Owner's Manual
ICRIIFTSMAN'I
6.75 HORSEPOWER
22" REAR DISCHARGE
POWER PROPELLED
ROTARY LAWN MOWER
Model No.
917.378310
•Safety
•Assembly
•Operation
•Maintenance
•Espa_ol
•Repair Parts
CAUTION:
Read and follow all
Safety Rules and instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/craftsman

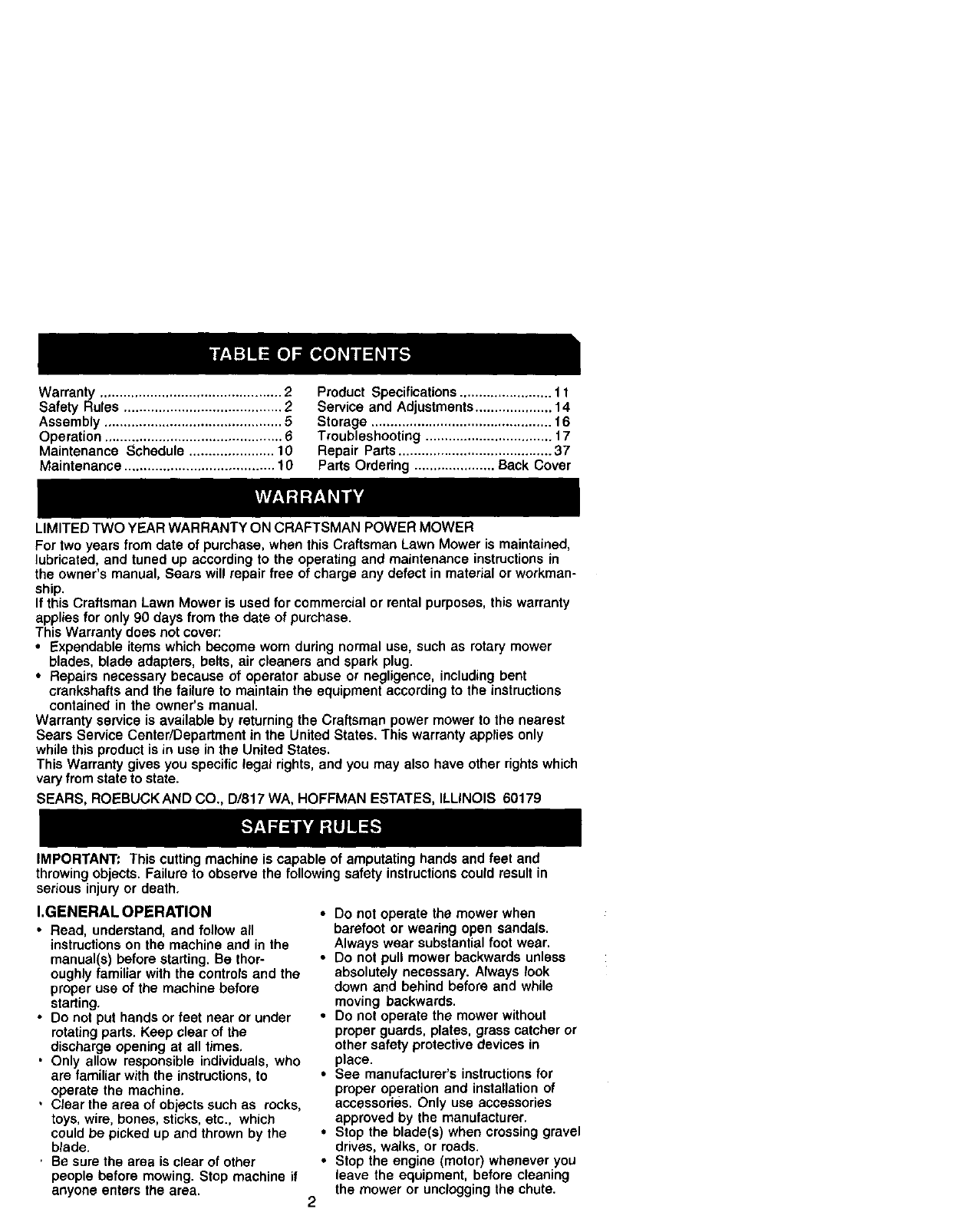

Warranty ............................................... 2
Safety Rules ......................................... 2
Assembly .............................................. 5
Operation .............................................. 6

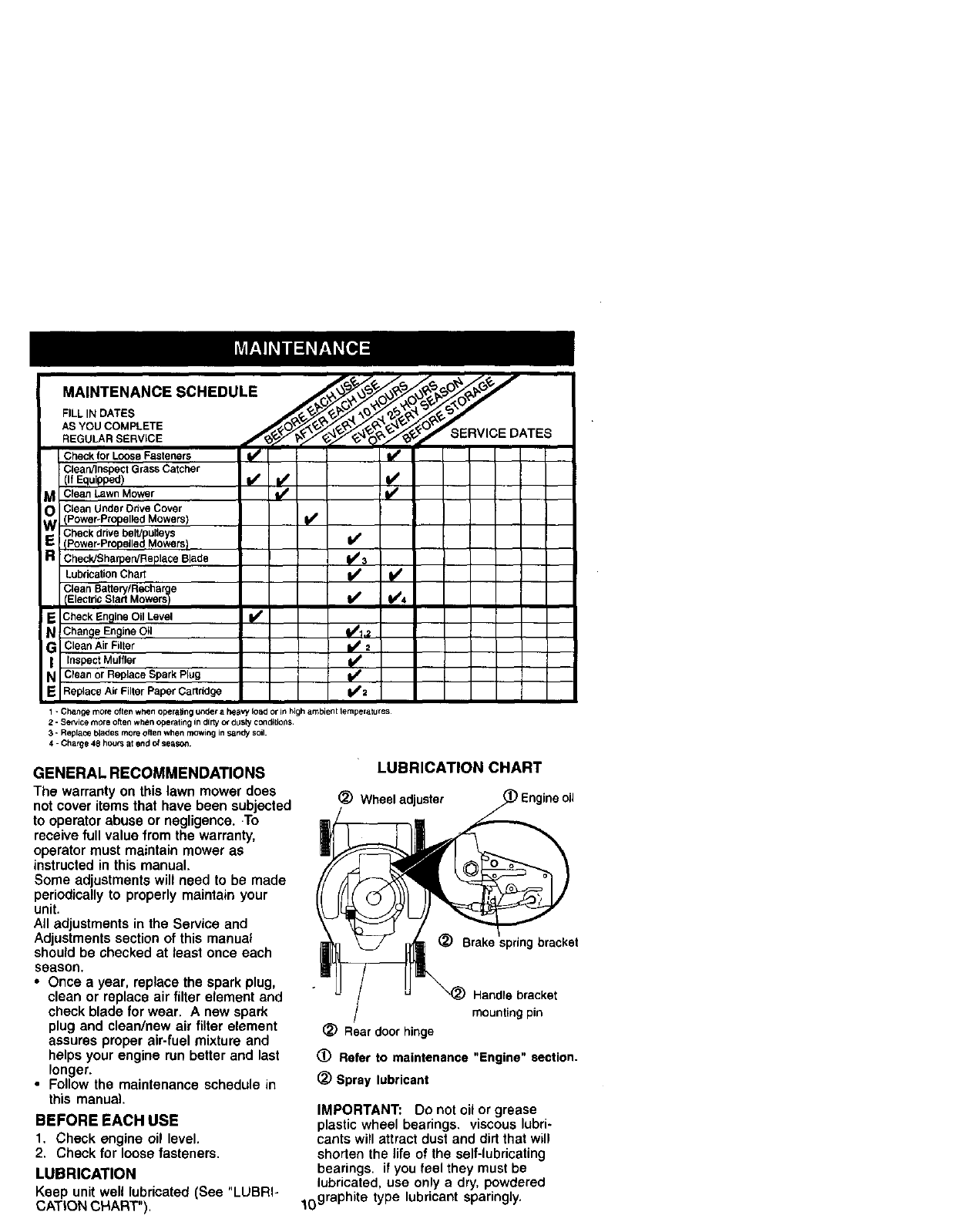

Maintenance Schedule ...................... 10
Maintenance ....................................... 10

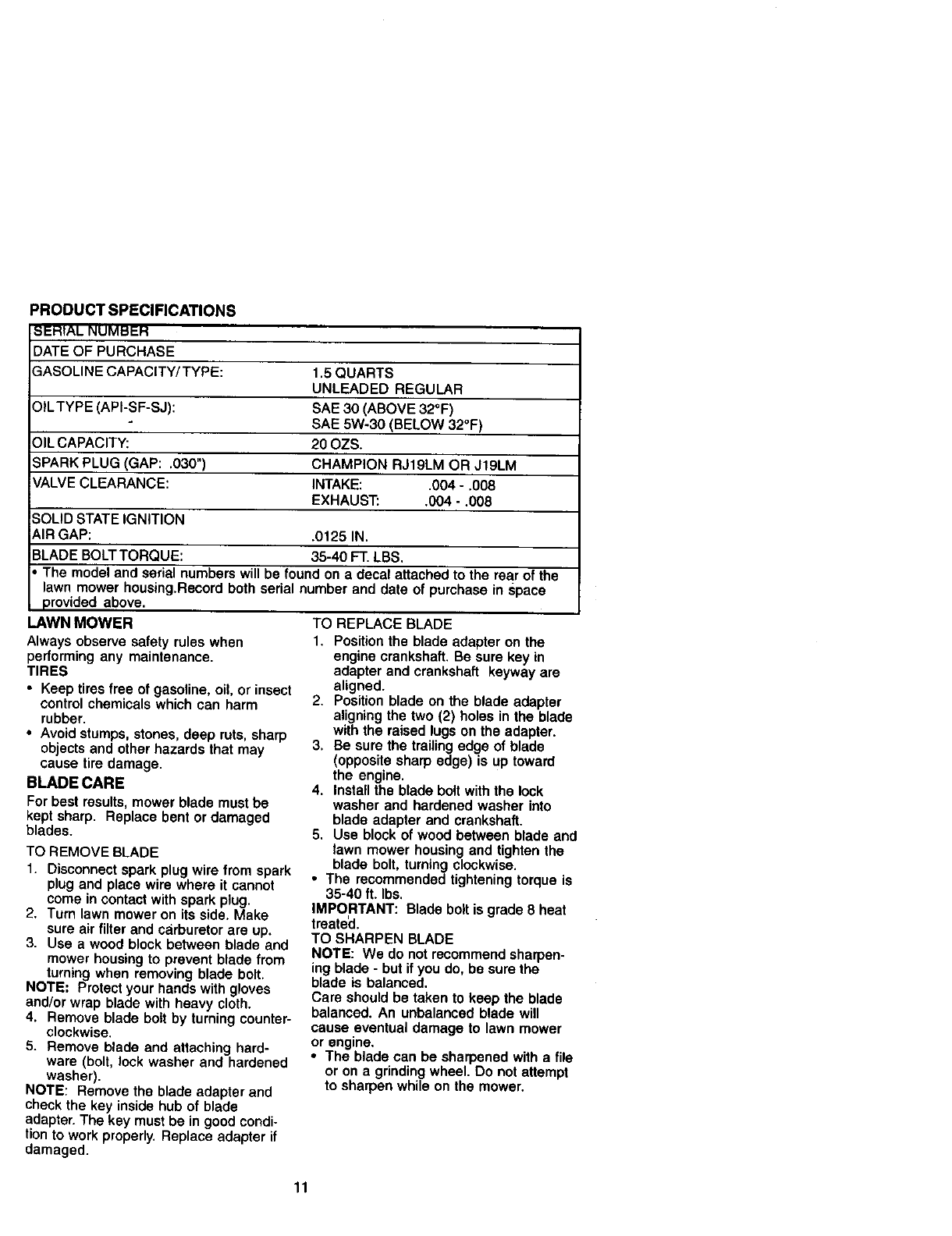

Product Specifications ........................ 11

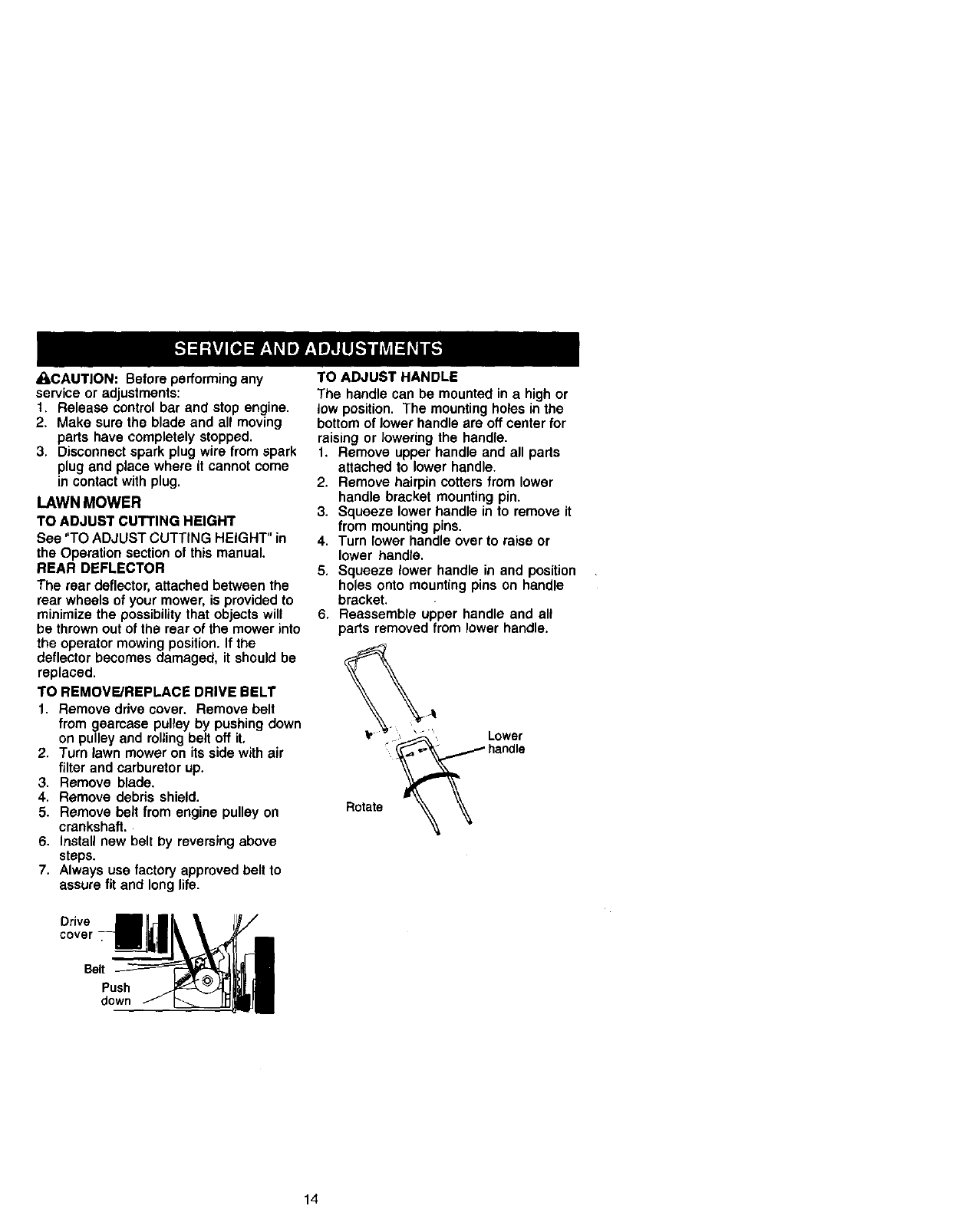

Service and Adjustments .................... 14

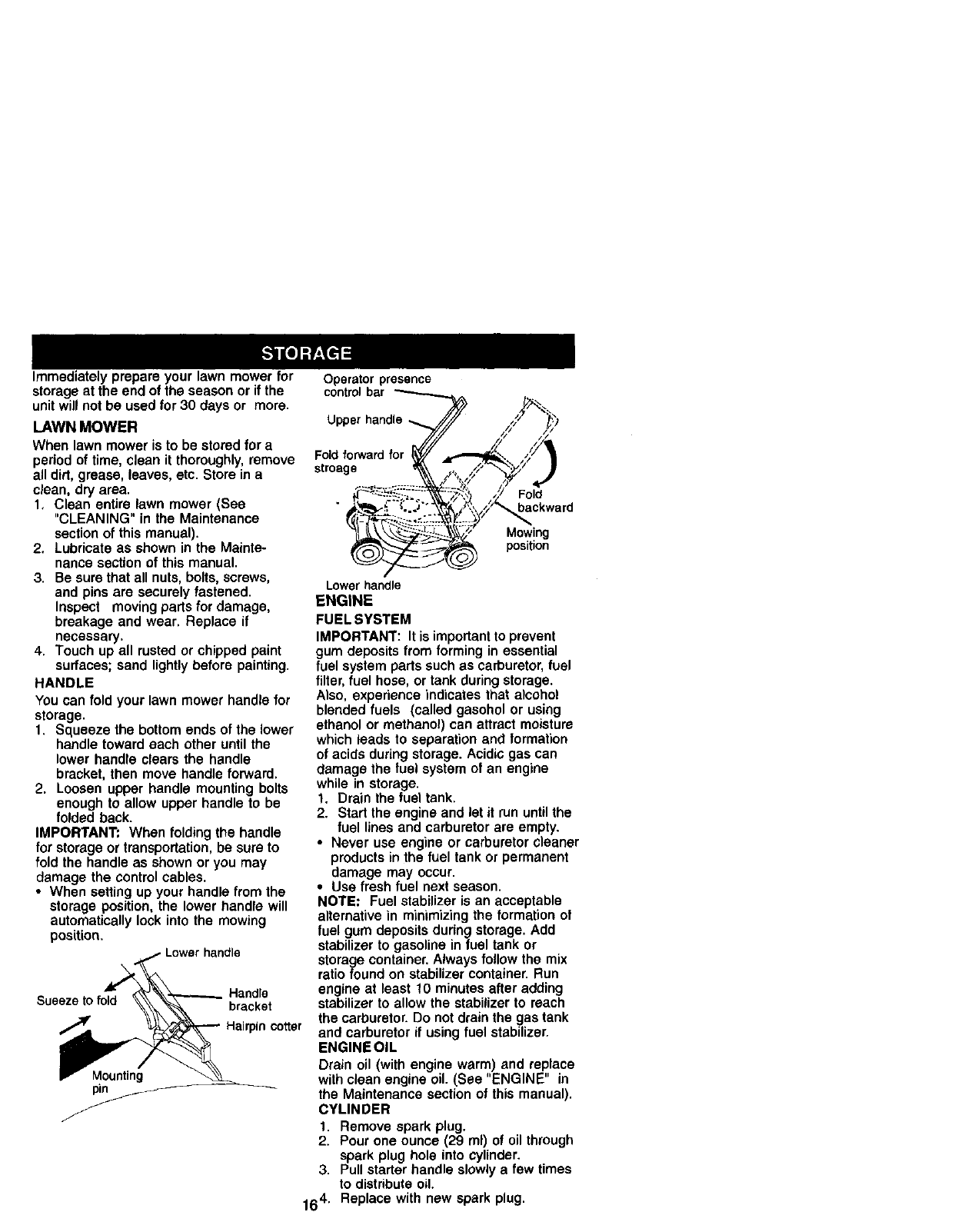

Storage ............................................... 16

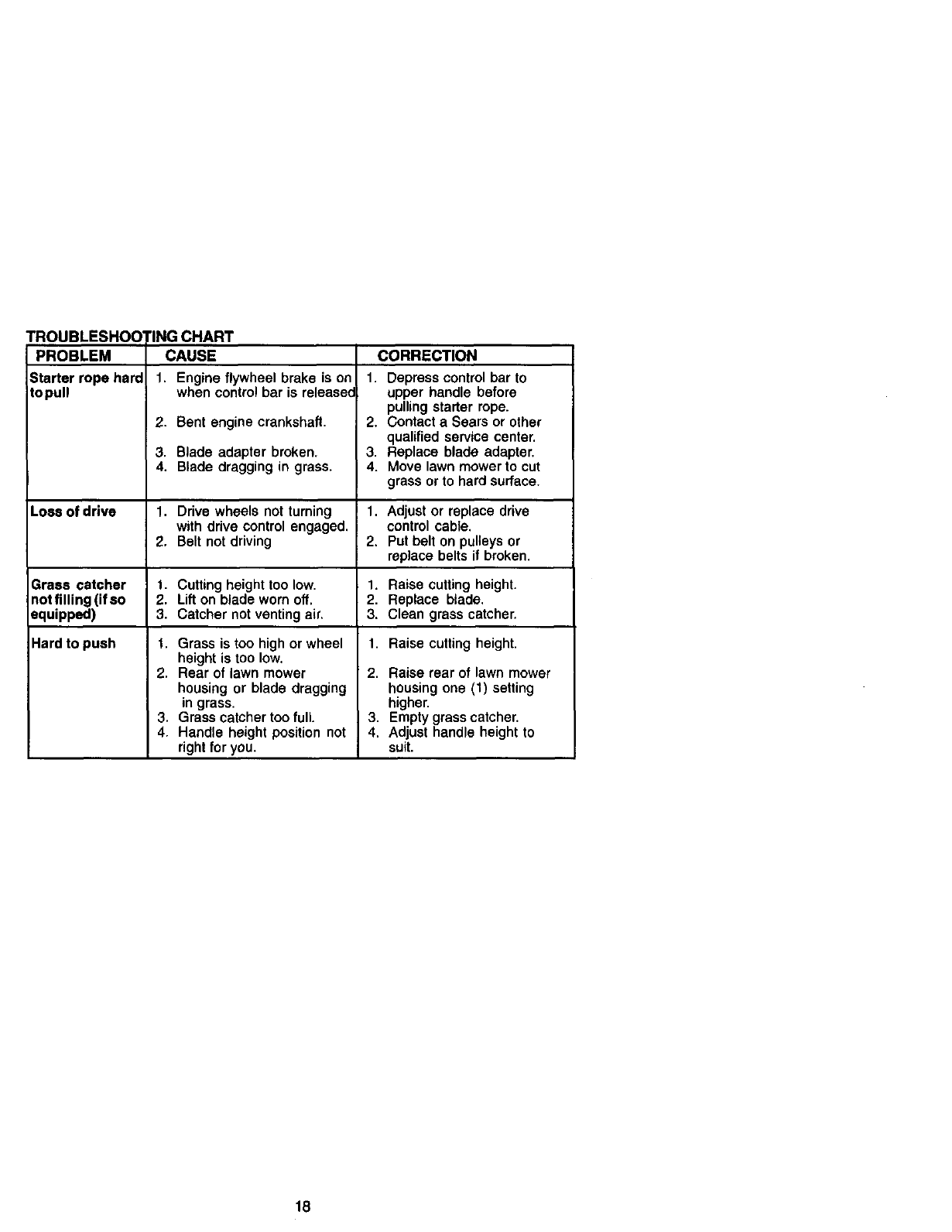

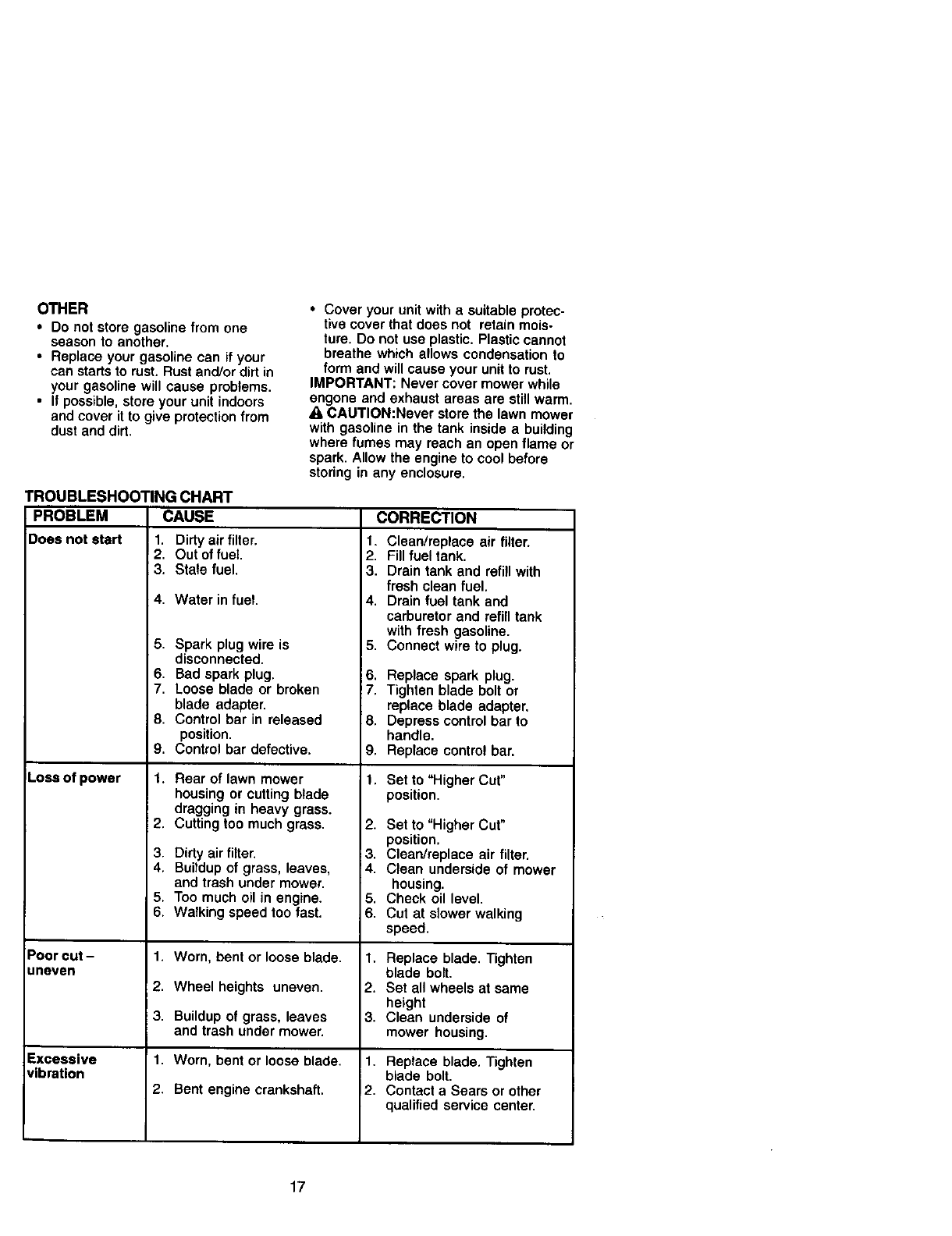

Troubleshooting ................................. 17

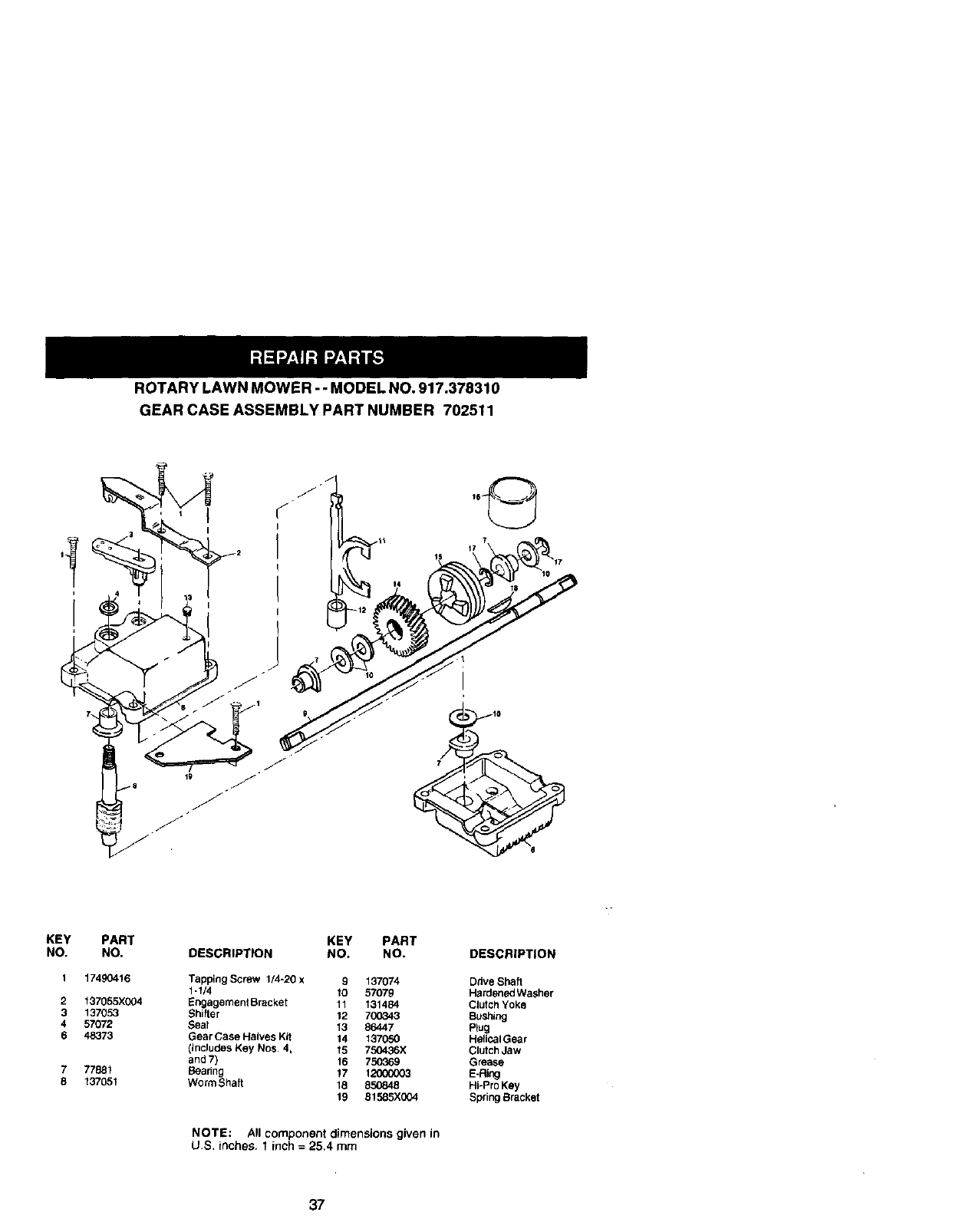

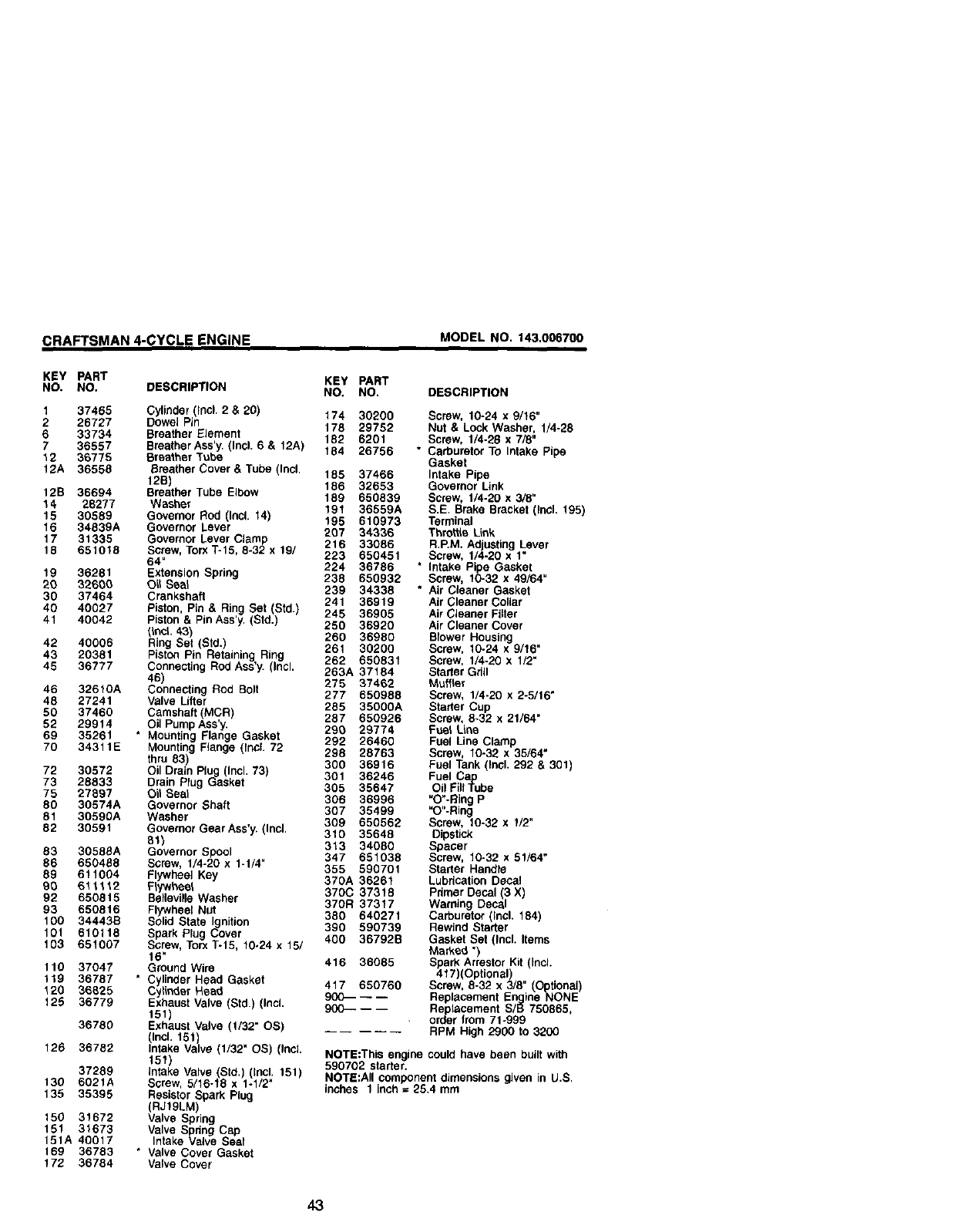

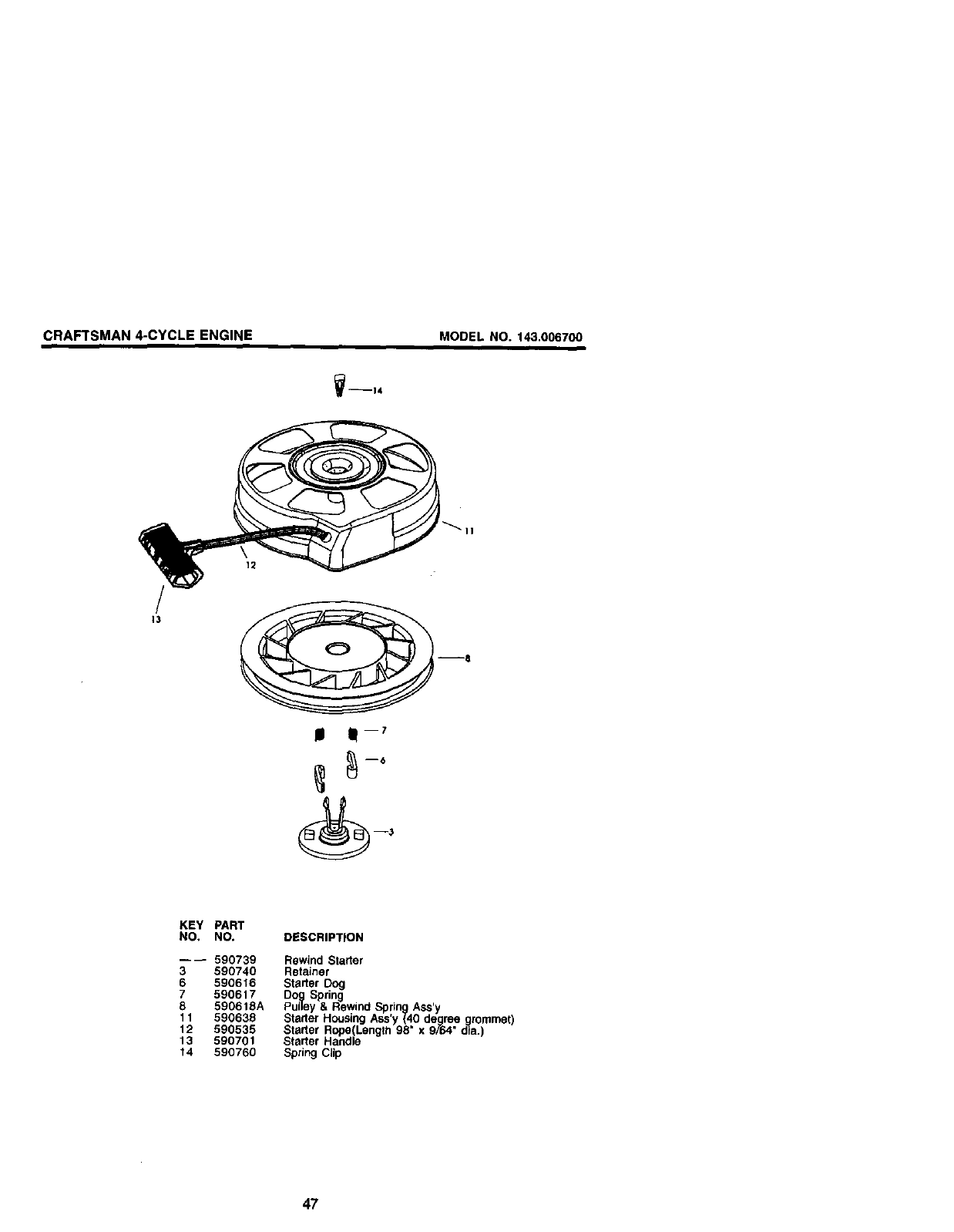

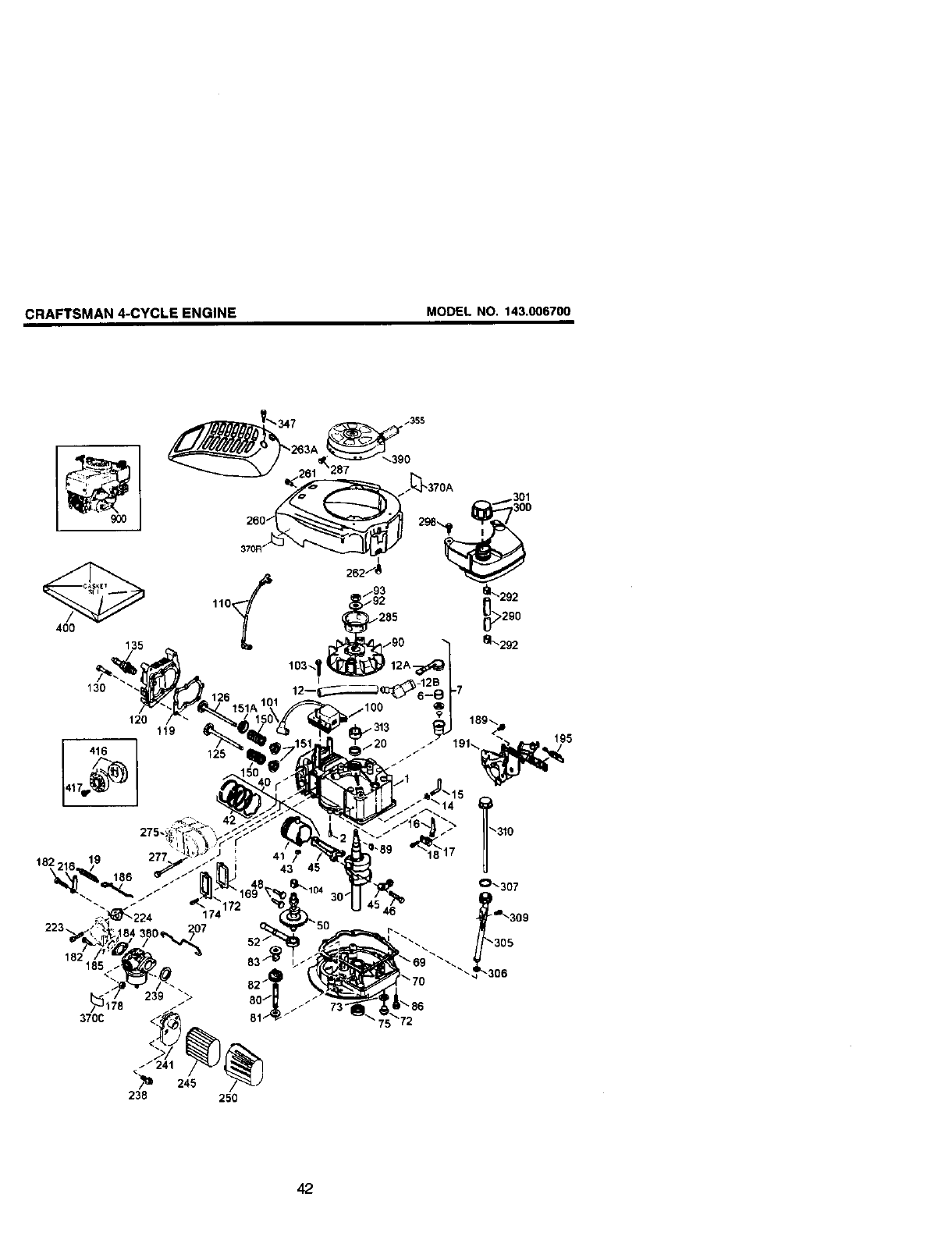

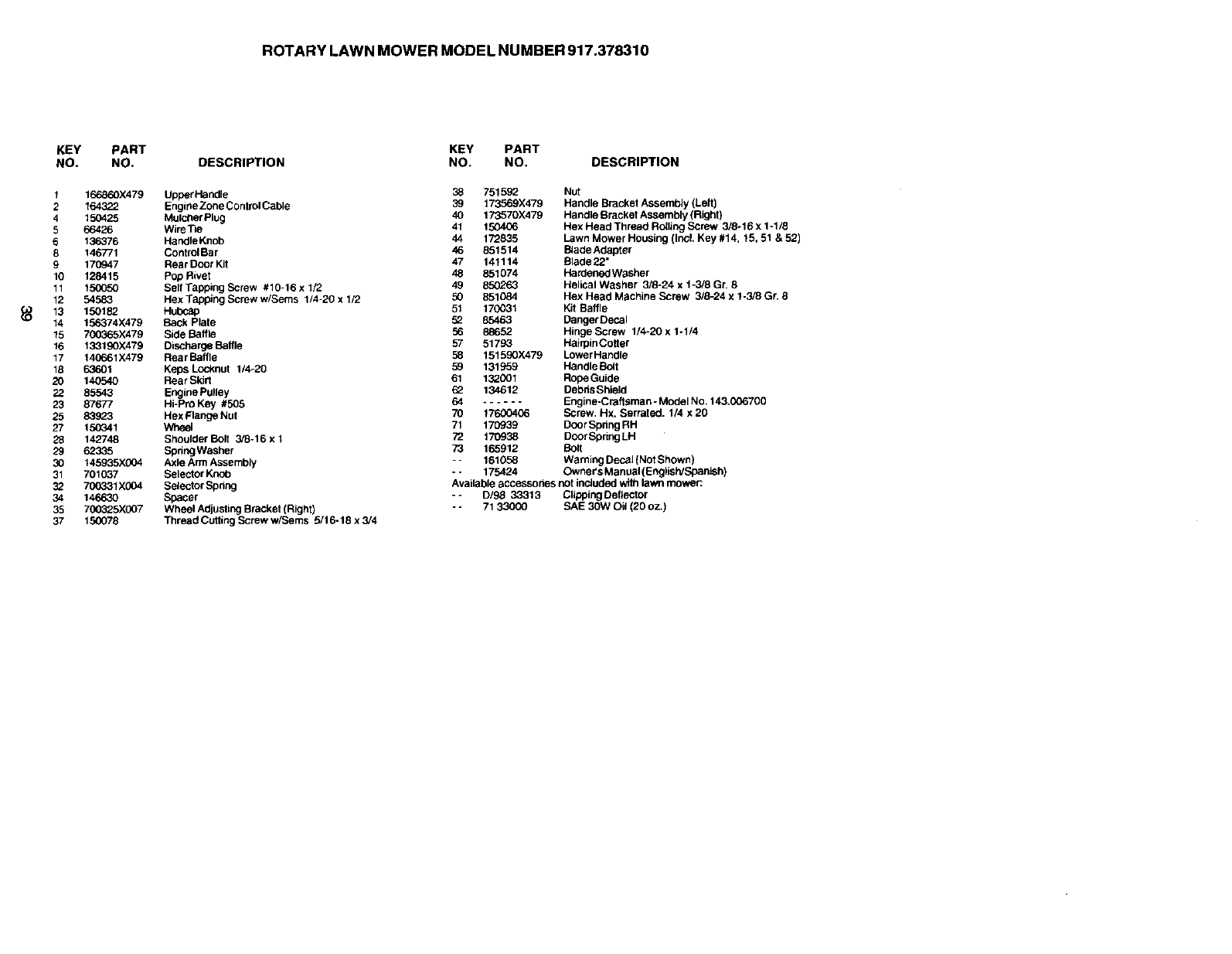

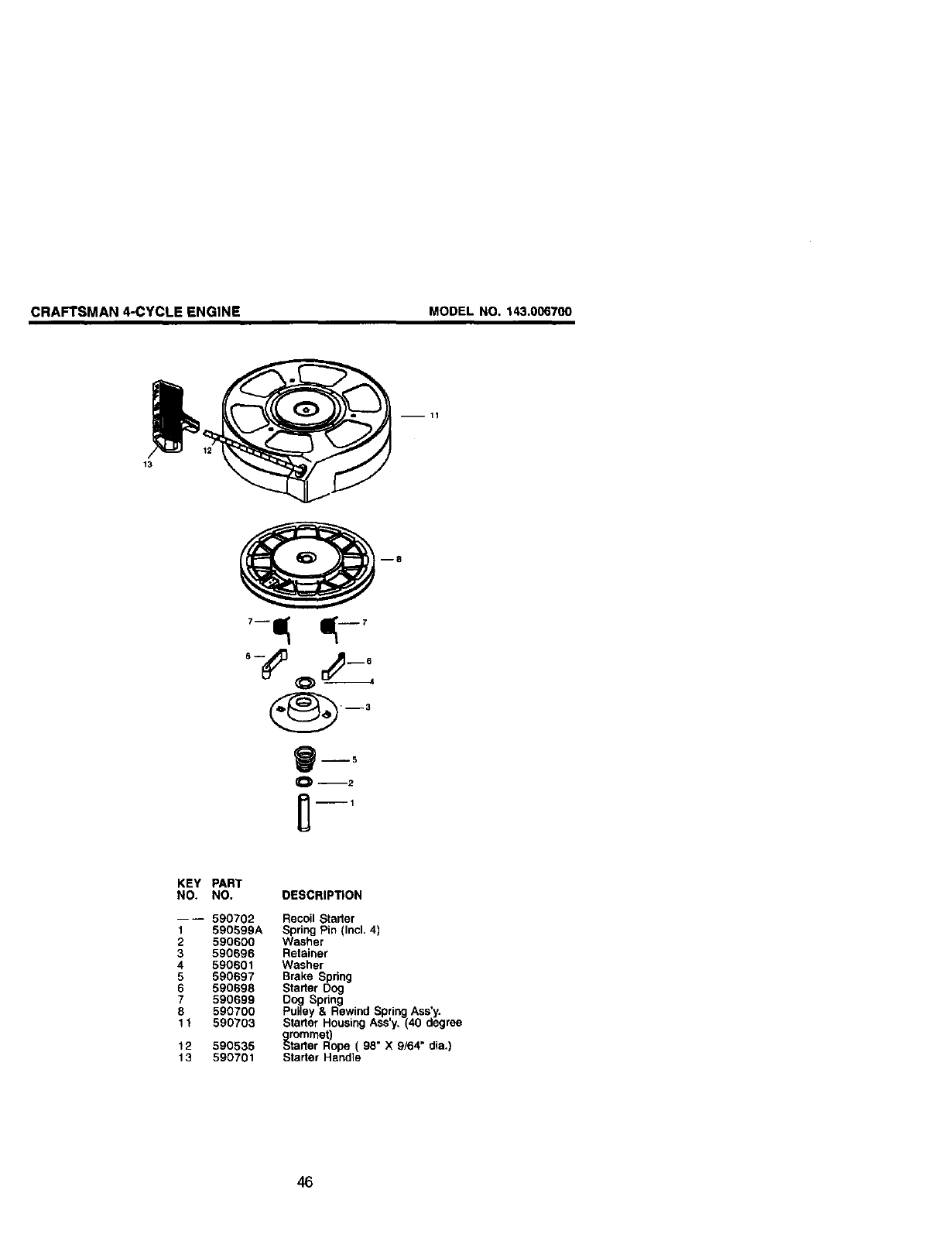

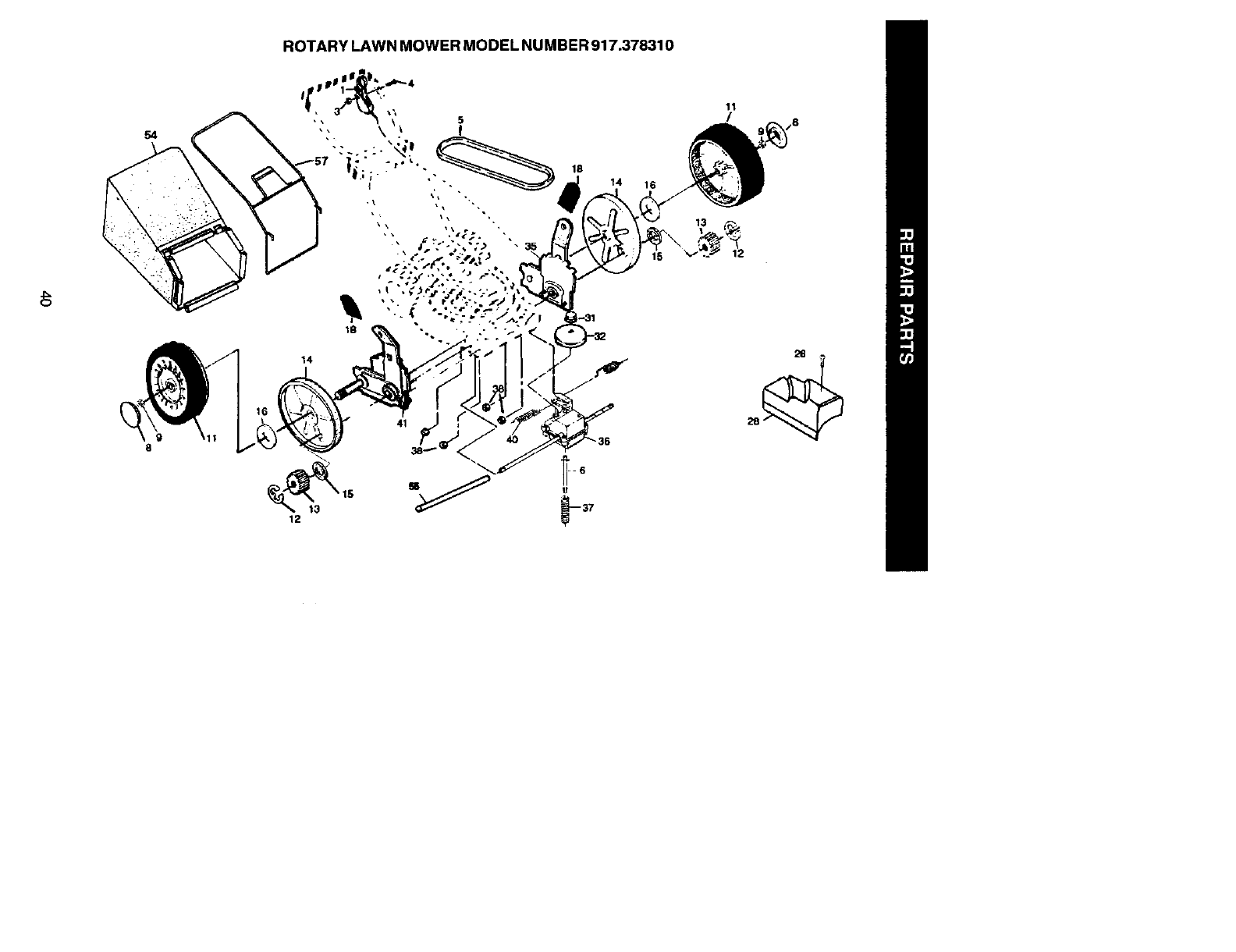

Repair Parts ........................................ 37

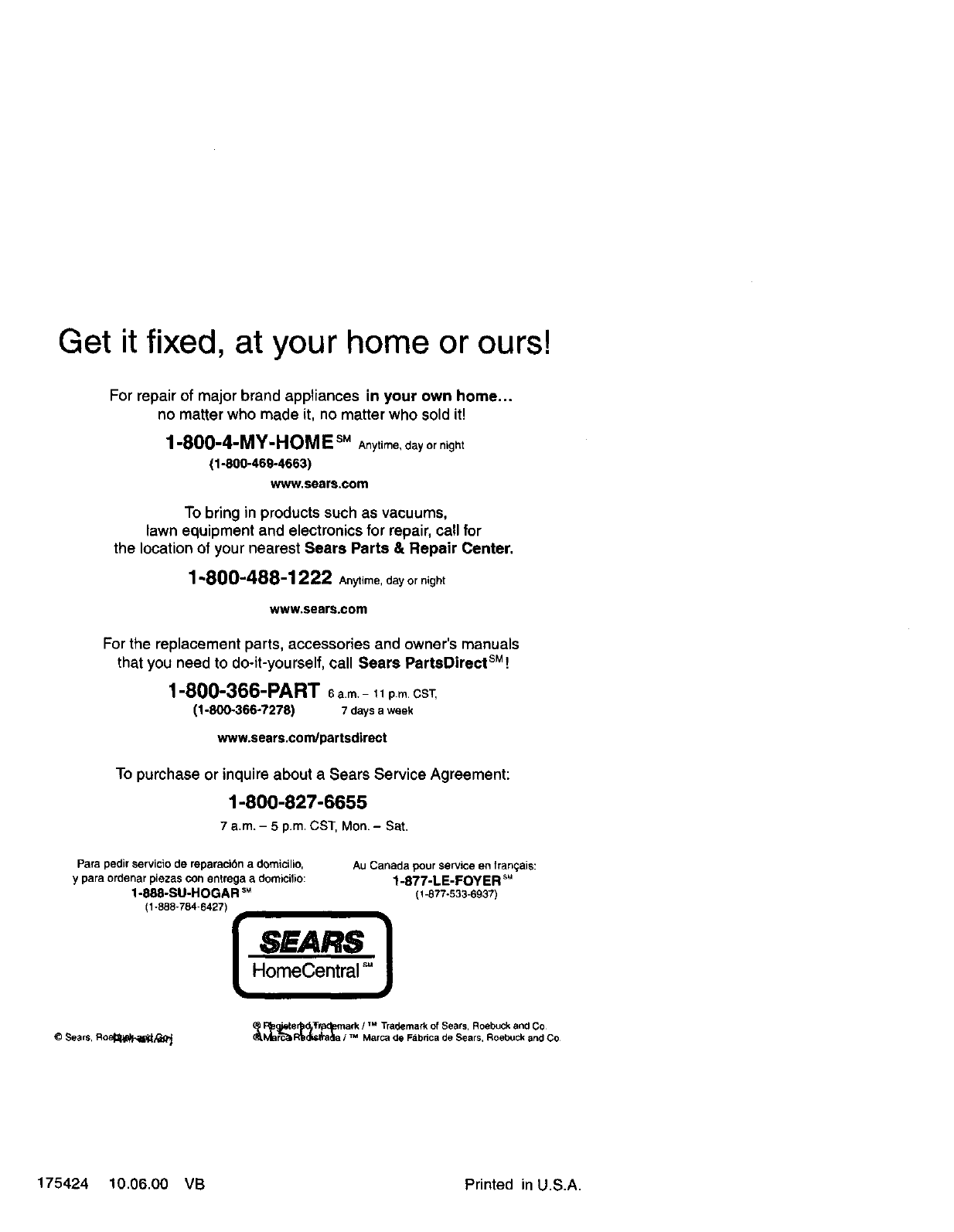

Parts Ordering ..................... Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
•Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUGKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
IMPORTANT= This cutting machine is capable of amputating hands and feet and
throwing objects. Failure to observe the following safety instructions could result in
serious injury or death.
I.GENERAL OPERATION
•Read, understand, and follow all
instructions on the machine and in the
manual(s) before starting. Be thor-
oughly familiar with the controls and the
proper use of the machine before
starting.
•Do not put hands or feet near or under
rotating pads. Keep clear of the
discharge opening at all times.
,Only allow responsible individuals, who
are familiar with the instructions, to
operate the machine.
,Clear the area of objects such as rocks,
toys, wire, bones, sticks, etc., which
could be picked up and thrown by the
blade.
' Be sure the area is clear of other
people before mowing. Stop machine if
anyone enters the area. 2
• Do not operate the mower when
barefoot or wearing open sandals.
Always wear substantial foot wear.
•Do not pull mower backwards unless
absolutely necessary. Always look
down and behind before and while
moving backwards.
• Do not operate the mower without
proper guards, plates, grass catcher or
other safety protective devices in
place.
•See manufacturer's instructions for
proper operation and installation of
accessories. Only use accessories
approved by the manufacturer.
•Stop the blade(s) when crossing gravel
drives, walks, or roads.
•Stop the engine (motor) whenever you
leave the equipment, before cleaning
the mower or unclogging the chute.
•Shut the engine (motor) off and wait
until the blade comes to complete stop
before removing grass catcher.
• Mow only in daylight or good artificial
light.
• Do not operate the machine while
under the influence of alcohol or drugs.
• Never operate machine in wet grass.
Always be sure of your footing: keep a
firm hold on the handle and walk; never
run.
• Disengage the self-propelled mecha-
nism or drive clutch on mowers so
equipped before starting the engine
(motor).
• If the equipment should start to vibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a warning of
trouble.
• Always wear safety goggles or safety
glasses with side shields when
operating mower.
II. SLOPE OPERATION
Slopes are a major factor related to slip
and fal! accidents which can result in
severe injury. All slopes require extra
caution. If you feel uneasy on a slope, do
not mow it.
DO:
•Mow across the face of slopes: never
up and down. Exercise extreme caution
when changing direction on slopes.
•Remove obstacles such as rocks, tree
limbs, etc.
•Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
•Do not trim near drop-offs, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
• Do not mow on wet grass. Reduced
footing could cause slipping.
In. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the
machine and the mowing activity. Never
assume that children will remain where
you tast saw them.
•Keep children out of the trimming area
and under the watchful care of another
responsible adult.
• Be alert and turn machine off if children
enter the area.
•Before and while walking backwards,
look behind and down for small
children.
•Never allow children to operate the
machine.
•Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
IV. SERVICE
• Use extra care in handling gasoline
and other fuels. They are flammable
and vapors are explosive.
-Use only an approved container.
- Never remove gas cap or add fuel
with the engine running. Allow
engine to cool before refueling. Do
not smoke.
- Never refuel the machine indoors.
- Never store the machine or fuel
container inside where there is an
open flame, such as a water heater.
•Never run amachine inside a closed
area.
• Never make adjustments or repairs with
the engine (motor) running. Disconnect
the spark plug wire, and keep the wire
away from the plug to prevent acciden-
tal starting.
• Keep nuts and bolts, especially blade
attachment bolts, tight and keep
equipment in good condition.
• Never tamper with safety devices.
Check their proper operation regularly.
• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel
spillage. Allow machine to cool before
storing.
• Stop and inspect the equipment if you
strike an object. Repair, if necessary,
before restarting.
• Never attempt to make wheel height
adjustments while the engine (motor) is
running.
• Grass catcher components are subject
to wear, damage, and deterioration,
which could expose moving parts or
allow objects to be thrown. Frequently
check components and replace with
manufacturer's recommended parts,
when necessary.
•Mower blades are sharp and can cut.
Wrap the blade(s) or wear gloves, and
use extra caution when servicing them.
•Do not change the engine governor
setting or overspeed the engine.
_Look forthissymbolto pointout
importantsafetyprecautions.It means
CAUTIONI!! BECOMEALERT!FrYOUR
SAFETY IS INVOLVED.
,A WARNING: Inorderto prevent
accidentalstartingwhensetting up,
transporting,adjustingor makingrepairs,
always disconnect sparkplugwire and
placewirewhere it cannotcontactspark
plug.
_WARNING: Engine exhaust, some of its
constituents, and certain vehicle compo-
nents contain or emit chemicals known to
the State of California to cause cancer
and birth defects or other reproductive
harm.
AWARNING: Battery posts, terminals and
related accessories contain lead and
lead compounds, chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm.
Wash hands after handling.
These accessories were available when this lawn mower was produced. They are not
shipped with your mower. They are also available at most Sears retail outlets and
service centers. Most Sears stores can also order repair parts for you, when you
provide the model number of your lawn mower. Some of these accessories may not
apply to your lawn mower,
LAWN MOWER PERFORMANCE
CUPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS
GRASS CATCHERS
FOR
REAR DISCHARGE
LAWN MOWERS _1 GRASSCATCHERS
FOR
SIDEDISCHARGE
LAWNMOWER$
STABILIZER
GAS CANS
LAWN MOWER MAINTENANCE
MUFFLERS
BELTS BLADES
AIR FILTERS
BLADE ADAPTERS WHEELS
SPARK PLUGS
ENGINE OIL
4

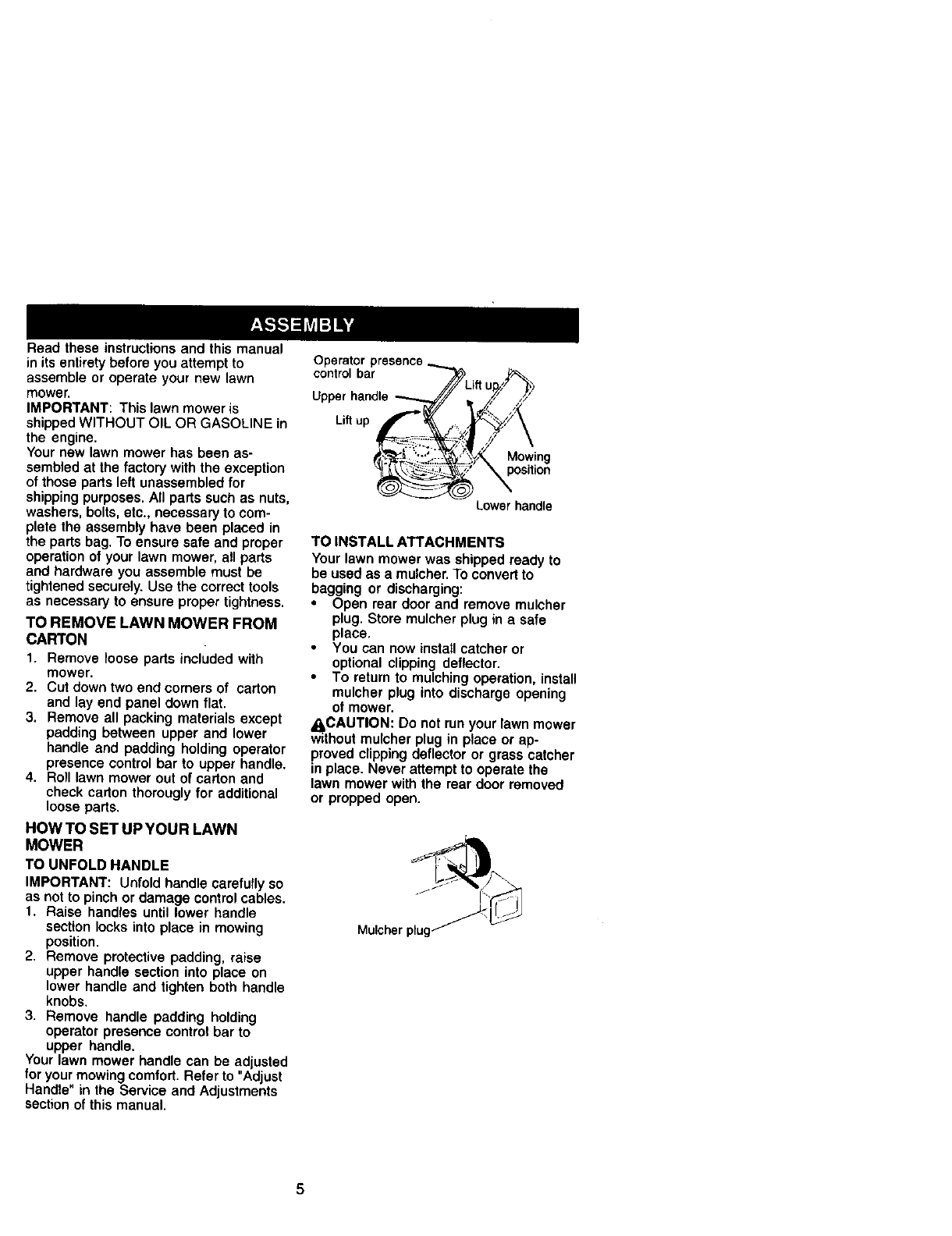

Read these instructions and this manual
in its entirety before you attempt to
assemble or operate your new lawn
mower.
IMPORTANT: This lawn mower is
shipped WITHOUT OIL OR GASOLINE in
the engine.
Your new lawn mower has been as-
sembled at the factory with the exception
of those parts left unassembled for
shipping purposes. All parts such as nuts,
washers, bolts, etc., necessary to com-
plete the assembly have been placed in
the parts bag. To ensure safe and proper
operation of your lawn mower, all parts
and hardware you assemble must be
tightened securely. Use the correct tools
as necessary to ensure proper tightness.
TO REMOVE LAWN MOWER FROM
CARTON
1. Remove loose parts included with
mower.
2. Cut down two end comers of cadon
and lay end panel down flat.
3. Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
4, Roll lawn mower out of carton and
check cadon thorougly for additional
loose parts.
HOW TO SET UP YOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
1. Raise handles until lower handle
section locks into place in mowing
position.
2. Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
3. Remove handle padding holding
operator presence control bar to
upper handle.
Your lawn mower handle can be adjusted
for your mowing comfort. Refer to "Adjust
Handle" in the Service and Adjustments
section of this manual.
Operator presence
control bar
Upper
Liftup
Mowing
Lower handle
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to
be used as amulcher. To convert to
bagging or discharging:
• Open rear door and remove mulcher
plug. Store mulcher plug in a safe
place.
You can now instatl catcher or
optional clipping deflector.
• To return to mulching operation, install
mulcher plug into discharge opening
of mower.
_CAUTION: Do not run your lawn mower
without mulcher plug in place or ap-
proved clipping deflector or grass catcher
in place. Never attempt to operate the
lawn mower with the rear door removed
or propped open.
Mulcherplug/_'/L<
5
KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR
LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself
with the location of various controls and adjustments. Save this manual for future
reference.
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL Oil DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
Enginezone controlcable
\Operator presencecontrol bar
Drive controllever
Starter handle
C
Mulcherplug Gasoline cap
Primer
Housing
cover
Engine oil
cap w/
dipstick
IMPORTANT: This lawn mower is
shipped WITHOUT OIL OR GASOLINE in Wheel adjuster
the engine. (on each wheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotarywalk-behindpower lawn mowers conformto the safety standardsof the American
NationalStandards Instituteand the U.S. Consumer ProductSafety Commission. The blade
turns when the engine is mnnin_l.
Operator presence control bar - must
be held down to the handle to start the
engine. Release to stop the engine.
Primer -pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle -used for starting the
engine.
Drive control lever -used to engage
power-propelled forward motion of lawn
mower.
Mulcher plug - must be removed to
convert to bagging or discharging
6 operation.

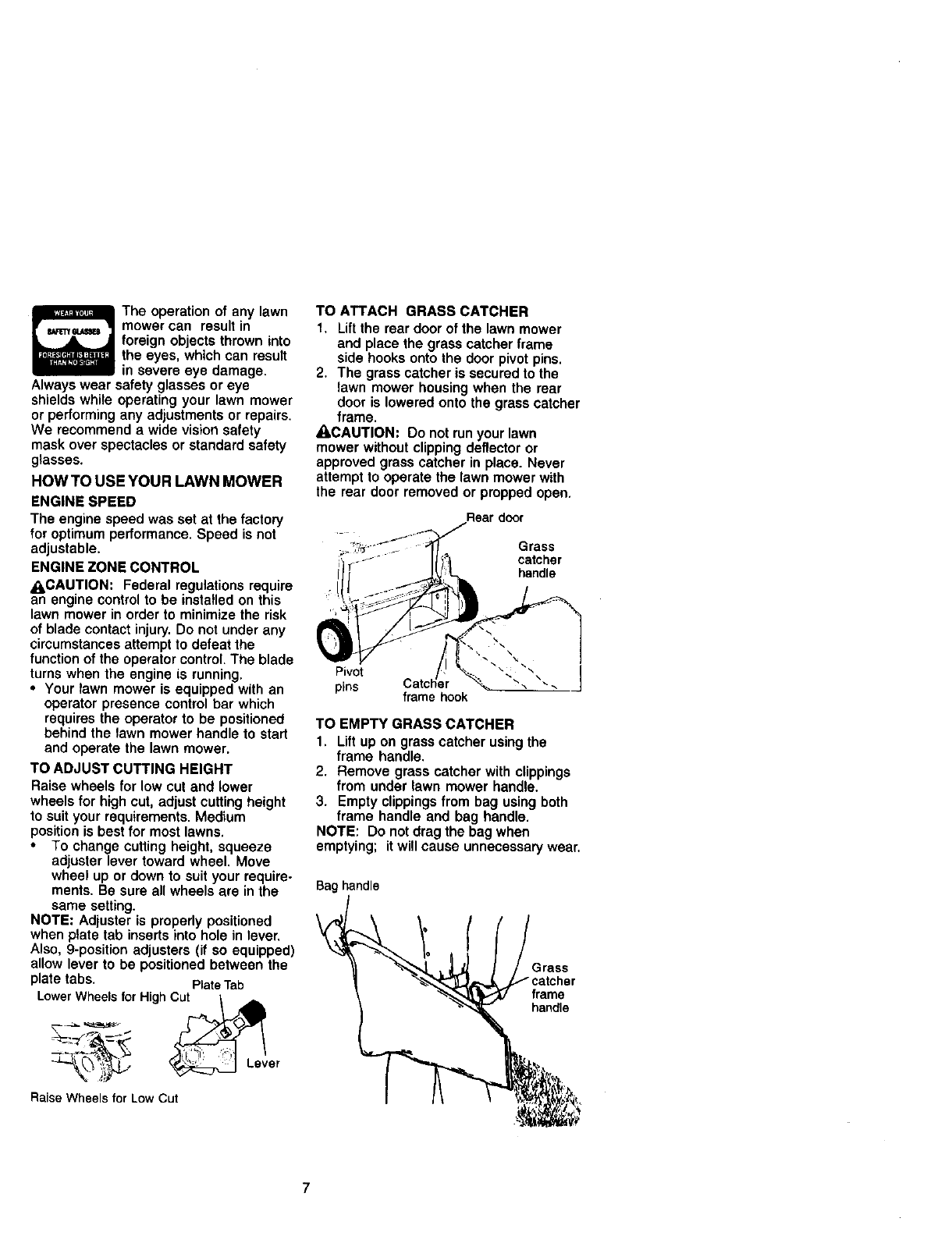

Theoperationof any lawn
mower can result in
foreign objects thrown into
the eyes, which can result
in severe eye damage.
Always wear safety glasses or eye
shields while operating your lawn mower
or performing any adjustments or repairs.
We recommend a wide vision safety
mask over spectacles or standard safety
glasses.
HOW TO USE YOUR LAWN MOWER
ENGINE SPEED
The engine speed was set at the factory
for optimum performance. Speed is not
adjustable.
ENGINE ZONE CONTROL
_I,CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower.
TO ADJUST CUTTING HEIGHT
Raise wheels for low cut and lower
wheels for high cut, adjust cutting height
to suit your requirements. Medium
position is best for most lawns.
•To change cutting height, squeeze
adjuster lever toward wheel. Move
wheel up or down to suit your require-
ments. Be sure all wheels are in the
same setting.
NOTE; Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs. PlateTab
LowerWheelsfor HighCutr,._L,_
Raise Wheels for Low Cut
TO ATTACH GRASS CATCHER
1. Lift the rear door of the lawn mower
and place the grass catcher frame
side hooks onto the door pivot pins.
2. The grass catcher is secured to the
lawn mower housing when the rear
door is lowered onto the grass catcher
frame.
•iLCAUTION: Do not run your lawn
mower without clipping deflector or
approved grass catcher in place. Never
attempt to operate the lawn mower with
the rear door removed or propped open.
Rear door
Grass
catcher
handle
TO EMPTY GRASS CATCHER
1, Lift up on grass catcher using the
frame handle.
2. Remove grass catcher with clippings
from under lawn mower handle.
3. Empty clippings from bag using both
frame handle and bag handle.
NOTE: Do not drag the bag when
emptying; it will cause unnecessary wear,
Bag handle
Grass
frame
handle

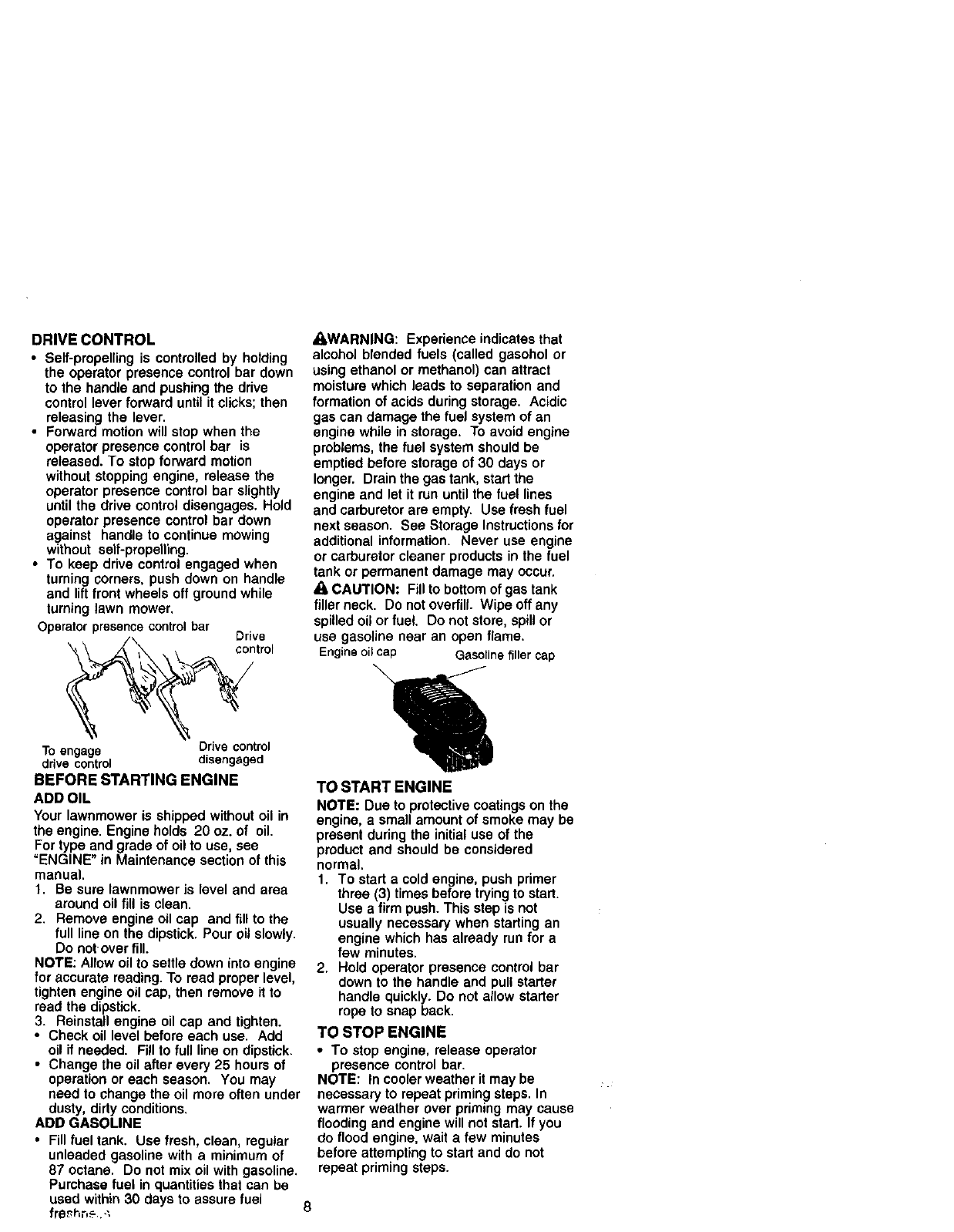

DRIVECONTROL
• Self-propellingiscontrolledby holding
the operator presence control bar down
to the handle and pushing the drive
control lever forward until it clicks; then
releasing the lever.
•Forward motion will stop when the
operator presence control bar is
released. To step forward motion
without stopping engine, release the
operator presence control bar slightly
until the drive control disengages. Hold
operator presence control bar down
against handle to continue mowing
without self-propelling.
• To keep drive control engaged when
turning corners, push down on handle
and lift front wheels off ground while
turning lawn mower.
Operator presence control bar Drive
_\ ,_ __ control
To engage Drive control
drive control disengaged
BEFORE STARTING ENGINE
ADD OIL
Your lawnmower is shipped without oil in
the engine. Engine holds 20 oz. of oil.
For type and grade of oil to use, see
"ENGINE" in Maintenance section of this
manual.
1. Be sure lawnmower is level and area
around oil fill is clean.
2. Remove engine oil cap and fill to the
full line on the dipstick, Pour oil slowly.
Do notover fill.
NOTE: Allow oil to settle down into engine
for accurate reading. To read proper level,
tighten engine oil cap, then remove it to
read the dipstick.
3. Reinstall engine oil cap and tighten.
• Check oil level before each use. Add
oil if needed. Fill to full line on dipstick.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often under
dusty, didy conditions.
ADD GASOLINE
•Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. Do not mix oil with gasoline,
Purchase fuel in quantities that can be
used within 30 days to assure fuel
fre_hr,_. ,;
_WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
_l, CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
Engineoilcap Gasolinefiller cap
TO START ENGINE
NOTE: Due to protective coatings on the
engine, a small amount of smoke may be
present during the initial use of the
product and should be considered
normal.
1. To start a cold engine, push primer
three (3) times before trying to start.
Use a firm push. This step is not
usually necessary when starting an
engine which has already run for a
few minutes.
2. Hold operator presence control bar
down to the handle and pull starter
handle quickly. Do not allow starter
rope to snap back.
TO STOP ENGINE
•To stop engine, release operator
presence control bar.
NOTE: In cooler weather itmay be
necessary to repeat priming steps. In
warmer weather over priming may cause
flooding and engine will not stad. If you
do flood engine, wait a few minutes
before attempting to start and do not
repeat priming steps.
8
MOWING TIPS
• Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area asecond
time.
•For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
• When using a rear discharge lawn
mower in moist, heavy grass, clumps of
cut grass may not enter the grass
catcher. Reduce ground speed
(pushing speed) and/or run the lawn
mower over the area a second time.
• If a trail of clippings is left on the right
side of a rear discharge mower, mow in
a clockwise direction with a small
overlap to collect the clippings on the
next pass.
• Pores in cloth grass catchers can
become filled with dirt and dust with use
and catchers will collect less grass. To
prevent this, regularly hose catcher off
with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance, keep
mower housing free of built-up grass and
trash. See "Cleaning" in Maintenance
section of this manual.
•The special mulching blade will recur
the grass clippings many times and
reduce them in size so that as they fall
onto the lawn they will disperse into the
grass and not be noticed. Also, the
mulched grass will biodegrade quickly
to provide nutrients for the lawn.
Always mulch with your highest engine
(blade) speed as this will provide the
best recutting action of the blades.
• Avoid cutting your lawn when it is wet.
Wet grass tends to form clumps and
interferes with the mulching action. The
best time to mow your lawn is the early
afternoon. At this time the grass has
dried and the newly out area will not be
exposed to the direct sun.
•For best results, adjust the lawn mower
cutting height so that the lawn mower
cuts off only the top one-third of the
grass blades. If the lawn is overgrown it
wil! be necessary to raise the height of
cut to reduce pushing effort and to keep
from overloading the engine and
leaving clumps of mulched grass. For
extremely heavy mulching, reduce your
width of cut by overlapping previously
cut path and mew slowly.
• Certain types of grass and grass
conditions may require that an area be
mulched a second time to completely
hide the clippings. When doing a
second cut, mow across or perpendicu-
lar to the first cut path.
•Change your cutting pattern from week
to week. Mow north to south one week
then change to east to west the next
week. This will help prevent matting
and graining of the lawn.
Max 1/3
9
REGULAR SERVICE
ICE DATES
Check for Loose Fasteners I_#
Clean/Inspect Grass Catcher
(If Equipped) _I_
M Clean Lawn Mower li/ bf/
O CLean Under Drive Cover
(Power-Propelled Mowers) I_
Check drive belt/pulleys
RE Poweropropeilad Mowers) _/
CheclVShalpeniReplace Blade _3
Lubrication Chart I_ Ii/
CleanBattery/Recharree
ElectricStart Mowers'_ I/ IIS'4
ECheck Engine 011Level
NChange Engine Oil ql/!,_
JCleanAirFilter l/=
InspectMuffler v'
aClean or Replace Spark Plug II/
EReplace Air Filter Paper Cartridge ip#=
1-Change more oftenwhen operating under a heavy load or in high ambient lemperatgres
2 - Se_'lce more oflen when operating in dirty or duSlycond_tion$
3 - Replace blades more often when mowing in sandy soil.
4 - Charge 48 hours at end of season.
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does
not cover items that have been subjected
to operator abuse or negligence, .To
receive full value from the warranty,
operator must maintain mower as
instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your
unit.
All adjustments in the Service and
Adjustments section of this manual
should be checked at least once each
season.
• Once a year, replace the spark plug,
clean or replace air filter element and
check blade for wear. A new spark
plug and clean/new air filter element
assures proper air-fuel mixture and
helps your engine run better and last
longer.
• Follow the maintenance schedule in
this manual.
BEFORE EACH USE
1. Check engine oil level.
2. Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRI-
CAT|ON CHART"),
LUBRICATION CHART
(_) Wheel adjuster ne oil
_) Brake spring bracket
'(_) Handle bracket
mounting pin
(_) Rear door hinge
(!) Refer to maintenance "Engine" section.
(_) Spray lubricant
IMPORTANT: Do not oil or grease
plastic wheel bearings, viscous lubri-
cants will attract dust and dirt that will
shorten the life of the self-lubricating
hearings, ifyou feel they must be
lubricated, use only a dry, powdered
lographite type lubricant sparingly.
PRODUCT SPECIFICATIONS
SERIAL NUMBP-H
DATE OF PURCHASE
GASOLINE CAPACITY/TYPE: 1.5 QUARTS
UNLEADED REGULAR
O1LTYPE (API-SF-SJ): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG (GAP: .030") CHAMPION RJ19LM OR J19LM
VALVE CLEARANCE: INTAKE: .004 - .008
EXHAUST: .004 - .008
SOLID STATE IGNITION
AIR GAP: .0125 IN.
BLADE BOLTTORQUE: 35-40 FT. LBS.
•The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when
performing any maintenance.
TIRES
•Keep tires free of gasoline, oil, or insect
control chemicals which can harm
rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Turn lawn mower on its side. Make
sure air filter and carburetor are up.
3. Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
NOTE= Protect your hands with gloves
aod/or wrap blade with heavy cloth.
4. Remove blade bolt by turning counter-
clockwise.
5. Remove blade and attaching hard-
ware (bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade
adapter. The key must be in good condi-
tion to work properly. Replace adapter if
damaged.
TO REPLACE BLADE
1. Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
2. Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
3. Be sure the trailing edge of blade
(opposite sharp edge) is up toward
the engine.
4. Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
5. Use block of wood between blade and
lawn mower housing and tighten the
blade bolt. turning clockwise.
•The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade bolt is grade 8 heat
treated.
TO SHARPEN BLADE
NOTE: We do not recommend sharpen.
ing blade - but if you do. be sure the
blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower
or engine.
•The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
11

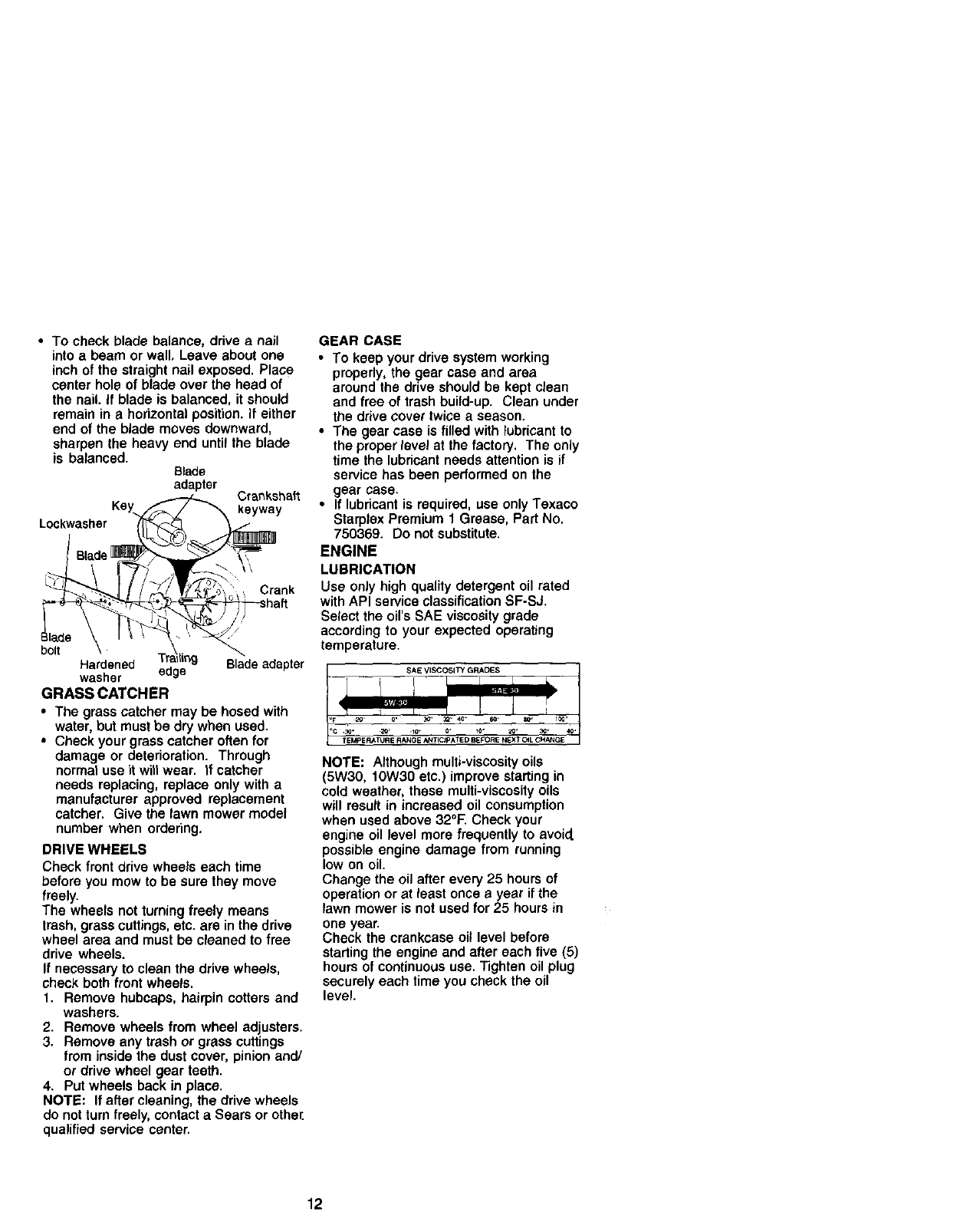

• To check blade balance, drive a nail
into abeam or wall, Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position, if either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced. Blade
adapter Crankshaft
Key_ keyway
Lookwasher
\\
Crank
bolt
Hardened edge Blade adapter
washer
GRASS CATCHER
•The grass catcher may be hosed with
water, but must be dry when used.
•Check your grass catcher often for
damage or deterioration. Through
normat use it witt wear. if catcher
needs replacing, replace only with a
manufacturer approved replacement
catcher. Give the lawn mower model
number when ordering.
DRIVE WHEELS
Check front drive wheels each time
before you mow to be sure they move
freely.
The wheels not turning freely means
trash, grass cuttings, etc. are in the drive
wheel area and must be cleaned to free
drive wheels.
If necessary to clean the drive wheels,
check both front wheels.
1. Remove hubcaps, hairpin cotters and
washers.
2. Remove wheels from wheel adjusters.
3. Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
4. Put wheels back in place.
NOTE: If after cleaning, the drive wheels
do not turn freely, contact a Sears or othe[
qualified service center.
GEAR CASE
•To keep your drive system working
properly, the gear case and area
around the drive should be kept clean
and free of trash build-up. Clean under
the drive cover twice a season.
• The gear case is filled with lubricant to
the proper level at the factory. The only
time the lubricant needs attention is if
service has been performed on the
gear case,
• If lubricant is required, use only Texaco
Starplex Premium 1 Grease, Part No.
750369. Do not substitute.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF-SJ.
Select the oil's SAE viscosity grade
according to your expected operating
temperature.
SAE VISCOSITY GRADES
NOTE: Although multi-viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi-viscosity oils
will result in increased oil consumption
when used above 32°F. Check your
engine oil level more frequently to avoid.
possible engine damage from running
low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the
lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil
level.
12
TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Remove engine oil cap; Jay aside on a
clean surface,
3. Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of
engine.
4. Wipe off any spilled oil on lawn mower
and on side of engine.
5. Fill engine with oil. (See "Add Oil" in
the Operacion section of this manual.)
6. Reconnect spark plug wire to spark
ptug.
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every year, more
often if you mow in very dusty, dirty
conditions. Do not wash air filter.
TO CHANGE AIR FILTER
1. Remove the air filter by turning
clockwise to the stop and pull away
from collar.
2. Remove filter from inside of cover.
3. Clean the inside of the cover and the
collar to remove any dirt accumula-
tion.
4. Insert new filter into cover.
5. Put air filter cover and filter into collar
aligning the tab with the slot.
6. Push in on cover and turn counter-
clockwise to tighten.
Turn
Clip clockwise to
Collar remove
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or dam-
age,
SPARK PLUG
Change your spark plug each year to
make your engine start easier and run
better, Set spark plug gap at ,030 inch.
CLEANING
IMPORTANT: For best performance,
keep mower housing free of buitt-up
grass and trash. Clean the underside of
your mower after each use.
_kCAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
•Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
•Keep finished surfaces and wheels free
of all gasoline, oil,etc.
•We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in
shortened engine life.
CLEAN UNDER DRIVE COVER
Clean under drive cover at least twice a
season. Scrape underside of cover with
putty knife or similar tool to remove any
build-up of trash or grass on underside of
drive cover.
Air filter
Air filter cover Turn counter-
clockwise to
tighten 13
_CAUTION: Before performing any
service or adjustments:
1. Release control bar and stop engine.
2. Make sure the blade and all moving
parts have completely stopped.
3. Disconnect spark plug wire from spark
plug and place where it cannot come
in contact with plug.
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual,
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your mower, is provided to
minimize the possibility that objects will
be thrown out of the rear of the mower into
the operator mowing position. If the
deflector becomes damaged, it should be
replaced.
TO REMOVE/REPLACE DRIVE BELT
1, Remove drive cover. Remove belt
from gearcase pulley by pushing down
on pulley and rolling belt off it.
2. Turn lawn mower on its side with air
tilter and carburetor up.
3. Remove blade,
4. Remove debris shield.
5. Remove belt from engine pulley on
crankshaft,
6, Install new belt by reversing above
steps.
7. Always use factory approved belt to
assure fit and long life,
TO ADJUST HANDLE
The handle can be mounted in a high or
low position, The mounting holes in the
bottom of lower handle are off center for
raising or lowering the handle.
1. Remove upper handle and all parts
attached to lower handle.
2. Remove hairpin cotters from lower
handle bracket mounting pin.
3. Squeeze lower handle in to remove it
from mounting pins,
4. Turn lower handle over to raise or
lower handle,
5. Squeeze lower handle in and position
holes onto mounting pins on handle
bracket,
6. Reassemble upper handle and all
parts removed from lower handle.
Drive
cover .
Belt
Push
down
14

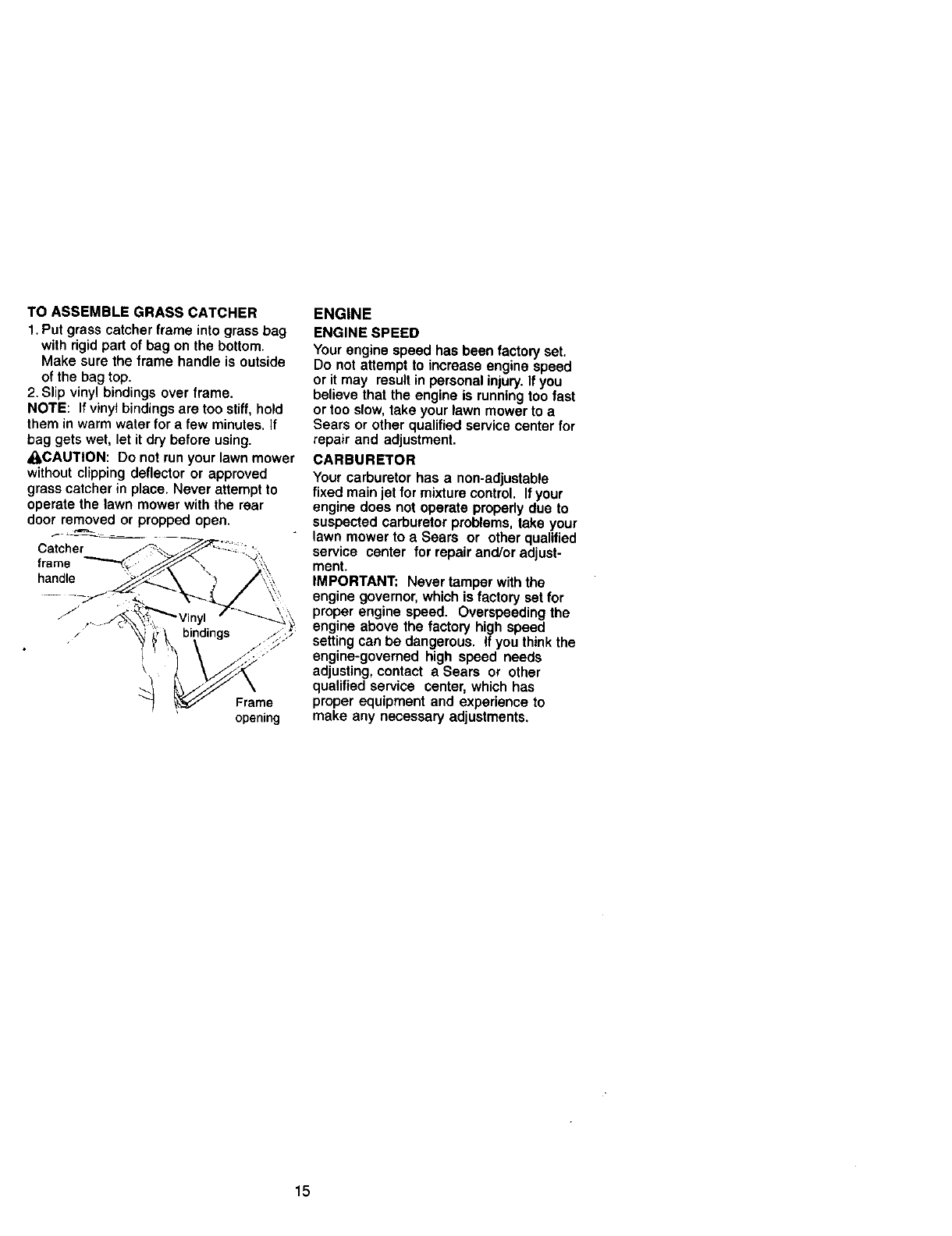

TO ASSEMBLE GRASS CATCHER
1. Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame.
NOTE: If viny_bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
_,CAUTtON: Do not run your lawn mower
without clipping deflector or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
Catcher
frame
handle
\
Frame
opening
ENGINE
ENGINE SPEED
Your engine speed has been factory set.
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that the engine is running too fast
or too slow, take your lawn mower to a
Sears or other qualified service center for
repair and adjustment.
CARBURETOR
Your carburetor has a non-adjustable
fixed main jet for mixture control. If your
engine does not operate properly due to
suspected carburetor problems, take your
lawn mower to a Sears or other qualified
service center for repair and/or adjust-
ment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous. If you think the
engine-governed high speed needs
adjusting, contact a Sears or other
qualified service center, which has
proper equipment and experience to
make any necessary adjustments.
15
Immediately prepare your lawn mower for
storage at the end of the season or if the
unit will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean it thoroughly, remove
all dirt, grease, leaves, etc. Store in a
clean, dry area.
1, Clean entire lawn mower (See
"CLEANING" in the Maintenance
section of this manual).
2. Lubricate as shown in the Mainte-
nance section of this manual.
3. Be sure that all nuts, bolts, screws,
and pins are securely fastened.
Inspect moving parts for damage,
breakage and wear. Replace if
necessary.
4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
YOUcan fold your lawn mower handle for
storage.
1, Squeeze the bottom ends of the lower
handle toward each other until the
lower handle clears the handle
bracket, then move handle forward.
2. Loosen upper handle mounting bolts
enough to allow upper handle to be
folded back.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
fold the handle as shown or you may
damage the control cables.
•When setting up your handle from the
storage position, the lower handle will
automatically lock into the mowing
position. handle
Handle
Sueeze to fold bracket
Hairpin cotter
pin
J
Operator presence
control bar
Upper handle
Foldforward for
stroags
Fold
backward
Mowing
position
Lowerhandle
ENGINE
FUEL SYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage.
1. Drain the fuel tank.
2. Start the engine and let it run untilthe
fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
•Usa fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least t0 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINEOIL
Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintenance section of this manual).
CYLINDER
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
3. Pull starter handle slowly a few times
to distribute oil.
164 .Replace with new spark plug.
OTHER
• Do not store gasoline from one
season to another.
•Replace your gasoline can if your
can starts to rust. Rust and/or dirt in
your gasoline will cause problems.
• If possible, store your unit indoors
and cover it to give protection from
dust and dirt.
•Cover your unit with a suitable protec-
tive cover that does not retain mois-
tura. Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engone and exhaust areas are still warm.
A, CAUTION:Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
TROUBLESHOOTING CHART
PROBLEM CAUSE CORRECTION
Does not start I. Dirtyairfilter.
Loss of power
Poor cut -
uneven
Excessive
vibration
2. Out of fuel.
3. Stale fuel.
4. Water in fuel.
5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken
blade adapter.
8. Control bar in released
position.
9. Control bar defective.
1. Rear of lawn mower
housing or cutting blade
dragging in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves,
and trash under mower.
5. Too much oil in engine.
6, Walking speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves
and trash under mower.
1. Worn, bent or loose blade.
2. Bent engine crankshaft.
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Replace control bar.
1. Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking
speed.
1. Replace blade. Tighten
blade bolt.
2. Set all wheels at same
height
3. Clean underside of
mower housing.
1. Replace blade. Tighten
blade bolt.
2. Contact aSears or other
qualified service center.
17
TROUBLESHOO
PROBLEM
Starterropehard
topull
rING CHART
CAUSE
I. Engineflywheelbrake is on
whencontrolbar is releasec
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
CORRECTION
1. Depress control bar to
upper handle before
pulling stader rope.
2. Contact a Sears or other
qualified service center,
3. Replace blade adapter.
4. Move lawn mower to cut
grass or to hard surface.
Loss of drive 1. Drive wheels not turning 1. Adjust or replace drive
with drive control engaged, control cable.
2. Belt not driving 2. Put belt on pulleys or
replace belts if broken.
Grass catcher 1. Cutting height too low. 1. Raise cutting height.
notfilling(ifso 2. Lift on blade worn off. 2. Replace blade.
equipped) 3. Catcher not venting air. 3. Clean grass catcher.
Hard to push 1. Raise cutting height.!. Grass is too high or wheel
height is too low.
2. Rear of lawn mower
housing or blade dragging
in grass.
3. Grass catcher too full.
4. Handle height position not
right for you.
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
4. Adjust handle height to
suit.
18
I
ROTARY LAWN MOWER - - MODEL NO. 917.378310
GEAR CASE ASSEMBLY PART NUMBER 702511
17
KEY
NO.
2
3
4
5
PART
NO. KEY PART
DESCRIPTION NO. NO. DESCRIPTION
17490416 Tapping Screw 1/4-20 x 9 137074 Ddve Shaft
1-1/4 10 57079 Hardened Washer
137055X004 Engagement Bracket 11 131484 Clutch Yoke
137053 Shifter 12 700343 Bushing
57072 Seal 13 86447 Plug
48373 Gear Case Halves Kit 14 137050 HelicalGear
(includes Key Nos. 4, 15 750436X Clutch Jaw
and7) 16 750369 Grease
77881 Bearing 17 120G0003 E-Ring
137051 WormShaft 18 850848 Hi-Pro Key
19 51585)(004 Spring Bracket
NOTE: All component dimensions given in
US. inches. 1inch = 25,4 mm
37
ROTARYLAWNMOWERMODELNUMBER917.378310
61
2O
35
31-
12
41
27
28
7O
13
ROTARY LAWN MOWER MODEL NUMBER 917.378310
KEY PART
NO. NO.
1 166860X479
2164322
4150425
566426
6136376
8146771
9 170947
10 128415
11 150050
12 54583
13 150182
14 156374)(479
15 700365)(479
16 133190X479
17 14G661X479
18 63601
20 140540
22 85543
23 87677
25 83923
27 150341
28 142748
29 62335
30 145935X004
31 701037
32 700331X004
34 146630
35 700325X007
37 150078
DESCRIPTION
Upper Handle
Engine Zone Control Cable
Mulcher Pleg
WireTie
HangleKnob
ControlBar
Rear Door Kit
Pop Rivet
Sell Tapping Screw #10-16 x 1/2
Hex Tapping Screw w/Seres 1/4-20 x1/2
Hubcap
Back Plate
Side Baffle
Discharge Baffle
Rear Baffle
Keps Locknut 1/4-20
Rear Skirt
Engine Pulley
Hi-PrO Key #505
Hex Flange Nut
Wheal
Shoulder Bolt 3/8-16 x 1
Spring Washer
Axle Arm Assembly
Selector Knob
Selector Spring
Spacer
Wheel Adjusting Bracket (Right)
Thread Cutting Screw w/Seres 5/16-16 x 3/4
KEY PART
NO. NO. DESCRIPTION
38 751592 Nut
39 173569X479 Handle Bracket Assembly (Left)
40 173570X479 Handle BracKet Assembly (Right)
41 150406 Hex Head Thread Rolling Screw 3/8-16 x 1-1/6
44 172835 Lawn Mower Housing (Ir_L Key #14, 15, 51 & 52)
46 851514 Blade Adapter
47 141114 Rlede 22"
48 851074 Hardened Washer
49 850263 Helical Washer 3/8-24 x t -3/8 Gr. 8
50 851084 Hex Head Machine Screw 3/8-24 x1-3/8 Gr. 8
51 170031 Kit Baffle
52 85463 DangerDecal
56 88652 Hinge Screw 1/4-20 x 1-1/4
57 5179_ Haiq)in Cotter
58 151590X479 Lower Handle
59 131959 Haedle Bolt
61 132001 Ropa Guide
62 134612 Debhs Shield
64 ...... Engine-Craftsman - Model No. 143.006700
70 17600406 Screw. Hx. Serrated. 1/4 x 20
71 170939 Door Spdng RH
72 170938 Door Spring LH
73 165912 Bolt
-- 161058 Warning Decal (Not Shown)
- - 175424 Ownei's Man ual (E nglisWSpanish)
Available accessories not included with lawn mower:
-- [3/98 33313 Clipping De6ector
- - 71 33000 SAE 30W Oil (20 oz,)
54
ROTARY LAWN MOWER MODEL NUMBER 917.378310
18
14 16
14
12
6
11
/
13
26
ROTARY LAWN MOWER MODEL NUMBER 917.378310
KEY PART
NO. NO.
1145755
3 751152
4158755
5146527
615O495
8150182
9 145212
11 150340
12 12000058
13 137054
14 8808O
15 88118
16 67725
18 7O1037
26 1436O3
DESCRIPTION
Control Gable Assembly
Locknut #10-24
Hex Washer Head Screw I/4-20 x 2,12
V-BEY=
Spring Retainer
Hubcap
Locknut
Wheel & Tire Assembly
E-Ring
Pinion
Dust Cover
FertWasher
Washer 1/2 x 1-1/2 x .134
Selector Knob
Pan Head Tapping Screw #10-24 x 2-3/4
KEY PART
NO. NO. DESCRIFqlON
28 154990 DriveCover
31 132010 Hex Flange Nut
32 137052 Drive Pulley
35 151521 Wheel Adjuster Assembly (Left)
36 7(__511 Gear Case Assembly
37 137090 $_ofing
38 63601 Locknut 1/4-20
40 75192. SP,_9
41 151520 Wheel Adjuster Assembly (Right)
54 169932 Grassbag Assembly
55 86012 Driveshaft Cover
57 169931 Grasshag
CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.006700
9OO
110_
400 135
130
120 119
4 417v/_ 1251
42
CRAFTSMAN 4-CYCLE ENGINE
KEY PART
NO. NO. DESCRIPTION
MODEL NO. 143.006700
KEY PART
NO. NO. DESCRIPTION
1 37465 Cylinder (Incl. 2 & 20) 174 30200
2 26727 Dowel Pin 178 29752
6 33734 Breather Element 182 6201
736557 BreatherAss'y. (Incl. 6 & 12A) 184 26756
12 36775 Srealher Tube
12A 36558 Breather Cover & Tube (Incl. 185 37466
12B) 186 32653
12B 36694 Breather Tube Elbow 189 650839
14 26277 Washer 191 36559A
15 30589 Governor Rod (Incl. 14) 195 610973
16 34839A Governor Lever 207 34336
17 31335 Governor Lever Clamp 216 33086
18 651018 Screw, Torx T-15, 8-32x 19/ 223 650451
64" 224 36786
19 36281 Extension Spring 238 650932
20 32600 Oi_Sea_ 239 34338
30 37464 Crankshaft 241 36919
40 40027 Piston, Pin & Ring Set (Std.
41 40042 Piston & Pin Ass'y. Std. 245 36905
250 36920
IncL 43)
42 40006 Ring Set Std.) 260 36980
43 20381 Piston Pin Retaining Ring 261 30200
45 36777 Connecting Rod Ass'y. (Incl. 262 650831
263A 37184
48) 275 37462
46 32610A Connecting Rod Bolt 277 650988
48 27241 Valve Lifter 285 35000A
50 37460 Camshaft (MCR) 287 650926
52 29914 Oil Pump Ass'y. 290 29774
69 35261 " Mounting Flange Gasket
70 34311E Mounting Flange (Incl. 72 292 26460
thru 83) 298 28763
300 36916
72 30572 Oil Drain Plug Incl. 73 301 36246
73 28833 Drain Plug Gasket 305 35647
75 27897 Oil Seal 306 36996
80 30574A Governor Shaft 307 35499
81 30590A Washer 309 650562
82 30591 Governor Gear Ass'y, (IncL 310 35648
81_ 313 34080
83 30588A Governor Spool 347 651038
86 650488 Screw, 1/4-20 x 1-1/4" 355 590701
89 611004 Flywheel Key 370A 36261
90 611112 F_ywheel 370C 37318
92 650815 Belleville Washer 370R 37317
93 650816 Flywheel Nut
100 34443B Solid State Ignition 380 640271
101 610118 Spark Plug Cover 390 590739
103 651007 Screw, Torx T-15, 10-24 x 15/ 400 367928
16" 416 36085
110 37047 Ground Wire
119 36787 "Cylinder Head Gasket
120 36625 Cy_ir',derHe_d 417 650760
125 36779 Exhaust Valve (Std.) (Incl. 900-----
900------
151)
36780 Exhaust Valve (1/32" OS)
(Incl, 151
126 36782 ntake Valve 1/32" OS) (IncL
151)
37289 Intake Valve (Std.) (Incl. 151)
130 6021A Screw, 5/16-18 x 1-1/2"
135 35395 Resistor Spark Plug
(RJI9LM)
150 31672 Valve Spring
151 31673 Valve Spring Cap
151A 40017 Intake Valve Seat
169 36783 * Valve Cover Gasket
172 36784 Valve Cover
Screw, 10-24 x 9/16"
Nut & Lock Washer, 1/4-28
Screw, 1/4-28 x 7/8"
*Carburetor To Intake Pipe
Gasket
Intake Pipe
Governor Link
Screw, 1/4-20 x 3/8"
S.E. Brake Bracket (Incl. 195)
Terminal
Throttle Link
R.P.M. Adjusting Lever
Screw, 1/4-20 x 1"
*Intake Pipe Gasket
Screw, 10-32 x 49/64"
• Air Cleaner Gasket
Air Cleaner Collar
Air Cleaner Filter
Air Cleaner Cover
Blower Housing
Screw, 10-24 x 9/16"
Screw, 1/4-20 x 112"
Starter Grill
Muffler
Screw, 1/4-20 x 2-5/16"
Starter Cup
Screw, 8-32 x 21/64"
Fuel Line
Fuel Line Clamp
Screw, 10-32 x 35/64"
Fuel Tank (Incl. 292 & 301)
Fuel Cap
Oil Fill Tube
"O"-Ring P
"O"-Ring
Screw, 10-32 x1/2"
Dipstick
Spacer
Screw, 10-32 x 51/64"
Starter Handle
Lubrication Decal
Primer Decal (3 X
Warn n9 Deca
Carburetor (Incl. 184)
Rewind Starter
Gasket Set (Incl. Items
Marked *)
Spark Arrestor Kit (Incl.
417)(Optional)
Screw, 8-32 x 3/8" (Optional)
Replacement Engine NONE
Re.=placementS/B 750865,
order from 71-999
RPM High 2900 to 3200
NOTE:This engine could have been built with
590702 starter.
NOTE:All component dimensions given in U.S.
inches 1 inch = 25.4 mm
43

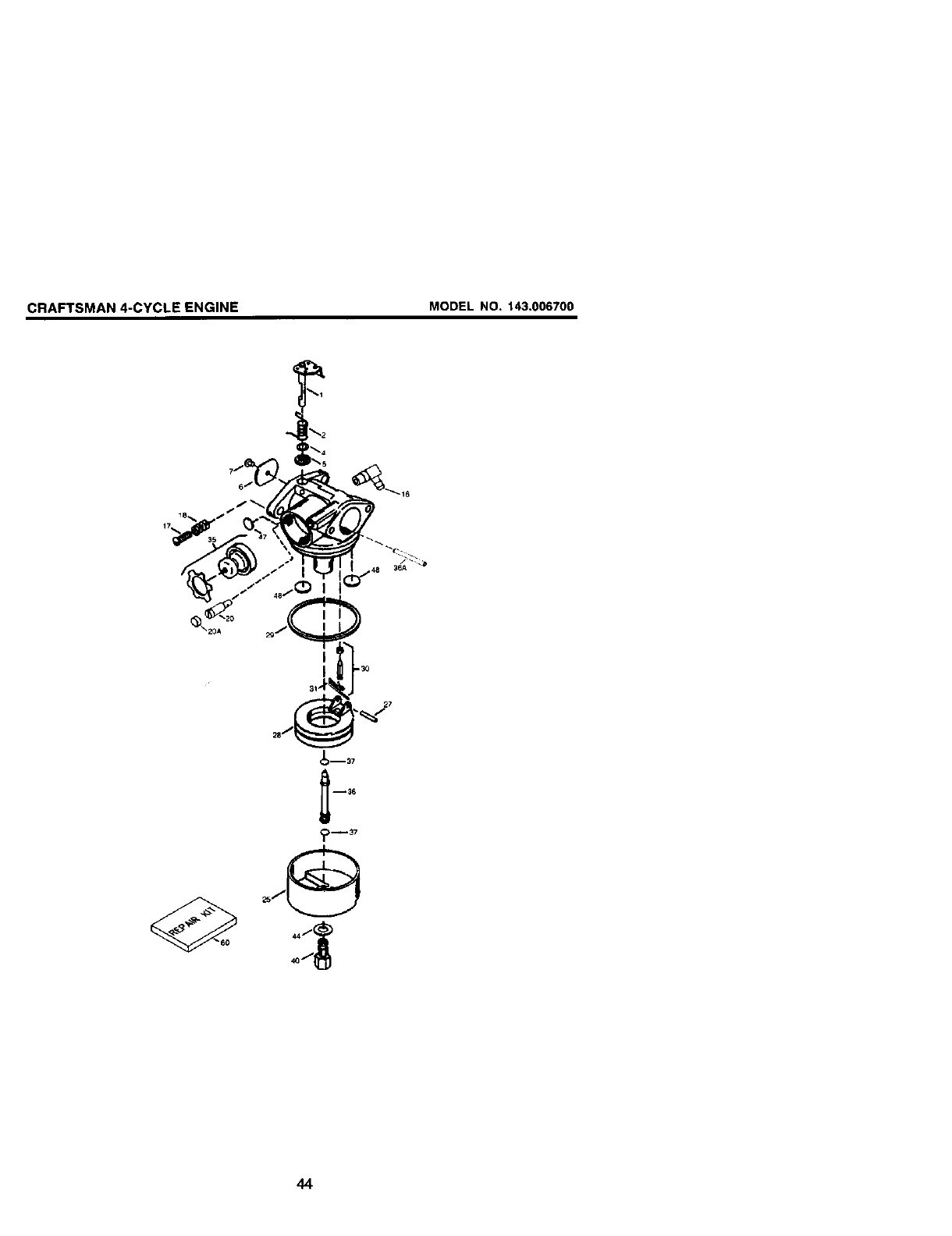

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.006700
.30
27
_m37
44

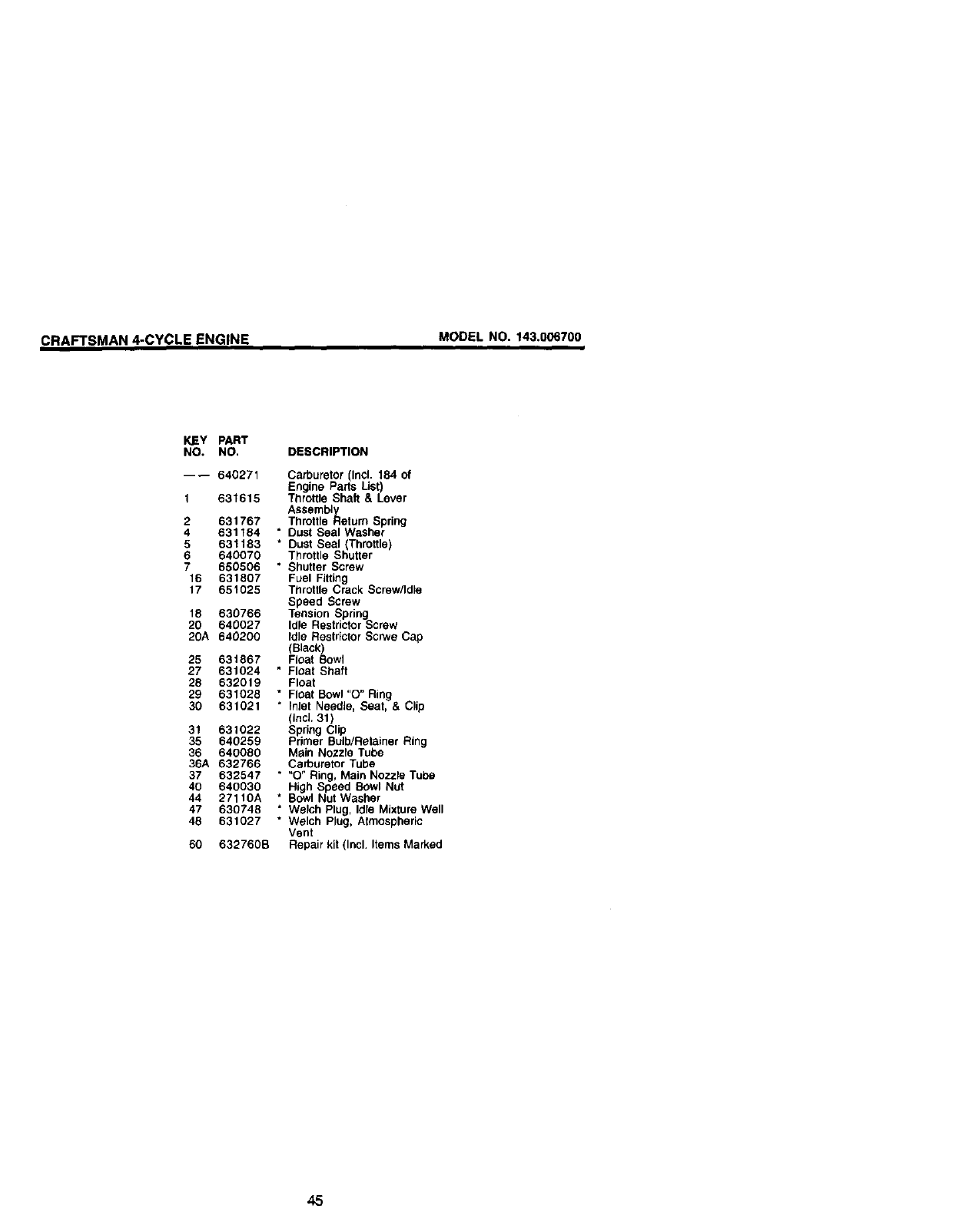

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.006700
KEY PART
NO. NO.
2
4
5
6
716
17
18
20
20A
25
27
28
29
30
31
35
36
36A
37
40
44
47
48
60
DESCRIPTION
640271 Carburetor Incl. 184 of
Engine Parts Lst
631615 Throttle Shaft & Lever
AssemblY
631767 Throttle Return Spring
631184 * Dust Seal Washer
631183 * Dust Seal (Throttle)
640070 Throttle Shutter
650506 "Shutter Screw
631807 Fuel Fitting
651025 Throttle Crack Screw/Idle
Speed Screw
630766 Tension Spring
640027 Idle Restdctor Screw
640200 rdle Restdctor Scrwe Cap
(Black)
631867 Float Bowl
631024 " Float Shaft
632019 Float
631028 * Float Bowl "O" Ring
631021 * InJet Needle, Seat, & Clip
(IncJ,31)
631022 Spring Clip
640259 Primer Bulb/Retainer Ring
640080 Main Nozzle Tube
632766 Carburetor Tube
632547 ""O'* Ring, Main Nozzle Tube
640030 High Speed Bowl Nut
27110A * Bowl Nut Washer
630748 *Welch Plug, Idle Mixture Well
631027 * Welch Plug, Atmospheric
Vent
632760B Repair kit (Incl. Items Marked
45
CRAFTSMAN 4-CYCLE ENGINE MODEL NO, 143.006700
mll
13
O
(_" --3
O--2
KEY
NO.
__m
1
2
3
4
5
6
7
8
11
12
13
PART
NO.
590702
590599A
590600
590696
590601
590697
590698
590699
590700
590703
590535
590701
DESCRIPTION
Recoil Starter
Spdng Pin (Incl. 4)
Washer
Retainer
Washer
Brake Spring
Starter Dog
Dog Spring
Pulley & Rewind Spring Ass'y.
Starter Housing Ass'y, (40 degree
_ommet •
arter Rope 98 X 9/64" dia.)
Starter Handle
46
CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.006700
KEY PART
NO. NO.
---- 590739
3 590740
6 590616
7 590617
8 590618A
11 590638
12 590535
13 590701
14 590760
DESCRIPTION
Rewind Starter
Retainer
Starter Dog
Dog Spring
Pulley & Rewind Spring Ass'y
Starter Housing Ass y (40 degraegrommet)
Starter Rope(Length 98" x 9[64" dia
Starter Handle
Spring Clip
47

Navigation menu
