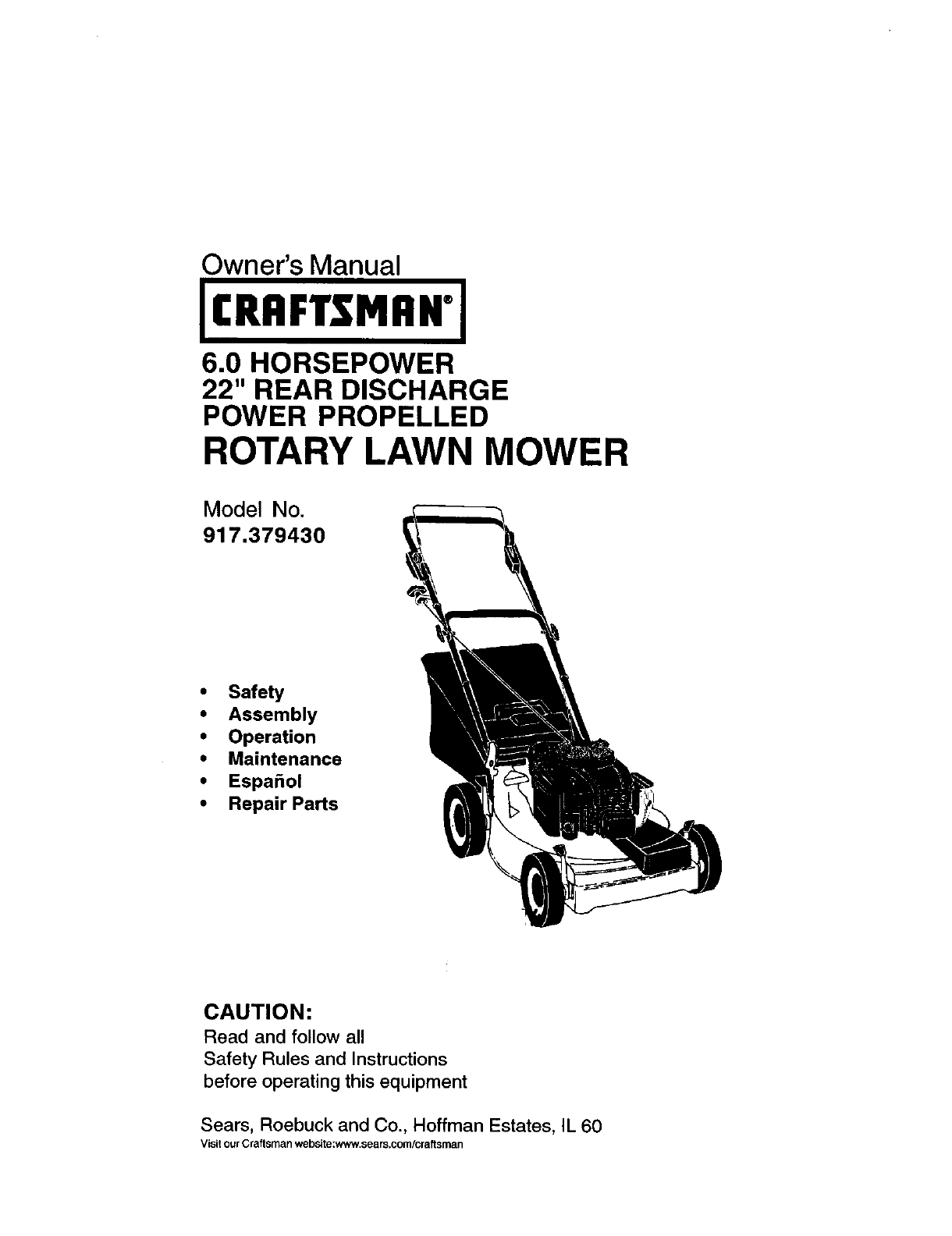

Owner's Manual

JCRAFTSMAWI

6.0 HORSEPOWER

22" REAR DISCHARGE

POWER PROPELLED

ROTARY LAWN MOWER

Model No.

917.379430

• Safety

•Assembly

•Operation

•Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60

VisitourCraftsmanwebsite:www.sears.com/craftsman

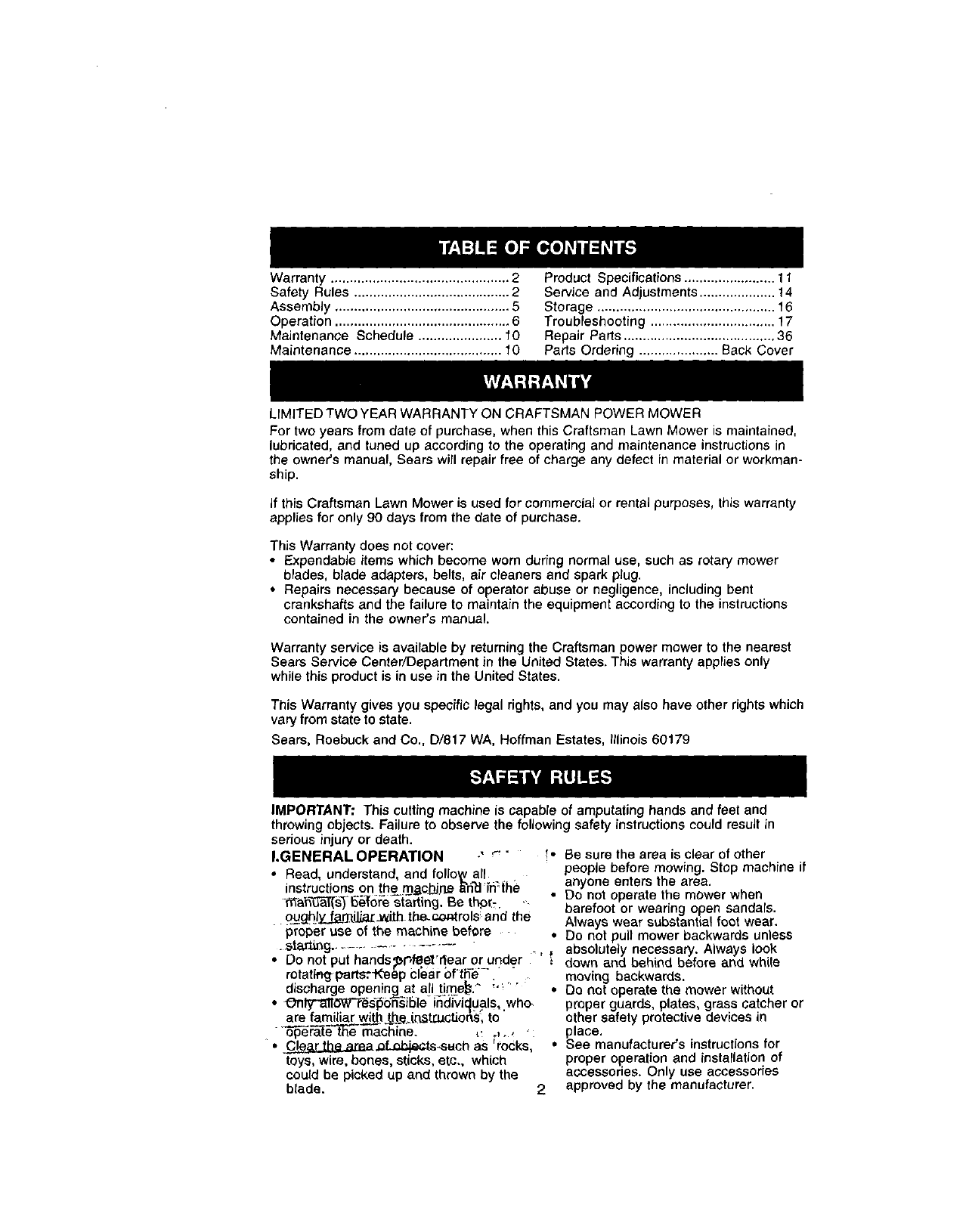

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly .............................................. S

Operation .............................................. 6

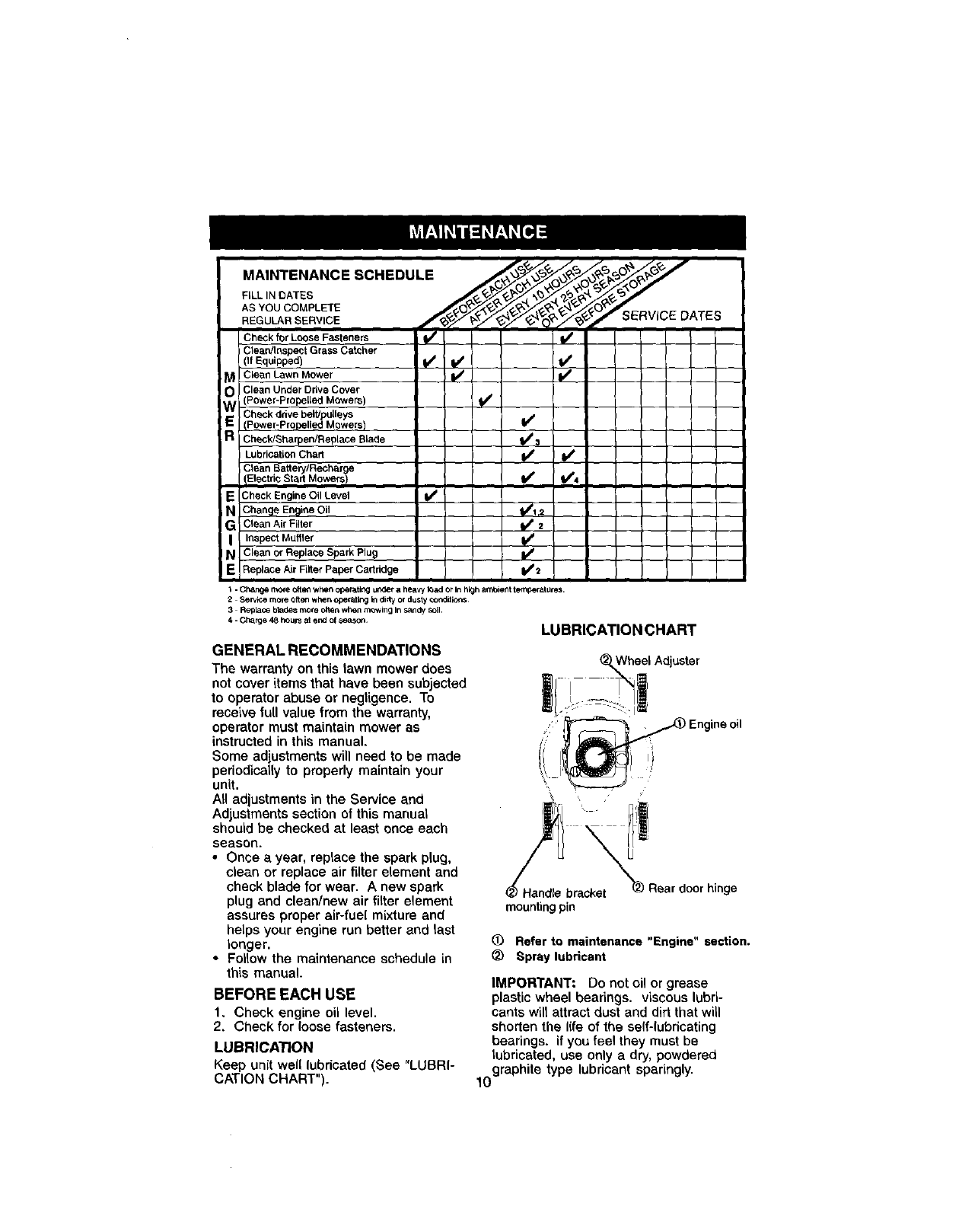

Maintenance Schedule ...................... 10

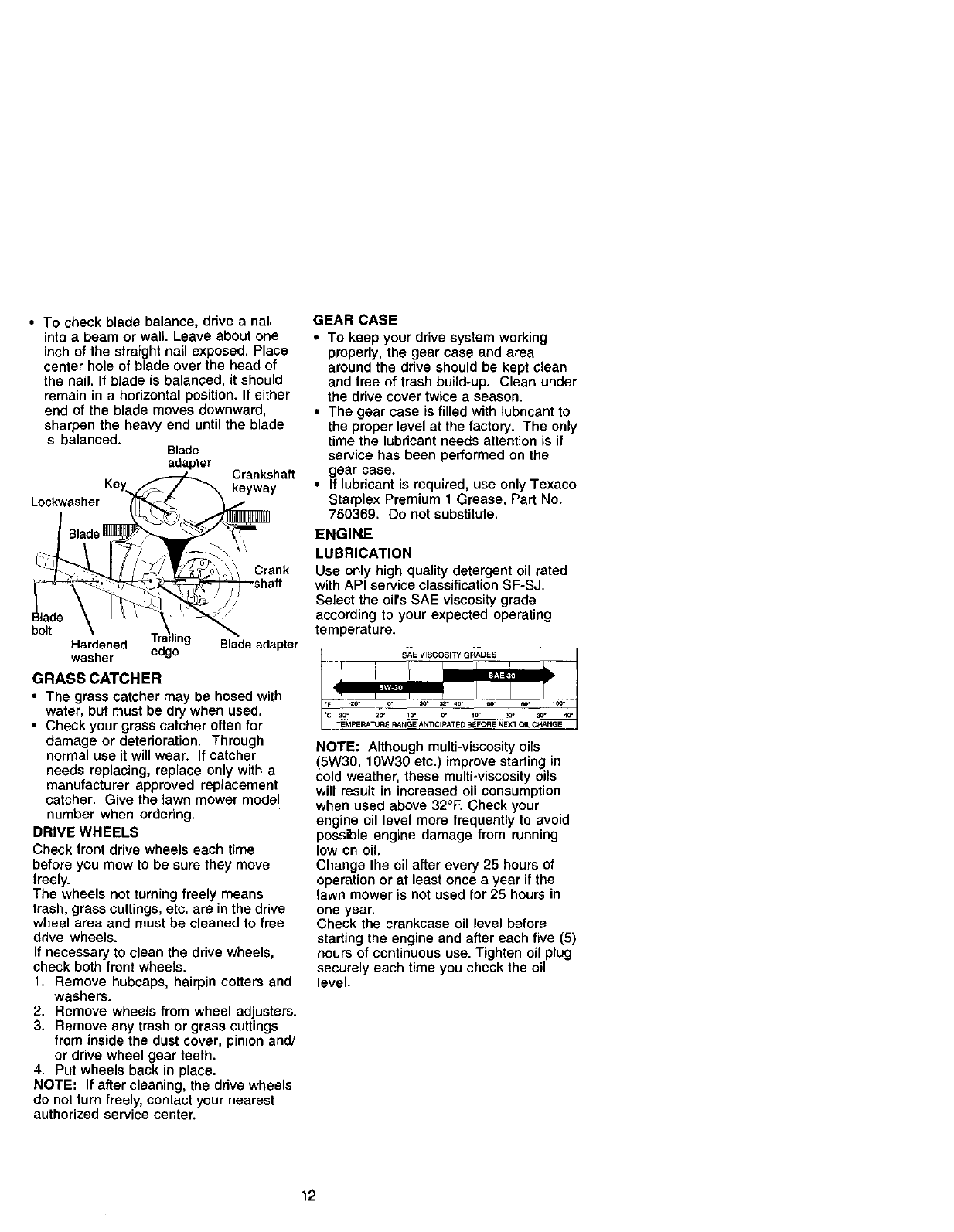

Maintenance ....................................... 10

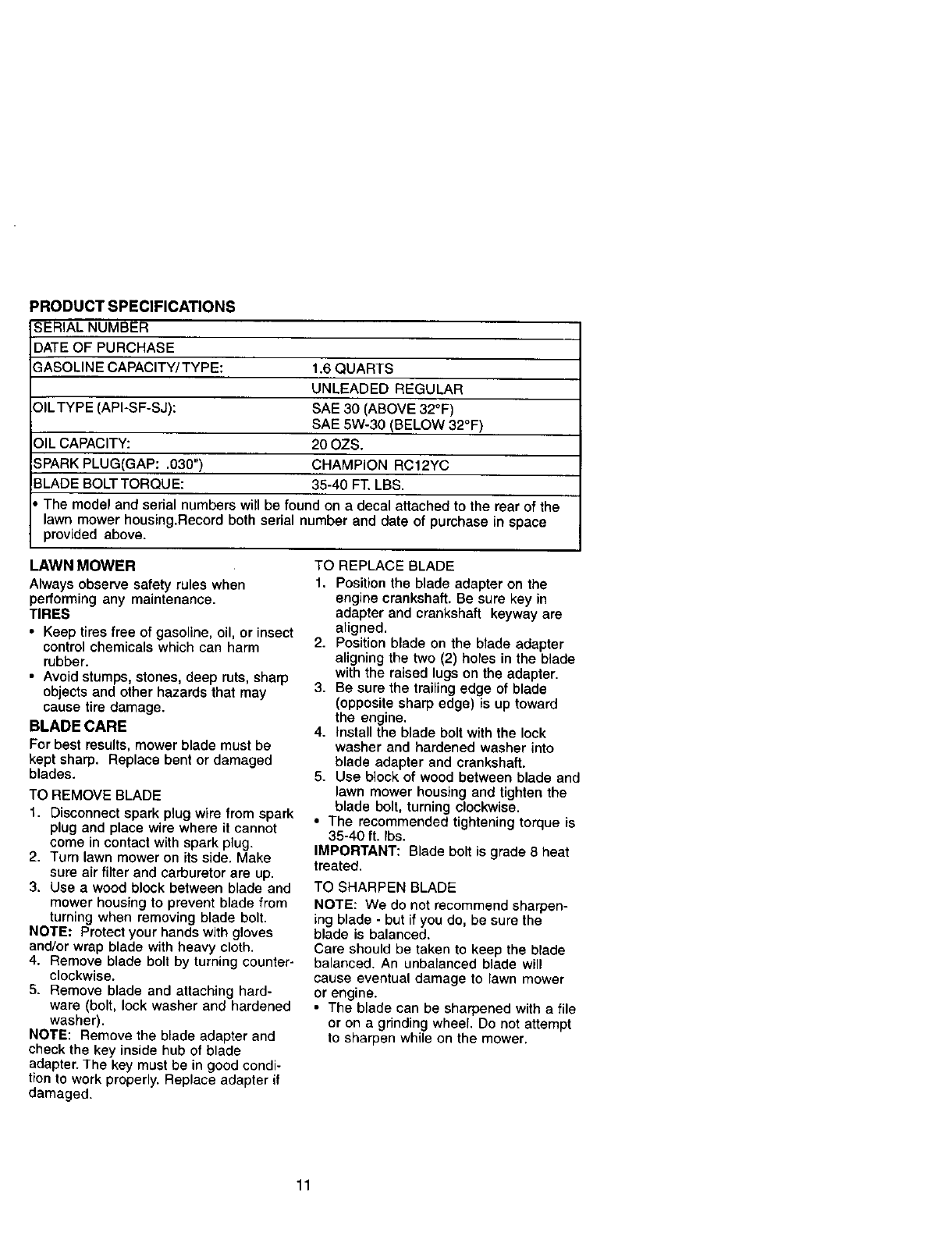

Product Specifications ........................ 11

Service and Adjustments .................... 14

Storage ............................................... 16

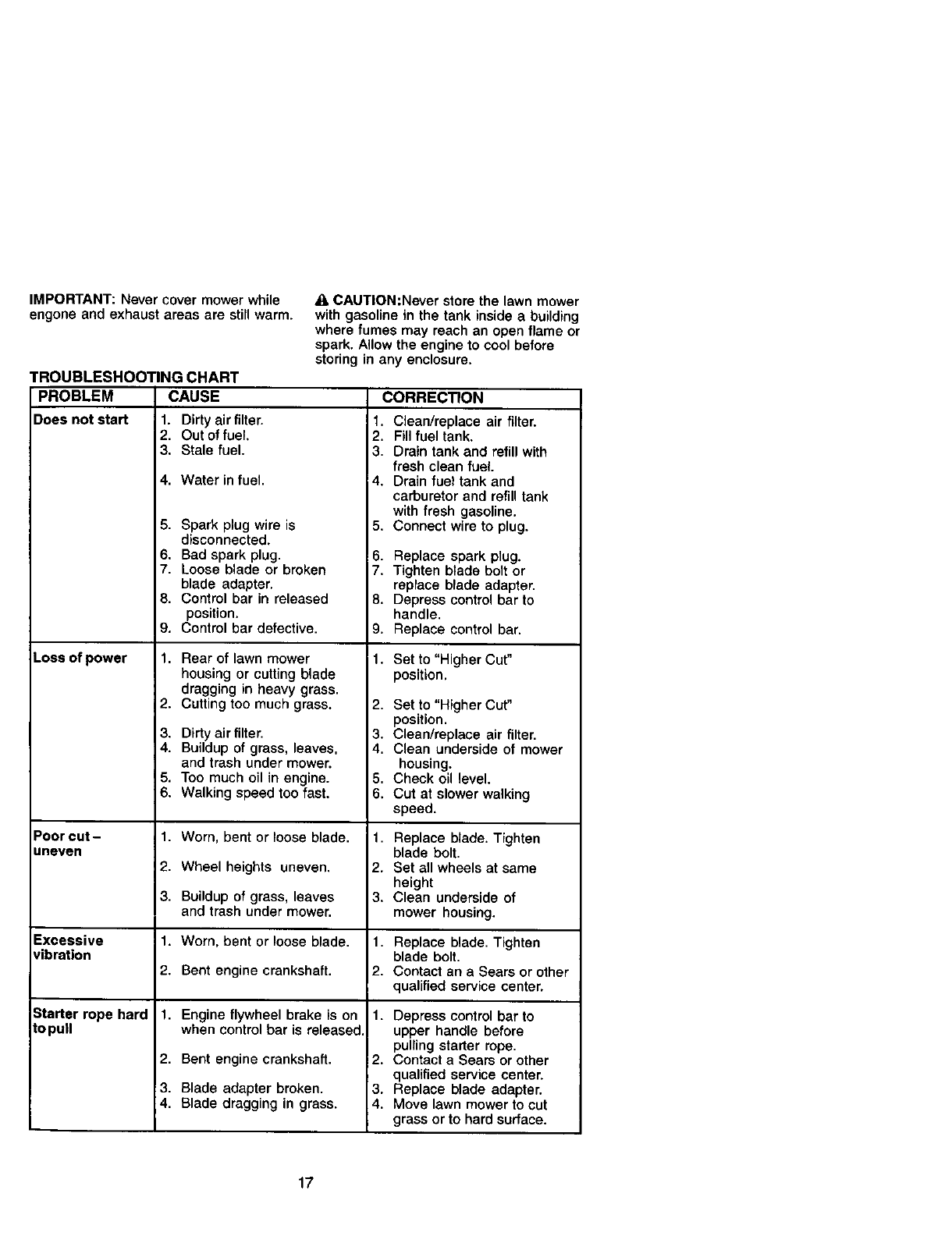

Troubleshooting ................................. 17

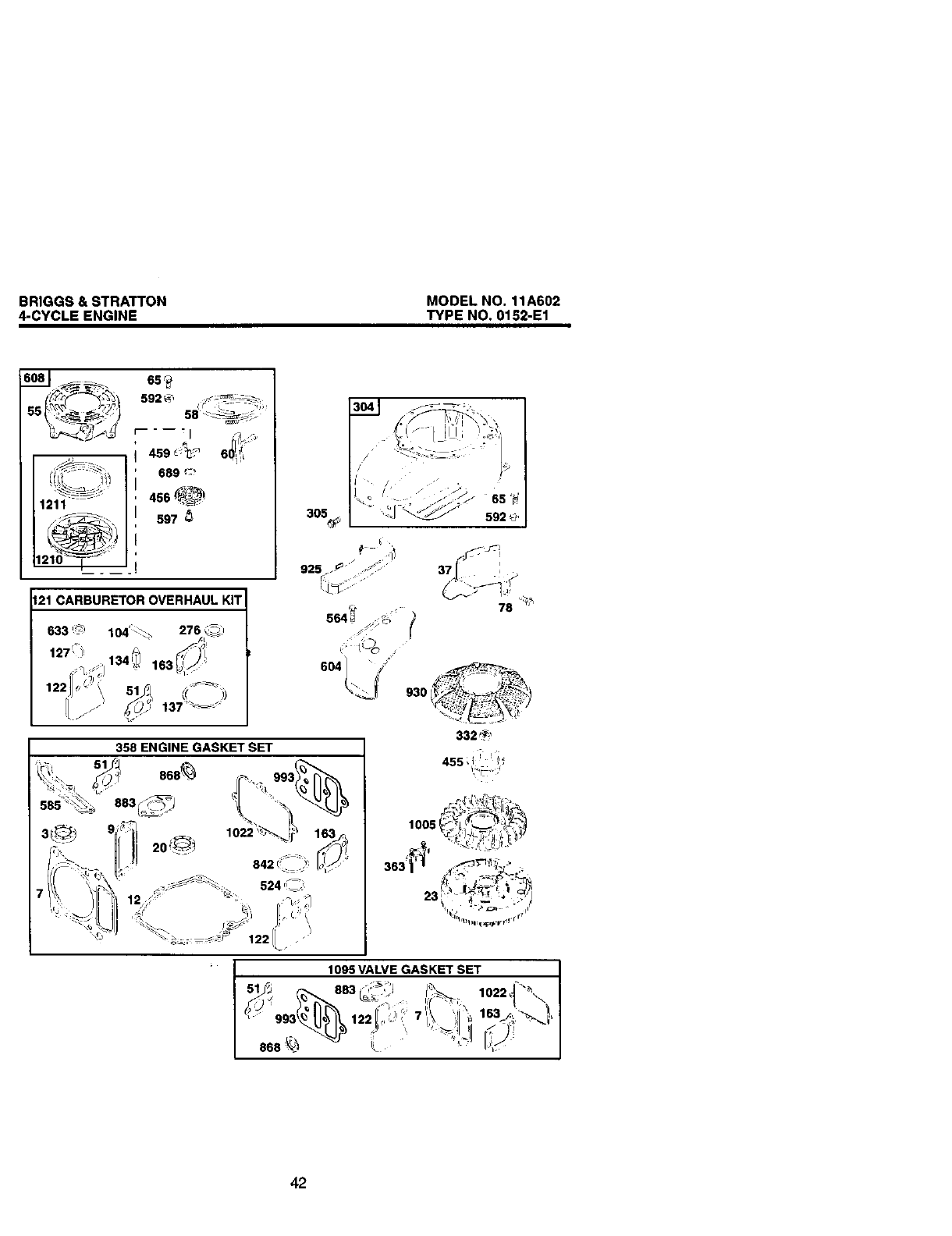

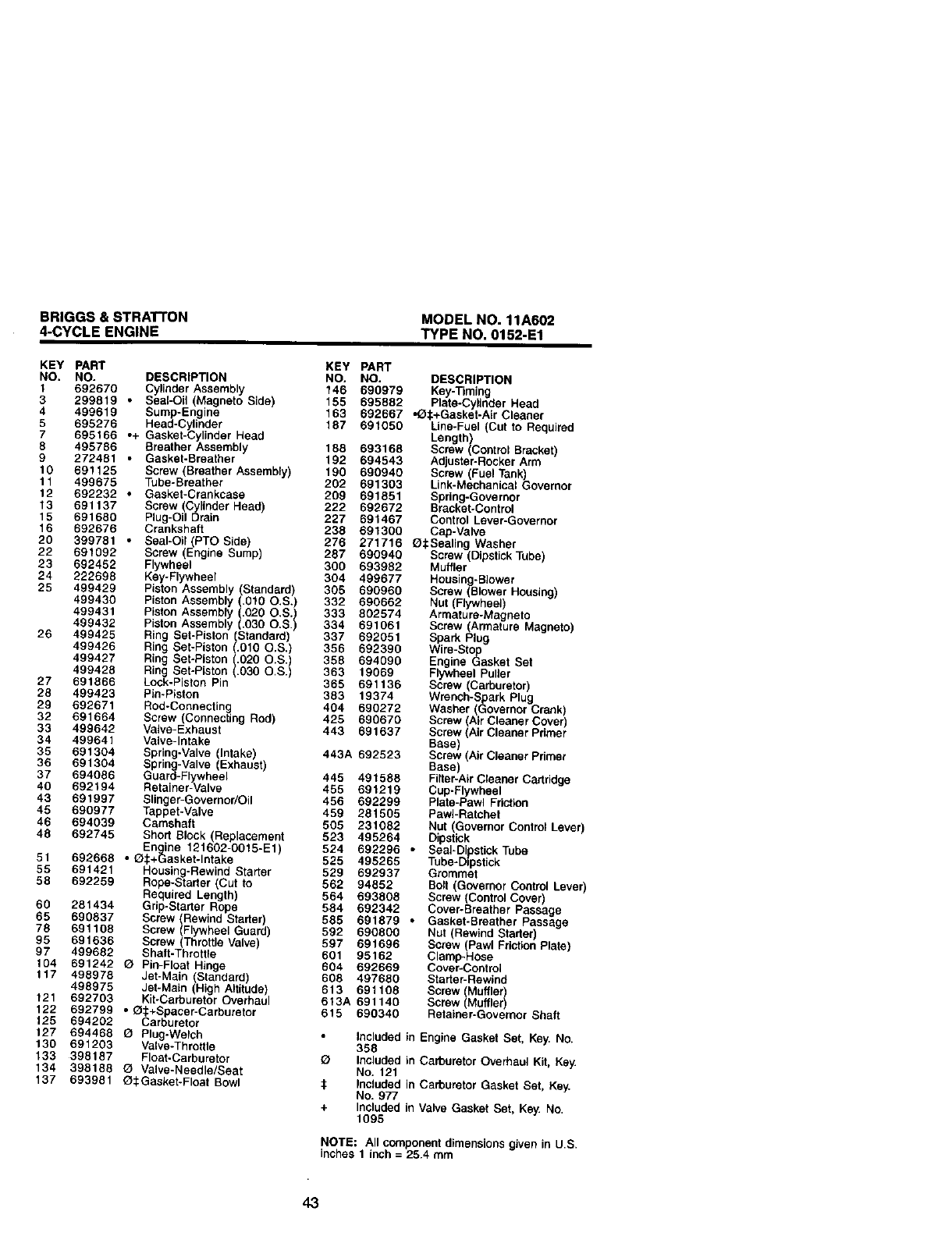

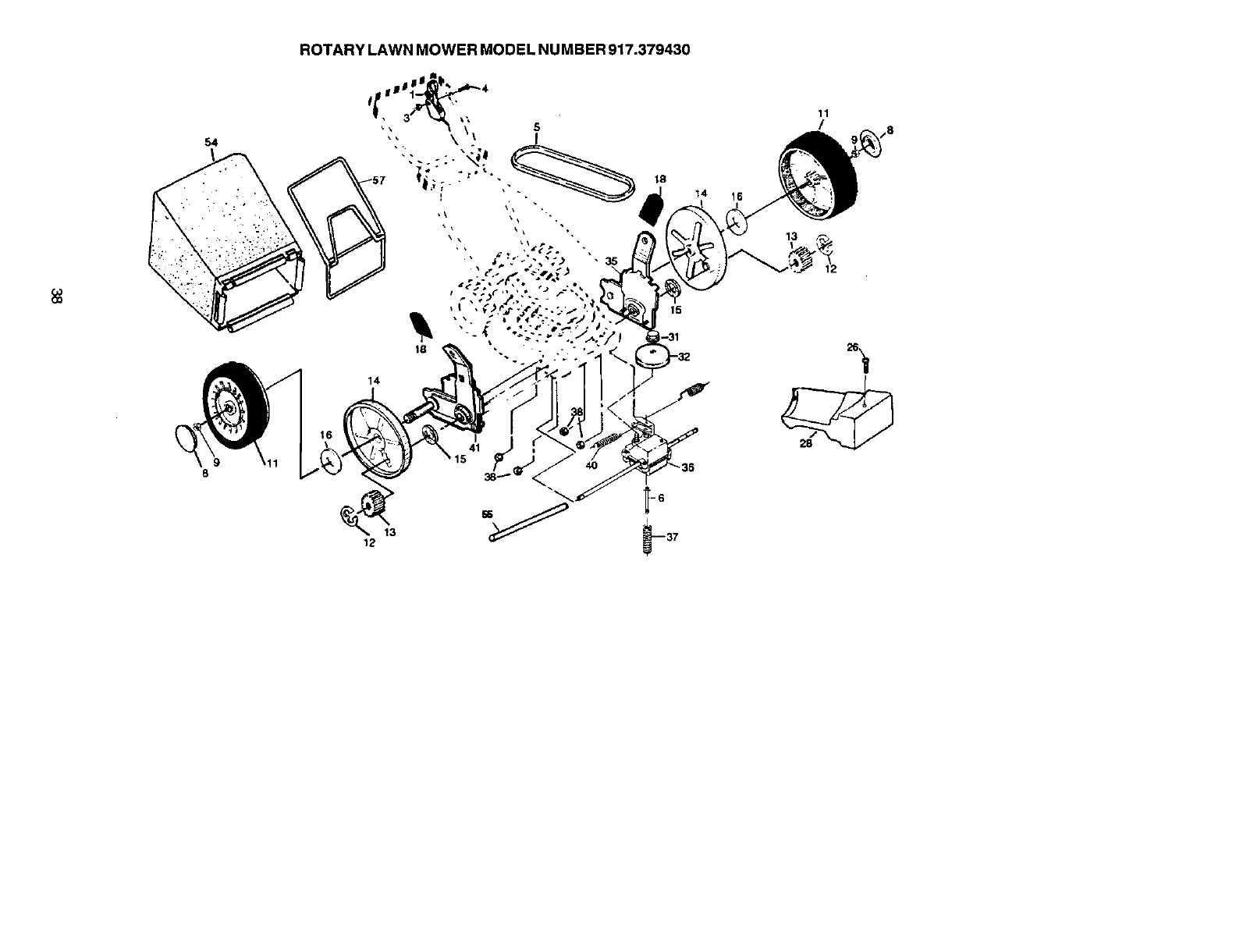

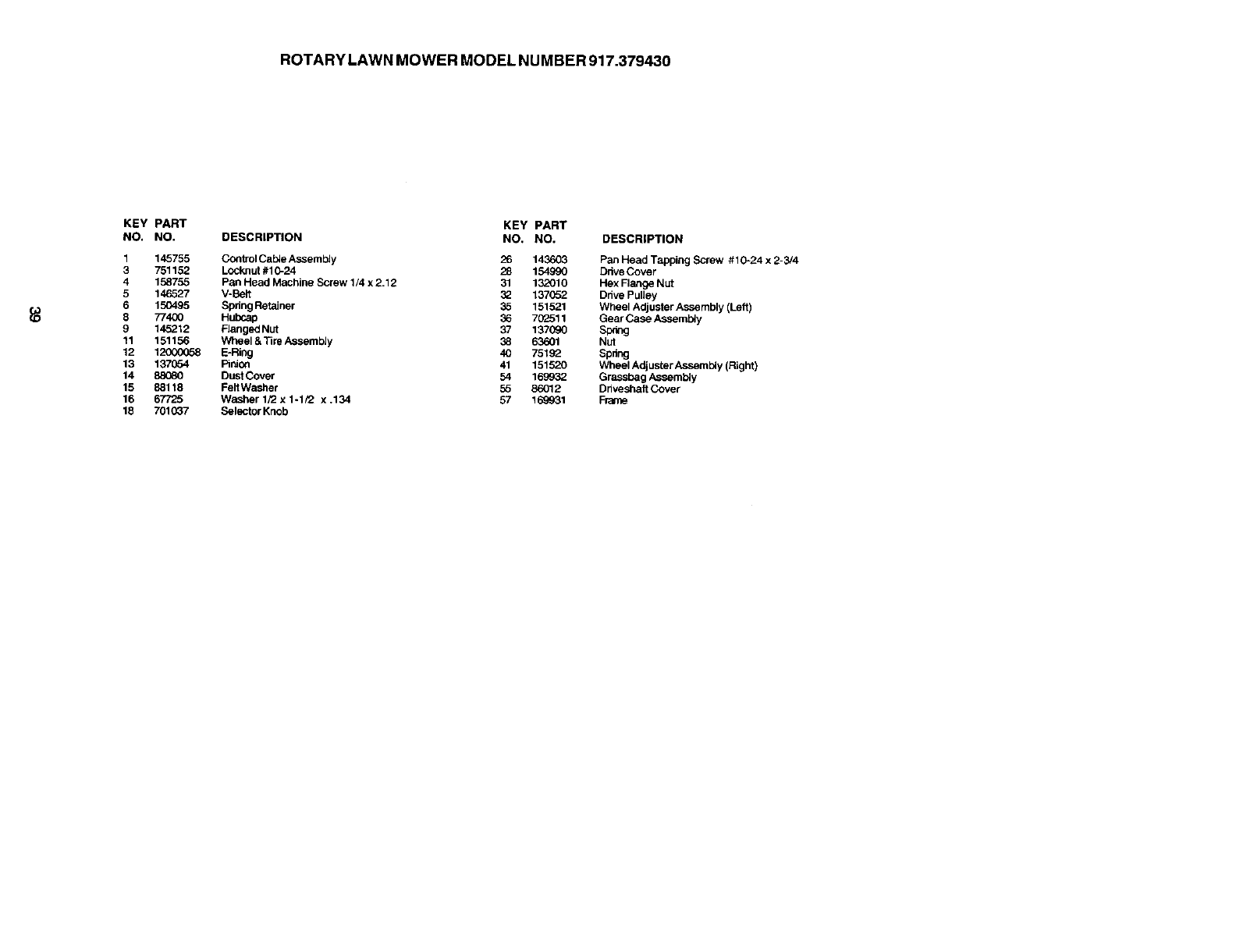

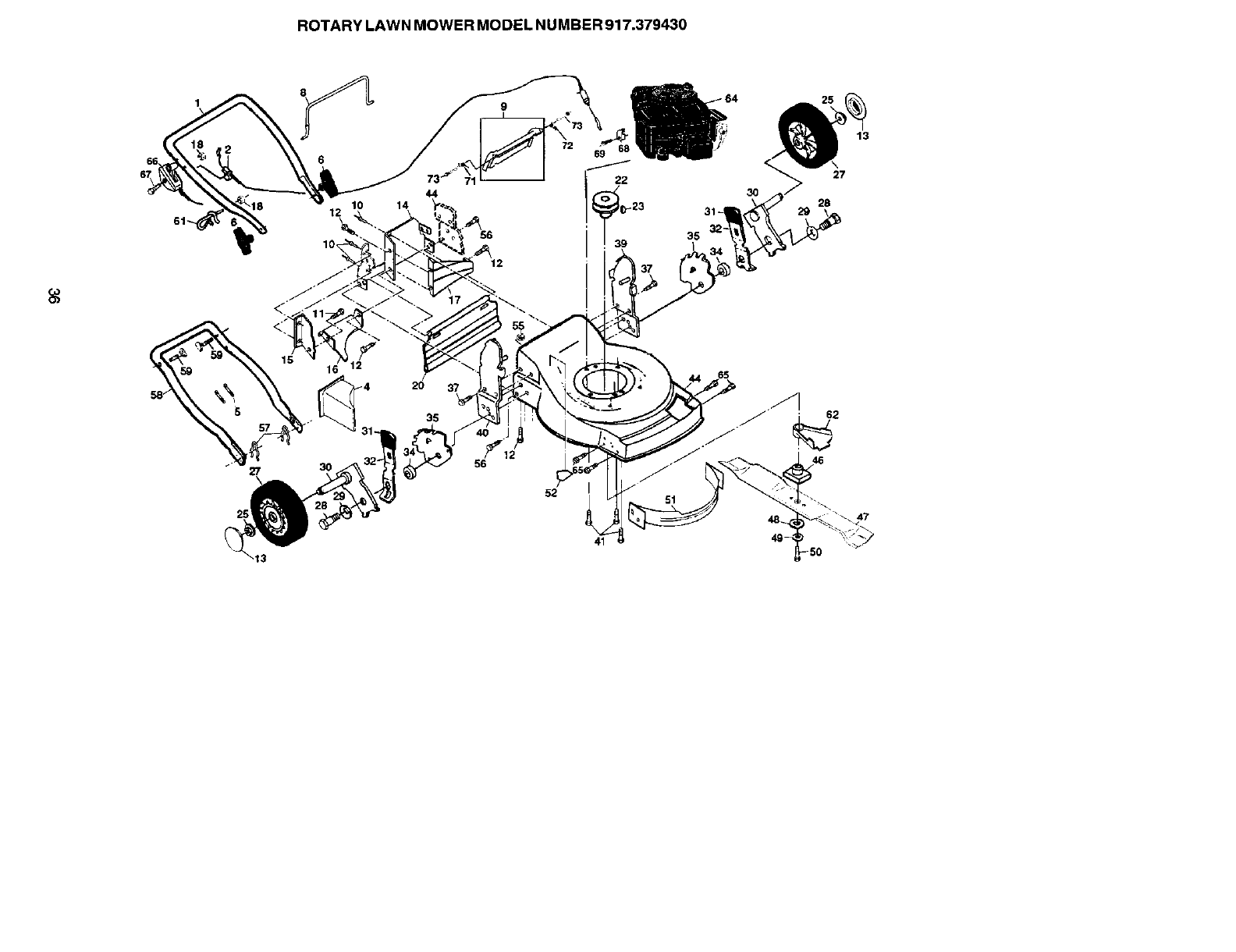

Repair Parts ........................................ 36

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for oommemial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air c_eaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States, This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, Illinois 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

hGENERAL OPERATION -" _.... !"

• Read, understand, and folJo_ all.

instructions on the m.scl_r).e _'n"d[n_-_he

ou.ghly_i.l_q_ 3,vJthtbe- coat rols and the

proper use of the machine before .... .

.stastmg ....................

• Do not put hands_r_e1'rlear or ur_der " '

rotatif_j part_.'K'eep clear bfth-e'-

discharge opening at all time_." "'" •

• _nl_O'W-Tes_50"fi_ible-i_divi_gals, .who,

are familiar with th_,(rLstr_ctJ.ons,to

"_'p'_ra-ate-"_'e-machine. ,: o,., •:

• C.Lle,&LEL_aKea.oLob_ts41uch as 'roCks, •

toys, wire, bones, sticks, etc., which

could be picked up and thrown by the

blade. 2

Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

Do not pull mower backwards unless

absolutely necessary. Always look

down and behind before and while

moving backwards.

Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in

place.

See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

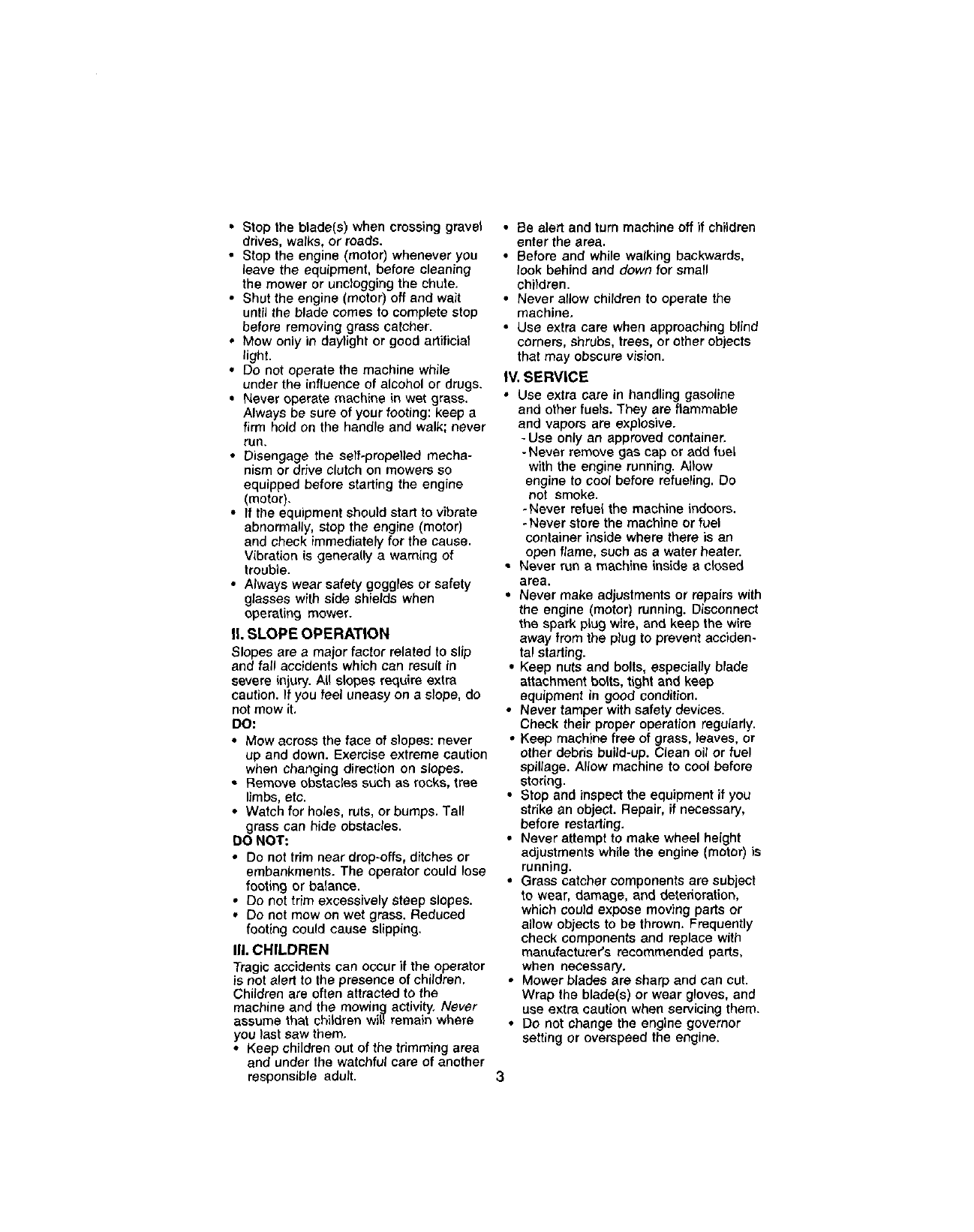

•Stop the blade(s) when crossing gravel

drives, walks, or roads.

•Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

• Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run.

• Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

• If the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

• Always wear safety goggles or safety

glasses with side shields when

operating mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. At1slopes require extra

caution. If you feel uneasy on aslope, do

not mow it.

DO:

• Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

•Do not mow on wet grass. Reduced

footing could cause slipping.

IlL CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and while walking backwards,

look behind and down for small

children.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

-Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as awater heater.

•Never run a machine inside a closed

area.

• Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent acciden-

tal starting.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debds build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when sen/icing them.

• Do not change the engine governor

setting or overspeed the engine.

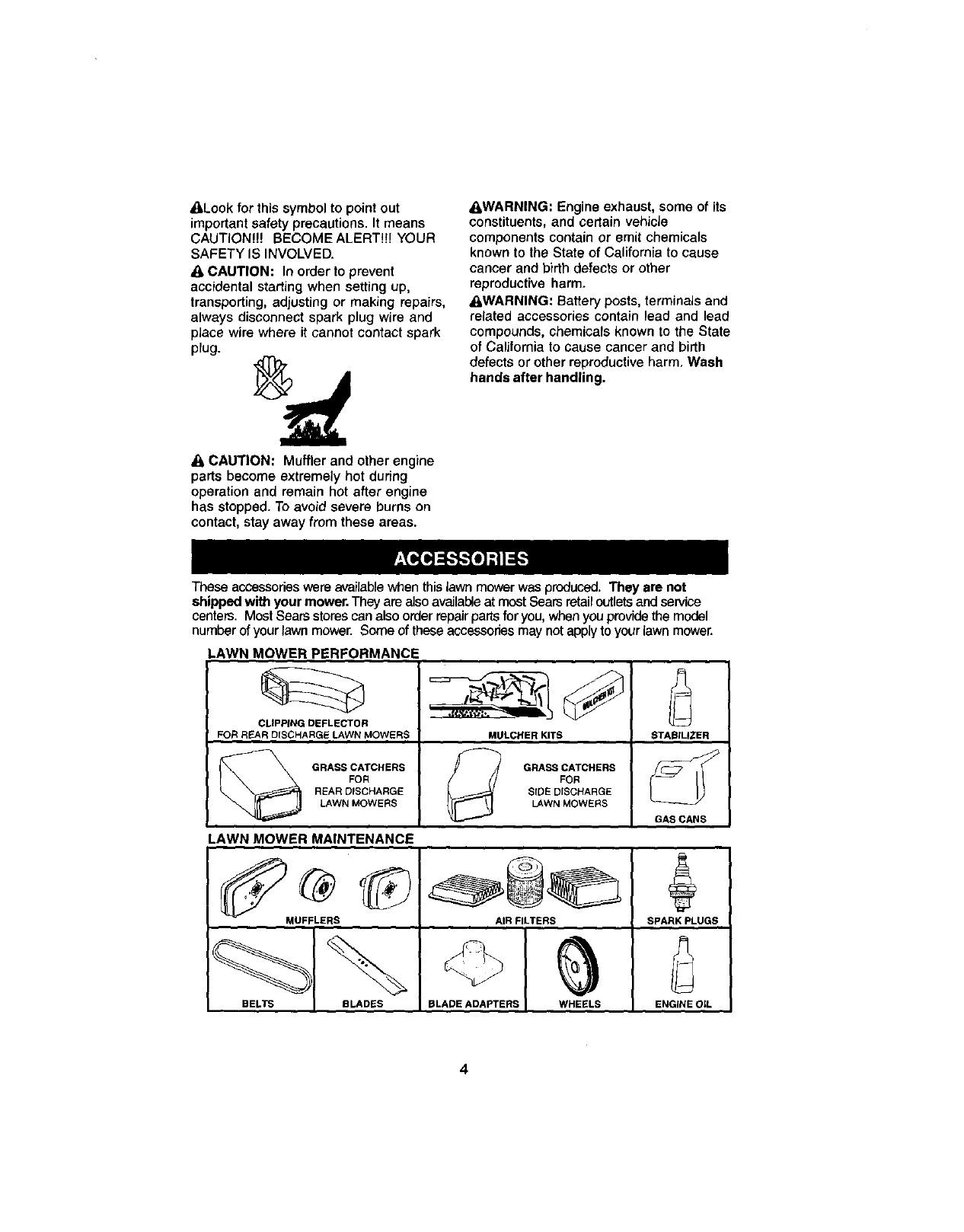

_Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOME ALERT!!! YOUR

SAFETY IS INVOLVED.

CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

prug.

ACAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine

has stopped. To avoid severe burns on

contact, stay away from these areas.

_WARNING: Engine exhaust, some of its

constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other

reproductive harm.

_WARNING: Battery posts, terminals and

related accessories contain lead and lead

compounds, chemicals known to the State

of California to cause cancer and birth

defects or other reproductive harm, Wash

hands after handling.

These accessorieswere available when this lawnmower was preduced. They are not

shipped with your mower. They are alsoavailableat mostBears retailoutletsand service

centers. Most Sears storescan also order repairparts for you, when you providethe model

number of your lawn mower. Some of these accessoriesmay not applyto your lawn mower.

LAWN MOWER PERFORMANCE

FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS STAB/LIZER

%o ccso o

REAR DISCHARGE SIDE DISCHARGE

LAWN MOWERS LAWN MOWERS

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS AIR FILTERS SPARK PLUGS

BELTS BLADES BLADE ADAPTERS WHEELS ENGINE elL

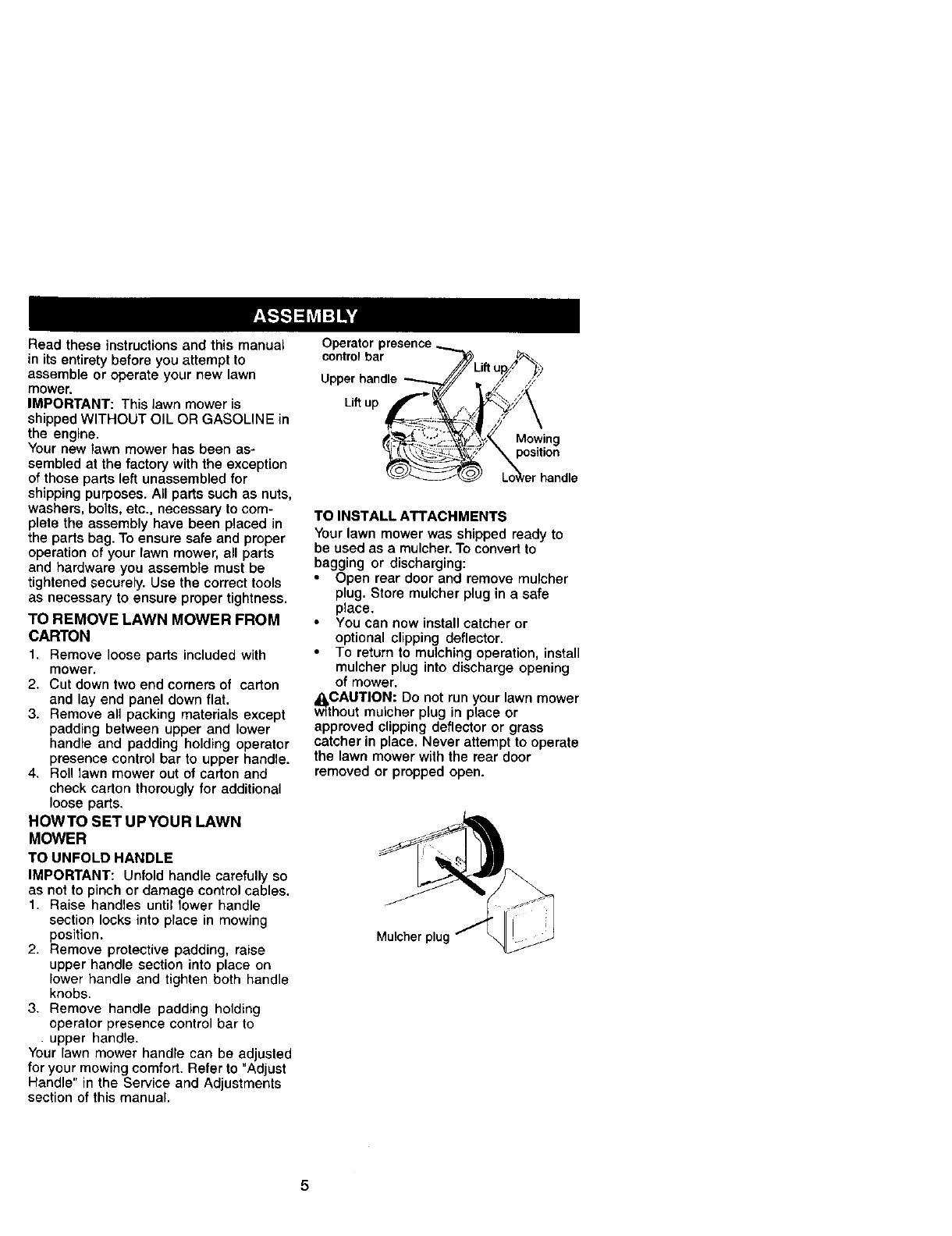

Read these instructions and this manual

in its entirety before you attempt to

assemble or operate your new lawn

mower.

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE in

the engine.

Your new lawn mower has been as-

sembled at the factory with the exception

of those parts left unassembled for

shipping purposes. All parts such as nuts,

washers, bolts, etc., necessary to com-

plete the assembly have been placed in

the parts bag. To ensure safe and proper

operation of your fawn mower, all parts

and hardware you assemble must be

tightened securely. Use the correct tools

as necessanj to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Remove loose parts included with

mower,

2. Cut down two end corners of carton

and lay end panel down flat.

3. Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

4. Roll lawn mower out of carton and

check cadon thorougly for additional

loose pads,

HOWTO SET UPYOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables,

1. Raise handles until lower handle

section locks into place in mowing

position.

2. Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

3. Remove handle padding holding

operator presence control bar to

upper handle.

Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle" in the Service and Adjustments

section of this manual.

Operator presence

control bar

Upper

Lift up

Mewing

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher, To convert to

bagging or discharging:

Open rear door and remove mulcher

plug, Store mulcher plug in a safe

place.

You can now install catcher or

optional clipping deflector.

• To return to mulching operation, install

mulcher plug into discharge opening

of mower.

w_ItCAUTION: Do not run your lawn mower

hout mulcher plug in place or

approved clipping deflector or grass

catcher in place. Never attempt to operate

the lawn mower with the rear door

removed or propped open.

Mulcher plug

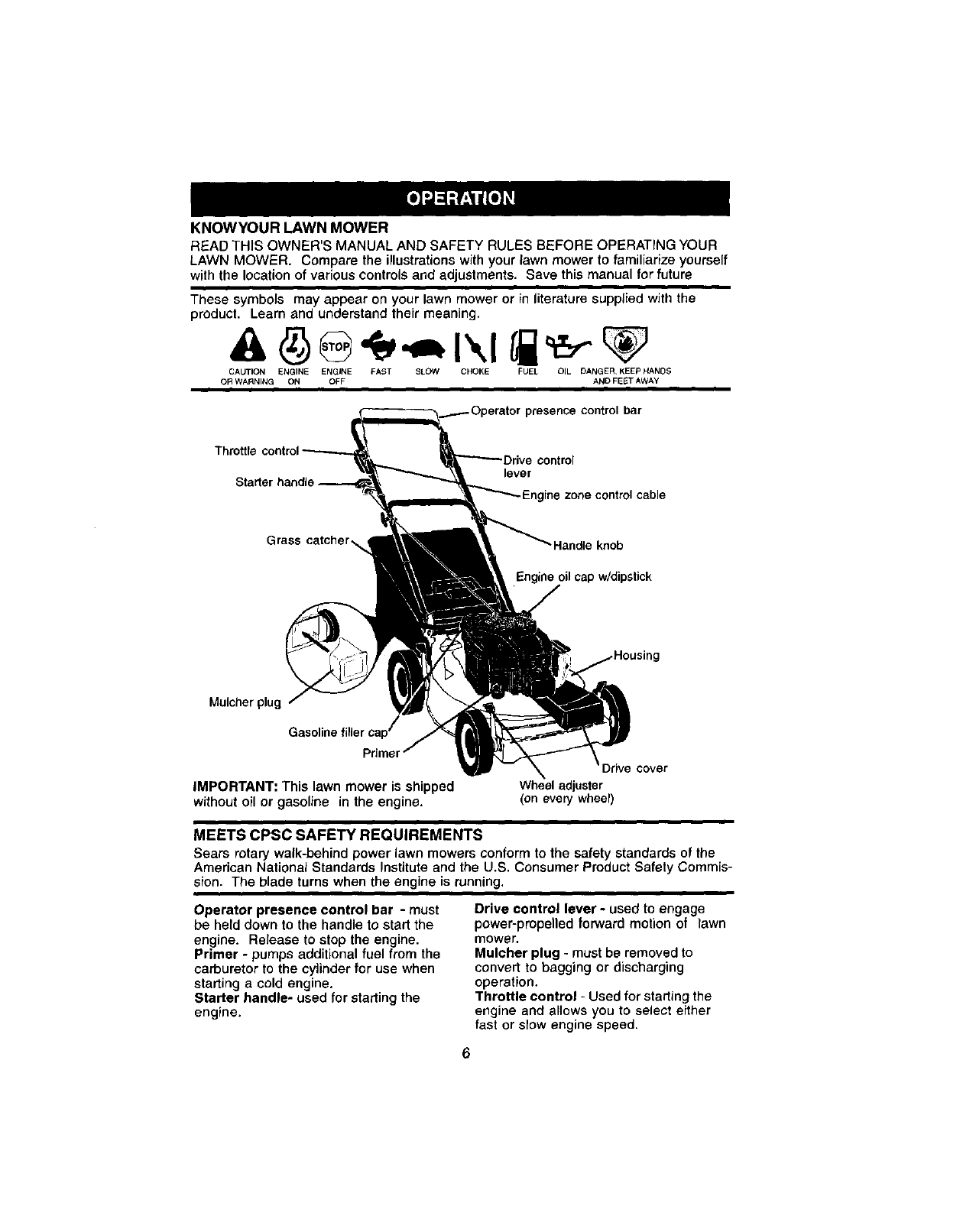

KNOWYOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself

with the location of various controls and adjustments. Save this manual for future

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGJNE FA_T SLOW CHOKE FUEL OIL DANGER, KEEP _ANO$

OR WARNING ON OFF AND FEET AWAY

control bar

Throttle control

lever

Starter I cable

Grass catcher,

w/dipstick

Mulcher plug

Prime

IMPORTANT: This lawn mower is shipped Wheel adjuster

without oil or gasoline in the engine. (on every wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safely Commis-

sion. The blade turns when the engine is running.

Operator presence control bar - must

be held down to the handle to stad the

engine. Release to stop the engine.

Primer -pumps additional fuel from the

carburetor to the cylinder for use when

starting acold engine.

Starter handle- used for starting the

engine.

Drive control lever -used to engage

power-propelled forward motion of lawn

mower,

Muleher plug - must be removed to

convert to bagging or discharging

operation,

Throttle control - Used for starting the

engine and allows you to select either

fast or slow engine speed.

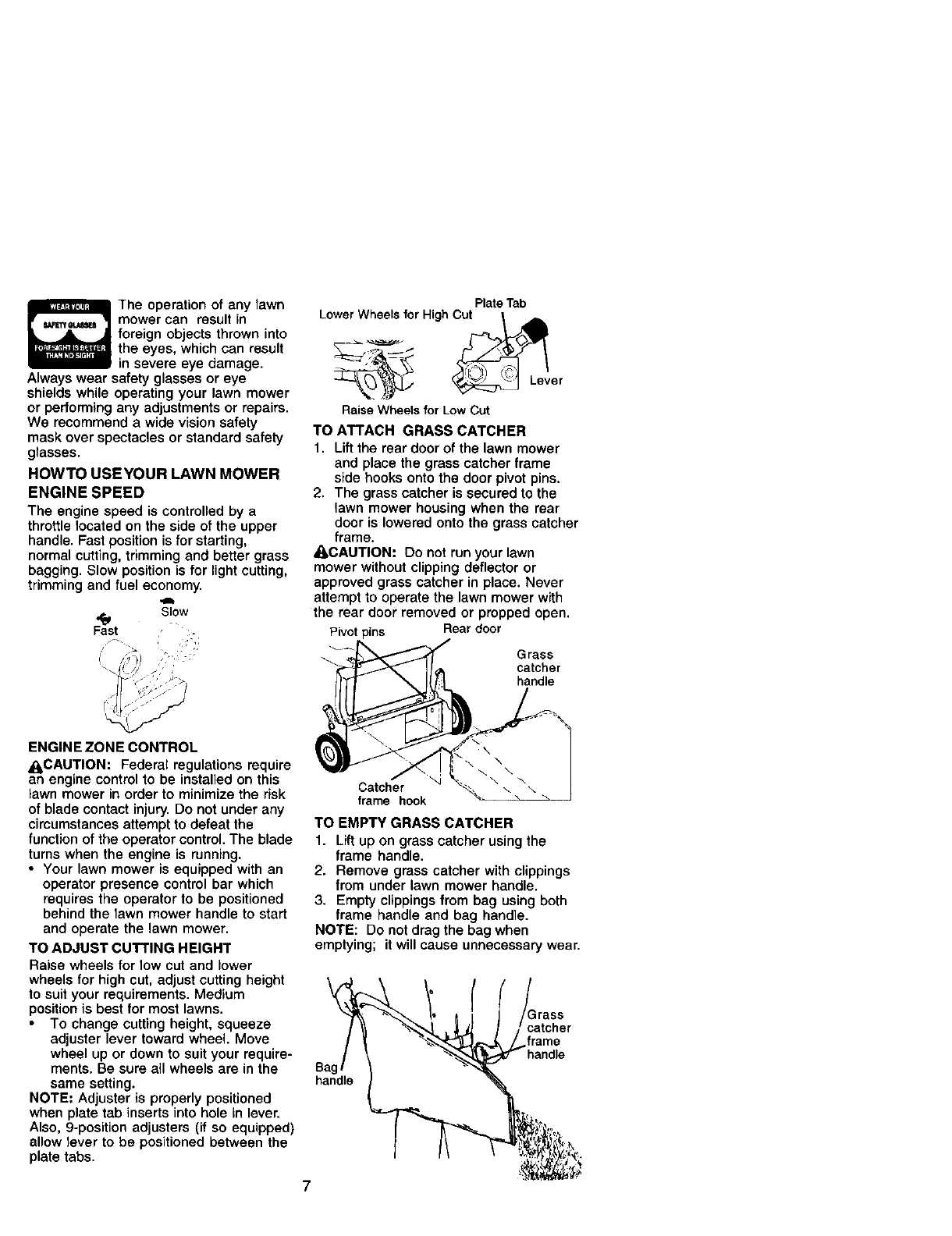

Theoperation of any lawn

mower can result in

foreign objects thrown into

the eyes, which can result

in severe eye damage.

Always wear safety glasses or eye

shields while operating your lawn mower

or performing any adjustments or repairs.

We recommend a wide vision safety

mask over spectacles or standard safety

glasses.

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED

The engine speed is controlled by a

throttle located on the side of the upper

handle. Fast position is for starting,

normal cutting, trimming and better grass

bagging. Slow position is for light cutting,

trimming and fuel economy.

"€_ Slow

Fas, :i

PlateTab

Lower Wheelsfor High Cutr_'L__L_-_A_

Lever

RaiseWheels for LowCut

TO ATTACH GRASS CATCHER

1, Lift the rear door of the lawn mower

and place the grass catcher frame

side hooks onto the door pivot pins,

2, The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

_I,CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open,

Pivotpins Rear door

Grass

catcher

handle

ENGINE ZONE CONTROL

_I_CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running,

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower

wheels for high cut, adjust cutting height

to suit your requirements. Medium

position is best for most lawns.

To change cutting height, squeeze

adjuster lever toward wheel, Move

wheel up or down to suit your require-

ments, Be sure all wheels are in the

same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Catcher \

frame hook

TO EMPTY GRASS CATCHER

1. Lift up on grass catcher using the

frame handle.

2. Remove grass catcher with clippings

from under lawn mower handle.

3. Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

(irass

catcher

frame

handle

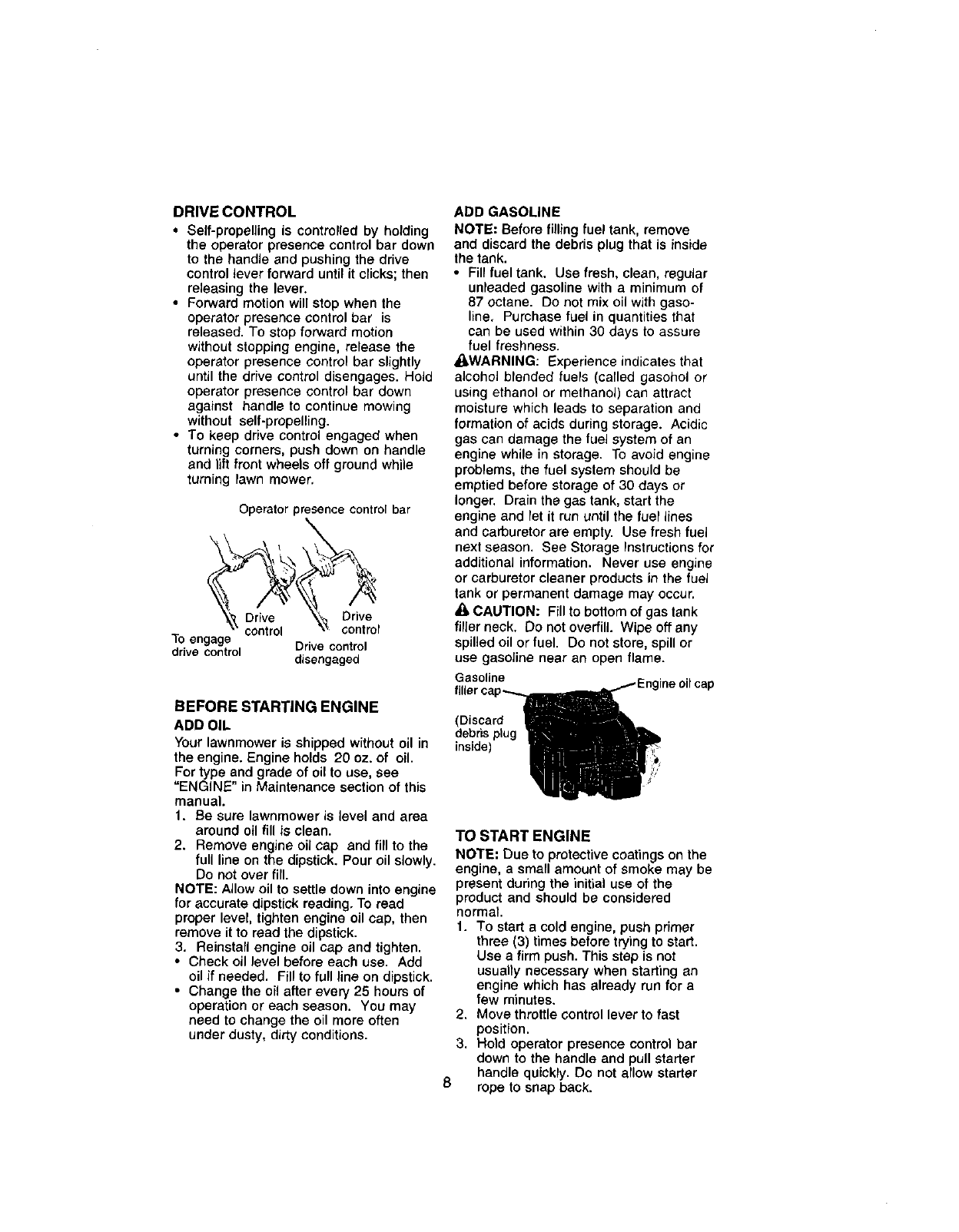

DRIVE CONTROL

•Self-prepelling is controlled by holding

the operator presence control bar down

to the handle and pushing the drive

control lever forward until it clicks; then

releasing the lever.

•Forward motion will stop when the

operator presence control bar is

released. To stop forward motion

without stopping engine, release the

operator presence control bar slightly

until the drive control disengages. Hold

operator presence control bar down

against handle to continue mowing

without self-propelling.

• To keep drive control engaged when

turning corners, push down on handle

and lift front wheels off ground while

turning lawn mower,

Operator presence control bar

_ Drive _ Drive

\'control _,_control

To engage

drive control Drive control

disengaged

BEFORE STARTING ENGINE

ADD OIL

Your lawnmower is shipped without oil in

the engine. Engine holds 20 oz. of oil.

For type and grade of oil to use, see

=ENGINE" in Maintenance section of this

manual.

1. Re sure lawnmower is level and area

around oil fill is clean.

2. Remove engine oil cap and fill to the

full line on the dipstick. Pour oil slowly.

Do not over fill.

NOTE: Allow oil to settle down into engine

for accurate dipstick reading, To read

proper level, tighten engine oil cap, then

remove it to read the dipstick.

3. Reinstall engine oil cap and tighten.

•Check oil level before each use. Add

oil if needed. Fill to full line on dipstick.

•Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

ADD GASOLINE

NOTE: Before filling fuel tank, remove

and discard the debds plug that is inside

the tank.

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. Do not mix oil with gaso-

line, Purchase fuel in quantities that

can be used within 30 days to assure

fuel freshness.

_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additionaJ information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_1, CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

Gasoline . •

filler cap._mi_L _lEnglne oilcap

(Discard II_i_L_

debrisplug

+del IrJ

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

1. To start a cold engine, push primer

three (3) times before trying to start.

Use afirm push. This step is not

usually necessary when starting an

engine which has already run for a

few minutes.

2. Move throttle control lever to fast

position.

3. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not arlow starter

rope to snap back.

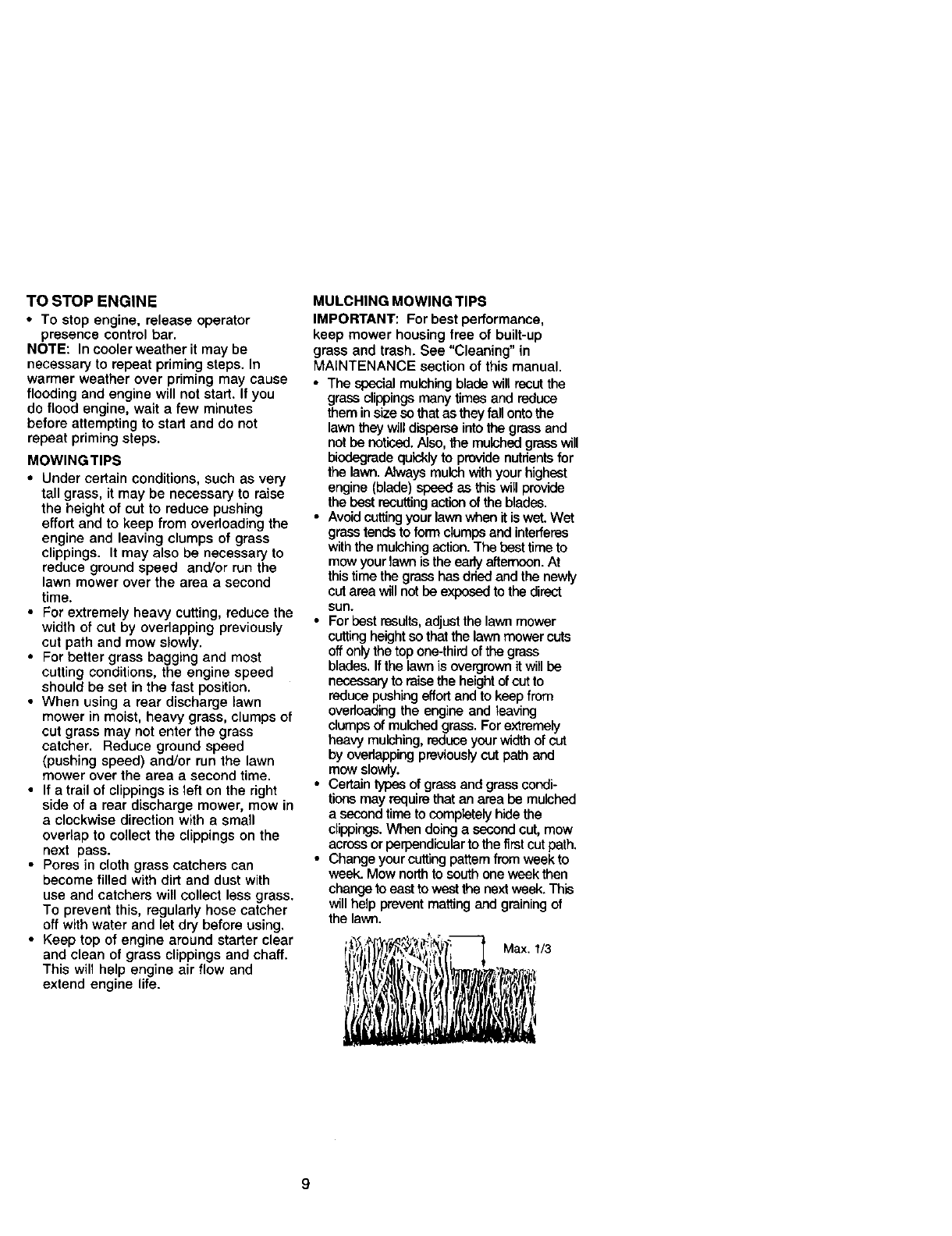

TO STOP ENGINE

• To stop engine, release operator

presence control bar.

NOTE: In cooler weather it may be

necessary to repeat pdming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat priming steps.

MOWINGTIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

• If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

ovedap to collect the clippings on the

next pass.

• Pores in cloth grass catchers can

become filled with dirt and dust with

use and catchers will collect less grass.

To prevent this, regularly hose catcher

off with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See "Cleaning" in

MAINTENANCE section of this manual,

• The special mulchingblade willreout the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass will

biodegrede qulcPJyto provide nutrients for

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best recuttingactionof the blades.

•Avoidcuttingyour lawn when it is wet. Wet

grasstends to form clumpsand interferes

withthe mulchingaction.The best time to

mow your lawn is the early afternoon.At

thistime the grass has dried and the newly

cutarea will not be exposed to the direct

sun.

•For best results,adjustthe lawn mower

cuttingheightsothat the lawnmower cuts

offonly the top one-thirdof the grass

blades. Ifthe lawn is overgrownit will be

necessaryto raise the heightofcut to

reduce pushingeffortand to keep from

overloadingthe engine and teaving

clumpsof mulchedgrass. Forextremely

heavy mulching,reduce your width of cut

by overlappingpreviouslycut path and

mow slowly.

• Certain types of grass and grass condi-

tions may require that an area be mulched

a second time to completely hide the

clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

• Change your cutting pattern from week to

week. Mow north to south one week then

change to east to west the next week. This

will help prevent matting and graining of

the lawn.

Max, 1/3

s¥oocoMP o

Check for Loose Fasteners _' I__

Clean/Inspect Grass Catcher

(If Equipped) _ Id#

MClean Lawn Mower y_

O Clean Under Ddve Cover(Power-Propelled Mowers)

Check ddve belt/ ulleys

RE (powe r-propeu le_IPMower s) IV#

Check/Shar pen/Replace Blade _

Lubrication Chart I/

Clean Battery/Rechar

IElectdc Stad Mowe_ e I/

ECheck Engine Oil Level I_

N Change Engine Oil fl/1.=

GClean Air Filter ii/=

I inspect Muffler ¥_

NClean or Replace Spark Plug ¥1

E Replace Air Filter Paper Cartridge IV#2

v',

I.change n'_0_e Of_ When op_rat L,_ iJr_er aheavy Ioa_d or In h_Jh arP_bient temperalures.

2Service more often when ope_tlng ifldidy or dusty _onddic_s

3 Replac_ b_adesmo_e olten when mowing In sandy SOil

4 - Charge 48 t_urs at end of season, LUBRICATION CHART

GENERAL RECOMMENDATIONS

The warranty on this tawn mower does

not cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

unit.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

•Once ayear, replace the spark plug,

cleaR or replace air filter element and

check blade for wear. A new spark

plug and clean/new air filter element

assures proper air-fuel mixture and

helps your engine run better and _ast

longer.

• FalSaw the maintenance schedule in

this manual

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRI-

CATION CHART").

_Wheel Adjustor

__)|

bracket

mounting pin

Rear door hinge

(_ Refer to maintenance "Engine" section,

(_ Spray lubricant

IMPORTANT: Do not oil or grease

plastic wheel bearings, viscous lubri-

cants will attract dust and dirt that will

shorten the life of the self-lubricating

bearings, ifyou feel they must be

lubricated, use only a dry, powdered

10graphite type lubricant sparingly.

PRODUCT SPECIFICATIONS

SERIAL NUMBER

DATE OF PURCHASE

GASOLINE CAPACITY/TYPE: 1.6 QUARTS

UNLEADED REGULAR

OILTYPE (API-SF-SJ): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPION RC12YC

BLADE BOLT TORQUE: 35-40 FT. LBS.

• The model and serial numbers will be found on a decal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER

Always ebsewe safety rules when

performing any maintenance,

TIRES

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

2. Turn lawn mower on its side. Make

sure air filter and carburetor are up.

3. Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

4. Remove blade bolt by turning counter-

clockwise.

5. Remove blade and attaching hard-

ware (bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade

adapter. The key must be in good condi-

tion to work properly. Replace adapter if

damaged.

TO REPLACE BLADE

1. Position the blade adapter on the

engine crankshaft. Be sure key in

adapter and crankshaft keyway are

aligned.

2. Position blade on the blade adapter

aligning the two (2) hotes in the blade

with the raised lugs on the adapter.

3. Be sure the trailing edge of blade

(opposite sharp edge) is up toward

the engine.

4. Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

5. Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

• The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause eventual damage to lawn mower

or engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, drive a nail

into a beam or walt. Leave about one

inch of the straight nail exposed. Place

center hole of blade over the head of

the nail. If blade is balanced, it should

remain in a horizontal position. If either

end of the blade moves downward,

sharpen the heavy end until the blade

is balanced.

Key_

Lockwasherr_

Hardened Tr

washer

Blade

adapter Crankshaft

keyway

mg Blade adapter

edge

GRASS CATCHER

•The grass catcher may be hosed with

water, but must be dry when used.

•Check your grass catcher often for

damage or deterioration. Through

normal use it will wear. If catcher

needs replacing, replace only with a

manufacturer approved replacement

catcher. Give the lawn mower model

number when ordering.

DRIVE WHEELS

Check front drive wheels each time

before you mow to be sure they move

freely.

The wheels not turning freely means

trash, grass cuttings, etc. are in the drive

wheel area and must be cleaned to free

drive wheels.

If necessary to clean the drive wheels,

check both front wheels.

1. Remove hubcaps, hairpin cotters and

washers.

2. Remove wheels from wheel adjusters.

3. Remove any trash or grass cuttings

from inside the dust cover, pinion and/

or drive wheel gear teeth.

4. Put wheels back in place.

NOTE: If after cleaning, the drive wheels

do not turn freely, contact your nearest

authorized service center.

GEAR CASE

•To keep your drive system working

properly, the gear case and area

around the drive should be kept clean

and free of trash build-up. Clean under

the drive cover twice a season.

• The gear case is filled with lubricant to

the proper level at the factory. The only

time the lubricant needs attention is if

service has been performed on the

gear case.

• If lubricant is required, use only Texaco

Starplex Premium 1 Grease, Part No.

750369. Do not substitute.

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°E Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one year.

Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil

level.

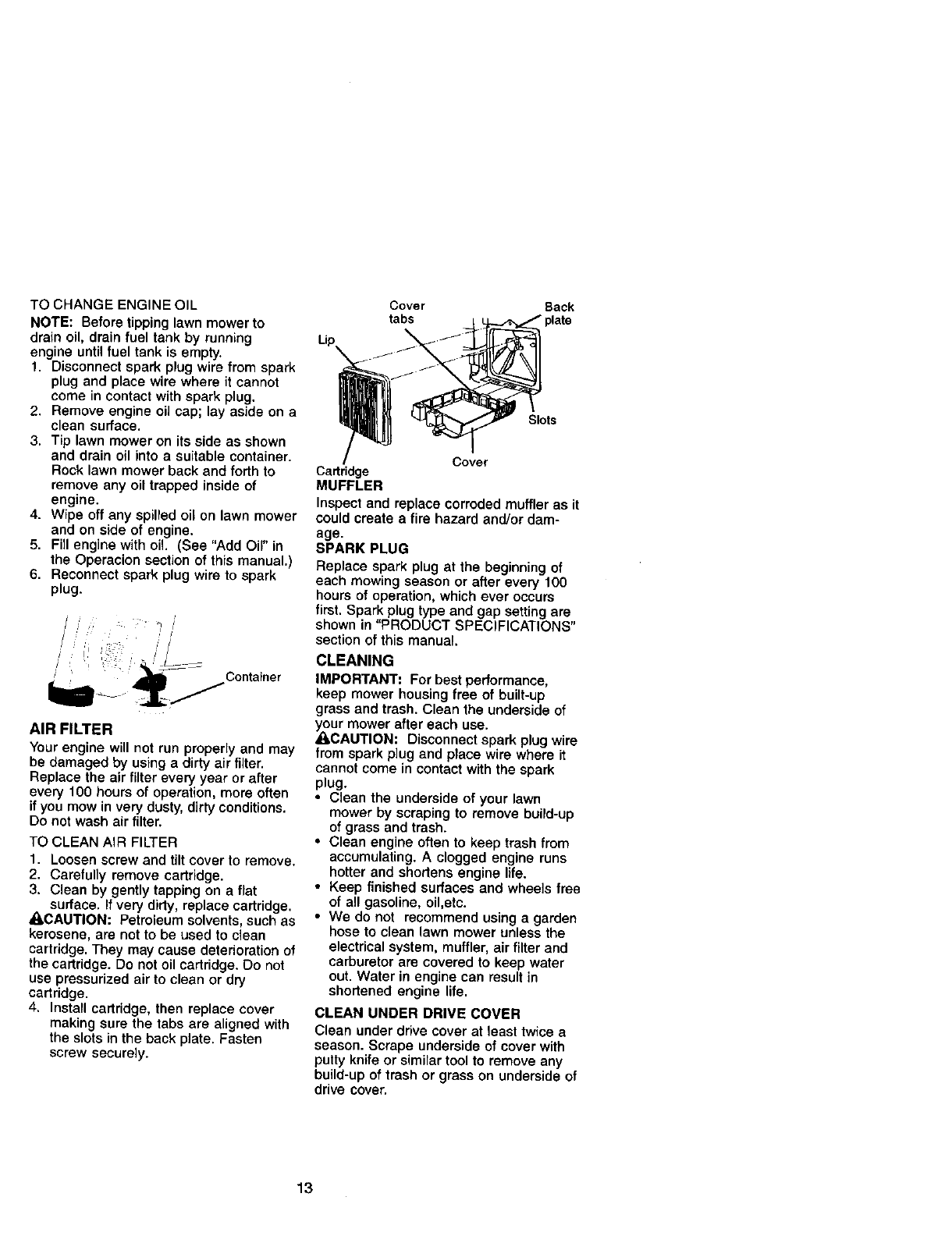

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to

drain oil, drain fuel tank by running

engine until fuel tank is empty.

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

2. Remove engine oil cap; lay aside on a

clean surface.

3. Tip lawn mower on its side as shown

and drain oil into a suitable container.

Rock lawn mower back and forth to

remove any oil trapped inside of

engine.

4. Wipe off any spilled oil on lawn mower

and on side of engine.

5. Fill engine with oil. (See "Add Oil" in

the Operacion section of this manual.)

6. Reconnect spark plug wire to spark

plug.

Container

AIR FILTER

Your engine will not run properly and may

be damaged by using a dirty air filter.

Replace the air filter every year or after

every 100 hours of operation, more often

if you mow in very dusty, dirty conditions.

Do not wash air filter.

TO CLEAN AIR FILTER

1. Loosen screw and tilt cover to remove.

2. Carefully remove cartridge.

3. Clean by gently tapping on a flat

surface. If very dirty, replace cartridge.

ACAUTION: Petroleum solvents, such as

kerosene, are not to be used to clean

cartridge. They may cause deterioration of

the cartridge. Do not oil cartridge. Do not

use pressurized air to clean or dry

cartridge.

4. Install cartridge, then replace cover

making sure the tabs are aligned with

the slots in the back plate. Fasten

screw securely.

Cover Back

tabs _L_..,_ plate

/Cover

Cartridge

MUFFLER

Inspect and replace corroded muffler as it

could create a fire hazard and/or dam-

age.

SPARK PLUG

Replace spark plug at the beginning of

each mowing season or after every 100

hours of operation, which ever occurs

first, Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual,

CLEANING

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean the underside of

your mower after each use.

_,CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

•Clean the underside of your lawn

mower by scraping to remove build-up

of grass and trash.

•Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shorfens engine life.

• Keep finished surfaces and wheels free

of all gasoline, oil,etc.

• We do not recommend using a garden

hose to clean lawn mower unless the

electrical system, muffler, air filter and

carburetor are covered to keep water

out. Water in engine can result in

shortened engine life.

CLEAN UNDER DRIVE COVER

Clean under drive cover at least twice a

season. Scrape underside of cover with

putty knife or similar tool to remove any

build-up of trash or grass on underside of

drive cover.

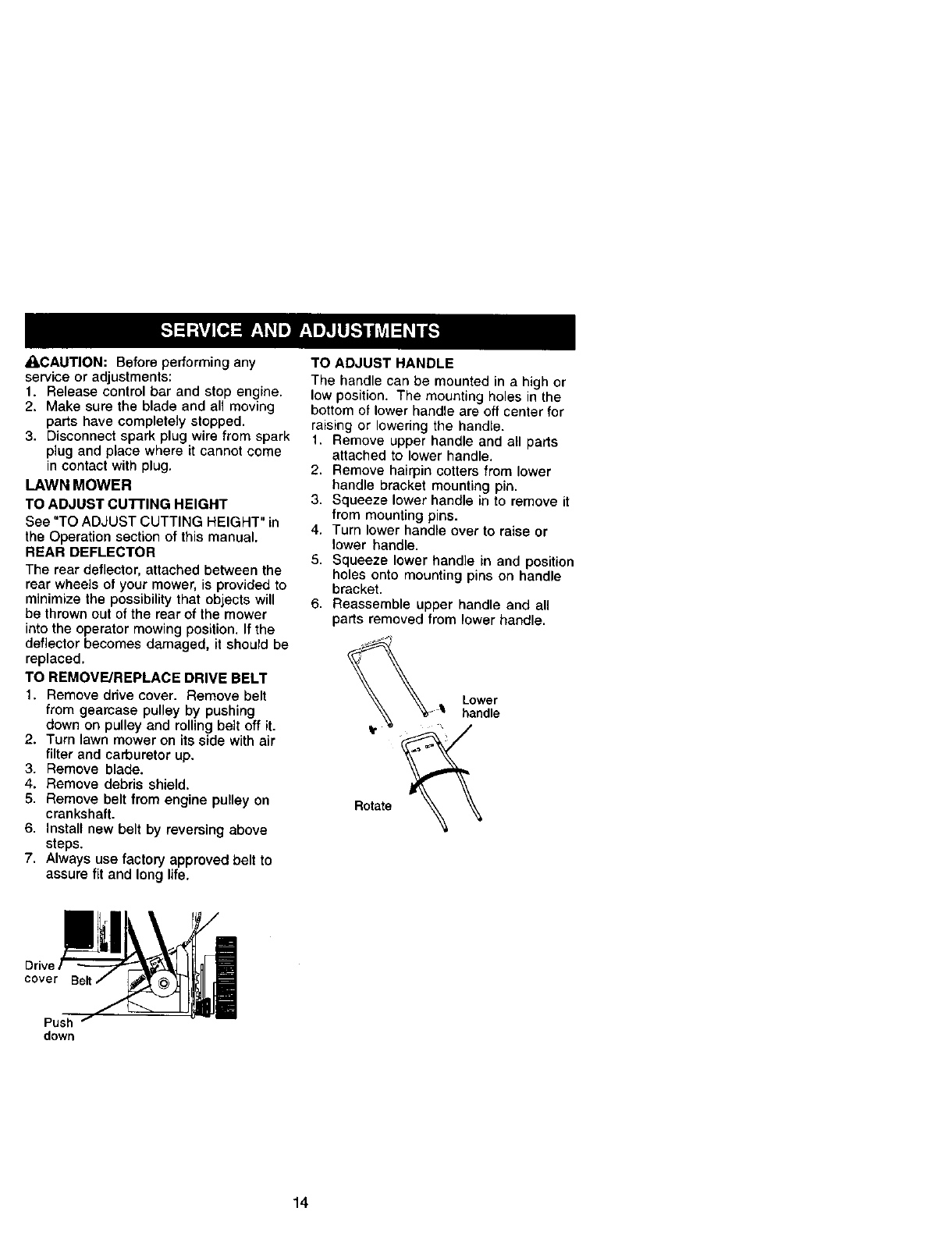

_,CAUTION: Before performing any

service or adjustments:

1. Release control bar and stop engine.

2. Make sure the blade and all moving

parts have completely stopped.

3. Disconnect spark plug wire from spark

plug and place where it cannot come

in contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your mower, is provided to

minimize the possibility that objects will

be thrown out of the rear of the mower

into the operator mowing position. If the

deflector becomes damaged, it should be

replaced.

TO REMOVE/REPLACE DRIVE BELT

1. Remove drive cover. Remove belt

from gearcase pulley by pushing

down on pulley and rolling belt off it.

2. Turn lawn mower on its side with air

filter and carburetor up.

3. Remove blade.

4. Remove debris shield.

5. Remove belt from engine pulley on

crankshaft.

6. Install new belt by reversing above

steps.

7. Always use factory approved belt to

assure fit and long life.

TO ADJUST HANDLE

The handle can be mounted in ahigh or

low position. The mounting holes in the

bottom of lower handle are off center for

raising or lowering the handle.

1. Remove upper handle and all parts

attached to lower handle.

2. Remove hairpin cotters from lower

handle bracket mounting pin.

3. Squeeze lower handle in to remove it

from mounting pins.

4. Turn lower handle over to raise or

lower handle.

5. Squeeze lower handle in and position

holes onto mounting pins on handle

bracket.

6. Reassemble upper handle and all

parts removed from lower handle.

Lower

handle

Rotate

cover

Push

down

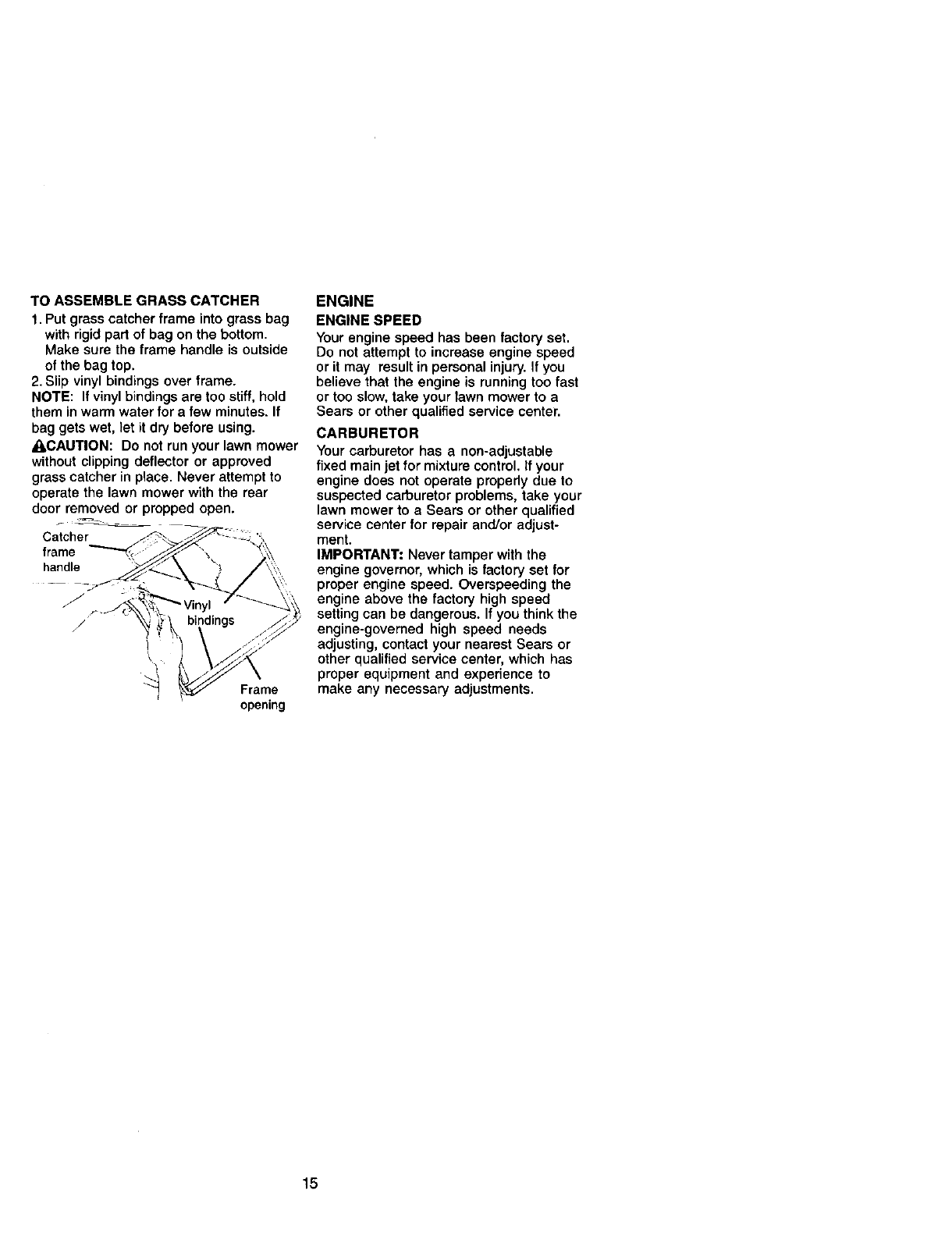

TO ASSEMBLE GRASS CATCHER

1. Put grass catcher frame into grass bag

with rigid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

2. Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for afew minutes. If

bag gets wet, let it dry before using.

ACAUTION: Do not run your lawn mower

without clipping deflector or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

handle '_J \ "_ /

_) Frame

opening

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that the engine is running too fast

or too slow, take your fawn mower to a

Sears or other qualified service center.

CARBURETOR

Your carburetor has a non-adjustable

fixed main jet for mixture control. If your

engine does not operate propedy due to

suspected carburetor problems, take your

lawn mower to aSears or other qualified

service center for repair and/or adjust-

ment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest Sears or

other qualified service center, which has

proper equipment and experience to

make any necessary adjustments.

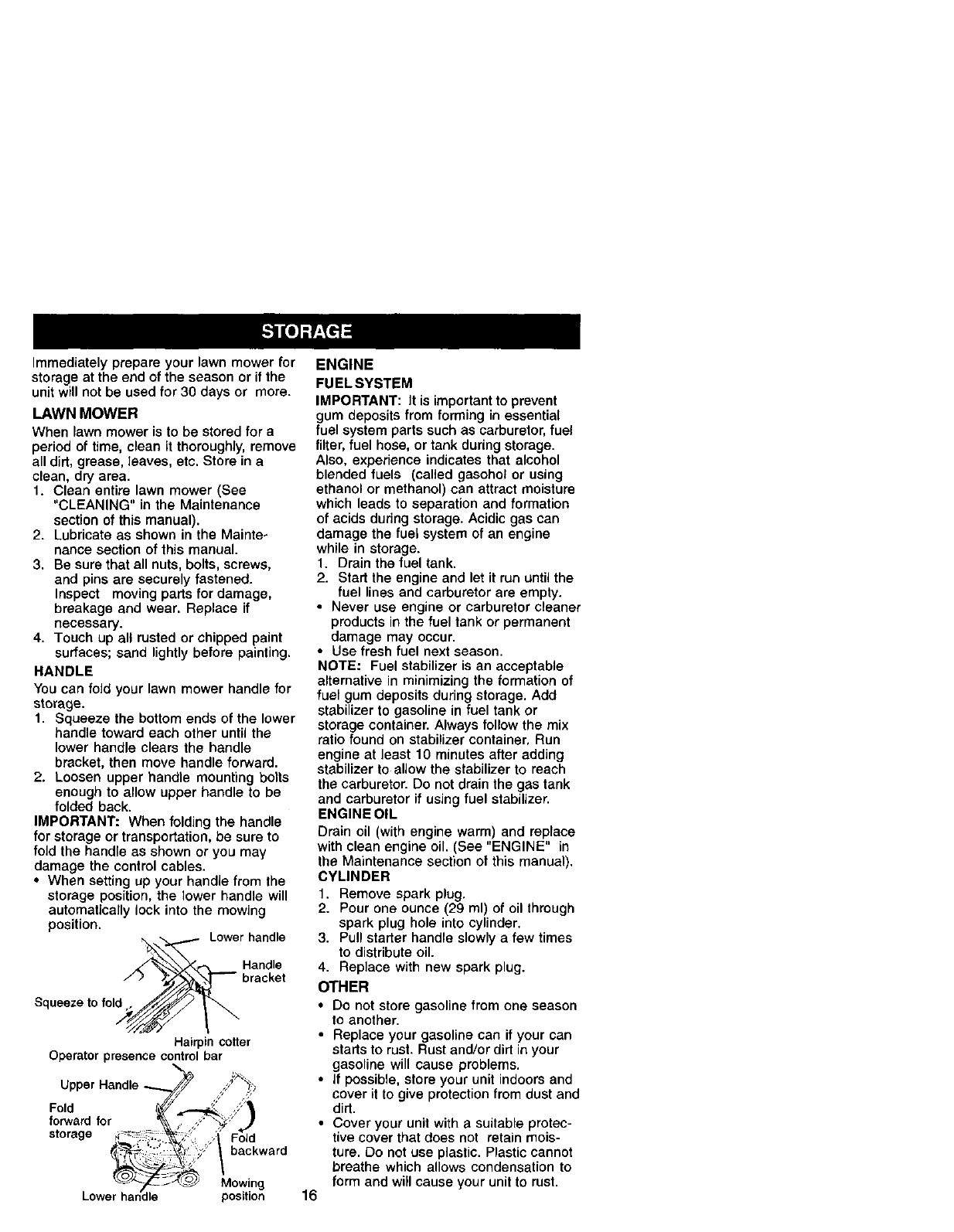

immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thoroughly, remove

all did, grease, leaves, eto. Store in a

clean, dry area.

1. Clean entire lawn mower (See

"CLEANING" in the Maintenance

section of this manual).

2. Lubricate as shown in the Mainte-

nance section of this manual.

3. Be sure that all nuts, bolts, screws,

and pins are securely fastened.

Inspect moving parts for damage,

breakage and wear. Replace if

necessary.

4. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

You can fold your lawn mower handle for

storage.

1. Squeeze the bottom ends of the lower

handle toward each other until the

lower handle clears the handle

bracket, then move handle forward.

2. Loosen upper handle mounting bolts

enough to allow upper handle to be

folded back.

IMPORTANT: When folding the handle

for storage or transportation, be sure to

fold the handle as shown or you may

damage the control cables.

•When setting up your handle from the

storage position, the lower handle will

automatically lock into the mowing

position. Lower handle

Squeeze to fold

Handle

bracket

Hairpin cotter

Operator presence control bar

Upper Handle ,;' U

Fold

forward for

storage Fo_d

backward

Mowing

Lower position

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container, Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER

t. Remove spark plug.

2. Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

3. Pull starter handle slowly a few times

to distribute oil.

4. Replace with new spark plug.

OTHER

• Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•if possible, store your unit indoors and

cover it to give protection from dust and

dirt.

•Cover your unit with a suitable protec-

tive cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your unit to rust.

IMPORTANT:Nevercovermowerwhile

engone and exhaust areas are still warm.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Does not start 1. Dirty air filter.

2. Out of fuel.

3. Stale fuel.

Loss of power

Poorcut-

uneven

4. Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken

blade adapter.

8. Control bar in released

position.

9. Control bar defective.

1. Rear of lawn mower

housing or cutting blade

dragging in heavy grass.

2. Cutting too much grass.

3. Dirty air filter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walking speed too fast.

1. Worn, bent or loose blade.

2. Wheel heights uneven.

3. Buildup of grass, leaves

and trash under mower.

1. Worn, bent or loose blade.

2. Bent engine crankshaft.

Engine flywheel brake is on

when control bar is released.

Bent engine crankshaft.

Blade adapter broken.

Blade dragging in grass.

CAUTiON:Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

CORRECTION

1. Clean/replace air filter.

2. Fill fuel tank.

3. Drain tank and refill with

fresh clean fuel.

4. Drain fuel tank and

carburetor and refill tank

with fresh gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. Tighten blade bolt or

reprace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

1, Set to "Higher Cut"

position.

2. Set to "Higher Cut"

position.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking

speed.

1. Replace blade. Tighten

blade bolt.

2. Set all wheels at same

height

3. Clean underside of

mower housing.

Excessive 1. Replace blade. Tighten

vibration blade bolt.

2. Contact an a Sears or other

qualified service center.

Starter rope hard 1.

to pull

1. Depress control bar to

upper handle before

pulling starter rope.

2. Contact a Sears or other

qualified service center.

3. Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Loss of drive 1, Drive wheels not turning 1, Adjust or replace drive

with drive control engaged, control cable,

2, Belt not driving 2. Put belt on pulleys or

replace belts if broken,

Grass catcher 1, Cutting height too low. 1. Raise cutting height.

notfilling(ifso 2, Lift on blade worn off. 2. Replace blade.

equipped) 3. Catcher not venting air. 3. Clean grass catcher,

Hard to push 1, Raise cutting height.1. Grass is too high or wheel

height is too low.

2. Rear of lawn mower

housing or blade dragging

in grass.

3. Grass catcher too full.

4. Handle height position not

right for you.

2. Raise rear of lawn mower

housing one (1) setting

higher.

3. Empty grass catcher.

4. Adjust handle height to

suit.

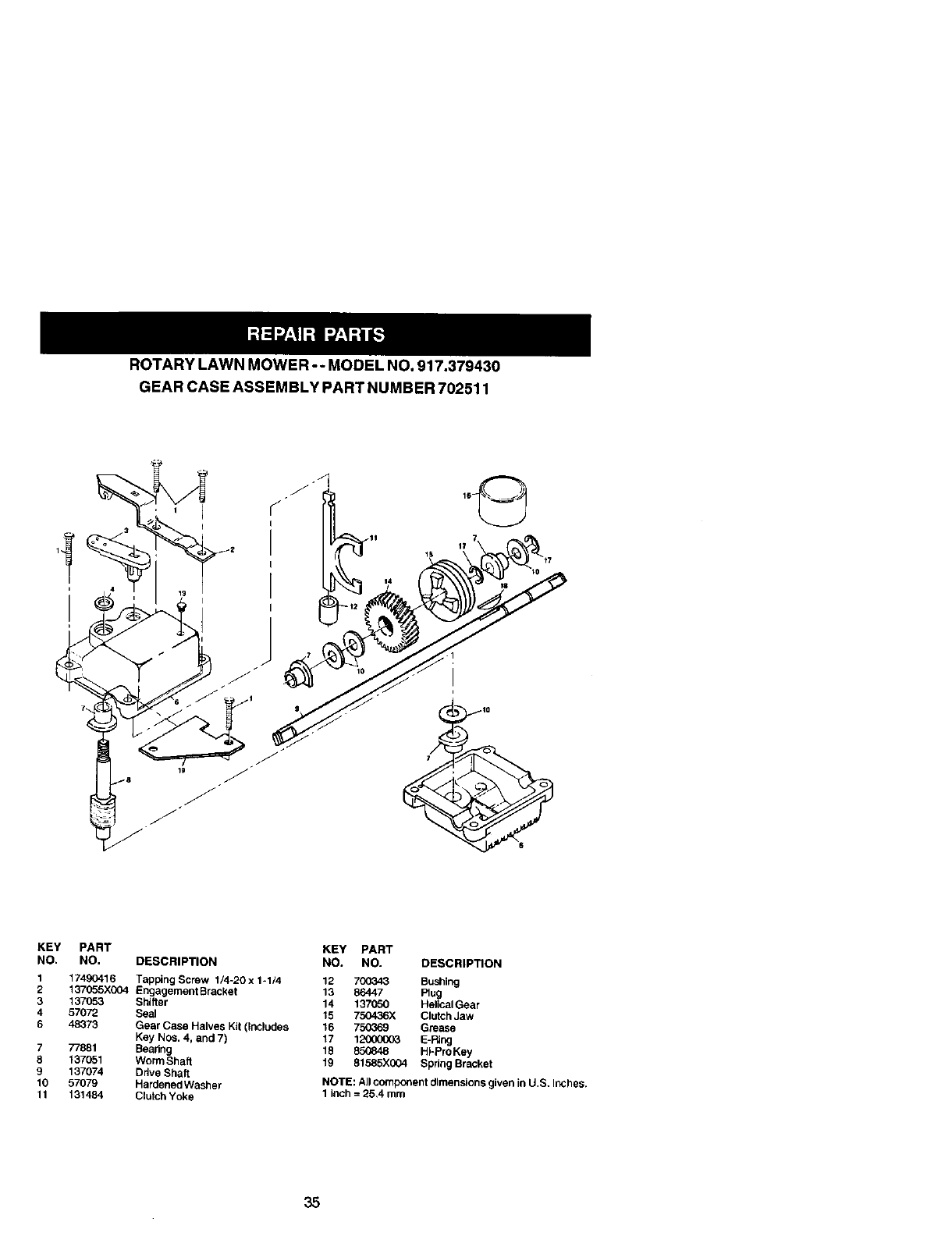

ROTARYLAWNMOWER-- MODEL NO. 917.379430

GEAR CASE ASSEMBLY PART NUMBER 702511

KEY PART

NO.

NO. DESCRIPTION

17490416 Tapping Screw I/4-20 x 1-1/4

137055X004 Engagement Bracket

137053 Shifter

57072 Seal

48373 Gear Case Halves Kit (Includes

Key NOS. 4, and 7)

77881 Beadng

137051 Worm Shaft

137074 Ddve Shaft

57079 HardenedWasher

131484 Clutch Yoke

KEY PART

NO, NO. DESCRIPTION

12 700343 Bushing

13 86447 Plug

14 137050 Helical Gear

15 750436X Clutch Jaw

16 750069 Grease

17 12000003 E-Ring

18 850848 HFProKey

19 81585X004 Spring Bracket

NOTE: All component dimensions given in U.S. Inches.

1inch =25.4 mm

ROTARYLAWNMOWERMODELNUMBER917.379430

lO_

27 30

22 3O

31 -'

41 "50

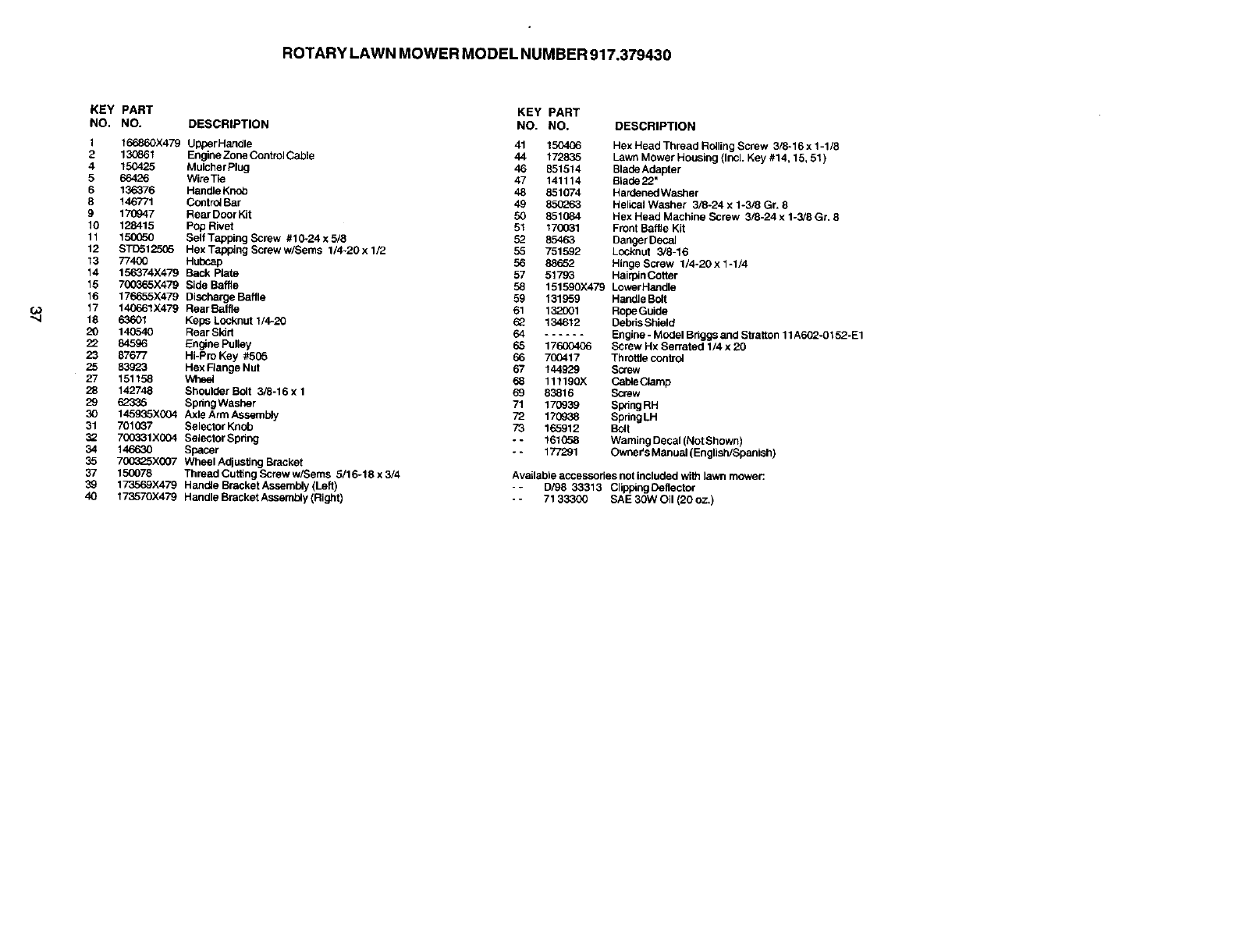

ROTARY LAWN MOWER MODEL NUMBER 917.379430

KEY PART

NO. NO.

1 166860X479

2 130861

4150425

5 66426

6 136376

5 146771

9 170947

10 128415

11 15(7350

12 STD512.505

13 77400

14 156374X479

15 700_65X479

16 176655X479

1"/ 140661 X479

18 63601

20 140540

22 84596

23 87677

25 83923

27 151158

28 142748

29 62335

30 145935X004

31 7010_37

:3_ 70033IX(X}4

34 146630

35 70(_25X007

37 150078

39 173569X479

40 173570X479

DESCRIPTION

Upper Handle

Engine Zone Control Cable

Mulcher Plug

WireTle

Handle Knob

Control Bar

Rear Door Kit

Pop Rivet

Self Tapping Screw #10-24 x 5/8

Hex Tapping Screw w/$ems 1/4-20 x 1/2

Hubcap

_mk P_te

Side Baffle

Dlecharge Baffle

Rear Ba_e

Keps Locknut 1/4-20

Rear Skid

En_ne puttey

Hi-Pro Key #505

Hex Range Nut

Whe_

Shoulder Bolt 3/8-16 x 1

Spdng washer

Axle Arm Assembly

Selector Knob

Selector Spring

Spacer

Wheel Adjus_ng Bracket

Thread Cuffing Screw w/Seres 5/16-1 g x 3/4

Handle Bracket Assembly (Left)

Handle Bracket Assembly (Right)

KEY PART

NO. NO, DESCRIPTION

41 150406 Hex t-_eadThread Rc4Ling Screw 3/B-16 _(1-1/_

44 172835 Lawn Mower Housing (Incl. Key #14,15, 51 )

46 851514 Blade Adepter

47 141114 B,_ade22"

48 851074 Hardened Washer

49 850263 Helleal Washer 3/8-24 x 1-3/8 Gr. 8

50 851084 Rex Head Machthe Screw 3/8-24 x 1-3JBGr, B

51 1700_1 Front Baffle Kit

52 85463 Danger Decal

55 751592 Locknut 3/8-16

56 88652 Hinge Screw 1/4-20 x 1-1/4

57 5179_ Hairpin Cotter

58 151590X479 Lower Handle

59 131959 Handle Boft

61 132001 RopaGuide

62 134612 Debds Shield

64 ...... Engine. ModelBriggsandStratton11A602-O152-E1

65 17600406 Screw Hx Serrated 1/4 x 20

66 700417 Throtde contro_

67 144929 Screw

68 111190X P-_*_bleCtar¢_

69 83816 Screw

71 170939 Swing RH

72 170938 SpringLH

73 165912 Bolt

- - 161058 Warning Decal (Not Shown)

- - 177291 Ownef sManual (English/$panist_)

Available accessories not included with lawn mower:

-- D/98 33313 ClippthgDehector

--71 33300 SAE 30W Oil (20 oz,)

ROTARY LAWN MOWER MODEL NU MBER 917.379430

-31

14 16

/,8

ROTARY LAWN MOWER MODEL NUMBER 917.379430

KEY

NO.

PART

NO.

145755

751152

158755

146527

150495

774O0

145212

151156

12O00058

137054

88O8O

88118

67725

701037

DESCRIPTION

Control Cable Assembly

Locknut #10-24

pan Head Machine Screw 1/4 x 2.12

V-Belt

Spring Retainer

Hubcap

Flanged Nut

Wheel &Tire Assembly

E-Ring

Firdon

Dust Cover

Felt Washer

Washer 1/2 x 1-1/2 x.134

Selector Knob

KEY PART

NO. NO. DESCRIPTION

26 143603

28 154990

31 132010

137052

35 151521

36 702511

37 137090

38 63601

40 75192

41 151520

54 169932

55 86012

57 169931

Pan Head Tapping Screw #1 0-24 x 2-3/4

Dnve Cover

Hex Flange Nut

Drive Pulley

Wheel Adjuster Assembly (Left)

Gear Case Assembly

spm_

Nut

Spring

Wheel Adjuster Assembly (Right)

Grassbag Assembly

Driveshaft Cover

FraTe

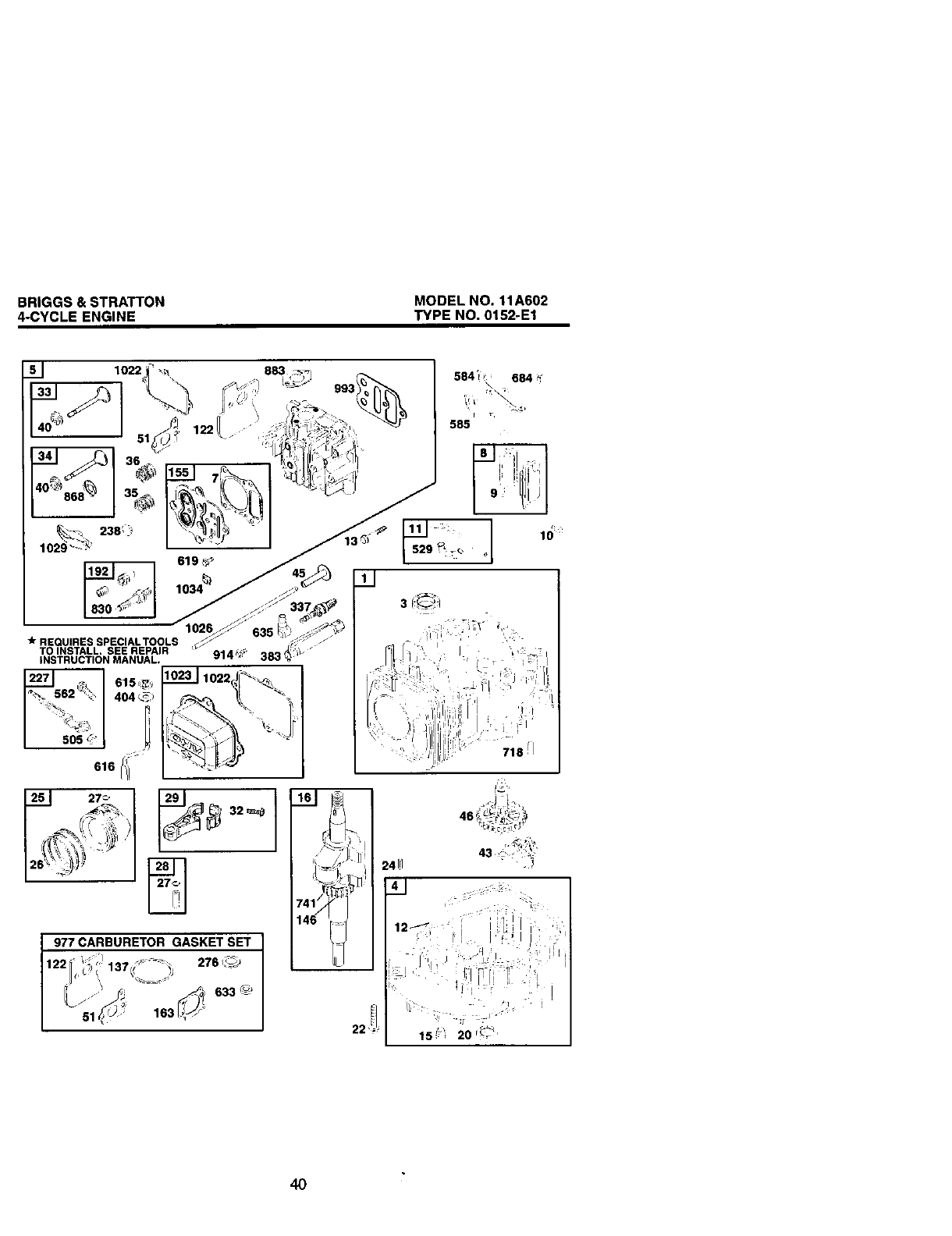

BRIGGS & STRATTON

4-CYCLE ENGINE MODEL NO. 11A602

TYPE NO. 0152-E1

"kREQUIRESSPECIALTOOLS

TO INSTALL.SEE REPAIR

INSTRUCTIONMANUAL.

227 615

_562 404 c

616

993

977 CARBURETOR GASKET SET

._ _=== 633_2_

t51_ le3i,_,__.,

se4_ s84_

'i___'_"_

585

16;

529 _ :_,

24/[]

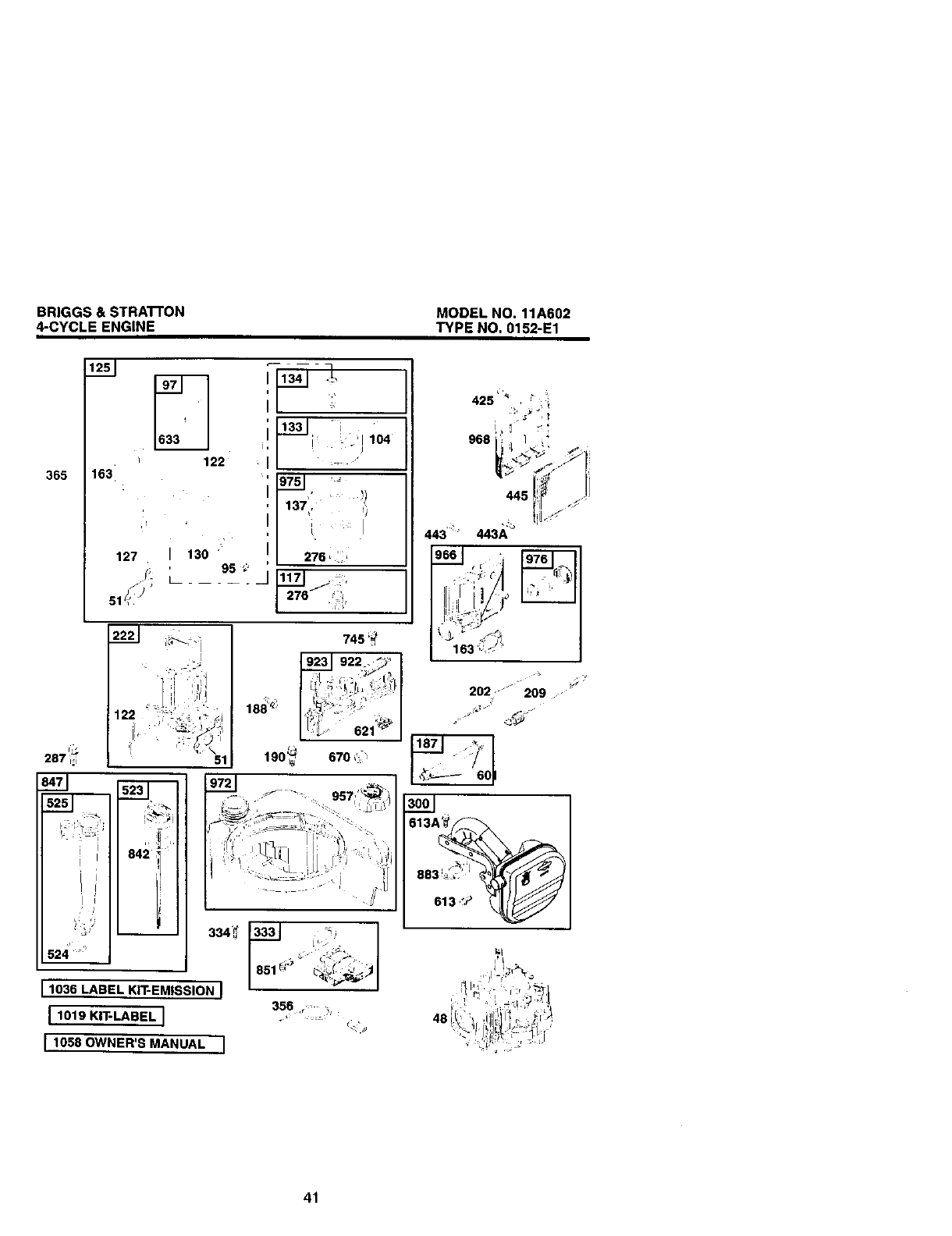

BRIGGS & STRA'I-FON

4-CYCLE ENGINE MODEL NO. 11A602

TYPE NO. 0152-E1

365 163

127

122

i130 '

95 _:_

L_ ......

331 _i

!¸ _ 'J 104

9751 _

276_

276 _'-_

; I

I 842

I i

L:|

r ,

524 :

I 1036 LABEL KIT-EMISSION I

11Ol,K'T-_BELI

I 1058 OWNER'S MANUAL I

745 _

922 ._

51 190 _(_ 670 _:

425' '_ ,_

968

202-_ 209

613A_

883

o13.

BRIGGS & STRATTON

4-CYCLE ENGINE MODEL NO. 11A602

TYPE NO. 0152-E1

1211

305_,

/•

I •

21 CARBURETOR OVERHAUL KIT

633 _104' _, 276 __

127 _i, _

'134_1 163 '_) !

358 ENGINE GASKET SET

868%

20 t_

163

'1095 VALVE GASKET SET

,_J 993_ 122!i_ii i7:'_ i\i_, 163 _'_ _,,

BRIGGS & STRATTON

4-CYCLE ENGINE

MODEL NO. 11A602

TYPE NO, 0152-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1692670 Cylinder Assembly 146 690979 Key-Timing

3 299819 • Seal-Oil (Magneto Side) 155 695882 Plate-Cylinder Head

4 499619 Sump-Engine 163 692667 ,,_l_:+Gasket-Air Cleaner

5 695276 Head-Cylinder 167 691050 Line-Fuel (Cut to Required

7 695166 ,+ Gasket-Cylinder Head Length)

8495786 Breather Assembly 188 693168 Screw (Control Bracket)

9 272481 • Gasket-Breather 192 694543 Adjuster-Rocker Arm

10 691125 Screw (Breather Assembly) 190 690940 Screw (Fuel Tank)

11 499678 Tube-Breather 202 691303 Link-Mechanical Governor

12 692232 * Gasket-Crankcase 209 691851 Spring-Governor

13 691137 Screw Cylinder Head) 222 692672 Bracket-Control

15 691680 Plug-Oi Dran 227 691467 Control Lever-Goverr_or

16 692676 Crankshaft 238 691300 Cap-Valve

20 399781 •Seal-Oil PTO Side) 276 271716 (3_Sealing Washer

22 691092 Screw (Engine Sump 287 690940 Screw (DipalickTube)

23 692452 Flywheel 300 693982 Muffler

24 222696 Key- Ftywheal 304 499677 Housin_B]ower

25 499429 Piston Assembly (Standard) 305 690960 Screw _.lower Housing)

499430 Piston Assembly (.010 O.S,) 332 690662 Nut (Flywheel)

499431 pfston Assembly (.020 O.S.) 333 802574 Armature-Magneto

499432 Piston Assembly (.030 O.S.) 334 691061 Screw (Armature Magneto)

26 499425 Ring Set-Piston (Standard) 337 692051 Spark Plug

499426 Ring Set-Piston (.010 O.S.) 356 692390 Wire-Stop

499427 Ring Set-Piston (.020 O.S.) 358 694090 Engine Gasket Set

Ring Set-Piston (.030 O.S.

499428 363 19069 Flywheel Puller)

27 691866 Lank-Piston Pin 365 691136 Screw (Carburetor)

28 499423 Pin-Piston 383 19374 Wrench-Spark Plug

29 692671 Rod-ConnectLng 404 690272 Washer (Governor Crank)

32 691664 Screw (Connecting Rod) 425 690670 Screw (Air Cleaner Cover)

33 499642 Valve-Exhaust 443 691637 Screw (Air Cleaner Primer

34 499641 Valve-Intake Base)

35 691304 Spring-Valve (Intake) 443A 692523 Screw (Air Cleaner Primer

36 691304 Spring-Valve (Exhaust) Base)

37 694086 Guard-Flywheel 445 491588 Filter-Air Cleaner Cattbdge

40 692194 Retainer-Valve 455 691219 Cup-Flywheel

43 691997 Stinger-Governor/Oil 456 692299 Plate-Pawl Friction

45 690977 Tappet-Valve 459 281505 Pawl-Ratchet

46 694039 Camshaft 505 231082 Nut (Governor Control Lever)

48 692745 Short Block (Replacement 523 495264 Oipstk_k

Engine 121602-0015-E1) 524 692296 °Seal-Dipstick Tube

51 692668 °G:_:+Gasket-lntake 525 495265 Tube-Dipstick

55 691421 Housing-Rewind Starter 529 692937 Grommet

58 692259 Rope-Starter (Cut to 562 94652 Bolt (Governor Control Lever)

Required Length) 564 693808 Screw (Control Cover)

60 281434 Grip-Starter Rope 584 692342 Cover-Breather Passage

65 690837 Screw (Rewind Starter) 585 691879 •Gasket-Breather Passage

76 691108 Screw (F_ywheel Guard) 592 690800 Nut (Rewind Starter)

95 691636 Screw (Throttle Valve) 597 691696 Screw (Pawl Friction Plate)

97 499682 Shaft-Throt6e 601 95162 Clamp-Hose

104 691242 (3 Pin-Float Hinge 604 692669 Cover-Control

117 498978 Jet-Main (Standard) 608 497680 Starter-Rewind

498975 Jet-Main High Altitude) 613691108 Screw (Muffler)

121 692703 Kt-Carburetor Overhau 613A 691140 Screw ()Muffler

125122694202692799°(3CCarburetor+Spacer-Carburet°r 615 690340 Retainer-Governor Shaft

127 694468 (3 Plug-Welch Included in Engine Gasket Set, Key. No.

136 691203 Valve-Thro01e 358

133 398187 F_oat-Carburetor (3 Included in Carburetor Overbaul Kit, Key.

134 398188 O Valve-Needle/Seat No. 121

137 693981 (31:Gasket-Float Bowl :_ Included in Carburetor Gasket Set, Key

NO. 977

+ Included in Valve Gasket Set, Key. No.

1095

NOTE= All component dimensions given in U.S.

inches 1 inch = 25.4 mm

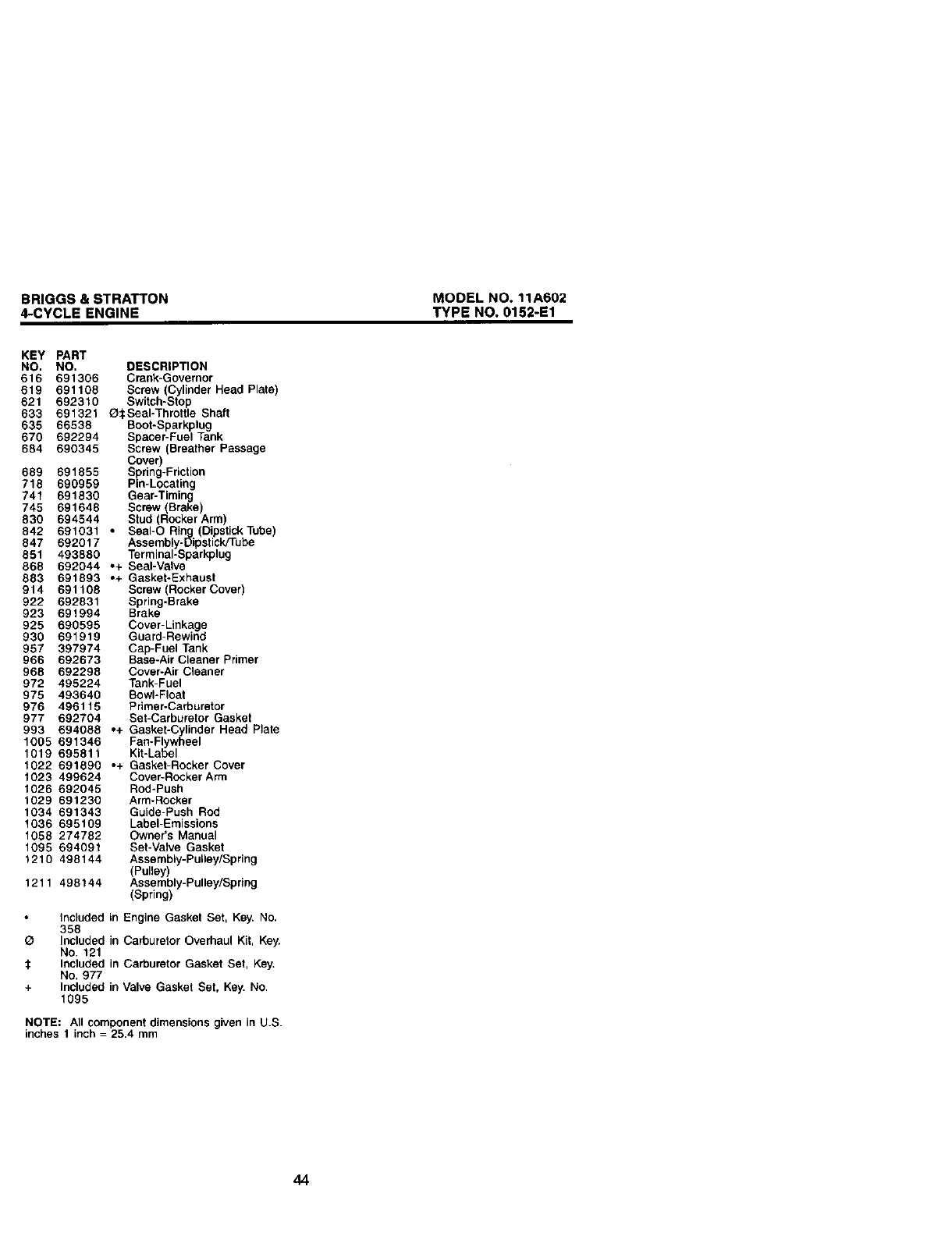

BRIGGS & STRATTON

4-CYCLE ENGINE MODEL NO. 11A602

TYPE NO. 0152-E1

KEY PART

NO. NO. DESCRIPTION

616 691306 Crank-Governor

619 691108 Screw (Cylinder Head Plate)

621 692310 Switch-Stop

633 691321 Q:i:SeaI-Throttle Shaft

635 66538 Boot-Sparkplug

670 692294 Spacer-Fuel Tank

684 690345 Screw (Breather Passage

Cover)

689 691855 Spring-Friction

718 690959 Pin-Locating

741 691830 Gear-Timing

745 691648 Screw Brake)

830 694544 Stud Rocker Arm

842 691031 • SeaI-O Ring (Dipstick Tube)

847 692017 Assembly-Dipstick/Tube

851 493880 TerminaI-Sparkplug

868 692044 ,+ Seal-Valve

883 691893 ,+ Gasket-Exhaust

914 691108 Screw (Rocker Cover)

922 692831 Spring-Brake

923 691994 Breke

925 690595 Cover-Linkage

930 691919 Guard-Rewind

957 397974 Cap-Fuel Tank

966 692673 Base-Air Cleaner Primer

968 692298 Cover-Air Cleaner

972 495224 Tank-Fuel

975 493640 Bowl-Float

976 496115 Primer-Carburetor

977 692704 Set-Carburetor Gasket

993 694088 ,+ Gasket-Cylinder Head Plate

1005 691346 Fan-Flywheel

1019 695811 Kit-Label

1022 691890 ,+ Gasket-Rocker Cover

1023 499624 Cover-Rocker Arm

1026 692045 Rod-Push

1029 691230 Arm-Rocker

1034 691343 Guide-Push Rod

1036 695109 Label-Emissions

1058 274782 Owner's Manual

1095 694091 Set-Valve Gasket

1210 498144 Assembly-Pulley/Spring

(Pulley)

1211 498144 Assembly-Pulley/Spring

(Spring)

included in Engine Gasket Set, Key. No.

358

OIncluded in Carburetor Overhaul Kit, Key.

No. 121

:_ Included in Carburetor Gasket Set, Key.

No. 977

+ Included in Valve Gasket Set. Key. NO.

1095

NOTE: All component dimensions given in U.S.

inches 1inch = 25.4 mm

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME s. Anytime, day or night

(1-800-.4694663)

www.sears.com

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectSM!

1-800-366-PART 6am-11p.m.csm.

(1-800-366-7278) 7 days a week

www.sears.conVpartsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m.- 5 p.m. CST, Mon. - Sat.

Para pedir servicio de reparaci6n a domJciflo,

ypara ordenar piezas con entrega a domicilio:

1-888-SU-HOGAR s.

(1-888-784-6427)

Au Canada pour serviceen franqais:

1-877-LE-FOYER _

(1-877-533-6937)

SEARS ]

HomeCentral®

®RegisteredTrademark /TMTrademark of Sears, Roebuckand Co.

®Mama Registrada /TMMarca de F&bricade Sears, Roebuckand Co,

177291 12.14.00 TR Printed in U.S.A.

Craftsman 917379430 User Manual 22 LAWN MOWER Manuals And Guides L0101245

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0101245 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
