Owner's Manual
6.0 HORSEPOWER
22" REAR DISCHARGE
POWER PROPELLED
ROTARY LAWN MOWER
Model No.
917.379440
•Safety
•Assembly
•Operation
•Maintenance
•Espa_ol
•Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co,, Hoffman Estates, IL 60179
Visit our Craftsman web stte:www.sea rs.c om/craflsma n

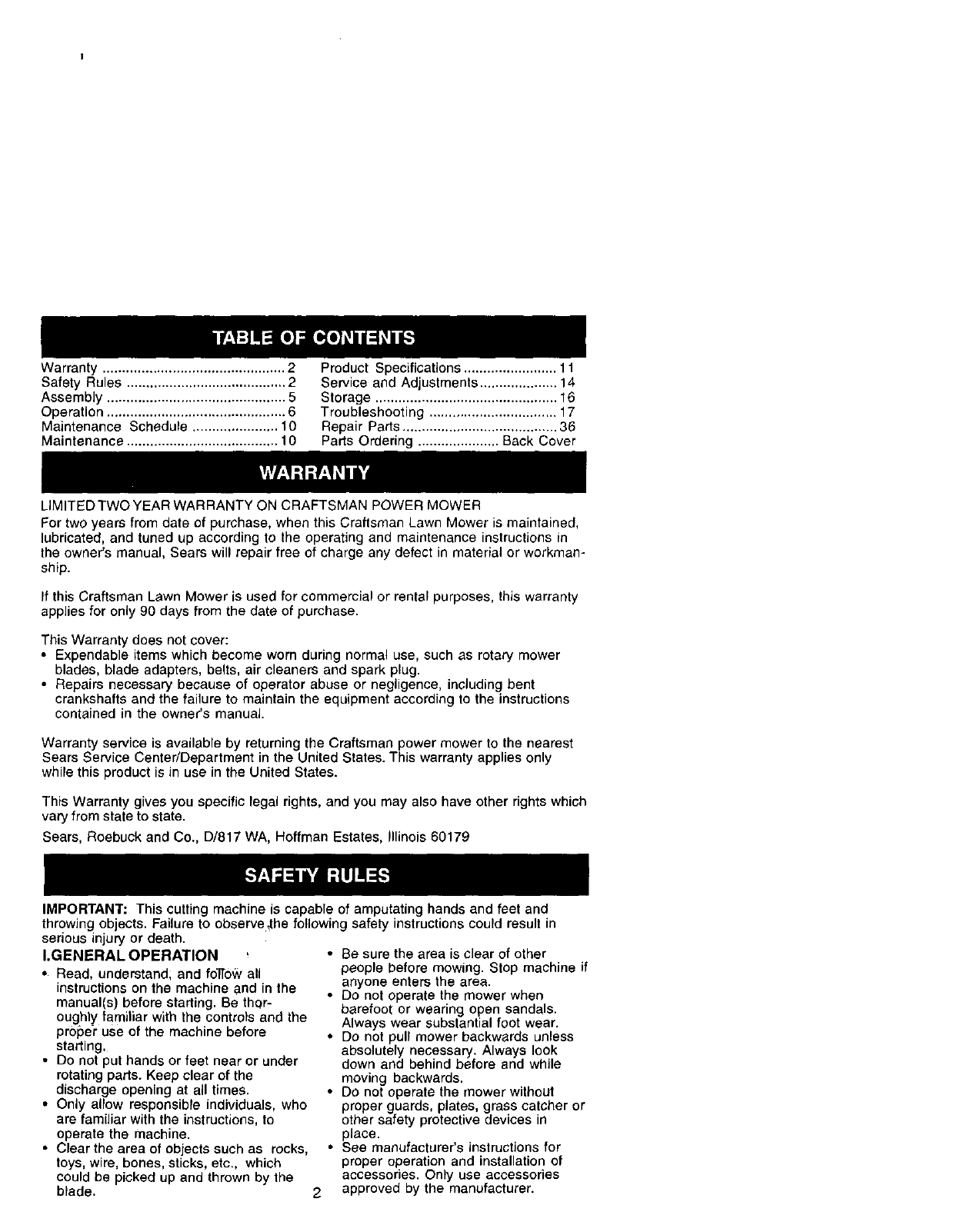

Warranty ............................................... 2
Safety Rules ......................................... 2
Assembly .............................................. 5

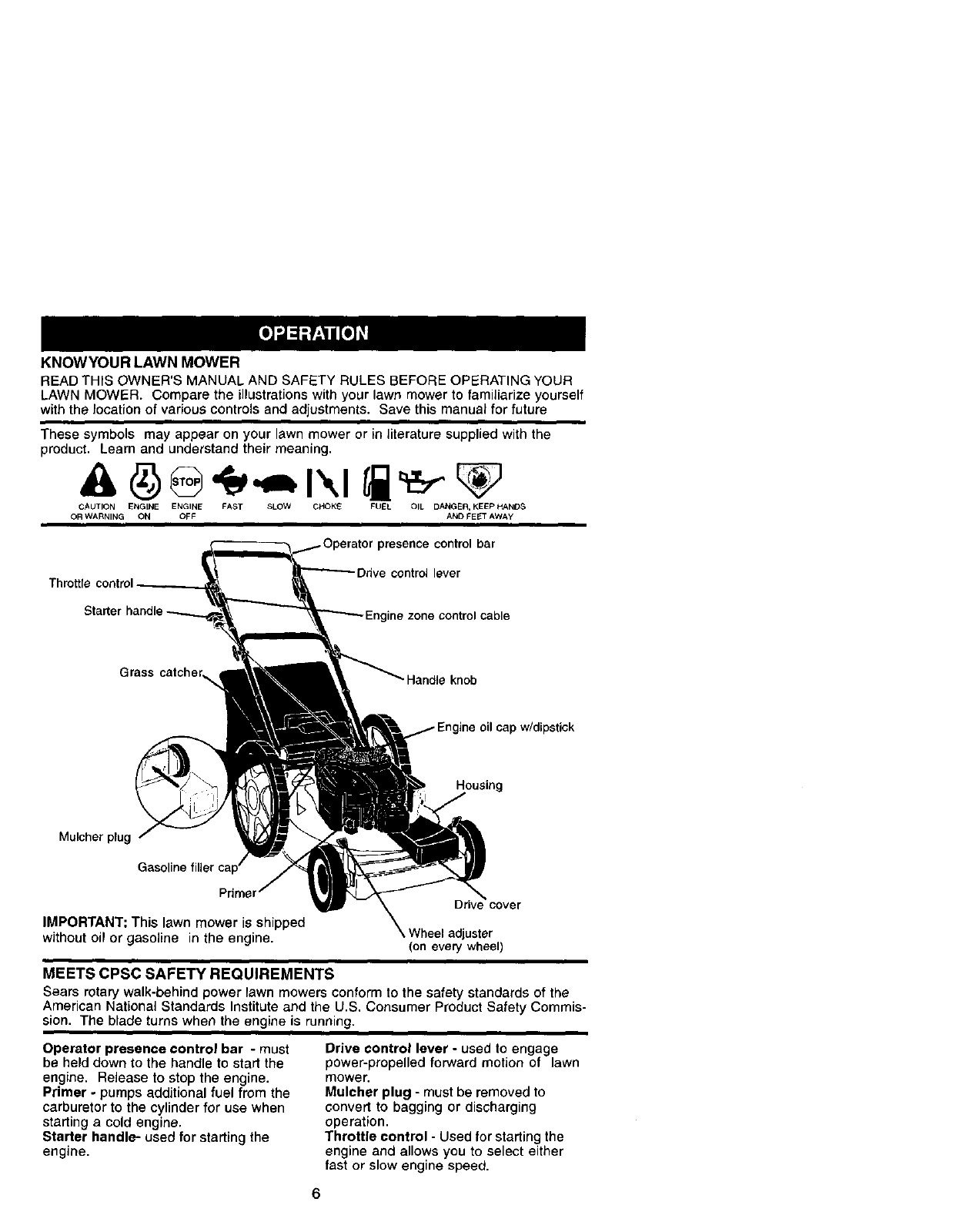

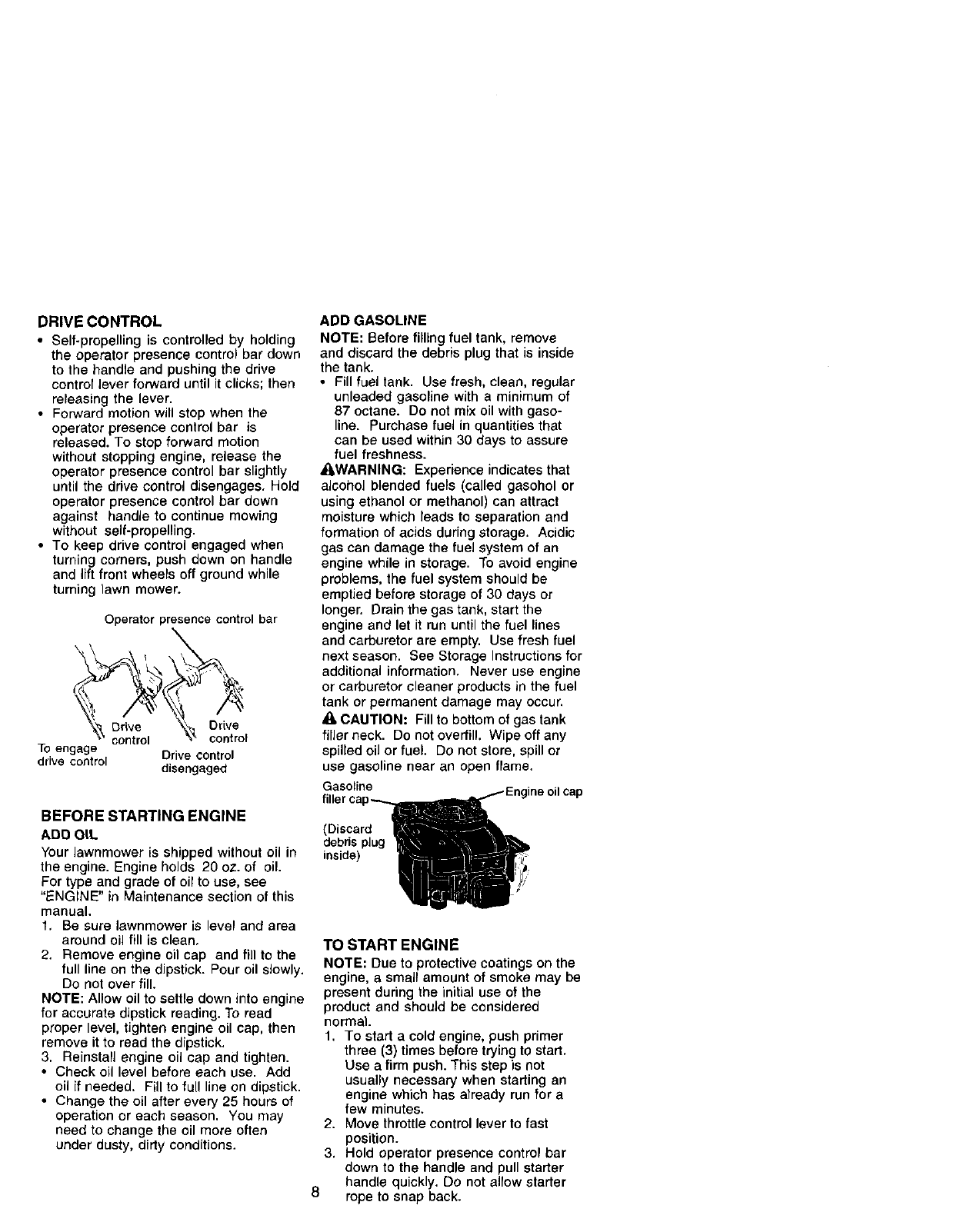

Operation .............................................. 6

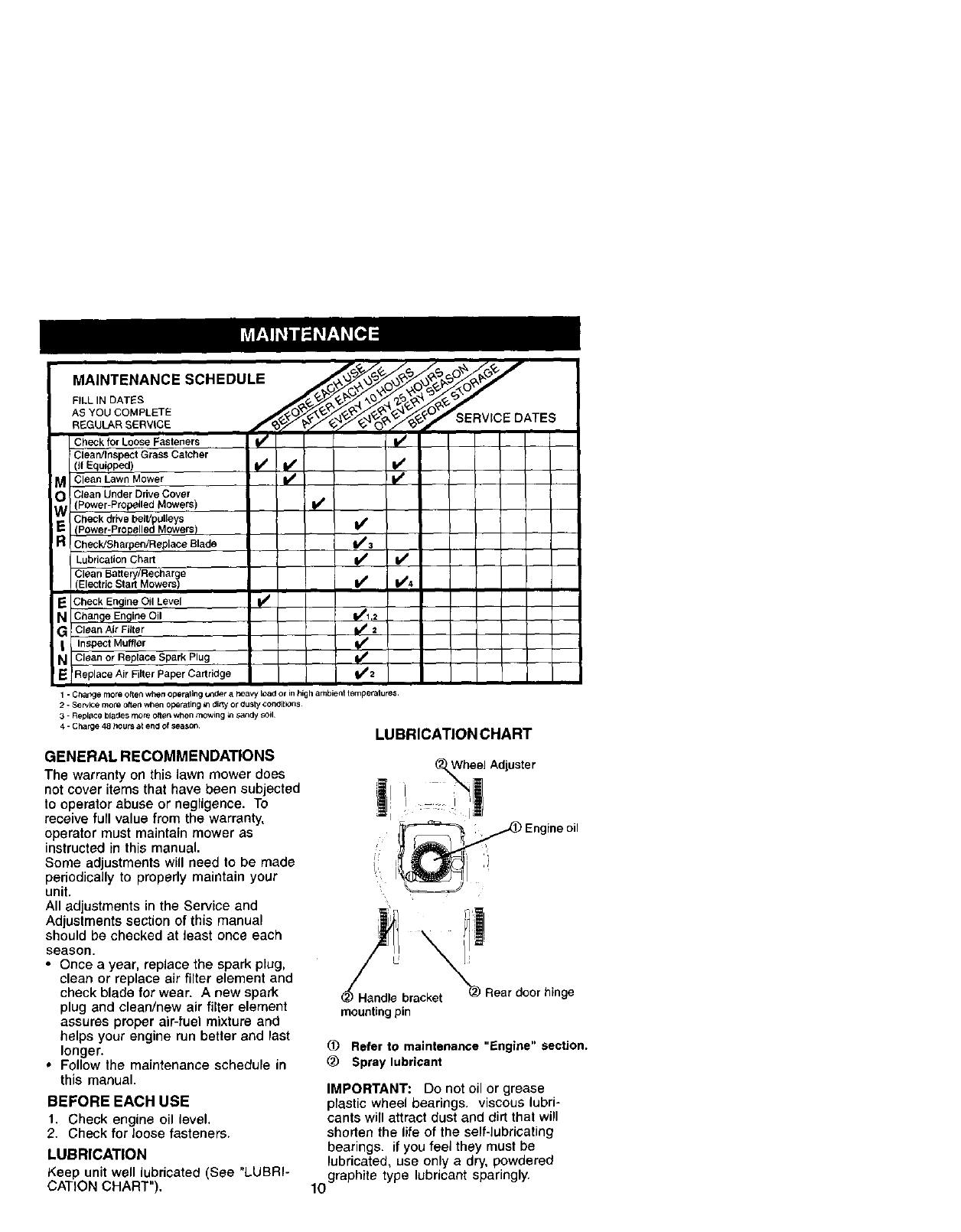

Maintenance Schedule ...................... 10
Maintenance ....................................... 10

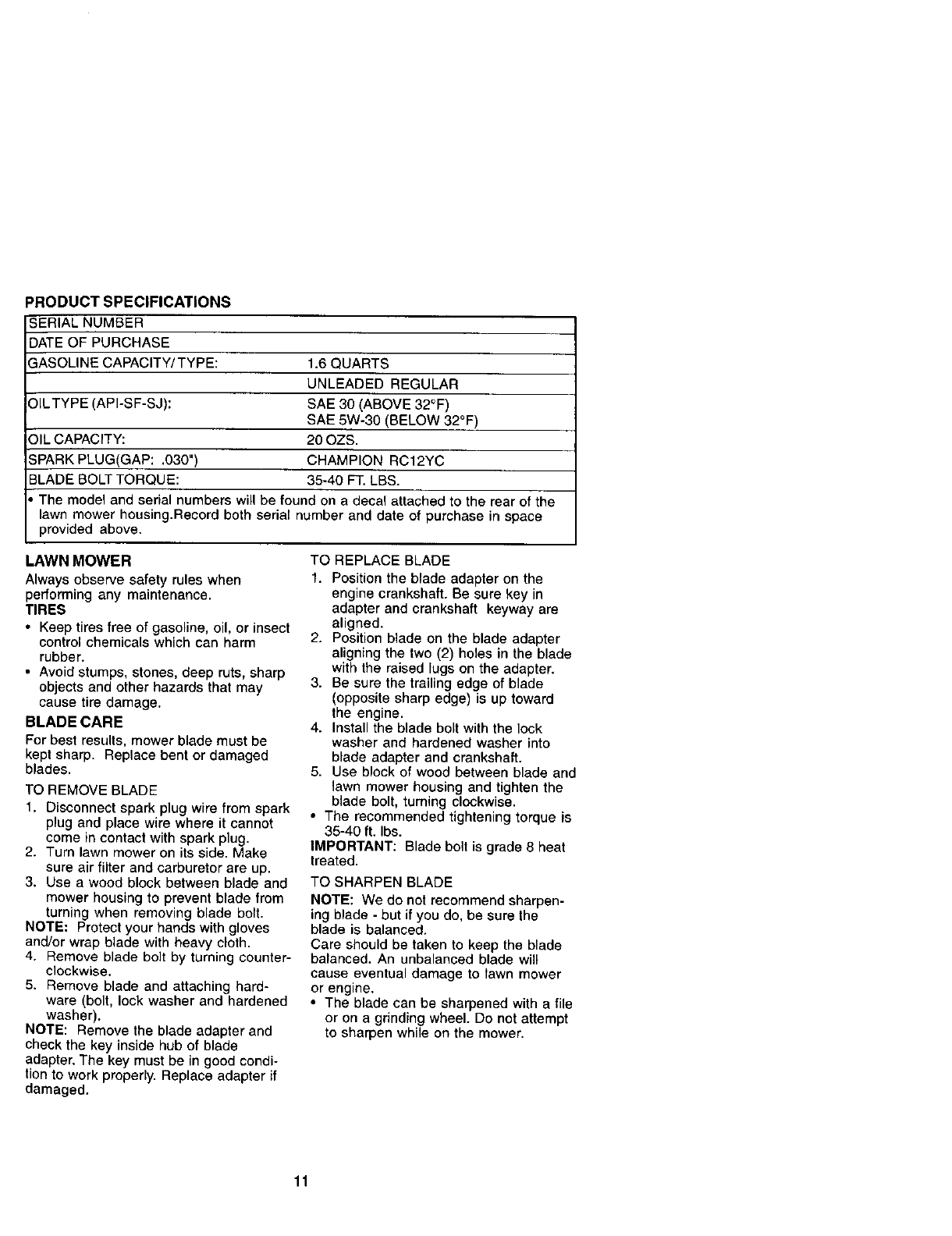

Product Specifications ........................ 11

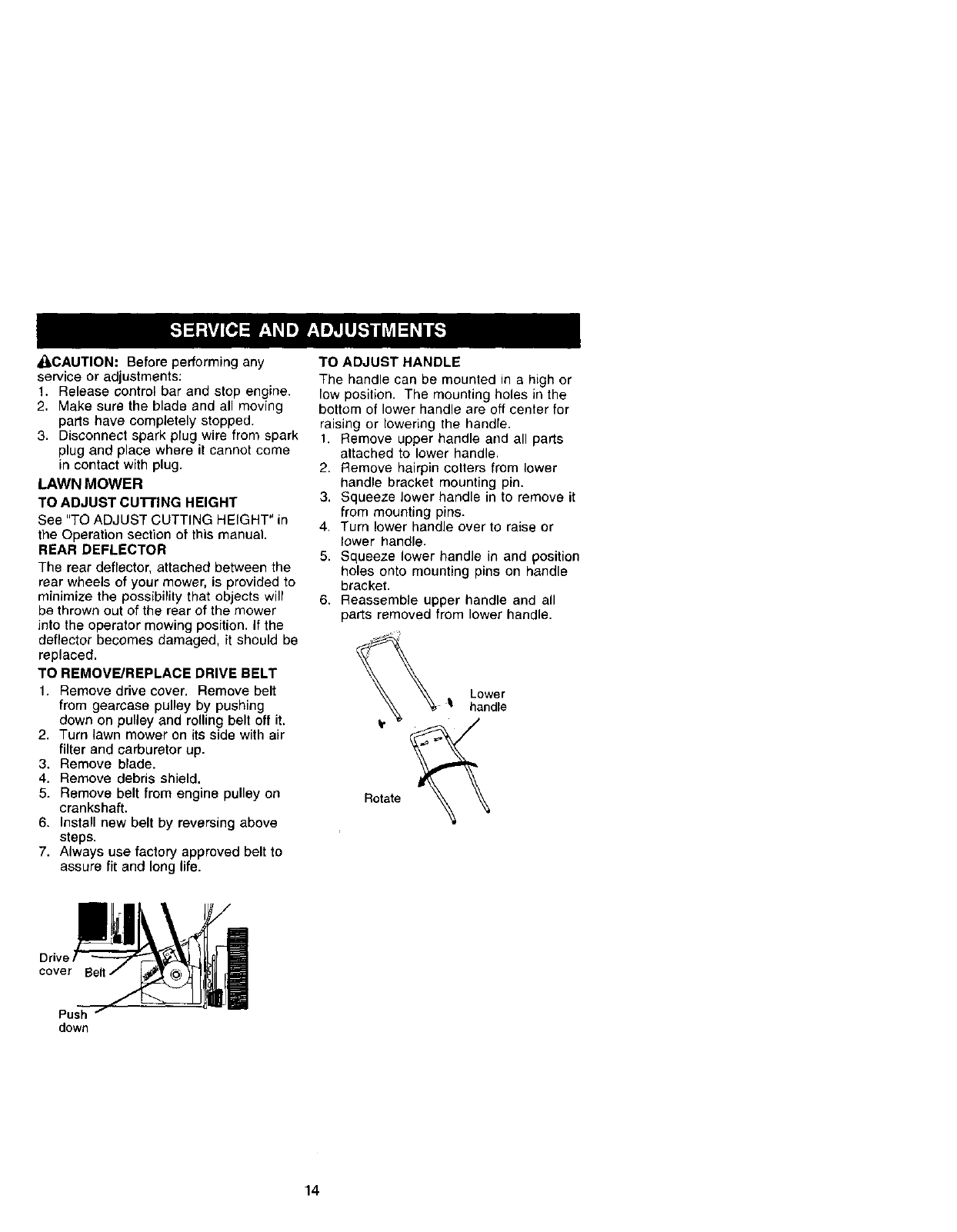

Service and Adjustments .................... 14

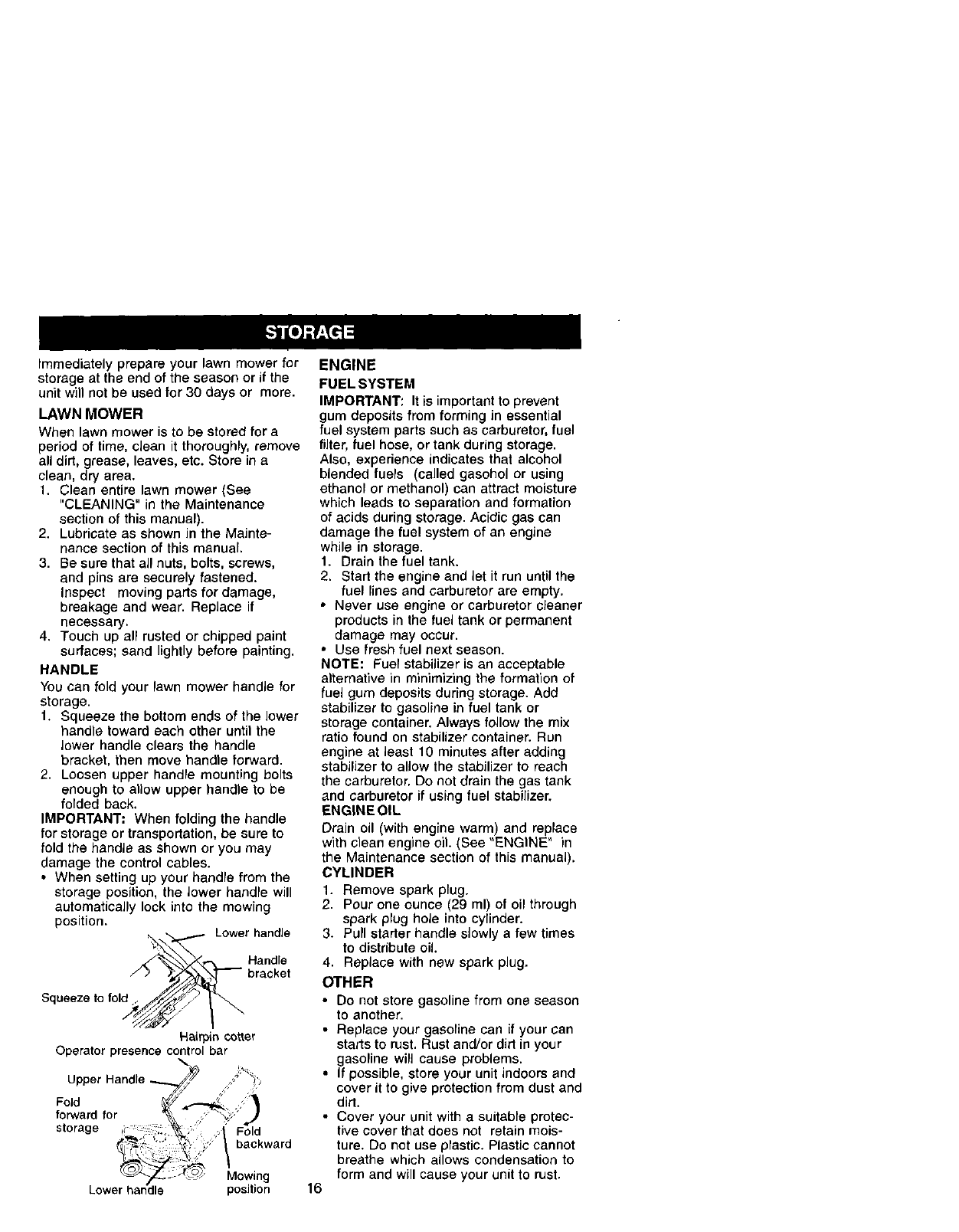

Storage ............................................... 16

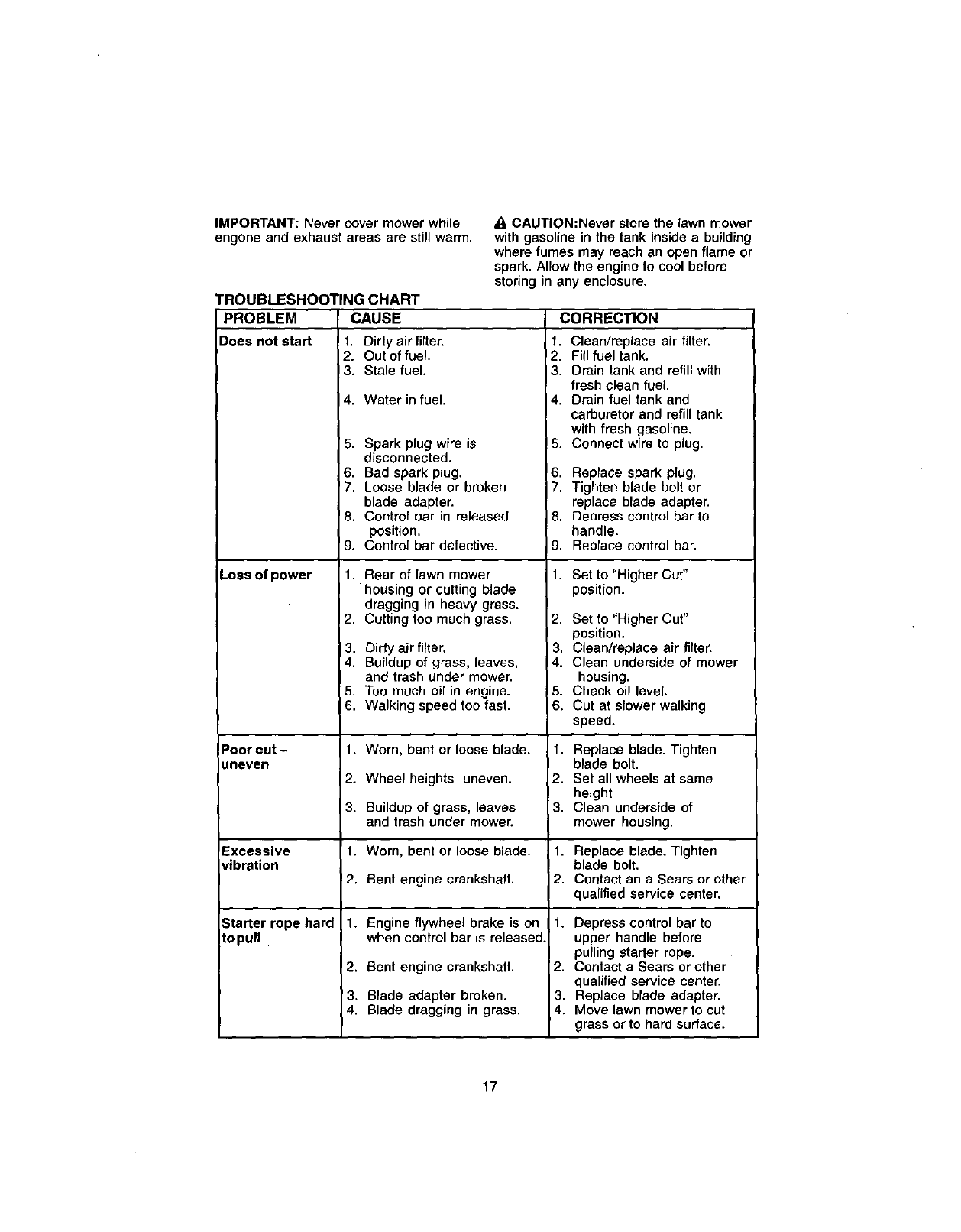

Troubleshooting ................................. 17

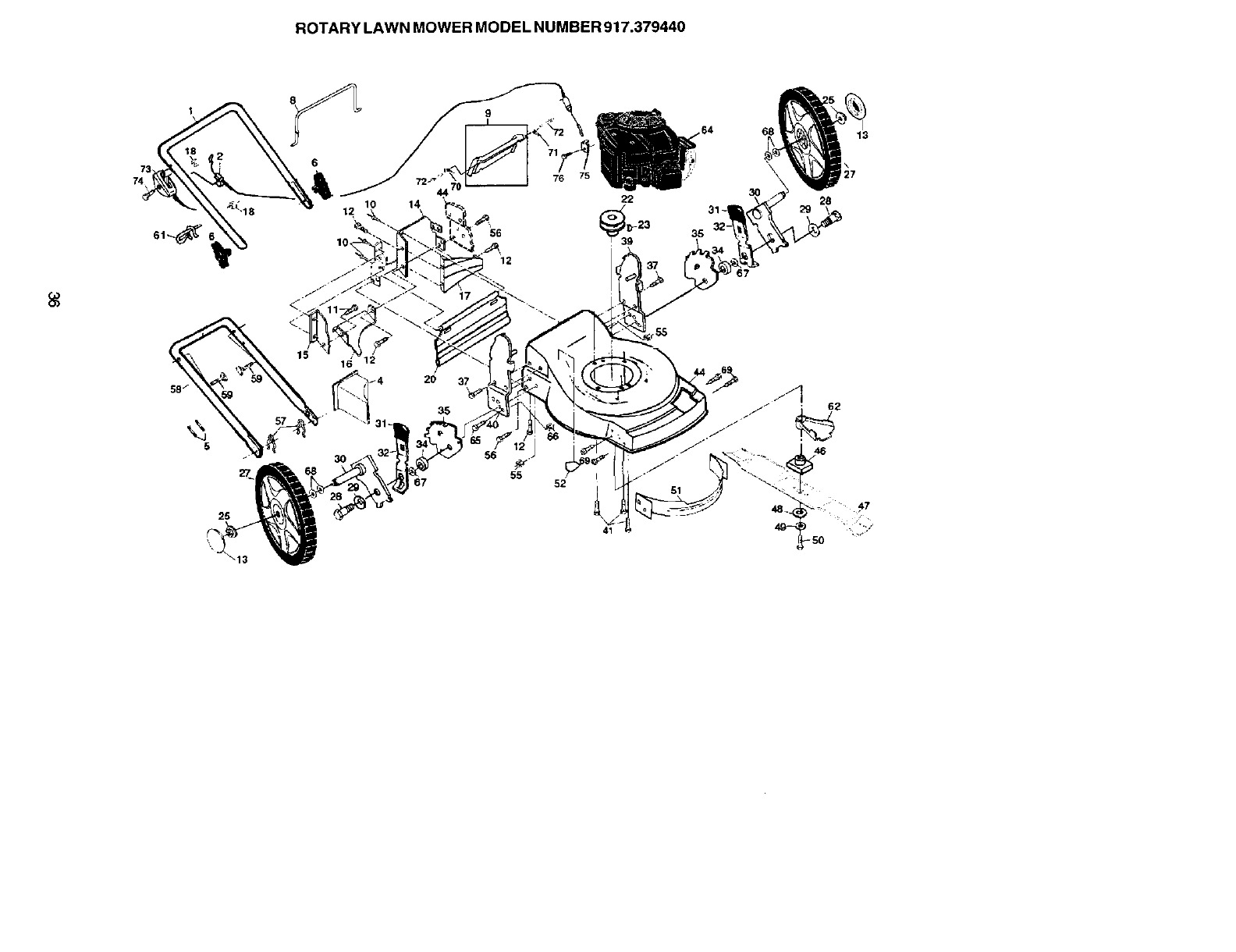

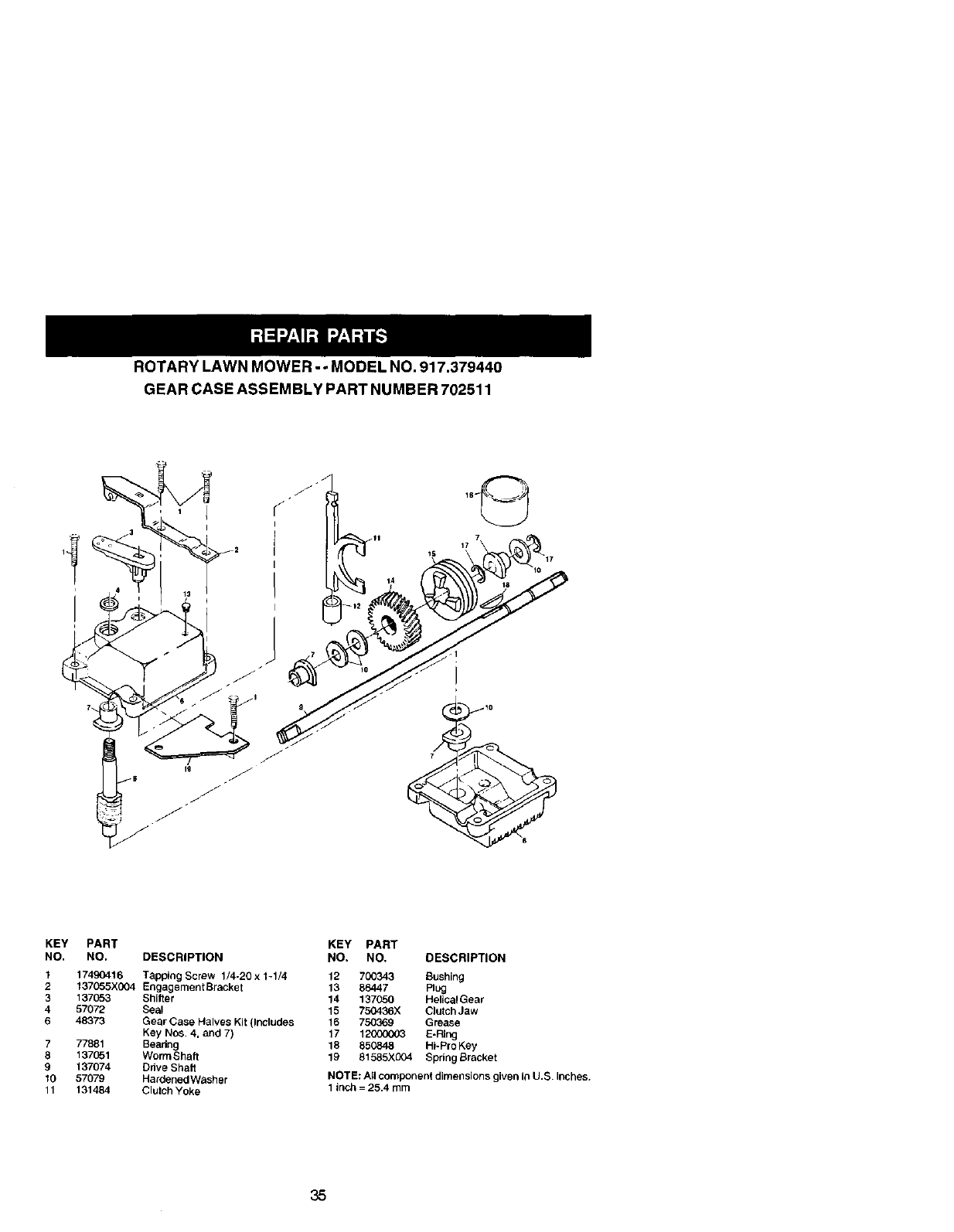

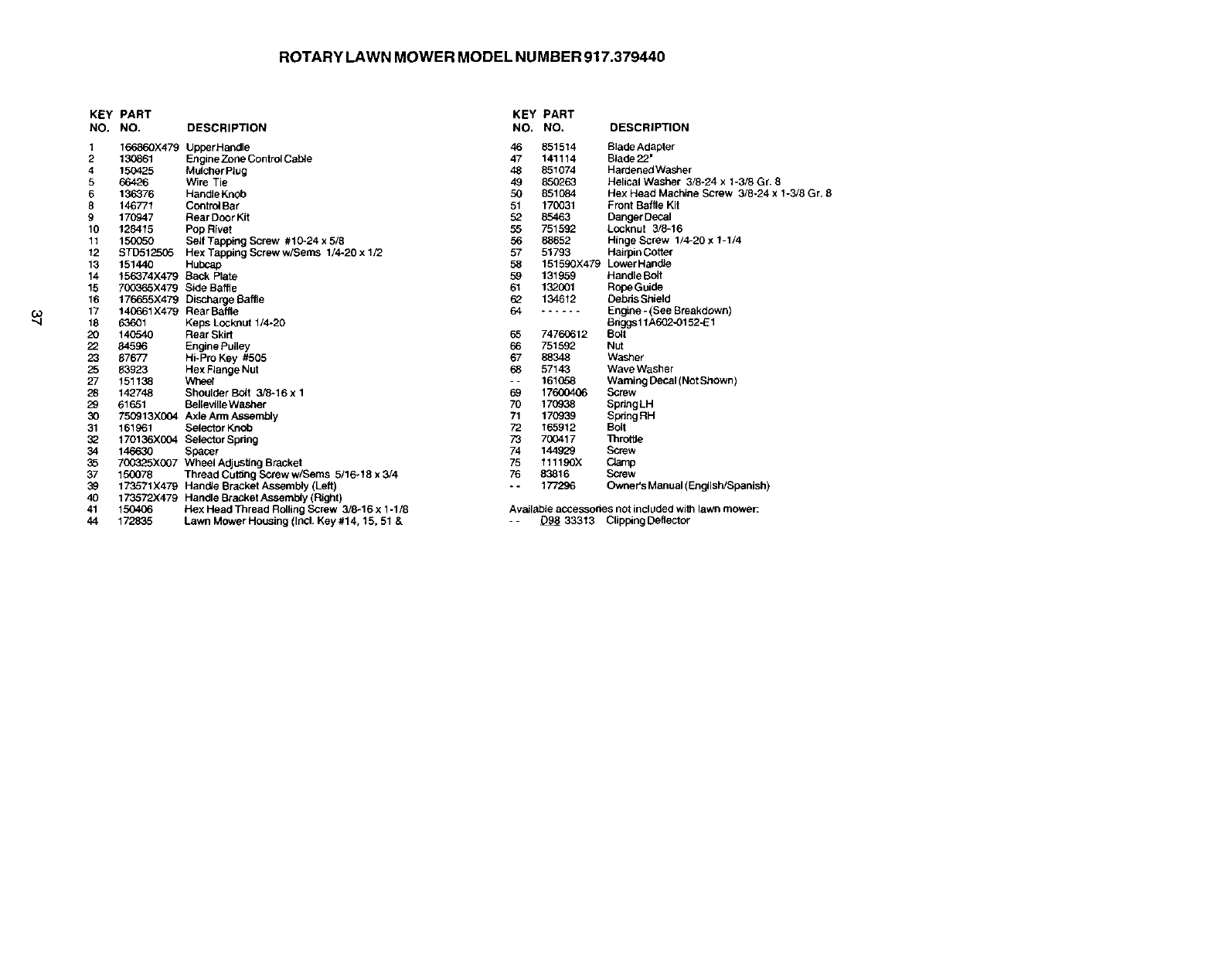

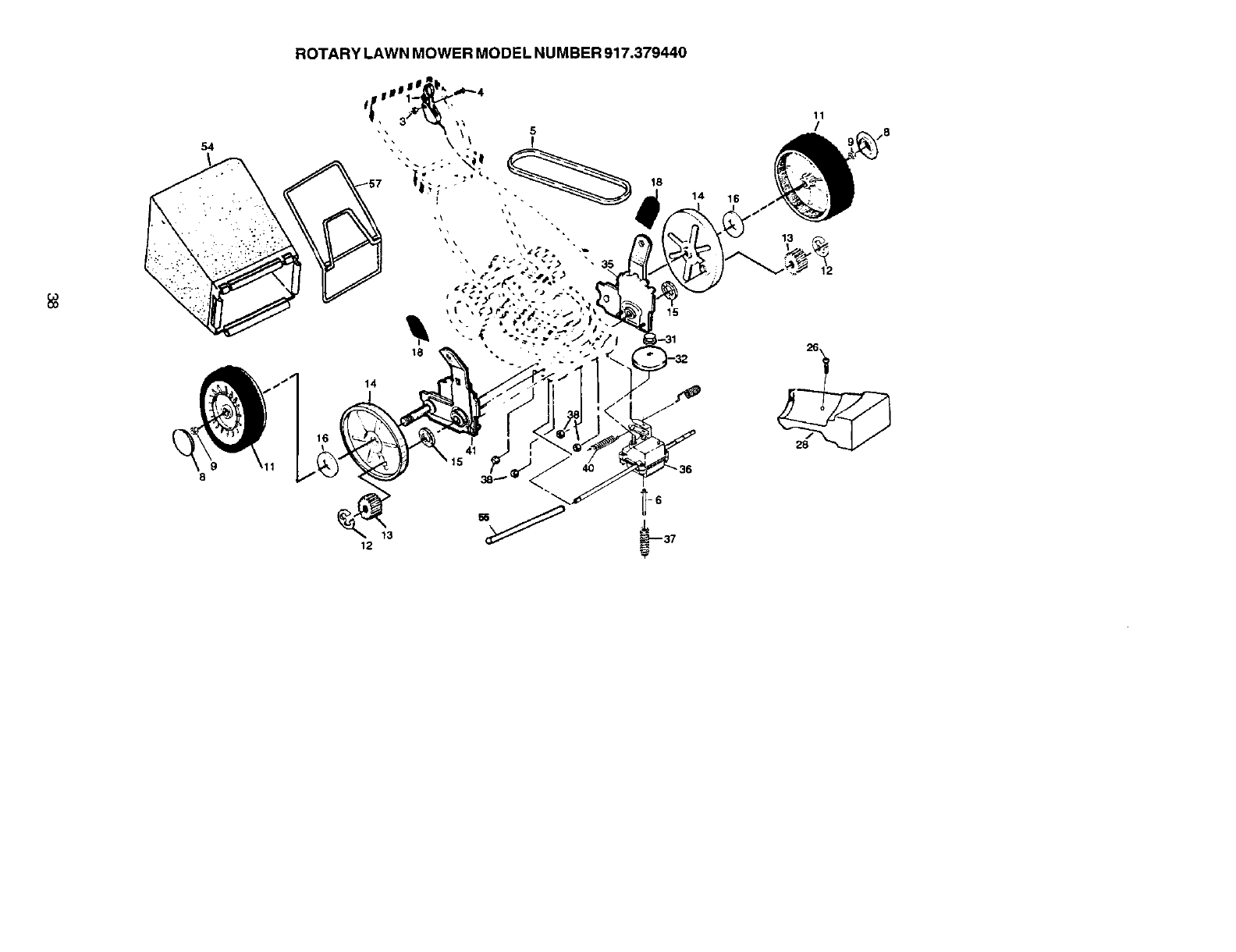

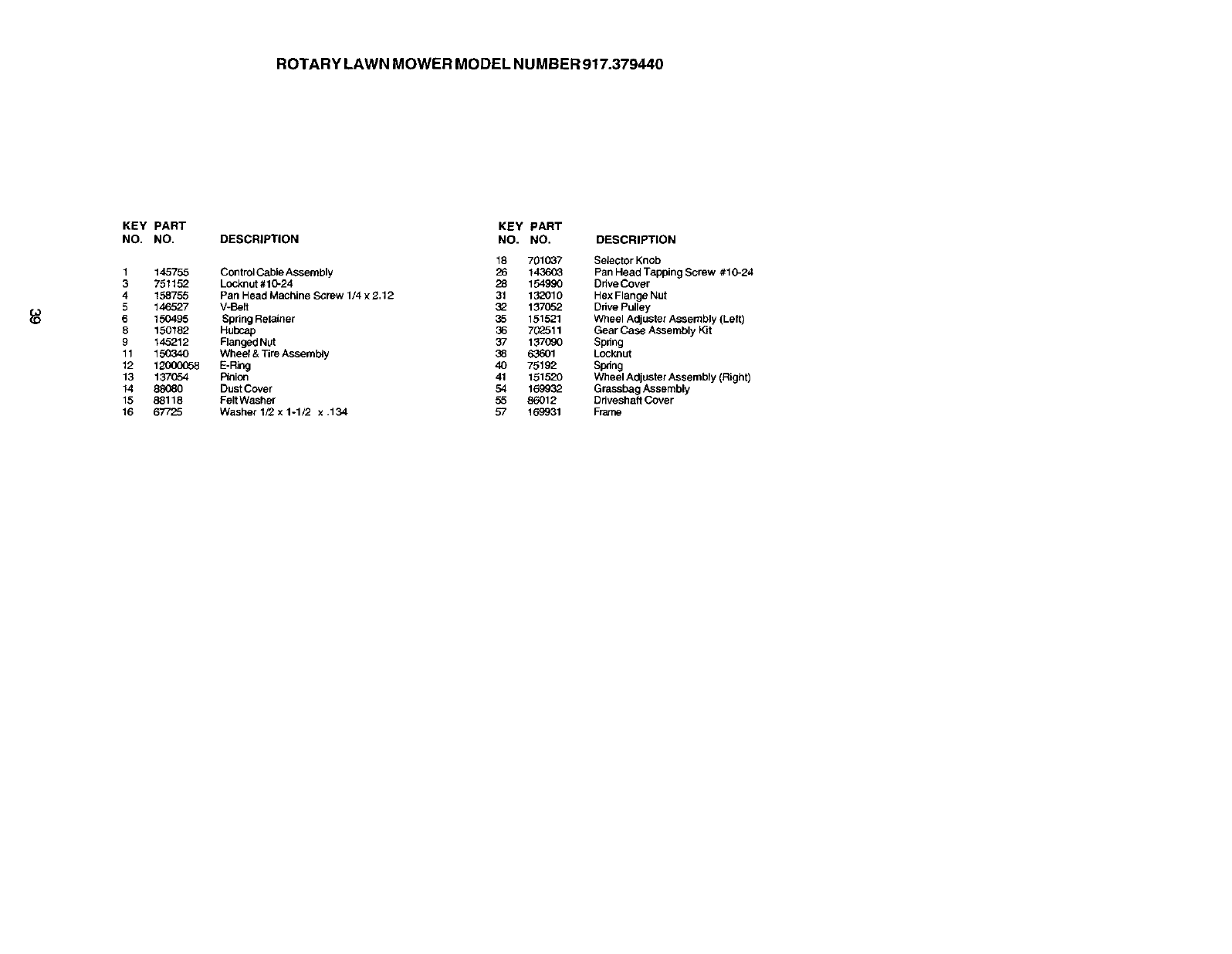

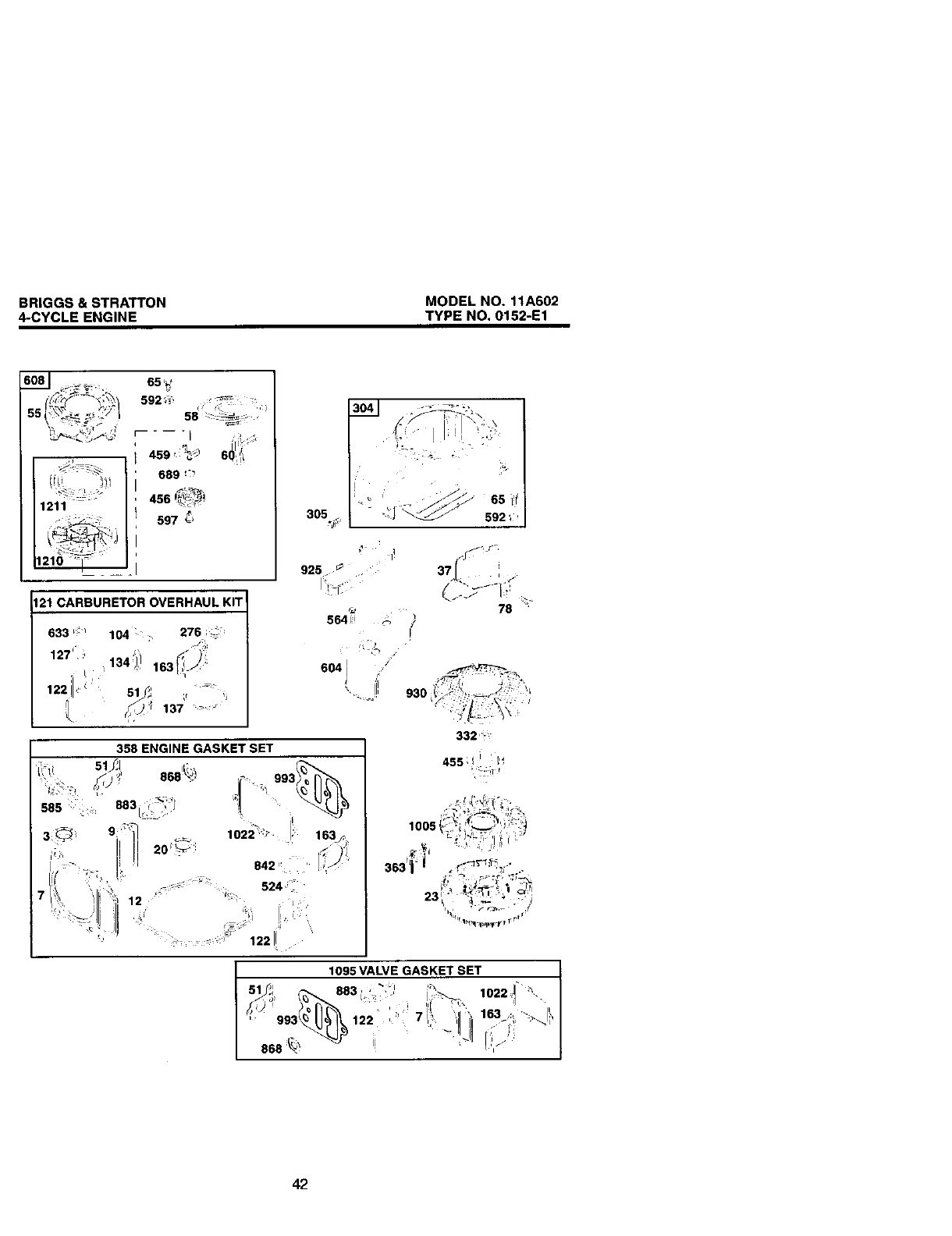

Repair Parts ........................................ 36
Parts Ordering ..................... Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
•Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Sears, Roebuck and Co., D/817 WA, Hoffman Estates, illinois 60179
IMPORTANT: This cutting machine is capable of amputating hands and feet and
throwing objects. Failure to observe_the following safety instructions could result in
serious injury or death.
I.GENERAL OPERATION °
•Read, understand; and fo'T]'owall
instructions on the machine and in the
manual(s) before starting. Be thor-
oughly familiar with the controls and the
proper use of the machine before o
starting,
• Do not put hands or feet near or under
rotating pads. Keep clear of the
discharge opening at all times. •
• Only alrow responsibre individuals, who
are familiar with the instructions, to
operate the machine.
• Clear the area of objects such as rocks, •
toys, wire, bones, sticks, etc., which
could be picked up and thrown by the
blade. 2
Be sure the area is clear of other
people before mowing. Stop machine if
anyone enters the area.
Do not operate the mower when
barefoot or wearing open sandals.
Always wear substantial foot wear.
Do not pull mower backwards unless
absolutely necessary. Always look
down and behind before and while
moving backwards.
Do not operate the mower without
proper guards, plates, grass catcher or
other safety protective devices in
place.
See manufacturer's instructions for
proper operation and installation of
accessories. OnFy use accessories
approved by the manufacturer.

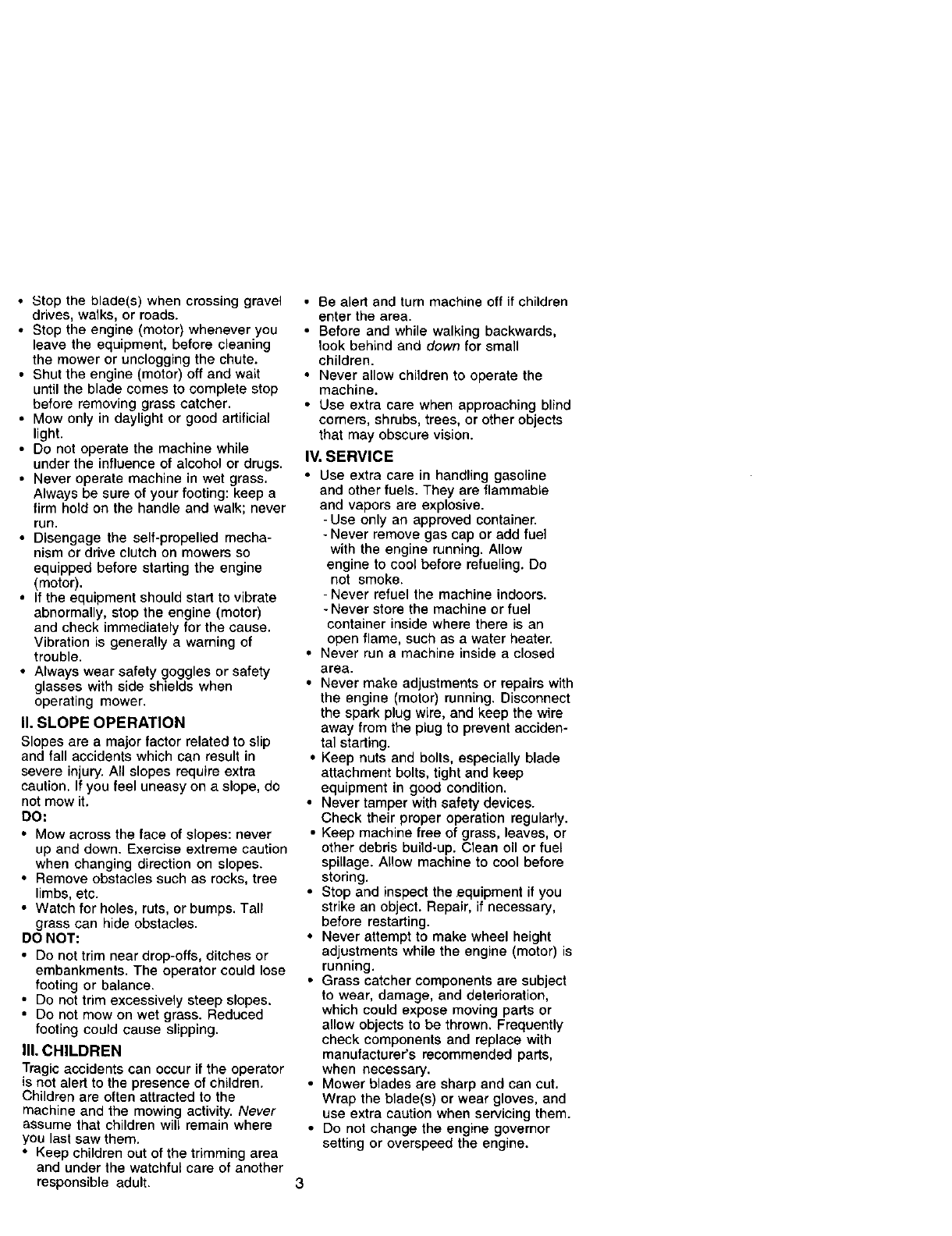

•Stop the blade(s) when crossing gravel
drives, walks, or roads.
• Stop the engine (motor) whenever you
leave the equipment, before cleaning
the mower or unclogging the chute.
• Shut the engine (motor) off and wait
until the blade comes to complete stop
before removing grass catcher.
• Mow only in daylight or good artificial
light.
• Do not operate the machine while
under the influence of alcohol or drugs.
• Never operate machine in wet grass.
Always be sure of your footing: keep a
firm hold on the handle and walk; never
run.
•Disengage the self-propelled mecha-
nism or drive clutch on mowers so
equipped before starting the engine
(motor).
• If the equipment should start to vibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a warning of
trouble.
• Always wear safety goggles or safety
glasses with side shields when
operating mower.
I1.SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidents which can result in
severe injury. All slopes require extra
caution. If you feel uneasy on a slope, do
not mow it.
DO:
• Mow across the face of slopes: never
up and down. Exercise extreme caution
when changing direction on slopes.
• Remove obstacles such as rocks, tree
limbs, etc.
• Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
• Do not trim near drop-offs, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
• Do not mow on wet grass. Reduced
footing could cause slipping.
II1. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the
machine and the mowing activity. Never
assume that children will remain where
you last saw them.
• Keep children out of the trimming area
and under the watchful care of another
responsible adult.
• Be alert and turn machine off if children
enter the area.
• Before and while walking backwards,
look behind and down for small
children.
• Never allow children to operate the
machine.
•Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
IV. SERVICE
• Use extra care in handling gasoline
and other fuels. They are flammable
and vapors are explosive.
- Use only an approved container.
- Never remove gas cap or add fuel
with the engine running. Allow
engine to cool before refueling. Do
not smoke.
- Never refuel the machine indoors.
- Never store the machine or fuel
container inside where there is an
open flame, such as a water heater.
• Never run a machine inside a closed
area.
• Never make adjustments or repairs with
the engine (motor) running. Disconnect
the spark plug wire, and keep the wire
away from the plug to prevent acciden-
tal starting.
• Keep nuts and bolts, especially blade
attachment bolts, tight and keep
equipment in good condition.
• Never tamper with safety devices.
Check their proper operation regularly.
• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel
spillage. Allow machine to cool before
storing.
• Stop and inspect the equipment if you
strike an object. Repair, if necessary,
before restarting.
• Never attempt to make wheel height
adjustments while the engine (motor) is
running.
• Grass catcher components are subject
to wear, damage, and deterioration,
which could expose moving parts or
allow objects to be thrown. Frequently
check components and replace with
manufacturer's recommended parts,
when necessary.
• Mower blades are sharp and can cut.
Wrap the blade(s) or wear gloves, and
use extra caution when servicing them.
• Do not change the engine governor
setting or overspeed the engine.
3
_Look for this symbol to point out
important safety precautions. It means
CAUTION!!! BECOME ALERT!!! YOUR
SAFETY IS INVOLVED.
CAUTION: In order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs,
always disconnect spark plug wire and
place wire where it cannot contact spark
plug.
_, CAUTION: Muffler and other engine
parts become extremely hot during
operation and remain hot after engine
has stopped. To avoid severe burns on
contact, stay away from these areas.
_,WARNING: Engine exhaust, some of its
constituents, and certain vehicle
components contain or emit chemicals
known to the State of California to cause
cancer and birth defects or other
reproductive harm.
AIWARNING: Battery posts, terminals and
related accessories contain lead and lead
compounds, chemicals known to the State
of California to cause cancer and birth
defects or other reproductive harm. Wash
hands after handling.
These accessories were availablewhen this lawn mower was produced. They are not
shipped with your mower. They are also available at most Sears retailoutlets and service
centers. Most Sears stores can also order repair pads for you, when you provide the model
number of your lawn mower. Some of these accessories may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS STABILIZER
REAR DISCHARGE SIDE DISCHARGE
LAWN MOWERS LAWN MOWERS
GAS CANS
LAWN MOWER MAINTENANCE
MUFFLERS Ale FILTERS SPARK PLUGS
BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL
4

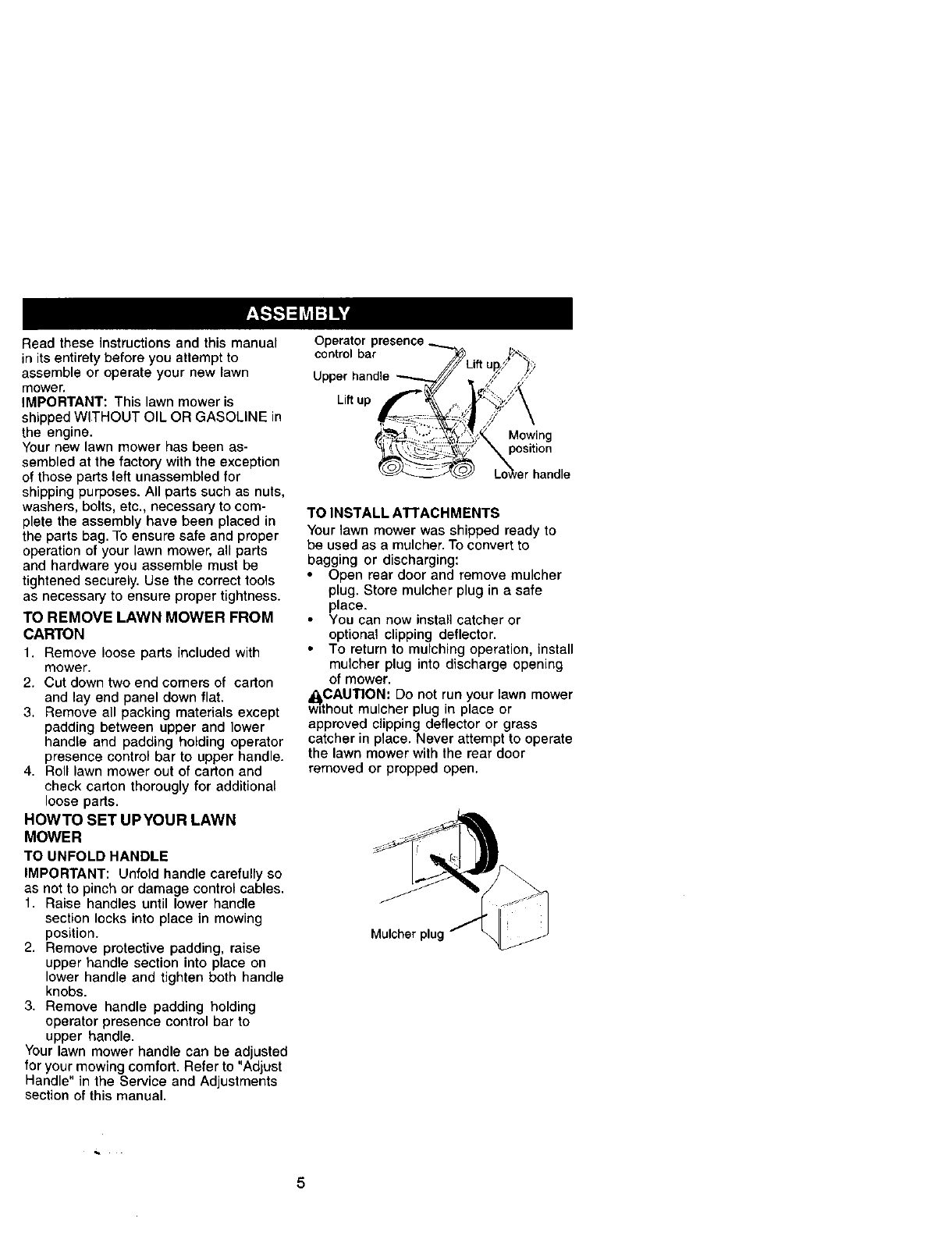

Read these instructions and this manual
in its entirety before you attempt to
assemble or operate your new lawn
mower.
IMPORTANT: This lawn mower is
shipped WITHOUT OIL OR GASOLINE in
the engine.
Your new lawn mower has been as-
sembled at the factory with the exception
of those parts left unassembled for
shipping purposes. All parts such as nuts,
washers, bolts, etc., necessary to com-
plete the assembly have been placed in
the parts bag. To ensure safe and proper
operation of your lawn mower, all parts
and hardware you assemble must be
tightened securely. Use the correct tools
as necessary to ensure proper tightness.
TO REMOVE LAWN MOWER FROM
CARTON
1. Remove loose parts included with
mower.
2. Cut down two end comers of carton
and lay end panel down flat.
3. Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check cadon thorougly for additional
loose pads.
HOWTO SET UPYOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
1, Raise handles until lower handle
section locks into place in mowing
position.
2. Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
3. Remove handle padding holding
operator presence control bar to
upper handle.
Your lawn mower handle can be adjusted
for your mowing comfort. Refer to "Adjust
Handle" in the Service and Adjustments
section of this manual.
control bar
Upper handle
Lift up
Mowing
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to
be used as a mulcher. To convert to
bagging or discharging:
Open rear door and remove mulcher
plug. Store mulcher plug in a safe
place.
You can now install catcher or
optional clipping deflector.
To return to mulching operation, install
mulcher plug into discharge opening
of mower.
w_tCAUTION: Do not run your lawn mower
hout mulcher plug in place or
approved clipping deflector or grass
catcher in place. Never attempt to operate
the lawn mower with the rear door
removed or propped open,
Mulcher plug
KNOWYOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself
with the location of various controls and adjustments. Save this manual for future
These symbols may appear on your lawn mower or in literature supplied with the
product. Learn and understand their meaning,
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WARNING ON OFF AND FEET AWAY
presence control bar
controllever
zone control cable
Grass catcher_, eknob
cap w/dipstick
Housing
Mulcher plug
Gasoline
Drive cover
IMPORTANT; This lawn mower is shipped adjuster
without oil or gasoline in the engine. (on every wheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S, Consumer Product Safety Commis-
sion. The blade turns when the engine is running.
Operator presence control bar -must
be held down to the handle to start the
engine. Release to stop the engine.
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle- used for starting the
engine.
Drive control lever - used to engage
power-propelled forward motion of lawn
mower.
Mulcher plug - must be removed to
convert to bagging or discharging
operation.
Throttle control - Used for starting the
engine and allows you to select either
fast or slow engine speed.
6

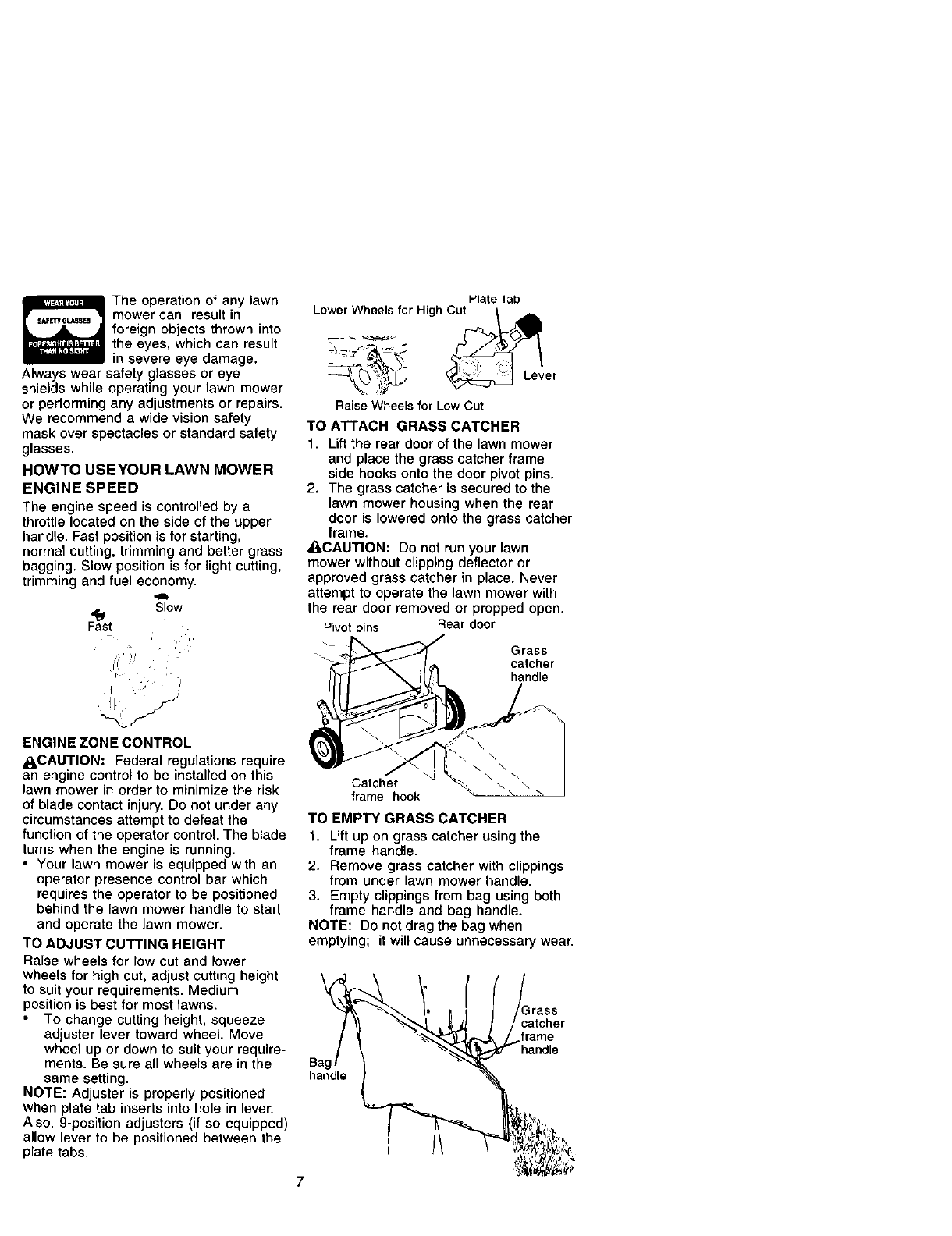

The operation of any lawn
mower can result in
foreign objects thrown into
the eyes, which can result
in severe eye damage.
Always wear safety glasses or eye
shields while operating your lawn mower
or performing any adjustments or repairs.
We recommend a wide vision safety
mask over spectacles or standard safety
glasses.
HOWTO USEYOUR LAWN MOWER
ENGINE SPEED
The engine speed is controlled by a
throttle located on the side of the upper
handle. Fast position is for starting,
normal cutting, trimming and better grass
bagging. Slow position is for light cutting,
trimming and fuel economy•
,_ Slow
Fact •
II i'I
ENGINE ZONE CONTROL
_,CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
•Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower•
TO ADJUST CUTTING HEIGHT
Raise wheels for low cut and lower
wheels for high cut, adjust cutting height
to suit your requirements. Medium
position is best for most lawns.
•To change cutting height, squeeze
adjuster lever toward wheel. Move
wheel up or down to suit your require-
ments. Be sure all wheels are in the
same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
Wlate lad
Lower Wheels for High Cutt-_L_,__L_'A_
_,_ _ Le_ver
Raise Wheels for Low Cut
TO ATTACH GRASS CATCHER
1. Lift the rear door of the lawn mower
and place the grass catcher frame
side hooks onto the door pivot pins.
2. The grass catcher is secured to the
lawn mower housing when the rear
door is lowered onto the grass catcher
frame.
_CAUTION: Do not run your lawn
mower without clipping deflector or
approved grass catcher in place. Never
attempt to operate the lawn mower with
the rear door removed or propped open.
Pivot pins Rear door
.. Grass
catcher
handle
Catcher \
frame hook
TO EMPTY GRASS CATCHER
1. Lift up on grass catcher using the
frame handle.
2. Remove grass catcher with clippings
from under lawn mower handle•
3. Empty clippings from bag using both
frame handle and bag handle.
NOTE: Do not drag the bag when
emptying; it will cause unnecessary wear.
Bag
handle
,_rass
catcher
frame
7
DRIVE CONTROL
• Self.prepelling is controlled by holding
the operator presence control bar down
to the handle and pushing the drive
control Jeverforward until it clicks; then
releasing the lever.
• Forward motion will stop when the
operator presence control bar is
released. To stop forward motion
without stopping engine, release the
operator presence control bar slightly
until the drive control disengages. Hold
operator presence control bar down
against handle to continue mowing
without self-propelling.
•To keep drive control engaged when
turning corners, push down on handle
and lift front wheels off ground while
turning lawn mower.
Operator presence control bar
"_ control
To engage
drive control Drive control
disengaged
BEFORE STARTING ENGINE
ADD OIL
Your lawnmower is shipped without oil in
the engine. Engine holds 20 oz. of oil.
For type and grade of oil to use, see
"ENGINE" in Maintenance section of this
manual.
1. Be sure lawnmower is level and area
around oil fill is clean,
2. Remove engine oil cap and fill to the
full line on the dipstick. Pour oil slowly.
Do not over fill.
NOTE: Allow oil to settle down into engine
for accurate dipstick reading. To read
proper level, tighten engine oil cap, then
remove itto read the dipstick.
3. Reinstall engine oil cap and tighten.
•Check oil level before each use. Add
oil if needed. Fill to full line on dipstick.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
NOTE: Before filling fuel tank, remove
end discard the debris plug that is inside
the tank.
• Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. Do not mix oil with gaso-
line. Purchase fuel in quantities that
can be used within 30 days to assure
fuel freshness.
_WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
_, CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
Gasoline __.Engine oilcap
filler cap_
(Discard
debrisplug
,nsido
TO START ENGINE
NOTE: Due to protective coatings on the
engine, a small amount of smoke may be
present during the initial use of the
product and should be considered
normal.
1. To start a cold engine, push primer
three (3) times before trying to start.
Use a firm push. This step is not
usually necessary when starting an
engine which has already run for a
few minutes.
2. Move throttle control lever to fast
position.
3. Hold operator presence control bar
down to the handle and pull starter
handle quickly. Do not allow starter
8 rope to snap back.
| U "_I U_ I=NUlN I"

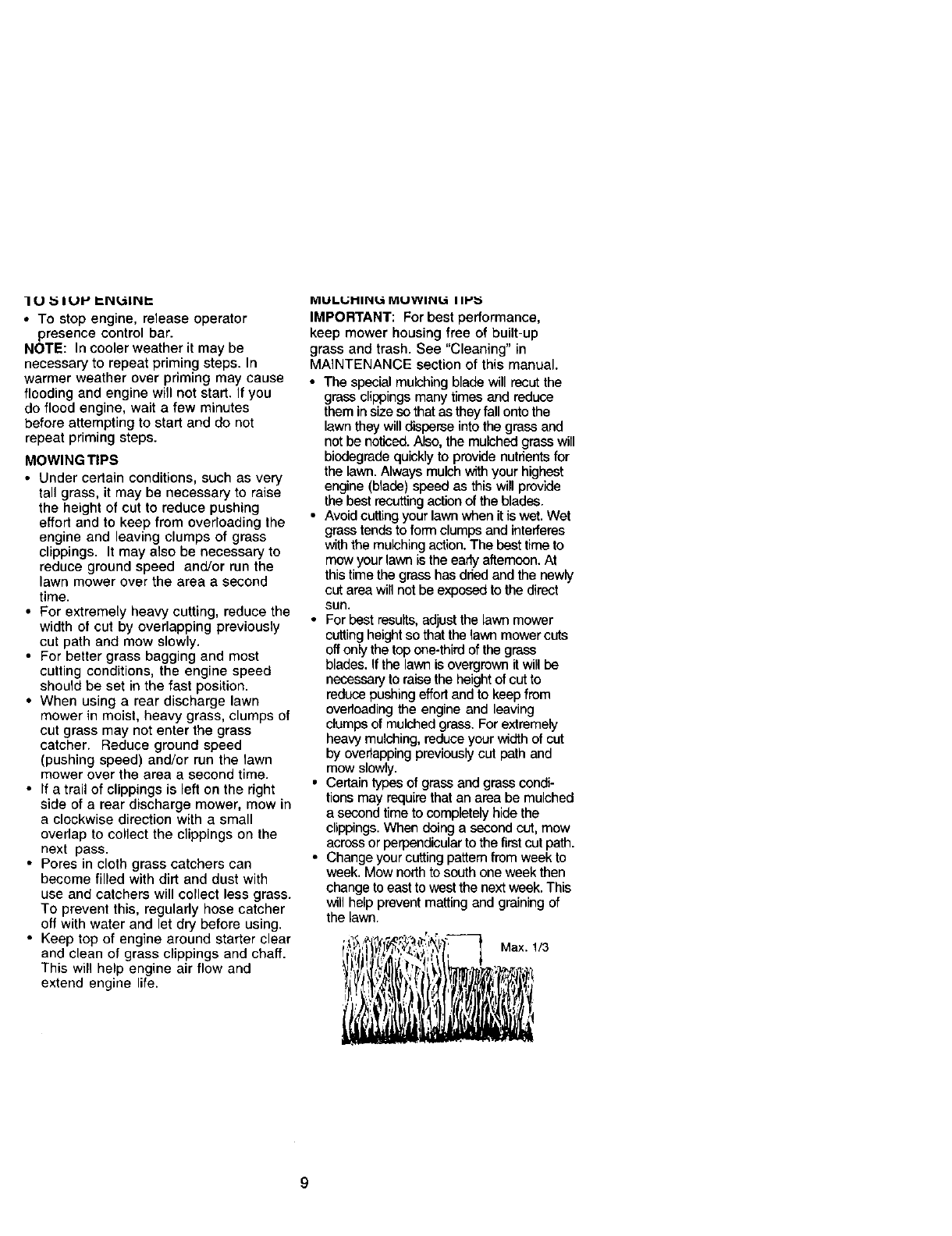

• To stop engine, release operator
presence control bar.
NOTE: In cooler weather it may be
necessary to repeat priming steps. In
warmer weather over priming may cause
flooding and engine will not start. If you
do flood engine, wait a few minutes
before attempting to start and do not
repeat priming steps.
MOWING TIPS
• Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
•When using a rear discharge lawn
mower in moist, heavy grass, clumps of
cut grass may not enter the grass
catcher. Reduce ground speed
(pushing speed) and/or run the lawn
mower over the area a second time.
• If a trail of clippings is left on the right
side of a rear discharge mower, mow in
a clockwise direction with a small
overlap to collect the clippings on the
next pass.
• Pores in cloth grass catchers can
become filled with dirt and dust with
use and catchers will collect less grass.
To prevent this, regularly hose catcher
oft with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULL;MINI_ IVIUWINL_ I I1"_
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. See "Cleaning" in
MAINTENANCE section of this manual.
• The special mulching blade will recut the
grass clippings many times and reduce
them in size so that as they fall onto the
lawn they will disperse into the grass and
not be noticed. Ako, the mulched grass will
biodegrade quickly to provide nutrients for
the lawn. Always mulch with your highest
engine (blade) speed as this will provide
the best recutting action of the blades.
• Avoid cutting your lawn when it is wet. Wet
grass tends to form clumps and interferes
with the mulching action. The best time to
mow your lawn is the eady aftemoon. At
this time the grass has dried and the newly
cut area will not be exposed to the direct
sun.
• For best results, adjust the lawn mower
cutting height so that the lawn mower cuts
off only the top one-third of the grass
blades. If the lawn is overgrown it will be
necessary to raise the height of cut to
reduce pushing effort and to keep from
overloading the engine and leaving
clumps of mulched grass. For extremely
heavy mulching, reduce your width of cut
by overlapping previously cut path and
mow slowly.
• Certain types of grass and grass condi-
tions may require that an area be mulched
a second time to completely hide the
clippings. When doing a second cut, mow
across or perpendicular to the first cut path.
• Change your cutting pattem from week to
week. Mow north to south one week then
change to east to west the next week. This
will help prevent matting and graining of
the lawn.
Max. 1/3
9
M
o
..,.TEN..CESC"0OULE
P,LLNDATES
Check for Loose Fasteners _ I1_
Clean/Inspect Grass Catcher
(IfEquipped) _ _ llf
CleanLawnMower __
CleanUnderDriveCover
(Power-PropelledMowers) !#*
Checkdrivebelt/pulleys
Power-Propelled Mowers) II_
Check/Sharpen/Replace Blade ti_3
LubricationChart I_ ti_
Clean Battery/Rechare
I/ElectricStart Moweir_ I1_ 1_4
EICheckEngineOilLevel _
NIChange Engine Oil Iv#1.2 __
GCleanAirFilter _ =
N_,Inspect Muffler
Cleanor Replace Spark Plug _*
E Replace Air Filter Paper Cartridge I1_=
1-Cha_:je more often when operating L,_lde r a t_eavy load or in high ambient temperatures
2 - Service more often when operating _ dirty or _usty condit_ns
3 - Replace blades more often when mowing _n,_andy SOil
4-Ch.r_e= _,ou== e,_of..... LUBRICATION CHA RT
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does
not cover items that have been subjected
to operator abuse or negligence. To
receive full value from the warranty,
operator must maintain mower as
instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your
unit,
All adjustments in the Service and
Adjustments section of this manual
should be checked at least once each
season.
•Once a year, replace the spark plug,
clean or replace air filter element and
check blade for wear. A new spark
plug and clean/new air filter element
assures proper air-fuel mixture and
helps your engine run better and last
longer.
•Follow the maintenance schedule in
this manual.
BEFORE EACH USE
1. Check engine oil level.
2. Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRI-
CATION CHART").
(_Wheel Adjuster
_/,,,,,1_ Engine oil
!
,, I
_J
bracket_l!Rear door hinge
mounting pin
L_ Refer to maintenance "Engine" section.
(_) Spray lubricant
IMPORTANT: Do not oil or grease
plastic wheel bearings, viscous lubri-
cants will attract dust and dirt that will
shorten the life of the self-lubricating
bearings, if you feel they must be
lubricated, use only a dry, powdered
graphite type lubricant sparingly.
10
PRODUCT SPECIFICATIONS
SERIAL NUMBER
_ATEOF PURCHASE
GASOLINE CAPACITY/TYPE: 1.6 QUARTS
UNLEADED REGULAR
OILTYPE (API-SF-SJ): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG(GAP: .030") CHAMPION RC12YC
BLADE BOLT TORQUE: 35-40 FT. LBS.
•The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when
performing any maintenance.
TIRES
• Keep tires free of gasoline, oil, or insect
control chemicals which can harm
rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Turn lawn mower on its side. Make
sure air filter and carburetor are up.
3. Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
NOTE: Protect your hands with gloves
and/or wrap blade with heavy cloth.
4. Remove blade bolt by turning counter-
clockwise.
5. Remove blade and attaching hard-
ware (bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade
adapter. The key must be in good condi-
tion to work properly. Replace adapter if
damaged.
TO REPLACE BLADE
1. Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
2. Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
3. Be sure the trailing edge of blade
(opposite sharp edge) is up toward
the engine.
4. Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
5. Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade boll is grade 8 heat
treated.
TO SHARPEN BLADE
NOTE: We do not recommend sharpen-
ing blade - but if you do, be sure the
blade is balanced.
Care should be taken to keep the blade
balanced, An unbalanced blade will
cause eventual damage to lawn mower
or engine.
• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
11

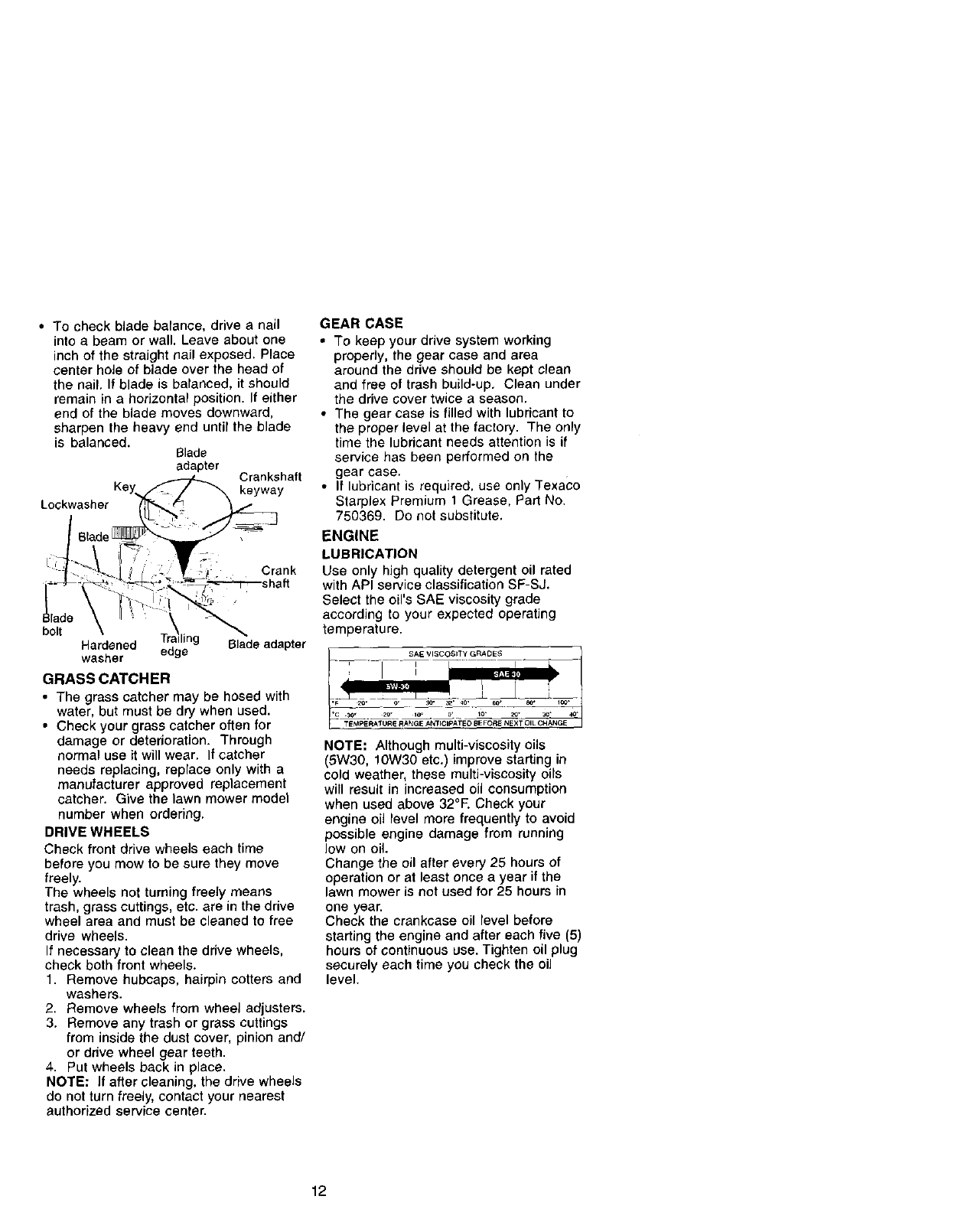

•To check blade balance, drive a nail
into a beam or wall. Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced. Blade
adapter Crankshaft
keyway
Lockwasher
Crank
bolt
Hardened edge Blade adapter
washer
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for
damage or deterioration. Through
normal use it will wear. If catcher
needs replacing, replace only with a
manufacturer approved replacement
catcher. Give the lawn mower model
number when ordering.
DRIVE WHEELS
Check front drive wheels each time
before you mow to be sure they move
freely.
The wheels not turning freely means
trash, grass cuttings, etc. are in the drive
wheel area and must be cleaned to free
drive wheels.
If necessary to clean the drive wheels,
check both front wheels.
1. Remove hubcaps, hairpin cotters and
washers.
2. Remove wheels from wheel adjusters.
3. Remove any trash or grass cuttings
from inside the dust cover, pinion and/
or drive wheel gear teeth.
4. Put wheels back in place.
NOTE: If after cleaning, the drive wheels
do not turn freely, contact your nearest
authorized service center.
GEAR CASE
• To keep your drive system working
properly, the gear case and area
around the drive should be kept clean
and free of trash build-up. Clean under
the drive cover twice a season.
•The gear case is filled with lubricant to
the proper level at the factory. The only
time the lubricant needs attention is if
service has been performed on the
gear case.
•If lubricant is required, use only Texaco
Starplex Premium 1 Grease, Part No.
750369. Do not substitute.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF-SJ.
Select the oil's SAE viscosity grade
according to your expected operating
temperature.
SAE VISCOSITY GRADES
I
o.
30, 20" io. o, IO. _0- 3o_
TEMPERATURE RANGE ANTICIPATE OBEFCR_ NE_:- OI L CHANGE
NOTE= Although multi-viscosity oils
(5W30, lOW30 etc.) improve starting in
cold weather, these multi-viscosity oils
will result in increased oil consumption
when used above 32°F. Check your
engine oil level more frequently to avoid
possible engine damage from running
low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the
lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil
level.
12

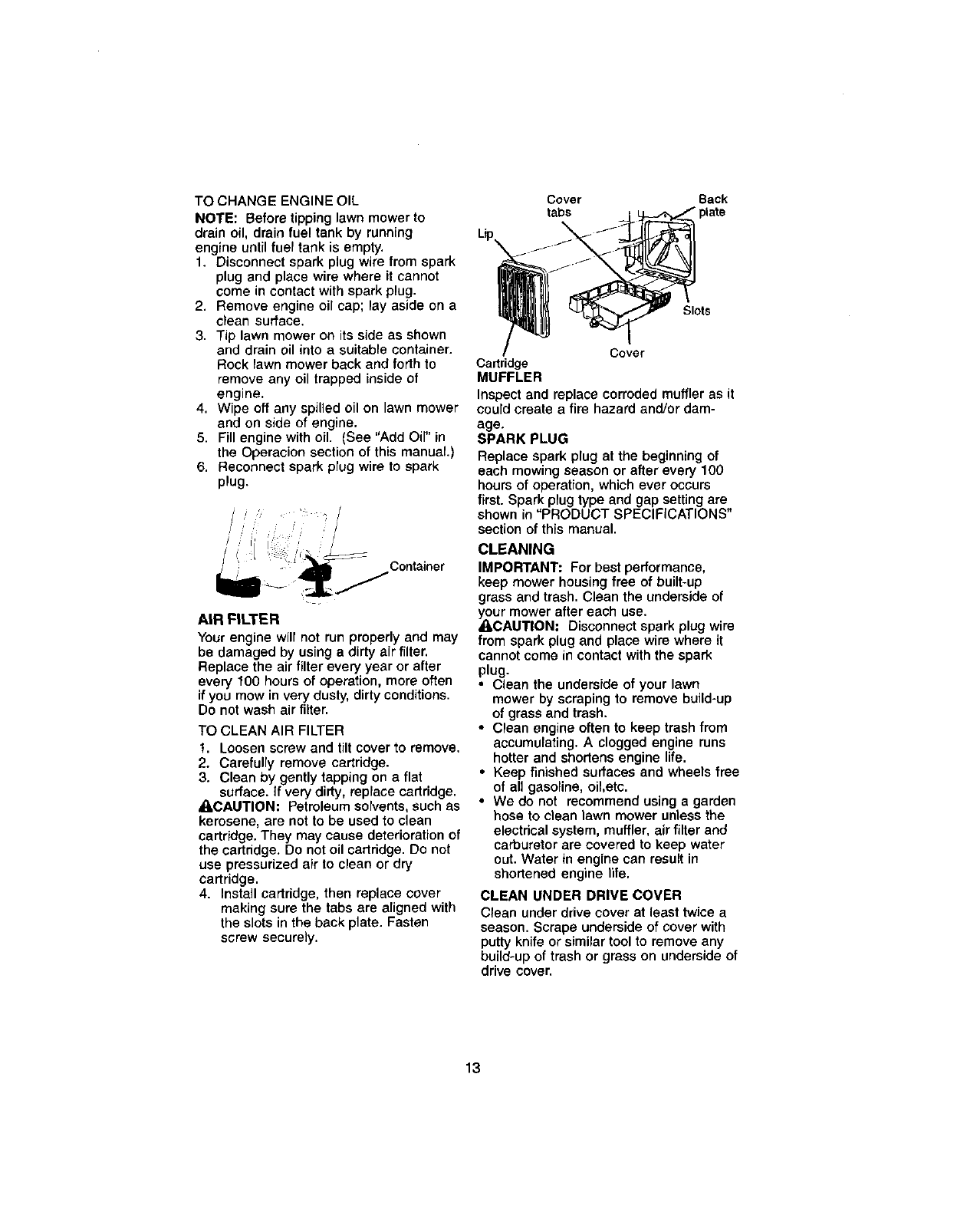

TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
1. Disconnect spark plug wire from spark
plug end place wire where it cannot
come in contact with spark plug.
2. Remove engine oil cap; lay aside on a
clean surface.
3. Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of
engine.
4. Wipe off any spilled oil on lawn mower
and on side of engine.
5. Fill engine with oil. (See "Add Oil" in
the Operacion section of this manual.)
6. Reconnect spark plug wire to spark
plug.
Container
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every year or after
every 100 hours of operation, more often
if you mow in very dusty, dirty conditions.
Do not wash air filter.
TO CLEAN AIR FILTER
1. Loosen screw and tilt cover to remove.
2. Carefully remove cartridge.
3. Clean by gently tapping on a flat
surface, if very dirty, replace cartridge.
A, CAUTION= Petroleum solvents, such as
kerosene, are not to be used to clean
cartridge. They may cause deterioration of
the cartridge. Do not oil cartridge. Do not
use pressurized air to clean or dry
cartridge.
4. Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely.
Lip
Cover
tabs
J'x
Back
Slots
Cover
Cartridge
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or dam-
age.
SPARK PLUG
Replace spark plug at the beginning of
each mowing season or after every 100
hours of operation, which ever occurs
first. Spark plug type and gap setting are
shown in "PRODUCT SPECIFICATIONS"
section of this manual.
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. Clean the underside of
_our mower after each use.
CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
•Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil,etc.
•We do not recommend using agarden
hose to clean lawn mower unless the
electrical system, muffler, air filter end
carburetor are covered to keep water
out. Water in engine can result in
shortened engine life.
CLEAN UNDER DRIVE COVER
Clean under drive cover at least twice a
season. Scrape underside of cover with
putty knife or similar tool to remove any
build-up of trash or grass on underside of
drive cover.
13
.ACAUTION: Before performing any
service or adjustments:
1. Release control bar and stop engine.
2. Make sure the blade and all moving
parts have completely stopped.
3. Disconnect spark plug wire from spark
plug and place where it cannot come
in contact with plug.
LAWN MOWER
TO ADJUST cu'n'ING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your mower, is provided to
minimize the possibility that objects wilt
be thrown out of the rear of the mower
into the operator mowing position, if the
deflector becomes damaged, it should be
replaced.
TO REMOVE/REPLACE DRIVE BELT
1. Remove drive cover. Remove belt
from gearcase pulley by pushing
down on pulley and rolling belt off it.
2. Turn lawn mower on its side with air
filter and carburetor up.
3. Remove blade.
4. Remove debris shield.
5. Remove belt from engine pulley on
crankshaft.
6. Install new belt by reversing above
steps.
7. Always use factory approved belt to
assure fit and long life.
TO ADJUST HANDLE
The handle can be mounted in a high or
low position. The mounting holes in the
bottom of lower handle are off center for
raising or lowering the handle.
1. Remove upper handle and all parts
attached to lower handle.
2. Remove hairpin cotters from lower
handle bracket mounting pin.
3. Squeeze lower handle in to remove it
from mounting pins.
4. Turn lower handle over to raise or
lower handle.
5. Squeeze lower handle in and position
holes onto mounting pins on handle
bracket.
6. Reassemble upper handle and all
parts removed from lower handle.
Lower
handle
Rotate
cover
Push
down
14
I U _)I:;IVII::II.I:; !,.lrl/_)_ _,/4, I_,ru:;rl

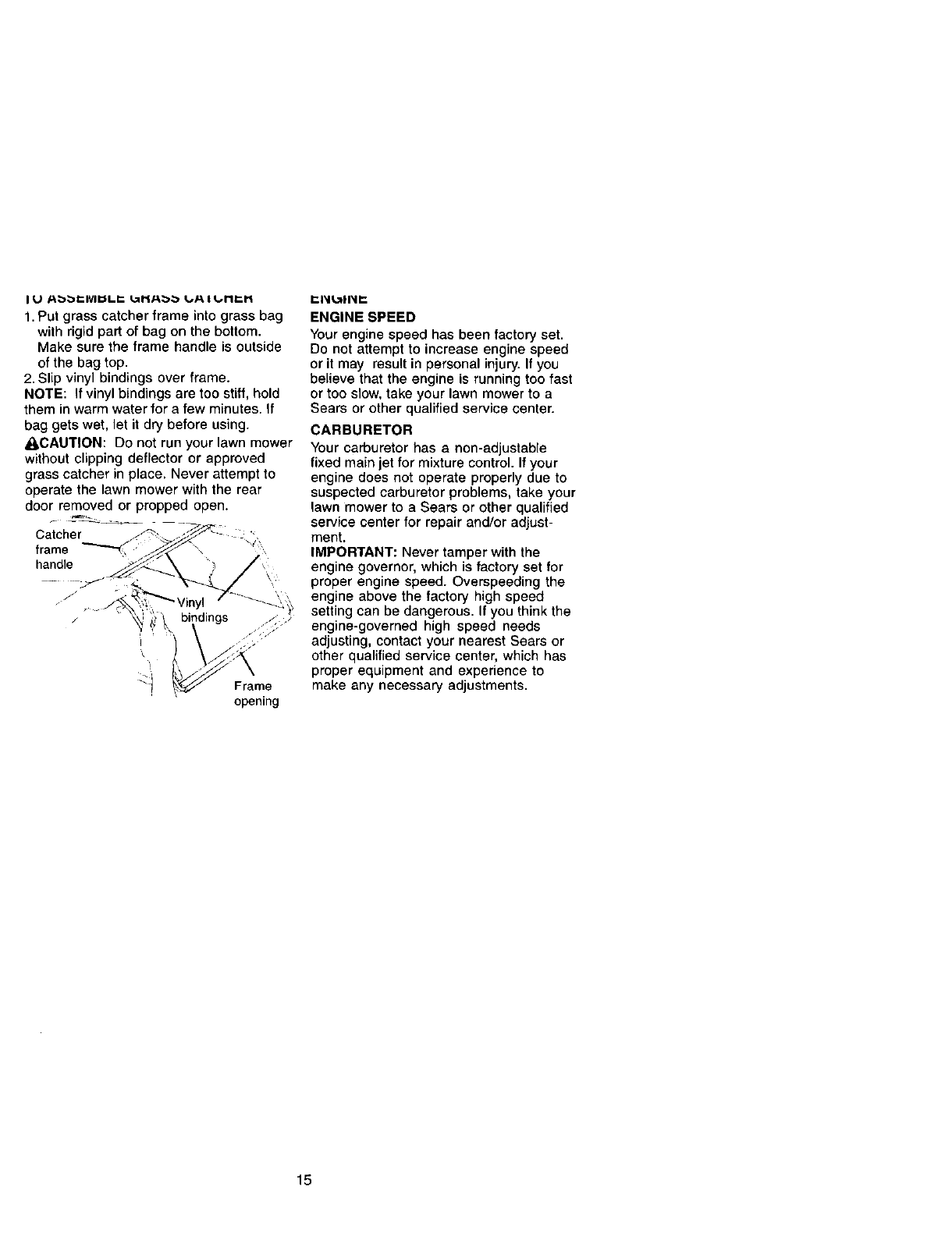

1. Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
_I,CAUTION: Do not run your lawn mower
without clipping deflector or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
Catcher
frame
handle
.... _,',_ Vinyl
I
Frame
opening
r..l_l Lll i_1i::
ENGINE SPEED
Your engine speed has been factory set,
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that the engine is running too fast
or too slow, take your lawn mower to a
Sears or other qualified service center.
CARBURETOR
Your carburetor has a non-adjustable
fixed main jet for mixture control. If your
engine does not operate properly due to
suspected carburetor problems, take your
lawn mower to a Sears or other qualified
service center for repair and/or adjust-
ment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous. If you think the
engine-governed high speed needs
adjusting, contact your nearest Sears or
other qualified service center, which has
proper equipment and experience to
make any necessary adjustments.
15
Immediately prepare your lawn mower for
storage at the end of the season or if the
unit will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean it thoroughly, remove
all dirt, grease, leaves, etc. Store in a
clean, dry area.
1. Clean entire lawn mower (See
"CLEANING" in the Maintenance
section of this manual).
2. Lubricate as shown in the Mainte-
nance section of this manual.
3. Be sure that all nuts, bolts, screws,
and pins are securely fastened.
Inspect moving parts for damage,
breakage and wear. Replace if
necessary.
4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your lawn mower handle for
storage.
1. Squeeze the bottom ends of the lower
handle toward each other until the
lower handle clears the handle
bracket, then move handle forward.
2. Loosen upper handle mounting bolts
enough to allow upper handle to be
folded back.
IMPORTANT; When folding the handle
for storage or transportation, be sure to
fold the handle as shown or you may
damage the control cables.
• When setting up your handle from the
storage position, the lower handle will
automatically lock into the mowing
position. Lower handle
Squeeze _ _ld Z
Handle
bracket
Hai_n ¢o_er
Operator presence control bar
Upper Handle
Fold
forward for
storage Fold
backward
Mowing
le position
ENGINE
FUEL SYSTEM
IMPORTANT', It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage.
1. Drain the fuel tank.
2. Start the engine and let it run until the
fuel lines and carburetor are empty.
•Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
•Use fresh fuel next season.
NOTE: Fuer stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintenance section of this manual).
CYLINDER
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
3. Pull starter handle slowly a few times
to distribute oil.
4. Replace with new spark plug,
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and
dirt.
•Cover your unit with a suitable protec-
tive cover that does not retain mois-
ture. Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unit to rust.
16
IMPORTANT: Never cover mower while
engone and exhaust areas are still warm.
TROUBLESHOOTING CHART
PROBLEM CAUSE
Does not start 1. Dirty air filter.
2. Out of fuel.
13. Stale fuel.
J4. Water in fuel.
Lossofpower
Poorcut-
uneven
CAUTION;Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
CORRECTION
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken
blade adapter.
8. Control bar in released
position.
9. Control bar defective.
1. Rear of lawn mower
housing or cuffing blade
dragging in heavy grass.
2. Cuffing too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves,
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves
and trash under mower.
1. Worn, bent or loose blade.
2. Bent engine crankshaft.
1. Engine flywheel brake is on
when control bar is released.
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Reprace control bar.
1. Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking
speed.
1. Replace blade. Tighten
blade bolt.
2. Set all wheels at same
height
3. Clean underside of
mower housing.
Excessive 1. Replace blade. Tighten
vibration blade bolt.
2. Contact an a Sears or other
qualified service center.
Starter rope hard
_opull 1. Depress control bar to
upper handle before
pulling starter rope.
2. Contact a Sears or other
qualified service center.
3. RepJace blade adapter.
4. Move lawn mower to cut
grass or to hard surface.
17
TROUBLESHOOTING CHART
CAUSE
PROBLEM
Loss of drive 1. Drive wheels not turning
with drive control engaged.
2. Belt not driving
CORRECTION
1. Adjust or replace drive
control cable.
2. Put belt on pulleys or
replace belts if broken.
Grass catcher 1. Cutting height too low. 1. Raise cutting height.
notfilling(ifso 2. Lift on blade worn off, 2. Replace blade.
equipped) 3. Catcher not venting air. 3. Clean grass catcher.
Hard to push 1. Raise cutting height.1. Grass is too high or wheel
height is too low.
2. Rear of lawn mower
housing or blade dragging
in grass.
3. Grass catcher too full.
4. Handle height position not
right for you.
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
4. Adjust handle height to
suit.
18
ROTARYLAWNMOWERMODELNUMBER917.379440
26
15 16 _12
3O
20 37
35
56
55
67 52
55
68
3O 28
13
ROTARY LAWN MOWER MODEL NUMBER 917.379440
KEY PART
NO. NO. DESCRIPTION
1
2
4
5
6
8
9
10
11
12
13
14
15
16
_ 17
18
20
22
23
25
27
28
29
3O
31
34
35
37
4O
41
44
166860X479 UpperHandle
130861 Engine Zone Control Cable
150425 Mulcher Plug
66426 Wire Tie
136376 Handle Knob
146771 Control Bar
170947 Hear Door Kit
128415 Pop Rivet
150050 Serf Tapping Screw #10-84 x 5/8
STD512505 HexTappingScreww/Sems 1/4-20xl/2
151440 Hubcap
156374X479 Back Plate
700365X479 Side Baffle
176655X479 Dfflcharge Baffle
140661X479 Rear Baffle
63601 Keps Locknut 1/4-20
140540 Rear Skirt
84596 Engine Pulley
87677 Hi-Pro Key #505
839"23 Hex Range Nut
151138 Wheel
142748 Shoulder Boff 3/8-16x 1
61651 Belleville Washer
750913)(004 Axle Arm Assembly
161961 Selector Knob
170136X004 Selector Spring
146630 Spacer
700325X007 Wheel Adjusting Bracket
150078 Thread Cuthng Screw w/Sems 5/16-18 x 3/4
173571X479 Handle BracketAssembly (Left)
173572X479 Handle Bracket Assembly (Right)
150406 Hex Head Thread R_ling Screw 3/8-16 x 1-1/8
172835 Lawn Mower Housing (Incl. Key #14, 15, 51 &
KEY PART
NO, NO. DESCRIPTION
46 851514 Blade Adapter
47 141114 Blade 22"
48 851074 HardenedWasher
49 850263 Helical Washer 3/8o24 x1-3/8 Gr. 8
50 951084 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
51 170031 Front Baffle Kit
52 85463 Danger DeCal
55 751592 Locknut 3/8-16
56 88652 Hinge Screw 1/4-20 x 1-1/4
57 51793 Hairpin Cofter
58 151590X479 Lower HandJe
59 131959 Handle Bolt
61 132001 RopeGuide
62 134612 Oebris Shield
64 ...... Engine - (See Breakdown)
Bnggs11A602-0152-E1
65 74760612 Boft
66 751592 Nut
67 88348 Washer
68 57143 Wave Washer
- - 161058 Waming Decal (Not Shown)
69 17600406 Screw
70 170938 Spring LH
71 170939 SpnngRH
72 165912 Bo_t
73 700417 Throthe
74 144929 Screw
75 111190X Clamp
76 83816 Screw
-- 177296 Owner's Manual (English/Spanish)
Availathe accessories not included with lawn mower:
--_33313 ClippingDeflector
ROTARY LAWN MOWER MODEL NUMBER 917.379440
54
14
15 41
13
12
18
14
15
16
11
/,8
13
ROTARY LAWN MOWER MODEL NUMBER 917.379440
KEY
NO,
1
3
4
5
6
8
9
11
12
13
14
15
16
PART
NO,
145755
751152
158755
146527
150495
150182
145212
15034O
12OOOO58
137054
886_0
88118
67725
DESCRIPTION
Control Cable Assembly
Locknut #10-24
Pan Head Machine Screw 1/4 x 2.12
V-Ben
Swing Retainer
Hubcap
RangedNut
Wheer & Tire Assembly
E-Ring
Pinion
Dust Cover
Felt Washer
Washer 1/2 x 1-1/2 x .134
KEY PART
NO. NO. DESCRIPTION
18 701037 Selector Knob
26 143603 Pan Head Tapping Screw #10-24
28 154990 Ddve Cover
31 132010 Hex Flange Nut
3_ 137052 Ddve Pulley
35 151521 Wheel Adjuster Assembly (Left)
36 70_511 Gear Case Assembly Kit
37 137090 Swing
38 63601 Locknut
40 75192 Swing
41 151520 Wheel Adjuster Assembly (Right)
54 169oj32. Grassbag Assembly
55 86012 Ddveshaft Cover
57 159931 Frame

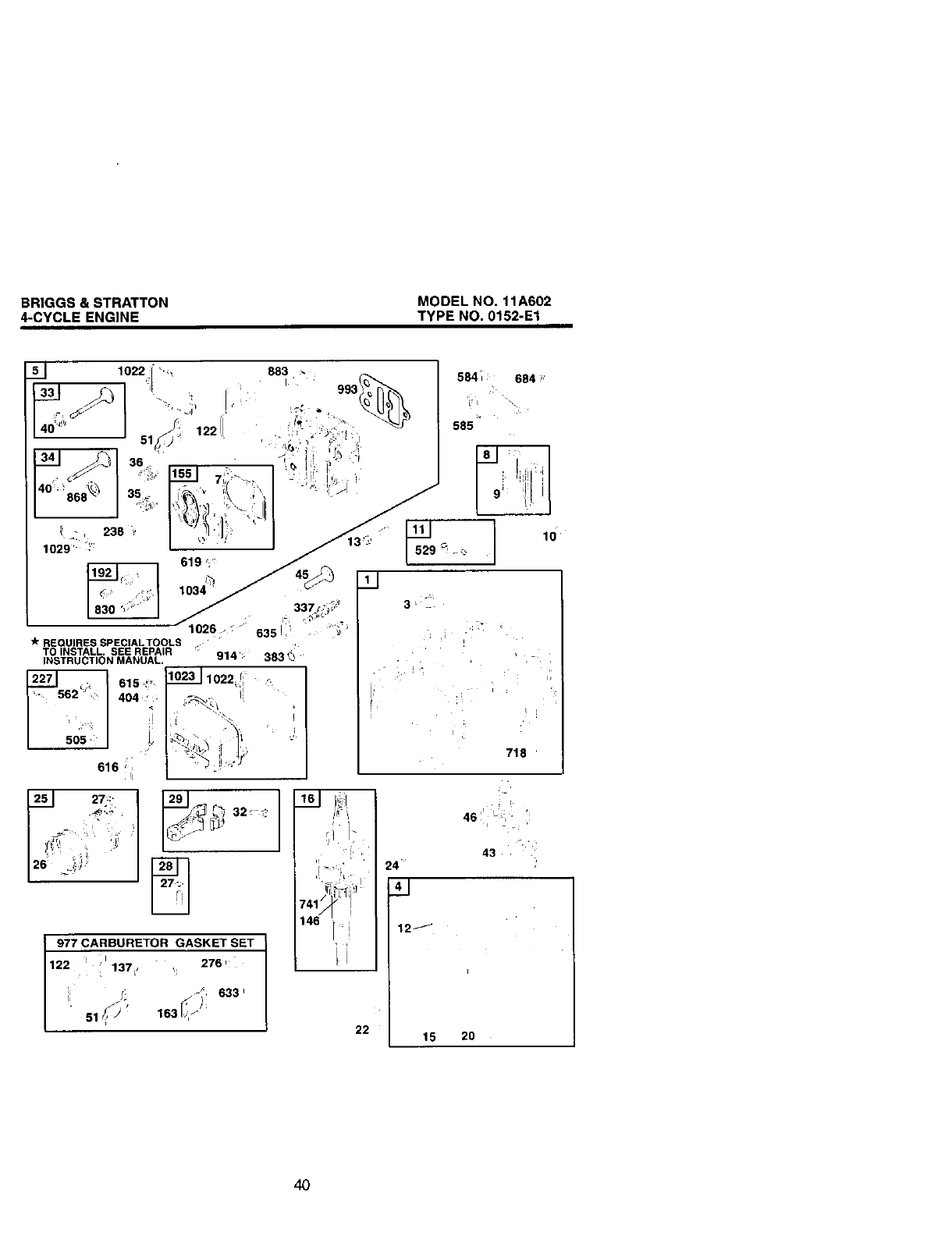

BRIGGS & STRATTON
4-CYCLE ENGINE MODEL NO, 11A602
TYPE NO, 0152-E1
883,
L, _993_
830 _i,:'
4r REQUIRESSPECIALTOOLS
TO INSTALL.SEE REPAIR
INSTRUCTIONMANUAL.
37 562
404 :
616
J
/
616 _,
914 383_
102311022
5841 684 _
!
1: L"\
585
1 lO
718
2_ 27_"
;i
[26
977 CARBURETOR GASKET SET I
1221 iiI 137_, _; -)!276'633 ' [
24
12j
22 15
46
43
2O
4O

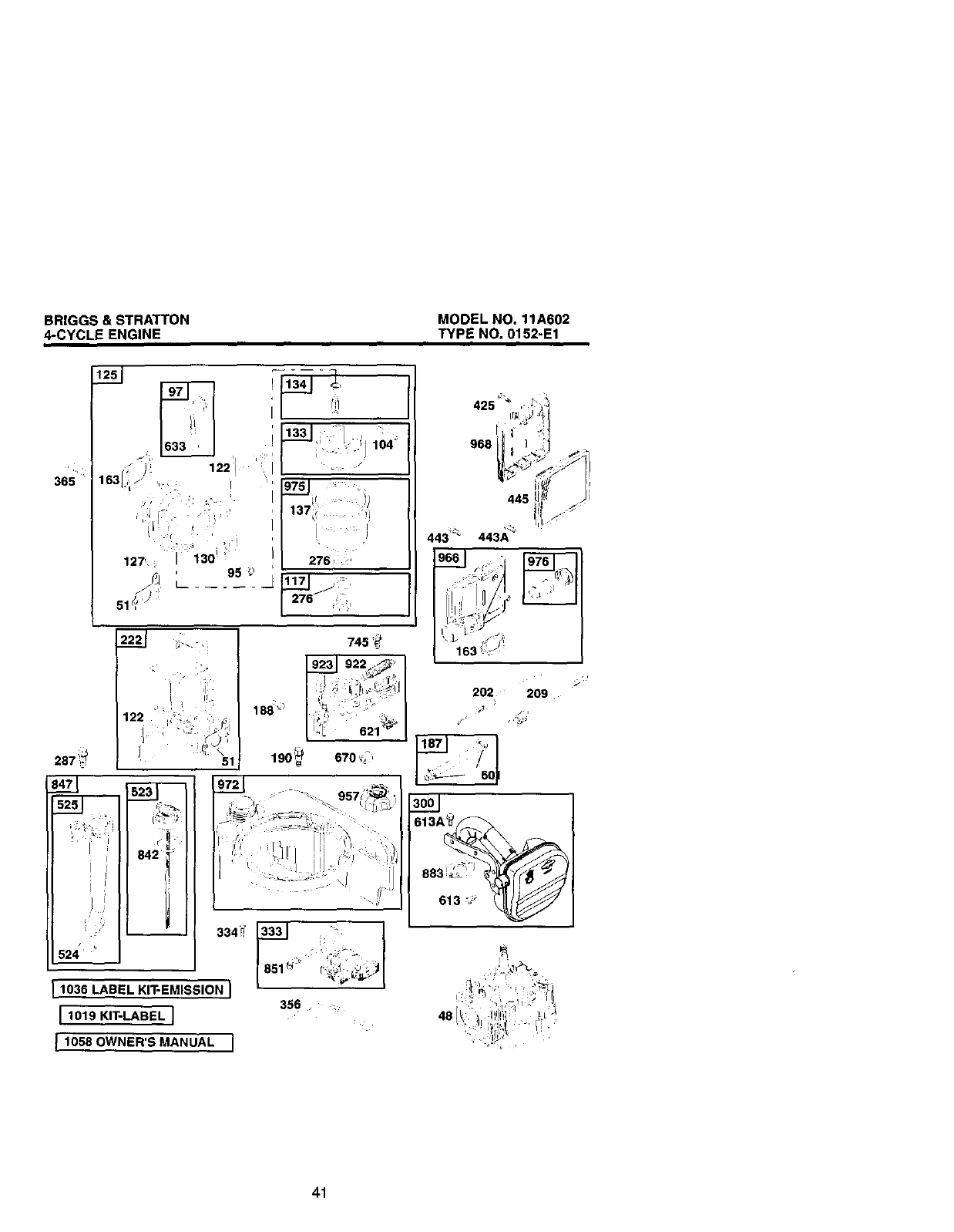

BRIGGS & STRATTON
4-CYCLE ENGINE MODEL NO. 11A602
TYPE NO. 0152-E1
/ )! 1221 I
163 .,:_/. ,_, _I ' ;
i I
i ,
127_ !I 130
' 95 _'
61_ _
_3-_J,i,;_].j__. lO4'
/
137 i .... !i
I;
___ 12_.Jj",
276 ,,
!1036 LABEL KIT-EMISSION ]
I 1019 KIT-LABEL I
[ 1058 OWNER'S MANUAL ]
J
4431_ 443/_ _'
! 163_:J:
I
202 209
41
BRIGGS & STRATTON
4-CYCLE ENGINE MODEL NO. 11A602
TYPE NO. 0152-E1
1211
121oi2___
121 CARBURETOR OVERHAUL KIT
633 104 >276 ;_,
127"' ,134_!i! 153
122i,,' 51S_ _, _' ,_
_..9 _ 137 _ .....
305_
358 ENGINE GASKET SET
995 :9o3i,_)J
3:<::_ 20'=: 1022__842 I';: 163_: i
m_
524, _'
12
&
925 _
564 _! ,_ I'/
930 _ ...... . :
332 _'
23
42
BRIGGS & STRATTON
4-CYCLE ENGINE
MODEL NO. 11A602
TYPE NO. 0152-E1
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 692670 Cylinder Assembly 146 690979
3299819 •Seal-Oil (Magneto Side) 155 695882
4 499619 163 692667
Sump-Engine
5 695276 Head-Cylinder 187 691059
7 695166 °+ Gasket-Cylinder Head
8 495786 Breather Assembly 188 693168
9 272481 •Gasket-Breather 192 694543
t0 691125 Screw (Breather Assembly) 190 690940
11 499675 Tube-Breather 202 691303
12 692232 °Gasket-Crankcase 269 691851
13 691137 Screw (Cylinder Head) 222 692672
15 691680 Plug-Oil Drain 227 691467
16 692676 Crankshaft 238 691300
20 399781 •Seal-Oil (PTO Side) 276 271716
22 691092 Screw (Engine Sump) 287 690940
23 692452 Flywheel 300 693982
24 222698 Key-Flywheel 304 499677
25 499429 Piston Assembly (Standard) 305 690960
499430 Piston Assembly (.010 O.S.) 332 690662
499431 Piston Assembly (.020 O.S.) 333 802574
499432 Piston Assembly (.030 03.) 334 691061
26 499425 Ring Set-Piston (Standard) 337 692051
499426 Ring Set-Piston (.010 O.S.) 356 692396
499427 Ring Set-Piston (.020 O.S.) 358 694090
499428 Ring Set-Piston (.030 O.S.) 363 19069
27 691866 Lock-Piston Pin 365 691136
28 499423 Pin-Piston 383 19374
29 692671 Rod-Connecting 404 690272
32 691664 Screw (Connecting Rod) 425 690670
33 499642 Valve-Exhaust 443 691637
34 499641 Valve-Intake
35 691304 Spring-Valve (Intake) 443A 692523
36 691304 Spring-Valve (Exhaust)
37 694086 Guard-Flywheel 445 491588
40 692194 Retainer-Valve 465 691219
43 691997 Slinger-Governor/Oil 456 692299
45 690977 Tappet-Valve 459 281505
46 694039 Camshaft 505 231082
48 692745 Short Block (Replacement 523 495264
•Engine 121602-0015-E1) 524 692296
51 692668 _+Gasket-lntake 525 495265
55 691421 Housing-Rewind Starter 529 692937
58 692259 Rope-Starter (Cut to 562 94852
Required Length) 564 693808
60 281434 Grip-Starter Rope 584 692342
65 690837 Screw (Rewind Starter) 585 691879
78 691108 Screw (Flywheel Guard) 592 690800
95 691636 Screw (Throttle VaNe) 597 691696
97 499682 Shall-Throttle 601 95162
104 691242 O Pin-Float Hinge 604 692669
117 498978 Jet-Main (Standard) 608 497680
498975 Jet-Main (High Altitude) 613 691108
121 692703 Kit-Carburetor Overhaul 613A 691140
122 692799 ,O:_+Spaeer-Carburetor 615 690340
125 694202 Carburetor
127 694468 O Plug-Welch
130 691203 Valve-Throttle
133 398187 Efoat-Carburetor
134 398188 D Valve-Needle/Seat
137 693981 etGasket-Float Bowl
DESCRIPTION
Key-Timing
Plate-Cylinder Head
oO:_+Gasket-Air Cleaner
Line-Fuel (Cut to Required
Length)
Screw (Control Bracket)
Adjuster-Rocker Arm
Screw Fuel Tank)
Link-Mechanica Governor
Spdng-Governor
Bracket-ControL
Control Lever.Governor
Cap-Valve
O:1:Sealing Washer
Screw (Dipstick Tube)
Muffler
Housing-Blower
Screw Blower Housing)
Nut (Flywheel)
Armature-Magneto
Screw (Armature Magneto)
Spark Plug
Wire-Sto
Engine _asket Set
Flywheel Puller
Screw (Carburetor)
Wrench-Spark Plug
Washer (Governor Crank)
Screw (Air Cleaner Cover)
Screw (Air Cleaner Primer
Base)
Screw (Air Cteaner Primer
Base)
Filter-Air Cleaner Cadridge
Cup-Flywheel
Plate-Pawl Friction
PawI-Ratchet
Nut (Governor Control Lever)
Dipstick
• Seal-Dipstick Tube
Tube-Dipstick
Grommet
Solt (Governor Control Lever)
Screw (Control Cover)
Cover-Breather Passage
• Gasket-Breather Passage
Nut (Rewind Starter
Screw (Pawl Fr ction P ate
Clamp-Hose
Cover-Control
Starter-Rewind
Screw (Muffler)
Screw (Muffler)
Retainer-Governor Shaft
Included in Engine Gasket Set, Key. No.
358
O Included in Carburetor Overhaul Kit, Key.
No. 121
:_ included in Carburetor Gasket Set, Key.
No. 977
+ Included in Valve Gasket Set, Key. No.
1095
NOTE: All component dimensions given in U.S.
inches 1inch = 26.4 mm
43

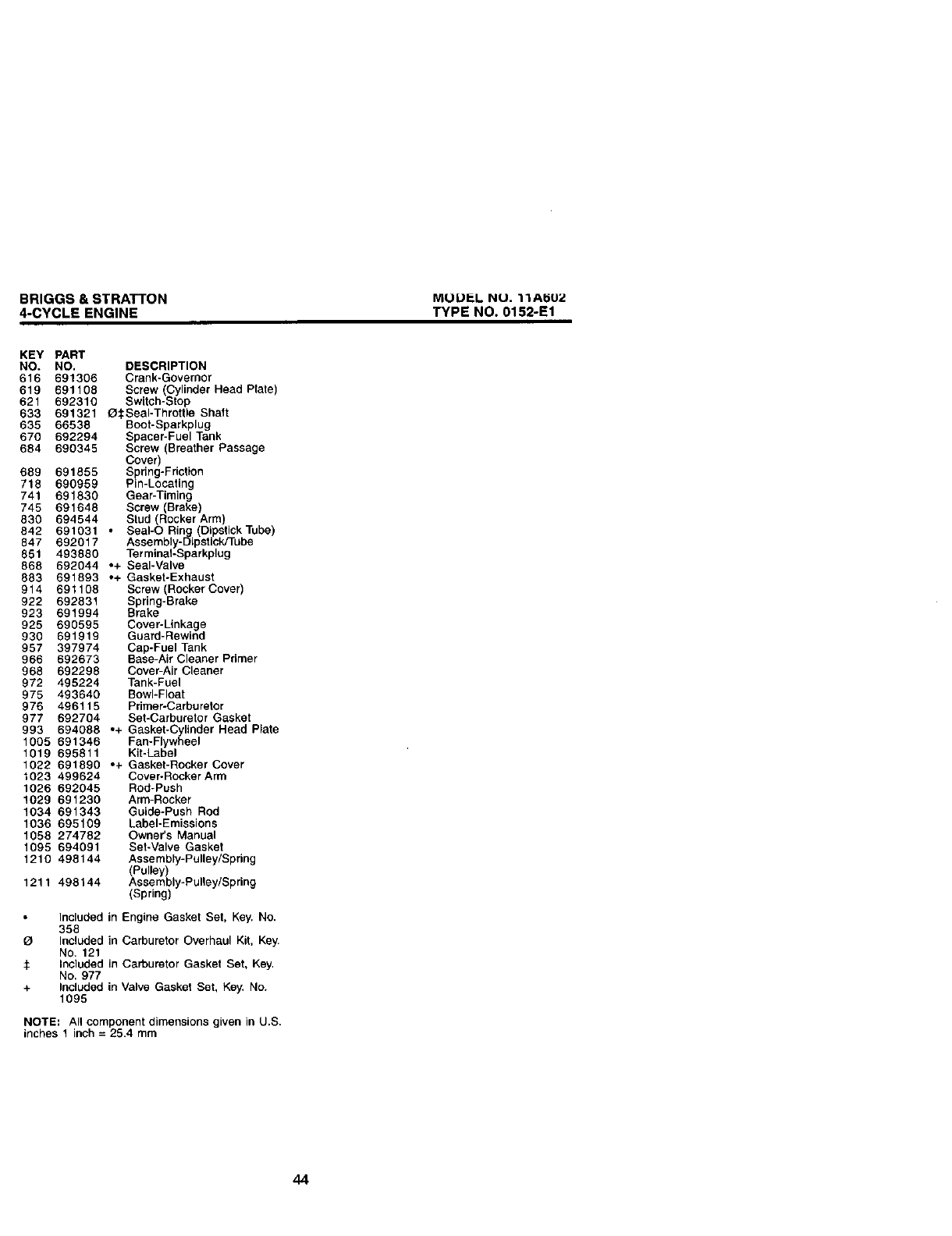

BRIGGS & STRATTON
4-CYCLE ENGINE IVIUUP..LNU. 11ASU2
TYPE NO. 0152-E1
KEY PART
NO. NO. DESCRIPTION
616 691306 Crank-Governor
619 691108 Screw (Cylinder Head Plate)
621 692310 Switch-Stop
633 691321 O:_SeaI-Throtfle Shaft
635 66538 Boot-Sparkplug
670 692294 Spacer-Fuel Tank
684 690345 Screw (Breather Passage
Cover)
689 691855 Spring-Friction
716 690959 Pin-Locating
741 691836 Gear-Timing
745 691648 Screw (Brake)
830 694544 Stud (Rocker Arm)
842 691031 •SeaI-O Ring (Dipstick Tube)
847 692017 Assembly-Dipstick/Tube
851 493880 TerminaI-Sparkplug
868 692044 o+ Seal-Valve
683 691893 ,+ Gasket-Exhaust
914 691108 Screw (Rocker Cover)
922 692831 Spring-Brake
923 691994 Brake
925 699595 Cover-Linkage
930 691919 Guard-Rewind
957 397974 Cap-Fuel Tank
966 692673 Base-Air Cleaner Primer
968 692298 Cover-Air Cleaner
972 495224 Tank-Fuel
975 493640 Bowl-Float
976 496115 Primer-Carburetor
977 692704 Set-Carburetor Gasket
993 694088 °+ Gasket-Cylinder Head Plate
1005 691346 Fan-Flywheel
1019 695811 Kit-Label
1022 691890 °+ Gasket-Rocker Cover
1023 499624 Cover-Rocker Arm
1026 692045 Rod-Push
1029 691230 Arm-Rocker
1034 691343 Guide-Push Rod
1036 695109 Label-Emissions
1058 274782 Owner's Manual
1095 694091 Set-Valve Gasket
1210 498144 Asse mbly-Pulley/Spdng
(Pulley)
1211 498144 Asse mbly*Pulley/Sp ring
(Spring)
Included in Engine Gasket Set, Key. No.
368
Included in Carburetor Overhaul Kit, Key.
NO. 121
:_ Included in Carburetor Gasket Set, Key.
NO. 977
+ Included in Valve Gasket Set, Key. No.
1095
NOTE: All component dimensions given in U.S.
inches 1inch = 25.4 mm
44
45
46
47
Get it fixed, at your home or ours!
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOM EsMA°ytime,day or night
(1-800-469-4663)
www.sears,com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 Anytime,day or night
www.sears.corn
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirectSM!
1-800-366-PART 6a.m.-It p.r..CST,
(1-800-366-7278) 7 days a week
www.sears.com/pa rtsdirect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.m.- 5 p.m.CST,Mort.- Sat.
Para pedir servicio de reparaci6n a demicilio,
y para ordenar piezas con entrega a dornicilio:
1-888-SU-HOGAR sM
(1-888-784-6427)
Au Canada pour service en fran*;ais:
1-877-LE-FOYER _.
(1-877-533-6937)
©Sears, Roebuckand Co, ®Registered Trademark /IM Trademark of Sears, Roebuck and Co.
®Marca Registrada /"" Marca de Fdbrica de Sears, Roebuck and Co
177296 12.15.00 TR Printed in U.S.A.

Navigation menu
