Owner's Manual

£RAFTXMRNo

5.5 HORSEPOWER

22" REAR DISCHARGE

POWER PROPELLED

ROTARY LAWN MOWEF

Model No.

917.379490

• Safety

• Assembly

• Operation

•Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website:www.sears.comicraftsman

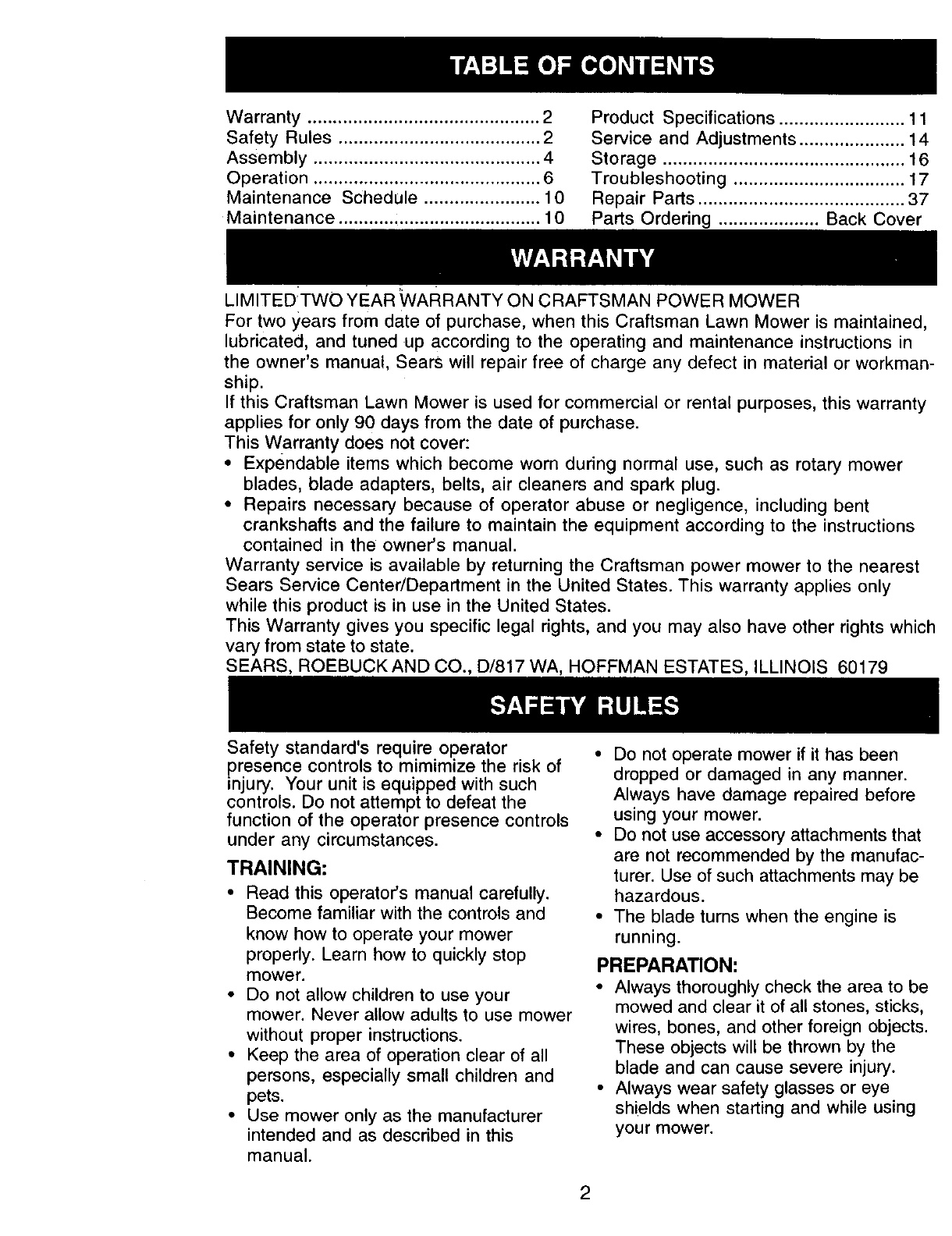

Warranty .............................................. 2

Safety Rules ........................................ 2

Assembly ............................................. 4

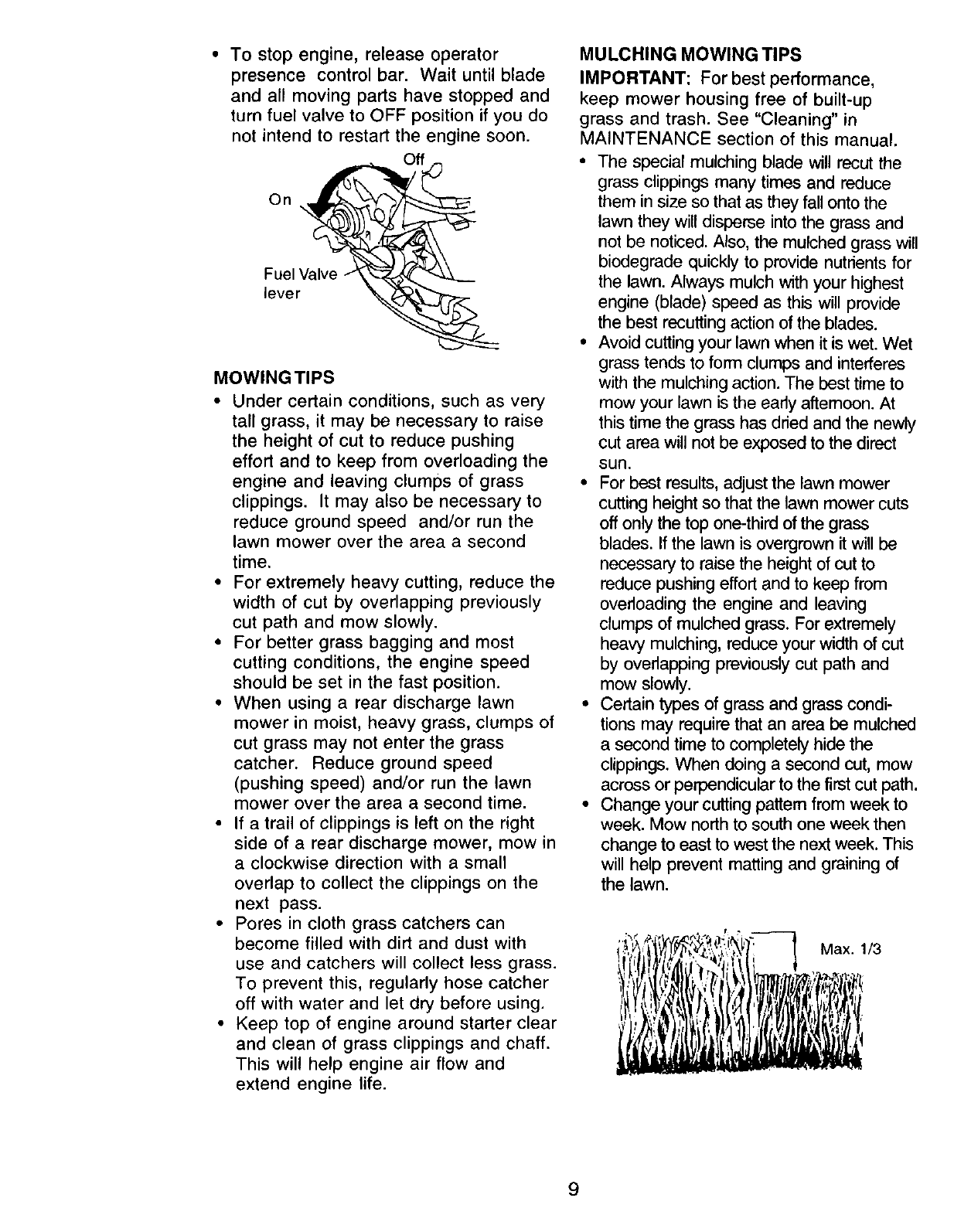

Operation ............................................. 6

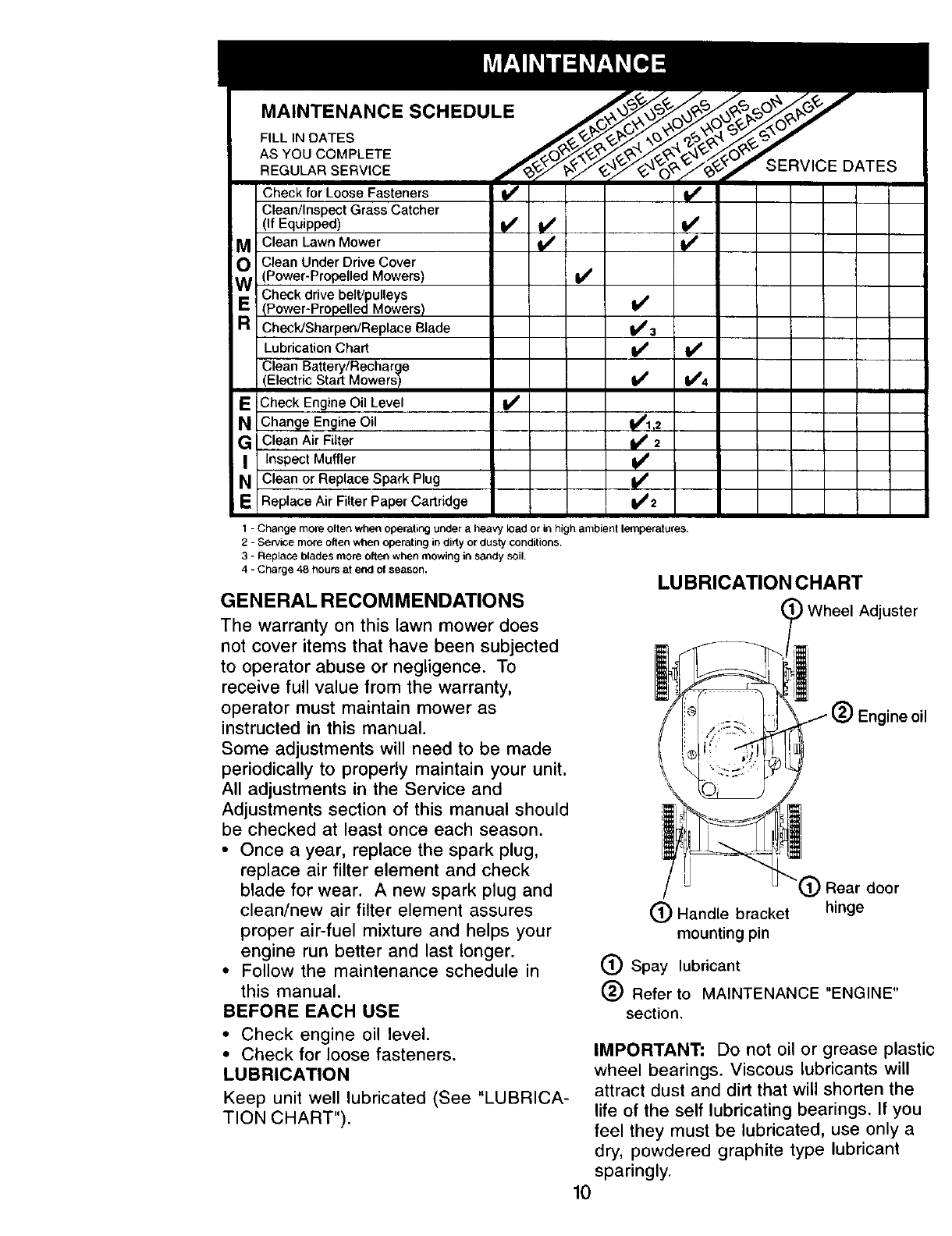

Maintenance Schedule ....................... 10

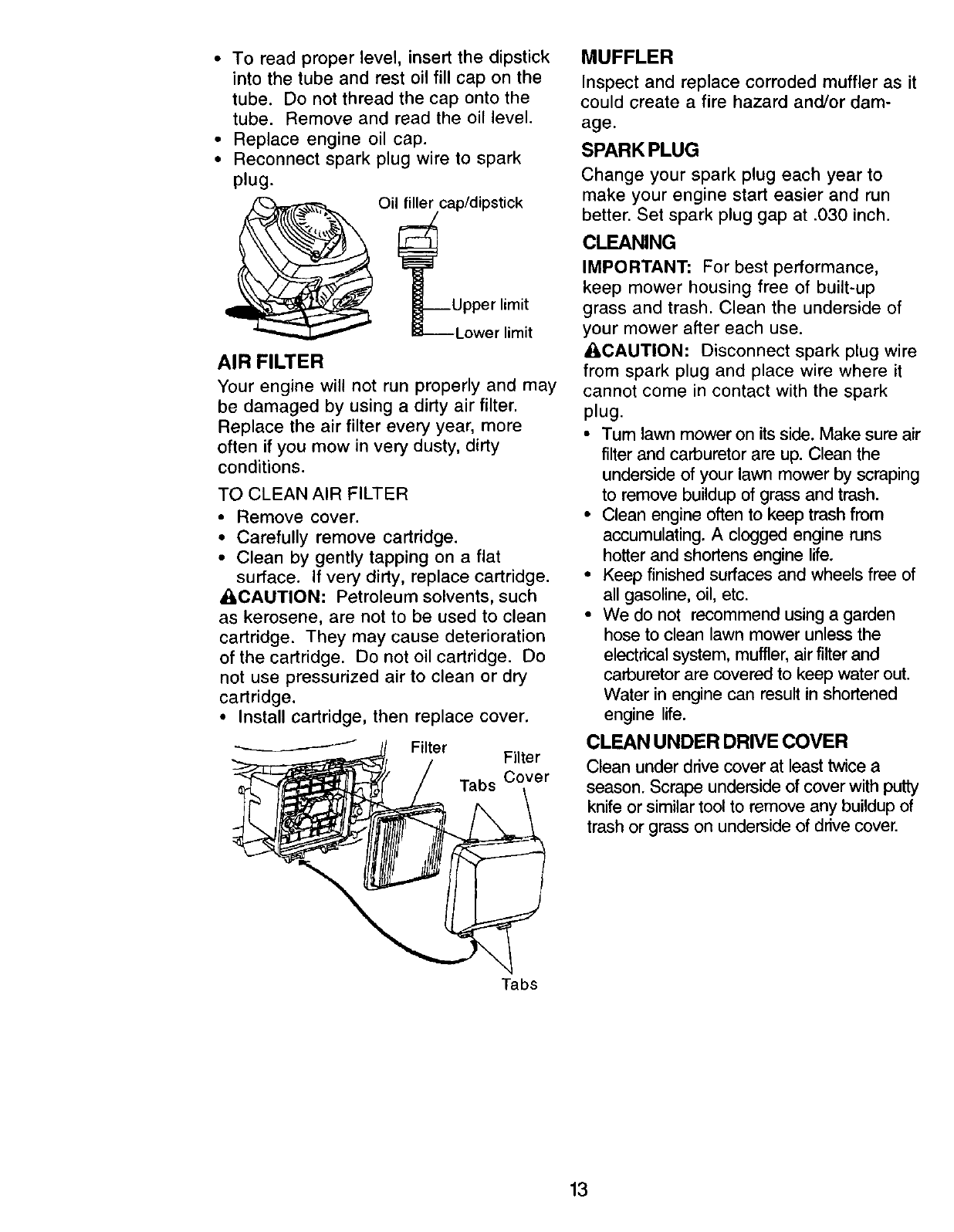

Maintenance ........... :............................ 10

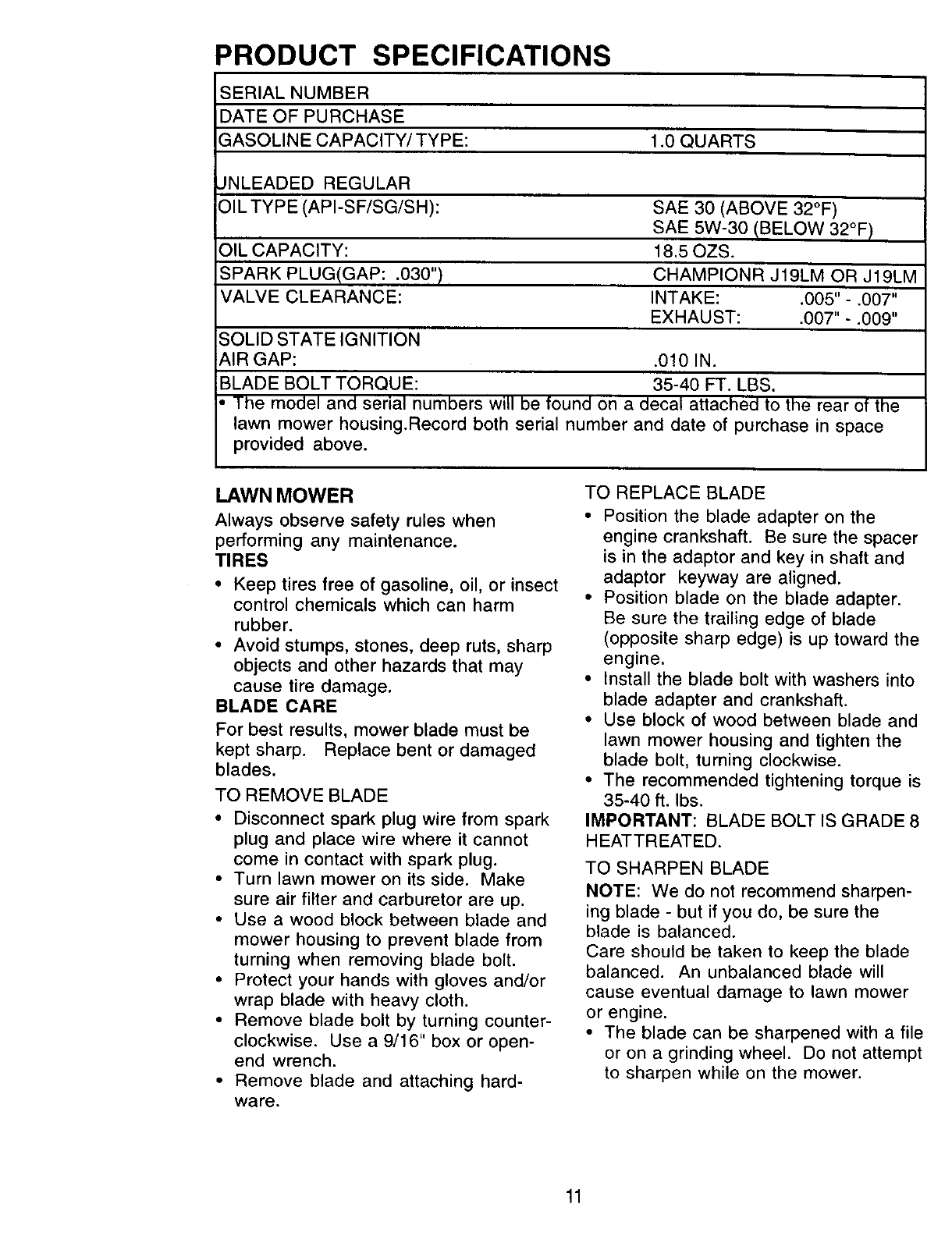

Product Specifications ......................... 11

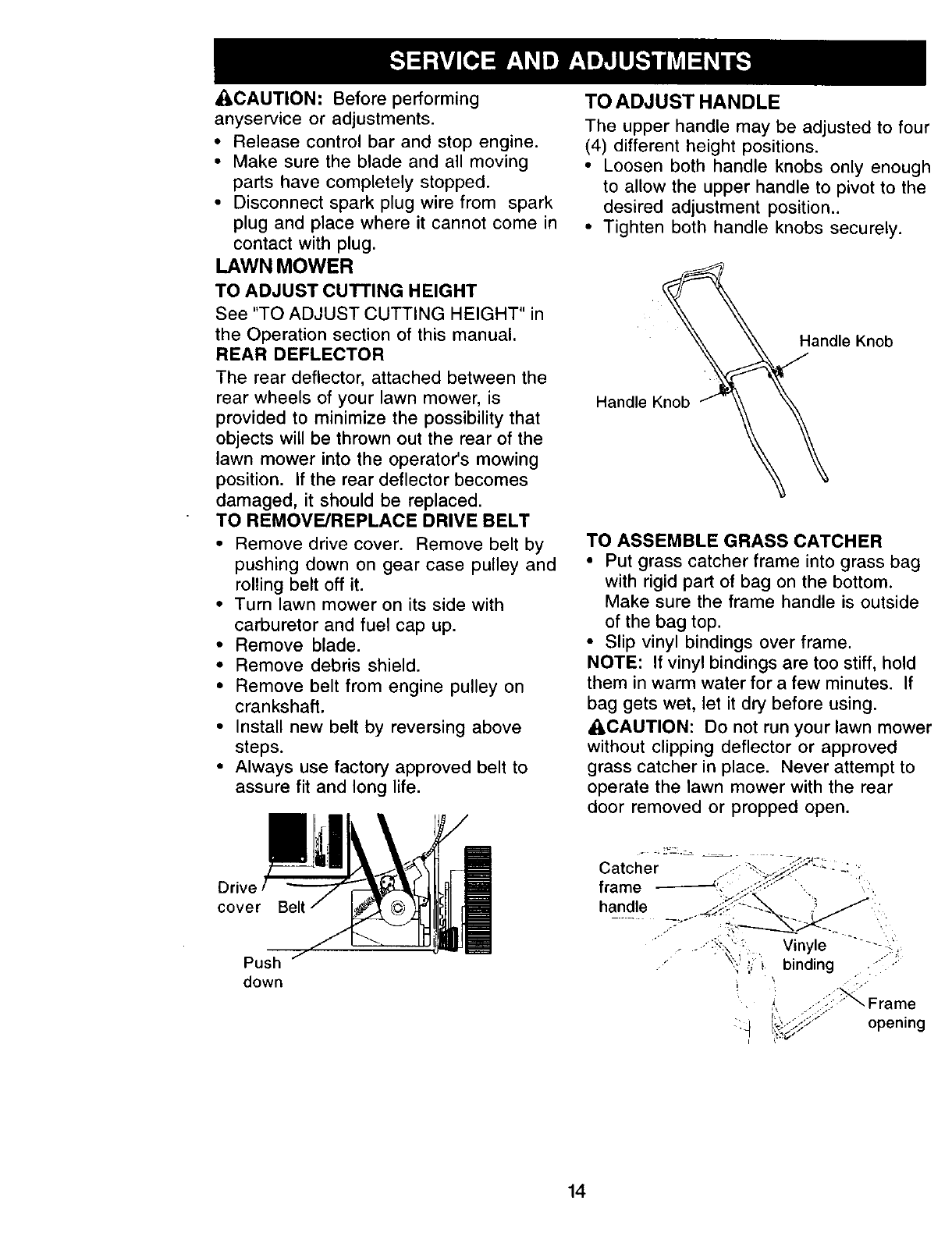

Service and Adjustments ..................... 14

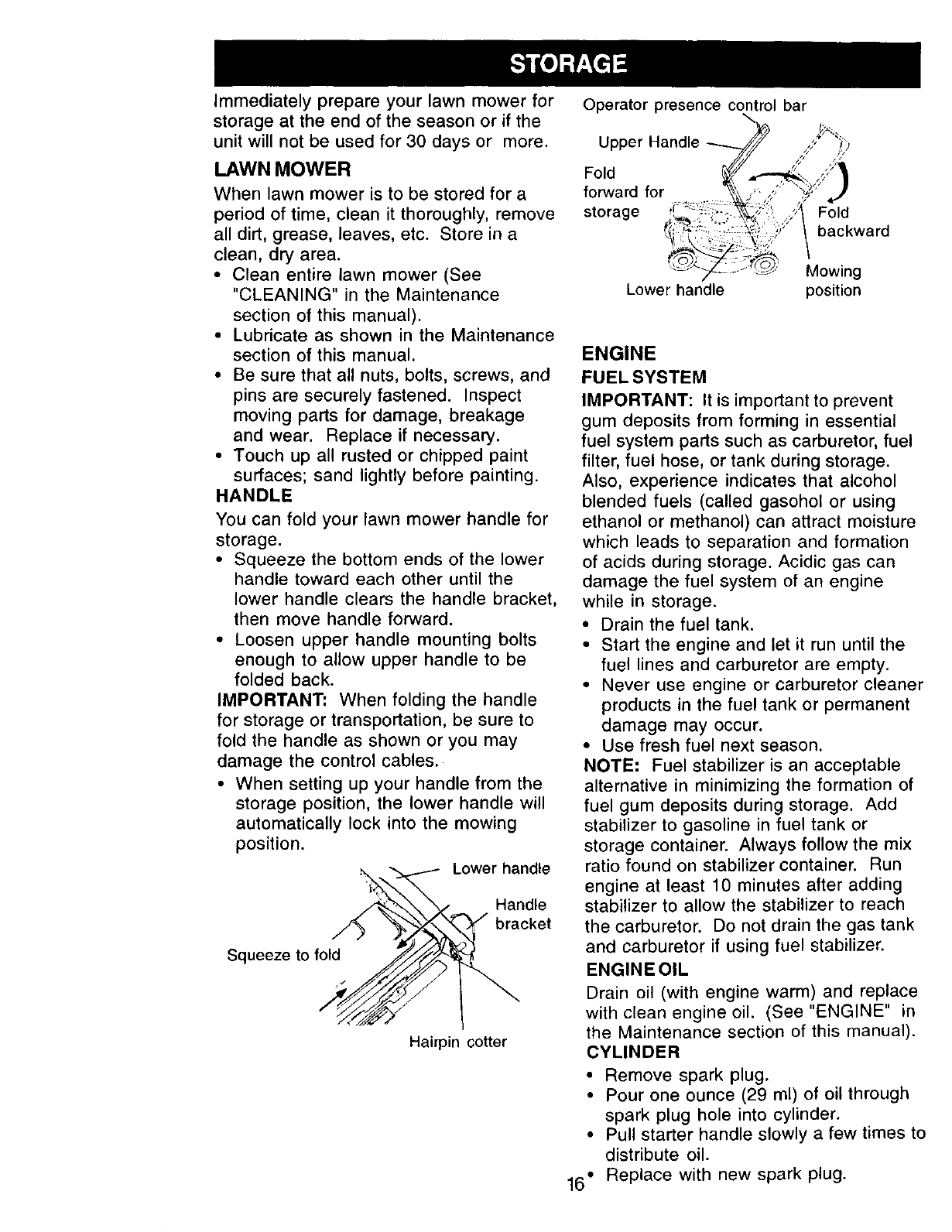

Storage ................................................ 16

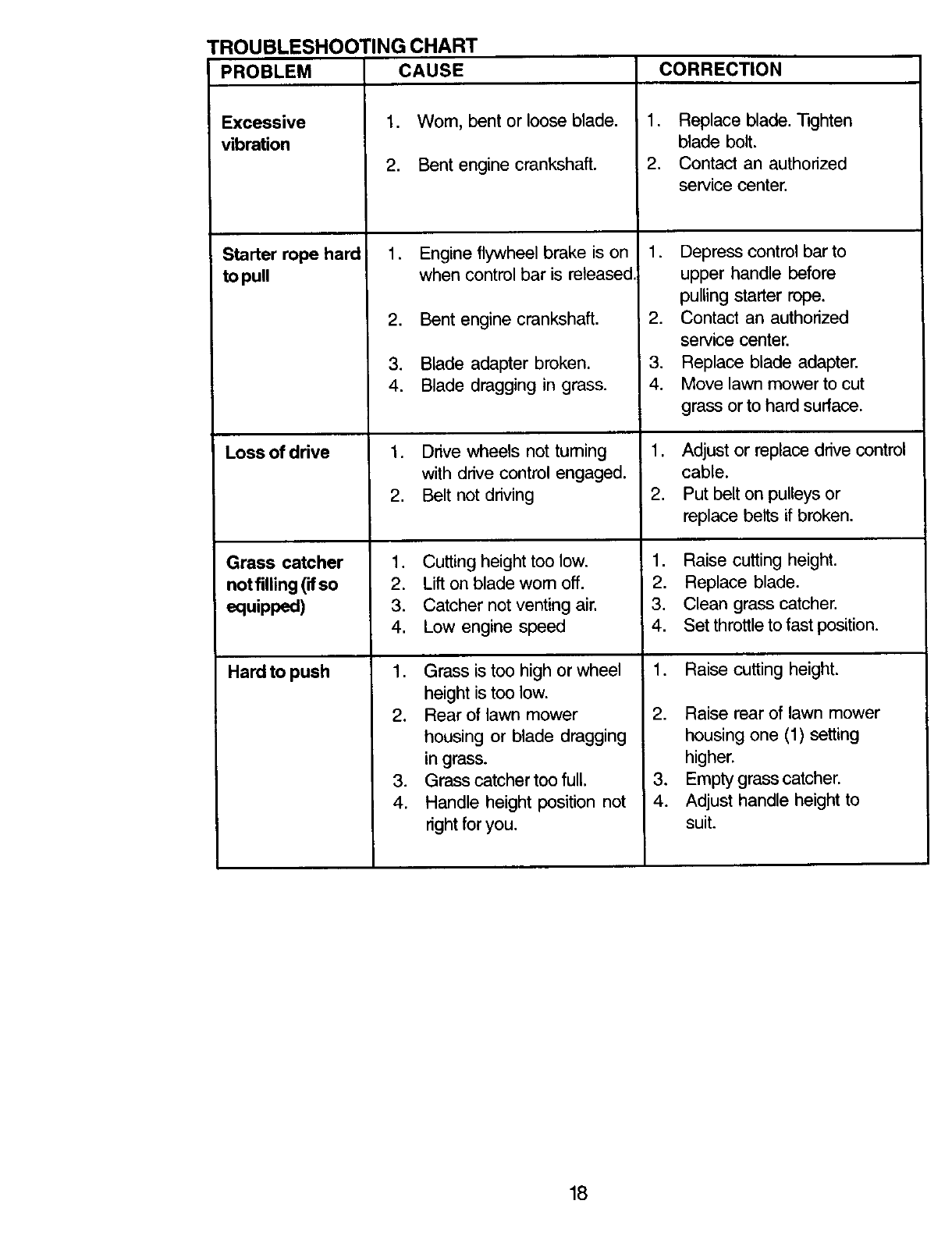

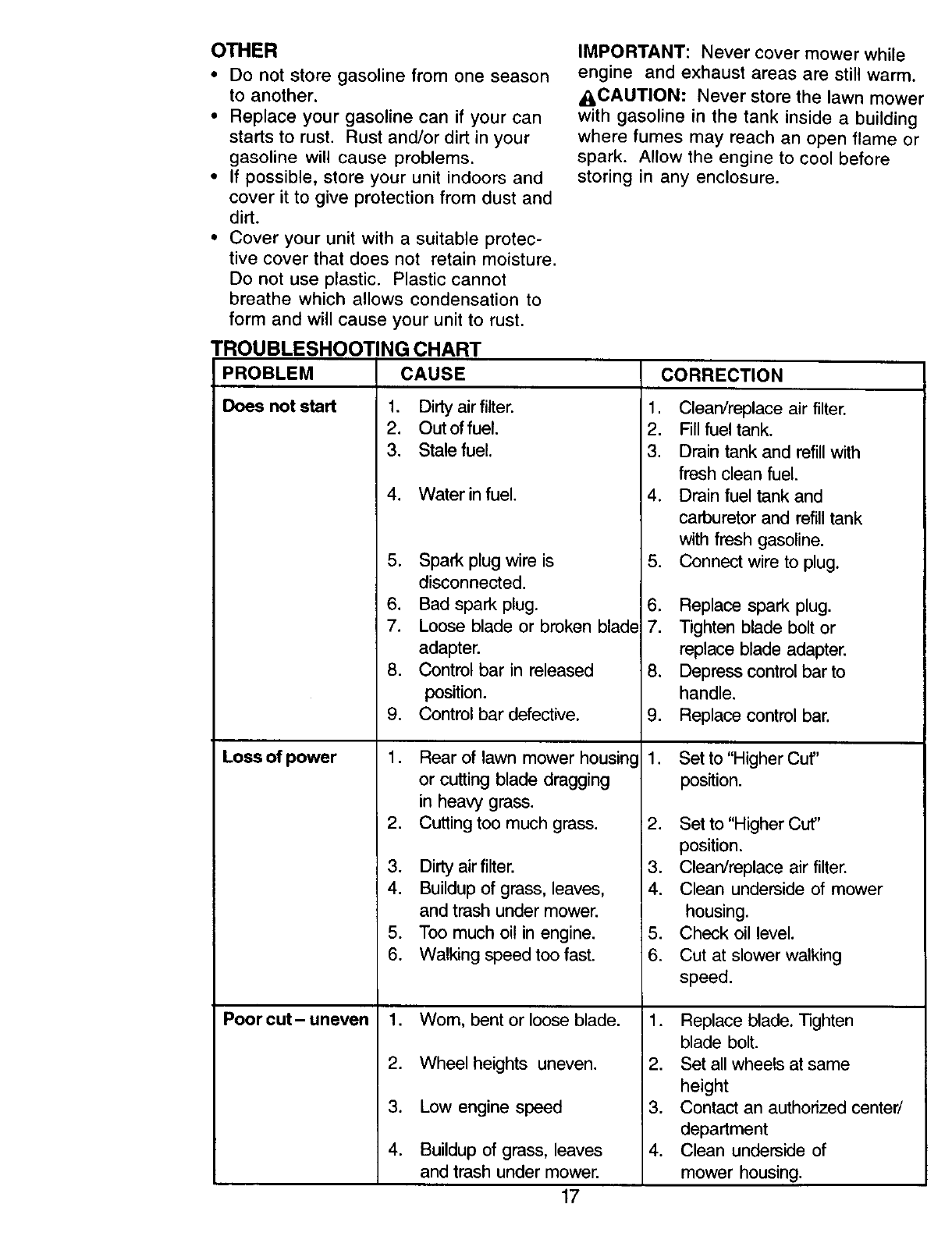

Troubleshooting .................................. 17

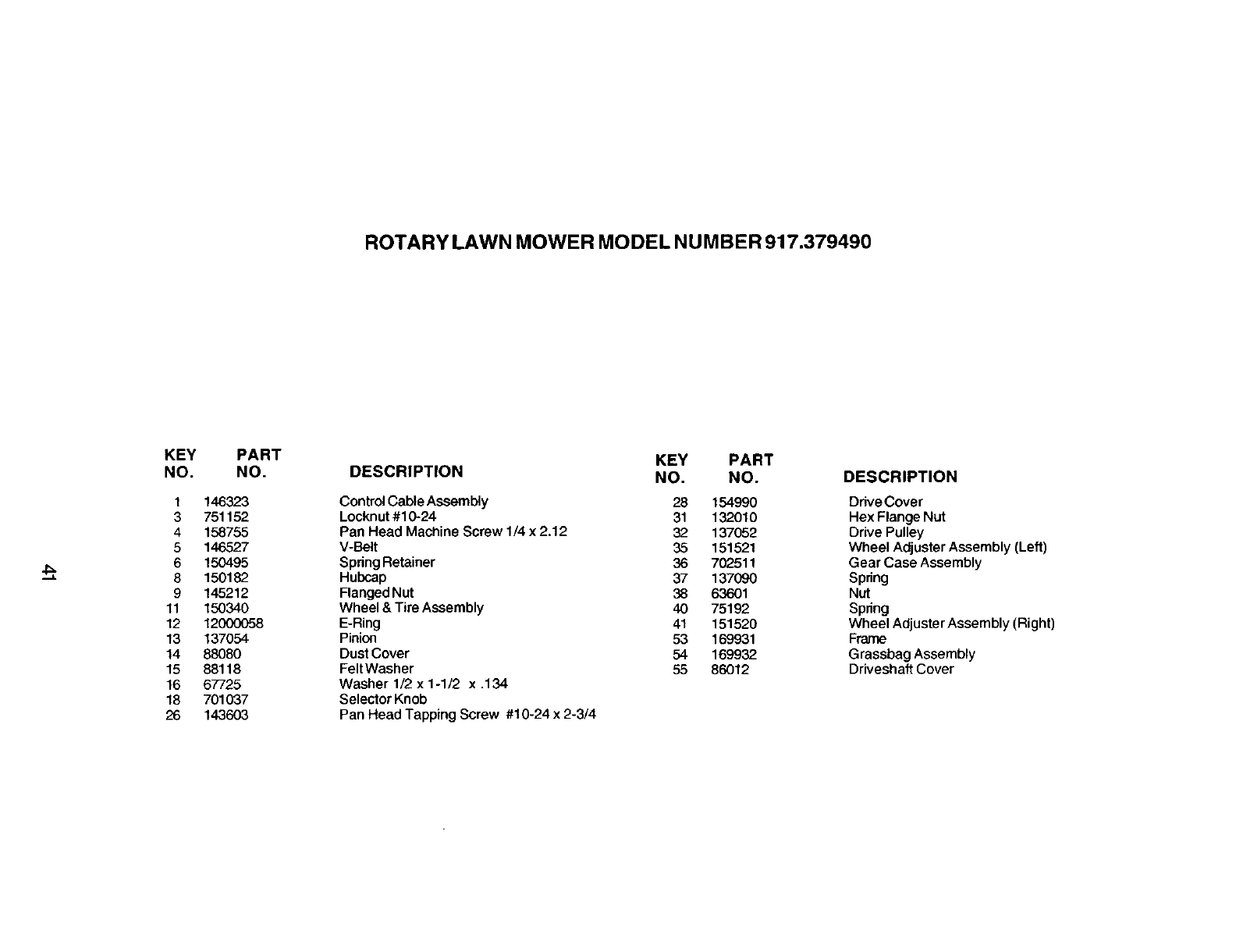

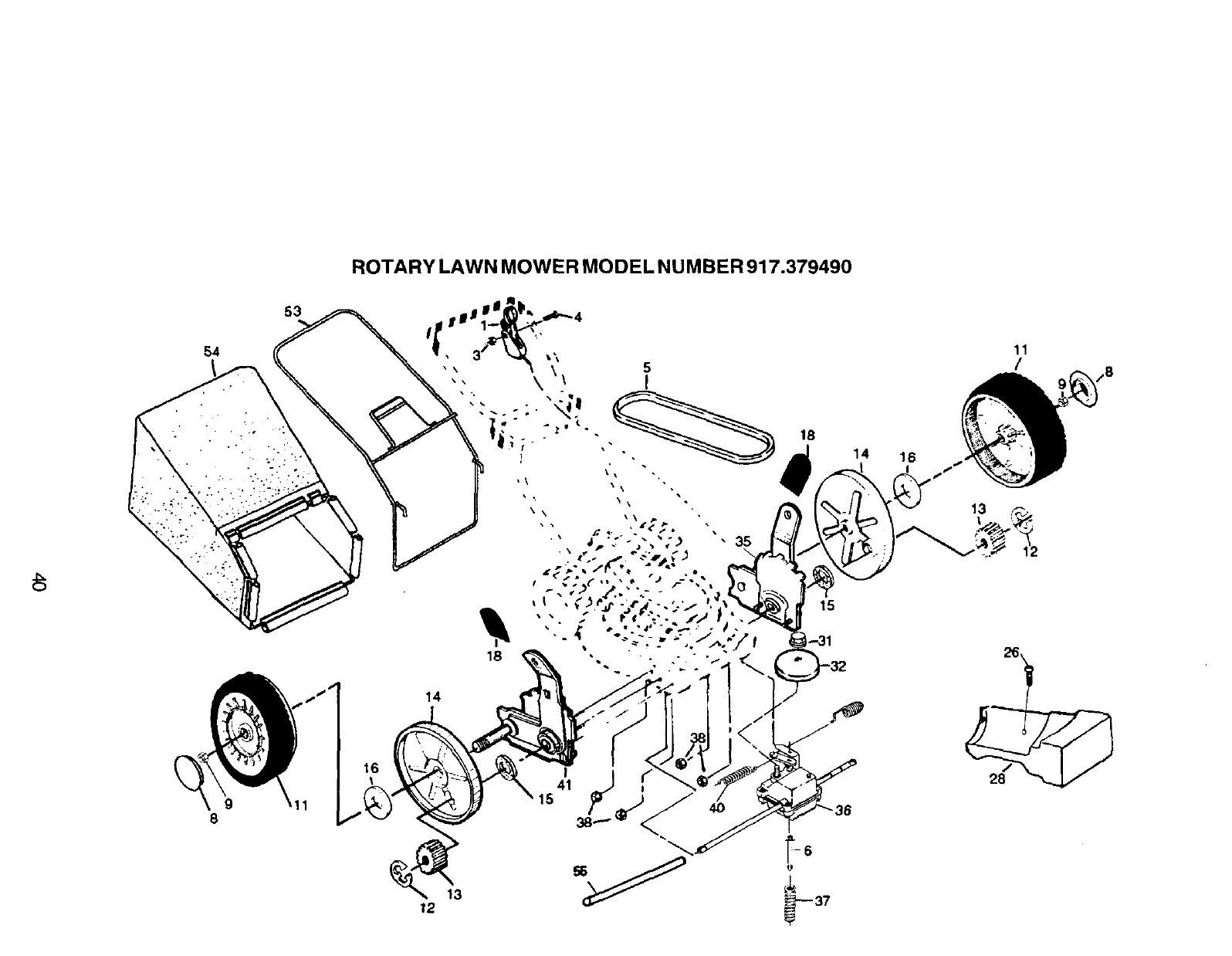

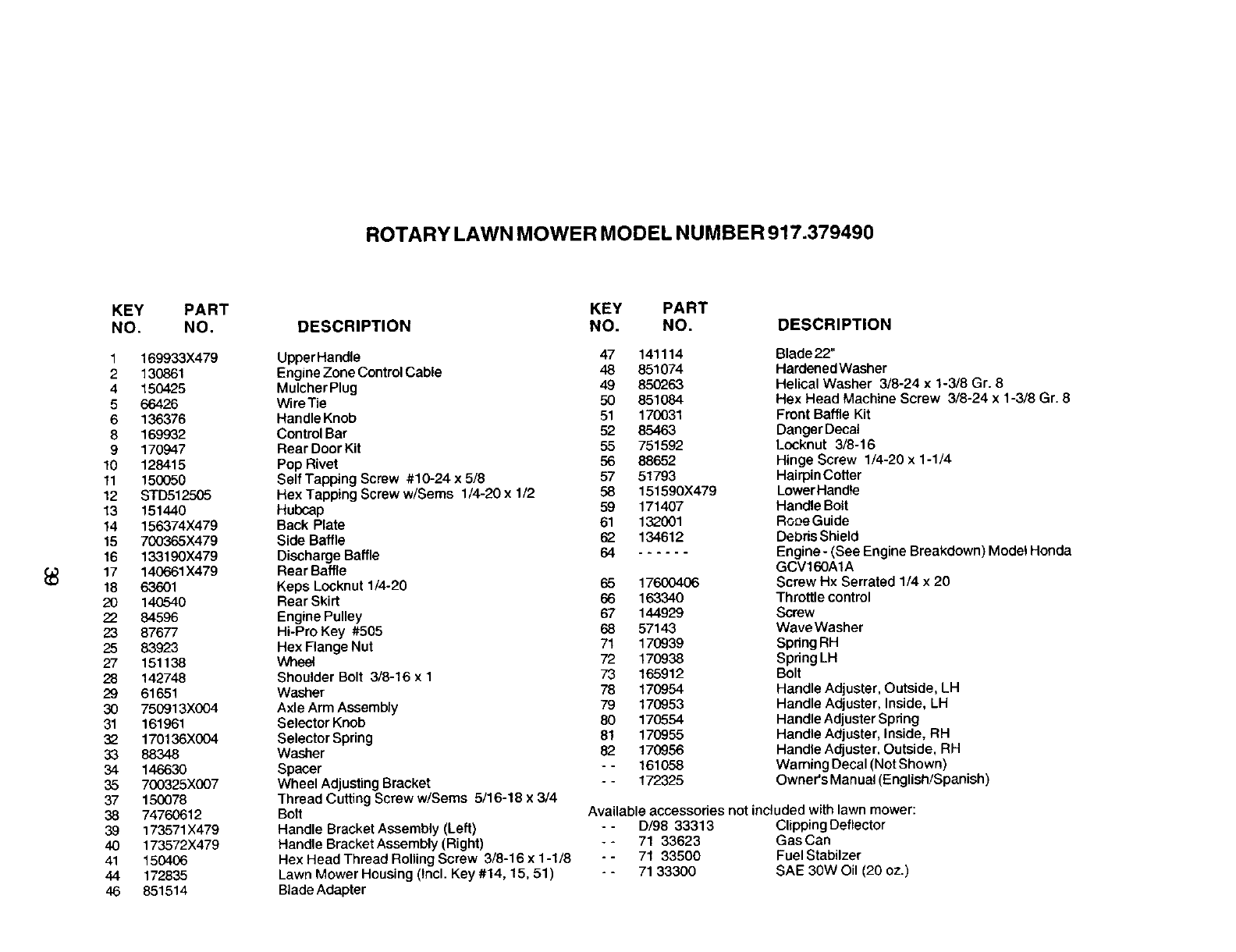

Repair Parts ......................................... 37

Parts Ordering .................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standard's require operator

presence controls to mimimize the risk of

injury. Your unit is equipped with such

controls. Do not attempt to defeat the

function of the operator presence controls

under any circumstances.

TRAINING:

• Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

properly. Learn how to quickly stop

mower.

• Do not allow children to use your

mower. Never allow adults to use mower

without proper instructions.

• Keep the area of operation clear of all

persons, especially small children and

pets.

• Use mower only as the manufacturer

intended and as described in this

manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

• Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

• The blade turns when the engine is

running.

PREPARATION:

• Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

• Always wear safety glasses or eye

shields when starting and while using

your mower.

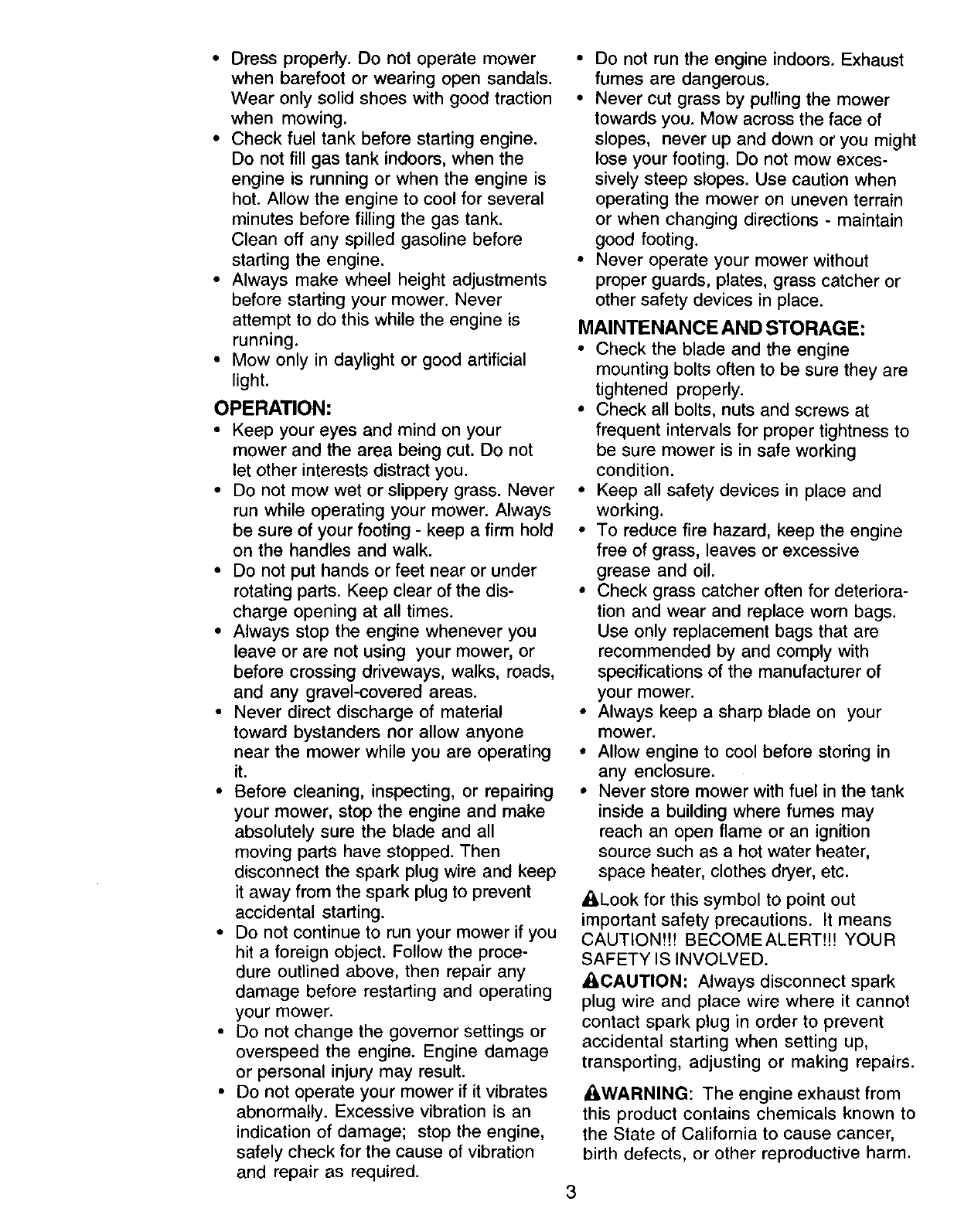

•Dress properly. Do not operate mower

when barefoot or wearing open sandals.

Wear only solid shoes with good traction

when mowing.

• Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank.

Clean off any spilled gasoline before

starting the engine.

•Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

• Mow only in daylight or good artificial

light.

OPERATION:

• Keep your eyes and mind on your

mower and the area being cut. Do not

let other interests distract you.

• Do not mow wet or slippery grass. Never

run while operating your mower. Always

be sure of your footing - keep a firm hold

on the handles and walk.

• Do not put hands or feet near or under

rotating parts. Keep clear of the dis-

charge opening at all times.

• Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks, roads,

and any gravel-covered areas.

• Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

• Before cleaning, inspecting, or repairing

your mower, stop the engine and make

absolutely sure the blade and all

moving parts have stopped. Then

disconnect the spark plug wire and keep

it away from the spark plug to prevent

accidental starting.

• Do not continue to run your mower if you

hit a foreign object. Follow the proce-

dure outlined above, then repair any

damage before restarting and operating

your mower.

• Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

• Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

• Do not run the engine indoors, Exhaust

fumes are dangerous.

• Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you might

lose your footing. Do not mow exces-

sively steep slopes. Use caution when

operating the mower on uneven terrain

or when changing directions - maintain

good footing.

• Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

• To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

•Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

• Allow engine to cool before storing in

any enclosure.

• Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

ALook for this symbol to point out

important safety precautions. It means

CAUTIONTT! BECOMEALERT!H YOUR

SAFETY IS INVOLVED.

_kCAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

_I,WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

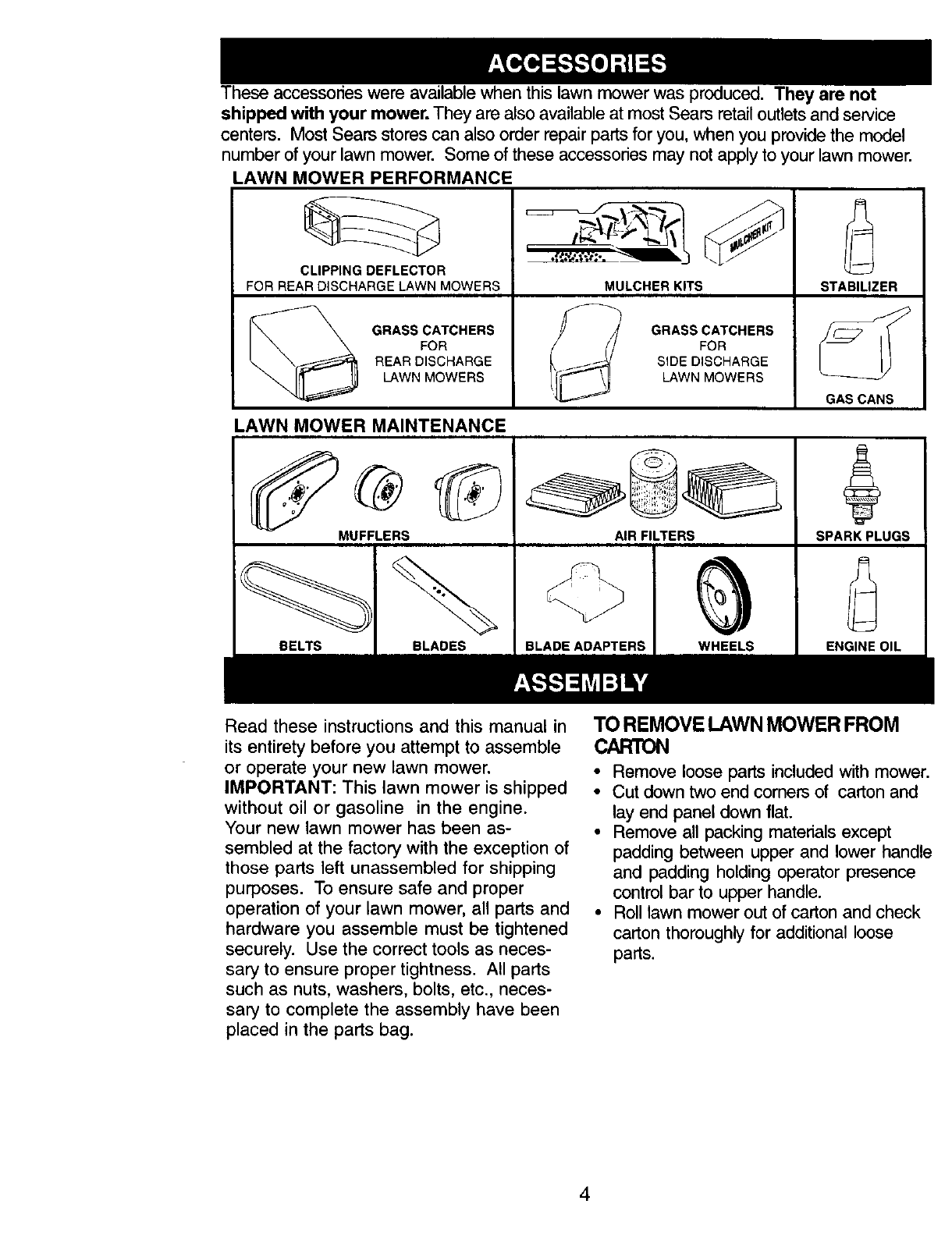

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

.f_o;f,,'t :.. -_J

MULCHER KITS

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS SPARK PLUGS

BLADES

AIR FILTERS

WHEELSBELTS BLADE ADAPTERS ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

without oil or gasoline in the engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those parts left unassembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all parts and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

sary to ensure proper tightness. All parts

such as nuts, washers, bolts, etc., neces-

sary to complete the assembly have been

placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose parts included with mower.

• Cut down two end corners of carton and

lay end panel down flat.

•Remove all packing materials except

padding between upper and lower handle

and padding holding operator presence

control bar to upper handle.

• Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts.

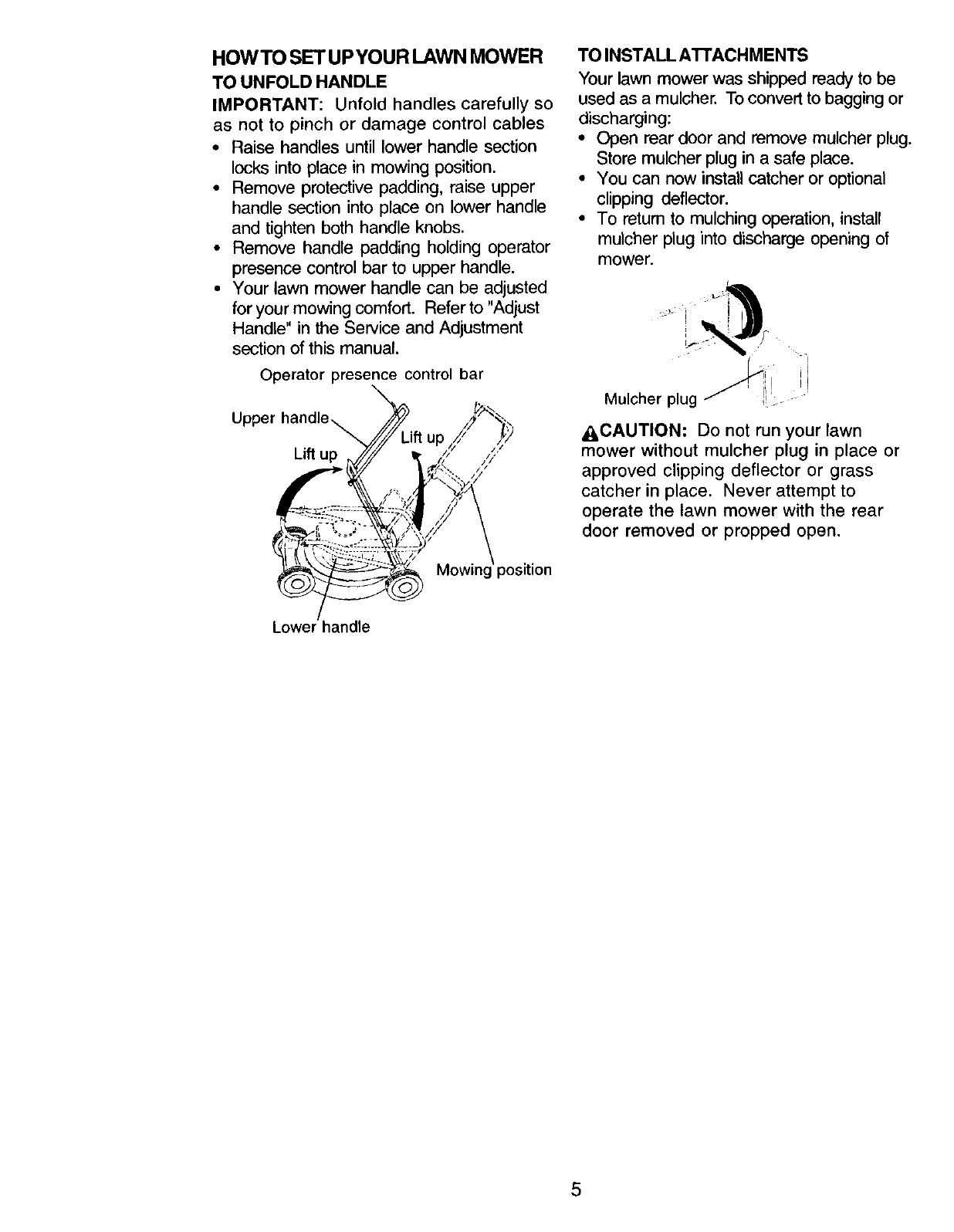

HOW TO SET UP YOUR LAWN MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handles carefully so

as not to pinch or damage control cables

•Raise handles until lower handle section

locks into place in mowing position.

• Remove protective padding, raise upper

handle section into place on lower handle

and tighten both handle knobs.

• Remove handle padding holding operator

presence control bar to upper handle.

• Your lawn mower handle can be adjusted

for your mowing comfort. Refer to "Adjust

Handle" in the Service and Adjustment

section of this manual.

Operator presence control bar

Upper handle_ up

Lift up

Mowing position

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to be

used as a mulcher. To convert to bagging or

discharging:

• Open rear door and remove mulcher plug.

Store mulcher plug in a safe place.

•You can now install catcher or optional

clipping deflector.

• To retum to mulching operation, install

mulcher plug into discharge opening of

mower.

Mulcher plug

_,CAUTION: Do not run your lawn

mower without mulcher plug in place or

approved clipping deflector or grass

catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

_andle

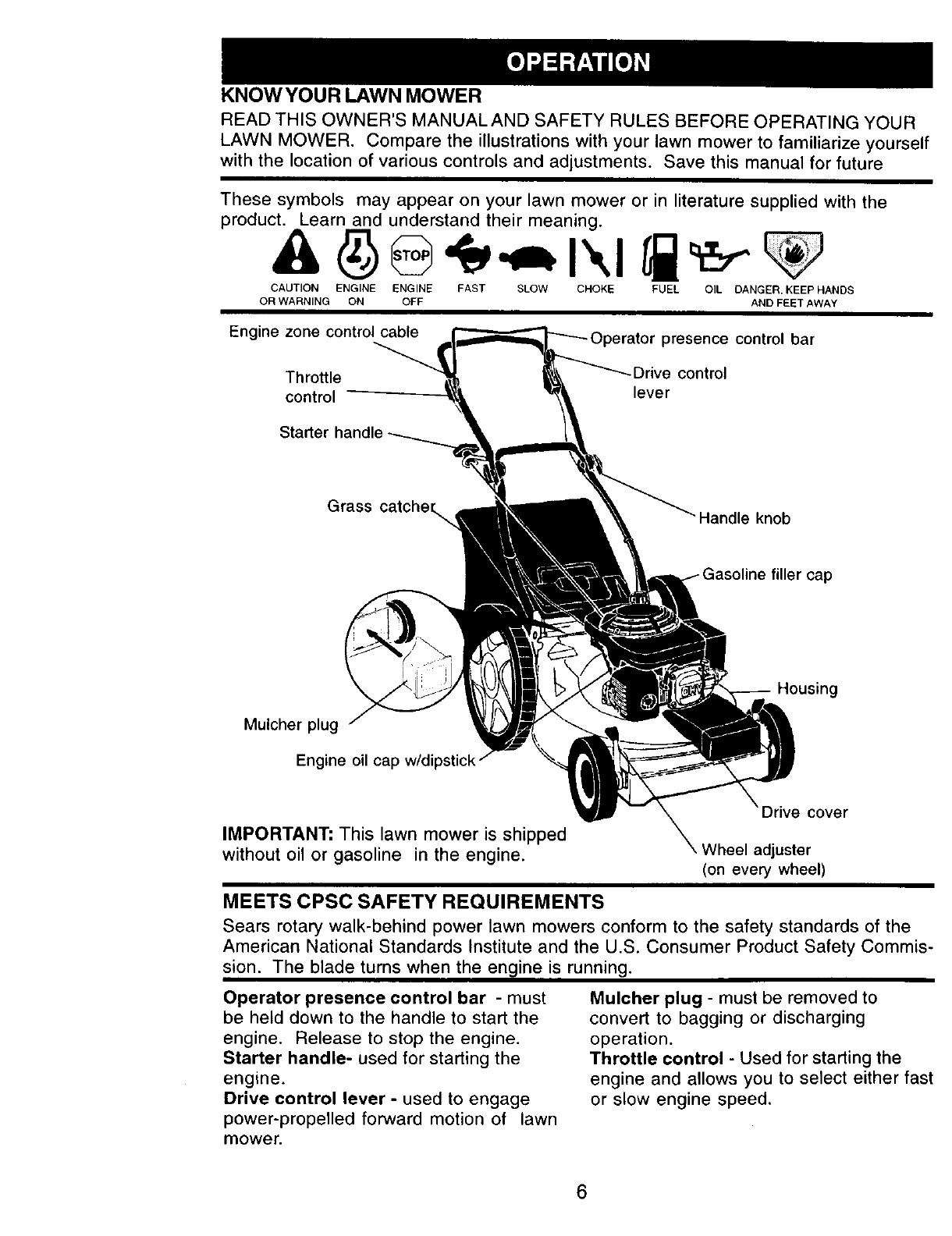

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself

with the location of various controls and adjustments. Save this manual for future

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER. KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Engine zone control cable

Throttle

control

presence control bar

-Drive control

lever

Starter handle

Grass catcher,., Handle knob

er cap

Mulcher plug

Engine oil cap w/dipsti(

Housing

IMPORTANT: This lawn mower is shipped

without oil or gasoline in the engine.

Drive cover

Wheel adjuster

(on every wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis-

sion. The blade turns when the engine is running.

Operator presence control bar -must

be held down to the handle to start the

engine. Release to stop the engine.

Starter handle- used for starting the

engine.

Drive control lever - used to engage

power-propelled forward motion of lawn

mower.

Mulcher plug - must be removed to

convert to bagging or discharging

operation.

Throttle control - Used for starting the

engine and allows you to select either fast

or slow engine speed.

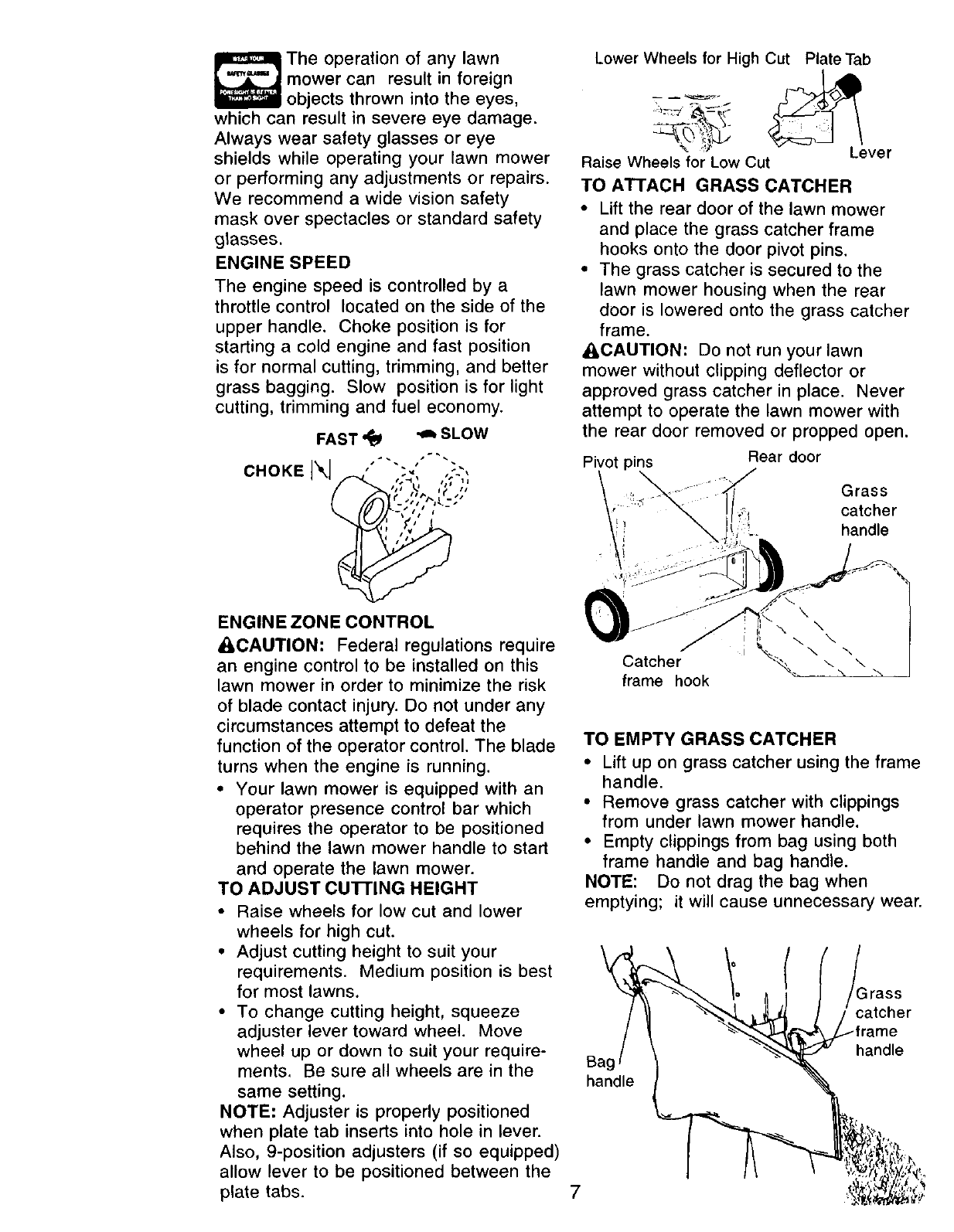

The operation of any lawn

mower can result in foreign

objects thrown into the eyes,

which can result in severe eye damage.

Always wear safety glasses or eye

shields while operating your lawn mower

or performing any adjustments or repairs.

We recommend a wide vision safety

mask over spectacles or standard safety

grasses.

ENGINE SPEED

The engine speed is controlled by a

throttle control located on the side of the

upper handle. Choke position is for

starting a cold engine and fast position

is for normal cutting, trimming, and better

grass bagging. Slow position is for light

cutting, trimming and fuel economy.

FAST "_ _ SLOW

C.OKE

,, ,;;-,'

t/_j,L _.

•I

ENGINE ZONE CONTROL

AI_CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CuI-rlNG HEIGHT

• Raise wheels for low cut and lower

wheels for high cut.

• Adjust cutting height to suit your

requirements. Medium position is best

for most lawns.

• To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Lower Wheels for High Cut Plate Tab

Lever

Raise Wheels for Low Cut

TO ATTACH GRASS CATCHER

• Lift the rear door of the lawn mower

and place the grass catcher frame

hooks onto the door pivot pins.

• The grass catcher is secured to the

lawn mower housing when the rear

door is lowered onto the grass catcher

frame.

_,CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or propped open.

Pivot pins Rear door

Grass

catcher

handle

Catcher

frame hook

\\ \

TO EMPTY GRASS CATCHER

• Lift up on grass catcher using the frame

handle.

• Remove grass catcher with clippings

from under lawn mower handle.

• Empty clippings from bag using both

frame handle and bag handle.

NOTE: Do not drag the bag when

emptying; it will cause unnecessary wear.

Ba(

handle

_rass

catcher

-frame

handle

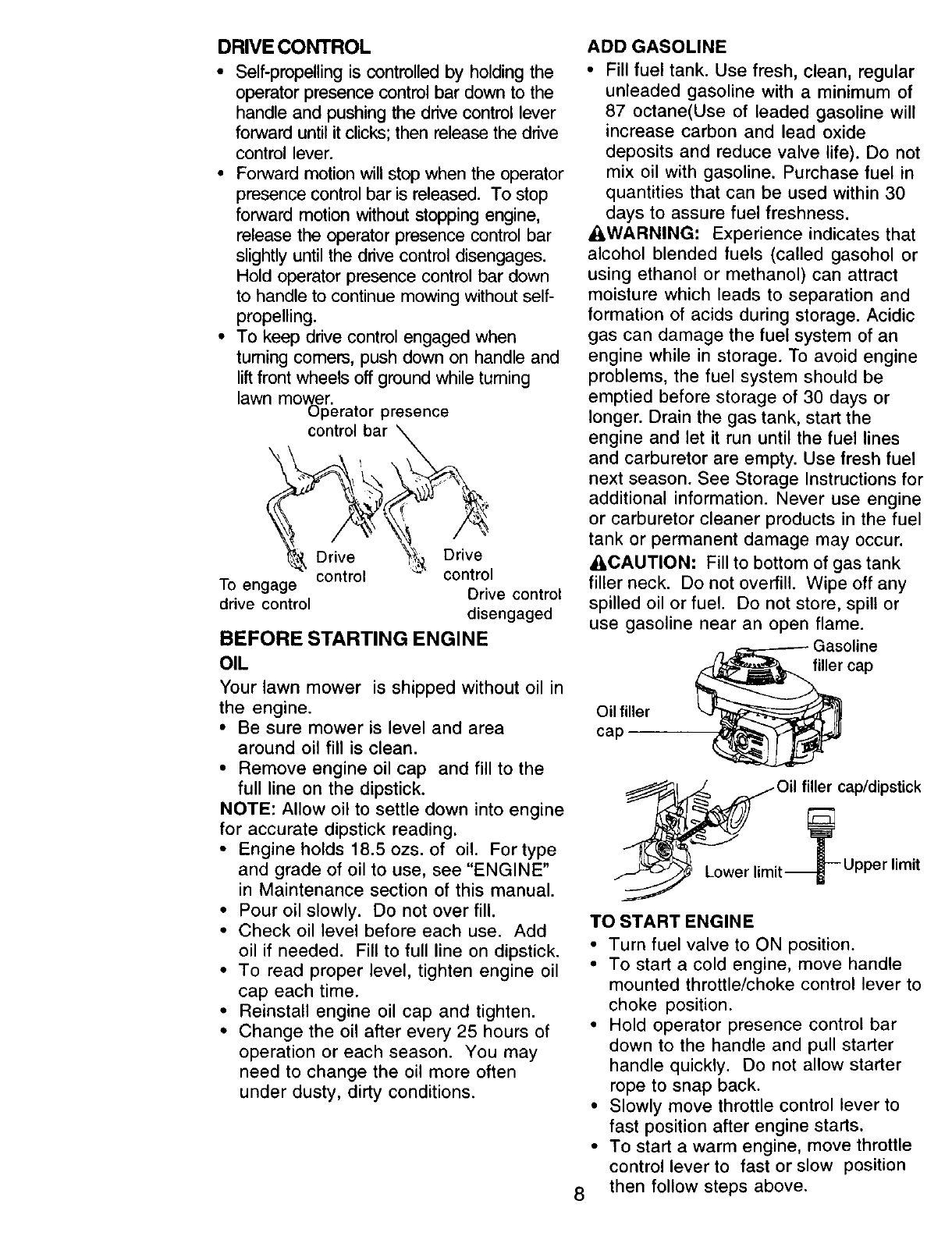

DRIVE CONTROL

•Self-propelling is controlled by holding the

operator presence control bar down to the

handle and pushing the drive control lever

forward until it clicks;then release the drive

control lever.

• Forward motion will stop when the operator

presence controlbar is released. To stop

forward motion without stopping engine,

release the operator presence control bar

slightlyuntil the drive control disengages.

Hold operator presence control bar down

to handle to continue mowing without self-

propelling.

•To keep drive control engaged when

tuming comers, push down on handle and

liftfront wheels off ground while tuming

lawn mower.

Operator presence

control bar

Drive Drive

control control

To engage Drive control

drive control disengaged

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in

the engine.

•Be sure mower is level and area

around oil fill is clean.

• Remove engine oil cap and fill to the

full line on the dipstick.

NOTE: Allow oil to settle down into engine

for accurate dipstick reading.

• Engine holds18.5ozs, of oil. Fortype

and grade of oil to use, see "ENGINE"

in Maintenance section of this manual.

• Pour oil slowly. Do not over fill.

• Check oil level before each use. Add

oil if needed. Fill to full line on dipstick.

• To read proper level, tighten engine oil

cap each time.

• Reinstall engine oil cap and tighten.

•Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane(Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

_,WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

ACAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

_ _==;_7--- Gaso_in;

Oil filler

cap

Oil filler cap/dipstick

it---_ Upper limit

TO START ENGINE

• Turn fuel valve to ON position.

• To start a cold engine, move handle

mounted throttle/choke control lever to

choke position.

• Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

• Slowly move throttle control lever to

fast position after engine starts.

• To start a warm engine, move throttle

control lever to fast or slow position

then follow steps above.

• To stop engine, release operator

presence control bar. Wait until blade

and all moving parts have stopped and

turn fuel valve to OFF position if you do

not intend to restart the engine soon.

Fuel Valve

lever

MOWING TIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• When using a rear discharge lawn

mower in moist, heavy grass, clumps of

cut grass may not enter the grass

catcher. Reduce ground speed

(pushing speed) and/or run the lawn

mower over the area a second time.

• If a trail of clippings is left on the right

side of a rear discharge mower, mow in

a clockwise direction with a small

overlap to collect the clippings on the

next pass.

• Pores in cloth grass catchers can

become filled with dirt and dust with

use and catchers will collect less grass.

To prevent this, regularly hose catcher

off with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. See "Cleaning" in

MAINTENANCE section of this manual.

• The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best recutting action of the blades.

• Avoid cutting your lawn when it is wet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mow your lawn is the early aftemoon. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun.

• For best results, adjust the lawn mower

cutting height so that the lawn mower cuts

off only the top one-third of the grass

blades. If the lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort and to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching, reduce your width of cut

by overlapping previously cut path and

mow slowly.

• Certain types of grass and grass condi-

tions may require that an area be mulched

a second time to completely hide the

clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

• Change your cutting pattern from week to

week. Mow north to south one week then

change to east to west the next week. This

will help prevent matting and graining of

the lawn.

Max. 1/3

MAINTENANCE SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVtCE

Check for Loose Fasteners -I_'

Clean/Inspect Grass Catcher

: (If Equipped) _'

Clean Lawn Mower

OClean Under Drive Cover,(Power-Propelled Mowers) If

Check drive belt/pulleys

E {Power-Propelled Mowers) If

Check/Sharpen/Replace Blade I_' 3

Lubrication Chart I##If

Clean Battery/Recharge

(Electric Start Mowers) I_ I,/4

ECheck Engine Oil Level If

Change Engine Oil _#1#1,2

G I Clean Air Filter _2

Inspect Muffler

N Clean or Replace Spark Plug v'

Replace Air Filter Paper Cartridge 1_2

1 - Change more olten when operating under a heavy load or in high ambient lemperatures.

2 - Service more olten when operating in dirty or dusty conditions,

3 - Replace blades more often when mowing in sandy soil.

4 - Charge 48 hours at end of season.

GENERAL RECOMMENDATIONS

SERVICE DATES

LUBRICATION CHART

The warranty on this lawn mower does

not cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year, replace the spark plug,

replace air filter element and check

blade for wear. A new spark plug and

clean/new air filter element assures

proper air-fuel mixture and helps your

engine run better and last longer.

• Follow the maintenance schedule in

this manual.

BEFORE EACH USE

•Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICA-

TION CHART").

) Wheel Adjuster

'(_ Rear door

hinge

IMPORTANT; Do not oil or grease plastic

wheel bearings• Viscous lubricants will

attract dust and dirt that will shorten the

life of the self lubricating bearings. If you

feel they must be lubricated, use only a

dry, powdered graphite type lubricant

sparingly.

(_) Engine oil

(_ Handle bracket

mounting pin

(_ Spay lubricant

(_ Refer to MAINTENANCE "ENGINE"

section.

PRODUCT SPECIFICATIONS

SERIAL NUMBER

DATE OF PURCHASE

GASOLINE CAPACITY/TYPE: 1.0 QUARTS

JNLEADED REGULAR

31L TYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 18.50ZS.

SPARK PLUG(GAP: .030")

VALVE CLEARANCE:

CHAMPIONR J19LM OR J19LM

INTAKE: .005" - .007"

EXHAUST: .007" - .009"

SOLID STATE IGNITION

AIR GAP: .0!0 IN.

BLADE BOLT TORQUE: 35-40 FT. LBS.

• The model and serial numbers will be found on a decal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER TO REPLACE BLADE

Always observe safety rules when

performing any maintenance.

TIRES

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

• Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

• Turn lawn mower on its side. Make

sure air filter and carburetor are up.

• Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

• Protect your hands with gloves and/or

wrap blade with heavy cloth.

• Remove blade bolt by turning counter-

clockwise. Use a 9/16" box or open-

end wrench.

• Remove blade and attaching hard-

ware.

• Position the blade adapter on the

engine crankshaft. Be sure the spacer

is in the adaptor and key in shaft and

adaptor keyway are aligned.

• Position blade on the blade adapter.

Be sure the trailing edge of blade

(opposite sharp edge) is up toward the

engine.

• Install the blade bolt with washers into

blade adapter and crankshaft.

• Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

• The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: BLADE BOLT IS GRADE 8

H EAT TR EATED.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause eventual damage to lawn mower

or engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

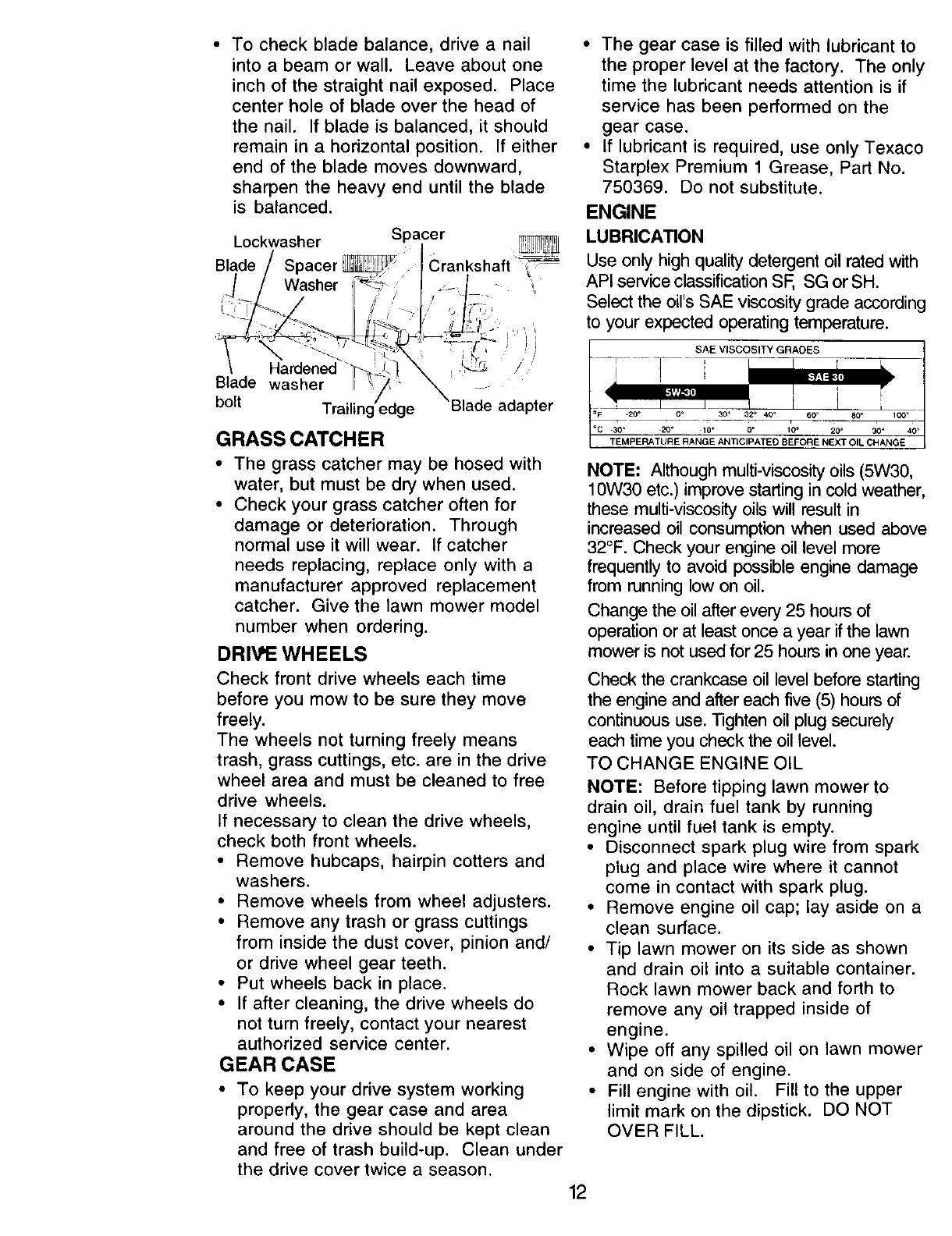

•To check blade balance, drive a nail

into a beam or wall. Leave about one

inch of the straight nail exposed. Place

center hole of blade over the head of

the nail. If blade is balanced, it should

remain in a horizontal position. If either

end of the blade moves downward,

sharpen the heavy end until the blade

is balanced.

Lockwasher Spacer

Blade Spacer Crankshaft

Blade washer

bolt

GRASS CATCHER

•The grass catcher may be hosed with

water, but must be dry when used.

• Check your grass catcher often for

damage or deterioration. Through

normal use it will wear. If catcher

needs replacing, replace only with a

manufacturer approved replacement

catcher. Give the lawn mower model

number when ordering.

DRIVE WHEELS

Check front drive wheels each time

before you mow to be sure they move

freely.

The wheels not turning freely means

trash, grass cuttings, etc. are in the drive

wheel area and must be cleaned to free

drive wheels.

If necessary to clean the drive wheels,

check both front wheels.

• Remove hubcaps, hairpin cotters and

washers.

• Remove wheels from wheel adjusters.

• Remove any trash or grass cuttings

from inside the dust cover, pinion and/

or drive wheel gear teeth.

• Put wheels back in place.

• If after cleaning, the drive wheels do

not turn freely, contact your nearest

authorized service center.

GEAR CASE

• The gear case is filled with lubricant to

the proper level at the factory. The only

time the lubricant needs attention is if

service has been performed on the

gear case.

• If lubricant is required, use only Texaco

Starplex Premium 1 Grease, Part No.

750369. Do not substitute.

• To keep your drive system working

properly, the gear case and area

around the drive should be kept clean

and free of trash build-up. Clean under

the drive cover twice a season.

ENGINE

LUBRICATION

Use only high quality detergent oil rated with

API service classification SF, SG or SH.

Select the oil's SAE viscosity grade according

to your expected operating temperature.

! SAE VIS=COSITY GRADES

.......

°C .30 _20 • .10. O. 10 •20 _30. 40 _

_ _TU_E RANGE ANT'CIPATEO BEFORE N_XT OIL CHAN

NOTE: Although multi-viscosity oils (5W30,

10W30 etc.) improve starting in cold weather,

these multi-viscosity oils will result in

increased oil consumption when used above

32°F. Check your engine oil level more

frequently to avoid possible engine damage

from running low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the lawn

mower is not used for 25 hours in one year.

Check the crankcase oil level before starting

the engine and after each five (5) hours of

continuous use. "l]ghten oil plug securely

each time you check the oil level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to

drain oil, drain fuel tank by running

engine until fuel tank is empty.

• Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

• Remove engine oil cap; lay aside on a

clean surface.

• Tip lawn mower on its side as shown

and drain oil into a suitable container.

Rock lawn mower back and forth to

remove any oil trapped inside of

engine.

• Wipe off any spilled oil on lawn mower

and on side of engine.

• Fill engine with oil. Fill to the upper

limit mark on the dipstick. DO NOT

OVER FILL.

• To read proper level, insert the dipstick

into the tube and rest oil fill cap on the

tube. Do not thread the cap onto the

tube. Remove and read the oil level.

• Replace engine oil cap.

• Reconnect spark plug wire to spark

plug.

Oilfillercap/dipstick

AIR FILTER

Your engine will not run properly and may

be damaged by using a dirty air filter.

Replace the air filter every year, more

often if you mow in very dusty, dirty

conditions.

TO CLEAN AIR FILTER

• Remove cover.

• Carefully remove cartridge.

• Clean by gently tapping on a flat

surface. If very dirty, replace cartridge.

ACAUTION: Petroleum solvents, such

as kerosene, are not to be used to clean

cartridge. They may cause deterioration

of the cartridge. Do not oil cartridge. Do

not use pressurized air to clean or dry

cartridge.

• Install cartridge, then replace cover.

Filter

Tabs

Filter

Cover

MUFFLER

Inspect and replace corroded muffler as it

could create a fire hazard and/or dam-

age.

SPARK PLUG

Change your spark plug each year to

make your engine start easier and run

better. Set spark plug gap at .030 inch.

CLEANING

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean the underside of

your mower after each use.

ACAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

•Tum lawn mower on itsside. Make sure air

filter and carburetor are up. Clean the

underside of your lawn mower by scraping

to remove buildup of grass and trash.

• Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

• Keep finished surfaces and wheels free of

all gasoline, oil, etc.

• We do not recommend using a garden

hose to clean lawn mower unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in shortened

engine life.

CLEAN UNDER DRIVE COVER

Clean under drive cover at least twice a

season. Scrape underside of cover with putty

knife or similar tool to remove any buildup of

trash or grass on underside of drive cover.

Tabs

ACAUTION: Before performing

anyservice or adjustments.

•Release control bar and stop engine.

• Make sure the blade and all moving

parts have completely stopped.

• Disconnect spark plug wire from spark

plug and place where it cannot come in

contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your lawn mower, is

provided to minimize the possibility that

objects will be thrown out the rear of the

lawn mower into the operator's mowing

position. If the rear deflector becomes

damaged, it should be replaced.

TO REMOVE/REPLACE DRIVE BELT

• Remove drive cover. Remove belt by

pushing down on gear case pulley and

rolling belt off it.

• Turn lawn mower on its side with

carburetor and fuel cap up.

• Remove blade.

• Remove debris shield.

• Remove belt from engine pulley on

crankshaft.

• Install new belt by reversing above

steps.

• Always use factory approved belt to

assure fit and long life.

TO ADJUST HANDLE

The upper handle may be adjusted to four

(4) different height positions.

• Loosen both handle knobs only enough

to allow the upper handle to pivot to the

desired adjustment position..

• Tighten both handle knobs securely.

Handle Knob

TO ASSEMBLE GRASS CATCHER

• Put grass catcher frame into grass bag

with rigid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

•Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

ACAUTION: Do not run your lawn mower

without clipping deflector or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

Drive

cover Belt

Push

down

Catcher .:'i ",_-__:.;:_.... -'"

frame ..------_! ...::-?;_'_". .i.

hanc!le ....._;;Y ....

. ..::%', z Vinyle --•:;

\};J !; _ binding

' ,i: ,_:i:i_Frame

:3 ['_;•_'._._;'",;g_;opening

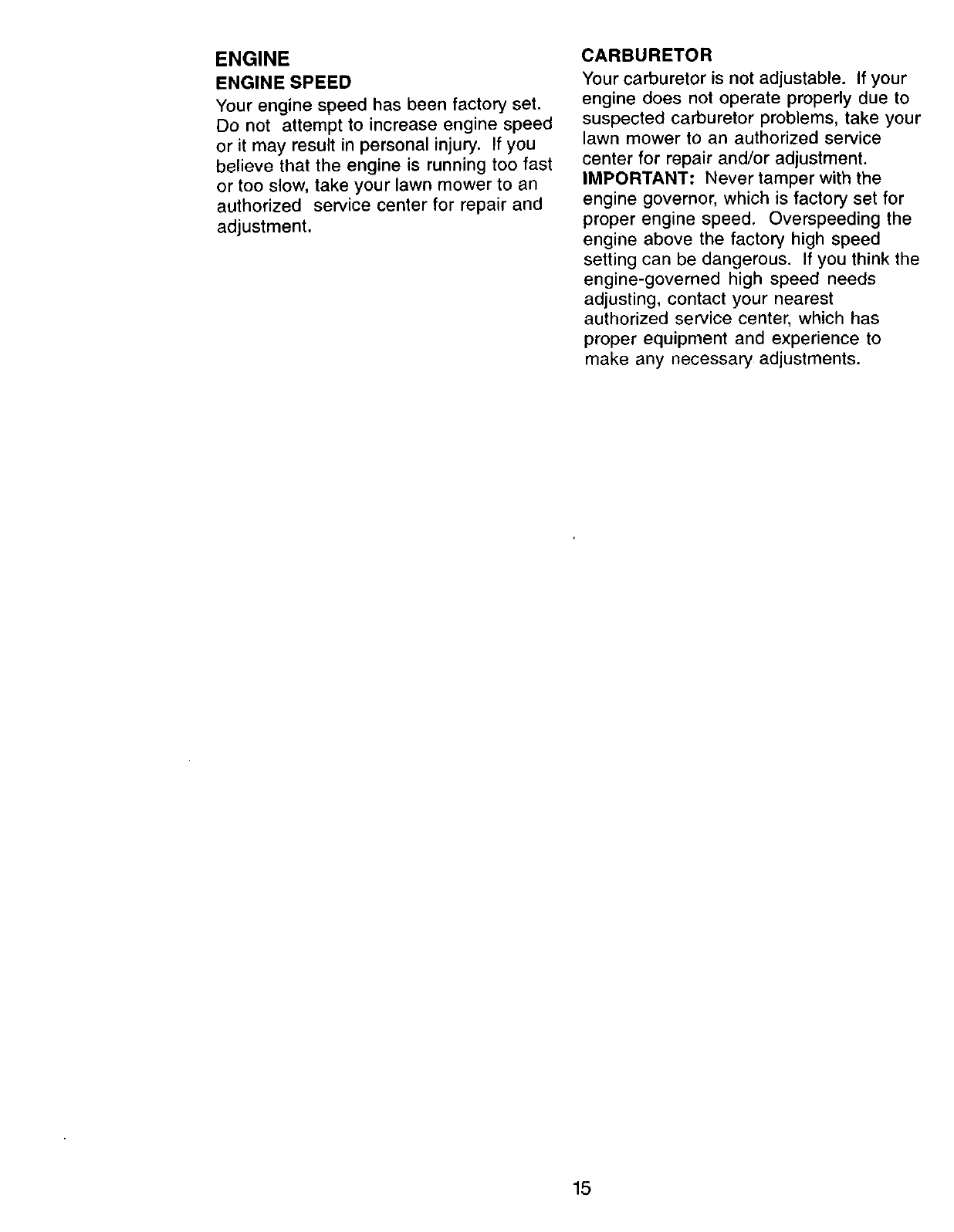

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that the engine is running too fast

or too slow, take your lawn mower to an

authorized service center for repair and

adjustment.

CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

lawn mower to an authorized service

center for repair and/or adjustment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest

authorized service center, which has

proper equipment and experience to

make any necessary adjustments.

Immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

• Clean entire lawn mower (See

"CLEANING" in the Maintenance

section of this manual).

• Lubricate as shown in the Maintenance

section of this manual.

• Be sure that all nuts, bolts, screws, and

pins are securely fastened. Inspect

moving parts for damage, breakage

and wear. Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

You can fold your lawn mower handle for

storage.

• Squeeze the bottom ends of the lower

handle toward each other until the

lower handle clears the handle bracket,

then move handle forward.

• Loosen upper handle mounting bolts

enough to allow upper handle to be

folded back.

IMPORTANT: When folding the handle

for storage or transportation, be sure to

fold the handle as shown or you may

damage the control cables.

• When setting up your handle from the

storage position, the lower handle will

automatically lock into the mowing

position.

Lower handle

Handle

bracket

Squeeze to fold

Hairpin cotter

Operator presence control bar

Upper Handle

Fold

forward for

storage Fold

backward

Lower handle Mowing

position

ENGINE

FUELSYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER

_i Remove spark plug.

Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

Pull starter handle slowly a few times to

distribute oil.

16 Replace with new spark plug.

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your unit indoors and

cover it to give protection from dust and

dirt.

• Cover your unit with a suitable protec-

tive cover that does not retain moisture.

Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

_I,CAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Does not start

Loss of power

1. Dirty air filter.

2. Out of fuel.

3. Stale fuel.

4. Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken blade

adapter.

8. Control bar in released

position.

9. Control bar defective.

1. Rear of lawn mower housing

or cutting blade dragging

in heavy grass.

2. Cutting too much grass.

3. Dirty air filter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walking speed too fast.

1. Worn, bent or loose blade.

2. Wheel heights uneven.

3. Low engine speed

4. Buildup of grass, leaves

and trash under mower.

Poorcut-uneven

1. Clean/replace air filter.

2. Fill fuel tank.

3. Drain tank and refill with

fresh clean fuel.

4. Drain fuel tank and

carburetor and refill tank

with fresh gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. Tighten blade bolt or

replace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

1. Set to "Higher Cuff

position.

2. Set to "Higher Cut"

position.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking

speed.

1. Replace blade. Tighten

blade bolt.

2. Set all wheels at same

height

3. Contact an authorized center/

department

4. Clean underside of

mower housing.

PROBLEM

TROUBLESHOOTINGCHART

CAUSE

Excessive

vibration

Starter rope hard

to pull

Loss of drive

Grass catcher

not filling (if so

equipped)

Hardtopush

1. Wom, bent orloose blade.

2. Bent engine crankshaft.

.Engine flywheel brake is on

when control bar is released

2. Bent engine crankshaft.

3. Blade adapter broken.

4. Blade dragging in grass.

1. Drive wheels not tuming

with drive control engaged.

2. Belt not driving

1. Cutting height too low.

2. Lift on blade wom off.

3. Catcher not venting air.

4. Low engine speed

1. Grass is too high or wheel

height is too low.

2. Rear of lawn mower

housing or blade dragging

in grass.

3. Grass catcher too full.

4. Handle height position not

right for you.

CORRECTION

1. Replace blade. Tighten

blade bolt.

2. Contact an authorized

service center.

1. Depress control bar to

upper handle before

pulling starter rope.

2. Contact an authorized

service center.

3. Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface.

1. Adjust or replace drive control

cable.

2. Put belt on pulleys or

replace belts if broken.

1. Raise cutting height.

2. Replace blade.

3. Clean grass catcher.

4. Set throttle to fast position.

1. Raise cutting height.

2. Raise rear of lawn mower

housing one (1) setting

higher.

3. Empty grass catcher.

4. Adjust handle height to

suit.

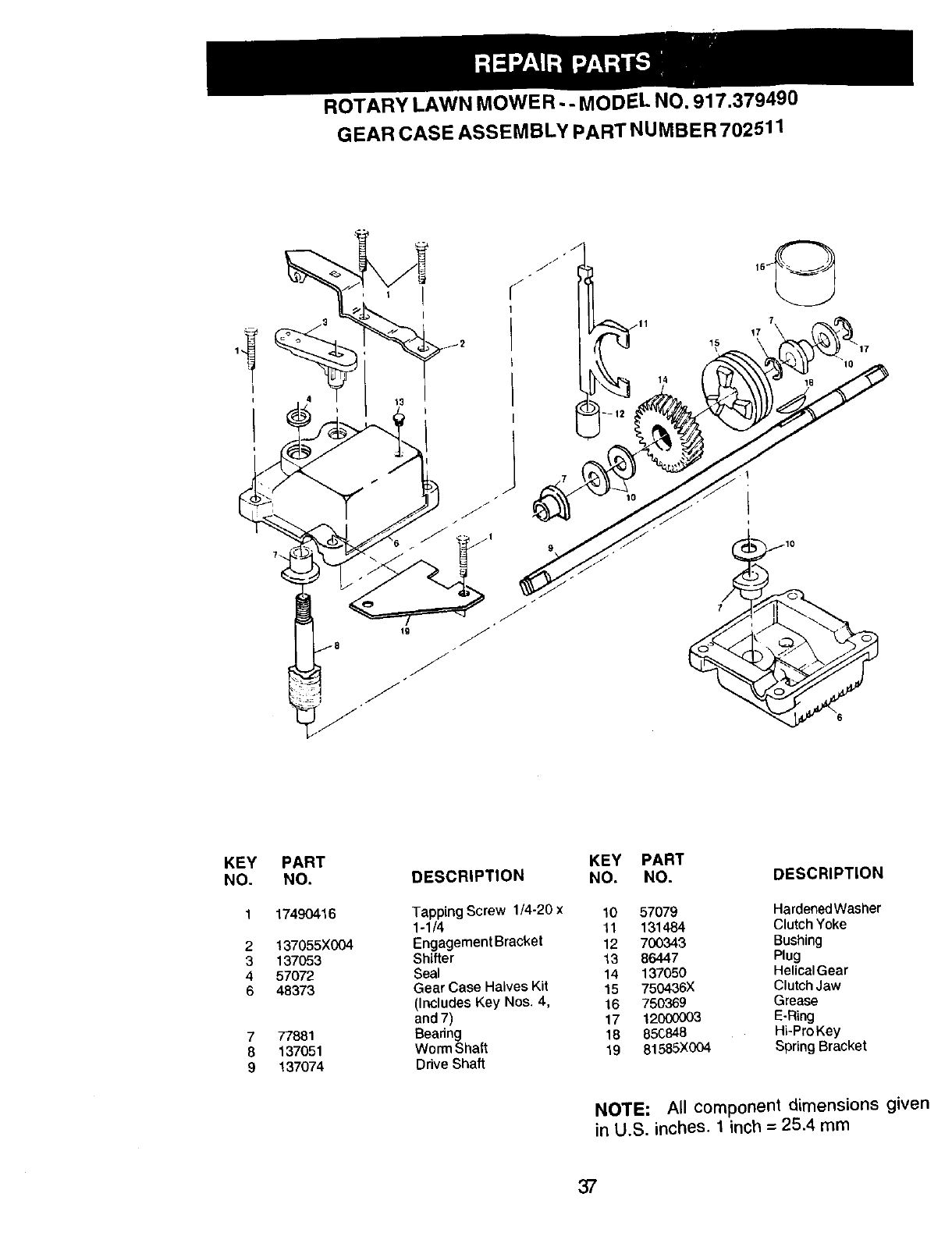

ROTARY LAWN MOWER -- MODEL NO. 917.379490

GEAR CASE ASSEMBLY PART NUMBER 702511

17 7\

KEY

NO.

PART

NO.

17490416

137055X004

137053

57072

48373

77881

137051

137074

DESCRIPTION KEY

NO. PART

NO. DESCRIPTION

Tapping Screw 1/4-20 x 10 57079 HardenedWasher

1-1/4 11 131484 Clutch Yoke

Engagement Bracket 12 700343 Bushing

Shifter 13 86447 Plug

Seal 14 137050 HelicalGear

Gear Case Halves Kit 15 750436X Clutch Jaw

(Includes Key Nos. 4, 16 750369 Grease

and7) 17 120C0003 E-Ring

Bearing 18 85C848 Hi-ProKey

Worm Shaft 19 81585X004 Spdng Bracket

Drive Shaft

NOTE: All component dimensions given

in U.S. inches. 1 inch = 25.4 mm

ROTARY LAWN MOWER MODEL NUMBER 917.379490

10_

16 2

/4 20 35

55 52

29 28

ROTARY LAWN MOWER MODEL NUMBER 917.379490

KEY PART

NO. NO.

1 169933X479

2 130861

4 150425

5 66426

6136376

8 169932

9 170947

10 128415

11 150050

12 STD512505

13 151440

14 156374X479

15 700365X479

16 133190X479

17 140661 X479

18 636O1

20 140540

22 84596

23 87677

25 83923

27 151138

28 142748

29 61651

30 750913X004

31 161961

32 170136X004

33 88348

34 14663O

35 700325X007

37 150078

38 74760612

39 173571 X479

40 173572X479

41 150406

44 172835

46 851514

DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

UpperHandle 47 141114

Engine Zone Control Cable 48 851074

Mulcher Plug 49 850263

WireTie 50 851084

Handle Knob 51 170031

Control Bar 52 85463

Rear Door Kit 55 751592

Pop Rivet 56 88652

Self Tapping Screw #10-24 x 5/8 57 51793

Hex Tapping Screw w/Sems 1/4-20 x 1/2 58 151590X479

Hubcap 59 171407

Back Plate 61 132001

Side Baffle 62 134612

Discharge Baffle 64 ......

Rear Baffle

Keps Locknut 1/4-20 65 17600406

Rear Skirt 66 163340

Engine Pulley 67 144929

Hi-Pro Key #505 68 57143

Hex Flange Nut 71 170939

Wheel 72 170938

Shoulder Bolt 3/8-16 x 1 73 165912

Washer 78 170954

Axle Arm Assembly 79 170953

Selector Knob 80 170554

Selector Spring 81 170955

Washer 82 170956

Spacer - - 161058

Wheel Adjusting Bracket - - 172325

Thread Cuffing Screw w/Seres 5/16-18 x 3/4

Bolt

Handle Bracket Assembly (Left)

Handle Bracket Assembly (Right)

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

Lawn Mower Housing (Incl. Key #14, t 5, 51 )

Blade Adapter

Blade 22"

Hardened Washer

Helical Washer 3/8-24 x 1-3/8 Gr. 8

Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8

Front Baffle Kit

Danger Decal

Locknut 3/8-16

Hinge Screw 1/4-20 x 1-1/4

Hairpin Cotter

Lower Handle

Handle Bolt

RooeGuide

Debds Shield

Engine- (See Engine Breakdown) Model Honda

GCV160AIA

Screw Hx Serrated 1/4 x 20

Throttle control

Screw

Wave Washer

Spring RH

Spdng LH

Bolt

Handle Adjuster, Outside, LH

Handle Adjuster, Inside, LH

Handle Adjuster Spring

Handle Adjuster, Inside, RH

Handle Adjuster. Outside, RH

Warning Decal (Not Shown)

Owner's Manual (English!Spanish)

Available accessories not included with lawn mower:

- - D/98 33313 Clipping Deflector

-- 71 33623 Gas Can

- - 71 33500 Fuel Stabilzer

- - 71 33300 SAE 30W Oil (20 oz.)

ROTARY LAWN MOWER MODEL NU MBER 917.379490

54 5

14 16

/,8

15 ©

ROTARY LAWN MOWER MODEL NUMBER 917.379490

KEY

NO.

PART

NO.

146323

751152

158755

146527

150495

150182

145212

150340

12000O58

137054

88080

88118

67725

701037

143603

KEY PART

DESCRIPTION NO. NO.

Control Cable Assembly 28 154990

Locknut #10-24 31 132010

Pan Head Machine Screw 1/4 x 2.12 32 137052

V-Belt 35 151521

Spring Retainer 36 702511

Hubcap 37 137090

Flanged Nut 38 63601

Wheel & Tire Assembly 40 75192

E-Ring 41 151520

Pinion 53 169931

Dust Cover 54 169932

FeltWasher 55 86012

Washer 1/2 x 1-1/2 x .134

Selector Knob

Pan Head Tapping Screw #10-24 x 2-3/4

DESCRIPTION

DriveCover

Hex Flange Nut

Drive Pulley

Wheel Adjuster Assembly (Left)

Gear Case Assembly

Spring

Nut

Spring

Wheel Adjuster Assembly (Right)

Frame

Grassbag Assembly

Driveshaft Cover

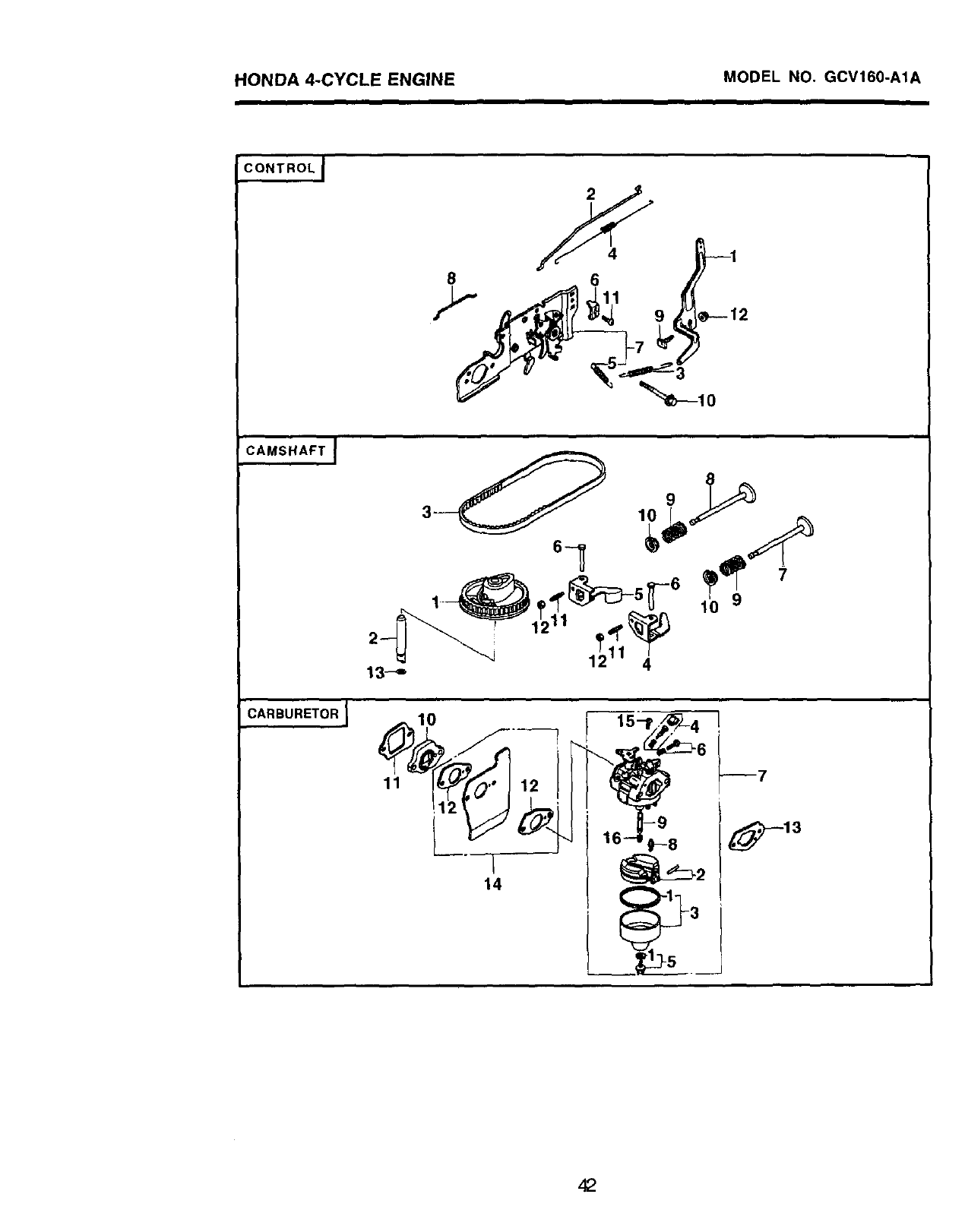

HONDA 4-CYCLE ENGINE MODEL NO. GCV160-AIA

I II

CONTROL I

CAMSHAFT I

CARBURETOR I

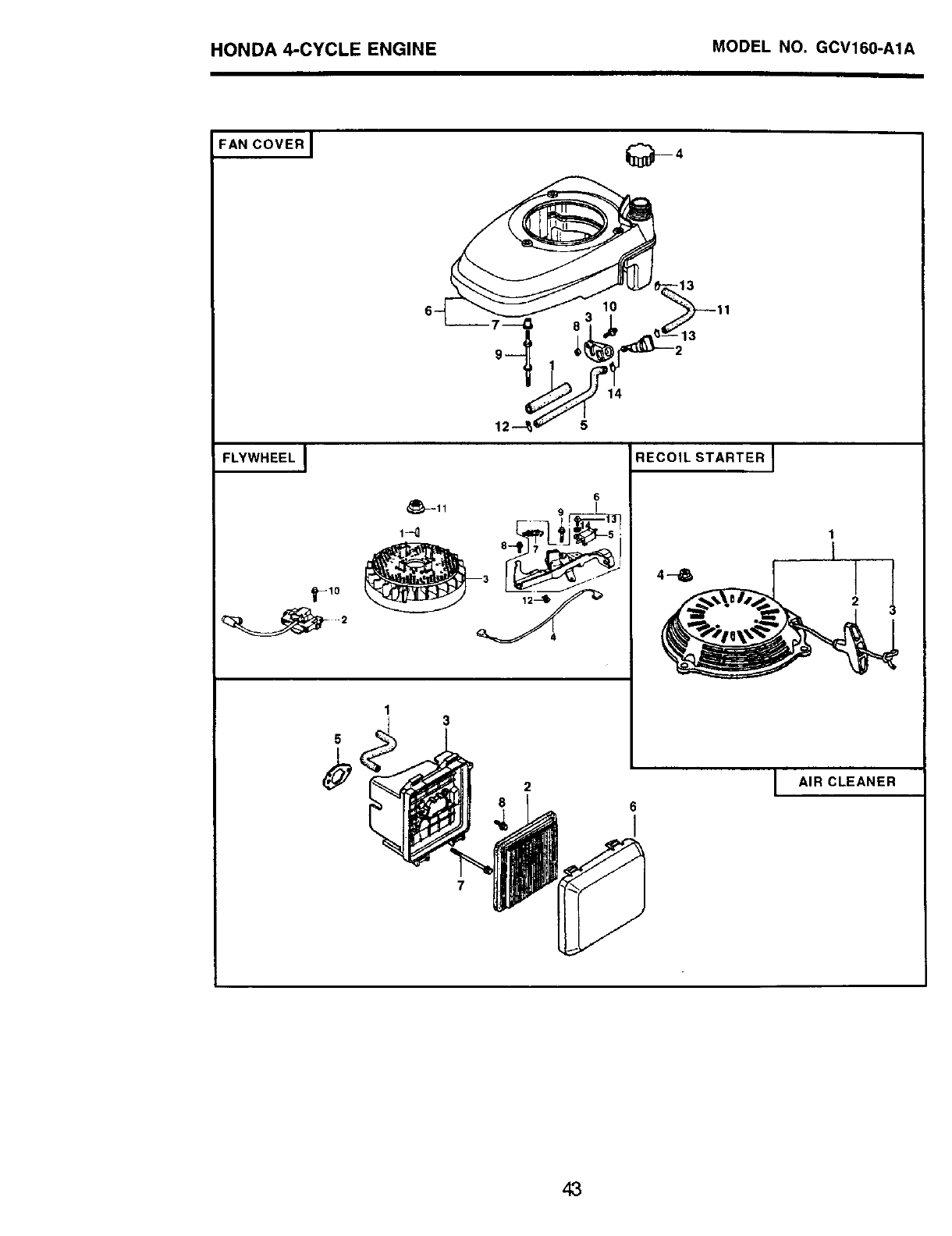

HONDA 4-CYCLE ENGINE MODEL NO. GCV160-A1A

FAN COVER I _--4

FLYWHEEL I

RECOIL STARTER J

I AIR CLEANER

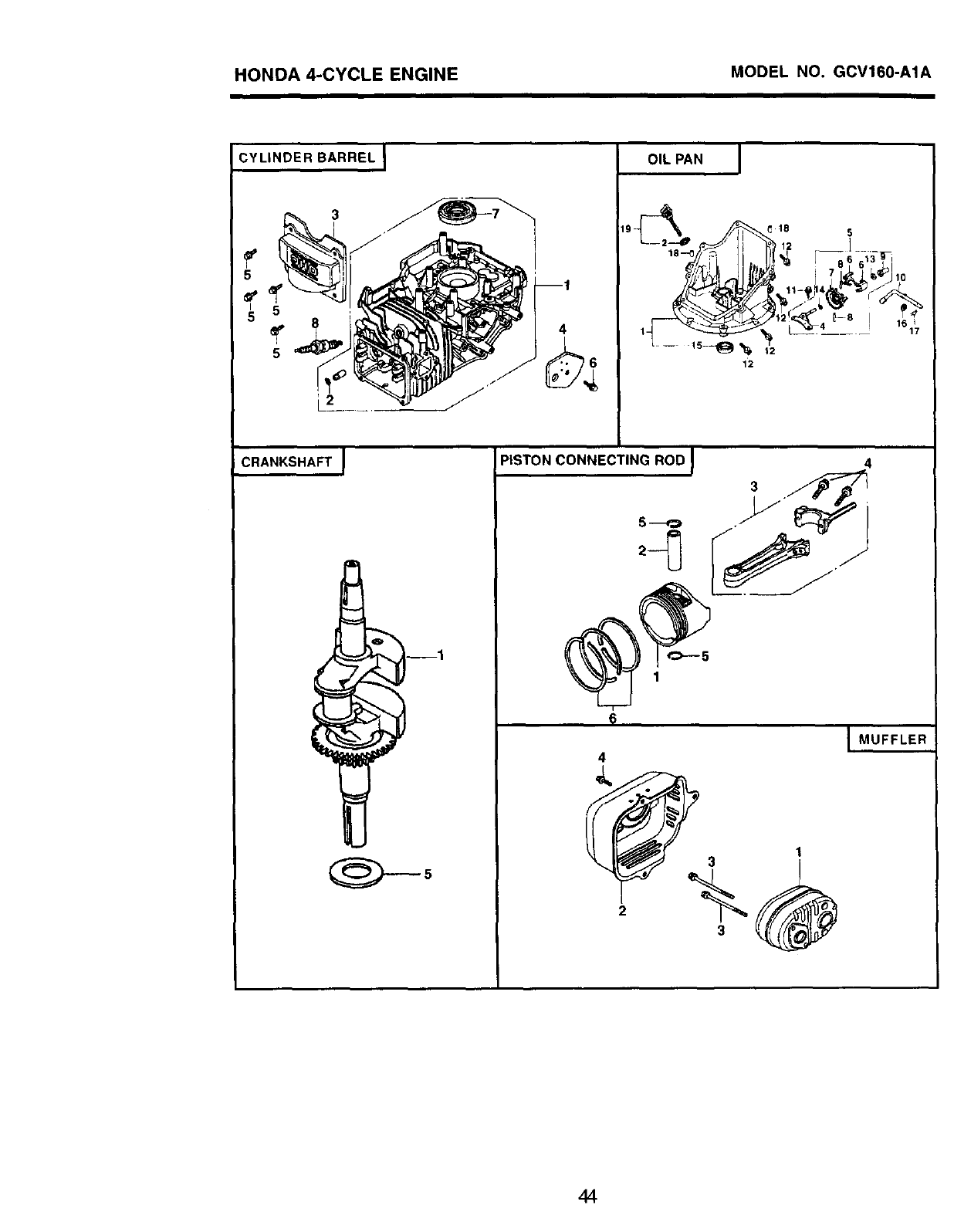

HONDA 4-CYCLE ENGINE MODEL NO. GCV160-AIA

;YLINDER BARREL I

L2 J

OIL PAN J

18 5

t12 1

L_:=_4 ]161_7

CRANKSHAFT JI

PISTON CONNECTING ROD J 4

I MUFFLER

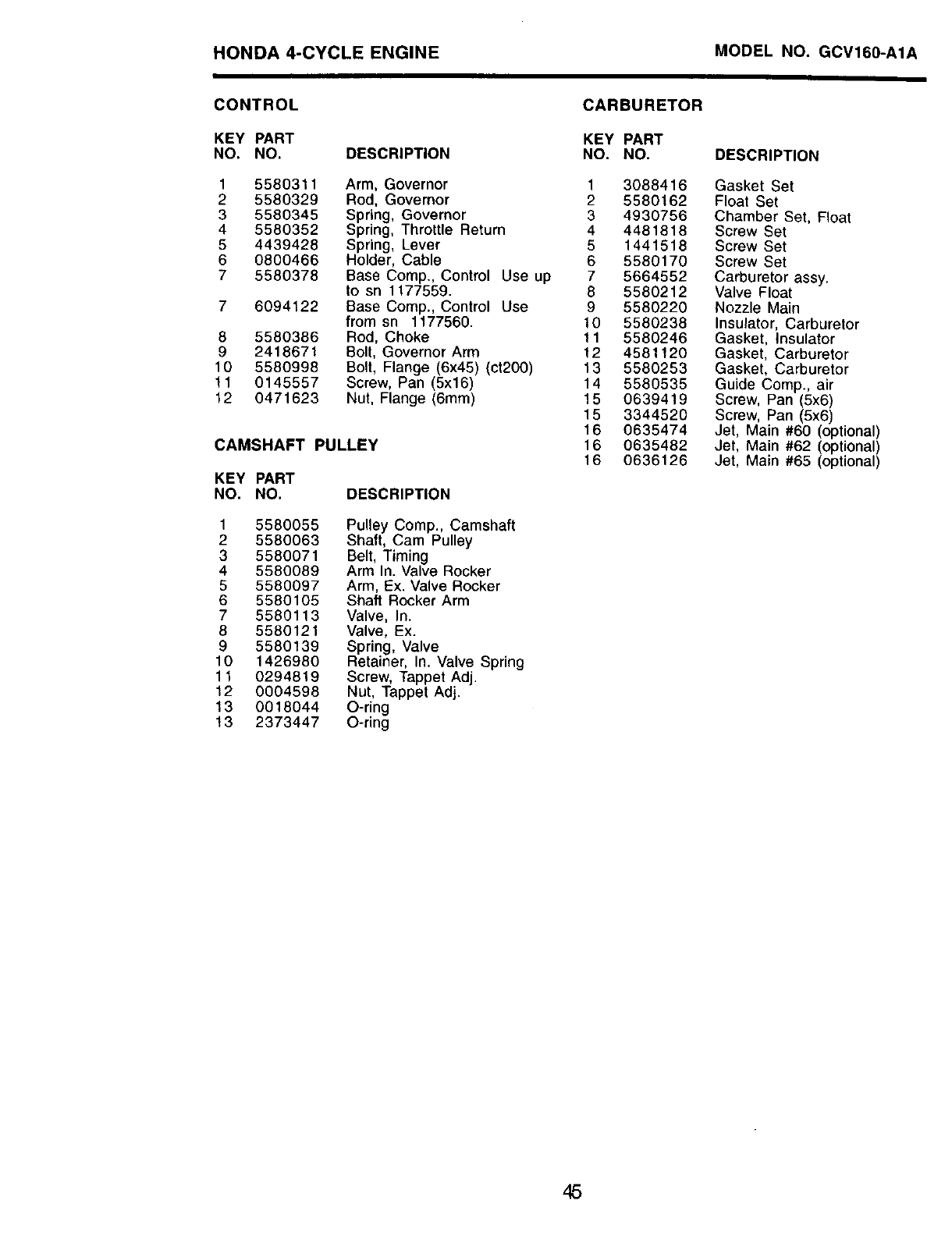

HONDA 4-CYCLE ENGINE MODEL NO. GCV160-A1A

CONTROL

KEY PART

NO, NO.

1 5580311

2 5580329

3 5580345

4 5580352

5 4439428

6 0800466

7 5580378

7 6094122

8 5580386

9 2418671

10 5580998

!1 0145557

12 0471623

DESCRIPTION

Arm, Governor

Rod, Governor

Spring, Governor

Spring, Throttle Return

Spring, Lever

Holder, Cable

Base Comp., Control Use up

to sn 1177559.

Base Comp., Control Use

from sn 1177560.

Rod, Choke

Bolt, Governor Arm

Bolt, Flange (6x45) (ct200)

Screw, Pan (5x16)

Nut, Flange (6mm)

CAMSHAFT PULLEY

KEY PART

NO. NO.

1 5580055

2 5580063

3 5580071

4 5580089

5 5580097

6 5580105

7 5580113

8 5580121

9 5580139

10 1426980

11 0294819

12 0004598

13 0018044

13 2373447

DESCRIPTION

Pulley Comp., Camshaft

Shaft, Cam Pulley

Belt, Timing

Arm In. Valve Rocker

Arm, Ex. Valve Rocker

Shaft Rocker Arm

Valve, In.

Valve, Ex.

Spring, Valve

Retainer, In. Valve Spring

Screw, Tappet Adj.

Nut, Tappet Adj.

O-ring

Ooring

CARBURETOR

KEY PART

NO. NO.

13088416

2 5580162

3 4930756

4 4481818

5 1441518

6 5580170

7 5664552

8 558O212

9 5580220

10 5580238

11 5580246

12 4581120

13 5580253

14 5580535

15 0639419

15 3344520

16 0635474

16 0635482

16 0636126

DESCRIPTION

Gasket Set

Float Set

Chamber Set, F_oat

Screw Set

Carburetor assy.

Valve Float

Nozzle Main

Insulator, Carburetor

Gasket, insulator

Gasket, Carburetor

Guide Comp., air

Screw, Pan (5x6)

Jet, Main #60 (optional)

Jet, Main #62 (optional)

Jet, Main #65 (optional)

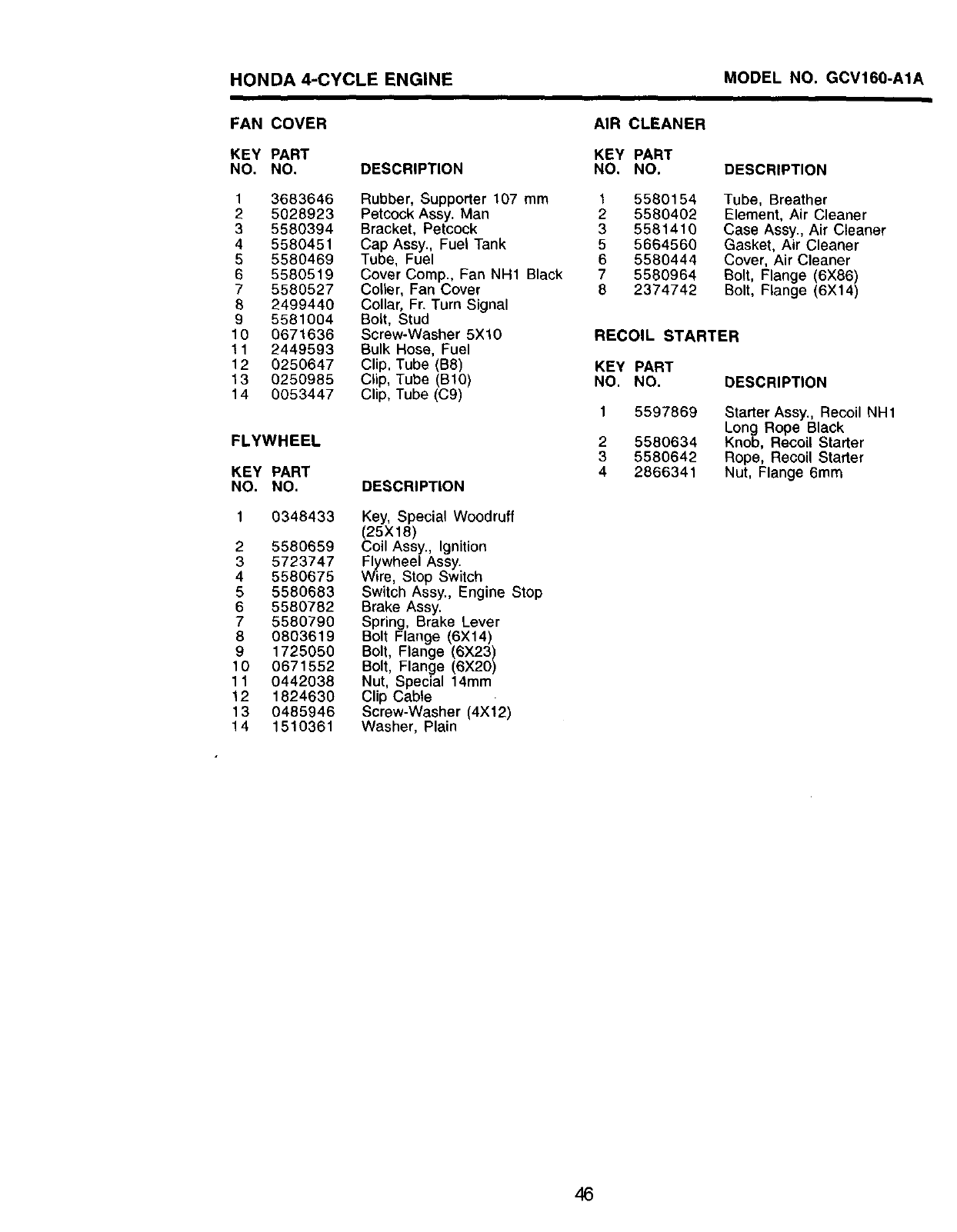

HONDA 4-CYCLE ENGINE MODEL NO. GCV160-A1A

FAN COVER

KEY PART

NO. NO. DESCRIPTION

1 3683646 Rubber, Supporter 107 mm

2 5028923 Petcock Assy. Man

3 5580394 Bracket, Petcock

4 5580451 Cap Assy., Fuel Tank

5 5580469 Tube, Fuel

6 5580519 Cover Comp., Fan NH1 Black

7 5580527 Coller, Fan Cover

8 2499440 Collar, Fr. Turn Signal

9 5581004 Bolt, Stud

10 0671636 Screw-Washer 5X10

! 1 2449593 Bulk Hose, Fuel

12 0250647 Clip, Tube (B8)

13 0250985 Clip, Tube (B10)

14 0053447 Clip, Tube (C9)

FLYWHEEL

KEY PART

NO. NO. DESCRIPTION

1 0348433 Key, Special Woodruff

(25X18)

2 5580659 Coil Assy., Ignition

3 5723747 Flywheel Assy.

4 5580675 Wire, Stop Switch

5 5580683 Switch Assy., Engine Stop

6 5580782 Brake Assy.

7 5580790 Spring, Brake Lever

8 0803619 Bolt Flange (6X14)

9 1725050 Bolt, Flange (6X23)

10 0671552 Bolt, Flange (6X20)

11 0442038 Nut, Special 14ram

12 1824630 Clip Cable

13 0485946 Screw-Washer (4X12)

14 1510361 Washer, Plain

AIR CLEANER

KEY PART

NO. NO.

1 5580154

2 5580402

3 5561410

5 5664560

6 5580444

7 5580964

8 2374742

DESCRIPTION

Tube, Breather

Element, Air Cleaner

Case Assy., Air Cleaner

Gasket, Air Cleaner

Cover, Air Cleaner

Bolt, Flange (6X86)

Bolt, Flange (6X14)

RECOIL STARTER

KEY PART

NO. NO. DESCRIPTION

5597869

5580634

5580642

2866341

Starter Assy., Recoil NH1

Long Rope Black

Knob, Recoil Starter

Rope, Recoil Starter

Nut, Flange 6mm

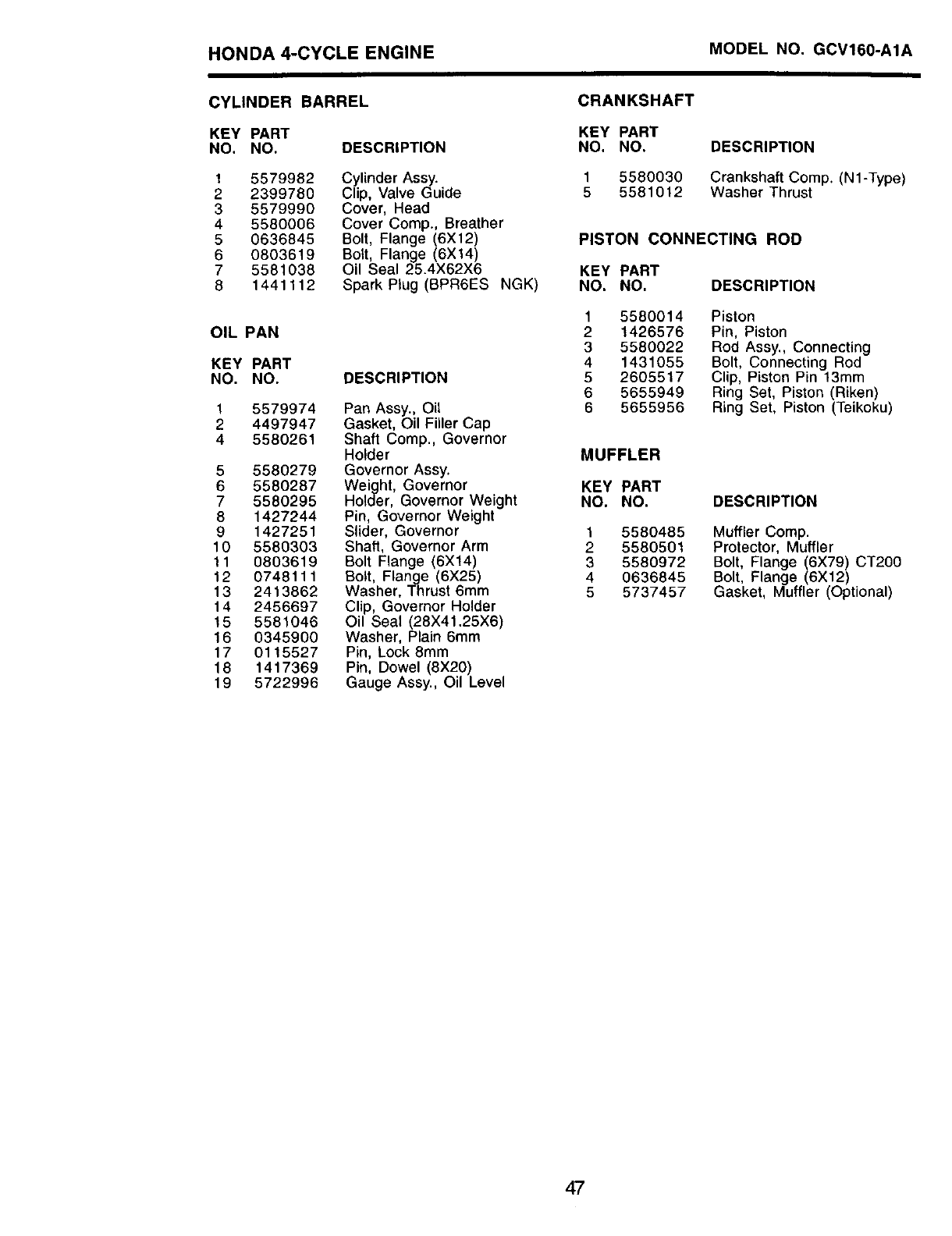

HONDA 4-CYCLE ENGINE MODEL NO. GCV16O-A1A

CYLINDER BARREL

KEY PART

NO. NO. DESCRIPTION

5579982

2399780

5579990

5580006

0636845

0803619

5581038

1441112

Cylinder Assy.

Clip, Valve Guide

Cover, Head

Cover Comp., Breather

Bolt, Flange (6X12)

Bott, Flange (6X14)

Oil Seal 25.4X62X6

Spark Plug (BPR6ES NGK)

OIL PAN

KEY PART

NO. NO.

1 5579974

2 4497947

4 5580261

5 5580279

6 5580287

7 5580295

8 1427244

9 1427251

10 5580303

11 0803619

12 0748111

13 2413862

14 2456697

15 5581046

16 0345900

17 0115527

18 1417369

19 5722996

DESCRIPTION

Pan Assy., Oil

Gasket, Oil Filler Cap

Shaft Comp., Governor

Holder

Governor Assy.

Weight, Governor

Holder, Governor Weight

Pin, Governor Weight

Slider, Governor

Shaft, Governor Arm

Bolt Flange (6X14)

Bolt, Flange (6X25)

Washer, Thrust 6ram

Clip, Governor Holder

Oil Seal (28X41.25X6)

Washer, Plain 6mm

Pin, Lock 8mm

Pin, Dowel (8X20)

Gauge Assy., Oil Level

CRANKSHAFT

KEY PART

NO. NO.

1 5580030

5 5581012

DESCRIPTION

Crankshaft Comp. (N1-Type)

Washer Thrust

PISTON CONNECTING ROD

KEY PART

NO. NO. DESCRIPTION

5580014

1426576

5580022

1431055

2605517

5655949

5655956

Piston

Pin, Piston

Rod Assy., Connecting

Bolt, Connecting Rod

Clip, Piston Pin 13mm

Ring Set, Piston (Riken)

Ring Set, Piston (Teikoku)

MUFFLER

KEY PART

NO. NO.

1 5580485

2 558O501

3 5580972

4 0636845

5 5737457

DESCRIPTION

Muffler Comp.

Protector, Muffler

Bolt, Flange (6X79) CT200

Bolt, Flange (6X12)

Gasket, Muffler (Optional)

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOMESMAnytime, day or night

(1-800-469-4663)

www.sears,com

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts & Repair Center.

1-800-488-1222Anytime, day or night

www.sears,com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectSU!

1-800-366-PART6am-11p.m.CST,

(1-800-366-7278) 7days a week

www.sears.conVpartsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m.- 5 p.m.CST, Mon.- Sat.

Para pedir servicio de reparaci6n a domicilio,

ypara ordenar piezas con entrega a domicilio:

1-888-SU-HOGAR "_

(1-888.784-6427)

Au Canada pour service en frangais:

1-877-LE-FOYERSM

(1-877-533-6937)

® Registered Trademark /T. Trademark of Sears, Roebuck and Co.

® Marca Registrada /T. Marca de Fabrica de Sears, Roebuck and Co.

172325 2.15.OO TR Printed in U.S.A.

Craftsman 917379490 User Manual ROTARY LAWN MOWER Manuals And Guides L0030172

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0030172 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
