S_/E/A/RS

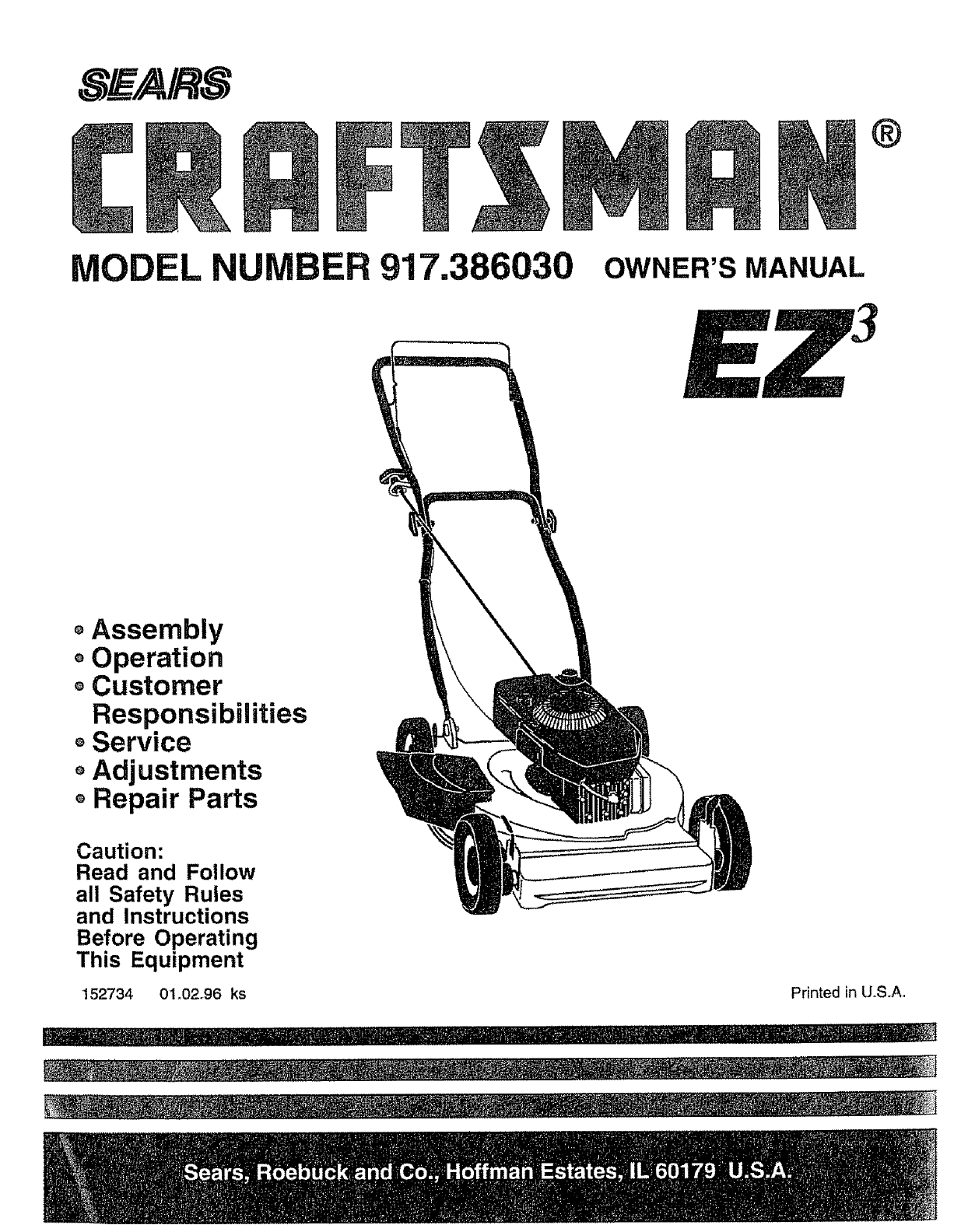

MODEL NUMBER 917.386030 OWNER'SMANUAL

oAssembly

oOperation

oCustomer

Responsibilities

oService

oAdjustments

oRepair Parts

Caution:

Read and Follow

all Safety Rules

and Instructions

Before Operating

This Equipment

152734 01o02_96 ks Printed in U.S.A.

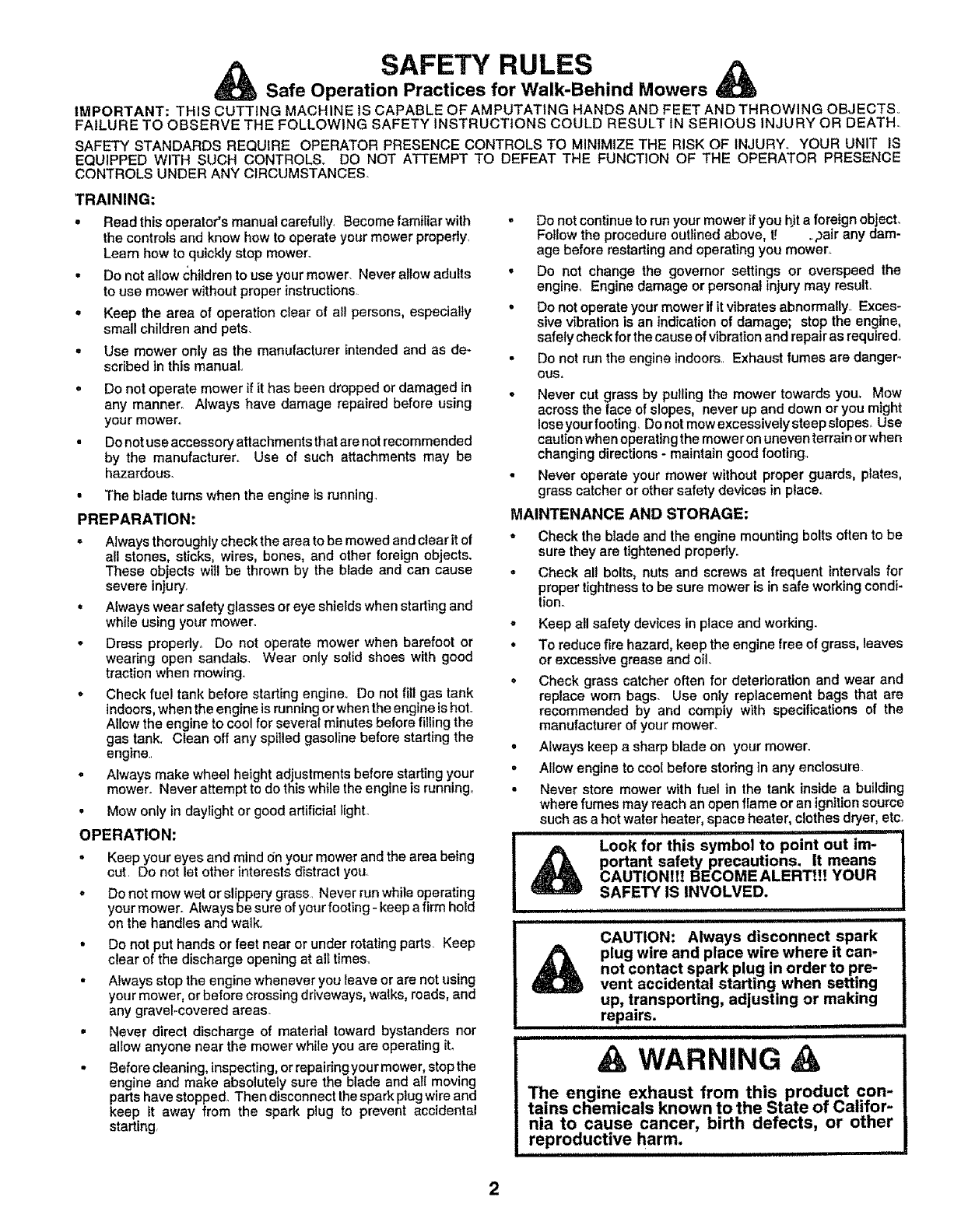

SAFETY RULES

Safe Operation Practices for Walk-Behind Mowers

IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS_

FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT tN SERIOUS INJURY OR DEATH

SAFETY STANDARDS REQUIRE OPERATOR PRESENCE CONTROLS TO MINIMIZE THE RISK OF INJURY_ YOUR UNIT iS

EQUIPPED WITH SUCH CONTROLS. DO NOT ATTEMPT TO DEFEAT THE FUNCTION OF THE OPERATOR PRESENCE

CONTROLS UNDER ANY CIRCUMSTANCES

TRAINING:

oRead this operator's manua! carefully. Become familiar with

the controls and know how to operate your mower properly.

Learn how to quickly stop mower.

• Do not allow children to use your mower. Never allow adults

to use mower without proper instructions

o Keep the area of operation clear of all persons, especially

small children and pets.

• Use mower only as the manufacturer intended and as de-

scribed in this manual..

=Do not operate mower if it has been dropped or damaged in

any manner. Always have damage repaired before using

your mower_.

°Do not use accessory attachments that are not recommended

by the manufacturer.. Use of such attachments may be

hazardous.

• The blade turns when the engine ts running.

PREPARATION:

o Always thoroughly check the area to be mowed and clear it of

all stones, sticks, wires, bones, and other foreign objects.

These objects wilt be thrown by the blade and can cause

severe injury.

, Always wear safety glasses or eye shields when starting and

while using your mower.

• Dress properly° Do not operate mower when barefoot or

wearing open sandals. Wear only solid shoes with good

traction when mowing.

° Check fuel tank before starting engine_ Do not fill gas tank

indoors, when the engine is running or when the engine ishOt,r

Allow the engine to cool for several minutes before filling the

gas tank Clean off any spilled gasoline before starting the

engine.

° Always make wheel height adjustments before starting your

mower° Never attempt to do this while the engine is running.

oMow only in daylight or good artificial Iight.

OPERATION:

•Keep your eyes and mind on your mower and the area being

cut. Do not let other interests distract you.

o Do not mow wet or slippery grass. Never run while operating

your mower. Always be sure of your footing - keep a firm hold

on the handles and walk.

• Do not put hands or feet near or under rotating parts. Keep

clear of the discharge opening at all times..

• Always stop the engine whenever you leave or are not using

your mower, or before crossing drLveways, walks, roads, and

any gravel-covered areas.

= Never direct discharge of material toward bystanders nor

allow anyone near the mower while you are operating iL

• Before cleaning, inspecting, orrepairingyour mower, stop the

engine and make absolutely sure the blade and all moving

parts have stopped. Then disconnect thespark plug wire and

keep it away from the spark plug to prevent accidental

starting,

- Do not continue to run your mower if you hita foreign objecL

Follow the procedure outlined above, t_ .pair any dam-

age before restarting and operating you mower_

•Do not change the govemor settings or overspeed the

engine° Engine damage or personal injury may result.

= Do not operate your mower if it vibrates abnormally. Exces-

sive vibration is an indication of damage; stop the engine,

safely check for the cause of vibration and repair as required

. Do not run the engine indoors Exhaust fumes are danger-

ous.

oNever cut grass by pulling the mower towards you. Mow

across the face of slopes, never up and down or you might

lose your footing Do not mow excessively steep slope& Use

caution when operating the mower on uneven terrain orwhen

changing directions - maintain good footing..

•Never operate your mower without proper guards, plates,

grass catcher or other safety devices in place.

MAINTENANCE AND STORAGE:

o Check the blade and the engine mounting bolts often to be

sure they are tightened properly..

=Check all bolts, nuts and screws at frequent intervals for

proper tightness to be sure mower is in safe working condi-

tion-

-Keep all safety devices in place and working.

•To reduce fire hazard, keep the engine free of grass, leaves

or excessive grease and oil.

•Check grass catcher often for deterioration and wear and

replace worn bags. Use only replacement bags that are

recommended by and comply with specifications of the

manufacturer of your mower.

•Always keep a sharp blade on your mower.

•Allow engine to coo{ before storing in any enclosure

•Never store mower with fuel in the tank inside a building

where fumes may reach an open flame or an ignitionsource

such as a hot water heater, space heater, clothes dryer, etc+

i lu i ,111 '1

A Look for this symbol to point out im- !

portant safety precautions. It means

CAUTION!!! BECOMEALERTt!! YOUR

SAFETY IS INVOLVED.

iii

................... ii

ii nl,nnn,i in iiiiinl1.11111

CAUTION: Always disconnect spark

plug wire and place wire where it can-

not contact spark plug in order to pre-

vent accidental starting when setting

up, transporting, adjusting or making

repairs. .............

i in i i nUlll

& WARNING &

The engine exhaust from this product con-

tains cliemicals known to the State of Califor-

nia to cause cancer, birth defects, or other

reproductive harm.

CONGRATULATIONS on your purchase of a Sears Lawn

Mower. It has been designed, engineered and manufac-

tured to give you the best possible dependability and

pefformance_

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service Center/Department. We have competent, well-

trained technicians and the proper tools to service or repair

this lawn mower,

Please read ar',d retain this manual, The instructions will

enable you tu assemble and maintain your lawn mower

properly,, Always observe the "SAFETY RULES",

MODEL

NUMBER 917.386030

SERIAL

NUMBER

DATE OF PURCHASE

THE MODEL AND SERIAL NUMBERSWILL BE FOUND

ON A DECAL ATTACHED TO THE REAR OF THE

LAWN MOWER HOUSING

YOUSHOULDRECORDBOTHSERIALNUMBERAND

DATE OF PURCHASE AND KEEPIN A SAFE PLACE

FOR FUTURE REFERENCE.

PRODUCT SPECIF CATaONS

HORSEPOWER: 40

DISPLACEMENT: 115 CU IN

GASOLINE CAPACITY 1_.5QUARTS

AND TYPE: UNLEADED REGULAR

-OIL TYPE (API-SF/SG): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS

SPARK PLUG: CHAMPION J19LM, RJ19LM

(GAP: .030") STD361458

VALVE CLEARANCE: INTAKE: 008

EXHAUST: .008

SOLID STATE IGNITION

AIR GAP: 0125 iN.

BLADE BOLT TORQUE: 35-40 FT. LBS

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this product. Contact your nearest Sears store for detaits_

CUSTOMER RESPONSilBKUTIES

o Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your lawn mower.

o Follow the instructions under "Customer Responsibilities" and "Storage" sections of this owner's manual..

UMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained, lubricated, and tuned up

according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any

defect in material or workmanship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty applies for only 90 days from

the date of purchase.

This Warranty does not cover:

o Expendable items which become worn during normal use, such as rotary mower blades, blade adapters, belts,

air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent crankshafts and the failure to maintain

the equipment according to the instructions contained in the owner's manual°

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN POWER MOWER TO THE NEAREST

SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE

THIS PRODUCT IS IN USE IN THE UNITED STATES.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

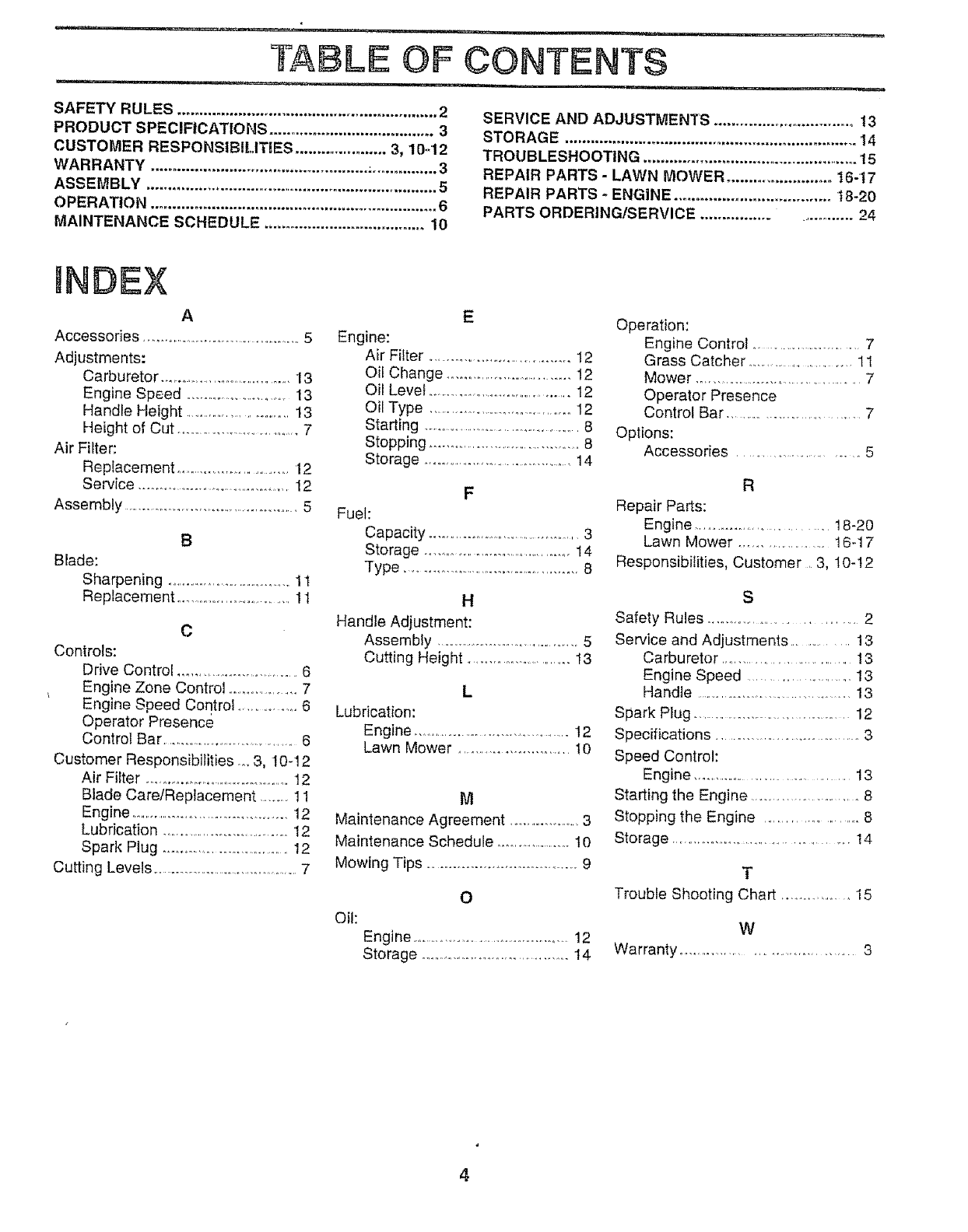

TABLE OF CONTENTS

,,.... i.._. = ..... u. .m,u ...........

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, 10"12

WARRANTY .................................................. ;............... 3

ASSEMBLY ...................................................................... 5

OPERATION .................................................................. 6

MAINTENANCE SCHEDULE ..................................... 10

SERVICE AND ADJUSTMENTS ................................ 13

STORAGE ................................................................... 14

TROUBLESHOOTING ................................................. 15

REPAIR PARTS - LAWN MOWER ........................ t6-t7

REPAIR PARTS - ENGINE .................................... t8-20

PARTS ORDERING/SERVICE ............................ 24

iNDEX

Accessories ..................................................5

Adjustments:

Carburetor .........................................13

Engine Speed ..................................13

Handle Height ........................... t3

Height of Cut .....................................7

Air Filter:

Replacement ..................................12

Service ..................................................12

Assembly ................................................... 5

Blade:

Sharpening .......................................11

Replacement .................................1t

Controls:

Drive Control ...................................6

Engine Zone Control ......................7

Engine Speed Control .............. 6

Operator Presence

Control Bar ........................................6

Customer Responsibilities o°°3, 10-12

Air Filter ..................................................... 12

Blade Care/Replacement ..........11

Engine ............................................12

Lubrication .................................... 12

Spark Plug ....................................12

Cutting Levels ............................................ 7

Engine:

Air Filter .......................................12

Oil Change ......................................12

Oil Level .........................................12

Oil Type ............................................12

Starting ..............................................8

Stopping ...........................................8

Storage .............................................14

Fuel:

Capacity ............................................3

Storage ..................................... 14

Type ................................................. 8

Handle Adjustment:

Assembly ............................................5

Cutting Height ..............................13

Lubrication:

Engine ............................................12

Lawn Mower ..............................10

Maintenance Agreement ........................3

Maintenance Schedule ........................10

Mowing Tips ............................................9

Oil:

Engine ..............................................12

Storage ...........................................14

Operation:

Engine Control ........................... 7

Grass Catcher .......................... 1t

Mower .................................................7

Operator Presence

Control Bar ................................. 7

Options:

Accessories ............................ 5

Repair Parts:

Engine .................................. 18-20

Lawn Mower ........................ 16-17

Responsibilities, Customer 3, 10-12

Safety Rules ..........................................2

Service and Adjustments ............... 13

Carburetor ............................. 13

Engine Speed ........................... 13

Handle .............................................13

Spark Plug ................................... 12

Specifications ..................................... 3

Speed Control:

Engine ..........................................13

Starting the Engine ........................... 8

Stopping the Engine ...........................8

Storage ................................ ............... 14

Trouble Shooting Chart ................. t5

Warranty ........................................... 3

i, ulu , ii u, ,,H,I ...... II

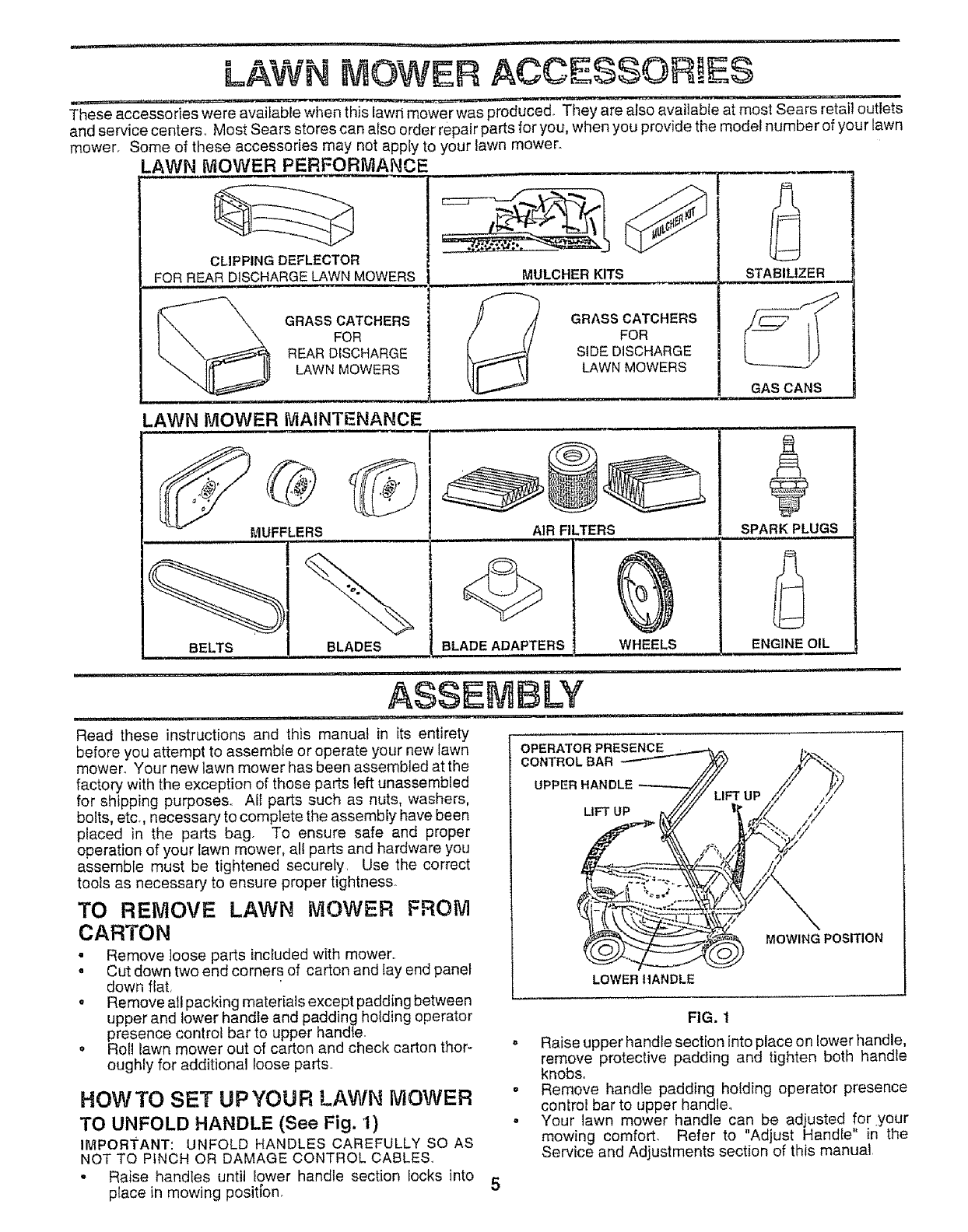

LAWN MOWER ACCESSOR!ES

These accessories were available when this lawn mower was produced. They are also available at most Sears retail outlets

and service centers Most Sears stores can also order repair parts for you, when you provide the model number of your lawn

mower. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FORREAR DISCHARGELAWNMOWERS

,, ,, i

i__,_ GRASSFoRCATCHERS

REAR DISCHARGE

LAWNMOWERS

MULCHERKITS

ii, i

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

MUFFLERS

t, ,i, i H,,,

LAWN MOWER MAINTENANCE

,,, ,,,, ,,,,,_ _ __ _L ,,

AIR FILTERS

BELTS BLADES

BLADE ADAPTERS WHEELS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in its entirety

before you attempt to assemble or operate your new lawn

mower. Your new lawn mower has been assembled at the

factory with the exception of those parts left unassembled

for shipping purposes.. All parts such as nuts, washers,

bolts, etc., necessary to complete the assembly have been

placed in the parts bag. To ensure safe and proper

operation of your lawn mower, alt parts and hardware you

assemble must be tightened securely. Use the correct

tools as necessary to ensure proper tightness.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose parts included with mower,,

.Cut down two end corners of carton and Iay end panel

down flat,

,Remove all packing materials except padding between

upper and lower handle and padding holding operator

presence control bar to upper handle.

o Roll lawn mower out of carton and check carton thor-

oughly for additional loose parts

HOWTO SET UPYOUR LAWN MOWER

TO UNFOLD HANDLE (See Fig. "i)

IMPORTANT: UNFOLD HANDLES CAREFULLY SO AS

NOT TO PINCH OR DAMAGE CONTROL CABLES,,

, Raise handles until lower handle section locks into

place in mowing positi'on

OPERATOR PRESENCE

CONTROLBAR

UPPER

MOWING POSITION

LOWER HANDLE

FIG. 1

o Raise upper handle section into place on lower handle,

remove protective padding and tighten both handle

knobs,

.Remove handle padding holding operator presence

control bar to upper handle°

°Your lawn mower handle can be adjusted for.your

mowing comfort, Refer to "Adjust Handle" in the

Service and Adjustments section of this manual

,,,iii,i i, ,i, ,

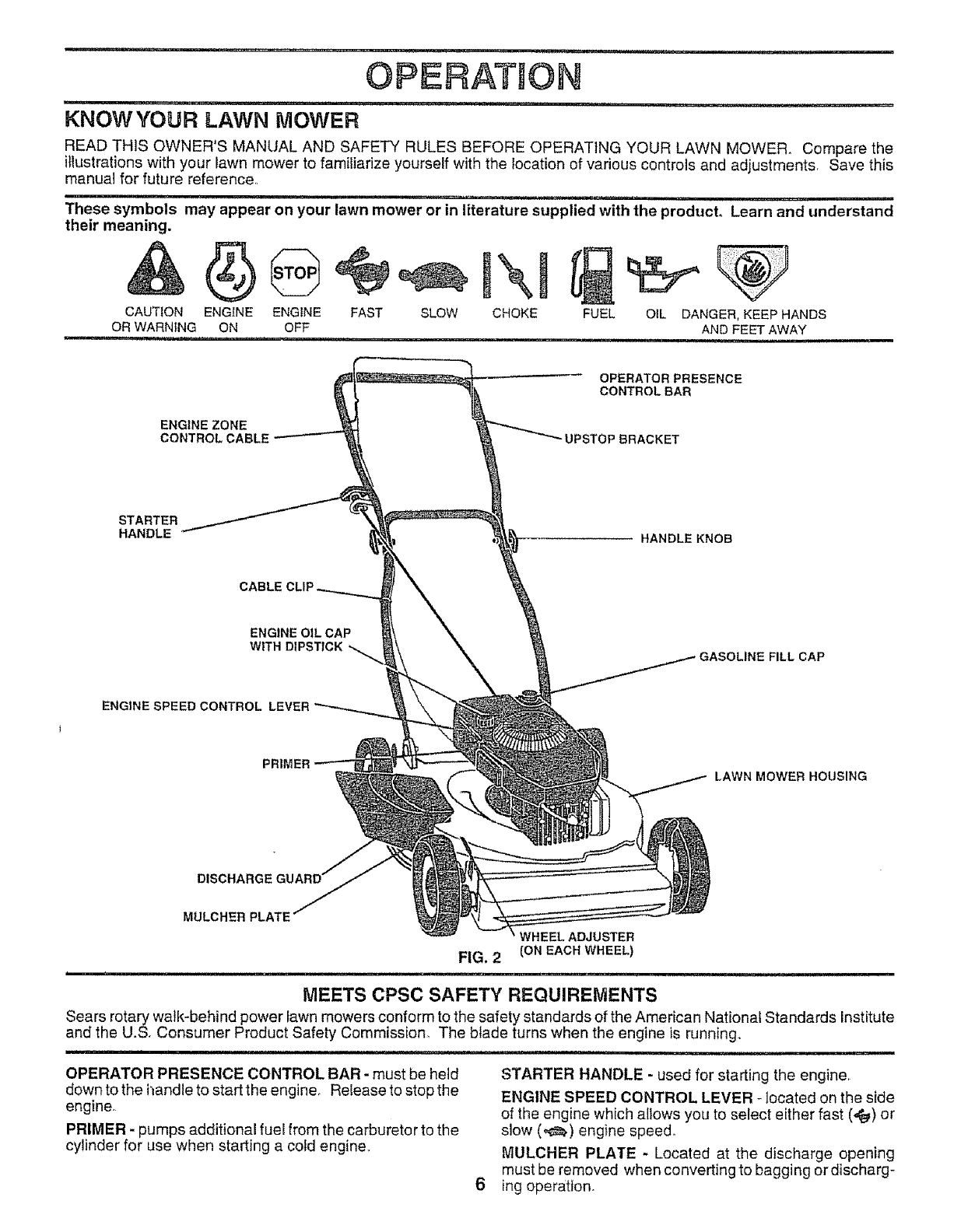

KNOWYOUR LAWN MOWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the

iilustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments, Save this

manual for future reference..

These symbols may appear on your lawn mower or in literature supplied with the product. Learn and understand

their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE

OR WARNING ON OFF

................................. 111,, , ii i

FUEL OIL DANGER, KEEP HANDS

AND FEET AWAY

ENGINEZONE

CONTROLCABLE

OPERATOR PRESENCE

CONTROL BAR

UPSTOPBRACKET

STARTER

HANDLE HANDLE KNOB

ENGINE OIL CAP

W1TH DIPSTICK GASOLINEFILLCAP

ENGINE SPEED CONTROL LEVER

LAWN MOWER HOUSING

DISCHARGE

MULCHER PLATE

FIG. 2

rv'HEEL ADJUSTER

(ON EACH WHEEL)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power fawn mowers conform to the safety standards of the American National Standards Institute

and the U.S. Consumer Product Safety Commission_ The blade turns when the engine is running.

ii iii i, ii ,i

OPERATOR PRESENCE CONTROL BAR - must be held

down to the i_andle to start the engine_ Release to stop the

engine.

PRIMER - pumps additional fuel from the carburetor to the

cylinder for use when starting a cold engine.

STARTER HANDLE -used for starting the engine.

ENGINE SPEED CONTROL LEVER -located on the side

of the engine which allows you to select either fast (,_) or

slow (__,) engine speed_

MULCHER PLATE - Located at the discharge opening

must be removed when converting to bagging or discharg-

ing operatbn.

!The operation of any _awnmower can result in foreign objects thrown into the eyes, which can

result in severe eye damage. Nways wear safety glasses or eye shields while operating your

lawn mower or performing any adjustments or repairs. We recommend a wide vision safety

mask over the spectacles or standard safety glasses.

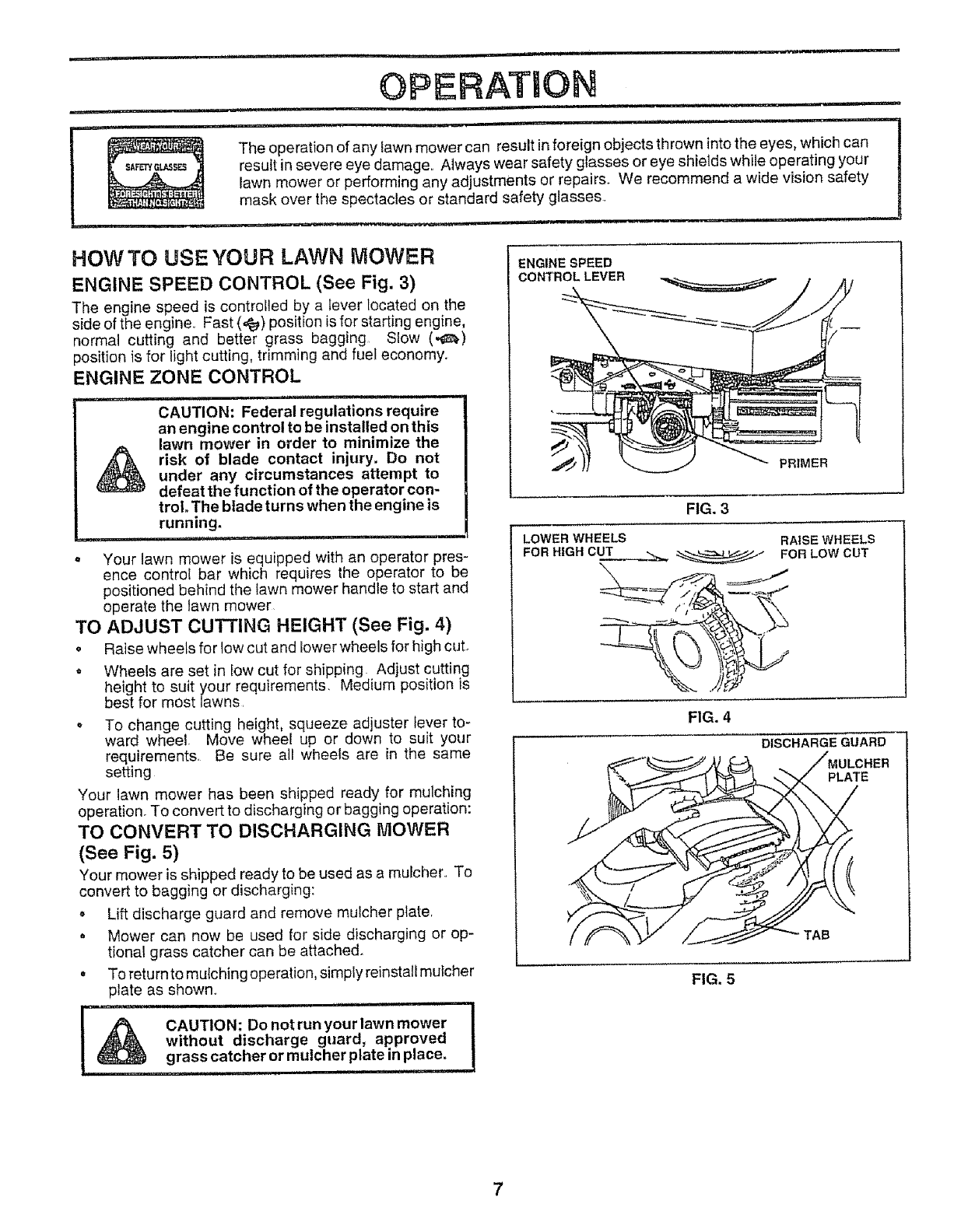

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED CONTROL (See Fig. 3)

The engine speed is controlled by a tever located on the

side of the engine. Fast (,_) position isfor starting engine,

normal cutting and better grass bagging Slow (,_)

position is for light cutting, trimming and fuel economy.

ENGINE ZONE CONTROL

CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the

risk of blade contact injury. Do not

under any circumstances attempt to

defeat the function of the operator con-

troL The blade turns when the engine is

running.

• Your lawn mower is equipped with an operator pres-

ence control bar which requires the operator to be

positioned behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CUTTING HEIGHT (See Fig. 4)

o Raise wheels for low cut and Iower wheels for high cut.

° Wheels are set in low cut for shipping Adjust cutting

height to suit your requirements. Medium position is

best for most lawns.

oTo change cutting height, squeeze adjuster lever to-

ward wheel. Move wheel up or down to suit your

requirements. Be sure all wheels are in the same

setting

Your lawn mower has been shipped ready for mulching

operation. To convert to discharging or bagging operation:

TO CONVERT TO DISCHARGING MOWER

(See Fig. 5)

Your mower is shipped ready to be used as a mulcher.. To

convert to bagging or discharging:

• Lift discharge guard and remove mulcher plate.

oMower can now be used for side discharging or op-

tional grass catcher can be attached.

•To return to mulching operation, simply reinstall mutcher

plate as shown,.

i ........ : .......

,_ CAUTION: Do not run your lawn mower I

without discharge guard, approved i

grass catcher or mulcher plate in place. !

,,,, ,,,, , , | ,

ENGINE SPEED

CONTROL LEVER

FIG. 3

LOWER WHEELS RAISE WHEELS

FOR HIGH CU_.T _ __ FOR LOW CUT

FIG. 4

DISCHARGE GUARD

/MULC.ER

FIG. 5

i_, =,,,u,.......

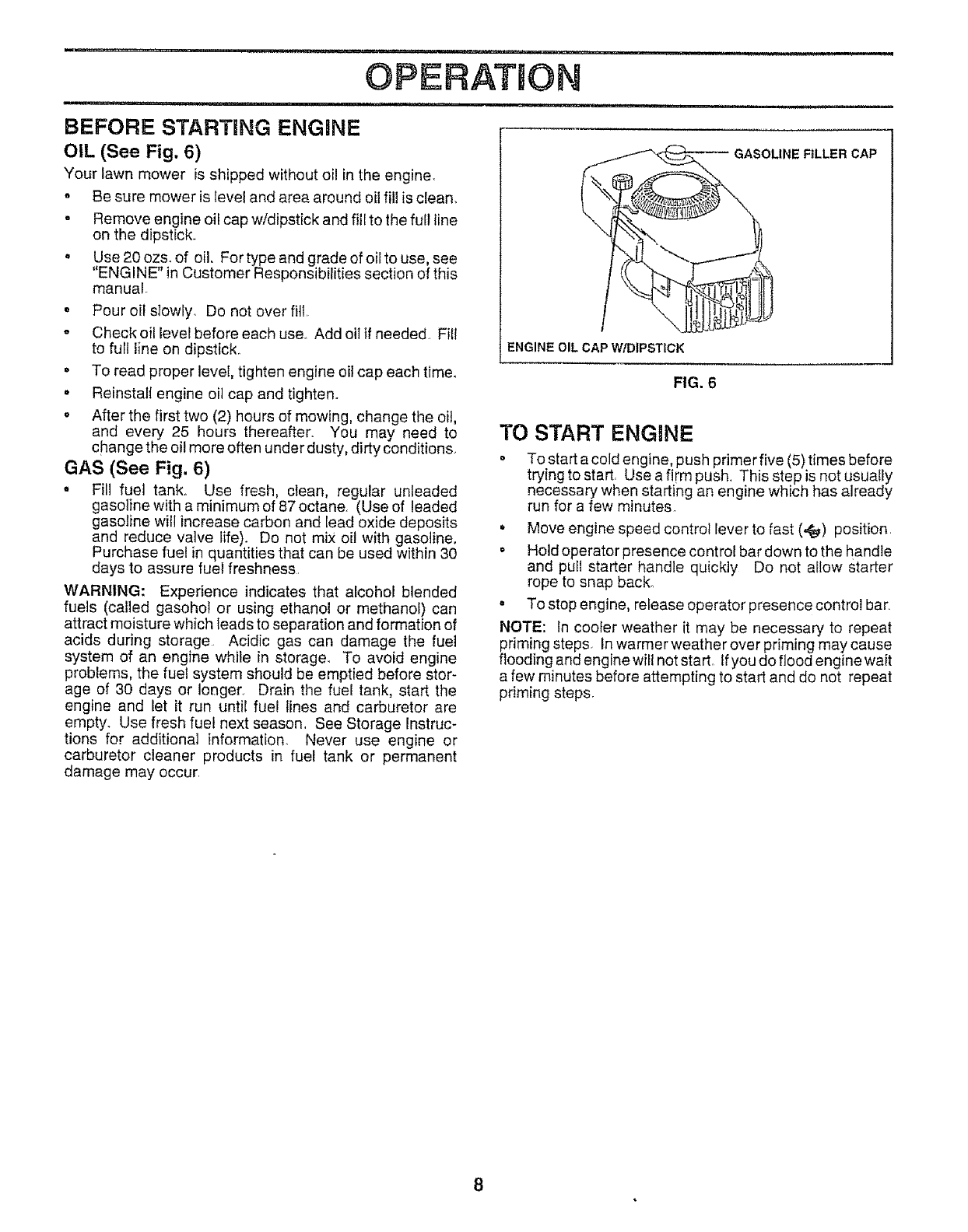

OPERATION

BEFORE STARTING ENGINE

OIL (See Fig. 6)

Your lawn mower is shipped without oil in the engine

.Be sure mower is [evel and area around oil fill is clean.

.Removeengineoilcapw/dipstickandffiltothefulltine

on the dipstick.

oUse 20 ozs. of oil. For type and grade of oil to use, see

"ENGINE" in Customer Responsibilities section of this

manual.

.Pour oi_stowly Do not over fill_

-Check oil level before each use. Add oil if needed. Fill

to full line on dipstick.

•To read proper level, tighten engine oil cap each time.

•Reinstall engine oil cap and tighten.

• After the first two (2) hours of mowing, change the oit,

and every 25 hours thereafter. You may need to

change the oil more often under dusty, dirty conditions.

GAS (See Fig. 6)

° Fill fuel tank,. Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline,

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness

WARNING: Experience indicates that alcohoi blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation of

acids during storage Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the fuel tank, start the

engine and let it run until fuel tines and carburetor are

empty. Use fresh fuel next season, See Storage Instruc-

tions for additional information. Never use engine or

carburetor cleaner products in fuel tank or permanent

damage may occur.

-_--_ GASOLINE FILLER CAP

ENGINE OIL CAP W/DIPSTICK

FIG. 6

TO START ENGINE

• To start a cold engine, push primerfive (5) times before

trying to start. Use a firm push. This step is not usuaIly

necessary when starting an engine which has already

run for a few minutes

• Move engine speed control lever to fast (,_) position.

° Hold operator presence control bar down to the handle

and pull starter handle quickly Do not allow starter

rope to snap back°

° To stop engine, release operator presence control bar.

NOTE: In cooler weather it may be necessary to repeat

priming steps. In warmer weather over priming may cause

flooding and engine will not start_ Ifyou do flood engine wait

a few minutes before attempting to start and do not repeat

priming steps.

...... ii............. i,i ]

OPERATION

................ ill ill i ii ii,

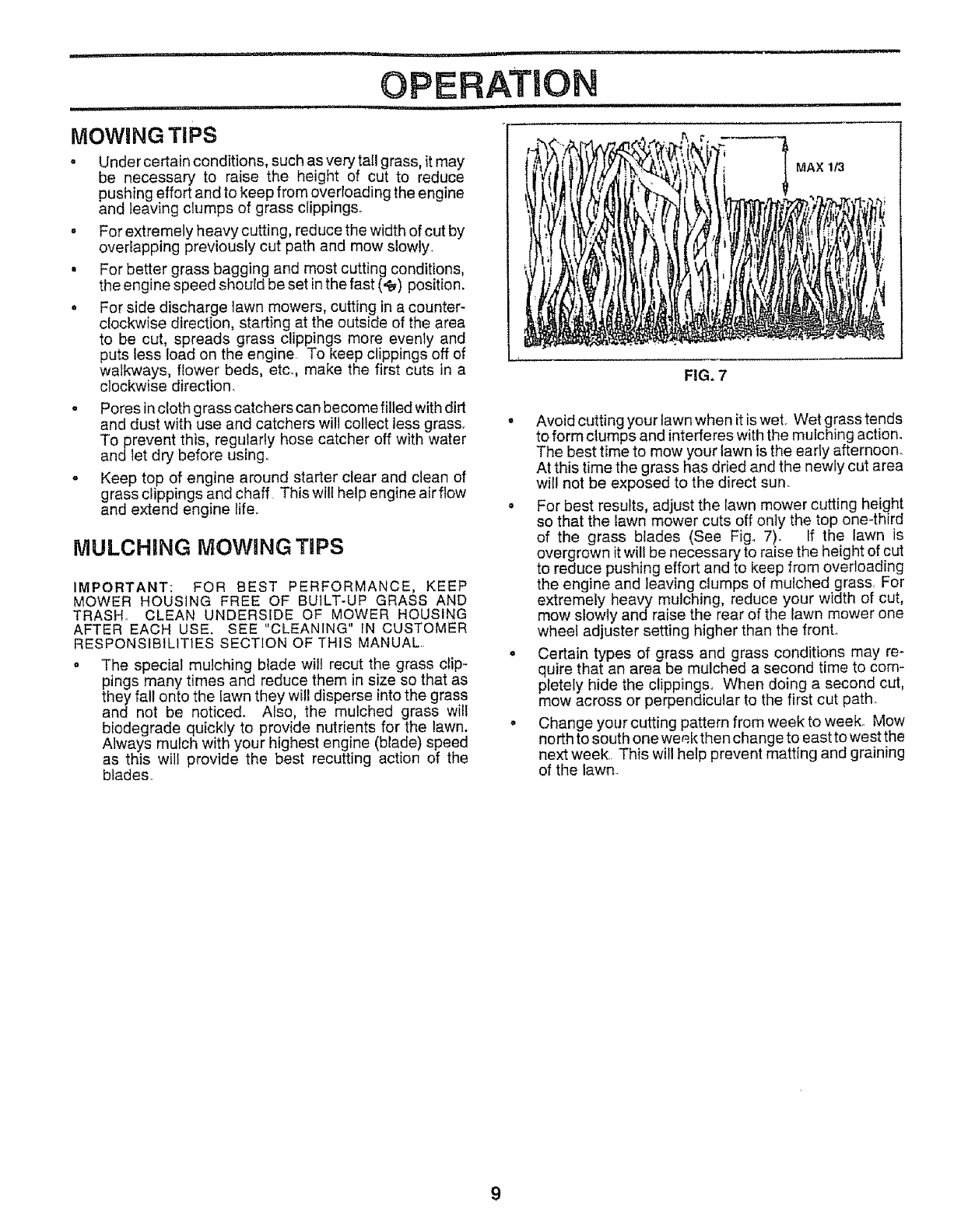

MOWING TiPS

o Under certain conditions, such as very tall grass, it may

be necessary to raise the height of cut to reduce

pushing effort and to keep from overloading the engine

and leaving clumps of grass clippings.

•For extremely heavy cutting, reduce the width of cut by

overlapping previously cut path and mow slowty.

• For better grass bagging and most cutting conditions,

the engine speed should be set in the fast (,_) position.

•For side discharge lawn mowers, cutting in a counter-

c{ockwise direction, starting at the outside of the area

to be cut, spreads grass clippings more evenly and

puts less load on the engine To keep clippings off of

walkways, flower beds, etc., make the first cuts in a

clockwise direction.

• Pores incloth grass catchers can become filled with dirt

and dust with use and catchers will collect less grass.

Toprevent this, regularly hose catcher off with water

and let dry before using.

oKeep top of engine around starter clear and clean of

grass clippings and chaff This will help engine airflow

and extend engine life.

MULCHING MOWING TiPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BU1LT-UP GRASS AND

TRASH CLEAN UNDERSIDE OF MOWER HOUSING

AFTER EACH USE. SEE "CLEANING" IN CUSTOMER

RESPONSIBILITIES SECTION OF THIS MANUAL.

o The special mulching blade wilt recut the grass dip-

pings many times and reduce them in size so that as

they fall onto the Iawn they will disperse intothe grass

and not be noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades.

MAX 1/3

FIG. 7

• Avoid cutting your lawn when it iswet. Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

wil! not be exposed to the direct sun.

= For best results, adjust the lawn mower cutting height

so that the lawn mower cuts off only the top one-third

of the grass blades (See Fig., 7). If the lawn is

overgrown it will be necessary to raise the height of cut

to reduce pushing effort and to keep from overloading

the engine and leaving clumps of mulched grass, For

extremely heavy mulching, reduce your width of cut,

mow slowly andraise the rear of the fawn mower one

wheel adjuster setting higher than the front..

.Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings, When doing a second cut,

mow across or perpendicular to the first cut path.

= Change your cutting pattern from week to week_ Mow

north to south one we_k then change to east to west the

next week.. This will help prevent matting and graining

of the lawn_

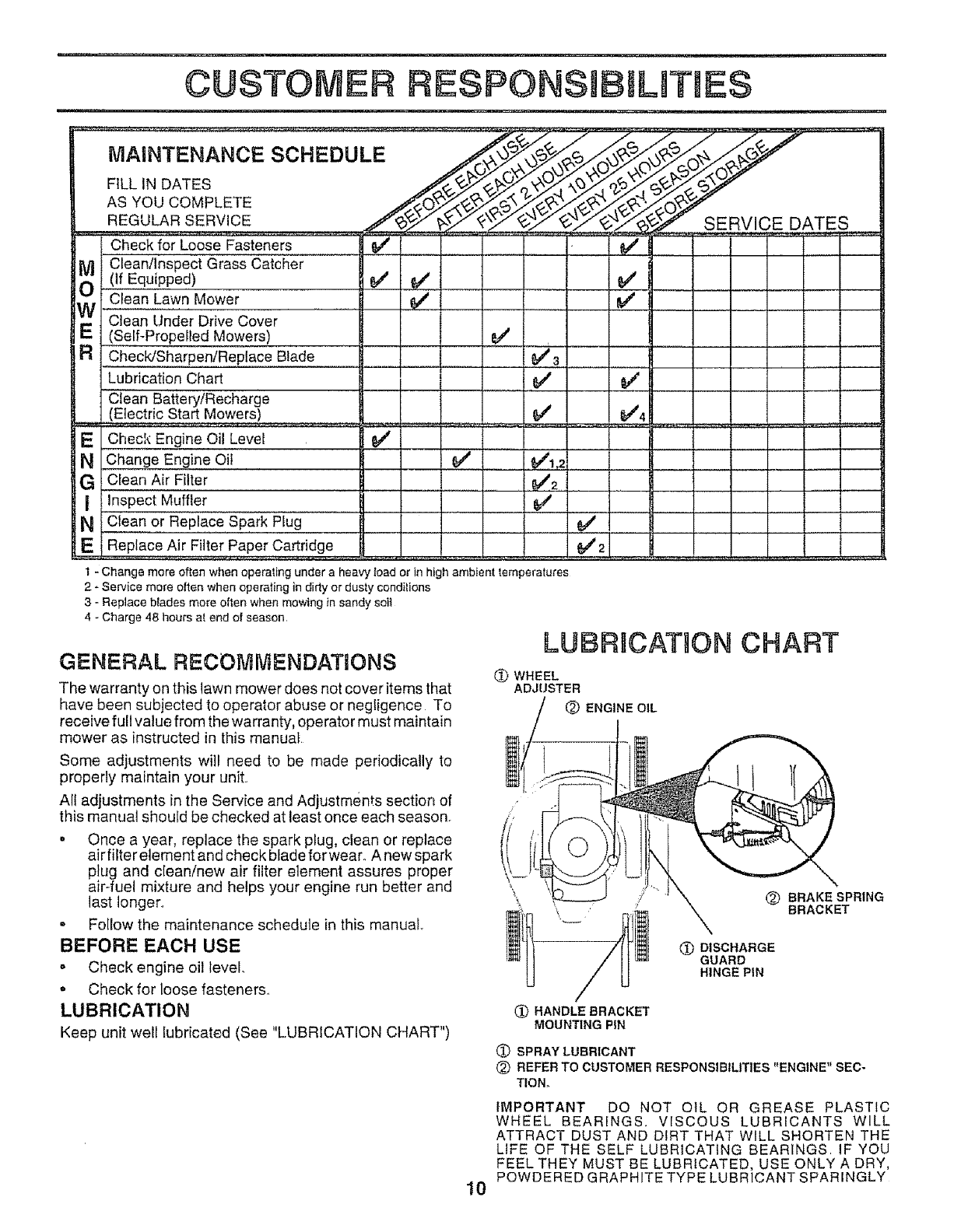

OUSTOMER RESPONSmSBL ES

....................................

F, L,NOATES

AsYouCOMPLETE .

Check for Loose Fasteners 6/ ......... ! _' J

O Clean/Inspect Grass Catcher

(If Equipped)Mower ........

EWr Clean Under Drive Cover

(Self-Propelled Mowers)

R Check/Sharpen/Replace Blade

6/ V' v' ....

V' 6/ .....

Lubrication Chart 6/ 6/

Clean Battery/Recharge

(Electric Start Mowers) $/ 6/4

E Check Engine Oil Level 6/ J

N Change Engine Oil 6/ ......_1,2!

G CIean Air Filter ............. _2,,,i

I Inspect Muffler J

N Clean or Replace Spark Plug ................................

.S. Replace Air Filter Paper Cartridge

1 - Change more often when operaling under a heavy load or in high ambient temperatures

2-Se_,{ce mole often when operating in dirty or dusty conditions

3 - Replace b{ades more often when mewing in sandy soil

4 - Charge 48 hours a! end ot season,

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not cover items that

have been subjected to operator abuse or negligence To

receive full value from the warranty, operator must maintain

mower as instructed in this manual

Some adjustments will need to be made periodically to

properly maintain your unit,,

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season_

LUBRiCATiON CHART

(# WHEEL

ADJUSTER

(_ ENGINE OIL

oOnce a year, replace the spark plug, clean or replace

air filter element and check blade forwear. A new spark

plug and clean/new air filter element assures proper

air-fuel mixture and helps your engine run better and

last longer..

° Follow the maintenance schedule in this manual

BEFORE EACH USE

o Check engine oil level.

. Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICATION CHART")

(_) BRAKESPRING

BRACKET

(_ DISCHARGE

GUARD

HINGE PIN

(_)HANDLEBRACKET

MOUNTING PIN

(_ SPRAY LUBRICANT

(_) REFERTO CUSTOMER RESPONSIBILITIES ENGINE SEC-

TION_

IMPORTANT DO NOT OiL OR GREASE PLASTIC

WHEEL BEARINGS, VISCOUS LUBRICANTS WILL

ATTRACT DUST AND DIRT THAT WILL SHORTEN THE

LIFE OF THE SELF LUBRICATING BEARINGS IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY,

POWDERED GRAPH ITE TYPE LUBRICANT SPARINGLY

u l...... ullulu ,n

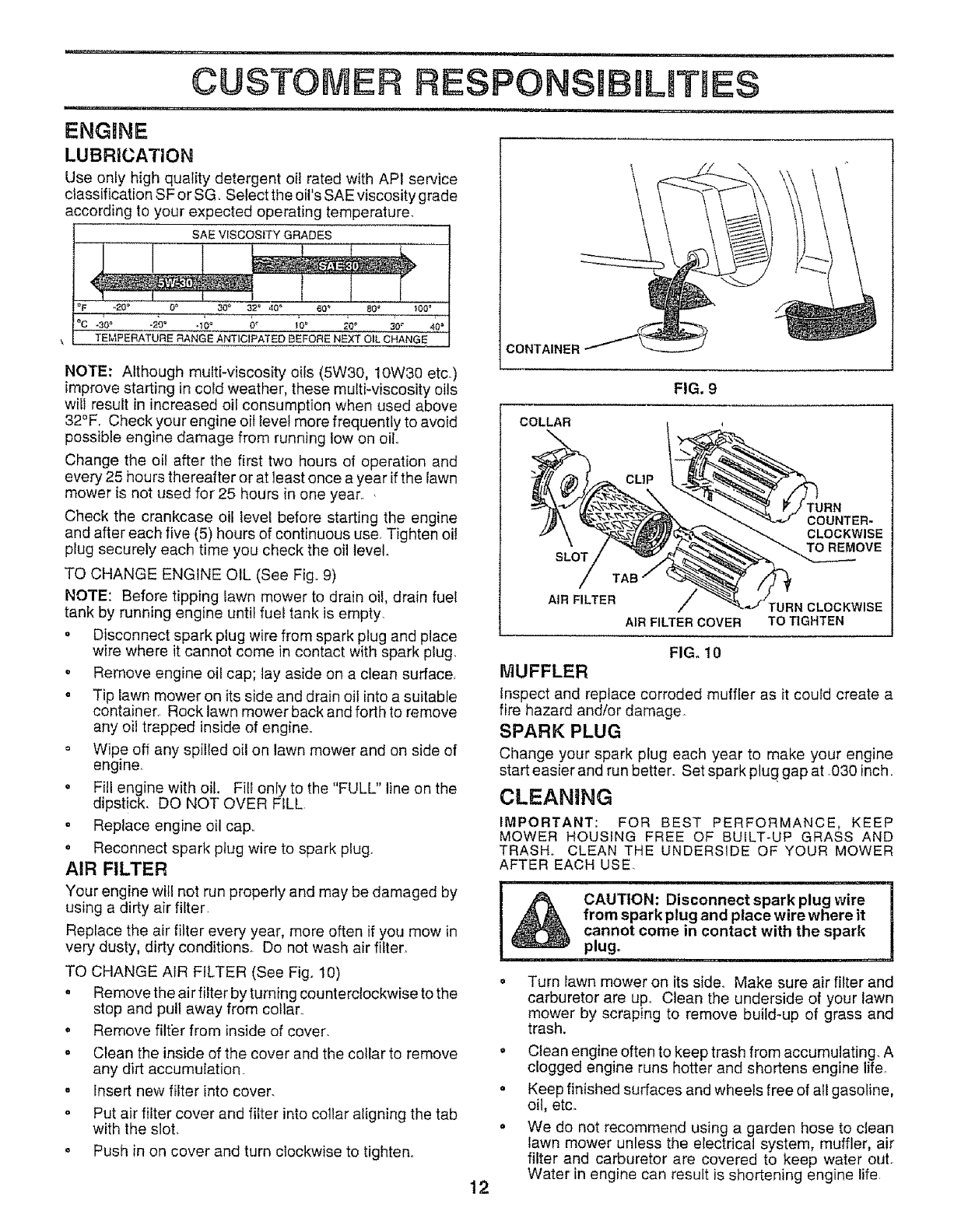

OUSTO RESPONSIBiLITiES

,11,,,, i imul, n,

ENGINE

LUBRICATION

Use only high quality detergent oil rated with API service

classification SF or SG. Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

°F _20_ 0° 3O" a2° 40° _0' _0° _00°

°_CC-a0o -20° 4O° O" _0° t0 ° 3O" 4O°

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multFviscosity oils (5W30, 10W30 etc)

improve starting in cold weather, these multFviscosity oils

will result in increased oil consumption when used above

32°F, Check your engine oil level more frequently to avoid

possible engine damage from running low on oil,,

Change the oil after the first two hours of operation and

every 25 hours thereafter or at least once a year if the lawn

mower is not used for 25 hours in one year. •

Check the crankcase oil level before starting the engine

and after each five (5) hours of continuous use, Tighten oil

plug securely each time you check the oil level

TO CHANGE ENGINE OIL (See Fig,, 9)

NOTE: Before tipping lawn mower to drain oil, drain fuel

tank by running engine until fuel tank is empty.

• Disconnect spark plug wire from spark plug and place

wire where it cannot come in contact with spark plug.

° Remove engine oi! cap; lay aside on a clean surface,

o Tip lawn mower on its side and drain oil into a suitabfe

container., Rock lawn mower back and forth to remove

any oil tr_pped inside of engine.

o Wipe off any spilled oil on lawn mower and on side of

engine,

. Fill engine with oil. Fill only to the "FULU' line on the

dipstick, DO NOT OVER FILL

o Replace engine oit cap,,

oReconnect spark plug wire to spark plug.

AIR FILTER

Your engine will not run properly and may be damaged by

using a dirty air filter

Replace the air filter every year, more often if you mow in

very dusty, dirty condition& Do not wash air filter.

TO CHANGE AIR FILTER (See Fig. 10)

o Remove the air filter by turning counterclockwise to the

stop and pull away from cottar_

.Remove filter from inside of cover.

. Clean the inside of the cover and the collar to remove

any dirt accumufation

o Insert new filter into cover.

o Put air filter cover and fitter into collar aligning the tab

with the slot,

o Push in on cover and turn clockwise to tighten°

FIG. 9

COLLAR

SLOT

TURN

COUNTER-

CLOCKWISE

TO REMOVE

AIR FILTER TURN CLOCKWISE

AIR FILTER COVER TO TIGHTEN

FIG. 10

MUFFLER

Inspect and replace corroded muffler as it coutd create a

fire hazard and/or damage,

SPARK PLUG

Change your spark plug each year to make your engine

start easier and run better. Set spark plug gap at 030 inch,

CLEANING

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH,, CLEAN THE UNDERSIDE OF YOUR MOWER

AFTER EACH USE

CAUTION: Disconnect sparkplug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

i i i Hn' I

Turn lawn mower on its side,, Make sure air filter and

carburetor are up, Clean the underside of your lawn

mower by scraping to remove build-up of grass and

trash.

.Clean engine often to keep trash from accumulating. A

clogged engine runs hotter and shortens engine life,

• Keep finished surfaces and wheels free of all gasoline,

oil, etc.,

• We do not recommend using a garden hose to clean

lawn mower unless the electrical system, muffler, air

filter and carburetor are covered to keep water out.

Water in engine can resuft is shortening engine life,

u, iu,,11,,,,i,= i i , u i, i,,,,,u ,,Ul i, ,,11,,

CUSTOMER RESPONSIBULITJES

n,,u i,,, ,,r,,,ll i,i

LAWN MOWER

Always observe safety rules when performing any mainte-

nance.

TIRES

oKeep tires free of gasoline, oil, or insect controlchemi-

cats which can harm rubber.

oAvoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage_

BLADE CARE

For best results, mower blade must be kept sharp. Replace

bent or damaged blades.

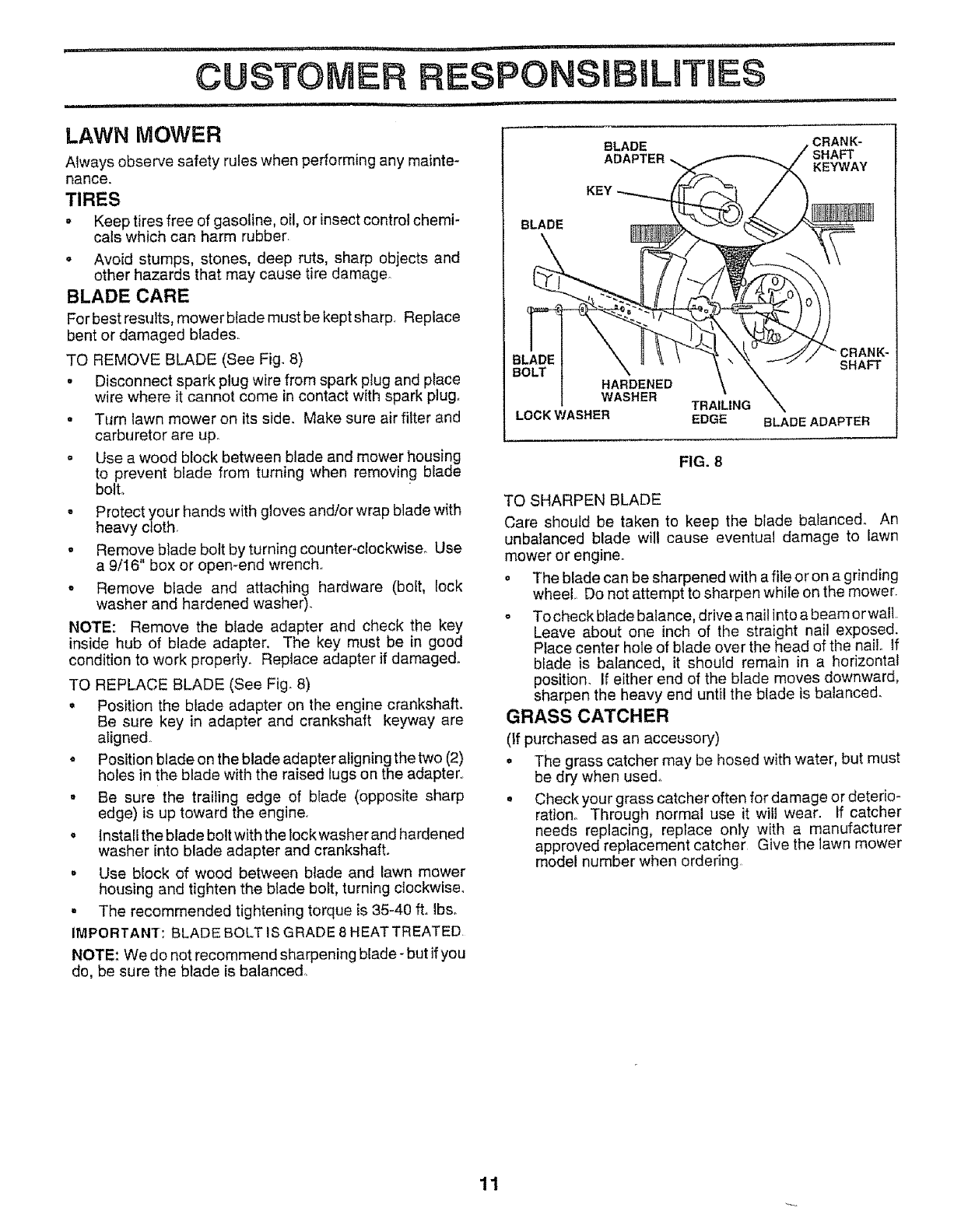

TO REMOVE BLADE (See Fig. 8)

,Disconnect spark plug wire from spark plug and place

wire where it cannot come in contact with spark p(ug,

oTurn lawn mower on its side. Make sure air fitter and

carburetor are up°

= Use a wood block between blade and mower housing

to prevent blade from turning when removing blade

bolt..

- Protect you r hands with gloves and/or wrap blade with

heavy cloth.

o Remove blade bolt by turning counter-clockwise_ Use

a 9/16" box or open-end wrench..

=Remove blade and attaching hardware (belt, lock

washer and hardened washer).

NOTE: Remove the blade adapter and check the key

inside hub of blade adapter, The key must be in good

condition to work properly. Replace adapter if damaged.

TO REPLACE BLADE (See Fig. 8)

= Position the blade adapter on the engine crankshaft.

Be sure key in adapter and crankshaft keyway are

aligned.

o Position blade on the blade adapter aligning the two (2)

holes in the blade with the raised lugs on the adapter._

,Be sure the trailing edge of blade (opposite sharp

edge) is up toward the engine.

o Install the blade bolt with the lock washer and hardened

washer into blade adapter and crankshaft.

• Use block of wood between blade and lawn mower

housing and tighten the blade bolt, turning clockwise.

=The recommended tightening torque is 35-40 ft. Ibs..

IMPORTANT: BLADE BOLT IS GRADE 8 HEAT TREATED.

NOTE: We do not recommend sharpening blade- but if you

de, be sure the blade is balanced..

BLADE ,, CRANK-

ADAPTER _.,.,...-------.,_ /SHAFT

_r_ Z, KEYWAY

LOCK WASHER EDGE BLADE ADAPTER

FIG. 8

TO SHARPEN BLADE

Care should be taken to keep the blade balanced° An

unbalanced blade will cause eventual damage to lawn

mower or engine,.

o The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower.

o To check blade balance, drive a nail into a beam or wall.

Leave about one inch of the straight nail exposed.

Place center hole of blade over the head of the nail,. (f

blade is balanced, it should remain in a horizontal

position. If either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

GRASS CATCHER

(If purchased as an acceusory)

•The grass catcher may be hosed with water, but must

be dry when use&

• Check your grass catcher often for damage or deterio-

ration° Through normal use it will wear. if catcher

needs replacing, replace only with a manufacturer

approved replacement catcher Give the lawn mower

model number when ordering.

inl n nl ,,,U,ll,U .........................

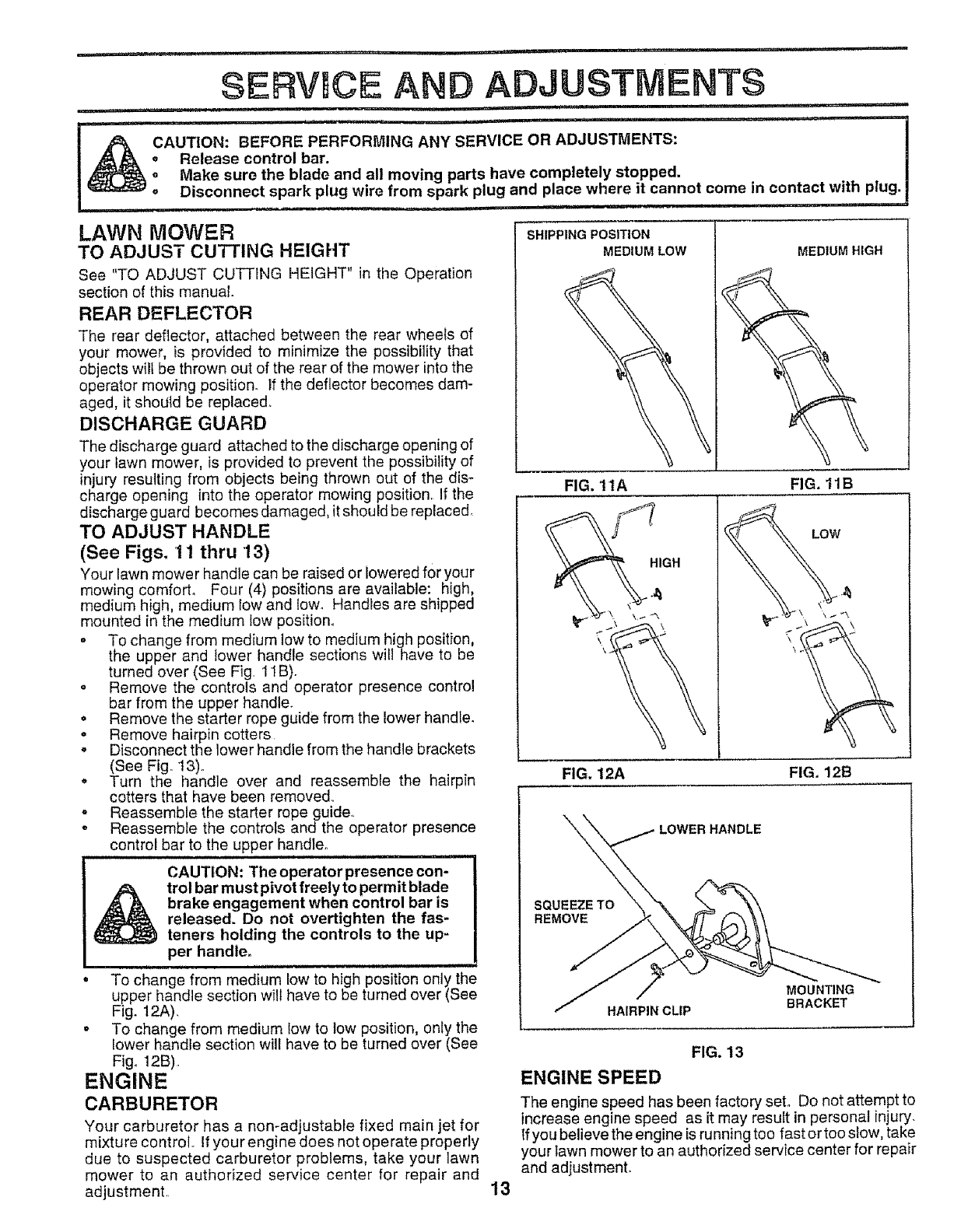

SERWCE AN ADJUSTMENTS

,,ill _ i i ii ,,n ,i................................

.... ii

i u,u ii i

ACAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: i

_Release control bar.

o Make sure the blade and all moving parts have completely stopped. I

"_o Disconnect spark plug wire from spark plug and place whe!e it cannot come in contact w!!h plug, !

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTT(NG HEIGHT" in the Operation

section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the rear wheels of

your mower, is provided to minimize the possibility that

objects will be thrown out of the rear of the mower into the

operator mowing position_ if the deflector becomes dam-

aged, it should be replace&

DISCHARGE GUARD

The discharge guard attached to the discharge opening of

your lawn mower, is provided to prevent the possibility of

injury resulting from objects being thrown out of the dis-

charge opening into the operator mowing position if the

discharge guard becomes damaged, it should be replaced

TO ADJUST HANDLE

(See Figs. 11 thru 13)

Your lawn mower handle can be raised or lowered for your

mowing comfort° Four (4) positions are available: high,

medium high, medium Iow and !ow. Handles are shipped

mounted in the medium low position.

o To change from medium lowto medium high position,

the upper and lower handle sections will have to be

turned over (See Fig. 11B).

° Remove the controls and operator presence control

bar from the upper handle.

•Remove the starter rope guide from the lower handle.

• Remove hairpin cotters

•Disconnect the lower handle from the handle brackets

(See Fig° t3).

o Turn the handle over and reassemble the hairpin

cotters that have been removed.

-Reassemble the starter rope guide.

•Reassemble the controls and the operator presence

control bar to the upper hand!e; ...............

CAUTION: The operator presence con-

trol bar must pivot freelyto permit blade

brake engagement when control bar is

released. Do not overtighten the fas-

teners holding the controls to the up-

per handle,

To change from med'ium 10Wto h)gl_position only the

upper handle section will have to be turned over (See

Fig. 12A).

o To change from medium low to low position, only the

lower handle section will have to be turned over (See

Fig° 12B).

ENGINE

CARBURETOR

Your carburetor has a non-adjustable fixed main jet for

mixture control.. If your engine does not operate properly

due to suspected carburetor problems, take your lawn

mower to an authorized service center for repair and

adjustment.. 13

SHIPPING POSITION

MEDIUM LOW MEDIUM HIGH

FIG. 11A FIG. 11B

LOW

FIG. 12A FIG. 12B

SQUEEZE TO

REMOVE

HAIRPIN CLIP

MOUNTING

BRACKET

FIG, 13

ENGINE SPEED

The engine speed has been factory set. Do not attempt to

increase engine speed as it may result in personal injury.

If you believe the engine is running too fast or too slow, take

your lawn mower to an authorized service center for repair

and adjustmenL

..... i, ,,', i i

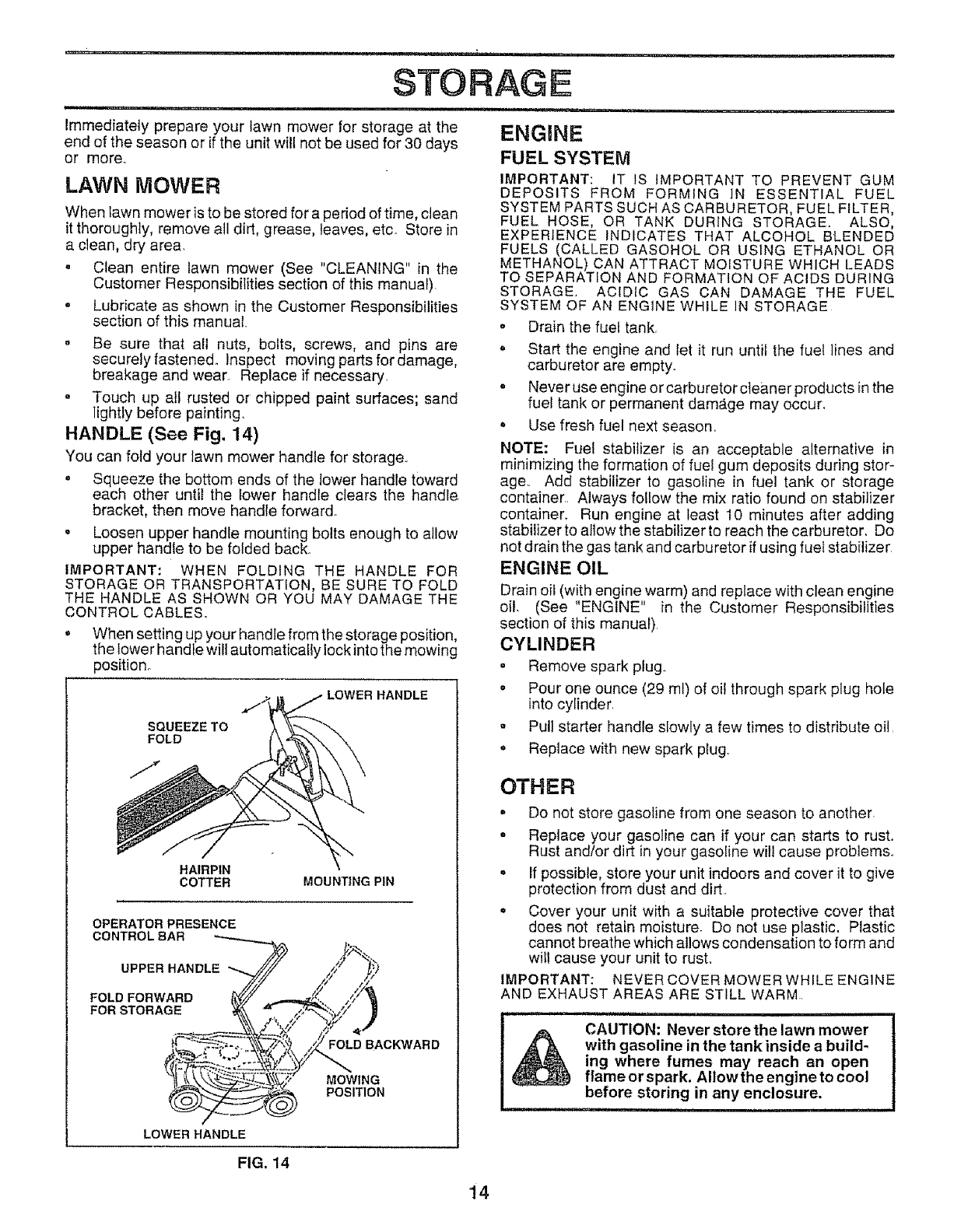

STORAGE

I,II 'U" U I,l,I.............

Immediately prepare your lawn mower for storage at the

end of the season or if the unit will not be used for 30 days

or more,,

LAWN MOWER

When lawn mower is to be stored for a period of time, clean

it thoroughly, remove al! did, grease, leaves, etc. Store in

a clean, dry area.

• Clean entire lawn mower (See "CLEANING" in the

Customer Responsibilities section of this manual)

. Lubricate as shown in the Customer Responsibilities

section of this manual.

. Be sure that all nuts, bolts, screws, and pins are

securely fastened,, Inspect moving parts fordamage,

breakage and wear_ Replace if necessary,

. Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

HANDLE (See Fig, 14)

You can fold your lawn mower handle for storage.

° Squeeze the bottom ends of the lower handle toward

each other until the lower handle clears the handle

bracket, then move handle forward.

° Loosen upper handle mounting bolts enough to allow

upper handle to be folded back°

IMPORTANT: WHEN FOLDING THE HANDLE FOR

STORAGE OR TRANSPORTATION, BE SURE TO FOLD

THE HANDLE AS SHOWN OR YOU MAY DAMAGE THE

CONTROL CABLES.

o When setting up your handle from the storage position,

the lower handle will automatically lock into the mowing

position,.

LOWER HANDLE

SQUEEZE TO

FOLD

HAIRPIN

COTTER MOUNTING PIN

OPERATOR PRESENCE

CONTROLBAR

UPPER HANDLE

FOLD FORWARD

FORSTORAGE

FOLD BACKWARD

MOWING

POSITION

LOWER HANDLE

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS iMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE, ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE

oDrain the fuel tank,

• Start the engine and let it run until the fuel lines and

carburetor are empty.

o Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur,

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fuel gum deposits during stor-

age,, Add stabilizer to gasoline in fuel tank or storage

container Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oit. (See "ENGINE" in the Customer Responsibilities

section of this manual)

CYLINDER

o Remove spark plug.

= Pour one ounce (29 ml) of oit through spark plug hole

into cylinder,

oPull starter handle slowly a few times to distribute oil

• Replace with new spark plug,

OTHER

•Do not store gasoline from one season to another

° Replace your gasoline can if your can starts to rusL

Rust and/or dirt in your gasofine will cause problems_

°If possible, store your unit indoors and cover it to give

protection from dust and dirt.

• Cover your unit with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your unit to rusL

IMPORTANT: NEVER COVER MOWER WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM

lullnnun i, ,

CAUTION: Never storethelawn mower

with gasoline in the tank inside a build-

ing where fumes may reach an open

flame or spark. Allow the engine to cool

before storing in any enclosure.

H,,,n u i,i i iii i i iin

FIG. 14

,i, ,11,,,,i, i.... ,i ,i, i,i MI

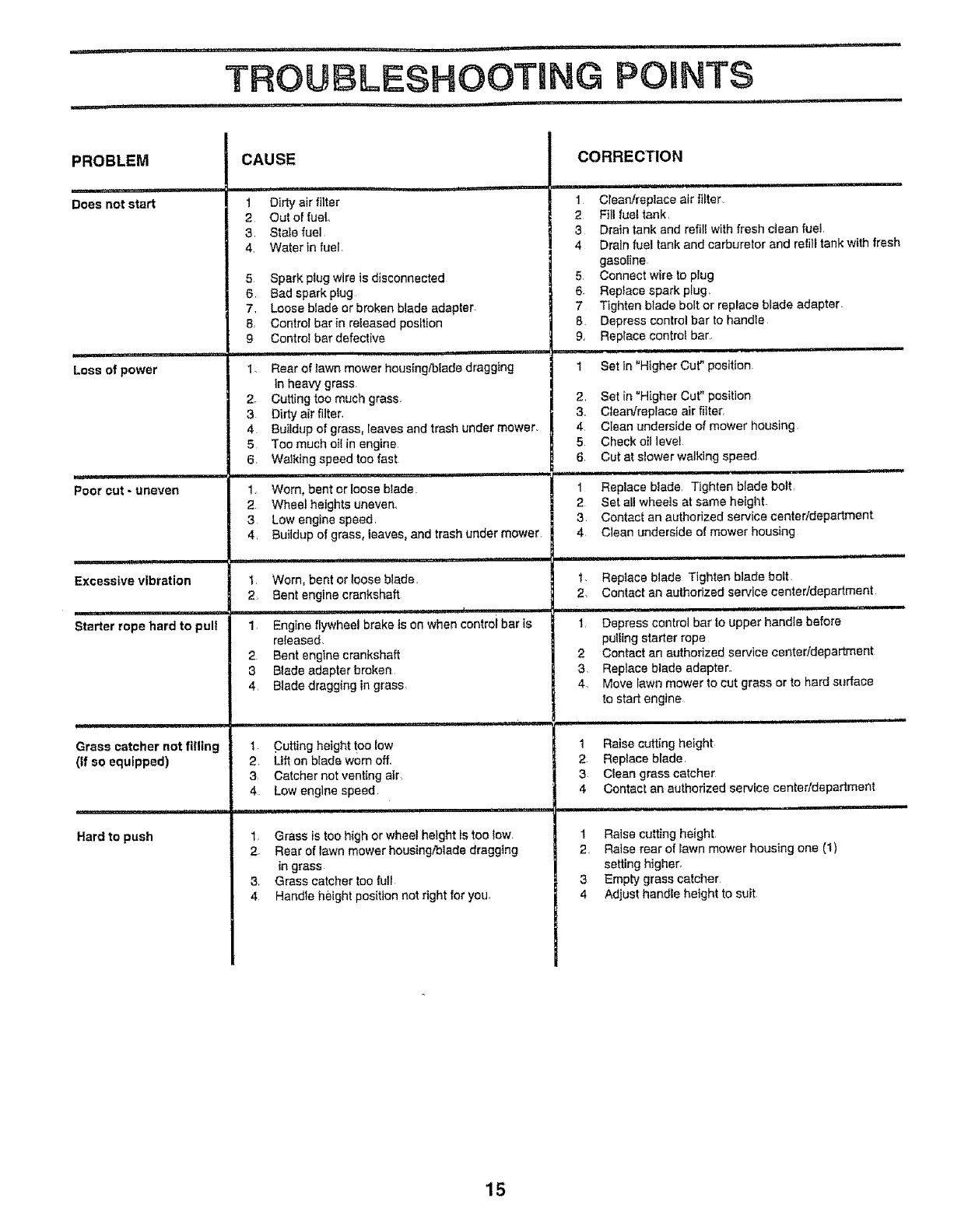

TROUBLESHOOT! POINTS

i IN,

ii ,, i,,r,,11,1

PROBLEM

..... H_'

Does not start

Loss of power

Poor cut - uneven

CAUSE

i,,11i,,11111

1 Dirty air filter

2 Out of fuel,,

3, Stale fuel

4, Water in fuel

Excessive vibration

i , , ,i ,,i

Starter rope hard to pull

Grass catcher not filling

(if so equipped)

i...........................

Hard to push

iii1,,i

Spark plug wire is disconnected

Bad spark plug

Loose blade or broken blade adapter-

Control bar in released position

Controt bar defective

Rear of town mower hous{ngiblade dragging

in heavy grass

Cutting too much grass,

Dirty air filter,

Buildup of grass, leaves and trash under mower

Too much oil in engine,

Walking speed too fast

Worn, bent or loose blade

Wheel he{ghts uneven,

Low engine speed

Buildup of grass, leaves, and trash under mower

1, Worn, bent or loose blade,

2, Bent engine crankshaft

........................ _ iii,

1 Engine flywheel brake is on when contror bar is

released,

2 Bent engine crankshaft

3 Blade adapter broken

4 Biade dragging in grass,

1 Cutting height !oo low

2. Lift on blade worn off,

3 Catcher not venting air,

4 Low engine speed

1 Grass ts too high or wheel height is too law

2- Rear of lawn mower housing/blade dragging

in grass

3, Grass catcher too fuli

4 Handle height position not right for you,

CORRECTION

i,, iii ,i,i, iil,ll

1 Clean/replace air filter

2 Fill fuel tank,

3 Drain tank and refill with fresh clean fuel,

4 Drain fuel tank and carburetor and refill tank with fresh

gasoline,

5 Connect wire to plug

6 Replace sparkplug,

7 Tighten blade bolt or replace blade adapter,

8. Depress control bar to handle

g, Reprace control bar,,

ii ............

1 Set In "Higher Cut" position

2, Set in "Higher Cut" position

3, Clean/replace air filter,

4 Clean underside of mower housing

5 Check oil level

6. Cut at slower walking speed

1 Replace blade, Tighten blade bait,

2 Set all wheats at same height.

3 Contact an authorized service center/depadment

4 Clean underside of mower housing

1_ Replace blade Tighten blade bolt,

2, Contact an authorized service center/department

1, Depress control bar to upper handle before

putling starter rope

2 Contact an authorized service center/department

3 Replace btade adapter,,

4, Move lawn mower to cut grass or to hard surface

to start engine

1 Raise cuing height

2 Replace blade,

3 Clean grass catcher

4 Contact an authorized service center/department

t Raise cutting height

2, Raise rear of fawn mower housing one (1)

setting higher;

3 Empty grass catcher

4 Adjust handle height to suit

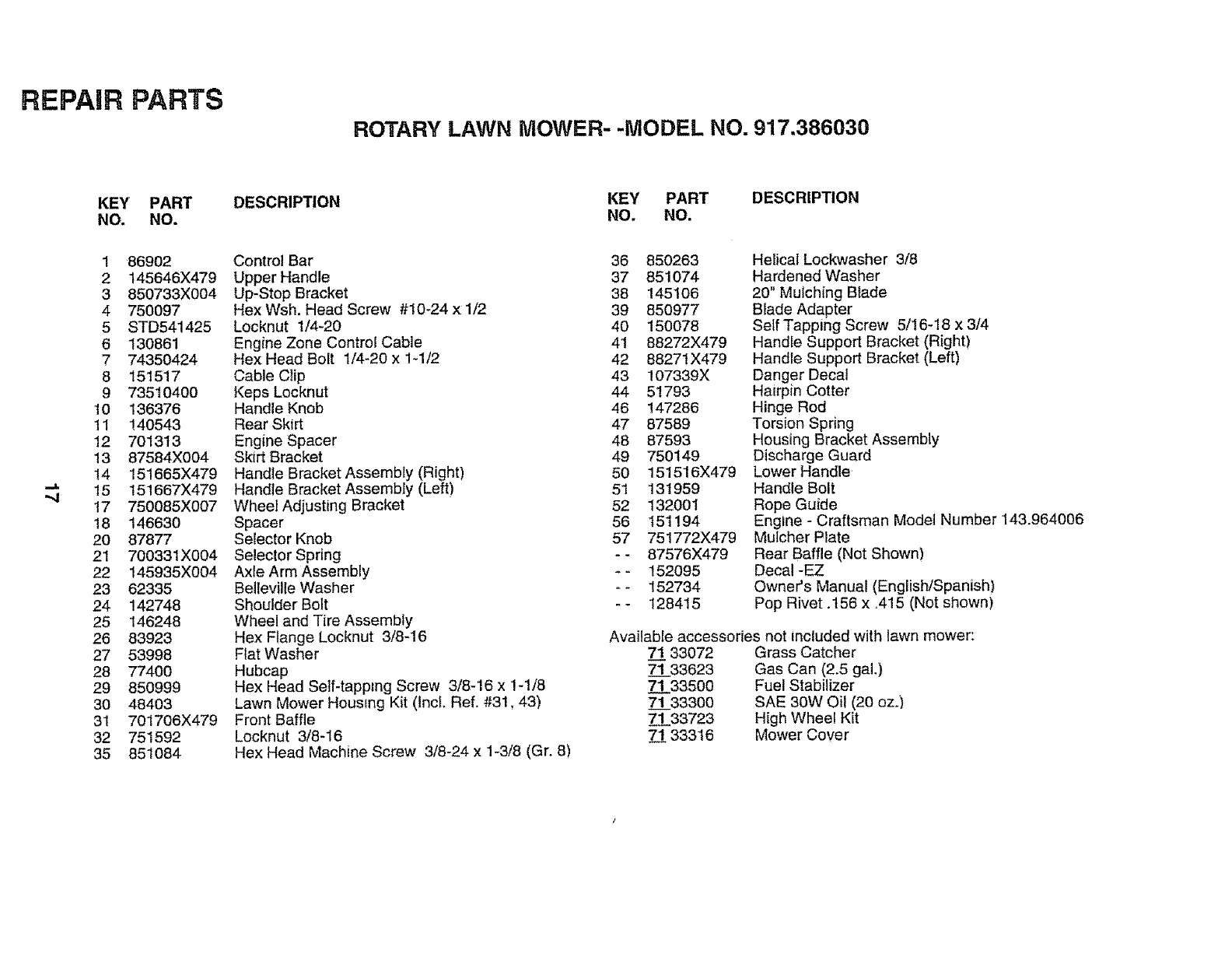

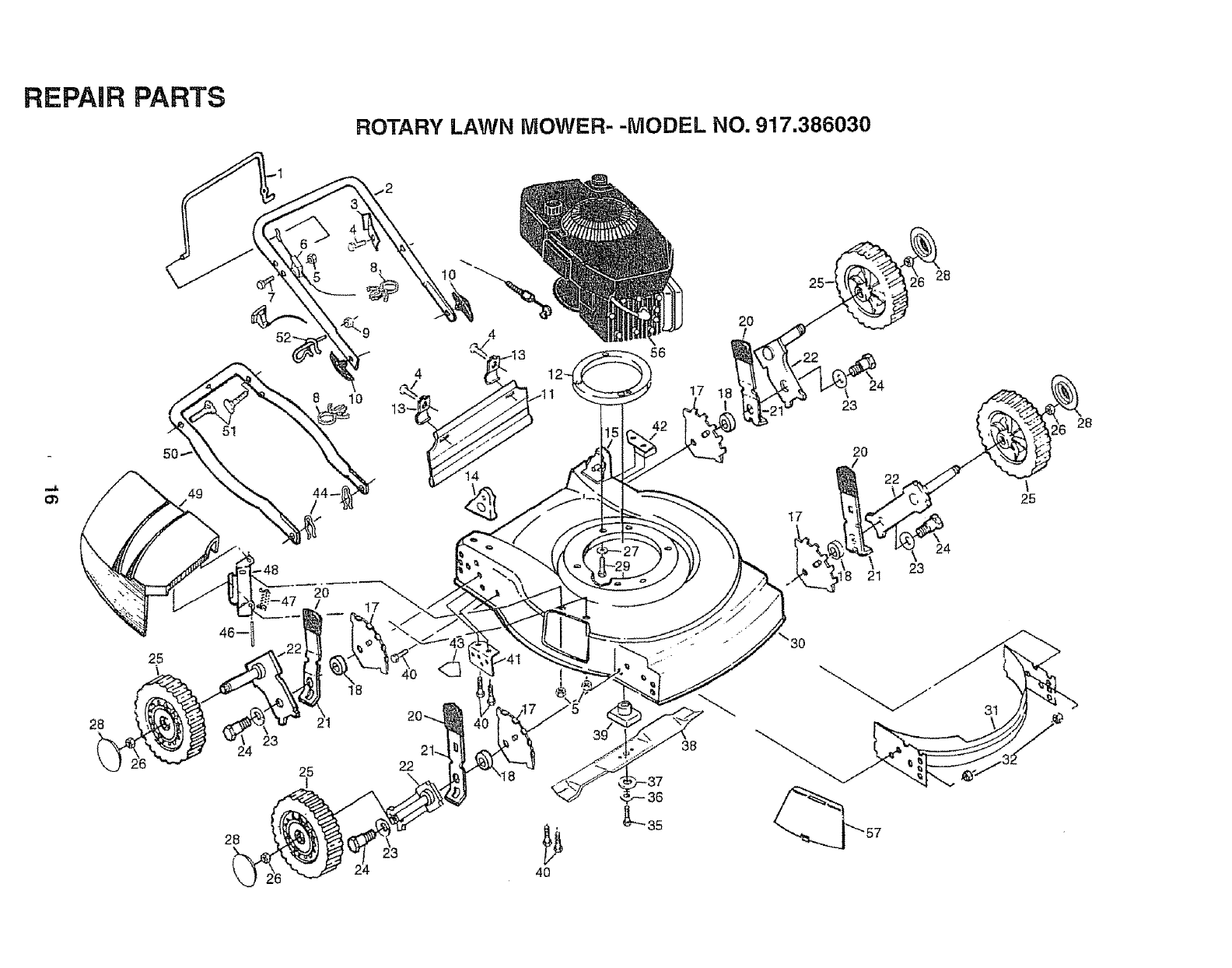

REPAIR PARTS

ROTARY LAWN MOWER- -MODEL NO. 917.386030

REPAIR PARTS

ROTARY LAWN MOWER- -MODEL NO. 917.386030

,,,.t.

",4

KEY PART

NO. NO.

1 86902

2 145646)(479

3 850733X004

4 750097

5 STD541425

6 130861

7 74350424

8 151517

9 73510400

10 136376

11 140543

12 701313

13 87584X004

14 151665X479

15 151667)(479

17 750085X007

18 146630

20 87877

21 700331X004

22 145935X004

23 62335

24 142748

25 146248

26 83923

27 53998

28 77400

29 850999

30 48403

31 701706X479

32 751592

35 851084

DESCRIPTION KEY PART DESCRIPTION

NO, NO.

Control Bar 36 850263

Upper Handle 37 851074

Up-Stop Bracket 38 145106

Hex Wsh, Head Screw #10-24 x 1/2 39 850977

Locknut 1/4-20 40 150078

Engine Zone Control Cable 41 88272X479

Hex Head Bolt 1/4-20 x 1-1/2 42 8827tX479

Cable CIip 43 107339X

Keps Locknut 44 51793

Handle Knob 46 147286

Rear Skirt 47 87589

Engine Spacer 48 87593

Skirt Bracket 49 750149

Handle Bracket Assembly (Right) 50 151516X479

Handle Bracket Assembly (Left) 51 131959

Wheel Adjusting Bracket 52 132001

Spacer 56 t51194

Selector Knob 57 751772X479

Selector Spring - - 87576X479

Axle Arm Assembly - - 152095

Belleville Washer - - 152734

Shoulder Bolt -- 128415

Wheel and Tire Assembly

Hex Flange Locknut 3/8-16

Flat Washer

Hubcap

Hex Head Self-tapping Screw 3/8-16 x 1-1/8

Lawn Mower Housing Kit (Incl. Ref. #31,43)

Front Baffle

Locknut 3/8-16

Hex Head Machine Screw 3/8-24 x 1-3/8 (Gr. 8)

Helical Lockwasher 3/8

Hardened Washer

20" Mulching Blade

Blade Adapter

SeIf Tapping Screw 5/16-18 x 3/4

Handle Support Bracket (Right)

Handle Support Bracket (Left)

Danger Decal

Hairpin Cotter

Hinge Rod

Torsion Spring

Housing Bracket Assembly

Discharge Guard

Lower Handle

Handle Bolt

Rope Guide

Engine -Craftsman Model Number 143.964006

Muicher Plate

Rear Baffle (Not Shown)

Decal -EZ

Owner's Manual (English/Spanish)

Pop Rivet .156 x.415 (Not shown)

Available accessories not included with lawn mower:

71 33072 Grass Catcher

71 33623 Gas Can (2.5 gal.)

7_3_133500 Fuel Stabilizer

7"133300 SAE 30W Oil (20 oz.)

71__33723 High Wheel Kit

71 33316 Mower Cover

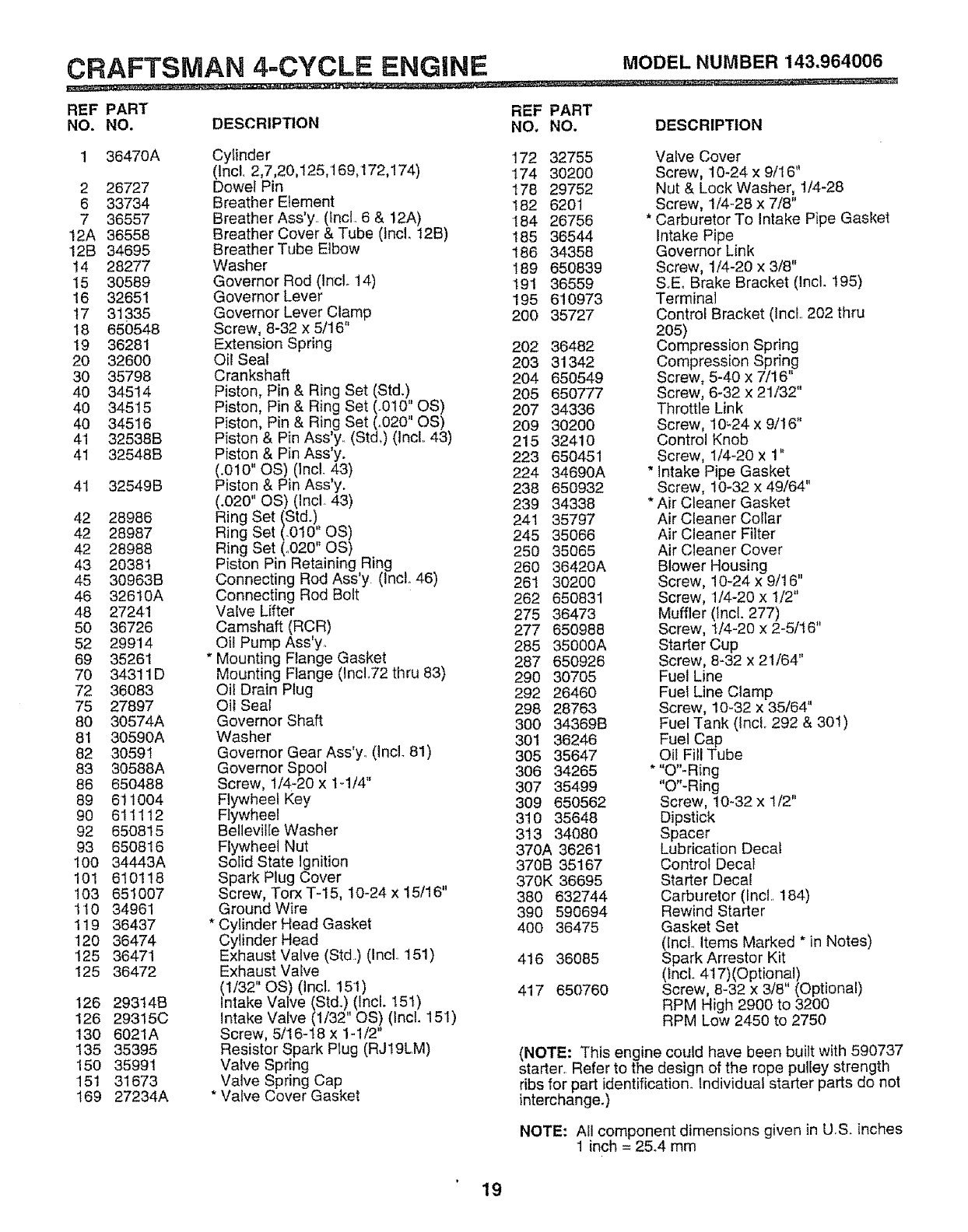

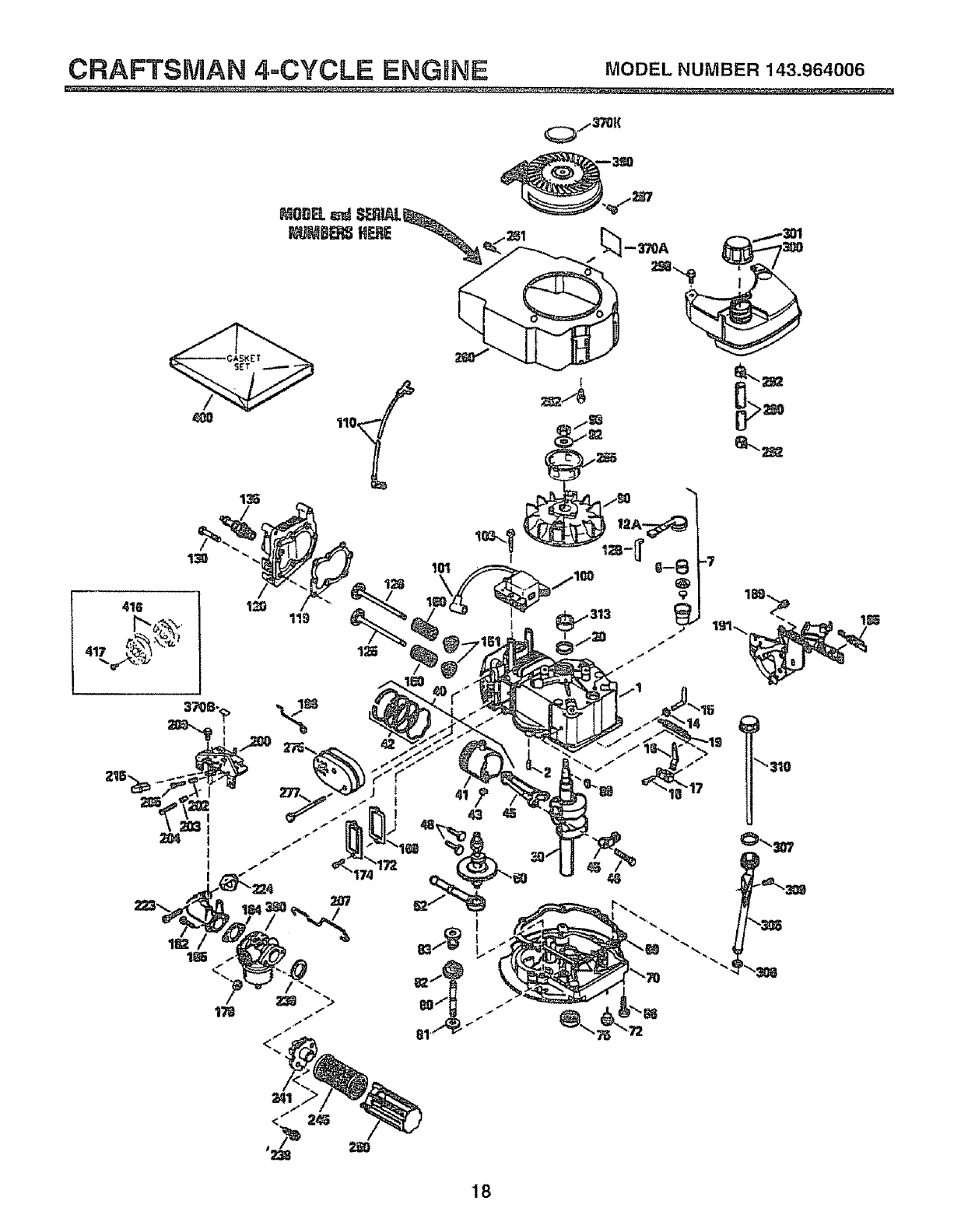

CRAFTSMAN 4=CYCLE ENGINE MODELNUMBER143.964006

MODEL_ SE_!_

t_MB_ HERE

j I

101

CRAFTSMAN 4.-CYCLE ENGINE MODELNUMBER143.964006

REF PART REF PART

NO, NO. DESCRIPTION NO, NO, DESCRIPTION

1 36470A

2 26727

6 33734

7 36557

12A 36558

12B 34695

14 28277

15 30589

16 32651

I7 31335

18 650548

19 36281

20 32600

30 35798

40 34514

40 34515

40 34516

41 32538B

41 32548B

41 32549B

42 28986

42 28987

42 28988

43 20381

45 30963B

46 32610A

48 27241

50 36726

52 29914

69 35261

70 34311D

72 36083

75 27897

80 30574A

81 30590A

82 30591

83 30588A

86 650488

89 611004

90 611112

92 650815

93 650816

100 34443A

101 610118

103 651007

110 34961

119 36437

120 36474

125 36471

125 36472

126 29314B

126 29315C

130 6021A

135 35395

150 35991

151 31673

169 27234A

Cylinder 172 32755

(lncL 2,7,20,125,169,172,174) 174 30200

Dowel Pin 178 29752

Breather Element 182 6201

Breather Ass'y.. (lnct. 6 & 12A) 184 26756

Breather Cover & Tube (lncL 1213) 185 36544

Breather Tube Elbow 186 34358

Washer 189 650839

Governor Red (tncL 14) 191 36559

Governor Lever 195 610973

Governor Lever Clamp 200 35727

Screw, 8-32 x 5/16"

Extension Spring 202 36482

Oil Seat 203 31342

Crankshaft 204 650549

Piston, Pin & Ring Set (Std.) 205 650777

Piston, Pin & Ring Set (_010" OS) 207 34336

Piston, Pin & Ring Set (.020" OS) 209 30200

Piston & Pin Ass'y. (Std,) (lncL 43) 215 32410

Piston & Pin Ass'y. 223 650451

(.0t0" OS) (Incl. 43) 224 34690A

Piston & Pin Ass'y. 238 650932

(.020" OS) (Incl. 43) 239 34338

Ring Set (Std.) 241 35797

Ring Set (.019" OS) 245 35066

Ring Set (.020" OS) 250 35065

Piston Pin Retaining,Ring 260 36420A

Connecting Rod Assy (Incl..46) 261 30200

Connecting Rod Bolt 262 650831

Valve Lifter 275 36473

Camshaft (RCR) 277 650988

Oil Pump Ass'yo 285 35000A

* Mounting Flange Gasket 287 650926

Mounting Flange (IncL72 thru 83) 290 30705

Oil Drain Plug 292 26460

Oil Seal 298 28763

Governor Shaft 300 34369B

Washer 301 36246

Governor Gear Ass'yo (Incl. 81) 305 35647

Governor Spool 306 34265

Screw, 1/4-20 x 1-1/4" 307 35499

Flywheel Key 309 650562

Flywheel 310 35648

Belleville Washer 3t3 34080

Flywheel Nut 370A 36261

Solid State Ignition 370B 35167

Spark Plug Cover 370K 36695

Screw, Torx T-15, 10-24 x 15/16" 380 632744

Ground Wire 390 590694

* Cylinder Head Gasket 400 36475

Cylinder Head

Exhaust Valve (Std.) (Incl. 151) 416 36085

Exhaust Valve

I1/32" OS) (Incl. 15'I) 417 650760

ntake Valve (Std.) (Incl. 151)

Intake Valve (1/32" OS) (IncL 151)

Screw, 5/16-18 x 1-1/2"

Resistor Spark Plug (RJ19LM)

Valve Spring

, Valve Spring Cap

Valve Cover Gasket

Valve Cover

Screw, 10-24 x 9/16"

Nut & Lock Washer, 1/4-28

Screw, 1/4_28 x 7/8"

* Carburetor To Intake Pipe Gasket

Intake Pipe

Governor Link

Screw, 1/4-20 x 3/8"

&Eo Brake Bracket (IncL t95)

Terminal

Control Bracket (lncL 202 thru

205)

Compression Spring

Screw, 5-40 x 7/16"

Screw, 6-32 x 21/32"

Throttle Link

Screw, 10_24 x 9/16"

Control Knob

Screw, 1/4-20 x 1"

* Intake Pipe Gasket

Screw, 10-32 x 49/64"

* Air Cleaner Gasket

Air Cleaner Collar

Air Cleaner Filter

Air Cleaner Cover

Blower Housing

Screw, 10-24 x 9/16"

Screw, 1/4-20 x 1/2"

Muffler (Incl. 277)

Screw, 1/4-20 x 2-5/t6"

Starter Cup

Screw, 8-32 x 21/64"

Fuel Line

Fuel Line Clamp

Screw, 10-32 x 35/64"

Fuel Tank (lncL 292 & 301)

Fuel Cap

Oil Fill Tube

* "O"-Ring

"O"-Ring

Screw, 10-32 x 1/2"

Dipstick

Spacer

Lubrication Decal

Control Decal

Starter Decal

Carburetor (Incl. 184)

Rewind Starter

Gasket Set

(SlncLItems Marked * in Notes)

park Arrestor Kit

0ncL 417)(Optional)

Screw, 8-32 x 3/8" (Optional)

RPM High 2900 to 3200

RPM Low 2450 to 2750

(NOTE: This engine could have been built with 590737

starter. Refer to the design of the rope pulley strength

ribs for part identification. Individual starter parts do not

interchange_)

NOTE: AII component dimensions given in US. inches

1 inch = 2&4 mm

CRAFTSMAN 4=CYCLE ENGINE MODELNUMBER143.964006

_., REF PART

'NO. NO. DESCRIPTION

-- 632744 Carburetor

1631615

. "_ "" "= 2 631767

4 631184

5 631183

6 632504

7 650506

25 631867

27 631024

=_ 28 632019

__,, 29 631028

30 631021-" 31 631022

_-,, 35 36045

36 632745

.... 37 632547

40 632743

,'_ 44 27110

48 631027

(tncL 184 of Engine Parts List)

Throttle Shaft & Lever Assembly

Throttle Return Spring

Dust Seal Washer

Dust Seal (Throttle)

Throttle Shutter

Shutter Screw

Fuel Fitting

Float Bowl

Float Shaft

Float

Float Bowl "O" Ring

Inlet Needle, Seat, & Clip (incl.. 31)

Spring Clip

Primer Bulb/Retainer Ring

Main NozzFe Tube

"O" Ring, Main Nozzle Tube

High Speed Bowl Nut

Bowl Nut Washer

Welch Plug, Atmospheric Vent

O--;'

REF PART

NO. NOo DESCRIPTION

-- 590694 Recoil Starter

I 590599A Spring Pin (Incl.. 4)

2 590600 Washer

3 590696 Retainer

4 590601 Washer

5 590697 Brake Spring

6 590698 Starter Dog

7 590699 Dog Spring

8 590700 Pulley & Rewind Spring Ass'y

11 590695 Starter Housing Ass'y.

(40 degree grommet)

t2 590535 Starter Rope (98" X 9/64" dia)

t3 590701 Starter Handle

REF PART

NO. NO. DESCRIPTION

-- 590737 Rewind Starter

3 590740 Retainer

6 590616 Starter Dog

7 590617 Dog Spring

8 590618A Pulley & Rewind Spring Ass'y

11 590687A Starter Housing Ass'y

(40 degree grommet)

12 590535 Starter Rope

(Length 98" x 9/64" dial)

13 590701 Starter Handle

I4 590741 Locking Tab

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SERVICE NOTES

OWNER'S

MANUAL

MODEL NO.

917.386030

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473-7247)

FOR REPLACEMENT FARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800-FON-PART

(1-800=366-7278)

4.0 HORSEPOWER

20" SiDE DISCHARGE

ROTARY LAWN MOWER

Each lawn mower has its own model number. Each en-

gine has its own model number_

The model number for your lawn mower will be found on a

decal attached to the rear of the lawn mower housing..

The model number for your engine will be found on the

blower housing of the engine

All parts listed herein may be ordered from any Sears,

Roebuck and Co Service CentedDepartment and most

Retail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE

FOLLOWING INFORMATION:

oPRODUCT- LAWN MOWER

°MODEL NUMBER - 917.386030

°ENGINE CRAFTSMAN - MODEL NO. 143.964006

oPART NUMBER

=PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians ..... professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell

Craftsman 917386030 User Manual ROTARY LAWN MOWER Manuals And Guides L0710015

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0710015 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
