Owner's Manual

JCRIIFTSMIIWJ

SIDE DISCHARGE

ROTARY LAWN MOWER

Model No.

917.387410

•Safety

•Assembly

•Operation

•Maintenance

•EspaSol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

beforeoperatingthisequipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craffsman

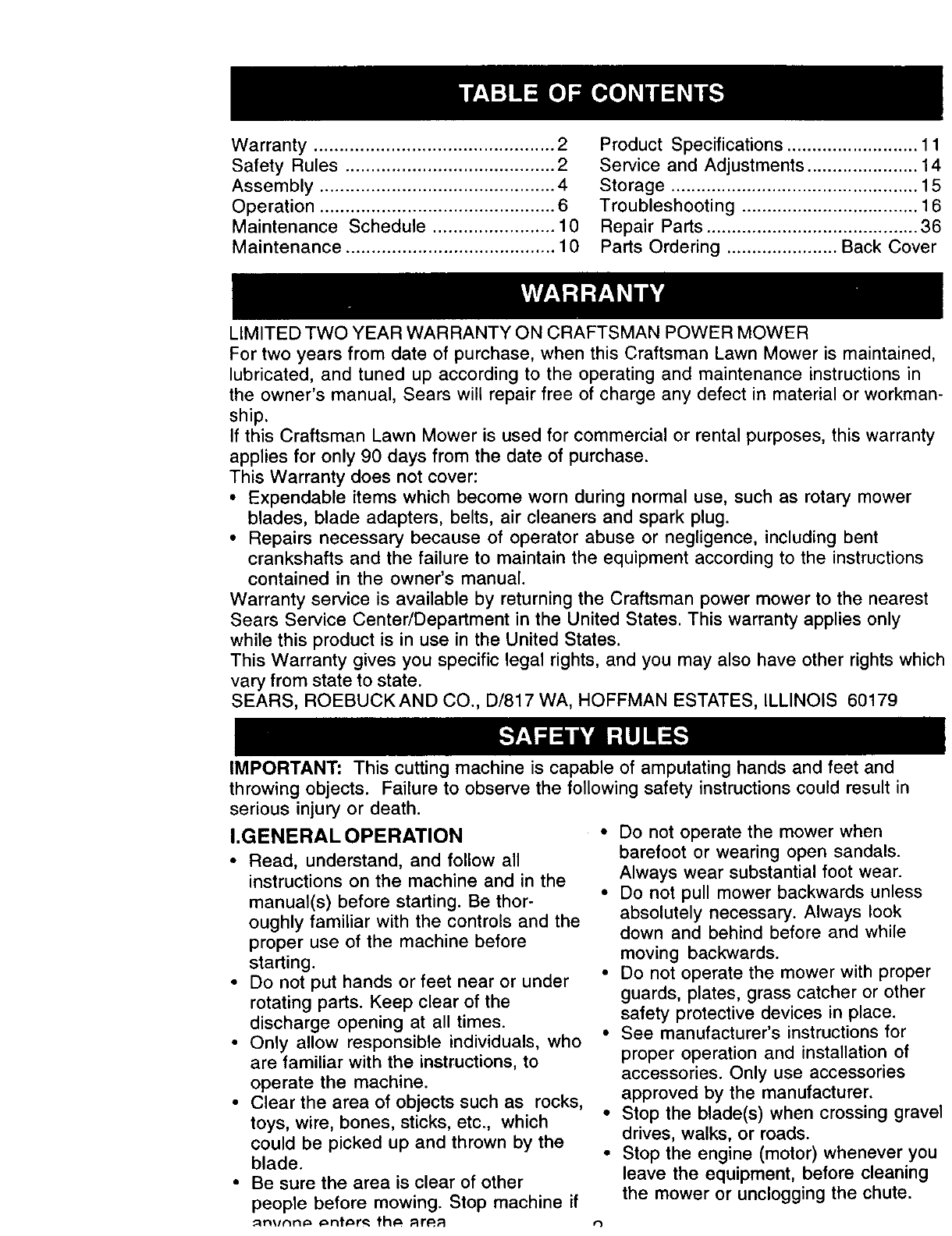

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly .............................................. 4

Operation .............................................. 6

Maintenance Schedule ........................ 10

Maintenance ......................................... 10

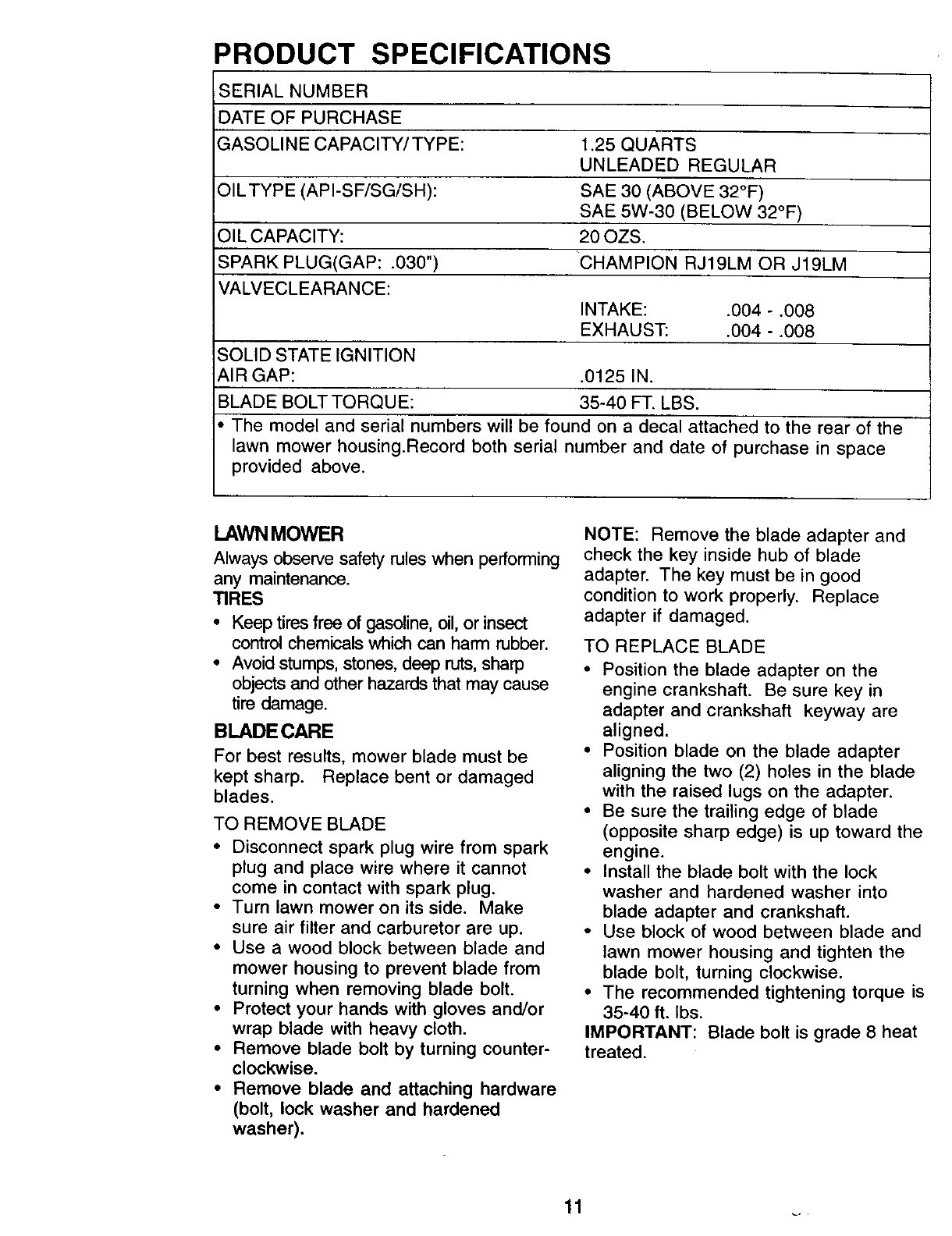

Product Specifications .......................... 11

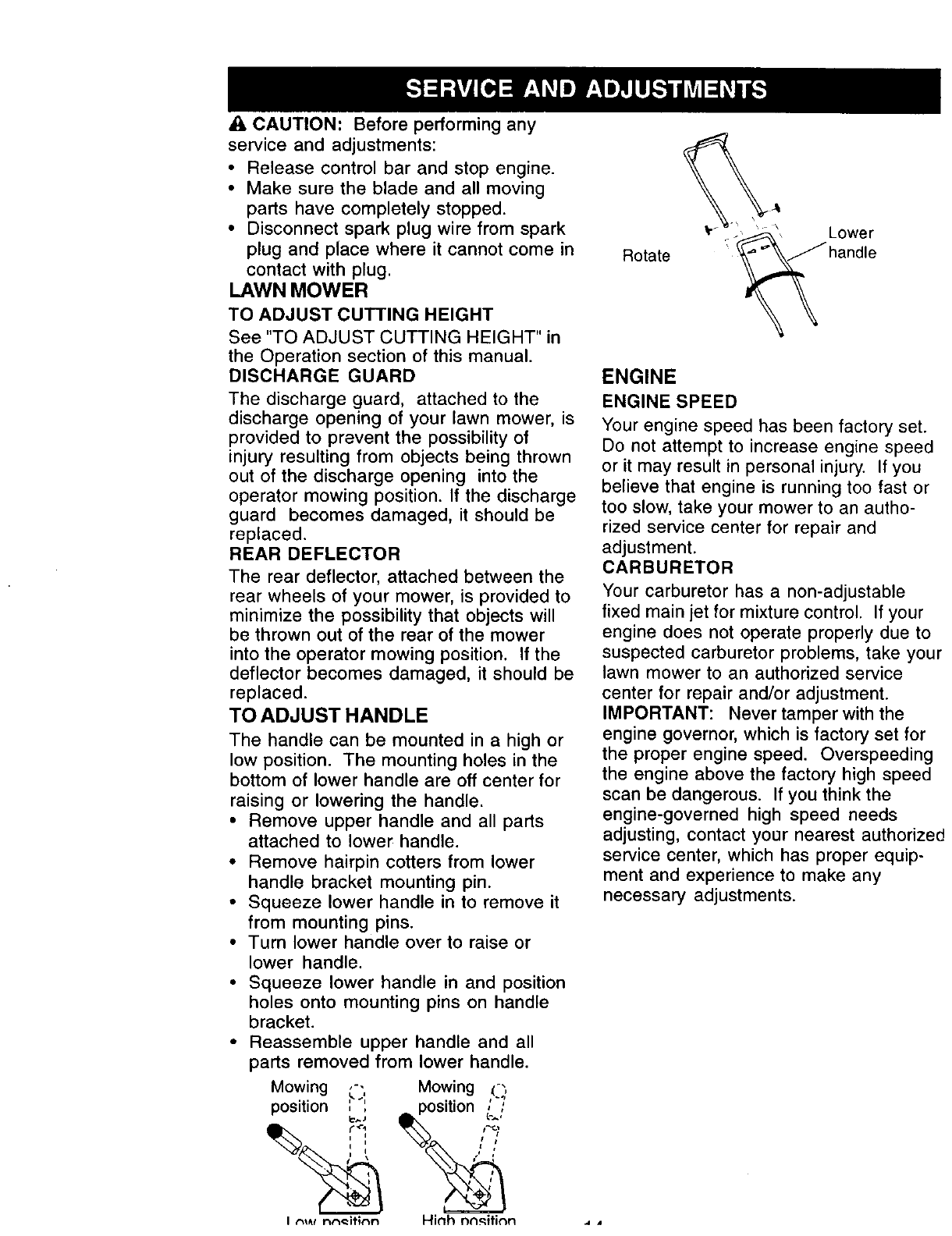

Service and Adjustments ...................... 14

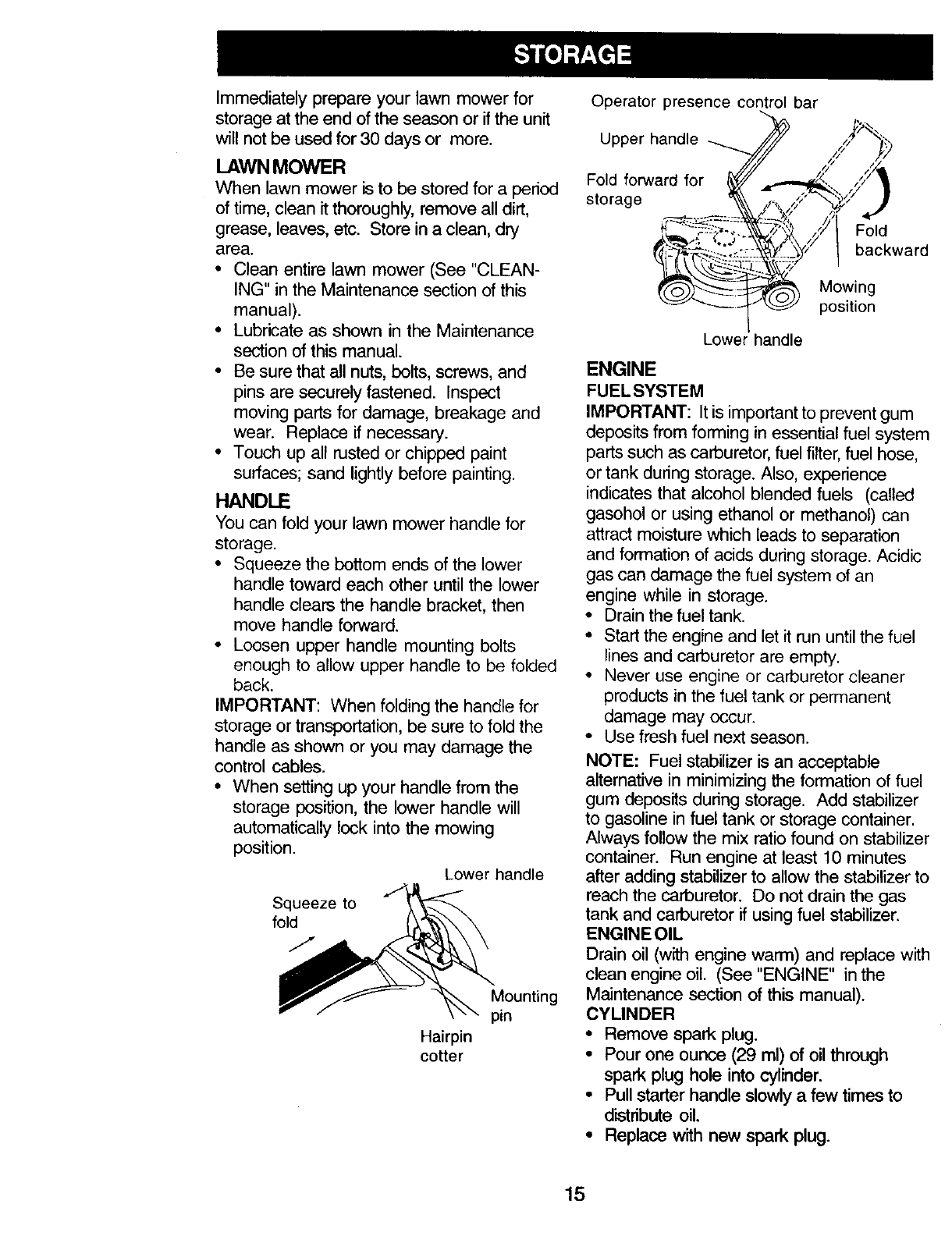

Storage ................................................. 15

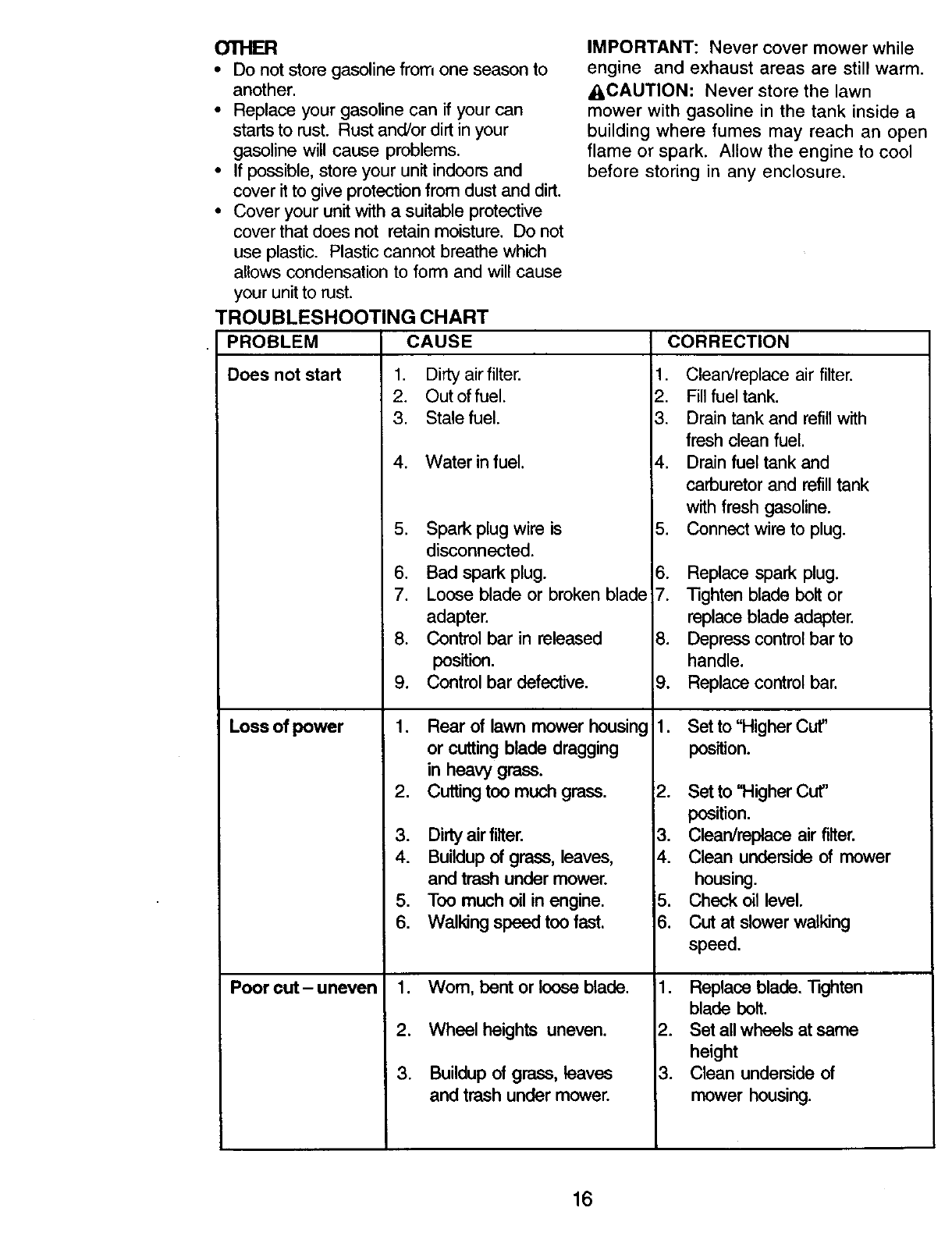

Troubleshooting ................................... 16

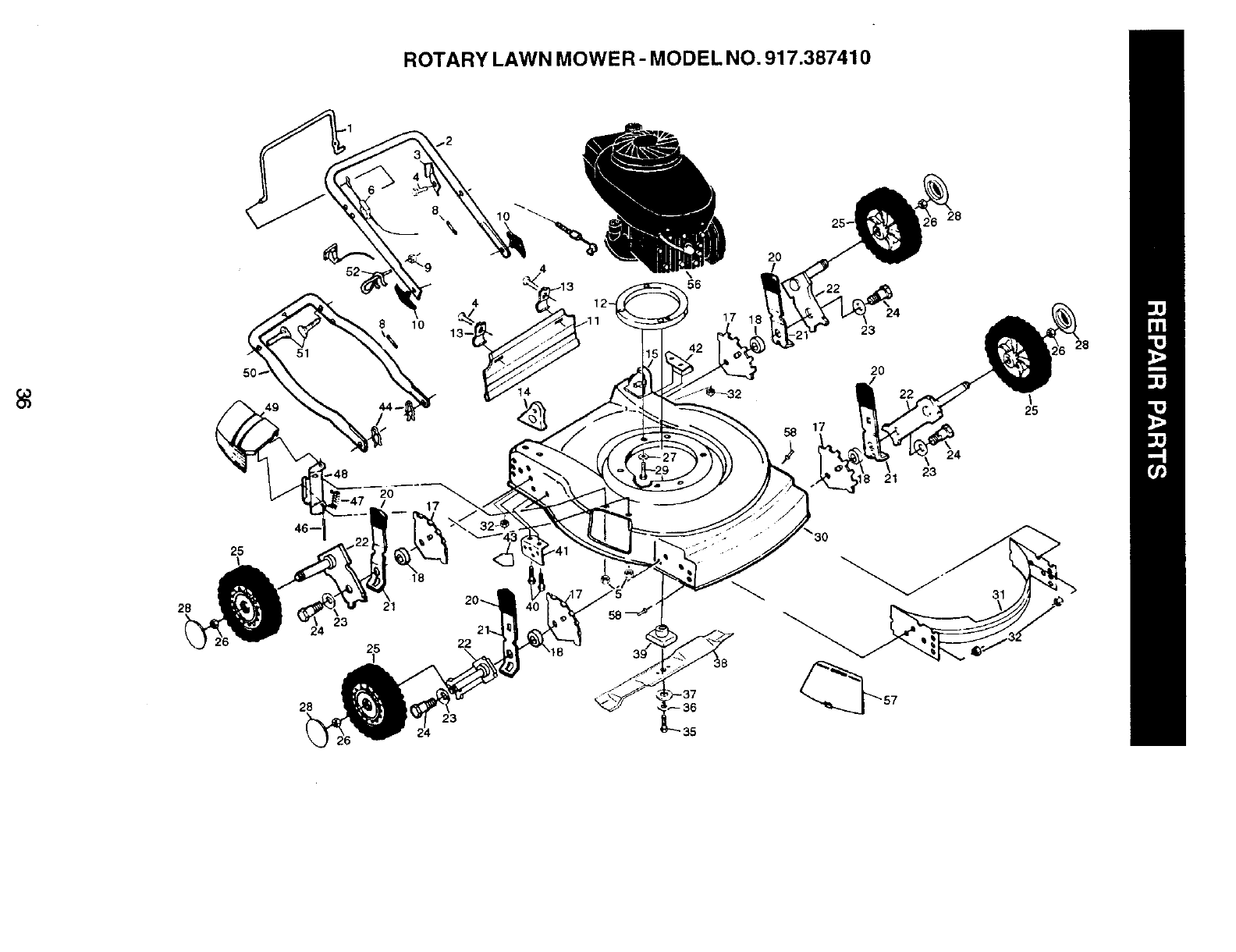

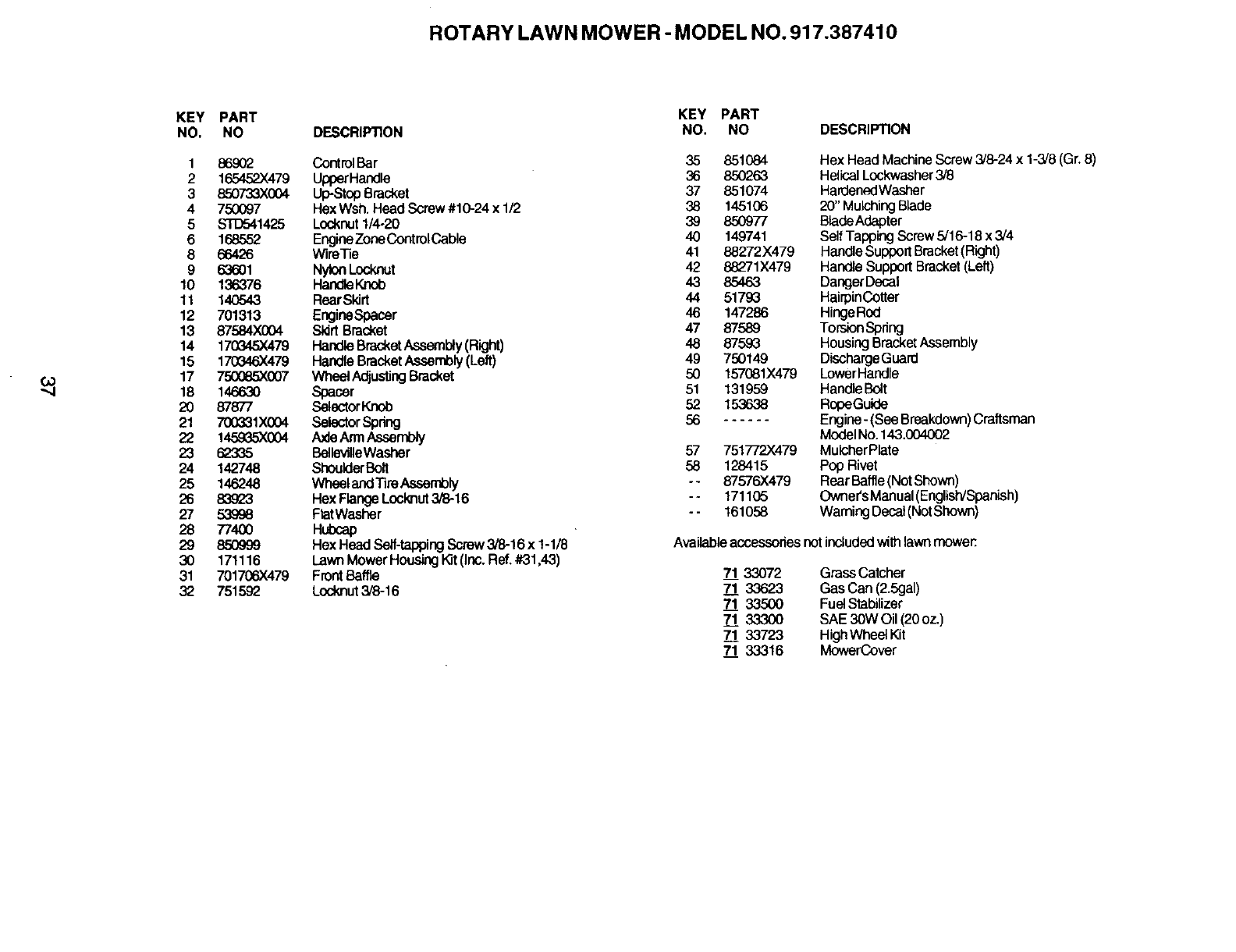

Repair Parts .......................................... 36

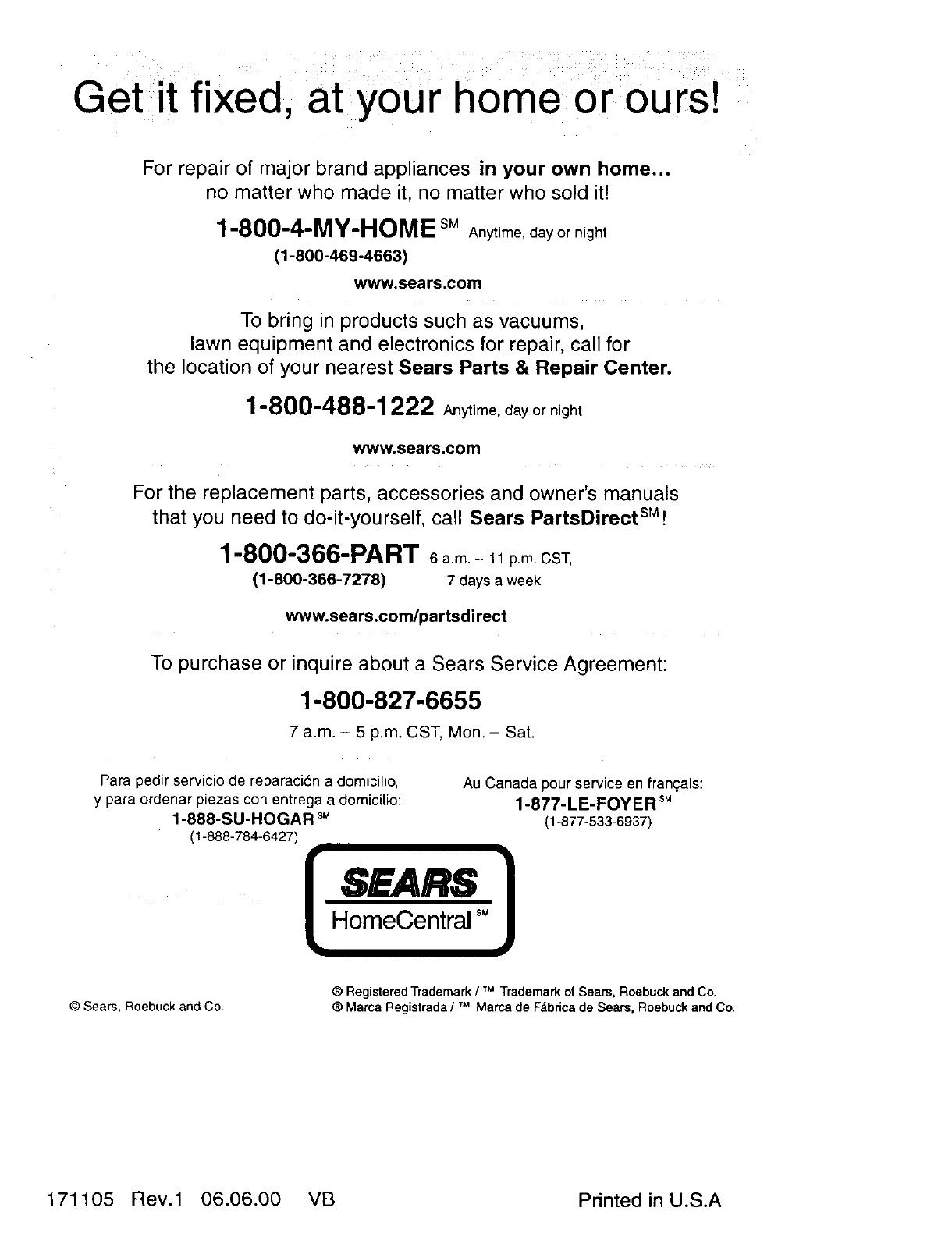

Parts Ordering ...................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

• Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I.GENERAL OPERATION

•Read, understand, and follow all

instructions on the machine and in the

manual(s) before starting. Be thor-

oughly familiar with the controls and the

proper use of the machine before

starting.

• Do not put hands or feet near or under

rotating parts. Keep clear of the

discharge opening at all times.

• Only allow responsible individuals, who

are familiar with the instructions, to

operate the machine.

• Clear the area of objects such as rocks,

toys, wire, bones, sticks, etc., which

could be picked up and thrown by the

blade.

• Be sure the area is clear of other

people before mowing. Stop machine if

• Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantial foot wear.

• Do not pull mower backwards unless

absolutely necessary. Always look

down and behind before and while

moving backwards.

• Do not operate the mower with proper

guards, plates, grass catcher or other

safety protective devices in place.

• See manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

• Stop the blade(s) when crossing gravel

drives, walks, or roads.

• Stop the engine (motor) whenever you

leave the equipment, before cleaning

the mower or unclogging the chute.

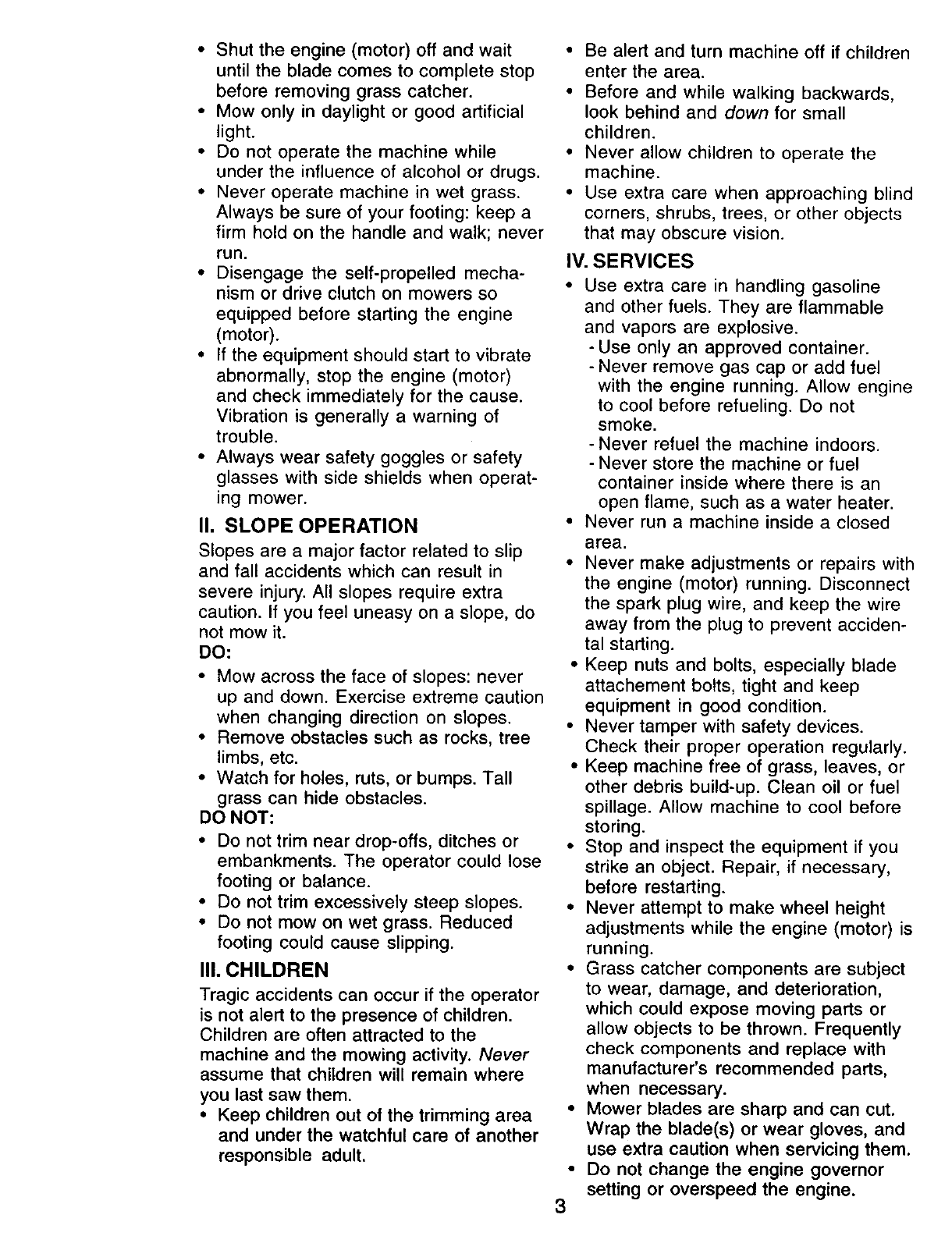

•Shut the engine (motor) off and wait

until the blade comes to complete stop

before removing grass catcher.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run.

• Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starting the engine

(motor).

• If the equipment should start to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

• Always wear safety goggles or safety

glasses with side shields when operat-

ing mower.

II. SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra

caution. If you feel uneasy on a slope, do

not mow it.

DO:

• Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

• Do not trim near drop-offs, ditches or

embankments. The operator could lose

footing or balance.

• Do not trim excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the trimming area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and while walking backwards,

look behind and down for small

children.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICES

Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow engine

to cool before refueling. Do not

smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

Never run a machine inside a closed

area.

Never make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away from the plug to prevent acciden-

tal starting.

• Keep nuts and bolts, especially blade

attachement bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Do not change the engine governor

setting or overspeed the engine.

_Look for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETYIS INVOLVED.

A CAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

AWARNING: Engine exhaust, some of its

constituents, and certain vehicle

components contain or emit chemicals

known to the State of Californiato cause

cancer and birth defects or other

reproductive harm.

AWARNING: Battery posts, terminals anc

related accessories contain lead and

lead compounds, chemicals known to the

State of Californiato cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

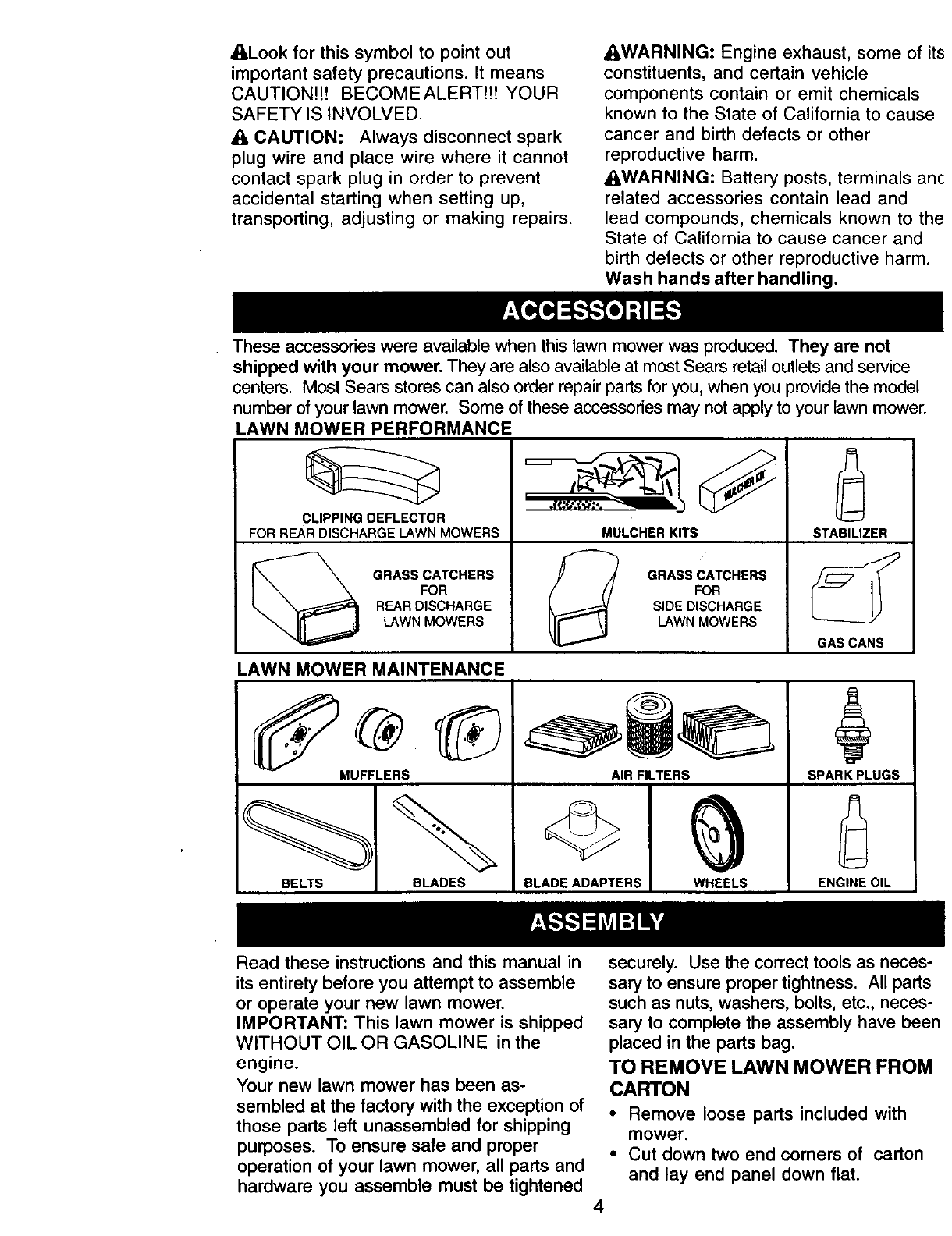

These accessories were available when this lawn mower was produced. They are not

shipped with your mower. They are also available at most Sears retail outlets and service

centers. Most Sears stores can also order repair parts for you, when you provide the model

number of your lawn mower. Some of these accessories may not apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWNMOWERS

MULCHER KITS

_/! GRASS CATCHERS

FOR

_/ SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS AIR FILTERS SPARK PLUGS

BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those parts left unassembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all parts and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

sary to ensure proper tightness. All parts

such as nuts, washers, bolts, etc., neces-

sary to complete the assembly have been

placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

•Remove loose parts included with

mower.

• Cut down two end corners of carton

and lay end panel down flat.

• Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

• Roll lawn mower out of carton and

check carton thoroughly for additional

loose parts.

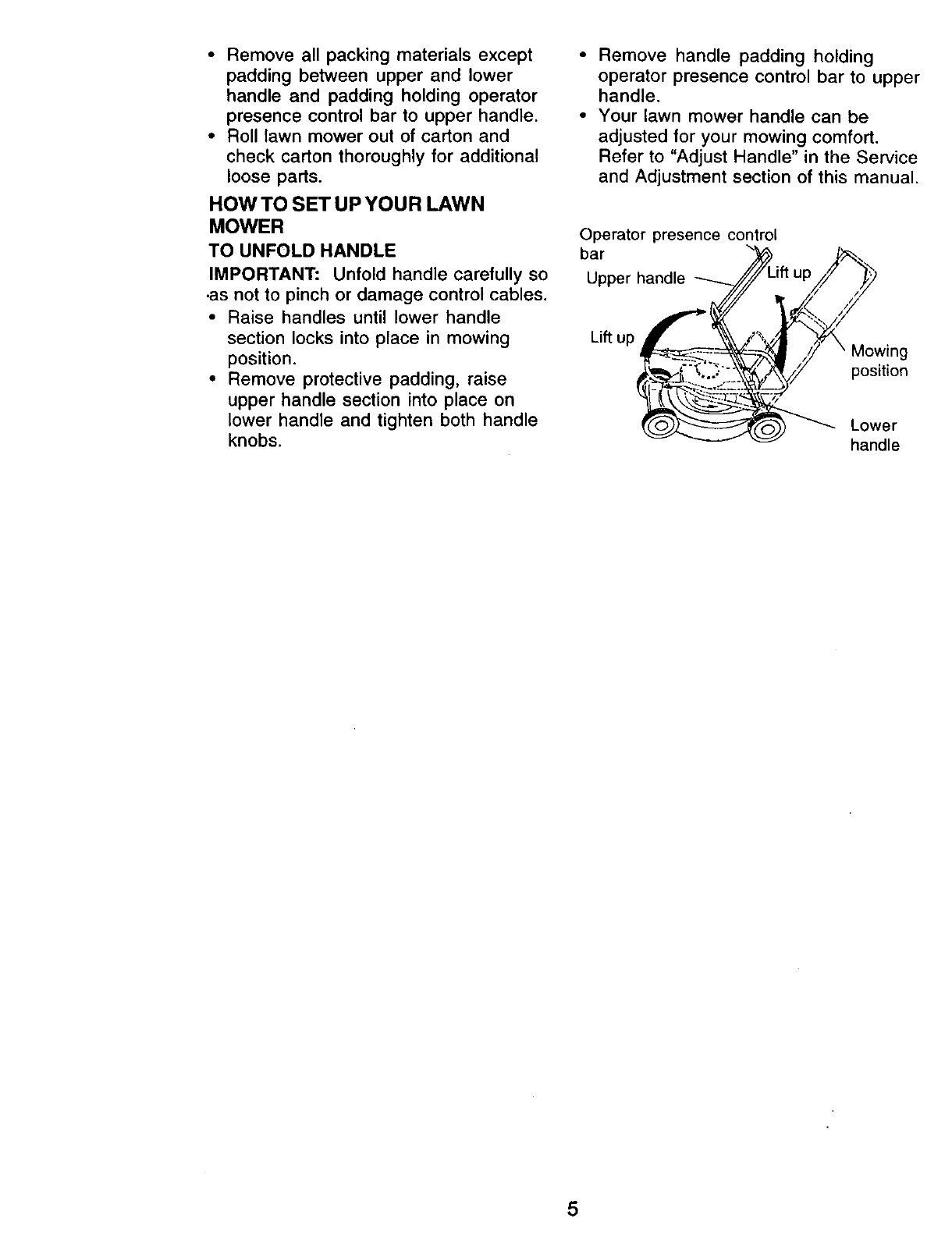

HOW TO SET UP YOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

•as not to pinch or damage control cables.

•Raise handles until lower handle

section locks into place in mowing

position.

•Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

• Remove handle padding holding

operator presence control bar to upper

handle.

•Your lawn mower handle can be

adjusted for your mowing comfort.

Refer to "Adjust Handle" in the Service

and Adjustment section of this manual.

Operator presence control

bar

Upper handle

Lift up Mowing

position

Lower

handle

KNOWYOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the

location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Engine zone control cable

presence control bar

Starter handle_

Gasoline filler cap

Engine oil plug Pnmer

using

Wheel adjuster

(on each wheel)

IMPORTANT: This lawn mower is

shipped WITHOUT OIL OR GASOLINE

in the engine.

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis

sion. The blade turns when the engine is running.

Operator presence control bar - must be

held down to the handle to start the engine.

Release to stop the engine.

Primer - pumps additional fuel from the

carburetor to the cylinder for use when

startinga cold engine.

Starter handle -used for startingthe engine.

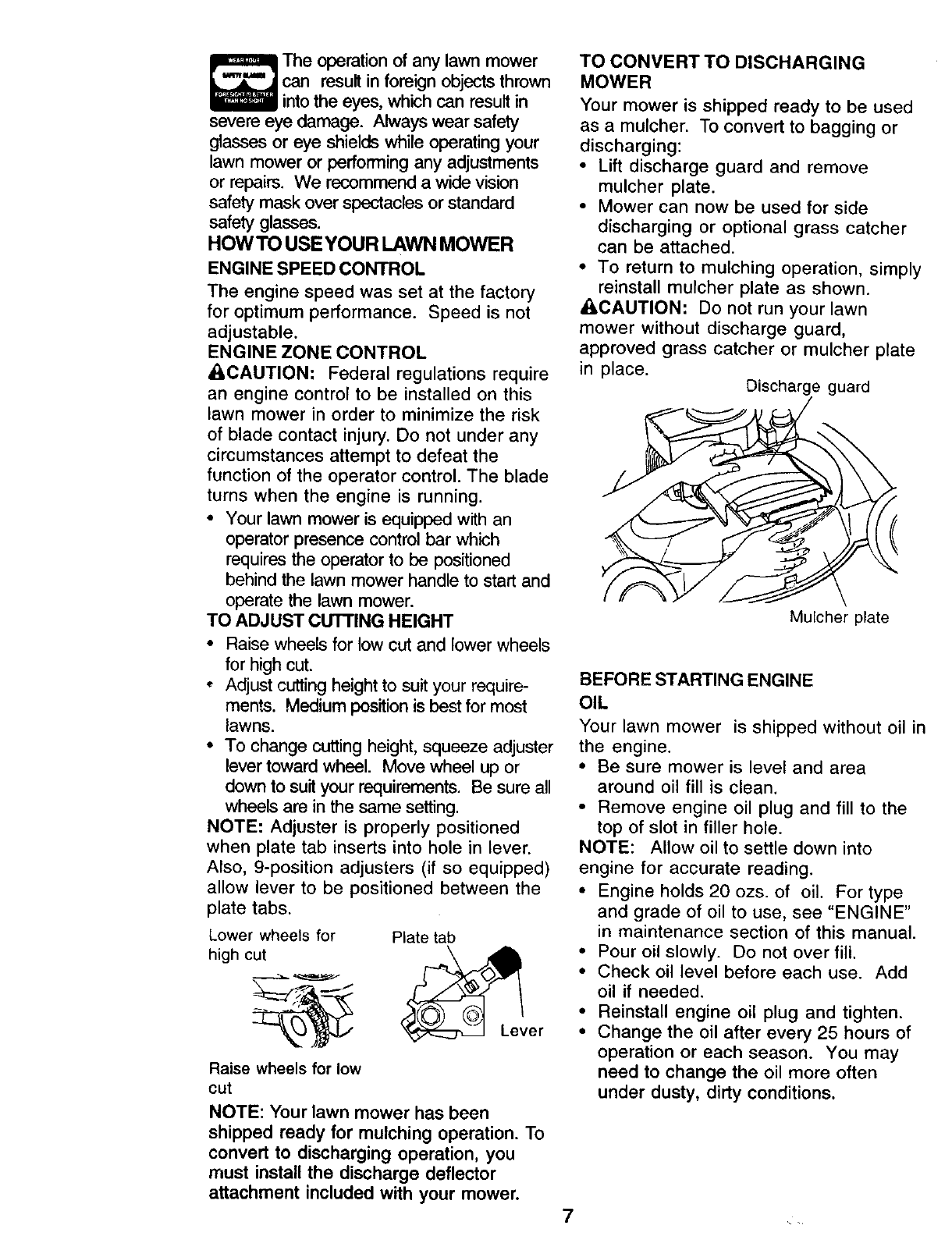

The operation of any lawn mower

can result in foreign objects thrown

intothe eyes, which can result in

severe eye damage. Always wear safety

glasses or eye shields while operating your

lawn mower or performing any adjustments

or repairs. We recommend a wide vision

safety mask over spectacles or standard

safety glasses.

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED CONTROL

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

A, CAUTION. Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CU'B'ING HEIGHT

• Raise wheels for low cut and lower wheels

for high cut.

*Adjust cutting height to suit your require-

ments. Medium position is best for most

lawns.

•To change cutting height, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Lower wheels for Plate tab

high cut

Lever

Raise wheels for low

cut

NOTE: Your lawn mower has been

shipped ready for mulching operation. To

convert to discharging operation, you

must install the discharge deflector

attachment included with your mower.

TO CONVERT TO DISCHARGING

MOWER

Your mower is shipped ready to be used

as a mulcher. To convert to bagging or

discharging:

• Lift discharge guard and remove

mulcher plate.

•Mower can now be used for side

discharging or optional grass catcher

can be attached.

• To return to mulching operation, simply

reinstall mulcher plate as shown.

_,CAUTION" Do not run your lawn

mower without discharge guard,

approved grass catcher or mulcher plate

in place. Discharge guard

Mu[cher plate

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in

the engine.

•Be sure mower is level and area

around oil fill is clean.

• Remove engine oil plug and fill to the

top of slot in filler hole.

NOTE: Allow oil to settle down into

engine for accurate reading.

• Engine holds 20 ozs. of oil. For type

and grade of oil to use, see "ENGINE"

in maintenance section of this manual.

• Pour oil slowly. Do not over fill.

•Check oil level before each use. Add

oil if needed.

• Reinstall engine oil plug and tighten.

• Change the oil after every 25 hours of

operation or each season. You may

need to change the oil more often

under dusty, dirty conditions.

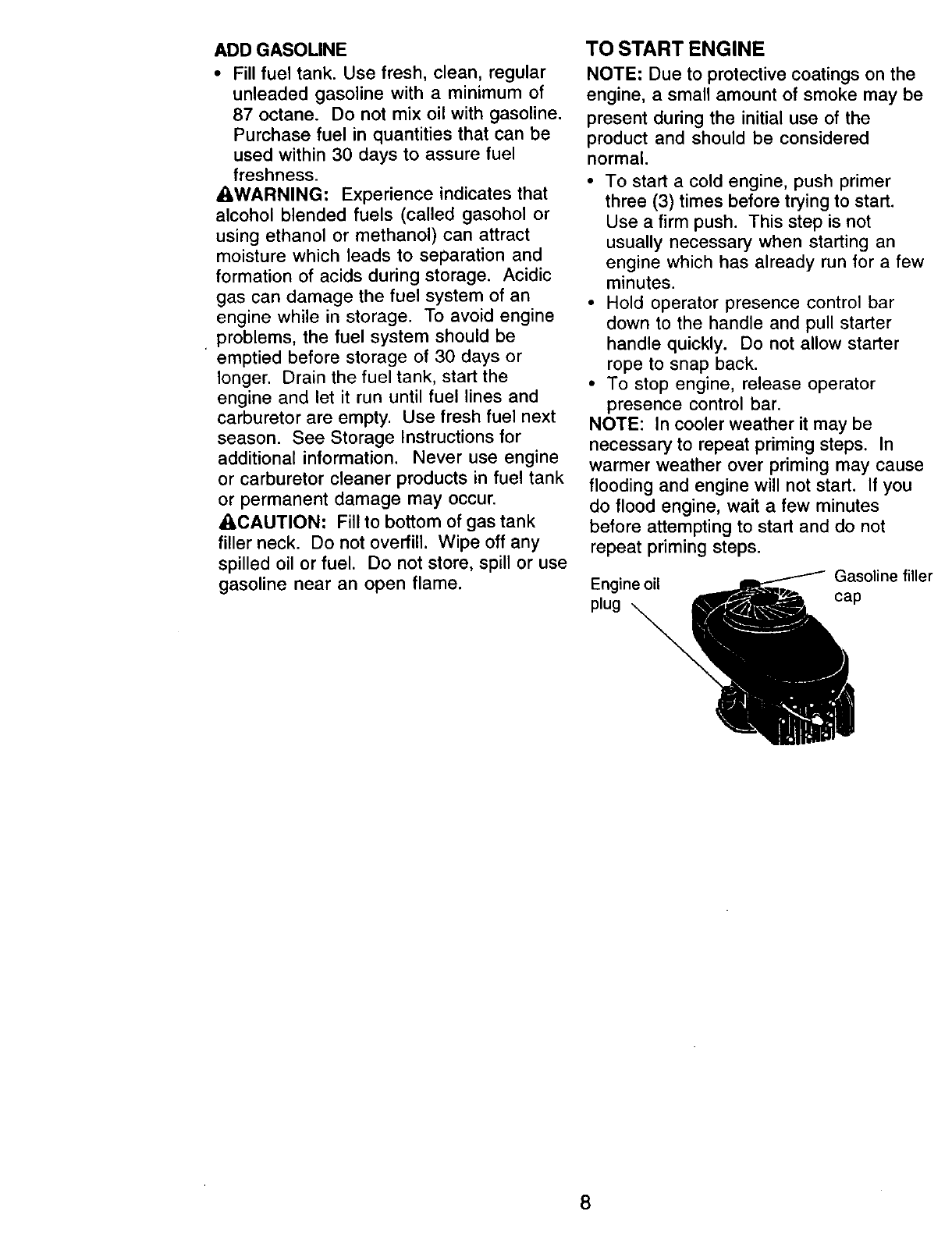

ADD GASOUNE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. Do not mix oil with gasoline.

Purchase fuel in quantities that can be

used within 30 days to assure fuel

freshness.

AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the fuel tank, start the

engine and let it run until fuel lines and

carburetor are empty. Use fresh fuel next

season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in fuel tank

or permanent damage may occur.

ACAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

• To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push. This step is not

usually necessary when starting an

engine which has already run for a few

minutes.

• Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

• To stop engine, release operator

presence control bar.

NOTE: In cooler weather it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat priming steps.

Engine oil Gasoline filler

plug cap

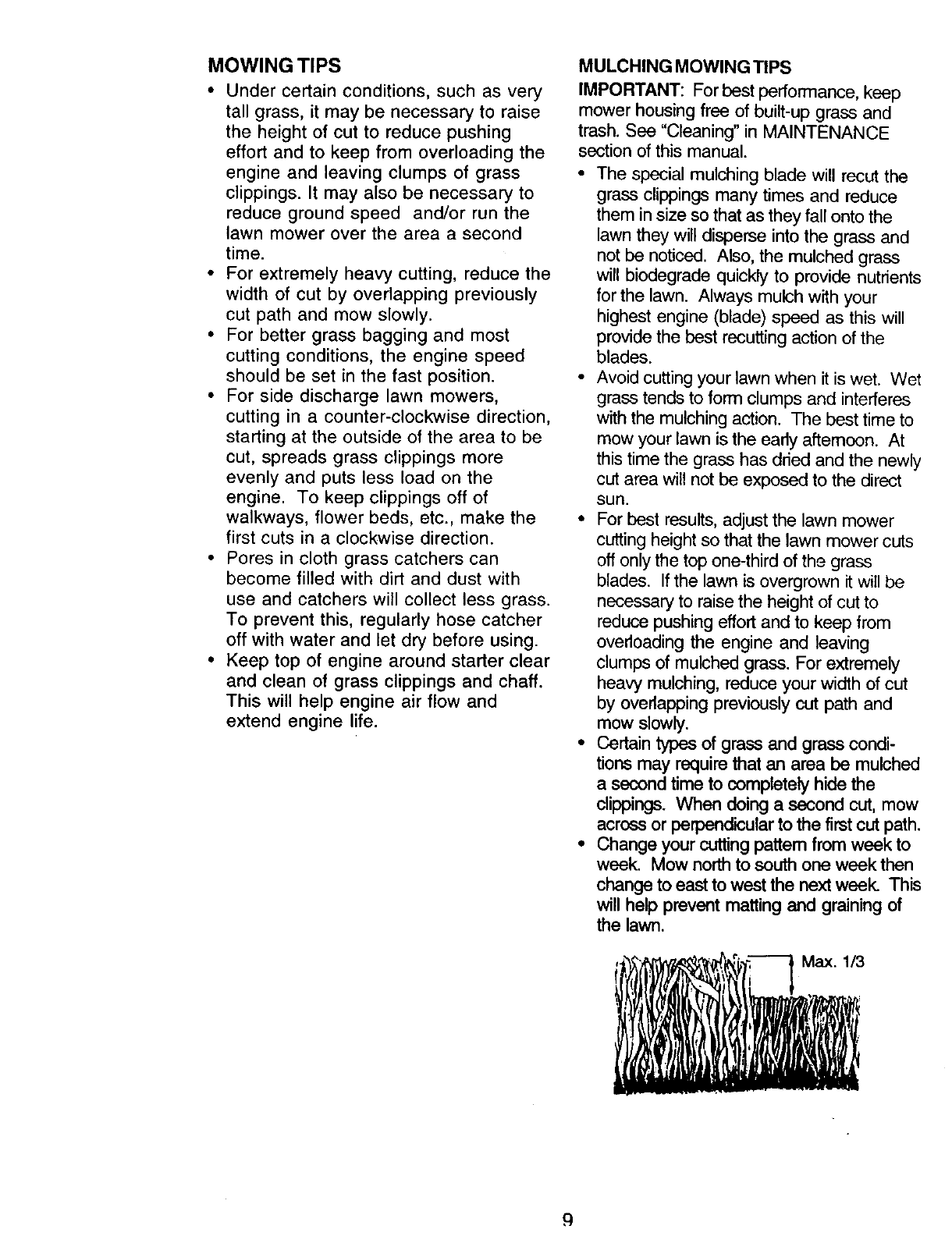

MOWING TIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from overloading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

• For extremely heavy cutting, reduce the

width of cut by overlapping previously

cut path and mow slowly.

• For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

• For side discharge lawn mowers,

cutting in a counter-clockwise direction,

starting at the outside of the area to be

cut, spreads grass clippings more

evenly and puts less load on the

engine. To keep clippings off of

walkways, flower beds, etc., make the

first cuts in a clockwise direction.

• Pores in cloth grass catchers can

become filled with dirt and dust with

use and catchers will collect less grass.

To prevent this, regularly hose catcher

off with water and let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. See "Cleaning" in MAINTENANCE

section of this manual.

• The special mulching blade will recur the

grass clippings many times and reduce

them in size so that as they fall onto the

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass

will biodegrade quickly to provide nutrients

for the lawn. Always mulch with your

highest engine (blade) speed as this will

provide the best recutting action of the

blades.

• Avoid cutting your lawn when it is wet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mow your lawn is the early aftemoon. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun.

• For best results, adjust the lawn mower

cutting height so that the lawn mower cuts

off only the top one-third of the grass

blades. If the lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort and to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching, reduce your width of cut

by overlapping previously cut path and

mow slowly.

• Certain types of grass and grass condi-

tions may require that an area be mulched

a second time to completely hide the

clippings. When doing a second cut, mow

across or perpendicular to the first cut path.

• Change your cutting pattem from week to

week. Mow north to south one week then

change to east to west the next week. This

will help prevent matting and graining of

the lawn.

'_'_l_f(l_"_,_'_--'_ Max. 1/3

MAINTENANCE SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE SERVICE DATES

Check for Loose Fasteners !_' I/

Clean/Inspect Grass Catcher

(If Equipped) I_ i_ $

i Clean Lawn Mower

Clean Under Drive Cover

(Power-Propelled Mowers)

W Check drive belt/pulleys

(Power-Propelted Mowers) I/

gCheck/Sharpen/Replace Blade I/"3

Lubrication Chart V'

Clean Battery/Recharge

/Electric Start Mowers I I_ 1_4

NE Check Engine Oil Level

Change Engine Oil t/l,2

Gi Clean Air Filter II_ 2

Inspect Muffler

N Clean or Replace Spark Plug

Replace Air Filter Paper Cartridge I/l

1-Change more oSen when operating under a heavy load or in high ambient temperatures.

2-Service more often when operating in dirty or dusty conditions,

3 - Replace blades more often when mowing in sandy soil.

4 - Charge 48 hours at end of season.

GENERALRECOMMENDA_ONS

The warranty on this lawn mower does not

cover items that hove been subjected to

operator abuse or negligence. To receive full

value from the warranty, operator must

maintain mower as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

All adjustments in the Service and Adjust-

ments section of this manual should be

checked at least once each season.

•Once a year, replace the spark plug, clean

or replace air filter element and check

blade for wear. A new spark plug and

clean/new air filter element assures proper

air-fuel mixture and helps your engine run

better and last longer.

•Follow the maintenance schedule in this

manual.

BEFORE EACH USE

• Check engine oil level.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICATION

CHART").

LUBRICATION CHART

(_)Wheel adjuster

oil (_)Brake

spring

bracket

_Handle bracket

mounting pin

(_Spray lubricante

(_Refer to MAINTINANCE "ENGINE"

SECTION.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricantswill attract

dust and dirtthat will shortenthe lifeof the

self lubricatingbearings. If you feel they must

be lubricated, use only a dry, powdered

graphite type lubricant sparingly.

1(3

PRODUCT SPECIFICATIONS

SERIAL NUMBER

DATE OF PURCHASE

GASOLINE CAPACITY/TYPE: 1.25 QUARTS

UNLEADED REGULAR

OILTYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J 19LM

VALVECLEARANCE:

INTAKE: .004 -.008

EXHAUST: .004 - .008

SOLID STATE IGNITION

AIR GAP: .0125 IN.

BLADE BOLTTORQUE: 35-40 FT. LBS.

The model and serial numbers will be found on a decal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER

Always observe safety rules when performing

any maintenance.

TIRES

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

• Avoid stumps, stones, deep ruts,sharp

objects and other hazards that may cause

tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

• Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

• Turn lawn mower on its side. Make

sure air filter and carburetor are up.

• Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

• Protect your hands with gloves and/or

wrap blade with heavy cloth.

• Remove blade bolt by turning counter-

clockwise.

• Remove blade and attaching hardware

(bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade

adapter. The key must be in good

condition to work properly. Replace

adapter if damaged.

TO REPLACE BLADE

•Position the blade adapter on the

engine crankshaft. Be sure key in

adapter and crankshaft keyway are

aligned.

• Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

• Be sure the trailing edge of blade

(opposite sharp edge) is up toward the

engine.

• Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

• Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

• The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend

sharpening blade - but if you do, be sure

the blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause eventual damage to lawn mower or

engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, drive a nail

into a beam or wall. Leave about one

inch of the straight nail exposed. Place

center hole of blade over the head of

the nail. If blade is balanced, it should

remain in a horizontal position. If either

end of the blade moves downward,

sharpen the heavy end until the blade

is balanced. Blade

Key.

Lockwasher

Crankshaft

keyway

Blade _

Crank

Blade

bolt Hardened Trailing Blade adapter

washer edge

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation orat least once a year if the lawn

mower is not used for 25 hours in one year.

Check the crankcase oil level before starting

the engine and after each five (5) hours of

continuous use. Tighten oil plug securely

each time you check the oil level.

TO CHANGE ENGINE OIL

• Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

• Be sure lawn mower is on level

surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove bottom oil drain plug.

• After oil has drained completely,

replace oil drain plug and tighten

securely.

• Refill engine with oil. Pour slowly. Do

not over fill.

• Fill to top of slot inside of filler hole.

• Reconnect spark plug wire to spark

plug.

GRASS CATCHER

(If purchased as an accessory)

• The grass catcher may be hosed with

water, but must be dry when used.

•Check your grass catcher often for

damage or deterioration. Through

normal use it will wear. If catcher

needs replacing, replace only with a

manufacturer approved replacement

catcher. Give the lawn mower model

number when ordering.

ENGINE

LUBRICATION

Use only high quality detergent oil rated with

API service classificationSF, SG or SH. Select

the oil'sSAE viscositygrade according to your

expected operating temperature.

SAE VISCOSITY GRADES

Drain plug

-20' 30" 32' 4O"

TEMpE_I:_ATURERANGE ANTICIPATED BEFORE NEXT OIL CHANGE 12

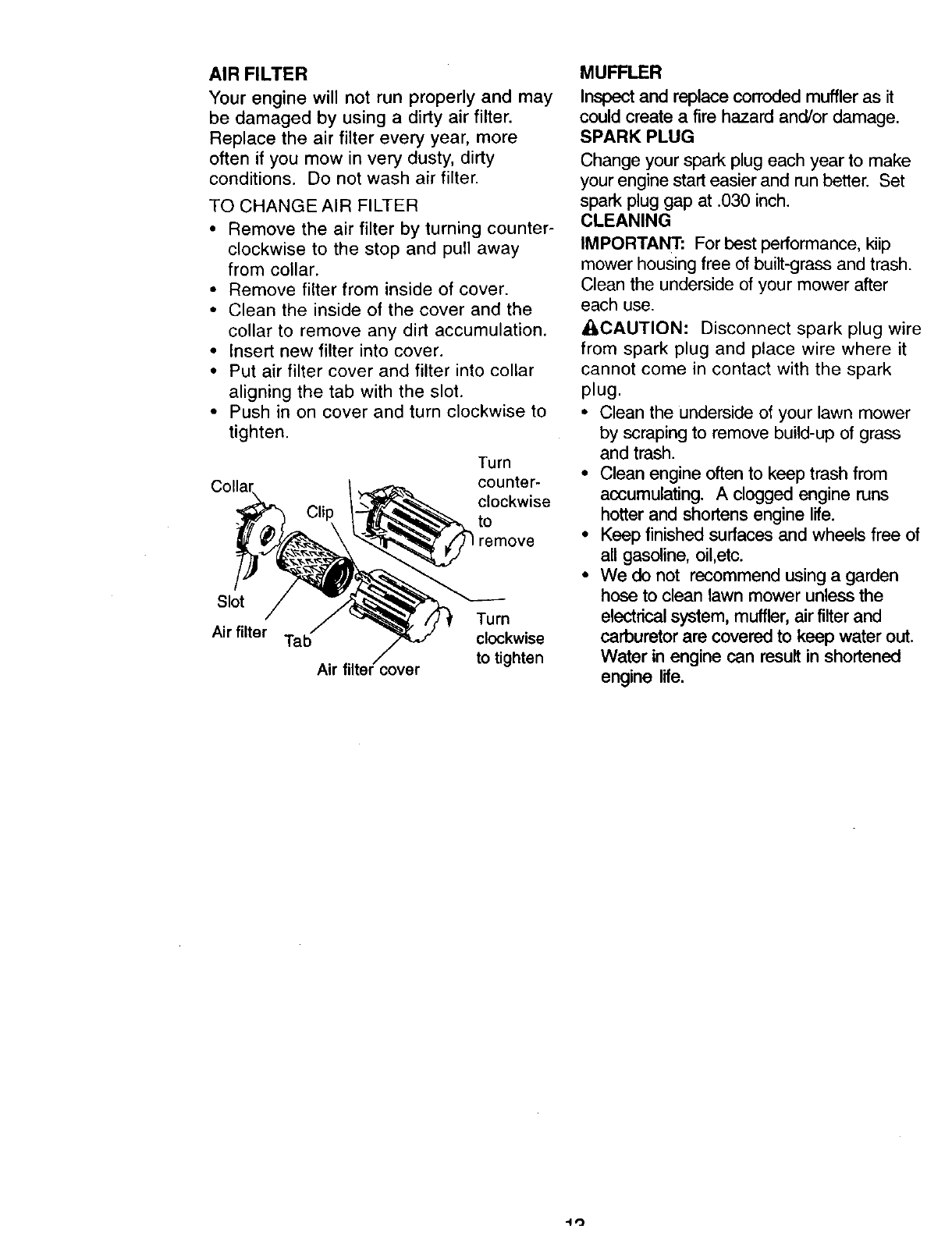

AIR FILTER

Your engine will not run properly and may

be damaged by using a dirty air filter.

Replace the air filter every year, more

often if you mow in very dusty, dirty

conditions. Do not wash air filter.

TO CHANGE AIR FILTER

•Remove the air filter by turning counter-

clockwise to the stop and pull away

from collar.

• Remove filter from inside of cover.

• Clean the inside of the cover and the

collar to remove any dirt accumulation.

• Insert new filter into cover.

•Put air filter cover and filter into collar

aligning the tab with the slot.

• Push in on cover and turn clockwise to

tighten.

Clip

Turn

counter-

clockwise

Slot

Air filter Tu rn

Tab clockwise

to tighten

Air filter" cover

MUFFLER

Inspect and replace corroded muffler as it

could create a fire hazard and/or damage.

SPARK PLUG

Change your spark plug each year to make

your engine start easier and run better. Set

spark plug gap at .030 inch.

CLEANING

IMPORTANT: For best performance, kiip

mower housing free of built-grass and trash.

Clean the underside of your mower after

each use.

ACAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

• Clean the underside of your lawn mower

by scraping to remove build-up of grass

and trash.

•Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

• Keep finished surfaces and wheels free of

all gasoline, oil,etc.

• We do not recommend using a garden

hose to clean lawn mower unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in shortened

engine life.

4r'}

CAUTION: Before performing any

service and adjustments:

• Release control bar and stop engine.

• Make sure the blade and all moving

parts have completely stopped.

• Disconnect spark plug wire from spark

plug and place where it cannot come in

contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

DISCHARGE GUARD

The discharge guard, attached to the

discharge opening of your lawn mower, is

provided to prevent the possibility of

injury resulting from objects being thrown

out of the discharge opening into the

operator mowing position. If the discharge

guard becomes damaged, it should be

replaced.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your mower, is provided to

minimize the possibility that objects will

be thrown out of the rear of the mower

into the operator mowing position. If the

deflector becomes damaged, it should be

replaced.

TO ADJUST HANDLE

The handle can be mounted in a high or

low position. The mounting holes in the

bottom of lower handle are off center for

raising or lowering the handle.

• Remove upper handle and all parts

attached to lower handle.

• Remove hairpin cotters from lower

handle bracket mounting pin.

• Squeeze lower handle in to remove it

from mounting pins.

• Turn lower handle over to raise or

lower handle.

• Squeeze lower handle in and position

holes onto mounting pins on handle

bracket.

• Reassemble upper handle and all

parts removed from lower handle.

Mowing _--_ Mowing _-_,

position _j position [._/

Ir_^l nn_itinn Hinh nn_itic, n

Rotate

:-_ Lh°nWd/re

ENGINE

ENGINE SPEED

Your engine speed has been factory set.

Do not attempt to increase engine speed

or it may result in personal injury. If you

believe that engine is running too fast or

too slow, take your mower to an autho-

rized service center for repair and

adjustment.

CARBURETOR

Your carburetor has a non-adjustable

fixed main jet for mixture control. If your

engine does not operate properly due to

suspected carburetor problems, take your

lawn mower to an authorized service

center for repair and/or adjustment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

the proper engine speed. Overspeeding

the engine above the factory high speed

scan be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest authorized

service center, which has proper equip-

ment and experience to make any

necessary adjustments.

Immediatelyprepareyourlawnmowerfor

storageatthe endof theseasonor if theunit

willnotbe usedfor30 daysor more.

LAWN MOWER

When lawn mower is to be stored for a peded

of time, clean it thoroughly,remove all dirt,

grease, leaves, etc. Store ina clean, dry

area.

•Clean entire lawn mower (See "CLEAN-

ING" in the Maintenance section of this

manual).

•Lubricate as shown in the Maintenance

section of this manual.

• Be sure that all nuts,belts, screws, and

pinsare securely fastened. Inspect

moving parts for damage, breakage and

wear. Replace if necessary.

•Touch up all rusted or chipped paint

surfaces; sand lightlybefore painting.

HANDLE

You can fold your lawn mower handle for

storage.

• Squeeze the bottom ends of the lower

handle toward each other until the lower

handle clears the handle bracket, then

move handle forward.

• Loosen upper handle mounting bolts

enough to allow upper handle to be folded

back.

IMPORTANT: When folding the handle for

storage or transportation, be sure to fold the

handle as shown or you may damage the

control cables.

• When setting up your handle from the

storage position, the lower handle will

automatically lock into the mowing

position.

Lower handle

Squeeze to

fold

Mounting

Hairpin

cotter

Operator presence control bar

Upper handle - //// Jy"_;_

Fold forward for-_/_-,, I<_!_/S)_

storage & _'-,_./J;'_ _,_//

, - ..... _ Fold

_i':_" _,_::_i 2" backward

v ----.-__12- _ position

Lower handle

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent gum

deposits from forming in essential fuel system

parts such as carburetor, fuel filter, fuel hose,

or tank during storage. Also, experience

indicates that alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separation

and formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage.

• Drain the fuel tank.

• Start the engine and let it run until the fuel

lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of fuel

gum deposits during storage. Add stabilizer

to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes

after adding stabilizer to allow the stabilizer to

reach the carburetor. Do not drain the gas

tank and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace with

clean engine oil. (See "ENGINE" in the

Maintenance section of this manual).

CYLINDER

• Remove spark plug.

• Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

• Pull starter handle slowly a few times to

distribute oil.

•Replace with new spark plug.

OTHER

• Do not store gasoline from one season to

another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your unit indoors and

cover it to give protection from dust and dirt.

• Cover your unit with a suitable protective

cover that does not retain moisture. Do not

use plastic. Plastic cannot breathe which

allows condensation to form and will cause

your unit to rust.

TROUBLESHOOTING CHART

PROBLEM

Does not start

Loss of power

Poor cut- uneven

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

_kCAUTION: Never store the lawn

mower with gasoline in the tank inside a

building where fumes may reach an open

flame or spark. Allow the engine to cool

before storing in any enclosure.

CAUSE CORRECTION

1. Dirty air filter.

2. Out of fuel.

3. Stale fuel.

4. Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken blade

adapter.

8. Control bar in released

position.

9. Control bar defective.

1. Rear of lawn mower housing

or cutting blade dragging

in heavy grass.

2. Cutting too much grass.

3. Dirty air filter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walldng speed too fast.

1. Wom, bent or loose blade.

2. Wheel heights uneven.

3. Buildup of grass, leaves

and trash under mower.

Jl. Clean/replace air filter.

2. Fill fuel tank.

3. Drain tank and refill with

fresh clean fuel.

4. Drain fuel tank and

carburetor and refill tank

with fresh gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. Tighten blade bolt or

replace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

1. Set to "Higher Cur'

position.

2. Set to "Higher Cut"

position.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking

speed.

1. Replace blade. "13ghten

blade bolt.

2. Set all wheels at same

height

3. Clean underside of

mower housing.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Excessive

vibration

Starter rope hard

to pull

Grass catcher

not filling (if so

equipped)

Hard to push

1. Wom, bent or loose blade.

2. Bent engine crankshaft,

Engine flywheel brake is on

when control bar is released.

Bent engine crankshaft.

Blade adapter broken.

Blade dragging in grass.

1. Cutting height too low.

2. Lift on blade wom off.

3. Catcher not venting air.

1. Grass is too high or wheel

height is too low.

2. Rear of lawn mower

housing or blade dragging

in grass•

3. Grass catcher too full•

4• Handle height position not

right for you.

1. Replace blade. Tighten

blade bolt.

2. Contact an authorized

service center.

1. Depress control bar to

upper handle before

pulling starter rope.

2. Contact an authorized

service center.

3. Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface

1. Raise cutting height.

2. Replace blade.

3. Clean grass catcher.

11.

4•

Raise cutting height.

Raise rear of lawn mower

housing one (1) setting

higher.

Empty grass catcher.

Adjust handle height to

suit.

"17

SERVICE NOTES

ROTARY LAWN MOWER -MODEL NO. 917.387410

52-

8 10

\56

1 23

ROTARY LAWN MOWER -MODEL NO. 917.387410

KEY PART

NO. NO

186902

2 165452X479

3850733X004

4750097

5 STD541425

6168552

8 66426

963601

10 136376

11 140543

12 701313

13 87584X004

14 176e45X479

15 1_479

17 750085X007

18 146630

20 87877

21 700331X004

22 145_5X004

23 62335

24 142748

25 146248

25 83923

27 53998

28 77400

29 85O999

30 171116

31 701706X479

32 751592

KEY PART

DESCRIP'nON NO. NO DESCRIPTION

ControlBar 35 851084

UpperHandle 36 850263

Up-Stop Bracket 37 851074

Hex Wsh, Head Screw #10-24 x 1/2 38 145106

Locknct 1/4-20 39 850977

EngineZoneControlCable 40 149741

WiraTie 41 88272X479

NylonLocknut 42 88271X479

HandleKnob 43 85463

RearSIdrt 44 51793

EngineSpacer 46 147286

Stdrt Bracket 47 87589

Handle BracketAssembly (Right) 48 87593

Handle Bracket Assembly (Left) 49 750149

Wheel Adjusting Bracket 50 157081X479

Spacer 51 131959

Selector Knob 52 153638

Selector Spdng 56 ......

A deArmAssemUy

BellevilleWasher 57 751772X479

Shoulder Bolt 58 128415

Wheal and Tire Assembly - - 87576)(479

Hex Flange Locknut 3/8-16 - - 171105

FlatWeaher . - 161058

Hubcap

Hex Heed Self-tapping Screw 3_-16 x 1-1/8

Lawn Mower Housing Kit (Inc. Ref. #31,43)

Front Baffle 71 33072

Locknut 3/8-16 71 33623

71 33500

71333OO

71 33723

7"1 33316

Hex Head Machine Screw 3/8-24 x 1-3/8 (Gr. 8)

Helical Lockwasher 3/8

HardenedWasher

20" MuLchingBlade

Blade Adapter

Self Tapping Screw 5/16-18 x 3/4

Handle Support Bracket (Right)

Handle Support Bracket (Left)

Danger Decal

HairpinCotter

HingeRod

TorsionSpnng

Housing Bracket Assembly

Discharge Guard

Lower Handle

Handle Bolt

RopeGuide

Engine - (Sea Breakdown) Craftsman

Model No. 143.004002

Mulcher Plate

Pop Rivet

Rear Baffle (Not Shown)

Owner's Manual (English/Spanish)

Warning Decal (NotShown)

Available accessodea not includedwith lawn mower.

GrassCatcher

Gas Can (2.5gal)

FuelStabilizer

SAE30W Oil(20oz,)

HighWheelKit

MowerCover

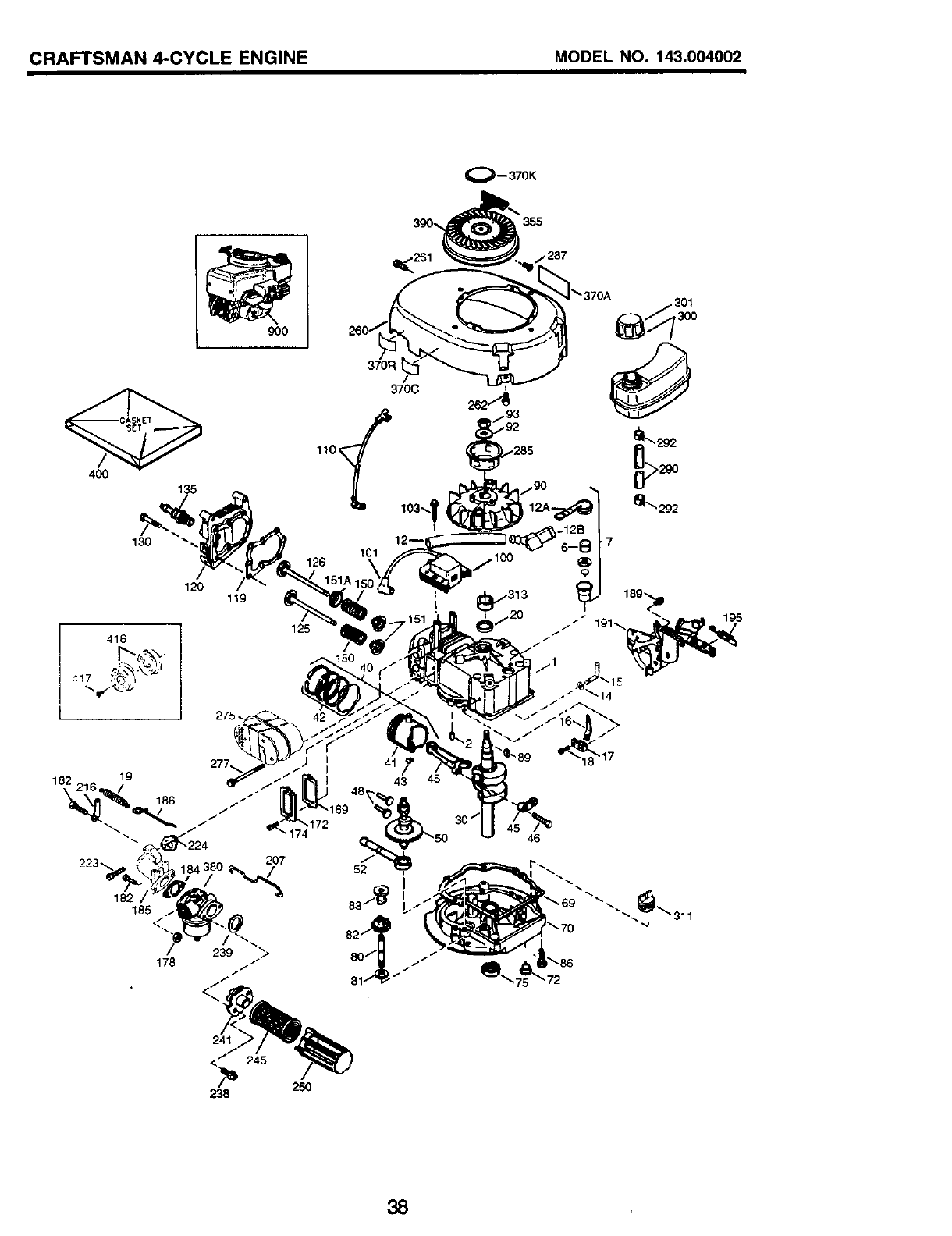

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.004002

_--370K

4O0

135

130

120

119

370R

370C

110_

103,_._

101

126

18218.'5

178

•355

/287

"_ 311

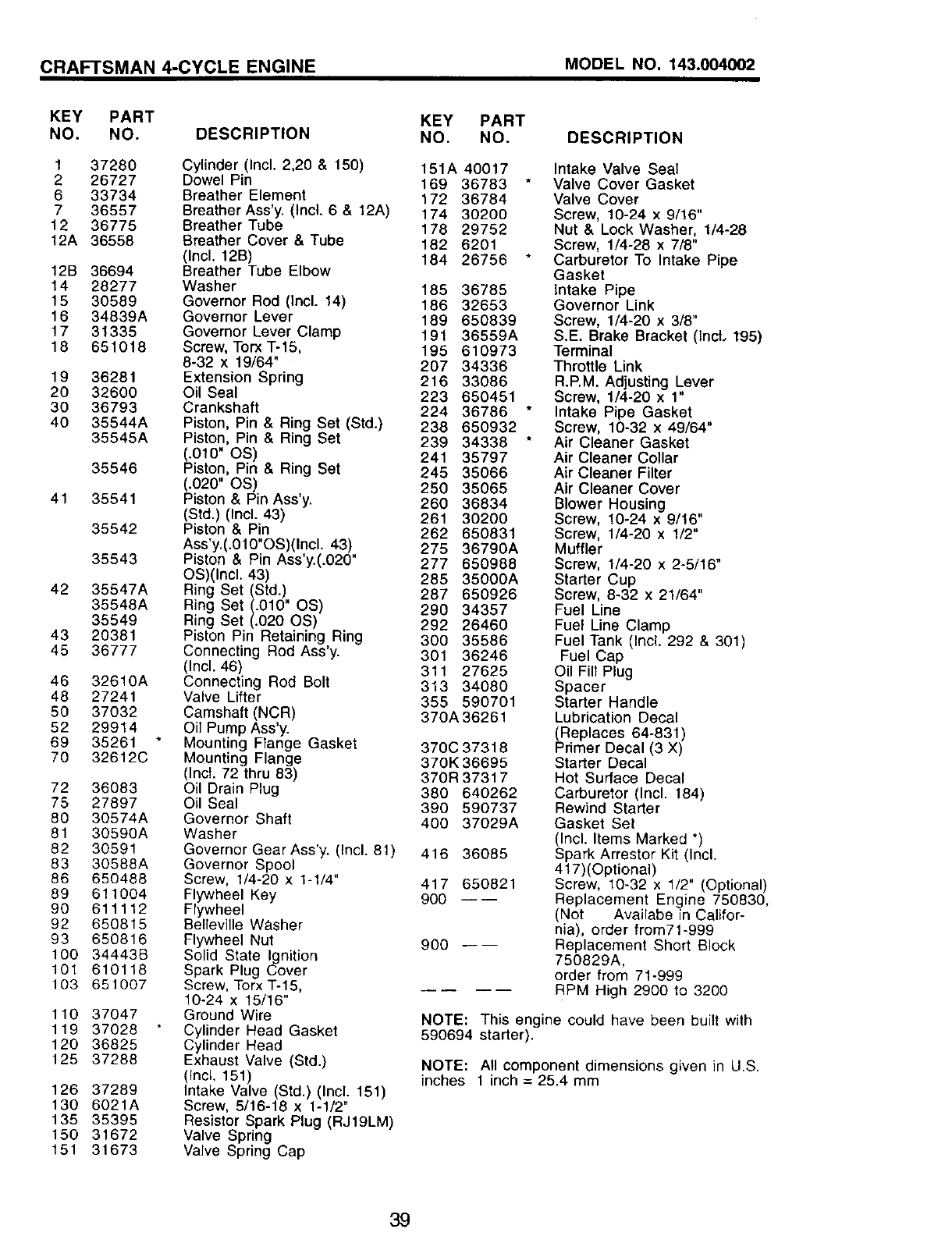

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.004002

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 37280 Cylinder (Incl. 2,20 & 150) 151A 40017

2 26727 Dowel Pin 169 36783

6 33734 Breather Element 172 36784

7 36557 Breather Ass'y. (Incl. 6 & 12A) 174 30200

12 36775 Breather Tube 178 29752

12A 36558 Breather Cover & Tube 182 6201

(Incl. 12B) 184 26756

12B 36694 Breather Tube Elbow

14 28277 Washer 185 36785

15 30589 Governor Rod (Incl. 14) 186 32653

16 34839A Governor Lever 189 650839

17 31335 Governor Lever Clamp 191 36559A

18 651018 Screw, Torx T-15, 195 610973

8-32 x 19/64" 207 34336

19 36281 Extension Spring 216 33086

20 32600 Oil Seal 223 650451

30 36793 Crankshaft 224 36786

40 35544A Piston, Pin & Ring Set (Std.) 238 650932

35545A Piston, Pin & Ring Set 239 34338

(.010" OS) 241 35797

35546 Piston, Pin & Ring Set 245 35066

(.020" OS) 250 35065

41 35541 Piston & Pin Ass'y. 260 36834

(Std.) (Incl. 43) 261 30200

35542 Piston & Pin 262 650831

Ass'y.(.010"OS)(Incl. 43) 275 36790A

35543 Piston & Pin Ass'y.(.020" 277 650988

OS)(Incl. 43) 285 35000A

42 35547A Ring Set (Std.) 287 650926

35548A Ring Set (.010" OS) 290 34357

35549 Ring Set (.020 OS) 292 26460

43 20381 Piston Pin Retaining Ring 300 35586

45 36777 Connecting Rod Ass'y. 301 36246

(Incl. 46) 311 27625

46 32610A Connecting Rod Bolt 313 34080

48 27241 Valve Lifter 355 590701

50 37032 Camshaft (NCR) 370A 36261

52 29914 Oil Pump Ass'y.

69 35261 Mounting Flange Gasket 370C37318

70 32612C Mounting Flange 370K 36695

(Incl. 72 thru 83) 370R 37317

72 36083 Oil Drain Plug 380 640262

75 27897 Oil Seal 390 590737

80 30574A Governor Shaft 400 37029A

81 30590A Washer

82 30591 Governor GearAss'y. (Incl. 81) 416 36085

83 30588A Governor Spool

86 650488 Screw, 1/4-20 x 1-1/4" 417 650821

89 611004 Flywheel Key 900 -- --

90 611112 Flywheel

92 650815 Belleville Wt_sher

93 650816 Flywheel Nut 900 ----

100 34443B Solid State Ignition

101 610118 Spark Plug Cover

103 651007 Screw, Torx T-15,

10-24 x 15/16"

110 37047 Ground Wire

119 37028 Cylinder Head Gasket

120 36825 Cylinder Head

125 37288 Exhaust Valve (Std.)

(Incl. 151)

126 37289 Intake Valve (Std.) (IncL 151)

130 6021A Screw, 5/16-18 x 1-1/2"

135 35395 Resistor Spark Plug (RJ19LM)

150 31672 Valve Spring

151 31673 Valve Spring Cap

DESCRIPTION

Intake Valve Seal

Valve Cover Gasket

Valve Cover

Screw, 10-24 x 9/16"

Nut & Lock Washer, 1/4-28

Screw, 1/4-28 x 7/8"

Carburetor To Intake Pipe

Gasket

Intake Pipe

Governor Link

Screw, 1/4-20 x 3/8"

S.E. Brake Bracket (lnct, t95)

Terminal

Throttle Link

R.P.M. Adjusting Lever

Screw, 1/4-20 x 1"

Intake Pipe Gasket

Screw, 10-32 x 49/64"

Air Cleaner Gasket

Air Cleaner Collar

Air Cleaner Filter

Air Cleaner Cover

Blower Housing

Screw, 10-24 x 9/16"

Screw, 1/4-20 x 1/2"

Muffler

Screw, 1/4-20 x 2-5/16"

Starter Cup

Screw, 8-32 x 21/64"

Fuel Line

Fuel Line Clamp

Fuel Tank (Incl. 292 & 301)

Fuel Cap

Oil Fill Plug

Spacer

Starter Handle

Lubrication Decal

(Replaces 64-831)

Primer Decal (3 X)

Starter Decal

Hot Surface Decal

Carburetor (Incl. 184)

Rewind Starter

Gasket Set

(Incl. Items Marked *)

Spark Arrestor Kit (Incl.

417)(Optional)

Screw, 10-32 x 1/2" (Optional)

Replacement Engine 750830,

(Not Availabe in Califor-

nia), order from71-999

Replacement Short Block

750829A,

order from 71-999

RPM High 2900 to 3200

NOTE: This engine could have been built with

590694 starter).

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

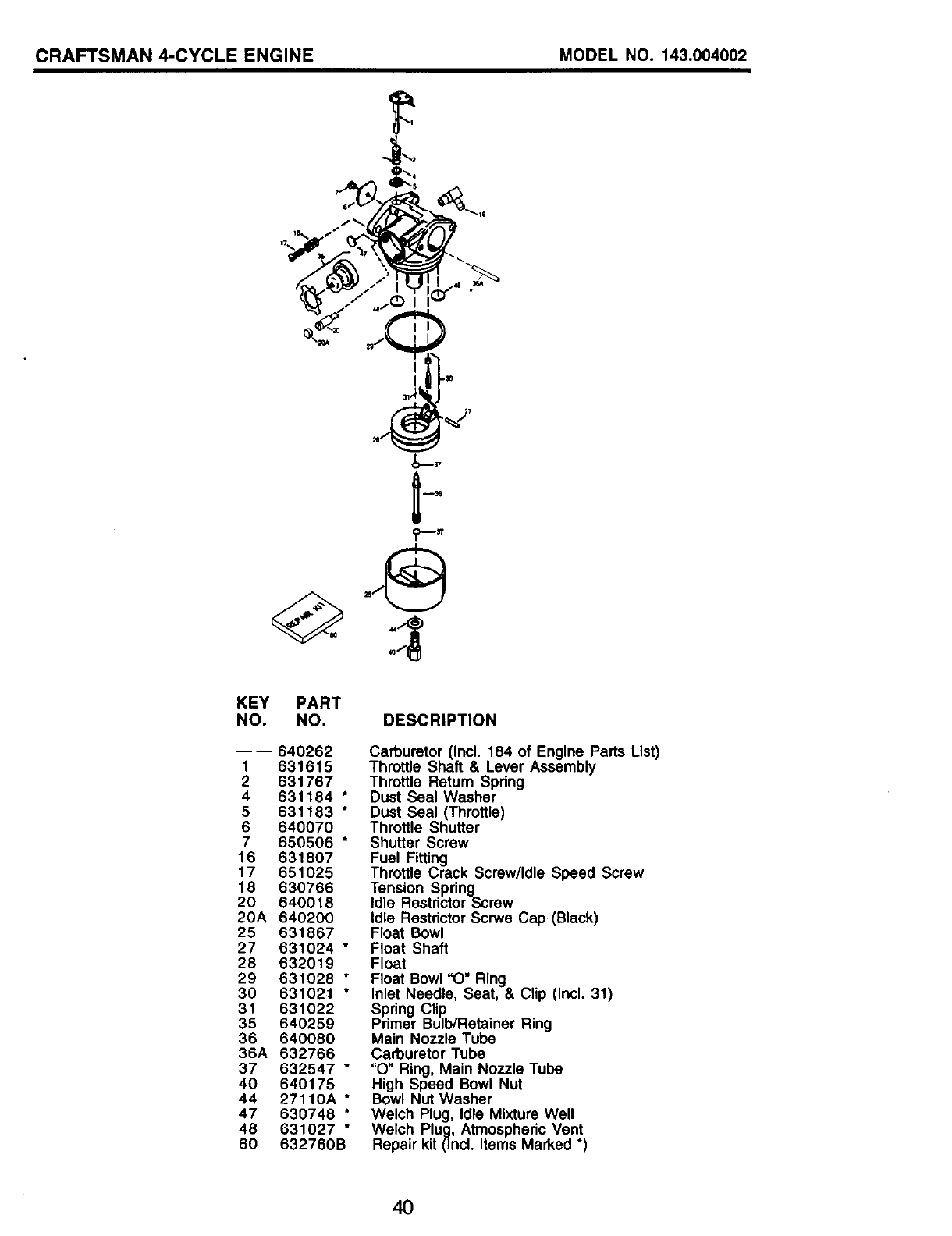

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.004002

KEY

NO.

20A

36A

PART

NO. DESCRIPTION

----640262

631615

631767

631184 *

631183 *

640070

650506 *

631807

651025

630766

640018

640200

631867

631024 *

632019

631028 *

831021 *

631022

640259

640080

632766

632547 *

840175

27110A *

630748 *

631027 *

632760B

Carburetor (Incl. 184 of Engine Parts List)

Throttle Shaft & Lever Assembly

Throttle Return Spdng

Dust Seal Washer

Dust Seal (Throttle)

Throttle Shutter

Shutter Screw

Fuel Fitting

Throttle Crack Screw/Idle Speed Screw

Tension Spring

Idle Restrictor Screw

Idle Restdctor Scrwe Cap (Black)

Float Bowl

Float Shaft

Float

Float Bowl "O" Ring

Inlet Needle, Seat, & Clip (Incl. 31)

Spring Clip

Primer Bulb/Retainer Ring

Main Nozzle Tube

Carburetor Tube

"O" Ring, Main Nozzle Tube

High Speed Bowl Nut

Bowl Nut Washer

Welch Plug, Idle Mixture Well

Welch Plug, Atmospheric Vent

Repair kit (Incl. Items Marked *)

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.004002

B--5

KEY

NO.

PART

NO.

----590a694

590599A

590600

590696

590601

590697

590698

590699

590700

590695

590535

590701

DESCRIPTION

Recoil Starter

Spring Pin (Incl. 4)

Washer

Retainer

Washer

Brake Spring

Starter Dog

Dog Spring

Pulley & Rewind Spring Ass'y.

Starter Housing Ass'y. (40

degree grommet)

Starter Rope ( 98" X 9/64"

dia.)

Starter Handle

KEY

NO.

PART

NO.

----590737

590740

590616

590617

590618A

590687A

590535

590701

590760

DESCRIPTION

Rewind Starter

Retainer

Starter Dog

Dog Spring

Pulley & Rewind Spring Ass'y

Starter Housing Ass'y (40

degree grommet)

Starter Rope (Length 98" x 9/

64" dia.)

Starter Handle

Spring Clip

Getit fixed, at your home or ours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME sM Anytime, day or night

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Sears PartsDirectSM!

1-800-366-PART 6am- _1pmCST,

(1-800-366-7278) 7 days a week

www.sears.com/par tsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m. - 5 p.m. CST, Mon.- Sat.

Para pedir servicio de reparaci6n a domicilio,

y para ordenar piezas con entrega a domicilio:

1-888-SU-HOGAR s_

(1-888-784-6427')

[ HcSm_ee_Cer_tradii,. 1

Au Canada pour service en fran£ais:

1-877-LE-FOYER s=

(1-877-533-6937)

® Registered Trademark /T. Trademark of Seam, Roebuck and Co.

® Marca Registrada /TM Marca de F&bdca de Seam, Roebuck and Co.

171105 Rev.1 06.06.00 VB Printed in U.S.A

Craftsman 917387410 User Manual ROTARY MOWER Manuals And Guides L0070092

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0070092 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
