Owner's Manual
JCRAFTSMAN'J
6.0 HORSEPOWER
22" ECONOMY
SIDE DISCHARGE
ROTARY LAWN MOWER
Model No.
917.387500
• Safety
• Assembly
•Operation
•Maintenance
•Espa6ol
• Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/craftsman
Warranty ............................................... 2
Safety Rules ......................................... 2
Assembly .............................................. 5
Operation .............................................. 6

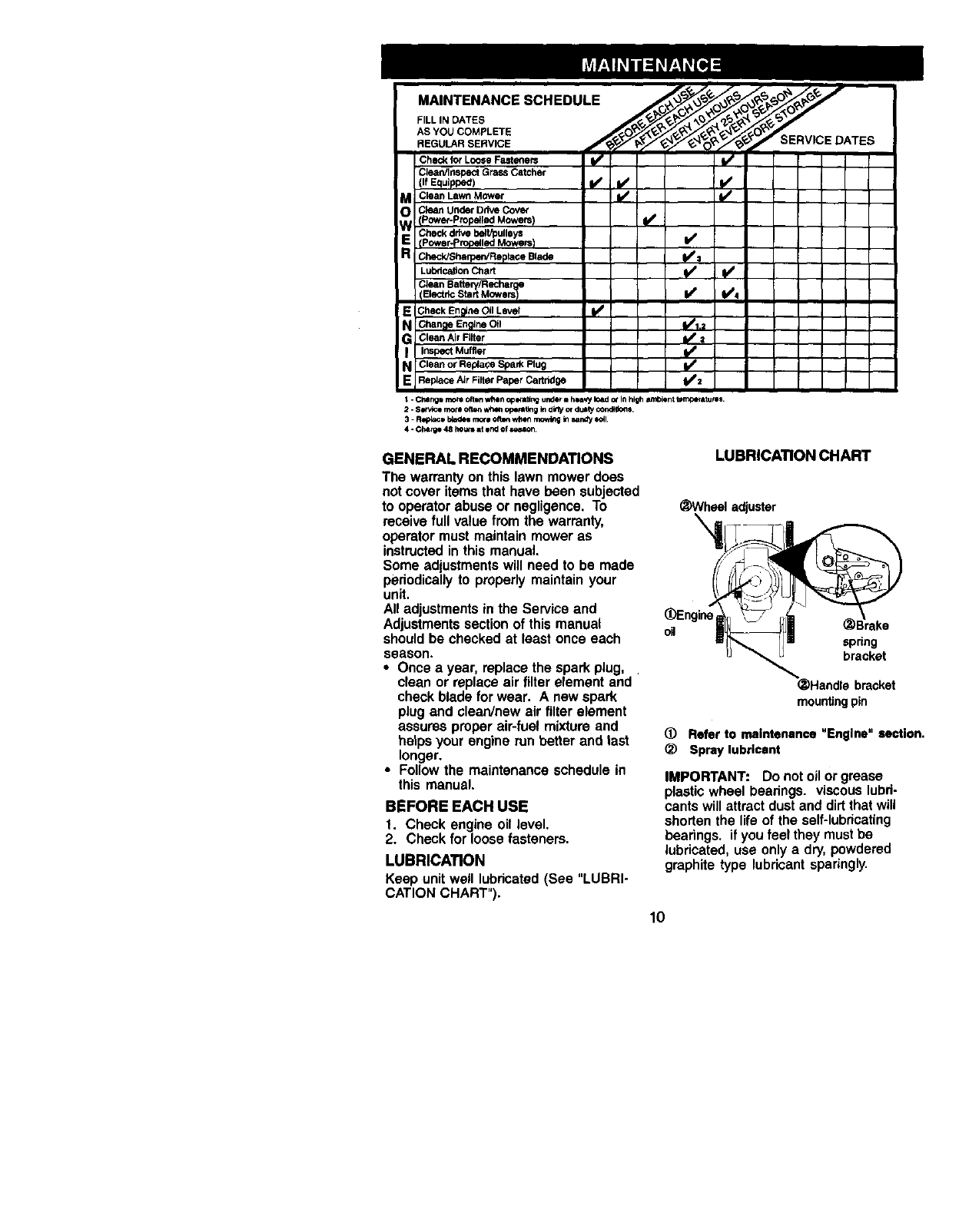

Maintenance Schedule ...................... 10
Maintenance ....................................... 10
Product Specifications ........................ 11

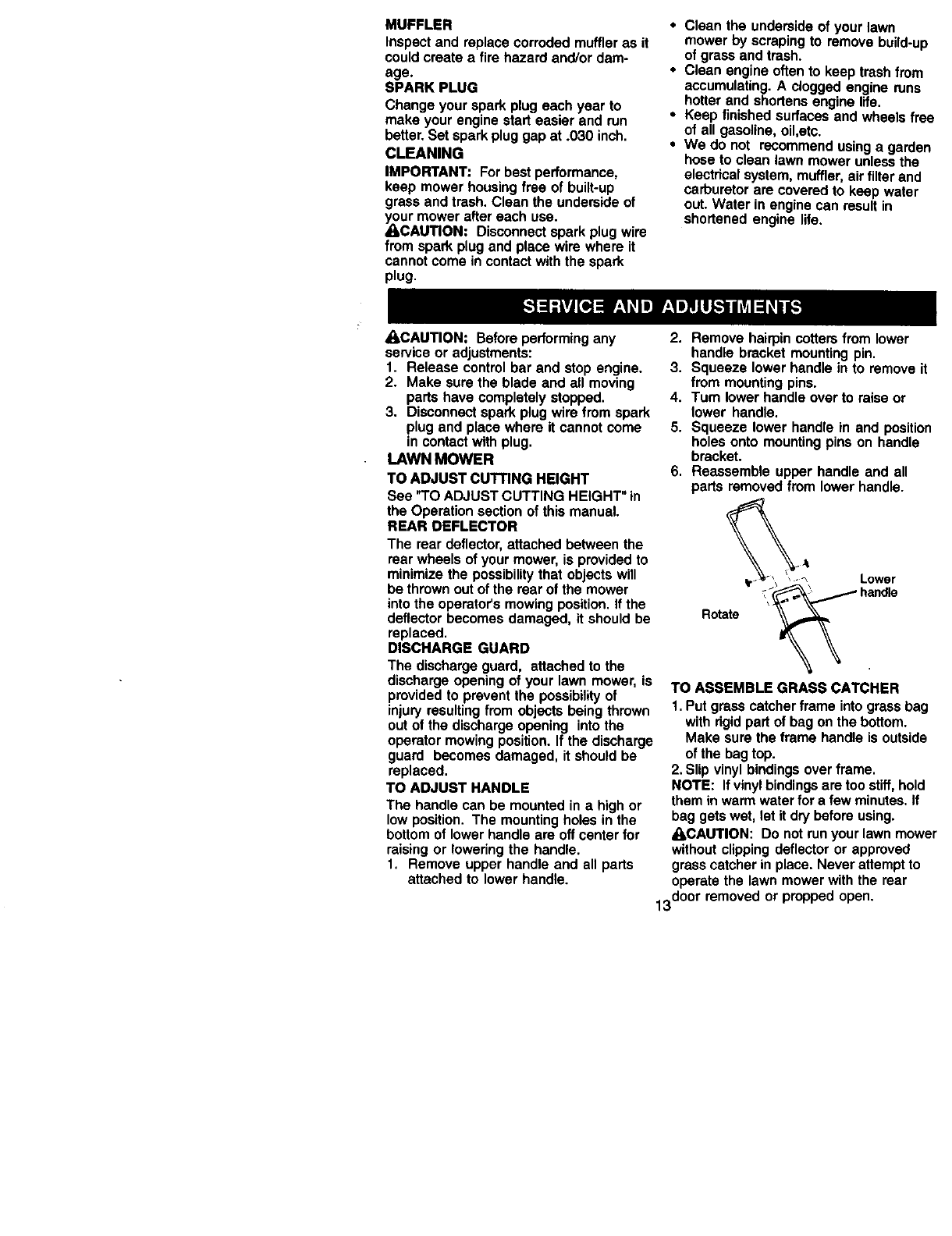

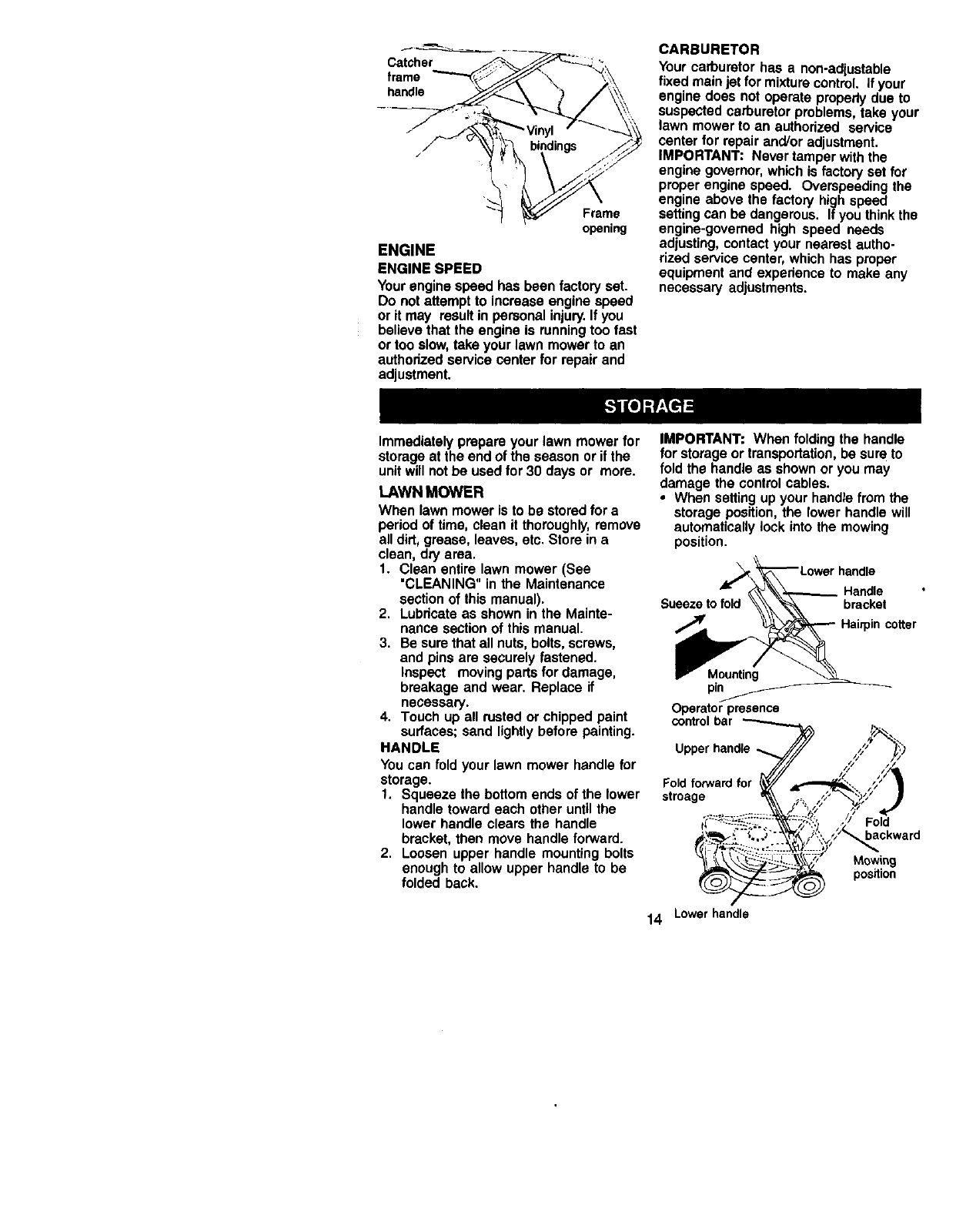

Service and Adjustments .................... 14
Storage ............................................... 15
Troubleshooting ................................. 16
Repair Pads ........................................ 35
Parts Ordedng ..................... Back Cover
LIMITED TWOYEARWARRANTY ON CRAFTSMAN POWERMOWER
For two years from date of purchase,whenthisCraftsmanLawnMower is maintained,
lubdcated,and tuned up accordingto the operatingand maintenanceinstnJctionsin
the owner'smanual,Sears willrepairfree of chargeany defectin materialorwork-
manship.
If thisCraftsmanLawn Moweris usedfor commercialor rentalpurposes,thiswarranty
applies for only90 days from the date of purchase.
This Warrantydoesnotcover:
•Expendableitemswhich becomeworndudng normaluse,such as rotarymower
blades,blade adapters,belts,air cleaners and sparkplug.
• Repairsnecessarybecauseof operatorabuse or negligence,includingbent
crankshaftsandthe failure to maintainthe equipmentaccordingto the instructions
containedin the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service CentedDepartment in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal dghts, and you may also have other dghts
which vary from state to state.
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
IMPORTANT: This cutting machine is capable of amputating hands and feet and
throwing objects. Failure to observe the following safety instructions could result in
sedous injury or death.
I.GENERAL OPERATION
•Read, understand, and follow all
instructions on the machine and in the
manual(s) before starting. Be thor-
oughly familiar with the controls and
the proper use of the machine before
starting.
•Do not put hands or feet near or under
rotating pads. Keep clear of the
discharge opening at all times.
• Only allow responsible individuals,
who are familiar with the instructions, to
operate the machine.
•Clear the area of objects such as
rocks, toys, wire, bones, sticks, etc.,
which could be picked up and thrown
by the blade.
•Be sure the area is clear of other
people before mowing. Stop machine if
anyone enters the area.
•Do not operate the mower when
barefoot or weadng open sandals.
Always wear substantial foot wear.
•Do not pull mower backwards unless
absolutely necessary. Always look
down and behind before and while
moving backwards.
•Do not operate the mower without
proper guards, plates, grass catcher or
other safety protective devices in place.
•See manufacturer's instructions for
proper operation and installation of
acceasodes. Only use accessories
2 approved by the manufacturer.

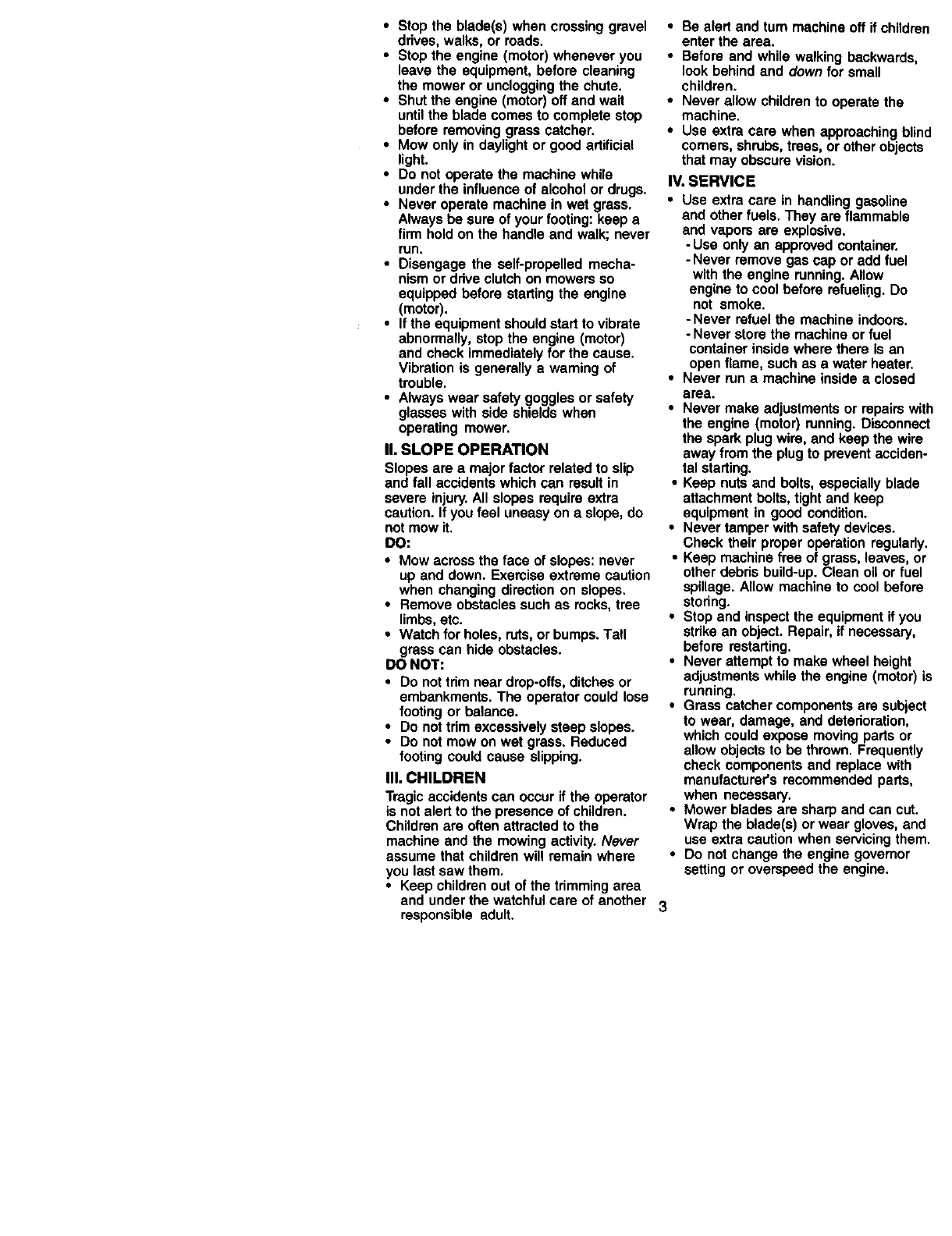

• Stoptheblade(s)whencrossinggravel
drives,walks,orroads.
•Stop the engine (motor) whenever you
leave the equipment, before cleaning
the mower or unclogging the chute.
• Shut the engine (motor) off and wait
until the blade comes to complete stop
before removing grass catcher.
•Mow only in daylight or good artificial
light.
•Do not operate the machine while
under the influence of alcohol or drugs,
•Never operate machine in wet grass.
Always be sure of your footing: keep a
firm hold on the handle and walk; never
run.
•Disengage the self-propelled mecha-
nism or drive clutch on mowers so
equipped before starting the engine
(motor).
•If the equipment should start to vibrate
abnormelly, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a waming of
trouble.
•Always wear safety goggles or safety
glasses with side shields when
operating mower.
II, SLOPE OPERATION
Slopes are a major factor relatad to slip
and fall accidents which can result in
severe injury.All slopes require extra
caution. If you feel uneasy on a slope, do
not mow it.
DO:
•Mow across the face of slopes: never
up and down. Exercise extreme caution
when changing direction on slopes.
•Remove obstacles such as rocks, tree
limbs, etc.
•Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
•Do not trim near drop-ors, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
•Do not mow on wet grass. Reduced
footing could cause slipping.
III. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presenca of children.
Children are often attracted to the
machine and the mowing activity. Never
assume that children will remain where
you last saw them.
•Keep children out of the trimming area
and under the watchful care of another
responsible adult.
•Be alert and turn machine off if child
enter the area.
• Before and while walking backward,,
look behind and down for small
children.
•Never allow children to operate the
machine,
•Use extra care when approaching b
comers, shrubs, tress, or other obje(
that may obscure vision.
IV. SERVICE
•Use extra care in handling gasdine
and other fuels. They are flammable
and vapors are explosive.
- Use only an approved container.
- Never remove gas cap or add fuel
with the engine running. Allow
engine to cool before refueli.ng, Do
not smoke.
-Never refuel the machine indoors.
- Never store the machine or fuel
container inside where there is an
open flame, such as a water heater
•Never run a machine inside a close(
area.
•Never make adjustments or repairs
the engine (motor) running. Disconn
the spark plug wire, and keep the wi
away from the plug to prevent accid_
tel starting,
•Keep nuts and bolts, especially blac
attachment bolts, tight and keep
equipment in good condition.
•Never tamper with safety devices.
Check their proper operation regula
•Keep machine free of grass, leaves,
other debris build-up. Clean oil or ft
spillage. Allow machine to cool bet(
storing.
•Stop and inspect the equipment if yq
strike an object. Repair, if necessa_
before restarting.
• Never attempt to make wheel height
adiustments whUe the engine (motor
running,
•Grass catcher components are subj(
to wear, damage, and deterioration,
which could expose moving parts or
allow objects to be thrown. Frequen!
check components and replace with
manufacturer's recommended parts
when necessary.
•Mower blades are sharp and can cu
Wrap the blade(s) or wear gloves, a
use extra caution when servicing th_
•Do not change the engine govemor
setting or overspeed the engine.
3

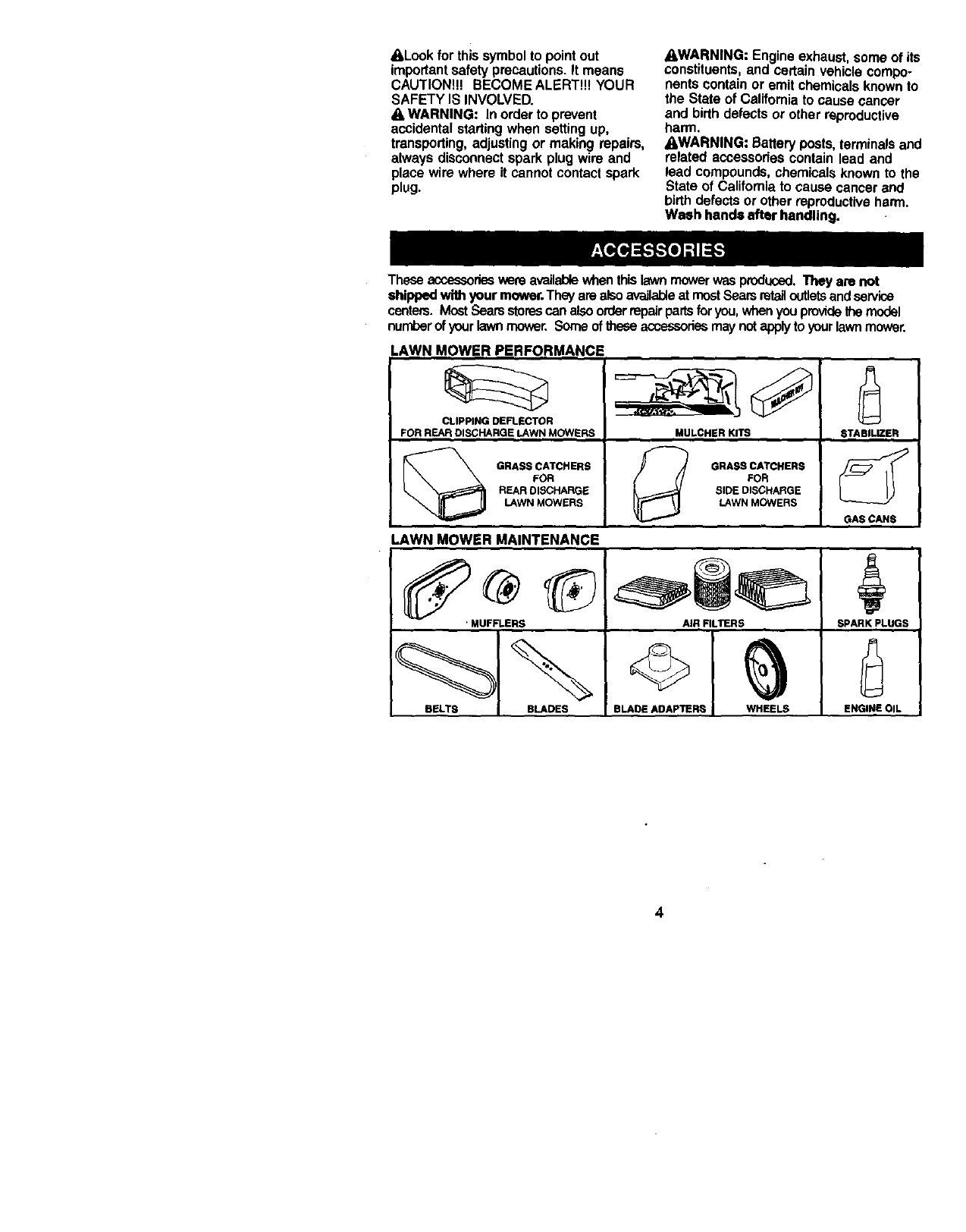

ALookfor thissymbolto pointout
importantsafetyprecautions.It means
CAUTION!!! BECOMEALERT!!! YOUR
SAFETY IS INVOLVED.
_1_WARNING: In orderto prevent
accidentalstartingwhen settingup,
transporting,adjustingor making repairs,
alwaysdisconnectsparkplugwire and
placewire whereit cannotcontactspark
plug.
AWARNING: Engineexhaust,someof its
constituents,and certainvehiclecompo-
nentscontainor emit chemicalsknownto
the State of Californiato causecancer
and birthdefectsor otherreproductive
harm.
AWARNING: Batteryposts,terminalsand
related accessoriescontainlead and
lead compounds,chemicalsknownto the
Stateof Californiato cause cancerand
birthdefectsor otherreproductiveharm.
Wash hands after handling.
TheseSccassorieswereavailablewhenthislawnmowerwasproduced.Theyare not
shippedwithyourmower.TheyerealsoavailableatmostSearsretailoutletsandservice
centers.Mo6tSearsstorescanalsoorderrepairpartsfor you,whenyouprovidethemodel
nurni0erofyourlawnmower.Someof theseaccessoriesmaynotapplytoyourlawnmower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS
GRASS CATCHERS
FOR
REAR DISCHARG_
LAWN MOWERS
MULCHER KITS
GRASS CATCHERS
FOR
SIDE DISCHARGE
LAWN MOWERS
$TABILBER
GAS CANS
LAWN MOWER MAINTENANCE
'MUFFLERS
BELTS BLADES
AIR FILTERS
BLA_aE ADAPTERS WHEELS
n
SPARK PLUGS
ENGINE OIL

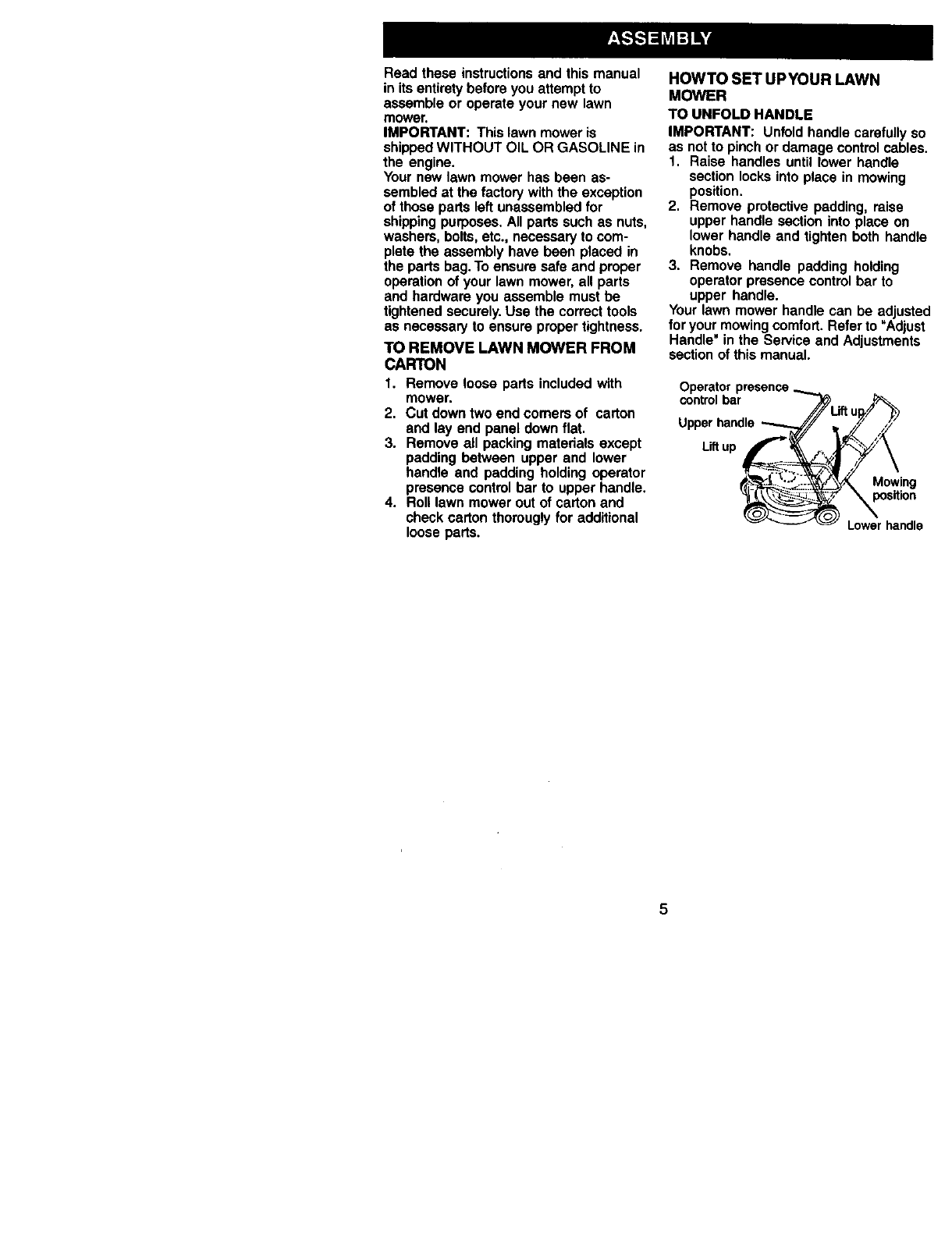

Read these instructions and this manual
in its entirety before you attempt to
assemble or operate your new lawn
mower.
IMPORTANT: This lawn mower is
shipped WITHOUT OIL OR GASOLINE in
the engine.
Your new lawn mower has been as-
sembled at the factory with the exception
of those parts left unassembled for
shipping purposes. All parts such as nuts,
washers, bolts, etc., necessary to com-
plete the assembly have been placed in
the parts bag. To ensure safe and proper
operation of your lawn mower, all parts
and hardware you assemble must be
tightened securely. Use the correct tools
as necessary to ensure proper tightness.
TO REMOVE LAWN MOWER FROM
CARTON
I. Remove loose parts included with
mower.
2. Cut down two end comers of carton
and lay end panel down flat.
3. Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
4. Roll lawn mower out of carton and
check carton thorougly for additional
loose parts.
HOWTO SET UPYOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
1. Raise handles until lower handle
section locks into place in mowing
position.
2. Remove protective padding, raise
upper handle section into place on
lower handle and tighten both handle
knobs.
3. Remove handle padding holding
operator presence control bar to
upper handle.
Your lawn mower handle can be adjusted
for your mowing comfort. Refer to "Adjust
Handle" in the Service and Adjustments
section of this manual.
Operator presence
controlbar _Uftu _
Upper handle _-J# _,_,_'Y/,_
_. "_::_-_/_ Mowing
5
KNOWYOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yoursell
with the location of various controls and adjustments. Save this manual for future
reference.
These symbols may appear on your lawn moweror in literaturesuppliedwiththe
product, Learn and understandtheir meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL OAk_ER, KEEP HAND5
OR WARNt f_l ON OFF ANO FEET AWAY
Operator presencecontrolbar
zonecontrolcable
Engine oil Cell:)with dipstick
'Wheael adjuster
IMPORTANT: This lawn mower is (on each wheel)
shipped without oil or gasoline in the
engine.
Ii ml
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
Amedcan National Standards Institute and the U.S. Consumer Product Safety Comm
sion. The blade turnswhen the,engine is running,
|1 i
Operator preaenoe control bar -must be Primer -pumps additional fuel from the
held down to the handle to start the carburetor to the cylinder for use when
engine. Release to stop the engine, starting a cold engine.
Starter handle - used for starting the
engine.
6

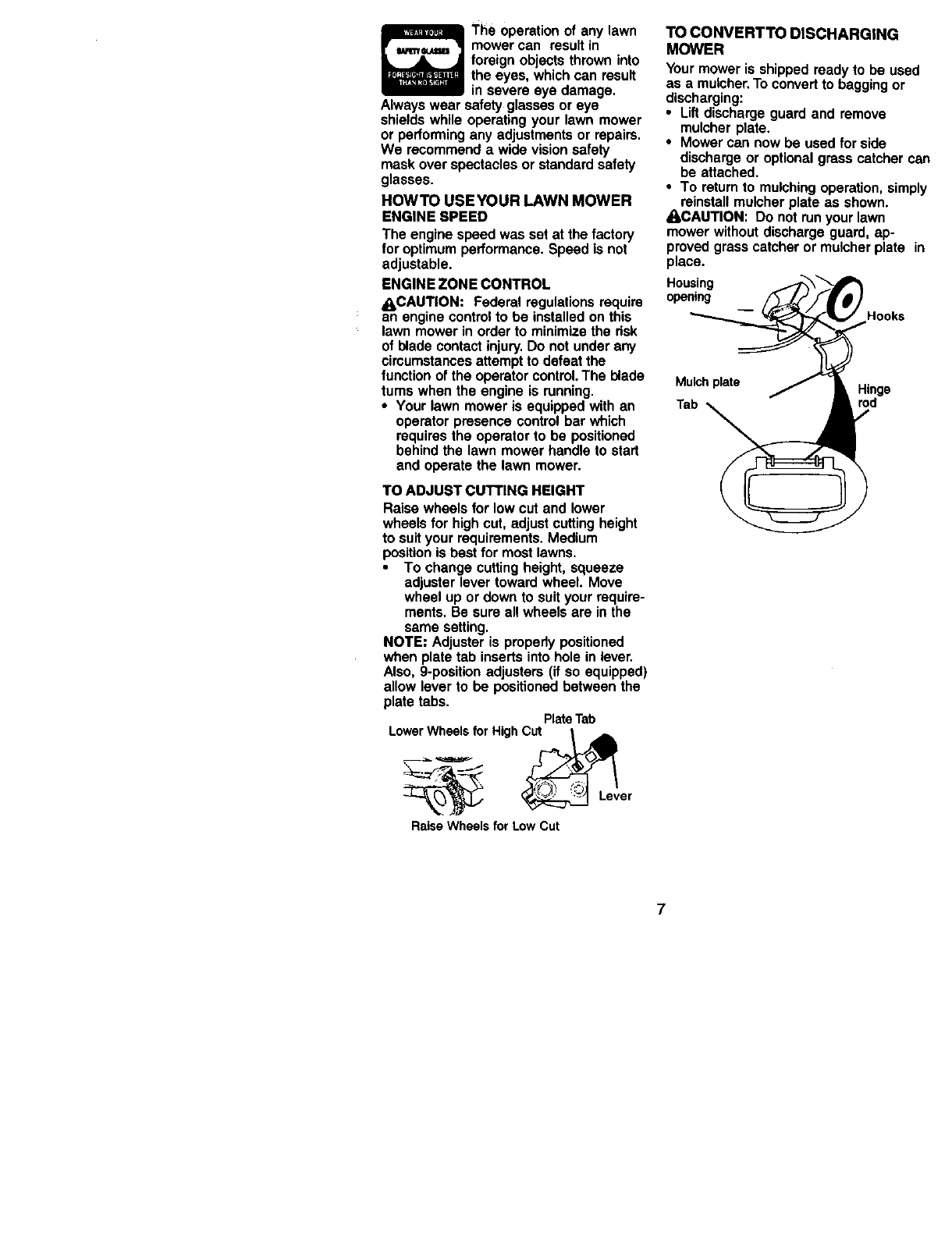

The operation of any lawn
mower can result in
foreign objects thrown into
the eyes, which can result
in severe eye damage.
Always wear safety glasses or eye
shields while operating your lawn mower
or performing any adjustments or repairs.
We recommend a wide vision safety
mask over spectacles or standard safety
glasses.
HOWTO USEYOUR LAWN MOWER
ENGINE SPEED
The engine speed was set at the factory
for optimum performance. Speed is not
adjustable.
ENGINE ZONE CONTROL
_kCAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the dsk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
rums when the engine is running.
•Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower.
TO ADJUST CUTTING HEIGHT
Raise wheels for low cut and lower
wheels for high cut, adjust cutting height
to suit your requirements. Medium
position is best for most lawns,
• To change cutting height, squeeze
adjuster lever toward wheel. Move
wheel up or down to suit your require-
ments. Be sure all wheels are in the
same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs. PlateTab
LowerWheels for High Cutr'-_L__L_-A_
ovor
Raise Wheels for LowCut
TO CONVERTTO DISCHARGING
MOWER
Your mower is shipped ready to be used
as a mulcher. To convert to bagging or
discharging:
•Lift discharge guard and remove
mulcher plate.
•Mower can now be used for side
discharge or optional grass catcher can
be attached.
•To retum to mulching operation, simply
reinstall mulcher plate as shown.
_I_CAUTION: Do not run your lawn
mower without discharge guard, ap-
proved grass catcher or mulcher plate in
place.
Housing
opening
Hooks
Mulchplate Hinge
Tab rod
BEFORESTARTINGENGINE
ADDOIL
Yourlawnmowerisshippedwithoutoilin
theengine. Engine holds 20 oz. of oil.
For type and grade of oil to use, see
"ENGINE" in Maintenance section of this
manual.
1. Be sure lawnmower is level and area
around oil fill is clean.
2. Remove engine oil cap and fill to the
full line on the dipstick. Pour oil slowly.
Do not over fill.
NOTE: Allow oil to settle down into engine
for accurate reading. To read proper level,
tighten engine oil cap, then remove it to
read the dipstick.
3. Reinstall engine oil cap and tighten.
•Check oil level before each use. Add
oil if needed. Fill to full line on dipstick.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
NOTE: Before filling fuel tank, remove
and discard the debris plug that is inside
the tank.
•Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. Do not mix oil with gaso-
line. Purchase fuel in quantities that
can be used within 30 days to assure
fuel freshness.
_WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids dudng storage. Acidic
gas can damage the fuel system of an
enginewhile in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in the fuel
tank or permanent damage may occur.
_1_CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
Gasoline oil cap
(Discard
debds plug
inside)
TO START ENGINE
NOTE: Due to protectivecoatingson the
engine,a smallamountof smokemay be
presentdudngthe initialuse of the
productand shouldbe considered
normal.
t. To starta cold engine, pushprimer
three (3) timesbeforetryingtostart.
Use a firmpush.Thisstep is not
usuallynecessarywhen startingan
enginewhich has already runfor a
few minutes.
2. Hold operatorpresence controlbar
downto the handleandpullstarter
handlequickly.Do notallow starter
rope to snap back.
TO STOP ENGINE
•To stopengine, release operator
presencecontrolbar.
NOTE: In coolerweatherit may be
necessaryto repeatprimingsteps.In
warmerweatherover primingmay cause
floodingandenginewillnotstart.If you
do floodengine,wait a few minutes
beforeattemptingto startand do not
repeatprimingsteps.
8

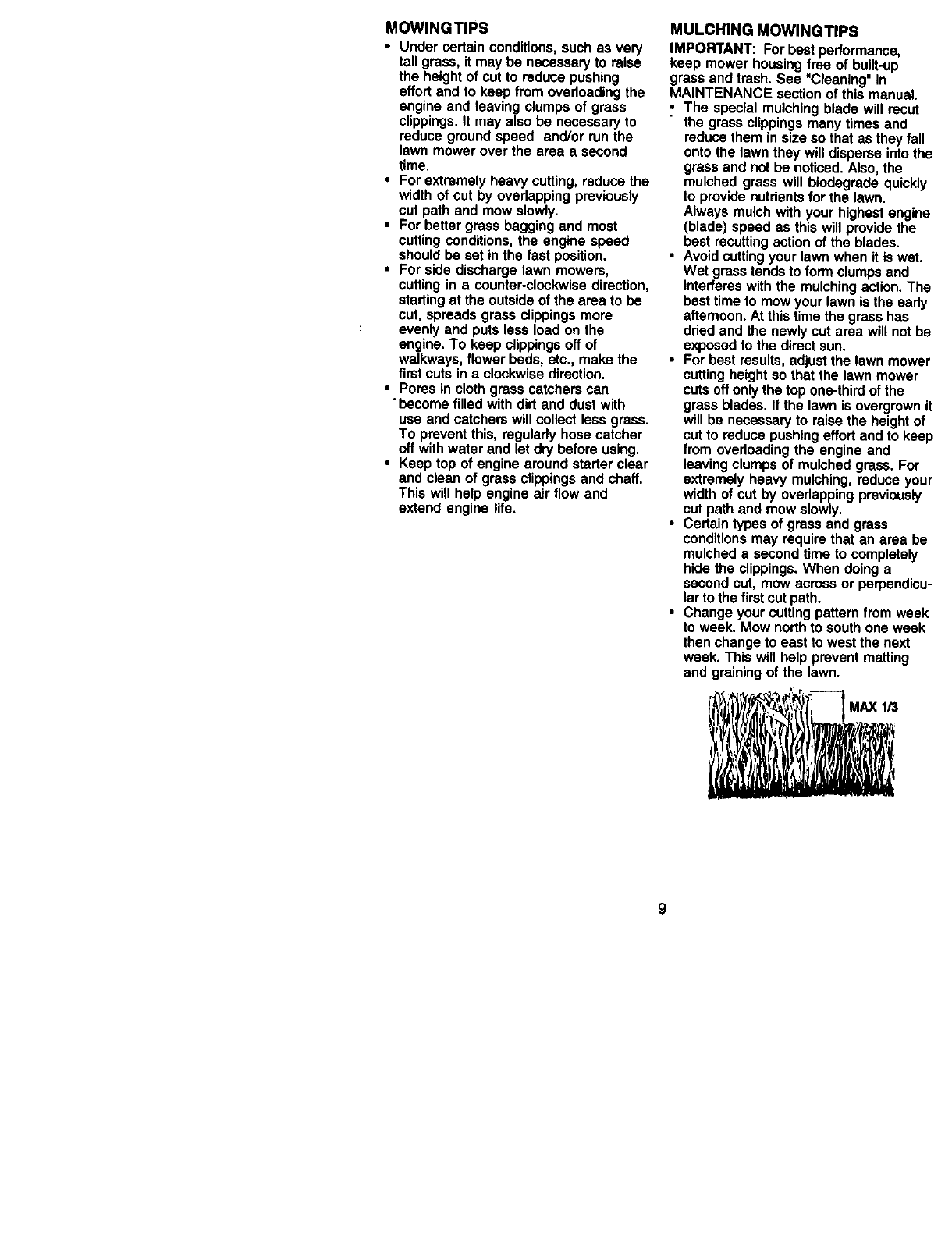

MOWING TIPS
•Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from ovedoading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
•For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
•For side discharge lawn mowers,
cutting in acounter-clockwise direction,
starting at the outside of the area to be
cut, spreads grass clippings more
evenly and puts less load on the
engine. To keep clippings off of
walkways, flower beds, etc., make the
flint cuts in a clockwise direction.
•Pores in cloth grass catchers can
"become filled with dirt and dust with
use end catchers will collect less grass.
To prevent this, regularly hose catcher
off with water and let dry before using,
•Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWINGTIPS
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. See "Cleaning" in
MAINTENANCE section of this manua
•The special mulching blade will reel
the grass clippings many times and
reduce them in size so that as they f
onto the lawn they will disperse into
grass and not be noticed. Also, the
mulched grass will biodegrade quic
to provide nutdents for the lawn.
Always mulch with your highest eng
(blade) speed as this will provide th,
best recurring action of the blades.
•Avoid cutting your lawn when it is w_
Wet grass tends to form clumps and
interferes with the mulching action, "
best time to mow your lawn is the e_
afternoon. At this time the grass has
dried and the newly cut area will no1
exposed to the direct sun.
•For best results, adjust the lawn mo'
cutting height so that the lawn mowq
cuts off only the top one-third of the
grass blades. If the lawn is overgrov
will be necessary to raise the height
cut to reduce pushing effort and to kq
from overloading the engine and
leaving clumps of mulched grass. F¢
extremely heavy mulching, reduce y
width of cut by overlapping previous
cut path and mow slowly.
•Certain types of grass and grass
conditions may require that an area
mulched asecond time to completel
hide the clippings. When doing a
second cut, mow across or peq3end;
lar to the first cut path.
•Change your cutting pattem from w(
to week. Mow north to south one we
then change to east to west the next
week. This will help prevent matting
and graining of the lawn.
MAX 1_
9
,LL,,O,TES _
ASYOUCOMPLETE /__O_j_,x_/ _*_ _'_.',_ O_
REGULAR SERVICE __,7" _v_ ERVICE DATES
Check for Loose F_ste_ers I,/' t/'
Clean/Inspect Grass Catcher
(If Equipped) I/ ll/' ll/
M Clean LaWn Mower If/I_
OClean Under Ddve Cov_
Pow_r-Propelled Mowers) _ i
Check drive b_t,_ulleys
E (Power-Prc_elled Mowers) I_
Cdeck/Sharpen/Replece Blade (=/'3
LubricationChart _// p//
Clean Batter//Recha
IElectric Start Mowe_ I/ k_4
ECheck En_ne 011Level (iS
NChange Engine Oil 1_/1.2
G €leanAlrRIter I_ 2
| Inspect Muffler
N Clean or Replao'e Spark Rug I/
E ReplaceAirFinerPaperCartridge 11_2
1.change mornof(onwhen _eTl_ing underi heavy load _Inhigh =lrnbienttemperatures.
2 - $,,rV_e mote oft,m when op,,m_g indirtyorduSlyoo,_ons.
3 - Rep_ce hi=des rnor_,oitim wflen mow_lgin=mrwySO_l.
4*Charge48 imml at end of imuon.
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does
not cover items that have been subjected
to operator abuse or negligence. To
receive full value from the warranty,
operator must maintain mower as
instructed in this manual.
Some adiustments will need to be made
periodically to properly maintain your
unit.
All adjustments in the Service and
Adjustments section of this manual
should be checked at least once each
season.
•Once a year, replace the spark plug,
clean or replace air filter element and
check blade for wear. A new spark
plug and clean/new air filter element
assures proper air-fuel mixture and
helps your engine run better and last
longer.
•Follow the maintenance schedule in
this manual.
BEFORE EACH USE
1. Check engine oil level.
2. Check for loose fasteners.
LUBRICATION
Keep unitwell lubricated (Sea "LUBRI-
CATION CHART").
LUBRICATION CHART
(_Wheel adjuster
\
o, spring
bracket
(_Handle bracket
mountingpin
(_) Refer to maintenance "Engine" section.
_) Spray lubricant
IMPORTANT: Do not oil or grease
plastic wheel bearings, viscous lubri-
cants will attract dust and dirt that will
shorten the life of the self-lubricating
bearings, if you feel they must be
lubricated, use only a dry, powdered
graphite type lubricant sparingly.
10
PRODUCT SPECIFICATIONS
SERIAL NUMBER
DATE OF PURCHASE
3ASOLINE CAPACITY/TYPE: 1.5 QUARTS
UNLEADED REGULAR
31LTYPE (API-SF - SJ): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
DIL CAPACITY: 20 OZS.
SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J19LM
BLADE BOLT TORQUE: 35-40 FT. LBS.
'The model and sedal numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when
performing any maintenance.
TIRES
•Keep tires free of gasoline, oil, or insect
control chemicals which can harm
rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.

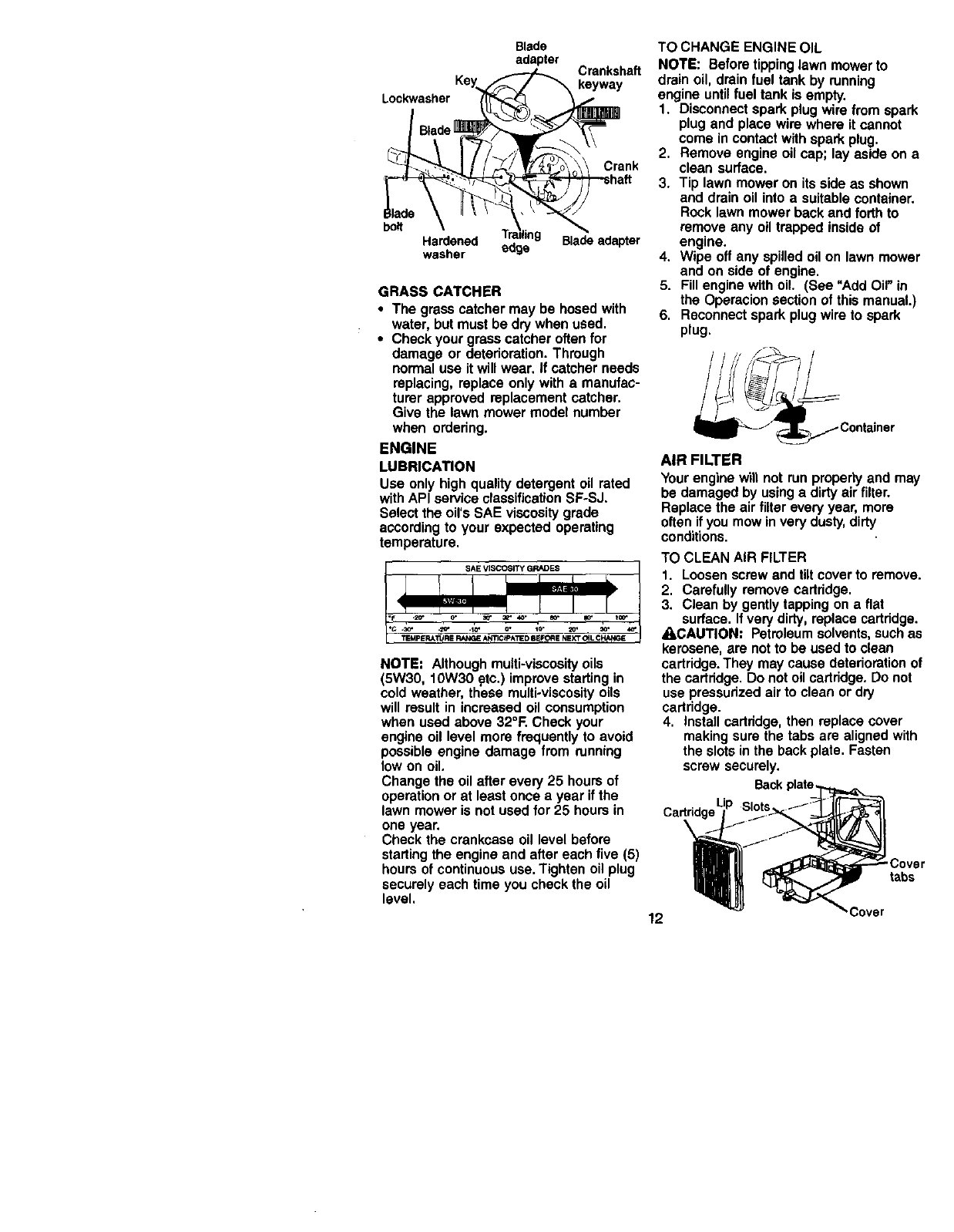

TO REMOVE BLADE
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Turn lawn mower on its side. Make
sure air filter and carburetor are up.
3. Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
NOTE: Protect your hands with gloves
and/or wrap blade with heavy cloth.
4. Remove blade bolt by tuming counter-
clockwise.
5. Remove blade and attaching hard-
ware (bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade
adapter. The key must be in good condi-
tion to work properly. Replace adapter if
damaged.
TO REPLACE BLADE
1. Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
2. Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
3. Be sure the trailing edge of blade
(opposite sharp edge) is up toward
the engine.
4. Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
5. Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, tuming clockwise.
•The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade bolt is grade 8 heat
treated.
TO SHARPEN BLADE
NOTE: We do not recommend sharpen-
ing blade - but if you do, be sure the
blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower
or engine.
•The blade can be sharpened with afile
or on a gdnding wheel. Do not attempt
to sharpen while on the mower.
•To check blade balance, ddve a nail
into a beam or wall. Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position, If either
end of the blade moves downward,
sharpen the heavy end until the blade
is balanced.
11
Blade
adapter kCr;"w a haft
Lockwasher =__
bolt \T,.=_,j_,._
washer e_:JHardened "_-"e'U Bladeadapter
GRASS CATCHER
•The grass catcher may be hosed with
water, but must be dry when used.
•Check your grass catcher often for
damage or deterioration. Through
normal use it will wear. If catcher needs
replacing, replace only with a manufac-
turer approved replacement catcher.
Give the lawn mower model number
when ordedng.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF-SJ.
Select the oirs SAE viscosity grade
according to your expected operating
temperature.
NOTE: Although multi-viscosity oils
(5W30, 10W30 Otc.) improve starting in
cold weather, these multi-viscosity oils
will result in increased oil consumption
when used above 32°F. Check your
engine oil level more frequently to avoid
possible engine damage from running
low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the
lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil
level,
TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
1. Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
2. Remove engine oil cap; lay aside on a
clean surface.
3. Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of
engine.
4. Wipe off any spilled oil on lawn mower
and on side of engine.
5. Fill engine with oil. (See "Add Oil" in
the Operacion section of this manual.)
6. Reconnect spark plug wire to spark
plug.
AIR FILTER
Yourenginewill not run properly and may
be damaged by usinga dirty airfilter.
Replacethe air filter everyyear,more
oftenif youmowin verydusty,dirty
conditions.
TO CLEAN AIR FILTER
1. Loosen screw and tilt cover to remove.
2. Carefully remove cartridge.
3. Clean by gently tapping on a flat
surface. If very dirty, replace cartridge.
_kCAUTION: Petroleum solvents, such as
kerosene, are not to be used to clean
cartridge. They may cause deterioration of
the cartridge. Do not oil cartridge. Do not
use pressurized air to clean or dry
cartridge.
4. Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely.
Back
12
Cover
tsbs
,Cover
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or dam*
age.
SPARK PLUG
Change your spark plug each year to
make your engine start easier and run
better. Set spark plug gap at .030 inch.
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. Clean the underside of
your mower after each use.
•iLCAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
•Keep finished surfaces and wheels free
of all gasoline, oil,etc.
•We do not recommend using a garden
hose to clean lawn mower unless the
electdcal system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in
shodened engine life.
_,CAUTION: Before performing any
service or adjustments:
1. Release control bar and stop engine.
2. Make sure the blade and all moving
parts have completely stopped.
3. Disconnect spark plug wire from spark
plug and place where it cannot come
in contact with plug.
LAWN MOWER
TO ADJUST CUTTING HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your mower, is provided to
minimize the possibility that objects will
be thrown out of the rear of the mower
into the operator's mowing position. If the
deflector becomes damaged, it should be
replaced.
DISCHARGE GUARD
The discharge guard, attached to the
discharge opening of your lawn mower, is
provided to prevent the possibility of
injury resulting from objects being thrown
out of the discharge opening into the
operator mowing position. If the discharge
guard becomes damaged, it should be
replaced.
TO ADJUST HANDLE
The handle can be mounted in ahigh or
low position. The mounting holes in the
bottom of lower handle are off center for
raising or lowering the handle.
1. Remove upper handle and all parts
attached to lower handle.
2. Remove hairpin cotters from lower
handle bracket mounting pin.
3. Squeeze lower handle in to remove it
from mounting pins.
4. Turn lower handle over to raise or
lower handle.
5. Squeeze lower handle in and position
holes onto mounting pins on handle
bracket.
6. Reassemble upper handle and all
parts removed from lower handle.
Lower
Rotate
TO ASSEMBLE GRASS CATCHER
1. Put grass catcher frame into grass bag
with dgid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
2. Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
ACAUTION: Do not run your lawn mower
without clipping deflector or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
13door removed or propped open.
Catcher
frame
handle
Frame
opening
ENGINE
ENGINE SPEED
Yourenginespeed has been factoryset.
Do notattemptto increaseenginespeed
or it may resultin personalinjury.If you
believethat the engineis runningtoofast
or tooslow,takeyour lawn mowerto an
authorizedservicecenterfor repairand
adjustment.
CARBURETOR
Your carburetor has a non-adjustable
fixed main jet for mixture control. If your
engine does not operate propedy due to
suspected carburetor problems, take your
lawn mower to an authorized service
center for repair and/or adjustment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous. If you think the
engine-governed high speed needs
adjusting, contact your nearest autho-
rized service center, which has proper
equipment and experience to make any
necessary adjustments.
Immediately prepare your lawn mower for
storage at the end of the season or if the
unit will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean it thoroughly, remove
all dirt, grease, leaves, etc. Store in a
clean, dry area,
1. Clean entire lawn mower (See
"CLEANING" in the Maintenance
section of this manual).
2. Lubdcate as shown in the Mainte-
nance section of this manual.
3. Be sure that all nuts, bolts, screws,
and pins are securely fastened.
Inspect moving parts for damage,
breakage and wear. Replace if
necessary.
4. Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your lawn mower handle for
storage.
1. Squeeze the bottom ends of the lower
handle toward each other until the
lower handle clears the handle
bracket, then move handle forward.
2. Loosen upper handle mounting bolts
enough to allow upper handle to be
folded back.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
fold the handle as shown or you may
damage the control cables.
• When setting up your handle from the
storage position, the lower handle will
automatically lock into the mowing
position.
Sueeze to fold
pin
handle
Handle
bracket
Operator presence
controlbar _,_/._..
Upper handle /-_/ _j_/r _)
Foldforwardfor _/ _ _,,:,", "t'f_
stroage '_\ _,_,_,"':;_,_
position
14 Lowerhandle

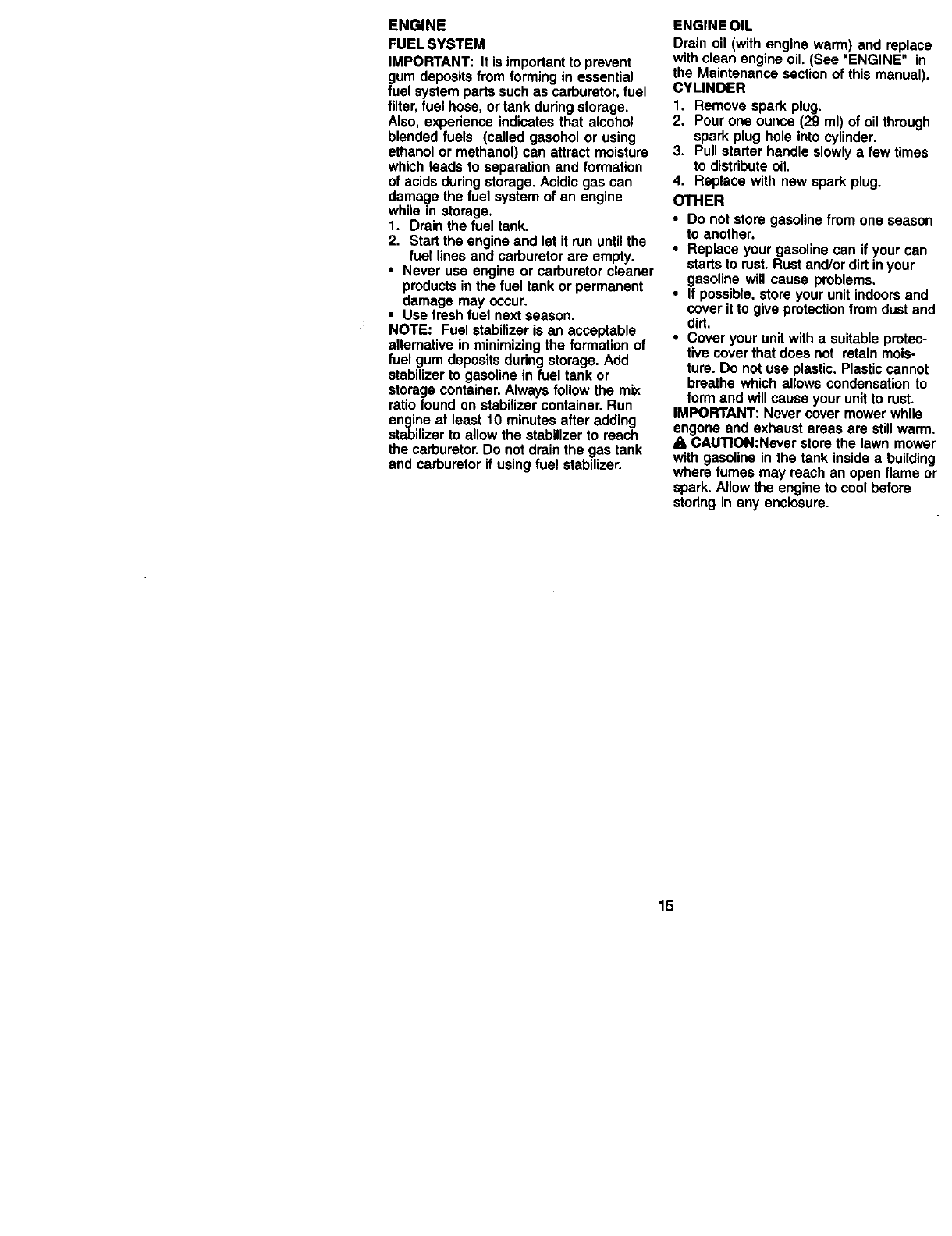

ENGINE
FUELSYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as carburetor, fuel
filter, fuel hose, or tank dudng storage.
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage.
1. Drain the fuel tank.
2. Start the engine and let it run until the
fuel lines and carburetor are empty.
•Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
•Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintenance section of this manual).
CYLINDER
1. Remove spark plug.
2. Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
3. Pull starter handle slowly a few times
to distribute oil.
4. Replace with new spark plug.
OTHER
•Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
•If possible, store your unit indoors and
cover it to give protection from dust and
dirt.
•Cover your unit with a suitable protec-
tive cover that does not retain mois-
ture. Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engone and exhaust areas are still warm.
ACAUTION:Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
15
TROUBLESHOOTING CHART
!PROBLEM CAUSE
Does not start
Loss of power
Poor cut-
_neven
1. Dirtyairfilter.
2. Outof fuel.
3. Stale fuel.
4. Water in fuel.
5. Spark plugwire is
disconnected.
6. Bad sparkplug.
7. Loose blade or broken
blade adapter.
8, Controlbar in released
position.
9. Controlbar defective.
1. Rear of lawn mower
housingorcuttingblade
draggingin heavy grass.
2. Cuttingtoomuchgrass.
3. Dirtyairfilter.
4. Buildupof grass,leaves,
and trashundermower.
5. Too muchoil in engine.
6. Walkingspeedtoofast.
CORRECTION
1. Clean/replaceair filter,
2, Fillfueltank.
3. Draintank and refillwith
freshcleanfuel.
4. Drainfueltank and
carburetorand refilltank
with freshgasoline.
5. Connectwireto plug.
1. Wom, bent or looseblade.
2. Wheel heights uneven.
3. Buildupof grass, leaves
and trashundermower.
1. Wom, bentor loose blade.
2. Bent enginecrankshaft.
i6. Replace spark plug.
7. Tightenblade boltor
replace blade adapter.
8. Depresscontrolbar to
handle.
9. Replace controlbar.
1. Set to "Higher Cut"
position.
2. Setto =HigherCut"
position.
3. Clean/replaceair filter.
4. Clean undersideof mower
housing.
5. Check oil level.
6. Cut at slowerwalking
speed.
1. Replace blade. Tighten
blade bolt.
2. Set all wheels at same
height
3. Clean underside of
mower housing.
Excessive 1. Replace blade. Tighten
vibration blade bolt.
2. Contact a Sears or other
qualified service center.
16

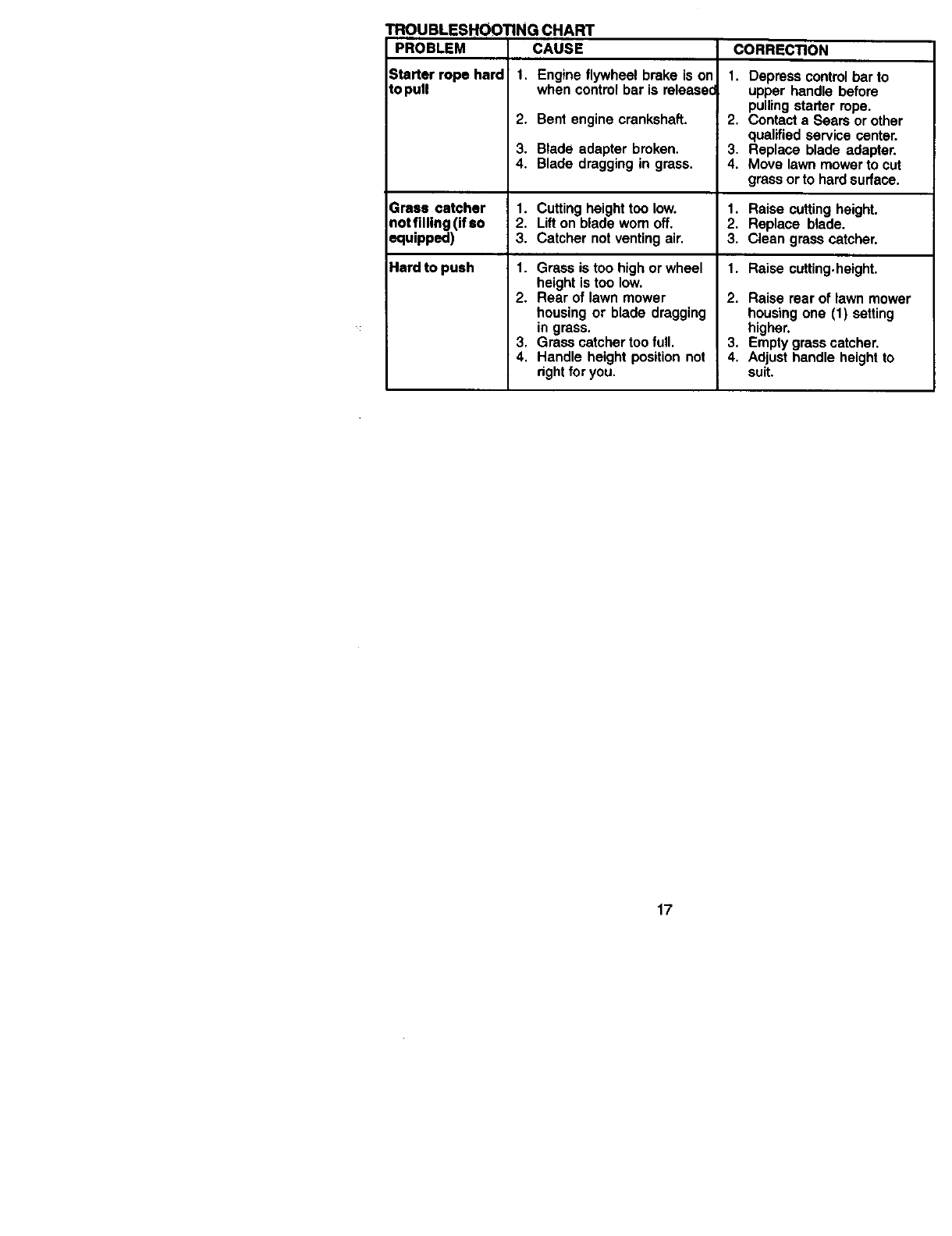

TROUBLESHOOTINGCHART
CAUSE CORRECTION
PROBLEM
Starter rope hard
to pull 1. Engine flywheel brake is on
when control bar is release_
2. Bent engine crankshaft,
3. Blade adapter broken.
4. Blade dragging in grass.
1. Depress control bar to
upper handle before
pulling starter rope.
2. Contact a Sears or other
qualified service center.
3. Replace blade adapter.
4. Move lawn mower to cut
grass or to hard surface.
Grass catcher 1. Cutting height too low. 1. Raise cutting height.
rtotfllllng(ifeo 2. Lift on blade worn off. 2. Replace blade.
_luipped) 3. Catcher not venting air, 3. Clean grass catcher.
Nard to push 1. Raise cutting.height,1. Grass is too high or wheel
height is too low.
2. Rear of lawn mower
housing or blade dragging
in grass.
3. Grass catcher too full.
4. Handle height position not
right for you.
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
4. Adjust handle height to
suit.
17

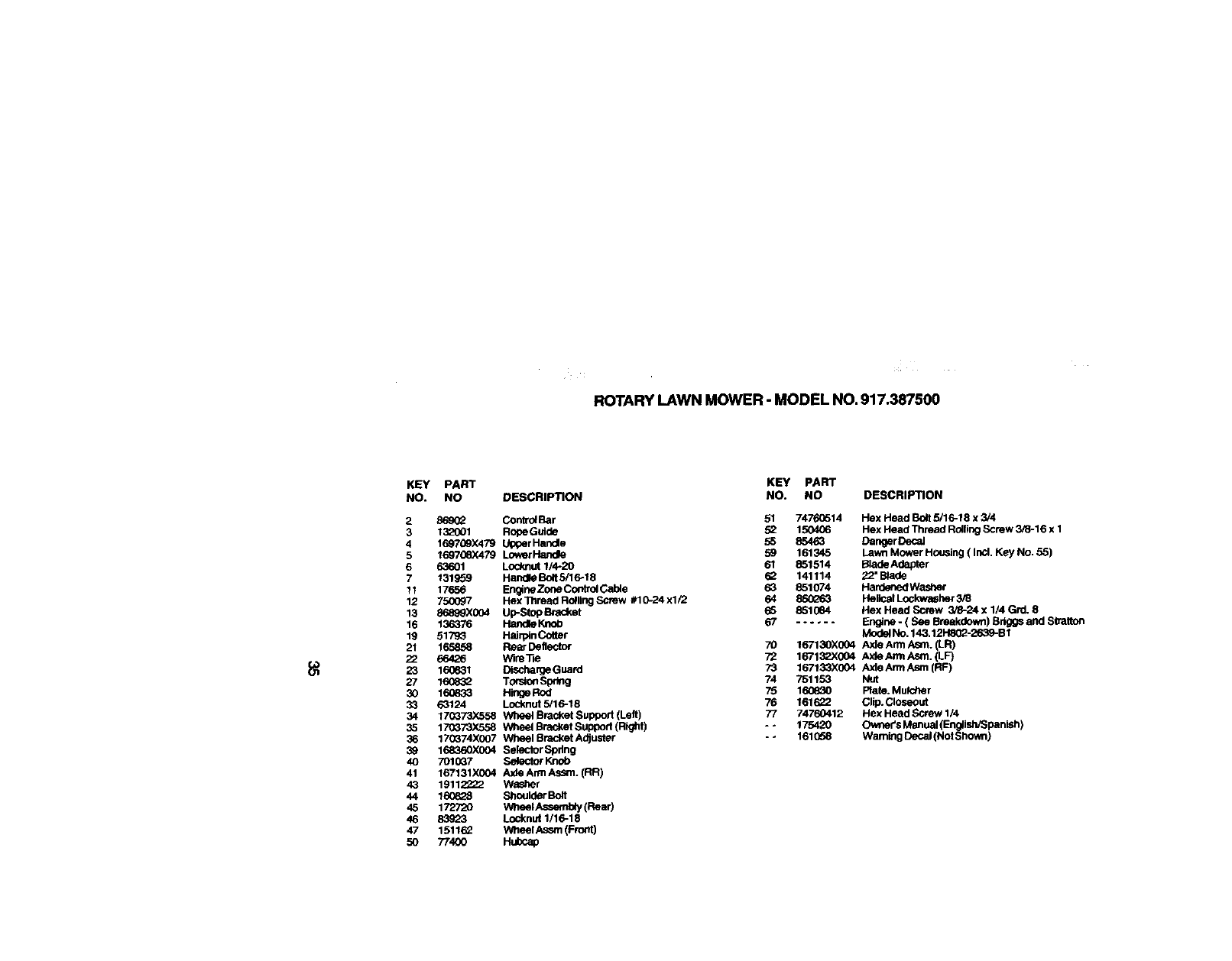

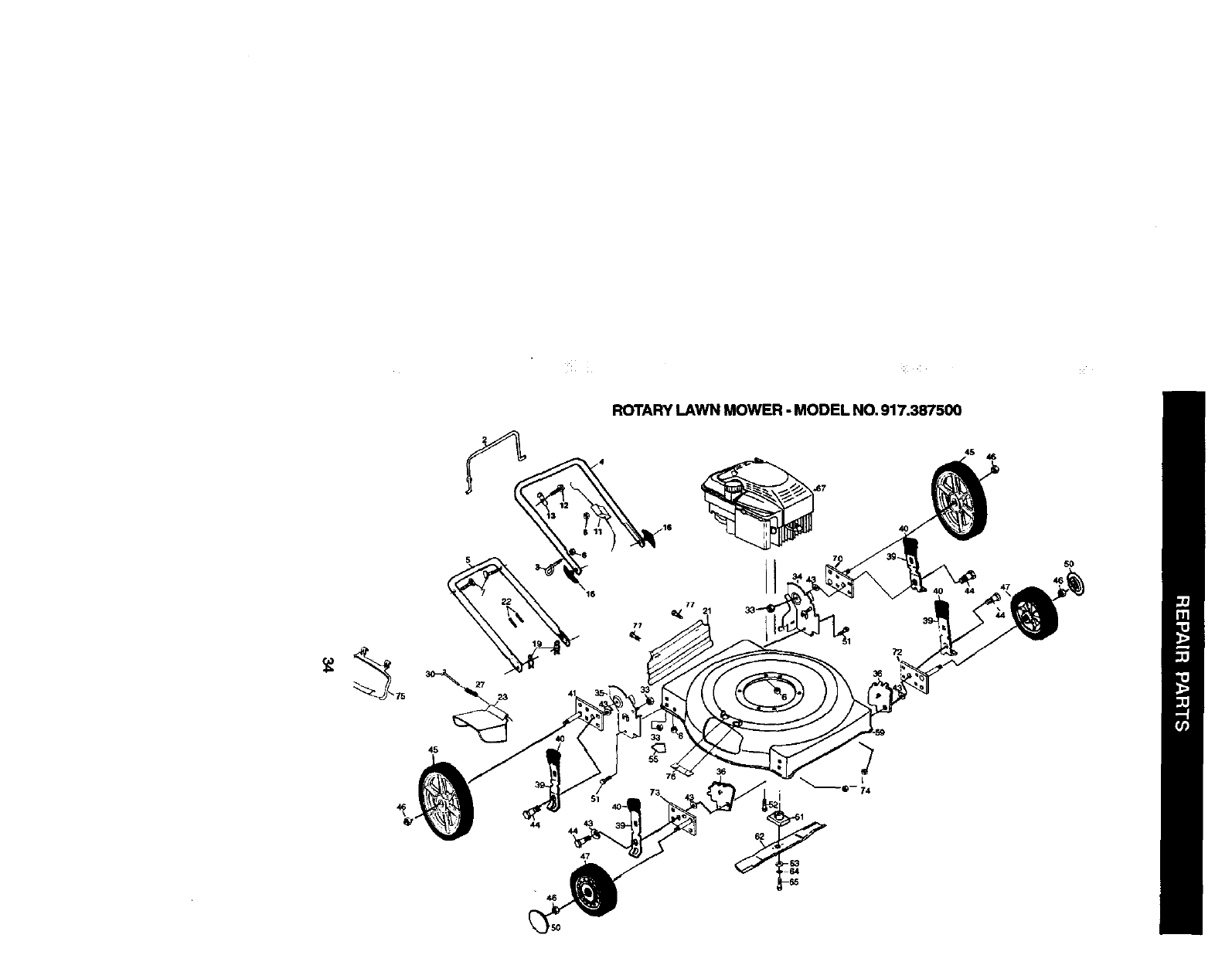

ROTARYLAWNMOWER- MODELNO.917.387500
72
44
45
44
46
51
43
44
47 63

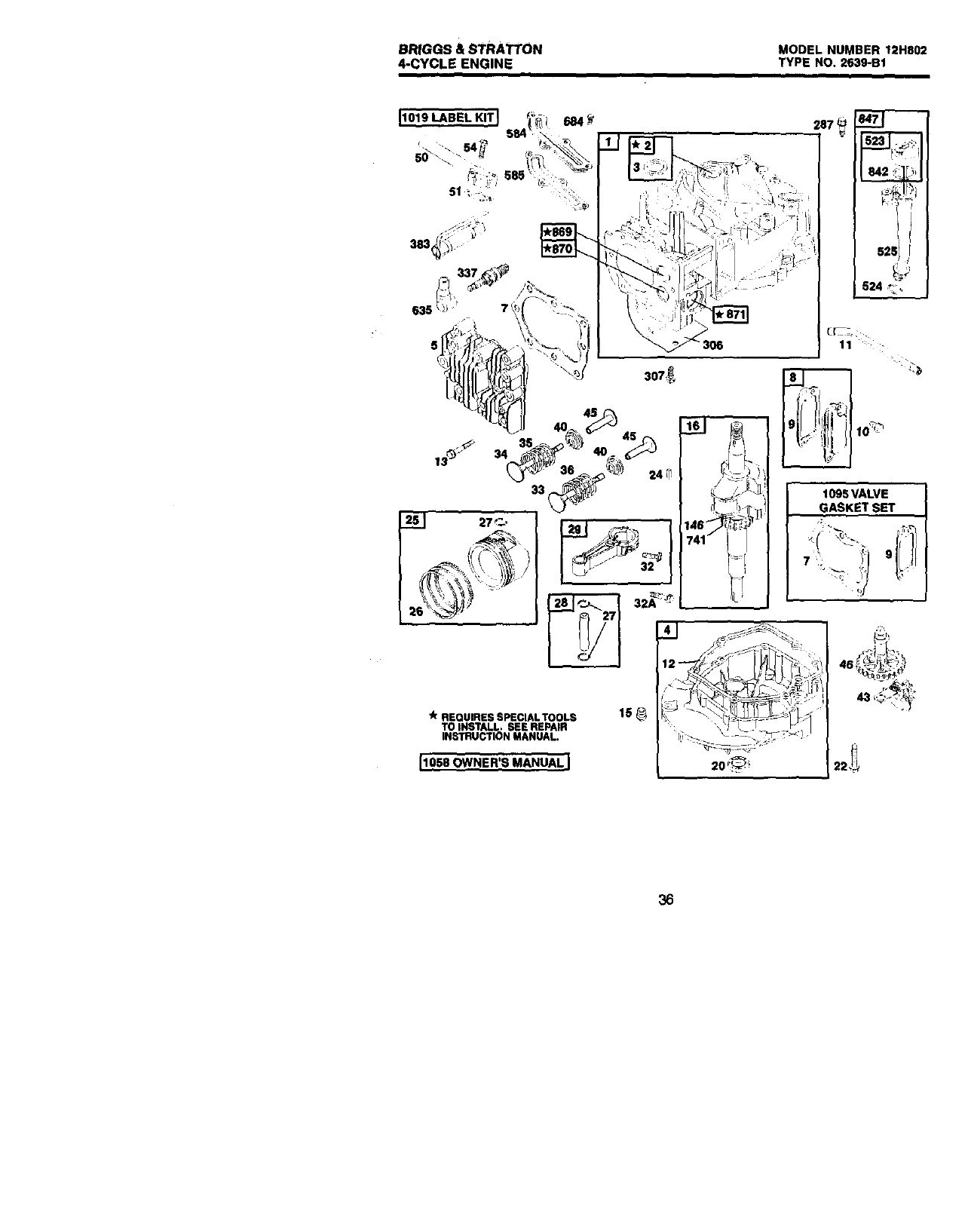

BRIGGS &STRATTON MODEL NUMBER 12H802
4-CYCLE ENGINE TYPE NO. 2639-B1
ii iiii
251
REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL.
{1058 OWNER'S MANUAL I
1095VALVE
GASKET SET
7?_ :!]

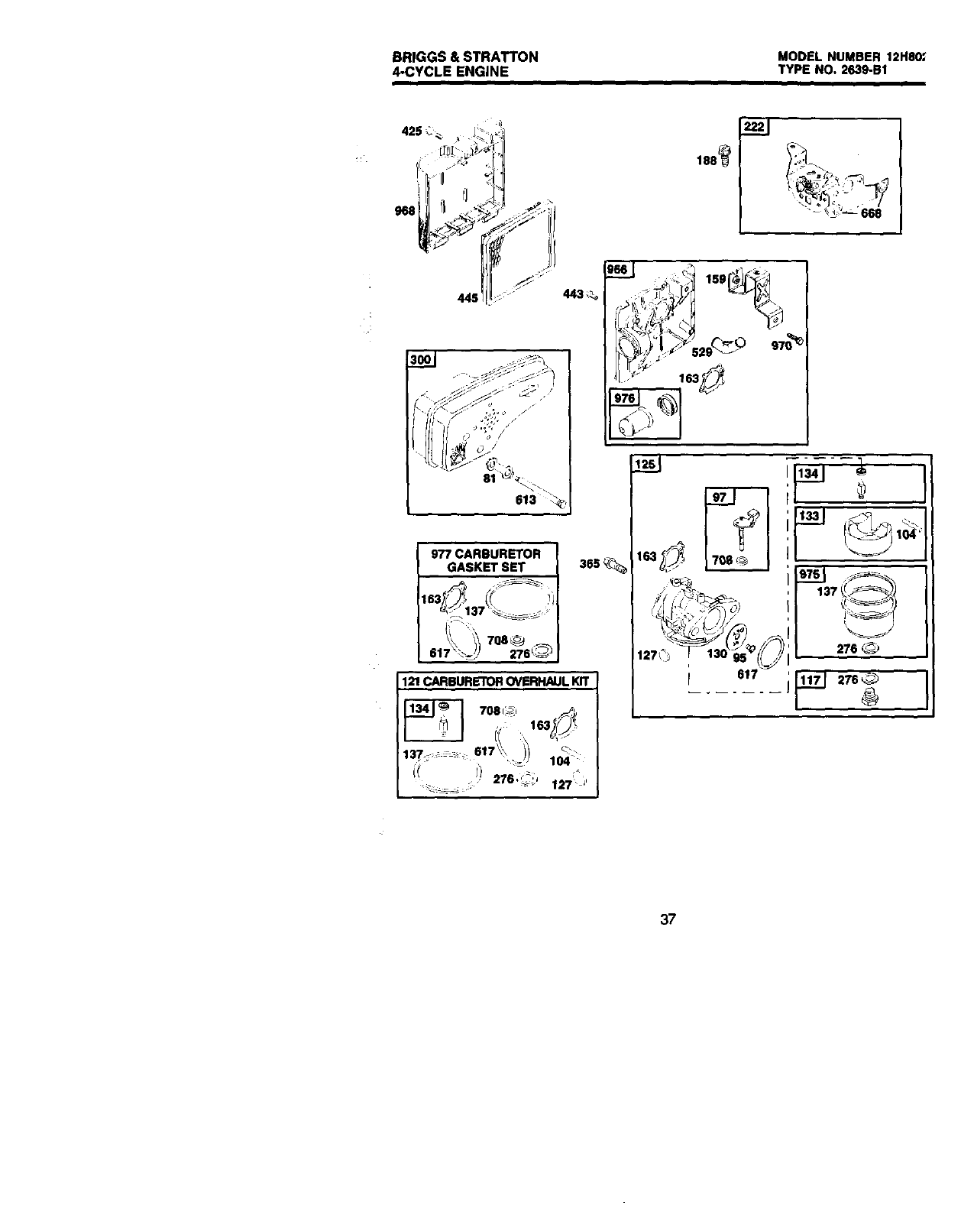

BRIGGS & STRATTON MODEL NUMBER 121180:
4-CYCLE ENGINE TYPE NO. 2639-B1
1881
445 443 ;_
/
977 CARBURETOR
GASKET SET
617_ 276_-i_ _
121 CARBURETOR OVERHAUL KIT
708 (_l
104
127 _
37

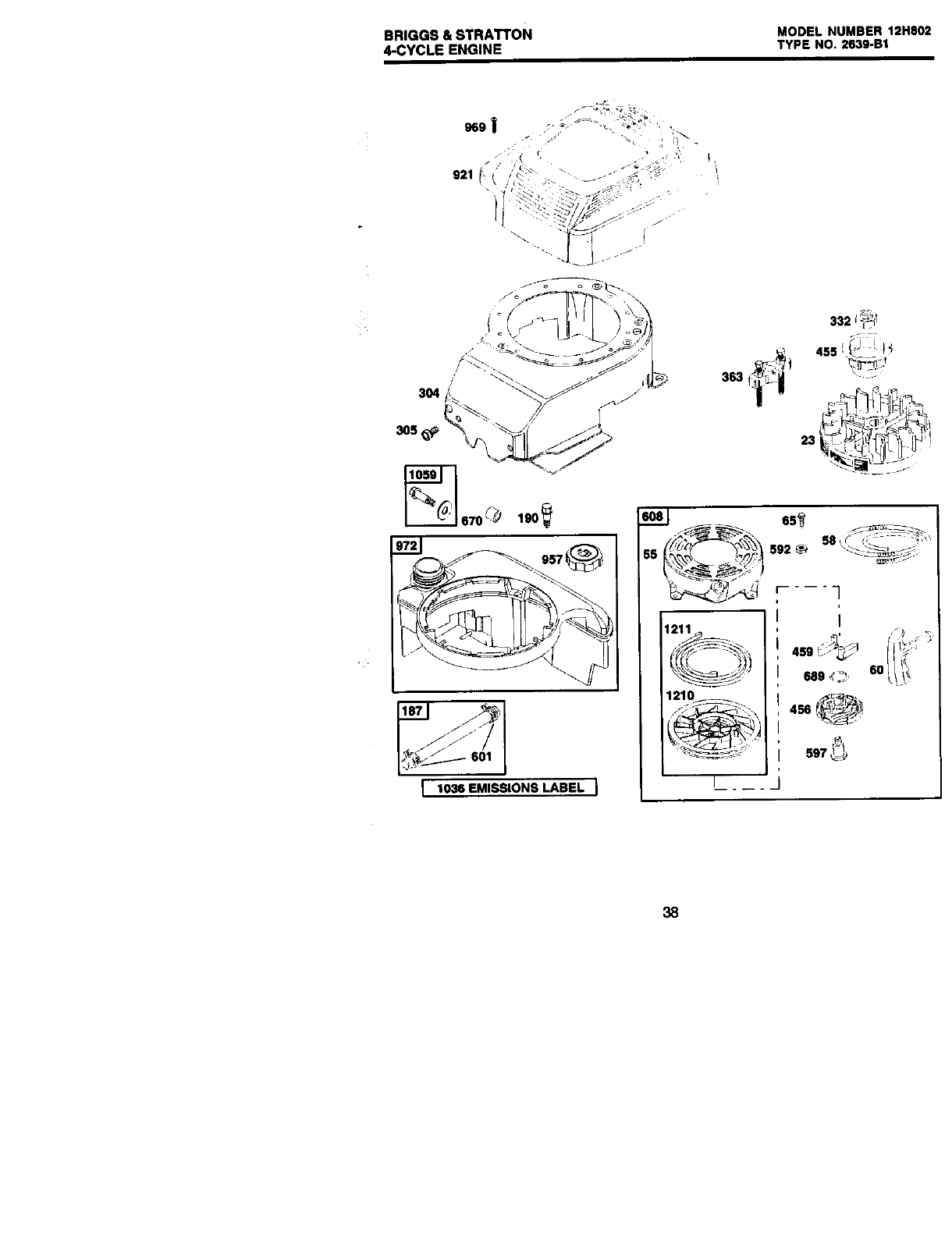

BRIGG$ & STRATTON MODEL NUMBER 12H802
4-CYCLE ENGINE TYPE NO. 2639-B1
!,
z '7
_ _..._ 601
L1036 EMISSIONS LABEL J
332 ! _fl
1+ "++?r_+_+:+
55 J _ r
211
1210
m.-- _
38
BRIGGS & STRATTON MODEL NUMBER 12N802
4-CYCLE ENGINE TYPE NO. 2639-B1
_z_ _ _
sog¢

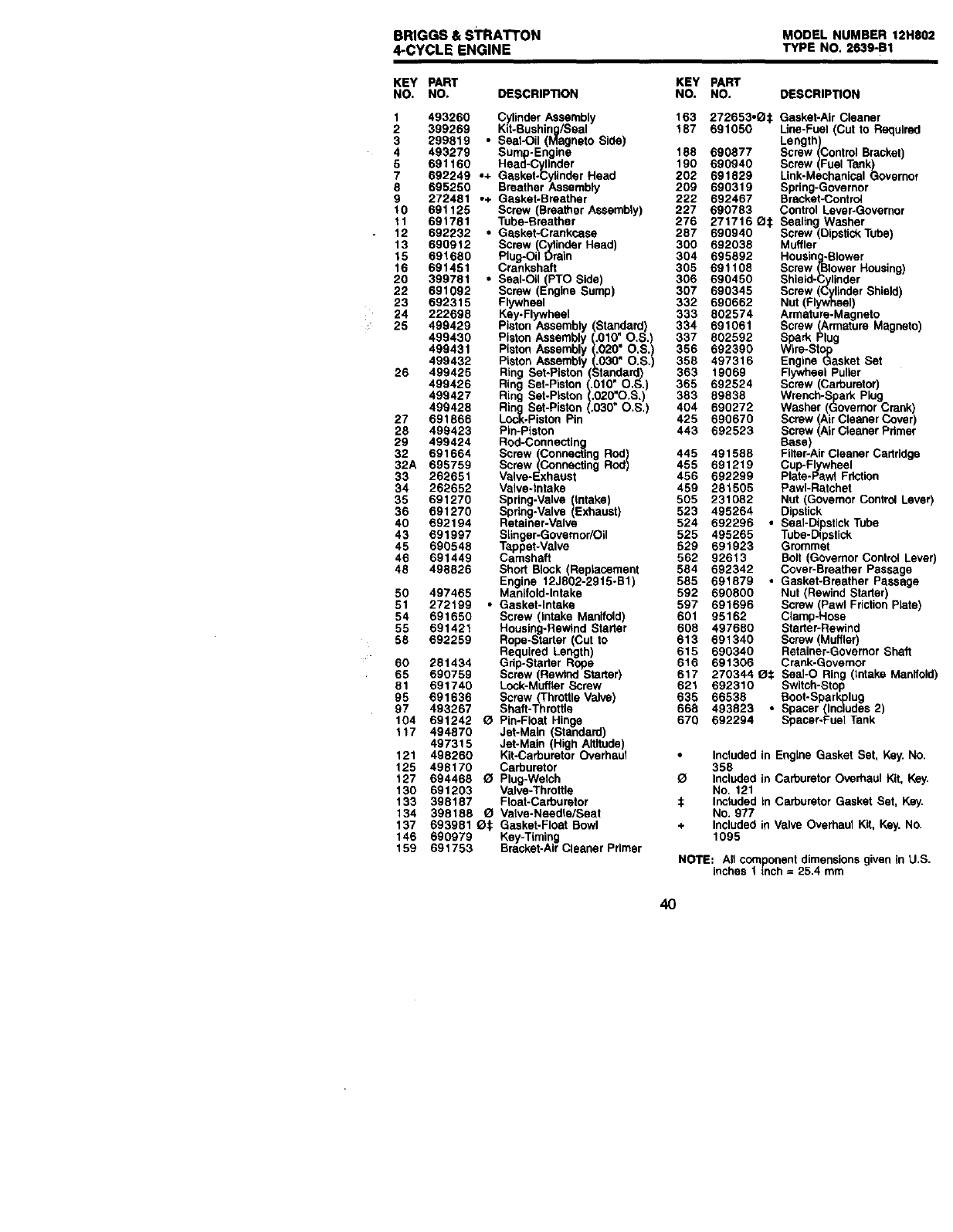

BRIGGS & STRATTON MODEL NUMBER 12H802
4-CYCLE ENGINE TYPE NO, 2639-B1
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO.
1 493260 C_linder Assembly 163 272653,O.t
2 399269 Kd-Bushing/Seal 187 691050
3 299819 • Seal-Oil (Magneto Side)
4 493279 Sump-Engine 188 690877
5 691160 Head-Cylinder 190 690940
7 692249 ,+ Gasket-Cylinder Head 202 691829
8 695250 Breather Assembly 209 690319
9 272481 ,+ Gasket-Breather 222 692467
10 691125 Screw (Breather Assembly) 227 690783
11 691781 Tube-Breather 276 271716 _:_
12 692232 • Gasket-Crankcase 287 690940
13 690912 Screw (Cylinder Head) 300 692038
15 691680 Plug-Oil Drain 304 695892
16 691451 Crankshaft 305 691108
20 399781 * Seal-Oil (PTO Side) 306 690450
22 691092 Screw (Engine Sump) 307 690345
23 692315 Flywheel 332 690662
24 222698 Key.Flywheel 333 802574
25 499429 Piston Assembly (Standard) 334 691061
499430 Piston Assembly (.0t(T O.S.) 337 802592
499431 Piston Assembly (.020" O.S.) 356 692390
499432 Piston Assembly (.030" O.S.) 358 497316
26 499425 Ring Set-Piston (Standard) 363 19069
499426 Ring Set-Piston (.010" O.S.) 365 692524
499427 Ring Set-Piston (.020"O.S.) 383 89838
499428 Ring Set-Piston (.030" O.S.) 404 690272
27 691866 Lock.Piston Pin 425 690670
28 499423 Pin*Piston 443 692523
29 499424 Rod-Connecting
32 691664 Screw Connecting Rod 445 491588
32A 695759 Screw Connectng Rod 455 691219
33 262651 Valve-Exhaust 456 692299
34 262652 Valve.intake 459 281505
35 691270 Spring-Valve (intake) 505 231082
36 691270 Spring-Valve (Exhaust) 523 495264
40 692194 Retainer-Valve 524 692296 •
43 691997 Slinger-Governor/Oil 525 495265
45 690548 Tappet-Valve 529 691923
46 691449 Camshaft 562 92613
48 498826 Short Block (Roplacemant 584 692342
Engine 12J802-2915-B1) 585 691879 •
50 497465 Manifold-Intake 592 690800
51 272199 , Gasket-Intake 597 691696
54 691650 Screw (Intake Manifold) 601 95162
55 691421 Housing-Rewind Starter 608 497680
58 692259 Rope-Starter (Cut to 613 691340
Required Length) 615 690340
60 281434 Gdp-Stader Rope 616 691306
65 690759 Screw (Rewind Starter) 617 270344 O_:
81 691740 Lock-Mufflar Screw 621 692310
95 691636 Screw (Throttle Valve) 635 66538 °
97 493267 Shaft-Throttle 668 493823
104 691242 _Pin-Float Hinge 670 692294
117 494870 Jet-Maln (Standard)
497315 Jet-Main (High Altitude)
121 498260 Kit-Carburetor Overhaul Included in
125 498170 Carburetor 358
127 694468 _Plug-Welch OIncluded in
130 691203 Valve-Throttle No, 121
133 398187 Float-CarbunHor :_ Inoluded _n
134 398188 _Valve-Needle/Seat No. 977
137 693981 _._ Gasket-Float Bowl + Included in
146 690979 Key-Timing 1095
159 691753 Bracket-Aft Cleaner Primer
DESCRIPTION
Gasket-Air Cleaner
Line-Fuel (Cut to Required
Length)
Screw (Control Bracket
Screw (Fue Tank)
Link-Manhenical Governor
Spring-Governor
Bracket-Contro_
Control Lever-Governor
Sealing Washer
Screw (Dipstick Tube)
Muffler
Hous_ng-Elower
Screw (Blower Housing
Shlald-Cylinder
Screw (Cyllader Shield
Nut (Flywhee
Armature-Magneto
Screw (Armature Magneto)
Spark Plug
Wire-Stop
Engine Gasket Set
Flywheel Pullar
Screw (Carburetor)
Wrench-Spark Plug
Washer (Governor Crank)
Screw (Air Cleaner Cover)
Screw (Air Cleaner Pdmer
Base)
Filter-Aft Cleaner Cartridge
Cup-Fl_wheel
Plate-Paw1 FdcUon
PawI-Ratchet
Nut (Govemor Control Lever)
Dipstick
Seal-Dipstick Tube
Tube-Dipstick
Grommet
Bolt (Governor Control Lever)
Cover-Breather Passage
Gasket-Breather Passage
Nut (Rewind Starter)
Screw (Pawl Friction Plate)
Clamp-Hose
Stader-Rewind
Screw (Muffler)
Retainer-Governor Shaft
Crank-Governor
SeaI-O Ring (Intake Manifold)
Switch-Stop
Boot-Sparkplug
Spacer (Inc=udas 2)
Spacer-Fuel Tank
Engine Gasket Set, Key. No.
Carburetor Overhaul Kit, Key.
Carburetor Gasket Set, Key.
Valve Overhaul Kit, Key. No,
NOTE: All component dimensions given in U.S.
inches 1 mch =25.4 mm
4O

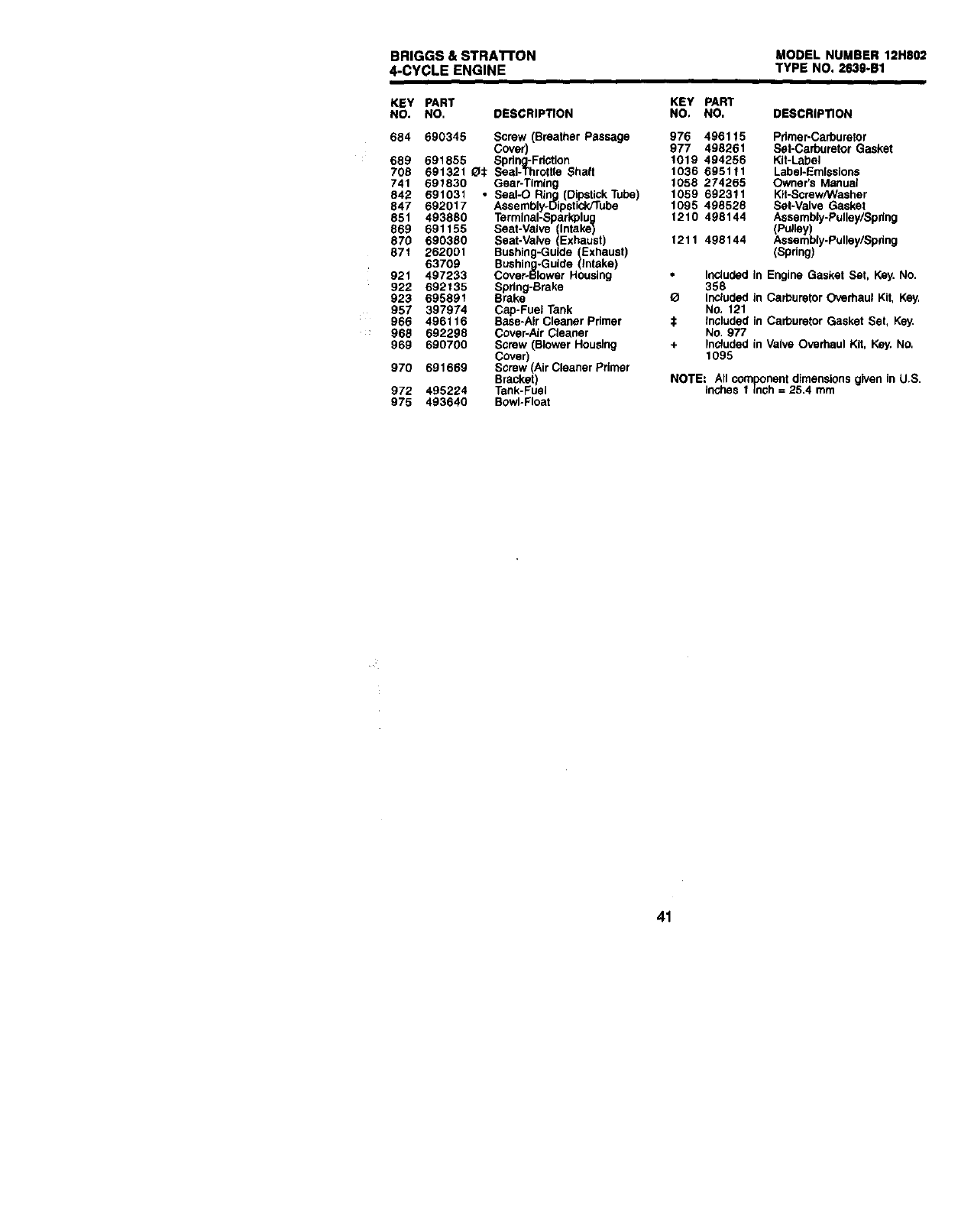

BRIGGS & STRA'n'ON MODEL NUMBER 12H802
4-CYCLE ENGINE TYPE NO. 2639-81
KEY PART KEY PART
NO. NO. DESCRIPTION NO, NO. DESCRIPTION
684 890345 Screw (Breather Passage 976 496115 Palmer-Carburetor
Cover) 977 498261 Set-Carburetor Gasket
689 691855 Spdng-Fnction 1019 494256 Kit-Label
708 591321 O:1: Seal-Throttle Shaft 1036 695111 Label-Emissions
741 691830 Gear-Timing 1058 274265 Owner's Manual
842 691031 • SeaI-O Ring (Dipstick Tube) 1059 692311 Kit-Screw/Washer
847 692017 Assembly-Dipstick/Tube 1095 498528 Set-Valve Gasket
851 493880 Terminal-Spark.plug 1210 498144 Assembly-Pulley/Spdng
869 691155 Seat-Valve (Intake) (Pulley)
870 690380 Seat-Valve (Exhaust) 1211 498144 Assembly-Pulley/Spring
871 262001 Bushing-Guide (Exhaust) (Spdng)
63709 Bushing-Guide (Intake)
92t 497233 CoveroBiower Housing Included in Engine Gasket Set, Key. No.
922 692135 Spdng-Brake 358
923 695891 Brake £1 Included in Carburetor Overhaul Kit. Key
957 397974 Cap-Fuel Tank NO. 121
966 496116 Base-Air Cleaner primer _: Included in Carburetor Gasket Set, Key.
969 692298 Cover-Air Cleaner No. 977
969 690700 Screw (Blower Housing + Included in Valve Overhaul Kit, Key. NO.
Cover) 1095
970 691689 Screw (Air Cleaner Primer
Bracket) NOTE: All component dimensions given in U.S.
972 495224 Tank-Fuel inches Iinch = 25.4 mm
975 493640 Bowl-Float
41
42
i
43

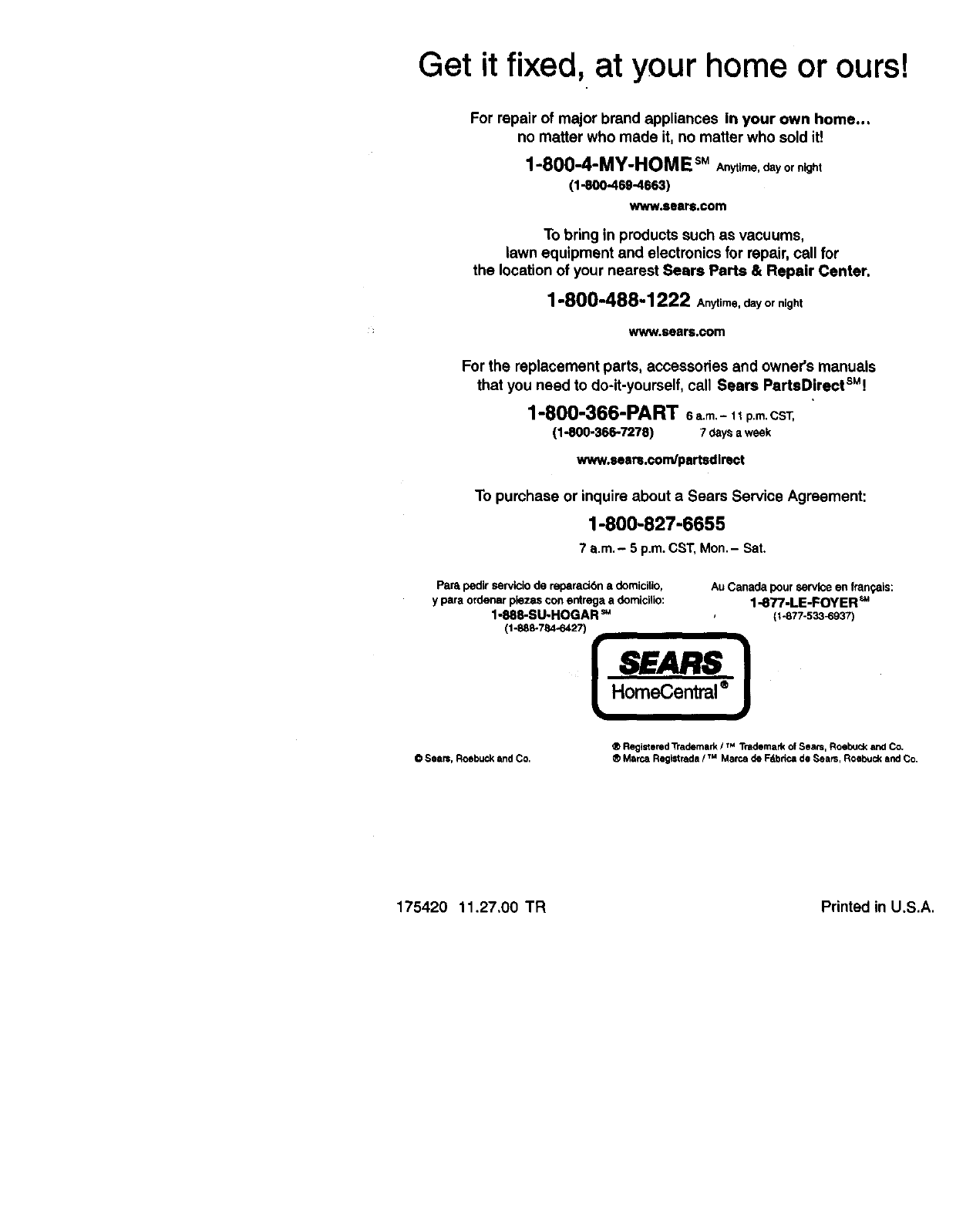

Get it fixed, at your home or ours!
For repair of major brand appliances in your own home...
no matter who made it. no matter who sold it!
1-800-4-MY-HOME sMAnytime, day or night
(1-800-469-4663)
www.sears.com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Part,= & Repair Center.
1-800-488-1222 Anytime, day or night
www.sears,com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears ParteDirectSM!
1-800-366-PART 8am- Itp.m. CST,
(1-800-366-7278) 7daysaweek
www.sesns.com/partsdlrect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.rn.- 5 p.m.CST,Mon.- Sat.
Para pedlrserviciode reparaci6n a domlcilio,
ypara ordenar piezas con entrega a domicilio:
1-888-SU-HOGAR s_
(1-888-784.6427)
AUCanada pour serviceen franc,ale:
1-877-LE-FOYER =A
(1-877-533-6937)
O Sears, Roebuck and Co. ®Registered Trademark /T. Trademark of Seam, Roebuck and Co,
TM
®Mama Reglstrada /Marca de F6bdca de Seam, Roebuck and Co.
175420 11.27,00 TR Printed in U.S.A.

Navigation menu
