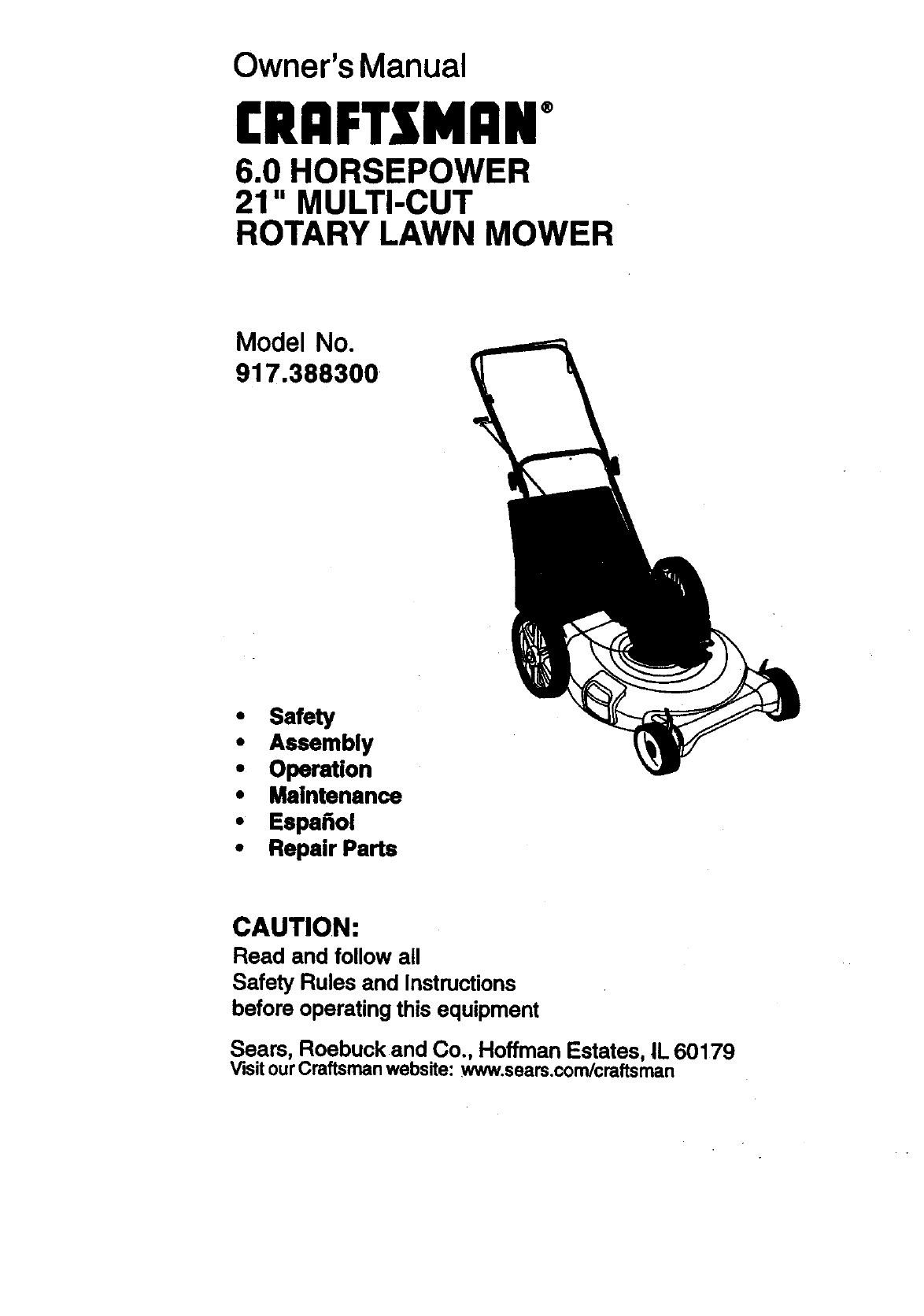

Owner's Manual

£RnFTSMnN"

6.0 HORSEPOWER

21" MULTI-CUT

ROTARY LAWN MOWER

Model No.

917.388300

• Safety

•Assembly

•Operation

• Maintenance

•Espahol

• Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Seam, Roebuck and Co., Hoffman Estates, IL 60179

VisitourCraftsmanwebsite: www.sears.com/craffsman

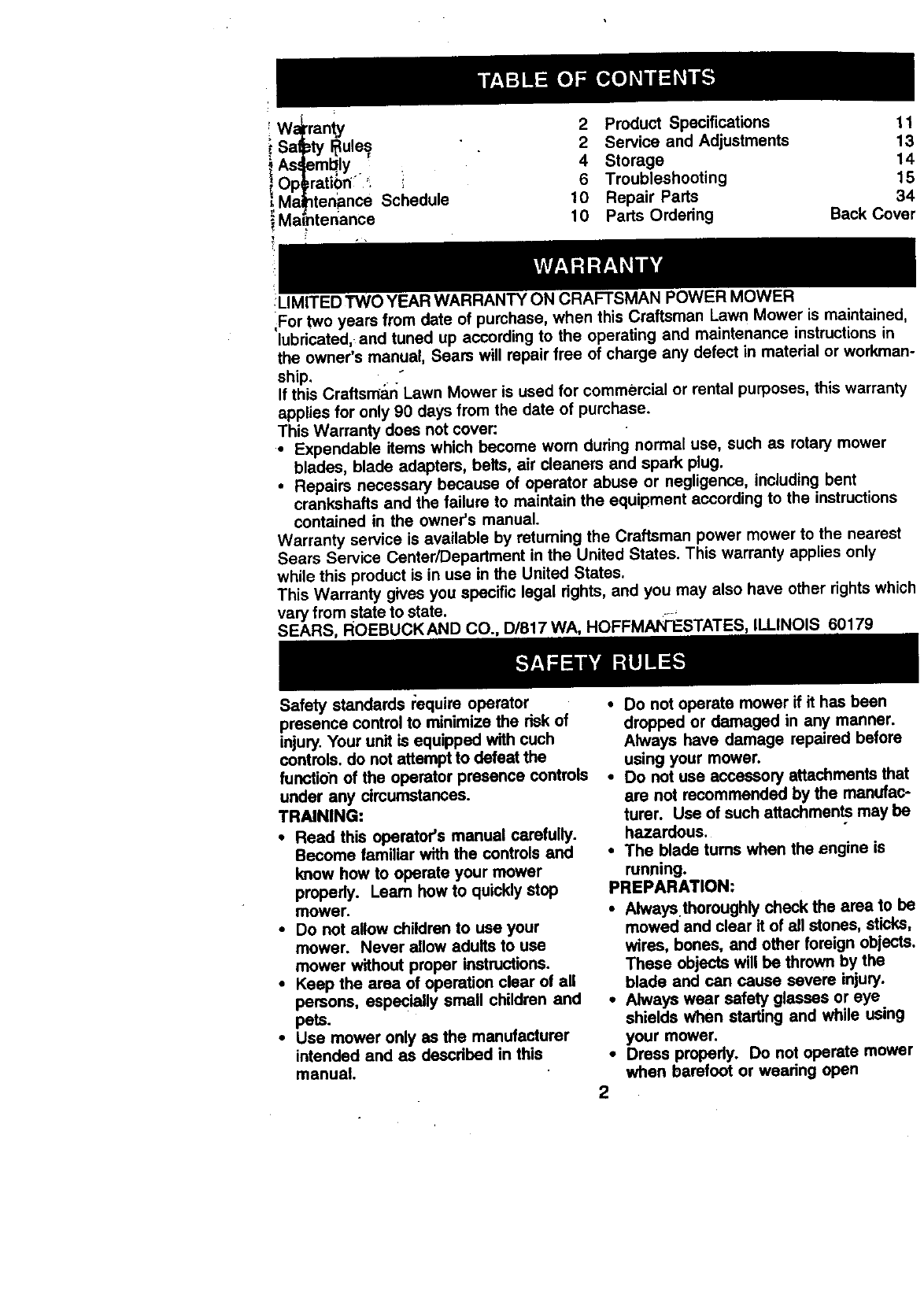

'warenty

Sat .=tyI_ules

_.As._embly

_tenance Schedule

i_M_ ntenance

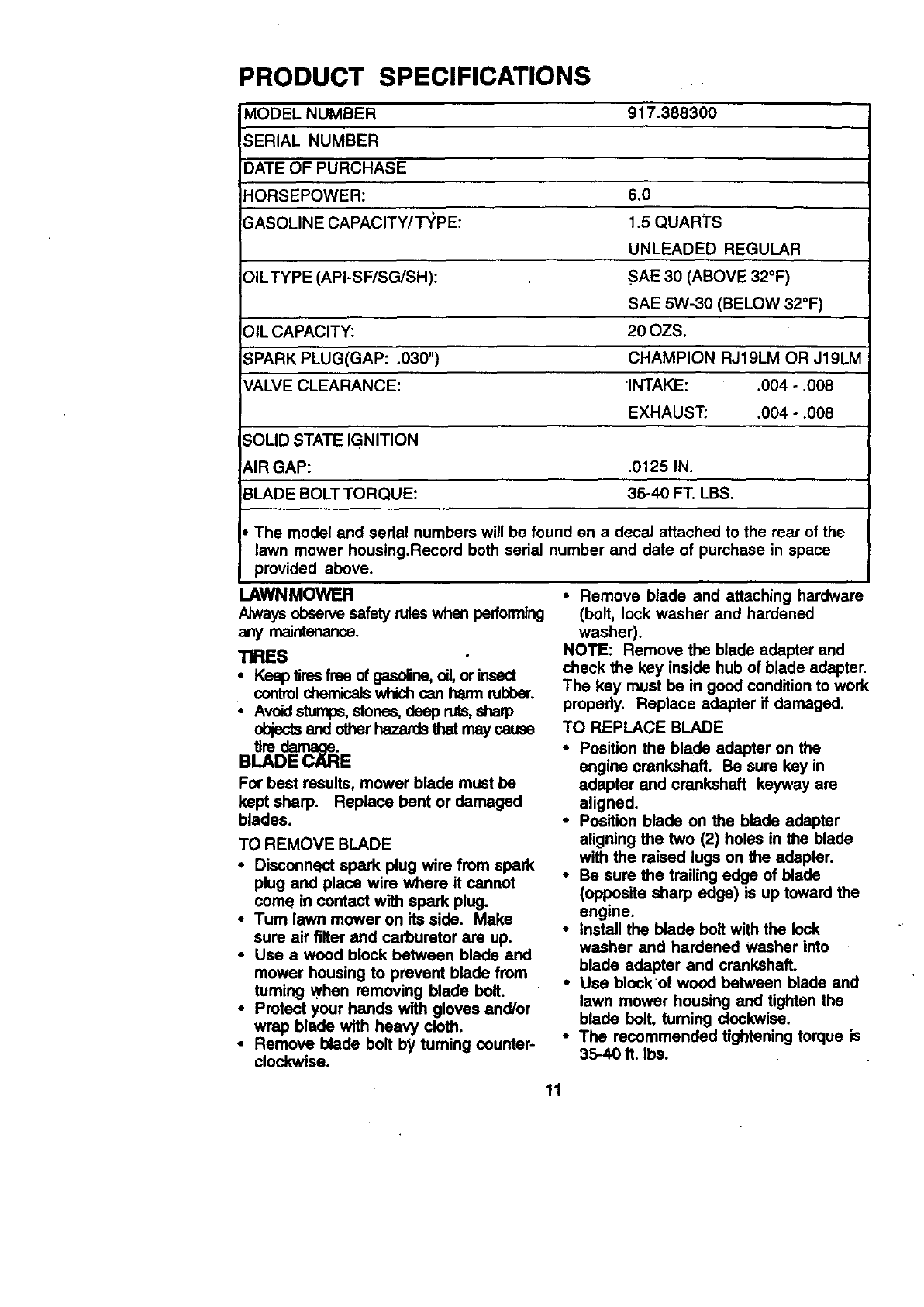

2 Product Specifications 1

2 Service and Adjustments 1;

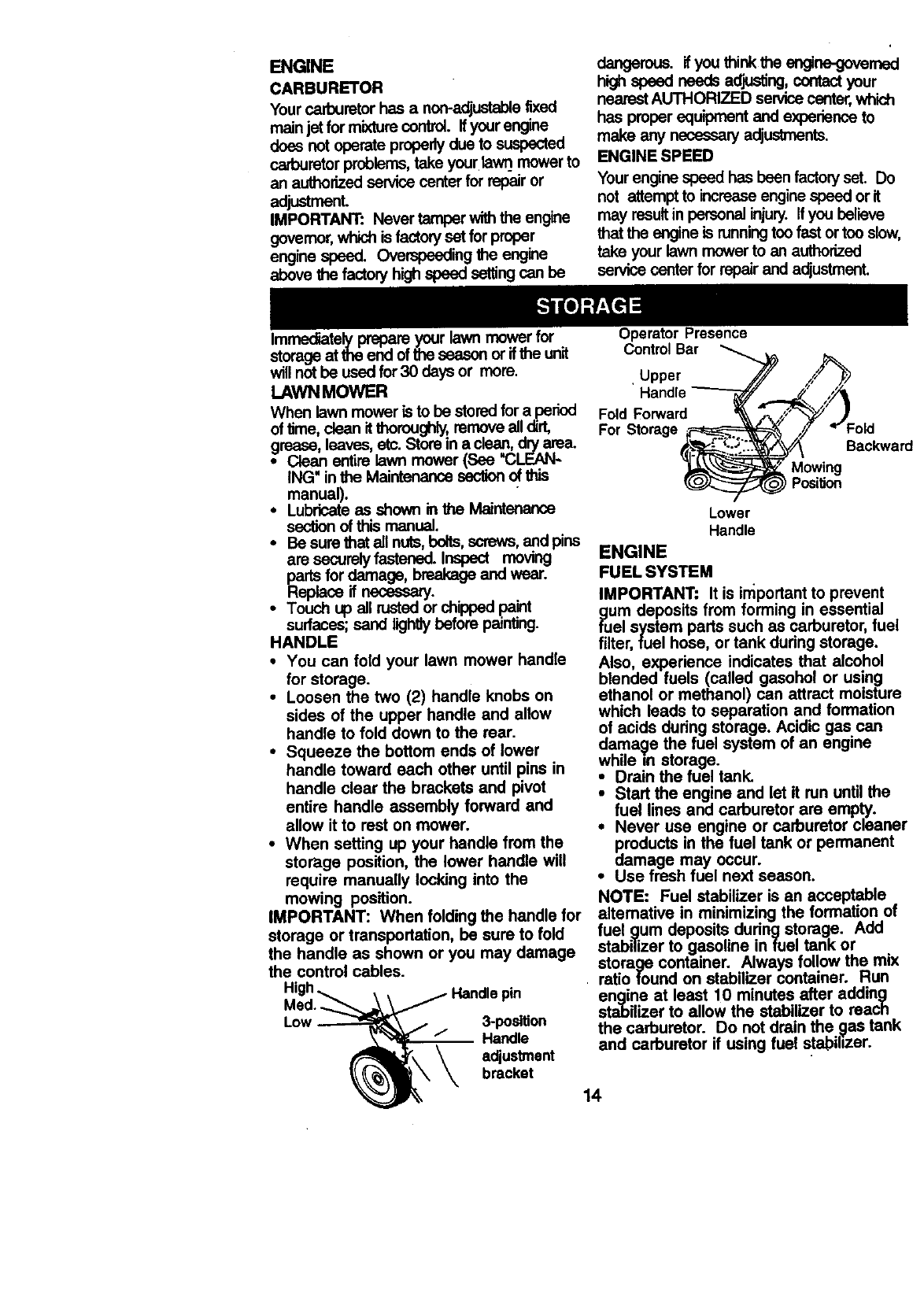

4 Storage 1,

6 Troubleshooting 1

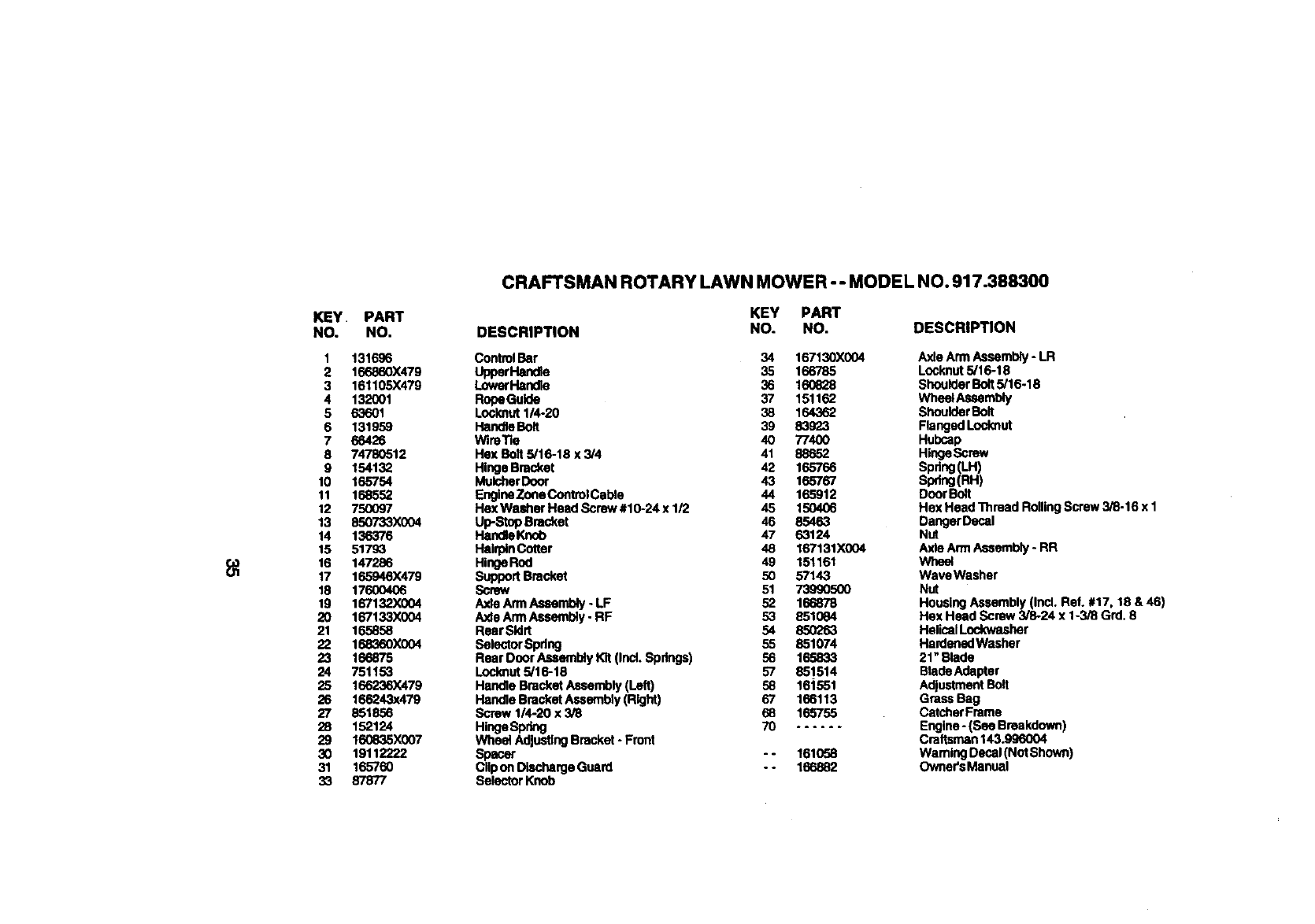

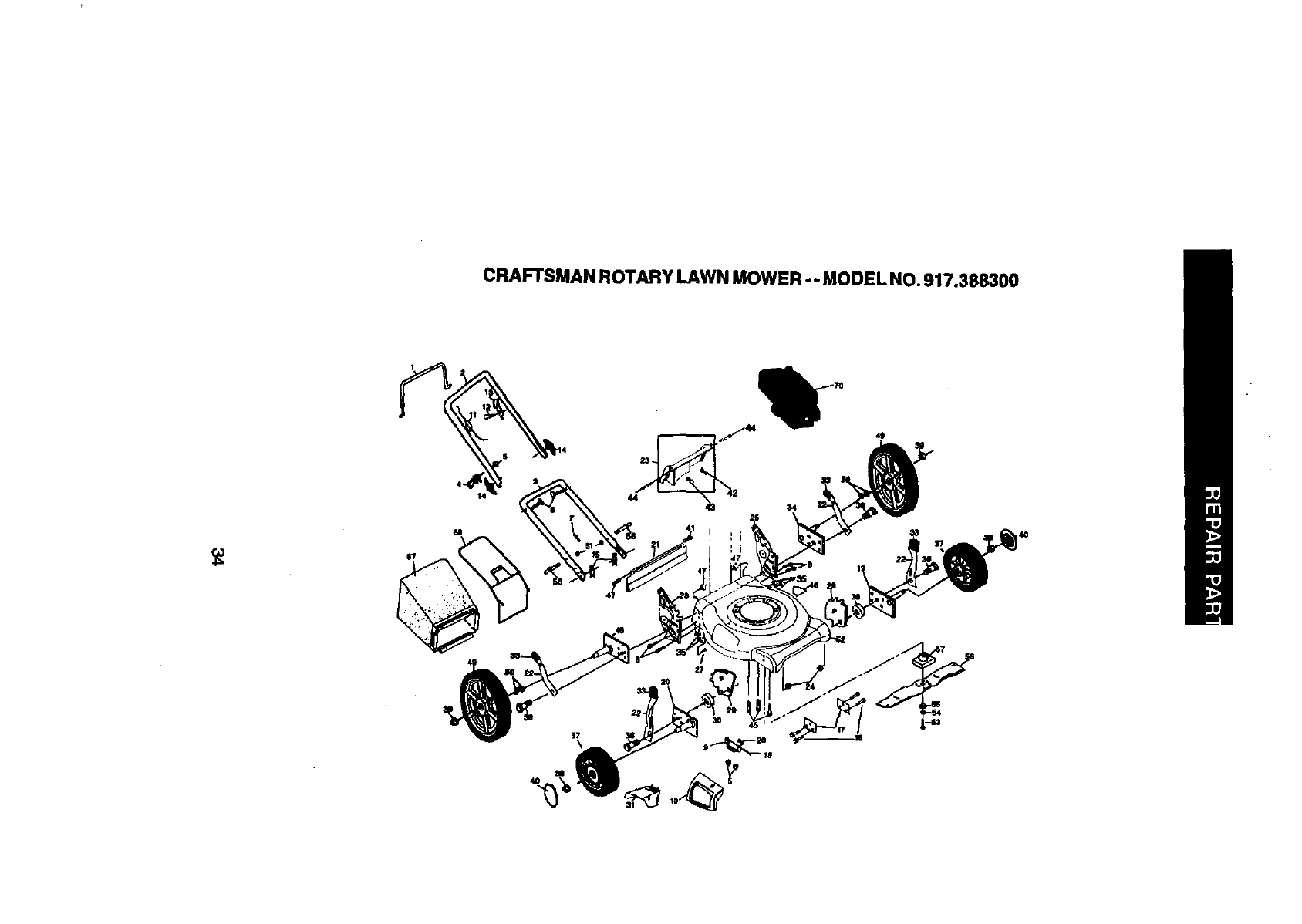

10 Repair Parts 3,

10 Parts Ordering Back Cove

:LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

iFor two years from date of purchase, when this Craftsmen Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workmar

ship.

If this Craftsmari Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:.

•Expendable items which become wom during normal use, such as rotary mower

blades, blade adapters, baits, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by retuming the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights whicI

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFM_STATES, ILLINOIS 60179

Safety standards _:equire operator

presence control to minimize the risk of

injury. Your unit is equipped with cuch

controls, do not attempt to defeat the

function of the operator presence controls

under any cimumstancas.

TRAINING:

• Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

properly. Leam how to quickly stop

mower.

• Do not allow children to use your

mower. Never allow adults to use

mower without proper instructions.

•Keep the area of operation clear of all

persons, especially smell children and

pets.

•Use mower only as the manufacturer

intended and as descdbed in this

manual.

•Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

•The blade turns when the engine is

running.

PREPARATION:

•Aiwaysthoroughly check the area to b

mowed and clear it of all stones, sticks

wires, bones, and other foreign object=

These objects will be thrown by the

blade and can cause severe injury.

•Always wear safety glasses or eye

shields when starting and while using

your mower.

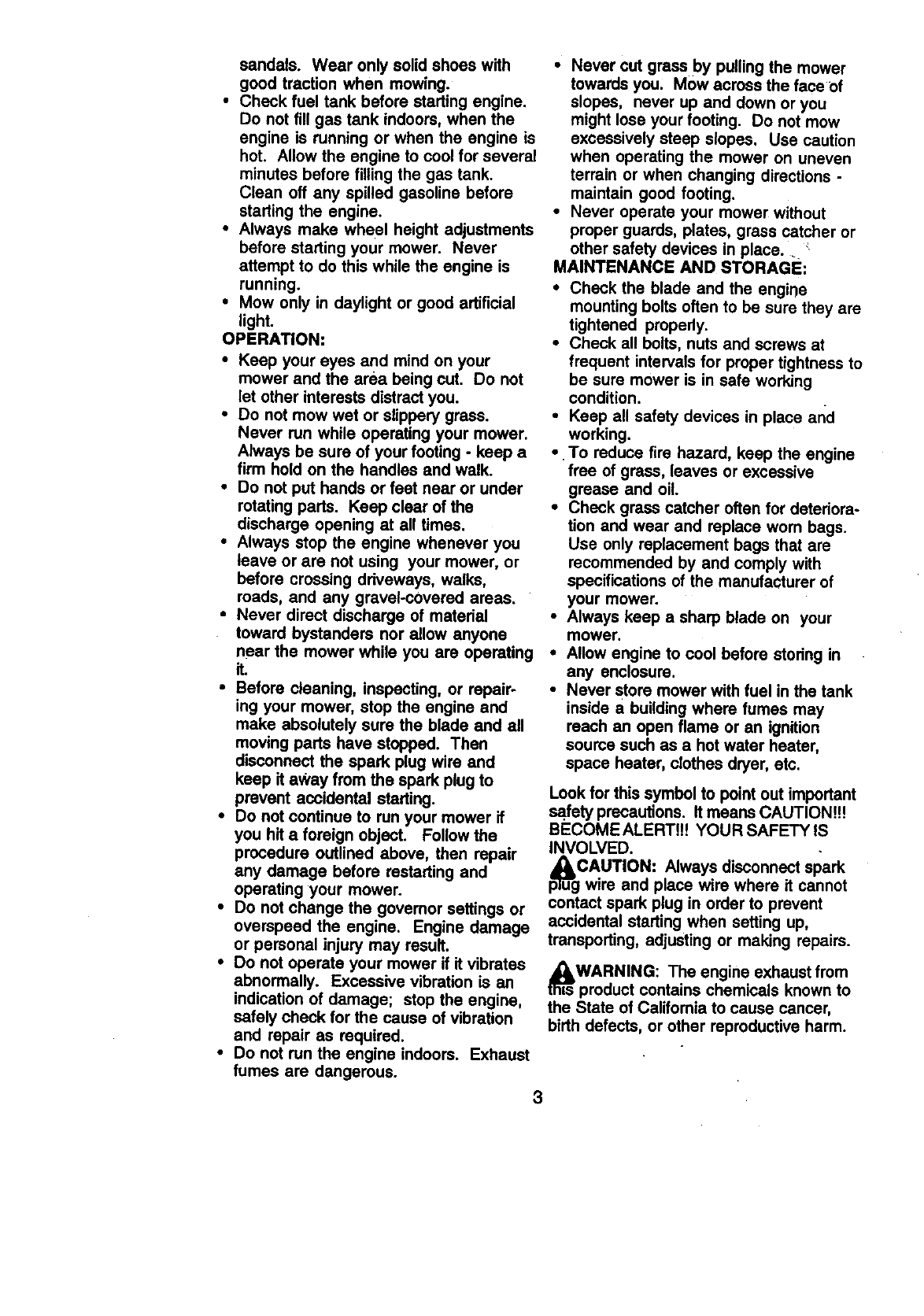

•Dress propedy. Do not operate mowe

when barefoot or weadng open

sandals.Wearonlysolidshoeswith

goodtractionwhenmowing.

•Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank.

Clean off any spilled gasoline before

starting the engine.

•Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

•Mow only in daylight or good artificial

light•

OPERATION:

•Keep your eyes and mind on your

mower and the area being cut. Do not

let other interests distract you.

•Do not mow wet or slippery grass.

Never run while operating your mower.

Always be sure of your footing -keep a

firm hold on the handles and walk.

•Do not put hands or feet near or under

rotating parts• Keep clear of the

discharge opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks,

roads, and any gravel-covered areas.

• Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

•Before cleaning, inspecting, or repair-

ing your mower, stop the engine and

make absolutely sure the blade and all

moving parts have stopped. Then

disconnect the spark plug wire and

keep it away from the spark plug to

prevent accidental starting.

•Do not continue to run your mower if

you hit a foreign object. Follow the

procedure outlined above, then repair

any damage before restarting and

operating your mower.

•Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous.

•Never cut grass by pulling the mower

towards you. Mow across the face Of

slopes, never up and down or you

might lose your footing. Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions -

maintain good footing.

•Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place. _ _

MAINTENANCE AND STORAGE:

•Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•. To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

•Check grass catcher often for deteriora-

tion and wear and replace wom bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in

any enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothas dryer, etc.

Look for this symbol to point out important

safety precautions• It means CAUTION!!!

BECOMEALERTI!! YOUR SAFETY IS

iNVOLVED.

_CAUTION: Always disconnect spark

_l_g wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

_IsWARNING: The engine exhaust from

product contains chemicals known to

the State of Califomia to cause cancer,

birth defects, or other reproductive harm.

Thsse_wereavalleblawhanthislawn mowerwas produced.They m,enot

shippedw#h your mownr.11_'-yarealse avallablaatmqstSearsret_loutletsandSsrvice

cantem,MostSearsstores.canalsoorderrepairpartsforyou,whenyouprovidethemodel

numberofyourlawn rnower.Someofthaseaccassoriesmay notapplytoyourlawnmower,

LAWN MOWE R PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHERKITS

_I GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES

AIR RLTERS

BLADE ADAPTERS WHEELS

STABILIZER

GAS CANS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to aSSemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those pads left unassembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all parts and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

sary to ensure proper tightness. All parts

such as nuts, washers, bolts, etc., neces-

sary to complete the assembly have been

placed in the pads bag.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose pads included with

mower.

•Cut down two end comers of carton and

lay end panel down flat.

•Remove all pecking materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

•Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts.

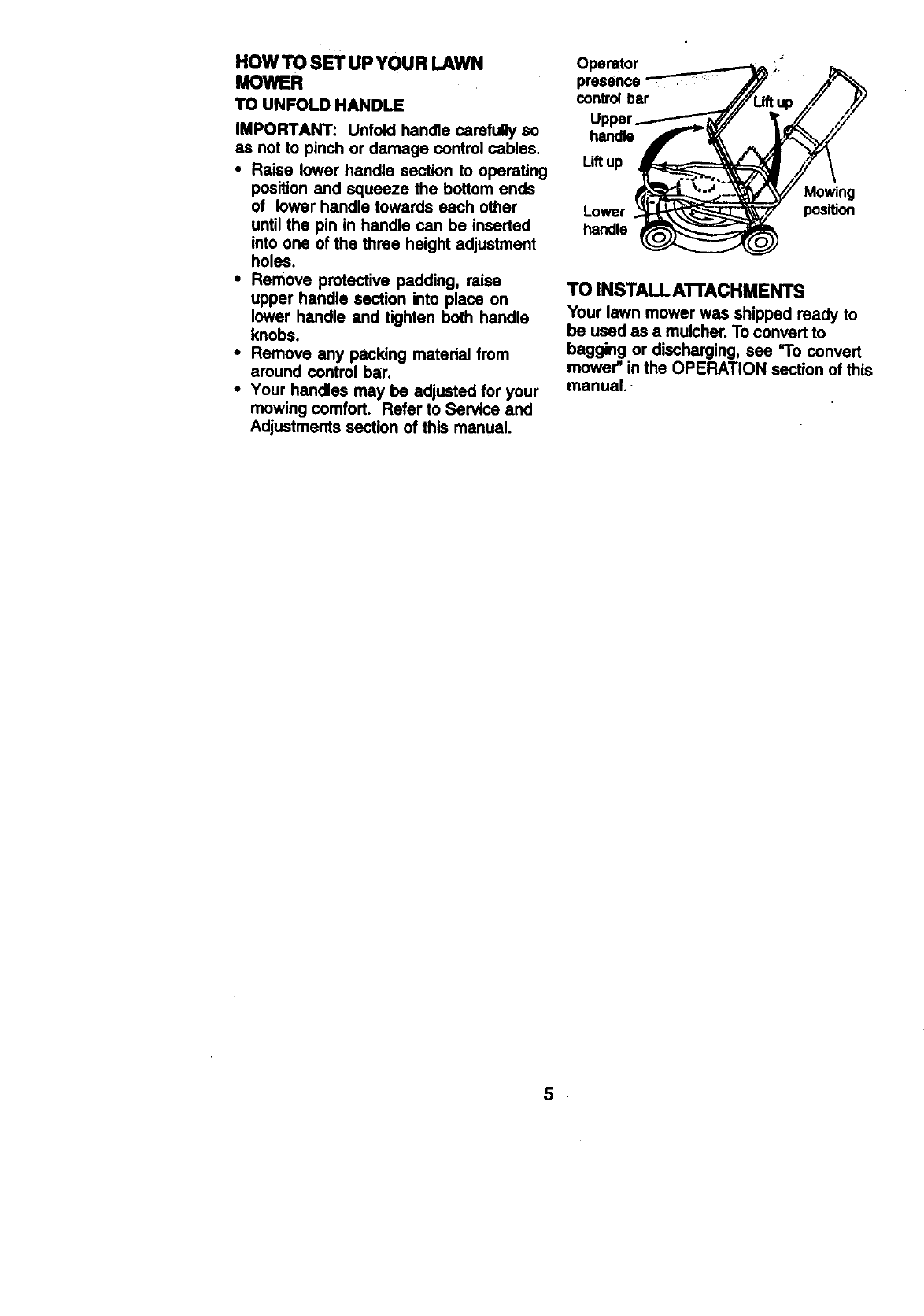

HOWTO SETUPYOURLAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

• Raise lower handle section to operating

position and squeeze the bottom ends

of lower handle towards each other

until the pin in handle can be inserted

into one of the three height adjustment

holes.

•Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs,

•Remove any packing material from

around control bar.

•Your handles may be adjusted for your

mowing comfort. Refer to Service and

Adjustments section of this manual.

Operator

presence

control bar

h_e

Uft up

Lower

handle

Mowing

position

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging, see "To convert

mower" in the OPERATION section of this

manual.,

KNOWYOUR LAWNMOWIBR

READ THiS OWNER'S MANUAl_AND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the Bustr'_dons with your lawn mower tofamiliarize yourselfwiththe

,Ioca_ of vadous conbob and adjustments. Save thismanual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF ANG FEET AWAY

Operator presence contro{

bar

Handle

Grass catche_._

fillercap

Engineoilcap

with dipstick

Mulcher door Lawn mower housing

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the Wheel adjuster

engine. (on each wheel),

MEETS CPSC SAFETY REQUIREMENTS

Sears rotarywalk-behind power lawn mowers confoml to the safety standards of the American

Nalional Standards Insl#ute and the U.S. Consumer Product Safety Commission. The blade

turnswbentheen_e is running.

Operator PretmceControl Bar- mustbe

betddowntoU_ehandletostartUheengine.

Releaseto stoptbe engine.

Pflmer - pumps add'dionalfuel from the

carburetorto Ihe cylinderfor use when

stara_acoldengine.

Starter Handle - used for startingthe engine.

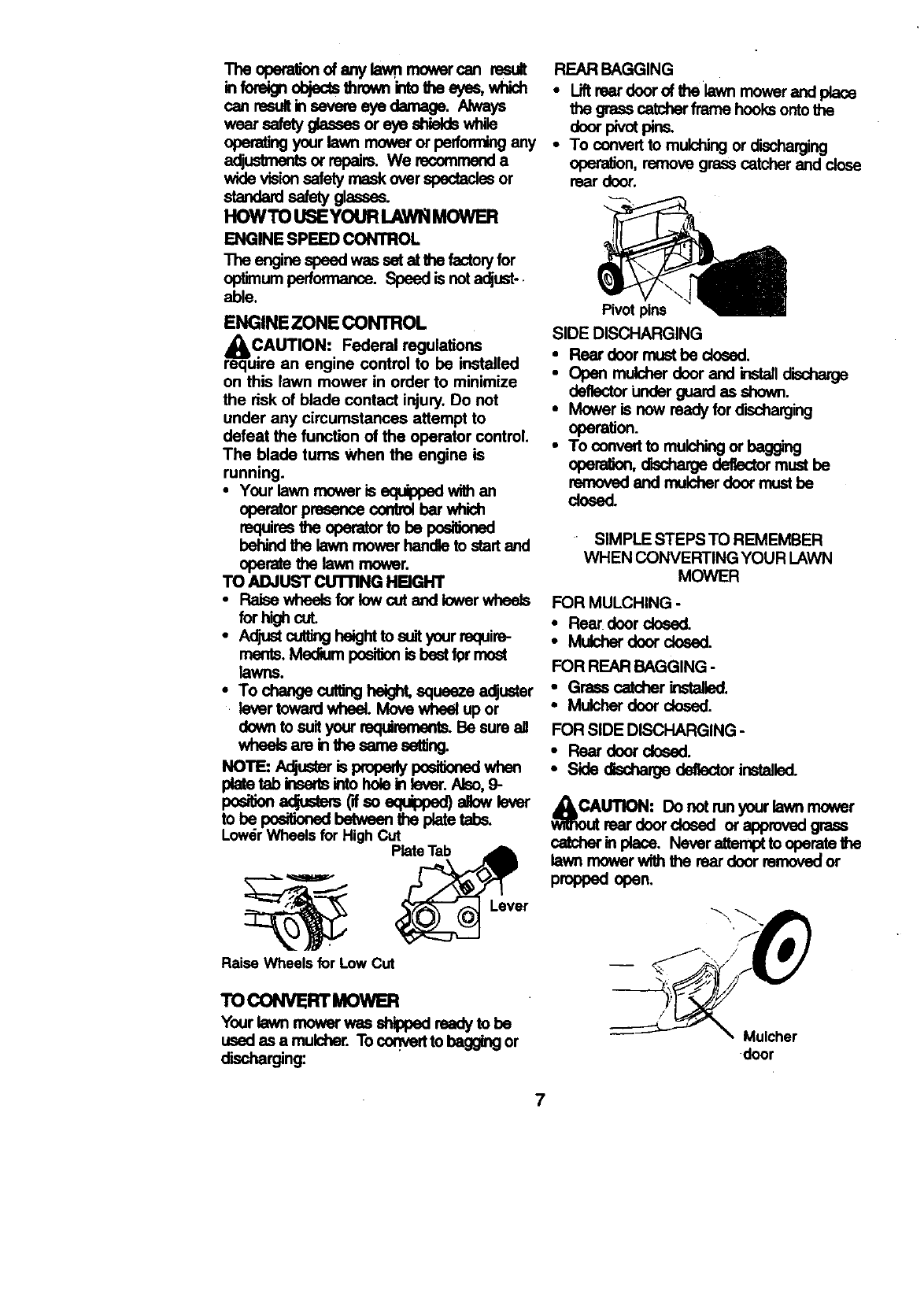

The_of any lawnmowercan result

mfore_ abjectsthrowni_tothe eyes,which

can rasultinsevereeyedamage. Always

wearasfety giassas or eye shialdswhile

operatingyourlawnmoweror performingany

adjusb'nentsor repairs.We recommanda

widevisionsafetymaskoverspectaclesor

standardsafetyglasses.

HOWTO USE YOUR LAWN MOWER

ENGINE SPEED CONTROL

The angino speed was set at the factory for

optimum performance. Speed is not adjust-

able.

ENGINE ZONE CONTROL

_CAUTION: Federal regulations

require an engine control to be installed

on this lawn mower in order to minimize

the risk of blade contact injury. Do not

under any circumstances attempt to

defeat the function of the operator control.

The blade turns When the engine is

running.

•Your lawn mower is equipped with an

operator presence conlrol bar which

requires Ule operalor to be posi'doned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CUTTING HEIGHT

•Raise wlneeisfor low cut and lower wheels

for high cut.

•Adjust cutling heightto suit your mquire-

mants, Medium positionis bast for most

lawns.

•To change cutting height, squeeze adjuster

lever toward wheel Move wheal up or

down to suityour roquirements. Be suro all

wheals are in the same astlJng.

NOTE:Adjusterispropedypod_nedwhen

plate tab inserts into hole in lever. Also, 9-

polo, adjusters ('#so eq,_ped) a,ow k_er

to be pe_ax_ betwean =hepUe tabs.

Low6r Wheels for High Cut

PlateTab

Lever

Raise Wheels for Low Cut

TOCONVERTMOWER

Your lawn mower was shipped ready to be

used as a mulcher. To convert to baggingor

discharging:

REAR BAGGING

•Lift rear door of the lawn mower and place

the grass catcher frame hooks onto the

door vot

• To convert to mulching or discharging

operalion, remove grass catcher and close

rear door.

SIDE DISCHARGING

•Rear door must be dosed,

•Open mulcher door and installdischarge

deflector iJnderouard as shown.

•Mower is now ready for alL-charging

operation.

•To convert to mulching or bagging

operation, _scharge deflector must be

removed and mulcher door must be

dosed.

SIMPLE STEPS TO REMEMBER

WHEN CONVERTING YOUR LAWN

MOWER

FOR MULCHING -

•Rear door dosed.

•Mulcher door desed.

FOR REAR BAGGING -

•Grass catcher installed,

• Mulcher door dosed.

FOR SIDE DISCHARGING -

•Rear door dosed.

• Side dischan_ deflector installed.

_UTION: Do not run your lawn mower

rear door dosed or approved grass

c_chor in placo. Never attempt to operate the

lawn mower with the rear door removed or

propped open.

Mulcher

door

Open

Mulcher Door

Discharge

deflector

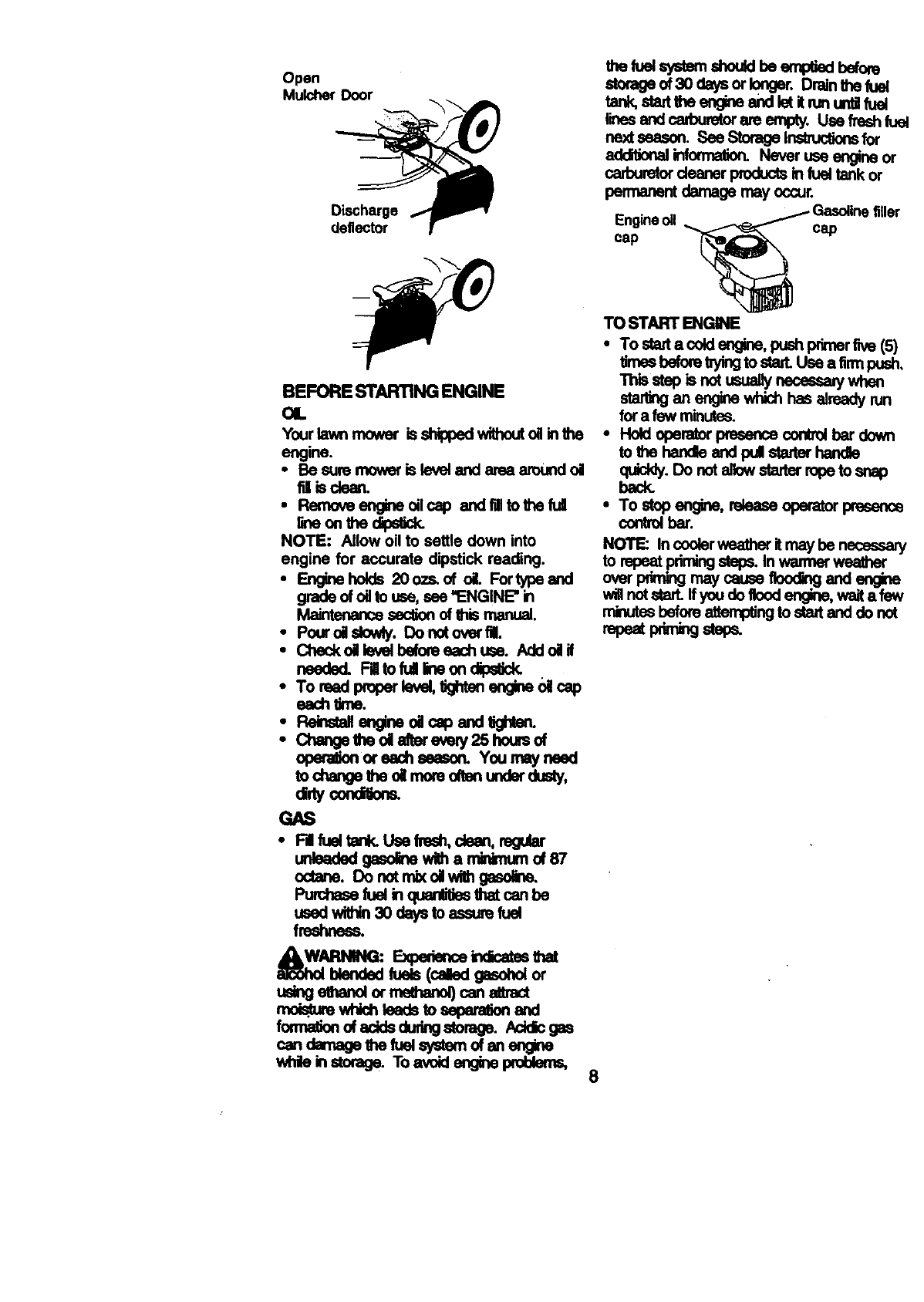

BEFORE STARTING ENGINE

Your lawn mower is shipped wi_out oil in the

engine.

• Be sure rnower is level and area around oil

fll is clean.

•Remove engine oilcap and fillto the full

a_eonthecr_sl_.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

•Engine holds 20ozs.of oil. Fortypeand

grade of oil to use, see =ENGINE" in

Maintenance section of this manual.

•Pour oilslowly. Do not over fill.

• Check oil level before each use. Addoilif

needed.FZtofullineon_ck.

• Toreadprior k_, _hten en_ne6Zcap

each _ne.

•Re_s_ en_neoacapand_

•ChangetheoZa_terevery25 houmof

_or each seaso_ You may need

tochangeg_eollmoredten underdusty,

drty

GAS

•RI furltm_ Usefresh,dean,regular

urdeadedgasc_w _ a mk_ d 87

_:_se _ inq_es _c_ be

-sed_30a_/stoass_e_

freshness.

_AFNN@: _q_ce _atos _

Uendedfueb(c_ed geso_ or

udnge_ol or _ cansttract

mo_.ure.v_h k_adsto _==ion =_d

f_ of addsdudngstorage.Ack_cgas

candamagethefuelsystemof anengine

w_e instorage.Toav=dencneproUem_

_e fuelsystemshouldbeempaedbofore

_ of 30c_ orlonger.Drainthefuel

_K _ut _ _gine _cl _ itmnun__

lines and cad_uretorare empty. Use fresh fuel

nextseason.SeeStorageInstmctionsfor

a_ inforn,atio_Neveruseengineor

carburetorcleaner products in fuel tank or

permanent damage may occur.

efiller

Engineoll cap

cap

TO START ENGINE

•Tostarta_d engine,pushpdmerfive(5)

t_mesboforet_ng to start. Use a firmpush,

T_ step_notusua_ynecess=ywhen

starlingan engine which has already run

for a few minutes.

•Hold operator presence control bar down

to thehandleandpulstartorhandle

quk_Idy.Do not a, ow starter rope to snap

back.

•Tostopeng.e,rek_se_presence

controlbar.

NOTE: In ccoler westher it may be necessary

to repest pdming steps. In warmer weather

overpruningmaycausegccm_gandengine

w#l notstart. If you do flood engine, wait a few

mir_.es before sttempting to start and do not

repestp_m_gstep_

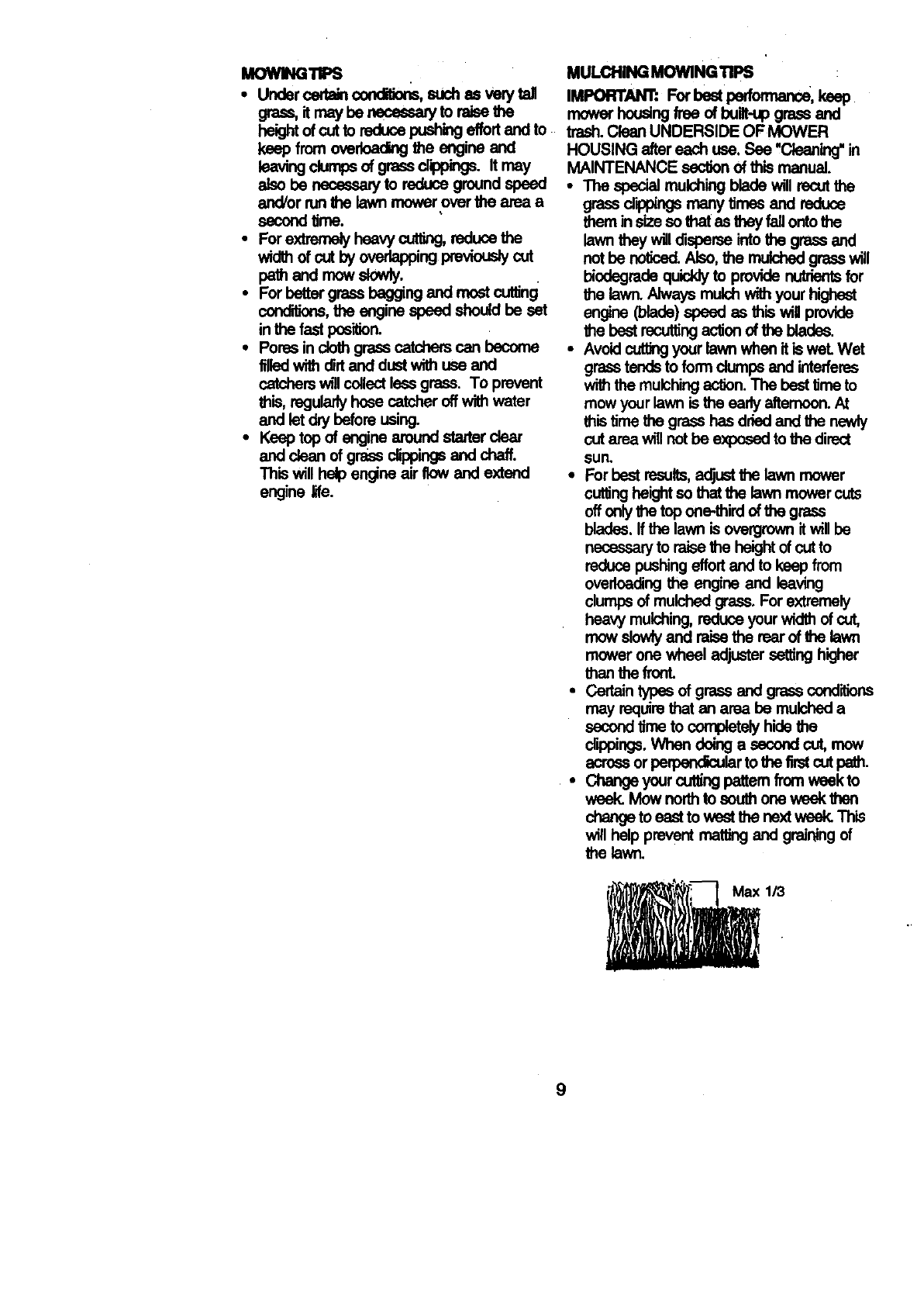

MOWING'lIPS MULCHING MOWlNGTIPS :

• Under certain concilk_ such as very tail IMPORTANT:. For best performance, keep

grass, it may be nenessery to raise the n_wer housingfree of buUt-upgrass and

height of cut to reduce pushing effort and to trash. Clean UNDERSIDE OF MOWER

keap from overloading the engine and

leaving clumps of grass clipp_s. It may

aise be necessary to reduce ground speed

and/or run the lawn mower over the area a

second time.

• For extremely heavy cutting,reduce the

dth ofc=byov ng prev cut

pathandmow

• For better grass bagging and most cutting

conditions,the engine speed should be set

inthe fast pos'_don.

• Porea in cloth grass catchers can become

filledwith dirt and dustwith use and

catcherswill collect less grass. To prevent

this, regularlyhose catcher off with water

and let dry before using.

•Keep top of angine around starter clear

anddeanof grosscrq0p_gsandchaff.

This will help engine air now and extend

engine life.

HOUSING after each use. See "Cleaning"in

MAINTENANCE section of this manual.

• The special mulching blade will recutthe

grass cl'_opingsmany times and reduce

them in size so that as they fail onto the

lawn they will dispeme into the grass and

not be noticed.Also, the mulched grass will

biodegrade quicklyto provide nutrientsfor

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best re_fting actien of the I_des.

•Avoid cuttingyour lawn when itis weL Wet

grass tends to form dumps and inte=feres

wi_ the mulchingac'don.The best time to

mow your lawn is the early afternoon.At

this time the grass has dried and the newiy

cut area will net be exposed to the direct

sun.

• For best results,adjust the lawn mower

cutling heightso that the lawn mower cuts

off only the top one-thirdof the grass

blades. If the lawn is overgrown it will be

necessary to raise the heightof cut to

reduce pushing effort and to keep from

overloading the engine and leaving

clumps of mulched gra,ss.For extremely

heavy mulching, reduce your width of cut,

mow slowiyand raisethe rear of the lawn

mower one wheal adjuster setting higher

than the front.

•Certain types of grass and grass comr_ions

may require that an area be mulched a

second lima to completely hide the

cr_pings. When doing a second cut, mow

acroseor peq_e_rK_jlar to the tirst cut path.

•Chenge your cutlJngpaftem from weak to

weak. Mow northto south one week then

change to east to west the next week. This

will help prevent matting and grairdngof

the lawn.

.A. ENANCESC.EOULE

AsYouCOMPL_-_ ___'.__ _ _._ g_¢__ :_;

Check forLoose Fasleners 1/ IFd

CleaNInsl)ect Grass Catcher

(if Equipped)

M clean LawnMower

_,_ Clean Under Drive CoverIpower.Pro_lled Mowe_)

Check drive belt/pulleys

RE (Power-Propelled Mowers)

CheckiSharpan/Re_ace Blade

LubricationChart

Clean BatterJ/Recharge

JE Check EngineOil Level

NChange Engine Oil

iGClean Air Rlter

I=nspectM_f_

N C_anorR_o_e SparkP_g

EReplace Air Rlter Paper Cartridge

v' ,/ l/

v' i/

t/ t/l:

1 - Ghangemo_ oftlmwh_mepemtl_l underIt I_lvy IoQd_t in highanltdenttempemtu_s,

2. SeNk_ morn olten_en _l_a_ Indktyordully _ndltlon=.

3 - Replaceblade_mo_ =t_ _ med_ In==,dy =o11.

4_Citable48 I_um _1emlof _.

GENERAL RECOMMENDATIONS

The warrantyon this lawn mower does not

cover items that have been sebjected to

operator abuse or neg_.To receive full

value from the warrant_ operator must

maintain mower as inst._ed in this manual.

Some ad'justmentswUlnsed to be made

pedocrK_ly to properly maintainyour unit.

All adjustments inthe Service and

Adjustments sec_on of this manual should be

checked at least once each season.

•Or,ceayser,mpta_thespa_kp_ug,

replaceairfilterelementand d'_k blade

forwear.A newspa_kpluganddean/new

air fiiter element assures proper alr-fual

mixture and helps your engine run better

a_ _t _x_er.

• Follow the maintenance schedule in this

manual.

BEFORE EACH USE

•Checkengineoillevel.

•Check for loose fasteners.

LUBRICATION

Keep unit well lubricated(See "LUBRICATION

CHART").

LUBRICATION CHART

Wheel

adjusters

E_rakespdng

door ) Handle bracket

hinge mountingpin

SPRAYLUBRICANT

SAE 30 MOTOR OIL. REFERTO

ENGINE -MAINTENANCESECTION.

IMPORTANT: Do not oil or grease

wheel bearings. V'_cous lubricantswill attract

dust and dirtthat will shortenthe lifeof _e self

lubricatingbearings. If youfeel they must be

lubricated, use only a dry,powdered graphite

type lubdcantsparingly.

PRODUCT SPECIFICATIONS

MODEL NUMBER 917.388300

SERIAL NUMBER

DATE OF PURCHASE

HORSEPOWER: 6.0

GASOLINE CAPACITY/'I'YPE: 1.5 QUARTS

UNLEADED REGULAR

OILTYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J19LM

VALVE CLEARANCE: "INTAKE: .004 - .008

EXHAUST: .004 - .008

SOLID STATE IGNITION

AIR GAP: .0125 IN.

BLADE BOLT TORQUE: 35-40 FT. LBS.

•The model and serial numbers will be found on a decal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWNMOWER

A/ways observe safety rules when performing

any maintenance.

TIRES

•Keap tiresfree of gssoline, oil, or insect

control chemicals which can harm nJbber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may cause

tiredamage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

•Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

•Tum lawn mower on its side. Make

sure air filter and carburetor are up.

•Use a wood block between blade and

mower housing to prevent blade from

tuming .when removing blade bolt.

•Protect your hands with gloves and/or

wrap blade with heavy cloth.

•Remove blade bolt by tuming counter-

clockwise.

•Remove blade and attaching hardware

(bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade adapter.

The key must be in good condition to work

propedy. Replace adapter if damaged.

TO REPLACE BLADE

•Position the blade adapter on the

engine crankshaft. Be sure key in

adapter and crankshaft keyway are

aligned.

•Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

•Be sure the trailing edge of blade

(opposite sharp edge) is up toward the

engine.

•Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

•Use block of wood between blade and

lawn mower housing and tighten the

blade belt, turning clockwise.

•The recommended tightening torque is

35-40 ft. Ibs.

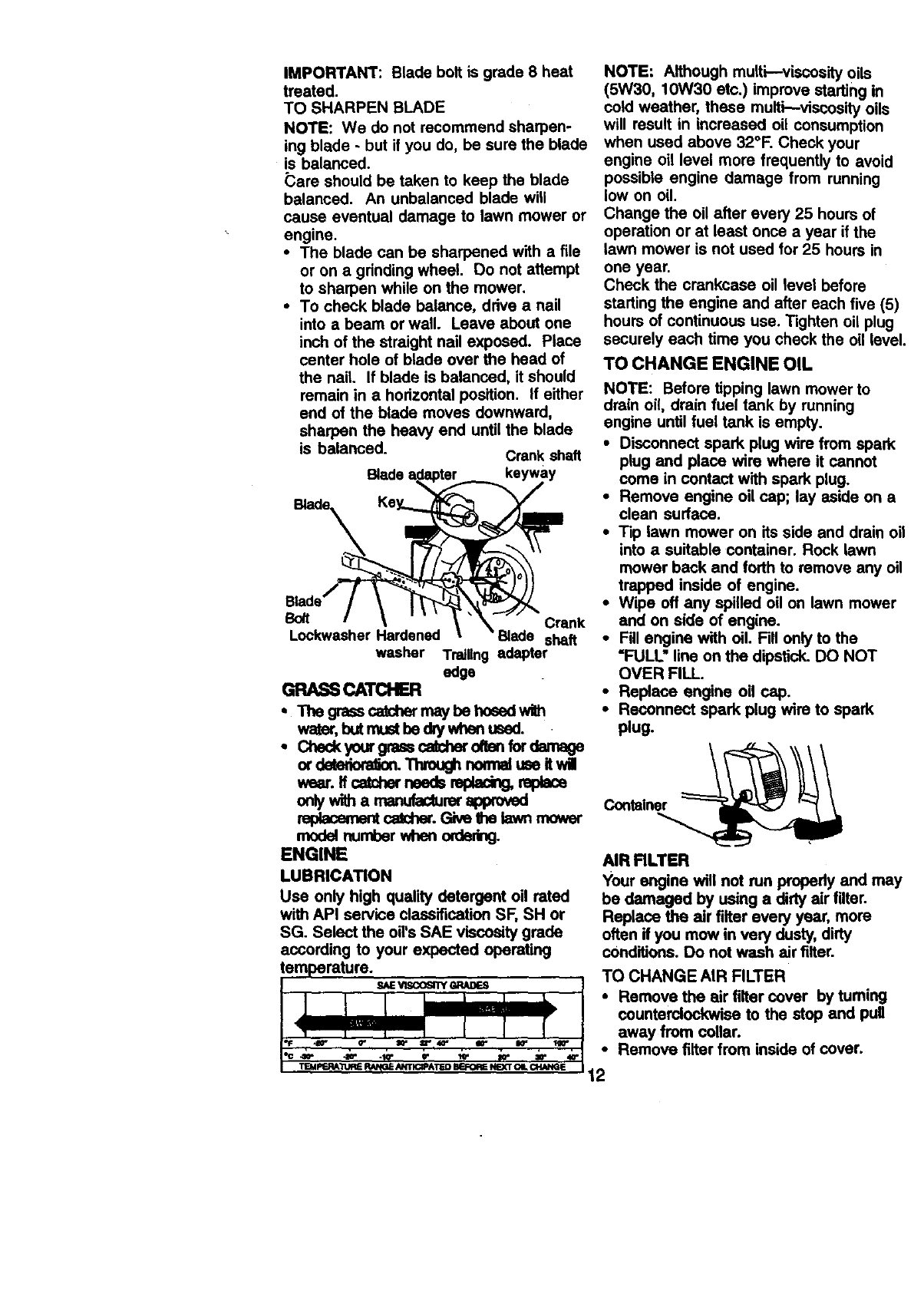

IMPORTANT: Blade bolt is grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade -but if you do, be sure the blade

is balanced.

(3are should be taken to keep the blade

balanced. An unbalanced blade will

cause eventual damage to lawn mower or

engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, drive a nail

into a beam or wall. Leave about one

inch of the straight nail exposed. Place

center hole of blade over the head of

the nail. If blade is balanced, it should

remain in a horizontal position. If either

end of the blade moves downward,

sharpen the heavy end until the blade

is balanced. Crank shaft

Blade e keyway

Bolt Crank

Lockwasher Hardened Blade shaft

washer Trailing adapter

edge

GRASSCATCHER

• The graas catcher may be hosed with

water, but mint be dry when used.

•Checkyourgrasscetchero_n fordamage

ordstedora_. Throughno._ useItwill

wosr.,ostmerneedsre dng, rel aCe

wm am=x aclumrspproved

re_ catcher.C_ve thelawn mower

model number when ordering.

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classification SF, SH or

SG. Select the oil's SAE viscosity grade

according to your expected operating

NOTE: Although multi--viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi--viscosity oils

will result in increased oil consumption

when used above 32°R Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one year.

Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to

drain oil, drain fuel tank by running

engine until fuel tank is empty.

•Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

•Remove engine oil cap; lay aside on a

clean surface.

•Tip lawn mower on its side and drain oil

into a suitable container. Rock lawn

mower back and forth to remove any oil

trapped inside of engine.

•Wipe off any spilled oil on lawn mower

and on side of engine.

•Fill engine with oil. Fill only to the

"FULL" line on the dipstick. DO NOT

OVER FILL.

•Replace engine oil cap

•Reconnect spark plug wire to spark

plug.

Contalne_

AIR RLTER

Your engine will not run propedy and may

be damaged by using a dirty air filter.

Replace the air filter every year, more

often if you mow in very dusty, dirty

conditions. Do not wash air filter.

TO CHANGE AIR FILTER

•Remove the air filter cover by tuming

counterclockwise to the stop and pub

away from cellar.

•Remove filter from inside of cover.

•Clean the inside of the cover and the

collar to remove any dirt accumulation.

•Insert new filter into cover.

•Put air filter cover and filler into collar

aligning the tab with the slot.

•Push in on cover and tum clockwise to

tighten.

Collar Clip Tum

counter--

clockwise to

remove

clockwise

Air filter cover to tighten

MUFFLER

Inspect and replace corroded muffler as it

could create afire hazard and/or damage.

SPARK PLUG

Change your spark plug each year to

make your engine start easier and run

better. Set spark plug gap at .030 inch.

CLEANING

IMPORTANT: For best performance, keep

"mower housing free of built---up grass

and trash. Clean underside of mower

housing after each use.

CAUTION: spark plug wire

Disconnect

from spark plug and place wire where it cannot

come in contactwiththe spark plug.

•Turn lawn mower on its side. Make sure

air filler and carburetor are up. Clean

the underside of your lawn mower by

scraping to remove build--up of grass

and trash.

•Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

•Keep finished surfaces and wheels free

of all gasoline, oil, etc.

•We DO NOT recommend using a

garden hose to clean lawn mower

unless the electdcal system, muffler, air

filter and carburetor are covered to

keep water out. Water in engine can

result in shortened engine life.

&CAUTION: Before performing any

service or adjustments:

•Release control bar and stop engine.

• Make sure the blade and all moving

parts have completely stopped.

• Disconnect spark plug wire from spark

plug and place where it cannot come in

contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your lawn mower, is

provided to minimize the possibility that

objects will be thrown out the rear of the

lawn mower into the operator's mowing

position.

If the rear deflector becomes damaged, it

should be replaced.

TO ADJUST HANDLE

The handle on your lawn mower has

three (3) height positions - adjust to height

that suits you.

•Squeeze the bottom ends of lower

handle towards each other until the pin

in handle can be inserted into one of

the three height adjustment holes.

High

Med._

Low 1"= ._ Handlepin

"_ \3-position

Handle

i! \ \ adjustment

\bracket

ENGINE

CARBURETOR

Your carburetor has a non-adjustablefixed

main jet for mixture control. If your engine

does not operate properlydue to suspected

carburetor problems, take your lawn.,mower to

an authorized service center for repair or

adjustment.

IMPORTANT: Never tsmper withthe engine

governor,which is factoryset for proper

engine speed. Overspeeding the engine

above the factory high speed setting can be

dangerous, if you think the engine-governed

high speed needs adjusting, contactyour

nearest AUTHORIZED service center,which

has proper equipment and experience to

make any necessary adjustments.

ENGINE SPEED

Your engine speed has been factory set. Do

not attempt to increase engine speed or it

may result in personal injury. If you believe

that the engine is runningtoo fast or too slow,

take your lawn mower to an authorized

service center for repair and adjustment.

Immediately prepare your lawn mower for

storage atthe end of the season or if the unit

will not be used for 30 days or mere.

LAWN MOWER

When lawn mower is to be stored fora period

of time clean it thoroughly,remove all dirt,

grease, leaves, etc. Store in a dean, dryarea.

• Clean entire lawn mower (See "CLEAN-

ING' in the Maintenance section of this

manual).

•Lubricate as shown in the Maintenance

sectionofthismanual.

•Be sure that all nuts, bolts,screws, and pins

are securely fastened. Inspect moving

_rts for damage, breakage and wear.

place if neceseary.

•Touch up all rusted or chipped paint

surfaces; sand lightlybefore painting.

HANDLE

•You can fold your lawn mower handle

for storage.

• Loosen the two (2) handle knobs on

sides of the upper handle and allow

handle to fold down to the rear.

•Squeeze the bottom ends of lower

handle toward each other until pins in

handle clear the brackets and pivot

entire handle assembly forward and

allow it to rest on mower.

•When setting up your handle from the

storage position, the lower handle will

require manually locking into the

mowing position.

IMPORTANT: When folding the handle for

storage or transportation, be sure to fold

the handle as shown or you may damage

the control cables.

High

Med._

Low _Handlepin

3-position

Handle

adjustment

bracket

Operator Presence

ControlBar

, Upper

Fold Forward

For Storage :old

Backward

Mowing

) Position

Lower

Handle

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

_uUmdeposits from forming in essential

el system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

•Drain the fuel tank.

•Start the engine and let it run until the

fuel lines and carburetor are empty.

iever use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after addin_l

stabilizer to allow the stabilizer to raacn

the carburetor. Do not drain the ._as tank

and carburetor if using fuel stabihzer.

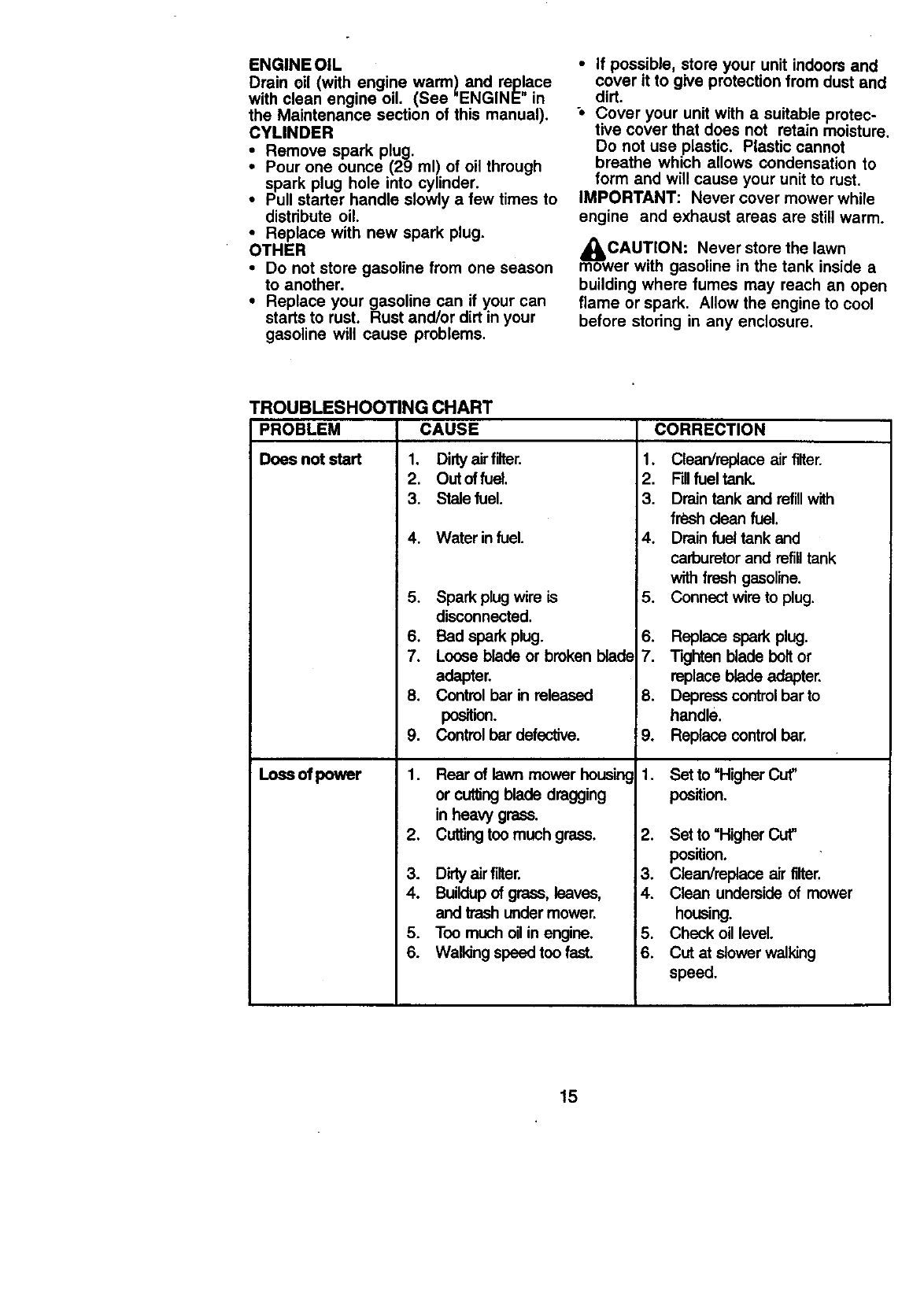

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE in

the Maintenance section of this manual).

CYLINDER

Remove spark plug.

Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

• Pull starter handle slowly a few times to

distribute oil.

•Replace with new spark plug.

OTHER

•Do not store gasoline from one season

to another.

•Replace your 9asoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your unit indoors and

cover it to give protection from dust and

dirt.

.Cover your unit with a suitable protec-

tive cover that does not retain moisture.

Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

&CAUTION: Never store the lawn

mower with gasoline in the tank inside a

building where fumes may reach an open

flame or spark. Allow the engine to cool

before storing in any enclosure.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Does not start 1. Dirty air filter.

2. Out offuel.

3. Stale fuel.

4. Water infuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken blade

adapter.

8. Control bar in released

po,_tion.

9, Control bar defective,

Loss of power 1, Rear of lawn mower housing

or cutting blade dragging

in heaw grass.

2. Cuttingtoo much grass.

3. Dirty airfilter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walking speed too fast.

CORRECTION

1. Clean/replace air filter.

2. Fillfuel tank.

3. Drain tank and refillwith

fresh dean fuel.

4. Drain fuel tank and

carburetor and refilltank

with fresh gasoline.

5. Connect wire to plug.

Replace spark plug.

Tk:jhtenblade bolt or

replace blade adapter.

Depress controlbar to

handle.

Replace controlbar.

Setto =HigherCut"

position.

2. Set to "Higher Cut"

position.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking

speed.

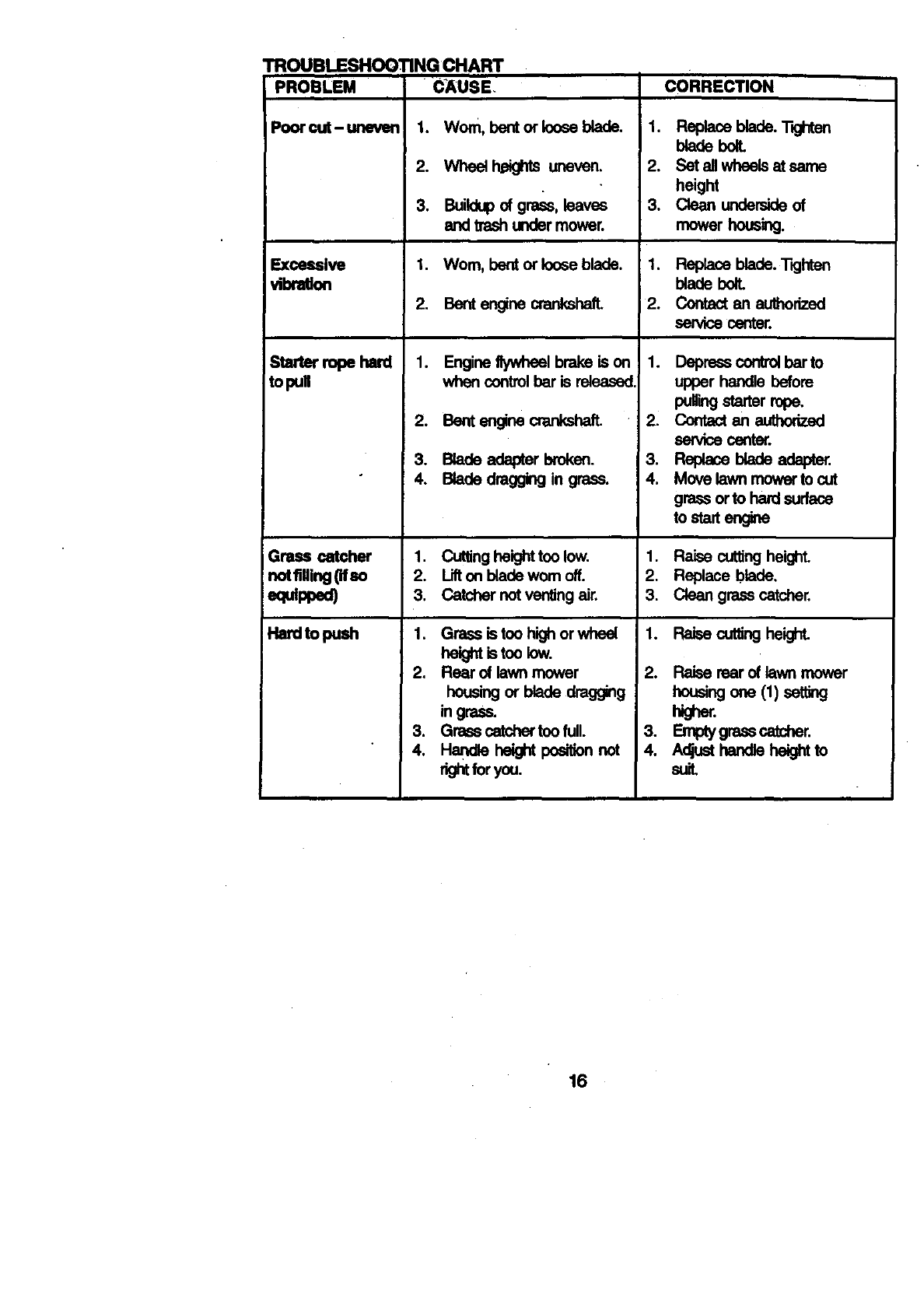

TROUBLESHOOTINGCHART

PROBLEM CAUSE.

Poor cut- uneven 1.

Excessive

_bralion

Sterter rope herd

topu,

Grass catcher

notfiging {ifso

oq.dl_

No.:itop_d,_

Worn, hent or 1_6e blade.

2. WheelI_igt_ ur_ven.

3. Buildupofgra_, leaves

andtrashundermower.

1. Worn, bentor looseblade.

2. Bentengine crankshaft.

1. Engine flywheel brake is on

when controlbar is released.

2. BentenQ_necranksha_

3. Blade adapter broken.

4. Blade draggklg in grass.

1. Cutting heighttoo low.

2. Lifton blade worn off.

3. Catcher not venting air.

1. Grass is too high or wheel

_t _,too=_w.

2. Rear of lawn mower

housing or blade dragging

in grass.

3. Grass catcher too full.

4. Handle height posi_on not

dghtforyou.

CORRECTION

1. Replace blade. T_r_en

blade bo_

2. Set all whools at same

height

3. Clean underside of

mower hous_g.

1. Replace blade. T_hten

blade bdt.

2. Contact an au_odzed

sen/ice center.

1. Depress control bar to

upper handle before

puHingstarter rope.

2. Contact sn author_ed

service center.

3. _Uadea_.

4. Move lawn n'_ov,_sr_cut

grass or to hard surface

to start engine

1. Raise cutlJngheight.

2. Replace blade,

3. Clean grass catcher.

1. Raise cutling height.

2. Raise rear of lawn mower

housing one (1) setting

h_er.

3. Emptygrasscatd_.

4. Adjust hendle height to

suit,

CRAFTSMAN ROTARY LAWN MOWER -- MODEL NO. 917.388300

KEY. PART

NO. NO.

1 131696

2 166860X479

3 161105X479

4 132001

5 636O1

6 131959

7 66426

8 74780512

9 154132

10 165754

11 168552

12 750097

13 850733X004

14 136376

15 51793

16 147286

17 165946X479

18 17600406

19 187132X004

20 167133X004

21 165858

22 168360X004

23 166875

24 751153

25 166236X479

26 166243x479

27 851856

28 152124

29 160835X007

30 19112222

31 165760

33 87877

KEY PART

DESCRIPTION NO. NO. DESCRIP_ON

ControlBar 34 167130X004 AxleArmAssembly- LR

UpperHandle 35 166785 Locknut5/16-18

LowerHandle 36 160828 ShoulderBolt5/16-18

RopeGuide 37 151162 WheelAssembly

Locknut1/4-20 38 164362 ShoulderBolt

HandleBolt 39 83923 FlangedLocknut

WireTle 40 77400 Hubcap

Hex Bolt5/16-18 x 3/4 41 88652 HingeScrew

HingeBracket 42 165766 Spring(LH)

MulcherDoor 43 165767 Spdng(RH)

EngineZoneContmlCable 44 165912 DoorBolt

Hex Washer Huad Screw#10-24 x 1/2 45 150406 HexHead Thmed RollingScrew3/8-16 x 1

Up-StopBmcket 46 85463 DangerDecal

PlendleKnot) 47 63124 Nut

HaltplnCofter 48 167131X004 AxleArmAssembly- RR

HingeRed 49 151161 Wheel

SupportBracket 50 57143 WaveWasher

Screw 51 73990500 Nut

Axle ArmAssemblyoLF 52 166878 HousingAssembly(Incl. Ref. #17, 18 & 46)

AxleArmAssembly- RF 53 851084 Hex Head Screw3/8-24 x 1-3/8 Grd. 8

RearSldrt 54 850263 HelicalLockwasher

SelectorSpdng 55 851074 HardenedWasher

Rear DoorAssemblyKit (Incl.Spdngs) 56 16,5833 21" Blade

Locknut5/16-18 57 851514 BledeAdapter

HandleBracketAssembly(Left) 58 16|551 AdjustmentBolt

Handle BracketAssembly(Right) 67 166113 Grass Bag

Screw114-20x 3/8 68 165755 CatcherFrame

HingeSprlng 70 ...... Engine- (Sse Breakdown)

Whse_AdjustingBracket-Front Craftsman143.996004

Spacer - - 161058 WarningDecal(NotShown)

CliponDischargeGuard - - 166882 Owner'sManual

SelectorKnob

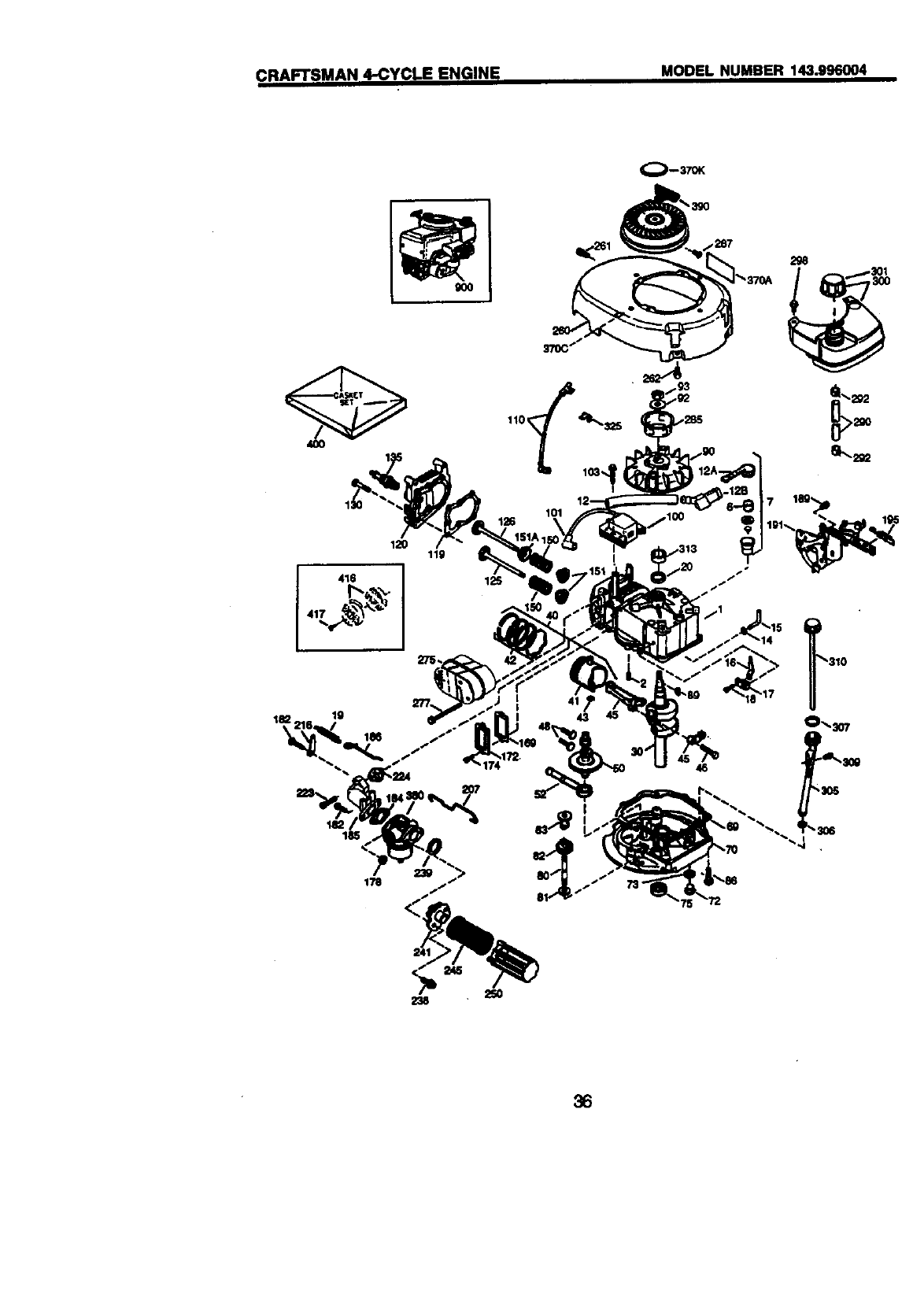

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.996004

4OO

O-370K

2Se

170

125

119

12S

310

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.996004

KEY PART

NO. NO. DESCRIPTION

37266

26727

33734

36557

12 36775

12A 36558

12B 36694

14 28277

15 30589

16 34839A

17 31335

18 651018

19 36281

20 32600

30 36776

40 40004

40005

41 36070

36071

42 40006

42 40007

43 20381

45 36777

46 32610A

48 27241

60 36778

52 29914

69 35261

70 34311E

72 30572

73 28833

75 27897

80 30574A

81" 30590A

82 30591

83 30588A

86 650488

89 611004

90 611112

92 650815

93 650816

100 34443B

101 610118

103 651007

110 37047

119 36787

120 36825

125 37288

126 37289

130 6021A

135 35395

150 31672

151 31673

151A 40017

KEY PART

NO. NO. DESCRIPTION

Cylinder (Incl. 2,20 & 150) 169

Dowel Pin 172

Breather Element 174

Breather Ass'y. (Incl. 6 & 178

182

12A)

Breather Tube 184

Breather Cover & Tube (Incl. 185

12B)

Breather Tube Elbow 186

Washer 189

Governor Rod (Incl. 14) 191

Govemor Lever

Governor Lever Clamp 195

Screw, Torx "1"-15,8-32x 19/ 207

64" 216

Extension Spring 223

Oil Seal 224

Crankshaft 238

Piston, Pin & Ring Set (Std.) 239

Piston, Pin & Ring Set 241

245

_010" OS)

iston & Pin Ass'y. (Std.) 250

260

_ncl. 43)

iston & Pin Ass'y. (.010" 261

262

OS)

(Incl.43) 275

Ring Set (Std,) 277

Ring Sat (.010" OS) 285

Piston Pin Retaining Ring 287

Connecting Rod Ass'y. (Incl. 290

292

46)

Connecting Rod Bolt 298

Valve Lifter 300

Camshaft (MCR) 301

305

Oil Pump Ass'y.

• Mounting Flange Gasket 306

Mounting Flange (Incl. 72 307

thru 83,306) 309

310

Oil Drain Rug (IncL 73)

Drain Plug Gasket 313

Oil Seal 325

Governor Shaft 370A

Washer 370C

Governor Gear Ass'y. (Incl. 370K

38O

81)

Governor Spool 390

Screw, 1/4-20 x 1-1/4" 400

_l_heel Key

eel 416

Bellevllle Washer

Flywheel Nut 417

Solid State Ignition

Spark Plug Cover 900

Screw, Torx T-16, 10-24 x 900

15116"

Ground Wire

* Cylinder Head Gaske

Cylinder Head

Exhaust Valve (Std.) (Incl.

151)

intake Valve (Std.) (Incl.

151)

Screw, 5/16-16 x 1-1/2"

Resistor Spark Plug

(RJ19LM)

Valve Spdng

Valve Spdng Cap

Intake Valve Seal

36785

32653

650839

36559A

610973

34336

33086

650451

36786

650932

34338

"35797

35066

35065

36980

30200

650831

36790A

650988

35000A

650926

29774

26460

28763

36916

36246

35647

36996

35499

650562

35648

34080

37152

36261

37199

36695

640174

590737

36792B

650821

--n

36783 * Valve Cover Gasket

36784 Valve Cover

30200 Screw, 10-24 x 9/16'

29752 Nut & Lock Washer, 1/4-28

6201 Screw, 1/428 x 7/8"

26756 * Carburetor To Intake Pipe

Gasket

Intake Pipe

Govamor Link

Screw, 1/4-20 x 3/8"

S.E. Brake Bracket (IncL

195)

Terminal

Throttle Unk

R.P.M. Adjusting Lever

Screw, 1/4-20 x 1"

•Intake Pipe Gasket

Screw, 10-32 x 49/64"

• Air Cleaner Gasket

Air Cleaner Collar

Air Cleaner Filter

Air Cleaner Cover

Blower Housing

Screw, 10-24 x 9/16"

Screw, 1/4-20 x 1/2"

Muffler

Screw, 1/4-20 x 2-5/16"

Starter Cup

Screw, 8-32 x 21/64"

Fuel Line

Fuel Line Clamp

Screw, 10-32 x 35/64"

Fuel Tank (Incl. 292 & 301)

Fuel Cap

Oil Fill Tube

•"O".Ring

=O'.Ring

Screw, 10o32 x 1/2"

Dipstick

Spacer

Spdng Clip

Lubdcation Decal

Pdmer Decal

Starter Decal

Carburetor (Incl. 184)

Rewind Starter

Gasket Set (Incl. Items

Marked *)

36085 Spark Arrestor Kit (Incl.

417)(Optional) •

Screw, 10-32. x 1/2 :

(Optional)

Replacement Engine NONE

Replacement S/B 750796A,

order from 71-999

RPM High 2900 to 3200

NOTE: This engine could have been built

with 590694starter

NOTE: All component dimensions given

in U.S. inches 1 inch = 25.4 mm

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.996004

KEY

NO.

20A

36A

48A

PART

NO.

640174

631615

631767

631184

631183

640070

650506

631807

651025

630766

640018

640053

631867

631024

632019

631028

631021

631022

36045A

640080

632766

632547

640175

27110A

630748

631027

632760

DESCRIPTION

Carburetor (ind. 184 of Engine Parts Ust)

Throttle Shaft & Lever Assembly

Throttle Retum Spdng

* Dust Seal Washer

* Dust Seal (Throttler

Throttle Shutter

• Shutter Screw

Fuel Fitting

Throttle Crack Screw/Idle Speed Screw

Tension Spdng

Idle Restdctor Screw

Idle Restdctor Screw Cap

Float Bowl

• Float Shaft

Float

* Float Bowl =O" Ring

Inlet Needle, Seat, & Clip (Incl. 31)

pdng C,p

diner BulblRetainer Ring

Main Nozzle Tube

Carburetor Tube

*"O"Ring, Main Nozzle Tube

H_ghSpeed Bowl Nut

Bowl Nut Washer

iWalch Plug, idle Mixture WallWelch Plug, Atmospheric Ven

Walc_ Plug

Repair kit (Incl. Items Mad_ed*)

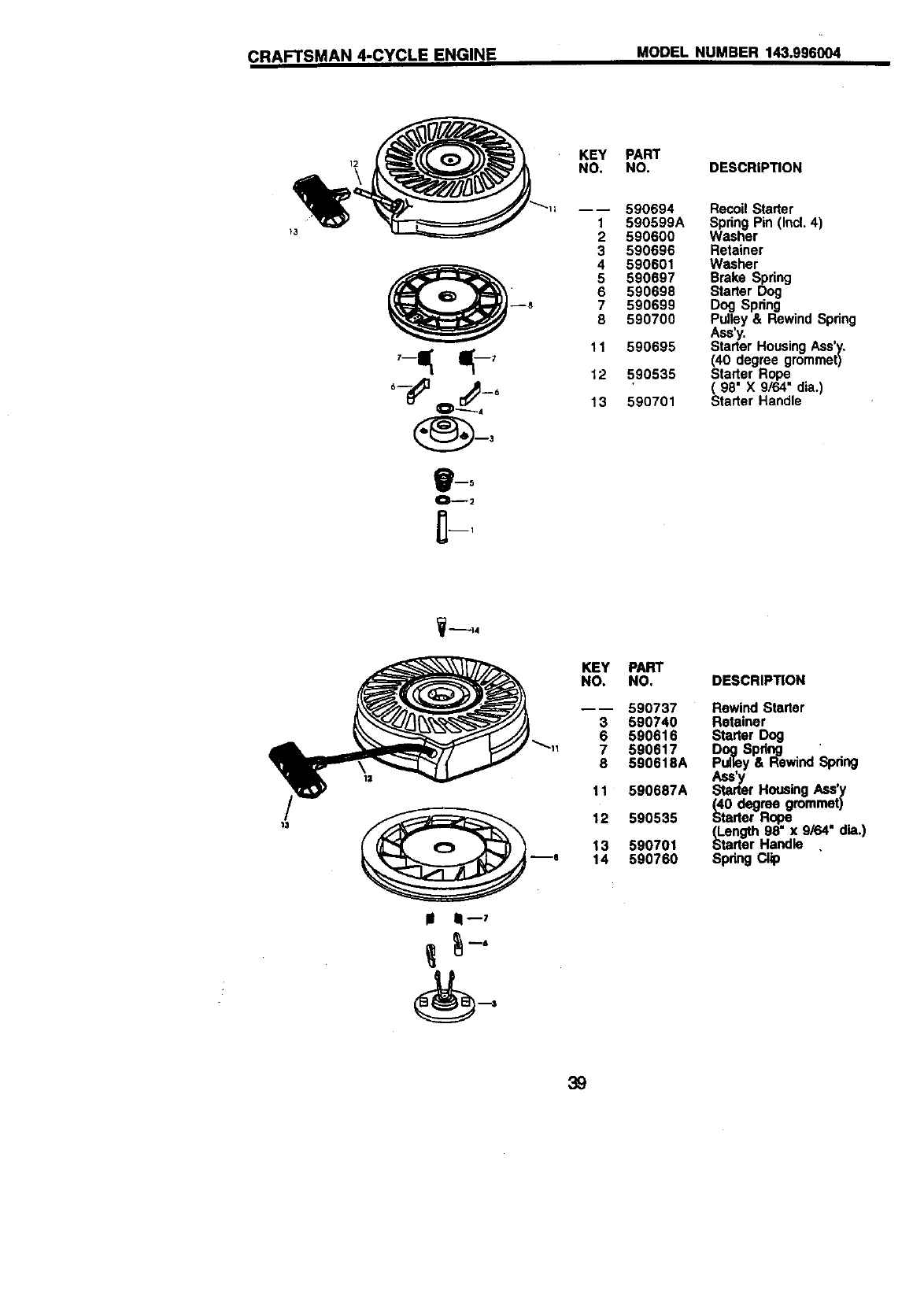

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.996004

4_ii_ __ • KEY

NO.

"_) _____*/'_ 590694

--'1- 590599A

_3 2 590600

3 590696

4 590601

5 690697

6 590698

e 7 590699

8 590700

11 590695

7--111_ _1_--' 12 590535

6--_] =. _----6 13 590701

--5

O--2

[]--,

PART

NO. DESCRIPTION

Recoil Starter

Spring Pin (Incl. 4)

Washer

Retainer

Washer

Brake Spring

Starter Dog

Dog Spring

Pulley & Rewind Spring

Ass'y,

Starter Housing Ass'y.

(40 degree grommet)

Starter Rope

( 98" X 9/64" dia.)

Starter Handle

V--_-d4

KEY PART

NO. NO.

---- 590737

3 590740

6 590616

7 590617

8 590618A

11 590687A

12 590535

13 590701

--= 14 590760

!11 111--7

DESCRIPTION

Rewind Starter

Retainer

Starter Dog

D Sp dog

A._'y

Starter Housing Ass'y

(40 degree grommet)

Starter Rope

(Length 96" x 9/64" dia.)

Starter Handle .

Spring Clip

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1.800-4.MY-Home sM(1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio

1-800-676-5811

In Canada for all your service and parts needs call

Au Canada pour tout le service ou les pi6ces

1-800-665-4455

For the repair or replacement parts you need:

Call 6 am-11pm CST, 7 days a week

Pa rtsD irect s"

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio

1-800-659-7084

For the location of a Sears Parts and Repair Center

in your area:

Call 24 Hours a day, 7 days a week

1-800-488-1222

For Information on purchasing aSears Maintenance

Agreement or to inquire about an existing Agreement:

Call 9 am-5 pm, Monday -Saturday

1-800-827-6655

166882 REV.2 05.19.99 VB Printed in U.S.A

Craftsman 917388300 User Manual WALK BEHIND LAWN MOWER Manuals And Guides L9080105

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L9080105 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
