Owner's Manual
JCRAFTSMIIN'J
6.25 HORSEPOWER
22" REAR DISCHARGE
ROTARY LAWN MOWER
Model No.
917.388340
•Safety
•Assembly
•Operation
•Maintenance
•Espa_ol
•Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Visit our Craftsman website: www.sears.com/craftsman
Warranty .............................................. 2
Safety Rules ........................................ 2
Assembly ............................................. 4
Operation ............................................. 6

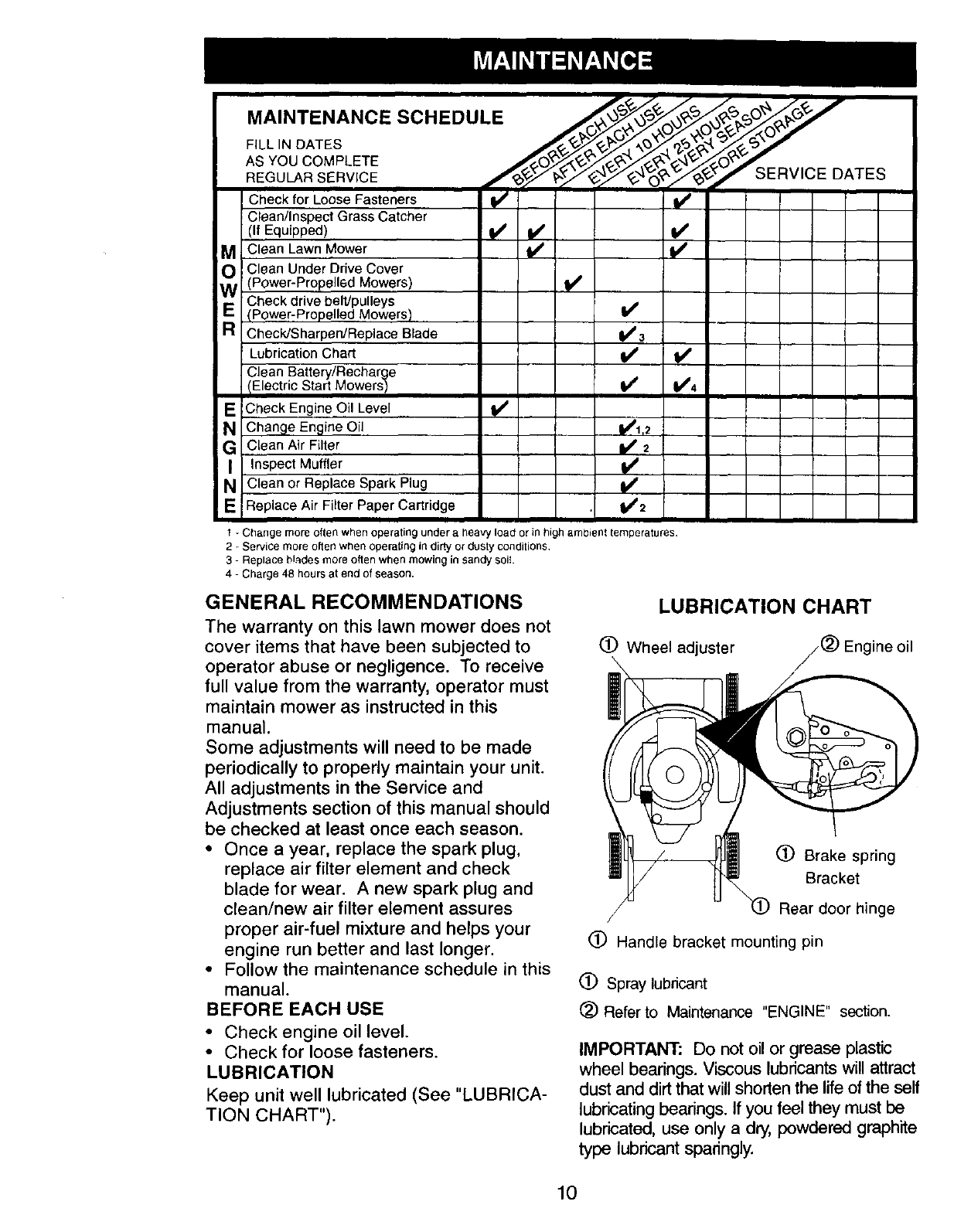

Maintenance Schedule ....................... 10
Maintenance ........................................ 10
Product Specifications ......................... 11
Service and Adjustments ..................... 14
Storage ................................................ 15

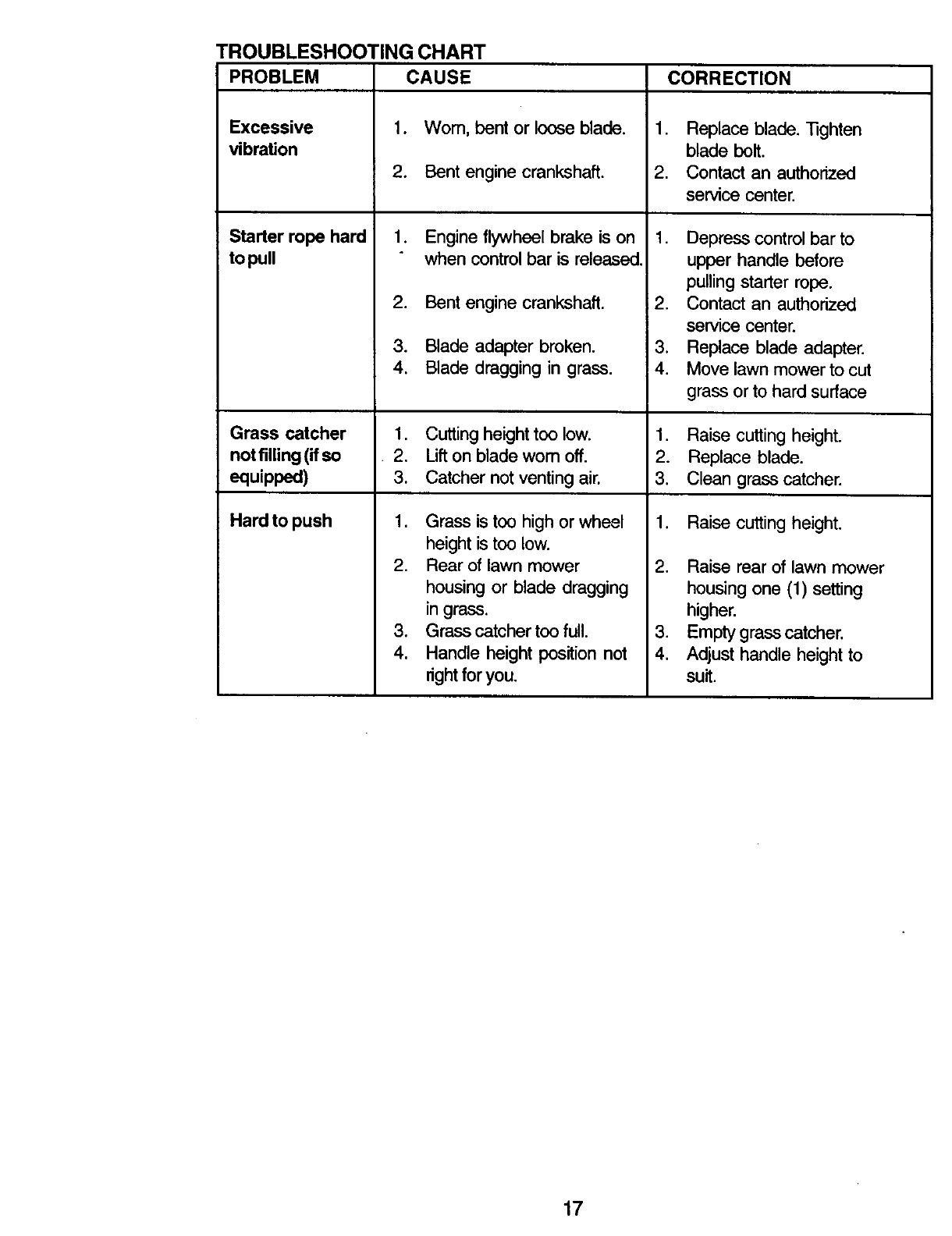

Troubleshooting .................................. 16

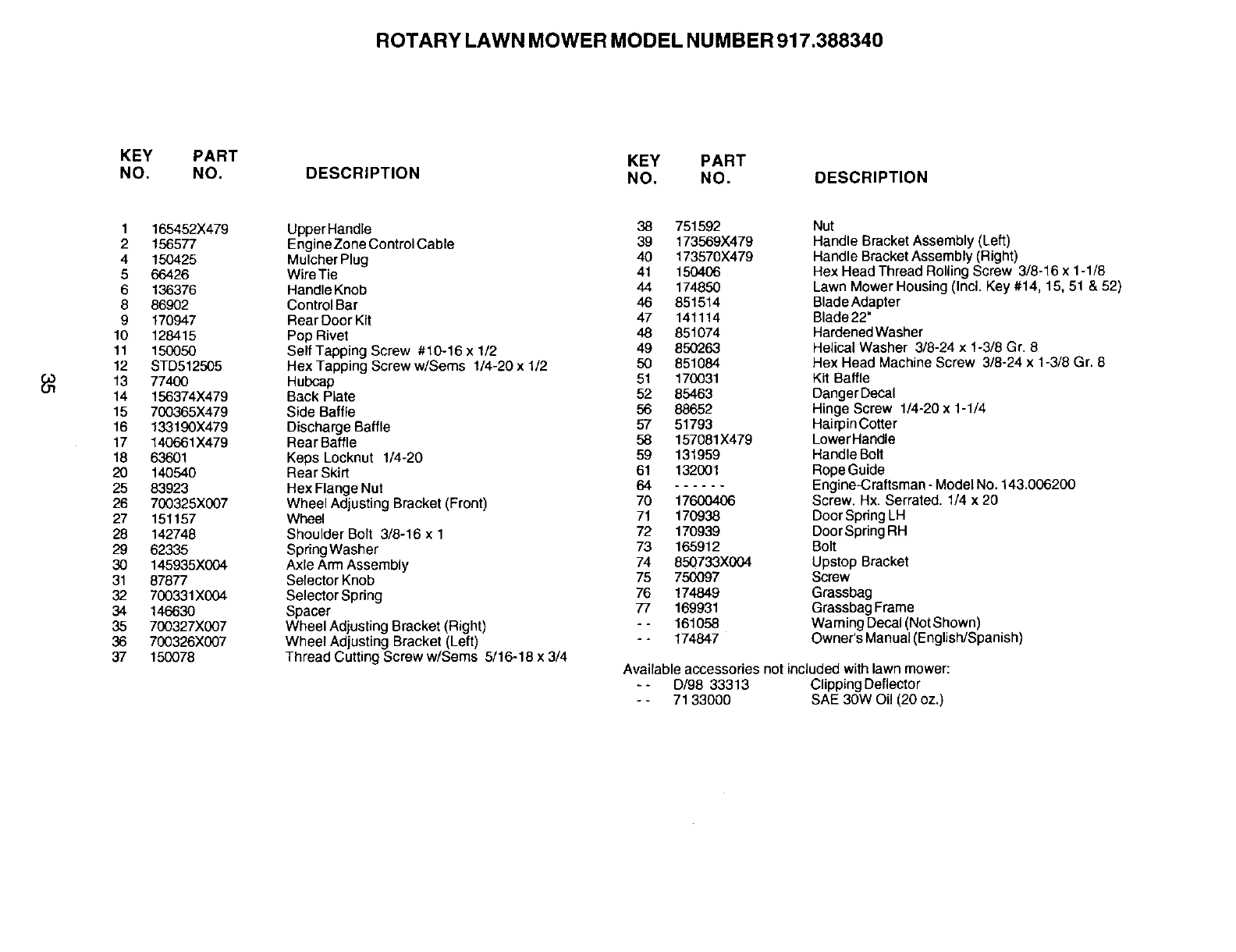

Repair Parts ......................................... 34
Parts Ordering ................... Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in the
owner's manual, Sears will repair free of charge any defect in material or workmanship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent crank-
shafts and the failure to maintain the equipment according to the instructions con-
tained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only while
this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
Safety standards require operator
presence controls to minimize the risk of
injury. Your unit is equipped with such
controls. Do not attempt to defeat the
function of the operator presence controls
under any circumstances.
TRAINING:
•Read this operator's manual carefully,
Become familiar with the controls and
know how to operate your mower
properly. Learn how to quickly stop
mower.
• Do not allow children to use your
mower. Never allow adults to use
mower without proper instructions.
• Keep the area of operation clear of all
persons, especially small children and
pets.
• Use mower only as the manufacturer
intended and as described in this
manual.
• Do not operate mower if it has been
dropped or damaged in any manner.
Always have damage repaired before
using your mower.
•Do not use accessory attachments that
are not recommended by the manufac-
turer. Use of such attachments may be
hazardous.
• The blade turns when the engine is
running.
PREPARATION:
•Always thoroughly check the area to be
mowed and clear it of all stones, sticks,
wires, bones, and other foreign objects.
These objects will be thrown by the
blade and can cause severe injury.
• Always wear safety glasses or eye
shields when starting and while using
your mower.
• Dress properly. Do not operate mower
when barefoot or wearing open sandals.
Wear only solid shoes with good traction
when mowing.
2

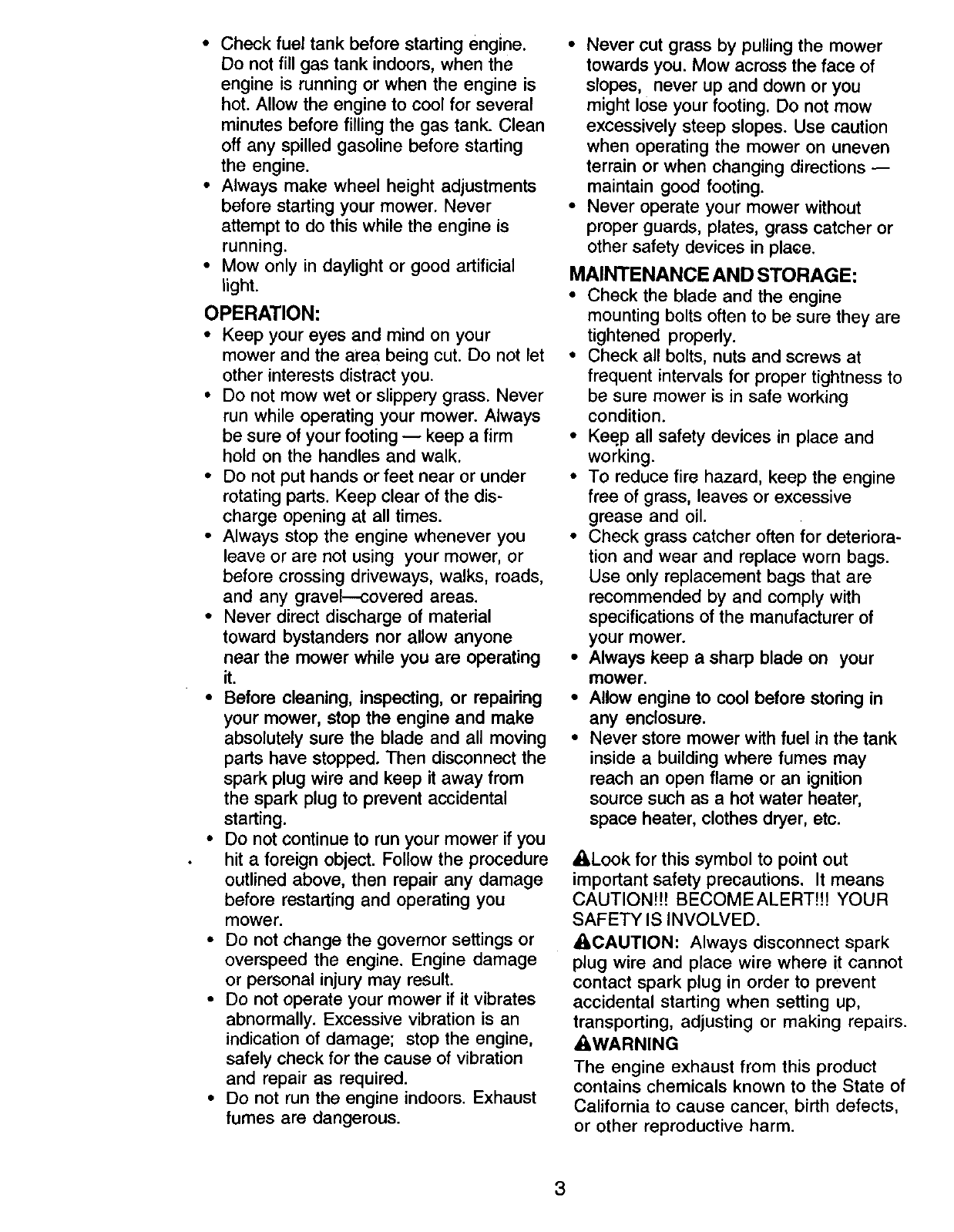

•Check fuel tank before starting engine.
Do not fill gas tank indoors, when the
engine is running or when the engine is
hot. Allow the engine to cool for several
minutes before filling the gas tank. Clean
off any spilled gasoline before starting
the engine.
•Always make wheel height adjustments
before starting your mower. Never
attempt to do this while the engine is
running.
• Mow only in daylight or good artificial
light.
OPERATION:
• Keep your eyes and mind on your
mower and the area being cut. Do not let
other interests distract you.
• Do not mow wet or slippery grass. Never
run while operating your mower. Always
be sure of your footing -- keep a firm
hold on the handles and walk.
• Do not put hands or feet near or under
rotating parts. Keep clear of the dis-
charge opening at all times.
• Always stop the engine whenever you
leave or are not using your mower, or
before crossing driveways, walks, roads,
and any gravel---covered areas.
• Never direct discharge of material
toward bystanders nor allow anyone
near the mower while you are operating
it.
• Before cleaning, inspecting, or repairing
your mower, stop the engine and make
absolutely sure the blade and all moving
parts have stopped. Then disconnect the
spark plug wire and keep it away from
the spark plug to prevent accidental
starting.
• Do not continue to run your mower if you
hit a foreign object. Follow the procedure
outlined above, then repair any damage
before restarting and operating you
mower.
• Do not change the governor settings or
overspeed the engine. Engine damage
or personal injury may result.
•Do not operate your mower if it vibrates
abnormally. Excessive vibration is an
indication of damage; stop the engine,
safely check for the cause of vibration
and repair as required.
• Do not run the engine indoors. Exhaust
fumes are dangerous.
• Never cut grass by pulling the mower
towards you. Mow across the face of
slopes, never up and down or you
might lose your footing. Do not mow
excessively steep slopes. Use caution
when operating the mower on uneven
terrain or when changing directions --
maintain good footing.
•Never operate your mower without
proper guards, plates, grass catcher or
other safety devices in place.
MAINTENANCE AND STORAGE:
• Check the blade and the engine
mounting bolts often to be sure they are
tightened properly.
• Check all bolts, nuts and screws at
frequent intervals for proper tightness to
be sure mower is in safe working
condition.
•Keep all safety devices in place and
working.
•To reduce fire hazard, keep the engine
free of grass, leaves or excessive
grease and oil.
• Check grass catcher often for deteriora-
tion and wear and replace worn bags.
Use only replacement bags that are
recommended by and comply with
specifications of the manufacturer of
your mower.
•Always keep a sharp blade on your
mower.
• Allow engine to cool before storing in
any enclosure.
• Never store mower with fuel in the tank
inside a building where fumes may
reach an open flame or an ignition
source such as a hot water heater,
space heater, clothes dryer, etc.
ALook for this symbol to point out
important safety precautions. It means
CAUTION!!! BECOMEALERT!!! YOUR
SAFETY IS INVOLVED.
ACAUTION: Always disconnect spark
plug wire and place wire where it cannot
contact spark plug in order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs.
_kWARNING
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
3

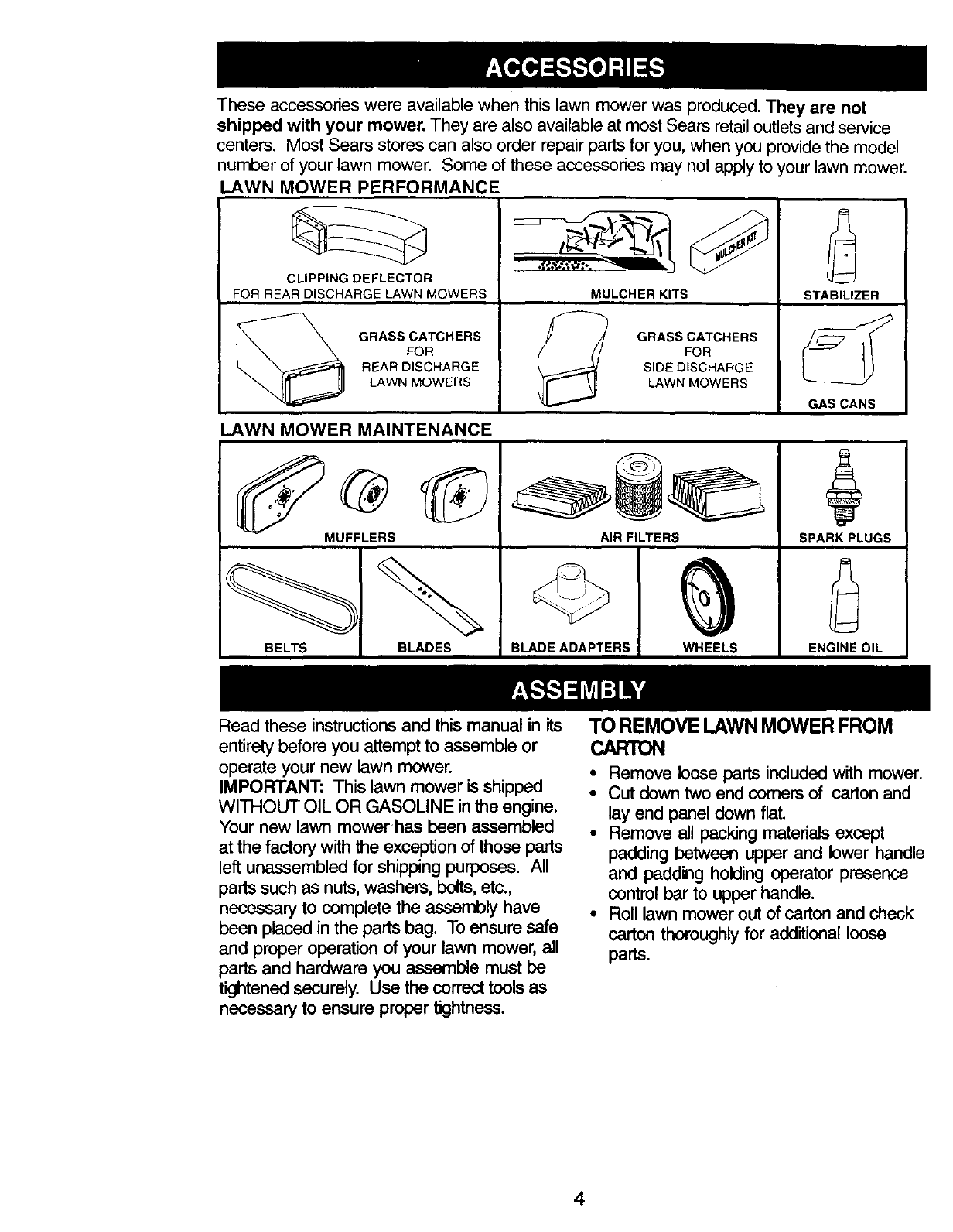

These accessories were available when this lawn mower was produced. They are not
shipped with your mower. They are also available at most Sears retail outlets and service
centers. Most Sears stores can also order repair parts for you, when you provide the model
number of your lawn mower. Some of these accessories may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS
GRASS CATCHERS
FOR
REAR DISCHARGE
LAWN MOWERS GRASS CATCHERS
FOR
SIDE DISCHARGE
LAWN MOWERS
LAWN MOWER MAINTENANCE
MUFFLERS
BELTS BLADES BLADE ADAPTERS
AIR FILTERS
WHEELS
STABILIZER
GAS CANS
SPARK PLUGS
A
ENGINE OIL
Read these instructionsand this manual in its
entirety before you attempt to assemble or
operate your new lawn mower.
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the engine.
Your new lawn mower has been assembled
at the factory with the exception of those parts
left unassembled for shipping purposes. All
parts such as nuts, washers, belts, etc.,
necessary to complete the assembly have
been placed in the parts bag. To ensure safe
and proper operation of your lawn mower, all
parts and hardware you assemble must be
tightened securely. Use the correct tools as
necessary to ensure proper tightness.
TO REMOVE LAWN MOWERFROM
CARTON
•Remove loose parts included with mower.
•Cut down two end comers of carton and
lay end panel down flat.
•Remove all packing materials except
padding between upper and lower handle
and padding holding operator presence
controlbar to upper handle.
• Roll lawn mower out of carton and check
carton thoroughly for additional loose
parts.
4

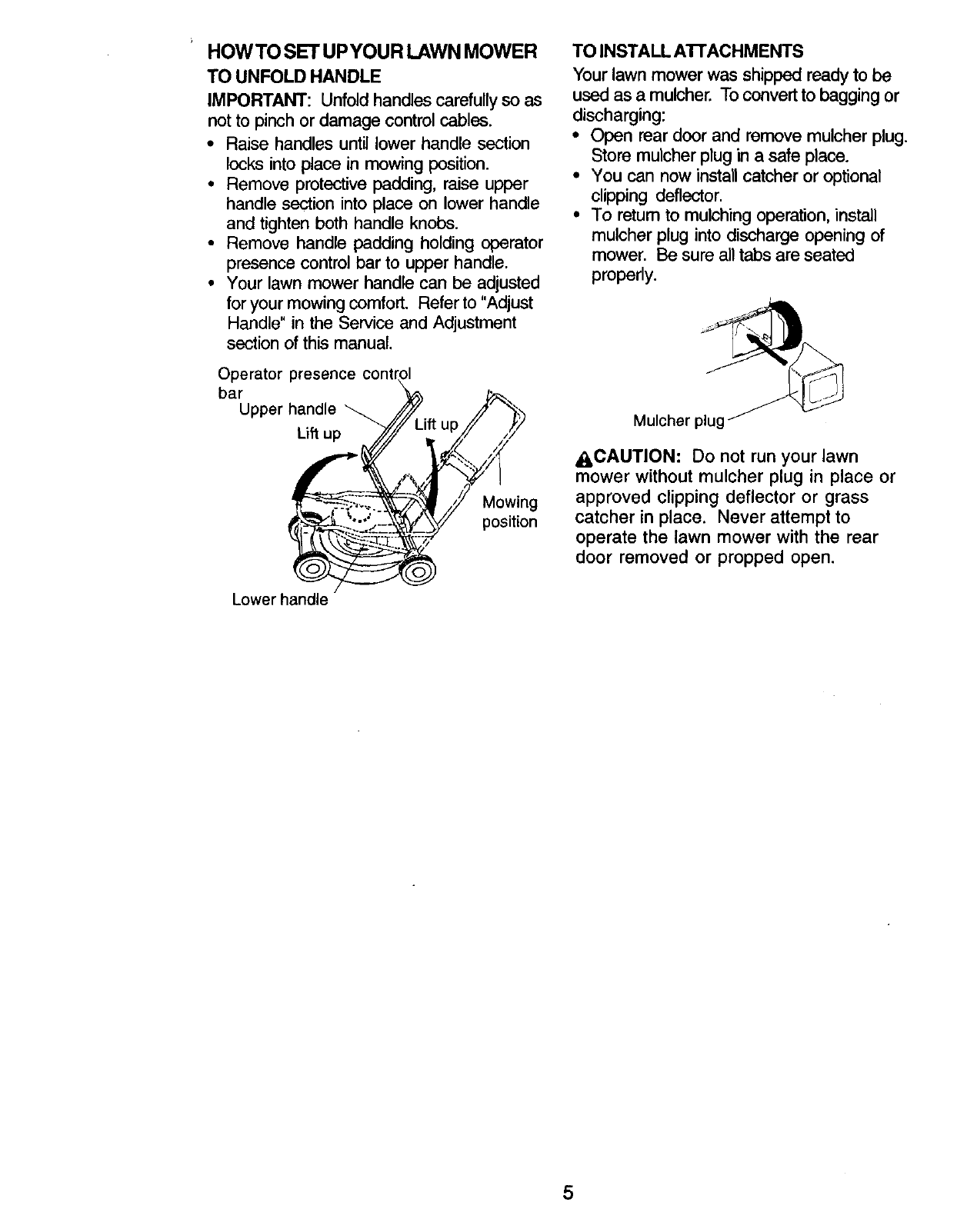

HOWTO SET UPYOUR LAWN MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handles carefully so as
not to pinch or damage control cables.
•Raise handles until lower handle section
locks into place in mowing position.
• Remove protective padding, raise upper
handle section into place on lower handle
and tighten both handle knobs.
•Remove handle padding holding operator
presence control bar to upper handle.
•Your lawn mower handle can be adjusted
for your mowing comfort. Refer to "Adjust
Handle" in the Service and Adjustment
section ofthis manual.
Operator presence cont
bar
Upper handle _
Lift up
Mowing
position
TO INSTALL A'I-rACHMENTS
Your lawn mower was shipped ready to be
used as amulcher. To convert to bagging or
discharging:
• Open rear door and remove mulcher plug.
Store mulcher plug in a safe place.
• You can now install catcher or optional
clipping deflector.
• To retum to mulching operation, install
mulcher plug into discharge opening of
mower. Be sure all tabs are seated
properly.
Mulcher plu_c
ACAUTION: Do not run your lawn
mower without mulcher plug in place or
approved clipping deflector or grass
catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
Lower handle
5
KNOW YOUR LAWN MOWER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN
MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the
location of various controls and adjustments. Save this manual for future reference.
These symbols may appear on your lawn moweror in literaturesuppliedwiththe product.Learnand understand
theremeaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS
OR WANNING ON OFF AND FEET AWAY
Engine zone control cable
\Operator presence control bar
Starter handle __
Grass
Handle knob
Mulcher plug Gasoline cap
Primer
Housing
Engine oil
cap w/
dipstick
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE inthe engine. Wheel adjuster
(on each wheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the American
National Standards Institute and the U.S. Consumer Product Safety Commission. The blade
tums when the engine is running.
Operator presence control bar -must be
held down to the handle to start the engine.
Release to stop the engine.
Primer - pumps additional fuel from the
carburetor to the cylinder for use when
starting a cold engine.
Starter handle -used for starting the engine.
Mulcher plug -must be removed to convert to
bagging or discharging operation.
6

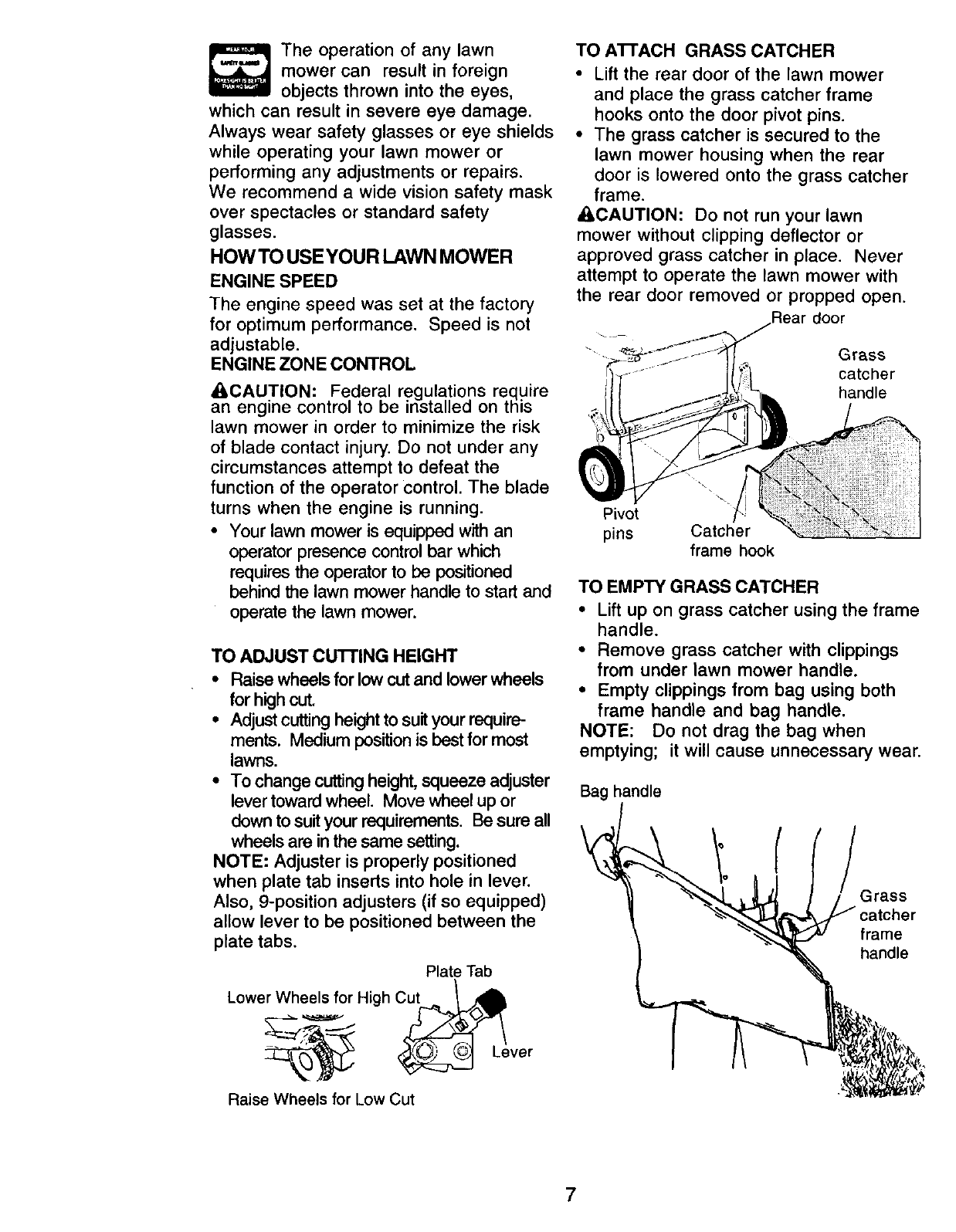

The operation of any lawn
mower can result in foreign
objects thrown into the eyes,
which can result in severe eye damage.
Always wear safety glasses or eye shields
while operating your lawn mower or
performing any adjustments or repairs.
We recommend a wide vision safety mask
over spectacles or standard safety
glasses.
HOWTO USE YOUR LAWN MOWER
ENGINE SPEED
The engine speed was set at the factory
for optimum performance. Speed is not
adjustable.
ENGINE ZONE CONTROL
ACAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start and
operate the lawn mower.
TO ADJUST cUTrlNG HEIGHT
•Raise wheels for low cut and lower wheels
for high cut.
• Adjust cutting height to suityour require-
ments. Medium position is best for most
lawns.
• To change cutting height, squeeze adjuster
lever toward wheel. Move wheel up or
down to suit your requirements. Be sure all
wheels are in the same setting.
NOTE: Adjuster is properly positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
Plate Tab
Lower Wheels for High Cut
Raise Wheels for Low Cut
TO AI-rACH GRASS CATCHER
• Lift the rear door of the lawn mower
and place the grass catcher frame
hooks onto the door pivot pins.
• The grass catcher is secured to the
lawn mower housing when the rear
door is lowered onto the grass catcher
frame.
A, CAUTION: Do not run your lawn
mower without clipping deflector or
approved grass catcher in place. Never
attempt to operate the lawn mower with
the rear door removed or propped open.
door
Grass
catcher
handle
Pivot
pins Catcher
frame hook
TO EMPTY GRASSCATCHER
•Lift up on grass catcher using the frame
handle.
• Remove grass catcher with clippings
from under lawn mower handle.
• Empty clippings from bag using both
frame handle and bag handle.
NOTE: Do not drag the bag when
emptying; it will cause unnecessary wear.
Bag handle
Grass
frame
handle
7

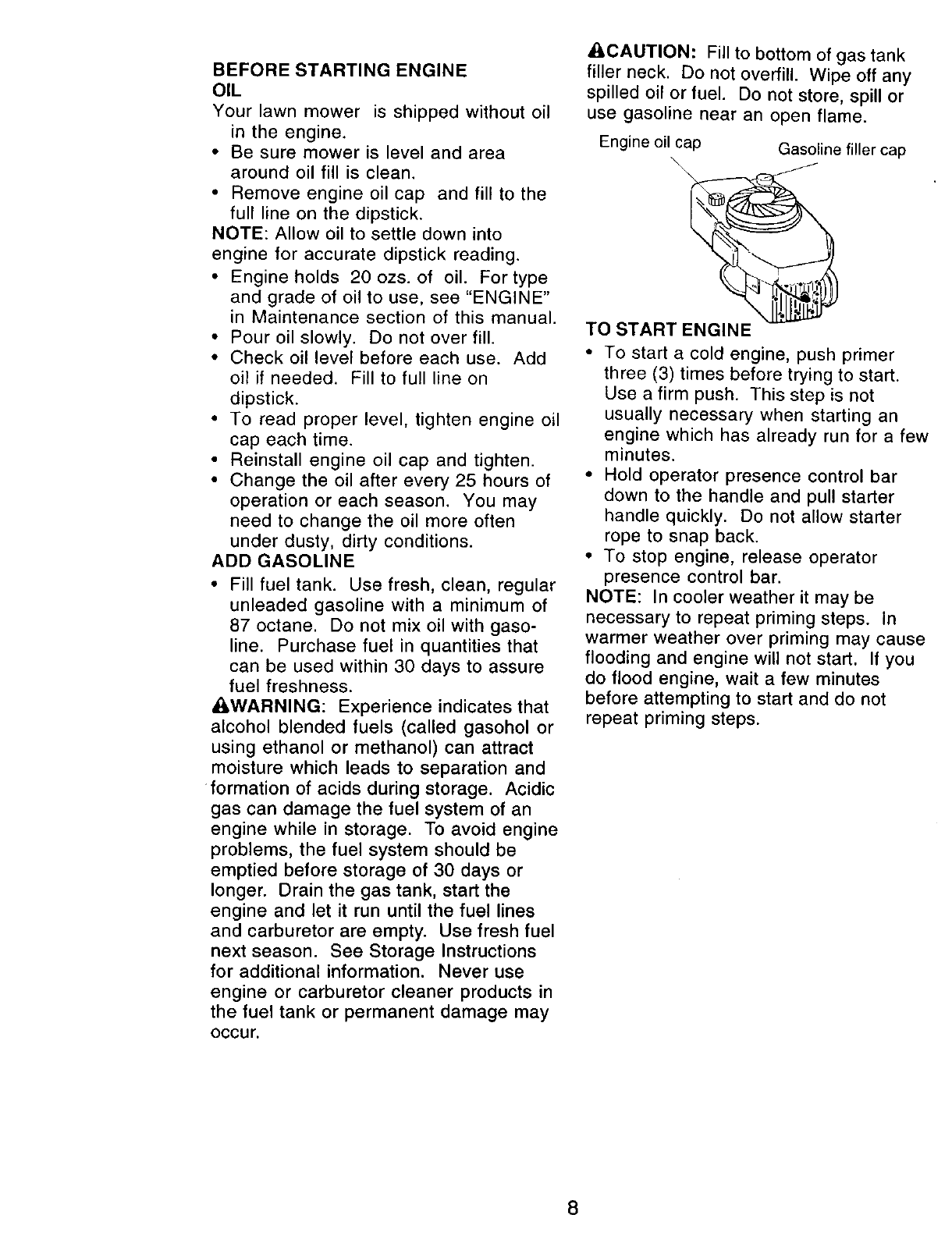

BEFORE STARTING ENGINE
OIL
Your lawn mower is shipped without oil
in the engine.
•Be sure mower is level and area
around oil fill is clean.
• Remove engine oil cap and fill to the
full line on the dipstick.
NOTE: Allow oil to settle down into
engine for accurate dipstick reading.
• Engine holds 20 ozs. of oil. For type
and grade of oil to use, see "ENGINE"
in Maintenance section of this manual.
• Pour oil slowly. Do not over fill.
•Check oil level before each use. Add
oil if needed. Fill to full line on
dipstick.
• To read proper level, tighten engine oil
cap each time.
• Reinstall engine oil cap and tighten.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often
under dusty, dirty conditions.
ADD GASOLINE
•Fill fuel tank. Use fresh, clean, regular
unleaded gasoline with a minimum of
87 octane. Do not mix oil with gaso-
line. Purchase fuel in quantities that
can be used within 30 days to assure
fuel freshness.
AWARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines
and carburetor are empty. Use fresh fuel
next season. See Storage Instructions
for additional information. Never use
engine or carburetor cleaner products in
the fuel tank or permanent damage may
occur.
AI_CAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or
use gasoline near an open flame.
Engine oil cap Gasoline filler cap
\\
TO START ENGINE
• To start a cold engine, push primer
three (3) times before trying to start.
Use a firm push. This step is not
usually necessary when starting an
engine which has already run for a few
minutes.
• Hold operator presence control bar
down to the handle and pull starter
handle quickly. Do not allow starter
rope to snap back.
• To stop engine, release operator
presence control bar.
NOTE: In cooler weather it may be
necessary to repeat priming steps. In
warmer weather over priming may cause
flooding and engine will not start. If you
do flood engine, wait a few minutes
before attempting to start and do not
repeat priming steps.
8

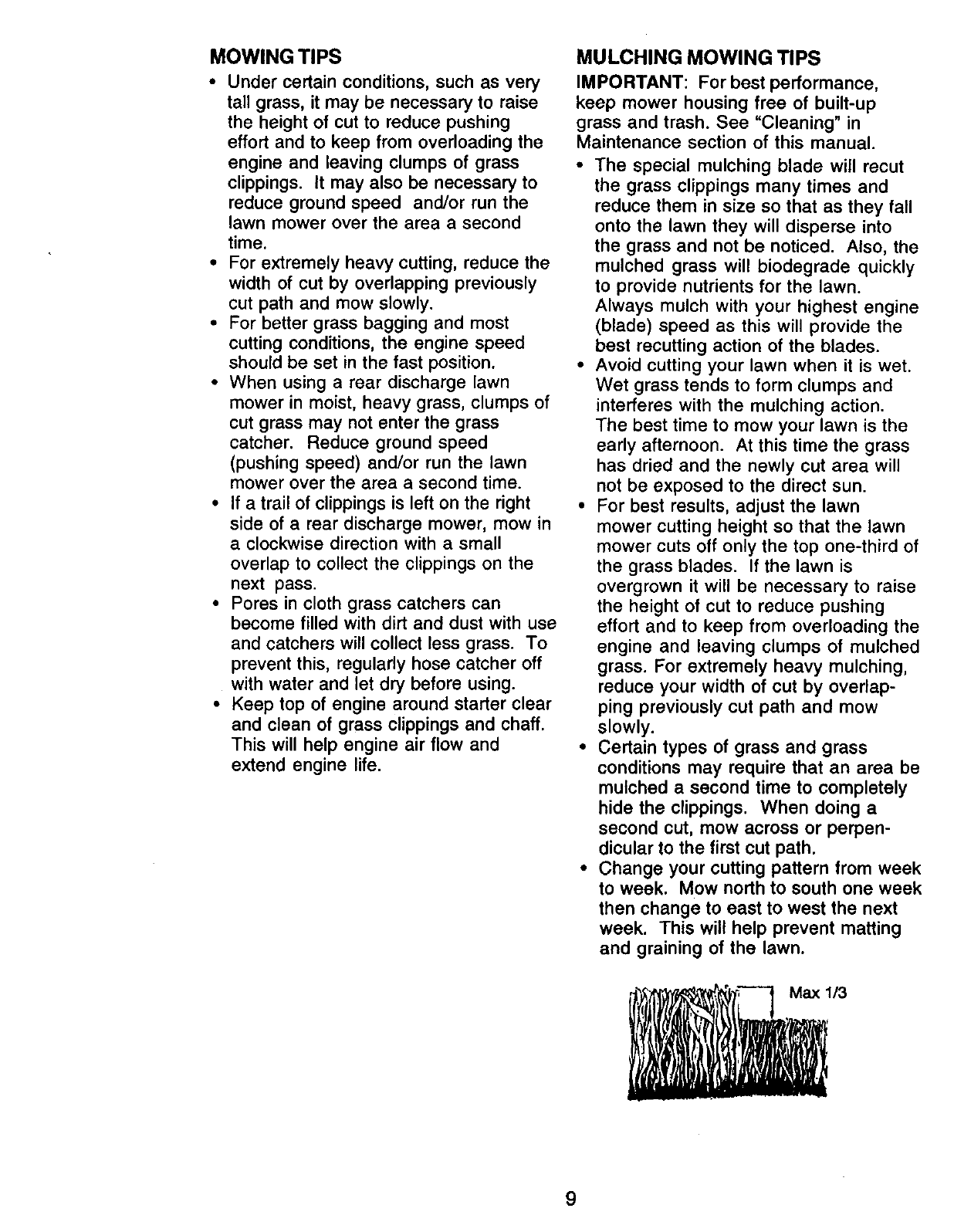

MOWING TIPS
•Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of grass
clippings. It may also be necessary to
reduce ground speed and/or run the
lawn mower over the area a second
time.
•For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
•When using a rear discharge lawn
mower in moist, heavy grass, clumps of
cut grass may not enter the grass
catcher. Reduce ground speed
(pushing speed) and/or run the lawn
mower over the area a second time.
•If a trail of clippings is left on the right
side of a rear discharge mower, mow in
aclockwise direction with a small
overlap to collect the clippings on the
next pass.
•Pores in cloth grass catchers can
become filled with dirt and dust with use
and catchers will collect less grass. To
prevent this, regularly hose catcher off
with water and let dry before using.
•Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and
extend engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. See "Cleaning" in
Maintenance section of this manual.
•The special mulching blade will recut
the grass clippings many times and
reduce them in size so that as they fall
onto the lawn they will disperse into
the grass and not be noticed. Also, the
mulched grass will biodegrade quickly
to provide nutrients for the lawn.
Always mulch with your highest engine
(blade) speed as this will provide the
best recutting action of the blades.
•Avoid cutting your lawn when it is wet.
Wet grass tends to form clumps and
interferes with the mulching action.
The best time to mow your lawn is the
early afternoon. At this time the grass
has dried and the newly cut area will
not be exposed to the direct sun.
•For best results, adjust the lawn
mower cutting height so that the lawn
mower cuts off only the top one-third of
the grass blades. If the lawn is
overgrown it will be necessary to raise
the height of cut to reduce pushing
effort and to keep from overloading the
engine and leaving clumps of mulched
grass. For extremely heavy mulching,
reduce your width of cut by overlap-
ping previously cut path and mow
slowly.
• Certain types of grass and grass
conditions may require that an area be
mulched a second time to completely
hide the clippings. When doing a
second cut, mow across or perpen-
dicular to the first cut path.
•Change your cutting pattern from week
to week. Mow north to south one week
then change to east to west the next
week. This will help prevent matting
and graining of the lawn.
/3
9
i/
Clean/Inspect Grass Catcher
(,fEquippe0) W
o_i Clean Lawn Mower
Clean Under Drive Cover
(Power-Propelled Mowers)
Check drive belVpulieys
(P0wer-Propelled Mowers) I_
RCheck/SharperVRepiace Blade t/3
Lubrication Chart I/ I_
Clean Battery/Recharge
/Electric Start Mowers) I/ I/'4
NE Check Engine Oil Level I_
Change Engine Oil i/1,2
(_ Clean Air Filter l_ 2
inspect Muffler
EN Clean or Replace Spark Plug
Replace Air Filter Paper Cartridge 1_2
..,.TE.ANOESO.EOU'E
/__0 _r/_O_i_'O_q.,_ u L) ,_._ 0_:
AS YOU COMPLETE /__£_,q'/_.'_."[_._'4¢_/_"_O_'._ '_.....
REGULAR SERVICE /'_"£c_/_.,_£!j/" SERVICE DATES
EIIN /_
Check for Loose Fasteners !l/
t - Change more often when operating under aheavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
3 - Replace blades more often when mowing in sandy soiL
4 - Charge 48 hours at end of season.
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not
cover items that have been subjected to
operator abuse or negligence. To receive
full value from the warranty, operator must
maintain mower as instructed in this
manual.
Some adjustments will need to be made
periodically to properly maintain your unit.
All adjustments in the Service and
Adjustments section of this manual should
be checked at least once each season.
•Once a year, replace the spark plug,
replace air filter element and check
blade for wear. A new spark plug and
clean/new air filter element assures
proper air-fuel mixture and helps your
engine run better and last longer.
• Follow the maintenance schedule in this
manual.
BEFORE EACH USE
• Check engine oil level.
• Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRICA-
TION CHART").
LUBRICATION CHART
(_) Wheel adjuster /(_) Engine oil
(_) Brake spring
Bracket
Rear door hinge
/
(_) Handle bracket mounting pin
(_ Spray lubricant
_) Refer to Maintenance "ENGINE" section.
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lubricants will attract
dust and dirt that will shorten the life of the self
lubricating bearings. If you feel they must be
lubricated, use only a dry, powdered graphite
type lubricant sparingly.
10

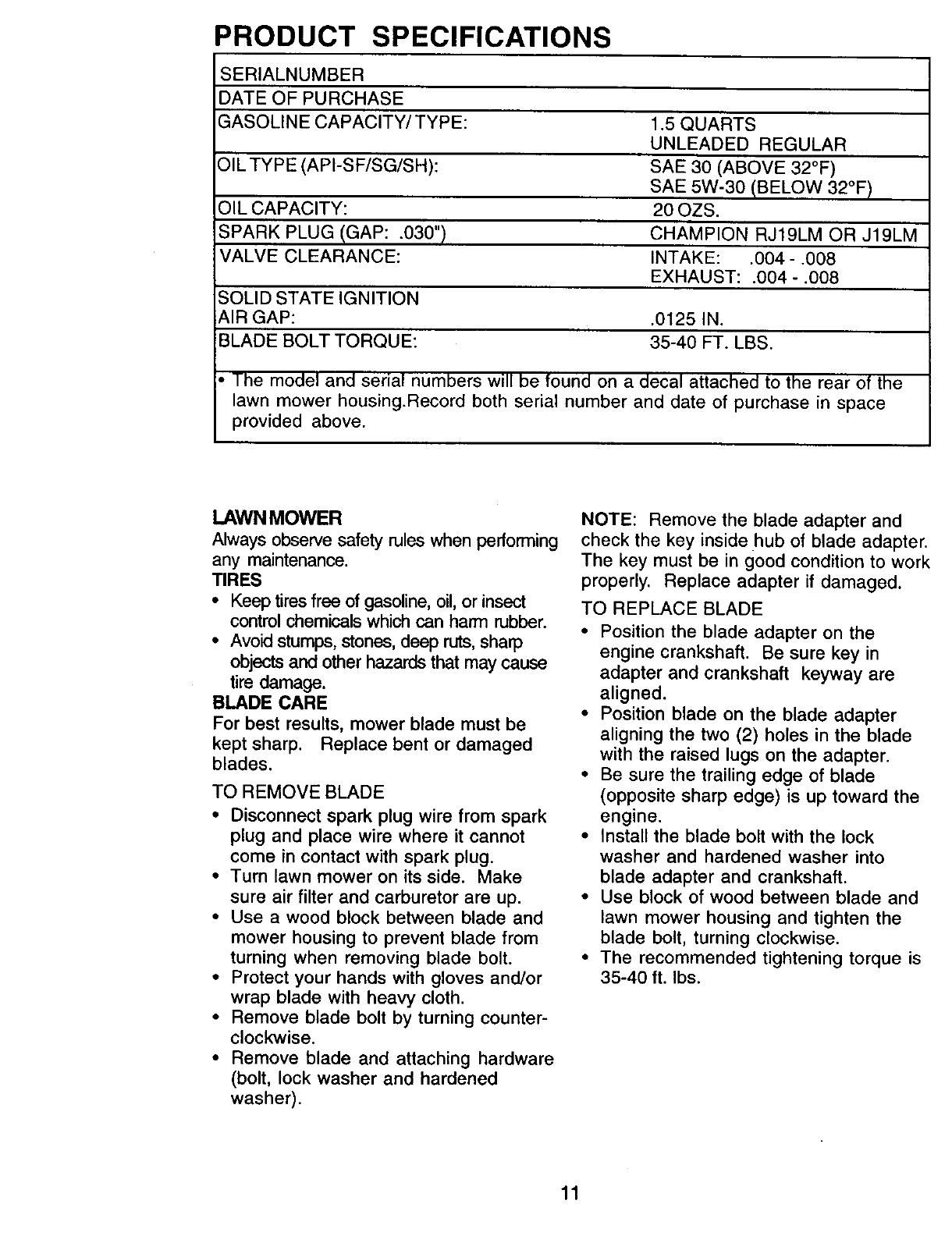

PRODUCT SPECIFICATIONS
SERIALNUMBER
DATE OF PURCHASE
GASOLINE CAPACITY/TYPE:
OIL TYPE (API-SF/SG/SH):
OIL CAPACITY:
SPARK PLUG (GAP: .030")
VALVE CLEARANCE:
1.5 QUARTS
UNLEADED REGULAR
SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
2O OZS.
CHAMPION RJ19LM OR J19LM
INTAKE: .004 - .008
EXHAUST: .004 - .008
SOLID STATE IGNITION
AIR GAP: .0125 IN.
BLADE BOLT TORQUE: 35-40 FT. LBS.
• The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when performing
any maintenance.
TIRES
• Keep tires free of gasoline, oil, or insect
control chemicals which can harm rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may cause
tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
TO REMOVE BLADE
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
•Turn lawn mower on its side. Make
sure air filter and carburetor are up.
•Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
•Protect your hands with gloves and/or
wrap blade with heavy cloth.
•Remove blade bolt by turning counter-
clockwise.
•Remove blade and attaching hardware
(bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade adapter.
The key must be in good condition to work
properly. Replace adapter if damaged.
TO REPLACE BLADE
• Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
• Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
• Be sure the trailing edge of blade
(opposite sharp edge) is up toward the
engine.
•Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
• Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. Ibs.
11

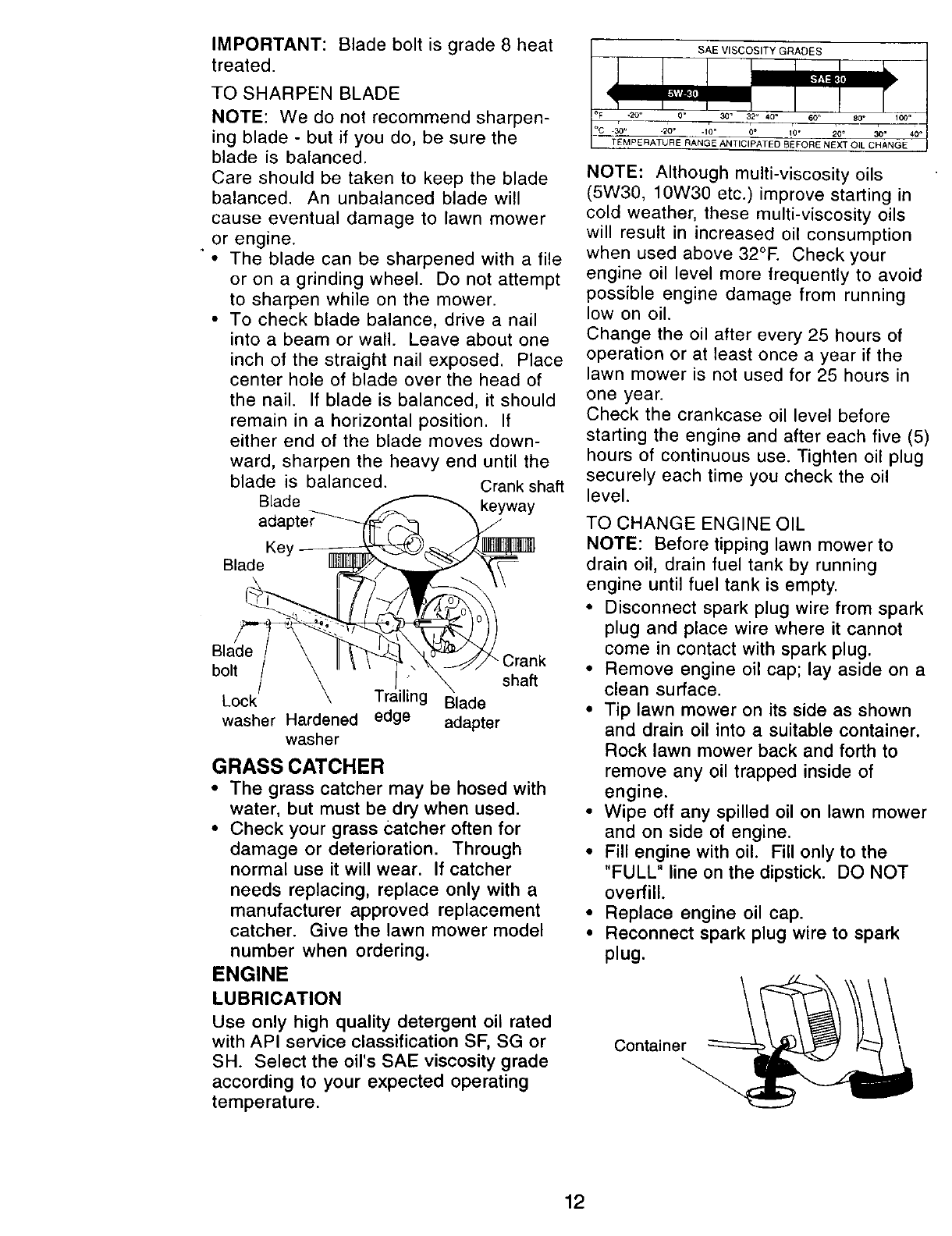

IMPORTANT: Blade bolt is grade 8 heat
treated.
TO SHARPEN BLADE
NOTE: We do not recommend sharpen-
ing blade - but if you do, be sure the
blade is balanced.
Care should be taken to keep the blade
balanced. An unbalanced blade will
cause eventual damage to lawn mower
or engine.
• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail
into a beam or wall. Leave about one
inch of the straight nail exposed. Place
center hole of blade over the head of
the nail. If blade is balanced, it should
remain in a horizontal position. If
either end of the blade moves down-
ward, sharpen the heavy end until the
blade is balanced. Crank shaft
Blade keyway
Key
Blade
Blade Crank
bolt shaft
Lock Blade
washer Hardened edge adapter
washer
GRASS CATCHER
•The grass catcher may be hosed with
water, but must be dry when used.
•Check your grass Catcher often for
damage or deterioration. Through
normal use it will wear. If catcher
needs replacing, replace only with a
manufacturer approved replacement
catcher. Give the lawn mower model
number when ordering.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF, SG or
SH. Select the oil's SAE viscosity grade
according to your expected operating
temperature.
SAE VISCOSITY GRADES
NOTE: Although multi-viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi-viscosity oils
will result in increased oil consumption
when used above 32°F. Check your
engine oil level more frequently to avoid
possible engine damage from running
low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the
lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil
level.
TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to
drain oil, drain fuel tank by running
engine until fuel tank is empty.
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Remove engine oil cap; lay aside on a
clean surface.
• Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of
engine.
•Wipe off any spilled oil on lawn mower
and on side of engine.
• Fill engine with oil. Fill only to the
"FULL" line on the dipstick. DO NOT
overfill.
• Replace engine oil cap.
• Reconnect spark plug wire to spark
plug.
Container
12

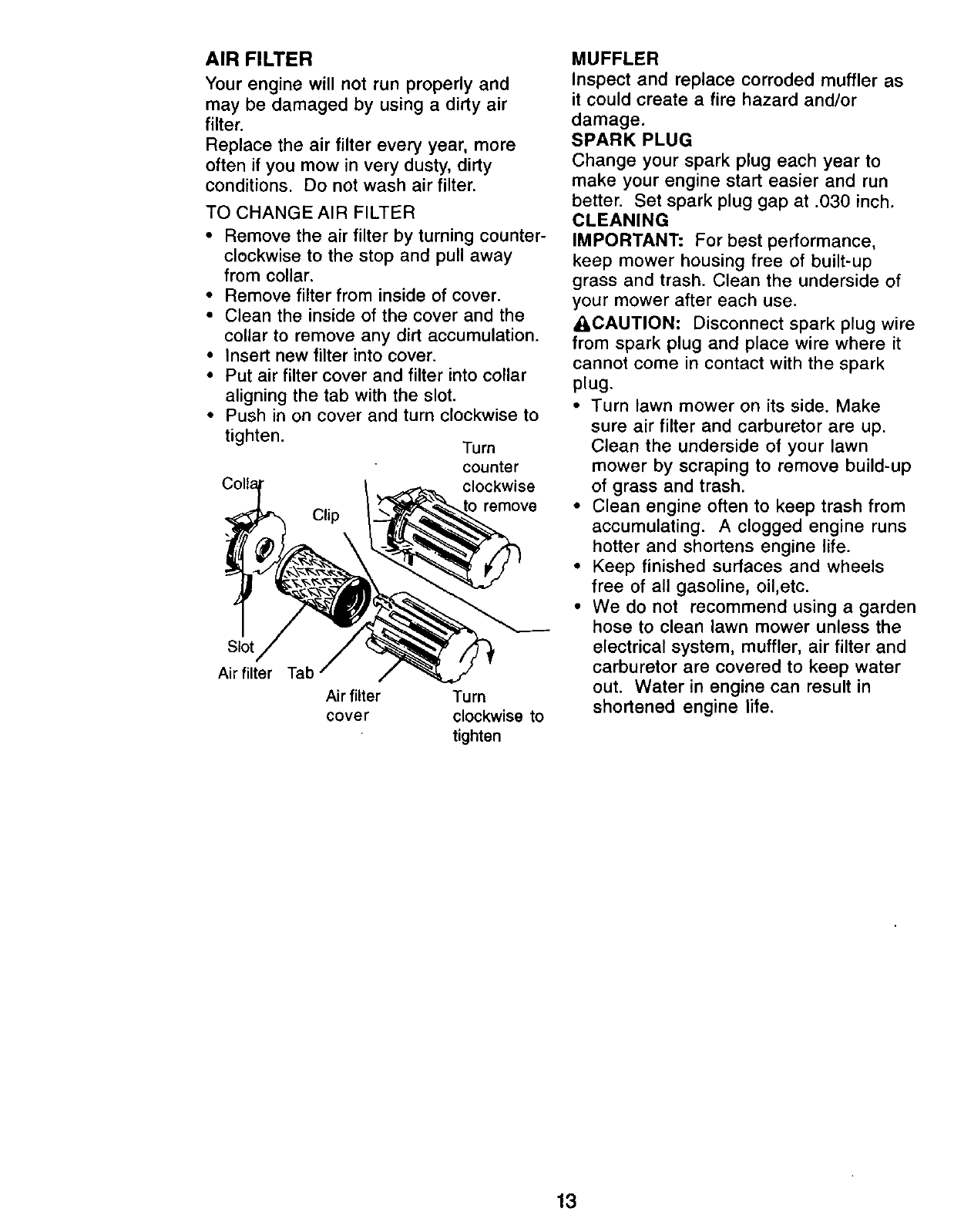

AIR FILTER
Your engine will not run properly and
may be damaged by using a dirty air
filter.
Replace the air filter every year, more
often if you mow in very dusty, dirty
conditions. Do not wash air filter.
TO CHANGE AIR FILTER
• Remove the air filter by turning counter-
clockwise to the stop and pull away
from collar.
•Remove filter from inside of cover.
• Clean the inside of the cover and the
collar to remove any dirt accumulation.
• Insert new filter into cover.
• Put air filter cover and filter into collar
aligning the tab with the slot.
•Push in on cover and turn clockwise to
tighten. Turn
counter
clockwise
remove
Clip
Slot
Air filter Tab
Air filter Turn
cover clockwise to
tighten
MUFFLER
Inspect and replace corroded muffler as
it could create a fire hazard and/or
damage.
SPARK PLUG
Change your spark plug each year to
make your engine start easier and run
better. Set spark plug gap at .030 inch.
CLEANING
IMPORTANT: For best performance,
keep mower housing free of built-up
grass and trash. Clean the underside of
your mower after each use.
ACAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Turn lawn mower on its side. Make
sure air filter and carburetor are up.
Clean the underside of your lawn
mower by scraping to remove build-up
of grass and trash.
• Clean engine often to keep trash from
accumulating. A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels
free of all gasoline, oil,etc.
• We do not recommend using a garden
hose to clean lawn mower unless the
electrical system, muffler, air filter and
carburetor are covered to keep water
out. Water in engine can result in
shortened engine life.
13

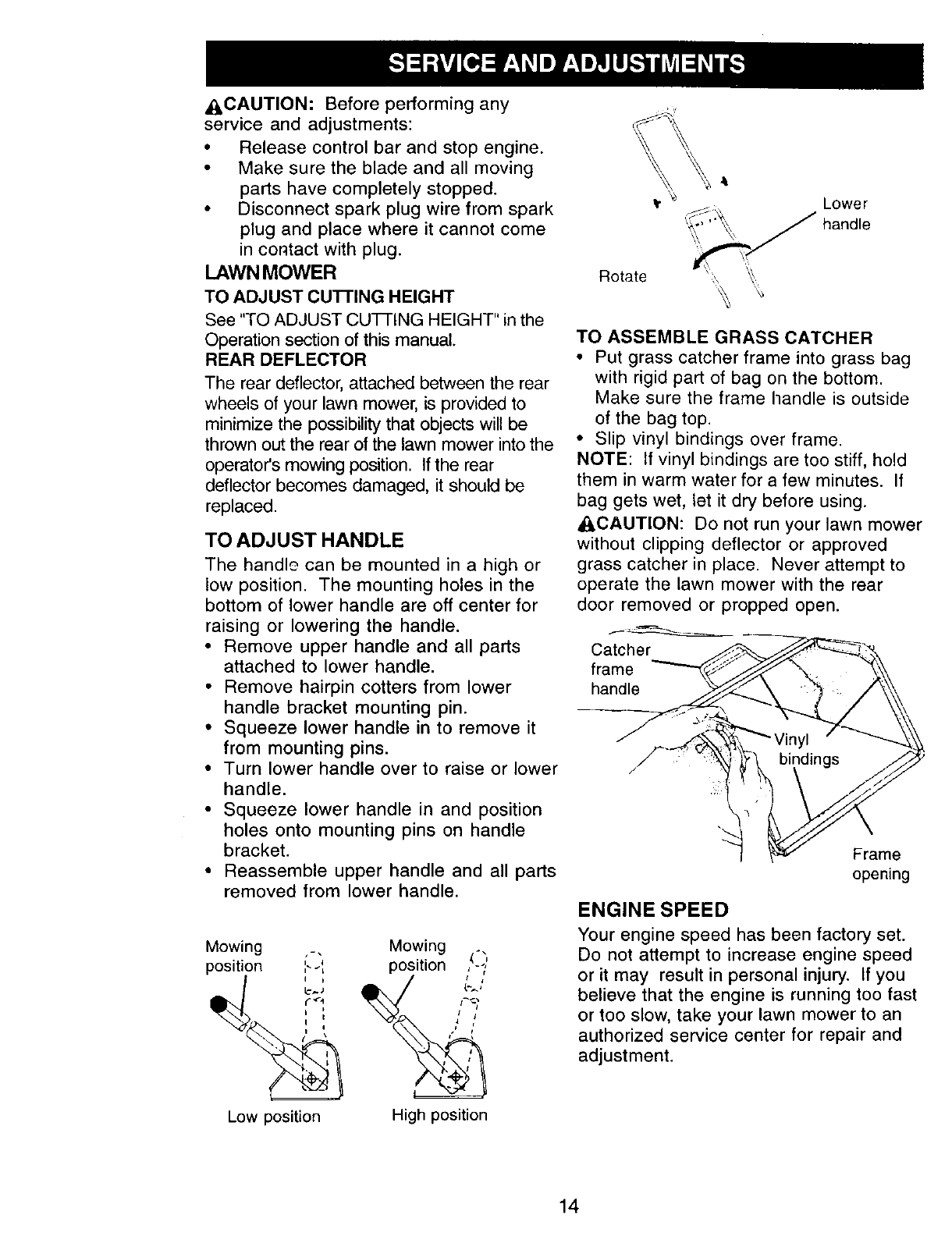

ACAUTION: Before performing any
service and adjustments:
• Release control bar and stop engine.
• Make sure the blade and all moving
parts have completely stopped.
• Disconnect spark plug wire from spark
plug and place where it cannot come
in contact with plug.
LAWN MOWER
TO ADJUST cu'n'ING HEIGHT
See "TO ADJUST CU-I-rlNG HEIGHT" in the
Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the rear
wheels of your lawn mower, is provided to
minimize the possibility that objects will be
thrown out the rear of the lawn mower into the
operator's mowing position. If the rear
deflector becomes damaged, it should be
replaced.
TO ADJUST HANDLE
The handl_ can be mounted in a high or
tow position. The mounting holes in the
bottom of lower handle are off center for
raising or lowering the handle.
• Remove upper handle and all parts
attached to lower handle.
• Remove hairpin cotters from lower
handle bracket mounting pin.
• Squeeze lower handle in to remove it
from mounting pins.
• Turn lower handle over to raise or lower
handle.
• Squeeze lower handle in and position
holes onto mounting pins on handle
bracket.
• Reassemble upper handle and all parts
removed from lower handle.
Mowing _,
position ',-_',
II
Low position
Mowing
position ,(-;]
1 I
High position
Lower
handle
Rotate
TO ASSEMBLE GRASS CATCHER
• Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
• Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
&CAUTION: Do not run your lawn mower
without clipping deflector or approved
grass catcher in place. Never attempt to
operate the lawn mower with the rear
door removed or propped open.
Catcher
frame
handle
Frame
opening
ENGINESPEED
Your engine speed has been factory set.
Do not attempt to increase engine speed
or it may result in personal injury. If you
believe that the engine is running too fast
or too slow, take your lawn mower to an
authorized service center for repair and
adjustment.
14

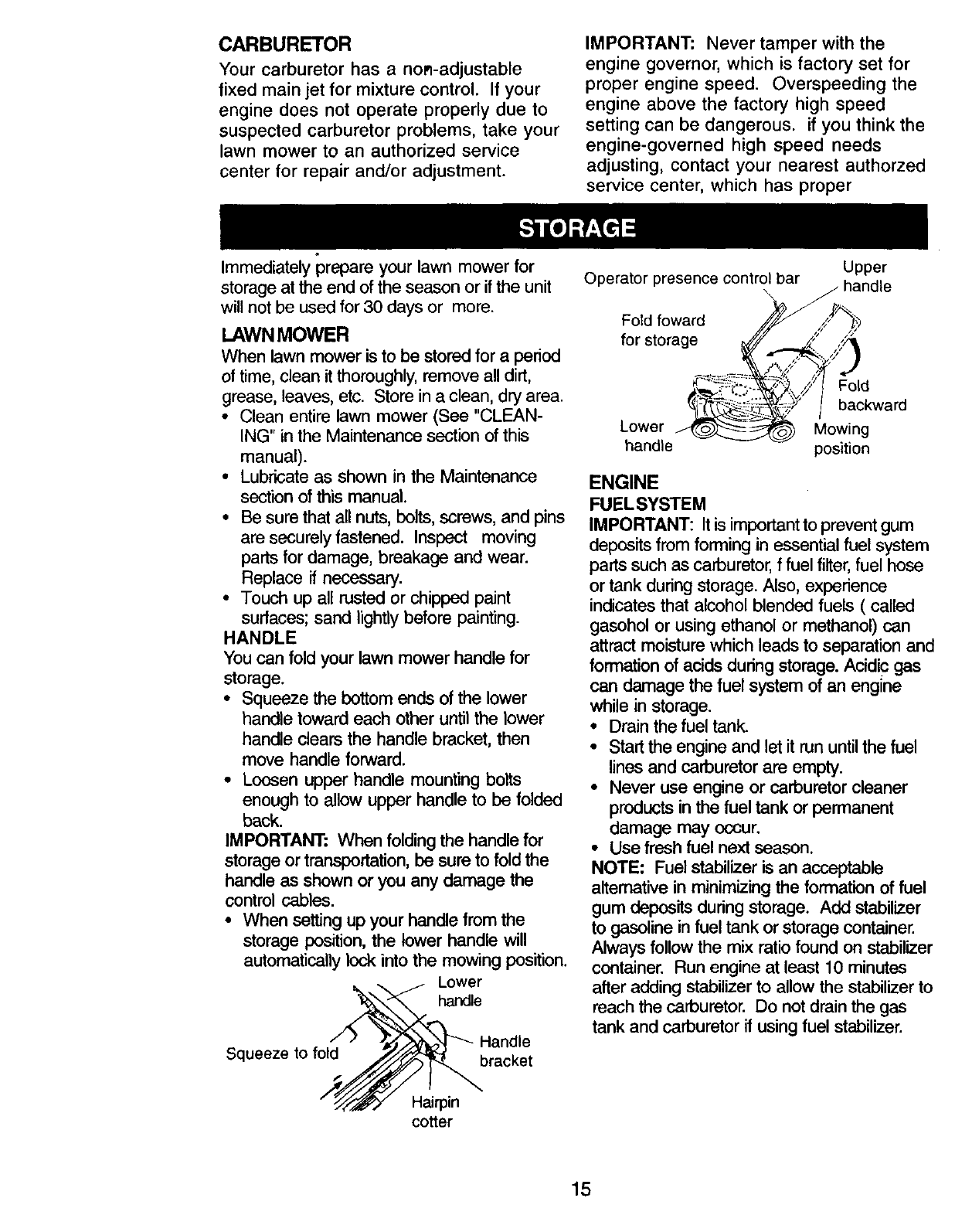

CARBURETOR
Your carburetor has a non-adjustable
fixed main jet for mixture control. If your
engine does not operate properly due to
suspected carburetor problems, take your
lawn mower to an authorized service
center for repair and/or adjustment.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed. Overspeeding the
engine above the factory high speed
setting can be dangerous, if you think the
engine-governed high speed needs
adjusting, contact your nearest authorzed
service center, which has proper
Immediately prepare your lawn mower for
storage at the end of the season or if the unit
will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a period
of time, clean itthoroughly,remove all dirt,
grease, leaves, etc. Store inaclean, dry area.
•Clean entire lawn mower (See "CLEAN-
ING" in the Maintenance section of this
manual).
• Lubricate as shown in the Maintenance
section of this manual.
•Be sure that all nuts, bolts, screws, and pins
are securely fastened. Inspect moving
parts for damage, breakage and wear.
Replace if necessary.
• Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your lawn mower handle for
storage.
• Squeeze the bottom ends of the lower
handle toward each other until the lower
handle clears the handle bracket, then
move handle forward.
• Loosen upper handle mounting bolts
enough to allow upper handle to be folded
back.
IMPORTANT: When folding the handle for
storage or transportation, be sure to fold the
handle as shown or you any damage the
control cables.
• When setting up your handle from the
storage position, the lower handle will
automatically lock into the mowing position.
Lower
Squeeze to fold bracket
Operator presence control bar
Fold foward is
for storage
.ower
handle
Upper
>FS_.) handle
_,j, Fold
_7'J' backward
Mowing
position
ENGINE
FUEL SYSTEM
IMPORTANT: It is importantto prevent gum
deposits from forming in essential fuel system
parts such as carburetor, f fuel filter, fuel hose
or tank during storage. Also, experience
indicates that alcohol blended fuels ( called
gasohol or using ethanol or methanol) can
attract moisture which leads to separation and
formation of acids during storage. Acidic gas
can damage the fuel system of an engine
while in storage.
• Drain the fuel tank.
• Start the engine and let it run until the fuel
lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of fuel
gum deposits during storage. Add stabilizer
to gasoline in fuel tank or storage container.
Always follow the mix ratio found on stabilizer
container. Run engine at least 10 minutes
after adding stabilizer to allow the stabilizer to
reach the carburetor. Do not drain the gas
tank and carburetor if using fuel stabilizer.
Hairpin
cotter
15

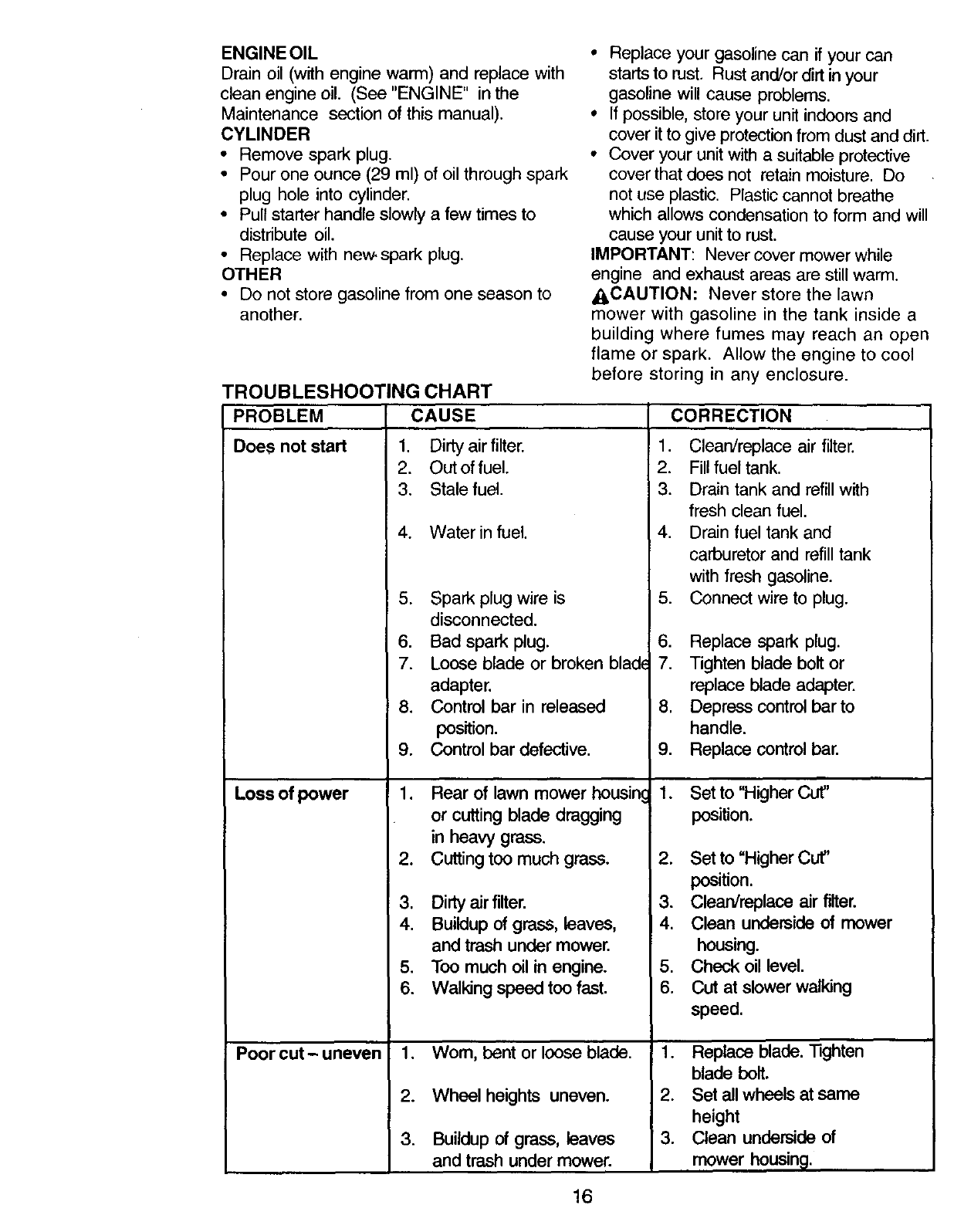

ENGINEOIL
Drain oil (with engine warm) and replace with
clean engine oil. (See "ENGINE" in the
Maintenance section of this manual).
CYLINDER
• Remove spark plug.
• Pour one ounce (29 ml) of oil through spark
plug hole into cylinder.
• Pull starter handle slowly a few times to
distribute oil.
• Replace with nev_ spark plug.
OTHER
• Do not store gasoline from one season to
another.
TROUBLESHOOTINGCHART
CAUSEPROBLEM
Does not start
Loss of power
Poor cut- uneven
1. Dirty air filter.
2. Out of fuel.
3. Stale fuel.
4. Water in fuel.
5. Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken blade
adapter.
8. Control bar in released
position.
9. Control bar defective.
1. Rear of lawn mower housin(
or cutting blade dragging
in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves,
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Wom, bent or loose blade.
2. Wheel heights uneven.
3. Buildup of grass, leaves
and trash under mower.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
•If possible, store your unit indoors and
cover it to give protection from dust and dirt.
• Cover your unit with a suitable protective
cover that does not retain moisture. Do
not use plastic. Plastic cannot breathe
which allows condensation to form and will
cause your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
_CAUTION: Never store the lawn
mower with gasoline in the tank inside a
building where fumes may reach an open
flame or spark. Allow the engine to cool
before storing in any enclosure.
CORRECTION
1. Clean/replace air filter.
2. Fill fuel tank.
3. Drain tank and refill with
fresh clean fuel.
4. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5. Connect wire to plug.
6. Replace spark plug.
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Replace control bar.
1. Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking
speed.
1. Replace blade. lighten
blade bolt.
2. Set all wheels at same
height
3. Clean underside of
mower housin_l.
!6
TROUBLESHOOTING CHART
PROBLEM CAUSE CORRECTION
Excessive 1. Wom, bent or loose blade. 1. Replace blade. 5ghten
vibration blade bolt.
2. Bent engine crankshaft. 2. Contact an authorized
service center.
Starter rope hard
to pull
Grass catcher
not filling (if so
equipped)
Hard to push
.
3.
4.
Engine flywheel brake is on
when controlbar is released.
Bent engine crankshaft.
Blade adapter broken.
Blade dragging in grass.
1. Cutting height too low.
• 2. Lift on blade wom oft.
3. Catcher not venting air.
1. Grass is too high or wheel
height is too low.
2. Rear of lawn mower
housing or blade dragging
in grass.
3. Grass catcher too full.
4. Handle height position not
right for you.
1. Depress control bar to
upper handle before
pulling starter rope.
2. Contact an authorized
service center.
3. Replace blade adapter.
4. Move lawn mower to cut
grass or to hard surface
1. Raise cutting height.
2. Replace blade.
3. Clean grass catcher.
1. Raise cutting height.
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
4. Adjust handle height to
suit.
17
ROTARY LAWN MOWER MODEL NUMBER 917.388340
76 61
27
75
f
16 12
14
35
39 36
51
S4
3O
31- 29
7O
3O
27
13
27
27 3O 26 41
ROTARY LAWN MOWER MODEL NUMBER 917.388340
KEY PART
NO, NO, DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 165452X479
2 156577
4 150425
5 66426
6136376
8 86902
9 170947
10 128415
11 1,50050
12 STD512505
13 77400
14 156374X479
15 700385X479
16 133190X479
17 140661X479
18 63601
20 140540
25 83923
26 700325X007
27 151157
28 142748
29 62335
30 145935X004
31 87877
32 700331X004
34 146630
35 700327X007
36 700326X007
37 150078
Upper Handle
Engine Zone Control Cable
Mulcher Plug
Wire Tie
Handle Knob
Control Bar
Rear Door Kit
Pop Rivet
Self Tapping Screw #10-16 x 1/2
Hex Tapping Screw w/Seres 1/4-20 x 1/2
Hubcap
Back Plate
Side Baffle
Discharge Baffle
Rear Baffle
Keps Locknut 1/4-20
Rear Skiff
Hex Flange Nut
Wheel Adjusting Bracket (Front)
Wheel
Shoulder Bolt 3/8-16 x 1
Spring Washer
Axle Arm Assembly
Selector Knob
Selector Spring
Spacer
Wheel Adjusting Bracket (Right)
Wheel Adjusting Bracket (Left)
Thread Cutting Screw w/Sems 5/16-18 x 3/4
38 751592
39 173569X479
40 173570X479
41 150406
44 174850
46 851514
47 141114
48 851074
49 850263
50 851084
51 170031
52 85463
56 88652
57 51793
58 157081X479
59 131959
61 132001
64
70 17600406
71 170938
72 170939
73 165912
74 950733X004
75 750097
76 174849
77 169931
- - 161058
- - 174847
Nut
Handle Bracket Assembly (Left)
Handle Bracket Assembly (Right)
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
Lawn Mower Housing (Incl. Key #14, 15, 51 & 52)
Blade Adapter
Blade 22"
Hardened Washer
Helical Washer 3/8-24 x t-3/8 Gr. 8
Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
Kit Baffle
Danger Decal
Hinge Screw 1/4-20 x 1-1/4
Haiq_in Cotter
Lower Handle
Handle Bolt
RopeGuide
Engine-Craftsman - Model No. 143.006200
Screw. Hx. Serrated. 1/4 x 20
Door Spring LH
DoorSpdng RH
Bolt
Upstop Bracket
Screw
Grassbag
Grassbag Frame
Waming Decal (Not Shown)
Owner's Manual (English/Spanish)
Avairable accessories not included with lawn mower:
-- D/98 33313 Clipping Deflector
- - 71 33000 SAE 30W Oil (20 oz.)

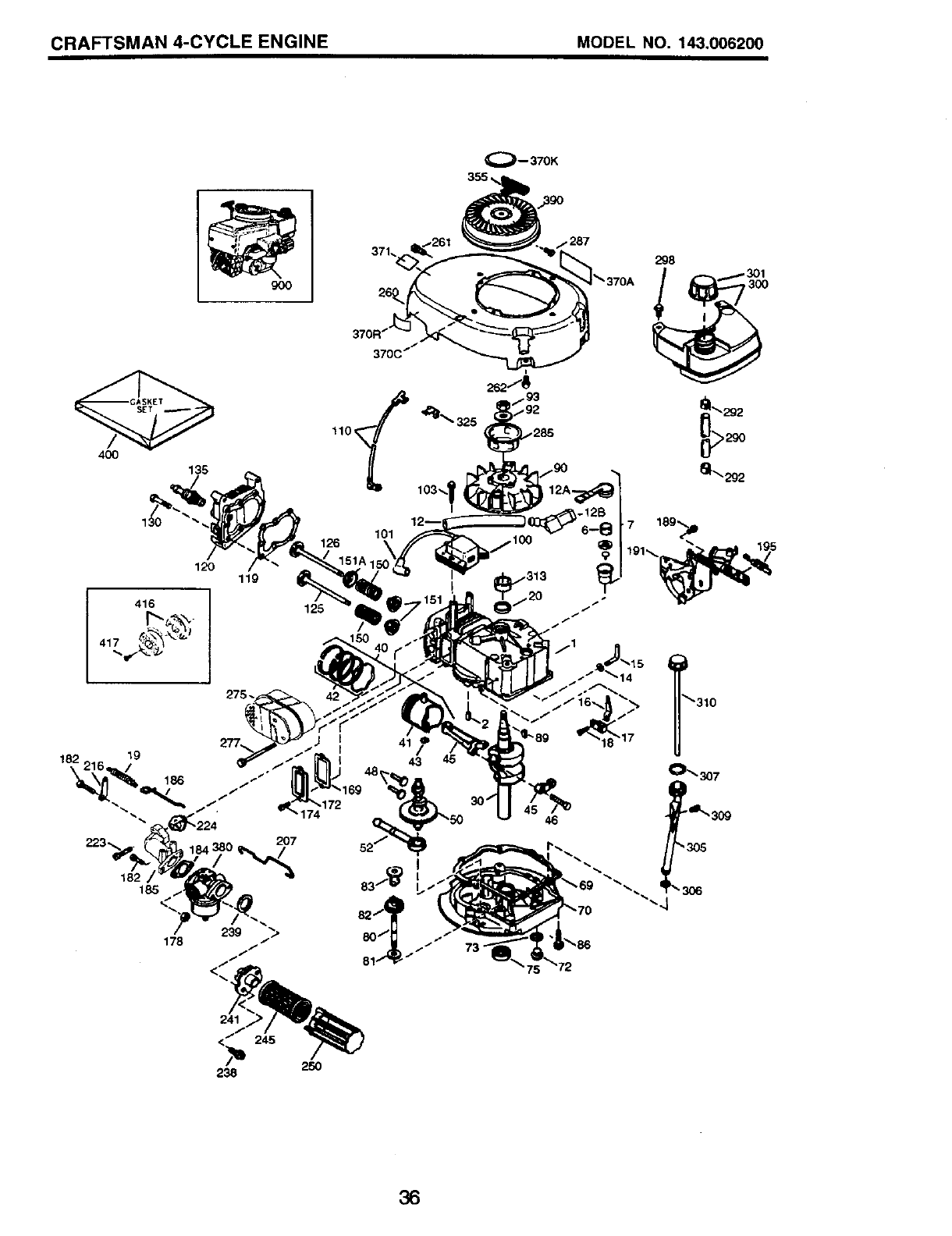

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.006200
4OO
135
130
416
120 119
125
275,
371,.
370C 1"
110_
101
126
,285
298
182185 5
178
4
3O
36

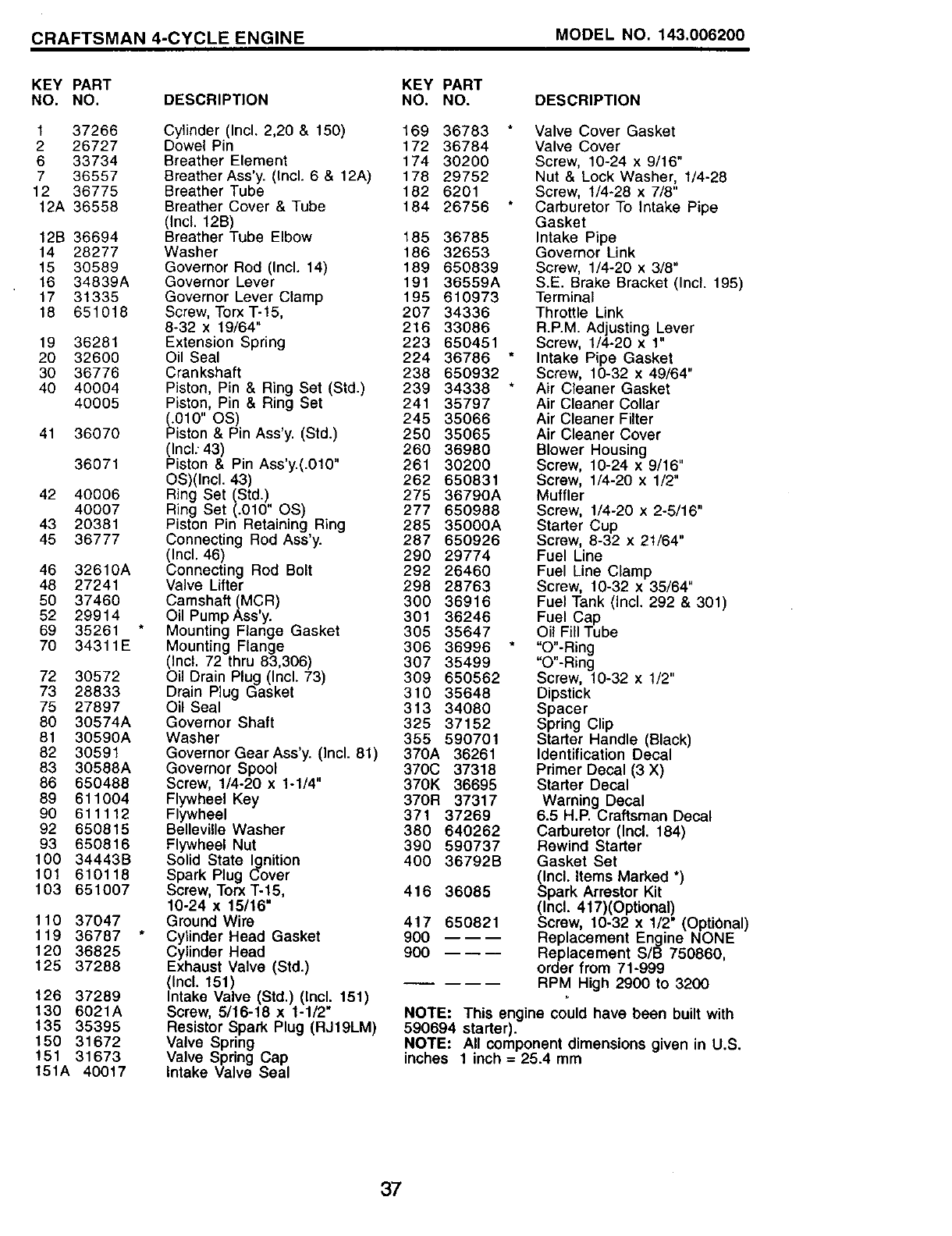

CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143,006200
KEY PART
NO. NO. DESCRIPTION
1 37266
2 26727
6 33734
7 36557
12 36775
12A 36558
12B 36694
14 28277
16 30589
16 34839A
17 31335
18 651018
19 36281
20 32600
30 36776
40 40004
40005
41 36070
36071
42 40006
40007
43 20381
45 36777
46 32610A
48 27241
50 37460
52 29914
69 35261
70 34311E
72 30572
73 28833
75 27897
80 30574A
81 30590A
82 30591
83 30588A
86 650488
89 611004
90 611112
92 650815
93 650816
100 34443B
101 610118
103 651007
110 37047
119 36787
120 36825
125 37288
126 37289
130 6021A
135 35395
150 31672
!51 31673
151A 40017
KEY PART
NO. NO.
Cylinder (Incl. 2,20 & 150) 169 36783
Dowel Pin 172 36784
Breather Element 174 30200
Breather Ass'y. (Incl. 6 & 12A) 178 29752
Breather Tube 182 6201
Breather Cover & Tube 184 26756
(Incl. 12B)
Breather Tube Elbow 185 36785
Washer 186 32653
Governor Rod (Incl. 14) 189 650839
Governor Lever 191 36559A
Governor Lever Clamp 195 610973
Screw, Torx T-15, 207 34336
8-32 x 19/64" 216 33086
Extension Spring 223 650451
Oil Seal 224 36786
Crankshaft 238 650932
Piston, Pin & Ring Set (Std.) 239 34338
Piston, Pin & Ring Set 241 35797
(.010" OS) 245 35066
Piston & Pin Ass'y. (Std.) 250 35065
(Incl: 43) 260 36980
Piston & Pin Ass'y.(.010" 261 30200
OS)(Incl. 43) 262 650831
Ring Set (Std.) 275 36790A
Ring Set (.010" OS) 277 650988
Piston Pin Retaining Ring 285 35000A
Connecting Rod Ass'y. 287 650926
(Incl. 46) 290 29774
Connecting Rod Bolt 292 26460
Valve Lifter 298 28763
Camshaft (MCR) 300 36916
Oil Pump Ass'y. 301 36246
Mounting Flange Gasket 305 35647
Mounting Flange 306 36996
(Incl. 72 thru 83,306) 307 35499
Oil Drain Plug (Incl. 73) 309 650562
Drain Plug Gasket 310 35648
Oil Seal 313 34080
Governor Shaft 325 37152
Washer 355 590701
Governor Gear Ass'y. (Incl. 81) 370A 36261
Governor Spool 370C 37318
Screw, 1/4-20 x 1-1/4" 370K 36695
Flywheel Key 370R 37317
Flywheel 371 37269
Belleville Washer 380 640262
Flywheel Nut 390 590737
Solid State Ignition 400 36792B
Spark Plug Cover
Screw, Torx T-15, 416 36085
10-24 x 15/16"
Ground Wire 417 650821
Cylinder Head Gasket 900
Cylinder Head 900
Exhaust Valve (Std.)
(Incl. 151)
Intake Valve (Std.) (Incl. 151)
Screw, 5/16-18 x 1-1/2"
Resistor Spark Plug (RJ19LM)
Valve Spring
Valve Spring Cap
Intake Valve Seal
DESCRIPTION
Valve Cover Gasket
Valve Cover
Screw, 10-24 x 9/16"
Nut & Lock Washer, 1/4-28
Screw, 1/4-28 x 7/8"
Carburetor To Intake Pipe
Gasket
Intake Pipe
Governor Link
Screw, 1/4-20 x 3/8"
S.E. Brake Bracket (Incl. 195)
Terminal
Throttle Link
R.P.M. Adjusting Lever
Screw, 1/4-20 x 1"
Intake Pipe Gasket
Screw, 10-32 x 49/64"
Air Cleaner Gasket
Air Cleaner Collar
Air Cleaner Filter
Air Cleaner Cover
Blower Housing
Screw, 10-24 x 9/16"
Screw, 1/4-20 x 1/2"
Muffler
Screw, 1/4-20 x 2-5/16"
Starter Cup
Screw, 8-32 x 21/64"
Fuel Line
Fuel Line Clamp
Screw, 10-32 x 35/64"
Fuel Tank (Incl. 292 & 301)
Fuel Cap
Oil Fill Tube
',',O':-Ring
O -Ring
Screw, 10-32 x 1/2"
Dipstick
Spacer
Spring Clip
Starter Handle (Black)
Identification Decal
Primer Decal (3 X)
Starter Decal
Warning Decal
6.5 H.P. Craftsman Decal

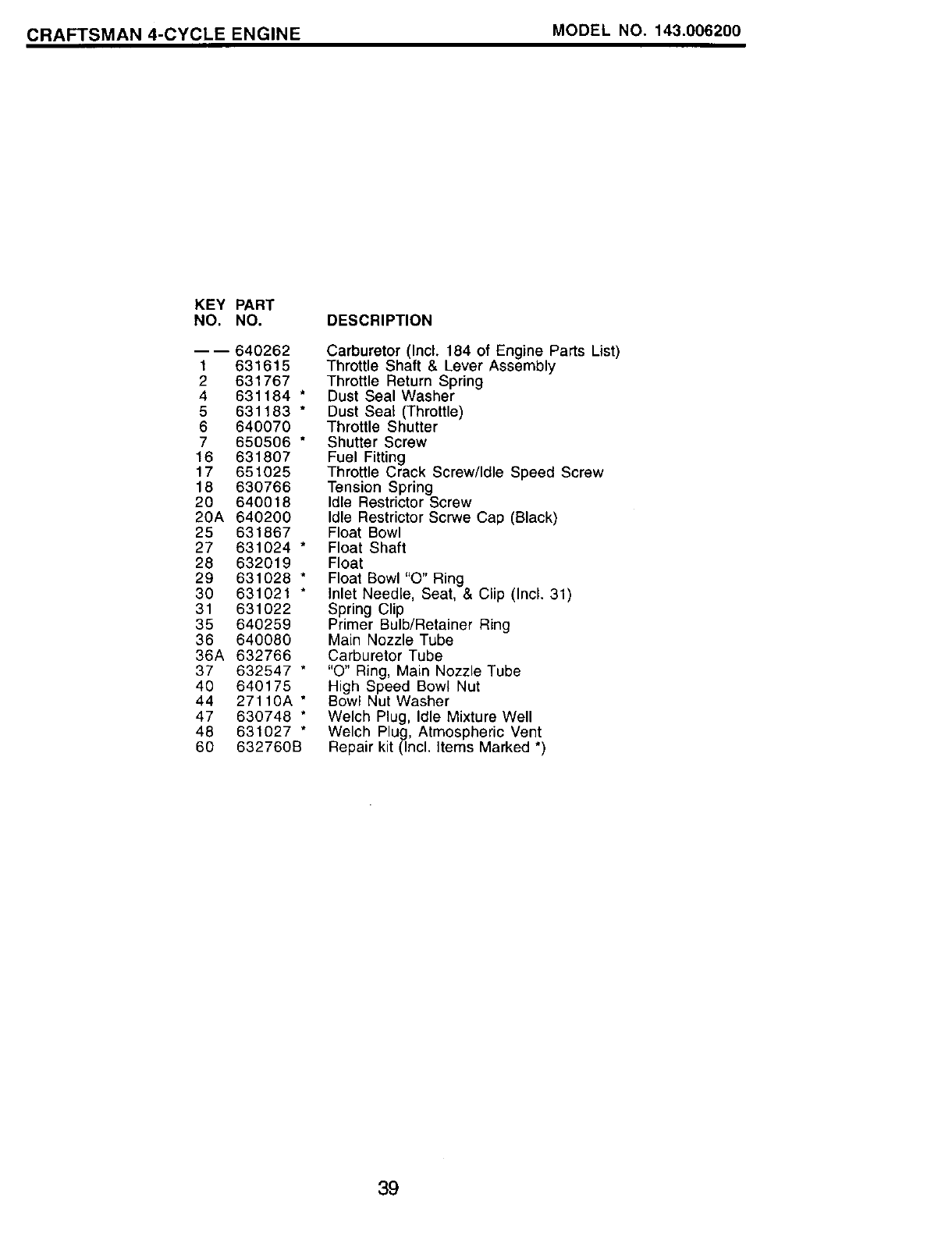

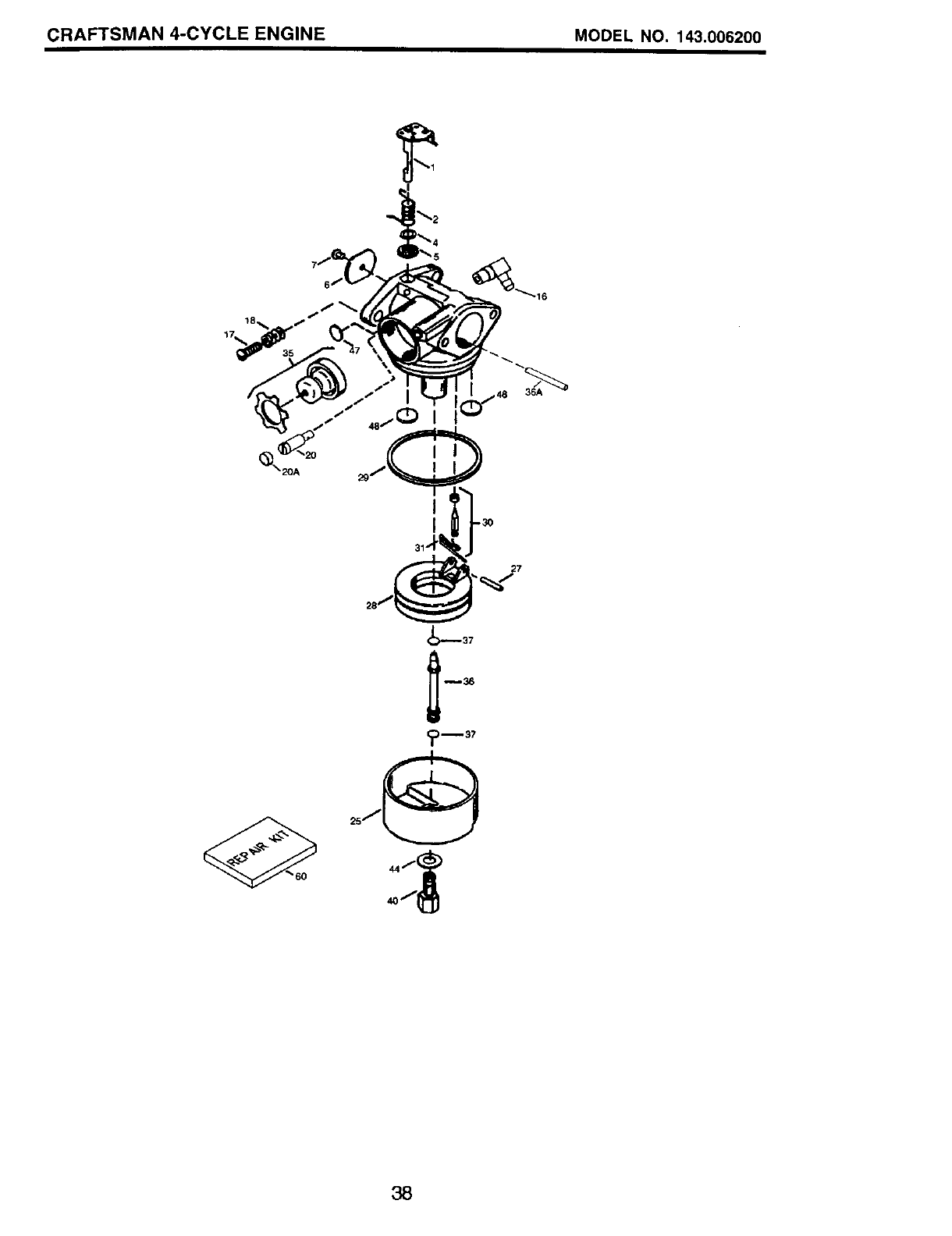

Carburetor (Incl. 184)

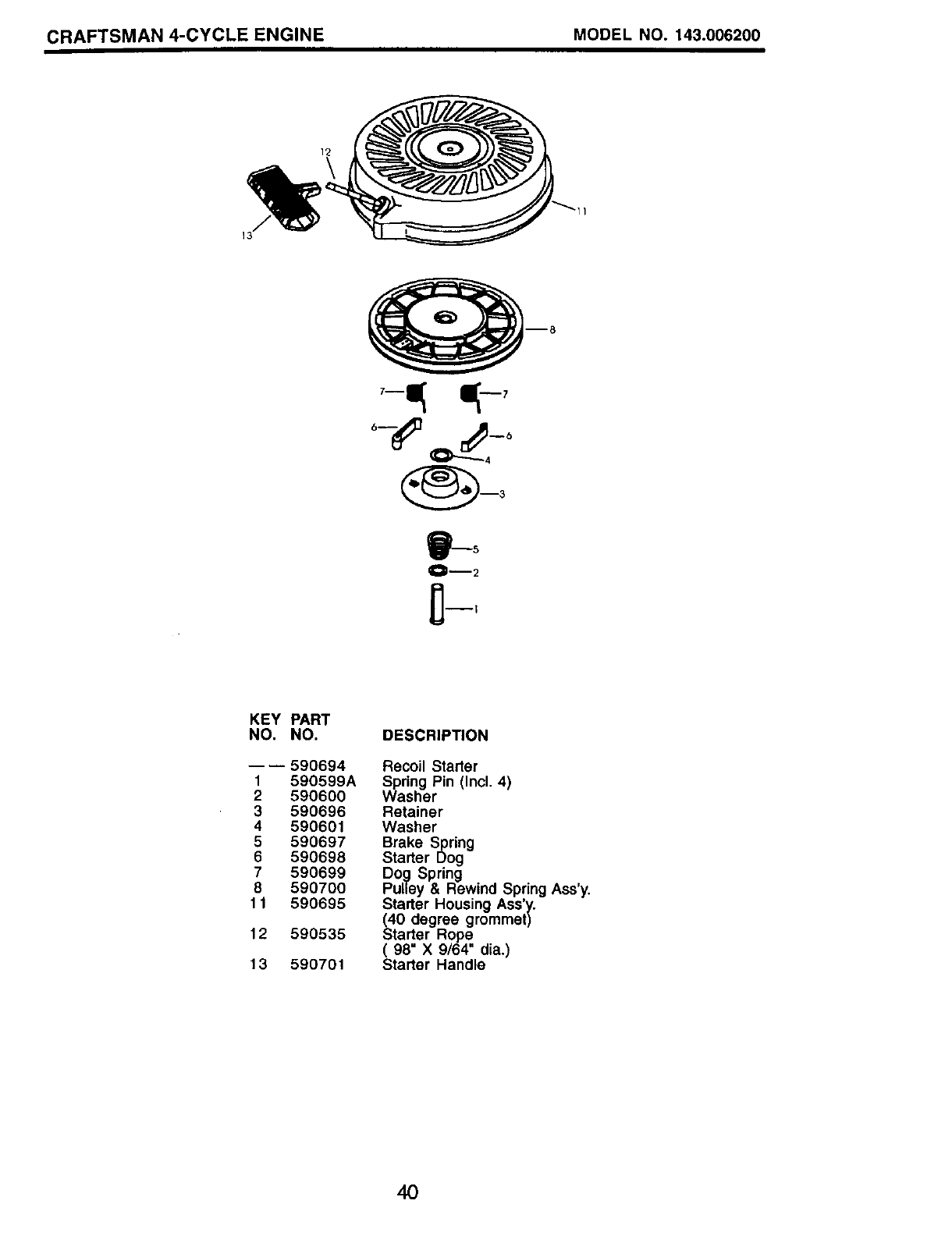

Rewind Starter
Gasket Set
(Incl. Items Marked *)
Spark Arrestor Kit
(Incl. 417)(Optional)
Screw, 10-32 x 1/2" (OptiOnal)
Replacement Engine NONE
Replacement S/B 750860,
order from 71-999
RPM High 2900 to 3200
NOTE: This engine could have been built with
590694 starter).
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
37
CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.006200
I
27
(_ 37
4O
38
CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.006200
KEY PART
NO. NO.
----640262
1 631615
2 631767
4 631184 *
5 631183 *
6 640070
7 650506 *
16 631807
17 651025
18 630766
20 640018
20A 640200
25 631867
27 631024 *
28 632019
29 631028 *
30 631021 *
31 631022
35 640259
36 640080
36A 632766
37 632547 *
40 640175
44 27110A *
47 630748 *
48 631027 *
60 632760B
DESCRIPTION
Carburetor (Incl. 184 of Engine Parts List)
Throttle Shaft & Lever Assembly
Throttle Return Spring
Dust Seal Washer
Dust Seal (Throttle)
Throttle Shutter
Shutter Screw
Fuel Fitting
Throttle Crack Screw/Idle Speed Screw
Tension Spring
Idle Restrictor Screw
Idle Restrictor Scrwe Cap (Black)
Float Bowl
Float Shaft
Float
Float Bowl "O" Ring
Inlet Needle, Seat, & Clip (Incl. 31)
Spring Clip
Primer Bulb/Retainer Ring
Main Nozzle Tube
Carburetor Tube
"O" Ring, Main Nozzle Tube
High Speed Bowl Nut
Bowl Nut Washer
Welch Plug, Idle Mixture Well
Welch Plug, Atmospheric Vent
Repair kit (Incl. Items Marked *)
39
CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.006200
12
B--5
KEY PART
NO. NO.
----590694
1590599A
2590600
3 590696
4590601
5 590697
6 590698
7 590699
8 590700
11 590695
12 590535
13 590701
DESCRIPTION
Recoil Starter
Spring Pin (Incl. 4)
Washer
Retainer
Washer
Brake Spring
Starter Dog
Dog Spring
Pulley & Rewind Spring Ass'y.
Starter Housing Ass'y.
(40 degree grommet)
StaRer Rope
( 98 X 9/64 dia.)
Starter Handle
4O
CRAFTSMAN 4-CYCLE ENGINE MODEL NO. 143.006200
!1 l! -7
a-- 8
KEY PART
NO. NO.
3
6
7
8
11
12
13
14
----590737
590740
590616
590617
590618A
590687A
590535
590701
590760
DESCRIPTION
Rewind Starter
Retainer
Starter Dog
Dog Spring
Pulley & Rewind Spring Ass'y
Starter Housing Ass'y
_I0 degree grommet)
arter Rope
_Length 98" x 9/64" dia.)
arter Handle
Spring Clip
41
42
43
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOME SMAnytime,day or night
(1-800-469-4663)
www.sears.com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 Anytime, day or night
www.sears.com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourselt, call Sears PartsDirectSM!
1-800-366-PART 8 a.m.- 11 p.m. CST,
(1-800-366-7278) 7 days a week
www.sears.com/partsdirect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.m. - 5 p.m. CST. Mon. - Sat.
Para pea_rservicio de re_)araci6n a domicilio
y Dara oraenar olezas con entrega a domicilio:
1-888-SU-HOGAR s.
t1-888-784-6427)
Au Canada Dourservice en franga_s:
1-877-LE-FOYER s,
_1-877-533-6937)
SEARS )
HomeCentral _"
© Sears, Roebuck and Co.
®Registered Trademark /TMTrademark of Sears, Roebuc_ and Co.
®Marca Registrada /TM Marca de Fdbdca de Sears, Roebuck and Co.
174847 05.08.00 VB Printed in U.S.A.
