Owner's Manual

[RRFTSMRN

6.25 HORSEPOWER

21" MULTI-CUT

ROTARY LAWN MOWER

Model No.

917.388360

• Safety

•-Assembly

• Operation

•Maintenance

•Eepafiol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

Warranty ............................................... 2

Safety Rules ......................................... 2

Assembly .............................................. 4

Operation .............................. ;............... 6

Maintenance Schedule ........................ 10

Maintenance ......................................... 10

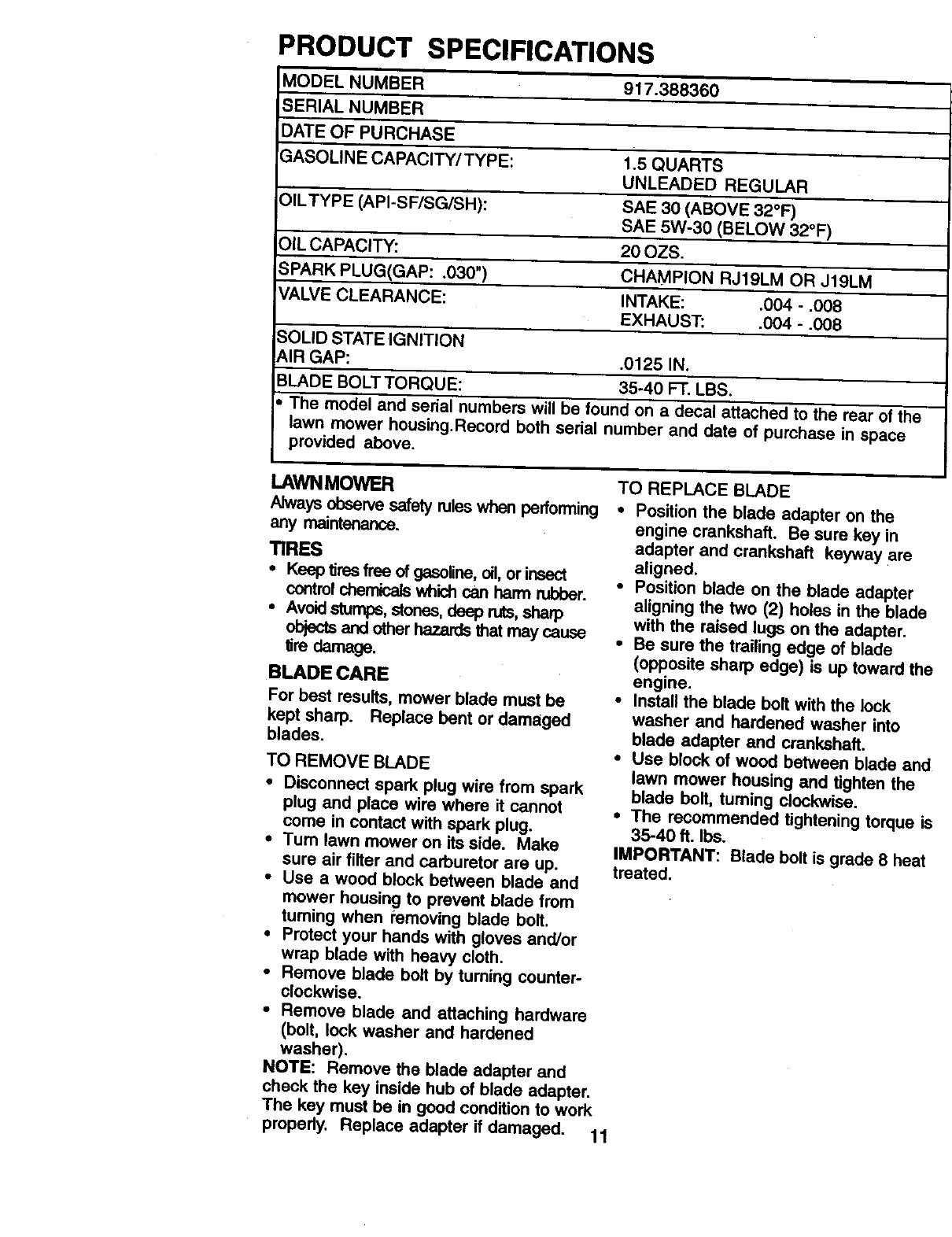

Product Specifications .......................... 11

Service and Adjustments...................... 13

Storage ................................................. 15

Troubleshooting ................................... 16

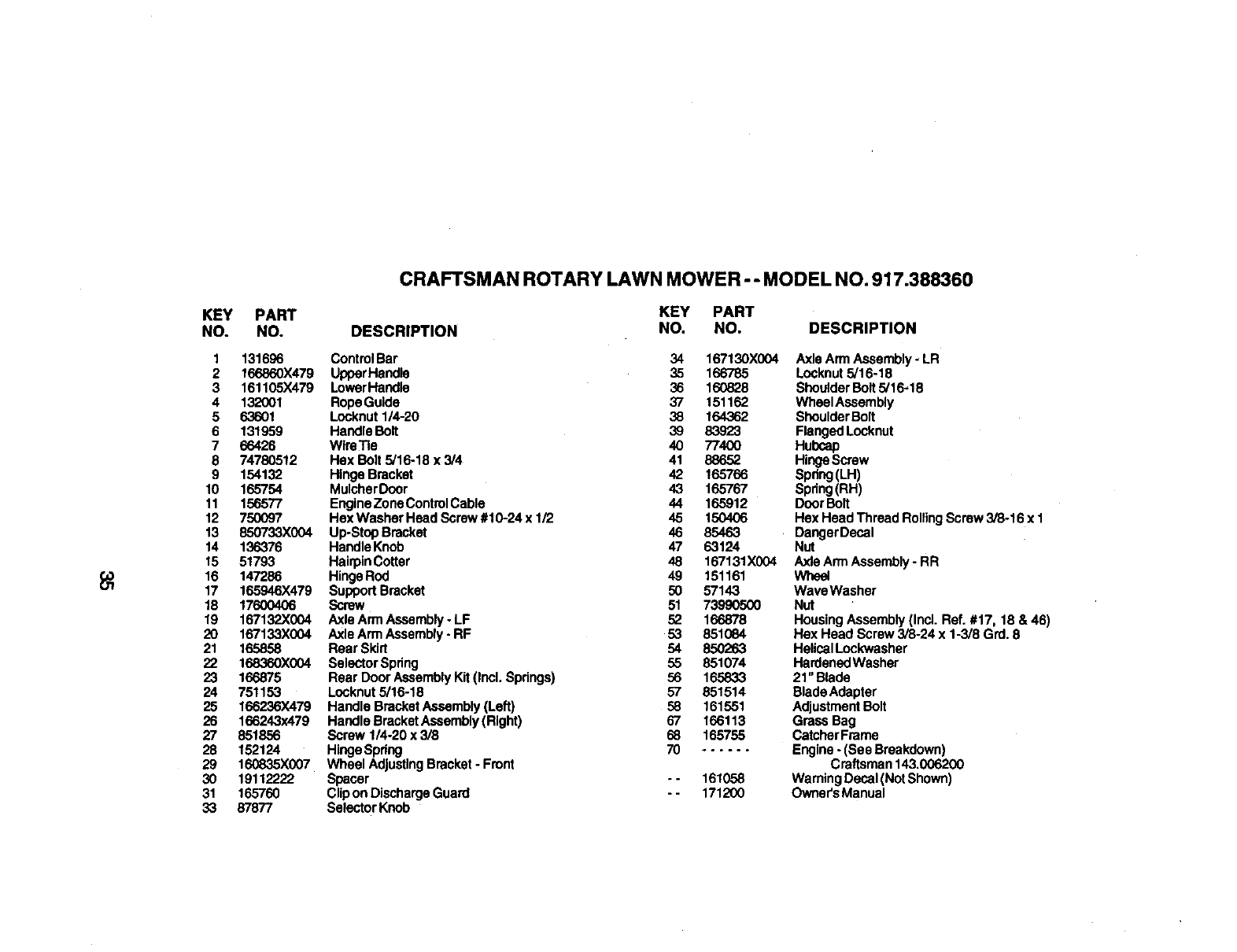

Repair Parts .......................................... 34

Parts Ordering ...................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructionsin

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commereial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Depadment in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

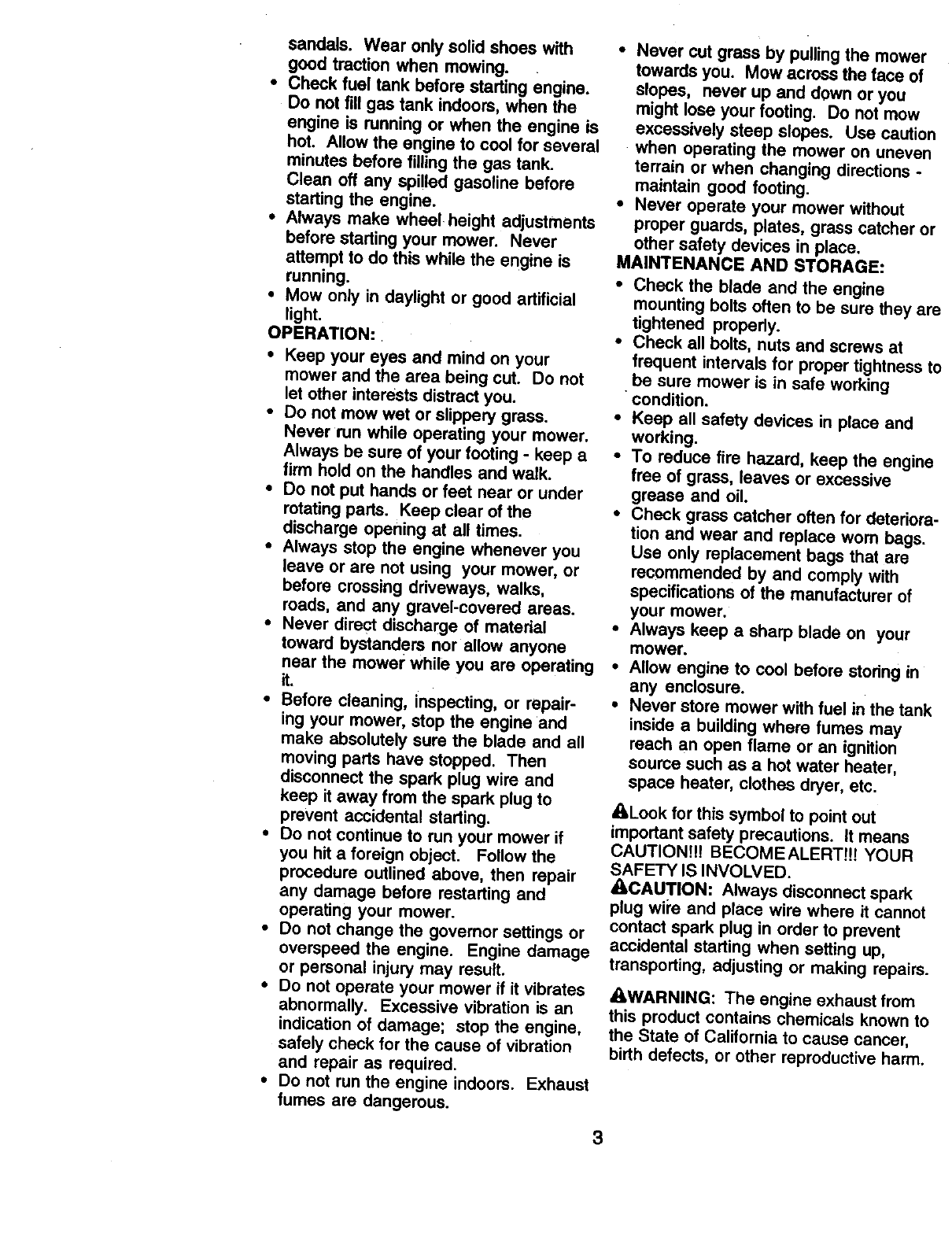

Safety standards require operator

presence control to minimize the risk of

injury.Your unit is equipped with cuch

controls, do not attempt to defeat the

function of the operator presence controls

under any circumstances.

TRAINING;

•Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

properly. Leam how to quickly stop

mower.

•Do not allow children to use your

mower. Never allow adults to use

mower without proper instructions,

•Keep the area of operation clear of all

persons, especially small children and

pets.

•Use mower only as the manufacturer

intended and as described in this

manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

•The blade turns when the engine is

running.

PREPARATION"

•Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

•Always wear safety glasses or eye

shields when starting and while using

your mower.

•Dress properly. Do not operate mower

when barefoot or wearing open

sandals. Wear only solid shoes with

good traction when mowing.

•Check fuel tank before starling engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank.

Clean off any spilled gasoline before

starting the engine.

*Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

•Mow only in daylight or good artificial

light.

OPERATION:

•Keep your eyes and mind on your

mower and the area being cut. Do not

let other interests distract you.

•Do not mow wet or slippery grass.

Never run while operating your mower.

Always be sure of your footing - keep a

firm hold on the handles and walk.

•Do not put hands or feet near or under

rotating parts. Keep clear of the

discharge opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks,

reads, and any gravel-covered areas.

•Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

•Before cleaning, inspecting, or repair-

ing your mower, stop the engine and

make absolutely sure the blade end all

moving parts have stopped. Then

disconnect the spark plug wire and

keep it away from the spark plug to

prevent accidental starting.

• Do not continue to run your mower if

you hit a foreign object. Follow the

procedure outlined above, then repair

any damage before restarting and

operating your mower.

•Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous.

•Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you

might lose your footing. Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions -

maintain good footing.

•Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

•Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

•condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

•Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in

any enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

ALook for this symbol to point out

important safety precautions. It means

CAUTIONII! BECOMEALERTf!! YOUR

SAFETY IS INVOLVED.

ACAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

_I,WARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

These accessorieswere availablewhen thislawn mower was produced. They are not

shipped with your mower. They are also availableat mostSears retailoutletsand service

centers. Most Sears storescan alsoorder repairpartsfor you,when youprovidethe model

numberofyour lawnmower. Some of these accessoriesmay notapplyto yourlawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHER KITS

LAWN MOWER MAINTENANCE

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

MUFFLERS

BELTS BLADES

AIR FILTERS

BLADE ADAPTERS WHEELS

GAS CANS

SPARK PLUGS

ENGINE OIL

Read these instructionsand this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those parts left unassembled for shipping

purposes. To ensure safe and proper

operationof your lawn mower, all parts and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

saryto ensure propertightness. All parts

such as nuts, washers, bolts, etc., neces-

sary to complete the assembly have been

placed in the parts bag.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose parts included with

mower.

• Cut downtwo end comers of carton and

lay end panel down flat.

• Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

•Roll lawn mower out of carton;and check

carton thoroughly for additional loose

parts.

HOWTO SET UPYOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

•Raise lower handle section to operating

position and squeeze the bottom ends

of lower handle towards each other

until the pin in handle can be inserted

into one of the throe height adjustment

holes.

•Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

•Remove any packing material from

around control bar.

•Your handles may be adjusted for your

mowing comfort. Refer to Service and

Adjustments section of this manual.

Operator

presence

Controlbar

handle

Liftup

Lower

handle

Handle

Mowing

posi_on

adjustment

/bracket

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as amulcher. To convert to

bagging or discharging, see =To convert

moweP in the OPERATION section of thi,,

manual.

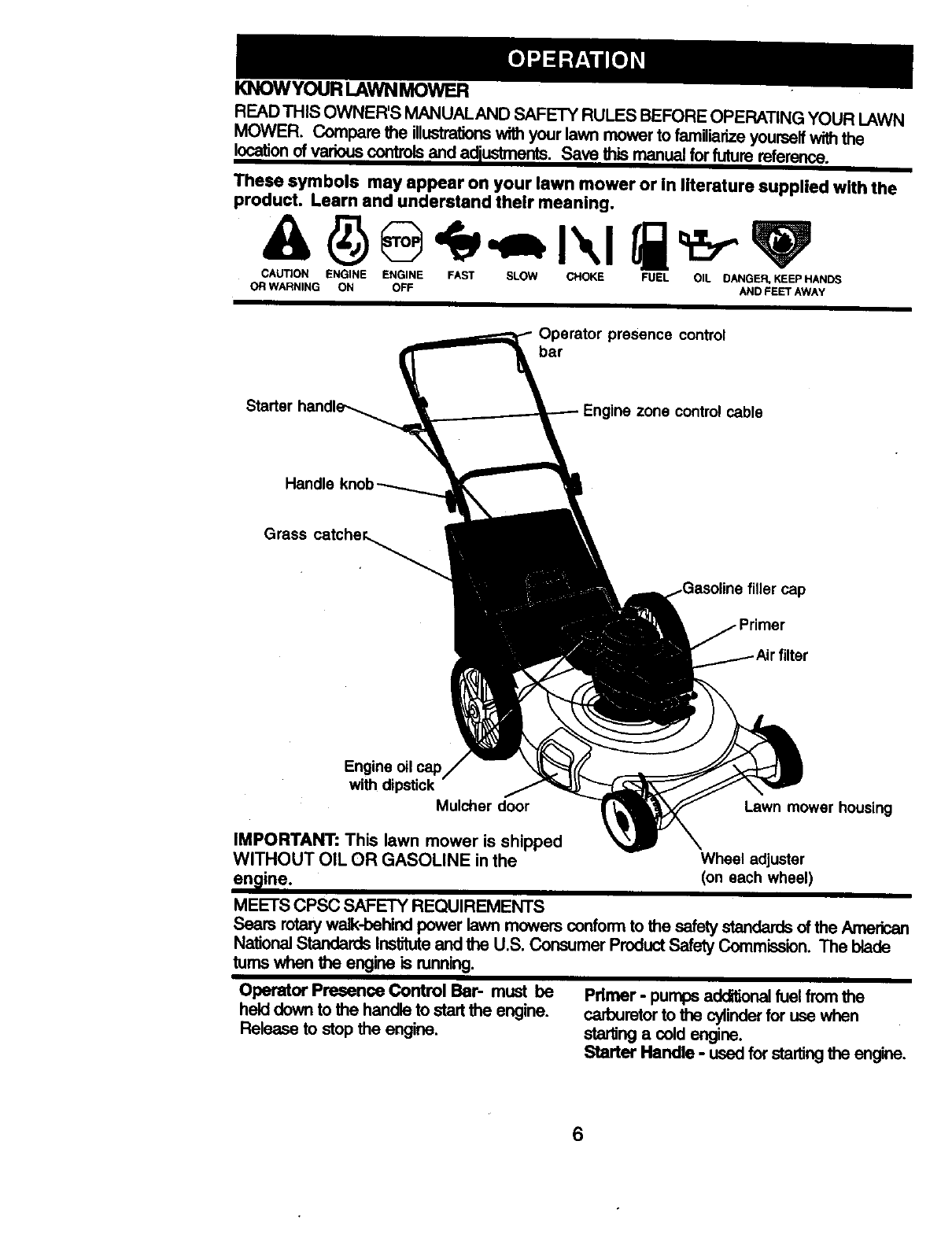

KNOW YOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrationswith your lawn mower tofamiliarizeyourselfwiththe

iocation of variousconb'oleand adiustmants. Save thismanualforfuture reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

presence control

bar

control cable

Handle

Primer

with dipstickMulcher door Lawn mower housing

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the Wheel adjuster

en_line. (on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

National Standards Institute and the U.S. Consumer Product Safety Commission. The blade

turns when _engine is running.

Operator Presence Control Bar- must be

helddown tothe handleto startthe engine.

Release to stop the engine.

Pflmer -pumps additional fuel from the

carburetor to the cylinder for use when

staring a cold engine.

Starter Handle -used for starting the engine,

The opem..U.orlof any lawn mower

can resulttnforeign objectsthrown

intotheeyes, whichcan resultin

asvere eye damage. Always wear safety

glassesor eye shieldswhile operatingyour

lawn mower or performingany adjustments

or repairs. We recommenda wide vision

s_ety mask over spectaclesor standmd

safetyglasses.

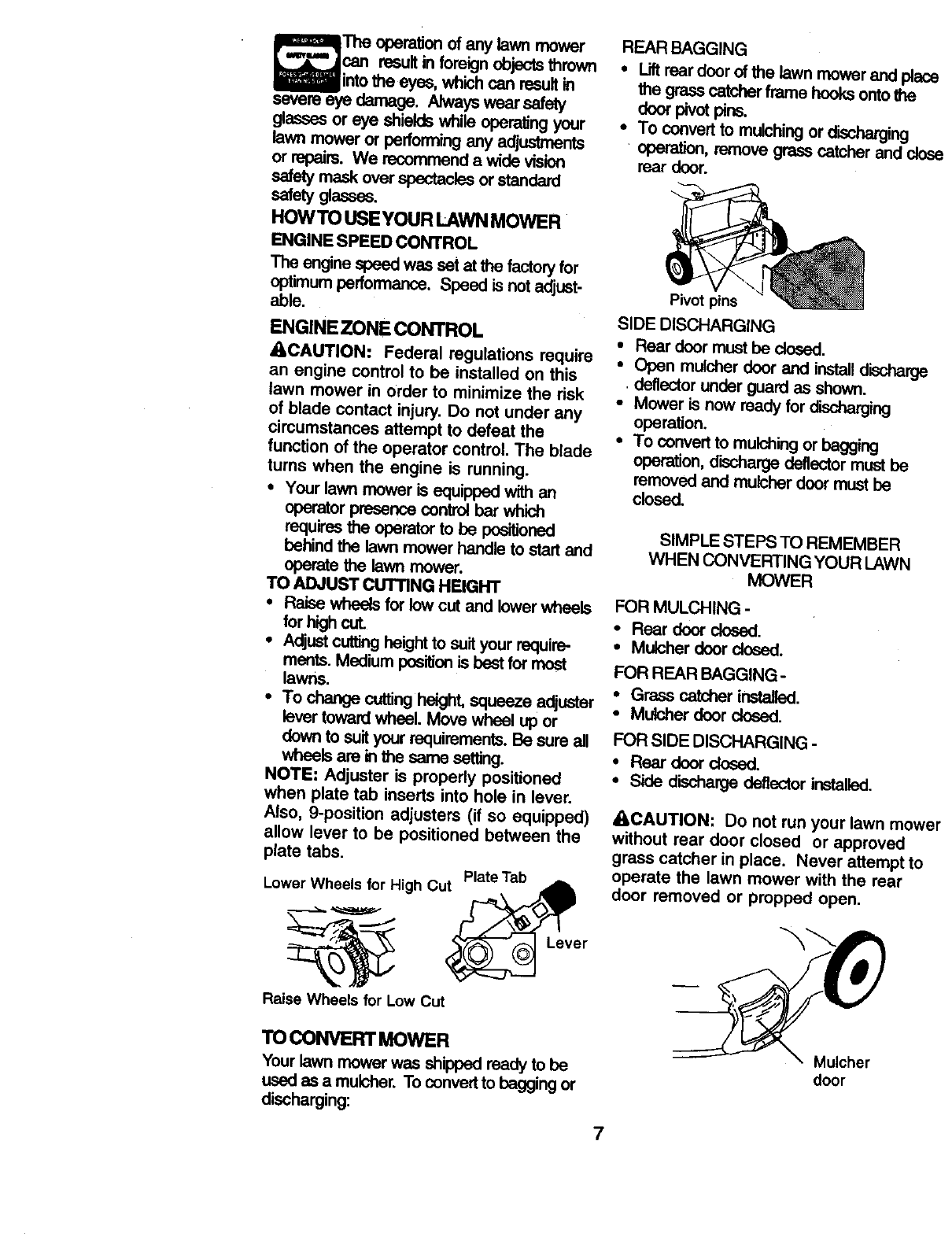

HOW TO USE YOUR LAWN MOWER

ENGINE SPEED CONTROL

The engine speedwas set at the factoryfor

optimumperformance. Speed is not adjust-

able.

ENGINE ZONE CONTROL

•,CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the dsk

of blade contact injury. Do not under any

circumstances attempt to defeat the

function of the operator control, The blade

turns when the engine is running.

• Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST cu'rlrlNG HEIGHT

•Raise wheels for low cut and lower wheels

for high cut

•Adjust cutting height to suit your require-

mentsoMedium position is best for most

lawns.

•To change cutting height, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting.

NOTE: Adjuster is properly positioned

when plate tab inserts into hole in lever.

Also, 9-position adjusters (if so equipped)

allow lever to be positioned between the

plate tabs.

Plate Tab

Lower Wheels for High Cut

Raise Wheels for Low Cut

Lever

TO CONVERT MOWER

Yourlawn mower was shippedreadyto be

used as a mulcher.To convertto baggingor

discharging:

REAR BAGGING

• Liftreardoor ofthe lawn mower and plao

the grass catcher frame hooks onto the

doorpivotl ns.

•To convert to mushing or discharging

'operation, remove grass catcher and

rear door.

Pivotpins

SIDE DISCHARGING

•Rear door must be closed.

• Open mulcher door and installdischarge

deflectorunder guardas shown.

•Mower is now ready for discharging

operation.

•To convert to mulchingor bagging

operation,dischargedeflectormustbe

removedand mulcherdoormustbe

closed,

SIMPLE STEPS TO REMEMBER

WHEN CONVERTING YOUR LAWN

MOWER

FOR MULCHING -

•Rear door cloesd.

•Mulcher door closed.

FOR REAR BAGGING-

•Grass catcher installed.

• Muicher door dosed.

FOR SIDE DISCHARGING -

•Rear door closed.

•Side discharge deflector installed.

ACAUTION: Do not run your lawn mow(

without rear door closed or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

door

Open

Mulcher Door

Discharge

deflector

BEFORE STARTING ENGINE

OIL

Yourlawn mower is shippedwithoutoil in the

engine.

•Be sure mower is leveland area aroundoil

fillis clean.

•Remove engine oil cap and fillto the full

lineon the dipstick.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

•Engine holds 20 ozs. of oil. Fortype and

grade of oilto use, see =ENGINE" in

Maintenancesectionof this manual.

•Pouroilslowly. Do not over fill

• Check oil level before each use. Addoilif

needed. Fillto fulllineon dipstick,

•To read properlevel,tighteneng'vneoilcap

each time.

•Reinstall engine oilcap and tighten.

•Change the oil afterevery 25 hours of

operationor each season. You may need

to changethe oil moreoften underdusty,

dirtyconcrdions.

ADD GASOMNE

•Fillfuel tank. Use fresh, clean, regular

unleadedgasolinewith a minimumof 87

octane. Do notmix oilwithgesoi'me.

Purchasefuel in quantitiesthatcan be

used within30 daysto assurefuel

freshness.

_WARNING: Expedence indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_I_CAUTION: Fill to bottom of gas tank

filler neck, Do not overfill, Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

TO START ENGINE

• To start acold engine, push primer three

(3) times before trying to start. Use a firm

push. This step is not usually necessary

when starting an engine which has already

run for afew minutes.

•Hold operator presence control bar down

to the handle and pull stader handle

quictdy. Do not allow starter rope to snap

beck.

• To stop engine, release operator presence

control bar.

NOTE: In cooler weather it may be

necessary to repeat pdming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you do

flood engine, wait a few minutes before

attempting to start aiid do not repeat

priming steps, Gasoline filler

cap

Engine oil

cap

MOWINGTIPS

• Undercertainconditions,such as verytaU

grass,it may be necessaryto raisethe

heightof cutto reducepushingeffortand to

keep from overloadingthe engine end

leavingdumps ofgrassdippings. It may

also be necessaryto reducegroundspeed

and/orrunthe lawn mower overthe area a

second time.

•For extremelyheavy cutting,reducethe

widthof cut by overlappingpreviouslycut

pethandmowstowly.

•Forbetter grassbaggingand mostcutting

conditions,the engine speed shouldbe set

inthefastposition.

•Poresin doth grasscatcherscan become

filladwithdirtand dustwithuse and

catchers will collectless grass. To prevent

this,regularlyhose catcher offwithwater

and letdrybeforeusing.

•Keep top of engine aroundstarterclear

and claanof grass clippingsand chaff.

This willhelpengine air flowand extend

engine life.

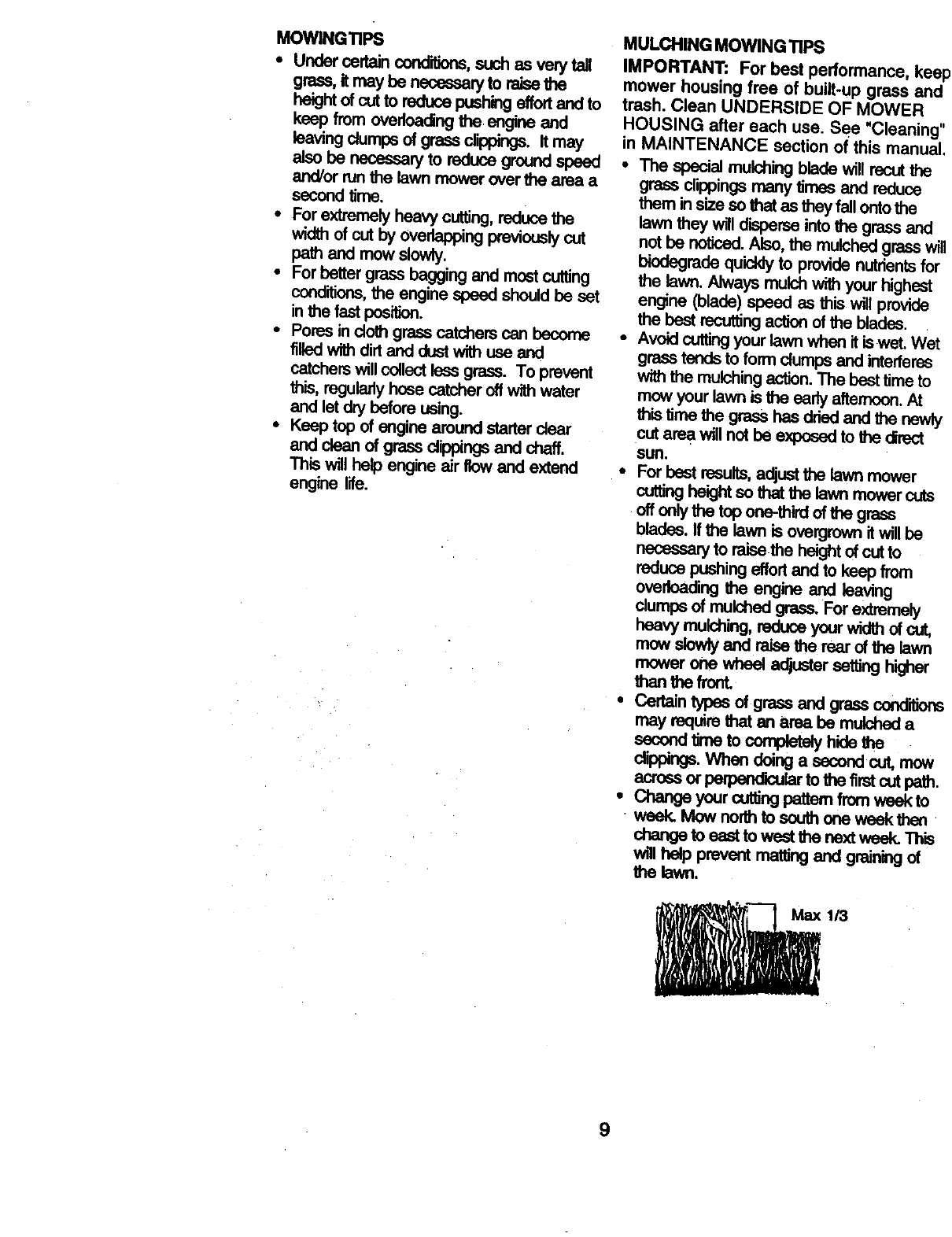

MULCHING MOWING TIPS

IMPORTANT: For best performance, ke_

mower housing free of built-up grass ant

trash. Clean UNDERSIDE OF MOWER

HOUSING after each use. See "Cleanin.€

in MAINTENANCE section of this manu_

• The specialmulching blade will recutthe

grassclippingsmany times and reduce

themin size sot_%_t_s theyfall ontothe

lawn theywill d_sperseintothe grassand

not be noticed.Also,the mulchedgrassw

biodegrade quicklyto providenutrientsto1

the lawn. Alwaysmulchwith yourhighest

engine (blade) speed as this will provide

the bestrecuttingac'donofthe blades.

•Avoidcuttingyour lawn when it iswet. We

grasstendsto form dumps and interferes

withthe mulching action.The besttime to

mow yourlawn is the early afternoon.At

this time the grass has driedand the newl

cut area will notbe exposedtothe direct

SUn.

•For best results,adjust the lawn mower

cuttingheightso that the lawn mowercuts

offonlythe top one-thirdof the grass

blades. If the lawn is overgrownitwillbe

necessaryto raisethe heightofcutto

reducepushingeffortand to keep from

overloadingthe engine and leaving

dumps of mulchedgrass.Forextremely

heavy mulching,reduceyourwidth ofcut,

mow slowlyand raise the rear of the lawn

mower c_e wheel adjustersettinghigher

tban the front.

•Certaintypes of grassand grasscorditior_

may requirethat an area be mulcheda

s :ond to

_. Whendeinga _xmd out,mow

acrossor peq_x_rDculartothe firstout path

•Changeyour cutSngpattemfrom week to

+week. MOw northto southene week than

changeto east to weet the next week. This

willhelp preventmaffingand grainingof

the lawn.

1/3

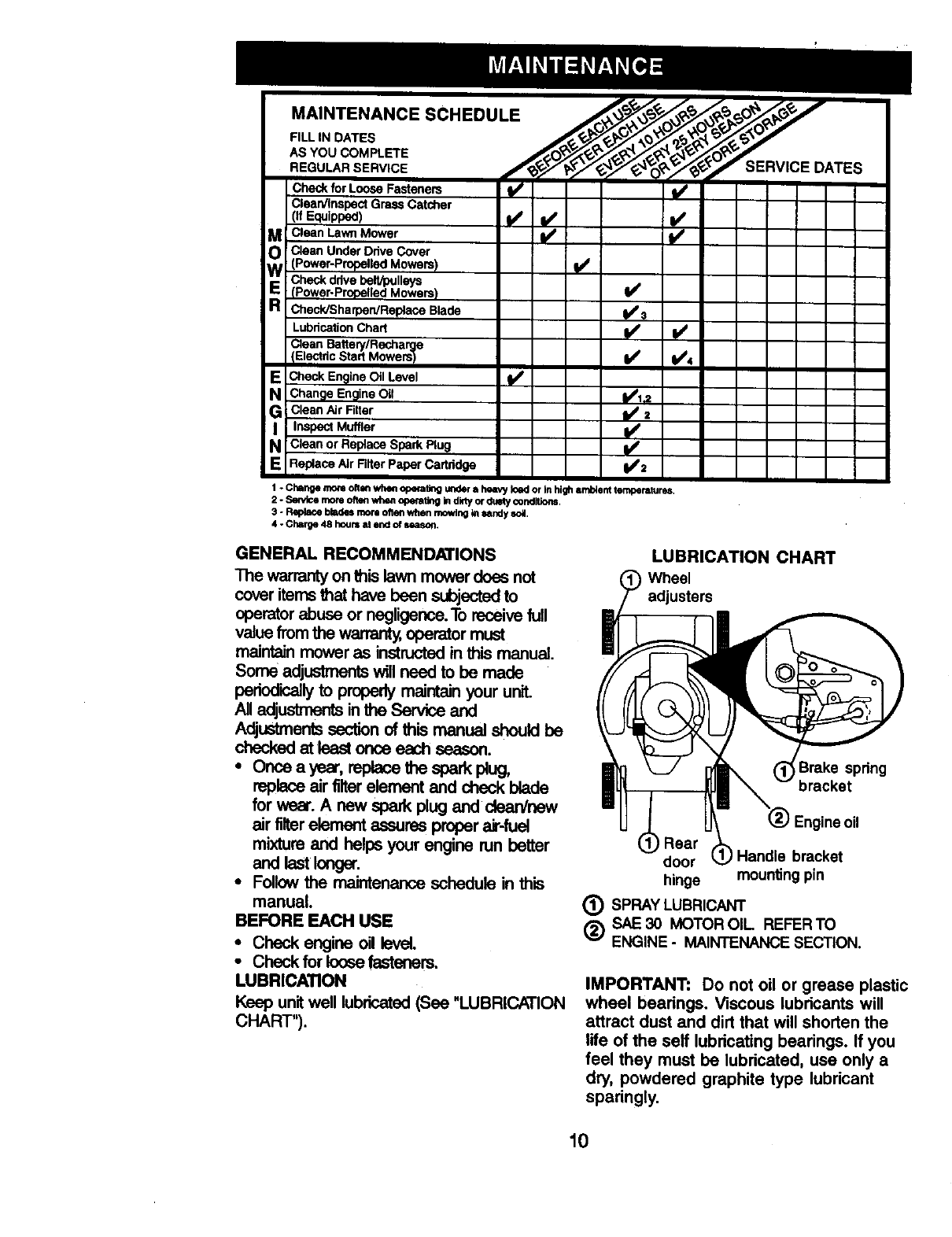

MA,N,E,ANCESCHEOULE

AS YOU COMPLETE /__-_'_. O___ .....

Check for Loose Fastenem _

Clean/inspect Grass Catcher

(ffEquipped) _ _

a Clean Lawn Mower

CleanUnderDriveCover

_ IPower-PropenedMowem)

Check ddve belt_0ulleys

(Power.Propelled Mowers) V'

RCheck/Sharpen/Replace Blade I_s

Lubrication Chart I_

C;ean Battery/RecharQe

IElectdc Start Mowers_ I/ 1_4

ECheckEnQine Oil Level I_'

Change Engine Oil I/1.2

Clean Air Filter _ =

Inspect Muffler

NCleanor ReplaceSparkPlug

ReplaceAir RlterPaperCadddge IS'=

1 ÷Change mornoftml when operasng under a heavyload or inhigh artY_enttemperatdres,

2 - Service more oftenwhen opemffng Indkty or _conditions.

3°Replace bladu rnoreoften when mowing Insamly =ol

4. Charge 48 hoursal end of season.

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive full

value from the w_, operator must

maintain mower as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your unit.

AU intheSew e and

Adjt_Vnentssectionofthismanual ,shouldbe

checked at least once each season.

• Once a year, replace the spark plug,

replace air filter element and check blade

for wea'. A new spark plug and clean/new

air filter element assures proper air-fuel

mixture and helps your engine run better

aed nger.

•Follow the maintenance schedule in this

manual.

BEFORE EACH USE

•Check engine oil level

•Check for loose faateners.

LUBRICATION

Keep unit well lubricated (See 'LUBRICATION

CHART").

LUBRICATION CHART

Wheel

adjusters

3rake spdng

bracket

(_ Rear

door Handle bracket

hinge mountingpin

(_) SPRAY LUBRICANT

(_) SAE 30 MOTOR OIL REFER TO

ENGINE - MAINTENANCE SECTION.

IMPORTANT: Do not oil or grease plastic

wheel bearings. Viscous lubricants will

attract dust and dirt that will shorten the

life of the self lubricating bearings. If you

feel they must be lubricated, use only a

dry, powdered graphite type lubricant

sparingly.

PRODUCT SPECIFICATIONS

MODEL NUMBER 917.388360

SERIAL NUMBER

DATE OF PURCHASE

GASOLINE CAPACITY/TYPE: 1_5 QUARTS

UNLEADED REGULAR

I ,

OILTYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR Jt 9LM

VALVE CLEARANCE: INTAKE: .004 -.008

EXHAUST: .004 - .008

SOLID STATE IGNITION

AIR GAP: .0125 IN.

BLADE BOLT TORQUE: 35-40 FT. LBS.

The model and serial numbers will be found on a decal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWNMOWER

Always observe safety rules when performing

any maintenance.

TIRES

•Keep tires free of gasoline,oil,or insect

controlchemicalswhk_hcan harm rubber.

•Avoidstumps,stones,deep ruts,sharp

objectsandother hazardsthat may cause

tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades,

TO REMOVE BLADE

•Disconnect spark plug wire from spark

plug and place wire where it cannot o

come in contact with spark plug.

• Turn lawn mower on its side. Make

sure air filter and carburetor are up.

•Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

•Protect your hands with gloves and/or

wrap blade with heavy cloth,

•Remove blade bolt by tuming counter-

clockwise.

•Remove blade and attaching hardware

(bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade adapter.

The key must be in good condition to work

properly. Replace adapter if damaged. 11

TO REPLACE BLADE

•Position the blade adapter on the

engine crankshaft. Be sure key in

adapter and crankshaft keyway are

aligned.

•Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

•Be sure the trailing edge of blade

(opposite sharp edge) is up toward the

engine.

•Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

•Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is grade 8 heat

treated.

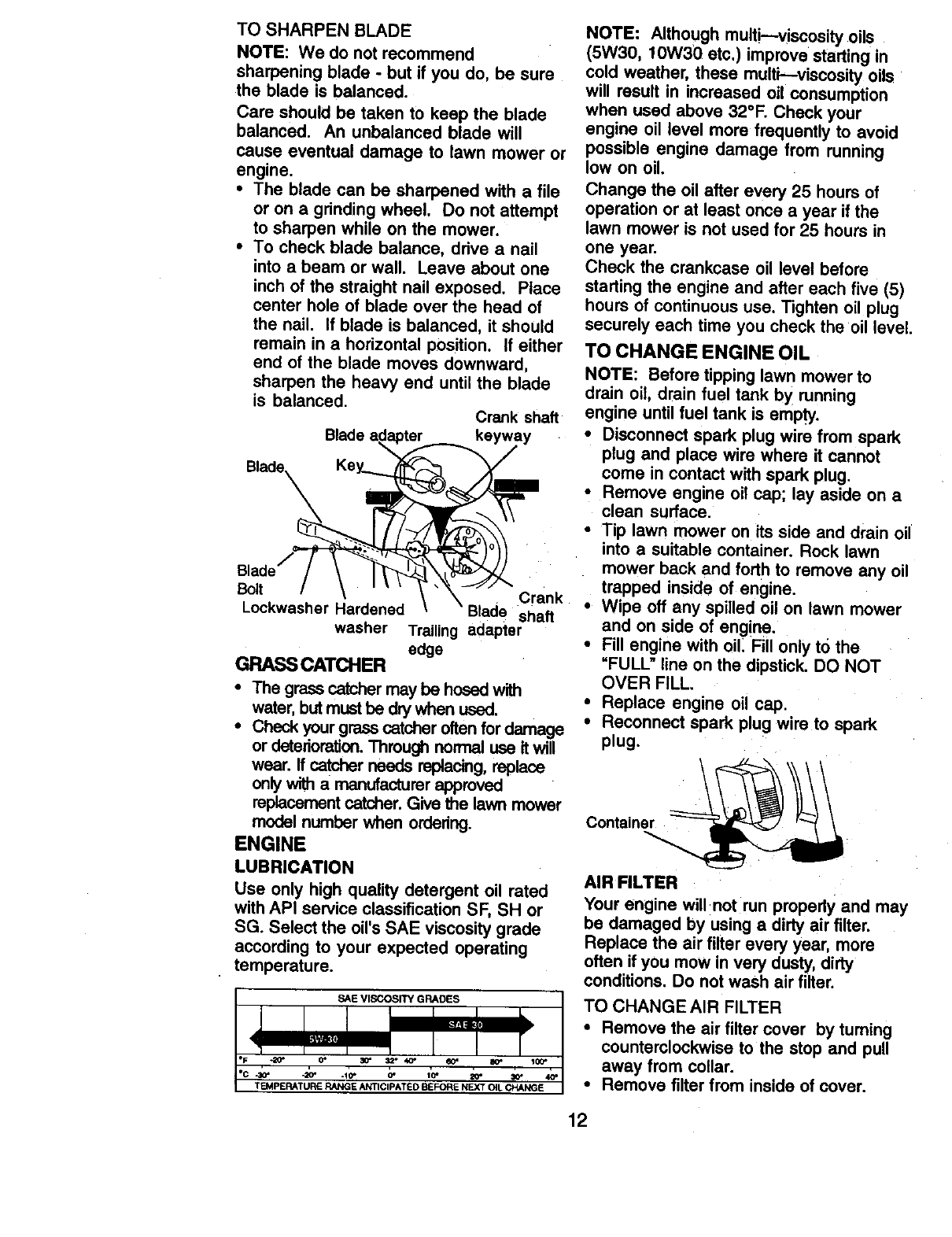

TO SHARPEN BLADE

NOTE: We do not recommend

sharpening blade -but if you do, be sure

the blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause eventual damage to lawn mower or

engine.

•The blade can be sharpened with a file

or on agrinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, drive a nail

into a beam or wall. Leave about one

inch of the straight nail exposed. Place

center hole of blade over the head of

the nail. If blade is balanced, it should

remain in a horizontal position. If either

end of the blade moves downward,

sharpen the heavy end until the blade

is balanced. Crank shaft

keyway

Blade

Bolt crank

Lockwashar Hardened Blade shaft

washer Trailing adapter

edge

GRASS CATCHER

• The grass _ may be heaed with

water, butmustbe drywhen used.

•Check yourgrasscatcher often for damage

or deterioration.Through normal use it will

wear. If catcherneeds replacing,replace

only with a manufacturerapproved

replacementcatcher.Give the lawn mower

model numberwhen ordering.

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classification SF, SH or

SG. Select the oil'sSAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

"30' -2O" -10" O' 10" 20" 30"

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi--viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi--viscosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one year.

Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil revel

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to

drain oil, drain fuel tank by running

engine until fuel tank is empty.

•Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

•Remove engine oil cap; lay aside on a

clean surface.

• Tip lawn mower on its side and drain oil

into a suitable container. Rock lawn

mower back and forth to remove any oil

trapped inside of engine.

•Wipe off any spilled oil on lawn mower

and on side of engine .

•Fill engine with oil_Fill only to the

"FULL" line on the dipstick. DO NOT

OVER FILL.

•Replace engine oil cap.

•Reconnect spark plug wire to spark

plug.

Container

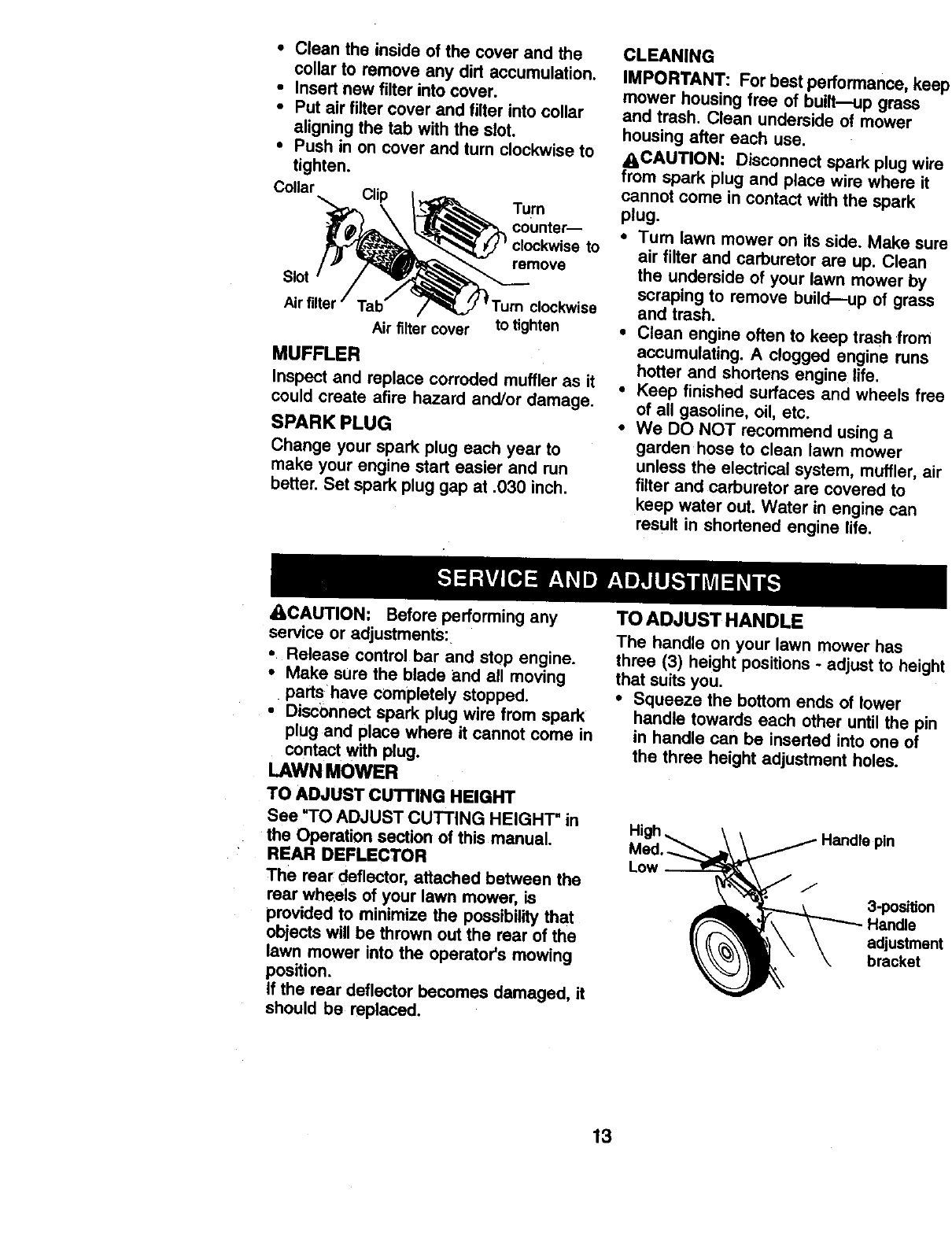

AIR FILTER

Your engine willnot run properly and may

be damaged by using a dirty air filter.

Replace the air filter every year, more

often if you mow in very dusty,dirty

conditions. Do not wash air filter.

TO CHANGE AIR FILTER

•Remove the air filter cover by tuming

counterclockwise to the stop and pull

away from collar.

•Remove filter from inside of cover.

• Clean the inside of the cover and the

collar to remove any dirt accumulation.

•Insert new filter into cover.

•Put air filter cover and filter into collar

aligning the tab with the slot.

•Push in on cover and turn clockwise to

tighten.

Collar Clip Tum

counter-- to

remove

clockwise

Air filter cover to tighten

MUFFLER

Inspect and replace corroded muffler as it

could create afire hazard and/or damage,

SPARK PLUG

Change your spark plug each year to

make your engine start easier and run

better. Set spark plug gap at .030 inch.

CLEANING

IMPORTANT: For best performance, ke_

mower housing free of built--up grass

and trash. Clean underside of mower

housing after each use.

_CAUTION: Disconnect spark plug wit

from spark plug and place wire where it

cannot come in contact with the spark

plug.

•Turn lawn mower on its side. Make sL

air filter and carburetor are up. Clean

the underside of your lawn mower by

scraping to remove build--up of grass

and trash.

•Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

•Keep finished surfaces and wheels fr_

of all gasoline, oil, etc.

•We DO NOT recommend using a

garden hose to clean lawn mower

unless the electrical system, muffler, 8

filter and carburetor arecovered to

keep water out. Water in engine can

result in shortened engine life.

ACAUTION: Before performing any

service or adjustmentsL

•Release control bar and stop engine.

•Make sure the blade and all moving

parts have completely stopped.

•Disconnect spark plug wire from spark

plug and place where it cannot come in

contact with plug.

LAWN MOWER

TO ADJUST cu'rrlNG HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear defi_or,attached between the

rear wheels of your lawn mower, is

provided to minimize the possibilitythat

objects will be thrown out the rear of the

lawn mower into the operator's mowing

position.

If the rear deflector becomes damaged, it

should be replaced.

TO ADJUST HANDLE

The handle on your lawn mower has

three (3) height positions - adjust to heig

that suits you,

•Squeeze the bottom ends of lower

handle towards each other until the pir

in handle can be inserted into one of

the three height adjustment holes.

Low

Handle pin

3-posttiol

adjustrnel

bracket

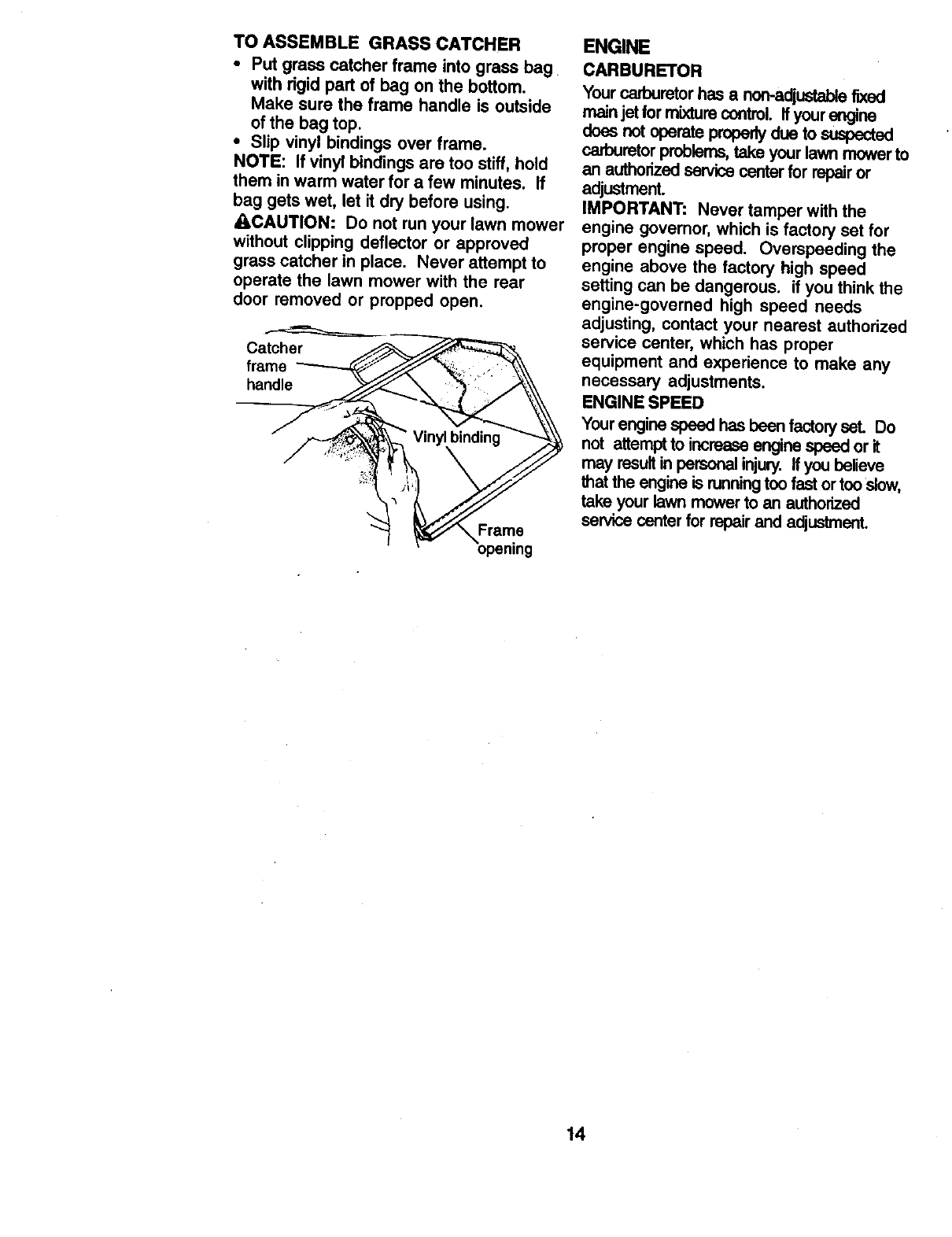

TO ASSEMBLE GRASS CATCHER

• Put grass catcher frame into grass bag

with dgid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

• Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

bag gets wet, let it dry before using.

ACAUTION: Do not run your lawn mower

without clipping deflector or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

Catcher .--_

handle_ _/'_ \_./k\\

opening

ENGINE

CARBURETOR

Yourcarburetorhas a non-adjustsblefixed

main jetfor mixturecontrol. Ifyourengine

does notoperate properlydue to suspected

carburetorproblems,take yourlawn mowerto

an authorizedservicecenterfor repairor

adjustment.

IMPORTANT: Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous, if you think the

engine-governed high speed needs

adjusting, contact your nearest authorized

service center, which has proper

equipment and experience to make any

necessary adjustments.

ENGINE SPEED

Yourenginespeed has been factoryset Do

not attemptto increaseenginespeedor it

may resultinpersonal injury. If youbelieve

that the engineis running too fast or too slow,

take your lawn mowerto an authonzed

service center for repairand adjustment.

Immediately prepareyourlawn mower(or

storageat the end of the seasonor ifthe unit

willnotbe used for 30 daysor more.

LAWN MOWER

When lawn mower isto be storedfora period

of time, cleanit thoroughly,removeall dirt,

grease, leaves,etc. Store ina clean, dryarea.

•Clean entire lawn mower (See "CLEAN-

ING"inthe Maintenancesectionofthis

manual).

• Lubricateas shownin the Maintenance

sectionof thismanual.

•Be surethat all nuts,belts, screws,and pins

are securelyfastened. Inspect moving

partsfor damage, breakage and wear.

Replace if necessary.

•Touch up all rustedor chippedpaint

surfaces;sand lightlybeforepainting.

HANDLE

•You can fold your lawn mower handle

for storage.

•Loosen the two (2) handle knobs on

sides of the upper handle and allow

handle to fold down to the rear.

• Squeeze the bottom ends of lower

handle toward each other until pins in

handle clear the brackets and pivot

entire handle assembly forward and

allow it to rest on mower.

•When setting up your handle from the

storage position, the lower handle will

require manually locking into the

mowing position.

IMPORTANT: When folding the handle for

storage or transportation, be sure to fold

the handle as shown or you may damage

the control cables.

/3-position

Handle

adjustment

bracket

Operator Presence

Control Bar

Upper

• Handle

Fold Forward'-'_

Lower

Handle

Mowing

Position

ENGINE

FUEL SYSTEM

IMPORTANT: tt is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fue!

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moistur_

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

•Drain the fuel tank.

•Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleane

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE' in

the Maintenance section of this manual).

CYLINDER

•Remove spark plug.

•Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

•Pull starter handle slowly a few times to

distribute oil.

•Replace with new spark plug.

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your unit indoors and

cover it to give protection from dust and

dirt.

•Cover your unit with a suitable protec-

tive cover that does not retain moisture.

Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

_I_CAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

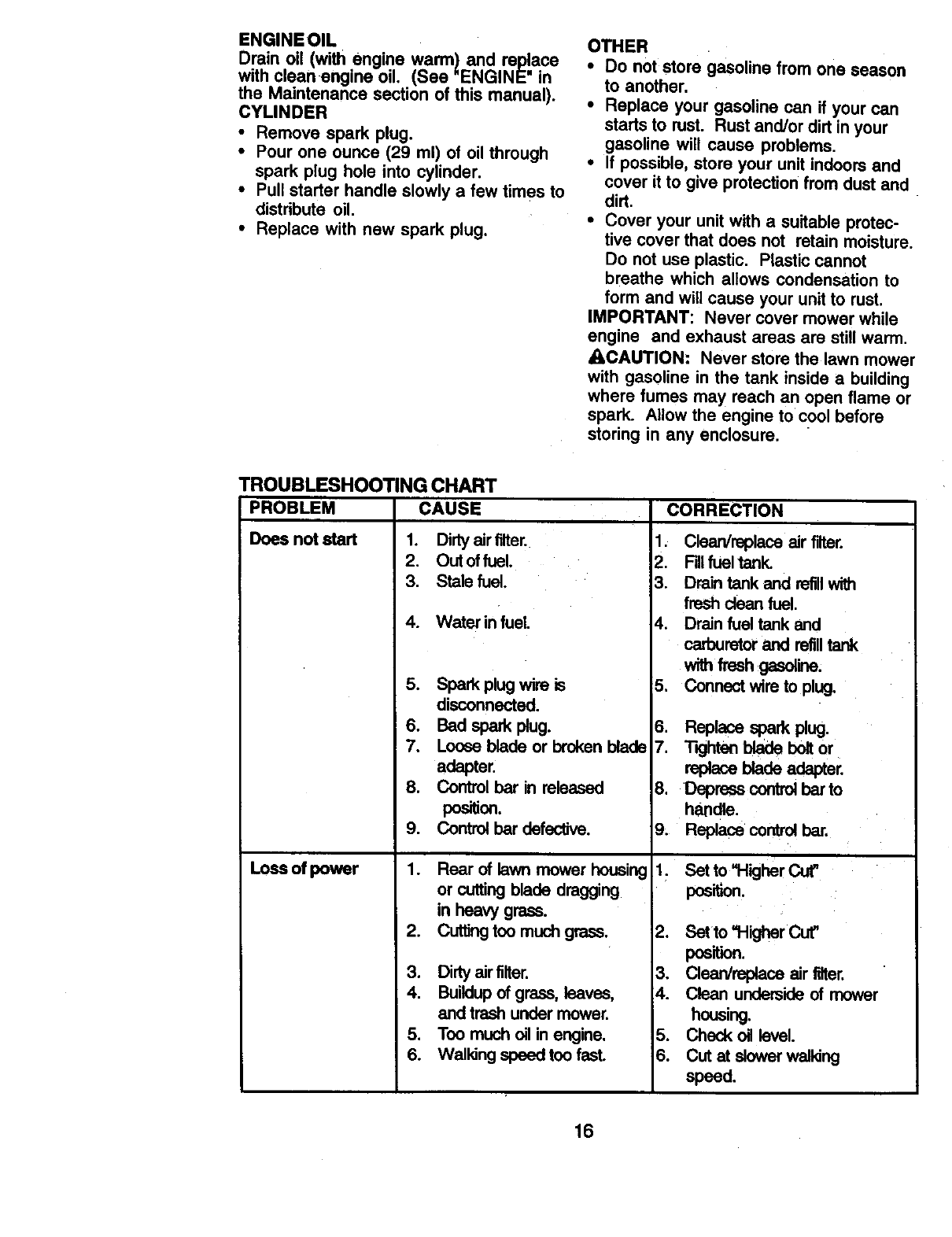

TROUBLESHOOTING CHART

PROBLEM CAUSE

Does not start 1. Dirtyair filter.

2. Out offuel.

3, Stale fuel.

4. Water infuel.

5. Spark plugwire is

disconnected.

6. Bad spark plug.

7. Loose blade or brokenblade

adapter.

8. Controlbar in released

pceltJm.

9. Controlbar defective.

Loss ofpower 1. Rear of lawn mower housing

or cuttingblade dragging

in heavy grass.

2. Cuttingtoo muchgrass.

3. Dirtyair filter.

4. Buildupof grass,leaves,

and trashundermower.

5. Too much oilin engine.

6. Walking speed too fast.

CORRECTION

1. Clean/replace air filter.

2. Fillfuel tank.

3. Drain tank and refillwith

fresh clean fuel.

4. Drain fuel tank and

carburetor and refilltank

with esh gas .

5. Connect wire to plug.

6. Replace sparkplug.

7. Tightenblade boitor

replaceblade adapter.

8. Depresscontrolbarto

handle.

9. Replace controlbar.

1. Set to =Higher Cut"

position.

2. Setto =Higher Cut"

position.

3. Clean/replaceair filter.

4. Clean undersideof mower

housing.

5. Check oil level.

8. Cut at slowerwalking

speed.

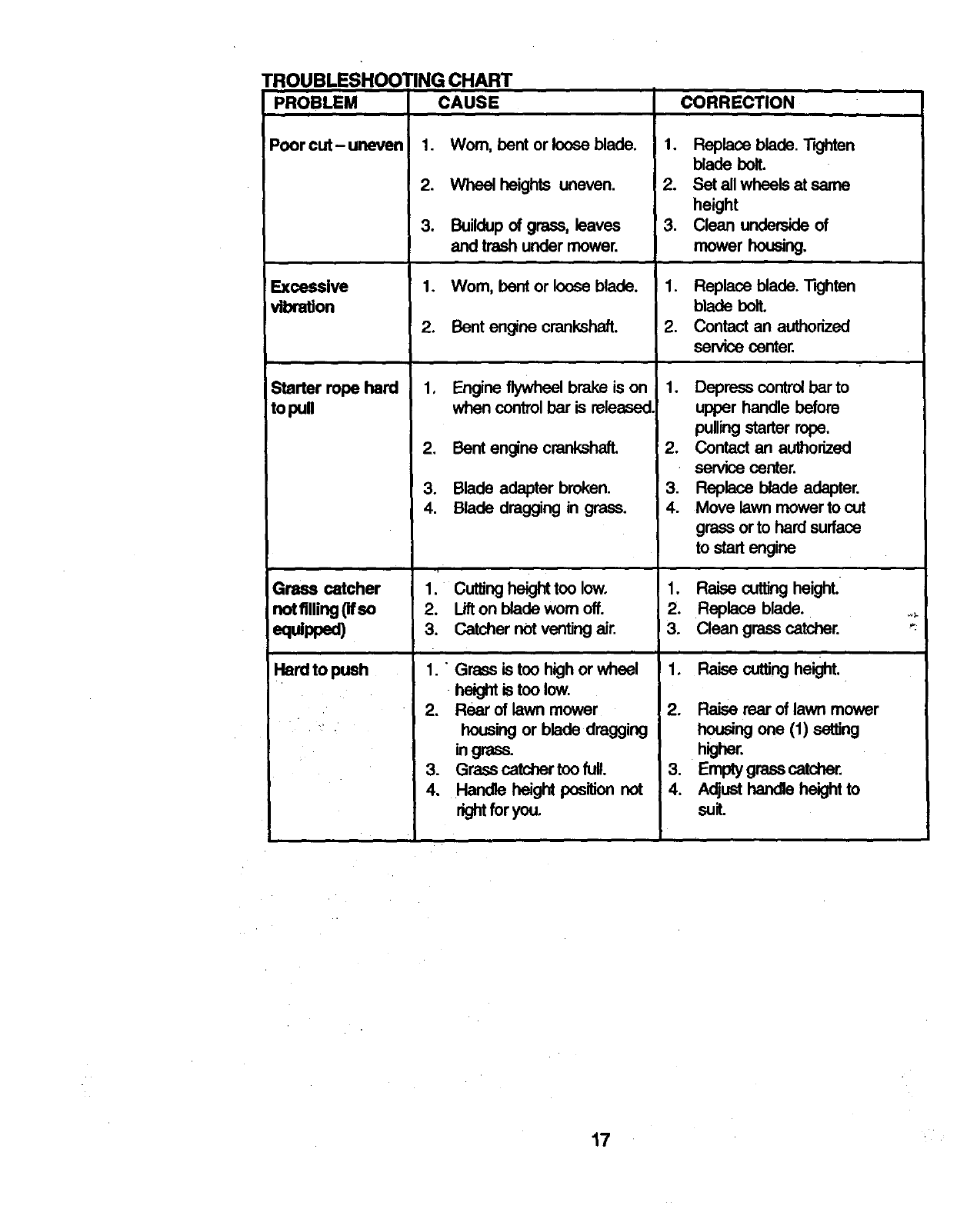

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Poor cut- uneven

Excessive

vibration

Starter rope hard

topull

Grass catcher

not filling (if so

equipped)

Hard to push

1. Worn, bent or loose blade.

2. Wheel heights uneven.

3. Buildupof grass,leaves

and trashundermower.

1. Worn, bent or loose blade.

2. Bent engine crankshaft.

1. Engine flywheel brake is on

when control bar is released

2. Bent engine cranksh_t.

3. Blade adapter broken.

4. Blade dragging in grass.

1. Cutting height too low.

2. Lift on blade wom off.

3. Catcher not venting _r.

1. " Grass is too high or wheel

h_ight is too low.

•I 2. Rear of lawn mower

housing or blade dragging

in grass.

3. Grass _r too full.

4. Handlet_ght pes_onnot

rightforyou.

1. Replace blade. Tighten

blade bolt.

2. Set all wheeis at same

height

3. Clean underside of

mower hou_ng.

1. Replace blade. TKjhten

blade bolt.

2. Contact an authorized

service center.

1. Depress contro! bar to

upper handle before

pulling starter rope.

2. Contact an authorized

service center.

3, Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface

to start engine

1. Raise cutting height.

2. Replace blade.

3. Clean grass catcher.

I. Raise cutting height.

.Raise rear of lawn mower

housingone (1) setting

higher.

3. Emptygrasscatcher.

4. Adjusthendle heightto

suit.

CRAFTSMAN ROTARY LAWN MOWER-- MODEL NO. 917.388360

KEY

NO.

PART

NO.

131696

166860X479

161105X479

132001

636O1

131959

66426

74780512

154132

165754

156577

750097

850733X004

136376

51793

147286

165946X479

17600406

167132X004

167133X004

165858

168360X004

166875

751153

166236X479

166243x479

851856

152124

160835X007

19112222

165760

87877

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

ControlBar 34 167130X004

UpperHandla 35 166785

LowerHandle 36 160828

RopaGuido 37 151162

Locknut 1/4-20 38 164362

Handle Bolt 39 83923

WlreTie 40 77400

Hex Bolt 5/16-18 x 3/4 41 88652

Hinge Bracket 42 165766

MulcherDoor 43 165767

Engine ZoneControlCable 44 165912

Hex Washer Head Screw #10-24 x 1/2 45 150406

Up-Stop Bracket 46 85463

HandleKnob 47 63124

HairpinCotter 48 167131X004

HingeRod 49 151161

Support Bracket 50 57143

Screw 51 73990500

Axle Arm Assembly. LF 52 166878

Axle ArmAssembly-RF 53 851064

Roar Skirl 54 850263

Selsctor Spring 56 851074

Rear Door AssemblyKit (Incl. Spdngs) 56 165833

Locknut5/16-18 57 851514

Handle Brecket Assembly (Left) 58 161551

Handle BracketAssembly(Right) 67 166113

Screw 1/4-20 x 3/8 68 165755

HingeSpdng 70 ......

Wheel AdjustingBracket - Front

Spacer -- 161058

Clipon Discharge Guard - - 171200

Selector Kncb

Axle Arm Assembly - LR

Locknut5/16-18

ShoulderBolt 5/16-18

Wheel Assembly

Shoulder Boit

Flanged Locknut

Hubcap

HingeScrew

Spdng(LH)

Spring(RH)

Door Bolt

Hex Head Thread RollingScrew 3/8-16 x 1

DangerDecal

Nut

Axle Ann Assembly-RR

Whee_

WaveWasher

Nut

Housing Assembly(Incl. Ref. #17, 18 & 46)

Hex Head Screw 3/8-24 x 1-3/8 Grd. 8

HelicalLockwasher

HardenedWasher

21" Blade

BladeAdapter

AdjustmentBolt

Grass Bag

CatcherFrame

Engine -(See Breakdown)

Craftsman 143.006200

Waming Decal (NotShown)

Owner'sManual

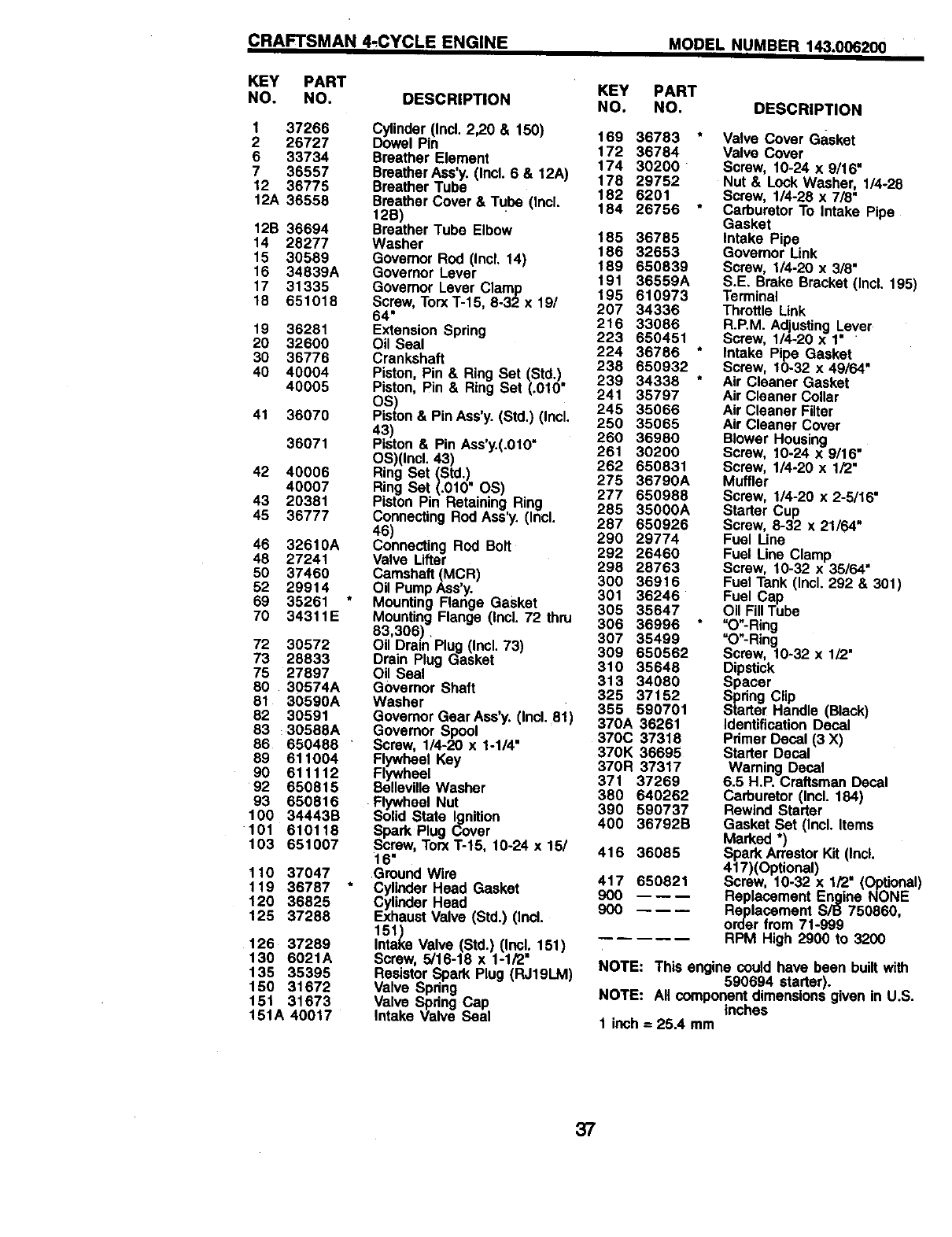

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.006200

4OO

130

120

416

185

_--370K

119

126

125

313

' 7 1897

178

238 25O

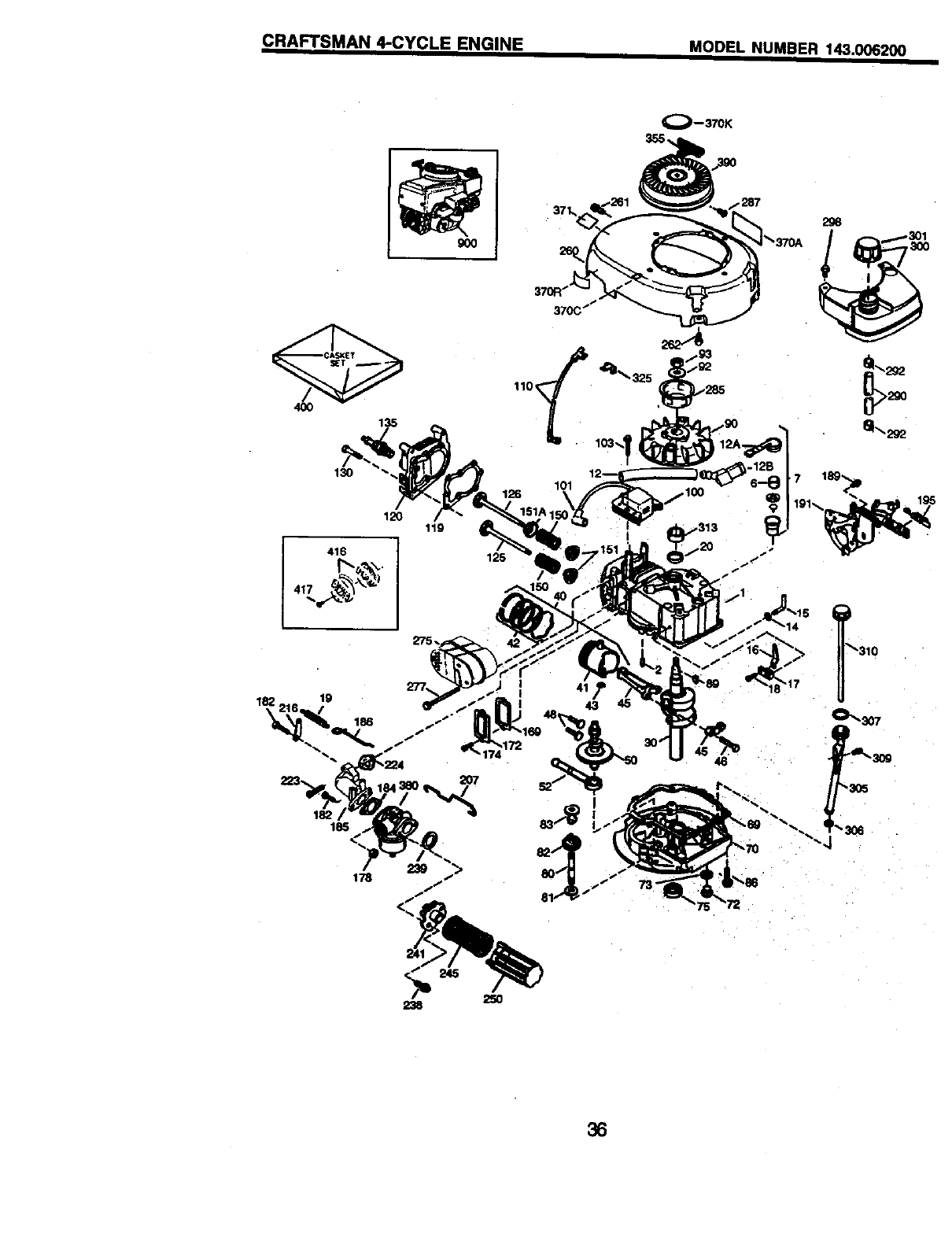

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.006200

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 37266 Cylinder (Incl. 2,20 & 150) 169 36783

2 26727 Dowel Pin 172 36784

6 33734 Breather Element 174 30200

7 36557 Breather Ass'y. (Incl. 6 & 12A) 178 29752

12 36775 Breather Tube 182 6201

12A 36558 Breather Cover & Tube 0nd. 184 26756

12B)

12B 36694 Breather Tube Elbow 185 36785

14 28277 Washer 186 32653

15 30589 Governor Rod (Incl. 14) 189 650839

16 34839A Governor Lever 191 36559A

17 31335 Governor Lever Clamp 195 610973

18 651018 Screw, Torx T-15, 8-32x 19/ 207 34336

64" 216 33086

19 36281 Extension Spring 223 650451

20 32600 Oil Seal 224 36786

30 36776 Crankshaft 238 650932

40 40004 Piston, Pin & Ring Set (Std.) 239 34338

40005 Piston, Pin & Ring Set (.010' 241 35797

OS) 245 35066

41 36070 Piston & Pin Ass'y. (Std.) (Incl. 250 35065

43)

36071 Piston & Pin Ass'y.(.0t0" 280 36980

261 30200

OS)(Incl. 43)

42 40006 Ring Set (Std.) 282 650831

275 36790A

40007 Ring Set (.010" OS) 277 650988

43 20381 Piston Pin Retaining Ring 285 35000A

45 36777 Connecting Rod Ass'y. (Incl. 287 650926

46) 290 29774

46 32610A Connecting Rod Bolt 292 26460

48 27241 Valve Lifter 298 28763

50 37460 Camshaft (MCR) 300 36916

52 29914 Oil Pump Ass'y. 301 36246

69 35261 * Mounting Flange Gasket 305 35647

70 34311E Mounting Flange (Incl. 72 thru 306 36996

83,306). 307 35499

72 30572 Oil Drain Plug (Incl. 73) 309 650562

73 28833 Drain Plug Gasket 310 35648

75 27897 Oil Seal 313 34080

80 30574A Governor Shaft 325 37152

81 305g0A Washer 355 590701

82 30591 Governor GearAss'y. (Incl. 81) 370A 36261

83 30568A Governor Spool 370C 37318

86 650488 Screw, 1/4-20 x 1-1/4" 370K 36695

89 611004 Flywheel Key 370R 37317

90 611112 Flywheel 371 37269

92 650815 Belleville Washer 380 640262

93 650816 Flywheel Nut 390 590737

100 34443B Solid State Ignition 400 36792B

101 610118 SparkPlug Cover

103 651007 Screw, TorxT-15, 10o24X15/ 416 36085

16"

110 37047 Ground Wire 417 650821

119 36787 Cylinder Head Gasket 900

120 36825 Cylinder Head 900

125 37288 Exhaust Valve (Std.) (Incl.

151)

126 37289 Intake Valve (Std.) (Incl. 151)

130 6021A Screw, 5/16-18 x 1-1/2"

135 35395 Resistor Spark Plug (RJ19LM)

150 31672 Valve Spdng

151 31673 Valve Spring Cap

151A 40017 Intake Valve Seal

* Valve Cover Gasket

Valve Cover

Screw, 10-24 x 9/16"

Nut & Lock Washer, 1/4-28

Screw, 1/4-28 x 7/8"

Carburetor To Intake Pipe

Gasket

Intake Pipe

Governor Link

Screw, 1/4-20 x 3/8"

S.E. Brake Bracket(Incl. 195)

Termthal

Throttle Link

R.P.M. AdjustingLever

Screw, 1/4-20 x 1"

Intake Pipe Gasket

Screw, 10-32 x 49164"

Air Cleaner Gasket

Air C_eanerCollar

Air Cleaner Filter

Air Cleaner Cover

Blower Housing

Screw, 10-24 x 9/16"

Screw, 1/4-20 x 1/2"

Muffler

Screw, 1/4-20 x 2-5/16"

Starter Cup

Screw, 8-32 x 21/64"

Fual Line

Fuel Line Clamp

Screw, 10-32 x 35/64"

Fuel Tank (Incl. 292 & 301)

Fuel Cap

Oil FillTube

uO'-Ring

=O"-Ring

Screw, 10-32 x 1/2'

Dipstick

Spacer

Spdng Clip

Starter Handle (Black)

IdentificationDecal

Primer Decal (3 X)

Starter Decal

Warning Decal

6.5 H.P. Craftsman Decal

Carburetor (Incl. 184)

Rewind Starter

Gasket Set (Incl. Items

Marked *)

Spark ArrestorKit (Incl.

417)(Optional)

Screw, 10-32 x 1/2" (Optional)

Replacement Engine NONE

Replacement S/B 750860,

order tram 71-999

RPM High 2900 to 3200

NOTE: This engine could have been builtwith

590694 starter).

NOTE: All componentdimensionsgiven in U.S.

inches

1 inch = 25.4 mm

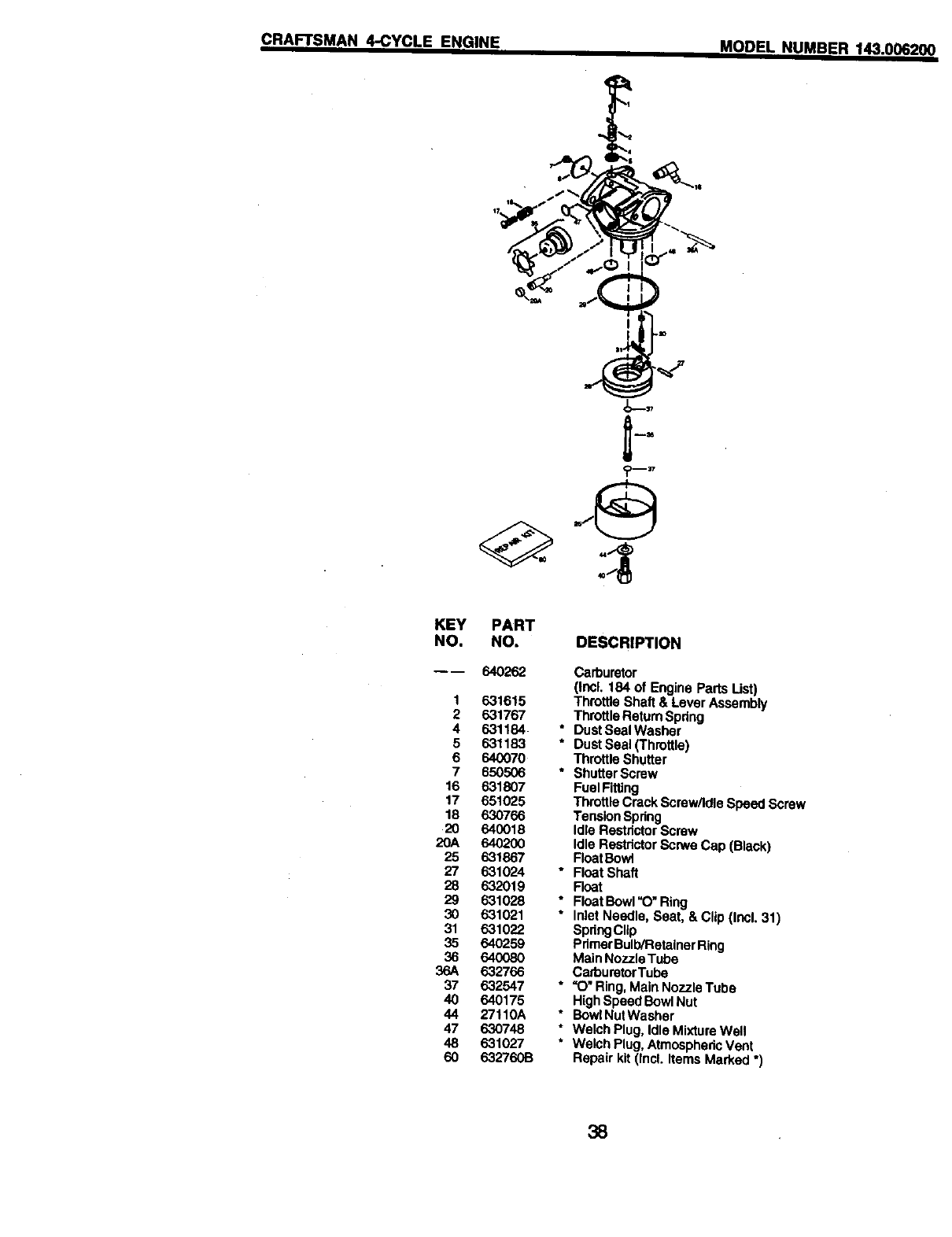

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.0062_

III

KEY

NO.

2OA

36A

PART

NO, DESCRIPTION

640262 Carburetor

(Incl. 184 of Engine Parts List)

631615 Throttle Shaft & Lever Assembly

631767 Throttle ReturnSpdng

631184 * Dust Seal Washer

631183 * Dust Seal (Throttle)

640070 Throttle Shutter

650506 * ShutterScrew

631807 Fuel Fitting

651025 Throttle Crack Screw/Idle Speed Screw

630766 Tension Spring

640018 Idle RestrictorScrew

640200 Idte Restrictor Scrwe Cap (Bracts)

631867 FloatBow1

631024 * Float Shaft

632019 Roat

631028 * FloatBowl "O"Ring

631021 * tn_etNeedle, Seat, & C_p (Incl. 31)

631022 SpringCllp

640259 PdmerBulb/RetainerRing

640080 Main Nozzle Tube

632766 CarburetorTube

632547 * =(3"Ring,Maln Nozzle Tube

640175 HighSpeed BowlNut

27110A • Bowl NutWasher

630748 * Welch Plug, IdleMixture Well

631027 * Welch Plug, AtmosphericVent

6327608 Repak kit (tnc_.Rerns Marked *)

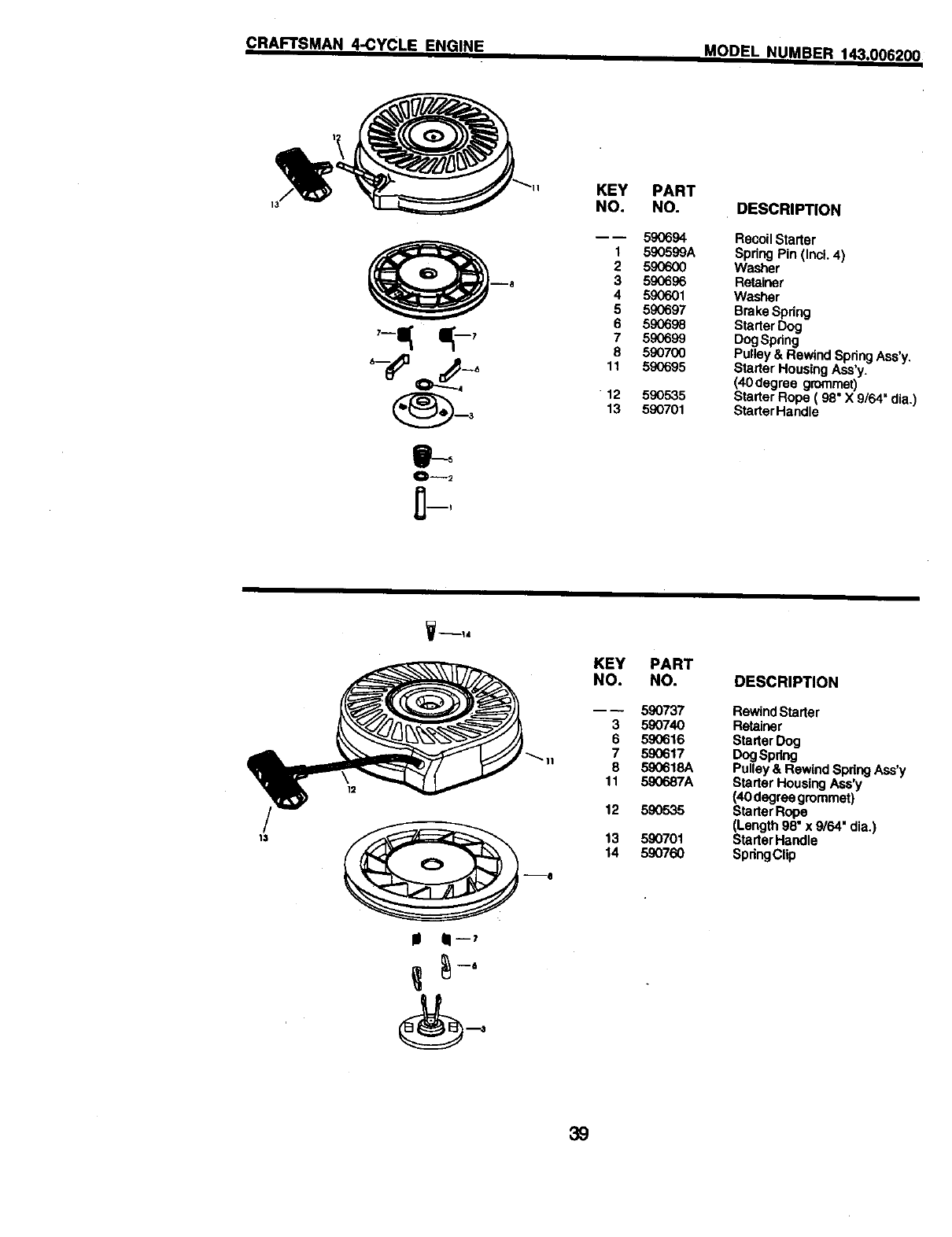

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.006200

_-5

O_2

KEY

NO.

PART

NO.

590694

590599A

59O6OO

59O696

59(To01

59O697

590698

59O699

590700

590695

590535

590701

DESCRIPTION

Recoil Starter

Spdng Pin (Incl. 4)

Washer

Retainer

Washer

BrakeSpdng

StarterDog

DogSpdng

Pulley & Rewind SpnngAss'y.

Starter Housing Ass'y.

(40 degree grommet)

Starter Rope ( 98* X 9/64" dia.)

StaRerHandle

_--lJl

II tl1-7

KEY

NO.

PART

NO.

59O737

590740

590616

590617

590618A

590687A

59O535

590701

59O760

DESCRIPTION

Rewind Starter

Retainer

Starter Dog

DogSpdng

Pulley & Rewind Spdng Ass'y

Starter Housing Ass'y

(40degree grommet)

StarterRope

(Length 98" x 9/64' dia.)

StarterHandte

SpringClip

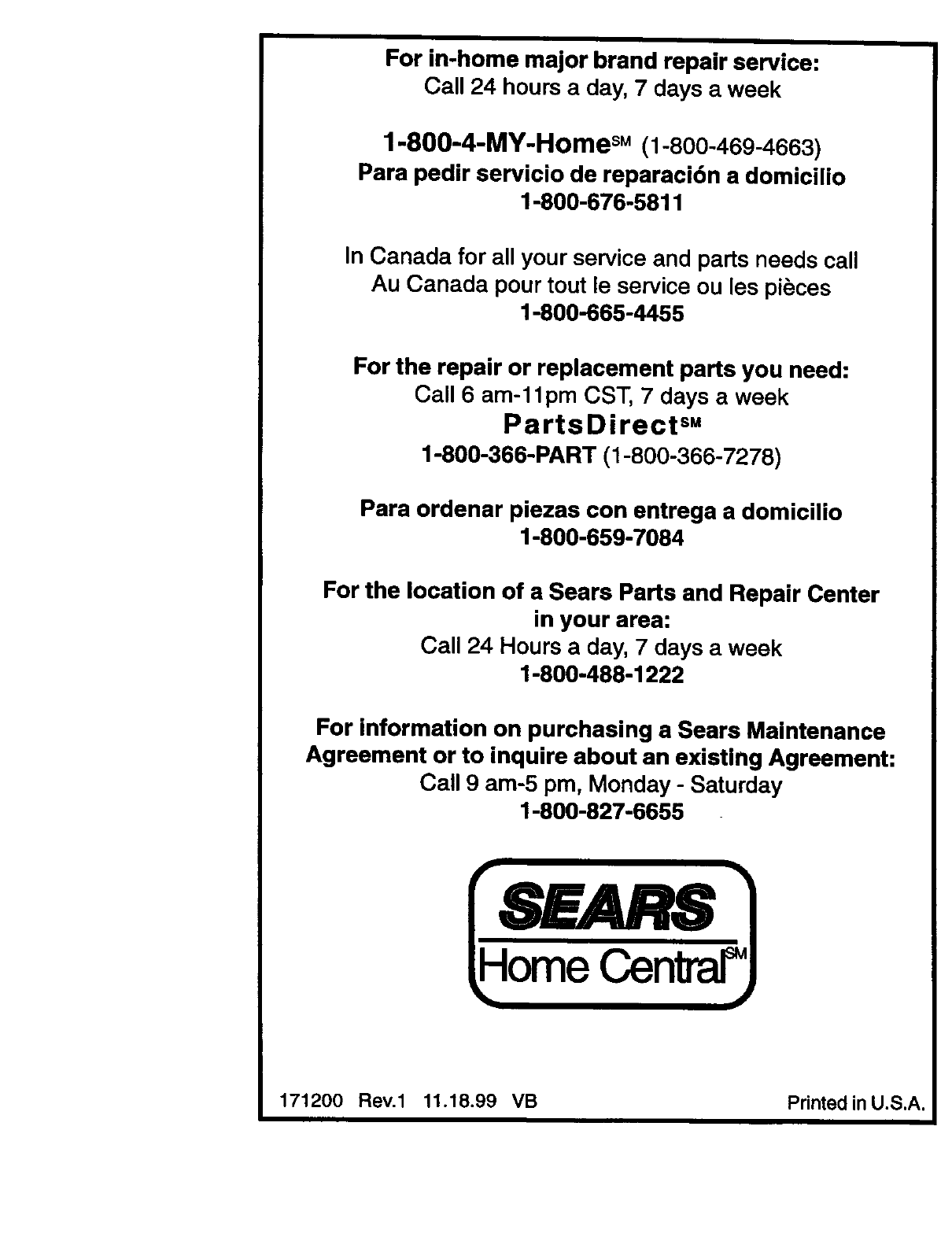

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-Home sM(1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio

1-800-676-5811

In Canada for all your service and parts needs call

Au Canada pour tout le service ou les pi_ces

1-800-665-4455

For the repair or replacement parts you need:

Call 6 am-11pm CST, 7 days a week

PartsDirect sM

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio

1-800-659-7084

For the location of a Sears Parts and Repair Center

in your area:

Call 24 Hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance

Agreement or to inquire about an existing Agreement:

Call 9 am-5 pm, Monday -Saturday

1-800-827-6655

SEAR8

171200 Rev.1 11.18.99 VB Printedin U.S.A,

Craftsman 917388360 User Manual 6.25HP 21 ROTARY LAWN MOWER Manuals And Guides L0010029

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0010029 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
