Owner's Manual

(RRFTSMRN°

6.0 HORSEPOWER

21" MULTI-CUT

ROTARY LAWN MOWER

Model No.

917.388382

• Safety

•Assembly

•Operation

• Maintenance

•Espa_ol

•Repair Parts

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visitour Craftsman website: www.sears.com/craffsman

Warranty

Safety Rules

Assembly

Operation +

Maintenance Schedule

Maintenance

2 Product Specifications 11

2 Service and Adjustments 13

4 Storage 14

6 Troubleshooting 15

10 Repair Parts 34

10 Parts Ordering Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of purchase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty

applies for only 90 days from the date of purchase.

This Warranty does not cover:.

•Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by returning the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

This Warranty gives you specific legal rights, and you may also have other rights which

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179

Safety standards require operator

presence control to minimize the risk of

injury. Your unit is equipped with cuch

controls, do not attempt to defeat the

function of the operator presence controls

under any circumstances.

TRAINING:

•Read this operator's manual carefully.

Become familiar with the controls and

know how to operate your mower

propedy. Learn how to quickly stop

mower.

•Do not allow children to use your

mower. Never allow adults to use

mower without proper instructions.

•Keep the area of operation clear of all

persons, especially small children and

pets.

•Use mower only as the manufacturer

intended and as described in this

manual.

• Do not operate mower if it has been

dropped or damaged in any manner.

Always have damage repaired before

using your mower.

•Do not use accessory attachments that

are not recommended by the manufac-

turer. Use of such attachments may be

hazardous.

•The blade tums when the engine is

running.

PREPARATION:

•Always thoroughly check the area to be

mowed and clear it of all stones, sticks,

wires, bones, and other foreign objects.

These objects will be thrown by the

blade and can cause severe injury.

•Always wear safety glasses or eye

shields when starting and while using

your mower.

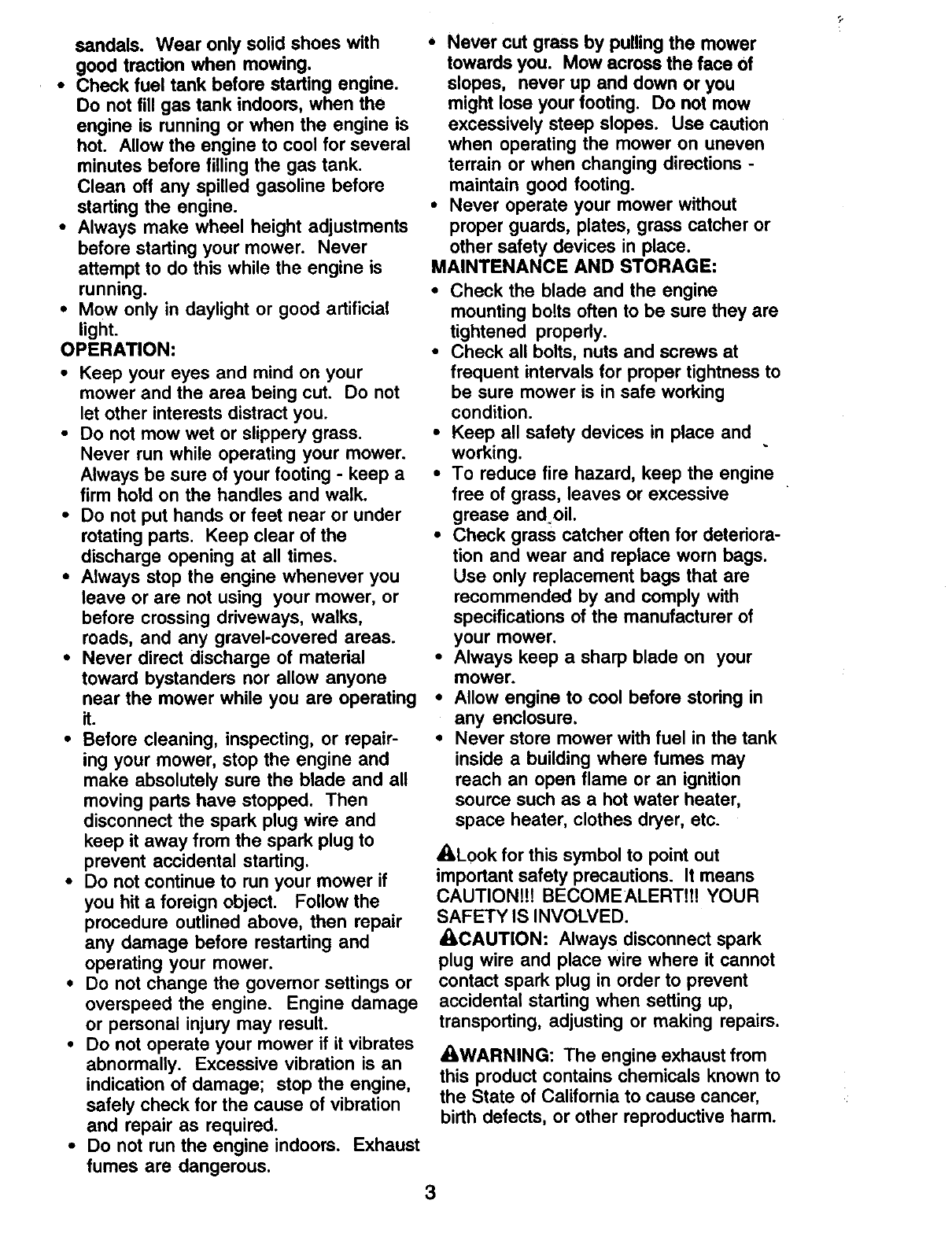

• Dress properly. Do not operate mower

when barefoot or wearing open

sandals. Wear only solid shoes with

good traction when mowing.

•Check fuel tank before starting engine.

Do not fill gas tank indoors, when the

engine is running or when the engine is

hot. Allow the engine to cool for several

minutes before filling the gas tank.

Clean off any spilled gasoline before

starting the engine.

•Always make wheel height adjustments

before starting your mower. Never

attempt to do this while the engine is

running.

*Mow only in daylight or good artificial

light.

OPERATION:

•Keep your eyes and mind on your

mower and the area being cut. Do not

let other interests distract you.

•Do not mow wet or slippery grass.

Never run while operating your mower.

Always be sure of your footing -keep a

firm hold on the handles and walk.

•Do not put hands or feet near or under

rotating pads. Keep clear of the

discharge opening at all times.

•Always stop the engine whenever you

leave or are not using your mower, or

before crossing driveways, walks,

roads, and any gravel-covered areas.

•Never direct discharge of material

toward bystanders nor allow anyone

near the mower while you are operating

it.

•Before cleaning, inspecting, or repair-

ing your mower, stop the engine and

make absolutely sure the blade and all

moving parts have stopped. Then

disconnect the spark plug wire and

keep it away from the spark plug to

prevent accidental starting.

•Do not continue to run your mower if

you hit a foreign object. Follow the

procedure outlined above, then repair

any damage before restarting and

operating your mower.

•Do not change the governor settings or

overspeed the engine. Engine damage

or personal injury may result.

•Do not operate your mower if it vibrates

abnormally. Excessive vibration is an

indication of damage; stop the engine,

safely check for the cause of vibration

and repair as required.

•Do not run the engine indoors. Exhaust

fumes are dangerous.

•Never cut grass by pulling the mower

towards you. Mow across the face of

slopes, never up and down or you

might lose your footing. Do not mow

excessively steep slopes. Use caution

when operating the mower on uneven

terrain or when changing directions -

maintain good footing.

•Never operate your mower without

proper guards, plates, grass catcher or

other safety devices in place.

MAINTENANCE AND STORAGE:

• Check the blade and the engine

mounting bolts often to be sure they are

tightened properly.

•Check all bolts, nuts and screws at

frequent intervals for proper tightness to

be sure mower is in safe working

condition.

•Keep all safety devices in place and

working.

•To reduce fire hazard, keep the engine

free of grass, leaves or excessive

grease and oil.

•Check grass catcher often for deteriora-

tion and wear and replace worn bags.

Use only replacement bags that are

recommended by and comply with

specifications of the manufacturer of

your mower.

•Always keep a sharp blade on your

mower.

•Allow engine to cool before storing in

any enclosure.

•Never store mower with fuel in the tank

inside a building where fumes may

reach an open flame or an ignition

source such as a hot water heater,

space heater, clothes dryer, etc.

ALook for this symbol to point out

important safety precautions. It means

CAUTION!!! BECOMEALERTT!! YOUR

SAFETY IS INVOLVED.

ACAUTION: Always disconnect spark

plug wire and place wire where it cannot

contact spark plug in order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs.

AWARNING: The engine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

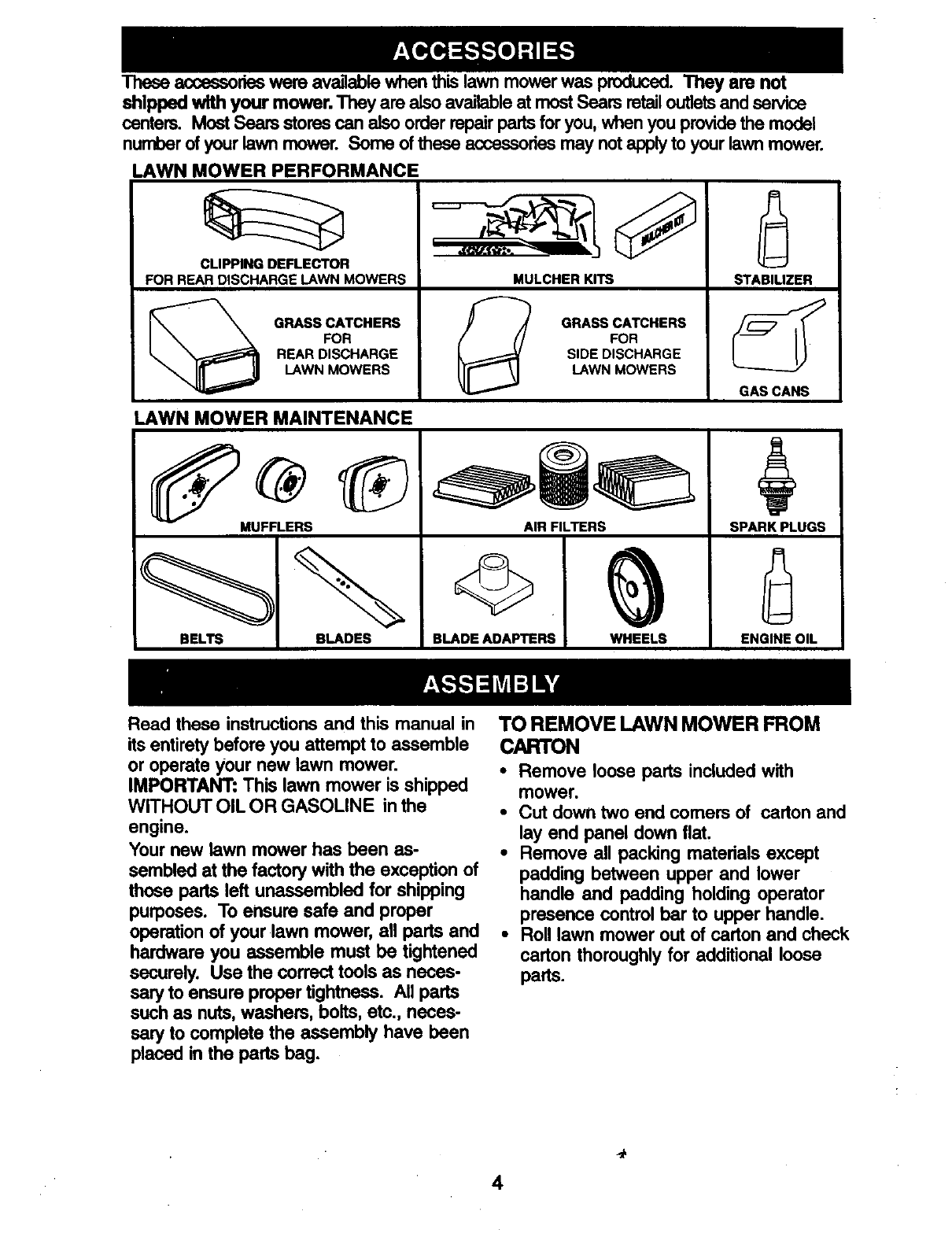

"rheseasceesodes were availablewhen thislawnmowerwas produced.They are not

shipped with your mower.They arealsoavailableat mostSears retailoutletsandservice

centers. MostSears storescan alsoorderrepairpartsforyou,when youprovidethe model

numberof yourlawnmower. Some ofthese accessoriesmay notapplyto yourlawnmower.

LAWN MOWER PERFORMANCE

_,£___.,0='o. ".I

CLIPPING DEFLECTOR

FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS GRASS CATCHERS

FOR

I SIDE DISCHARGE

LAWN MOWERS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES BLADE ADAPTERS

AIR FILTERS

WHEELS

STABILIZER

GAS CANS

SPARK PLUGS

ENGINE OIL

Read these instructions and this manual in

its entirety before you attempt to assemble

or operate your new lawn mower.

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Your new lawn mower has been as-

sembled at the factory with the exception of

those pads left unassembled for shipping

purposes. To ensure safe and proper

operation of your lawn mower, all pads and

hardware you assemble must be tightened

securely. Use the correct tools as neces-

sary to ensure proper tightness. All parts

such as nuts, washers, bolts, etc., neces-

sary to complete the assembly have been

placed in the pads bag.

TO REMOVE LAWN MOWER FROM

CARTON

• Remove loose pads included with

mower.

•Cut down two end comers of carton and

lay end panel down flat.

•Remove all packing materials except

padding between upper and lower

handle and padding holding operator

presence control bar to upper handle.

•Roll lawn mower out of carton and check

carton thoroughly for additional loose

parts.

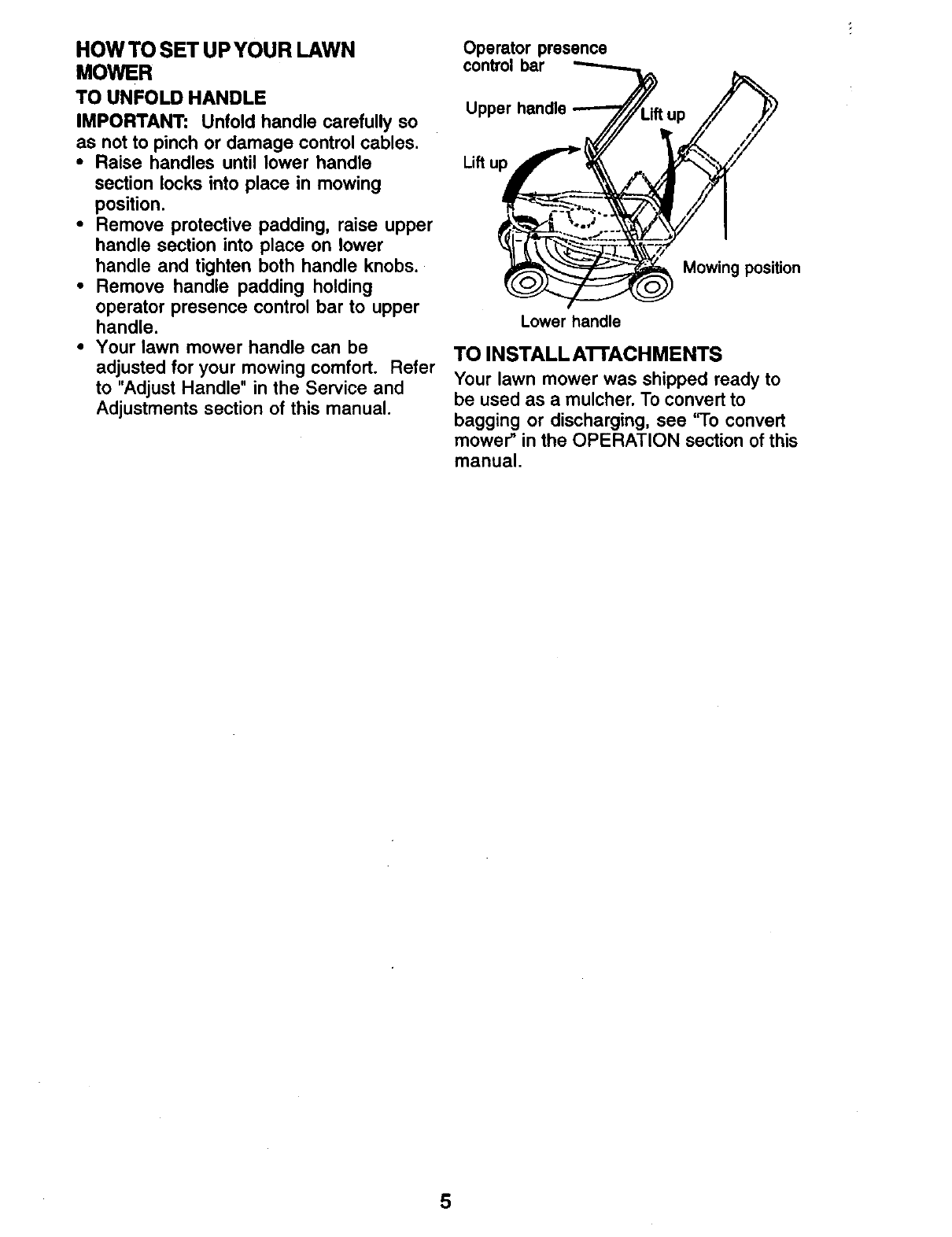

HOW TO SET UP YOUR LAWN Operatorpresence

MOWER control bar

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

•Raise handles until lower handle

section locks into place in mowing

position.

•Remove protective padding, raise upper

handle section into place on lower

handle and tighten both handle knobs.

•Remove handle padding holding

operator presence control bar to upper

handle.

•Your lawn mower handle can be

adjusted for your mowing comfort. Refer

to "Adjust Handle" in the Service and

Adjustments section of this manual.

Upper handle

Lift up

Mowing position

Lower handle

TO INSTALL A'I-rACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging, see 'q'o convert

mower" in the OPERATION section of this

manual.

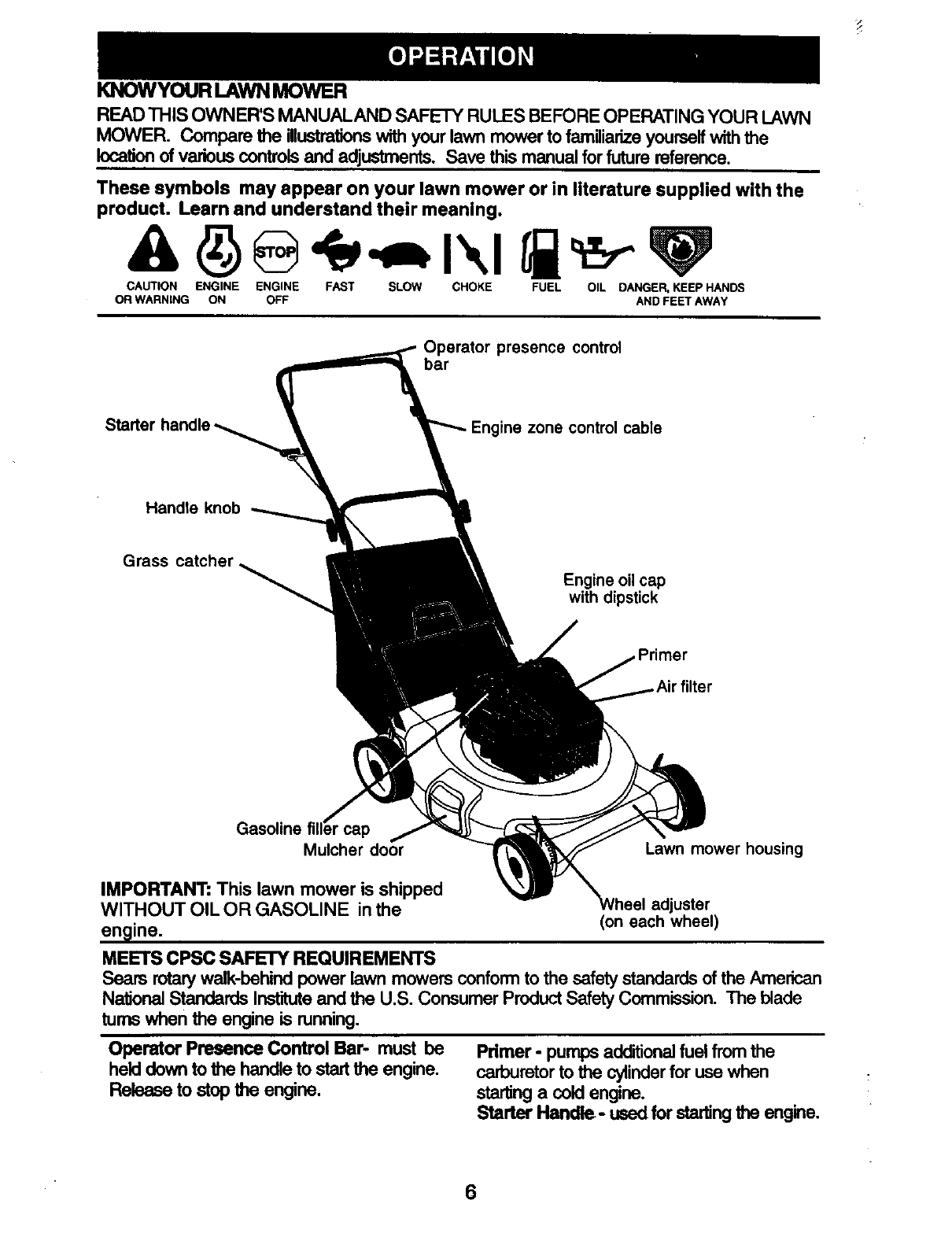

KNOWYOUR LAWN MOWER

READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR LAWN

MOWER. Compare the illustrationswith your lawn mower to familiarize yourselfwith the

location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your lawn mower or in literature supplied with the

product. Learn and understand their meanlng.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

Operator presence control

bar

Engine zone control cable

Handle knob

Grass catcher Engine oil cap

with dipstick

Mulcher door Lawn mower housing

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the Jster

en_line. (on each wheel)

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards ofthe American

National Standards Institute and the U.S. Consumer Product Safety Commission. The blade

turns when the engine is running.

Operator Presence Control Bar- must be

held down to the handle to start the engine.

Release to stop the engine.

Pdmer -pumps additionalfuel from the

carburetor to the cylinder for use when

starling a cold engine.

Starter Handle- used for startingthe engine.

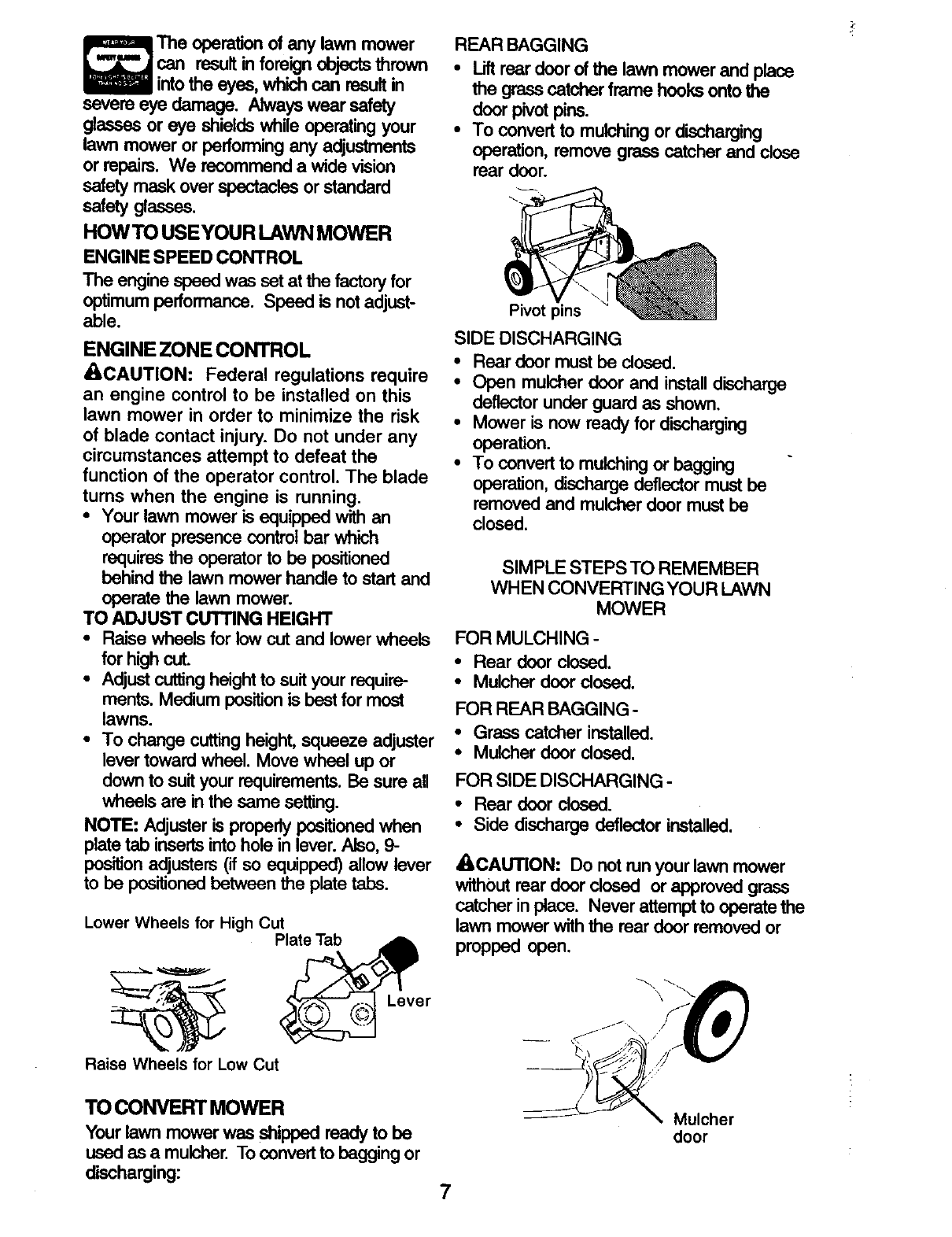

The operation of any lawn mower

can result in foreign objects thrown

into the eyes, which can result in

severe eye damage. Always wear safety

glasses or eye shields while operating your

lawn mower or performing any adjustments

or repairs. We recommend a wide vision

safety mask over spectacles or standard

safety glasses.

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED CONTROL

The engine speed was set at the factory for

optimum performance. Speed is not adjust-

able.

ENGINE ZONE CONTROL

_I=CAUTION: Federal regulations require

an engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

cimumstances attempt to defeat the

function of the operator control. The blade

tums when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start and

operate the lawn mower.

TO ADJUST CUTTING HEIGHT

=Raise wheels for low cut and lower wheels

for high cut.

•Adjust cutting height to suit your require-

ments. Medium positionis best for most

lawns.

, To change cutting height, squeeze adjuster

lever toward wheel. Move wheel up or

down to suit your requirements. Be sure all

wheels are in the same setting.

NOTE: Adjuster is properly positioned when

plate tab inserts into hole in lever. Also, 9-

position adjusters (if so equipped) allow lever

to be positionedbetween the plate tabs.

LowerWheels for High Cut

Raise Wheels for Low Cut

TO CONVERT MOWER

Yourlawnmowerwas shipped readytobe

usedas a mulcher.Toconvert tobaggingor

discharging:

REAR BAGGING

•Lift rear door of the lawn mower and place

the grass catcher frame hooks onto the

doorpivotpins.

•To convert to mulching or discharging

operation, remove grass catcher and close

rear door.

Pivot pins

SIDE DISCHARGING

• Rear door must be dosed.

• Open mulcher door and install discharge

deflector under guard as shown,

• Mower is now ready for discharging

operation.

•To convert to mulching or bagging

operation, discharge deflector must be

removed and mulcher door must be

closed.

SIMPLE STEPS TO REMEMBER

WHEN CONVERTING YOUR LAWN

MOWER

FOR MULCHING -

•Rear door closed.

• Mulcher door closed.

FOR REAR BAGGING -

•Grass catcher installed.

•Mulcher door closed.

FOR SIDE DISCHARGING -

• Rear door dosed.

•Side discharge deflector installed.

ACAUTION: Do not run your lawn mower

without rear door closed or approved grass

catcher in place. Never attempt to operate the

lawn mower with the rear door removed or

prepped open.

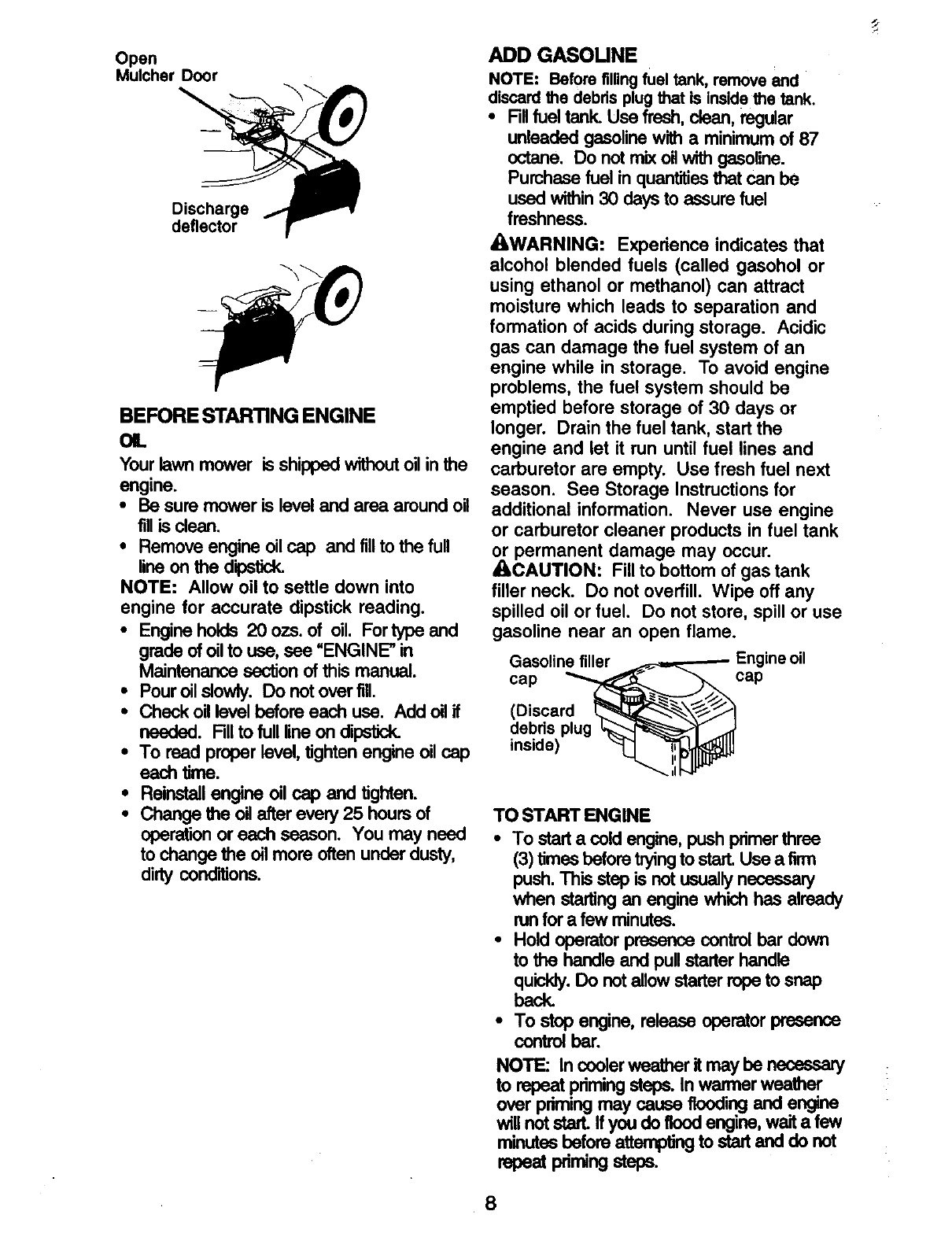

Mulcher

door

Open

Mulcher Door

Discharge

deflector

BEFORE STARTING ENGINE

OIL

Your lawn mower is shipped without oil in the

engine.

•Be sure mower is level and area around oil

fillis dean.

•Remove engine oil cap and fillto the full

line on the dipstick.

NOTE: Allow oil to settle down into

engine for accurate dipstick reading.

•Engine holds 20 ozs. of oil. For type and

grade of oilto use, see "ENGINE' in

Maintenance section of this manual.

• Pour oilslowly. Do not over till.

•Check oil level before each use. Add oil if

needed. Fill to full line on dipstick.

•To read proper level, tighten engine oil cap

each time.

•Reinstall engine oil cap and tighten.

•Change the oil after every 25 hours of

operation or each season. You may need

to change the ell more often under dusty,

dirty cond'fdons.

ADD GASOUNE

NOTE: Beforefillingfuel tank, removeand

discardthe debrisplugthat is insidethe tank.

•Fillfuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of 87

octane. Do not mix oil with gasoline.

Purchase fuel in quantitiesthat can be

used within 30 days to assure fuel

freshness.

AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the fuel tank, start the

engine and let it run until fuel lines and

carburetor are empty. Use fresh fuel next

season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in fuel tank

or permanent damage may occur.

_]LCAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

Gasoline filler _Engine oil

cap _cap

(Discard _I_'_._X_'j_ l

debris plug _..'_'T" _,_

Inside) "_._

TO START ENGINE

•To start a cold engine, push primer three

(3) times before t_ing to start. Use a firm

push. This step is not usually necessary

when startingan engine which has already

run for afew minutes.

•Hold operator presence control bar down

to the handle and pull starter handle

quickly. Do not allow starter rope to snap

back.

•To stop engine, release operator presence

control bar.

NOTE: In cooler weather it may be necessary

to repeat primingsteps. In wanner weather

over priming may cause flooding and engine

will not start. If you do flood engine, wait a few

minutes before attempting to start and do not

repeatp mingsteps.

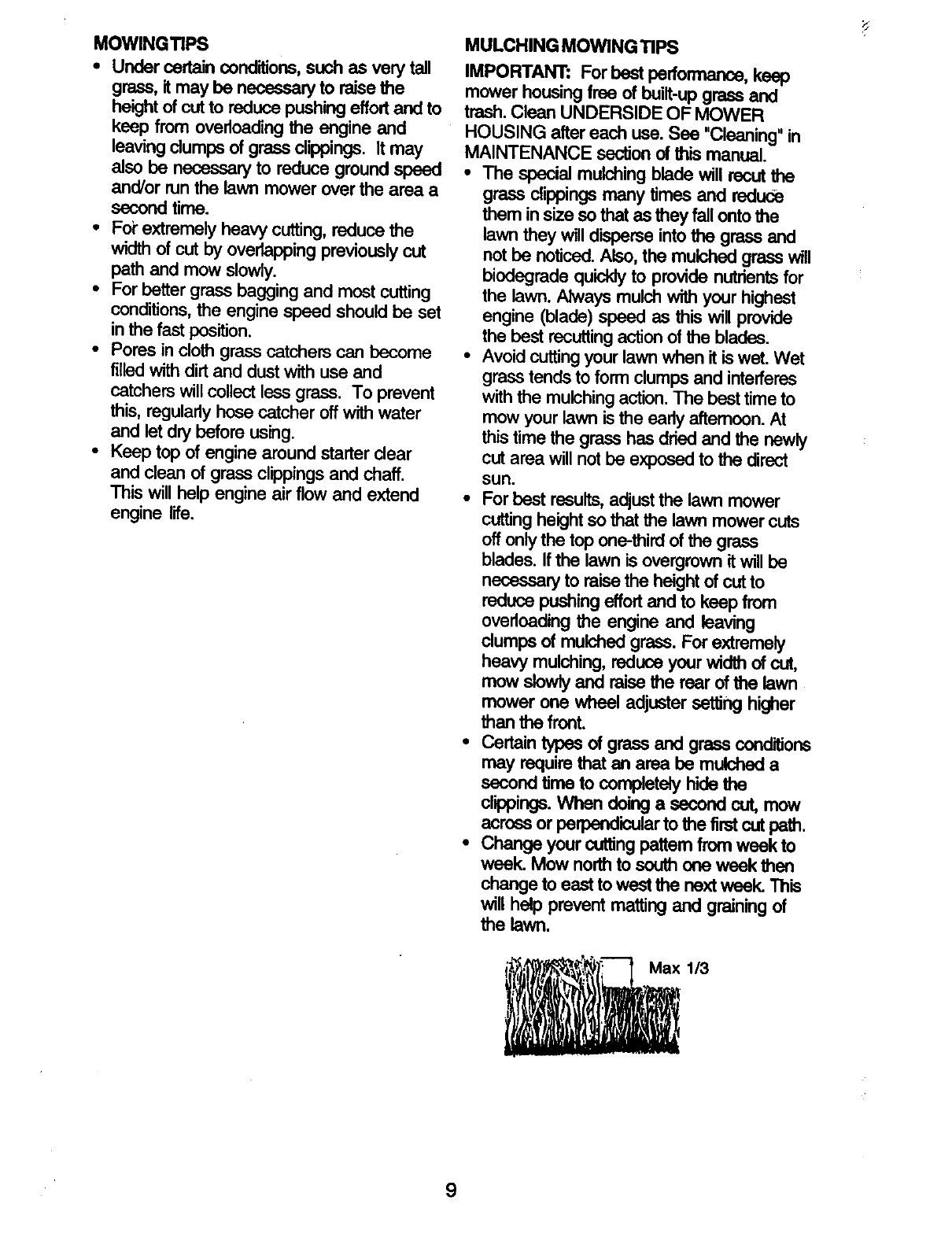

MOWINGTIPS

• Under certain conditions, such as very tall

grass, it may be necessary to raise the

height of cut to reduce push;_geffort and to

keep from overloading the engine end

leaving clumps of grass clippings. It may

also be necessary to reduce ground speed

end/or run the lawn mower over the area a

second time.

•FoPextremely heavy cutting, reduce the

width of cut by overlapping previously cut

path and mow slowly.

•For better grass bagging and most cutting

conditions,the engine speed should be set

inthe fast position.

•Pores in cloth grass catchers can become

tiltedwith dirt and dust with use and

catchers will collect less grass. To prevent

this, regularly hose catcher off with water

end let dry before using.

• Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and extend

engine life.

MULCHING MOWING TIPS

IMPORTANT: For best performance, keep

mower housing free of built-up grass and

trash. Clean UNDERSIDE OF MOWER

HOUSING after each use. See "Cleaning" in

MAINTENANCE section of this manual.

•The special mulching blade will recut the

grass clippings many times and reduce

them in size so that as they fallonto the

lawn they will disperse into the grass and

not be noticed. Also, the mulched grass will

biodegrade quicklyto provide nutrientsfor

the lawn. Always mulch with your highest

engine (blade) speed as this will provide

the best recuttingactionof the blades.

•Avoid cutting your lawn when it is wet. Wet

grass tends to form clumps and interferes

with the mulching action. The best time to

mow your lawn is the early afternoon. At

this time the grass has dried and the newly

cut area will not be exposed to the direct

sun.

•For best results,adjustthe lawn mower

cutting height so that the lawn mower cuts

off only the top one-third of the grass

blades. If the lawn is overgrown it will be

necessary to raise the height of cut to

reduce pushing effort end to keep from

overloading the engine and leaving

clumps of mulched grass. For extremely

heavy mulching, reduce your width of cut,

mow slowly and raise the rear of the lawn

mower one wheel adjuster setting higher

than the front.

•Certaintypesofgrassand grassconditione

may require that an area be mulched a

second time to completely hide the

clippings.Whendoinga secondcut,mow

across or perpendicular to the firstcut path.

•Change your cutting pattern from week to

week. Mow northto south one week then

change to east to westthe next week. This

wilt help prevent matting and graining of

the lawn.

MAINTENANCE SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE 3EFIVICE DATES

Check for Loose Fastenem

Clean/Ins_ Grass Catcher I

1Clean Lawn Mower

Clean Under Drive Cover

power-e_ Mowe,_) V'

Check ddve belt/pulleys

(Power-Propelled Mowers) I/'

CheckiSha qJen/ReplaceBlade V_a

L®_=UonCha. I/ I/

Clean Battery/Recharge

IElectdc Start MowersIV' I/4

Check Engine Oil Level !v'

Change Engine Oil I II_l.l

Clean Air Filter ll/ it

InspectMuffler

Clean or Replace Spark Rug

Replace Air FittorPaper Cartridge lilifit

1-Change more ofte_ when operatklg under a heavy load or in high ambient temperatures.

2 - Sentlce more often when operaing in dirty or dusty conditions.

3-Repkv:e bldes mo_e oiten when mow_ in q.md¥ soQ.

4 - Charge 48 houm al end of m,

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does not

cover items that have been subjected to

operator abuse or negligence. To receive lull

value from the wanan_, operator must

maintain mower as instructed in this manual.

Some adjustments will need to be made

periodicallyto properly maintain your unit.

All I_:liusln'_s in ll'e Service and

Adjustments section of this manual should be

checked at leest orlce each season.

• Once a year, replace the spark plug,

replace air filterelement and check blade

for we_. A new spark plug and clean/new

air filterelement assures proper air-fuel

mixture and helps your engine run better

andlastk jer.

•Follow the maintenance schedule in this

manual.

BEFORE EACH USE

•Check engine oil level.

•Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See "LUBRICATION

CHART").

LUBRICATION CHART

Wheel

adjusters

(_FI. Engine oil

ear

oDor I Handle bracket

hinge mounting pin

(_ SPRAY LUBRICANT

SAE 30 MOTOR OIL. REFER TO

(_ ENGINE- MAINTENANCE SECTION.

IMPORTANT: Do not oilor grease plastic

wheel bearings. Viscous lubricantswill attract

dust and dirtthat willshorten the lifeof the self

lubricatingbearings. If you feel they must be

lubricated,use only adry, powdered graphite

typelubricantspadng /.

PRODUCT SPECIFICATIONS

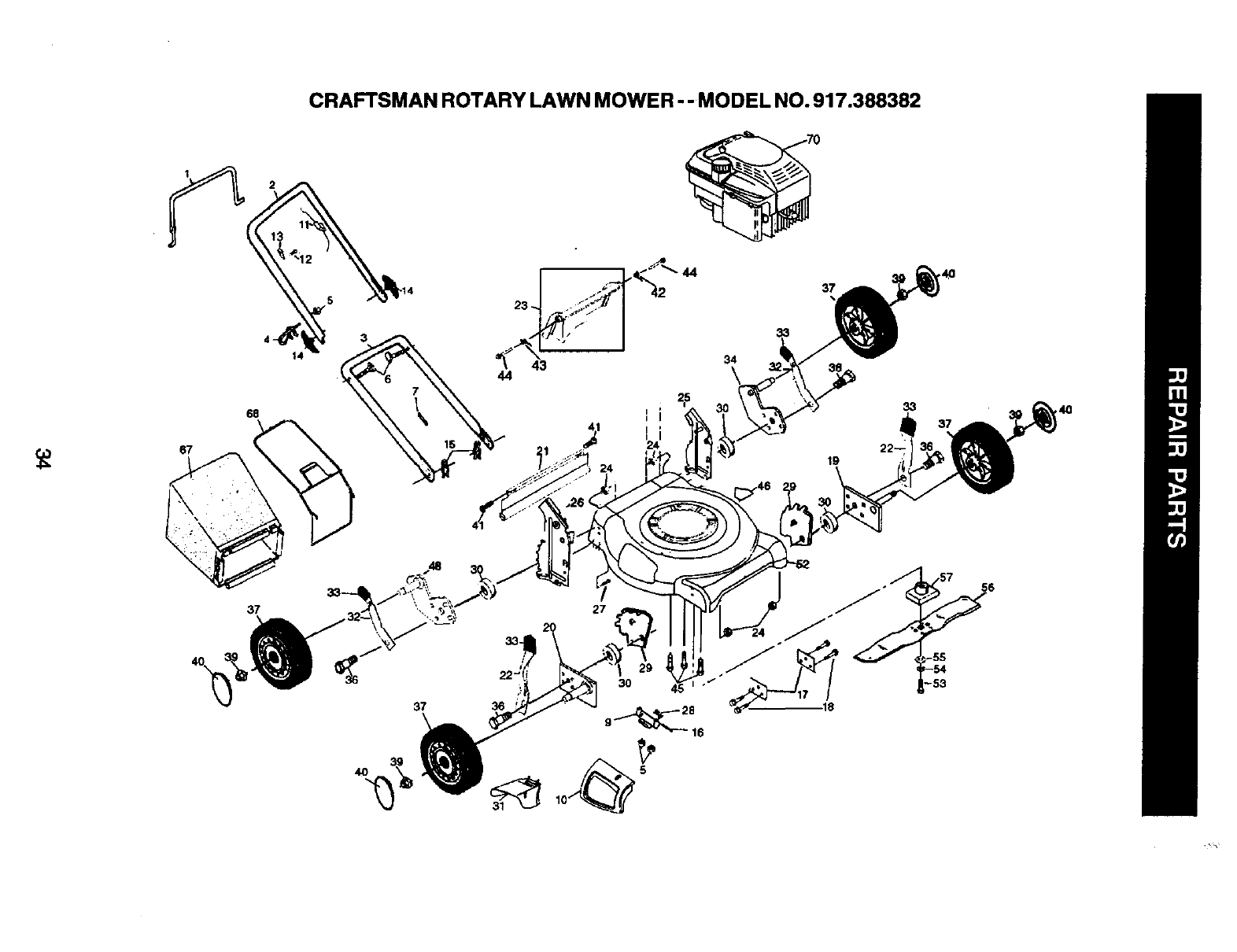

MODEL NUMBER 917.388382

SERIALNUMBER

DATE OF PURCHASE

GASOLINE CAPACITY/TYPE: 1.6 QUARTS

UNLEADED REGULAR

OlLTYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J19LM

VALVE CLEARANCE: INTAKE: .004 - .008

EXHAUST: .004 -.008

SOLID STATE IGNITION

AIR GAP: .0125 IN.

BLADE BOLT TORQUE: 35-40 FT. LBS.

The model and serial numbers will be found on a decal attached to the roar of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER

Always observe safety rules when performing

any maintenance.

TIRES

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm rubber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may cause

tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

•Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

•Tum lawn mower on its side. Make

sure air filter and carburetor are up.

•Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

•Protect your hands with gloves and/or

wrap blade with heavy cloth.

•Remove blade bolt by turning counter-

clockwise.

•Remove blade and attaching hardware

(bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade adapter.

The key must be in good condition to work

properly. Replace adapter if damaged.

TO REPLACE BLADE

•Position the blade adapter on the

engine crankshaft. Be sure key in

adapter and crankshaft keyway are

aligned.

•Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

•Be sure the trailing edge of blade

(opposite sharp edge) is up toward the

engine.

•Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

•Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

•The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is grade 8 heat

treated.

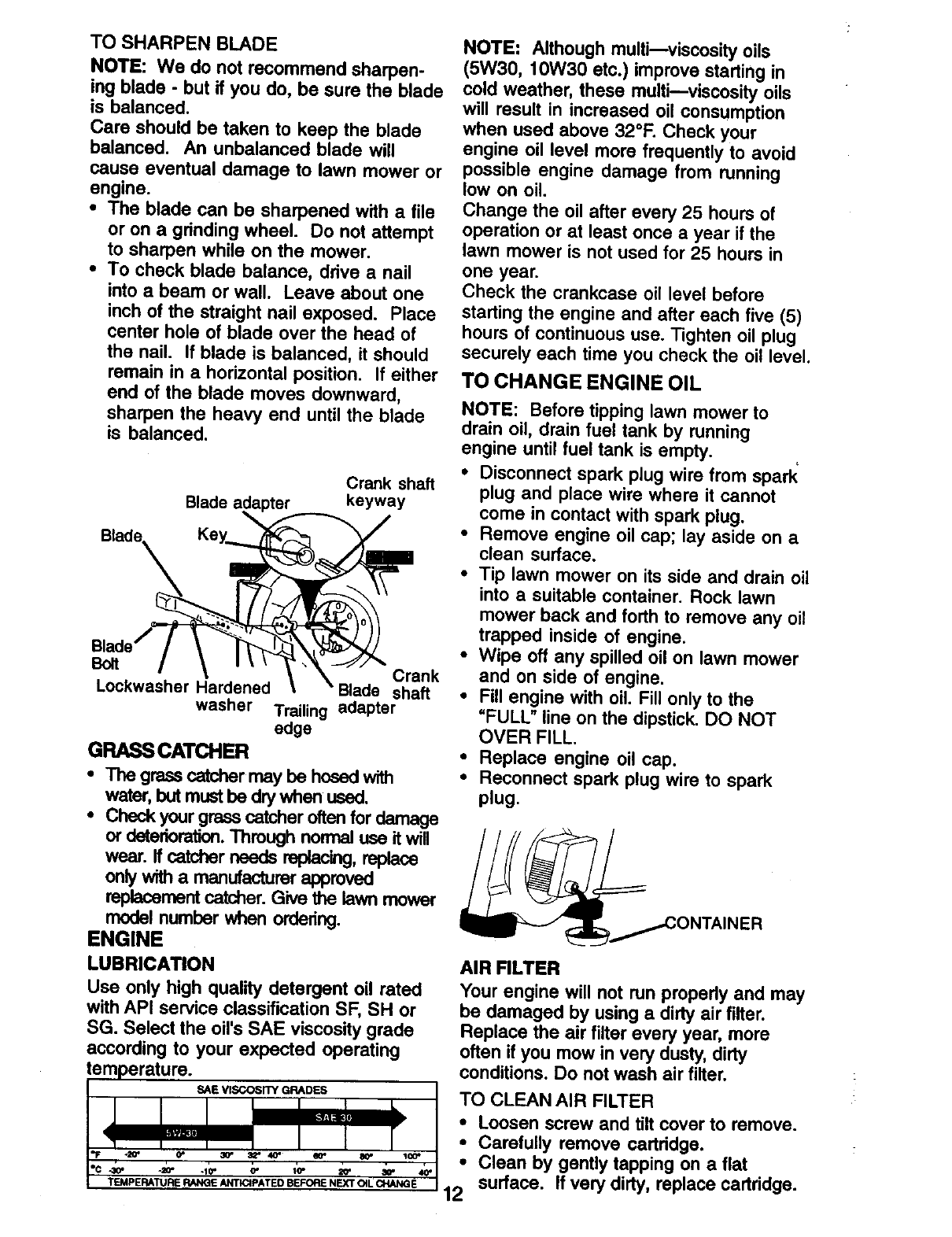

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the blade

is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause eventual damage to lawn mower or

engine.

•The blade can be sharpened with afile

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, drive a nail

into a beam or wall. Leave about one

inch of the straight nail exposed. Place

center hole of blade over the head of

the nail. If blade is balanced, it should

remain in ahorizontal position. If either

end of the blade moves downward,

sharpen the heavy end until the blade

is balanced.

Crank shaft

keyway

Bolt Crank

Lockwasher Hardened Blade shaft

washer Trailing adapter

edge

GRASSCATCHER

* The grass catcher may be hosed with

water, but must be dry when used.

* Check your grass catcher often for damage

or deterioration.Through normal use it will

wear. If catcher needs replacing, replace

only with a manufacturer approved

replacement catcher. Give the lawn mower

model number when ordering.

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classification SF, SH or

SG. Select the oil's SAE viscosity grade

according to your expected operating

tem

NOTE: Although multi--viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these muiti--vlacosity oils

will result in increased oil consumption

when used above 32°F. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one year.

Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to

drain oil, drain fuel tank by running

engine until fuel tank is empty.

•Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

•Remove engine oil cap; lay aside on a

clean surface.

•Tip lawn mower on its side and drain oil

into a suitable container. Rock lawn

mower back and forth to remove any oil

trapped inside of engine.

•Wipe off any spilled oil on lawn mower

and on side of engine.

•Fill engine with oil. Fill only to the

=FULL" line on the dipstick. DO NOT

OVER FILL.

•Replace engine oil cap.

•Reconnect spark plug wire to spark

plug.

AIR FILTER

Your engine will not run propedy and may

be damaged by using a dirty air filter.

Replace the air filter every year, more

often if you mow in very dusty, dirty

conditions. Do not wash air filter.

TO CLEAN AIR FILTER

•Loosen screw and tilt cover to remove.

•Carefully remove cartridge.

•Clean by gently tapping on a flat

surface. If very dirty, replace cartridge.

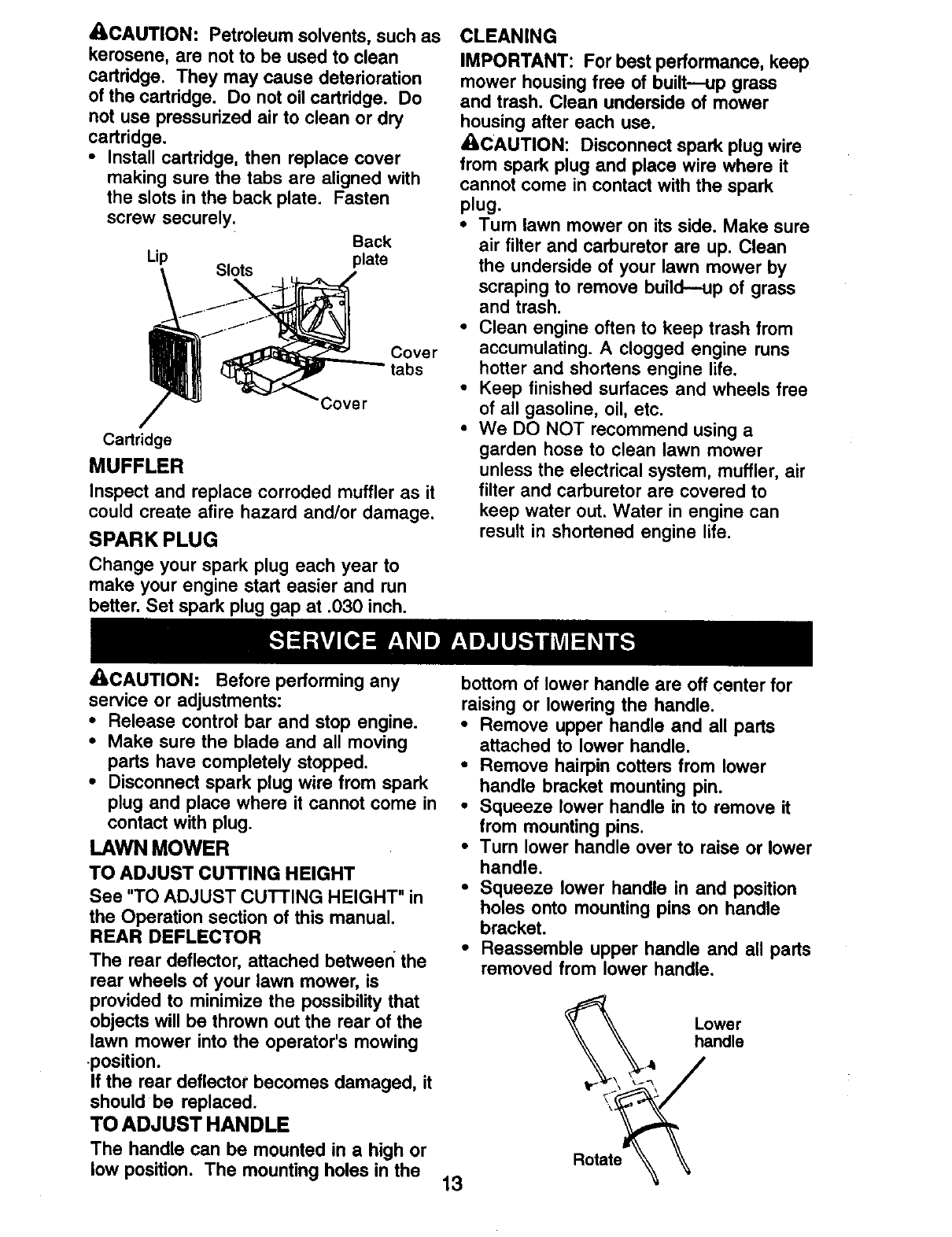

ACAUTION: Petroleum solvents, such as

kerosene, are not to be used to clean

cartridge. They may cause deterioration

of the cartridge. Do not oil cartridge. Do

not use pressurized air to clean or dry

cartridge.

•Install cartridge, then replace cover

making sure the tabs are aligned with

the slots in the back plate. Fasten

screw securely.

Back

Lip Slots plate

Cover

tabs

'Cover

Cartridge

MUFFLER

Inspect and replace corroded muffler as it

could create afire hazard and/or damage.

SPARK PLUG

Change your spark plug each year to

make your engine start easier and run

better. Set spark plug gap at .030 inch.

CLEANING

IMPORTANT: For best performance, keep

mower housing free of built--up grass

and trash. Clean underside of mower

housing after each use.

_CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

•Turn lawn mower on its side. Make sure

air filter and carburetor are up. Clean

the underside of your lawn mower by

scraping to remove build--up of grass

and trash.

• Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

•Keep finished surfaces and wheels free

of all gasoline, oil, etc.

•We DO NOT recommend using a

garden hose to clean lawn mower

unless the electrical system, muffler, air

filter and carburetor are covered to

keep water out. Water in engine can

result in shortened engine life.

_I_CAUTION: Before performing any

service or adjustments:

•Release control bar and stop engine.

•Make sure the blade and all moving

parts have completely stopped.

•Disconnect spark plug wire from spark

plug and place where it cannot come in

contact with plug.

LAWN MOWER

TO ADJUST CUTTING HEIGHT

See "TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your lawn mower, is

provided to minimize the possibility that

objects will be thrown out the rear of the

lawn mower into the operator's mowing

.position.

If the rear deflector becomes damaged, it

should be replaced.

TO ADJUST HANDLE

The handle can be mounted in a high or

low position. The mounting holes in the

bottom of lower handle are off center for

raising or lowering the handle.

•Remove upper handle and all parts

attached to lower handle.

•Remove hairpin cotters from lower

handle bracket mounting pin.

•Squeeze lower handle in to remove it

from mounting pins.

•Turn lower handle over to raise or lower

handle.

•Squeeze lower handle in and position

holes onto mounting pins on handle

bracket.

•Reassemble upper handle and all parts

removed from lower handle.

Lower

_" _" 4 handle

.orate\

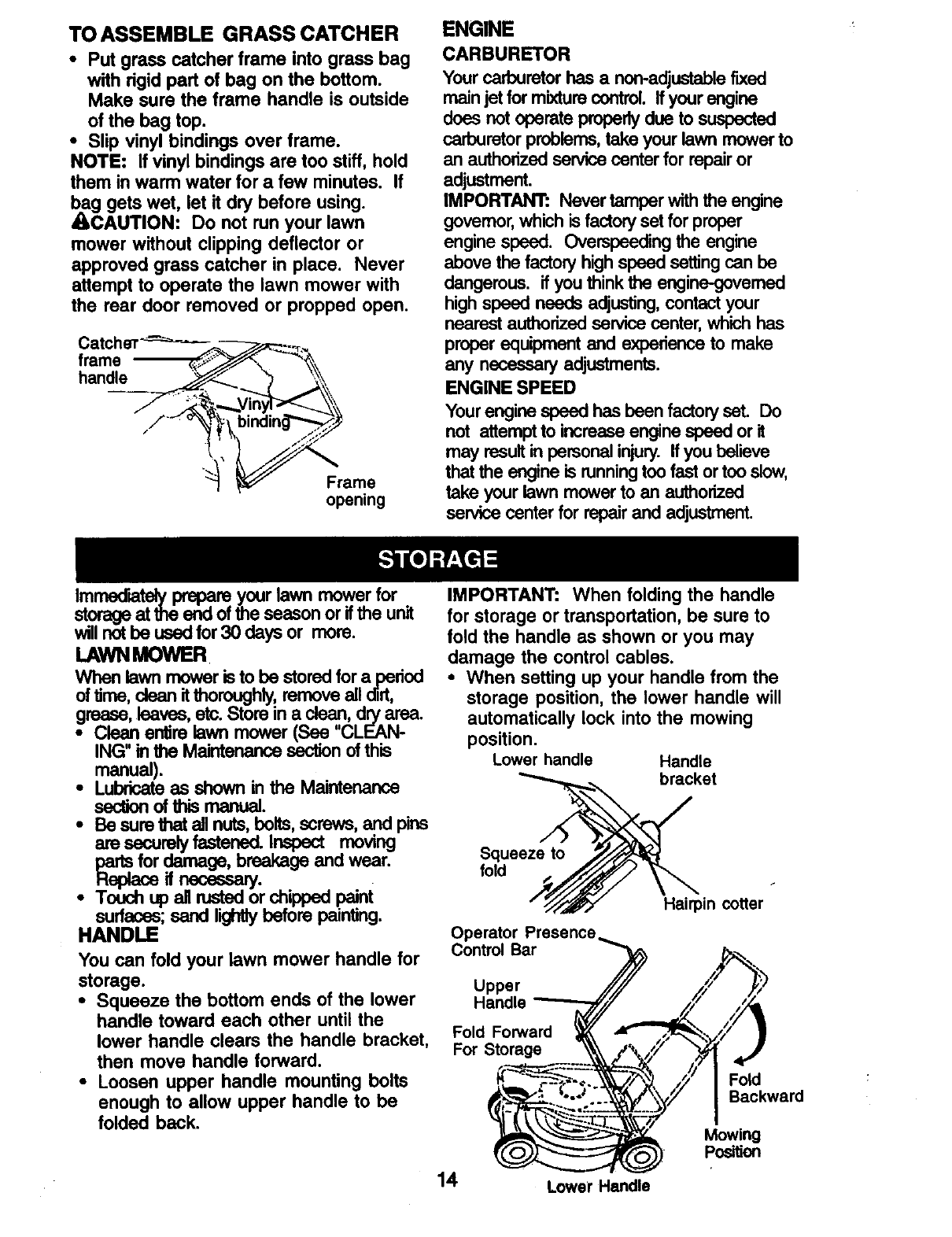

TOASSEMBLE GRASS CATCHER

•Put grass catcher frame into grass bag

with dgid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

•Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for a few minutes. If

_g gets wet, let it dry before using.

CAUTION: Do not run your lawn

mower without clipping deflector or

approved grass catcher in place. Never

attempt to operate the lawn mower with

the rear door removed or prepped open.

Catchel"_-_ _-_/_=:::.._.,

frame

handle_

_' _rame

opening

ENGINE

CARBURETOR

Your carburetor has a non-adjustable fixed

main jet for mixture control. If your engine

does not operate properly due to suspected

carburetor problems, take your lawn mower to

an authorized service canter for repair or

adjustment.

IMPORTANT: Never tamper with the engine

governor, which is factory set for proper

engine speed. Overspeeding the engine

above the factory high speed setting can be

dangerous, if you think the engine-govemed

high speed needs adjusting, contact your

nearest authorized service canter, which has

proper equipment and experience to make

any necessary adjustments.

ENGINE SPEED

Your engine speed has been factoryset. Do

not attempt to increase engine speed or it

may result in personal injury. If you believe

that the engine is runningtoo fast or too slow,

take your lawn mower to an authorized

service canter for repair and adjustmerrL

Immed=at_yprepareyourlawn mowerfor

storageatthe and oftheseasonor ifthe unit

willnotbe usedfor30 days or more.

LAWNMOWER

When lawn mower is to be stored for a period

oftime, clean it thoroughly, remove all did,

grease, leaves, etc. Store in a clean, dry area.

•Clean entire lawn mower (See "CLEAN-

ING" in the Maintenance section of this

manual).

•Lubricate as shown in the Maintenance

section of this manual.

•Be sure that all nuts, belts, screws, and pins

are securely fastened. Ir_0ect moving

parts for damage, breakage and wear.

Replaceit necessary.

•Touch up all rusted or chipped paint

surfaces; sand lightlybefore painting.

HANDLE

You can fold your lawn mower handle for

storage.

•Squeeze the bottom ends of the lower

handle toward each other until the

lower handle clears the handle bracket,

then move handle forward.

•Loosen upper handle mounting bolts

enough to allow upper handle to be

folded back.

IMPORTANT: When folding the handle

for storage or transportation, be sure to

fold the handle as shown or you may

damage the control cables.

• When setting up your handle from the

storage position, the lower handle will

automatically lock into the mowing

position.

Lower handle Handle

bracket

Squeeze to

fold

Hairpin cotter

Control Bar

Upper

Handle

Fold Forward

For Storage

Fold

Backward

Mowing

Position

14 Lower Handle

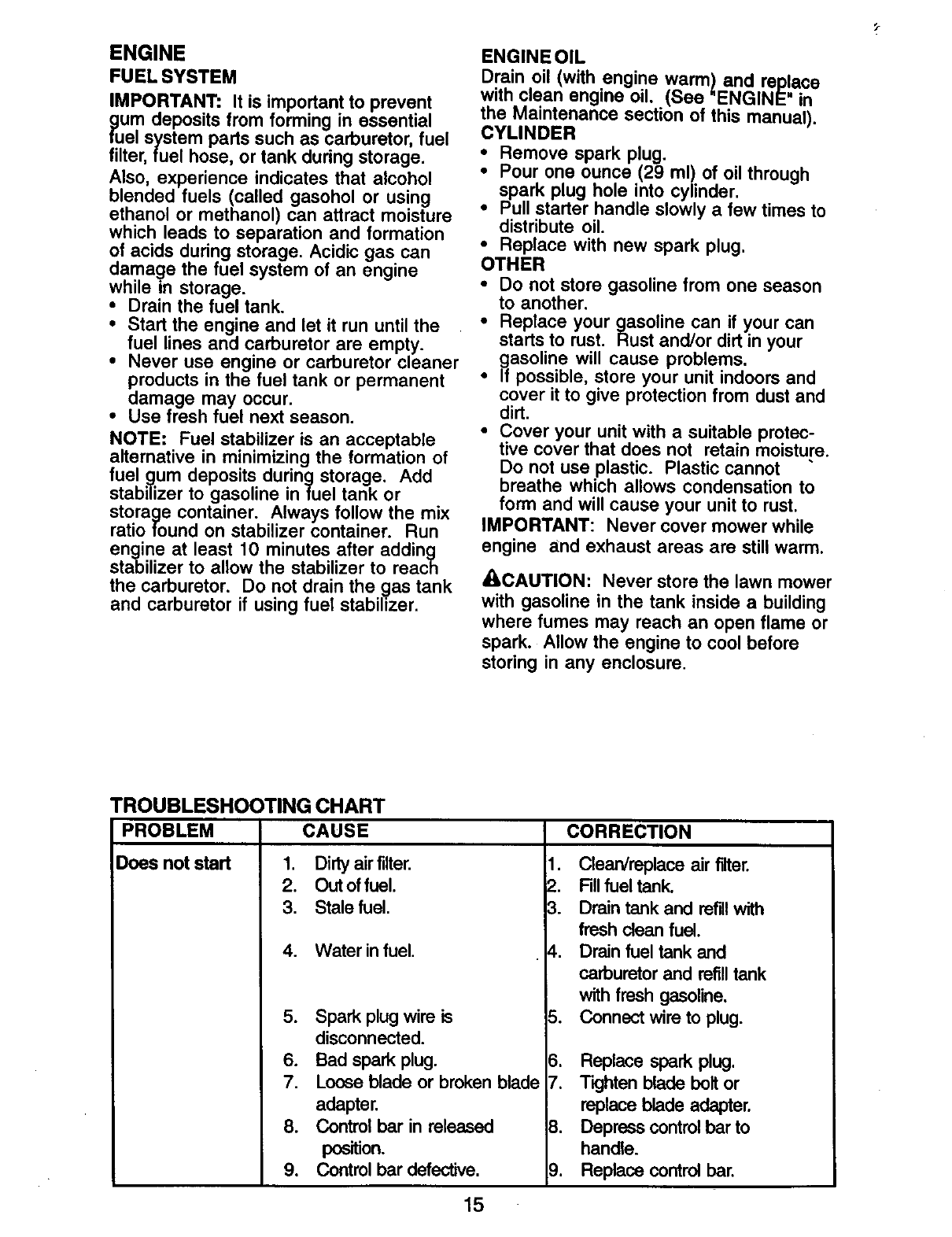

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

_luUmdeposits from forming in essential

el system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

•Drain the fuel tank.

•Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE' ,n

the Maintenance section of this manual).

CYLINDER

Remove spark plug.

Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

•Pull starter handle slowly a few times to

distribute oil.

•Replace with new spark plug.

OTHER

•Do not store gasoline from one season

to another.

•Replace your _lasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your unit indoors and

cover it to give protection from dust and

dirt.

•Cover your unit with a suitable protec-

tive cover that does not retain moisture.

Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your unit to rust.

IMPORTANT: Never cover mower while

engine and exhaust areas are still warm.

ACAUTION: Never store the lawn mower

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TROUBLESHOOTING CHART

PROBLEM CAUSE

Does not start 1. Dirty air filter.

2. Out of fuel.

3. Stale fuel.

4. Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken blade

adapter.

8. Control bar in released

po6ition.

9. Control bar defective.

CORRECTION

Clean/replace air filter.

RII fuel tank.

Drain tank and refillwith

fresh clean fuel.

Drain fuel tank and

carburetor and refilltank

with fresh gasoline.

5. Connect wire to plug.

6. Replace spark plug.

7. "l'_jhtenblade bolt or

replace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

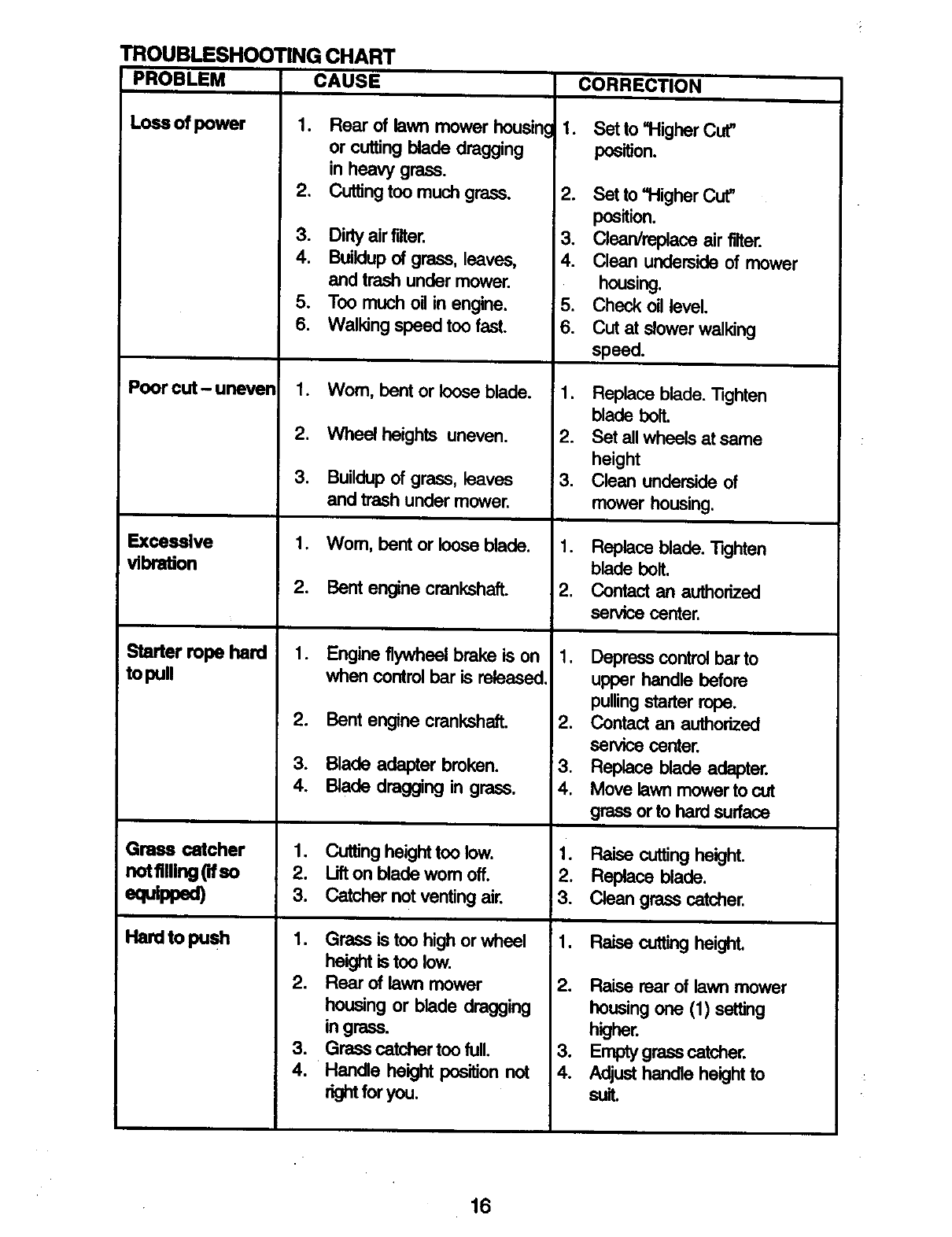

TROUBLESHOOTING CHART

PROBLEM CAUSE

Loss of power

Poor cut- uneven

Excessive

vlbraUon

Starter rope hard

topuu

Gmss catcher

not rang ('€so

eq pped)

Herdtopush

1. Rear of lawn mower housing

or cutting bladedragging

in heavy grass.

2, Cuffing too much grass.

3. Dirty air filter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walking speed too fast.

1. Worn, bent or loose blade.

2. Wheel heights uneven.

3. Buildup of grass, leaves

and bash under mower.

1. Wom, bent or loose blade.

2. Bent engine crankshaft.

1. Engine flywheel brake is on

when control bar is released.

2. Bent engine cranksh_t.

3. Blade adapter broken.

4. Blade dragging in grass.

1. Cutting height too low.

2. Lift on blade worn off.

3. Catcher not venting air.

1. Grass is too high or wheel

height is too low.

2. Rear of lawn mower

housing or blade dragging

in grass.

3. Grass catcher too full.

4. Handle he'_ht pos'_on not

rightforyou.

CORRECTION

1. Set to =HigherCut"

position.

2. Set to "HigherCut"

position.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking

speed.

1. Replace blade. "lighten

blade belt.

2. Set all wheels at same

height

3. Clean underside of

mower housing.

1. Replace blade. "lighten

blade belt.

2. Contact an authorized

service center.

1. Depress controlbar to

upper handle before

pullingstarter rope.

2. Contact an authorized

service center.

3. Replace blade adapter,

4, Move lawn mower to cut

grass or to hard surface

1. Raise cutting height.

2. Re_ blade.

3. Clean grass catcher.

1. Raise cutting height

2. Raise rear of lawn mower

housing one (1) setting

higher.

3. Empty grass catcher.

4. Adjusthandlebrightto

suit.

CRAFTSMAN ROTARY LAWN MOWER --MODEL NO. 917.388382

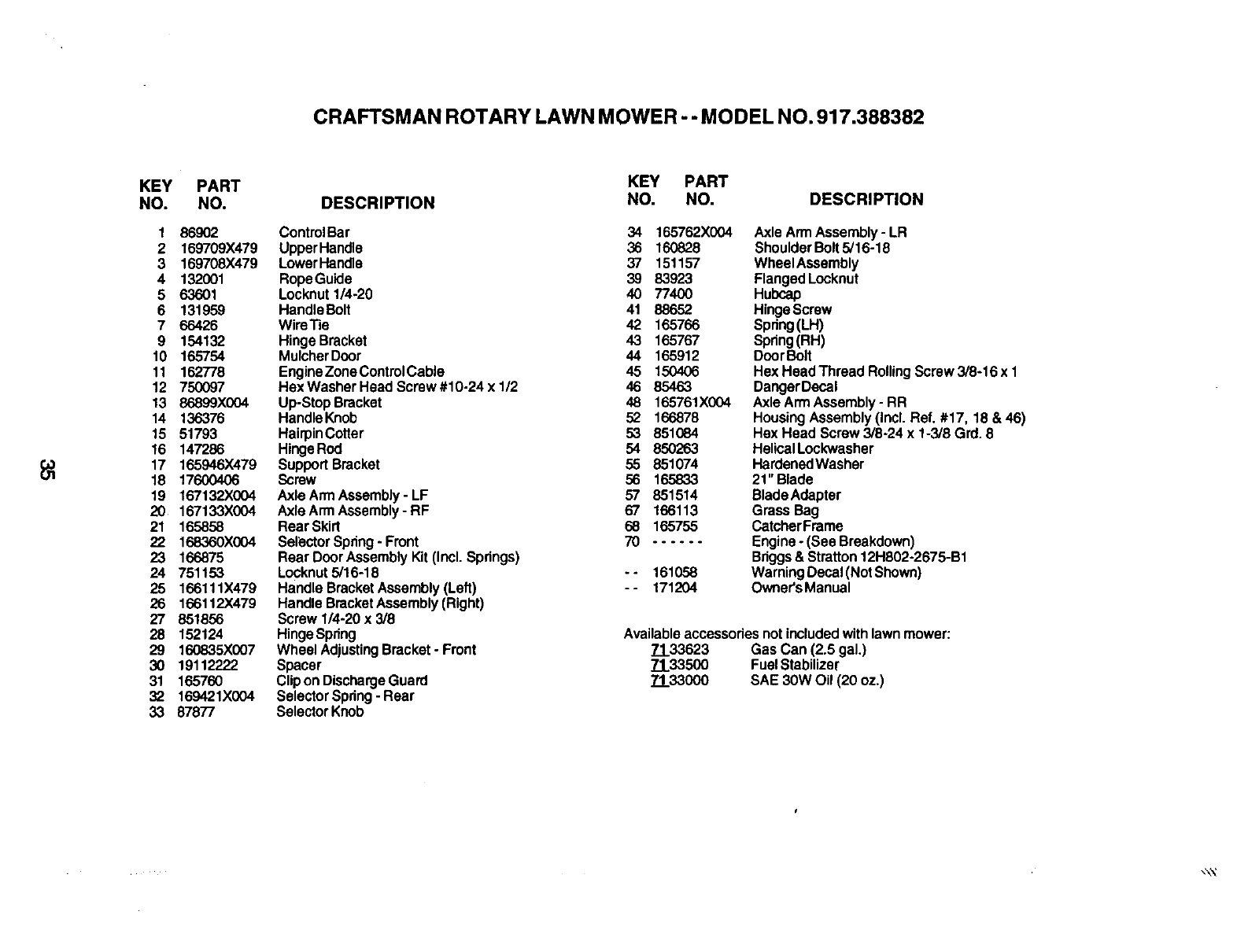

CRAFTSMAN ROTARY LAWN MOWER -- MODEL NO. 917.388382

KEY

NO.

PART

NO.

86902

169709X479

169708X479

132001

636O1

131959

66426

154132

165754

162778

750097

86899X004

136376

51793

147286

165946X479

17600406

167132X004

167133X004

165858

168360X004

166875

751153

166111 X479

166112X479

851856

152124

160835X007

19112222

165760

169421X004

87877

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

ControlBar

UpperHandle

LowerHandle

RopeGuide

Locknut1/4-20

HandleBolt

WireTie

HingeBracket

MulcherDoor

EngineZoneControlCable

Hex WasherHead Screw#10-24 x 112

Up-StopBracket

HandleKnob

HairpinCotter

HingeRod

SupportBracket

Screw

AxleArmAssembly- LF

AxleArmAssembly- RF

Rear Skirt

SelectorSpring- Front

Rear DoorAssemblyKit(Incl.Springs)

Locknut5/16-18

HandleBracketAssembly(Left)

HandleBracketAssembly(Right)

Screw 1/4-20 x 3/8

HingeSpring

WheelAdjustingBracket-Front

Spacer

Clipon DischargeGuard

SelectorSpring- Rear

SelectorKnob

34 165762X004 Axle Arm Assembly - LR

36 160828 Shoulder Bolt 5/16-18

37 151157 Wheel Assembly

39 83923 Flanged Locknut

40 77400 Hubcap

41 88652 Hinge Screw

42 165766 Spdng (LH)

43 165767 Spdng(RH)

44 165912 Door Bolt

45 150406 Hex Head Thread Rolling Screw 3/8-16 x 1

46 85463 Danger Decal

48 165761X004 Axle Arm Assembly- RR

52 166878 Housing Assembly (Incl. Ref. #17, 18 & 46)

53 851G84 Hex Head Screw 3/8-24 x 1-3/8 Grd. 8

54 850263 Helical Lockwasher

55 851074 Hardened Washer

56 16,5833 21" Blade

57 851514 Blade Adapter

67 166113 Grass Bag

68 165755 Catcher Frame

70 ...... Engine -(See Breakdown)

Briggs & Stratton 12H802-2675-B1

--161058 Warning Decal (Not Shown)

- - 171204 Owner'sManual

Availableaccessoriesnotincludedwithlawnmower:

7133623 Gas Can (2.5 gal.)

7133500 FuelStabilizer

7133000 SAE 30W Oil(20 oz,)

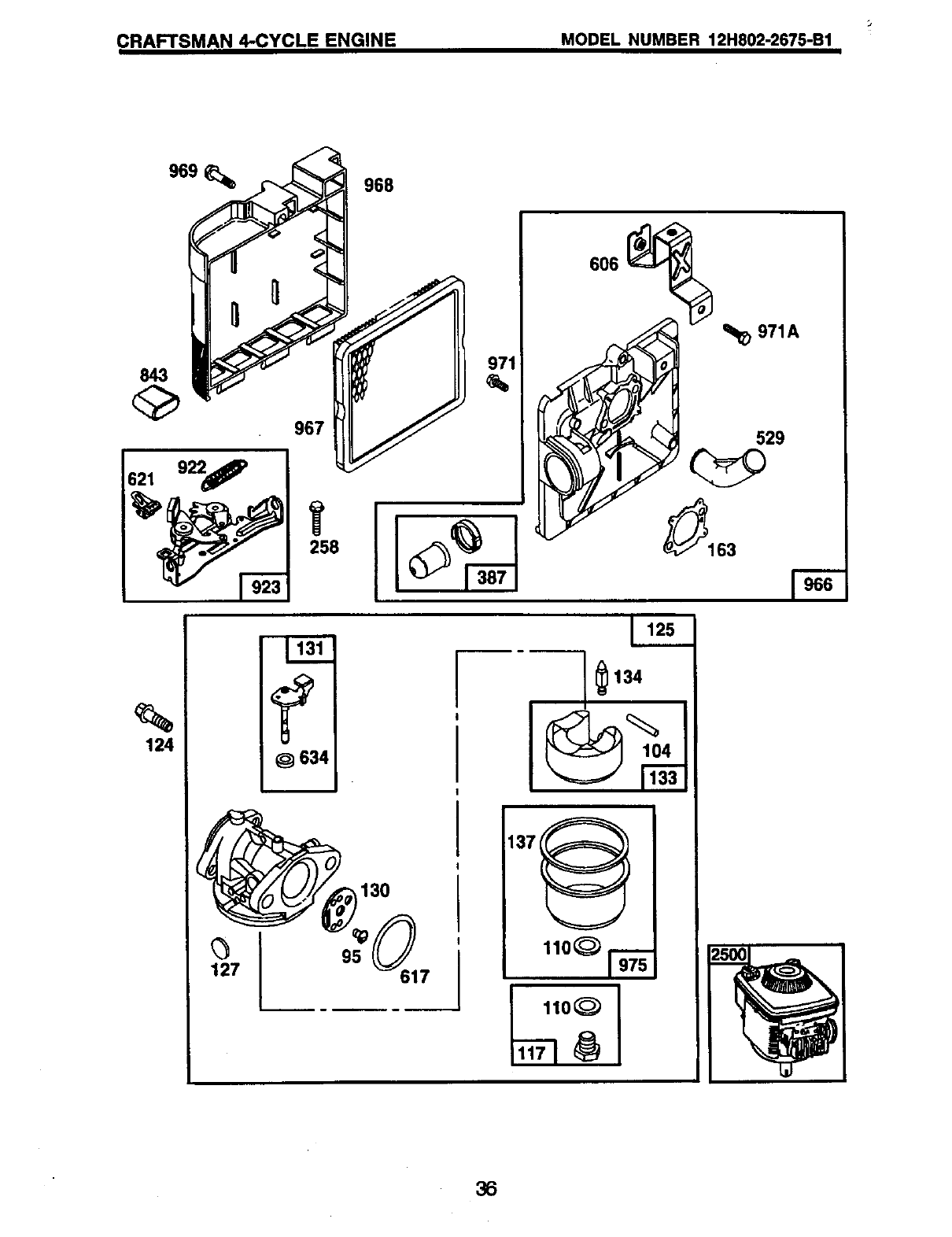

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-2675-B1

843

621

967

968

2_58

971

124 _634

6O6

_971A

529

_163

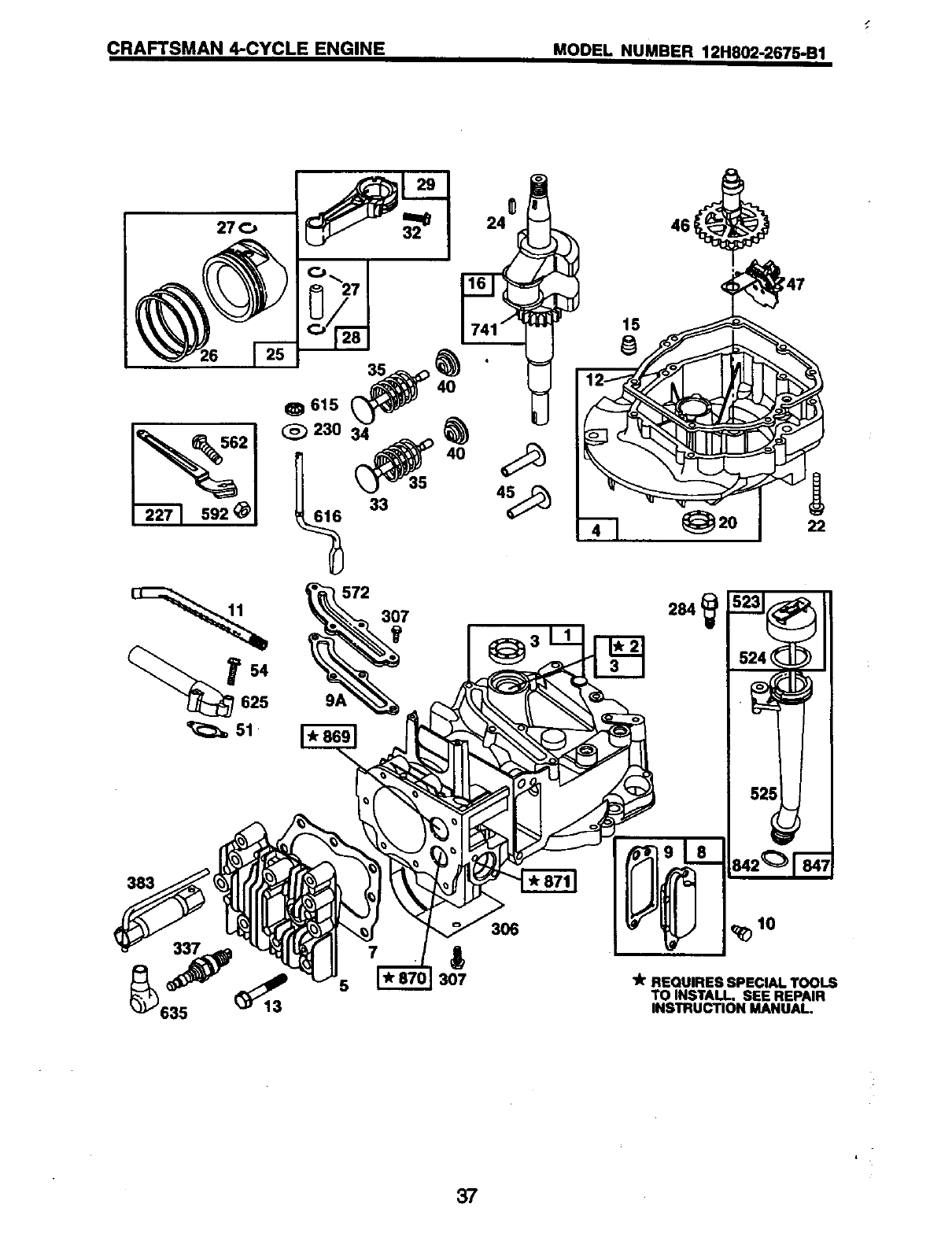

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-2675-B1

(__ 572 307

625 91

i47

383

306

"k REQUIRES SPECIAL TOOLS

TO INSTALL. SEE REPAIR

INSTRUCTION MANUAL.

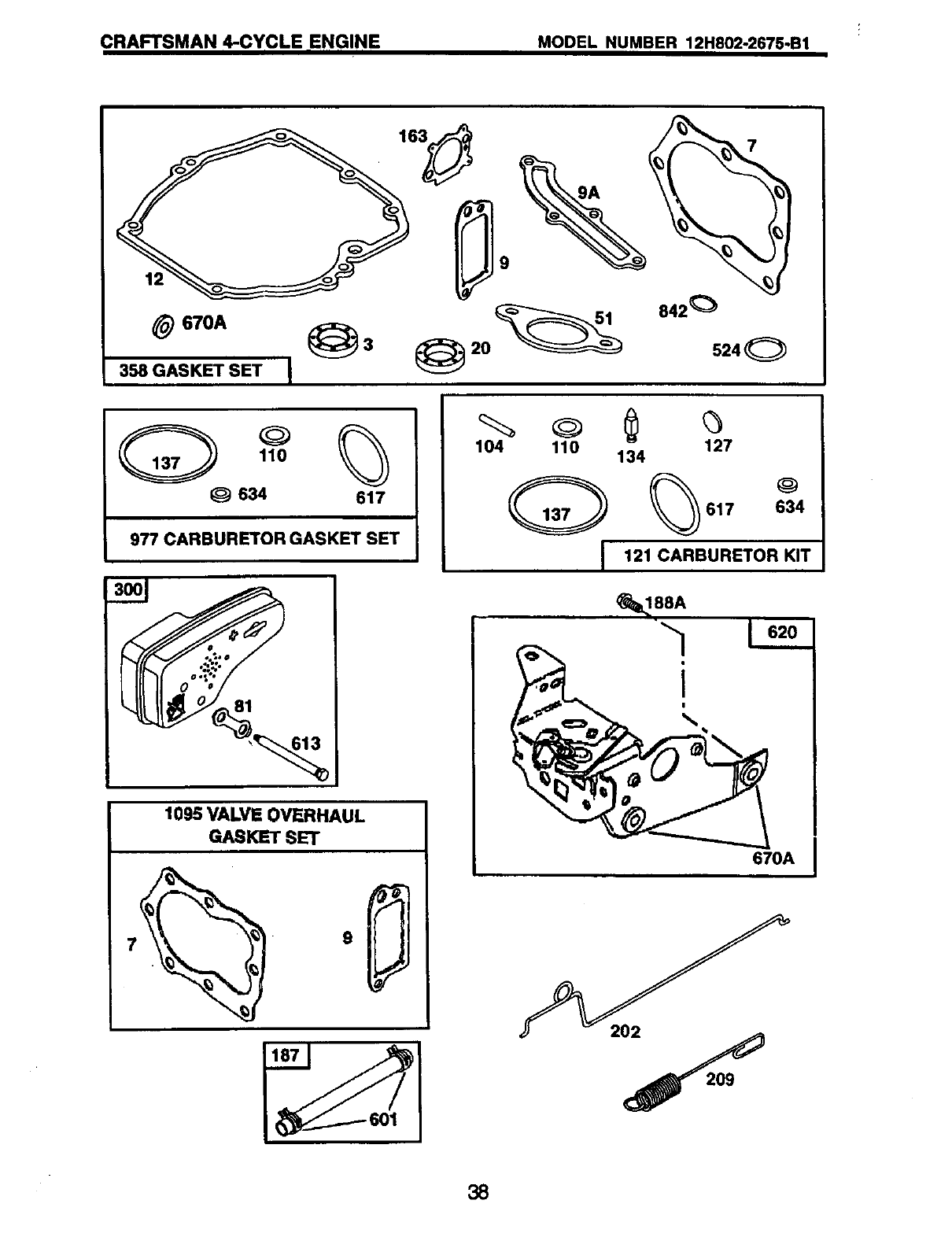

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-2675-B1

_) 670A

842 _

524

634 617

977 CARBURETOR GASKET SET

1095 VALVE OVERHAUL

GASKET SET

104 110 127

134 °

617 634

F121 CARBURETOR KIT

_88A

670A

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12HS02-2675-B1

334

356

304

_332

455

11019 LABEL KIT - EMISSION ]

3t)

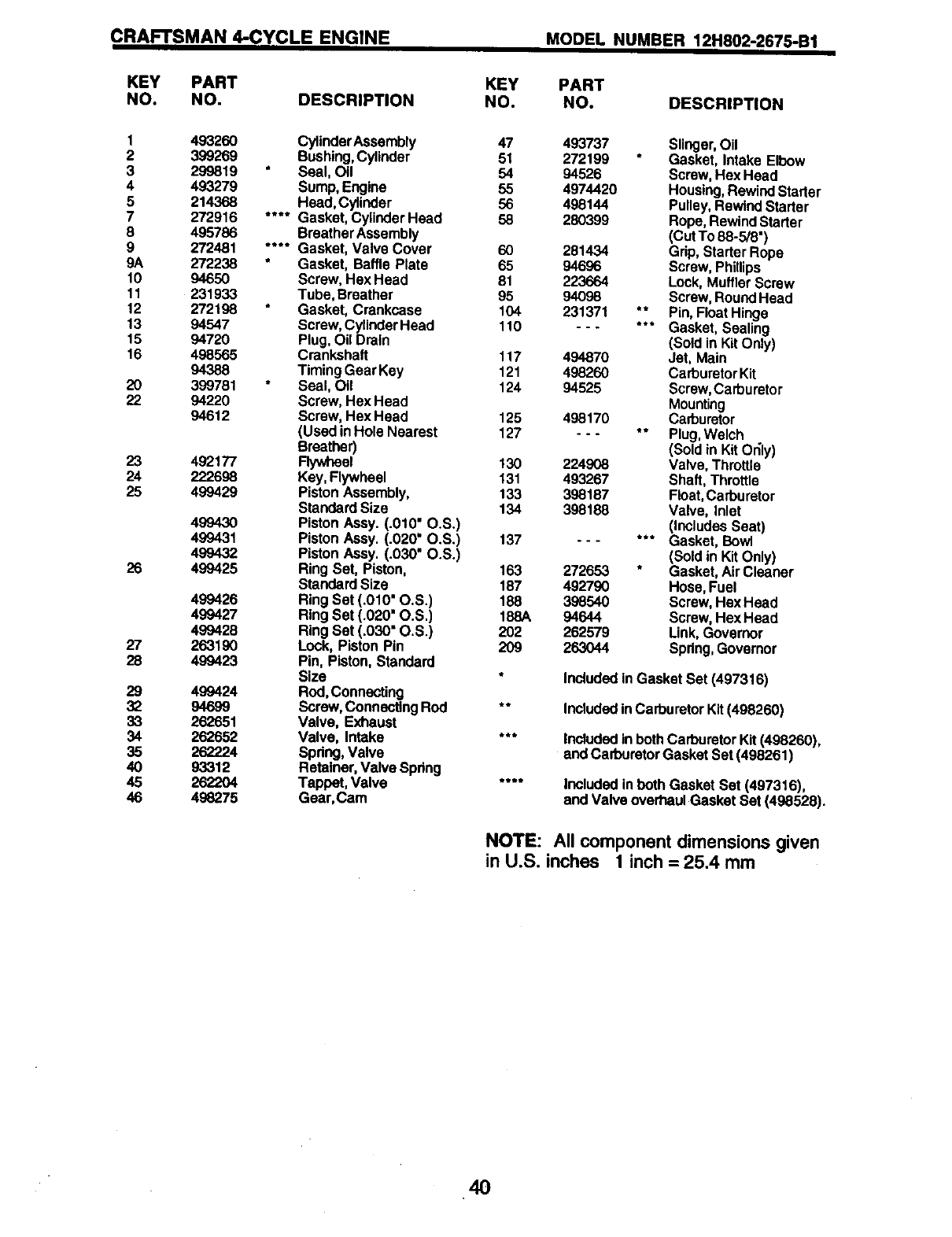

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-267S-B1

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

1 493260 CylinderAssembly

2 399269 Bushing,Cylinder

3 299819 Seal, Oil

4 493279 Sump,Engine

5 214368 Head,Cylinder

7 272916 .... Gasket, CylinderHead

8 495786 BreatherAssembly

9 272481 .... Gasket, Valve Cover

9A 272238 Gasket, Baffle Plate

10 94650 Screw,Hex Head

11 231933 Tube,Breather

12 272198 Gasket, Crankcase

13 94547 Screw,CylinderHead

15 94720 Plug,Oil Drain

16 498565 Crankshaft

94388 TimingGear Key

20 399781 Seal, Oil

22 94220 Screw,Hex Head

94612 Screw,Hex Head

(Used inHole Nearest

Breather)

23 492177 Flywheel

24 222698 Key,Flywheel

25 499429 PistonAssembly,

StandardSize

499430 Piston Assy. (.010" O.S.)

499431 Piston Assy. (.020" O.S.)

499432 Piston Assy. (.030" O.S.)

26 499425 Ring Set, Piston,

StandardSize

499426 RingSet (.010' O.S.)

499427 RingSet (.020' O.S.)

499428 RingSat (.030=O.S.)

27 263190 Lock, Piston Pin

28 499423 Pin, Piston,Standard

Size

29 499424 Rod,Connecting

32 94699 Screw,ConnectingRod

33 262651 Valve, Exhaust

34 262652 Valve, Intake

35 262224 Spdng,Valve

40 93312 Retainer,Valve Spdng

45 262204 Tappet,Valve

46 498275 Gear,Cam

47 493737 Slinger, Oil

51 272199 Gasket, Intake Elbow

54 94526 Screw, Hex Head

55 4974420 Housing, Rewind Starter

56 498144 Pulley, Rewind Starter

58 280399 Rope, Rewind Starter

(Cut To 88-5/8")

60 281434 Gdp, Starter Rope

65 94696 Screw, Phillips

81 223664 Lock, Muffler Screw

95 94098 Screw, Round Head

104 231371 ** Pin, Float Hinge

110 - -- *** Gasket, Sealing

(Sold in Kit Only)

117 494870 Jet, Main

121 498260 Carburator Kit

124 94525 Screw, Carburetor

Mounting

125 498170 Carburetor

127 --- ** Plug, Welch

(Sold in Kit Or_ly)

130 224908 Valve, Throttle

131 493267 Shaft, Throttle

133 398187 Float, Carburator

134 398188 Valve, Inlet

(Includes Seat)

137 -- - *** Gasket, Bowl

(Sold in Kit Only)

163 272653 Gasket, Air Cleaner

187 492790 Hose, Fuel

188 398540 Screw, HexHead

188A 94644 Screw, Hex Head

202 262579 Link, Govemor

209 263044 Spdng, Governor

t_,t

Includedin GasketSet (497316)

IncludedinCarburetorKit(498260)

Includedinboth CarburetorKit(498260),

and CarburetorGasket Set(498261)

Includedinboth GasketSat (497316),

and Valve overhaulGasketSet (498528).

NOTE: All component dimensions given

in U.S. inches 1 inch = 25,4 mm

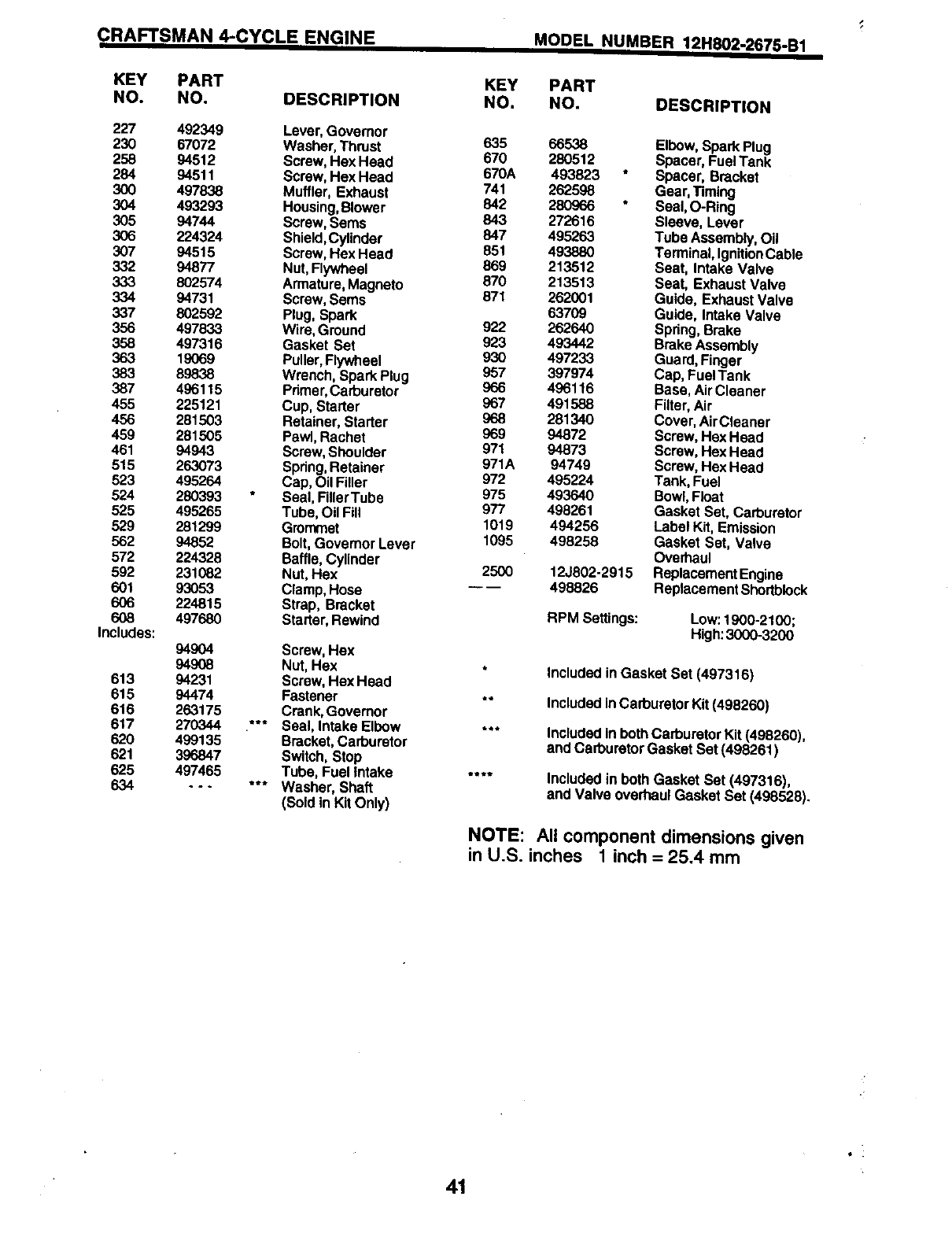

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12HSO2-2675-B1

KEY PART

NO. NO. DESCRIPTION

227 492349 Lever, Governor

230 67072 Washer, Thrust

258 94512 Screw, Hex Head

284 94511 Screw, Hex Head

300 497838 Muffler, Exhaust

304 493293 Housing, Blower

305 94744 Screw, Sems

306 224324 Shield, Cylinder

307 94515 Screw, Hex Head

332 94877 Nut, Flywheel

333 802574 Armature, Magneto

334 94731 Screw, Sems

337 802592 Plug, Spark

356 497833 Wire, Ground

358 497316 Gasket Set

363 19069 Puller, Flywheel

383 69838 Wrench, Spark Plug

387 496115 Palmer,Carburetor

455 225121 Cup, Starter

456 281503 Retainer, Starter

459 281505 Pawi, Rac:het

461 94943 Screw, Shoulder

515 263073 Spring, Retainer

523 495264 Cap, Oil Filler

524 280393 Seal, Filler Tube

525 495265 Tube, Oil Fill

529 281299 Grommet

562 94852 Bolt, Governor Lever

572 224328 Baffle, Cylinder

592 231082 Nut, Hex

601 93053 Clamp, Hose

606 224815 Strap, Bracket

608 497680 Starter, Rewind

Includes: 94904 Screw,Hex

94908 Nut, Hax

613 94231 Screw,Hex Head

615 94474 Fastener

616 263175 Crank,Governor

617 270344 *** Seal, Intake Elbow

620 499135 Bracket,Carburetor

621 396847 Switch,Stop

625 497465 Tube, Fuel Intake

634 - - - *** Washer, Shaft

(Sold inKitOnly)

KEY PART

NO, NO. DESCRIPTION

635 66538 Elbow, Spark Plug

670 280512 Spacer, Fuel Tank

670A 493823 "Spacer, Bracket

741 262598 Gear, Timing

842 280966 Seal, O-Ring

843 272616 Sleeve, Lever

847 495263 Tube Assembly, Oil

851 493880 Terminal, Ignition Cable

869 213512 Seat, Intake Valve

870 213513 Seat, Exhaust Valve

871 262001 Guide, Exhaust Valve

63709 Guide, Intake Valve

922 262640 Spring, Brake

923 493442 Brake Assembly

930 497233 Guard, Finger

957 397974 Cap, FuelTank

966 496116 Base, Air Cleaner

967 491588 Filter, Air

968 281340 Cover, Air Cleaner

969 94872 Screw, Hex Head

971 94873 Screw, Hex Head

971A 94749 Screw, Hex Head

972 495224 Tank, Fuel

975 493640 Bowl, Float

977 498261 Gasket Set, Carburetor

1019 494256 Label Kit, Emission

1095 498258 Gasket Set, Valve

Overhaul

2500 12J802-2915 Replacement Engine

-- 498826 Replacement Shortblock

NOTE:

in U.S.

RPM Settings: Low: 1900-2100;

High: 3000-3200

Included inGasket Set (497316)

Included in CaYouretorKit(498260)

IncludedIn bothCarburetorKit (498260),

andCarburetorGasketSet (498261)

Includedin both Gasket Set (497316),

and Valve overhaulGasket Set (498528).

All component dimensions given

inches 1 inch = 25.4 mm

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME s" (1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio

1-800-676-5811

In Canada for all your service and parts needs call

Au Canada pour tout le service ou les pi_ces

1-800-665-4455

For the repair or replacement parts you need:

Call 6 am - 11 pm CST, 7 days a week

PartsDirect s"

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio

1-800-659-7084

For the location of a Sears Parts and Repair Center

in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance

Agreement or to inquire about an existing Agreement:

Call 9 am - 5 pm, Monday -Saturday

1-800-827-6655

171204 10.19.99 VB Printedin U.S.A.

Craftsman 917388382 User Manual 6.0HP 21 ROTARY LAWN MOWER Manuals And Guides L0010005

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0010005 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
