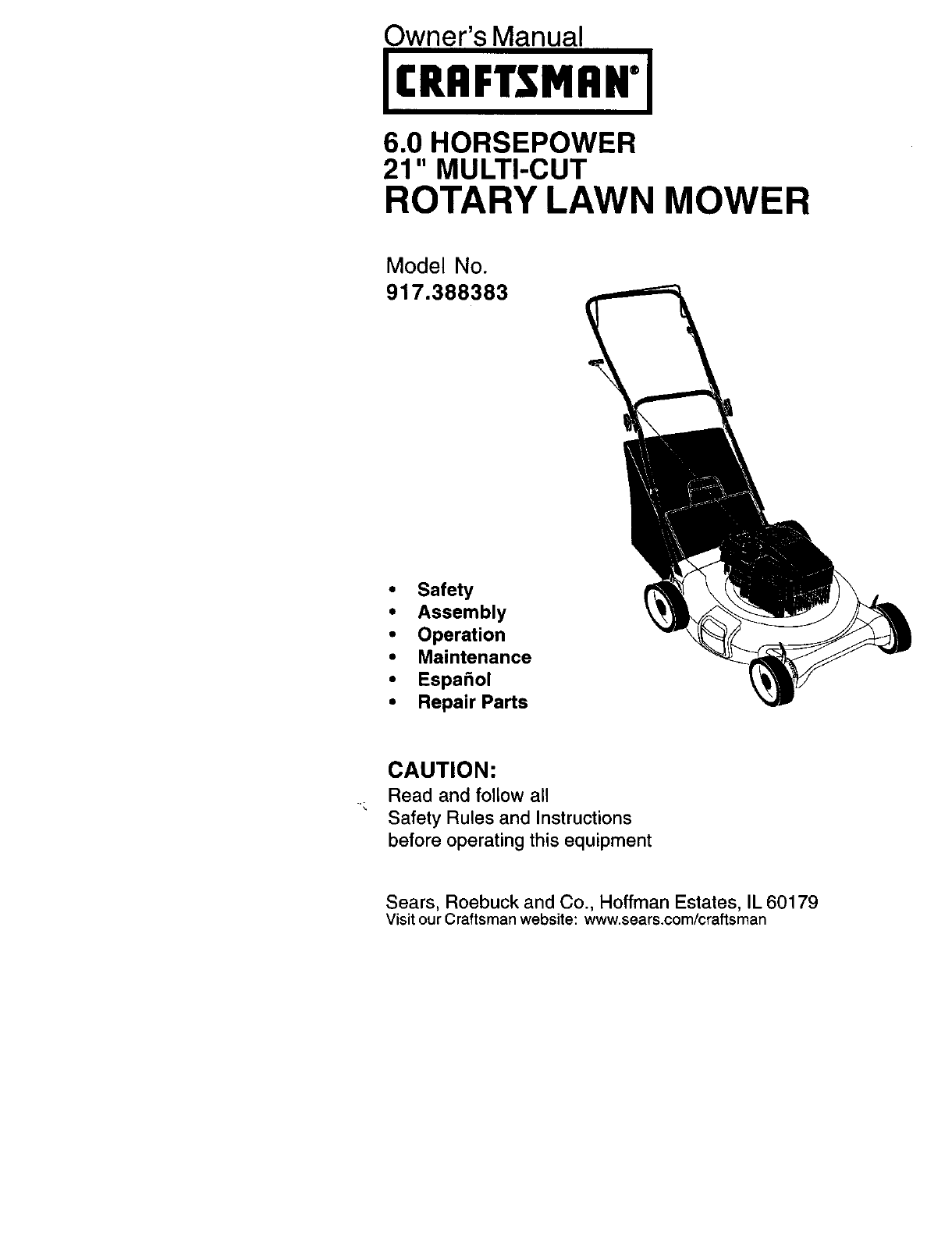

Owner's Manual
6.0 HORSEPOWER
21" MULTI-CUT
ROTARY LAWN MOWER
Model No.
917.388383
•Safety
•Assembly
•Operation
•Maintenance
•Espahol
•Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179
visit our Craftsman website: www.sears.com/craftsman

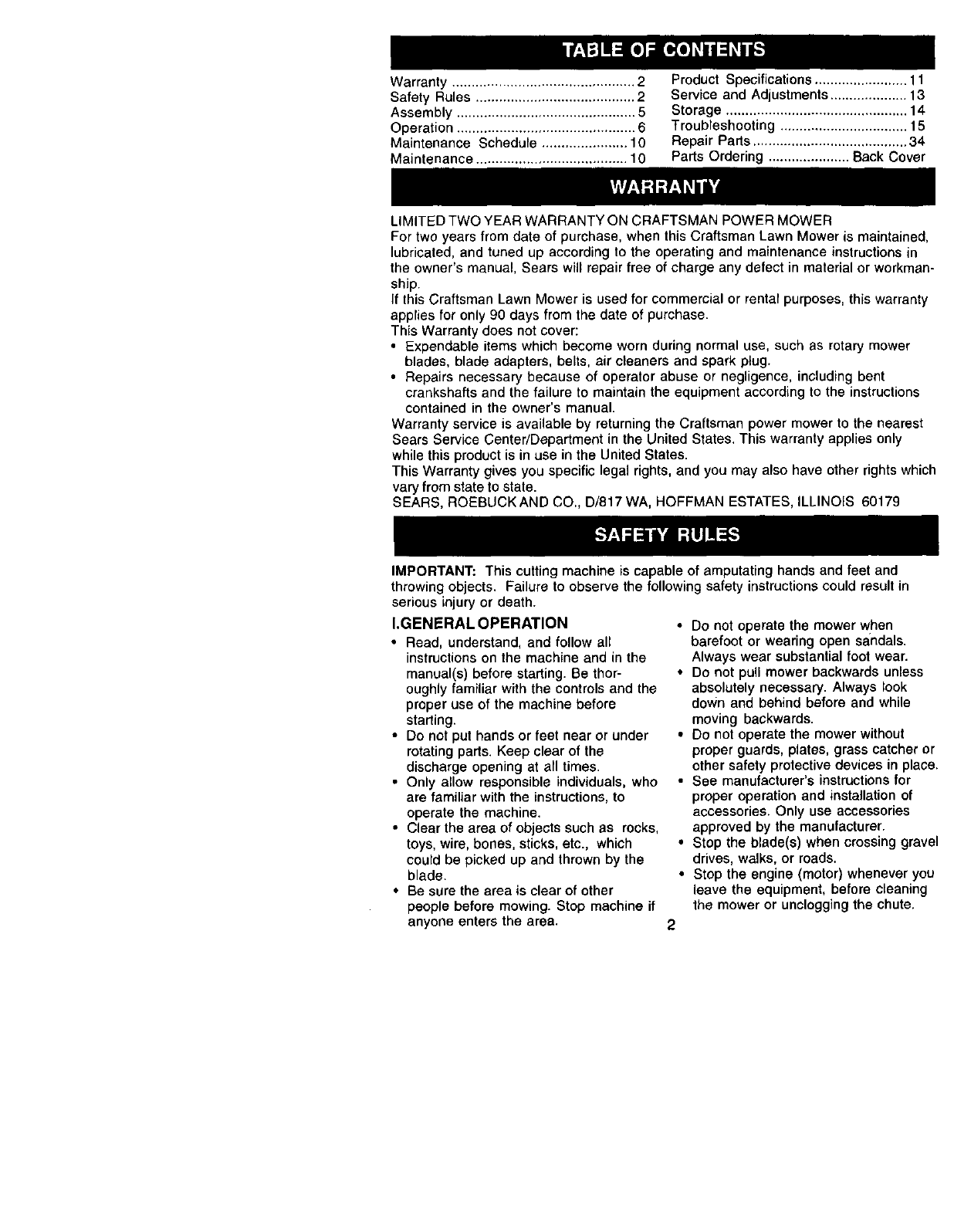

Warranty ............................................... 2
Safety Rules ......................................... 2
Assembly .............................................. 5
Operation .............................................. 6

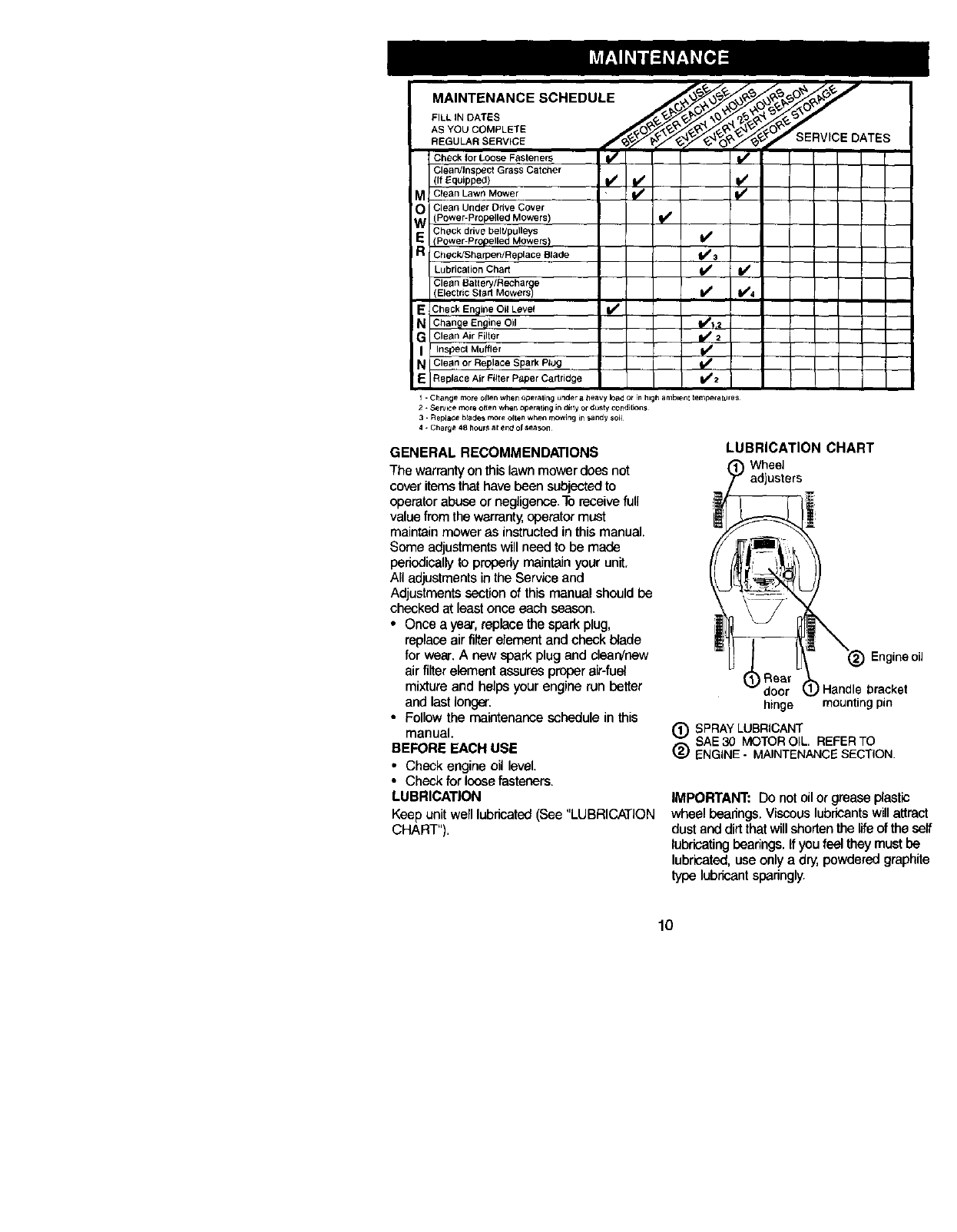

Maintenance Schedule ...................... 10
Maintenance ....................................... 10

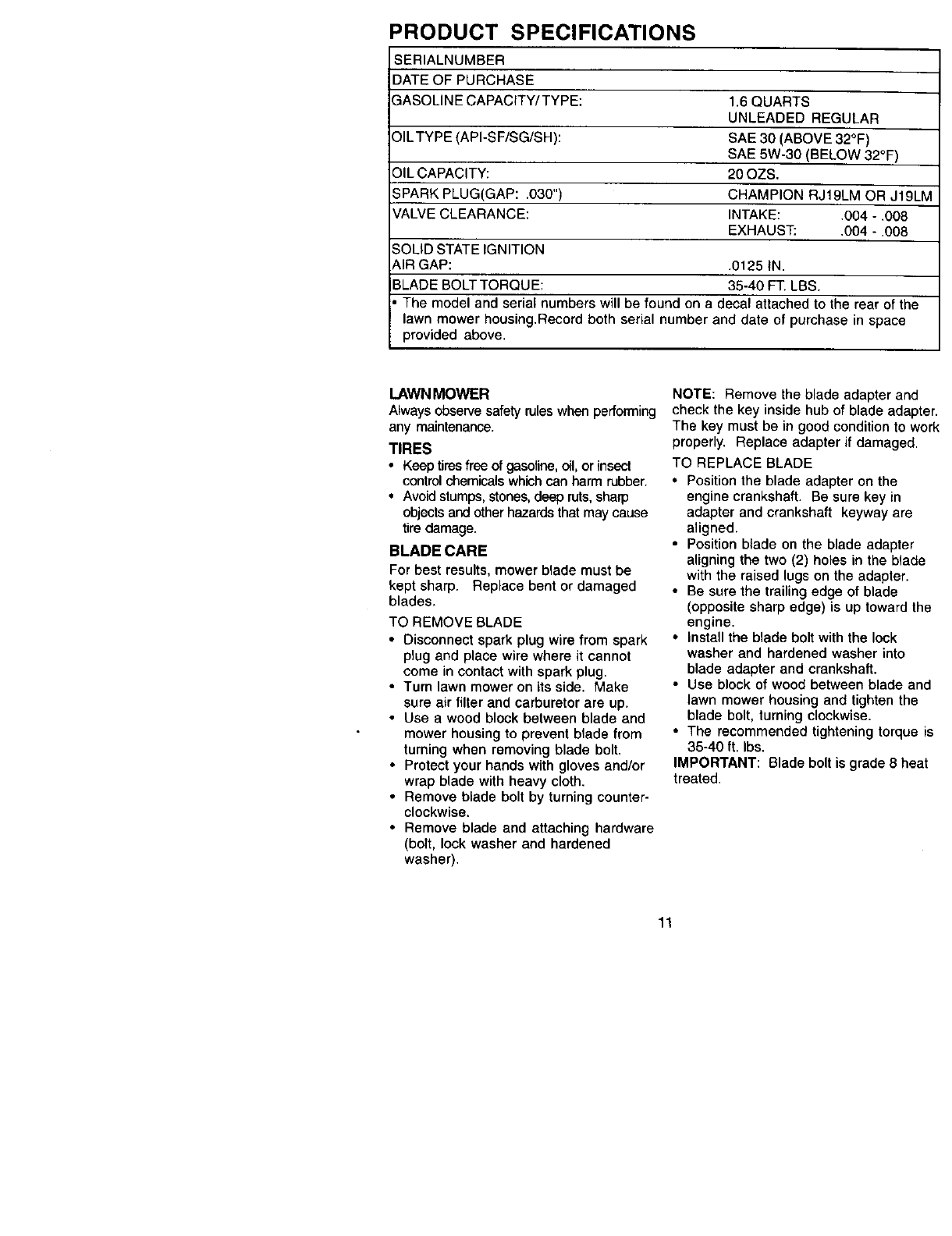

Product Specifications ........................ 11

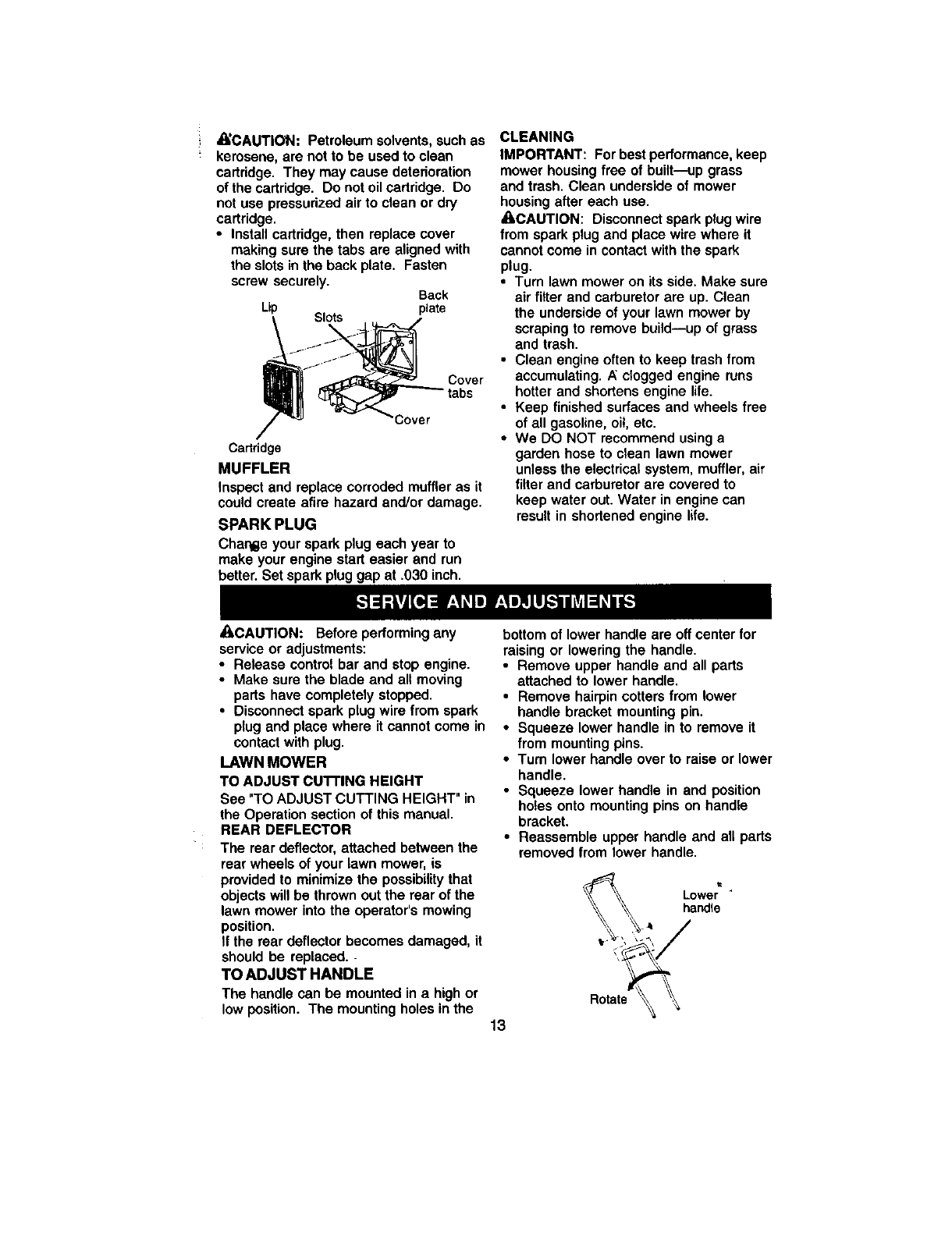

Service and Adjustments .................... 13

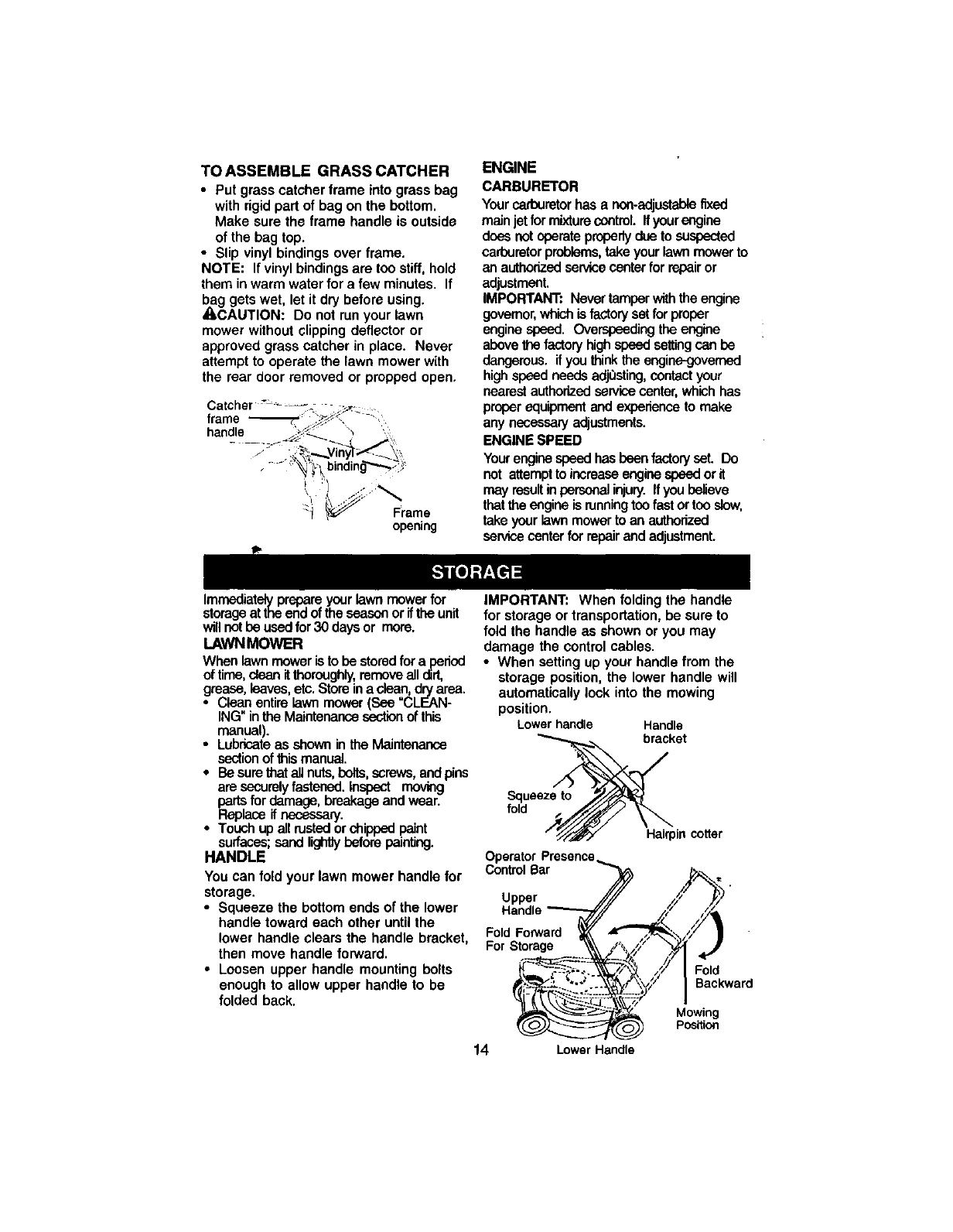

Storage ............................................... 14

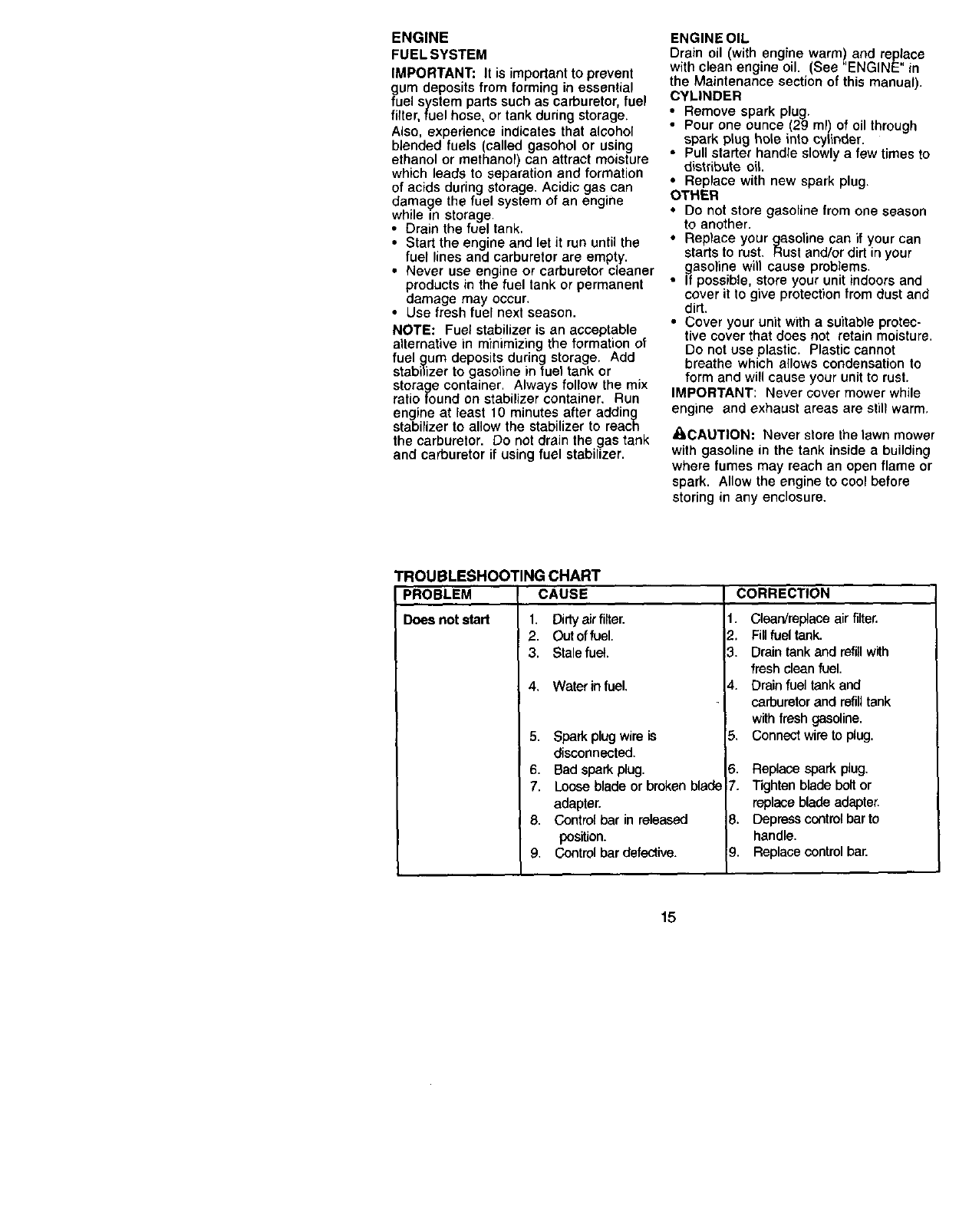

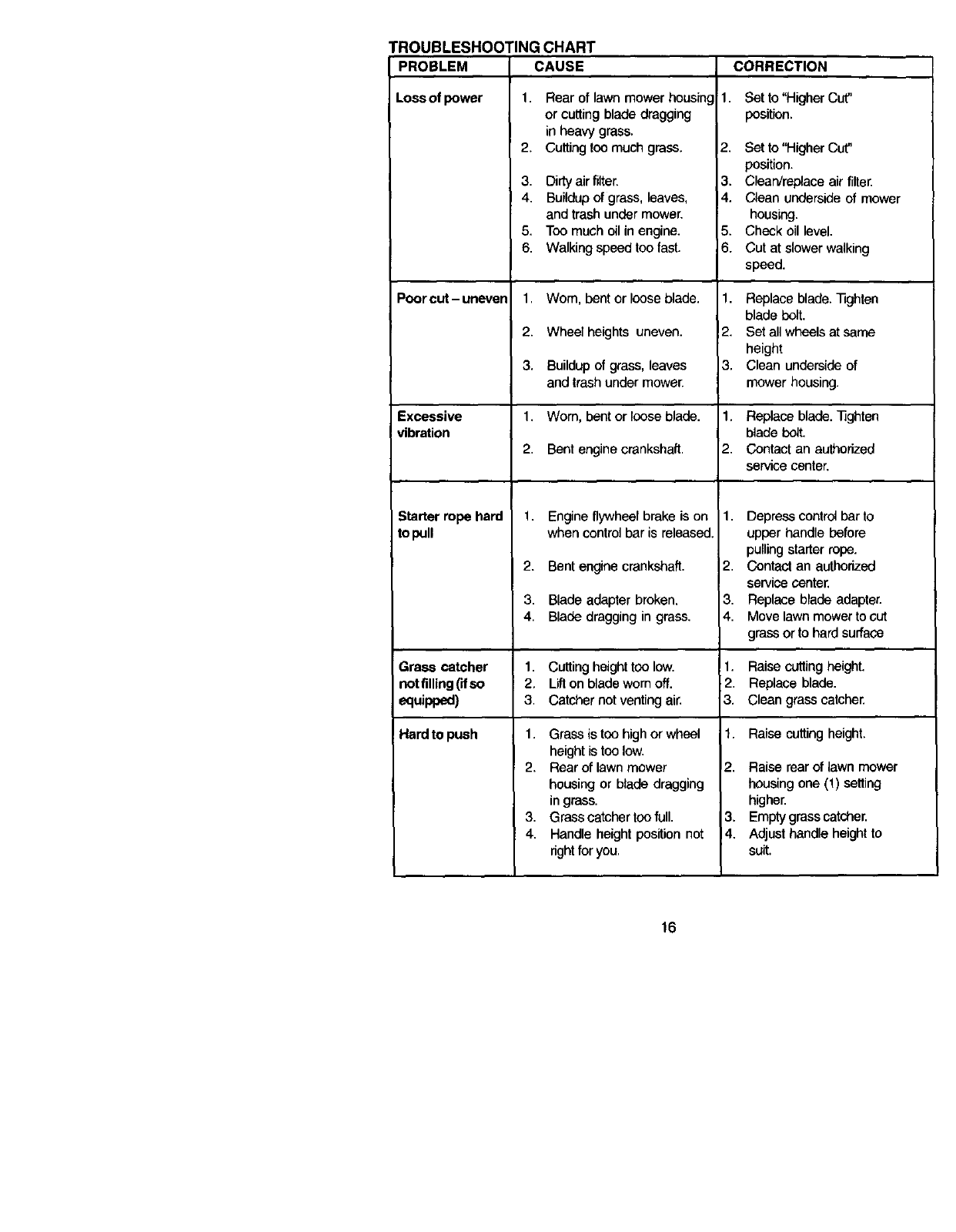

Troubleshooting ................................. 15

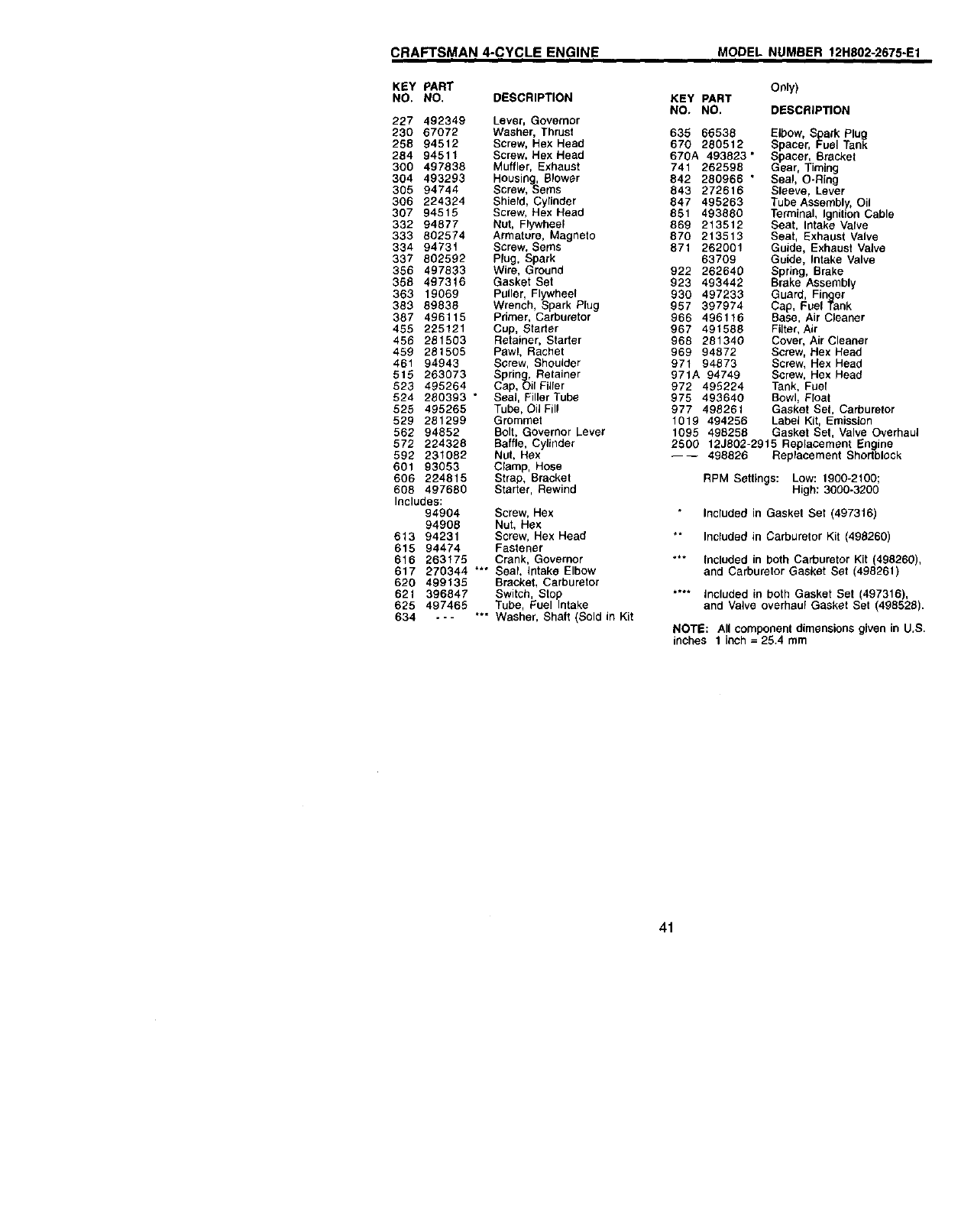

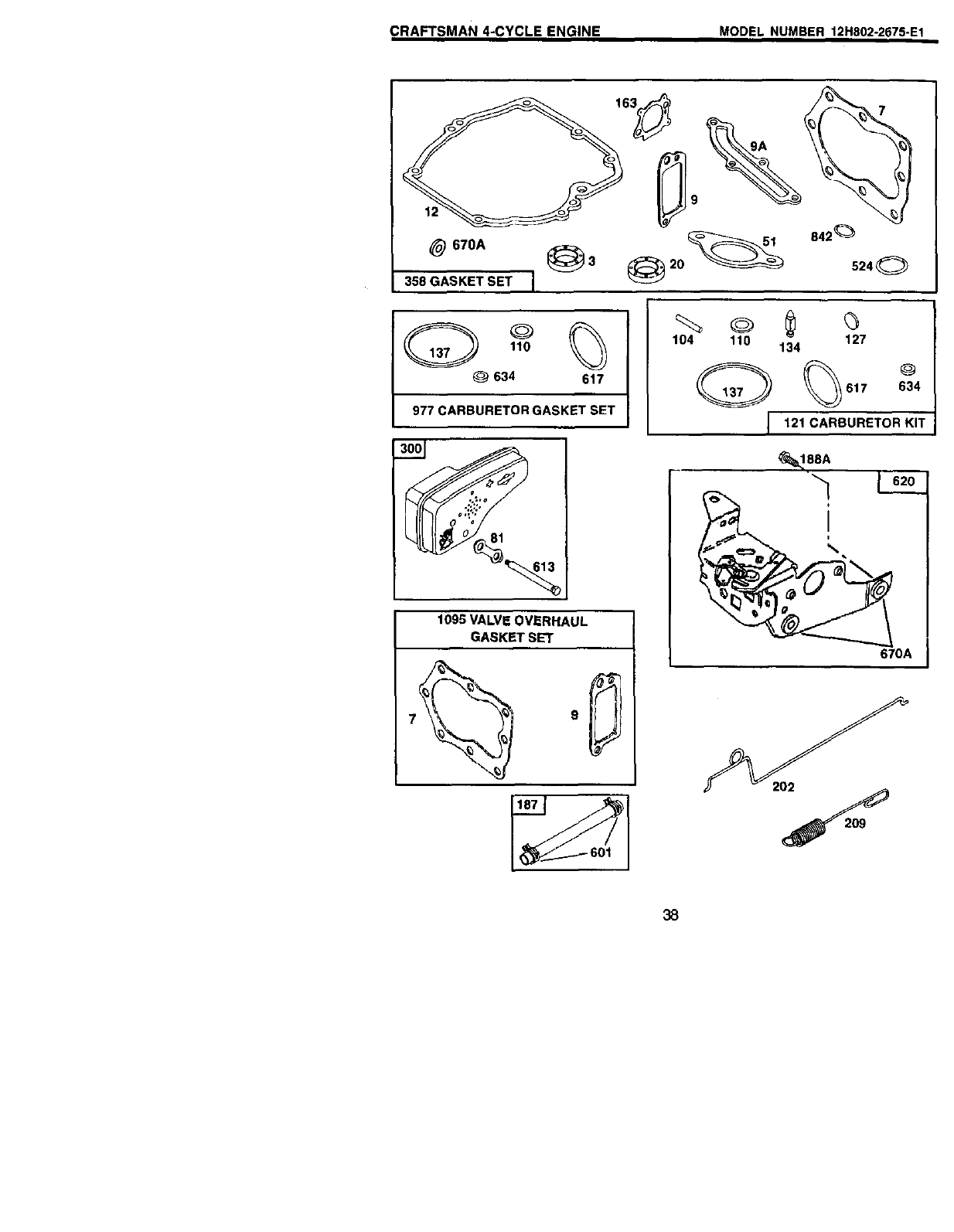

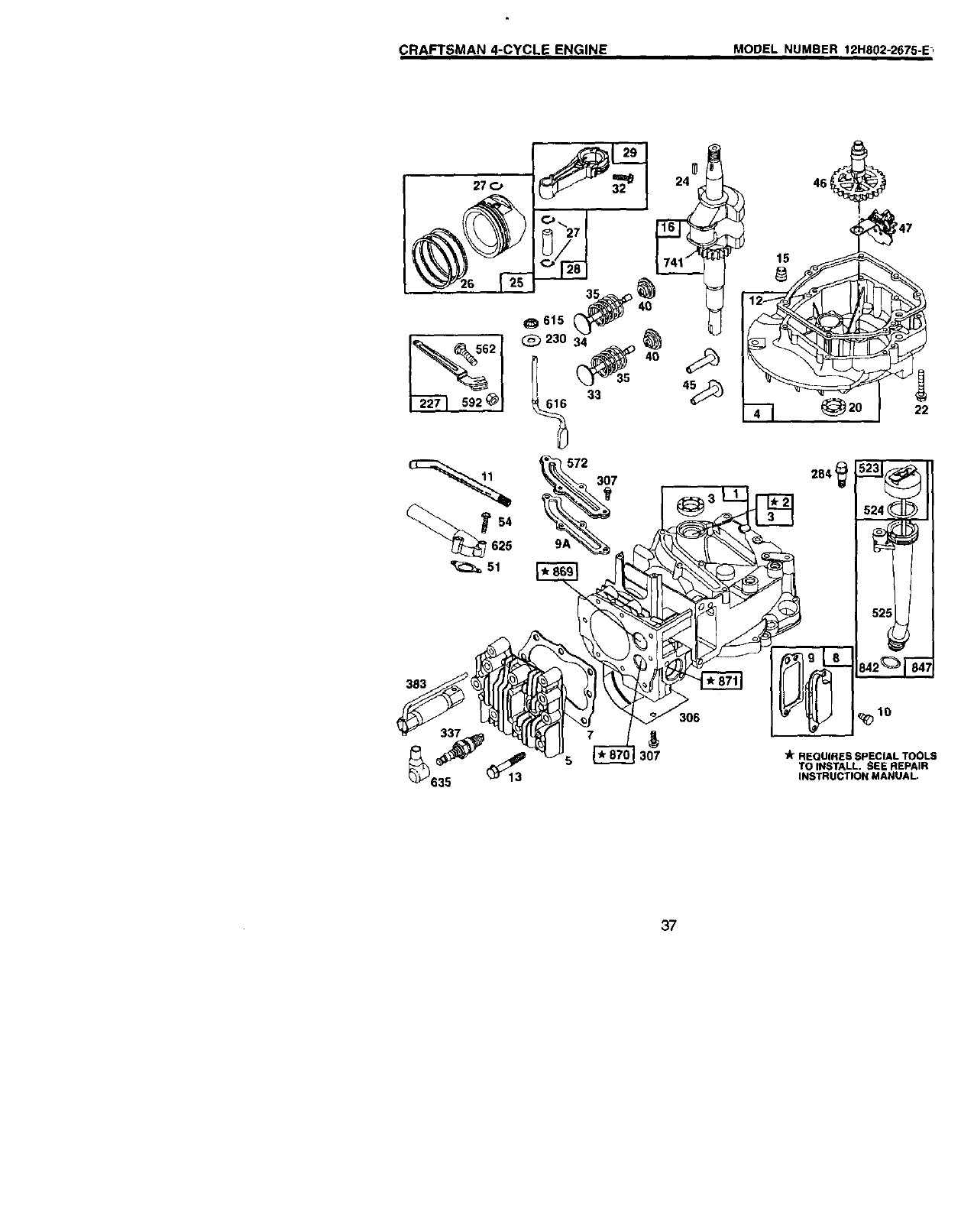

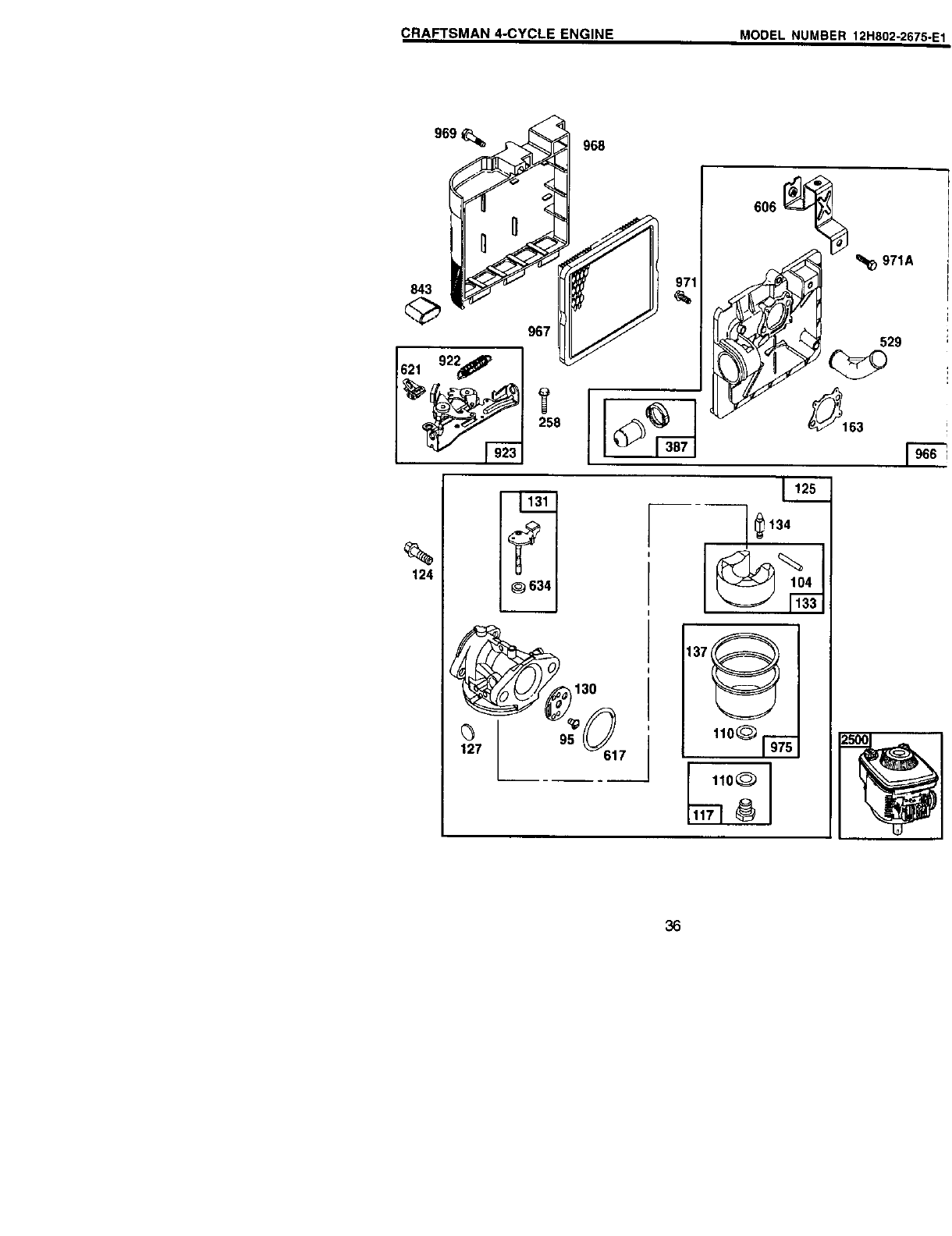

Repair Parts ........................................ 34
Parts Ordering ..................... Back Cover
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in
the owner's manual, Sears will repair free of charge any defect in material or workman-
ship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleaners and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent
crankshafts and the failure to maintain the equipment according to the instructions
contained in the owner's manual.
Warranty service is available by returning the Craftsman power mower to the nearest
Sears Service Center/Department in the United States. This warranty applies only
while this product is in use in the United States.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
IMPORTANT: This cutting machine is capable of amputating hands and feet and
throwing objects. Failure to observe the following safety instructions could result in
serious injury or death.
I.GENERAL OPERATION
•Read, understand, and follow all
instructions on the machine and in the
manual(s) before starting. Be thor-
oughly familiar with the controls and the
proper use of the machine before
starting.
•Do not put hands or feet near or under
rotating parts. Keep clear of the
discharge opening at all times.
• Only allow responsible individuals, who
are familiar with the instructions, to
operate the machine.
• Clear the area of objects such as rocks,
toys, wire, bones, sticks, etc., which
could be picked up and thrown by the
blade.
• Be sure the area is clear of other
people before mowing. Stop machine if
anyone enters the area.
• Do not operate the mower when
barefoot or wearing open sandals.
Always wear substantial foot wear.
• Do not pull mower backwards unless
absolutely necessary. Always look
down and behind before and while
moving backwards.
• Do not operate the mower without
proper guards, plates, grass catcher or
other safety protective devices in place.
• See manufacturer's instructions for
proper operation and installation of
accessories. Only use accessories
approved by the manufacturer.
• Stop the blade(s) when crossing gravel
drives, walks, or roads.
• Stop the engine (motor) whenever you
leave the equipment, before cleaning
the mower or unclogging the chute.

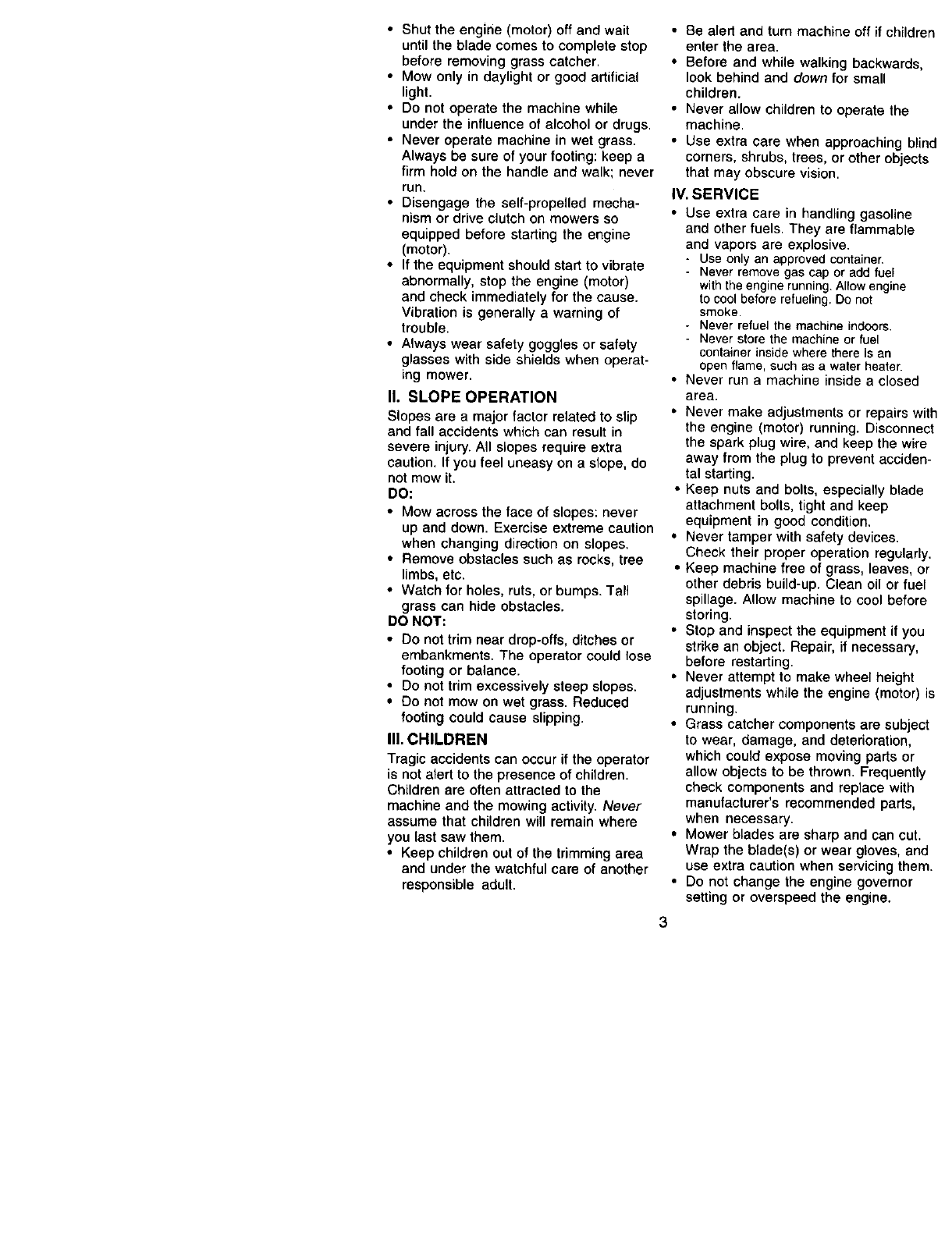

• Shuttheengine (motor) off and wait
until the blade comes to complete stop
before removing grass catcher.
• Mow only in daylight or good artificial
light.
• Do not operate the machine while
under the influence of alcohol or drugs.
• Never operate machine in wet grass.
Always be sure of your footing: keep a
firm hold on the handle and walk; never
run.
• Disengage the self-propelled mecha-
nism or drive clutch on mowers so
equipped before starting the engine
(motor).
• If the equipment should start to vibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally awarning of
trouble.
•Always wear safety goggles or safety
glasses with side shields when operat-
ing mower.
II. SLOPE OPERATION
Slopes are a major factor related to slip
and fall accidents which can result in
severe injury.All slopes require extra
caution. If you feel uneasy on a slope, do
not mow it.
DO:
• Mow across the face of slopes: never
up and down. Exercise extreme caution
when changing direction on slopes,
• Remove obstacles such as rocks, tree
limbs, etc.
• Watch for holes, ruts, or bumps. Tall
grass can hide obstacles.
DO NOT:
•Do not trim near drop-offs, ditches or
embankments. The operator could lose
footing or balance.
• Do not trim excessively steep slopes.
•Do not mow on wet grass. Reduced
footing could cause slipping.
II1. CHILDREN
Tragic accidents can occur if the operator
is not alert to the presence of children.
Children are often attracted to the
machine and the mowing activity. Never
assume that children will remain where
you last saw them.
• Keep children out of the trimming area
and under the watchful care of another
responsible adult.
• Be alert and turn machine off if children
enter the area.
• Before and while walking backwards,
look behind and down for small
children.
• Never allow children to operate the
machine.
• Use extra care when approaching blind
corners, shrubs, trees, or other objects
that may obscure vision.
IV. SERVICE
• Use extra care in handling gasoline
and other fuels. They are flammable
and vapors are explosive.
- Use only an approvedcontainer.
- Never remove gas cap or add fuel
with the engine running. Aliow engine
to cool before refueling. Do not
smoke.
- Never refuel the machine indoors.
- Never store the machine or fuel
container inside where there is an
open flame, such as awater heater.
• Never run a machine inside a closed
area.
• Never make adjustments or repairs with
the engine (motor) running. Disconnect
the spark plug wire, and keep the wire
away from the plug to prevent acciden-
tal starting.
• Keep nuts and bolts, especially blade
attachment bolts, tight and keep
equipment in good condition.
• Never tamper with safety devices.
Check their proper operation regularly.
• Keep machine free of grass, leaves, or
other debris build-up. Clean oil or fuel
spillage. Allow machine to cool before
storing.
• Stop and inspect the equipment if you
strike an object. Repair, if necessary,
before restarting.
• Never attempt to make wheel height
adjustments while the engine (motor) is
running.
• Grass catcher components are subject
to wear, damage, and deterioration,
which could expose moving parts or
allow objects to be thrown. Frequently
check components and replace with
manufacturer's recommended parts,
when necessary.
• Mower blades are sharp and can cut.
Wrap the blade(s) or wear gloves, and
use extra caution when servicing them.
• Do not change the engine governor
setting or overspeed the engine.
3

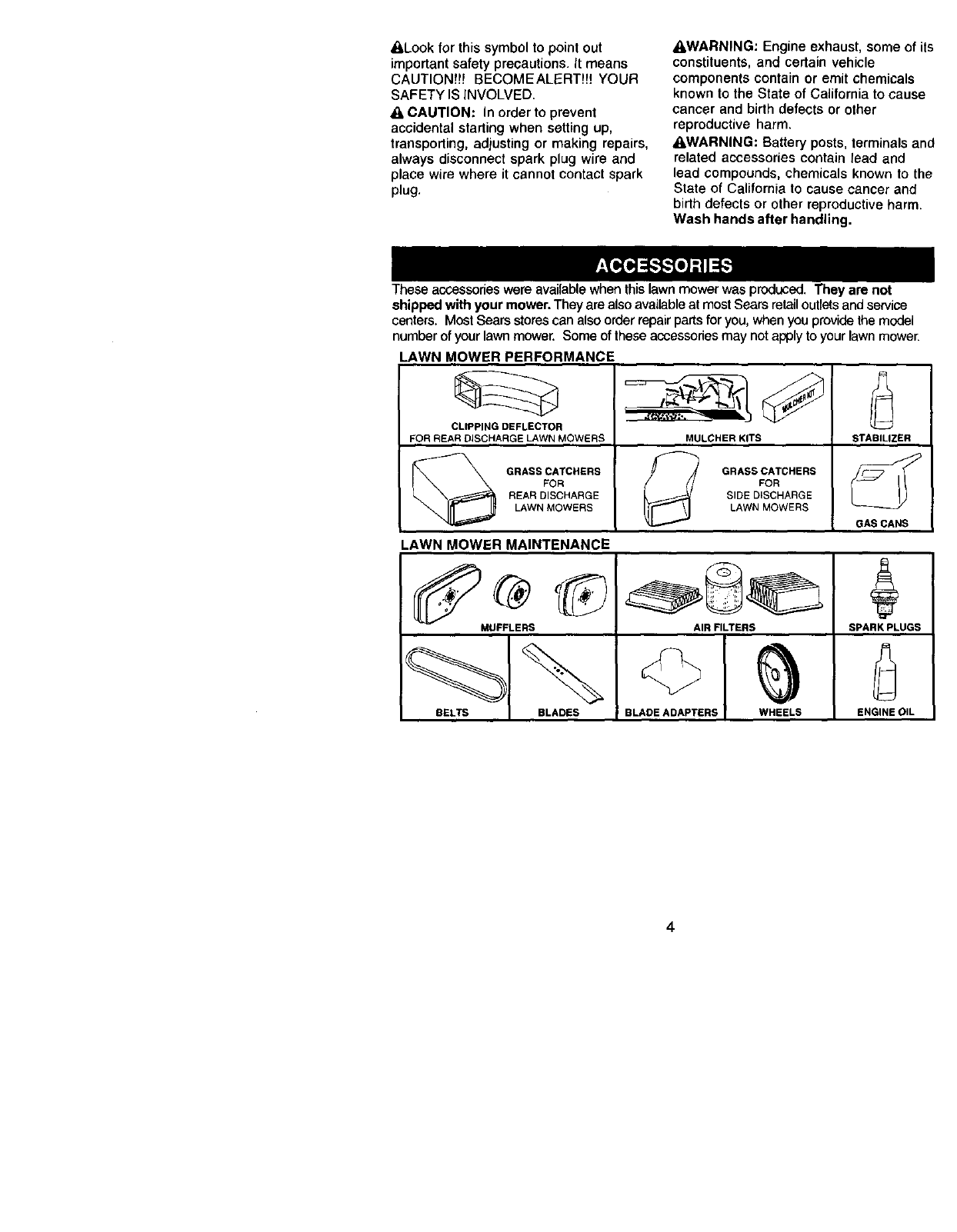

_Look for this symbol to point out
important safety precautions. It means
CAUTION!!! BECOMEALERT!!! YOUR
SAFETY IS INVOLVED.
CAUTION: In order to prevent
accidental starling when setting up,
transporting, adjusting or making repairs,
always disconnect spark plug wire and
place wire where it cannot contact spark
plug.
AWARNING: Engine exhaust, some of its
constituents, and certain vehicle
components contain or emit chemicals
known to the State of California to cause
cancer and birth defects or other
reproductive harm.
_,WARNING: Battery posts, terminals and
related accessories contain lead and
lead compounds, chemicals known to the
State of California to cause cancer and
birth defects or other reproductive harm,
Wash hands after handling.
These accessories were available when this lawn mower was produced. They are not
shipped with your mower. They are also available at most Sears retail outlets and service
centers. Most Sears stores can also order repair parts for you, when you provide the model
number of your lawn mower. Some of these accessories may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
FOR REAR DISCHARGE LAWN MOWERS MULCHER KITS STABILIZER
REAR DISCHARGE SIDE DISCHARGE
LAWN MOWERS LAWN MOWERS
GAS CANS
LAWN MOWER MAINTENANCE
MUFFLERS AIR FILTERS SPARK PLUGS
BELTS BLADES BLADE ADAPTERS WHEELS ENGINE OIL
4

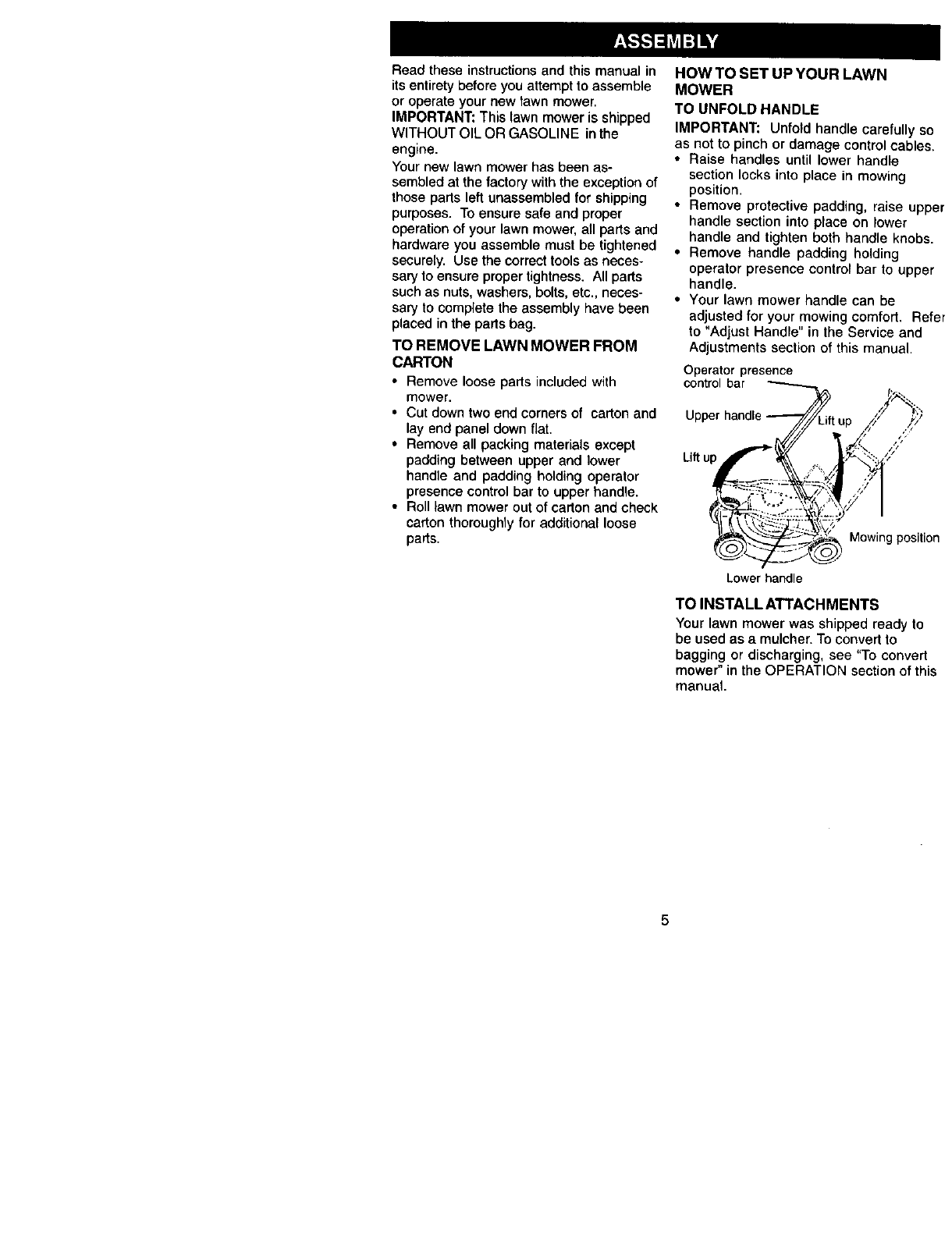

Read these instructions and this manual in
its entirety before you attempt to assemble
or operate your new lawn mower,
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine.
Your new lawn mower has been as-
sembled at the factory with the exception of
those parts left unassembled for shipping
purposes. To ensure safe and proper
operation of your lawn mower, all parts and
hardware you assemble must be tightened
securely. Use the correct tools as neces-
sary to ensure proper tightness. All parts
such as nuts, washers, bolts, etc., neces-
sary to complete the assembly have been
placed in the parts bag.
TO REMOVE LAWN MOWER FROM
CARTON
•Remove loose parts included with
mower.
•Cut down two end corners of carton and
lay end panel down flat.
•Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
•Roll lawn mower out of carton and check
carton thoroughly for additional loose
parts.
HOW TO SET UP YOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
•Raise handles until lower handle
section locks into place in mowing
position.
• Remove protective padding, raise upper
handle section into place on lower
handle and tighten both handle knobs.
• Remove handle padding holding
operator presence control bar to upper
handle.
• Your lawn mower handle can be
adjusted for your mowing comfort. Refer
to "Adjust Handle" in the Service and
Adjustments section of this manual.
Operator presence
control bar
Upper
Lift u
Mowing position
Lower handle
TO INSTALL ATTACHMENTS
Your lawn mower was shipped ready to
be used as amulcher. To convert to
bagging or discharging, see "To convert
mower" in the OPERATION section of this
manual.

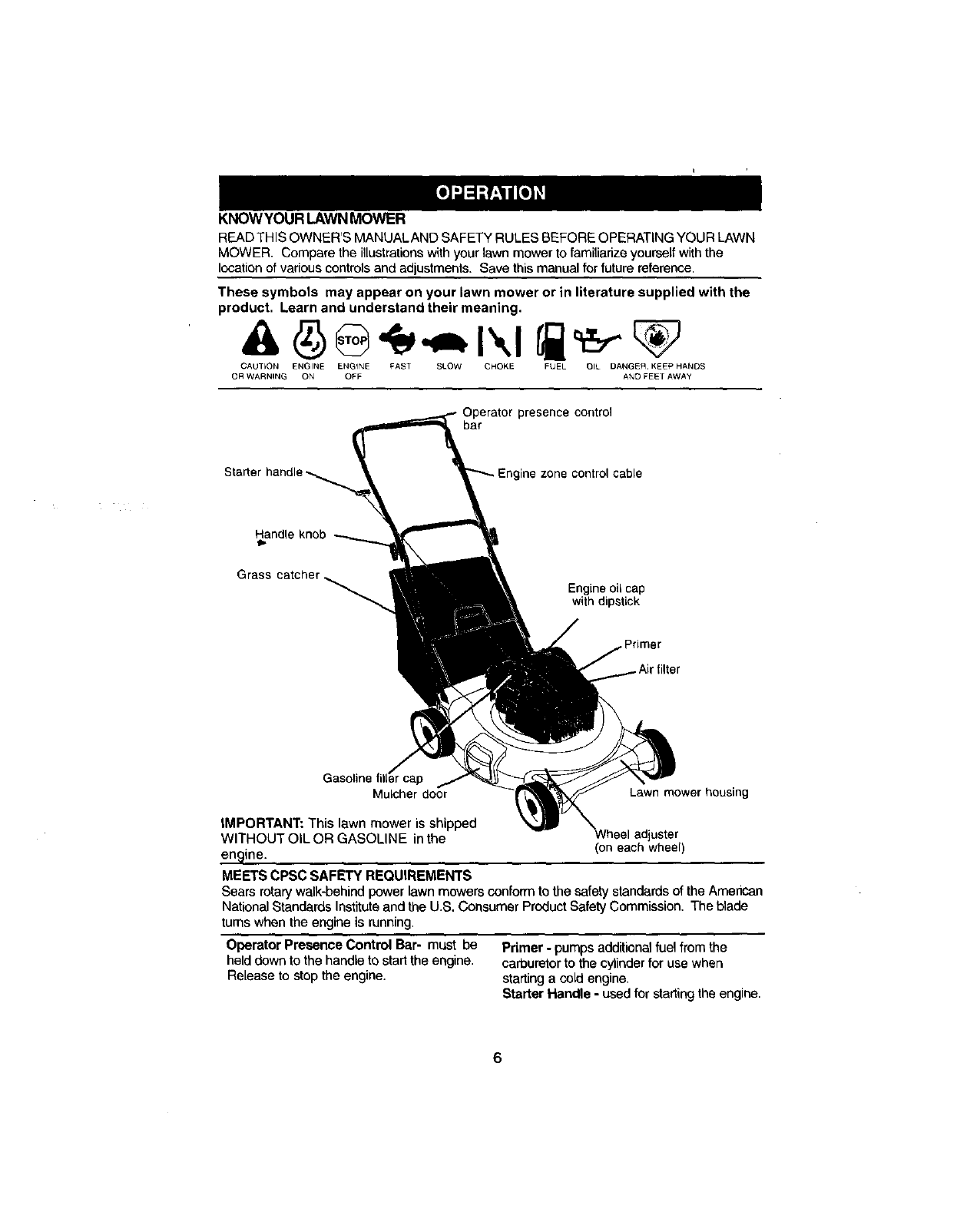

KNOWYOUR LAWNMOWER
READTHISOWNER'SMANUALANDSAFETYRULESBEFOREOPERATINGYOURLAWN
MOWER. Comparethe illustrationswith your lawn mowerto familiarizeyourselfwiththe
locationof variouscontrolsand adjustments.Save thismanualfor futurereference.
These symbols may appear on your lawn mower or in literature supplied with the
product, Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FtJEL ell DANGER. KEEP HANDS
OR WARNqNG ON OFF AND FEET AWAY
presence control
bar
Starter zone control cable
Handle knob
Grass catcher
Engine oil cap
with dipstick
Gasoline
Mulcher door Lawn mower housing
IMPORTANT: This lawn mower is shipped
WITHOUT OIL OR GASOLINE in the
engine. (on each wheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotarywalk-behind power lawn mowers conform to the safetystandardsof the American
National Standards Instituteand the U.S, Consumer ProductSafety Commission, The blade
turns when the engine is running.
Operator Presence Control Bar- must be Primer - pumps additional fuel from the
held down to the handle to start the engine, carburetor to the cylinder for use when
Release to stop the engine, starting a cold engine.
Starter Handle - used for starting the engine.
6

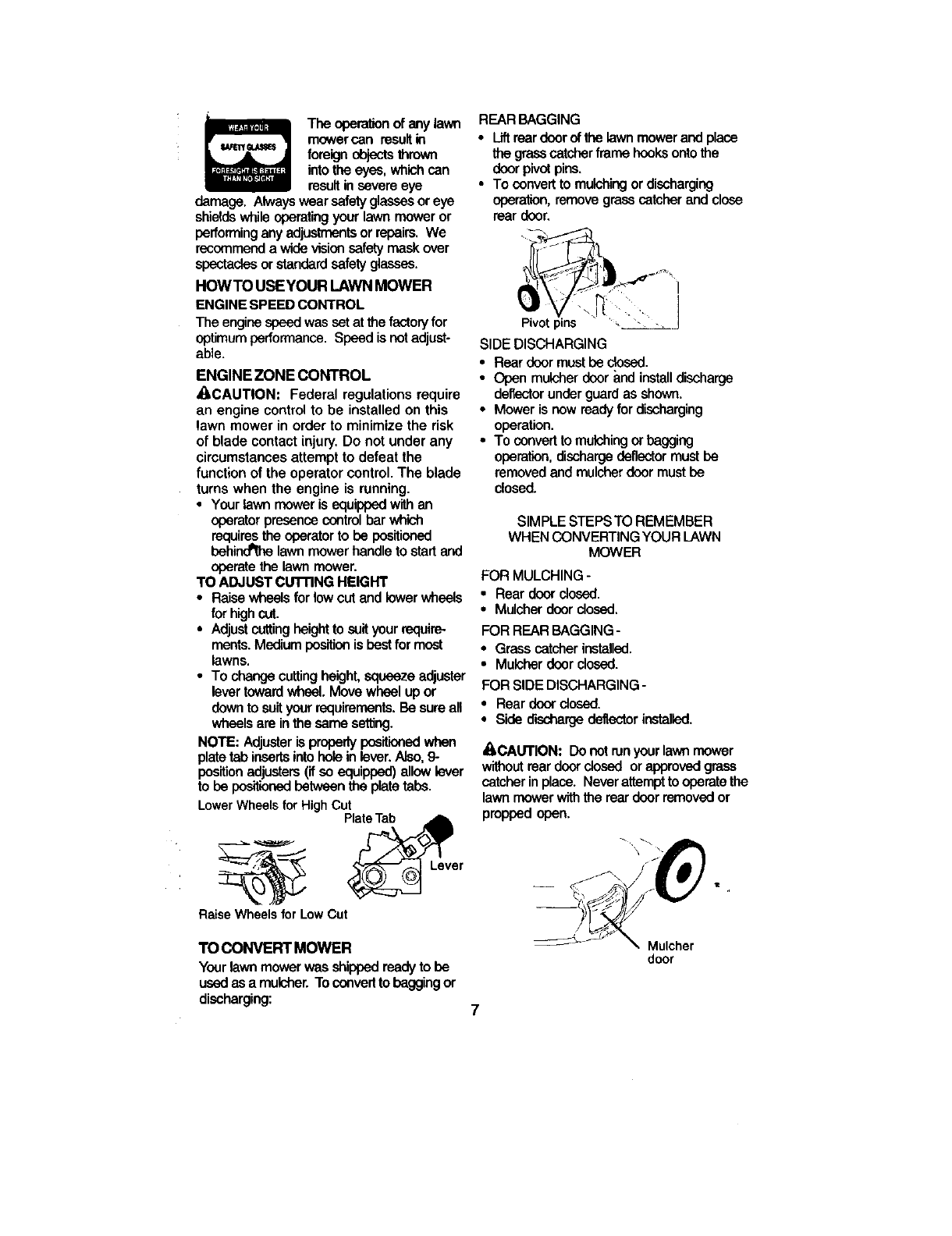

"rheoperationofanylawn
mowercan resultin
foreigeobjectsthrown
intothe eyes,whichcan
resultinsevereeye
damage. Alwayswearsafetyglassesoreye
shieldswhileoperatingyourlawnmoweror
peffes'ningany adjustmentsorrepairs.We
recommenda widevisionsafetymask over
spectaclesorstandardsafetyglasses.
HOW TO USE YOUR LAWN MOWER
ENGINESPEEDCONTROL
Theenginespeedwassetatthe factoryfor
optimumperformance.Speedisnotadjust-
able
ENGINE ZONE CONTROL
_CAUTION: Federal regulations require
an engine control to be installed on this
lawn mower in order to minimize the risk
of blade contact injury. Do not under any
circumstances attempt to defeat the
function of the operator control. The blade
turns when the engine is running.
•Your lawn mower is equipped with an
operator presence controlbar which
requires the operator to be positioned
behine_'_elawn mower handle to start and
operate the lawn mower.
TO ADJUST CUFFING HEIGHT
•Raise wheels for low cut and lower wheels
for highcut.
•Adjustcuttingheight to suit your require-
ments. Medium positionis best for most
lawns.
•To change cuttingheight, squeeze adjuster
lever towardwheel. Move wheel up or
down to suityour requiramants.Be sure all
wheels are inthe same setting.
NOTE: Adjusteris properlypositionedwhen
pl_e tab inserts into hole in lever. Also,9-
positionadjusters (if so equipped) allow lever
to be positionedbetween the plate tabs.
LowerWheels for HighCut
Pla_
Raise Wheels for LowCut
REAR BAGGING
• Lift reardoor of the lawn mower and place
the grass catcherframe hooks ontothe
door pivotpins.
•To convertto mulchingor discharging
operation,remove grass catcher and close
rear door.
Pivotpins " ' _ - . .j
SIDE DISCHARGING
•Rear door must be closed
• Open muicher door and installdischarge
deftector under guard as shown
• Mower is new ready for discharging
operation
• To convert to mulching or bagging
operation, discharge deflector must be
removed and mulcher door must be
closed.
SIMPLE STEPS TO REMEMBER
WHEN CONVERTING YOUR LAWN
MOWER
FOR MULCHING -
•Rear door dosed
• Mulcher door dosed
FOR REAR BAGGING -
•Grass catcher installed.
• Mulcher door closed
FOR SIDE DISCHARGING -
•Rear doordosed.
•Side dischargedallector installed.
ACAUTION: Donotrunyour lawn mower
withoutreardoordosed orapprovedgrass
catcherinplace. Neveratternpttooperatethe
lawnmowerwiththe reardoorremovedor
preppedopen.
TO CONVERT MOWER
Yourlawn mowerwasshippedreadyto be
usedas a mulcher.Toconvedto baggingor
discharging: 7
Mulcher
door
Open
MulcherDoor
dofioc,o
BEFORE STARTING ENGINE
OIL
Yourlawn mower is shippedwithout oilin the
engine.
•Be sure mower is level and area aroundoil
fillis clean.
•Remove engine oilcap and fillto the full
line on the dipstick.
NO_E: Allow oil to settle down into
engine for accurate dipstick reading.
•Engine holds 20ozs. of oil. Fortypeend
grade of oil to use, see "ENGINE" in
Maintenance sectionof this manual.
• Pour oil slowly. Do not overfill.
•Check oil level before each use. Add oil if
needed. Fillto fulllineon dipstick.
•To read proper level,tighten engine oil cap
each time.
•Reinstall engine oil cap end tighten.
•Change the oil after every 25 hears of
operationor each season. You may need
to change the oil more often under dusty,
dirty conditions.
ADD GASOUNE
NOTE: Before filling fuel tank, remove
and discard the debris plug that is inside
the tank.
•Fillfuel tank. Use fresh,clean, regular
unloaded gasolinewith a minimum of 87
octane. Do not mixoil withgasoline.
Purchase fuel in quantitiesthat can be
used within30 days to assure fuel
freshness.
1 •
_,WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the fuel tank, start the
engine and let it run until fuel lines and
carburetor are empty. Use fresh fuel next
season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in fuel tank
or permanent da,mage may occur.
ACAUTION: Fill to bottom of gas tank
filler neck. Do not overfill. Wipe off any
spilled oil or fuel. Do not store, spill or use
gasoline near an open flame.
Gasolinefiller _Engineoil
cap _ _ cap
(Discard _-/_
debrisplug t._-,_"'--7_>,_T _,_
inside) _ ,1"_
TO START ENGINE
NOTE: Due to protective coatings on the
engine, a small amount of smoke may be
present during the initial use of the
product and should be considered
normal.
•To start a cold engine, push primer
three (3) times before trying to start. Use
a firm push. This step is not usually
necessary when starting an engine
which has already run for a few
minutes.
•Hold operator presence controlbar down
to the handteend pullstaher handle
quickly. Do not allowstarterrope to snap
back.
•To stopengine, release operator presence
contm_bar.
NOTE: In coolerweather it may be necessary
to repeat primingsteps. In warmer weather
over priming may cause flooding add engine
willnot start. If you do flood engine,wait a few
minutes before attemptingto startand do not
repeat primingsteps.
8

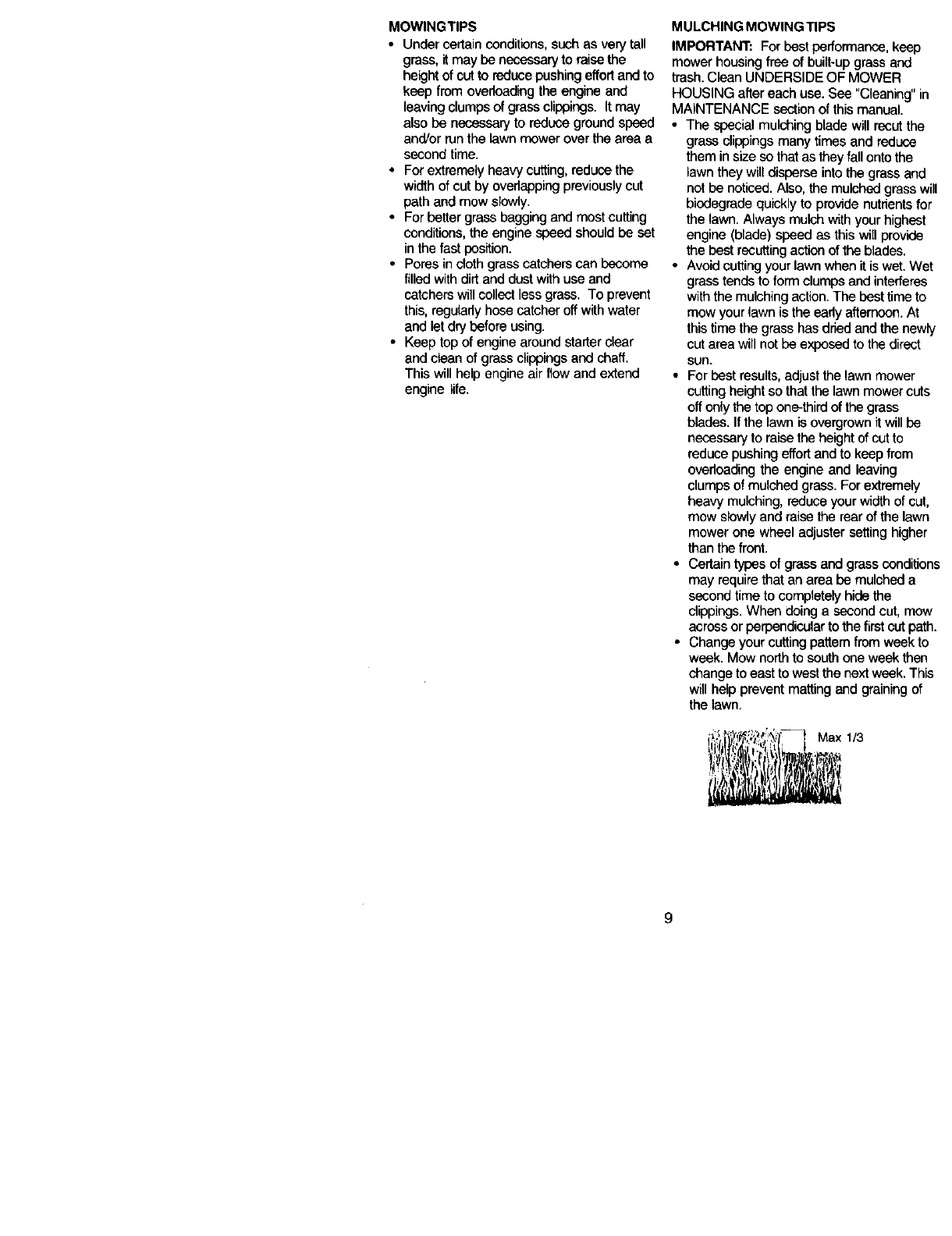

MOWINGTIPS
•Under certain condttlons, such as very tall
grass, it may be necessary to raise the
height of cut to reduce pushing effed and to
keep from overloading the engine and
leaving clumps of grass clippings. It may
also be necessary to reduce ground speed
and/or run the lawn mower over the area a
second time.
• For extremely heavy cutting, reducethe
width of cut by overlapping previously cut
path and mow slowly.
• For better grass bagging and most cutting
conditions, the engine speed should be set
in the fast position.
• Pores in cloth grass catchers can become
filled with dirt and dust with use and
catchers wilt cotlecl less grass. To prevent
this, regulady hose catcher off with water
and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This wil_help engine air flow end extend
engine life.
MULCHING MOWING TIPS
IMPORTANT: For best performance,ke_
mower housingfree of built-upgrass ar_
trash.Clean UNDERSIDE OF MOWER
HOUSING after each use. See "C_eaning
MAINTENANCE sectionof thismanual.
•The special mulchingblade will recut t
grass clippingsmany times and reduc
them in size so thatas they fall onto the
_awnthey w_tdisperse into the grass ¢_
not be noticed. Also, the mulched gras
biodegrade quickly to provide nutrient,,
the lawn. Always mulch w_th your high
engine (blade) speed as this will provi
the best recutting action of the blades.
• Avoid cutting your lawn when it is wet.
grass tends to form clumps and interfer
withthe mulching act_n. The best time
mow your lawn is the early afternoon. I
this time the grass has dried and the n_
cut area will not be exposed to the dire
sun.
• For best results, adjust the lawn mowe
cutting height so that the lawn mower (
off only the top one-third of the grass
blades. If the lawn is overgrown _twiUt
necessary to raise the height of cut to
reduce pushing effort and to keep fron"
overloading the engine and leaving
clumps of mulched grass. For extreme
heavy ruu!ching, reduceyour w_dthof
mow slowly and raise the rear of the Is
mower one wheel adjuster setting hig
than the front.
•Certain types of grass and grass cone
may require that an area be mulched
second time to completely hide the
clippings. When doing a second cut, rr
acrossor peq_3nd_utarto _hefirstcutl:
•Change your cuttingpatternfrom wee!,
week. Mow northto southone week t_"
change to east to west the nextweek."
will help prevent mattingand graining
the _awn.
Max 1/3
1. Change nl_re o_ien when oper_ling under a heavy load or in high amblenl temperatures
2. Serv_e more often when operaling in di_ty ot dusty conditions
3. Replace b_ades more often when mowing in sandy soi_
4. Charge 48 hours a[ end of season¸
GENERAL RECOMMENDATIONS
The warrantyonthislawn mowerdoes not
cover items that have been subjectedto
operatorabuse or negligence.To receive full
value fromthe warranty,operator must
maintain mower as instructedin this manual.
Some adjustmentswillneed to be made
periodicallyto propertymaintain your unit.
All adjustmentsin the Service and
Adjustmentssectionof this manual should be
checked at leastonce each season.
•Once a year, replacethe spark plug,
replace air filterelement and check b_ade
for wear. A new spark plug and clean/new
air filter element assuresproper air-fuel
mixture and helps your engine run better
and last Iong_.
• Follow the maintenance schedule in this
manual.
BEFORE EACH USE
• Check engine oil level.
• Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRICATION
CHART").
LUBRICATION CHART
_ Wheel
ad)usters
\
i _ i_)_
/
door Handle bracket
hinge mounting pin
(_) SPRAYLUBRICANT
SAE30 MOTOROIL. REFERTO
(_) ENGINE- MAINTENANCESECTION.
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lubricants willattract
dustand dirtthat willshorten the lifeof the self
lubricating bearings. If you feel they mustbe
lubricated,use only a dry, powdered graphite
type lubrk:,antsparingly.
10
PRODUCT SPECIFICATIONS
SERIALNUMBER
DATE OF PURCHASE
GASOLINE CAPACITY/TYPE: 1.6 QUARTS
UNLEADED REGULAR
OILTYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG(GAP: .030") CHAMPION RJ19LM OR J19LM
VALVE CLEARANCE: INTAKE: .004 - .008
EXHAUST: .004 - .008
SOLID STATE IGNITION
AIR GAP: .0125 IN.
BLADE BOLT TORQUE: 35-40 FT. LBS.
• The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when performing
any maintenance.
TIRES
•Keep tires free of gasoline, oil, or insect
control chemicals which can harm rubber.
•Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may cause
tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades,
TO REMOVE BLADE
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Turn lawn mower on its side. Make
sure air filter and carburetor are up.
• Use a wood block between blade and
mower housing to prevent btade from
turning when removing blade bolt.
• Protect your hands with gloves and/or
wrap blade with heavy cloth.
• Remove blade bolt by turning counter-
clockwise.
• Remove blade and attaching hardware
(bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade adapter.
The key must be in good condition to work
properly. Replace adapter if damaged.
TO REPLACE BLADE
• Position the blade adapter on the
engine crankshaft. Be sure key in
adapter and crankshaft keyway are
aligned.
• Position blade on the blade adapter
aligning the two (2) holes in the blade
with the raised lugs on the adapter.
• Be sure the trailing edge of blade
(opposite sharp edge) is up toward the
engine.
•Install the blade bolt with the lock
washer and hardened washer into
blade adapter and crankshaft.
• Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
•The recommended tightening torque is
35-40 ft, Ibs.
IMPORTANT: Blade bolt is grade 8 heat
treated.
11

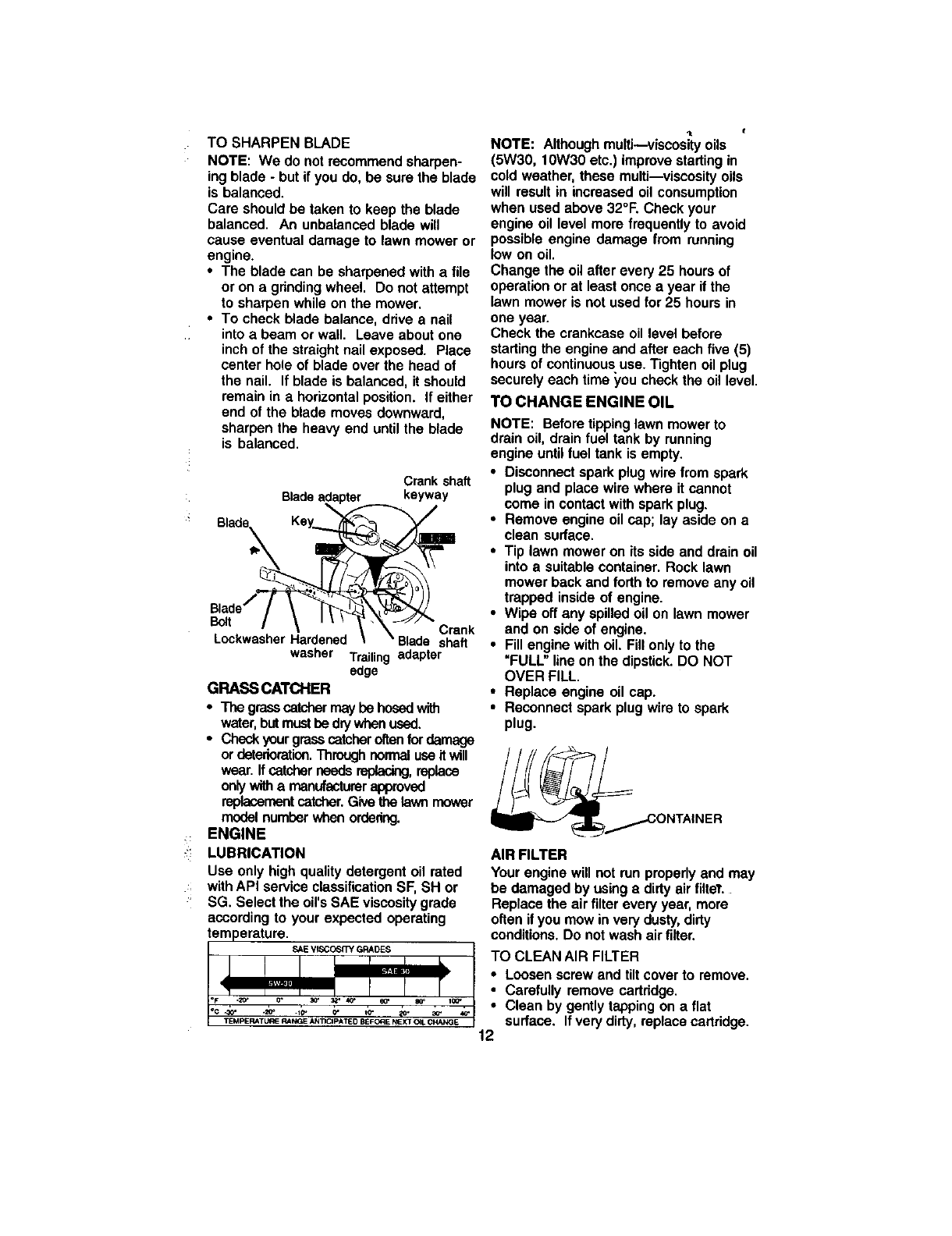

TOSHARPEN BLADE
NOTE: We do notrecommendsharpen-
ingblade - but if you do, be surethe blade
is balanced.
Care shouldbe taken to keep the blade
balanced. An unbalancedblade will
cause eventual damageto lawn moweror
engine.
• The blade can be sharpenedwitha file
or ona grindingwheel. Do not attempt
to sharpenwhile on the mower.
•To check blade balance,drive a nail
intoa beam or wall. Leave aboutone
inchof the straightnail exposed. Place
center hole of blade overthe head of
the nail. If blade is balanced,it should
remainin a horizontalposition. If either
end of the blade movesdownward,
sharpenthe heavy end untilthe blade
is balanced.
Crank shaft
Blade keyway
Bolt Crank
Lockwasher Hardened Blade shaft
washer Trailing adapter
edge
GRASS CATCHER
• The gra_ catcher may 10ehosed with
water, but must be dry when ussd.
•Check your grass ca_her often fordamage
or deterioration.Through normal use it will
wear. If catcher needs replacing, replace
only with a manufacturerapproved
replacementcatcher. Give the lawn mower
model number when ordering.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF, SH or
SG. Select the oil's SAE viscosity grade
according to your expected operating
.t
NOTE: Although multi-viscosity oils
(5W30, lOW30 etc.) improve starting in
cold weather, these multi--viscosity oils
will result in increased oil consumption
when used above 32°F. Check your
engine oil level more frequently to avoid
possible engine damage from running
low on oil.
Change the oil after every 25 hours of
operation or at least once a year if the
lawn mower is not used for 25 hours in
one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil level.
TO CHANGE ENGINE OIL
NOTE: Beforetippinglawn mowerto
drainoil, drainfuel tank by running
engineuntilfuel tank is empty.
•Disconnectsparkplugwirefrom spark
plugand placewire where it cannot
come in contactwithsparkplug.
•Removeengineoil cap; lay asideon a
clean surface.
•Tip lawnmoweron its side and drainoil
into a suitablecontainer.Rock lawn
mowerback and forth to removeany oil
trappedinsideof engine.
•Wipe off any spilledoil on lawn mower
and on side of engine.
•Fillenginewith oil.Fillonly to the
=FULL"line onthe dipstick.DO NOT
OVER FILL.
•Replace engineoil cap.
•Reconnectsparkplugwire to spark
plug.
AIR FILTER
Yourenginewill not run properlyand may
be damagedby using a dirtyair filter.
Replacethe airfilterevery year, more
oftenif youmow invery dusty,dirty
conditions.Do notwash airfilter.
TO CLEAN AIR FILTER
•Loosen screw and tilt cover to remove.
• Carefully remove cartridge.
• Clean by gently tapping on aflat
surface. If very dirty, replace cartridge.
12
_CAUTION:Petroleum solvents, such as
kerosene, are not to be used to clean
cartridge. They may cause deterioration
of the cartridge. Do not oil cartridge. Do
not use pressurized air to clean or dry
cartridge.
•Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely. Back
Lip plate
Slots
Cover
Cover
Cartridge
MUFFLER
Inspect and replace corroded muffler as it
could create afire hazard and/or damage.
SPARK PLUG
Chanile your spark plug each year to
make your engine start easier and run
better. Set spark plug gap at .030 inch.
CLEANING
IMPORTANT: For best performance, keep
mower housing free of built---up grass
and trash. Clean underside of mower
housing after each use.
ACAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
•Tum lawn mower on its side. Make sure
air filter and carburetor are up. Clean
the underside of your lawn mower by
scraping to remove build--up of grass
and trash.
•Clean engine often to keep trash from
accumulating. Aclogged engine runs
hotter and shortens engine life.
•Keep finished surfaces and wheels free
of all gasoline, oil, etc.
•We DO NOT recommend using a
garden hose to ctean lawn mower
unless the electrical system, muffler, air
filter and carburetor are covered to
keep water out. Water in engine can
result in shortened engine life.
_ILCAUTION: Before performing any
service or adjustments:
•Release control bar and stop engine.
•Make sure the blade and all moving
parts have completely stopped.
•Disconnect spark plug wire from spark
plug and place where it cannot come in
contact with plug.
LAWN MOWER
TO ADJUST CU'I-rlNG HEIGHT
See "TO ADJUST CUTTING HEIGHT" in
the Operation section of this manual.
REAR DEFLECTOR
The rear deflector, attached between the
rear wheels of your lawn mower, is
provided to minimize the possibility that
objects will be thrown out the rear of the
lawn mower into the operator's mowing
position.
If the rear deflector becomes damaged, it
should be replaced.
TO ADJUST HANDLE
The handle can be mounted in a high or
low position. The mounting holes in the
bottom of lower handle are off center for
raising or lowering the handle.
•Remove upper handle and all parts
attached to lower handle.
•Remove hairpin cotters from lower
handle bracket mounting pin.
•Squeeze lower handle in to remove it
from mounting pins.
•Turn lower handle over to raise or lower
handle.
•Squeeze lower handle in and position
holes onto mounting pins on handle
bracket.
•Reassemble upper handle and all parts
removed from lower handle.
13
Lower •
handle
.ot to',\\
TO ASSEMBLE GRASS CATCHER
• Put grass catcher frame into grass bag
with rigid part of bag on the bottom.
Make sure the frame handle is outside
of the bag top.
• Slip vinyl bindings over frame.
NOTE: If vinyl bindings are too stiff, hold
them in warm water for a few minutes. If
bag gets wet, let it dry before using.
ACAUTION: Do not run your lawn
mower without clipping deflector or
approved grass catcher in place. Never
attempt to operate the lawn mower with
the rear door removed or propped open,
"I Frame
opening
ENGINE
CARBURETOR
Your cadouretorhas a non-adjustablefixed
main jet for mixture centrol. If your engine
does not operateproperlydue to suspected
carburetorproblems,take your lawn mower to
an authorized servicecenter for repairor
adjustment.
IMPORTANT: Never tamper withthe engine
governor,which is factory set for proper
engine speed. Overspeeding the engine
above the factory highspeed settingcan be
dangerous, ifyou thinkthe engine-governed
highspeed needs adjOsting,contact your
nearest authorized service center, which has
proper equipment and experience to make
any necessary adjustments.
ENGINE SPEED
Yourenginespeed has been factory set. Do
not attemptto increase enginespeed or it
may resultinpersonal injury. If you believe
that the engine is runningtoo fast or too slow,
take your lawn mower to an authorized
service center for repairand adjustment.
Immediately prepare your lawn mower for
storageat the end of the season or ifthe unit
willnot be used for 30 days or morn.
LAWNMOWER
When lawn mower is to be stored for aperiod
of time, clean it thoroughly, remove all dirt,
grease, leaves, etc.Store ina clean, dry area.
•Clean entire lawn mower (See "CLEAN-
ING" inthe Maintenance sectionof this
manual).
•Lubricateas shown in the Maintenance
sectionof this manual.
•Be surethat all nuts,bolts,screws, and pins
are securelyfastened. Inspect moving
i_aeprtSfor damage, breakage and Wear.
lace if r_cessafy.
• Touch up all rustedor shipped paint
surfaces;send lightlybefore painting.
HANDLE
You can fold your lawn mower handle for
storage.
•Squeeze the bottom ends of the lower
handle toward each other until the
lower handle clears the handle bracket,
then move handle forv_,ard.
•Loosen upper handle mounting bolts
enough to allow upper handle to be
folded back.
IMPORTANT: When folding the handle
for storage or transportation, be sure to
fold the handle as shown or you may
damage the control cables.
•When setting up your handle from the
storage position, the lower handle will
automatically lock into the mowing
position.
Lower handle Handle
bracket
Squeeze to
fold
Operator Presence.__
ControlBar -_
Upper ¥//
Handle "------ r/
Fold Forv,'ard _
For Storage "_ ff'_ ,
_'r_:'_--7 _ _
--_.-.....:
_ _'-"_ '_'.-: : i-_
14 LowerH_ndle
Hairpin cotter
J ///
ii,7 FB°/cdkward
Mowing
Position
ENGINE
FUELSYSTEM
IMPORTANT:Itisimportanttoprevent
_uUmdeposits from forming in essential
el system parts such as carburetor, fuel
filter, fuel hose, or tank during storage.
Also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation
of acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage,
•Drain the fuel tank,
•Start the engine and let it run until the
fuel lines and carburetor are empty.
•Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
•Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuet tank or
storage container. Always follow the mix
ratio found on stabilizer container. Run
engine at least 10 minutes after adding
stabilizer to allow the stabilizer to reach
the carburetor. Do not drain the gas tank
and carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintenance section of this manual).
CYLINDER
Remove spark plug.
Pour one ounce (29 ml) of oil through
sparkplug holeintocylinder.
Pullstarterhandle slowlya few timesto
distribute oil.
• Replace with new spark plug.
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust, Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and
dirt,
• Cover your unit with a suitable protec-
tive cover that does not retain moisture.
Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm,
ACAUTION: Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
TROUBLESHOOTING CHART
PROBLEM CAUSE
Does not start 1. Didy air filter.
2. Outof fuel.
3. Stale fuel.
4, Water infuel.
5, Spark plug wire is
disconnected.
6. Bad spark plug.
7. Loose blade or broken blade
adapter.
8. Control bar in released
position.
9. Control bar defactive.
CORRECTION
1. Clean/replace air filter.
2. Fill fuel tank.
,3. Drain tank and refill with
fresh clean fuel.
=I. Drain fuel tank and
carburetor and refill tank
with fresh gasoline.
5, Connect wire to plug.
6. Replace spark plug,
7. Tighten blade bolt or
replace blade adapter.
8. Depress control bar to
handle.
9. Replace control bar.
15
TROUBLESHOOTINGCHART
PROBLEM CAUSE CORRECTION
Lossofpower
Poorcut-uneven
Excessive
vibration
Starter rope hard
to poll
Grass catcher
not filling (ifso
equipped)
Hard to push
1. Rear of lawn mower housing
or cutting blade dragging
in heavy grass.
2. Cutting too much grass.
3. Dirty air filter.
4. Buildup of grass, leaves,
and trash under mower.
5. Too much oil in engine.
6. Walking speed too fast.
1. Worn, bent or loose blade.
2. Wheel heights uneven.
3. Buildupof grass, leaves
and trash under mower.
1. Worn, bent or loose blade.
2. Bent engine crankshaft.
1. Engine flywheel brake is on
when controlbar is released.
2. Bent engine crankshaft.
3. Blade adapter broken.
4. Blade dragging in grass.
1. Cutting height too low.
2. Lift on blade wom off.
3. Catcher not venting air.
1. Grass is too high or wheel
height is too low.
2. Rear of lawn mower
housing or blade dragging
in grass.
3. Grass catcher too full.
4. Handle height position not
right for you.
1. Set to "Higher Cut"
position.
2. Set to "Higher Cut"
position.
3. Clean/replace air filter.
4. Clean underside of mower
housing.
5. Check oil level.
6. Cut at slower walking
speed.
1. Replace blade. 33ghten
blade bolt.
i
!2. Set all wheels at same
height
3. Clean underside of
mower housing.
1. Replace blade. 33ghten
blade belt.
2. Contact an authorized
service center.
1. Depress control bar to
upper handle before
pulling starter rope.
2. Contact an authorized
service center.
3. Replace blade adapter.
4. Move lawn mower to cut
grass or to hard surface
1. Raise cutting height.
2. Replace blade.
3. Clean grass catcher.
1. Raise cutting height.
2. Raise rear of lawn mower
housing one (1) setting
higher.
3. Empty grass catcher.
4. Adjust handle height to
suit.
16
67
14
68
37
CRAFTSMAN ROTARY LAWN MOWER -- MODEL NO. 917.388383
44
37
33
19
27
20
22 3O

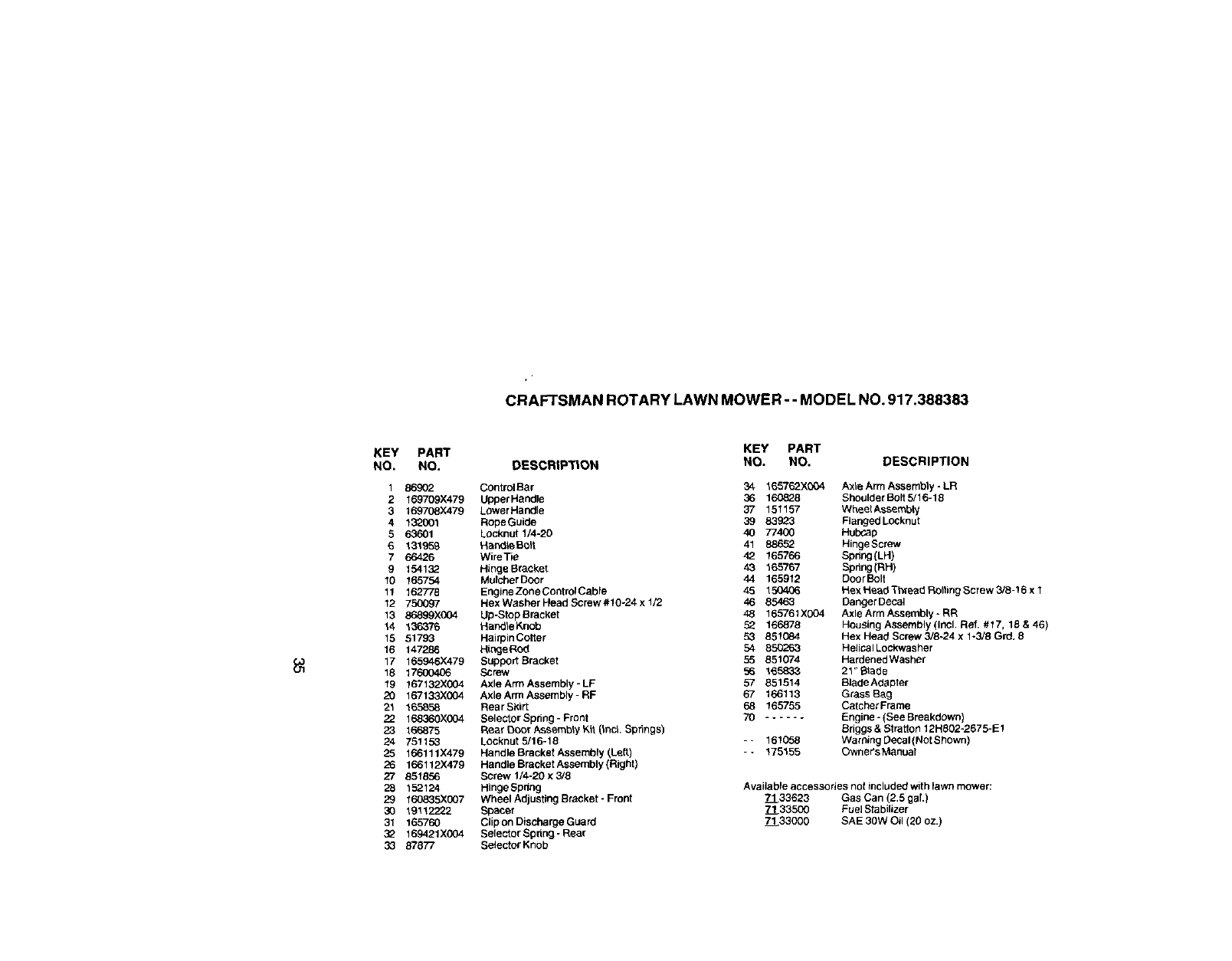

CRAFTSMAN ROTARY LAWN MOWER -- MODEL NO. 917.388383
KEY PART
NO. NO.
186902
2169709)(479
3 169708X479
4132001
5636O1
6 131959
7 66426
9 154132
10 165754
11 162778
12 750097
13 86899X004
14 136376
15 51793
16 147286
17 165946X479
18 176OO406
19 167132X004
20 167133X004
21 165858
22 168360X004
23 166875
24 751153
25 166111X479
26 166112X479
27 851856
28 152124
29 160835X007
30 19112222
31 165760
32 169421X004
33 67877
DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
ControIBar 34 165762X004 Axle Arm Assembly - LR
UpperHandle 36 160828 Shoulder Bolt 5/16-18
Lower Handle 37 151157 Wheet Assembly
ROpe Guide 39 83923 Flanged Locknut
L0cknut 1/4-20 40 77400 Hubcap
Handle Bolt 41 886.52 Hinge Screw
Wire'Fie 42 165766 Spnng (LH)
Hinge Bracket 43 165767 Spring (RH)
Mulcher Door 44 165912 Door Bolt
EngineZoneControlCable 45 150406 Hex Read Thread Roiling Screw 3/8-16 x 1
Hex Washer Head Screw#10-24 x 1/2 46 85463 DangerDecal
Up-Stop Bracket 48 165761X(X)4 Axle Arm Assembly - RR
HandteKnob 52 166878 Housing Assembly (InCl. Ref, #17, 16 & 46)
Hairpin Cotter 53 851084 Hex Head Screw 3/8-24 x 1-3/8 Grd, 8
Hinge Flod 54 850263 HeliCal Lockwasher
Support Bracket 55 851074 Hardened Washer
S_rew 56 1S5833 21" Btade
Axle Arm Assembly - LF 57 851514 Blade Adapter
Axle Arm Assembly - RF 67 166113 Grass Bag
Rear Skirt 68 165755 Catcher Frame
Selector Spdng - Front 70 ...... Engine - (See Breakdown)
Rear Door Assembly Kit (Inc4. Springs) Bnggs & Btratton 12HBO2-2675-E1
LOCknut 5/16-18 -- 161058 Warning DeCal (Not Shown)
Handle Bracket Assembly (Left) - -175155 Owner'sManual
Handle Bracket Assembly (Right)
Screw 1/4-20 x3/8
Hinge Spnng Available accessories not included with lawn mower:
Wbeel Adjusting Bracket - Front 7A.33623 Gas Can (2.5 gal.)
Spacer Z_L33500 Fuel Stabilizer
Clip on Discharge Guard 7133000 SAE 30W Oil (20 oz.)
Selector Spring - Rear
Selector Knob
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-267S-E1
969_ 968
843
621 92_P
%
124
I_27
967
606
Q6341
130
95 17
,37
110_ ]
%971A
529
_163
:36
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12H802-2675-E,
625
51
24
0615 _ 4_°
230 34
33
572
3O7
?
15
8
_20
284
i47
22
383
337_
306
307 lk REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL,
37

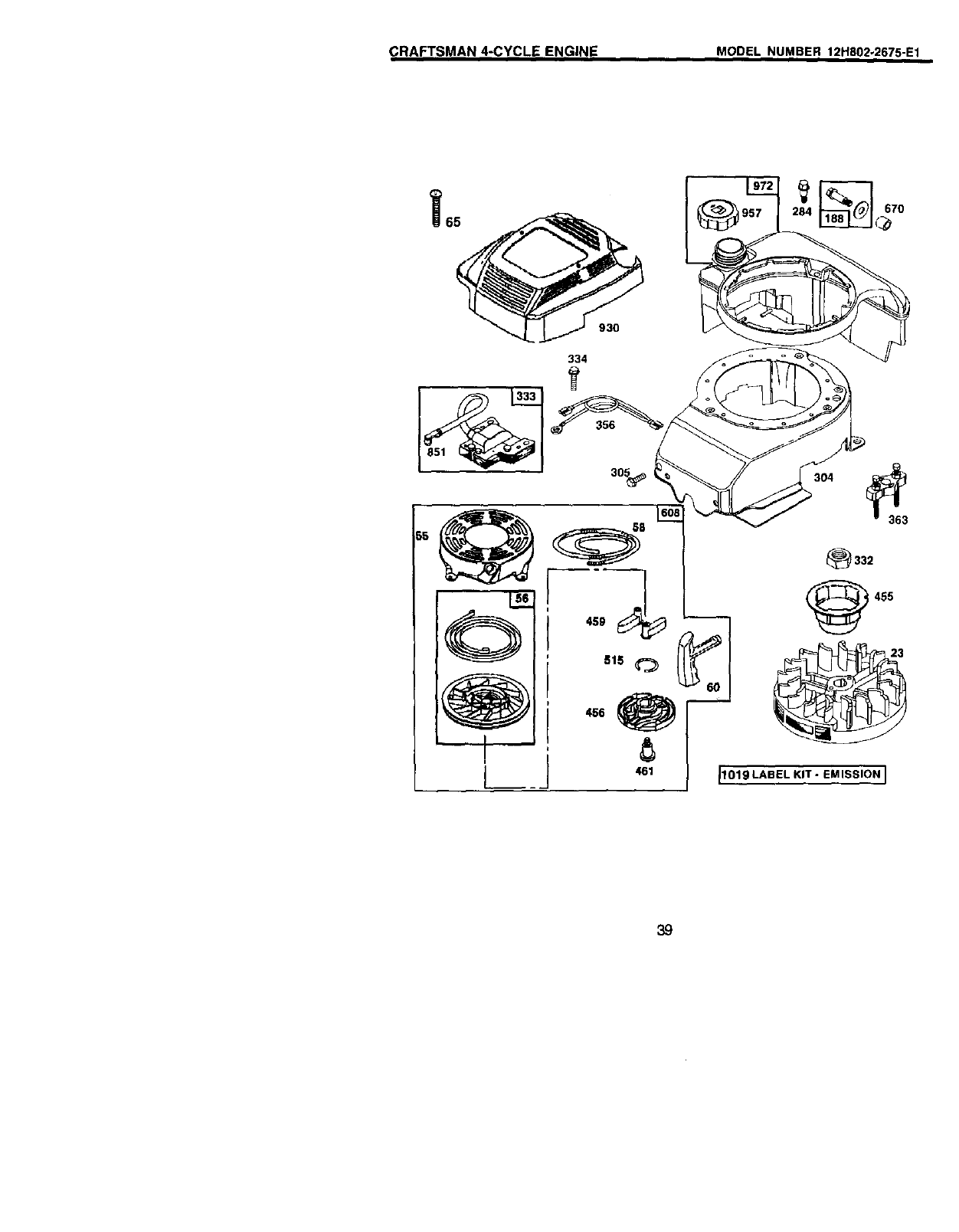

CRAFTSMAN 4-CYCLE ENGIN,E MODEL NUMBER 12HS02-2675-E1
930
30, _
459 _0
456
4_1 19 LABEL KIT -EMISSION J
39

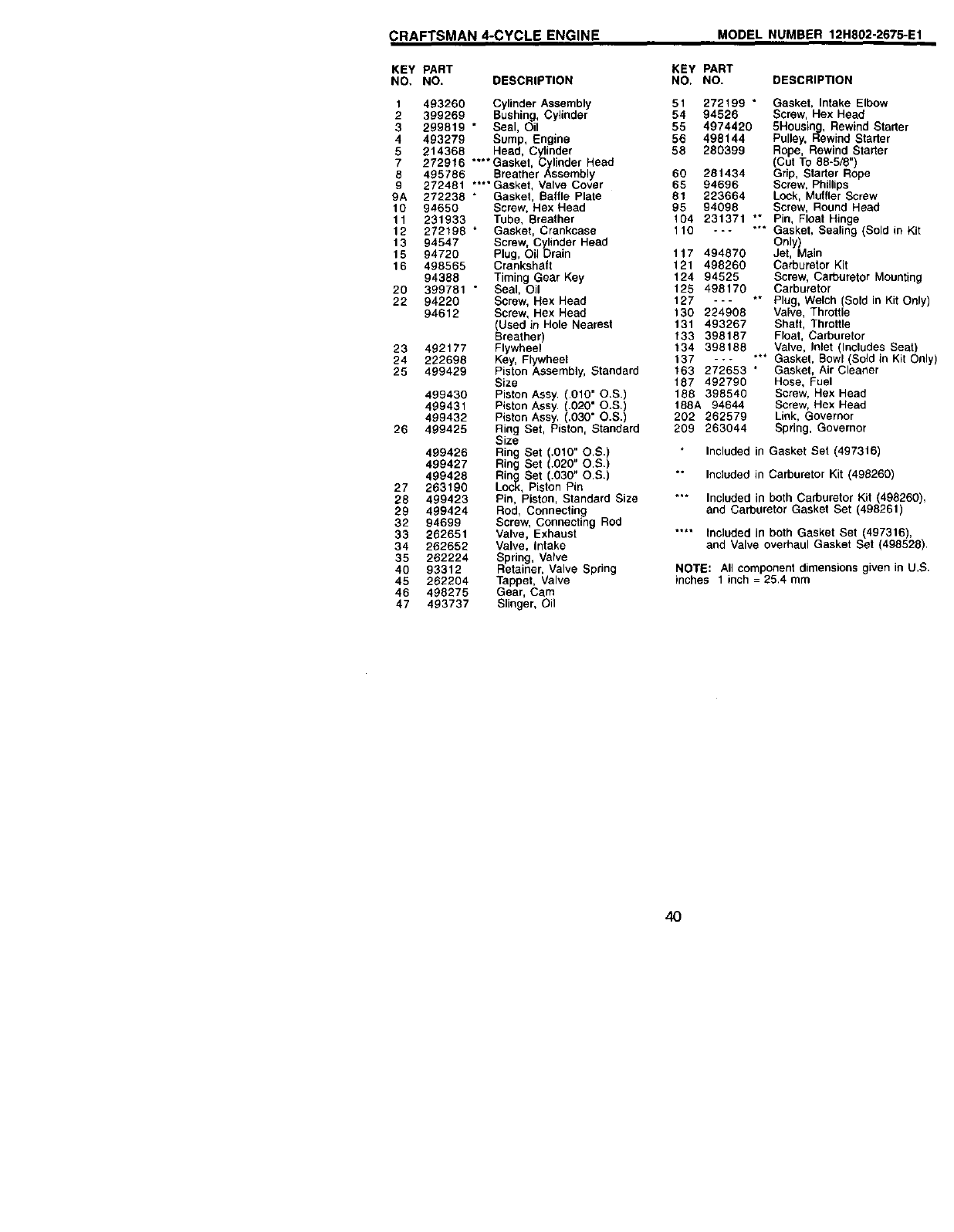

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12HSO2-2675-E1
KEY PART
NO, NO. DESCRIPTION
1493260 Cylinder Assembly
2 399269 Bushing, Cylinder
3 299819 *Seal, Oil
4 493279 Sump, Engine
5 214368 . .Head, Cylinder
7 272916 ** Gasket, Cylinder Head
8 495786 Breather Assembly
9 272481 .... Gasket, Valve Cover
9A 272238 *Gasket, Baffle Plate
10 94650 Screw, Hex Head
11 231933 Tube, Breather
12 272198 * Gasket, Crankcase
13 94547 Screw, Cy_linder Head
15 94720 Plug, Oil Drain
16 498565 Crankshalt
94388 Timing Gear Key
20 399781 * Seal, Oil
22 94220 Screw, Hex Head
94612 Screw, Hex Head
(Used in Hole Nearest
Breather)
23 492177 Flywheel
24 222698 Key, Flywheel
25 499429 Piston Assembly, Standard
Size
499430 Piston Assy, (.010" O.S.)
499431 Piston Assy. (.020" O.S.)
499432 Piston Assy. (.030" O.S.)
26 499425 Ring Set, Piston, Standard
Size
499426 Ring Set (.010" O.S.)
499427 Ring Set (.020" O.S. )
499428 Rin_g Set (.030" O.S.)
27 263190 Lock, Piston Pin
28 499423 Pin, Piston, Standard Size
29 499424 Rod, Connecting
32 94699 Screw, Connecting Rod
33 262651 Valve, Exhaust
34 262652 Valve, Intake
35 262224 Spring, Valve
40 93312 Retainer, Valve Spring
45 262204 Tappet, Valve
46 498275 Gear, Cam
47 493737 Slinger, Oil
KEY PART
NO. NO. DESCRIPTION
51 272199 * Gasket, Intake Elbow
54 94526 Screw, Hex Head
55 4974420 5Housing, Rewind Stader
56 498144 Pulley, Rewind Stader
58 280399 Rope, Rewind Starter
(Cut To 88-5/8")
60 281434 Grip, Starter Rope
65 94696 Screw, Phillips
81 223664 Lock, Muffler Screw
95 94098 Screw, Round Head
104 231371 ** Pin, Float Hinge
110 - -- *** Gasket, Sealing (Sold in Kit
Only)
117 494870 Jet, Main
121 498260 Carburetor Kit
124 94525 Screw, Carburetor Mounting
125 498170 Carburetor
127 - - - ** Plug, Welch (Sold in Kit Only)
130 224908 Valve, Throttle
131 493267 Shaft, Throttle
133 398187 Float, Carburetor
134 398188 Valve, Inlet (Includes Seat
137 --- *** Gasket, Bowl (Sod nKit Ony)
163 272653 * Gasket, Air Cleaner
187 492790 Hose, Fuel
188 398540 Screw, Hex Head
t88A 94644 Screw, Hex Head
202 262579 Link, Governor
209 263044 Spring, Governor
Included in Gasket Set (497316)
Included in Carburetor Kit (498260)
*'* Included in both Carburetor Kit (498260),
and Carburetor Gasket Set (498261)
.... Included in both Gasket Set (497316),
and Valve overhaul Gasket Set (498528).
NOTE: All component dimensions given in U.S.
inches 1 inch = 25,4 mm
40
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 12HS02-2675-E1
KEY PART
NO. NO, DESCRIPTION
227 492349 Lever, Governor
230 67072 Washer, Thrust
258 94512 Screw, Hex Head
284 94511 Screw, Hex Head
300 497838 Muffler, Exhaust
304 493293 Housing, Blower
305 94744 Screw, Seres
306 224324 Shield, Cyfinder
307 94515 Screw, Hex Head
332 94877 Nut, Flywheel
333 802574 Armature, Magneto
334 9473t Screw, Sems
337 802592 Plug, Spark
356 497833 Wire, Ground
356 497316 Gasket Set
363 19069 Puller, Flywheel
383 89839 Wrench, Spark Plug
387 496115 Primer, Carburetor
455 225121 Cup, Starter
456 281503 Retainer, Starter
459 281505 Pawl, Rachet
461 94943 Screw, Shoulder
515 263073 Spring,, Relainer
523 495264 Cap, Oil Filler
524 280393 *Seal, Filler Tube
525 495265 Tube, Oil Fill
529 281299 Grommet
562 94852 Bolt, Governor Lever
572 224328 Baffle, Cylinder
592 231082 Nat, Hex
601 93063 Clamp, Hose
606 224815 Strap, Bracket
608 497680 Starter, Rewind
Includes:
94904 Screw, Hex
94908 Nut, Hex
613 94231 Screw, Hex Head
615 94474 Fastener
616 263175 Crank, Governor
617 270344 **" Seal Intake Elbow
620 499135 Bracket, Carburetor
621 396847 Switch, Stop
625 497465 Tube, Fuel Intake
634 - - - **" Washer, Shaft (Sold in Kit
Only)
KEY PART
NO, NO. DESCRIPTION
635 66538 Elbow, Spark Plug
670 280512 Spacer, Fuel Tan_
670A 493823 •Spacer, Bracket
741 262596 Gear, Timing
842 280966 " Seal, O-Ring
843 272616 Sleeve, Lever
847 495263 Tube Assembly, Oil
851 493880 Terminal, Ignition Cable
869 213512 Seat, Intake Valve
870 213513 Seat, Exhaust Valve
871 262001 Guide, Exhaust Valve
63709 Guide, Intake Valve
922 262640 Spring, Brake
923 493442 Brake Assembly
930 497233 Guard, Finger
957 397974 Cap, Fuel Tank
966 496116 Base, Air Cleaner
967 491588 Filter, Air
968 281340 Cover, Air Cleaner
969 94872 Screw, Hex Head
971 94873 Screw, Hex Head
97tA 94749 Screw, Hex Head
972 495224 Tank, Fuel
975 493640 Bowl, Float
977 496261 Gasket Set, Carburetor
1019 494256 Label Kit, Emission
1095 498258 Gasket Set, Valve Overhaul
2500 12J802-2915 Replacement Engine
---- 498826 Replacement Shortblock
RPM Settings: Low: 1900-2100;
High: 3000-3200
Included in Gasket Set (497316)
Included in Carburetor Kit (498260)
•** fncluded in both Carburetor Kit (498260),
and Carburetor Gasket Set (498261)
**** Included in both Gasket Set (497316),
and Valve overhaul Gasket Set (498528).
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
41
42
43
Get it fixed, at your home or ours!
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOM ESMAnytime,dayor night
(1-800-469-4663)
www.sears.com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 Anytime, day or night
www.sears.com
For the replacement parts, accessories and owner's manuals
that you need 1odo-it-yourself, call Sears PartsDirectSM!
1-800-366-PART 6am- 11p.m.CST,
(t -800-366-7278) 7 days a week
www.sears.com/partsdirect
To purchase or inquire about aSears Service Agreement:
1-800-827-6655
7 a.m.- 5 p.m,CST,Mon.- Sat.
Para pedir servicio de reparacibn a domicifio,
y para ordenar piezas con enirega adomieilio:
1-888-SU-HOGARs.
(1-8881784-6427)
Au Canada pour service en fran_ais:
1-877-LE-FOYER SM
(1-877-533-6937)
SEARS
HomeCentral " }
© Seam, Roebuck and Co ® RegisteredTrademark /T_ Trademark of S_ars, Roebuckand Co,
®Marca Registrada /_. Marca de Fabricade Sears, Roebuckand Co.
175155 08.14.00 Rev.1 VB Printedin U.S,A.

Navigation menu
