Owner's Manual

6.0 HORSEPOWER

21 "MULTI-CUT

ROTARY LAWN MOWER

Model No.

917.389620

• Safety

• Assembly

• Operation

• Maintenance

- Espafiol

•Repair Parts

NOTE: Engines which are certified to comply with CalifomJa and U.S. EPA emission regulations

for SORE (Small Off Road Equipment, are certified to operate on regular unleaded gasoline, and

include the following emission centrol systems: Engine Modification (EM), and Three-way

Catalyst (TWC) (if so equipped).

AVISO: Los motores homek>gados para cumplir con le reglamentaci6n sobre emisiones de

California y de la Agencle de Proteccl6n Ambiental estadeunidence (EPA) para equipos

pequefms no circulentes (SORE) funcionan con gasollea normal sin plomo, e incluyen los

siguientss sistemas de control de emisiones: modificaci6n del motor (EM) y catalizador de triple

acci6n (TWC) (en caso de tenerlo).

The D.O.M. decal includes engine life specifications for the emissions-related useful life period of

_our engine. This period relates to the emission compliance life as certified by EPA/CARB. To

find the/ire pedod specification for your engine, please match one of the following letters with the

letter printed on your D.O.M. decal: (C) 125 hours, (B) 250 hours, (A) 500 hours.

La calcemanfa D.O.M. induye espechlcaciones sobre la dura(;ibn del motor para el pedodo de

vida dtil de su motor relaccionade con emisiones. Este perlodo se relaciona con la duracibn en

conformidad con las emislenes segOn Io certificado por EPNCARB. Para hallar la especificacibn

del perfodo de vide de su motor, mire cudl de las siguientes letras viene impresa en su

celcomanfa D.O.M.: (C) 125 horas, (B) 250 horas, (A) 500 horas.

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equipment

Seam, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website" www.sears,com/craftsman

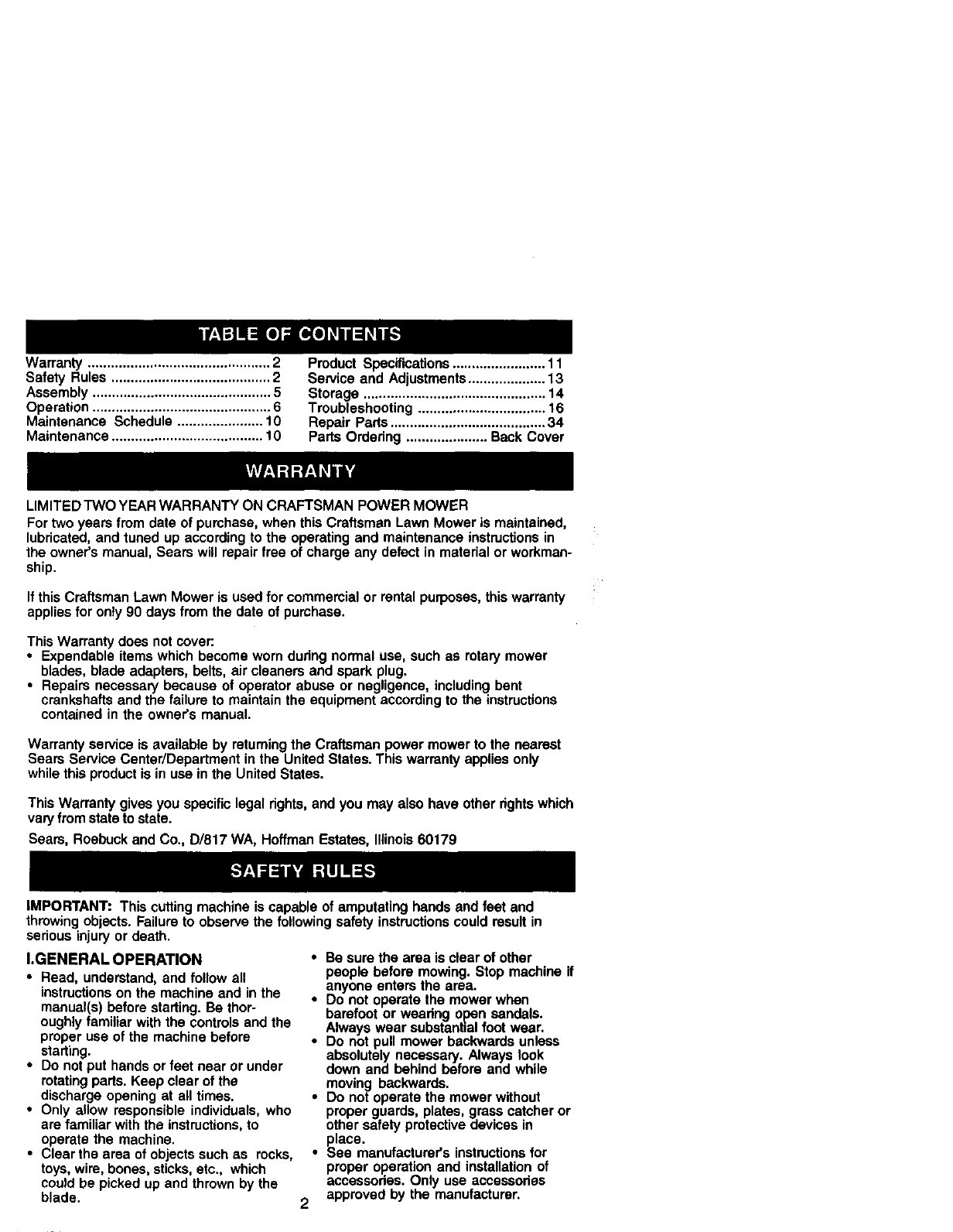

Warranty............................................... 2

Safety Rules ......................................... 2

Assembly ..............................................5

Operation.............................................. 6

Maintenance Schedule...................... 10

Maintenance....................................... 10

ProductSpecifications........................ 11

Sewice and Adjustments.................... 13

Storage ............................................... 14

Troubleshooting................................. 16

Repair Parts........................................34

Parts Ordering..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER

For two years from date of pumhase, when this Craftsman Lawn Mower is maintained,

lubricated, and tuned up according to the operating and maintenance instructions in

the owner's manual, Sears will repair free of charge any defect in material or workman-

ship.

If thisCraftsmanLawnMower is usedfor commercialor rentalpurposes,thiswarranty

appliesfor only90 days from the date of purchase.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as rotary mower

blades, blade adapters, belts, air cleaners and spark plug.

•Repairs necessary because of operator abuse or negligence, including bent

crankshafts and the failure to maintain the equipment according to the instructions

contained in the owner's manual.

Warranty service is available by retuming the Craftsman power mower to the nearest

Sears Service Center/Department in the United States. This warranty applies only

while this product is in use in the United States.

ThisWarrantygivesyouspecificlegal rights,and you may alsohave otherdghtswhich

varyfrom stateto state.

Seam, Roebuckand Co., 1:)/817WA, HoffmanEstates, Illinois60179

IMPORTANT: This cuttingmachineis capable of amputatinghands andfeet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

I.GENERAL OPERATION *

• Read, understand, and follow all

instructions on the machine and in the •

manual(s) before starting. Be thor-

oughly familiar with the controls and the

proper use of the machine before .

starting.

• Do not put hands or feet near or under

rotating parts, Keep clear of the

discharge opening at all times. •

•Only allow responsible individuals, who

are familiar with the instructions, to

operate the machine.

•Clear the area of objects such as rocks, •

toys, wire, bones, sticks, etc., which

could be picked up and thrown by the

blade. 2

Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

Do not operate the mower when

barefoot or wearing open sandals.

Always wear substantla"I foot wear.

Do not pull mower backwards unless

absolutely necessary. Always look

down and behind before and while

moving backwards.

Do not operate the mower without

proper guards, plates, grass catcher or

other safety protective devices in

,_lace.

ee manufacturer's instructions for

proper operation and installation of

accessories. Only use accessories

approved by the manufacturer.

• Stoptheblade(s)whencmseinggravel •

ddvas, walks, or roads.

• Stop the engine (motor) whenever you

leave the equipment, before cleaning •

the mower or unclogging the chute.

• Shut the engine (motor) off and wait •

until the blade comes to complete stop

before removing grass catcher.

= Mow only in d_ight or good artificial

light.

•Do not operate the machine while

under the influence of alcohol or drugs.

•Never operate machine in wet grass.

Always be sure of your footing: keep a

firm hold on the handle and walk; never

run.

•Disengage the self-propelled mecha-

nism or drive clutch on mowers so

equipped before starling the engine

(motor).

•If the equipment should stad to vibrate

abnormally, stop the engine (motor)

and check immediately for the cause.

Vibration is generally a warning of

trouble.

•Always wear safety goggles or safety

glaSSes with side shields when

operating mower.

II, SLOPE OPERATION

Slopes are a major factor related to slip

and fall accidents which can result in

severe injury. All slopes require extra

caution. If you feel uneasy on aslope, do

r_otmow iL

DO:

•Mow across the face of slopes: never

up and down. Exercise extreme caution

when changing direction on slopes.

•Remove obstacles such as rocks, tree

limbs, etc.

•Watch for holes, ruts, or bumps. Tall

grass can hide obstacles.

DO NOT:

•Do not trim near drep-offs, ditches or

embankments. The operator could lose

footing or balance.

•Do not tdm excessively steep slopes.

• Do not mow on wet grass. Reduced

footing could cause slipping.

III. CHILDREN

Tragic accidents can occur if the operator

is not sled to the presence ot children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

Keep children out of the trimming area

and under the watchful care of another

responsible adult.

Be alert and tum machine off if children

enter the area.

Before and while walking backwards,

It>ok behind and down for small

children.

•Never allow children to operate the

machine,

•Use extra care when approaching blind

comerS, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Usa extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

-Never store the machine or itJel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Never =make adjustments or repairs with

the engine (motor) running. Disconnect

the spark plug wire, and keep the wire

away trom the plug to prevent acciden-

tal starting.

•Keep nuts and bolts, especially blade

attachment botts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debds build-up. Clean 0il or fuel

spillage. Allow machine to c001 before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restading.

* Never attempt to make wheel height

adjustments while the engine (motor) is

running.

• Grass catcher components are subiect

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary,

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Do not change the engine governor

3 setting or ovarspead the engine.

_,Look for this symbol to point out

important safety precautions. It means

CAUTIONIH BECOMEALERT!H YOUR

SAFETY IS INVOLVED.

ACAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

A CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine

has stopped. To avoid severe burns on

contact, stay away from these areas.

AIWARNING: Engine exhaust, some of its

constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other

reproductive harm.

AWARNING: Battery posts, terminals end

related accessories contain lead and lead

compounds, chemicals known to the State

of Califomia to cause cancer and birth

defects or other reproductive harm. Wash

hands after handling.

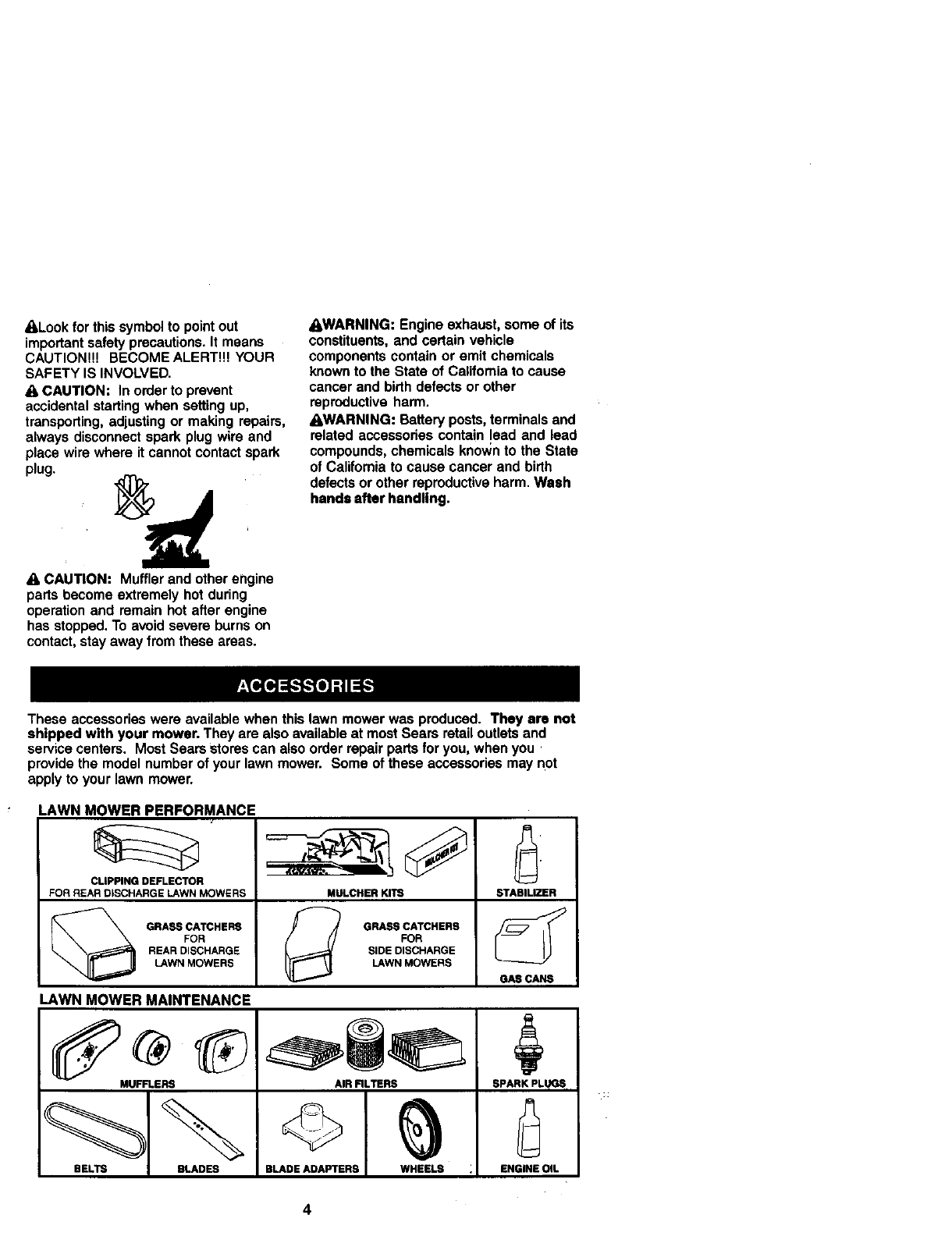

These accessories were available when this lawn mower was produced. They ere not

shipped with your mower. They are also available at most Sears retail outlets and

service centers. Most Sears stores can also order repair parts for you, when you

provide the model number of your lawn mower. Some of these accessories may not

apply to your lawn mower.

LAWN MOWER PERFORMANCE

CLIPPING DEFLECTOR

FOR HEAH DISCHARGE LAWN MOWERS

GRASS CATCHERS

FOR

REAR DISCHARGE

LAWN MOWERS

MULCHER _TS

GRASS CATCHERS

FOR

SIDE DISCHARGE

LAWN MOWERS

STABILIZER

GAS CANS

LAWN MOWER MAINTENANCE

MUFFLERS

BELTS BLADES

AIR FILTERS

BLADE ADAPTERS WHEELS

SPARK PLUGS

ENGINE OIL

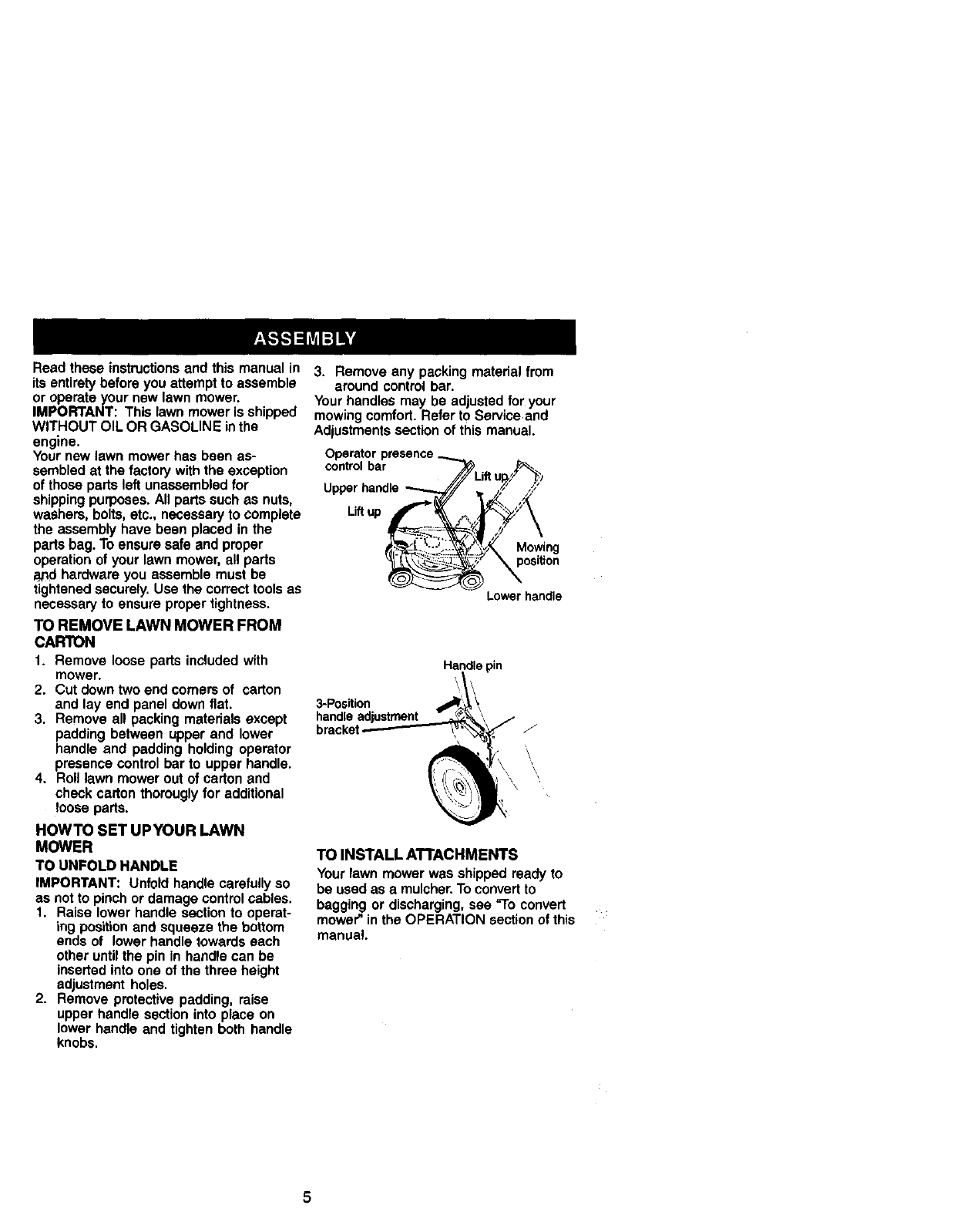

Read these instructionsand this manualin 3. Remove any packingmaterialfrom

itsentiretybeforeyou attemptto assemble

or operateyour new lawn mower.

IMPORTANT: This lawnmoweris shipped

WITHOUT OIL OR GASOLINE inthe

engine.

Yournew lawn mowerhas been as-

sembledat the factorywiththe exception controlbar

of thosepartsleft unassembledfor Upperhandle

shippingpurposes.All partssuchas nuts,

washers,bolts,etc., necessaryto complete Liftup

the assemblyhave been placed inthe

partsbag. Toensuresafe and proper

operationof your lawnmower,all parts

_nd hardwareyou assemblemustbe

tightenedsecurely.Use the correcttoolsas

necessaryto ensure propertightness.

TO REMOVE LAWN MOWER FROM

CARTON

1. Removeloose parts includedwith

mower.

2. Cutdowntwo end comersof carton

and lay end panel down flat. 3-Position

3. Removeall packingmaterialsexcept handleadjustment

paddingbetweenupper and lower bracket

handleend paddingholdingoperator

presencecontrolbar to upperhandle.

4. Rolllawn moweroutof cartonand

checkcarton thorouglyfor additional

looseparts.

HOWTO SET UPYOUR LAWN

MOWER

TO UNFOLD HANDLE

IMPORTANT: Unfold handle carefully so

as not to pinch or damage control cables.

1. Raise lower handle section to operat-

ing position and squeeze the bottom

ends of lower handle towards each

other until the pin in handle can be

inserted into one of the three height

adjustment holes,

2. Remove protective padding, raise

upper handle section into place on

lower handle and tighten both handle

knobs.

around control bar.

Your handles may be adjusted for your

mowing comfort. Refer to Service and

Adjustments section of this manual.

Mowing

Lower handle

Handle pin

TO INSTALL ATTACHMENTS

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging, see 'To convert

mower" in the OPERATION section of this

manual.

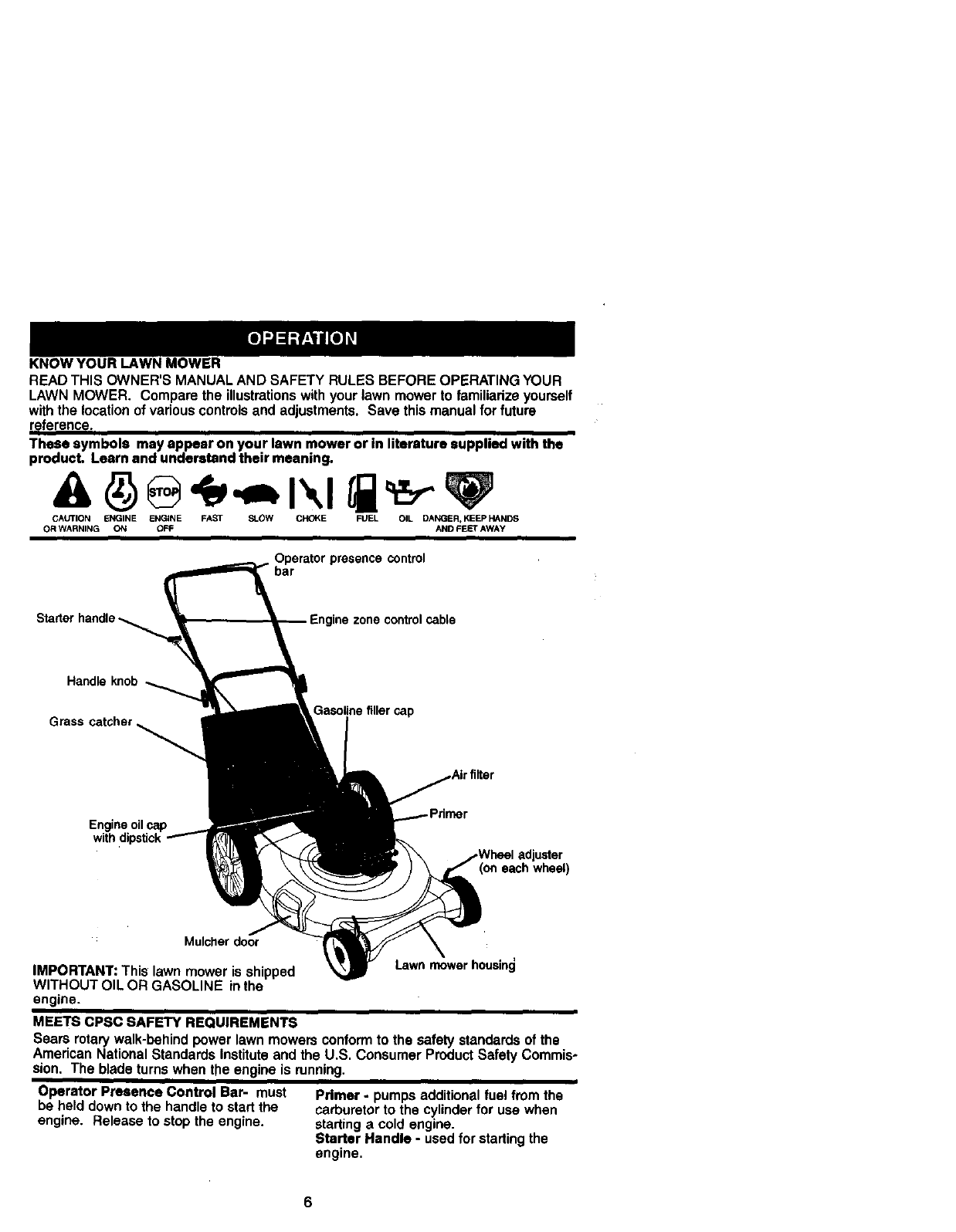

KNOWYOURLAWNMOWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself

with the location of various controls and adjustments. Save this manual for future

reference.

These symbols may appear on your lawn mower or In literature supplied with the

product. Learn and understand their meaning.

CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HANDS

OR WARNING ON OFF AND FEET AWAY

•Operator presence control

bar

Handle knob

Grass Gasoline filler cap

Engineoilcap

with.dipstick

(on each wheel)

Mulcher door

IMPORTANT: This lawn mower is shipped

WITHOUT OIL OR GASOLINE in the

engine.

Lawn mowerhousincJ

MEETS CPSC SAFETY REQUIREMENTS

Sears rotary walk-behind power lawn mowers conform to the safety standards of the

American National Standards Institute and the U.S. Consumer Product Safety Commis*

sion. The blade turns when the engine is running. i

Operator Presence Control Bar- must Primer - pumps additional fuel from the

be held down to the handle to start the carburetor to the cylinder for use when

engine. Release to stop the engine, starting a cold engine.

Starter Handle - used for starting the

engine•

The operationof any lawn

mowercan resultin

foreignobjectsthrowninto

the eyes, whichcan result

in severe eye damage.

Alwayswear safetyglassesor eye

shieldswhile operatingyour lawn mower

or performinganyadjustmentsor repairs.

We recommenda widevisionsafety

maskover spectaclesor standardsafety

glasses, '

HOWTO USEYOUR LAWN MOWER

ENGINE SPEED

The engine speed was set at the factory

for optimum performance. Speed is not

adjustable.

ENGINE ZONE CONTROL

a_nCAUTION: Federal regulations require

engine control to be installed on this

lawn mower in order to minimize the risk

of blade contact injury. Do not under any

cimumstances attempt to defeat the

function of the operator control. The blade

turns when the engine is running.

•Your lawn mower is equipped with an

operator presence control bar which

requires the operator to be positioned

behind the lawn mower handle to start

and operate the lawn mower.

TO ADJUST CUTTING HEIGHT

Raise wheels for low cut and lower

wheels for high cut, adjust cutting height

to suit your requirements. Medium

position is best for most lawns.

• To change cutting height, squeeze

adjuster lever toward wheel. Move

wheel up or down to suit your require-

ments. Be sure all wheels are in the

same setting.

NOTE: Adjuster is propedy positioned

when plate tab inserts into hole in lever.

Also, 9*position adjusters (if so equipped)

allow lever to be positioned between the

p_atetabs.

Lower Wheelsfor HighCut

Pla_

RaiseWheels for Low Cut

TO CONVERT MOWER

Your lawn mower was shipped ready to

be used as a mulcher. To convert to

bagging or discharging:

REAR BAGGING

•Lift rear door of the lawn mower and

place the grass catcher frame hooks

onto the door pivot pins.

•To convert to mulching or discharging

operation, remove grass catcher and

close rear door.

Pivotpins "_, _ _

SIDE DISCHARGING

•Rear door must be closed.

•Open mulcher door and install dis-

ct'iarge deflector under guard as

shown.

•Mower is now ready for discharging

operation.

•To convert to mulching or bagging

operation, discharge deflector must be

removed and mulcher door must be

closed.

SIMPLE STEPS TO REMEMBER WHEN

CONVERTING YOUR LAWN MOWER

FOR MULCHING-

1. Rear door closed.

2. Mulcher door closed.

FOR REAR BAGGING -

1. Grass catcher installed.

2. Mulcher door closed.

FOR SIDE DISCHARGING -

1. Rear door closed.

2. Side discharge deflector installed.

_I_CAUTION: Do not run your lawn

mower without rear door closed or

approved grass catcher in place.

Never attempt to operate the lawn mower

with the rear door removed or propped

open.

Mulcher

door

Open

Mulcher Door

Discharge

deflector

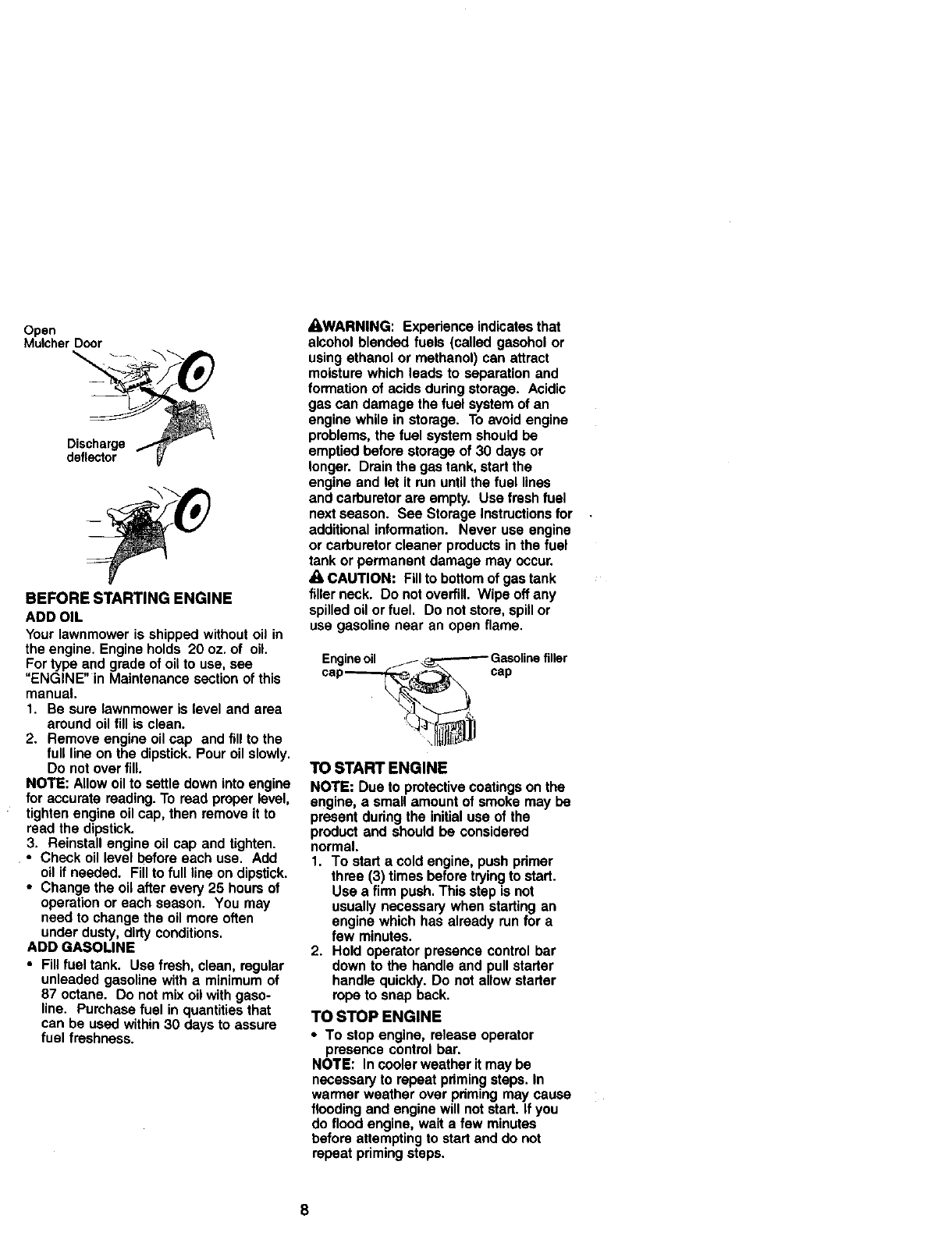

BEFORE STARTING ENGINE

ADD OIL

Yourlawnrnoweris shippedwithoutoil in

the engine. Engineholds 20 oz. of oil.

For type and gradeof oil to use,see

"ENGINE" in Maintenancesectionof this

manual.

1. Be sure lawnmoweris leveland area

aroundoil fill is clean.

2. Removeengineoil cap and fill to the

full lineon the dipstick.Pouroil slowly.

Do notoverfill.

NOTE: Allowoilto settledown intoengine

for accuratereading.To read properlevel,

tightenengineoil cap, then removeit to

readthe dipstick.

3. Reinstallengine oil cap and tighten.

• Check oil level beforeeach use. Add

oil if needed. Fillto fullline ondipstick.

•Changethe oil after every 25 hoursof

operationor each season. You may

need to changethe oil moreoften

underdusty,dirtyconditions.

ADD GASOLINE

•Fillfueltank. Use fresh, clean, regular

unleadedgasolinewith a minimumof

87 octane. Do not mix oil withgaso-

line. Purchasefuel in quantitiesthat

can be usedwithin30 daysto assure

fuel freshness.

AWARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids dudng storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

Engineoil cap

TO START ENGINE

NOTE: Due to protective coatings on the

engine, a small amount of smoke may be

present during the initial use of the

product and should be considered

normal.

1, To start a cold engine, push primer

three (3) times before trying to start.

Use a firm push, This step is not

usually necessary when starting an

engine which has already run for a

few minutes.

2. Hold operator presence control bar

down to the handle and pull starter

handle quickly. Do not allow starter

rope to snap back.

TO STOP ENGINE

•To stop engine, release operator

presence control bar.

NOTE: In cooler weether it may be

necessary to repeat priming steps. In

warmer weather over priming may cause

flooding and engine will not start. If you

do flood engine, wait a few minutes

before attempting to start and do not

repeat priming steps.

MOWING TIPS

• Under certain conditions, such as very

tall grass, it may be necessary to raise

the height of cut to reduce pushing

effort and to keep from ovedoading the

engine and leaving clumps of grass

clippings. It may also be necessary to

reduce ground speed and/or run the

lawn mower over the area a second

time.

•For extremely heavy cutting, reduce the

width of cut by ovedapping previously

cut path and mow slowly.

•For better grass bagging and most

cutting conditions, the engine speed

should be set in the fast position.

•Pores in cloth grass catchers can

become filled with dirt and dust with use

and catchers will collect less grass. To

prevent this, regularly hose catcher off

with water and let dry before using.

•Keep top of engine around starter clear

and clean of grass clippings and chaff.

This will help engine air flow and

extend engine life,

MULCHING MOWINGTIPS

IMPORTANT: Forbest performance,

keep mowerhousingfree of built-up

grassandtrash.Clean UNDERSIDE OF

MOWER HOUSING after each use.See

"Cleaning"in MAINTENANCE sectionof

this manual.

•The special mulchingblade will recut

the grassclippingsmanytimes and

reducethem insize so that as they fall

ontothe lawnthey will disperseintothe

grassand notbe noticed.Also,the

mulchedgrasswill biodegradequickly

to providenutrientsforthe lawn.

Always mulchwithyour highestengine

(blade) speed as this willprovidethe

best recuttingactionof the blades.

•Avoidcuttingyour lawnwhen it is wet.

Wet grasstendsto formclumpsand

interfereswiththe mulching action.The

besttime to mow your lawnis the early

afternoon.At thistimethe grasshas

driedand the newlycut area will notbe

exposedto the directsun.

•For best results,adjustthe lawn mower

cuttingheightso that the lawn mower

cutsoff onlythe topone-thirdof the

grass blades.If the lawnis overgrownit

will be necessaryto raisethe heightof

cut to reducepushingeffortandto keep

from overloadingthe engineand

leavingclumpsof mulchedgrass. For

extremelyheavy mulching,reduceyour

widthof cut, mow slowlyand raise

the rear of the lawn mowerone wheel

adjustersettinghigherthanthe front,

•Certaintypes of grassand grass

conditionsmay requirethat an area be

mulcheda secondtime to completely

hide the clippings.When doinga

secondcut, mow acrossor perpendicu-

lar to thefirstcut path.

•Change yourcuttingpatternfromweek

to week. Mow north to southone week

then changeto eastto westthe next

week. This will help preventmatting

and grainingof the lawn.

Max 1/3

,'1 O_ _ _/_

REGULAR SERVICE _ICE OATES

Check for Loose Fasteners _

Claan/Inspact Grass Catcher

(IfE_l.p_) I/ ,/ !/

M Clean Lawn Mower I_ I_

O Clean Under Ddve Cover

(Power-PrOpelledMowers)

Check dttve belt/pulleys

_R Power-PrOpelledMowers) li/

Check/Sharpen/ReplaCe Blade I1_ =

LubricationChart I_

Clean BtatePj/Rechal

Bectdc Start Mowers ll_ I/4

ECheck En_llneOil Level ql/

aChange EnglneOil I/'1._

S Clean Air Fitter I_ =

IInspect Muffler I_

NClean or Replace Spark Plug I1_

E Replace Air Rltar Paper Cartddge I_2

I. Change more OR_ when ¢peraUng under a Ilia W load or in h_gh afnblent temperatures.

2 "Serv_cl more olten when operatingindirtyor dusty _ndit_ns.

3- Replace t>_:1_ more often whe_ r_mWlngin sandyso_l.

4. Charge 48 hours at ee,d of seasor_, LUBRICATION CHART

GENERAL RECOMMENDATIONS

The warranty on this lawn mower does

not cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

operator must maintain mower as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

unit.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

• Once e year,; replace the spark plug,

clean or replace air filter element and

check blade for wear. A new spark

plug and clean/new air filter element

assures proper air-fuel mixture and

helps your engine run better and last

longer.

•Follow the maintenance schedule in

this manual.

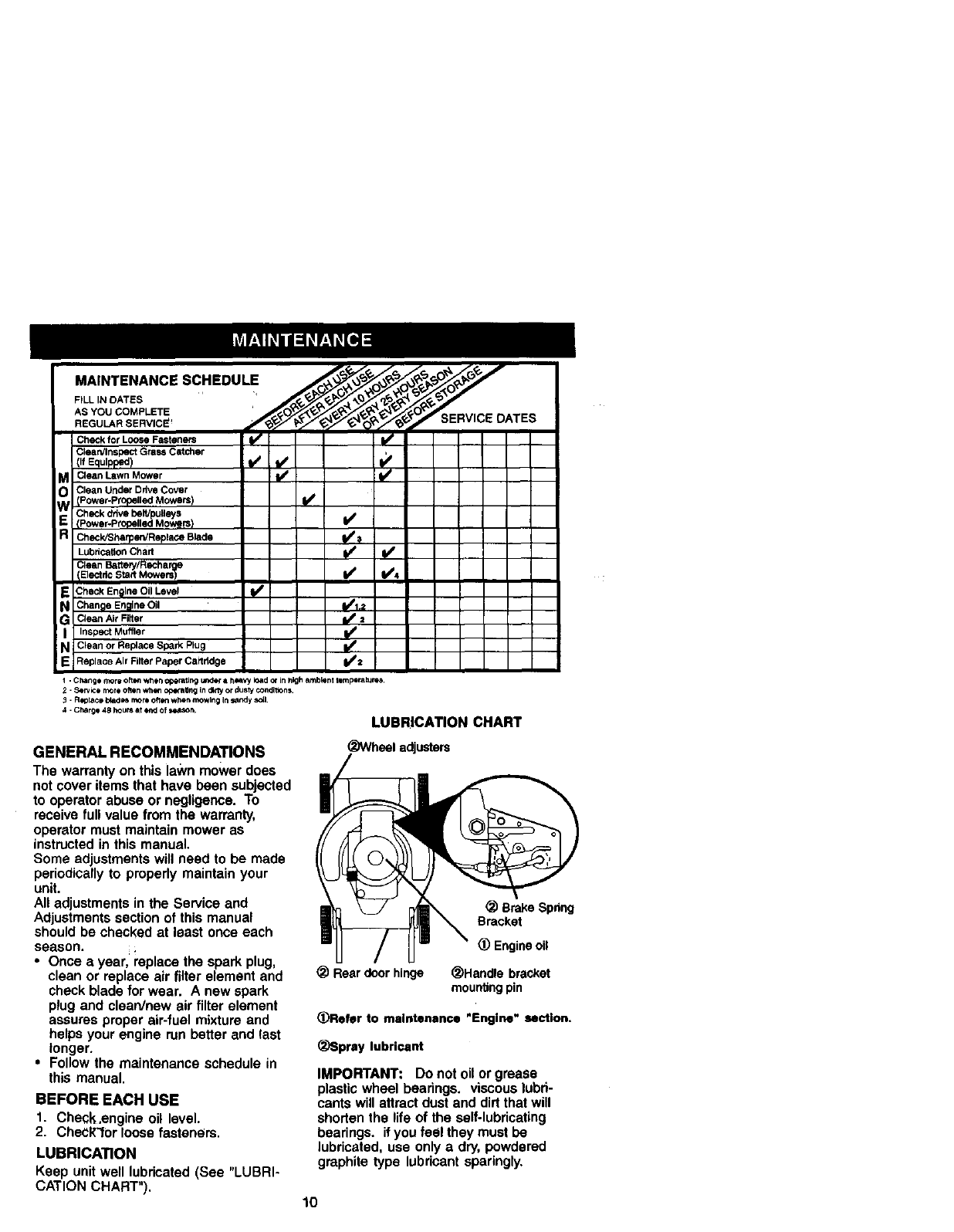

BEFORE EACH USE

1. Check .engine oil bevel,

2. Check'_f0r loose fasteners,

LUBRICATION

Keep unit well lubricated (See "LUBRI-

CATION CHART"),

_Nheela_u_ers

Brake Spring

Bracket

_) Engine oil

Rear door hinge _Handle bracket

mounting pin

_)Refar to maintenance "Engine" section.

_Sprey lubricant

IMPORTANT: Donot oilor grease

plasticwheel bearings, viscouslubri-

cants willattractdustend dirtthatwill

shortenthe lifeof the self-lubricating

bearings, ifyou feel they mustbe

lubricated,use only a dry, powdered

graphitetype lubricantsparingly.

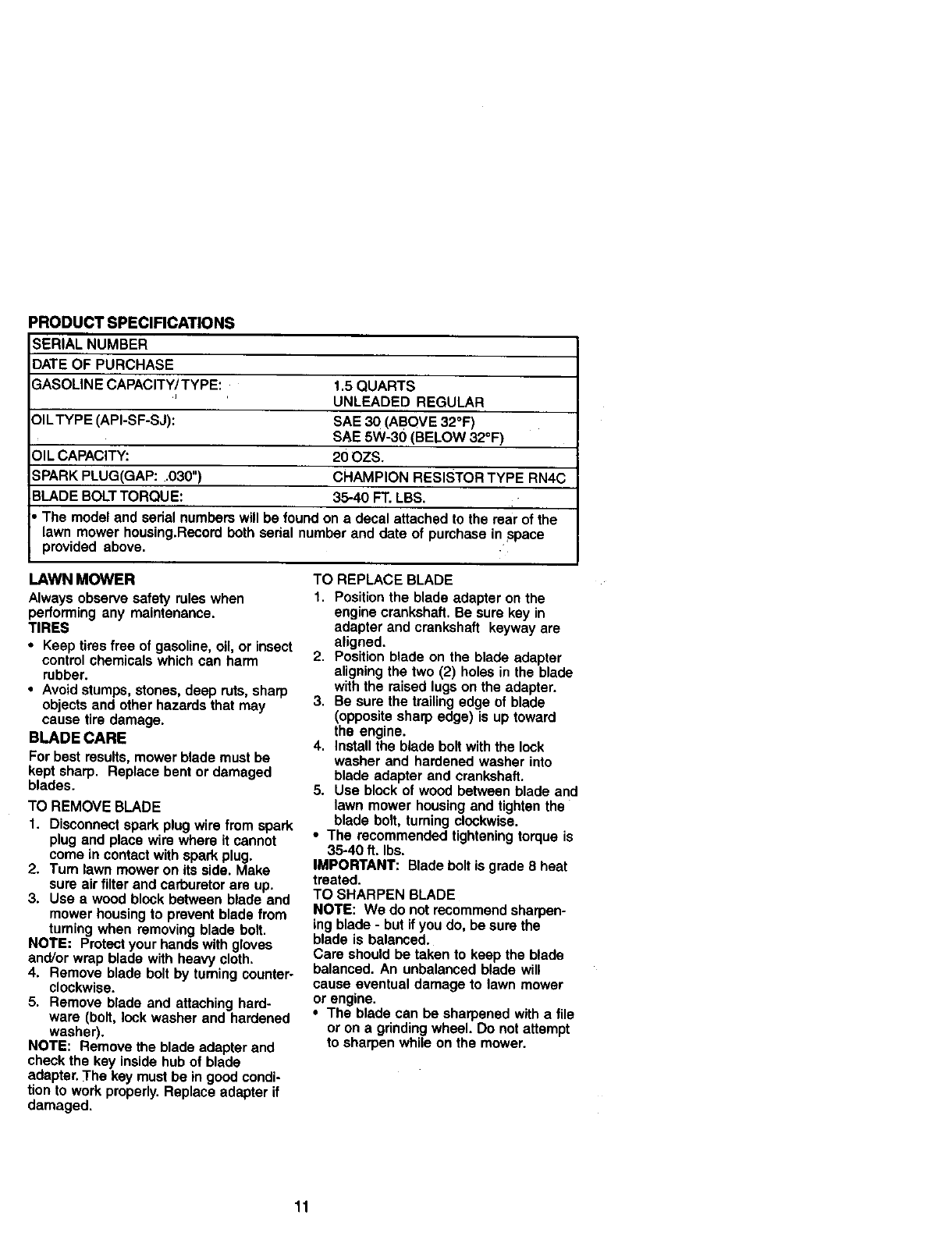

PRODUCT SPECIFICATIONS

SERIAL NUMBER

DATE OF PURCHASE

GASOLINE CAPACITY/TYPE: 1.5 QUARTS

UNLEADED REGULAR

OILTYPE (API-SF-SJ): SAE 30 (ABQVE 32°F)

SAE 5W-30 (BELOW 32°F)

OIL CAPACITY: 20 OZS.

SPARK PLUG(GAP: .030") CHAMPION RESISTOR TYPE RN4C

BLADE BOLT TORQUE: 35-40 FT. LBS.

•The model and serial numbers will be found on a decal attached to the rear of the

lawn mower housing.Record both serial number and date of purchase in space

provided above.

LAWN MOWER

Always observe safety rules when

performing any maintenance.

TIRES

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

•Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

BLADE CARE

For best results, mower blade must be

kept sharp. Replace bent or damaged

blades.

TO REMOVE BLADE

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

2. Tum lawn mower on its side. Make

sure air filter and carburetor are up.

3. Use a wood block between blade and

mower housing to prevent blade from

turning when removing blade bolt.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

4. Remove blade bolt by turning counter-

clockwise.

5. Remove blade and attaching hard-

ware (bolt, lock washer and hardened

washer).

NOTE: Remove the blade adapter and

check the key inside hub of blade

adapter, The key must be in good condi-

tion to work properly. Replace adapter if

damaged.

TO REPLACE BLADE

1. Position the blade adapter on the

engine crankshaft. Be sure key in

adapter and crankshaft keyway are

aligned.

2. Position blade on the blade adapter

aligning the two (2) holes in the blade

with the raised lugs on the adapter.

3. Be sure the trailing edge of blade

(opposite sharp edge) is up toward

the engine.

4. Install the blade bolt with the lock

washer and hardened washer into

blade adapter and crankshaft.

5. Use block of wood between blade and

lawn mower housing and tighten the

blade bolt, turning clockwise.

•The recommended tightening torque is

35-40 ft. Ibs.

IMPORTANT: Blade bolt is grade 8 heat

treated.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause eventual damage to lawn mower

or engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check bladebalance, drivea nail

intoa beam or wall. Leave aboutone

inchof the straightnailexposed.Place

centerhole of blade overthe headof

the nail. If blade is balanced,it should

remain ina horizontalposition.If either

end ofthe blade moves downward,

sharpenthe heavy end untilthe blade

is balanced.

Key_

bolt \Tr

Hardened

washer

Blade

adapter

_shaft

ling Bladeadapter

edge

GRASS CATCHER

• The grass catcher may be hosed with

water, but must be dry when used.

•Check your grass catcher often for

damage or deterioration. Through

normal use it will wear. If catcher needs

replacing, replace only with a manufac-

turer approved replacement catcher.

Give the lawn mower model number

when ordering.

ENGINE

LUBRICATION

Use only high quality detergent oil rated

with API service classification SF-SJ,

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-visc0sity oils

will result in increased oil consumption

when used above 32°I=. Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

lawn mower is not used for 25 hours in

one_eer.

Check the crankcase oil level before

starting the engine and after each five (5)

hours of continuous use. Tighten oil plug

securely each time you check the oil

level.

TO CHANGE ENGINE OIL

NOTE: Before tipping lawn mower to

drain oil, drain fuel tank by running

engine until fuel tank is empty.

1. Disconnect spark plug wire from spark

plug and place wire where it cannot

come in contact with spark plug.

2. Remove engine oil cap; lay aside on a

clean surface.

3. Tip lawn mower on its side as shown

and drain oil into a suitable container.

Rock lawn mower back and forth to

remove any oil trapped inside of

engine.

4. Wipe off any spilled oil on lawn mower

and on side of engine.

5. Fill engine with oil. (See "Add Oil" in

the Operecion section of this manual.)

6. Reconnect spark plug wire to spark

plug.

AIR FILTER

Your enginewill not run properlyand may

be damaged by usinga dirtyair filter.

Replacethe airfilter everyyear or after

every 100 hoursof operation,more often

if youmow in very dusty,dirtyconditions.

Do notwash air filter.

TO CHANGE AIR FILTER

1. Removethe air filter by turning

clockwiseto the stopand pullaway

from collar.

2. Removefilterfrominsideof cover.

3. Clean the insideofthe coverand the

collarto removeany dirt accumula-

tion.

4. Insertnew filterintocover.

5. Put airfilter coverand filter intocollar

aligningthe tabwiththe slot.

6. Pushin on coverand rumcounter-

clockwiseto tighten.

Turn

Collar Clip clockwise to

remove

Airfilter

Air filtercover Turn counter-

clockwiseto

tighten

MUFFLER

Inspect and replace corroded muffler as it

could create a fire hazard and/or dam-

age.

SPARK PLUG

Replace spark plug at the beginning of

each mowing season or after every 100

hours of operation, which ever occurs

first. Spark plug type and gap setting are,,

shown in PRODUCT SPECIFICATIONS

section of this manual.

CLEANING

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean the underside of

your mower after each use.

_CAUTION: Disconnect spark plug wire

from spark plug and place wire where it

cannot come in contact with the spark

plug.

• Clean the underside of your lawn

mower by scraping to remove build-up

of grass and trash.

• Clean engine often to keep trash from

accumulating. A clogged engine runs

hotter and shortens engine life.

•Keep finished surfaces and wheels free

of all gasoline, oil,etc.

•We do not recommend using a garden

hose to clean lawn mower unless the

electrical system, muffler, air filter and

carburetor are covered to keep water

out. Water in engine can result in

shortened engine life.

ACAUTION: Before performing any '

service or adjustments:

1. Release control bar and stop engine.

. 2. Make sure the blade and all moving

parts have completely stopped.

3. Disconnect spark plug wire from spark

plug and place where it cannot come

in contact with plug.

LAWN MOWER

TO ADJUST cu'n'ING HEIGHT

See 'TO ADJUST CUTTING HEIGHT" in

the Operation section of this manual.

REAR DEFLECTOR

The rear deflector, attached between the

rear wheels of your mower, is provided to

minimize the possibility that objects will

be thrown out of the rear of the mower

intd the operator mowing position. If the

deflector becomes damaged, it should be

replaced.

TO ADJUST HANDLE

The handle on your lawn mower has

three (3) height positions - adjqst to

height that suits you.

•Squeeze the bottom ends of lower

handle towards each other until the pin

in handle can be inserted into one of

the three height adjustment holes.

Lo_ pin

adjustment

bracket

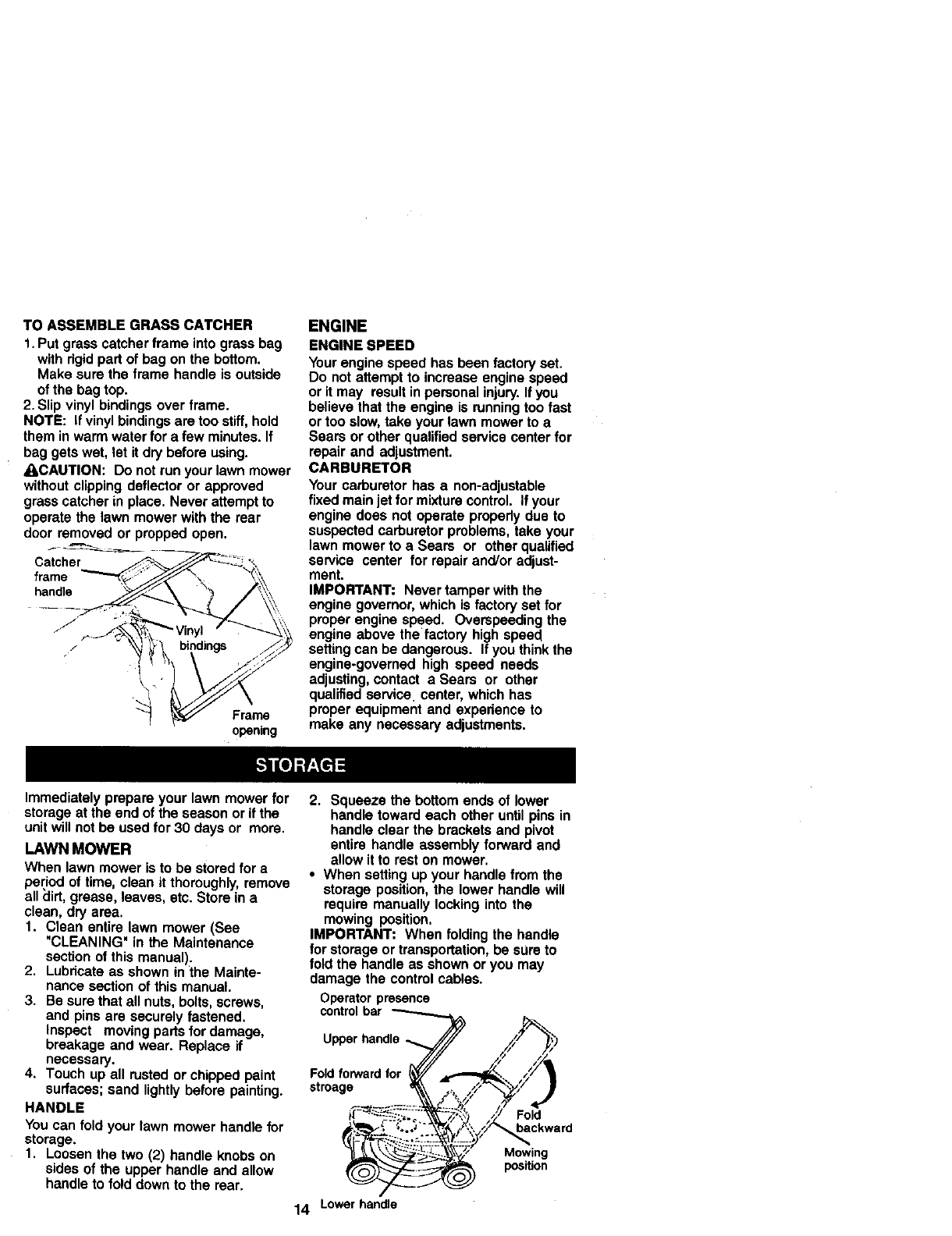

TO ASSEMBLE GRASS CATCHER

1. Put grass catcher frame into grass bag

with dgid part of bag on the bottom.

Make sure the frame handle is outside

of the bag top.

2. Slip vinyl bindings over frame.

NOTE: If vinyl bindings are too stiff, hold

them in warm water for afew minutes. If

bag gets wet, let it dry before using.

ACAUTION: Do not run your lawn mower

without clipping deflector or approved

grass catcher in place. Never attempt to

operate the lawn mower with the rear

door removed or propped open.

Catcher

frame

handle

Frame

opening

ENGINE

ENGINE SPEED

Yourenginespeed has been factoryset.

Do notattempt to increase enginespeed

orit may resultin personalinjury.If you

believethat the engineis runningtoo fast

ortooslow,take yourlawn mowerto a

Sears or other qualifiedservicecenterfor

repairand adjustment.

CARBURETOR

Yourcarburetorhas a non-adjustable

fixedmainjet formixture control, if your

enginedoes not operateproperlydue to

suspectedcarburetorproblems,take your

lawnmowerto a Sears or other qualified

service center for repairand/oradjust-

ment.

IMPORTANT: Nevertamperwiththe

enginegovernor,which is factorysetfor

properenginespeed. Overspeedingthe

engineabove the factory highspeed

settingcan be dangerous. If youthinkthe

engine-governedhigh speed needs

adjusting,contact a Sears or other

qualifiedservice center,which has

properequipmentand experienceto

make any necessaryadjustments.

Immediately prepare your lawn mower for

storage at the end of the season or if the

unit will not be used for 30 days or more.

LAWN MOWER

When lawn mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire lawn mower (See

'CLEANING' in the Maintenance

section of this manual).

2, Lubricate as shown in the Mainte-

nance section of this manual.

3. Be sure that all nuts, bolts, screws,

and pins are securely fastened.

Inspect moving parts for damage,

breakage and wear. Replace if

necessary.

4. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

HANDLE

You can fold your lawn mower handle for

storage.

1. Loosen the two (2) handle knobs on

sides of the upper handle and allow

handle to fold down to the rear,

2. Squeeze the bottom ends of lower

handle toward each other until pins in

handle clear the brackets and pivot

entire handle assembly forward and

allow it to rest on mower.

•When setting up your handle from the

storage position, the lower handle will

require manually locking into the

mowing position,

IMPORTANT: When folding the handle

for storage or transportation, be sure to

fold the handle as shown or you may

damage the control cables.

Operator presence

controlbar _ _/_)

Upperhandle ._/

Fold forwardfor _ _ :. ."Y/'

stroage .... .._,/%_ ,"_ J

=_ -_ . (_/ _ckward

_position

14 Lower handle

Med

Low. pin

3-Position

handle

adjustment

bracket

ENGINE

FUELSYSTEM

IMPORTANT:ItisimLoortanttoprevent

gumdepositsfromforminginessential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, expedence indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

altemative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer,

ENGINEOIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29 ml) of oil through

spark plug hole into cylinder.

3. Pull starter handle slowly a few times

to distdbute oil.

4. Replace with new spark plug.

OTHER

• Do not store gasoline from one

season to another.

•Replace your gasoline can if your

can starts to rust. Rust and/or dirt in

your gasqline will cause problems.

•If possible, store your unit indoors

and cover it to give protection from

dust and dirt.

•Cover your unit with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your unit

to rust.

IMPORTANT: Never cover mower while

engone and exhaust areas are still

warm.

ACAUTION:Never store the lawn

mower with gasoline in the tank inside

a building where fumes may reach an

open flame or spark. Allow the engine

to cool before storing in any enclosure.

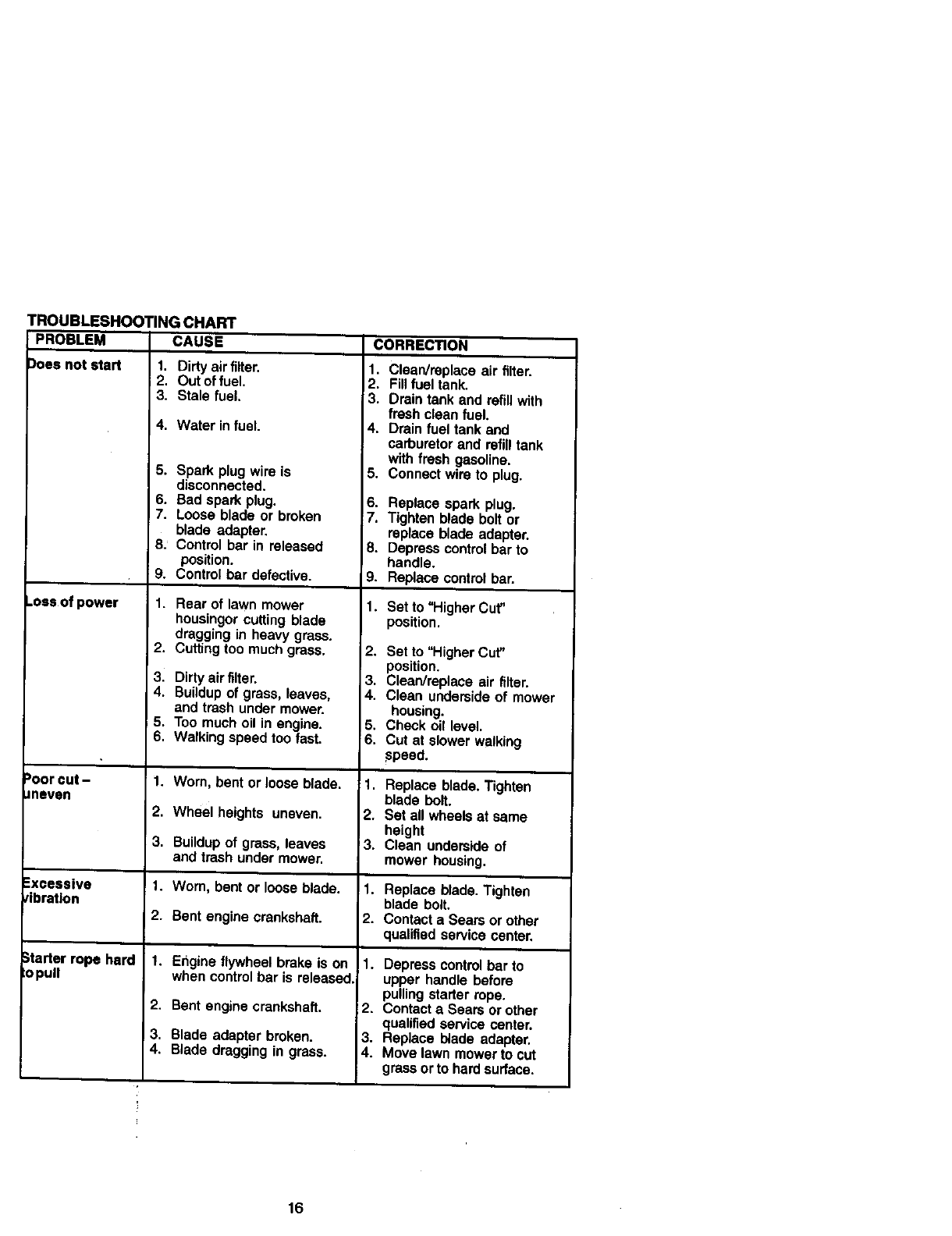

TROUBLESHOOTING CHART

PROBLEM CAUSE

)oes not start 1. Dirty air filter.

2. Out of fuel.

3. Stale fuel.

4. Water in fuel.

5. Spark plug wire is

disconnected.

6. Bad spark plug.

7. Loose blade or broken

blade adapter.

8. Control bar in released

position.

9. Control bar defective.

1. Rear of lawn mower

housingor cutting blade

dragging in heavy grass.

2. Cutting too much grass.

3. Dirty air filter.

4. Buildup of grass, leaves,

and trash under mower.

5. Too much oil in engine.

6. Walking speed too fast.

1. Worn, bent or loose blade.

2. Wheel heights uneven.

3. Buildup of grass, leaves

and trash under mower.

.oss of power

Poor cut -

Jneven

CORREC'nON

1. Clean/raplace air filter.

2. Fillfueltank.

3. Draintank and refillwith

fresh cleanfuel.

4. Drain fuel tank and

carburetorand refilltank

withfresh gasoline.

5. Connectwireto plug.

6. Replace spark plug.

7. Tighten blade bolt or

replace blade adapter.

8. Depress control bar to

handle.

9. Replace control bar.

1. Setto "Higher Cut"

position.

2. Set to "Higher Cut"

position.

3. Clean/replace air filter.

4. Clean underside of mower

housing.

5. Check oil level.

6. Cut at slower walking

rSpeed.

1. Replace blade. Tighten

blade bolt.

2. Set allwheelsat same

height

3. Clean undersideof

mower housing.

Excessive 1. Worn. bent or loose blade. 1. Replace blade. Tighten

vibration blade bolt.

2. Bent engine crankshaft. 2. Contact a Sears or other

qualified service center.

_oterter rope hard 1. Engine flywheel brake is On

pull when control bar is released.

2. Bent engine crankshaft.

3. Blade adapter broken.

4. Blade dragging in grass.

1. Depress control bar to

upper handle before

pulling starter rope.

2. Contact a Sears or other

qualified service center.

3. Replace blade adapter.

4. Move lawn mower to cut

grass or to hard surface.

TROUBLESHOOTINGCHART

PROBLEM CAUSE CORRECTION"'

._msscatcher 1. Cuttingheighttoo low. 1. Raise cuttingheight.

iotfilling (ifso 2. Lifton bladeworn off. 2. Replace blade.

.:lulpped) 3. Catcher notventingair. 3. Clean grasscatcher.

tard to push 1. Raise cuttingheight.

1. Grass is too high or wheel

height is too low.

2. Rear of lawn mower

housing or blade dragging

in grass.

3. Grass catcher too full.

4. Handle height position not

rightfor you,

2. Raise rear of lawn mower

housing one (1) setting

higher.

3. Empty grass catcher.

4. Adjust handle height to

suit,

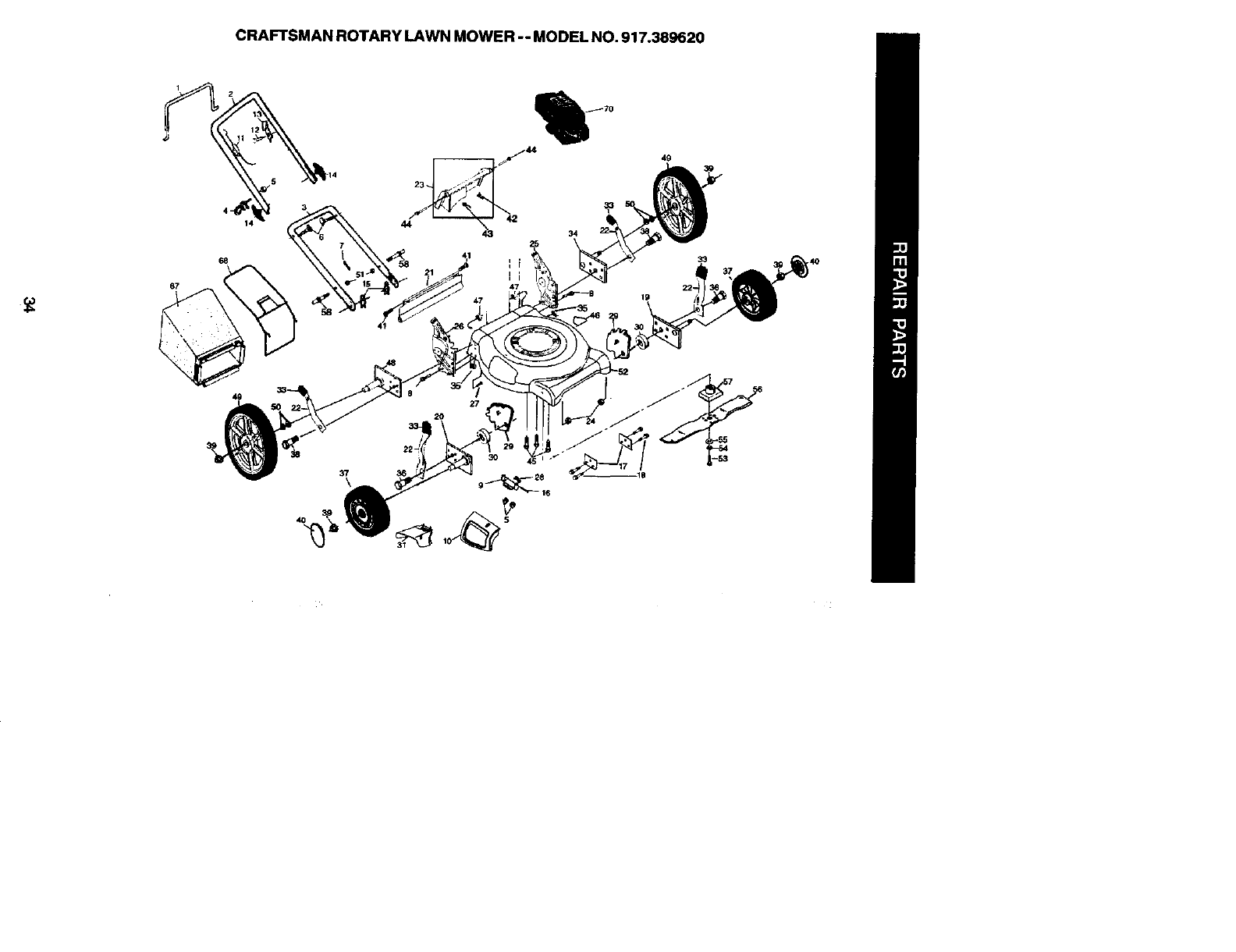

CRAFTSMANROTARYLAWNMOWER-- MODELNO.917.389620

j44

I i

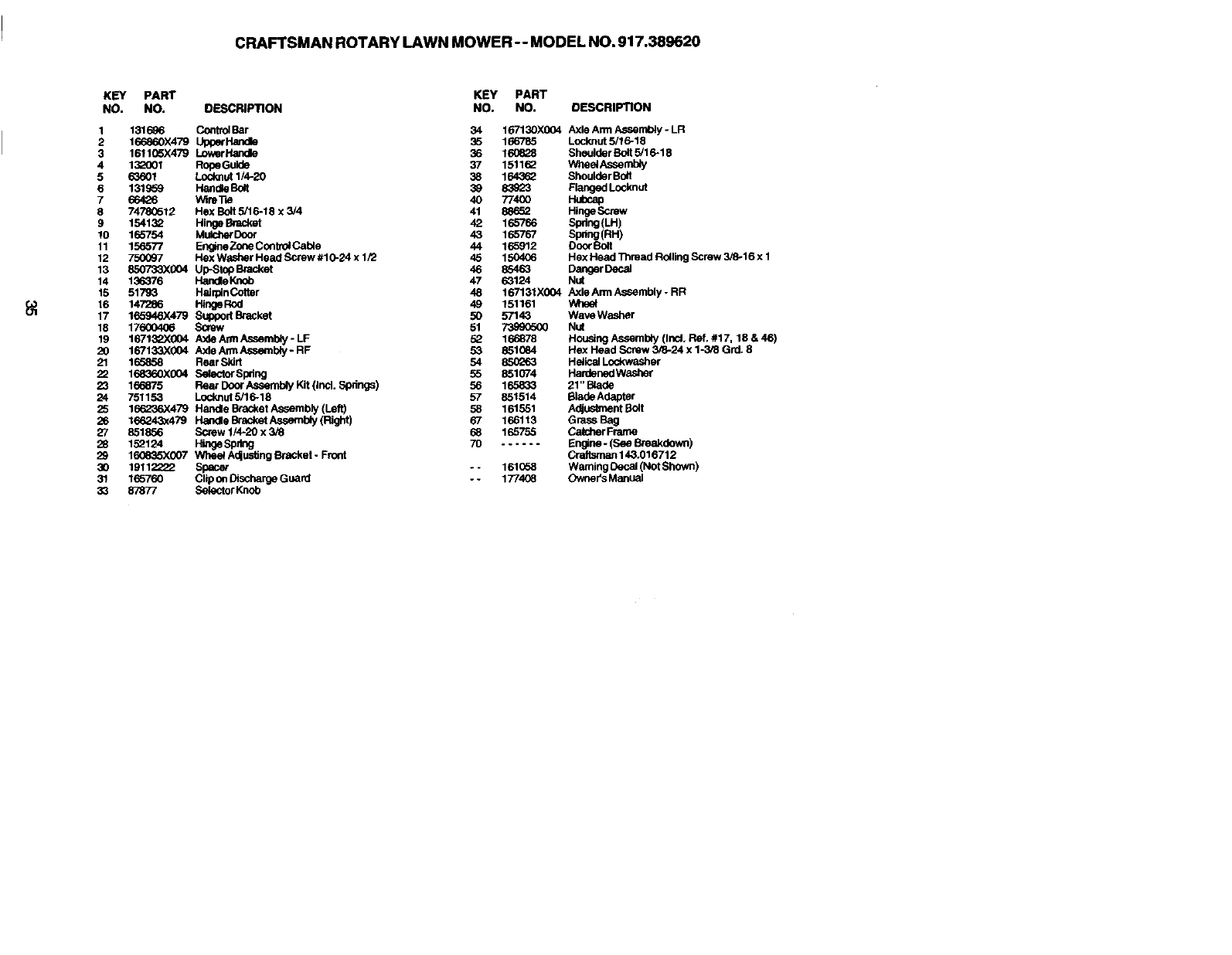

CRAFTSMAN ROTARY LAWN MOWER- - MODEL NO. 917.389620

KEY PART

NO. NO. DESCRIPTION

1 1316_6 ControlBar

2 166860X479 Lltof3e¢_

3 161105X479 LowerHandle

4132001 RopeGulde

5 63601 LOCkOUt1/4-20

6 131969 Handle Belt

766426 Wire 1"el

874780512 Hex Bolt 5/16-18 x 3/4

9 154132 Hinge Bmcket

!0 165754 Melcher Docr

11 156577 Engine Zone Contro_ Ca_e

12 _Hex W&_ner Head Sorew #10-24 x 1/2

13 850733X004 Up-Stop Bracket

14 136376 Hande Kno_

15 51793 Helq01nCotter

16 147286 Hinge Rod

17 1_5946X479 Support Bracket

18 17600406 Screw

19 167132X004 A)de Arm Assembly -LF

20 167133X004 Axle Arm Assembly -RF

21 165858 Rear Sldrt

22 168360X004 Selector Spdng

23 166875 Rear Door Assembly Kit (Incl. Spdngs)

24 751153 Locknut 5/16-18

25 16_36X479 Hancle Bracket Assembly (LeR)

26 1662430(479 Haitdle Bracket Assembly (Right)

27 851856 Screw 1/4-20 x 3_

28 152124 _ge sprig

29 160835X007 Wha_ Ac!ueling Bracket - Front

30 1911_'1J_ Spacer

31 165760 Cllp on Discharge Guard

33 87877 Setector Knob

KEY PART

NO. NO. DESCRIPTION

167130X(JO4 Axle Arm Assembly -LR

166785 Locknut 5/16-18

160_28 Shautder Bolt 5/16-18

161162 WheelAssemely

164,362 Shoulder Bdt

83923 Flanged Locknut

774OO Hubcap

88652 Hinge Screw

165766 Spdng(LH)

165767 Sprlng(RH)

165912 Door Bolt

150406 Hex Head Thread Relling Screw 3/8-16 x 1

85463 Danger Decal

63124 Nut

167131X004 Axle Arm Assembly - RR

151161

57143 Wave Washer

Nut

16_B78 Houelng As_emi01y (Ind, Ref. #17. 18 & 46)

851084 Hex Head Screw 3/8-24 x 1-3/B Grd. 8

850263 Helical Lockwasher

851074 Hardened Washer

165833 21" Blade

851514 Blade Adapter

161551 Adjustment Bolt

166113 Grass Bag

165755 Catcher Frame

70 ...... Engine - (See Breakdown)

C_ 143.016712

- - 161(_8 Warning Decal (Not Shown)

- - 1774O6 Owners ManuaJ

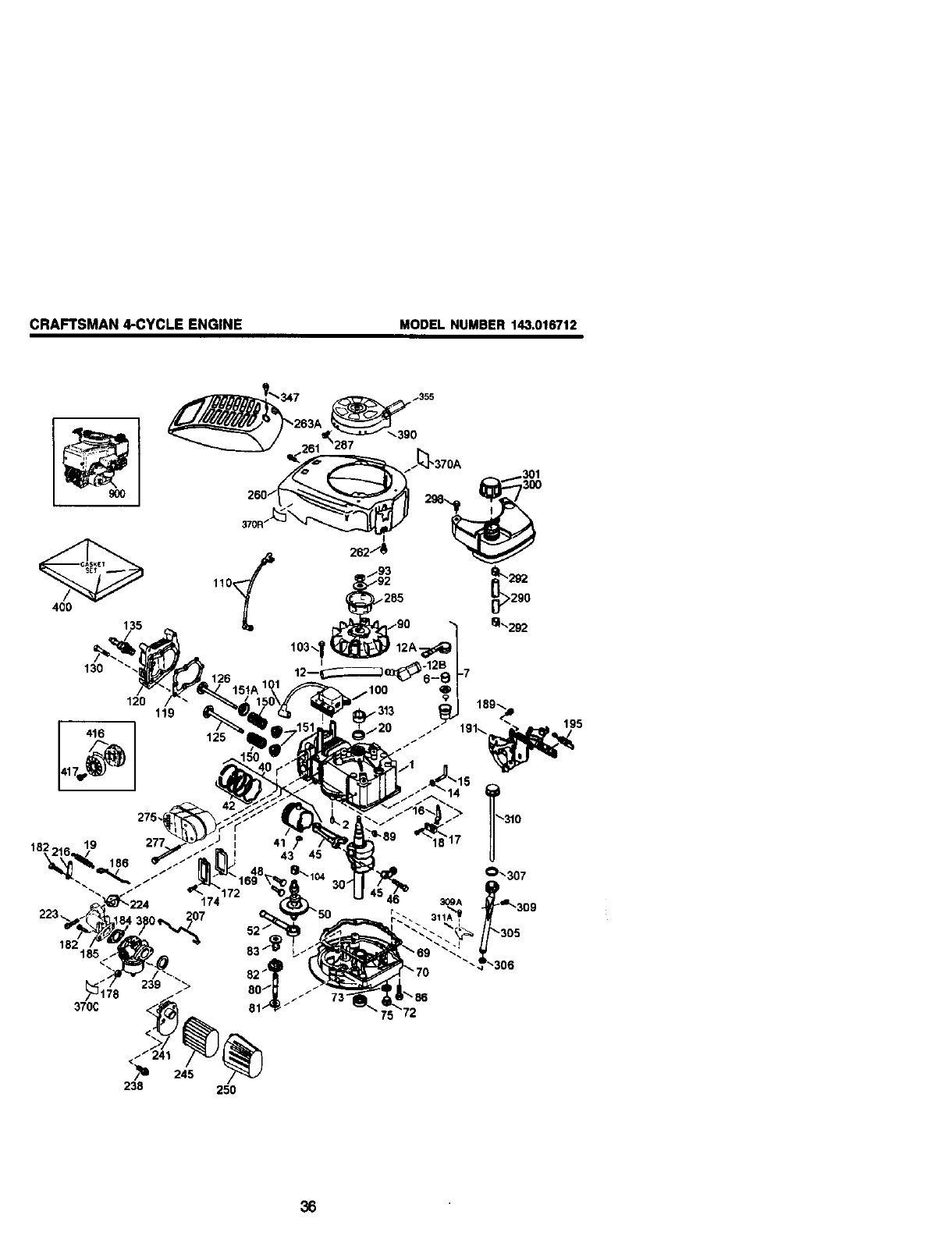

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016712

130

120 119

275.

103,

182216 19

_'I_224 174

223,_=_ _184_80_ =2/07 52"

1854

238 250

104

_355

195

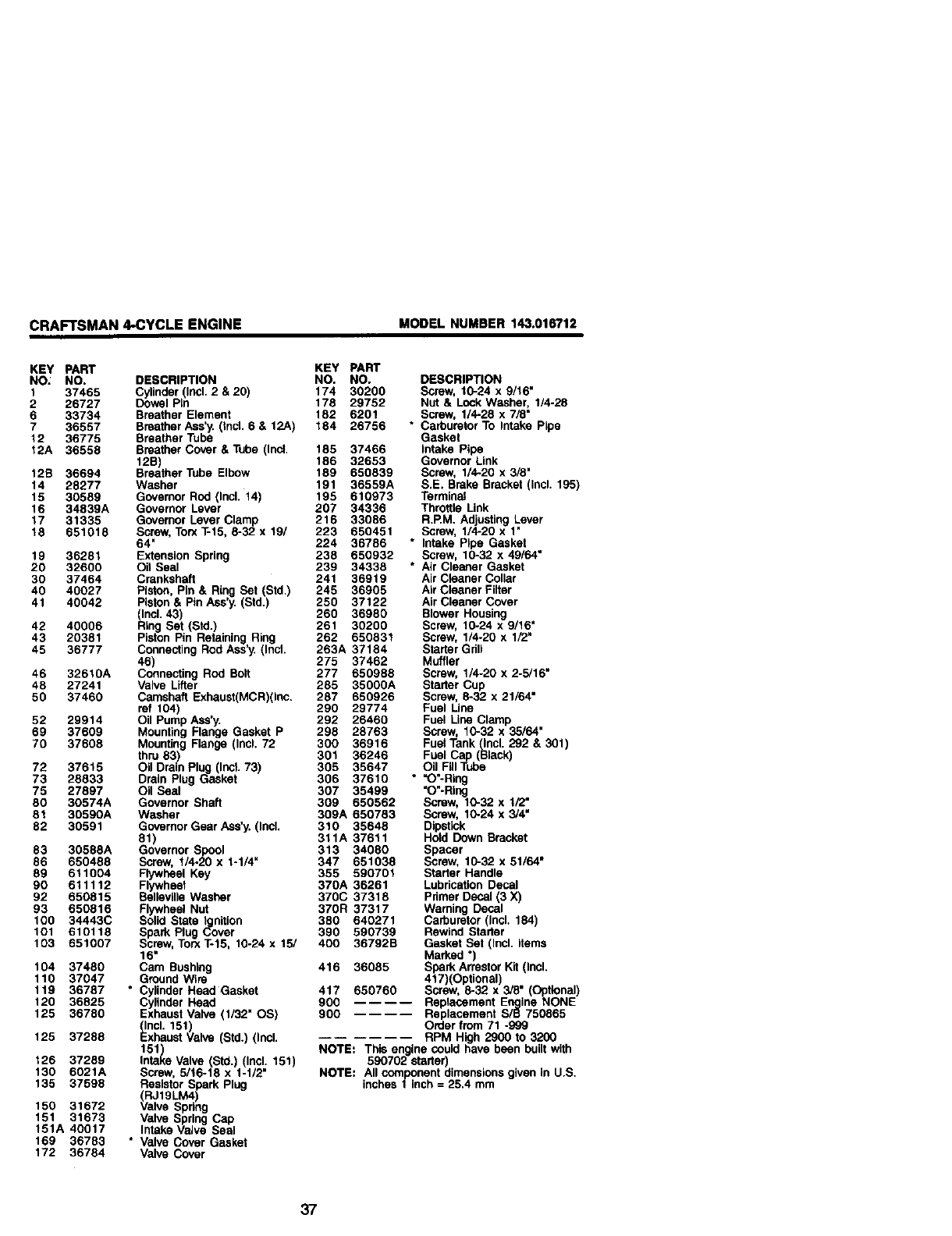

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016712

KEY PART KEY PART

NO: NO. DESCRIPTION NO. NO.

1 37465 Cylinder Incl. 2 & 20) 174 30200

2 26727 Dowe Pn 178 29752

6 33734 Breather Element 182 6201

7 36557 Breather Ass'y. (IncL 6 & 12A) 184 26756

12 36775 Breather Tube

12A 36558 Breather Cover & Tube (Incl. 185 37466

12B) 186 32653

12B 36694 Breather Tube Elbow 189 650839

14 28277 Washer 191 36559A

15 30589 Governor Rod (Incl. 14) 195 610973

16 34839A Govemor Lever 207 34336

17 31335 Governor Lever Clamp 216 33086

18 651018 Screw, TorxT-15, 8-32 x 19/ 223 650451

64" 224 36786

19 36281 Extension Spring 238 650932

20 32600 Oit Seal 239 34338

30 37464 Crankshaft 241 36919

40 40027 Piston, Pin & Ring Set (Std.) 245 36905

41 40042 Piston & Pin Ass'y. (Std.) 250 37122

(Incl. 43) 260 36980

42 40006 Ring Set (Std.) _ 261 30200

43 20381 Piston Pin Retaining Hing 262 650831

45 36777 Connecting Rod Ass'y. (Incr. 263A 37184

46) 275 37462

46 32610A Connecting Rod Bolt 277 650988

48 27241 Valve Lifter 285 35000A

50 37460 Camshaft Exhaust(MCR)(Inc. 287 650926

ref 104) 290 29774

52 29914 Oil Pump Ass'y. 292 26460

69 37609 Mounting Flange Gasket P 298 28763

70 37608 Mounting Flange (Incl. 72 300 36916

thru 83) 301 36246

72 37615 Oil Drain Plug (Incl. 73) 305 35647

73 28833 Drain Plug Gasket 306 37610

75 27897 Oil Seal 307 35499

80 30574A Governor Shaft 309 650562

81 30590A Washer 309A 650783

82 30591 Governor Gear Ass'y. (Incl. 310 35648

81) 311A 37611

83 30588A Governor Spool 313 34080

86 650488 Screw, 1/4-20 x 1-1/4" 347 651038

89 611004 Flywheel Key 355 590701

90 611112 Flywheel 370A 36261

92 650815 Bellevllle Washer 370C 37318

93 650816 Flywheel Nut 370R 37317

100 34443C Solid State Ignition 380 640271

101 610118 Spark Plug Cover 390 590739

103 651007 Screw, TorxT-15, 10-24 x 15/ 400 36792B

16"

104 37480 Cam Bushing 416 36085

110 37047 Ground Wire

119 36787 • Cylinder HeadGasket 417 650760

120 36825 Cylinder Head 900

125 36780 Exhaust Valve (1/32" OS) 900

(Incl. 151)

125 37288 Exhaust Valve (Std.) (Incl.

151

126 37289 Intake Valve (Std.) (Incl. 151)

130 6021A Screw, 5/16-18 x 1-I/2"

135 37598 Resistor Spark Plug

RJ19LM4

150 31672 Vave Sprng

151 31673 Valve Spring Cap

151A 40017 Intake Valve Seal

169 36783 "Valve Cover Gasket

172 36784 Valve Cover

DESCRIPTION

Screw, 10-24 x 9/16"

Nut & Lock Washer, 1/4-28

Screw, 1/4-28 x 7/8"

•Carburetor To Intake P_pe

Gasket

Intake Pips

Governor Link

Screw, 1/4-20 x 3/8"

S.E. Brake Bracket (Incl. 195)

Terminat

Throttle Link

R.P.M. Adjusting Lever

Screw, 1/4-20 x 1•

* Intake Pipe Gasket

Screw, 10-32 x 49/64"

* Air Cleaner Gasket

Air Ck)aner Collar

Air Cleaner Filter

Air Cleaner Cover

Blower Housing

Screw, 10-24 x 9/16"

Screw, 1/4-20 x 1/2"

Starter Gdll

Muffler

Screw, 1/4-20 x 2-5/16"

Starter Cup

Screw, 8-32 x 21/64"

Fuel Line

Fuel Line Clamp

Screw, 10-32 x 35/64"

Fuel Tank (Incl. 292 & 301

Fuel Cap (Black)

Oil FillTube

* "0"- Ring

"O"-Rlng

Screw, 10-32 x I/2"

Screw, 10-24 x 3/4"

Dipstick

Hold Down Bracket

Spacer

Screw, 10-32 x 51164"

Starter Handle

Lubricetion Decal

Primer Decal (3 X)

Waming Decal

Carburetor (Incl. 184)

Rewind Starter

Gasket Set (Incl. Items

Marked *)

Spark Arrestor Kit (Incl.

417)(Optional)

Screw, 8-32 x 3/8" (Optional)

Replacement Engine NONE

Replacement S/B 750865

Order from 71 -999

RPM High 2900 to 3200

NOTE: This engine could have been built with

590702 starter)

NOTE: All component dimensions given in U.S.

inches 1 inch =25.4 mm

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016712

KEY PART

NO. NO. DESCRIPTION

---- 640271 Carburetor (Incl. 184 of

Engine Parts List)

1 31615 Throttle Shaft & Lever

Assembly

2 31767 Throttle Return Spdng

4 631184 * Dust Seal Washer

5 631183 * Dust Seal {Thruttle)

6 640070 Throttle Shutter

7 650506 * Shutter Screw

16 631807 Fuel Fitting

17 651025 Throttle Crack Screw/Idle

Speed Screw

18 830766 Tension Spring

20 640027 Idle Restdctor Screw

20A 640200 Idle Restdctor Scrwe Cap

Black

25 631867 _loat I_owl

27 631024 * Float Shaft

28 632019 Float

29 631028 * Float Bowl _O" Ring

30 631021 * Inlet Needle, Seat, & Clip

(Incl. 31)

31 631022 Spring Clip

35 640259 Primer Bulb/Retainer Ring

36 640080 Main Nozzle Tube

36A 632766 Carburetor Tube

37 632547 * "O" Ring, Main Nozzle Tube

40 640030 High Speed Bowl Nut

44 27110A * Bowl Nut Washer

47 630748 * Welch Plug, Idle Mixture Well

48 631027 *Welch Plug, Atmosphadc

Vent

60 632760B Repair kit (Incl. items Marked

• in Notes)

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.016712

37_1 _K_Y PART

NO. NO.

590702

590599A

590600

_"11 _ 590696

590601

11 _ 590697

590698

7 590699

8 590700

11 590703

__8

7__=f

590535

590701

B--5

DESCRIPTION

Recoil Starter

Spdng Pin (IncL 4)

Washer

Retainer

Washer

Brake Spring

Starter Dog

Dog Spdng

Pulley & Rewind Spdng Ass'y

Starter Housing Ass'y. (40

degree grommet)

Starter Rope ( 98" X 9/64"

dla.)

Starter Handle

KEY PART

NO, NO.

---- 590739

3 590740

"_-. 6 590616

7 590617

8 590618A

11 590638

12 590535

13 590701

14 590760

DESCRIPTION

Rewind Starter

Retainer

Starter Dog

Dog Spring

Pulley & Rewind Spring Ass'y

Starter Housing Ass'y (40

degree grommet)

Starter Rope(Length 98" x 9/

64" dia.)

Starter Handle

Spring Clip

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

1-800-4-MY-HOME sMAnytime, day or night

(1-800469-4663)

www.seals.com

To bring in products such as vacuums,

lawn equipment and electronics for repair, call for

the location of your nearest Sears Parts & Repair Center.

1-800-488-1222 Anytime,day or night

WWW,Sears,colrrl

For the replacement parts, accessories and owner's manuals

that you need to do-it-yourself, call Seers PartsDIrectSM!

1-800-366-PART 8am- Itp.m.CST,

(1.800.866-7278) 7daysa week

www.sea rs.com/pa rtsdlrect

To purchase or inquire about aSears Service Agreement:

1-800-827-6655

7 a.m.- 5 p.m.CST,Mon.- Sat.

Pars psdirservicio de reparack_na dom_cllio, AuCanada pour service en franP,,als:

ypara ordenar piezas con entmga adomicilio: 1-877-LE-FOYER _"

1.888-SU-HOGAR =' (1-877-533-6937)

(1-688-784-6427)

SF_4RS ]HomeCentral ®

o se=rs,Ro_t_ft _®egl redTrademsrklTMTrader_rkofSeam, RoeloucksndCo,

._ist fade /TMMama de F_bdca de Sears, Roebuck and Co.

177408 12.11.00 TR Printed in U.S.A.

Craftsman 917389620 User Manual Gas, Walk Behind Lawnmower Manuals And Guides L0101183

CRAFTSMAN Walk Behind Lawnmower, Gas Manual L0101183 CRAFTSMAN Walk Behind Lawnmower, Gas Owner's Manual, CRAFTSMAN Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
