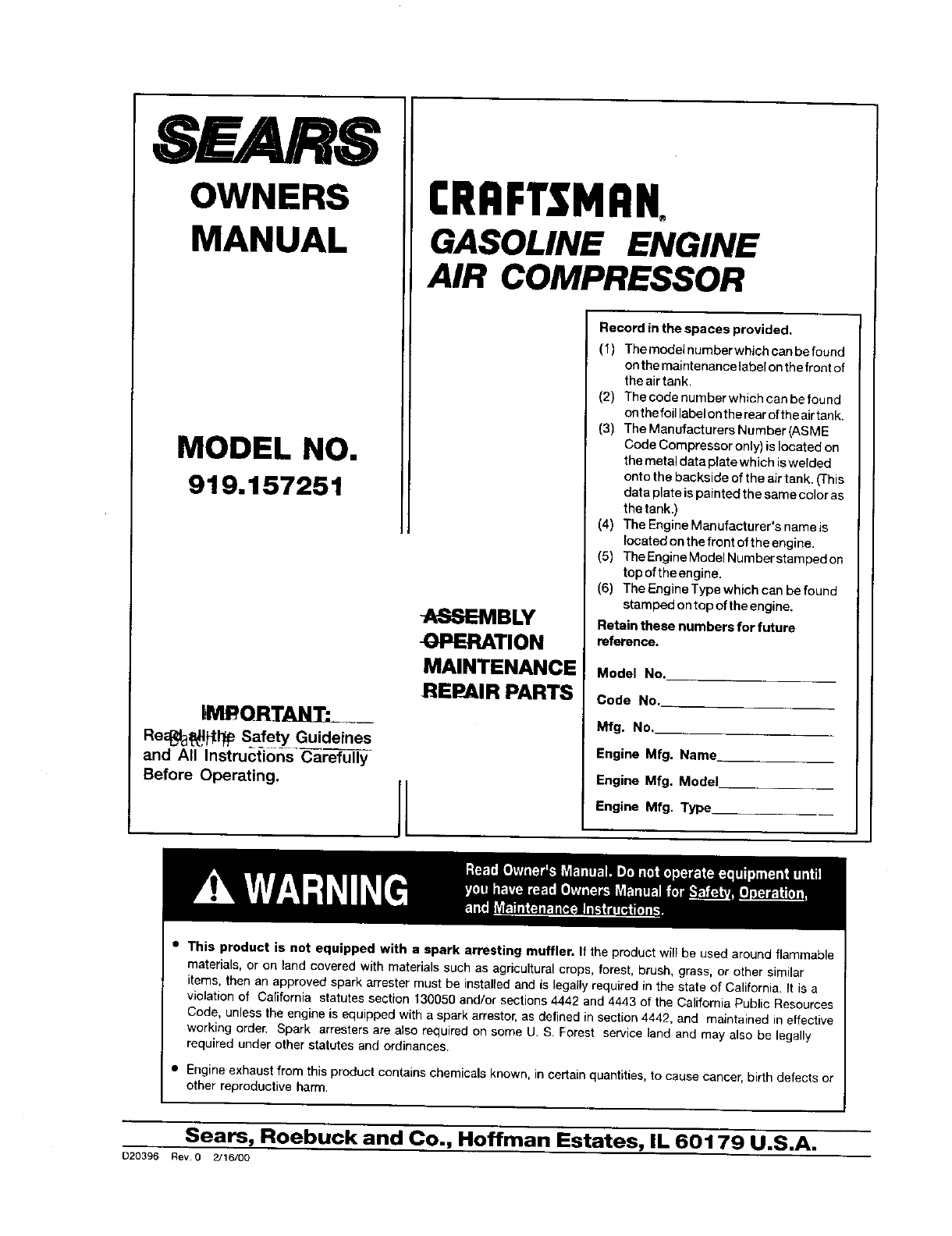

SEAR8

OWNERS

MANUAL

MODEL NO.

919.157251

|MI_ORTAN_:___

Re_l-_e Safety Guideines

and All Instructions Carefully

Before Operating.

CRRFTSMRN,

GASOLINE ENGINE

AIR COMPRESSOR

ASSEMBLY

OPERATION

MAINTENANCE

REPAIR PARTS

Record in the spaces provided.

(1) The model number which can be found

on the maintenance label onthe front of

the air tank.

(2) The cede number which can be found

onthefoil labelonthe rear ofthe airtank.

(3) The Manufacturers Number {ASME

Code Compressor only) is located on

the met a_data plate which is welded

onto the backside of the air tank. (This

data plate is painted the same color as

thetank.)

(4) The Engine Manufacturer's name is

located onthe frontof the engine.

(5) The EngineModel Number stamped on

top oftheengine.

(6) The EngineType which can be found

stamped on top of the engine.

Retain these numbers for future

reference.

Model No.

Code No.

Mfg. No,

Engine Mfg. Name

Engine Mfg. Model

Engine Mfg, Type

• This product Is not equipped with a spark erresUlng muffler. If the product will be used around flammable

materials, or on land covered with materials such as agricultural crops, forest, brush, grass, or other similar

items, then an approved spark arrestor must be installed and is legally required in the state of California. It is a

violation of California statutes section 130050 and/or sections 4442 and 4443 of the California Public Resources

Code, unless the engine is equipped with a spark arrestor, as defined in section 4442, and maintained in effective

working order. Spark arrestors are also required on some U, S. Forest service land and may also be legally

required under other statutes and ordinances.

• Engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth defects or

other reproductive harm.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

D20396 Rev, 0 2/16/00

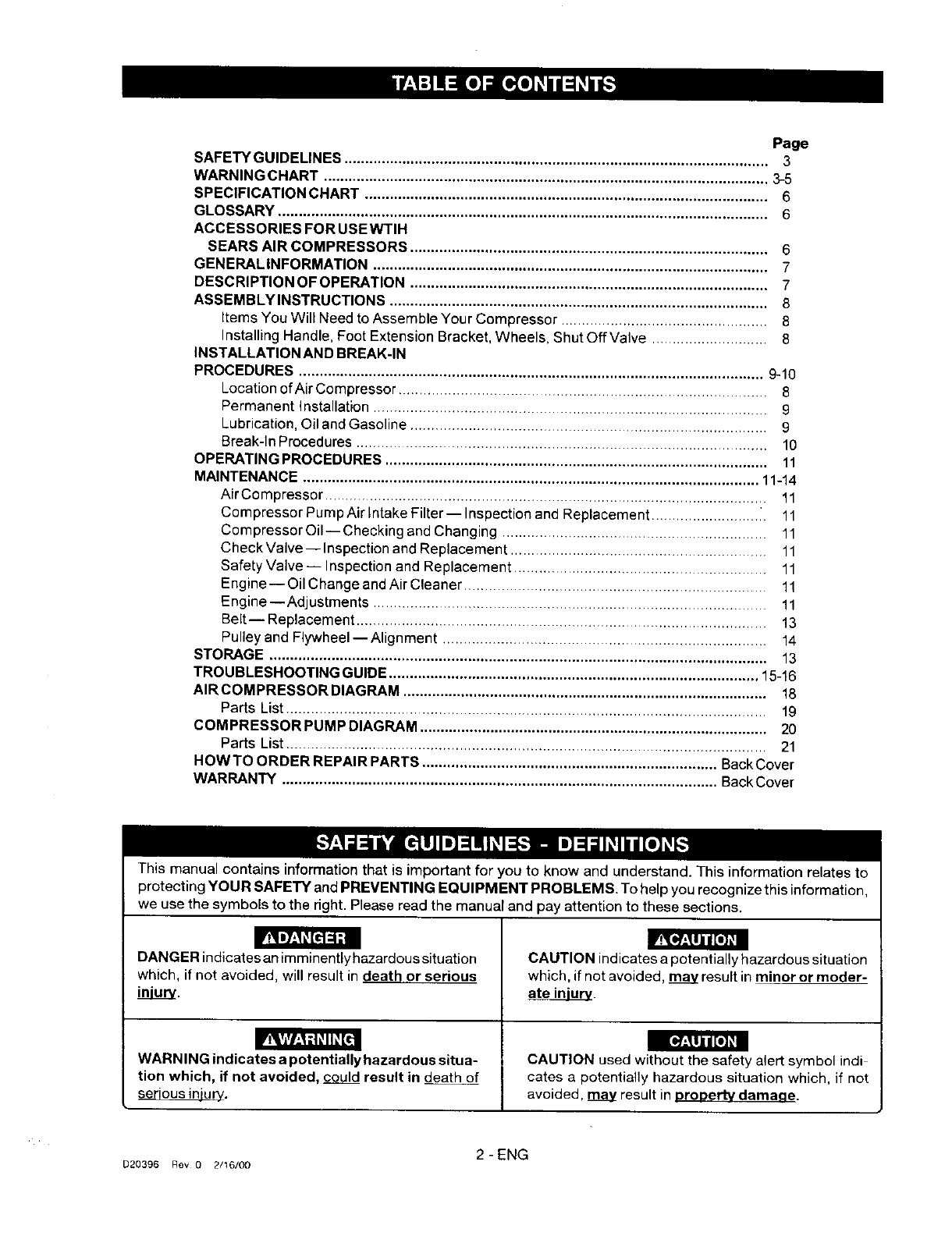

Page

SAFETY GUIDELINES ...................................................................................................... 3

WARNING CHART ........................................................................................................... 3-5

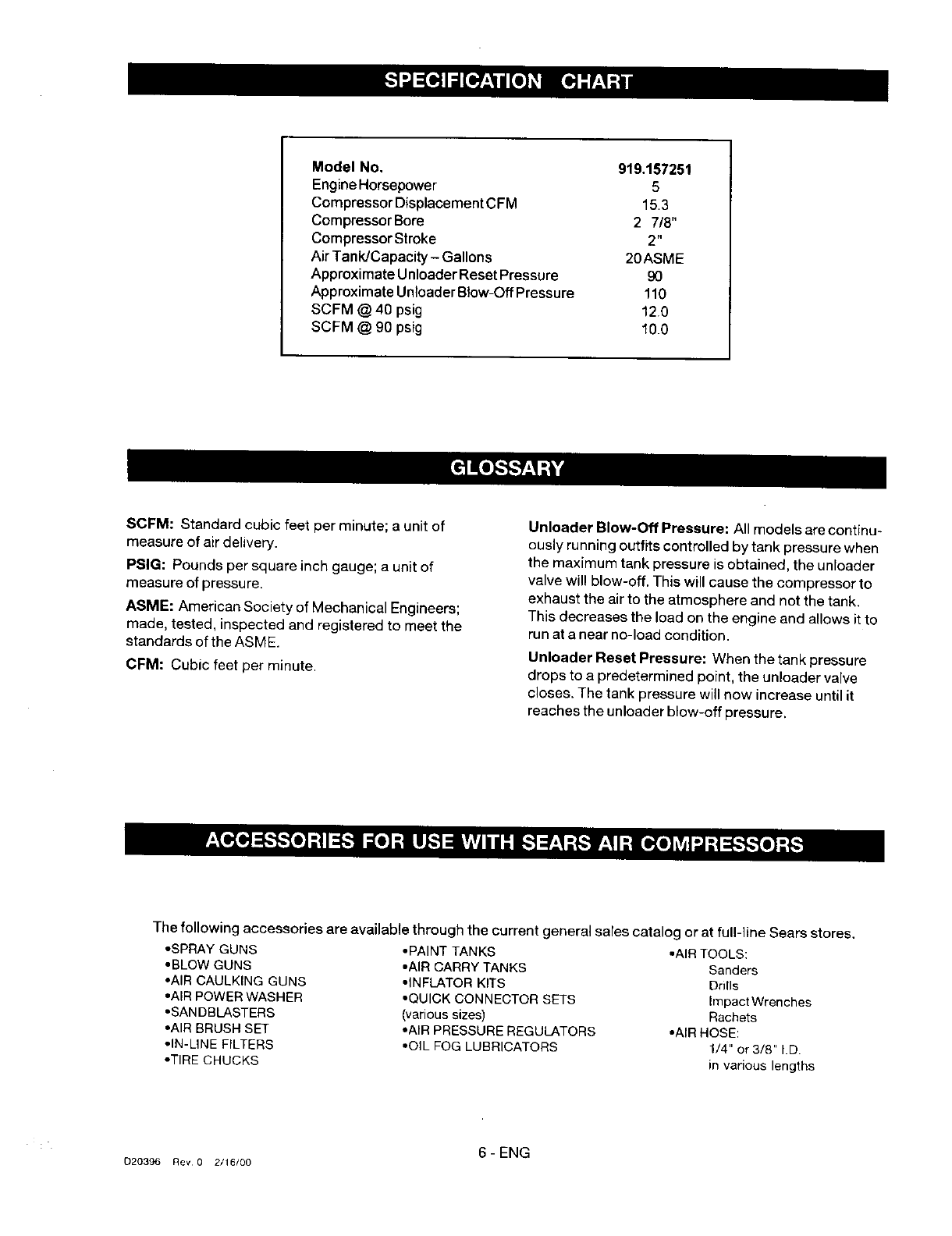

SPECIFICATION CHART ................................................................................................. 6

GLOSSARY ...................................................................................................................... 6

ACCESSORIES FOR USE WTIH

SEARS AIR COMPRESSORS ...................................................................................... 6

GENERALINFORMATION ............................................................................................... 7

DESCRIPTION OF OPERATION ...................................................................................... 7

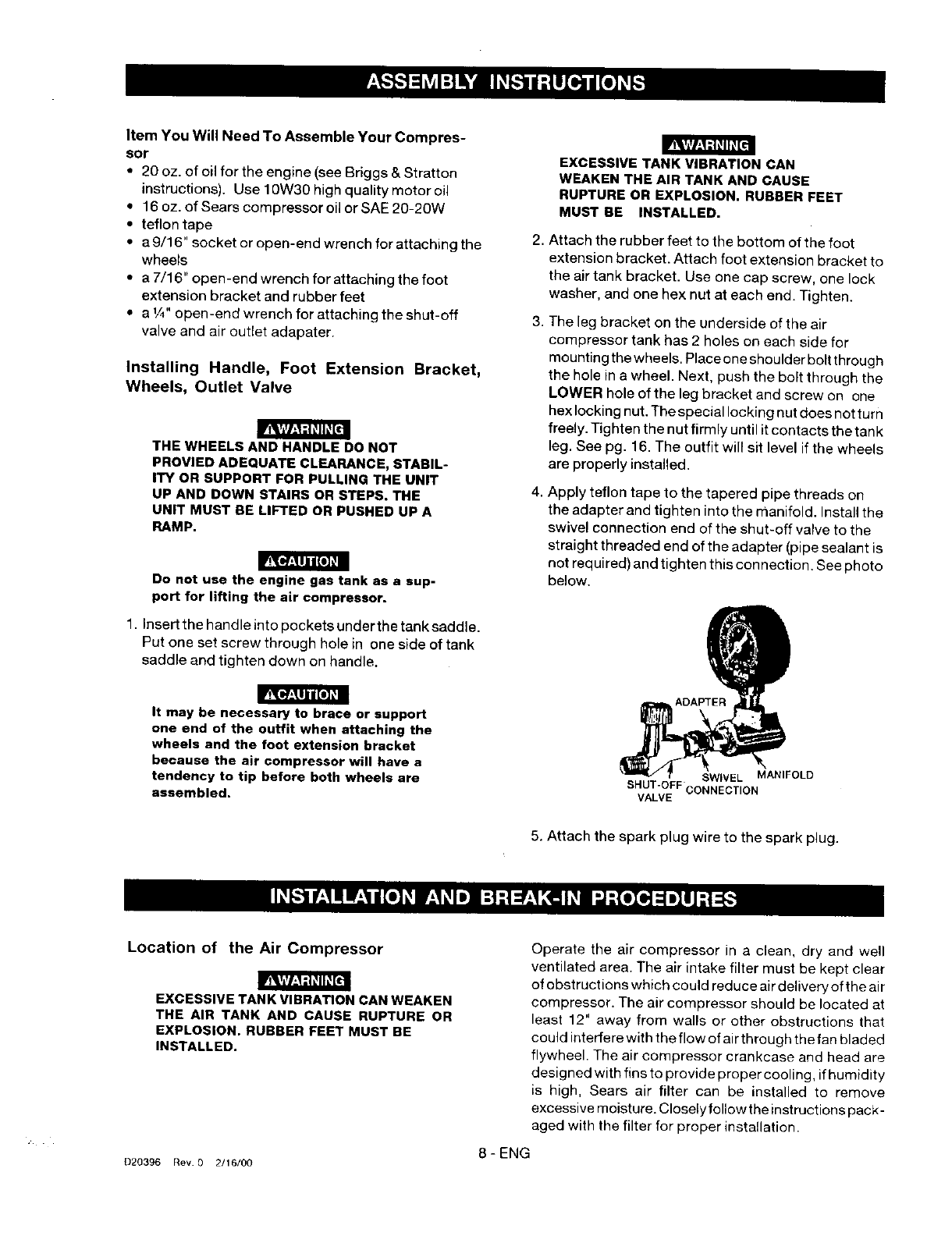

ASSEMBLYINSTRUCTIONS ........................................................................................... 8

Items You Will Need to Assemble Your Compressor .................................................. 8

Installing Handle, Foot Extension Bracket, Wheels, Shut Off Valve ............................ 8

INSTALLATION AND BREAK-IN

PROCEDURES ................................................................................................................ 9-10

Location of Air Compressor ........................................................................................ 8

Permanent Installation ............................................................................................... g

Lubrication, Oil and Gasoline ...................................................................................... 9

Break-In Procedures ................................................................................................... 10

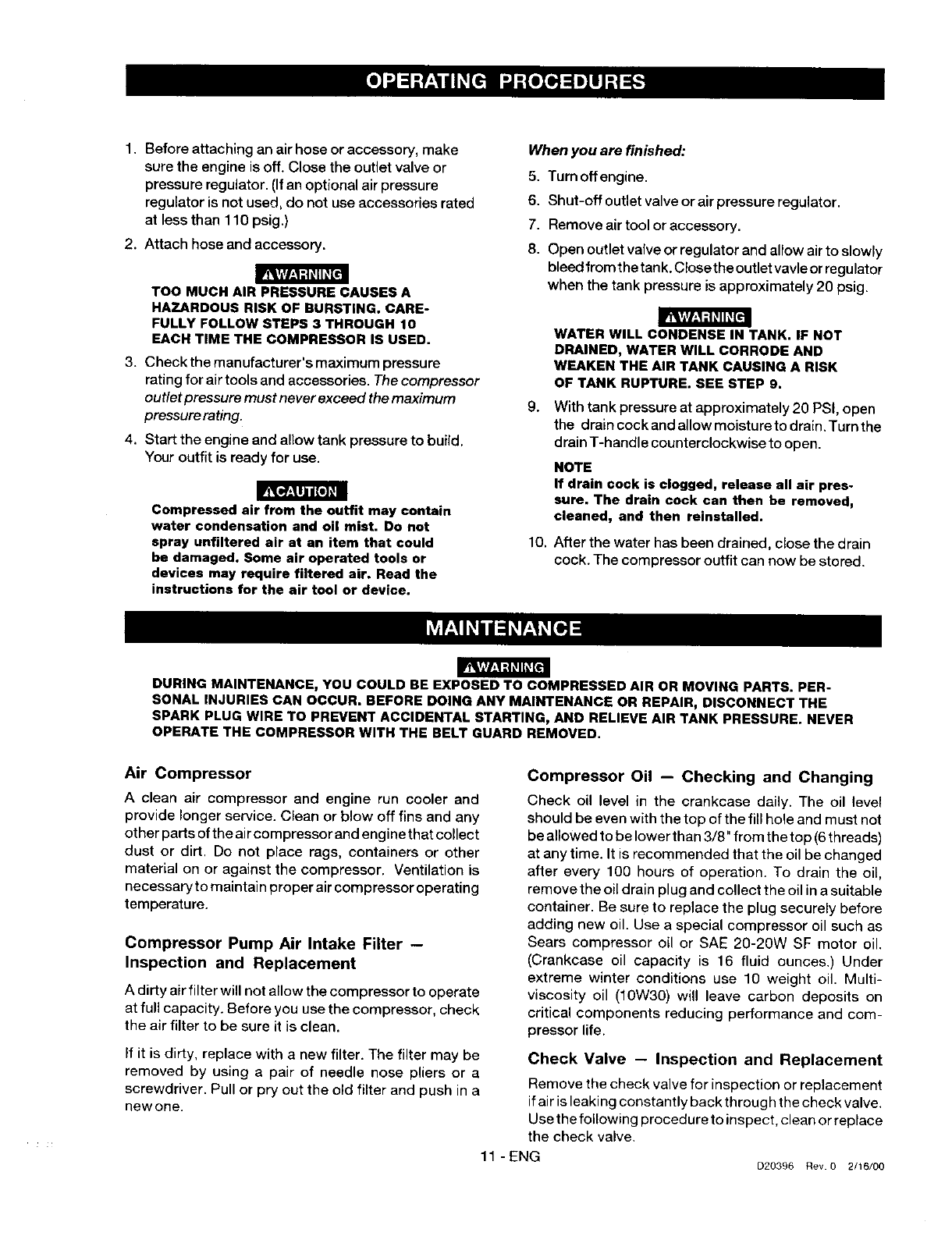

OPERATING PROCEDURES ............................................................................................ 11

MAINTENANCE .............................................................................................................. 11-14

AirCompressor ........................................................................................................... 11

Compressor Pump Air Intake Filter-- Inspection and Replacement .......................... i. 11

Compressor Oil-- Checking and Changing ................................................................ 11

Check Valve--Inspection and Replacement .............................................................. 11

Safety Valve -- Inspection and Replacement ............................................................. 11

Engine-- Oil Change and Air Cleaner ......................................................................... 11

Engine--Adjustments ............................................................................................... 11

Belt-- Replacement ................................................................................................... 13

Pulley and Flywheel -- Alignment .............................................................................. 14

STORAGE ........................................................................................................................ 13

TROUBLESHOOTING GUIDE ......................................................................................... 15-16

AIR COMPRESSOR DIAGRAM ........................................................................................ 18

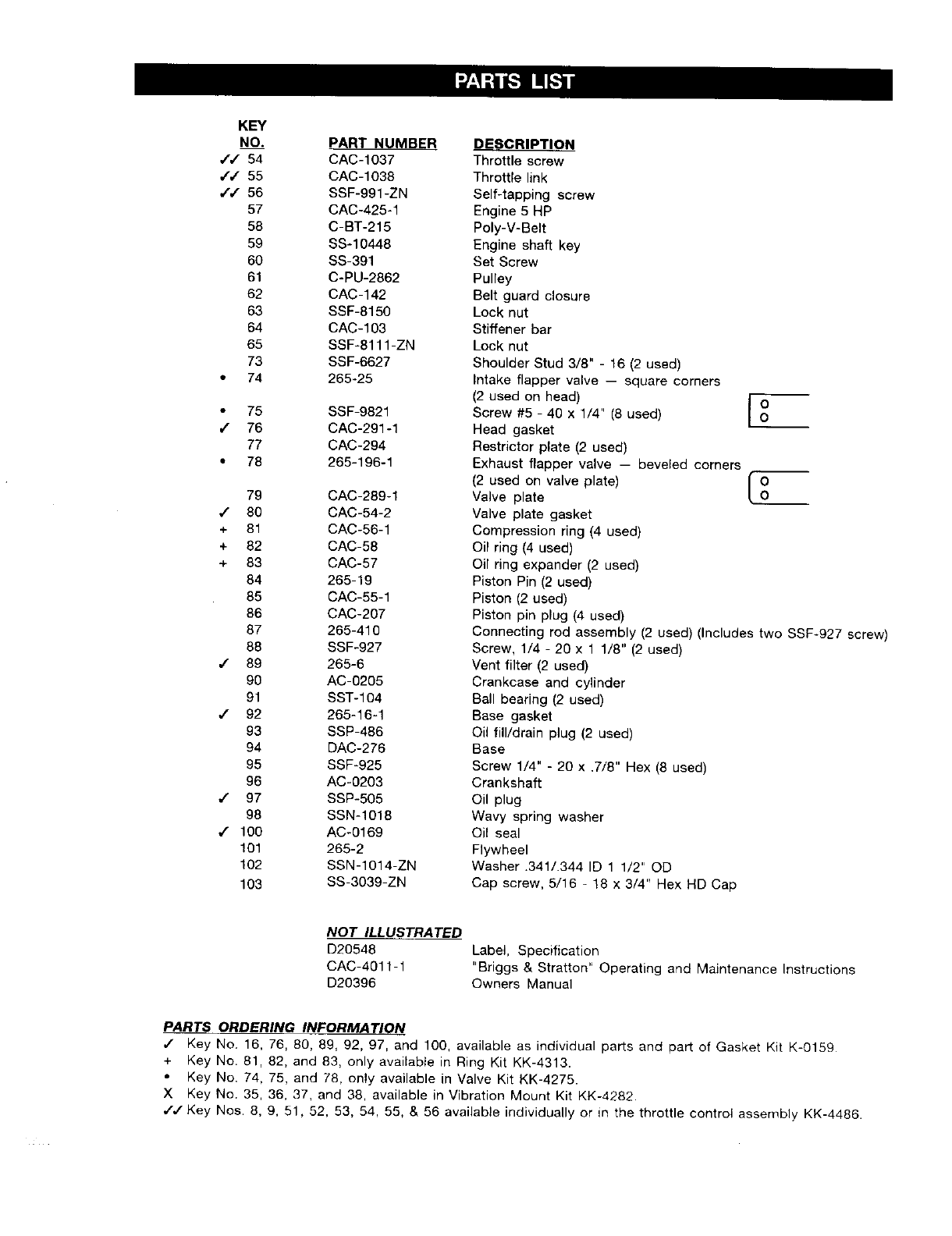

Parts List .................................................................................................................... 19

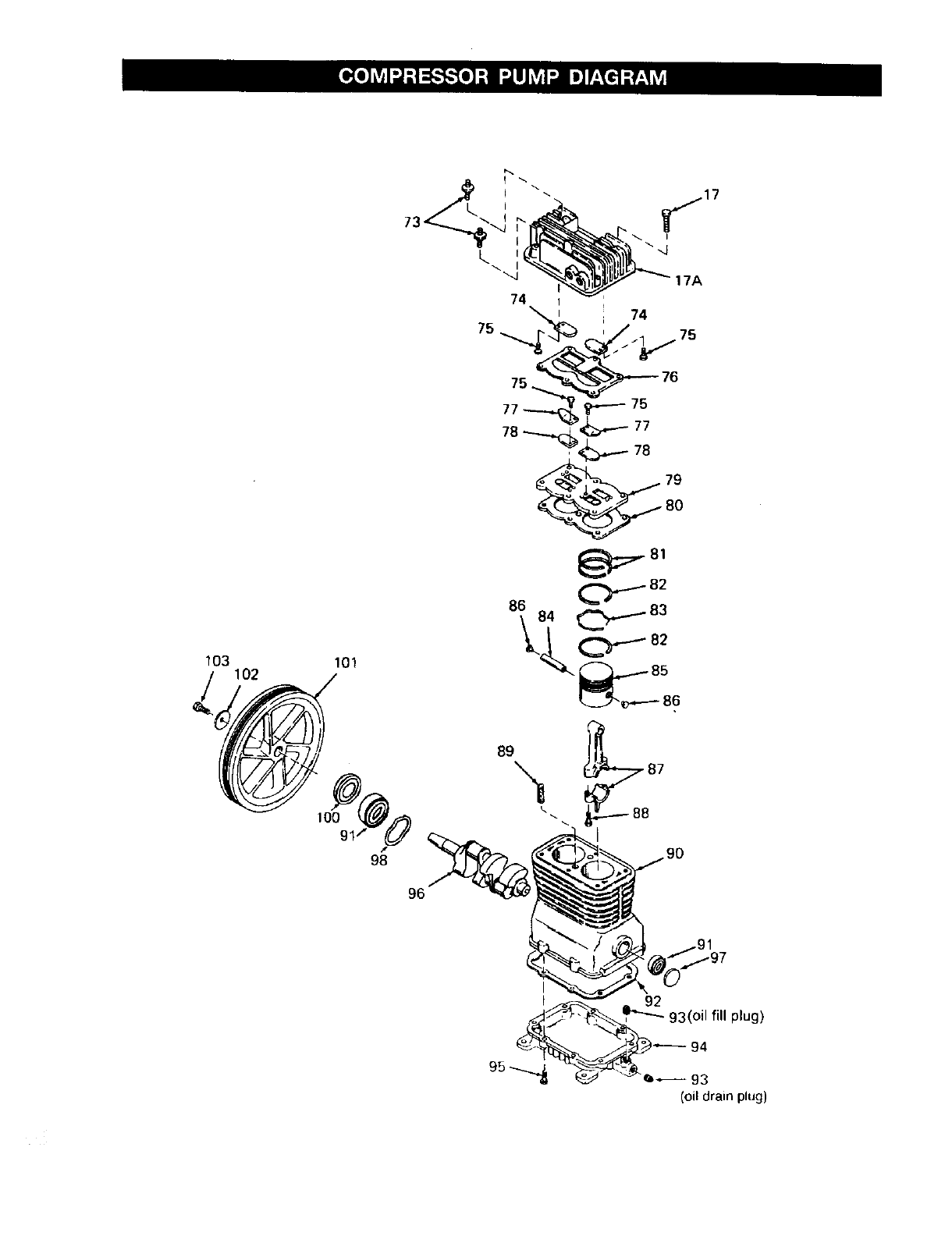

COMPRESSOR PUMP DIAGRAM .................................................................................... 20

Parts List .................................................................................................................... 21

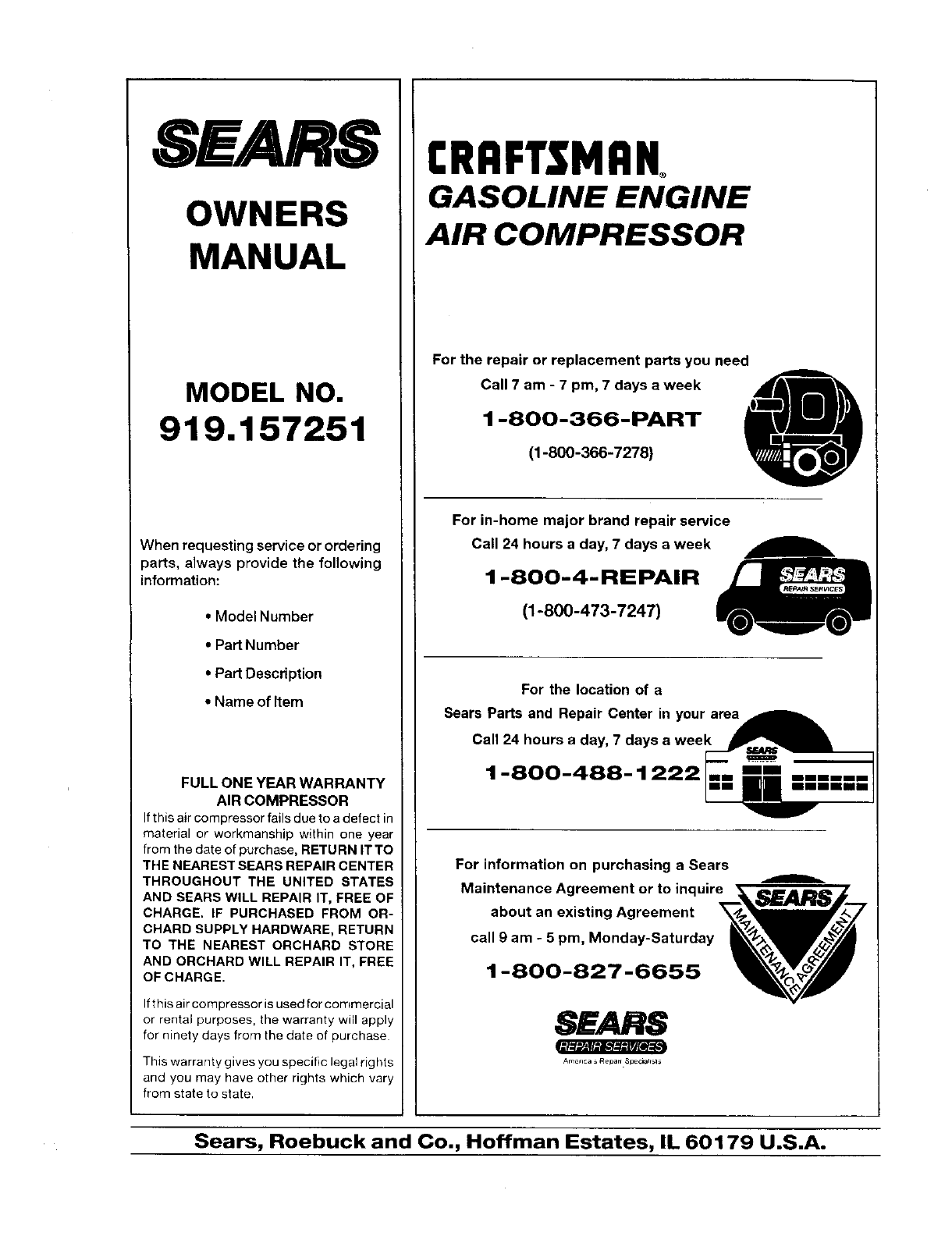

HOWTO ORDER REPAIR PARTS ....................................................................... Back Cover

WARRANTY ......................................................................................................... BackCover

This manual contains information that is important for you to know and understand. This information relates to

protecting YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information,

we use the symbols to the right. Please read the manuar and pay attention to these sections.

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

iniurv.

WARNING indicates a potentially hazardous situa-

tion which, if not avoided, could result in death of

CAUTION indicates a potentially hazardous situation

which, if not avoided, _ result in minor or moder-

ate in'lUnt.

CAUTION used without the safety alert symbol indi

cates a potentially hazardous situation which, if not

avoided, _ result in i_roDertv damaae.

2 - ENG

D20396 Rev 0 2/16/00

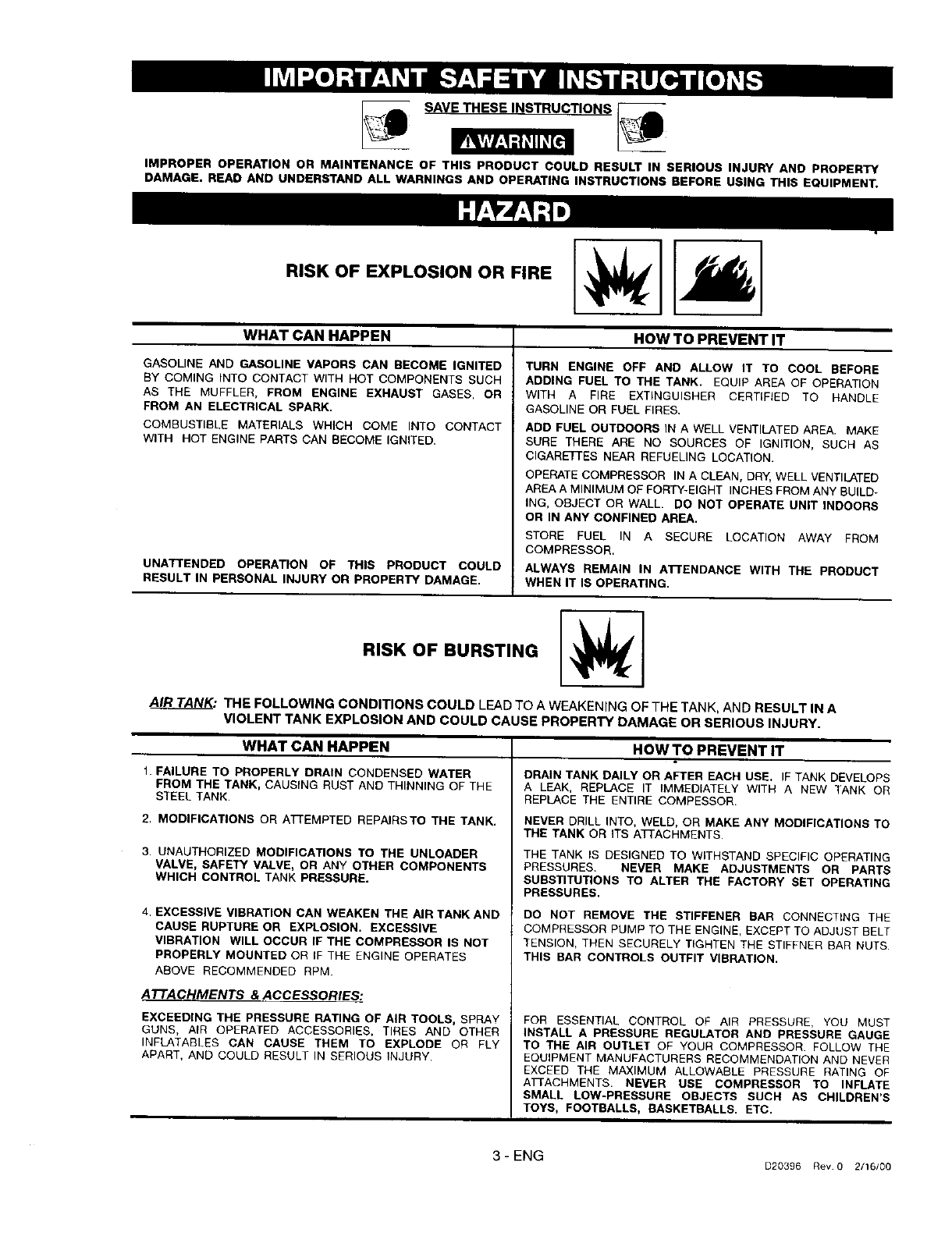

___ SAV_TIONS I_

IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS INJURY AND PROPERTY

DAMAGE. READ AND UNDERSTAND ALL WARNINGS AND OPERATING INSTRUCTIONS BEFORE USING THIS EQUIPMENT.

.so°xosoo [ li l

WHAT CAN HAPPEN

GASOLINE AND GASOLINE VAPORS CAN BECOME IGNITED

BY COMING INTO CONTACT WITH HOT COMPONENTS SUCH

AS THE MUFFLER, FROM ENGINE EXHAUST GASES, OR

FROM AN ELECTRICAL SPARK.

COMBUSTIBLE MATERIALS WHICH COME INTO CONTACT

WITH HOT ENGINE PARTS CAN BECOME IGNITED,

UNATTENDED OPERATION OF THIS PRODUCT COULD

RESULT IN PERSONAL iNJURY OR PROPERTY DAMAGE,

HOW TO PREVENT IT

TURN ENGINE OFF AND ALLOW IT TO COOL BEFORE

ADDING FUEL TO THE TANK. EQUIP AREA OF OPERATION

WITH AFIRE EXTINGUISHER CERTIFIED TO HANDLE

GASOLINE OR FUEL FIRES,

ADD FUEL OUTDOORS IN AWELL VENTILATED AREA. MAKE

SURE THERE ARE NO SOURCES OF IGNIT[ON, SUCH AS

CIGARE-FrES NEAR REFUELING LOCATION.

OPERATE COMPRESSOR IN A CLEAN, DRY, WELL VENTILATED

AREA A MINIMUM OF FORTY-EIGHT INCHES FROM ANY BUILD-

ING, OBJECT OR WALL. DO NOT OPERATE UNIT INDOORS

OR IN ANY CONFINED AREA.

STORE FUEL IN A SECURE LOCATION AWAY FROM

COMPRESSOR.

ALWAYS REMAIN IN AI-FENDANCE WITH THE PRODUCT

WHEN IT iS OPERA'RNG.

RISK OF BURSTING I_

IRTA_: THE FOLLOWING CONDITIONS COULD LEAD TO AWEAKENING OF THE TANK, AND RESULT IN A

VIOLENT TANK EXPLOSION AND COULD CAUSE PROPERTY DAMAGE OR SERIOUS INJURY.

WHAT CAN HAPPEN

1. FAILURE TO PROPERLY DRAIN CONDENSED WATER

FROM THE TANK, CAUSING RUST AND THINNING OF THE

STEEL TANK.

2. MODIFICATIONS OR A_EMPTED REPAIRSTO THE TANK.

3. UNAUTHORIZED MODIFICATIONS TO THE UNLOADER

VALVE, SAFETY VALVE, OR ANY OTHER COMPONENTS

WHICH CONTROL TANK PRESSURE.

4. EXCESSIVE VIBRATION CAN WEAKEN THE AIR TANK AND

CAUSE RUPTURE OR EXPLOSION. EXCESSIVE

VIBRATION WILL OCCUR IF THE COMPRESSOR IS NOT

PROPERLY MOUNTED OR IF THE ENGINE OPERATES

ABOVE RECOMMENDED RPM.

ATTACHMENTS & ACCESSORIES:

EXCEEDING THE PRESSURE RATING OF AIR TOOLS, SPRAY

GUNS, AIR OPERATED ACCESSORIES, TIRES AND OTHER

INFLATABLES CAN CAUSE THEM TO EXPLODE OR FLY

APART, AND COULD RESULT IN SERIOUS INJURY.

HOW TO PREVENT IT

DRAIN TANK DAILY OR AFTER EACH USE, iF TANK DEVELOPS

ALEAK, REPLACE IT IMMEDIATELY WITH A NEW TANK OR

REPLACE THE ENTIRE COMPESSOR

NEVER DRILL INTO, WELD, OR MAKE ANY MODIFICATIONS TO

THE TANK OR ITS AT[AGHMENTS.

THE TANK IS DESIGNED TO WITHSTAND SPECIFIC OPERATING

PRESSURES. NEVER MAKE ADJUSTMENTS OR PARTS

SUBSTITUTIONS TO ALTER THE FACTORY SET OPERA_NG

PRESSURES.

DO NOT REMOVE THE STIFFENER BAR CONNECTING THE

COMPRESSOR PUMP TO THE ENGINE, EXCEPT TO ADJUST BELT

TENSION, THEN SECURELY TIGHTEN THE STIFFNER BAR NUTS.

THIS BAR CONTROLS OUTFIT VIBRATION.

FOR ESSENTIAL CONTROL OF AIR PRESSURE, YOU MUST

INSTALL A PRESSURE REGULATOR AND PRESSURE GAUGE

TO THE AIR OUTLET OF YOUR COMPRESSOR FOLLOW THE

EQUIPMENT MANUFACTURERS RECOMMENDATION AND NEVER

EXCEED THE MAXIMUM ALLOWABLE PRESSURE RATING OF

A_rACHMENTS. NEVER USE COMPRESSOR TO INFLATE

SMALL LOW-PRESSURE OBJECTS SUCH AS CHILDREN'S

TOYS, FOOTBALLS, BASKETBALLS. ETC.

3-ENG D20396 Rev 0 2/16/00

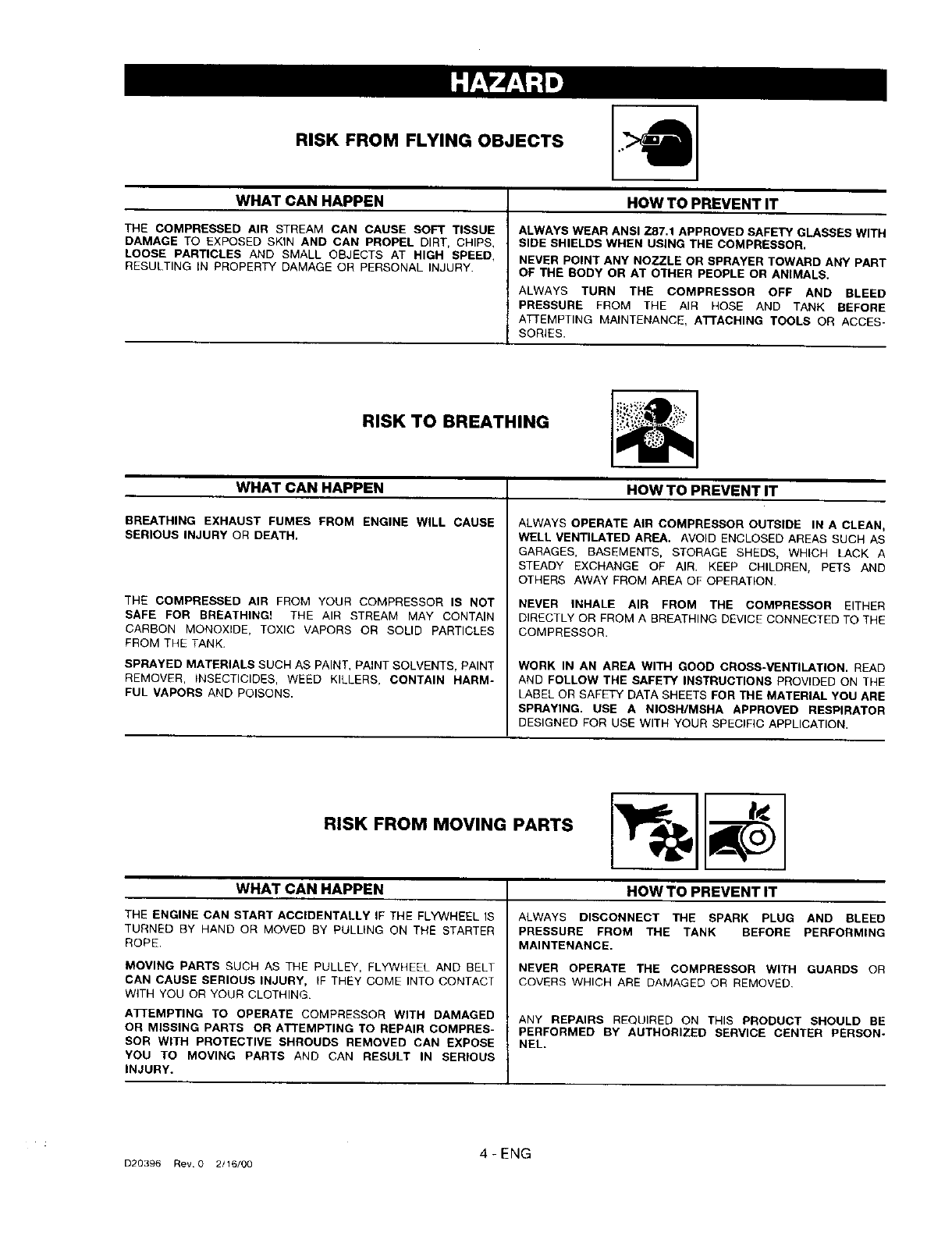

RISK FROM FLYING OBJECTS

WHAT CAN HAPPEN

THE COMPRESSED AIR STREAM CAN CAUSE SOFT TISSUE

DAMAGE TO EXPOSED SKIN AND CAN PROPEL DIRT, CHIPS,

LOOSE PARTICLES AND SMALL OBJECTS AT HIGH SPEED,

RESULTING IN PROPERTY DAMAGE OR PERSONAL INJURY.

HOW TO PREVENT IT

ALWAYS WEAR ANSI Z87.1 APPROVED SAFETY GLASSES WITH

SIDE SHIELDS WHEN USING THE COMPRESSOR.

NEVER POINT ANY NOZZLE OR SPRAYER TOWARD ANY PART

OF THE BODY OR AT OTHER PEOPLE OR ANIMALS.

ALWAYS TURN THE COMPRESSOR OFF AND BLEED

PRESSURE FROM THE AIR HOSE AND TANK BEFORE

ATTEMPTING MAINTENANCE, ATTACHING TOOLS OR ACCES-

SORIES.

RISK TO BREATHING

WHAT CAN HAPPEN

BREATHING EXHAUST FUMES FROM ENGINE WILL CAUSE

SERIOUS INJURY OR DEATH.

THE COMPRESSED AIR FROM YOUR COMPRESSOR IS NOT

SAFE FOR BREATHING! THE AIR STREAM MAY CONTAIN

CARBON MONOXIDE, TOXIC VAPORS OR SOLID PARTICLES

FROM THE TANK.

SPRAYED MATERIALS SUCH AS PAINT, PAINT SOLVENTS, PAINT

REMOVER, INSECTICIDES, WEED KILLERS, CONTAIN HARM-

FUL VAPORS AND POISONS.

HOW TO PREVENT IT

ALWAYS OPERATE AIR COMPRESSOR OUTSIDE IN A CLEAN,

WELL VENTILATED AREA. AVOID ENCLOSED AREAS SUCH AS

GARAGES, BASEMENTS, STORAGE SHEDS, WHICH LACK A

STEADY EXCHANGE OF AIR. KEEP CHILDREN, PETS AND

OTHERS AWAY FROM AREA OF OPERATION.

NEVER INHALE AIR FROM THE COMPRESSOR EITHER

DIRECTLY OR FROM A BREATHING DEVICE CONNECTED TO THE

COMPRESSOR.

WORK IN AN AREA WITH GOOD CROSS-VENTILATION. READ

AND FOLLOW THE SAFETY INSTRUCTIONS PROVIDED ON THE

LABEL OR SAFETY DATA SHEETS FOR THE MATERIAL YOU ARE

SPRAYING. USE A NIOSH/MSHA APPROVED RESPIRATOR

DESIGNED FOR USE WITH YOUR SPECIFIC APPLICATION.

RISK FROM MOVING PARTS

WHAT CAN HAPPEN

THE ENGINE CAN START ACCIDENTALLYIF THE FLYWHEELIS

TURNED BY HAND OR MOVED BY PULLING ON THE STARTER

ROPE.

MOVING PARTS SUCH AS THE PULLEY, FLYWHEEL AND BELT

CAN CAUSE SERIOUS INJURY, IF THEY COME INTO CONTACT

WITH YOU OR YOUR CLOTHING

ATTEMPTING TO OPERATE COMPRESSOR WITH DAMAGED

OR MISSING PARTS OR ATTEMPTING TO REPAIR COMPRES-

SOR WITH PROTECTIVE SHROUDS REMOVED CAN EXPOSE

YOU TO MOVING PARTS AND CAN RESULT IN SERIOUS

INJURY.

HOW TO PREVENT IT

ALWAYS DISCONNECT THE SPARK PLUG AND BLEED

PRESSURE FROM THE TANK BEFORE PERFORMING

MAINTENANCE.

NEVER OPERATE THE COMPRESSOR WITH GUARDS OR

COVERS WHICH ARE DAMAGED OR REMOVED

ANY REPAIRS REQUIRED ON THIS PRODUCT SHOULD BE

PERFORMED BY AUTHORIZED SERVICE CENTER PERSON-

NEL.

4-ENG

D203_ Rev 0 2/16/0Q

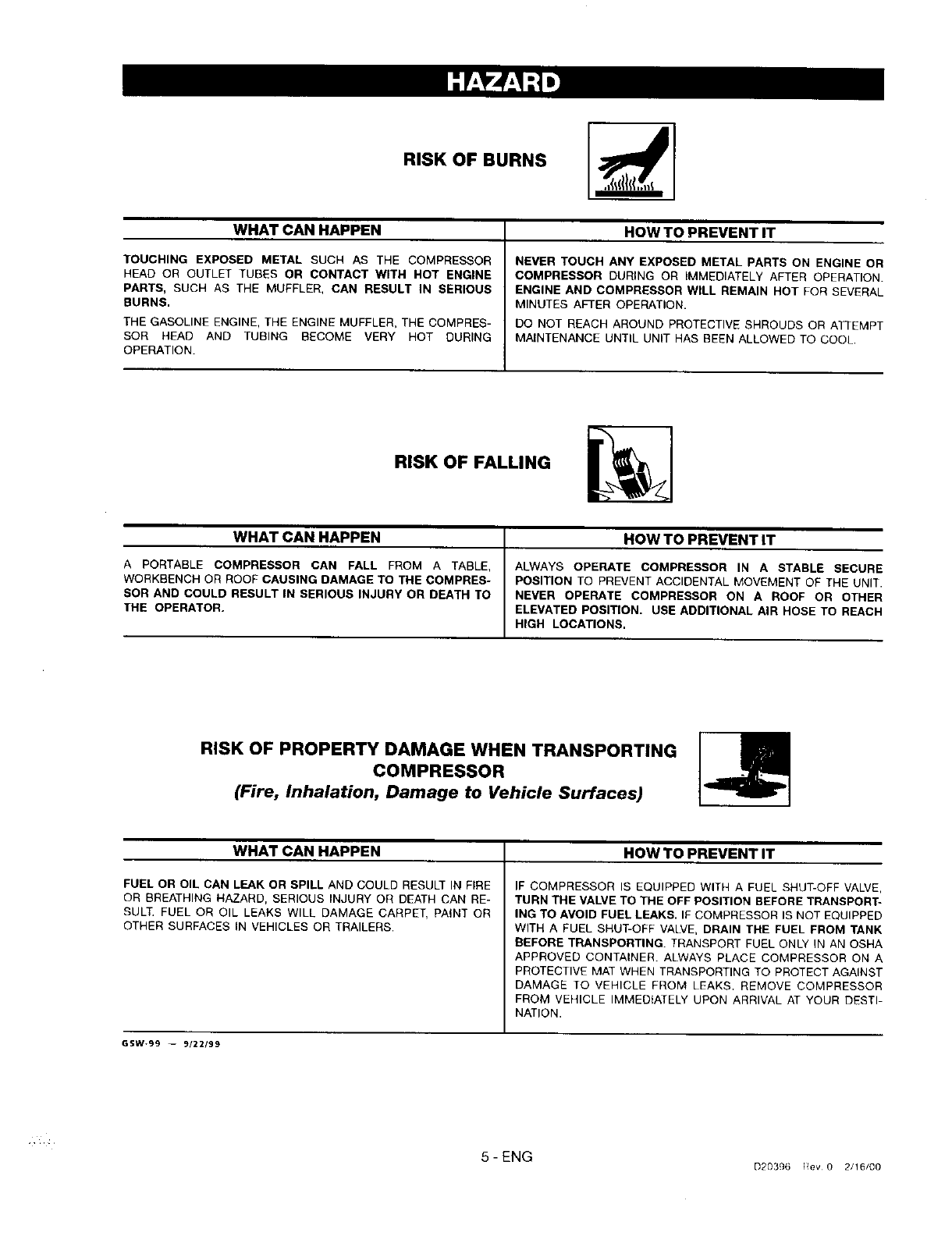

RISK OF BURNS

WHAT CAN HAPPEN

TOUCHING EXPOSED METAL SUCH AS THE COMPRESSOR

HEAD OR OUTLET TUBES OR CONTACT WITH HOT ENGINE

PARTS, SUCH AS THE MUFFLER, CAN RESULT IN SERIOUS

BURNS.

THE GASOLINE ENGINE, THE ENGINE MUFFLER, THE COMPRES-

SOR HEAD AND TUBING BECOME VERY HOT DURING

OPERATION.

HOW TO PREVENT IT

NEVER TOUCH ANY EXPOSED METAL PARTS ON ENGINE OR

COMPRESSOR DURING OR IMMEDIATELY AFTER OPERATION.

ENGINE AND COMPRESSOR WILL REMAIN HOT FOR SEVERAL

MINUTES AFTER OPERATION.

DO NOT REACH AROUND PROTECTIVE SHROUDS OR ATTEMPT

MAINTENANCE UNTIL UNIT HAS BEEN ALLOWED TO COOL.

RISK OF FALLING

WHAT CAN HAPPEN

A PORTABLE COMPRESSOR CAN FALL FROM A TABLE,

WORKBENCH OR ROOF CAUSING DAMAGE TO THE COMPRES-

SOR AND COULD RESULT IN SERIOUS INJURY OR DEATH TO

THE OPERATOR.

HOW TO PREVENT IT

ALWAYS OPERATE COMPRESSOR IN A STABLE SECURE

POSITION TO PREVENT ACCIDENTAL MOVEMENT OF THE UNIT.

NEVER OPERATE COMPRESSOR ON A ROOF OR OTHER

ELEVATED POSITION. USE ADDITIONAL AIR HOSE TO REACH

HIGH LOCATIONS.

RISK OF PROPERTY DAMAGE WHEN TRANSPORTING I n

COMPRESSOR

(Fire, Inhalation, Damage to Vehicle Surfaces)

WHAT CAN HAPPEN

FUEL OR OIL CAN LEAK OR SPILL AND COULD RESULT IN FIRE

OR BREATHING HAZARD, SERIOUS INJURY OR DEATH CAN RE-

SULT. FUEL OR OIL LEAKS WILL DAMAGE CARPET, PAINT OR

OTHER SURFACES IN VEHICLES OR TRAILERS.

HOWTO PREVENT IT

IF COMPRESSOR IS EQUIPPED WITH A FUEL SHUT-OFF VALVE,

TURN THE VALVE TO THE OFF POSITION BEFORE TRANSPORT-

ING TO AVOID FUEL LEAKS. IF COMPRESSOR IS NOT EQUIPPED

WITH A FUEL SHUT-OFF VALVE, DRAIN THE FUEL FROM TANK

BEFORE TRANSPORTING. TRANSPORT FUEL ONLY IN AN OSHA

APPROVED CONTAINER. ALWAYS PLACE COMPRESSOR ON A

PROTECTIVE MAT WHEN TRANSPORTING TO PROTECT AGAINST

DAMAGE TO VEHICLE FROM LEAKS. REMOVE COMPRESSOR

FROM VEHICLE IMMEDIATELY UPON ARRIVAL AT YOUR DESTI-

NATION.

GSW.99 -- 9122199

5 - ENG D20396 F!ev 0 2/16/00

Model No.

Engine Horsepower

Compressor DisplacementCFM

CompressorBore

Compressor Stroke

Air Tank/Capacity- Gallons

Approximate UnloaderReset Pressure

Approximate UnloaderBlow-OffPressure

SCFM @ 40 psig

SCFM @ 90 psig

919.157251

15.3

2 7/8"

20ASME

110

12.0

10.0

SCFM: Standard cubic feet per minute; a unit of

measure of air delivery.

PSIG: Pounds per square inch gauge; a unitof

measure of pressure.

ASME: American Society of Mechanical Engineers;

made, tested, inspected and registered to meet the

standardsof the ASME.

CFM: Cubic feet per minute.

Unloader Blow-Off Pressure: All models are continu-

ously running outfits controlled by tank pressure when

the maximum tank pressure is obtained, the unloader

valve will blow-off. This will cause the compressor to

exhaust the air to the atmosphere and not the tank.

This decreases the load on the engine and allows it to

run at a near no-load condition.

Unloader Reset Pressure: When the tank pressure

drops to apredetermined point, the unloader valve

closes. The tank pressure will now increase until it

reaches the unloader blow-off pressure.

The following accessories are available through the current general sales catalog or at full-line Sears stores,

•SPRAY GUNS

•BLOW GUNS

• AIR CAULKING GUNS

eAIR POWER WASHER

"SANDBLASTERS

• AIR BRUSH SET

oIN-LINE FILTERS

• TIRE CHUCKS

•PAINT TANKS

•AIR CARRY TANKS

•INFLATOR KITS

•QUICK CONNECTOR SETS

(various sizes)

•AIR PRESSURE REGULATORS

•OIL FOG LUBRICATORS

•AIR TOOLS:

Sanders

Drills

Impact Wrenches

Rachets

=AIR HOSE:

1/4" or 3/8" I.D.

in various lengths

6 - ENG

020396 Rev 02/16/00

You have purchased an air compressor unit consisting of

a 2 cylinder, single-stage air compressor pump and air

tank. Included with portable compressors are wheels,

gauges, and handle.

Your air compressor can be used for operating paint spray

guns, air tools, caulking guns, grease guns, air brushes,

sandblaster, or inflating tires and plastic toys, spraying

weed killers, insecticides, etc.

An air pressure regulator is usually required for most of

these applications. Regulators can be purchased from

most Sears stores or through the Sears Power Tool

Catalog.

Separate air transformers which combine the functions or

air regulation and/or moisture and dirt removal should be

used where applicable.

ON/OFF

SWITCH-_-_

UNLOADER VALVE

VALVE

SHUTOFF VALVE

CHECK

VALVE

Figure 1

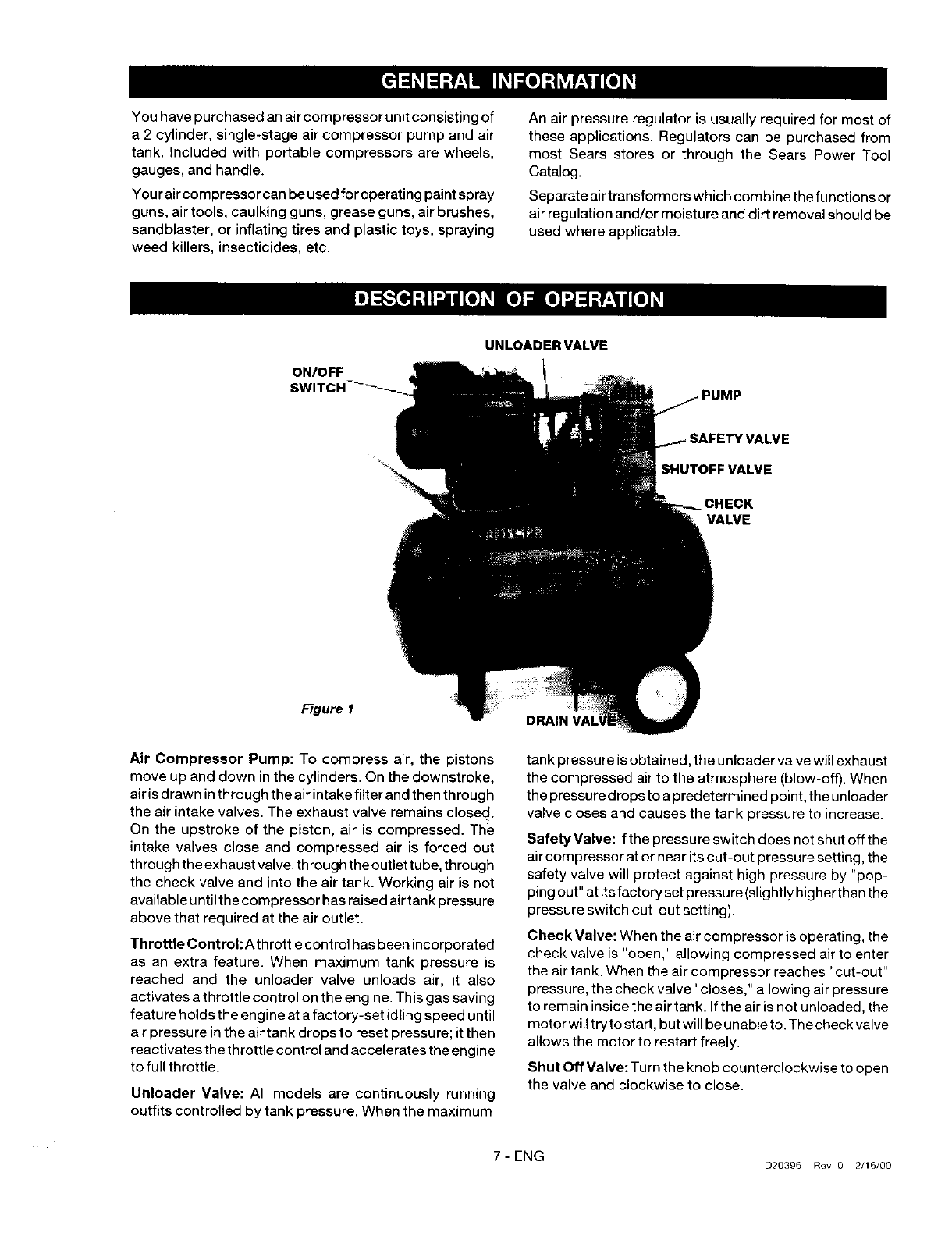

Air Compressor Pump: To compress air, the pistons

move up and down in the cylinders. On the downstroke,

air is drawn in through the air intake filter and then through

the air intake valves. The exhaust valve remains closed.

On the upstroke of the piston, air is compressed. The

intake valves close and compressed air is forced out

through the exhaust valve, th rough the outlet tube, through

the check valve and into the air tank. Working air is not

available until the compressor has raised airtank pressure

above that required at the air outlet.

Throttle Control: Athrottle control has been incorporated

as an extra feature. When maximum tank pressure is

reached and the unloader valve unloads air, it also

activates a throttle control on the engine. This gas saving

featu re holds the engine at a factory-set idling speed until

air pressure in the air tank drops to reset pressure; it then

reactivates the throttle control and accelerates the engine

to full throttle.

Unloader Valve: All models are continuously running

outfits controlled by tank pressure. When the maximum

tank pressure is obtained, the unloader valve will exhaust

the compressed air to the atmosphere (blow-off). When

the pressure drops to a predetermined point, the unloader

valve closes and causes the tank pressure to increase.

Safety Valve: If the pressure switch does not shut off the

air compressor at or near its cut-out pressure setting, the

safety valve will protect against high pressure by "pop-

ping out" at its factory set pressure (slightly higherthan the

pressure switch cut-out setting).

Check Valve: When the air compressor is operating, the

check valve is "open," allowing compressed air to enter

the air tank. When the air compressor reaches "cut-out"

pressure, the check valve "closes," allowing air pressure

to remain inside the air tank. If the air is not unloaded, the

motor will try to start, but will be unable to. The check valve

allows the motor to restart freely.

Shut Off Valve: Turn the knob counterclockwise to open

the valve and clockwise to close.

7 - ENG D20396 Rev 0 2/16/00

Item You Will Need To Assemble Your Compres-

sor

•20 oz. of oil for the engine (see Briggs & Stratton

instructions). Use 10W30 high quality motor oil

• 16 oz. of Sears compressor oil or SAE 20-20W

• teflon tape

• a9/16" socket oropen-endwrench ferattachingthe

wheels

• a 7/16" open-end wrench for attaching the foot

extension bracket and rubber feet

•aW' open-end wrench for attaching the shut-off

valve and air outlet adapater.

I_,V;l_,1:]Oll_[€

Installing Handle, Foot Extension Bracket,

Wheels, Outlet Valve

THE WHEELS AND HANDLE DO NOT

PROVIED ADEQUATE CLEARANCE, STABIL-

ITY OR SUPPORT FOR PULLING THE UNIT

UP AND DOWN STAIRS OR STEPS. THE

UNIT MUST BE LIFTED OR PUSHED UP A

RAMP.

Oo not use the engine gas tank as a sup-

port for lifting the air compressor.

1. Insert the handle into pockets under the tank saddle.

Put one set screw through hole in one side of tank

saddle and tighten down on handle.

EXCESSIVE TANK VIBRATION CAN

WEAKEN THE AIR TANK AND CAUSE

RUPTURE OR EXPLOSION. RUBBER FEET

MUST BE INSTALLED.

2, Attach the rubber feet to the bottom of the foot

extension bracket, Attach foot extension bracket to

the air tank bracket. Use one cap screw, one lock

washer, and one hex nut at each end. Tighten.

3. The leg bracket on the underside of the air

compressor tank has 2 holes on each side for

mounting the wheels. Place one shoulder bolt through

the hole in a wheel. Next, push the bolt through the

LOWER hole ofthe leg bracket and screw on one

hexlocking nut. The special locking nut does not turn

freely. Tighten the nut firmly until it contacts the tan k

leg. See pg. 16. The outfit will sit level if the wheels

are properly installed.

4. Apply teflon tape to the tapered pipe threads on

the adapter and tighten into the manifold. Install the

swivel connection end of the shut-off valve to the

straight threaded end of the adapter (pipe sealant is

not required) and tighten this connection. See photo

below.

It may be necessary to brace or support

one end of the outfit when attaching the

wheels and the foot extension bracket

because the air compressor will have a

tendency to tip before both wheels are

assembled.

SWFVEL MANIFOLD

SHUT-OFF CONNECTION

VALVE

5. Attach the spark plug wire to the spark plug.

Location of the Air Compressor

.I_l¥1_I_ U_f_:

EXCESSIVE TANK VIBRATION CAN WEAKEN

THE AIR TANK AND CAUSE RUPTURE OR

EXPLOSION. RUBBER FEET MUST BE

INSTALLED.

D20396 Rev 0 2116/00

Operate the air compressor in a clean, dry and well

ventilated area. The air intake filter must be kept clear

of obstructions which could reduce air delivery of the air

compressor. The air compressor should be located at

least 12" away from walls or other obstructions that

could interfere with the flow of air through thefan bladed

flywheel. The air compressor crankcase and head are

designed with fins to provide proper cooling, if humidity

is high, Sears air filter can be installed to remove

excessive moisture. Closely follow the instructions pack -

aged with the filter for proper installation.

8-ENG

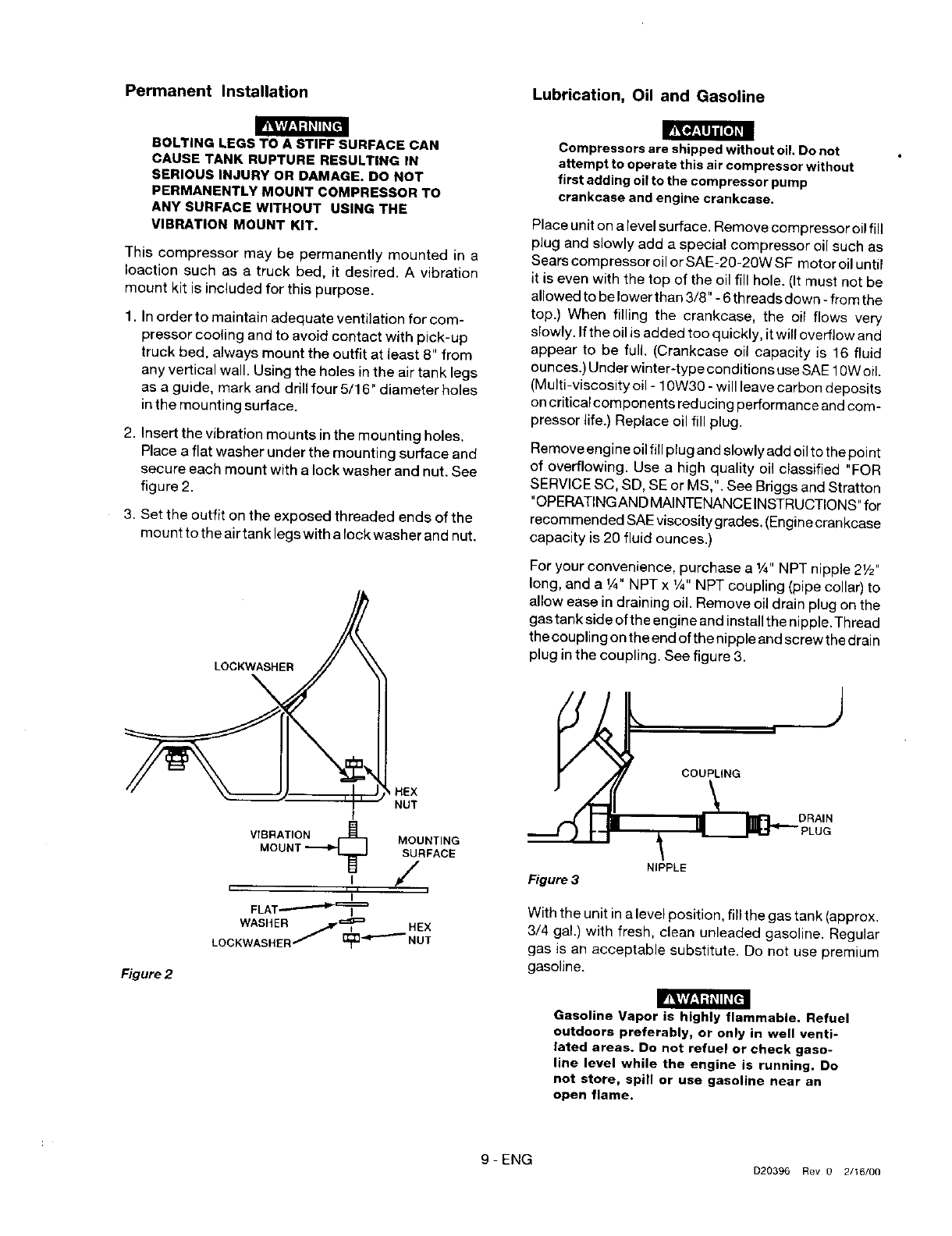

Permanent Installation Lubrication, Oil and Gasoline

BOLTING LEGS TO A STIFF SURFACE CAN

CAUSE TANK RUPTURE RESULTING IN

SERIOUS INJURY OR DAMAGE. DO NOT

PERMANENTLY MOUNT COMPRESSOR TO

ANY SURFACE WITHOUT USING THE

VIBRATION MOUNT KIT.

This compressor may be permanently mounted in a

Ioaction such as e truck bed, it desired. A vibration

mount kit is included for this purpose.

1. In order to maintain adequate ventilation for com-

pressor cooling and to avoid contact with pick-up

truck bed, always mount the outfit at least 8" from

any vertical wall. Using the holes in the air tank legs

as a guide, mark and drill four 5/16" diameter holes

in the mounting surface.

2. Insert the vibration mounts in the mounting holes.

Place a flat washer under the mounting surface and

secure each mount with a lock washer and nut. See

figure 2.

3. Set the outfit on the exposed threaded ends of the

mount to the airtank legs with a lock washer and nut.

LOCKWASHER

Figure 2

Compressors are shipped without oil. Do not

attempt to operate this air compressor without

first adding oil to the compressor pump

crankcase and engine crankcase.

Place unit on a level surface. Remove compressor oil fill

plug and slowly add a special compressor oil such as

Sears compressor oil or SAE-20-20W SF motor oil until

it is even with the top of the oil fill hole. (It must not be

allowed to be lower than 3/8" - 6 th reads down - fro m the

top.) When filling the crankcase, the oil flows very

slowly. If the oil is added too quickly, it will overflow and

appear to be full. (Crankcase oil capacity is 16 fluid

ounces.) Under winter-type conditions use SAE 10W oil.

(Multi-viscosity oil - 10W30 - will leave carbon deposits

on critical components reducing performance and com-

pressor life.) Replace oil fill plug.

Remove engine oil fill plug and slowly add oil to the point

of overflowing. Use a high quality oil classified "FOR

SERVICE SC, SD, SE or MS,". See Briggs and Stratton

"OPERATING AND MAINTENANCE INSTRUCTIONS" for

recommended SAE viscosity grades. (Engine crankcase

capacity is 20 fluid ounces.)

For your convenience, purchase a W' NPT nipple 2V2"

long, and a 1/4" NPT x 1/4"NPT coupling (pipe collar) to

allow ease in draining oil. Remove oil drain plug on the

gas tank side of the engine and install the nipple. Thread

the ooupting on the end of the nipple and screw the drain

plug in the coupling. See figure 3.

COUPLING

DRAIN

NIPPLE

Figure 3

With the unit in a level position, fill the gas tank (approx.

3/4 gal.) with fresh, clean unleaded gasoline. Regular

gas is an acceptable substitute. Do not use premium

gasoline.

Gasoline Vapor is highly flammable. Refuel

outdoors preferably, or only in well venti-

lated areas. Do not refuel or check gaso-

line level while the engine is running. Do

not store, spill or use gasoline near an

open flame.

9 - ENG D20396 Ray 0 2/16/0Q

Oo not mix oil with gasoUne.

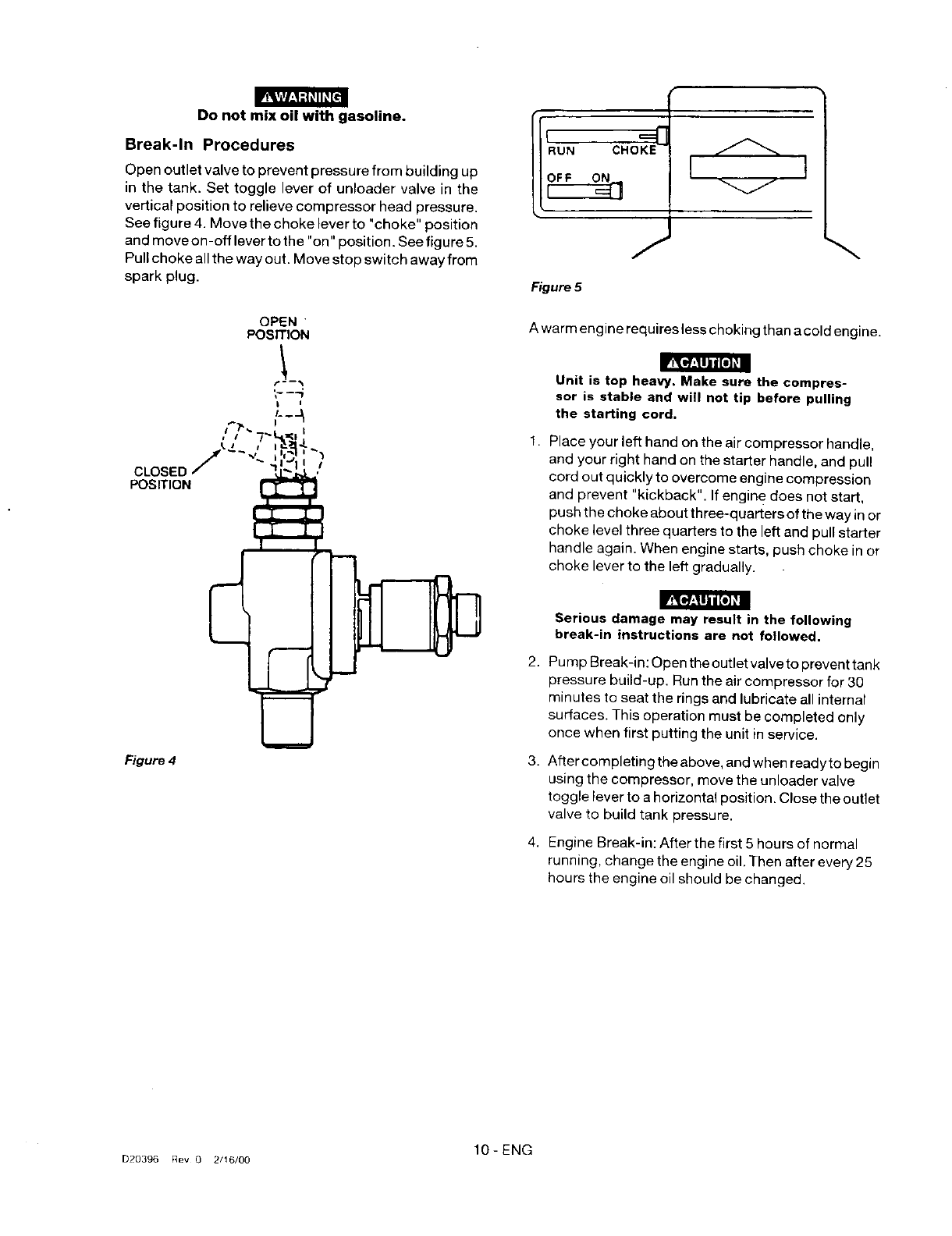

Break-In Procedures

Open outlet valve to prevent pressure from building up

in the tank. Set toggle lever of unloader valve in the

vertical position to relieve compressor head pressure.

See figure 4. Move the choke lever to "choke" position

and move on -off lever to the "on" position. See figure 5.

Pull choke allthe way out. Move stop switch away from

spark plug.

OPEN

POSITION

tt'tP__ ". I

k & /

CLOSED

POSITION

RE_r..IlII| [e]_

Figure 4

[ IRUN

Figure 5

A warm engine requires less choking than a cold engine.

Unit is top heavy. Make sure the compres-

sor is stable and will not tip before pulling

the starting cord,

Place your left hand on the air compressor handle,

and your right hand on the starter handle, and pull

cord out quickly to overcome engine compression

and prevent "kickback". If engin e does not start,

push the choke about three-quarters of the way in or

choke level three quarters to the left and pull starter

handle again. When engine starts, push choke in or

choke lever to the left gradually.

Serious damage may result in the following

break-in instructions are not followed.

Pump Break-in: Open the outlet valve to prevent tank

pressure build-up. Run the air compressor for 30

minutes to seat the rings and lubricate all internal

surfaces. This operation must be completed only

once when first putting the unit in service.

After completing the above, and when ready to begin

using the compressor, move the unloader valve

toggle lever to a horizontal position. Close the outlet

valve to build tank pressure.

Engine Break-in: After the first 5 hours of normal

running, change the engine oil. Then after every 25

hours the engine oil should be changed.

10 - ENG

D20396 Rev 0 2/16/00

1. Before attaching an air hose or accessory, make

sure the engine is off. Close the outlet valve or

pressure regulator. (If an optional air pressure

regulator is not used, do not use accessories rated

at less than 110 psig.)

2. Attach hose and accessory.

TOO MUCH AIR PRESSURE CAUSES A

HAZARDOUS RISK OF BURSTING. CARE-

FULLY FOLLOW STEPS 3 THROUGH 10

EACH TIME THE COMPRESSOR IS USED.

3. Check the manufacturer's maximum pressure

rating for air tools and accessories. The compressor

outlet pressure must never exceed the maximum

pressure rating.

4. Start the engine and allow tank pressure to build.

Your outfit is ready for use.

Compressed air from the outfit may contain

water condensation and oil mist. Do not

spray unfiltered air at an item that could

be damaged. Some air operated tools or

devices may require filtered air. Read the

instructions for the air tool or device.

When you are finished:

5. Turn offengine.

6. Shut-off outlet valve or air pressure regulator.

7. Remove air tool or accessory.

8. Open outlet valve or regulator and allow air to slowly

bleed from the tank. Closethe outlet vavleor regulator

when the tank pressure is approximately 20 psig.

10,

WATER WILL CONDENSE IN TANK. IF NOT

DRAINED, WATER WILL CORRODE AND

WEAKEN THE AIR TANK CAUSING A RISK

OF TANK RUPTURE. SEE STEP 9.

With tank pressure at approximately 20 PSI, open

the drain cock and allow moisture to drain. Turn the

drain T-handle counterclockwise to open.

NOTE

If drain cock is clogged, release all air pres-

sure. The drain cock can then be removed,

cleaned, and then reinstalled.

After the water has been drained, close the drain

cock. The compressor outfit can now be stored.

DURING MAINTENANCE, YOU COULD BE EXPOSED TO COMPRESSED AIR OR MOVING PARTS. PER-

SONAL INJURIES CAN OCCUR. BEFORE DOING ANY MAINTENANCE OR REPAIR, DISCONNECT THE

SPARK PLUG WIRE TO PREVENT ACCIDENTAL STARTING, AND RELIEVE AIR TANK PRESSURE. NEVER

OPERATE THE COMPRESSOR WITH THE BELT GUARD REMOVED.

Air Compressor

Aclean air compressor and engine run cooler and

provide longer service. Clean or blow off fins and any

other parts of the air compressor and enginethat collect

dust or dirt, Do not place rags, containers or other

material on or against the compressor. Ventilation is

necessary to maintain proper air compressor operating

temperature.

Compressor Pump Air Intake Filter --

Inspection and Replacement

A dirty air filter will not allow the compressor to operate

at full capacity. Before you use the compressor, check

the air filter to be sure it is clean.

Compressor Oil -- Checking and Changing

Check oil level in the crankcase daily. The oil level

should be even with the top of the fill hole and must not

be allowed to be lower than 3/8" from the top (6threads)

at any time. It is recommended that the oil be changed

after every 100 hours of operation. To drain the oil,

remove the oil drain plug and collect the oil in a suitable

container. Be sure to replace the plug securely before

adding new oil. Use a special compressor oil such as

Sears compressor oil or SAE 20-20W SF motor oil.

(Crankcase oil capacity is 16 fluid ounces.) Under

extreme winter conditions use 10 weight oil. Multi-

viscosity oil (10W30) will leave carbon deposits on

critical components reducing performance and com-

pressor life.

If it is dirty, replace with a new filter. The filter may be

removed by using a pair of needle nose pliers or a

screwdriver. Pull or pry out the old filter and push in a

new one.

Check Valve -- Inspection and Replacement

Remove the check valve for inspection or replacement

if air is leaking constantly back through the check valve.

Use the following procedure to inspect, clean or replace

the check valve.

11 - ENG 020396 Rev 0 2/16/00

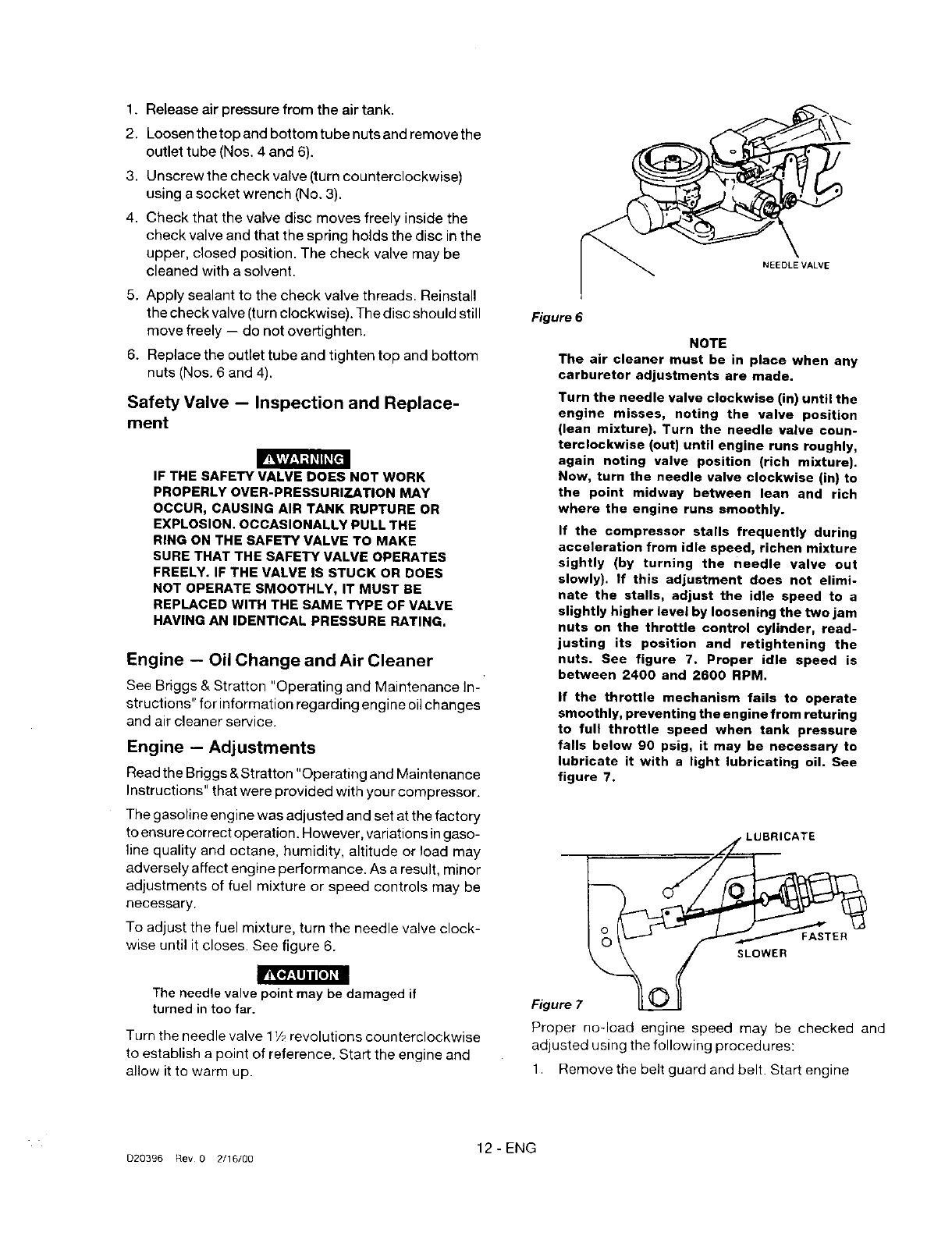

Release air pressure from the air tank.

Loosen the top and bottom tube nuts and remove the

outlet tube (Nos. 4 and 6).

Unscrew the check valve (turn counterclockwise)

using a socket wrench (No. 3).

Check that the valve disc moves freely inside the

check valve and that the spring holds the disc in the

upper, closed position. The check valve may be

cleaned with a solvent.

Apply sealant to the check valve threads. Reinstall

the check valve (turn clockwise). The disc should still

move freely -- do not overtighten.

Replace the outlet tube and tighten top and bottom

nuts (Nos. 6 and 4).

Safety Valve -- Inspection and Replace-

ment

IF THE SAFETY VALVE DOES NOT WORK

PROPERLY OVER-PRESSURIZATION MAY

OCCUR, CAUSING AIR TANK RUPTURE OR

EXPLOSION. OCCASIONALLY PULL THE

RING ON THE SAFETY VALVE TO MAKE

SURE THAT THE SAFETY VALVE OPERATES

FREELY. IF THE VALVE IS STUCK OR DOES

NOT OPERATE SMOOTHLY, IT MUST BE

REPLACED WITH THE SAME TYPE OF VALVE

HAVING AN IDENTICAL PRESSURE RATING.

Engine -- Oil Change and Air Cleaner

See Briggs & Stratton "Operating and Maintenance In-

structions" for information regarding engine oil changes

and air cleaner service.

Engine -- Adjustments

Read the Briggs & Stratton "Operating and Maintenance

Instructions" that were provided with your compressor.

The gasoline engine was adjusted and set at the factory

to ensure correct operation. However, variationsin gaso-

line quality and octane, humidity, altitude or load may

adversely affect engine performance. As a result, minor

adjustments of fuel mixture or speed controls may be

necessary.

To adjust the fuel mixture, turn the needle valve clock-

wise until it closes• See figure 6.

Figure 6

NEEDLEVALVE

NOTE

The air cleaner must be in place when any

carburetor adjustments are made.

Turn the needle valve clockwise (in) until the

engine misses, noting the valve position

(lean mixture). Turn the needle valve coun-

terclockwise (out) until engine runs roughly,

again noting valve position (rich mixture).

Now, turn the needle valve clockwise (in) to

the point midway between lean and rich

where the engine runs smoothly.

If the compressor stalls frequently during

acceleration from idle speed, richen mixture

sightly (by turning the needle valve out

slowly). If this adjustment does not elimi-

nate the stalls, adjust the idle speed to a

slightly higher level by loosening the two jam

nuts on the throttle control cylinder, read-

justing its position and retightening the

nuts. See figure 7. Proper idle speed is

between 2400 and 2600 RPM.

If the throttle mechanism fails to operate

smoothly, preventing the engine from returing

to full throttle speed when tank pressure

falls below 90 psig, it may be necessary to

lubricate it with a light lubricating oil. See

figure 7.

LUBRICATE

rER

SLOWER

The needle valve point may be damaged if

turned in too far.

Turn the needle valve 1_/2revolutions counterclockwise

to establish a point of reference. Start the engine and

allow it to warm up.

Figure 7

Proper no-load engine speed may be checked and

adjusted using the following procedures:

1. Remove the belt guard and belt. Start engine

12 - ENG

D20396 Hey 0 2/16/00

NOTE

This is the only time you should operate

your compressor with the belt guard

removed. Use caution when checking

engine speed.

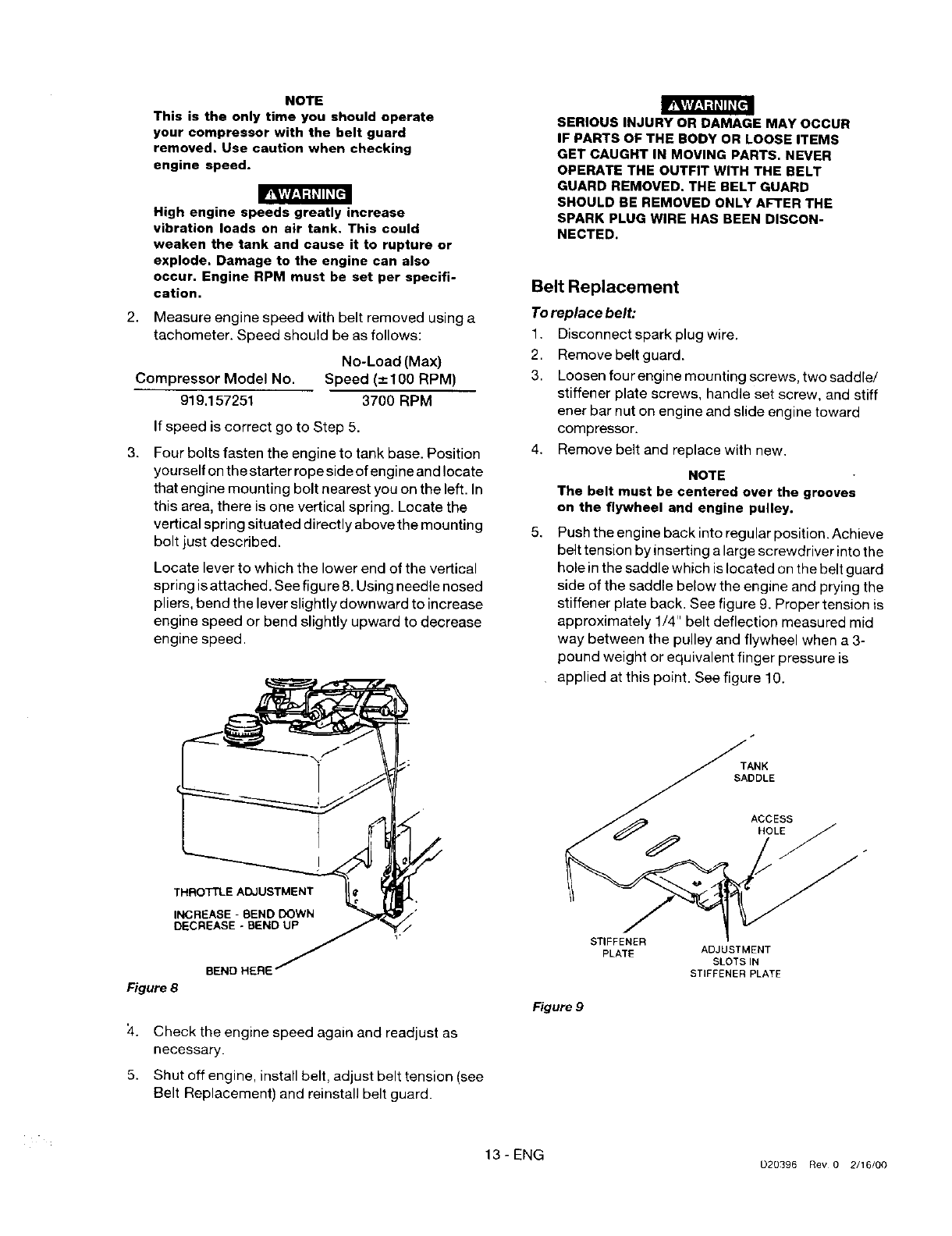

"vvRIiW_]_IR[_

High engine speeds greatly increase

vibration loads on air tank. This could

weaken the tank and cause it to rupture or

explode. Damage to the engine can also

occur. Engine RPM must be set per specifi-

cation.

2. Measure engine speed with belt removed using a

tachometer. Speed should be as follows:

Compressor Model No.

919.157251

No-Load (Max)

Speed (± 100 RPM)

3700 RPM

If speed is correct go to Step 5.

Four bolts fasten the engine to tank base. Position

yourself on the starter rope side of engine and locate

that engine mounting bolt nearest you on the left. In

this area, there is one vertical spring. Locate the

vertical spring situated directly above the mounting

bolt just described.

Locate lever to which the lower end of the vertical

spring is attached. See figu re 8. Using needle nosed

pliers, bend the lever slightly downward to increase

engine speed or bend slightly upward to decrease

engine speed.

SERIOUS INJURY OR DAMAGE MAY OCCUR

IF PARTS OF THE BODY OR LOOSE ITEMS

GET CAUGHT IN MOVING PARTS. NEVER

OPERATE THE OUTFIT WITH THE BELT

GUARD REMOVED. THE BELT GUARD

SHOULD BE REMOVED ONLY AFTER THE

SPARK PLUG WIRE HAS BEEN DISCON-

NECTED.

Belt Replacement

To replace belt:

1. Disconnect spark plug wire.

2. Remove belt guard.

3. Loosen four engine mounting screws, two saddle/

stiffener plate screws, handle set screw, and stiff

ener bar nut on engine and slide engine toward

compressor.

4. Remove belt and replace with new.

NOTE

The belt must be centered over the grooves

on the flywheel and engine pulley.

5. Push the engine back into regular position. Achieve

belt tension by inserting a large screwdriver into the

hole in the saddle which is located on the belt guard

side of the saddle below the engine and prying the

stiffener plate back. See figure 9. Proper tension is

approximately 1/4" belt deflection measured mid

way between the pulley and flywheel when a 3-

pound weight or equivalent finger pressure is

applied at this point. See figure 10.

TANK

SADDLE

ACCESS

THROTTLE ADJUSTMENT

INCREASE-BEND DOWN

DECREASE oBEND UP /

BEND HERE

Figure 8

:4. Check the engine speed again and readjust as

necessary.

5. Shut off engine, install belt, adjust belt tension (see

Belt Replacement) and reinstall belt guard.

Figure 9

STIFFENER

PLATE ADJUSTMENT

SLOTS IN

STIFFENER PLATE

13 - ENG D20396 Rev 0 2/16/00

Figure 10

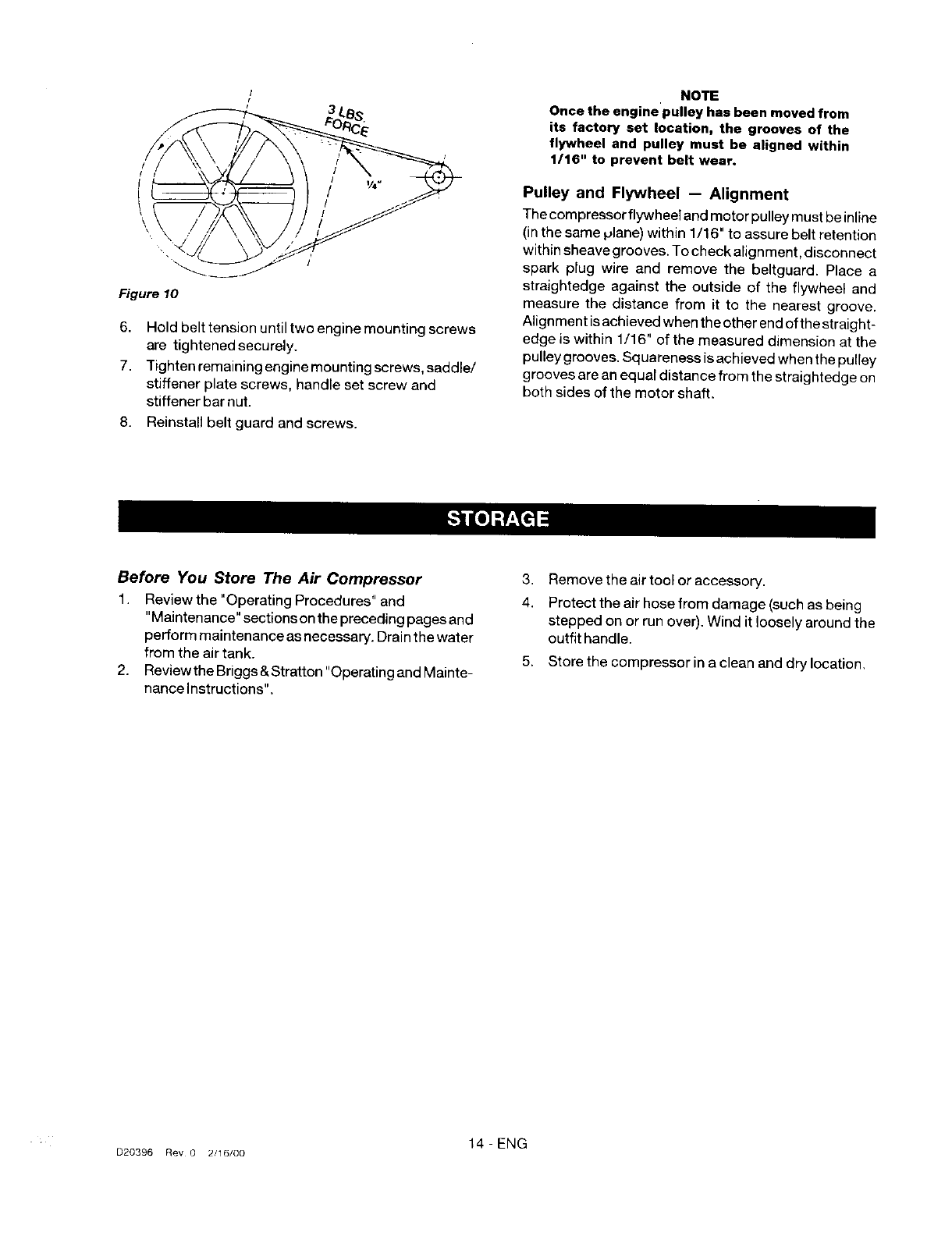

6. Hold belt tension until two engine mounting screws

are tightened securely+

7. Tighten remaining engine mounting screws, saddle/

stiffener plate screws, handle set screw and

stiffener bar nut.

8. Reinstall belt guard and screws.

NOTE

Once the engine pulley has been moved from

its factory set location, the grooves of the

flywheel and pulley must be aligned within

1/16" to prevent belt wear,

Pulley and Flywheel -- Alignment

The compressor flywheel and motor pulley must be inline

(inthe same plane) within 1/16" to assure belt retention

within sheave grooves. To check align ment, disconnect

spark plug wire and remove the beltguard. Place a

straightedge against the outside of the flywheel and

measure the distance from it to the nearest groove.

Alignment isachieved when the other end of the straight-

edge is within f/16" of the measured dimension at the

pulley grooves. Squareness is achieved when the pulley

grooves are an equal distance from the straightedge on

both sides of the motor shaft.

Before You Store The Air Compressor

1. Review the "Operating Procedures +'and

"Maintenance" sections onthe precedingpagesand

performmaintenance asnecessary. Drain the water

from the air tank.

2. Reviewthe Briggs&Stratton "Operating andMainte-

nance Instructions".

Remove the air tool or accessory.

Protect the air hose from damage (such as being

stepped on or run over). Wind it loosely around the

outfit handle.

5, Store the compressor in a clean and dry location,

14 - ENG

D20396 Rev 0 2/16/00

gVtIW-'1_

UNIT CYCLES AUTOMATICALLY WHEN POWER IS ON. WHEN DOING MAINTENANCE, YOU MAY BE

EXPOSED TO VOLTAGE SOURCES, COMPRESSED AIR OR MOVING PARTS. PERSONAL INJURIES

CAN OCCUR. BEFORE PERFORMING MAINTENANCE OR REPAIR, TURN OFF AND LOCK OUT

ELECTRIC POWER AND BLEED OFF AIR TANK PRESSURE. NEVER OPERATE THE COMPRESSOR

WITH THE BELT GUARD REMOVED.

PROBLEM

Excessive tank pressure - safety

valve pops off.

Air leaks at fittings or hose.

CAUSE

Unloader valve does not release pressure

when tank reaches "blow-off" pressure•

Tube or hose fittings are not tight enough.

CORRECTION

Unloader valve must be replaced•

Tighten fittings where air can be heard escaping.

Check fittings under soapy water solution. DO NOT

OVER-TIGHTEN.

Air leaks inside check valve, Defective or dirty check valve. Remove and clean or replace check valve. DO NOT

OVER-TIGHTEN.

Continuous air leak at unloader Defective checkvalve, Turn off engine, move unloader valve toggle lever to

valve• vertical position. If air leaks out of tank through

unloader valve, clean or replace check valve.

Air leaks at air tank welds. Defective air tank. Air tank must be replaced. Do not attempt repair of

any leaks.

Air leak from safety valve. Possible defect in safety valve•

Knocking noise, Defective check valve.

Loose pulley.

Low oil level (Compressor or engine).

Loose flywheel.

Loose compressor or engine mountin(

screws.

Loose belt.

Carbon build-up.

Stiffener bar loose,

Prolong excessive use of air.

Compressor is not large enough for air

requirement.

Compressor is not supplying

enough air to operate accesso-

ries.

Restricted air intake filter.

Loose belt.

Hole in hose.

Check valve restricted

Air leaks•

DO NOT DRILL INTO, WELD OR OTHER-

WISE MODIFY AIR TANK. IT WILL BE

WEAKENED.

Operate safety valve manually by pulling on ring. If

valve still leaks, it should be replaced.

Remove and clean or replace.

Tighten pulley set screw.

Maintain prescribed oil level• Add oil

Tighten screw•

Check bolts. Tighten as required•

Tension belt per instructions on page 12, step 5.

Remove the head and valve plate. Clean the valve

)late and the top of the piston. (Be sure carbon does

not fall into the cylinder.) Reassemble to 25-30 ft,lbs.

using new gasket and torque screws.

Check both nuts and tighten if required

Decrease amount of air usage.

Check the accessory air requirement• If it is higher

than the SCFM or pressure supplied by your air

compressor, you need a larger compressor.

Clean or replace air intake filter•

Adjust belt tension.

Check and replace•

Remove and clean or replace•

Tighten fittings• (See Air Leaks section of Trouble-

shooting Guide•)

15 - ENG D20396 Rev 0 2/16/00

PROBLEM

Excessive belt wear.

CAUSE

Loose belt.

Pulley misalignment.

Loose pulley.

Squealing sound. Loose belt.

There is no oil in the compressor.

Engine will not run The stop switch is in the "stop" position.

The gasoline tank is empty.

The choke is not set properly.

Excessive vibration.

Improper fuel mixture,

Air tank pressure is too high,

The unloading valve toggle lever is in a

horizontal position.

Stiffener bar or engine and compressor

mounting screws are loose.

CORRECTION

Adjust tension per instruction on page 12, step 5.

Adjust pulleys per instructions on page 13.

Check for worn keyway or pulley bore. Also check

for bent motor shaft. Replace parts if necessary.

Adjust belt tension per instructions on page 12,

step 5.

Add oil to top of fill hole in base.

Move the stop switch away from the spark plug.

Fill the tank with gas.

Re-set the choke. Remember, a warm engine

requires less choking that a cold engine.

Adjust the fuel mixture,

Open the ball valve and reduce tank pressure to less

than 40 psig.

Place unloading valve toggle lever in a vertical

3osition.

EXCESSIVE VIBRATION COULD

WEAKEN THE AIR TANK AND CAUSE IT

TO RUPTURE OR EXPLODE. STIFFENER

BAR NUTS AND MOUNTING SCREWS

MUST BE KEPT TIGHTENED. NEVER

OPERATE THE OUTFIT UNLESS

EQUIPPED WITH THE STIFFENER BAR

AND RUBBER FEET.

16 - ENG

D20396 Rev 0 2/16/00

17 - ENG D20306 Rev 0 2/16/00

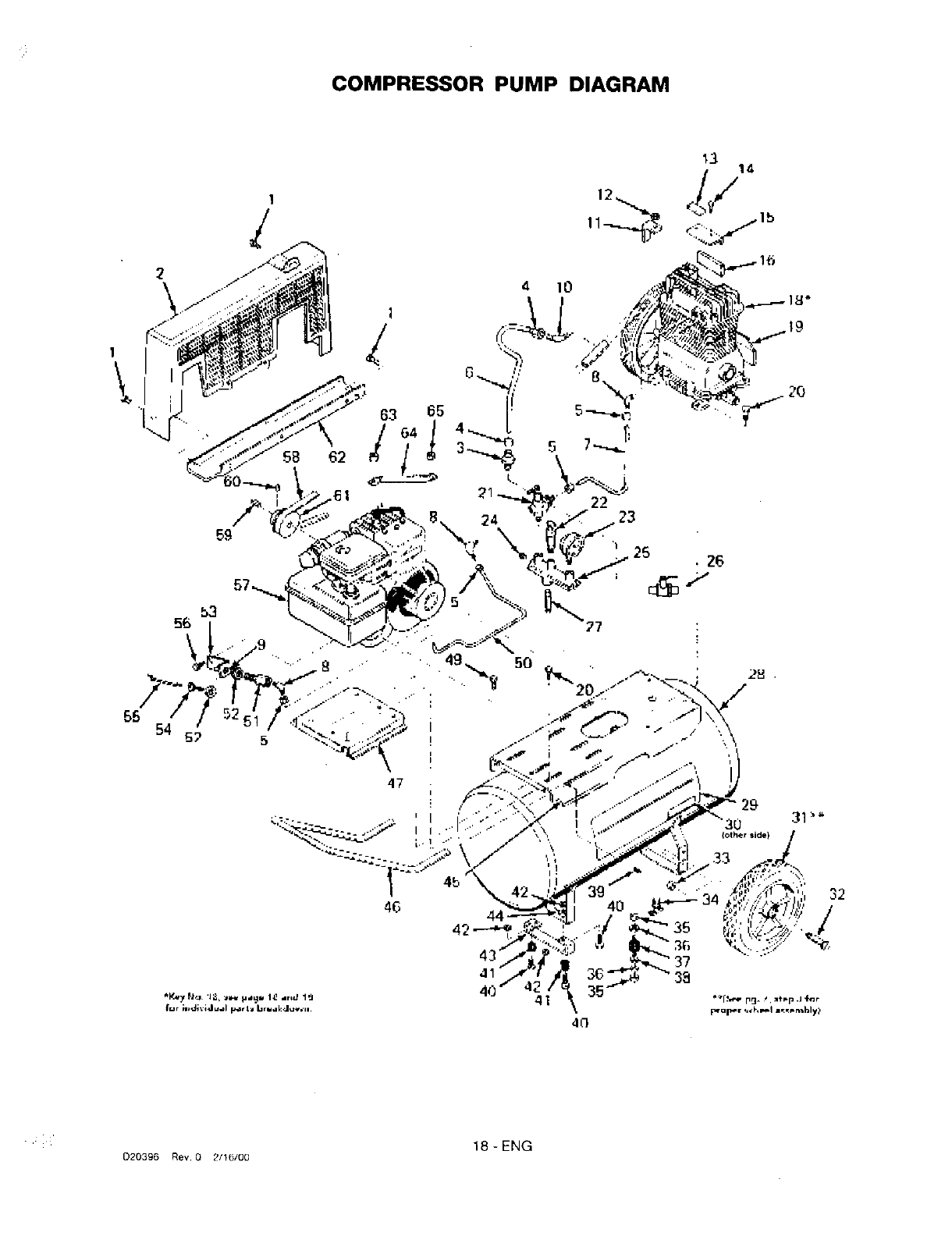

COMPRESSOR PUMP DIAGRAM

11..._._:_ <:'--_jlb

4IO

43"

•20

18 -ENG

D20396 Rev. 0 2/16/00

KEY

NO.

,,'J 8

,z,/9

J 16

17A

X 35

X 36

X 37

X 38

j',/51

•/./52

,/,/53

pART NUMBER

SSF-953-ZN

CAC-87-1

CAC-437-2

S$P-7812

SSP-7811

AC-0675

AC-0676

SSP-6422

CAC-1041

SSP-6423

CAC-2-1

SSF-8113-ZN

LA-1779-1

SSF-935

255-18

265-17

SSF-g55

CAC-293-1

AC-0337

LA-3020

SSF-928

0AC-423

TIA-4150

GA-348

SS-3222-CD

CAC-226

SSV-4

SS-2110

TA-4473

1,6,-3069

LA-2373-1

CAC°4293

CAC-60

SSF-8080-ZN

SS-2707

SS-656-CD

SS-1503°CD

CAC- 165

SS-6506-CD

$S-391

SS-2-ZN

SST°5301

SS-655-ZN

DAC-159

21181-506

LA-3028-1

SUDL-43-1

CAC-42°1

SSF-30T7

AC-0677

CAC-4275

NOT AVAILABLE

CAC-!036

Self-tapping screw (7 used)

Belt guard

Check valve

Nut sleeve assy 1/2" (2 used)

Nut sleeve assy 1/4" (4 used)

Outlet tube

Pressure release tube

Elbow (3 used)

Compression Spring

Elbow

Bracket

Lock nut

Label, Hot Surface

Screw, #8-32 x 3/8" (2 used)

Filter retainer

Intake filter

Screw, 3/8 - 18 x 7/8" (4 used)

Cylinder head

Compressor pump assembly Model 919.157250

Warning label

Screw, 5/16 - 18 x 7/6" (6 used)

Unloader valve

Safety valve ASME

Pressure gauge

Pipe plug

Manifold

Globe Valve, 1/4" NP]"

Nipple

Air tank, 20 gallon ASME

Label, Craftsman

Label, Maintenance

Wheel, 8" (2 used)

Shoulder bolt (2 used)

Hex nut, #3/8"-16 UNC-2B (2 used)

Drain Valve

Nut #5/16-18 (8 used)

Lock washer, #5/16 (8 used)

Vibration mount (4 used)

Washer, #5/16 (4 used)

Set screw, #1/4 - 20 x 5/8" long

Cap screw, #1/4 - 20 x 3/4" long (4 used)

Rubber feet (2 used)

Hex nut, 1/4" - 20 (4 used)

Foot bracket

Lock washer (2 used)

Label, Billboard

Handle

Stiffener plate

Screw (4 used)

Throttle control tube

Air cylinder assembly (includes two #52, one #8, 9. #54. and #55)

Jam nut, 9/16" - 18 (2 used) available in #51

Throttle bracket

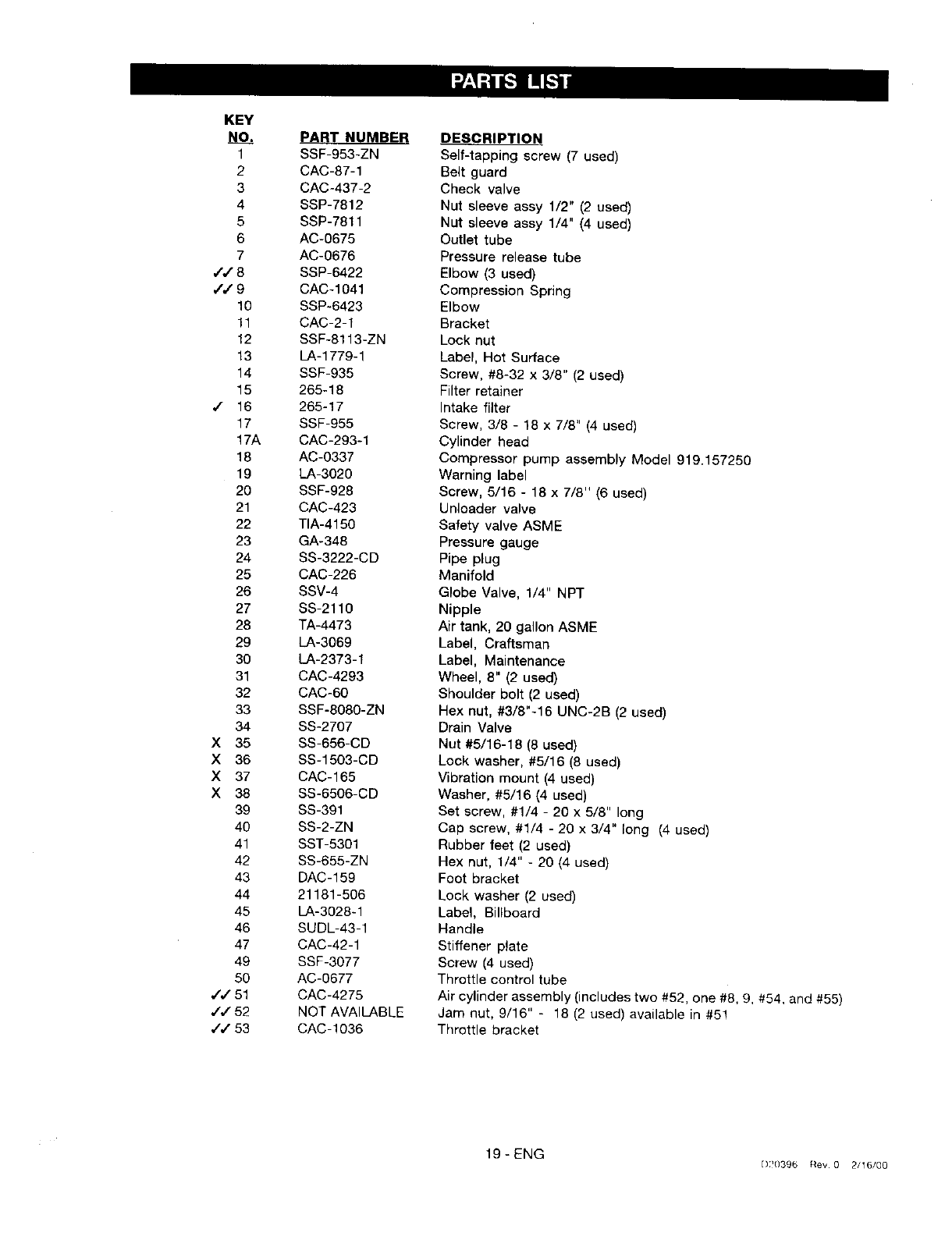

lg- ENG [);0396 f_ev0 2/16/00

103 101

102

17A

__t_ 93(oil fill plug)

(oil drain plug)

KEY

NO. PART NUMBER

/,/ 54 CAC-1037

#'./" 55 CAC-1038

•/,/ 56 SSF-991-ZN

57 CAC-425-1

58 C-BT-215

59 SS-10448

60 SS-391

61 C-PU-2862

62 CAC - 142

63 SSF-8150

64 CAC- 103

65 SSF-8111-ZN

73 SSF-6627

• 74 265-25

• 75 SSF-9821

/76 CAC-291-1

77 CAC-294

• 78 265-196-1

79 CAC-289-1

/80 CAC-54-2

+ 81 CAC-56-1

+ 82 CAC-58

+ 83 CAC-57

84 265-19

85 CAC-55-1

86 CAC-207

87 265-410

88 SSF-927

•/ 89 265-6

90 AC-0205

91 SST-1 O4

v" 92 265-16-1

93 SSP-486

94 DAC-276

95 SSF-925

96 AC-0203

-/ 97 SSP-505

98 SSN-1018

•/ 100 AC-0169

101 265-2

102 SSN-1014-ZN

103 SS-3039-ZN

DESCRIPTION

Throttle screw

Throttle link

Self-tapping screw

Engine 5 HP

Poly-V-Belt

Engine shaft key

Set Screw

Pulley

Belt guard closure

Lock nut

Stiffener bar

Lock nut

Shoulder Stud 3/8" - 16 (2 used)

Intake flapper valve -- square corners

(2 used on head)

Screw #5 - 40 x 1/4" (8 used)

Head gasket

Restrictor plate (2 used)

Exhaust flapper valve -- beveled corners

(2 used on valve plate)

Valve plate

Valve plate gasket

Compression ring (4 used)

Oil ring (4 used)

Oil ring expander (2 used)

Piston Pin (2 used)

Piston (2 used)

Piston pin plug (4 used)

I°

Connecting rod assembly (2 used) (Includes two SSF-927 screw)

Screw, 1/4 - 20 x 1 1/8" (2 used)

Vent filter (2 used)

Crankcase and cylinder

Ball bearing (2 used)

Base gasket

Oil fill/drain plug (2 used)

Base

Screw 1/4" - 20 x .7/8" Hex (8 used)

Crankshaft

Oil plug

Wavy spring washer

Oil seal

Flywheel

Washer .341/.344 ID 1 1/2" OD

Cap screw, 5/16 - 18 x 3/4" Hex HD Cap

NOT ILLUSTRATED

D20548

CAC-4011-1

D20396

Label, Specification

"Briggs & Stratton" Operating and Maintenance Instructions

Owners Manual

PARTS ORDERING INFORMATION

•/ Key No. 16, 76, 80, 89, 92, 97, and 100, available as individual parts and part of Gasket Kit K-0159

+ Key No. 81, 82, and 83, only available in Ring Kit KK-4313.

Key No. 74, 75, and 78, only available in Valve Kit KK-4275.

X Key No. 35, 36, 37, and 38, available in Vibration Mount Kit KK-4282.

•f,/Key Nos. 8, 9, 51, 52, 53, 54, 55, & 56 available individually or in the throttle control assembly KK-4486.

SE,4RS

OWNERS

MANUAL

MODEL NO.

919.157251

When requesting service or ordering

)arts, always provide the following

information:

• Model Number

• Part Number

• Part Description

• Name of Item

FULL ONE YEAR WARRANTY

AIR COMPRESSOR

Ifthis air compressor fails due to a defect in

material or workmanship within one year

from the date of purchase, RETURN IT TO

THE NEAREST SEARS REPAIR CENTER

THROUGHOUT THE UNITED STATES

AND SEARS WILL REPAIR IT, FREE OF

CHARGE. IF PURCHASED FROM OR-

CHARD SUPPLY HARDWARE, RETURN

TO THE NEAREST ORCHARD STORE

AND ORCHARD WILL REPAIR IT, FREE

OF CHARGE.

If t his air compressor is used for commercial

or rental purposes, the warranty will apply

for ninety days from the date of purchase

This warranty gives you specific legal rights

and you may have other rights which vary

from state to state.

[RRFTSMRNo

GASOLINE ENGINE

AIR COMPRESSOR

For the repair or replacement parts you need

Call 7 am - 7 pro, 7 days aweek

1-8OO-366-PART

(1-800-366-7278)

For in-home major brand repair service

Call 24 hours a day, 7 days aweek

1-800-4-REPAIR

(1-800-473-7247)

For the location of a

Sears Parts and Repair Center in yout:rea _

Call 24 hours a day, 7 days a wee

1-800-488-1222

For information on purchasing a Sears

Maintenance Agreement or to inquir--_ __AD_e_7_...__

about an existing Agreement ___

call 9 am - 5pro, Monday-Saturday

1-800-827-6655 '_/'_F"

SEARS

America _ Repar[ Sp_Clah_ !

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Craftsman 919157251 User Manual AIR COMPRESSOR Manuals And Guides L0050059

CRAFTSMAN Air compressor Manual L0050059 CRAFTSMAN Air compressor Owner's Manual, CRAFTSMAN Air compressor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
