OWNER'S MANUAL
CRRFTSMIIN
5.0 Horsepower
1800 PSI 2.0 GPM
High Pressure Washer
Model No:
919.679180
WARNING: Before using this
product, read this manual
and follow all Safety Rules
and Operating Instructions.
•Safety
• Assembly
• Operation
• Maintenance
• Parts List
• Fran£_ais
Sold by Sears Canada, Inc., Toronto, Ont. M5B2B8
MGP-e7918GA 5/26/S9
TABLE OF CONTENTS
Warranty ............................................ 2
Safety Guidelines .............................. 3-4
Assembly ........................................... 5-6
Operation ........................................... 6-9
Product Specifications ...................... 10
Maintenance ...................................... 10-12
Service and Adjustments ................ 13-14
Storage .................................................. 14
Troubleshooting .................................... 15
Parts ................................................ 16-27
EPA Codes ...................................... 28-29
How to Order Parts ................ Back Cover
FULL ONE YEAR WARRANTY ON CRAFTSMAN HIGH PRESSURE WASHER
For one year from the date of purchase, when this Craftsman High Pressure Washer is maintained
and operated according to the instructions in the owner's manual, Sears will repair, free of charge,
any defect in material and workmanship.
If your Craftsman PressureWasher is usedfor eommerieal or rental purposes, this warranty
applies only for 90 days from the date of purchase. If this washer is used for rented purposes this
warraty applies for only 30 days from the date of purchase.
FULL TWO YEAR WARRANTY ON CRAFTSMAN ENGINE
For two years from the date of purchase, when thisCraftsman engine is maintained and operated
according to the instructions in the owner's manual, Sears will repair, free of charge, any defect in
material and workmanship.
If your Craftsman engine is used for commericalor rental purposes, this warranty applies only for
one year from the date of purchase. This warranty does not cover expendable items such as spark
plugs and air filters, which become worn during normal use.
Repairs necessary because of operator abuse or negligence, including damage resulting from no
water being supplied to pump or failure to maintain the equipment according to the instructions
contained in the owner's manual, are not covered under warranty.
WARRANTY SERVICE IS AVAILABLE BY RETURNING THE HIGH PRESSURE WASHER TO THE
NEAREST SEARS SERVICE CENTER THROUGHOUT THE UNITED STATES. This warranty gives you
specific legal rights and you may also have other rights, which vary from state to state.
Sold by Sears Canada, Inc., Toronto, Ont. M5B2B8
2
SAFETY GUIDELINES - DEFINITIONS
This manualcontainsinformationthat is importantforyou to know andunderstand.Thisinformationrelatesto protecting
YOURSAFETYand PREVENTINGEQUIPMENTPROBLEMS.Tohelpyou recognizethis information,we usethe symbols
below. Pleasereadthe manualand pay attentionto thesesections.SAVETHESEDEFINrrloNS/INSTRUCTIONS.
AWARNING indicates a potentially hazardous
situation which, if not avoided, _result in
death or serious iniurv.
A, DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious iniurv.
ACAUTION indicates a potentially hazardous situation
which,if notavoided, may resultinmi t
iniurv.
t0/2197
IMPORTANT SAFETY INSTRUCTIONS
Improper operation or maintenance of this product could result in serious injury and property damage. Read and understand all
warnings and operating instructions before using.
HAZARD
RISK OF EXPLOSION
OR FIRE
RISK TO BREATHING
WHAT CAN HAPPEN
•Spilled gasoline and its vapors can
become ignitedfrom cigarette
sparks, electricalarcing,exhaust
gases,and hot enginecomponents
such as the muffler.
• Heat will expand fuel in the tank
which could result in spillage and
possible fire explosion.
• Operating the pressure washer in an
explosive environment could result
in a fire.
•Materialsplaced against or near the
pressure washer can interfere with
itsproper ventilationfeatures
causingoverheatingand possible
ignitionof the materials.
Improperlystored fuelcould lead to
accidental ignition. Fuel improperly
secured couldget into the hands of
childrenor other unqualifiedpersons.
Breathing exhaust fumes will cause
serious injury or death.
Some cleaning fluids contain sub-
stances which could cause injury to
skin, eyes, or lungs.
HOW TO PREVENT IT
•Shut off engineand allow itto cool
before adding fuelto the tank.
DUse care in filling tank to avoid
spilling fuel. Move pressurewasher
away fromfuelingarea before
startingengine.
Keep maximum fuel level V2below
top of tank to allow forexpansion,
Operate and fuel equipment in well
ventilated areasfree from obstruc-
tions. Equip areas with fire
extinguishers suitable for gasoline
fires.
Never operate pressure washer in an
area containing dry brush or weeds.
Store fuel incontainer approvedfor
gasoline, in a secure location away
from work area,
Operate pressure washer in a well
ventilated area. Avoid enclosed areas
such as garages, basements ,etc.
Never operate unit in a location
occupied by humans or animals.
Use only cleaning fluids specifically
recommended for high pressure
washers. Follow manufacturers
recommendations.
3
IMPORTANT SAFETY INSTRUCTIONS (cont'd)
HAZARD
RISKOF UNSAFE
OPERATION •
RISK OF INJURY FROM
SPRAY
RISK OF
ELECTRICAL
SHOCK
RISK OF FLUID INJECTION
RISK OF CHEMICAL BURN
WHAT CAN HAPPEN HOW TO PREVENT IT
Unsafeoperationof your pressure
washer couldlead to seriousinjury
or death to you or others.
The spraygun/wand is apowerful
cleaningtool that could look like a
toy to a child.
Reactiveforce of spraywill cause
gun/wandto move, and couldcause
the operatorto slip orfall, or
misdirect the spray.Improper control
of gun/wand can result ininjuriesto
self and others.
• Highvelocityfluid spray can cause
objects to break, propelling particles
at highspeed.
• Ught orunsecuredobjects can become
hazardousprojectiles.
• Spray directed at electrical outletsor
switches, or objects connected to an
electrical circuit, could result in afatal
electrical shock.
Your washeroperates at fluid
pressures and velocitieshigh enough
to penetrate human and animal flesh,
which could result in amputation or
other serious injury. Leaks caused by
loose fittings or worn or damaged
hoses can result in injection injuries.
DO NOTTREATFLUIDINJECTIONAS
A SIMPLE CUT! See a physician
immediately!
Relieve system pressure before
attemptingmaintenance or disassem-
bly of equipment.
•Use of acids, toxic or corrosive
chemicals, poisons, insecticides, or
any kind of flammable solvent with this
product could result in serious injury
or death.
•Becomefamiliar with the operation
and controlsof the pressurewasher.
•Keep childrenaway fromthe
pressurewasher at all times.
•Never defeat the safety features of this
product.
•Do not operate maohine with missing,
broken, orunauthorizedparfs.
•Never leave wand unattended while
unit is running.
•Keep workarea free of obstacles.
•Stand on a stable surfaceand grip gun/
wand firmly. Expect the gun to kick
whentriggered.
• Always wear ANSI approved Z87 safety
glasses. Wear protective clothingto
protect againstaccidentalspraying.
Never point wand at, or spray people or
animals.
I= Always secure trigger lock when wand
is not in service to prevent accidental
operation.
• Never permanentlysecuretriggerin pull
back (open) position.
•Unplug any electrically operated
product before attempting to clean it.
Direct spray away from electric outlets
and switches.
•Never place handsinfront of nozzle.
•Direct spray away from self and others.
• Make sure hose and fittings are
tightened and in good condition. Never
hold onto the hose or fittings during
operation.
• Do not allow hose to contact muffler.
• Never attach or remove wand or hose
fittings while system is pressurized.
• Use only hose and high pressure
accessories rated for 1800 PSI service.
• To relieve system pressure, shut off
engine, turn off water supply, and pull
gun trigger until water stops flowing.
• Do not use acids, gasoline, kerosene, or
any other flammable materials in this
product. Use only household
detergents, cleaners and degreasers
recommended for use in pressure
washers.
• Wear protective clothing to protect
eyes and skin from contact with
sprayed materials.
4
IMPORTANT SAFETY INSTRUCTIONS (cant'd)
HAZARD
RISK OF HOT SURFACES
WHAT CAN HAPPEN
•Contact with hot surfaces,such as
enginesexhaust components, could
result in sedous bum.
HOW TO PREVENT IT
•Duringoperation,touch onlythe control
surfaces of the pressure washer. Keep
childrenaway fromthe pressurewasher
at all times. They may not be able to
recognizethe hazardsof thisproduct.

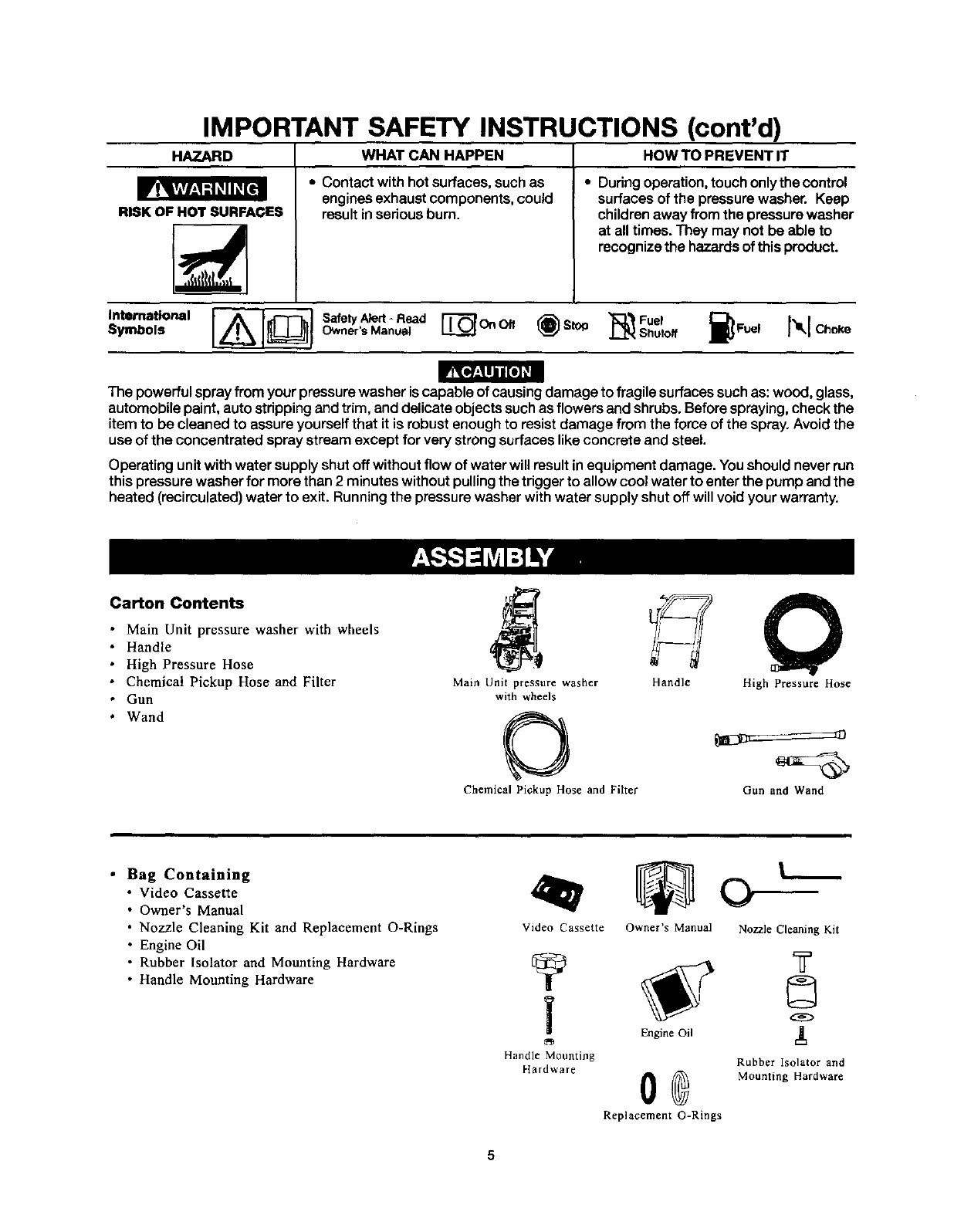

Symbols Owner's Manual "_ Fuel i ['_[ Choke
The powerful sprayfrom your pressure washer is capable of causingdamage to fragile surfaces suchas:wood, glass,
automobile paint, auto strippingand trim, and delicate objects such as flowers and shrubs. Before spraying, check the
item to be cleaned to assureyourself that it is robust enough to resist damage from the force of the spray. Avoid the
use of the concentrated spray stream except for very strongsurfaceslike concrete and steel.
Operating unit with water supplyshut off without flowof water willresult inequipment damage. You shouldnever run
this pressure washer for more than 2 minutes without pulling the tdgger to allow cool water to enter the pump and the
heated (recirculated) water to exit. Running the pressure washer with water supply shut off will void your warranty.
Carton Contents
Main Unit pressure washer with wheels
Handle
High Pressure Hose
Chemical Pickup Hose and Filter
Gun
Wand
Main Unit pressure washer
with wheels
©
Chemical Pickup Hose and Filter
Handle High Pressure Hose
Gun and Wand
•Bag Containing
Video Cassette
Owner's Manual
Nozzle Cleaning Kit and Replacement O-Rings
Engine Oil
Rubber Isolator and Mounting Hardware
Handle Mounting Hardware
Video Cassette Owner's Manual Nozzle Cleaning Kit
©
Engine Oil ][
Handle Mounting Rubber Isolator and
Hardware
O_ Mounting Hardware
Replacement O-Rings
5

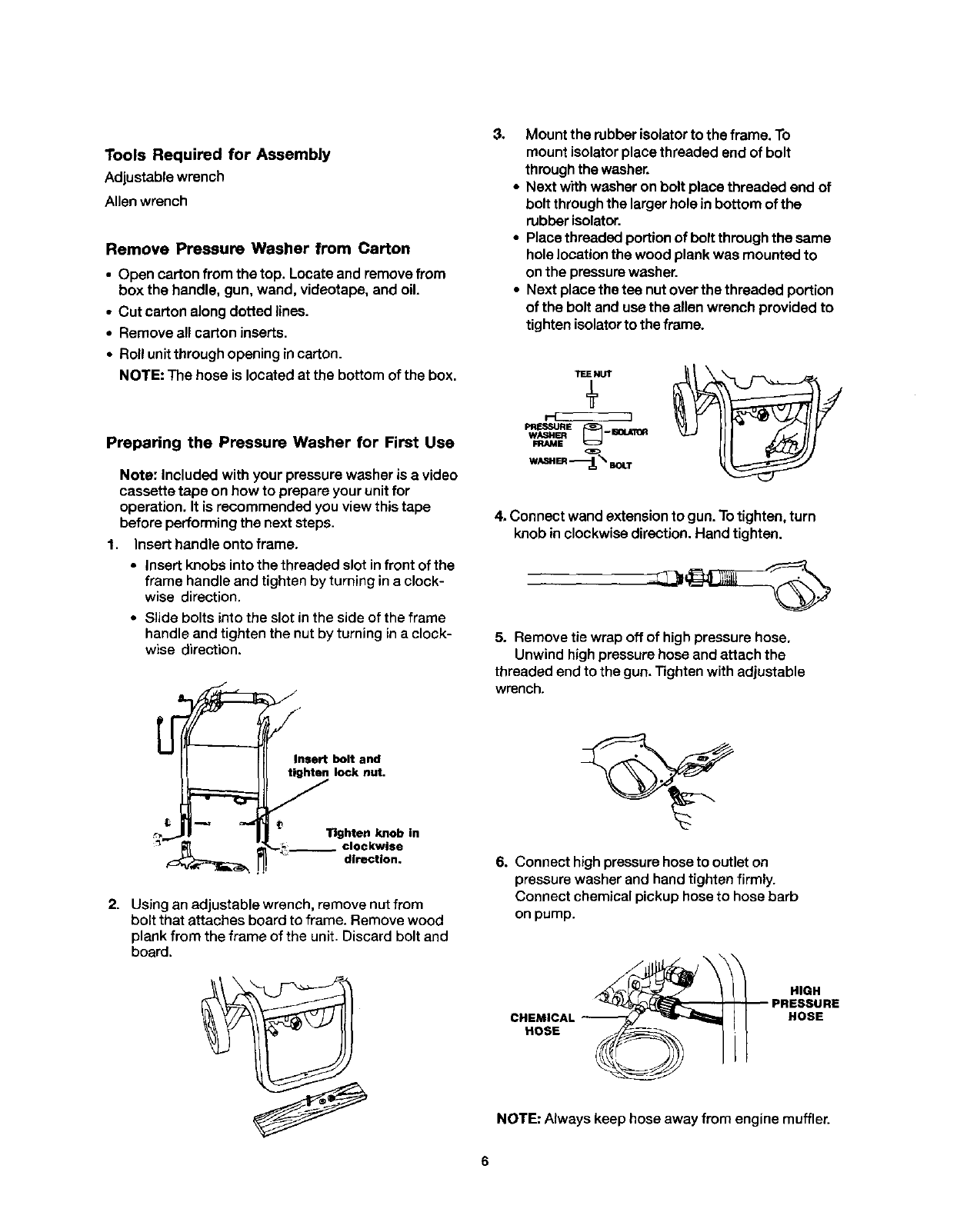

Tools Required for Assembly
Adjustable wrench
Allen wrench
Remove Pressure Washer from Carton
•Open carton from the top. Locate and removefrom
box the handle, gun, wand, videotape, and oil.
•Cut carton along doffed lines.
•Remove all carton inserts.
•Roll unitthroughopening incarton.
NOTE: The hose is located at the bottom of the box.
Preparing the Pressure Washer for First Use
Note: Included with your pressure washer is a video
cassette tape on how to prepare your unitfor
operation. It isrecommended you view this tape
before performing the nextsteps.
1. Insert handle onto frame.
• Insert knobs into the threaded slot in front of the
frame handle and tighten by turning in a clock-
wise direction.
• Slide bolts into the slot in the side of the frame
handle and tighten the nut by turning in a clock-
wise direction.
Insert bolt and
tighten lock nut,
Tighten knob in
_.___ clockwise
direction.
2. Usingan adjustable wrench, remove nut from
bolt that attaches board to frame. Removewood
plank from the frame of the unit. Discard bolt and
board.
,Mountthe rubber isolator to the frame. To
mount isolatorplace threaded end of bolt
throughthe washer.
• Next with washeron bolt place threaded end of
bolt throughthe largerhole in bottom of the
rubberisolator.
•Place threadedportionof bolt throughthe same
hole locationthe wood plank was mounted to
onthe pressurewasher.
•Next place the tee nutoverthe threaded portion
of the bolt and usethe allen wrench provided to
tightenisolatorto the frame.
TEENtrr
r[ ]
PRESSURE _-- EOL4TOR
WASHER
FRAME
W/i_HER -_. BOLT
4, Connect wand extensionto gun.Totighten, turn
knob inclockwise direction. Hand tighten.
5. Remove tie wrap off of high pressure hose,
Unwind high pressure hose and attach the
threaded end to the gun.Tighten with adjustable
wrench.
6. Connect high pressure hose to outlet on
pressure washer and hand tighten firmly.
Connect chemical pickup hoseto hosebarb
onpump.
CHEMICAL--
HOSE
HIGH
PRESSURE
HOSE
NOTE: Always keep hose away from engine muffler.
6
7. Place assembled gun and wand on pressure
washer holder.
Pull the cord under the wire bracket to the
right of the wireloop.
Lift the pull cord handle up and slide the cord
to the left sliding the cord into the wire loop.
Next slide handle behind the wire bracket to
the left of the wire loop.
Engine recoilwill pullthe cord into its final
position.
8, Place pull cord intothewire bracket holder.
Pull the cord underthe wire bracket to the right
of the wire loop.
Checklist
Before going any further please reviewthe following:
•Be sure you have completed assembly instructions.
•Double check allfittings to be surethey are tight.
IMPORTANT: Before any attempt to start your pres-
sure washer be sure to check engine oil (See Opera-
tion underAdding EngineOil.)
Know Your High Pressure Washer
Read this Owner's Manual and Safety Rules before
operation of your High Pressure Washer Compare
this illustrationwith our pressurewasher to familiarize
yourselfwith the location of variouscontrolsand
adjustments. Save this manual for future reference.
PUMP- Develops high pressure.
PRESSURE REGULATOR- Allows you to adjust the
pressure of the outlet stream.
ENGINE RUN/STOP SWITCH- Sets engine in starting
mode for recoil starter -- Stops running engine.
RECOIL STARTER- Used for starting the engine
manually.
SPRAY GUN ASSEMBLY (Contains Gun and Wand)-
Controls the application of water onto cleaning surface
with trigger device.
OIL FILL- Port where engine oil is poured.
GAS TANKJCAP- Cap is removed and unleaded
gasoline is poured.
CHEMICAL INJECTION TUBE AND FILTER- Mixes
water and detergent in outlet water flow.
HIGH PRESSURE OUTLET- Connection for high pres-
sure hose.
CHOKE- Lever used for starting unit.
SPRAY GUN
ASSEMBLY HANDLE
HIGH PRESSURE
HOSE_
ENGINE
CHEMICAL
INJECTOR
TUBE & FILTER
HIGH
PRESSURE
OUTLET
WATER INLET
CONNECTION
RECOIL
OIL FILL
PUMP
7

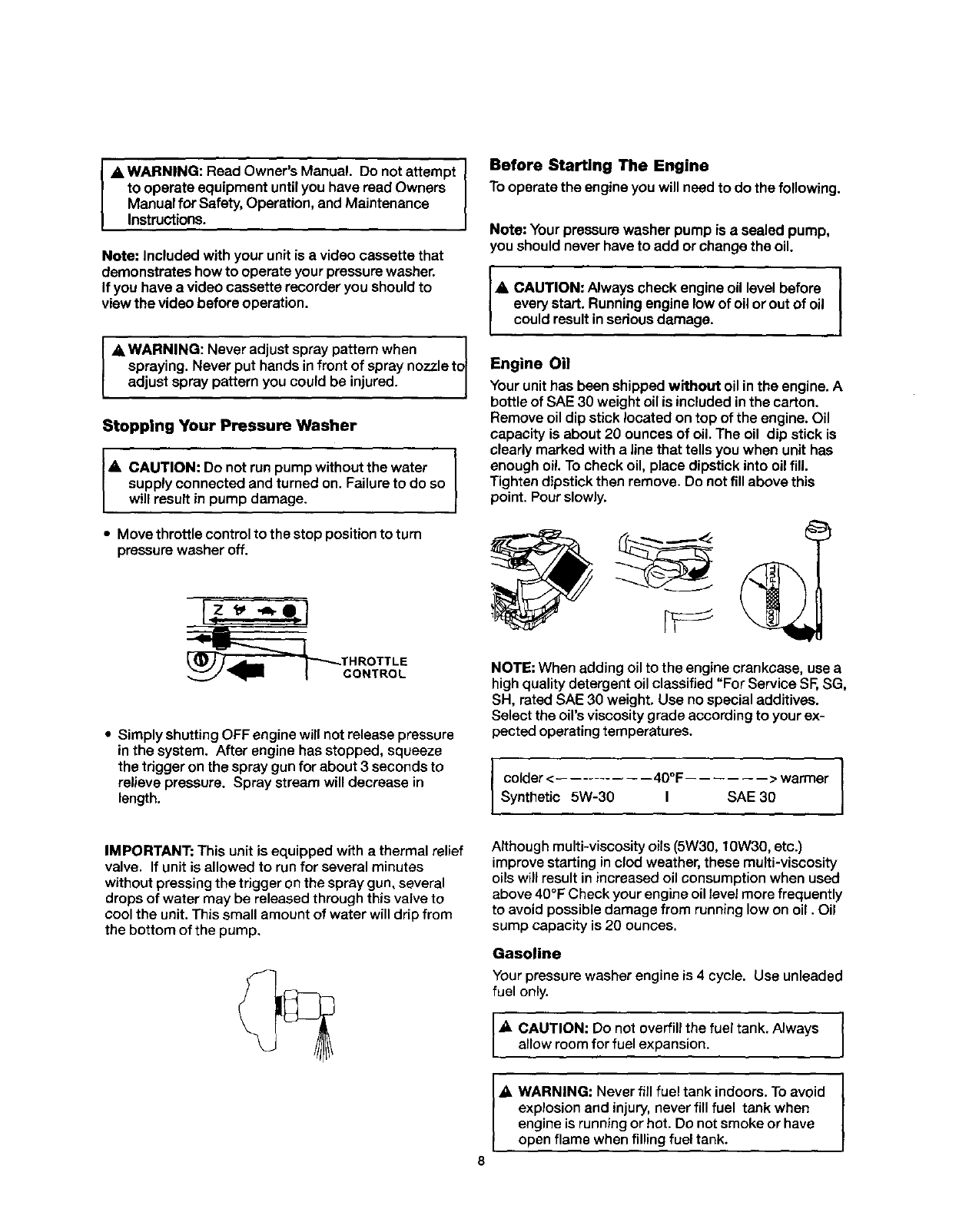

AARNING: Read Owner's Manual. Do not attempt I
to operate equipment untilyou have read Owners
Manualfor Safety, Operation, and Maintenance
Instructions.
Note: Included with your unit is a video cassette that
demonstrates howto operate your pressurewasher.
If you have a video cassette recorder you should to
view the video before operation.
A, WARNING: Never adjust spray pattern when
spraying. Never put hands infront of spray nozzle to
adjust spray pattern you couldbe injured.
Stopping Your Pressure Washer
&CAUTION: Do not run pump withoutthe water ]
supply connected and turnedon. Failureto do so I
will result in pump damage.
• Move throttlecontrol to the stop positionto turn
pressurewasher off.
• Simply shuttingOFF engine willnot release pressure
in the system. After engine has stopped, squeeze
the trigger on the spray gun for about 3 seconds to
relieve pressure. Spray stream will decrease in
length.
Before Starting The Engine
To operate the engine youwill need to do the following.
Note: Yourpressure washer pump is asealed pump,
you should never have to add or change the oil.
Ih, CAUTION: Always check engineoil level before I
I
every start. Runningengine lowof oilor out of oil I
could resultinsedous damage.
Engine Oil
Your unit has been shipped without oil in the engine. A
bottle of SAE 30 weight oil is included inthe carton.
Remove oil dip stick located on top of the engine. Oil
capacity is about 20 ounces of oil.The oil dip stick is
clearly marked with a line that tellsyou when unit has
enough oil To check oil, place dipstick into oil fill.
Tighten dipstick then remove. Do notfill above this
point. Pour slowly.
NOTE: When adding oil to the engine crankcase, use a
highqualitydetergentoil classified"For ServiceSF,SG,
SH, rated SAE 30 weight, Use no special additives.
Select the oil's viscositygrade accordingto your ex-
pected operatingtemperatures.
colder <.......... 40°F ...... > warmer
Synthetic 5W-30 ISAE 30
IMPORTANT: This unit is equipped with a thermal relief
valve. If unit is allowed to run for several minutes
without pressing the trigger on the spray gun, several
drops of water may be released through this valve to
cool the unit. This small amount of water will drip from
the bottom of the pump,
Although multi-viscosityoils (5W30, lOW30, etc.)
improve starting in clod weather, these multi-viscosity
oils will result in increasedoil consumption when used
above 40°F Check your engine oil level more frequently
to avoid possible damage from running low on oil. Oil
sump capacity is 20 ounces.
Gasoline
Your pressure washer engine is 4 cycle. Use unleaded
fuel only.
A, AUTION: Do not overfillthe fuel tank. Always
allow room for fuel expansion.
A, ARNING: Never fill fuel tank indoors. Toavoid
explosionand injury,never fill fuel tank when
engine is runningor hot. Do not smoke or have
open flame when fillingfuel tank.
Use clean, fresh, regular unleaded gasoline witha
minimumof 85 octane. Do not mix oil with gasoline. If
unleaded fuel is unavailable leaded fuel may be used.
IMPORTANT: It is important to prevent gum deposits
from forming in essential fuel system parts such as
the carburetor,fuelfilter hose ortank duringstorage.
Also,experience indicatesthat alcohol-blendedfuels
(calledgasohol or usingethanolor methanol)can
attract moisture which leadsto separation and forma-
tion of acids duringstorage. Acidic gas can damage
the fuel system of an engine while in storage. To avoid
engine problems, the fuel system should be emptied
before storage of 30 days or longer.Never use engine
orcarburetor cleaner products inthe fueltank or
permanent damage may occur.
I_ CAUTION: Never start pressure washer without I
!
water source turned on and connected to I
pressure washer. Failure to do so will cause
pump damage.
To Start Your Pressure Washer
• Remove gas cap.
• Add unleaded gasoline, slowly,to fuel tank.
• Do not overfill.
•Squeeze trigger on pressurewasher wand to relieve
airpressurecaused by turningon the water.Water
will spew out of the gun inathin stream. This will
make it easierto start the engine.
• Engage the safety latch on the spray gun. This locks
the trigger in place and keeps you from accidentally
sprayinga highpressure stream.
SAFETY
.LATCH
•On the engine there is a choke/run lever. Place lever
to the choke position.
I"_..ml I o_1
•On the enginethere is a throttle control lever.Place
throttle to the rabbit position. Always start engine
with throttle in the rabbit (high speed) position.
• Connect garden hose to the water inlet on the
pressure washer. Tighten by turning counterclock-
wise. PUMP
INLET
• Connect high pressure hoseto discharge on pump.
• Connect the garden hose to the water spout and turn
water supply on.
•Grasp the starter grip and pull slowly until resistance
isfelt,then pullfirmly to start engine.
NOTE: If enginedoes not start rightaway, squeeze the
triggeron the gun to relieve airpressurecaused by
turningon the water.Water will spew out of the gun ina
thin stream. This will make it easier to pullstart the
engine. If more than five pulls, place choke level back to
run position.
• When engine starts, gradually move choke lever to
RUN position.
• For hot engine restarts, make sure throttle is in the
rabbit (high speed) position and the choke lever is in
the RUN position.
• Grasp the starter grip and pull slowly until resistance
is felt, then pull firmly to start engine.

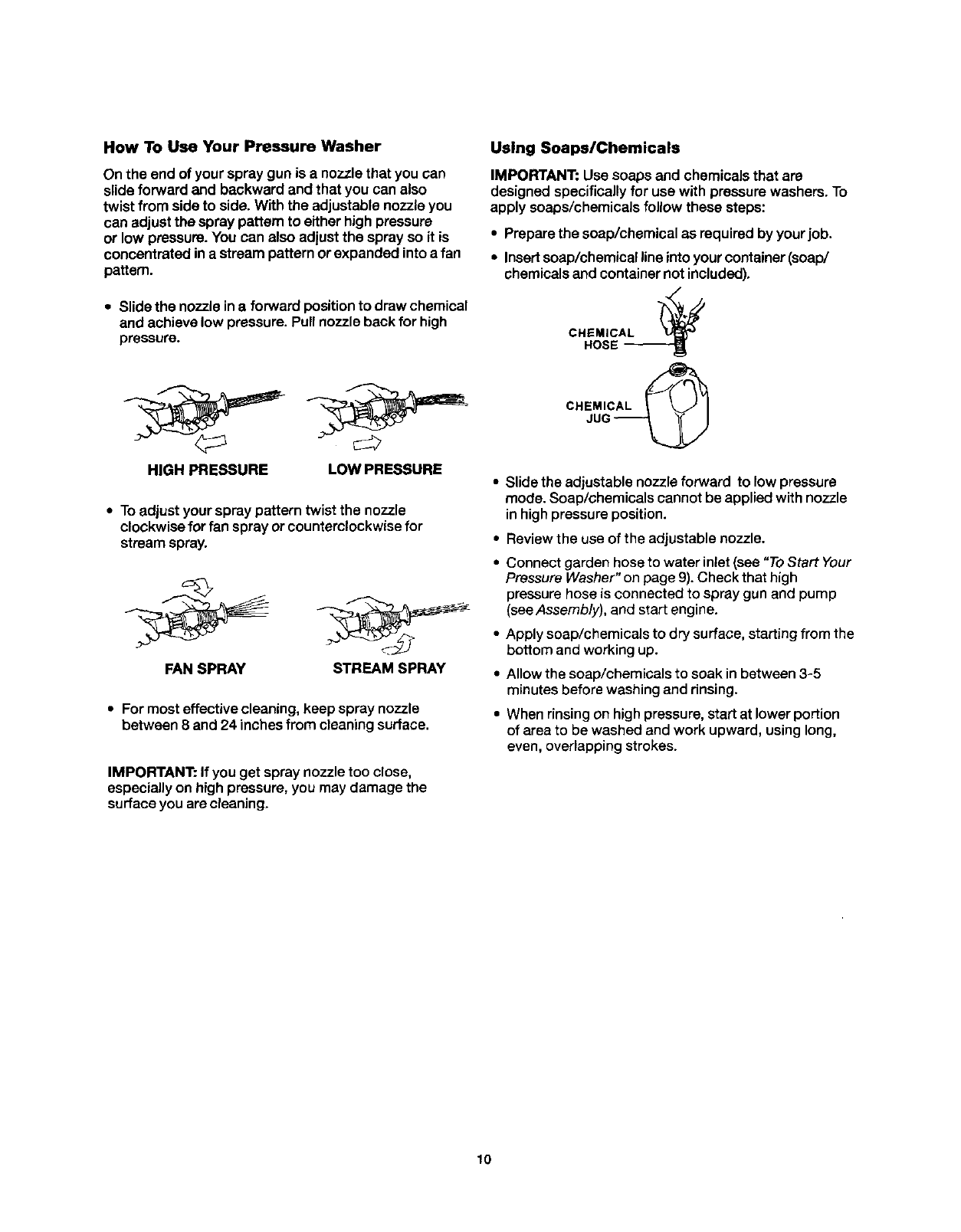

How To Use Your Pressure Washer
On the end of your spray gun is anozzle that you can
slide forward and backward and that you can also
twist from side to side. With the adjustable nozzle you
can adjust the spray pattern to either high pressure
or low pressure. You can also adjust the spray so it is
concentrated in astream pattern or expanded into a fan
pattem.
•Slide the nozzle in a forward position to draw chemical
and achieve low pressure. Pull nozzle back for high
pressure.
HIGH PRESSURE LOW PRESSURE
• To adjust your spray pattern twist the nozzle
clockwise for fan spray orcounterclockwisefor
stream spray.
FAN SPRAY STREAM SPRAY
• For most effective cleaning, keep spray nozzle
between 8and 24 inches from cleaning surface.
IMPORTANT: If you get spray nozzle too close,
especially on high pressure, you may damage the
surface you are cleaning.
Using Soaps/Chemicals
IMPORTANT: Use soaps and chemicals that are
designed specifically for use with pressure washers, To
apply soaps/chemicals follow these steps:
•Preparethe soap/chemical as requiredby yourjob.
•Insertsoap/chemicalline intoyour container (soap/
chemicalsand containernot included),
CHEMICAL
HOSE --
CHEMICAL
• Slide the adjustable nozzle forward to low pressure
mode. Soap/chemicals cannot be applied with nozzle
in high pressure position.
•Reviewthe use of the adjustable nozzle.
• Connect garden hose to water inlet (see "To Start Your
Pressure Washer" on page 9). Check that high
pressure hose is connected to spray gun and pump
(see Assembly), and start engine.
• Apply soap/chemicals to dry surface, starting from the
bottom and working up.
• Allow the soap/chemicals to soak in between 3-5
minutes before washing and dnsing.
• When rinsingon high pressure, start at lower portion
of area to be washed and work upward, usinglong,
even, overlappingstrokes.
10
CUSTOMER RESPONSIBILITIES TABLE
Every25 Every50 Every100
MAINTENANCE TASK Beforeeach use hoursor veadv houmorveadv hoursorveadv
PRESSURE WASHER
Check/clean inletscreen, x
Check hiah pressurehose. x
Check soaoand chemicalhoseandfilter x
Check gun andwandfor le_ks, x
Purge oumoof air and contaminants x
ENGINE
Gheck0il level x
Char_aeengine oil }_
Clean air cleaner and orecleaner x
ClearVreolacestark clua x
Clean enoinemuffler &flnoer auard x
IPreDarefor storaee Precareunitfor storaneif it is to remainidlefor Ionaerthan30 davs.
Product Specifications
Pressure Washer Specifications
I Pressure 1600
Flow Rate 2.0 GPM
Cleaning Units (psi x GPM) 3600
Engine Specifications
RPM 3600
Rated Horsepower 5.0
Spark Plug Gap %030" (0.76mm)
Gasoline Capacity 1.5 quarts
Oil (22 oz. capacity) SAE 30 weight
General Recommendations
The warranty of the highpressure washer does not
cover itemsthat have been subjected to operator
abuse or negligence. To receive full value from the
warranty, operator must maintain high pressure
washer as instructed in this manual.
Some adjustmentswill need to be made periodically to
maintain your high pressure washer.
Once a year you should clean or replace the spark
plug, and clean or replace the air filter, and thoroughly
check the gun and wand assembly for wear. A clean
spark plug and clean air filter assure proper fuel-air
mixture and help your engine run better and last longer.
Your pressure washer pump is a sealed pump; you
should never have to add or change the oil.
NOTE: Over time the o-rings in the gun assembly
become worn. Attached to your owners manual is a
replacememt o-ring and split backup ring.
O-ring_._ _---- Split Backup
-_"_ _v Ring
11
Pressure Washer Maintenance
Check and Clean Inlet Screen: Examine inletscreen
on pump inlet fitting. Clean if clogged; replace if tom.
Check High Pressure Hose: High pressure hose can
develop leaks from wear, kinking,abuse. Inspect hose
each time before use. Check for cuts, leaks, abrasions
or bulgingof cover, and damage ormovement of
couplings.If any of these conditionsexist, replace hose
immediately.
Check Chemical/Soap Hose: Examine the chemicaV
soap hoseand clean if clogged. Hose should fit tightly
on pump fitting. Check for leaks and tears. Replace
filter or hose if either is damaged.
Check Gun and Wand: Examine hose connectionto
gun making sure it is secure. Test trigger by pressing it
and making sure it springs back into place when you
release it.
Pump Maintenance (Changing Pump Oil)
Your pressurewasher pump is a sealed pump, you
should neverhave to change oil.
Changing Engine Oil
•Change oil while engine is stillwarm. Preferably
drainoil from top of engineas illustratedbelow.
Drain oilwith aircleaner side up, Oilcan be drained
fromengine bottom if necessary.
IMPORTANT: Beforetippingengineor equipment to
drain oil, drainfuel from tank by runningengine until
fuel tank is empty.
Cleaner
e
•Todrain oilfrom bottom of engine, removedrain
plug as illustratedbelow. Allow oil to drain and
replace drain plug. Remove dipstick and refillwith
new oil of recommended grade. Start and run engine
at idle for 30 seconds.
OIL DRAIN
PLUG
Purge Pump of Air and Contaminants
Toremove the airfrom the pump, follow these steps:
•Set up the pressure washer as described in
Assembly section and connect the water supply.
• Remove the wand extensionfromthe spray gun.
• Pullthe trigger on the gun and hold.
Toremove the contaminants from the pump, follow
these steps:
• Set up the pressure washer as described in
ASSEMBLY section, connect the water supply.
•Remove the wand extension from the spraygun.
•Start the engine accordingto instructionsinthe
OPERATIONsection.
• Start the engineaccordingto instructionsinthe
OPERATIONsection.
•Pullthe trigger on the gun and hold.
•When the water supply is steady and constant,
disengage triggerand refasten the wand extension.
Engine Maintenance
Check Oil Level
•Oil levelshould be checked prior to each use
orat least every 5 hoursof operation. To check oil see
Adding Engine Oil on page 9.
318" SQUARE
P|PE
• Stop engine. Wait 30 seconds and re-check oillevel.
If required, add oil to bring level to FULL mark on
dipstick,
Check Engine -- Finger Guard/Muffler
• Do not clean engine withaforcefulspray of
water because water could contaminate fuel system.
With a brushor cloth, clean any debris from finger
guardafter every useto prevent engine damage
caused by overheating.
• Before running engine, clean muffler area to
remove all grass and combustible debris.
12

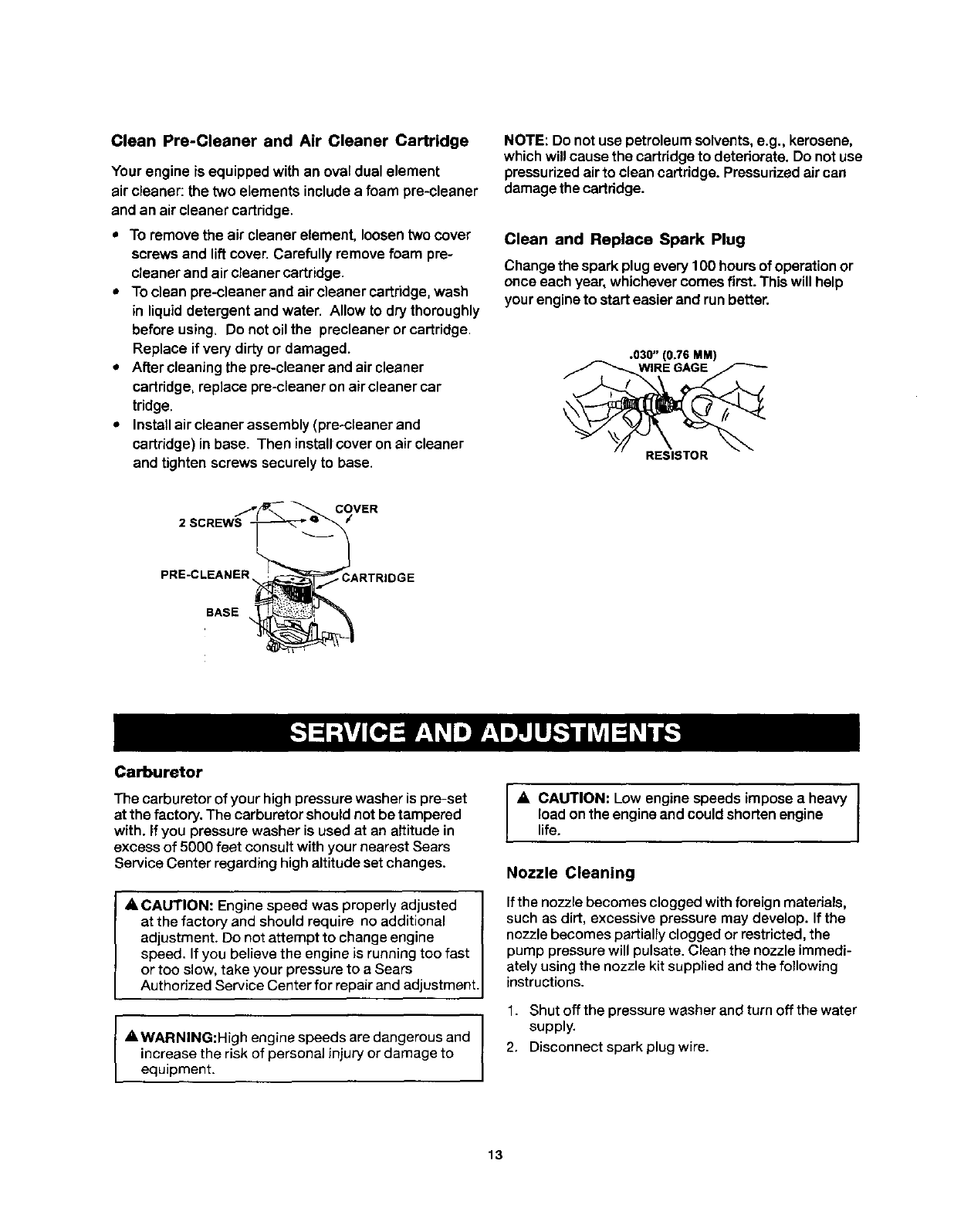

Clean Pre-Cleaner and Air Cleaner Cartridge
Your engine is equippedwith an oval dual element
air cleaner: the two elements include a foam pre-cleaner
and an air cleaner cartridge.
•To remove the air cleaner element, loosentwo cover
screws and lift cover. Carefully remove foam pre-
cleaner and air cleaner cartridge.
•To clean pre-cleaner and air cleaner cartridge,wash
in liquiddetergent and water. Allow to drythoroughly
before using. Do not oil the precleaner or cartridge.
Replace if very dirty or damaged.
•After cleaning the pre-cleaner and air cleaner
cartridge,replace pre-cleaner onair cleaner car
tridge.
•Installair cleaner assembly (pre-cleaner and
cartridge) inbase. Then installcover onair cleaner
and tighten screws securely to base.
NOTE: Do not use petroleum solvents,e.g., kerosene,
which willcause the cartridge to detedorete. Do not use
pressurizedairto clean cartridge. Pressurizedaircan
damage the cartridge.
Clean and Replace Spark Plug
Change the spark plug every I00 hoursof operationor
once each year,whichever comes first. This will help
your engineto start easier and run better.
.030" (0.76 MM)
RESISTOR
oo.vER
PRE-CLEANER _CARTRIDGE
BASE
Carburetor
The carburetor of your high pressure washer is pre-set
at the factory. The carburetor should not be tampered
with. If you pressure washer is used at an altitude in
excess of 5000 feet consult with your nearest Sears
Service Center regarding high altitude set changes.
ACAUTION: Engine speed was properly adjusted
at the factory and should require no additional
adjustment. Do not attempt to change engine
speed, If you believe the engine is running too fast
or too slow, take your pressure to a Sears
Authorized Service Center for repair and adjustment.
,& WARNING:High engine speeds are dangerous and
increase the risk of personal injury or damage to
equipment.
IA CAUTION: Low engine speeds impose a heavy I
I
load on the engineand could shortenengine I
life.
Nozzle Cleaning
Ifthe nozzle becomes clogged withforeign materials,
such as dirt, excessive pressure may develop. If the
nozzle becomes partially clogged or restricted, the
pump pressure will pulsate. Clean the nozzle immedi-
ately using the nozzle kit supplied and the following
instructions.
1. Shut off the pressure washer and turn off the water
supply.
2, Disconnect spark plug wire.
13
3. Pull tdggeron gun handleto relieve any water
pressure.
4. Disconnect the wand fromthe gun.
5. Remove nozzle from the the end of the wand with
the 2ram allen wrench provided.
6. Clean the nozzle usingthe nozzle cleaner provided
or a straightened paper clip. Insert intothe nozzle
end and work back and forth untilobstructionsis
removed.
7. Direct water supply into nozzleend to backflush
loosened particles for 30 seconds.
8. Reassemble the nozzle to the wand. Tightan
securelyto prevent leaks.
9. Reconnect wand to gun and turn on water suppply.
10. Start pressurewasherand place wand into high
pressuresetting to test.

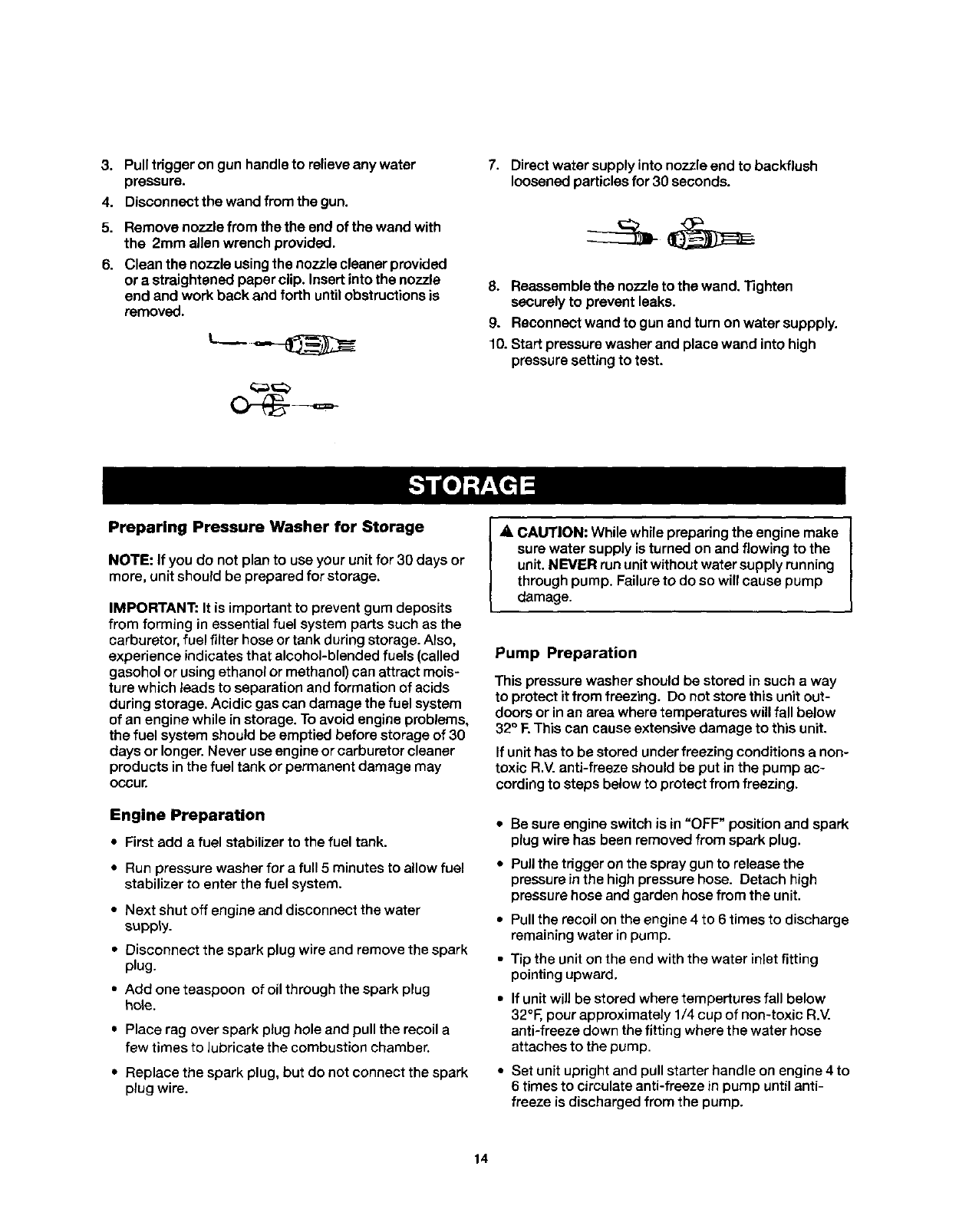

Preparing Pressure Washer for Storage
NOTE: If you do not plan to use your unit for 30 days or
more, unit should be prepared for storage.
IMPORTANT: It is important to prevent gum deposits
from forming in essentialfuel system parts such as the
carburetor,fuel filter hoseortank duringstorage.Also,
experience indicatesthat alcohol-blendedfuels (called
gasoholor usingethanolor methanol)can attract mois-
ture which leads to separation and formation of acids
during storage. Acidic gas can damage the fuel system
of an engine while in storage.To avoid engineproblems,
the fuel system should be emptied before storage of 30
days or longer.Never use engineorcarburetorcleaner
products inthe fuel tank or permanentdamage may
occur.
Engine Preparation
• First add afuel stabilizer to the fuel tank.
•Run pressurewasherforafull5minutestoailowfuel
stabilizer to enter the fuel system.
•Next shut off engine and disconnect the water
supply.
•Disconnect the spark plug wire and remove the spark
plug.
• Add one teaspoon of oil through the spark plug
hc4e.
•Place rag over spark plug hole and pull the recoil a
few times to iubricate the combustion chamber.
• Replace the spark plug, but do not connect the spark
plug wire.
la, CAUTION: Whilewhile preparing the engine make
surewater supply is turnedon and flowing to the
unit.NEVER rununit withoutwater supplyrunning
throughpump. Failureto do so willcause pump
damage.
Pump Preparation
This pressure washer should be stored in sucha way
to protect it from freezing. Do not store this unit out-
doors or in an area where temperatures will fall below
32° E This can cause extensive damage to this unit.
If unit has to be stored underfreezing conditions a non-
toxic R.V.anti-freeze should be put inthe pump ac-
cordingto steps below to protect from freezing.
• Be sure engine switch is in "OFF" position and spark
plugwire has been removed from spark plug.
• Pull the trigger on the spray gun to release the
pressurein the high pressure hose. Detach high
pressure hose and garden hose from the unit.
•Pullthe recoil on the engine 4 to 6 times to discharge
remaining water in pump.
• Tip the unit on the end with the water inlet fitting
pointing upward.
•If unit will be stored where temperturee fall below
32°F, pour approximately 1/4 cup of non-toxic R.V.
anti-freeze down the fitting where the water hose
attaches to the pump.
• Set unit upright and pull starter handle on engine 4 to
6 times to circulate anti-freeze in pump until anti-
freeze is discharged from the pump.
14

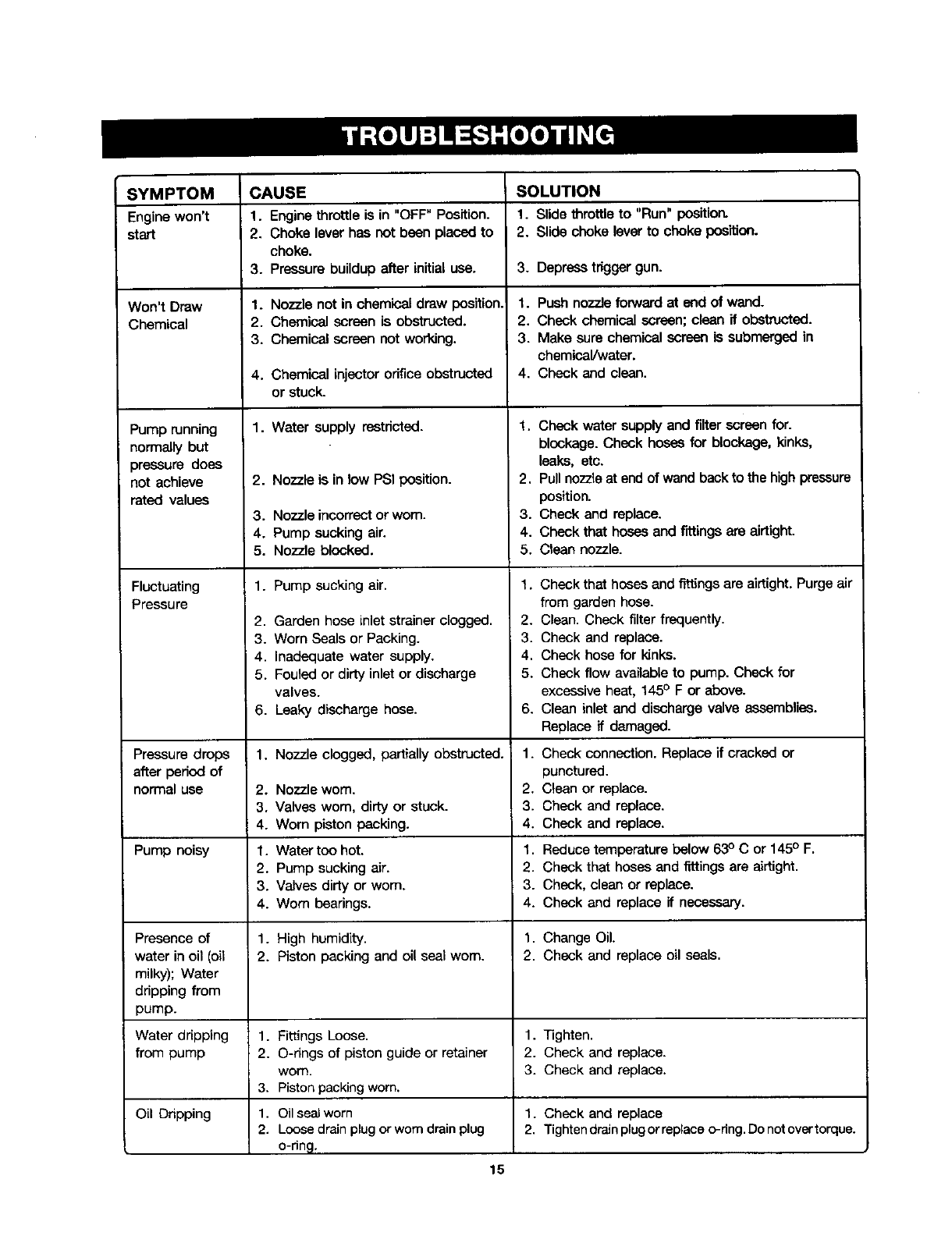

SYMPTOM CAUSE SOLUTION
Enginewon't 1. Enginethrottleisin"OFF" Position. 1. Slide throttle to "Run" position.
start 2. Choke lever has not bean placed to 2. Slide choke lever to choke position.
choke,
3. Pressure buildup after initial use. 3. Depress trigger gun.
Won't Draw 1. Nozzle not in chemical draw position. 1. Push nozzle forward at end of wand.
Chemical 2. Chemical screen is obstructed. 2. Check chemical screen; clean if obstructed.
3. Chemical screen not working. 3. Make sure chemical screen is submerged in
chemical/water.
4. Chemical injector orifice obstructed 4. Check and clean.
or stuck.
1. Water supply restricted. 1.
Pump running
normally but
pressure does
not achieve
rated values
Fluctuating
Pressure
2. Nozzle is in low PSI position.
3. Nozzle incorrect or worn.
4. Pump sucking air.
5. Nozzle blocked.
1. Pump sucking air.
2,
3.
4.
5.
Check water supply and filter screen for.
blockage. Check hoses for blockage, kinks,
leaks, etc.
2. Pull nozzle at end of wand back to the high pressure
position.
3. Check and replace.
4. Check that hoses and ftttings are airtight.
5. Clean nozzle.
1.
2.
Check that hoses and fittings are airtight. Purge air
from garden hose.
Clean. Check filter frequently.
Check and replace.
Check hose for kinks.
Check flow available to pump. Check for
excessive heat, 145o F or above.
Clean inlet and discharge valve assemblies.
Replace if damaged.
Garden hose inlet strainer clogged.
Worn Seals or Packing. 3.
Inadequate water supply. 4.
Foaled or dirty inlet or discharge 5.
valves.
Leaky discharge hose. 6.
Nozzle clogged, partially obstructed. 1.
Nozzle worn. 2.
Valves wom, dirty or stuck. 3.
Worn piston pecking. 4.
1.
2.
3.
4.
High humidity. 1.
Piston packing and oil seal worn. 2.
6.
Pressure drops 1. Check connection. Replace if cracked or
after period of punctured.
normal use 2. Clean or replace.
3. Check and replace.
4. Check and replace.
Pump noisy 1. Water too hot. Reduce temperature below 63° C or 145° F.
2. Pump sucking air. Check that hoses and fittings are airtight.
3. Valves dirty or worn. Check, clean or replace.
4. Wom bearings. Check and replace if necessary.
Presence of 1. Change Oil.
water in oil (oil 2. Check and replace oil seals.
milky); Water
dripping from
pump.
Water dripping 1. Fittings Loose. 1. Tighten.
from pump 2. O-rings of piston guide or retainer 2. Check and replace.
worn. 3. Check and replace.
3. Piston packing worn.
Oil Dripping 1. Oil seal worn 1. Check and replace
2. Loose drain plug or wom drain plug 2. Tightendralnplugorrepisceo-dng.Donotovertorque.
o-ring.
15
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180
24
8
3
22 21
19
20
5
REF NO. PART NUMBER DESCRIPTION
1 17715
2 C042
3H128
417709
5 W137
616371
7 W131
817713
10 H140
11 N130
12 H040
13 17569
14 F064
15 F469
16 17712
17 17913
19 17367
900 .....
20 PK17908
21 16829
22 F504W
23 Fl12
24 AL-650015
Handle
Knob - 5/16"
Gun
Tire Semi (7 x 1 3/4")
Nut Pal 1/2"
Rubber Foot, Hollow
Tee Nut 5/160" x 3/4"
Frame
Hose, Chemical
Lance, Multi-Reg
Hose
Decal Craftsman
Screw - Hex 5/16" - 18 x 1LG
Lock Nut 5/16"
Screw HHC, 5/16"
Decal Operation
Handle Grip
Engine (Refer to Engine Break-
down (Model 12F802-2017)
Pump
Garden Hose Adapter 1/2"
3/8" Coupling
Washer
O-Ring Kit
PARTS NOT ILLUSTRATED
MGP-679180
NC3"OO1
F191
F196
16087
F074
16505
Owners Manual
Nozzle Cleaning Kit
Screw, Hex-Engine to Pump
Screw, Hex-Engine to Pump
Nut Flanghead-Engine to Pump
Washer Flat-Engine to Pump
Thermal Relief Valve
ACCESSORIES
(Not Included with Pressure Washer)
919.76430 FlooHSiding Brush
919.76431 Fixed Brush
919.76450 25Ft. 3/8" high pressure hose
919.76451 50Ft. 3/8" high pressure hose
919.76484 Turbo nozzle
16
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 PUMP BREAKDOWN MODEL PK-17908
IS
3s-_O
8
_41 47 48 10
4_
17

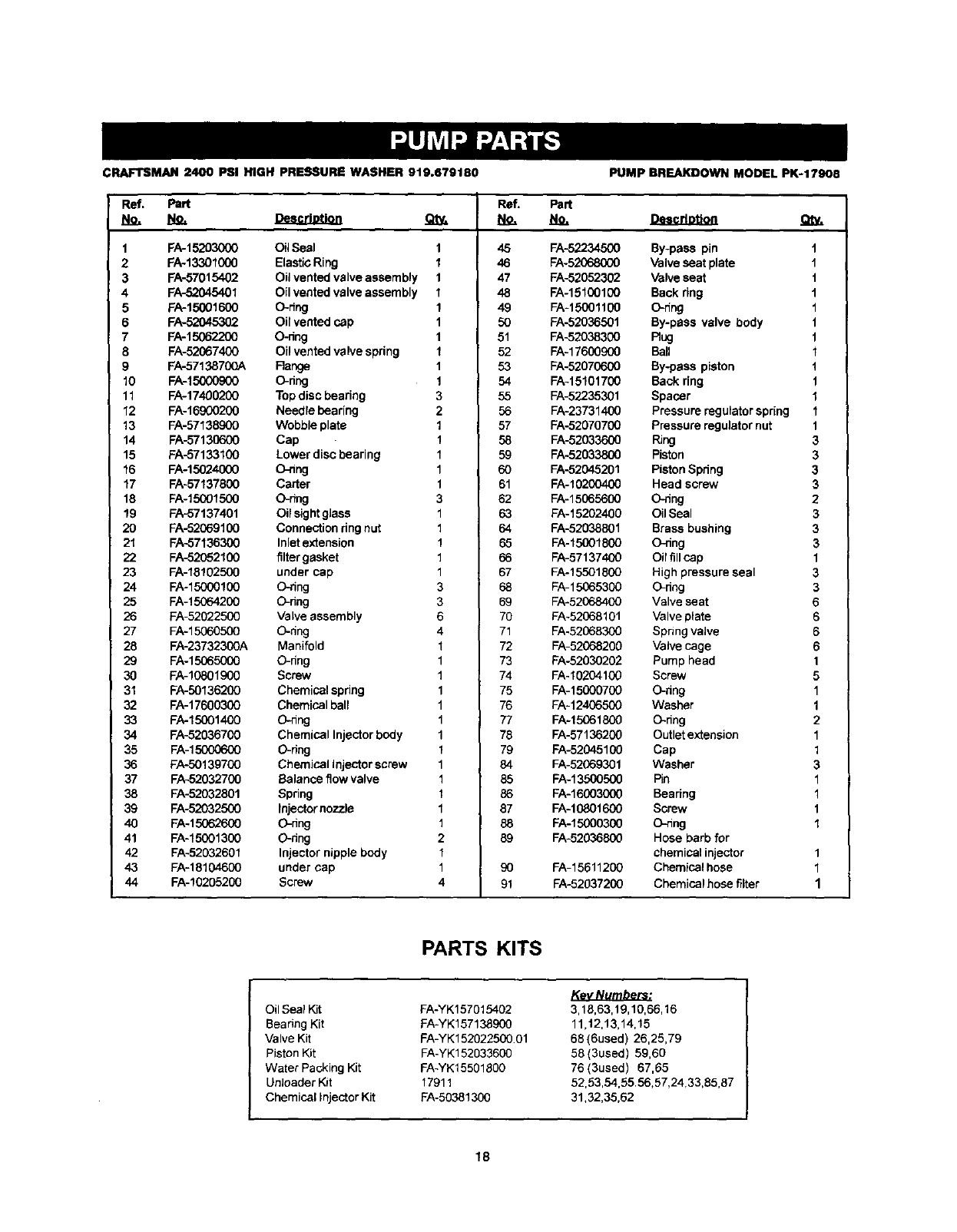

CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 PUMP BREAKDOWN MODEL PK-17908
Ref. Part Ref. Part
No. No. _ _v. No, No- _ _v.
1 FA-15203000 Oil Seal 1
2 FA-13301000 Elastic Ring 1
3 FA-57015402 Oil vented valve assembly 1
4 FA-52045401 Oil vented valve assembly 1
5 FA-15001600 O-dng 1
6 FA-52045302 Oil vented cap 1
7 FA-15062200 O-dng 1
8 FA-52067400 Oil vented valve spring 1
9 FA-57138700A Range 1
10 FA-15000900 O-dng t
11 FA-17400200 Top disc beadng 3
12 FA-16900200 Needle bearing 2
13 FA-57138900 Wobble plate 1
14 FA157130600 Cap 1
15 FA-57133100 Lower disc bearing 1
16 FA-15024000 O_ing 1
17 FA-57137800 Carter 1
18 FA-15001500 O-dng 3
19 FA--57137401 Oil sight glass 1
20 FA-52069100 Connection ringnut 1
21 FA_57136300 Inlet extension 1
22 FA-52052100 filter gasket 1
23 FA-18102500 under cap 1
24 FA-15000100 O-ring 3
25 FA-15064200 O-dng 3
26 FA-52022500 Valve assembly 6
27 FA-15060500 O-dng 4
28 FA-23732300A Manifold t
29 FA-15065000 CLdng 1
30 FAll 0801900 Screw 1
31 FA-50136200 Chemical spring 1
32 FA-17600300 Chemical ball 1
33 FA-15001400 O-ring 1
34 FA-52036700 Chemical Injector body 1
35 FA-1500(_o00 O-ring I
36 FA-50139700 Chemical Injector screw 1
37 F,t_52032700 Balance flow valve 1
38 FA-52032801 Spring 1
39 FA-52032500 Injector nozzle 1
40 FA-15062600 O-dng 1
41 FA-15001300 O-ring 2
42 FA-52032601 Injector nipple body 1
43 FA-18104600 under cap 1
44 FA-10205200 Screw 4
45 FA--52234500 By-pass pin 1
46 FA-52068000 Valve seat plate 1
47 FA-52052302 Valve seat t
48 FA-15100100 Back ring 1
49 FA-15001100 O-dng 1
50 FA-52036501 By-pass valve body t
51 FA-52038300 Rug 1
52 FA-17600900 Ball 1
53 FA-52070600 By-pass piston t
54 FA-15101700 Back ring t
55 FA-5223530t Spacer 1
56 FA-23731400 Pressure regulator spring 1
57 FA-52070700 Pressure regulator nut 1
58 FA-52033600 Ring 3
59 FA.-52033800 Piston 3
60 FA-52045201 Piston Spring 3
61 FA-19200400 Head screw 3
62 FA-15665600 O-ring 2
63 FA-t 5202400 OilSeal 3
64 FA-52038801 Brass bushing 3
65 FA-15001800 O-ring 3
66 FA-57t 37400 Oil fill cap 1
67 FA-t 550t 8C0 High pressure seal 3
68 FA-15065300 O-dng 3
69 FA-52068400 Valve seat 6
70 FA-52068101 Valve plate 6
71 FA-52068300 Spnng valve 6
72 FA-52068200 Valve cage 6
73 FA-52030202 Pump head 1
74 FA-10204100 Screw 5
75 FA-15000700 O-dng 1
76 FA-12406500 Washer 1
77 FA-15061800 O-dng 2
78 FA-57136200 Outlet extension 1
79 FA-52045100 Cap 1
84 FA-5206930 t Washer 3
85 FA-13500500 Pin 1
86 FA-16003000 Beadng 1
87 FA-10801600 Screw 1
88 FA-15000300 O_ng 1
89 FA-52036800 Hose barb for
chemical injector 1
90 FA-15611200 Chemicat hose 1
91 FA-52037200 Chemical hose filter 1
PARTS KITS
Oil Seal Kit
Bearing Kit
Valve Kit
Piston Kit
Water Packing Kit
Unloader Kit
Chemical Injector Kit
FA-YK157015402
FA-YK157138900
FA-YK152022500 01
FA-YK152033600
FA-YK15501600
17911
FA-50381300
3,16,63,19,10,66,16
11,12,13,14,15
68 (6used) 26,25,79
58 (3used) 59,60
76 (3used) 67,65
52,53,54,65.56,57,24,33,85,87
31,32,35,62
18

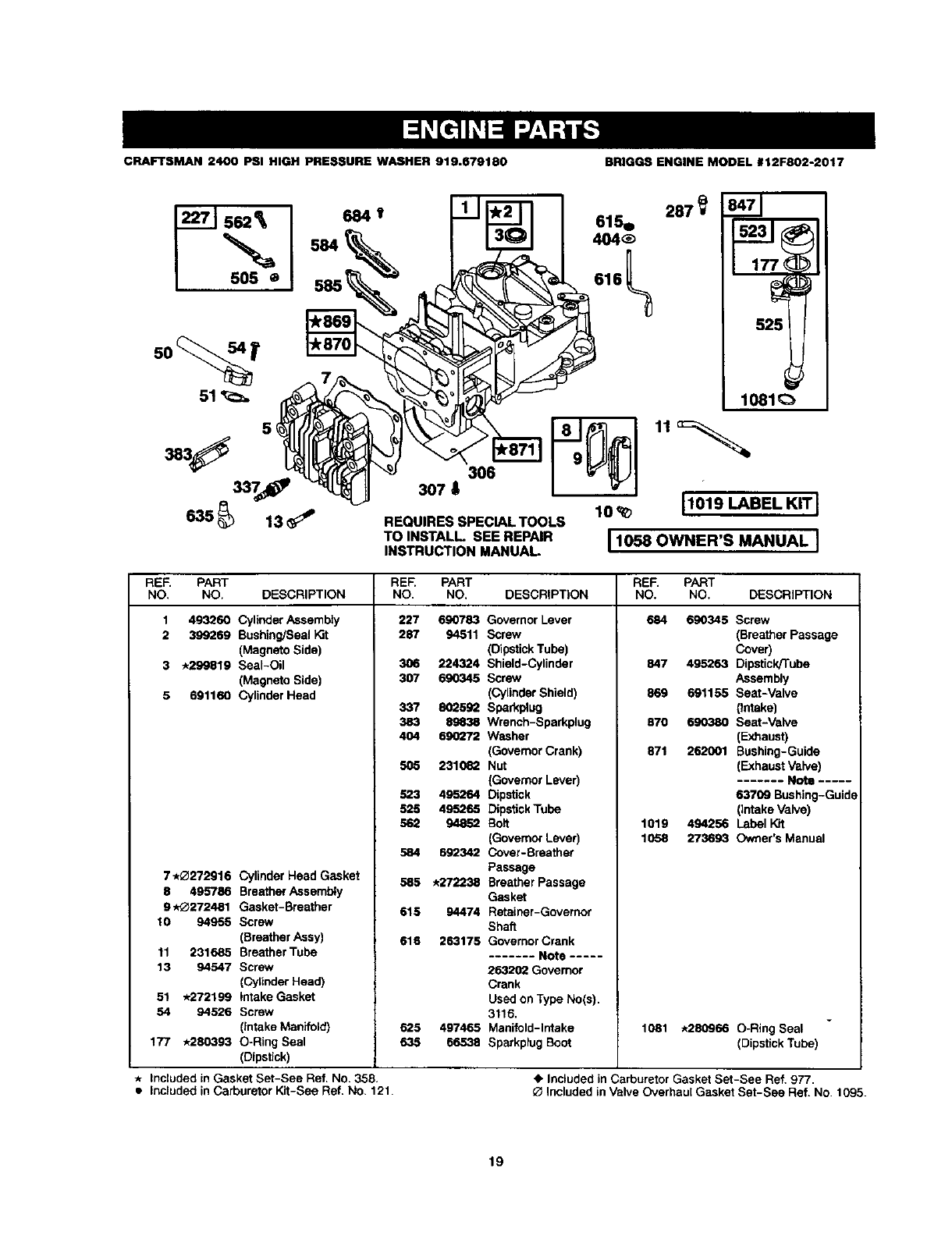

CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL #12F802-2017
6356 13_
684t 615e
404_
616
307 8306 9_
REQUIRES SPECIAL TOOLS
TO INSTALL SEE REPAIR
INSTRUCTION MANUAL
287
177
525
10810
11019LABELKWl
I10ssOWNER'SMANUAL I
REF. PART
NO. NO,
1 493260 Cylinder Assembly
2 399269 Bushing/Seal Wut
(Magneto Side)
3 *299819 Seal-Oil
(Magneto Side)
5 691160 Cylinder Head
7*5272916 Cylinder Head Gasket
8 495786 Breather Assembly
9_272481 Gasket-Breather
10 94955 Screw
(Breather Assy)
11 231685 Breather Tube
13 94547 Screw
(Cylinder Head)
51 ,272199 Intake Gasket
54 94526 Screw
(fntake Manifold)
177 *280393 O*RingSeal
(Dipstick)
*Included in Gasket Set-See Ref. No. 358.
• included in Carburetor Kit-See Ref. No. 121.
REF. PART REF. PART
DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
684 690345227 690783 Governor Lever
287 94511 Screw
(Dipstick Tube)
306 224324 Shield-cylinder
307 690345 Screw
(cylinder Shield)
337 BO25g_ Sperkplug
383 89838 Wrench-Bparkplug
404 690272 Washer
(Governor Crank)
505 2310_2 Nut
(Gevemer Lever)
523 495264 Dipstick
525 495265 Dipstick Tube
847 495263
86g 691155
970 690380
871 262001
Screw
(Breather Passage
Cover)
DipstickJTube
Assembly
Seat-Valve
(Intake)
Seat-Valve
(Exhaust)
Bushing-Guide
(Exhaust Valve)
Note
63709 Bushing-Guide
(intake Valve)
562 94852 Bolt
(Govemor Lever)
584 692342 Cover-Breather
Passage
585 *272238 Breather Passage
Gasket
615 94474 Retainer-Governor
Shaft
615 263175 Governor Crank
Note
263202 Govemor
Crank
Used on Type No(s).
3116.
625 497465 Manifold-Intake
635 66538 Sparkplug Boot
1010 494256 Label Kit
1058 273693 Owner's Manual
1081 *280966 O-Ring Seal
(Dipstick Tube)
•'Included in Carburetor Gasket Set-See Ref. 977.
O Included in Valve Overhaul Gasket Set-See Ref. No. 1095.
19

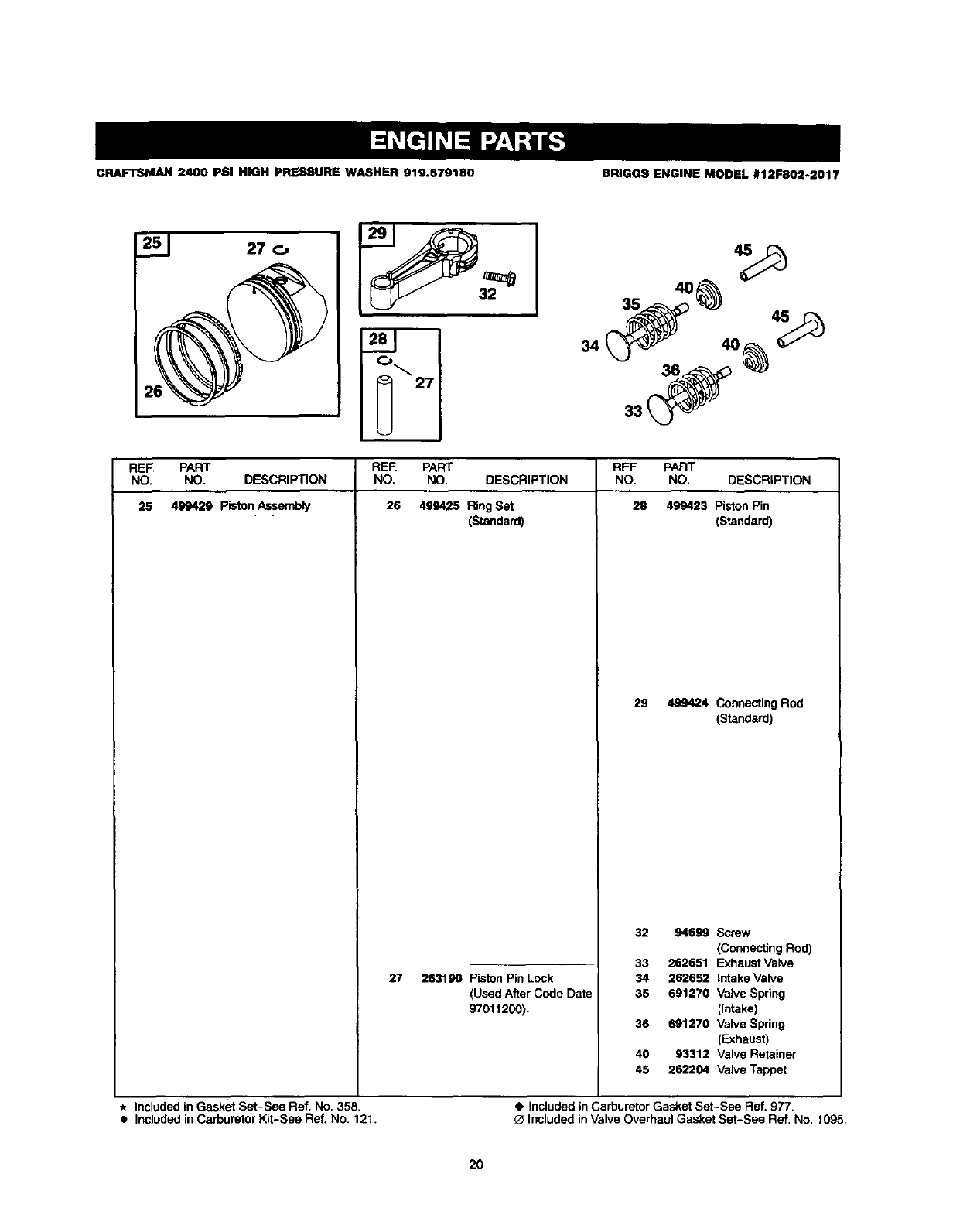

CRAFTSMAN 2400 pSI HIGH pRESSURE WASHER 919.679t80 BRIGGS ENGINE MODEL 912F802-2017
27 O
REF. PART REF. PARt" REF. pART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
25 499429 Piston Assembly 26 499425 Ring Set 28
(Standard}
499423 Piston Pin
(Standard)
29 499424 Connecting Rod
(Standard)
27 263190 Piston Pin Lock
(Used After Code Date
97011200).
32 94699 Screw
(Connecting Rod)
33 262651 Exhaust Valve
34 262652 Intake Valve
35 691270 Valve Spring
(Intake)
36 691270 Valve Spring
(Exhaust)
40 93312 Valve Retainer
45 262204 Vatve Tappet
* Included in Gasket Set-See Ref. No. 358.
• Included in Carburetor Kit-See Ref. No. 121. • Included in Carburetor Gasket Set-See Ref. 977.
OIncluded in Valve Overhaul Gasket Set-See Ref. No. 1095.
2O
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL # 12F802-2017
24
;-III I'AIII
NO. NO. DL::$,r.:m.-"i'O "--
lS 691461 Cmnle;h_.ft
InoludedInra_r.,ket.,..:.et_e,_.14,_N_ _,0
h,4:k_|wdi. ¢.:_.ibur,.l,_._KiI. :Br..:ep,,:f..NlO,121.
tiFF PAnT
I'_€,) N(_ I]' _;4:1111'II[)N RF.F. PART
NI) N_I I_ ._;(;I III'LII)N
24. 222Q91) I Iy_tlOOlK_
1411 _4.'111 Ilrl_JOKM _,
3_;7A 94_,',?.9K,cy Drive. Pulley
741 _R]_.'IRh [;_t- hmlrv_
Irlr:hllJi4tJ i|1( ;+rl _.+PI,_I<I' (;I_HkHI I:;_4t-_;€.11.11(#_. _,"/,
_:._.neluaed In Vb.f_e O_..'(:_haul Qa,.<et Set _;c.:" Ref No 1_.
21

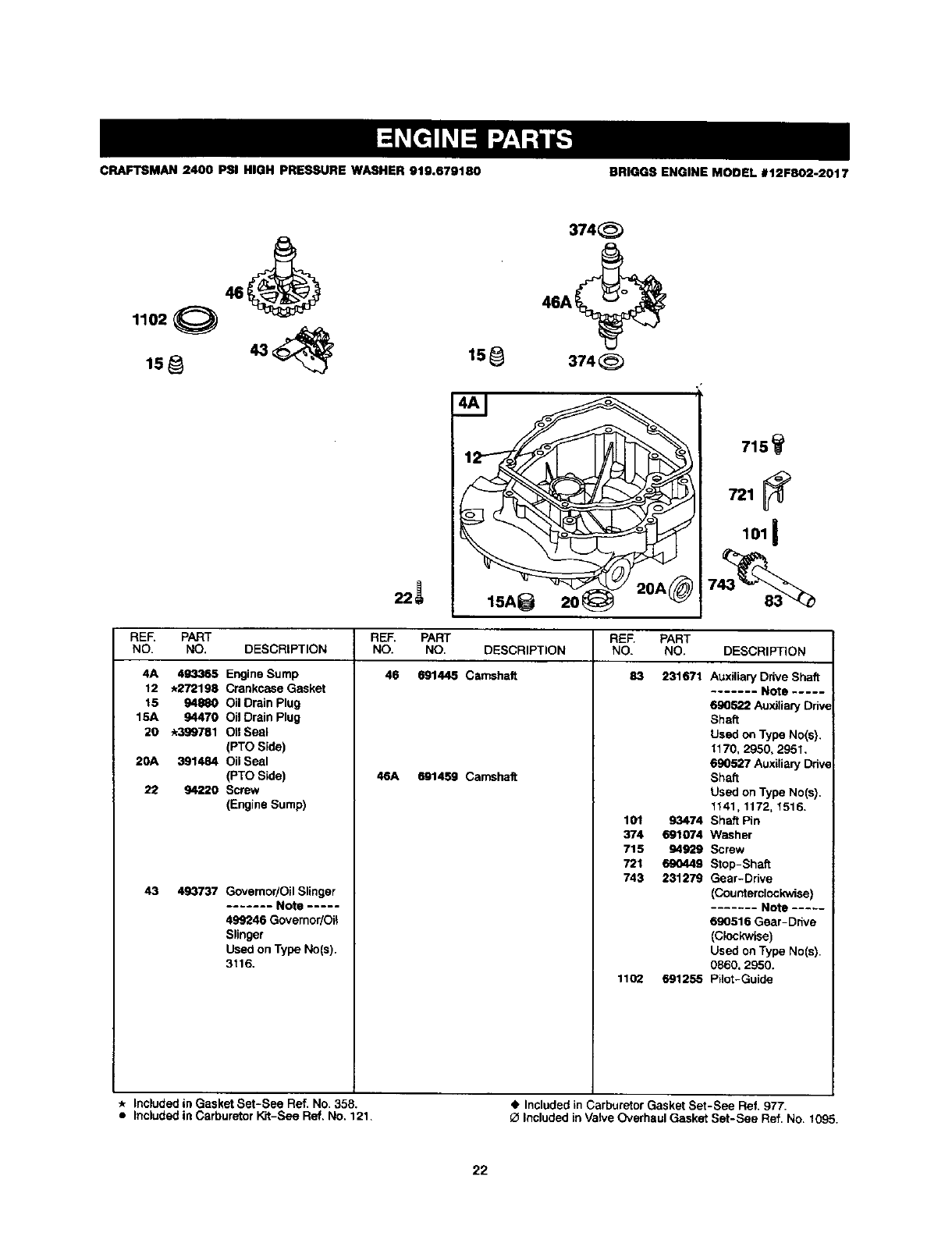

CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL #12F802-2017
15_
374_
46A
374
715_
101
REF. PART REF. PART" REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
46 691445 Camshaft 83 231671
4A 493365 Engine Sump
12 *272198 Crankcase Gasket
15 94880 Oil Dmin Plug
15A 94470 Oil Drain Plug
20 *399781 OII Seal
(PTO Side)
29A 391484 Oil Seal
(PTO Side)
22 94220 Screw
(Engine Sump)
46A 691459 Camshaft
101 93474
374 691074
715 94929
721 690449
743 231279
1102 691255
43 493737 Governor/Oil Slinger
Note
499246 Governor/Oil
Slinger
Used on Type No(s).
3116,
Auxiliary Drive Shaft
Note
690522 Auxiliary Drive
Shaft
Used on Type No(s).
1170, 2950, 2951,
690527 Auxiliary Ddve
Shaft
Used on Type No(s).
1141, 1172, 1516.
Shaft Pin
Washer
Screw
Stop-Shaft
Gear-Drive
(Counterclockwise)
Note
690518 Gear-Drive
(Clockwise)
Used on Type No(s).
0860, 2950.
Pilot-Guide
Included in Gasket Set-See Ref. No. 358.
Included in Carburetor Kit-See Ref. No. 121. •Included in Carburetor Gasket Set-See Ref. 977.
OIncluded in Valve Overhaul Gasket Set-See Ref. No. 1095,
22

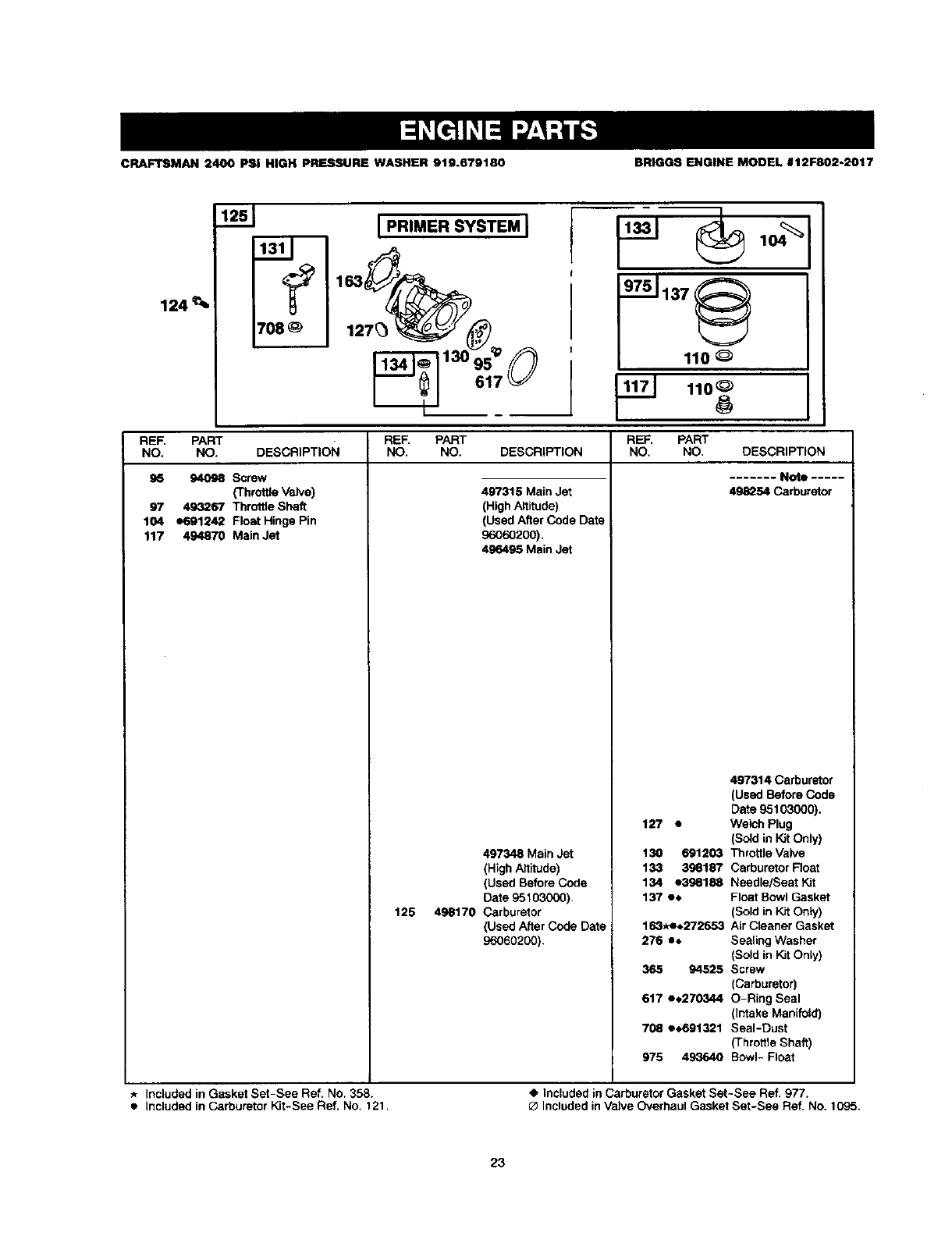

CRAFTSMAN 2400 PSi HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL 1112F802-2017
124
1=51
f
708
IPRIMER SYSTEM I
1_--_'_- 130 95 _)
_617
e7, 1137<
110
_1100
REF. PART
NO. NO. DESCRIPTION
95 94098 Screw
(Throttle Valve)
97 493267 Throttle Shaft
104 e691242 Float Hinge Pin
117 494870 Main Jet
REF, PART
NO. NO. DESCRIPTION
497315 Main Jet
(High Altitude)
(Used After Code Date
96O6O2OO).
496495 Main Jet
REF. PART
NO. NO.
127 •
DESCRIPTION
........ Note .....
498254 Carburetor
497314 Carburetor
(Used Before Code
Date 95103000).
Welch Plug
(Sold in Kit Only)
125
497348 Main Jet
(High Altitude)
(Used Before Code
Date 95103000).
498170 Carburetor
(Used After Code Date
96060200).
130 691203 Throttle Valve
133 396187 Carburetor Float
134 e398188 Needle/Seet Kit
137 •_ Float Bowl Gasket
(Sold in Kit Only)
163,_e_272653 Air Cleaner Gasket
276 e. Sealing Washer
(Sold in Kit Only)
365 94525 Screw
(Carburetor)
617 ee270344 O-Ring Seal
(Intake Manifold)
708 •_.691321 Seal-Dust
(Throttle Shaft)
975 493640 Bowl- Float
*Included in Gasket Set-See Ref. No. 358.
•Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-See Ref. 977.
Included in Vah/e Overhaul Gasket Set-See Ref. No. 1095.
23
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL #12F802-2017
365%
708A 0
F_-'] 12_ 0A 95_
Ic. s,s+ °'+
REF. PART REF. PART FIEF. PART
NO, NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
125A 498965 Carburetor 217
94 e493765 Idle Mixture Kit
95 94096 Screw
(Throttle Valve)
97 493267 Throttle Shaft
98 398t 85 Idle Speed Kit
104 e691242 Float Hinge Pin
108 223471 Choke Valve
109 494218 Choke Shaft
109A 498593 Choke Shaft
117A 498977 Main Jet
127 • Welch Plug
(Sold in Kit Only)
130A 223470 Threttle Valve
133 398187 Carburetor Float
134 e398188 Needle/Seal K_t
137 hFloat Bowl Gasket
(Sold in Kit Only)
163.o+272653 Air Cleaner Gasket
262749 Choke Return Spring
Note
890572 Choke Retum
Spring
276 •. Sealing Washer
(Sold in Kit Only)
365 94525 Screw
(Carburetor)
617 e.270344 O-Ring Seal
(Intake Manifold)
706 •,691321 Seal-Dust
(Throttle Shaft)
Note
e+691321 Seal-Dust
(Choke Shaft)
708A e_693867 Seal-Dust
Used on Type No(s).
1910, 2001,2017,
2403. 2404, 2407,
2681, 2682, 3116,
975 493640 Bowl-Float
Included in Gasket Sot-See Ref. No. 358.
Included in Carburetor Kit-See Ref. No. 121. 4P Included in Carburetor Gasket Set-See Ref. 977.
OIncluded in Valve Overhaul Gasket Set-See RSt. No. 1095
24
CRAFTSMAN2400PSiHIGHPRESSUREWASHER919,679180 BRIGGSENGINEMODEL#12F802-2017
Rcr. PP_T
"J(1. N¢). r)l-_C:.:-ll PII,;)N
20g 0_3'i2eJ2 _ _tirG:i- Governt:r
Rcr. PA_T I' ;AH
N() N_) I_F.-_r_,T,ON INo. No. or.£.cNlr
2531:144_prm;_ [_av.
Irluludad iraC.,_P_L Sel-_e n_r, i_,>,_. •include(:[ In _/bur_or _ar, ki_t .%_t up._ HRt RT7
r
I,. Irluluded in Valw Owrhaul Go_k_t _L-'t _o_ H_. N_',. l,_r_r,.
25
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL #12F802-2017
L, ,.._':)
t!,,+! ' tl
940 _,,_"
091_9_0 _ `'" ":_'_]*
...."
621 +_
Use With Choke
Type, Cm'bulBto¢ "r"11%%11%
g84 r... '°:'
,0,<f:/
RFF FART
NO. NO. DrscnlPTION
1B _J1142 _urew
_tl._+mr_l Cover)
9BA 49_,_DI Idle S_uu-Ji._.
1BO 94_4Zl+_,_r _-
(C'u.Lr,,,,IBm¢l,,,_O
202 202.'S'_ Muul,ahi¢_lO0..,I i_ll_
23_ 2024_;1 Lut;_u[ Link
22.2 497_a3 C._ntr,J{Br_ke*L
Ul+edwith Pri_er
Type _:otbuml_r
HH-. PAH I
P',O. NO. DE,_.CFIIPTIDN
322B 892150 Cu_drol D_ar.:kut
259 4_1223 Br_;ket-C_iu_ Clu,u+J
347 69139_ _wituh- R,,_ukvr
447 93801 _¢€@_
(GOh(rOI'C;.,0v_h
(_m.,_5_A_I, Brau'(.ut)
e0_.A 0_I'_._,44 Ct..+V_,r- I_ UrktFj i
HI-F. PARI
NO. NO. D:"SCFIIPTION
I_ ,4g3023 Spa_,er
Orlulud_= Z_
043 272618 _lue+,_u- L+_ur
e4_vt 2oo14_ ._l_'..,ve-L.+'.,',+r
092 6t_06+)_, -._,','i_l" F,,uy
_40 94082 -_ruw
(Ga+riri,j _--l_.r+lp
D,r,u,_i_t)
904 '6,_2072 Dr,t,t_l,,eL-_p 5wiL+h
990 3929_2 Key _.!
In-'tudL'_ m GaSket G_t ._€_- R_f. No. 3:>t_.
hiulu'J-L-_liulC_buaul_ _L-Su_ +r'q_r.No. 121. Includedin_=-bumtor Gu=k_t_et _ee Ref. Lr//.
IL_l==ulud_lir=Wive OverhaulGauketS_t-Sue Re[. Hu.t_
26
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL 112F802-2017
tY IIz,
269 268 270
265 '_"
265A {_'
334 _'
...S" ""..:'_
.., ,.. ,_..., ,_-'-,:,....
RFF PART
i'qO. NC.. DESGrt.IPTION
25_A 2215,')5 Ct_q,'r',l."-¢;__In'x3
L:_B 6_1_ C_ln_t-r.;orttrol Wnro
(72_Lollg, _;Jt to
Hc_iulro,_ L_ngtfl;
....... Not_ .....
_P_tD72 CaEin9 ,-3o'_-
trnl W_m
(4_,"long, Cut to
HCqblrod Longt|l_
25_ _Wnr_ Control
_S' Lang, CuL to
Roquimd Lunngtlh_
--- .... Not= ....
2ED_9 Wiro Cuntrol
_,_4' L_n_, Cut t_
H c;qtJltad L_n _Ith)
R[F, PA_T
270 61425 Nut
{_._antrolWi'_ Cs=irlg)
271 2_I)_D_ Lev_r-Corlltol
33,3 _g,2_74 Armstute-Mul_nuL_
3a4 g4731 _;rew
9Z'_1 Wu_l]u,
3_6 _z3gO Wiru-_tuu
3_9 9Obr6 Nut
423 e_37-5_ 5_:_uw
50? :_5_5 h'_$uI_I=X
,520 6910_I T_,r.i=_l
RF.F PART
NO, NO. DESCRIPTION
8Zl 396047 .'3w;_.lp-_IuF_
_'_# _4512 _;ruw
8Sl 4_.lt_B l_nmnal C,31)l_
91Q 9451D St.J¢l _tatar Mounkng
_-_ 2ti2r_O ._3tml_ _raka
_3 t_E_ko,2 EI-_I_
_=ad ._,fterCade D_t=
.=Y_1U_;[)D).
....... Note .....
3_t'[_a _wttch
Interlock
(AItP.rn,_t_r)
included in C_k_t 5ut-_ee Re_ N_. _S_. •Irmlu_d nn _rlgur_tor Gasket _L-_ue _ur, _/t,
Inclbd_d in _alve Overhud O_._ut _,_.-5ee qe" _J,) I0_5
27
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919,679180 BRIGGS ENGINE MODEL #12F802-2017
m |
9zlB ..L • i
_iq.,. "-.. '_'--- -_,_""...:::'"I
f,"._ .,....:., .:.:,.. ,....
t,°:"_.:-":':"" ../"" ,.......
../."
'-... .° ..°'"
670''_
i 1(:136EMISSIONS LABEL !
101
tva7
RFF F_.RT P,adTl" I_E'- PJ_:(T
NO. NO. D _ESCRIPT'ON NO. L_J-_GHIPI ION r_)" Nt_ nF$_.,nlPTTOI_
961t 04r_6
397974 C,._p--uel "_fr k.
492790 Lir_'-[-uel
N,_te
2_004 Lirlu- f"L,ul
0_3.
190 _4,._11 8_'rvw
_rL_ITArlk_
z4ea =_KgO I-i ter-r'uel
RFF
NO.
4501 93063 Cl_mp Ho;e
(GrReri;,
_0|A 9,TB0"/ Clar_p IIGm
([:].la=_)
9.,30 28113_S GU;r_] R_.v,_nd
9,._A 090_9B Gu,lr_ I_nd
•.3_ 69'1_45 (-_u,lrcJ.H_lnd
I-Im:r,I;',O)
•19_E 499141 I-ml_lmn._ I _1_._1
m7_t ;,"I_0)
499340 F.:rnl__.nn_
r3p_lv-_97_1 ,_t00:*.
1D.50 3J[_54D $¢¢$w._llt_ r_t
141_1J('J_,rJIn €'_.',IIqf F,m-F,_RI-]qLND. _SR.
Ir_dudedin Ca'b=retor kC,Jt-See Ref. No. I_1.
28
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL # 12F802-2017
37 I
23A
304
305_
925
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
304 493293 Housing-Blower
23A 492175 Flywheel
37 224511 Guard-Flywheel
73 691222 Screen-Rotating
305 591108 Screw
(Blower Housing)
332 92284 Nut-Flywheel
363 19069 Flywheel Puller
455 691219 Cup-Flywheel
925 690595 Cover-Linkage
Included in Gasket Set-See Ref. No. 358.
•Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-See Ref. 977.
0IncJudedin Valve Overhaul Gasket Set-See Ref. No. 1095.
29
CRAFTSMAN 2400 PSi HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL #12F802-2017
L
689 0
REF. PART REF. PART PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. DESCRIPTION
55 65691421 Rewind Starter
Housing
58 280399 Starter Rope
(Cut To Ri_luired
Length)
59 396892 Grip Insert
60 281434 Starter Rope Grip
60A 393152 Starter Rope Grip
94904 Screw
(Rewind Starter)
144 498144 Pulley/Spring Assy
456 281503 Plate-Pawl Friction
459 281505 Pawl- Retchet
REF.
NO.
461 94943 Screw
(Pawi Friction Plate)
592 949O8 Nut
(Rewind Starter)
608 497680 Starter-Rewind
689 263073 Spring-Friction
946 223294 Stop-Rope
Included in Gasket Set-See Ref. No. 358.
Included in Carburetor Kit-See Ref, No, 121. Included in Carburetor Gasket Set-See Ref. 977.
Included in Valve Overhaul Gasket Set-See Ref. No. 109_
30
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGE ENGINE MODEL #12F802-2017
L
68
592 _)
1
689O
456 I_
461 946
REF. PART REF. PART PART
NO. NO. DESCRIPTION NO. NO, DESCRIPTION NO. DESCRIPTION
55 65891421 Rewind Starter
Housing
58 280399 Starter Rope
(Cut To Required
Length)
59 396892 Grip Insert
60 281434 Starter Rope Grip
60A 393152 Starter Rope Grip
g4904 Screw
(Rewind Starter)
144 4_144 Pulley/Spring Assy
456 281503 Plate-Pawl Friction
459 281505 Pawl- Ratchet
REE
NO.
461 94943 Screw
(Pawl Friction Plate)
592 94908 Nut
(Rewind Starter)
608 497680 Starter-Rewind
689 263073 Spdng-Fdction
946 223294 Stop-Rope
Included in Gasket Set-See Ref. No. 358,
Included in Carburetor Kit-See Ref. No, 121.
• Included in Carburetor Gasket Set-See Ref. 977.
O Included in Valve Overhaul Gasket Set-See Ref. NO. 1095
31
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL #12F802-2017
S92
!/
.p" ,,,._,._'-.
•.;-_ --...."
._.
101
...:.. .i _ _'-7_.
_u t.. t .. .7,....
•-:-.,-'--_..=. -;_;.,.:..
. ..,"
,, • ,o"
_'_...:_.._
946 ..q..;,
Ht-f', PAH I
NO. NO. r'iF!l .P,RIPTil"lN
H_IJ_I_
57A _1_89 Hetvlrill '_t;l-lcr ,._pr,_f_
511 21K]_99 _t_rt_.r -IDI_
(i_ui T_Requi_ed
Lenilith)
1f9 _ Grip Inll_rl
6OA :!1t_1_l _lii/t-'_ -"lope Glip
_.F.l". PAINT
Nl_l N:). r_._t'_,R'llaTION
llS 949(14 HCmW
73_ 2_4627 _'_n HDt_tln0
101 262626 P_ _h_ft
2"P5_ 2B09T_ W_._F_r _J
4,_/JiA 224_21 Plam-Pliw" I'rl=llori
439A 492e33 Paw]- F{_l_'l_-i
(_w_ind _l_lr_l)
_cr. PART
N_) N_ r_RIFITION
In_:ludc(l;l:
691219 (_up)-I'#'_lhc_l
67B 1t2427B _'v_lrl_l _llDcar
94_A 3_lll Guide-Rule
1_:_4 224322 W_U h_,r
lil;lud_ ill _,itll_[ ,_tl-,.e, le _ef NO 35_
_#_IllP.IIJtllI(t In Vi_I_ ()v_rblllJI ('-iil._kitt F,lli -_;_l_ l-lilt. NI'_I II_R
32
CRAFTSMAN 2400 PSI HIGH PRESSURE WASHER 919.679180 BRIGGS ENGINE MODEL #12F802-2017
35BEHG_E OVERHAULGASKETSET
177 ....... "_i_"
.t" _1081 _.'$ 3_,_,..,J,._
_..._ ..._ <;,:.,_. :_/
1095 VALVE OVERHAUL
GASKET SET 977 CARBURETOR
GASi_ET SET
HLI. F',/,.'_T
NO NC). I;I-P;'L:HIP 1I_N
3; *QggwI_) _D=J 'r.3;l
(Muuneto _e)
12 _Q'i_lg_ {:rankca-_=G_-k_t
20 @:alggTgl _u_l-Oil
61 +_rZ199 intakeC1,u_t
_4 e4_3?E5 Idle M_xtur_ Kit
1D4 _g1242 rlt_Lltiii_Pir_
12t 4_I_gEG E_mur_t_r
O_=.rh_ulKi_
12_ iv W_l(':l'_ =hJQ
(Goad rl Kit O.Iy')
134 _,,_gOl_8 N_udl,.,_Se,_I<_"
(_uld .nKitO.Iy_
r_EF. PAFI'r
NO. NO. _J_E.,_3RIl>'i'lON
1_3*_'IFZT"_S3 Air _:le_J_ur_kuL
1"/7 ^_103_ C%RIhQt-1_ll
(Di_ti_
275 _@ R_llncj W_hm
(_:ld m I_t Only_
358 40731G Fngrr _ _,_'h_ul
Gasket _et
565 ^272238 Rt_,_er Pp_g_
G=ket
817 • 412704J44 0 -R;I_,_I_1
,_lnt=kaM_nifo_
$80 ,493623 SIJ_uur
/In€llJClP.¢2)
RFF PAR1
NO. NO. DC_Ci-[IPTION
!7,0(Lle SF,={t)
g77 49_.G1 (_a:,k_L't _t
CarbLs_tor
1_81 *2B0gEG U HIn¢] _nt
t,UIp=tlak hlbP.)
ta£6 4g_:,,2_ t.;;ar._,t F,(_t V,11_
t.)vP.rh,ll JI
In_lud_J in C_tLmrulur Ki_-._ee R_r NO _21
,(i ]llUll.lLtUd in CdlbU'U'.Ui _,,_€_lte_..°,e_.-.._ecJRef g77
h.oluLl*)(I in V_lve Overl'_ll qm_t Ht_t-H_R R_t. Nn. 10_
33
Bdggs&StrattonCorporation(B&S),theCaliforniaAirResourcesBoard(CARB)
andtheUnitedStatesEnvironmentalProtectionAgency(U.S.EPA)
EmissionControlSystemWarrantyStatement(Owner'sDefectWarrantyRightsandObligations)
Intheintarastof theenvironment,B&Seeginesthatmeet stricternis- TO CERTIFIED ENGINES PURCHASEDIN CALIFORNIAIN 1995
sionrequirernentsarelabeled,"Thlaenginasontormeto1995-1998 AND THEREAFTER, WHICH ARE USED IN CALIFORNIA, AND
Califomiaemissionregulationsfor ULGE enginesand U.S. EPA TO CERTIFIED MODEL YEAR 1997 AND LATER ENGINES
Phese I regulstionsfor smallnon-roedengines." WHICH ARE PURCHASED AND USED ELSEWHERE IN THE
EMISSION CONTROL WARRANTYCOVERAGE IS APPLICABLE UNITED STATES.
Callfomla and United States Emission Control DefectsWarranty Statement
CARB, U.S. EPA and B&S are pleased to explain the Emission
ControlSystemWarrantyonyour1996 andlat_" utilityor lawnand
gardenequipment(ULGE)engine.InCalifomia,newULGEengines
producedonor after August 1, 1995 must be designed,builtand
equippedto meet the State'sstringentanti-smogstendards_Else-
where in the UnitedStates, new non-road,spark-ignitionengines
certifiedfor modelyear 1997and later,mustmeet similarstandards
setforthby the U.S. EPA. B&S must warrantthe emissioncontrol
systemonyourengineforthe pe_s of time listed below,provided
there has been no abuse,neglector impropermaintenanceofyour
ULGEengine.
Youremissioncontrolsystamincludespartssuchas the carburetor,
air cleaner,ignitionsystem, mufflerend catalyticconverter.Also
includedmaybeconnectorsandotheremissionrelatedassemblies.
Where awarrantablecondition exists,B&S willrepairyour ULGE
engine at nooust to youincludingdiagnosis,partsand labor.
Bdggs & Stratton Emission Control DefectsWarranty Coverage
ULGE engines are warranted relativeto emissioncontrol parts bstow.lfanycoveredpartonyourenginaisdefective,thepartwillbe
defectsfor a periodof two years, subjectto provisionsset forth repairedorreplacedby B&S.
Owner's Warranty Reel:X)nelbilttlas
Asthe ULGEengineowner,youare responsiblefor theperformance
ofthe requiredmaintenancelisted in yourOperatar/OwnerManual.
B&S recommendsthat youretainallyourreceiptscoveringmainta.
nanceonyourULGE engine,but B&Scannotdenywarrantysolely
forthe lackofreceiptsorfor yourfailuretoensurethe performanceof
allscheduledmaintenance.
Asthe ULGEengineowner,youshouldhoweverbeawarethat B&S
maydeny youwarrantycoverageifyourULGEengineoraparthas
faileddueto abuse, neglect,impropermaintenance or unapproved
modifications.
Youare responsibleforpresentingyourULGE engineto an Autho-
rizedB&SServiceDeeler as soonas a problemexists.The undis-
pu:tsdwarrantyrepairsshouldbecompletedina reasonableamount
oftime, notto exceed30 days,
if you have any questions regarding your warranty rightsand
responsibilities,you shouldcontacta B&SServiceRepresentative
at 1-414-259-5262.
Theemissionwarrantyis a defectswarranty.Defectsarejudgedon
normalenginepedormanos.Thewarrantyisnot relatedtoan in-use
emissiontest.
Brlggs & Stratton Emission Control Defects Warranty Provisions
Thefollowingarespecificprovisionsrelativeto yourEmissionControlDefectsWarrantyCoverage.Itis inadditiontotheB&S enginewarranty
for non-regulatedenginesfound intheOperatar/OwnerManual.
1. WarrantedParts
Coverage underthis warrantyextendsonly to the partslisted
below (theemissioncontrolsystemsparts) to the extentthese
partswere presentonthe enginepurchased.
a. FuelMeteringSystem
• Coldstartendchmentsystem(softchoke)
• Carburetorandinternalparts
•FuelPump
b. Air InductionSystem
•Aircleaner
•Intakemanifold
c. IgnitionSystem
•Spark plug(s)
•Magnetoignitionsystem
d. Catalyst System
Catalyticconverter
•Exhaustmanifold
•Air injectionsystemorpulsevalve
e. MiscellaneousItems Used inAboveSystems
• Vacuum,temperature,position,timesensitivevalves
and switches
• Connectors and assemblies
2. Lengthof Coverage
B&Swarrantstotheinitialownerandeachsubsequentpurchaser
thattheWarrantedPartsshallbe free from defectsin materials
and workmanshipwhich caused the failure of the Warranted
Partsfor apariud oftwoyearsfrom thedatethe engine is deliv-
eredto a retailpumhaser.
3. No Charge
Repairor replacementof any WarrantedPartwillbeperformed
at nocharge to the owner,including diagnostic labor which laeds
to the determination that aWarranted Part is defective, if the
diagnostic work is performed at an AuthorizedB&S Service
Dealer. For emissionswarrantyservicecontactyour nearest
Authorized B&S Service Dealer as listed in the "YellowPages"
under =Engines, Gasoline," "Gasoline Engines," "Lawn
Mowers," orsimilarcategory.
4. Claims and Coverage Exclusions
Warranty claimsshallbefiled in accordancewiththeprevisions
ofthe B&SEngineWarranty Policy.Warrantycoverage shallbe
excluded for failures of Warranted Partswhichare not original
B&S parts or because of abuse, neglector improper mainte-
nenosas setforth Inthe B&SEngineWarrantyPolicy.B&S isnot
liable to coverfailuros of Warranted Parts caused by the use of
add-on, non..odginal,or modified parts.
5. Maintenance
Any Warranted Part which is not scheduledfor replacementas
required maintenance or which is scheduledonly for regular
inspection to theeffectof =repair or replace asnecessary" shall
be warranted as to defects for the warranty period. Any
Warranted Part whichisscheduledfor replacementas required
maintenanceshall be warrantedas to defectsonly for theperiod
of time up to the first scheduledreplacement for that part. Any
replacementpartthat is equivalentinperformanceand durability
may be used inthe performance of any maintenance orrepairs.
The owner is responsible for the performanceof all required
maintenance, as defined in the B&SOperator/Owner Manual.
6. Consequential Coverage
Coverage hereunder shall extend to the failure of any engine
componentscaused by the failure of any Warranted Part still
under warranty.
34
Bdggs & Stratton welcomes warranty repair and apologizes
to you for being inconvenienced. Any Authorized Service
Dealer may perform warranty repairs. Most warranty repairs
are handled routinely, but sometimes requests for warranty
service may not be appropriate. For example, warranty would
not apply ifengine damage occurred because of misuse, lack
of routine maintenance, shipping, handling, warehousing or
improper installation. Similarly, warranty Is void if the serial
number of the engine has been removed or the engine has
been altered or modified.
Ifa customer differswiththe decisionof the Service,Dealer, an
investigation willbe made to determine whether the warranty
applies. Ask the Service Dealer to submitall supportingfacts to
his Distributororthe Factoryfor review. If the Distributoror the
Factory decides that the claim isjustified,the customer will be
fully reimbursed for those items that are defective. To avoid
misunderstanding which might occur between the customer
and the Dealer, listedbelow are some of the causes of engine
failure that the warranty does not cover.
Improper maintenance:
The life of an engine depends upon the conditions under
which itoperates, and the care itreceives. Some applications,
such as tillers, pumps and rotary mowers, are very often used
industy or dirty conditions, which can cause what appears to
be premature wear. Such wear, when caused by dirt, dust,
spark plug cleaning grit, or other abrasive material that has
entered the engine because of improper maintenance, is not
covered by warranty.
This warranty covers engine related defective material
and/or workmanship only. and not replacement or refund
of the equipment to which the engine may be mounted.
Nor does the warranty extend to repairs required
because of:
1. PROBLEMS CAUSED BY PARTS THAT ARE NOT
ORIGINAL BRIGGS & STRA'I-rON PARTS.
2. Equipment controls or installations that prevent starting,
cause unsatisfactory engine performance, or shorten
engine life. (Contact equipment manufacturer.)
3. Leaking carburetors, clogged fuel pipes, sticking valves,
or other damage, caused by usingcontaminated or stale
fuel. (Use clean, fresh, lead-free gasoline and Briggs &
Stratton gasoline stabilizer, Part No. 5041 .)
4. Pads which are scored or broken because an engine was
operated with insufficient or contaminated lubricatingoil,
or an incorrect grade of lebdceting oil (check oil level daily
or after every 8 hours of operation. Refill when necessary
and change at recommended intervals.) Read "Owner's
Manual."
5. Repair or adjustment of associated parts or assemblies
such as clutches, transmissions, remote controls, etc.,
which are not manufactured by Briggs & Stratton.
6. Damage or wear to parts caused by dirt, which entered
the engine because of improper air cleaner maintenance,
re-assembly, or use of a non-original air cleaner element
or cadddge. (At recommended intervals, clean and re-oil
the Oil-Foam® element or the foam pre-cleaner, and
replace the cartridge.) Read "Owner's Manual."
7. Parts damaged by overspeeding, or overheating caused
by grass, debris, or dirt, which plugs or clogs the cooling
fins, orflywheel area, or damage caused by operating the
engine in a confined area without sufficient ventilation.
(Clean fins on the cylinder,cylinder head and flywheel at
recommended intervals.) Read "Owner's Manual."
8. Engine or equipment pads breken by excessive vibration
caused by a loose engine mounting, loose cotter blades,
unbalanced blades or loose or unbalanced impellers,
improper attachment of equipment to engine crankshaft,
overspeeding or other abuse in operation.
9. A bent or broken crankshaft, caused by stdking a solid
object with the cutter blade of a rotary lawn mower, or
excessive v-bait tightness.
10. Routine tune-up or adjustment of the engine.
11. Engine or engine component failure, i.e., combustion
chamber, valves, valve seats, valve guides, or bumed
starter motor windings, caused by the use of alternate
fuels such as, liquified petroleum, natural gas, altered
gasolines, etc.
35
_ARS
CRAFTSMAN
MODEL NO.
919.679180
SERVICE
HOW TO ORDER
REPAIR PARTS
OWNER'S MANUAL
The model number of your Sears Air Compressor can be
found
on the maintenance label on the top of the shroud or on the
bar code label on the rear of the air tank.
SERVICE AND REPAIR PARTS
CALL 1-800-665-4455"
Keep this number handy should you require a service
call or need to order repair parts.
If ordering parts make sure you have the name, make
and model no. of the merchandise and the name and
number of the part you wish to order.
*If calling locally, please use one of the following numbers:
Regina -566-5124 Montreal-333-5740
Toronto-744-4900 Halifax -454-2444
Kitchener-894-7590 Ottawa-738-4440
Vancouver - 420-8211
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
•PART NUMBER • PART DESCRIPTION
• MODEL NUMBER • NAME OF ITEM
All parts listed may be ordered from any Sears Service Center
and most Sears stores.
If the parts you need are not stocked locally, your order will be
electronically transmitted to a Sears Repair Parts Distribution
Center for handling.
Sold By Sears Canada, Inc., Toronto, Ont. M5B 2B8
