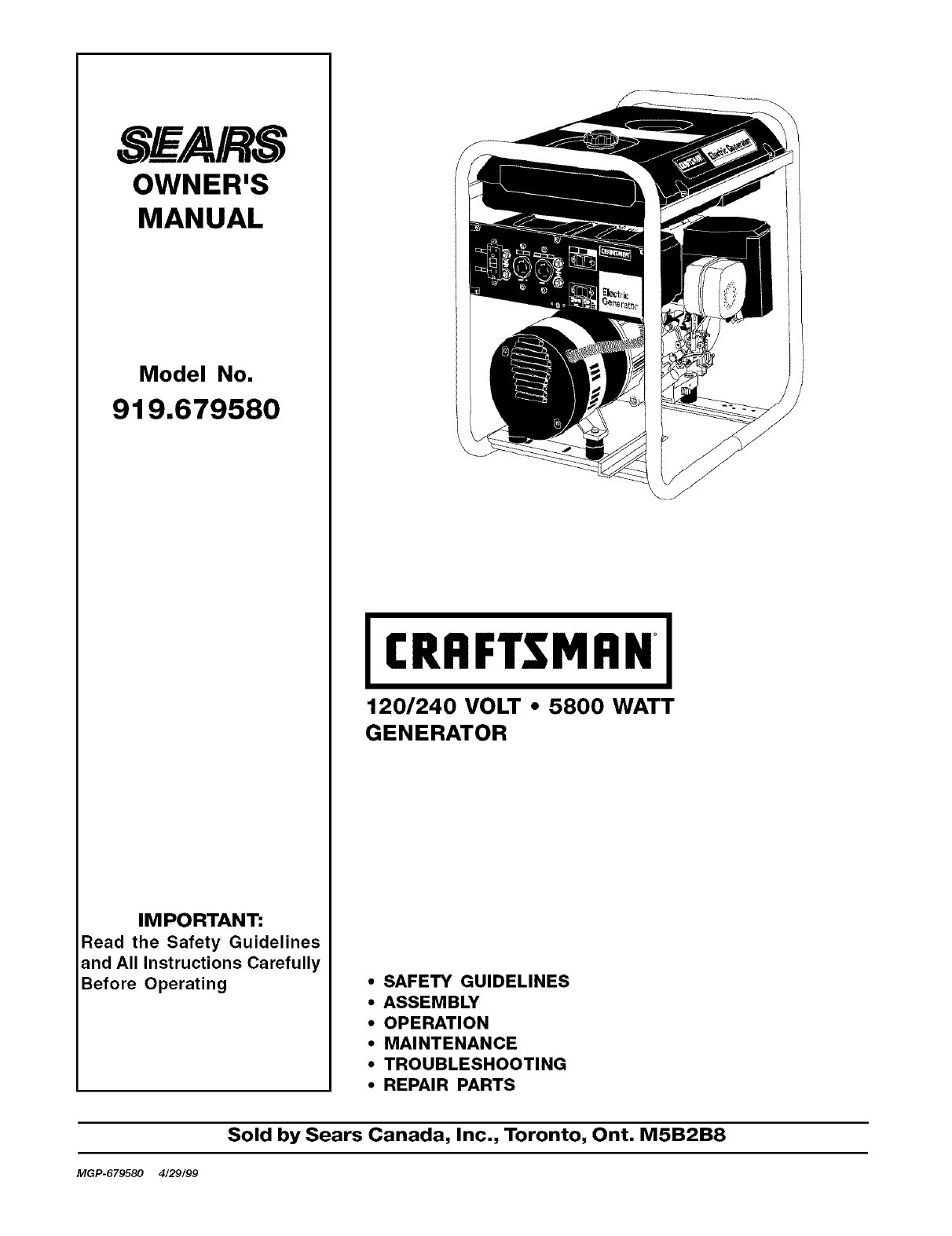

OWNER'S

MANUAL

Model No.

919.679580

IMPORTANT:

Read the Safety Guidelines

and All Instructions Carefully

Before Operating

ICRRFTSMRNI

120/240 VOLT °5800 WATT

GENERATOR

• SAFETY GUIDELINES

•ASSEMBLY

•OPERATION

•MAINTENANCE

•TROUBLESHOOTING

•REPAIR PARTS

Sold by Sears Canada, Inc., Toronto, Ont. M5B2B8

MGP-679580 4/29/99

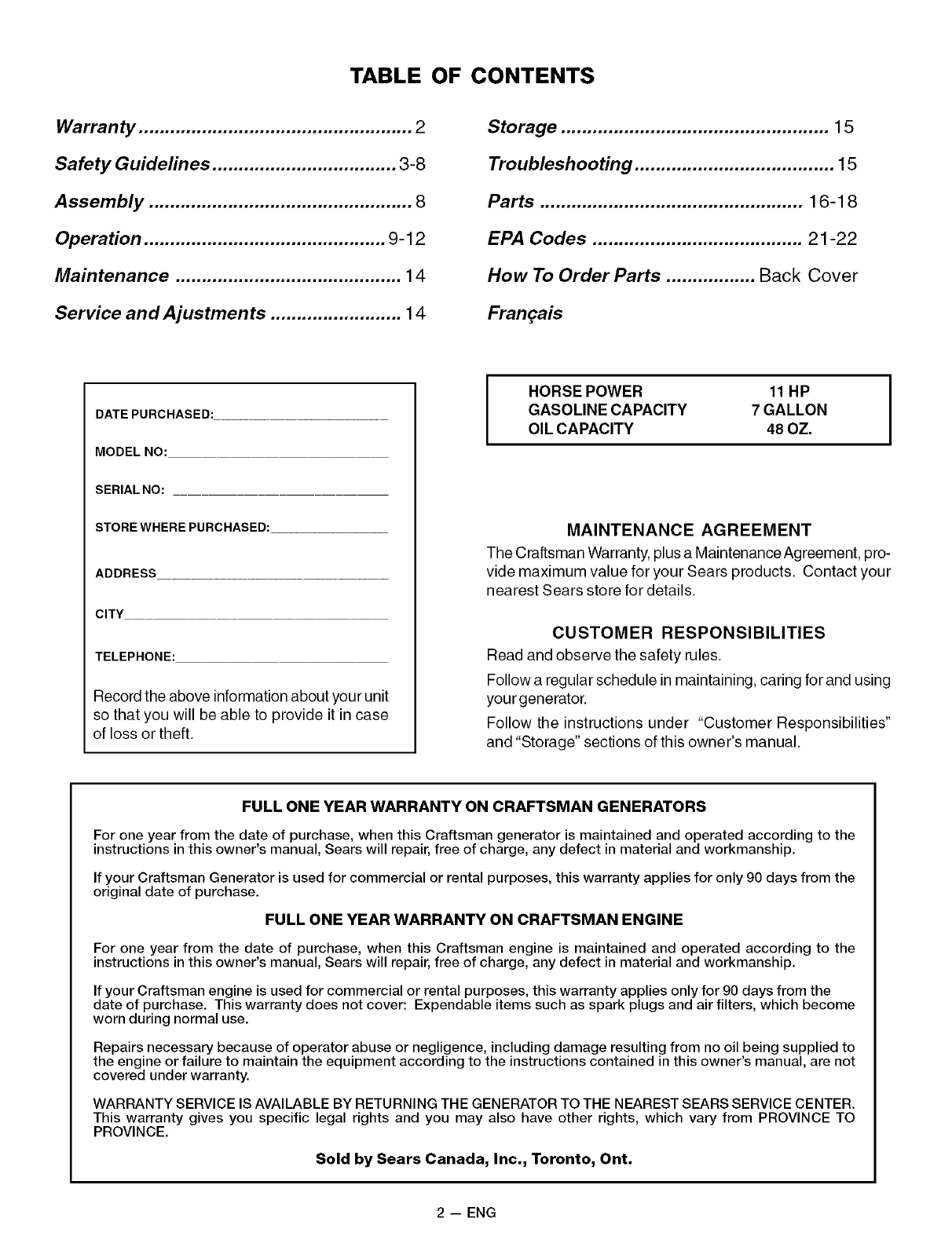

TABLE OF CONTENTS

Warranty .................................................... 2

Safety Guidelines ................................... 3-8

Assembly .................................................. 8

Operation .............................................. 9-12

Maintenance ........................................... 14

Service and Ajustments ......................... 14

Storage ................................................... 15

Troubleshooting ...................................... 15

Parts .................................................. 16-18

EPA Codes ........................................ 21-22

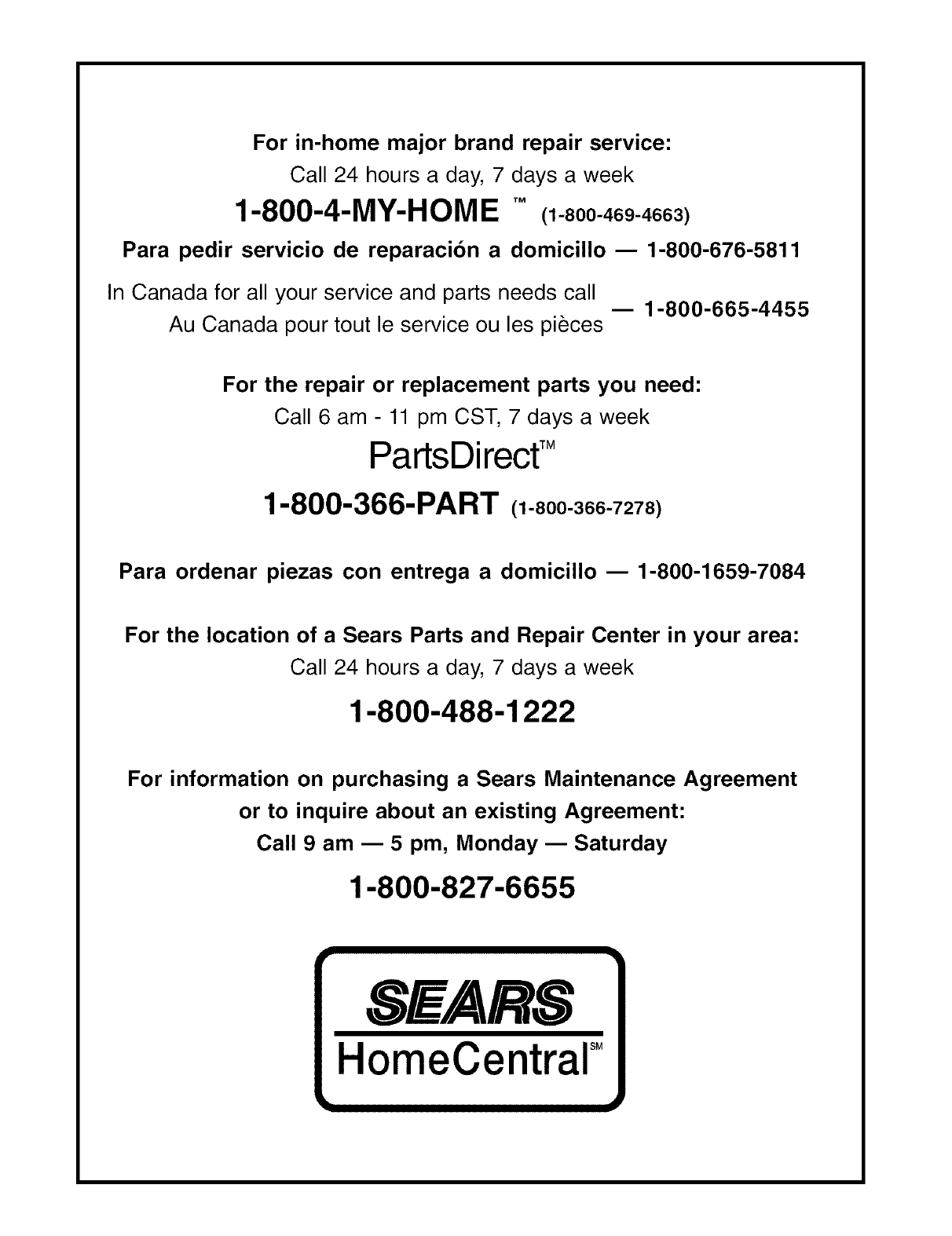

How To Order Parts ................. Back Cover

Fran_ais

DATEPURCHASED:

MODEL NO:

SERIAL NO:

STOREWHERE PURCHASED:

ADDRESS

CITY

TELEPHONE:

Record the above information about your unit

so that you will be able to provide it in case

of loss or theft.

HORSE POWER 11 HP

GASOLINE CAPACITY 7 GALLON

OIL CAPACITY 48 OZ. I

MAINTENANCE AGREEMENT

The Craftsman Warranty, plus a Maintenance Agreement, pro-

vide maximum value for your Sears products. Contact your

nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

Read and observe the safety rules.

Follow a regular schedule in maintaining, caring for and using

your generator.

Follow the instructions under "Customer Responsibilities"

and "Storage" sections of this owner's manual.

FULL ONE YEAR WARRANTY ON CRAFTSMAN GENERATORS

For one year from the date of purchase, when this Craftsman generator is maintained and operated according to the

instructions in this owner's manual, Sears will repair, free of charge, any defect in material and workmanship.

If your Craftsman Generator is used for commercial or rental purposes, this warranty applies for only 90 days from the

original date of purchase.

FULL ONE YEAR WARRANTY ON CRAFTSMAN ENGINE

For one year from the date of purchase, when this Craftsman engine is maintained and operated according to the

instructions in this owner's manual, Sears will repair, free of charge, any defect in material and workmanship.

If your Craftsman engine is used for commercial or rental purposes, this warranty applies only for 90 days from the

date of purchase. This warranty does not cover: Expendable items such as spark plugs and air filters, which become

worn during normal use.

Repairs necessary because of operator abuse or negligence, including damage resulting from no oil being supplied to

the engine or failure to maintain the equipment according to the instructions contained in this owner's manual, are not

covered under warranty.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE GENERATOR TO THE NEAREST SEARS SERVICE CENTER.

This warranty gives you specific legal rights and you may also have other rights, which vary from PROVINCE TO

PROVINCE.

Sold by Sears Canada, Inc., Toronto, Ont.

2 -- ENG

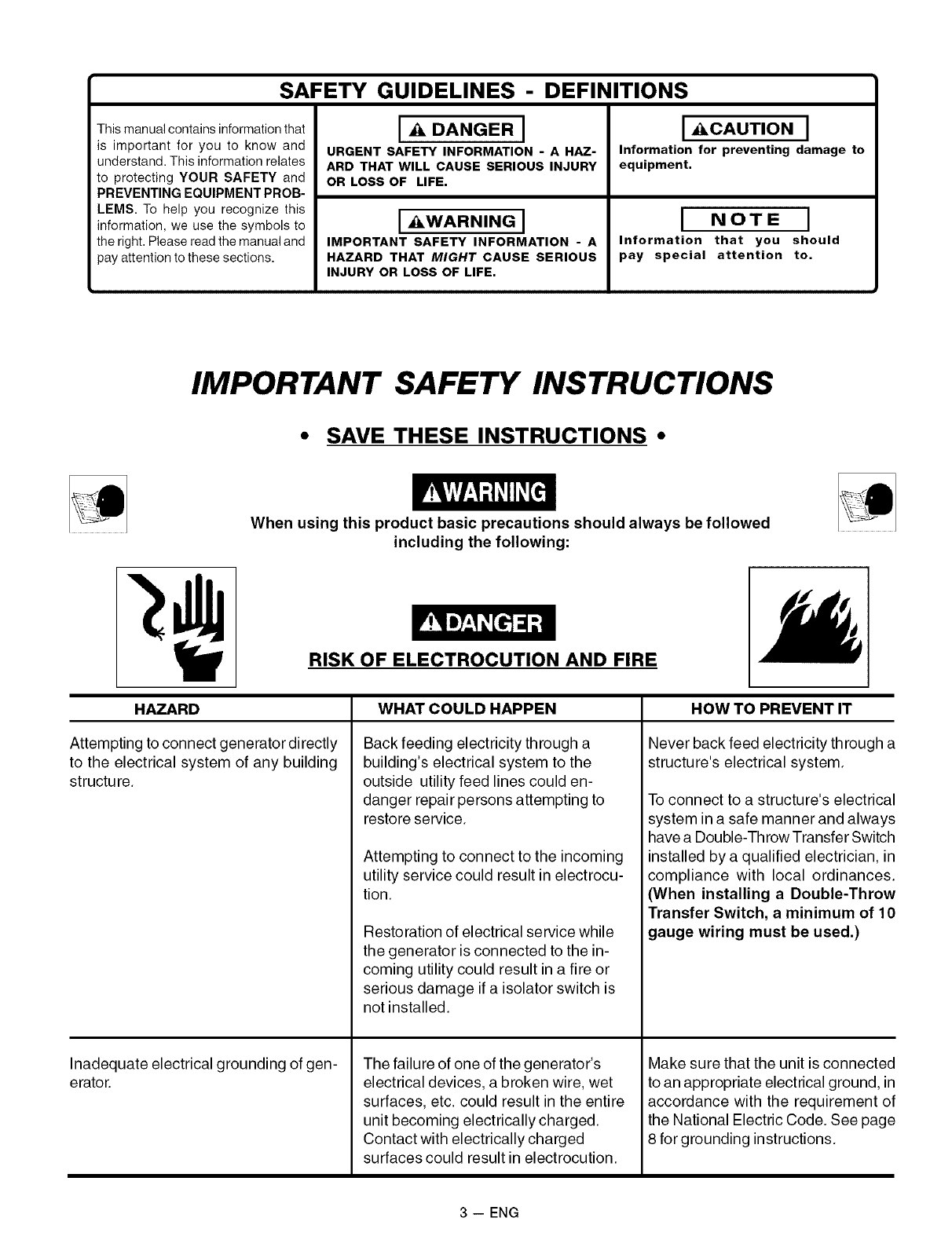

SAFETY GUIDELINES - DEFINITIONS

This manual contains information that

is important for you to know and

understand. This information relates

to protecting YOUR SAFETY and

PREVENTING EQUIPMENT PROB-

LEMS. To help you recognize this

information, we use the symbols to

the right. Please read the manual and

pay attention to these sections.

I_DANGER I

URGENT SAFETY INFORMATION -A HAZ-

ARD THAT WILL CAUSE SERIOUS INJURY

OR LOSS OF LIFE.

I_WARNING I

IMPORTANT SAFETY INFORMATION -A

HAZARD THAT MIGHT CAUSE SERIOUS

INJURY OR LOSS OF LIFE.

I_CAUTION I

Information for preventing damage to

equipment.

I NOTE I

Information that you should

pay special attention to.

IMPORTANT SAFETY INSTRUCTIONS

•SAVE THESE INSTRUCTIONS •

HAZARD

Attempting to connect generator directly

to the electrical system of any building

structu re.

Inadequate electrical grounding of gen-

erator.

When using this product basic precautions should always be followed

including the following:

RISK OF ELECTROCUTION AND FIRE

WHAT COULD HAPPEN

Back feeding electricity through a

building's electrical system to the

outside utility feed lines could en-

danger repair persons attempting to

restore service.

Attempting to connect to the incoming

utility service could result in electrocu-

tion.

Restoration of electrical service while

the generator is connected to the in-

coming utility could result in a fire or

serious damage if a isolator switch is

not installed.

The failure of one of the generator's

electrical devices, a broken wire, wet

surfaces, etc. could result in the entire

unit becoming electrically charged.

Contact with electrically charged

surfaces could result in electrocution.

HOW TO PREVENT IT

Never back feed electricity through a

structure's electrical system.

To connect to a structure's electrical

system in a safe manner and always

have a Double-Th row Transfer Switch

installed by a qualified electrician, in

compliance with local ordinances.

(When installing a Double-Throw

Transfer Switch, a minimum of 10

gauge wiring must be used.)

Make sure that the unit is connected

to an appropriate electrical ground, in

accordance with the requirement of

the National Electric Code. See page

8 for grounding instructions.

3-- ENG

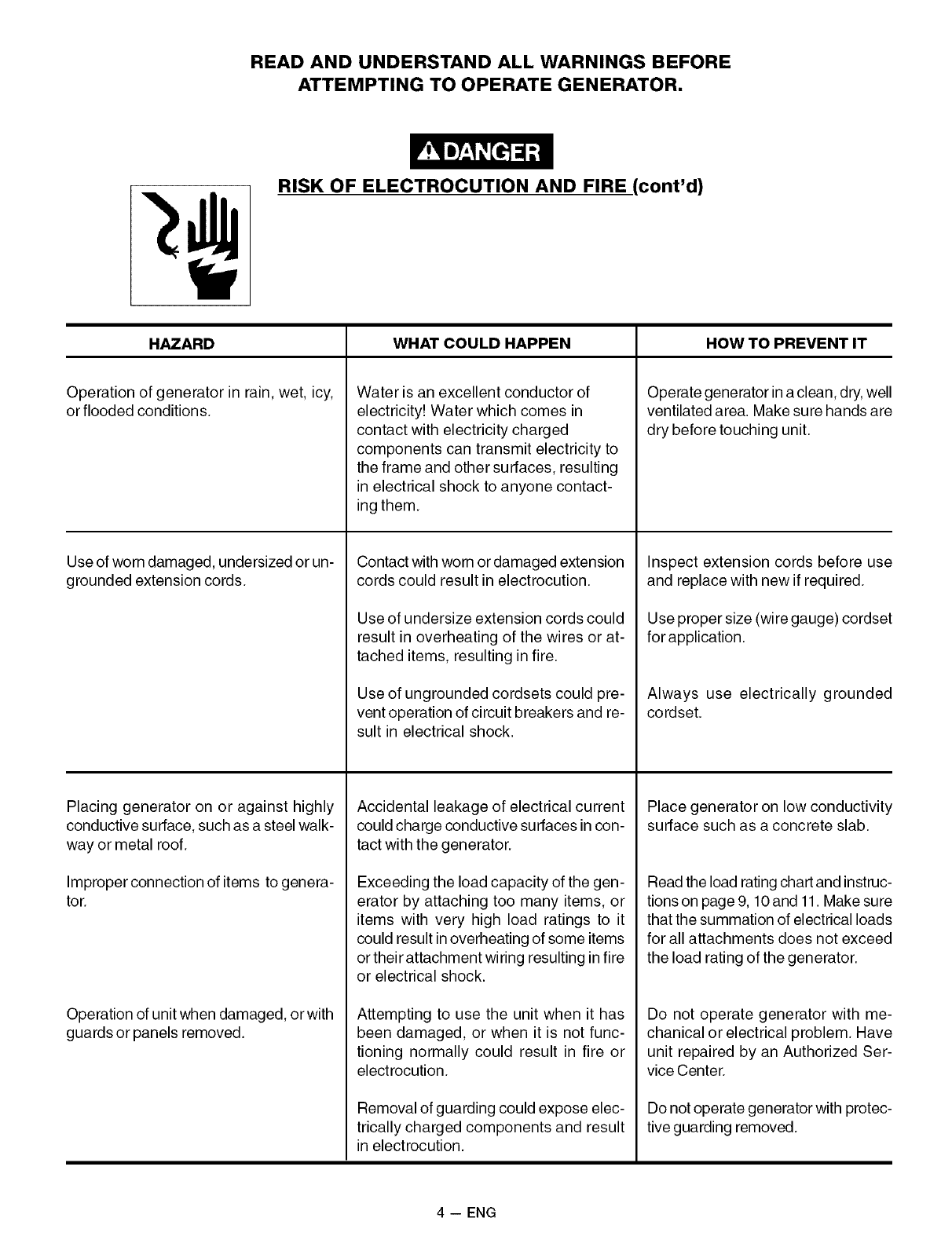

READ AND UNDERSTAND ALL WARNINGS BEFORE

ATTEMPTING TO OPERATE GENERATOR.

RISK OF ELECTROCUTION AND FIRE (cont'd)

HAZARD

Operation of generator in rain, wet, icy,

or flooded conditions.

Use of worn damaged, undersized or un-

grounded extension cords.

Placing generator on or against highly

conductive surface, such as a steel walk-

way or metal roof.

Improper connection of items to genera-

tor.

Operation of unit when damaged, or with

guards or panels removed.

WHAT COULD HAPPEN

Water is an excellent conductor of

electricity! Water which comes in

contact with electricity charged

components can transmit electricity to

the frame and other surfaces, resulting

in electrical shock to anyone contact-

ing them.

Contact with worn or damaged extension

cords could result in electrocution.

Use of undersize extension cords could

result in overheating of the wires or at-

tached items, resulting in fire.

Use of ungrounded cordsets could pre-

vent operation of circuit breakers and re-

sult in electrical shock.

Accidental leakage of electrical current

could charge conductive surfaces in con-

tact with the generator.

Exceeding the load capacity of the gen-

erator by attaching too many items, or

items with very high load ratings to it

could result in overheating of some items

or their attachment wi ring resulting in fire

or electrical shock.

Attempting to use the unit when it has

been damaged, or when it is not func-

tioning normally could result in fire or

electrocution.

Removal of guarding could expose elec-

trically charged components and result

in electrocution.

HOW TO PREVENTIT

Operate generator in a clean, dry, well

ventilated area. Make sure hands are

dry before touching unit.

Inspect extension cords before use

and replace with new if required.

Use proper size (wire gauge) cordset

for application.

Always use electrically grounded

cordset.

Place generator on low conductivity

surface such as a concrete slab.

Read the load rating chart and instruc-

tions on page 9, 10 and 11. Make sure

that the summation of electrical loads

for all attachments does not exceed

the load rating of the generator.

Do not operate generator with me-

chanical or electrical problem. Have

unit repaired by an Authorized Ser-

vice Center.

Do not operate generator with protec-

tive guarding removed.

4-- ENG

READ AND UNDERSTAND ALL WARNINGS BEFORE

ATTEMPTING TO OPERATE GENERATOR.

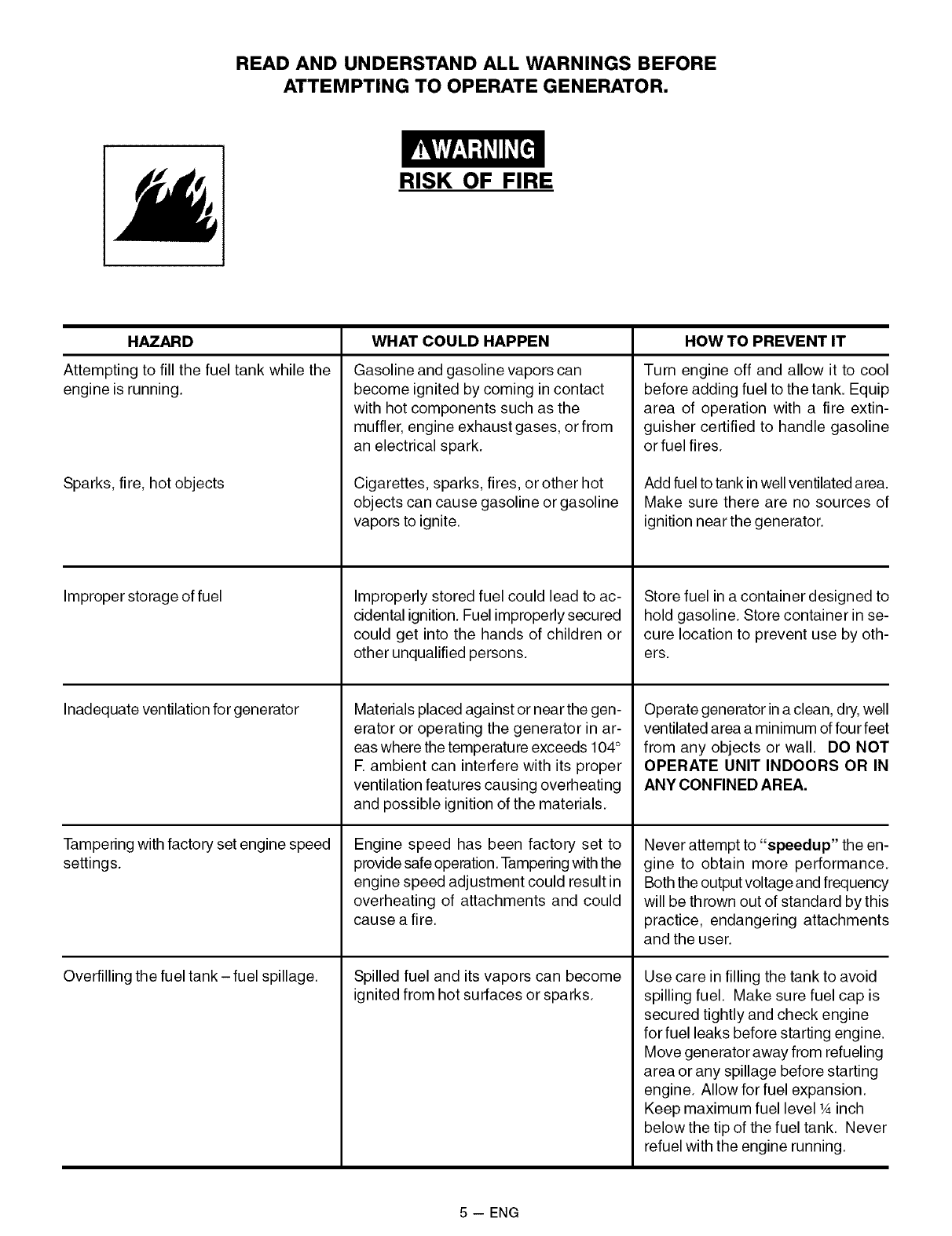

RISK OF FIRE

HAZARD

Attempting to fill the fuel tank while the

engine is running.

Sparks, fire, hot objects

Improper storage of fuel

Inadequate ventilation for generator

Tampering with factory set engine speed

settings.

Overfilling the fuel tank -fuel spillage.

WHAT COULD HAPPEN

Gasoline and gasoline vapors can

become ignited by coming in contact

with hot components such as the

muffler, engine exhaust gases, or from

an electrical spark.

Cigarettes, sparks, fires, or other hot

objects can cause gasoline or gasoline

vapors to ignite.

Improperly stored fuel could lead to ac-

cidental ignition. Fuel improperly secured

could get into the hands of children or

other unqualified persons.

Materials placed against or near the gen-

erator or operating the generator in ar-

eas where the temperature exceeds 104°

F. ambient can interfere with its proper

ventilation features causing overheating

and possible ignition of the materials.

Engine speed has been factory set to

provide safe operation. Tampering with the

engine speed adjustment could result in

overheating of attachments and could

cause a fire.

Spilled fuel and its vapors can become

ignited from hot surfaces or sparks.

HOW TO PREVENTIT

Turn engine off and allow it to cool

before adding fuel to the tank. Equip

area of operation with a fire extin-

guisher certified to handle gasoline

or fuel fires.

Add fuel to tank in well ventilated area.

Make sure there are no sources of

ignition near the generator.

Store fuel in a container designed to

hold gasoline. Store container in se-

cure location to prevent use by oth-

ers.

Operate generator ina clean, dry, well

ventilated area a minimum of four feet

from any objects or wall. DO NOT

OPERATE UNIT INDOORS OR IN

ANY CONFINED AREA.

Never attempt to "speedup" the en-

gine to obtain more performance.

Both the output voltage and frequency

will be thrown out of standard by this

practice, endangering attachments

and the user.

Use care in filling the tank to avoid

spilling fuel. Make sure fuel cap is

secured tightly and check engine

for fuel leaks before starting engine.

Move generator away from refueling

area or any spillage before starting

engine. Allow for fuel expansion.

Keep maximum fuel level 1Ainch

belowthe tip of the fuel tank. Never

refuel with the engine running.

5 -- ENG

READ AND UNDERSTAND ALL WARNINGS BEFORE

ATTEMPTING TO OPERATE GENERATOR.

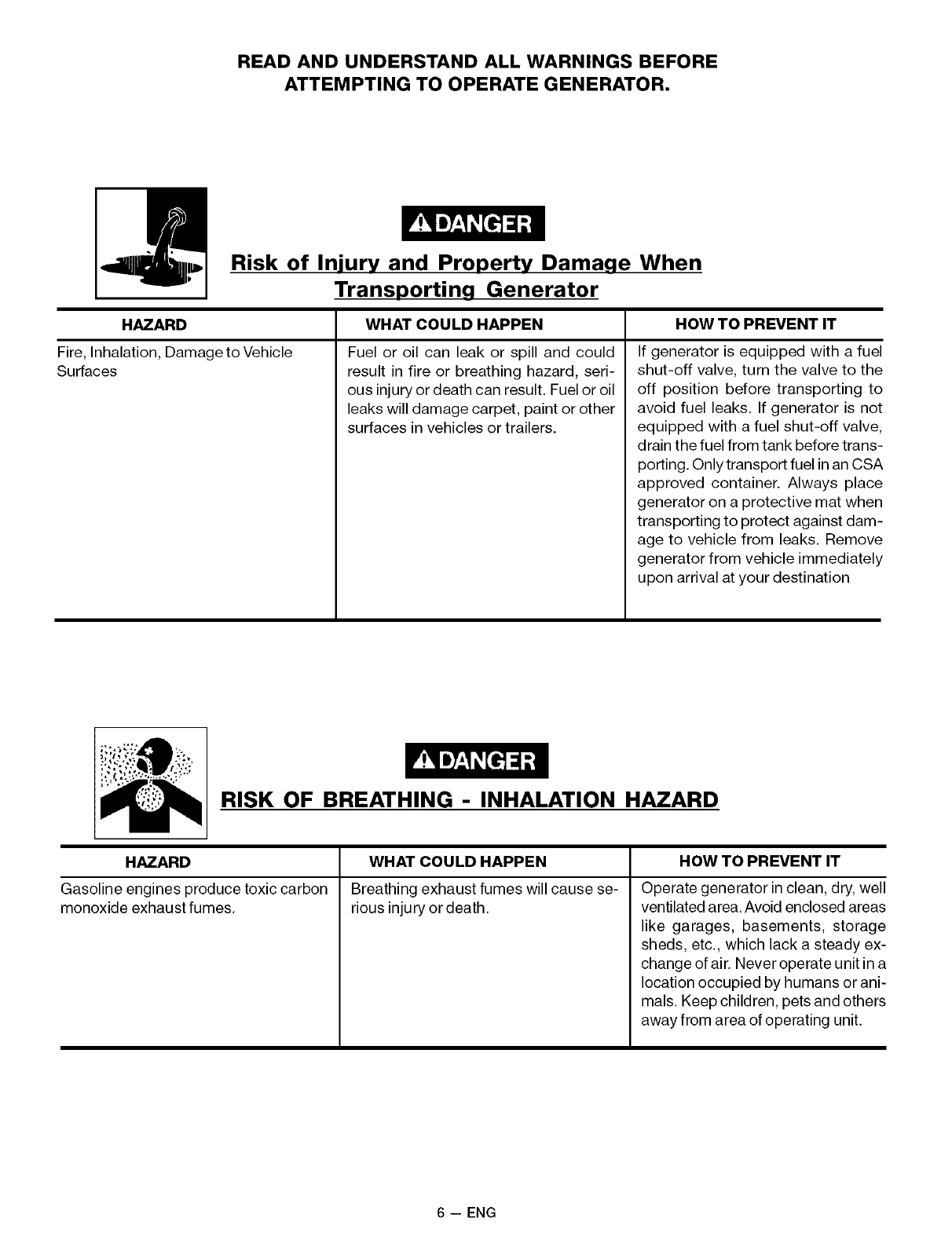

Risk of Injury and Property Damage When

Transporting Generator

HAZARD

Fire, Inhalation, Damage to Vehicle

Surfaces

WHAT COULD HAPPEN

Fuel or oil can leak or spill and could

result in fire or breathing hazard, seri-

ous injury or death can result. Fuel or oil

leaks will damage carpet, paint or other

surfaces in vehicles or trailers.

HOW TO PREVENT IT

If generator is equipped with a fuel

shut-off valve, turn the valve to the

off position before transporting to

avoid fuel leaks. If generator is not

equipped with a fuel shut-off valve,

drain the fuel from tank before trans-

porting. Only transport fuel in an CSA

approved container. Always place

generator on a protective mat when

transporting to protect against dam-

age to vehicle from leaks. Remove

generator from vehicle immediately

upon arrival at your destination

RISK OF BREATHING - INHALATION HAZARD

HAZARD

Gasoline engines produce toxic carbon

monoxide exhaust fumes.

WHAT COULD HAPPEN

Breathing exhaust fumes will cause se-

rious injury or death.

HOW TO PREVENT IT

Operate generator in clean, dry, well

ventilated area. Avoid enclosed areas

like garages, basements, storage

sheds, etc., which lack a steady ex-

change of air. Never operate unit in a

location occupied by humans or ani-

mals. Keep children, pets and others

away from area of operating unit.

6 -- ENG

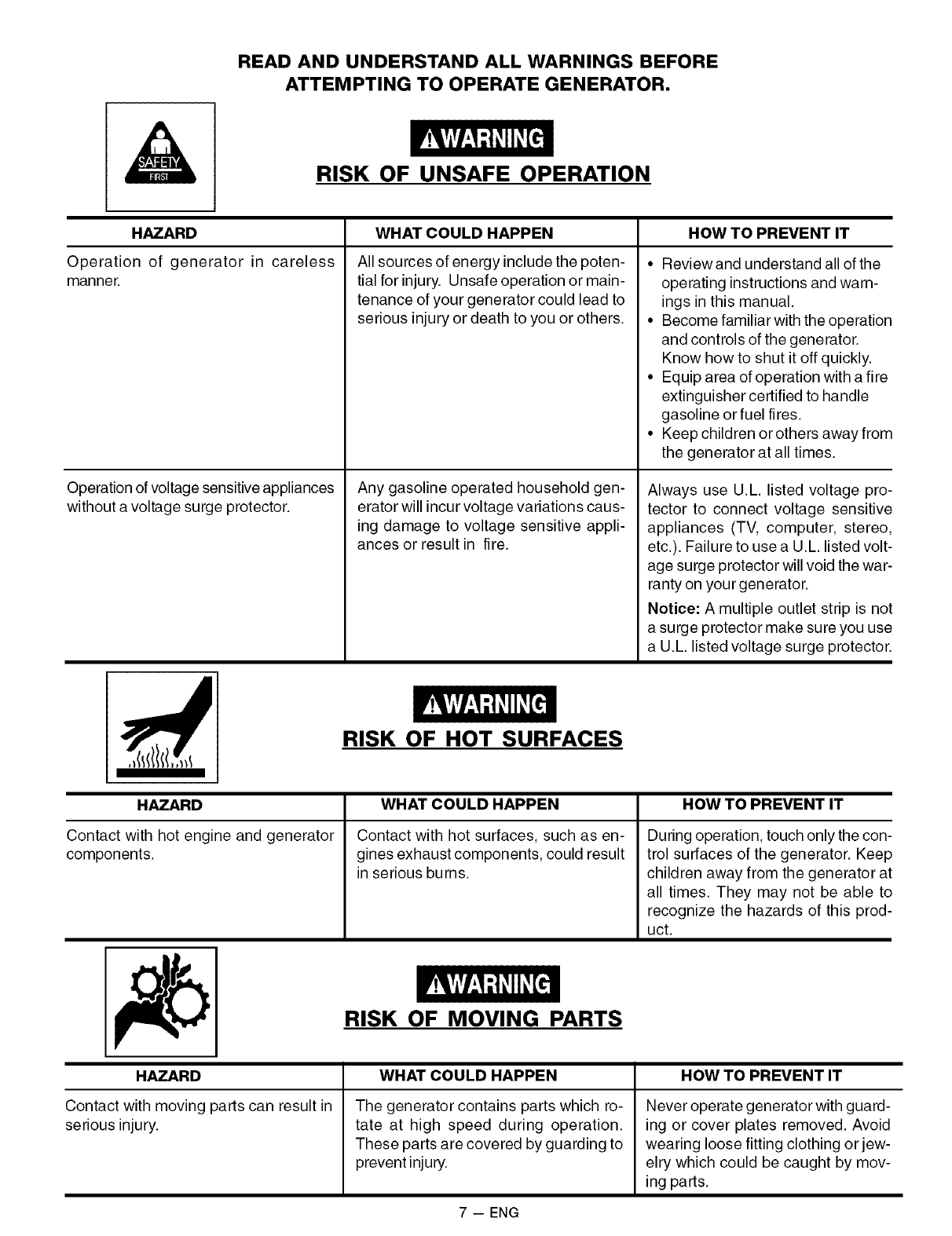

READ AND UNDERSTAND ALL WARNINGS BEFORE

ATTEMPTING TO OPERATE GENERATOR.

RISK OF UNSAFE OPERATION

HAZARD

Operation of generator in careless

manner.

Operation of voltage sensitive appliances

without a voltage surge protector.

WHAT COULD HAPPEN

All sources of energy include the poten-

tial for injury. Unsafe operation or main-

tenance of your generator could lead to

serious injury or death to you or others.

Any gasoline operated household gen-

erator will incur voltage variations caus-

ing damage to voltage sensitive appli-

ances or result in fire.

HOW TO PREVENTIT

•Reviewand understand all of the

operating instructions and warn-

ings in this manual.

• Become familiarwith the operation

and controls of the generator.

Know how to shut it off quickly.

• Equip area of operation with a fire

extinguisher certified to handle

gasoline or fuel fires.

• Keep children or others away from

the generator at all times.

Always use U.L. listed voltage pro-

tector to connect voltage sensitive

appliances (TV, computer, stereo,

etc.). Failure to use a U.L. listed volt-

age surge protector will void the war-

ranty on your generator.

Notice: A multiple outlet strip is not

a surge protector make sure you use

a U.L. listed voltage surge protector.

RISK OF HOT SURFACES

HAZARD

Contact with hot engine and generator

components.

HAZARD

Contact with moving parts can result in

serious injury.

WHAT COULD HAPPEN

Contact with hot surfaces, such as en-

gines exhaust components, could result

in serious burns.

HOW TO PREVENTIT

During operation, touch only the con-

trol surfaces of the generator. Keep

children away from the generator at

all times. They may not be able to

recognize the hazards of this prod-

uct.

RISK OF MOVING PARTS

WHAT COULD HAPPEN

The generator contains parts which ro-

tate at high speed during operation.

These parts are covered by guarding to

prevent injury.

HOW TO PREVENT IT

Never operate generator with guard-

ing or cover plates removed. Avoid

wearing loose fitting clothing or jew-

elry which could be caught by mov-

ing parts.

7-- ENG

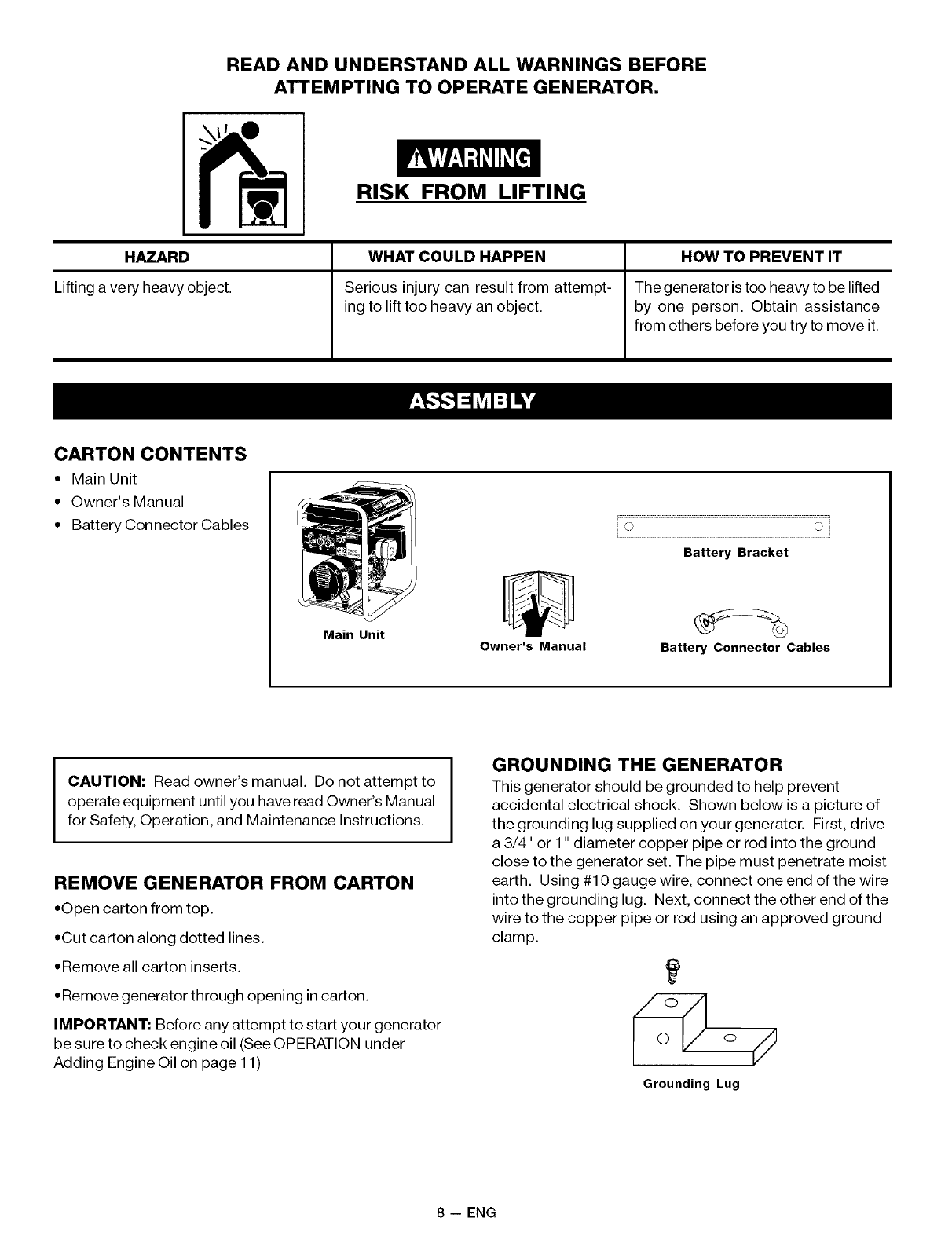

READ AND UNDERSTAND ALL WARNINGS BEFORE

ATTEMPTING TO OPERATE GENERATOR.

HAZARD

Lifting a very heavy object.

RISK FROM LIFTING

WHAT COULD HAPPEN

Serious injury can result from attempt-

ing to lift too heavy an object.

HOW TO PREVENT IT

The generator is too heavy to be lifted

by one person. Obtain assistance

from others before you try to move it.

CARTON CONTENTS

• Main Unit

•Owner's Manual

• Battery Connector Cables

Main Unit Owner's Manual

o i

Battery Bracket

Battery Connector Cables

CAUTION: Read owner's manual. Do not attempt to

operate equipment until you have read Owner's Manual

for Safety, Operation, and Maintenance Instructions.

REMOVE GENERATOR FROM CARTON

•Open carton from top.

• Cut carton along dotted lines.

• Remove all carton inserts.

• Remove generator through opening in carton.

IMPORTANT: Before any attempt to start your generator

be sure to check engine oil (See OPERATION under

Adding Engine Oil on page 11)

GROUNDING THE GENERATOR

This generator should be grounded to help prevent

accidental electrical shock. Shown below is a picture of

the grounding lug supplied on your generator. First, drive

a 3/4" or 1" diameter copper pipe or rod into the ground

close to the generator set. The pipe must penetrate moist

earth. Using #10 gauge wire, connect one end of the wire

into the grounding lug. Next, connect the other end of the

wire to the copper pipe or rod using an approved ground

clamp.

Grounding Lug

8-- ENG

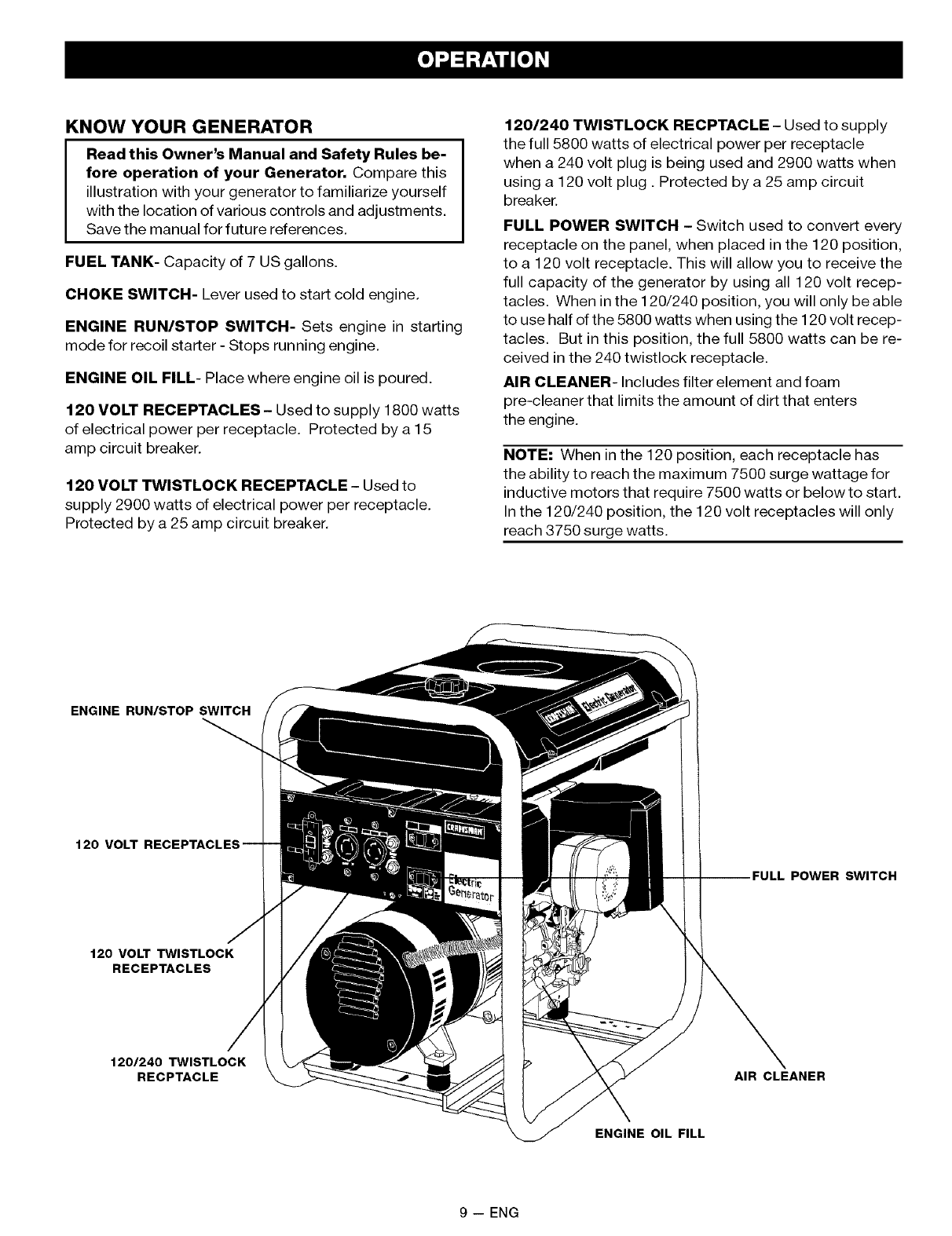

KNOW YOUR GENERATOR

Read this Owner's Manual and Safety Rules be-

fore operation of your Generator, Compare this

illustration with your generator to familiarize yourself

with the location of various controls and adjustments.

Save the manual for future references.

FUEL TANK- Capacity of 7 US gallons.

CHOKE SWITCH- Lever used to start cold engine.

ENGINE RUN/STOP SWITCH- Sets engine in starting

mode for recoil starter - Stops running engine.

ENGINE OIL FILL- Place where engine oil is poured.

120 VOLT RECEPTACLES - Used to supply 1800 watts

of electrical power per receptacle. Protected by a 15

amp circuit breaker.

120 VOLT TWlSTLOCK RECEPTACLE - Used to

supply 2900 watts of electrical power per receptacle.

Protected by a 25 amp circuit breaker.

120/240 TWISTLOCK RECPTACLE - Used to supply

the full 5800 watts of electrical power per receptacle

when a 240 volt plug is being used and 2900 watts when

using a 120 volt plug. Protected by a 25 amp circuit

breaker.

FULL POWER SWITCH - Switch used to convert every

receptacle on the panel, when placed in the 120 position,

to a 120 volt receptacle. This will allow you to receive the

full capacity of the generator by using all 120 volt recep-

tacles. When in the 120/240 position, you will only be able

to use half of the 5800 watts when using the 120 volt recep-

tacles. But in this position, the full 5800 watts can be re-

ceived in the 240 twistlock receptacle.

AIR CLEANER- Includes filter element and foam

pre-cleaner that limits the amount of dirt that enters

the engine.

NOTE: When in the 120 position, each receptacle has

the ability to reach the maximum 7500 surge wattage for

inductive motors that require 7500 watts or below to start.

In the 120/240 position, the 120 volt receptacles will only

reach 3750 surge watts.

ENGINE RUN/STOP SWITCH

120 VOLT

POWER SWITCH

120 VOLT TWISTLOCK

RECEPTACLES

120/240 TWISTLOCK

RECPTACLE AIR CLEANER

ENGINE OIL FILL

9 -- ENG

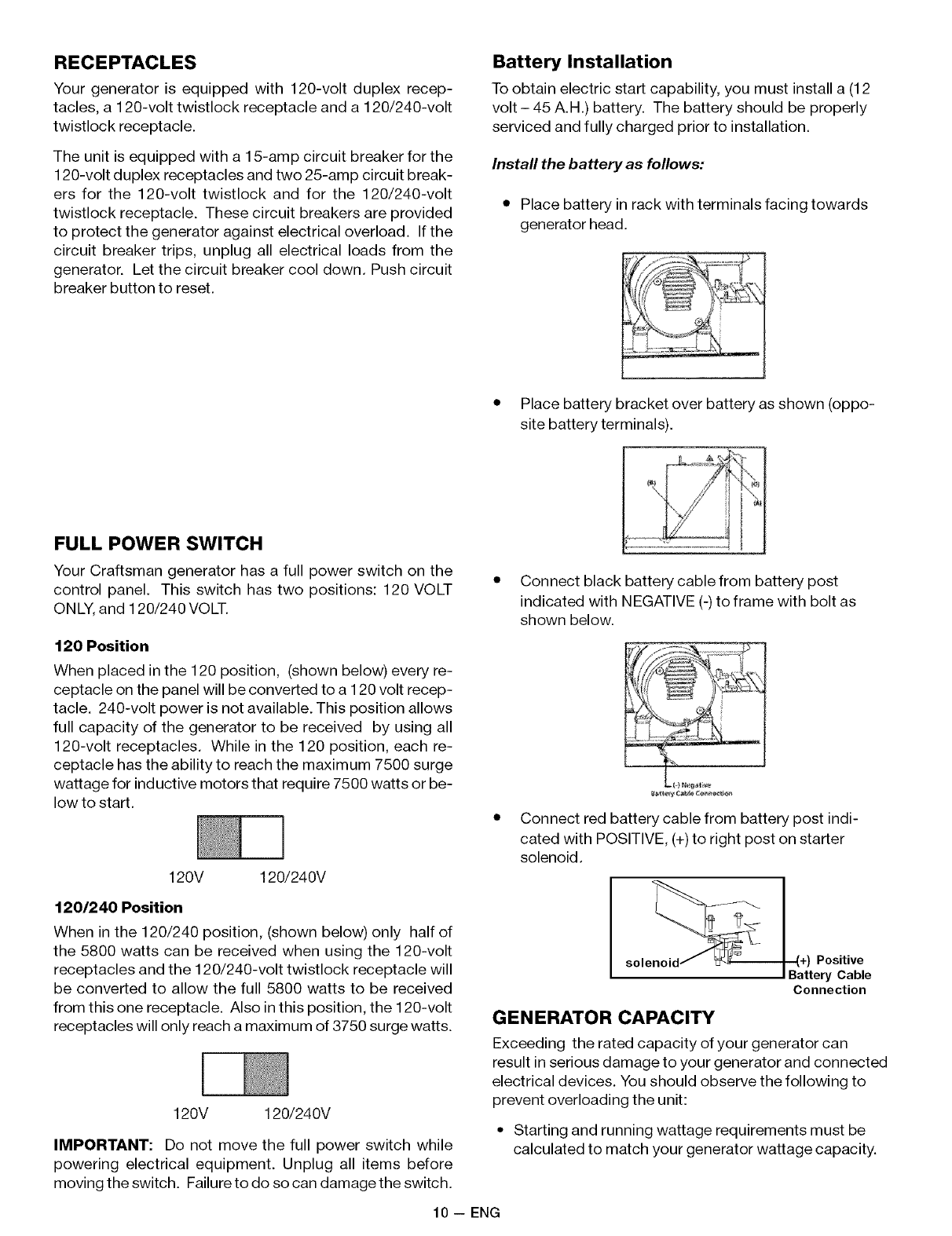

RECEPTACLES

Your generator is equipped with 120-volt duplex recep-

tacles, a 120-volt twistlock receptacle and a 120/240-volt

twistlock receptacle.

The unit is equipped with a 15-amp circuit breaker for the

120-volt duplex receptacles and two 25-amp circuit break-

ers for the 120-volt twistlock and for the 120/240-volt

twistlock receptacle. These circuit breakers are provided

to protect the generator against electrical overload. If the

circuit breaker trips, unplug all electrical loads from the

generator. Let the circuit breaker cool down. Push circuit

breaker button to reset.

Battery Installation

To obtain electric start capability, you must install a (12

volt - 45 A.H.) battery. The battery should be properly

serviced and fully charged prior to installation.

Install the battery as follows:

• Place battery in rack with terminals facing towards

generator head.

• Place battery bracket over battery as shown (oppo-

site battery terminals).

FULL POWER SWITCH

Your Craftsman generator has a full power switch on the

control panel. This switch has two positions: 120 VOLT

ONLY, and 120/240 VOLT.

120 Position

When placed in the 120 position, (shown below) every re-

ceptacle on the panel will be converted to a 120 volt recep-

tacle. 240-volt power is not available. This position allows

full capacity of the generator to be received by using all

120-volt receptacles. While in the 120 position, each re-

ceptacle has the ability to reach the maximum 7500 surge

wattage for inductive motors that require 7500 watts or be-

low to start.

120V 120/240V

120/240 Position

When in the 120/240 position, (shown below) only half of

the 5800 watts can be received when using the 120-volt

receptacles and the 120/240-volt twistlock receptacle will

be converted to allow the full 5800 watts to be received

from this one receptacle. Also in this position, the 120-volt

receptacles will only reach a maximum of 3750 surge watts.

120V 120/240V

IMPORTANT: Do not move the full power switch while

powering electrical equipment. Unplug all items before

moving the switch. Failure to do so can damage the switch.

10 -- ENG

• Connect black battery cable from battery post

indicated with NEGATIVE (-) to frame with bolt as

shown below.

• Connect red battery cable from battery post indi-

cated with POSITIVE, (+) to right post on starter

solenoid.

sole_+) Positive

I Battery Cable

Connection

GENERATOR CAPACITY

Exceeding the rated capacity of your generator can

result in serious damage to your generator and connected

electrical devices. You should observe the following to

prevent overloading the unit:

• Starting and running wattage requirements must be

calculated to match your generator wattage capacity.

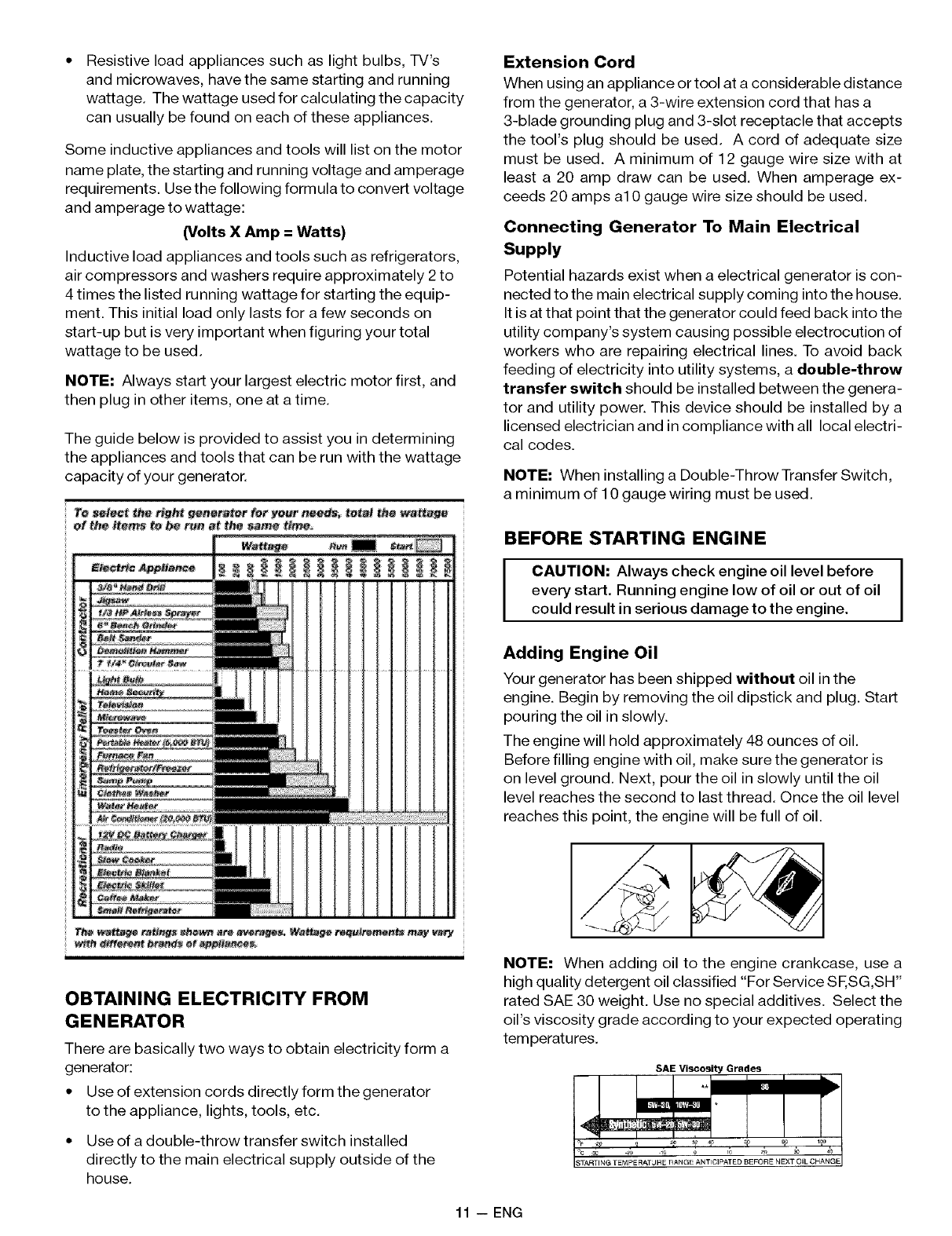

Resistiveloadappliancessuchaslightbulbs,TV's

andmicrowaves,havethesamestartingandrunning

wattage.Thewattageusedforcalculatingthecapacity

canusuallybefoundoneachoftheseappliances.

Someinductiveappliancesandtoolswilllistonthemotor

nameplate,thestartingandrunningvoltageandamperage

requirements.Usethefollowingformulatoconvertvoltage

andamperagetowattage:

(Volts X Amp = Watts)

Inductive load appliances and tools such as refrigerators,

air compressors and washers require approximately 2 to

4 times the listed running wattage for starting the equip-

ment. This initial load only lasts for a few seconds on

start-up but is very important when figuring your total

wattage to be used.

NOTE: Always start your largest electric motor first, and

then plug in other items, one at a time.

The guide below is provided to assist you in determining

the appliances and tools that can be run with the wattage

capacity of your generator.

"re _el_t _e right _rator for _rQur n_, total _wa'r_e

#f the ltem_ to be _n _t the sa_e tim,

Extension Cord

When using an appliance or tool at a considerable distance

from the generator, a 3-wire extension cord that has a

3-blade grounding plug and 3-slot receptacle that accepts

the tool's plug should be used. A cord of adequate size

must be used. A minimum of 12 gauge wire size with at

least a 20 amp draw can be used. When amperage ex-

ceeds 20 amps al 0 gauge wire size should be used.

Connecting Generator To Main Electrical

Supply

Potential hazards exist when a electrical generator is con-

nected to the main electrical supply coming into the house.

It is at that point that the generator could feed back into the

utility company's system causing possible electrocution of

workers who are repairing electrical lines. To avoid back

feeding of electricity into utility systems, a double-throw

transfer switch should be installed between the genera-

tor and utility power. This device should be installed by a

licensed electrician and in compliance with all local electri-

cal codes.

NOTE: When installing a Double-ThrowTransfer Switch,

a minimum of 10 gauge wiring must be used.

BEFORE STARTING ENGINE

I CAUTION: Always check engine oil level before I

every start. Running engine low of oil or out of oil I

could result in serious damage to the engine.

Adding Engine Oil

Your generator has been shipped without oil in the

engine. Begin by removing the oil dipstick and plug. Start

pouring the oil in slowly.

The engine will hold approximately 48 ounces of oil.

Before filling engine with oil, make sure the generator is

on level ground. Next, pour the oil in slowly until the oil

level reaches the second to last thread. Once the oil level

reaches this point, the engine will be full of oil.

OBTAINING ELECTRICITY FROM

GENERATOR

There are basically two ways to obtain electricity form a

generator:

• Use of extension cords directly form the generator

to the appliance, lights, tools, etc.

• Use of a double-throw transfer switch installed

directly to the main electrical supply outside of the

house.

NOTE: When adding oil to the engine crankcase, use a

high quality detergent oil classified "For Service SF,SG,SH"

rated SAE 30 weight. Use no special additives. Select the

oil's viscosity grade according to your expected operating

tern perat ures.

SAE Viscosity Grades

;TARTI N6 TEMPERA]ORE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

11 -- ENG

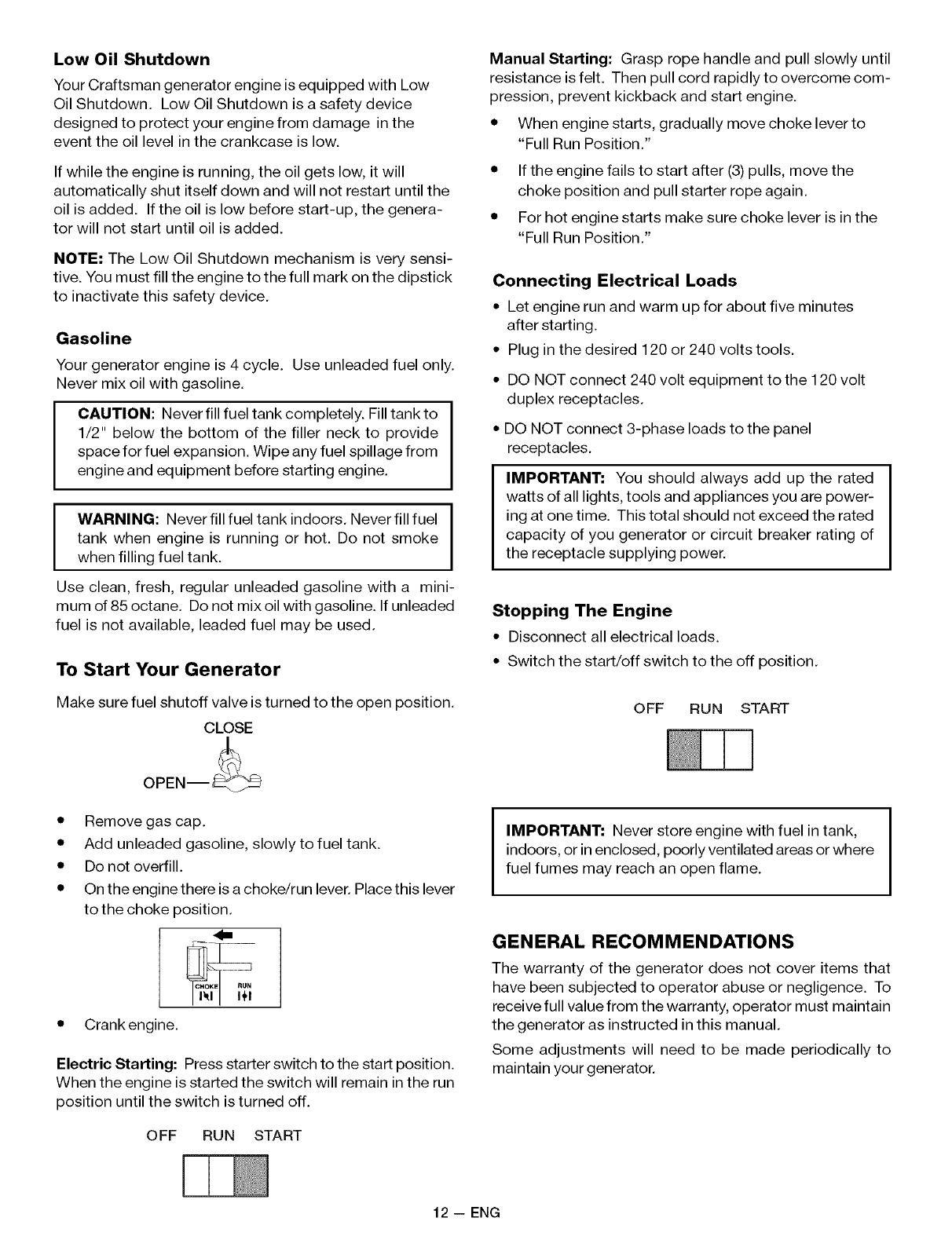

Low Oil Shutdown

Your Craftsman generator engine is equipped with Low

Oil Shutdown. Low Oil Shutdown is a safety device

designed to protect your engine from damage in the

event the oil level in the crankcase is low.

If while the engine is running, the oil gets low, it will

automatically shut itself down and will not restart until the

oil is added. If the oil is low before start-up, the genera-

tor will not start until oil is added.

NOTE: The Low Oil Shutdown mechanism is very sensi-

tive. You must fill the engine to the full mark on the dipstick

to inactivate this safety device.

Gasoline

Your generator engine is 4 cycle. Use unleaded fuel only.

Never mix oil with gasoline.

CAUTION: Never fill fuel tank completely. Fill tank to

1/2" below the bottom of the filler neck to provide

space for fuel expansion. Wipe any fuel spillage from

engine and equipment before starting engine.

I WARNING: Never fill fuel tank indoors. Never fill fuel

tank when engine is running or hot. Do not smoke

when filling fuel tank.

Use clean, fresh, regular unleaded gasoline with a mini-

mum of 85 octane. Do not mix oil with gasoline. If unleaded

fuel is not available, leaded fuel may be used.

To Start Your Generator

Make sure fuel shutoff valve is turned to the open position.

Manual Starting: Grasp rope handle and pull slowly until

resistance is felt. Then pull cord rapidly to overcome com-

pression, prevent kickback and start engine.

• When engine starts, gradually move choke lever to

"Full Run Position."

• If the engine fails to start after (3) pulls, move the

choke position and pull starter rope again.

• For hot engine starts make sure choke lever is in the

"Full Run Position."

Connecting Electrical Loads

• Let engine run and warm up for about five minutes

after starting.

• Plug in the desired 120 or 240 volts tools.

• DO NOT connect 240 volt equipment to the 120 volt

duplex receptacles.

• DO NOT connect 3-phase loads to the panel

receptacles.

IMPORTANT" You should always add up the rated

watts of all lights, tools and appliances you are power-

ing at one time. This total should not exceed the rated

capacity of you generator or circuit breaker rating of

the receptacle supplying power.

Stopping The Engine

• Disconnect all electrical loads.

• Switch the start/off switch to the off position.

OFF RUN START

Remove gas cap.

Add unleaded gasoline, slowly to fuel tank.

Do not overfill.

On the engine there is a choke/run lever. Place this lever

to the choke position.

.Q=

Crank engine.

Electric Starting: Press starter switch to the start position.

When the engine is started the switch will remain in the run

position until the switch is turned off.

OFF RUN START

IMPORTANT: Never store engine with fuel in tank,

indoors, or in enclosed, poorly ventilated areas or where

fuel fumes may reach an open flame.

GENERAL RECOMMENDATIONS

The warranty of the generator does not cover items that

have been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

the generator as instructed in this manual.

Some adjustments will need to be made periodically to

maintain your generator.

12 -- ENG

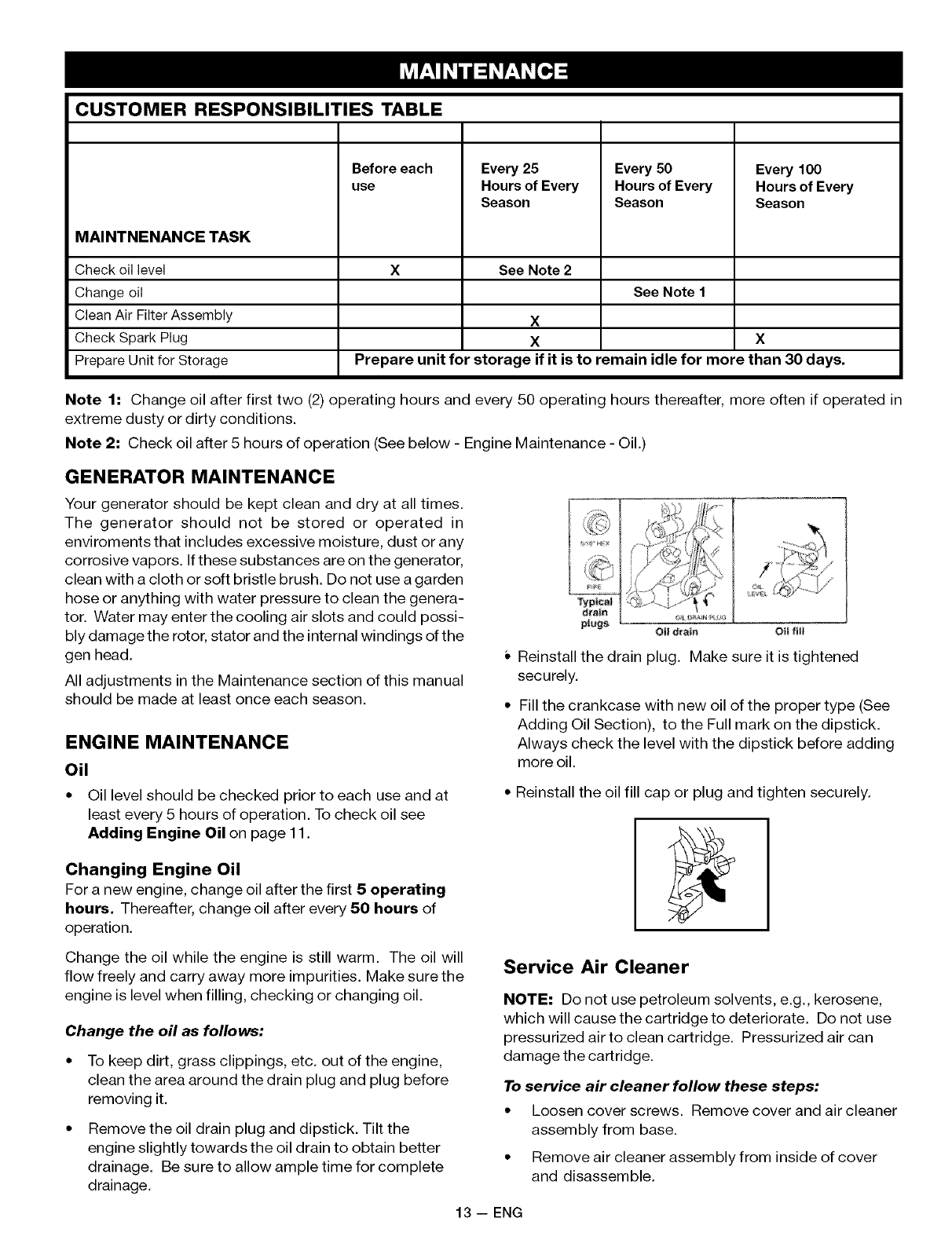

CUSTOMER RESPONSIBILITIES TABLE

MAINTNENANCE TASK

Check oil level

Change oil

Clean Air Filter Assembly

Check Spark Plug

Prepare Unit for Storage

Before each

use

Every 25

Hours of Every

Season

Every 50

Hours of Every

Season

X See Note 2

See Note 1

Every 100

Hours of Every

Season

Prepare unit for storage if it is to remain idle for more than 30 days.

Note 1: Change oil after first two (2) operating hours and every 50 operating hours thereafter, more often if operated in

extreme dusty or dirty conditions.

Note 2: Check oil after 5 hours of operation (See below - Engine Maintenance - Oil.)

GENERATOR MAINTENANCE

Your generator should be kept clean and dry at all times.

The generator should not be stored or operated in

enviroments that includes excessive moisture, dust or any

corrosive vapors. If these substances are on the generator,

clean with a cloth or soft bristle brush. Do not use a garden

hose or anything with water pressure to clean the genera-

tor. Water may enter the cooling air slots and could possi-

bly damage the rotor, stator and the internal windings of the

gen head.

All adjustments in the Maintenance section of this manual

should be made at least once each season.

ENGINE MAINTENANCE

Oil

• Oil level should be checked prior to each use and at

least every 5 hours of operation. To check oil see

Adding Engine Oil on page 11.

Changing Engine Oil

For a new engine, change oil after the first 5 operating

hours. Thereafter, change oil after every 50 hours of

operation.

Change the oil while the engine is still warm. The oil will

flow freely and carry away more impurities. Make sure the

engine is level when filling, checking or changing oil.

Change the oil as follows:

• To keep dirt, grass clippings, etc. out of the engine,

clean the area around the drain plug and plug before

removing it.

Remove the oil drain plug and dipstick. Tilt the

engine slightly towards the oil drain to obtain better

drainage. Be sure to allow ample time for complete

drainage.

Reinstall the drain plug. Make sure it is tightened

securely.

• Fill the crankcase with new oil of the proper type (See

Adding Oil Section), to the Full mark on the dipstick.

Always check the level with the dipstick before adding

more oil.

• Reinstall the oil fill cap or plug and tighten securely.

Service Air Cleaner

NOTE: Do not use petroleum solvents, e.g., kerosene,

which will cause the cartridge to deteriorate. Do not use

pressurized air to clean cartridge. Pressurized air can

damage the cartridge.

To service air cleaner follow these steps:

• Loosen cover screws. Remove cover and air cleaner

assembly from base.

• Remove air cleaner assembly from inside of cover

and disassemble.

13 -- ENG

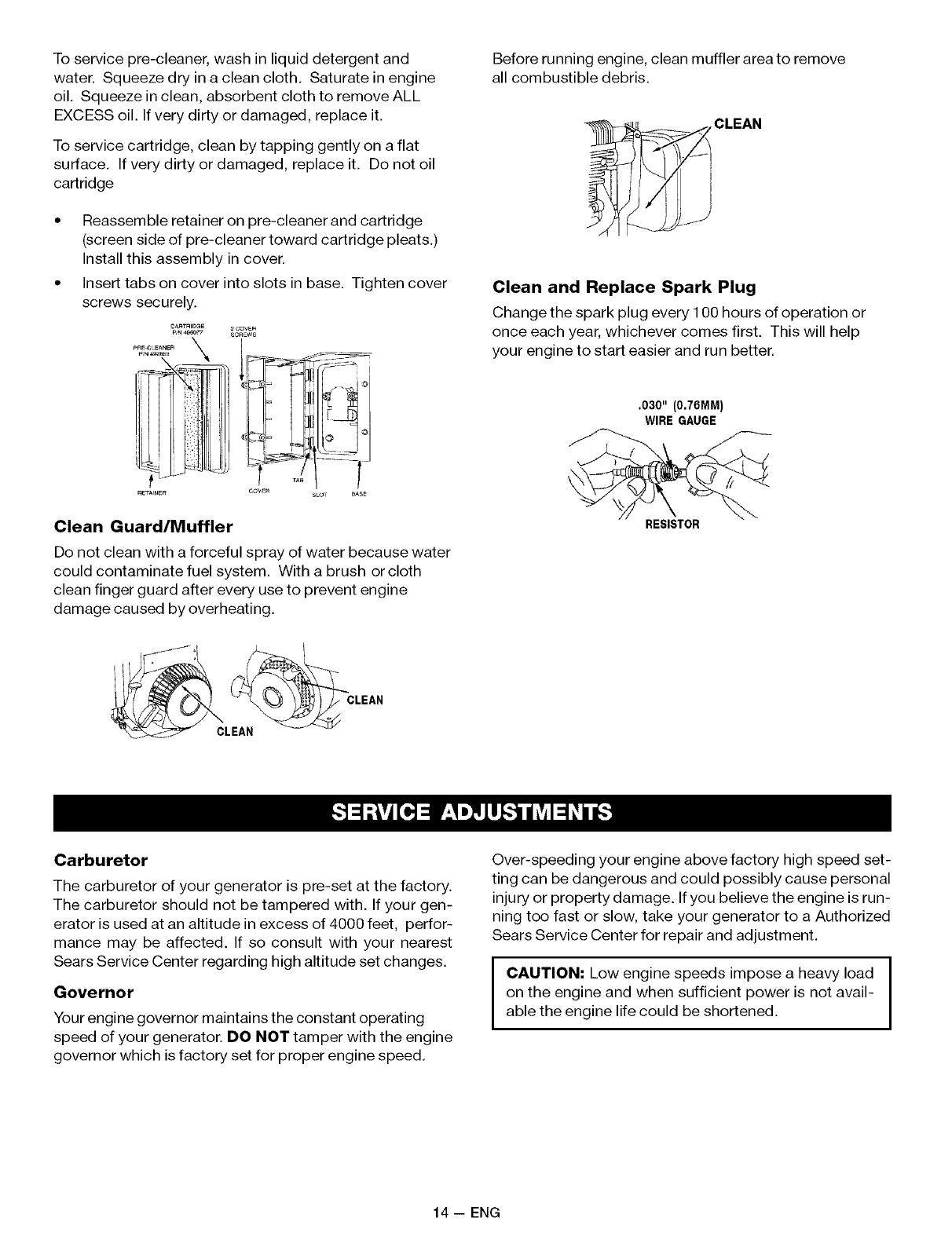

To service pre-cleaner, wash in liquid detergent and

water. Squeeze dry in a clean cloth. Saturate in engine

oil. Squeeze in clean, absorbent cloth to remove ALL

EXCESS oil. If very dirty or damaged, replace it.

To service cartridge, clean by tapping gently on a flat

surface. If very dirty or damaged, replace it. Do not oil

cartridge

• Reassemble retainer on pre-cleaner and cartridge

(screen side of pre-cleaner toward cartridge pleats.)

Install this assembly in cover.

• Insert tabs on cover into slots in base. Tighten cover

screws securely.

Clean Guard/Muffler

Do not clean with a forceful spray of water because water

could contaminate fuel system. With a brush or cloth

clean finger guard after every use to prevent engine

damage caused by overheating.

Before running engine, clean muffler area to remove

all combustible debris.

_//_ CLEAN

Clean and Replace Spark Plug

Change the spark plug every 100 hours of operation or

once each year, whichever comes first. This will help

your engine to start easier and run better.

.030" (0.76MM)

WIRE GAUGE

RESISTOR

Carburetor

The carburetor of your generator is pre-set at the factory.

The carburetor should not be tampered with. If your gen-

erator is used at an altitude in excess of 4000 feet, perfor-

mance may be affected. If so consult with your nearest

Sears Service Center regarding high altitude set changes.

Governor

Your engine governor maintains the constant operating

speed of your generator. DO NOT tamper with the engine

governor which is factory set for proper engine speed.

Over-speeding your engine above factory high speed set-

ting can be dangerous and could possibly cause personal

injury or property damage. If you believe the engine is run-

ning too fast or slow, take your generator to a Authorized

Sears Service Center for repair and adjustment.

I CAUTION: Low engine speeds impose a heavy load I

on the engine and when sufficient power is not avail- I

able the engine life could be shortened.

14 -- ENG

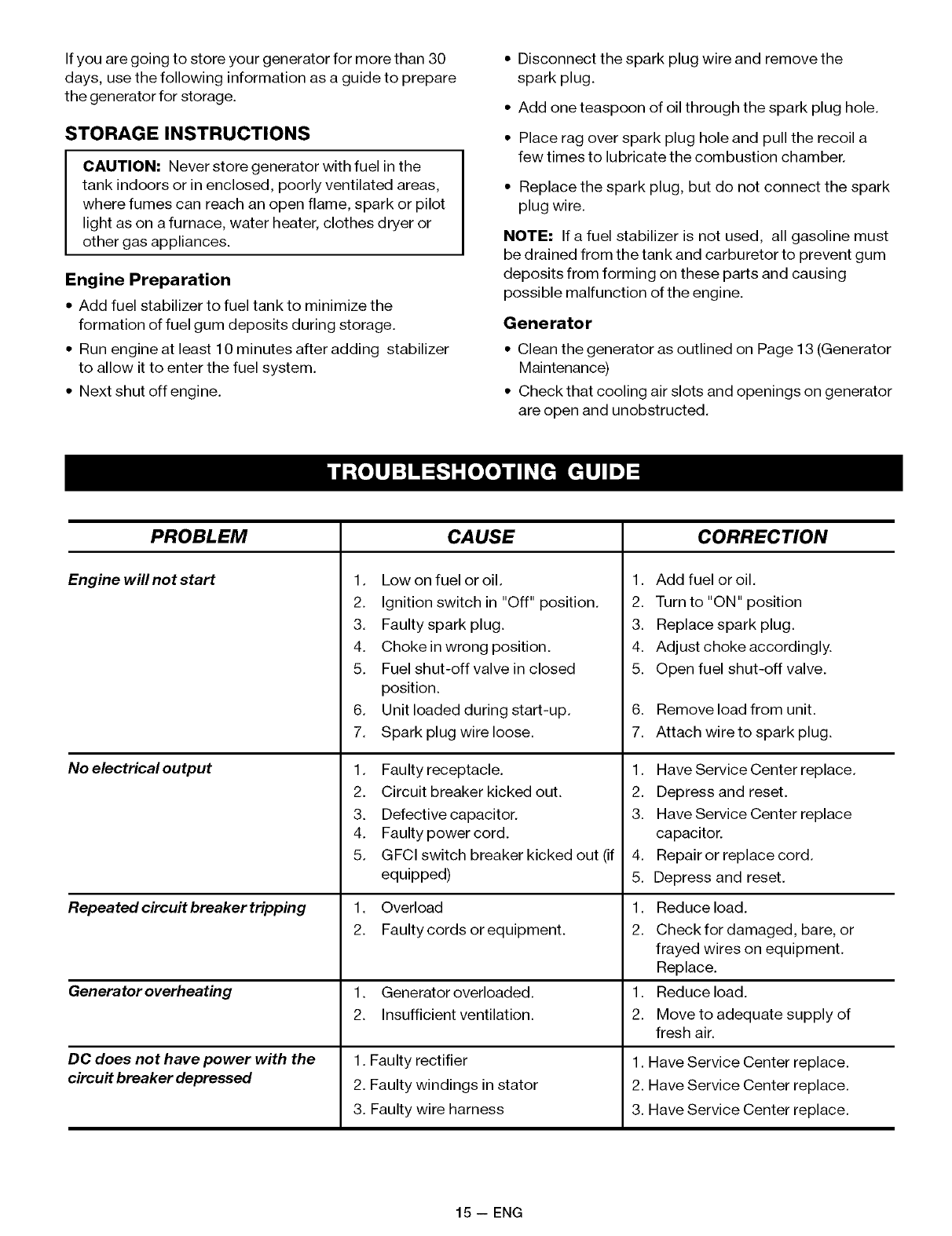

Ifyou are going to store your generator for more than 30

days, use the following information as a guide to prepare

the generator for storage.

STORAGE INSTRUCTIONS

CAUTION: Never store generator with fuel in the

tank indoors or in enclosed, poorly ventilated areas,

where fumes can reach an open flame, spark or pilot

light as on a furnace, water heater, clothes dryer or

other gas appliances.

Engine Preparation

• Add fuel stabilizer to fuel tank to minimize the

formation of fuel gum deposits during storage.

• Run engine at least 10 minutes after adding stabilizer

to allow it to enter the fuel system.

• Next shut off engine.

• Disconnect the spark plug wire and remove the

spark plug.

• Add one teaspoon of oil through the spark plug hole.

• Place rag over spark plug hole and pull the recoil a

few times to lubricate the combustion chamber.

• Replace the spark plug, but do not connect the spark

plug wire.

NOTE: If a fuel stabilizer is not used, all gasoline must

be drained from the tank and carburetor to prevent gum

deposits from forming on these parts and causing

possible malfunction of the engine.

Generator

• Clean the generator as outlined on Page 13 (Generator

Maintenance)

• Check that cooling air slots and openings on generator

are open and unobstructed.

PROBLEM

Engine will not start

No electrical output

Repeated circuit breakertripping

Generator overheating

DC does not have power with the

circuit breaker depressed

CAUSE

1. Low on fuel or oil.

2. Ignition switch in "Off" position.

3. Faulty spark plug.

4. Choke in wrong position.

5. Fuel shut-off valve in closed

position.

6. Unit loaded during start-up.

7. Spark plug wire loose.

1. Faulty receptacle.

2. Circuit breaker kicked out.

3. Defective capacitor.

4. Faulty power cord.

5. GFCI switch breaker kicked out (if

equipped)

1. Overload

2. Faulty cords or equipment.

1. Generator overloaded.

2. Insufficient ventilation.

1. Faulty rectifier

2. Faulty windings in stator

3. Faulty wire harness

CORRECTION

1. Add fuel or oil.

2. Turn to "ON" position

3. Replace spark plug.

4. Adjust choke accordingly.

5. Open fuel shut-off valve.

6. Remove load from unit.

7. Attach wireto spark plug.

1. Have Service Center replace.

2. Depress and reset.

3. Have Service Center replace

capacitor.

4. Repair or replace cord.

5. Depress and reset.

1. Reduce load.

2. Check for damaged, bare, or

frayed wires on equipment.

Replace.

1. Reduce load.

2. Move to adequate supply of

fresh air.

1. Have Service Center replace.

2. Have Service Center replace.

3. Have Service Center replace.

15 -- ENG

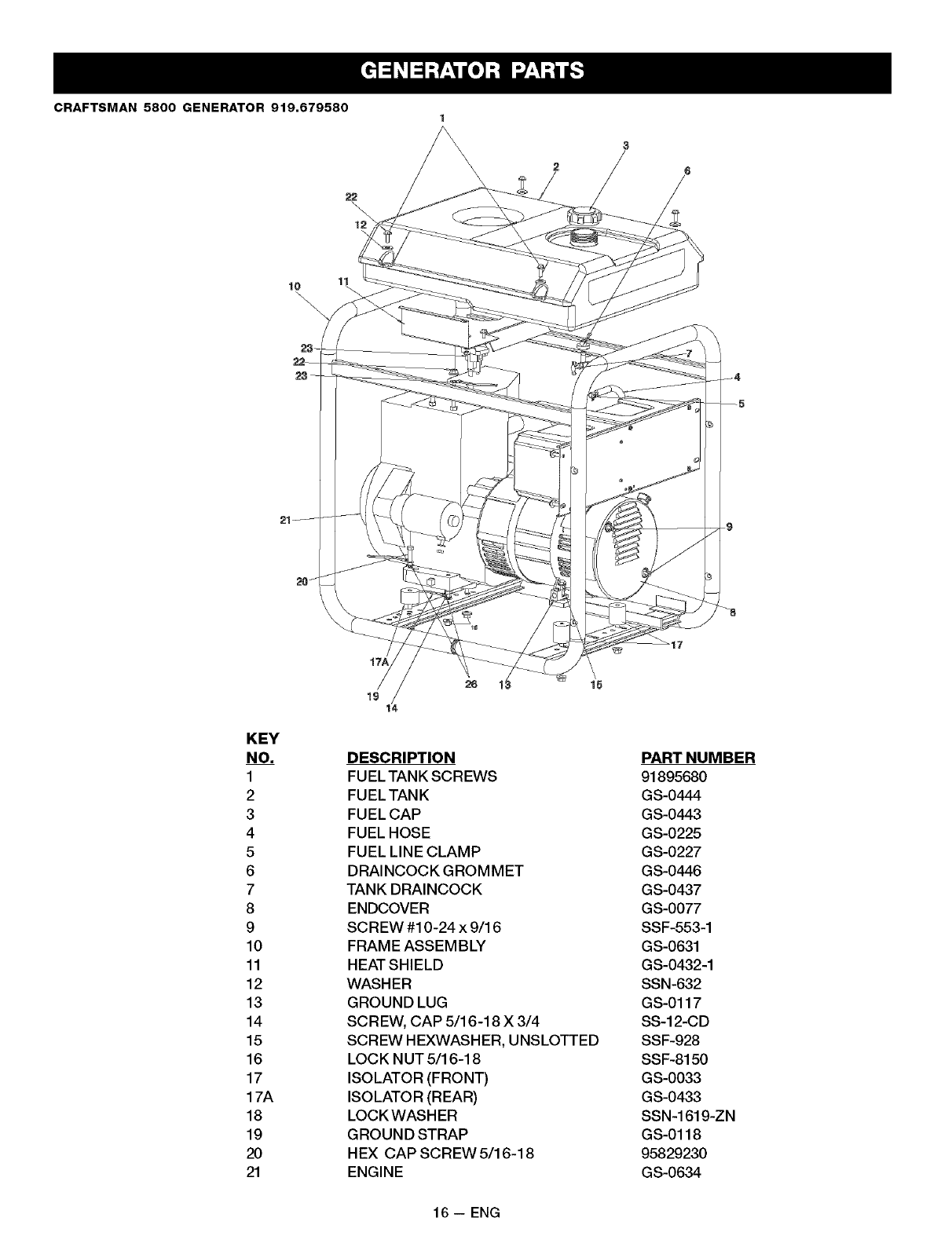

CRAFTSMAN 5800 GENERATOR 919.579580 1

KEY

NO.

17A

DESCRIPTION

FUEL TANK SCREWS

FUELTANK

FUEL CAP

FUEL HOSE

FUEL LINE CLAMP

DRAINCOCK GROMMET

TANK DRAINCOCK

ENDCOVER

SCREW #10-24 x 9/16

FRAME ASSEMBLY

HEAT SHIELD

WASHER

GROUND LUG

SCREW, CAP 5/16-18 X3/4

SCREW HEXWASHER, UNSLOTTED

LOCK NUT 5/16-18

ISOLATOR (FRONT)

ISOLATOR (REAR)

LOCKWASHER

GROUND STRAP

HEX CAP SCREW 5/16-18

ENGINE

PART NUMBER

91895680

GS-0444

GS-0443

GS-0225

GS-0227

GS-0446

GS-0437

GS-0077

SSF-553-1

GS-0631

GS-0432-1

SSN-632

GS-0117

SS-12-CD

SSF-928

SSF-8150

GS-0033

GS-0433

SSN-1619-ZN

GS-0118

95829230

GS-0634

16 -- ENG

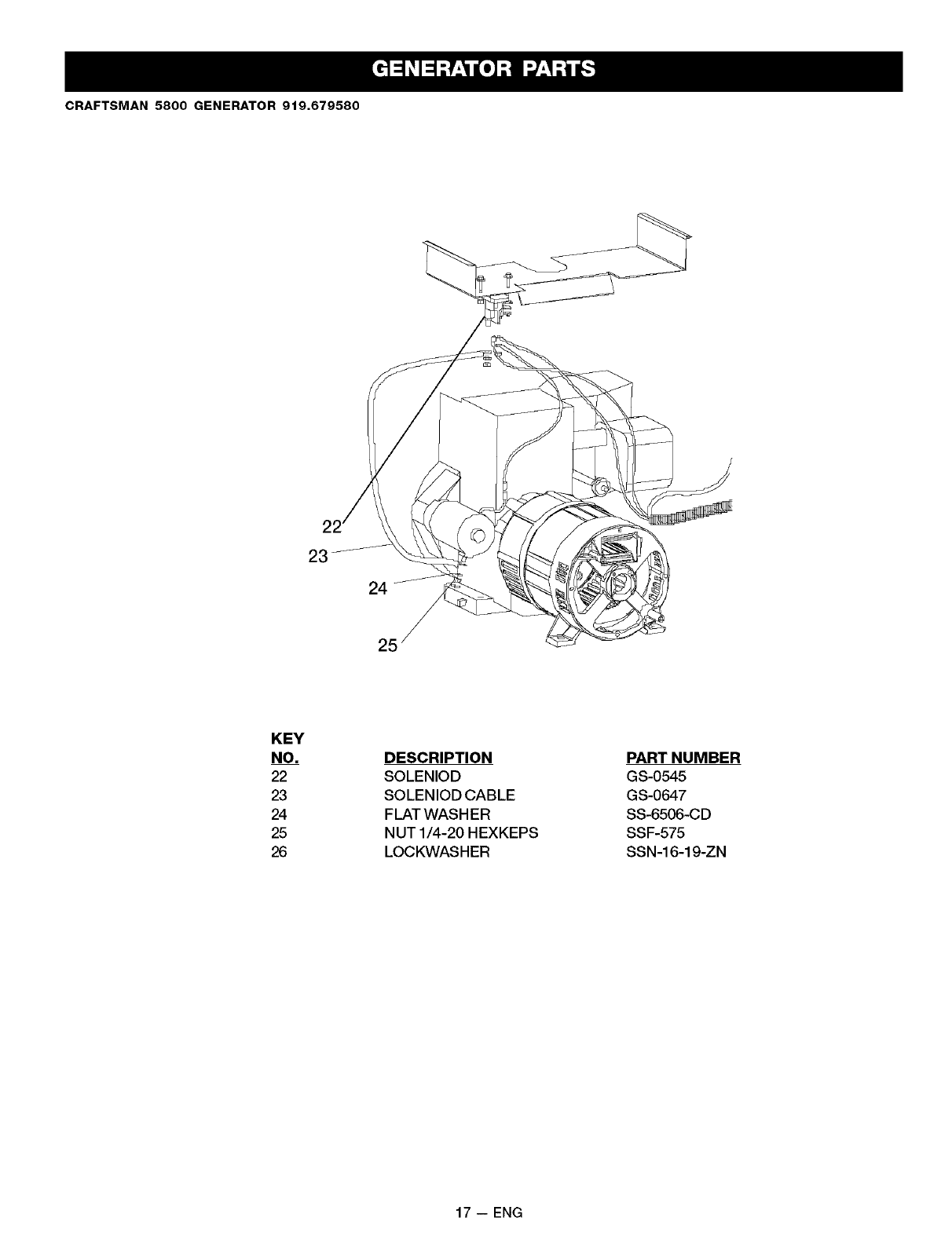

CRAFTSMAN 5800 GENERATOR 919.579580

KEY

NO.

DESCRIPTION

SOLENIOD

SOLENIOD CABLE

FLATWASHER

NUT 1/4-20 HEXKEPS

LOCKWASHER

PART NUMBER

GS-0545

GS-0647

SS-6506-CD

SSF-575

SSN-16-19-ZN

17 -- ENG

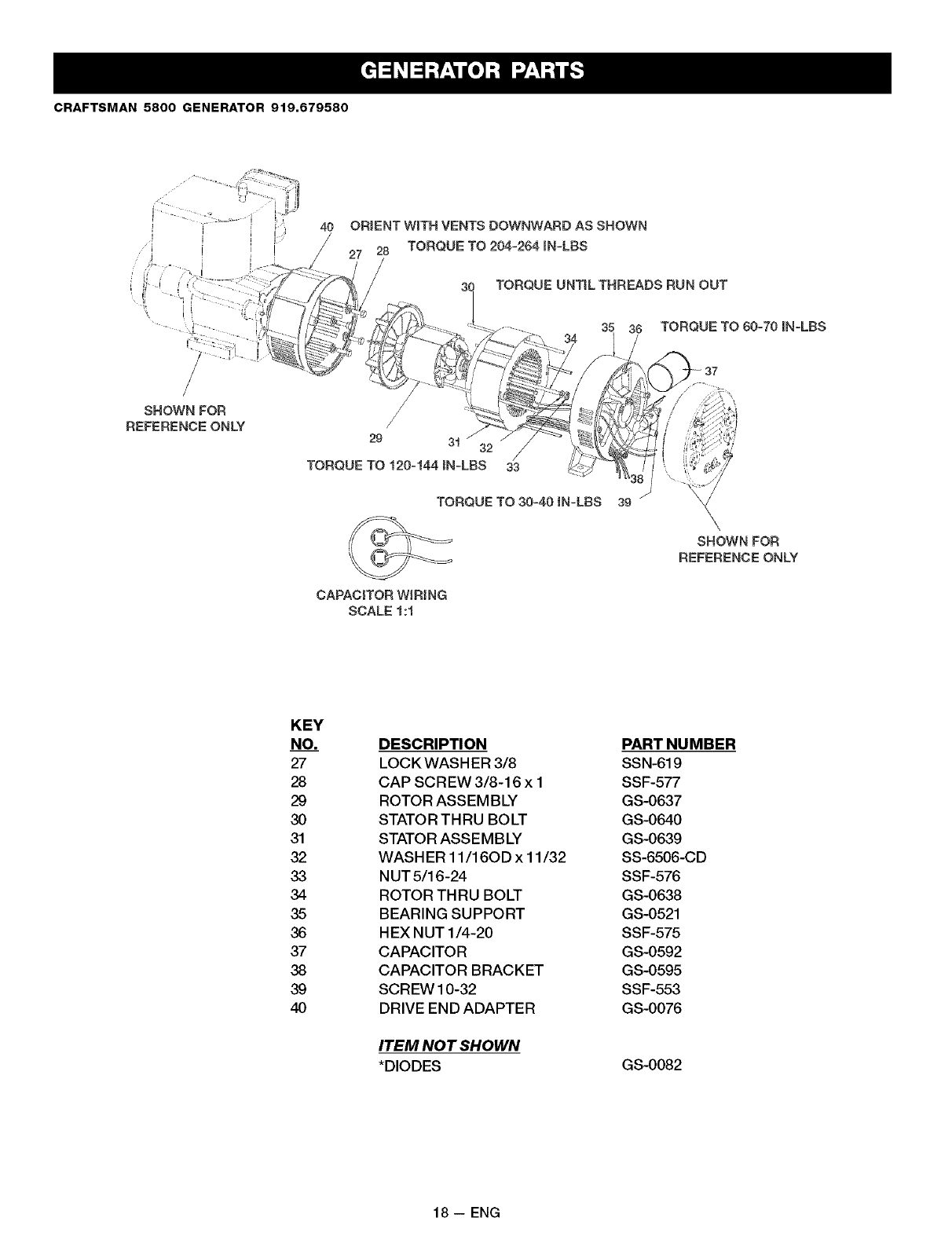

CRAFTSMAN 5800 GENERATOR 919.579580

40 ORIENT WiTH VENTS DOWNWARD AS SHOWN

27 28 TORQUE TO 204-264 IN-LBS

TORQUE UNTIL THREADS RUN OUT

35 36 TORQUE TO (;0-70 IN-LRS

SHOWN FOR

REFERENCE ONLY

SHOWN FOR

REFERENCE ONLY

KEY

NO.

DESCRIPTION

LOCK WAS HER 3/8

CAP SCREW 3/8-16 x 1

ROTOR ASSEMBLY

STATOR THRU BOLT

STATOR ASSEMBLY

WASHER 11/16OD x 11/32

NUT 5/16-24

ROTOR THRU BOLT

BEARING SUPPORT

HEX NUT 1/4-20

CAPACITOR

CAPACITOR BRACKET

SCREW 10-32

DRIVE END ADAPTER

ITEM NOT SHOWN

*DIODES

PART NUMBER

SSN-619

SSF-577

GS-0637

GS-0640

GS-0639

SS-6506-CD

SSF-576

GS-0638

GS-0521

SSF-575

GS-0592

GS-0595

SSF-553

GS-0076

GS-0082

18 -- ENG

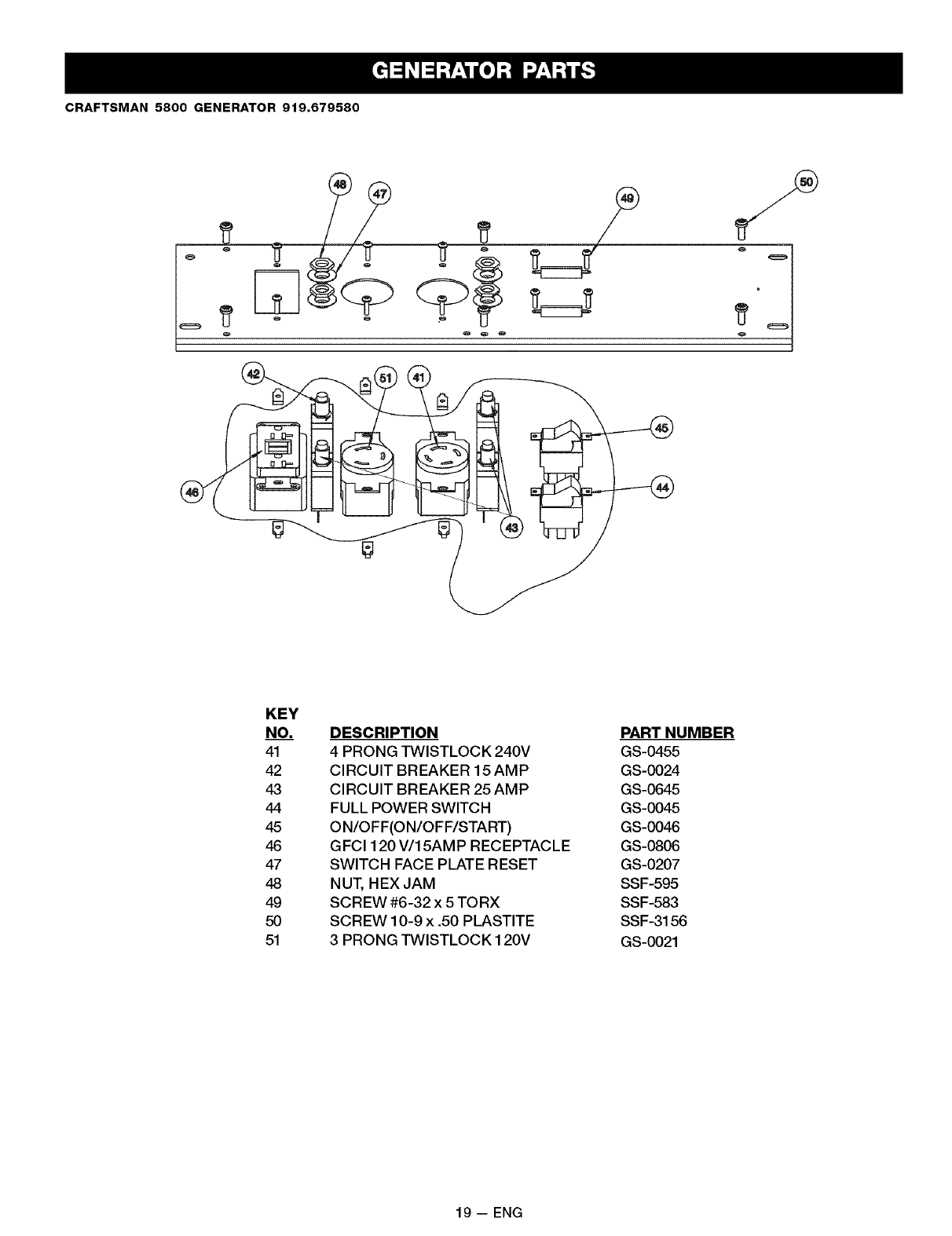

CRAFTSMAN 5800 GENERATOR 919.579580

KEY

NO. DESCRIPTION

41 4 PRONG TWISTLOCK 240V

42 CIRCUIT BREAKER 15AMP

43 CIRCUIT BREAKER 25 AMP

44 FULL POWER SWITCH

45 ON/OFF(ON/OFF/START)

46 GFCI 120 V/15AMP RECEPTACLE

47 SWITCH FACE PLATE RESET

48 NUT, HEX JAM

49 SCREW #6-32 x 5 TORX

50 SCREW 10-9 x .50 PLASTITE

51 3 PRONG TWlSTLOCK 120V

PART NUMBER

GS-0455

GS-0024

GS-0645

GS-0045

GS-0046

GS-0806

GS-0207

SSF-595

SSF-583

SSF-3156

GS-0021

19 -- ENG

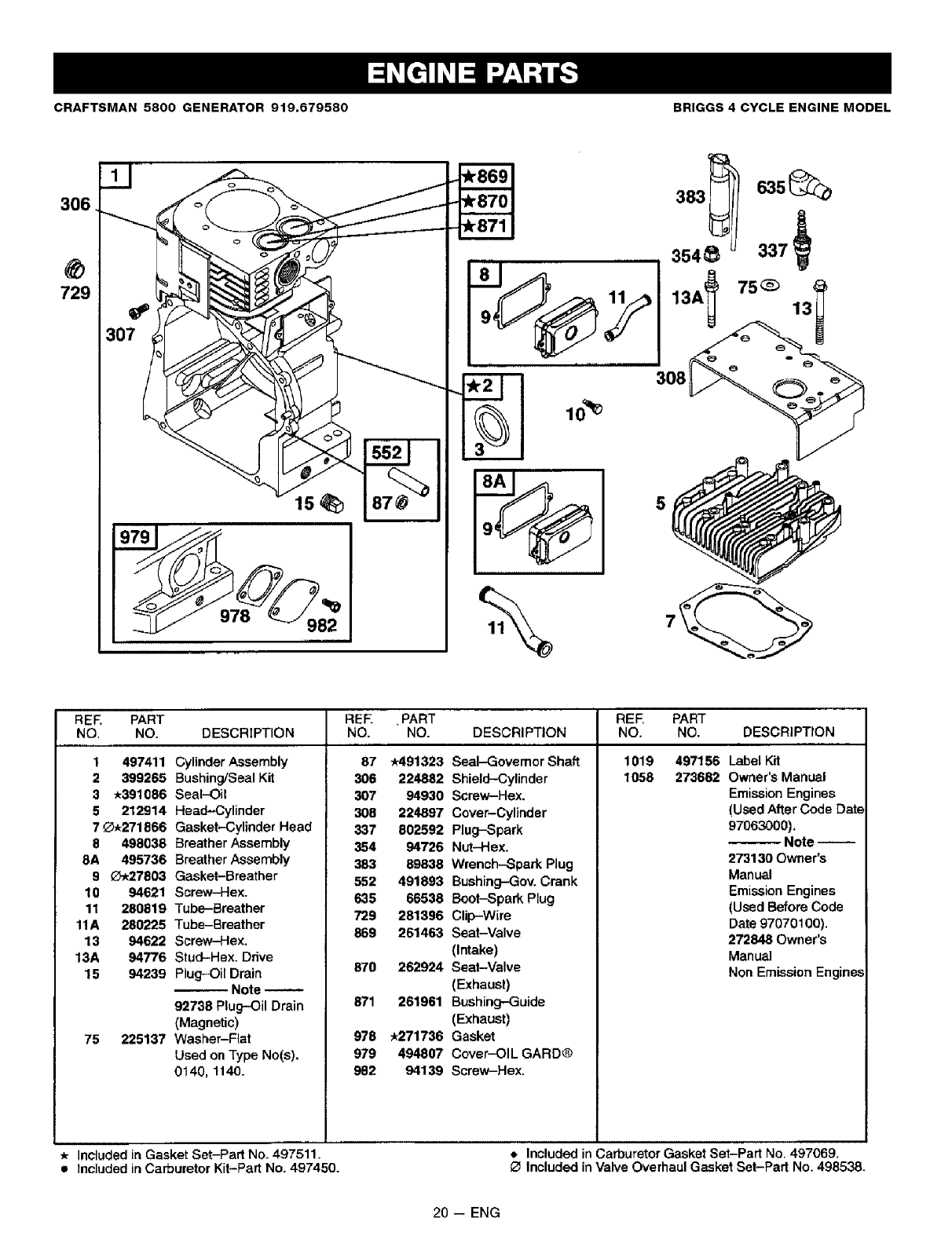

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS 4 CYCLE ENGINE MODEL

3O6

729

REF, PART ,PART REE PART

NO. NO. DESCRIPTION NO. NO, NO.

1 497411 Cylinder Assembly

2 399265 Bushing/Seal Kit

3*391086 Seal-Oil

5 212914 Head-Cylinder

7_271866 Gasket-Cylinder Head

8 498038 Breather Assembly

8A 495736 Breather Assembly

9_27803 Gasket-Breather

10 94621 Screw-Hex.

11 280819 Tube-Breather

11A 280225 Tube-Breather

13 94622 Screw-Hex.

13A 94776 Stud-Hex. Drive

15 94239 Plug-Oil Drain

Note

92736 Plug-Oil Drain

(Magnetic)

75 225137 Washer-Flat

Used on Type No(s).

0140, 1140.

REF,

NO.

306

3O7

308

337

354

383

552

635

729

869

87O

871

978

979

982

DESCRIPTION

_,491323 Seal-Governer Shaft

224882 Shield-Cylinder

94930 Screw-Hex.

224897 Cover-Cylinder

802592 Plug-Spark

94726 Nut-Hex.

89838 Wrench-Spark Plug

491893 Bushing-Gov. Crank

66538 Boot-Spark Plug

281396 Clip-Wire

261463 Seat-Valve

(Intake)

262924 Seat-Valve

(Exhaust)

261961 Bushing-Guide

(Exhaust)

-_271736 Gasket

494807 Cover-OIL GARD®

94139 Screw-Hex.

1019 497156

1058 273682

DESCRIPTION

,L,,,,,,,,,,, ,, .....

Label Kit

Owner's Manual

EmissionEngines

(Used After Code Date

97063000).

Note

273130 Owner's

Manual

Emission Engines

(Used Before Code

Date 97070100).

272848 Owner's

Manual

Non Emission Enginee

*Included in Gasket Set-Part No. 497511.

Included in Carburetor Kit-Part No. 497450. Included in Carburetor Gasket Set-Part No. 497069,

OIncluded in Valve Overhaul Gasket Set-Pad No. 498538.

20 -- ENG

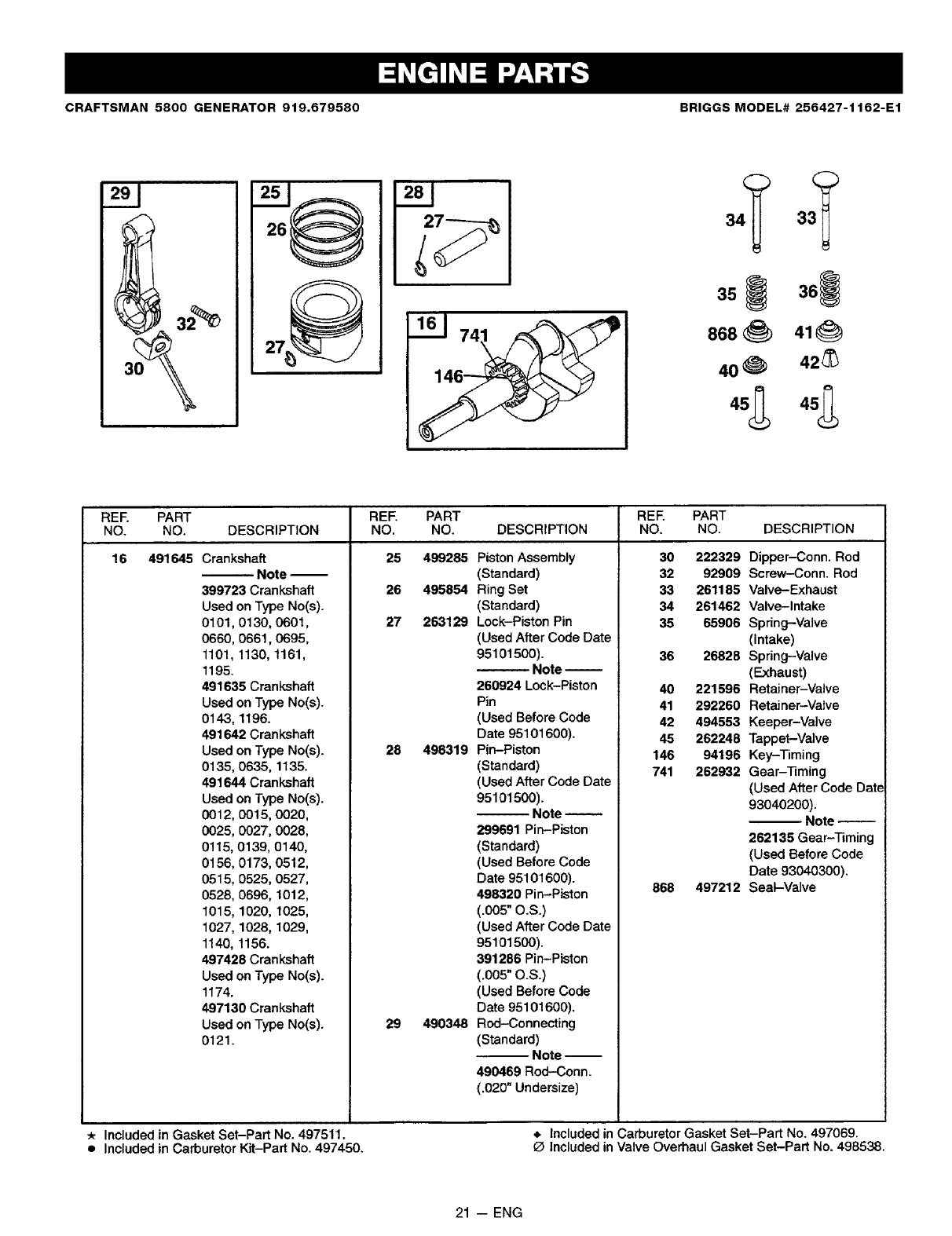

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

868

-J;

41_

42_

REF. PART REE PART

NO. NO. DESCRIPTION DESCRIPTION NO. NO. DESCRIPTION

16 491645 Crankshaft

Note --

399723 Crankshaft

Used on Type No(s).

0101, 0130, 0601,

0660, 0661,0695,

1101, 1130, 1161,

1195.

491635 Crankshaft

Used on Type No(s).

0143, 1196.

491642 Crankshaft

Used on Type No(s).

0135, 0635, 1135.

491644 Crankshaft

Used on Type No(s).

0012, 0015, 0020,

0025, 0027, 0028,

0115, 0139, 0140,

0158, 0173, 0512,

0515, 0525, 0527,

0528, 0696, 1012,

1015, 1020, 1025,

1027, 1028, 1029,

1140, 1156.

497428 Crankshaft

Used on Type No(s).

1174.

497130 Crankshaft

Used on Type No(s).

0121.

REF.

NO.

_RT

NO.

4_2_

4_8_

2831_

28 498319

29 490348

Piston Assembly

(Standard)

Ring Set

(Standard)

Lock-Piston Pin

(Used After Code Date

95101500).Note --

260924 Lock-Piston

(Used Before Code

Date 95101600).

Pin-Piston

(Standard)

(Used After Code Date

95101500).

-- Note

299691 Pin-Piston

(Standard)

(Used Before Code

Date 95101600).

498320 Pin-Piston

(.005" O.S.)

(Used After Code Date

95101500).

391286 Pin-Piston

(.005" O.S.)

(Used Before Code

Date 95101600).

Rod-Connecting

(Standard) Note --

490469 Rod-Conn.

(.020" Undersize)

222329

92909

261185

261462

65906

36 26828

40 221596

41 292260

42 494553

45 262248

146 94196

741 262932

868 497212

Dipper-Conn. Rod

Screw-Conn. Rod

Valve-Exhaust

Valve-intake

Spring--Valve

(Intake)

Spring-Valve

(Exhaust)

Retainer-Valve

Keeper-Valve

Tappet-Valve

Key-Timing

Gear-Timing

(Used After Code Date

93040200).

Note

262135 Gear-Timing

(Used Before Code

Date 93040300).

Seal-Valve

Included in Gasket Set-Part No. 497511.

•Included in Carburetor Kit-Part No. 497450.

• Included in Carburetor Gasket Set-Part No. 497069.

OIncluded in Valve Overhaul Gasket Set-Part No. 498538.

21 -- ENG

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

22 -- ENG

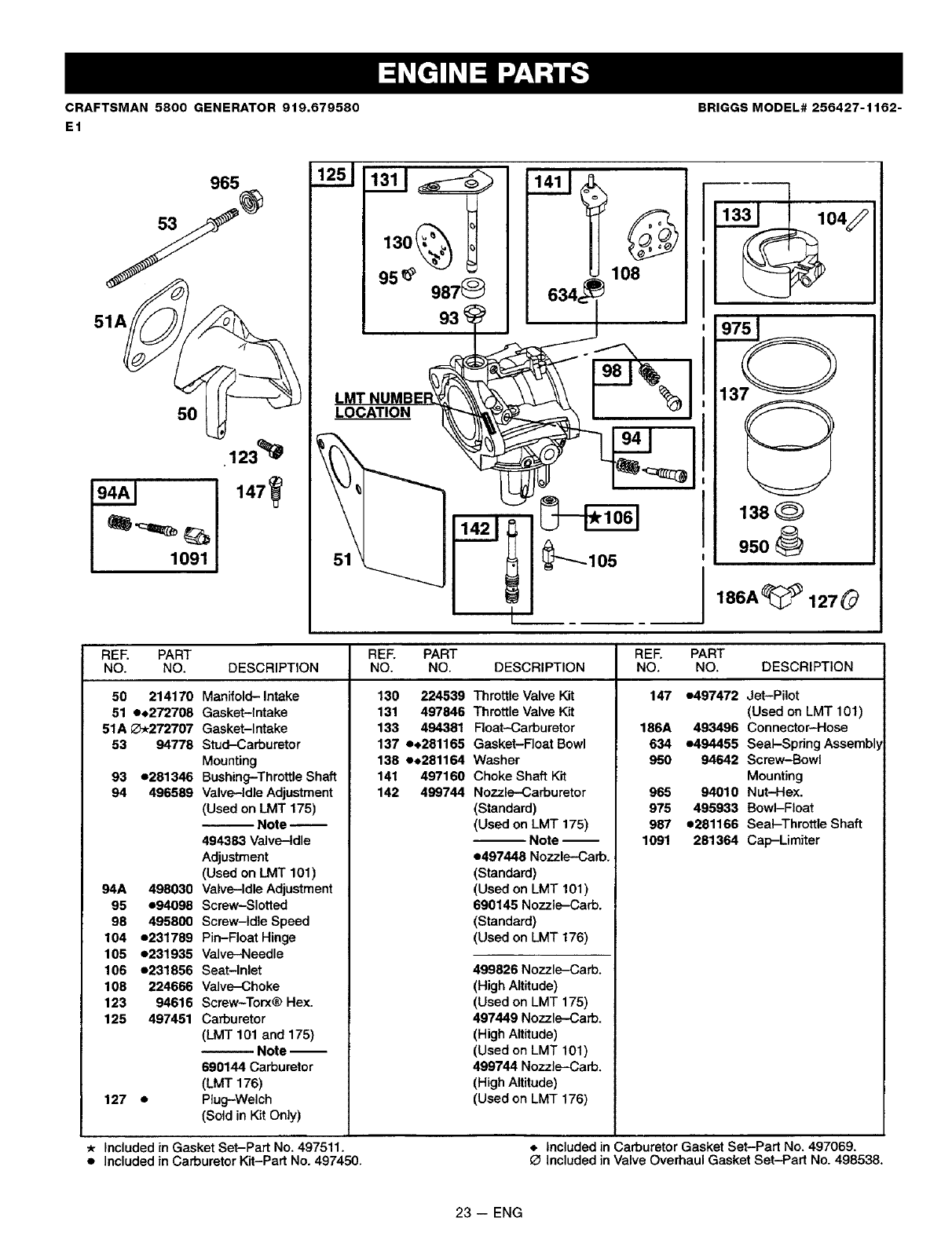

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 255427-1162-

965

1091

LMT NUMBE_=

LOCATION _I

_104_

188A 12T0

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

147

50 214170

51 e_272708

51A _-_272707

53 94778

93 e281346

94 496589

94A 498030

95 e94098

98 495800

104 e231789

105 e231935

106 e231856

108 224666

123 94616

125 497451

127 •

Manifold- Intake

Gasket-Intake

Stud-Carburetor

Mounting

Bushing-Throttle Shaft

Valve-Idle Adjustment

(Used on LMT 175)

Note

494383 Valve-Idle

Adjustment

(Used on LMT 101)

Valve-Idle Adjustment

Screw-Slotted

Screw-Idle Speed

Pin-Float Hinge

Valve-Needle

Seat-Inlet

Valve-Choke

Screw-Torx® Hex.

Carburetor

(LMT 101 and 175)

Note --

690144 Carburetor

(LMT 176)

Plug-Welch

(Sold in Kit Only)

130 224539

131 497846

133 494381

137 •.281165

138 e_281164

141 497160

142 499744

ThrottleValve Kit

Throttle Valve Kit

Float-Carburetor

Gasket-Float Bowl

Washer

Choke Shaft Kit

Nozzle-Carburetor

(Standard)

(Used on LMT t 75)

Note --

• 497448 Nozzle-Carb.

(Standard)

(Used on LMT 101)

690145 Nozzle-Carb.

(Standard)

(Used on LMT 176)

499826 Nozzle-Carb.

(High Altitude)

(Used on LMT 175)

497449 Nozzle-Carb.

(High Altitude)

(Used on LMT 101)

499744 Noz.zle-Carb.

(High Altitude)

(Used on LMT 176)

e497472 Jet-Pilot

(Used on LMT 101)

186A 493496 Connector-Hose

634 e494455 Seal-Spring Assembl'_

950 94642 Screw-Bowl

Mounting

965 94010 Nut-Hex.

975 495933 Bowl-Float

987 e281166 Sea!-Throttle Shaft

1091 281364 Cap-Limiter

Included in Gasket Set-Part No. 497511.

• Included in Carburetor Kit-Part No. 497450.

Included in Carburetor Gasket Set-Part No. 497069.

Included in Valve Overhaul Gasket Set-Part No. 498538,

23 -- ENG

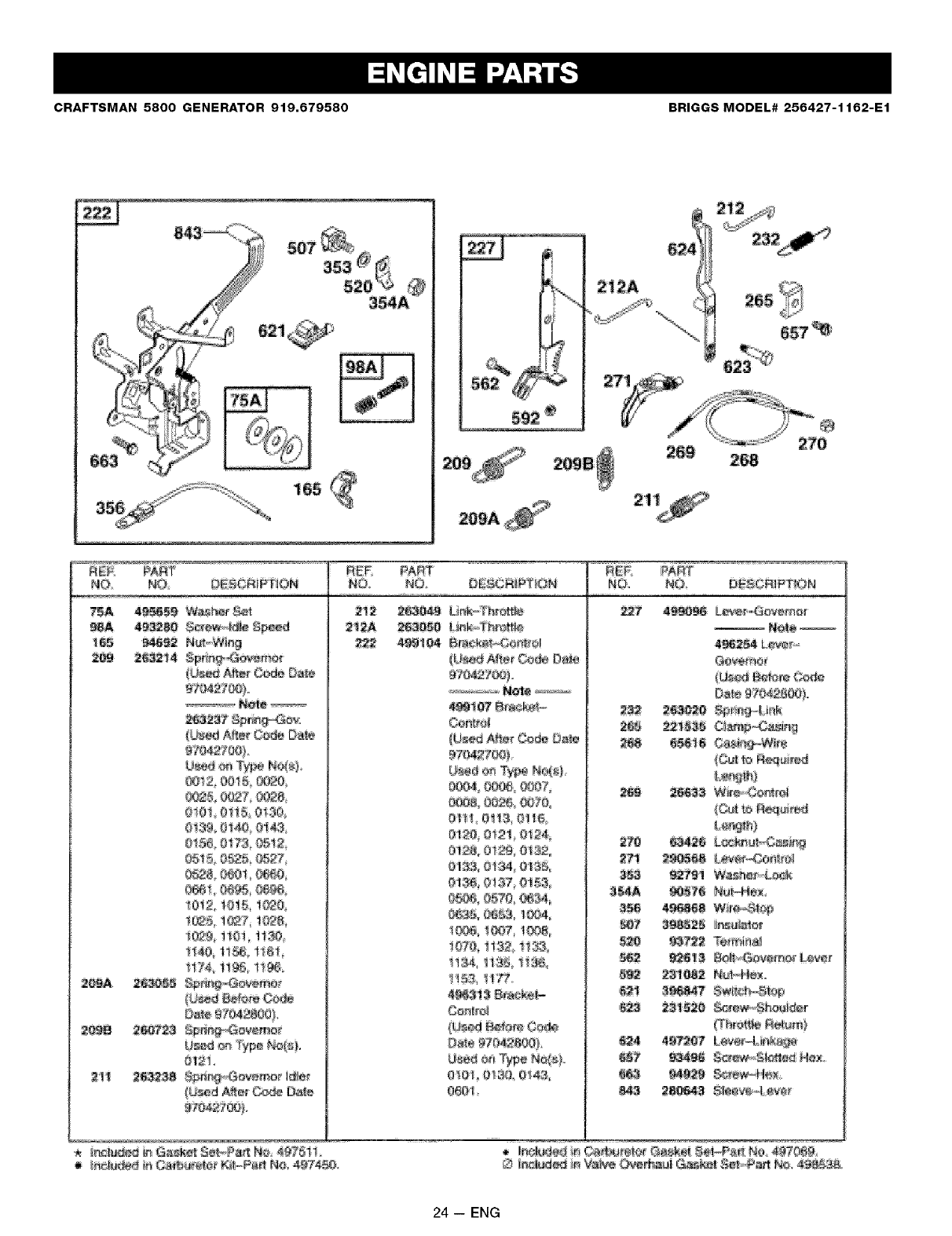

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

692 _

268

RER PART + RIEK

_O NO, DESCRiPTiON NO. _O+

75A 49_59 _4a_her _

95A 493280 $_,w_i_e _peed

!66 _2 Nci!_;W_n_

2_ 2692_4 _pr_n_,,,Ge_mor

20g,A 26_3_

2_B 2_72_

21_ _32a_

...... Nole

#6$CR_#TiON

t:_t 2 001& 0020

_5, _327 0_8

0101 0115 I')130_

0189 0!40 014&

01_& 0173 05!2

05_5 0525 0_7

1012, t015, 1_9

t_5 1_7 !028,

1_9 110t !!30,

1174_1i95 !196;

Sp_!_4$ove_r_

_i_ _6a049 Ur_k_Thr_le

............ N_ .....

499q07 B_acke{-

Go#iroN

(Used _e_ Code Oa_e

Usede_ T_peNe(@

R_ PART

1'4;O. NO. DBSOR!FT_ON

4962_ _r _e_ _

Oa._e97042_).

o_21.

(u_ed A_ef _ Da_

_r_iaded _ Gas_e__2ei_a_t N# 49751t

r_4. OJ3_.0007;

_& oo2& 00o,

0120 01_1_0424.

0i2& 0129. 0132.

01s& 0_34,e_s&

01_ 0!87 0!53¢

0-_, 0570 _I

t070, !1S2 t133

4_SI 3Br_-

Coa#e_

Z_a_e_704,_8_)

0_0_0_30_0143,

060_

_@J _218a_ C_._3asin 9

_; 496868 W'i_,

_? 398_2_ In_a'_or

_82 2_1062 N_q4_...

16_ 2_i _25 _ew-, Shou]_r

24 -- ENG

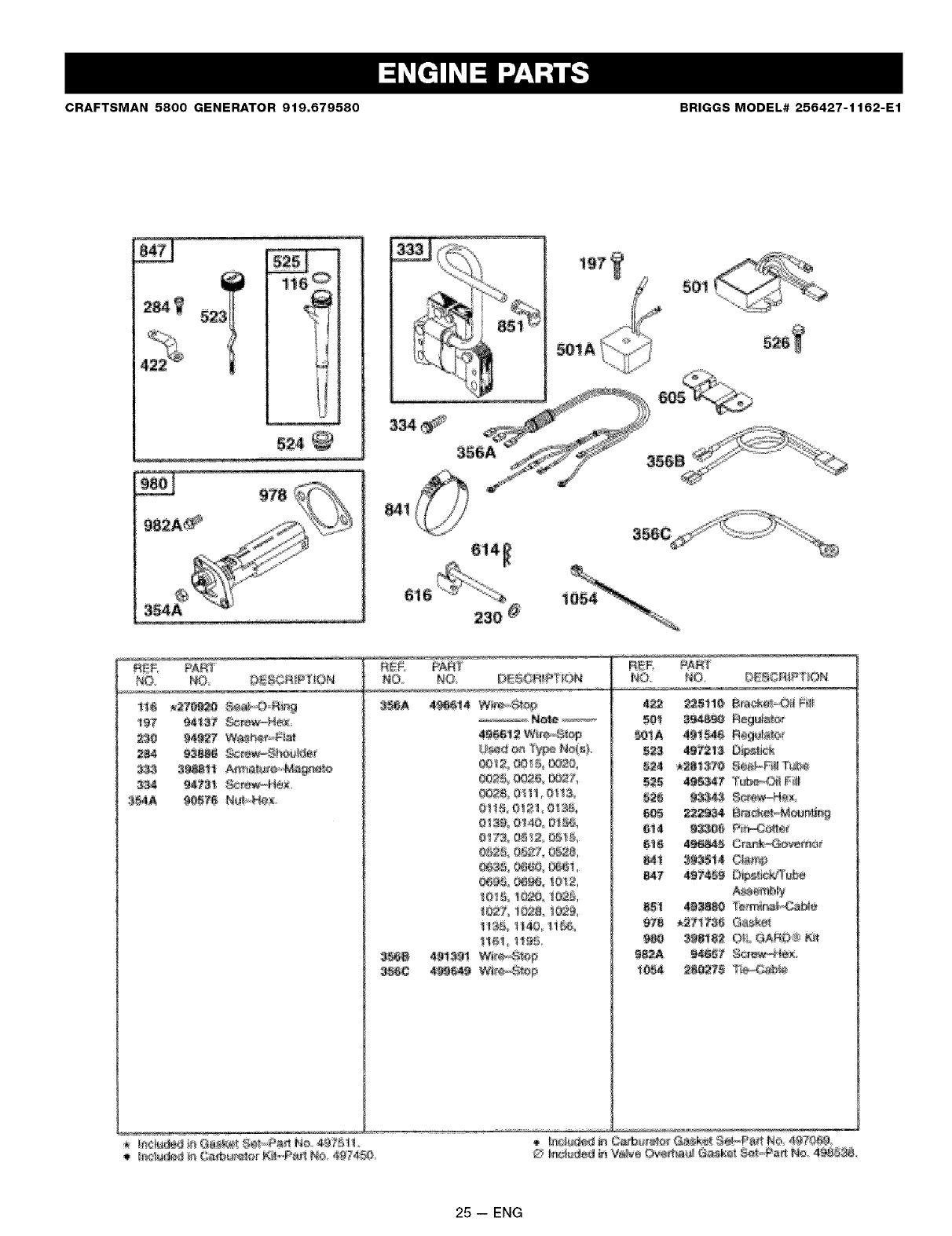

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

524

85i _''

50i

_ _m _

NO. NO @_,S_!Pl iON

_54A 90_76 N_-He_

_:blacl#d_J#_Va_e 0 e _a& G_ ® .........

25 -- ENG

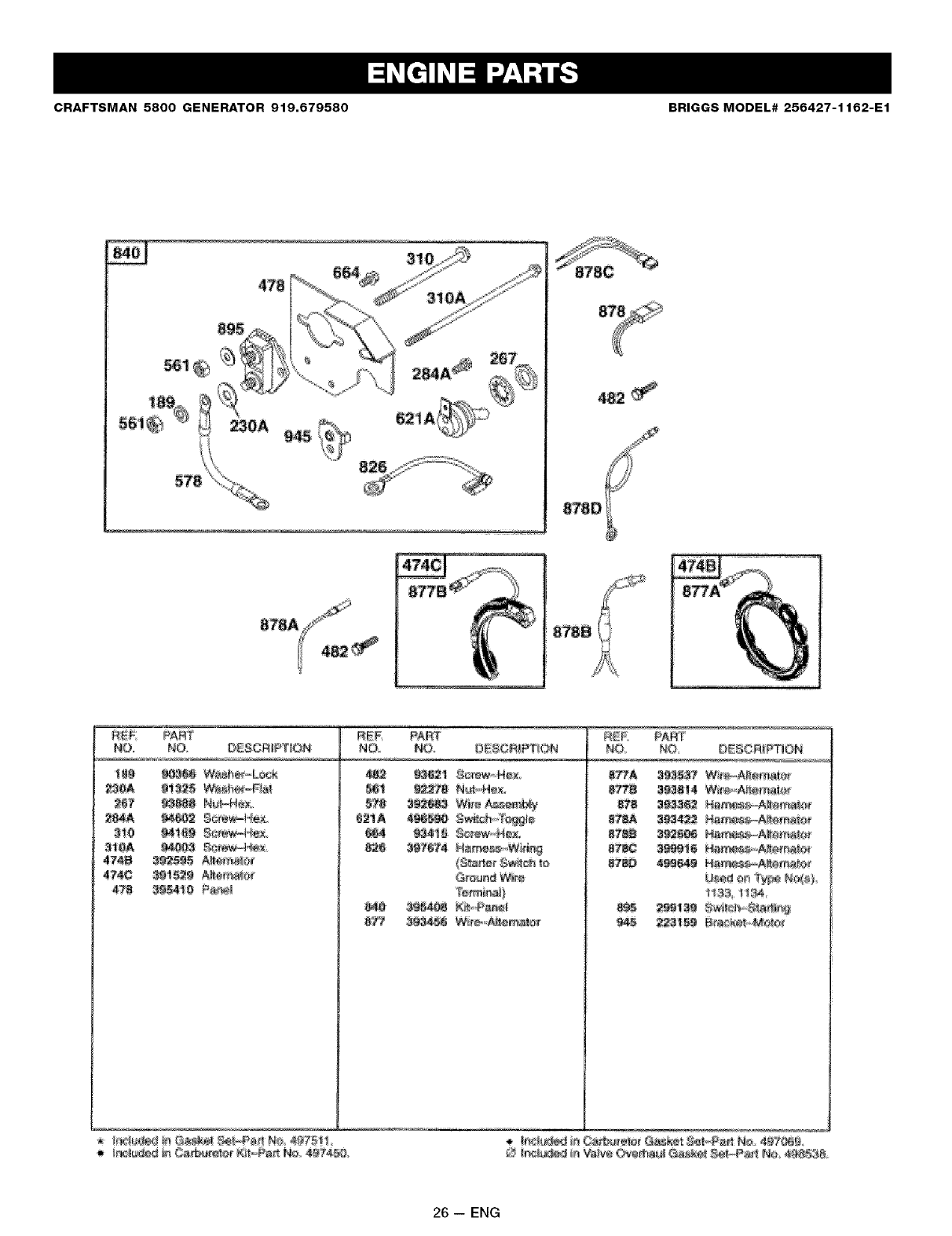

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

478

826 ._, _-,,_.

RS_; PART

474B _9_595 A#ema_

478 39_0 Pa_'_

_} NO DESC R_Pq!ON

8_ 3_3_;!4 Wil_A!_6rria_

U_e_ aa _y#e No(s)

26 -- ENG

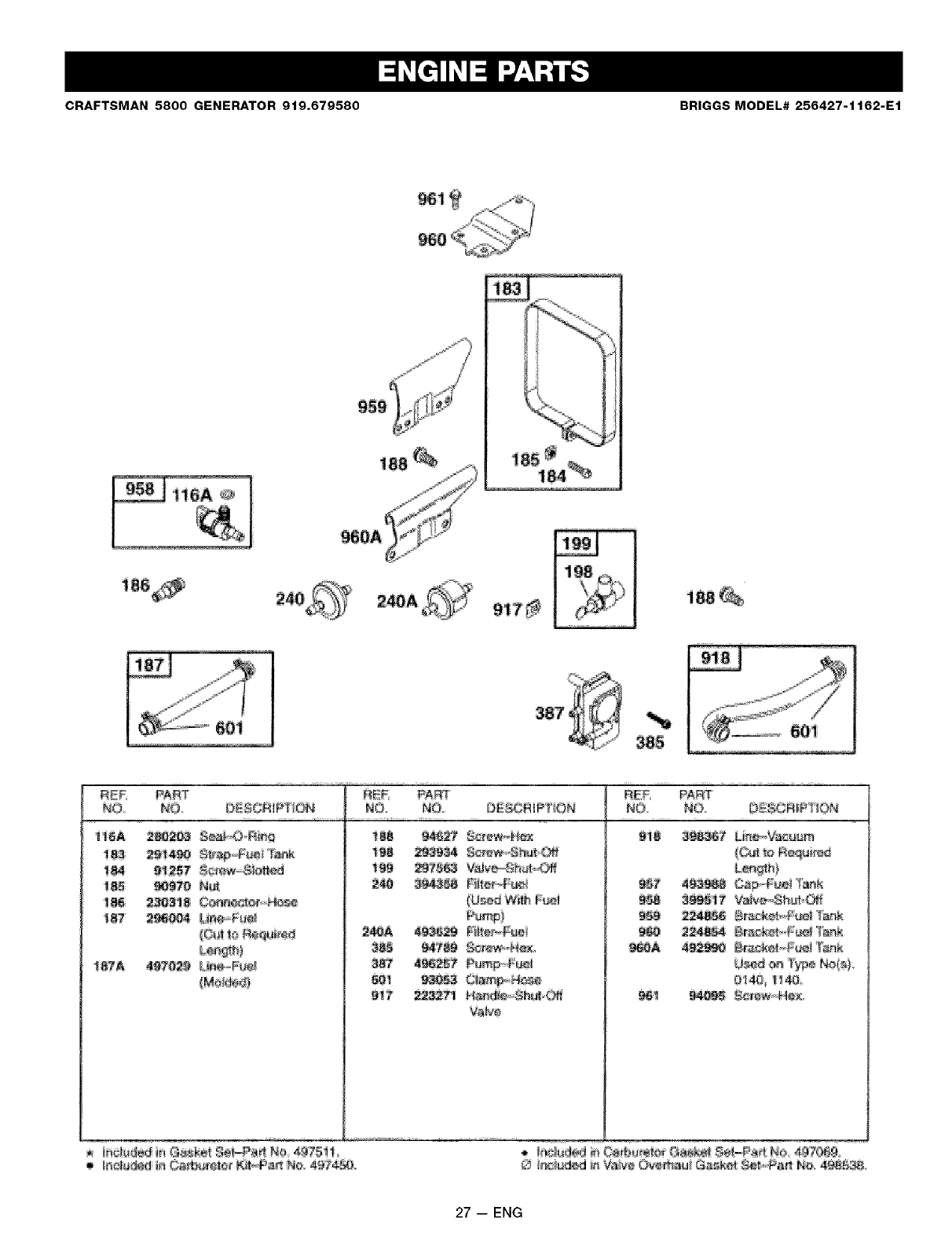

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

REE PA_T

NO NO, D_C_i:PTiON

187 _ Lm÷R_e_

REF PARr

NO, NO Og:$ORiPTiON

t 88 _6_'?

i98 _39_a S_w-<_hat O_

_A 483_29 F'i_ter_Wue

Va_v_

R_E pA_

NO NO, D_CR_P _ ON

{@Jt_oRequif_

_t a_a_8 Cap_Fue,_ Tank

9_ _ _rack_,4::_! lank

9_ _2_ Brac_o4:_ Tank

_oA 4_29_0 uel Taak

27 -- ENG

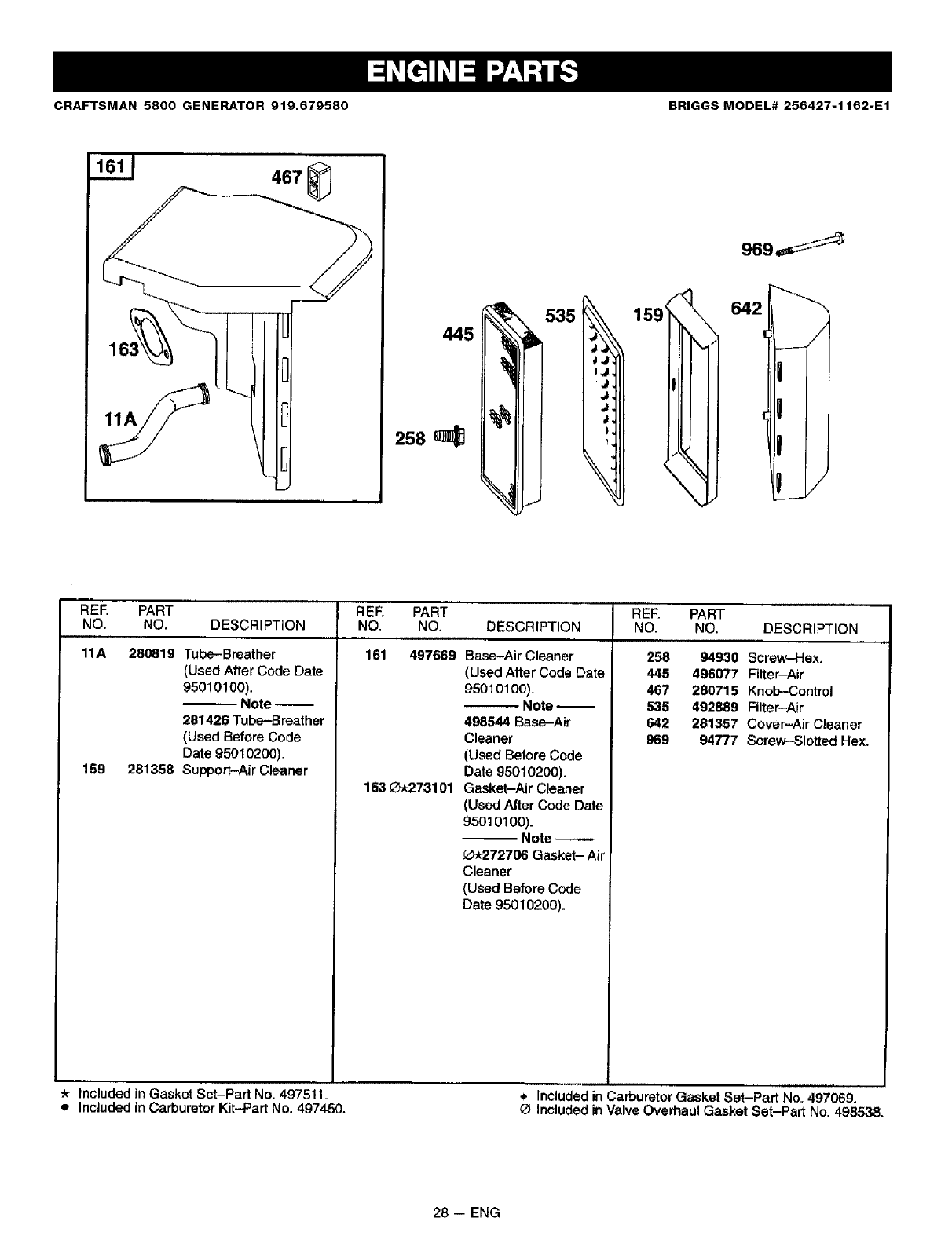

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

467

535

445

258

159

969_

642

REE PART REF, PART REF.

NO, NO, DESCRIPTION NO. NO, DESCRIPTION NO.

11A 161 497669

159

280819 Tube-Breather

(Used After Code Date

95010100).

Note

281426 Tube-Breather

(Used Before Code

Date 95010200).

261358 Support-Air Cleaner

Included in Gasket Set-Part No. 497511.

• Included in Carburetor Kit-Part No, 497450.

163 _A-273101

Base-Air Cleaner

(Used After Code Date

950101 O0).

Note

498544 Base-Air

Cleaner

(Used Before Code

Date 95010200).

Gasket-Air Cleaner

(Used After Code Date

95010100).

Note

_272706 Gasket- Air

Cleaner

(Used Before Code

Date 95010200).

,,,, ,,

PART

NO. DESCRIPTION

258 94930 Screw-Hex.

445 496077 Filter-Air

467 280715 Knob-Control

535 492889 Filter-Air

642 281357 Cover-Air Cleaner

969 94777 Screw--Slotted Hex.

i Included in Carburetor Gasket Set-Part No. 497069.

O Included in Valve Overhaul Gasket Set-Part No. 498538.

28 -- ENG

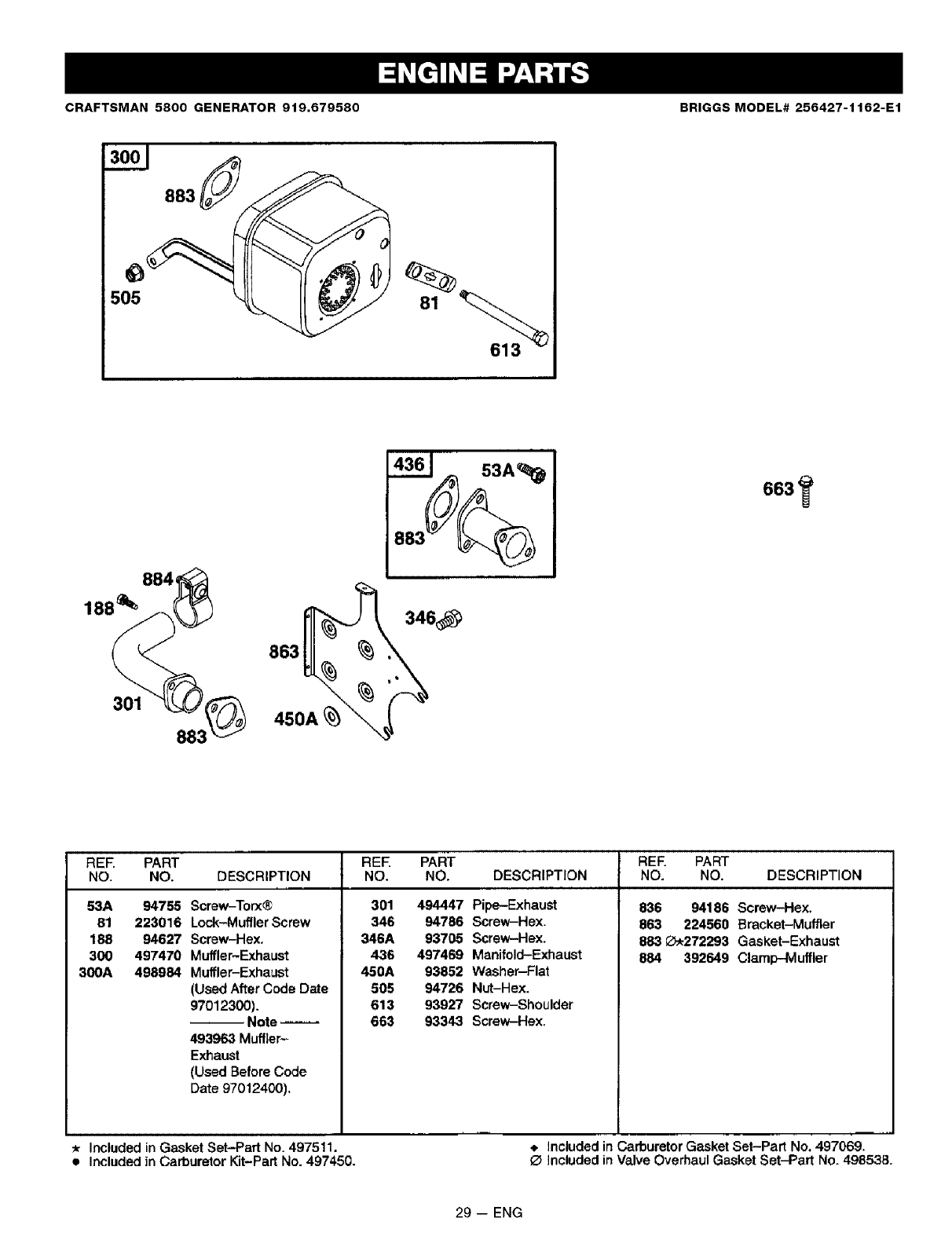

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

883

505

884_

188_

883

863

450A

346_

663_

REE PART REF REF. PART

NO. NO. NO. NO. NO. DESCRIPTION

53A 94755

81 223016

188 94627

300 497470

300A 498984

DESCRIPTION

Screw-Torx®

Lock-Muffler Screw

Screw-Hex.

Muffler-Exhaust

(Used After Code Date

97012300).

Note

493963 Muffler-

Exhaust

(Used Before Code

Date 97012400).

_r Included in Gasket Set-Part No. 497511.

•Included in Carburetor Kit-Part No. 497450.

PART

NO, DESCRIPTION

,,, ,,,, ,, , ,

301 494447 Pipe-Exhaust

346 94786 Screw-Hex.

346A 93705 Screw-Hex.

436 497469 Manifold-Exhaust

450A 93852 Washer-Flat

505 94726 Nut-Hex.

613 93927 Screw-Shoulder

663 93343 Screw-Hex.

836 94186 Screw-Hex.

863 224560 Bracket-Muffler

883 _272293 Gasket-Exhaust

884 392649 Clamp-M uffler

4, Included in Carburetor Gasket Set-Part No, 497069.

0 Included in Valve Overhaul Gasket Set-Part No. 498538.

29 -- ENG

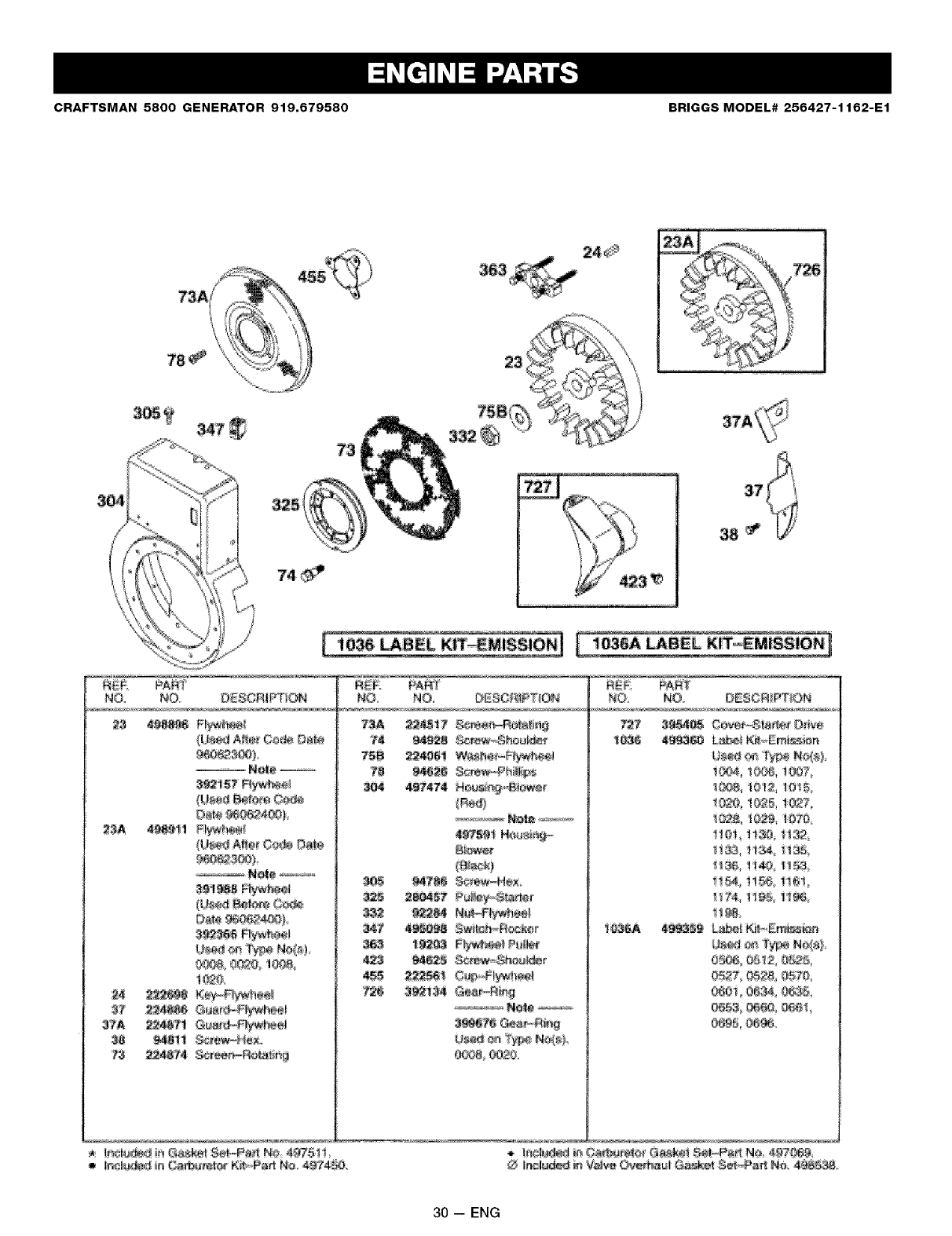

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

304

73A/ .o

23 _:_ ,F_:,,

° "<_ _[Sl I

QU /

........

d%.,_.:_%, % 716

...........................iLxII_I ..........

IIF, P_IT

(U_d Ale_ Cede D_I@

9606P,S@}

Q_te )

ISA 4!!1:1 lli_heil

N_ ....

24 _BgB

31 _488B

37A 2_7_

7_ _4874

(U_ _ere Ca_

!@0,

S_x_4ex,

NO NO, BiESCRIPT!O_

73A _537

75B 22_0_!

_497474

&w.l

33_

_716

2se4_i

_rew-_hll_8

{n_J)

P_ r

Ge_r-R_

_08 I_20.

NO NOo DIIOIIPTION

_7 1954_ Ct_ve_-SIailef D_'_e

1_g, 1Q_I 1027

110! !130_ t!£@.

It&g, i134 1t35_

11_, 1140, H{a,

1_ !!_ t16%

U_ Ce Type Nee}

0_7_ O_.a r_TI,

060 _ 06_, f_&

06g& 06_

la_sla_ m V_ve t_#j Gmm_ 8e_-,#a_ No 4g_&

30 -- ENG

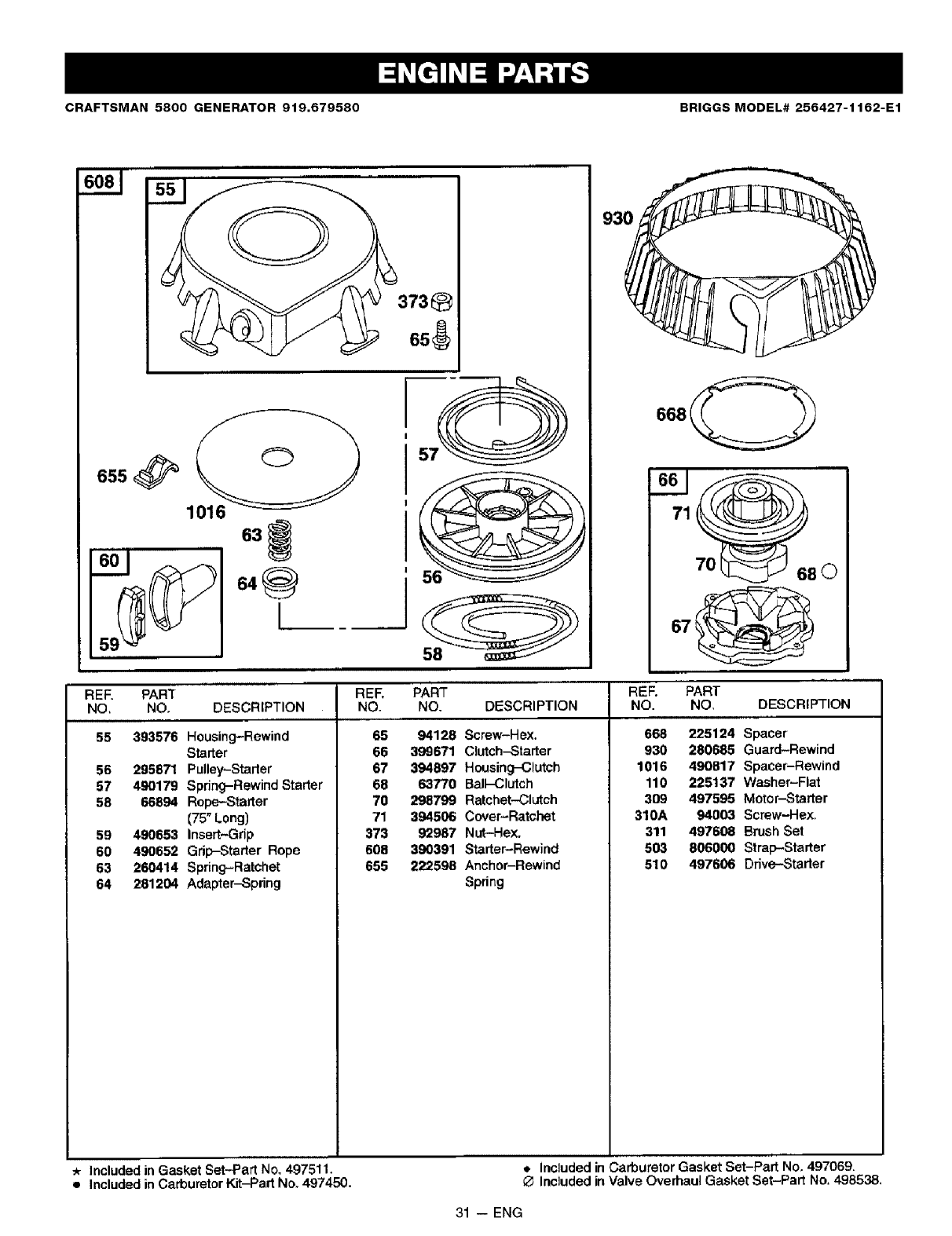

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

REF. PART " REF, PART REF.

NO, NO. DESCRIPTION NO. NO. DESCRIPTION NO.

55 393576 Housing-Rewind

Starter

56 295871 Pulley--Stader

57 490179 Spring-Rewind Starter

58 66894 Rope-Starter

(75" Long)

59 490653 Insert-Gdp

60 490652 Grip-Starter Rope

63 260414 Spring-Ratchet

64 281204 Adapter-Spring

373

608

655

94128 Screw-Hex.

399671 Clutch-Starter

394897 Housing-Clutch

63770 Bali-Clutch

298799 Ratchet-Clutch

394506 Cover-Ratchet

92987 Nut-Hex.

390391 Starter-Rewind

222598 Anchor-Rewind

Spring

68 ©

PART

NO, DESCRIPTION

668 225124 Spacer

930 280685 Guard-Rewind

1016 490B17 Spacer-Rewind

110 225137 Washer-Flat

309 497595 Motor-Starter

310A 94003 Screw-Flex.

311 497608 Brush Set

503 806000 Strap-Starter

510 497606 Drive-Starter

Includedin Gasket Set-Part No. 497511.

• Included inCarburetor Kit-Part No, 497450.

i ....

,_ included in Carburetor Gasket Set-Part No, 497069.

Included in Valve Overhaul Gasket Set-Part No, 498538,

31 -- ENG

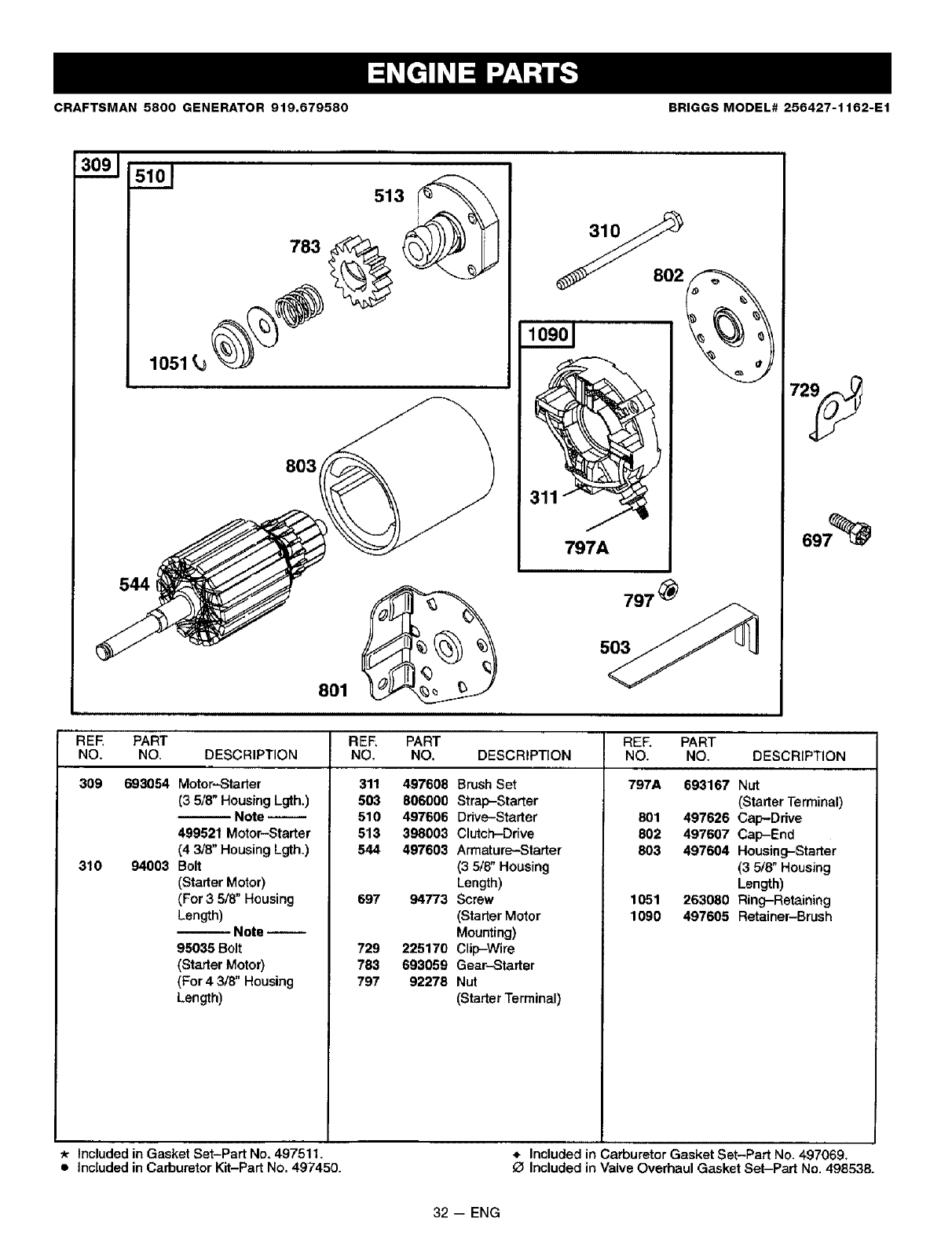

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

783

1051

803

544

801

797A

797 _

503

REF PART REE PART RIEF.

NO. NO. DESCRIPTION NO, NO. NO,

309 693054 797A

310 94003

Motor-Starter

(3 5/8" Housing Lgth.)

Note

499521 Motor-Starter

(4 3/8" Housing Lgth.)

Bolt

(Starter Motor)

(For 3 5/8" Housing

Length) Note

95035 Bolt

(Starter Motor)

(For 4 3/8" Housing

Length)

Included in Gasket Set-Part No, 497511.

•Included in Carburetor Kit-Part No. 497450.

311 497608

503 806000

510 497606

513 398003

544 497603

697 94773

729 225170

783 693059

797 92278

DESCRIPTION

Brush Set

Strap-Starter

Drive-Starter

Clutch-Drive

Armature-Starter

(3 5/6" Housing

Length)

Screw

(Starter Motor

Mounting)

Clip-Wire

Gear-Starter

Nut

(Starter Terminal)

PART

NO. DESCRIPTION

693167 Nut

(Starter Terminal)

801 497626 Cap-Drive

802 497607 Cap-End

803 497604 Housing-Starter

(3 5t8" Housing

Length)

1051 263080 Ring-Retaining

1090 497605 Retainer-Brush

Included in Carburetor Gasket Set-Part No. 497069.

O Included in Valve Overhaul Gasket Set-Part No. 498538.

32 -- ENG

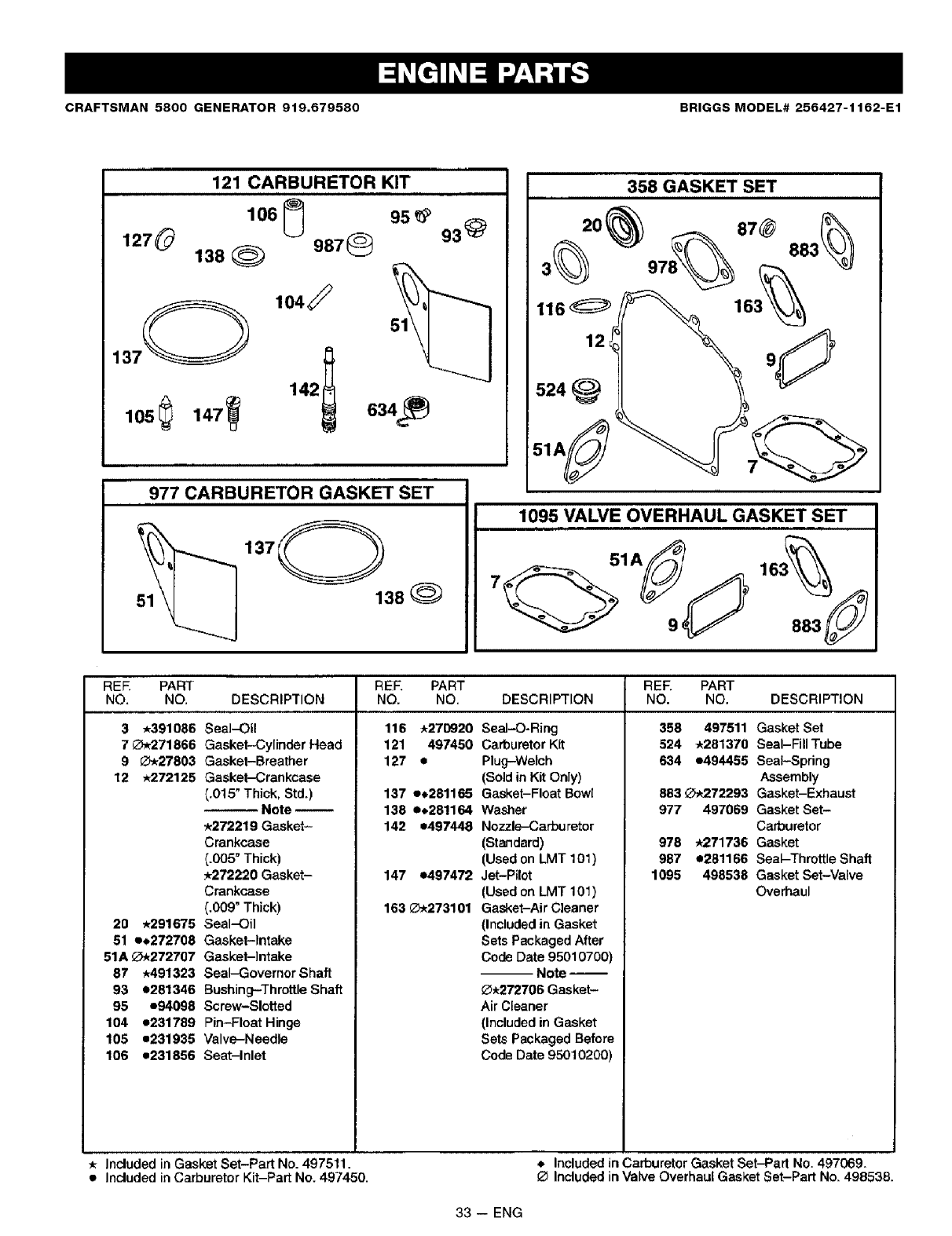

CRAFTSMAN 5800 GENERATOR 919.579580 BRIGGS MODEL# 256427-1162-E1

121 CARBURETOR KIT

108

1270 987@

138

95_ 93 _

634_

977 CARBURETOR GASKET SET

137_ (_

138

358 GASKET SET

87@

116 _163 _

524

1095 VALVE OVERHAUL GASKET SET

REE PART

NO. NO. DESCRIPTION

3*391086 Seal-Oil

7_'_r271866

9 2P,r27803

12 *272125

20 *291675

51 o.272708

51A_272707

87 *491323

93 e281346

95 e94098

104 e231789

105 e231935

106 e231856

Gasket-Cylinder Head

Gasket-Breather

Gasket-Crankcase

1.015"Thick, Std.)

Note

_r272219 Gasket-

Crankcase

(.005" Thick)

_272220 Gasket-

Crankcase

(.009" Thick)

Seal-Oil

Gasket-Intake

Seal-Governor Shaft

Bushing-Throttle Shaft

Screw-Slotted

Pin-Float Hinge

Valve-Needle

Seat-Inlet

. Included in Gasket Set-Part No. 497511.

• Included inCarburetor Kit-Part No. 497450.

REF.

NO.

116

121

127

137

138

142

147

163

PART REF. PART

NO. DESCRIPTION NO. NO. DESCRIPTION

_270920

497450

•,281165

o.281164

e497448

•497472

_:_,k273101

Seal-.-O-Ring

Carburetor Kit

Plug-Welch

(Sold in Kit Only)

Gasket-Float Bowl

Washer

Nozzle-Carbu retor

(Standard)

(Used on LMT 101)

Jet-Pilot

(Used on LMT 101)

Gasket-Air Cleaner

(Included in Gasket

Sets Packaged After

Code Date 95010700)

Note

_272706 Gasket-

Air Cleaner

(Included in Gasket

Sets Packaged Before

Code Date 95010200)

358 497511 Gasket Set

524 *281370 Seal-Fill Tube

634 •494455 Seal-Spring

Assembly

883 _,_272293 Gasket-Exhaust

977 497069 Gasket Set-

Carburetor

-k271736 Gasket

• 281166 Seal-Throttle Shaft

498538 Gasket Set-Valve

Overhaul

978

987

1095

÷Included inCarburetor Gasket Set-Part No. 497069.

OIncluded in Valve Overhaul Gasket Set-Part No. 498538.

33 -- ENG

Briggs & Stratton Corporation (B&S), the California Air Resources Board (CARB)

and the United States Environmental Protection Agency (U.S. EPA)

Emission Control System Warranty Statement (Owner's Defect Warranty Rights and Obligations)

Inthe interest of the environment, B&S enginesthat meet strict emis- TO CERTIFIED ENGINES PURCHASED IN CALIFORNIA IN 1995

sion requirements are labeled, 'q-his engine conforms to 1995 - 1998 AND THEREAFTER, WHICH ARE USED IN CALIFORNIA, AND

California emission regulations for ULGE engines and U.S. EPA TO CERTIFIED MODEL YEAR 1997 AND LATER ENGINES

Phase I regulations for small non-road engines." WHICH ARE PURCHASED AND USED ELSEWHERE IN THE

EMISSION CONTROL WARRANTY COVERAGE IS APPLICABLE UNITED STATES.

California and United States Emission Control Defects Warranty Statement

CARB, U.S. EPA and B&S are pleased to explain the Emission

Control System Warranty on your 1996 and later utility or lawn and

garden equipment (ULGE) engine. In California, new ULGE engines

produced on or after August 1, 1995 must be designed, built and

equipped to meet the State's stringent anti-smog standards., Else-

where in the United States, new non-road, spark-ignition engines

certified for model year 1997 and later, must meet similar standards

set forth by the U.S. EPA. B&S must warrant the emission control

system on your engine for the periods of time listed below, provided

there has been no abuse, neglect or improper maintenance of your

ULGE engine.

Your emission control system includes parts such as the carburetor,

air cleaner, ignition system, muffler and catalytic converter. Also

included may be connectors and other emission related assemblies.

Where a warrantable condition exists, B&S will repair your ULGE

engine at no cost to you including diagnosis, parts and labor.

Briggs & Stratton Emission Control Defects Warranty Coverage

ULGE engines are warranted relative to emission control parts below. Ifany covered part on your engine isdefective, the part will be

defects for a period of two years, subject to provisions set forth repaired or replaced by B&S.

Owner's Warranty Responsibilities

As the ULGE engine owner, you are responsible for the performance

of the required maintenance listed in your Operator/Owner Manual.

B&S recommends that you retain att your receipts covering mainte-

nance on your ULGE engine, but B&S cannot deny warranty solely

for the lack of receipts orfor your failure to ensure the performance of

all scheduled maintenance.

As the ULGE engine owner, you should however be aware that B&S

may deny you warranty coverage ifyour ULGE engine or a part has

failed due to abuse, neglect, improper maintenance or unapproved

modifications.

You are responsible for presenting your ULGE engine to an Autho-

rized B&S Service Dealer as soon as a problem exists. The undis-

puted warranty repairs should be completed in a reasonable amount

of time, not to exceed 30 days.

if you have any questions regarding your warranty rights and

responsibilities, you should contact a B&S Service Representative

at 1-414-259-5262.

The emission warranty is a defects warranty. Defects are judged on

normal engine performance. The warranty isnot related to an in-use

emission test.

Briggs & Stratton Emission Control Defects Warranty Provisions

The following are specific provisions relative to your Emission Control Defects Warranty Coverage. It is in addition to the B&S engine warranty

for non-regulated engines found in the Operator/Owner Manual.

1. Warranted Parts

Coverage under this warranty extends only to the parts listed

below (the emission control systems parts) to the extent these

parts were present on the engine purchased.

a. Fuel Metering System

• Cold start enrichment system (soft choke)

• Carburetor and internal parts

• Fuel Pump

b. Air Induction System

•Air cleaner

• Intake manifold

c. Ignition System

•Spark plug(s)

• Magneto ignition system

d. Catalyst System

• Catalytic converter

• Exhaust manifold

• Air injection system or pulse valve

e. Miscellaneous Items Used in Above Systems

• Vacuum, temperature, position, time sensitive valves

and switches

• Connectors and assemblies

2. Length of Coverage

B&S warrants to the initial owner and each subsequent purchaser

that the Warranted Parts shall be free from defects in materials

and workmanship which caused the failure of the Warranted

Parts for a period of two years from the date the engine is deliv-

ered to a retail purchaser.

3. NOCharge

Repair or replacement of any Warranted Part will be performed

at no charge to the owner, including diagnostic labor which leads

to the determination that a Warranted Part is defective, if the

diagnostic work is performed at an Authorized B&S Service

Dealer. For emissions warranty service contact your nearest

Authorized B&S Service Dealer as listed in the "Yellow Pages"

under "Engines, Gasoline," "Gasoline Engines," "Lawn

Mowers," or similar category.

4. Claims and Coverage Exclusions

Warranty claims shall be filed in accordance with the provisions

of the B&S Engine Warranty Policy. Warranty coverage shall be

excluded for failures of Warranted Parts which are not original

B&S parts or because of abuse, neglect or improper mainte-

nance as set forth inthe B&S Engine Warranty Policy. B&S is not

liable to cover failures of Warranted Parts caused by the use of

add-on, non-original, or modified parts.

5. Maintenance

Any Warranted Part which is not scheduled for replacement as

required maintenance or which is scheduled only for regular

inspection to the effect of "repair or replace as necessary" shall

be warranted as to defects for the warranty period. Any

Warranted Part which is scheduled for replacement as required

maintenance shall bewarranted as to defects onlyfor the period

of time up to the first scheduled replacement for that part. Any

replacement part that is equivalent in performance and durability

may be used in the performance of any maintenance or repairs.

The owner is responsible for the performance of all required

maintenance, as defined in the B&S Operator/Owner Manual.

6. Consequential Coverage

Coverage hereunder shall extend to the failure of any engine

components caused by the failure of any Warranted Part still

under warranty.

34 -- ENG

Briggs& Strattonwelcomeswarrantyrepairandapologizes

to youfor beinginconvenienced.AnyAuthorizedService

Dealermayperformwarrantyrepairs.Mostwarrantyrepairs

arehandledroutinely,butsometimesrequestsforwarranty

servicemaynotbeappropriate.Forexample,warrantywould

notapplyifenginedamageoccurredbecauseofmisuse,lack

ofroutinemaintenance,shipping,handling,warehousingor

improperinstallation.Similarly,warrantyisvoidif theserial

numberoftheenginehasbeenremovedortheenginehas

beenalteredormodified.

IfacustomerdifferswiththedecisionoftheService,Dealer, an

investigation will be made to determine whether the warranty

applies. Ask the Service Dealer to submit all supporting facts to

his Distributor or the Factory for review. If the Distributor or the

Factory decides that the claim is justified, the customer will be

fully reimbursed for those items that are defective. To avoid

misunderstanding which might occur between the customer

and the Dealer, listed below are some of the causes of engine

failure that the warranty does not cover.

Improper maintenance:

The life of an engine depends upon the conditions under

which it operates, and the care it receives. Some applications,

such as tillers, pumps and rotary mowers, are very often used

in dusty or dirty conditions, which can cause what appears to

be premature wear. Such wear, when caused by dirt, dust,

spark plug cleaning grit, or other abrasive material that has

entered the engine because of improper maintenance, is not

covered by warranty.

This warranty covers engine related defective material

and/or workmanship _and not replacement or refund

of the equipment to which the engine may be mounted.

Nor does the warranty extend to repairs required

because of:

PROBLEMS CAUSED BY PARTS THAT ARE NOT

ORIGINAL BRIGGS & STRATTON PARTS.

Equipment controls or installations that prevent starting,

cause unsatisfactory engine performance, or shorten

engine life. (Contact equipment manufacturer.)

Leaking carburetors, clogged fuel pipes, sticking valves,

or other damage, caused by using contaminated or stale

fuel. (Use clean, fresh, lead-free gasoline and Briggs &

Stratton gasoline stabilizer, Part No. 5041 .)

4. Parts which are scored or broken because an engine was

operated with insufficient or contaminated lubricating oil,

or an incorrect grade of lubricating oil (check oil level daily

or after every 8 hours of operation. Refill when necessary

and change at recommended intervals.) Read "Owner's

Manual."

5. Repair or adjustment of associated parts or assemblies

such as clutches, transmissions, remote controls, etc.,

which are not manufactured by Briggs & Stratton.

6. Damage or wear to parts caused by dirt, which entered

the engine because of improper air cleaner maintenance,

re-assembly, or use of a non-original air cleaner element

or cartridge. (At recommended intervals, clean and re-oil

the Oil-Foam@ element or the foam pre-cleaner, and

replace the cartridge.) Read "Owner's Manual."

7. Parts damaged by overspeeding, or overheating caused

by grass, debris, or dirt, which plugs or clogs the cooling

fins, or flywheel area, or damage caused by operating the

engine in a confined area without sufficient ventilation.

(Clean fins on the cylinder, cylinder head and flywheel at

recommended intervals.) Read "Owner's Manual."

8. Engine or equipment parts broken by excessive vibration

caused by a loose engine mounting, loose cutter blades,

unbalanced blades or loose or unbalanced impellers,

improper attachment of equipment to engine crankshaft,

overspeeding or other abuse in operation.

9. A bent or broken crankshaft, caused by striking a solid

object with the cutter blade of a rotary lawn mower, or

excessive v-belt tightness.

10. Routine tune-up or adjustment of the engine.

11. Engine or engine component failure, i.e., combustion

chamber, valves, valve seats, valve guides, or burned

starter motor windings, caused by the use of alternate

fuels such as, liquified petroleum, natural gas, altered

gasolines, etc.

35 - ENG

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME '° (1-800-469-4663)

Para pedir servicio de reparacibn a domicillo -- 1-800-676-5811

In Canada for all your service and parts needs call 1-800-665-4455

Au Canada pour tout le service ou les pieces

For the repair or replacement parts you need:

Call 6 am - 11 pm CST, 7 days a week

PartsDirect TM

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicillo -- 1-800-1659-7084

For the location of a Sears Parts and Repair Center in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance Agreement

or to inquire about an existing Agreement:

Call 9 am _5 pm, Monday _Saturday

1-800-827-6655

HomeCentraF

Craftsman 919679580 User Manual GENERATOR Manuals And Guides L0412370

CRAFTSMAN Generator Manual L0412370 CRAFTSMAN Generator Owner's Manual, CRAFTSMAN Generator installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
