Caution:

Read and fol low

all Safety Rules

and In struc tions

Be fore Op er at ing

This Equip ment

MODEL NO.

944.524410

OWNER’S

MANUAL

• Assembly

• Operation

• Maintenance

• Service and Adjustments

• Repair Parts

1450 SERIES B&S ENGINE

24" TWO-STAGE

POWER-PROPELLED

SNOW THROWER

Sears Canada, Inc., Toronto, Ontario M5B 2B8

587392327 Rev. 1

Gasoline containing up to 10% ethanol (E10) is acceptable for use in this machine.

The use of any gasoline exceeding 10% ethanol (E10) will void the product warranty.

2

IMPORTANT

Safe Operation Practices for Walk-Behind Snow Throwers

This snow thrower is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury.

WARNING: This snow thrower is for

use on sidewalks, driveways and other

ground level surfaces. Caution should

be exercised while using on sloping

surfaces. Do not use snow thrower on

surfaces above ground level such as

roofs of residences, garages, porch es

or other such structures or buildings.

WARNING: Snow throwers have ex-

posed rotating parts, which can cause

severe injury from contact, or from ma-

terial thrown from the discharge chute.

Keep the area of operation clear of all

persons, small children and pets at all

times including startup.

WARNING: Always disconnect spark

plug wire and place it where it can not

con tact plug in order to pre vent ac ci-

den tal start ing when setting up, trans-

port ing, ad just ing or making re pairs.

Look for this symbol to point out im-

por tant safety precautions. It means

CAUTION!!! BE COME ALERT!!! YOUR

SAFE TY IS IN VOLVED.

CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine

has stopped. To avoid severe burns on

contact, stay away from these areas.

WARNING: Engine exhaust, some of

its con stit u ents, and certain vehicle

com po nents contain or emit chem i-

cals known to the State of Cal i for nia

to cause can cer and birth defects or

oth er re pro duc tive harm.

(f) Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times, until refueling

is complete. Do not use a nozzle lock-open device.

(g) Replace gasoline cap securely and wipe up spilled

fuel.

(h) If fuel is spilled on clothing, change clothing im-

mediately.

5. Use extension cords and receptacles as specified by

the manufacturer for all units with electric drive motors

or electric starting motors.

6. Adjust the collector housing height to clear gravel or

crushed rock surface.

7. Never attempt to make any adjustments while the

engine (motor) is running (except when specifically

recommended by manufacturer).

8. Always wear safety glasses or eye shields during op-

eration or while performing an adjustment or repair to

protect eyes from foreign objects that may be thrown

from the machine.

9. Use ear protectors to avoid damage to hearing.

Operation

1. Do not put hands or feet near or under rotating parts.

Keep clear of the discharge opening at all times.

2. Exercise extreme caution when operating on or cross-

ing gravel drives, walks, or roads. Stay alert for hidden

hazards or traffic.

3. After striking a foreign object, stop the engine (motor),

remove the wire from the spark plug, disconnect the

cord on electric motors, thoroughly inspect the snow

thrower for any damage, and repair the damage before

restarting and operating the snow thrower.

4. If the unit should start to vibrate abnormally, stop the

engine (motor) and check immediately for the cause.

Vibration is generally a warning of trouble.

5. Stop the engine (motor) whenever you leave the oper-

ating position, before unclogging the collector/impeller

housing or discharge chute, and when making any

repairs, adjustments or inspections.

Training

1. Read, understand and follow all instructions on the

machine and in the manual(s) before operating this

unit. Be thoroughly familiar with the controls and the

proper use of the equipment. Know how to stop the

unit and disengage the controls quickly.

2. Never allow children to operate the equipment. Never

allow adults to operate the equipment without proper

instruction.

3. Keep the area of operation clear of all persons, par-

ticularly small children.

4. Exercise caution to avoid slipping or falling, especially

when operating the snow thrower in reverse.

Preparation

1. Thoroughly inspect the area where the equipment is

to be used and remove all doormats, sleds, boards,

wires, and other foreign objects.

2. Disengage all clutches and shift into neutral before

starting the engine (motor).

3. Do not operate the equipment without wearing adequate

winter garments. Avoid loose fitting clothing that can

get caught in moving parts. Wear footwear that will

improve footing on slippery surfaces.

4. Handle fuel with care; it is highly flammable

(a) Use an approved fuel container.

(b) Never add fuel to a running engine or hot engine.

(c) Fill fuel tank outdoors with extreme care. Never fill

fuel tank indoors.

(d) Never fill containers inside a vehicle or on a truck

or trailer bed with a plastic liner. Always place

containers on the ground, away from your vehicle,

before filling.

(e) When practical, remove gas-powered equipment

from the truck or trailer and refuel it on the ground.

If this is not possible, then refuel such equipment

on a trailer with a portable container, rather than

from a gasoline dispenser nozzle.

3

MAINTENANCE SCHEDULE ..................................... 15

MAINTENANCE ..................................................... 15-16

SERVICE AND AD JUST MENTS ........................... 17-19

STORAGE ................................................................... 20

TROU BLE SHOOT ING ................................................ 21

REPAIR PARTS ..................................................... 22-45

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ................................ 3

WARRANTY .................................................................. 4

ASSEMBLY / PRE-OPERATION ............................... 5-8

OPERATION ............................................................ 9-14

TABLE OF CONTENTS

CONGRATULATIONS on your purchase of a new snow

thrower. It has been designed, engineered and man u fac-

tured to give best possible dependability and per for mance.

Should you experience any problem you cannot easily

remedy, please contact your nearest authorized service

center. We have competent, well-trained tech ni cians and

the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your snow thrower

prop er ly. Always observe the “SAFETY RULES”.

SERIAL NUMBER: ___________________________

DATE OF PURCHASE: _______________________

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A DECAL ATTACHED TO THE REAR OF THE SNOW

THROWER HOUSING.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for

and using your snow thrower.

• Follow the instructions under “Maintenance” and “Stor-

age” sec tions of this own er’s manual.

6. When cleaning, repairing or inspecting the snow

thrower, stop the engine and make certain the collector/

impeller and all moving parts have stopped. Disconnect

the spark plug wire and keep the wire away from the

plug to prevent someone from accidentally starting the

engine.

7. Do not run the engine indoors, except when starting

the engine and for transporting the snow thrower in or

out of the building. Open the outside doors; exhaust

fumes are dangerous.

8. Exercise extreme caution when operating on slopes.

9. Never operate the snow thrower without proper guards,

and other safety protective devices in place and working.

10. Never direct the discharge toward people or areas

where property damage can occur. Keep children and

others away.

11. Do not overload the machine capacity by attempting

to clear snow at too fast a rate.

12. Never operate the machine at high transport speeds

on slippery surfaces. Look behind and use care when

operating in reverse.

13. Disengage power to the collector/impeller when snow

thrower is transported or not in use.

14. Use only attachments and accessories approved by

the manufacturer of the snow thrower (such as wheel

weights, counterweights, or cabs).

15. Never operate the snow thrower without good visibility

or light. Always be sure of your footing, and keep a

firm hold on the handles. Walk; never run.

16. Never touch a hot engine or muffler.

Clearing a Clogged Discharge Chute

Hand contact with the rotating impeller inside the discharge

chute is the most common cause of injury associated with

snow throwers. Never use your hand to clean out the dis-

charge chute. To clear the chute:

1. SHUT THE ENGINE OFF!

2. Wait 10 seconds to be sure the impeller blades have

stopped rotating.

3. Always use a clean-out tool, not your hands.

Maintenance and Storage

1. Check shear bolts and other bolts at frequent intervals

for proper tightness to be sure the equipment is in safe

working condition.

2. Never store the machine with fuel in the fuel tank inside

a building where ignition sources are present such as

hot water heaters, space heaters, or clothes dryers.

Allow the engine to cool before storing in any enclosure.

3. Always refer to operator’s manual for important details

if the snow thrower is to be stored for an extended

period.

4. Maintain or replace safety and instruction labels, as

necessary.

5. Run the machine a few minutes after throwing snow

to prevent freeze-up of the collector/impeller.

PRODUCT SPECIFICATIONS

Gasoline Capacity 3.2 Quarts (3.03 Liters)

and Type: Unleaded Regular only

Oil Type SAE 5W-30 or 10W-30

(API SG–SL): Synthetic SAE 5W-30

Oil Capacity: 28 Ounces (0,62 Liters)

Spark Plug: Champion QC12YC

Gap: 0.030" (0,762 mm)

4

GENERAL: Craftsman products are warranted to be free from defects in materials or workmanship for a specific time period

as set-out below (the “Warranty Period”). Warranties extend to the original purchaser of a Craftsman product only. Purchases

made through an online auction or through any website other than www.sears.ca are excluded. The relevant Warranty Period

commences on the original date of purchase. Within this period, SEARS CANADA, Inc. will, at its sole option, repair or replace

any products or components which fail in normal use. Such repairs or replacement will be made at no charge to the customer for

parts or labor, provided that the customer shall be responsible for any transportation cost.

EXCLUSIONS: This warranty does not cover failures due to normal wear, abuse, misuse, neglect (including but not limited to

the use of stale fuel, dirt, abrasives, moisture, rust, corrosion, or any adverse reaction due to improper storage or use habits),

improper maintenance or failure to follow maintenance guidelines and/or instructions, failure to operate the product in accordance

with the owner’s manual or any additional instructions or information provided at the time of purchase or in subsequent

communications with the original purchaser, accident or unauthorized alterations or repairs made or attempted by others. Also

excluded from warranty coverage - except as provided below - are the following: maintenance, adjustments, components subject

to wear including but not limited to: cosmetic components, belts, blades, blade adapters, bulbs, tires, filters, guide bars, lubricants,

seats, grips, recoil assy’s, saw chains and bars, trimmer lines and spools, spark plugs, starter ropers and tines, and discoloration

resulting from ultraviolet light. Any product missing the model and/or serial number identification label will be disqualified from

coverage under this warranty.

REPAIRS: Repairs have a 90 day warranty. If the defective product is still within the Warranty Period, then the new warranty is 90

days from the date of repair or to the end of the original Warranty Period, whichever period is longer.

DISCLAIMERS: THE WARRANTIES AND REMEDIES CONTAINED HEREIN ARE EXCLUSIVE AND IN LIEU OF ALL OTHER

WARRANTIES, WHETHER ORAL OR WRITTEN (OTHER THAN AS STATED HEREIN), AND WHETHER EXPRESS, IMPLIED

OR STATUTORY, INCLUDING BUT NOT LIMITED TO ANY. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH

MAY VARY FROM PROVINCE TO PROVINCE.

IN NO EVENT SHALL SEARS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES,

WHETHER RESULTING FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE

PRODUCT. THE EXCLUSIONS IN THIS PARAGRAPH SHALL NOT APPLY IN JURISDICATIONS WHERE APPLICABLE LAW

DOES NOT ALLOW FOR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. IN SUCH JURISDICTIONS,

THIS PARAGRAPH SHALL NOT APPLY, BUT THE REMAINING PROVISIONS OF THIS DOCUMENT SHALL REMAIN VALID.

SEARS retains the exclusive right to repair or replace the product or offer a full refund of the purchase price at its sole discretion.

SUCH REMEDY SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.

CUSTOMER RESPONSIBILITIES: In additional to complying with all suggested maintenance guidelines and instructions,

customers’ obligations shall include but shall not be limited to: operating the product in accordance with the owner’s manual or

any additional instructions or information provided at the time of purchase or in subsequent communications to the purchaser from

time to time, exhibit reasonable care in the use, operation, maintenance, general upkeep and storage of the product. Failure to

comply with these requirements will void any applicable warranty.

LIST OF APPLICABLE WARRANTY PERIODS: The following list contains the applicable Warranty Period for your Craftsman

product and is based on a combination of the type of product or component and the intended and actual use of the product or

component:

1. 90 DAYS: Craftsman products intended for use or actually used for commercial, institutional, professional or income-

producing purposes

2. 2 YEARS: Craftsman riding lawn mowers, yard and garden tractors, walk behind mowers, tillers, brush cutters,

snow blowers, handheld blowers, backpack blowers, hedge trimmers and electrical products for noncommercial,

nonprofessional, non-institutional, or non-income-producing use, except for those components which are part of engine

systems manufactured by third party engine manufacturers for which the purchase has received an separate warranty with

product information supplied at the time of purchase.

3. 1 YEAR: Craftsman power cutters, stump grinders, pole pruners, gas chain saws, electric chain saws, trimmer

attachments, baggers and pole saws for noncommercial, nonprofessional, non-institutional, or non-income-producing use.

4. 90 DAYS: All defective batteries, which will be replaced during this 90-day Warranty Period.

5. 60 DAYS: Additional Warranty Period of 60 days will apply to adjustments and worn products or components BUT DOES

NOT INCLUDE WEAR OR ADJUSTMENTS for products used for commercial, institutional, professional or income-

producing purposes. Wear items include but are not limited to: belts, blades, tires, spark plugs, air filters, chains, shear

bolts, skid plates, scraper bars, drift cutters, ropes, tines, collection bags and pulleys.

As the Warranty Period runs from the date of purchase and NOT from the date that a product is delivered, opened, assembled or

first used, please ensure during this time period that your product or component has been assembled and tested for correction

operation regardless of when you intend to actually use it. Claims made after the Warranty Period has expired will not be

honored.

PROOF OF PURCHASE/DOCUMENTATION: Warranty coverage is conditioned upon the original purchaser furnishing SEARS

CANADA or its authorized third party service provider if applicable, with the original sales receipt or other adequate written proof

of the original purchase date and identification of the product. In the event that the original purchaser is unable to provide a

company of the original sales receipt, SEARS CANADA Inc. reserves the right to determine in its sole discretion what other written

proof of the original purchase date and identification of the product is acceptable.

5

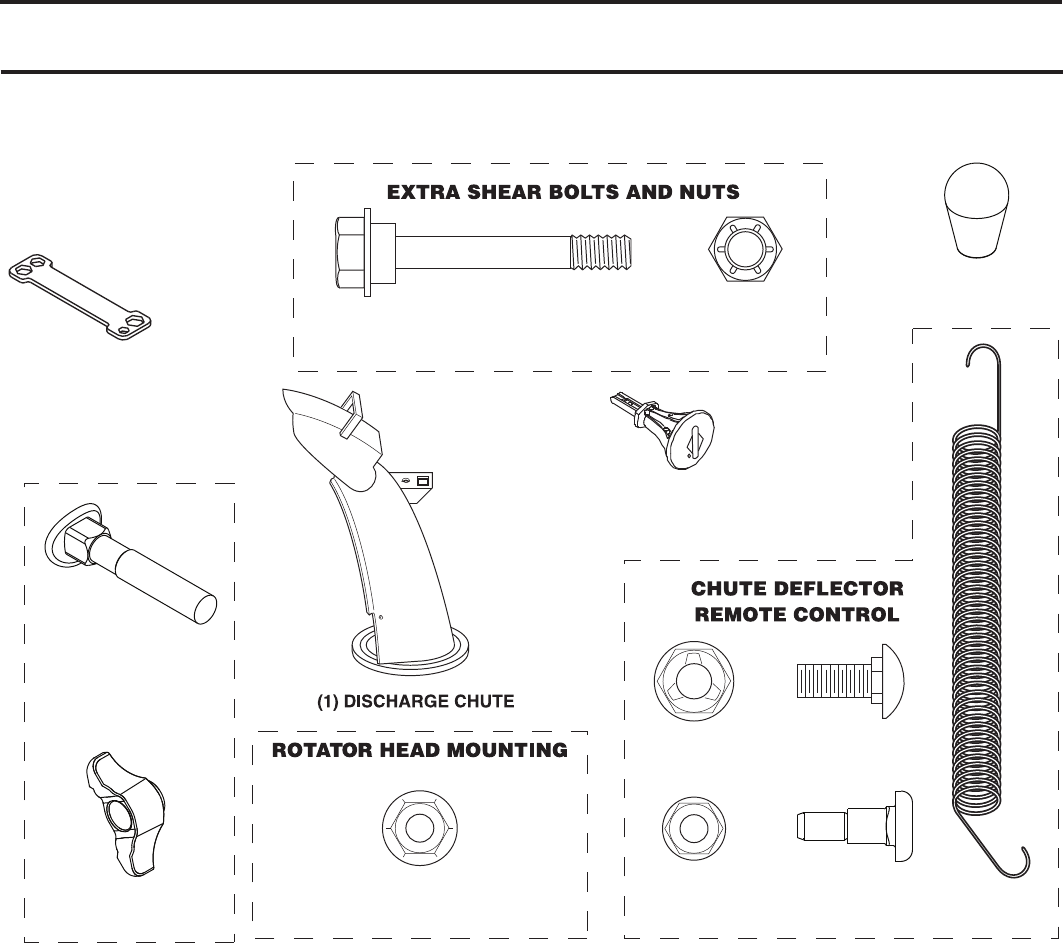

PARTS PACKED SEPARATELY IN CARTON

(1) MULTI-

WRENCH

(180684)

(1) LOCKNUT

5/16-18

(73970500)

(1) CARRIAGE BOLT

5/16-18 x 5/8

(585832001)

(1) LOCKNUT

1/4-20

(585691401)

(1) SHOULDER

BOLT 1/4-20

(585832201)

(1) SPRING

(184505)

(2) SHEAR BOLTS 1/4-20 x 1-3/4

(585511801)

(2) LOCKNUTS

1/4-20

(73800400)

(1) LOCKNUT 3/8

(585691001)

(3) KNOB

581697501

SAFTEY IGNITION KEY (S)

(193071)

(2) CARRIAGE BOLTS

5/16-18 x 2 1/4”

(587359001)

(2) HANDLE KNOBS

(189713)

6

ASSEMBLY / PRE-OPERATION

Read these instructions and this manual in its entirety before you attempt to assemble or operate your new snow

thrower. Reading the entire manual will familiarize you with the unit, which will assist you in assembly, operation

and maintenance of the product.

Your new snow thrower has been as sem bled at the factory with the ex cep tion of those parts left unassembled for shipping

purposes. All parts such as nuts, washers, bolts, etc., necessary to com plete the as sem bly have been placed in the parts

bag. To ensure safe and proper operation of your snow thrower, all parts and hard ware you assemble must be tightened

se cure ly. Use the correct tools as nec es sary to ensure proper tightness.

HANDLE

KNOB

LOWER

HANDLE

CARRIAGE

BOLT

UPPER

HANDLE

FIG. 3

2. Remove and discard temporary mounting bolts.

Adjust the handle height to desired position using the

appropriate mounting holes. Install carriage bolts that

are supplied in the bag of parts and tighten lower handle

knobs securely.

3. Install the additional carriage bolts and handle knobs

that are supplied in the bag of parts to secure upper

handle to lower handle.

FIG. 1

HANDLE

KNOB

MOUNTING

HOLES

TEMPORARY

MOUNTING

BOLT

FIG. 2

CARRIAGE

BOLT

REMOVE SNOW THROWER FROM CAR TON

1. Remove all accessible loose parts and parts boxes

from carton.

2. Cut down all four corners of carton and lay panels flat.

3. Remove the two (2) screws securing the auger housing

to the pallet and remove additional steel brackets from

skid plate if equipped.

4. Remove all packing materials.

5. Remove plastic ties securing the snow thrower to the

pallet.

6. Remove snow thrower from carton and check carton

thor ough ly for ad di tion al loose parts.

HOW TO SET UP YOUR SNOW THROWER

Store the extra shear bolts, nuts and multi-wrench provided

in parts bag.

NOTE: The multi-wrench may be used for assembly of the

chute rotator head to snow thrower and making ad just ments

to the skid plates.

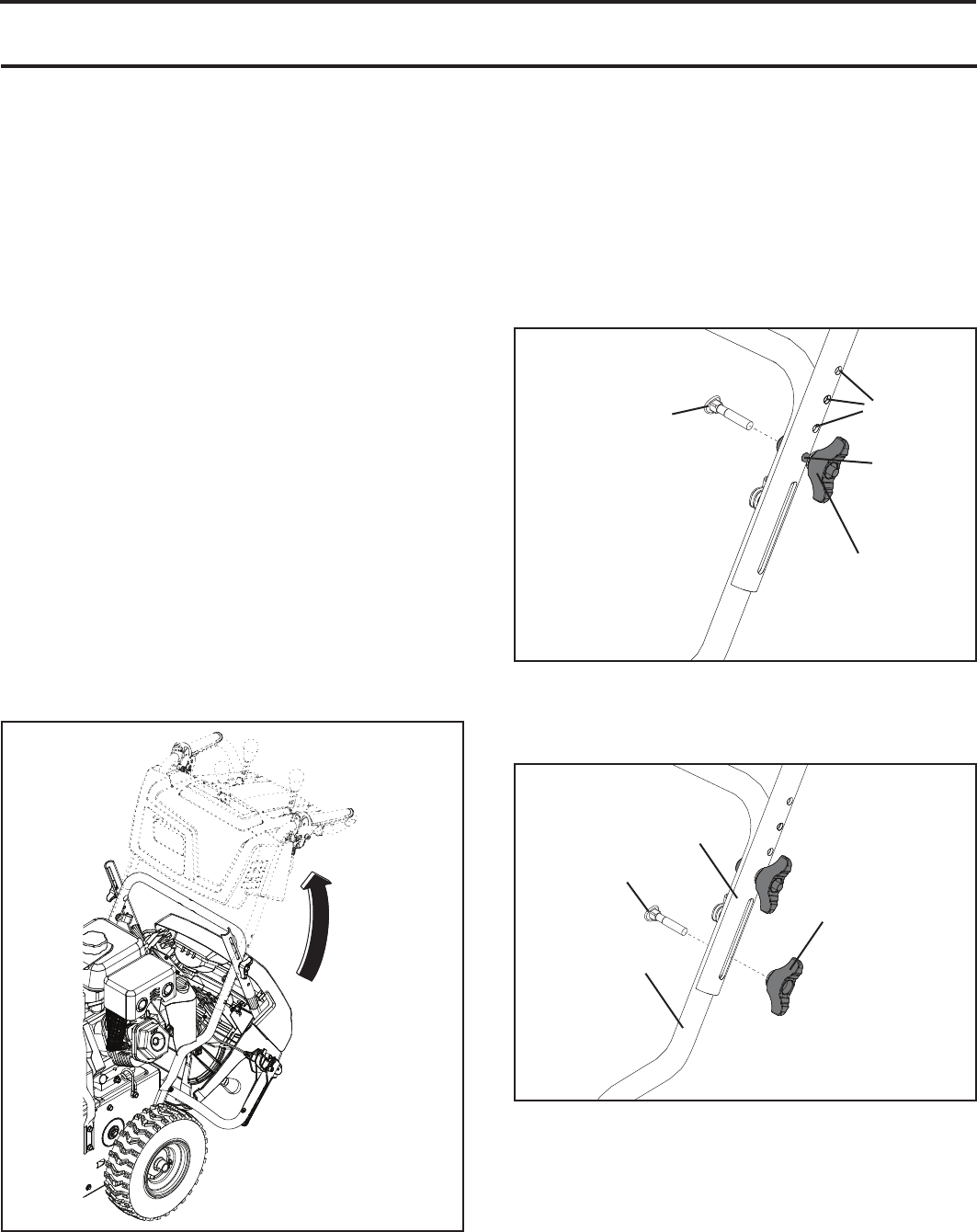

UNFOLD UPPER HANDLE (See Figs. 1-3)

1. Raise upper handle to the operating position.

7

ASSEMBLY / PRE-OPERATION

CHECK TIRE PRESSURE

The tires on your snow thrower were overinflated at the fac-

tory for shipping purposes. Correct and equal tire pres sure

is important for best snow throwing performance.

• Reduce tire pressure to 14-17 PSI.

CONTROL LEVER

KNOB KNOB

FIG. 7

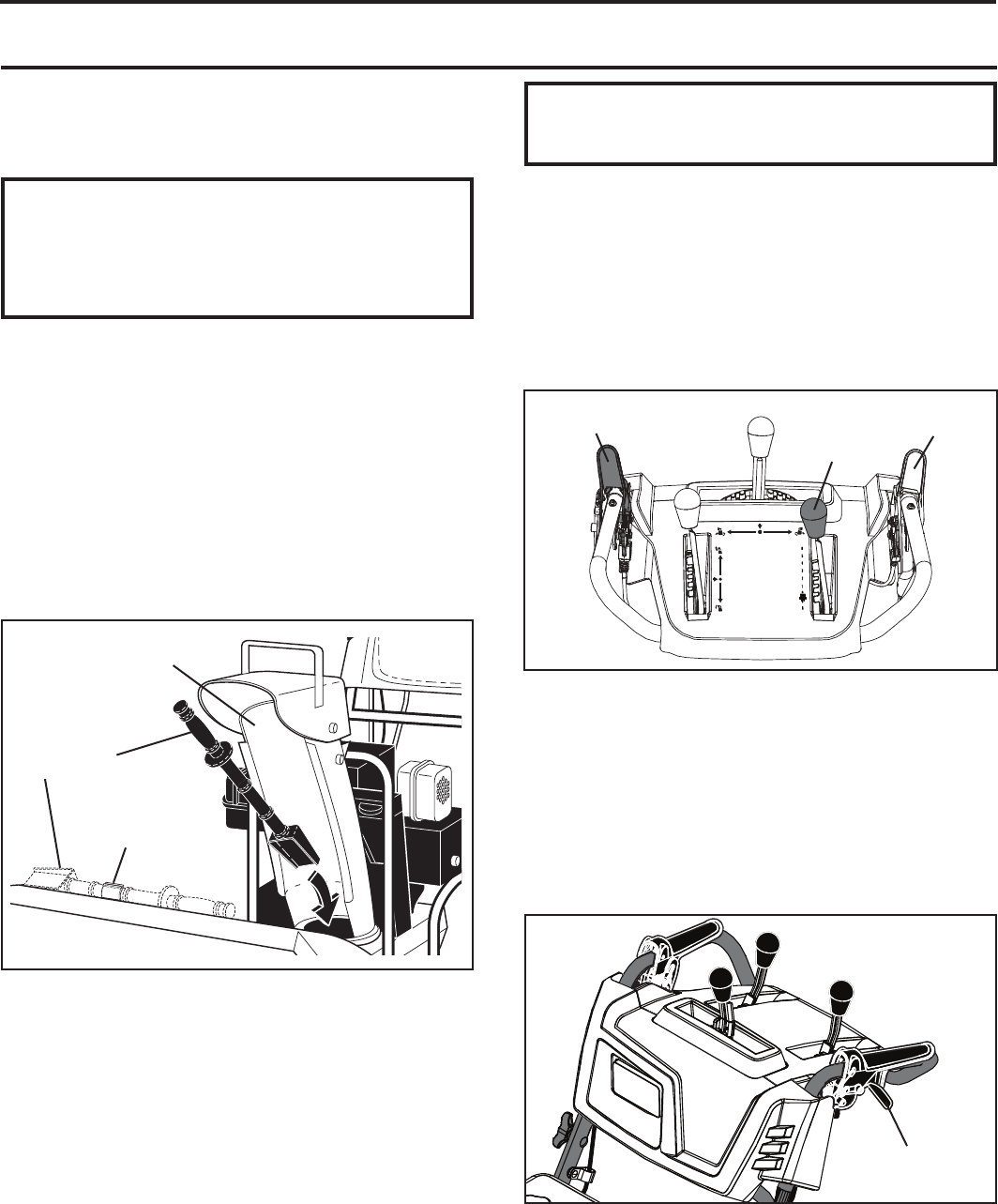

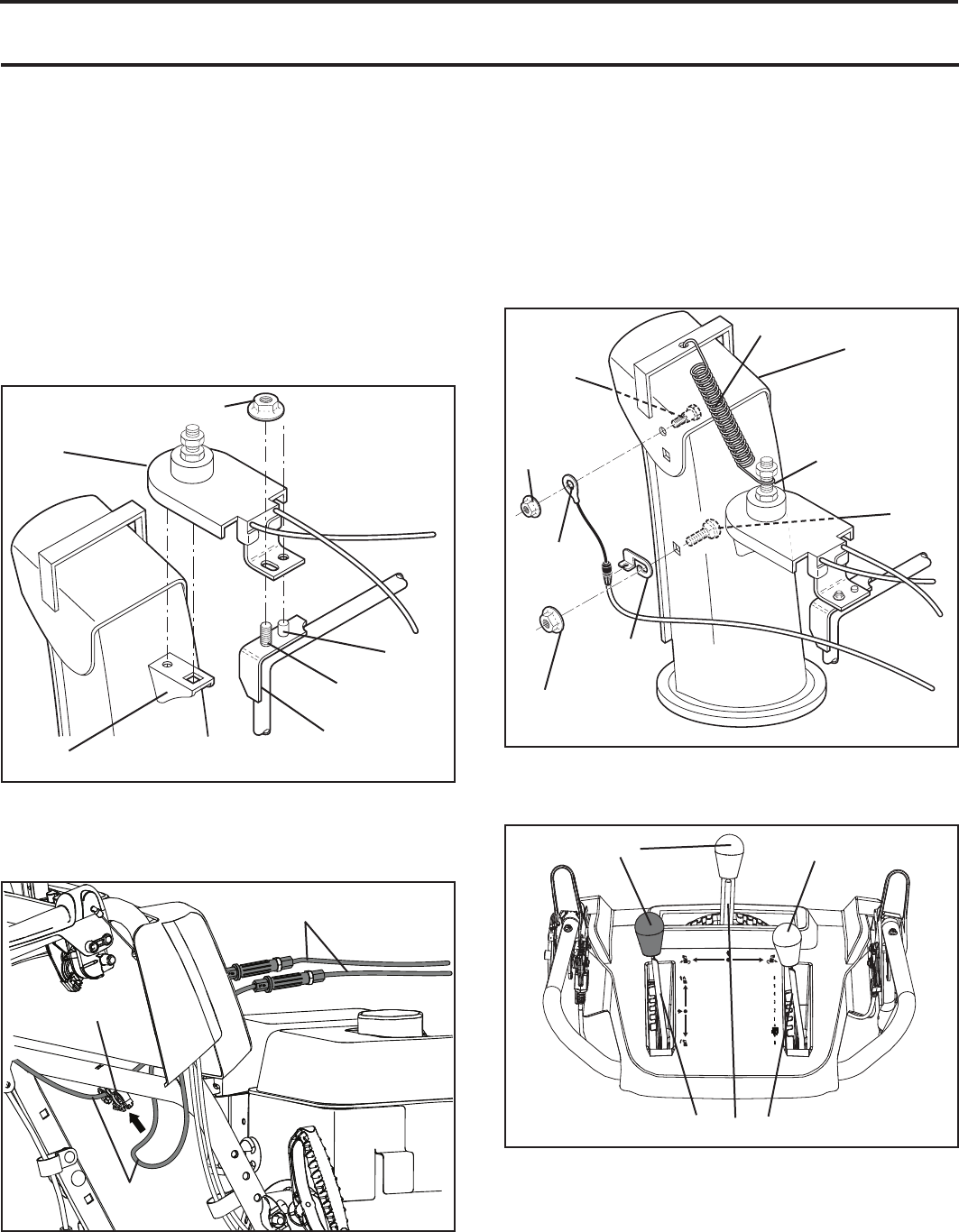

INSTALL DISCHARGE CHUTE / CHUTE ROTATOR HEAD

(See Fig. 4 and 5)

NOTE: The multi-wrench provided in your parts bag may

be used to install the chute rotator head.

1. Place discharge chute assembly on top of chute base

with discharge opening toward front of snow thrower.

2. Position chute rotator head over chute bracket. If nec es-

sary, rotate chute assembly to align square and pin on un-

der side of chute rotator head with holes in chute brack et.

3. With chute rotator head and chute bracket aligned,

po si tion chute rotator head on pin and threaded stud

of mounting bracket.

4. Install locknut and cable guide (if equipped) on threaded

stud and tighten securely.

FIG. 4

CHUTE

ROTATOR

HEAD

LOCKNUT

THREADED

STUD

PIN

ROTATOR HEAD

MOUNT ING

BRACKET

CHUTE

BRACKET

ALIGN BEFORE

TIGHTENING LOCKNUT

FIG. 5

ROTATOR

CABLES

ROTATOR

CABLES

DOUBLE

CLIP

5. Place rotator cables through cable guide (if equipped)

and secure cables to the lower handle using the double

clip.

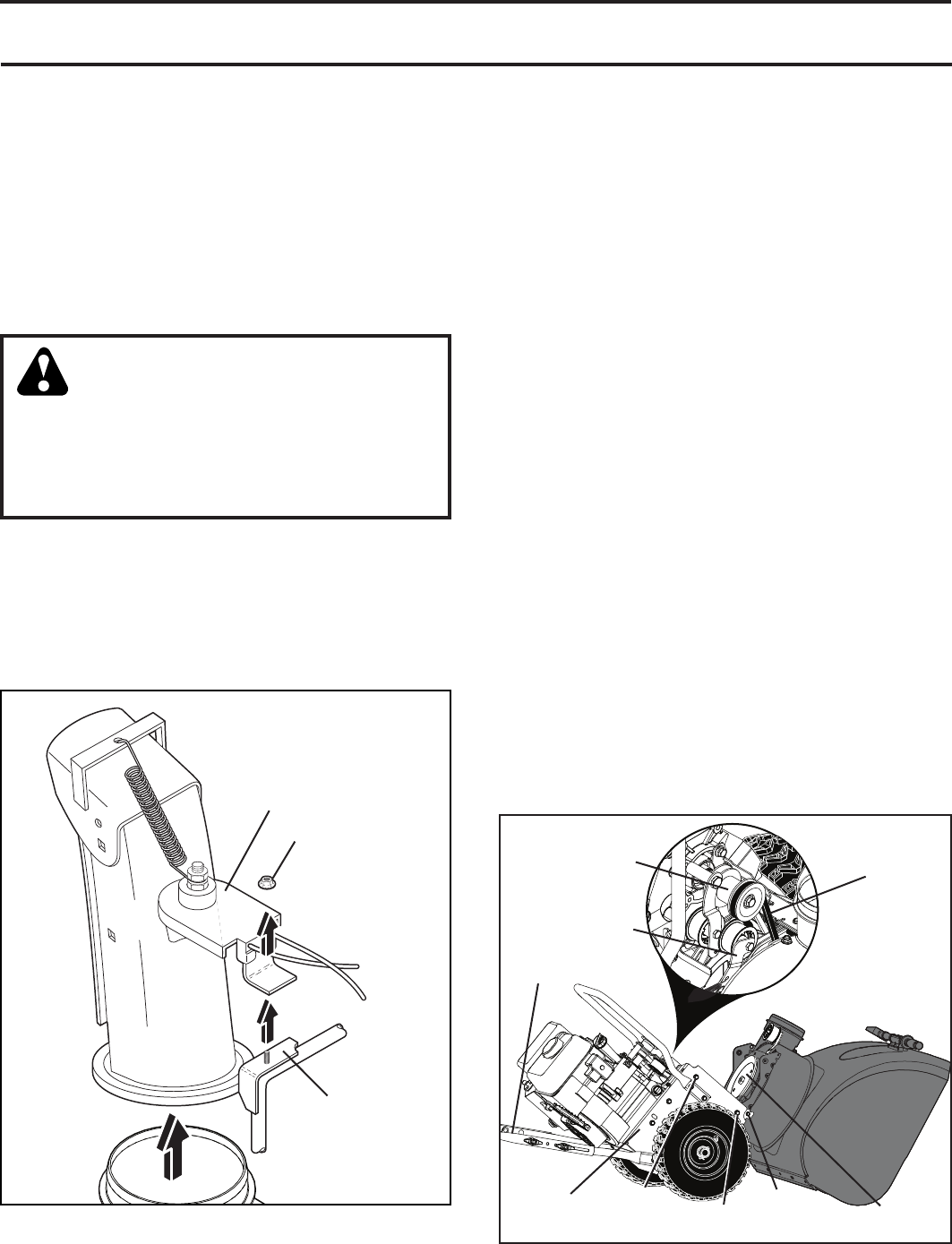

INSTALL CHUTE DEFLECTOR REMOTE CONTROL

(See Figs. 6 and 7)

1. Install remote cable bracket to discharge chute with

5/16-18 carriage bolt and 5/16-18 locknut as shown.

Tighten securely.

2. Install remote cable eyelet to chute deflector with

1/4-20 shoulder bolt and 1/4-20 locknut as shown.

Tighten nut securely. Eyelet will be loose on shoulder

bolt.

3. Install spring hooks between hex nuts on chute rotator

head and into hole in chute deflector as shown.

FIG. 6

HOOK

BE TWEEN

HEX NUTS

ON CHUTE

ROTATOR

HEAD

SPRING CHUTE

DE FLEC TOR

5/16-18

CARRIAGE

BOLT

5/16-18

LOCKNUT

REMOTE

CABLE

BRACKET

1/4-20

LOCK NUT

CABLE

EYELET

1/4-20

SHOULDER

BOLT

4. Install all control lever knobs by pressing them down

onto the control levers.

8

OPERATION

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare

the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save

this manual for future reference.

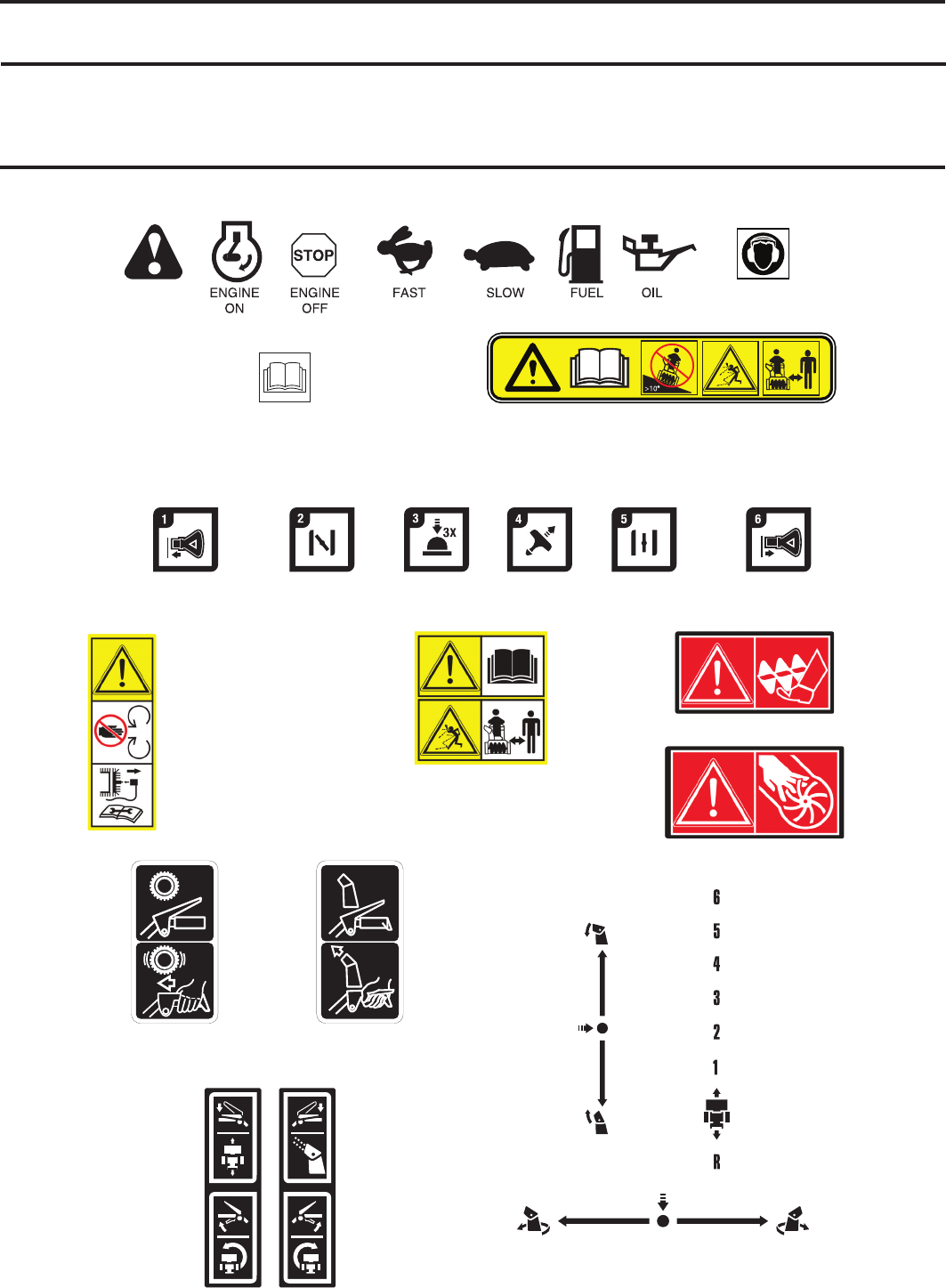

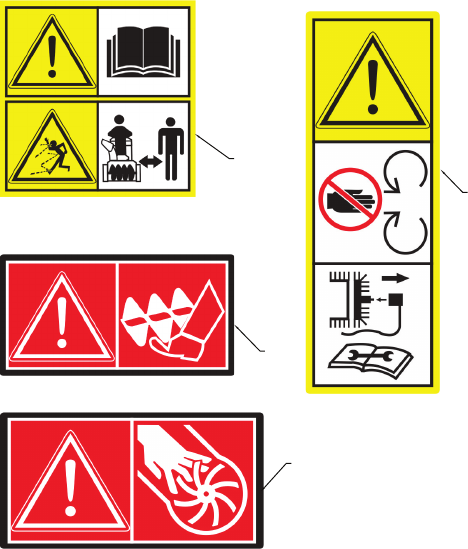

These symbols may appear on your snow thrower or in literature supplied with the product. Learn and understand

their meaning.

READ AND FOLLOW ALL SAFETY INFORMATION

AND INSTRUCTIONS BEFORE USE OF THIS PRODUCT.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

EAR PROTECTION

RECOMMENDED

DANGER

OR WARNING

SNOW

DISCHARGE

TRACTION

DRIVE CONTROL

DISENGAGED

ENGAGED

ROTATE LEFT ROTATE RIGHT

CHUTE

ROTATION

IGNITION KEY. INSERT

TO START AND RUN

CHOKE CLOSED

(START)

RECOIL START CHOKE OPEN

(RUN)

PRIMER IGNITION KEY. PULL

OUT TO STOP

UP

CHUTE

DEFLECTOR

DOWN

FORWARD

REVERSE

DANGER, KEEP FEET AWAY

DANGER, KEEP HANDS AWAY

READ OPERATORS MANUAL

DANGER

DO NOT OPERATE ON STEEP SLOPES

WATCH FOR THROWN OBJECTS

OPERATE AT A SAFE DISTANCE FOR OTHER PEOPLE

DO NOT PLACE HANDS

NEAR BLADES

DANGER

REMOVE SPARK

PLUG WIRE BEFORE

PERFORMING

MAINTENANCE

READ OPERATORS MANUAL

DANGER

WATCH FOR THROWN OBJECTS

OPERATE AT A SAFE DISTANCE FROM OTHER PEOPLE

STEER LEFT STEER RIGHT

TRACTION

DRIVE CONTROL

SNOW

DISCHARGE

9

ELECTRIC

START

BUTTON

RECOIL

(AUXILIARY)

STARTER

HANDLE

ON / OFF

SWITCH

SAFETY

IGNITION

KEY

PRIM ER

CHOKE

CON TROL

MUF FLER

GAS O LINE

FILLER CAP

THROTTLE

MEETS A.N.S.I. SAFETY REQUIREMENTS

Our snow throwers conform to the standards of the American National Standards Institute.

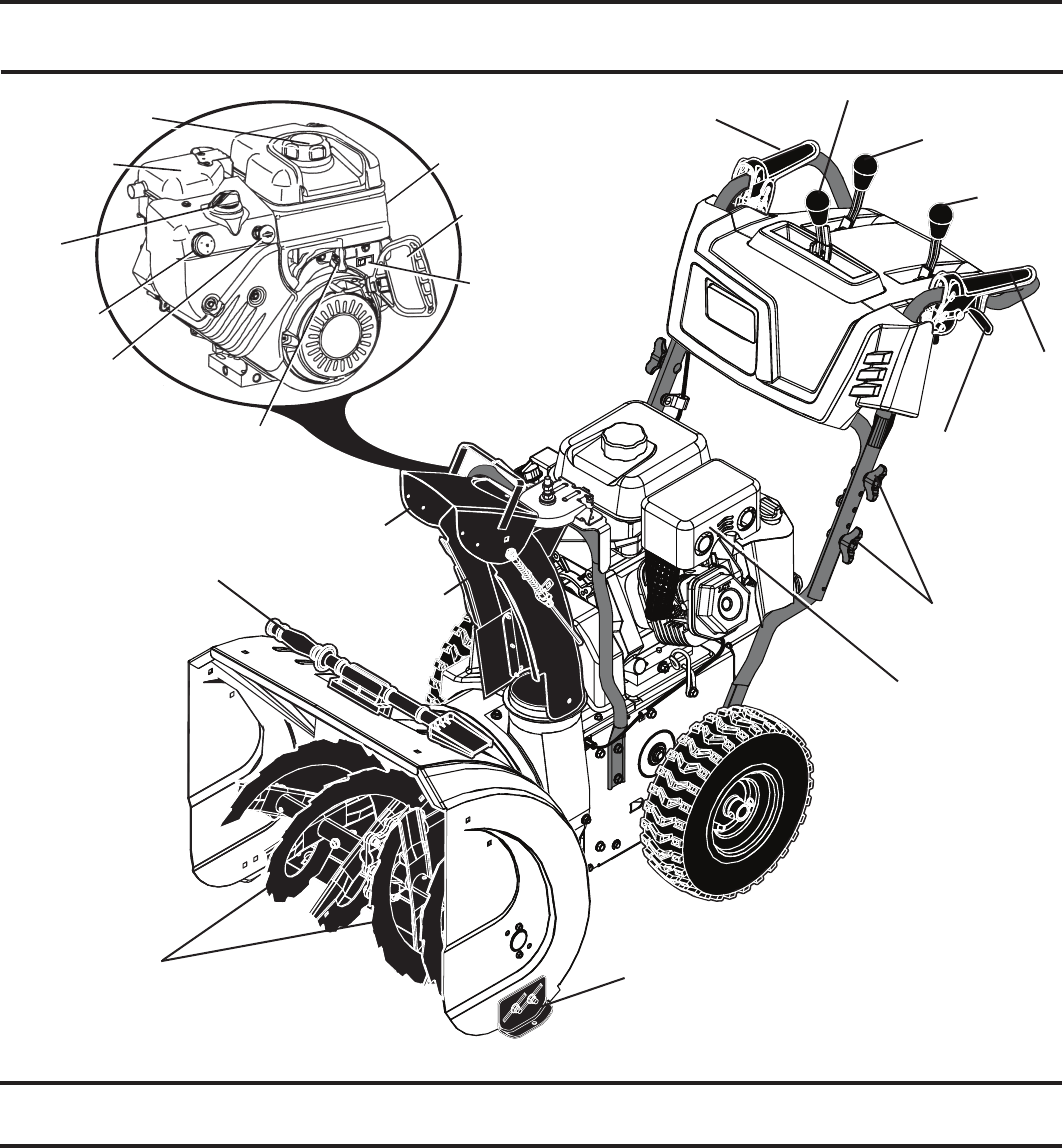

FIG. 8

OPERATION

LH and RH turn triggers - used to steer the snow thrower.

Traction drive control lever - used to engage power-

pro pelled for ward or reverse motion of snow thrower.

Auger control lever - used to engage auger motion (throw

snow).

Discharge chute control lever - used to change the di rec-

tion the snow is thrown.

Deflector remote control lever - used to change the

dis tance the snow is thrown.

Skid plate - used to adjust height of scraper bar from the

ground.

Safety ignition key - must be inserted for the engine to

start and run. Remove when snow thrower is not in use.

Electric start button - used for starting the engine.

Recoil starter handle - used for start ing en gine.

Primer - pumps additional fuel from the carburetor to the

cylinder for use when starting a cold engine.

Choke Control - used for starting a cold engine.

ON / OFF switch - used to STOP the engine.

Throttle- used to se lect FAST or SLOW engine speeds.

Drive speed control lever - used to select forward or

reverse motion and speed of snow thrower.

DEFLECTOR

REMOTE

CONTROL

LEVER

TRACTION

DRIVE

CONTROL

LEVER

DISCHARGE CHUTE CONTROL LEVER

DRIVE SPEED

CON TROL LEVER

AUGER

CONTROL

LEVER

MUF FLER

HANDLE KNOB

SKID PLATE

CHUTE

DE FLEC TOR

DISCHARGE

CHUTE

AU GERS

NOTE: ITEMS ABOVE

ARE SHOWN IN

THEIR TYPICAL

LOCATION ON THE

ENGINE. ACTUAL

LOCATION MAY

VARY WITH THE

ENGINE ON YOUR

UNIT.

CLEAN-OUT

TOOL

LH TURN

TRIGGER

10

OPERATION

TO CONTROL SNOW DISCHARGE (See Fig. 10)

WARNING: Snow throwers have ex-

posed rotating parts, which can cause

severe injury from contact, or from ma-

terial thrown from the discharge chute.

Keep the area of operation clear of all

persons, small children and pets at all

times including startup.

WARNING: If the discharge chute or

au ger become clogged, shut-off en gine

and wait for all moving parts to stop. Use

the clean-out tool, NOT YOUR HANDS,

to un clog the chute and/or auger.

The operation of any snow thrower can result

in foreign objects thrown into the eyes, which

can result in severe eye damage. Always wear

safety glasses or eye shields while operating

your snow thrower or performing any ad just-

ments or repairs. We recommend standard safe ty glasses

or a wide vision safety mask worn over spectacles.

HOW TO USE YOUR SNOW THROWER

Know how to operate all controls before adding fuel or

attempting to start the engine.

STOPPING

TRACTION DRIVE

• Release traction drive control lever to stop the forward

or reverse movement of the snow thrower.

AUGER

• Release the auger control lever to stop throwing snow.

ENGINE

1. Move ON / OFF switch to “OFF” position.

2. Remove (do not turn) safety ignition key to prevent

unauthorized use.

NOTE: Never use choke to stop engine.

FIG. 10

DISCHARGE CHUTE

CONTROL LEVER

CHUTE DEFLECTOR

REMOTE CONTROL

LEVER

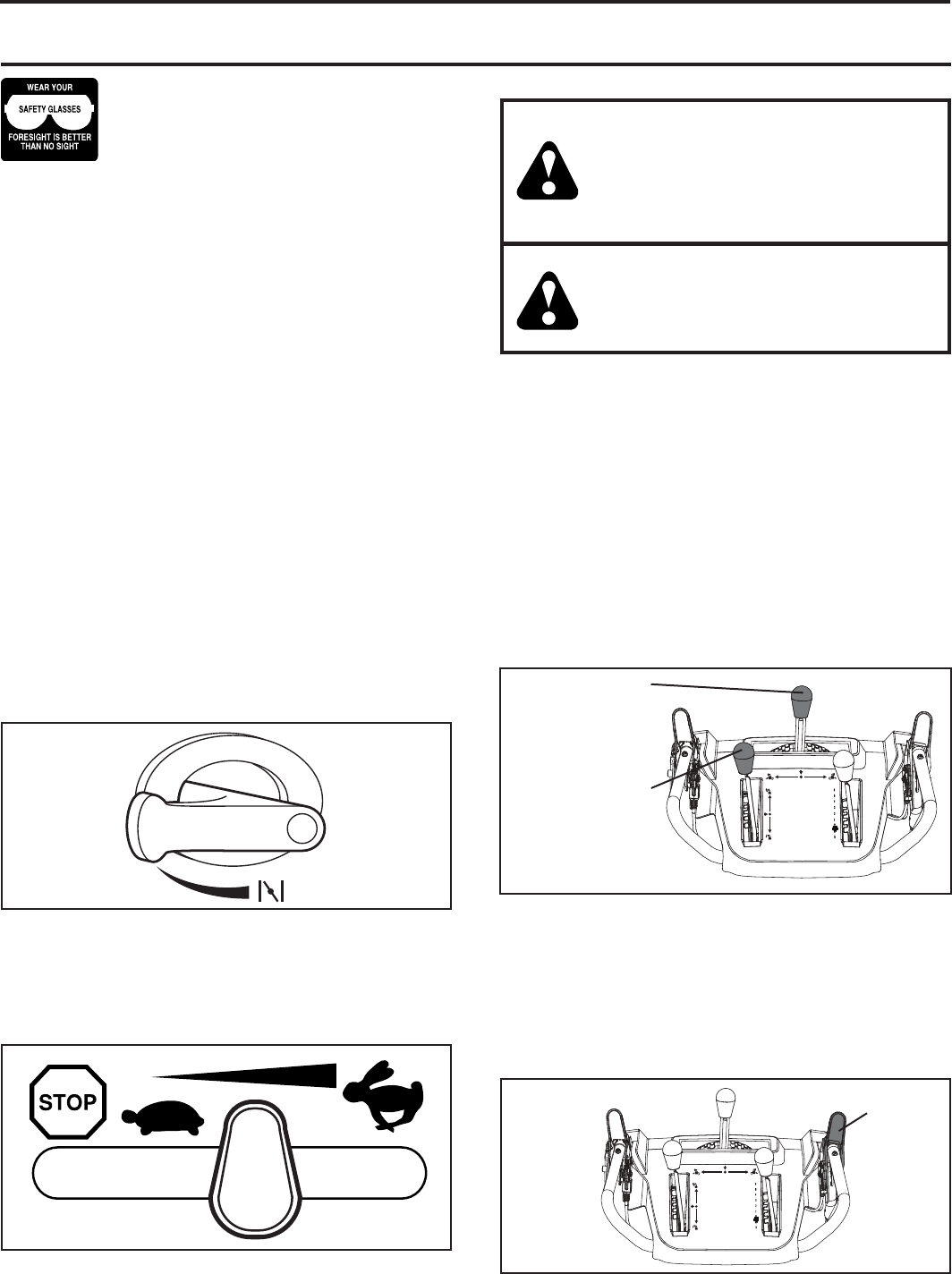

TO THROW SNOW (See Fig. 11)

The auger rotation is controlled by the auger control lever

located on the right side handle.

• Squeeze auger control lever to handle to engage the

auger and throw snow.

• Release the auger control lever to stop throwing snow.

AUGER

CONTROL

LEVER

FIG. 11

The DIRECTION in which snow is to be thrown is controlled

by the discharge chute control lever.

• To change the discharge chute position, pull backward

on discharge chute control lever and move lever left

or right until chute is in desired position. Be sure lever

springs back and locks into desired position.

The DISTANCE that snow is thrown is controlled by the

position of the chute deflector. Set the deflector low to

throw snow a short distance; set the deflector higher to

throw snow farther.

• Push right on chute deflector control lever and move

lever forward to lower the deflector and decrease the

distance. Move lever back to raise the deflector and

increase the distance. Be sure lever springs back and

locks into desired position.

FIG. 9

FULLOFF

TO USE CHOKE CON TROL (See Fig. 9)

The choke con trol is located on the en gine. Use the choke

control when ev er you are starting a cold en gine. Do not

use to start a warm en gine.

• To engage choke, turn knob counterclockwise. Slowly

turn knob clockwise to disengage.

TO USE THROTTLE CONTROL (See Fig. 13)

The throttle control is located on the engine. Always op er ate

the snow thrower with the engine at full throttle. Full throttle

offers the best snow thrower performance.

FIG. 12

SLOW FAST

11

TO MOVE FORWARD AND BACKWARD (See Fig. 13)

SELF-PROPELLING, forward and reverse movement of

the snow thrower, is controlled by the traction drive control

lever located on the left side handle.

• Squeeze traction drive control lever to handle to en gage

the drive system.

• Release traction drive control lever to stop the forward

or reverse movement of the snow thrower.

SPEED and DIRECTION are controlled by the drive speed

control lever.

• Push right on the speed control lever and move lever to

de sired po si tion BE FORE engaging the trac tion drive

control lever. Be sure lever springs back and locks into

desired position.

OPERATION

USING THE CLEAN-OUT TOOL (See Fig. 12)

In certain snow conditions, the discharge chute may

become clogged with ice and snow. Use the clean-out tool

to dislodge this blockage.

When cleaning, repairing, or in spect ing, make

certain all controls are disengaged and the

auger/impeller and all moving parts have

stopped. Disconnect the spark plug wire and

keep the wire away from the spark plug to

prevent accidental starting.

• Release the auger control lever and shut off the engine.

• Remove the clean-out tool from its mounting clip.

Grasp the tool firmly by the handle while pushing and

twisting the tool into the discharge chute to dislodge

the blockage.

After the packed snow has been dislodged, return the

clean-out tool to it's mounting clip by pushing it into the clip.

• Make sure the discharge chute is pointed in a safe

direction (no vehicles, buildings, people, or other objects

are in the direction of discharge) before restarting engine.

• Restart the engine, then squeeze the auger control lever

to the handle to clear snow from the auger housing and

the discharge chute.

CLEAN-OUT

TOOL

FIG. 12

MOUNTING

CLIP

DISCHARGE CHUTE

DRIVE

SPEED

CONTROL

LEVER

TRACTION DRIVE

CONTROL LEVER

FIG. 13

AUGER

CONTROL

LEVER

POWER STEERING OPERATION (See Fig. 14)

Steering triggers are used to assist in steering your snow

thrower. The triggers are located on the underside of each

handle. When a trigger is squeezed, it disengages the drive

wheel on that side of snow thrower and allows it to turn in

that direction.

• To turn left – squeeze left side trigger.

• To turn right – squeeze right side trigger.

FIG. 14

CAUTION: Do not move speed con trol le ver

when traction drive control lever is en gaged.

Damage to the snow thrower can result.

• Slower speeds are for heavier snow and faster speeds

are for light snow and transporting the snow thrower. It

is recommended that you use a slower speed until you

are familiar with the operation of the snow thrower.

NOTE: When both traction drive and auger control levers

are engaged, the traction drive control lever will lock the

auger control lever in the engaged position. This will allow

you to release your right hand from the handle and adjust

the discharge chute direction without interrupting the snow

throwing process.

LH TURN

TRIGGER

12

TO ADJUST SKID PLATES (See Fig. 15)

NOTE: The wrench provided in your parts bag may be

used to adjust the skid plates.

Skid plates are located on each side of the auger housing

and adjust the clearance between the scraper bar and the

ground surface. Adjust skid plates evenly to proper height

for current surface conditions. For removal of snow in

normal con di tions, such as a paved driveway or side walk,

place skid plates in the highest position (lowest scraper

clear ance) to give a 1/8" clearance between the scraper

bar and the ground. Use a middle position if the surface

to be cleared is uneven.

NOTE: It is not recommended to operate the snow thrower

over gravel or rocky surfaces. Objects such as gravel, rocks

or other debris, can easily be picked up and thrown by the

impeller, which can cause serious personal injury, property

dam age or damage to the snow thrower.

• If snow thrower must be operated over gravel surface,

use extra caution and be sure skid plates are adjusted

to lowest (highest scraper clear ance) position.

1. Shut off engine and wait for all moving parts to stop.

2. Adjust skid plates by loosening the 1/2" hex nuts, then

moving skid plate to desired position. Be sure both

plates are adjusted evenly. Tighten securely.

OPERATION

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 16)

The engine on your snow thrower has been shipped from

the factory already filled with oil.

1. Check engine oil with snow thrower on level ground.

2. Remove oil fill cap/dipstick and wipe clean, reinsert

the dipstick and screw tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

“FULL” mark on dipstick is reached. Do not overfill.

• To change engine oil, see “TO CHANGE ENGINE OIL”

in the Main te nance sec tion of this manual.

ADD GASOLINE (See Fig. 16)

• Fill fuel tank to bottom of tank filler neck. Do not over-

fill. Use fresh, clean, regular unleaded gasoline with

a minimum of 87 octane. Do not mix oil with gasoline.

Purchase fuel in quan ti ties that can be used within 30

days to assure fuel freshness.

WARNING: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

CAUTION: Alcohol blended fuels (called gas o-

hol or using ethanol or methanol) can attract

moisture which leads to separation and for ma-

tion of acids dur ing storage. Acidic gas can

damage the fuel system of an engine while in

storage. To avoid engine problems, the fuel

system should be emptied be fore stor age of

30 days or longer. Drain the gas tank, start

the engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel next

season. See Storage In struc tions for ad di tion al

information. Never use engine or car bu re tor

cleaner products in the fuel tank or per ma nent

damage may occur.

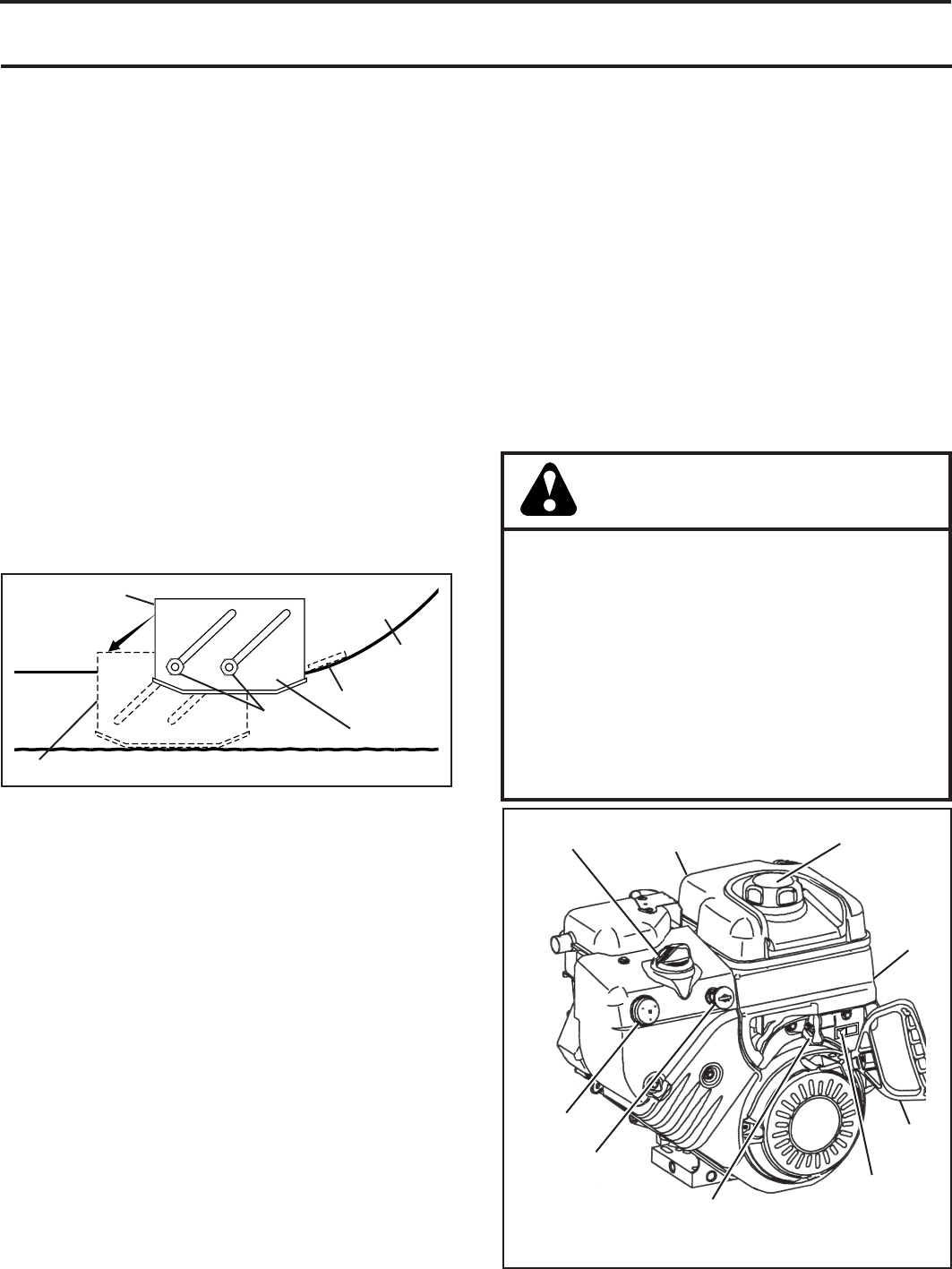

SCRAPER BAR (See Fig. 15)

The scraper bar is not adjustable, but is reversible. After

con sid er able use it may become worn. When it has worn

almost to the edge of the housing, it can be reversed,

providing additional service before requiring replacement.

Replace a dam aged or worn scrap er bar.

SKID PLATE

LOW POSITION (HIGH GROUND CLEAR ANCE)

HEX

NUTS

HIGH POSITION

(LOW GROUND

CLEARANCE)

AUGER

HOUSING

FIG. 15

SCRAPER BAR

ENGINE OIL

FILL CAP / DIPSTICK

PRIM ER

SAFETY

IG NI TION

KEY ON / OFF

SWITCH

STARTER

BUTTON

RECOIL

STARTER

HANDLE

GAS O LINE

FILLER CAP

NOTE: ALL ITEMS ARE SHOWN IN THEIR TYPICAL LOCATION.

ACTUAL LOCATION MAY VARY WITH ENGINE ON YOUR UNIT.

FIG. XX

CHOKE

CONTROL

THROT TLE

13

OPERATION

TO START ENGINE

Your snow thrower engine is equipped with both a 120 Volt

A.C. electric starter and a recoil starter. The electric starter

is equipped with a three-wire power cord and plug and is

designed to operate on 120 Volt A.C. household current.

• Ensure your house is a 120 Volt A.C. three-wire

ground ed system. If you are uncertain, consult a

li censed electrician.

WARNING: Do not use the electric

start er if your house is not a 120 Volt A.C.

three-wire grounded system. Se ri ous

per son al injury or damage to your snow

thrower could result.

COLD START - ELECTRIC STARTER

1. Insert safety ignition key (tied to recoil start cord) into

ignition slot until it clicks. DO NOT turn the key. Keep

the extra safety ignition key in a safe place.

2. Place throttle control in “FAST” position.

3. Place ON / OFF switch in “ON” position.

4. Rotate choke control to “FULL” position.

5. Push the primer three (3) times.

NOTE: Over priming may cause flooding, preventing the

engine from starting. If you do flood the engine, wait a few

minutes be fore at tempt ing to start and DO NOT push the

primer.

6. Connect the power cord to the engine.

7. Plug the other end of the power cord into a three-hole

grounded 120 Volt A.C. receptacle.

8. Push starter button until engine starts.

IMPORTANT: Do not crank engine more than five con tin u-

ous seconds between each time you try to start. Wait 5 to

10 seconds between each attempt.

9. When the engine starts, release the starter button and

slowly move the choke control to the “OFF” position.

10. Disconnect the power cord from the receptacle first,

then from the engine.

Allow the engine to warm up for a few minutes. Engine will

not develop full power until it has reached normal operating

temperature.

WARM START - ELECTRIC STARTER

Follow the steps above, keeping the choke control in the

“OFF” position.

COLD START - RECOIL STARTER

1. Insert safety ignition key (tied to recoil start cord) into

ignition slot until it clicks. DO NOT turn the key. Keep

the extra safety ignition key in a safe place.

2. Place throttle control in “FAST” position.

3. Place ON / OFF switch in “ON” position.

4. Rotate choke control to “FULL” position.

5. Push the primer three (3) times.

NOTE: Over priming may cause flooding, preventing the

engine from starting. If you do flood the engine, wait a few

minutes be fore at tempt ing to start and DO NOT push the

primer.

6. Pull recoil starter handle quickly. Do not allow starter

rope to snap back.

7. When the engine starts, release the recoil starter

han dle and slowly move the choke control to the “OFF”

position.

Allow the engine to warm up for a few minutes. Engine will

not develop full power until it has reached normal operating

temperature.

WARM START - RECOIL STARTER

Follow the steps above, keeping the choke in the “OFF”

position. DO NOT push the primer.

BEFORE STOPPING

Run the engine for a few minutes to help dry off any moisture

on the engine.

IF RECOIL STARTER HAS FROZEN

If the recoil starter has frozen and will not turn the engine,

proceed as follows:

1. Grasp the recoil starter handle and slowly pull as much

rope out of the starter as possible.

2. Release the recoil starter handle and let it snap back

against the starter.

If the engine still fails to start, repeat the above steps or

use the electric starter.

SNOW THROWING TIPS

• Always operate the snow thrower with the engine at

full throttle. Full throttle offers the best performance.

• Go slower in deep, freezing or heavy wet snow. Use the

drive speed control, NOT the throttle, to adjust speed.

• It is easier and more efficient to remove snow im me-

di ate ly after it falls.

• The best time to remove snow is the early morning.

At this time the snow is usually dry and has not been

exposed to the direct sun and warming tem per a tures.

• Slightly overlap each successive path to ensure all

snow will be removed.

• Throw snow downwind whenever possible.

• Ad just the skid plates to proper height for current snow

con di tions. See “TO ADJUST SKID PLATES” in this

section of this manual.

• For extremely heavy snow, re duce the width of snow

removal by over lap ping previous path and moving

slowly.

• Keep engine clean and clear of snow during use. This

will help air flow and extend engine life.

• After snow-throwing is completed, allow engine to run

for a few minutes to melt snow and ice off the engine.

• Clean the entire snow thrower thoroughly after each

use and wipe dry so it is ready for next use.

WARNING: Do not operate snow

thrower if weather conditions im pair

visibility. Throwing snow dur ing a

heavy, windy snowstorm can blind

you and be hazardous to the safe

operation of the snow thrower.

14

MAINTENANCE

LUBRICATION CHART

GENERAL REC OM MEN DA TIONS

The warranty on this snow thrower does not cover items

that have been sub ject ed to operator abuse or negligence.

To receive full value from the warranty, operator must

maintain snow thrower as in struct ed in this manual. Some

ad just ments will need to be made periodically to properly

maintain your snow thrower.

All adjustments in the Service and Ad just ments section of

this manual should be checked at least once each season.

• Once a year, you should replace the spark plug and

check belts for wear. A new spark plug will help your

engine run better and last longer.

• Follow the maintenance schedule in this manual.

NOTE: Use only Original Equipment Manufacturer (OEM)

parts to service this unit. Failure to do so can cause the

unit to malfunction and pose a risk of injury to the operator.

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

3. Check controls to be sure they are functioning properly.

LUBRICATION

Keep your snow thrower well lubricated

(See “LU BRI CA TION CHART”).

At the beginning of each season, or every 25 hours of

use, apply a small amount of white lithium grease to the

interlock bosses.

➀ SAE 5w30 Motor Oil

➁ See “Engine” in Maintenance section

➂ White Lithium Grease

Engine oil

Pivot points

➂ Interlock

bosses

15

CLEANING

IMPORTANT: For best performance, keep snow thrower

housing free of any dirt or trash. Clean the outside of your

snow thrower after each use.

WARNING: Remove safety ignition key

and disconnect spark plug wire from

spark plug. Place wire where it can not

come in contact with spark plug.

• Keep finished surfaces/wheels free of gasoline, oil, etc.

• We do not recommend using a garden hose to clean

your snow thrower unless the electrical system, muffler

and carburetor are covered to keep water out. Water

in engine can result in shortened engine life.

MAINTENANCE

BELTS

Check belts for deterioration and wear after every 50 hours

of operation and replace if necessary. The belts are not

ad just able. Replace belts if they begin to slip from wear.

(See “TO REMOVE BELT COVER” in the Service and

Adjustments section of this manual).

The belts on your snow thrower are of special con struc tion

and should be replaced by original equipment man u fac tur er

(OEM) belts avail able from your nearest dealer. Using other

than OEM belts can cause personal injury or damage to

the snow thrower.

SNOW THROWER

Always observe the safety rules when performing any

main te nance.

TIRES

• Maintain proper air pressure in both tires (14–17 PSI).

• Keep tires free of gasoline and oil, which can harm rubber.

NOTE: To seal tire punctures and prevent flat tires due

to slow leaks, tire sealant may be purchased from your

local parts dealer. Tire sealant also prevents tire dry rot

and cor ro sion.

AUGER GEAR CASE

• The gear case was filled with lubricant to the proper level

at the factory. The only time the lubricant needs atten-

tion is if service has been performed on the gear case.

• If lubricant is required, use only Ronex ED #1 grease.

TRACTION DRIVE SYSTEM

DO NOT lubricate the drive components inside the snow

thrower. The sprockets, hex shafts, drive disc and friction

wheel require no lubrication. The bearings and bushings

are lifetime lubricated and require no maintenance.

CAUTION: Any lubricating of the above com po-

nents can cause contamination of the friction

wheel and damage to the drive system of your

snow thrower.

ENGINE

See engine manual.

LUBRICATION

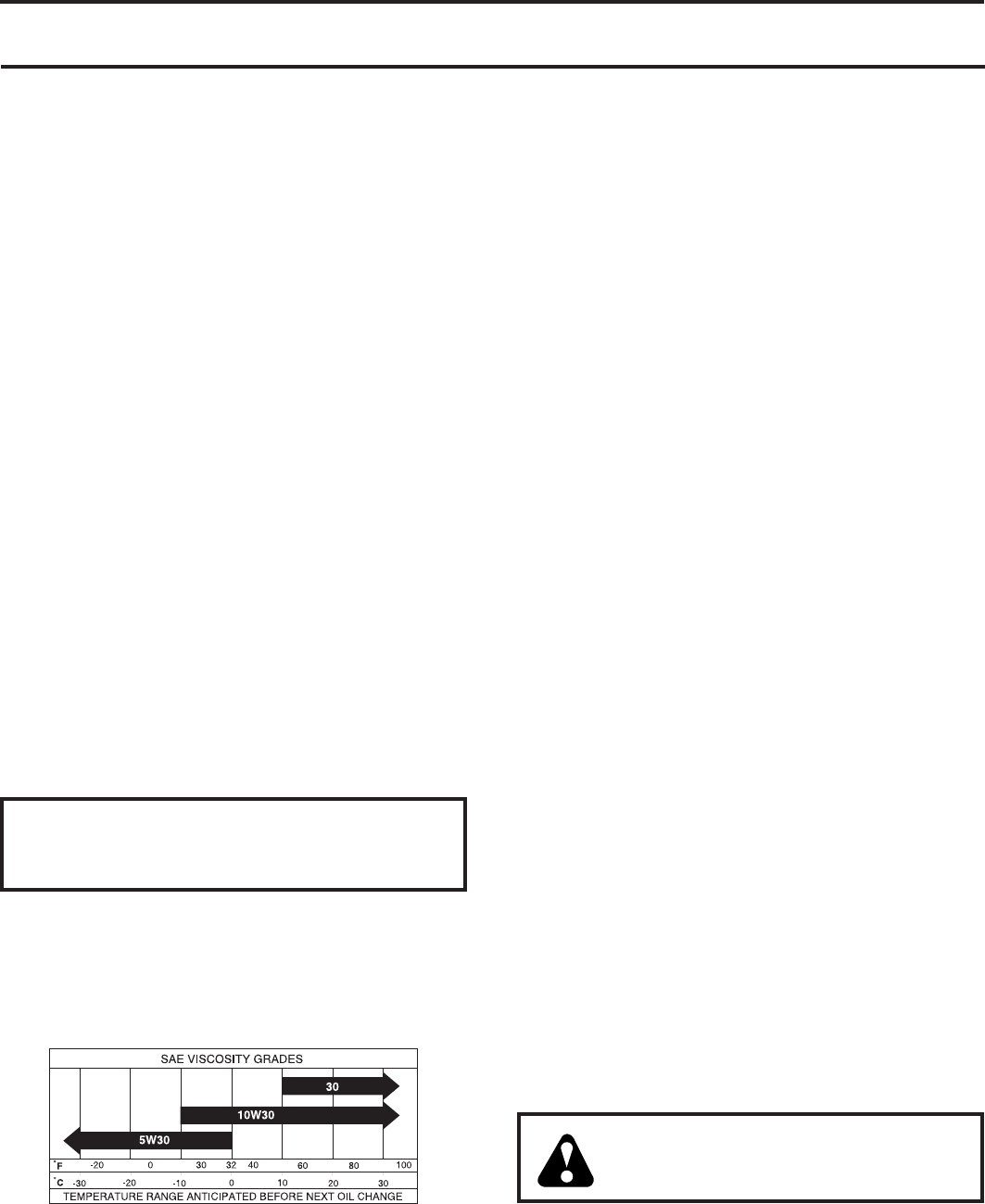

Use only high quality detergent oil rated with API service

classification SG–SL. Select the oil's SAE viscosity grade

according to your expected operating temperature.

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least once

a year if the snow thrower is not used for 25 hours in one year.

MUFFLER

Inspect and replace corroded muffler as it could cre ate a

fire haz ard and/or dam age.

SPARK PLUG

Replace spark plug at the beginning of each season or after

every 100 hours of operation, whichever occurs first. Spark

plug type and gap setting are shown in the “PROD UCT

SPEC I FI CA TIONS” section of this manual.

Check the crankcase oil level before starting the engine

and after each five (5) hours of continuous use. Tighten oil

fill cap / dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL

Determine temperature range anticipated before next oil

change. All oil must meet API service classification SG–SL.

• Be sure snow thrower is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

NOTE: A wheel may be removed from snow thrower for

easier access to the oil drain plug and place ment of a

suitable container.

1. Remove safety ignition key and disconnect spark plug

wire from spark plug. Place wire where it cannot come

in contact with spark plug.

2. Clean area around drain plug.

3. Remove drain plug and drain oil in a suitable container.

4. Install drain plug and tighten securely.

5. Wipe off any spilled oil from snow thrower and engine.

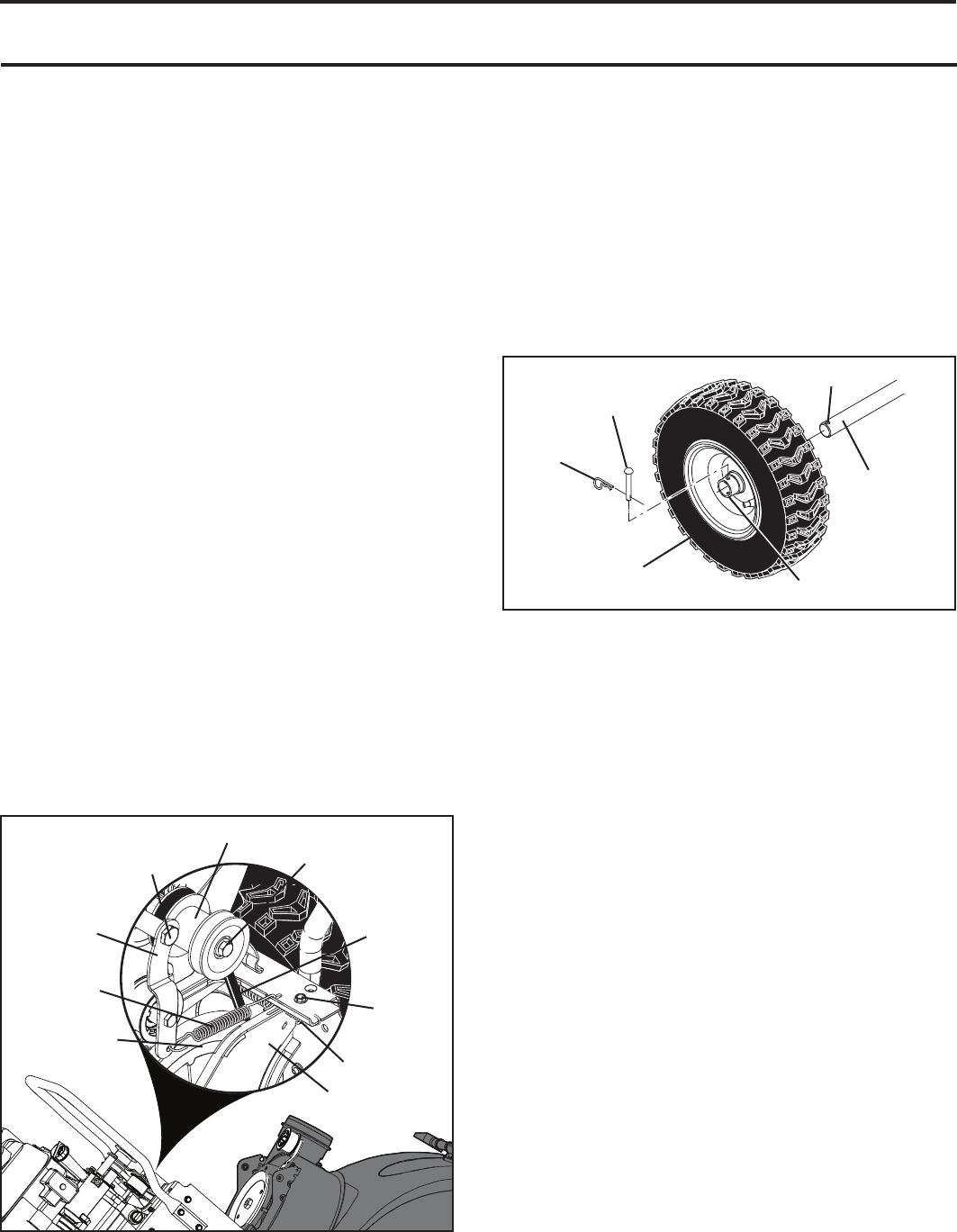

6. Install left wheel (if removed for draining oil). Be sure

to install wheel pin and retainer pin into proper hole

in wheel axle (See “TO REMOVE WHEELS” in the

Service and Adjustments section of this manual).

7. Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine.

8. Refill engine with oil through oil dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

“PRODUCT SPECIFICATIONS” section of this man u al.

9. Use gauge on oil fill cap/dipstick for checking level.

Be sure dipstick cap is tightened securely for accurate

reading. Keep oil at “FULL” line on dipstick.

10. Wipe off any spilled oil.

16

SERVICE AND ADJUSTMENTS

WARNING: To avoid serious injury, before

performing any service or ad just ments:

1. Be sure the on/off switch is in the

OFF position.

2. Remove safety ignition key.

3. Make sure the augers and all mov ing

parts have completely stopped.

4. Disconnect spark plug wire from

spark plug and place wire where it

can not come in contact with plug.

SNOW THROWER

TO ADJUST SNOW THROWER HEIGHT

See “TO ADJUST SKID PLATES” and “SCRAPER BAR”

in the Operation section of this manual.

CHUTE DEFLECTOR

The chute deflector, attached to the top of the discharge

chute, is provided to direct discharging snow away from

the operator. If the deflector becomes damaged, it should

be re placed.

WARNING: To avoid serious injury,

nev er operate your snow thrower with

the deflector removed or damaged.

• To change direction and/or distance snow is dis charged,

see “TO CONTROL SNOW DISCHARGE” in the Op-

er a tion section of this manual.

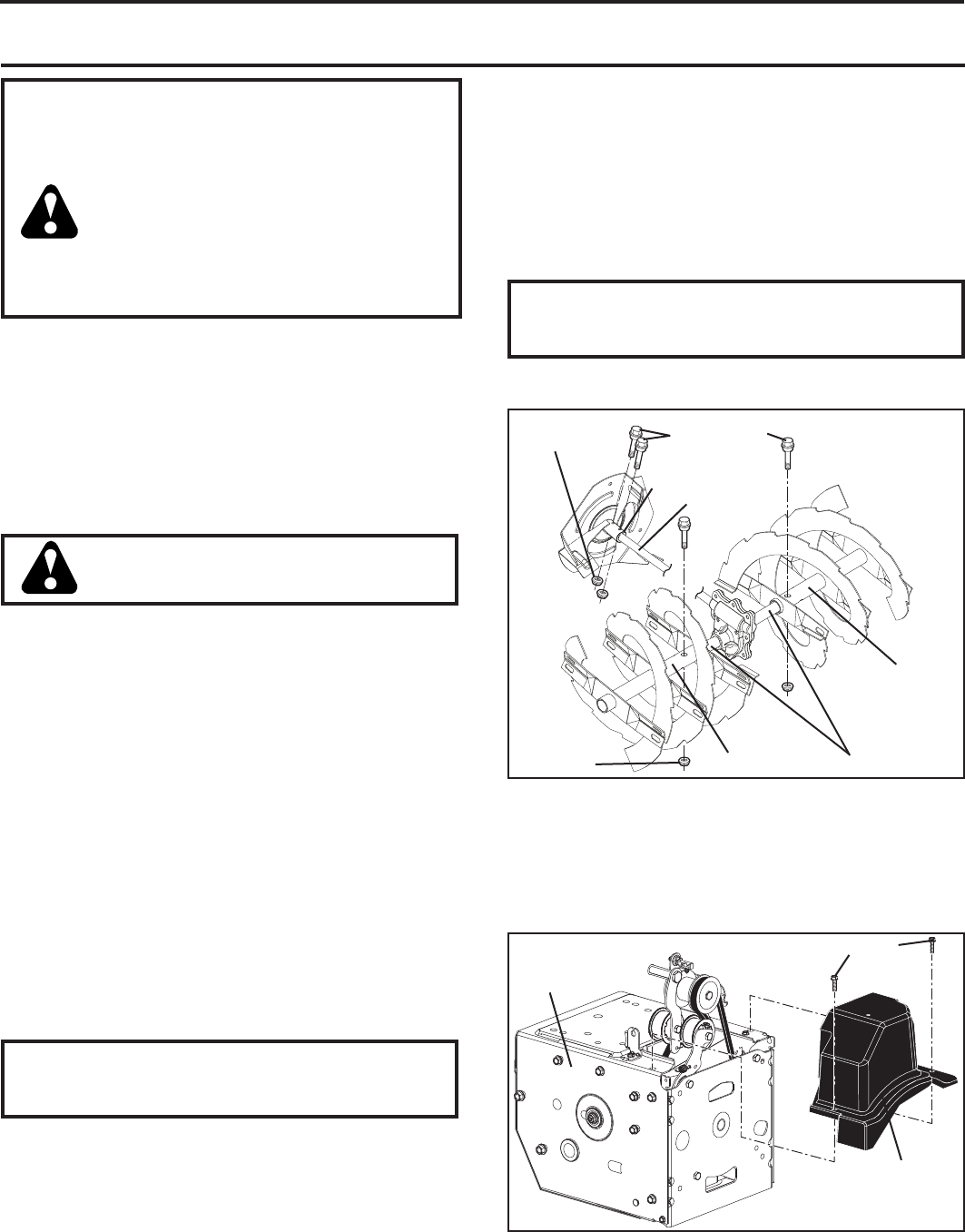

SHEAR BOLTS (See Fig. 17)

AUGER SHEAR BOLTS

Both right and left-hand augers are secured to the auger

shaft with a shear bolt and hex nut. Should a foreign ob-

ject or ice become lodged in the augers, the shear bolts

are designed to break, preventing damage to any other

com po nents. If one or both augers do not turn when auger

control lever is engaged, check to see if one or both of the

bolts have sheared. To replace the shear bolts:

1. Disengage all controls and move throttle control to

STOP position. Wait for all moving parts to stop.

2. Remove safety ignition key and disconnect spark plug

wire from spark plug. Place wire where it cannot come

in contact with spark plug.

3. Align hole in auger hub with hole in auger shaft and

install a new 1/4-20 x 2" shear bolt. Install 1/4-20

lock nut and tighten securely.

CAUTION: Do not sub sti tute. Use only original

equip ment shear bolts as sup plied with your

snow thrower.

4. Insert safety ignition key and reconnect spark plug wire

to spark plug.

IMPELLER SHEAR BOLTS

The impeller is secured to the impeller shaft with two (2)

shear bolts and hex nuts. Should a foreign object or ice

become lodged in the impeller, the shear bolts are de signed

to break, preventing damage to any other com po nents. If

impeller does not turn when auger control lever is engaged,

check to see if the shear bolts have sheared.

AUGER SHAFT

1/4-20 x 2

SHOULDER /

SHEAR BOLT

1/4-20

LOCK NUT

IMPELLER

SHAFT

1/4-20

LOCKNUT

IMPELLER HUB

AUGER

HUB

AUGER HUB

FIG. 17

To replace the shear bolts:

1. Disengage all controls and move throttle control to

STOP position. Wait for all moving parts to stop.

2. Remove safety ignition key and disconnect spark plug

wire from spark plug. Place wire where it cannot come

in contact with spark plug.

3. Align holes in impeller hub with holes in impeller shaft

and install two (2) new 2" shear bolts. Install 1/4-20

locknuts and tighten securely.

CAUTION: Do not substitute. Use only original

equip ment capscrew/shear bolts as sup plied

with your snow thrower.

4. Insert safety ignition key and reconnect spark plug wire

to spark plug.

TO REMOVE BELT COVER (See Fig. 18)

1. Loosen the two (2) screws securing belt cover to frame.

2. Remove belt cover.

• Replace belt cover by installing cover and tightening

screws.

BELT

COVER

SCREWS

FRAME

FIG. 18

17

SERVICE AND ADJUSTMENTS

TO REPLACE BELTS

The auger and traction drive belts are not adjustable. If the

belts are damaged or begin to slip from wear, they should

be replaced. It is recommended that the belt(s) be replaced

by a service center/department.

NOTE: It is recommended that both the auger and traction

drive belt be replaced at the same time.

The V-belts on your snow thrower are of special con struc-

tion and should be replaced by original equipment man u-

fac tur er (OEM) belts avail able from your nearest service

center/department. Using other than OEM belts can cause

personal injury or damage to the snow thrower.

WARNING: Belt replacement requires

separation of the snow thrower. While

separating the auger housing from the

frame assembly, it is important that an

assistant stand in the operating po si tion

and hold the snow thrower han dles. Serious

personal injury and/or damage to the unit

could occur if the snow thrower should fall

during the belt chang ing process.

BEFORE REPLACING BELTS

1. REMOVE GASOLINE FROM FUEL TANK - Drain

gasoline from fuel tank into a suitable container, outdoors,

away from fire or flame. Wipe up any spilled gasoline.

2. REMOVE DISCHARGE CHUTE - Loosen lock nut

securing chute rotator head to mounting bracket to allow

chute rotator head to be raised and discharge chute to

be removed from snow thrower. See Fig. 19.

AUGER BELT REPLACEMENT (See Fig. 20)

TO REMOVE AUGER BELT

1. Remove upper 5/16” bolts and lower 1/4” bolts from

both sides of the frame assembly. Do not discard bolts.

2. Loosen but DO NOT REMOVE lower 5/16” bolts on both

sides of the frame assembly.

3. Remove the auger belt from the engine pulley.

4. Tip the back section down. The front section will tip

forward at the same time, as the bottom bolt acts as a

hinge between the front and back sections. Use a block

under the hinge point to secure the snow thrower in the

tipped position as shown.

5. Move auger belt tensioner arm and remove auger belt

from around the arm.

TO INSTALL AUGER BELT

1. Move belt tensioner arm and place auger belt around

and inside groove of the auger pulley.

NOTE: Ensure the belt is not pinched between the frame

and auger housing as you bring the unit back together.

2. Remove block from under the snow thrower. Lift the

handles to tip the back section up. The front section

will tip back and pivot to rejoin the back section.

3. Ensure belt is routed inside auger pulley groove properly.

4. Install the previously removed and loosened 5/16” bolts,

and tighten securely. (8-12 Ft. Lbs. / 11-16 Nm).

Install the previously removed 1/4” bolts (X2), and tighten

securely. (4-6 Ft. Lbs. / 5-8 Nm).

5. Install auger belt onto engine pulley. Ensure belt is

routed correctly around idler pulley and seated properly

in engine pulley groove.

6. Operate all controls to ensure belts are installed properly

and that all components are moving correctly.

Continue with “AFTER REPLACING BELTS” instructions.

3. REMOVE BELT COVER - See “TO REMOVE BELT

COVER” in this section of this manual. FIG. 20

AUGER BELT

TENSIONER ARM

ENGINE PULLEY AUGER

BELT

LOWER

5/16" BOLT

UPPER

5/16"

BOLT

LOWER

1/4" BOLT AUGER

PULLEY

HANDLE

FRAME

ASSEMBLY

FIG. 19

LOCK NUT

MOUNTING

BRACKET

CHUTE ROTATOR HEAD

18

SERVICE AND ADJUSTMENTS

ENGINE

SEE ENGINE MANUAL

CARBURETOR

Your carburetor is not adjustable. Engine performance

should not be affected at altitudes up to 2,134 meters. If

your engine does not operate properly due to suspected

carburetor problems, take your snow thrower to a service

center/department.

ENGINE SPEED

Never tamper with the engine governor, which is factory set

for proper engine speed. Overspeeding the engine above

the factory high speed setting can be dangerous and will

void the warranty. If you think the engine-governed high

speed needs adjusting, contact a service center/depart-

ment, which has the proper equipment and experience to

make any necessary ad just ments.

FIG. 21

DRIVE BELT REPLACEMENT (See Fig. 21)

TO REMOVE DRIVE BELT

1. Remove auger belt. See “TO REMOVE AUGER BELT”

in this section.

2. Remove tensioner spring attached to drive belt tensioner

arm.

3. Remove return spring holding the swing plate in place.

4. Remove arm bolt and drive belt tensioner arm.

5. Remove pulley bolt and washer, engine pulley, and drive

belt from engine.

6. Remove the top bolt holding the swing plate to frame

assembly.

7. Pivot and hold the swing plate away from snow thrower

and remove drive belt from drive pulley.

TO INSTALL DRIVE BELT

1. Pivot and hold swing plate away from snow thrower.

Place drive belt onto drive pulley. Ensure drive belt is

routed in drive pulley groove properly before lowering

swing plate.

2. Install previously removed top bolt. Tighten securely.

3. Place drive belt into engine pulley groove before installing

onto engine shaft.

4. Install previously removed washer and bolt and secure

engine pulley onto engine. Tighten securely (30-35 Ft.

Lbs. / 41-47 Nm).

5. Install drive belt tensioner arm and arm bolt onto engine.

Tighten securely.

6. Install return spring onto swing plate.

7. Install tensioner spring onto tensioner arm.

8. Operate all controls to ensure belts are installed properly

and that all components are moving correctly.

9. Install auger belt. See “TO INSTALL AUGER BELT” in

this section.

AFTER REPLACING BELT(S)

1. INSTALL BELT COVER and two (2) screws. Tighten

securely.

2. INSTALL DISCHARGE CHUTE – See “INSTALL

DISCHARGE CHUTE / CHUTE ROTATOR HEAD” in

the Assembly section of this manual.

DRIVE PULLEY

ENGINE PULLEY

ARM BOLT

DRIVE BELT

TENSIONER

ARM

TENSIONER

SPRING

DRIVE

BELT

SWING

PLATE

TOP

BOLT

RETURN

SPRING

PULLEY BOLT

AND WASHER

TO REMOVE WHEELS (See Fig. 22)

• Remove the wheel pin and retainer pin and remove

wheel from axle.

NOTE: To seal punctures or prevent flat tires due to slow

leaks, tire sealant may be purchased from your local parts

dealer. Tire sealant also prevents tire dry rot and cor ro sion.

AXLE

OUTER HOLE

WHEEL HUB

WHEEL

RETAINER

PIN

FIG. 22

WHEEL PIN

19

SERVICE AND ADJUSTMENTS

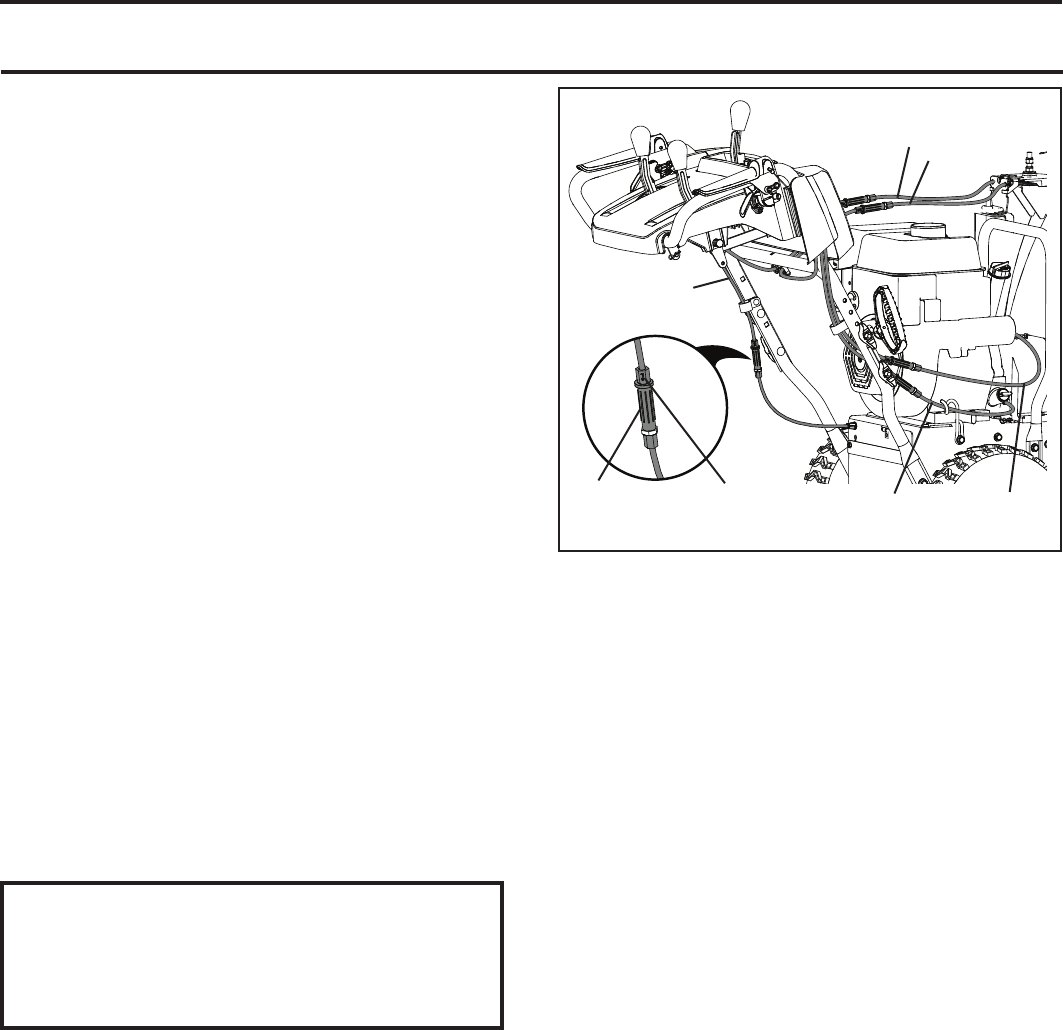

FIG. 23

ADJUSTER

TURN BUCKLE SPEED

SELECT

CABLE

CHUTE ROTATOR

CABLE

DRIVE

ENGAGEMENT

CABLE

AUGER

CONTROL

CABLE

JAM NUT

TO ADJUST CHUTE ROTATOR CABLE TENSION

(See Fig. 23)

1. Adjust cable tension by loosening the jam nut next to

the turn buckle.

2. Grasp the short section and hold while turning the long

section to lengthen the adjuster.

3. Adjust until cable is snug and tighten jam nuts.

CAUTION: Do NOT adjust auger control cable

tension. The auger cable is set at the factory.

Any adjustment by the consumer may create

an unsafe machine condition. If you feel the

cable needs to be adjustment, please contact

an authorized service center/department.

TO ADJUST SPEED SELECT AND DRIVE

ENGAGEMENT CABLE TENSION (See Fig. 23)

After many hours of use, if first gear seems to slip or seems

too slow, adjustments may need to be made to the Speed

Select and Drive Engagement cable tensions to shorten

their lengths.

To adjust the Speed Select cable:

1. Adjust cable tension by loosening the jam nut next to

the turn buckle.

2. Grasp the short section and hold while turning the long

section to lengthen the adjuster.

3. Turn the long section two turns and tighten jam nut.

4. Test the first gear drive speed.

If it is still too slow or seems to be slipping, adjust the Drive

Engagement cable to shorten its length.

To adjust the Drive Engagement cable:

1. Adjust cable tension by loosening the jam nut, next to

the turn buckle.

2. Grasp the short section and hold, while turning the long

section to lengthen the adjuster.

3. Turn the long section two turns and tighten jam nut.

4. Test the first gear drive speed.

If first gear still appears to be too slow or slipping, repeat

this procedure starting with the Speed Select cable.

20

STORAGE

Immediately prepare your snow thrower for storage at

the end of the season or if the unit will not be used for 30

days or more.

WARNING: Never store the snow

thrower with gaso line in the tank in side

a build ing where fumes may reach an

open flame, spark or pilot light as on

a fur nace, water heater, clothes dryer

or gas ap pli ance. Allow the engine to

cool be fore storing in any enclosure.

SNOW THROWER

When snow thrower is to be stored for a period of time,

clean it thor oughly, re move all dirt, grease, leaves, etc.

Store in a clean, dry area.

1. Clean entire snow thrower (See “CLEANING” in the

Main te nance section of this manual).

2. Inspect and replace belts, if necessary (See “TO RE-

PLACE BELTS” in the Service and Adjustments sec tion

of this manual).

3. Lubricate as shown in the Main te nance sec tion of this

man u al.

4. Be sure that all nuts, bolts, screws, and pins are securely

fas tened. Inspect moving parts for damage, breakage

and wear. Replace if nec es sary.

5. Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

ENGINE

See engine manual.

FUEL SYS TEM

IMPORTANT: It is important to prevent gum deposits from

forming in essential fuel system parts such as carburetor,

fuel hose, or tank during storage. Also, alcohol blended

fuels (called gasohol or using ethanol or methanol) can

attract moisture which leads to separation and formation

of acids during storage. Acidic gas can damage the fuel

system of an engine while in storage.

• Empty the fuel tank by starting the engine and letting

it run until the fuel lines and car bu re tor are empty.

• Never use engine or carburetor cleaner prod ucts in

the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in min i-

miz ing the formation of fuel gum deposits during stor age.

Add stabilizer to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 min utes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not drain the

gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See “ENGINE” in the Maintenance section of this

man ual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29 ml) of oil through spark plug hole

into cylinder.

3. Pull recoil starter handle slowly a few times to dis trib ute

oil.

4. Replace with new spark plug.

OTHER

• Remove safety ignition key; store it in a safe place.

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your snow thrower indoors and cover

it to protect it from dust and dirt.

• Cover your snow thrower with a suitable pro tec tive

cover that does not retain moisture. Do not use plastic.

Plastic cannot breathe, which allows con den sa tion to

form and will cause your snow thrower to rust.

IMPORTANT: Never cover snow thrower while engine/

exhaust area is still warm.

21

TROUBLESHOOTING

Does not start 1. Fuel shut-off valve (if so 1. Turn fuel shut-off valve to OPEN position.

equipped) in OFF position.

2. Safety ignition key 2. Insert safety ignition key.

is not inserted.

3. Out of fuel. 3. Fill fuel tank with fresh, clean gasoline.

4. Throttle in STOP position 4. Move throttle to FAST position

(or ON/OFF switch is OFF). (or ON/OFF switch to ON position).

5. Choke in OFF position. 5. Move to FULL position.

6. Primer not depressed. 6. Prime as instructed in the Operation section of this manual.

7. Engine is flooded. 7. Wait a few minutes before restarting, DO NOT prime.

8. Spark plug wire is 8. Connect wire to spark plug.

disconnected.

9. Bad spark plug. 9. Replace spark plug.

10. Stale fuel. 10. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

11. Water in fuel. 11. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

Loss of power 1. Spark plug wire loose. 1. Reconnect spark plug wire.

2. Throwing too much snow. 2. Reduce speed and width of swath.

3. Fuel tank cap is covered 3. Remove ice and snow on and around fuel tank cap.

with ice or snow.

4. Dirty or clogged muffler. 4. Clean or replace muffler.

Engine idles or 1. Choke is in FULL position. 1. Move choke to OFF position.

runs roughly 2. Blockage in fuel line. 2. Clean fuel line.

3. Stale fuel. 3. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

4. Water in fuel. 4. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

5. Carburetor is in need of 5. Contact an authorized service center/department.

adjustment or overhaul.

Excessive 1. Loose parts or damaged 1. Tighten all fasteners. Replace damaged parts. If vibration

vibration augers or impeller. remains, contact an authorized service center/department.

Recoil starter 1. Frozen recoil starter. 1. See “IF RECOIL STARTER HAS FROZEN”

is hard to pull in the Operation section of this manual.

Loss of traction 1. Drive belt is off of pulley. 1. Check / reinstall drive belt.

drive / slowing 2. Friction drive wheel is worn. 2. Contact an authorized service center/department.

of drive speed

Loss of snow 1. Auger belt is off of pulley. 1. Check / reinstall auger belt.

discharge or 2. Auger belt is worn. 2. Check / replace auger belt.

slowing of 3. Clogged discharge chute. 3. Clean snow chute.

snow discharge 4. Augers / impeller jammed. 4. Remove debris or foreign object from augers / impeller.

PROBLEM CAUSE CORRECTION

See appropriate section in manual unless directed to an authorized service center/department.

22

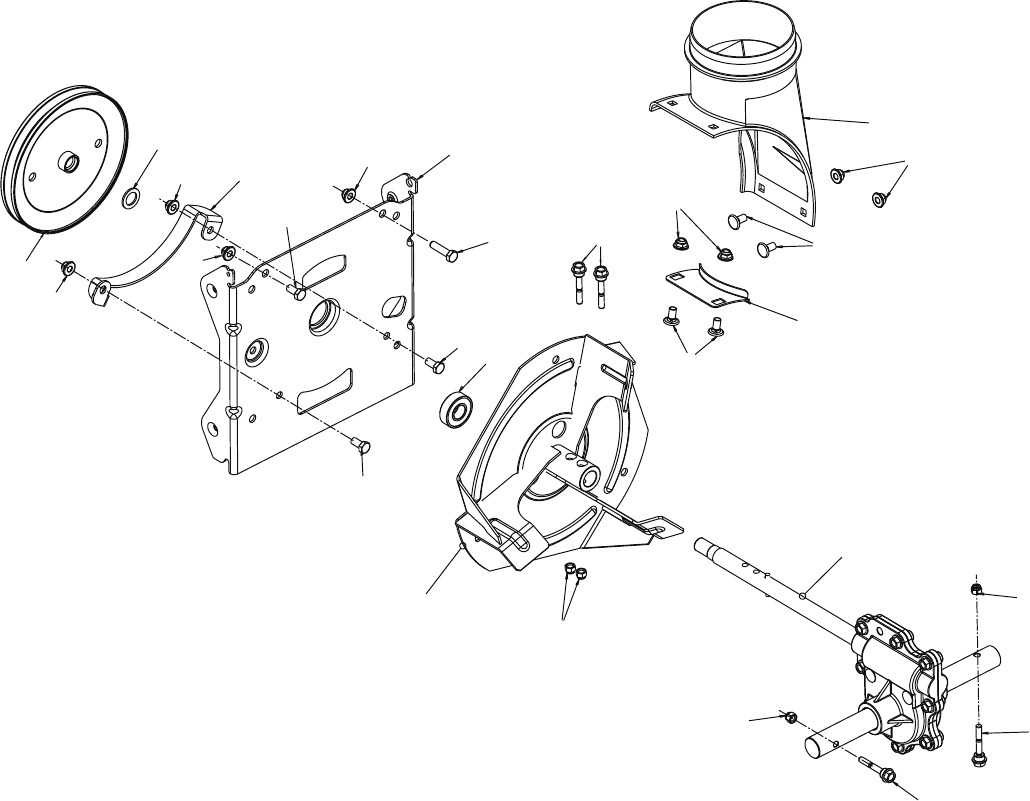

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

AUGER HOUSING / IMPELLER ASSEMBLY

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

10

11

1

2

3

4

5

6

6

7

7

7

9

9

8

8

12

13

13

13

14

14

14

14

15

16

05.09.009-E

6

23

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

AUGER HOUSING / IMPELLER ASSEMBLY

1 586714801 GEARBOX AUGER

2 586607202 IMPELLER STEEL

3 586715201 PULLEY IMPELLER SCREW ON

4 585056901 CHUTE DISCHARGE BASE

5 178675 BRACKET CORNER DISCHARGE BASE

6 585511801 BOLT SHEAR 1/4-20

7 73800400 NUT NYLOCK 1/4-20

8 585691301 NUT FLANGE NYLOCK 5/16-18 - BLK

9 585691201 BOLT CARRIAGE WAFER HEAD 5/16-18 X 5/8 BLK

10 581632002 BRACKET BELT KEEPER LOWER

11 581592502 BRACKET INTERFACE

12 198791 BEARING BALL

13 163183 SCREW HEX HEAD 5/16-18 X 5/8

14 427942 NUT FLANGE NYLOCK 5/16-18

15 587392701 WASHER IMPELLER PULLEY

1.00D X .641ID X .075THK

16 74520520 SCREW HEX HEAD 5/16-18 X 1.25

24

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

AUGER HOUSING / IMPELLER ASSEMBLY

05.09.010-C

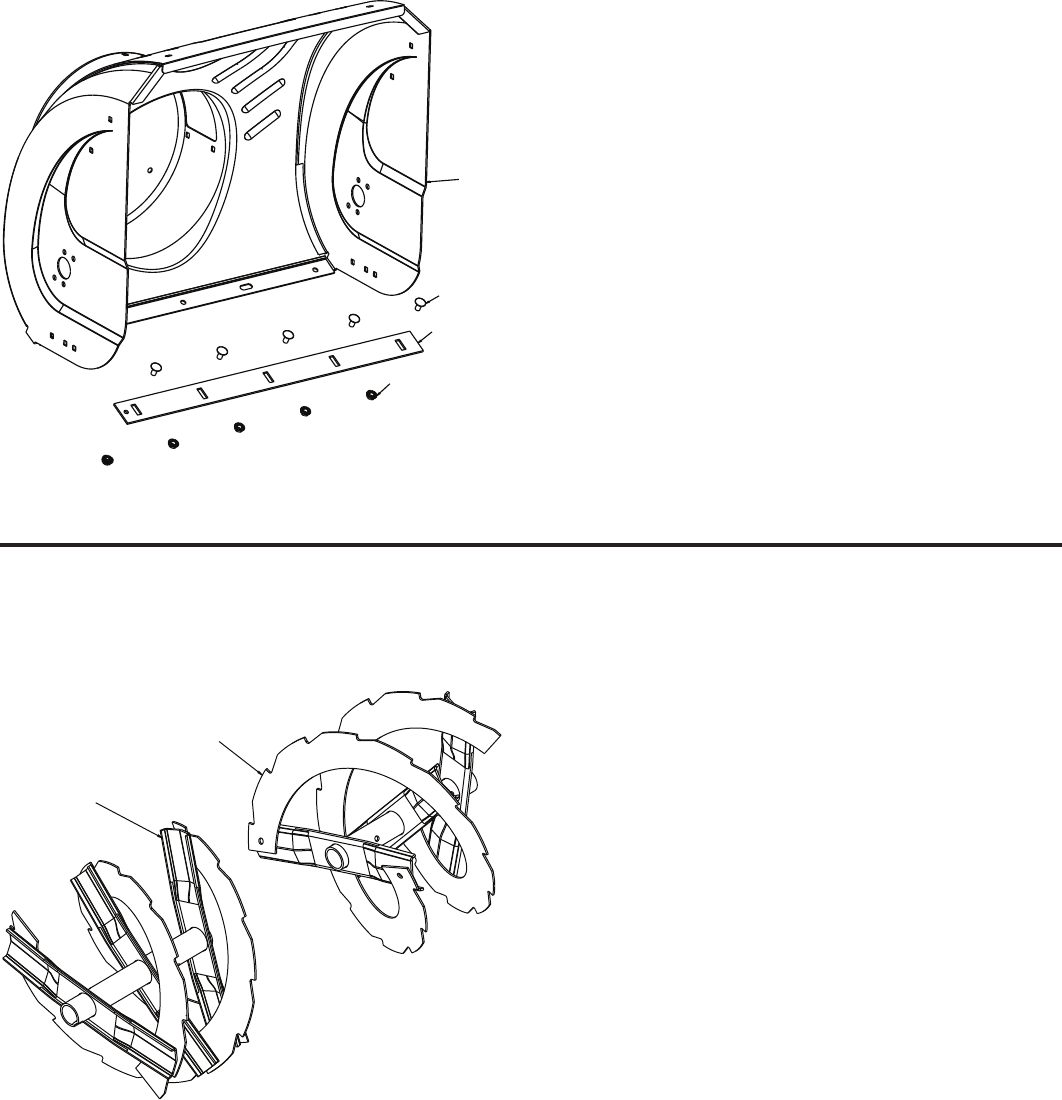

1

2

3

4

5X

5X

1 581637302 AUGER HOUSING

2 404931X428 SCRA PER BAR

3 72270505 CARRIAGE BOLT 5/16-18 X

.625 GR5

4 155377 NUT 5/16-18

1

2

05.09.005-C

1 420493X615 AUGER WELD RIB LH 24

2 420494X615 AUGER WELD RIB R H 24

25

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

AUGER HOUSING / IMPELLER ASSEMBLY

05.09.007-A

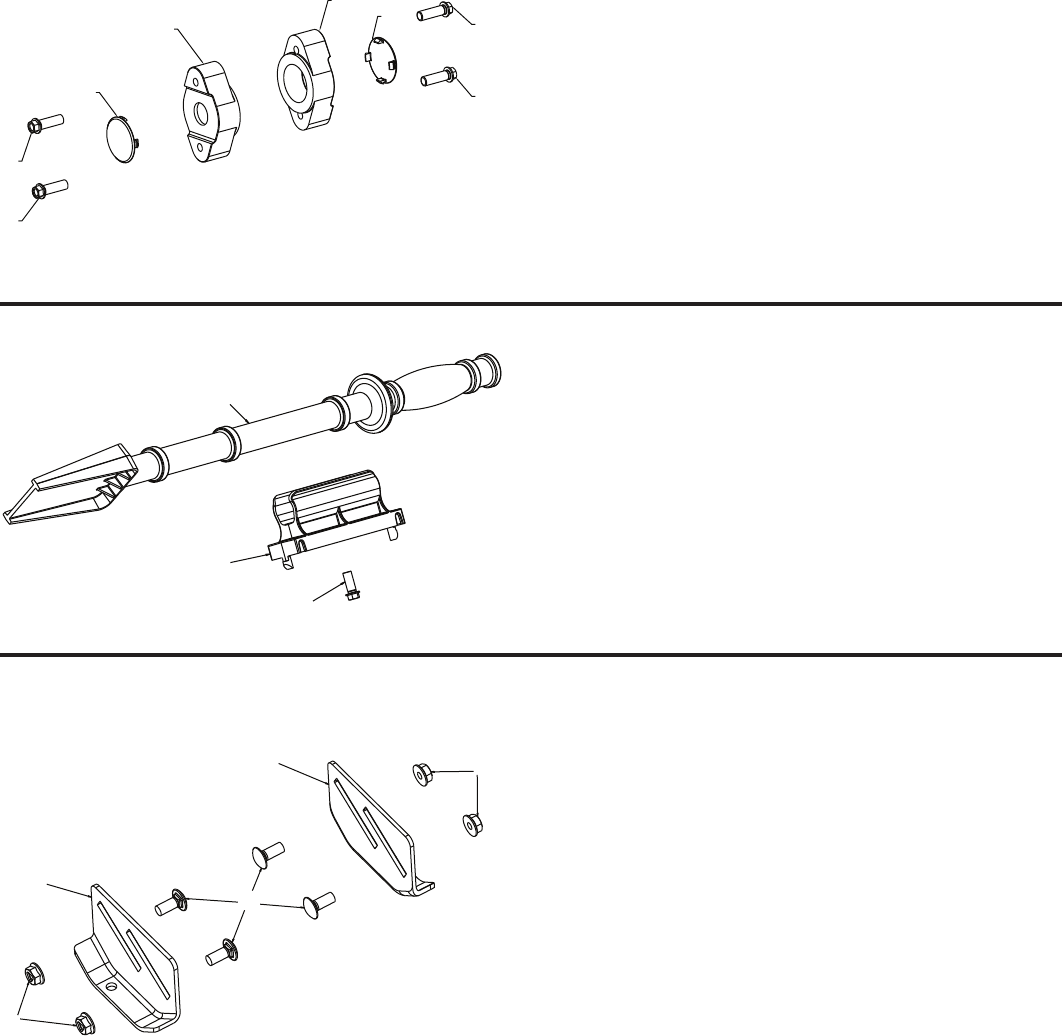

2

2

3

3

1

1

3

3

1 420478 AUGER BEARING

2 411939 BEARING PLUG

3 584299401 SCREW HI-LO WASHD

5/16-14 X 1.00

05.09.039-A

1

2

3

1 192199 TOOL CLEANOUT

2 405400 CLIP CLEANOUT TOOL

3 194189 SCREW HEX WASHER

13-16 X 5/8

05.12.001-A

1

2

3

4

4

1 174762X479 SKID PLATE LH

2 178777X479 SKID PLATE RH

3 585691701 BOLT CARRIAGE BLK

5/16-18 X .75

4 585691301 NUT BLK 5/16 -18

26

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

CONTROL PANEL / DISCHARGE CHUTE

KEY PART

NO. NO. DESCRIPTION

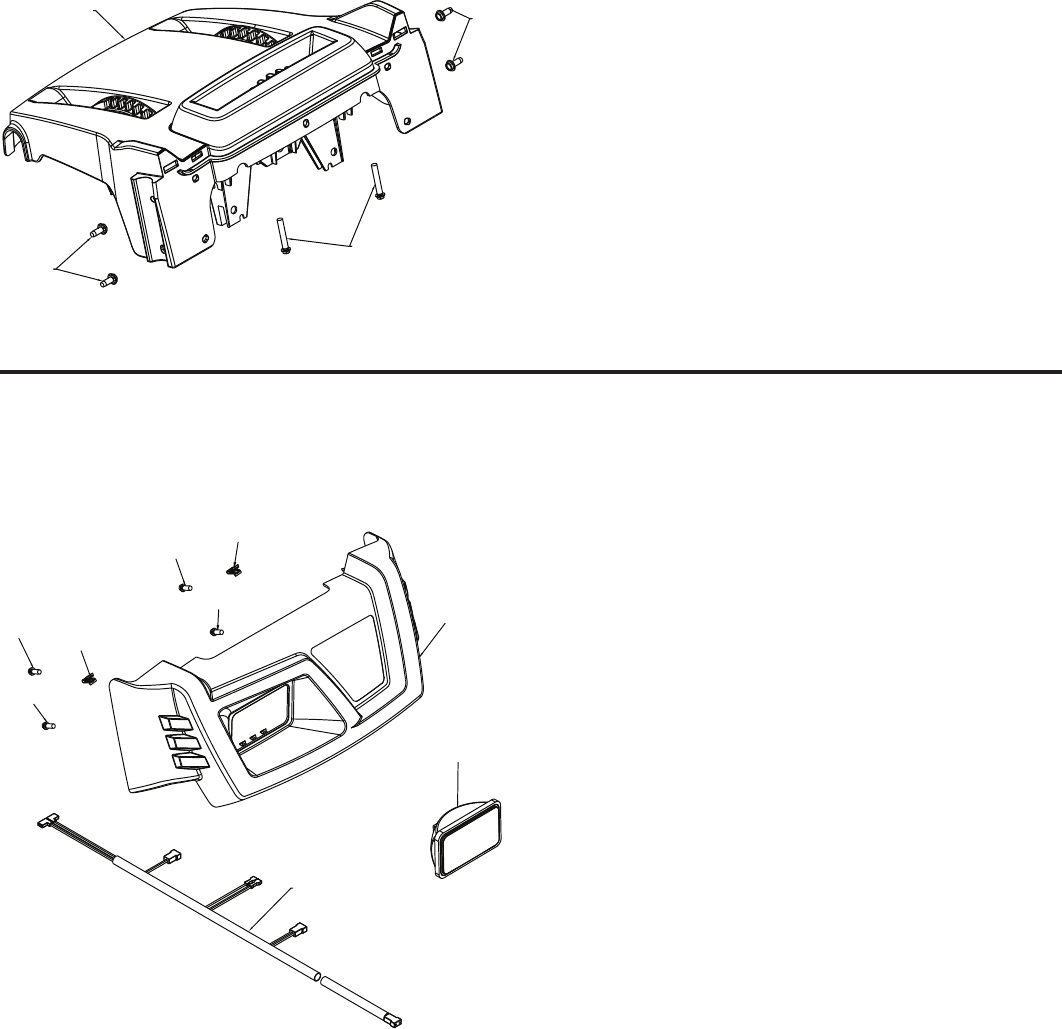

12

23

05.07.003-A

1 581131201 CONSOLE BASE MULTI

CONTROL

2 17060410 SCREW TA SEMI GIMLE

1/4-20 X .62

3 581329501 SCREW HEX WASHER

13-16 X 1.50

1

2

3

3

3

3

4

4

5

05.07.015-C

1 581128105 CONSOLE BLACK 428

2 586181001 FLOOD LIGHT

3 194189 SCREW HI-LO 13-16 X 5/8

4 581928701 PANEL CLIP

5 587535701 WIRE HARNESS LIGHT & GRIP

- - 183784 BULB

27

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

CONTROL PANEL / DISCHARGE CHUTE

KEY PART

NO. NO. DESCRIPTION

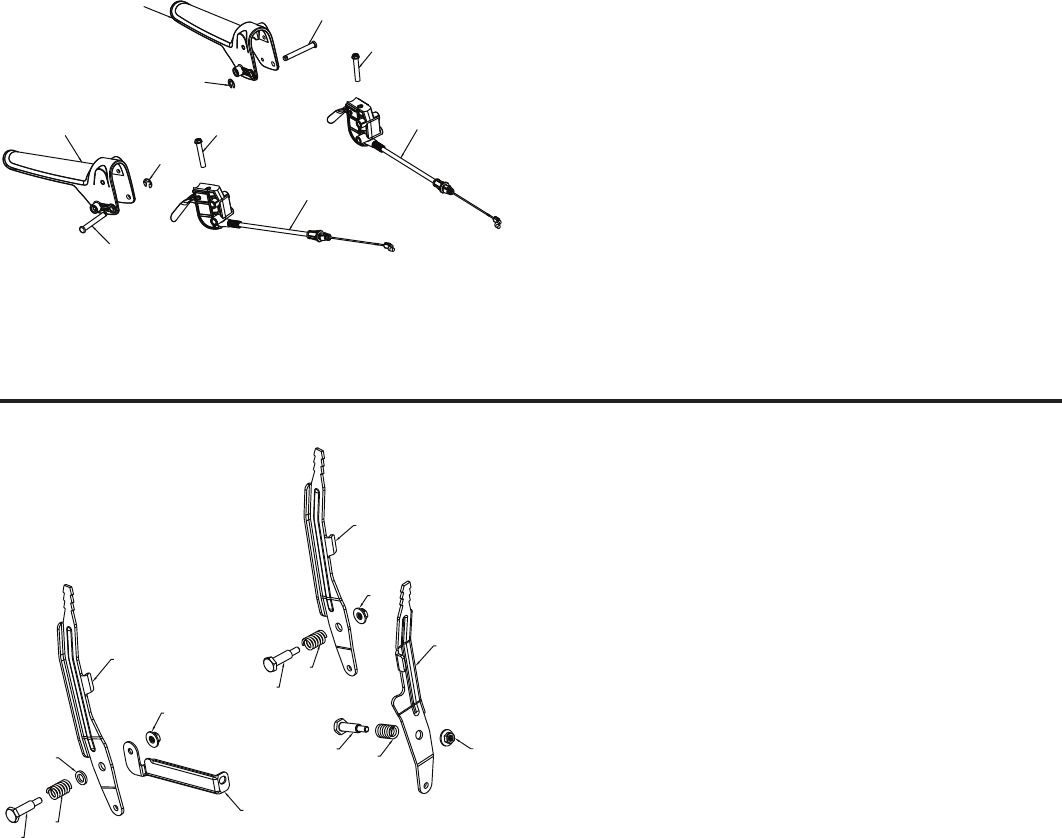

1

12

3

3

3

4

4

4

5

5

5

6

7

05.08.005-C

1 581123902 LEVER CONTROL SPEED/DEFL

2 581241602 LEVER CONTROL CHUTE ROT

3 581329701 BOLT SHOULDER 1/4-20

4 581329601 SPRING COMPRESSION

5 586668901 NUT FL LOCK 1/4-20

6 584468402 BRACE SUPPORT SPEED

7 587031301 WASHER .625 X .375 X .094

NYLON 6/6

1

1

2

2

3

3

4

4

5

5

05.08.007-C

1 587463001 LEVER CONTROL DSSST

OPP MPP

2 581208201 CONTROL UNIT ASM LEVER

PIVOT

3 585690701 SCREW HEXHD 10-24 X 1.50

4 431762 GROOVED PIN

5 12000014 E-RING EXTERNAL

28

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

CONTROL PANEL / DISCHARGE CHUTE

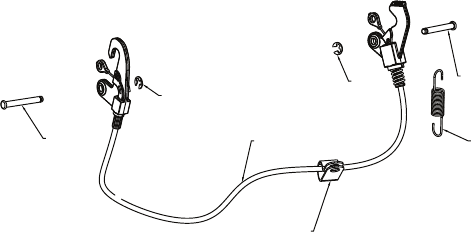

12

2

3

3

4

505.08.001-B

1 580664701 CABLE INTERLOCK

2 431762 PIN GROOVED

3 12000014 E-RING

4 581151201 SPRING RETURN

5 197991 CLIP CABLE BLACK

29

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

CONTROL PANEL / DISCHARGE CHUTE

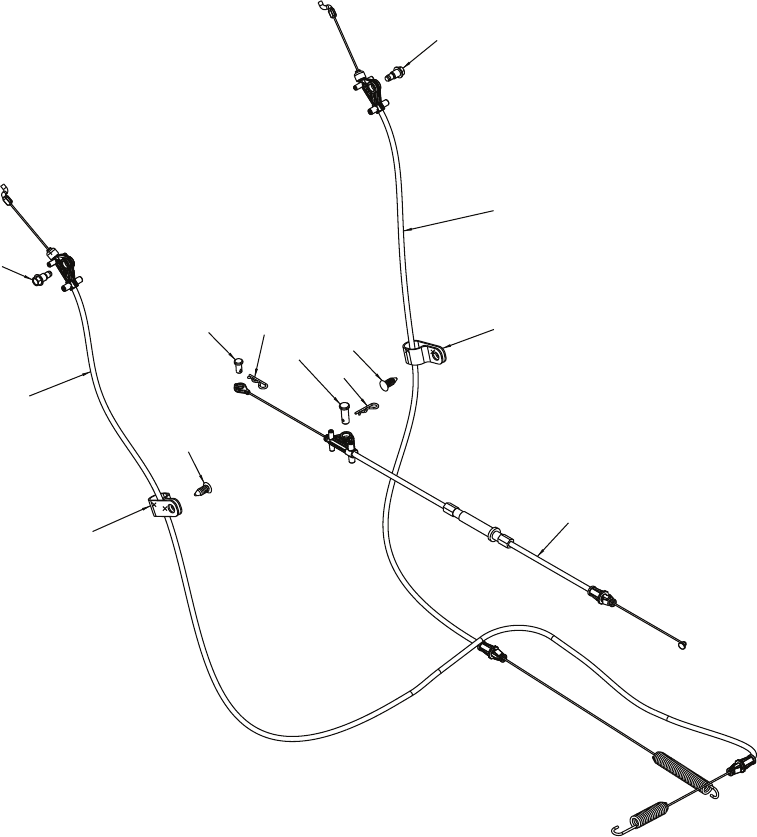

1

2

3

4

4

5

5

6

6

7

9

8

8

05.08.009-C

1 581128301 CABLE CONTROL DRIVE

2 587428701 CABLE CONTROL AUGER

3 587622801 CABLE CONTROL SPEED

4 581726101 BOLT SHOULDER 1/4

5 197991 CLIP CABLE

6 428124 FASTENER PUSH .250

7 581329401 PIN CLEVIS 5/16

8 423 303 HAIRPIN

9 585808301 PIN CLEVIS 1/4

30

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

CONTROL PANEL / DISCHARGE CHUTE

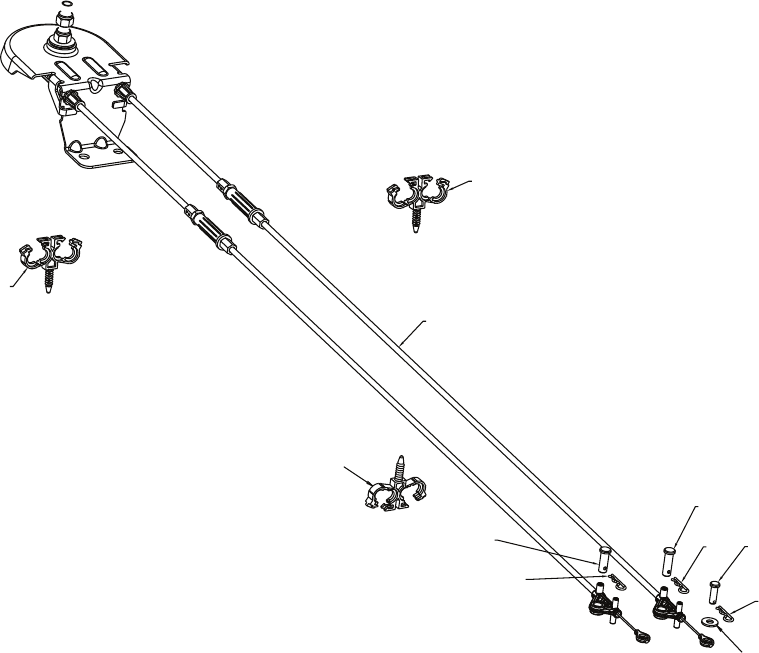

1

23

4

4

4

5

5

5

6

7

05.08.003-D

1 581680301 CABLE ROTATOR ASM

2 581329401 PIN CLEVIS 5/16 X 7/8

3 77100812 PIN CLEVIS 1/4 X 3/4

4 423303 HAIRPIN SOFT ZINC

5 584652201 CLIP CONDUIT DOUBLE

6 586682101 WASHER

7 587130801 PIN CLEVIS 5/16 X 1

31

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

CONTROL PANEL / DISCHARGE CHUTE

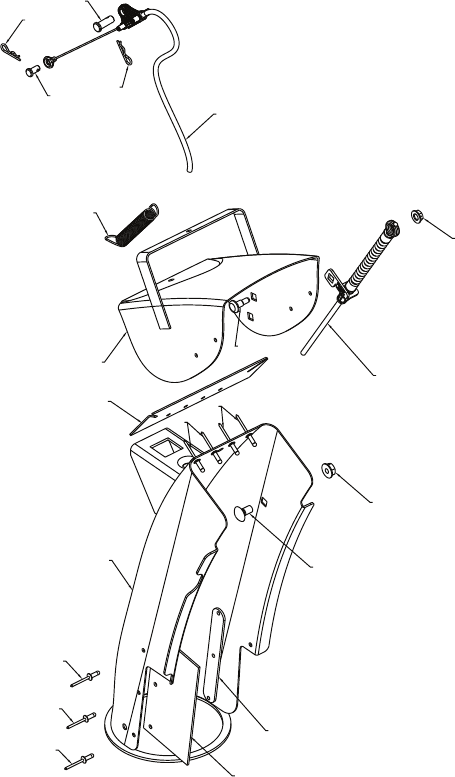

10

10

*11

1

2

3

4

4

4

44

5

6

7

7

9

8

*12

*13

*14

*15

05.11.006-D

1 443328X615 CHUTE WELDMENT

2 178633X615 DEFLECTOR WELDMENT

3 420325 DEFLECTOR SEAL

4 128415 POP RIVET

5 430324 CHUTE SNOW SHIELD

6 419822X004 SHIELD STRAP RETAINER

7 586961501 CABLE ASM DEFLECTOR -

BOWDEN

8 581329401 PIN CLEVIS 5/16 X .875

9 585808301 PIN CLEVIS 1/4 X .312

10 423303 HAIRPIN RETAINER

*11 184505 DEFLECTOR SPRING

*12 585832201 SHOULDER BOLT 1/4-20 X .375

*13 585691401 NUT 1/4-20

*14 585832001 CARRIAGE BOLT 3/8-16 X .625

*15 73970500 NUT 5/16-18

NOTE: ALL ITEMS MARKED WITH AN * ARE PROVIDED

IN THE BAG OF ITEMS SHIPPED LOOSE WITH THE

PRODUCT

32

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

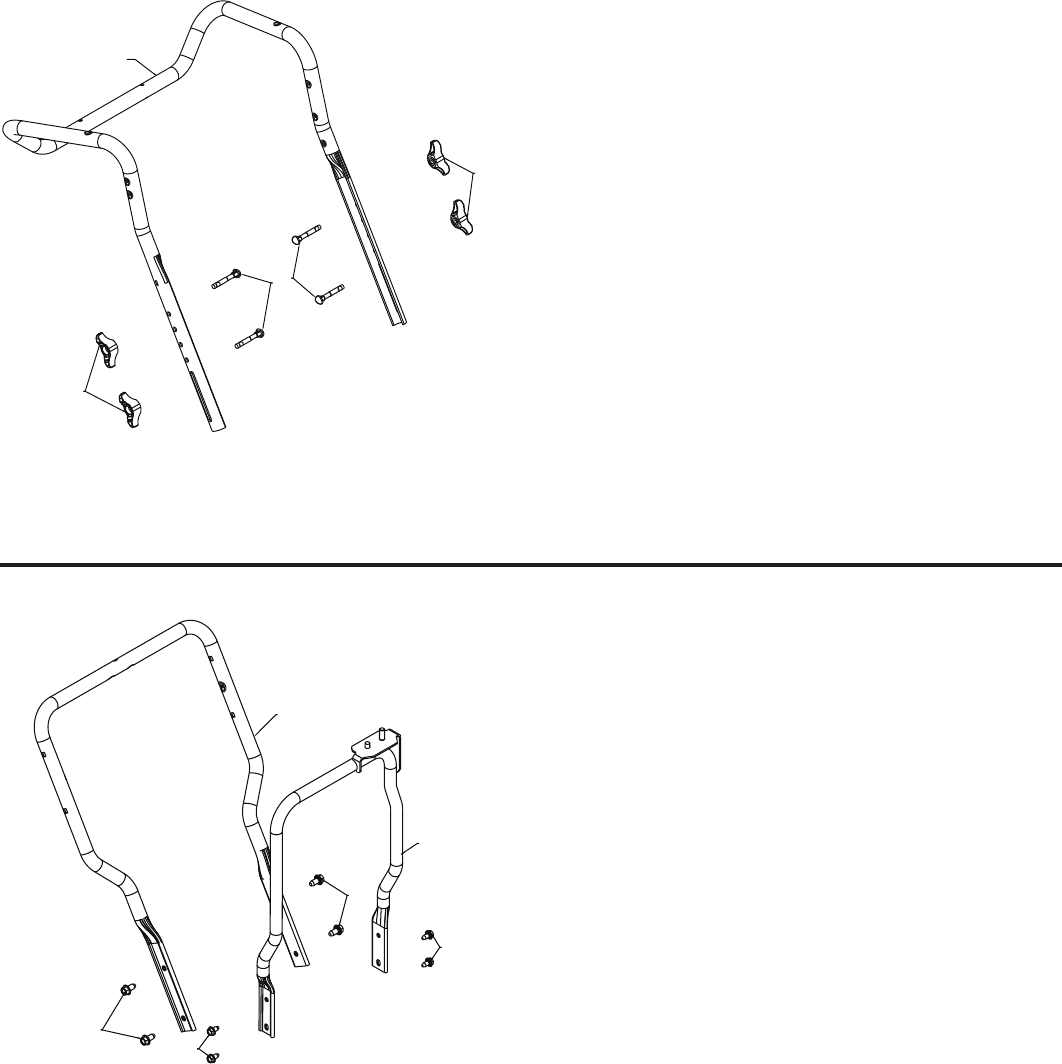

HANDLES

1

2

2

3

4

4

05.05.001-D

1 581123504 LOWER TUBE

2 17000612 SCREW HEX WASH HD

3/8-16 X .75

3 581622002 CHUTE ROTATOR SUPPORT

ASM

4 17000510 BOLT HEX 5/16-18

1

2

2

3

05.06.001-E

1 581123604 UPPER HANDLE

2 189713X428 HANDLE KNOB STD BLACK

3 587359001 BOLT 5/16-18 X 1.75

CONCAVE HEAD

33

KEY PART

NO. NO. DESCRIPTION

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

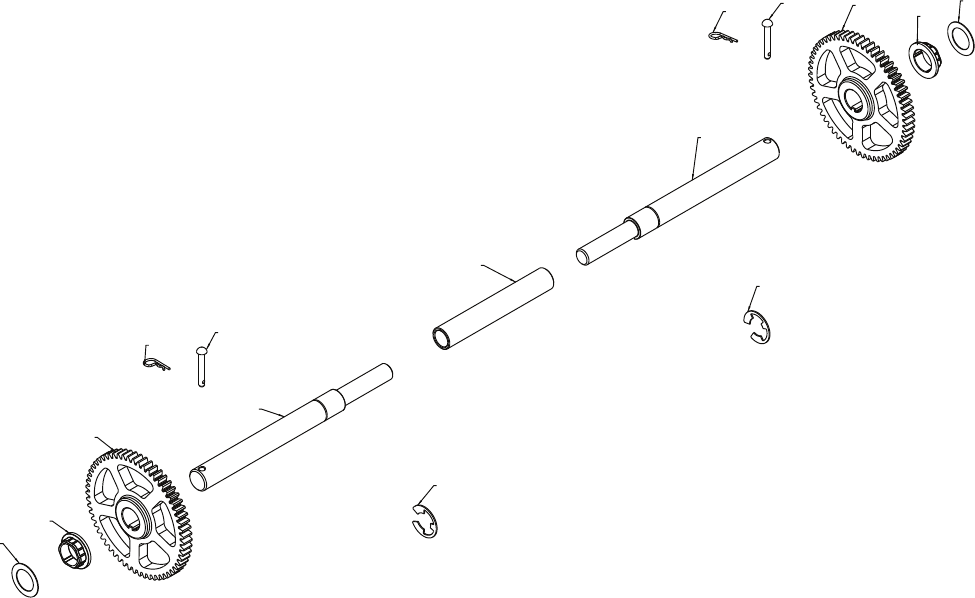

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

DRIVE

1

12

2

3

3

4

4

5

5

6

67

7

8

05.03.002-A

1 444949 WASHER 1.00

2 581122301 BUSHING HEX 1 SHAFT

3 580757301 GEAR 59T DRIVEN

4 12000053 RETAINING RING

5 580752601 AXLE SHAFT SPLIT

6 4497H RETAINER SPRING 1 ZINC

7 126875X RIVET RD HD DRILLED 1/4 DIA

8 580752501 AXLE SLEEVE

34

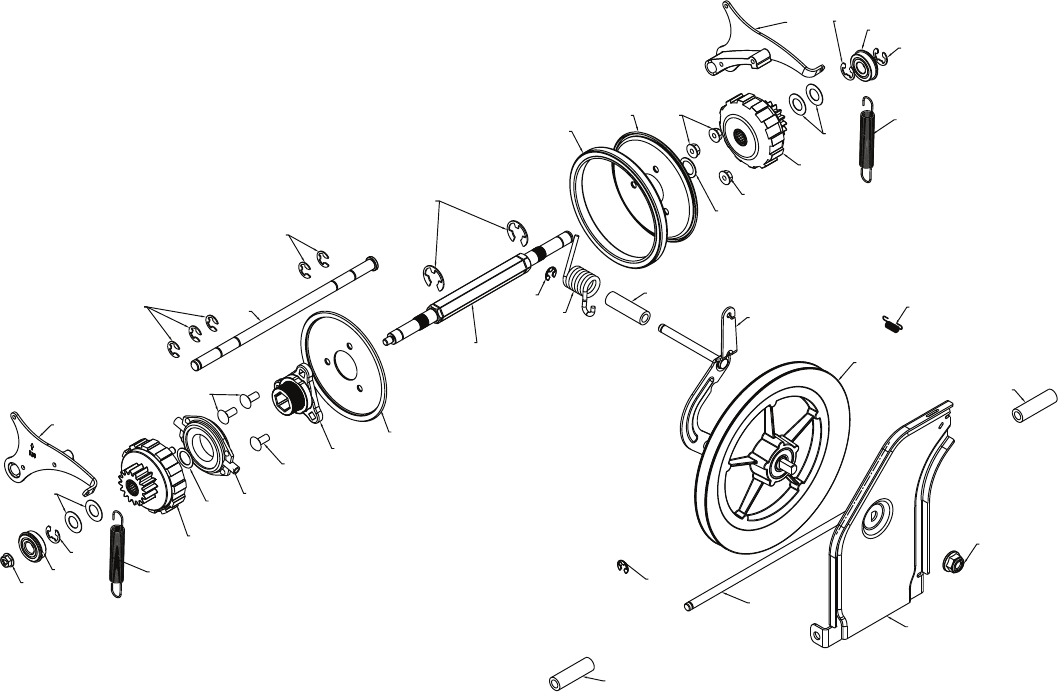

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

DRIVE

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

10

10

11

1

2

3

4

4

4

5

6

6

7

98

12

13

14

14

15

16

16

17

17

18

19

20

20

21

21

22

23

23

24

25

26

27

27

28

05.02.002-C

12 13

13

35

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

DRIVE

1 521991101 NUT HEX FLANGE LK 1/2-13

2 581446903 SWING PLATE FRICTION PULL

3 581123001 ROD TIP PLATE

4 581732701 SPACER DRIVE

5 193885 LATCH SPRING

6 12000007 E-RING RETAINER

7 581328401 FRICTION DISC COMBO PULLEY

8 581454203 BRACKET YOKE WELDMENT

9 581315301 SPRING TORSION DRIVE

10 585263801 EXTENSION SPRING

11 585691501 NUT HEX FLANGE LOCK 5/16-18

12 580756201 BEARING 9/16 I.D. 1622-2RSNR

13 580756101 RETAINER RING 1622-2RSNR

14 580751301 WASHER FLAT .59 I.D. X 1.065 X 25 GA

15 580756601 PAWL ASM RH

16 580756001 GEAR ASM PLANETARY

17 580756301 WASHER FLAT .6875 I.D. X 1.00 X 21 GA

18 175344 TRUNNION BEARING ASM

19 581090901 HUB RUBBER WHEEL

20 72110506 BOLT CARRIAGE 5/16-18 X .75

21 581091002 PLATE RUBBER WHEEL

22 581091101 RING RUBBER WHEEL

23 586644301 E-RING

24 580755101 ROD PAWL

25 12000022 E-RING

26 580752401 SHAFT REDUCTION PWR STR

27 751153 NUT HEX FLANGE LK 5/16-18

28 580756701 PAWL ASM LH

36

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

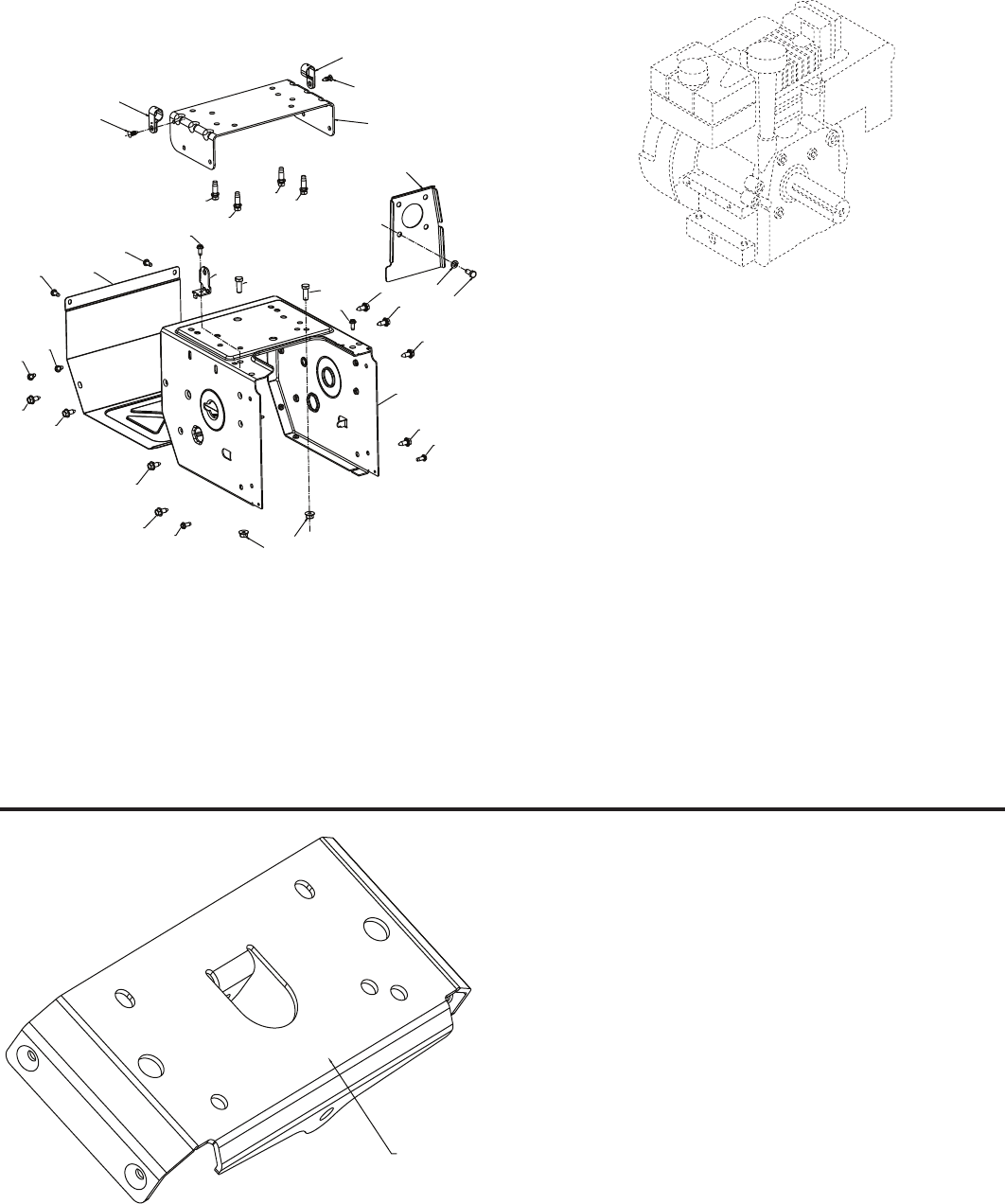

CHASSIS / ENGINE / PULLEYS

KEY PART

NO. NO. DESCRIPTION

1

05.01.002-A

1 583940502 SMALL MOUNTING PLATE

10

11

11

1

2

2

2

2

34

5

5

5

5

5

5

5

5

6

6

7

7

7

7

7

7

7

7

9

8

8

12

12

13

14

05.01.004-A

- - - - - - - - - - B&S ENGINE 20M307-0001-F1

1 580839403 FRAME

2 150406 ENGINE BOLT 3/8-16 X 1.280

DOGPOINT

3 580839503 FRAME COVER

4 581122402 SHIFTER BRACKET

5 17060410 SCREW HEX WASHER

1/4-20 X 5/8

6 74760616 HEX HD BOLT 3/8-16 X 1.00

7 428867 BOLT HEXHD WASHER

5/16-18 X .75

8 73900600 NUT LOCK 3/8-16

9 74610512 SCREW 5/16-24 X .750

10 10040500 WASHER LOCK

11 428124 PUSH FASTENER .25 X .783

12 197991 P-CLIP

13 587125502 PLATE ENGINE FRONT B&S

250/305

14 587069902 BRACKET ENGINE

MOUNTING B&S 205/305

37

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION KEY PART

NO. NO. DESCRIPTION

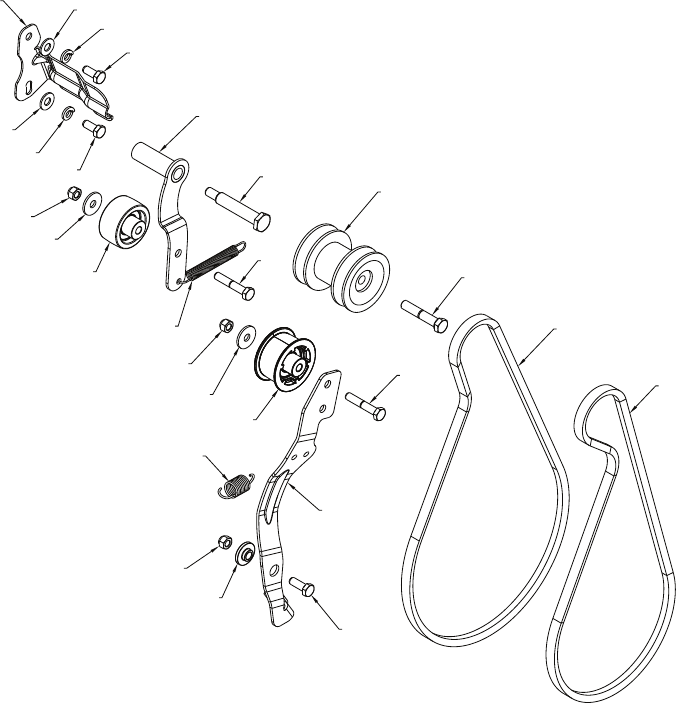

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

CHASSIS / ENGINE / PULLEYS

10

10

11

12

2

3

3

4

4

5

5

5

6

6

7

9

8

12

13

14

15

16

17

18

19

20

05.04.003-K

1 581623702 BELT KEEPER BRACKET

2 19111216 WASHER 11/32 X 3/4 X 16 GA

3 10040500 LOCK WASHER 5/16 SPLIT HVY

4 74610512 CAPSCREW HEXHD

5/16-24 X .75 GR5

5 73800500 NUT NYLOCK 5/16-18 UNC

6 59289 WASHER FLAT .328 X 1.00 X .097

7 581141401 PULLEY IDLER 2.0 WITH SPACER

8 581338203 IDLER ARM WELDMENT DRIVE

9 580753001 RETURN SPRING IDLER ARM

DRIVE

10 74760528 BOLT HEXHD 5/16-18 X 1.75

11 581413801 SHOULDER BOLT

5/16-24 X 2.15

12 587462901 IMPELLER/DRIVE PULLEY

ASM

13 179617 BOLT HEXHD 3/8-24 GR8

14 587031201 RETURN SPRING IDLER ARM

15 74760514 BOLT HEXHD 5/16-18 X .875

16 580831104 IDLER ARM

17 587343701 IDLER BUSHING PIVOT

18 587209001 AUGER BELT HI CRANK

19 585829901 DRIVE BELT HI CRANK

20 586880201 PULLEY IDLER 2.0

FLANGELESS WITH SPACER

38

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

CHASSIS / ENGINE / PULLEYS

1

2

3

3

4

405.04.004-B

1 587105501 BELT COVER HI CRANK

2 145006 CABLE GUIDE

3 585691101 BOLT HEX WSH THDRL

1/4-20 X 1

4 423062 PALNUT 1/4 IN

39

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

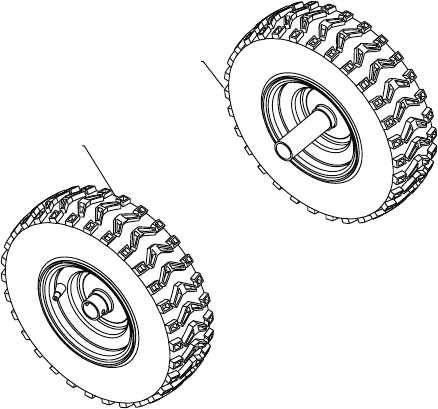

WHEELS

1

2

05.15.001-A

1 580627704 WHEEL 13X4 NPS RH 1.00

K478

2 580627604 WHEEL 13X4 NPS LH 1.00

K478

40

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

BAG OF PARTS

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

1

01.14.007-A

1 193071 SAFETY IGNITION KEY

10

11

1

2

3

4

5

6

7

9

8

12

05.18.006-B

1 585511801 BOLT 1/4-20 X 1.81

2 73800400 NUT NYLOCK 1/4-20

3 180684 WRENCH

4 585832201 BOLT SHOULDER

5 585691401 NUT HEX FL 1/4-20 CTR

6 585691001 NUT NYLOCK 3/8-16

7 587359001 BOLT 5/16-18 X 2.2 5 CONCAVE

8 189713X428 KNOB 5/16-18 TWO-WING

9 585832001 BOLT 5/16-18 X .625

10 73970500 NUT SERR FL LOCK 5/16-18

11 184505 SPRING DEFLECT CHUTE

12 581697501 KNOB SOFT TOUCH SLOTTED

41

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

DECALS

1

2

3

4

05.16.001-A

1 184045 DECAL AUGER

2 199682 DECAL CHUTE

3 199683 DECAL AUGER SAFETY

4 184028 DECAL BELT GUIDE

- - 174572 DECAL CANADA

42

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

DECALS

1

5

5

4

31

KEY PART

NO. NO. DESCRIPTION

1 199683 DECAL, DANGER

3 199682 DECAL, DANGER, DEFLECTOR

4 184045 DECAL, DANGER

5 184028 DECAL, BELT GUARD

- - 174572 DECAL, CANADA

- - 587392327 OWNER’S MANUAL, ENGLISH

- - 587392331 OWNER’S MANUAL, FRENCH

43

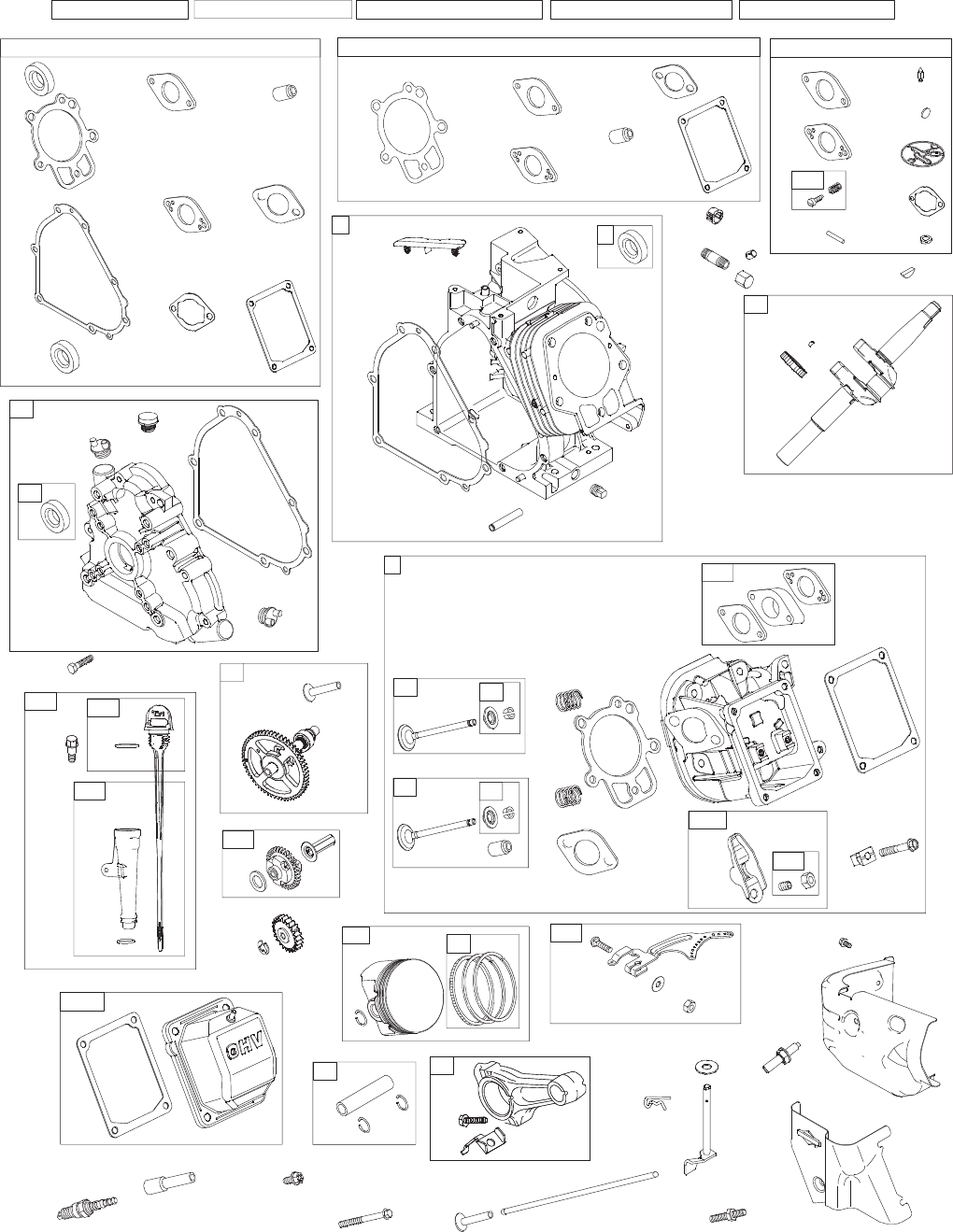

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

ENGINE, B&S MODEL NUMBER 20M307-0001-F1

718A

742

746

725

220

219

27

26

25

27

28

30

32

29

30

32

1427

998

529

1351

306

307

46

45

741

377

24

16

524

287

842

847 523

525

21

20

1221

22

18

19

21A

48 1330132910581036

3

552

15

718

1

2

37A

12

616

614

404

505

562

227

278

358

51

51A

7

1022

883

868

163

20

12

3

7

1095

1022

868

51

51A

883

121

105

104

137

127

633

51

51A

163

98

35

883

868

7

1100 798

1022

36

51

51A

122

34

33 42

192

1029

5

42

1029A

1022

1023

914

13 1171

337

635

45

1026

44

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

ENGINE, B&S MODEL NUMBER 20M307-0001-F1

118

472 190

187

601

972

957

957A

53

610

163

108

130

135

117

127

51

51A

104

105

137

1127

975

125

122

133

95

633

97

98

528

109

632

1252

1251

11

305

731

1288

1318

1352

1251A

55

1211

1210

58

459

689

456

597

458

608

65

528

601A

304

281

65 592

306

37

78

1054

668

731A

976

892

1196 1196A 756

990

209

632

188

604

564

604A

613

613A

883

300

751

211

485

504

621

410

668A

773

1138

222

190

271

836

832

45

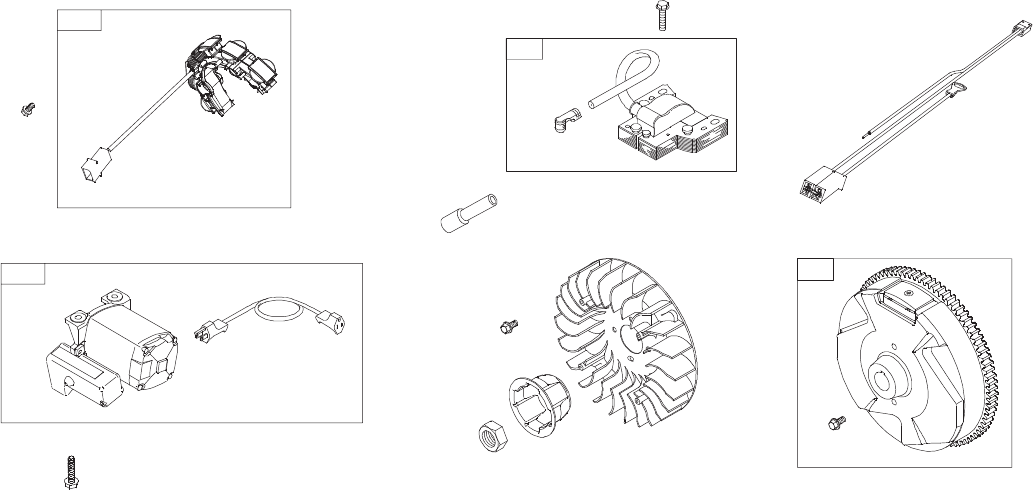

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

ENGINE, B&S MODEL NUMBER 20M307-0001-F1

356

851

334

333

697

1119

309

735

474

635

332

455

1070

1005 23

1070

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

1 794849 CYLINDER ASSEMBLY

2 698340 KIT-BUSHING/SEAL

(MAGNETO SIDE)

3 391086S SEAL-OIL (MAGNETO SIDE)

5 799860 HEAD-CYLINDER

7 694872 GASKET-CYLINDER HEAD

11 696750 TUBE-BREATHER

12 694953 GASKET-CRANKCASE

13 794829 SCREW (CYLINDER HEAD)

15 691686 PLUG-OIL DRAIN

16 794720 CRANKSHAFT

18 791965 COVER-CRANKCASE

19 698340 KIT-BUSHING/SEAL (PTO SIDE)

20 391086S SEAL-OIL (PTO SIDE)

21 281658S CAP-OIL FILL

21A 799857 CAP-OIL FILL

22 794825 SCREW (CRANKCASE

COVER/SUMP)

23 794812 FLYWHEEL

24 222698S KEY-FLYWHEEL (ALUMINUM)

25 792117 PISTON ASSEMBLY (STD)

- - 792144 PISTON ASSEMBLY (.020”

OVERSIZE)

26 792026 RING SET (STANDARD)

- - 792073 RING SET (.020” OVERSIZE)

27 690975 LOCK-PISTON PIN

28 696581 PIN-PISTON

29 694691 ROD-CONNECTING

30 694692 DIPPER-CONNECTING ROD

32 690976 SCREW (CONNECTING ROD)

33 499596 VALVE-EXHAUST

34 795199 VALVE-INTAKE

35 694865 SPRING-VALVE (INTAKE)

36 694865 SPRING-VALVE (EXHAUST)

37 591544 GUARD-FLYWHEEL

37A 795715 GUARD-FLYWHEEL

42 499586 KEEPER-VALVE

45 690977 TAPPET-VALVE

46 795697 CAMSHAFT

48 794910 SHORT BLOCK

51 694874 GASKET-INTAKE

51A 694875 GASKET-INTAKE

53 795017 STUD (CARBURETOR)

55 696710 HOUSING-REWIND STARTER

58 693389 ROPE-STARTER

65 697725 SCREW (REWIND STARTER)

78 795026 SCREW (FLYWHEEL GUARD)

95 690718 SCREW (THROTTLE VALVE)

97 696387 SHAFT-THROTTLE

98 695408 KIT-IDLE SPEED

104 694918 PIN-FLOAT HINGE

105 696136 VALVE-FLOAT NEEDLE

108 696143 VALVE-CHOKE

109 793520 SHAFT-CHOKE

117 796080 JET-MAIN (STANDARD)

118 796128 JET-MAIN (HIGH ALTITUDE)

(5000 > 9000 FEET)

121 796137 KIT-CARBURETOR OVERHAUL

46

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

ENGINE, B&S MODEL NUMBER 20M307-0001-F1

122 694876 SPACER-CARBURETOR

125 796122 CARBURETOR

127 690727 PLUG-WELCH

130 696139 VALVE-THROTTLE

133 694914 FLOAT-CARBURETOR

135 698780 TUBE-FUEL TRANSFER

137 698781 GASKET-FLOAT BOWL

163 692277 GASKET-AIR CLEANER

187 791879 LINE-FUEL (FORMED)

188 699479 SCREW (CONTROL BRACKET)

190 699220 SCREW (FUEL TANK)

192 690083 ADJUSTER-ROCKER ARM

209 694867 SPRING-GOVERNOR (RED)

211 695307 SPRING-GOVERNED IDLE

(NO COLOR/PLAIN)

219 693578 GEAR-GOVERNOR

220 691724 WASHER (GOVERNOR GEAR)

222 794800 BRACKET-CONTROL

227 694864 LEVER-GOVERNOR CONTROL

271 797554 LEVER-CONTROL

278 798196 WASHER (GOVERNOR

CONTROL LEVER)

281 697268 PANEL-CONTROL

287 699234 SCREW (DIPSTICK TUBE)

300 794948 MUFFLER

304 795699 HOUSING-BLOWER

305 699481 SCREW (BLOWER HOUSING)

306 697240 SHIELD-CYLINDER

307 794822 SCREW (CYLINDER SHIELD)

309 591036 MOTOR-STARTER

332 794824 NUT (FLYWHEEL)

333 591459 ARMATURE-MAGNETO

334 699477 SCREW (MAGNETO

ARMATURE)

337 491055S PLUG-SPARK

356 793206 WIRE-STOP

358 795201 GASKET SET-ENGINE

377 690979 KEY-WOODRUFF

404 795759 WASHER (GOVERNOR

CRANK)

410 695382 LINK-CONTROL

455 794867 CUP-FLYWHEEL

456 692299 PLATE-PAWL FRICTION

458 699334 KIT-HANDLE/ROPE

459 281505S PAWL-RATCHET

472 791948 KNOB-CHOKE SHAFT

474 797090 ALTERNATOR

485 695755 KNOB-CONTROL

504 695383 WASHER SET-FRICTION

505 793515 NUT (GOVERNOR CONTROL

LEVER)

523 790477 DIPSTICK

524 691876 SEAL-O RING (DIPSTICK TUBE)

525 792041 TUBE-DIPSTICK

528 793006 HOSE-PRIMER

529 791822 GROMMET

552 694674 BUSHING-GOVERNOR CRANK

562 798197 BOLT (GOVERNOR CONTROL

LEVER)

564 699854 SCREW (CONTROL COVER)

592 690800 NUT (REWIND STARTER)

597 691696 SCREW (PAWL FRICTION

PLATE)

601 791850 CLAMP-HOSE (GREEN)

601A 691638 CLAMP-HOSE (PRIMER HOSE)

604 696758 COVER-CONTROL

604A 790473 COVER-CONTROL

608 699335 STARTER-REWIND

610 794541 ARRESTER-INTAKE

613 794846 SCREW (MUFFLER)

(M6X.71MM)

613A 794844 SCREW (MUFFLER)

(M8X.85MM)

614 691620 PIN-COTTER

616 795758 CRANK-GOVERNOR

621 692310 SWITCH-STOP

632 796324 SPRING/LINK-MECHANICAL

GOVERNOR

633 690998 SEAL-CHOKE/THROTTLE

SHAFT (THROTTLE SHAFT)

635 691909 BOOT-SPARK PLUG

663 699854 SCREW (CONTROL PANEL)

668 794539 SPACER (SNOW HOOD)

668A 694257 SPACER (CONTROL BRACKET)

689 691855 SPRING-FRICTION

697 795012 SCREW (STARTER MOTOR)

718 690959 PIN-LOCATING (CYLINDER)

718A 695178 PIN-LOCATING (CYLINDER

HEAD)

725 696756 SHIELD-HEAT

731 794540 HOOD-SNOW

731A 793621 HOOD-SNOW

735 795901 CORD-STARTER

741 691288 GEAR-TIMING

742 692564 RETAINER-E RING

746 694679 GEAR-IDLER

751 794839 WASHER (STOP WIRE)

756 794839 WASHER (SNOW HOOD)

773 694258 RETAINER (CONTROL

BRACKET)

798 697890 SCREW (ROCKER COVER)

832 797095 GUARD-MUFFLER

836 699234 SCREW (MUFFLER GUARD)

842 795015 SEAL-O RING (DIPSTICK)

847 795087 DIPSTICK/TUBE ASSEMBLY

851 692424 TERMINAL-SPARK PLUG

868 794086 SEAL-VALVE

883 695398 GASKET-EXHAUST

47

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944.524410

ENGINE, B&S MODEL NUMBER 20M307-0001-F1

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

Engine Power Rating Information

The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi-

neers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and cor-

rected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values are

derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operating

conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and the va-

riety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross power

when used in a given piece of power equipment (actual “on-site” or net power). This difference is due to a variety of factors

including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application

limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manu-

facturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this Series engine.

892 791944 SWITCH-KEY

914 794827 SCREW (ROCKER COVER)

957 799719 CAP-FUEL (SERVICE CAP)

957A 792647 CAP-FUEL (ORIGINAL CAP)

972 799863 TANK-FUEL

975 698783 BOWL-FLOAT

976 793382 PRIMER-CARBURETOR

990 794696 KEY SET

998 792928 PIPE-OIL

1005 794815 FAN-FLYWHEEL

1022 690971 GASKET-ROCKER COVER

1023 698042 COVER-ROCKER

1026 592673 ROD-PUSH (INTAKE AND

EXHAUST)

1029 690972 ARM-ROCKER

1029A 807323 ARM-ROCKER

1036 LABEL-EMISSIONS

(AVAILABLE FROM A BRIGGS

& STRATTON AUTHORIZED

DEALER)

1054 280275 TIE-CABLE

1058 277104 OPERATOR’S MANUAL

1070 794821 SCREW (FLYWHEEL FAN)

1095 795200 GASKET SET-VALVE

1100 791959 PIVOT-ROCKER ARM

1119 699772 SCREW (ALTERNATOR)

1127 695407 SCREW (FLOAT BOWL)

1138 694255 NUT (CONTROL BRACKET)

(HIGH SPEED CONTROL)

1171 794828 STUD (ROCKER ARM COVER)

1196 696692 SCREW (SNOW HOOD)

1196A 798785 SCREW (SNOW HOOD)

(#10-24X.65)

1210 498144 PULLEY/SPRING ASSEMBLY

(PULLEY)

1211 498144 PULLEY/SPRING ASSEMBLY

(SPRING)

1251 696762 SHIELD-SNOW

1251A 790471 SHIELD-SNOW

1252 699481 SCREW (SNOW SHIELD)

1288 794838 NUT (SNOW HOOD)

1318 698111 KNOB-SNOW HOOD

1329 21M314-

3017-F1 REPLACEMENT ENGINE

1351 794847 STUD (CYLINDER SHIELD)

1352 795016 NUT (SPARK PLUG SHIELD)

(SERRATED)

1427 695757 CAP-PIPE

CARBURETOR OVERHAUL KIT KEY NO. 121

ENGINE GASKET SET KEY NO. 358

VALVE GASKET SET KEY NO. 1095

08.22.14 TH Printed in the U.S.A.

® / TM Trademarks of Sears Brands Management Corporation used under license by Sears Canada

MD Marque déposée / MC Marque de commerce de Sears Brands Management Corporation utilisée en vertu d’une licence de Sears Canada
