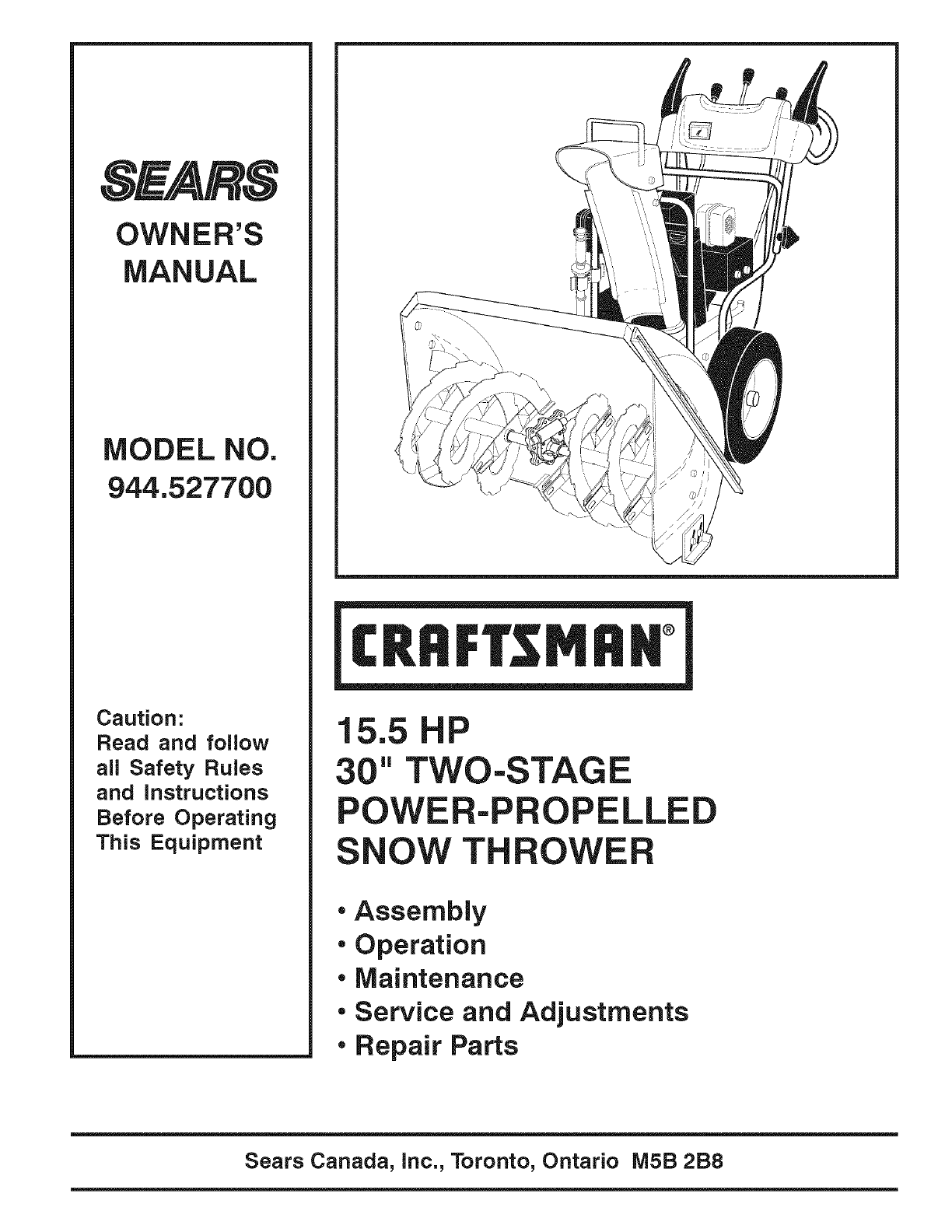

OWNER'S

MANUAL

MODEL NO.

944.527700

Caution:

Read and follow

all Safety Rules

and instructions

Before Operating

This Equipment

TWO-STAGE

R- ROPELLE

THROWER

• Assembly

• Operation

• Maintenance

•Service and Adjustments

• Repair Parts

Sears Canada, Inc., Toronto, Ontario MSB 2B8

iMPORTANT

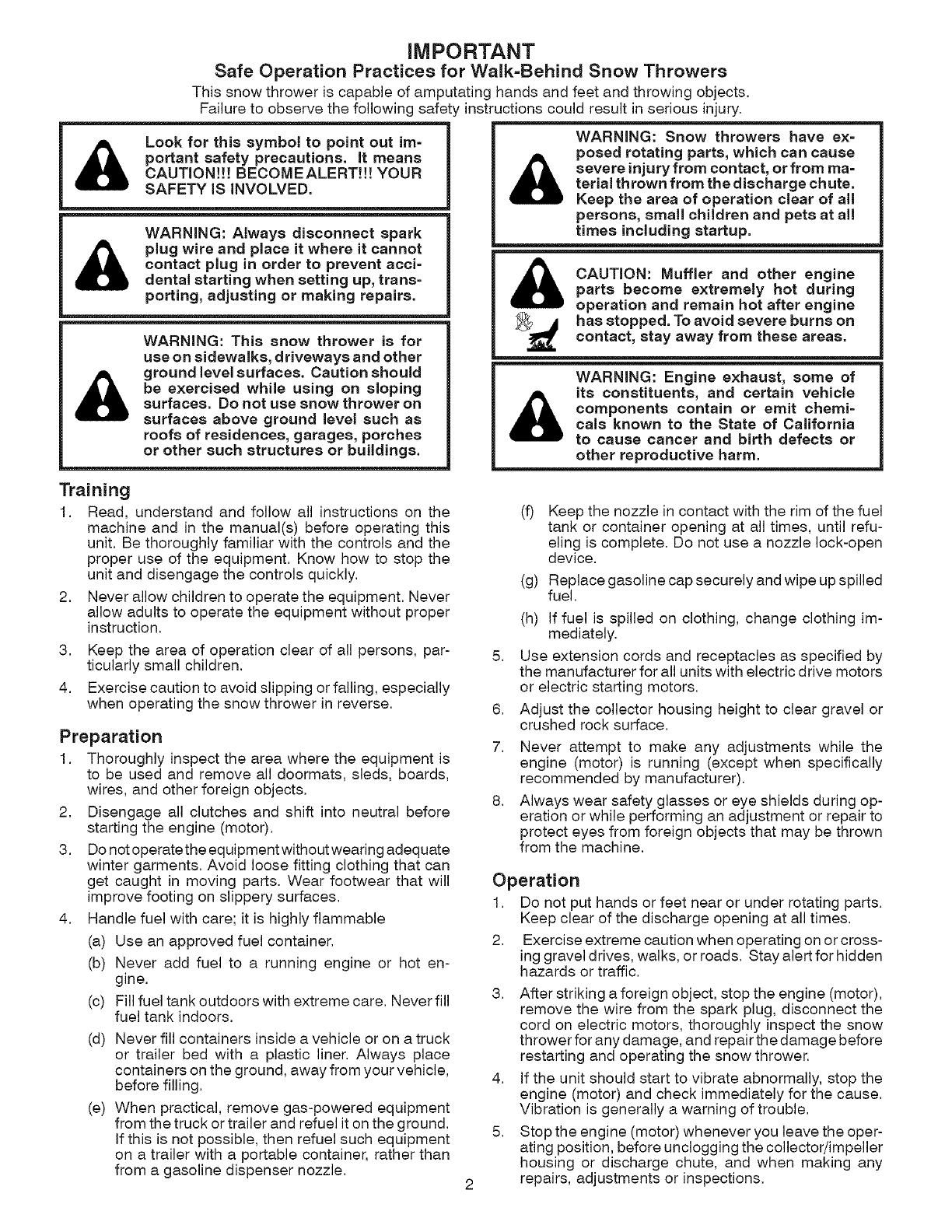

Safe Operation Practices for Walk=Behind Snow Throwers

This snow thrower is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury.

Look for this symbol to point out im-

portant safety precautions, it means

CAUTION!!! BECOMEALERT!!! YOUR

SAFETY iS iNVOLVED.

&WARNING: Always disconnect spark

plug wire and place it where it cannot

contact plug in order to prevent acci=

dental starting when setting up, trans=

porting, adjusting or making repairs.

WARNING: This snow thrower is for

use on sidewalks, driveways and other

ground level surfaces. Caution should

be exercised while using on sloping

surfaces. Do not use snow thrower on

surfaces above ground level such as

roofs of residences, garages, porches

or other such structures or buildings.

WARNING: Snow throwers have ex=

posed rotating parts, which can cause

severe injury from contact, or from ma-

terial thrown from the discharge chute.

Keep the area of operation clear of all

persons, small children and pets at all

times including startup.

CAUTION: Muffler and other engine

parts become extremely hot during

operation and remain hot after engine

_ has stopped. To avoid severe burns on

contact, stay away from these areas.

WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemi=

cals known to the State of California

to cause cancer and birth defects or

other reproductive harm.

Training

1, Read, understand and follow all instructions on the

machine and in the manual(s) before operating this

unit. Be thoroughly familiar with the controls and the

proper use of the equipment. Know how to stop the

unit and disengage the controls quickly.

2. Never allow children to operate the equipment. Never

allow adults to operate the equipment without proper

instruction.

3, Keep the area of operation clear of all persons, par-

ticularly small children.

4, Exercise caution to avoid slipping or falling, especially

when operating the snow thrower in reverse.

Preparation

1, Thoroughly inspect the area where the equipment is

to be used and remove all doormats, sleds, boards,

wires, and other foreign objects.

2. Disengage all clutches and shift into neutral before

starting the engine (motor).

3, Do not operatethe equipment without wearing adequate

winter garments. Avoid loose fitting clothing that can

get caught in moving parts. Wear footwear that will

improve footing on slippery surfaces.

4, Handle fuel with care; it is highly flammable

(a) Use an approved fuel container.

(b) Never add fuel to a running engine or hot en-

gine.

fuel tank indoors.

(d) Never fill containers inside a vehicle or on a truck

or trailer bed with a plastic liner. Always place

containers on the ground, away from your vehicle,

before filling.

(e) When practical, remove gas-powered equipment

from the truck or trailer and refuel it on the ground.

If this is not possible, then refuel such equipment

on a trailer with a portable container, rather than

from a gasoline dispenser nozzle.

(f) Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times, until refu-

eling is complete. Do not use a nozzle lock-open

device.

(g) Replace gasoline cap securely and wipe up spilled

fuel.

(h) If fuel is spilled on clothing, change clothing im-

mediately.

Use extension cords and receptacles as specified by

the manufacturer for all units with electric drive motors

or electric starting motors.

Adjust the collector housing height to clear gravel or

crushed rock surface.

Never attempt to make any adjustments while the

engine (motor) is running (except when specifically

recommended by manufacturer).

Always wear safety glasses or eye shields during op-

eration or while performing an adjustment or repair to

protect eyes from foreign objects that may be thrown

from the machine.

Operation

1, Do not put hands or feet near or under rotating parts,

Keep clear of the discharge opening at all times.

2. Exercise extreme caution when operating on or cross-

ing gravel drives, walks, or roads, Stay alert for hidden

hazards or traffic.

3, After striking a foreign object, stop the engine (motor),

remove the wire from the spark plug, disconnect the

cord on electric motors, thoroughly inspect the snow

thrower for any damage, and repair the damage before

restarting and operating the snow thrower.

4. If the unit should start to vibrate abnormally, stop the

engine (motor) and check immediately for the cause.

Vibration is generally a warning of trouble.

5, Stop the engine (motor) whenever you leave the oper-

ating position, before unclogging the collector/impeller

housing or discharge chute, and when making any

repairs, adjustments or inspections,

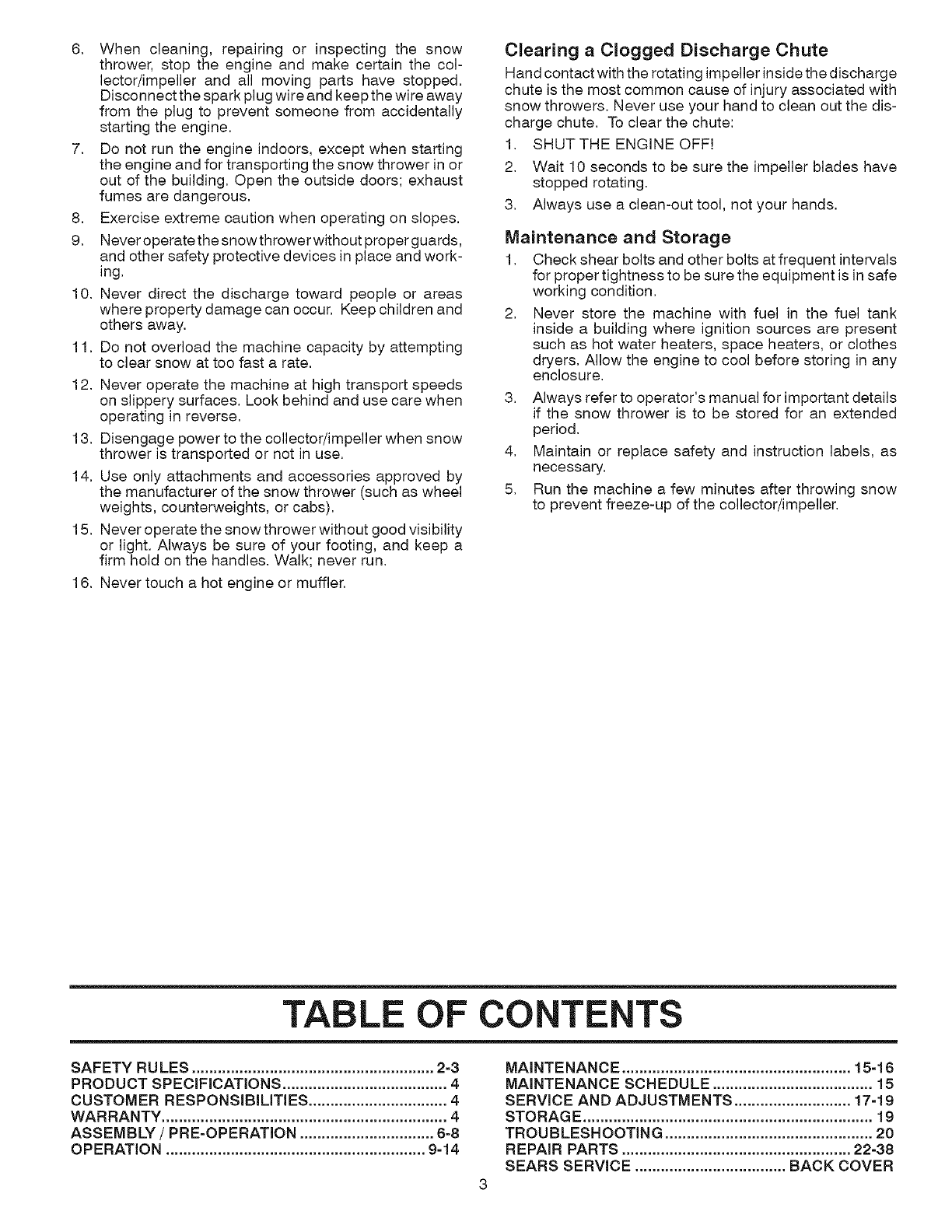

6. Whencleaning,repairingor inspectingthe snow

thrower,stopthe engineandmakecertainthe col-

lector/impellerandall movingpartshavestopped.

Disconnectthesparkplugwireandkeepthewireaway

fromtheplugto preventsomeonefromaccidentally

startingtheengine.

7. Donotruntheengineindoors,exceptwhenstarting

theengineandfortransportingthesnowthrowerinor

outofthebuilding.Opentheoutsidedoors;exhaust

fumesaredangerous.

8. Exerciseextremecautionwhenoperatingonslopes.

9. Neveroperatethesnowthrowerwithoutproperguards,

andothersafetyprotectivedevicesinplaceandwork-

ing.

10.Neverdirectthe dischargetowardpeopleor areas

wherepropertydamagecanoccur.Keepchildrenand

othersaway.

11.Donotoverloadthemachinecapacitybyattempting

to clearsnowattoofasta rate.

12.Neveroperatethemachineat hightransportspeeds

onslipperysurfaces.Lookbehindandusecarewhen

operatinginreverse.

13.Disengagepowertothecollector/impellerwhensnow

throweristransportedornotinuse.

14.Useonlyattachmentsandaccessoriesapprovedby

themanufacturerofthesnowthrower(suchaswheel

weights,counterweights,orcabs).

15.Neveroperatethesnowthrowerwithoutgoodvisibility

orlight.Alwaysbesureof yourfooting,andkeepa

firmholdonthehandles.Walk;neverrun.

16.Nevertoucha hotengineormuffler.

Clearing a Clogged Discharge Chute

Hand contact with the rotating impeller inside the discharge

chute is the most common cause of injury associated with

snow throwers. Never use your hand to clean out the dis-

charge chute. To clear the chute:

1. SHUTTHE ENGINE OFF!

2. Wait 10 seconds to be sure the impeller blades have

stopped rotating.

3. Always use a clean-out tool, not your hands.

Maintenance and Storage

1. Check shear bolts and other bolts at frequent intervals

for proper tightness to be sure the equipment is in safe

working condition.

2. Never store the machine with fuel in the fuel tank

inside a building where ignition sources are present

such as hot water heaters, space heaters, or clothes

dryers. Allow the engine to cool before storing in any

enclosure.

3, Always refer to operator's manual for important details

if the snow thrower is to be stored for an extended

period,

4, Maintain or replace safety and instruction labels, as

necessary,

5, Run the machine a few minutes after throwing snow

to prevent freeze-up of the collector/impeller,

TABLE OF CONTENTS

SAFETY RULES ........................................................ 2-3

PRODUCT SPECiFICATiONS ...................................... 4

CUSTOMER RESPONSIBILITIES ................................ 4

WARRANTY .................................................................. 4

ASSEMBLY /PRE-OPERATION ............................... 6-8

OPERATION ............................................................ 9=14

MAINTENANCE ..................................................... 15-16

MAINTENANCE SCHEDULE ..................................... 15

SERVICE AND ADJUSTMENTS ........................... 17=19

STORAGE ................................................................... 19

TROUBLESHOOTING ................................................ 20

REPAIR PARTS ..................................................... 22-38

SEARS SERVICE ................................... BACK COVER

LIMITED TWO (2) YEAR WARRANTY ON CRAFTSMAN SNOW THROWER

For two (2) years from date of purchase Sears Canada, Inc. will repair or replace, at Sears option, free of charge

parts which are defective as a result of material or workmanship,

COMMERCIAL OR RENTAL USE:

Warranty on Snow Thrower will be 90 days from date of purchase if used for commercial or rental purposes,

This Warranty does NOT cover:

1. Pre=delivery set=up.

2. Expendable items which become worn during normal use, such as belts, spark plugs, air cleaners,

and shear pins, as well damage to the engine resulting from operating snow thrower with insufficient oil.

3. Repairs necessary because of operator abuse or negligence, including the failure to operate and main=

tain the equipment according to the instructions contained in the Owner's Manual.

4. Tire replacement or repair caused by punctures from outside objects, such as nails, thorns, stumps or glass.

Warranty service is available by returning the Craftsman Snow Thrower to the nearest Sears Service Centre/Depart-

ment in Canada. This warranty applies only while this product is in use in Canada.

This warranty is in addition to any statutory warranty and does NOT exclude or limit legal rights you may have but

shalll run concurrently with applicable provincial legislation. Furthermore, some provinces do not allow limitations

on how long an implied warranty will last, so the above limitations may not apply to you,

Sears Canada, inc., Toronto, Ontario M5B 2B8

CONGRATULATIONS on your purchase of a new snow

thrower. It has been designed, engineered and manufac-

tured to give best possible dependability and performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears service centre/

department. We have competent, well-trained technicians

and the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your snow thrower

properly. Always observe the "SAFETY RULES",

SERIAL NUMBER:

DATE OFPURCHASE:

THE MODELAND SERIAL NUMBERSWILL BE FOUND

ON A DECALATTACH ED TOTHE REAR OFTHE SNOW

THROWER HOUSING.

YOUSHOULDRECORDBOTHSERIALNUMBERAND

DATE OF PURCHASE AND KEEPIN A SAFE PLACE

FOR FUTURE REFERENCE.

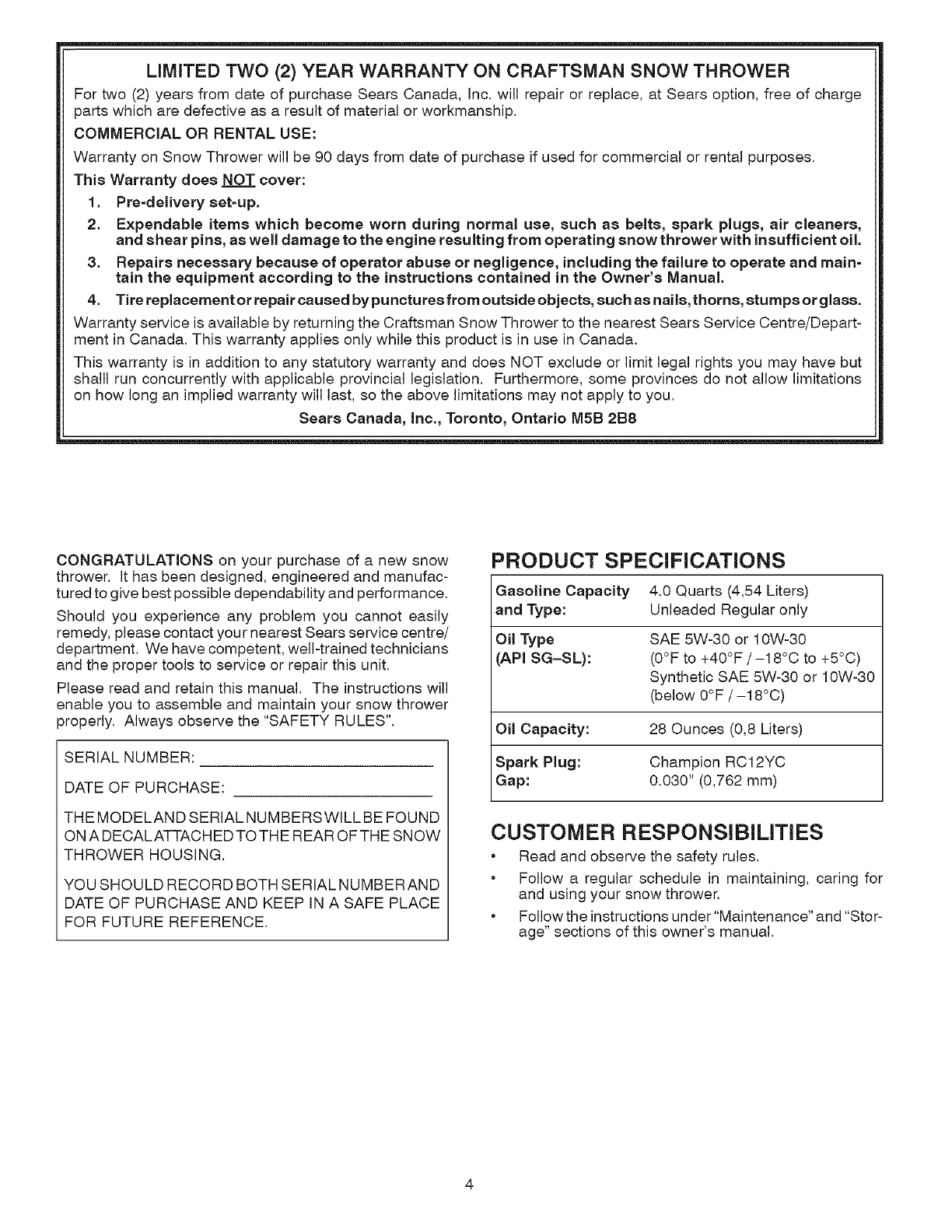

PRODUCT SPECiFiCATiONS

Gasoline Capacity 4.0 Quarts (4,54 Liters)

and Type: Unleaded Regular only

Oil Type SAE 5W-30 or 10W-30

(APl SG-SL): (0°F to +40°F /-18°C to +5°C)

Synthetic SAE 5W-30 or 10W-30

(below 0°F /-18°C)

Oil Capacity: 28 Ounces (0,8 Liters)

Spark Plug: Champion RC12YC

Gap: 0,030" (0,762 mm)

CUSTOMER RESPONSIBiLiTiES

• Read and observe the safety rules,

• Follow a regular schedule in maintaining, caring for

and using your snow thrower,

• Follow the instructions under "Maintenance" and "Stor-

age" sections of this owner's manual,

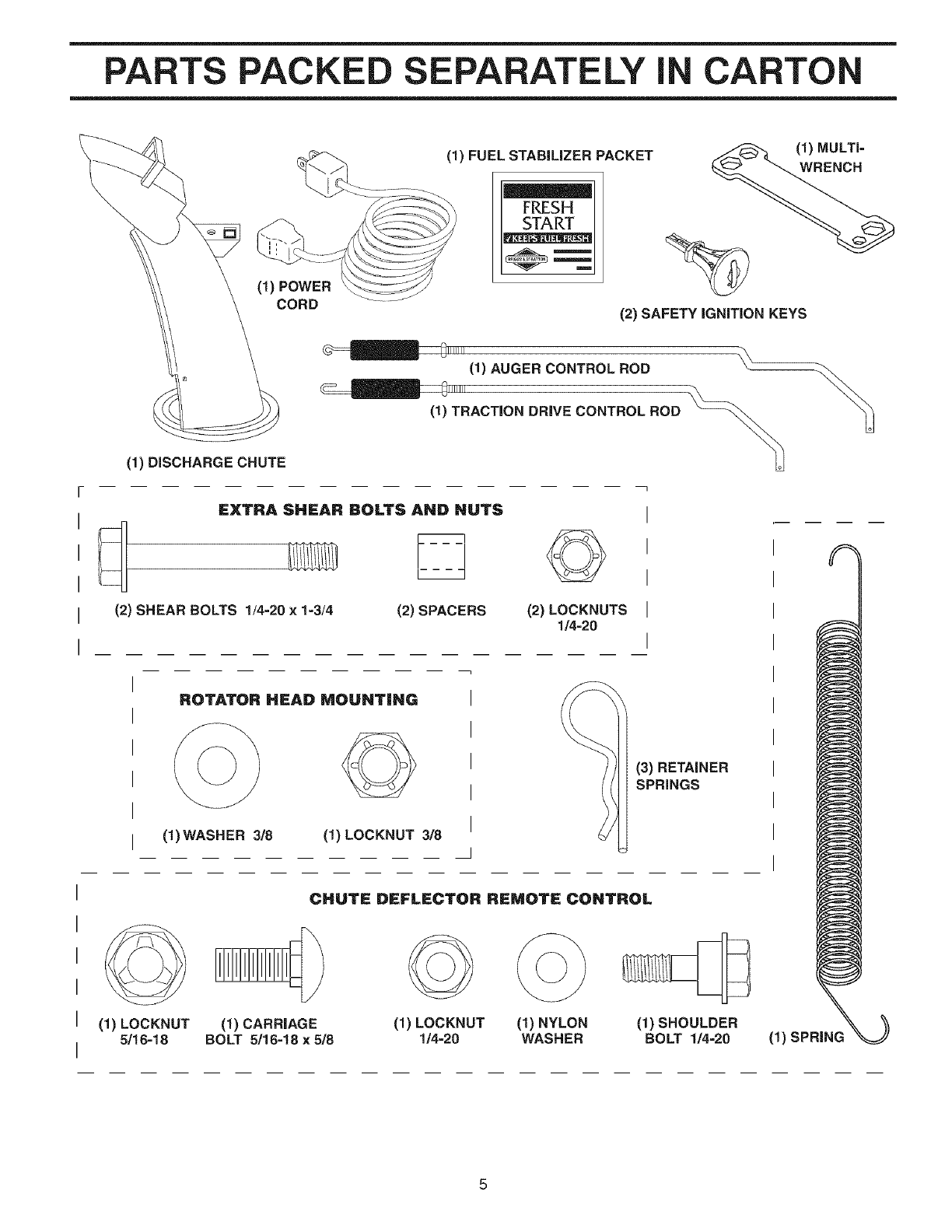

PARTS PACKED SEPARATELY I CARTON

(1) POWER

CORD

(1) FUEL STABiLiZER PACKET

(2) SAFETY iGNiTiON KEYS

(1) AUGER CONTROL ROD

1111111

(1) TRACTION DRIVE CONTROL ROD

(1) MULTi=

WRENCH

(1) DISCHARGE CHUTE

EXTRA SHEAR DOLTS AND NUTS

(2) SHEAR BOLTS 1/4=20 x %3/4

(2) SPACERS (2) LOCKNUTS

1/4=20

ROTATOR HEAD MOUNTING

(1) WASHER 3/8 (1) LOCKNUT 3/8

(3) RETAINER

SPRINGS

(1) LOCKNUT

5/16=18 (1) CARRIAGE

BOLT 5/16=18 x 5/8

CHUTE DEFLECTOR REMOTE CONTROL

(1) LOCKNUT (1) NYLON

1/4-20 WASHER {1) SHOULDER

BOLT 1/4=20 (1)

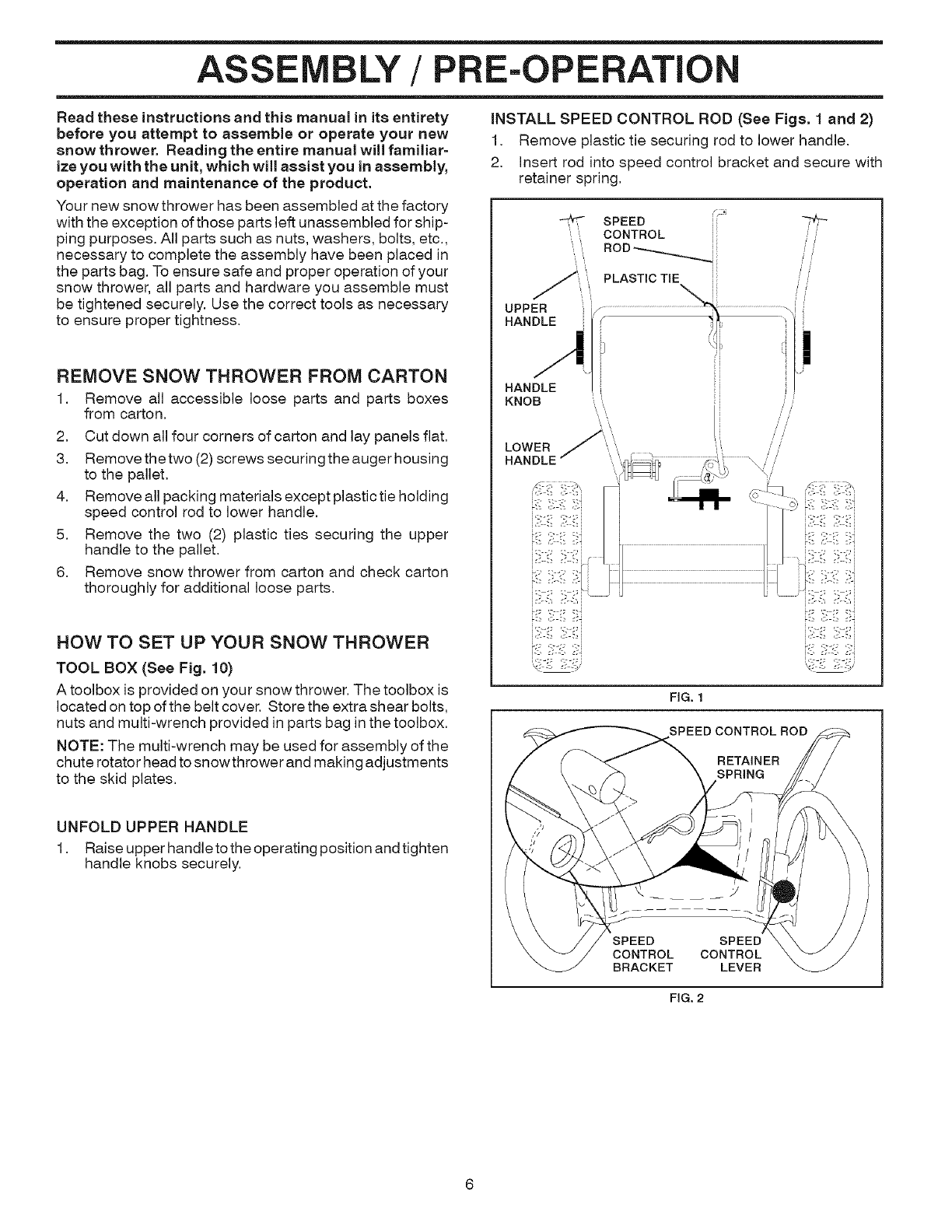

AS /RE-O ERATION

Read these instructions and this manual in its entirety

before you attempt to assemble or operate your new

snow thrower. Reading the entire manual will familiar=

ize you with the unit, which will assist you in assembly,

operation and maintenance of the product.

Your new snow thrower has been assembled at the factory

with the exception of those parts left unassembled for ship-

ping purposes. All parts such as nuts, washers, bolts, etc.,

necessary to complete the assembly have been placed in

the parts bag. To ensure safe and proper operation of your

snow thrower, all parts and hardware you assemble must

be tightened securely. Use the correct tools as necessary

to ensure proper tightness.

REMOVE SNOW THROWER FROM CARTON

1. Remove all accessible loose parts and parts boxes

from carton.

2. Cut down all four corners of carton and lay panels flat.

3. Remove the two (2) screws securing the auger housing

to the pallet.

4. Remove all packing materials except plastic tie holding

speed control rod to lower handle.

5. Remove the two (2) plastic ties securing the upper

handle to the pallet.

6. Remove snow thrower from carton and check carton

thoroughly for additional loose parts.

HOW TO SET UP YOUR SNOW THROWER

TOOL BOX (See Fig, 10)

A toolbox is provided on your snow thrower. The toolbox is

located on top of the belt cover. Store the extra shear bolts,

nuts and multi-wrench provided in parts bag in the toolbox.

NOTE: The multi-wrench may be used for assembly of the

chute rotator head to snow thrower and making adjustments

to the skid plates.

UNFOLD UPPER HANDLE

1. Raise upper handle to the operating position and tighten

handle knobs securely.

INSTALL SPEED CONTROL ROD (See Figs. 1 and 2)

1. Remove plastic tie securing rod to lower handle.

2. insert rod into speed control bracket and secure with

retainer spring.

UPPER

HANDLE

KNOB

LOWER

HANDLE

SPEED

CONTROL

ROD //

/ /

PLASTIC TIE

FIG. 1

SPEED CONTROL ROD

RETAINER

SPRING

SPEED SPEED

CONTROL CONTROL

BRACKET LEVER

FIG. 2

AS /RE-O ERATION

INSTALL TRACTION DRIVE CONTROL ROD

(See Figs. 3and 4)

The traction drive control rod has the long loop on the end

of the spring as shown.

1. Slide rubber sleeve up rod and hook end of spring into

pivot bracket with loop opening down as shown.

2. With top end of rod positioned under left side of control

panel, push rod down and insert top end of rod into hole

in drive control bracket. Secure with retainer spring.

INSTALL AUGER CONTROL ROD (See Figs. 5 and 6)

The auger control rod has the short loop on the end of the

spring as shown.

1. Slide rubber sleeve up rod and hook end of spring into

control arm with loop opening up as shown.

2. With top end of rod positioned under right side of

control panel, push down on rod and insert end of rod

into hole in auger control bracket. Secure with retainer

spring.

LOOP

OPENING

DOWN

CONTROL

ARM

AUGER

ROD

RUBBER

SLEEVE

FIG. 3

RETAINER

SPRING

CONTROL

BRACKET

FIG, 4

FIG. 5

AUGER CONTROL ROD AUGER

CONTROL

RETAINER LEVER

SPRING \

CONTROL

BRACKET

FIG. 6

AS BLY /RE-O ERATION

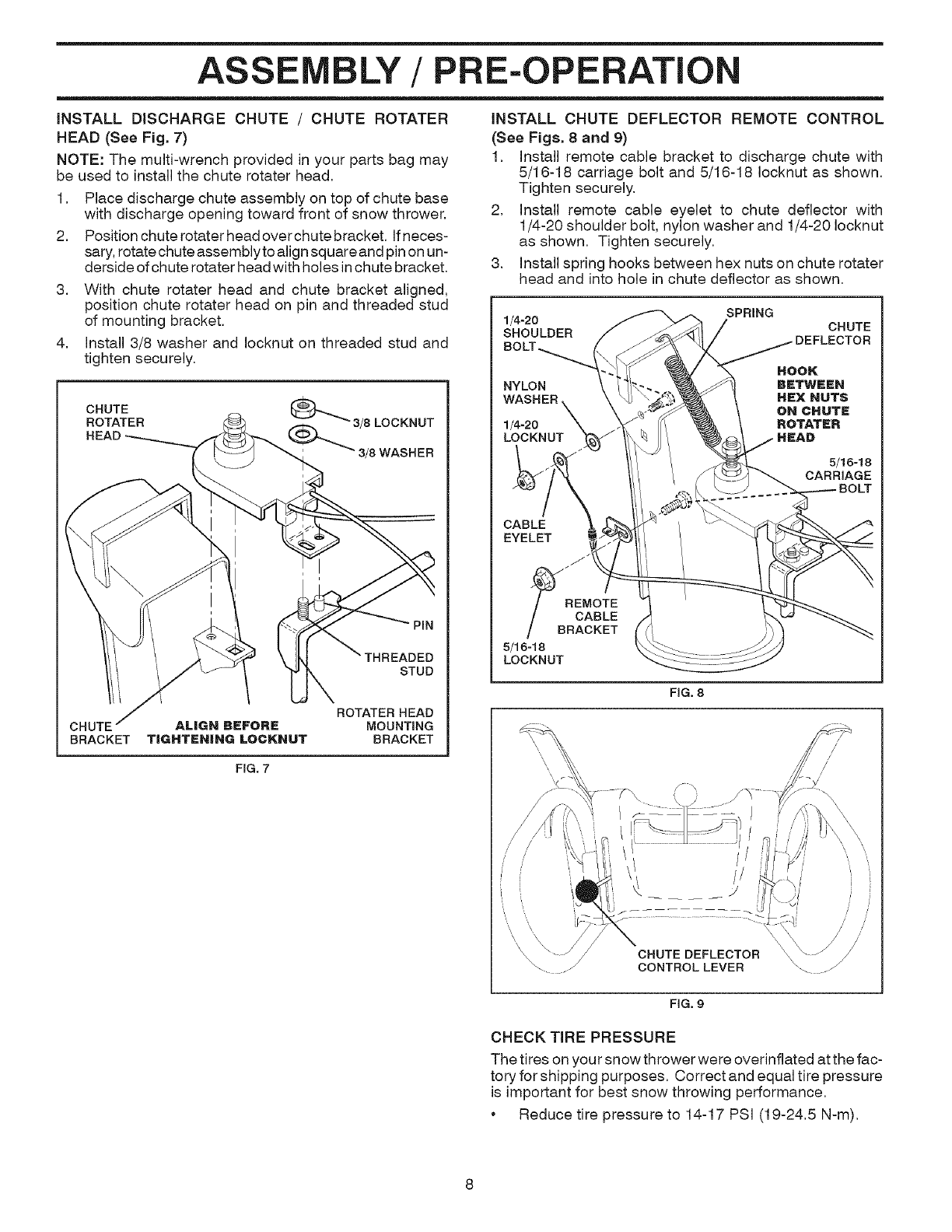

iNSTALL DISCHARGE CHUTE /CHUTE ROTATER

HEAD (See Fig. 7)

NOTE: The multi-wrench provided in your parts bag may

be used to install the chute rotater head,

1, Place discharge chute assembly on top of chute base

with discharge opening toward front of snow thrower,

2, Position chute rotater head overchute bracket, Ifneces-

sary, rotate chute assembly to align square and pin on un-

derside of chute rotater head with holes inchute bracket,

3, With chute rotater head and chute bracket aligned,

position chute rotater head on pin and threaded stud

of mounting bracket,

4, Install 3/8 washer and Iocknut on threaded stud and

tighten securely,

STUD

CHUTE

ROTATER

ROTATER HEAD

MOUNTING

BRACKET

FIG. 7

iNSTALL CHUTE DEFLECTOR REMOTE CONTROL

(See Figs. 8 and 9)

1, Install remote cable bracket to discharge chute with

5/16-18 carriage bolt and 5/16-18 Iocknut as shown,

Tighten securely,

2, Install remote cable eyelet to chute deflector with

1/4-20 shoulder bolt, nylon washer and 1/4-20 Iocknut

as shown, Tighten securely,

3, Install spring hooks between hex nuts on chute rotater

head and into hole in chute deflector as shown,

SPRING

1/4-20 CHUTE

SHOULDER

HOOK

NYLON BETWEEN

WASHER HEX NUTS

ON CHUTE

1/4-20 ROTATER

LOCKNUT

CABLE

EYELET

5/16- ! 8

CARRIAGE

BOLT

_B _EMOTE

CABLE

RACKET

5/16-18

LOCKNUT

FiG. 8

CHUTE DEFLECTOR

CONTROL LEVER

// //

FIG. 9

CHECK TiRE PRESSURE

The tires on you r snow th rower were overinflated at the fac-

tory for shipping purposes. Correct and equal tire pressure

is important for best snow throwing performance,

•Reduce tire pressure to 14-17 PSi (19-24,5 N-m),

OPERATION

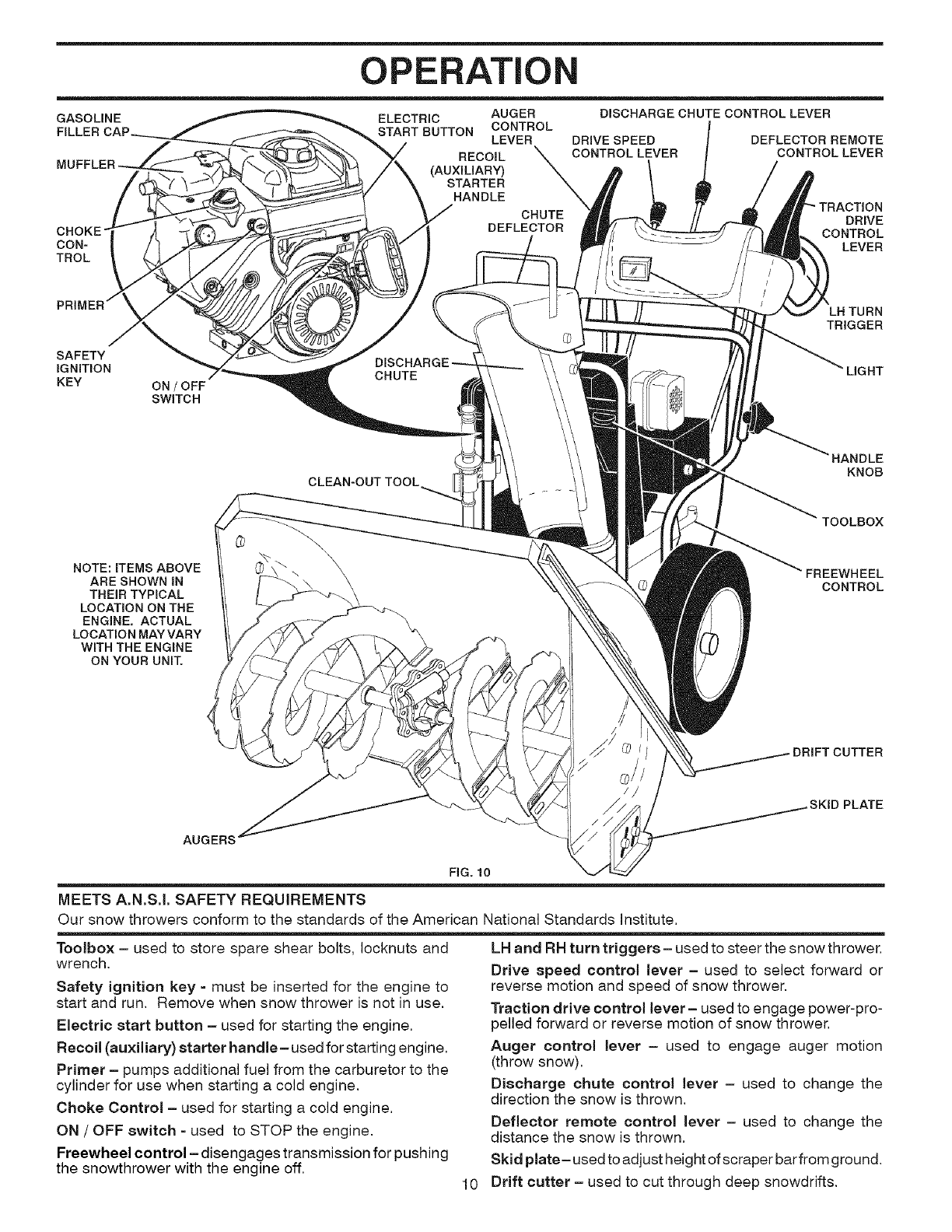

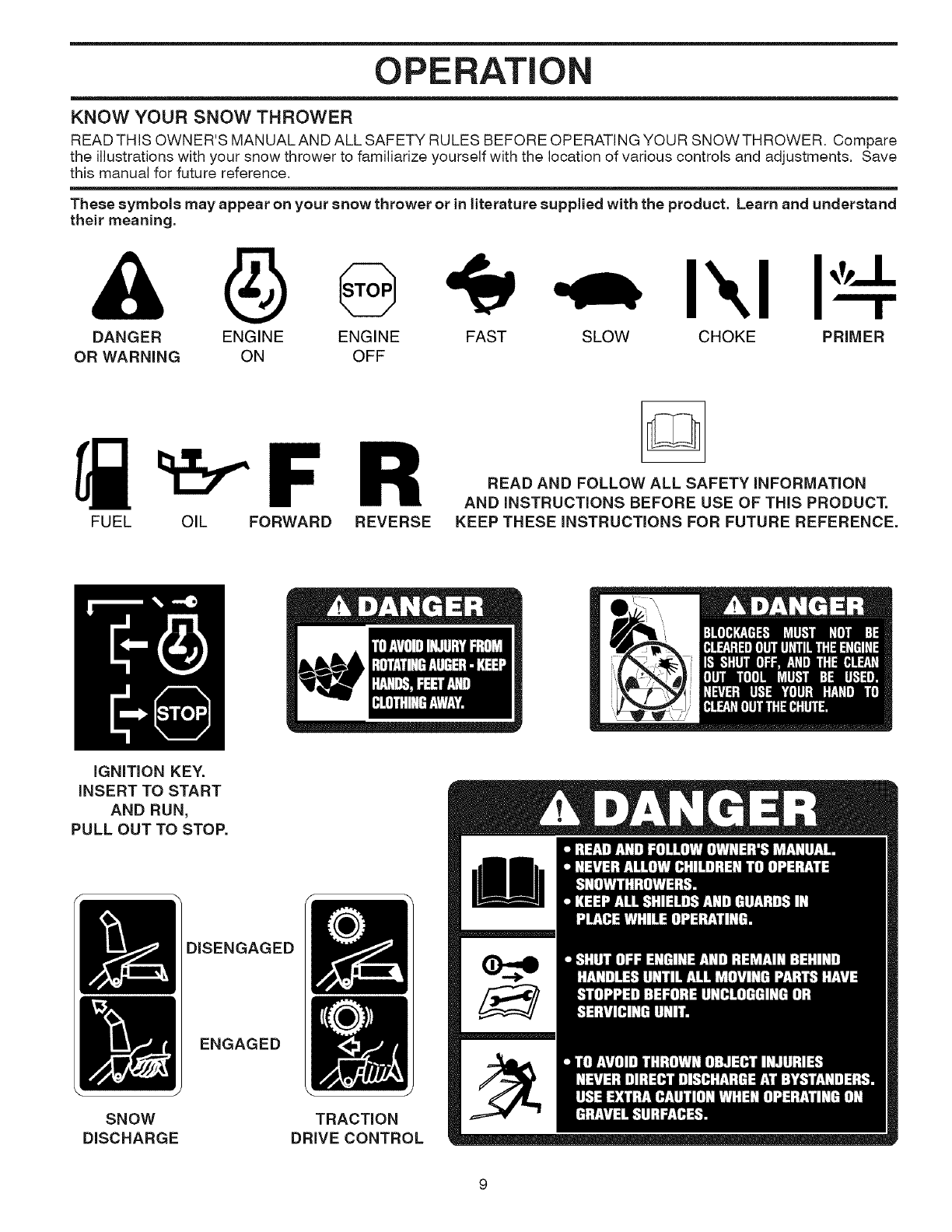

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUALAND ALL SAFETY RULES BEFORE OPERATING YOUR SNOWTHROWER. Compare

the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments, Save

this manual for future reference,

These symbols may appear on your snow thrower or in literature supplied with the product. Learn and understand

their meaning,

ENGINE

OFF

I\1

DANGER ENGINE FAST SLOW CHOKE PRIMER

OR WARNING ON

FUEL OIL FORWARD REVERSE

READ AND FOLLOW ALL SAFETY INFORMATION

AND INSTRUCTIONS BEFORE USE OF THIS PRODUCT.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

IGNITION KEY.

INSERT TO START

AND RUN,

PULL OUT TO STOP.

DISENGAGED

ENGAGED

\ J

SNOW

DISCHARGE

TRACTION

DRIVE CONTROL

O ERATION

GASOLINE ELECTRIC AUGER DISCHARGE CHUTE CONTROL LEVER

START BUTTON CONTROL

LEVER DRIVE SPEED DEFLECTOR REMOTE

RECOIL X CONTROL LEVER CONTROL LEVER

STARTER

HANDLE ' TRACTION

CHUTE DRIVE

CHOKE DEFLECTOR CONTROL

CON- LEVER

TROL

SAFETY

IGNITION

KEY ON /OFF

SWITCH

CHUTE

_HTURN

TRIGGER

LIGHT

NOTE: ITEMS ABOVE

ARE SHOWN IN

THEIR TYPICAL

LOCATION ON THE

ENGINE. ACTUAL

LOCATION MAY VARY

WITH THE ENGINE

ON YOUR UNIT.

CLEAN-OUT TOOL i

HANDLE

KNOB

TOOLBOX

CONTROL

DRIFT CUTTER

PLATE

FIG. 10

MEETS A,N,S,I, SAFETY REQUIREMENTS

Our snow throwers conform to the standards of the American National Standards Institute,

Toolbox = used to store spare shear bolts, Iocknuts and

wrench,

Safety ignition key - must be inserted for the engine to

start and run, Remove when snow thrower is not in use,

Electric start button - used for starting the engine,

Recoil (auxiliary) starter handle- used for starting engine,

Primer - pumps additional fuel from the carburetor to the

cylinder for use when starting a cold engine,

Choke Control - used for starting a cold engine,

ON /OFF switch =used to STOP the engine,

Freewheel control - disengages transmission for pushing

the snowthrower with the engine off, 10

LH and RH turn triggers - used to steer the snow thrower,

Drive speed control lever - used to select forward or

reverse motion and speed of snow thrower,

Traction drive control lever- used to engage power-pro-

pelled forward or reverse motion of snow thrower,

Auger control lever - used to engage auger motion

(throw snow),

Discharge chute control lever - used to change the

direction the snow is thrown,

Deflector remote control lever - used to change the

distance the snow is thrown,

Skid plate -used to adjust height of scraper barfrom ground,

Drift cutter - used to cut through deep snowdrifts,

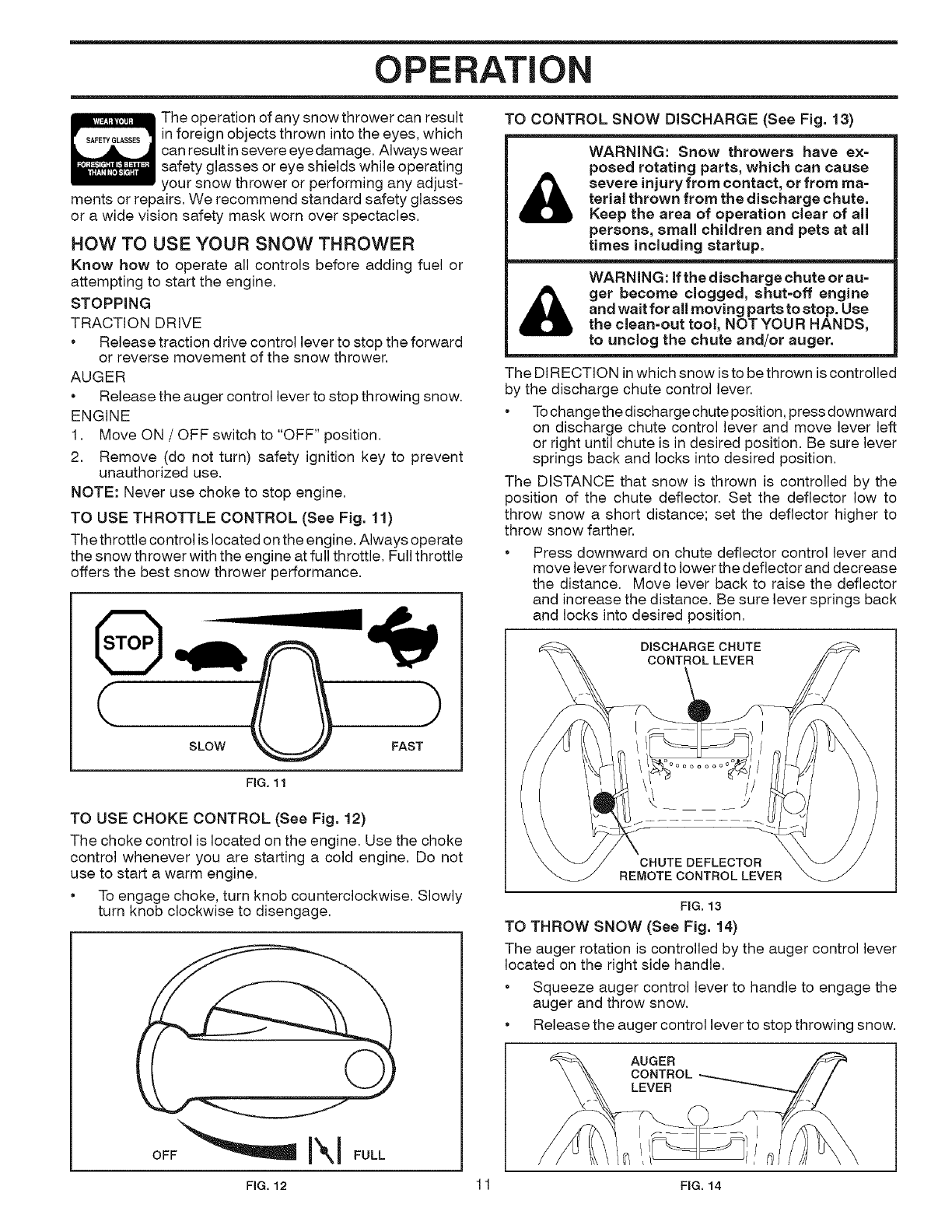

OPERATION

The operation of any snow thrower can result

in foreign objects thrown into the eyes, which

can result insevere eye damage. Always wear

safety glasses or eye shields while operating

your snow thrower or performing any adjust-

ments or repairs. We recommend standard safety glasses

or a wide vision safety mask worn over spectacles.

HOW TO USE YOUR SNOW THROWER

Know how to operate all controls before adding fuel or

attempting to start the engine.

STOPPING

TRACTION DRIVE

• Release traction drive control lever to stop the forward

or reverse movement of the snow thrower.

AUGER

• Release the auger control lever to stop throwing snow.

ENGINE

1. Move ON /OFF switch to "OFF" position.

2. Remove (do not turn) safety ignition key to prevent

unauthorized use.

NOTE: Never use choke to stop engine.

TO USE THROTTLE CONTROL (See Fig. 11)

The throttle control is located on the engine. Always operate

the snow thrower with the engine at full throttle. Full throttle

offers the best snow thrower performance.

(, )

SLOW FAST

FIG, 11

TO USE CHOKE CONTROL (See Fig. 12)

The choke control is located on the engine. Use the choke

control whenever you are starting a cold engine. Do not

use to start a warm engine.

• To engage choke, turn knob counterclockwise. Slowly

turn knob clockwise to disengage.

(OFF I\lFULL

TO CONTROL SNOW DISCHARGE (See Fig. 13)

WARNING: Snow throwers have ex-

posed rotating parts, which can cause

severe injuryfrom contact, or from ma-

terial thrown from the discharge chute.

Keep the area of operation clear of all

persons, small children and pets at all

times including startup.

WARNING: If the discharge chute or au-

get become clogged, shut-off engine

and wait for all moving parts to stop. Use

the clean=out tool, NOT YOUR HANDS,

to unclog the chute and/or auger.

The DIRECTION inwhich snow isto be thrown is controlled

by the discharge chute control lever.

• Tochangethe discharge chute position, press downward

on discharge chute control lever and move lever left

or right until chute is in desired position. Be sure lever

springs back and locks into desired position.

The DISTANCE that snow is thrown is controlled by the

position of the chute deflector. Set the deflector low to

throw snow a short distance; set the deflector higher to

throw snow farther.

Press downward on chute deflector control lever and

move lever forward to lower the deflector and decrease

the distance. Move lever back to raise the deflector

and increase the distance. Be sure lever springs back

and locks into desired position.

DISCHARGECHUTE

CONTROLLEVER

CHUTE DEFLECTOR

REMOTE CONTROLLEVER

FIG, 13

TO THROW SNOW (See Fig. 14)

The auger rotation is controlled by the auger control lever

located on the right side handle.

• Squeeze auger control lever to handle to engage the

auger and throw snow.

• Release the auger control lever to stop throwing snow.

FIG. 12 1 1 FIG. 14

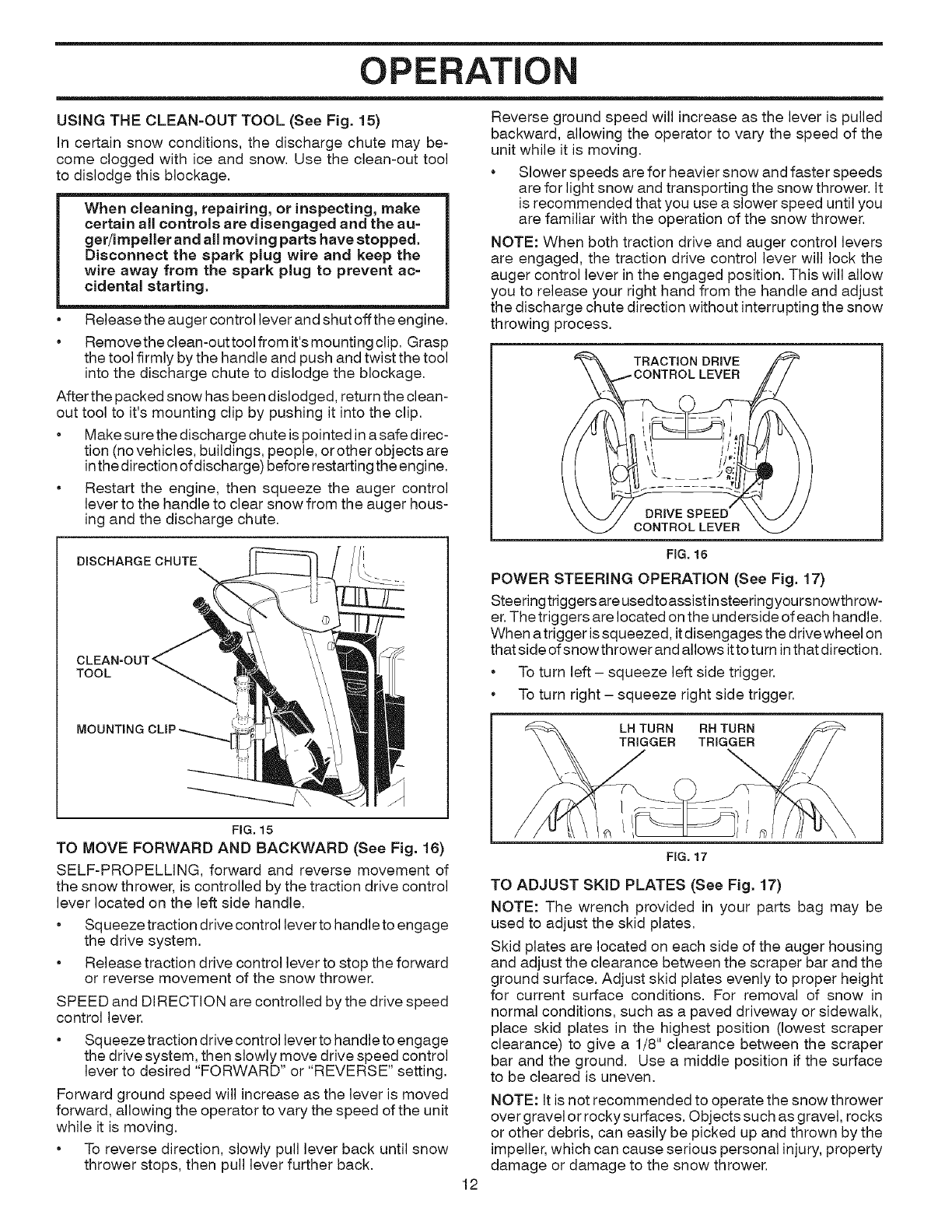

OPERATION

USING THE CLEAN-OUT TOOL (See Fig. 15)

in certain snow conditions, the discharge chute may be-

come clogged with ice and snow. Use the clean-out tool

to dislodge this blockage.

When cleaning, repairing, or inspecting, make

certain all controls are disengaged and the au=

get/impeller and all moving parts have stopped.

Disconnect the spark plug wire and keep the

wire away from the spark plug to prevent ac-

cidental starting.

Release the auger control lever and shut offthe engine.

• Removethe clean-out tool from it's mounting clip. Grasp

the tool firmly by the handle and push and twist the tool

into the discharge chute to dislodge the blockage.

After the packed snow has been dislodged, return the clean-

out tool to it's mounting clip by pushing it into the clip.

. Make surethe discharge chute is pointed in asafe direc-

tion (no vehicles, buildings, people, or other objects are

inthe direction ofdischarge) before restarting the engine.

• Restart the engine, then squeeze the auger control

lever to the handle to clear snow from the auger hous-

ing and the discharge chute.

DISCHARGECHUTE

TOOL

MOUNTING

FIG, 15

TO MOVE FORWARD AND BACKWARD (See Fig. 16)

SELF-PROPELLING, forward and reverse movement of

the snow thrower, is controlled by the traction drive control

lever located on the left side handle.

•Squeeze traction drive control lever to handle to engage

the drive system,

• Release traction drive control lever to stop the forward

or reverse movement of the snow thrower,

SPEED and DIRECTION are controlled by the drive speed

control lever.

• Squeeze traction drive control lever to handle to engage

the drive system, then slowly move drive speed control

lever to desired "FORWARD" or "REVERSE" setting,

Forward ground speed will increase as the lever is moved

forward, allowing the operator to vary the speed of the unit

while it is moving,

• To reverse direction, slowly pull lever back until snow

thrower stops, then pull lever further back,

Reverse ground speed will increase as the lever is pulled

backward, allowing the operator to vary the speed of the

unit while it is moving.

• Slower speeds are for heavier snow and faster speeds

are for light snow and transporting the snow thrower. It

is recommended that you use a slower speed until you

are familiar with the operation of the snow thrower.

NOTE: When both traction drive and auger control levers

are engaged, the traction drive control lever will lock the

auger control lever in the engaged position. This will allow

you to release your right hand from the handle and adjust

the discharge chute direction without interrupting the snow

throwing process.

TRACTION DRIVE

LEVER

lDRIVE SPEED

CONTROLLEVER 1

FIG. 16

POWER STEERING OPERATION (See Fig. 17)

Steering triggers are usedtoassist insteering yoursnowthrow-

er. The triggers are located on the underside of each handle.

When atrigger is squeezed, itdisengages the drive wheel on

that side of snowthrower and allows ittoturn inthat direction,

• To turn left- squeeze left side trigger,

• To turn right - squeeze right side trigger,

TURN

FIG. 17

TO ADJUST SKiD PLATES (See Fig. 17)

NOTE: The wrench provided in your parts bag may be

used to adjust the skid plates.

Skid plates are located on each side of the auger housing

and adjust the clearance between the scraper bar and the

ground surface. Adjust skid plates evenly to proper height

for current surface conditions. For removal of snow in

normal conditions, such as a paved driveway or sidewalk,

place skid plates in the highest position (lowest scraper

clearance) to give a 1/8" clearance between the scraper

bar and the ground. Use a middle position if the surface

to be cleared is uneven.

NOTE: It is not recommended to operate the snow thrower

over gravel or rocky surfaces. Objects such as gravel, rocks

or other debris, can easily be picked up and thrown by the

impeller, which can cause serious personal injury, property

damage or damage to the snow thrower.

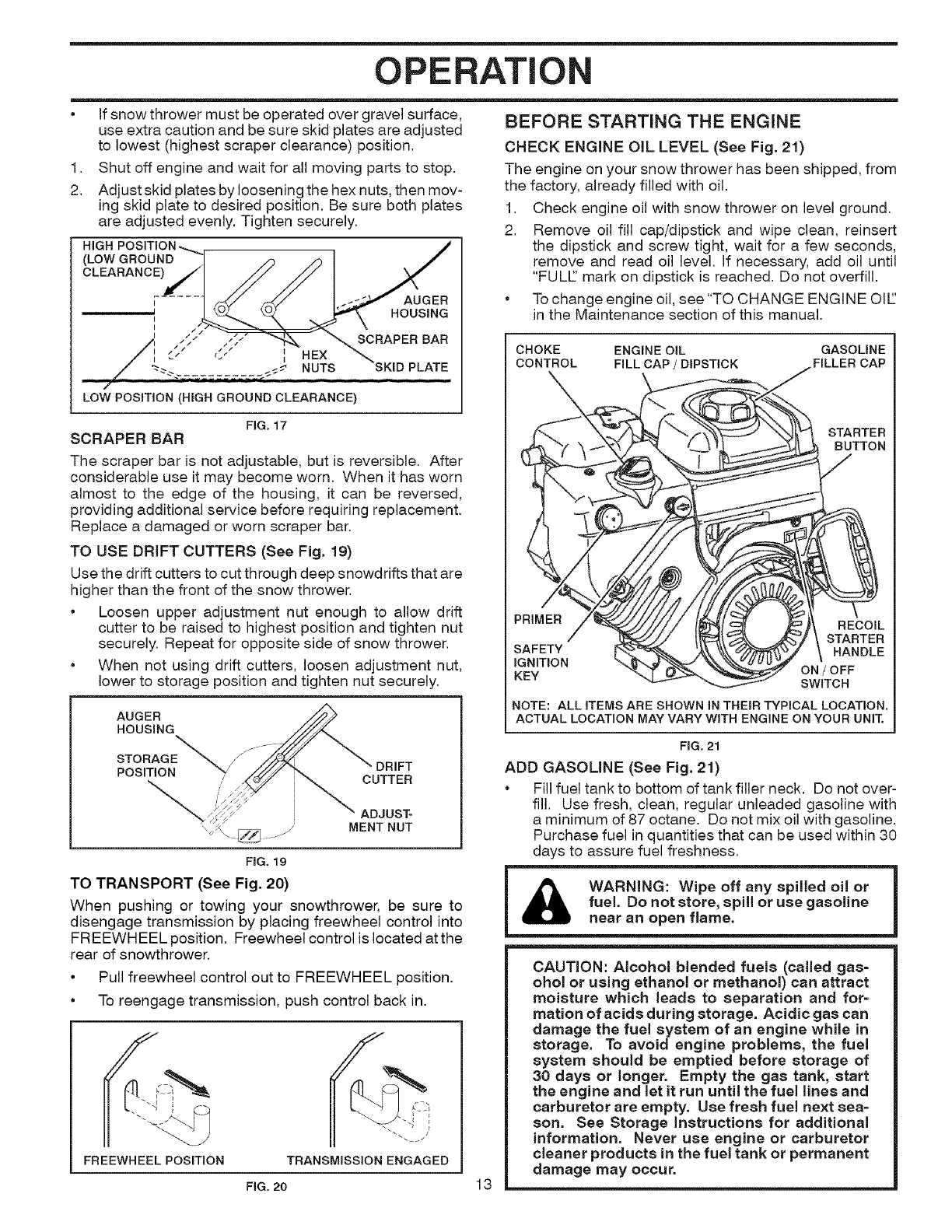

OPERATION

• If snow thrower must be operated over gravel surface,

use extra caution and be sure skid plates are adjusted

to lowest (highest scraper clearance) position.

1. Shut off engine and wait for all moving parts to stop.

2. Adjust skid plates by loosening the hex nuts, then mov-

ing skid plate to desired position. Be sure both plates

are adjusted evenly. Tighten securely.

(LOW GROUND

FIG, 17

SCRAPER BAR

The scraper bar is not adjustable, but is reversible. After

considerable use it may become worn. When it has worn

almost to the edge of the housing, it can be reversed,

providing additional service before requiring replacement.

Replace a damaged or worn scraper bar.

TO USE DRIFT CUTTERS (See Fig. 19)

Use the drift cutters to cut through deep snowdrifts that are

higher than the front of the snow thrower.

• Loosen upper adjustment nut enough to allow drift

cutter to be raised to highest position and tighten nut

securely. Repeat for opposite side of snow thrower.

• When not using drift cutters, loosen adjustment nut,

lower to storage position and tighten nut securely.

AUGER

HOUSING

STORAGE_

POSITION /DRIFT

CUTTER

ADJUST-

MENT NUT

FIG, 19

TO TRANSPORT (See Fig, 20)

When pushing or towing your snowthrower, be sure to

disengage transmission by placing freewheel control into

FREEWHEEL position. Freewheel control is located atthe

rear of snowthrower.

• Pull freewheel control out to FREEWHEEL position.

• To reengage transmission, push control back in.

FREEWHEEL POSITION

TRANSMISSION ENGAGED

FIG, 20

BEFORE STARTING THE ENGINE

CHECK ENGINE OiL LEVEL (See Fig. 21)

The engine on your snow thrower has been shipped, from

the factory, already filled with oil.

1. Check engine oil with snow thrower on level ground.

2. Remove oil fill cap/dipstick and wipe clean, reinsert

the dipstick and screw tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULE' mark on dipstick is reached. Do not overfill.

• To change engine oil, see "TO CHANGE ENGINE OIE'

in the Maintenance section of this manual.

CHOKE ENGINE OIL GASOLINE

CONTROL FILL CAP /DIPSTICK FILLER CAP

STARTER

BUTTON

PRIMER RECOIL

STARTER

SAFETY HANDLE

IGNITION ON/OFF

KEY SWITCH

NOTE: ALL iTEMS ARE SHOWN IN THEIR TYPICAL LOCATION.

ACTUAL LOCATION MAY VARY WITH ENGINE ON YOUR UNIT.

FIG. 21

ADD GASOLINE (See Fig. 21)

• Fill fuel tank to bottom of tank filler neck. Do not over-

fill. Use fresh, clean, regular unleaded gasoline with

a minimum of 87 octane. Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

WARNING: Wipe off any spilled oil or

fuel, Do not store, spill or use gasoline

near an open flame.

CAUTION: Alcohol blended fuels (called gas-

ohol or using ethanol or methanol) can attract

moisture which leads to separation and for=

mation of acids during storage. Acidic gas can

damage the fuel system of an engine while in

storage. To avoid engine problems, the fuel

system should be emptied before storage of

30 days or longer. Empty the gas tank, start

the engine and let it run until the fuel lines and

carburetor are empty. Use fresh fuel next sea-

son. See Storage instructions for additional

information. Never use engine or carburetor

cleaner products in the fuel tank or permanent

damage may occur.

OPERATION

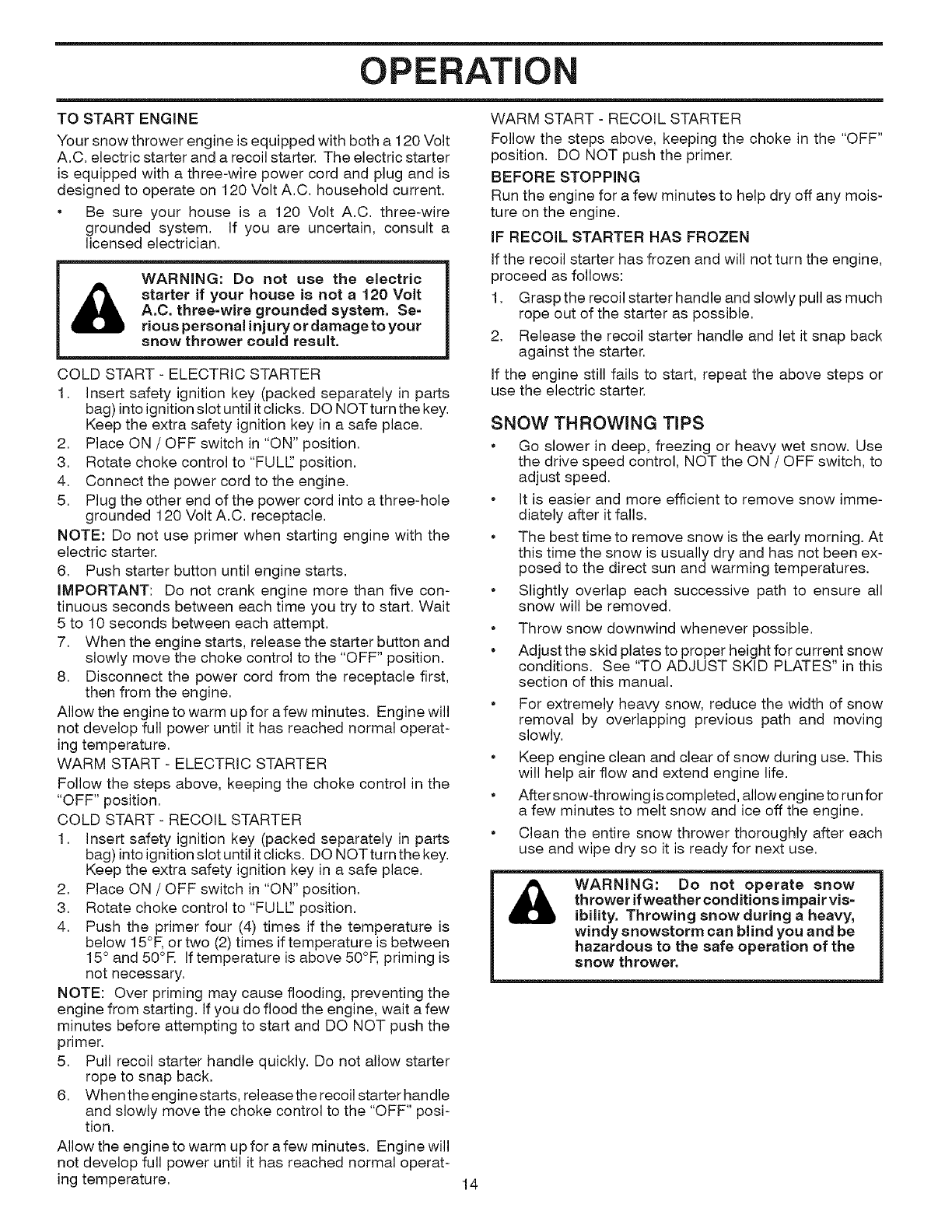

TO START ENGINE

Your snow thrower engine is equipped with both a 120 Volt

A.C. electric starter and a recoil starter. The electric starter

is equipped with a three-wire power cord and plug and is

designed to operate on 120 Volt A.C. household current.

• Be sure your house is a 120 Volt A.C. three-wire

grounded system. If you are uncertain, consult a

licensed electrician.

WARNING: Do not use the electric

starter if your house is not a 120 Volt

A.C. three=wire grounded system. Se=

rious personal injury or damage to your

snow thrower could result.

COLD START - ELECTRIC STARTER

1. Insert safety ignition key (packed separately in parts

bag) into ignition slot until it clicks. DO NOTturn the key.

Keep the extra safety ignition key in a safe place.

2. Place ON /OFF switch in "ON" position.

3. Rotate choke control to "FULL:.'position.

4. Connect the power cord to the engine.

5. Plug the other end of the power cord into a three-hole

grounded 120 Volt A.C. receptacle.

NOTE: Do not use primer when starting engine with the

electric starter.

6. Push starter button until engine starts.

IMPORTANT: Do not crank engine more than five con-

tinuous seconds between each time you try to start. Wait

5 to 10 seconds between each attempt.

7. When the engine starts, release the starter button and

slowly move the choke control to the "OFF" position.

8. Disconnect the power cord from the receptacle first,

then from the engine.

Allow the engine to warm up for a few minutes. Engine will

not develop full power until it has reached normal operat-

ing temperature.

WARM START - ELECTRIC STARTER

Follow the steps above, keeping the choke control in the

"OFF" position.

COLD START- RECOIL STARTER

1. Insert safety ignition key (packed separately in parts

bag) into ignition slot until it clicks. DO NOTtum the key.

Keep the extra safety ignition key in a safe place.

2. Place ON /OFF switch in "ON" position.

3. Rotate choke control to "FULE' position.

4. Push the primer four (4) times if the temperature is

below 15°F, or two (2) times if temperature is between

15° and 50°R If temperature is above 50°F, priming is

not necessary.

NOTE: Over priming may cause flooding, preventing the

engine from starting. If you do flood the engine, wait a few

minutes before attempting to start and DO NOT push the

primer.

5. Pull recoil starter handle quickly. Do not allow starter

rope to snap back.

6. When the engine starts, release the recoil starter handle

and slowly move the choke control to the "OFF" posi-

tion.

Allow the engine to warm up for a few minutes. Engine will

not develop full power until it has reached normal operat-

ing temperature.

WARM START- RECOIL STARTER

Follow the steps above, keeping the choke in the "OFF"

position. DO NOT push the primer.

BEFORE STOPPING

Run the engine for a few minutes to help dry off any mois-

ture on the engine.

IF RECOIL STARTER HAS FROZEN

If the recoil starter has frozen and will not turn the engine,

proceed as follows:

1. Grasp the recoil starter handle and slowly pull as much

rope out of the starter as possible.

2. Release the recoil starter handle and let it snap back

against the starter.

If the engine still fails to start, repeat the above steps or

use the electric starter.

SNOW THROWING TiPS

Go slower in deep, freezing or heavy wet snow. Use

the drive speed control, NOT the ON /OFF switch, to

adjust speed.

It is easier and more efficient to remove snow imme-

diately after it falls,

The best time to remove snow is the early morning. At

this time the snow is usually dry and has not been ex-

posed to the direct sun and warming temperatures,

Slightly overlap each successive path to ensure all

snow will be removed,

Throw snow downwind whenever possible.

Adjust the skid plates to proper height for current snow

conditions. See "TO ADJUST SKID PLATES" in this

section of this manual.

• For extremely heavy snow, reduce the width of snow

removal by overlapping previous path and moving

slowly.

• Keep engine clean and clear of snow during use. This

will help air flow and extend engine life.

• After snow-throwing is completed, allow engine to run for

a few minutes to melt snow and ice off the engine.

• Clean the entire snow thrower thoroughly after each

use and wipe dry so it is ready for next use.

WARNING: Do not operate snow

thrower if weather conditions impair vis=

ibility. Throwing snow during aheavy,

windy snowstorm can blind you and be

hazardous to the safe operation of the

snow thrower.

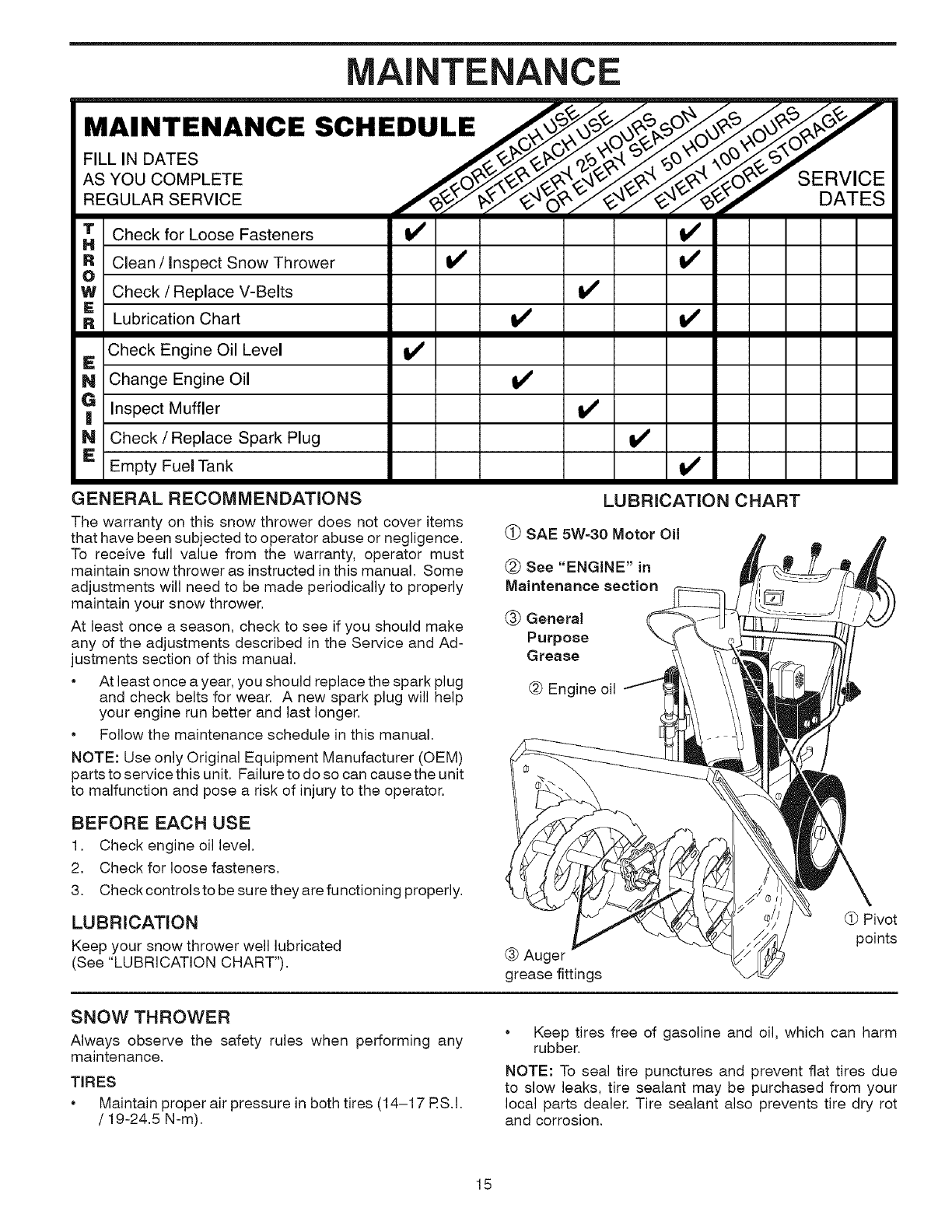

MAINTENANCE SCHEDULE

AS YOU COMPLETE J_£_,4"._0_ SERVICE

REGULAR SERVICE f_y_'_r_/'_'4r/_fb_ DATES

Check for Loose Fasteners I_ I_

RClean /Inspect Snow Thrower I_ if

WCheck/Replace V=Beks I_

Lubrication Chart !_ if

Check Engine Oil Level

N Change Engine Oil

Inspect Muffler

N Check /Replace Spark Plug

EEmpty Fuel Tank

v' v' v' v'

GENERAL RECOMMENDATIONS

The warranty on this snow thrower does not cover items

that have been subjected to operator abuse or negligence.

To receive full value from the warranty, operator must

maintain snow thrower as instructed in this manual. Some

adjustments will need to be made periodically to properly

maintain your snow thrower.

At least once a season, check to see if you should make

any of the adjustments described in the Service and Ad-

justments section of this manual.

•At least once a year, you should replace the spark plug

and check belts for wear. A new spark plug will help

your engine run better and last longer.

•Follow the maintenance schedule in this manual.

NOTE: Use only Original Equipment Manufacturer (OEM)

parts to service this unit. Failure to do so can cause the unit

to malfunction and pose a risk of injury to the operator.

LUBRICATION CHART

(_ SAE 5W=30 Motor Oil

(_ General

Purpose

Grease

@ Engine oil

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

3, Check controls to be sure they are functioning properly.

LUBRICATION

Keep your snow thrower well lubricated

(See "LUBRICATION CHART"), Auger

grease fittings

Pivot

points

SNOW THROWER

Always observe the safety rules when performing any

maintenance.

TIRES

• Maintain proper air pressure in both tires (14-17 RS.I.

/19-24.5 N-m).

Keep tires free of gasoline and oil, which can harm

rubber.

NOTE: To seal tire punctures and prevent flat tires due

to slow leaks, tire sealant may be purchased from your

local parts dealer. Tire sealant also prevents tire dry rot

and corrosion.

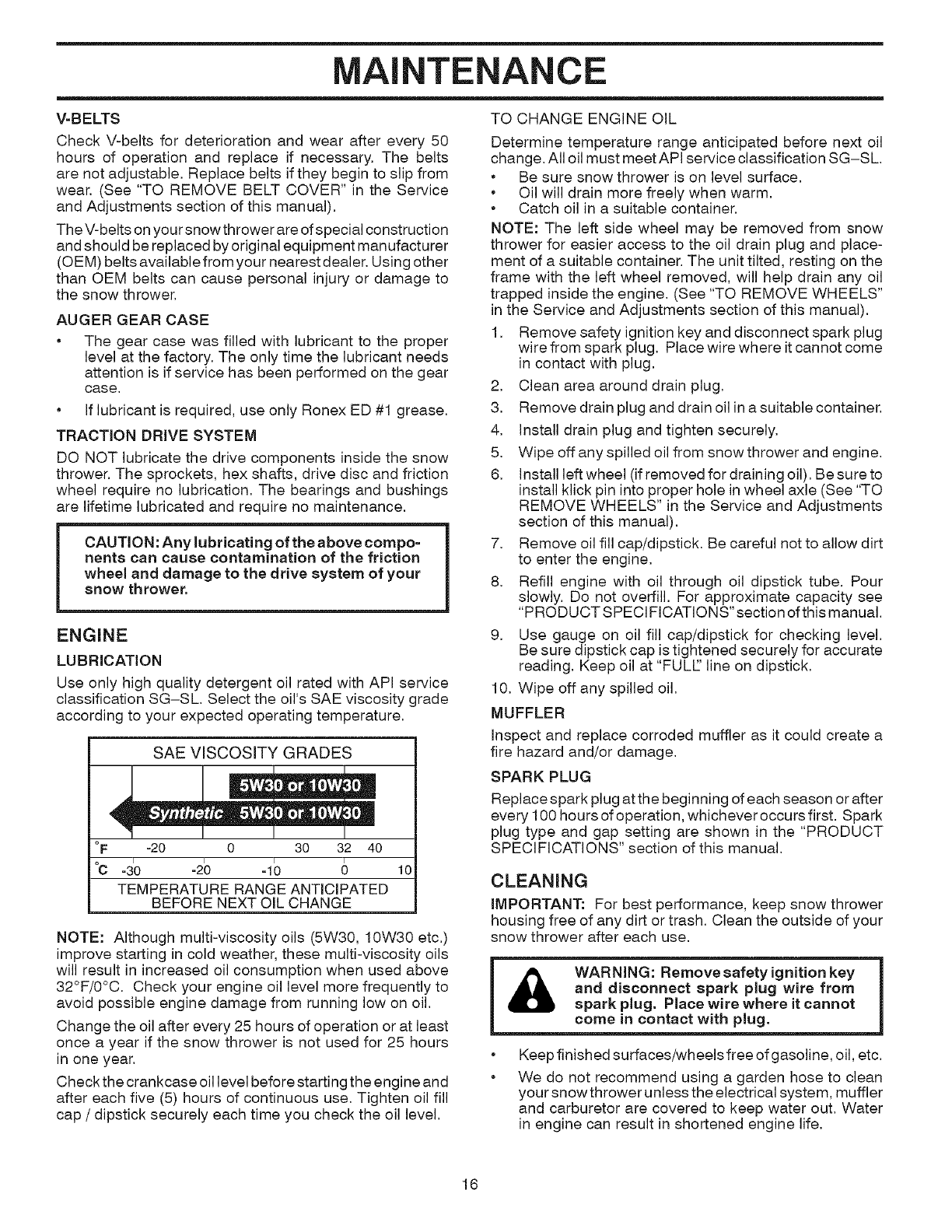

V-BELTS TO CHANGE ENGINE OIL

Check V-belts for deterioration and wear after every 50

hours of operation and replace if necessary. The belts

are not adjustable. Replace belts if they begin to slip from

wear. (See "TO REMOVE BELT COVER" in the Service

and Adjustments section of this manual).

The V-belts on your snow thrower are of special construction

and should be replaced by original equipment manufacturer

(OEM) belts available from your nearest dealer. Using other

than OEM belts can cause personal injury or damage to

the snow thrower.

AUGER GEAR CASE

• The gear case was filled with lubricant to the proper

level at the factory. The only time the lubricant needs

attention is if service has been performed on the gear

case.

• If lubricant is required, use only Ronex ED #1 grease.

TRACTION DRIVE SYSTEM

DO NOT lubricate the drive components inside the snow

thrower. The sprockets, hex shafts, drive disc and friction

wheel require no lubrication. The bearings and bushings

are lifetime lubricated and require no maintenance.

CAUTION: Any lubricating of the above compo=

nents can cause contamination of the friction

wheel and damage to the drive system of your

snow thrower.

Determine temperature range anticipated before next oil

change. All oil must meet API service classification SG-SL.

• Be sure snow thrower is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

NOTE: The left side wheel may be removed from snow

thrower for easier access to the oil drain plug and place-

ment of a suitable container. The unit tilted, resting on the

frame with the left wheel removed, will help drain any oil

trapped inside the engine. (See "TO REMOVE WHEELS"

in the Service and Adjustments section of this manual).

1. Remove safety ignition key and disconnect spark plug

wire from spark plug. Place wire where it cannot come

in contact with plug.

2. Clean area around drain plug.

3. Remove drain plug and drain oil in a suitable container.

4. Install drain plug and tighten securely.

5. Wipe off any spilled oil from snow thrower and engine.

6. Install left wheel (if removed for draining oil). Be sure to

install klick pin into proper hole in wheel axle (See "TO

REMOVE WHEELS" in the Service and Adjustments

section of this manual).

7. Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine.

8. Refill engine with oil through oil dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECI FICATIO NS" section of this manual.

ENGINE

LUBRiCATiON

Use only high quality detergent oil rated with API service

classification SG-SL Select the oil's SAE viscosity grade

according to your expected operating temperature.

SAE VISCOSITY GRADES

°F -20 0 30 32 40

i°C -3'0 -20 =1'0 0

TEMPERATURE RANGE ANTICIPATED

BEFORE NEXT OiL CHANGE

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F/0°C. Check your engine oil level more frequently to

avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least

once a year if the snow thrower is not used for 25 hours

in one year.

Check the crankcase oil level before starting the engine and

after each five (5) hours of continuous use. Tighten oil fill

cap /dipstick securely each time you check the oil level.

9. Use gauge on oil fill cap/dipstick for checking level.

Be sure dipstick cap is tightened securely for accurate

reading. Keep oil at "FULL.' line on dipstick.

10. Wipe off any spilled oil.

MUFFLER

Inspect and replace corroded muffler as it could create a

fire hazard and/or damage.

SPARK PLUG

Replace spark plug at the beginning of each season or after

every 100 hours of operation, which ever occurs first. Spark

plug type and gap setting are shown in the "PRODUCT

SPECIFICATIONS" section of this manual.

CLEANING

iMPORTANT: For best performance, keep snow thrower

housing free of any dirt or trash, Clean the outside of your

snow thrower after each use.

WARNING: Removesafetyignitionkey

and disconnect spark plug wire from

spark plug, Place wire where it cannot

come in contact with plug.

Keep finished surfaces/wheels free of gasoline, oil, etc.

We do not recommend using a garden hose to clean

your snow thrower unless the electrical system, muffler

and carburetor are covered to keep water out. Water

in engine can result in shortened engine life.

SERVICE ADJUSTMENTS

WARNING: To avoid serious injury, before

performing any service or adjustments:

1. Be sure the on/off switch is in the

OFF position.

2. Remove safety ignition key.

3. Make sure the augers and all moving

parts have completely stopped.

4. Remove safety ignition keyanddiscon=

nect spark plug wire from spark plug.

Place wire where it cannot come in

contact with plug_

SNOW THROWER

TO ADJUST SNOW THROWER HEIGHT

See "TO ADJUST SKID PLATES" and "SCRAPER BAR"

in the Operation section of this manual.

CHUTE DEFLECTOR

The chute deflector, attached to the top of the discharge

chute, is provided to direct discharging snow away from

the operator. If the deflector becomes damaged, it should

be replaced.

WARNING: To avoid serious injury,

I never operate your snow thrower with

the deflector removed or damaged.

• To change direction and/or distance snow is discharged,

see "TO CONTROL SNOW DISCHARGE" in the Op-

eration section of this manual.

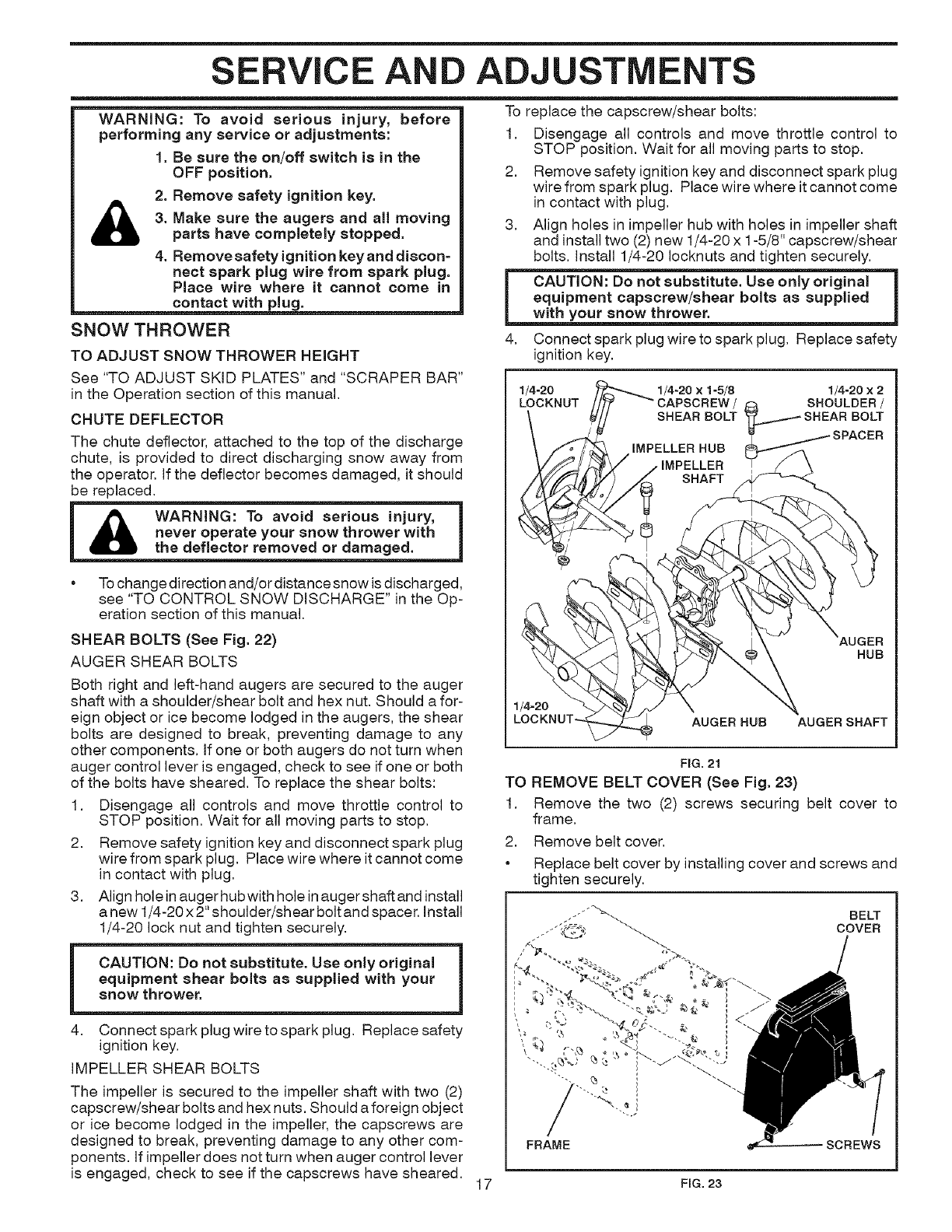

SHEAR BOLTS (See Fig, 22)

AUGER SHEAR BOLTS

Both right and left-hand augers are secured to the auger

shaft with a shoulder/shear bolt and hex nut. Should a for-

eign object or ice become lodged in the augers, the shear

bolts are designed to break, preventing damage to any

other components. If one or both augers do not turn when

auger control lever is engaged, check to see if one or both

of the bolts have sheared. To replace the shear bolts:

1. Disengage all controls and move throttle control to

STOP position. Wait for all moving parts to stop.

2. Remove safety ignition key and disconnect spark plug

wire from spark plug. Place wire where it cannot come

in contact with plug.

3. Align hole in auger hub with hole in auger shaft and install

a new 1/4-20 x 2" shoulder/shear bolt and spacer. Install

1/4-20 lock nut and tighten securely.

I CAUTION: Do not substitute. Use only original

equipment shear bolts as supplied with your

snow thrower.

4. Connect spark plug wire to spark plug. Replace safety

ignition key.

IMPELLER SHEAR BOLTS

The impeller is secured to the impeller shaft with two (2)

capscrew/shear bolts and hex nuts. Should a foreign object

or ice become lodged in the impeller, the capscrews are

designed to break, preventing damage to any other com-

ponents. If impeller does not turn when auger control lever

is engaged, check to see if the capscrews have sheared.

To replace the capscrew/shear bolts:

1. Disengage all controls and move throttle control to

STOP position. Wait for all moving parts to stop.

2. Remove safety ignition key and disconnect spark plug

wire from spark plug. Place wire where it cannot come

in contact with plug.

3. Align holes in impeller hub with holes in impeller shaft

and install two (2) new 1/4-20 x 1-5/8" capscrew/shear

bolts. Install 1/4-20 Iocknuts and tighten securely.

4. Connect spark plug wire to spark plug. Replace safety

ignition key.

1/4-20 _._ 1/4-20 × 1-5/8 1/4-20 x 2

LOCKNUT //7_f _CAPSCREW/ _ SHOULDER /

\ _/// SHEAR BOLT _il/SHEAR BOLT

\/_'_ IMPELLER HUB _ sPAcER

FIG, 21

TO REMOVE BELT COVER (See Fig. 23)

1. Remove the two (2) screws securing belt cover to

frame.

2. Remove belt cover.

• Replace belt cover by installing cover and screws and

tighten securely.

BELT

COVER

SCREWS

17 FIG.23

SERVICE ADJUSTMENTS

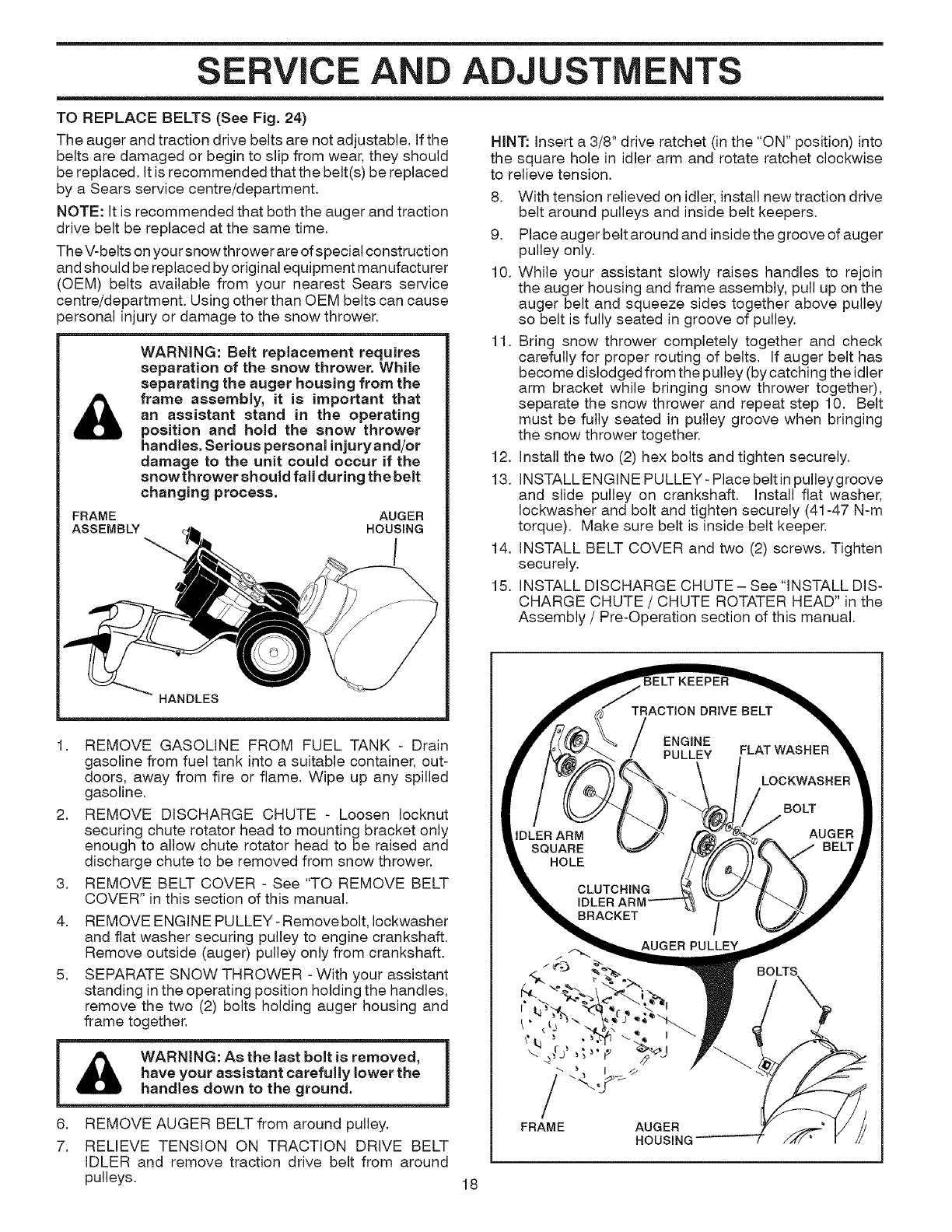

TO REPLACE BELTS (See Fig. 24)

The auger and traction drive belts are not adjustable. If the

belts are damaged or begin to slip from wear, they should

be replaced. It is recommended that the belt(s) be replaced

by a Sears service centre/department.

NOTE: It is recommended that both the auger and traction

drive belt be replaced at the same time.

The V-belts on your snow thrower are of special construction

and should be replaced by original equipment manufacturer

(OEM) belts available from your nearest Sears service

centre/department. Using other than OEM belts can cause

)ersonal injury or damage to the snow thrower.

WARNING: Belt replacement requires

separation of the snow thrower, While

separating the auger housing from the

frame assembly, it is important that

an assistant stand in the operating

position and hold the snow thrower

handles, Serious personal injuryand/or

damage to the unit couJd occur if the

snow thrower shouJd falJ during the belt

changing process.

FRAME AUGER

ASSEMBLY HOUSING

HINT: Insert a 3/8" drive ratchet (in the "ON" position) into

the square hole in idler arm and rotate ratchet clockwise

to relieve tension,

8. With tension relieved on idler, install new traction drive

belt around pulleys and inside belt keepers.

9. Place auger belt around and inside the groove of auger

pulley only.

10. While your assistant slowly raises handles to rejoin

the auger housing and frame assembly, pull up on the

auger belt and squeeze sides together above pulley

so belt is fully seated in groove of pulley.

11. Bring snow thrower completely together and check

carefully for proper routing of belts. If auger belt has

become dislodged from the pulley (by catching the idler

arm bracket while bringing snow thrower together),

separate the snow thrower and repeat step 10. Belt

must be fully seated in pulley groove when bringing

the snow thrower together.

12. Install the two (2) hex bolts and tighten securely.

13. INSTALL ENGINE PULLEY- Place belt in pulleygroove

and slide pulley on crankshaft, Install flat washer,

Iockwasher and bolt and tighten securely (41-47 N-m

torque), Make sure belt is inside belt keeper,

14, INSTALL BELT COVER and two (2) screws, Tighten

securely,

15, INSTALL DISCHARGE CHUTE - See "INSTALL DIS-

CHARGE CHUTE /CHUTE ROTATER HEAD" in the

Assembly /Pre-Operation section of this manual,

1. REMOVE GASOLINE FROM FUEL TANK - Drain

gasoline from fuel tank into a suitable container, out-

doors, away from fire or flame. Wipe up any spilled

gasoline.

2. REMOVE DISCHARGE CHUTE - Loosen Iocknut

securing chute rotator head to mounting bracket only

enough to allow chute rotator head to be raised and

discharge chute to be removed from snow thrower.

3. REMOVE BELT COVER - See "TO REMOVE BELT

COVER" in this section of this manual.

4. REMOVE ENGINE PULLEY-Removebolt, lockwasher

and flat washer securing pulley to engine crankshaft.

Remove outside (auger) pulley only from crankshaft.

5. SEPARATE SNOW THROWER - With your assistant

standing in the operating position holding the handles,

remove the two (2) bolts holding auger housing and

frame together.

REMOVE AUGER BELT from around pulley.

RELIEVE TENSION ON TRACTION DRIVE BELT

IDLER and remove traction drive belt from around

pulleys. 18

i •

_ I //

FRAME AUGER

HOUSING

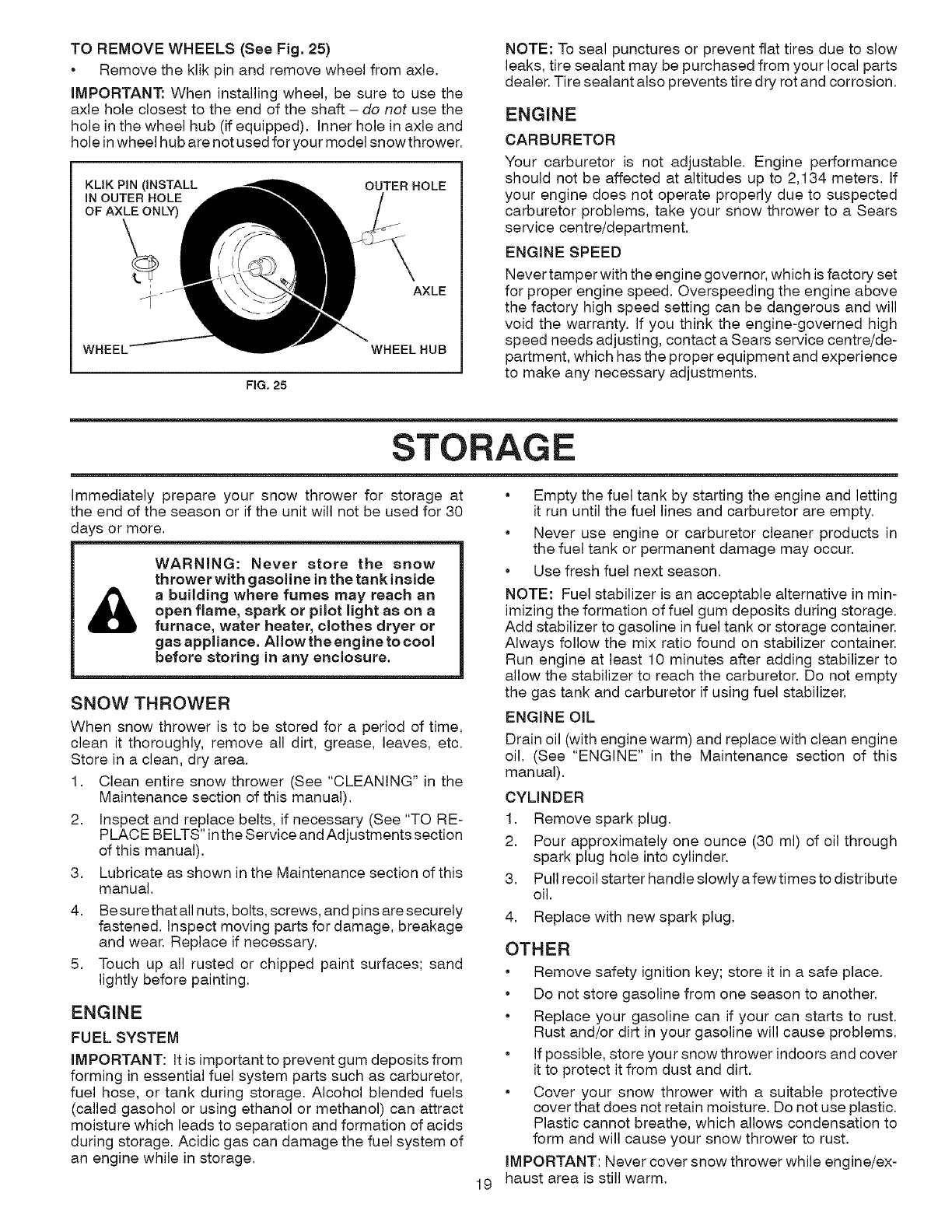

TO REMOVE WHEELS (See Fig. 25)

• Remove the klik pin and remove wheel from axle.

IMPORTANT: When installing wheel, be sure to use the

axle hole closest to the end of the shaft - do not use the

hole in the wheel hub (if equipped). Inner hole in axle and

hole in wheel hub are not used for your model snow thrower.

KLIK PIN (INSTALL

IN OUTER HOLE

OF AXLE ONLY)

OUTER HOLE

AXLE

WHEEL WHEEL HUB

FIG, 25

NOTE: To seal punctures or prevent flat tires due to slow

leaks, tire sealant may be purchased from your local parts

dealer. Tire sealant also prevents tire dry rot and corrosion,

ENGINE

CARBURETOR

Your carburetor is not adjustable. Engine performance

should not be affected at altitudes up to 2,134 meters. If

your engine does not operate properly due to suspected

carburetor problems, take your snow thrower to a Sears

service centre/department.

ENGINE SPEED

Never tamper with the engine governor, which is factory set

for proper engine speed. Overspeeding the engine above

the factory high speed setting can be dangerous and will

void the warranty. If you think the engine-governed high

speed needs adjusting, contact a Sears service centre/de-

partment, which has the proper equipment and experience

to make any necessary adjustments.

STO E

Immediately prepare your snow thrower for storage at

the end of the season or if the unit will not be used for 30

days or more.

WARNING: Never store the snow

thrower with gasoline in the tank inside

a building where fumes may reach an

open flame, spark or pilot light as on a

furnace, water heater, clothes dryer or

gas appliance, Allow the engine to cool

before storing in any enclosure.

SNOW THROWER

When snow thrower is to be stored for a period of time,

clean it thoroughly, remove all dirt, grease, leaves, etc,

Store in a clean, dry area.

1, Clean entire snow thrower (See "CLEANING" in the

Maintenance section of this manual).

2. Inspect and replace belts, if necessary (See "TO RE-

PLACE BELTS" inthe Service and Adjustments section

of this manual).

3, Lubricate as shown in the Maintenance section of this

manual.

4. Besurethat all nuts, bolts, screws, and pins are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

5. Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

ENGINE

FUEL SYSTEM

IM PORTANT: It is important to prevent gum deposits from

forming in essential fuel system parts such as carburetor,

fuel hose, or tank during storage. Alcohol blended fuels

(called gasohol or using ethanol or methanol) can attract

moisture which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system of

an engine while in storage.

• Empty the fuel tank by starting the engine and letting

it run until the fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner products in

the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in min-

imizing the formation of fuel gum deposits during storage.

Add stabilizer to gasoline in fuel tank or storage container.

Always follow the mix ratio found on stabilizer container.

Run engine at least 10 minutes after adding stabilizer to

allow the stabilizer to reach the carburetor. Do not empty

the gas tank and carburetor if using fuel stabilizer.

ENGINE OiL

Drain oil (with engine warm) and replace with clean engine

oil. (See "ENGINE" in the Maintenance section of this

manual).

CYLINDER

1. Remove spark plug.

2. Pour approximately one ounce (30 ml) of oil through

spark plug hole into cylinder.

Pull recoil starter handle slowly a few times to distribute

oil.

Replace with new spark plug.

OTHER

•Remove safety ignition key; store it in a safe place.

• Do not store gasoline from one season to another.

•Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

•If possible, store your snow thrower indoors and cover

it to protect it from dust and dirt.

•Cover your snow thrower with a suitable protective

cover that does not retain moisture. Do not use plastic.

Plastic cannot breathe, which allows condensation to

form and will cause your snow thrower to rust.

IMPORTANT: Never cover snow thrower while engine/ex-

haust area is still warm.

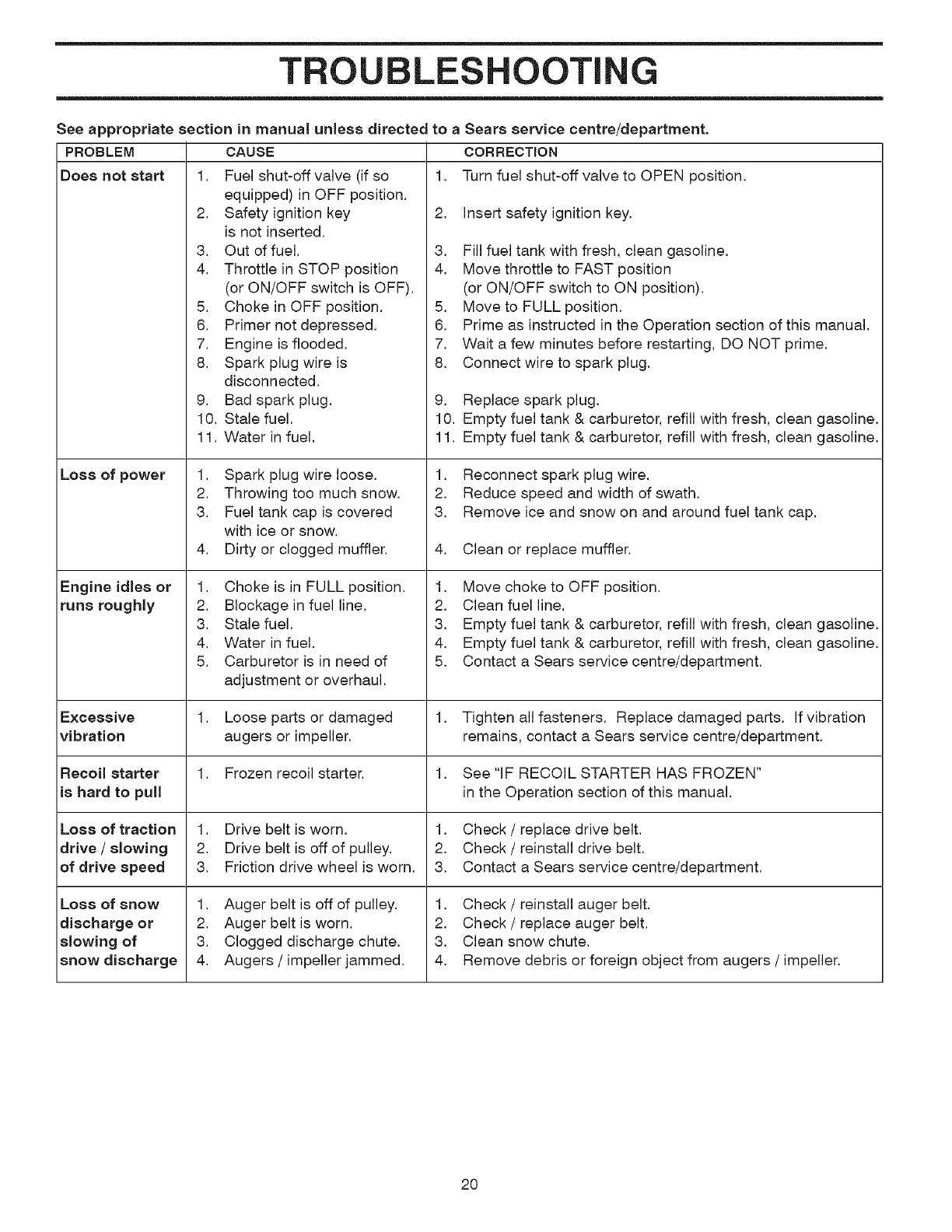

TROU OOTING

See appropriate section in manuaJ unless directed to aSears service centre/department.

PROBLEM

Does not start

Loss of power

Engine idles or

runs roughly

Excessive

vibration

Recoil starter

is hard to pull

Loss of traction

drive /slowing

of drive speed

Loss of snow

discharge or

slowing of

snow discharge

CAUSE

1. Fuel shut-off valve (if so

equipped) in OFF position.

2. Safety ignition key

is not inserted.

3. Out of fuel.

4. Throttle in STOP position

(or ON/OFF switch is OFF).

5. Choke in OFF position.

6. Primer not depressed.

7. Engine is flooded.

8. Spark plug wire is

disconnected.

9. Bad spark plug.

10. Stale fuel.

11. Water in fuel.

1. Spark plug wire loose.

2. Throwing too much snow.

3. Fuel tank cap is covered

with ice or snow.

4. Dirty or clogged muffler.

1. Choke is in FULL position.

2. Blockage in fuel line.

3. Stale fuel.

4. Water in fuel.

5. Carburetor is in need of

adjustment or overhaul.

Loose parts or damaged

augers or impeller.

1. Frozen recoil starter.

1. Drive belt is worn.

2. Drive belt is off of pulley.

3. Friction drive wheel is worn.

1. Auger belt is off of pulley.

2. Auger belt is worn.

3. Clogged discharge chute.

4. Augers /impeller jammed.

CORRECTION

1. Turn fuel shut-off valve to OPEN position.

2. insert safety ignition key.

3. Fill fuel tank with fresh, clean gasoline.

4. Move throttle to FAST position

(or ON/OFF switch to ON position).

5. Move to FULL position.

6. Prime as instructed in the Operation section of this manual.

7. Wait a few minutes before restarting, DO NOT prime.

8. Connect wire to spark plug.

9. Replace spark plug.

10. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

11. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

1. Reconnect spark plug wire.

2. Reduce speed and width of swath.

3. Remove ice and snow on and around fuel tank cap.

4. Clean or replace muffler.

1. Move choke to OFF position.

2. Clean fuel line.

3. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

4. Empty fuel tank & carburetor, refill with fresh, clean gasoline.

5. Contact a Sears service centre/department.

1. Tighten all fasteners. Replace damaged parts. If vibration

remains, contact a Sears service centre/department.

1. See"lF RECOIL STARTER HAS FROZEN"

in the Operation section of this manual.

1, Check /replace drive belt,

2, Check /reinstall drive belt,

3, Contact a Sears service centre/department,

1. Check /reinstall auger belt.

2. Check /replace auger belt.

3. Clean snow chute.

4. Remove debris or foreign object from augers /impeller.

SE CE NOTES

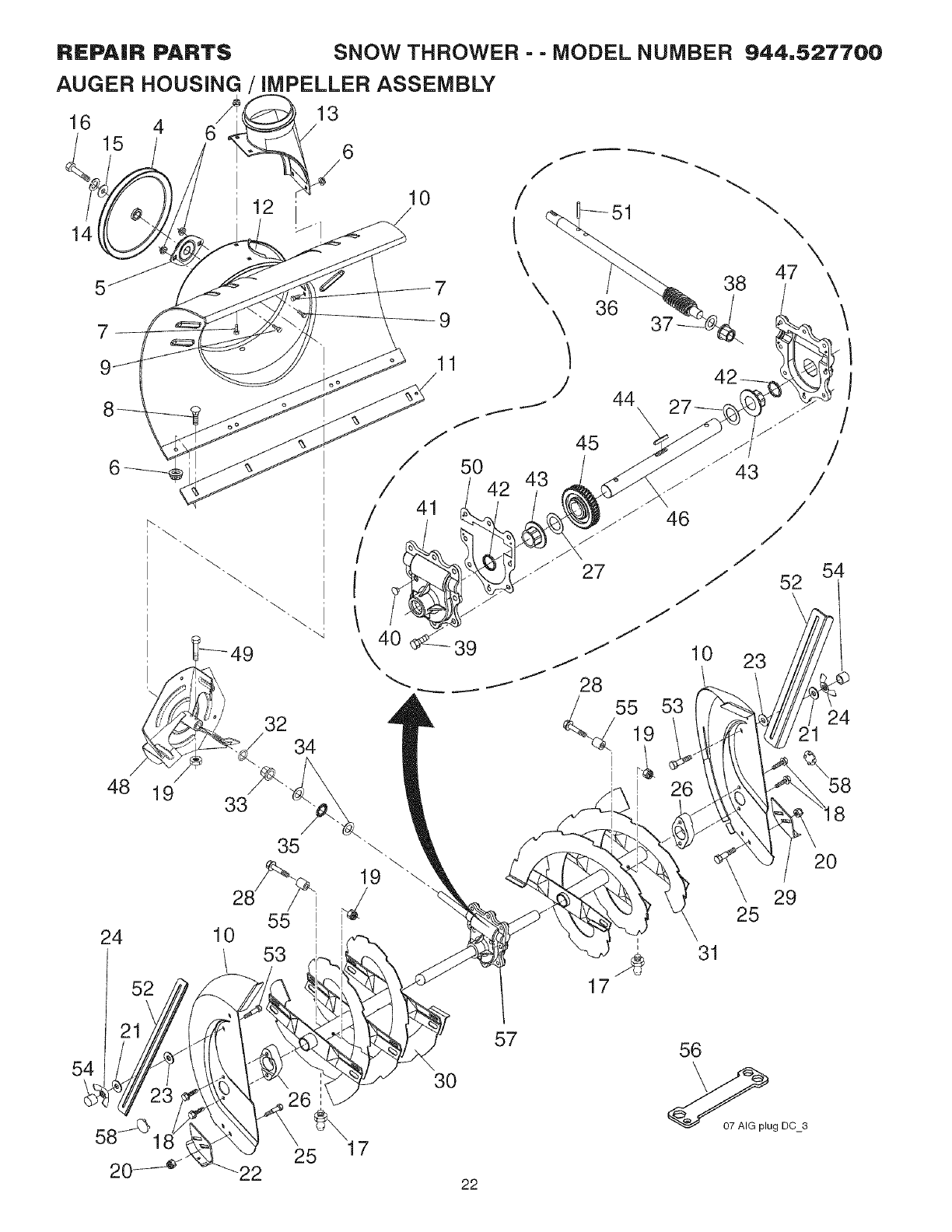

REPAIR PARTS SNOW THROWER - - MODEL NUMBER

AUGER HOUSING /iMPELLER ASSEMBLY

16 4 6/_/13

15 __, 6

12 10

5 7

48 19 33

5O42

\ 36 37-

/ 44

24 10

19 \

944,527700

38 /\\

./" /

43 /

/54

25 17

57 56

_ug DC 3

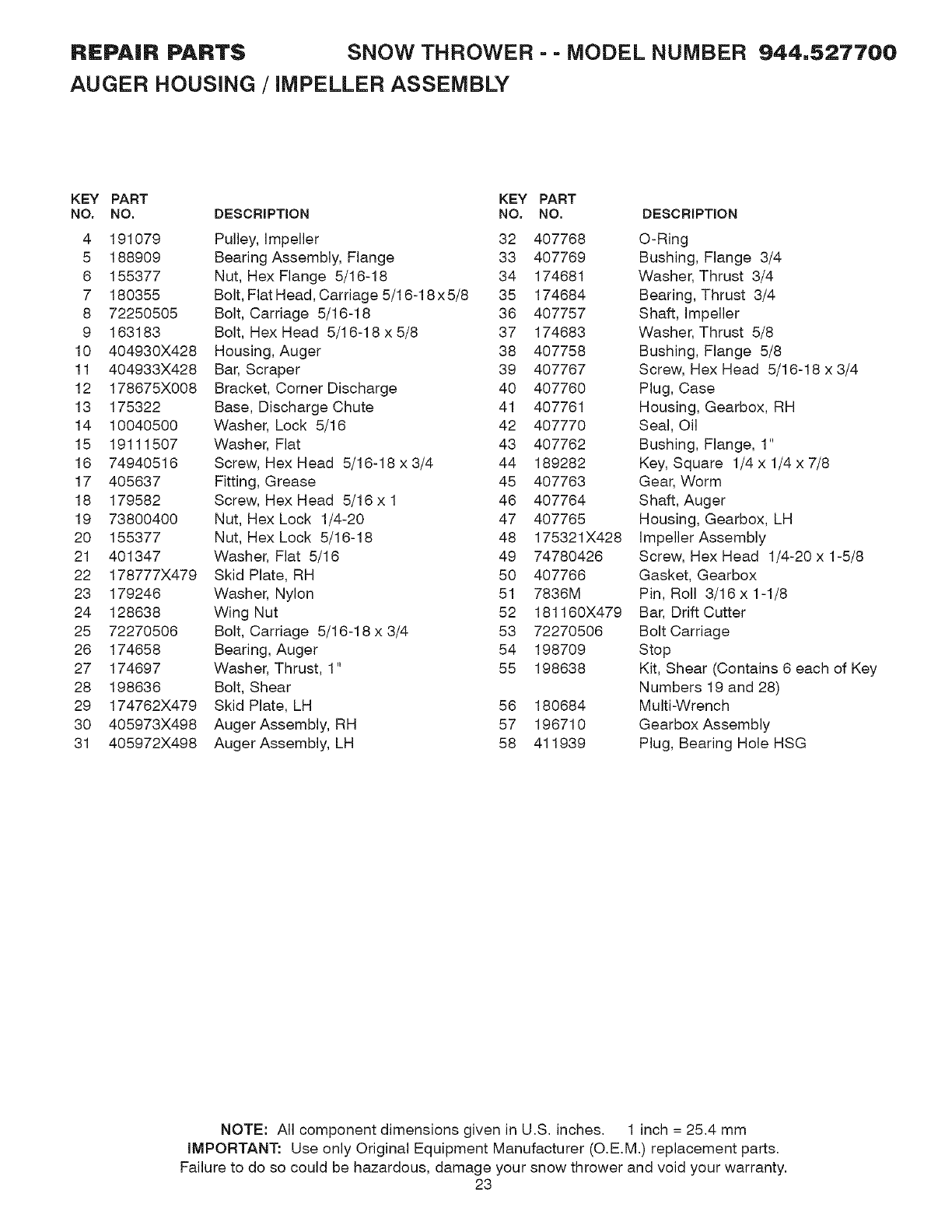

REPAIR PARTS SNOW THROWER == MODEL NUMBER 944,527700

AUGER HOUSING /IMPELLER ASSEMBLY

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

4 191079 Pulley, Impeller 32 407768 O-Ring

5 188909 Bearing Assembly, Flange 33 407769 Bushing, Flange 3/4

6 155377 Nut, Hex Flange 5/16-18 34 174681 Washer, Thrust 3/4

7 180355 Bolt, Flat Head, Carriage 5/16-18x5/8 35 174684 Bearing, Thrust 3/4

8 72250505 Bolt, Carriage 5/16-18 36 407757 Shaft, Impeller

9 163183 Bolt, Hex Head 5/16-18 x 5/8 37 174683 Washer, Thrust 5/8

10 404930X428 Housing, Auger 38 407758 Bushing, Flange 5/8

11 404933X428 Bar, Scraper 39 407767 Screw, Hex Head 5/16-18 x 3/4

12 178675X008 Bracket, Corner Discharge 40 407760 Plug, Case

13 175322 Base, Discharge Chute 41 407761 Housing, Gearbox, RH

14 10040500 Washer, Lock 5/16 42 407770 Seal, Oil

15 19111507 Washer, Flat 43 407762 Bushing, Flange, 1"

16 74940516 Screw, Hex Head 5/16-18 x 3/4 44 189282 Key, Square 1/4 x 1/4 x 7/8

17 405637 Fitting, Grease 45 407763 Gear, Worm

18 179582 Screw, Hex Head 5/16 x 1 46 407764 Shaft, Auger

19 73800400 Nut, Hex Lock 1/4-20 47 407765 Housing, Gearbox, LH

20 155377 Nut, Hex Lock 5/16-18 48 175321X428 Impeller Assembly

21 401347 Washer, Flat 5/16 49 74780426 Screw, Hex Head 1/4-20 x 1-5/8

22 178777X479 Skid Plate, RH 50 407766 Gasket, Gearbox

23 179246 Washer, Nylon 51 7836M Pin, Roll 3/16 x 1-1/8

24 128638 Wing Nut 52 181160X479 Bar, Drift Cutter

25 72270506 Bolt, Carriage 5/16-18 x 3/4 53 72270506 Bolt Carriage

26 174658 Bearing, Auger 54 198709 Stop

27 174697 Washer, Thrust, 1" 55 198638 Kit, Shear (Contains 6 each of Key

28 198636 Bolt, Shear Numbers 19 and 28)

29 174762X479 Skid Plate, LH 56 180684 Multi-Wrench

30 405973X498 Auger Assembly, RH 57 196710 Gearbox Assembly

31 405972X498 Auger Assembly, LH 58 411939 Plug, Bearing Hole HSG

NOTE: All component dimensions given in U,S, inches, 1 inch = 25,4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O,E,M,) replacement parts,

Failure to do so could be hazardous, damage your snow thrower and void your warranty,

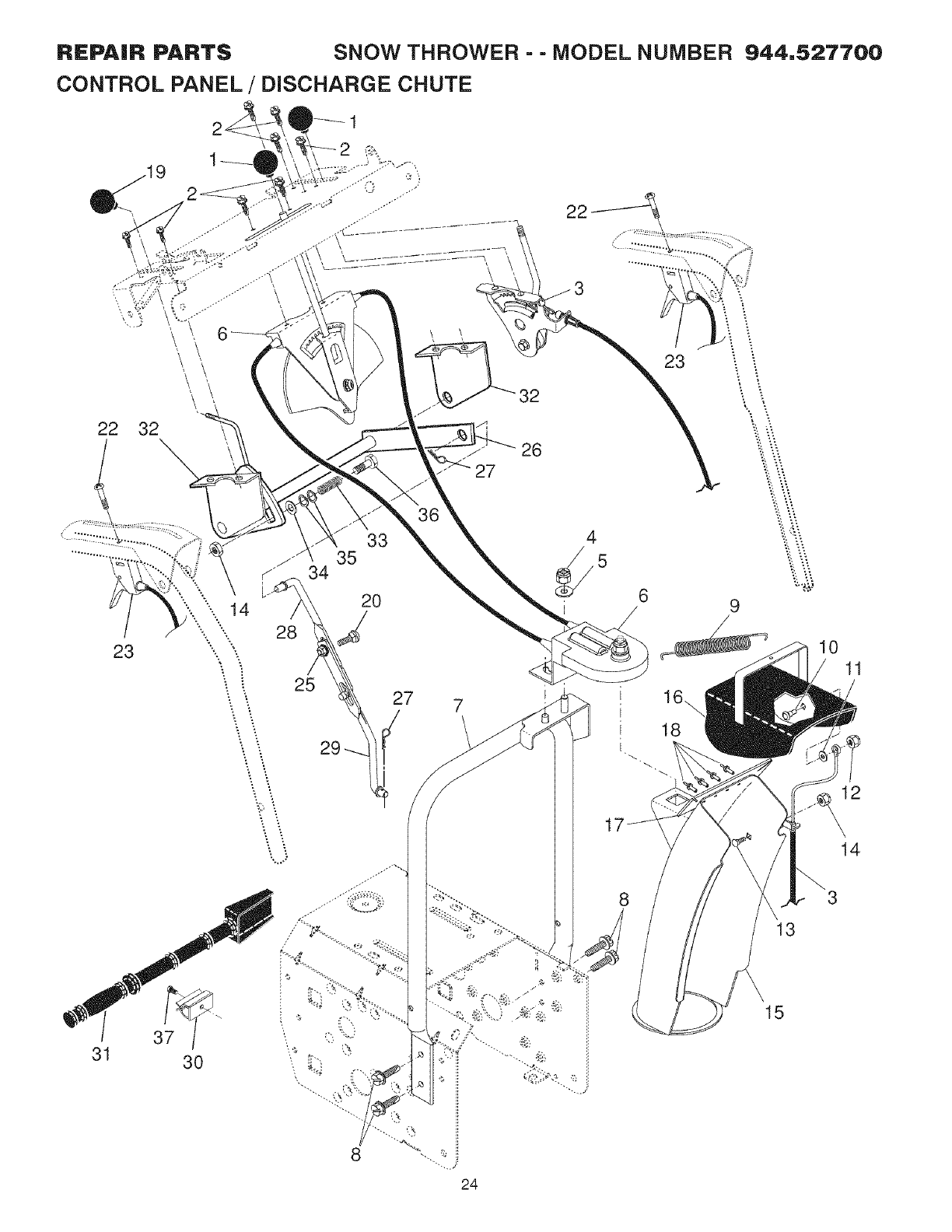

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944,527700

CONTROL PANEL /DISCHARGE CHUTE

22 32

31 30

25 27 7

16\

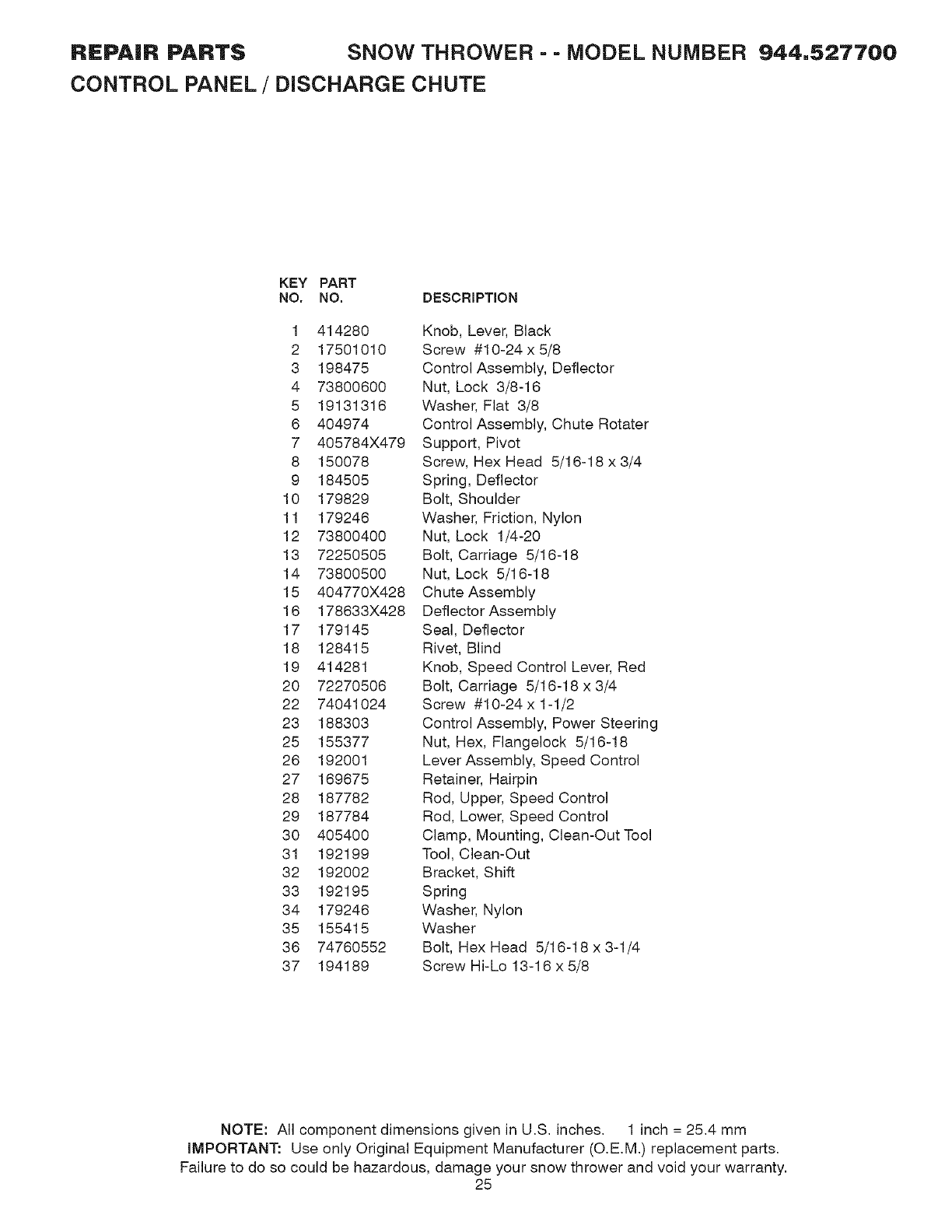

REPAIR PARTS SNOW THROWER == MODEL NUMBER 944,527700

CONTROL PANEL /DISCHARGE CHUTE

KEY PART

NO. NO. DESCRIPTION

1 414280

2 17501010

3 198475

4 73800600

5 19131316

6 404974

7 405784X479

8 150078

9 184505

10 179829

11 179246

12 73800400

13 72250505

14 73800500

15 404770X428

16 178633X428

17 179145

18 128415

19 414281

20 72270506

22 74041024

23 188303

25 155377

26 192001

27 169675

28 187782

29 187784

30 405400

31 192199

32 192002

33 192195

34 179246

35 155415

36 74760552

37 194189

Knob, Lever, Black

Screw #10-24 x 5/8

Control Assembly, Deflector

Nut, Lock 3/8-16

Washer, Flat 3/8

Control Assembly, Chute Rotater

Support, Pivot

Screw, Hex Head 5/16-18 x 3/4

Spring, Deflector

Bolt, Shoulder

Washer, Friction, Nylon

Nut, Lock 1/4-20

Bolt, Carriage 5/16-18

Nut, Lock 5/16-18

Chute Assembly

Deflector Assembly

Seal, Deflector

Rivet, Blind

Knob, Speed Control Lever, Red

Bolt, Carriage 5/16-18 x 3/4

Screw #10-24 x 1-1/2

Control Assembly, Power Steering

Nut, Hex, Flangelock 5/16-18

Lever Assembly, Speed Control

Retainer, Hairpin

Rod, Upper, Speed Control

Rod, Lower, Speed Control

Clamp, Mounting, Clean-Out Tool

Tool, Clean-Out

Bracket, Shift

Spring

Washer, Nylon

Washer

Bolt, Hex Head 5/16-18x3-1/4

Screw Hi-Lo 13-16 x 5/8

NOTE: All component dimensions given in U,S, inches, 1 inch = 25,4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O,E,M,) replacement parts,

Failure to do so could be hazardous, damage your snow thrower and void your warranty,

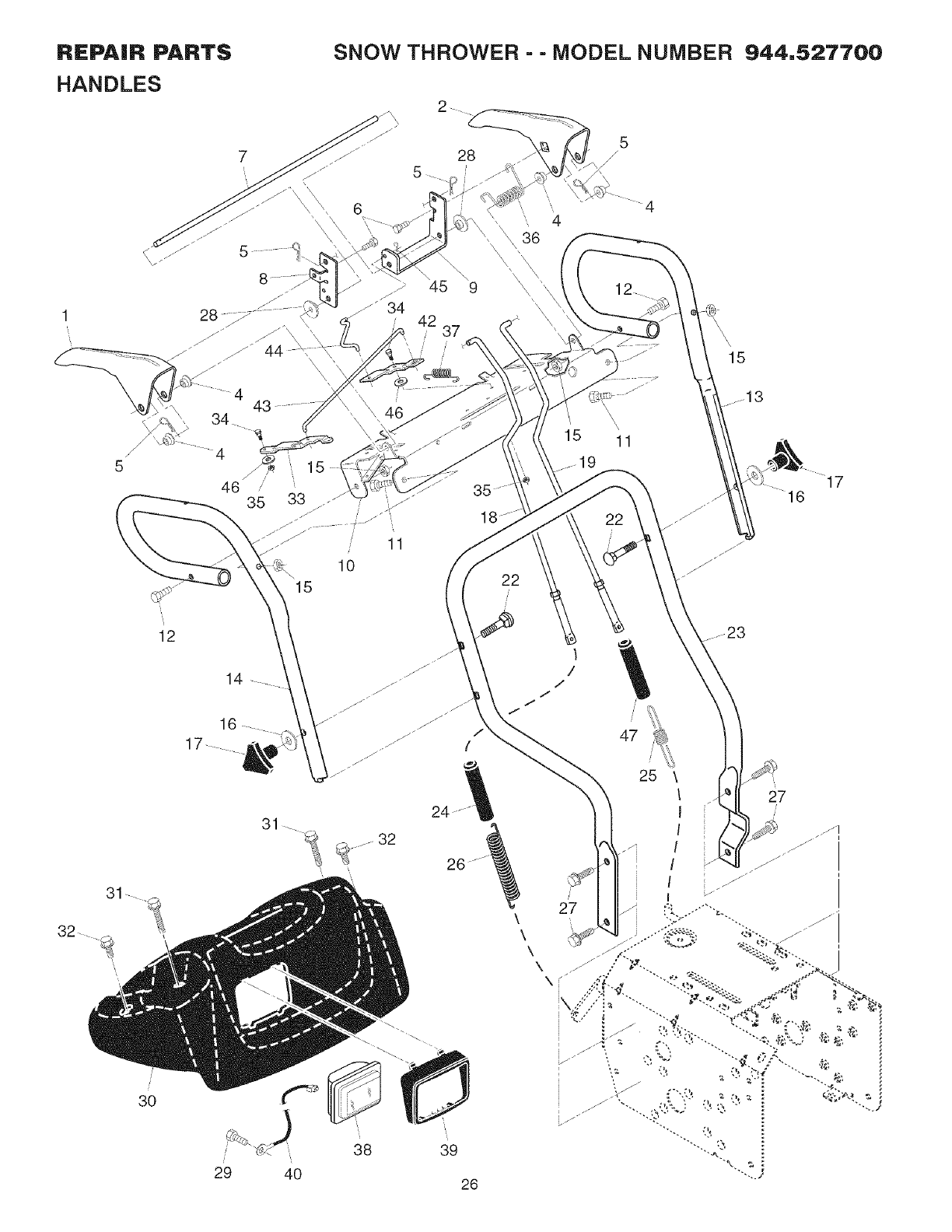

REPAIR PARTS SNOW THROWER == MODEL NUMBER 944,527'700

HANDLES

//" i

/11

10 22

17-

31 _ ...... 32

29 4O 26

15 11

-19

\\\

_-23

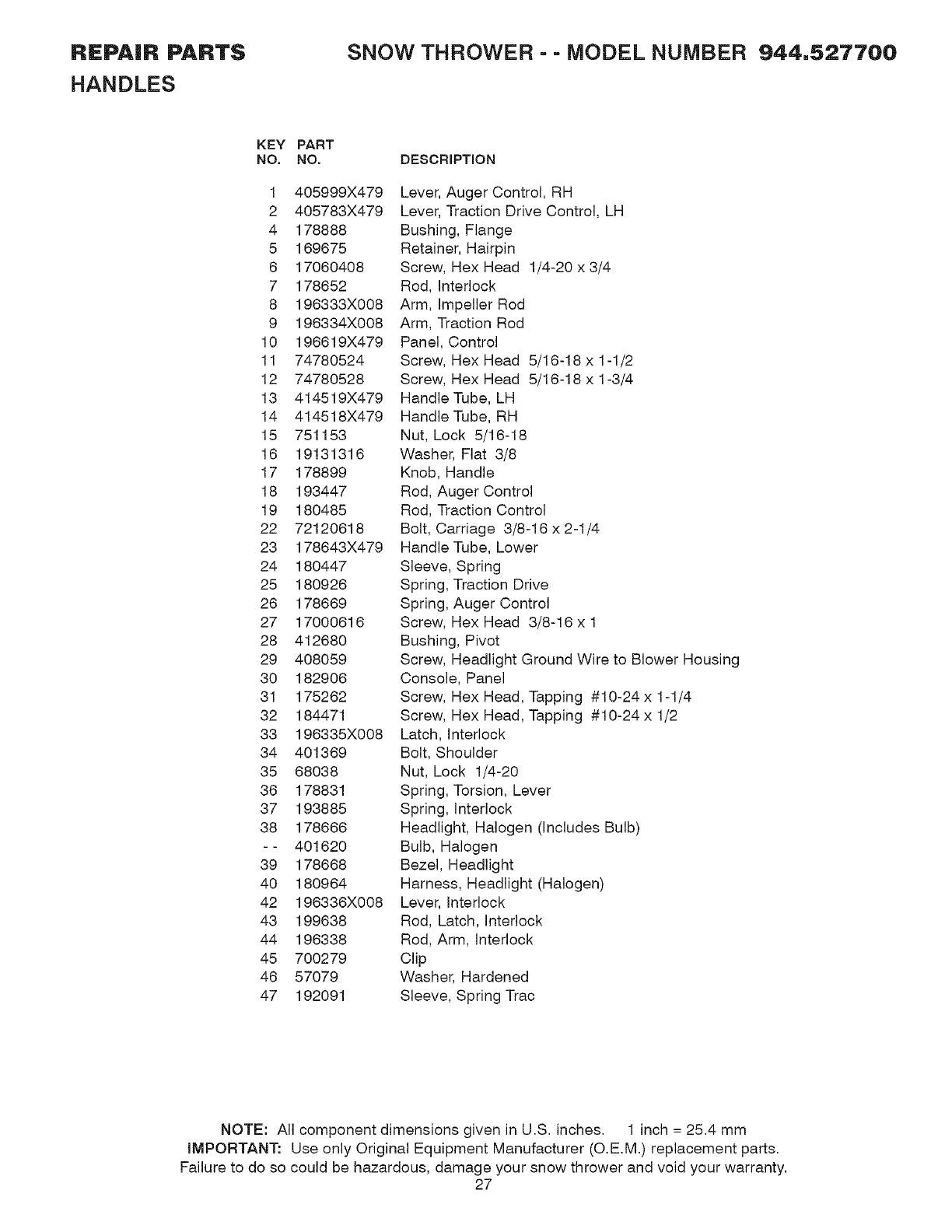

REPAIR PARTS

HANDLES

SNOW THROWER - - MODEL NUMBER 944,527700

KEY PART

NO. NO.

1 405999X479

2 405783X479

4 178888

5 169675

6 17060408

7 178652

8 196333X008

9 196334X008

10 196619X479

11 74780524

12 74780528

13 414519X479

14 414518X479

15 751153

16 19131316

17 178899

18 193447

19 180485

22 72120618

23 178643X479

24 180447

25 180926

26 178669

27 17000616

28 412680

29 408059

30 182906

31 175262

32 184471

33 196335X008

34 401369

35 68038

36 178831

37 193885

38 178666

-- 401620

39 178668

40 180964

42 196336X008

43 199638

44 196338

45 700279

46 57079

47 192091

DESCRiPTiON

Lever, Auger Control, RH

Lever, Traction Drive Control, LH

Bushing, Flange

Retainer, Hairpin

Screw, Hex Head 1/4-20 x 3/4

Rod, Interlock

Arm, Impeller Rod

Arm, Traction Rod

Panel, Control

Screw, Hex Head 5/16-18 x 1-1/2

Screw, Hex Head 5/16-18 x 1-3/4

Handle Tube, LH

Handle Tube, RH

Nut, Lock 5/16-18

Washer, Flat 3/8

Knob, Handle

Rod, Auger Control

Rod, Traction Control

Bolt, Carriage 3/8-16 x 2-1/4

Handle Tube, Lower

Sleeve, Spring

Spring, Traction Drive

Spring, Auger Control

Screw, Hex Head 3/8-16 x 1

Bushing, Pivot

Screw, Headlight Ground Wire to Blower Housing

Console, Panel

Screw, Hex Head, Tapping #10-24 x 1-1/4

Screw, Hex Head, Tapping #10-24 x 1/2

Latch, Interlock

Bolt, Shoulder

Nut, Lock 1/4-20

Spring, Torsion, Lever

Spring, Interlock

Headlight, Halogen (Includes Bulb)

Bulb, Halogen

Bezel, Headlight

Harness, Headlight (Halogen)

Lever, Interlock

Rod, Latch, Interlock

Rod, Arm, Interlock

Clip

Washer, Hardened

Sleeve, Spring Trac

NOTE: All component dimensions given in U,S, inches, 1 inch = 25,4 mm

iMPORTANT: Use only Original Equipment Manufacturer (O,E,M,) replacement parts,

Failure to do so could be hazardous, damage your snow thrower and void your warranty,

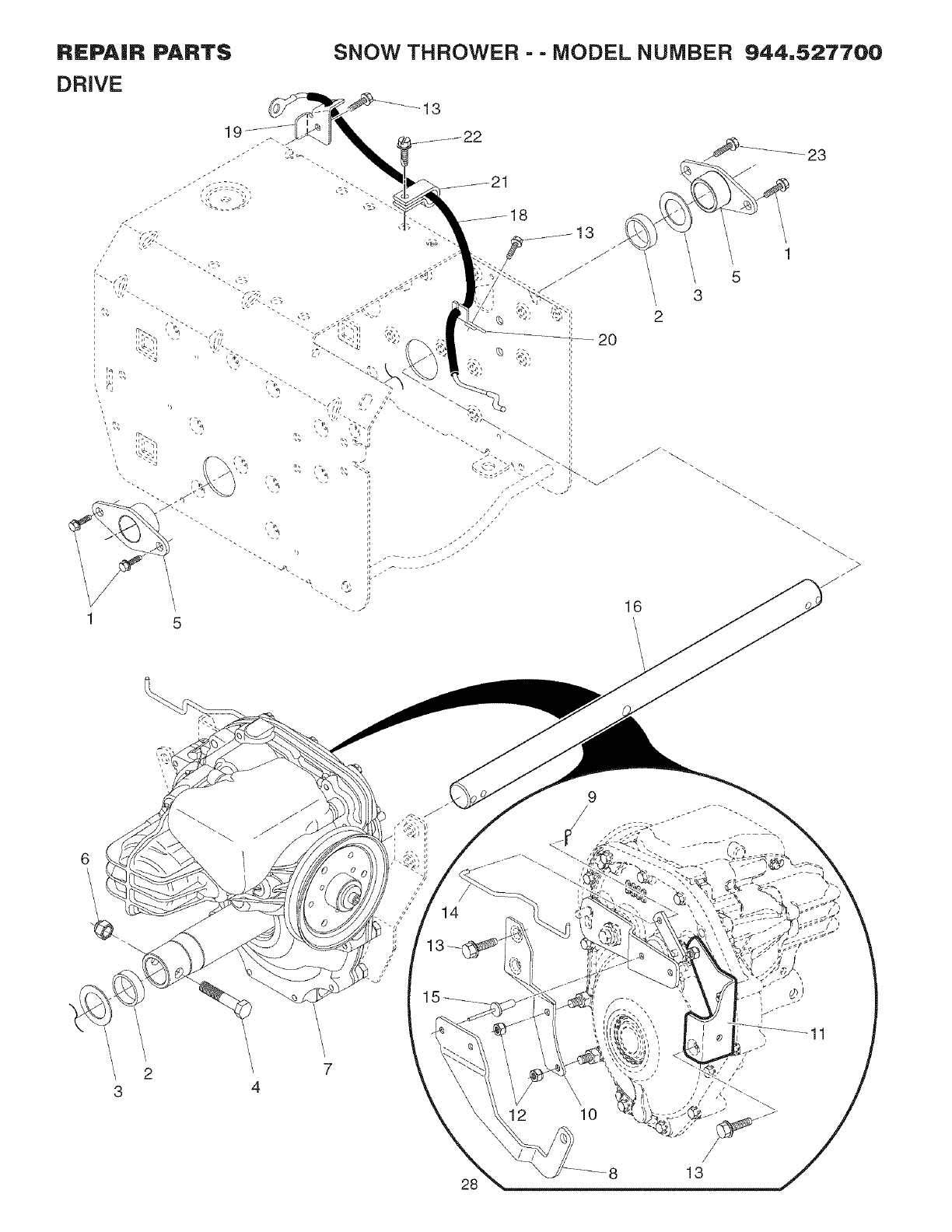

REPAIR PARTS SNOW THROWER - - MODEL NUMBER 944,527700

DRIVE

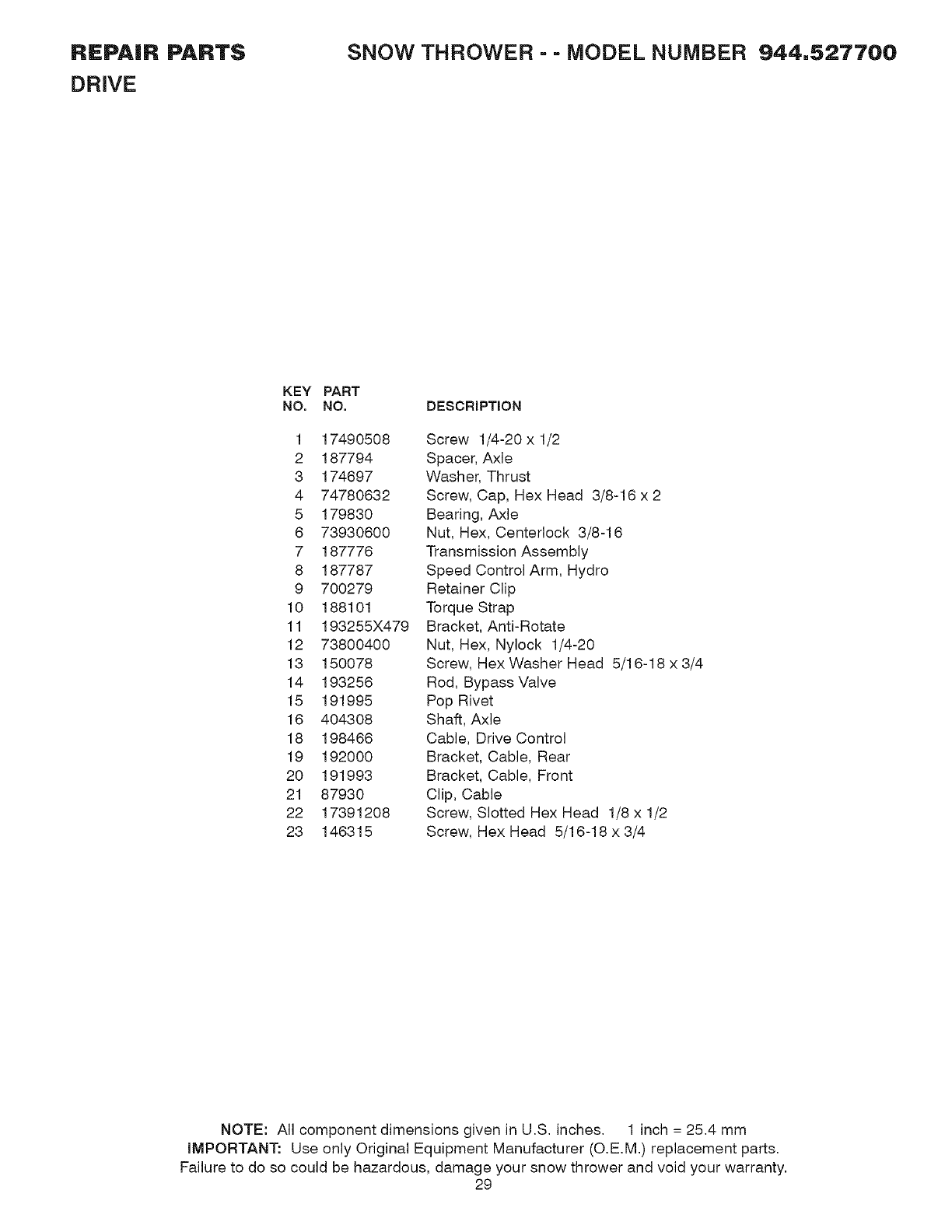

REPAIR PARTS

DRIVE

SNOW THROWER - - MODEL NUMBER 944,527700

KEY PART

NO. NO.

1 17490508

2 187794

3 174697

4 74780632

5 179830

6 73930600

7 187776

8 187787

9 700279

10 188101

11 193255X479

12 73800400

13 150078

14 193256

15 191995

16 404308

18 198466

19 192000

20 191993

21 87930

22 17391208

23 146315

DESCRiPTiON

Screw 1/4-20 x 1/2

Spacer, Axle

Washer, Thrust

Screw, Cap, Hex Head 3/8-16 x 2

Bearing, Axle

Nut, Hex, Centerlock 3/8-16

Transmission Assembly

Speed Control Arm, Hydro

Retainer Clip

Torque Strap

Bracket, Anti-Rotate

Nut, Hex, Nylock 1/4-20

Screw, Hex Washer Head 5/16-18 x 3/4

Rod, Bypass Valve

Pop Rivet

Shaft, Axle

Cable, Drive Control

Bracket, Cable, Rear

Bracket, Cable, Front

Clip, Cable

Screw, Slotted Hex Head 1/8 x 1/2

Screw, Hex Head 5/16-18 x 3/4

NOTE: All component dimensions given in U,S, inches, 1 inch = 25,4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O,E,M,) replacement parts,

Failure to do so could be hazardous, damage your snow thrower and void your warranty,

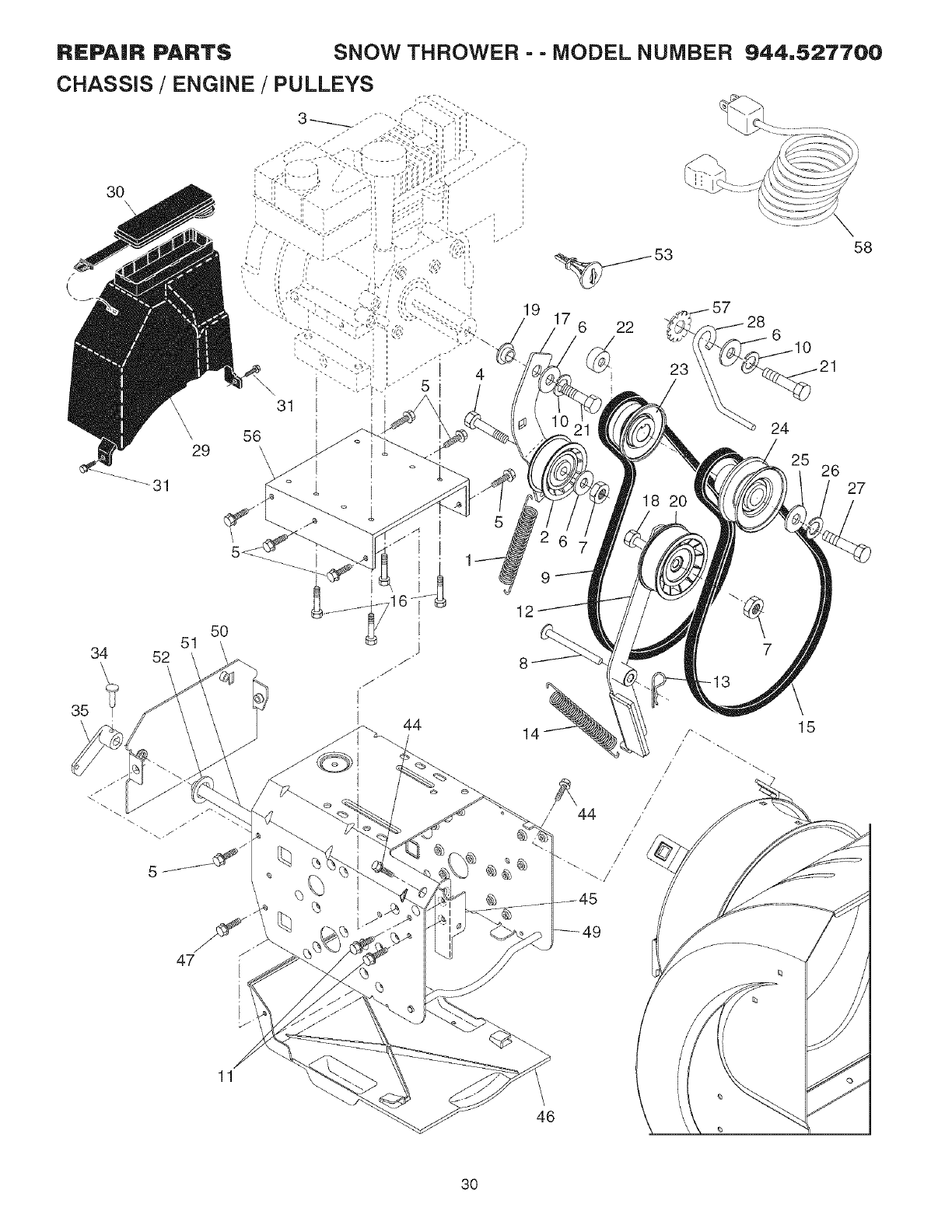

REPAIR PARTS SNOW THROWER - - MODEL NUMBER

_31

944,527700

26 27

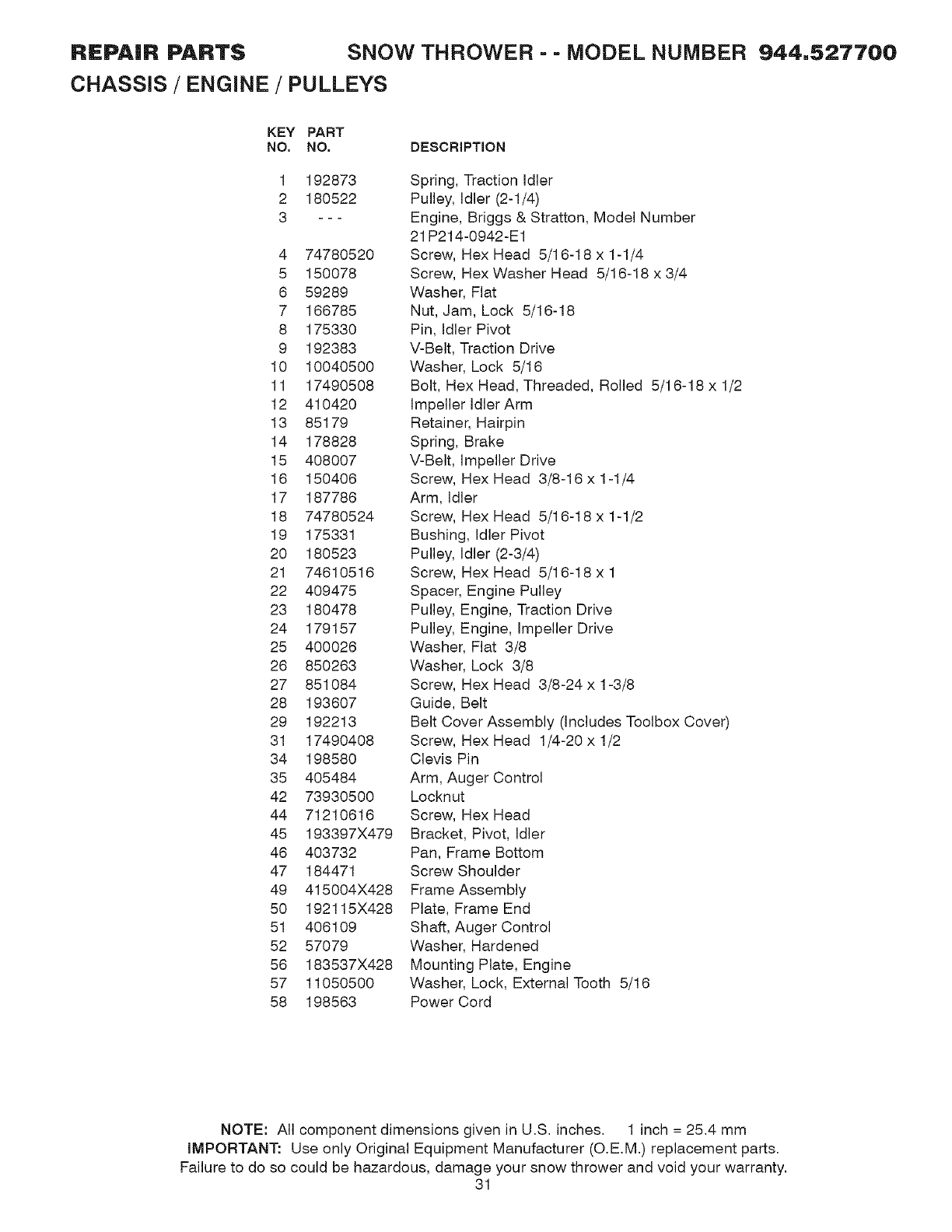

REPAIR PARTS SNOW THROWER == MODEL NUMBER 944,527700

CHASSIS /ENGINE /PULLEYS

KEY PART

NO. NO. DESCRIPTION

1 192873

2 180522

3---

4 74780520

5 150078

6 59289

7 166785

8 175330

9 192383

10 10040500

11 17490508

12 410420

13 85179

14 178828

15 408007

16 150406

17 187786

18 74780524

19 175331

20 180523

21 74610516

22 409475

23 180478

24 179157

25 400026

26 850263

27 851084

28 193607

29 192213

31 17490408

34 198580

35 405484

42 73930500

44 71210616

45 193397X479

46 403732

47 184471

49 415004X428

50 192115X428

51 406109

52 57079

56 183537X428

57 11050500

58 198563

Spring, Traction idler

Pulley, idler (2-1/4)

Engine, Briggs & Stratton, Model Number

21 P214-O942-E1

Screw, Hex Head 5/16-18 x 1-1/4

Screw, Hex Washer Head 5/16-18 x 3/4

Washer, Flat

Nut, Jam, Lock 5/16-18

Pin, idler Pivot

V-Belt, Traction Drive

Washer, Lock 5/16

Bolt, Hex Head, Threaded, Rolled 5/16-18 x 1/2

impeller Idler Arm

Retainer, Hairpin

Spring, Brake

V-Belt, Impeller Drive

Screw, Hex Head 3/8-16 x 1-1/4

Arm, Idler

Screw, Hex Head 5/16-18 x 1-1/2

Bushing, Idler Pivot

Pulley, Idler (2-3/4)

Screw, Hex Head 5/16-18 x 1

Spacer, Engine Pulley

Pulley, Engine, Traction Drive

Pulley, Engine, Impeller Drive

Washer, Flat 3/8

Washer, Lock 3/8

Screw, Hex Head 3/8-24 x 1-3/8

Guide, Belt

Belt Cover Assembly (includes Toolbox Cover)

Screw, Hex Head 1/4-20 x 1/2

Clevis Pin

Arm, Auger Control

Locknut

Screw, Hex Head

Bracket, Pivot, Idler

Pan, Frame Bottom

Screw Shoulder

Frame Assembly

Plate, Frame End

Shaft, Auger Control

Washer, Hardened

Mounting Plate, Engine

Washer, Lock, External Tooth 5/16

Power Cord

NOTE: All component dimensions given in U,S, inches, 1 inch = 25,4 mm

iMPORTANT: Use only Original Equipment Manufacturer (O,E,M,) replacement parts,

Failure to do so could be hazardous, damage your snow thrower and void your warranty,

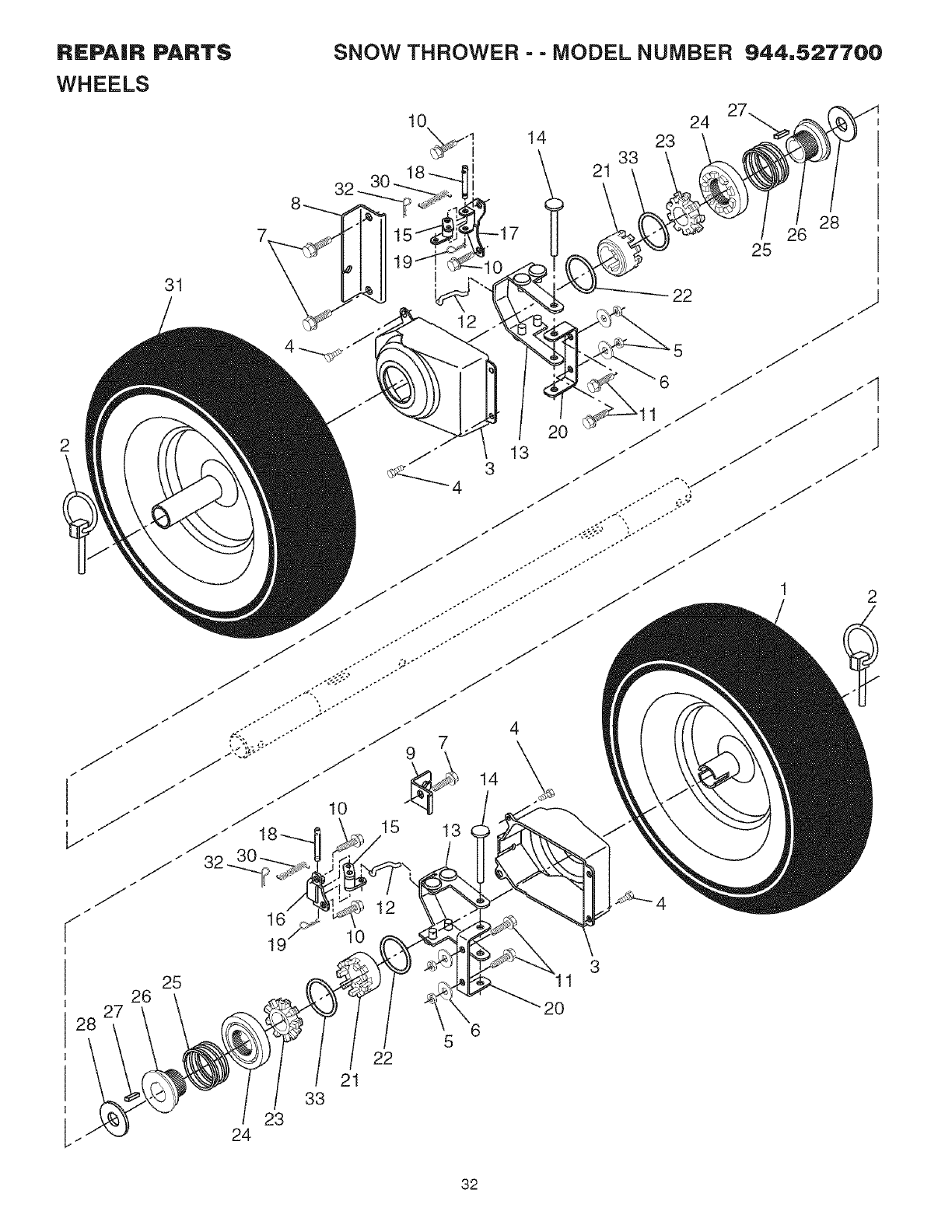

REPAIR PARTS

WHEELS

SNOW THROWER - - MODEL NUMBER 944,527700

14 23

3',

15 13

"20

22 S

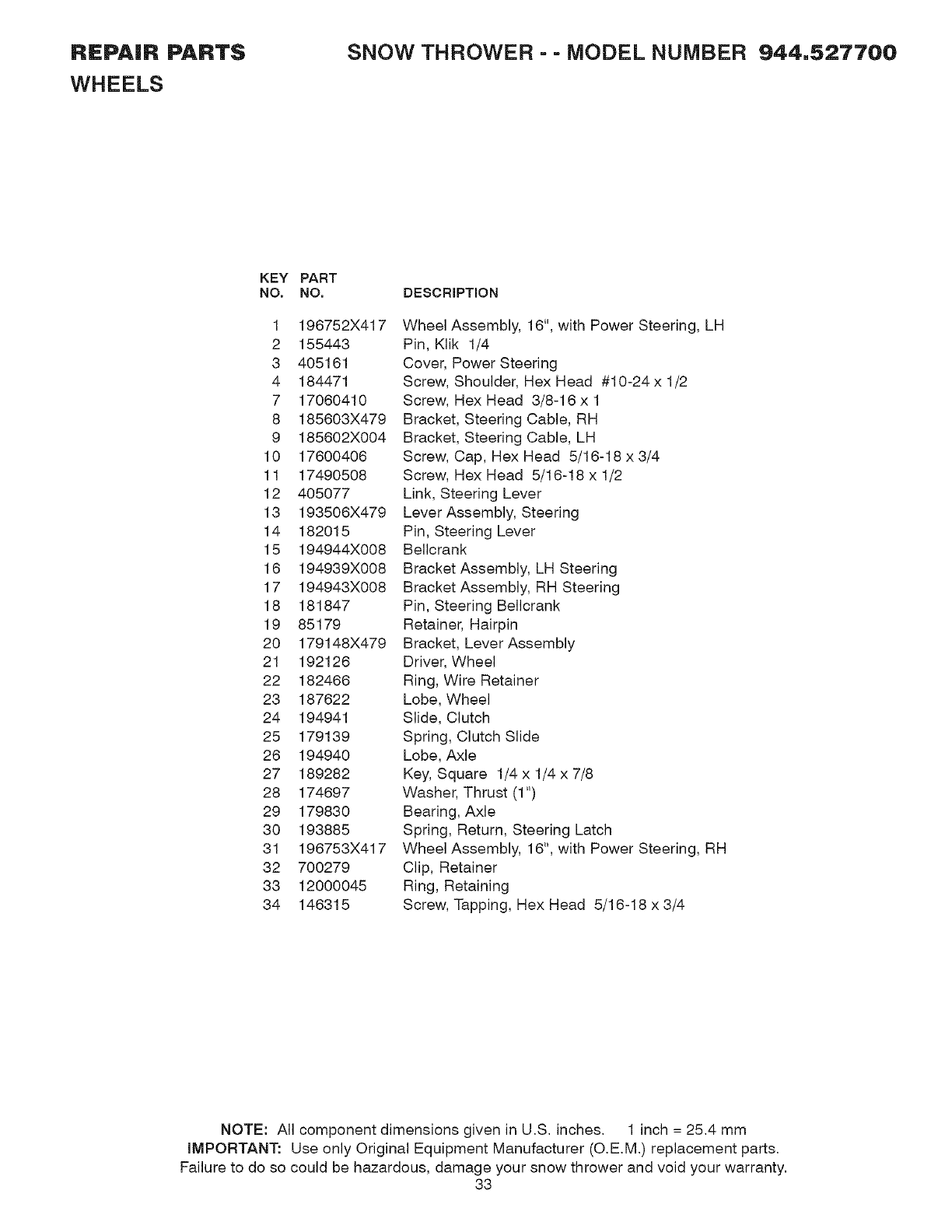

REPAIR PARTS

WHEELS

SNOW THROWER - - MODEL NUMBER 944,527700

KEY PART

NO. NO.

1 196752X417

2 155443

3 405161

4 184471

7 17060410

8 185603X479

9 185602X004

10 17600406

11 17490508

12 405077

13 193506X479

14 182015

15 194944X008

16 194939X008

17 194943X008

18 181847

19 85179

20 179148X479

21 192126

22 182466

23 187622

24 194941

25 179139

26 194940

27 189282

28 174697

29 179830

30 193885

31 196753X417

32 700279

33 12000045

34 146315

DESCRIPTION

Wheel Assembly, 16", with Power Steering, LH

Pin, Klik 1/4

Cover, Power Steering

Screw, Shoulder, Hex Head #10-24 x 1/2

Screw, Hex Head 3/8-16 x 1

Bracket, Steering Cable, RH

Bracket, Steering Cable, LH

Screw, Cap, Hex Head 5/16-18 x 3/4

Screw, Hex Head 5/16-18 x 1/2

Link, Steering Lever

Lever Assembly, Steering

Pin, Steering Lever

Bellcrank

Bracket Assembly, LH Steering

Bracket Assembly, RH Steering

Pin, Steering Bellcrank

Retainer, Hairpin

Bracket, Lever Assembly

Driver, Wheel

Ring, Wire Retainer

Lobe, Wheel

Slide, Clutch

Spring, Clutch Slide

Lobe, Axle

Key, Square 1/4 x 1/4 x 7/8

Washer, Thrust (1")

Bearing, Axle

Spring, Return, Steering Latch

Wheel Assembly, 16", with Power Steering, RH

Clip, Retainer

Ring, Retaining

Screw, Tapping, Hex Head 5/16-18 x 3/4

NOTE: All component dimensions given in U,S, inches, 1 inch = 25,4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O,E,M,) replacement parts,

Failure to do so could be hazardous, damage your snow thrower and void your warranty,

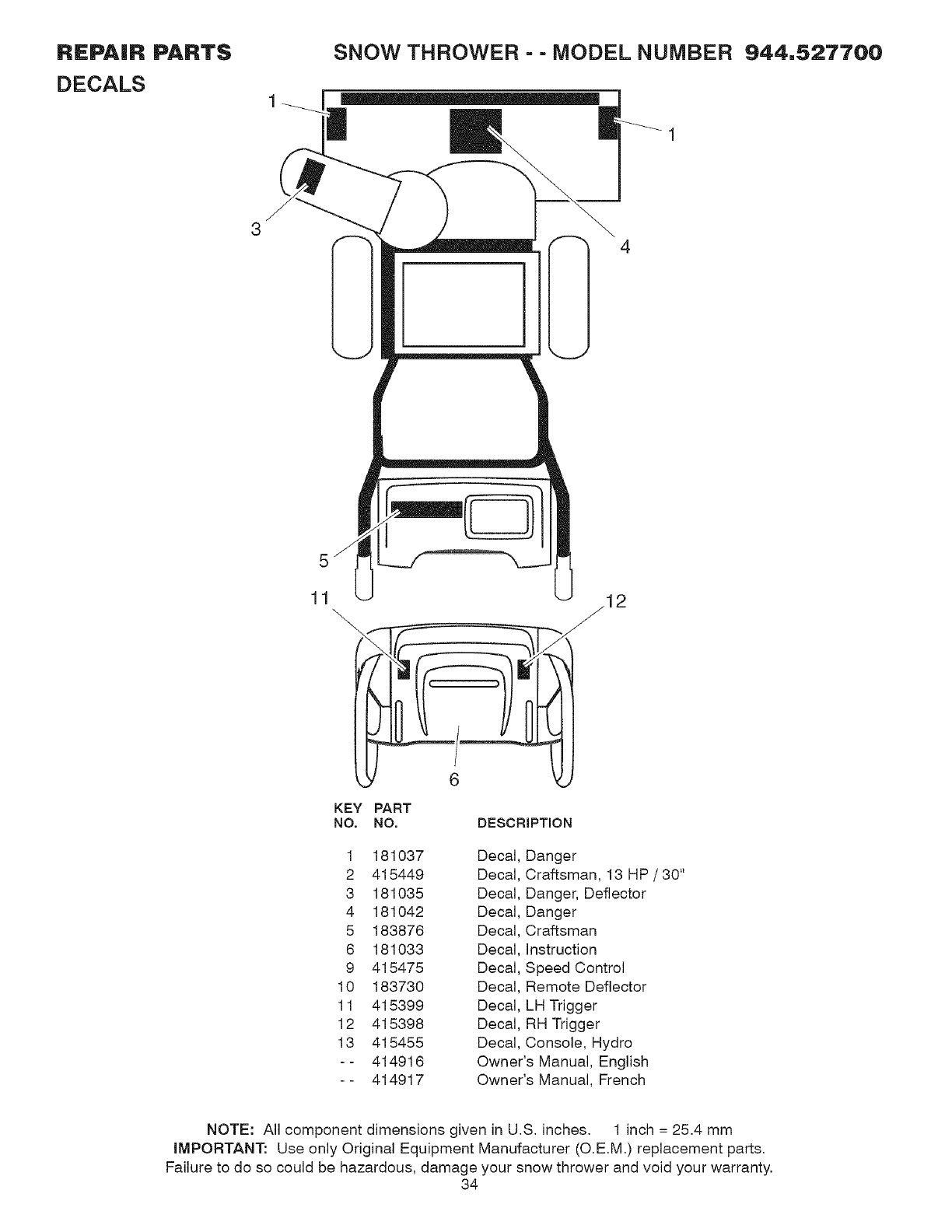

REPAIR PARTS

DECALS

SNOW THROWER - - MODEL NUMBER

944,527700

KEY PART

NO. NO. DESCRIPTION

1 181037 Decal

2 415449 Decal

3 181035 Decal

4 181042 Decal

5 183876 Decal

6 181033 Decal

9 415475 Decal

10 183730 Decal

11 415399 Decal

12 415398 Decal

13 415455

- - 414916

- - 414917

Danger

Craftsman, 13 HP/30"

Danger, Deflector

Danger

Craftsman

Instruction

Speed Control

Remote Deflector

LH Trigger

RH Trigger

Decal Console, Hydro

Owner's Manual, English

Owner's Manual, French

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT." Use only Original Equipment Manufacturer (O.E.M.) replacement parts.

Failure to do so could be hazardous, damage your snow thrower and void your warranty.

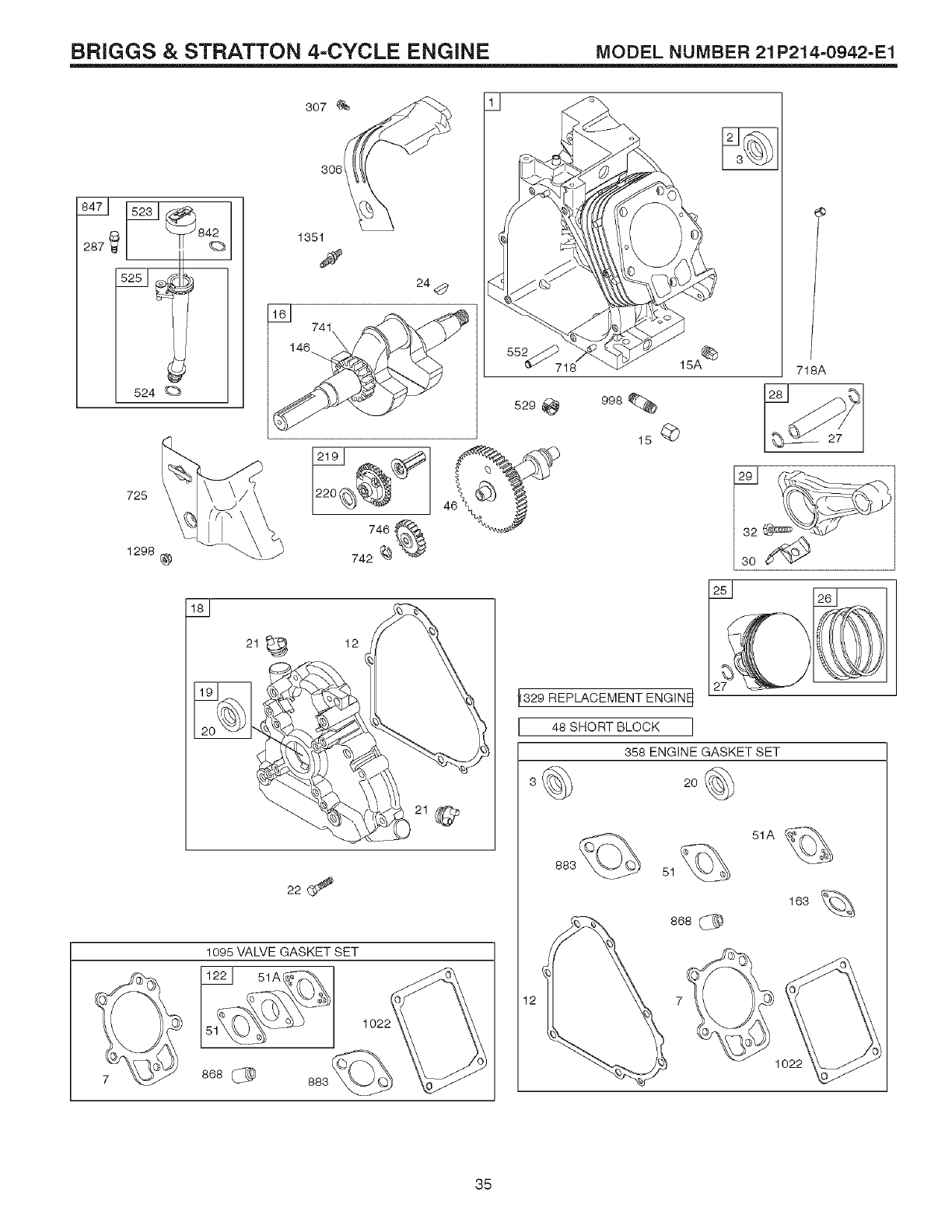

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 21P214=0942=E1

8 / ',-q_842

287

524 _

725

1298 @

307

3O61

1351

741 X

746

742 _ _}_

552_718

529

718A

1095 VALVE GASKET SET

51A_

363(_ ss3(_

_329 REPLACEMENT ENGINE_

48 SHORT BLOCK I

358 ENGINE GASKET SET

3 2O

51A

163 %

1022

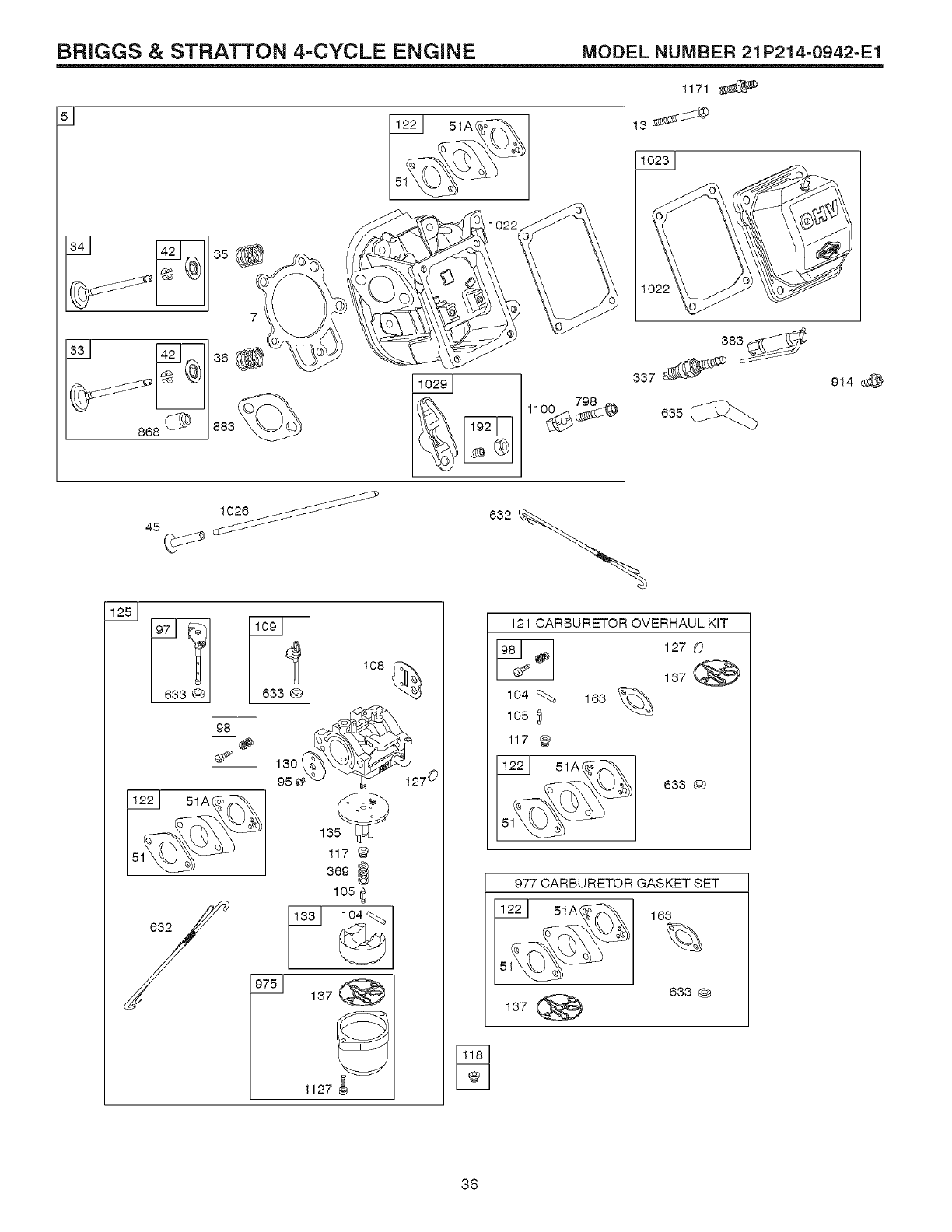

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 21P214o0942-E1

1171

383_

t_ _ _7_ o_4_

45 _

51Aq

108

135

117

369

105 [_

137

1127 ?

121 CARBURETOR OVERHAUL KIT

127 ©

137

lO4 _ 163 %

105 [_

117

51A(

633 @

977 CARBURETOR GASKET SET

_J 51A( 163

633 @

137 (_

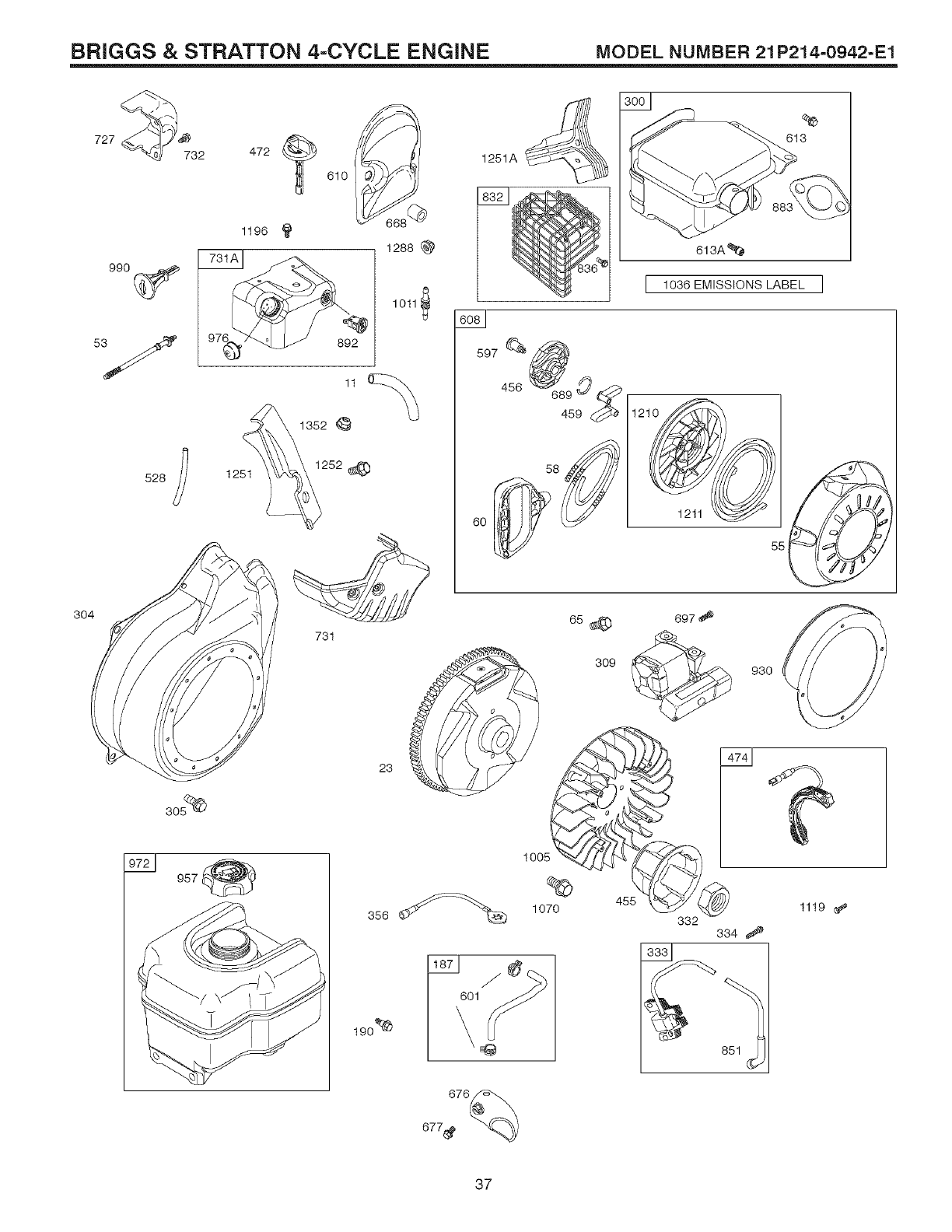

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 21P214o0942-E1

732 472 1251A

610

3O4

990

528

1288

1011

1252 _)

1251

613

I 1036 EMISSIONS LABEL I

597 _@

456 684950_

1211

8o_

731 654;_

309

697,_

930

967_ 8_6

601

190'_

100_

1070 455

332

334

1119

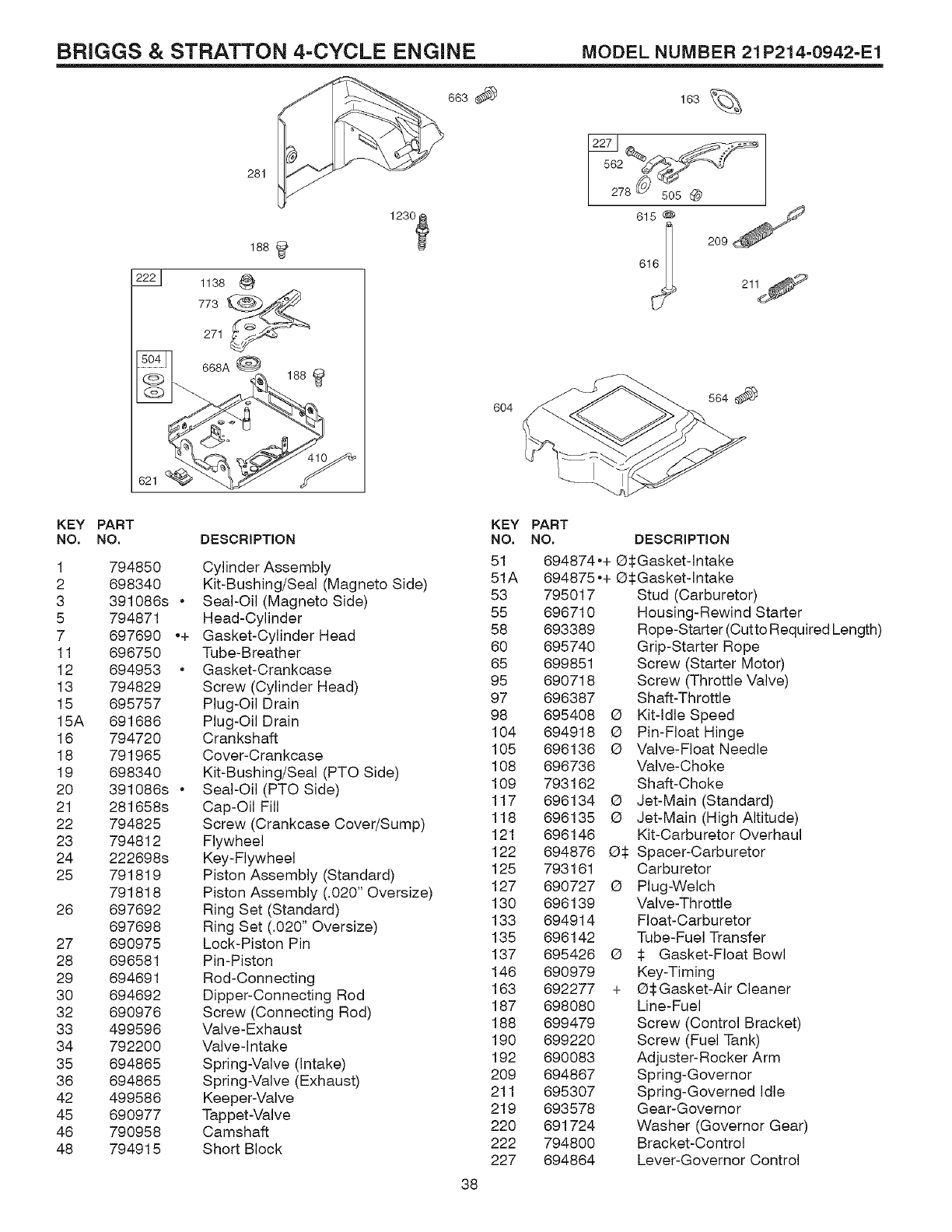

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 21P214-0942-E1

821

281

188

1138

773 _271

668A @

188

663_ 163%

1230_} 209 j

211S

604

1227I .....

I278 505 @

618

616_

564

KEY

NO.

15A

PART

NO.

794850

698340

391086s •

794871

697690 "+

696750

694953 •

794829

695757

691686

794720

791965

698340

391086s •

281658s

794825

794812

222698s

791819

79181 8

697692

697698

690975

696581

694691

694692

690976

499596

792200

694865

499586

690977

790958

79491 5

DESCRIPTION

Cylinder Assembly

Kit-Bushing/Seal (Magneto Side)

Seal-Oil (Magneto Side)

Head-Cylinder

Gasket-Cylinder Head

Tube-Breather

Gasket-Crankcase

Screw (Cylinder Head)

Plug-Oil Drain

Crankshaft

Cover-Crankcase

Kit-Bushing/Seal (PTO Side)

Seal-Oil (PTO Side)

Cap-Oil Fill

Screw (Crankcase Cover/Sump)

Flywheel

Key-Flywheel

Piston Assembly (Standard)

Piston Assembly (.020" Oversize)

Ring Set (Standard)

Ring Set (,020" Oversize)

Lock-Piston Pin

Pin-Piston

Rod-Connecting

Dipper-Connecting Rod

Screw (Connecting Rod)

Valve-Exhaust

Valve-Intake

Spring-Valve (Intake)

Spring-Valve (Exhaust)

Keeper-Valve

Tappet-Valve

Camshaft

Short Block

KEY

NO.

51A

104

105

108

109

117

118

121

122

125

127

130

133

135

137

146

163

187

188

190

192

209

211

219

220

222

227

PART

NO. DESCRIPTmON

694874.+ (_:Gasket-lntake

694875,+ O$Gasket-lntake

795017

696710

693389

695740

699851

690718

696387

695408

694918

696136

696736

793162

696134

696135

696146

694876

793161

690727

696139

694914

696142

695426

690979

692277

698080

699479

699220

690083

694867

695307

693578

691724

794800

694864

Stud (Carburetor)

Housing-Rewind Starter

Rope-Starter (Cutto Required Length)

Grip-Starter Rope

Screw (Starter Motor)

Screw (Throttle Valve)

Shaft-Throttle

Kit-Idle Speed

Pin-Float Hinge

Valve-Float Needle

Valve-Choke

Shaft-Choke

Jet-Main (Standard)

Jet-Main (High Altitude)

Kit-Carburetor Overhaul

Spacer-Carburetor

Carburetor

Plug-Welch

Valve-Throttle

Float-Carburetor

Tube-Fuel Transfer

$ Gasket-Float Bowl

Key-Timing

(_ Gasket-Air Cleaner

Line-Fuel

Screw (Control Bracket)

Screw (Fuel Tank)

Adjuster-Rocker Arm

Spring-Governor

Spring-Governed Idle

Gear-Governor

Washer (Governor Gear)

Bracket-Control

Lever-Governor Control

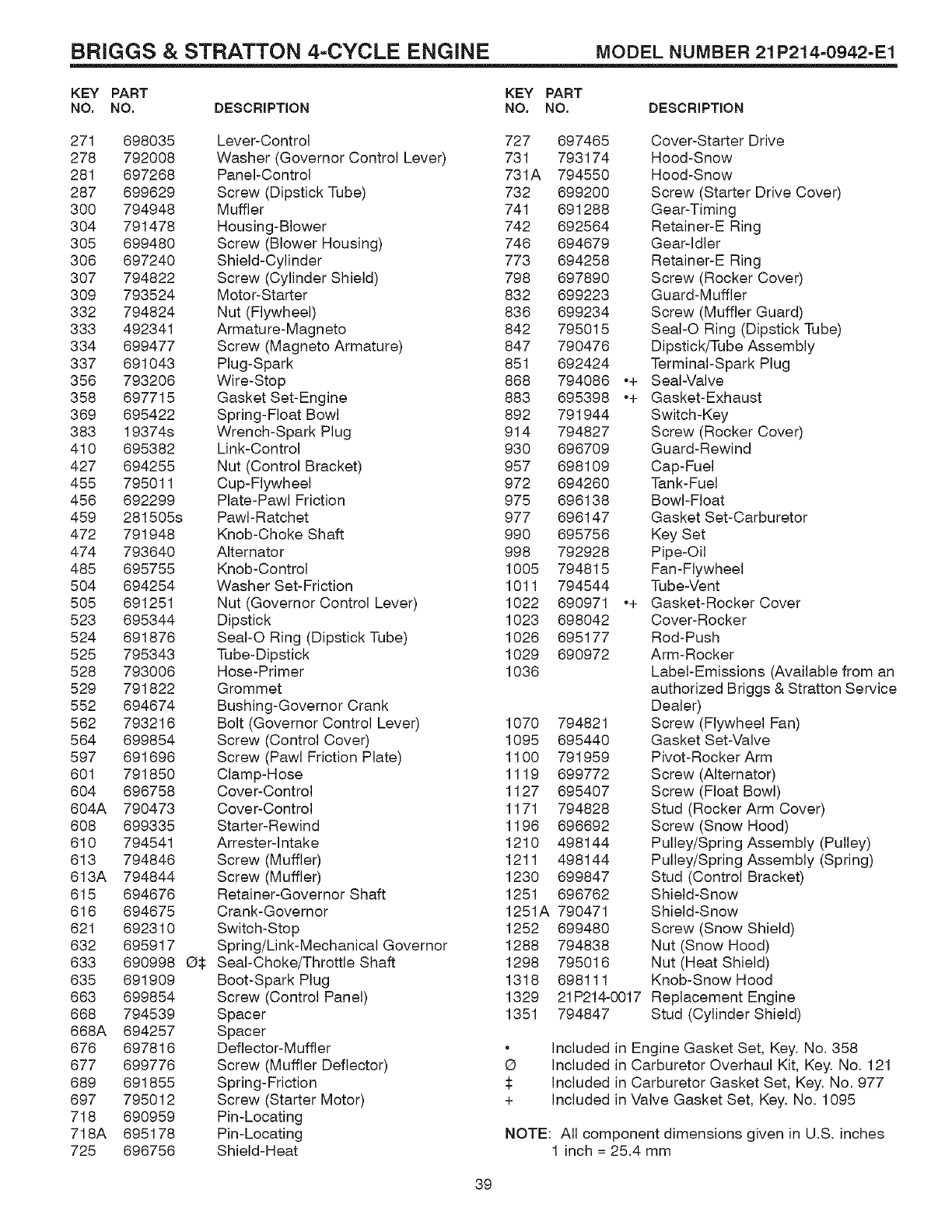

BRIGGS & STRATTON 4-CYCLE ENGINE MODEL NUMBER 21P214=0942=E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

271 698035 Lever-Control 727 697465

278 792008 Washer (Governor Control Lever) 731 793174

281 697268 Panel-Control 731A 794550

287 699629 Screw (Dipstick Tube) 732 699200

300 794948 Muffler 741 691288

304 791478 Housing-Blower 742 692564

305 699480 Screw (Blower Housing) 746 694679

306 697240 Shield-Cylinder 773 694258

307 794822 Screw (Cylinder Shield) 798 697890

309 793524 Motor-Starter 832 699223

332 794824 Nut (Flywheel) 836 699234

333 492341 Armature-Magneto 842 795015

334 699477 Screw (Magneto Armature) 847 790476

337 691043 Plug-Spark 851 692424

356 793206 Wire-Stop 868 794086

358 697715 Gasket Set-Engine 883 695398

369 695422 Spring-Float Bowl 892 791944

383 19374s Wrench-Spark Plug 914 794827

410 695382 Link-Control 930 696709

427 694255 Nut (Control Bracket) 957 698109

455 795011 Cup-Flywheel 972 694260

456 692299 Plate-Pawl Friction 975 696138

459 281505s PawI-Ratchet 977 696147

472 791948 Knob-Choke Shaft 990 695756

474 793640 Alternator 998 792928

485 695755 Knob-Control 1005 794815

504 694254 Washer Set-Friction 1011 794544

505 691251 Nut (Governor Control Lever) 1022 690971

523 695344 Dipstick 1023 698042

524 691876 SeaI-O Ring (Dipstick Tube) 1026 695177

525 795343 Tube-Dipstick 1029 690972

528 793006 Hose-Primer 1036

529 791822 Grommet

552 694674 Bushing-Governor Crank

562 793216 Bolt (Governor Control Lever) 1070 794821

564 699854 Screw (Control Cover) 1095 695440

597 691696 Screw (Pawl Friction Plate) 1100 791959

601 791850 Clamp-Hose 1119 699772

604 696758 Cover-Control 1127 695407

604A 790473 Cover-Control 1171 794828

608 699335 Starter-Rewind 1196 696692

610 794541 Attester-intake 1210 498144

613 794846 Screw (Muffler) 1211 498144

613A 794844 Screw (Muffler) 1230 699847

615 694676 Retainer-Governor Shaft 1251 696762

616 694675 Crank-Governor 1251A 790471

621 692310 Switch-Stop 1252 699480

632 695917 Spring/Link-Mechanical Governor 1288 794838

633 690998 O$ Seal-Choke/Throttle Shaft 1298 795016

635 691909 Boot-Spark Plug 1318 698111

663 699854 Screw (Control Panel) 1329

668 794539 Spacer 1351

668A 694257 Spacer

676 697816 Deflector-Muffler

677 699776 Screw (Muffler Deflector) (_

689 691855 Spring-Friction

697 795012 Screw (Starter Motor) +

718 690959 Pin-Locating

718A 695178 Pin-Locating

725 696756 Shield-Heat

Cover-Starter Drive

Hood-Snow

Screw (Starter Drive Cover)

Gear-Timing

Retainer-E Ring

Gearqdler

Retainer-E Ring

Screw (Rocker Cover)

Guard-Muffler

Screw (Muffler Guard)

SeaI-O Ring (Dipstick Tube)

Dipstick/Tube Assembly

Terminal-Spark Plug

Seal-Valve

Gasket-Exhaust

Switch-Key

Screw (Rocker Cover)

Guard-Rewind

Cap-Fuel

Tank-Fuel

Bowl-Float

Gasket Set-Carburetor

Key Set

Pipe-Oil

Fan-Flywheel

Tube-Vent

Gasket-Rocker Cover

Cover-Rocker

Rod-Push

Arm-Rocker

Label-Emissions (Available from an

authorized Briggs & Stratton Service

Dealer)

Screw (Flywheel Fan)

Gasket Set-Valve

Pivot-Rocker Arm

Screw (Alternator)

Screw (Float Bowl)

Stud (Rocker Arm Cover)

Screw (Snow Hood)

Pulley/Spring Assembly (Pulley)

Pulley/Spring Assembly (Spring)

Stud (Control Bracket)

Shield-Snow

Screw (Snow Shield)

Nut (Snow Hood)

Nut (Heat Shield)

Knob-Snow Hood

21P214-0017 Replacement Engine

794847 Stud (Cylinder Shield)

Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No. 121

Included in Carburetor Gasket Set, Key. No. 977

Included in Valve Gasket Set, Key. No, 1095

NOTE: All component dimensions given in U,S, inches

1 inch = 25,4 mm

Just Call:

1-800-4-1VlY-HOIVlE®

(1-800-469-4663)

24 hours a day, 7 days a week

For the repair of major brand appliances in your own home...

no matter who made it, no matter who sold it!

For your nearest Sears Parts and Service location,

to bring in products like vacuums, lawn equipment and electronics.

For Sears Parts &Service, to order the replacement parts,

accessories and owner's manuals that you need to do-it-yourself.

WWW,Sears,ca

iiiiiiiiiiiiiiiiiii

HHHHHHHHH_

(_) /TM Trademarks of Sears, Roebuck and Co. used under license by Sears Canada

M_Marque d_pos_e /MCMarque de commerce de Sears, Roebuck and Co. utilisee en vertu d'une licence de Sears Canada

414916 08.14.07 AP Printed in the U.S.A.

Craftsman 944527700 User Manual SNOW THROWER Manuals And Guides L0709174

CRAFTSMAN Snowthrower, Gas Manual L0709174 CRAFTSMAN Snowthrower, Gas Owner's Manual, CRAFTSMAN Snowthrower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
