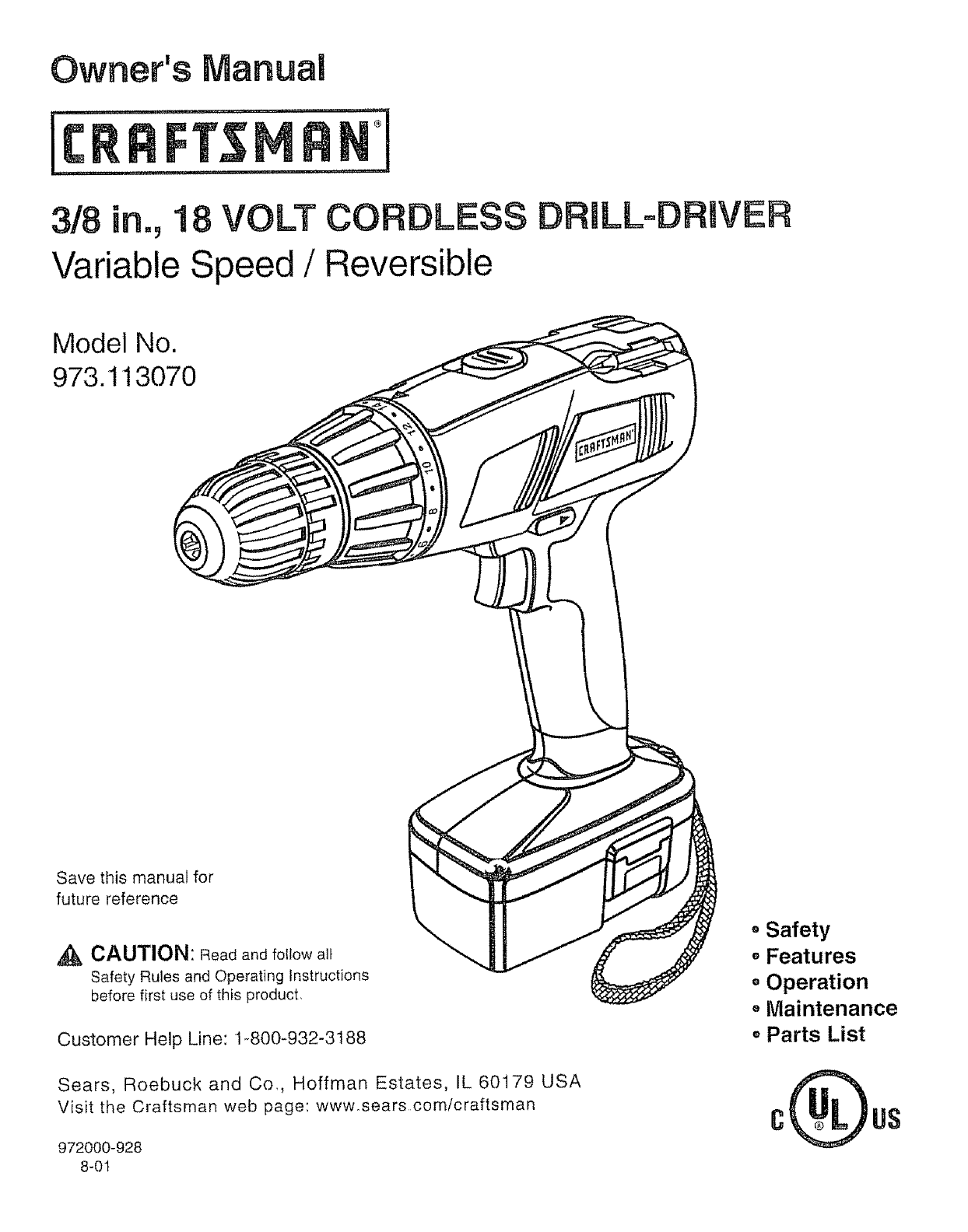

Owner's Manual
I,{:............,,,,,,FT
uII ,111 I....I,,I......
3/8 in., 1
Variable
VOLT CORDLESS
Speed /Reversible
DF_ILL.-DRmVER
Model No.
973.113O70
Save this manual for
future reference
,_ CAUTION: Read and follow all
Safety Rules and Operating Instructions
before first use of this product.
Customer Help Line: 1.-800-932-3t88
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: WWWosears corn/craftsman
972000-928
8-01
oSafety
Features
oOperation
eMaintenance
Parts List
US

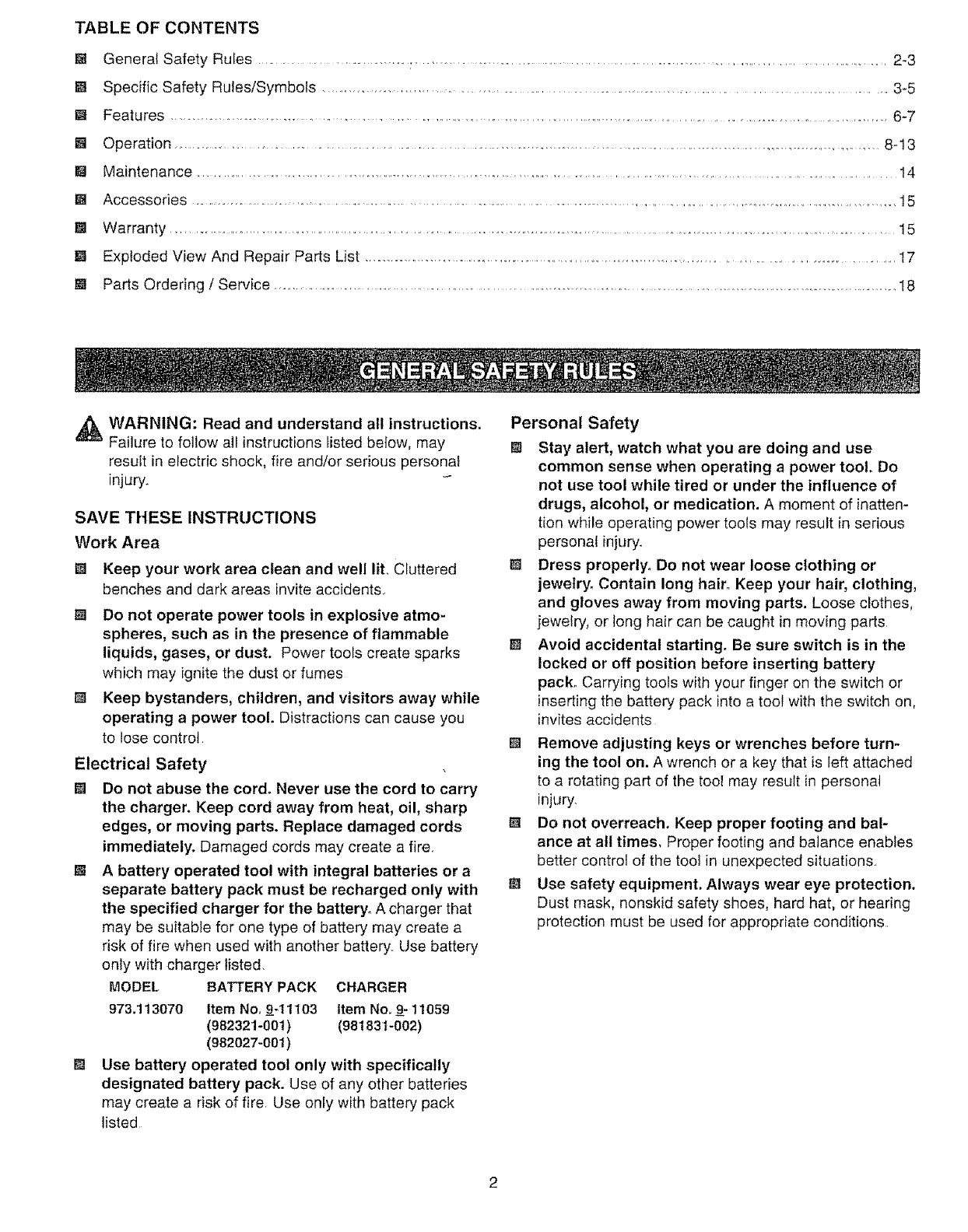

TABLE OF CONTENTS
t_t General Safety Rules ............................................................................................................................... 2-3

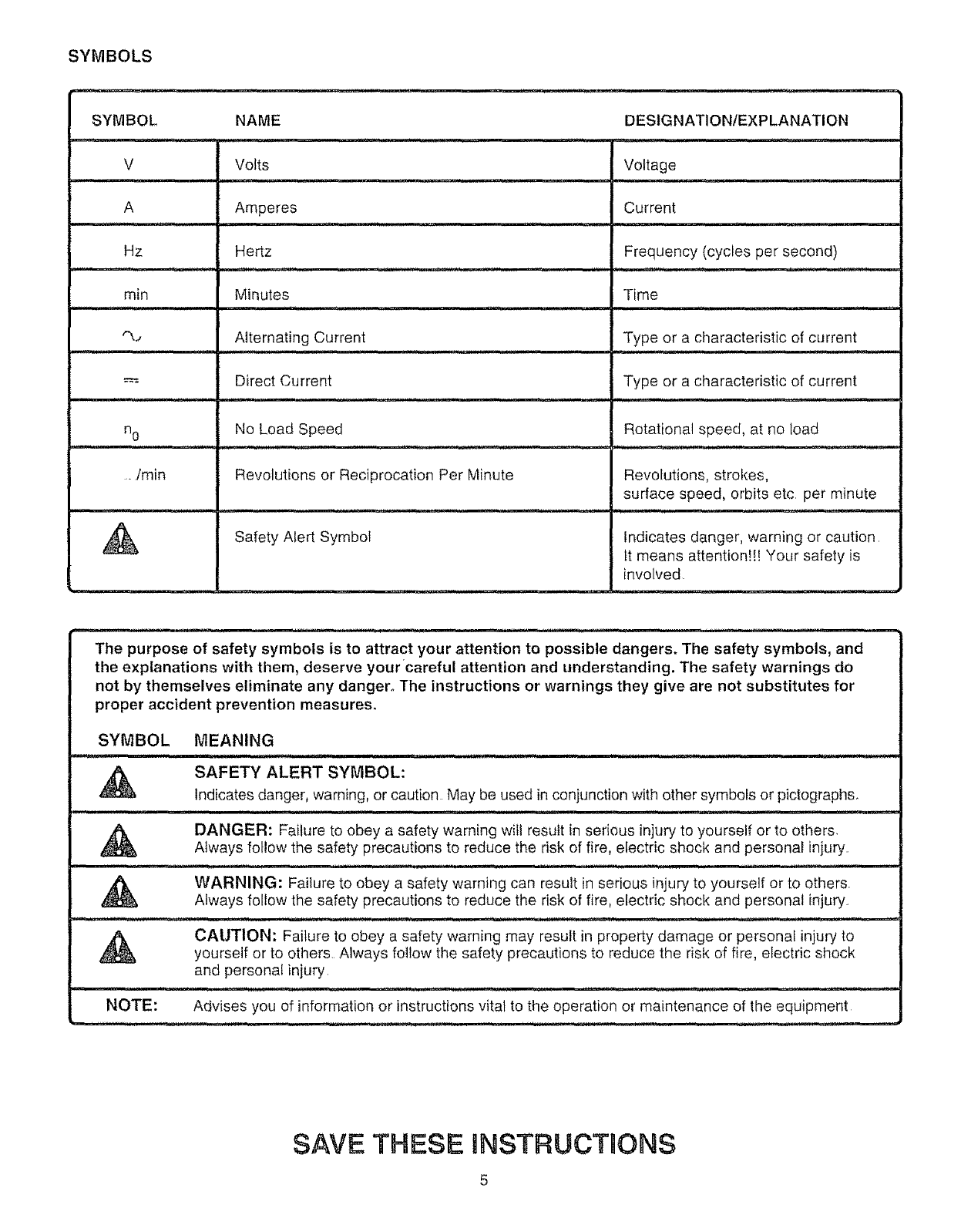

m Specific Safety Rules!Symbols ................................................................................................................. 3-5

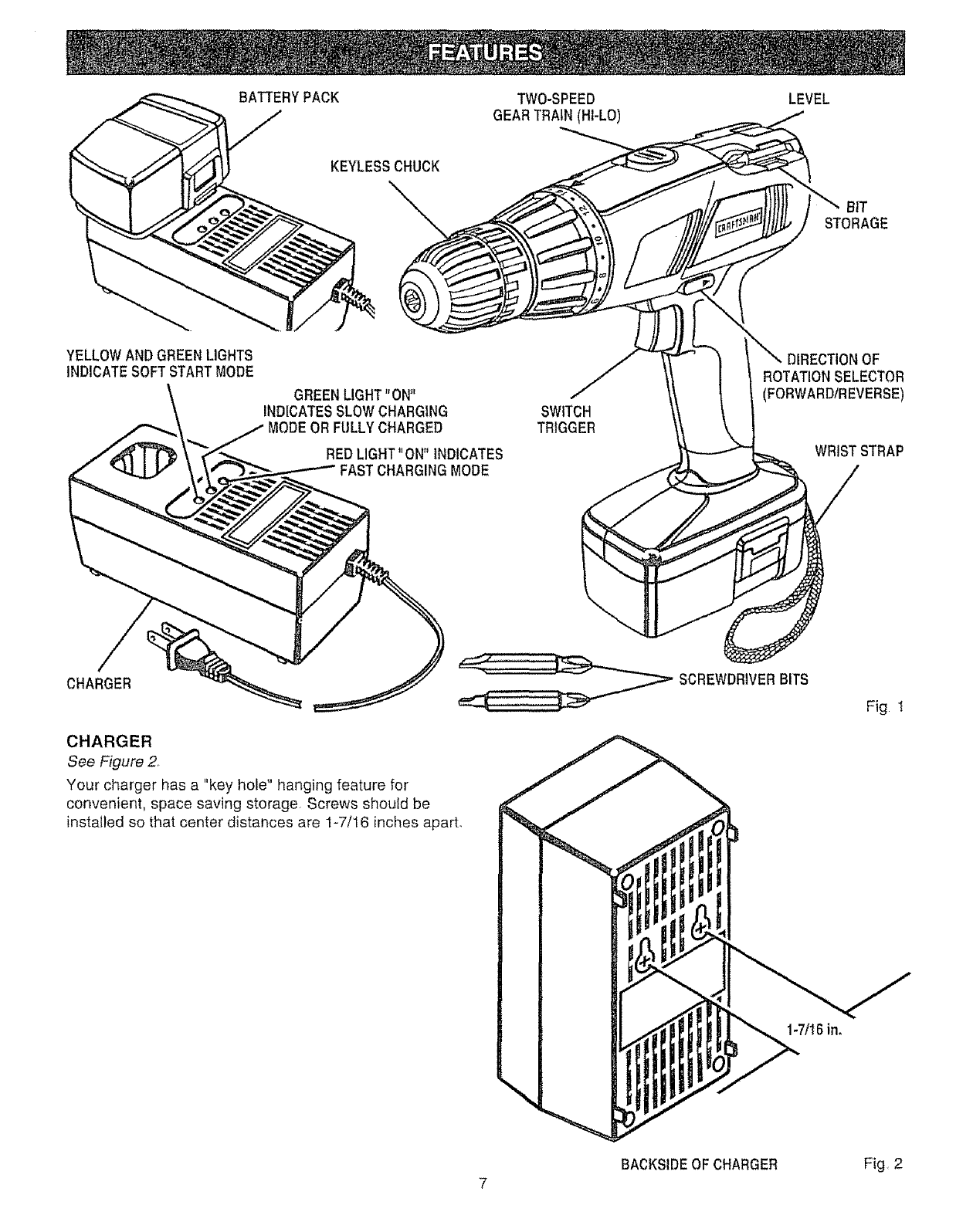

[] Features .................................................................................................................................................................... 6-7

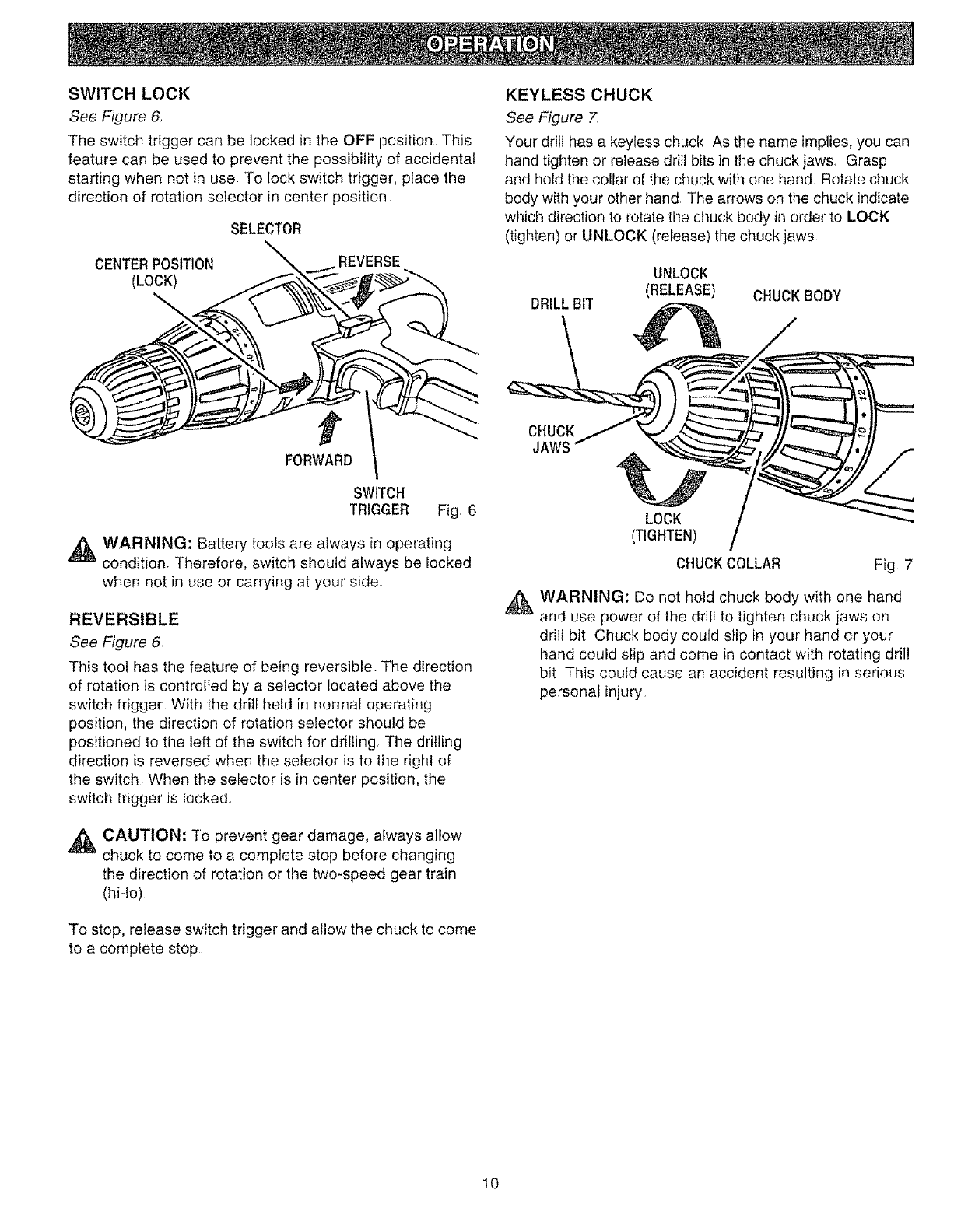

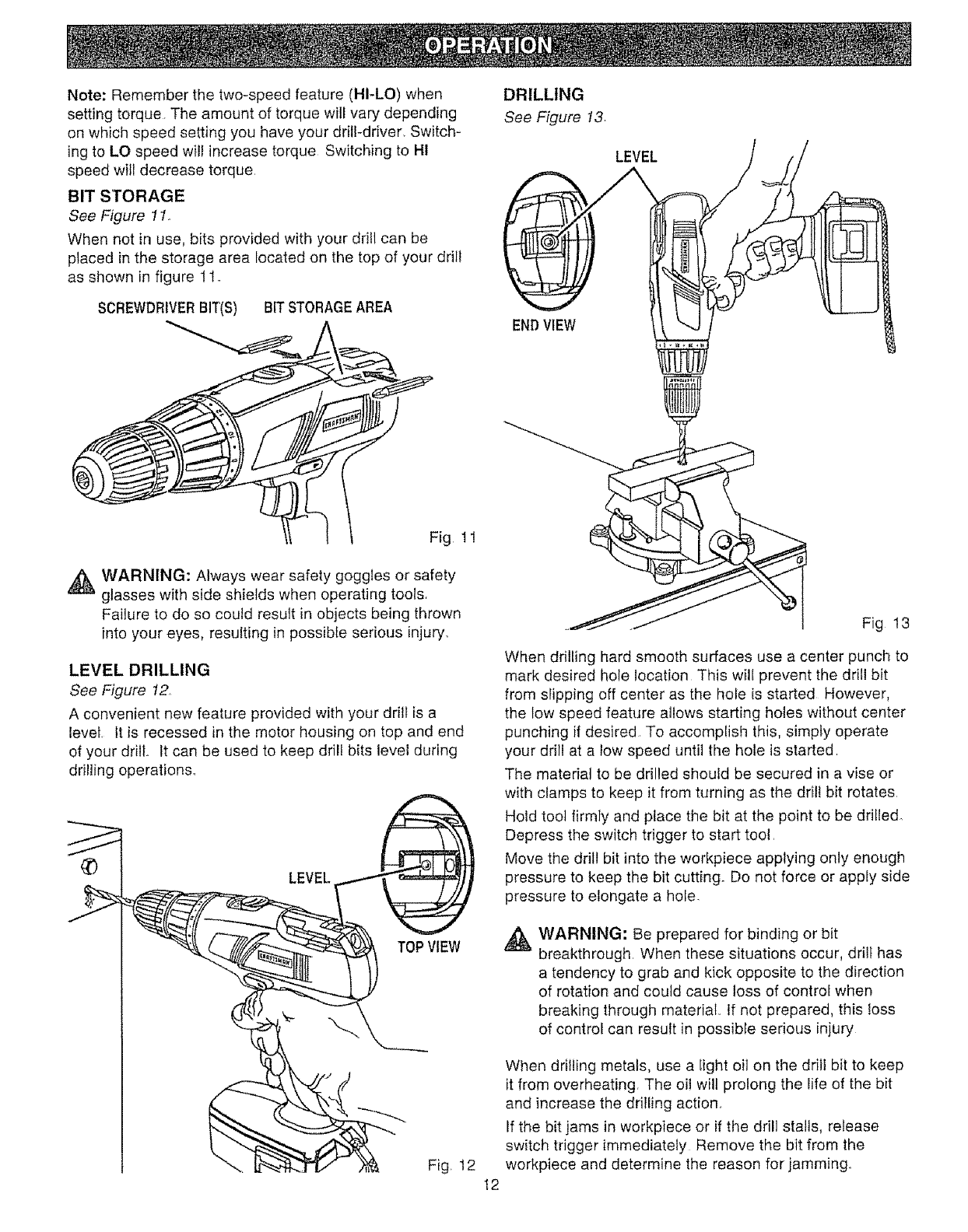

[] Operation .................................................................................................................................................................... 8-13

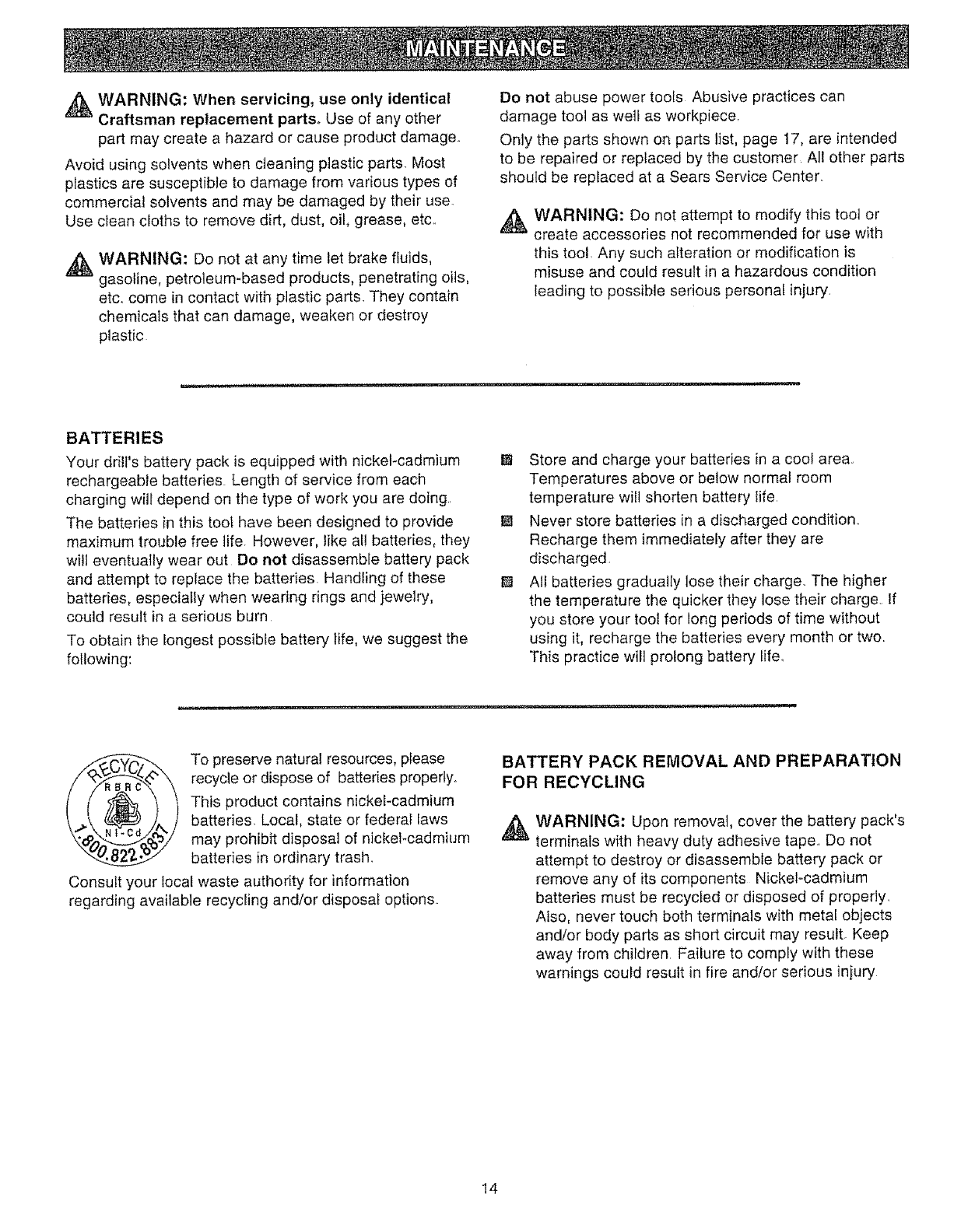

[] Maintenance ........................................................................................................................................................... t4

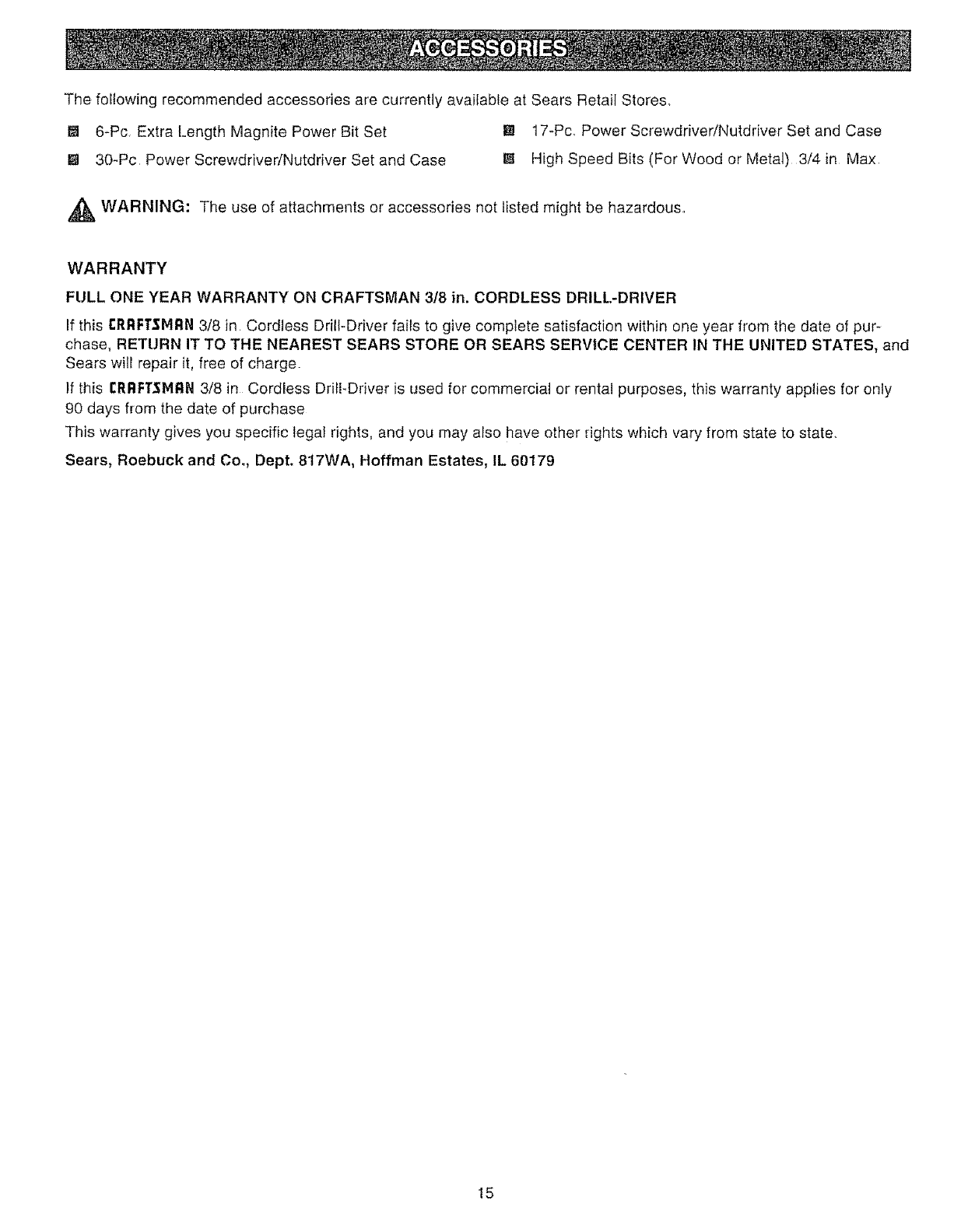

[] Accessodes ...................................................................................................................................................................... 15
1_1 Warranty .......................................................................................................................................................................... 15

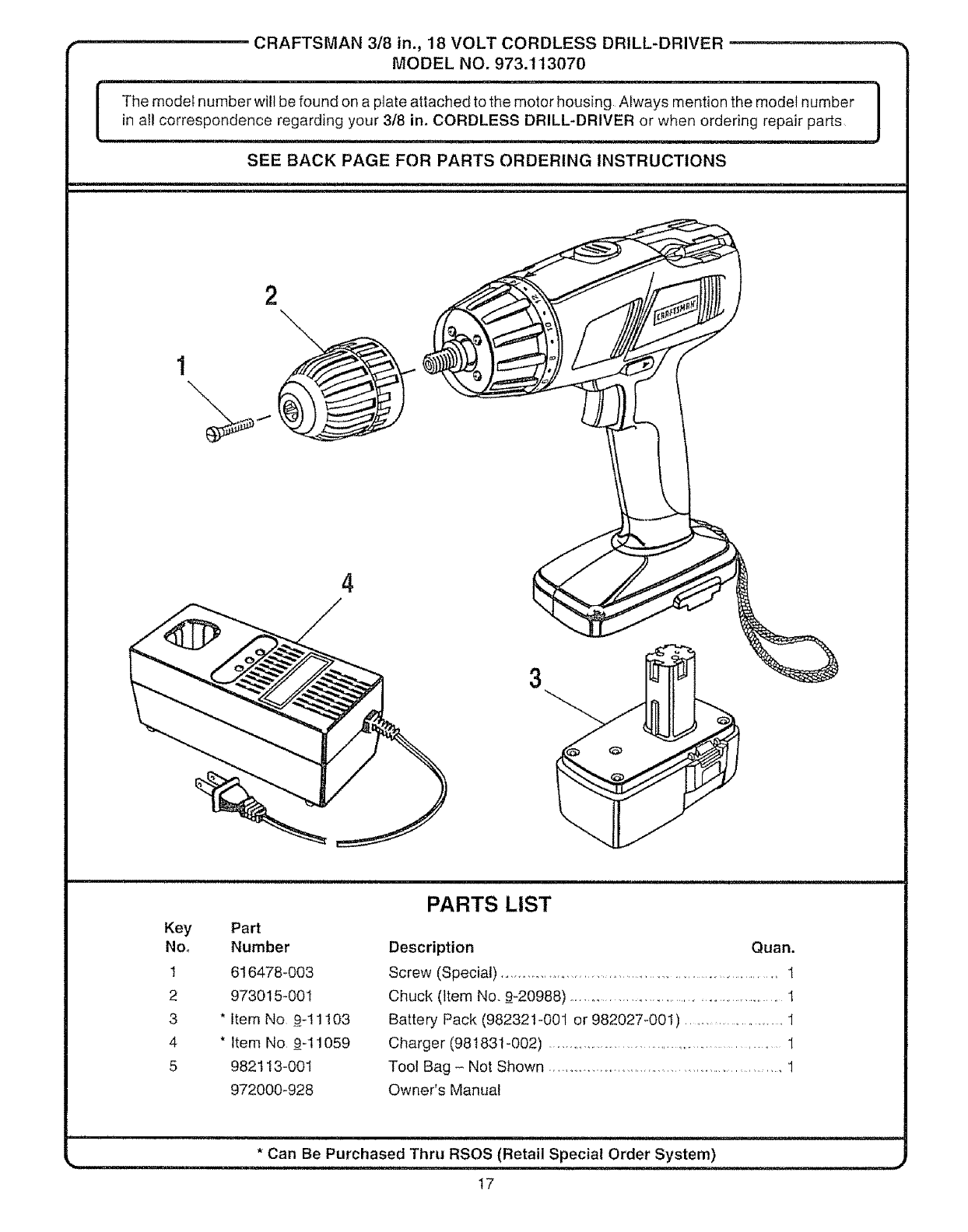

E Exploded View And Repair Parts List ................................................................................................................................. 17
[] Parts Ordering /Service ........................................................................................................................................................ 18
_WARNING: Read and understand all instructions.
Failure to follow all instructions listed below, may
result in electric shock, fire and!or serious personal
injury,
SAVE THESE INSTRUCTIONS
Work Area
[] Keep your work area clean and well lit Cluttered
benches and dark areas invite accidents.
m Do not operate power tools in explosive atmo-
spheres, such as in the presence of flammable
liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes
tm Keep bystanders, children, and visitors away while
operating a power tool. Distractions can cause you
to lose control
Electrical Safety
[] Do not abuse the cord+ Never use the cord to carry
the charger. Keep cord away from heat, oil, sharp
edges, or moving parts. Replace damaged cords
immediately. Damaged cords may create a fire.
[] A battery operated tool with integral batteries or a
separate battery pack must be recharged only with
the specified charger for the battery° A charger that
may be suitable for one type of battery may create a
risk of fire when used with another battery. Use battery
only with charger listed.
i_IODEL BATTERY PACK CHARGER
973.113070 Item No. 9+11103 Item No. 9-11059
(982321-00!) (981831-002)
(982027-00t)
[] Use battery operated tool only with specifically
designated battery pack. Use of any other batteries
may create a risk of fire, Use only with battery pack
listed
Personal Safety
[] Stay alert, watch what you are doing and use
common sense when operating apower tool. Do
not use tool while tired or under the influence of
drugs, alcohol, or medication. A moment of inatten-
tion while operating power tools may result in serious
personal injury°
[] Dress properly° Do not wear loose clothing or
jewelry, Contain long hair° Keep your hair, clothing,
and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts
[] Avoid accidental starting. Be sure switch is in the
locked or off position before inserting battery
pack° Carrying tools with your finger on the switch or
inserting the battery pack into a tool with the switch on,
invites accidents
[] Remove adjusting keys or wrenches before turn-
ing the tool on. A wrench or a key that is left attached
to a rotating part of the tool may result in personal
injury,
[] Do not overreach. Keep proper footing and bal-
ance at all times, Proper footing and balance enables
better control of the tool in unexpected situations,
I_ Use safety equipment, Always wear eye protection.
Dust mask, nonskid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions=

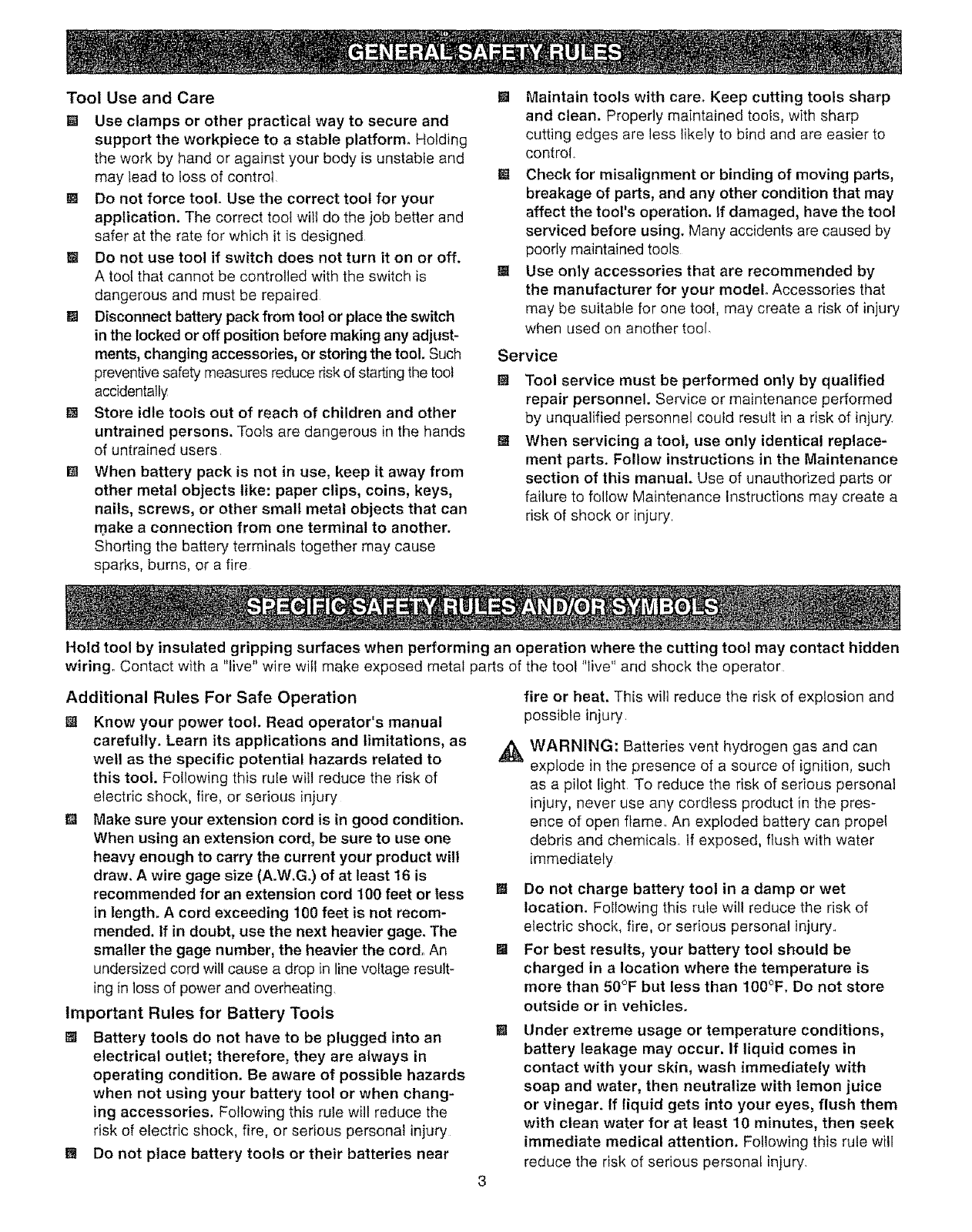

Tool Use and Care
[] Use clamps or other practical way to secure and
support the workpiece to a stable platform° Holding
the work by hand or against your body is unstable and
may lead to loss of control
E Do not force tool. Use the correct toot for your
application. The correct tool will do the job better and
safer at the rate for which it is designed
[] Do not use tool if switch does not turn it on or off.
A toot that cannot be controlled with the switch is
dangerous and must be repaired
[] Disconnect battery pack from tool or place the switch
in the locked or off position before making any adjust-
merits, changing accessories, or storing the tool. Such
preventive safety measures reduce riskof starting the toot
accidentally
[] Store idle tools out of reach of children and other
untrained persons, Tools are dangerous in the hands
of untrained users
[] When battery pack is not in use, keep it away from
other metal objects like: paper clips, coins, keys,
nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
sparks, burns, or a fire
[] Maintain tools with care. Keep cutting tools sharp
and clean. Properly maintained tools, with sharp
cutting edges are less likely to bind and are easier to
control
[] Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool's operation. If damaged, have the too!
serviced before using. Many accidents are caused by
poorly maintained tools
[] Use only accessories that are recommended by
the manufacturer for your model. Accessories that
may be suitable for one tool, may create a risk of injury
when used on another tool,
Service
18 Tool service must be performed only by qualified
repair personnel. Service or maintenance performed
by unqualified personnel could result in a risk of injury,
[] When servicing a tool, use only identical replace-
ment parts. Follow instructions in the Maintenance
section of this manual. Use of unauthorized parts or
failure to follow Maintenance Instructions may create a
risk of shock or injury
Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden
wiring. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator
Additional Rules For Safe Operation
[] Know your power tool. Read operator's manual
carefully. Learn its applications and limitations, as
well as the specific potential hazards related to
this tool. Following this rule will reduce the risk of
electric shock, fire, or serious injury
[] Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one
heavy enough to carry the current your product will
draw. A wire gage size (A.W.G°) of at least 16 is
recommended for an extension cord 100 feet or less
in length. A cord exceeding 100 feet is not recom-
mended, tf in doubt, use the next heavier gage, The
smaller the gage number, the heavier the cord. An
undersized cord wil! cause a drop in line voltage result-
ing in loss of power and overheating.
Important Rules for Battery Tools
[] Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
when not using your battery tool or when chang-
ing accessories. Following this rule will reduce the
risk of electric shock, fire, or serious personal injury
[] Do not place battery tools or their batteries near
fire or heat. This wilt reduce the risk of explosion and
possible injury,
WARNING: Batteries vent hydrogen gas and can
explode in the presence of a source of ignition, such
as a pilot light To reduce the risk of serious personal
injury, never use any cordless product in the pres-
ence of open flame,, An exploded battery can propel
debris and chemicals, tf exposed, flush with water
immediately
[] Do not charge battery tool in a damp or wet
location. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury
[] For best results, your battery tool should be
charged in a location where the temperature is
more than 50°F but less than IO0°F, Do not store
outside or in vehicles.
[] Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in
contact with your skin, wash immediately with
soap and water, then neutralize with lemon juice
or vinegar. If liquid gets into your eyes, flush them
with clean water for at least 10 minutes, then seek
immediate medical attention, Following this rule will
reduce the risk of serious personat injury

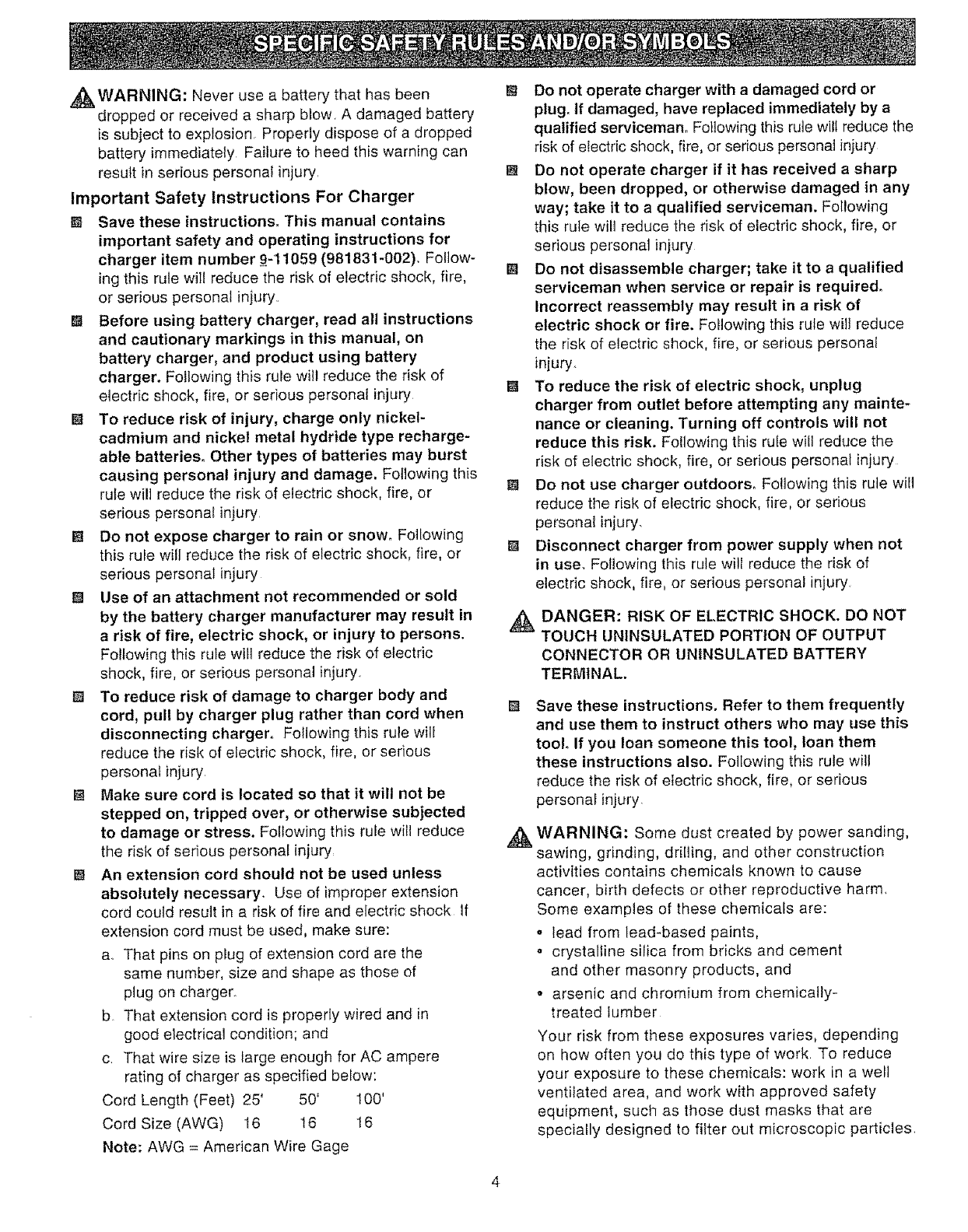

,,_WARNING: Never use a battery that has been
dropped or received a sharp blow A damaged batter/
is subject to explosion Properiy dispose of a dropped
battery immediately Failure to heed this warning can
result in serious personal injury
Important Safety Instructions For Charger
Save these instructions. This manual contains
important safety and operating instructions for
charger item number 9-11059 (981831-002). Follow-
ing this rule will reduce the risk of electric shock, fire,
or serious personal injury
[] Before using battery charger, read all instructions
and cautionary markings in this manual, on
battery charger, and product using battery
charger. Following this rule wil! reduce the risk of
electric shock, fire, or serious personal injury
I_ To reduce risk of injury, charge only nickel-
cadmium and nickel metal hydride type recharge-
able batteries, Other types of batteries may burst
causing personal injury and damage. Following this
rule will reduce the risk of electric shock, fire, or
serious personal injury
[] Do not expose charger to rain or snow. Following
this rule will reduce the risk of electric shock, fire, or
serious personal injury
[] Use of an attachment not recommended or sold
by the battery charger manufacturer may result in
arisk of fire, electric shock, or injury to persons.
Following this rule wit1reduce the risk of electric
shock, fire, or serious personal injury
[] To reduce risk of damage to charger body and
cord, pull by charger plug rather than cord when
disconnecting charger. Following this rule will
reduce the risk of electric shock, fire, or serious
personal injury
[] Make sure cord is located so that it will not be
stepped on, tripped over, or otherwise subjected
to damage or stress. Following this rule will reduce
the risk of serious personal injury=
[] An extension cord should not be used unless
absolutely necessary. Use of improper extension
cord could result in a risk of fire and electric shock If
extension cord must be used, make sure:
a That pins on plug of extension cord are the
same number, size and shape as those of
plug on charger
b That extension cord is properly wired and in
good electrical condition; and
c That wire size is large enough for AC ampere
rating of charger as specified below:
Cord Length (Feet) 25' 50' 100'
Cord Size (AWG) 16 16 16
Note: AWG = American Wire Gage
W Do not operate charger with a damaged cord or
plug. If damaged, have replaced immediately by a
qualified serviceman. Following this rule wilt reduce the
risk of electric shock, fire, or serious personat injury
[] Do not operate charger if it has received a sharp
blow, been dropped, or otherwise damaged in any
way; take it to a qualified serviceman. Following
this rule wifl reduce the risk of electric shock, fire, or
serious personal injury
[] Do not disassemble charger; take it to a qualified
serviceman when service or repair is required.
Incorrect reassembly may result in a risk of
electric shock or fire. Following this rule wilt reduce
the risk of electric shock, fire, or serious personal
injury
El To reduce the risk of electric shock, unplug
charger from outlet before attempting any mainte-
nance or cleaning. Turning off controls will not
reduce this risk. Following this rufe will reduce the
risk of electric shock, fire, or serious personal injury
[] Do not use charger outdoors. Following this rule will
reduce the risk of electric shock, fire, or serious
personal injury.
[] Disconnect charger from power supply when not
in use. Following this rule will reduce the risk of
electric shock, fire, or serious personal injury
ADANGER: RISK OF ELECTRIC SHOCK. DO NOT
TOUCH UNINSULATED PORTION OF OUTPUT
CONNECTOR OR UN|NSULATED BATTERY
TERMINAL.
[] Save these instructions. Refer to them frequently
and use them to instruct others who may use this
tool. If you loan someone this tool, loan them
these instructions also. Following this rule will
reduce the risk of electric shock, fire, or serious
personal injury.
WARNING: Some dust created by power sanding,
sawing, grinding, drilling, and other construction
activities contains chemicals known to cause
cancer, birth defects or other reproductive harm,
Some examples of these chemicals are:
olead from lead-based paints,
o crystalline silica from bricks and cement
and other masonry products, and
o arsenic and chromium from chemically-
treated lumber
Your risk from these exposures varies, depending
on how often you do this type of work To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are
specially designed to filter out microscopic particles,
SYMBOLS
SYMBOL
V
u,,,i i
A
NAME
Volts
Amperes
Hz Hertz
min Minutes
"t., Alternating Current
--=- Direct Current
no No Load Speed
..../min Revolutions or Reciprocation Per Minute
Safety Alert Symbol
DESIGNATION/EXPLANATION
Voltage
Current
Frequency (cycles per second)
Time
Type or a characteristic of current
Type or a characteristic of current
Rotational speed, at no load
Revolutions, strokes,
surface speed, orbits etc per minute
Indicates danger, warning or caution
It means attention!!! Your safety is
involved.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and
the explanations with them, deserve your careful attention and understanding. The safety warnings do
not by themselves eliminate any danger° The instructions or warnings they give are not substitutes for
proper accident prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL:
Indicates danger, warning, or caution May be used in conjunction with other symbols or pictographs.
DANGER: Failure to obey a safety warning wilt result in serious injury to yourself or to others.
Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury=
WARNING: Failure to obey a safety warning can result in serious injury to yourself or to others•
Always follow the safety precautions to reduce the risk of fire, electdc shock and personal injury.
CAUTION: Failure to obey a safety warning may result in property damage or personal injury to
yourself or to others. Always follow the safety precautions to reduce the risk of fire, electric shock
and personal injury
ii,i,i i, ,,H,,,i ,it,,, ,, i i,,,l, , lll,,iHi ,,,,r ,i,,, ,, ,,,ll i,,,
NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment
L
SAVE THESE HNSTRUCTUONS

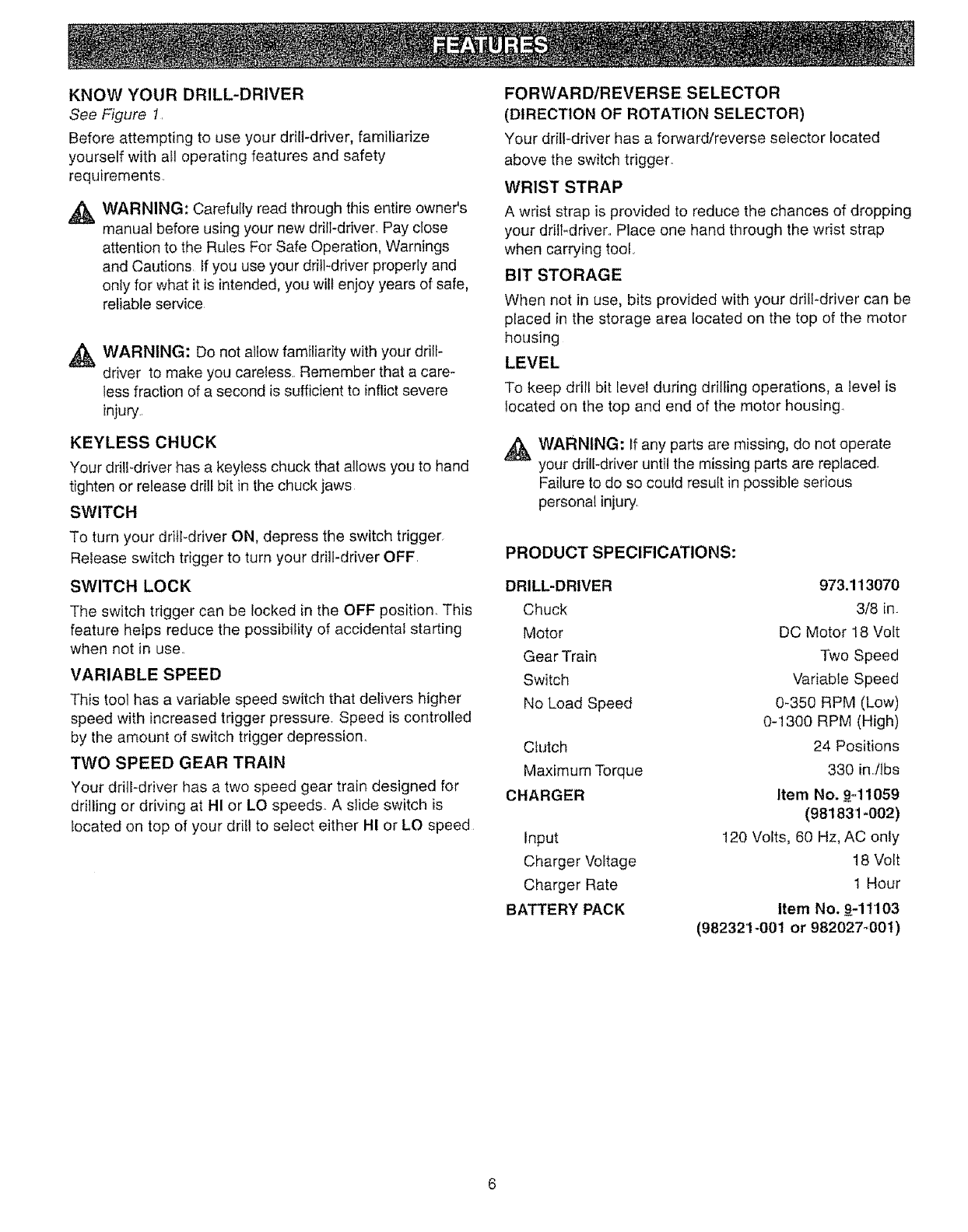

KNOW YOUR DRILL-DRIVER
See Figure 1.
Before attempting to use your ddtFdriver, familiarize
yourself with afl operating features and safety
requirements.
,_ WARNING: Carefully read through this entire owner's
manual before using your new drill-driver. Pay close
attention to the Rules For Safe Operation, Warnings
and Cautions tf you use your drill-driver properEy and
only for what it is intended, you will enjoy years of safe,
reliable service
_ WARNING: Do not allow familiarity with your drill-
driver to make you careless. Remember that a care-
less fraction of a second is sufficient to inflict severe
injury.
KEYLESS CHUCK
Your drill-driver has a keyless chuck that allows you to hand
tighten or release drill bit in the chuck jaws

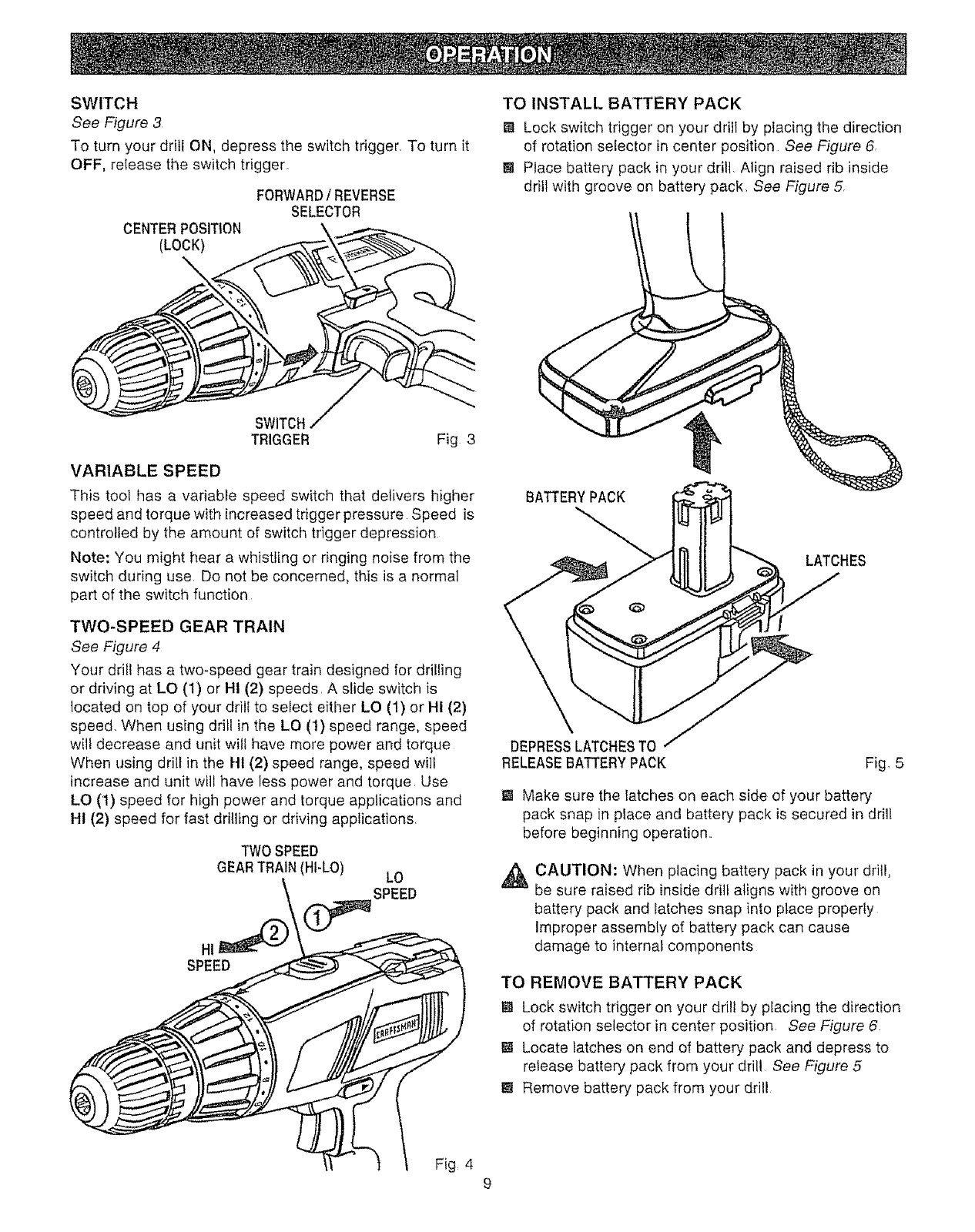

SWITCH
To turn your drill-driver ON, depress the switch trigger.
Release switch trigger to turn your drill-driver OFF.
SWITCH LOCK
The switch trigger can be locked in the OFF position This
feature helps reduce the possibility of accidental starting
when not in use..
VARIABLE SPEED
This tool has a variable speed switch that delivers higher
speed with increased trigger pressure. Speed is controlled
by the amount of switch trigger depression_
TWO SPEED GEAR TRAIN
Your drill-driver has a two speed gear train designed for
drilling or driving at HI or LO speeds. A slide switch is
located on top of your drill to select either HI or LO speed
FORWARD/REVERSE SELECTOR
(DIRECTION OF ROTATION SELECTOR)
Your dril!-ddver has a forward/reverse selector located
above the switch trigger.
WRIST STRAP
A wrist strap is provided to reduce the chances of dropping
your dritFdrivero Place one hand through the wrist strap
when carrying tool.
BIT STORAGE
When not in use, bits provided with your drill-driver can be
placed in the storage area located on the top of the motor
housing
LEVEL
To keep drill bit level during drilling operations, a level is
located on the top and end of the motor housing.
WARNING: If any parts are missing, do not operate
your drill-driver until the missing parts are replaced.
Failure to do so could result in possible serious
personal injury
PRODUCT SPECIFICATIONS:
DRILL-DRIVER
Chuck
Motor
Gear Train
Switch
No Load Speed
Clutch
Maximum Torque
CHARGER
Input
Charger Voitage
Charger Rate
BATTERY PACK
973.1 t 3070
3/8 in.
DC Motor 18 Volt
Two Speed
Variable Speed
0-350 RPM (Low)
0-1300 RPM (High)
24 Positions
330 inJlbs
Item No. 9-11059
(981831-002)
120 Volts, 60 Hz, AC only
18 Volt
1 Hour
Item No. _9-11'193
(982321-001 or 982027-00t)
BATTERYPACK TWO-SPEED LEVEL
GEARTRAIN(HI-LO)
KEYLESSCHUCK
BIT
STORAGE
YELLOW ANDGREENLIGHTS
INDICATESOFTSTARTMODE
GREENLIGHT"ON"
INDICATESSLOWCHARGING
MODEOR FULLYCHARGED SWITCH
TRIGGER
DIRECTIONOF
ROTATIONSELECTOR
(FORWARD/REVERSE)
WRISTSTRAP
CHARGER
CHARGER
See Figure 2,
Your charger has a "key hole" hanging feature for
convenient, space saving storage Screws should be
installed so that center distances are 1-7/I6 inches apart,
Fig t
BACKSIDEOFCHARGER Fig, 2
7
_ WARNING:Alwayswearsafetygogglesorsafety
glasseswithsideshieldswhenoperatingtools
Failureto dosocouldresultinobjectsbeingthrown
into your eyes, resulting in possible serious injury.
,_k WARNING: Do not allow familiarity with your drill-
driver to make you careless. Remember that a
careless fraction of a second is sufficient to inflict
severe injury

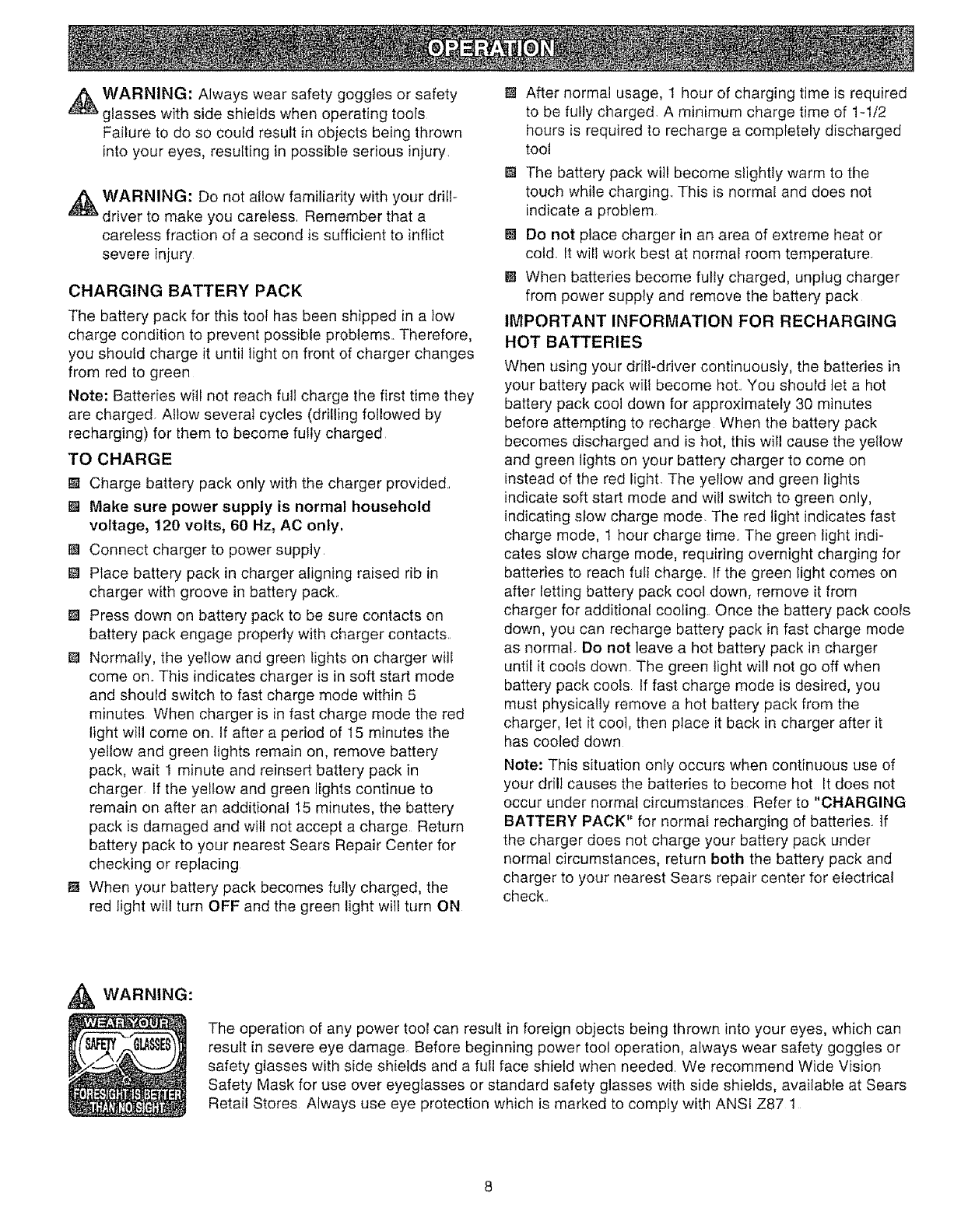

CHARGING BATTERY PACK
The battery pack for this toot has been shipped in alow
charge condition to prevent possible problems.. Therefore,
you should charge it until tight on front of charger changes
from red to green
Note: Batteries will not reach full charge the first time they
are charged, Aflow severat cycles (drilling followed by
recharging) for them to become fully charged
TO CHARGE
[] Charge battery pack only with the charger provided..
[] Make sure power supply is normal household
voltage, 120 volts, 60 Hz, AC only,
[] Connect charger to power supply.
[] Place battery pack in charger aligning raised rib in
charger with groove in battery pack..
[] Press down on battery pack to be sure contacts on
battery pack engage properly with charger contacts..
[] Normally, the yellow and green lights on charger will
come on. This indicates charger is in soft start mode
and should switch to fast charge mode within 5
minutes When charger is in fast charge mode the red
light will come on. If after a period of 15 minutes the
yellow and green lights remain on, remove battery
pack, wait 1 minute and reinsert battery pack in
charger If the yellow and green lights continue to
remain on after an additional 15 minutes, the battery
pack is damaged and wilt not accept a charge Return
battery pack to your nearest Sears Repair Center for
checking or replacing
[] When your battery pack becomes fully charged, the
red light will turn OFF and the green light will turn ON
[] After normal usage, 1 hour of charging time is required
to be fully charged. A minimum charge time of 1-1/2
hours is required to recharge a completely discharged
tool
[] The battery pack will become slightly warm to the
touch while charging. This is normal and does not
indicate a problem.
[] Do not place charger in an area of extreme heat or
cold. It wilt work best at normal room temperature.
[] When batteries become fully charged, unplug charger
from power supply and remove the battery pack
IMPORTANT INFORMATION FOR RECHARGING
HOT BATTERIES
When using your drill-driver continuously, the batteries in
your battery pack will become hot.. You should let a hot
battery pack cool down for approximately 30 minutes
before attempting to recharge When the battery pack
becomes discharged and is hot, this will cause the yellow
and green lights on your batten/charger to come on
instead of the red light. The yellow and green lights
indicate soft start mode and will switch to green only,
indicating slow charge mode. The red light indicates fast
charge mode, 1 hour charge time.. The green light indi-
cates slow charge mode, requiring overnight charging for
batteries to reach full charge. If the green light comes on
after letting battery pack cool down, remove it from
charger for additional cooling. Once the battery pack cools
down, you can recharge battery pack in fast charge mode
as normal. Do not leave a hot battery pack in charger
until it cools down. The green light will not go off when
battery pack cools If fast charge mode is desired, you
must physically remove a hot battery pack from the
charger, let it cool, then place it back in charger after it
has cooled down
Note: This situation only occurs when continuous use of
your drill causes the batteries to become hot It does not
occur under normal circumstances Refer to "CHARGING
BATTERY PACK" for normal recharging of batteries. If
the charger does not charge your battery pack under
normal circumstances, return both the battery pack and
charger to your nearest Sears repair center for electrical
check..
_ WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes, which can
result in severe eye damage Before beginning power tool operation, always wear safety goggles or
safety glasses with side shields and a full face shield when needed We recommend Wide Vision
Safety Mask for use over eyeglasses or standard safety glasses with side shields, available at Sears
Retail Stores Always use eye protection which is marked to comply with ANSI Z87 1
SWITCH
See Figure 3
To turn your drill ON, depress the switch trigger. To turn it
OFF, release the switch trigger
FORWARD/REVERSE
SELECTOR
CENTERPOSITION
SWITCH
TRIGGER Fig 3
VARIABLE SPEED
This tool has a variable speed switch that delivers higher
speed and torque with increased trigger pressure Speed is
controlled by the amount of switch trigger depression
Note: You might hear a whistling or ringing noise from the
switch during use Do not be concerned, this is a normal
part of the switch function
TWO-SPEED GEAR TRAIN
See Figure 4
Your drill has a two-speed gear train designed for drilling
or driving at LO (1) or HI (2) speeds. A slide switch is
tocated on top of your drill to select either LO (1) or HI (2)
speed. When using drill in the LO (1) speed range, speed
wilt decrease and unit will have more power and torque
When using drill in the HI (2) speed range, speed wilt
increase and unit will have less power and torque Use
LO (1) speed for high power and torque applications and
HI (2) speed for fast drilling or driving applications.
TWOSPEED
GEARTRAIN(HI-LO) LO
SPEED
HI
SPEED
TO INSTALL BATTERY PACK
[] Lock switch trigger on your drill by placing the direction
of rotation selector in center position See Figure 6
[] Place battery pack in your drill. Align raised rib inside
drill with groove on battery pack See Figure 5.
BATTERYPACK
LATCHES
DEPRESSLATCHESTO
RELEASEBATTERYPACK Fig, 5
[] Make sure the latches on each side of your battery
pack snap in place and battery pack is secured in drill
before beginning operation=
_ CAUTION: When placing battery pack in your drill,
be sure raised rib inside drill aligns with groove on
battery pack and latches snap into place properly
Improper assembly of battery pack can cause
damage to internal components
TO REMOVE BATTERY PACK
I_f Lock switch trigger on your drill by placing the direction
of rotation selector in center position. See Figure 6
la Locate latches on end of battery pack and depress to
release battery pack from your drill See Figure 5
[] Remove battery pack from your drill
Fig. 4 9
SWITCHLOCK
See Figure &
The switch trigger can be locked in the OFF position. This
feature can be used to prevent the possibility of accidental
starting when not in use. To lock switch trigger, place the
direction of rotation selector in center position
SELECTOR
CENTERPOSITION '_ _ REVERSE
GFORWARD
SWITCH
TRIGGER Fig, 6
,_ WARNING: Battery tools are always in operating
condition Therefore, switch should always be locked
when not in use or carrying at your side
REVERSIBLE
See Figure 6.
This toot has the feature of being reversible. The direction
of rotation is controlled by a selector located above the
switch trigger With the drill held in normal operating
position, the direction of rotation selector should be
positioned to the left of the switch for drilling. The drilting
direction is reversed when the selector is to the right of
the switch. When the selector is in center position, the
switch trigger is locked.
,_ CAUTION: To prevent gear damage, afways allow
chuck to come to a complete stop before changing
the direction of rotation or the two-speed gear train
(hi-lo)
To stop, release switch trigger and allow the chuck to come
to a complete stop
KEYLESS CHUCK
See Figure Z
Your drill has a keyless chuck As the name impties, you can
hand tighten or release drill bits in the chuck jaws.. Grasp
and hold the collar of the chuck with one hand Rotate chuck
body with your other hand The arrows on the chuck indicate
which direction to rotate the chuck body in order to LOCK
(tighten) or UNLOCK (release) the chuck jaws
DRILL BIT
UNLOCK
(RELEASE) CHUCKBODY
LOCK
(TIGHTEN) /
CHUCKCOLLAR Fig 7
AWARNING: Do not hold chuck body with one hand
and use power of the drill to tighten chuck jaws on
drill bit Chuck body could slip in your hand or your
hand could slip and come in contact with rotating drill
bit. This could cause an accident resulting in serious
personal injury,
10

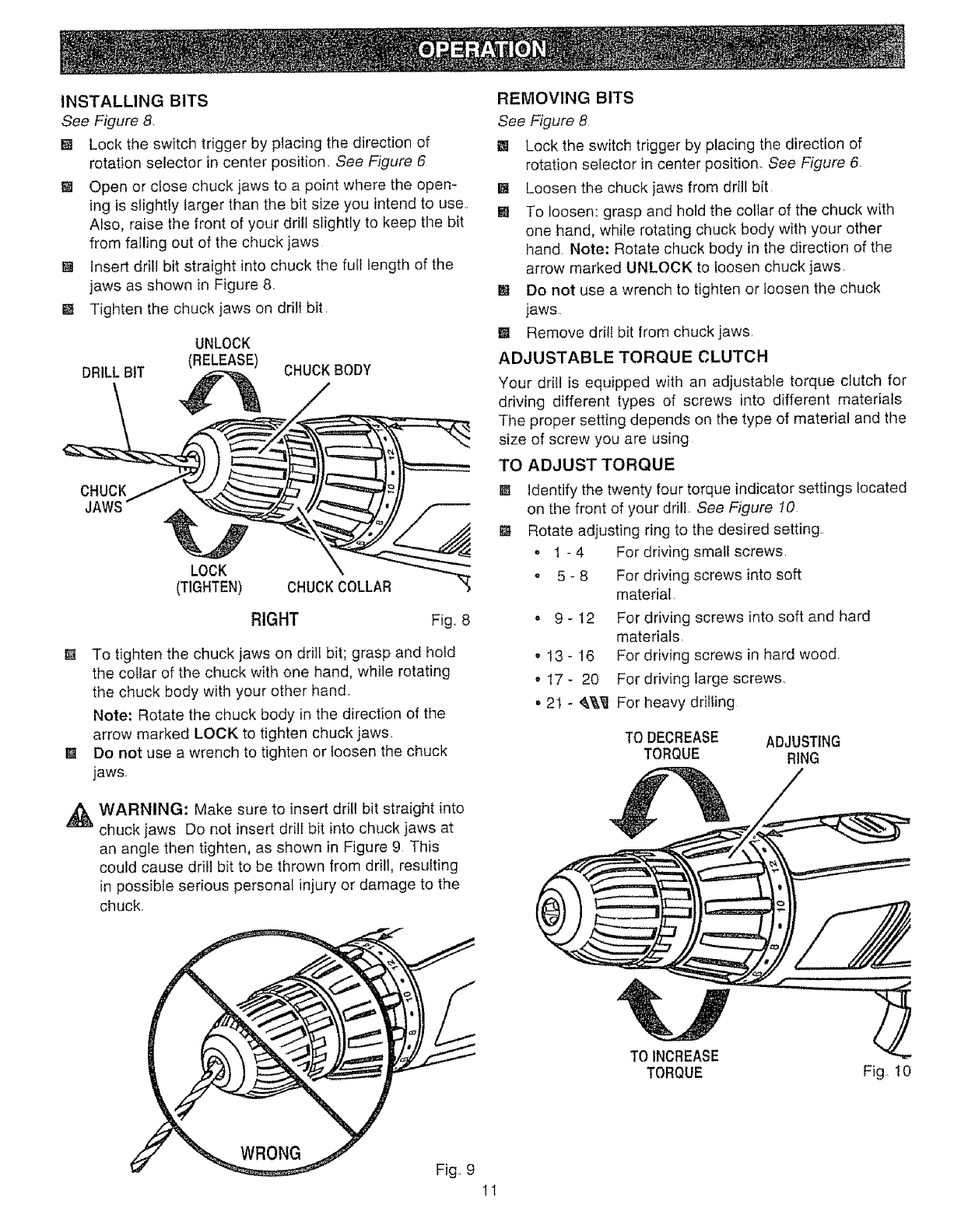

INSTALLINGBITS
See Figure 8
[] Lock the switch trigger by placing the direction of
rotation selector in center position. See Figure 6
[] Open or close chuck jaws to a point where the open-
ing is slightly larger than the bit size you intend to use..
Also, raise the front of your drill slightly to keep the bit
from falling out of the chuck jaws
[] Insert drill bit straight into chuck the full length of the
jaws as shown in Figure 8
[] Tighten the chuck jaws on drill bit
UNLOCK
(RELEASE) CHUCKBODY
LOCK
(TIGHTEN) CHUCKCOLLAR
RIGHT Fig.. 8
[] To tighten the chuck jaws on drill bit; grasp and hold
the collar of the chuck with one hand, while rotating
the chuck body with your other hand
Note: Rotate the chuck body in the direction of the
arrow marked LOCK to tighten chuck jaws.
[] Do not use a wrench to tighten or loosen the chuck
jaws.
A WARNING: Make sure to insert drill bit straight into
chuck jaws Do not insert drill bit into chuck jaws at
an angle then tighten, as shown in Figure 9 This
could cause drill bit to be thrown from drill, resulting
in possible serious personal injury or damage to the
chuck.
REMOVING BITS
See Figure 8
El1 Lock the switch trigger by placing the direction of
rotation seleclor in center position.. See Figure 6.
[] Loosen the chuck iaws from drill bit
[] To loosen: grasp and hold the collar of the chuck with
one hand, while rotating chuck body with your other
hand. Note: Rotate chuck body in the direction of the
arrow marked UNLOCK to loosen chuck jaws.
[] Do not use a wrench to tighten or loosen the chuck
jaws
[] Remove drill bit from chuck jaws,
ADJUSTABLE TORQUE CLUTCH
Your drill is equipped with an adjustable torque clutch for
driving different types of screws into different materials
The proper setting depends on the type of material and the
size of screw you are using
TO ADJUST TORQUE
[] Identify the twenty four torque indicator settings located
on the front of your drilk See Figure 10
[] Rotate adjusting ring to the desired setting.,
° 1 - 4 For driving small screws,
o 5 - 8 For driving screws into soft
material
o 9 - 12 For driving screws into soft and hard
materials,
• 13 - t6 For driving screws in hard wood,
• 17 - 20 For driving large screws,,
o 2t - _k_,_ For heavy drilling
TO DECREASE
TORQUE ADJUSTING
RING
&J
TO INCREASE
TORQUE
Note:Rememberthetwo-speedfeature(HI-LO)when
settingtorqueTheamountof torquewillvarydepending
onwhichspeedsettingyouhaveyourdrilt-driver.Switch-
ingtoLOspeedwill increase torque Switching to Ht
speed will decrease torque
BIT STORAGE
See Figure 11o
When not in use, bits provided with your drill can be
ptaced in the storage area located on the top of your drill
as shown in figure 11o
SCREWDRIVERBIT(S) BIT STORAGEAREA
_t 1 Fig 11
_ WARNING: Always wear safety goggles or safety
glasses with side shields when operating tools.
Failure to do so could resutt in objects being thrown
into your eyes, resulting in possible serious injury.
LEVEL DRILLING
See Figure 12.
A convenient new feature provided with your drill is a
leve! It is recessed in the motor housing on top and end
of your drill. It can be used to keep drill bits level during
drilling operations_
®LEVEL
TOPVIEW
Fig. 12
DRILLING
See Figure 13
LEVEL
ENDVIEW
12
Fig 13
When drilling hard smooth surfaces use a center punch to
mark desired hole location This will prevent the drill bit
from slipping off center as the hole is started However,
the low speed feature allows starting holes without center
punching if desired To accomplish this, simply operate
your drill at a tow speed until the hole is started
The material to be drilled should be secured in a vise or
with clamps to keep it from turning as the drill bit rotates.
Hold tool firmly and place the bit at the point to be drilled.
Depress the switch trigger to start tool.
Move the drill bit into the workpiece applying only enough
pressure to keep the bit cutting. Do not force or apply side
pressure to elongate a hole.
_ WARNING: Be prepared for binding or bit
breakthrough. When these situations occur, drill has
a tendency to grab and kick opposite to the direction
of rotation and could cause loss of control when
breaking through material.. If not prepared, this loss
of control can result in possible serious injury
When drilling metals, use a light oil on the drill bit to keep
it from overheating. The oil wilt prolong the life of the bit
and increase the drilling action°
If the bit jams in workpiece or if the drill stalls, release
switch trigger immediately Remove the bit from the
workpiece and determine the reason for jamming.

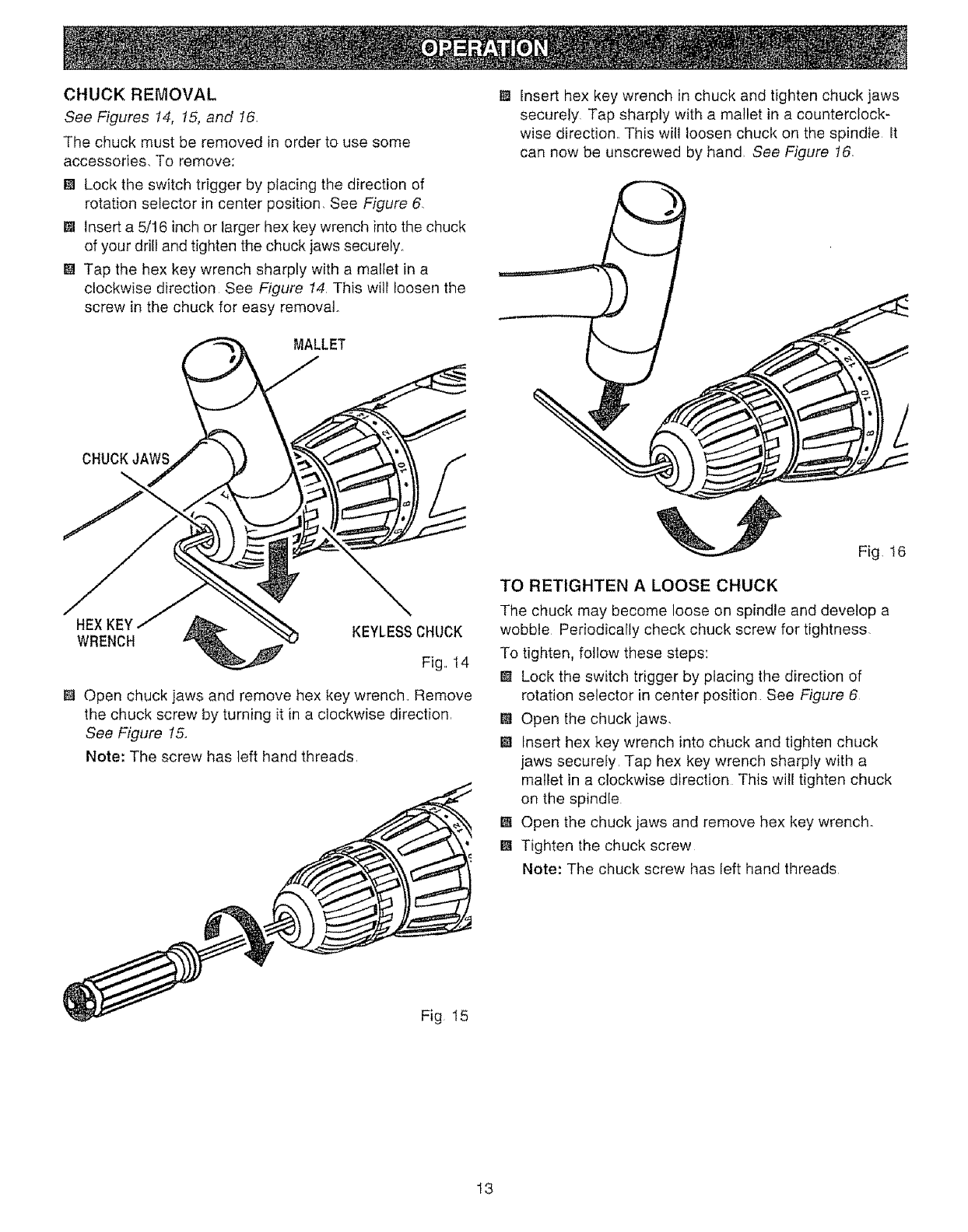

CHUCKREMOVAL
See Figures t4, 15, and 16.
The chuck must be removed in order to use some
accessories To remove:
[] Lock the switch trigger by placing the direction of
rotation selector in center position. See Figure 6
[] Insert a 5/16 inch or larger hex key wrench into the chuck
of your drill and tighten the chuck jaws securely.
[] Tap the hex key wrench sharply with a mallet in a
clockwise direction See Figure 14. This will loosen time
screw in the chuck for easy removal.
MALLET
[] Insert hex key wrench in chuck and tighten chuck jaws
securely. Tap sharply with a mallet in a counterclock-
wise direction,, This will loosen chuck on the spindle It
can now be unscrewed by hand, See Figure 16.
CHUCKJAWS
\
HEXKEY ,_ KEYLESSCHUCK
WRENCH
Fig.. 14
[] Open chuck jaws and remove hex key wrench. Remove
the chuck screw by turning it in a clockwise directionr
See Figure 15_
Note: The screw has left hand threads.
Fig I5
Fig 16
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on spindle and develop a
wobble Periodically check chuck screw for tightness
To tighten, follow these steps:
[] Lock the switch trigger by placing the direction of
rotation selector in center position See Figure 6
[] Open the chuck jaws.
[] Insert hex key wrench into chuck and tighten chuck
jaws securely. Tap hex key wrench sharply with a
mallet in a clockwise direction This will tighten chuck
on the spindle
[] Open the chuck jaws and remove hex key wrench.
[] Tighten the chuck screw
Note: The chuck screw has left hand threads
I3
_ WARNING: When servicing, use only identical
Craftsman replacement parts° Use of any other
part may create a hazard or cause product damage.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc..
_k WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating oils,
etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken or destroy
plastic
Do not abuse power tools Abusive practices can
damage tool as welt as workpiece.
Only the parts shown on parts list, page 17, are intended
to be repaired or replaced by the customer All other parts
should be replaced at a Sears Service Center.
,_ WARNING: Do not attempt to modify this toot or
create accessories not recommended for use with
this too! Any such alteration or modification is
misuse and could result in a hazardous condition
leading to possible serious personal injury.
BATTERIES
Your drill's battery pack is equipped with nickel-cadmium
rechargeable batteries. Length of service from each
charging will depend on the type of work you are doing.
The batteries in this tool have been designed to provide
maximum trouble free life. However, like all batteries, they
will eventually wear out Do not disassemble battery pack
and attempt to replace the batteries Handling of these
batteries, especially when wearing rings and jewelry,
could result in a serious burn
To obtain the longest possible battery life, we suggest the
following:
I_ Store and charge your batteries in a cool area..
Temperatures above or below normal room
temperature wilt shorten batten/life.
M Never store batteries in a discharged condition..
Recharge them immediately after they are
discharged.
[] All batteries gradually lose their charge. The higher
the temperature the quicker they lose their charge, tf
you store your tool for long periods of time without
using it, recharge the batteries every month or two.
This practice wilt prolong battery lifeo
To preserve natural resources, please
recycle or dispose of batteries properly°
This product contains nickel-cadmium
batteries Local, state or federal laws
may prohibit disposal of nickel-cadmium
batteries in ordinary trash_
Consult your local waste authority for information
regarding available recycling and/or disposal options.
BATTERY PACK REMOVAL AND PREPARATION
FOR RECYCLING
WARNING: Upon removal, cover the battery pack's
terminals with heavy duty adhesive tape.. Do not
attempt to destroy or disassemble battery pack or
remove any of its components Nickel-cadmium
batteries must be recycled or disposed of properly.
Also, never touch both terminals with metal objects
and/or body parts as short circuit may result Keep
away from children. Failure to comply with these
warnings could result in fire and/or serious injury
14
ThefollowingrecommendedaccessoriesarecurrentlyavailableatSearsRetailStores,
I_16-Pc ExtraLengthMagnitePowerBitSet Wt7-Pc Power Screwdriver/Nutdriver Set and Case
I_ 30-Pc Power Screwdriver!Nutdriver Set and Case _ High Speed Bits (For Wood or Metal)3/4 in Max,
,_ WARNING: The use of attachments or accessories not listed might be hazardous..
WARRANTY
FULL ONE YEAR WARRANTY ON CRAFTSMAN 3!8 in. CORDLESS DRILL-DRIVER
If this I:RRRrSMRN 3/8 in, Cordless Drill-Driver fails to give complete satisfaction within one year from the date of pur-
chase, RETURN IT TO THE NEAREST SEARS STORE OR SEARS SERVICE CENTER IN THE UNITED STATES, and
Sears will repair it, free of charge
If this I:RFIFT$1,4RN3/8 in Cordless DrifFDriver is used for commercial or rental purposes, this warranty applies for only
90 days from the date of purchase
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 8t7WA, Hoffman Estates, IL 60179
15
u, ,i ,-i_
_IIIL
,i, i , .ii
...... ii,,,i
.... i, i, ._lli _
i ,,11111, li lil i,lill,,
.................. i ,-H,,i
,11 , i
i , H,N ,,,i,,
_ii i i,l,,,!,llllJJiliJ , i ,_II,,_M
, ,I I I
I"'11 IIII, I, ' ',,'
........................................ II,,I,
'1"1 I ..... H ,,,_
.... I'1 '
I"1 ........
r----
CRAFTSMAN 3/8 in., 18 VOLT CORDLESS DRILL-DRIVER ---
MODEL NO. 973.'113070
i
i The model number will be found on a plate attached to the motor housing Always mention the model number I
in a!! correspondence regarding your 318 in CORDLESS DRILL-DRIVER or when ordering repair parts
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
i ii Ii i
2
4
3
Key Part
No, Number
1 616478-003
2 973015-00I
3 * item No 9-11103
4 * Item No_9-11059
5 982113-001
972000-928
PARTS LIST
Description Quan.
Screw (Special) ................................................................ 1
Chuck (Item No. _9-20988).................................................. 1
Battery Pack (982321-001 or 982027-001) ..................... 1
Charger (981831-002) .................................................... 1
Tool Bag - Not Shown .................................................... 1
Owner's Manual
i i
* Can Be Purchased Thru RSOS (Retail Special Order System)
17

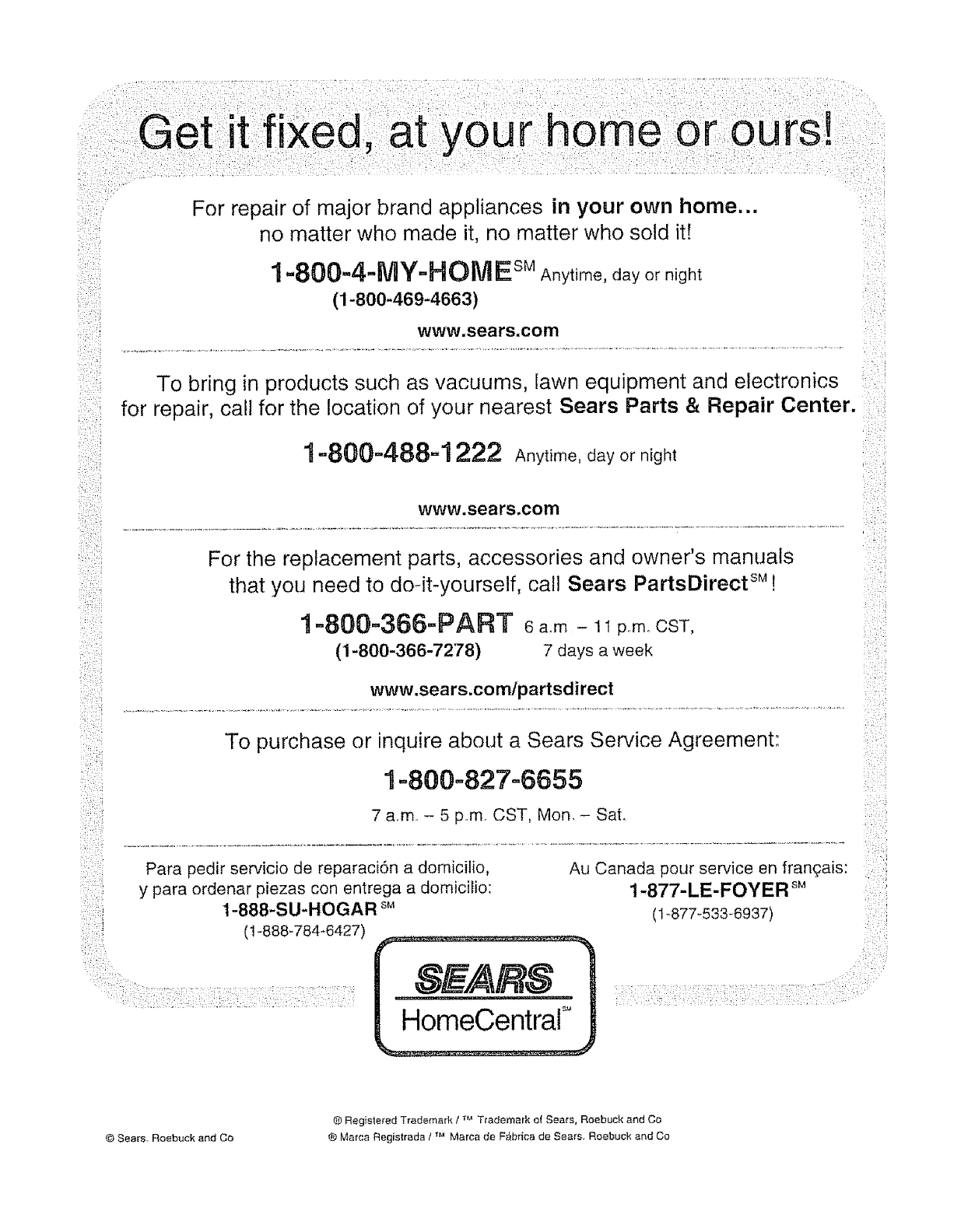

For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOME sMAnytime, day or night
(1-800-469-4663)
www.sears,com
_:;_;ii_i...........................................................................................................................................................................................................................................................................'i!_ili
To bring in products such as vacuums, lawn equipment and electronics
for repair, call for the location of your nearest Sears Parts & Repair Center.
1=800=488-1222 Anytime, day or night
}) i
www.sears,com
_ii___'i'i
!ii!:i!_
:zl
For the replacement parts, accessories and owner's manuals
that you need to doqt-yourself, call Sears PartsDirectSM T
lo800-366-PART 6 a.m - 11 pro, CST,
(1-800-366-7278) 7 days a week
www.sears.com/partsdirect
To purchase or inquire about a Sears Service Agreement:
1--800,-827=6655
7 am - 5 p_m, CST, Mon,- Sat.
Para pedir servicio de reparaci6n a domicitio, Au Canada pour service en fran(2ais: _; !
y para ordenar piezas con entrega a domicilio: 1.877.LE.FOYER sM
1-888-SU-HOGAR s_ (1-877-533-6937)
(1-888-784*6427)
® Registered Trademark /TM Trademark of Soars, Roebuck and Co
© Soars. Roebuck and Co ® Matca Registrada ITM Marca de Fabrica de Soars, Roebuck and Co
