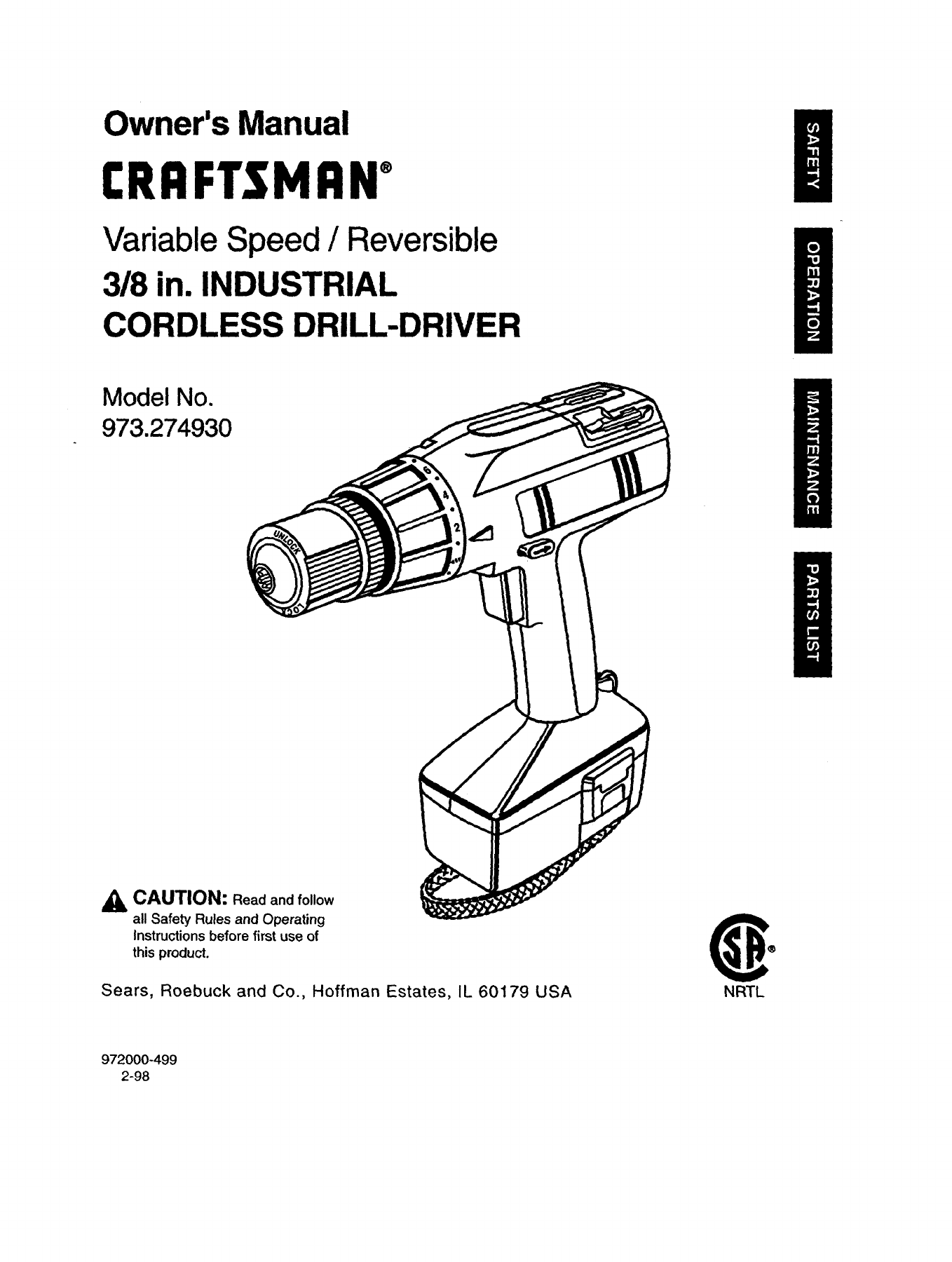

Owner's Manual
I:RRFTSMRNo
Variable Speed /Reversible
3/8 in. INDUSTRIAL
CORDLESS DRILL-DRIVER
Model No.
973.274930
CAUTION: Read and follow
all Safety Rules and Operating
Instructions before first use of
this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA NRTL
972000-499
2-98

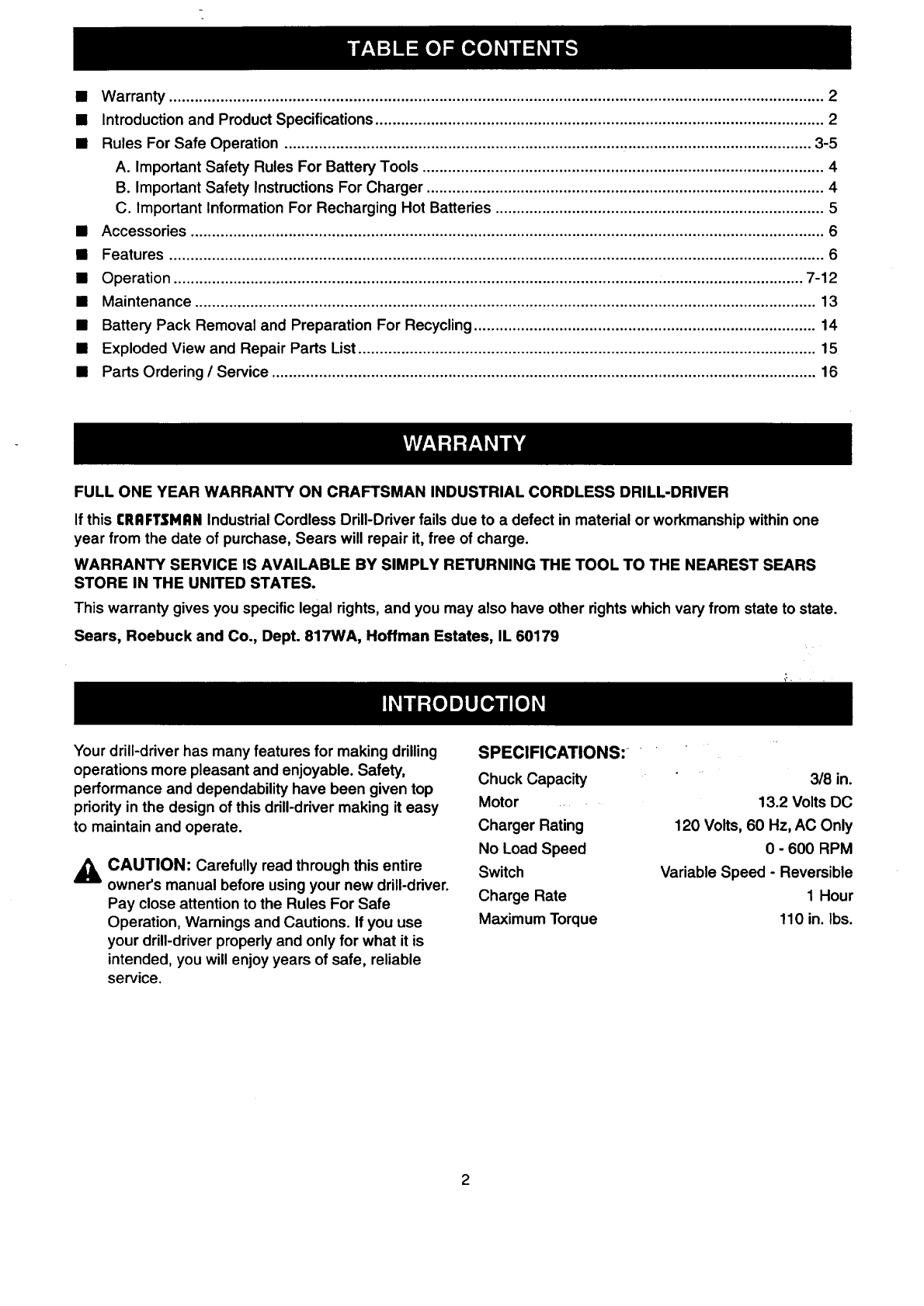

•Warranty ......................................................................................................................................................... 2
• Introduction and Product Specifications ......................................................................................................... 2
• Rules For Safe Operation ............................................................................... ............................................ 3-5
A. Important Safety Rules For Battery Tools .............................................................................................. 4
B. Important Safety Instructions For Charger ............................................................................................. 4
C. Important Information For Recharging Hot Batteries ............................................................................. 5
• Accessories .................................................................................................................................................... 6
• Features ......................................................................................................................................................... 6
• Operation ................................................................................................................................................... 7-12
• Maintenance ................................................................................................................................................. 13
• Battery Pack Removal and Preparation For Recycling ................................................................................ 14
• Exploded View and Repair Parts List ........................................................................................................... 15
• Parts Ordering /Service ............................................................................................................................... 16
FULL ONE YEAR WARRANTY ON CRAFTSMAN INDUSTRIAL CORDLESS DRILL-DRIVER
If this {:RAFTSMANIndustrial Cordless Drill-Driver fails due to a defect in material or workmanship within one
year from the date of purchase, Sears will repair it, free of charge.
WARRANTY SERVICE IS AVAILABLE BY SIMPLY RETURNING THE TOOL TO THE NEAREST SEARS
STORE IN THE UNITED STATES.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Your drill-driver has many features for making drilling
operations more pleasant and enjoyable. Safety,
performance and dependability have been given top
priority in the design of this drill-driver making it easy
to maintain and operate.
_AUTION: Carefully read through this entire
owner's manual before using your new drill-driver.
Pay close attention to the Rules For Safe
Operation, Warnings and Cautions. If you use
your drill-driver properly and only for what it is
intended, you will enjoy years of safe, reliable
service.
SPECIFICATIONS:
Chuck Capacity 3/8 in.
Motor 13.2 Volts DC
Charger Rating 120 Volts, 60 Hz, AC Only
No Load Speed 0 -600 RPM
Switch Variable Speed -Reversible
Charge Rate 1 Hour
Maximum Torque 110 in. Ibs.
2

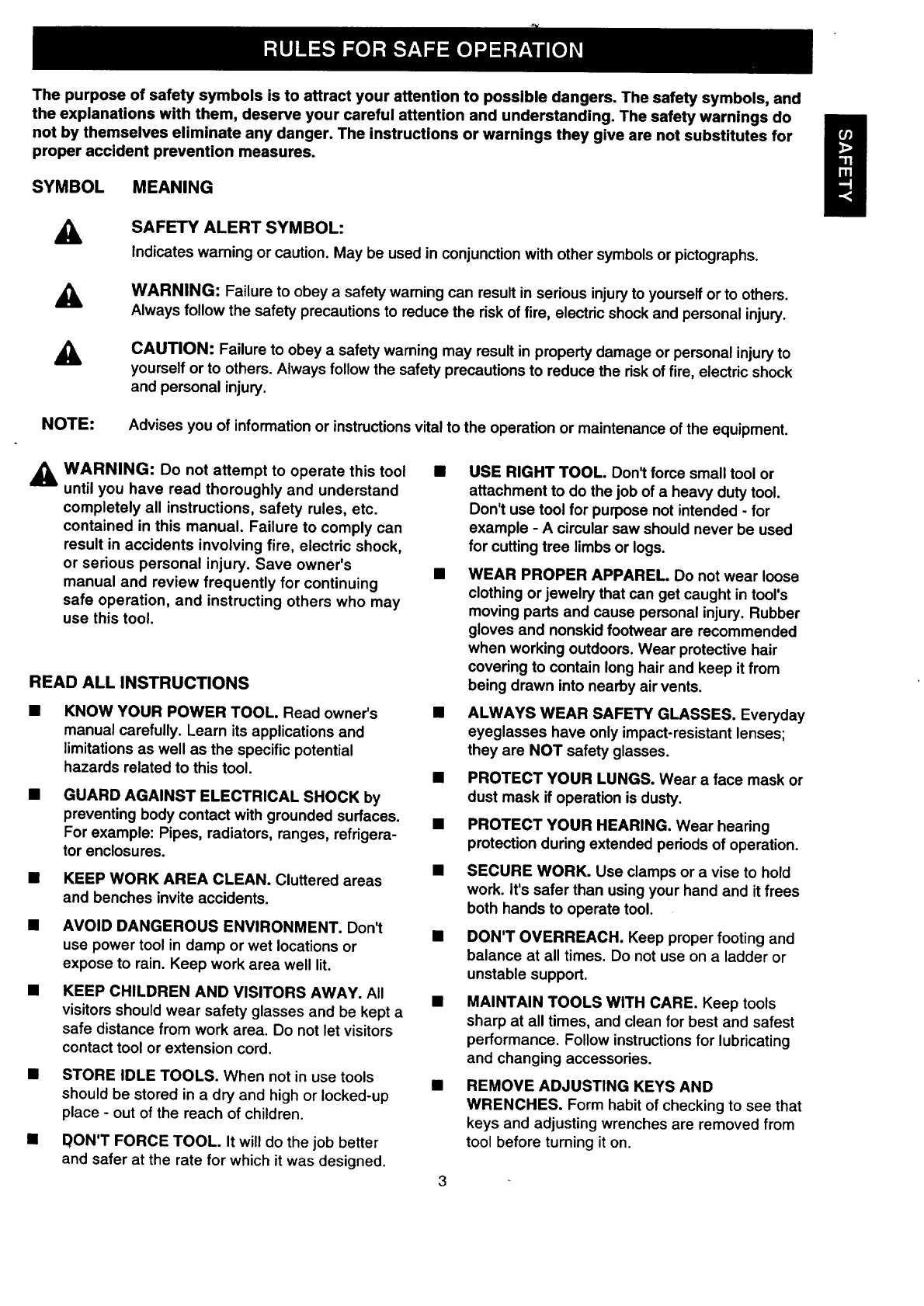

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and
the explanations with them, deserve your careful attention and understanding. The safety warnings do
not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for
proper accident prevention measures.
SYMBOL MEANING
ASAFETY ALERT SYMBOL:
Indicates warning or caution. May be used in conjunction with other symbols or pictographs.
WARNING: Failure to obey a safety warning can result in serious injury to yourseff or to others.
Always follow the safety precautions to reduce the risk of fire, electric shock and personal injury.
CAUTION: Failure to obey a safety warning may result in property damage or personal injury to
yourself or to others. Always follow the safety precautions to reduce the risk offire, electric shock
and personal injury.
NOTE: Advises you of information or instructions vital to the operation or maintenance of the equipment.
AWARNING: Do not attempt to operate this tool •
until you have read thoroughly and understand
completely all instructions, safety rules, etc.
contained in this manual. Failure to comply can
result in accidents involving fire, electric shock,
or serious personal injury. Save owner's
manual and review frequently for continuing
safe operation, and instructing others who may
use this tool.
READ ALL INSTRUCTIONS
KNOW YOUR POWER TOOL. Read owner's
manual carefully. Learn its applications and
limitations as well as the specific potential
hazards related to this tool.
GUARD AGAINST ELECTRICAL SHOCK by
preventing body contact with grounded surfaces.
For example: Pipes, radiators, ranges, refrigera-
tor enclosures.
•KEEP WORK AREA CLEAN. Cluttered areas
and benches invite accidents.
AVOID DANGEROUS ENVIRONMENT. Don't
use power tool in damp or wet locations or
expose to rain. Keep work area well lit.
KEEP CHILDREN AND VISITORS AWAY. All
visitors should wear safety glasses and be kept a
safe distance from work area. Do not let visitors
contact tool or extension cord.
STORE IDLE TOOLS. When not in use tools
should be stored in a dry and high or locked-up
place -out of the reach of children.
DON'T FORCE TOOL. It will do the job better
and safer at the rate for which it was designed.
USE RIGHT TOOL. Don't force small tool or
attachment to do the job of a heavy duty tool.
Don't use tool for purpose not intended - for
example -A circular saw should never be used
for cutting tree limbs or logs.
WEAR PROPER APPAREL Do not wear loose
clothing or jewelry that can get caught in tool's
moving parts and cause personal injury. Rubber
gloves and nonskid footwear are recommended
when working outdoors. Wear protective hair
covering to contain long hair and keep it from
being drawn into nearby air vents.
ALWAYS WEAR SAFETY GLASSES. Everyday
eyeglasses have only impact-resistant lenses;
they are NOT safety glasses.
•PROTECT YOUR LUNGS. Wear a face mask or
dust mask if operation is dusty.
•PROTECT YOUR HEARING. Wear hearing
protection during extended periods of operation.
•SECURE WORK. Use clamps or a vise to hold
work. It's safer than using your hand and it frees
both hands to operate tool.
DON'T OVERREACH. Keep proper footing and
balance at all times. Do not use on a ladder or
unstable support.
MAINTAIN TOOLS WITH CARE. Keep tools
sharp at all times, and clean for best and safest
performance. Follow instructionsfor lubricating
and changing accessories.
REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of checking to see that
keys and adjusting wrenches are removed from
tool before turning it on.

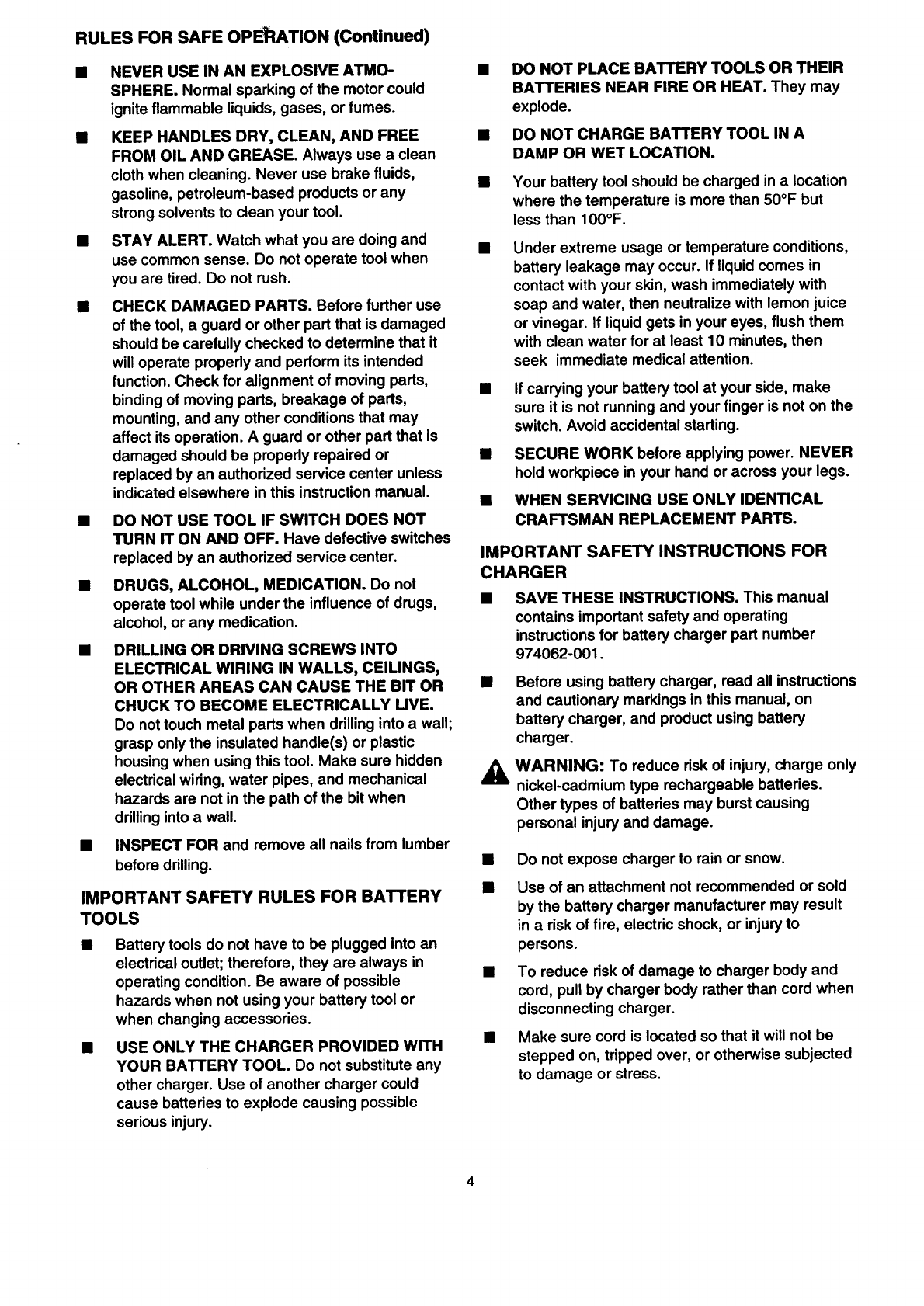

RULES FOR SAFE OPERATION (Continued)
• NEVER USE IN AN EXPLOSIVE ATMO-
SPHERE. Normal sparking of the motor could
ignite flammable liquids, gases, or fumes.
•KEEP HANDLES DRY, CLEAN, AND FREE
FROM OIL AND GREASE. Always use a clean
cloth when cleaning. Never use brake fluids,
gasoline, petroleum-based products or any
strong solvents to clean your tool.
•STAY ALERT. Watch what you are doing and
use common sense. Do not operate tool when
you are tired. Do not rush.
CHECK DAMAGED PARTS. Before further use
of the tool, a guard or other part that is damaged
should be carefully checked to determine that it
willoperate properly and perform its intended
function. Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other conditions that may
affect its operation. Aguard or other part that is
damaged should be properly repaired or
replaced by an authorized service center unless
indicated elsewhere in this instruction manual.
DO NOT USE TOOL IF SWITCH DOES NOT
TURN IT ON AND OFF. Have defective switches
replaced by an authorized service center.
DRUGS, ALCOHOL, MEDICATION. Do not
operate tool while under the influence of drugs,
alcohol, or any medication.
•DRILLING OR DRIVING SCREWS INTO
ELECTRICAL WIRING IN WALLS, CEILINGS,
OR OTHER AREAS CAN CAUSE THE BIT OR
CHUCK TO BECOME ELECTRICALLY LIVE.
Do not touch metal parts when drilling into a wall;
grasp only the insulated handle(s) or plastic
housing when using this tool. Make sure hidden
electrical wiring, water pipes, and mechanical
hazards are not in the path of the bit when
drilling into a wall.
•INSPECT FOR and remove all nails from lumber
before drilling.
IMPORTANT SAFETY RULES FOR BATTERY
TOOLS
Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible
hazards when not using your battery tool or
when changing accessories.
USE ONLY THE CHARGER PROVIDED WITH
YOUR BATTERY TOOL. Do not substitute any
other charger. Use of another charger could
cause batteries to explode causing possible
serious injury.
DO NOT PLACE BATTERY TOOLS OR THEIR
BATTERIES NEAR FIRE OR HEAT. They may
explode.
DO NOT CHARGE BATTERY TOOL IN A
DAMP OR WET LOCATION.
Your battery tool should be charged in a location
where the temperature is more than 50°F but
less than 100°F.
Under extreme usage or temperature conditions,
battery leakage may occur. If liquid comes in
contact with your skin, wash immediately with
soap and water, then neutralize with lemon juice
or vinegar. If liquidgets in your eyes, flush them
with clean water for at least 10 minutes, then
seek immediate medical attention.
If carrying your battery tool at your side, make
sure it is not running and your finger is not on the
switch. Avoid accidental starting.
SECURE WORK before applying power. NEVER
hold workpiece in your hand or across your legs.
WHEN SERVICING USE ONLY IDENTICAL
CRAFTSMAN REPLACEMENT PARTS.
IMPORTANT SAFETY INSTRUCTIONS FOR
CHARGER
•SAVE THESE INSTRUCTIONS. This manual
contains important safety and operating
instructions for battery charger part number
974062-001.
A
Before using battery charger, read all instructions
and cautionary markings in this manual, on
battery charger, and product using battery
charger.
WARNING: To reduce risk of injury, charge only
nickel-cadmium type rechargeable batteries.
Other types of batteries may burst causing
personal injury and damage.
Do not expose charger to rain or snow.
Use of an attachment not recommended or sold
by the battery charger manufacturer may result
in a risk of fire, electric shock, or injuryto
persons.
To reduce risk of damage to charger body and
cord, pull by charger body rather than cord when
disconnecting charger.
Make sure cord is located so that it will not be
stepped on, tripped over, or otherwise subjected
to damage or stress.

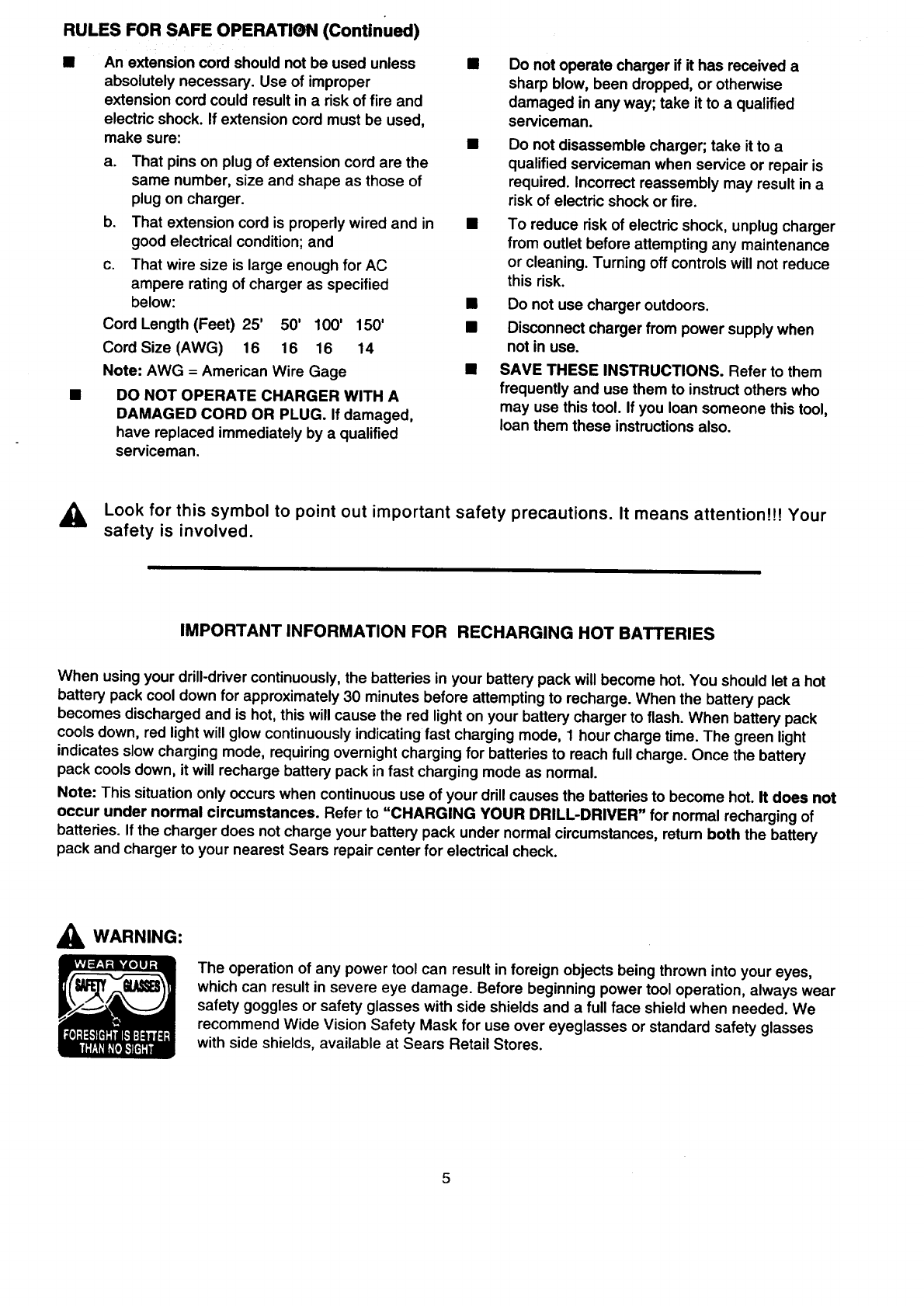

RULES FOR SAFE OPERATION (Continued)
An extension cord should not be used unless •
absolutely necessary. Use of improper
extension cord could result in a risk of fire and
electric shock. If extension cord must be used,
make sure: •
a. That pins on plug of extension cord are the
same number, size and shape as those of
plug on charger.
b. That extension cord is properly wired and in •
good electrical condition; and
c. That wire size is large enough for AC
ampere rating of charger as specified
below: •
Cord Length (Feet) 25' 50' 100' 150' •
Cord Size (AWG) 16 16 16 14
Note: AWG = American Wire Gage •
DO NOT OPERATE CHARGER WITH A
DAMAGED CORD OR PLUG. If damaged,
have replaced immediately by a qualified
serviceman.
Do not operate charger if it has received a
sharp blow, been dropped, or otherwise
damaged in any way; take it to a qualified
serviceman.
Do not disassemble charger; take it to a
qualified serviceman when service or repair is
required. Incorrect reassembly may result in a
risk of electric shock or fire.
To reduce risk of electric shock, unplug charger
from outlet before attempting any maintenance
or cleaning. Turning off controls will not reduce
this risk.
Do not use charger outdoors.
Disconnect charger from power supply when
not in use.
SAVE THESE INSTRUCTIONS. Refer to them
frequently and use them to instruct others who
may use this tool. If you loan someone this tool,
loan them these instructions also.
,_ Look for this symbol to point out important safety precautions. It means attention!!! Your
safety is involved.
IMPORTANT INFORMATION FOR RECHARGING HOT BATTERIES
When using your drill-driver continuously, the batteries in your battery pack will become hot. You should let ahot
battery pack cool down for approximately 30 minutes before attempting to recharge. When the battery pack
becomes discharged and is hot, this will cause the red light on your battery charger to flash. When battery pack
cools down, red light will glow continuously indicating fast charging mode, 1 hour charge time. The green light
indicates slow charging mode, requiringovernight charging for batteries to reach full charge. Once the battery
pack cools down, it will recharge battery pack in fast charging mode as normal.
Note: This situation only occurs when continuous use of your drill causes the batteries to become hot. It does not
occur under normal circumstances. Refer to "CHARGING YOUR DRILL-DRIVER" for normal recharging of
batteries. If the charger does not charge your battery pack under normal circumstances, return both the battery
pack and charger to your nearest Sears repair center for electrical check.
A WARNING:
The operation of any power tool can result in foreign objects being thrown into your eyes,
which can result in severe eye damage. Before beginning power tool operation, always wear
safety goggles or safety glasses with side shields and a full face shield when needed. We
recommend Wide Vision Safety Mask for use over eyeglasses or standard safety glasses
with side shields, available at Sears Retail Stores.
The following recommended accessories are currently available at Sears Retail Stores.
•6-Pc. Extra Length Magnite Power Bit Set
•30-Pc. Power Screwdriver/Nutddver Set and Case
• 17-Pc. Power Screwdriver/Nutdriver Set and Case
• High Speed Bits (For Wood or Metal) ......3/4 inch Max.
• Keyless Chuck (Item No. 20988)
WARNING" The use of attachments or accessories not listed might be hazardous.

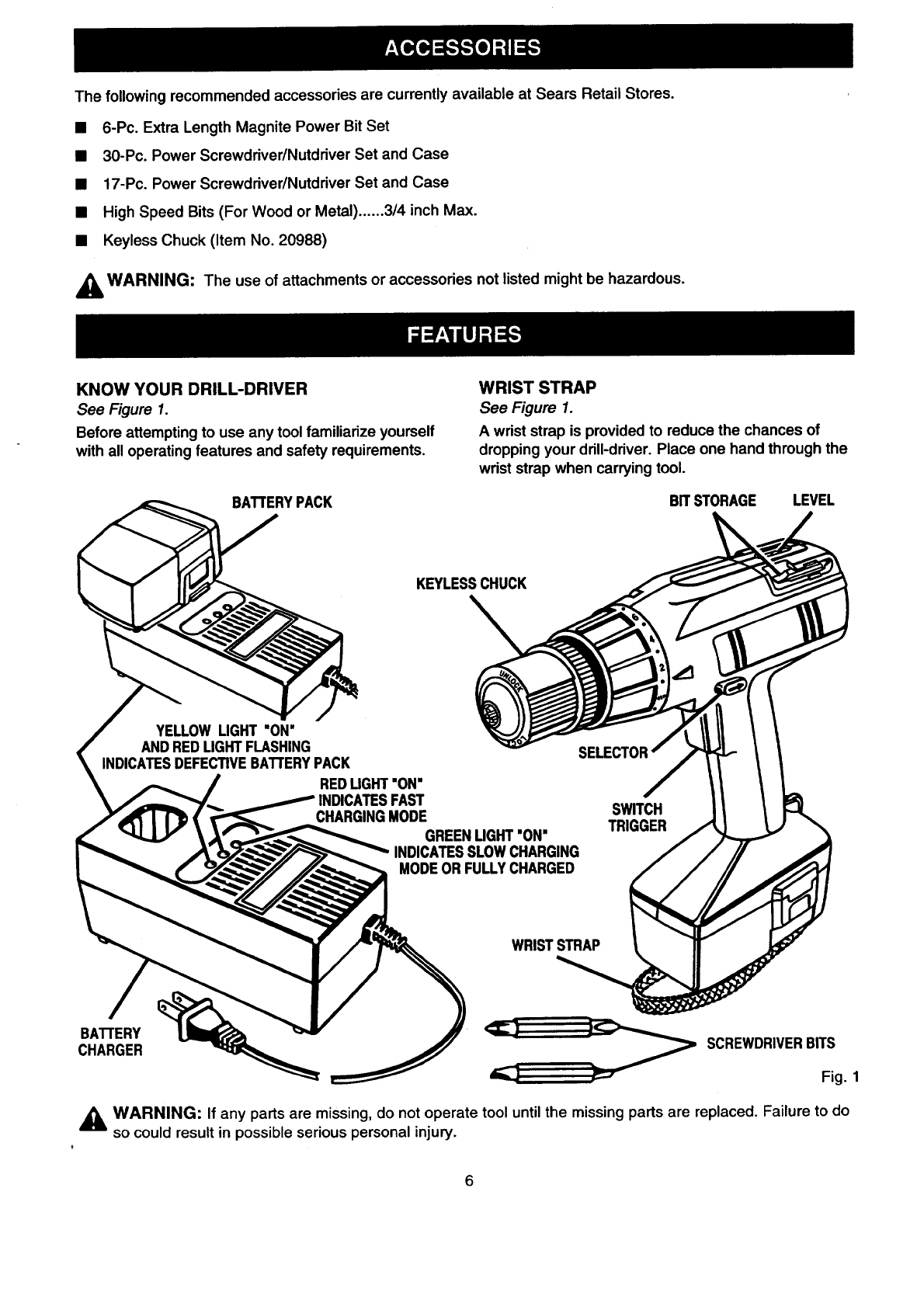

KNOW YOUR DRILL-DRIVER
See Figure 1.
Before attempting to use any tool familiarize yourself
with all operating features and safety requirements.
BATTERYPACK
WRIST STRAP
See Figure 1.
A wrist strap is provided to reduce the chances of
dropping your drill-driver. Place one hand through the
wrist strap when carrying tool.
BITSTORAGE LEVEL
KEYLESSCHUCK
YELLOW LIGHT "ON"
AND REDUGHT FLASHING
INDICATESDEFECTIVEBATTERYPACK
REDUGHT "ON"
FAST
CHARGINGMODE SWITCH
TRIGGER
WRISTSTRAP
BATTERY CZ:;! |__
CHARGER SCREWDRIVERBITS
_ Fig. 1
WARNING: If any parts are missing, do not operate tool until the missing parts are replaced. Failure to do
so could result in possible serious personal injury.
6
_ib ARNING: Always wear safety goggles or
safety glasses with side shields when operating
tools. Failure to do so could result in objects
being thrown into your eyes, resulting in possible
serious injury.
_i ARNING: Do not allow familiarity with your
drill-driver to make you careless. Remember that
a careless fraction of a second is sufficient to
inflict severe injury.

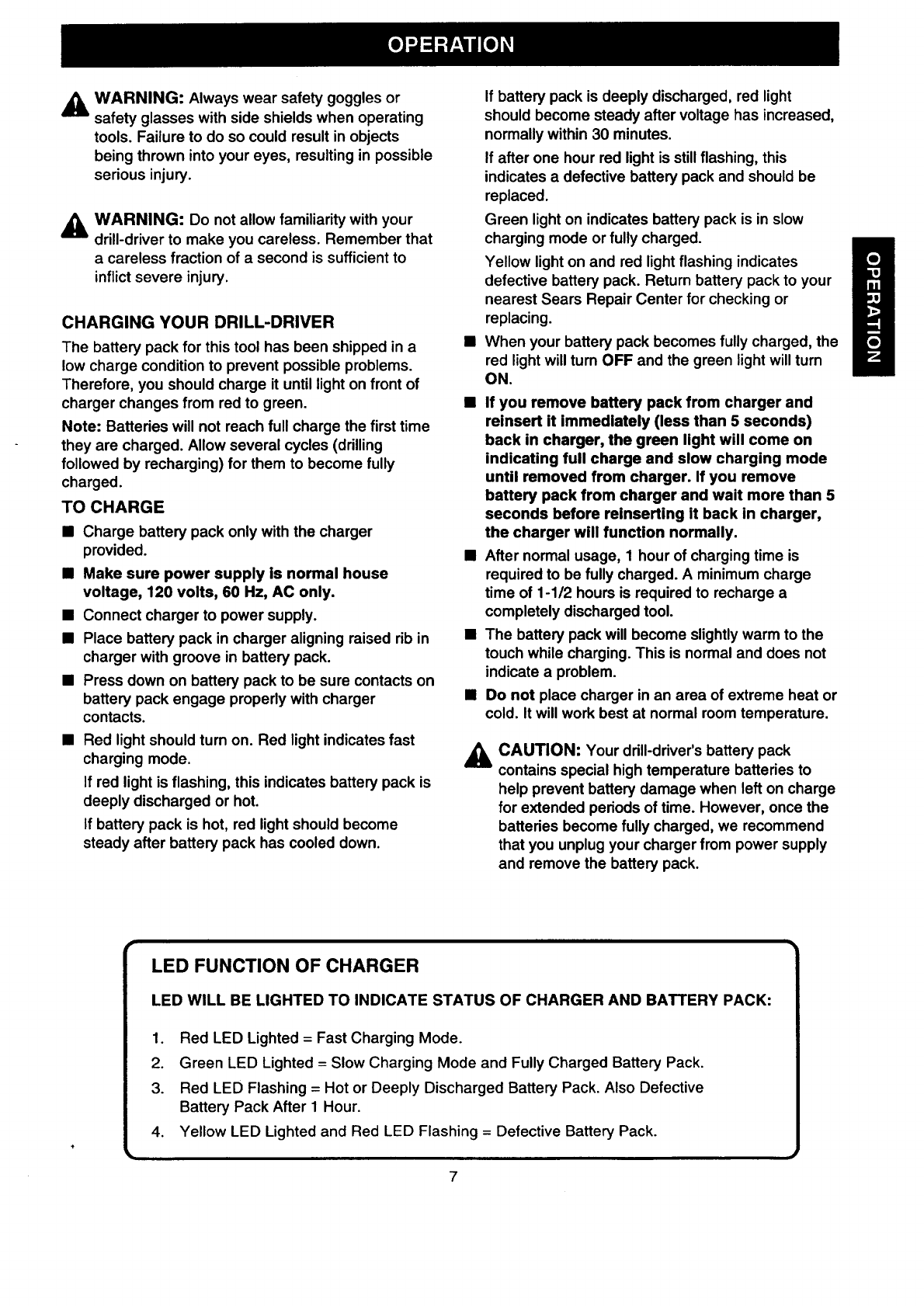

CHARGING YOUR DRILL-DRIVER
The battery pack for this tool has been shipped in a
low charge condition to prevent possible problems.
Therefore, you should charge it until light on front of
charger changes from red to green.
Note: Batteries will not reach full charge the first time
they are charged. Allow several cycles (drilling
followed by recharging) for them to become fully
charged.
TO CHARGE
• Charge battery pack only with the charger
provided.
•Make sure power supply is normal house
voltage, 120 volts, 60 Hz, AC only.
•Connect charger to power supply.
•Place battery pack in charger aligning raised rib in
charger with groove in battery pack.
•Press down on battery pack to be sure contacts on
battery pack engage properly with charger
contacts.
•Red light should turn on. Red light indicates fast
charging mode.
If red light is flashing, this indicates battery pack is
deeply discharged or hot.
If battery pack is hot, red light should become
steady after battery pack has cooled down.
If battery pack is deeply discharged, red light
should become steady after voltage has increased,
normally within 30 minutes.
If after one hour red light is still flashing, this
indicates a defective battery pack and should be
replaced.
Green light on indicates battery pack is in slow
charging mode or fully charged.
Yellow light on and red light flashing indicates
defective battery pack. Return battery pack to your
nearest Sears Repair Center for checking or
replacing.
• When your battery pack becomes fully charged, the
red light will turn OFF and the green light will turn
ON.
•If you remove battery pack from charger and
reinsert it immediately (less than 5 seconds)
back in charger, the green light will come on
indicating full charge and slow charging mode
until removed from charger. If you remove
battery pack from charger and wait more than 5
seconds before reinserting it back in charger,
the charger will function normally.
•After normal usage, 1 hour of charging time is
required to be fully charged. Aminimum charge
time of 1-1/2 hours is required to recharge a
completely discharged tool.
•The battery pack will become slightly warm to the
touch while charging. This is normal and does not
indicate a problem.
•Do not place charger in an area of extreme heat or
cold. It will work best at normal room temperature.
,_ CAUTION: Your drill-driver's battery pack
contains special high temperature batteries to
help prevent battery damage when left on charge
for extended periods of time. However, once the
batteries become fully charged, we recommend
that you unplug your charger from power supply
and remove the battery pack.
LED FUNCTION OF CHARGER
LED WILL BE LIGHTED TO INDICATE STATUS OF CHARGER AND BATTERY PACK:
1. Red LED Lighted = Fast Charging Mode.
2. Green LED Lighted = Slow Charging Mode and Fully Charged Battery Pack.
3. Red LED Flashing = Hot or Deeply Discharged Battery Pack. Also Defective
Battery Pack After I Hour.
4. Yellow LED Lighted and Red LED Flashing = Defective Battery Pack.
7
SWITCH

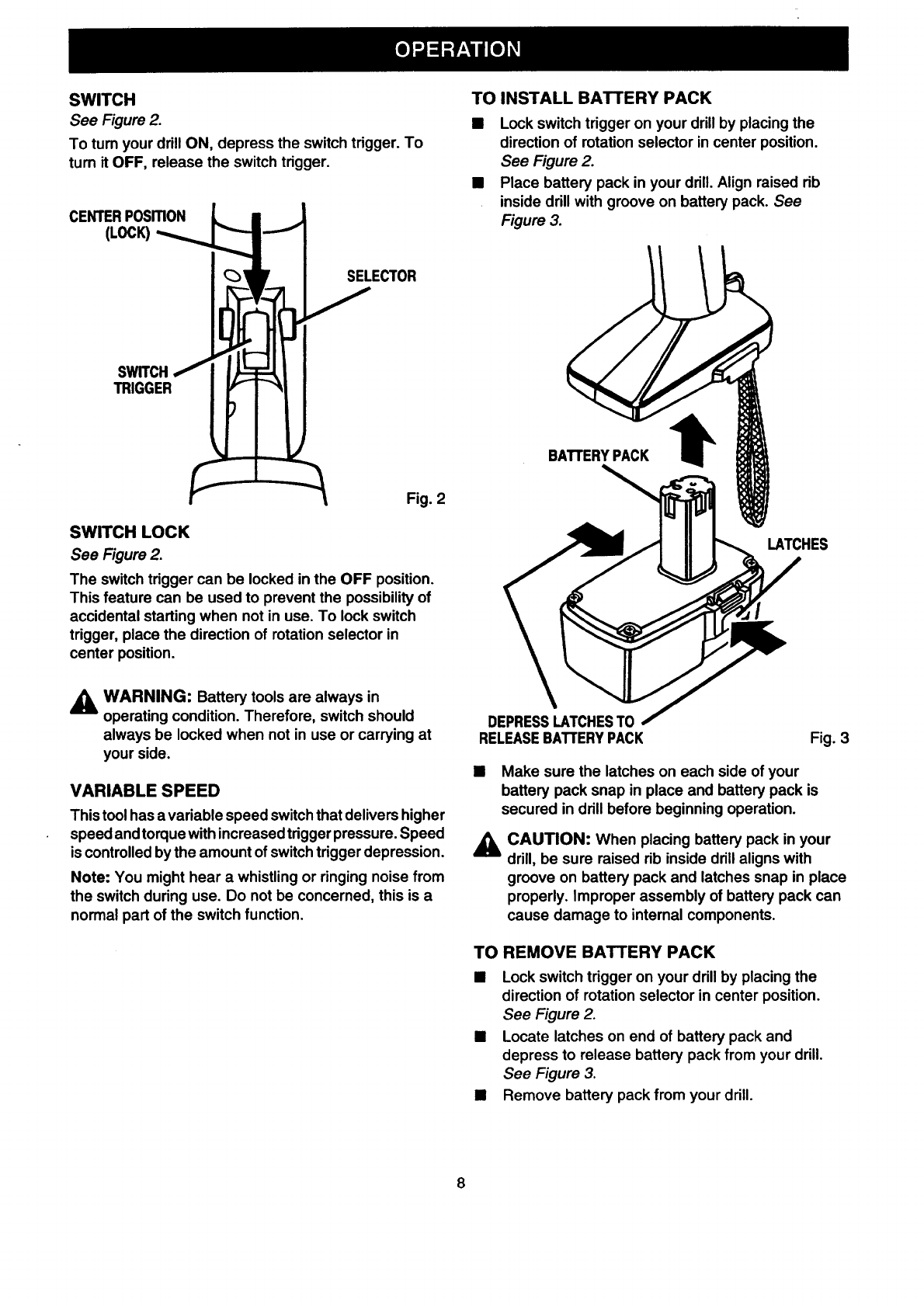

See Figure 2.
To tum your drill ON, depress the switch trigger. To
turn it OFF, release the switch trigger.
CENTERPosmoN
(LOCK)
SELECTOR
TO INSTALL BATTERY PACK
•Lock switch trigger on your drill by placing the
direction of rotation selector in center position.
See Figure 2.
•Place battery pack in your drill. Align raised rib
inside drill with groove on battery pack. See
Figure 3.
SWITCH
TRIGGER
BATTERYPACK
Fig. 2
SWITCH LOCK
See Figure 2.
The switch trigger can be locked in the OFF position.
This feature can be used to prevent the possibility of
accidental starting when not in use. To lock switch
trigger, place the direction of rotation selector in
center position.
AWARNING: Battery tools are always in
operating condition. Therefore, switch should
always be locked when not in use or carrying at
your side.
VARIABLE SPEED
This tool has a variable speed switchthat delivers higher
speed and torquewith increased trigger pressure. Speed
is controlled by the amount of switchtrigger depression.
Note: You might hear a whistling or ringing noise from
the switch during use. Do not be concerned, this is a
normal part of the switch function.
LATCHES
DEPRESSLATCHESTO
RELEASEBA'n'ERYPACK Fig. 3
•Make sure the latches on each side of your
battery pack snap in place and battery pack is
secured in drill before beginning operation.
_k CAUTION: When placing battery pack in your
drill, be sure raised rib inside drill aligns with
groove on battery pack and latches snap in place
properly. Improper assembly of battery pack can
cause damage to internal components.
TO REMOVE BATTERY PACK
Lock switch trigger on your drill by placing the
direction of rotation selector in center position.
See Figure 2.
•Locate latches on end of battery pack and
depress to release battery pack from your drill.
See Figure 3.
•Remove battery pack from your drill.
REVERSIBLE
See Figure 4.
This tool has the feature of being reversible. The
direction of rotation is controlled by a selector located
above the switch trigger. With the drill held in normal
operating position, the direction of rotation selector
should be positioned to the left of the switch for
drilling. The drilling direction is reversed when the
selector is to the right of the switch. When the selector
is in center position, the switch trigger is locked.
CENTERPOSITION
(LOCK)
FORWARD REVERSE
SWITCH SELECTOR
TRIGGER
Fig. 4
,_IL CAUTION: To prevent gear damage, always
allow chuck to come to a complete stop before
changing the direction of rotation.
To stop, release switch trigger and allow the chuck to
come to a complete stop.
CHARGER
See Figure 5.
Your charger has a "key hole" hanging feature for
convenient, space saving storage. Screws should be
installed so that center distances are 1-7/16 inches
apart.
BACKSIDE
OFCHARGER
KEYLESS CHUCK
See Figure 6.
Your new drillhas a keyless chuck. As the name implies,
you can hand tightenor release drill bitsin the chuck
jaws. Grasp and holdthe collar of the chuck withone
hand. Rotate the chuck body with your other hand. The
arrows on the chuck indicatewhich directionto rotate
the chuck body in orderto LOCK (tighten)or UNLOCK
(release) the drill bit.
CHUCK
BODY
UNLOCK
(RELEASE)
LOCK
DRILLBIT (TIGHTEN)
CHUCKCOLLAR
Fig. 6
_llb WARNING: Do not hold chuck body with one
hand and use power of the drill to tighten chuck
jaws on drill bits. Chuck body could slip in your
hand or your hand could slip and come in contact
with rotating drill bit. This could cause an
accident resulting in serious personal injury.
1-7116in.
Fig. 5 9

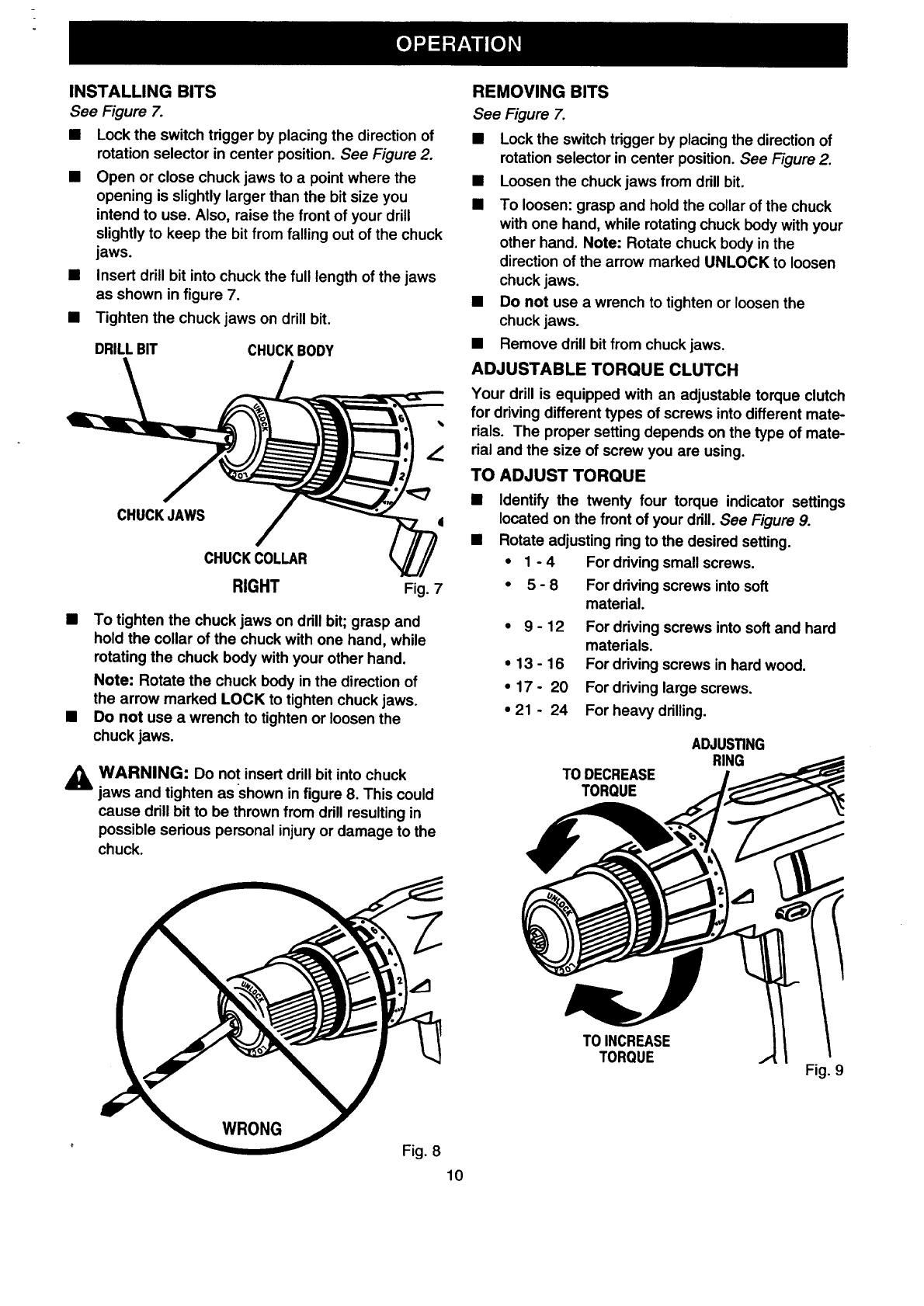

INSTALLING BITS
See Figure 7.
•Lock the switch trigger by placing the direction of
rotation selector in center position. See Figure 2.
•Open or close chuck jaws to apoint where the
opening is slightly larger than the bit size you
intend to use. Also, raise the front of your drill
slightly to keep the bit from falling out of the chuck
jaws.
• Insert drill bit into chuck the full length of the jaws
as shown in figure 7.
• Tighten the chuck jaws on drill bit.
DRILLBIT CHUCKBODY
CHUCKJAWS
CHUCKCOLLAR
RIGHT Fig. 7
• To tighten the chuck jaws on drill bit; grasp and
hold the collar of the chuck with one hand, while
rotating the chuck body with your other hand.
Note: Rotate the chuck body in the direction of
the arrow marked LOCK to tighten chuck jaws.
•Do not use a wrench to tighten or loosen the
chuck jaws.
_k WARNING: Do not insert drill bit into chuck
jaws and tighten as shown in figure 8. This could
cause drill bit to be thrown from drill resulting in
possible serious personal injury or damage to the
chuck.
REMOVING BITS
See Figure 7.
• Lock the switch trigger by placing the direction of
rotation selector in center position. See Figure 2.
•Loosen the chuck jaws from drill bit.
•To loosen: grasp and hold the collar of the chuck
with one hand, while rotating chuck body with your
other hand. Note: Rotate chuck body in the
direction of the arrow marked UNLOCK to loosen
chuck jaws.
•Do not use a wrench to tighten or loosen the
chuck jaws.
•Remove drill bit from chuck jaws.
ADJUSTABLE TORQUE CLUTCH
Your drill is equipped with an adjustable torque clutch
for driving different types of screws into different mate-
rials. The proper setting depends on the type of mate-
rial and the size of screw you are using.
TO ADJUST TORQUE
•Identify the twenty four torque indicator settings
located on the front of your drill. See Figure 9.
•Rotate adjusting ringto the desired setting.
•1 - 4 For driving small screws.
•5 - 8 For driving screws into soft
material.
•9 - 12 For driving screws into soft and hard
materials.
•13 - 16 For driving screws in hard wood.
•17 - 20 For driving large screws.
•21 - 24 For heavy drilling.
ADJUSTING
RING
TO DECREASE
TORQUE
TOINCREASE
TORQUE Fig. 9
Fig. 8
10
BIT STORAGE
See Figure 10.
When not in use, bits provided with your drill can be
placed in the storage area located on the top of your
drill as shown in figure 10.
DRILLING
See Figure 12.
,_k WARNING: Always wear safety goggles or
safety glasses with side shields when operating
tools. Failure to do so could result in objects
being thrown into your eyes, resulting in possible
serious injury.
_SCREWDRIVER
""= Fig. 10
LEVEL DRILLING
See Figure 11.
Aconvenient feature provided with your drill is a level.
It is recessed in the motor housing on top of your drill.
It can be used to keep drill bits level during drilling
operations.
Fig. 11
Fig. 12
When drilling hard smooth surfacesuse a center punch
to mark desired hole location.This willprevent the drill
bitfrom slippingoff center as the hole is started. How-
ever, the low speed feature allows startingholes without
center punching if desired. To accomplishthis, simply
operate your drillat a low speed untilthe hole is started.
The material to be drilledshould be secured in a vise or
with clamps to keep it fromtuming as the drillbit rotates.
Hold tool firmly and placethe bitat the pointto be drilled.
Depress the switchtrigger to start tool.
Move the drill bitinto the workpieceapplyingonly
enough pressureto keep the bitcutting.Do not force or
apply side pressureto elongate a hole.
_llb ARNING: Be prepared for binding or bit
breakthrough. When these situations occur, drill
has a tendency to grab and kick opposite to the
direction of rotation and could cause loss of
control when breaking through material. If not
prepared, this loss of control can result in
possible serious injury.
When drilling metals, use a light oil on the drill bit to
keep it from overheating. The oil will prolong the life of
the bit and increase the drilling action.
If the bit jams in workpiece or if the drill stalls, release
switch trigger immediately. Remove the bit from the
workpiece and determine the reason for jamming.
11

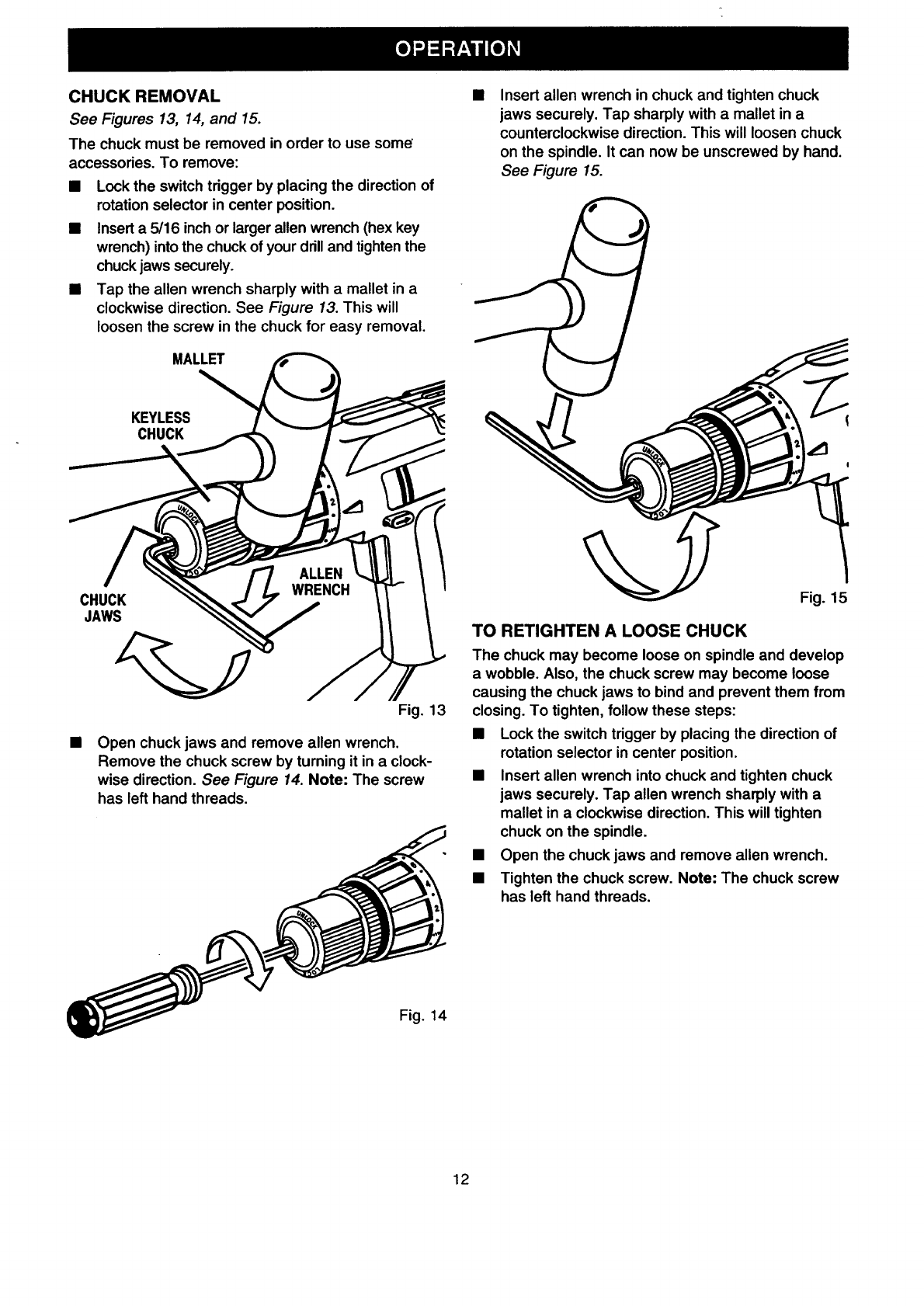

CHUCK REMOVAL
See Figures 13, 14, and 15.
The chuck must be removed in order to use some'
accessories. To remove:
•Lock the switch trigger by placing the direction of
rotation selector in center position.
• Insert a 5/16 inch or larger allen wrench (hex key
wrench) into the chuck of your drilland tightenthe
chuckjaws securely.
•Tap the allen wrench sharply with a mallet in a
clockwise direction. See Figure 13. This will
loosen the screw in the chuck for easy removal.
MALLET
KEYLESS
CHUCK
CHUCK
JAWS
Fig. 13
Open chuck jaws and remove allen wrench.
Remove the chuck screw by turning it in a clock-
wise direction. See Figure 14. Note: The screw
has left hand threads.
Insert allen wrench in chuck and tighten chuck
jaws securely. Tap sharply with a mallet in a
counterclockwise direction. This will loosen chuck
on the spindle. It can now be unscrewed by hand.
See Figure 15.
Fig. 15
TO RETIGHTEN A LOOSE CHUCK
The chuck may become loose on spindle and develop
a wobble. Also, the chuck screw may become loose
causing the chuck jaws to bind and prevent them from
closing. To tighten, follow these steps:
•Lock the switch trigger by placing the direction of
rotation selector in center position.
•Insert allen wrench into chuck and tighten chuck
jaws securely. Tap allen wrench sharply with a
mallet in a clockwise direction. This will tighten
chuck on the spindle.
•Open the chuck jaws and remove allen wrench.
•Tighten the chuck screw. Note: The chuck screw
has left hand threads.
Fig. 14
12

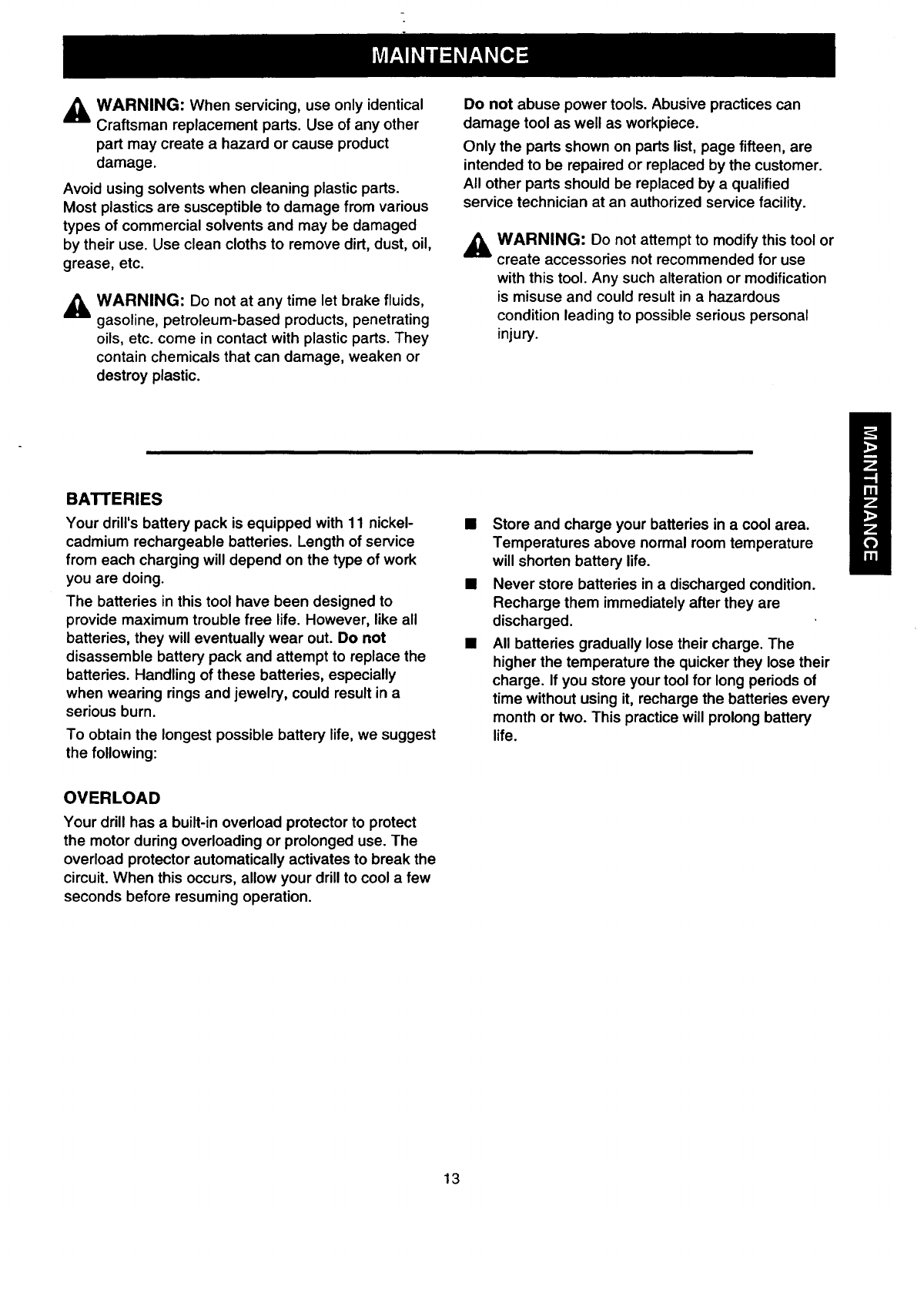

_k ARNING: When servicing, use only identical
Craftsman replacement parts. Use of any other
part may create a hazard or cause product
damage.
Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various
types of commercial solvents and may be damaged
by their use. Use clean cloths to remove dirt, dust, oil,
grease, etc.
_k WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating
oils, etc. come in contact with plastic parts. They
contain chemicals that can damage, weaken or
destroy plastic.
Do not abuse power tools. Abusive practices can
damage tool as well as workpiece.
Only the parts shown on parts list, page fifteen, are
intended to be repaired or replaced by the customer.
All other parts should be replaced by a qualified
service technician at an authorized service facility.
_k WARNING: Do not attempt to modify this tool or
create accessories not recommended for use
with this tool. Any such alteration or modification
is misuse and could result in a hazardous
condition leading to possible serious personal
injury.
BATTERIES
Your drill's battery pack is equipped with 11 nickel-
cadmium rechargeable batteries. Length of service
from each charging will depend on the type of work
you are doing.
The batteries in this tool have been designed to
provide maximum trouble free life. However, like all
batteries, they will eventually wear out. Do not
disassemble battery pack and attempt to replace the
batteries. Handling of these batteries, especially
when wearing rings and jewelry, could result in a
serious burn.
To obtain the longest possible battery life, we suggest
the following:
•Store and charge your batteries in a cool area.
Temperatures above normal room temperature
will shorten battery life.
•Never store batteries in a discharged condition.
Recharge them immediately after they are
discharged.
•All batteries gradually lose their charge. The
higher the temperature the quicker they lose their
charge. If you store your tool for long periods of
time without using it, recharge the batteries every
month or two. This practice will prolong battery
life.
OVERLOAD
Your drill has a built-in overload protector to protect
the motor during overloading or prolonged use. The
overload protector automatically activates to break the
circuit. When this occurs, allow your drill to cool a few
seconds before resuming operation.
13

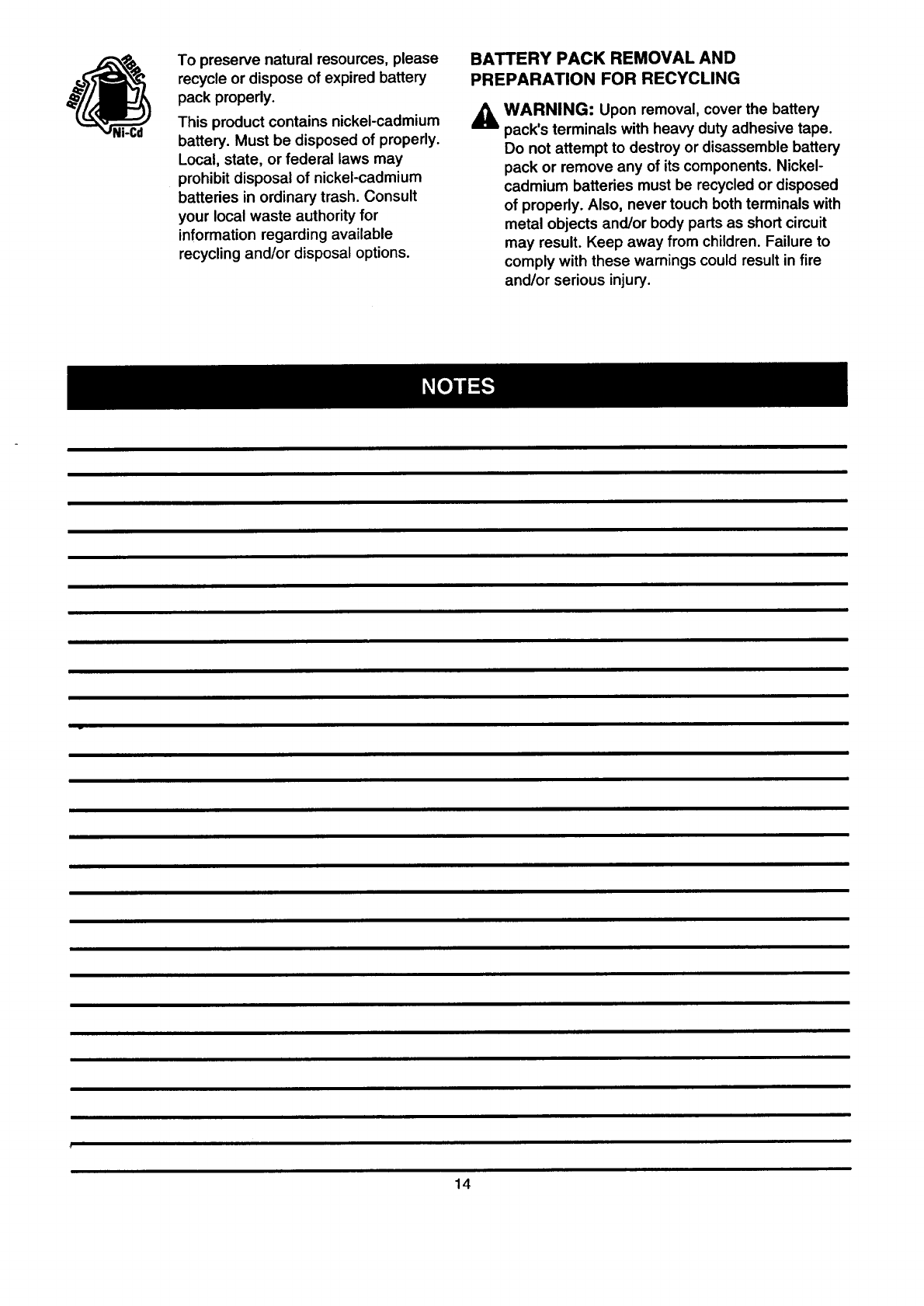

Topreservenaturalresources,please
recycle or dispose of expired battery
pack properly.
This product contains nickel-cadmium
battery. Must be disposed of properly.
Local, state, or federal laws may
prohibit disposal of nickel-cadmium
batteries in ordinary trash. Consult
your local waste authority for
information regarding available
recycling and/or disposal options.
BATTERY PACK REMOVAL AND
PREPARATION FOR RECYCLING
WARNING: Upon removal, cover the battery
pack's terminals with heavy duty adhesive tape.
Do not attempt to destroy or disassemble battery
pack or remove any of its components. Nickel-
cadmium batteries must be recycled or disposed
of properly. Also, never touch both terminals with
metal objects and/or body parts as short circuit
may result. Keep away from children. Failure to
comply with these warnings could result in fire
and/or serious injury.
I
14

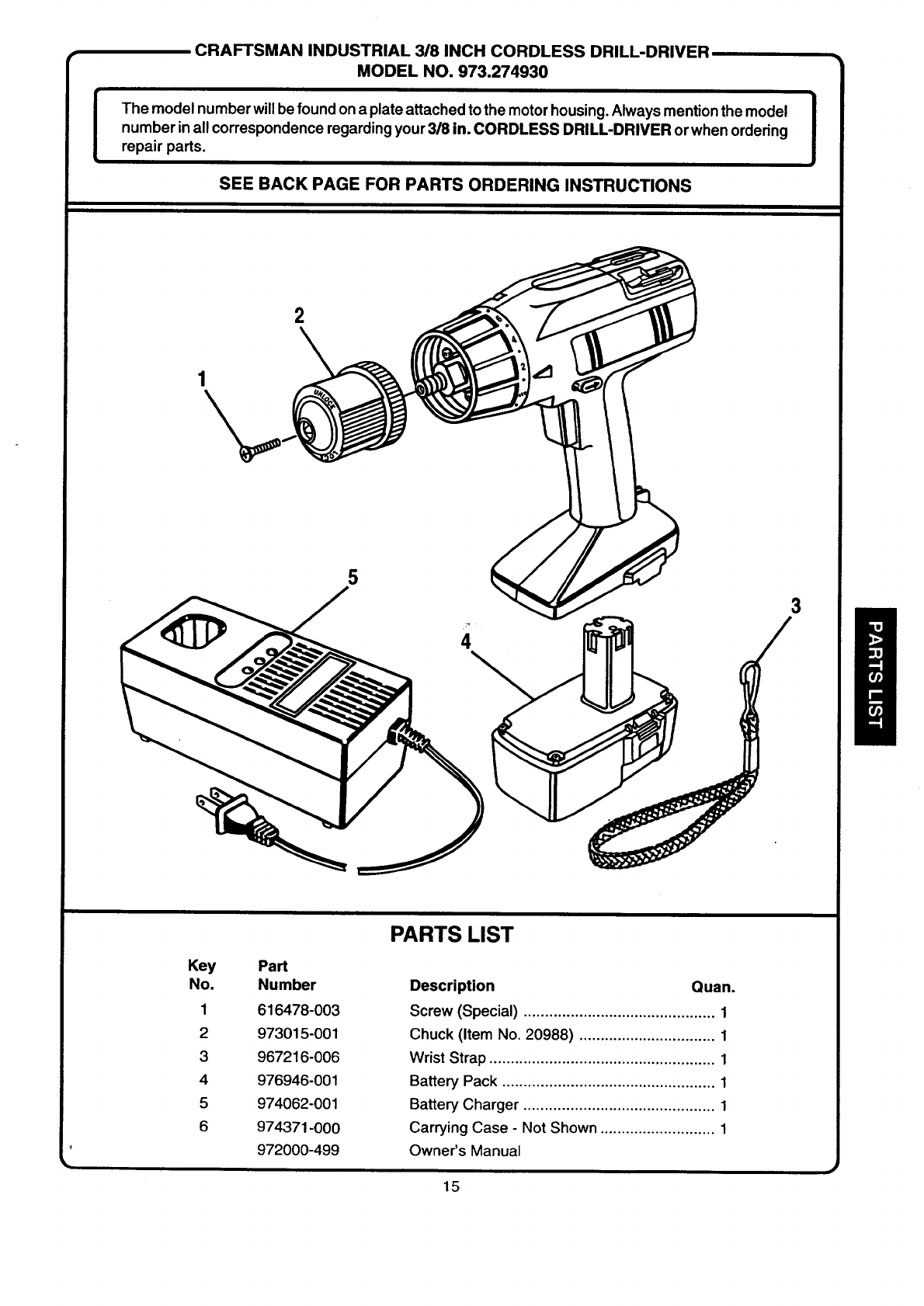

CRAFTSMAN INDUSTRIAL 318 INCH CORDLESS DRILL-DRIVER
MODEL NO. 973.274930
The model number will be found ona plate attached to the motor housing. Always mention the model
number in all correspondence regarding your 318in. CORDLESS DRILL-DRIVER orwhen ordering
repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
2
5
Key PaN
No. Number
1 616478-003
2 973015-001
3 967216-006
4 976946-001
5 974062-001
6 974371-000
972000-499
PARTS LIST
Description Quan.
Screw (Special) ............................................. 1
Chuck (Item No, 20988) ................................ 1
Wrist Strap ..................................................... 1
Battery Pack .................................................. 1
Battery Charger ............................................. 1
Carrying Case - Not Shown ........................... 1
Owner's Manual
15
P

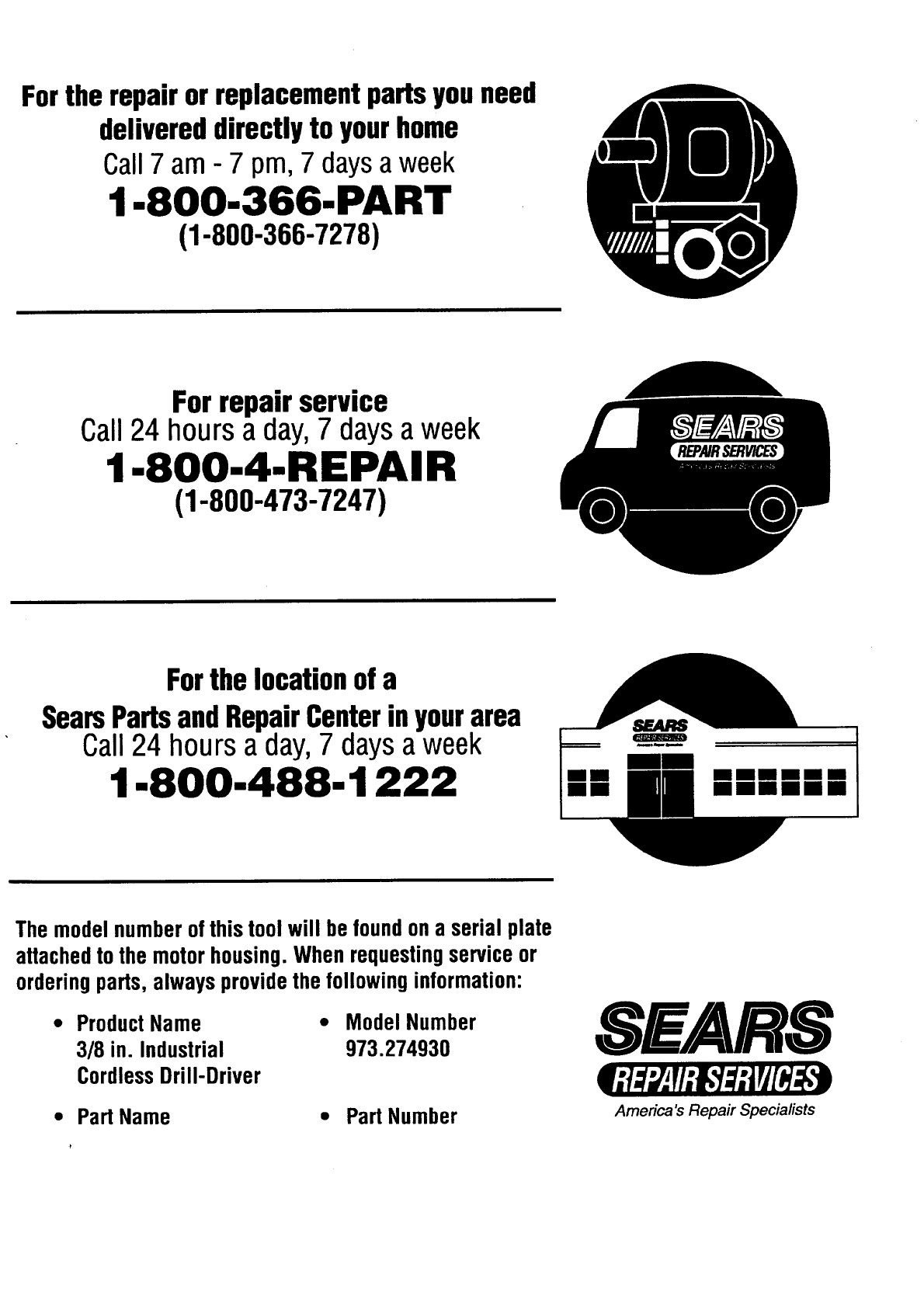

Fortherepairorreplacementpartsyouneed
delivereddirectlyto yourhome
Call7 am - 7 pm,7 daysaweek
1-800-366-PART
(1-800-366 7278)
Forrepairservice
Call24 hours a day,7 daysaweek
1.800-4-REPAIR
(1-800-473-7247)
Forthelocationofa
SearsPartsandRepairCenterinyourarea
Call24 hours a day,7 daysaweek
1-800-488-1222 mm
mm mmmmmmm
mmmmmm
The modelnumberofthistool will be foundona serial plate
attachedtothe motorhousing.Whenrequestingserviceor
orderingparts,alwaysprovidethe followinginformation:
ProductName
3/8 in. Industrial
CordlessDrill-Driver
ModelNumber
973.274930
• Part Name •Part Number
SEe/ S
America's Repair Specialists

Navigation menu
