Owner's Manual

1/2 HP

GARAGE DOOR OPENER

For Residential Use Only

Model No:

139.53978SRT

CAUTION:

Read and follow all safety rules

and operating instructions

before first use of this product.

Fasten the manual near the

garage door after installation.

Complies with UL 325 ,/"_'_

regulations effective _U| |

January 1, 1993

[] Safety Precautions

[] Assembly

[] Installation

[] Adjustment

[] Maintenance

[] Operation

[] Troubleshooting

[] Parts List

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

visit our Craftsman website: www.sears.com/craftsman

Contents Page

A review of safety alert symbols ................................. 2

You'll need tools.......................................................... 3

Safety information regarding garage door locks

and ropes .................................................................. 3

Testing your garage door for sticking, binding

and balance ............................................................... 3

Illustrationof sectionaldoor installation ..................... 4

Illush'ationof one-piece door installation................... 5

Carton inventory.......................................................... 6

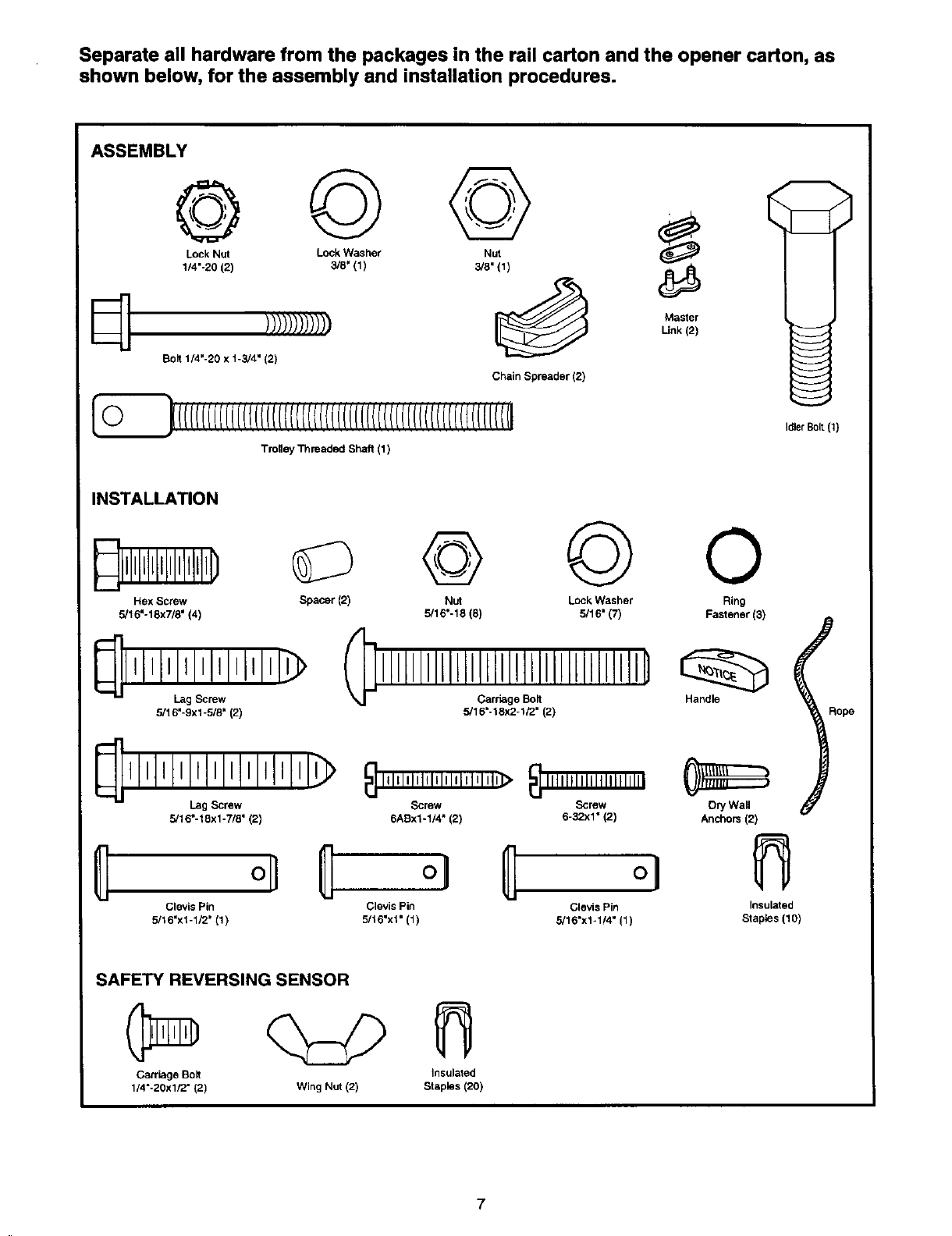

Hardware inventory..................................................... 7

Assembly section -pages 8 - 11

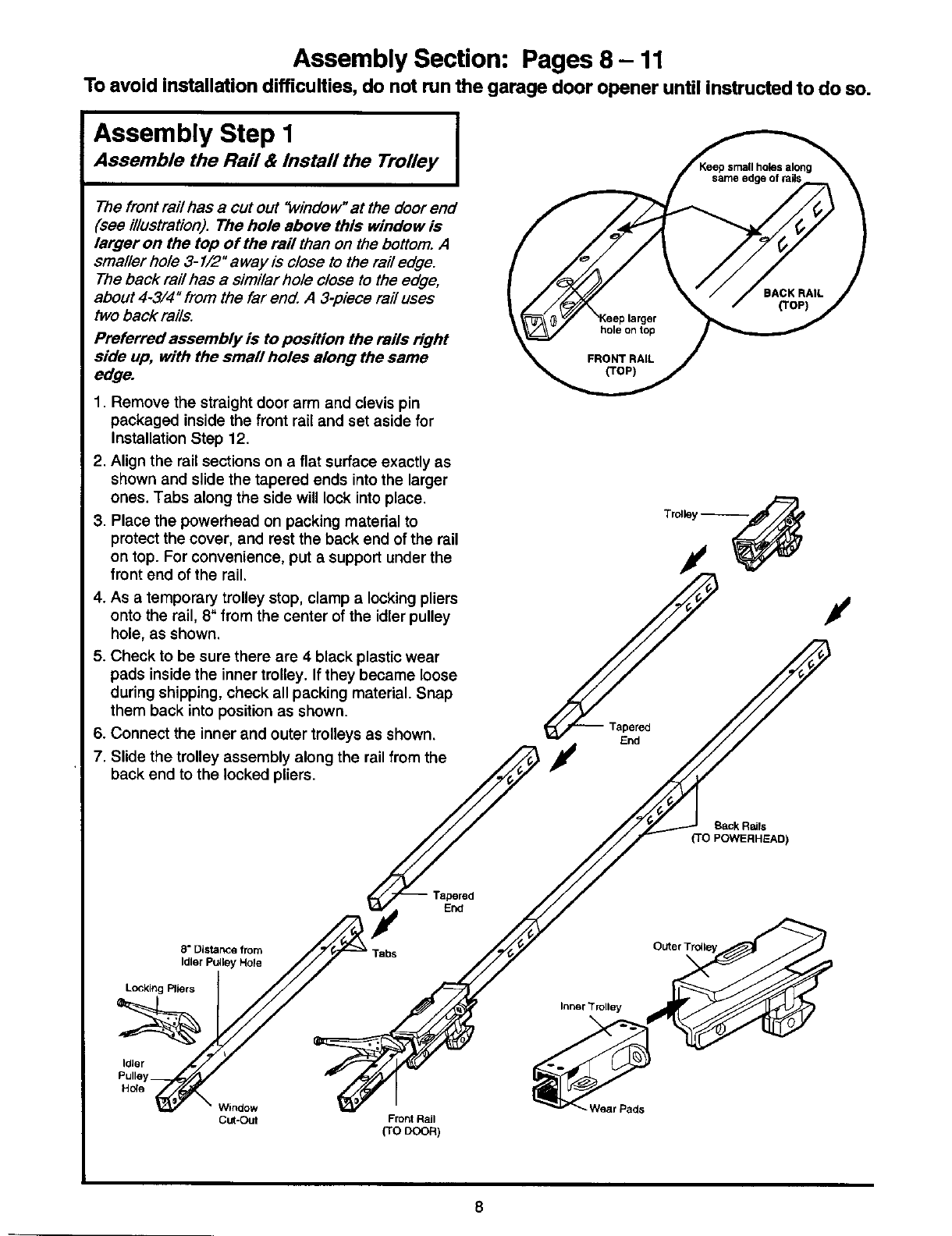

Assemble the rail & installthe trolley........................ 8

Fasten the rail to the opener ..................................... 9

Installthe idler pulley ................................................ 9

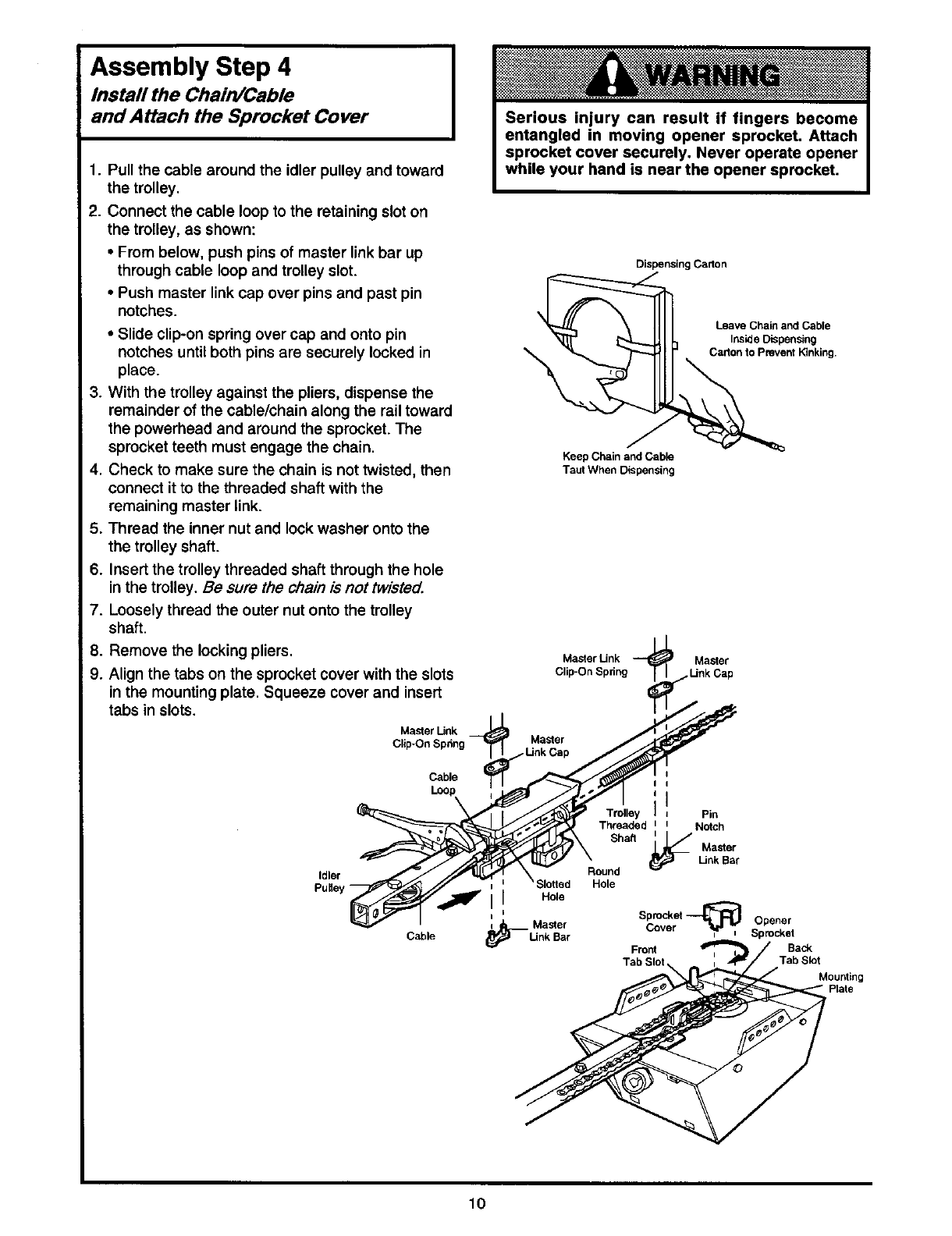

Installchain/cable & attach the sprocket cover......10

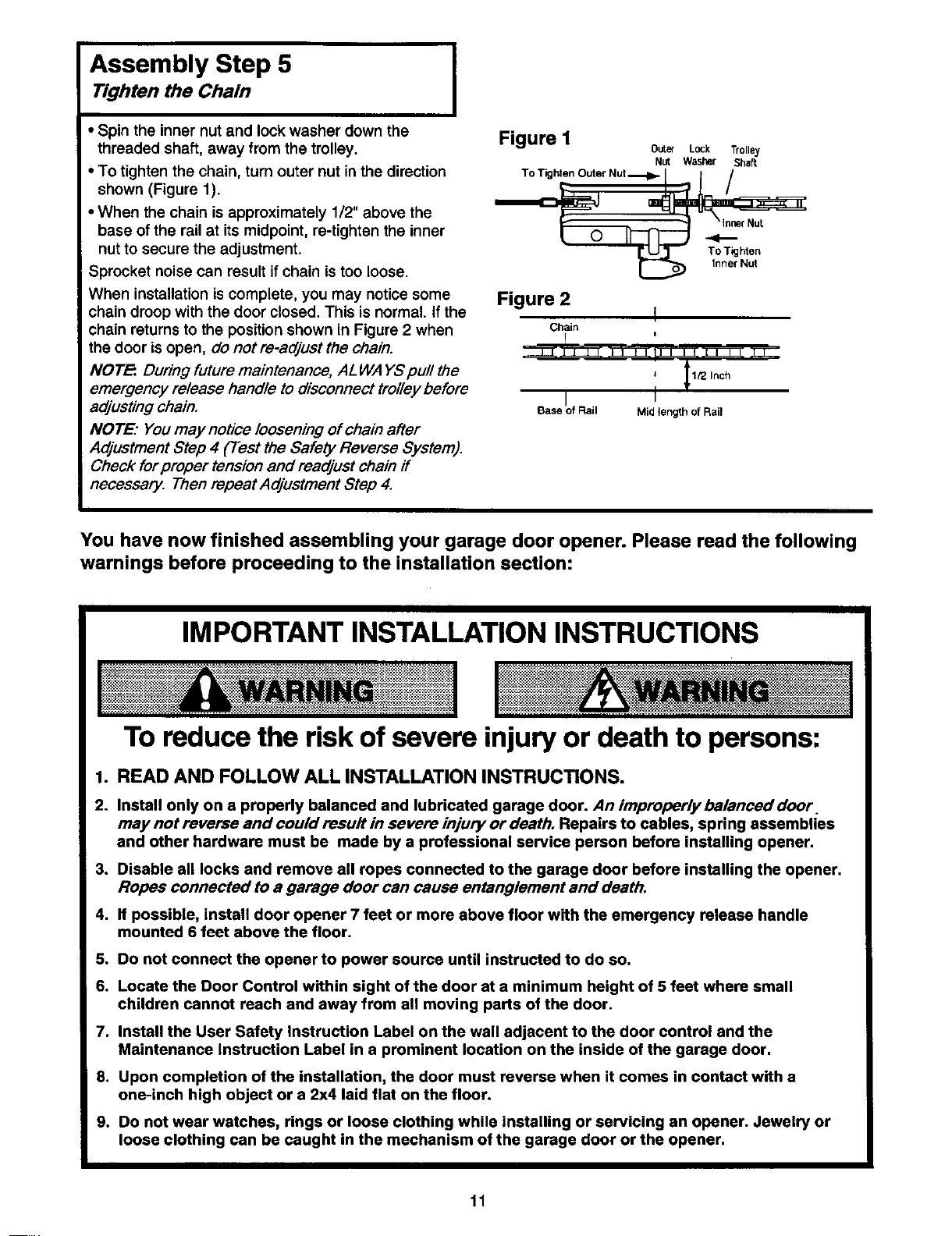

Tighten the chain .................................................... 11

Installation section -pages 11 - 27

Installationsafety instructions................................. 11

Determine header bracket location

Sectional door ....................................................... 12

One-piece door ..................................................... 13

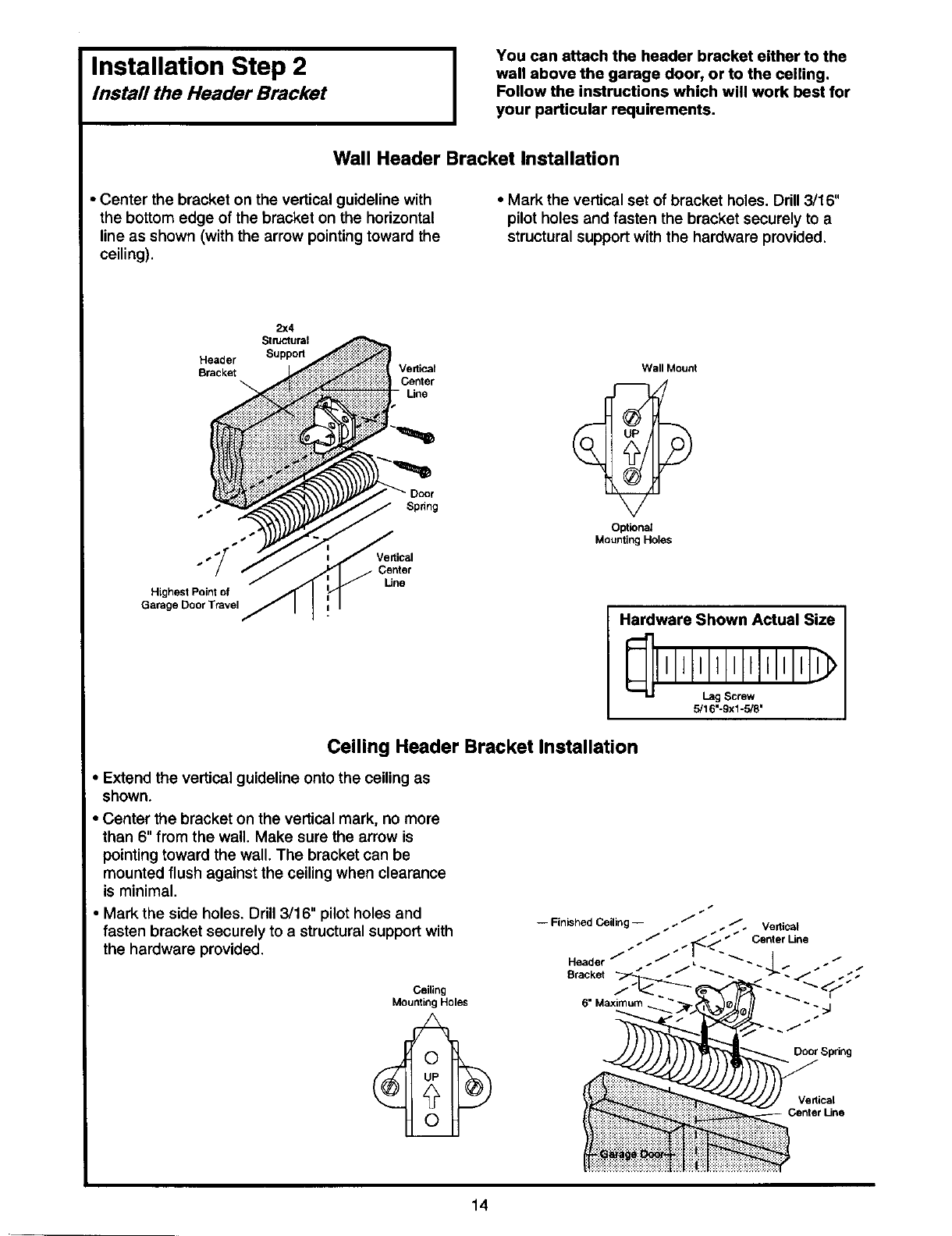

Installthe header bracket ....................................... 14

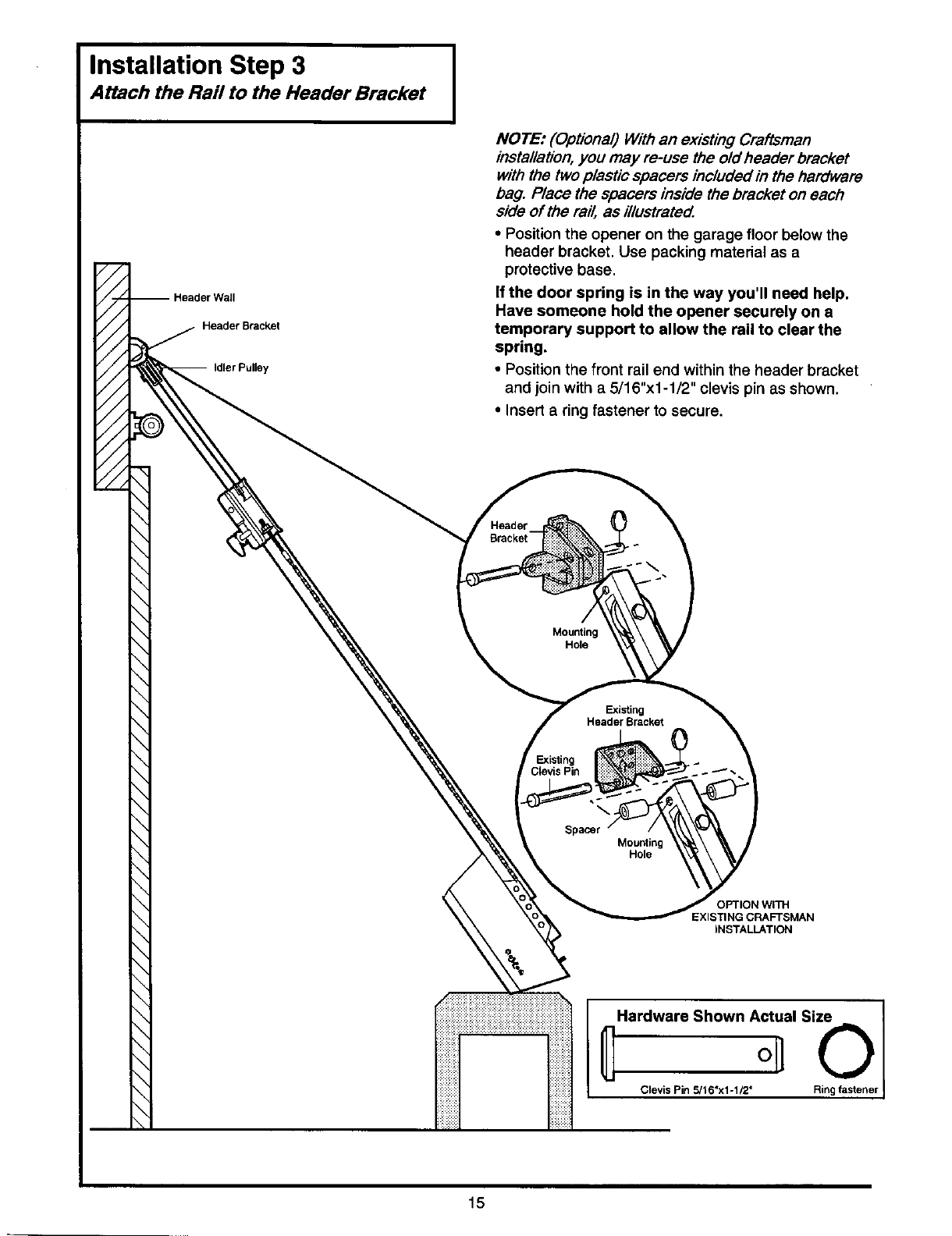

Attach the rail to header bracket ............................ 15

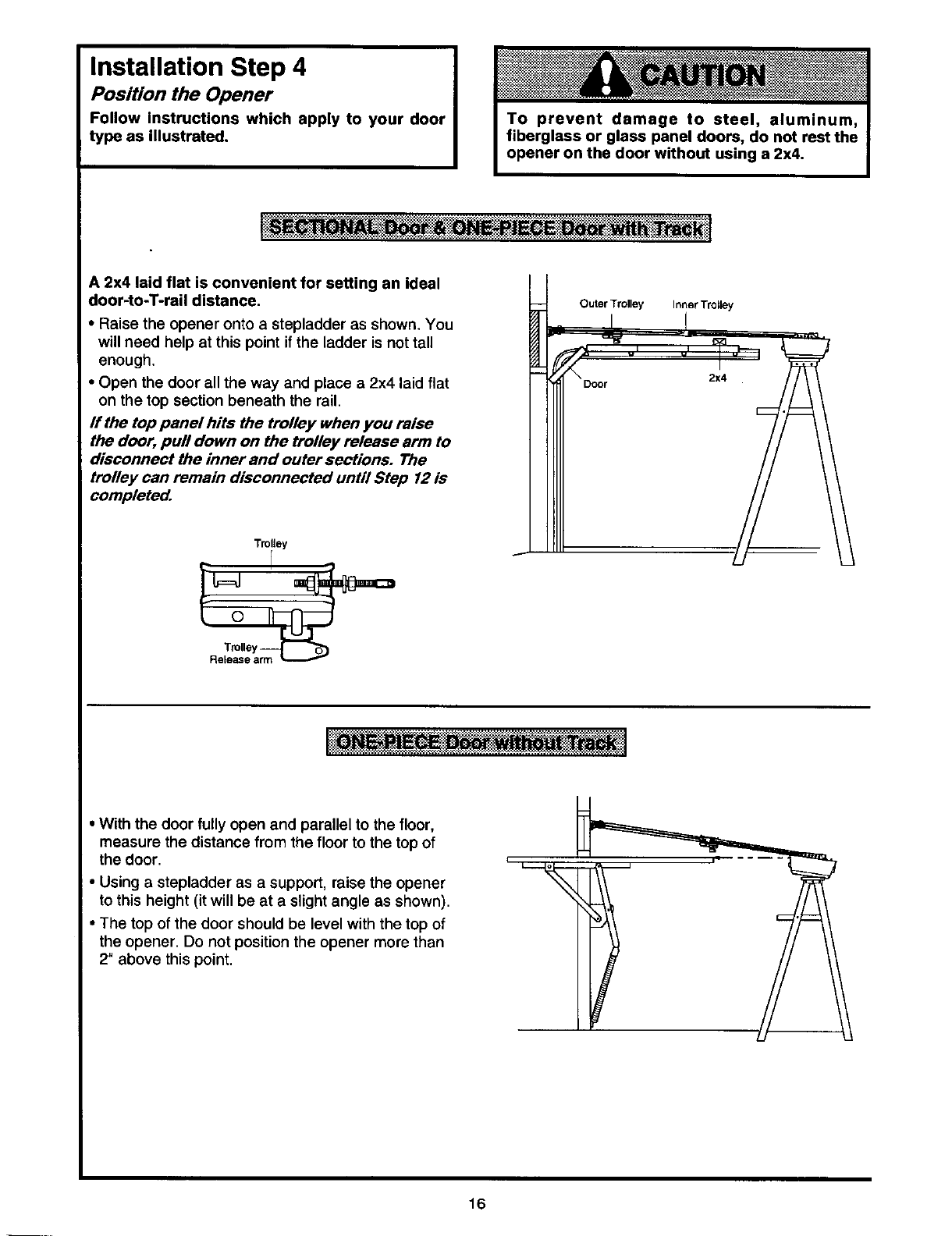

Positionthe opener ................................................. 16

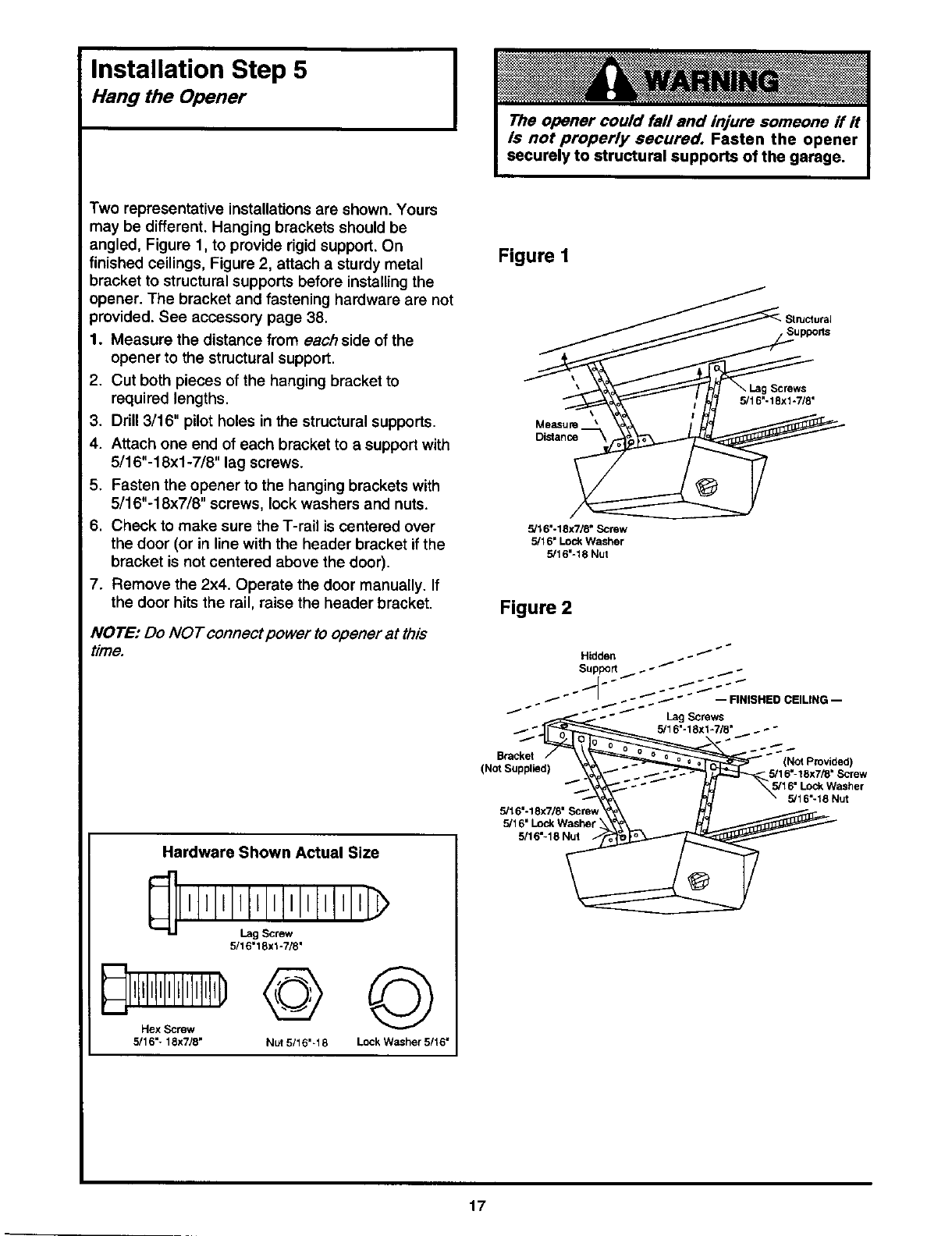

Hang the opener ..................................................... 17

Installthe door control ............................................ 18

Contents Page

Installthe lightand lens ................................................. 19

Attach emergency release rope and handle................. 19

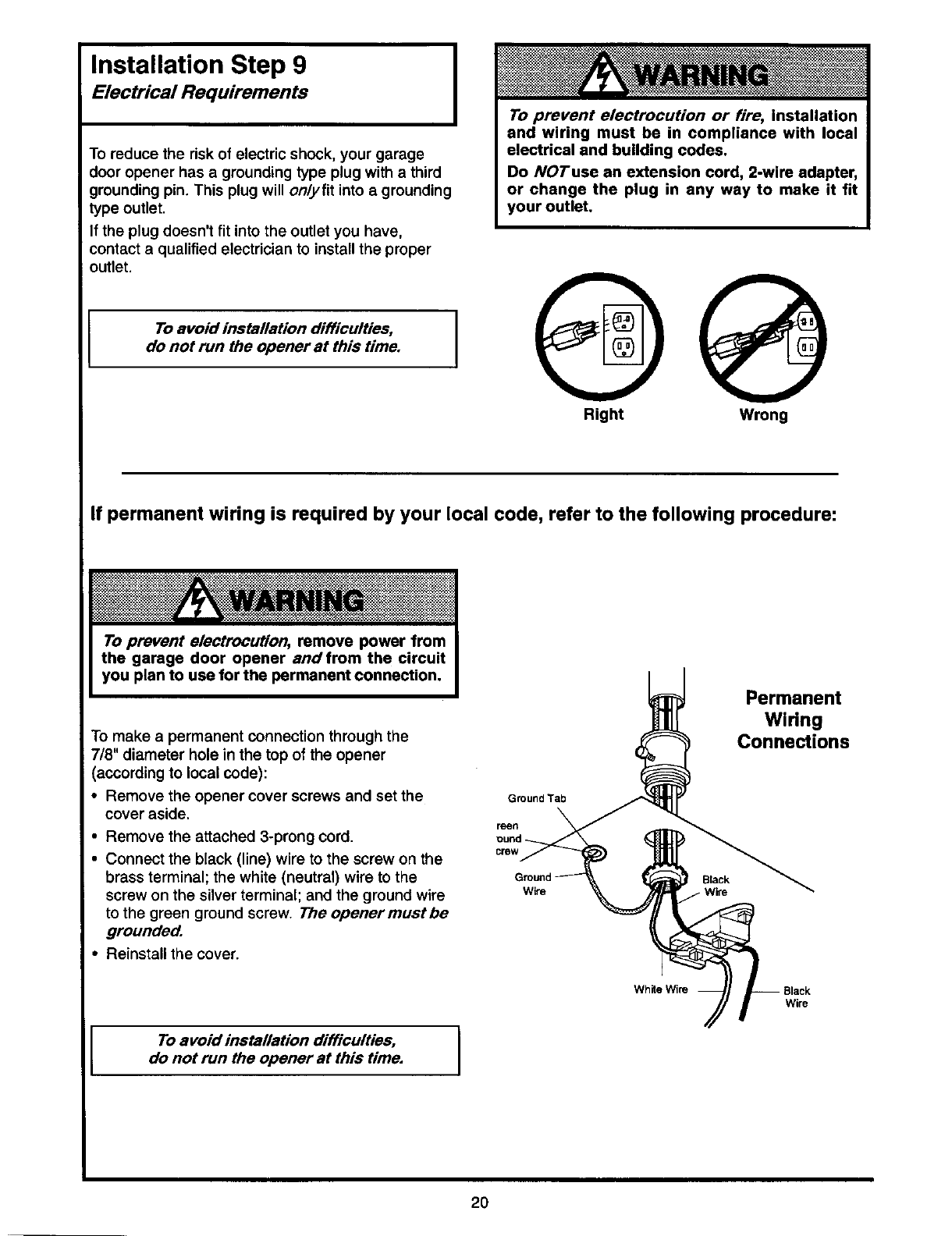

Electrical requiramemts ................................................. 20

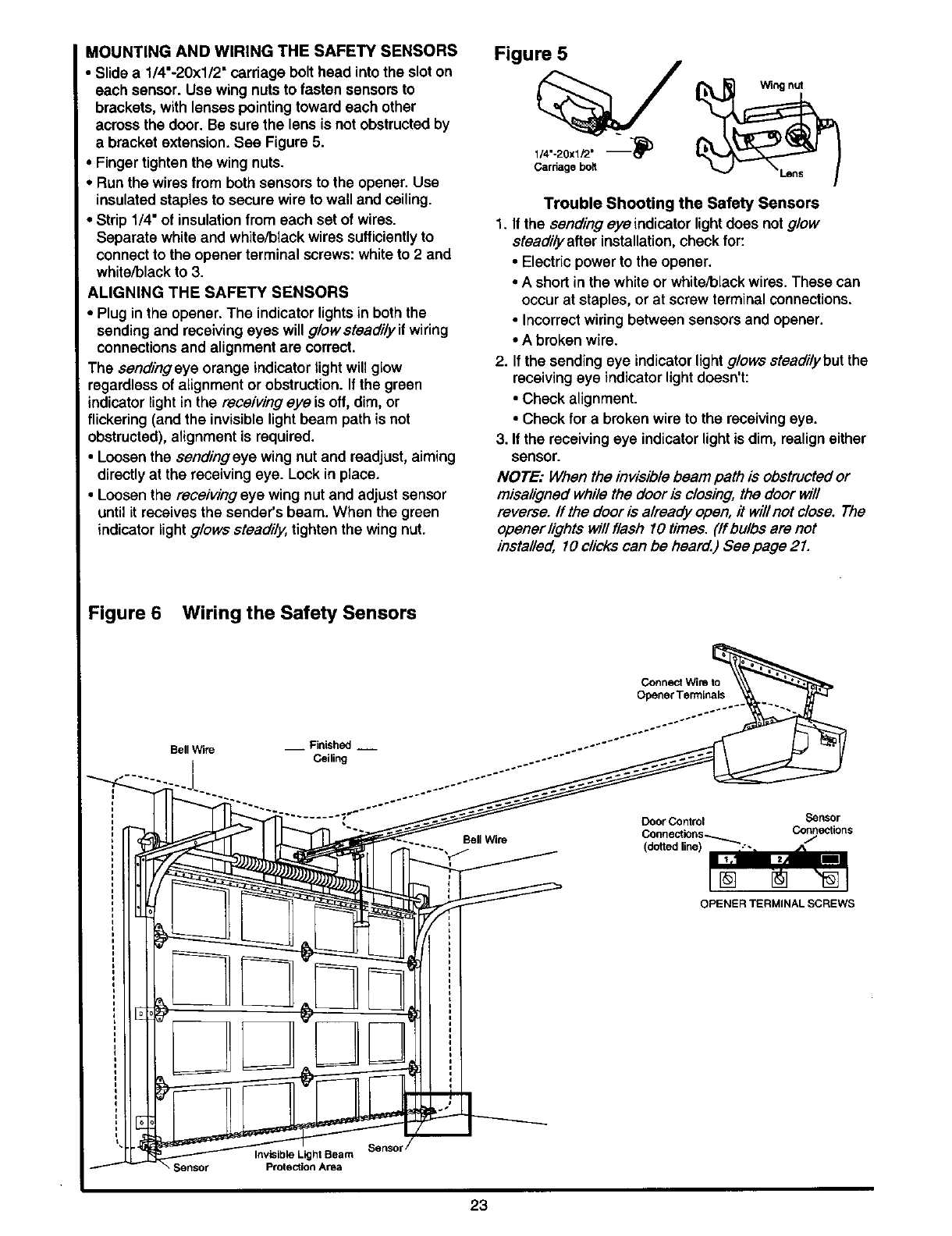

Safety reversing sensor information.............................. 21

Installthe safety reversing sensor........................... 22, 23

Fasten door bracket (sectional door) ............................ 24

Fasten door bracket (one-piece door)........................... 25

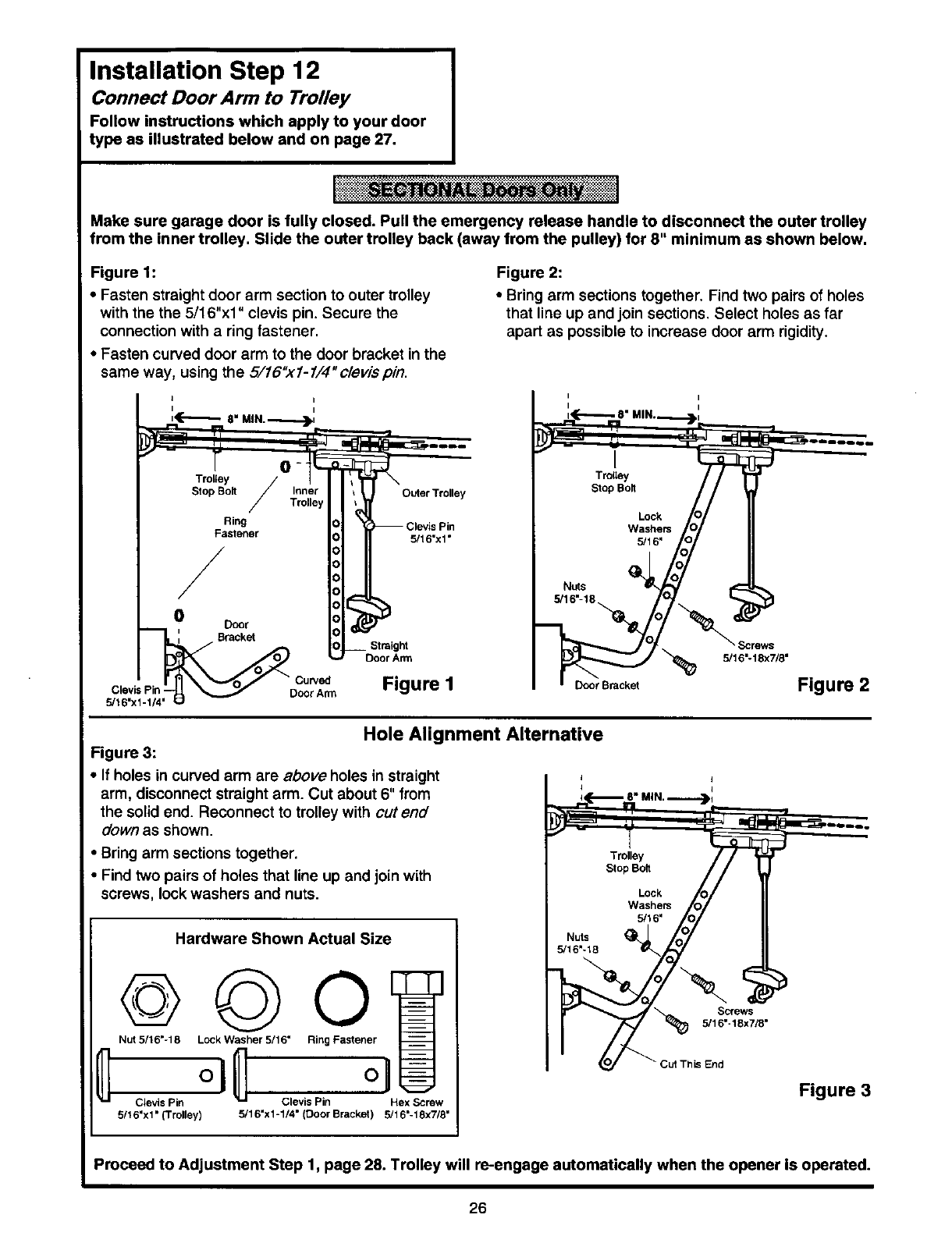

Connect door arm to trolley (sectional door)................. 26

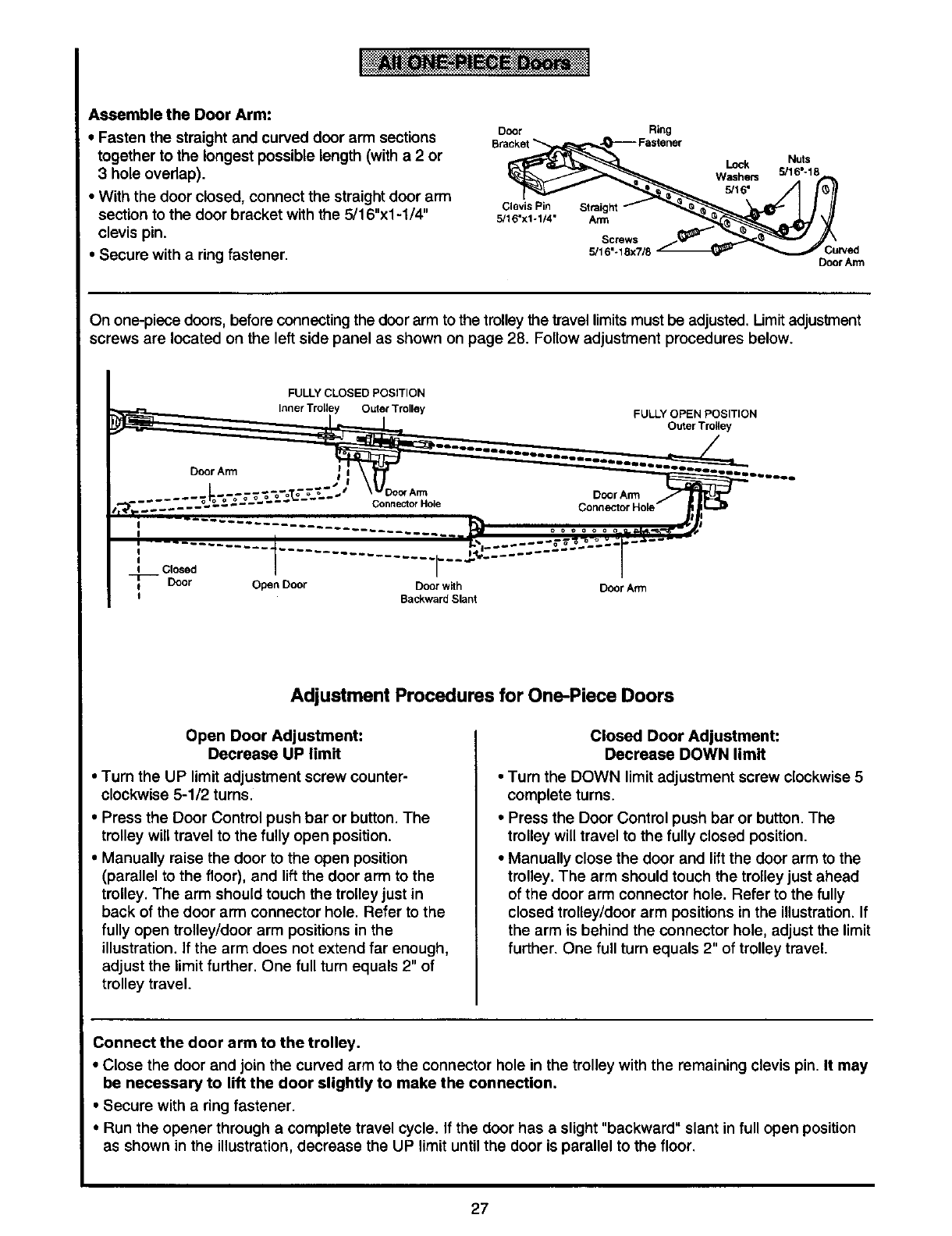

Connect door arm to trolley (one-piece door) ...............27

Adjustment section - pages 28 - 30

Travel limit adjustments................................................. 28

Force adjustments......................................................... 29

Test the safety reversing sensor ................................... 30

Test the safety reverse system .................................... 30

Operation safety instructions........................................... 31

Care of your opener......................................................... 31

Maintenance schedule .................................................... 31

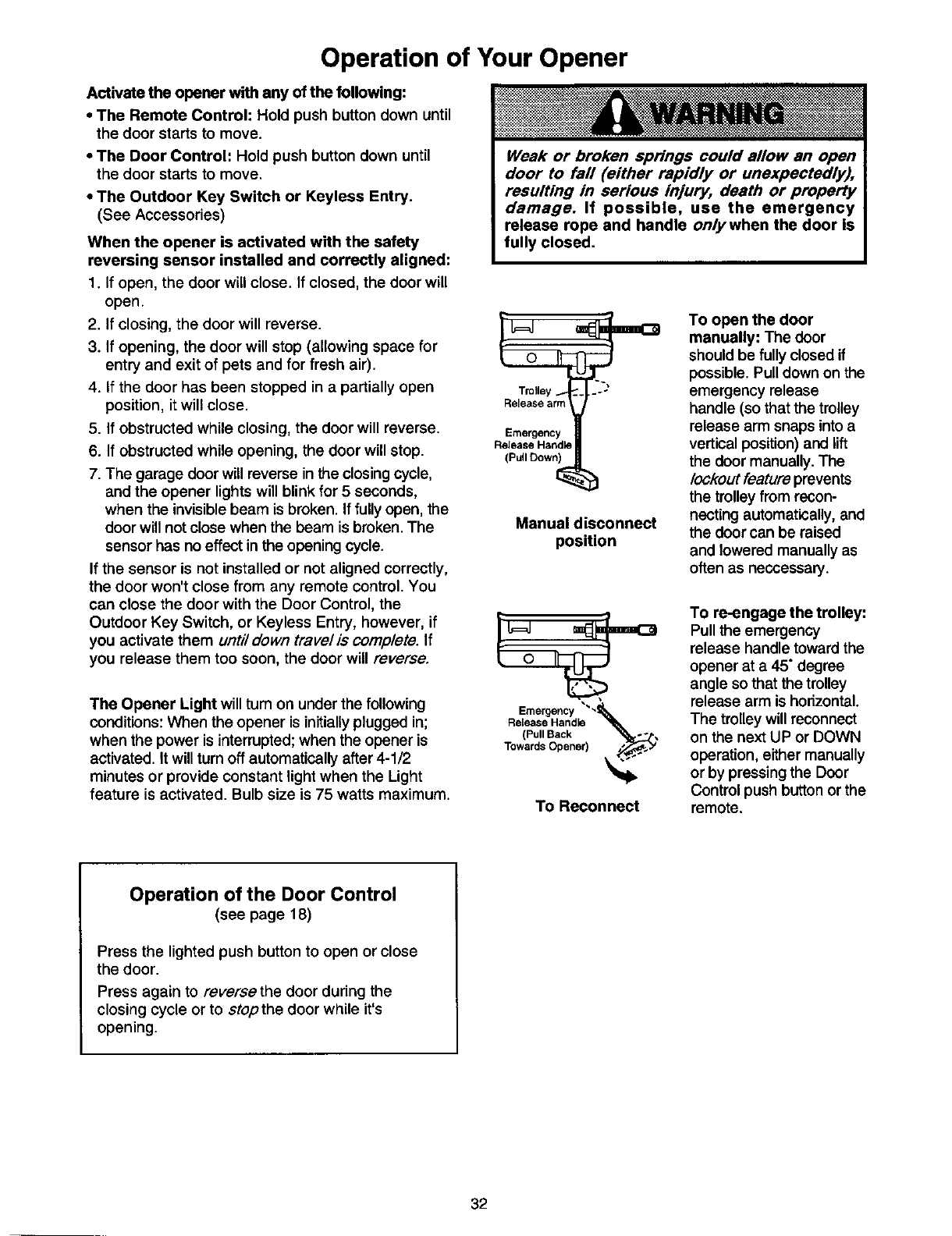

Operation of your opener ................................................ 32

Receiver and remote control programming .................... 33

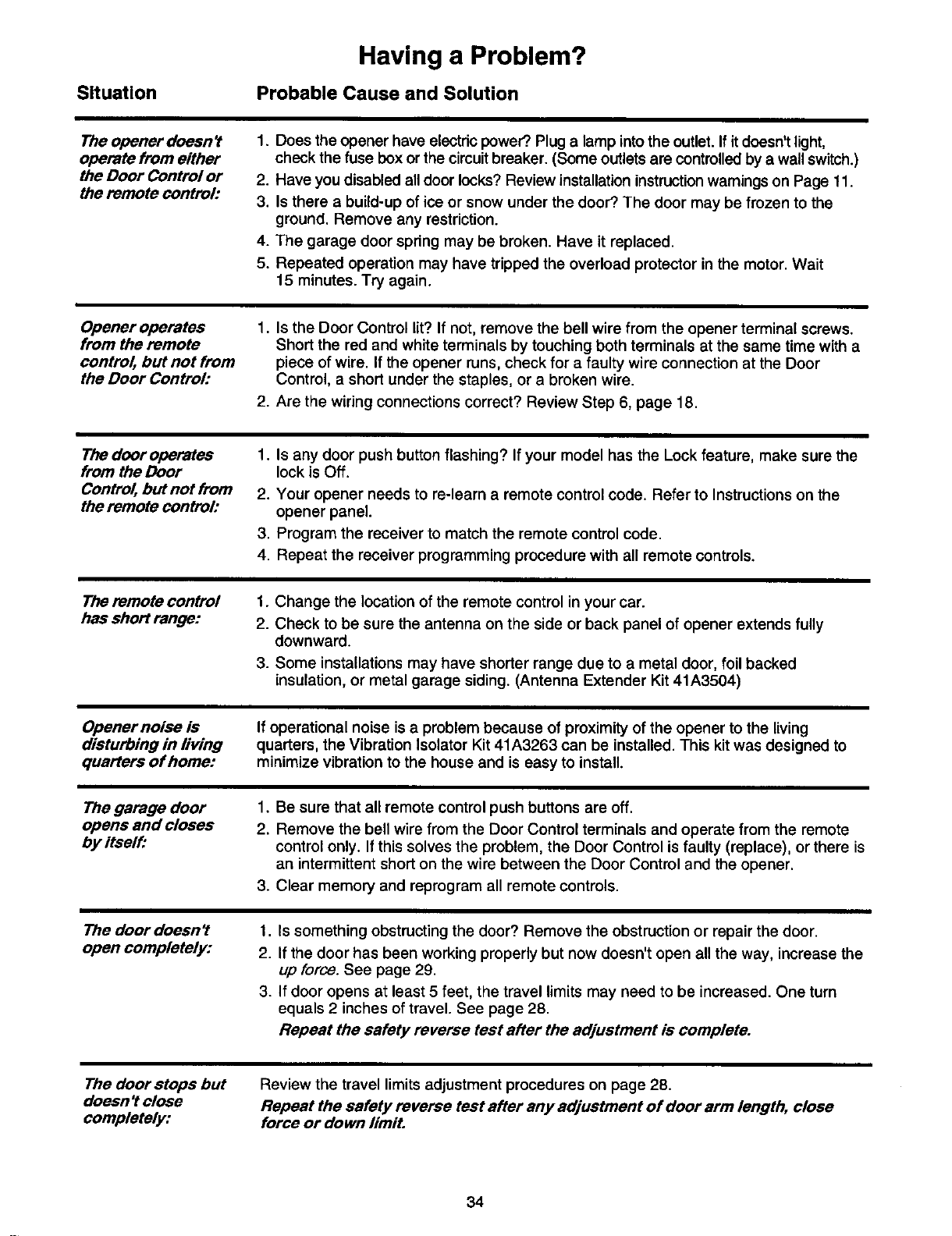

Having a problem? .................................................... 34, 35

Repair parts, rail assembly .............................................. 36

Repair parts, installation.................................................. 36

Repair parts, opener assembly ....................................... 37

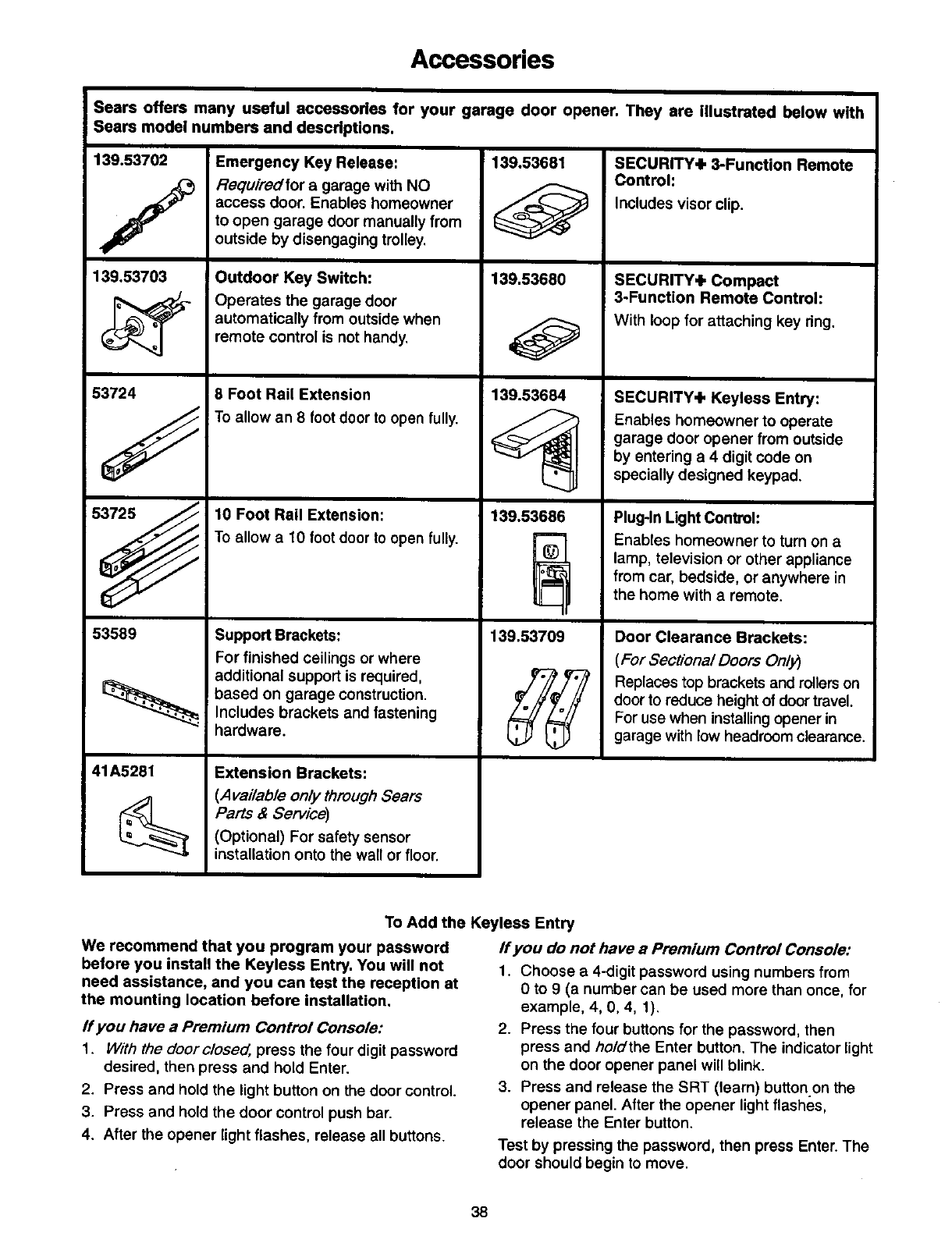

Accessories...................................................................... 38

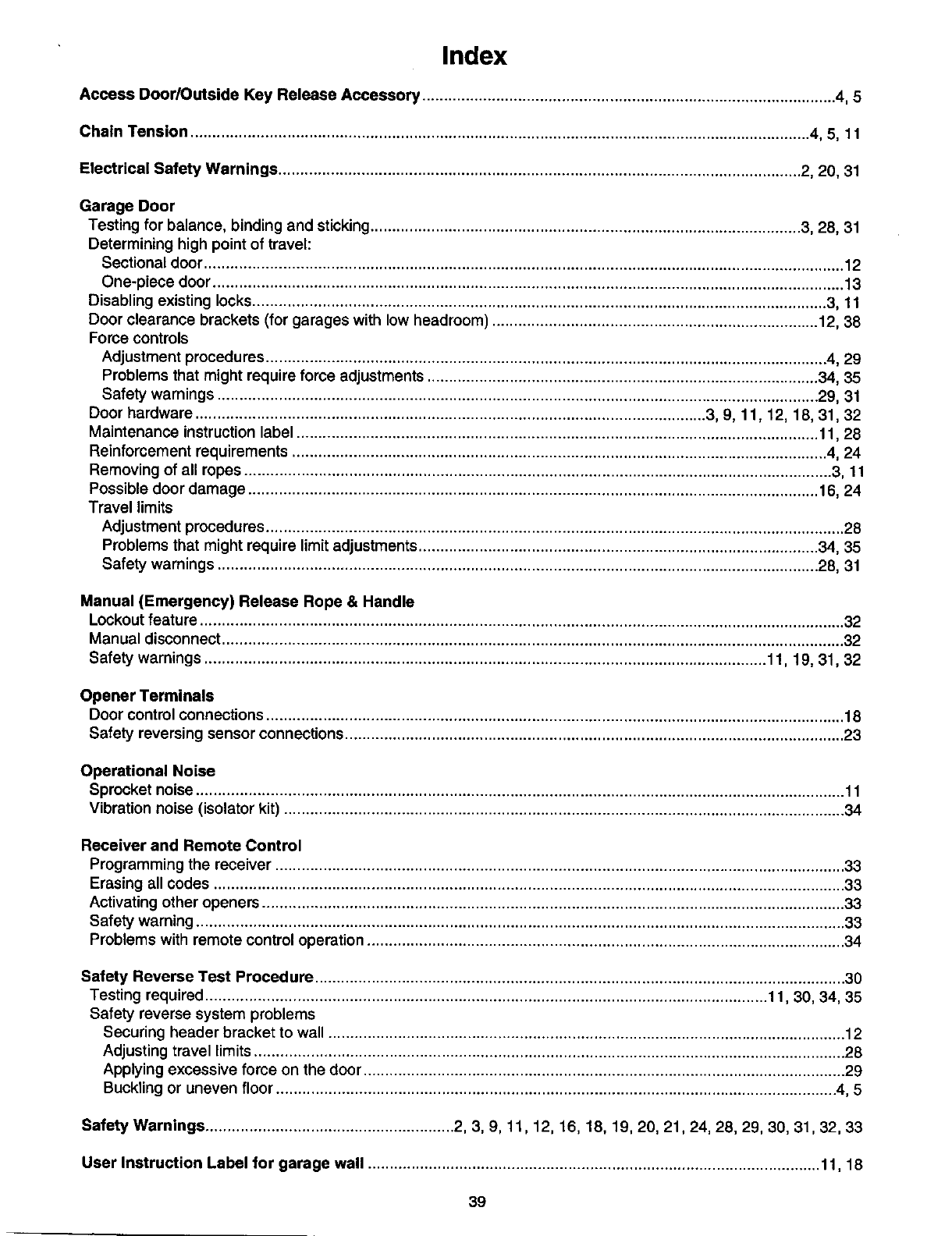

Index ................................................................................ 39

How to order repair parts................................................. 40

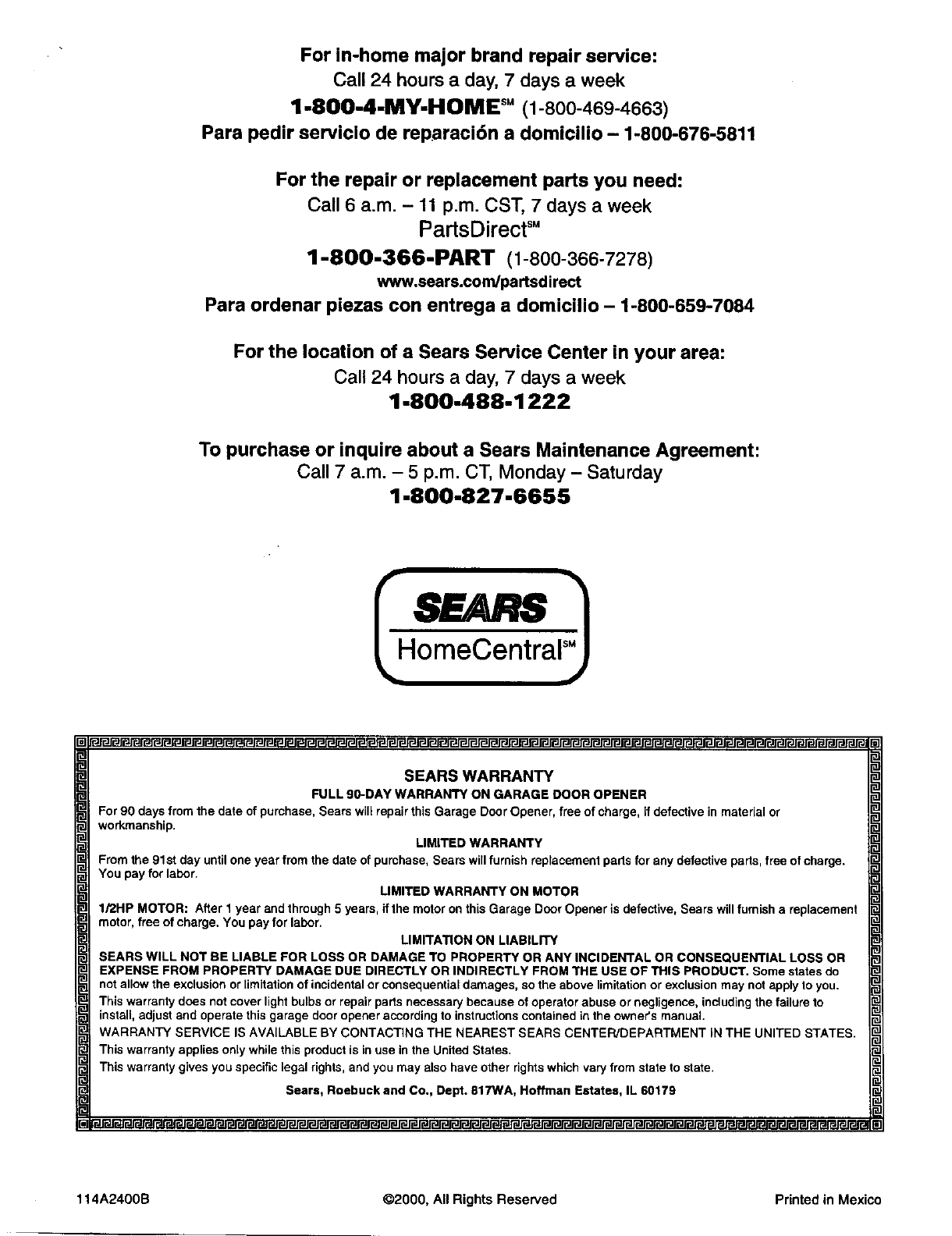

Warranty .......................................................................... 40

Start by reviewing these important safety alert symbols

Mechanical Electrical

When you see this Safety Symbol on the following pages, it will alert you to the possibility of damage

to your garage door and/or the garage door opener if you do not comply with the corresponding

instructions. Read the instructions carefully.

This garage door opener is designed and tested to offer safe service provided it is installed, operated,

maintained and tested in strict accordance with the safety instructions contained in this manual.

You'll Need Tools

During assembly, installation and adjustment of the opener, instructions will call for hand tools shown below.

Stepladder _ckets _ Adjustable End Wrench

An unbalanced garage door might not reverse

when required and someone under the door

could be seriously injured or killed.

If your garage door binds, sticks or is out of

balance, call for professional garage door

service. Garage doors, door springs, cables,

pulleys, brackets and their hardware are under

extreme tension and can cause serious Injury

or death. Do not try to loosen, move or adjust

them youreelfl

Ropes left on a garage door could cause

someone to become entangled and killed.

Remove all ropes connected to the door before

installing and operating the opener.

Identify the type and height of your door and any

special conditions that exist and any additional

materials that may be required by referring to the

lists on page 4 or page 5.

To avoid damage to the garage door and

opener, disable locks before installing and

operating the opener. Use a wood screw or nail

to hold looks in the "open" (unlocked) position.

Operation at other than 120V 60 Hz will cause

opener malfunction and damage.

Before you begin, complete the following test to

make sure your door is balanced, and is not

sticking or binding:

•Liftthe door about halfway as shown. Release the

door. It should stay in place, supported entirely by

its springs.

•Raise and lower the door to see if there is any

binding or sticking.

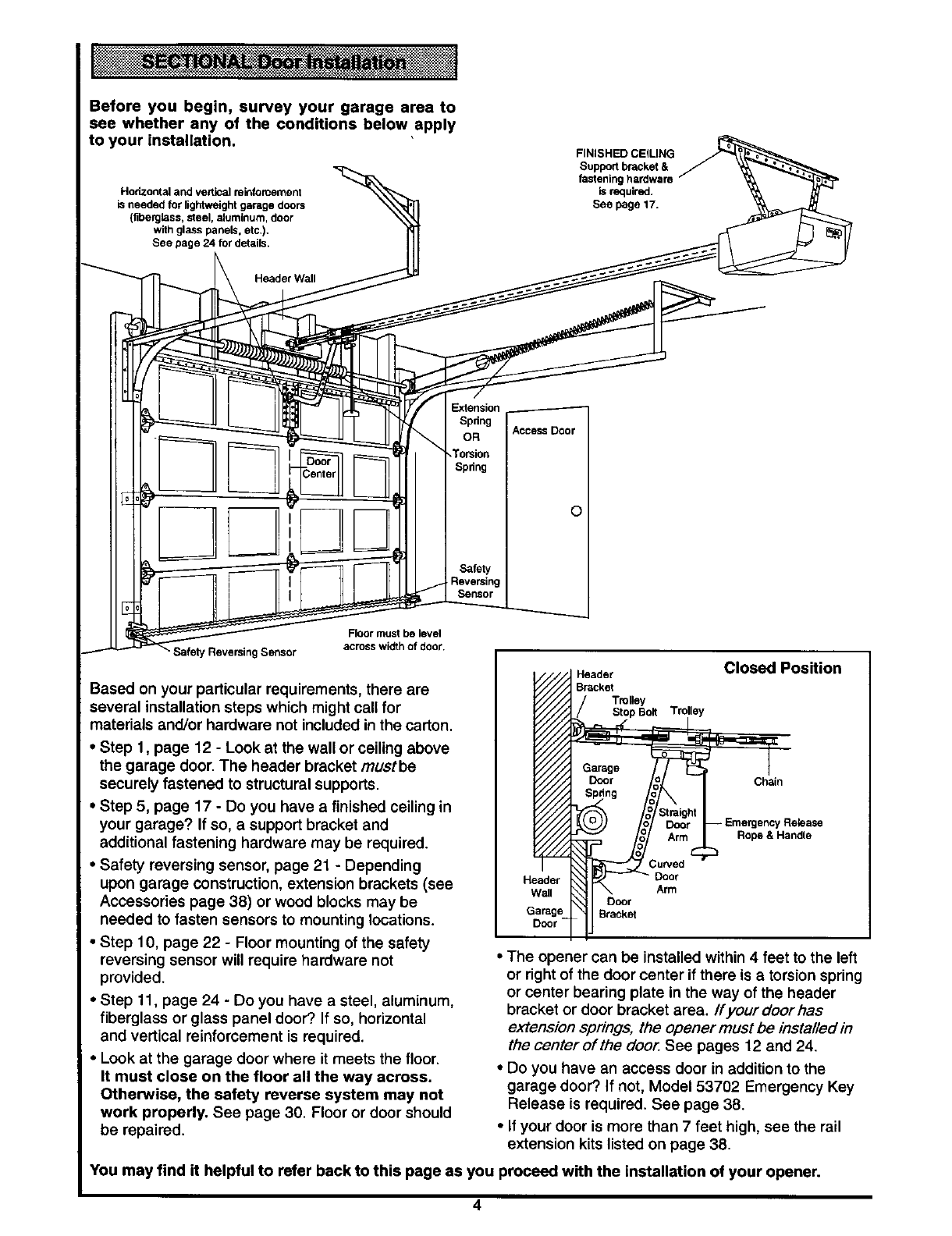

ONE-PIECE DOOR

Before you begin, survey your garage area to

see whether any of the conditions below apply

to your installation.

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door

with glass panels, etc.).

See page 24 for details,

Header Wall

FINISHED CEILING

Support bracket &

fastening hardware

is required.

See page 17.

Extension

Spdng Access Door

Spdng

safety

Reversing

Ser_sor

Floor must be level

Sensor across width of door,

Based on your particular requirements, there are

several installation steps which might call for

materials and/or hardware not included in the carton.

•Step 1, page 12 - Look at the wall or ceiling above

the garage door. The header bracket mustbe

securely fastened to structural supports.

• Step 5, page 17 - Do you have a finished ceiling in

your garage? If so, a support bracket and

additional fastening hardware may be required.

• Safety reversing sensor, page 21 - Depending

upon garage construction, extension brackets (see

Accessories page 38) or wood blocks may be

needed to fasten sensors to mounting locations.

• Step 10, page 22 - Floor mounting of the safety

reversing sensor will require hardware not

provided.

• Step 11, page 24 - Do you have a steel, aluminum,

fiberglass or glass panel door? If so, horizontal

and vertical reinforcement is required.

• Look at the garage door where it meets the floor.

It must close on the floor all the way across.

Otherwise, the safety reverse system may not

work properly. See page 30, Floor or door should

be repaired.

Header

Wall

Garage

Door -

Header Closed Position

Bracket

/Trolley

Stop Bolt Trolley

_u_r J_ Enl_'l_YRed_ ase

J- _Door

\Arm

Door

Bracket

•The opener can be installed within 4 feet to the left

or right of the door center if there is a torsion spring

or center bearing plate in the way of the header

bracket or door bracket area. If your door has

extension springs, the opener must be installed in

the center of the door. See pages 12 and 24.

• Do you have an access door in addition to the

garage doo_ If not, Model 53702 Emergency Key

Release is required. See page 38.

• If your door is more than 7 feet high, see the rail

extension kits listed on page 38.

You may find it helpful to refer back to this page as you proceed with the installation of your opener.

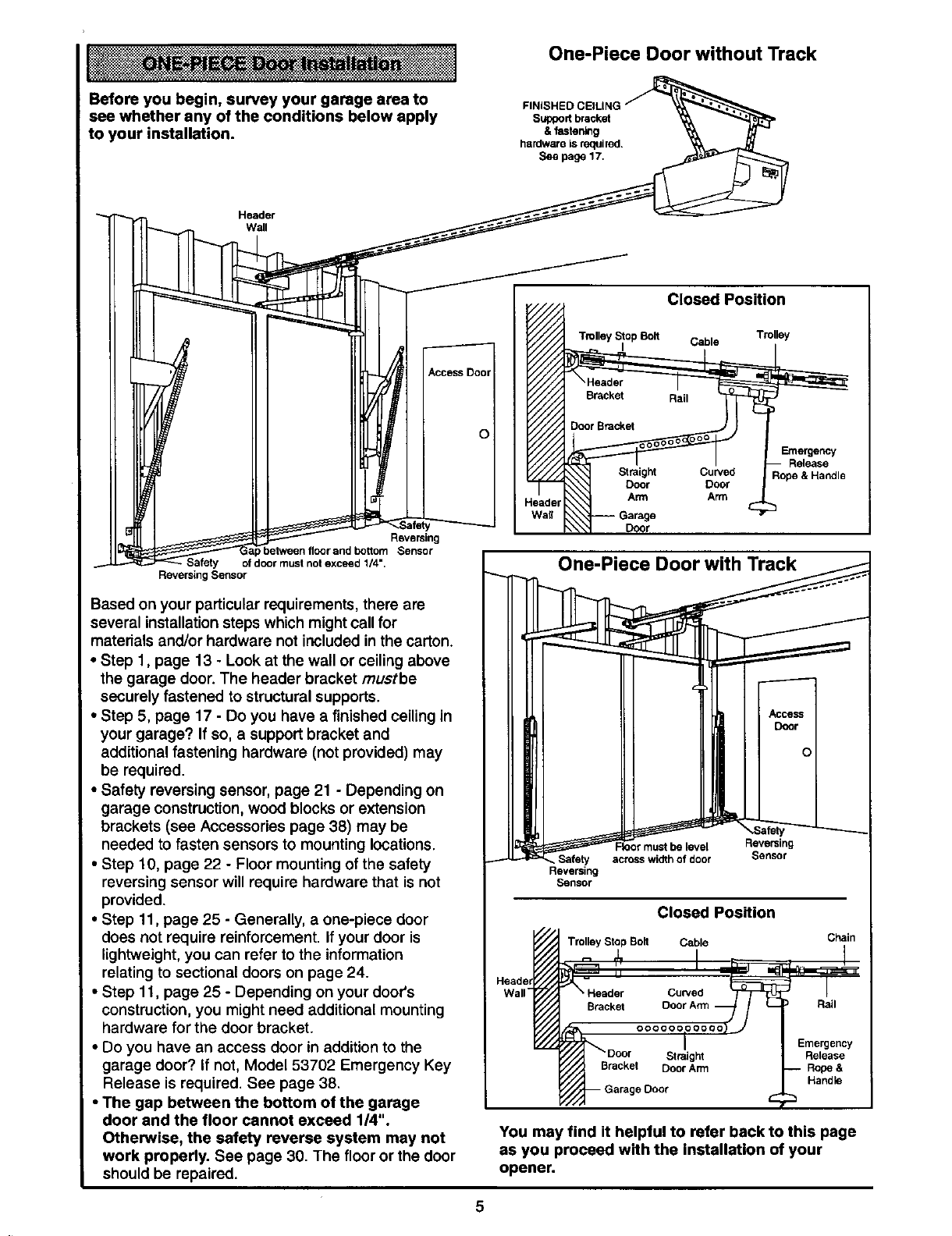

One-Piece Door without Track

Before you begin, survey your garage area to FINISHED CEILING

see whether any of the conditions below apply supportbracket "_

to your installation. &fastening _'_ _

h_rdware is required.

See page 17.

Header

Wall

_ _ _Trolley Stop Bolt Cable Trolley

EmergenCy

Release

Rope & Handle

leader

Reversinc

ap between floor and bottom Sensor" -----

Safety of door must not exceed 1/4". One-Piece Door with Track

Reversing Sensor

Based on your particular requirements, there are

several installation steps which might call for

materials and/or hardware not included in the carton.

•Step 1, page 13 - Look at the wall or ceiling above

the garage door. The header bracket mustbe

securely fastened to structural supports.

•Step 5, page 17 - Do you have a finished ceiling in

your garage? If so, a support bracket and

additional fastening hardware (not provided) may

be required.

•Safety reversing sensor, page 21 - Depending on

garage construction, wood blocks or extension

brackets (see Accessories page 38) may be

needed to fasten sensors to mounting locations.

•Step 10, page 22 - Floor mounting of the safety

reversing sensor will require hardware that is not

provided.

•Step 11, page 25 - Generally, a one-piece door

does not require reinforcement. If your door is

lightweight, you can refer to the information

relating to sectional doors on page 24.

•Step 11, page 25 - Depending on your door's

construction, you might need additional mounting

hardware for the door bracket.

• Do you have an access door in addition to the

garage door? If not, Model 53702 Emergency Key

Release is required. See page 38.

•The gap between the bottom of the garage

door and the floor cannot exceed 1/4%

Otherwise, the safety reverse system may not

work properly. See page 30. The floor or the door

should be repaired.

;afety

Reversing

.. Safety across width of door Sensor

Reversing

Sensor

Closed Position

/JJ/_ Trolley Stop Bolt Cable

Wall" _ _ Header

i_; B_cket

_BG oor Straight

Bracket Door Arm

arage Door _-

Chain

Rail

Emergency

Release

-- Rope &

Handle

You may find it helpful to refer back to this page

as you proceed with the installation of your

opener.

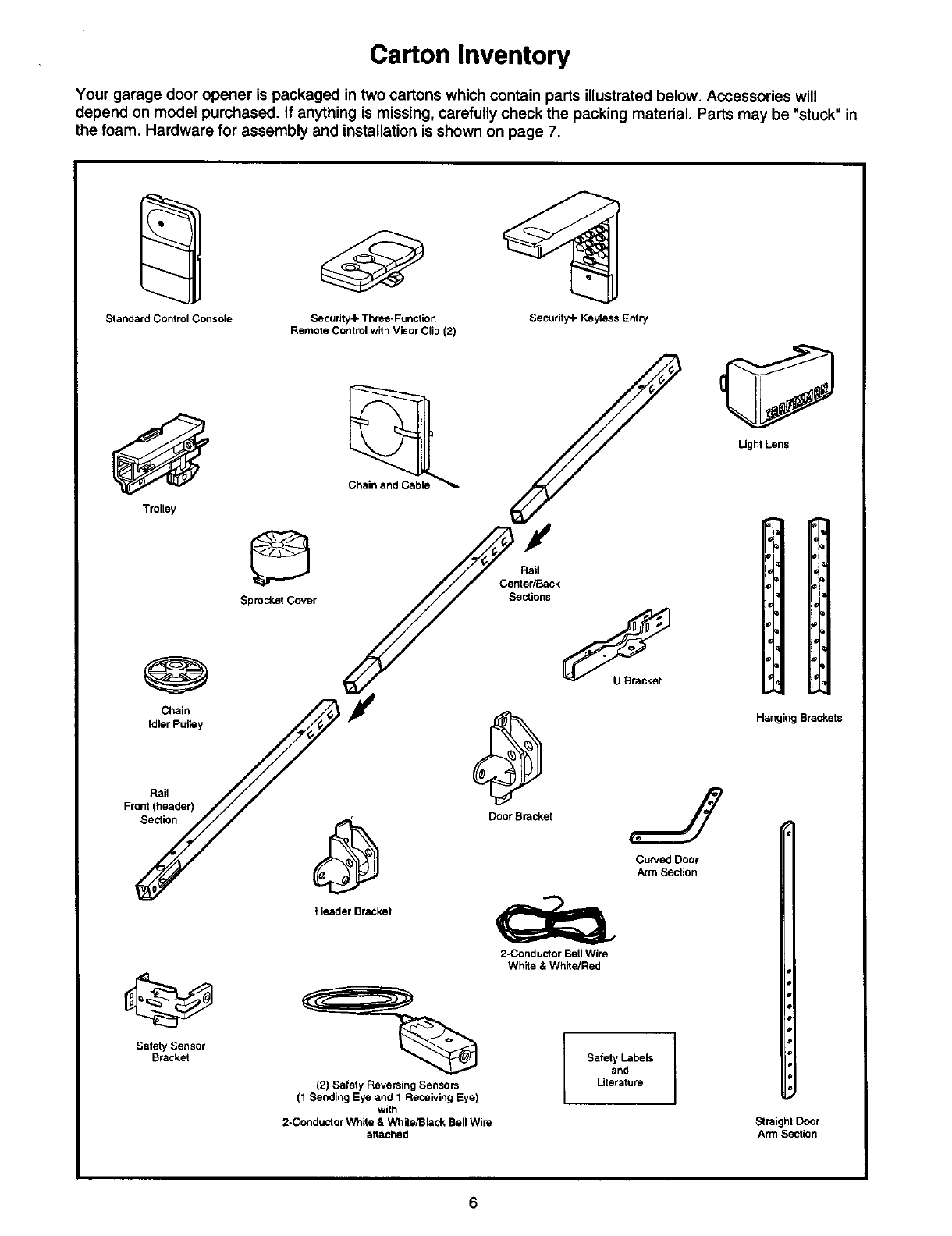

Carton Inventory

Your garage door opener is packaged in two cartons which contain parts illustrated below. Accessories will

depend on model purchased, if anything is missing, carefully check the packing material. Parts may be "stuck" in

the foam. Hardware for assembly and installation is shown on page 7.

Standard Control Console

Troney

Chain

Idler Pulley

Rail

Front (header)

Section

Safety Sensor

Bracket

Sprocket Cover

Security-I- Three-Function

Remote Control with Visor Clip (2)

Security+ Keyless Entry

Rail

Center/Back

Sections

Header Bracket

Door Bracket

2-Conductor Bell Wire

White & White/Red

(2) Safety Reversing Sensors

(1 Sending Eye and 1Receiving Eye)

with

2-Conductor White & White/Black Bell Wire

attached

SafetyandLabels ]

Uterature

Curved Door

Arm Section

Ught Lens

Hanging Brackets

Straight Door

Arm Section

Separate all hardware from the packages in the rail carton and the opener carton, as

shown below, for the assembly and installation procedures.

ASSEMBLY@ © @

Lock Nut Lock Washer Nut

1/4"-20 (2) 3/8' (1) 3/8" (1)

Bolt 1/4"-20 x 1-5/4" (2)

Chain Spreader (2)

TroUey Threaded Shaft (1)

Master

Link(2)

Idler Bolt (1)

INSTALLATION

D,,,L,H,H,I,,,,,D© © 0

Hex Screw Spacer (2) Nut Lock Washer Ring

5/16'-18x7/8" (4) 5/16"-18 (8) 5/16" (7) Fastener (3)

_] Illl II !!!rl!l I]ll II I1_ Screw ]"HlJ::]:''"'"I

5/16"-18xl-7/8" (2) 6ABx1-1/4 ° (2) 6-32x1" (2) Anchors (2)

oj om

Clevis Pin CleVis Pin Clevis Pin Insulated

5/16"x1-1/2" (1) 5/16"xl" (1) 5/16"x1-1/4" (1) Staples (10)

SAFETY REVERSING SENSOR

Carriage Bolt Insulated

1/4"-20xl/2" (2) Wing Nut (2) Staples (20)

Assembly Section: Pages 8 - 11

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

Assembly Step I I

Assemble the Rail & Install the Trolley I

The front rail has a cut out "window"at the door end

(see illustration). The hole above this window is

larger on the top of the rail than on the bottom. A

smaller hole 3-1/2" away is close to the rail edge.

The back rail has a similar hole close to the edge,

about 4-3/4" from the far end. A 3-piece rail uses

two back rails.

Preferred assembly is to position the rails right

side up, with the small holes along the same

edge.

1. Remove the straight door arm and clevis pin

packaged inside the front rail and set aside for

Installation Step 12.

2. Align the rail sections on a fiat surface exactly as

shown and slide the tapered ends into the larger

ones. Tabs along the side will lock into place.

3. Place the powerhead on packing material to

protect the cover, and rest the back end of the rail

on top. For convenience, put asupport under the

front end of the rail.

4. As a temporary trolley stop, clamp a locking pliers

onto the rail, 8" from the center of the idler pulley

hole, as shown.

5. Check to be sure there are 4 black plastic wear

pads inside the inner trolley. If they became loose

during shipping, check all packing material. Snap

them back into position as shown.

6. Connect the inner and outer trolleys as shown.

7. Slide the trolley assembly along the rail from the

back end to the locked pliers.

Trolley __

End

Back Rails

(TO POWERHEAD)

End

8" Distar_e from

Idler Pulley Hole

Locking Pliers

IdJer

Hole

Window

Cut-Out FrontRail

(TO DOOR)

Inner Trolley

- Wear Pads

Outer 1

Assembly Step 2 I

Fasten the Rail to the Opener I

•Insert a 1/4"-20xl -3/4 bolt into the cover

protection bolt hole on the back end of the rail as

shown. Tighten securely with a 1/4"-20 lock nut.

•Remove the two screws from the top of the

opener.

•Place the U bracket, flat side down, on the opener

and align the bracket holes with the screw holes.

Fasten with the previously removed screws.

•Attach spreaders to the U bracket by snapping

them into place.

•Align the rail assembly with the top of the opener.

Slide the rail end onto the U-bracket, all the way

to the stops that protrude on the top and sides of

the bracket.

To fasten rail, use only those screws mounted

in the top of the opener. Any other screws will

cause serious damage to the opener.

Screws •Opener

Sprocket

"U" Bracket

Cover

So_ Ho_

Hardware Shown Actual Size

Bolt 1/4"-20 x 1-3/4 1/4"-20

SLIDE RAILTO STOP_

ON TOP AND SIDES

OF BRACKET

Lock Nut

into Back Slets.

then Snap Tab

Into Front Slot

Assembly Step 3

Install the Idler Pulley

•Lay the chain/cable beside the rail, as shown.

Grasp the end with the cable loop and pass

approximately 12" of cable through the window.

Allow it to hang until Assembly Step 5.

•Remove the tape from the idler pulley. The inside

center should be pre-greased. If dry, regrease to

ensure proper operation.

•Place the idler pulley into the window as shown.

•Insert the idler bolt from the top through the rail

and pulley. Tighten with a 3/8" lock washer and

nut underneath the rail until the lock washer is

compressed.

Rotate the pulley to be sure it spins freely.

Insert a 1/4"-20xl-3/4 bolt into the trolley stop

hole in the front of the rail as shown. Tighten

securely with a 1/4"-20 lock nut.

Chain and

Cabte

rease

Inside Pulley

Idler

Pulley

Trolley

Stop Hole '

Idler Pulley

Hardware Shown Actual Size _

Idler Bolt Bolt 1/4'-20 x1-3/4 Lock Nut 1/4"-20 Nut 3/8' Lock Washer 318"

Assembly Step 4

Install the Chain/Cable

and Attach the Sprocket Cover

1. Pull the cable around the idler pulley and toward

the trolley.

2. Connect the cable loop to the retaining slot on

the trolley, as shown:

•From below, push pins of master link bar up

through cable loop and trolley slot.

• Push master link cap over pins and past pin

notches.

•Slide clip-on spring over cap and onto pin

notches until both pins are securely locked in

place.

3. With the trolley against the pliers, dispense the

remainder of the cable/chain along the rail toward

the powerhead and around the sprocket. The

sprocket teeth must engage the chain.

4. Check to make sure the chain is not twisted, then

connect it to the threaded shaft with the

remaining master link.

5. Thread the inner nut and lock washer onto the

the trolley shaft.

6. Insert the trolley threaded shaft through the hole

in the trolley. Be sure the chain is not twisted.

7. Loosely thread the outer nut onto the trolley

shaft.

8. Remove the locking pliers.

9. Align the tabs on the sprocket cover with the slots

in the mounting plate. Squeeze cover and insert

tabs in slots.

Master Unk

Cable

Idler

Cable

Dispensing Carton

Leave Chainand Cable

Inside D_spensing

Carton to PreventKinking.

Keep Chain and Cable

Taut When Dispensing

Master Link Master

Clip-OnSpdng .Unk Cap

Master

.-Unk Cap

lotted

I Hole

i I

qMaster

i_Unk Bar

Trolley Pin

Threaded Notch

Shaft _Master

Unk Bar

Round

Hole

Sprocket _ Opener

Cover Sprocket

Front Back

Tab Slot Tab Slot

Mounting

Assembly Step 5

Tighten the Chain I

•Spin the inner nut and lock washer down the

threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction

shown (Figure 1).

• When the chain is approximately 1/2" above the

base of the rail at its midpoint, re-tighten the inner

nut to secure the adjustment.

Sprocket noise can result if chain is too loose.

When installation is complete, you may notice some

chain droop with the door closed. This is normal. If the

chain returns to the position shown in Figure 2 when

the door is open, do notre-adjust the chain.

NOT_. During future maintenance, AL WA YS pull the

emergency release handle to disconnect trolley before

adjusting chain.

NOTE: You may notice loosening of chain after

Adjustment Step 4 (Test the Safety Reverse System).

Check for proper tension and readjust chain ff

necessary. Then repeat Adjustment Step 4.

Figure I o=_ Lo_ Tro,.y

Nut Washer Shaft

ToT_.,_nOuterNut.--_I ! /

Inner Nut

Figure 2 I

Chain

--..L..L .LLLJ_ J--L_--L L_L_J_ _

i I1/_ Inch

Base o Ra Mid tength of Rail

You have now finished assembling your garage door opener. Please read the following

warnings before proceeding to the installation section:

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS.

2. Install only on a properly balanced and lubricated garage door. An Improperly balanced door

may not reverse and could result in severe injury or death. Repairs to cables, spring assemblies

and other hardware must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener.

Ropes connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the emergency release handle

mounted 6 feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small

children cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the door control and the

Maintenance Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a

one-inch high object or a 2x4 laid flat on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or

loose clothing can be caught in the mechanism of the garage door or the opener,

Installation Section: Pages 12 - 27

Installation Step I

Determine Header Bracket Location

Installation procedures vary according to

garage door types. Follow the instructions

which apply to your door.

__ Header __

Wall

Vedical

Guideline

__ Finished __

Ceiling

If the header bracket Is not rigidly fastened to

a structural support on the header wall or

ceiling, the safety reverse system may not

work properly (see page 30). The door might

not reverse when required, and could cause

serious injury or death.

The garage door springs, cables, pulleys,

brackets and their hardware are under extreme

tension. Do not attempt to loosen, move or

adjust them yourself. Serious personal injury

or death could result. Call for professional

garage door service.

2x4 Structural

Supports

.Vertical

•Close the door and mark the inside

vertical centerline of the garage door

•Extend the line onto the header wall

above the door.

Remember, you can fasten the

header bracket within 2 feet of the

left or right of the door center onlyif

a torsion spring or center bearing

plate is in the way; or you can attach

it to the ceiling (refer to page 14)

when clearance is minimal. (It may

be mounted on the wall upside down

if necessary, to gain approximately

1/2".)

/f you need to install the header bracket

on a2x4 (on wall or ceiling), use lag

screws (not provided) to securely fasten

the 2x4 to structural supports as shown

here and on page 13.

• Open your door to the highest

point of travel as shown. Draw

an intersecting horizontal line

on the header wall 2" above

the high point This height will

provide travel clearance for the

top edge of the door.

Door clearance brackets are

available for sectional doors

when headroom clearance is

less than 2" See accessory

page 38.

Ceiling

I '

Header

_2 wall Track

_'*_High tPoint

of Travel

DOOr

Header

Track

Highest Point

of Travel

Proceed to Step 2, page 14.

Sectional door

with curved track One-piece door

with horizontal track

Read the Safety instructions on page 12. They also apply to doors without tracks.

•Close the door and mark the

inside vertical centerline of

your garage door. Extend the

line onto the header wall

above door.

If headroom clearance is

minimal, you can install the

header bracket on the ceiling.

See page 14.

•If you need to install the

header bracket on a 2x4 (on

wall or ceiling), use lag screws

(not provided) to securely

fasten the 2x4 to structural

supports as shown.

[

Header Wall Vertical

Centerflne 2x4

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

Door l

Jamb

Hardware

Header Wall

JHighest Point

of Travel

Header Highest Point

Wall of Travel

One-piece door without track

jamb hardware

One-piece door without track

pivot hardware

• Open your door to the highest point of travel as

shown. Measure the distance from the top of the

door to the floor. Subtract the actual height of the

door. Add 8" to the remainder. (See Example).

•Close the door and draw an intersecting horizontal

line on the header wall at the determined height.

If the total number of inches exceeds the height

available in your garage, use the maximum

height possible, or refer to page 14 for ceiling

installation.

EXAMPLE

Distance from top of door

(at highest point of travel) to floor........................... 92"

Actual height of door ............................................. -88"

Remainder ................................................................ 4"

Add ......................................................................... +8"

Bracket height on header wall ............................... 12"

(Measure UP from top of CLOSED door,)

Proceed to Step 2, page 14.

Installation Step 2 I

Install the Header Bracket

You can attach the header bracket either to the

wall above the garage door, or to the ceiling.

Follow the instructions which will work best for

your particular requirements.

Wall Header Bracket Installation

•Center the bracket on the vertical guideline with

the bottom edge of the bracket on the horizontal

line as shown (with the arrow pointing toward the

ceiling).

•Mark the vertical set of bracket holes. Drill 3/16"

pilot holes and fasten the bracket securely to a

structural support with the hardware provided.

2x4

Structural

Header Support

Bracket Vertical

Center

Line

.-/

Highest Point of

Garage Door Travel

Vertical

Center

Une

Spdng

Wall Mount

OptionaZ

Mounting Holes

Hardware Shown Actual Size

Lag Screw

5/16"-9xl-5/8"

Ceiling Header Bracket Installation

•Extend the vertical guideline onto the ceiling as

shown.

• Center the bracket on the vertical mark, no more

than 6" from the wall. Make sure the arrow is

pointing toward the wall. The bracket can be

mounted flush against the ceiling when clearance

is minimal.

• Mark the side holes, Drill 3/16" pilot holes and

fasten bracket securely to a structural support with

the hardware provided.

Ceiling

Mounting Holes 6" Maximum

Vertical

Center Line

Door Spring

Vertical

Center Une

Installation Step 3 I

Attach the Rail to the Header Bracket

Header Bracket

Idler Pulley

NOTE: (Optional) With an existing Craftsman

installation, you may re-use the old header bracket

with the two plastic spacers included in the hardware

bag. Place the spacers inside the bracket on each

side of the rail, as illustrated.

•Position the opener on the garage floor below the

header bracket. Use packing material as a

protective base.

If the door spring is in the way you'll need help.

Have someone hold the opener securely on a

temporary support to allow the rail to clear the

spring.

•Position the front rail end within the header bracket

and join with a 5/16"xl-1/2" clevis pin as shown.

• Insert a ring fastener to secure.

Mounting

Hole

Existing

Header Bracket

Existing

Clevis Pin

Spacer

Mounting

Hole

OPTION WmH

EXISTING CRAFTSMAN

INSTALLATION

Hardware Shown Actual Size

olO

Clevis Pin 5/16"xl -1/2" Ring fastener

Installation Step 4

Position the Opener

Follow instructions which apply to your door

type as illustrated.

A 2x4 laid flat is convenient for setting an ideal

door-to-T-rail distance.

•Raise the opener onto astepladder as shown, You

will need help at this point if the ladder is not tall

enough.

•Open the door all the way and place a 2x4 laid flat

on the top section beneath the rail.

If the top panel hits the trolley when you raise

the door, pull down on the trolley release arm to

disconnect the inner and outer sections. The

trolley can remain disconnected until Step 12 is

completed.

Trolley

Outer Trolley Inner Trolley

2x4

Door

With the door fully open and parallel to the floor,

measure the distance from the floor to the top of

the door.

Using astepladder as a support, raise the opener

to this height (it will be at a slight angle as shown).

The top of the door should be level with the top of

the opener. Do not position the opener more than

2" above this point.

Installation Step 5

Hang the Opener I

Two representative installations are shown. Yours

may be different. Hanging brackets should be

angled, Figure 1, to provide rigid suppod. On

finished ceilings, Figure 2, attach a sturdy metal

bracket to structural supports before installing the

opener. The bracket and fastening hardware are not

provided. See accessory page 38.

1. Measure the distance from each side of the

opener to the structural support.

2. Cut both pieces of the hanging bracket to

required lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with

5/16"-18xl-7/8" lag screws.

5. Fasten the opener to the hanging brackets with

5/16"-18x7/8" screws, lock washers and nuts.

6. Check to make sure the T-rail is centered over

the door (or in line with the header bracket if the

bracket is not centered above the door).

7. Remove the 2x4. Operate the door manually. If

the door hits the rail, raise the header bracket.

NOTE: Do NOT connect power to opener at this

time.

Hardware Shown Actual Size

Li,i,

5/16"18xl -7/8"

FJL!jlI! !!HD© ©

5/16"o 18x7/8" Nut 5/16"-18 Lock Washer 5/16"

Figure I

Supports

Mea_ur _ \\

Distance

5/16"- 18xl -7/8"

5/16"-18x7/8" Screw

5/16' Lock Washer

5/16"-18 Nut

Figure 2

Hidden I- _

Support_-- _ _ ./ /

/ t S-j::;'s'° c''"°-

" ""- - Lag Screws

._ "_5/16"-18xl-7/8" - - "

Bracket - -- - _.

(Not Suppl_ _ (NOt Provided)

5/16"-18x7/8" Screw

5/16" LOck Washer

5/16"-18 Nut

5/16"-18x7/8' Screw

5/16" LOckWasher

Installation Step 6

Install the Door Control I

Locate the door control within sight of the door at a

minimum height of 5feet where small children

cannot reach, and away from all moving parts of the

door and door hardware.

The door control is typically attached directly to the

wall. If installing into drywall, drill 5/32" holes and

use the anchors provided. For pre-wired installations

(as in new home construction), Console models

may be mounted to astandard single gang box

(Figure 2).

1. Strip 1/4" of insulation from one end of the bell

wire and connect it to the two screw terminals on

the back of the door control: white to 2 and

white/red to 1.

2. Pry off cover along one side with ascrewdriver

blade (Figure 1). Fasten with 6ABx1-1/4" self-

tapping screws (standard installation) or 6-32x1"

machine screws (pre-wired installation) as

follows:

•Install bottom screw, allowing 1/8" to protrude

above wall surface.

•Position bottom of door control on screw head

and slide down to secure. Adjust screw for snug

fit.

•Install top screw with care to avoid cracking

plastic housing. Do not overtighten.

• Insert top tabs and snap on cover.

3. (For standard installation only) Run the bell wire

up the wall and across the ceiling to the opener.

Use insulated staples to secure the wire in

several places. Be careful not to pierce the wire

with a staple, creating a short.

4. Connect the bell wire to the terminal screws on

the opener panel: white to 2; white/red to 1.

5. Position the antenna wire as shown.

Do not connect to live electrical wiling. Connect

only to 24 Volt/oH, voltage wires. Connection to

live wires or higher voltage may cause serious

injury from shock, burn or electrocution.

Children operating or playing with a garage

door opener can injure themselves or others.

The garage door could close and cause

serious injury or death.

Install the door control (or any additional push

buttons) out of the reach of children and away

from all moving parts of the door and door

hardware, but where the garage door is visible.

Do not allow children to operate the push

button(s) or the remote control(s).

A moving garage door could injure someone

under it. Activate the opener only when the

door is properly adjusted, you can see it clearly,

and there are no obstructions to door travel.

Hardware Shown Actual Size

_ UihJIlnJIlilililil Ililn_

6AB x 1-1/4" Screw Insulated

Control Console (std installation) Staples

Control Console (pre*wired) Dry Wall Anchors

Figure 1

REMOVE & REPLACE COVER

To Replace, To Remove,

Insert Twist

Top Tabs .•Here

First • • •

Figure 2

PRE-WlRED

INSTALLATION

24 Volt

2-Condustor

Bell Wire

2-Condustor

Ben Wim

BACK VIEW

STANDARD

CONTROL

CONSOLE

of Opener

6. Attach the User Safety Instruction label to the wall

near the door control, and the Maintenance

Instruction label in aprominent location on the

inside of the garage door.

Page 32 explains how to use the door control.

Do NOT connect the power and operate the

openerat this time. The trolley will travel to the

full open position but will not return to the

close position until the sensor beam is

connected and properly aligned.

See Safety Reversing Sensor instructions

beginning on page 21.

Installation Step 7

Install the Light and the Lens

Install the light

•Install a 75 watt maximum light bulb in the socket.

The light will turn ON and remain lit for

approximately 4-1/2 minutes when power is

connected. Then the light will turn OFF.

• If the bulb burns out prematurely due to vibration,

replace it with astandard neck "Garage Door

Opener" bulb.

Install the lens

•For convenience, the lens may be installed

after Adjustment Step 4 on page 30.

• Apply slight pressure on the sides of the lens and

slide the tabs into the slots in the end panel.

•Reverse the procedure to remove the lens.

Ught

Lens

Tab

Slot

5 Watt Max.

Ught Bulb

Gu_e

Installation Step 8

Attach the Emergency

Release Rope and Handle

• Thread one end of the rope through the hole in the

top of the red handle so "NOTICE" reads right side

up as shown. Secure with an overhand knot, at

least 1" from the end of the rope to prevent

slipping.

•Thread the other end of the rope through the hole

in the release arm of the outer trolley.

•Adjust rope length so the handle is 6feet above

the floor. Secure with an overhand knot.

If it is necessary to cut the rope, heat seal the

cut end with a match or lighter to prevent

unraveling.

Do not use the red handle to pull the door

open or closed. The rope knot could become

untied and you could fail Use the emergency

release only to disengage the trolley and, if

possible, only when the door is closed.

Garage doors are heavy. If the door is open

when the handle is pulled, the door could

close inadvertently if it is not properly

balanced. Serious injury may result to persons

under the door. Make sure the doorway is clear

of persons and obstructions before pulling

handle when door is open.

Trolley

_1-- Emergency

Release Handle

Installation Step 9 I

Electrical Requirements I

To reduce the risk of electric shook, your garage

door opener has agrounding type plug with a third

grounding pin. This plug will onlyfit into a grounding

type outlet.

If the plug doesn't fit into the outlet you have,

contact a qualified electrician to install the proper

outlet.

To avoid installation difficulties,

do not run the opener at this time.

To prevent electrocution or fire, installation

and wiring must be in compliance with local

electrical and building codes.

Do NOTuse an extension cord, 2-wire adapter,

or change the plug in any way to make it fit

your outlet.

Right Wrong

If permanent wiring is required by your local code, refer to the following procedure:

To make apermanent connection through the

7/8" diameter hole in the top of the opener

(according to local code):

• Remove the opener cover screws and set the

cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the

brass terminal; the white (neutral) wire to the

screw on the silver terminal; and the ground wire

to the green ground screw. The opener must be

grounded.

•Reinstall the cover.

To avoid installation difficulties, I

do not run the opener at this time. I

Ground Tab

Black

WLre -Wke

White Wire

Permanent

Widng

Connections

Wire

The Safety Reversing System

IMPORTANT INFORMATION ABOUT THE

SAFETY REVERSING SENSOR

The safety reversing sensor must be connected

and aligned correctly before the garage door

opener will move in the down direction. This is a

required safety device and cannot be disabled.

When properly connected and aligned, the safety

reversing sensor will detect an obstacle in the path

of its electronic beam. The sending eye (with an

orange indicator light) transmits an invisible light

beam to the receiving eye (with a green indicator

light). If an obstruction breaks the light beam while

the door is closing, the door will stop and reverse to

full open position, and the opener light will flash

10 times.

The units must be installed inside the garage so

that the sending and receiving eyes face each other

across the door, between 4 - 6" above the floor.

Either can be installed on the left or right of the door

as long as the sun never shines directly into the

receiving eye lens.

The mounting brackets are designed to clip onto the

track of sectional garage doors without additional

hardware.

Without a properly working safety reversing

sensor, persons (particularly children) could

be injured or killed by a closing garage door.

Read and follow all instructions,

To protect small children, install the safety

reversing sensor so that the beam will be

between 4 - 6" above the garage floor.

Disconnect power to the garage door opener

before installing the safety reversing sensor,

If it is necessary to mount the units on the wall, the

brackets must be securely fastened to a solid surface

such as the wall framing. Extension brackets (see

accessories) are available if needed. If installing in

masonry construction, add a piece of wood at each

location to avoid drilling extra holes in masonry if

repositioning is necessary.

The invisible light beam path must be unobstructed.

No part of the garage door (or door tracks, springs,

hinges, rollers or other hardware) may interrupt the

beam while the door is closing.

Sensor Beam

4-6" max,

above floor

Invisible Light Beam

Protection Area

Sortsor B6am

4-6" max,

above floor

Figure 1: Facing the door from inside the garage

Installation Step 10 I

Install the Safety Reversing Sensor

INSTALLING THE BRACKETS

Be sure power to the opener is disconnected.

Install and align the brackets so the sensors will

face each other across the garage door, with the

beam from 4 -6" above the floor.

They may be installed in one of three ways, as

follows.

Garage door track installation (preferred):

• Slip the curved arms over the rounded edge of

each door track, with the curved arms facing the

door. Snap into place against the side of the track.

It should lie flush, with the lip hugging the back

edge of the track, as shown in Figure 2.

If your door track will not support the bracket

securely, wall installation is recommended.

Wall installation:

•Place the bracket against the wall with curved

arms facing the door. Be sure there is enough

clearance for the sensor beam to be unobstructed.

• If additional depth is needed, an extension bracket

(see Accessories) or wood blocks can be used.

•Use bracket mounting holes as a template to

locate and drill (2) 3/16" diameter pilot holes on the

wall at each side of the door, from 4-6" above the

floor. (See warning at beginning of Installation

Step 10.)

• Attach brackets to wall with lag screws (not

provided).

•If using extension brackets or wood blocks, adjust

right and left assemblies to the same distance out

from the mounting surface. Make sure all door

hardware obstructions are cleared.

Floor installation:

• Use wood blocks or extension brackets (see

Accessories) to elevate sensor brackets so the

lenses will be 4-6" above the floor.

• Carefully measure and place right and left

assemblies at the same distance out from the wall.

Be sure all door hardware obstructions are

cleared.

•Fasten to the floor with concrete anchors as

shown.

Figure 2 DOOR TRACK MOUNT (Right Side)

Door

•Track

', Up

Bracket

Indicator

light

Figure 3 WALL MOUNT (Right Side)

(Provided with

Extension Bracket)

Extension

Bracket

(See Accessories)

I_ (Provided with

Extension

_nsor

, ,;racket

Lens light

Figure 4

Lerls

Sensor

Bracket

FLOOR MOUNT (Right Side)

indicator

tight

(Provided with

ExtensionBracket)

Extension

Attach w_h

-- concrete anchors

(not provided)

_.._Exlension

Bracket

(See Accessories)

Hardware Shown Actual Size

1/4"-20x1/2" (2) Wing Nut 12) Insulated Staples (20)

MOUNTING AND WIRING THE SAFETY SENSORS

•Slide a 1/4"-20xl/2" carriage bolt head into the slot on

each sensor. Use wing nutsto fasten sensors to

brackets, wRhlenses pointingtoward each other

across the door. Be sure the lens is not obstructed by

a bracket extension. See Figure 5.

•Finger tightenthe wing nuts.

•Run the wires from both sensors to the opener. Use

insulated staples to secure wire to wall and ceiling.

•Strip 1/4" of insulationfrom each set of wires.

Separate white and white/black wires sufficientlyto

connect to the opener terminal screws: white to 2 and

white/black to 3.

ALIGNING THE SAFETY SENSORS

• Plug in the opener. The indicator lights in both the

sending and receiving eyes will glowsteadilyit wiring

connections and alignment are correct.

The sending eye orange indicator light will glow

regardless of alignment or obstruction. If the green

indicator light in the receiving eye is off, dim, or

flickering (and the invisible light beam path is not

obstructed), alignment is required.

• Loosen the sendingeye wing nut and readjust, aiming

directly at the receiving eye. Lock in place.

•Loosen the receiving eye wing nut and adjust sensor

until Ltreceives the sender's beam. When the green

indicator light glows steadily, tighten the wing nut.

Figure 5

Wing nut

1/4" 20x1/2"

Cardage bo]_

Trouble Shooting the Safety Sensors

1. If the sendingeyeindicator light does not g/ow

steadiiyafter installation,check for:

•Electric power to the opener.

• A short in the white or white/black wires. These can

occur at staples, or at screw terminal connections.

•Incorrectwiring between sensors and opener.

•A broken wire.

2. If the sending eye indicatorlightg/owe steadi/ybut the

receiving eye indicator lightdoesn't:

•Check alignment.

•Check for a broken wire to the receiving eye.

3. If the receiving eye indicatorlightis dim, realign either

sensor.

NOTE: When the invisib/ebeam path is obstructedor

misa/igned whi/e the door is c/osing,the door wi//

reverse, ff the dooris already open, # wi//not c/ose. The

opener fights wi// f/ash 10 times. (/f bulbs are not

installed, 10clicks can be heard.) See page 21.

Figure 6

Wiring the Safety Sensors

Installation Step 11

Fasten Door Bracket

Follow instructions which apply to your door

type as illustrated below or on page 25.

A horizontal brace should be long enough to be secured to 2 vertical supports. A vertical brace should

cover the height of the top panel.

The illustration shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of

angle iron are used to create a "U"-shaped support. The best solution is to check with your garage door

manufacturer for an opener installation door reinforcement kit.

Header

Bracket

_oof

Bracket

Location

--....,.......

d vertical reinforcement

is needed for lightweight garage doors

(fiberglass, aluminum, steeL, doors with

glass panel, etc), (Not Provided)

• Center the door bracket on the previously marked

vertical guideline used for the header bracket

installation. Note the correct UP placement, as

stamped inside the bracket.

•Position the bracket on the face of the door within

the following limits:

A) The top edge of the bracket 2"-4" below the top

edge of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door.

• Mark and drill 5/16" left and right fastening holes.

Secure the bracket as shown in Figure 1 if there is

vertical reinforcement.

If your installation doesn't require vertical reinforce-

ment but does need top and bottom fastening holes

for the door bracket, fasten as shown in Figure 2.

Figure I

Figure 2

Hardware Shown Actual Size

Nut 5/16" - 18 Lock Washer 5/16"

Carriage Bolt

IIIII[lllillll[ILllllllllllllllllLID

5/16"-18 x 2-1/2"

Please read and comply with the warnings and reinforcement Instructions on page 24.

They apply to one-piece doors also.

Header Wall

2x4 Support Header

-- Finished Coiling --

Ooor

Bracket Placement

of Door

Bracket

VediCal

Garage Door

Horizontal and vertical reinforcement is

•needed for lightweight garage doors

lass, alumk_um, steel, door with

glass panel, stc,). (Not Provided)

Nut

5/16"-18 OI

I t

Door _ i

Bracket

€ I

For adoor with no i

exposed framing or for

the optional installation,

use 5/16"x1-1/2" lag

screws (not provided)

5,116"

Top of Door

(Inside Garage)

_. Top Edge

of Door

-- Optiona_

Placement

Carriage Bolt

5!16"-18X2-1f2"

•Center the bracket on the top of the door, in line

with the h,eader bracket as shown. Mark holes.

• Drill 5/16" pilot holes and fasten the door bracket

with hardware provided.

If the door has no exposed framing, drill 3/16" pilot

holes and fasten the bracket with 5/16"xl -1/2" lag

screws (not provided) to the top of the door.

The door bracket may be installed on the top

edge of the door if required for your installation.

(Refer to the dotted line optional placement

drawing.) Drill 3/16" pilot holes and substitute

5/16"x1-1/2" lag screws (not provided) to fasten

the bracket to the door.

Hardware Shown Actual Size

Nut 5/16" - 18 LockWasher 5/16"

IIIIIII11111111LLLIIIIIlIl[IIIIII1

Carriage Bolt

5/16"-18 x 2-1/2"

Installation Step 12

Connect Door Arm to Trolley

Follow instructions which apply to your door

type as illustrated below and on page 27.

Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley

from the inner trolley, Slide the outer trolley back (away from the pulley) for 8" minimum as shown below,

Figure 1:

•Fasten straight door arm section to outer trolley

with the the 5/16"xl" clevis pin. Secure the

connection with aring fastener.

•Fasten curved door arm to the door bracket in the

same way, using the 5/16")( 1-I/4" c/evis pin.

Figure 2:

•Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far

apart as possible to increase door arm rigidity.

I i

Outer Trolley

levis Pin

5/16"x 1"

ClevisPin DoorArm

5/16"x1-1/4"

Door Arm

Figure 1

Screws

5/16"-18x7/8"

_rB_ok_ Figure2

Hole Alignment Alternative

Figure 3:

•If holes in curved arm are above holes in straight ,

arm, disconnect straight arm. Cut about 6" from

the solid end. Reconnect to trolley with cutend

down as shown.

•Bring arm sections together.

•Find two pairs of holes that line up and join with

screws, lock washers and nuts.

Hardware Shown Actual Size

©@o

Nut 5/16"-18 Lock Washer 5/16" Ring Fastener

Clevis Pin Clevis Pin

5/16"xl" (Trolley)

Hex Screw

5/16"x 1-1/4" (Door Bracket ) 5/16"-18x7/8"

Screws

5/16"- 18x7/8"

Figure 3

Proceed to Adjustment Step 1, page 28. Trolley will re-engage automatically when the opener Is operated.

Assemble the Door Arm:

• Fasten the straight and curved door arm sections

together to the longest possible length (with a2or

3 hole ovedap).

•With the door closed, connect the straight door arm

section to the door bracket with the 5/16"xl-1/4"

clevis pin.

•Secure with a ring fastener.

Door Ring

Clevis Pin Straight

5/16"x1-1/4" Arm

Screws

5/16"-18x7/8

Lock

Washers

5/16"

Nuts

5/16"-18

Door Ann

On one-piece doors, before connectingthe door arm to the trolley the travel limitsmust be adjusted. Limit adjustment

screws are located on the left side panel as shown on page 28. Follow adjustment procedures below.

FULLYCLOSED POSITION

Inner Tro_lay OuterTrolley FULLY OPEN POSITION

Outer Trolley

Clo_ed

.................. _.___._."

Open Door Doorwith

Backward Slant Door Arm

Adjustment Procedures for One-Piece Doors

Open Door Adjustment:

Decrease UP limit

•Turn the UP limit adjustment screw counter-

clockwise 5-1/2 turns.

• Press the Door Control push bar or button. The

trolley will travel to the fully open position.

•Manually raise the door to the open position

(parallel to the floor), and lift the door arm to the

trolley. The arm should touch the trolley just in

back of the door arm connector hole. Refer to the

fully open trolley/door arm positions in the

illustration. If the arm does not extend far enough,

adjust the limit further. One full turn equals 2" of

trolley travel.

Closed Door Adjustment:

Decrease DOWN limit

•Turn the DOWN limit adjustment screw clockwise 5

complete tums.

•Press the Door Control push bar or button. The

trolley will travel to the fully closed position.

•Manually close the door and liftthe door arm to the

trolley. The arm should touch the trolley just ahead

of the door arm connector hole. Refer to the fully

closed trolley/door arm positions in the illustration. If

the arm is behind the connector hole, adjust the limit

further. One full turn equals 2" of trolley travel.

Connect the door arm to the trolley.

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may

be necessary to lift the door slightly to make the connection.

•Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has aslight "backward" slant in full open position

as shown in the illustration, decrease the UP limit untilthe door is parallel to the floor.

Adjustment Section: Pages 28 - 30

Adjustment Step 1

Adjust the UP and DOWN Limits

Do not make any limit adjustments until the

safety reversing sensors are completely

installed.

Limit adjustment settings regulate the points at

which the door will stopwhen moving up or down.

If anything interferes with the door's upward travel, it

will stop. If anything interferes with the door's

downward travel (including binding or unbalanced

doors), it will reverse.

To operate the opener, press the Door Control push

bar or button. Run the opener through a complete

travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse

unintentionally when fully closed?

If your door passes both of these tests, no limit

adjustments are necessary unless the reversing test

fails (See page 30).

Adjustment procedures are outlined below.

Read the procedures carefully before

)roceeding to Adjustment Step 2. Use a

screwdriver to make limit adjustments. Run the

opener through a complete travel cycle after

each adjustment.

NOTE: Repeated operation of the opener during

adjustment procedures may cause the motor to

overheat and shut off. Simply wait 15 minutes and

try again.

Improper adjustment of the travel limits will

interfere with the proper operation of the safety

reverse system. The door might not reverse

properly when required and could seriously

injure or kill someone under it. Test the safety

reverse system following all adjustments to the

travel limits. See page 30.

Limit

Adjustment

I_ Screws

"................llllhlllll,0 0 000

Cover Left Side Panel

Protection

Bolt

Adjustment Label

How and When to Adjust the Limits

•If the door does not open completely, but

opens at leastfive feet:

Increase up travel. Turn the UP limit adjustment

screw clockwise. One turn equals 2" of travel,

NOTE: To prevent the trolley from hitting the cover

_rotection bolt, keep aminimum distance of 2-4"

between the trolley and the bolt.

•If door does not open at least 5 feet:

Adjust the UP (open) force as explained in

Adjustment Step 2.

•If the door does not close completely:

Increase down travel. Turn the DOWN limit

adjustment screw counterclockwise. One turn

equals 2" of travel.

If the door still won't close completely and the trolley

bumps into the trolley stop bolt (see page 4 or 5), try

lengthening the door arm (see page 26) and

decreasing the down limit.

•If the opener reverses in fully closed position:

Decrease down travel. Turn the DOWN limit

adjustment screw clockwise, One turn equals 2" of

travel.

•If the door revereeswhen closing and

there is no visible interference to travel cycle:

If the opener lights are flashing, the Safety

Reversing Sensors are either not installed,

misaligned, or obstructed. See Troubleshooting,

page 23.

Test the door for binding: Pull the emergency

release handle. Manually open and close the door. If

the door is binding, call for garage door service. If

the door is not binding or unbalanced, adjust the

DOWN (close) force. See Adjustment Step 2.

Adjustment Step 2 I

Adjust the Force I

Force adjustment controls are located on the back

}anel of the opener. Force adjustment settings

regulate the amount of power required to open and

close the door.

The door will stop in the up direction if anything

interferes with its travel. The door will reverse in the

down direction if anything interferes with its travel

(including binding or unbalanced doors).

If the forces are set too light, door travel may be

interrupted by nuisance reversals in the down

direction and stops in the up direction.

Weather conditions can affect the door

movement, so occasional adjustment may be

needed.

The maximum force adjustment range is 260 degrees,

about 3/4 of acomplete turn. Do not force controls

beyond that point. Turn force adjustment controls

with a screwdriver.

Adjustment Label

Too much force on the door will interfere with

the proper operation of the safety reverse

system. The door might not reverse properly

when required and could seriously Injure or kill

someone under it. Do not increase the force

beyond the minimum amount required to close

the door. Do not use the force adjustments to

compensate for a binding or sticking garage

door. Test the safety reverse system following

all adjustments to force levels. See page 30.

Back panelof

doorop_n6r Force

Adjustment

Control

How and When to Adjust the Forces

Test the DOWN (close) force

Grasp the door bottom when the door is about

halfway through DOWN (close) travel. The door

should reverse. Reversal halfway through down

travel does not guarantee reversal on a two-inch

obstruction. See page 30. If the door is hard to

hold or doesn't reverse, decrease the DOWN (close)

force by turning the control counterclockwise.

Make 10 degree turn adjustments until the door

reverses normally. After each adjustment, run the

opener through a complete cycle.

Test the UP (open) force

Grasp the door bottom when the door is about

halfway through UP (open) travel. The door should

stop. If the door is hard to hold or doesn't stop,

decrease UP (open) force by turning the control

counterclockwise.

Make 10 degree turn adjustments untilthe door stops

easily. After each adjustment, run the opener through

a complete travel cycle.

If the door doesn't open stleast5 feet

Increase UP (Open) force by turning the control

clockwise. Make 10 degree turn adjustments until

door opens completely. Re-adjust the UP limit if

necessary. After each adjustment, run the opener

through a complete travel cycle.

If the door reverses during the down (close) cycle

and the opener lights aren't flashing

Increase DOWN (close) force by turning the control

clockwise. Make 10 degree turn adjustments untilthe

door completes a close cycle. After each adjustment,

run the opener through a complete travel cycle. Do

not increase the force beyond the minimum

amount required to close the door.

Adjustment Step 3

Test The Safety Reversing Sensor

• Press the remote control push button to open the

door.

•Place the opener carton in the path of the door.

• Press the remote control push button to close the

door. The door will not move more than an inch,

and the opener light will flash.

Professional service is required ff the opener

closes the door when the safety reversing

sensor is obstructed.

iThe garage door opener will not close from a

remote control if the indicator light in either

sensor is off(alerting you to the fact that the

sensor is misaligned or obstructed).

The garage door can be closed by pressing and

holding the Door Control push bar or button until

down travel is completed.

Adjustment Step 4

Test the Safety Reverse System I

F-- l II I

Test:

• Place a one-inch board (or a 2x4 laid flat) on the

floor, centered under the garage door.

• Operate the door in the down direction. The door

must reverse on striking the obstruction.

Adjustment:

If the door stopson the obstruction, it is not traveling

far enough in the down direction.

•Increase the DOWN limit by turning the DOWN

limit adjustment screw counterclockwise 1/4 turn.

•Repeat the test.

On a sectional door, make sure limit

adjustments do not cause the trolley to move

within 2-1/2" of the trolley stop bolt. If

necessary, lengthen straight door arm to

maintain this minimum distance.

•When the door reverses on the one-inch board,

remove the obstruction and run the opener through

3 or 4 complete travel cycles to test adjustment.

If the door will not reverse after repeated

adjustment attempts, call Sears Service Center

for garage door opener service.

o' 'oooooi

(or a 2x4 laid fiat)

Important safety check

Repeat Adjustment Steps 1, 2 and 4 after:

•Each adjustment of door arm length, force controls

or limit controls.

•Any repair to or adjustment of the garage door

(including springs and hardware)•

•Any repair to or buckling of the garage floor.

•Any repair to or adjustment of the opener.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTRUCTIONS.

2. Do not permit children either to operate or to

play with the opener. Keep remote control in a

location inaccessible to children.

3. Operate opener only when the door is in full

view and free from any obstruction. Keep the

door in sight until it is completely closed. NO

ONE SHOULD CROSS THE PATH OF THE

MOVING DOOR.

4. Check safety reversal system monthly. See

page 30. The garage door MUSTreverse on

contact with a one-inch (or a 2x4 board laid

flat) object placed on the floor. If an adjustment

is made to either the force or the limit of travel,

both adjustments may be needed and the

safety reversal system must be checked.

Failure to properly adjust the opener may

result in severe injury or death.

5. If possible, use the emergency release only

when the door is in a closed position. Caution

should be taken whenever the disconnect cord

is actuated with the door open. Weak or broken

springs may cause the door to fall rapidly,

causing injury or death to persons.

6. KEEP GARAGE DOORS PROPERLY

BALANCED. See page 3. An improperly

balanced door may not reverse when required

and could result in severe injury or death,

Repairs to cables, spring assemblies and other

hardware must be made by a professional

garage door person.

7. Disconnect the electric power to the garage

door opener before making any repairs or

removing the covers.

8.SAVE THESE INSTRUCTIONS.

Care of Your Opener

Limit and force adjustment controls

Limit Controls Force Controls

Adjustment Label Adjustment Label

(Located on the left side panel) (Located on the right side panel)

Weather conditions may cause some minor

changes in door operation requiring some re-

adjustments, particularly during the first year of

operation.

Pages 28 and 29 refer to the limit and force

adjustments. Only ascrewdriver is required. Follow

the instructions carefully.

Repeat the safety reverse test (page 30) after any

adjustment of limits or force.

The remote control

The lithium battery should

produce power for up to

5years. To replace battery,

use the visor clip or screwdriver

blade to pry open the case, as

shown. ("Open" location is

3-FUNCTION

Open this end

first to avoid

cracking

stamped on back of transmitter case.) Insert battery

positive side down.

Replace cover as follows. 3-Function remote: Insert

the 3 tabs at the opposite end and snap shut.

Dispose of old batteries properly.

Maintenance Schedule

Once a Month

Manually operate door. If it is unbalanced or

binding, call for professional garage door service.

Check to be sure door opens & closes fully.

Adjust limits and/or force if necessary.

(See pages 28 and 29.)

Repeat the safety reverse test. Make any

necessary adjustments (See page 30).

Twice a Year

Check chain tension. Disconnect trolley first.

Adjust if necessary (See page 11).

Once a Year

Oil door rollers, bearings and hinges. The opener

does not require additional lubrication. Do not

grease the door tracks.

Operation of Your Opener

Activate the opener with any of the following:

• The Remote Control: Hold push button down until

the door starts to move.

•The Door Control: Hold push button down until

the door starts to move.

•The Outdoor Key Switch or Keyless Entry.

(See Accessories)

When the opener is activated with the safety

reversing sensor installed and correctly aligned:

1. If open, the door will close. If closed, the door will

open.

2. If closing, the door will reverse.

3. If opening, the door will stop (allowing space for

entry and exit of pets and for fresh air).

4. If the door has been stopped in a partially open

position, it will close.

5. If obstructed while closing, the door will reverse.

6. If obstructed while opening, the door will stop.

7. The garage door will reverse inthe closing cycle,

and the opener lights win blink for 5 seconds,

when the invisiblebeam is broken. If fullyopen, the

door will not close when the beam is broken. The

sensor has no effect inthe opening cycle.

If the sensor is not installed or not aligned correctly,

the door won't close from any remote control. You

can close the door with the Door Control, the

Outdoor Key Switch, or Keyless Entry, however, if

you activate them until down travel is complete. If

you release them too soon, the door will reverse.

The Opener Light will tum on under the following

conditions: When the opener is initiallyplugged in;

when the power is interrupted; when the opener is

activated. It will turn oft automatically after 4-1/2

minutes or provide constant light when the Light

feature is activated. Bulb size is 75 watts maximum.

Weak or broken sp/_ngs could allow an open

door to fall (either rapidly or unexpectedly),

resulting in serious injury, death or property

damage. If possible, use the emergency

release rope and handle onlywhen the door is

fully closed.

Trolley _- .--

Release arm

Emergency

Release Handle

(Pull Down)

Manual disconnect

position

To open the door

manually: The door

should be fully closed if

possible. Pull down on the

emergency release

handle (so that the trolley

release arm snaps into a

vertical position)and lift

the door manually. The

lockout feature prevents

the trolleyfrom recon-

necting automatically, and

the door can be raised

and lowered manually as

often as neccessary.

Emergency _..

Release Handle

(Pull Back

Towards Opener)

To Reconnect

To re-engage the trolley:

Pull the emergency

release handle toward the

opener at a45" degree

angle so that the trolley

release arm is horizontal.

The trolley will reconnect

on the next UP or DOWN

operation, either manually

or by pressing the Door

Control push button or the

remote.

Operation of the Door Control

(see page 18)

Press the lighted push button to open or close

the door.

Press again to reverse the door during the

closing cycle or to stopthe door while it's

opening.

Receiver and Remote Control Programming

SE( URri '.F To complywdhFCC rules,adjustmento¢modificationsof this receiverandfor

transmitterare prohtbRed,except for changingthe code settingor replacing

the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Your garage door opener receiver and remote

control have been pre-set at the factory. The door

will open when you press the LARGE remote

control push button. The code between the remote

control and the receiver changes with each use,

randomly accessing over 100 billion new codes.

The 3-function remote control can also activate

additional SECURITY,I, garage door openers and/or

light controls.

Your SECURITY+ opener will operate with:

•several SECURITY,I, remote controls (with blue

push buttons) utilizing up to 8 functions.

•one SECURITY+ Keyless Entry System

(Model 139.53684).

Follow the instructions below to program your

opener to match any additional remotes you may

_urchase. See Accessories on page 38.

Children operating or playing with a garage

door opener can injure themselves or others.

The garage door could close and cause setfous

injury or death. Do not allow children to operate

the door push button(s) or remote control(s).

A moving garage door could injure or kill

someone under it. Activate the opener only

when you can see the door clearly, it is free of

obstructions, and is properly adjusted.

To Add A Remote Control

If you have a Premium Control Console:

1. With the doorc/osed, press and hold a remote

control push button. See Figure 1.

2. Press and hold the Light button on the door

control.

3. Press and hold the door control push button.

4. After the opener light flashes, release all buttons.

Test by pressing the remote push button.

If you do not have a Premium Control Console:

1. Press and holdthe selected remote control push

button. See Figure 1.

2.Then press and release the SRT (learn) button on

the back panel of the opener, Figure 2. The

indicator light on the panel will begin to blink and

the opener light will flash once.

3. Release the remote push button.

Test by pressing the remote push button.

To Erase All Remote Control Codes

Press and hold the SRT button on the opener panel

until the indicator light turns off (about 6 seconds).

All remote control codes are now erased. Then

follow the steps above to re-program each remote

control.

Figure I

Select a remote control push

button to operate opener

SECURITY'I'

3-Function

Remote Control

Figure 2

SECURITY,I,

Garage Door Opener

SRT (leam) Indicator BACK

Button Ught PANEL

Code programming instructions are

also located on the opener panel,

Situation

Having a Problem?

Probable Cause and Solution

The opener doesn ?

operate from either

the Door Control or

the remote control:

1. Does the opener have electric power?. Plug a lamp into the outlet. If it doesn't light,

check the fuse box or the circuit breaker. (Some outlets are controlled by a wall switch.)

2. Have you disabled all door locks? Review installation instruction warnings on Page 11.

3. Is there a build-up of ice or snow under the door? The door may be frozen to the

ground. Remove any restriction.

4. The garage door spring may be broken. Have it replaced.

5. Repeated operation may have tripped the overload protector in the motor. Wait

15 minutes. Try again.

Opener operates

from the remote

control, but not from

the Door Control:

1. Is the Door Control lit? If not, remove the bell wire from the opener terminal screws.

Short the red and white terminals by touching both terminals at the same time with a

piece of wire. If the opener runs, check for a faulty wire connection at the Door

Control, a short under the staples, or a broken wire.

2. Are the wiring connections correct? Review Step 6, page 18.

The door operates

from the Door

Control, but not from

the remote control:

Is any door push button flashing? If your model has the Lock feature, make sure the

lock is Off.

Your opener needs to re-learn a remote control code. Refer to Instructions on the

opener panel.

Program the receiver to match the remote control code.

Repeat the receiver programming procedure with all remote controls.

The remote control

has short range: 1. Change the location of the remote control in your car.

2. Check to be sure the antenna on the side or back panel of opener extends fully

downward.

.Some installations may have shorter range due to a metal door, foil backed

insulation, or metal garage siding. (Antenna Extender Kit 41A3504)

Opener noise is

disturbing in living

quarters of home:

If operational noise is a problem because of proximity of the opener to the living

quarters, the Vibration Isolator Kit 41A3263 can be installed. This kit was designed to

minimize vibration to the house and is easy to install.

The garage door

opens and closes

by itself:

1. Be sure that all remote control push buttons are off.

2. Remove the bell wire from the Door Control terminals and operate from the remote

control only. If this solves the problem, the Door Control is faulty (replace), or there is

an intermittent short on the wire between the Door Control and the opener.

3. Clear memory and reprogram all remote controls.

The door doesn't

open completely: 1. Is something obstructing the door? Remove the obstruction or repair the door.

2. If the door has been working properly but now doesn't open all the way, increase the

up force. See page 29.

3. If door opens at least 5 feet, the travel limits may need to be increased. One turn

equals 2 inches of travel. See page 28.

Repeat the safety reverse test after the adjustment is complete.

The door stops but

doesn't close

completely:

Review the travel limits adjustment procedures on page 28.

Repeat the safety reverse test after any adjustment of door arm length, close

force or down limit.

Situation

Having a Problem? (continued)

Probable Cause & Solution

The door opens but 1.

won't close: 2,

If the opener lights blink, check the safety reversing sensor. See page 23.

If the opener lights do not blink and it is a new installation, check the down force.

See Adjustment Step 2, page 29. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete•

The door reverses for

no apparent reason

and opener lights

don't blink:

Is something obstructing the door? Pull the red emergency release handle. Operate

the door manually. If it is unbalanced or binding, call for professional garage door

service.

Clear any ice or snow from the garage floor area where the door closes.

Review the force adjustment procedures on page 29.

If door reverses in the fully closedposition, decrease the travel limits (page 28).

Repeat safety reverse test after adjustments to force or travel limits. The need

for occasional adjustment of the force and limit seffings is normal. Weather

conditions in particular can affect doer travel.

The door reverses for

no apparent reason

and opener lights

blink for 5 seconds

after reversing:

Check the safety reversing sensor. Remove any obstruction or align the receiving eye.

See page 23.

The opener light:

The opener strains or

maximum force is

needed to operate

door:

•.. doesn't turn on:

Replace the light bulbs (75 watts maximum). Use a standard neck garage door opener

bulb if regular bulb burns out,

•.. doesn't turn off:

Is the Light feature on?. Turn it off.

The door may be out of balance or the springs are broken. Close the door and use the

emergency release to disconnect the trolley. Open and close the door manually. A properly

balanced door will stay in any pointof travel while being supportedentirely by itssphngs, If it

does not, disconnect the opener and call a professionalgarage door sewiceman. Do not

increase the force to operate the opener.

The opener motor

hums briefly, then

won't work:

The garage door springs are broken. See above.

If the problem occurs on the first operation of the opener, door may be locked. Disable

the doorlock. If the chain was removed and reinstalled, the motor may be out of phase.

Remove the chain; cycle the motor to the down position. Observe the drive sprocket.

When it turns in a clockwise direction and stops in the down position, reinstall the chain.

Repeat the safety reverse test after the adjustment is complete,

The opener won't

operate due to

power failure:

1. Use the emergency release to disconnectthe trolley. The door can be opened and closed

manually. When the power is restored, press the Door Control push bar or button and

trolley will automatically reconnect (unless trolley is in lockout position.) See page 32.

2. The Emergency Key Release accessory (for use on garages with no service door)

disconnects the trolley from outside the garage in case of power failure.

The chain droops

or sags:

It is normal for the chain to droop slightly in the closed door position. Use the

emergency release to disconnect the trolley. If the chain returns to normal height when

the trolley is disengaged and the door reverses on a one-inch board, no adjustments

are needed (see page 11).

Repair Parts

Rail Assembly Parts

KEY PART

NO. NO. DESCRIPTION

1 1A995 Master link kit

2 41C5141-1 Complete trolley assembly

3 183C158-3 Rail - front (header) section

4 183C157-3 Rail - center/beck section (2)

5 144C56 Chain Idler pulley

6 41A5249 Chain and cable

7 144C62 Spreader (2)

8 12D598 U bracket

Installation Parts

KEY PART

NO. NO,

1 41A4899

210A20

3 41A5032

4 29B137

541A2828

6 217A238

712B590

841A5047

9 178B35

10 31D431

11 10A2

12 31B430

13 178B34

14 12B350

15 41A5034

16 2B477-1

41A5258

114A2400

DESCRIPTION

Standard control console

3V 2032 Lithium battery

3-function remote control housing

(no circuit board)

Visor clip

Emergency rope & handle assy.

2-conductor bell wire - white & white/red

Header bracket w/clevis pin & fastener

Door bracket w/clevis pin & fastener

Curved door arm section

Keyless entry keypad cover

12 Volt battery

Keyless entry battery cover

Straight door arm section

Hanging brackets

Safety sensor kit (receiving and sending

eyes) with 3' 2-conductor bell wire attached

Safety sensor brackets (2)

NOT SHOWN

Assembly & Installation hardware bag (see

page 7),

Owner's manual

12-

15 14

Repair Parts

Opener Assembly Parts

(Down) LIMIT SWITCH 14

Br_ co.tact ASSEMe,v 12

L,ontact Contact Wire

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 31D380 11 41D3058

2 41C4220A

41A2817

441B4245

541A4352

6175B88

7 108D58-2

8 30B363

912A373

10 41A3150

Sprocket cover

Gear and sprocket assembly

Complete with:

Spring washer

Thrust washer

Retaining dng

Bearing plate

Roll pins (2)

Drive gear and worm gear

Helical gear w/retainer and grease

Drive/worm gear kit w/grease

Roll pins (2)

Line cord

End panel

Light socket

Lens

Capacitor -1/2HP

Capacitor bracket

Terminal block w/screws

12 41D0328-4

13 41A2818

14 41D3452

15 41C4398A

16 41C4246

17 41A2826

18 41A2822A

19 41A5021-2E

20 41A3691

41A2825

Universal replacement motor &

bracket assembly

Complete with: Motor, worm,

bracket, bearing assembly,

RPM sensor

Cover

Helical geer & retainer w/grease

Limit switch assembly

RPM sensor assembly

Wire harness assembly w/plug

Shaft bearing kit

Interrupter cup assembly

Receiver logic board assembly

Complete with:

Logic board, End panel w/all labels

End panel

NOT SHOWN

Opener assembly hardware kit

(includes screws not designated by

a number in illustration).

Accessories

Sears offers many useful accessodes for your garage door opener. They are illustrated below with

Sears model numbers and descriptions.

139.53681 SECURITY+ 3-Function Remote

Control:

139.53702

139.53703

53724

153725

53589

41A5281

Emergency Key Release:

Requ/redfor a garage with NO

access door. Enables homeowner

to open garage door manually from

outside by disengaging trolley.

Outdoor Key Switch:

Operates the garage door

automatically from outside when

remote control is not handy.

8 Foot Rail Extension

To allow an 8foot door to open fully.

10 Foot Rail Extension:

To allow a 10 foot door to open fully.

Support Brackets:

For finished ceilings or where

additional support is required,

based on garage construction.

Includes brackets and fastening

hardware.

Extension Brackets:

(Available only through Sears

Parts & Service)

(Optional) For safety sensor

installation onto the wall or floor.

139.53680

139.53684

139.53686

139.53709

Includes visor clip.

SECURITY+ Compact

3-Function Remote Control:

With loop for attaching key ring.

SECURITY+ Keyless Entry:

Enables homeowner to operate

garage door opener from outside

by entering a 4 digit code on

specially designed keypad.

Plug-In Light Control:

Enables homeowner to turn on a

lamp, television or other appliance

from car, bedside, or anywhere in

the home with a remote.

Door Clearance Brackets:

(For Sectional Doors Onl_

Replaces top brackets and rollers on

door to reduce height of doortravel.

For use when installing opener in

garage with low headroom clearance.

To Add the Keyless Entry

We recommend that you program your password

before you install the Keyless Entry. You will not

need assistance, and you can test the reception at

the mounting location before installation.

If you have a Premium Control Console:

1. With the door closed, press the four digit password

desired, then press and hold Enter.

2. Press and hold the light button on the door control.

3. Press and hold the door control push bar.

4. After the opener light flashes, release all buttons.

If you do not have a Premium Control Console:

1. Choose a 4-digit password using numbers from

0 to 9 (a number can be used more than once, for

example, 4, 0, 4, 1).

2. Press the four buttons for the password, then

press and holdthe Enter button. The indicator light

on the door opener panel will blink.

3. Press and release the SRT (learn) button on the

opener panel. After the opener light flashes,

release the Enter button.

Test by pressing the password, then press Enter. The

door should begin to move.

Index

Access Door/Outside Key Release Accessory ............................................................................................... 4, 5

Chain Tension .............................................................................................................................................. 4, 5, 11

Electrical Safety Warnings ........................................................................................................................ 2, 20, 31

Garage Door

Testing for balance, binding and sticking ................................................................................................... 3, 28, 31

Determining high point of travel:

Sectional door ................................................................................................................................................... 12

One-piece door ................................................................................................................................................. 13

Disabling existing locks.................................................................................................................................... 3, 11

Door clearance brackets (for garages with low headroom) ........................................................................... 12, 38

Force controls

Adjustment procedures ................................................................................................................................. 4, 29

Problems that might require force adjustments .......................................................................................... 34, 35

Safety warnings .......................................................................................................................................... 29, 31

Door hardware ..................................................................................................................... 3, 9, 11, 12, 18, 31,32

Maintenance instruction label ........................................................................................................................ 11,28

Reinforcement requirements ........................................................................................................................... 4, 24

Removing of all ropes ....................................................................................................................................... 3, 11

Possible door damage ................................................................................................................................... 16, 24

Travel limits

Adjustment procedures ..................................................................................................................................... 28

Problems that might require limit adjustments ............................................................................................ 34, 35

Safety warnings .......................................................................................................................................... 28, 31

Manual (Emergency) Release Rope & Handle

Lockout feature .................................................................................................................................................... 32

Manual disconnect ............................................................................................................................................... 32

Safety warnings ................................................................................................................................. 11, 19, 31, 32

Opener Terminals

Door control connections ..................................................................................................................................... 18

Safety reversing sensor connections ................................................................................................................... 23

Operational Noise

Sprocket noise ..................................................................................................................................................... 11

Vibration noise (isolator kit) ................................................................................................................................. 34

Receiver and Remote Control

Programming the receiver ................................................................................................................................... 33

Erasing all codes ................................................................................................................................................. 33

Activating other openers ...................................................................................................................................... 33

Safety warning ..................................................................................................................................................... 33

Problems with remote control operation .............................................................................................................. 34

Safety Reverse Test Procedure .......................................................................................................................... 30

Testing required ................................................................................................................................. 11, 30, 34, 35

Safety reverse system problems

Securing header bracket to wall ....................................................................................................................... 12

Adjusting travel limits ........................................................................................................................................ 28

Applying excessive force on the door ............................................................................................................... 29

Buckling or uneven floor ................................................................................................................................. 4, 5

Safety Warnings ......................................................... 2, 3, 9, 11, 12, 16, 18, 19, 20, 21,24, 28, 29, 30, 31,32, 33

User Instruction Label for garage wall ........................................................................................................ 11, 18

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-8OO-4-MY-HOME s" (1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio - 1-800-676-5811

For the repair or replacement parts you need:

Call 6 a.m. - 11 p.m. CST, 7 days a week

PartsDirect s"

1-800-366-PART (1-800-366-7278)

www.sears.condpa rtsd irect

Para ordenar piezas con entrega a domicilio - 1-800-659-7084

For the location of a Sears Service Center in your area:

Call 24 hours a day, 7 days a week

1-8OO-488-1222

To purchase or inquire about a Sears Maintenance Agreement:

Call 7 a.m. - 5 p.m. CT, Monday - Saturday

1-800-827-6655

SEARS WARRANTY

FULL 90-DAY WARRANTY ON GARAGE DOOR OPENER

For 90 days from the date of purchase, Sears will repair this Garage Door Opener, free of charge, if defective in material or

workmanship.

LIMITED WARRANTY

From the 91 st day until one year from the date of purchase, Sears will furnish replacemenl pads for any defective pads, free of charge.

You pay for labor.

LIMITED WARRANTY ON MOTOR

1/2HP MOTOR: After 1 year and through 5 years, ifthe motor on this Garage Door Opener is defective, Sears will furnish areplacement

motor, free of charge. You pay for labor,

LIMITATION ON LIABILITY

SEARS WILL NOT BE LIABLE FOR LOSS OR DAMAGE TO PROPERTY OR ANY INCIDENTAL OR CONSEQUENTIAL LOSS OR

EXPENSE FROM PROPERTY DAMAGE DUE DIRECTLY OR INDIRECTLY FROM THE USE OF THIS PRODUCT. Some states do

not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply lo you.

This warranty does not cover light bulbs or repair parts necessary because of operator abuse or negligence, including the failure to

install, adjust and operate this garage door opener according to instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS CENTER/DEPARTMENT IN THE UNITED STATES.

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Craftsman 1 2 Hp 139 53978Srt Users Manual

13953978SRT 13953978SRT CRAFTSMAN GARAGE DOOR OPENER - Manuals and Guides L0030048 View the owners manual for your CRAFTSMAN GARAGE DOOR OPENER #13953978SRT. Home:Garage Door & Opener Parts:Craftsman Parts:Craftsman GARAGE DOOR OPENER Manual

CRAFTSMAN Garage Door Opener Manual L0030048 CRAFTSMAN Garage Door Opener Owner's Manual, CRAFTSMAN Garage Door Opener installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
