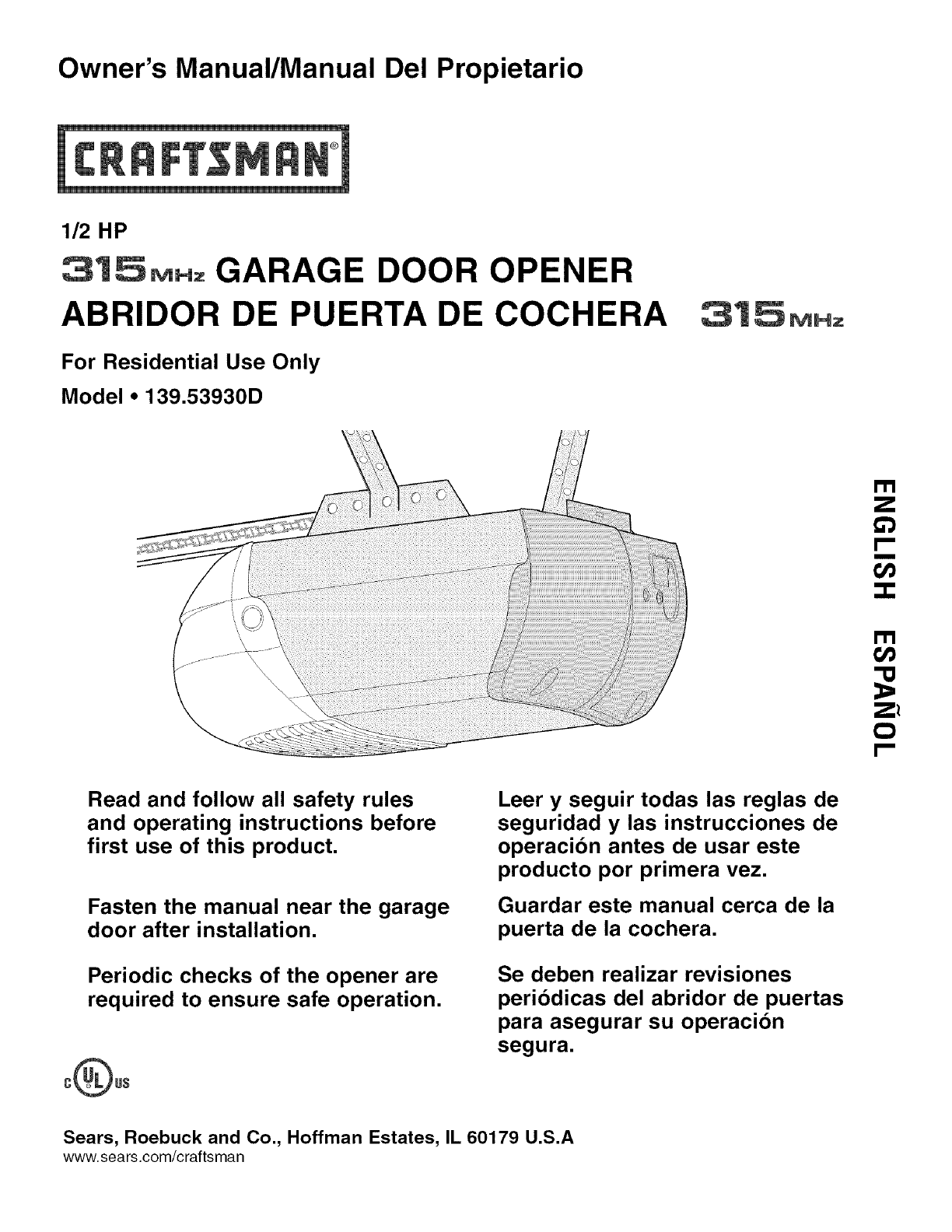

Owner's Manual/Manual Del Propietario

1/2 HP

315_N= GARAGE DOOR OPENER

ABRIDOR DE PUERTA DE COCHERA

For Residential Use Only

Model •139.53930D

315_.=

m

Z

t.n

rrl

t.n

z_

o

Read and follow all safety rules

and operating instructions before

first use of this product.

Fasten the manual near the garage

door after installation.

Periodic checks of the opener are

required to ensure safe operation.

Leer y seguir todas las reglas de

seguridad y las instrucciones de

operacion antes de usar este

producto por primera vez.

Guardar este manual cerca de la

puerta de la cochera.

Se deben realizar revisiones

periodicas del abridor de puertas

para asegurar su operacion

segura.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A

www.sears.com/craftsman

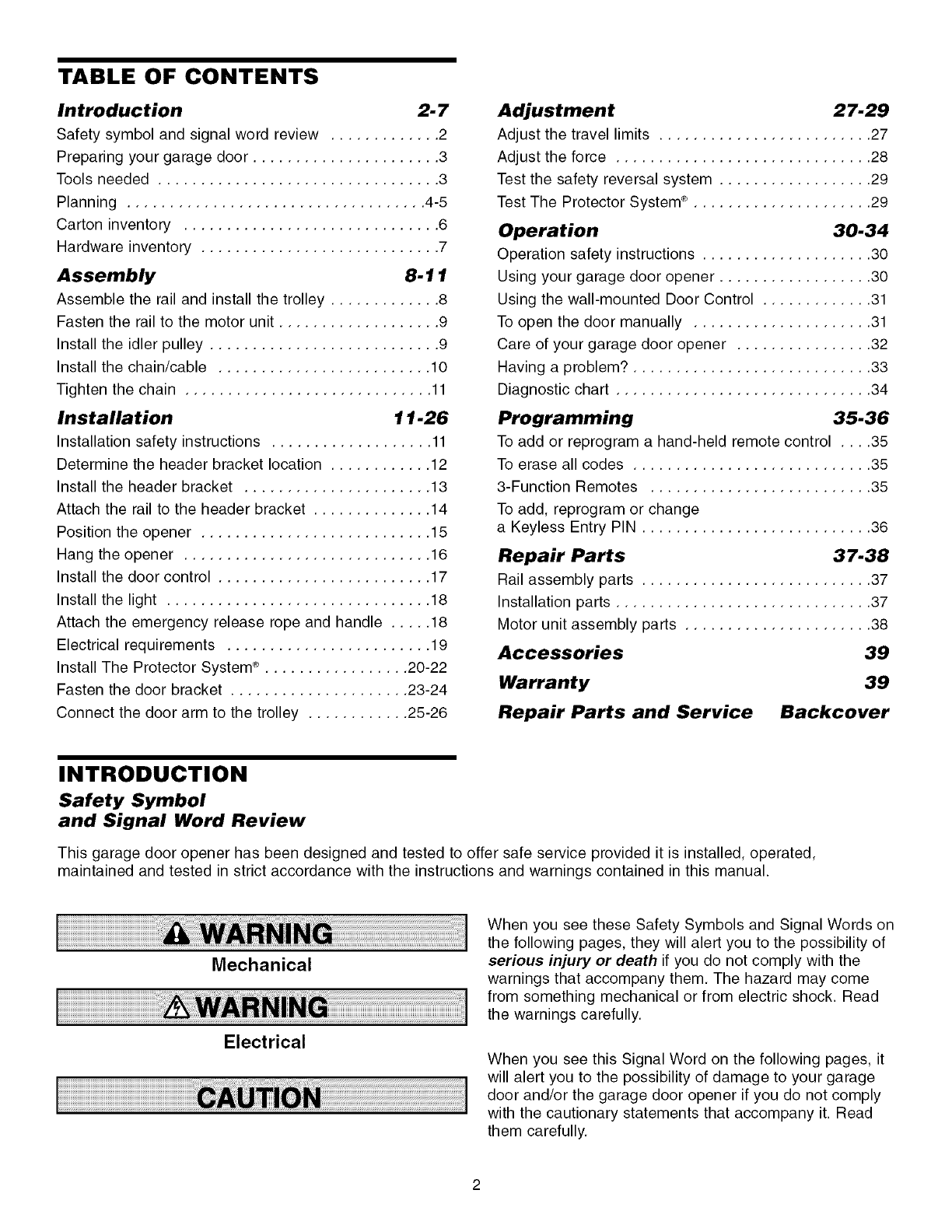

TABLE OF CONTENTS

Introduction 2- 7

Safety symbol and signal word review ............. 2

Preparing your garage door ...................... 3

Tools needed ................................. 3

Planning ................................... 4-5

Carton inventory .............................. 6

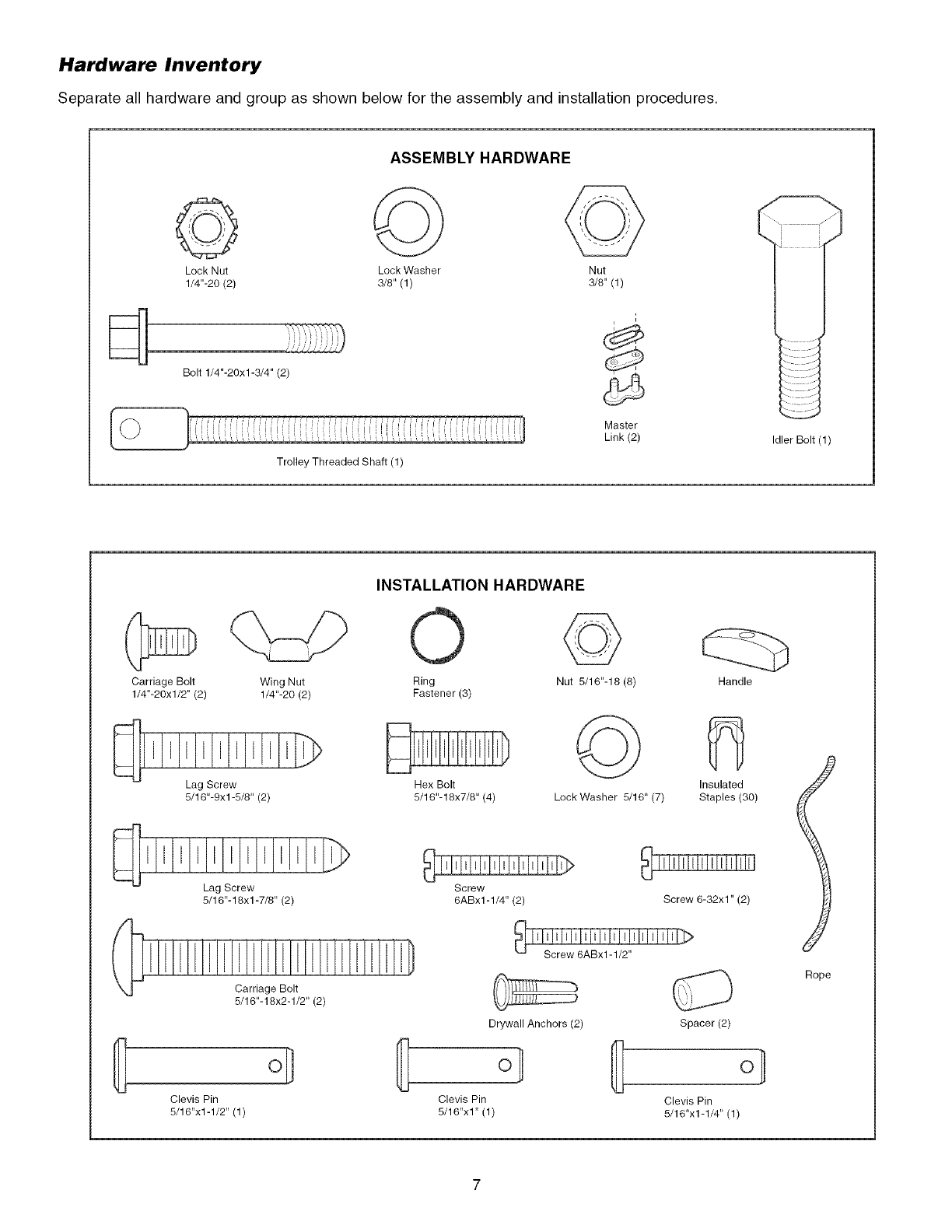

Hardware inventory ............................ 7

Assembly 8-11

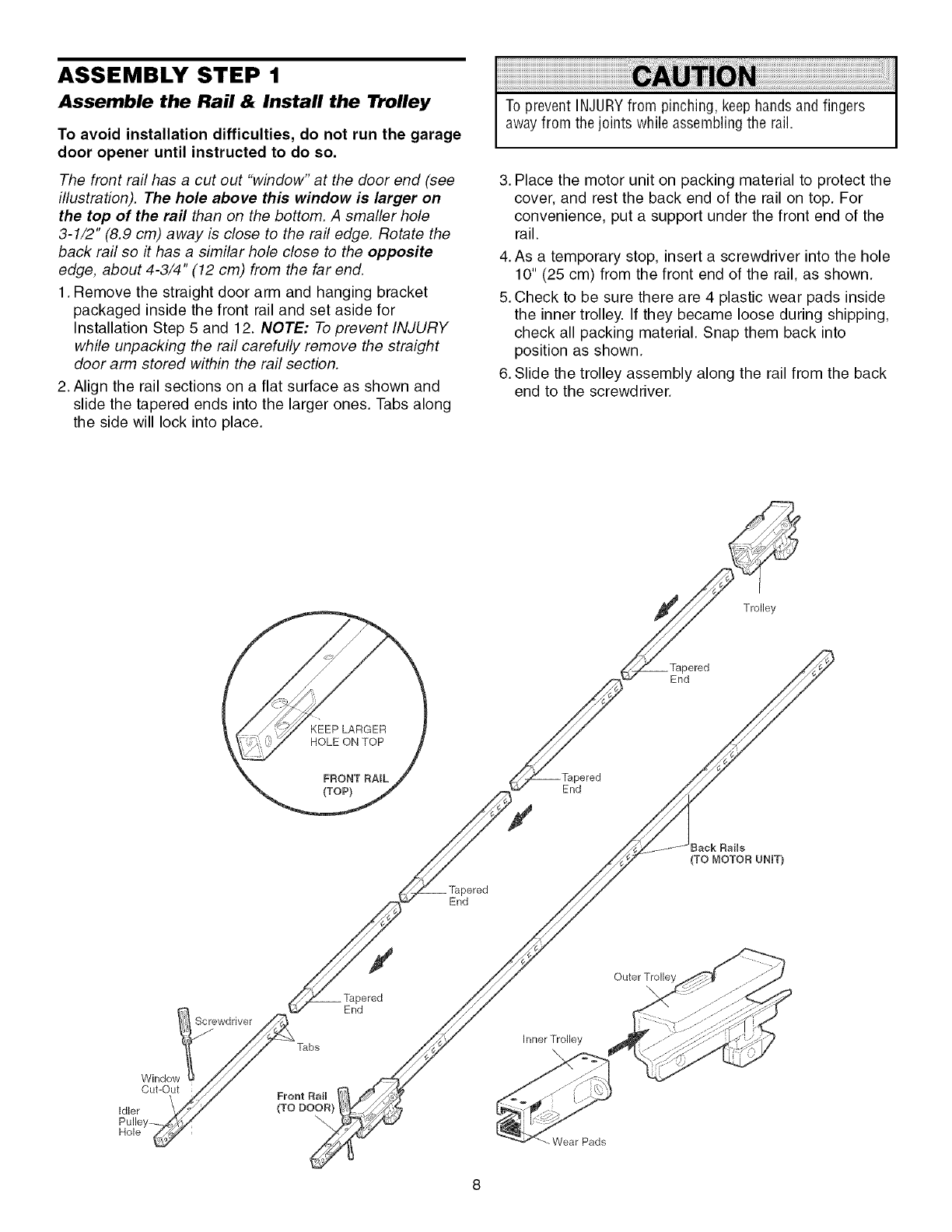

Assemble the rail and install the trolley ............. 8

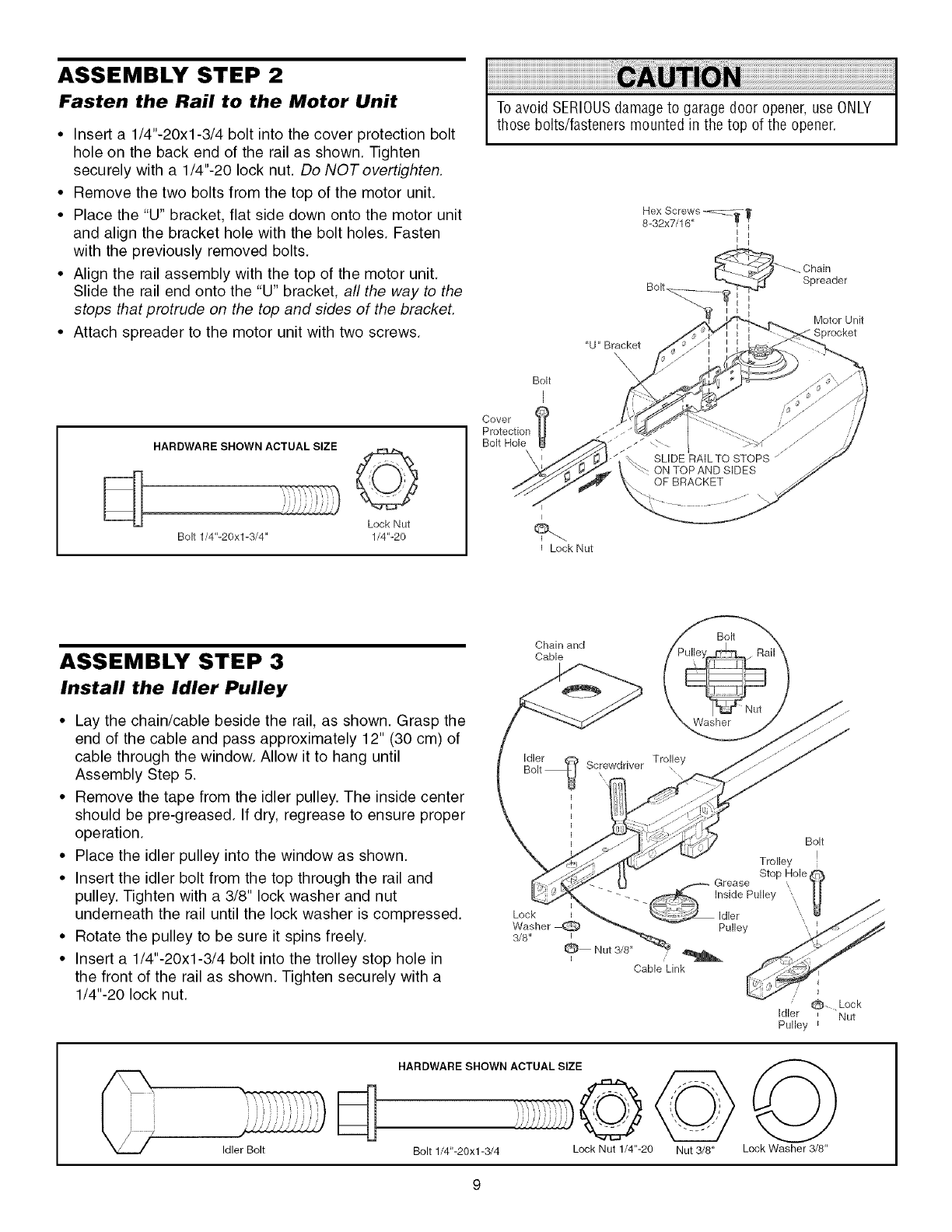

Fasten the rail to the motor unit ................... 9

Install the idler pulley ........................... 9

Install the chain/cable ......................... 10

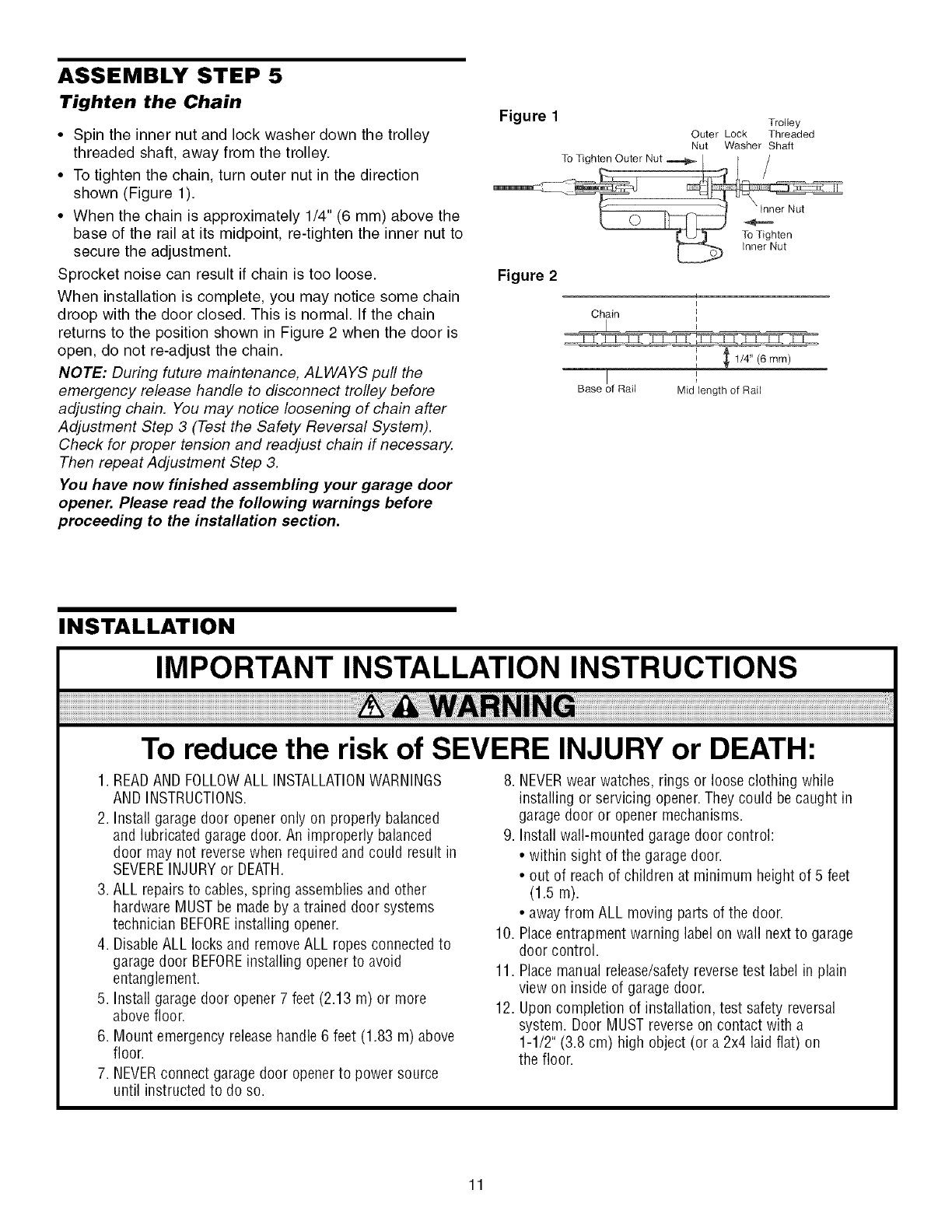

Tighten the chain ............................. 11

Installation 11.26

Installation safety instructions ................... 11

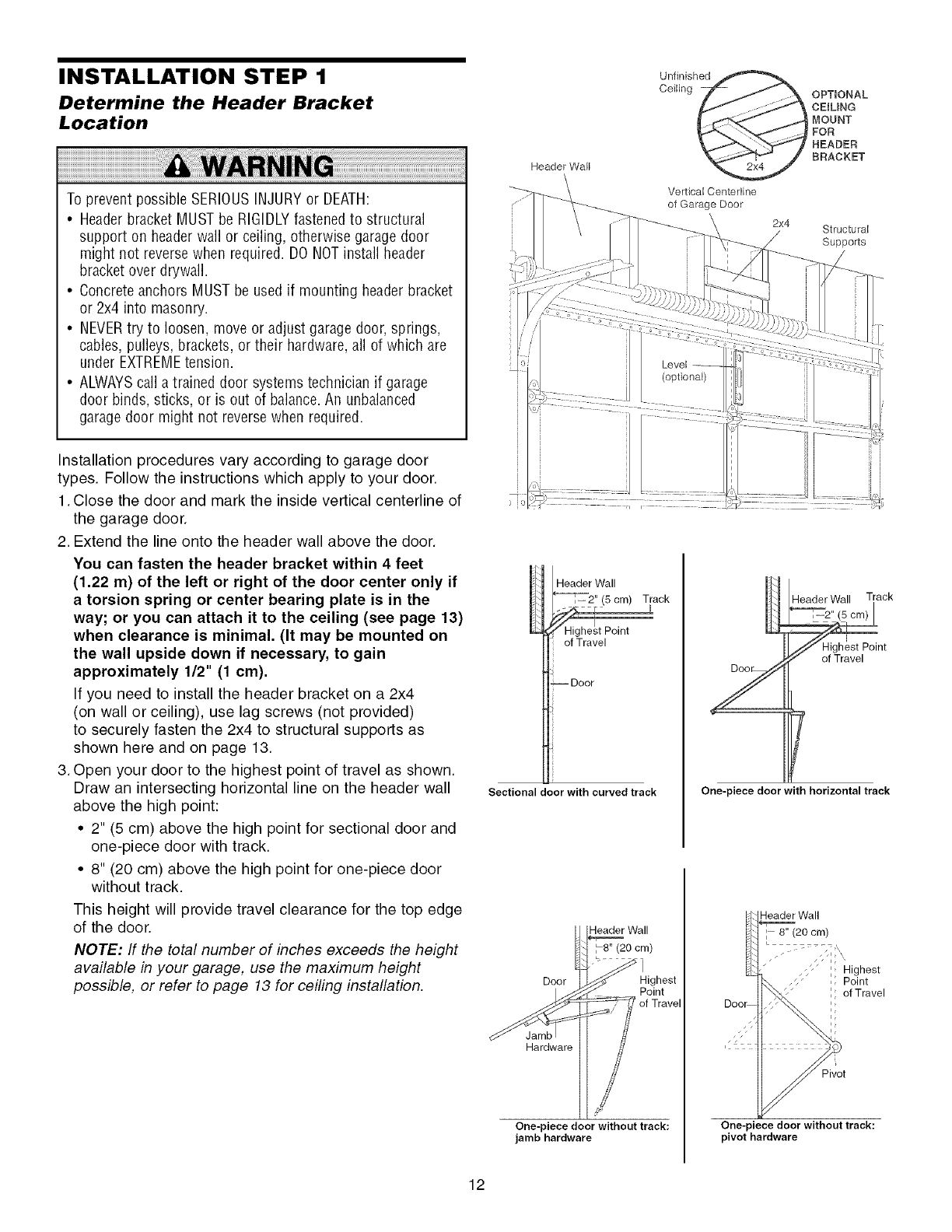

Determine the header bracket location ............ 12

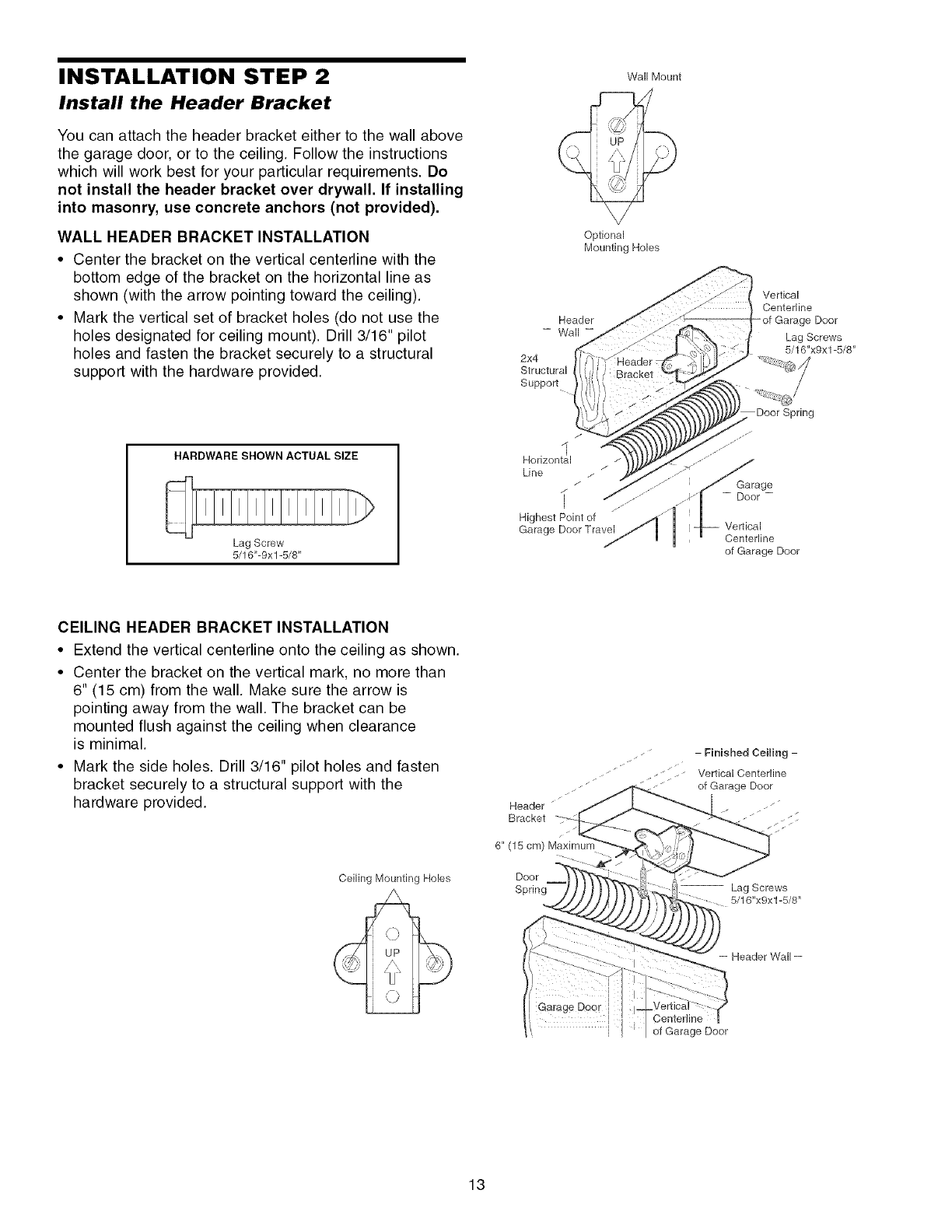

Install the header bracket ...................... 13

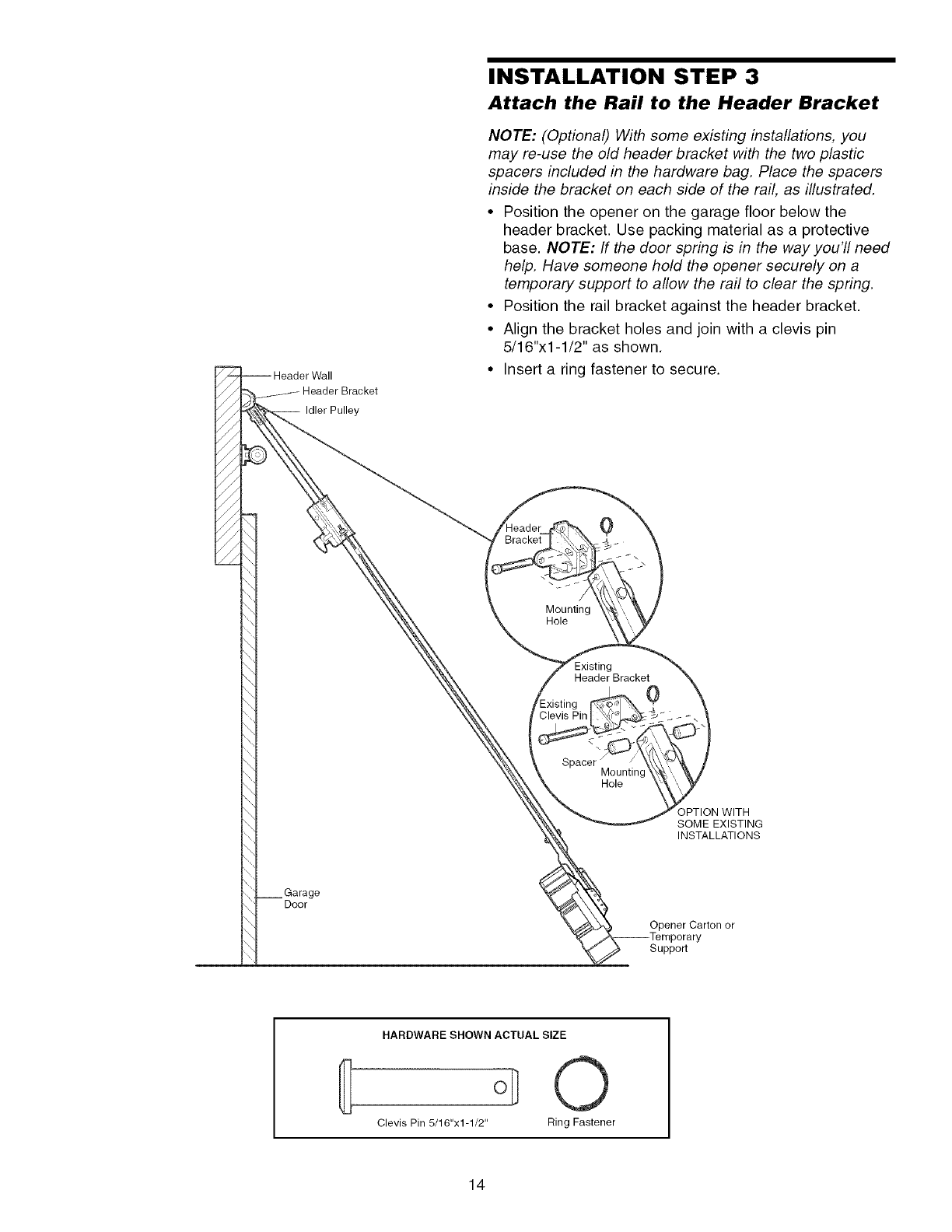

Attach the rail to the header bracket .............. 14

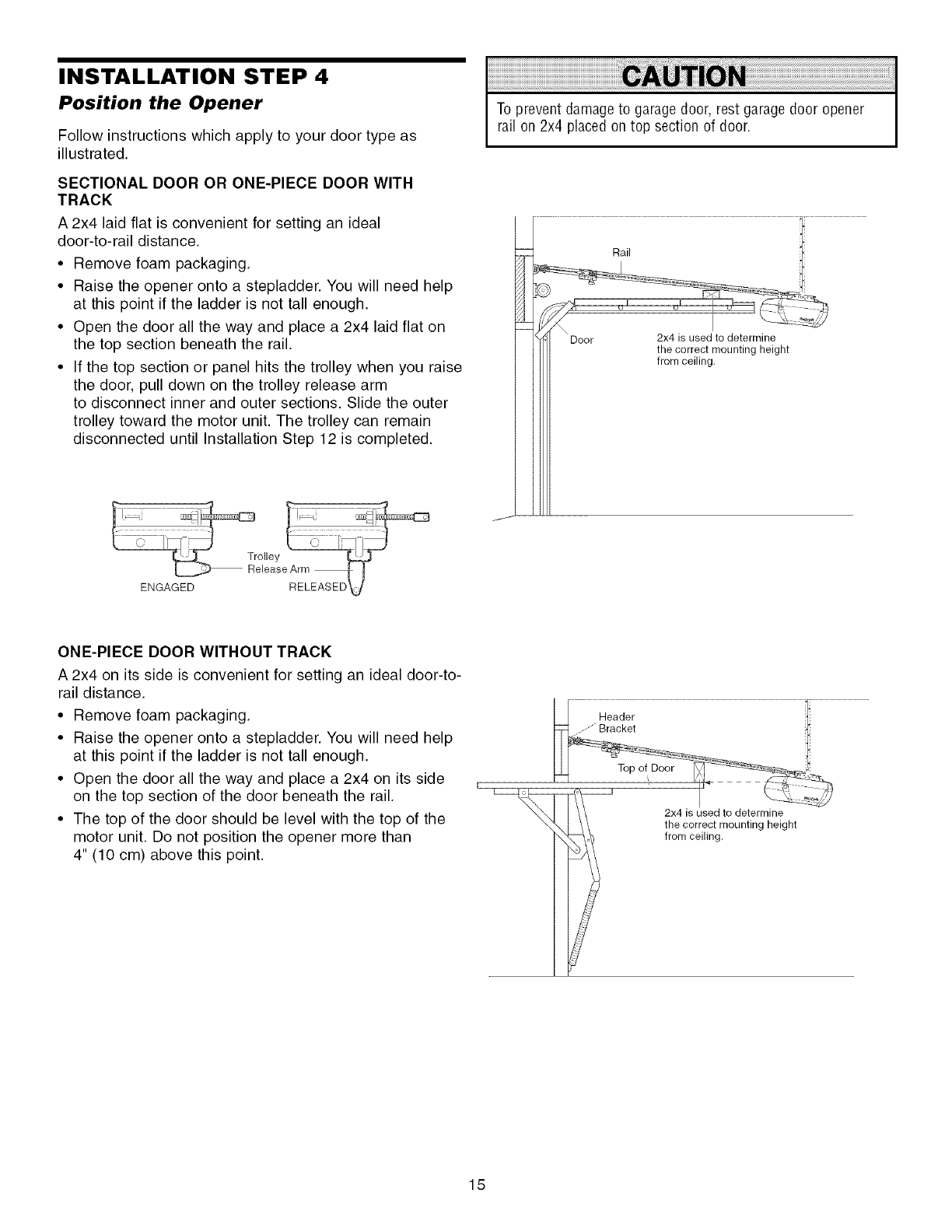

Position the opener ........................... 15

Hang the opener ............................. 16

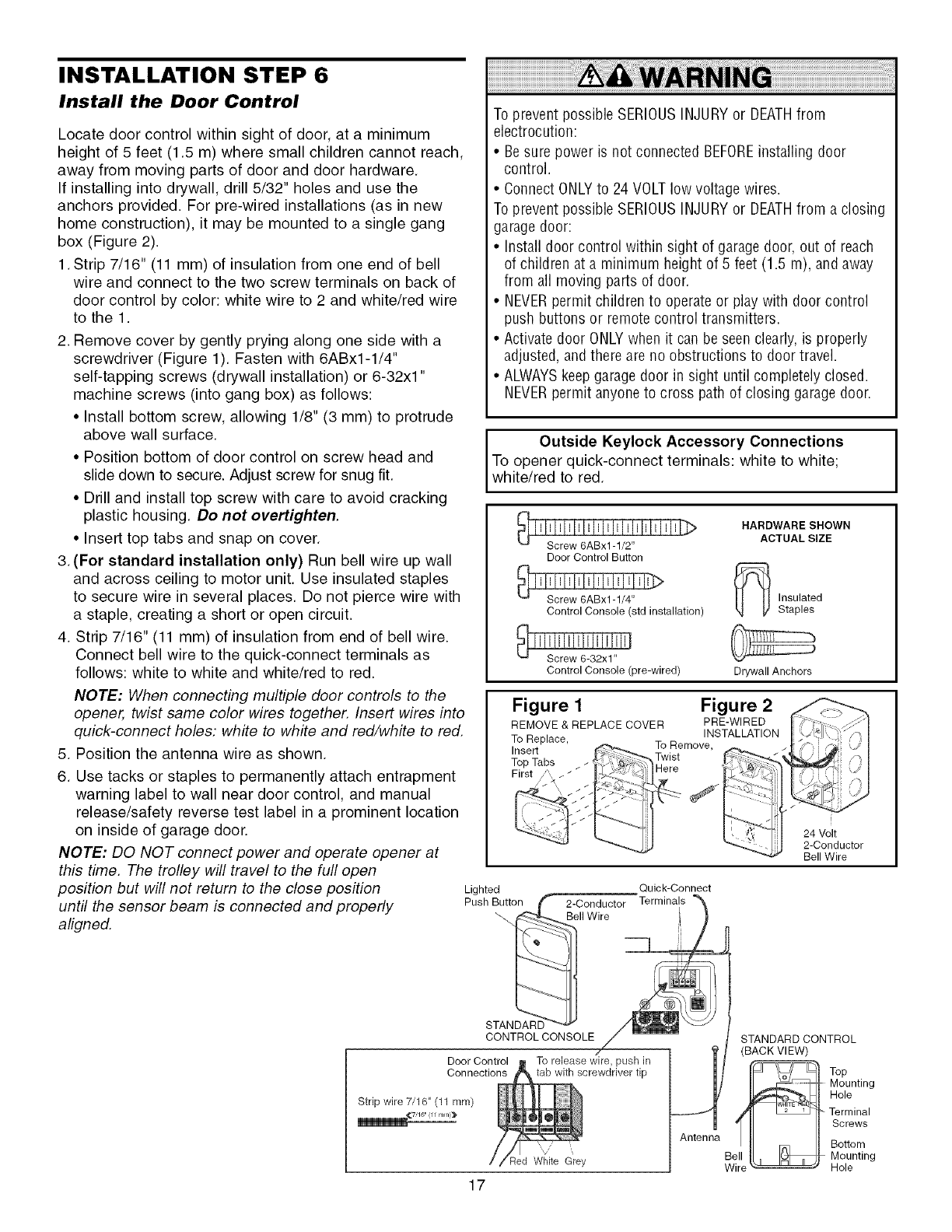

Install the door control ......................... 17

Install the light ............................... 18

Attach the emergency release rope and handle ..... 18

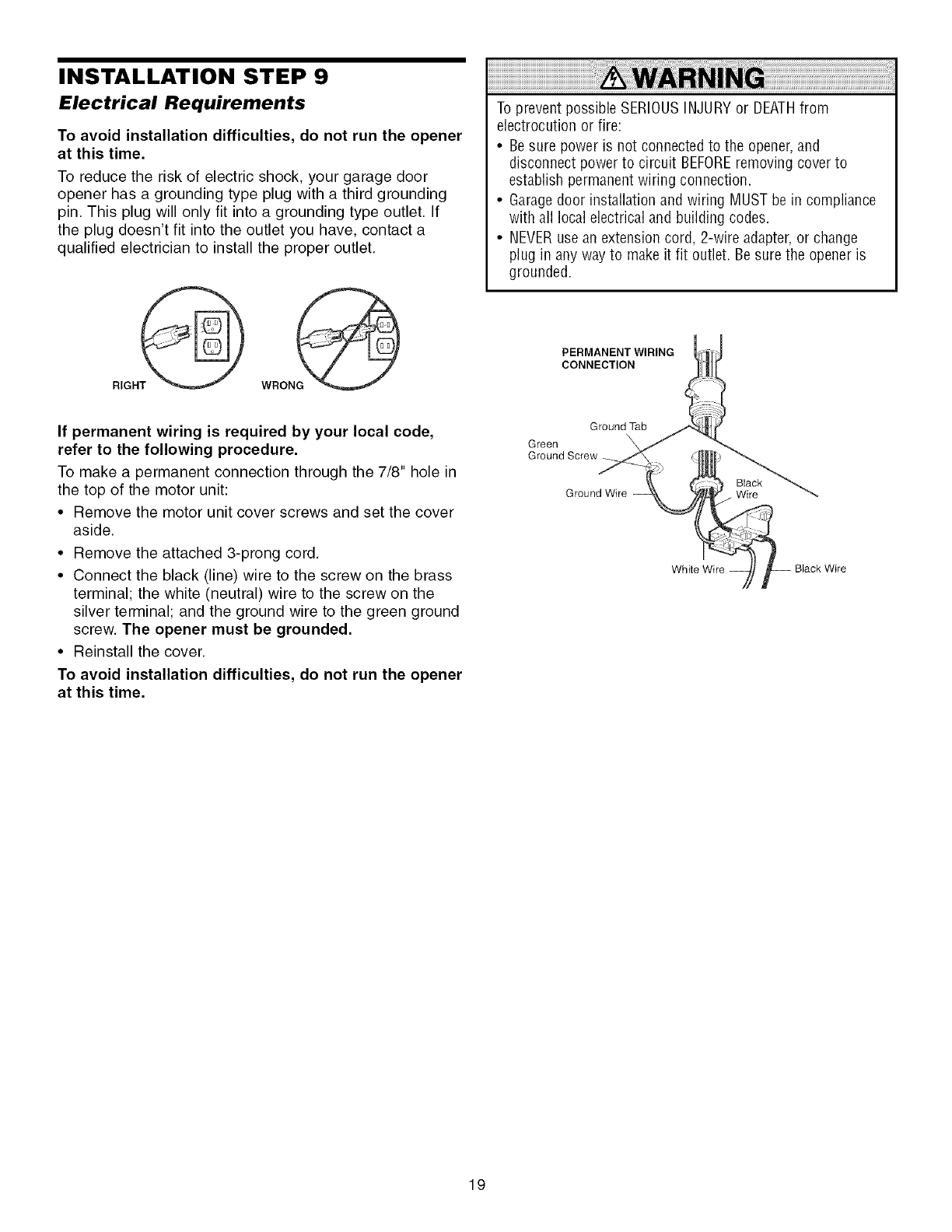

Electrical requirements ........................ 19

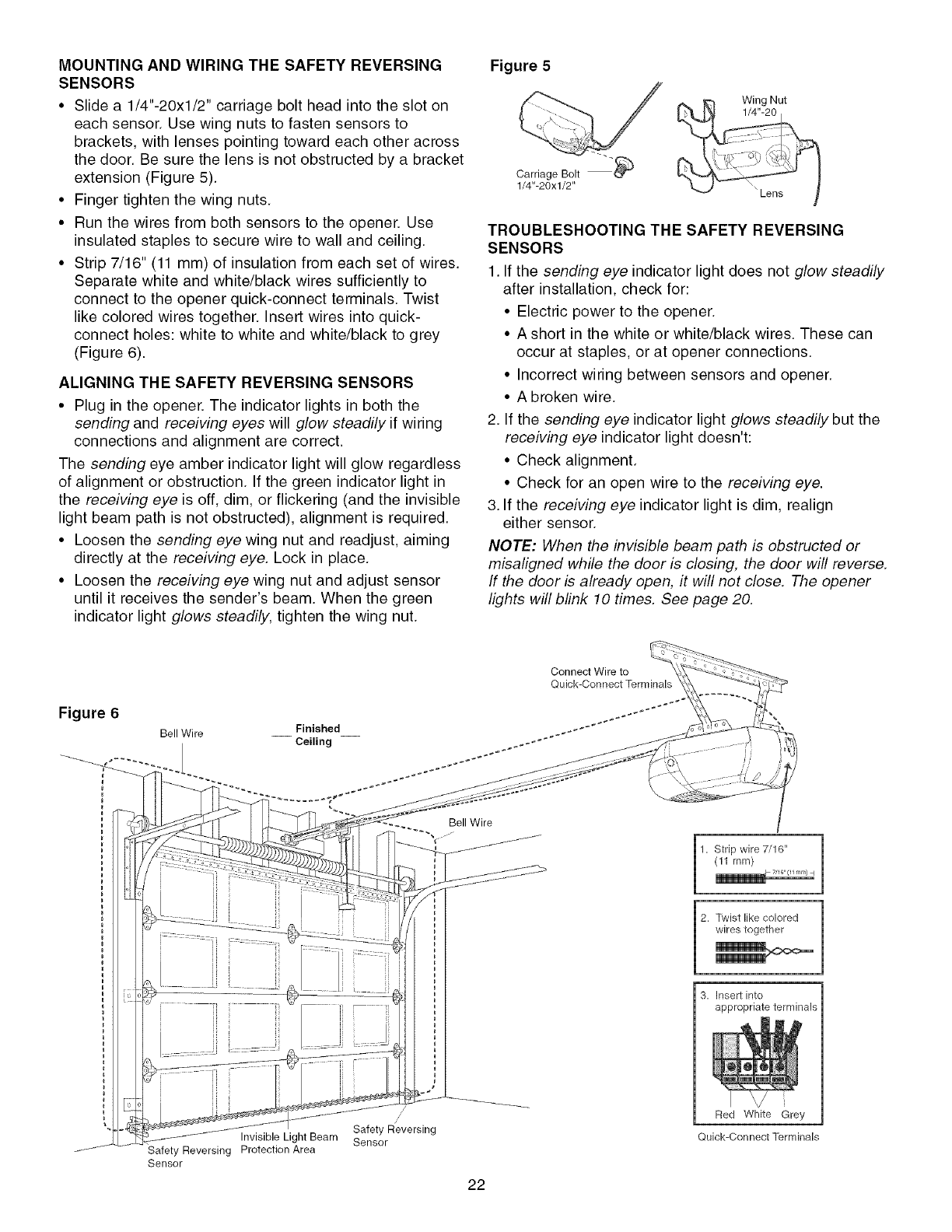

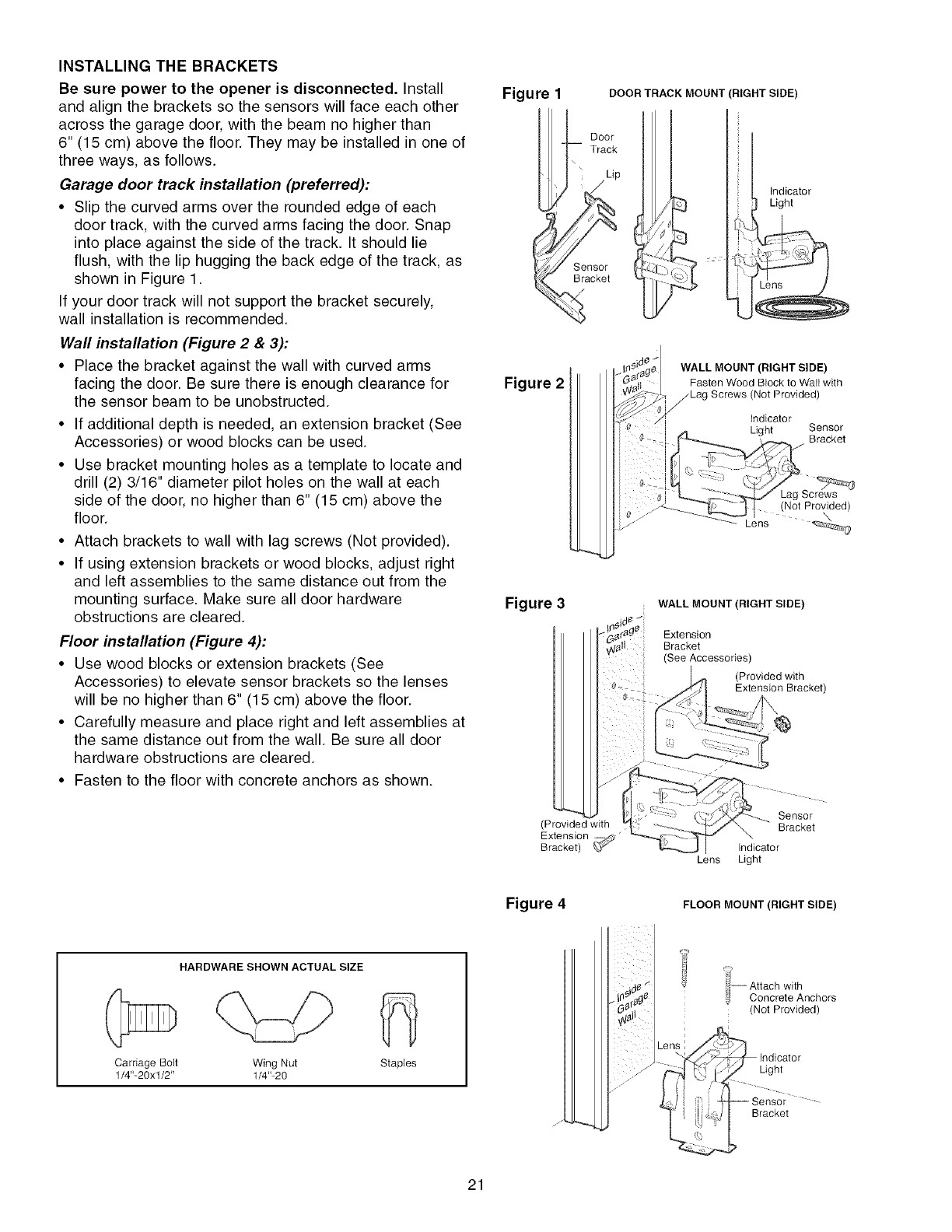

Install The Protector System ®................. 20-22

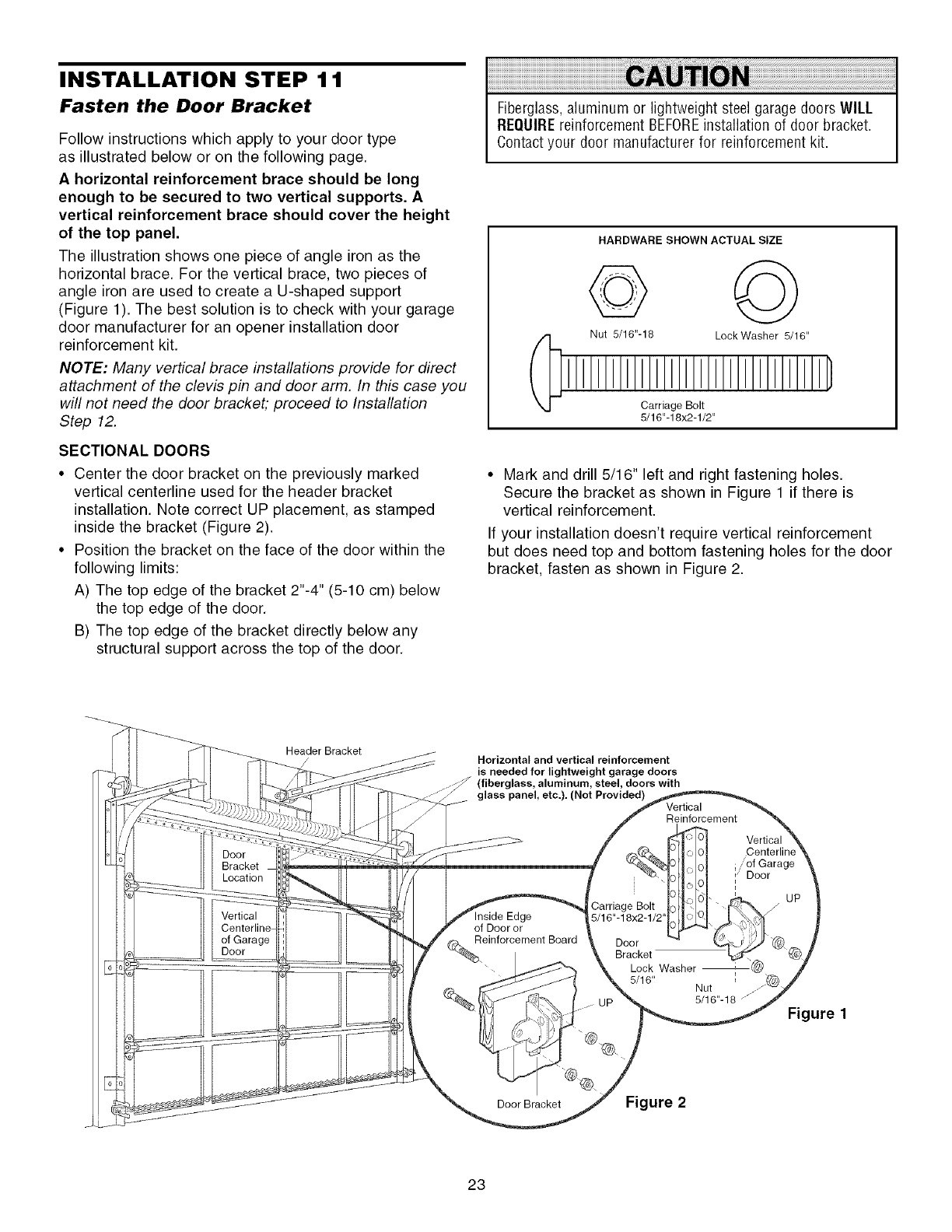

Fasten the door bracket ..................... 23-24

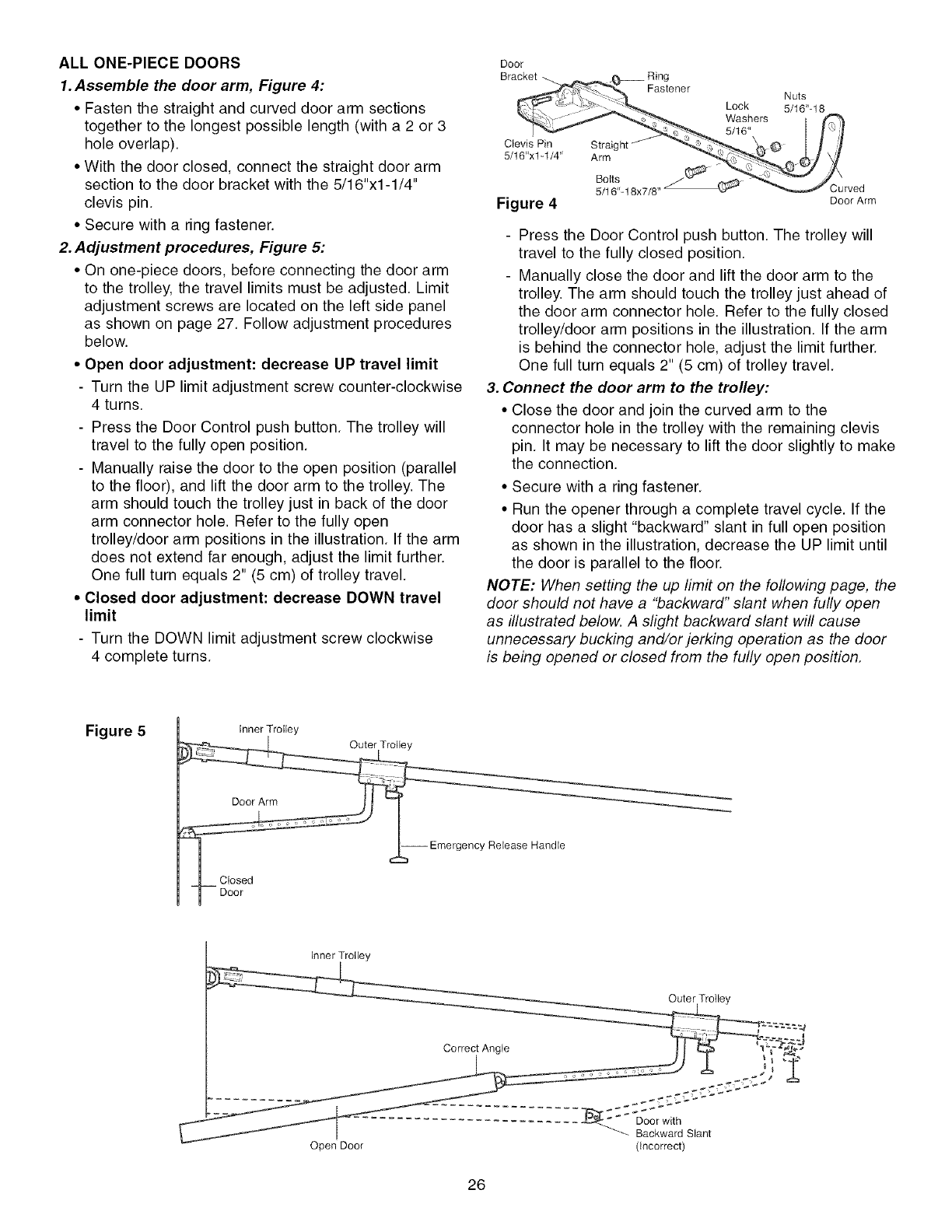

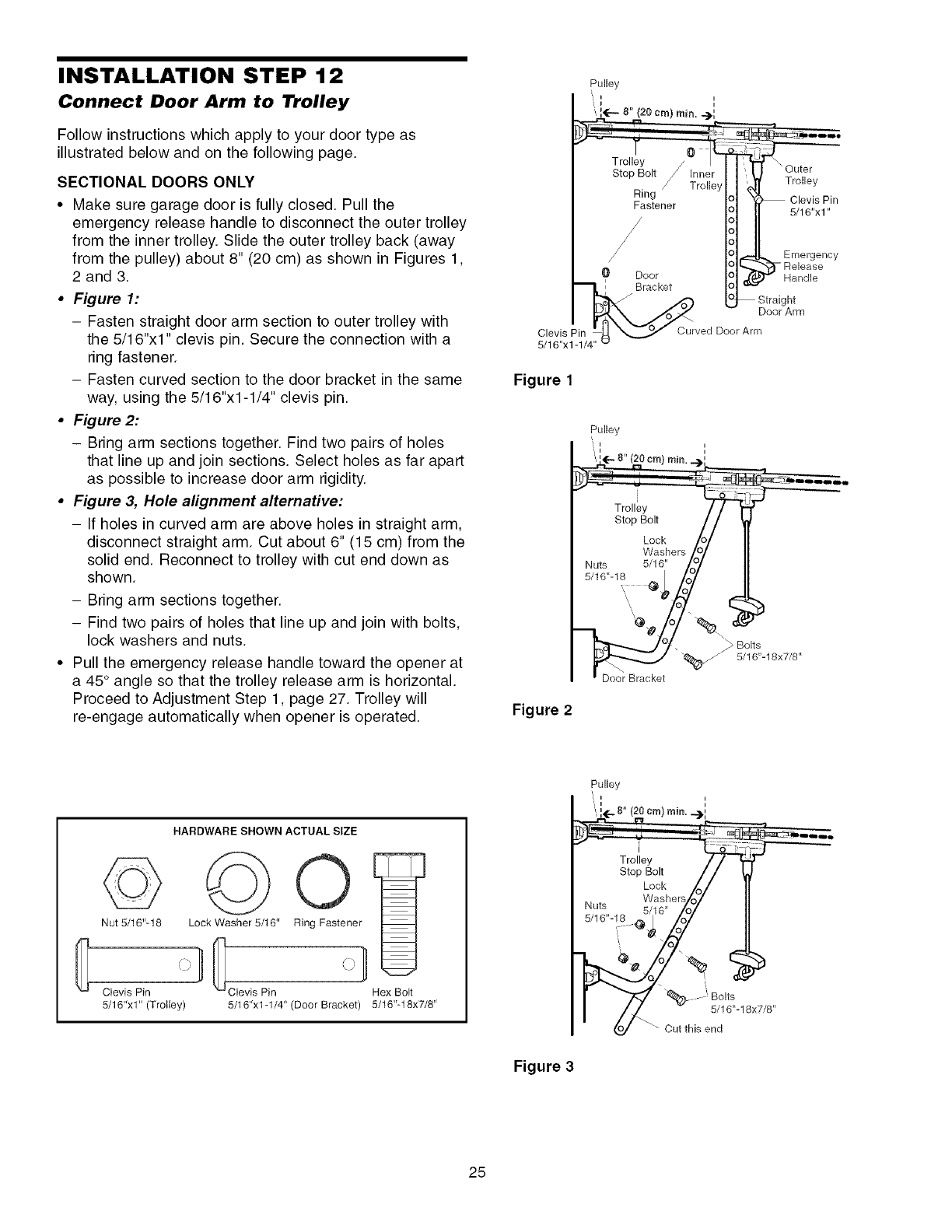

Connect the door arm to the trolley ............ 25-26

Adjustment 27-29

Adjust the travel limits ......................... 27

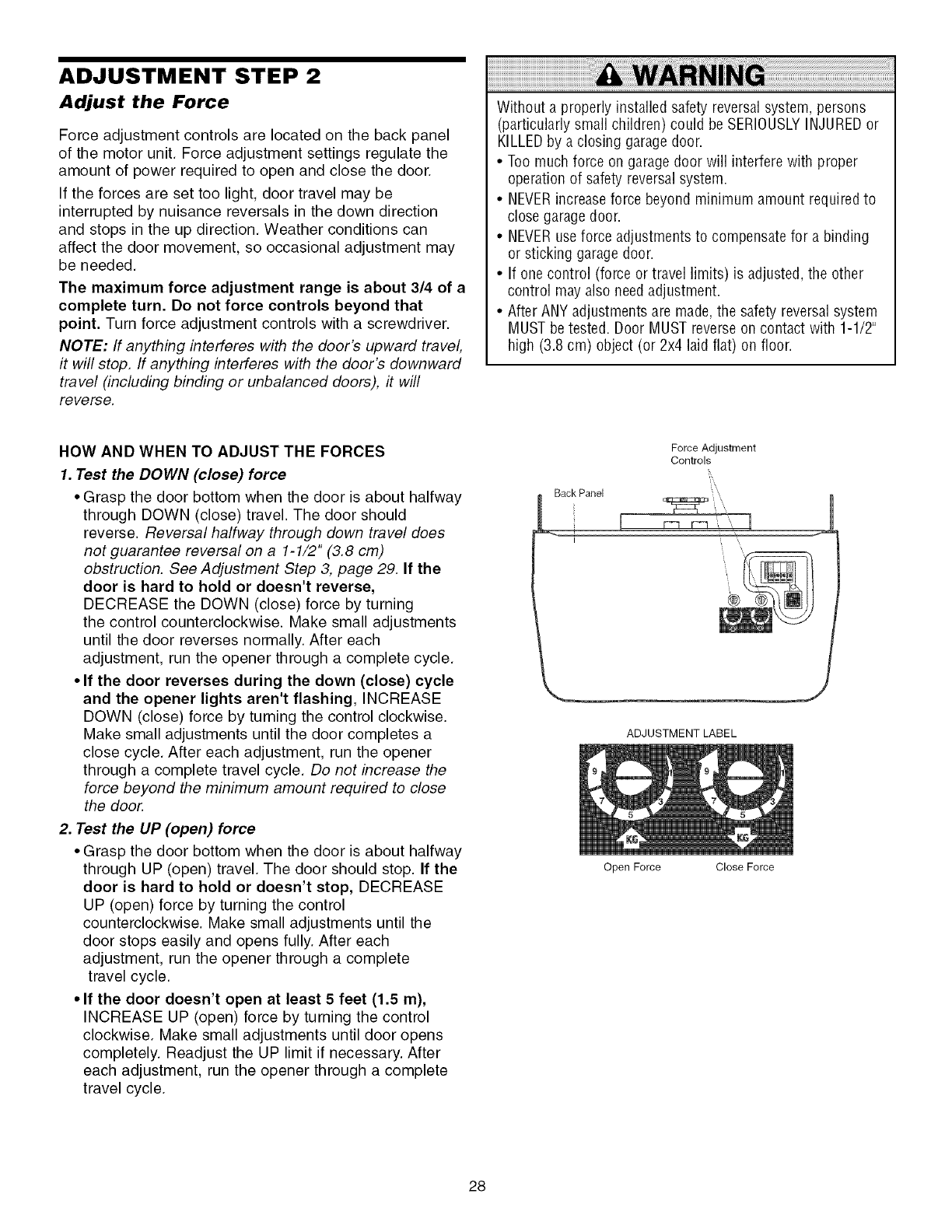

Adjust the force .............................. 28

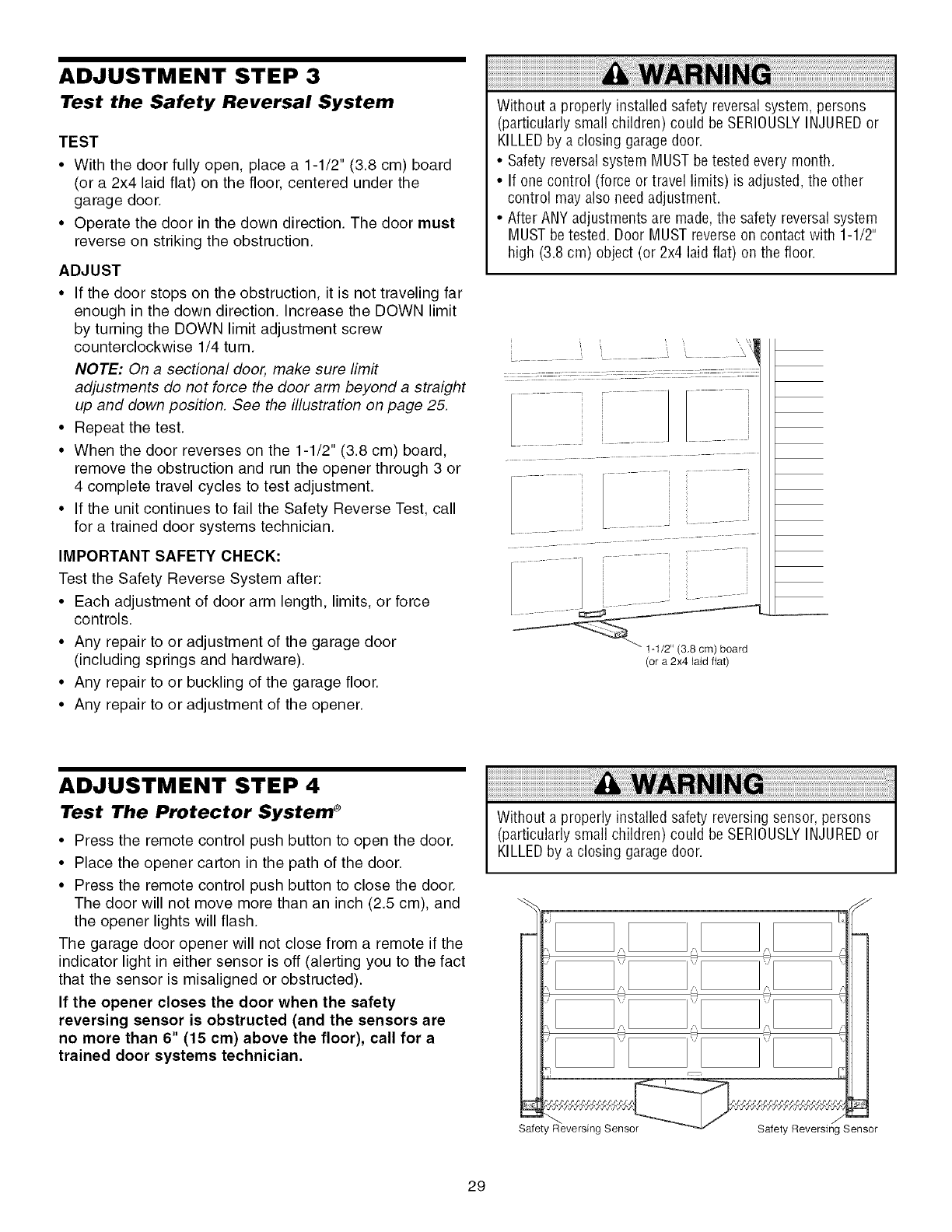

Test the safety reversal system .................. 29

Test The Protector System ® ..................... 29

Operation 30-34

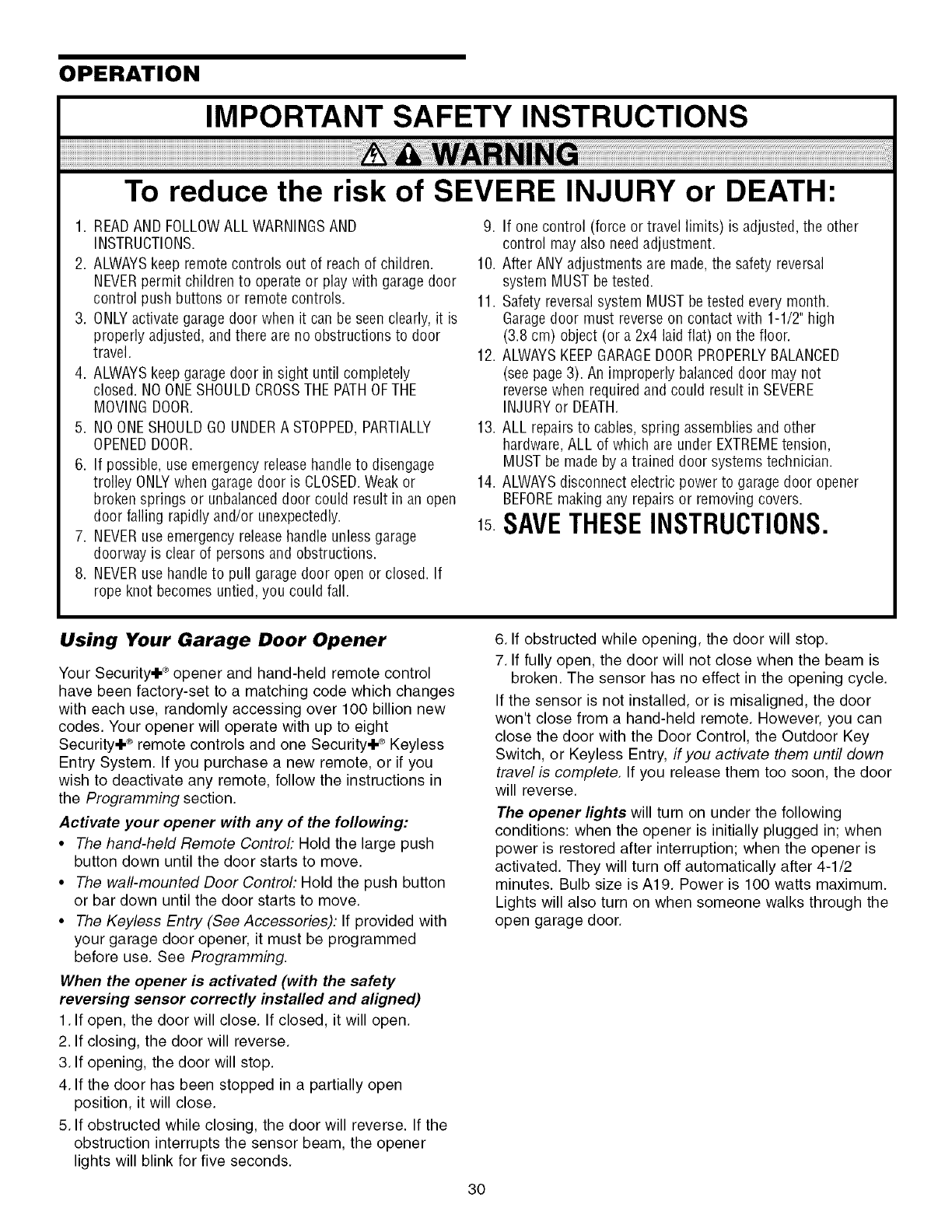

Operation safety instructions .................... 30

Using your garage door opener .................. 30

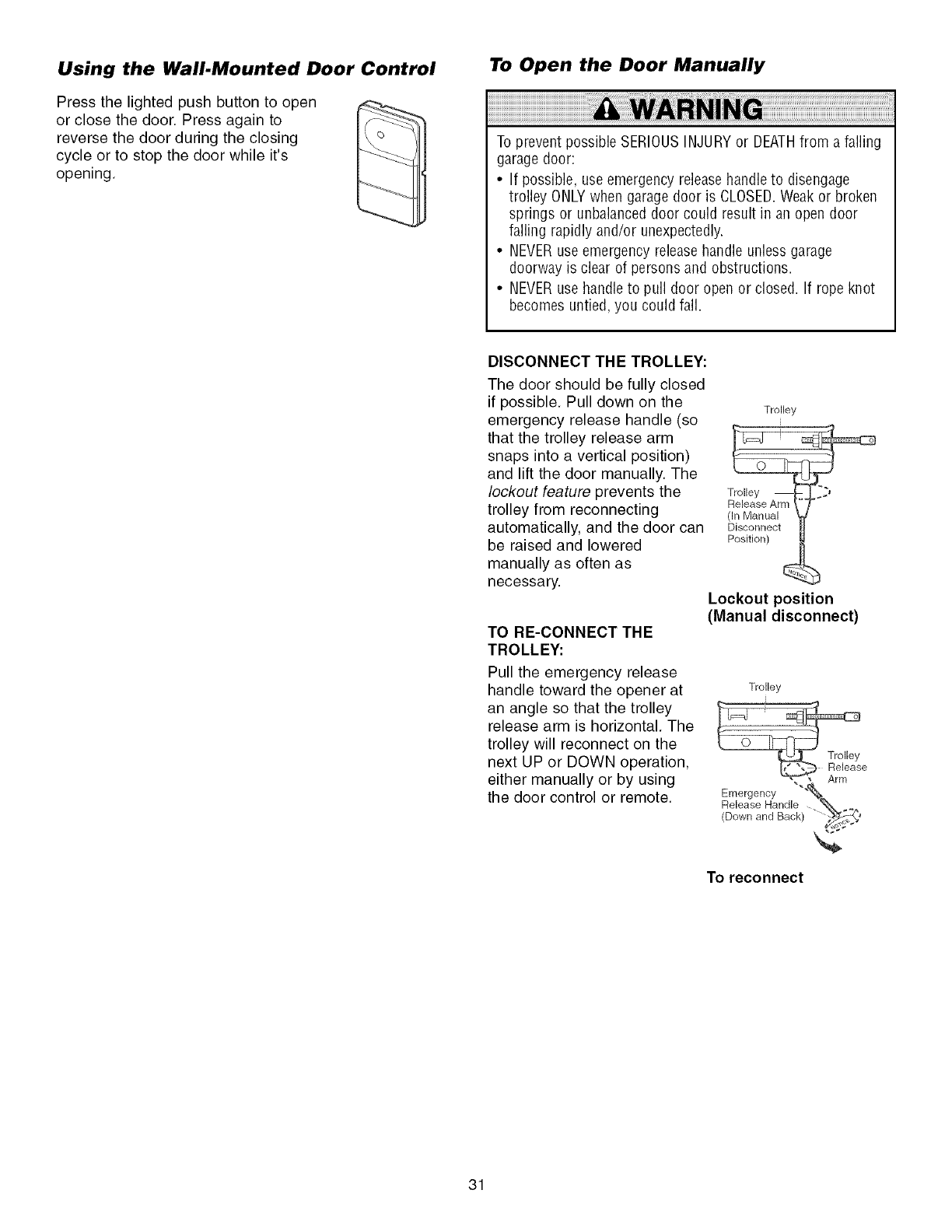

Using the wall-mounted Door Control ............. 31

To open the door manually ..................... 31

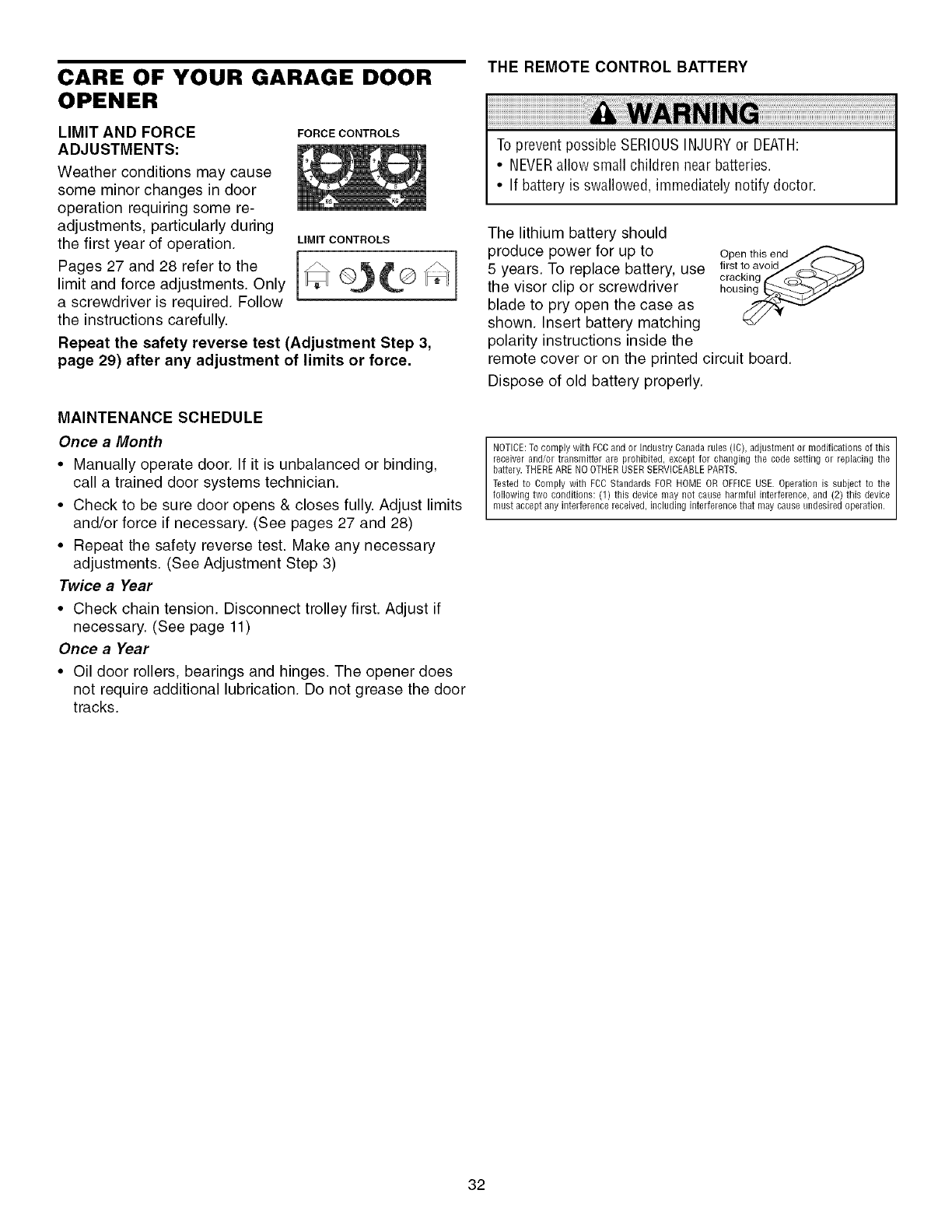

Care of your garage door opener ................ 32

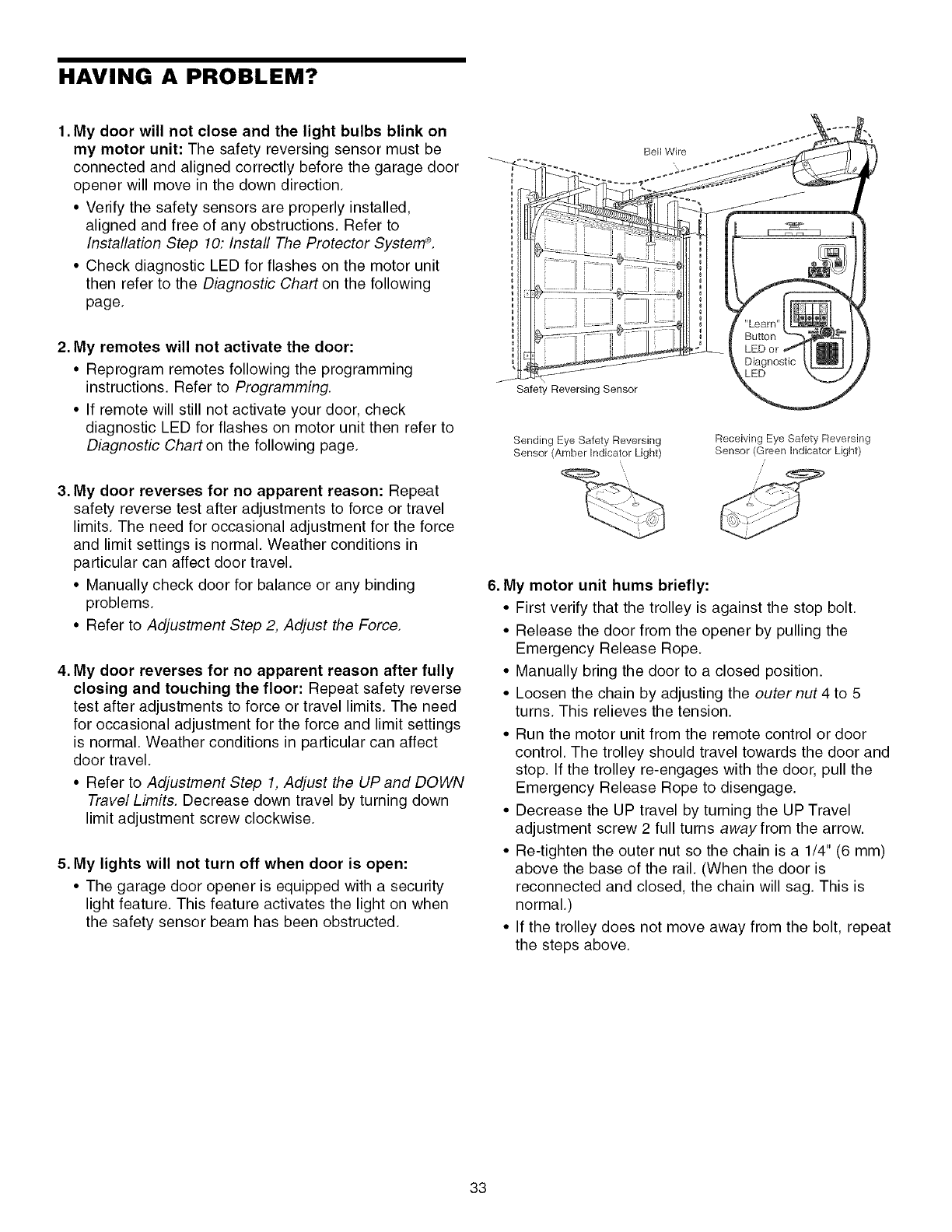

Having a problem? ............................ 33

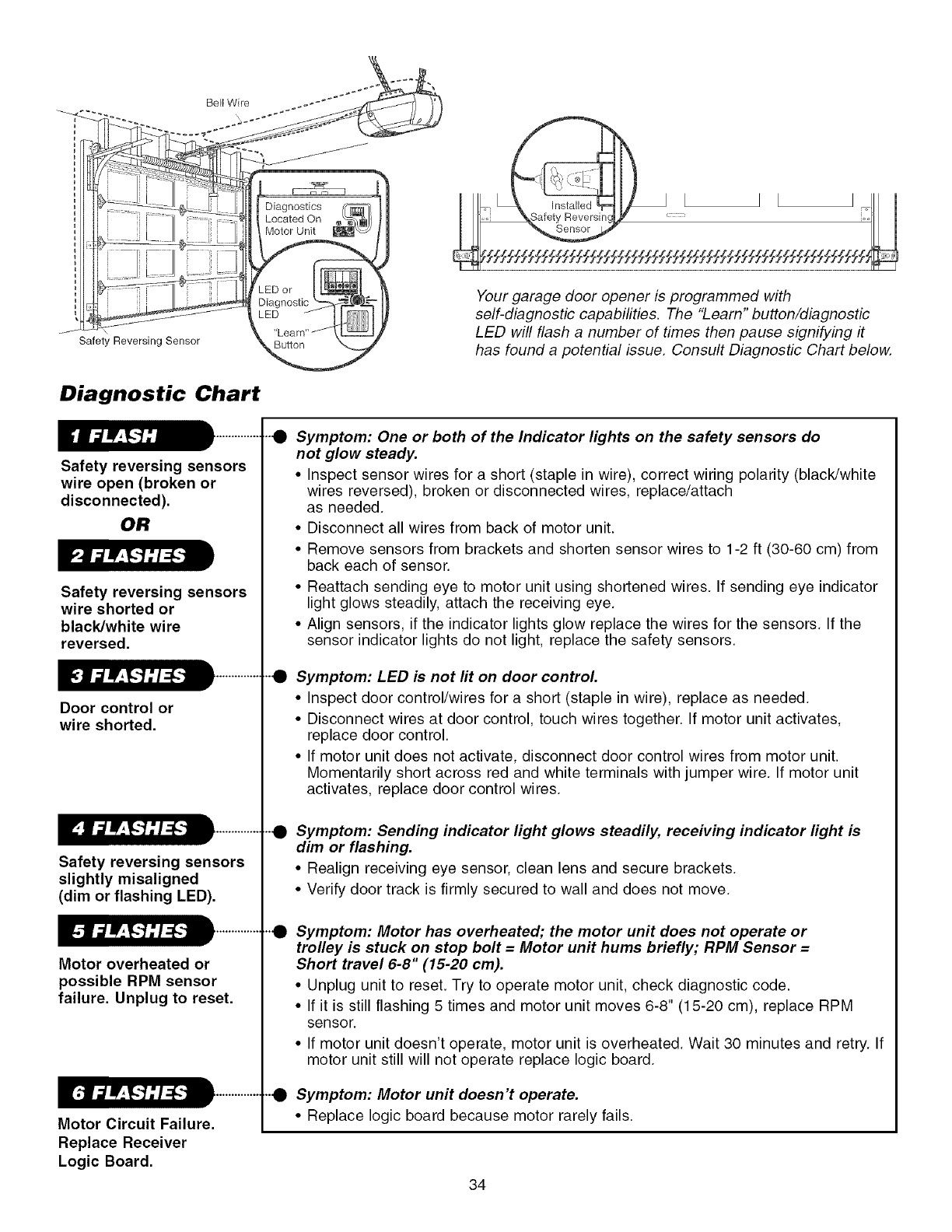

Diagnostic chart .............................. 34

Programming 35-36

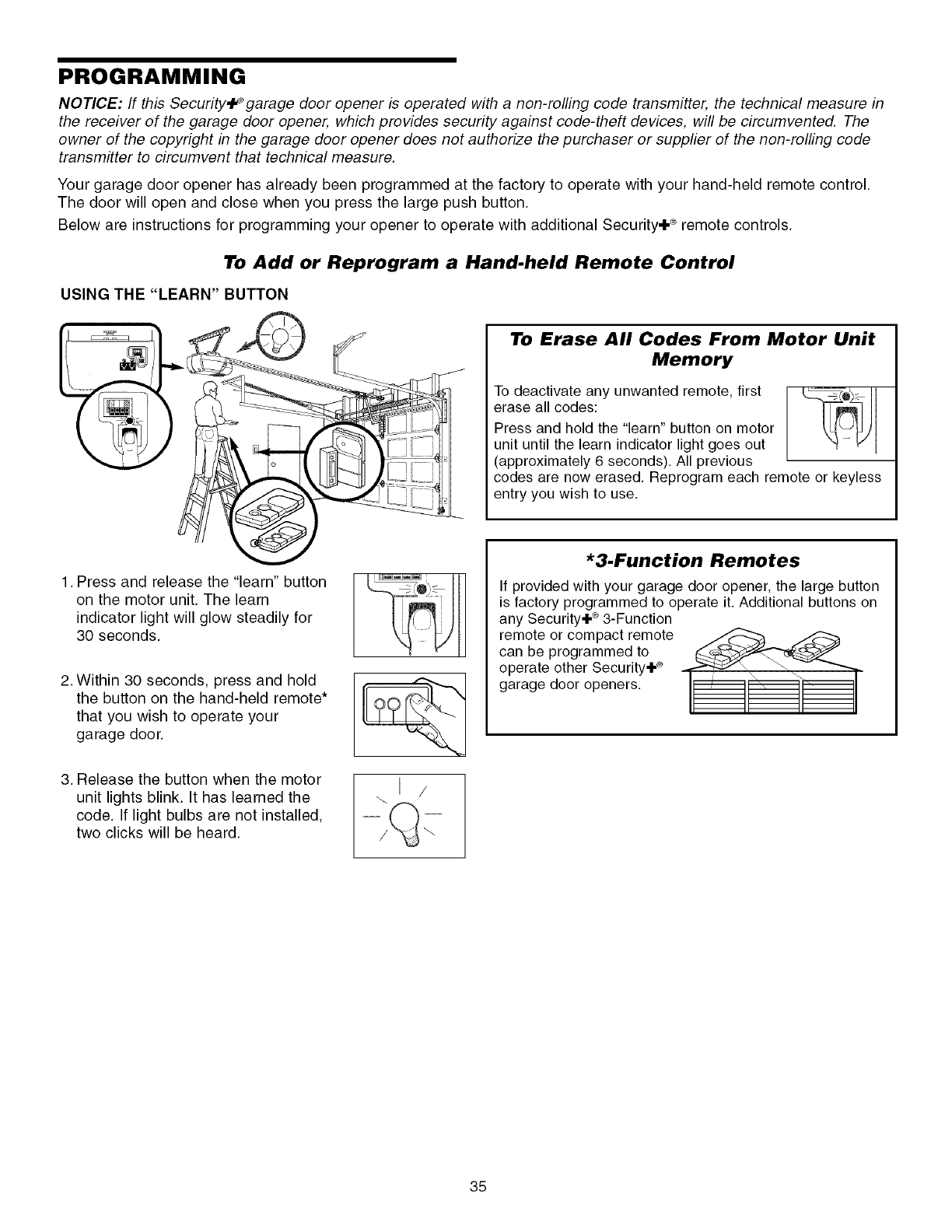

To add or reprogram a hand-held remote control .... 35

To erase all codes ............................ 35

3-Function Remotes .......................... 35

To add, reprogram or change

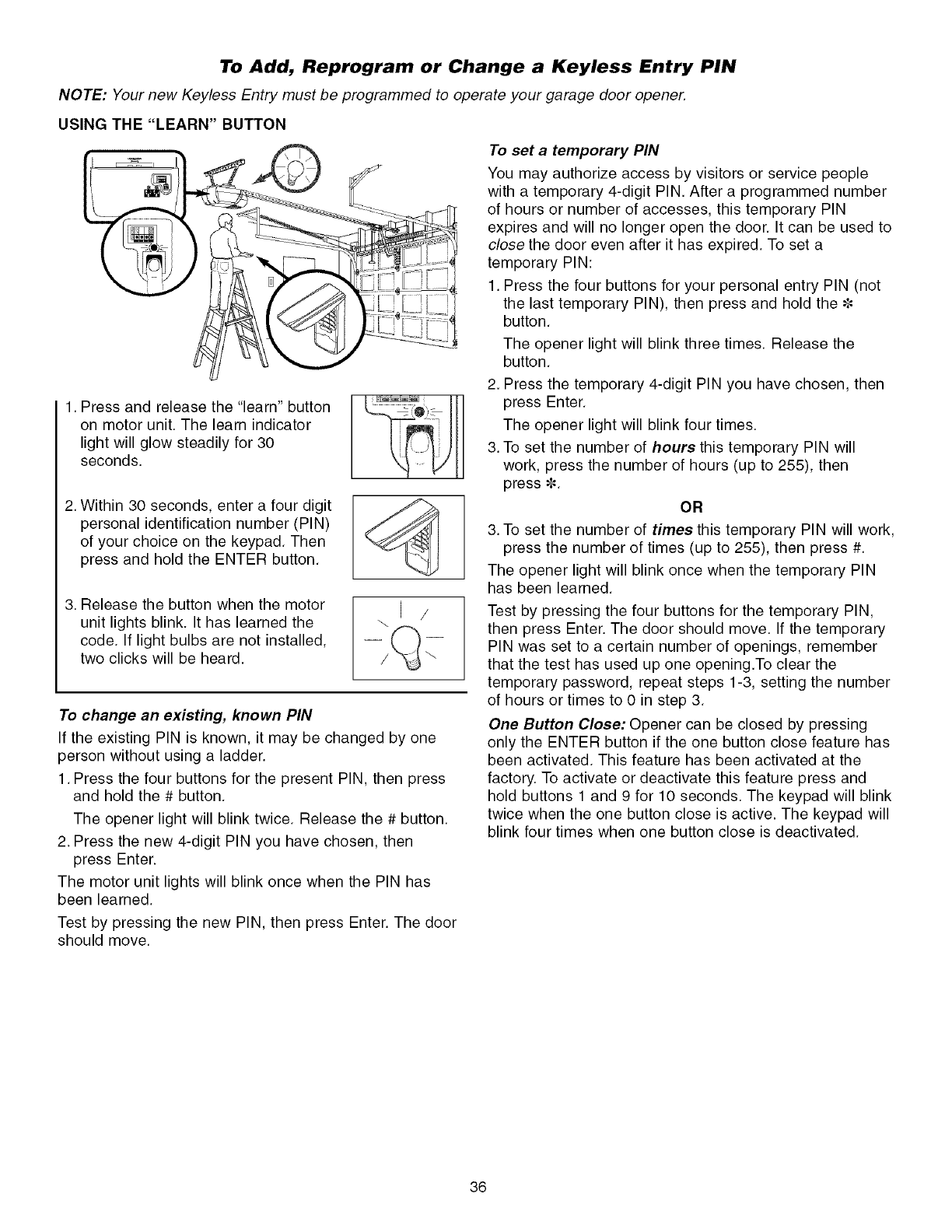

a Keyless Entry PIN ........................... 36

Repair Parts 37.38

Rail assembly parts ........................... 37

Installation parts .............................. 37

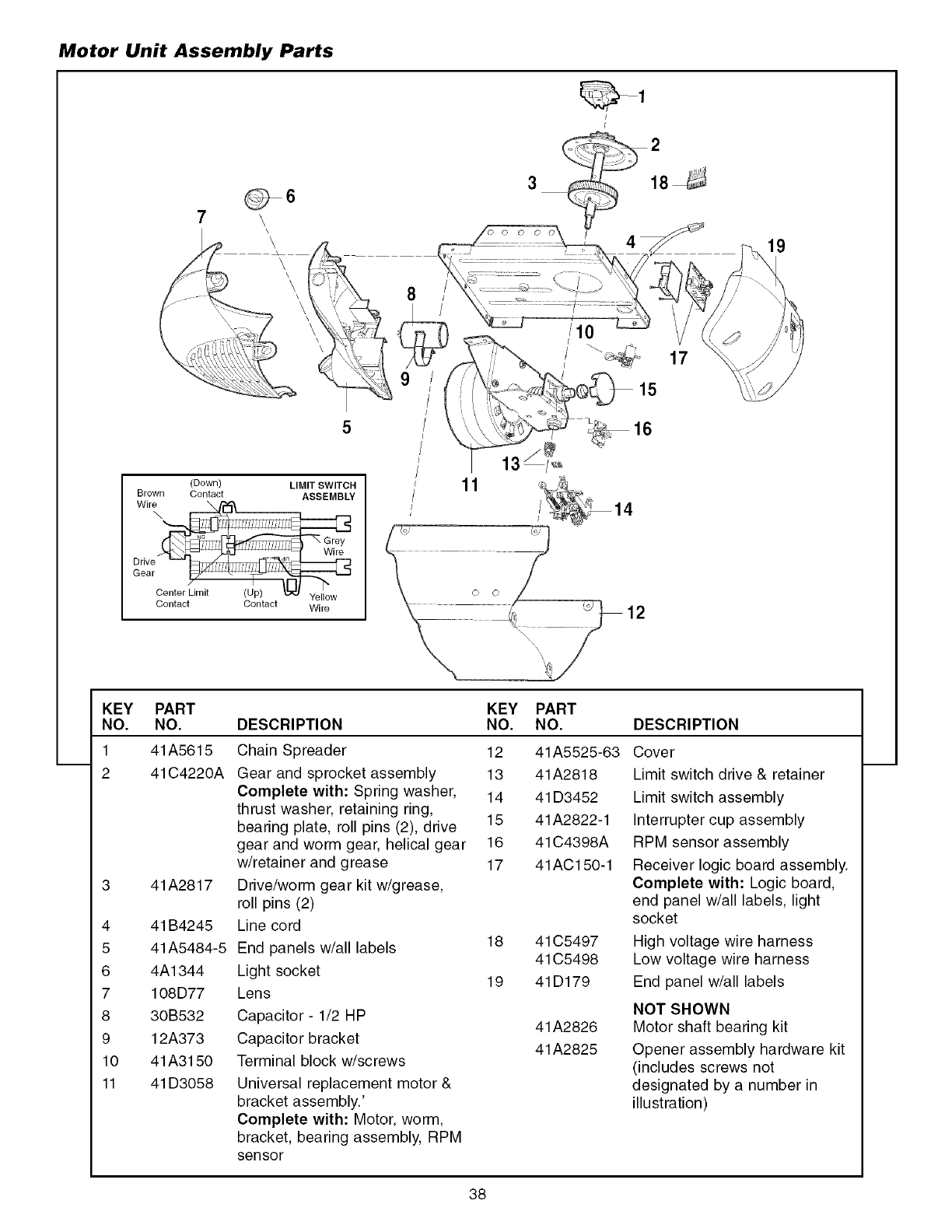

Motor unit assembly parts ...................... 38

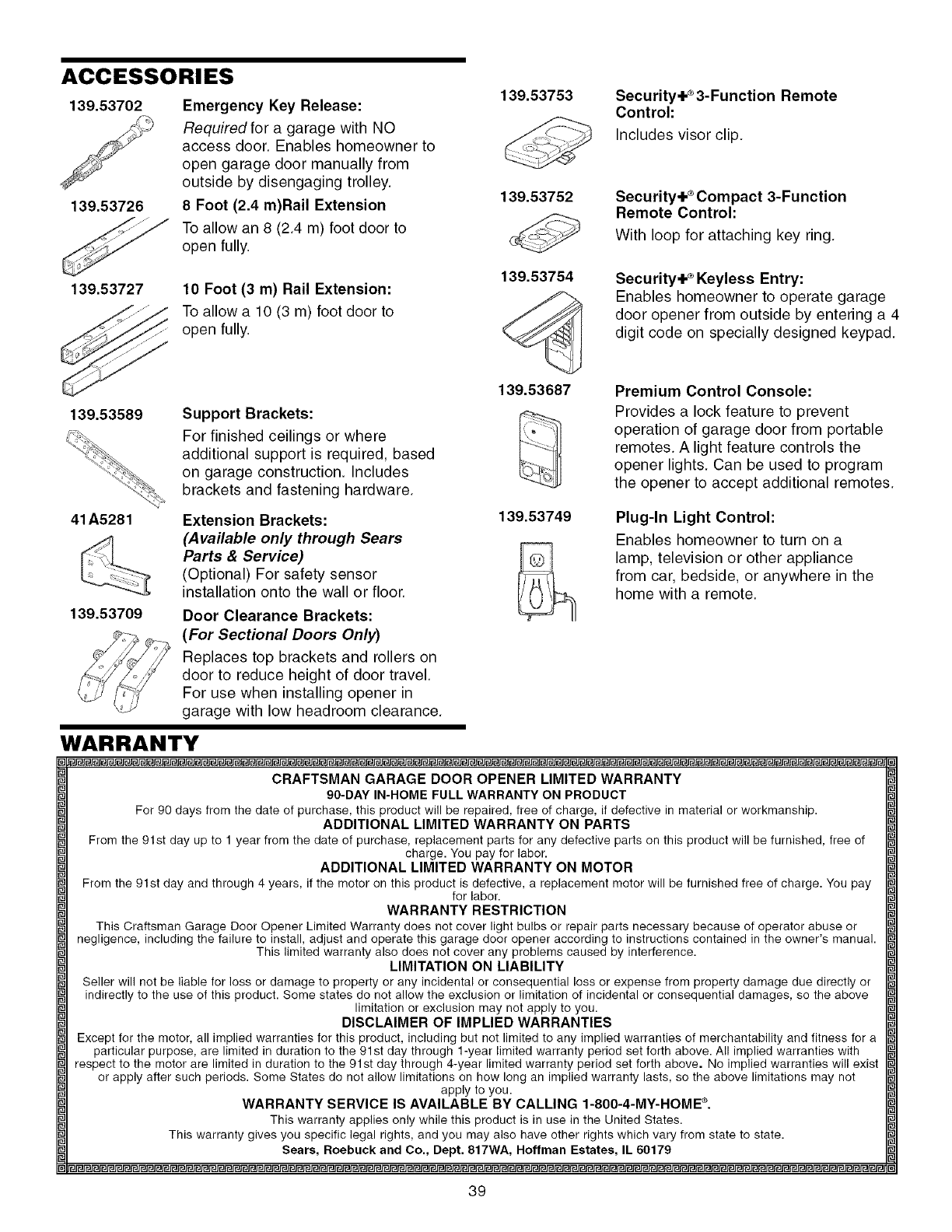

Accessories 39

Warranty 39

Repair Parts and Service Backcover

INTRODUCTION

Safety Symbol

and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it is installed, operated,

maintained and tested in strict accordance with the instructions and warnings contained in this manual.

Mechanical

Electrical

When you see these Safety Symbols and Signal Words on

the following pages, they will alert you to the possibility of

serious injury or death if you do not comply with the

warnings that accompany them. The hazard may come

from something mechanical or from electric shock. Read

the warnings carefully.

When you see this Signal Word on the following pages, it

will alert you to the possibility of damage to your garage

door and/or the garage door opener if you do not comply

with the cautionary statements that accompany it. Read

them carefully.

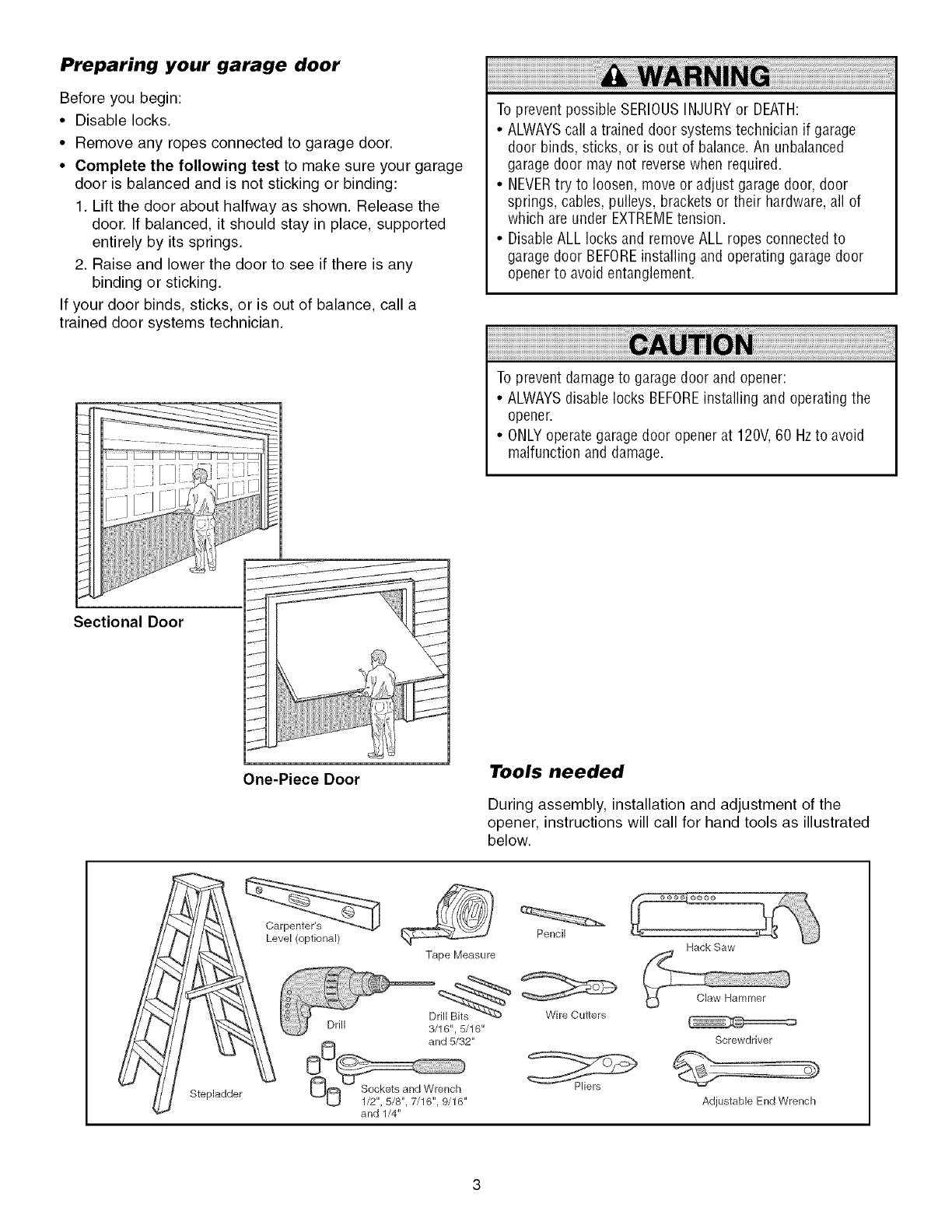

Preparing your garage door

Before you begin:

• Disable locks.

• Remove any ropes connected to garage door.

• Complete the following test to make sure your garage

door is balanced and is not sticking or binding:

1. Lift the door about halfway as shown. Release the

door. If balanced, it should stay in place, supported

entirely by its springs.

2. Raise and lower the door to see if there is any

binding or sticking.

If your door binds, sticks, or is out of balance, call a

trained door systems technician.

To prevent possible SERIOUSINJURYor DEATH:

•ALWAYScall a trained door systems technician if garage

door binds, sticks, or is out of balance An unbalanced

garagedoor may not reversewhen required

•NEVERtry to loosen, move or adjust garagedoor, door

springs, cables, pulleys, brackets or their hardware,all of

which are under EXTREMEtension

•DisableALL locks and removeALL ropes connected to

garagedoor BEFOREinstalling and operating garagedoor

openerto avoid entanglement.

iili

To prevent damage to garage door and opener:

•ALWAYSdisable locks BEFOREinstalling and operating the

opener.

•ONLYoperate garagedoor opener at 120V,60 Hzto avoid

malfunction and damage.

Sectional Door

One-Piece Door Tools needed

During assembly, installation and adjustment of the

opener, instructions will call for hand tools as illustrated

below.

Stepladder

Level (optional) Pencil

Tape Measure

16 it6

Dnll D_ Wire Cutters

and 5/32"

and 1/4"

Hack Saw

Screwdriver

Adjustable End Wrench

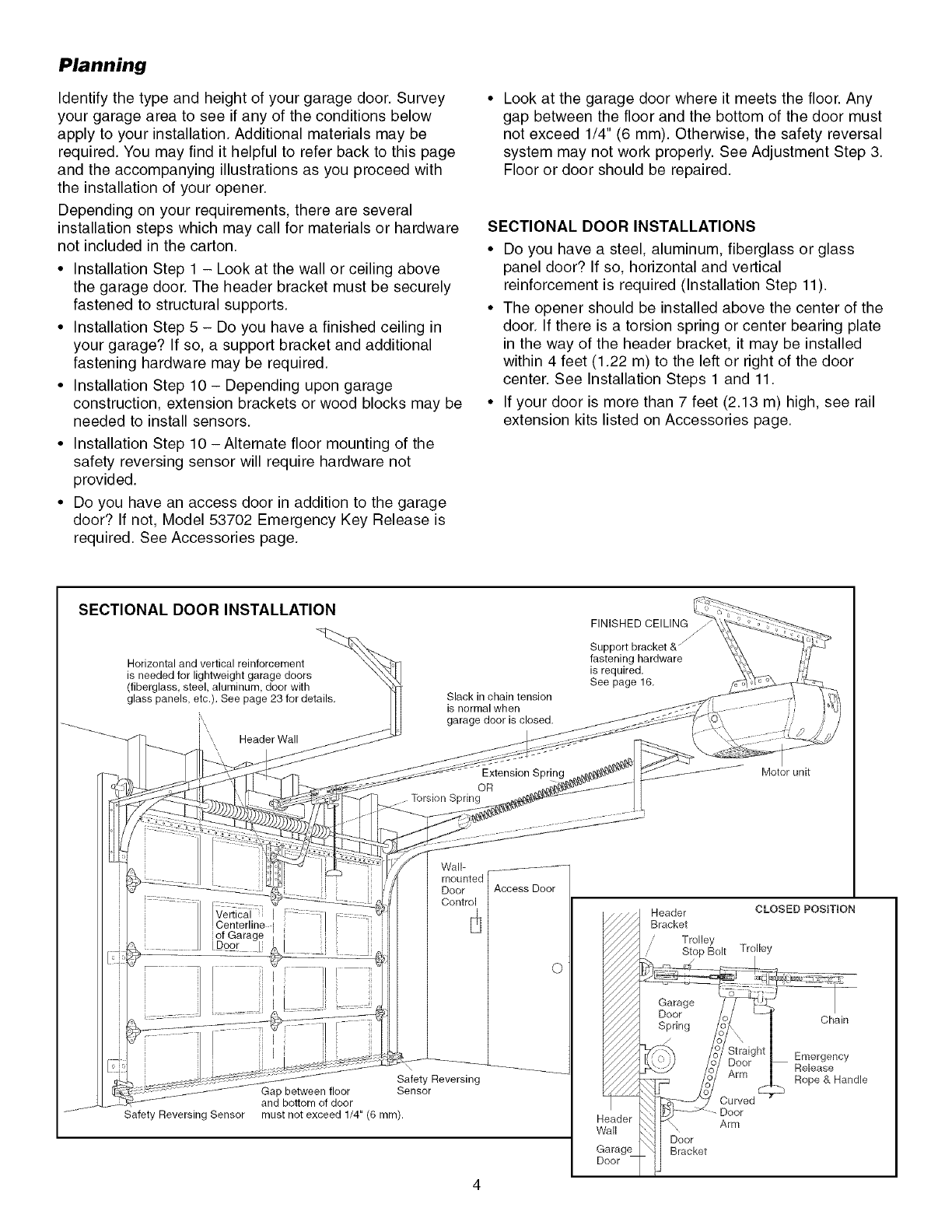

Planning

Identify the type and height of your garage door. Survey

your garage area to see if any of the conditions below

apply to your installation. Additional materials may be

required. You may find it helpful to refer back to this page

and the accompanying illustrations as you proceed with

the installation of your opener.

Depending on your requirements there are several

installation steps which may call for materials or hardware

not included in the carton.

• Installation Step 1 - Look at the wall or ceiling above

the garage door. The header bracket must be securely

fastened to structural supports.

• Installation Step 5 - Do you have a finished ceiling in

your garage? If so, a support bracket and additional

fastening hardware may be required.

• Installation Step 10- Depending upon garage

construction, extension brackets or wood blocks may be

needed to install sensors.

• Installation Step 10 -Alternate floor mounting of the

safety reversing sensor will require hardware not

provided.

• Do you have an access door in addition to the garage

door? If not, Model 53702 Emergency Key Release is

required. See Accessories page.

• Look at the garage door where it meets the floor. Any

gap between the floor and the bottom of the door must

not exceed 1/4" (6 mm). Otherwise, the safety reversal

system may not work properly. See Adjustment Step 3.

Floor or door should be repaired.

SECTIONAL DOOR INSTALLATIONS

• Do you have a steel, aluminum, fiberglass or glass

panel door? If so, horizontal and vertical

reinforcement is required (Installation Step 11).

• The opener should be installed above the center of the

door. If there is a torsion spring or center bearing plate

in the way of the header bracket, it may be installed

within 4 feet (1.22 m) to the left or right of the door

center. See Installation Steps 1 and 11.

• If your door is more than 7 feet (2.13 m) high, see rail

extension kits listed on Accessories page.

SECTIONAL DOOR INSTALLATION

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum, door with

glass panels, etc.). See page 23 for details.

Header Wall

Slack in chain tension

is normal when

garage door is closed.

Extension Spring

OR

- Torsion Spring

FINISHED CEILING

Support

fastening hardware

is required.

See page 16.

Motor unit

,Centerline I [:;

iof Garage

I T'

Safety Reversing

Gap between floor Sensor

and bottom of door

Safety Reversing Sensor must not exceed 1/4" (6 mm).

Access Door

O

Header CLOSED POSITION

Bracket

/Trolley

Stop Bolt Trolley

' _=- _ _ _., _r_:_: _

O

Door I.. I • _, •

Spring /_ L,na,n

\\

#ra,g Emergency

" .LLJ' d Remease

#_ /.._/ Arm Rope & Handle

F_ Arm

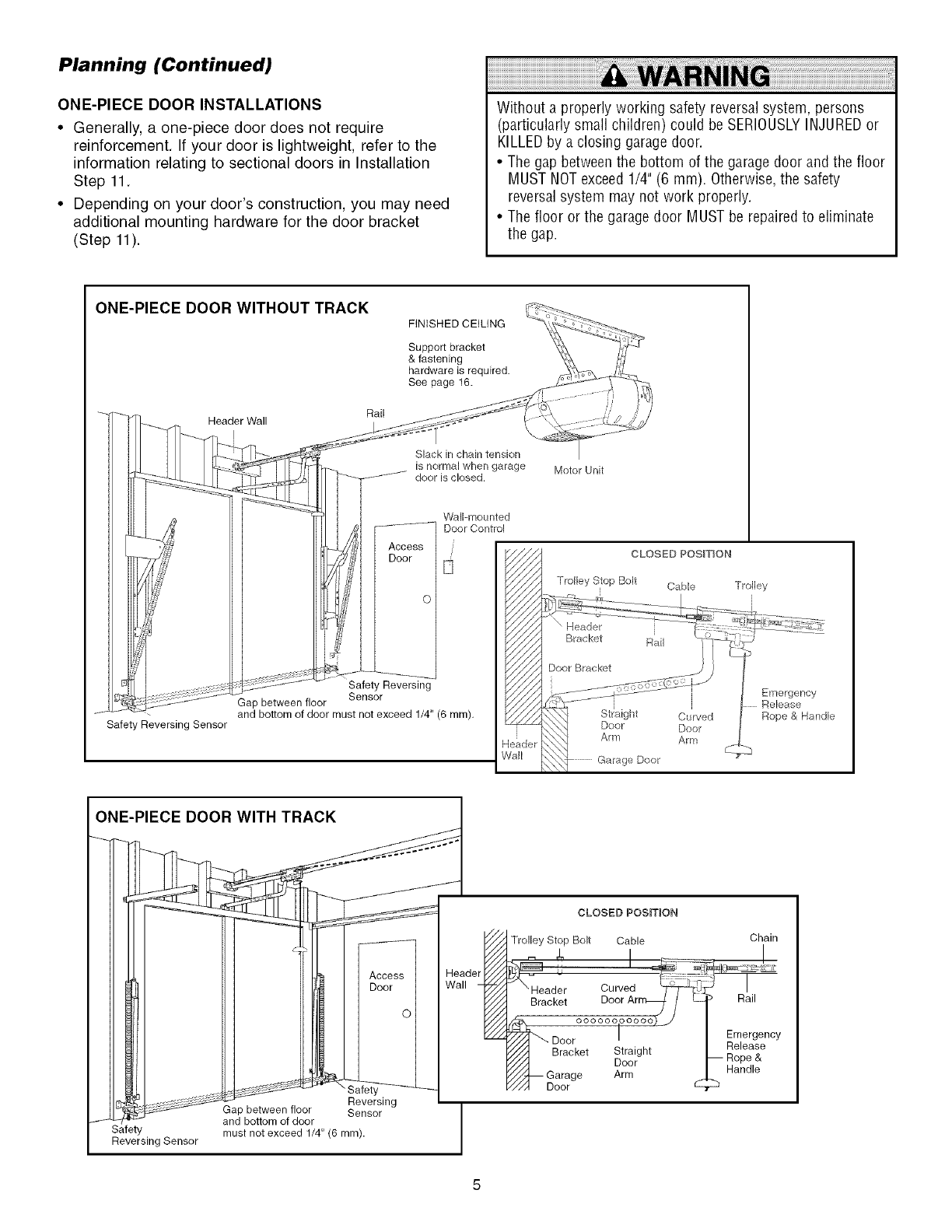

Planning (Continued)

ONE-PIECE DOOR INSTALLATIONS

•Generally, a one-piece door does not require

reinforcement. If your door is lightweight, refer to the

information relating to sectional doors in Installation

Step 11.

• Depending on your door's construction, you may need

additional mounting hardware for the door bracket

(Step 11).

Without a properly working safety reversal system, persons

(particularly small children) could be SERIOUSLYINJUREDor

KILLEDby a closing garagedoor.

• Thegap betweenthe bottom of the garage door and the floor

MUST NOTexceed 1/4" (6 mm). Otherwise,the safety

reversal system may not work properly.

• The floor or the garage door MUST be repaired to eliminate

the gap.

ONE-PIECE DOOR WITHOUT TRACK

FINISHED CEILING

Suppo_ bracket

&fastening

hardwareis required.

See page 16.

Rail

Header Wall

!

Slack in chain tension

is normal when garage

......... door is closed,

Safety Reversing

Sensor

Gap between floor

- and bottom of door must not exceed 1/4" (6 mm),

Safety Reversing Sensor

Wall-mounted

Door Control

7

• i

Motor Unit

CLOSED POSITION

Trolley Stop Bolt Cable

i

Curved

Door Door

Arm Arm

Garage Door

Trolley

Emergency

Release

Rope & Handle

ONE-PIECE DOOR WITH TRACK

Reversing

Gap between floor Sensor

J and bottom of door

Safety must not exceed 1/4" (6 ram).

Reversing Sensor

Access J

Ol

CLOSED PosmoN

Trolley Stop Bolt Cable

_Header Curved LT_L_

Bracket Door Arr_ /L_

/_ ...... iooooo)j

Door

_ Bracket Straight

Door

Y_TJ'_ Garage Arm

//zl Door

Chain

Rail

Emergency

Release

--Rope &

Handle

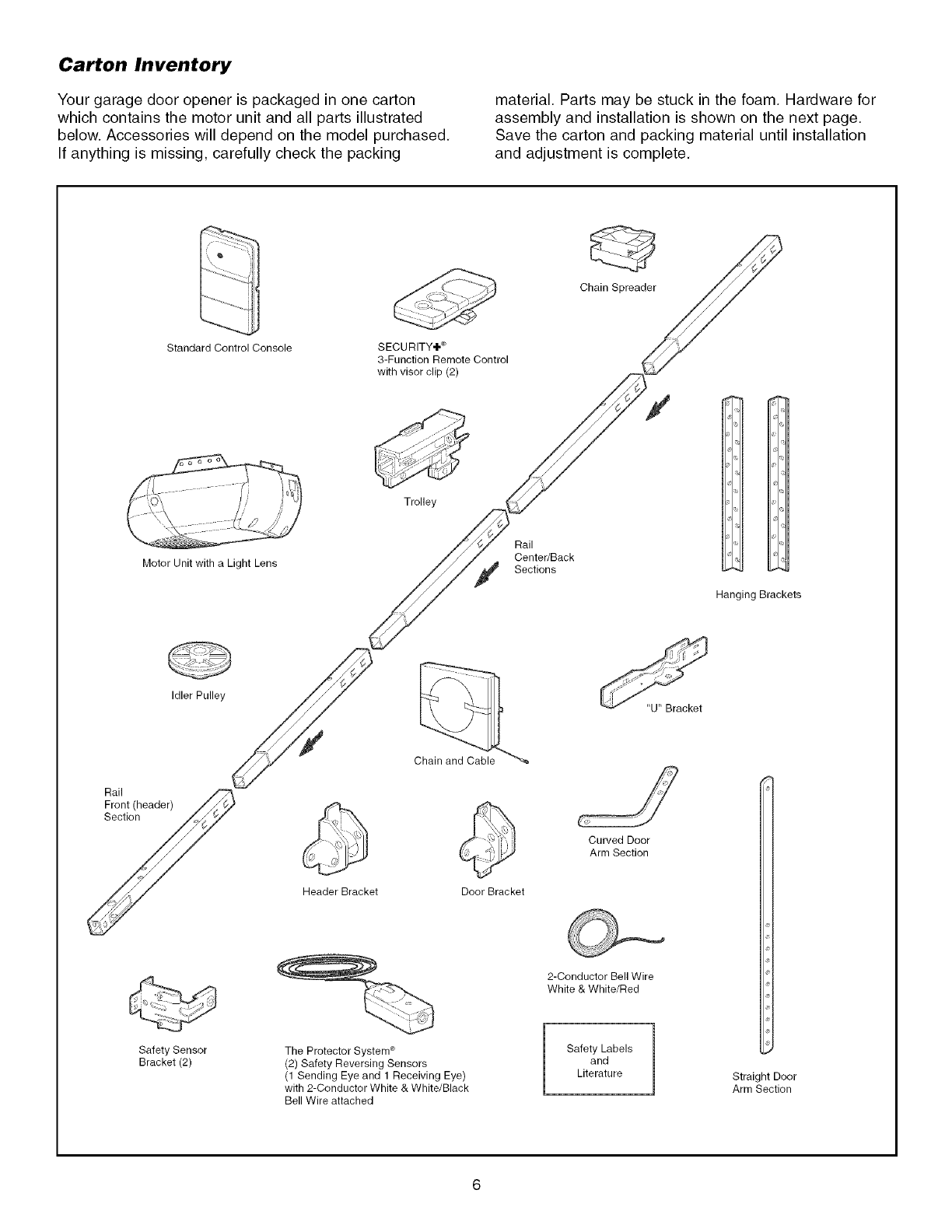

Carton Inventory

Your garage door opener is packaged in one carton

which contains the motor unit and all parts illustrated

below. Accessories will depend on the model purchased.

If anything is missing, carefully check the packing

material. Parts may be stuck in the foam. Hardware for

assembly and installation is shown on the next page.

Save the carton and packing material until installation

and adjustment is complete.

Standard Control Console SECU RITY,I, ®

3-Function Remote Control

with visor clip (2)

Chain Spreader

Trolley

Motor Unit with a Light Lens

Rail

Center/Back

Sections

Hanging Brackets

Idler Pulley

Rail

Fron! (header) /_f_2

Safety Sensor

Bracket(2)

Header Bracket Door Bracket

The Protector System ®

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with 2-Conductor White & White/Black

Bell Wire attached

Curved Door

Arm Section

2-Conductor Bell Wire

White & White/Red

Safety Labels

and

Literature

"U" Bracket

Straight Door

Arm Section

Hardware Inventory

Separate all hardware and group as shown below for the assembly and installation procedures.

ASSEMBLY HARDWARE

Lock Nut Lock Washer

1/4"-20 (2) 3/8" (1)

Bolt 1/4"-20xl-3/4" (2)

Trolley Threaded Shaft (1)

Nut

3/8" (1)

i

Master

Link (2) Idler Bolt (1)

Carriage Bolt

1/4"-20xl/2" (2)

Wing Nut

1/4"-20 (2)

Lag Screw

5/16"-9xl -5/8" (2)

Lag Screw

5/16"-18xl -7/8" (2)

Carriage Bolt

5/16"-18x2-1/2" (2)

Clevis Pin

5/16"x1-1/2"(1)

INSTALLATION HARDWARE

Ring

Fastener (3)

Hex Bolt

5/16"-18x7/8" (4)

©

Nut 5/16"-18 (8)

©

LockWasher 5/16" (7)

Handle

Insulated

Staples (30)

Screw

6ABx1-1/4" (2) Screw 6-32xl" (2)

Drywall Anchors (2)

ol

Clevis Pin

5/16"x1" (1)

Spacer (2) q

Clevis Pin

5/16"x1-1/4" (1)

Rope

ASSEMBLY STEP 1

Assemble the Rail & Install the Trolley

To avoid installation difficulties, do not run the garage

door opener until instructed to do so.

The front rail has a cut out "window" at the door end (see

illustration). The hole above this window is larger on

the top of the rail than on the bottom. A smaller hole

3-1/2" (8.9 cm) away is close to the rail edge. Rotate the

back rail so it has a similar hole close to the opposite

edge, about 4-3/4" (12 cm) from the far end.

1. Remove the straight door arm and hanging bracket

packaged inside the front rail and set aside for

Installation Step 5 and 12. NOTE: To prevent INJURY

while unpacking the rail carefully remove the straight

door arm stored within the rail section.

2. Align the rail sections on a flat surface as shown and

slide the tapered ends into the larger ones. Tabs along

the side will lock into place.

To prevent INJURYfrom pinching, keep hands and fingers

awayfrom the joints while assembling the rail.

3. Place the motor unit on packing material to protect the

cover, and rest the back end of the rail on top. For

convenience, put a support under the front end of the

rail.

4. As a temporary stop, insert a screwdriver into the hole

10" (25 cm) from the front end of the rail, as shown.

5. Check to be sure there are 4 plastic wear pads inside

the inner trolley. If they became loose during shipping,

check all packing material. Snap them back into

position as shown.

6. Slide the trolley assembly along the rail from the back

end to the screwdriver.

Trolley

_ered

End

End

End

Window

Cut-Out

Idler

Pulley-

Hole

Screwdriver

Tabs

End

Inner Trolley

\

_Wear Pads

Outer Trolley

\

ASSEMBLY STEP 2

Fasten the Rail to the Motor Unit

•Insert a 1/4"-20xl-3/4 bolt into the cover protection bolt

hole on the back end of the rail as shown. Tighten

securely with a 1/4"-20 lock nut. Do NOTovertighten.

• Remove the two bolts from the top of the motor unit.

• Place the "U" bracket, flat side down onto the motor unit

and align the bracket hole with the bolt holes. Fasten

with the previously removed bolts.

• Align the rail assembly with the top of the motor unit.

Slide the rail end onto the "U" bracket, all the way to the

stops that protrude on the top and sides of the bracket.

• Attach spreader to the motor unit with two screws.

HARDWARE SHOWN ACTUAL SIZE ©

Lock Nut

Bolt 1/4"-20xl -3/4" 1/4"-20

To avoid SERIOUSdamageto garagedoor opener, use ONLY

those bolts/fasteners mounted in the top of the opener.

Chain

Spreader

Bolt

I

Cover

Protection

Bolt Hole

"U" Bracket

\\N

Motor Unit

Sprocket

J Lock Nut

ASSEMBLY STEP 3

Install the Idler Pulley

• Lay the chain/cable beside the rail, as shown. Grasp the

end of the cable and pass approximately 12" (30 cm) of

cable through the window. Allow it to hang until

Assembly Step 5.

• Remove the tape from the idler pulley. The inside center

should be pre-greased. If dry, regrease to ensure proper

operation.

• Place the idler pulley into the window as shown.

• Insert the idler bolt from the top through the rail and

pulley. Tighten with a 3/8" lock washer and nut

underneath the rail until the lock washer is compressed.

• Rotate the pulley to be sure it spins freely.

• Insert a 1/4"-20xl-3/4 bolt into the trolley stop hole in

the front of the rail as shown. Tighten securely with a

1/4"-20 lock nut.

Chain and

Cable

Bolt

Washer

Idler _ Trolley

Bolt tl Screwdriver \

I

I

I

I

I

Lock I

Washer

3/8" E

Bolt

I

Trolley t

Grease Stop

_ _._ Inside Pulley Hole

'_ Idler "'", U

Pulley

_- Lock

Idler ,Nut

Pulley

Idler Bolt

HARDWARE SHOWN ACTUAL SIZE

Jli}_

i/J'Jj

Bolt 1/4"-20x1-3/4 Lock Nut 1/4"-20 Nut 3/8" Lock Washer 3/8"

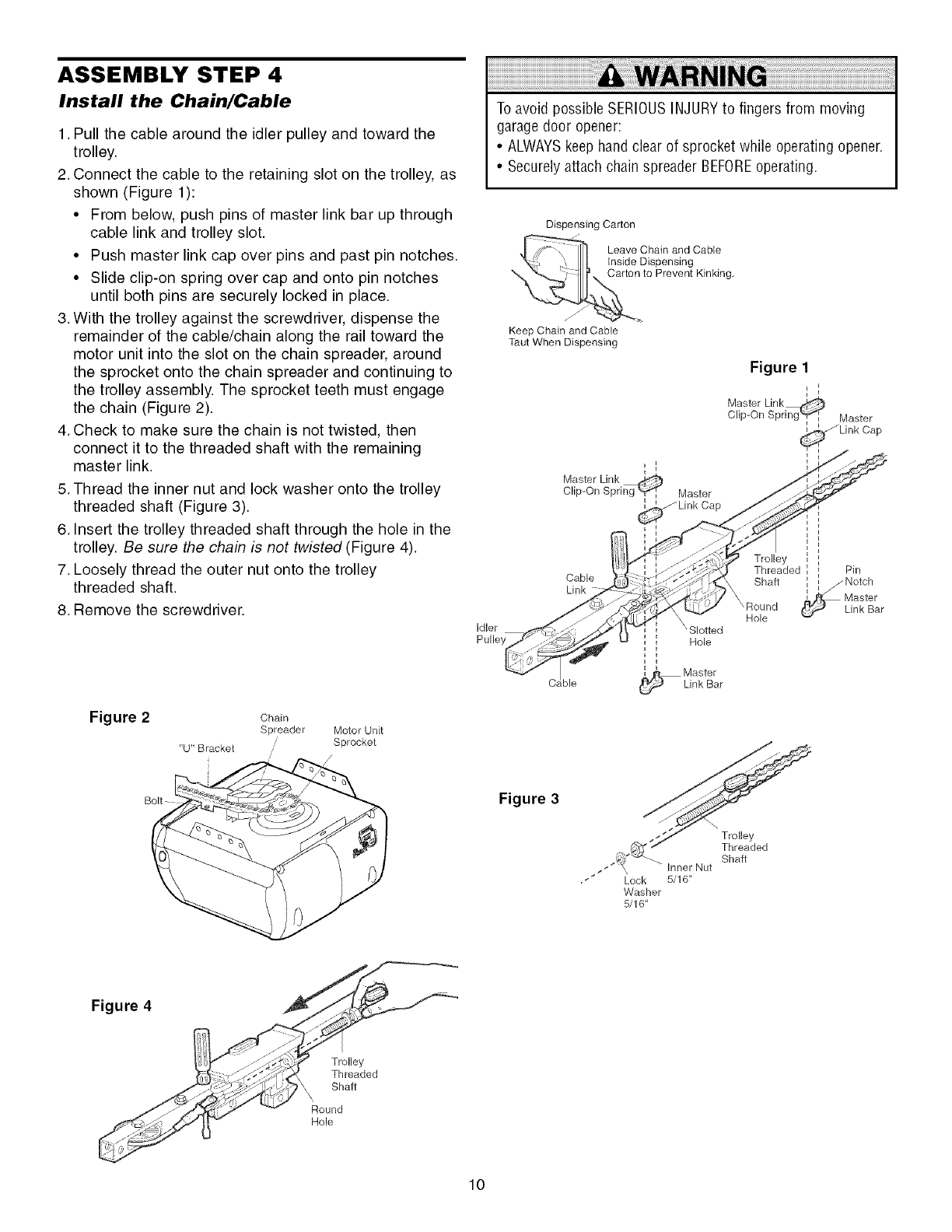

ASSEMBLY STEP 4

Install the Chain/Cable

1. Pull the cable around the idler pulley and toward the

trolley.

2. Connect the cable to the retaining slot on the trolley, as

shown (Figure 1):

• From below, push pins of master link bar up through

cable link and trolley slot.

• Push master link cap over pins and past pin notches.

• Slide clip-on spring over cap and onto pin notches

until both pins are securely locked in place.

3. With the trolley against the screwdriver, dispense the

remainder of the cable/chain along the rail toward the

motor unit into the slot on the chain spreader, around

the sprocket onto the chain spreader and continuing to

the trolley assembly. The sprocket teeth must engage

the chain (Figure 2).

4. Check to make sure the chain is not twisted, then

connect it to the threaded shaft with the remaining

master link.

5. Thread the inner nut and lock washer onto the trolley

threaded shaft (Figure 3).

6. Insert the trolley threaded shaft through the hole in the

trolley. Be sure the chain is not twisted (Figure 4).

7. Loosely thread the outer nut onto the trolley

threaded shaft.

8. Remove the screwdriver.

Figure 2 Chain

Spreader Motor Unit

,/ Sprocket

"U" Bracket

To avoid possible SERIOUSINJURYto fingers from moving

garage door opener:

• ALWAYSkeep hand clear of sprocket while operating opener.

• Securelyattach chain spreader BEFOREoperating.

Dispensing Carton

Leave Chain and Cable

inside Dispensing

arton to Prevent Kinking,

Keep Chain and Cable

Taut When Dispensing

, ,,

Master Link _,-_ _>_.

Clip-On Spring _ Master

Figure 1

Master Link_

Clip-On Spri rig "_r_k Master

Link Cap

Idler

Pulley

Cable

Link

hie

\ Slotted

Hole

_ Master

Link Bar

Trolley

Threaded Pin

Shaft kk j Notch

\ ,

i

Round Link Bar

Hole

Figure 3

._ Lock 5/16"

Washer

5/16"

Figure 4

Trolley

Threaded

Shaft

Round

Hole

10

ASSEMBLY STEP 5

Tighten the Chain

•Spin the inner nut and lock washer down the trolley

threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction

shown (Figure 1).

• When the chain is approximately 1/4" (6 mm) above the

base of the rail at its midpoint, re-tighten the inner nut to

secure the adjustment.

Sprocket noise can result if chain is too loose.

When installation is complete, you may notice some chain

droop with the door closed. This is normal. If the chain

returns to the position shown in Figure 2 when the door is

open, do not re-adjust the chain.

NOTE: During future maintenance, ALWAYS pull the

emergency release handle to disconnect trolley before

adjusting chain. You may notice loosening of chain after

Adjustment Step 3 (Test the Safety Reversal System).

Check for proper tension and readjust chain if necessary.

Then repeat Adjustment Step 3.

You have now finished assembling your garage door

opener. Please read the following warnings before

proceeding to the installation section.

Figure 1

Figure 2

Trolley

Outer Lock Threaded

Nut Washer Shaft

Chain i

Base of Rail

I

Mid length of Rail

INSTALLATION

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READAND FOLLOWALL INSTALLATIONWARNINGS

AND INSTRUCTIONS.

2. Install garage door opener only on properly balanced

and lubricated garage door. An improperly balanced

door may not reversewhen required and could result in

SEVEREINJURYor DEATH.

3. ALL repairs to cables, spring assemblies and other

hardware MUST be made by a trained door systems

technician BEFOREinstalling opener.

4. DisableALL locks and remove ALL ropes connected to

garage door BEFOREinstalling opener to avoid

entanglement.

5. Install garage door opener 7 feet (2.13 m) or more

above floor.

6. Mount emergency releasehandle 6 feet (1.83 m) above

floor.

7. NEVERconnect garage door openerto power source

until instructed to do so.

8. NEVERwear watches, rings or loose clothing while

installing or servicing opener.They could be caught in

garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door.

• out of reach of children at minimum height of 5 feet

(1.5 m).

• awayfrom ALL moving parts ofthe door.

10. Placeentrapment warning label on wall next to garage

door control.

11. Placemanual release/safetyreversetest label in plain

view on inside of garage door.

12. Upon completion of installation, test safety reversal

system. Door MUST reverseon contact with a

1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on

the floor.

11

INSTALLATION STEP 1

Determine the Header Bracket

Location

To prevent possible SERIOUSINJURYor DEATH:

•Header bracket MUST be RIGIDLYfastened to structural

support on headerwall or ceiling, otherwise garagedoor

might not reversewhen required. DO NOTinstall header

bracket over drywall.

• Concreteanchors MUST be used if mounting header bracket

or 2x4 into masonry.

• NEVERtry to loosen, move or adjust garagedoor, springs,

cables, pulleys, brackets, or their hardware, all of which are

under EXTREMEtension.

• ALWAYScall a trained door systems technician if garage

door binds, sticks, or is out of balance.An unbalanced

garagedoor might not reversewhen required.

Installation procedures vary according to garage door

types. Follow the instructions which apply to your door.

1. Close the door and mark the inside vertical centerline of

the garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4 feet

(1.22 m) of the left or right of the door center only if

a torsion spring or center bearing plate is in the

way; or you can attach it to the ceiling (see page 13)

when clearance is minimal. (It may be mounted on

the wall upside down if necessary, to gain

approximately 1/2" (1 cm).

If you need to install the header bracket on a 2x4

(on wall or ceiling), use lag screws (not provided)

to securely fasten the 2x4 to structural supports as

shown here and on page 13.

3. Open your door to the highest point of travel as shown.

Draw an intersecting horizontal line on the header wall

above the high point:

• 2" (5 cm) above the high point for sectional door and

one-piece door with track.

• 8" (20 cm) above the high point for one-piece door

without track.

This height will provide travel clearance for the top edge

of the door.

NOTE: If the total number of inches exceeds the height

available in your garage, use the maximum height

possible, or refer to page 13 for ceiling installation.

Unfinished

Oei,og7---jr \ OPT O.AL

___\CEtUNG

J _ J4 MOUNT

._ _ FOR

yj HEADER

_ BRACKET

Vertical Centerline

of Garage Door

2x4 Structural

_' Supports

Header Wal_

2"(5 cm) Track

of Travel

--Door

Sectional door with curved track

Header Wall Track

J/7" Highest Point

Y of Travel

XTT

One-piece door with horizontal track

l _ Wall

III L8"{28

Door_ Highest

JJjC / _ Point

_/of Travel

One-piece door without track:

jamb hardware

Header Wall

8" (20 cm)

i Highest

, Point

:of Travel

One-piece door without track:

pivot hardware

12

INSTALLATION STEP 2

Install the Header Bracket

You can attach the header bracket either to the wall above

the garage door, or to the ceiling. Follow the instructions

which will work best for your particular requirements. Do

not install the header bracket over drywall. If installing

into masonry, use concrete anchors (not provided).

WALL HEADER BRACKET INSTALLATION

•Center the bracket on the vertical centerline with the

bottom edge of the bracket on the horioontal line as

shown (with the arrow pointing toward the ceiling).

•Mark the vertical set of bracket holes (do not use the

holes designated for ceiling mount). Drill 3/16" pilot

holes and fasten the bracket securely to a structural

support with the hardware provided.

HARDWARE SHOWN ACTUAL SIZE

Lag Screw

5/16"-9xl -5/8"

Wall Mount

Optional

Mounting Holes

Header

-- Wall--

2x4

Structural

Support

I

Horizontal

Line

"_ j-J

Highest Point of

Garage Door Travel

Vertical

Centerline

Door

Lag Screws

5/16"x9x1-5/8"

Door Spring

Garage

-- Door-

Vertical

Centerline

of Garage Door

CEILING HEADER BRACKET INSTALLATION

• Extend the vertical centerline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than

6" (15 cm) from the wall. Make sure the arrow is

pointing away from the wall. The bracket can be

mounted flush against the ceiling when clearance

is minimal.

• Mark the side holes. Drill 3/16" pilot holes and fasten

bracket securely to a structural support with the

hardware provided.

Ceiling Mounting Holes

- Finished CeiUing -

• .- [- Vertical Centerline

of Garage Door

Header

Bracket

6" (15 cm) Maximum

Door

Spring _ Lag Screws

5/16"x9x1-5/8"

-- Header Wall --

Centedine

of Garage Door

13

//

//

//

//

//

/ /

Idler Pulley

Door

INSTALLATION STEP 3

Attach the Rail to the Header Bracket

NOTE: (Optional) With some existing installations, you

may re-use the old header bracket with the two plastic

spacers included in the hardware bag. Place the spacers

inside the bracket on each side of the rail, as illustrated.

• Position the opener on the garage floor below the

header bracket. Use packing material as a protective

base. NOTE: If the door spring is in the way you'll need

help. Have someone hold the opener securely on a

temporary support to allow the rail to clear the spring.

• Position the rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin

5/16"x1-1/2" as shown.

• Insert a ring fastener to secure.

0

\

Mounting

Hole

Header Bracket 0

<-

Mounting

Hole

OPTION WITH

SOME EXISTING

INSTALLATIONS

Opener Carton or

Support

HARDWARE SHOWN ACTUAL SIZE

Clevis Pin 5/16"x1-1/2" Ring Fastener

14

INSTALLATION STEP 4

Position the Opener

Follow instructions which apply to your door type as

illustrated.

SECTIONAL DOOR OR ONE-PIECE DOOR WITH

TRACK

A 2x4 laid flat is convenient for setting an ideal

door-to-rail distance.

• Remove foam packaging.

• Raise the opener onto a stepladder. You will need help

at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on

the top section beneath the rail.

• If the top section or panel hits the trolley when you raise

the door, pull down on the trolley release arm

to disconnect inner and outer sections. Slide the outer

trolley toward the motor unit. The trolley can remain

disconnected until Installation Step 12 is completed.

To prevent damage to garage door, rest garage door opener

rail on 2x4 placed on top section of door.

Rail i

!.

_l Door 2x4 is used to determine

tfheco_CtgmOU ntin g height

ENGAGED

ONE-PIECE DOOR WITHOUT TRACK

A 2x4 on its side is convenient for setting an ideal door-to-

rail distance.

• Remove foam packaging.

• Raise the opener onto a stepladder. You will need help

at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 on its side

on the top section of the door beneath the rail.

• The top of the door should be level with the top of the

motor unit. Do not position the opener more than

4" (10 cm) above this point.

L_

2x4 is used to determine

the correct mounting height

from ceiling.

15

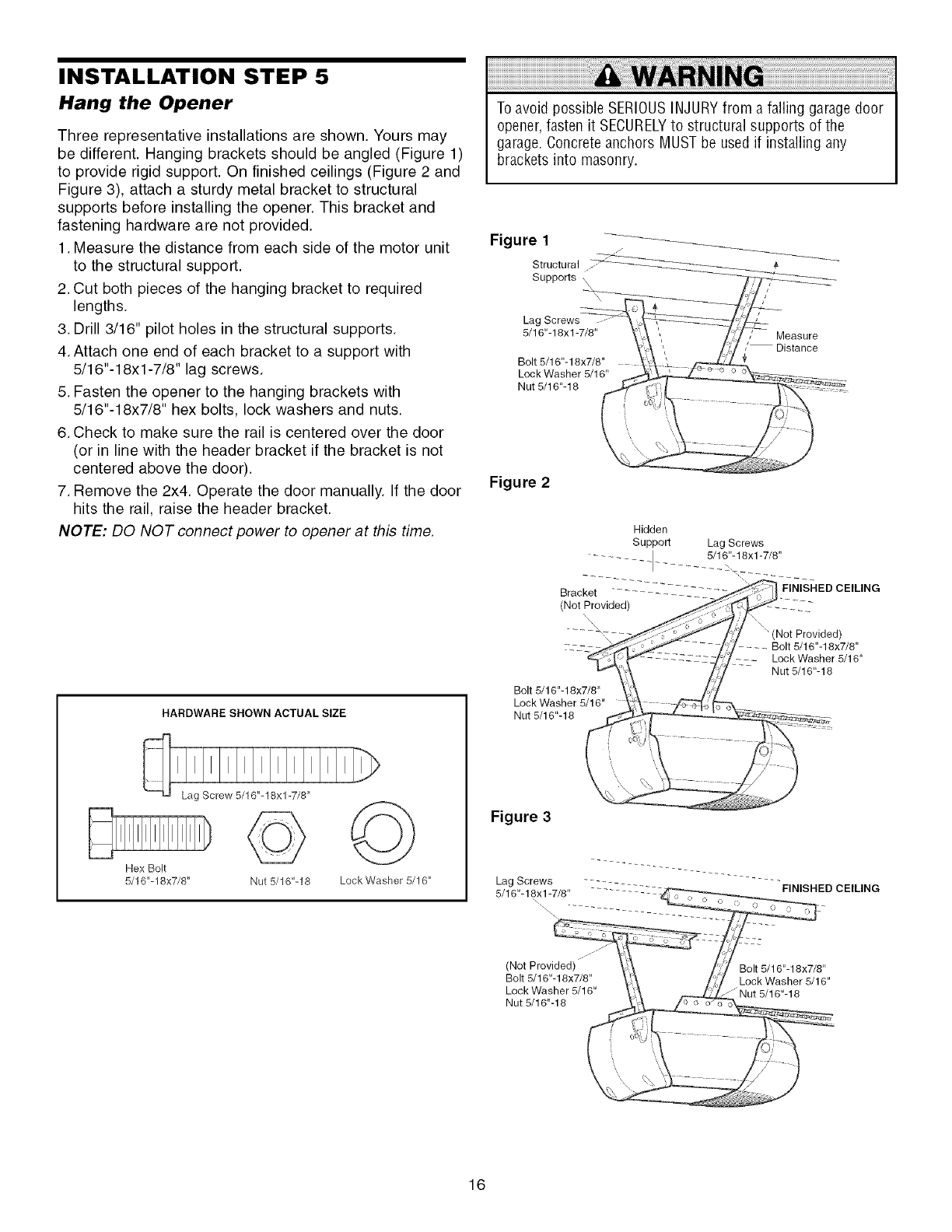

INSTALLATION STEP 5

Hang the Opener

Three representative installations are shown. Yours may

be different. Hanging brackets should be angled (Figure 1)

to provide rigid support. On finished ceilings (Figure 2 and

Figure 3), attach a sturdy metal bracket to structural

supports before installing the opener. This bracket and

fastening hardware are not provided.

1. Measure the distance from each side of the motor unit

to the structural support.

2. Cut both pieces of the hanging bracket to required

lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with

5/16"-18xl -7/8" lag screws.

5. Fasten the opener to the hanging brackets with

5/16"-18x7/8" hex bolts, lock washers and nuts.

6. Check to make sure the rail is centered over the door

(or in line with the header bracket if the bracket is not

centered above the door).

7. Remove the 2x4. Operate the door manually. If the door

hits the rail, raise the header bracket.

NOTE: DO NOT connect power to opener at this time.

HARDWARE SHOWN ACTUAL SIZE

Lag Screw 5/16"-18xl W/8"

Hex Bolt

5/16"-18x7/8" Nut 5/16"-18 Lock Washer 5/16"

To avoid possible SERIOUSINJURYfrom a falling garage door

opener, fasten it SECURELYto structural supports of the

garage. Concrete anchors MUST be used if installing any

brackets into masonry.

Figure 1

Structural

Supports \

Lag Screws

5/16"-18xl -7/8"

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

Measure

iDistance

Figure 2

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

FINISHED CEILING

\

"(Not Provided)

Bolt 5/16"-18x7/8"

..... Lock Washer 5/16"

Nut 5/16"-18

Figure 3

Lag Screws

5/16"-18xl -7/8" FINISHED CEILING

(Not Provided)

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

Nut 5/16"-18

Bolt 5/16"-18x7/8"

Lock Washer 5/16"

16

INSTALLATION STEP 6

Install the Door Control

Locate door control within sight of door, at a minimum

height of 5 feet (1.5 m) where small children cannot reach,

away from moving parts of door and door hardware.

If installing into drywall, drill 5/32" holes and use the

anchors provided. For pre-wired installations (as in new

home construction), it may be mounted to a single gang

box (Figure 2).

1.Strip 7/16" (11 mm) of insulation from one end of bell

wire and connect to the two screw terminals on back of

door control by color: white wire to 2 and white/red wire

to the 1.

2. Remove cover by gently prying along one side with a

screwdriver (Figure 1). Fasten with 6ABx1-1/4"

self-tapping screws (drywall installation) or 6-32xl"

machine screws (into gang box) as follows:

• Install bottom screw, allowing 1/8" (3 mm) to protrude

above wall surface.

• Position bottom of door control on screw head and

slide down to secure. Adjust screw for snug fit.

• Drill and install top screw with care to avoid cracking

plastic housing. Do not overtighten.

• Insert top tabs and snap on cover.

3. (For standard installation only) Run bell wire up wall

and across ceiling to motor unit. Use insulated staples

to secure wire in several places. Do not pierce wire with

a staple, creating a short or open circuit.

4. Strip 7/16" (11 mm) of insulation from end of bell wire.

Connect bell wire to the quick-connect terminals as

follows: white to white and white/red to red.

To prevent possible SERIOUSINJURYor DEATHfrom

electrocution:

• Besure power is not connected BEFOREinstalling door

control.

• Connect ONLYto 24 VOLTlow voltage wires.

To prevent possible SERIOUSINJURYor DEATHfrom a closing

garage door:

• Install door control within sight of garage door, out of reach

of children at a minimum height of 5 feet (1.5 m), and away

from all moving parts of door.

• NEVERpermit children to operate or play with door control

push buttons or remote control transmitters.

• Activatedoor ONLYwhen it can be seen clearly, is properly

adjusted, and there are no obstructions to door travel.

• ALWAYSkeepgarage door in sight until completely closed.

NEVERpermit anyone to cross path of closing garage door.

Outside Keylock Accessory Connections

To opener quick-connect terminals: white to white;

white/red to red.

Door Control Button

Control Console (std installation)

Control Console (pre-wired)

HARDWARE SHOWN

ACTUAL SIZE

Insulated

Staples

Drywall Anchors

NOTE: When connecting multiple door controls to the

opener, twist same color wires together. Insert wires into

quick-connect holes: white to white and red/white to red.

5. Position the antenna wire as shown.

6. Use tacks or staples to permanently attach entrapment

warning label to wall near door control, and manual

release/safety reverse test label in a prominent location

on inside of garage door.

NOTE: DO NOT connect power and operate opener at

this time. The trolley will travel to the full open

position but will not return to the close position

until the sensor beam is connected and properly

Figure IFigure 2

REMOVE & REPLACE COVER PRE-WIRED

INSTALLATION

To Replace,

Insert To Remove,

Top Tabs Twist

First Here

Lighted Quick-Connect

Push Butto__ 2-ConductorllWire Terminals

STANDARD

CONTROL CONSOLE

aligned.

Antenna

24 Volt

2-Conductor

Bell Wire

STANDARD CONTROL

'BACK VIEW)

Top

Mounting

Hole

Terminal

Screws

Bottom

Bell Mounting

Wire Hole

17

I

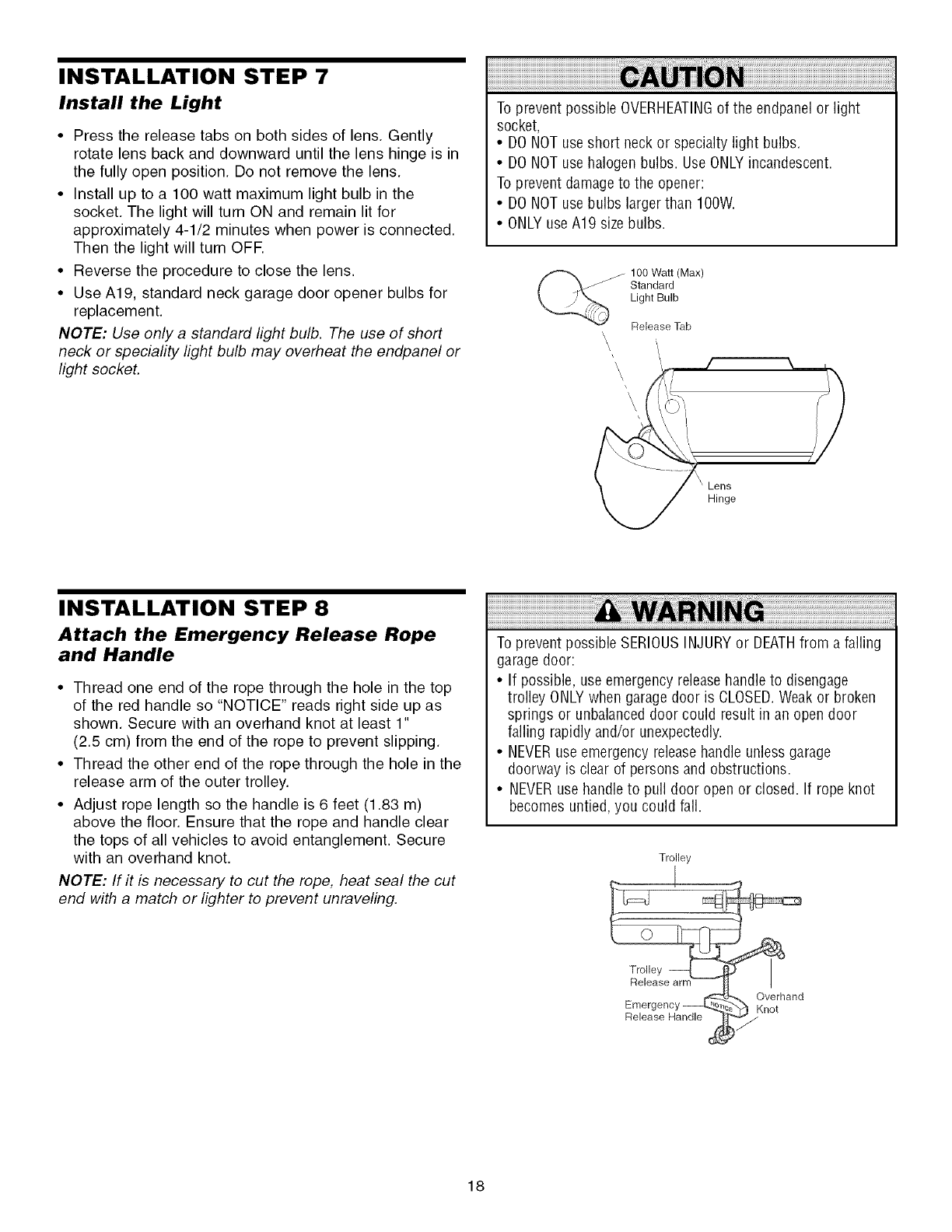

INSTALLATION STEP 7

Install the Light

•Press the release tabs on both sides of lens. Gently

rotate lens back and downward until the lens hinge is in

the fully open position. Do not remove the lens.

• Install up to a 100 watt maximum light bulb in the

socket. The light will turn ON and remain lit for

approximately 4-1/2 minutes when power is connected.

Then the light will turn OFR

• Reverse the procedure to close the lens.

• Use A19, standard neck garage door opener bulbs for

replacement.

NOTE: Use only a standard light bulb. The use of short

neck or speciafity light bulb may overheat the endpanel or

light socket.

To prevent possible OVERHEATINGof the endpanelor light

socket,

• DO NOTuse short neck or specialty light bulbs.

• DO NOTuse halogen bulbs. Use ONLYincandescent.

To prevent damage to the opener:

• DO NOTuse bulbs larger than IOOW.

• ONLYuse A19 size bulbs.

100 Watt (Max)

Standard

Light Bulb

Release Tab

\\

INSTALLATION STEP 8

Attach the Emergency Release Rope

and Handle

• Thread one end of the rope through the hole in the top

of the red handle so "NOTICE" reads right side up as

shown. Secure with an overhand knot at least 1"

(2.5 cm) from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the

release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet (1.83 m)

above the floor. Ensure that the rope and handle clear

the tops of all vehicles to avoid entanglement. Secure

with an overhand knot.

NOTE: If it is necessary to cut the rope, heat seal the cut

end with a match or lighter to prevent unraveling.

To prevent possible SERIOUSINJURYor DEATHfrom a failing

garage door:

• If possible, use emergency releasehandle to disengage

trolley ONLYwhen garagedoor is CLOSED.Weak or broken

springs or unbalanceddoor could result in an open door

failing rapidly and/or unexpectedly.

• NEVERuse emergency releasehandle unless garage

doorway is clear of persons and obstructions.

• NEVERuse handleto pull door open or closed. If rope knot

becomes untied,you could fall.

Trolley

Emergency

Release Handle

_K Overhand

not

18

INSTALLATION STEP 9

Electrical Requirements

To avoid installation difficulties, do not run the opener

at this time.

To reduce the risk of electric shock, your garage door

opener has a grounding type plug with a third grounding

pin. This plug will only fit into a grounding type outlet. If

the plug doesn't fit into the outlet you have, contact a

qualified electrician to install the proper outlet.

To prevent possible SERIOUSINJURYor DEATHfrom

electrocution or fire:

• Besure power is not connected to the opener, and

disconnect power to circuit BEFOREremoving cover to

establish permanentwiring connection.

• Garagedoor installation and wiring MUST be in compliance

with all local electrical and building codes.

• NEVERuse an extension cord, 2-wire adapter, or change

plug in any way to makeit fit outlet. Besure the opener is

grounded.

PERMANENT WIRING

CONNECTION

If permanent wiring is required by your local code,

refer to the following procedure.

To make a permanent connection through the 7/8" hole in

the top of the motor unit:

• Remove the motor unit cover screws and set the cover

aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass

terminal; the white (neutral) wire to the screw on the

silver terminal; and the ground wire to the green ground

screw. The opener must be grounded.

• Reinstall the cover.

To avoid installation difficulties, do not run the opener

at this time.

Ground Tab

Green \

Ground Screw

Black

Ground Wire Wire

White Wire

19

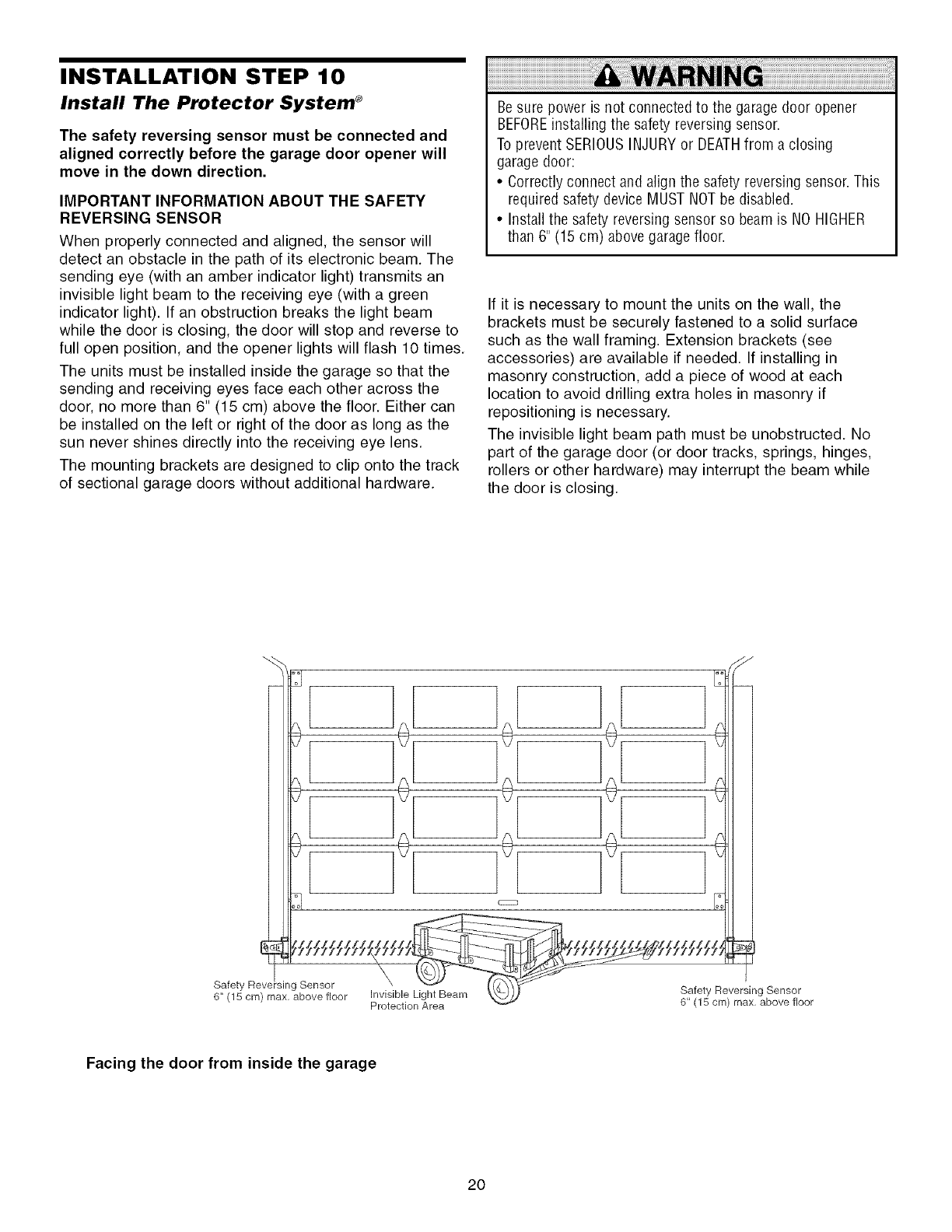

INSTALLATION STEP 10

Install The Protector System ®

The safety reversing sensor must be connected and

aligned correctly before the garage door opener will

move in the down direction.

IMPORTANT INFORMATION ABOUT THE SAFETY

REVERSING SENSOR

When properly connected and aligned, the sensor will

detect an obstacle in the path of its electronic beam. The

sending eye (with an amber indicator light) transmits an

invisible light beam to the receiving eye (with a green

indicator light). If an obstruction breaks the light beam

while the door is closing, the door will stop and reverse to

full open position, and the opener lights will flash 10 times.

The units must be installed inside the garage so that the

sending and receiving eyes face each other across the

door, no more than 6" (15 cm) above the floor. Either can

be installed on the left or right of the door as long as the

sun never shines directly into the receiving eye lens.

The mounting brackets are designed to clip onto the track

of sectional garage doors without additional hardware.

Be sure power is not connectedto the garage door opener

BEFOREinstalling the safety reversingsensor.

To prevent SERIOUSINJURYor DEATHfrom a closing

garage door:

• Correctly connect and align the safety reversing sensor.This

required safety device MUST NOTbe disabled.

• Install the safety reversing sensor so beam is NO HIGHER

than 6" (15 cm) above garage floor.

If it is necessary to mount the units on the wall, the

brackets must be securely fastened to a solid surface

such as the wall framing. Extension brackets (see

accessories) are available if needed. If installing in

masonry construction, add a piece of wood at each

location to avoid drilling extra holes in masonry if

repositioning is necessary.

The invisible light beam path must be unobstructed. No

part of the garage door (or door tracks, springs, hinges,

rollers or other hardware) may interrupt the beam while

the door is closing.

Protection Area

Safety Reversing Sensor

6" (15 crn) max, above floor

Facing the door from inside the garage

2O

INSTALLING THE BRACKETS

Be sure power to the opener is disconnected. Install

and align the brackets so the sensors will face each other

across the garage door, with the beam no higher than

6" (15 cm) above the floor. They may be installed in one of

three ways, as follows.

Garage door track installation (preferred):

•Slip the curved arms over the rounded edge of each

door track, with the curved arms facing the door. Snap

into place against the side of the track. It should lie

flush, with the lip hugging the back edge of the track, as

shown in Figure 1.

If your door track will not support the bracket securely,

wall installation is recommended.

Wall installation (Figure 2 & 3):

• Place the bracket against the wall with curved arms

facing the door. Be sure there is enough clearance for

the sensor beam to be unobstructed.

• If additional depth is needed, an extension bracket (See

Accessories) or wood blocks can be used.

• Use bracket mounting holes as a template to locate and

drill (2) 3/16" diameter pilot holes on the wall at each

side of the door, no higher than 6" (15 cm) above the

floor.

• Attach brackets to wall with lag screws (Not provided).

• If using extension brackets or wood blocks, adjust right

and left assemblies to the same distance out from the

mounting surface. Make sure all door hardware

obstructions are cleared.

Floor installation (Figure 4):

• Use wood blocks or extension brackets (See

Accessories) to elevate sensor brackets so the lenses

will be no higher than 6" (15 cm) above the floor.

• Carefully measure and place right and left assemblies at

the same distance out from the wall. Be sure all door

hardware obstructions are cleared.

• Fasten to the floor with concrete anchors as shown.

Figure 1 DOOR TRACK MOUNT (RIGHT SIDE)

Door

Track

Sensor

Bracket

Indicator

Light

Figure 2

WALL MOUNT (RIGHT SIDE)

Fasten Wood Block to Wall with

//Lag Screws (Not Provided)

Indicator

Light Sensor

Bracket

Lens

Figure 3

(Not Provided)

WALL MOUNT (RIGHT SIDE)

<_r Extension

d;ll Bracket

(See Accessories)

(Provided with

Extension Brackel

(Provided with

Extension

Bracket) _"

Sensor

Bracket

Indicator

Light

Lens

Figure 4FLOOR MOUNT (RIGHT SIDE)

HARDWARE SHOWN ACTUAL SIZE

Carriage Bolt Wing Nut

1/4"-20xl/2" 1/4"-20 Staples

_i_J Attach with

i! Concrete Anchors

(Not Provided)

Indicator

Light

Bracket

21

MOUNTING AND WIRING THE SAFETY REVERSING

SENSORS

• Slide a 1/4"-20xl/2" carriage bolt head into the slot on

each sensor. Use wing nuts to fasten sensors to

brackets, with lenses pointing toward each other across

the door. Be sure the lens is not obstructed by a bracket

extension (Figure 5).

• Finger tighten the wing nuts.

• Run the wires from both sensors to the opener. Use

insulated staples to secure wire to wall and ceiling.

• Strip 7/16" (11 mm) of insulation from each set of wires.

Separate white and white/black wires sufficiently to

connect to the opener quick-connect terminals. Twist

like colored wires together. Insert wires into quick-

connect holes: white to white and white/black to grey

(Figure 6).

ALIGNING THE SAFETY REVERSING SENSORS

• Plug in the opener. The indicator lights in both the

sending and receiving eyes will glow steadily if wiring

connections and alignment are correct.

The sending eye amber indicator light will glow regardless

of alignment or obstruction. If the green indicator light in

the receiving eye is off, dim, or flickering (and the invisible

light beam path is not obstructed), alignment is required.

• Loosen the sending eye wing nut and readjust, aiming

directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust sensor

until it receives the sender's beam. When the green

indicator light glows steadily, tighten the wing nut.

Figure 5

Carriage Bolt --_

1/4"-20xl/2"

Wing Nut

1/4"-20

"Lens

TROUBLESHOOTING THE SAFETY REVERSING

SENSORS

1. If the sending eye indicator light does not glow steadily

after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can

occur at staples, or at opener connections.

• Incorrect wiring between sensors and opener.

• A broken wire.

2. If the sending eye indicator light glows steadily but the

receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign

either sensor.

NOTE: When the invisible beam path is obstructed or

misaligned while the door is closing, the door will reverse.

If the door is already open, it will not close. The opener

lights will blink 10 times. See page 20.

Figure 6

Bell Wire

Bell Wire l

1. Strip wire 7/16"

(11 mm)

7,16" (11 m41)

2. Twist like colored

wires together

Invisible Light Beam

Safety Reversing Protection Area

Sensor

/

/

Safety Reversing

Sensor

22

3. Insert into

appropriate terminals

Red White Grey

Quick-Connect Terminals

INSTALLATION STEP 1 1

Fasten the Door Bracket

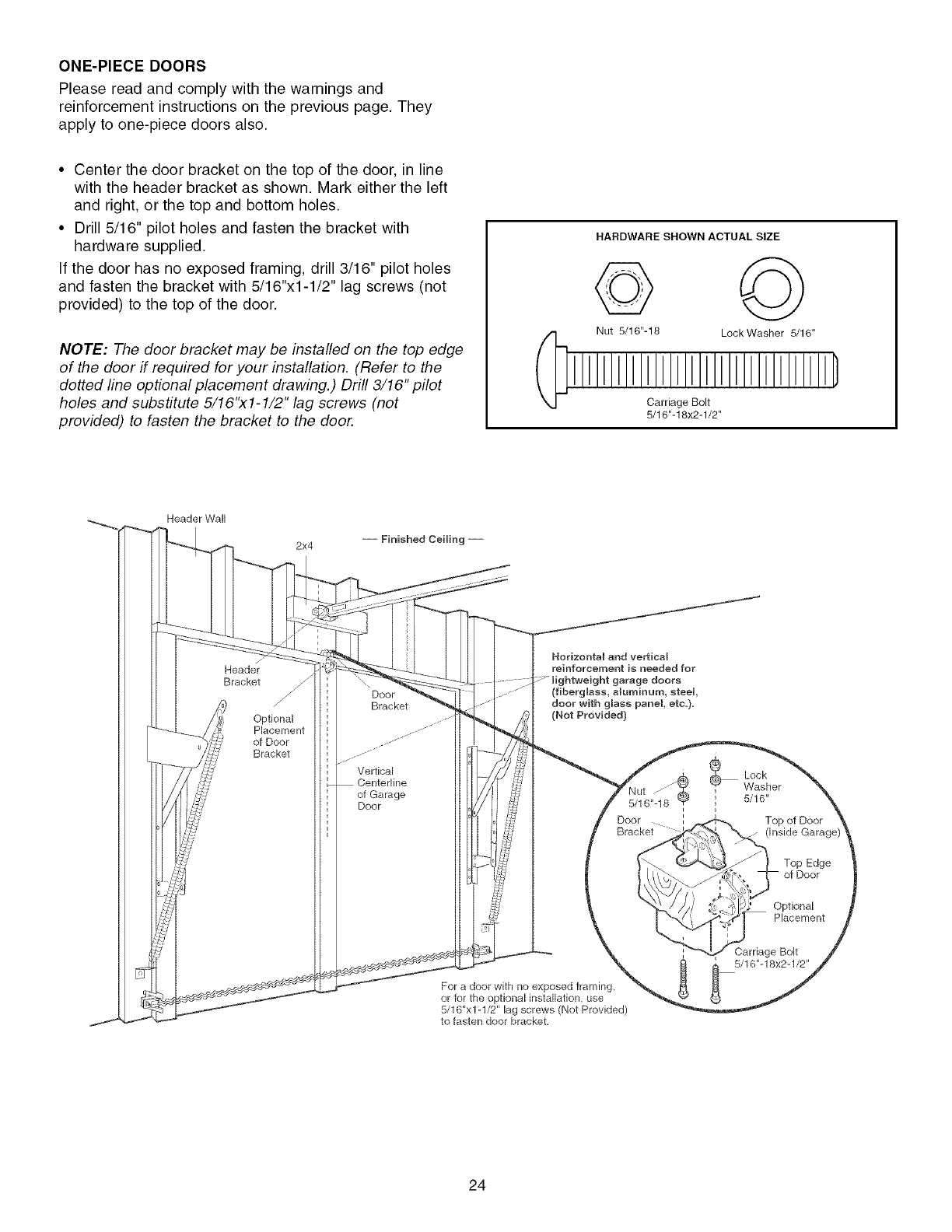

Follow instructions which apply to your door type

as illustrated below or on the following page.

A horizontal reinforcement brace should be long

enough to be secured to two vertical supports. A

vertical reinforcement brace should cover the height

of the top panel.

The illustration shows one piece of angle iron as the

horizontal brace. For the vertical brace, two pieces of

angle iron are used to create a U-shaped support

(Figure 1). The best solution is to check with your garage

door manufacturer for an opener installation door

reinforcement kit.

NOTE: Many vertical brace installations provide for direct

attachment of the clevis pin and door arm. In this case you

will not need the door bracke# proceed to Installation

Step 12.

SECTIONAL DOORS

• Center the door bracket on the previously marked

vertical centerline used for the header bracket

installation. Note correct UP placement, as stamped

inside the bracket (Figure 2).

• Position the bracket on the face of the door within the

following limits:

A) The top edge of the bracket 2"-4" (5-10 cm) below

the top edge of the door.

B) The top edge of the bracket directly below any

structural support across the top of the door.

Fiberglass,aluminum or lightweight steel garage doors WILL

REQUIREreinforcement BEFOREinstallation of door bracket.

Contactyour door manufacturerfor reinforcement kit.

HARDWARE SHOWN ACTUAL SIZE

© ©

Nut 5/16"-18 LockWasher 5/16"

Carriage Bolt

5/16"-18x2-1/2"

• Mark and drill 5/16" left and right fastening holes.

Secure the bracket as shown in Figure 1 if there is

vertical reinforcement.

If your installation doesn't require vertical reinforcement

but does need top and bottom fastening holes for the door

bracket, fasten as shown in Figure 2.

Header Bracket Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, aluminum, steel, doors with

glass panel, etc.). (Not Provided) Vertical

Reinforcement

Vertical

Centerline

//of Garage

,' Door

ge

of Door or

einforcement Board

Carriage Bolt

Door

Bracket

Lock Washer -_(

5/16" Nut

5/16"-18 z .....

UP

Figure 1

Door Bracket Figure 2

23

ONE-PIECEDOORS

Please read and comply with the warnings and

reinforcement instructions on the previous page. They

apply to one-piece doors also.

• Center the door bracket on the top of the door, in line

with the header bracket as shown. Mark either the left

and right, or the top and bottom holes.

• Drill 5/16" pilot holes and fasten the bracket with

hardware supplied.

If the door has no exposed framing, drill 3/16" pilot holes

and fasten the bracket with 5/16"x1-1/2" lag screws (not

provided) to the top of the door.

NOTE: The door bracket may be installed on the top edge

of the door if required for your installation, (Refer to the

dotted line optional placement drawing.) Drill 3/16" pilot

holes and substitute 5/16"x1-1/2" lag screws (not

provided) to fasten the bracket to the door,

HARDWARE SHOWN ACTUAL SIZE

© ©

Nut 5/16"-18 LockWasher 5/16"

Carriage Bolt

5/16"-18x2-1/2"

Header Wall

2x4

Header

Bracket

Optional

Placement

of Door

Bracket

Door

Bracket

Vertical

of Garage

Door

Horizontal and vertical

reinforcement {s needed for

lightweight garage doors

(fiberglass, aluminum, steeU,

door with glass panel, etc.).

(Not Provided)

8J16.48"$

Door

Bracket

For a door with no exposed framing,

or for the optional installation, use

5/16"xl-1/2" lag screws (Not Provided)

to fasten door bracket,

®

LockWasher

' 5/16"

Top of Door

(Inside Garac

Top Edge

of Door

Optional

Placement

Carriage Bolt

5/16"-18x2-1/2"

24

INSTALLATION STEP 12

Connect Door Arm to Trolley

Follow instructions which apply to your door type as

illustrated below and on the following page.

SECTIONAL DOORS ONLY

•Make sure garage door is fully closed. Pull the

emergency release handle to disconnect the outer trolley

from the inner trolley. Slide the outer trolley back (away

from the pulley) about 8" (20 cm) as shown in Figures 1,

2 and 3.

•Figure 1:

- Fasten straight door arm section to outer trolley with

the 5/16"x1" clevis pin. Secure the connection with a

ring fastener.

- Fasten curved section to the door bracket in the same

way, using the 5/16"x1-1/4" clevis pin.

•Figure 2:

- Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart

as possible to increase door arm rigidity.

•Figure 3, Hole alignment alternative:

- If holes in curved arm are above holes in straight arm,

disconnect straight arm. Cut about 6" (15 cm) from the

solid end. Reconnect to trolley with cut end down as

shown.

- Bring arm sections together.

- Find two pairs of holes that line up and join with bolts,

lock washers and nuts.

• Pull the emergency release handle toward the opener at

a 45° angle so that the trolley release arm is horizontal.

Proceed to Adjustment Step 1, page 27. Trolley will

re-engage automatically when opener is operated.

Figure 1

Pulley

"5 Bolts

""_/ 5/16"-18x7/8"

Door Bracket

Figure 2

G

HARDWARE SHOWN ACTUAL SIZE

Nut 5/16"-18

Clevis Pin

5/16"xl" (Trolley)

Lock Washer 5/t 6" Ring Fastener

Clevis Pin Hex Bolt

5/16"xl -1/4" (Door Bracket) 5/16"-18x7/8"

Figure 3

Pulley

',, i i

'_ii(-,- 8" (20 cra) rain._),,

J ........'_,___ = ....

Trolley / / 1

Stop Bolt //

Lock /o/

Washers/oy

Nuts 5/16" /o7

"-7:7 % .' Bo,ts

// "---.

o1_ Cut this end

25

ALL ONE-PIECE DOORS

1.Assemble the door arm, Figure 4:

• Fasten the straight and curved door arm sections

together to the longest possible length (with a 2 or 3

hole overlap).

• With the door closed, connect the straight door arm

section to the door bracket with the 5/16"x1-1/4"

clevis pin.

• Secure with a ring fastener.

2. Adjustment procedures, Figure 5:

• On one-piece doors, before connecting the door arm

to the trolley, the travel limits must be adjusted. Limit

adjustment screws are located on the left side panel

as shown on page 27. Follow adjustment procedures

below.

• Open door adjustment: decrease UP travel limit

- Turn the UP limit adjustment screw counter-clockwise

4 turns.

- Press the Door Control push button. The trolley will

travel to the fully open position.

- Manually raise the door to the open position (parallel

to the floor), and lift the door arm to the trolley. The

arm should touch the trolley just in back of the door

arm connector hole. Refer to the fully open

trolley/door arm positions in the illustration. If the arm

does not extend far enough, adjust the limit further.

One full turn equals 2" (5 cm) of trolley travel.

• Closed door adjustment: decrease DOWN travel

limit

- Turn the DOWN limit adjustment screw clockwise

4 complete turns.

Door

Bracket

Clevis Pin Straight

5/16"x1-1/4" Arm

Fastener

Lock

Washers

5/16"

Nuts

5/16"-18

Figure 4

Bolts

5/16"-18x7/8" Curved

Door Arm

- Press the Door Control push button. The trolley will

travel to the fully closed position.

- Manually close the door and lift the door arm to the

trolley. The arm should touch the trolley just ahead of

the door arm connector hole. Refer to the fully closed

trolley/door arm positions in the illustration. If the arm

is behind the connector hole, adjust the limit further.

One full turn equals 2" (5 cm) of trolley travel.

3. Connect the door arm to the trolley:

• Close the door and join the curved arm to the

connector hole in the trolley with the remaining clevis

pin. It may be necessary to lift the door slightly to make

the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the

door has a slight "backward" slant in full open position

as shown in the illustration, decrease the UP limit until

the door is parallel to the floor.

NOTE: When setting the up limit on the following page, the

door should not have a "backward" slant when fully open

as illustrated below. A slight backward slant will cause

unnecessary bucking and/or jerking operation as the door

is being opened or closed from the fully open position.

Figure 5 Inner Trolley

cy Release Handle

Inner Trolley

Outer Trolley

Correct Angle _C _";

Backward Slant

Open Door (Incorrect)

26

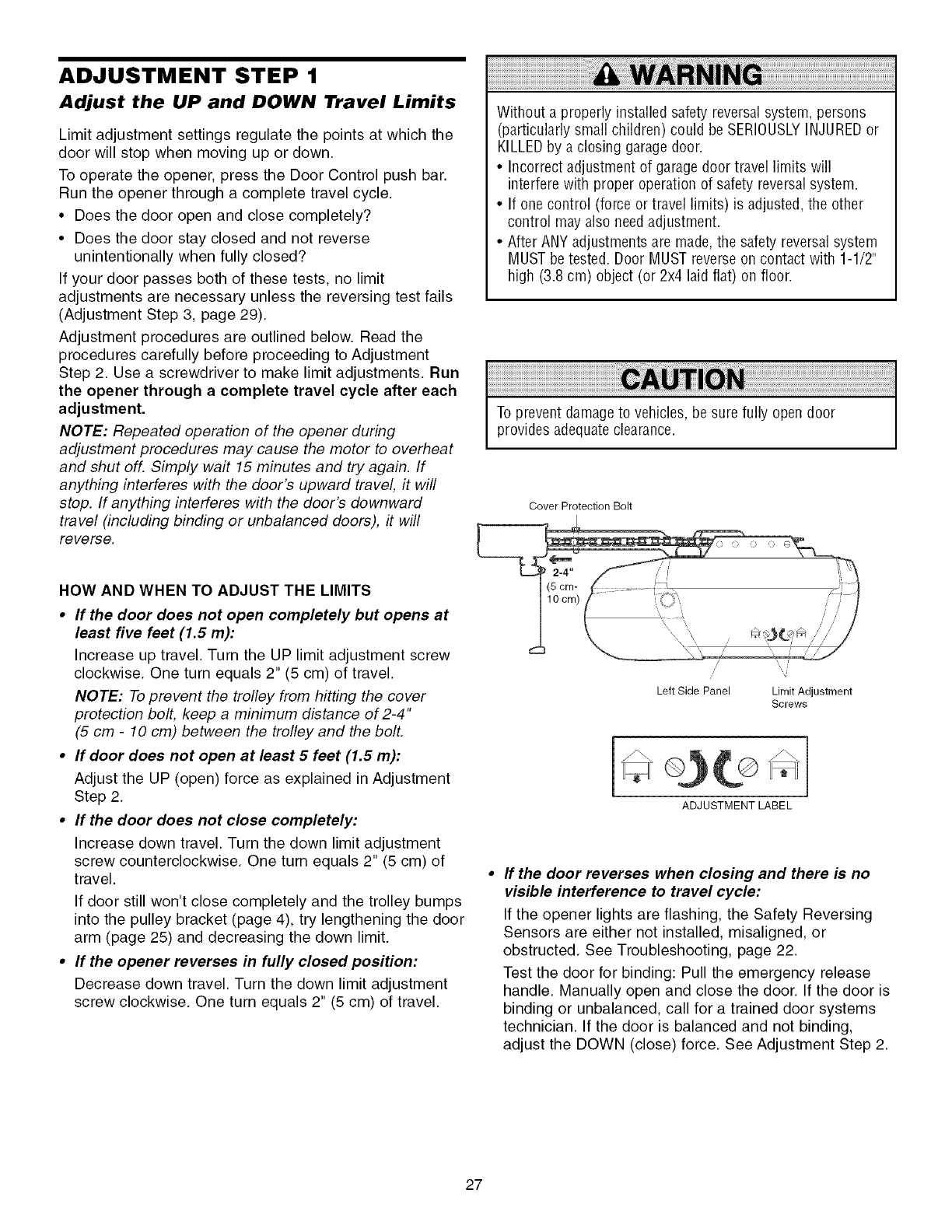

ADJUSTMENT STEP 1

Adjust the UP and DOWN Travel Limits

Limit adjustment settings regulate the points at which the

door will stop when moving up or down.

To operate the opener, press the Door Control push bar.

Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse

unintentionally when fully closed?

If your door passes both of these tests, no limit

adjustments are necessary unless the reversing test fails

(Adjustment Step 3, page 29).

Adjustment procedures are outlined below. Read the

procedures carefully before proceeding to Adjustment

Step 2. Use a screwdriver to make limit adjustments. Run

the opener through a complete travel cycle after each

adjustment.

NOTE: Repeated operation of the opener during

adjustment procedures may cause the motor to overheat

and shut off. Simply wait 15 minutes and try again. If

anything interferes with the door's upward travel, it will

stop. If anything interferes with the door's downward

travel (including binding or unbalanced doors), it will

reverse.

Without a properly installed safety reversal system, persons

(particularly small children) could be SERIOUSLYINJUREDor

KILLEDby a closing garagedoor.

• Incorrect adjustment of garage door travel limits will

interfere with proper operation of safety reversalsystem.

• If one control (force or travel limits) is adjusted,the other

control may also needadjustment.

• After ANY adjustments are made,the safety reversalsystem

MUST be tested. Door MUST reverse on contact with 1-1/2"

high (3.8 cm) object (or 2x4 laid flat) on floor.

To prevent damage to vehicles, be sure fully open door

provides adequate clearance.

Cover Protection Bolt

U

HOW AND WHEN TO ADJUST THE LIMITS

•If the door does not open completely but opens at

least five feet (1.5 m):

Increase up travel. Turn the UP limit adjustment screw

clockwise. One turn equals 2" (5 cm) of travel.

NOTE: To prevent the trolley from hitting the cover

protection bolt, keep a minimum distance of 2-4"

(5 cm -10 cm) between the trolley and the boll

•If door does not open at least 5 feet (1.5 m):

Adjust the UP (open) force as explained in Adjustment

Step 2.

•If the door does not close completely:

Increase down travel. Turn the down limit adjustment

screw counterclockwise. One turn equals 2" (5 cm) of

travel. •

If door still won't close completely and the trolley bumps

into the pulley bracket (page 4), try lengthening the door

arm (page 25) and decreasing the down limit.

•If the opener reverses in fully closed position:

Decrease down travel. Turn the down limit adjustment

screw clockwise. One turn equals 2" (5 cm) of travel.

Left Side Panel Limit Adjustment

Screws

ADJUSTMENT LABEL

If the door reverses when closing and there is no

visible interference to travel cycle:

If the opener lights are flashing, the Safety Reversing

Sensors are either not installed, misaligned, or

obstructed. See Troubleshooting, page 22.

Test the door for binding: Pull the emergency release

handle. Manually open and close the door. If the door is

binding or unbalanced, call for a trained door systems

technician. If the door is balanced and not binding,

adjust the DOWN (close) force. See Adjustment Step 2.

27

ADJUSTMENT STEP 2

Adjust the Force

Force adjustment controls are located on the back panel

of the motor unit. Force adjustment settings regulate the

amount of power required to open and close the door.

If the forces are set too light, door travel may be

interrupted by nuisance reversals in the down direction

and stops in the up direction. Weather conditions can

affect the door movement, so occasional adjustment may

be needed.

The maximum force adjustment range is about 3/4 of a

complete turn. Do not force controls beyond that

point. Turn force adjustment controls with a screwdriver.

NOTE: If anything interferes with the door's upward travel,

it will stop. If anything interferes with the door's downward

travel (including binding or unbalanced doors), it will

reverse.

Without a properly installed safety reversal system, persons

(particularly small children) could be SERIOUSLYINJUREDor

KILLEDby a closing garagedoor.

• Too much force on garage door will interfere with proper

operation of safety reversalsystem.

• NEVERincreaseforce beyond minimum amount requiredto

close garage door.

• NEVERuse force adjustments to compensate for a binding

or sticking garage door.

• If one control (force or travel limits) is adjusted, the other

control may also needadjustment.

• After ANY adjustments are made,the safety reversalsystem

MUST be tested. Door MUST reverse on contact with 1-1/2"

high (3.8 cm) object (or 2x4 laid flat) on floor.

HOW AND WHEN TO ADJUST THE FORCES

1. Test the DOWN (close) force

• Grasp the door bottom when the door is about halfway

through DOWN (close) travel. The door should

reverse. Reversal halfway through down travel does

not guarantee reversal on a 1-1/2" (3.8 cm)

obstruction. See Adjustment Step 3, page 29. If the

door is hard to hold or doesn't reverse,

DECREASE the DOWN (close) force by turning

the control counterclockwise. Make small adjustments

until the door reverses normally. After each

adjustment, run the opener through a complete cycle.

• If the door reverses during the down (close) cycle

and the opener lights aren't flashing, INCREASE

DOWN (close) force by turning the control clockwise.

Make small adjustments until the door completes a

close cycle. After each adjustment, run the opener

through a complete travel cycle. Do not increase the

force beyond the minimum amount required to close

the door.

2. Test the UP (open) force

• Grasp the door bottom when the door is about halfway

through UP (open) travel. The door should stop. If the

door is hard to hold or doesn't stop, DECREASE

UP (open) force by turning the control

counterclockwise. Make small adjustments until the

door stops easily and opens fully. After each

adjustment, run the opener through a complete

travel cycle.

• If the door doesn't open at least 5 feet (1.5 m),

INCREASE UP (open) force by turning the control

clockwise. Make small adjustments until door opens

completely. Readjust the UP limit if necessary. After

each adjustment, run the opener through a complete

travel cycle.

Force Adjustment

Controls

Back Panel

I

ADJUSTMENT LABEL

Open Force

J

Close Force

28

ADJUSTMENT STEP 3

Test the Safety Reversal System

TEST

•With the door fully open, place a 1-1/2" (3.8 cm) board

(or a 2x4 laid flat) on the floor, centered under the

garage door.

• Operate the door in the down direction. The door must

reverse on striking the obstruction.

ADJUST

• If the door stops on the obstruction, it is not traveling far

enough in the down direction. Increase the DOWN limit

by turning the DOWN limit adjustment screw

counterclockwise 1/4 turn.

NOTE: On a sectional door, make sure limit

adjustments do not force the door arm beyond a straight

up and down position. See the illustration on page 25.

• Repeat the test.

• When the door reverses on the 1-1/2" (3.8 cm) board,

remove the obstruction and run the opener through 3 or

4 complete travel cycles to test adjustment.

• If the unit continues to fail the Safety Reverse Test, call

for a trained door systems technician.

IMPORTANT SAFETY CHECK:

Test the Safety Reverse System after:

• Each adjustment of door arm length, limits, or force

controls.

• Any repair to or adjustment of the garage door

(including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

Without a properly installed safety reversal system, persons

(particularly small children) could be SERIOUSLYINJUREDor

KILLEDby a closing garagedoor.

• Safety reversal system MUST be tested every month.

• If one control (force or travel limits) is adjusted, the other

control may also needadjustment.

• After ANY adjustments are made,the safety reversalsystem

MUST be tested. Door MUST reverse on contact with 1-1/2"

high (3.8 cm) object (or 2x4 laid flat on the floor.

A

_:z: _7_::z_7 :::_7_7 z:_z _7z:_:_7 ::zT_:

=

(or a 2x4 laid flat)

ADJUSTMENT STEP 4

Test The Protector System ®

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door.

The door will not move more than an inch (2.5 cm), and

the opener lights will flash.

The garage door opener will not close from a remote if the

indicator light in either sensor is off (alerting you to the fact

that the sensor is misaligned or obstructed).

If the opener closes the door when the safety

reversing sensor is obstructed (and the sensors are

no more than 6" (15 cm) above the floor), call for a

trained door systems technician.

Without a properly installed safety reversing sensor, persons

(particularly small children) could be SERIOUSLYINJUREDor

KILLEDby a closing garagedoor.

Safety Reversing Sensor

29

OPERATION

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READAND FOLLOWALL WARNINGSAND

INSTRUCTIONS.

2. ALWAYSkeep remote controls out of reach of children.

NEVERpermit children to operate or play with garage door

control push buttons or remote controls.

3. ONLYactivate garage door when it can be seen clearly, it is

properly adjusted, and there are no obstructions to door

travel.

4. ALWAYSkeep garage door in sight until completely

closed. NO ONESHOULDCROSSTHEPATHOFTHE

MOVING DOOR.

5. NO ONESHOULDGOUNDERA STOPPED,PARTIALLY

OPENEDDOOR.

6. If possible, use emergency release handleto disengage

trolley ONLYwhen garage door is CLOSED.Weakor

broken springs or unbalanceddoor could result in an open

door failing rapidly and/or unexpectedly.

7. NEVERuse emergency releasehandle unless garage

doorway is clear of persons and obstructions.

8. NEVERuse handleto pull garagedoor open or closed. If

rope knot becomes untied, you could fall.

9. If one control (force or travel limits) is adjusted, the other

control may also need adjustment.

10. After ANY adjustments are made,the safety reversal

system MUST be tested.

11. Safety reversalsystem MUST be tested every month.

Garagedoor must reverseon contact with 1-1/2" high

(3.8 cm) object (or a 2x4 laid flat) on the floor.

12. ALWAYSKEEPGARAGEDOORPROPERLYBALANCED

(see page 3). An improperly balanced door may not

reversewhen requiredand could result in SEVERE

INJURYor DEATH.

13. ALL repairs to cables, spring assemblies and other

hardware,ALL of which are under EXTREMEtension,

MUST be made by a trained door systems technician.

14. ALWAYSdisconnect electric power to garagedoor opener

BEFOREmaking any repairs or removing covers.

15SAVETHESEINSTRUCTIONS.

Using Your Garage Door Opener

Your Security+ ®opener and hand-held remote control

have been factory-set to a matching code which changes

with each use, randomly accessing over 100 billion new

codes. Your opener will operate with up to eight

Security+ ® remote controls and one Security+ ®Keyless

Entry System. If you purchase a new remote, or if you

wish to deactivate any remote, follow the instructions in

the Programming section.

Activate your opener with any of the following:

•The hand-held Remote Control: Hold the large push

button down until the door starts to move.

• The wall-mounted Door Control: Hold the push button

or bar down until the door starts to move.

• The Keyless Entry (See Accessories): If provided with

your garage door opener, it must be programmed

before use. See Programming.

When the opener is activated (with the safety

reversing sensor correctly installed and aligned)

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop.

4. If the door has been stopped in a partially open

position, it will close.

5. If obstructed while closing, the door will reverse. If the

obstruction interrupts the sensor beam, the opener

lights will blink for five seconds.

6. If obstructed while opening, the door will stop.

7. If fully open, the door will not close when the beam is

broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is misaligned, the door

won't close from a hand-held remote. However, you can

close the door with the Door Control, the Outdoor Key

Switch, or Keyless Entry, if you activate them until down

travel is complete. If you release them too soon, the door

will reverse.

The opener lights will turn on under the following

conditions: when the opener is initially plugged in; when

power is restored after interruption; when the opener is

activated. They will turn off automatically after 4-1/2

minutes. Bulb size is A19. Power is 100 watts maximum.

Lights will also turn on when someone walks through the

open garage door.

30

Using the Wall.Mounted Door Control

Press the lighted push button to open

or close the door. Press again to

reverse the door during the closing

cycle or to stop the door while it's

opening. ITo Open the Door Manually

To prevent possible SERIOUSINJURYor DEATHfrom a failing

garage door:

• If possible, use emergency releasehandle to disengage

trolley ONLYwhen garage door is CLOSED.Weakor broken

springs or unbalanced door could result in an open door

falling rapidly and/or unexpectedly.

• NEVERuse emergency releasehandle unless garage

doorway is clear of persons and obstructions.

• NEVERusehandleto pull door open or closed. If rope knot

becomes untied,you could fall.

DISCONNECT THE TROLLEY:

The door should be fully closed

if possible. Pull down on the

emergency release handle (so

that the trolley release arm

snaps into a vertical position)

and lift the door manually. The

lockout feature prevents the

trolley from reconnecting

automatically, and the door can

be raised and lowered

manually as often as

necessary.

TO RE-CONNECT THE

TROLLEY:

Pull the emergency release

handle toward the opener at

an angle so that the trolley

release arm is horioontal. The

trolley will reconnect on the

next UP or DOWN operation,

either manually or by using

the door control or remote.

Trolley

Trolley

Release Arm

(In Manual

Disconnect

Position)

Lockout position

(Manual disconnect)

Trolley

Emergency ""_

Release Handle . %_

(Down and Back) " _'

To reconnect

31

CARE OF YOUR GARAGE DOOR

OPENER

LIMIT AND FORCE FORCECONTROLS

ADJUSTMENTS:

Weather conditions may cause

some minor changes in door

operation requiring some re-

adjustments, particularly during

the first year of operation LIMITCONTROLS

limit and force adjustments Only

a screwdriver is required Follow

the instructions carefully

Repeat the safety reverse test (Adjustment Step 3,

page 29) after any adjustment of limits or force.

MAINTENANCE SCHEDULE

Once a Month

•Manually operate door If it is unbalanced or binding,

call a trained door systems technician

• Check to be sure door opens & closes fully Adjust limits

and/or force if necessary (See pages 27 and 28)

• Repeat the safety reverse test Make any necessary

adjustments (See Adjustment Step 3)

Twice a Year

• Check chain tension Disconnect trolley first Adjust if

necessary (See page 11)

Once a Year

• Oil door rollers, bearings and hinges The opener does

not require additional lubrication Do not grease the door

tracks

THE REMOTE CONTROL BATTERY

To prevent possible SERIOUSINJURYor DEATH:

•NEVERallow small children near batteries

•If battery is swallowed, immediately notify doctor

The lithium battery should

produce power for up to openthisend

first to avoidJ _...._

5 years To replace battery, use cracl_ing_ _--_._.:.._-_J

the visor clip or screwdriver hous_

blade to pry open the case as

shown. Insert battery matching

polarity instructions inside the

remote cover or on the printed circuit board.

Dispose of old battery properly.

NOTICE: To comply with FCC and or Industry Canada rules (iC), adjustment or modifications of this

receiver and/or transmitter are prohibited, except for changing the code setting or replacing the

battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with ECC Standards FOR HOME OR OFFICE USE. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

32

HAVING A PROBLEM?

1. My door will not close and the light bulbs blink on

my motor unit: The safety reversing sensor must be

connected and aligned correctly before the garage door

opener will move in the down direction.

• Verify the safety sensors are properly installed,

aligned and free of any obstructions. Refer to

Installation Step 10: Install The Protector Syster_.

• Check diagnostic LED for flashes on the motor unit

then refer to the Diagnostic Chart on the following

page.

2. My remotes will not activate the door:

• Reprogram remotes following the programming

instructions. Refer to Programming.

• If remote will still not activate your door, check

diagnostic LED for flashes on motor unit then refer to

Diagnostic Chart on the following page.

3. My door reverses for no apparent reason: Repeat

safety reverse test after adjustments to force or travel

limits. The need for occasional adjustment for the force

and limit settings is normal. Weather conditions in

particular can affect door travel.

• Manually check door for balance or any binding

problems.

• Refer to Adjustment Step 2, Adjust the Force.

4. My door reverses for no apparent reason after fully

closing and touching the floor: Repeat safety reverse

test after adjustments to force or travel limits. The need

for occasional adjustment for the force and limit settings

is normal. Weather conditions in particular can affect

door travel.

• Refer to Adjustment Step 1, Adjust the UP and DOWN

Travel Limits. Decrease down travel by turning down

limit adjustment screw clockwise.

5. My lights will not turn off when door is open:

• The garage door opener is equipped with a security

light feature. This feature activates the light on when

the safety sensor beam has been obstructed.

Bell Wire

Safety Reversing Sensor

Sending Eye Safety Reversing

Sensor (Amber Indicator Light)

Receiving Eye Safety Reversing

Sensor (Green Indicator Light)

,/

6. My motor unit hums briefly:

• First verify that the trolley is against the stop bolt.

• Release the door from the opener by pulling the

Emergency Release Rope.

• Manually bring the door to a closed position.

• Loosen the chain by adjusting the outer nut 4 to 5

turns. This relieves the tension.

• Run the motor unit from the remote control or door

control. The trolley should travel towards the door and

stop. If the trolley re-engages with the door, pull the

Emergency Release Rope to disengage.

• Decrease the UP travel by turning the UP Travel

adjustment screw 2 full turns away from the arrow.

• Re-tighten the outer nut so the chain is a 1/4" (6 mm)

above the base of the rail. (When the door is

reconnected and closed, the chain will sag. This is

normal.)

• If the trolley does not move away from the bolt, repeat

the steps above.

33

Bell Wire

\

Installed

Safety Reversing Sensor

Diagnostic Chart

Safety reversing sensors

wire open (broken or

disconnected).

OR

Safety reversing sensors

wire shorted or

black/white wire

reversed.

Door control or

wire shorted.

Safety reversing sensors

slightly misaligned

(dim or flashing LED).

Motor overheated or

possible RPM sensor

failure. Unplug to reset.

Motor Circuit Failure.

Replace Receiver

Logic Board.

Your garage door opener is programmed with

self-diagnostic capabilities. The "Learn" button/diagnostic

LED will flash a number of times then pause signifying it

has found a potential issue. Consult Diagnostic Chart below.

Symptom: One or both of the Indicator lights on the safety sensors do

not glow steady.

• Inspect sensor wires for a short (staple in wire), correct wiring polarity (black/white

wires reversed), broken or disconnected wires, replace/attach

as needed.

• Disconnect all wires from back of motor unit.

• Remove sensors from brackets and shorten sensor wires to 1-2 ft (30-60 cm) from

back each of sensor.

• Reattach sending eye to motor unit using shortened wires. If sending eye indicator

light glows steadily, attach the receiving eye.

• Align sensors, if the indicator lights glow replace the wires for the sensors. If the

sensor indicator lights do not light, replace the safety sensors.

Symptom: LED is not fit on door control.

• Inspect door control/wires for a short (staple in wire), replace as needed.

• Disconnect wires at door control, touch wires together. If motor unit activates,

replace door control.

• If motor unit does not activate, disconnect door control wires from motor unit.

Momentarily short across red and white terminals with jumper wire. If motor unit

activates, replace door control wires.

Symptom: Sending indicator light glows steadily, receiving indicator light is

dim or flashing.

• Realign receiving eye sensor, clean lens and secure brackets.

• Verify door track is firmly secured to wall and does not move.

Symptom: Motor has overheated; the motor unit does not operate or

trolley is stuck on stop bolt = Motor unit hums briefly; RPM Sensor =

Short travel 6-8" (15-20 cm).

• Unplug unit to reset. Try to operate motor unit, check diagnostic code.

• If it is still flashing 5 times and motor unit moves 6-8" (15-20 cm), replace RPM

sensor.

• If motor unit doesn't operate, motor unit is overheated. Wait 30 minutes and retry. If

motor unit still will not operate replace logic board.

Symptom: Motor unit doesn't operate.

• Replace logic board because motor rarely fails.

34

PROGRAMMING

NOTICE: If this Security.l_ garage door opener is operated with a non-rolling code transmitter, the technical measure in

the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The

owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code

transmitter to circumvent that technical measure.

Your garage door opener has already been programmed at the factory to operate with your hand-held remote control.

The door will open and close when you press the large push button.

Below are instructions for programming your opener to operate with additional Security÷ ® remote controls.

To Add or Reprogram a Hand.held Remote Control

USING THE "LEARN" BUTTON

1. Press and release the "learn" button

on the motor unit. The learn

indicator light will glow steadily for

30 seconds.

2. Within 30 seconds, press and hold

the button on the hand-held remote*

that you wish to operate your

garage door.

3. Release the button when the motor

unit lights blink. It has learned the

code. If light bulbs are not installed,

two clicks will be heard.

To Erase All Codes From Motor Unit

Memory

To deactivate any unwanted remote, first _-_-L___®3__i

erase all codes:

Press and hold the "learn" button on motor

unit until the learn indicator light goes out

(approximately 6 seconds). All previous

codes are now erased. Reprogram each remote or keyless

entry you wish to use.

*3-Function Remotes

If provided with your garage door opener, the large button

is factory programmed to operate it. Additional buttons on

any Security÷ ®3-Function

remote or compact remote _ ._-'-_'_'_'_'_'_'_

can be programmed to

operate other Security÷ ®

garage door openers.

35

To Add, Reprogram or Change a Keyless Entry PIN

NOTE: Your new Keyless Entry must be programmed to operate your garage door opener,

USING THE "LEARN" BUTTON

)

1. Press and release the "learn" button

on motor unit. The learn indicator

light will glow steadily for 30

seconds.

2. Within 30 seconds, enter a four digit

personal identification number (PIN)

of your choice on the keypad. Then

press and hold the ENTER button.

3. Release the button when the motor

unit lights blink. It has learned the

code. If light bulbs are not installed,

two clicks will be heard.

To change an existing, known PIN

If the existing PIN is known, it may be changed by one

person without using a ladder.

1. Press the four buttons for the present PIN, then press

and hold the # button.

The opener light will blink twice. Release the # button.

2. Press the new 4-digit PIN you have chosen, then

press Enter.

The motor unit lights will blink once when the PIN has

been learned.

Test by pressing the new PIN, then press Enter. The door

should move.

To set a temporary PIN

You may authorize access by visitors or service people

with a temporary 4-digit PIN. After a programmed number

of hours or number of accesses, this temporary PIN

expires and will no longer open the door. It can be used to

close the door even after it has expired. To set a

temporary PIN:

1. Press the four buttons for your personal entry PIN (not

the last temporary PIN), then press and hold the _=

button.

The opener light will blink three times. Release the

button.

2. Press the temporary 4-digit PIN you have chosen, then

press Enter.

The opener light will blink four times.

3. To set the number of hours this temporary PIN will

work, press the number of hours (up to 255), then

press _.

OR

3. To set the number of times this temporary PIN will work,

press the number of times (up to 255), then press #.

The opener light will blink once when the temporary PIN

has been learned.

Test by pressing the four buttons for the temporary PIN,

then press Enter. The door should move. If the temporary

PIN was set to a certain number of openings, remember

that the test has used up one opening.To clear the

temporary password, repeat steps 1-3, setting the number

of hours or times to 0 in step 3.

One Button Close: Opener can be closed by pressing

only the ENTER button if the one button close feature has

been activated. This feature has been activated at the

factory. To activate or deactivate this feature press and

hold buttons 1 and 9 for 10 seconds. The keypad will blink

twice when the one button close is active. The keypad will

blink four times when one button close is deactivated.

36

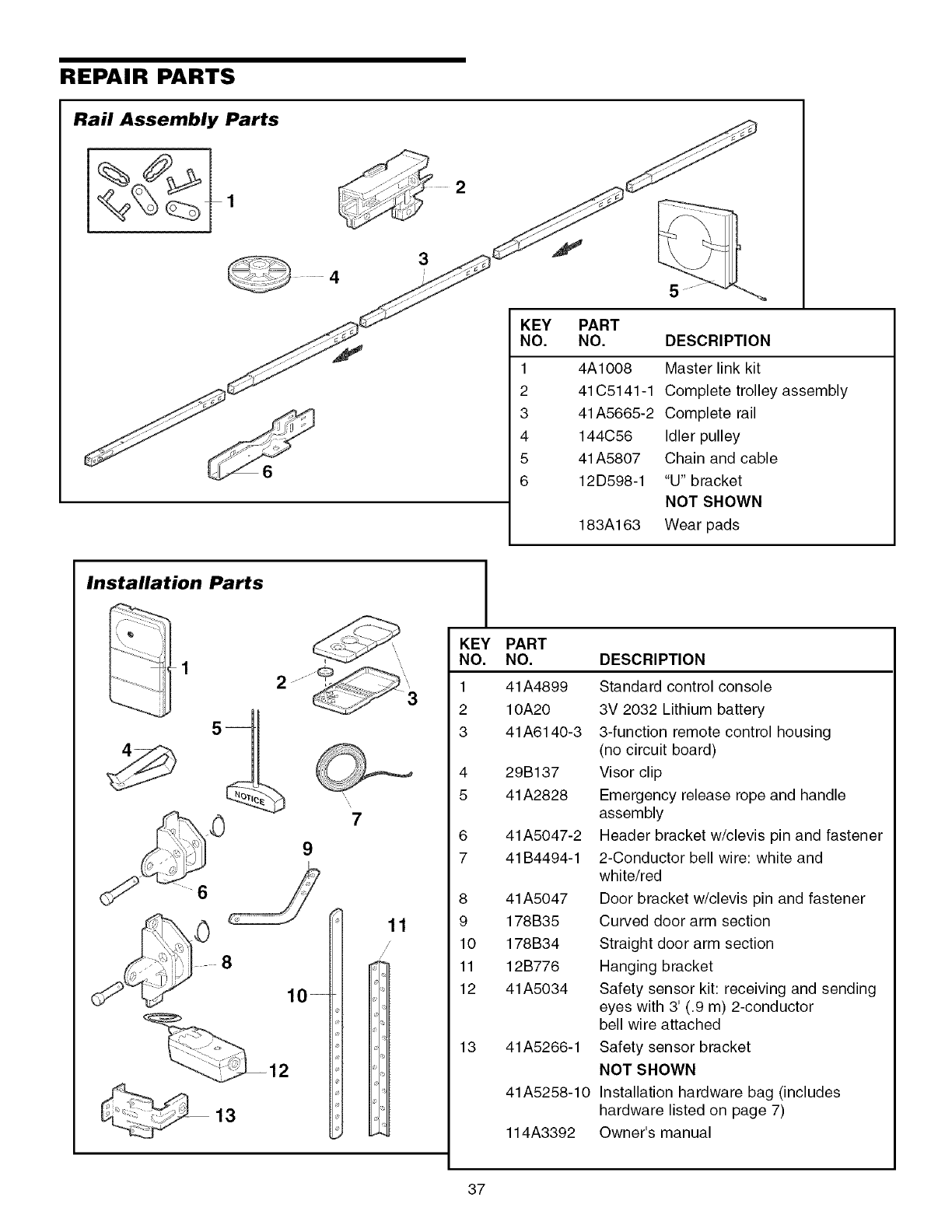

REPAIR PARTS

KEY

NO.

Rail Assembly Parts

6

Installation Parts

3

1

2

3

4

5

6

PART

NO. DESCRIPTION

4A1008 Master link kit

41C5141-1 Complete trolley assembly

41A5665-2 Complete rail

144C56 Idler pulley

41A5807 Chain and cable

12D598-1 "U" bracket

NOT SHOWN

183A163 Wear pads

10

13

\\

7

11

/

/

KEY

NO.

1

2

3

4

5

6

7

8

9

10

11

12

13

PART

NO.

41 A4899

10A20

41 A6140-3

29B137

41A2828

41A5047-2

41B4494-1

41 A5047

178B35

178B34

12B776

41 A5034

41A5266-1

41A5258-10

114A3392

DESCRIPTION

Standard control console

3V 2032 Lithium battery

3-function remote control housing

(no circuit board)

Visor clip

Emergency release rope and handle

assembly

Header bracket w/clevis pin and fastener

2-Conductor bell wire: white and

white/red

Door bracket w/clevis pin and fastener

Curved door arm section

Straight door arm section

Hanging bracket

Safety sensor kit: receiving and sending

eyes with 3' (.9 m) 2-conductor

bell wire attached

Safety sensor bracket

NOT SHOWN

Installation hardware bag (includes

hardware listed on page 7)

Owner's manual

37

Motor Unit Assembly Parts

7 \

\

(Down) LIMIT SWITCH

Brown Contact ASSEMBLY

Contact Contact Wire

8/

11

15

12

17

19

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1

2

41A5615

41C4220A

41A2817

4 41 B4245

5 41A5484-5

6 4A1344

7 108D77

8 30B532

9 12A373

10 41A3150

11 41D3058

Chain Spreader 12

Gear and sprocket assembly 13

Complete with: Spring washer, 14

thrust washer, retaining ring,

bearing plate, roll pins (2), drive 15

gear and worm gear, helical gear 16

w/retainer and grease 17

Drive/worm gear kit w/grease,

roll pins (2)

Line cord

End panels w/all labels 18

Light socket 19

Lens

Capacitor- 1/2 HP

Capacitor bracket

Terminal block w/screws

Universal replacement motor &

bracket assembly.'

Complete with: Motor, worm,

bracket, bearing assembly, RPM

sensor

41 A5525-63

41 A2818

41 D3452

41A2822-1

41 C4398A

41AC150-1

41 C5497

41 C5498

41D179

41A2826

41A2825

Cover

Limit switch drive & retainer

Limit switch assembly

Interrupter cup assembly

RPM sensor assembly

Receiver logic board assembly.

Complete with: Logic board,

end panel w/all labels, light

socket

High voltage wire harness

Low voltage wire harness

End panel w/all labels

NOT SHOWN

Motor shaft bearing kit

Opener assembly hardware kit

(includes screws not

designated by a number in

illustration)

38

ACCESSORIES

139.53702

139.53726

Emergency Key Release:

Required for a garage with NO

access door. Enables homeowner to

open garage door manually from

outside by disengaging trolley.

8 Foot (2.4 m)Rail Extension

To allow an 8 (2.4 m) foot door to

open fully.

139.53727 10 Foot (3 m) Rail Extension:

To allow a 10 (3 m) foot door to

open fully.

139.53753

139.53752

139.53754

Secu rity-I.®3-Function Remote

Control:

Includes visor clip.

Security+ ®Compact 3-Function

Remote Control:

With loop for attaching key ring.

Security+ ®Keyless Entry:

Enables homeowner to operate garage

door opener from outside by entering a 4

digit code on specially designed keypad.

139.53589

41A5281

139.53709

Support Brackets:

For finished ceilings or where

additional support is required, based

on garage construction. Includes

brackets and fastening hardware.

Extension Brackets:

(Available only through Sears

Parts &Service)

(Optional) For safety sensor

installation onto the wall or floor.

Door Clearance Brackets:

(For Sectional Doors Only)

Replaces top brackets and rollers on

door to reduce height of door travel.

For use when installing opener in

garage with low headroom clearance.

139.53687

139.53749

Premium Control Console:

Provides a lock feature to prevent

operation of garage door from portable

remotes. A light feature controls the

opener lights. Can be used to program

the opener to accept additional remotes.

Plug-In Light Control:

Enables homeowner to turn on a

lamp, television or other appliance

from car, bedside, or anywhere in the

home with a remote.

WARRANTY

CRAFTSMAN GARAGE DOOR OPENER LIMITED WARRANTY

90-DAY IN-HOME FULL WARRANTY ON PRODUCT

For 90 days from the date of purchase, this product will be repaired, free of charge, if defective in material or workmanship.

ADDITIONAL LIMITED WARRANTY ON PARTS

From the 91st day up to 1 year from the date of purchase, replacement parts for any defective parts on this product will be furnished, free of

charge. You pay for labor.

ADDITIONAL LIMITED WARRANTY ON MOTOR

From the 91st day and through 4 years, if the motor on this product is defective, a replacement motor will be furnished free of charge. You pay

for labor.

WARRANTY RESTRICTION

This Craftsman Garage Door Opener Limited Warranty does not cover light bulbs or repair parts necessary because of operator abuse or

negligence, including the failure to install, adjust and operate this garage door opener according to instructions contained in the owner's manual.

This limited warranty also does not cover any problems caused by interference.

LIMITATION ON LIABILITY

Seller will not be liable for loss or damage to property or any incidental or consequential loss or expense from property damage due directly or

indirectly to the use of this product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above

limitation or exclusion may not apply to you.

DISCLAIMER OF IMPLIED WARRANTIES

Except for the motor, all implied warranties for this product, including but not limited to any implied warranties of merchantability and fitness for a

particular purpose, are limited in duration to the 91st day through 1-year limited warranty period set forth above. All implied warranties with

respect to the motor are limited in duration to the 91st day through 4-year limited warranty period set forth above. No implied warranties will exist

or apply after such periods. Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not

apply to you.

WARRANTY SERVICE IS AVAILABLE BY CALLING 1-800-4-MY-HOME ®.

This warranty applies only while this product is in use in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

39
