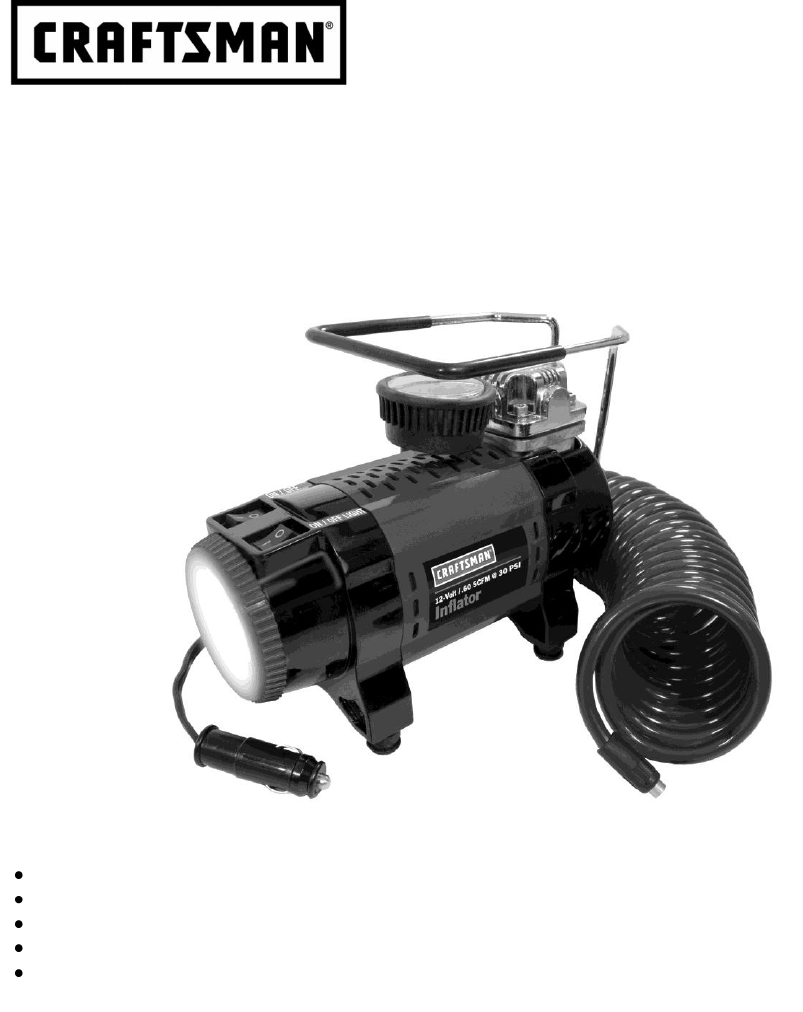

Operator’s Manual
12V
INFLATOR
Model No. 75120
CAUTION: Read the Safety Guidelines
and All Instructions Carefully Before
Operating.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Visit our Craftsman website: www.craftsman.com
Safety Guidelines
Assembly
Operation
Maintenance
Troubleshooting
TABLE OF CONTENTS
WARRANTY ................................................................................ 1
REPLACEMENT PARTS ............................................................ 1
SAFETY GUIDELINES-DEFINITIONS ....................................... 2
IMPORTANT SAFETY INSTRUCTIONS ................................. 2-6
GLOSSARY ................................................................................ 6
ACCESSORIES........................................................................... 7
ASSEMBLY ................................................................................. 7
OPERATION .......................................................................... 8-10
MAINTENANCE ........................................................................ 11
TROUBLESHOOTING GUIDE .................................................. 11
SPECIFICATIONS..................................................................... 11
WARRANTY
CRAFTSMAN ONE YEAR FULL WARRANTY
FOR ONE YEAR from the date of purchase, this product is warranted against
any defects in material or workmanship. Defective product will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the web site:
www.craftsman.com
This warranty does not cover the air needle, which is an expendable part that can wear out from
normal use within the warranty period.
This warranty is void if this product is ever used while providing commercial services or if rented
to another person.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
REPLACEMENT PARTS
If you need to replace any inflation accessories, call this number and ask for
Customer Service: 1-800-874-5771
1
SAFETY GUIDELINES - DEFINITIONS
This manual contains information that is important for you to know and understand. This information relates to protecting
YOUR SAFETY and PREVENTING EQUIPMENT PROBLEMS. To help you recognize this information, we use the
symbols below. Please read the manual and pay attention to these sections.
DANGER: Indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate injury.
WARNING: Indicates a potentially
hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION: Used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may
result in property damage.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
IMPROPER OPERATION OR MAINTENANCE OF THIS PRODUCT COULD RESULT IN SERIOUS
INJURY AND PROPERTY DAMAGE. READ AND UNDERSTAND ALL WARNINGS AND OPERATING
INSTRUCTIONS BEFORE USING THIS EQUIPMENT.
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known (to the State of California) to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
lead from lead-based paints
crystalline silica from bricks and cement and other masonry products
arsenic and chromium from chemically-treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment,
always wear MSHA/NIOSH approved, properly fitting face mask or respirator when using such tools.
When using air tools, basic safety precautions should always be followed to reduce the risk of
personal injury.
Use 12 Volt DC only. Make sure that your vehicle 12 Volt power outlet is free of any ash residue or
debris. A dirty 12 Volt power outlet can cause the inflator and power cord to overheat. Overheating can
cause damage to your inflator/vehicle and could cause bodily harm or injury. Disconnect power when
not in use.
This inflator is designed to inflate car tires, bike tires, ATV tires, sports equipment, air mattresses, beach
toys and other inflatables. Do not use for any purpose other than inflating. If you do so, bodily harm or
personal injury can occur.
Caution, allow inflator to cool down 10 minutes after each 10 minutes of continuous operation.
After using, turn off power.
The inflator is not a toy. Keep away from children at all times.
Do not carry inflator by the air hose or power cord as damage may occur.
Do not leave the inflator unattended while in operation.
Do not over inflate. Please follow the manufacturer’s instructions for the item you are inflating
Keep the inflator away from flammable areas/liquids at all times.
Do not operate the inflator in wet or damp areas.
Operate the inflator only with the attachments that are included.
USE SAFETY GLASSES. Also use face or dust mask if operation is dusty. It is recommended that your
vehicle’s 12 Volt battery be fully charged to get the best performance from your inflator. If your vehicle
battery is weak, the inflator will not work at its maximum output level.
2
For best results and more efficient power, it is recommended that you operate your inflator with your
VEHICLE’S ENGINE RUNNING, making absolutely sure you are outside or in an open, well-ventilated
area and NOT INSIDE A CONFINED AREA, SUCH AS A GARAGE as bodily injury or asphyxiation
resulting in death could occur. ALWAYS ALLOW FOR PROPER VENTILATION. Most vehicle 12 Volt
power outlets will operate with vehicle ignition off; however, some vehicles require that the ignition be
turned on.
IMPORTANT SAFETY INSTRUCTIONS
Save these instructions
Improper operation or maintenance of this product could result in serious injury and property
damage. Read and understand all warnings and operation instructions before using this
equipment.
HAZARD
WARNING: Risk of explosion or fire
What Could Happen
How To Prevent It
It is normal for electrical contacts
within the motor to spark.
Always operate the inflator in a well ventilated
area free of combustible materials, gasoline, or
solvent vapors.
If electrical sparks from inflator
come into contact with
flammable vapors, they may
ignite, causing fire or explosion.
Store flammable materials in a secure location
away from inflator.
Restricting any of the inflator
ventilation openings will cause
serious overheating and could
cause fire.
Never place objects against or on top of inflator.
Operate inflator in an open area at least 12
inches away from any wall or obstruction that
would restrict the flow of fresh air to the ventilation
openings.
Do not operate unit in any confined area.
Unattended operation of this
product could result in personal
injury or property damage. To
reduce the risk of fire, do not
allow the inflator to operate
unattended.
Always remain in attendance with the product
when it is operating. Always disconnect power by
moving on/off switch to the off position and
unplug the power cord.
3
HAZARD
WARNING: Risk of Bursting
What Could Happen
ATTACHMENTS & ACCESSORIES:
Exceeding the pressure rating of air
operated accessories, tires, inflatable
balls, and other inflatables item can
cause them to explode or fly apart,
and could result in serious injury.
Unattended tires, inflatable balls,
inflatable toys, and other inflatable
items can over inflate very quickly
sometimes in a matter of seconds and
result in personal or property
damage.
HAZARD
WARNING: Risk from Flying Objects
What Could Happen
The inflator air stream can cause soft
tissue damage to exposed skin and
can propel dirt, chips, loose particles,
and small objects at high speed,
resulting in property damage or
personal injury.
HAZARD
WARNING: Risk to Breathing
What Could Happen
The compressed air directly from your
inflator is not safe for breathing. The
air stream may contain carbon
monoxide, toxic vapors, or solid
particles from the tank. Breathing
these contaminants can cause
serious injury or death.
4
HAZARD
WARNING: Risk of Burns
What Could Happen
Touching exposed metal such as the
inflator head or outlet tubes, can result
in serious burns.
HAZARD
WARNING: Risk from Moving Parts
What Could Happen
Moving parts such as the pulley,
flywheel, and belt can cause serious
injury if they come into contact with
you, your clothing, loose hair, or
jewelry.
Attempting to operate inflator with
damaged or missing parts or
attempting to repair inflator with
protective shrouds removed can expose
you to moving parts and can result in
serious injury.
HAZARD
WARNING: Risk of Falling
What Could Happen
An inflator can fall from a table or
workbench causing damage to the
inflator and could result in serious
injury or death to the operator.
5
HAZARD
WARNING: Risk of Unsafe Operation
What Could Happen
Unsafe operation of your inflator could
lead to serious injury or death to you
or others.
HAZARD
WARNING: Risk of Injury
Do not direct air stream at body.

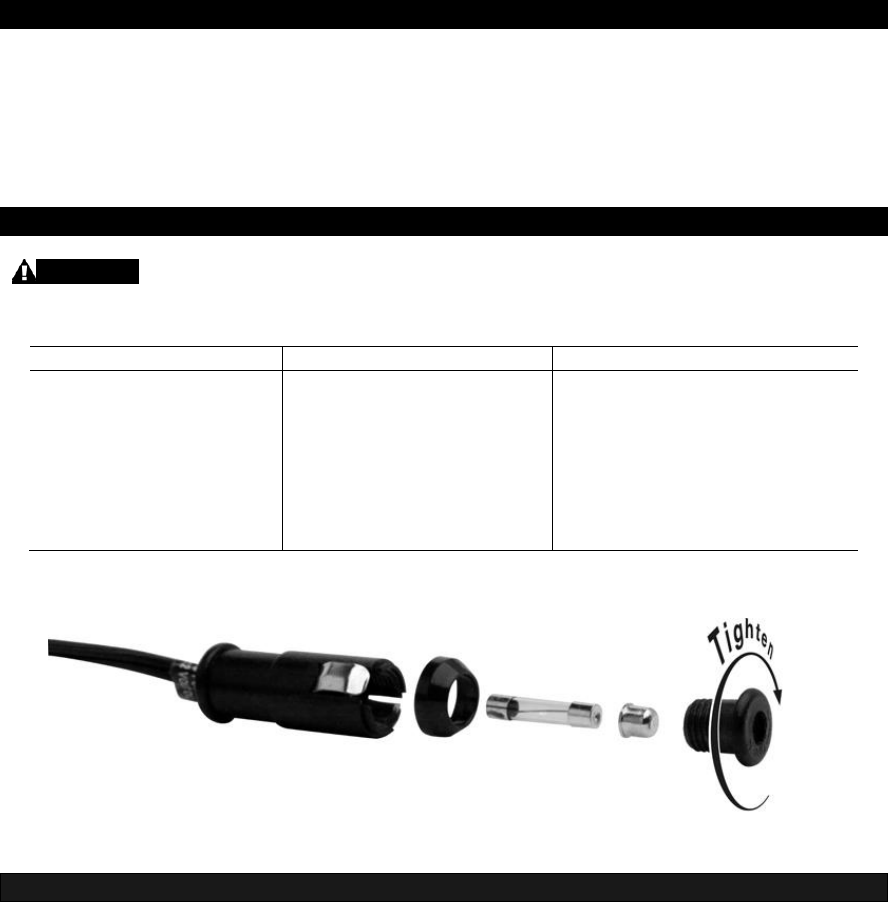

Disconnect from supply circuitry before replacing fuse.
SAVE THESE INSTRUCTIONS
GLOSSARY
Become familiar with these terms
before operating the unit.
CFM: Cubic feet per minute.
SCFM: Standard cubic feet per minute;
a unit of measure of air delivery.
PSIG: Pounds per square inch gauge;
a unit of measure of pressure.
Code Certification: Products that bear one
or more of the following marks: UL, CUL,
ETL, CETL, have been evaluated by OSHA
certified independent safety laboratories
and meet the applicable Underwriters
Laboratories Standards for Safety.
6
ACCESSORIES
This unit is capable of powering the following Accessories that are included with your inflator:
Air Needle: Used to inflate sports
balls.
Presta Valve Adaptor: Used to inflate
high performance bike tires.
High Flow Inflator/Deflator Adaptor with
three nozzles and seal ring: Used to
inflate or deflate air mattresses, small boats,
inflatable toys, and other items that require
large volume of low-pressure air.
ASSEMBLY
Contents of Carton
To Remove Inflator from Carton
1 Inflator equipped with rubber air
hose and pressure gauge
PVC Coil Air Hose with built-in
Screw-on valve
1 Inflation Accessory Kit
- 1 Air Needle
- 1 Presta Valve Adaptor
- 1 High Flow Inflator/Deflator
Adaptor with three nozzles and
seal ring.
1. Grasp handle and lift the Inflator out of
the carton.
2. Remove all packaging from Inflator and
discard.
7
OPERATION

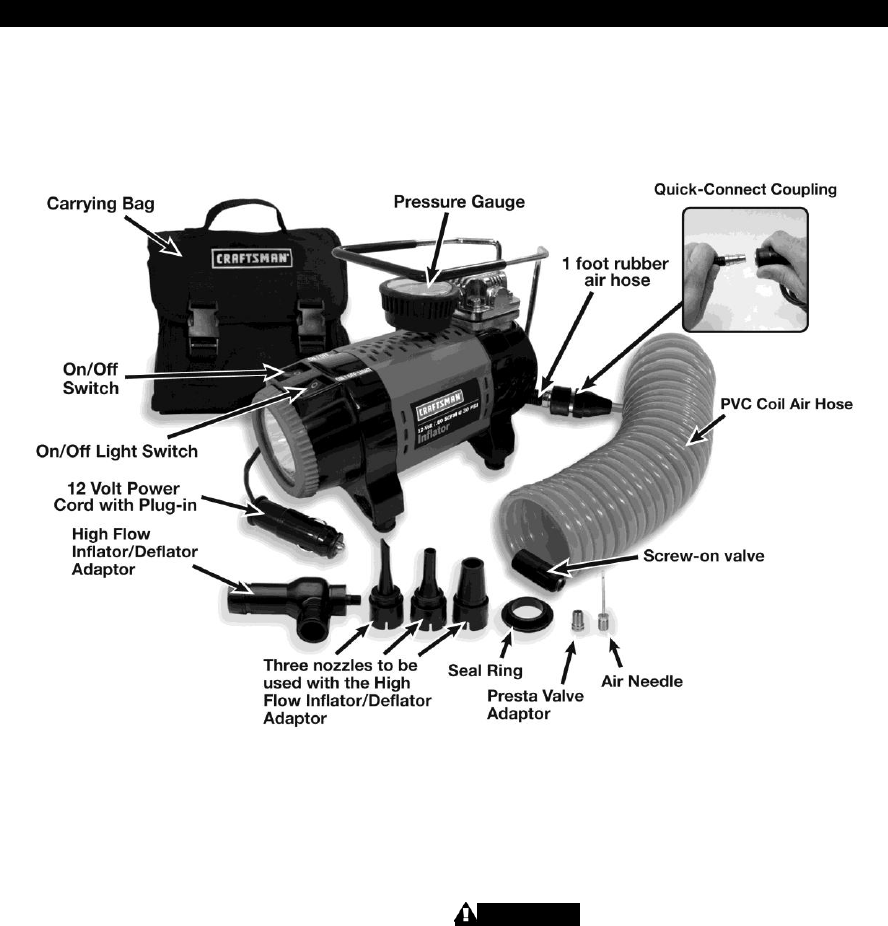

Know your Inflator
READ THIS OWNER’S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustration with your unit to familiarize yourself with the location of various controls
and adjustments. Save this manual for future reference.
Description of Operation
On/Off Switch: Used to turn Inflator on and off.
LED Light: Used for inflating in low light
conditions.
Pressure Gauge: Gives the pressure reading
in PSI.
Screw-on Valve: Used with standard tire
valves and with accessories included with
Inflator.
Air Needle: Attaches directly to the screw-on
valve to inflate sport balls.

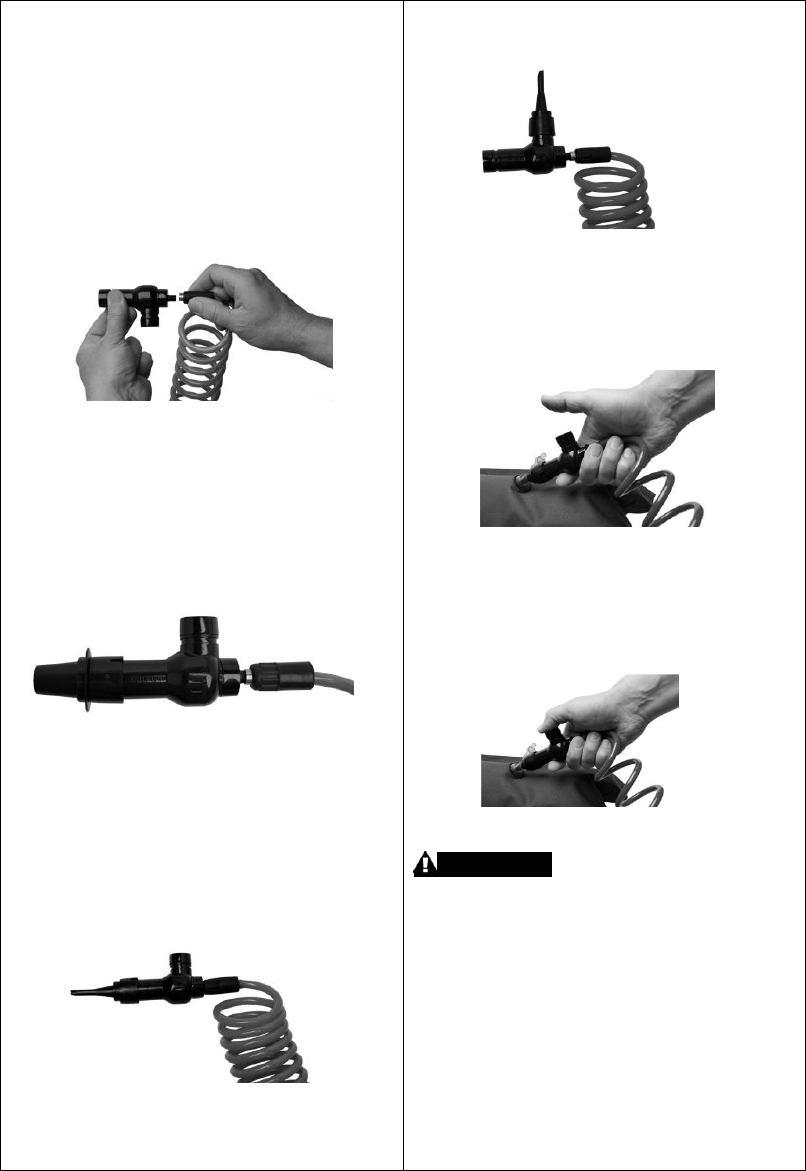

High Flow Inflator/Deflator Adaptor: Used
with inflator/deflator nozzles, this adaptor
attaches directly to the screw-on valve to inflate
or deflate air mattresses, small boats, inflatable
toys, and other items that require a large
volume of low-pressure air.
Inflator/Deflator Nozzles: Used with High
Flow Inflator/Deflator Adaptor.
Seal Ring: Used with inflator/deflator nozzles
to prevent air from leaking out of inflatables
with very large air inlets.
WARNING: Risk of Bursting. Unattended
tires, inflatable balls, inflatable toys, and other
inflatable items can over-inflate very quickly,
sometimes in a matter of seconds, and result in
personal injury or property damage.
8
OPERATION
To inflate vehicle and bicycle tires
1. Remove 12 Volt Direct Drive Inflator from
carrying case and place evenly on flat
surface.
2. Connect the PVC coil air hose to the
Inflator by pulling back on the quick
connect coupler collar and inserting this
on valve located on the end of the 1 foot
rubber air hose. Push in firmly and pull the
quick connect coupler back until you hear
a click to lock the PVC coil in place.
3. Connect the PVC coil screw-on valve to
tire air valve by twisting clockwise until it is
securely attached to the tire air valve.
4. Connect the 12 Volt power cord into DC
12 Volt power outlet.
5. Move the On/Off switch to On position
and the Inflator will begin to operate.
Monitor the PSI on the gauge to fill your
item to desired pressure. Once you have
reached the desired air pressure, move
the On/Off switch to the Off position.
6. To remove the air hose from your tire air
valve, twist the PVC coil screw-on valve
counterclockwise.
7. Remove the 12 Volt power cord from the
DC 12 Volt power outlet.
8. Remove the PVC coil from the Inflator by
pulling back on the quick connect collar
and pulling away from the valve located
on the end of the 1 foot rubber air hose.
9. Allow unit to cool.
10. Return 12 Volt Direct Drive Inflator to the
carrying case. Store your Inflator
attachments in the carrying case.
WARNING: Risk of Flying
Objects/Bursting Objects. Over inflating
tire could cause the tire to burst or the
screw-on valve to pop off the valve stem
and become a projectile. Use a tire
pressure gauge to ensure an accurate
tire pressure reading, because the
pressure gauge on the unit is for general
reference only.
To inflate sports ball, air mattress,
rubber raft, etc.
1. Remove 12 Volt Direct Drive Inflator from
carrying case and place evenly on flat
surface.
2. Connect the PVC coil air hose to the
Inflator by pulling back on the quick
connect coupler collar and inserting this
on valve located on the end of the 1 foot
rubber air hose. Push in firmly and pull the
quick connect coupler back until you hear
a click to lock the PVC coil in place.
3. Select the appropriate inflation accessory
and screw onto end of the PVC coil
screw-on valve.
4. Connect the 12 Volt power cord into DC
12 Volt power outlet.
NOTE: For instructions on how to use
High Flow Inflator/Deflator Adaptor at
this point, see the next page.
5. Insert the inflation accessory into desired
item you are inflating.
6. Move the On/Off switch to On position and
the Inflator will begin to operate. Inflate
your desired item to the correct pressure
and move the On/Off switch to the Off
position.
7. Remove inflation accessory from PVC coil
screw-on valve.
8. Remove the 12 Volt power cord from the
DC 12 Volt power outlet.
9. Remove the PVC coil from the Inflator by
pulling back on the quick connect collar
and pulling away from the valve located
on the end of the 1 foot rubber air hose.
10. Allow unit to cool.
11. Return 12 Volt Direct Drive Inflator to the
carrying case. Store your Inflator
attachments in the carrying case.
WARNING: Risk of Bursting. Most
sports balls with no initial air will fill in
less than 10 seconds. Watch sports
balls carefully while filling, do not
overfill.
WARNING: Risk of Bursting. Too
much air pressure causes a hazardous risk
of bursting. Check the manufacturer’s
maximum pressure rating for objects being
inflated. Carefully follow Instructions.
9
High Flow Inflator/Deflator
Adaptor
For larger inflatable items, you
may wish to use the High Flow
Inflator/Deflator Adaptor as follows:
1. Connect the screw-on valve to high flow
inflator/deflator adaptor as shown. Twist
the screw-on valve clockwise until it is
securely attached.
2. Choose nozzle to be used to inflate or
deflate. NOTE: The seal ring may be
used with any of the nozzles to prevent
air from leaking out of inflatables with
very large air inlets. Insert nozzle thru
seal ring as shown.
3. The high flow inflator/deflator adaptor
has an “inflation” outlet and “deflation”
outlet. Attach the nozzle to the
preferred outlet. NOTE: “Inflation” and
“Deflation” are marked at outlets.
Inflation Position
Deflation Position
4. Insert nozzle into inflatable and start
inflator.
NOTE: If inflatable is not getting firm
enough, place thumb over the “deflation”
outlet to allow air to go directly into the
inflatable.
WARNING: Risk of Bursting. DO
NOT over-inflate. Keeping thumb over
“Deflation” outlet could cause inflatable
to over-inflate. Use caution when
placing thumb over “Deflation” outlet.
10
MAINTENANCE
Cleaning
1. Turn the On/Off switch to Off and unplug the cord.
2. Wipe exterior plastic and metal parts clean using damp cloth. Do not get moisture or water into
interior moving parts.
3. Any other servicing should be performed by a qualified service representative.
TROUBLESHOOTING
WARNING: Risk of Unsafe Operation. Voltage sources, moving parts, or compressed air
sources are exposed when repairing the inflator. Personal injury can occur. Unplug the inflator
before attempting the repairs.
PROBLEM
CAUSE
CORRECTION
Motor will not run.
Blown Fuse
Faulty motor
1. Check fuse in end of 12
Volt plug. See diagram
below.
2. Check automobile fuse for
12 Volt receptacle.
Contact 1-800-874-5771
SPECIFICATIONS
Model No. 75120
Working amperage at 32 PSI: 11A
Max amperage: 15A
.60 SCFM @ 30 PSI
11
add new step
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR®
(1-888-784-6427)
www.sears.com
Au Canada pour service en français:
1-800-LE-FOYERMC
(1-800-533-6937)
www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of the nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
Your Home
For troubleshooting, product manuals and expert advice:
www.managemylife.com
For repair – in your home – of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME® Call anytime, day or night
(1-800-469-4663) (U.S.A. and Canada)
www.sears.com www.sears.ca
Get it fixed, at your home or ours!
® Registered Trademark / TM Trademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada / TM Marca de Fábrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC in otros países
MC Marque de commerce / MD Marque déposée de Sears Brands, LLC

Navigation menu
