Craftsman 149 236321 Owners Manual
149236321 149236321 CRAFTSMAN JOINTER - PLANER - Manuals and Guides L0806251 View the owners manual for your CRAFTSMAN JOINTER - PLANER #149236321. Home:Tool Parts:Craftsman Parts:Craftsman JOINTER - PLANER Manual
CRAFTSMAN Jointer/Planer Manual L0806251 CRAFTSMAN Jointer/Planer Owner's Manual, CRAFTSMAN Jointer/Planer installation guides
149.236321 L0806251
2015-01-05
: Craftsman Craftsman-149-236321-Owners-Manual-160967 craftsman-149-236321-owners-manual-160967 craftsman pdf
Open the PDF directly: View PDF
.
Page Count: 16
owners
manual
MODELNO.
149.236321
SERIAL
OR CODE
NUMBER:
Model and code number may be
found on the back of the base.
You should record both model and
code number and retain in a safe
place for future use.
CALIFORNIA OWNERS: a unique
serial code number is stamped on
the underside of the machine,
CAUTION:
Read All Instructions
Carefully Before Start-
ing Assembly and Use.
Save This Manual For
Future Reference.
SEA IRS / r.RRFT$MRN_._

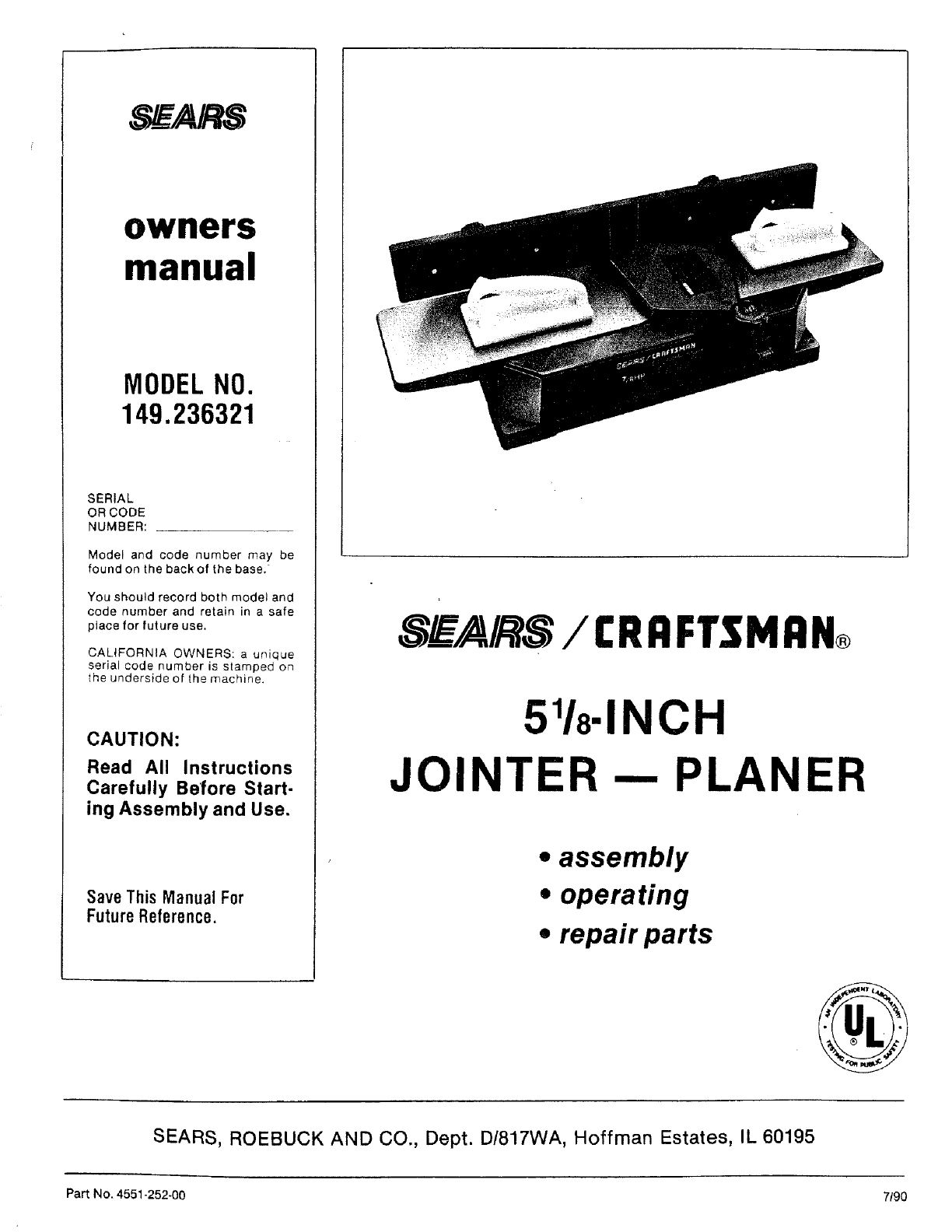

5%-INCH
JOINTER-- PLANER
•assembly
•operating
•repair parts
SEARS, ROEBUCK AND CO., Dept. D/817WA, Hoffman Estates, IL 60195
Part No. 4551-252.00 7/90
FULL ONE-YEAR WARRANTY ON I:RFIFTSMRNoJOINTER -- PLANER
If within one year from the date of purchase, this Craftsman Jointer -- Planer falls due to a defect
in material or workmanship, Sears will repair it, free of charge.
WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS STORE OR SERVICE
CENTER IN THE UNITED STATES.
This warranty gives you specific legal rights and you may also have other rights which vary from
state to state.
Sears, Roebuck and Co., Dept. D/817WA, Hoffman Estates, IL 60195

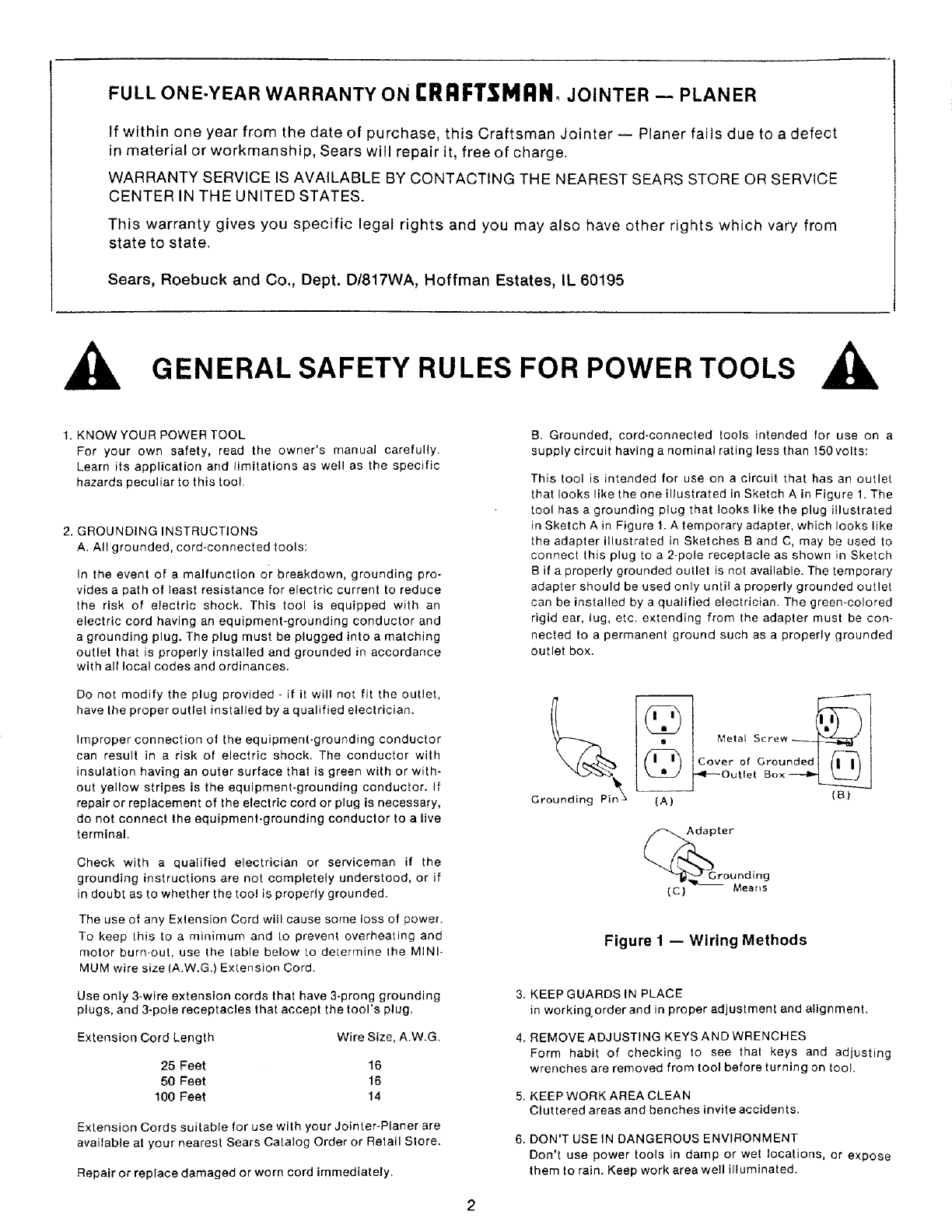

GENERAL SAFETY RULES FOR POWER TOOLS
1. KNOW YOUR POWER TOOL
For your own safety, read the owner's manual carefully.
Learn its application and limitations as well as the specific
hazards peculiar to this tool.
2. GROUNDING INSTRUCTIONS
A. All grounded, cord-connected tools:
In the event of a malfunction or breakdown, grounding pro-
vides a path of least resistance for electric current to reduce
the risk of electric shock. This tool is equipped with an
electric cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance
with all local codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet,
have the proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conductor
can result in arisk of electric shock. The conductor with
insulation having an outer surface that is green with or with-
out yellow stripes is the equipment-grounding conductor. If
repair or replacement of the electric cord or plug is necessary,
do not connect the equipment-grounding conductor to a live
terminal.
Check with a qualified electrician or serviceman if the
grounding instructions are not completely understood, or if
in doubt as to whether the tool is properly grounded.
The use of any Extension Cord witl cause some loss of power.
To keep this to a minimum and to prevent overheating and
molor burn-out, use the table below to determine Ihe MINI-
MUM wire size (A.W.G,) Extension Cord.
Use only 3-wire extension cords that have 3-prong grounding
plugs, and 3-pole receptacles that accept the tool's plug.
Extension Cord Length Wire Size, A.WG.
25 Feet 16
50 Feet 16
100 Feet 14
Extension Cords suitable for use with your Jointer-Planer are
available at your nearest Sears Catalog Order or Retail Store.
Repair or replace damaged or worn cord immediately.
B. Grounded, cord-connected tools intended for use on a
supply circuit having a nominal rating less than 150volts:
This tool is intended for use on a circuit that has an outlet
that looks like the one illustrated in Sketch A in Figure 1. The
tool has a grounding plug that looks like the plug illustrated
in Sketch A in Figure 1. A temporary adapter, which looks like
the adapter illustrated in Sketches B and C, may be used to
connect this plug to a 2-pole receptacle as shown in Sketch
B if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet
can be installed by a qualified electrician. The green-colored
rigid ear, lug, etc. extending from the adapter must be con-
nected to a permanent ground such as a properly grounded
outlet box.
Grounding Pin_
covMeta[ Screw _'_
(A) (B)
Adapter
g
(C) Mear_s
Figure 1 -- Wiring Methods
3. KEEPGUARDS IN PLACE
in working order and in proper adjustment and alignment.
4. REMOVE ADJUSTING KEYS AND WRENCHES
Form habit of checking to see that keys and adjusting
wrenches are removed from tool before turning on tool.
5. KEEP WORK AREA CLEAN
Cluttered areas and benches invite accidents,
6. DON'T USE IN DANGEROUS ENVIRONMENT
Don't use power tools in damp or wet locations, or expose
them to rain. Keep work area well illuminated.
7.KEEPCHILDRENAWAY
Atlvisitorsshouldbekeptasafedistancefromworkarea.
8.MAKEWORKSHOPKIDPROOF
withpadlocks,masterswitches,orbyremovingstarterkeys.
9.DON'TFORCETOOL
It willdothejobbetterandbesaferattherateforwhichit
wasdesigned.
10.USERIGHTTOOL
Don'tforcetoolorattachmenttodoajobforwhichitwasnot
designed.
11.WEARPROPERAPPAREL
Nolooseclothing,gloves,neckties,rings,bracelets,or
jewelrytogetcaughtinmovingparts.Nonslipfootwearis
recommended.Wearprotectivehaircoveringtocontainlong
hair.
12.ALWAYSUSESAFETYGLASSES
Alsousefaceordustmaskif cuttingoperationisdusty
Everydayeyeglassesonlyhaveimpactresistantlenses.They
areNOTsafetyglasses.
13.SECUREWORK
Useclampsoravisetoholdworkwhenpractical.It'ssafer
thanusingyourhandandfreesbothhandstooperate tool.
!4. DON'T OVERREACH
Keep your proper footing and balance at all times.
!5. MAINTAIN TOOLS IN TOP CONDITION
Keep tools sharp and clean for best and safest performance.
Follow instructions for lubricating and changing accessories.
16. DISCONNECT TOOLS FROM POWER SOURCE
before servicing and when changing accessories such as
blades, bits, cutters, or when mounting and re-mounting
motor.
17. AVOID ACCIDENTAL STARTING
Make sure switch is in "OFF" position before plugging in
cord.
18. USE RECOMMENDED ACCESSORIES
Consult the owner's manual for recommended accessories.
Use of improper accessories may be hazardous.
19. NEVER STAND ON TOOL
Serious injury could occur if lhe tool is tipped or if the cutting
too] is unintentionally contacted.
20. CHECK DAMAGED PARTS
Before further use of the tool, a guard or other part that is
damaged should be carefully checked to ensure that it wilt
operate property and perform its intended function - check
for alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other conditions that
may affect its operation. A guard or other part that is damaged
should be properly repaired or replaced.
21. DIRECTION OF FEED
Feed work into a blade or cutter against the direction of
rotation of the blade or cutter only.
22. NEVER LEAVE TOOL RUNNING UNATTENDED. TURN
POWER OFF. Don't leave tool until it comes to a complete
stop.
23. WEAR EAR PROTECTION
When operating for prolonged period of time,-use of ear pro-
tection is recommended.
The operation of any power toot can result in foreign objects
being thrown into the eyes, which can result in severe eye
damage. Always wear safety goggles complying with ANSI Z87.1
(shown on Package) before commencing power tool operation.
Safety Goggles are available at Sears retail or catalog stores.

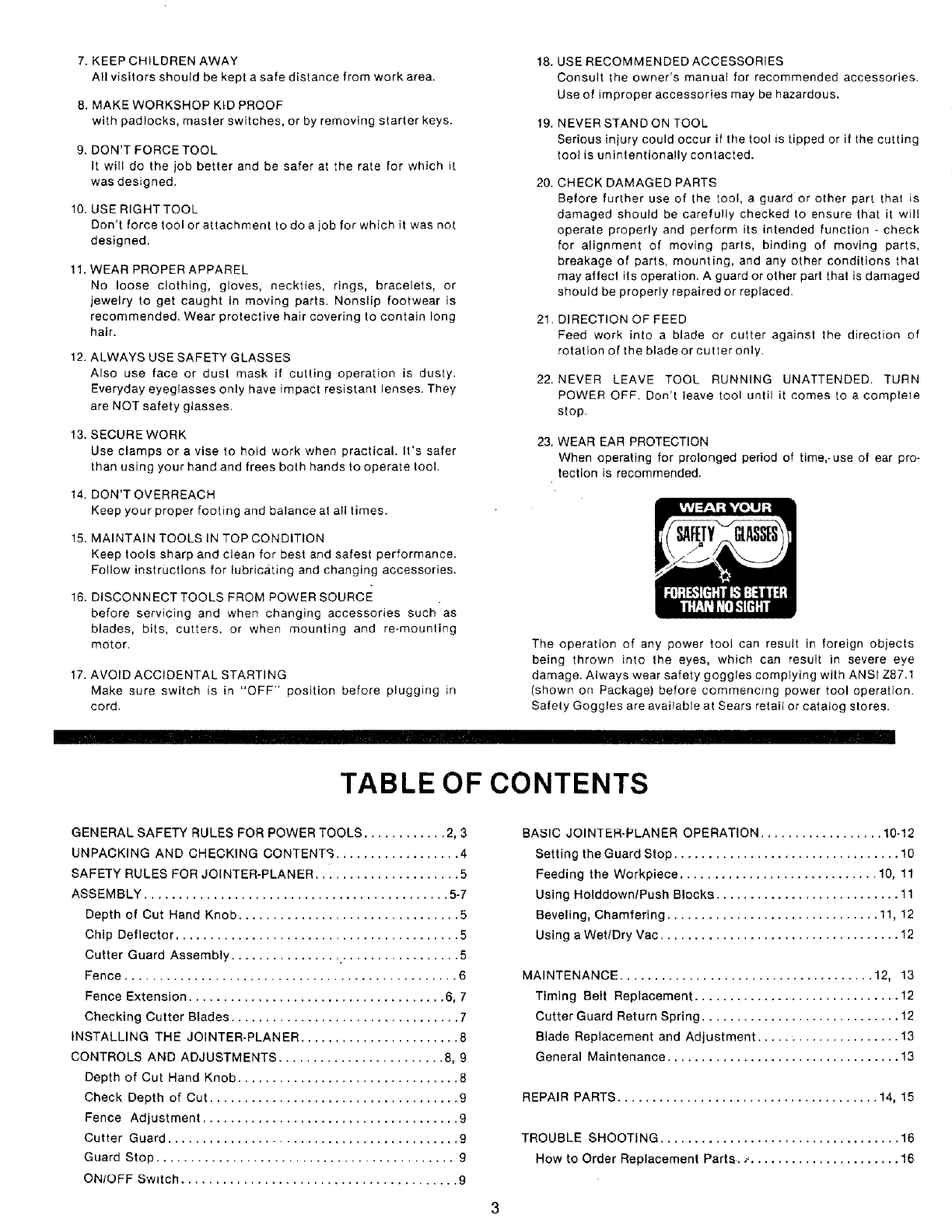

TABLE OF CONTENTS
GENERAL SAFETY RULES FOR POWER TOOLS ............ 2, 3
UNPACKING AND CHECKING CONTENT'_ .................. 4
SAFETY RULES FOR JOINTER-PLANER ..................... 5
ASSEMBLY ............................................ 5-7
Depth of Cut Hand Knob ................................ 5
Chip Deflector ......................................... 5
Cutter Guard Assembly ................ .................. 5
Fence ................................................ 6
Fence Extension ..................................... 6, 7
Checking Cutter Blades ................................. 7
INSTALLING THE JOINTER-PLANER ....................... 8
CONTROLS AND ADJUSTMENTS ........................ 8, 9
Depth of Cut Hand Knob ................................ 8
Check Depth of Cut .................................... 9
Fence Adjustment ..................................... 9
Cutter Guard .......................................... 9
Guard Stop ........................................... 9
ONIOFF Switch ........................................ 9
BASIC JOINTEH-PLANER OPERATION .................. 10-12
Setting the Guard Stop ................................. 10
Feeding the Workpiece ............................. 10, 11
Using Holddown/Push Blocks ........................... 11
Beveling, Chamfering ............................... 11, 12
Using a Wet/Dry Vac ................................... 12
MAINTENANCE ..................................... 12, 13
Timing Belt Replacement .............................. 12
Cutter Guard Return Spring ............................. 12
Blade Replacement and Adjustment ..................... 13
General Maintenance .................................. 13
REPAIR PARTS ...................................... 14, 15
TROUBLE SHOOTING ................................... 16
How to Order Replacement Parts., ,_...................... 16

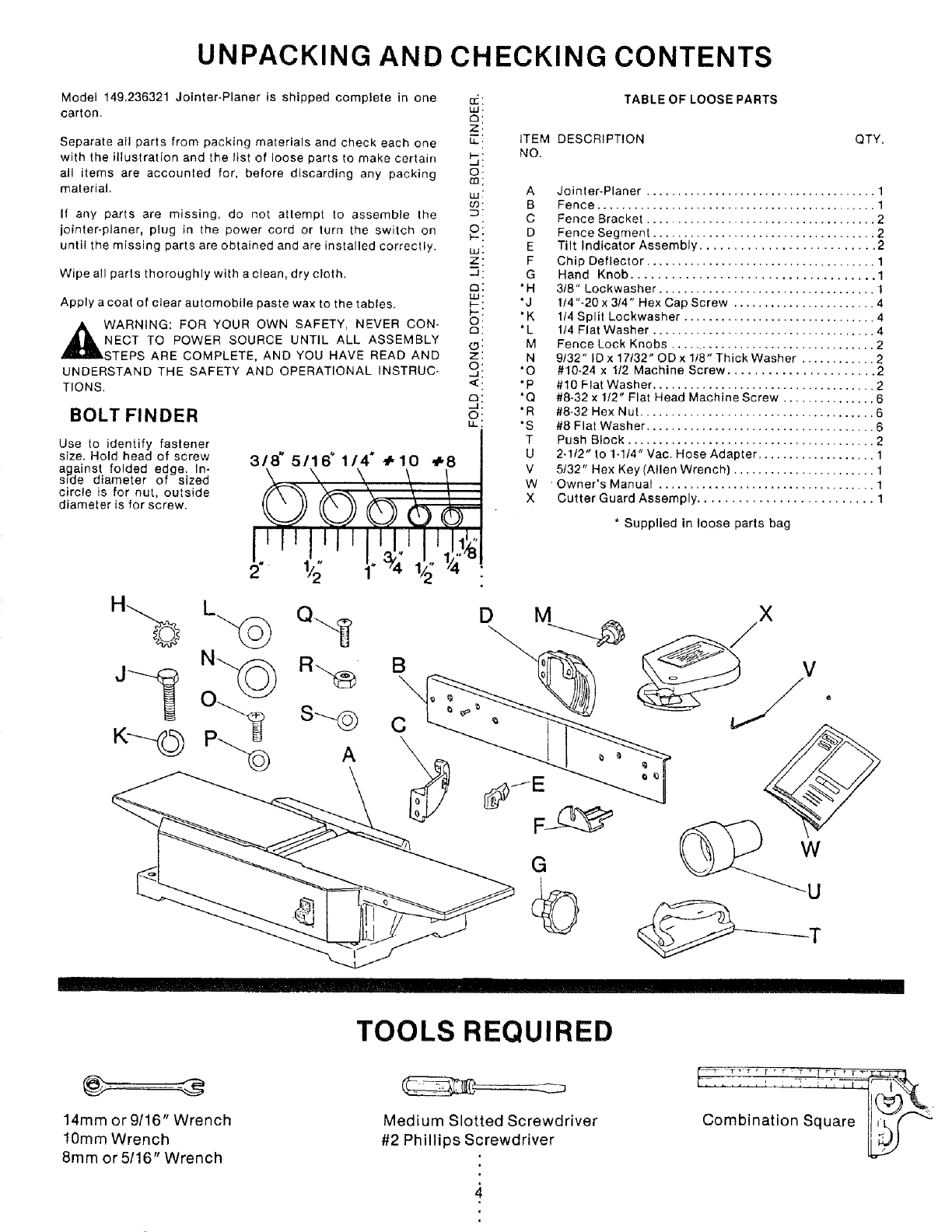

UNPACKING AND CHECKING CONTENTS
Model 149.236321 Jointer-Planer is shipped complete in one
carton.
Separate all parts from packing materials and check each one
with the illustration and the list of loose parts to make certain
all items are accounted for, before discarding any packing
material.
If any parts are missing, do not attempt to assemble the
jointer-planer, plug in the power cord or turn the switch on
until the missing parts are obtained and are installed correctly.
Wipe all parts thoroughly with a clean, dry cloth.
Apply a coat of clear automobile paste wax to the tables.
,_WARNING: FOR YOUR OWN SAFETY, NEVER CON-
NECT TO POWER SOURCE UNTIL ALL ASSEMBLY
STEPS ARE COMPLETE, AND YOU HAVE READ AND
UNDERSTAND THE SAFETY AND OPERATIONAL INSTRUC-
TIONS.
BOLT FINDER
LU.
tm_
z.
LL,
u_
O-
rn_
w_
O:
F-:
LU_
_z:
,m:
IJJ.
F-'
O"
a:
Z:
Use to identify fastener
size. Hold head of screw
against folded edge. In-
side diameter of sized
circle is for nut, outside
diameter is for screw.
3/8" 5116" 1/4" ÷10 4,8
2" 1/2'3/4 1_2'1_
TABLE OF LOOSE PARTS
ITEM DESCRIPTION QTY,
NO.
A Jointer-Planer ..................................... 1
B Fence ............................................. 1
C Fence Bracket ..................................... 2
D Fence Segment .................................... 2
E Tilt Indicator Assembly .......................... 2
F Chip Deflector ..................................... 1
G Hand Knob .................................... 1
' H 3/8" Lockwasher ................................... 1
"J 1/4"-20 x 3/4" Hex Cap Screw ....................... 4
"K 1/4 Split Lockwasher ............................... 4
*L 1/4 Flat Washer .................................... 4
M Fence Lock Knobs .................................. 2
N 9132"lDx17132"ODx118"ThickWasher ............ 2
*O #10.24 x lf2 Machine Screw ...................... 2
*P #10 Flat Washer .................................... 2
"Q #8-32 x 1/2" Flat Head Machine Screw ............... 6
"R #8-32 Hex Nut ...................................... 6
*S #8 Flat Washer ..................................... 6
T Push Block ........................................ 2
U 2-112"tol-ll4"Vac. HoseAdapter ................... 1
V 5/32" Hex Key (Allen Wrench) ....................... 1
W Owner's Manual ................................... 1
X Cutter Guard Assemply .......................... 1
* Supplied in loose parts bag
B
\
C
D M X
G
e
TOOLS REQUIRED
14mm or 9/16" Wrench
10mm Wrench
8mm or 5/16" Wrench
Medium Slotted Screwdriver
#2 Phillips Screwdriver
,i
Combination
Square

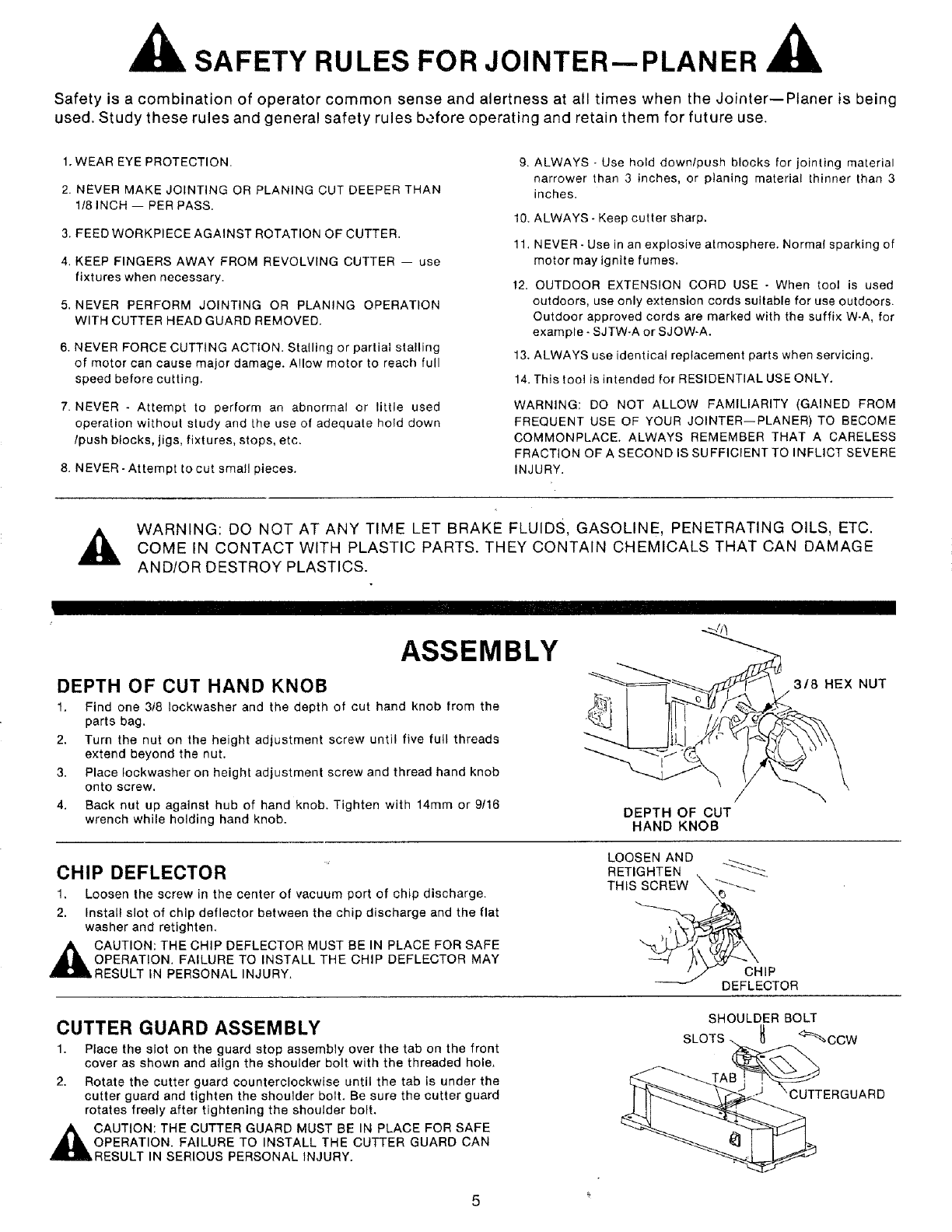

SAFETY RULES FOR JOINTER--PLANER
Safety is a combination of operator common sense and alertness at all times when the Jointer--Pianer is being
used. Study these rules and general safety rules before operating and retain them for future use.
1. WEAR EYE PROTECTION.
2. NEVER MAKE JOINTING OR PLANING CUT DEEPER THAN
1/8 INCH -- PER PASS.
3. FEED WORKPIECE AGAINST ROTATION OF CUTTER.
4. KEEP FINGERS AWAY FROM REVOLVING CUTTER -- use
fixtures when necessary.
5. NEVER PERFORM JOINTING OR PLANING OPERATION
WITH CUTTER HEAD GUARD REMOVED.
6. NEVER FORCE CUTTING ACTION. Stalling or partial stalling
of motor can cause major damage. Allow motor to reach full
speed before cutting.
7. NEVER - Attempt to perform an abnormal or little used
operation without study and the use of adequate hold down
/push blocks, jigs, fixtures, stops, etc.
8. NEVER- Attempt to cut small pieces.
9. ALWAYS - Use hold downlpush blocks for jointing material
narrower than 3 inches, or planing material thinner than 3
inches.
10. ALWAYS - Keep cutter sharp.
11. N EVER- Use in an explosive atmosphere. Normal sparking of
motor may ignite fumes.
12. OUTDOOR EXTENSION CORD USE - When tool is used
outdoors, use only extension cords suitable for use outdoors.
Outdoor approved cords are marked with the suffix W-A, for
example - SJTW-A or SJOW-A.
13. ALWAYS use identical replacement parts when servicing.
14. This tool is intended for RESIDENTIAL USE ONLY.
WARNING: DO NOT ALLOW FAMILIARITY (GAINED FROM
FREQUENT USE OF YOUR JOINTER--PLANER) TO BECOME
COMMONPLACE. ALWAYS REMEMBER THAT A CARELESS
FRACTION OF A SECOND IS SUFFICIENT TO INFLICT SEVERE
INJURY.
WARNING: DO NOT AT ANY TIME LET BRAKE FLUIDS, GASOLINE, PENETRATING OILS, ETC.
,_ COME IN CONTACT WITH PLASTIC PARTS. THEY CONTAIN CHEMICALS THAT CAN DAMAGE
AND/OR DESTROY PLASTICS.
ASSEMBLY
DEPTH OF CUT HAND KNOB
1. Find one 3/8 tockwasher and the depth of cut hand knob from the
parts bag.
2. Turn the nut on the height adjustment screw until five full threads
extend beyond the nut.
3. Place Iockwasher on height adjustment screw and thread hand knob
onto screw,
4. Back nut up against hub of hand knob. Tighten with 14mm or 9/16
wrench while holding hand knob.
\
DEPTH OF CUT
HAND KNOB
3/8 HEX NUT
CHIP DEFLECTOR
1. Loosen the screw in the center of vacuum port of chip discharge,
2. Install slot of chip deflector between the chip discharge and the flat
washer and retighten.
,_CAUTION: THE CHIP DEFLECTOR MUST BE IN PLACE FOR SAFE
OPERATION. FAILURE TO INSTALL THE CHIP DEFLECTOR MAY
RESULT IN PERSONAL INJURY.
LOOSEN AND
RETIGHTEN _.
TH IS__..
DEFLECTOR
CUTTER GUARD ASSEMBLY
1. Place the slot on the guard stop assembly over the tab on the front
cover as shown and align the shoulder bolt with the threaded hole,
2. Rotate the cutter guard counterclockwise until the tab Is under the
cutter guard and tighten the shoulder bolt, Be sure the cutter guard
rotates freely after tightening the shoulder bolt.
_1 AUTION: THE CUTTER GUARD MUST BE IN PLACE FOR SAFE
OPERATION. FAILURE TO INSTALL THE CUTTER GUARD CAN
kRESULT IN SERIOUS PERSONAL INJURY.
SHOULDER BOLT
SLOTS _ "_CCW
ARD
5

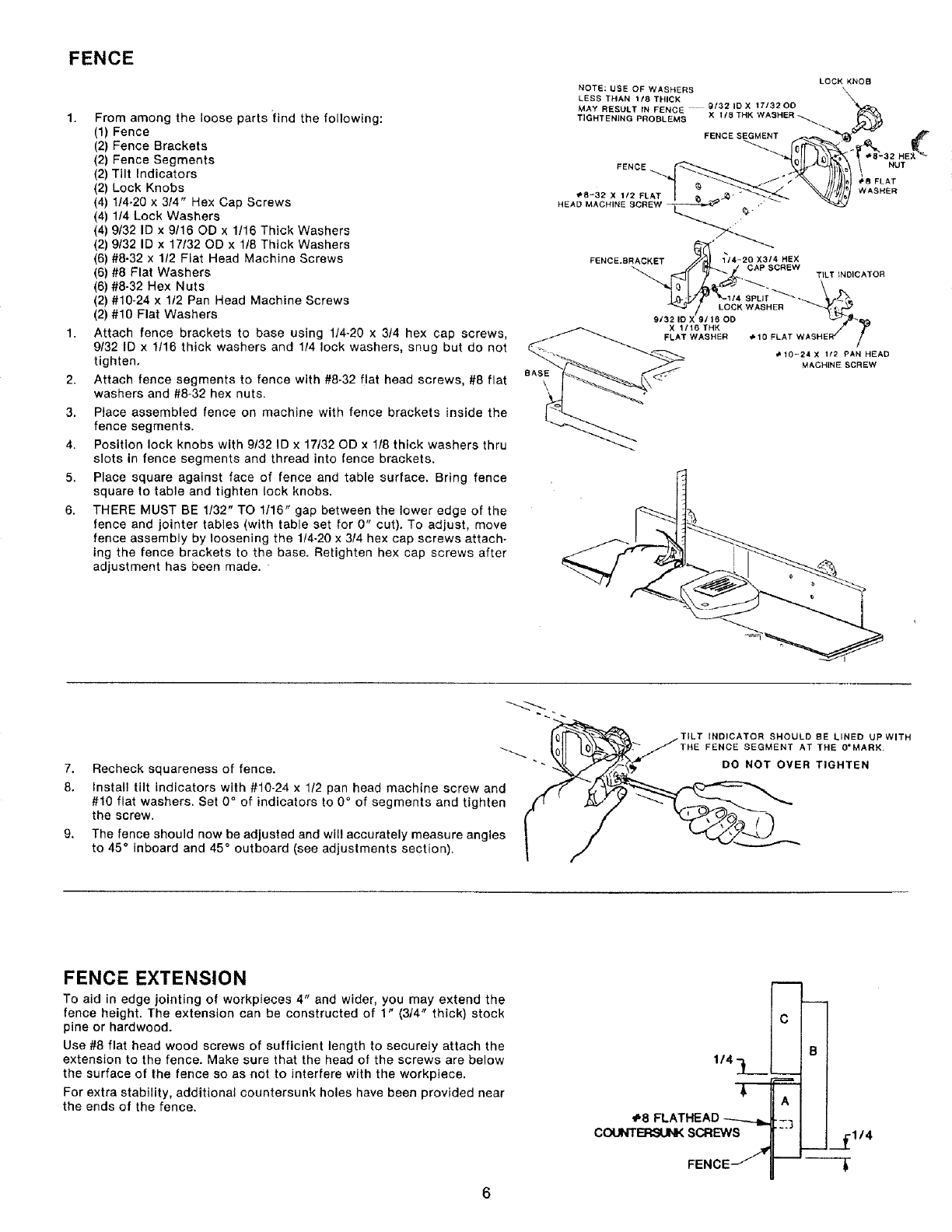

FENCE
1. From among the loose parts "find the following:
(1) Fence
(2) Fence Brackets
(2) Fence Segments
(2) Tilt Indicators
(2) Lock Knobs
(4) 114-20 x 3/4" Hex Cap Screws
(4) 1/4 Lock Washers
(4) 9132 ID x 9/16 OD x 1t16 Thick Washers
(2) 9t32 ID x 17/32 OD x 1t8 Thick Washers
(6) #8-32 x 1t2 Flat Head Machine Screws
(6) #8 Flat Washers
(6) #8-32 Hex Nuts
(2) #10-24 x 1/2 Pan Head Machine Screws
(2) #10 Flat Washers
1. Attach fence brackets to base using 114-20 x 3/4 hex cap screws,
9t32 ID x 1/16 thick washers and 1/4 lock washers, snug but do not
tighten.
2. Attach fence segments to fence with #8+32 flat head screws, #8 flat
washers and #8-32 hex nuts.
3. Place assembled fence on machine with fence brackets inside the
fence segments.
4. Position lock knobs with 9t32 ID x 17t32 OD x I/8 thick washers thru
slots in fence segments and thread into fence brackets.
5. Place square against face of fence and table surface. Bring fence
square to table and tighten lock knobs.
6. THERE MUST BE 1/32" TO 1116" gap between the lower edge of the
fence and jeinter tables (with table set for 0" cut). To adjust, move
fence assembly by loosening the 1/4-20 x 314 hex cap screws attach*
ing the fence brackets to the base. Retighten hex cap screws after
adjustment has been made.
LOCK KNOB
NOTE; USE OF WASHERS \ %
LESS THAN 118 THICK
MAY RESULT IN FENCE + g/32 ID X17/320D
TIGHTENING PROBLEMS X 1/8 THK WASHER --_..
FENCE SEGMENT
FENCE NUT
_8 FLAT
WASHER
4*8-32 X 112 FLAT _ _"
HEAD MACHINE SCREW _ ,+
FENCE.BRACKET 1"/4-20 X314 HEX
CAP SCREW
_,._. TILT INDICATOR
// LOCK WASHER
9t32 I0 X 91 IS GO
X 1116 THK
FLAT WASHER 4' 10 FLAT
*'10-24 X 112 PAN HEAD
MACHINE SCREW
7. Recheck squareness of fence.
8. Install tilt indicators with #10-24 x 1/2 pan head machine screw and
#10 flat washers. Set 0 ° of indicators to 0 °of segments and tighten
the screw.
9, The fence should now be adjusted and will accurately measure angles
to 45 °Inboard and 45 °outboard (see adjustments section).
TILT INDICATOR SHOULD BE LINED UP WITH
._" THE FENCE SEGMENT AT THE 0+MARK+
FENCE EXTENSION
To aid in edge jointing of workpieees 4" and wider, you may extend the
fence height, The extension can be constructed of 1" (3t4" thick) stock
pine or hardwood.
Use #8 flat head wood screws of sufficient length to securely attach the
extension to the fence. Make sure that the head of the screws are below
the surface of the fence so as not to interfere with the workpiece.
For extra stability, additional countersunk holes have been provided near
the ends of the fence,
114 '-_ +
+8
COUNTERSUNK SCREWS
A= 11/16Thickx2"Widex 10"Long
The11/16thicknesscanbeobtainedbyplaningtheboard
onthejointer-planer.
B= 112"to3t4"Thickx3-112" Wide x 10" Long
This piece may also be made out of plywood.
,.C= 3/4" Thick x 2.112" Wide x 19-1/2" Long
'The 2-112" width may be increased if desired.
OPTIONAL -- For Extra Stability
D= 11116" Thick x 2" Wide x 2" Long, 2 Pieces
E= 112" to 314" Thick x 3-1/2" Wide x 2" + Long, 2 Pcs.
NOTE: Cut both D pieces from the same stock or thickness as
board A and cut both E pieces from the same stock or thickness
as board B.
C _- B
__/
t .............
r i
J- B 3/4 -
E OPTIONALr--
/
," FOR EXTRA STABILITY
4- -- - <_-- D OPTIONAL
it '
A

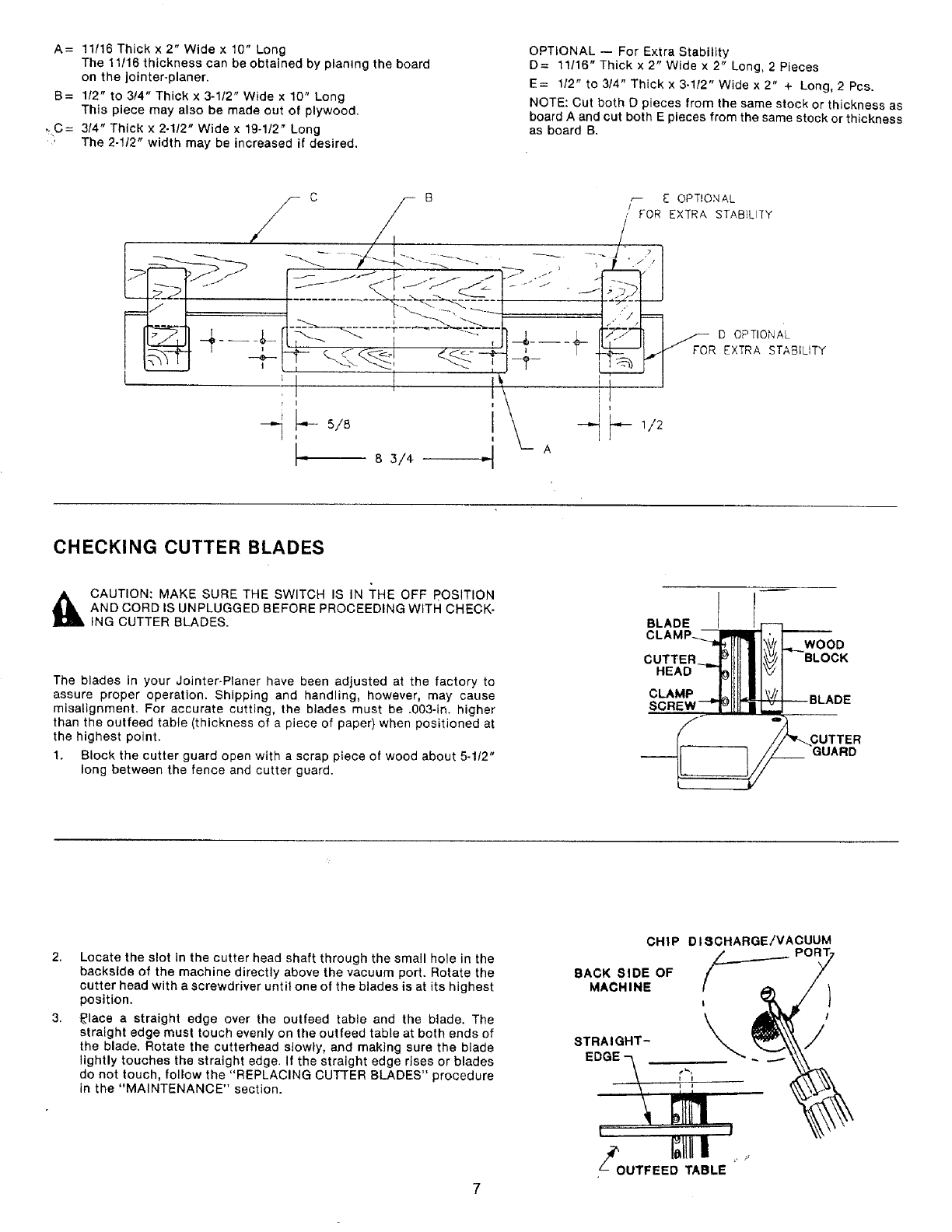

CHECKING CUTTER BLADES
_ CAUTION: MAKE SURE THE SWITCH IS IN THE OFF POST ON
AND CORD IS UNPLUGGED BEFORE PROCEEDING WITH CHECK-
ING CUTTER BLADES.
The blades in your Jointer*Planer have been adjusted at the factory to
assure proper operation. Shipping and handling, however, may cause
misalignment. For accurate cutting, the blades must be .O03-in. higher
than the outfeed table (thickness of a piece of paper) when positioned at
the highest point.
1. Block the cutter guard open with a scrap piece of wood about 5-1/2"
long between the fence and cutter guard.
BLADE
CUTTER
HEAD
CLAMP
WOOD
BLOCK
CUTTER
_RD
Locate the slot in the cutter head shaft through the small hole in the
backside of the machine directly above the vacuum port. Rotate the
cutter head with a screwdriver until one of the blades is at its highest
position.
pJaee a straight edge over the outfeed table and the blade. The
straight edge must touch evenly on the outfeed table at both ends of
the blade, Rotate the cutterhead slowly, and making sure the blade
lightly touches the straight edge. If the straight edge rises or blades
do not touch, follow the "REPLACING CUTTER BLADES" procedure
in the "MAINTENANCE" section.
CHIP DISCHARGE/VACUUM
BACK 81DE OF
MACHINE

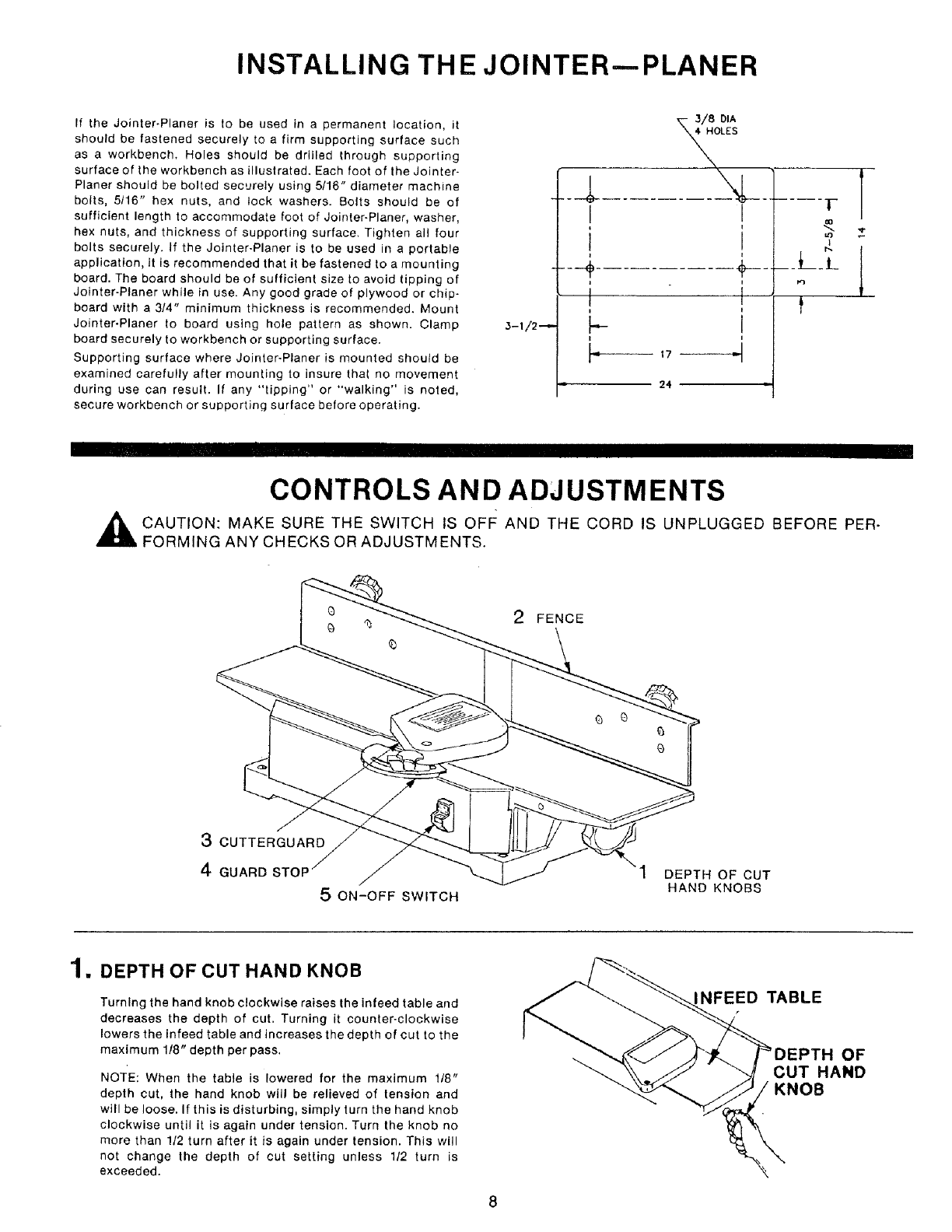

INSTALLING THE JOINTER--PLANER
If the Jointer-Planer is to be used in a permanent location, it
should be fastened securely to a firm supporting surface such
as a workbench. Holes should be drilled through supporting
surface of the workbench as illustrated. Each foot of the Jointer-
Planer should be bolted securely using 5/16" diameter machine
bolts, 5116" hex nuts, and lock washers. Bolts should be of
sufficient length to accommodate foot of Jointer-Planer, washer,
hex nuts, and thickness of supporting surface. Tighten all four
bolts securely. If the Jointer-Planer is to be used in a portable
application, it is recommended that it be fastened to a mounting
board. The board should be of sufficient size to avoid tipping of
Jointer-Planer while in use. Any good grade of plywood or chip-
board with a 314" minimum thickness is recommended. Mount
Jointer-Planer to board using hole pattern as shown. Clamp
board securely to workbench or supporting surface.
Supporting surface where Jointer-Planer is mounted should be
examined carefully after mounting to insure that no movement
during use can result. If any "tipping" or "walking" is noted,
secure workbench or supporting surface before operating.
3-1t27
J
_- 3/8 DIA
I
i
24
I !
_LL
1
i
T
I
CONTROLS AND ADJUSTMENTS
,_ CAUTION: MAKE SURE SWITCH IS oFF AND THE CORD IS UNPLUGGED BEFORE PER-
THE
FORMING ANY CHECKS OR ADJUSTMENTS.
2FENCE
3CUTTERGUARD
4 GUARD STOP
5 ON-OFF SWITCH
1DEPTH OF CUT
HAND KNOBS
1. DEPTH OF CUT HAND KNOB
Turning the hand knob clockwise raises the infeed table and
decreases the depth of cut. Turning it counter-clockwise
lowers the infeed table and increases the depth of cut to the
maximum 118" depth per pass.
NOTE: When the table is lowered for the maximum 118"
depth cut, the hand knob will be relieved of tension and
will be loose, If this is disturbing, simply turn the hand knob
clockwise until it is again under tension. Turn the knob no
more than 1/2 turn after it is again under tension. This will
not change the depth of cut setting unless 112 turn is
exceeded.
NFEED TABLE
OF
CUT HAND
KNOB

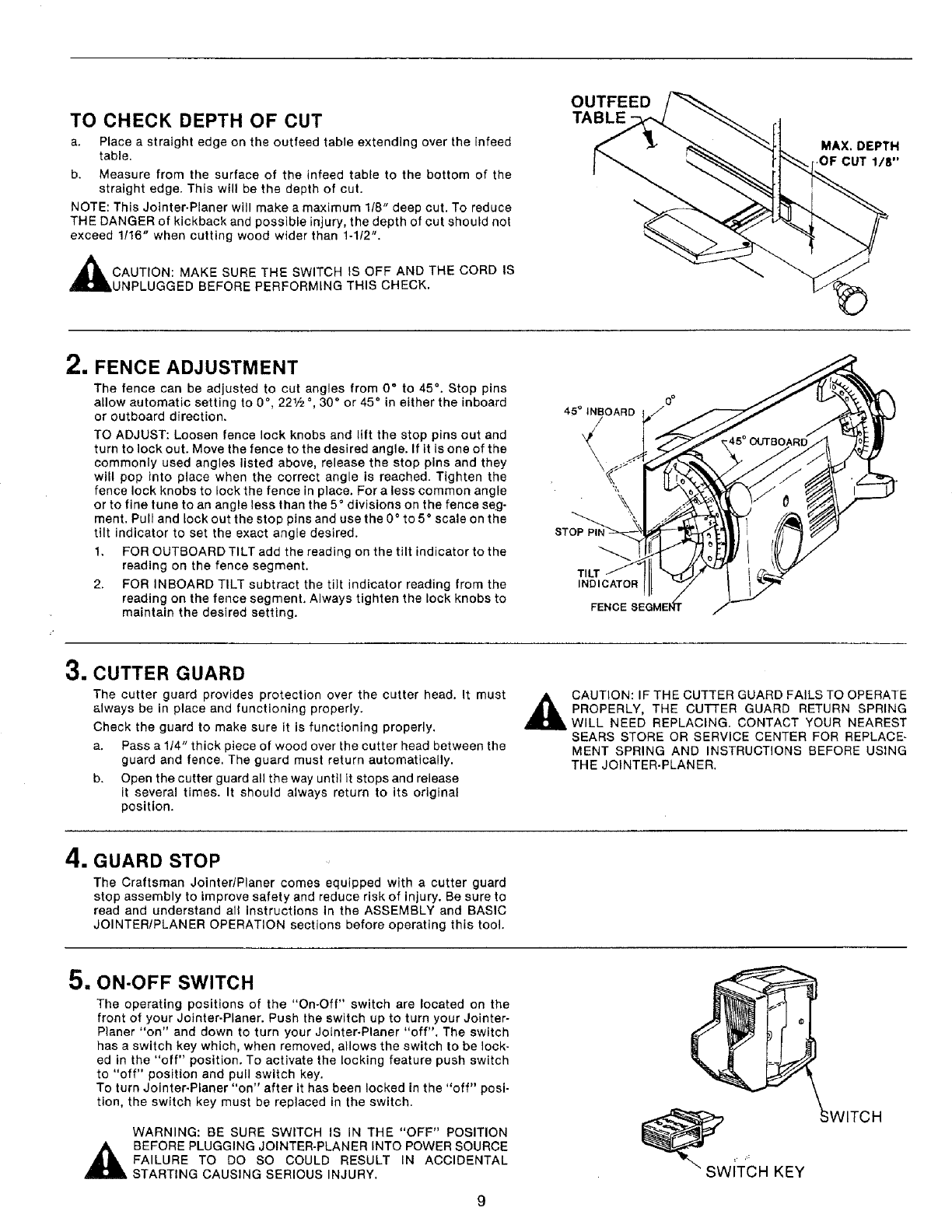

TO CHECK DEPTH OF CUT
a. Place a straight edge on the outfeed table extending over the infeed
table.
b. Measure from the surface of the infeed table to the bottom of the
straight edge. This will be the depth of cut.
NOTE: This Jointer-Planer will make a maximum 118" deep cut. To reduce
THE DANGER of kickback and possible injury, the depth of cut should not
exceed 1/16" when cutting wood wider than 1.1t2".
,_CAUTION: MAKE SURE THE SWITCH IS OFF AND THE CORD IS
UNPLUGGED BEFORE PERFORMING THIS CHECK.
OUTFEED
TABLE
MAX. DEPTH
.OF CUT 1/8"
mFENCE ADJUSTMENT
The fence can be adjusted to cut angles from O° to 45 °. Stop pins
allow automatic setting to 0 °, 221/2=, 30 °or 45 °in either the inboard
or outboard direction.
TO ADJUST: Loosen fence lock knobs and lift the stop pins out and
turn to lock out. Move the fence to the desired angle. If It is one of the
commonly used angles listed above, release the stop pins and they
will pop into place when the correct angle is reached. Tighten the
fence lock knobs to lock the fence in place. Fora less common angle
or to fine tune to an angle less than the 5 °divisions on the fence seg-
ment. Pull and lock out the stop pins and use the 0° to 5 ° scale on the
tilt indicator to set the exact angle desired.
1. FOR OUTBOARD TILT add the reading on the tilt indicator to the
reading on the fence segment.
2. FOR INBOARD TILT subtract the tilt indicator reading from the
reading on the fence segment. Always tighten the lock knobs to
maintain the desired setting.
45 ° INBOARD
8TOP
TILT
INDICATOR
FENCE
O °
3.CUTTER GUARD
The cutter guard provides protection over the cutter head, It must
always be in place and functioning properly.
Check the guard to make sure it is functioning properly.
a. Pass a 114" thick piece of wood over the cutter head between the
guard and fence. The guard must return automatically.
b. Open the cutter guard all the way until it stops and release
it several times. It should always return to its original
position.
,_ CAUTION: IF THE CUTTER GUARD FAILS TO OPERATE
PROPERLY, THE CUTTER GUARD RETURN SPRING
WILL NEED REPLACING. CONTACT YOUR NEAREST
SEARS STORE OR SERVICE CENTER FOR REPLACE-
MENT SPRING AND INSTRUCTIONS BEFORE USING
THE JOINTER-PLANER.
4. GUARD STOP
The Craftsman Jointer/Planer comes equipped with a cutter guard
stop assembly to improve safety and reduce risk of injury. Be sure to
read and understand all instructions in the ASSEMBLY and BASIC
JOINTER/PLANER OPERATION sections before operating this tool.
5. ON.OFF SWITCH
The operating positions of the "On-Off" switch are located on the
front of your Jointer-Planer. Push the switch up to turn your Jointer-
Planer "on" and down to turn your Jointer-Planer "off". The switch
has a switch key which, when removed, allows the switch to be lock-
ed in the "off" position. To activate the locking feature push switch
to "off" position and pull switch key.
To turn Jointer-Planer "on" after it has been locked in the "off" posi-
tion, the switch key must be replaced in the switch.
WARNING: BE SURE SWITCH IS IN THE "OFF" POSITION
BEFORE PLUGGING JOINTER-PLANER INTO POWER SOURCE
FAILURE TO DO SO COULD RESULT IN ACCIDENTAL
STARTING CAUSING SERIOUS INJURY.
_swiT'c H KEY
SWITCH

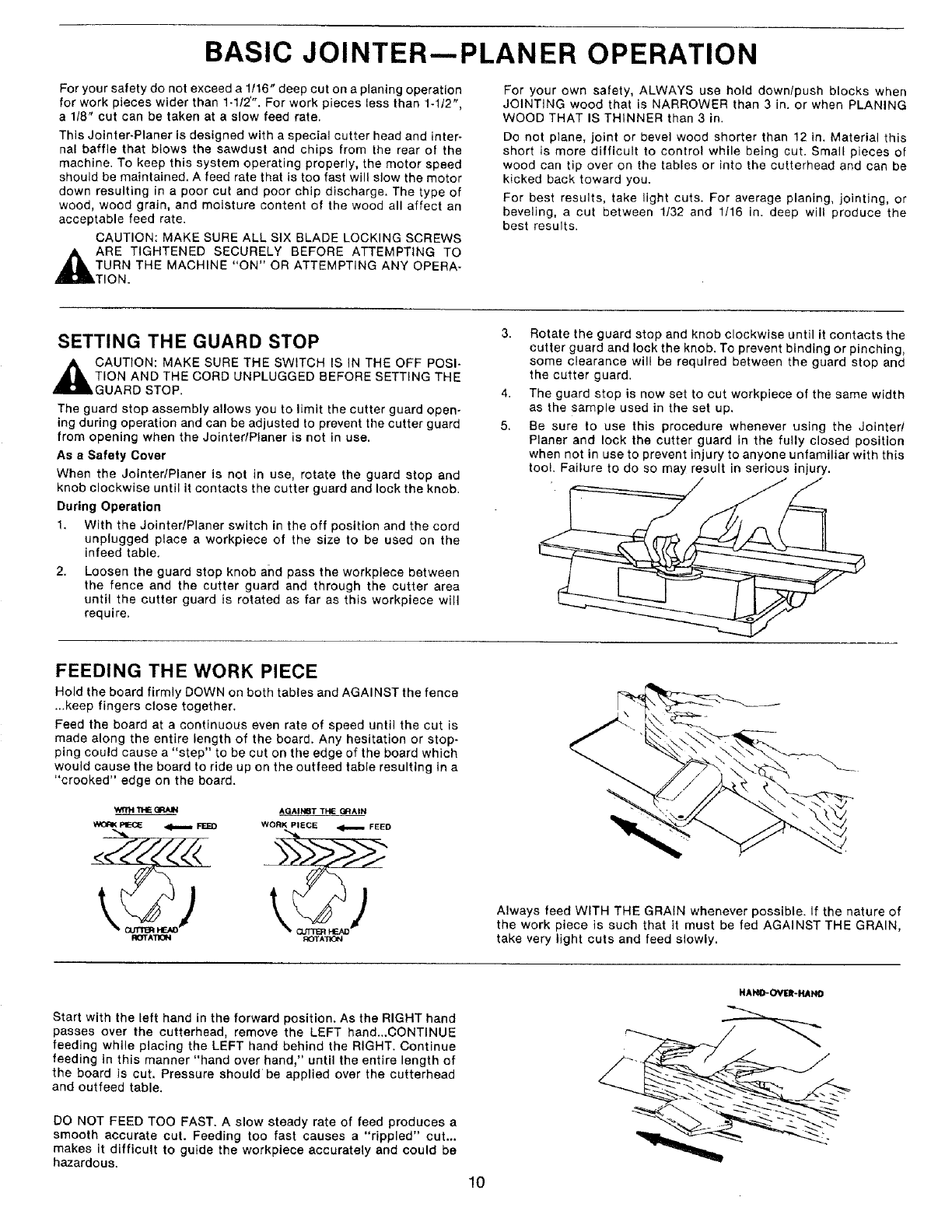

BASIC JOINTER--PLANER OPERATION
For your safety do not exceed a 1t16" deep cut on a planing operation
for work pieces wider than 1-112'". For work pieces less than 1.1/2",
a118" cut can be taken at a slow feed rate.
This Jointer-Planer is designed with a special cutter head and inter-
nal baffle that blows the sawdust and chips from the rear of the
machine. To keep this system operating properly, the motor speed
should be maintained. A feed rate that is too fast will slow the motor
down resulting in a poor cut and poor chip discharge. The type of
wood, wood grain, and moisture content of the wood all affect an
acceptable feed rate.
CAUTION: MAKE SURE ALL SIX BLADE LOCKING SCREWS
ARE TIGHTENED SECURELY BEFORE ATTEMPTING TO
TURN THE MACHINE "ON" OR ATTEMPTING ANY OPERA-
TION.
For your own safety, ALWAYS use hold downlpush blocks when
JOINTING wood that is NARROWER than 3 in. or when PLANING
WOOD THAT IS THINNER than 3 in.
Do not plane, joint or bevel wood shorter than 12 in. Material this
short is more difficult to control while being cut. Small pieces of
wood can tip over on the tables or into the cutterhead and can be
kicked back toward you,
For best results, take light cuts. For average planing, jointing, or
beveling, a cut between 1/32 and 1/16 in. deep wil! produce the
best results.
SETTING THE GUARD STOP
,_ CAUTION: MAKE SURE THE SWITCH IS IN THE OFF POSI-
TION AND THE CORD UNPLUGGED BEFORE SETTING THE
GUARD STOP.
The guard stop assembly allows you to limit the cutter guard open-
ing during operation and can be adjusted to prevent the cutter guard
from opening when the JointerlPtaner is not in use.
As a Safety Cover
When the JolntedPlaner is not in use, rotate the guard stop and
knob clockwise until it contacts the cutter guard and lock the knob.
During Operation
1. With the JointerlPlaner switch in the off position and the cord
unplugged place a workpiece of the size to be used on the
infeed table.
2. Loosen the guard stop knob and pass the workpiece between
the fence and the cutter guard and through the cutter area
until the cutter guard is rotated as far as this workpiece will
require.
4.
5,
Rotate the guard stop and knob clockwise until it contacts the
cutter guard and lock the knob. To prevent binding or pinching,
some clearance will be required between the guard stop and
the cutter guard.
The guard stop is now set to cut workpiece of the same width
as the sample used in the set up.
Be sure to use this procedure whenever using the Jointer!
Planer and lock the cutter guard In the fully closed position
when not in use to prevent injury to anyone unfamiliar with this
tool. Failure to do so may result in serious injury.
FEEDING THE WORK PIECE
Hold the board firmly DOWN on both tables and AGAINST the fence
...keep fingers close together.
Feed the board at a continuous even rate of speed until the cut is
made along the entire length of the board. Any hesitation or stop-
ping could cause a "step" to be cut on the edge of the board which
would cause the board to ride up on the outfeed table resulting in a
"crooked" edge on the board.
t,_j t, j
ROTA_ ROTATION
Always feed WITH THE GRAIN whenever possible, if the nature of
the work piece is such that it must be fed AGAINST THE GRAIN,
take very light cuts and feed slowly.
Start with the left hand in the forward position. As the RIGHT hand
passes over the cutterhead, remove the LEFT hand...CONTINUE
feeding while placing the LEFT hand behind the RIGHT. Continue
feeding in this manner "hand over hand," until the entire length of
the board is cut. Pressure should be applied over the cutterhead
and outfeed table.
DO NOT FEED TOO FAST. A slow steady rate of feed produces a
smooth accurate cut. Feeding too fast causes a "rippled" cut...
makes it difficult to guide the workpiece accurately and could be
hazardous.
10

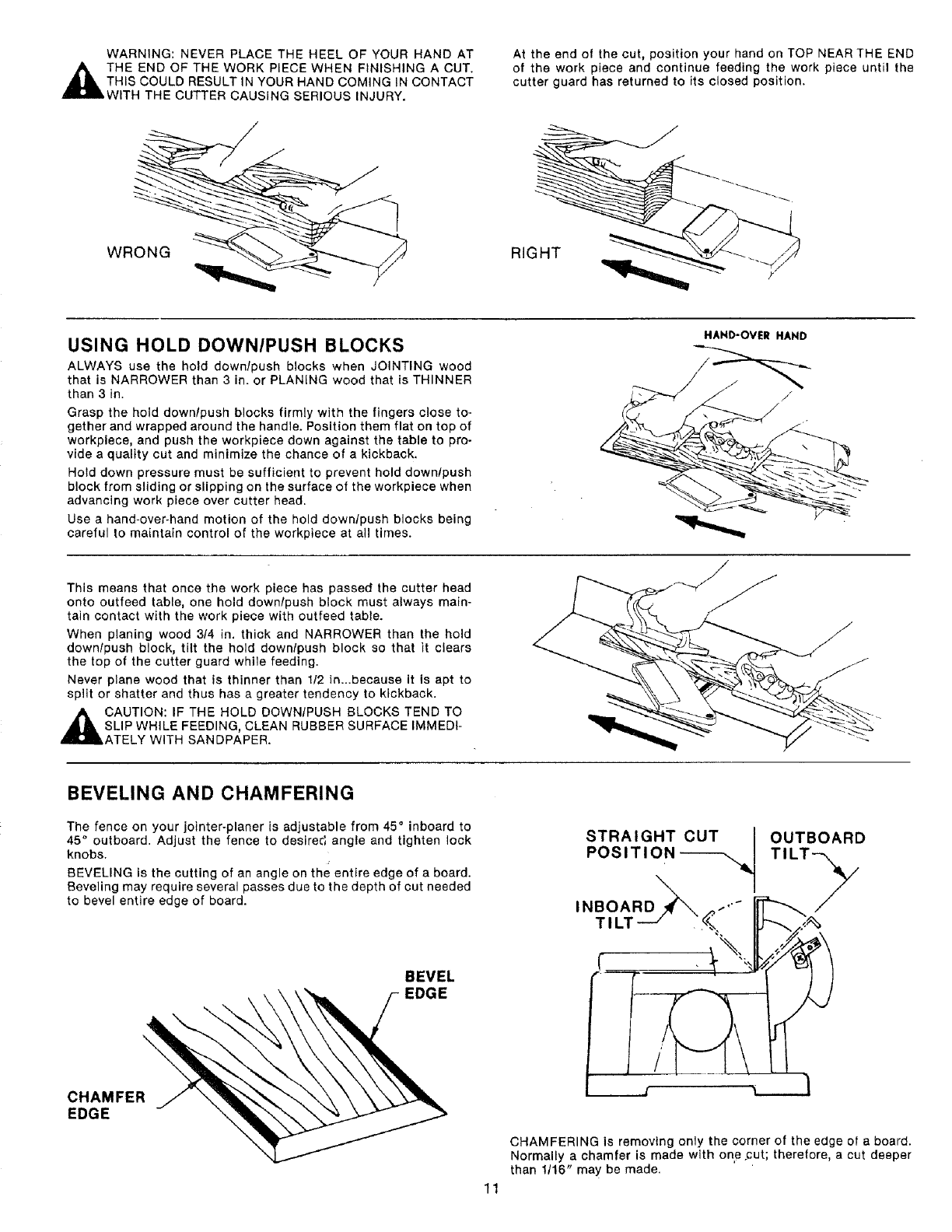

WARNING: NEVER PLACE THE HEEL OF YOUR HAND AT
_ THE END OF THE WORK PIECE WHEN FINISHING A CUT.
THIS COULD RESULT IN YOUR HAND COMING IN CONTACT
WITH THE CUTTER CAUSING SERIOUS INJURY,
At the end of the cut, position your hand on TOP NEAR THE END
of the work piece and continue feeding the work piece until the
cutter guard has returned to its closed position,
RIGHT
/
USING HOLD DOWN/PUSH BLOCKS
ALWAYS use the hold downlpush blocks when JOINTING wood
that is NARROWER than 3 in. or PLANING wood that is THINNER
than 3 in.
Grasp the hold down/push blocks firmly with the fingers close to-
gether and wrapped around the handle. Position them flat on top of
workpiece, and push the workpiece down against the table to pro-
vide a quality cut and minimize the chance of a kickback.
Hold down pressure must be sufficient to prevent hold down/push
block from sliding or slipping on the surface of the workpiece when
advancing work piece over cutter head.
Use a hand-over-hand motion of the hold downlpush blocks being
careful to maintain control of the workpiece at all times.
HAND'OVER HAND
This means that once the work piece has passed the cutter head
onto outfeed table, one hold down/push block must always main-
tain contact with the work piece with outfeed table.
When planing wood 3/4 in. thick and NARROWER than the hold
downlpush block, tilt the hold down/push block so that it clears
the top of the cutter guard while feeding.
Never plane wood that is thinner than 112 in...because it is apt to
split or shatter and thus has a greater tendency to kickback.
,_ CAUTION: IF THE HOLD DOWN/PUSH BLOCKS TEND TO
SLIP WHILE FEEDING, CLEAN RUBBER SURFACE IMMEDI-
ATELY WITH SANDPAPER.
BEVELING AND CHAMFERING
The fence on your jointer-planer is adjustable from 45 ° inboard to
45 ° outboard. Adjust the fence to desired angle and tighten lock
knobs.
BEVELING is the cutting of an angle on the entire edge of a board.
Beveling may require several passes due to the depth of cut needed
to bevel entire edge of board.
BEVEL
EDGE
x
CHAMFER
EDGE
INBOARD 4(_, .-." _/
llJ' )
11
CHAMFERING is removing only the corner of the edge of a board.
Normally a chamfer is made with one cut therefore, a cut deeper
than 1116" may be made.

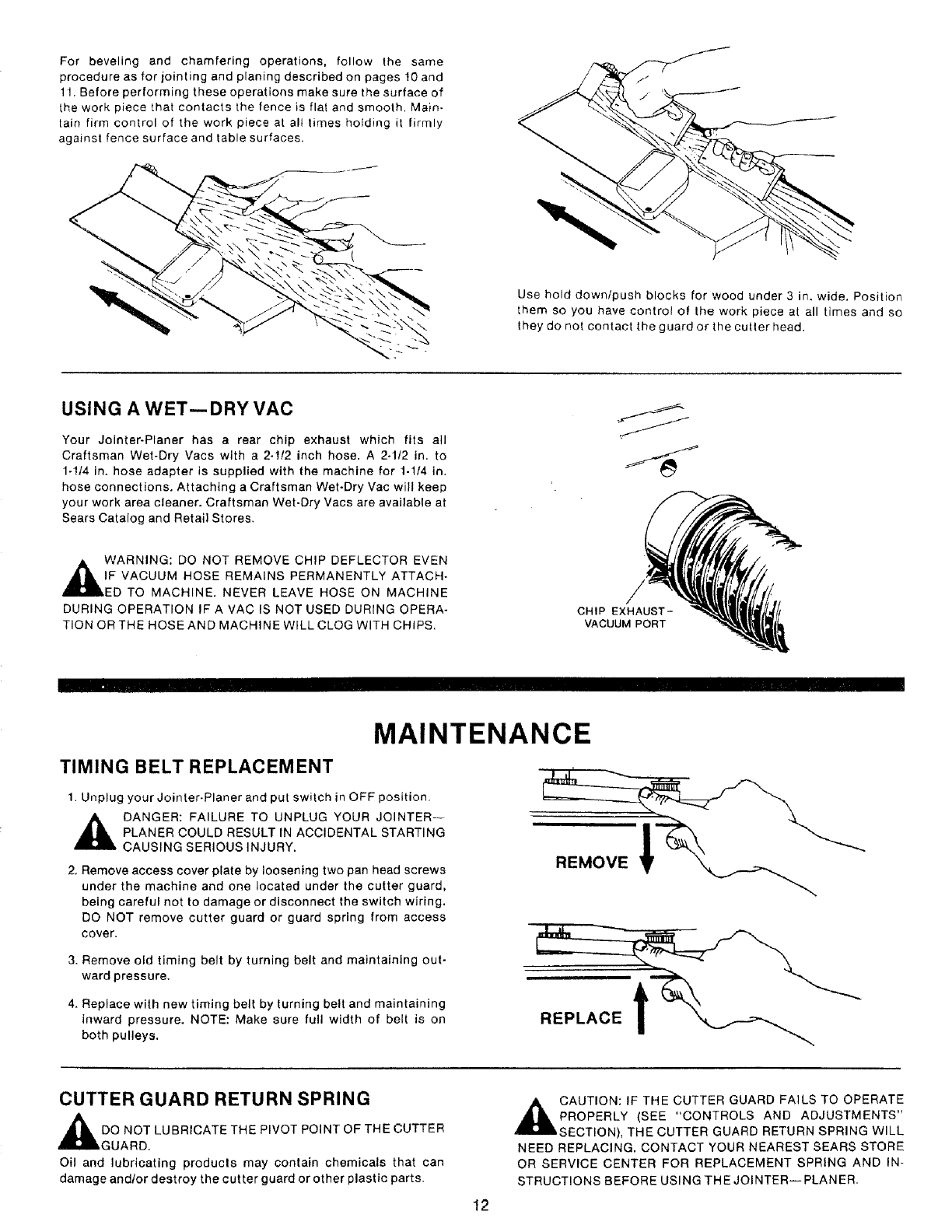

Forbevelingandchamferingoperations,followthesame
procedureasforjointingandplaningdescribedonpages10and
11.Beforeperformingtheseoperationsmakesurethesurfaceof
theworkpiecethatcontactsthefenceisflatandsmooth,Main.
lainfirmcontroloftheworkpieceatalttimesholdingit firmly
againstfencesurfaceandtablesurfaces.
Useholddowntpushblocksforwoodunder3in.wide.Position
themsoyouhavecontroloftheworkpieceatalltimesandso
theydonotcontacttheguardorthecullerhead.
USING A WET-- DRY VAC
Your Jointer-Planer has a rear chip exhaust which fits all
Craftsman Wet-Dry Vacs with a 2-1!2 inch hose. A 2-1/2 in. to
1-1/4 in. hose adapter is supplied with the machine for 1-1/4 in,
hose connections. Attaching a Craftsman Wet-Dry Vac wilt keep
your work area cleaner. Craftsman Wet-Dry Vacs are available at
Sears Catalog and Retail Stores.
,_WARNING: DO NOT REMOVE CHIP DEFLECTOR EVEN
IF VACUUM HOSE REMAINS PERMANENTLY ATTACH-
ED TO MACHINE. NEVER LEAVE HOSE ON MACHINE
DURING OPERATION IF A VAC IS NOT USED DURING OPERA-
TION OR THE HOSE AND MACHINE WILL CLOG WITH CHIPS.
CHIP EXHAUST-
VACUUM PORT
MAINTENANCE
TIMING BELT REPLACEMENT
1. Unplug your Jointer-Planer and put switch in OFF position,
,i_ DANGER: FAILURE TO UNPLUG YOUR JOINTER--
PLANER COULD RESULT IN ACCIDENTAL STARTING
CAUSING SERIOUS INJURY.
2. Remove access cover plate by loosening two pan head screws
under the machine and one located under the cutter guard,
being careful not to damage or disconnect the switch wiring.
DO NOT remove cutter guard or guard spring from access
cover.
3. Remove old timing belt by turning belt and maintaining out-
ward pressure.
4. Replace with new timing belt by turning belt and maintaining
inward pressure. NOTE: Make sure full width of belt is on
both pulleys. .EL I
CUTTER GUARD RETURN SPRING
,_DO NOT LUBRICATE THE PIVOT POINT OF THE CUTTER
GUARD.
Oil and lubricating products may contain chemicals that can
damage andtor destroy the cutter guard or other plastic parts.
12
,_ILCAUTION: IF THE CUTTER GUARD FALLS TO OPERATE
PROPERLY (SEE "CONTROLS AND ADJUSTMENTS"
SECTION), THE CUTTER GUARD RETURN SPRING WILL
NEED REPLACING. CONTACT YOUR NEAREST SEARS STORE
OR SERVICE CENTER FOR REPLACEMENT SPRING AND iN-
STRUCTIONS BEFORE USING THE JOINTER-- PLANER.

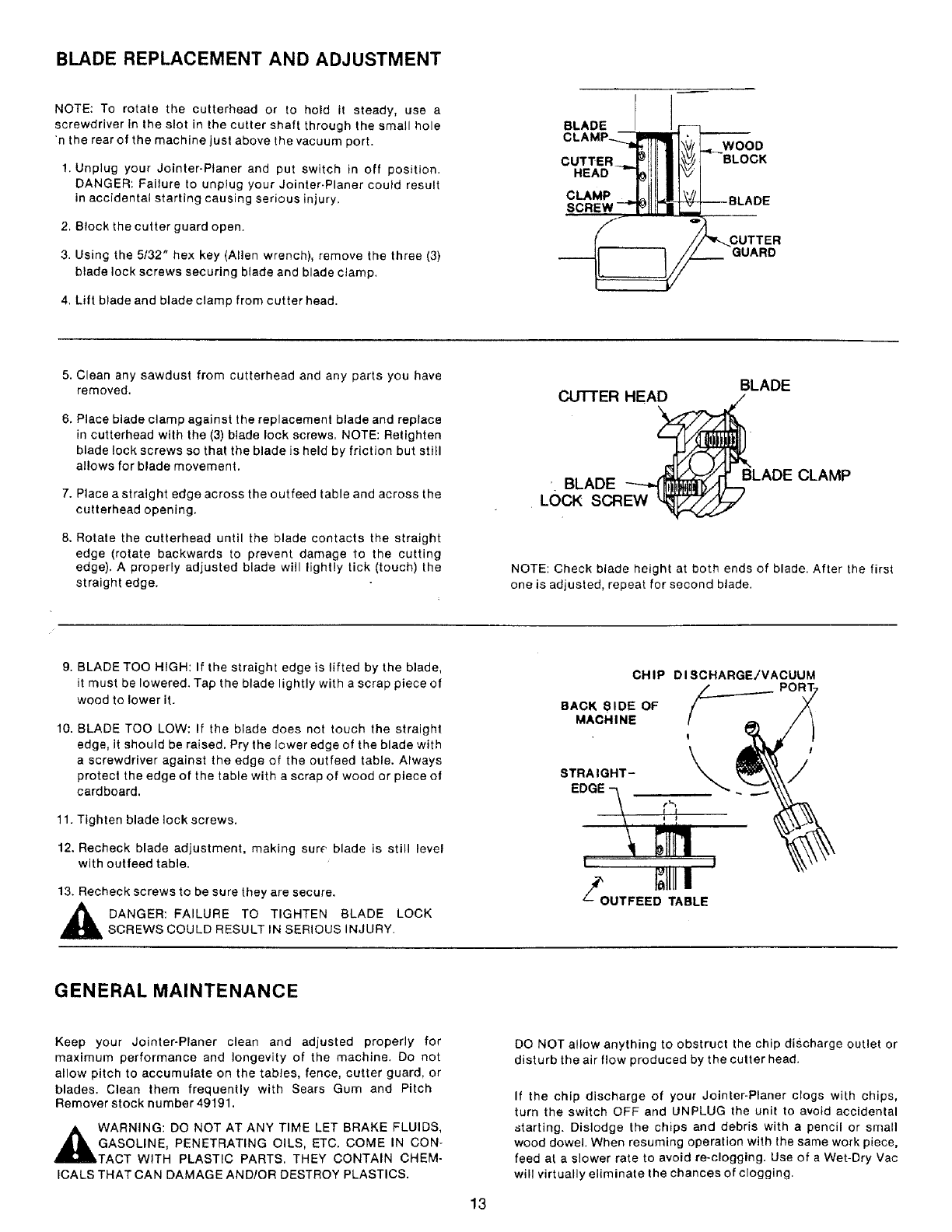

BLADE REPLACEMENT AND ADJUSTMENT
NOTE: To rotate the cutterhead or to hold it steady, use a
screwdriver in the slot in the cutter shaft through the small hole
the rear of the machine just above the vacuum port.
1. Unplug your Jointer-Ptaner and put switch in off position.
DANGER: Failure to unplug your Jointer-Planer could result
in accidental starting causing serious injury.
2. Block the cutter guard open.
3. Using the 5132" hex key (Allen wrench), remove the three (3)
blade lock screws securing blade and blade clamp,
4, Lift blade and blade clamp from cutter head.
BLADE
CUTTER
HEAD
CLAMP
SCREW
WOOD
BLOCK
CUTTER
RD
5. Clean any sawdust from cutterhead and any parts you have
removed,
6, Place blade clamp against the replacement blade and replace
in cutterhead with the (3) blade lock screws. NOTE: Retighten
blade lock screws so that the blade is held by friction but still
allows for blade movement.
7. Place a straight edge across the out feed table and across the
cutterhead opening,
8. Rotate the cutterhead until the blade contacts the straight
edge (rotate backwards to prevent damage to the cutting
edge). A properly adjusted blade will lightly tick (touch) the
straight edge.
BLADE
CUTTER _HEAD
,BLADE ...... LADE CLAMP
LOCK SCREW_
NOTE: Check blade height at both ends of blade. After the first
one is adjusted, repeat for second blade.
9. BLADE TOO HIGH: If the straight edge is lifted by the blade,
it must be lowered. Tap the blade lightly with a scrap piece of
wood to lower it.
10. BLADE TOO LOW: If the blade does not touch the straight
edge, it should be raised. Pry the lower edge of the blade with
ascrewdriver against the edge of the outfeed table. Always
protect the edge of the table with a scrap of wood or piece of
cardboard.
11. Tighten blade lock screws,
12. Recheck blade adjustment, making sur_" blade is still level
with outfeed table.
13. Recheck screws to be sure they are secure.
DANGER: FAILURE TO TIGHTEN BLADE LOCK
SCREWS COULD RESULT IN SERIOUS INJURY.
CHIP DI 8CHARGE./VACUUM
BACK BIDE OF
MACHINE
GENERAL MAINTENANCE
Keep your Jointer-Planer clean and adjusted properly for
maximum performance and longevity of the machine, Do not
allow pitch to accumulate on the tables, fence, cutter guard, or
blades. Clean them frequently with Sears Gum and Pitch
Remover stock n umber 49191.
,_WARNING: DO NOT AT ANY TIME LET BRAKE FLUIDS,
GASOLINE, PENETRATING OILS, ETC. COME IN CON-
TACT WITH PLASTIC PARTS, THEY CONTAIN CHEM-
ICALS THAT CAN DAMAGE AND/OR DESTROY PLASTICS.
13
DO NOT allow anything to obstruct the chip discharge outlet or
disturb the air flow produced by the cutter head.
If the chip discharge of your Jointer-Planer clogs with chips,
turn the switch OFF and UNPLUG the unit to avoid accidental
starting. Dislodge the chips and debris with a pencil or small
wood dowel. When resuming operation with the same work piece,
feed at a slower rate to avoid re-clogging, Use of a Wet-Dry Vac
will virtually eliminate the chances of clogging.

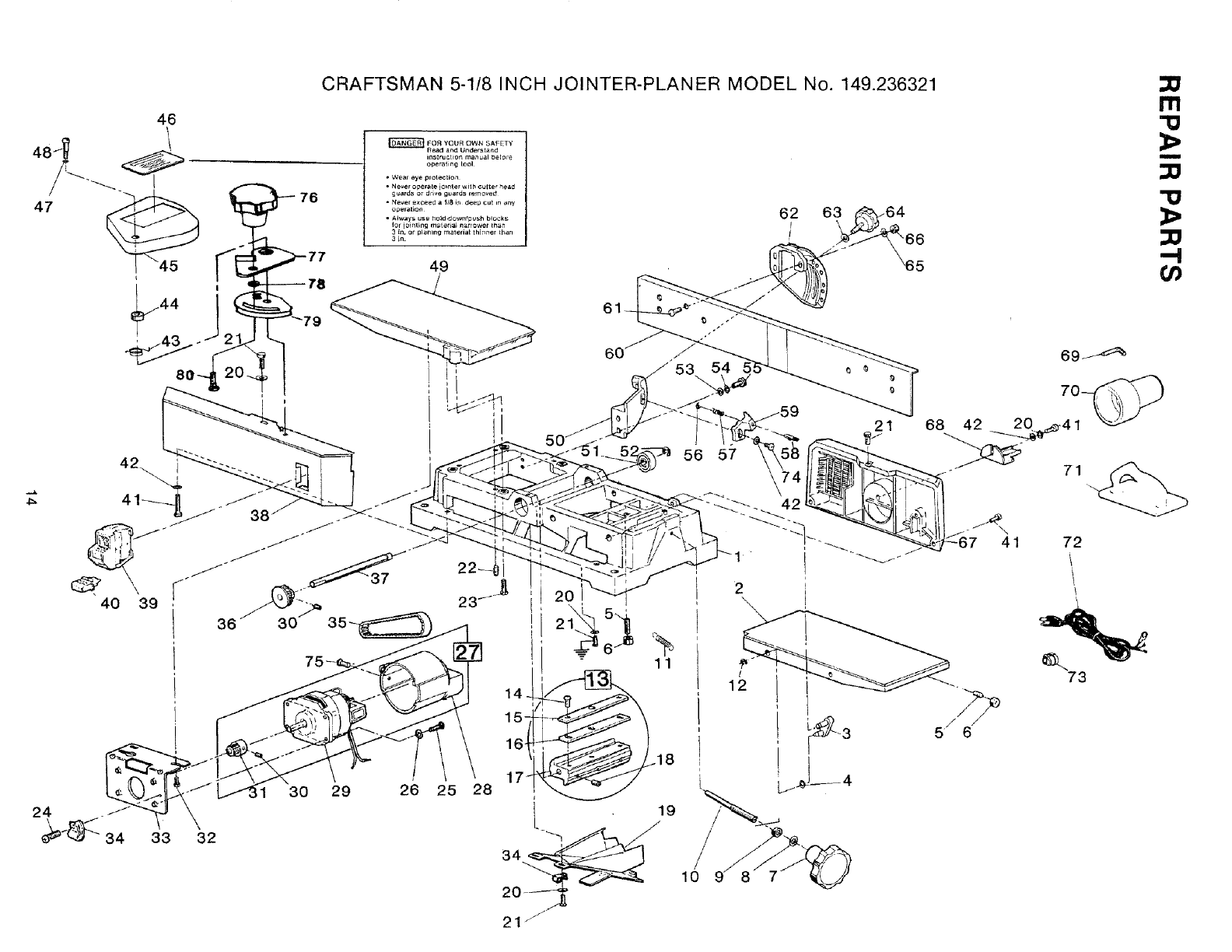

CRAFTSMAN 5-1/8 INCH JOINTER-PLANER MODEL No. 149.236321
46
47 76
, " 77
, \
40 39
1 30 29
FOR YOUR OWN SAFETY
Read and Understand
instruction manual before
operating tool
• Wear eye p_olection
• Newer operate io_nt er wilh cutter head
guards or dd_e guards remoVeL_
• Never exceed a118 _ deep cut m an,/
oper,li_on
•Aiway,s use hold-downfpuP*h b_ocks
lot joh_t_ng m_er_a_ n_rrowe_ than
3 _n, or planing material thinner _han
3 _n.
49
61
6O 53
62 63 _64
21
26 25 28
2\
!
12
10
m
69-_
71 ._
\41 72
73
5/6/
REF.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
2O
21
22
23
24
25
26
27
28
29
3O
31
32
33
34
35
36
37
38
39
40
41
42

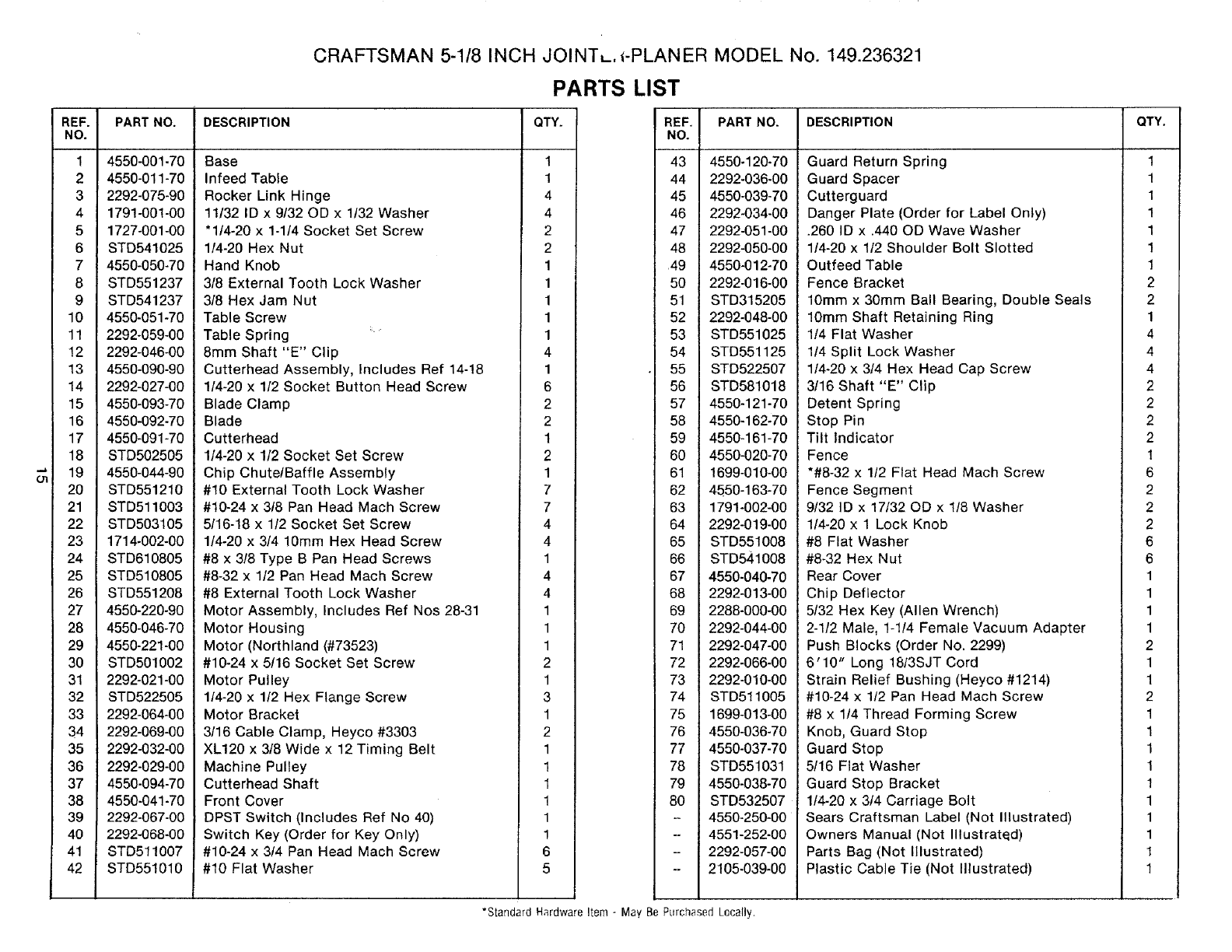

CRAFTSMAN 5-1/8 INCH JOINTL._-PLANER MODEL No. 149.236321
PARTS LIST
PART NO. DESCRIPTION QTY.
4550-001-70
4550-011-70
2292-075-90
1791-001-00
1727-001-00
STD541025
4550-050-70
STD551237
STD541237
4550-051-70
2292-059-00
2292-046-00
4550-090-90
2292-027-00
4550-093-70
4550-092-70
4550-091-70
STD502505
4550-044-90
STD551210
STD511003
STD503105
1714-002-00
STD610805
STD510805
STD551208
4550-220-90
4550-046-70
4550-221-00
STD501002
229_021-00
STD522505
2292-064-00
2292-069-00
2292-032-00
2292-029-00
4550-094-70
4550-041-70
2292-067-00
2292-068-00
STD511007
STD551010
Base
Infeed Table
Rocker Link Hinge
11/32 ID x 9/32 OD x 1/32 Washer
"1/4-20 x 1-1t4 Socket Set Screw
114-20 Hex Nut
Hand Knob
3/8 External Tooth Lock Washer
3t8 Hex Jam Nut
Table Screw
Table Spring ....
8mm Shaft "E" Clip
Cutterhead Assembly, Includes Ref 14-18
1/4-20 x 1t2 Socket Button Head Screw
Blade Clamp
Blade
Cutterhead
1/4-20 x 112 Socket Set Screw
Chip Chute/Baffle Assembly
#10 External Tooth Lock Washer
#10-24 x 3/8 Pan Head Mach Screw
5/16-18 x 1/2 Socket Set Screw
1/4-20 x 3/4 10mm Hex Head Screw
#8 x 3/8 Type B Pan Head Screws
#8-32 x 112 Pan Head Mach Screw
#8 External Tooth Lock Washer
Motor Assembly, Includes Ref Nos 28-31
Motor Housing
Motor (Northland (#73523)
#10-24 x 5/16 Socket Set Screw
Motor Pulley
114-20 x 1/2 Hex Flange Screw
Motor Bracket
3/16 Cable Clamp, Heyco #3303
XL120 x 3f8 Wide x 12 Timing Belt
Machine Pulley
Cutterhead Shaft
Front Cover
DPST Switch (Includes Ref No 40)
Switch Key (Order for Key Only)
#10-24 x 3/4 Pan Head Mach Screw
#10 Flat Washer
1
1
4
4
2
2
1
1
1
1
1
4
1
6
2
2
1
2
1
7
7
4
4
1
4
4
1
1
1
2
1
3
1
2
1
1
1
1
1
1
6
5
REF.
NO.
43 4550-120-70
44 2292-036-00
45 4550-039-70
46 2292-034-00
47 2292-051-00
48 2292-050-00
49 4550-012-70
50 2292-016-00
51 STD315205
52 2292-048-00
53 STD551025
54 STD551125
55 STD522507
56 STD581018
57 4550-121-70
58 4550-162-70
59 4550-161-70
60 4550-020-70
61 1699-010-00
62 4550-163-70
63 1791-002-00
64 2292-019-00
65 STD551008
66 STD541008
67 4550-04_70
68 2292-013-00
69 2288-000-00
70 2292-044-00
71 2292-047-00
72 2292-066-00
73 2292-010-00
74 STD511005
75 1699-013-00
76 4550-036-70
77 4550-037-70
78 STD551031
79 4550-038-70
80 STD532507
-- 4550-250-00
-- 4551-252-00
-- 2292-057-00
-- 2105-039-00
PART NO. DESCRIPTION QTY.
Guard Return Spring 1
Guard Spacer 1
Cutterguard 1
Danger Plate (Order for Label Only) 1
.260 IDx.440 OD Wave Washer 1
1/4-20 x 1/2 Shoulder Bolt Slotted 1
Outfeed Table 1
Fence Bracket 2
10mm x 30ram Ball Bearing, Double Seals 2
10mm Shaft Retaining Ring 1
1/4 Flat Washer 4
1/4 Split Lock Washer 4
114-20 x 314 Hex Head Cap Screw 4
3/16 Shaft "E" Clip 2
Detent Spring 2
Stop Pin 2
Tilt Indicator 2
Fence 1
*#8-32 x 1/2 Flat Head Mach Screw 6
Fence Segment 2
9/32 ID x 17132 OD x 1t8 Washer 2
1/4-20 x 1 Lock Knob 2
#8 Flat Washer 6
#8-32 Hex Nut 6
Rear Cover 1
Chip Deflector 1
5132 Hex Key (Allen Wrench) 1
2-112 Male, 1-114 Female Vacuum Adapter 1
Push Blocks (Order No. 2299) 2
6'10" Long 1813SJT Cord 1
Strain Relief Bushing (Heyco #1214) 1
#10-24 x 1/2 Pan Head Mach Screw 2
#8 x 1t4 Thread Forming Screw 1
Knob, Guard Stop 1
Guard Stop 1
5116 Flat Washer 1
Guard Stop Bracket 1
1/4-20 x 3t4 Carriage Bolt 1
Sears Craftsman Label (Not Illustrated) 1
Owners Manual (Not Illustrated) 1
Parts Bag (Not Illustrated) 1
Plastic Cable Tie (Not Illustrated) t
"Standard Hardware Item - May Be Purchased Lecally.

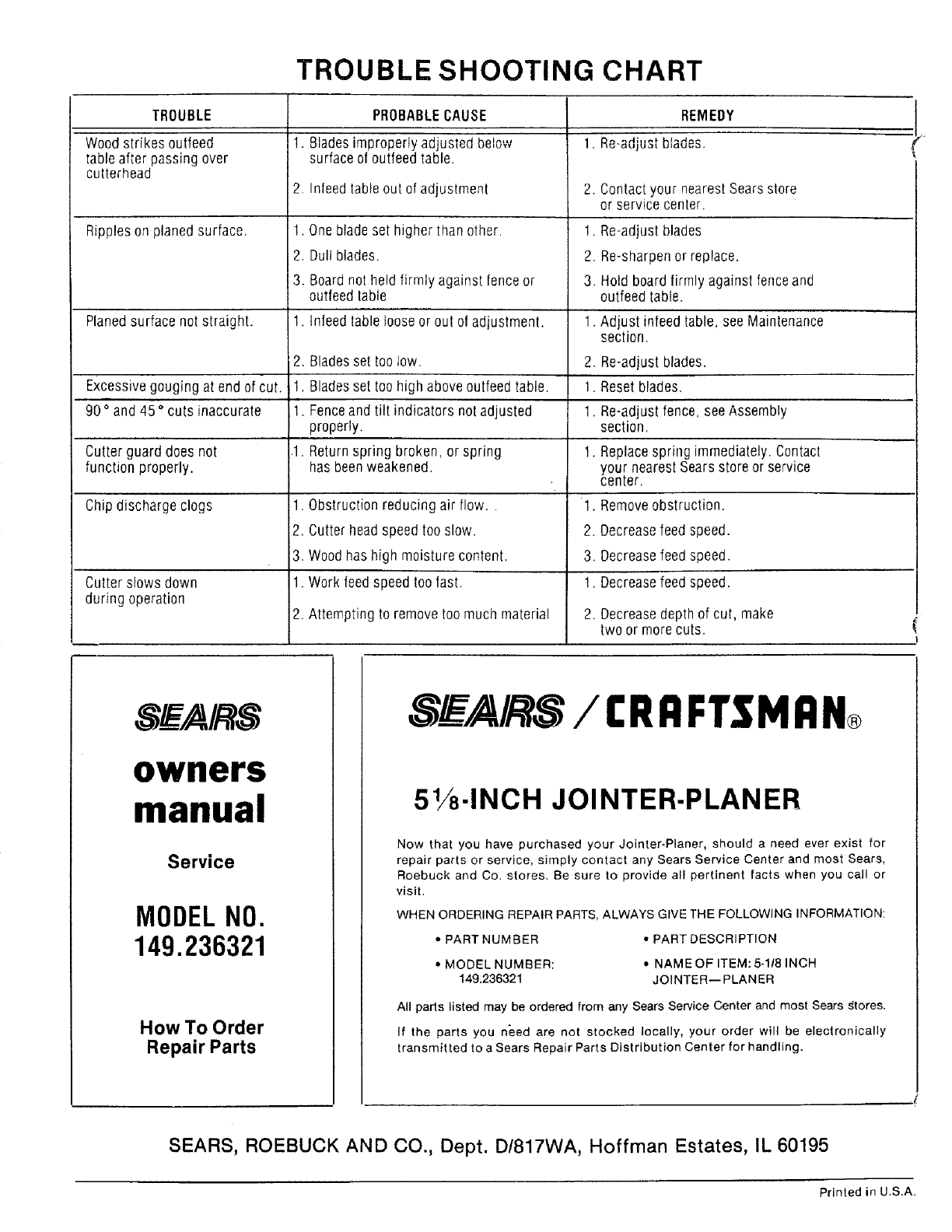

TROUBLE SHOOTING CHART
TROUBLE
Woodstrikes outfeed
table after passing over
cutterhead
Rippleson planed surface,
Planed surface not straight.
PROBABLECAUSE
t. Bladesimproperly adjusted below
surfaceof outfeedtable,
2. Infeedtable out of adjustmenl
1. Onebladeset higher than other,
2. Dultblades.
3, Boardnot held firmly against fenceor
outfeedtable
1. Infeedtable looseor out of adjustment.
2, Bladesset too low,
Excessivegouging at end of cut. 1. Bladesset too high aboveoutfeedtable,
90° and 45° cuts inaccurate 1. Fenceandtilt indicators not adjusted
properly,
Cutter guard does not 1, Returnspring broken, or spring
function properly, has beenweakened,
Chip discharge clogs 1. Obstruction reducing air flow,. 1.
2. Cutterheadspeed too slow. 2.
3. Woodhas high moisture content. 3.
Cutter slows down 1. Work feed speed too fast. 1.
during operation 2. Attempting to removetoo much material 2.
REMEDY
1. Re-adjust blades,
2. Contactyour nearestSearsstore
or service center.
1. Re-adjust blades
2. Re-sharpenor replace,
3. Hold board firmly against fenceand
outfeedtable,
1, Adjust infeed table, see Maintenance
section.
2. Re-adjust blades.
1. Resetblades.
1. Re-adjust fence, seeAssembly
section.
1. Replacespring immediately. Contact
your nearestSears storeor service
center.
Removeobstruction.
Decreasefeed speed.
Decreasefeed speed.
Decreasefeed speed.
Decreasedepth of cut, make
two or more cuts,
SE/A,IRS
owners
manual
Service
MODELNO.
149.236321
How To Order
Repair Parts
SF_/A,IRS / I:RI:1FTSMI:IN®
5l/s-INCH JOINTER-PLANER
Now that you have purchased your Jointer-Planer, should a need ever exist for
repair parts or service, simply contact any Sears Service Center and most Sears,
Roebuck and Co. stores. Be sure to provide all pertinent facts when you call or
visit.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
•PART NUMBER •PART DESCRIPTION
• MODEL NUMBER:
149.236321
• NAME OF ITEM: 5-118 INCH
JOINTER--PLANER
All parts listed may be ordered from any Sears Service Center and most Sears dtores.
If the parts you need are not stocked locally, your order will be electronically
transmitted to aSears Repair Parts Distribution Center for handling.
SEARS, ROEBUCK AND CO., Dept. D/817WA, Hoffman Estates, IL 60195
Printed in U.S.A.
