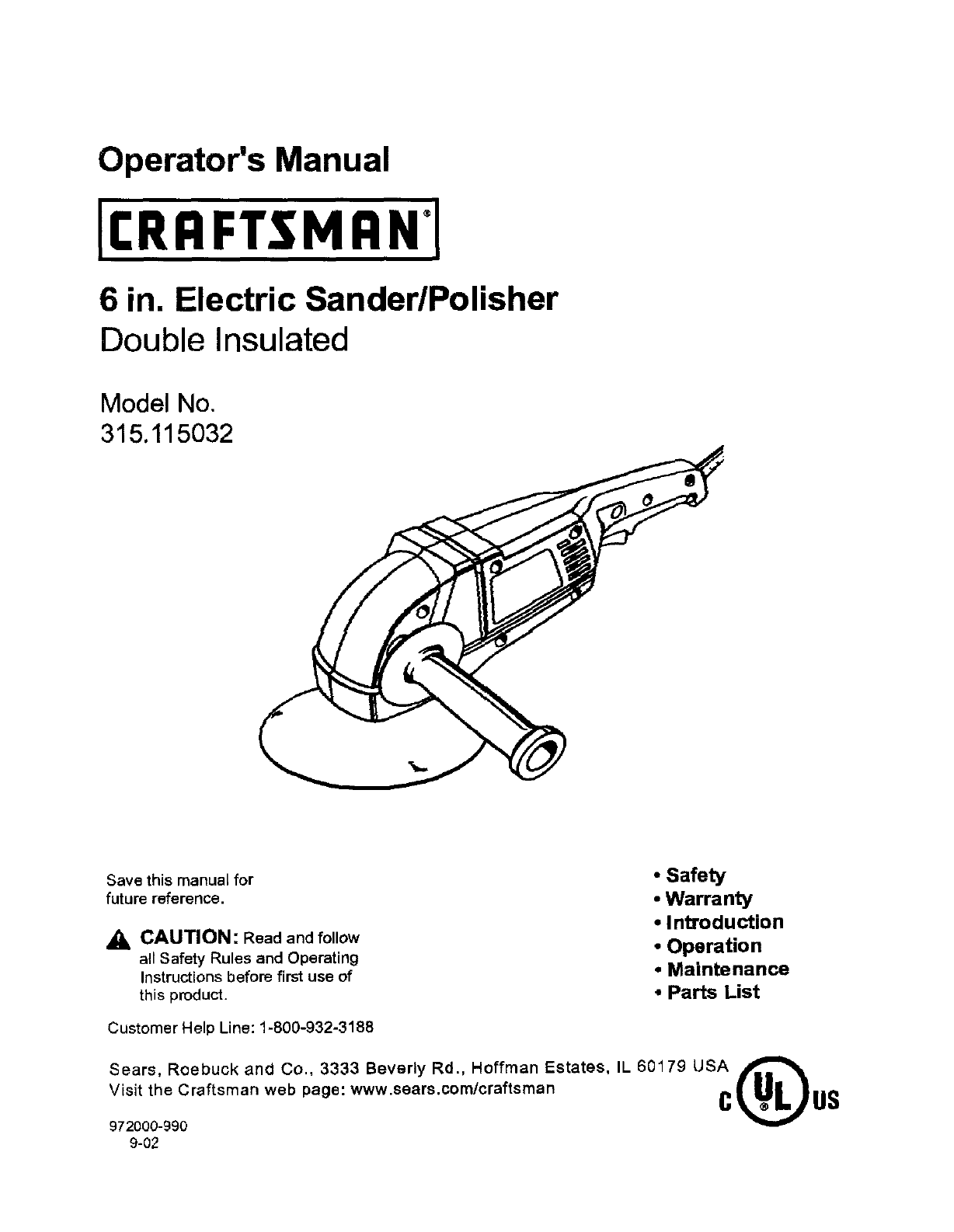

Operator's Manual
tI:RRFTSMRN'I
6 in. Electric SanderlPolisher
Double Insulated
Model No.
315.115032
Save this manual for
future reference.
CAUTION: Read and follow
all Safety Rules and Operating
Instructions before first use of
this product.
• Safety
•Warranty
•I ntroduction
•Operation
•Maintenance
• Parts List
Customer Help Line: 1-800-932-3188
Sears, Roebuck and Co., 3333 Beverly Rd., Hoffman Estates, IL 60179 USA
Visit the Craftsman web page: www.sears.com/craftsman Illl I
C_US
972000-990
9-02

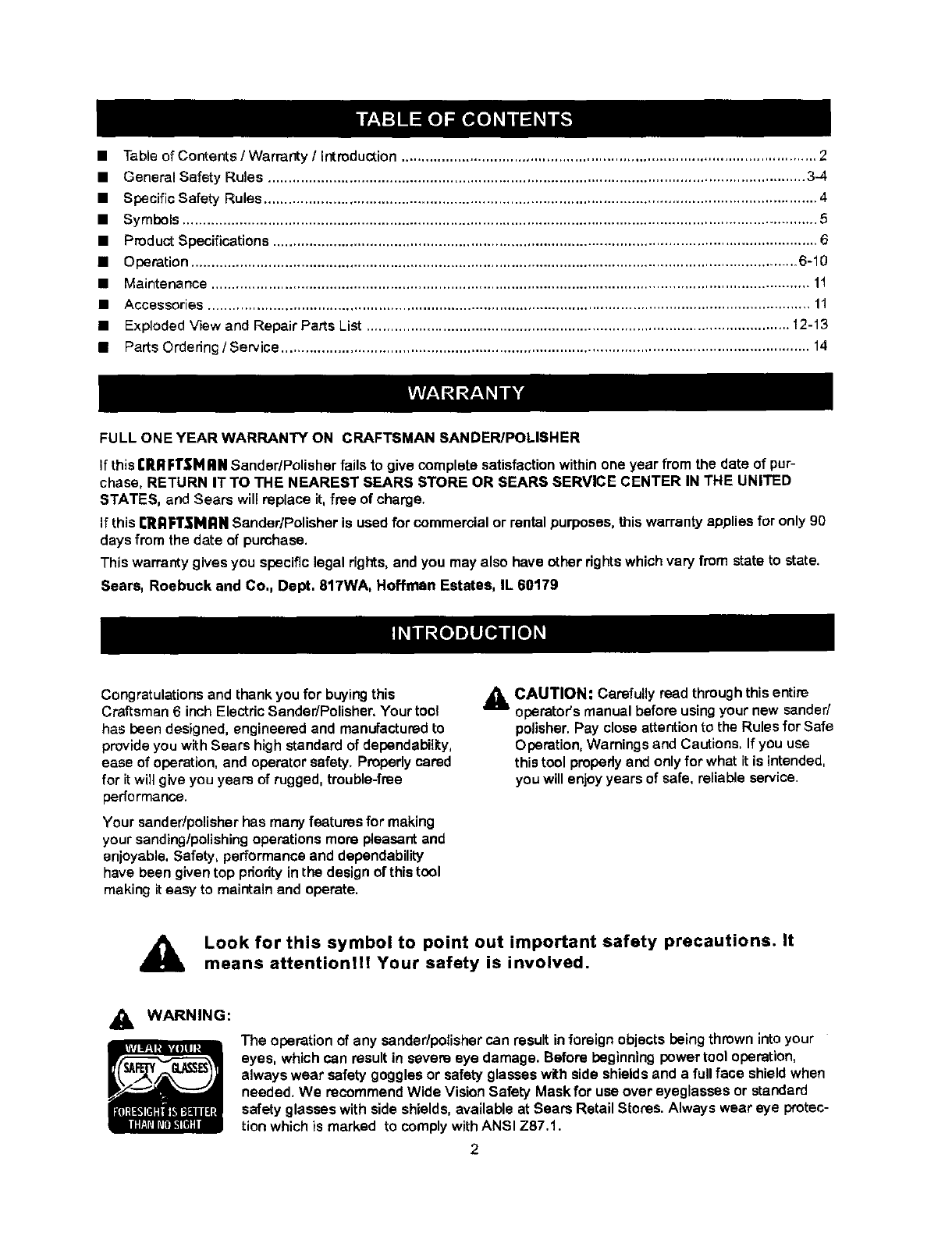

• Table of Contents /Warranty /Introduction ....................................................................................................... 2
• General Safety Rules ..................................................................................................................................... 3-4
• Specific Safety Rules ......................................................................................................................................... 4

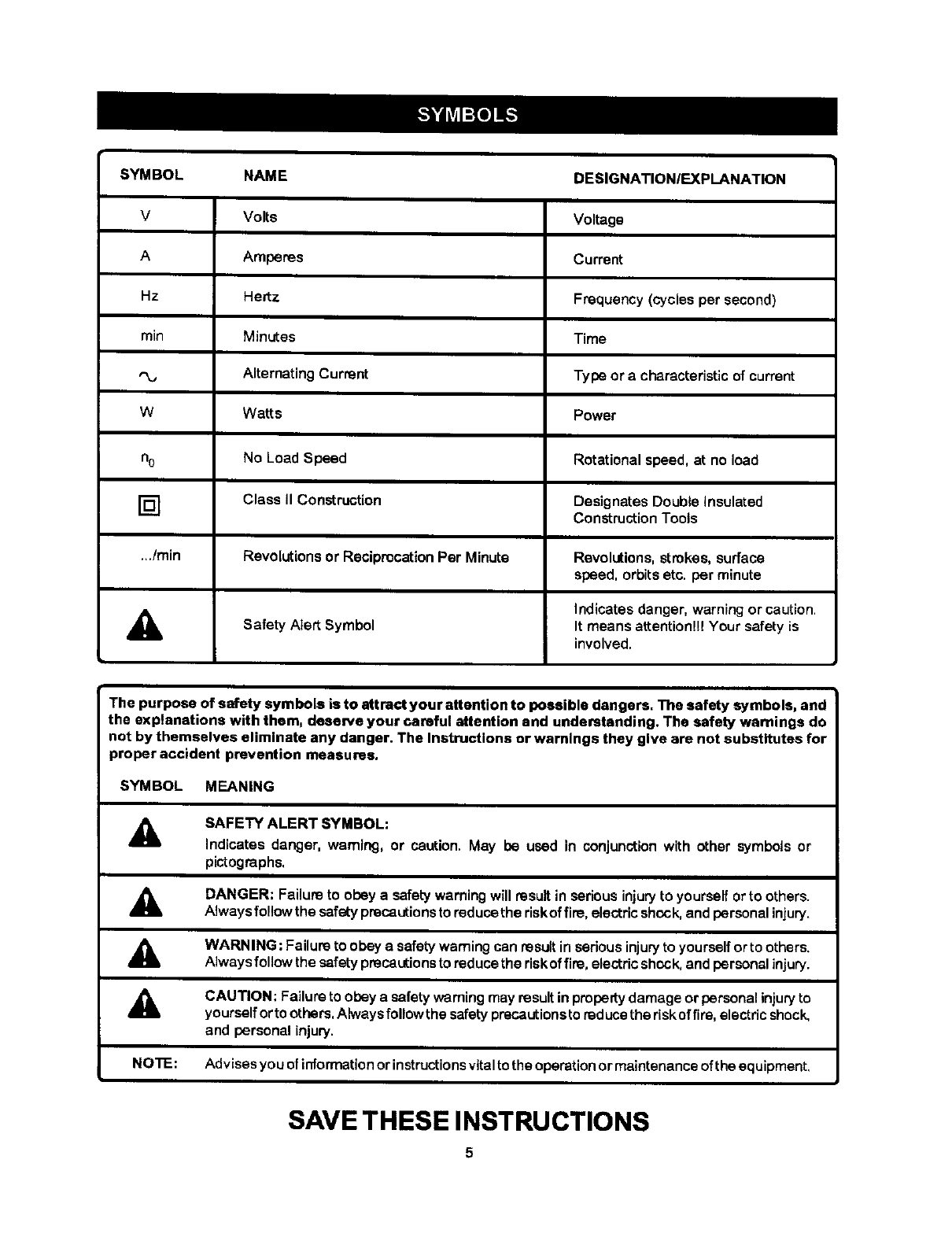

• Symbols ............................................................................................................................................................. 5
• Product Specifications ....................................................................................................................................... 6
• Operation ...................................................................................................................................................... 6-10

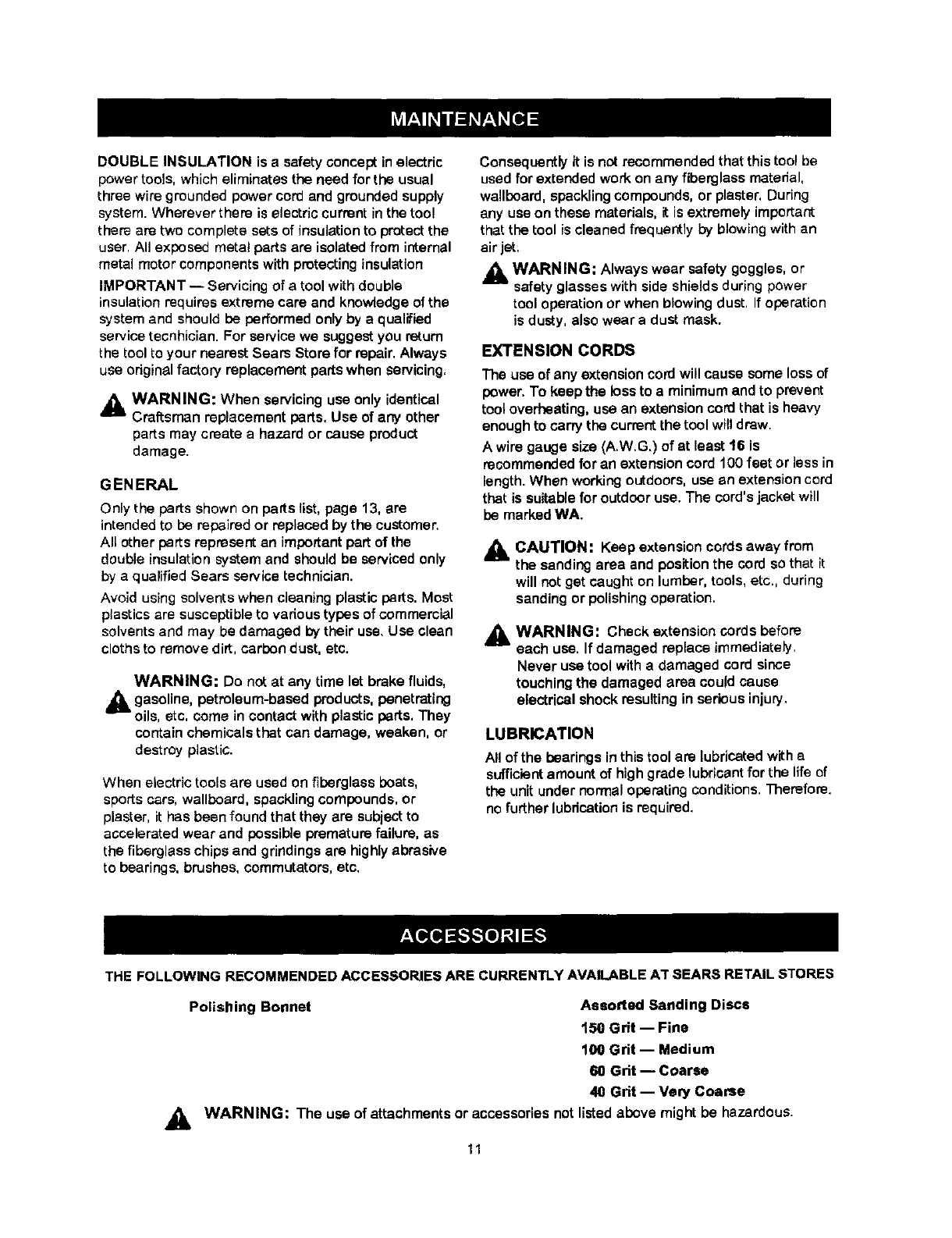

• Maintenance .................................................................................................................................................... 11
•Accessories ..................................................................................................................................................... 11

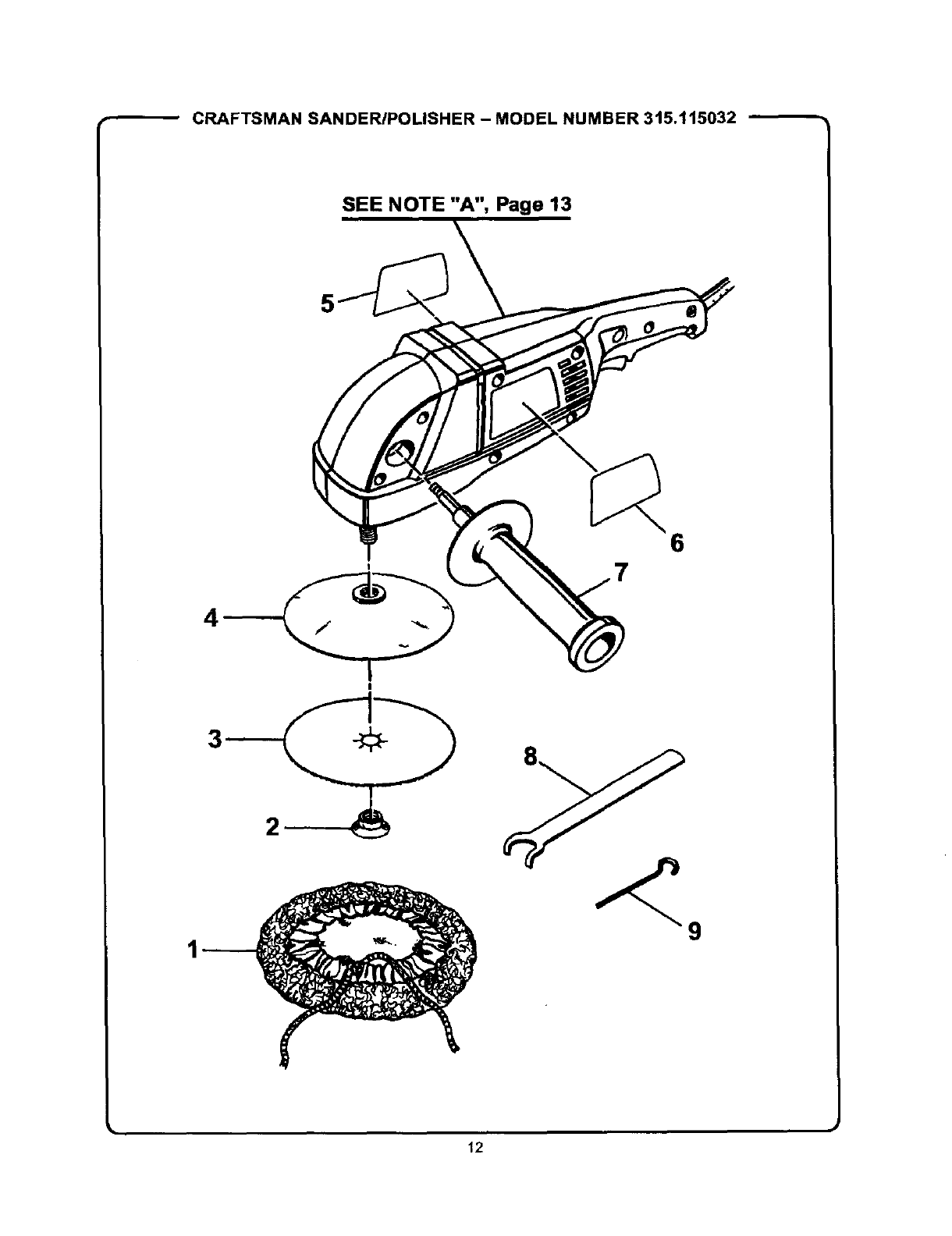

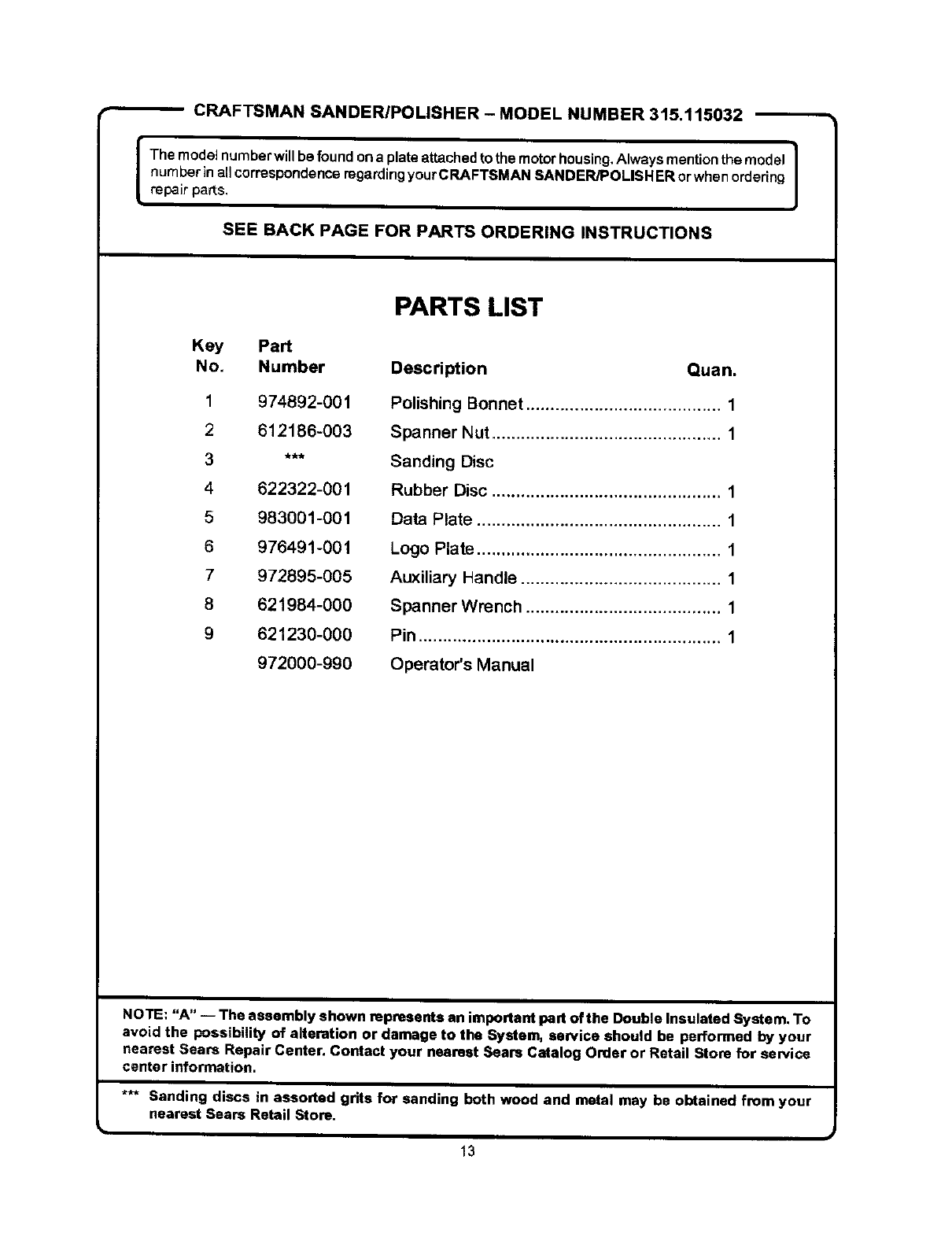

• Exploded View and Repair Parts List ......................................................................................................... 12-13
• Parts Ordedng/Service ................................................................................................................................... 14
FULL ONE YEAR WARRANTY ON CRAFTSMAN SANDER/POLISHER
If this rRRFT$14RN Sander/Polisher fails to give complete satisfaction within one year from the date of pur-
chase, RETURN IT TO THE NEAREST SEARS STORE OR SEARS SERVICE CENTER IN THE UNITED
STATES, and Sears will replace it, free of charge.
If this ERRFTSNRN Sander/Polisher is used for commercial or rental purposes, this warranty applies for only 90
days from the date of purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
Congratulations and thank you for buying this
Craftsman 6 inch Electric SandedPolisher. Your tool
has been designed, engineered and manufactured to
provide you with Sears high standard of dependability,
ease of operation, and operator safety+ Propedy cared
for it will give you years of rugged, trouble-free
performance.
Your sander!polisherhas many featuresfor making
your sanding/polishingoperationsmore pleasant and
enjoyable. Safety, performance and dependability
have been given top pdodty in the design of this tool
making it easy to maintain and operate.
ACAUTION: Carefully read through this entire
operator'smanual before usingyour new sanded
polisher.Pay closeattentionto the Rules for Safe
Operation, Warningsand Cautions, If you use
thistool prepedyand onlyfor what it is intended,
you willenjoy years of safe, reliable service.
Look for this symbol to point out important safety precautions. It
means attentionllt Your safety is involved.
,_k WARNING:
The operation of any sander/polishercan result inforeign objects beingthrown intoyour
eyes. which can result in severe eye damage. Before beginningpewer tool operation,
always wear safetygoggles or safetyglasseswith side shieldsand a fullface shieldwhen
needed, We recommendWide VisionSafety Mask for use over eyeglasses or standard
safetyglasses with side shields, availableat Sears Retail Stores. Always wear eye protec-
tion which is marked to complywithANSI Z87,1.
2

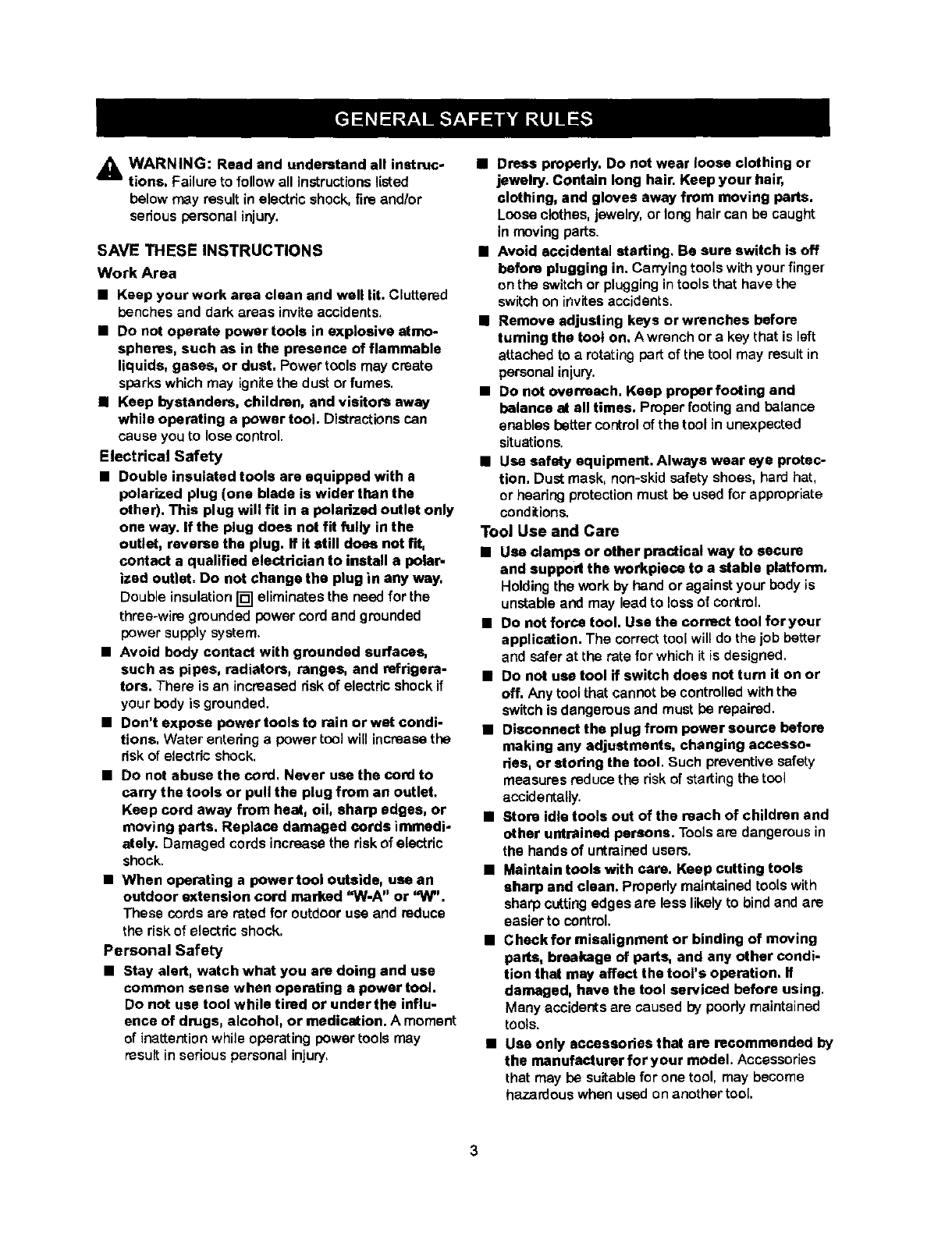

WARNING: Read and understand all instruc-
tions, Failure to followall instructionslisted
below may result in eiectdc shock,fire and/or
sedous personal injury.
SAVE THESE INSTRUCTIONS
Work Area
•Keep your work area clean and well lit. Cluttered
benches and dark areas invite accidents.
•Do not operate power tools in explosive etmo-
spherss, such as in the presence of flammable
liquids, gases, or dust. Power tools may create
sparks which may ignite the dust or fumes.
•Keep bystanders, children, and visitors away
while operating a power tool. Distractions can
cause you to lose control.
Electrical Safety
•Double insulated tools are equipped with a
polarized plug (one blade is wider than the
other). This plug will fit in a polarized outlet only
one way, If the plug does not fit fully in the
outlet, reverse the plug. If it still does not fit,
contact e qualified electrician to install e polar-
ized outlet. Do not change the plug in any way,
Double insulation [] eliminates the need for the
three-wire grounded power cord and grounded
power supply system.
•Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges, and refrigera.
tore. There is an increased dsk of electric shock if
your body is grounded.
•Don't expose power tools to rain orwet condi-
tions, Water entedng a power tool will increase the
dsk of electric shock.
•Do not abuse the cord, Never use the cord to
carry the tools or pull the plug from an outlet,
Keep cord away from heat, oil, sharp edges, or
moving parts, Replace damaged cords immedi-
ately. Damaged cords increase the risk of electric
shock.
•When operating a power tool outside, use an
outdoor extension cord marked "W-A" or "W'.
These cords are rated for outdoor use and reduce
the risk of electric shock,
Personal Safety
•Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use tool while tired or under the influ-
ence of drugs, alcohol, or medication. A moment
of inattention while operating power tools may
result in serious personal injury,
•Dress propedy. Do not wear loose clothing or
jeweky. Contain long hair, Keep your hair,
clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair can be caught
in moving parts.
•Avoid accidental starting. Be sure switch is off
before plugging in, CarTying tools with your finger
on the switch or plugging in tools that have the
switch on invites accidents.
•Remove adjusting keys or wrenches before
tuming the tool on, Awrench or a key that is left
attached to arotating part of the tool may result in
personal injury.
•Do not overreach, Keep proper footing and
balance at all times, Proper footing and balance
enables better control of the tool in unexpected
situations.
•Use safety equipment. Always wear eye protec-
tion, Dust mask, non-skid safety shoes, hard hat,
or hearing protection must be used for appropriate
conditions.
Tool Use and Care
•Use clamps or other practical way to secure
and support the workpiece to a stable platform.
Holding the work by hand or against your body is
unstable and may lead to loss of control.
•Do not force tool. Use the correct tool foryour
application. The correct tool will do the job better
and safer at the rate for which it is designed.
•Do not use tool if switch does not turn it on or
off. Any tool that cannot be controlled with the
switch is dangerous and must be repaired.
•Disconnect the plug from power soume before
making any adjustments, changing accesso-
dee, or storing the tool. Such preventive safety
measures reduce the risk of starting the tool
accidentally,
•Store idle tools out of the reach of children and
other untrained persons, Tools are dangerous in
the hands of untrained users.
•Maintain tools with care. Keep cutting tools
sharp and clean. Properly maintained tools with
sharp cutting edges are less likely to bind and are
easier to control.
•Check for miselignment or binding of moving
parts, breakage of parts, and any other condi-
tion that may affect the tool's operation, If
damaged, have the tool sewiced before using.
Many accidents are caused by poody maintained
tools.
•Use only accessories that are recommended by
the manufacturer for your model. Accessories
that may he suitable for one tool, may become
hazardous when used on another tool,
3

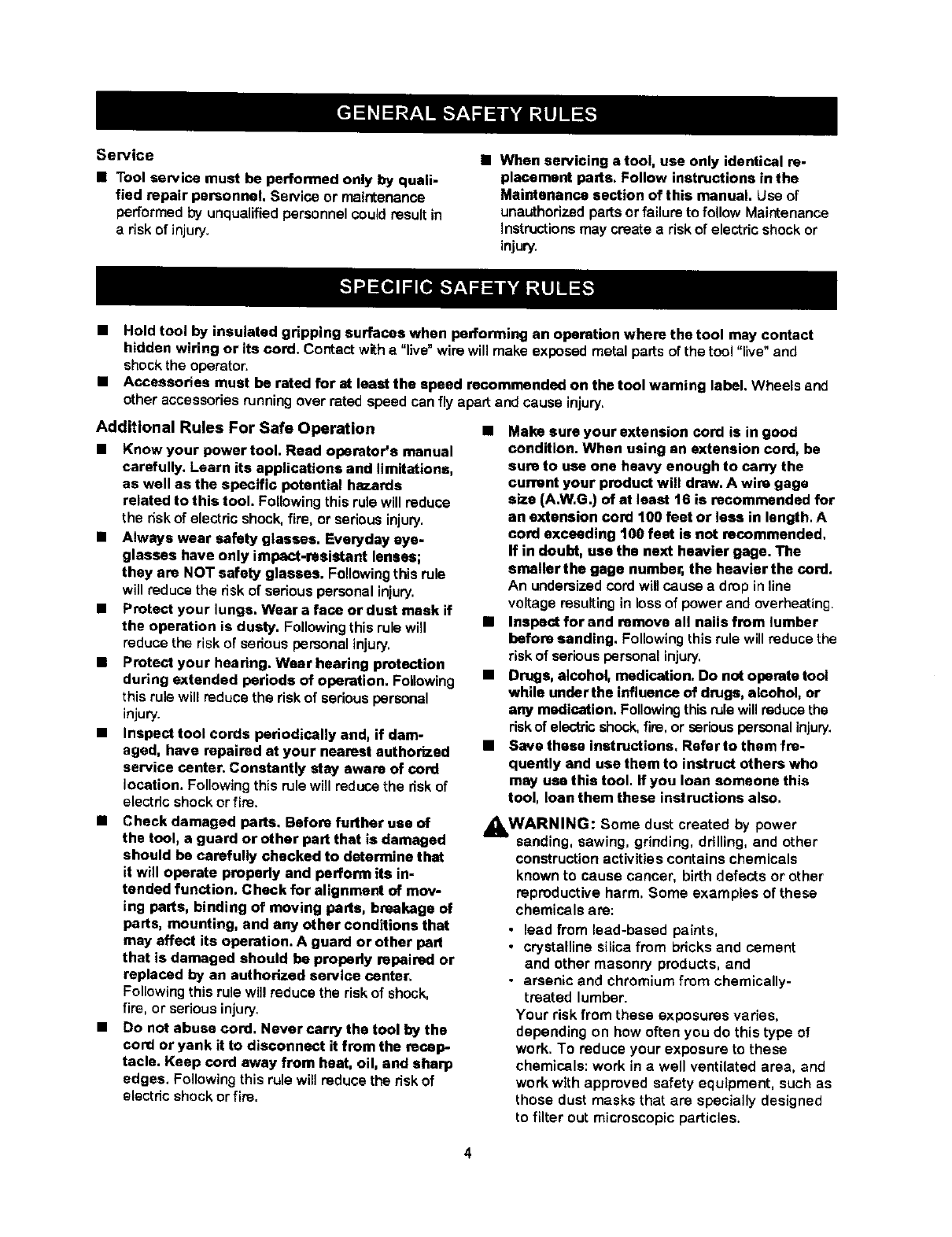

Service
•Tool service must be performed only by quali-
fied repair personnel, Service or maintenance
performed by unqualifiedpersonnelcouldresult in
a riskof injury.
•When servicing a tool, use only identical re.
placement parts, Follow instructions in the
Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance
Instructions may create a risk of electric shock or
injury.
•Hold tool by insulated gripping surfaces when performing an operation where the tool may contact
hidden wiring or its cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and
shock the operator.
•Accessories must be rated for at least the speed recommended on the tool warning label. Wheels and
other accessories running over rated speed can fly apart and cause injury.
Additional Rules For Safe Operation
•Know your power tool. Reed operator's manual
carefully. Learn its applications and limitations,
as well as the specific potential hazards
related to this tool. Following this rule will reduce
the risk of electric shock, fire, or serious injury.
•Always wear safety glasses. Everyday eye-
glasses have only impact-resistant lenses;
they are NOT safety glasses. Following this rule
will reduce the risk of serious personal injury.
•Protect your lungs. Wear a face or dust mask if
the operation is dusty. Following this rule will
reduce the risk of sedous personal injury.
•Protect your hearing. Wear hearing protection
during extended periods of operation. Following
this rule will reduce the risk of serious personal
injury.
•Inspect tool cords periodically and, if dam-
aged, have repaired at your nearest authorized
service center. Constantly stay aware of cord
location. Following this rule will reduce the risk of
electdc shock or fire.
•Check damaged parts. Before further use of
the tool, a guard or other part that is damaged
should be carefully checked to determine that
it will operate propedy and perform its in-
tended function. Check for alignment of mov-
ing parts, binding of moving pads, breakage of
parts, mounting, and any other conditions that
may affect its operation. A guard or other part
that is damaged should be propedy repaired or
replaced by an authorized service center,
Following this rule will reduce the risk of shock,
fire, or serious injury.
•Do not abuse cord. Never carry the tool by the
cord or yank it to disconnect it from the recep-
tacle. Keep cord away from heat, oil, and sharp
edges. Following this rule will reduce the dsk of
electdc shock or fire,
•Make sure your extension cord is in good
condition. When using an extension cord, be
sure to use one heavy enough to cemj the
current your product will draw. A wire gage
size (A.W.G.) of at least 16 is recommended for
an extension cord 100 feet or less in length. A
cord exceeding t00 feat is not recommended.
If in doubt, use the next heavier gage. The
smaller the gage number, the heavier the cord.
An undersized cord will cause a drop in line
voltage resulting in loss of power and overheating.
•Inspect forand remove all nails from lumber
before sanding. Following this rule will reduce the
risk of serious personal injury.
•Drugs, alcohol, medication. Do not operate tool
while under the influence of drugs, alcohol, or
any medication, Following this rule will reduce the
risk of electric shock, fire, or serious personal injury,
•Save these instructions, Refer to them fre-
quently and use them to instruct others who
may use this tool. If you loan someone this
tool, loan them these instructions also,
_IWARNING: Some dust created by power
sanding, sawing, grinding, drilling, and other
construction activities contains chemicals
known to cause cancer, birth defects or other
reproductive harm, Some examples of these
chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement
and other masonry products, and
• arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in awell ventilated area, and
work with approved safety equipment, such as
those dust masks that are specially designed
to filter out microscopic particles.
SYM BOL NAM E DESIGNATION/EXPLANATION
VVolts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
min Minutes Time
Alternating Current Type or a characteristic of current
W Watts Power
no No Load Speed Rotational speed, at no load
]Class II Construction Designates Double insulated
Construction Tools
.,./rain Revolutions or Reciprocation Per Minute Revolutions, strokes, surface
speed, orbits etc. per minute
ASafety Alert Symbol Indicates danger, warning or caution.
It means attentionH! Your safety is
involved.
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and
the explanations with them, deserve your careful attention and understanding. The safety warnings do
not by themselves eliminate any danger. The Instructions or warnings they give are not substitutes for
proper accident prevention measures.
SYMBOL MEANING
SAFETY ALERT SYMBOL:
Indicates danger, warning, or caution. May be used in conjunctionwith other symbols or
pictogrephs,
DANGER: Failureto obey a safetywarningwill resultin seriousinjuryto yourselfotto others.
Always followthe safetyprecautionsto reducathe riskoffire, electricshock,and personal injury.
WARNING: Failure to obey a safety warning can result in serious injury to yourself or to others,
Always follow the safety precautions to reduce the risk of fire, electric shock, and personal injury.
CAUTION: Failure to obey a safetywarningmay resultinpropertydamage or personal injury to
yourselforto others,Always followthe safetyprecautionstoreduce the dskoffire, electricshock,
and personal injury.
NOTE: Advises you of information or instructions vital to the operation or maintenance ofthe equipment,
SAVE THESE INSTRUCTIONS
5

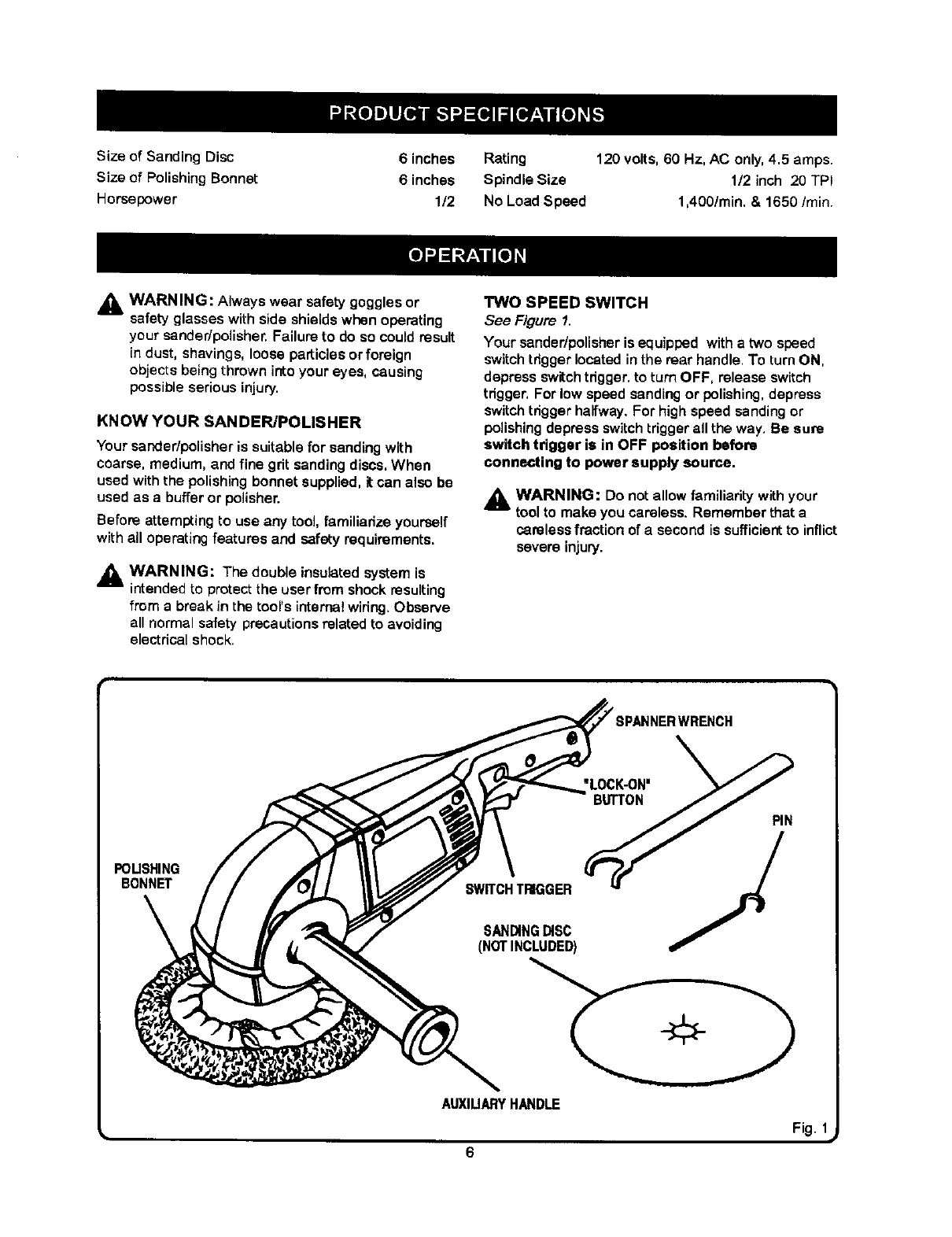

Size of Sanding Disc
Size of Polishing Sonnet
Horsepower
6 inches Rating 120 volts, 60 Hz, AC only,4.5 amps.
6 inches Spindle Size 1/2 inch 20 TPI
1/2 No Load Speed 1,400/min. & 1650/min.
WARNING: Always wear safety goggles or
safety glasses with side shields when operating
your sandedpolisher. Failure to do so couldresult
in dust, shavings, loose particles or foreign
objects being thrown into your eyes, causing
possible serious injury.
KNOW YOUR SANDER/POLISHER
Your sandedpolisher is suitablefor sandingwith
coarse, medium, and fine grit sanding discs. When
used withthe polishingbonnetsupplied, it can also be
used as a bufferor polisher.
Before attempting to use any tool,familiarize yourself
with all operatingfeatures and safetyrequirements.
,_ WARNING: The double insulated system is
intended to protect the usar from shock resulting
from a break in the tool's internal wiring. Observe
all normal safety precautions related to avoiding
electrical shock,
TWO SPEED SWITCH
See Figure 1.
Your sander/polisheris equipped with a two speed
switchtdgger locatedin the rear handle, To turn ON,
depress switchtdgger, to turn OFF, release switch
tdgger, For low speed sandingor polishing, depress
switchtdgger haffway.For highspeed sandingor
polishingdepress switchtrigger all the way. Be sum
switch trigger is in OFF position before
connecting to power supply source.
WARNING: Do notallow familiaritywithyour
tool to make you careless. Remember that a
carelessfraction of a second is sufficientto inflict
severe injury.
POUSHING
BONNET SWITCHTRIGGER
SANDINGDISC
(NOTINCLUDED)
AUXlUARYHANDLE
Fig. 1
6

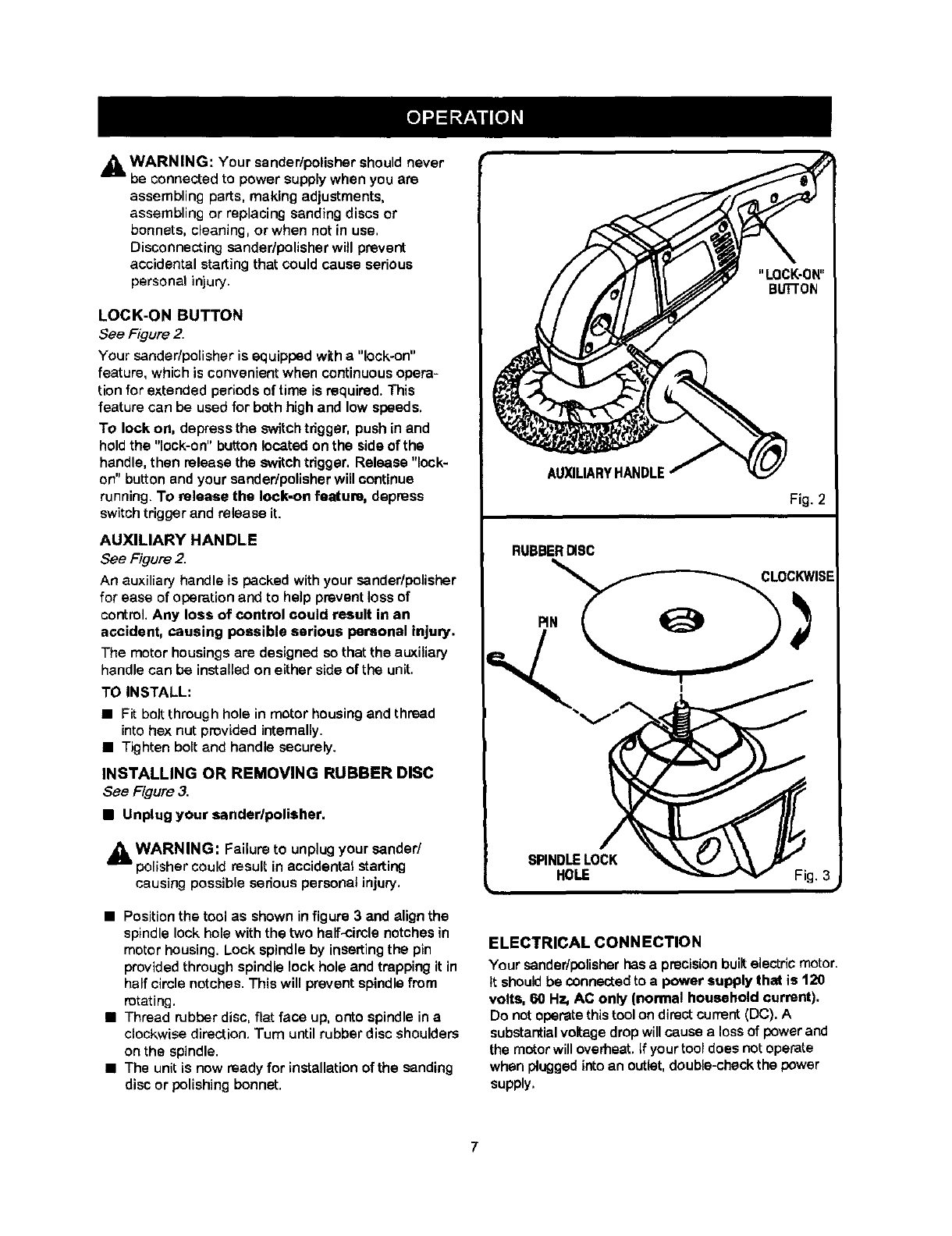

_i WARNING: Your sander/polishershould never
be connected to power supplywhen you are
assembling parts, making adjustments,
assembling or replacing sanding discs or
bonnets, cleaning, or when not in use,
Disconnecting sander/polisher will prevent
accidental startingthat could cause serious
personal injury.
LOCK-ON BUTTON
See Figure 2.
Your sander/polisher is equipped with a"lock-on"
feature, which is convenient when continuous opera-
tion for extended periods of time is rrequired. This
feature can be used for both high and low speeds.
To lock or=, depress the switch tdgger, push in and
hold the "lock-on" button located on the side of the
handle, then release the switch tdgger, Release "lock-
on" button and your sander/polisher will continue
running. To release the Iock,.on feature, depress
switch trigger and release it.
AUXILIARY HAN DLE
See Figure 2.
An auxiliary handle is pocked withyour sander/polisher
for ease of operation and to help prevent loss of
control.Any loss of control could result in an
accident, causing possible serious personal injury.
The motor housingsare designed so that the aL_iliary
handle can be installed on either side of the unit,
TO INSTALL:
• Fit bolt through hole in motor housing and thread
into hex nut provided internally.
•Tighten bolt and handle securely.
INSTALLING OR REMOVING RUBBER DISC
See Figure 3,
• Unplug your sander/polisher.
,_ WARN ING: Failure to unplugyour sander/
polisher could result in accidental starting
causingpossible sedous personal injury.
• Position the tool as shown in figure 3and align the
spindle lock hole with the two half-circle notches in
motor housing, Lock spindle by inserting the pin
provided through spindle lock hole and trapping it in
half circle notches, This will prevent spindle from
rotating,
•Thread rubber disc, flat face up, onto spindle in a
clockwise direction. Turn until rubber disc shoulders
on the spindle.
• The unit is now ready for installation of the sanding
disc or polishing bonnet.
RUBBER_$C
CLOCKWISE
ELECTRICAL CONNECTION
Your sandedpelisher has a precision built electric motor.
It should be connected to a power supply that is 120
volts. 60 Hz_AC only (normal household current),
Do not operate this tool on direct current (DC). A
substantial voltage drop will cause a loss of power and
the motor will overheat. If your tool does not operate
when plugged into an outlet, double-check the power
supply,
7
SANDING DISC SELECTION
Selecting the correct size grit and type sanding disc is
an extremely important step in achieving a high quality
sanded finish. Aluminum oxide, silicon carbide, and
other synthetic abrasives are best for power sanding.
Natural abrasives, such as flint and garnet are too soft
for economical use in power sanding.
In general, coarse grit will remove the most material
and finer grit will produce the best finish in all sanding
operations. The condition of the surface to be sanded
will determine which grit will do the job. If the surface is
rough, start with a coarse grit and sand until the surface
is uniform, Medium grit may then be used to remove
scratches lef_ by the coarser grit and finer gdt used for
finishing of the surface.
Always use the proper grit sanding disc, and not extra
pressure when sanding. Continue sanding with each
grit until surface is uniform.
INSTALLING OPTIONAL SANDING DISC
See Figure 4.
•Unplug your sanderlpolisher.
_1= WARN ING: Failureto unplug your sander/polisher
could result in accidentalstartingcausing possible
serious personal injury.
• Position the tool as shown in figure 4 and align the
spindle lock hole with the two half-circle notches in
motor housing. Lock spindle by inserting the pin
provided through spindle lock hole and trapping it in
half circle notches. This will prevent spindle from
rotating.
•Center the sanding disc over the rubber disc and
start spanner nut onto threaded spindle in a clock-
wise direction.
• Securely tighten spanner nut with the spanner
wrench provided.
_WARNING: Remove pin before attemptingto
operate sander/polisher. Failure to do so could
cause pin to be thrown from the tool resulting in
possibleserious injury.
SPANNERWRENCH
SPANNERNUI" SANDINGDISC
_ iLI (NOTINCLUDED)
Fig. 4
APPLICATIONS
(Use only for the purposes listed below)
•Sanding on wood surfaces.
•Removing rust from and sanding steel surfaces.
•Polishing and buffing.
,_ WARNING: Before connectingyour sander/
polisherto power supplysource,always check
to be sure switchis not in "lock-on" position.
Failure to do so couldresult in accidental
startingof your sander/polisherresulting in
possibleseriousinjury.

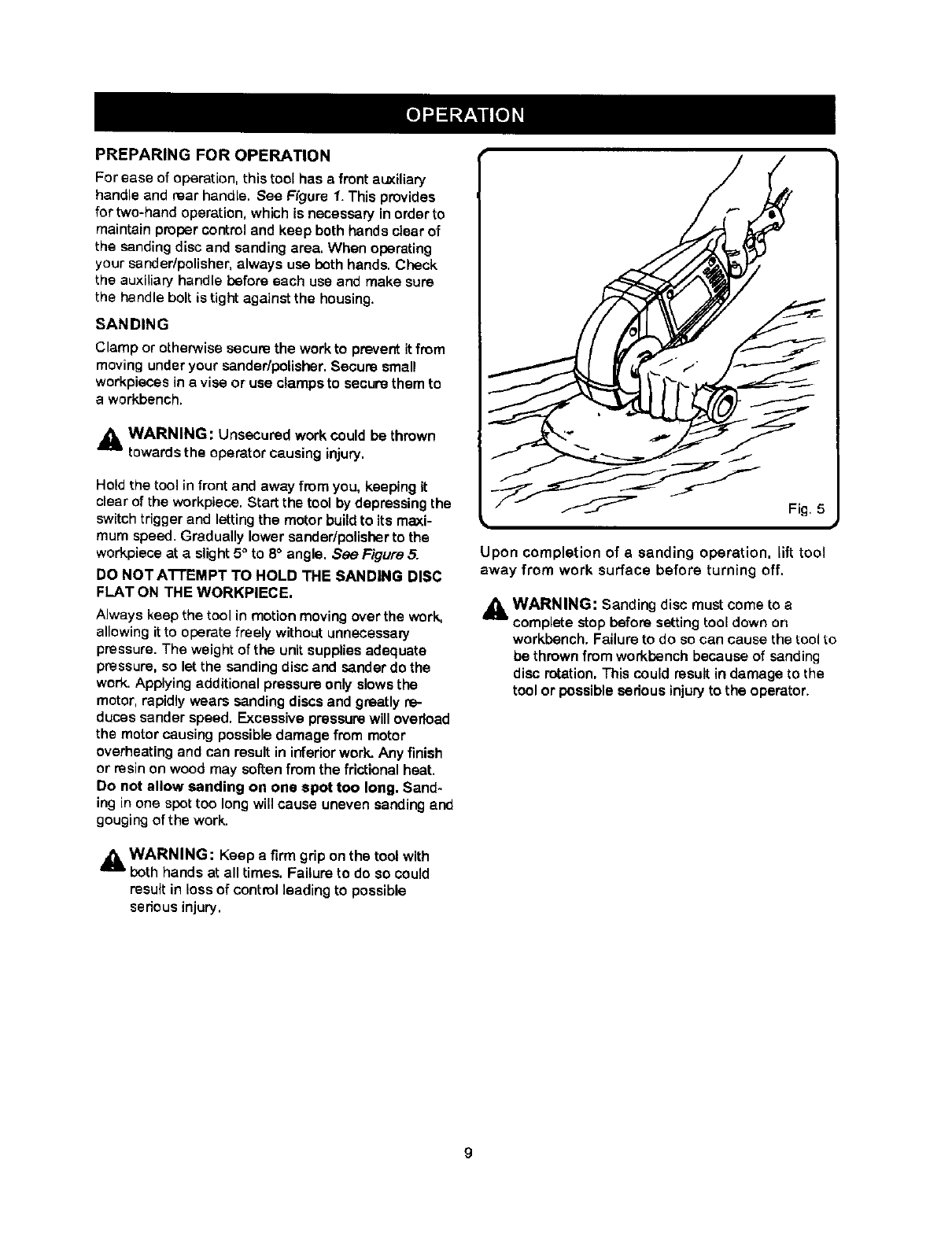

PREPARINGFOROPERATION
For ease of operation, this tool has a front aL_iliary
handle and mar handle. See Ffgure 1. This provides
for two-hand operation, which is necessary in order to
maintain proper control and keep both hands clear of
the sanding disc and sanding area, When operating
your sander/polisher, always use both hands. Check
the auxiliary handle before each use and make sure
the handle bolt is tight against the housing.
SANDING
Clamp or otherwise secure the work to prevent it from
moving under your sander/polisher, Secure small
workpieces in avise or use clamps to secure them to
a workbench.
_, WARNING: Unsecured workcould be thrown
towards the operator causing injury.
Hold the tool in front and away from you, keeping it
clear of the workpiece. Start the tool by depressing the
switch trigger and letting the motor build to its maxi-
mum speed. Gradually lower sander/polisher to the
workpiece at a slight 5° to 8°angle. See Figure 5.
DO NOT A'n'EMPT TO HOLD THE SANDING DISC
FLAT ON THE WORKPIECE.
Always keep the tool in motion moving over the work,
allowing it to operate freely without unnecessary
pressure. The weight of the unit supplies adequate
pressure, so let the sanding disc and sander do the
work. Applying additional pressure only slows the
motor, rapidly wears sanding discs and greatly re-
duces sander speed. Excessive pressure will ovedoad
the motor causing possible damage from motor
overheating and can result in inferior work. Any finish
or resin on wood may soften from the frictional heat.
Do not allow sanding on one spot too long. Sand-
ing in one spot too long will cause uneven sanding and
gouging of the work.
_.WARNING: Keep a firm grip onthe tool with
both hands at all times. Failure to do so could
result in lossof controlleading to possible
sedous injury.
Upon completion of asanding operation, lift tool
away from work surface before turning off.
_I, WARNING: Sanding disc must come to a
complete stop before setting tool down on
workbench. Failure to do so can cause the tool to
be thrown from workbench because of sanding
disc ro_ation, This could result in damage to the
tool or possible sedous injury to the operator.

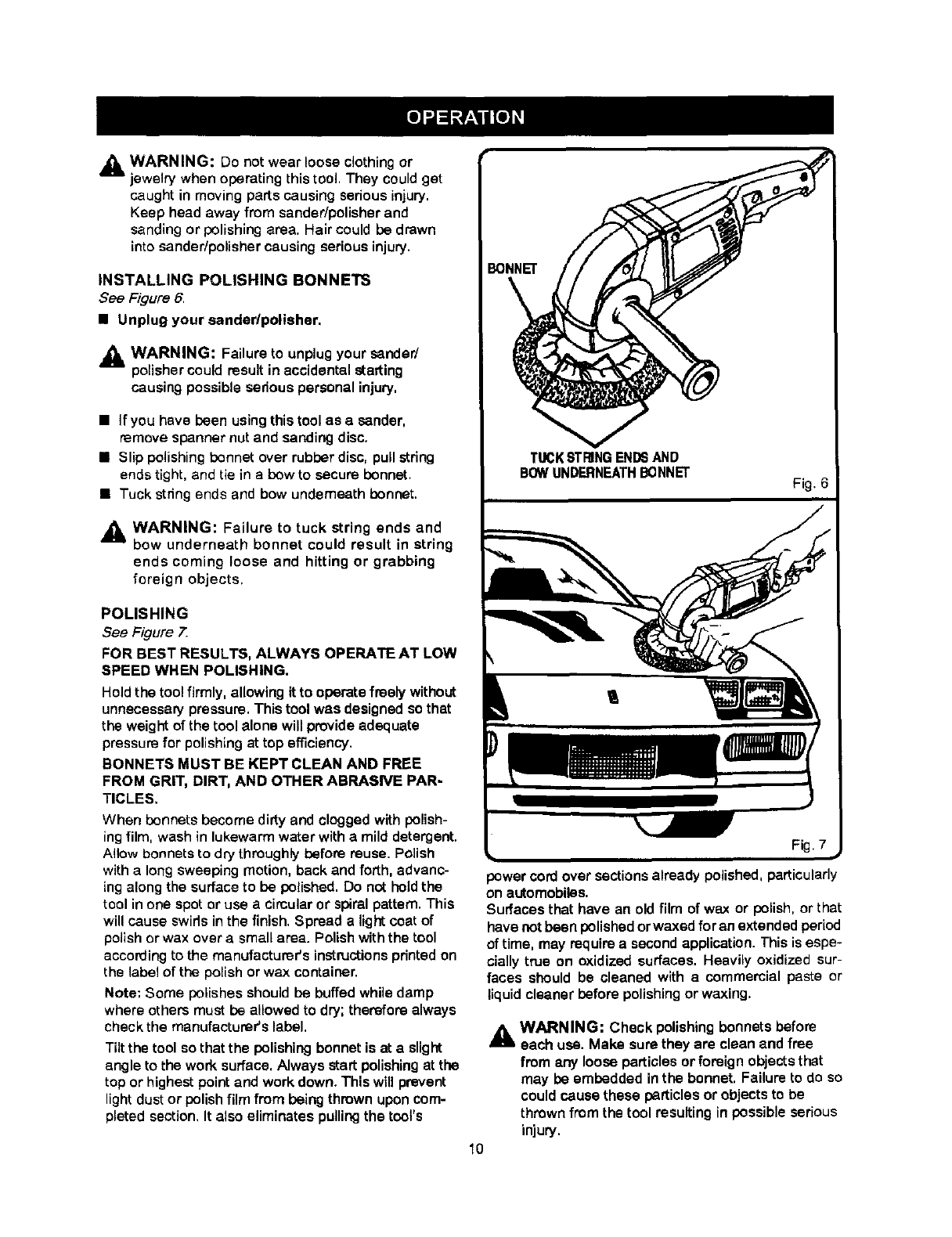

_1=WARNING:Donotwear loose clothing or
jewelry when operating this tool, They could get
caught in moving parts causing sehous injury.
Keep head away from sender/polisher and
sanding or polishing area. Hair could be drawn
into sender/polisher causing serious injury,
INSTALLING POLISHING BONNETS
See Figure 6.
• Unplug your sander/polisher,
_IL WARNING: Failure to unplugyour sender/
polisher could result in accidentalstarting
causing possiblesedous personal injury.
• if you have been using this tool as a sender,
remove spanner nut and sanding disc,
•Slip polishing bonnet over rubber disc, pull string
ends tight, and tie in a bow to secure bonnet.
•Tuck stnng ends and bow underneath bonnet.
_. WARNING: Failure to tuck string ends and
bow underneath bonnet could result in string
ends coming loose and hitting or grabbing
foreign objects,
POLISHING
See Figure
FOR BEST RESULTS, ALWAYS OPERATE AT LOW
SPEED WHEN POLISHING.
Hold the tool firmly, allowingit to operate freely without
unnecessary pressure. This tool was designed so that
the weight of the tool alone will provide adequate
pressurefor polishing at top efficiency.
BONNETS MUST BE KEPT CLEAN AND FREE
FROM GRIT, DIRT, AND OTHER ABRASIVE PAR-
TICLES.
When bonnets become dirty and clogged with polish-
ing film, wash in lukewarm water with a mild detergent.
Allow bonnets to dry throughly before reuse. Polish
with a long sweeping motion, back and forth, advanc-
ing along the surface to be polished. Do not hold the
tool in one spot or use a circular or spiral pattern. This
will cause swids in the finish. Spread a light coat of
polish or wax over a small area. Polish with the tool
according to the manufacturer's instructions printed on
the label of the polish or wax container.
Note; Some polishes should be buffed while damp
where others must be allowed to dry; therefore always
check the manufacturer's label.
Tilt the tool so that the polishing bonnet is at a slight
angle to the work surface, Always start polishing at the
top or highest point and work down. This will prevent
light dust or polish film from being thrown upon com-
pleted section, It also eliminates pulling the tool's
TUCKSTF_NGENDSAND
BOWUNDERNEATHBONNET Fig. 6
Fig. 7
power cord over sections already polished, particularly
on automobiles.
Surfaces that have an old film of wax or polish, or that
have not been polished or waxed for an extended period
of time, may require a second application. This is espe-
cially true on oxidized surfaces. Heavily oxidized sur-
faces should be cleaned with a commercial paste or
liquid cleaner before polishing or waxing.
10
_k WARNING: Check polishing bonnetsbefore
each use. Make sure they are clean and free
from any loose particlesor foreign objectsthat
may be embedded inthe bonnet. Failure to do so
couldcause these particlesor objectsto be
thrown fromthe tool resultingin possible serious
injury,
DOUBLE INSULATION is a safety concept in electric
power tools, which eliminates the need for the usual
three wire grounded power cord and grounded supply
system. Wherever there is electric current in the tool
there are two complete sets of insulation to protect the
user. All exposed metal parts are isolated from internal
metal motor components with protecting insulation
IMPORTANT -- Servicing of a tool with double
insulation requires extreme care and knowledge of the
system and should be performed only by a qualified
service tecnhician. For service we suggest you re(urn
the tool to your nearest Sears Store for repair. Always
use original factory replacement parts when servicing,
A WARNING: When servicing use only identical
Craftsman replacement parts, Use of any other
parts may create a hazard or cause product
damage.
GENERAL
Only the parts shown on parts list, page 13, are
intended to be repaired or replaced by the customer.
All other parts represent an Jmpprtant part of the
double insulation system and should be serviced only
by a qualified Sears service technician.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to vadous types of commercial
solvents and may be damaged by their use. Use clean
cloths to remove dirt, carbon dust, etc.
WARNING: Do notat any time let brakefluids,
,_k gaseline, petroleum-based products,penetrating
oils, etc, come in contact with plastic parts, They
containchemicals that can damage, weaken, or
destroy plastic.
When electric tools are used on fiberglass boats,
sports cars, wallboard, spackling compounds, or
plaster, it has been found that they are subject to
accelerated wear and possible premature failure, as
the fiberglass chips and grindings are highly abrasive
to bearings, brushes, commutators, etc.
Consequently it is not recommended that this tool be
used for extended work on any fiberglass material,
wallboard, spackling compounds, or plaster, During
any use on these materials, it is extremely important
that the tool is cleaned frequently by blowing with an
air jet.
,_ WARNING; Always wear safety goggles, or
safety glasses with side shields during power
tool operation or when blowing dust. If operation
is dusty, also weara dust mask.
EXTENSION CORDS
The use of any extensioncordwill cause some lossof
power.To keep the lossto a minimumandto prevent
tool overheating,use an extensioncord that is heavy
enoughto cany the currentthe tool will drew.
Awire gauge size (A.W.G.) of at least 16 is
recommendedforan extensioncord 100 feet or less in
length. When workingoutdoors,use an extensioncord
that is suitablefor outdooruse. The cord'sjacketwill
be markedWA.
A CAUTION: Keep extension cords away from
the sandingarea and position the cord so that it
will notget caughton lumber, tools,etc., during
sandingor polishingoperation,
_k WARNING: Check extensioncords before
each use. If damaged replace immediately.
Never use tool with a damaged cord since
touchingthe damaged area could cause
electricalshockresulting in serious injury,
LUBRICATION
All of the bearingsinthis tool are lubricated with a
sufficient amount of highgrade lubricant for the life of
the unit undernormal operatingconditions, Therefore,
nofurther lubdsetionis required.
THE FOLLOWING RECOMMENDED ACCESSORIES ARE CURRENTLY AVAILABLE AT SEARS RETAIL STORES
Polishing Bonnet Assorted Sanding Discs
150 Gdt -- Fine
100 Grit -- Medium
60 Gdt -- Coarse
40 Grit -- Very Coarse
A WARNING: The use of attachments or accessories not listed above might be hazardous.
11
CRAFTSMAN SANDER/POLISHER - MODEL NUMBER 3t5.115032
SEE NOTE "A", Page 13
6
4
12
CRAFTSMAN SANDER/POLISHER - MODEL NUMBER 315.115032 _--
IThe model number will ba found on aplate attached to the motor housing. Always mention the model 1
number in all correspondence regarding your CRAFTSMAN SANDER/POLISHER or when ordering I
repair parts.
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
Key
No.
1
2
3
4
5
6
7
8
9
Part
Number
974892-001
612186-003
622322-001
983001-001
976491-001
972895-005
621984-00O
621230-000
972000-990
PARTS LIST
Description Quan.
Polishing Bonnet ........................................ 1
Spanner Nut ............................................... 1
Sanding Disc
Rubber Disc ............................................... 1
Data Plate .................................................. 1
Logo Plate .................................................. 1
Auxiliary Handle ......................................... 1
Spanner Wrench ........................................ 1
Pin .............................................................. 1
Operator's Manual
NOTE: "A" -- The assembly shown represents an important part of the Double Insulated System. To
avoid the possibility of alteration or damage to the System, service should be performed by your
nearest Sears Repair Center. Contact your nearest Sears Catalog Order or Retail Store for service
center information.
*** Sanding discs in assorted grits for sanding both wood and metal may be obtained from your
nearest Sears Retail Store.
13

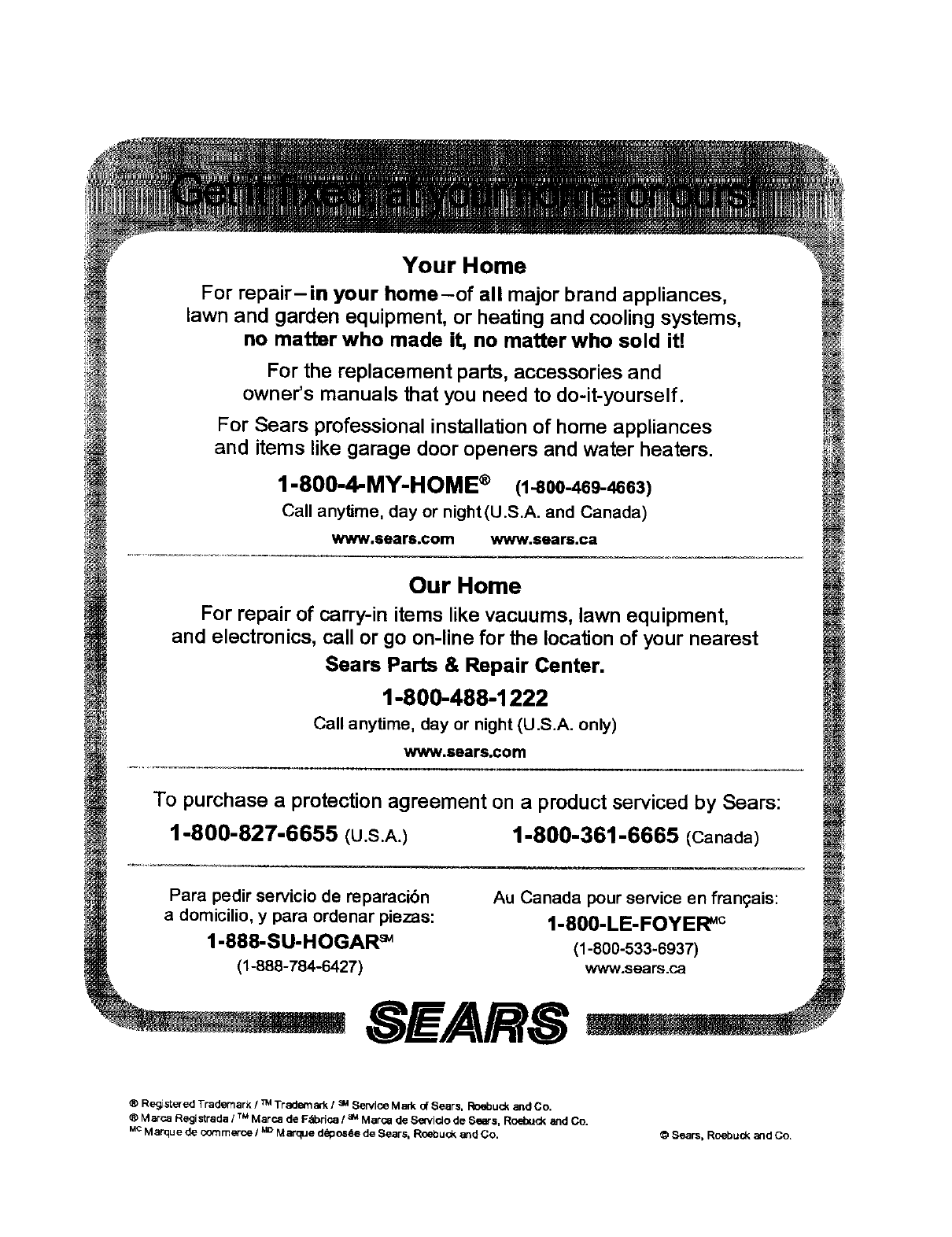

Your Home
For repair-in your home-of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME ®(1-800-469-4663)
Call anytime, day or night(U.S.A, and Canada)
www.sears.com www.sears.ca
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Center.
1-800-488-1222
Call anytime, day or night (U.S.A. only)
www.sears.com
To purchase aprotection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparacibn
a domicilio, y para ordenar piezaa:
1-888-SU-HOGAR _
(1-888-784-6427) SWARS
Au Canada pour service en fran_ais:
1-800-LE-FOYER "c
(1-800-533-6937)
www.sears.ca
®Registered Trademark /_Trademark /sa Service Mark of Sears, Roebuck a_d Co.
®Marca Registrada /TMMarca de F,_rica /s_ Marca de Setvlclo de Sears, Roebuck and Co.
MCMarque de commerce /tad Marque d_p os/ae de Sears, Roebuck and Co. ®Sears, Roebuck and Co.

Navigation menu
