Owner's Manual

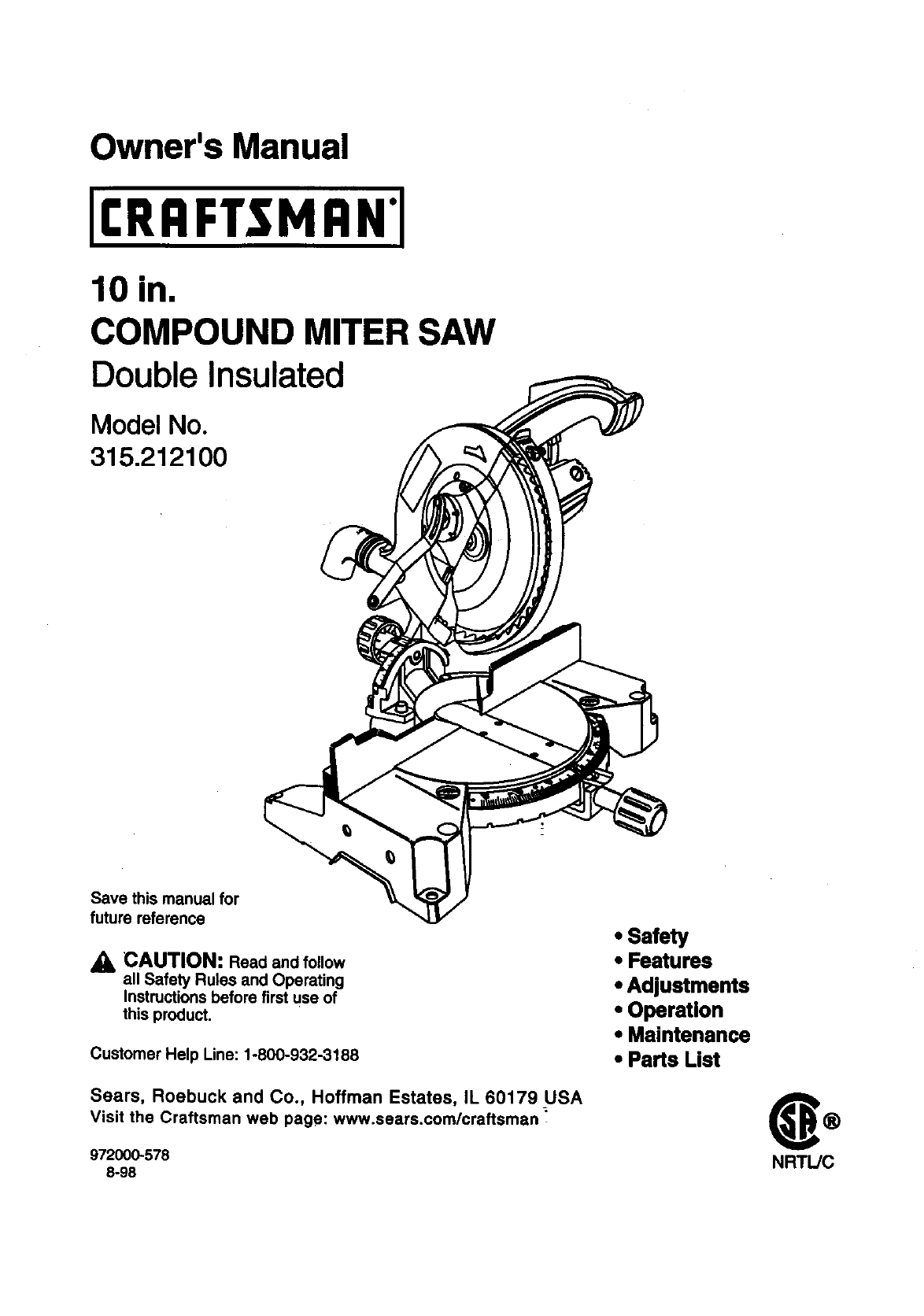

10 in.

COMPOUND MITER SAW

Double Insulated

Model No.

315.2121O0

Save this manual for

future reference

CAUTION: Read and follow

all Safety Rules and Operating

Instructions before first use of

this product,

Customer Help Line: 1-800-932-3188

Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA

Visit the Craftsman web page: www.sears com/craftsman

972000-578

8-98

• Safety

• Features

•Adjustments

•Operation

• Maintenance

•Parts List

NRTL/C

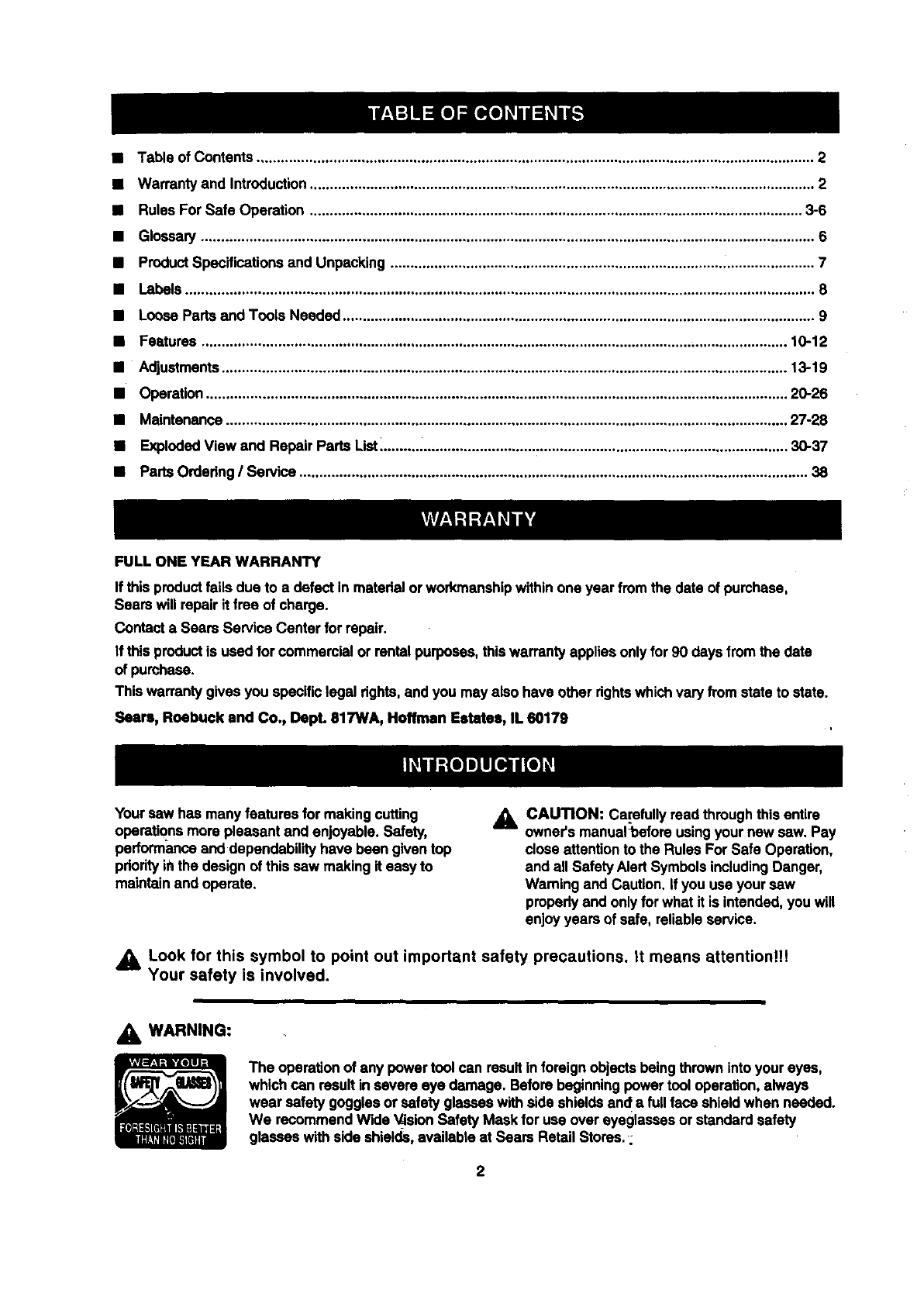

• Table of Contents........................................................................................................................................... 2

•Warranty and Introduction.............................................................................................................................. 2

•Rules For Safe Operation ........................................................................................................................... 3-6

•Glossary ......................................................................................................................................................... 6

•ProductSpecificationsand Unpacking .......................................................................................................... 7

•Labels............................................................................................................................................................. 8

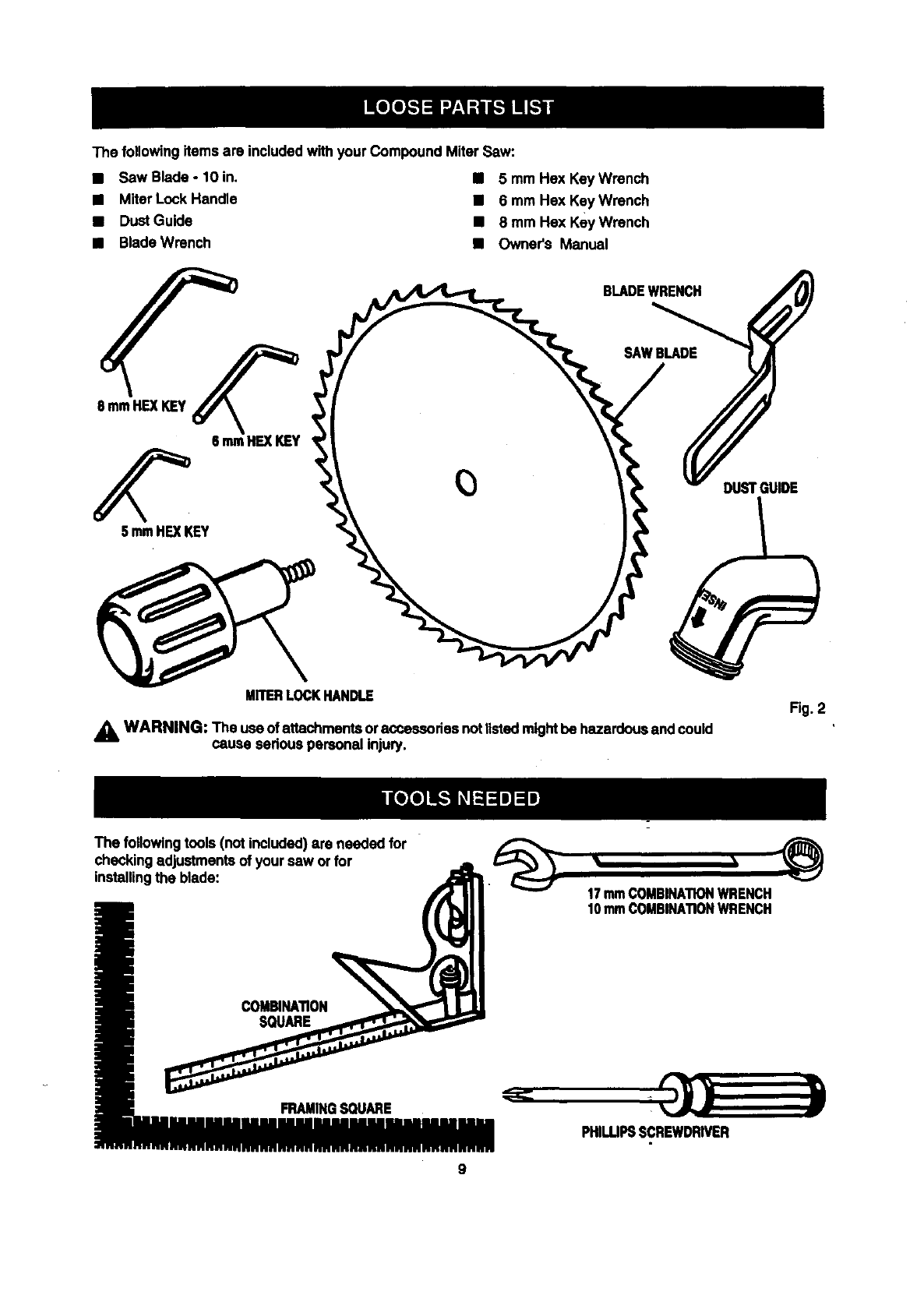

•Loose Parts and Tools Needed ...................................................................................................................... 9

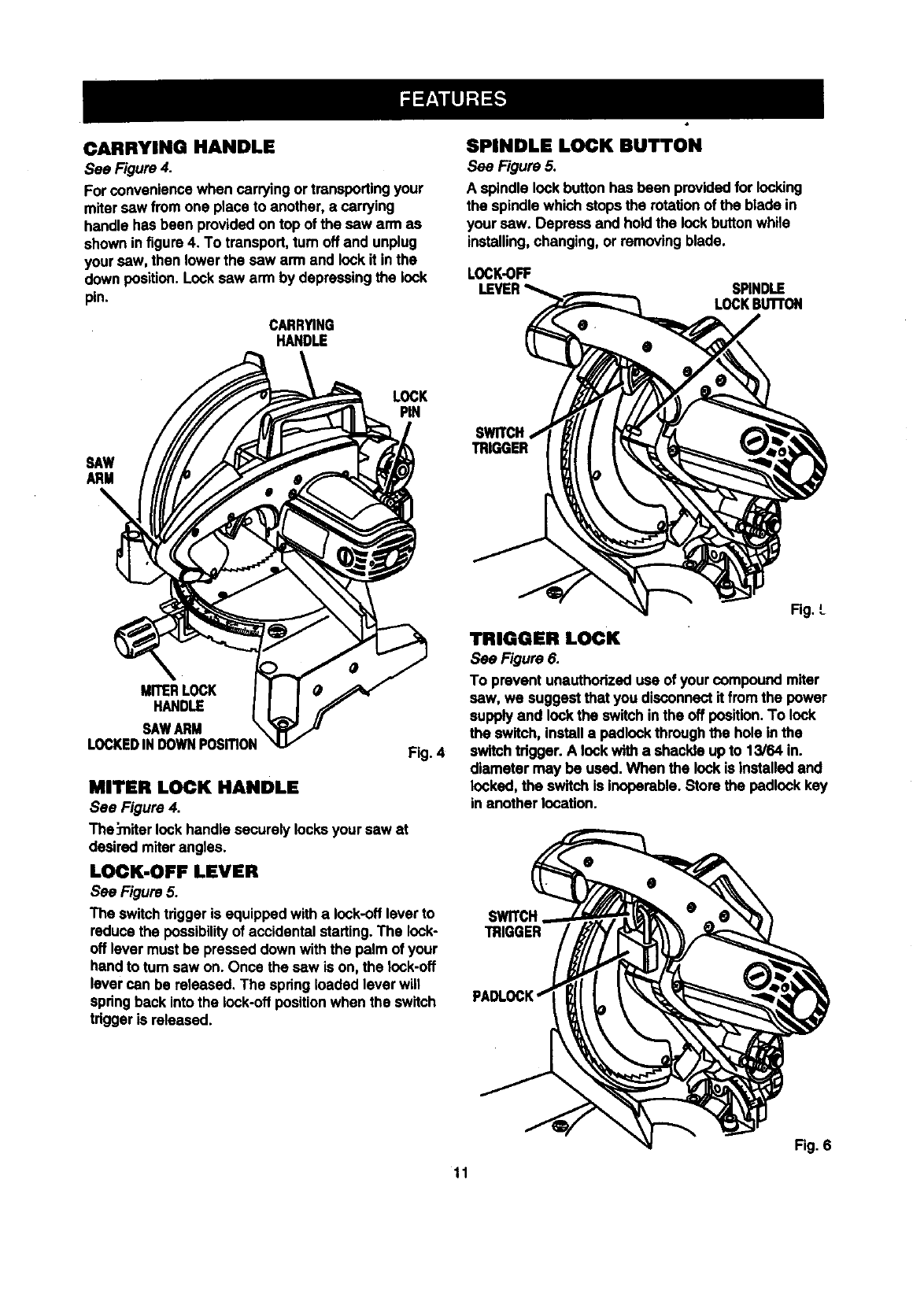

•Features .................................................................................................................................................. 10-12

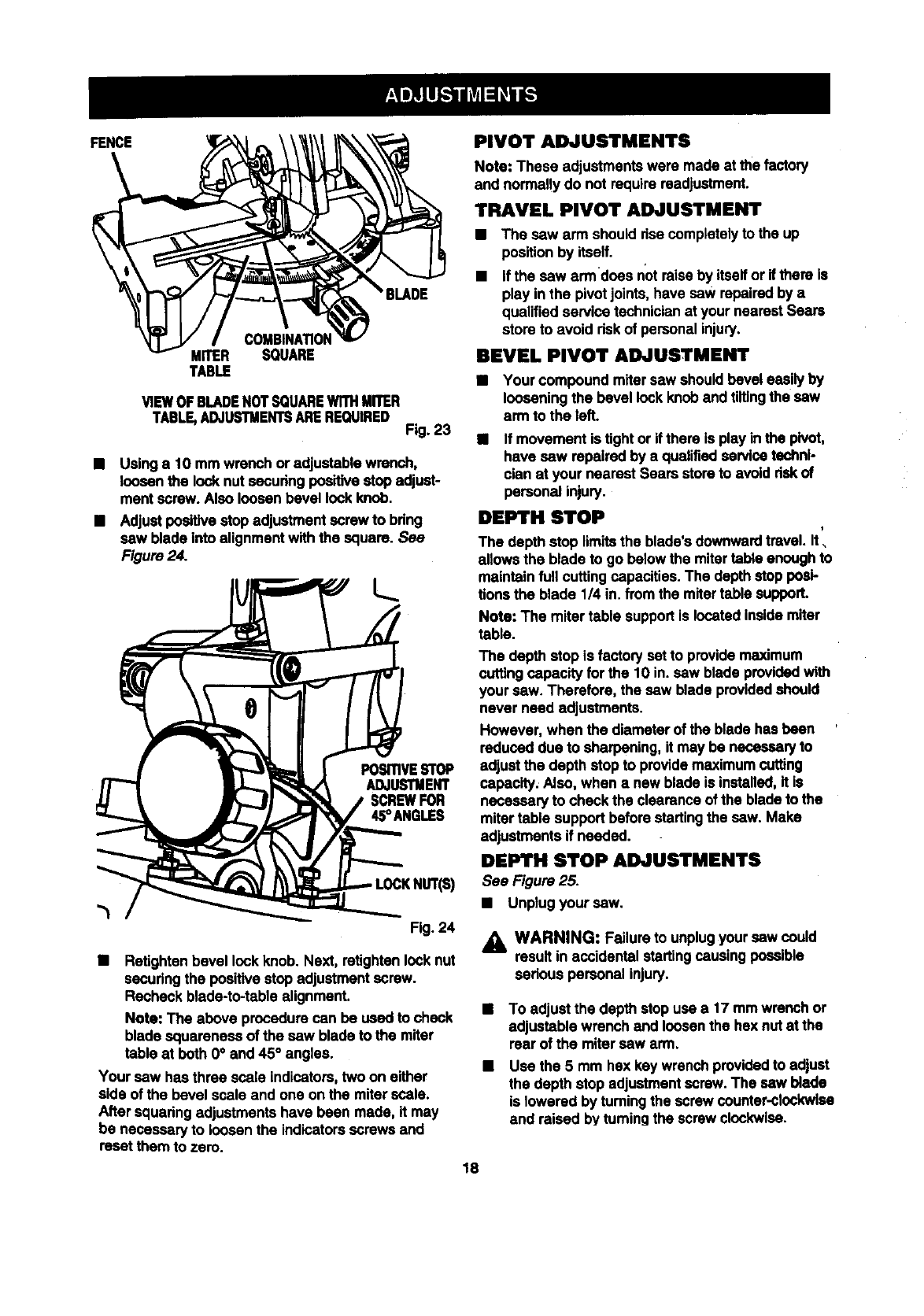

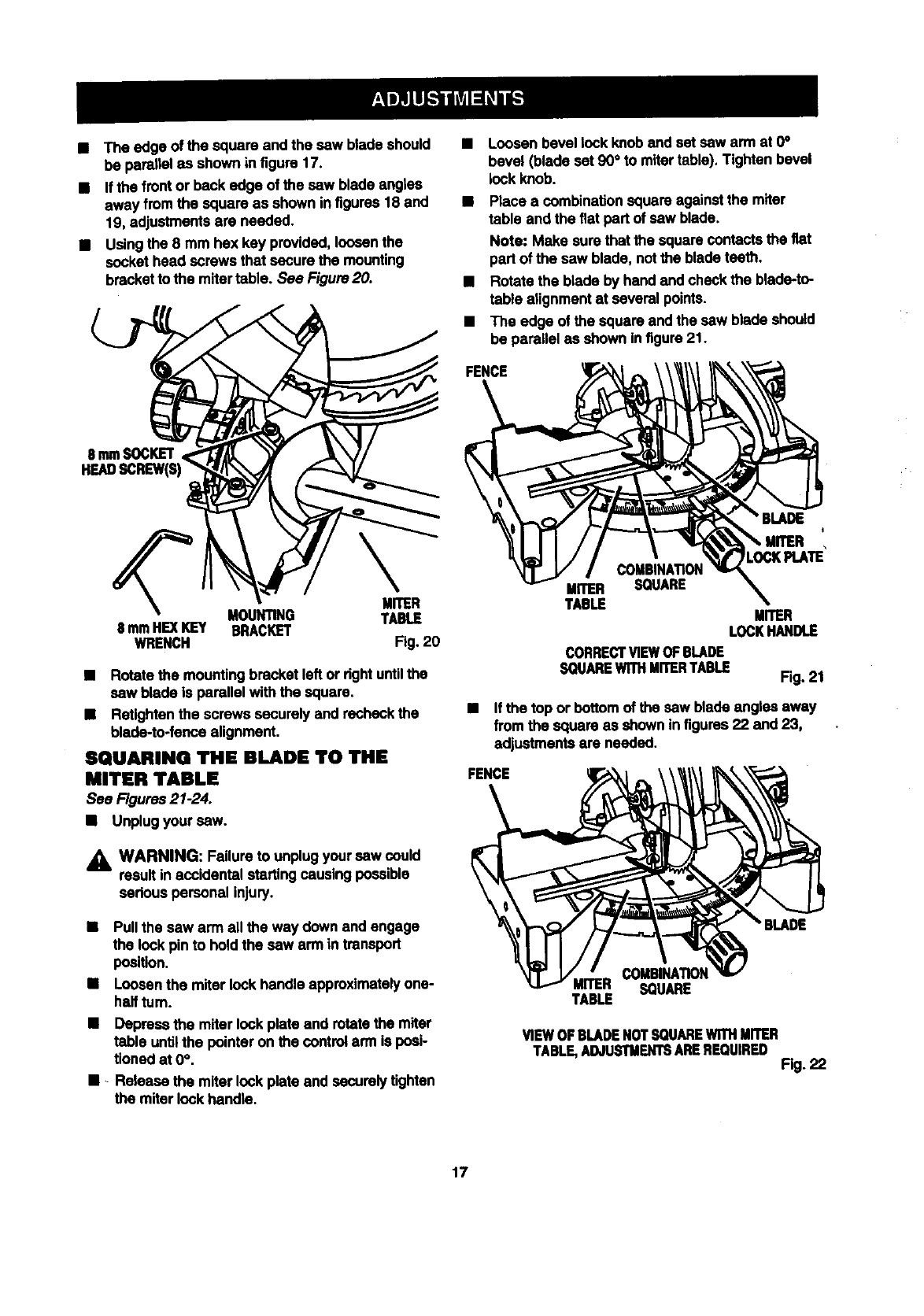

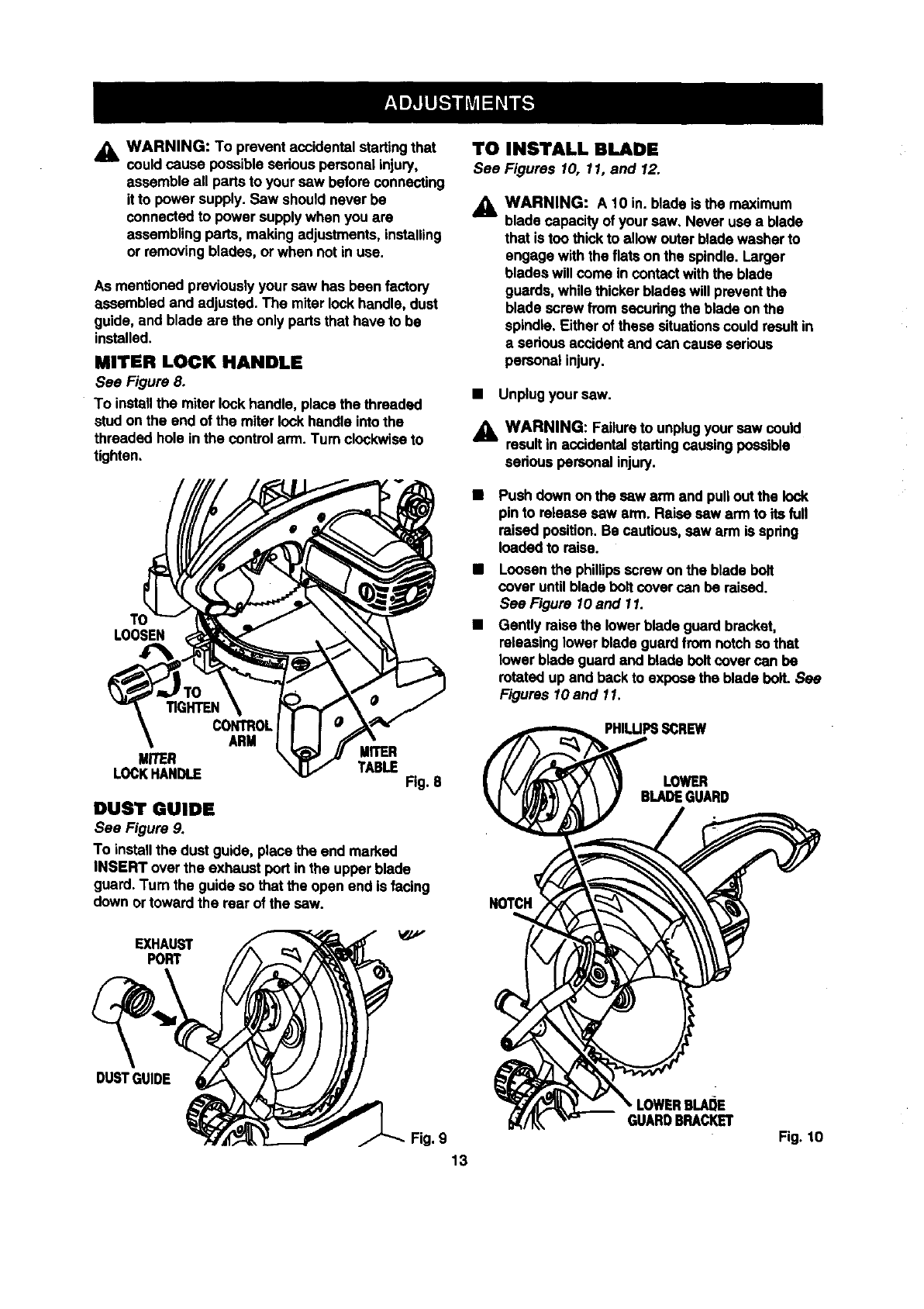

•Adjustments............................................................................................................................................. 13-19

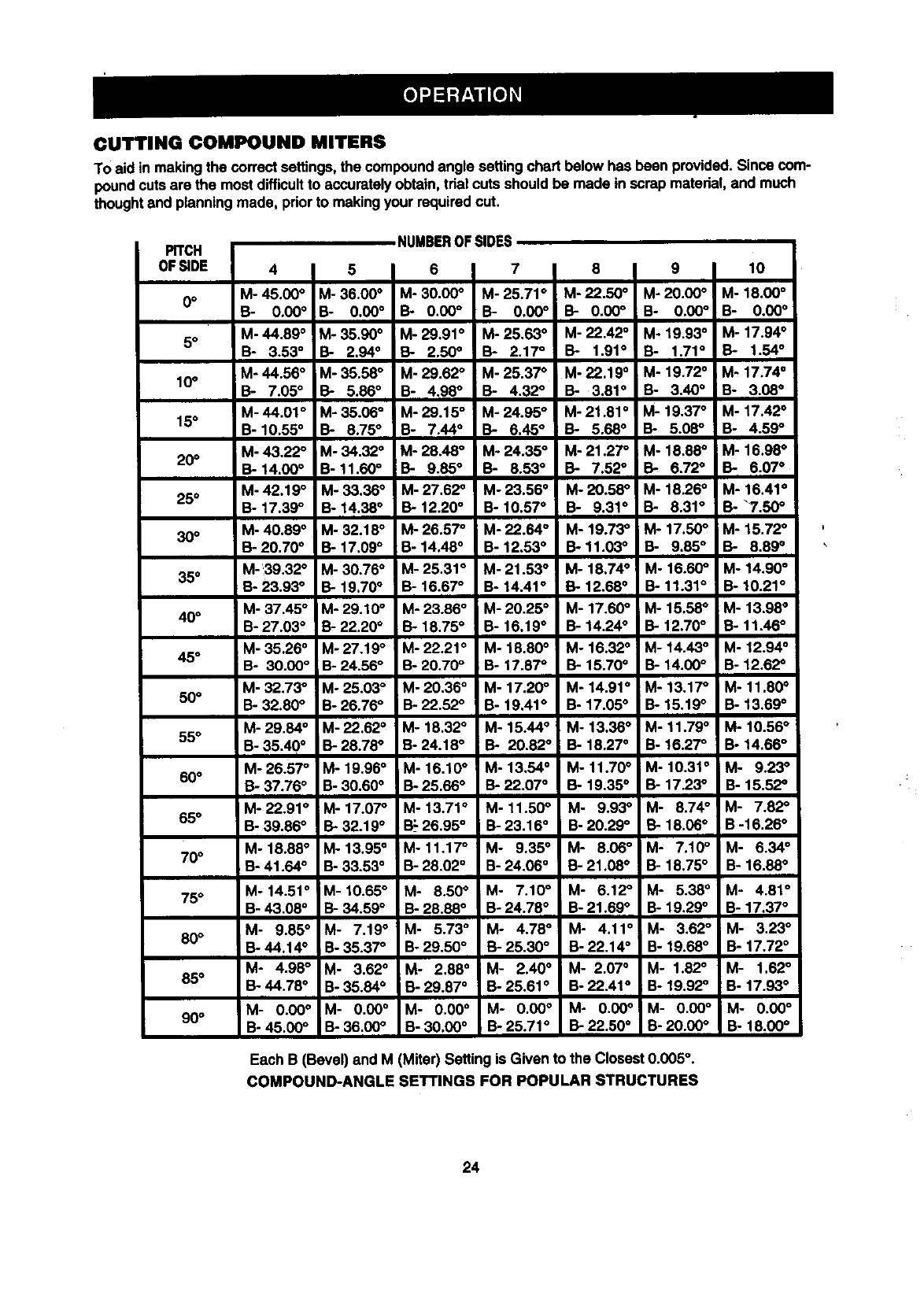

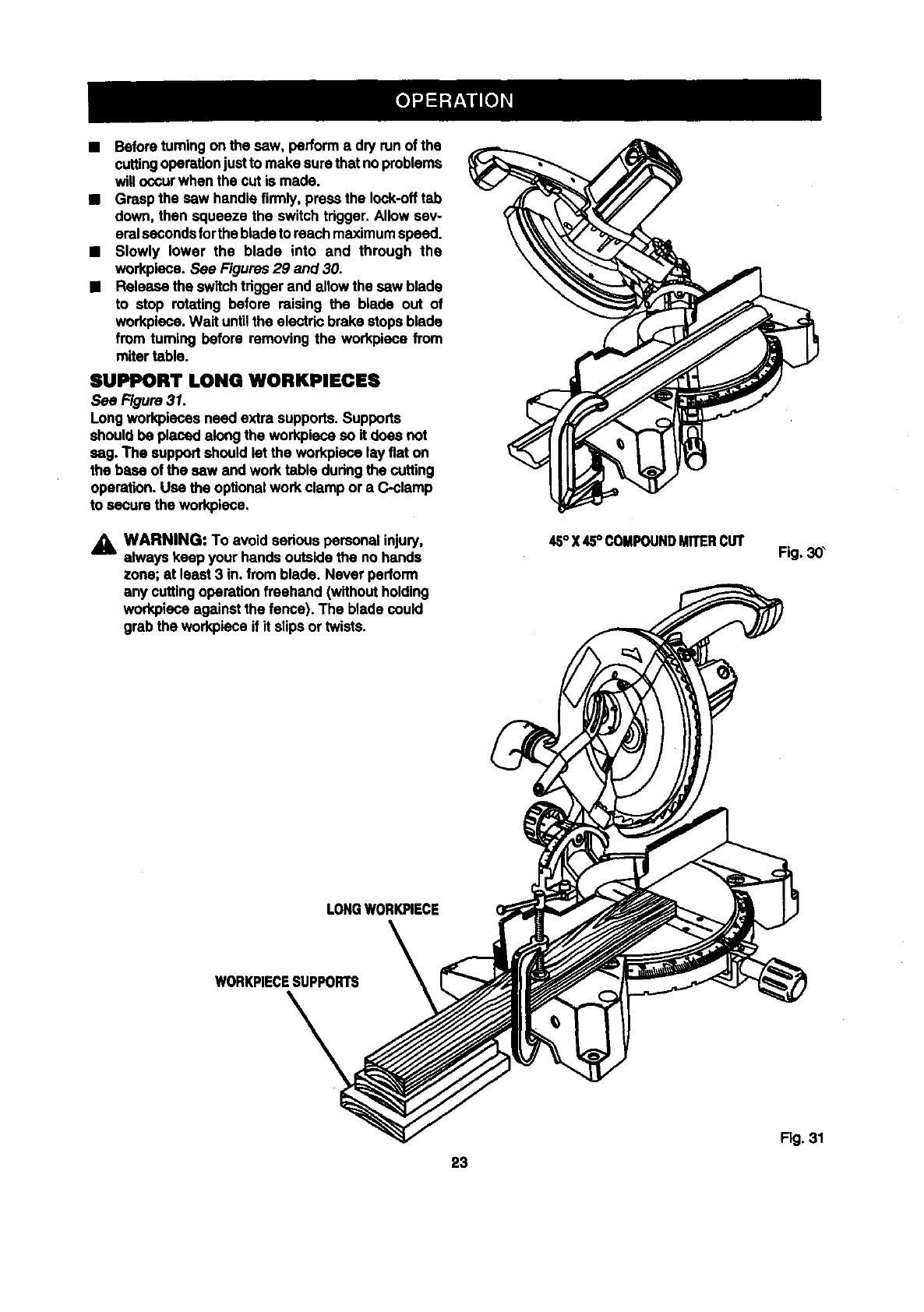

•Operation................................................................................................................................................. 20-26

•Maintenance............................................................................................................................................ 27-28

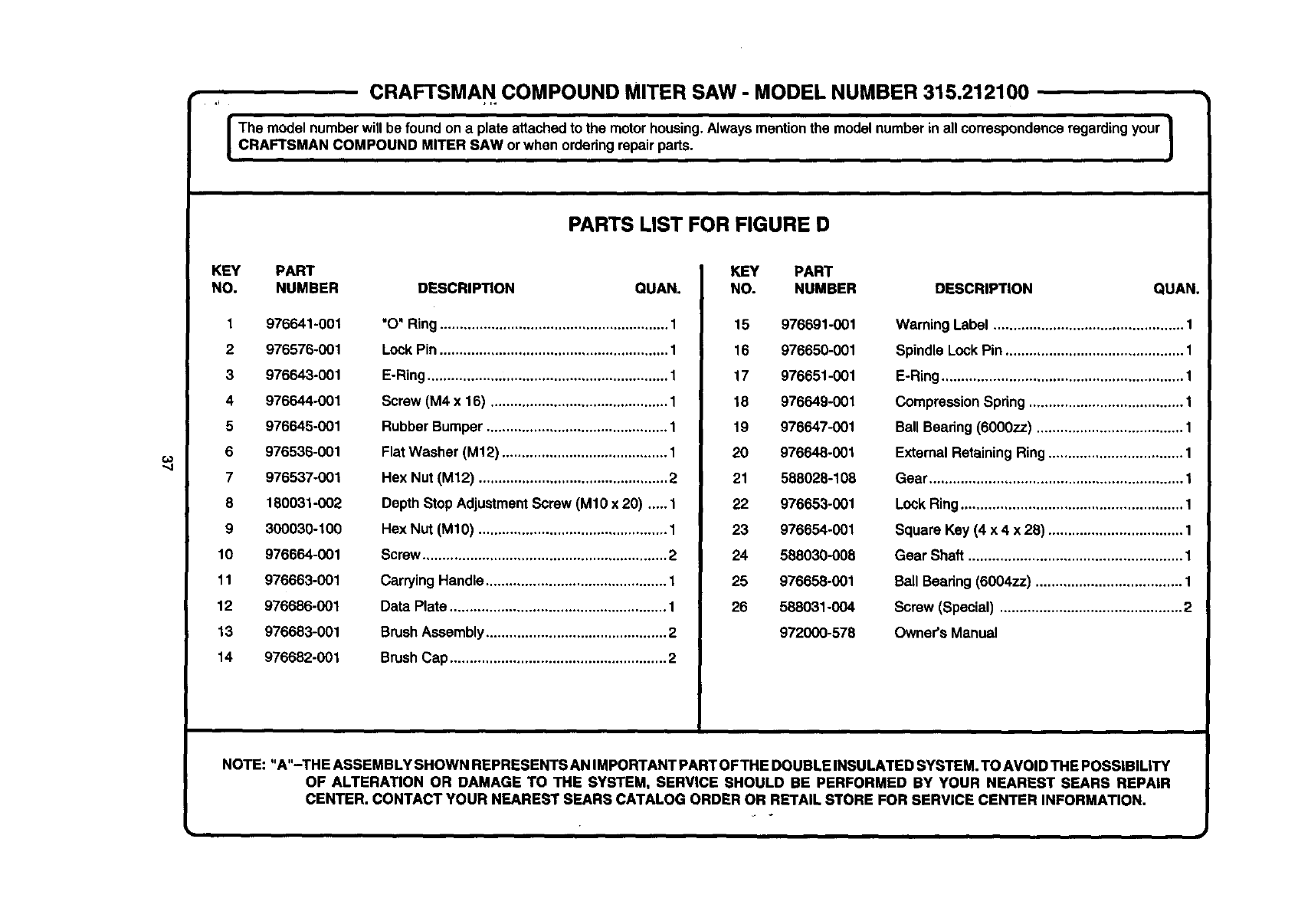

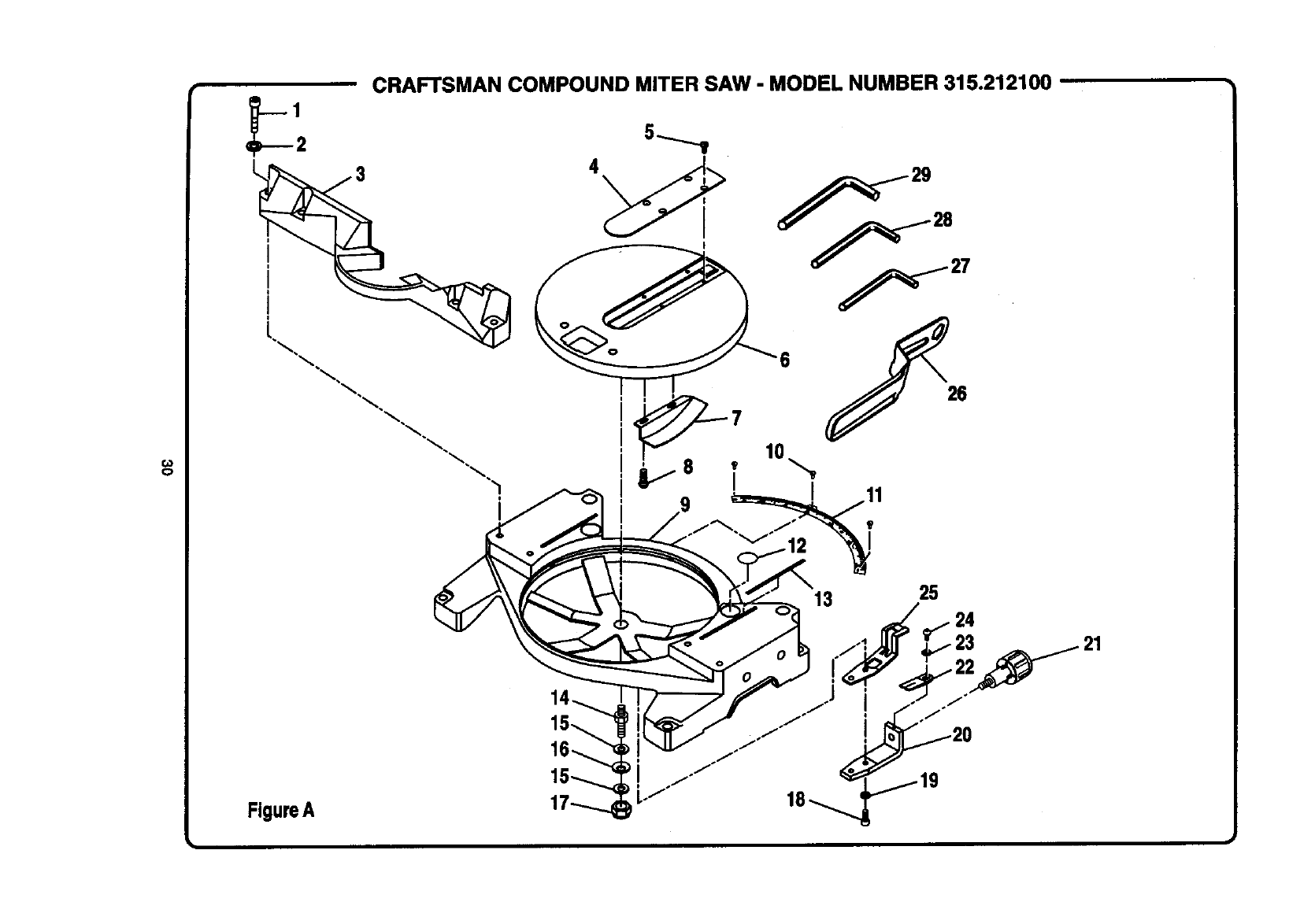

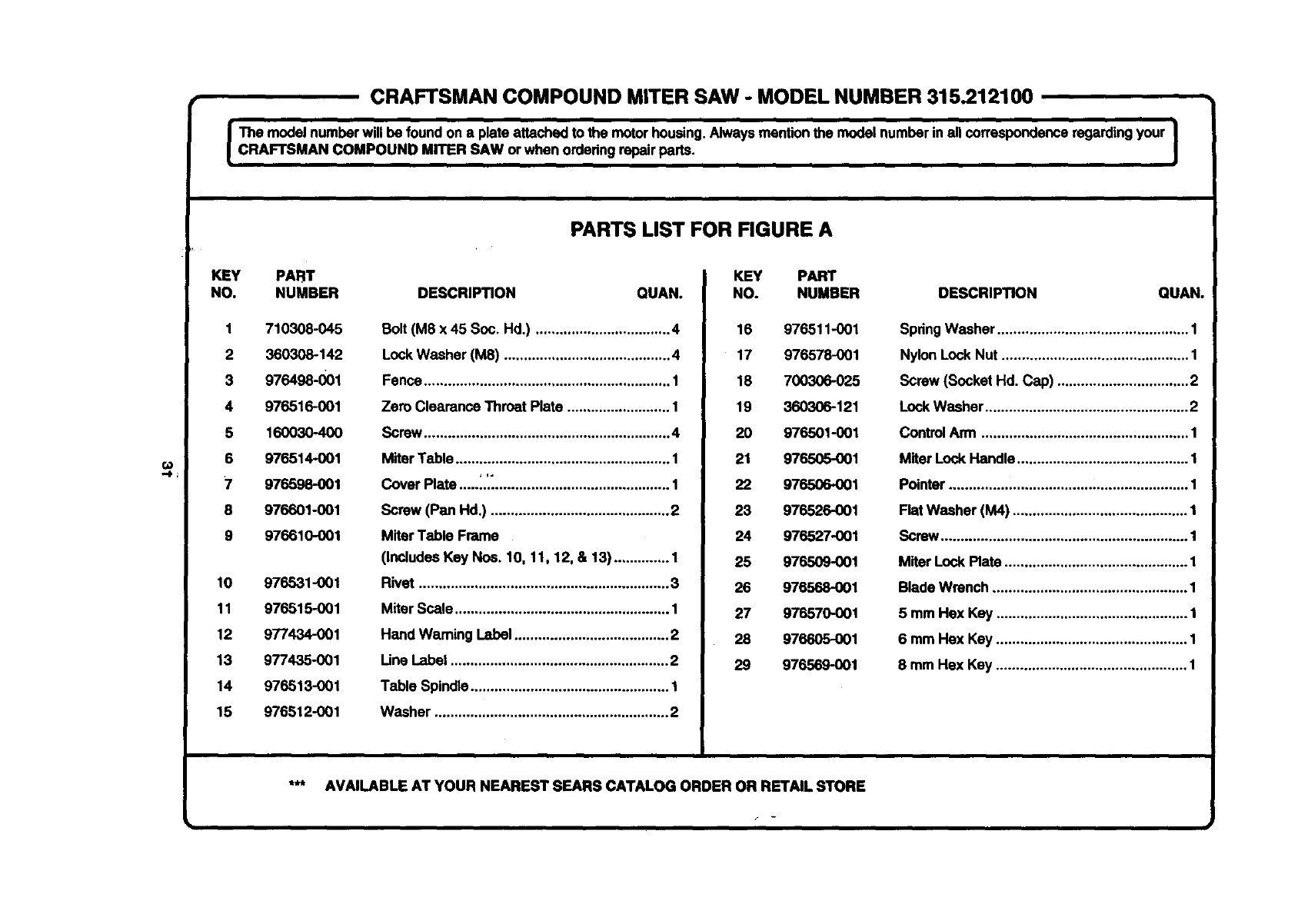

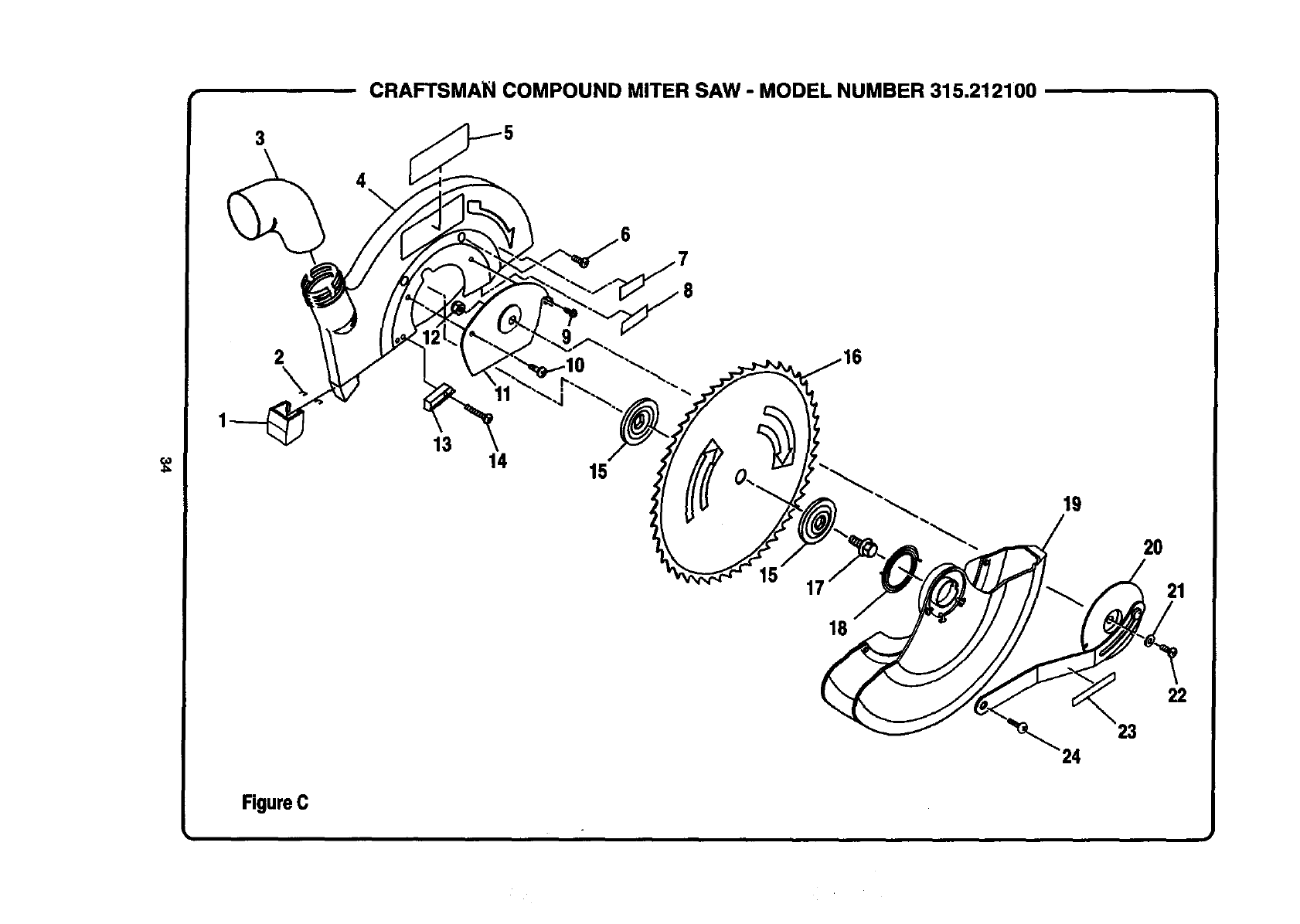

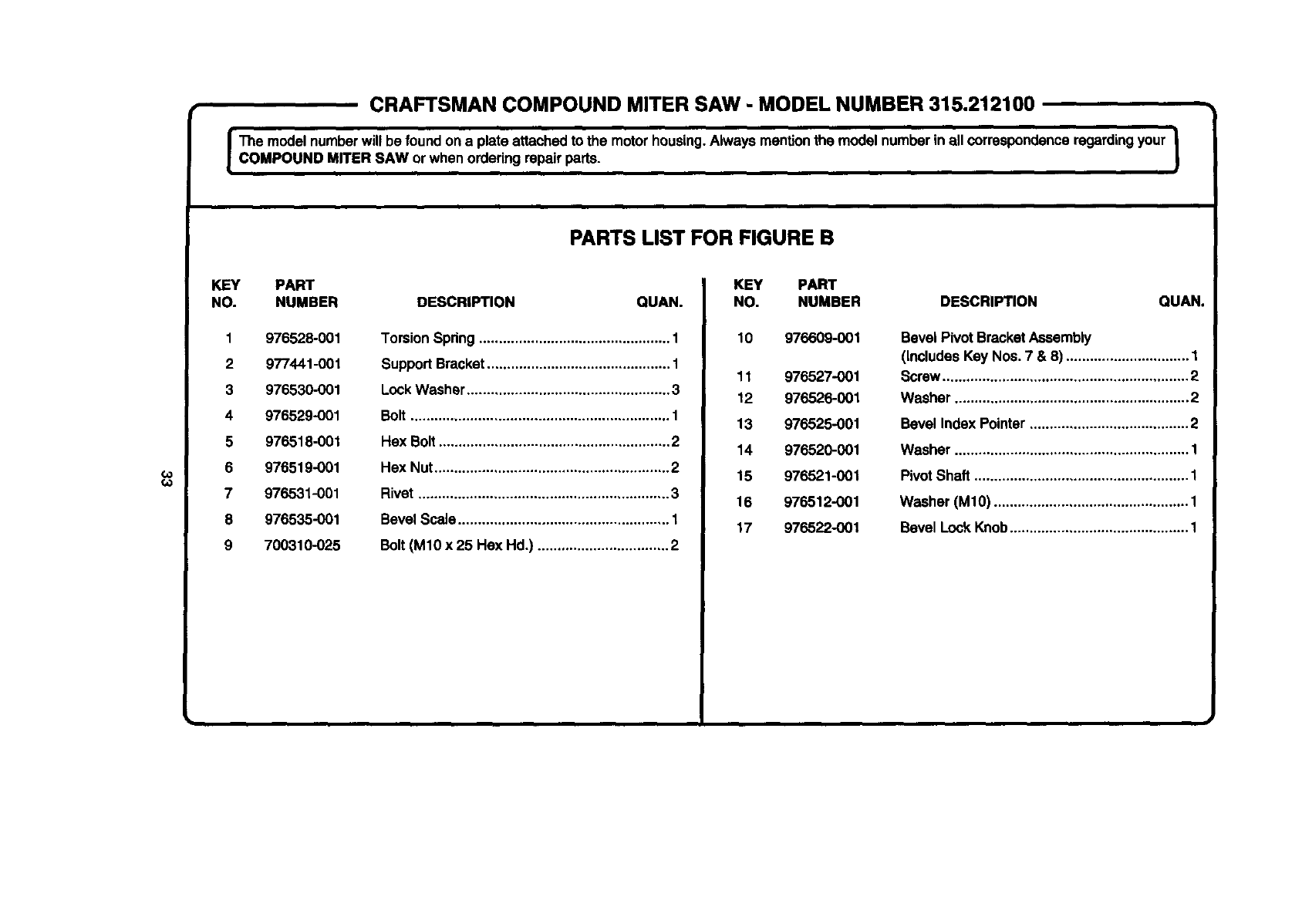

•ExplodedView and Repair Parts List...................................................................................................... 30-37

•Parts Ordedng /Service ............................................................................................................................... 38

FULL ONE YEAR WARRANTY

If this productfails due to a defect in material or workmanshipwithinone year from the date of purchase,

Sears will repair it free of charge.

Contact a Sears Service Center for repair.

If this productis used for commercialor rentalpurposes,thiswarrantyappliesonlyfor 90 days from the date

of purchase.

This warranty givesyou specificlegal dghts, and you may also have other rightswhich vary from state to state.

Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179

Yoursaw has many features for makingcuffing

operationsmore pleasant and enjoyable. Safety,

performanceand dependabilityhave been giventop

pdodtyihthe design of this saw making it easy to

maintainand operate,

_IL CAUTION: Carefullyread throughthisentire

owner's manual:beforeusingyour new saw. Pay

closeattentionto the Rules For Safe Operation,

and all Safety Alert SymbolsincludingDanger,

Warningand Caution. If you use your saw

properlyand onlyfor what it is intended,you will

enjoyyears of safe, reliable service.

,_ Look for this symbol to point out important safety precautions. It means attentionlH

Your safety is involved.

_lb WARNING:

The operationof any powertool can resultin foreignobjects beingthrowninto your eyes,

which can result in severe eye damage. Before beginningpower tool operation, always

wear safety gogglesor safety glasseswith side shieldsand a full face shield when needed.

We recommendWide _sion Safety Mask for use over eyeglassesor standardsafety

glasses with side shlel(Js,available at Sears Retail Stores.:

Thepurposeof safetysymbolsIsto attractyourattention to possible dangers. The safety symbols, and

the explanations with them, deserve your careful attention and understanding. The safety warnings do

not by themselves eliminate any danger. The Instructions or warnings they give are not substitutes for

proper accident prevention measures.

SYMBOL

&MEANING

SAFETY ALERT SYMBOL:

Indicatesdanger, warningor caution. •ey be used in conjunctionwith other symbolsor picto-

graphs.

ADANGER: Failure to obey a safetywaming will resultin sedous injuryto yoursefforto others.

Alwaysfollowthe safetyprecautionsto reduce the dsk of tire, electricshockand personalinjury.

AWARNING: Failureto obey a safety waming can resultInsadous injuryto yourseffor to others.

Alwaysfollowthe safety precautionsto reducethe dskof fire, electdcshockand personal injury.

&CAUTION: Failureto obey a safety waming may resultIn propertydamage or personal injuryto

yoursefforto others.Alwaysfollowthe safety precautionsto reducethe flsk of fire, electricshock

and personal injury.

NOTE: Advisesyou of informationor instructionsvitalto the operationor maintenanceof the equipment.

DOUBLE INSULATION

Double insulationis a concept insafety, inelectric

power tools,which eliminatesthe need forthe usual

thrae-wiragroundedpower cord.All exposed metal

partsare isolatedfromintemal metal motor

componentswith protectinginsulation.Double

insulatedtoolsdo not need to be grounded.

_k WARNING: Do notattempt to operate thistool

untilyou have read thoroughlyand understand

completelyall instructions,safety rules, etc.

contained inthis manual. Failure to complycan

result in accidents involvingfire, electdcshock,

or seriouspersonal injury.Save owner'smanual

and reviewfrequently forcontinuingsafe

operation, and instructingothers who may use

thistool.

READ ALL INSTRUCTIONS

KNOW YOUR POWER TOOL. Read the owner's

manual carefully. Learn the saw's applications

and limitationsas well as the specific potential

hazards related to this tool

GUARD AGAINST ELECTRICAL SHOCK BY

PREVENTING BODY CONTACT WITH

GROUNDED SURFACES. For example; pipes,

radiators,ranges, refdgeratorenclosures.

KEEP GUARDS IN PLACE and ingood working

order.

REMOVE ADJUSTING KEYS AND

WRENCHES. Get in the habit of checkingto see

that hex keys and adjustingwrenches are

removed from tool before fuming on saw.

IMPORTANT

Servicingrequiresextreme care and knowledgeof the

systemand shouldbe performed only by e qualified

sawica technician.For servicewe suggestyou retum

the tool to your nearest Sears storefor repair.Always

use odginalfactoryreplacementparts whenservicing.

KEEP THE WORK AREA CLEAN. Clutteredwork

areas and work benches invite accidents.DO

NOT leave tools or pieces of wood on the saw

while it is in operation.

•DO NOT USE IN DANGEROUS ENVIRON-

MENTS. Do not usa powertools near gasolineor

other flammable liquids,in damp or wet locations,

or expose them to rain. Keep the work area well

lit.

KEEP CHILDREN AND VISITORS AWAY. All

visitorsshould wear safety glasses and be kepta

safe distancefromwork area. Do not let visitors

contact tool or extensioncord while operating.

•MAKE WORKSHOP CHILD-PROOF with pad-

locksand master switches,or by removingstarter

keys.

• DO NOT FORCE THE TOOl- It will do the job

better and safer at the rate for which it was

designed.

•USE THE RIGHT TOOL. Do notforce the tool or

attachmentto do ajob it was not designed for.

Don't use it for apurposenot intended.

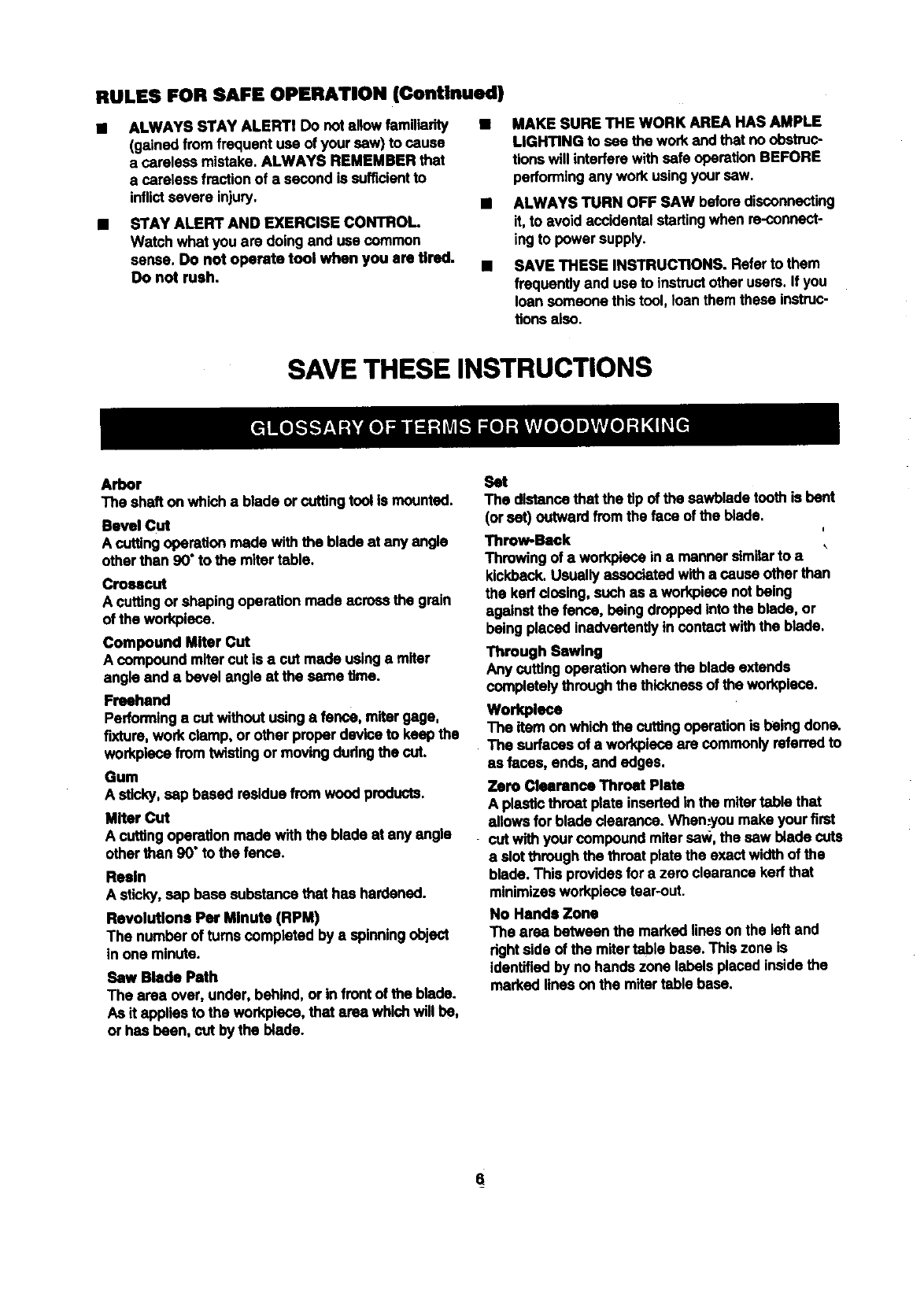

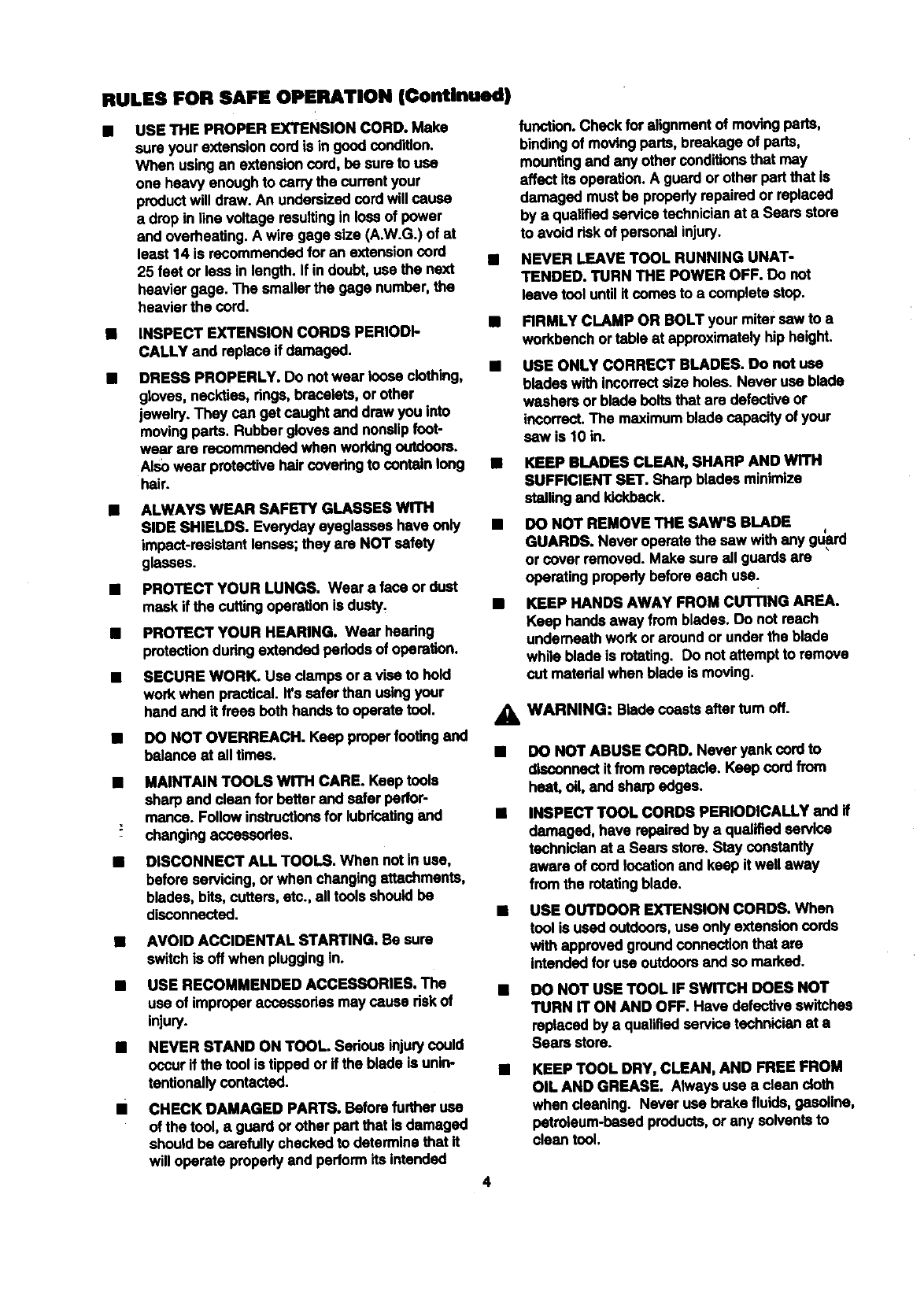

RULES FOR SAFE OPERATION (Continued)

USE THE PROPER EXTENSION CORD. Make

sure your extensioncord is in goodcondition.

When usingan extensioncord, be sureto use

one heavy enough to carrythe currentyour

productwill draw. An undersizedcord will cause

a drop in line voltage resultingin lossof power

and overheating.A wire gage size (A,W.G.) of at

least 14 is recommendedfor an extensioncord

25 feet or less in length. If in doubt,use the next

heavier gage. The smaller the gage number,the

heavier the cord.

INSPECT EXTENSION CORDS PERIODI-

CALLY and replace if damaged.

DRESS PROPERLY. Do notwear loose clothing,

gloves, neckties, dngs, bracelets,or other

jewelry. They can get caught and drew you into

movingparts. Rubber gloves and nonsliptoot-

wear are recommended whenworkingoutdoors.

Ais0 wear protectivehair covedngto contain long

hair.

ALWAYS WEAR SAFETY GLASSES WITH

SIDE SHIELDS. Everydayeyeglasses have only

impact-resistantlenses;they are NOT safety

glasses.

PROTECT YOUR LUNGS. Wear a face or dust

maskif the cuttingoparetlon is dusty,

PROTECT YOUR HEARING. Wear headng

protectiondudng extended padods of oparetion.

SECURE WORK. Use clamps ora vise to hold

workwhen practical. I_ssafer than usingyour

hand and It frees both hands to operete tool.

DO NOT OVERREACH. Keep properfooting and

balance at all times.

MAINTAIN TOOLS WITH CARE. Keeptools

sharp and clean for borer and safer pedor-

manca. Follow instructionsfor lubricatingand

changingaccassodes.

DISCONNECT ALL TOOLS. When not inuse,

before servicing,or when changingattachments,

blades, bits, cutters, etc., all toolsshouldbe

disconnected.

AVOID ACCIDENTAL STARTING. Be sure

switchis off when pluggingin.

USE RECOMMENDED ACCESSORIES. The

use of improperaccessoriesmay cause dsk of

injury.

NEVER STAND ON TOOL. Sedous injurycould

occur if the tool is tippedor ifthe blade is unln.-

tanUonailycontacted.

CHECK DAMAGED PARTS. Before furtheruse

of the tool, a guard or other part that is damaged

shouldbe carefullychecked to determine that it

willoperate properlyand performits intended

function. Check for alignmentof movingpads,

bindingof movingpart==,breakage of parts,

mountingand any other conditions that may

affect its operation.A guard or other part that is

damaged must be propady repaired or replaced

by a qualifiedservice technicianat a Sears store

to avoid dsk of personal injury.

NEVER LEAVE TOOL RUNNING UNAT-

TENDED. TURN THE POWER OFF. Do not

leave tool untilit comes to acomplete stop.

RRMLY CLAMP OR BOLT your miter sew to a

workbenchor table at approximatelyhip height.

USE ONLY CORRECT BLADES. Do not use

blades with incorrectsize holes; Never use blade

washersor blade bolts that are defec_ve or

incorrect.The maximumblade capacity of your

saw is 10 in.

KEEP BLADES CLEAN, SHARP AND WITH

SUFFICIENT SET. Sharp blades minimize

stallingand kickback.

DO NOT REMOVE THE SAW'S BLADE I

GUARDS. Never operate the sew with any guard

or coverremoved. Make sure all guardsare

operatingpropady before each use.

KEEP HANDS AWAY FROM CUTTING AREA.

Keep handsaway fromblades. Do not reach

underneathwork or around or underthe blade

while blade is rotating. Do notattempt to remove

cut matedal when blade is moving.

_1= WARNING: Blade coastsafter turn off.

DO NOT ABUSE CORD. Never yank cord to

disconnectitfrom receptacle. Keep cord from

heat, oil, and sharp edges.

INSPECT TOOL CORDS PERIODICALLY and if

damaged, have repairedby a qualifiedservice

technicianat a Sears store. Stay constantly

aware of cordlocationand keep it well away

from the rotatingblade.

USE OUTDOOR EXTENSION CORDS. When

tool is used outdoors,use only extensioncords

with approvedgroundconnection that are

intended for use outdoorsand so marked.

DO NOT USE TOOL IF SWITCH DOES NOT

TURN IT ON AND OFF. Have defectiveswitches

replacedby a qualifiedservicetechnician at a

Sears store.

KEEP TOOL DRY, CLEAN, AND FREE FROM

OIL AND GREASE. Alwaysuse a clean cloth

when cleaning. Never use brake fluids, gasoline,

petrolaum-based products,or any solventsto

clean tool.

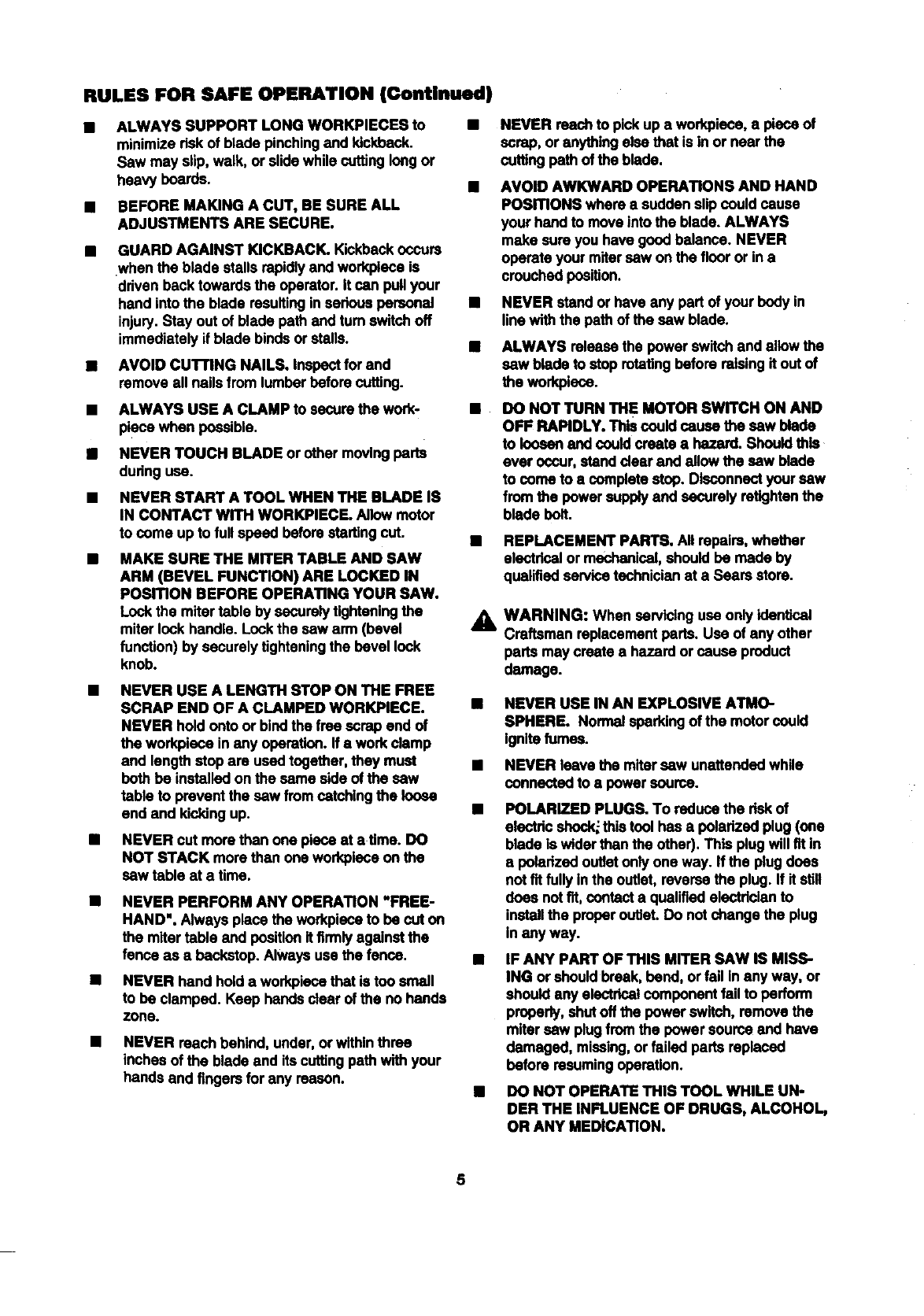

RULES FOR SAFE OPERATION (Continued)

ALWAYS SUPPORT LONG WORKPIECES to

minimize riskof blade pinchingand kickback.

Saw may slip, walk, or slide while cuffinglongor

heavy boards.

BEFORE MAKING A CUT, BE SURE ALL

ADJUSTMENTS ARE SECURE.

GUARD AGAINST KICKBACK. Kickbackoccurs

when the blade stalls rapidlyand workplaceis

driven back towardsthe operator, it can pullyour

hand intothe blade resultingin serious personal •

injury.Stay out of blade path and turnswitchoff

immediatelyif blade bindsor stalls. •

AVOID CUl'nNG NAILS. Inspectfor and

remove all nails fromlumberbefore cutting.

ALWAYS USE A CLAMP to securethe work-

piece when possible.

NEVER TOUCH BLADE or other movingparts

dudng use.

NEVER START A TOOL WHEN THE BLADE IS

IN CONTACT WITH WORKPIECE. Allow motor

to come up to full speed before startingcut.

MAKE SURE THE MITER TABLE AND SAW

ARM (BEVEL FUNCTION) ARE LOCKED IN

POSITION BEFORE OPERATING YOUR SAW.

Lock the mitertable by securelytighteningthe

miter lock handle. Lockthe saw arm (bevel

function)by securely tighteningthe bevel lock

knob.

NEVER USE A LENGTH STOP ON THE FREE

SCRAP END OF A CLAMPED WORKPIECE.

NEVER holdonto or bindthe free scrap end of

the workpiece in any operation.If aworkclamp

and length stopare usedtogether, they must

both be installed on the same side of the sew

table to prevent the sew fromcatchingthe loose

and and kickingup.

NEVER cut morethan one piece at aurae. DO

NOT STACK more than one workpleceon the

sew table at a time.

NEVER PERFORM ANY OPERATION "FREE-

HAND". Always place the workpiecato be cut on

the miter table and positionit firmlyagainst the

fence as a backstop.Always use the fence.

NEVER hand holda workpiscathat is too small

to be clamped. Keep handsclear of the no hands

zone.

NEVER reach behind,under, or withinthree

inches of the blade and its cuttingpath with your

hands and fingersfor any reason.

NEVER reach to pickup a workpieca, a piece of

scrap, or any_ing else that is inor near the

cuttingpathof the blade.

AVOID AWKWARD OPERATIONS AND HAND

POSITIONS where asudden slip couldcause

your hand to move into the blade. ALWAYS

make sure you have good balance. NEVER

operate your mitersew on the flooror ina

crouched position.

NEVER standor have any part of your body in

line withthe path of the sew blade.

ALWAYS release the power switchand allow the

sew blade to stop rotatingbefore raisingit outof

the workpiece.

DO NOT TURN THE MOTOR SWITCH ON AND

OFF RAPIDLY. This couldcause the sew blade

to loosenand could creata ahazard. Should thla

ever occur, standclear and allow the sew blade

to come to a completestop. Disconnectyour sew

from the power supplyand securely retlghtenthe

blade bolt.

REPLACEMENT PARTS. All repairs,whether

electricalor mechanical,shouldbe made by

qualifiedservice technician at a Sears store.

,_ WARNING: When servicinguse only identical

Craftsman replacementparts. Use of any other

parts may create ahazard or cause product

damage.

NEVER USE IN AN EXPLOSIVE ATMO-

SPHERE. Normalsparkingof the motor could

Ignitefumes.

NEVER leave the mitersew unattendedwhile

connected to apower source.

POLARIZED PLUGS. To reduce the dsk of

electdcshock_thistool has apolarized plug (one

blade is wider thanthe other). This plugwill fit in

a poladzed outletonly one way. If the plugdoes

notfit fully in the outlet,reversethe plug. If it still

does not fit,contacta qualifiedaiectdcian to

installthe properoutlat.Do notchange the plug

in any way.

IF ANY PART OF THIS MITER SAW IS MISS-

ING or shouldbreak, bend, orfail in any way, or

should any electricalcomponent fail to perform

properly,shutoff the power switch, removethe

mitersaw plugfrom the power source and have

damaged, missing,or failed parts replaced

before resumingoperation.

DO NOT OPERATE THIS TOOL WHILE UN-

DER THE INFLUENCE OF DRUGS, ALCOHOL,

OR ANY MEDICATION.

RULES FOR SAFE OPERATION (Continued)

• ALWAYS STAY ALERT! Do not allowfamiliarity •

(gainedfrom frequent use of your saw)to cause

a careless mistake.ALWAYS REMEMBER that

acareless fraction of a second is sufficientto

inflictsevere injuPJ. •

ffi STAY ALERT AND EXERCISE CONTROL

Watch what you are doing and use common

sense. Do not operate tool when you are tired, ffi

Do not rush.

MAKE SURE THE WORK AREA HAS AMPLE

LIGHTING to see the workand that noobMtruc-

tions will interferewith safe operationBEFORE

performingany work usingyour saw.

ALWAYS TURN OFF SAW before disconnecting

it, to avoid accidentalstartingwhen m-connect-

ing to power supply.

SAVE THESE INSTRUCTIONS. Referto them

frequently and use to instructother users. If you

loan someone this tool,loan them these instruc-

Miens also.

SAVE THESE INSTRUCTIONS

Arbor

The shaft on which a blade or cuttingtool is mounted.

Bevel Cut

A cuttingoperationmade withthe blade at any angle

other than 90" to the mitertable,

Crosscut

A cuffingor shaping operation made across the grain

of the workpiece.

Compound Miter Cut

A compoundmitercut is acut made usinga miter

angle and a bevel angle at the same time.

Freehand

Performinga cut without usinga fence, mitergage,

fixture,work clamp, or other proper deviceto keep the

workplecefromtwistingor movingdudng the cut.

Gum

A sticky,sap based residuefrom wood products,

Mlter Cut

A cuttingoperationmade with the blade at any angle

other than 90" to the fence.

Resin

A sticky,sap base substancethat has hardened.

Revolutions Per Minute (RP•)

The number of turns completed by aspinningobject

inone minute.

Saw Blade Path

The area over, under, behind,or infront of the blade.

As it appliesto the workplece, that area whichwill be,

or has been, cut by the blade.

Set

The distance that the tip of the sawblede toothis bent

(or set) outwardfrom the face of the blade. I

Throw-Back

Throwing of a workplecein a manner similarto a

kickback. Usuallyassociatedwith a cause other than

the kerf dosing, suchas a workpiscenotbeing

against the fence, being droppedintothe blade, or

beingplaced inadvertentlyincontact withthe blade.

Through Sawing

Anycuttingoperationwhere the blade extends

completelythrough the thicknessof the workplace.

Workplece

The item on whichthe cuffingoperationis being done.

The surfaces of a workplecaare commonly referredto

as faces, ends, and edges.

Zero Clearance Throat Plate

A plasticthroat plate insertedIn the mitertable that

allows for blade clearance. When:you make your first

cut with your compound miter sew, the sew blade cuts

a slotthroughthe throat platethe exactwidth of the

blade. This providesfor a zero clearance kerf that

minimizesworkpiscataar-out.

No Hands Zone

The area betweenthe markedlines onthe left and

dght side of the mitertable base. This zone is

identifiedby no hands zone labels placed insidethe

markedlines on the mitertable base.

BladeDiameter 10in.

BladeArbor 5/8in.

NoLoadSpeed 5000RPM

Rating 120Volts,60Hz-ACOnly

Input 15Amperes

NetWeight 32Ibs.

CuttingCapacitywithMiterat0°/Bevel0°:

5-3/4in.Wx 2-5/8in.T

MaximumCuttingCapacitywithMiterat45°/Bevel0°:

4-1/4in.Wx 2-5/8in.T

MaximumCuttingCapacitywithMiterat0°/Bevel45°:

5-3/4in.Wx1-7/8in.T

MaximumCuttingCapacitywithMiterat45°/Bevel45°:

4-1/4in.Wx 1-7/8in.T

YourCompoundMiterSawhasbeenshipped

completelyassembled except forthe blade, miterlock

handle, and dust guide.

_lb WARNING: If any parts are missing,do not

operate thistool untilthe missingparts are

replaced. Failure to do so could result in possible

serious porsonal injury.

•Remove all loose partsfrom the carton. Separate

and checkwith the listof loose parts. See Rgure 2.

•Remove the packingmaterialsfrom around your

saw.

•Carefully liftsaw from the carton and place it on a

level work surface. Althoughsmall, this sew is

heavy.To avoid back injury,get help when

needed.

Do not discardthe packingmaterials untilyou

have carefully inspectedthe saw, identifiedall

loose parts, and setisfa_odly operated your new

saw.

•Your saw has been shippedwiththe saw arm

locked inthe down position. To release sew arm,

push down on top of saw arm and pullout the lock

pin. See Figure 4.

•Liftthe saw arm by the handle. Hand pressure

shouldremain on the sew arm to prevent sudden

rise upon release of the lock pin.

•Examine all partsto make sure no breakage or

damage has occurreddudng shipping.

If any parts are damaged or missing,do notattempt to

plugin the power cord andturn the switchon untilthe

damaged or missingparts are obtained and are

installedcorrectly.

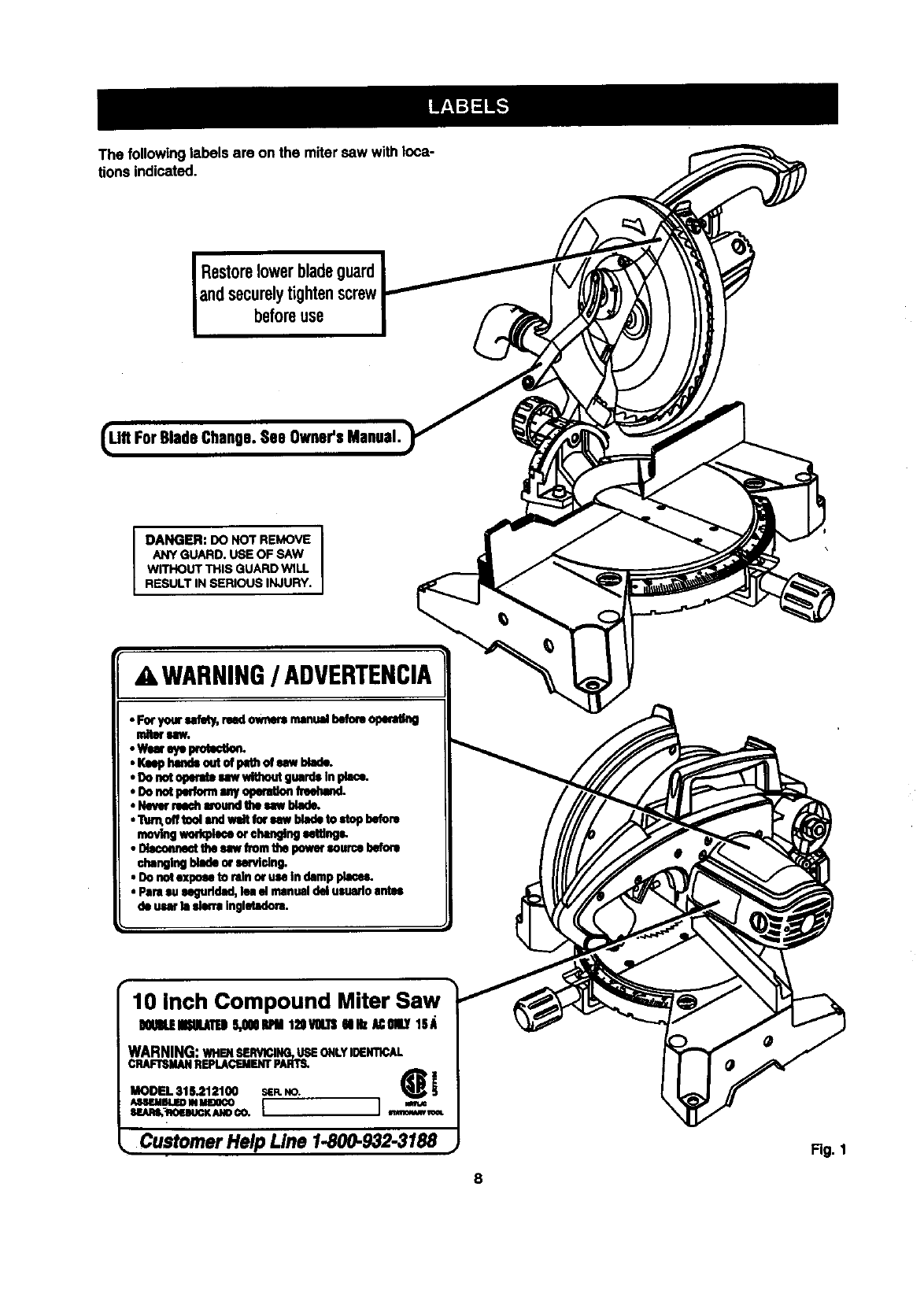

The followinglabels are on the miter sawwith loca-

tions indicated.

Restorelowerbladeguard

andsecurelytightenscrew

beforeuse

e.See

DANGER: DO NOT REMOVE I

ANY GUARD. USE OF SAW

WITHOUT THIS GUARD WILL

RESULT IN SERIOUS INJURY.

A WARNING/ADVERTENCIA

• ForyourmfMy, madownersmanualbeforeop4rallng

ndtMHw.

• WmreyewOtocUo_

• KeepIvmdsoutof pareofmw blade.

•DonotoplmD HW withoutguardsInplace.

•Do notWslmmzmyoperationI_Vam_.

• NevwnmchmmmdtheHW blade.

•Turn.oilt_l m_lwznformw bladetostopbefore

movingwodqdeceor ©h_,_ng _mllngL

• Di.com_t thesawfromthepowersomcebefore

©hangingbladeorservicing.

• Donotexposeto rainoruseindampplaces.

• ParasuNguddad, leael manualdelustmzloantes

deuMr I- sierraIngletadora.

10 inch Compound Miter Saw

emllUEIllEJffBI _RIPllllm1_ MIIz J_MI,Y 1$i

WARNING:WHeNSeJMCINO,useONLYI_,AL

CRAFTSMANREPLACEMENTPARTS.

MODEL 315.'_12100 S_R .. _

ASSEMBLEDINMmO¢O

SEARS,'/IOEBUCKANOOC_ II

,Customer Help Line 1-800-932-3188

Rg. 1

ThefollowingitemsareincludedwithyourCompoundMiterSaw:

•Saw Blade -10 in. • 5 mm Hex Key Wrench

•Miter LockHandle •6 mm Hex Key Wrench

•DustGuide •8mmHexKeyWrench

•Blade Wrench •Owner's Manual

BLADEWRENCH

8 mmHEXKEY

6mmHEXKEY

5 mmHEXKEY

MITERLOCKHANDLE

SAWBLADE

DUSTGUIDE

Fig.2

_i, WARNING: The use of attachmentsoreccessodes notIlstad mightbe hazardousand could

cause serious personal injury.

The followingtools (notincluded)are needed for

checking adjustmentsof your saw or for %Dinstallingthe blade:

FRAMINGSQUARE

17mmCOMBINATIONWRENCH

10mmCOMBINATIONWRENCH

PHILUPSSCREWDRIVER

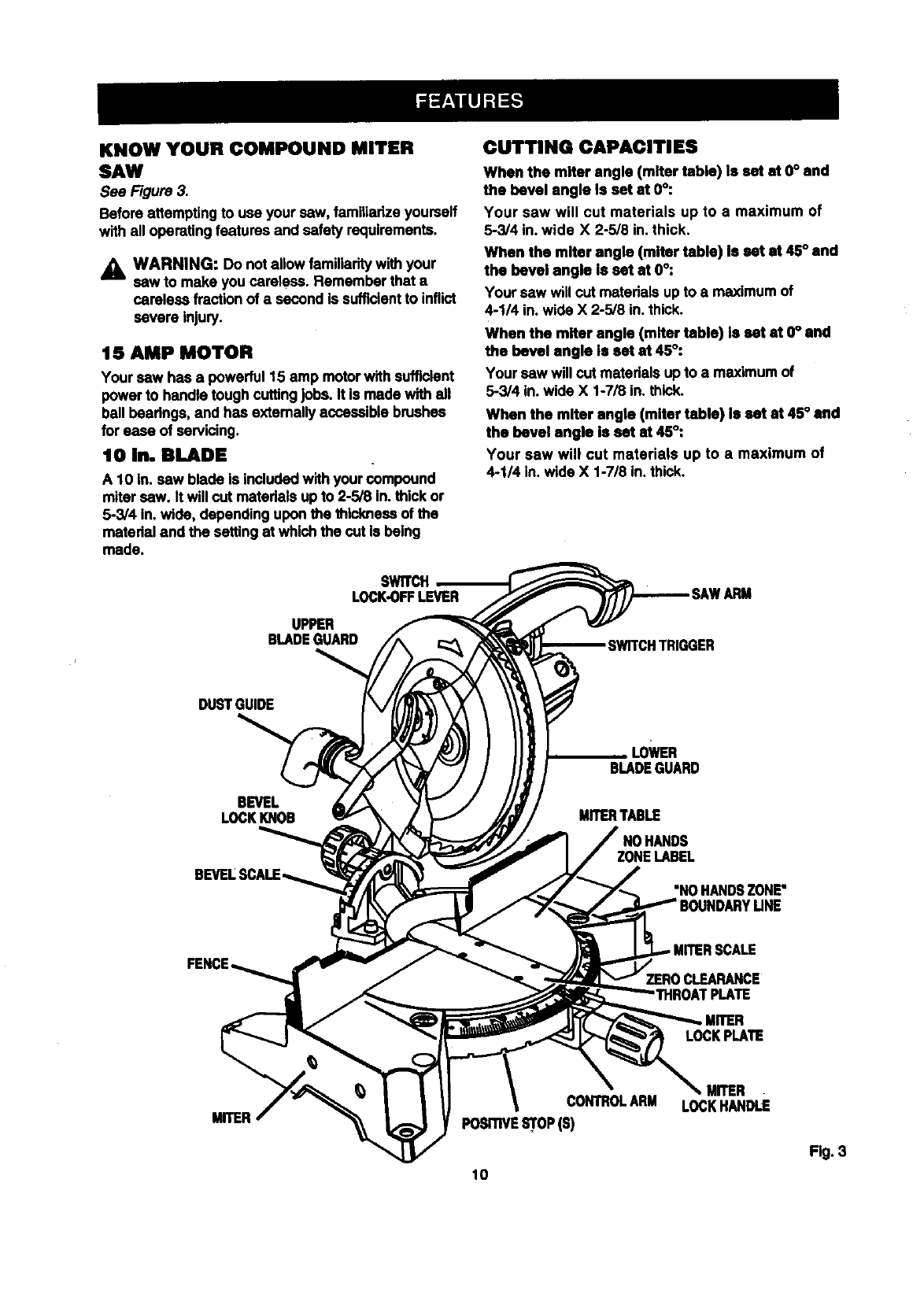

KNOW YOUR COMPOUND MITER

SAW

See Figure 3.

Before attemptingto use your saw, familiarizeyourself

withall operatingfeatures and safety requirements.

WARNING: Do not allow familiaritywith your

saw to make you careless. Remember that a

careless fractionof asecond is sufficientto inflict

severe injury.

15 AMP MOTOR

Your saw has a powerful 15 amp motorwithsufficient

power to handle toughcuttingjobs. It is made withall

ball beadngs, and has extemally accessiblebrushes

for ease of servicing.

10 in. BLADE

A 10 in. saw blade is includedwithyour compound

mitersaw. It will cut matedais up to 2-5/8 in. thick or

5-3/4 in. wide, dependingupon the thickness of the

material and the settingat which the cut is being

made.

SWITCH

L_K_LEVER

UPPER

BLADEGUAND

CUTTING CAPACITIES

When the miter angle (miter table) Is set at O° and

the bevel angle Is set at 0°:

Your saw will cut materials up to a maximum of

5-3/4 in. wide X 2-5/8 in. thick.

When the miter angle (miter table) Is set at 45° and

the bevel angle Is set at 0°:

Your saw will cut matsdalsup to a maximumof

4-1/4 in. wide X 2-5/8 in. thick.

When the miter angle (miter table) Is set at O°and

the bevel angle is set at 45°:

Your saw will cut materials upto a maximumof

5-3/4 in. wide X 1-7/8 in. thick.

When the miter angle (miter table) Is set at 45° and

the bevel angle is set at 45°:

Your saw will cut materials up to a maximum of

4-1/4 in. wide X 1-7/8 in. thick.

SWITCHTRIGGER

DUSTGUIDE

BEVEL

LOCKKNOB

BLADEGUARD

MITERTABLE

)HANDS

ZONELABEL

"NOHANDSZONE"

ZEROCLEARANCE

'LATE

LOCKPLATE

CONTROLARM

Posmvz_oP(_

MITER .

LOCKHANDLE

Fig. 3

CARRYING HANDLE

Sea Figure 4.

For conveniencewhen carryingor transportingyour

miter sawfrom one placeto another, acarrying

handle has been providedon top of the saw arm as

shown infigure 4. To transport,turn off and unplug

your saw, then lower the saw arm and lockit inthe

downposition.Locksaw arm by depressingthe lock

pin.

CARRYING

HANDLE

LOCK

SAW

ARM

MITERLOCK

HANDLE

SAWARM

LOCKEDINDOWNPOSITION Fig. 4

MITER LOCK HANDLE

Sea Figure 4.

The!miter lockhandle securely locksyour saw at

desired miterangles.

LOCK-OFF LEVER

See Figure 5.

The switchtdggaris equippedwith a lock-offlever to

reduce the possibilityof accidentalstarting.The lock-

off lever must be pressed down withthe palm of your

hand to tum saw on. Once the saw is on, the lock-off

lever can be released, The spdng loadedlever will

spdngback intothe lock-offpositionwhen the switch

tdggeris released.

SPINDLE LOCK BUTTON

See Figure 5.

A spindle lock buttonhas been providedfor locking

the spindle which stopsthe rotationof the blade in

your saw. Depress and holdthe lockbuttonwhile

installing,changing, or removingblade.

LOCK-OFF SPINDLE

LOCKBuI"rON

SWITCH,

TRIGGER

Rg. L

TRIGGER LOCK

See Figure 6.

To prevent unauthodzedusa of your compoundmiter

saw, we suggest that you disconnectit fromthe power

supplyand lockthe switchin the off position.To lock

the switch, installa padlockthroughthe hole inthe

switchtdggar. A lockwith a shackleup to 13/64 in.

diameter may be used. When the lockis installedand

locked,the switch is inoperable.Store the padlock key

in another location.

SWITCH

TRIGGER

Fig. 6

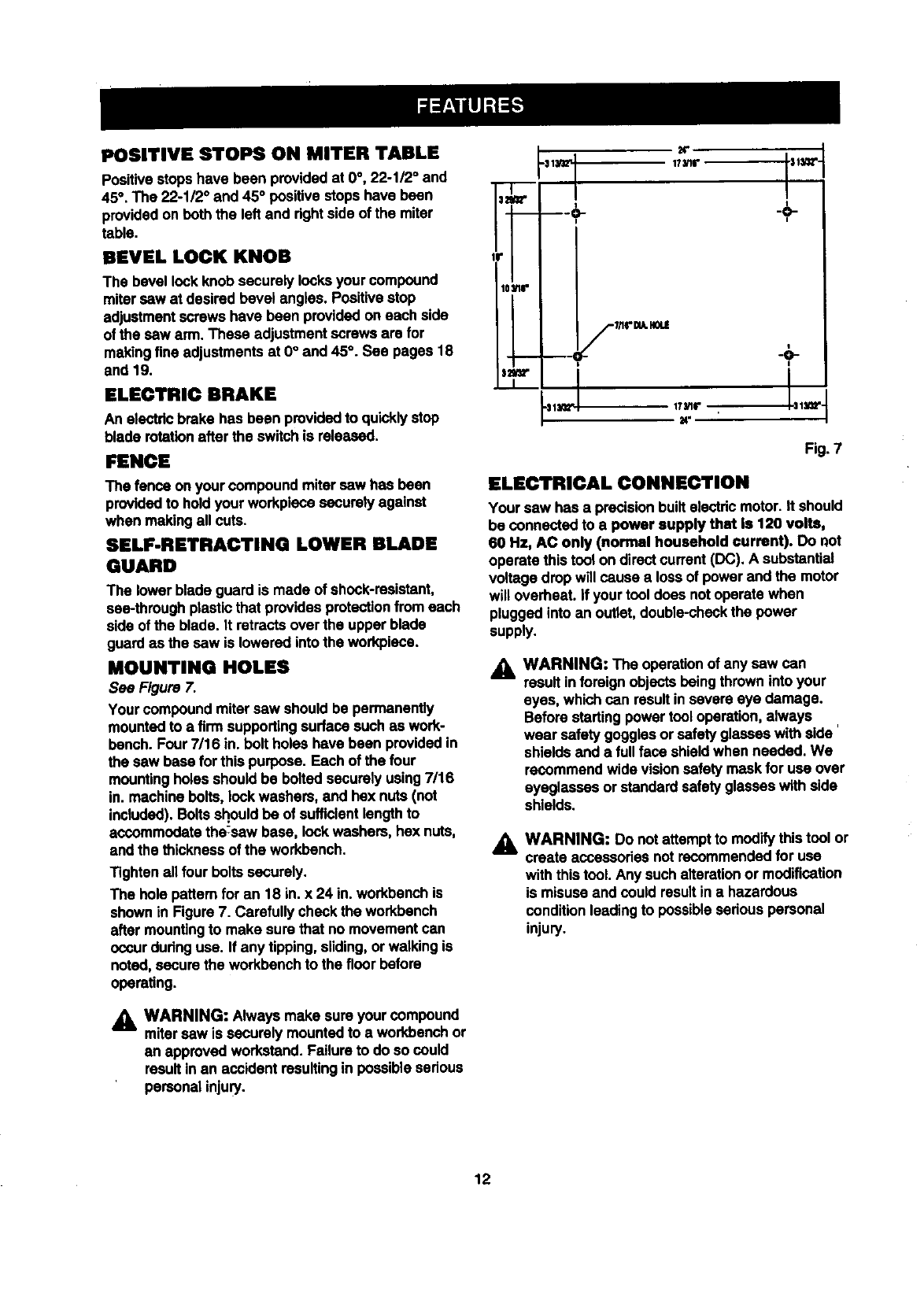

POSITIVE STOPS ON MITER TABLE

Positivestopshave been providedst 0°, 22-1/2 °and

45o.The 22-1/2° and 45° positivestopshave been

providedon both the left and rightside of the miter

table.

BEVEL LOCK KNOB

The bevel lookknob securely locksyour compound

mitersew at desired bevel angles. Positive stop

adjustmentscrews have been providedon each side

of the sew arm. These adjustmentscrews are for

making fine adjustmentsat 0° and 45°. See pages 18

and 19.

ELECTRIC BRAKE

An aiectdc brake has been providedto quicklystop

blade rotationafter the switchis released.

FENCE

The fence on your compoundmiter sew has been

providedto hold your workplecasecurely against

when making all cuts.

SELF-RETRACTING LOWER BLADE

GUARD

The lower blade guard is made of shock-resistant,

see-throughplasticthat providesprotectionfrom each

sideof the blade. It retractsover the upper blade

guard as the saw is lowered intothe workplace.

MOUNTING HOLES

See Figure 7.

Yourcompound miter saw should be permanently

mounted to a firm supportingsurfacesuch as work-

bench.Four 7/16 in. bolt holes have been providedin

the saw base forthis purpose. Each of the four

mounting holes shouldbe boltedsecurely using7/16

in. machine bolts, look washers, and hex nuts (not

Included),Boltssh,ould be of sufficientlengthto

accommodate the'saw base, lookwashers, hex nuts,

and the thicknessof the workbench.

Tightenall four bolts securely.

The hole patternfor an 18 in. x 24 in. workbench is

shownin Figure 7. Carefully check the workbench

after mounting to make surethat no movement can

occurduringuse. If any tipping,sliding,or walkingis

noted,secure the workbenchto the flour before

operating.

_l, WARNING: Always make sure your compound

mitersaw is securely mounted to aworkbench or

an approved workstand. Failure to do so could

resultin an accident resulting in possible sedous

personalinjury.

7/lr _.IIOLE 1?3/lr

31_31"

Fig. 7

ELECTRICAL CONNECTION

Your saw has a precisionbuiltaiectdc motor.It should

be connected to a power supply that Is 120 volts,

60 Hz, AC only (normal household current). Do not

operate this tool on directcurrent(DC). A substantial

voltage dropwill cause a lossof power and the motor

willoverheat. If your tool does notoperate when

pluggedinto an outlet,double-checkthe power

supply.

j_ WARNING: The operationof any saw can

result inforeign objects beingthrown intoyour

eyes, which can resultin severs eye damage.

Before startingpower tool operation,always

wear safety gogglesor safety glasseswith side'

shieldsand afull face shieldwhen needed. We

recommendwide visionsafetymask for use over

eyeglasses or standardsafety glasseswith side

shields.

_1= WARNING: Do not attemptto modifythistool or

create acceesodesnot recommendedfor use

withthistool. Any suchalterationor modification

is misuseand could resultin a hazardous

condition leadingto possible sedous personal

injury.

_k WARNING: To prevent accidentalstartingthat

couldcause possiblesedous personal injur/,

assemble all partsto your saw before connecting

itto power supply. Saw shouldnever be

connectedto power supplywhen you are

assembling parts, making adjustments,installing

or removingblades, orwhen not in use.

As mentioned previouslyyour saw has been factory

assembled and adjusted. The miterlock handle, dust

guide, and blade are the only partsthat have to be

installed,

MITER LOCK HANDLE

See Figure 8.

To installthe miter lockhandle, place the threaded

stud on the end of the miter lockhandle intothe

threaded hole in the control arm. Turn clockwiseto

tighten,

TIGHTEN

ARM

MITER MITER

LOCKHANDLE TABLEFig. 8

DUST GUIDE

See Figure 9.

To installthe dust guide, placethe end marked

INSERT over the exhaust port in the upperblade

guard. Turn the guide so that the open end is facing

down or toward the rear of the saw.

EXHAUST

PORT

DUSTGUIDE

TO INSTALL BLADE

See Figures 10, 11, and 12.

AWARNING: A 10 in. blade is the maximum

blade capacity of your saw. Never use a blade

that is too thick to allow outer blade washerto

engage withthe flats on the spindle.Larger

blades willcome in contact withthe blade

guards, while thickerblades will prevent the

blade screw from secudngthe blade on the

spindle. Either of these situationscouldresult in

asadous accident and can cause serious

personal injury.

•Unplugyour saw.

A WARNING: Failureto unplugyour saw could

result in accidentalstartingcausing possible

sedous personal injury.

Push down on the saw arm and pull outthe lock

pin to release saw arm. Raise saw arm to its full

raised position.Be cautious, saw arm is spdng

loaded to raise.

•Loosenthe phillipsscrew on the blade bolt

cover untilblade boltcover can be raised.

See Figure lO and 11.

•Gently raisethe lower blade guardbracket,

releasinglower blade guardfrom notch sothat

lower blade guard and blade boltcover can be

rotated up and back to exposethe blade boll See

Figures 10 and 11.

PHILLIPSSCREW

LOWER

BLADEGUARD

GUARDBRACKET

Fig.9 Fig. 10

LOWER

BLADEGUARD PHILUPS

SCREW

BOLTCOVER

ONSMNDLE

INNERBLADE

WASHERWlTH

DOUBLE'D'FLA'rS

BLADE

TIGHTEN

BLADEBOLT

OUTERBLADEWASHER

WITHDOUBLE"D"FLATS

Fig. 11

•Depress the spindle lockbuttonand rotatethe

blade bolt untilthe spindle locks. See Figure 12.

•Usingthe blade wrench provided, loosen

removethe blade bolt.

Note: The blade bolt has left hand threads. Turn

blade boll clockwiseto loosen.

•Remove outer blade washer. Do not remove

inner blade washer.

SPINDLE

Bun'oN

Fig. 12

•Wipe adrop of oil onto inner blade washer and

outer blade washer where they contactthe blade.

_1_ WARNING: If inner blade washer has been

removed, replace it before placingblade on

spindle.Failure to do so couldcause an accident

since blade will nottightenproperly.

•Fitsaw blade insidelower blade guardand onto

spindle.The blade teeth pointdownwardat the

front of sew as shown infigure 11.

_lh CAUTION: Always installthe blade with the

blade teeth and the arrow pdntedon the sideof

the blade pointing downat the front of the saw.

The directionof blade rotation is also stamped

withan arrow on the upper blade guard.

•Replace outer blade washer. The double "D"fiats

on the blade washers alignwith the flats on the

spindle.

•Depress spindlelockbuttonand replace blade

bolt.

Note: The blade boil has left hand threads.Turn

blade boil counterclockwiseto tighten.

•Tighten blade bolt securely.

•Remove the blade wrench and store it in a safe

placefor future use.

•Replace the lower blade guardand blade boil

cover.

•Rstightenphillipsscrew secudng blade boil cover.

Tighten screwsecurely. See Figure 11.

AWARNING: To prevent damage to the spindle

lock, always allow motor to come to a complete

stop before engagingspindlelock. Make surethe

spindle lockbutton is notengaged before

reconnectingsaw into power source.

Your compoundmiter saw has been adjusted at the

factory for making very accurate cuts. However, some

of the components might have been jarred out of

alignment during shipping. Also, over a period of time,

readjustment will probably become necessary due to

wear. After unpacking your sew, check the following

adjustments before you begin using saw. Make any

readjustments that are necessary and periodically

check the parts alignment to make sure that your saw

is cutting accurately.

_l_ WARNING: Your saw shouldnever be

connectedto powersupplywhen you are

assemblingparts, making adjustments,installing

or removingblades, or when not in use.

Disconnectingyoursaw willprevent accidental:

startingthat could cause serious injury.

Note:Manyoftheillustrationsinthismanualshow

onlyportionsofyourcompoundmitersaw.Thisis

intentionalsothatwecancleadyshowpoints being

made in the illustrations.Never operate your saw

withoutall guardssecurely inplace and in good

operatingcondition.

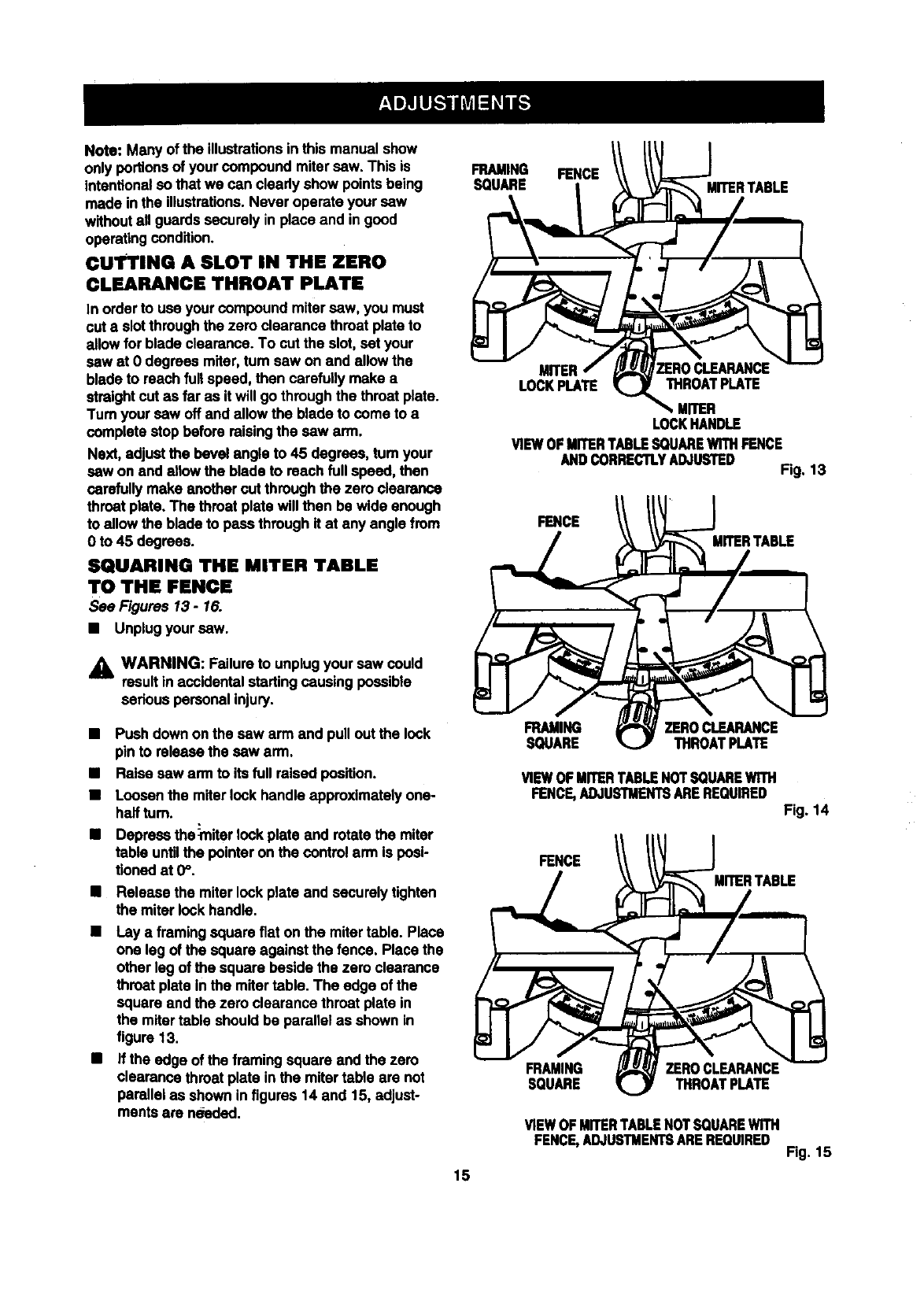

cu'rlrlNG A SLOT IN THE ZERO

CLEARANCE THROAT PLATE

In orderto use your compound miter saw, you must

cut a slotthroughthe zero clearance throat plate to

allow for blade clearance.To cut the slot, sat your

saw at Odegrees miter,turn saw on and allow the

blade to reach fullspeed, then carefully make a

straight cut as far as it will go throughthe throat plate.

Turn your saw off and allow the blade to come to a

complete stop before raisingthe saw arm.

Next, adjust the bevel angle to 45 degrees, tum your

saw on and allowthe blade to roach full speed, then

carefully make another cut throughthe zero clearance

throat plate. The throat plate will then be wide enough

to allow the blade to pass throughit at any angle from

Oto 45 degrees.

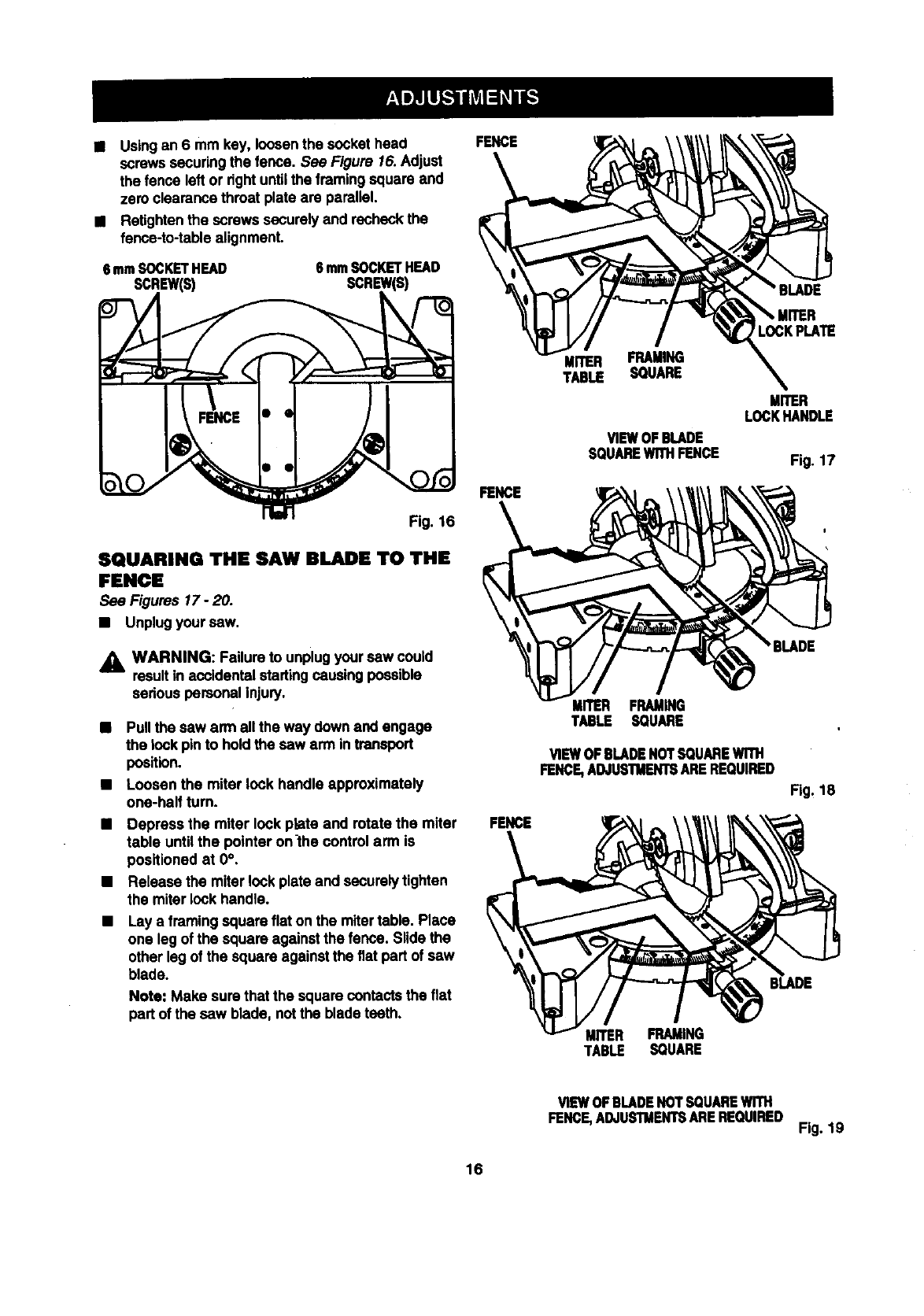

SQUARING THE MITER TABLE

TO THE FENCE

See Figures 13- 16.

•Unplugyour saw.

,_ WARNING: Failureto unplugyour saw could

resultin accidentalstartingcausing possible

sadous personal injury.

•Push down on the saw arm and pulloutthe look

pin to release the saw arm.

•Raise saw arm to its full raised position.

•Loosenthe miter lockhandle approximatelyone-

half tum.

•Depress themiter lockplate and rotatethe miter

table untilthe pointer on the control arm is posi-

tioned at 0°.

•Release the miterlock plate and securely tighten

the miter lockhandle.

•Lay aframingsquare fiat on the mitertable. Place

one leg of the square against the fence. Place the

other leg of the square beside the zero clearance

throat plate inthe miter table. The edge of the

square and the zero clearance throat plate in

the mitertable should be parallel as shown in

figure 13.

•If the edge of the framing square and the zero

clearance throat plate inthe mitertable are not

parallel as shown infigures 14 and 15, adjust-

ments are n_:led.

..c,//

SQUARE I _ _ MITERTABLE

LOCKHANDLE

VIEWOFMITERTABLESQUAREWITHFENCE

ANDCORRECTLYADJUSTED Fig. 13

FRAMINa _ _' ZEROCLEARARCE

SQUARE %)' THROATPLATE

VIEWOFMITERTABLENOTSQUAREWITH

FENCE,ADJUSTMENTSAREREQUIRED Fig. 14

FENCE

MITERTABLE

FRAMING ZEROCLEARANCE

SQUARE THROATPLATE

VIEWOFMITERTABLENOTSQUAREWiTH

FENCE,ADJUSTMENTSAREREQUIRED Fig. 15

• Usingan6mmkey,loosenthesockethead

screwssecuringthefence.See Figure 16. Adjust

the fence left or rightuntilthe framingsquare and

zero clearance throat plataare parallel.

•Retightenthe screws securely and recheckthe

fence-to-tablealignment.

6 mmSOCKETHEAD

SCREW(S)

6 mmSOCKETHEAD

SCREW(S)

Fig. 16

SQUARING THE SAW BLADE TO THE

FENCE

See Figures 17- 20.

•Unplugyour saw.

_l, WARNING: Failure to unplugyour saw could

resultin accidental startingcausingpossible

sedous personal injury.

Pull the saw arm all the way down and engage

the lockpin to holdthe saw arm in transport

position.

Loosen the miter lock handle approximately

one-half turn.

Depress the miter lock prate and rotate the miter

table untilthe pointer on-the control arm is

positioned at 0°.

Release the miter lockplate and securelytighten

the miterlock handle.

Lay a framing square flat on the mitertable. Place

one legof the square against the fence. Slide the

other legof the square against the fiat part of saw

blade.

Note: Make sure that the square contactsthe flat

partof the saw blade, notthe blade teeth.

FENCE

MITER FRAMING

TABLE SQUARE

VIEWOFBLADE

SQUAREWITHFENCE

MITER

LOCKHANDLE

Fig. 17

MITER FRAMING

TABLE SQUARE

VIEWOFBLADENOTSQUAREWITH

FENCE,ADJUSTMENTSAREREQUIRED

Fig, 18

BLADE

MITER FRAMING

TABLE SQUARE

VIEWOFBLADENOTSQUAREWITH

FENCE,ADJUSTMENTSAREREQUIRED Fig. 19

• Theedgeofthesquareandthesawbladeshould

beparallelasshowninfigure17.

•If the frontor beck edge of the saw blade angles

away fromthe square as shown infigures 18 and

19, adjustmentsare needed.

•Usingthe 8 mm hex key provided, loosenthe

socket head screws that secure the mounting

bracketto the mitertable. See Figure20.

8 mmSOCKET

MITER

TABLE

MOUNTING

8 mmHEXKEY BRACKET

WRENCH Fig.20

•Rotate the mountingbracket left or rightuntilthe

saw blade is parallel withthe square.

•Retighten the screws securelyand recheckthe

blade-to-fence alignment,

SQUARING THE BLADE TO THE

MITER TABLE

See Rgures 21-24.

•Unplugyour saw.

_lb WARNING: Failure to unplugyour saw could

result in accidental startingcausingpossible

sadous personal injury.

•Pull the saw arm all the way down and engage

the lock pin to holdthe saw arm intransport

position.

•Loosenthe miterlock handle approximatelyone-

half tum.

•Depress the miter lockplate and rotatethe miter

table untilthe pointer on the controlarm is posi-

tioned at 0°,

• _ Release the miter lockplate and securelytighten

the miter lock handle.

Loosen bevel lockknob and set saw arm at 0"

bevel (blade set90" to miter table). Tighten bevel

lockknob.

Place a combinationsquare against the miter

table and the fiat part of saw blade,

Note: Make sure that the square contactsthe flat

part of the saw blade, notthe blade teeth.

Rotate the blade by hand and check the blade-to-

table alignment at severalpoints.

The edge of the square andthe saw blade should

be parallel as shown Infigure21.

FENCE

MITER

TABLE

COMBINATION

SQUARE

MITER

LOCKHANDLE

CORRECT_EWOFBLADE

SQUAREWITHMITERTABLE Fig. 21

•If the top or bottomof the saw blade angles away

from the square as shown infigures22 and 23,

adjustmentsare needed.

FENCE

COMBINATION

SQUARE

TABLE

VIEWOFBLADENOTSQUAREW111tMITER

TABLE,ADJUSTMENTSAREREQUIRED Rg. 22

FENCE PIVOT ADJUSTMENTS

COMBINATION

MITER SQUARE

TABLE

VIEWOF BLADENOTSQUAREWITHMITER

TABLE,ADJUSTMENTSAREREQUIRED Fig.23

•Usinga 10 mm wrench or adjustable wrench,

loosen the lock nut secudngpositivestopadjust-

ment screw.Also loosenbevel lockknob.

• Adjustpositivestopadjustmentscrew to bdng

sew blade into alignment withthe square. See

F/gum 24.

POSITIVESTOP

ADJUSTMENT

45°ANGLES

Fig.24

•Retighten bevel lock knob. Next, retighten locknut

securingthe positivestop adjustmentscrew.

Recheck blede-to-table alignment.

Note: The above procedurecan be usedto check

blade squarenessof the saw blade to the rarer

table at both 0° and 45°angles.

Your sew has three scale indicators,two on either

side of the bevel scale and one onthe miterscale.

After squaringadjustmentshave been made, it may

be necessaryto loosen the indicatorsscrews and

reset them to zero.

Note: These adjustmentswere made at the factory

and normallydo not require readjustment.

TRAVEL PIVOT ADJUSTMENT

•The saw arm should risecompletelyto the up

positionby itself.

• If the sew armdoes notraise by itselfor if there is

play in the pivotjoints, have saw repaired by a

qualifiedservice technicianat your nearest Sears

store to avoid riskof personal injury.

BEVEL PIVOT ADJUSTMENT

•Your compoundmiter saw shouldbevel easilyby

looseningthe bevel lock knoband tiltingthe sew

arm to the left.

If movement is tight or if there is playin the pivot,

have saw repaired by a qualifiedservicetechni-

cian at your nearest Sears store to avoid dsk of

personal injury.

DEPTH STOP I

The depth stop limitsthe blade's downwardtravel. It,

allows the blade to go below the mitertable enoughto

maintainfull cuttingcapacities. The depth stop posi-

tions the blade 114in. from the mitertable support.

Note: The miter table supportis locatedinsidemiter

table.

The depth stop is factory setto providemaximum

cuttingcapacity for the 10 in. sew blade providedwith

your saw. Therefore, the saw blade providedshould

never need adjustments.

However, when the diameter of the blade has been

reduced due to sharpening, it may be necasseryto

adjust the depth stop to providemaximumcutting

capacity. Also, when a new blade is installed,it is

necessary to check the clearance of the blade to the

miter table support before startingthe saw. Make

adjustmentsif needed.

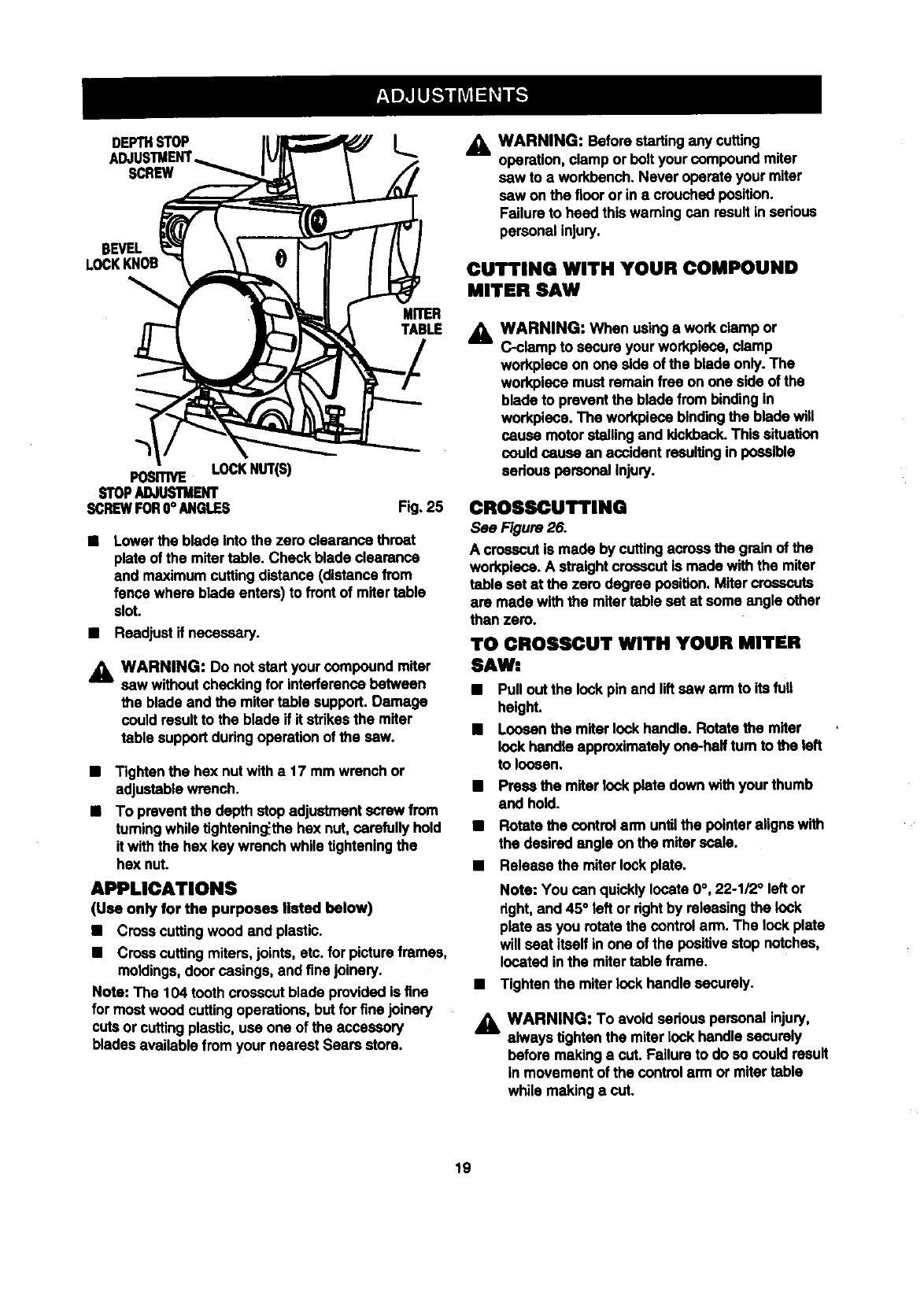

DEPTH STOP ADJUSTMENTS

See Figure 25.

•Unplug your saw.

_k WARNING: Failure to unplugyour saw could

result in accidentalstartingcausing posaible

serious personal injury.

To adjust the depth stopuse a 17 mmwrench or

adjustable wrench and loosenthe hex nutat the

rear of the mitersew arm.

Use the 5 mm hax key wrench providedto adjust

the depth stop adjustmentscrew. The saw blade

is lowered by tuming the screw counter-cloctoNIse

and raised by turningthe screw clockwise.

DEPTHSTOP L...

SCREW

BEVEL

MITER

TABLE

POSITIVE LOCKNUT(S)

STOPADJUSTMENT

SCREWFOR0°ANGLES Fig,25

Lower the blade into the zero clearance throat

plate of the mitertable. Check blade clearance

and maximumcuttingdistance (distancefrom

fence where blade enters) to front of mitertable

slot.

•Readjustif necessary.

_k WARNING: Do not start yourcompound miter

sew withoutcheckingfor interference between

the blade and the mitertable support.Damage

couldresultto the blade if it strikesthe miter

table supportduringoperationof the saw.

• Tightenthe hex nutwith a 17 mm wrench or

adjustablewrench.

•To preventthe depth stop adjustmentscrew from

tumingwhile tightening_thehex nut, carefullyhold

it withthe hex key wrench while tighteningthe

hsx nut.

APPLICATIONS

(Use only for the purposes nsted below)

•Cross cuttingwood and plastic.

•Cross cuffingmiters,joints, etc. for pictureframes,

moldings,doorcasings, and fine joinery.

Note: The 104 tooth crosscutblade providedis fine

for mostwood cuttingoperations,but for fine joinery

cuts or cuffingplastic,use one of the accessory

blades available from your nearest Sears store.

WARNING: Beforestartingany cutting

operation,clamp or bolt your compoundmiter

saw to a workbench. Never operate your miter

sew on the flooror in a crouchedposition.

Failure to heed this warningcan result in serious

personal injury.

CUTTING WITH YOUR COMPOUND

MITER SAW

_, WARNING: When usingawork clamp or

C-clamp to secure your workpieca,clamp

workpieceon one side of the blade only.The

workpiscemust remainfree on one side of the

blade to preventthe blade frombindingin

workplece. The workpiecebindingthe blade will

cause motorstallingand kickback.This situation

could cause an accident resultingin possible

sedous personal Injury.

CROSSCUTTING

See Figure 26.

A crosscutis made by cuttingacrossthe grain of the

workplace. A straightcrosscutis made with the miter

table set at the zero degree position. Miter crosscuts

are made withthe mitertable set at some angle other

then zero.

TO CROSSCUT WITH YOUR MITER

SAW:

•Pull out the lockpin and liftsew arm to its full

height.

•Loosenthe miterlockhandle. Rotate the miter

lock handle approximatelyone-half tum to the left

to loosen.

•Press the miter lockplate down with your thumb

and hold.

•Rotate the controlarm untilthe pointer alignswith

the desiredangle on the miterscale,

•Release the miter lockplate.

Note: You can quicklylocate 0°, 22-1/2 ° leftor

dght, and 45' left or rightby releasingthe lock

plate as you rotatethe control arm. The lock plate

will seat itselfin one of the positivestop notches,

located inthe mitertable frame.

•Tighten the miter lock handlesecurely.

WARNING: To avoidsedous personalinjury,

always tightenthe miterlock handle securely

before making a cut. Failure to do so couldresult

in movementof the controlarm or mitertable

while making a cut.

•Slowly lower the blade into and throughthe

workpiece. See Figure 26.

•Release the switchtdgger and allow the saw

STRAIGHT blade to stop rotatingbefore raisingthe blade out

CROSSCUT of workpiece.Wait untilthe eisctdcbrake stops

blade fromtuming before removingthe workpiece

from the mitertable.

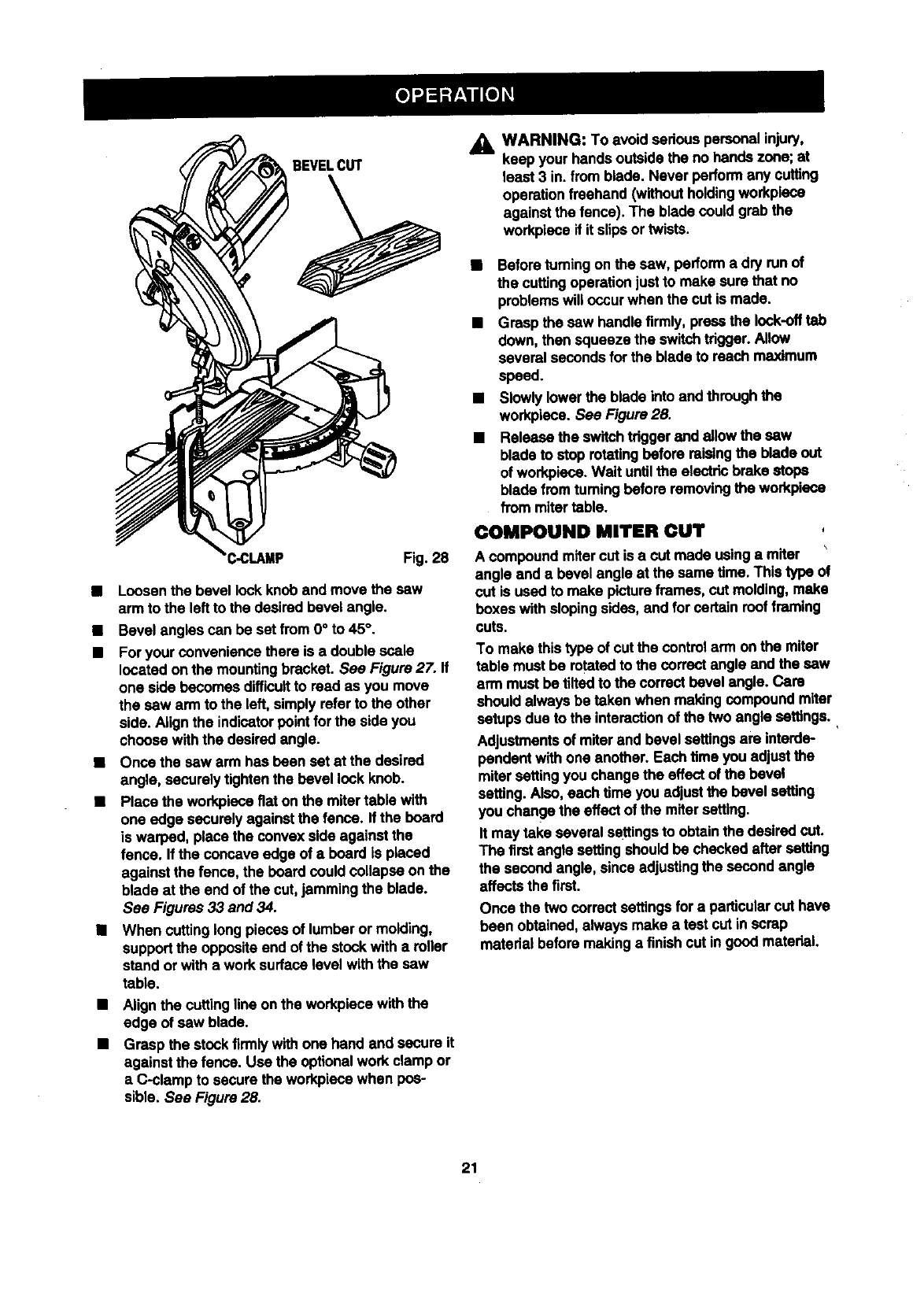

BEVEL CUT

See Figures 27 and 28.

A bevel cut is made by cuttingacrossthe grainof the

workplacewith the blade angled to the workplace. A

straightbevel cut is made withthe mitertable set at

the zero degree positionand the blade set at an angle

between 0" and 45°.

LEFTSiDE

LEFT

iNDICATOR

POINT

RIGHTSIDE

RIGHT

INDICATOR

POINT

C-CLAMP Rg. 26

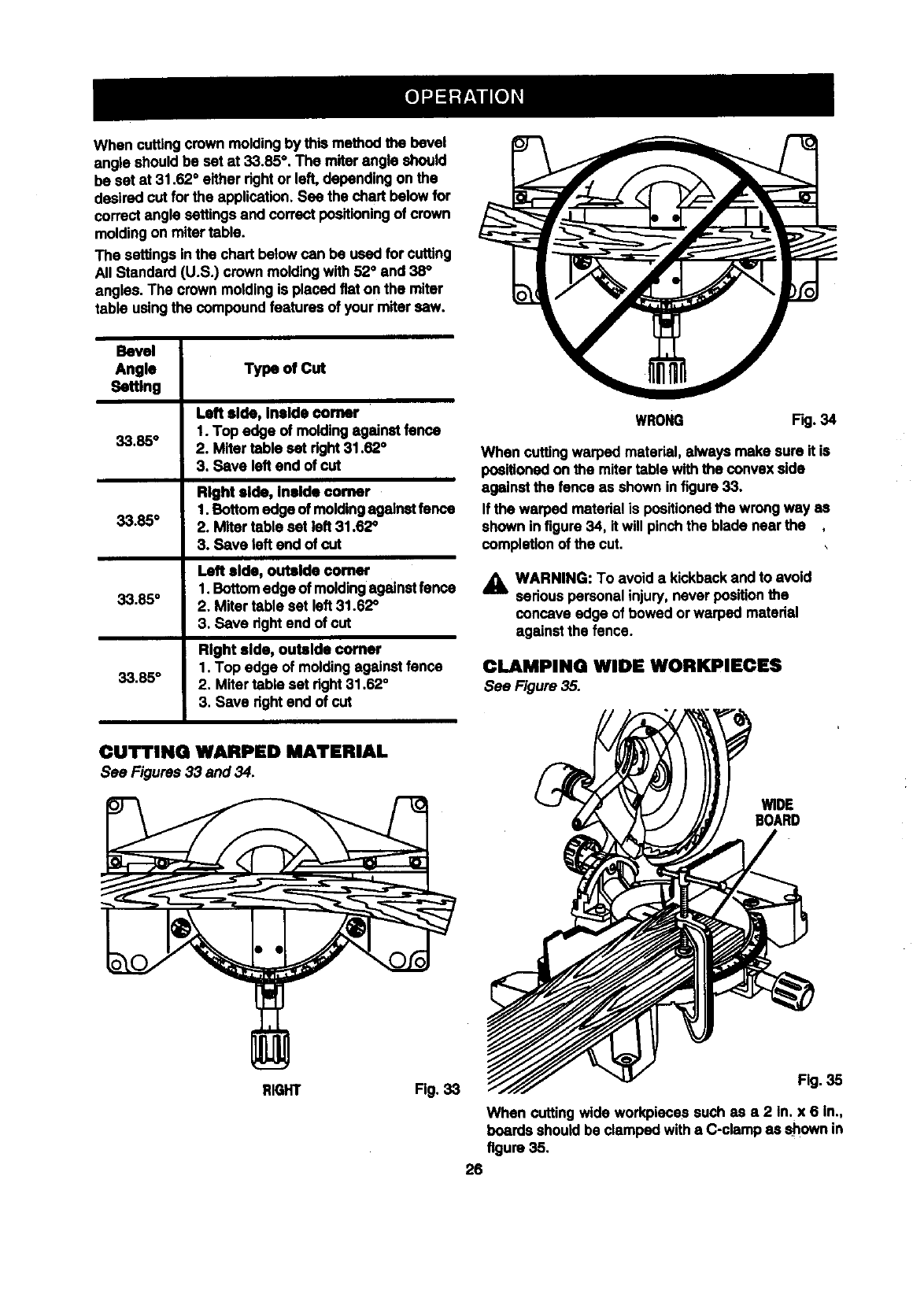

•Place the workplacefiat on the mitertable with

one edge securelyagainst the fence. If the board

is warped, placethe convex side againstthe

fence, if the concave edge of a boardis placed

against the fence, the boardcould collapse on the

blade at the end of the cut, jamming the blade.

See Figures 33 and 34.

•When cuttinglongpieces of lumberor molding,

supportthe oppositeend of the stock witharoller

stand or witha work surface levelwith the saw

table.

•Align cuttingline on the workpiecawiththe edge

of saw blade.

Grasp the stockfirmly withone hand dnd secure

it against the fence. Usa the optionalworkclamp

or a C-clamp to secure the workpiecawhen

possible.See Figure 26.

_1= WARNING: To avoid sadous personal injury,

keep your hands outsidethe no hands zone; at

least 3 in. fromblade. Never performany cutting

operationfreehand (withoutholdingworkplace

againstthe fence). The blade couldgrab the

workpleceif it slipsor twists.

•Before tumingon the saw, performa dry runof the

cuttingoperationjustto make sure that no

problemswill occurwhen the cut is made.

•Grasp the saw handlefirmly,prass the lock-offtab

down,then squeeze the switchtrigger:Allow

several seconds for the blade to reach maximum

speed.

SCALE SCALE

MOUNTINGBRACKET Fig. 27

TO BEVEL OUT WITH YOUR MITER

SAW:

•Pull out the lockpin and liftsaw arm to its full

height.

•Loosen the miterlock handle. Rotate the miter

lock handle approximatelyone-haftturn to the left

to loosen.

Press the miter lockplate down withyour thumb

and hold.

Rotate the controlarm untilthe pointer aligns with

zero on the miterscale.

Release the miter lockplate.

Note: You can quicklylocate zero by releasing

the lock plateas you rotatethe control arm. The

lock plate will seat itselfin one of the built-in

positivestop notches,locatedin the miter table

frame.

•Tighten the miter lockhandle securely.

_IL WARNING: To avoid sedous personal injury,

always tightenthe miter lockhandle securely

before makingacut. Failure to do so couldresult

in movement of the controlarm or mitertable

while makinga cut.

BEVELCUT

Fig.28

•Loosenthe bevel lock knobend move the sew

arm to the left to the desiredbevel angle.

•Bevel angles can be setfrom 0° to 45°.

•For your conveniencethere is a double scale

located on the mountingbracket. See Figure27. If

one side becomes difficultto readas you move

the saw arm to the left, simplyrefer to the other

side. Align the indicatorpointforthe side you

choose withthe desiredangle.

•Once the sew arm has been set at the desired

angle, securelytightenthe bevel lock knob.

•Place the workpiecefiat on the mitertable with

one edge securelyagainst the fence. If the beard

is warped, placethe convexside against the

fence. If the concave edge of a boardis placed

against the fence, the boardcould collapse on the

blade at the end of the cut,jamming the blade.

See Figures 33 and 34.

•When cuttinglongpiecesof lumberor molding,

supportthe oppositeend of the stock with a roller

stand orwith a worksurface level withthe sew

table.

Alignthe cuttingline on the workpiecewith the

edge of sew blade.

Grasp the stockfirmlywith one hand and secure it

against the fence. Use the optionalwork clamp or

a C-clamp to secure the workpiecewhen pos-

sible. See Figure 28.

_1, WARNING: To avoid sedous personal injury,

keep your hands outside the no hands zone; at

least 3 in. from blade. Never performany cutting

operationfreehand (withoutholdingworkpiece

againstthe fence). The blade could grab the

workpieceif it slips or twists.

•Before turningonthe saw, performa dry run of

the cuttingoperationjust to make sure that no

problemswill occurwhen the cut is made.

•Grasp the sew handlefirmly, pressthe lock.offtab

down, then squeeze the switchtrigger.Allow

severalseconds for the blade to reach maximum

speed.

•Slowly lower the blade into and through the

workpiece. See Figure 28.

•Release the switchtrigger and allow the saw

blade to stoprotatingbefore raisingthe blade out

of workpiece.Wait untilthe electricbrake stops

blade from turningbefore removingthe workpiece

from mitertable.

COMPOUND MITER CUT

A compoundmitercut is a cut made usinga miter

angle and a bevel angle at the same time. This type of

cut is usedto make pictureframes, cut molding, make

boxes withslopingsides, and for certainroof framing

cuts.

To make thistype of cut the controlarm on the miter

table must be rotatedto the correctangle and the saw

arm must be tilted to the correct bevelangle. Care

shouldalways be taken when making compound miter

setupsdue to the interactionof the two angle setings..

Adjustmentsof miter and bevel settingsare interde-

pendent withone another. Each time you adjustthe

mitersetting you change the effect of the bevel

setting.Also, each time you adjust the bevel setting

you change the effectof the miter setting.

It may take several settingsto obtainthe desiredcut.

The firstangle setting shouldbe checked after setting

the second angle, since adjustingthe second angle

affects the first.

Once the two correct settingsfor a particularcut have

been obtained,always make a test cut inscrap

matedal before makinga finishcut in goodmatedaL

TO MAKE A COMPOUND CUT WITH

YOUR MITER SAW:

• Pull outthe lockpin and liftsaw arm to itsfull

height.

•Loosenthe miterlock handle. Rotate the miter lock

handle approximatelyone-heft tum to the leftto

loosen.

•Press the miter lockplate downwithyour thumb

and hold.

Rotate the controlarm untilthe pointeralignswith

the desiredangle on the miterscale.

Release the miter lockplate.

Note: You can quicklylocate0", 22-1/2" left or

right,and 45" left or dghtby releasingthe miter

lock plateas you rotatethe controlarm. The miter

lockplatewill seat itselfinone of the positive stop

notches,located inmitertable frame.

•Tighten the miterlock handlesecurely.

_IL WARNING: To avoid sedouspersonal injury,

always tightenthe miterlockhandlesecurely

before making a cut. Failureto do so could result

in movementof the control arm or mitertable

while makinga cut.

•Loosenthe bevel lockknob and move the saw arm

to the left to the desiredbevel angle.

•Bevel angles can be set from 0" to 45".

•For your convenience there is a doublescala

locatedon the mountingbracket. See Figure27. If

one side becomesdifficultto read as you move the

sew arm to the left, simplyreferto the other side.

Alignthe indicatorpoint for the side youchoose

withthe desired angle.

•Once the sew arm has bean set at the desired

angle, securely tightenthe bevel lockknob.

•Recheck miterangle setting. Make a test cut in

scrap material.

•Place the workplaceflat onthe miter table with

one edge securelyagainstthe fence. If the board

is warped, placethe convexside against the

fence. If the concave edge of a boardcould

collapse on the blade at the end of the cut,

j';mmingthe blade. See Figures33 and 34.

•When cuttinglongpiecesof lumberor molding,

supportthe oppositeend of the stock witha roller

standor withaworksurfacelevelwiththe sew

table.

•Align the cuttinglineon the workpiecewiththe

edge of sew blade.

•Grasp the stock firmlywith one hand and secureit

againstthe fence. Use the optionalworkclampor

a C-clamp to securethe workpiecawhen possible.

See Figure29.

_1, WARNING: To avoidsadous personalinjury,

always keep your handsoutsidethe no hands

•t

zone; at least 3 m. from blade•Never performany

cuffingoperationfreehand(withoutholding

workpieceagainst the fence). The blade could

grab the workpieceit it slipsortwists.

COMPOUND

MITERCUT

C-CLAMP Fig.29

•Before fumingon the saw, performadry runof the

cuffingoperationjustto make surethat no problems

will occurwhenthe cut is made.

•Grasp the saw handlefirmly,press the lock-offtab

down, then squeeze the switchtrigger. Allow sev-

eralsecondsforthe bladeto reachmaximum speed.

•Slowly lower the blade into and through the

workpioce. See Figures29 and 30.

•Release the switchtrigger and allow the saw blade

to stop rotating before raising the blade out of

workpiece. Wait untilthe electric brake stopsblade

from tuming before removing the workpiece from

miter table.

SUPPORT LONG WORKPIECE$

See Figure 31.

Longworkplecesneed extra supports.Supports

should be placed alongthe workpiece so it does not

sag. The supportshouldlet the workplece lay fiat on

the babe of the saw and worktable duringthe cutting

operation.Usa the optionalworkclamp or a C-clamp

to secure the workpiece.

WARNING: To avoid seriouspersonal injury,

always keep your hands outside the nohands

zone; at least 3 in. from blade. Never perform

any cuttingoperationfreehand (withoutholding

workpieceagainstthe fence). The blade could

grab the workpieceif it slips ortwists.

45° X 45° COMPOUNDMITERCUT Fig. 30"

LONGWORKPIECE

WORKPIECESUPPORTS

Fig. 31

CUTTING COMPOUND MITERS

To aid in making the correct settings,the compoundangle settingchart below has been provided.Since com-

pound cuts are the most difficultto accuratelyobtain, tdal cuts should be made in scrap material,and much

thoughtand planning made, priorto making your requiredcut.

NUMBEROFSIDES

PITCH

0FSIDE 4 I sI B 7ISIS10

0o M-45.00 ° M-36,09, M-3O.00 ° M-25,71 ° M-22.50 °M-20.00 ° M-18.00 °

B- 0.00° 13- O.00°B- 0.09, B- 0.09, B- O.00°B- 0.09, B- 0.00 °

M-44.89, M-35.90 °M-29.91 °M-25.63 °M-22,42, M-19.93 °M-17.94 °

5° B- 3.53 °B- 2.94° B- 2.50°B- 2.17°B- 1.91° B- 1.71° B- 1.54°

M-44.56 ° M-35.58 °M-29.62, M-25.37 °M-22.19 °M-19.72, M-17.74 °

10°B- 7.05 °B- 5.86°B- 4.98 ° i B- 4.32°B- 3.81° B- 3.40°B- 3.08°

M-44.01 ° M-35.06 ° M-29.15 °M-24.95 °M-21.81°! M-19.37 °M-17.42,

15° B-10.55 °B- 8.75° B- 7.44°B- 6.45° B- 5.68°B- 5.08° B- 4.59'

M-43.22, M-34,32, M-28.48 °M-24,35 ° M-21.27 ° M-18.88 °M-16.98 °

20=B-14.09, B-11.60 °B- 9.85 ° B- 8.53° B- 7.52, B- 6.72° B- 6.07"

M-42.19, M-33.36 °M-27.62, M-23.56" M-20.58 ° M-18.26 ° M-16.41 °

25° B- 17.39" B-14.38 ° B- 12.20° B- 10.57" B- 9.31°B- 8.31°B- _7.50°

300 M-40.89 °M-32.18 ° M-26.57 °M-22.64 °M-19.73 ° M-17.59, M-15.72,

B-20,70 °B-17.09, 13-14.48° B-12.530 B-11.03 °B- 9.85°B- 8.89 °

35oM-39.32 ° M-30.76 ° M-25.31 °M-21.53 °M-18.74 ° M-16.69, M-14,90 °

B-23.93 ° B- 19.70° B-16.67 ° B-14.41 ° B- 12,68° B- 11.31° B-10.21 °

M-37,45 ° M-29.10 °M-23.86 °M-20,25 ° M-17.60 ° M-15.58 °M-13,98 °

40oB-27.03 ° B-22.20 ° B-18.75 ° B- 16.19, B-14.24 ° B- 12.70° B- 11.46°

M-35.26 ° M-27.19 ° M-22.21 °M- 18.80° M- 16.32° M-14.43 ° M-12.94 °

45°B- 30.00° B- 24.56° B- 20.70 ° B- 17.87°B- 15.70° B- 14.00°B- 12.62"

M-32.73 ° M-25.03 °M-20.36 °M-17.20 °M-14.91 °M-13.17 ° M-11.80 °

50° B-32.80 ° B-26.76 ° 13-22.52, B- 19.41°B- 17,05°B-15.19 ° B-13.69 °

M-29,84 °M-22.62 °M- 18.32°M- 15.44°M- 13.36" M-11,79 ° M- 10.56°

55° B-35,40 ° B-28.78 ° B-24.18 °B- 20,82 ° B-18.27 °B-16.27 ° B-14.66 °

M-26.57 ° M-19.96 °M-16.10 °I M-13.54 °M-11.70 ° M-10.31 ° M- 9.23 °

60oB-37.76 ° B-30.60 °B-25,66 ° B-22.07 ° B- 19,35°B- 17.23° B- 15.52'

M-22.91 ° M-17.07 °M-13.71 °M-11.50 ° M- 9.93 °M- 8.74° M- 7.82 °

650 B- 39,86 ° 13"32.19° B:"26.95 ° B- 23.16 ° B- 20.29 ° 13-18.06° B -16,26 °

M-18.88 ° M-13.95 ° iM-11,17 °M- 9.35 ° M- 8.06 °M- 7.10° M- 6.34°

70° B-41.64 °B-33.53 ° B-28.02 ° B-24.06 ° B-21.08 °B-18.75 ° B-16,88 °

75° M-14.51 °M-10.65 ° M- 8.50° M- 7.10 ° M- 6.12 ° M- 5.38° M- 4.81°

B-43,08 °B-34,59, B-28.89, B-24.78 ° B-21.69 °B-19.29 ° B-17.37 °

M- 9.85 ° M- 7.19 ° M- 5.73 ° M- 4.78 °M- 4.11° M- 3.62° iM- 3.23 °

80° B-44.14 ° B-35.37 ° B-29,59, B-25,30 °B-22.14 ° B- 19.68° B-17.72 °

M- 4,98 ° M- 3.62 ° M- 2.88°I M- 2.40 ° M- 2.07 ° M- 1.82° M- 1.62"

850 B-44.78 °B-35.84 °B-29.87 ° B-25.61° B-22.41 °B- 19.92° B-17.93 °

M- 0.00 ° M- 0.09, M- O.0O°M- O.00° M- O.00°!M- 0.09, M- 0.00 °

90° B- 45.00 °B- 36.00° B- 30.09, B- 25.71° B- 22.59, B- 20.00° B- 18.00 °

Each B (Bevel) and M (Miter) Setting is Given to the Closest0.005 °.

COMPOUND-ANGLE SETTINGS FOR POPULAR STRUCTURES

CUTTING CROWN MOLDING

Your compoundmiter saw does an excellent job of

cuttingcrown molding. In general, compound miter

saws doa betterjob of cuffingcrown moldingthan

any other tool made.

In orderto fit properly,crown moldingmust be com-

pound m/tared with extreme accuracy.

The two contact surfaces on a piece of crown molding

that fit fiat against the ceiling and the wall of a room

are at angles that, when added together, equal

exactly 90°. Mcet crown moldinghas atop rear angle

(the sectionthat fits fiat against the ceiling) of 52° and

a bottom rear angle (the section that fits fiat against

the wall) of 38°.

52° CEIUNG

LFENCE

• LEFTSIDE,INSIDECORNER

•RIGHTSIDE,OUTSIDECORNER

MITERTABLE

O O

LAYING MOLDING FLAT ON THE

MITER TABLE

See Figure 32.

To use thismethod foraccurateiy cuttingcrown

moldingfor a 90° insideor outsidecomer, lay the

moldingwith its broad beck surfacefiat onthe miter

table and against the fence.

When settingthe beval and miterangles forcom-

pound miters, remember that the settingsare interde-

pendent;changingone angle changes the other angle

as well.

Keep in mind that the angles for crownmoldingsare

very precise and difficultto set. Since it is very easy

for these angles to shift,all settingsshouldfirstbe

tested on scrap molding.Also mostwalls do nothave

angles of exactly 90", therefore, you will needto fine

tune your settings.

CORNER

FENCE

OUTSIDE

CORNER

BOTTOMEDGEAGAINSTFENCE:

•RIGHTSIDE,INSIDECORNER

OUTSIDECORNER

MITERTABLE

O O

CROWNMOLDING FLATON MITERTABLE Fig. 32

When cuttingcrown moldingby thismethod the bevel

angle shouldbe set at 33.85°. The miter angle should

be set at 31.62°either dght or left, depending onthe

desiredcut for the application.See the chart below for

correctangle settingsand correct positioningof crown

moldingon mitertable.

The settingsin the chart below can be used forcutting

All Standard (U.S.) crown moldingwith 52° and 38°

angias. The crown moldingis placed fiat on the miter

table usingthe compound features of your mitersaw.

Bevel

Angle Type of Cut

Setting

Left side, Inside corner

1. Top edge of moldingagainst fence

33'85° 2. Miter table set dght 31.62°

3. Save left end of cut

Right side, Inside corner

1. Bottomedge of moldingagainst fence

33"85° 2. Miter table set left 31.62°

3. Save left end of cut

Left side, outside comer

1. Bottomedgeof moldingagainst fence

33"85° 2. Miter table set left 31.62°

3. Save rightend of cut

Right side, outside comer

1. Top edge of moldingagainst fence

33"85° 2. Miter table set dght31.62 °

3. Save dght end of cut

CUTTING WARPED MATERIAL

See Figures 33 and 34.

WRONG Fig. 34

When cuttingwarped material,always make sure it is

positionedon the mitertable with the convex side

against the fence as shown infigure 33.

If the warped matadai is positionedthe wrong way as

shown infigure 34, it will pinchthe blade near the

completion of the cut.

_lb WARNING: To avoid a kickbackand to avoid

serious personalinjury,never positionthe

concave edge of bowed or warped material

against the fence.

CLAMPING WIDE WORKPIECES

See Figure35.

WIDE

BOARD

RIGHT Fig. 33 Fig. 35

When cuttingwide workpiecas such as a 2 in. x 6 in.,

boards shouldbe clampedwith a C-clamp as shown in

figure 35.

WARNING:Whenservicing,usaonlyidentical

Craftsmanreplacementparts.Useofanyother

partmay create a hazard orcause product

damage.

GENERAL

Avoidusingsolvents when cleaning plasticparts.

Most plasticsare susceptibleto damage fromvadous

types of commercialsolventsand may be damaged

by their usa. Usa clean clothsto remove dirt,carbon

dust, etc.

EXTENSION CORDS

The usa of any extensioncord will cause some lossof

power.To keep the lossto a minimumand to prevent

tool overheating, usa an extensioncord that is heavy

enoughto carry the currentthe tool will drew.

A wire gage size (A.W.G.) of at least 14 is recom-

mended for an extensioncord 25 feet or less in

length.When workingoutdoors,usa an extension

cord that is suitablefor outdoorusa. The cord's jacket

will be markedWA.

,_ WARNING: Do notat any time let brake fluids, _cuttingCAUTION:areaandKeeppositionextensi°nthecordScordsoaWaythatfromitwillthe

gasoline,petroleum-basedproducts,penetrating notget caught on lumber,tools, etc., dudng

cuttingoperation.

oils,etc. come in contact with plastic parts. They

containchemicals that can damage, weaken or

destroyplastic.

it has been foundthat siectric toolsare subjectto

accelerated wear and possibleprematurefailurewhen

they are used onfiberglass boats, sports cars,

wallboard,spacklingcompounds, or plaster.The

chips and gdndingsfromthese matedals are highly

abrasiveto siectdc tool parts suchas bearings,

brushes,commutators, etc. Consequently,it is not

recommendedthat thistool be usedfor extended

work on any fiberglass material,wallboard, spackling

compounds,or plaster. Duringany use on these

matedaisit is extremelyimportantthat the tool is

cleaned frequentlyby blowingwithan air jet.

LUBRICATION

WARNING: Check extensioncords before each

usa. If damaged, replace immediately.Never usa

tool withadamaged cord since touchingthe

damaged area could cause electdcal shock

resultingin sedous injury.

_k WARNING: Alwayswear safety gogglesor

safety glasses withside shieldsdudngpower

tooloperation or when blowingdust. If operation

is dusty,also wear adust mask.

All of the bsadngs inthis tool are lubricatedwith a

sufficientamount of highgrade lubricantforthe lifeof

the unit under normaloperatingconditions.Therefore,

no further lubricationis required.

_lb WARNING: To ensure safety and reliability,all

repairs-- with the exceptionof the extemally

accessible brushes_shouldbe performed by a

qualifiedservice technicianat a Sears storeto

avoid riskof personal injury.

BRUSH REPLACEMENT

See Figure 36.

BRUSH

ASSEMBLY

BRUSH

CAP

BRUSH

CAP

_BRUSH

ASSEMBLY Fig. 36

Your saw has externally accessiblebrushassemblies

that shouldbe pehodicallycheckedforwear.

Proceed as follows when replacement Is required:

• Unplugyour saw.

_kWARNING: Failureto unplugyour saw could

result in accidentalstartingcausingsadous

injury.

•Remove brushcap with a screwdriver.Brush

assembly is spdngloaded and will pop outwhen

you remove brushcap.

•Remove brushassembly.

•Check for wear. Replace both brusheswhen

either has less than 1/4 in. lengthof carbon

remaining. Do not replace one side without

replacingthe other.

•Reassemble usingnew brushassemblies.Make

sure curvatureof brush matchescurvatureof

motorand that brushmoves freelyin brushtube.

•Make surebrushcap is odented correctly ,

(straight)and replace.

•Tighten brushcap securely. Do not overtighten.

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212100

Ihe model numberwill be found on a plateattachedto the motorhousing.Alwaysmentionthe model numberinall correspondenceregarding your |

CRAFTSMAN COMPOUND MITER SAW orwhen orderingrepairparts. J

KEY PART

NO. NUMBER

710308-045

360308-142

976498-001

976516-001

160030-400

976514-001

976598-001

976601-001

976610-001

976531-001

976515-001

977434-001

977435-001

976513-001

976512-001

PARTS LIST FOR FIGURE A

DESCRIPTION QUAN.

Bolt (M8 x 45 Soc. Hd.) .................................. 4

LockWasher (M8) .......................................... 4

Fence.............................................................. 1

Zero ClearanceThroat Plate .......................... 1

Screw.............................................................. 4

Miter Table ...................................................... 1

Jq.

Cover Plate ..................................................... 1

Screw (Pan Hd.) ............................................. 2

Miter Table Frame

(IncludesKey Nos. 10, 11, 12, & 13) .............. 1

Rivet ............................................................... 3

Miter Scale...................................................... 1

Hand Waming Label ....................................... 2

Une Label ....................................................... 2

Table Spindle.................................................. 1

Washer ........................................................... 2

KEY PART

NO. NUMBER DESCRIPTION

16 976511-001

17 976578-001

18 700306-025

19 360306-121

20 976501-001

21 976505-001

22 976506-001

23 976526-001

24 976527-001

25 976.509-001

26 976.568-001

27 976570-001

28 976605-001

29 976.569-001

AVAILABLE AT YOUR NEAREST SEARS CATALOG ORDER OR RETAIL STORE

QUAN.

SpringWasher ................................................ 1

NylonLockNut ............................................... 1

Screw (Socket Hd. Cap) ................................. 2

LockWasher ................................................... 2

ControlArm .................................................... 1

Miter LockHandle........................................... 1

Pointer.................................... ........................ 1

Flat Washer (M4) ............................................ 1

Screw.....................,....................................... 1

Miter Lock Plate .............................................. 1

Blade Wrench ................................................. 1

5 mm Hex Key ................................................ 1

6 mm Hex Key ................................................ 1

8 mm Hex Key ................................................ 1

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212100

8 9

FigureB

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212100

The model numberwill be foundon a plateattached to the motorhousing.Always mentionthe model numberinall correspondenceregardingyour

COMPOUND MITER SAW or whenordering repairparts.

PARTS LIST FOR FIGURE B

KEY

NO.

PART

NUMBER

976528-001

977441-001

976530-001

976529-001

976518-001

976519-001

976531-001

976535-001

700310-025

DESCRIPTION QUAN.

TorsionSpring ................................................ 1

SupportBracket.............................................. 1

LockWasher ................................................... 3

Bolt ................................................................. 1

Hex Bolt.......................................................... 2

Hex Nut........................................................... 2

Rivet ............................................................... 3

Bevel Scale ..................................................... 1

Bolt (MIO x 25 Hex Hd.) ................................. 2

KEY PART

NO. NUMBER DESCRIPTION

10 976609-001

11 976527-001

12 976526-001

13 976525-001

14 976520-001

15 976521-001

16 976512-001

17 976522-001

QUAN.

Bevel Pivot BracketAssembly

(includesKey Nos. 7 & 8) ............................... 1

Screw.............................................................. 2

Washer ........................................................... 2

Bevel Index Pointer........................................ 2

Washer ........................................................... 1

PivotShaft ...................................................... 1

Washer (M10) ................................................. 1

Bevel LockKnob............................................. 1

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212100

FigureC

13 14 15 O_

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212100

Ihe modelnumberwill be foundon a plate attachedto the motorhousing,Alwaysmentionthe model numberin all correspondenceregardingyour |

COMPOUND MITER SAW or when ordedng repairparts. J

PARTS LIST FOR FIGURE C

KEY PART

NO. NUMBER

1 976539-001

2 976596-001

3 976567-001

4 976543-001

5 979678-001

6 976599-001

7 976733-001

8 976540-001

9 976604-001

10 976600-001

,,11 976552-001

12 976549-001

13 976541-001

DESCRIPTION QUAN.

Dust Shield..................................................... 1

U-Clip.............................................................. 2

Dust Guide ...................................................... 1

Upper Blade Guard......................................... 1

Logo Plate ...................................................... 1

Screw (M5 x 12) ............................................. 4

Lower Blade Guard Label............................... 1

Caution Label ................................................. 1

PhillipsScrew ................................................. 1

Fixed Screw .................................................... 1

Blade BoltCover............................................. 1

LockNut ......................................................... 1

Stopper........................................................... 1

KEY PART

NO. NUMBER DESCRIPTION

14 13(X)30-401

15 976547-001

16 ***

17 976548-001

18 976554-001

19 976607-001

20 976608-001

21 976507-001

22 130030-501

23 976740-001

24 976564-001

QUAN.

Screw (M4 x 15) ............................................. 1

Blade Washer ................................................. 2

Saw Blade ...................................................... 1

Blade Bolt (M8 x 20) ....................................... 1

ReturnSpdng ................................................. t

LowerBlade Guard Assembly........................ 1

Blade Guard BracketAssembly

(IncludesKey No. 23) ..................................... 1

Washer (M5) ................................................... 1

Screw (M5 x 10) ............................................. 1

Label ............................................................... 1

Screw .............................................................. 1

COMPLETE ASSORTMENT AVAILABLE AT YOUR NEAREST SEARS CATALOG ORDER OR RETAIL STORE

CRAFTSMAN COMPOUND MITER SAW - MODEL NUMBER 315.212100

SEENOTE"A"

22 23

24 25

FigureD 26

CRAFTSMAN COMPOUND MITER SAW -MODEL NUMBER 315.212100

Ihe model numberwill be foundon a plate attachedto the motorhousing.Alwaysmentionthe model numberin allcorrespondenceregardingyour |

CRAFTSMAN COMPOUND MITER SAW or when orderingrepairparts. I

KEY PART

NO. NUMBER

976641-001

976576-001

976643-001

976644-001

976645-001

976536-001

976537-001

180031-002

300030-100

976664-001

976663-001

976686-001

976683-001

976682-001

PARTS LIST FOR FIGURE D

DESCRIPTION QUAN.

"O' Ring.......................................................... 1

LockPin.......................................................... 1

E-Ring............................................................. 1

Screw (M4 x 16) ............................................. 1

Rubber Bumper.............................................. 1

FlatWasher (M12) .......................................... 1

Hex Nut (M12) ................................................ 2

Depth StopAdjustmentScrew (M10 x 20) ..... 1

Hex Nut (M10) ................................................ 1

Screw.............................................................. 2

CarryingHandle.............................................. 1

Data Plate ....................................................... 1

BrushAssembly.............................................. 2

BrushCap....................................................... 2

KEY PART

NO. NUMBER DESCRIPTION

15 976691-001

16 976650-001

17 976651-001

18 976649-001

19 976647-001

20 976648-001

21 588028-108

22 976653-001

23 976654-001

24 588030-006

25 976658-001

26 568031-004

972000-578

QUAN.

Warning Label ................................................ 1

Spindle LockPin ............................................. 1

E-Ring............................................................. 1

CompressionSpring ....................................... 1

Ball Bearing(6000zz) ..................................... 1

Extemal RetainingRing.................................. 1

Gear ................................................................ 1

LockRing........................................................ 1

Square Key (4 x 4 x 26) .................................. 1

Gear Shaft ...................................................... 1

Ball Bearing (6004zz) ..................................... 1

Screw (Special) .............................................. 2

Owner's Manual

NOTE: "A"-THE ASSEMBLY SHOWN REPRESENTS AN IMPORTANT PART OFTHE DOUBLE INSULATED SYSTEM. TO AVOID THE POSSIBILITY

OF ALTERATION OR DAMAGE TO THE SYSTEM, SERVICE SHOULD BE PERFORMED BY YOUR NEAREST SEARS REPAIR

CENTER. CONTACT YOUR NEAREST SEARS CATALOG ORDER OR RETAIL STORE FOR SERVICE CENTER INFORMATION.

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-Home s. (1-800-469-4663)

Para pedir servicio de reparacibn a domicilio - 1-800-676-5811

In Canada for all your service and parts needs call - 1-800-665-4455

Au Canada pour tout le service ou les pi_ces

For the repair or replacement parts you need:

Call 7 am - 7 pm, 7 days a week

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio - 1-800-659-7084

For the location of a Sears Parts and Repair Center in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance Agreement

or to inquire about an existing Agreement:

Call 9 am - 5 pm, Monday - Saturday

1-800-827-6655

The Service Side of Sears _"

Craftsman 315 2121O0 Users Manual

CRAFTSMAN Miter Saw Manual 99040504 CRAFTSMAN Miter Saw Owner's Manual, CRAFTSMAN Miter Saw installation guides

315.2121O0 99040504

3152121o0 9437700c-3c37-4211-b711-7e998905f46f Craftsman Saw 315.2121O0 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
