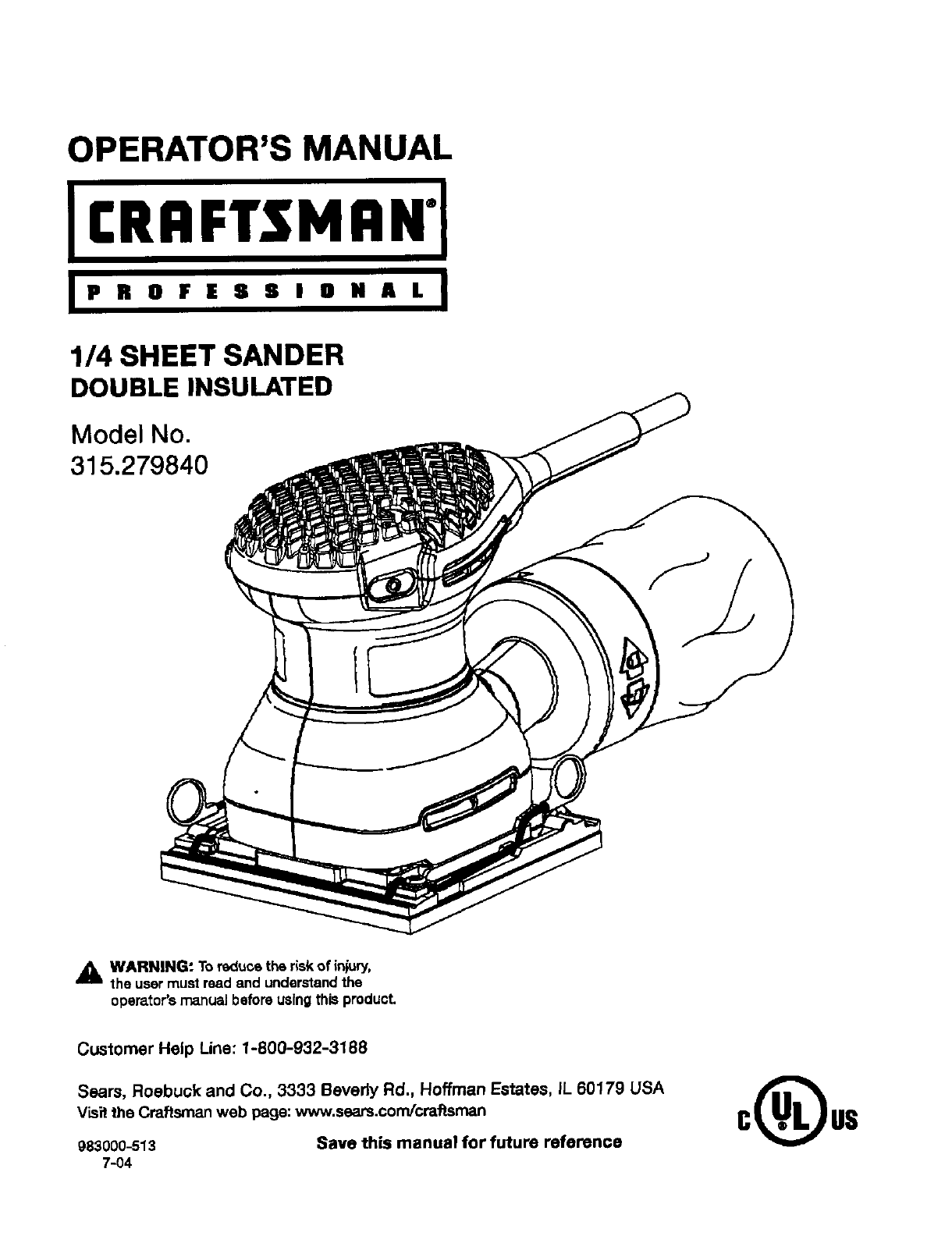

OPERATOR'S MANUAL

iPR OFESS I ONAL I

1/4 SHEET SANDER

DOUBLE INSULATED

Model No.

315.279840

_k WARNING: Toreduce tho riskof injury,

the user must read and understandthe

operator'smanual before usingthisproduct.

Customer Help Line: 1-800-932-3188

Sears, Roebuck and Co., 3333 Bevedy Rd., Hoffman Estates, IL 60179 USA

Visit the Craftsman web page: www.sears.com/cmflsman

983000-513

7-04

Save this manual for future reference

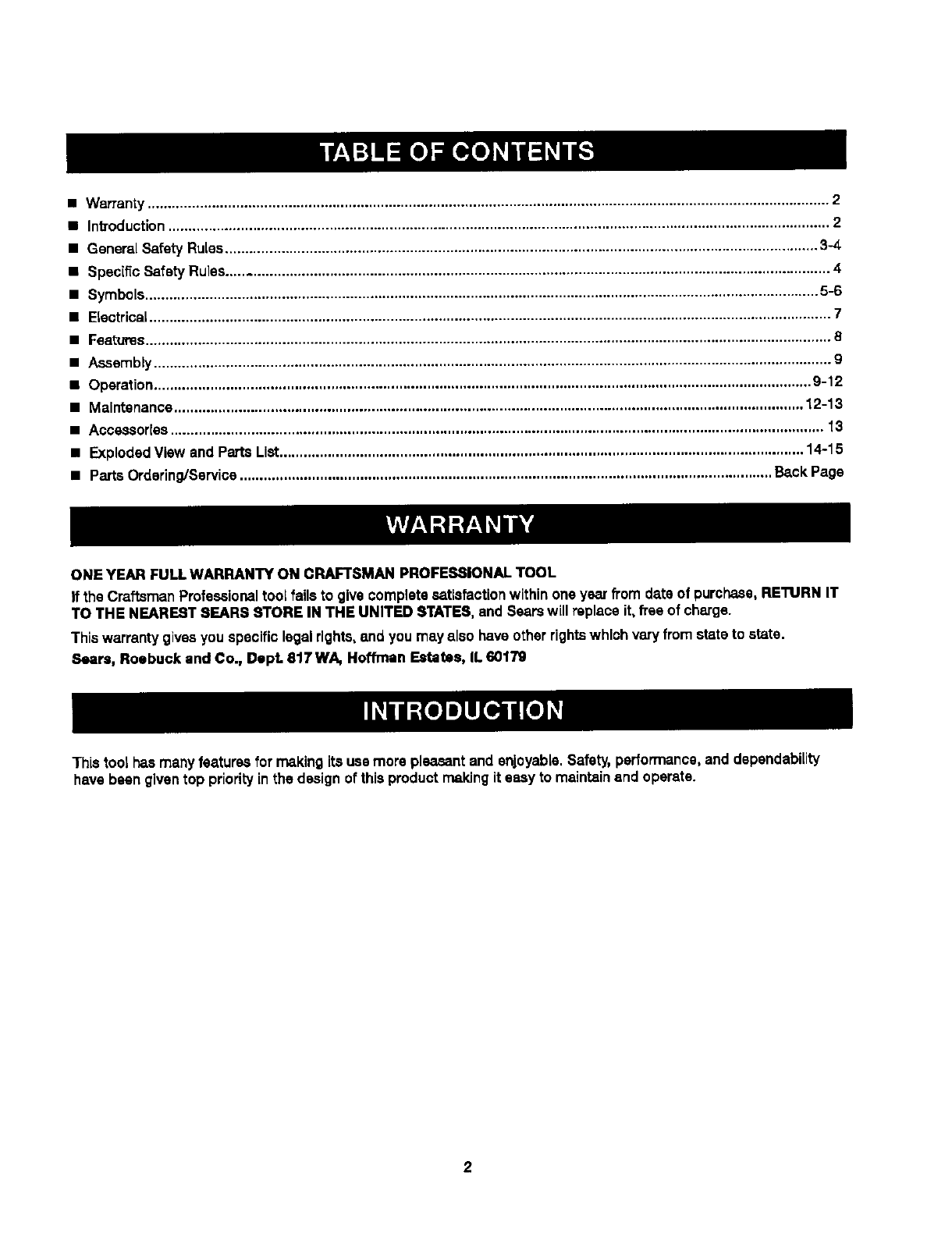

•Warranty.......................................................................................................................................................................... 2

•Infroduction..................................................................................................................................................................... 2

•General SafetyRules.................................................................................................................................................... 3-4

•Specific Safety Rules...................................................................................................................................................... 4

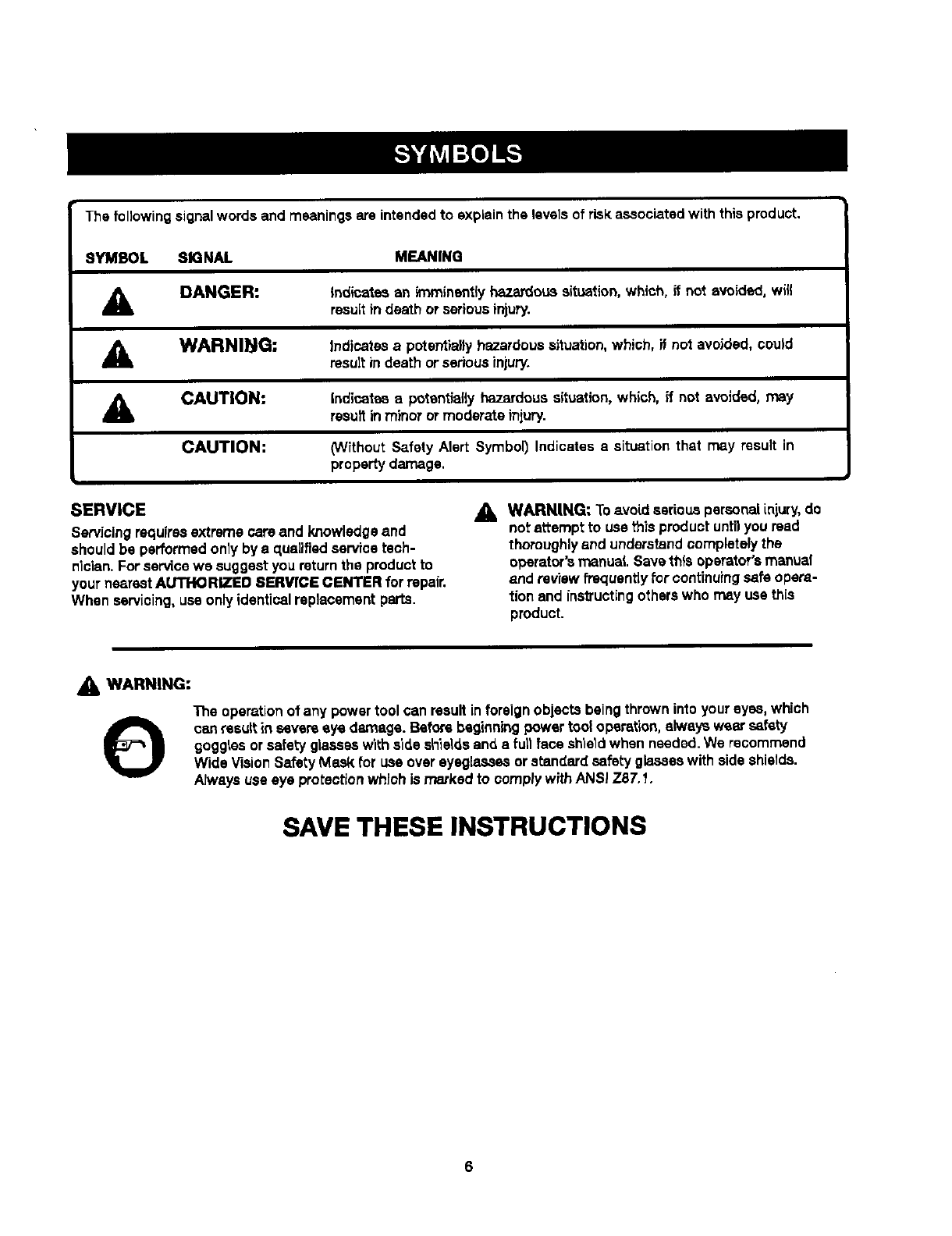

•Symbols........................................................................................................................................................................ 5-6

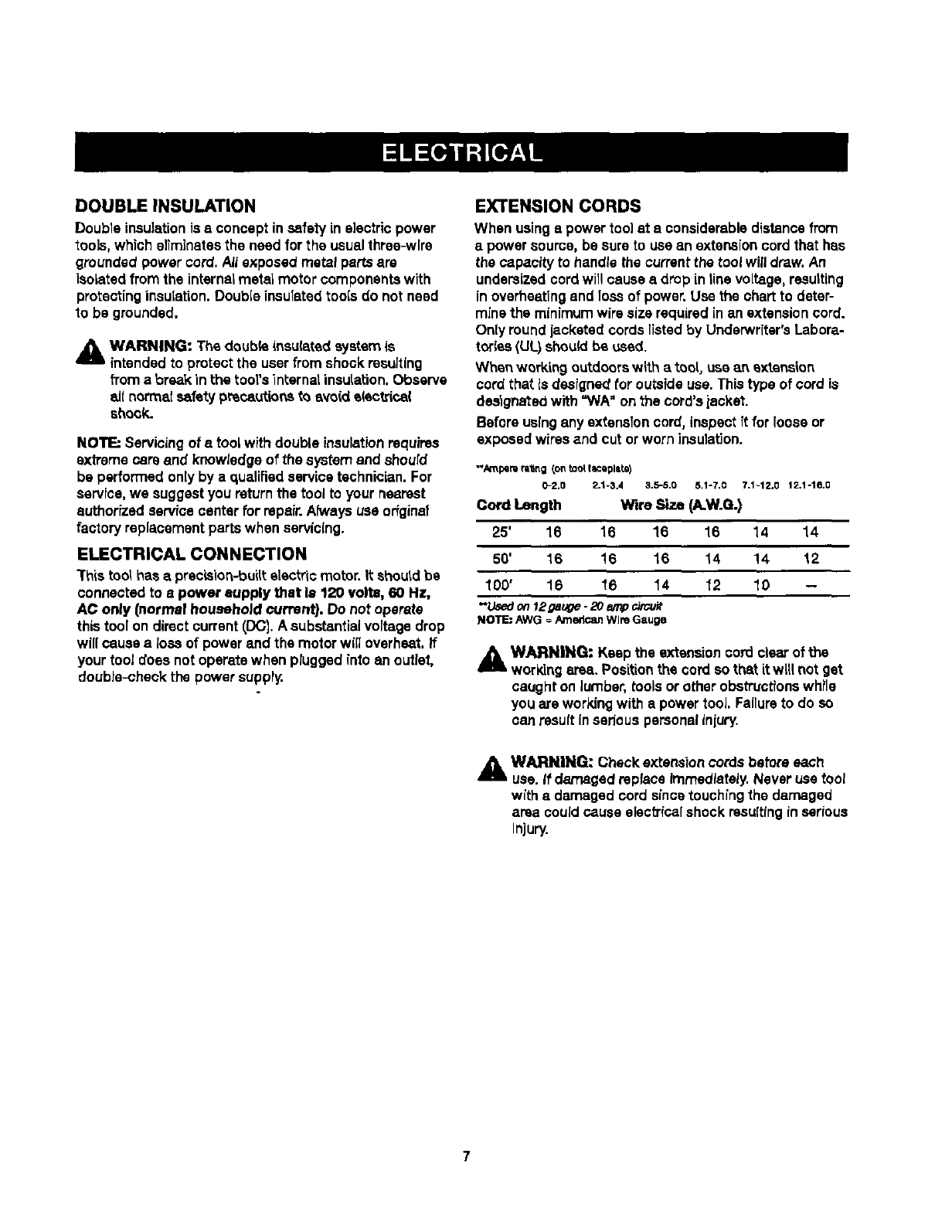

•Electrical.......................................................................................................................................................................... 7

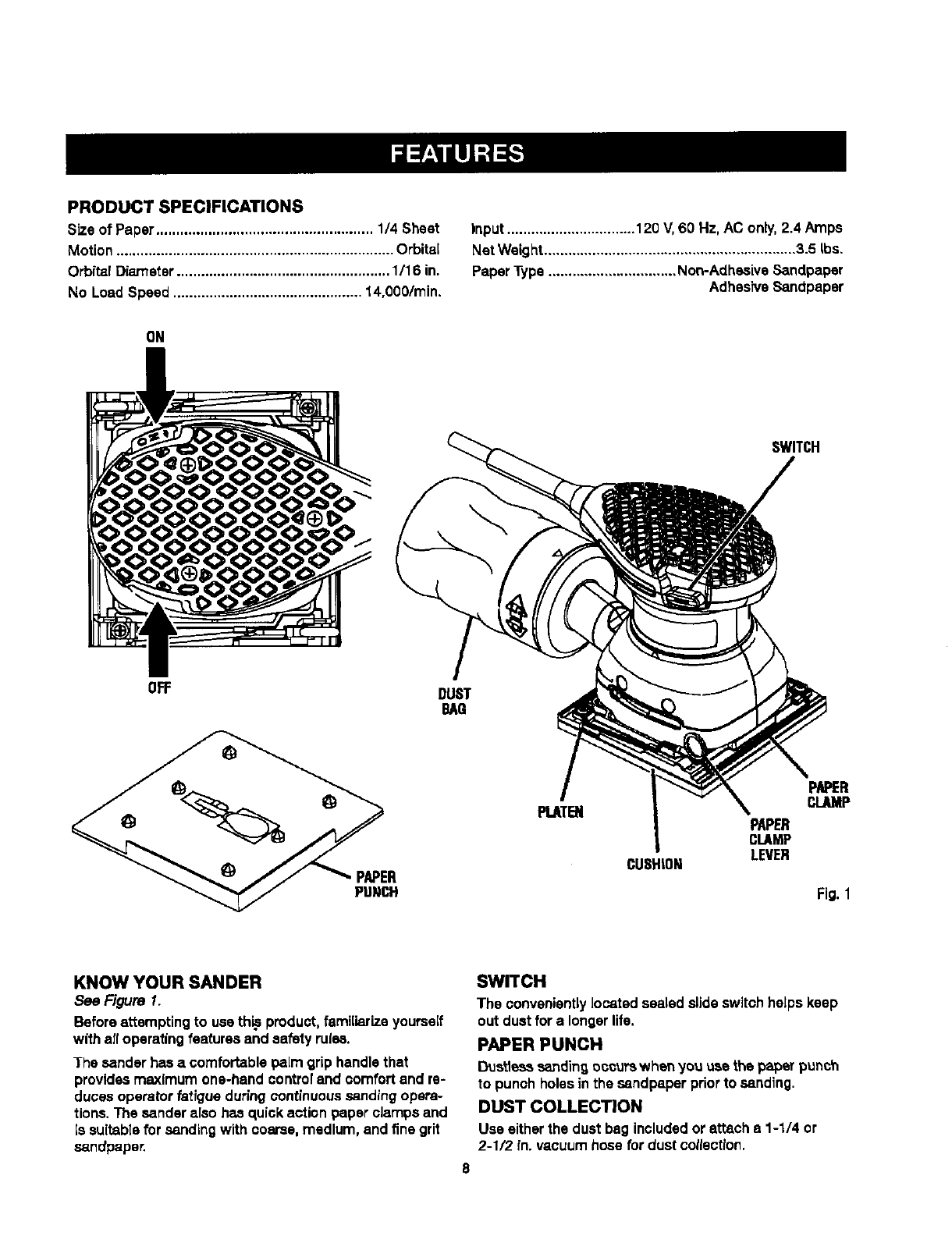

•Features........................................................................................................................................................................... 8

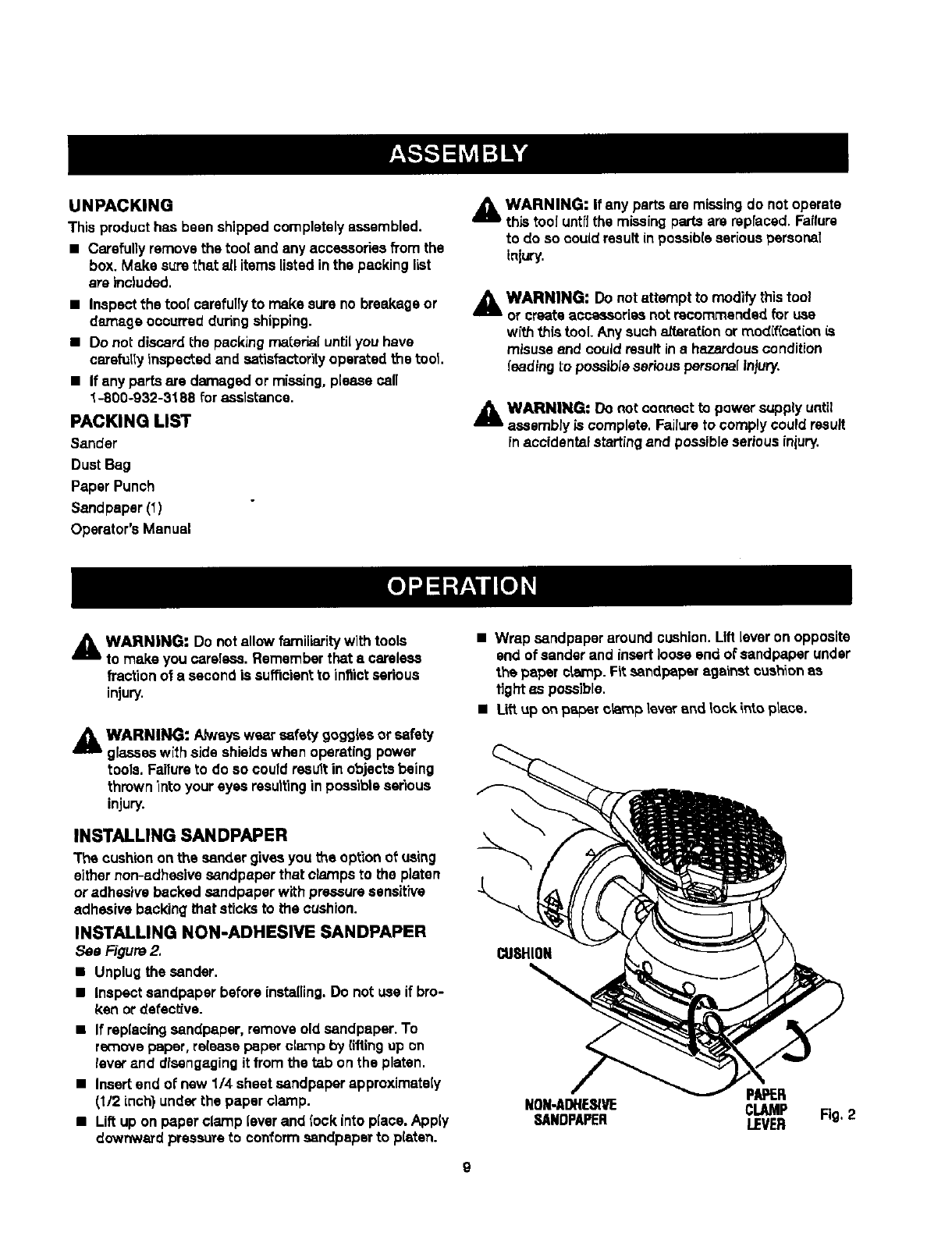

•Assembly......................................................................................................................................................................... 9

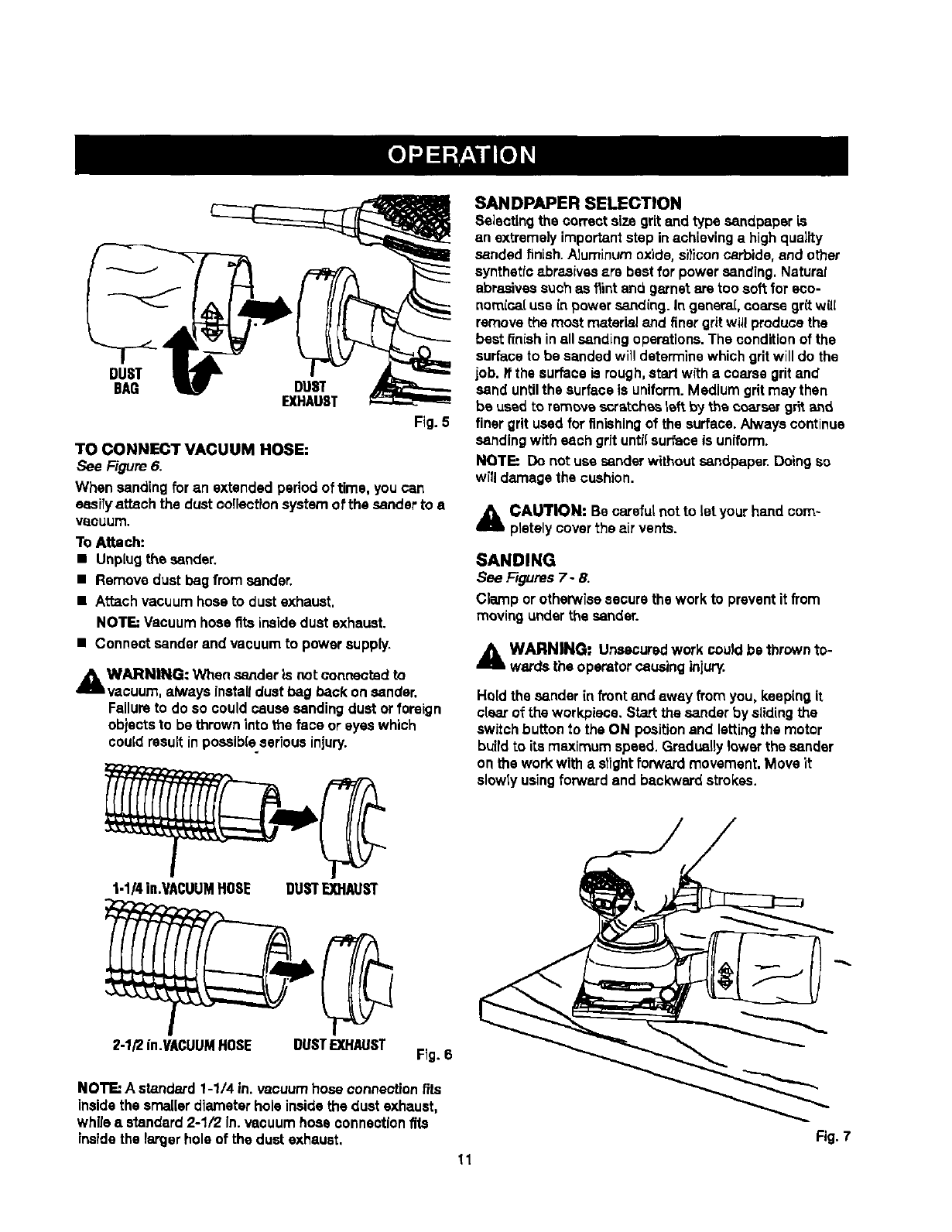

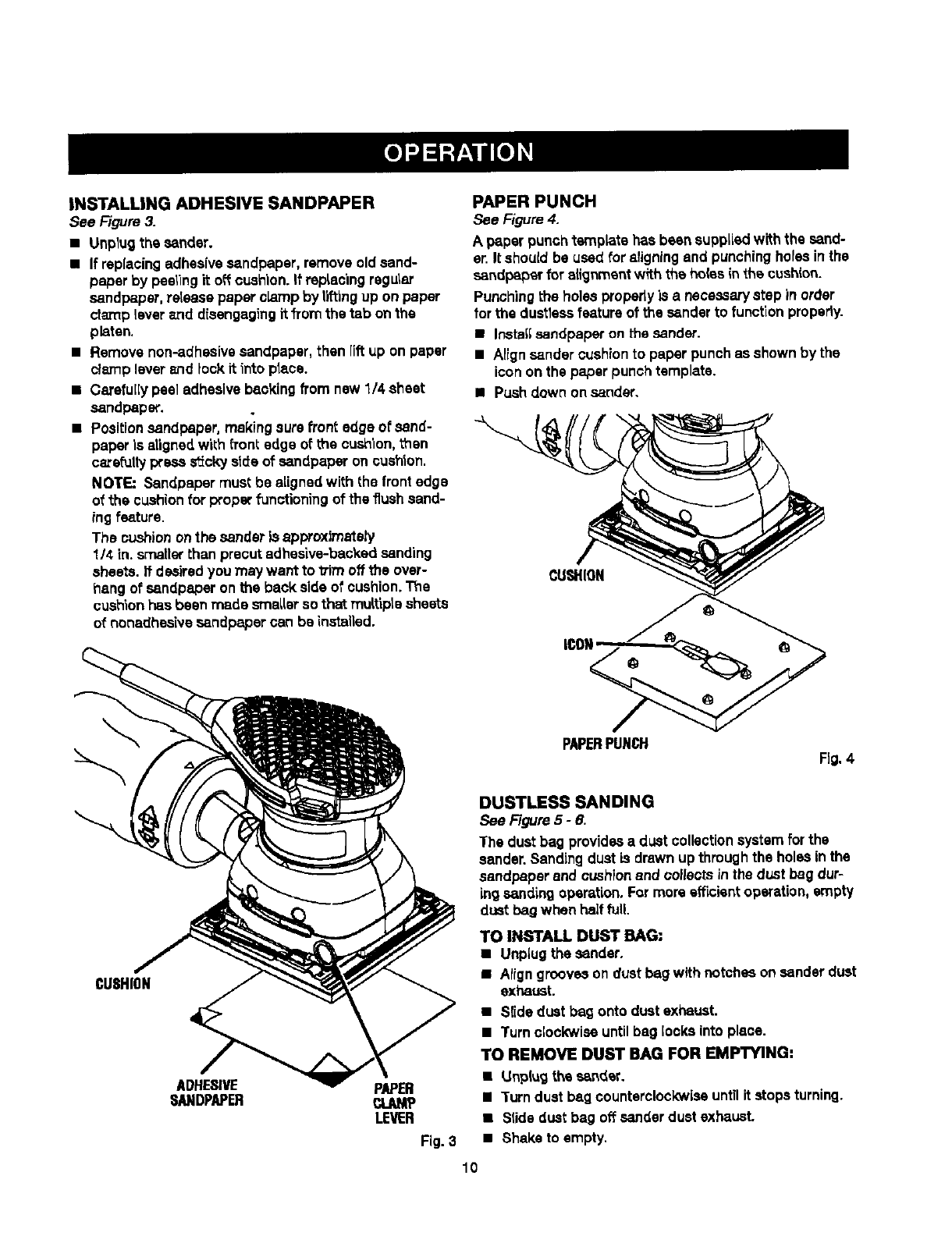

•Operation.................................................................................................................................................................... 9-12

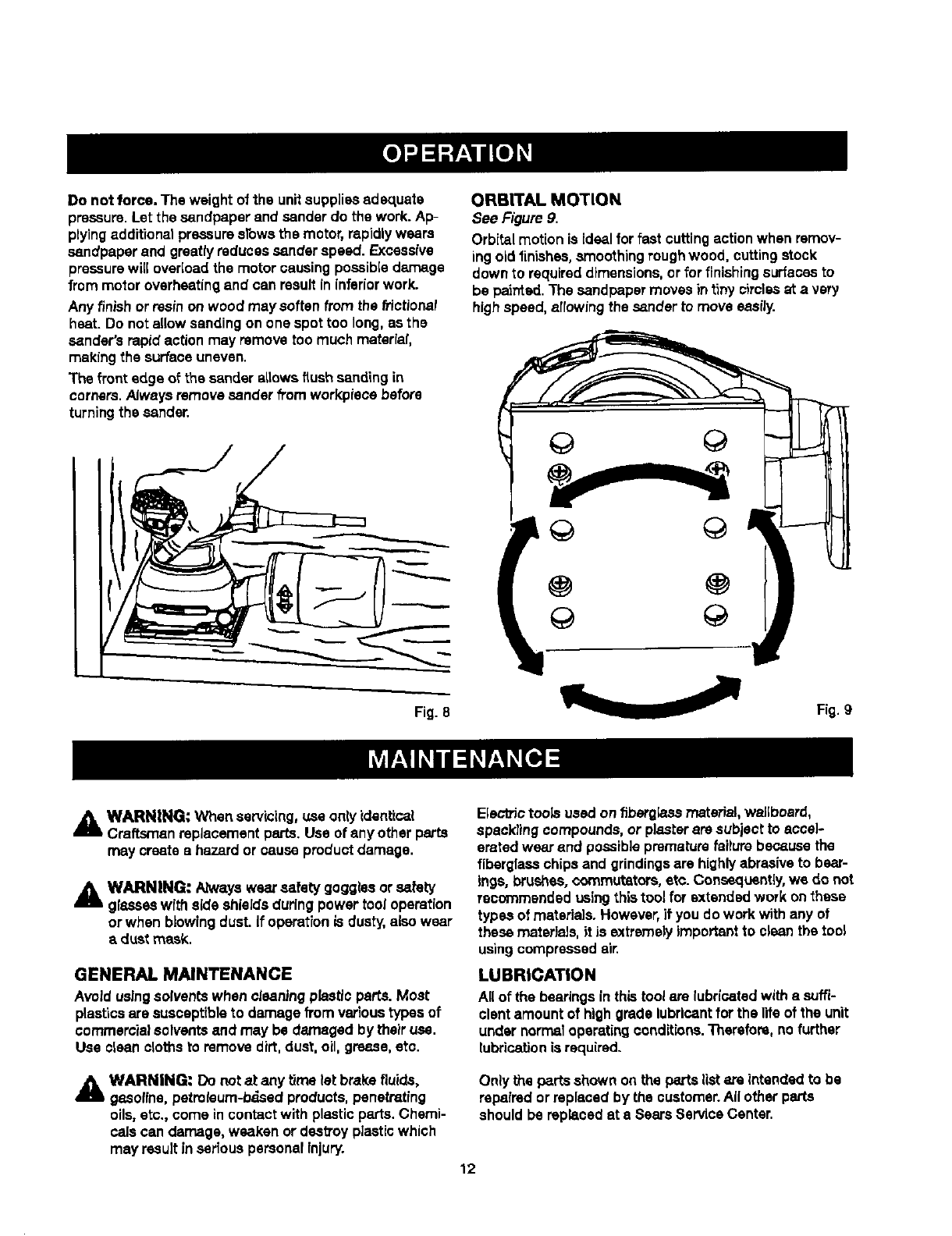

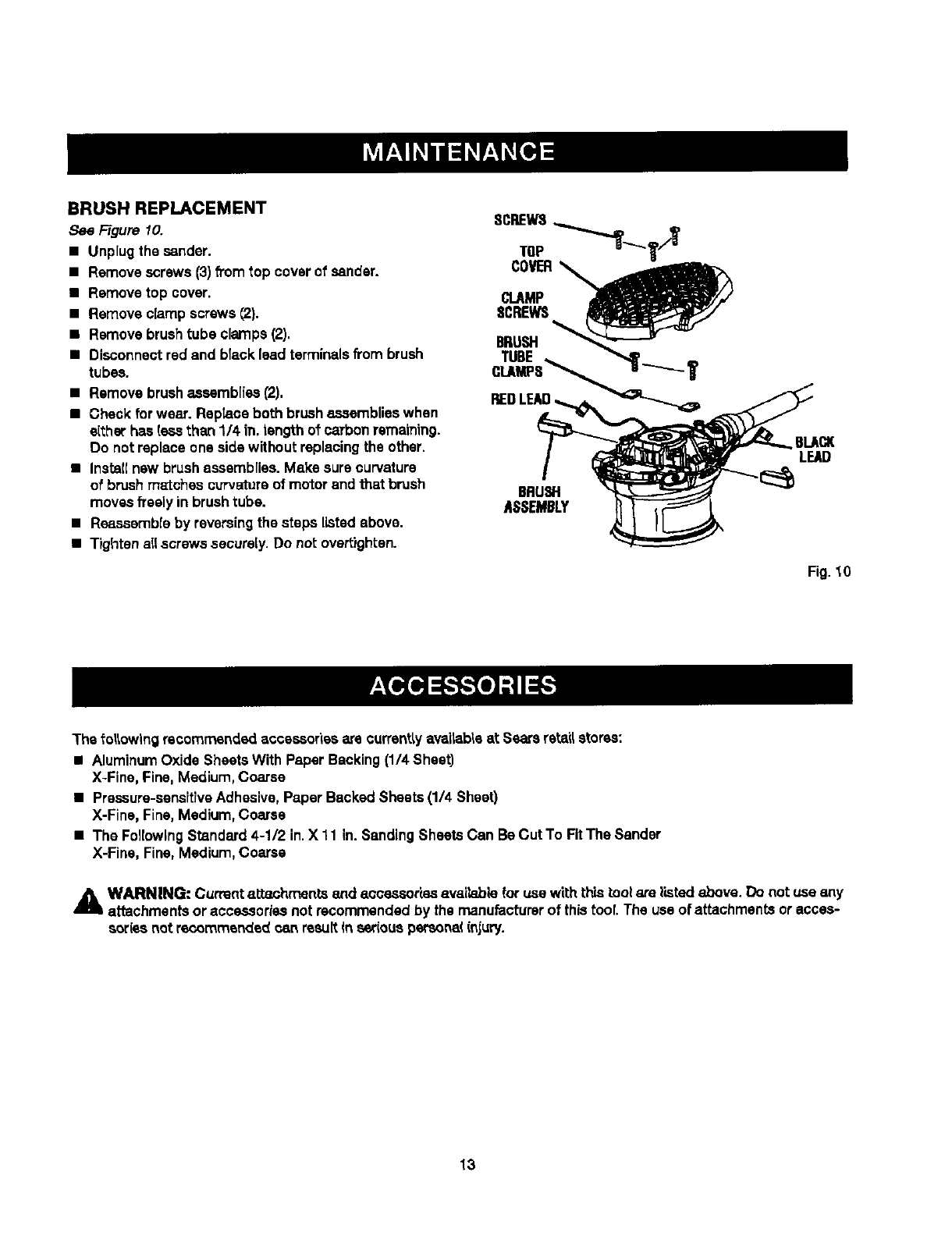

•Maintenance............................................................................................................................................................. 12-13

• AcceSSories ................................................................................................................................................................... 13

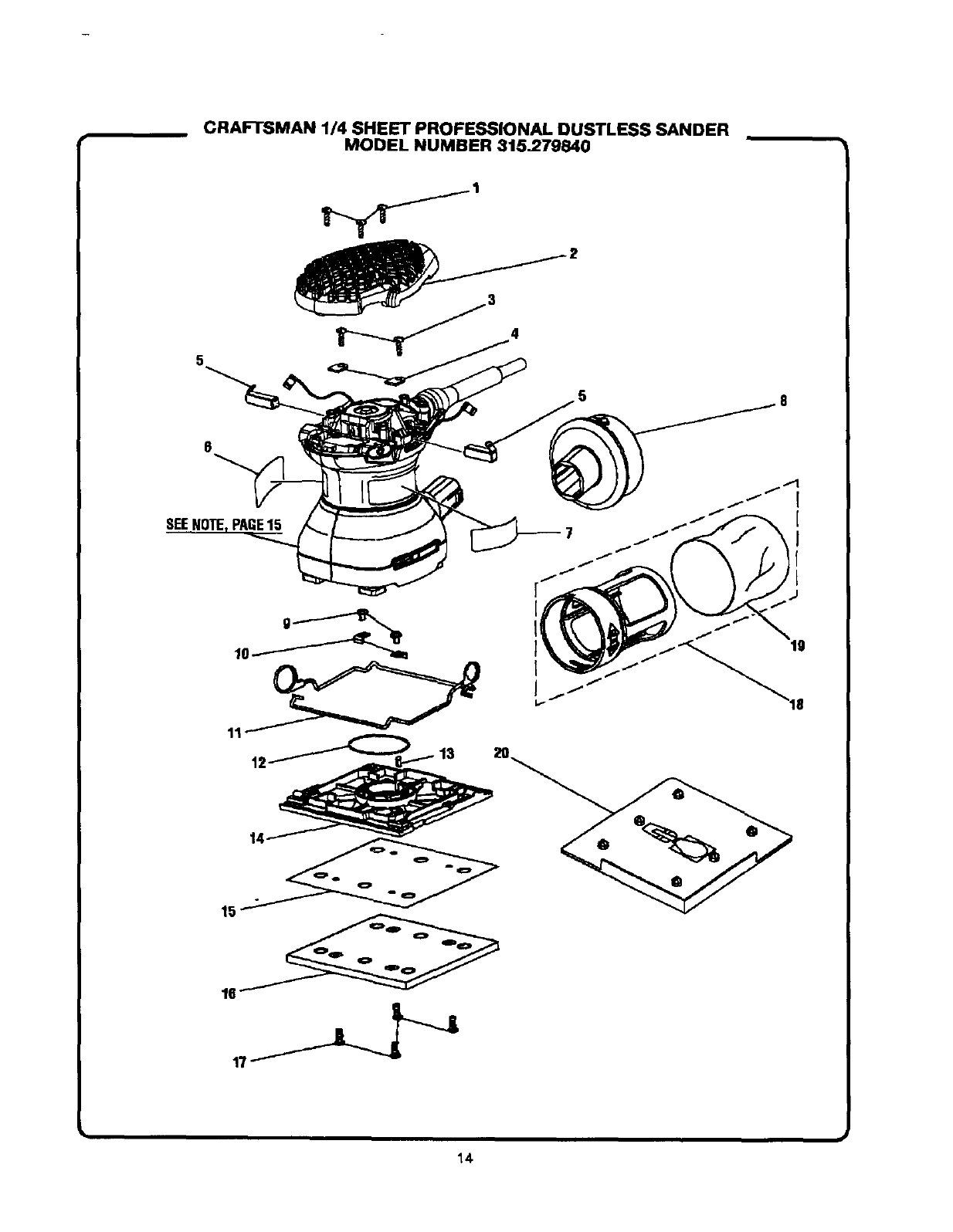

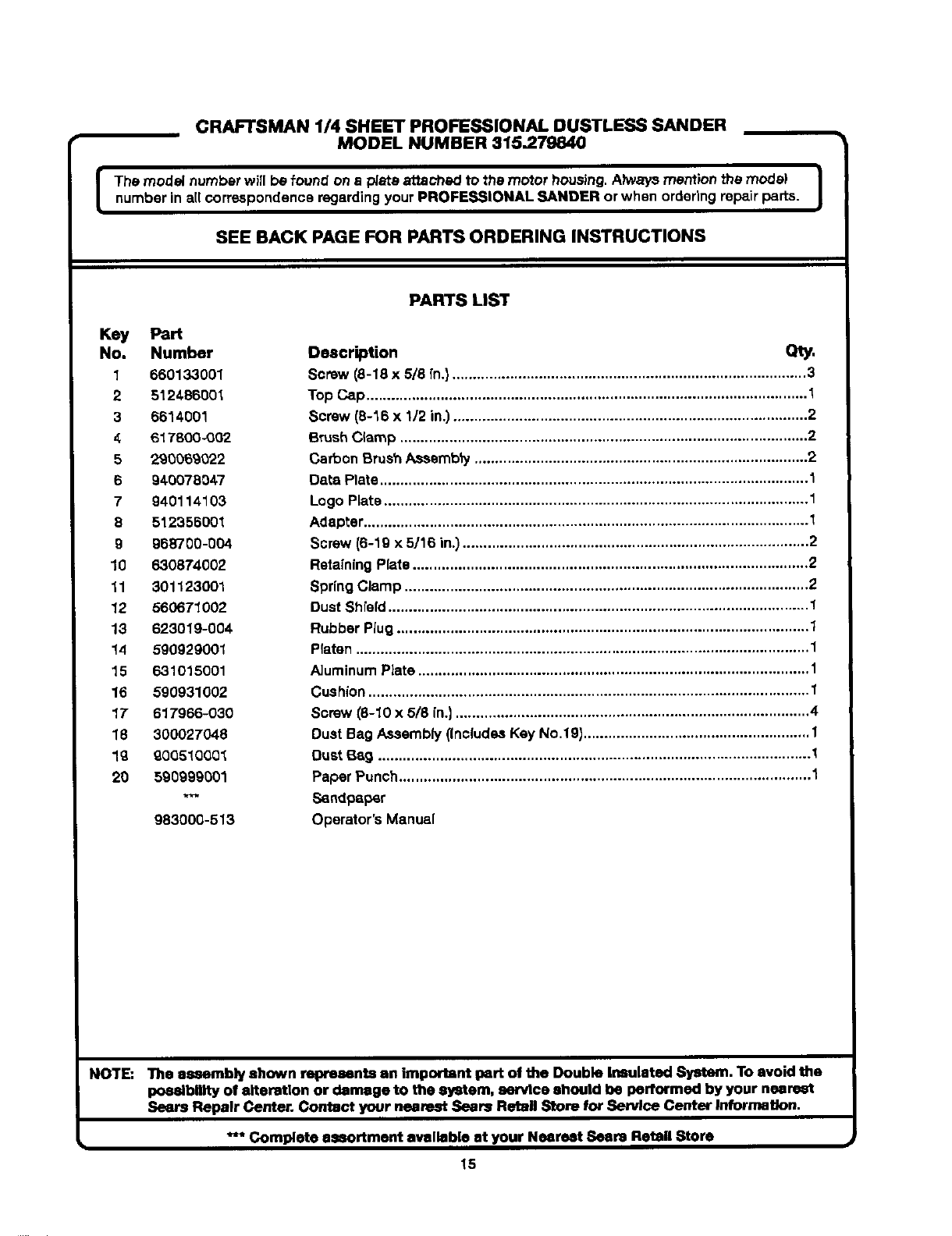

•ExplodedView and Parts List................................................................................................................................... 14-15

•Parts Ordering/Service..................................................................................................................................... Back Page

ONE YEAR FULL WARRANTY ON CRAFTSMAN PROFESSIONAL TOOL

If the Craftsman Professionaltool fails to give completesatisfactionwithinone year from date o1purchase, RETURN IT

TO THE NEAREST SEARS STORE IN THE UNITED STATES,and Searswill replace it, free of charge.

This warranty givesyou specific legalrights,and youmay also have other rightswhich varyfrom stateto state.

Sears, Roebuck and Co., DopL 817 WA, Hoffman Estates, IL 60179

This tool has many featuresfor making its use more pleasantand enjoyable.Safety, performance,and dependability

have been given top priorityinthe design of thisproduct making it easy to maintain and operate.

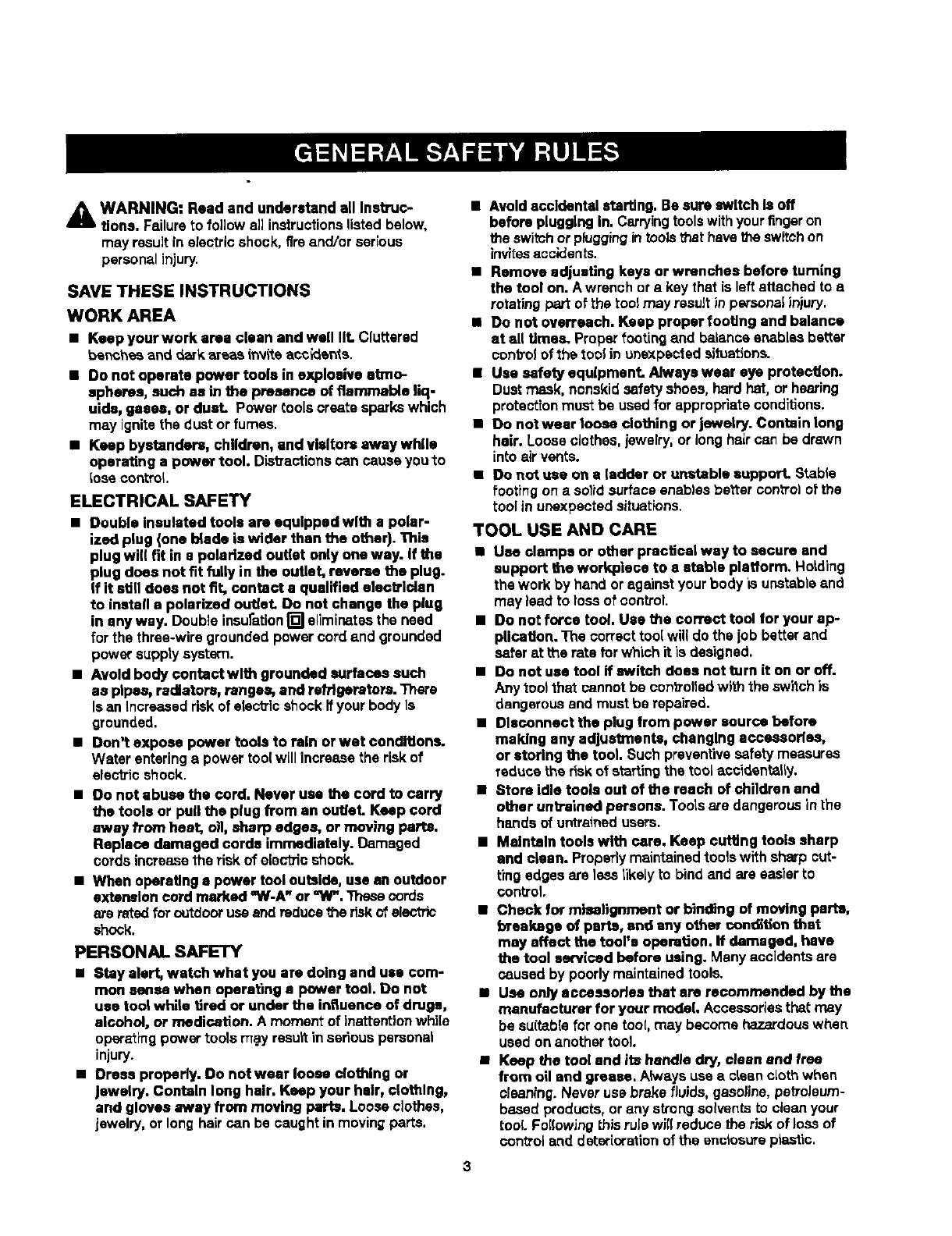

WARNING:Readand understand all Instruc-

tions. Failureto follow a]] instructions listed below,

mayresult in eisctric shock, tim and/or serious

personalinjury.

SAVE THESE INSTRUCTIONS

WORK AREA

• Keep your work area clean and well lit, Cluttered

benches and dark areas invite _cc;dents.

• Do not operate power tools in explosive stmo-

spheres, such as in the presence of flammable liq-

uids, gases, or dust. Power tools create sparkswhich

may ignitethe dustor fumes,

•Keep bystanders, children, andvbltore eweywblls

operating a power tool. Distractionscan cause you to

lose control.

ELECTRICAL SAFETY

•Double Insulated tools are equipped with a polar-

ized plug (one blade is wider than the other). This

plug wi(I fit in a polarized out(st only one way. If the

plug does not fit fully in the outlet, reverse the plug.

If it still does not fit, contact • qualified eleoVldan

to install e polarized out(eL Do nat change the plug

in any way. Double insulation[] eliminatesthe need

for the three-wire grounded power cord and grounded

power supplysystem.

•Avoid body contact wlth grounded surfaces such

as pipes, radiators, range_, and rstrlperatore. There

Is an Increasedriskof electricshock Ifyour body Is

grounded.

•Don't expose power tools to rein or wet conditions`

Water enteringapower tool will Increase the riskof

erectricshock.

•Do nat abuse the cord. Never use the cord to carry

the tools or pull the plug from an outlet. Keep cord

away from heat, oil, sharp edges, or moving parts.

Replace damaged cords immediately. Damaged

cords increasethe risk of electricshock.

•When operating s power tool outside, use an outdoor

exterBIon cord marked '=W-A"or =If_. Thesecords

are ratedfor outdooruseand reducethe riskof electric

shock.

PERSONAL SAFETY

•Stay alert, watch what you are doing and use com-

men sense when operating s power tool. Do not

use tool white tired or under the influence of drugs,

alcohol, or medication. A momentof inattentionwhite

operatingpower tools m.ayresultin seriouspersonal

injury.

•Dress properly. Do notweer loose clothing or

jewelry. Contain long hair. Keep your heir, clothing,

end gloves away from moving parts. Loose clothes,

jewelry, or long hair can be caught inmoving parts.

•Avoidaccidental etarUng. Be sure switch le off

before plugging In. Carryingtoolswithyourfinger on

the switchorpluggingin toolsthat havethe switchon

invitesaccidents.

•Remove adjusting keys or wrenches before tuming

the tool on. A wrench or a key that is leftattached to a

rotating part of the toolmay resultin persocaJiniury.

•Do not overreach. Keep proper footing end balance

at all times. Properfooting and balance en_b[asbetter

con_olofthetooSin unexpectedsituations.

•Use sefetyequipment. Nwsyewear eye protection.

Dustmask, nonskidsafetyshoes, hard hat, or hearing

protectionmust be usedfor appropriate conditions.

•Do not wear loose clothing or jewelry. Contain long

hair. Loose clothes,jewelry,or long hair can be drawn

intoair vents.

•Do not use on a ladder or un_d_ablesupport. Stable

footing on a solid surface enab)esbetter con_ol ofthe

tool in unexpectedsituations.

TOOL USE AND CARE

•Use clamps or other practical way to secure and

support the workplece to a stable platform. Holding

the work by hand oragainst your body is unstableand

may lead to lossof centroL

•Do not force too/. Use the correct tool for your ap-

plication. The correct too(will do the job better and

setar at the rate tor which it is designed.

•Do not cee tool if =witch does not turn it on or off.

Anytool that cannot be controlledwith the switchis

dangerousand must be repaired.

•Disconnect the plug from power source before

making any adjustments, changing accessories,

or storing the tool. Such preventivesafety measures

reduce the riskof startingthe tool accidentally.

•Store idle tools out of the reach of children and

other untrained persona. Tootsare dangerousinthe

hands of untrainedusers.

•Mdntsln tools wtth cars. Keep cuffing tools sharp

and clean. Properlymaintainedtoolswith sharp cut-

ting edges are less likelyto bind and are easierto

control

•Check for misaitgnment or binding of moving parts,

brsekags of parts, and any othe_ condition that

may effect the tool's operation. If damaged, have

the tool serviced before using. Many accidents are

caused by poorly maintained tools.

•Use only accessories that are recommended by the

manufacturer for your model. Accessoriesthat may

be su[tab(efor one too{,may become hazardouswhen

usedon another tool.

•Keep the tool end its handle dry, clean end free

from oil end grease. ANvsys use a cleancloth when

cleaning. Never use brake fluids, gasoline,petToioum-

based products,or any strongsolventsto cleanyour

tool.Followingthis ruJewJflreduce the riskof loss of

control and deteriorationof the enctos6veplastic.

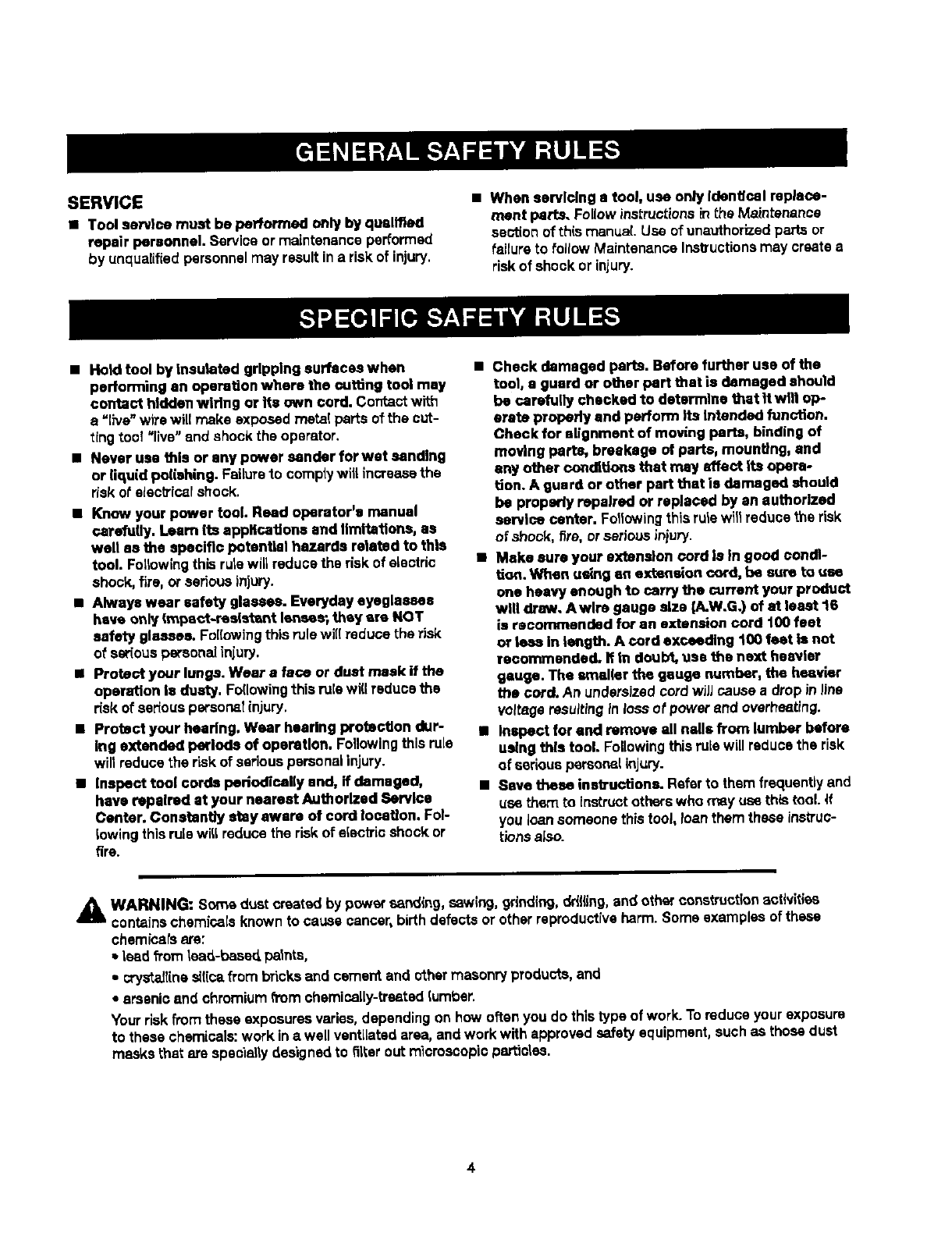

SERVICE

•Tool service must be performed only by qualified

repair personnel. Serviceor maintenanceperformed

by unqualifiedpersonnelmay re,suitin a riskof injury.

• When servicing • tool, use only Identical replace-

ment parts, Follow ins;:ructionsin the Maintenance

section of thLsmanual. Use of unauthorizedparts or

failure to follow Maintenance Instructionsmay create a

riskof shock or injury.

•Hold tool by Insulated gripping surhlcse when

performing an operation where the cutting tool may

contact hidden wiring or Its own cord. Contact with

e "live"wire will make exposedmetal parts of the cut-

ting tool "live"and shockthe operator.

INever use this or any power sander for wet sanding

or (io,uid polishing. Failureto comptywill increasethe

risk o#electricalshock.

•Know your power tool. Read operator's manual

carefully. Learn Its applications end limitations, as

well as the specific potential hazards related to this

tool. Followingthisrutswill reduce ths riskof electric

shock, firs, or seriousInjury.

•Always wear safety glasses. Everyday eyeglasses

have only _mpsct-re=dstsnt lenses; they ere NOT

safety glasses. Followingthis rulewil(reduce the risk

of sedous personalinlury.

•Proteof your lungs. Wear e face or dust meek if the

operation Is dusty. Fallowingthisrule wi[Ireduce the

riskof serious perser_l injury.

•Protect your hearing, Wear hearing protection dur-

Ing extended Periods of operation. Followingthis rule

wiltreduce the risk of seriouspersonal injury.

•Inspect tool cords lc_icxliceHy end, ffdamaged,

have repaired at your nearest Authorized ServJca

Center. Constantly stay aware of cord location. Fol-

lowing thisrule wJilreduce the risk of eisctrJc shock or

fire.

•Check damaged parts. Before further use of the

tool, •guard or other pert that is damaged should

be carefully checked to determine that It will op-

erate properly and perform its intended function.

Check for alignment of moving parts, binding of

moving parts, breakage of parts, recur=ling,and

any other conditions that may effect It_ opera.

Uon. A guard or other part that is damaged should

be propEwlyrepaired or replaced by an authorized

service center. Followingthis rulewfffreduce the risk

of shock, fire, or seriousinjury.

• Make sure your extension cord is In good oondl-

tia_'LWhen using an extsns_oncord, be sure to use

one heavy enough to carry the current your product

will draw. Awlre gauge size {A,W.G.) of at least 16

is recommended for an extension cord I00 feet

or tess In leagth. A cord exceeding 100 feat is not

reoon'mnondod. If in doubt, use the next heavier

gaul. The =-nailer the gauge number, the he=vler

the cord. An undersized cord wJJJcause s dropin line

vol_tgs resultingInlossof power end overheating.

•Inspect for end remove all nails from lumber before

using this tool. Followingthis rulewill reducethe risk

of seriouspersePalInjury.

•Save these Instructions. Referto them frequentlyand

use _to instruct othe_swho may use thistool. If

you loan someone this tool, loan them these instruc-

tionsa/so.

WARNING: Soma dust crsatad by power sanding,sawing,grinding, drilling,end other constructionactivities

containschemicalsknown to cause cancer,birthdefects or other reproductiveharm. Some examples of these

chemicalsare:

•lead from lead-based, palms,

. crystallines_t(cafrom bricksand cement and othermasonry produc_s,and

•arsenicand chromiumit'om chemically-treated{umber.

Your riskfromthese exposuresvaries, depending on how oftenyou do thistype of work. To reduceyoursxposum

to these chemicals:work inawell ventilatedarea, andwork with approved Safetyequipment,such as thosedust

maskstha_ are speciallydesignedto filter out microscopic particles.

4

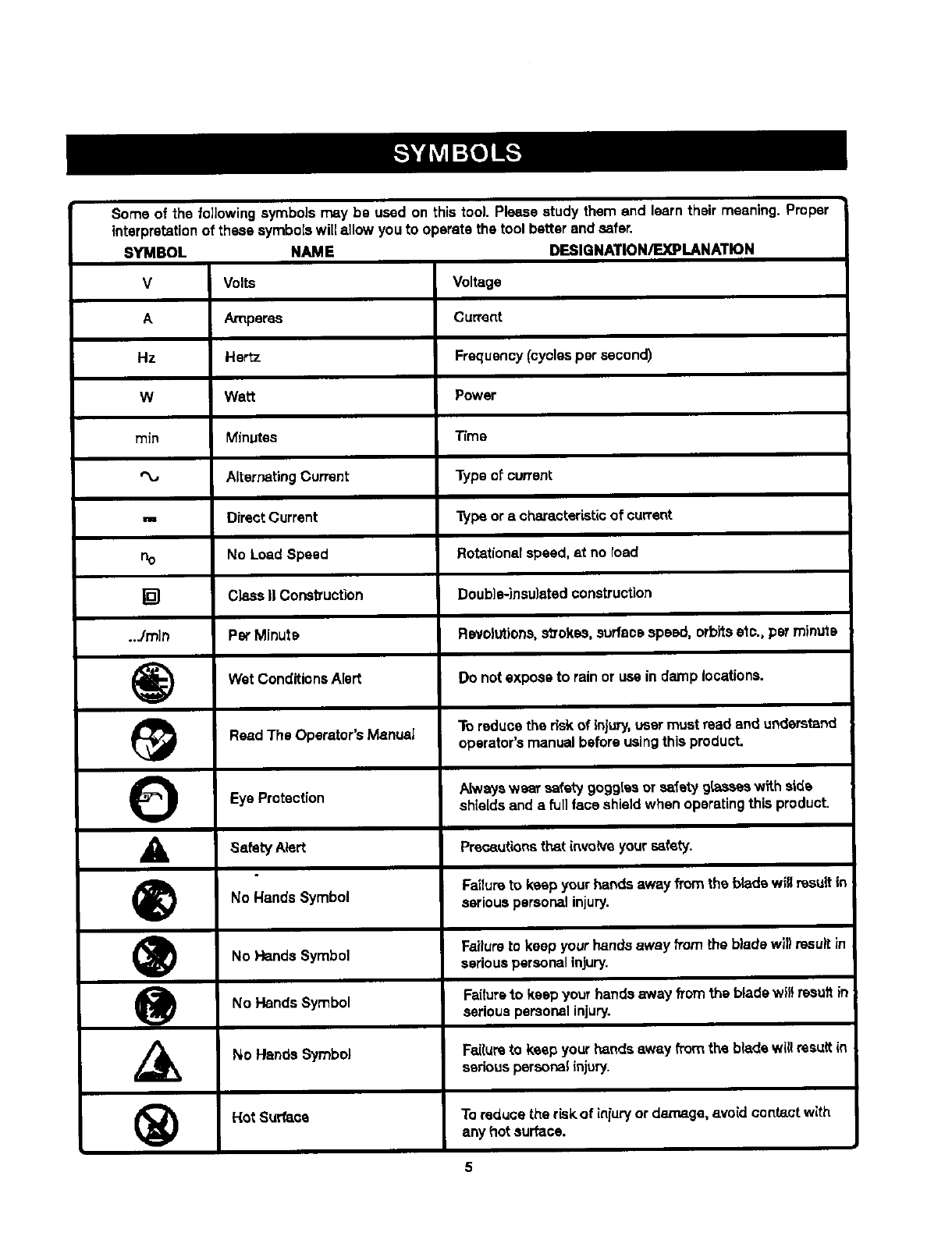

Some of the following symbols may be used on this tool. Please study them and learn their meaning. Proper

interpretationof these symbolswill allow youto operate the tool batterand safer.

SYMBOL NAME DESIGNATION/EXPLANATION

V Volts Voltage

AAmperes Current

Hz Hertz Frequency(cyclesper second)

W Watt Power

rain Minutes "i3me

'%, AlternatingCurrent Type of current

,= Direct Current Typeor achsracterLsticof current

no No Load Speed Rotationalspeed, at no load

_] ClassII Consb'uctJon Doub]e-]nsu)_tedconstruction

..Jm]n Per Minute Revolutions,strokes,surface speed, orb_setc., per minute

(_ Wet ConditionsAlert Do not exposeto rain or use in damp locations.

Read The Operator'sManual To reducethe risk of injury, usermust read and understand

operator'smanual beforeusingthis product.

O Atwaysweer safety gogglesor safetyglasseswith aide

Eye Protection shieldsand a fun face shieldwhen operatingthis product.

ASafety Alert Precautionsthat involveyour safety.

(_ Failureto keep your hands away fromthe blade will resultin

No Hands Symbol seriouspersonalinjury.

(_) Failureto keep yourhands away hornthe blade wil)result in

No Hands Symbol seriouspersonal injury.

OFailureto keep your handsaway fromthe blade wi_ resuttin

No Hands Symbol seriouspersonalinjury.

,/_ No Hands Symbol Faitureto keep yourhands away from the blade wil! resuttinseriouspersonalinjury.

_) Hot Sur/ace Toreduce the riskof _n[uryor damage, avoid contactwlthany hot surface.

5

The following signal words and meanings are intended to explain the levels of risk associated with this product.

SYMBOL SIGNAL

ADANGER:

AWARNING:

ACAUTION:

CAUTION:

MEANING

indicates an imminentlyi-_g.ardoussitL_tion,which, if not avoided, will

rssultin death or seriousinjury.

|nd}catesa potentiallyhazardoussituation,which, if not avoided, could

resultin death or seriousinjury.

Indicat_ a potentiallyhazardoussituation,which, {f not avoided, may

result inminor ormoderate injury,

(Without Safety Alert Symbol) Indicates a situation that may result in

propertydamage.

SERVICE

Servicingrequiresextreme care and knowledgeand

should be performed only by a qualilted servicetech-

nician.For servicewe suggest youreturnthe product to

your nearsstAUTHORIZED SERVICE CENTER for repair.

When servicing,use onlyidentical replacementparts.

AWARNING: Toavoid seriouspersonalLnjury,do

not attempt to usa thisproduct untilyouread

thoroughlyand understandcompletelythe

operator'smanual. Savethis operator'smanual

and review frequently for continuingsafe opera-

tion and instructingothers who may use this

product.

,_ WARNING:

The operationof any power tool can resultinforeign objects beingthrowninto your eyes,which

O can result in saverseye damage. Before beginningpower tool operation, always wear eafaty

goggles or safatyglasseswith sideshieldsand a fun face sh'leldwhen needed.We recommend

Wide VisionSafetyMask for usa overeyeglassesor standard safety glasseswith sideshields.

Alwaysuse eye protectionwhich is marked to comply withANSI Z87.1.

SAVE THESE INSTRUCTIONS

6

DOUBLE INSULATION

Double insulationis a concept insafety in electricpower

tools, which eliminates the need for the usualthres-wlre

grounded power cord. AJiexposed metal partsare

isolatedfrom the internalmetal motor componentswith

protectinginsulation.Double insulatedtools do not need

to be grounded.

WARNING: The double insulated systemis

intended to pmteot the userfrom shook resulting

from abreak in the tool's internalinsulation.Observe

ell norm_ safetypresautio_s to evo{daIeotl'tce,I

shook.

NOTE: Servicingof a tool withdouble insulationrequires

extreme care and knowledge of the systemand should

be performedonly by a qualified servicetechnician. For

service,we suggestyou return the tool to your nearest

authorrzed servicecenterfor repair.A_vaysuse original

faotory replacementpartswhen servicing.

ELECTRICAL CONNECTION

This tool has aprecLsion-builtslectYicmotor,Itshould be

connectedto a power supply that Is 120 volts, 60 Hz,

AC only (normal household current). Do not operate

this tool on directcurrent (DC). A substantialvoltage drop

will cause a loss of power and the motor will overheat.If

yourtool does not operate when plugged into an outlet,

double-check the power suppry.

EXTENSION CORDS

When usinga power tool at a considerabledistance from

a power soume, be sureto use an extensioncord that has

the capacity to handle the currentthe tootwill draw. An

undersizedcordwill cause adrop in tinsvoltage,resulting

inoverheatingand lose of power,Use the ohartto deter-

minethe minimumwire size requiredinan extensioncord.

Only roundjacketed cords listed by Undsrwriter'sLabora-

tories (UL) shouk_be used.

When working outdoorswith a tool, use an extension

cord that is designed for outsideuse. Thistype of cord is

designatedwith =WA= onthe cord'siacket.

Before usingany extensioncord, inspect it for loose or

exposed wiresand cut or worn insulation.

•"/_mpem rating (on _o01{aCeplmte)

0-2.0 2.1-3.4 3.5-5.0 5,1-7,0 7.1-12.0 12.1-16.0

Cord Length W'weSize (A.W.G.)

25' 16 16 16 16 14 1.4

50' 16 16 16 14 14 12

100' 18 16 14 "{2 10 --

NOTE: AWG = Amedcan WireGauge

WARNING: Keepthe extension cord clearof the

workingarea, Positionthe cord so that itwiU not get

caught on lumber,toolsor other obstructfonswhile

you are workingwith a power tool. Failureto do so

can result inseriouspersonalinjury.

WARNING: Checkextensioncords before each

use. If damaged repfaceImmediately.Never use tool

with adamaged cord sincetouchingthe damaged

area couldcause electricalshock resu{tinginserious

Injury.

PRODUCTSPECIFICATIONS

SizeofPaper...................................................... 1/4 Sheet

Motion ..................................................................... Orbital

Orbfta[Diameter..................................................... 1/16 in.

No Load Speed ............................................... 14,000/min.

input................................ 120 V,60 Hz, AC only,2.4 Amps

Net Weight............................................................... 3.5 tba.

Paper Type................................ Non-AdhesiveSandpaper

AdhesiveSandpaper

ON

SWITCH

OFF DUST

BAG

PAPER

PUNCH

PLATEN

CUSHION

PAPER

CLAMP

LEVER

PAPER

CLAMP

Fig. 1

KNOW YOUR SANDER

See Figure 1.

Before attempting to use this product,familiarizeyourself

with aftoperatingfeatures and safety rules.

The sander has acomfortablepalm grip handlethat

provides maximum one-hand control and comfortand re-

duces operator fetfgue duringuontinuouasandingopera-

tions.The sander also has quickaction paper clamps and

is suitablefor sanding with coame, medium,and fine grit

sandpaper.

8

SWITCH

The conveniently located sealed slideswitch helpskeep

out dustfor a longerlife.

PAPER PUNCH

Dustlesssanding occurswhen you use the paper punch

to punch holesin the sandpaper priorto sanding.

DUST COLLECTION

Use either the dust bag includedor attach a 1-1/4 or

2-1/2 fn. vacuum hose for dustcol/ection.

UNPACKING

Thisproducthasbeenshippedcompletelyassembled.

•Carefullyremovethe too[ and any accessories from the

box. Make surethat a_litems listed in the packing mist

are inc)uded.

•Inspect the too[ carefullyto make sure no breakageor

damage occurred duringshipping.

• Do not discardthe packingmateris[untilyou have

carefullyinspected and satisfactorilyoperated thetool.

•If any partsare damaged or missing, please call

1-800-932-3488 for assistance.

PACKING LIST

Sander

Dust Bag

Paper Punch

Sandpaper (1)

Operator'sManual

_k WARNING" If any partsare missingdo notoperate

thLstool untilthe missing partsare repracsd, Failure

to do so couldresult inpossiblessr[ous persosai

injury.

_WARNING: Do notattempt to modify this tool

or create accessoriesnot recommended for use

with thistool. Any suchatterat(on or modification Ls

misuseend couldresult ine hazardouscondition

feadiogto possibleseriouspersona[In}ury.

AWARN|NG: Do not connect to power supplyuntil

assembly is complete, Failureto comply could result

inaccidentalstartingand possibleseriousinjury.

_k WARN|NG: Do not allow familisrity with tools

to make you careless. Rememberthat acareless

fraction of a second is sufficientto inflictserious

injury.

_L WARNING: Alwayswear safety gogglesor safety

glasseswith side shieldswhen operating power

tools,Failureto do so could rseultin objectsbeing

throwninto your eyes resultinginpossibleserious

injury.

INSTALLING SANDPAPER

The cushionon the sander givesyou the option of using

either non-adhesivesandpaperthat clamps to the platen

or adhesive backed sandpaper with pressuresensitive

adhesive backingthat sticks to the cushion.

INSTALLING NON-ADHESIVE SANDPAPER

See Figure2.

•Unplug the sander.

•inspect sandpaper before installing.Do not use if bro-

ken or defsc_ve.

•If rap{acingsandpaper, removeold sandpaper. To

removepaper, release paper clamp by lifting up on

leverand disengagingit fromthe tab onthe platen.

•Insertend ofnew 1/4sheet sandpaper approximately

(1/2 inch) underthe paper clamp.

•Lift up on paper clamp (everand lock into p(ace.Apply

downward pressureto conformsandpaper to p(atan.

•Wrap sandpaper around cushion.Lift lever on opposite

end of sander and insertloose end of sandpaper under

the paper clamp. Fit sandpaper againstcushionas

fight as possible.

• Liftup on paperclampleverand lock _ntoplace.

CUSHION

NON-ADHESIVE

SANDPAPER

PAPER

CLAMP Fig. 2

LEVER

INSTALLINGADHESIVESANDPAPER

See Figure 3.

•Unp]ug thesander.

• Ifreplacingadhesivesandpaper,remove oldsand-

paperby peelingitoffcushion.Ifreplacingregular

sandpaper,relsase paper C_T_pby liftingup onpaper

cramp lever and disengagingit from the tab on the

platen.

•Remove non-adhesivesandpaper, then liftup on paper

damp lever end lock it into place.

•Carefully peel adhesivebacking from new 114sheet

sandpaper.

•Positionsandpaper, makingsure front edge of sand-

paper is alignedwith front edge of the cushion,then

carefullypress_cky side of sandpaper on cushion.

NOTE: Sandpaper must be a[igned with the front edge

of the cushionfor proper functioningof the flush sand-

ing feature.

The cushion onthe sander ksapprox_nnately

1/4 in. smaller than precut adhesive-backed sanding

sheets. If desiredyou may want to vim off the over-

hang of sandpaper on the back side of cushion.The

cushion has been made smallerso that multiple sheets

of nonadhesivesandpapercan be installed.

PAPER PUNCH

See Figure4.

A paper punch template has been suppliedwith the sand-

er. It should be used for sflgning and punchingholesin the

sandpaper for alignmentwith the holes in the cushion.

Punchingthe holes propertyis a necessarystep )n order

tor the dustlessfeature of the sender to function property.

•Instattsandpaperon the sander.

• Align sander cushionto paper punchas shown by the

iconon the paper punchtemplate.

•Pushdown on sander.

CUSHInN

ADHESIVE

SANDPAPER

PAPERPUNCH Fig.4

Fig. 3

DUSTLESS SANDING

See Figure 5-6.

The dustbag providesa dust collectionsystemfor the

sander.Sanding dust is drawn up throughthe holes inthe

sandpaper end cushion and collects in the dust bag dur-

ing sanding operation.For more effLcientoperation, empty

dust bag when halffull.

TO INSTALL DUST BAG:

•Unplugthe sander.

•Aligngrooves on dust bag with notches onsander dust

exhaust.

•Slide dust bag onto dust exhaust.

• Turn clockwiseuntilbag looksinto place.

TO REMOVE DUST BAG FOR EMPTYING:

•Unplugthe sander.

•Turn dust bag counterclockwiseuntilit stops turning.

•Slide dust bag off sander dustexhaust.

•Shake to empty.

10

DUST

BAG DUET

EXHAUST

Fig.5

TO CONNECT VACUUM HOSE:

See Figure 6.

When sanding for an extended period of time, you can

easilyattach the dust collectionsystemof the sander to s

vaouum.

To Attach:

• Unplugthe sander.

•Remove dustbag from sander.

•Attach vacuum hoseto dust exhaust.

NOTE: Vacuum hosefits insidedustexhaust.

• Connect sander and vacuum to power supply.

_kWARNIING: When sander is not connected to

vacuum, always installdust bag back onsander.

Fallurato do so could cause sanding dustor foreign

obiects to be thrown into the face or eyeswhich

couldresult inposaibie.sariousinjury.

SANDPAPER SELECTION

Selectingthe correct size gritand type sandpaper is

an extremelyimportantstep inachievinga highquality

sanded finish.Aluminumoxide,siliconcarbide, and other

syntheticabrsaivea are bestfor power sanding. Natural

abrasivessuchas flint and gernetare too solt for eco-

nomicaluse in power sanding.In genera[,coarse grit will

remove the most material and finer grit will produce the

best _nish in allsanding operations.The conditionof the

surfaceto be sanded will determinewhich gritwill do the

job. If the surfaceis rough,start with a coarsegrit and

sand untilthe surface Is uniform.Medium grit may then

be usedto removescratchesleft by the coarser grit a,'_d

finer grit usedfor finishingof the surface.Alwayscontinue

sanding with each grit untilsurfaceis uniform.

NOTE: Do not use sanderwithout sandpaper. Doing so

will damage the cushion.

CAUTION: Be carafutnotto let your hand com-

pletelycoverthe air vents.

SANDING

See Fcgures7- 8.

Clamp orotherwisesecure the work to prevent it from

moving underthe sander.

,_ WARNING: Unsecuredwork couldbe thrownto-

waraLsthe operator causing in]ur_.

Hold the sander in front and away fromyou, keepingit

clear of the workpiece. Start the sander by slidingthe

switchbutton to the ON positionand lettingthe motor

build to its maximum speed. Graduallylower the sander

on the work with a stightforward movement. Move it

slowiyusingforward end backwardstrokes.

1-1/4 in.VACUUMHOSE DUSTEXHALI_r

2-1/2 In.VACUUMHOSE DUSTEXHAUST Fig. 6

NOTE: A standard 1-1/4 in. vacuumhose connectionfits

insidethe smaller diameter hole insidethe dust exhaust,

while astandard2-1/2 In. vacuumhose connectionfits

insidethe largerhole of the dust exhaust.

fl

Fig. 7

Donotforce.Theweightofthe unitsuppliesadequate

pressure.Let the sandpaper and sander do the work. Ap-

plyingadditional pressuresrowa the motor,rapidlywears

sandpaper and greatlyreducessander speed. Excessive

pressurewill overloadthe motor causingpossibledamage

from motor overheatingand can result ininferiorwork.

Any finishorresin on wood maysoften from the frictional

ORBITAL MOTION

See Figure 9.

Orbitalmotion is idealfor fast cuttingactionwhen remov-

ing old finishes,smoothingroughwood, cuttingstock

down to requireddimensions,or for finishingsurfacesto

be painted. The sandpaper moves intiny circlesat a very

highspeed, arrowing the sander to move easily.

heat. Do not allow sanding on one spot too long, as the

sander's rapidaction may remove too muchmatarial,

making the surface uneven.

The front edge o_the sander allows ftushsandingin

corners.AJwayaremovesander from workptece before

turningthe sander.

Fig. 8 Fig.9

AWARNING: When servicing,use only identical

Craftsman replacement parts. Use of any other parts

may create a hazardor cause productdamage.

AWARNING: Alwayswear _ataty goggles orsafety

glasseswith side shie/dsduringpower tool operation

or when blowingdust. If operationis dusty,also wear

adustmask.

GENERAL MAINTENANCE

Avoid usingsolventswhen cleaning plasticparts. Most

plasticsare susceptibleto damage fromvarioustypes of

commercialsolventsand may be damaged by their use.

Use clean clothsto remove dirt,dust, oil, grease,etc.

WARNING: Do notat any time let brake fluids,

gasoline,petroleum-b_Lsedproducts,penetn_ting

oils, etc., come in contactwith plasticparts. Chemi-

cals can damage, weaken or destroy plasticwhich

may result in seriouspersonalInjury.

Electrictools used on flbargLseamaterial,wallboard,

specklingcompounds, or plasterere subject to scsal-

stated wear and possibleprematurefaiturebecause the

fiberglass chipsand grindingsare highlyabrasiveto bear-

ings,brushes,commutators,etc. Consequently,we do not

recommended usingthistool for extended work on these

types of materials. However,it youdo work with any of

these materials,it is extremelyimportantto clean the tool

usingcompressedair.

LUBRICATION

All of the bearings in this toolam lubricatedwith asuffi-

cientamount of highgrade lubricantfor the lifeof the unit

undernormaloperatingconditions.Therefore,nofurther

lubricationis required.

Onlythe partsshown on the parts listare intended to be

repairedor replaced by the customer.All other parts

should be replacedat a Sears ServiceCenter.

12

BRUSH REPLACEMENT

Rgure 10.

• Unp[ugthe sander.

•Remove screws (3)fl'om top coverof sander.

•Remove top cover.

•Remove clamp screws (2.).

•Removebrushtube clamps(2).

•Disconnectred and blacklead terminalsfl'om brush

tubes.

•Remove brushassemblies (2).

•Check for wear. Replace both brushassemblieswhen

e(therhas tess than 1/4 in. length of carbon remaining.

Do not replace one side withoutreplacingthe other.

•Installnew brushassemblies.Make sure curvature

of brushm_ches curvatureof motor and that brush

moves freely in brushtube.

•Reassembleby reversingthe steps listedabove.

•Tighten allscrews securely.Do not overtighten.

BLACX

LEAD

Fig._0

The following recommended accassodas are currentlyawitab_eat Sears retail stores:

•AluminumOxide Sheets With Paper Backing(1/4 Sheet)

X-Fine, Fine, Medium, Coarse

•Presaure-sensitTveAdhesive,Paper Backed Sheets(1/4 Sheet)

X-Fine, Fine, Medium, Coarse

•The FollowingStandard4-1/2 in.X 11 in. Sanding Sheets Can Be Cut To FitThe Sander

X-Fine, Fine,Medium, Coarse

AWARNING: Current attanhments end accessoriesevailablafor use with this tsof are listedabove. Do not use any

attachmentsor accessoriesnot recommended by the manufacturerof thistool. The use of attachments oracces-

sor(esnot recommsnde_ can resultIn ser(ouspersona(injury.

13

CRAFTSMAN 114 SHEET PROFESSIONAL DUSTLESS SANDER

MODEL NUMBER 315.279840

SEENOTEtPAGE15

f

J

11_ !.J 1.

14

I

CRAFTSMAN 1/4 SHEET PROFESSIONAL DUSTLESS SANDER

MODEL NUMBER 315.279840

The model number will be found on a plate a_a_-hedto the motor housing. Always mention the model |

number in all correspondence regarding your PROFESSIONAL SANDER orwhen orderingrepair parts. J

SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS

Key Pad

No. Number

1660133001

2 512486001

3 5614001

4 617800-002

5 2'30069022

6940075047

7940114103

8 512355001

9 968"/00-004

10 630874002

11 301123001

12 560671002

13 623019-004

14 590929001

15 631015001

16 590931002

17 617966-030

18 300027048

19 g00510001

20 590999001

w_

983000-513

PARTS LIST

Description Qty,

Screw (8-18 x 5/8 fn.)...................................................................................... 3

Top Cap ........................................................................................................... I

Screw (5-15 x 1/2 in.) ...................................................................................... 2

BrushClamp ................................................................................................... 2

Carbon Brush Assembly ................................................................................. 2

Data Plate........................................................................................................ 1

Logo Plate ....................................................................................................... 1

Adapter............................................................................................................ 1

Screw (6-19 x 5/16 in.) .................................................................................... 2

Retaining Plats ................................................................................................ 2

Spring Clamp .................................................................................................. 2

Dust Shrefd ...................................................................................................... 1

Rubber Plug .................................................................................................... 1

Platen .............................................................................................................. 1

PJuminumPlate ............................................................................................... 1

Cushion........................................................................................................... 1

Screw (8-10 x 5/8 in.] ...................................................................................... 4

Dust Rag Assembly (Includes Key No.19) ....................................................... 1

Dust B_g ......................................................................................................... 1

Paper Punch.................................................................................................... 1

Sandpaper

Operator's Manual

NOTE: The assembly shown representa an imporlmnt part ot the Double Insulated System. To avoid the

pomliblllty of alteration or damage to the 8]p_tem, mmttce should be performed by your nearest

Sears Repair Center. Contact your nearest Sears Reran Store for Service Center Inform'don.

*** Gomplete assortment available at your Neareat 8earn Retail Store ,

15

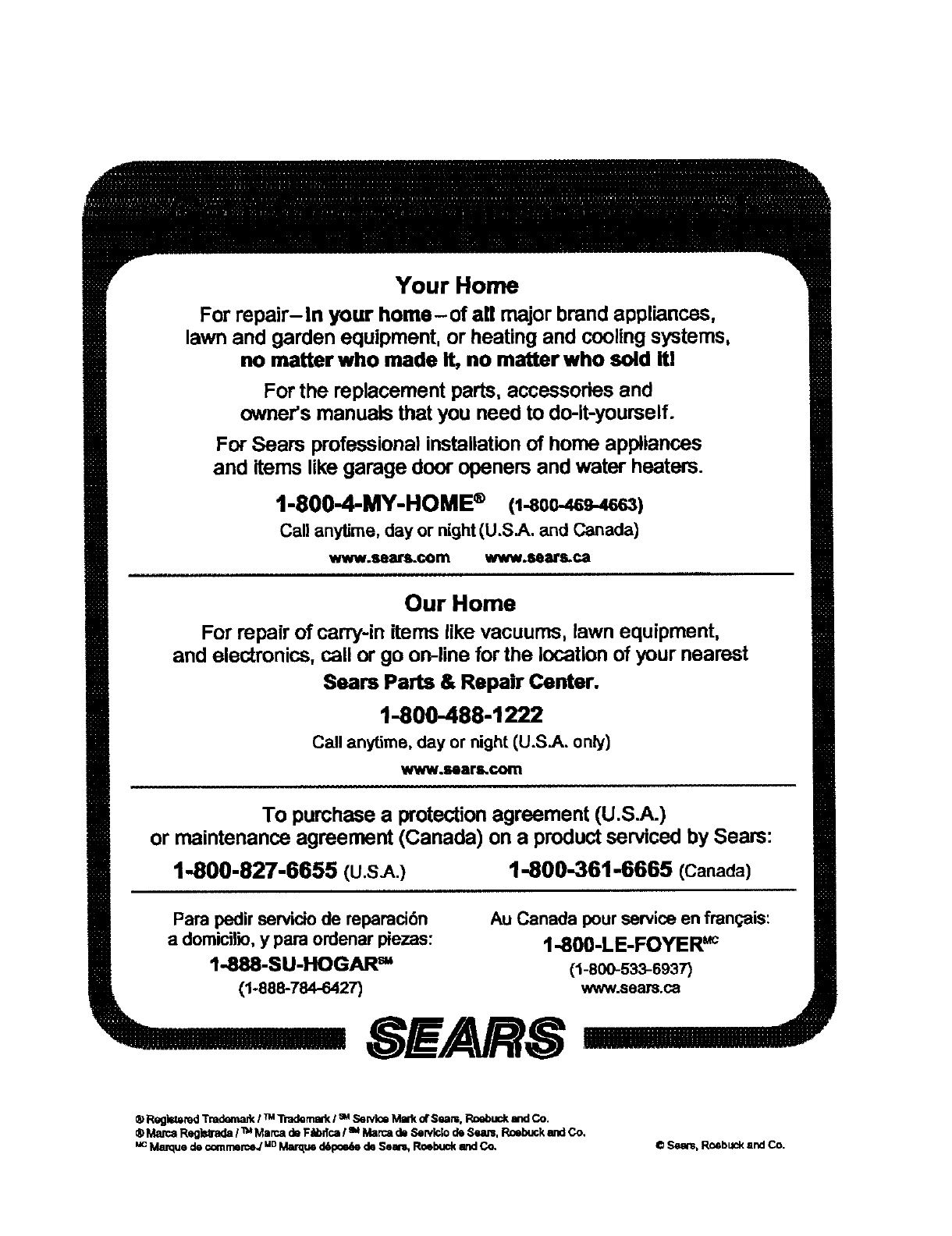

Your Home

For repair- In your home- of all major brand appliances,

lawn and garden equipment, or heating and coolingsystems,

no matter who made it, no matter who sold itl

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installationof home appliances

and items like garage door openers and water heaters.

1.800-4-MY-HOME ®(l-eoo-48s-46_)

Call anytime, day or night (U.S_. and Canada)

www.lmar_com www.seara.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protectionagreement (U.Sa_.)

or maintenance agreement (Canada) on a productserviced by Sears:

1-800.827-6655 (u.sJ_.) 1-800-361-6665 (Canada)

Para pedir servicio de repamcidn

a domicilio, y pare ordenar piezas:

1-888-SU-HOGAR"

(%888-784-6427)

Au Canada pour service en francvais:

1-800-LE-FOYER "c

(1-800-533-6937)

www.sears.ca

®Reglltemd Trademmk/_TrademstkIaMSel_ieeMark orSeam, Roebuckmd Co.

®Marca Reglstlada/'ra MarcadieFibdca /_Marcade Servlclode Sears,Roe_k _ _.

ac Ma_ue de cornrnemeJ uoI_ d6p_e_edieSears,RoebuckandCo. OSean;,Roebuckind Co.
