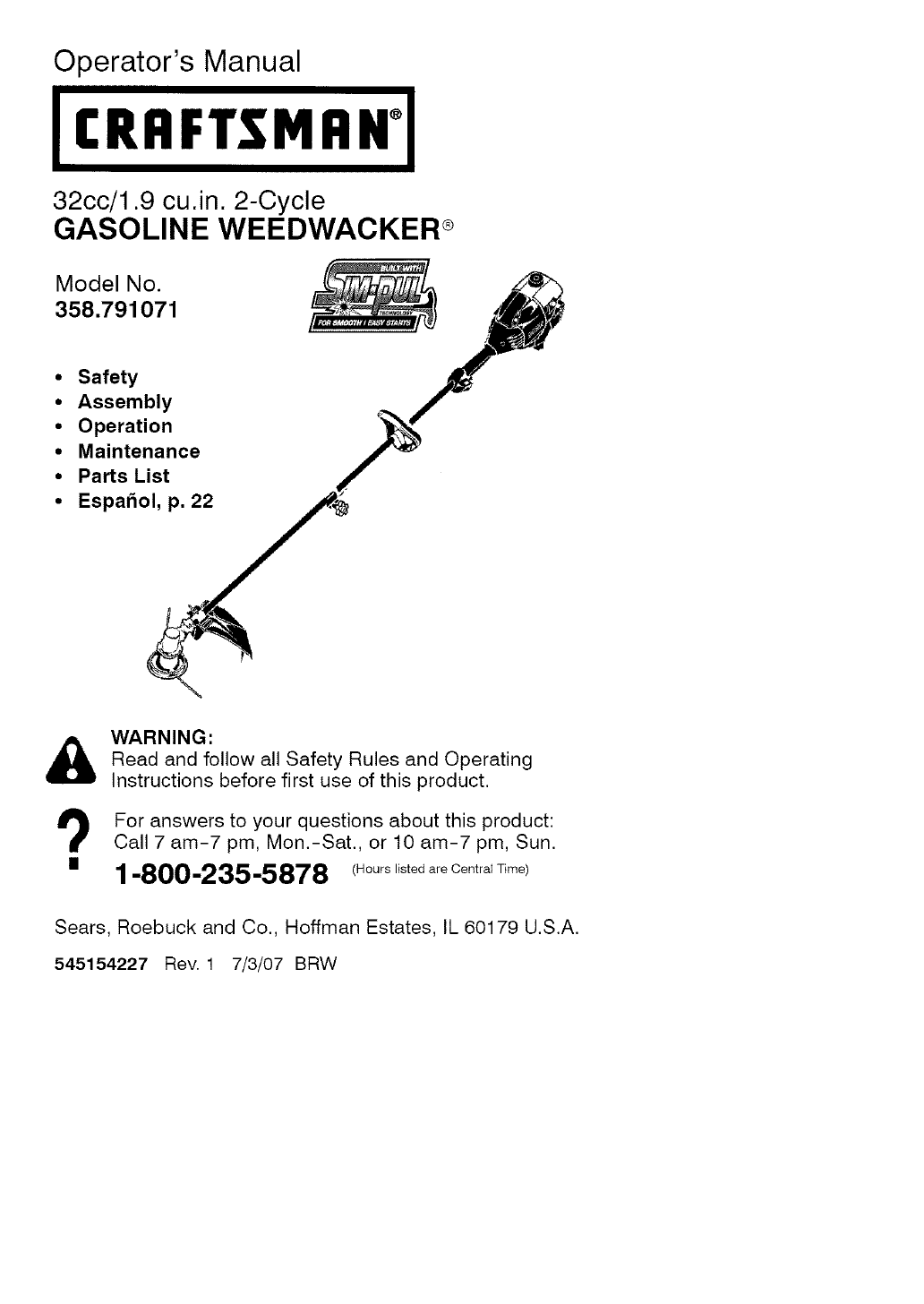

Operator's Manual

32cc/1.9 cu.in. 2-Cycle

GASOLINE WEEDWAOKER ®

Model No.

358.791071

•Safety

•Assembly

•Operation

•Maintenance

•Parts List

•Espar_ol, p. 22

WARNING:

Read and follow all Safety Rules and Operating

Instructions before first use of this product.

For answers to your questions about this product:

Call 7 am-7 pm, Mon.-Sat., or 10 am-7 pm, Sun.

1-800-235-5878 _Hoo_slisted are Centrat Time)

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

545154227 Rev. 1 7/3/07 BRW

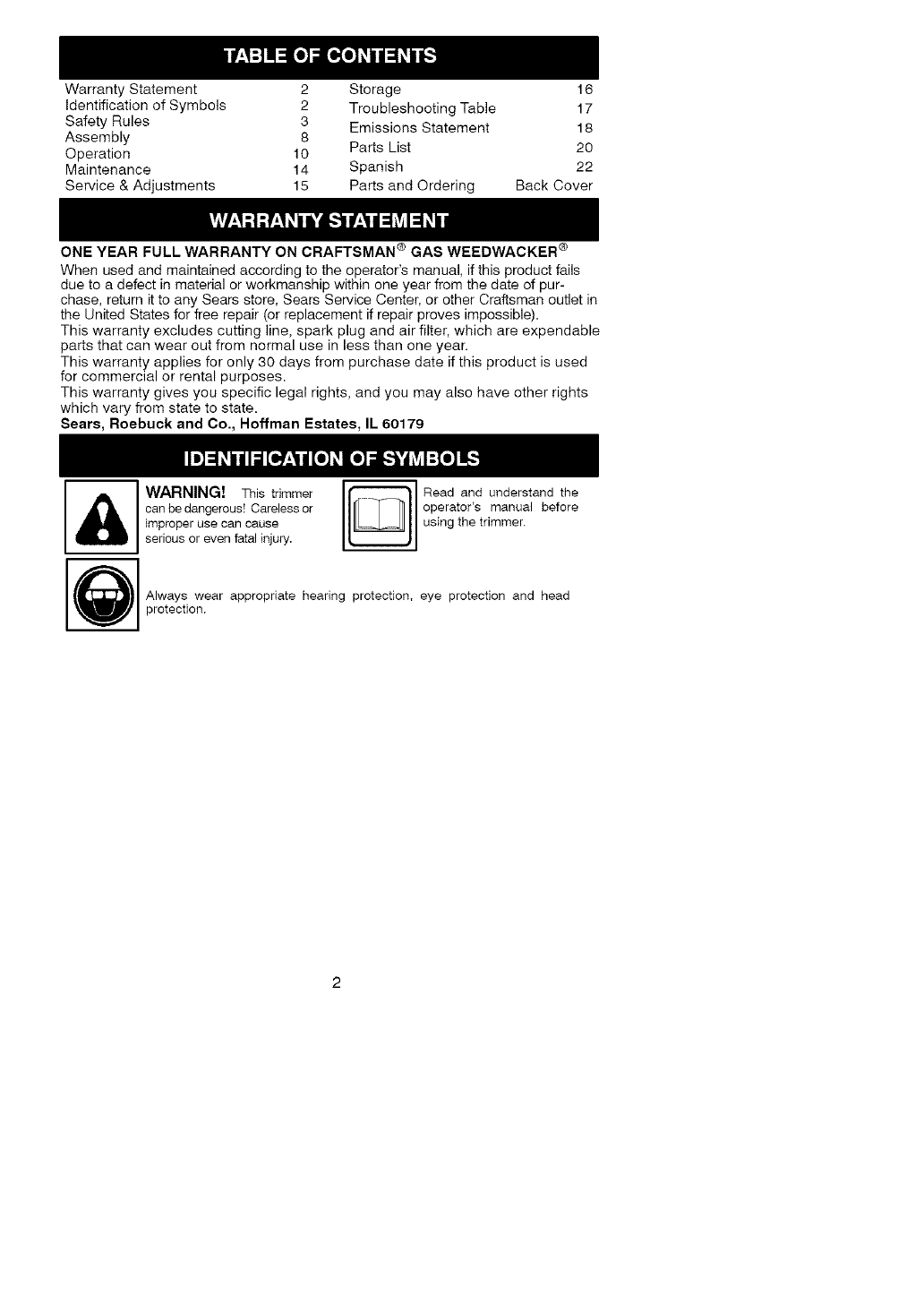

Warranty Statement 2 Storage 16

Identification of Symbols 2 Troubleshooting Table 17

Safety Rules 3 Emissions Statement 18

Assembly 8

Operation 10 Parts List 20

Maintenance 14 Spanish 22

Service & Adjustments 15 Parts and Ordering Back Cover

ONE YEAR FULL WARRANTY ON CRAFTSMAN ® GAS WEEDWACKER ®

When used and maintained according to the operator's manual, if this product fails

due to a defect in material or workmanship within one year from the date of pur-

chase, return it to any Sears store, Sears Service Center, or other Craftsman outlet in

the United States for free repair (or replacement if repair proves impossible).

This warranty excludes cutting line, spark plug and air filter, which are expendable

parts that can wear out from normal use in less than one year.

This warranty applies for only 30 days from purchase date if this product is used

for commercial or rental purposes.

This warranty gives you specific legal rights, and you may also have other rights

which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

WARNING! This trimmer

can be dangerous! Careless or

improper use can cause

serious or even fatal injury.

Read and understand the

operator's manual before

using the trimmer.

Always wear appropriate hearing protection, eye protection and head

protection,

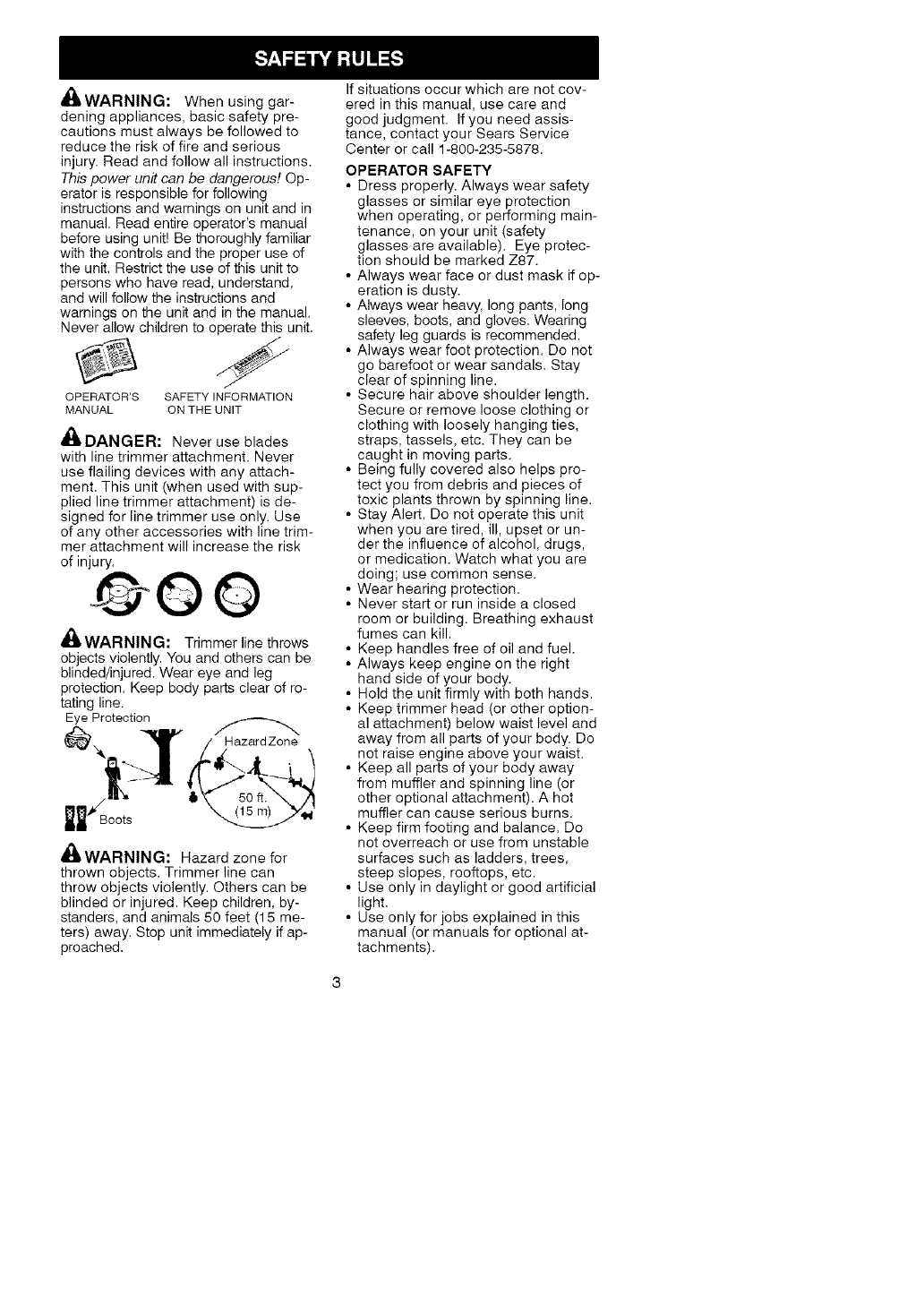

4_WARNING: When using gar-

dening appliances, basic safety pre-

cautions must always be followed to

reduce the risk of fire and serious

injury. Read and follow all instructions.

This power unit can be dangerous! Op-

erator is responsible for following

instructions and warnings on unit and in

manual. Read entire operator's manual

before using unit! Be thoroughly familiar

with the controls and the proper use of

the unit. Restrict the use of this unit to

persons who have read, understand,

and will follow the instructions and

warnings on the unit and in the manual.

Never allow children to operate this unit.

OPERATOR'S SAFETY INFORMATION

MANUAL ON THE UNIT

dl_ DANGER: Never use blades

with line trimmer attachment, Never

use flailing devices with any attach-

ment. This unit (when used with sup-

plied line trimmer attachment) is de-

signed for line trimmer use only. Use

of any other accessories with line trim-

mer attachment will increase the risk

of injury.

@OO

_&WARNING: Trimmer line throws

objects violently. You and others can be

blinded/injured. Wear eye and leg

protection. Keep body parts clear of ro-

tating line.

Eye Protection

/_zardZone

-tl

lm. 8oots

_WARNING: Hazard zone for

thrown objects. Trimmer line can

throw objects violently. Others can be

blinded or injured. Keep children, by-

standers, and animals 50 feet (15 me-

ters) away. Stop unit immediately if ap-

proached.

If situations occur which are not cov-

ered in this manual, use care and

good judgment. If you need assis-

tance, contact your Sears Service

Center or call 1-800-235-5878.

OPERATOR SAFETY

• Dress properly. Always wear safety

glasses or similar eye protection

when operating, or performing main-

tenance, on your unit (safety

glasses are available). Eye protec-

tion should be marked Z87.

• Always wear face or dust mask if op-

eration is dusty.

• Always wear heavy, long pants, long

sleeves, boots, and gloves. Wearing

safety leg guards is recommended.

• Always wear foot protection. Do not

go barefoot or wear sandals. Stay

clear of spinning line.

• Secure hair above shoulder length.

Secure or remove loose clothing or

clothing with loosely hanging ties,

straps, tassels, etc. They can be

caught in moving parts.

• Being fully covered also helps pro-

tect you from debris and pieces of

toxic plants thrown by spinning line.

• Stay Alert. Do not operate this unit

when you are tired, ill, upset or un-

der the influence of alcohol, drugs,

or medication. Watch what you are

doing; use common sense.

• Wear hearing protection.

• Never start or run inside a closed

room or building. Breathing exhaust

fumes can kill.

• Keep handles free of oil and fuel.

• Always keep engine on the right

hand side of your body.

• Hold the unit firmly with both hands.

• Keep trimmer head (or other option-

al attachment) below waist level and

away from all parts of your body. Do

not raise engine above your waist.

• Keep all parts of your body away

from muffler and spinning line (or

other optional attachment). A hot

muffler can cause serious burns.

• Keep firm footing and balance. Do

not overreach or use from unstable

surfaces such as ladders, trees,

steep slopes, rooftops, etc.

• Use only in daylight or good artificial

light.

• Use only for jobs explained in this

manual (or manuals for optional at-

tachments).

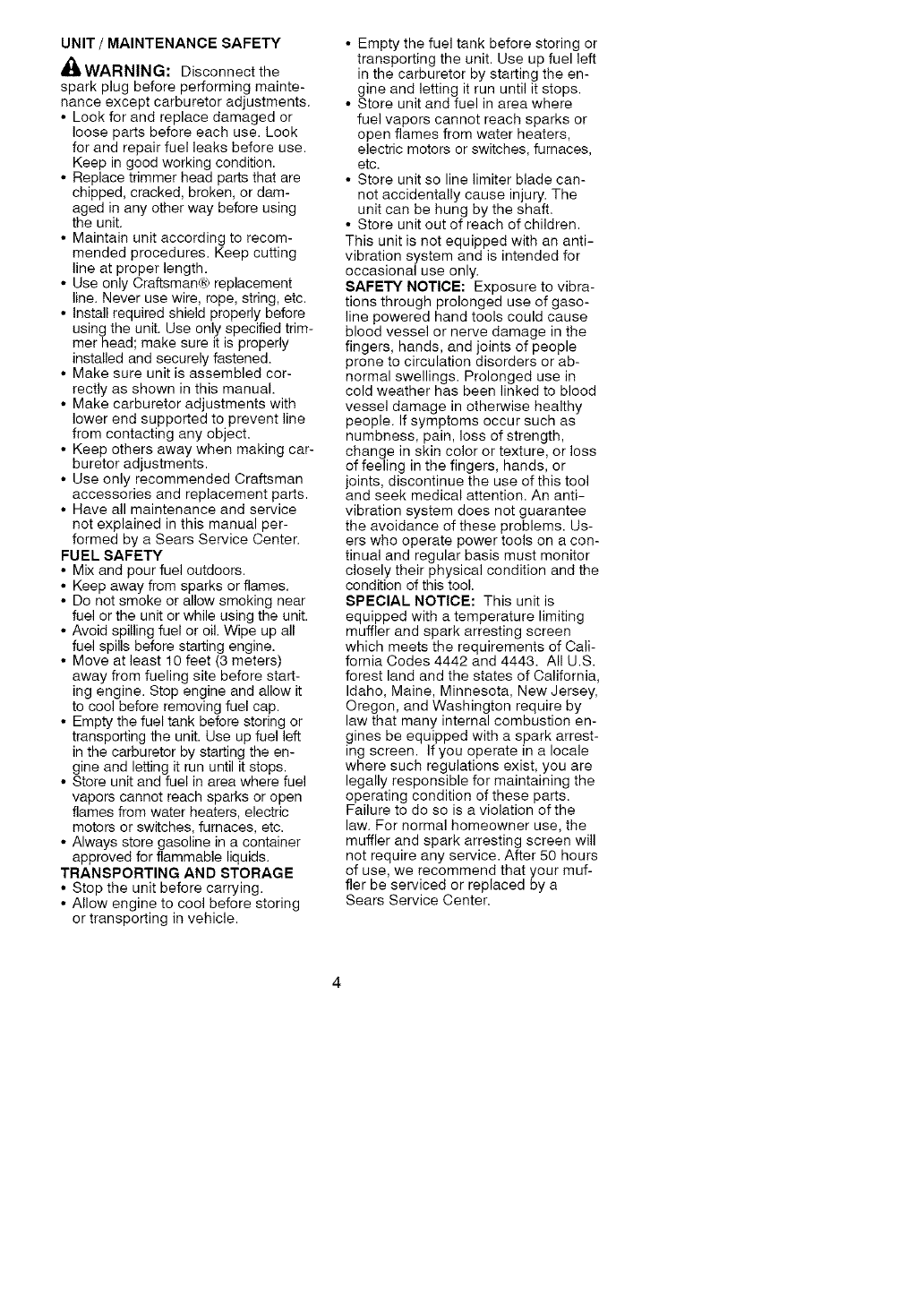

UNIT /MAINTENANCE SAFETY

_WARNING: Disconnect the

spark plug before performing mainte-

nance except carburetor adjustments.

• Look for and replace damaged or

loose parts before each use. Look

for and repair fuel leaks before use.

Keep in good working condition.

• Replace trimmer head parts that are

chipped, cracked, broken, or dam-

aged in any other way before using

the unit.

• Maintain unit according to recom-

mended procedures. Keep cutting

line at proper length.

• Use only Craftsman(_ replacement

line. Never use wire, rope, string, etc.

• Install required shield properly before

using the unit. Use only specified trim-

mer head; make sure it is properly

installed and securely fastened.

• Make sure unit is assembled cor-

rectly as shown in this manual.

• Make carburetor adjustments with

lower end supported to prevent line

from contacting any object.

• Keep others away when making car-

buretor adjustments.

• Use only recommended Craftsman

accessories and replacement parts.

• Have all maintenance and service

not explained in this manual per-

formed by a Sears Service Center.

FUEL SAFETY

• Mix and pour fuel outdoors.

• Keep away from sparks or flames.

• Do not smoke or allow smoking near

fuel or the unit or while using the unit.

• Avoid spilling fuel or oil. Wipe up all

fuel spills before starting engine.

• Move at least 10 feet (3 meters)

away from fueling site before start-

ing engine. Stop engine and allow it

to cool before removing fuel cap.

• Empty the fuel tank before storing or

transporting the unit. Use up fuel left

in the carburetor by starting the en-

gine and letting it run until it stops.

• Store unit and fuel in area where fuel

vapors cannot reach sparks or open

flames from water heaters, electric

motors or switches, furnaces, etc.

• Always store gasoline in a container

approved for flammable liquids.

TRANSPORTING AND STORAGE

• Stop the unit before carrying.

• Allow engine to cool before storing

or transporting in vehicle.

• Empty the fuel tank before storing or

transporting the unit. Use up fuel left

in the carburetor by starting the en-

gine and letting it run until it stops.

• Store unit and fuel in area where

fuel vapors cannot reach sparks or

open flames from water heaters,

electric motors or switches, furnaces,

etc.

• Store unit so line limiter blade can-

not accidentally cause injury. The

unit can be hung by the shaft.

• Store unit out of reach of children.

This unit is not equipped with an anti-

vibration system and is intended for

occasional use only.

SAFETY NOTICE: Exposure to vibra-

tions through prolonged use of gaso-

line powered hand tools could cause

blood vessel or nerve damage in the

fingers, hands, and joints of people

prone to circulation disorders or ab-

normal swellings. Prolonged use in

cold weather has been linked to blood

vessel damage in otherwise healthy

people. If symptoms occur such as

numbness, pain, loss of strength,

change in skin color or texture, or loss

of feeling in the fingers, hands, or

joints, discontinue the use of this tool

and seek medical attention. An anti-

vibration system does not guarantee

the avoidance of these problems. Us-

ers who operate power tools on a con-

tinual and regular basis must monitor

closely their physical condition and the

condition of this tool.

SPECIAL NOTICE: This unit is

equipped with a temperature limiting

muffler and spark arresting screen

which meets the requirements of Cali-

fornia Codes 4442 and 4443. All U.S.

forest land and the states of California,

Idaho, Maine, Minnesota, New Jersey,

Oregon, and Washington require by

law that many internal combustion en-

gines be equipped with a spark arrest-

ing screen. If you operate in a locale

where such regulations exist, you are

legally responsible for maintaining the

operating condition of these parts.

Failure to do so is a violation of the

law. For normal homeowner use, the

muffler and spark arresting screen will

not require any service. After 50 hours

of use, we recommend that your muf-

fler be serviced or replaced by a

Sears Service Center.

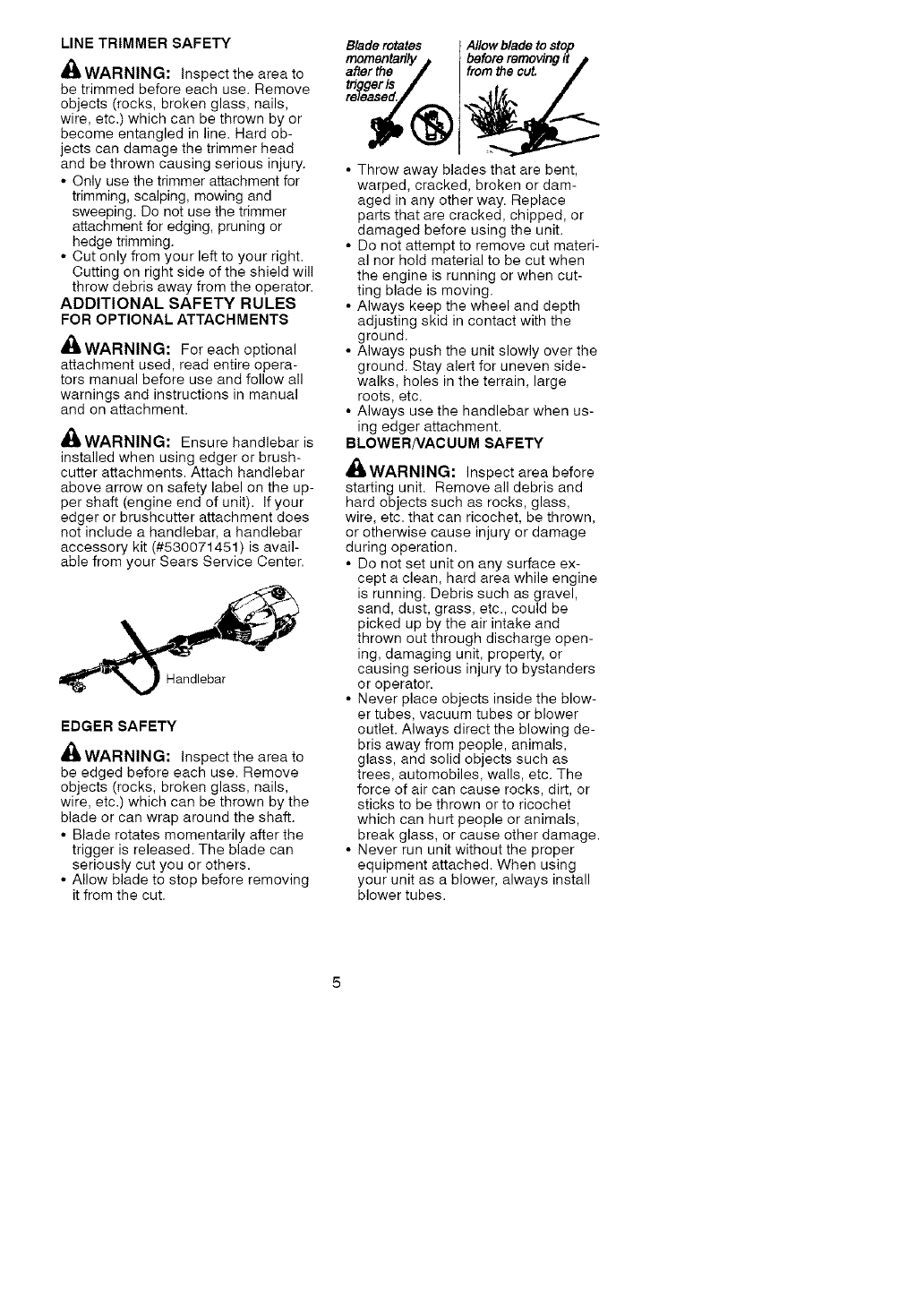

LINE TRIMMER SAFETY

WARNING: Inspect the area to

be trimmed before each use. Remove

objects (rocks, broken glass, nails,

wire, etc.) which can be thrown by or

become entangled in line. Hard ob-

jects can damage the trimmer head

and be thrown causing serious injury.

• Only use the trimmer attachment for

trimming, scalping, mowing and

sweeping. Do not use the trimmer

attachment for edging, pruning or

hedge trimming.

• Cut only from your left to your right.

Cutting on right side of the shield will

throw debris away from the operator.

ADDITIONAL SAFETY RULES

FOR OPTIONAL ATTACHMENTS

_WARNING: For each optional

attachment used, read entire opera-

tors manual before use and follow all

warnings and instructions in manual

and on attachment.

_WARNING: Ensure handlebar is

installed when using edger or brush-

cutter attachments. Attach handlebar

above arrow on safety label on the up-

per shaft (engine end of unit). If your

edger or brushcutter attachment does

not include a handlebar, a handlebar

accessory kit (#530071451 ) is avail-

able from your Sears Service Center.

EDGER SAFETY

WARNING: Inspect the area to

be edged before each use. Remove

objects (rocks, broken glass, nails,

wire, etc.) which can be thrown by the

blade or can wrap around the shaft.

• Blade rotates momentarily after the

trigger is released. The blade can

seriously cut you or others.

• Allow blade to stop before removing

it from the cut.

Blade rotates Allowbladeto stop

beforeremovingit #

after the fromthe cut. J

td_lgeris _/

release_

• Throw away blades that are bent,

warped, cracked, broken or dam-

aged in any other way. Replace

parts that are cracked, chipped, or

damaged before using the unit.

• Do not attempt to remove cut materi-

al nor hold material to be cut when

the engine is running or when cut-

ting blade is moving.

• Always keep the wheel and depth

adjusting skid in contact with the

ground.

• Always push the unit slowly over the

ground. Stay alert for uneven side-

walks, holes in the terrain, large

roots, etc.

• Always use the handlebar when us-

ing edger attachment.

BLOWERNACUUM SAFETY

_,WARNING: Inspect area before

starting unit. Remove all debris and

hard objects such as rocks, glass,

wire, etc. that can ricochet, be thrown,

or otherwise cause injury or damage

during operation.

• Do not set unit on any surface ex-

cept a clean, hard area while engine

is running. Debris such as gravel,

sand, dust, grass, etc., could be

picked up by the air intake and

thrown out through discharge open-

ing, damaging unit, property, or

causing serious injury to bystanders

or operator.

• Never place objects inside the blow-

er tubes, vacuum tubes or blower

outlet. Always direct the blowing de-

bris away from people, animals,

glass, and solid objects such as

trees, automobiles, walls, etc. The

force of air can cause rocks, dirt, or

sticks to be thrown or to ricochet

which can hurt people or animals,

break glass, or cause other damage.

• Never run unit without the proper

equipment attached. When using

your unit as a blower, always install

blower tubes.

• Checkairintakeopening,blower

tubesorvacuumtubesfrequently,

alwayswithenginestoppedand

sparkplugdisconnected.Keep

ventsanddischargetubesfreeof

debriswhichcanaccumulateand

restrictproperairflow.

• Neverplaceanyobjectinairintake

openingasthiscouldrestrictproper

airflowandcausedamagetothe

unit.

• Neveruseforspreadingchemicals,

fertilizers,orothersubstanceswhich

maycontaintoxicmaterials.

• Toavoidspreadingfire,donotuse

nearleaforbrushfires,fireplaces,

barbecuepits,ashtrays,etc.

BRUSHCUTTER SAFETY

DANGER: Blade can thrust vio-

lently away from material it does not

cut. Blade thrust can cause amputa-

tion of arms or legs.

4t_WARNING: Do not use trimmer

head as a fastening device for the

blade.

etc.) which can be thrown or become

entangled in the blade or trimmer line.

• Throw away and replace blades that

are bent, warped, cracked, broken

or damaged in any other way.

• Install required shield properly be-

fore using the unit. Use the metal

shield for all metal blade use.

_,WARNING: Only use brushcut-

ter attachments that provide a metal

shield with protruding nose.

Protrudin g

• Use only specified blade and make

sure it is properly installed and se-

curely fastened.

• Cut from your left to your right.

• Always use the handlebar and a

properly adjusted shoulder strap

with blade (see ASSEMBLY instruc-

tions in brushcutter attachment

operator's manual).

CULTIVATOR SAFETY

_WARNING: Rotating tines can

cause serious injury. Keep away from

rotating tines. Stop the engine and

disconnect the spark plug before un-

clogging tines or making repairs.

• The blade continues to spin after the

throttle is released or engine is turned

off. The coasting blade can throw ob-

jects or seriously cut you if accidental-

ly touched. Stop the blade by contact-

ing the right hand side of the coasting

blade with material already cut.

S_a°cPC_yStio_rgact ,

with cut mat_ L

41WARNING: Inspect the area to

be cut before each use. Remove ob-

jects (rocks, broken glass, nails, wire,

dMI=WARNING: Inspect the area to

be cultivated before starting the unit.

Remove all debris and hard and sharp

objects such as rocks, vines, branch-

es, rope, string, etc.

• Avoid heavy contact with solid objects

that might stop the tines. If heavy con-

tact occurs, stop the engine and in-

spect the unit for damage.

• Never operate the cultivator without

the tine cover in place and properly

secured.

• Keep the tines and guard clear of

debris.

• After striking a foreign object, stop

the engine, disconnect the spark

plug and inspect the cultivator for

damage. Repair before restarting.

• Disconnectattachmentfromthedrive

enginebeforecleaningthetineswith

ahoseandwatertoremoveany

build-up.Oilthetinestopreventrust.

• Alwaysweargloveswhenservicingor

cleaningthetines.Thetinesbecome

verysharpfromuse.

• Donotrununitathighspeedunless

cultivating.

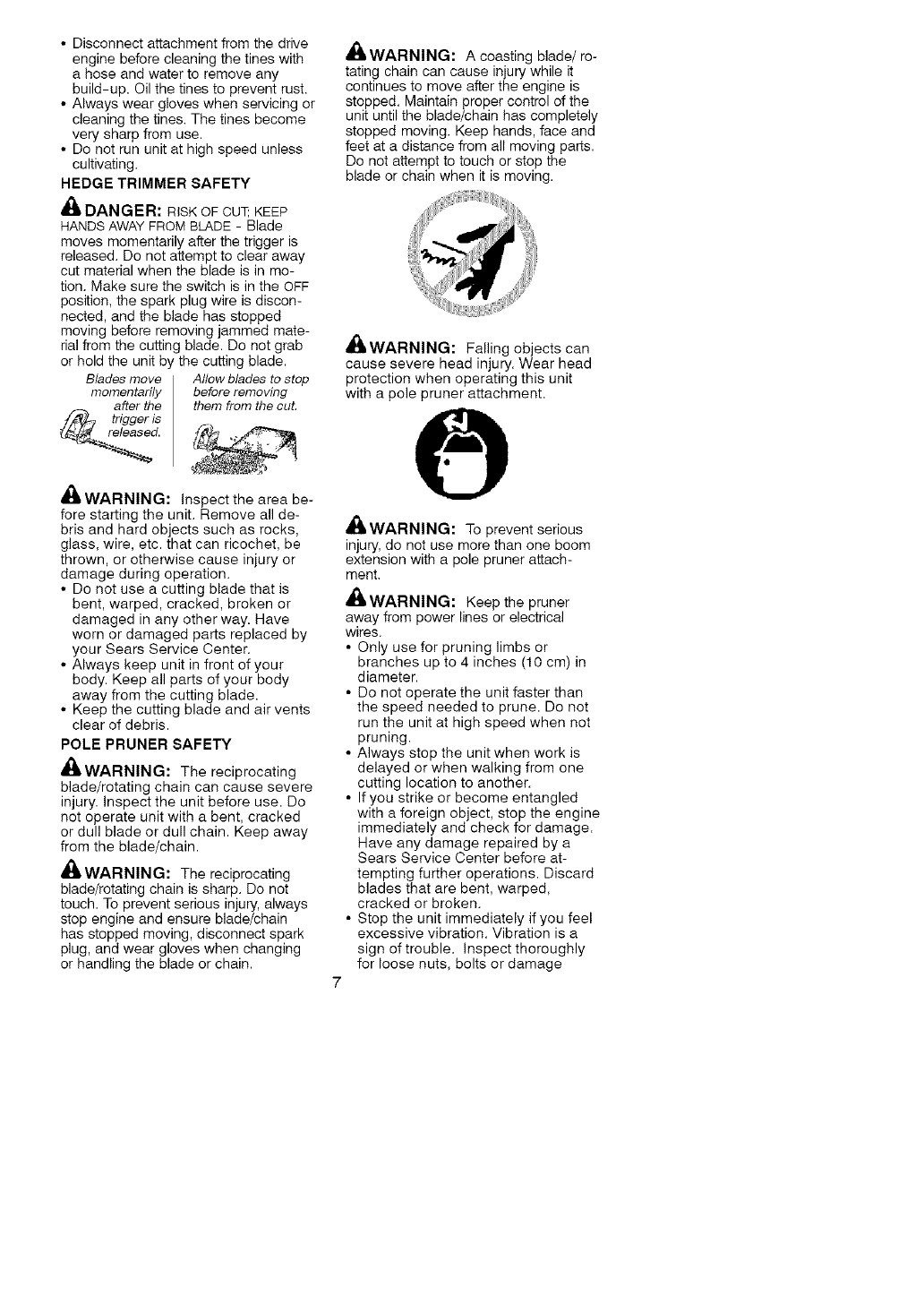

HEDGE TRIMMER SAFETY

DANGER: RiSK OF CUT; KEEP

HANDS AWAY FROM BLADE - Blade

moves momentarily after the trigger is

released. Do not attempt to clear away

cut material when the blade is in mo-

tion. Make sure the switch is in the OFF

position, the spark plug wire is discon-

nected, and the blade has stopped

moving before removing jammed mate-

rial from the cutting blade. Do not grab

or hold the unit by the cutting blade.

Blades move

momentarily

after the

triggeris

eased.

,_WARNING:

Allow blades to stop

before removing

them from the cut.

Inspect the area be-

fore starting the unit. Remove all de-

bris and hard objects such as rocks,

glass, wire, etc. that can ricochet, be

thrown, or otherwise cause injury or

damage during operation.

• Do not use a cutting blade that is

bent, warped, cracked, broken or

damaged in any other way. Have

worn or damaged parts replaced by

your Sears Service Center.

• Always keep unit in front of your

body. Keep all parts of your body

away from the cutting blade.

• Keep the cutting blade and air vents

clear of debris.

POLE PRUNER SAFETY

_,WARNING: The reciprocating

blade/rotating chain can cause severe

injury. Inspect the unit before use. Do

not operate unit with a bent, cracked

or dull blade or dull chain. Keep away

from the blade/chain.

WARNING: The reciprocating

blade/rotating chain is sharp. Do not

touch. To prevent serious injury, always

stop engine and ensure blade/chain

has stopped moving, disconnect spark

plug, and wear gloves when changing

or handling the blade or chain.

,_WARNING: A coasting blade/ro-

tating chain can cause injury while it

continues to move after the engine is

stopped. Maintain proper control of the

unit until the blade/chain has completely

stopped moving. Keep hands, face and

feet at a distance from all moving parts.

Do not attempt to touch or stop the

blade or chain when it is moving.

_bWARNING: Falling objects can

cause severe head injury. Wear head

protection when operating this unit

with a pole pruner attachment.

A _______

4_WARNING: To prevent serious

injury, do not use more than one boom

extension with a pole pruner attach-

ment.

&WARNING: Keep the pruner

away from power lines or electrical

wires.

• Only use for pruning limbs or

branches up to 4 inches (10 cm) in

diameter.

• Do not operate the unit faster than

the speed needed to prune. Do not

run the unit at high speed when not

pruning.

• Always stop the unit when work is

delayed or when walking from one

cutting location to another.

• If you strike or become entangled

with a foreign object, stop the engine

immediately and check for damage.

Have any damage repaired by a

Sears Service Center before at-

tempting further operations. Discard

blades that are bent, warped,

cracked or broken.

• Stop the unit immediately if you feel

excessive vibration. Vibration is a

sign of trouble. Inspect thoroughly

for loose nuts, bolts or damage

beforecontinuing.ContactSears

Serviceforrepairorreplacementof

affectedpartsasnecessary.

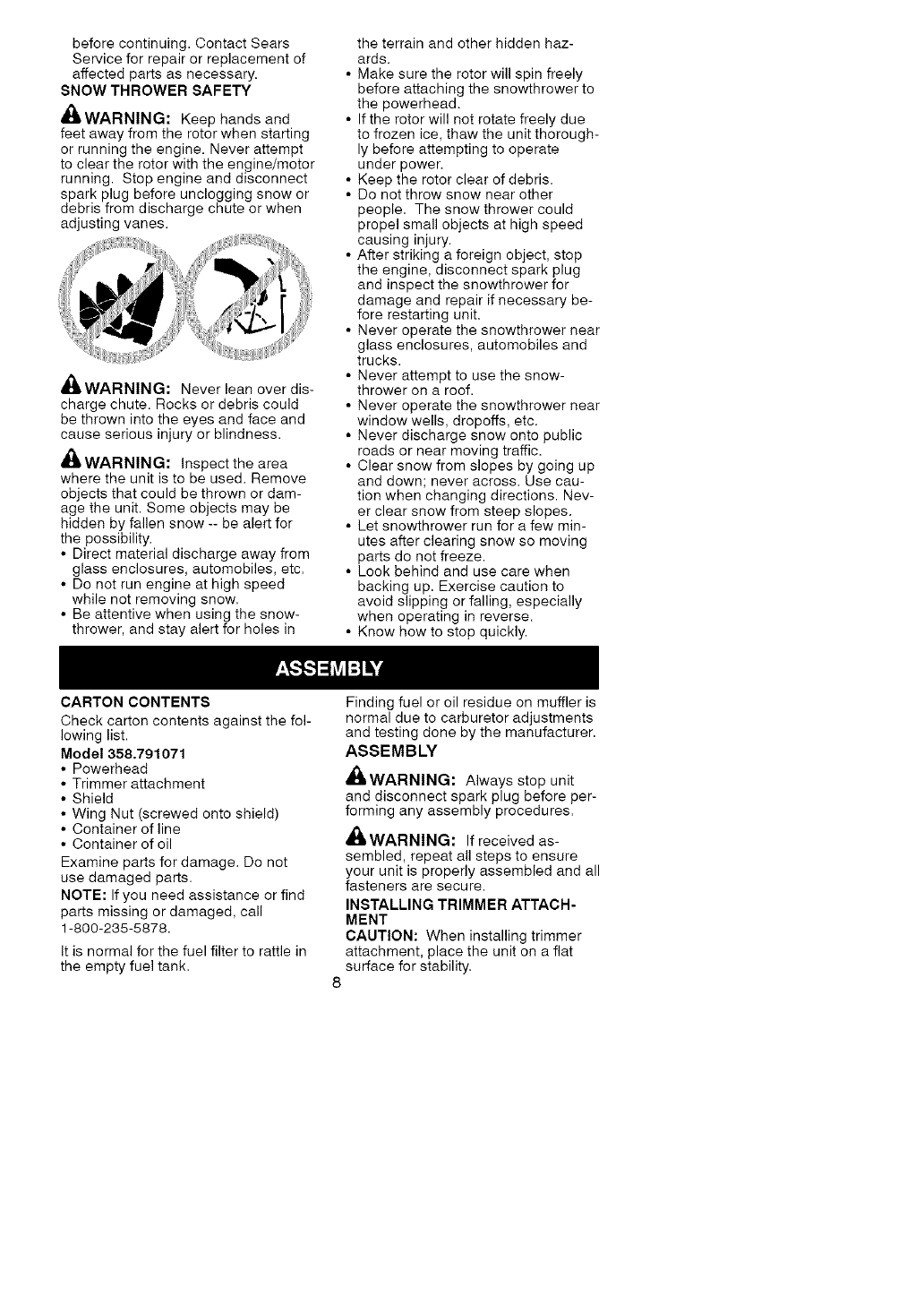

SNOW THROWER SAFETY

_WARNING: Keep hands and

feet away from the rotor when starting

or running the engine. Never attempt

to clear the rotor with the engine/motor

running. Stop engine and disconnect

spark plug before unclogging snow or

debris from discharge chute or when

adjusting vanes.

all.WARNING: Never lean over dis-

charge chute. Rocks or debris could

be thrown into the eyes and face and

cause serious injury or blindness.

_.WARNING: Inspect the area

where the unit is to be used. Remove

objects that could be thrown or dam-

age the unit. Some objects may be

hidden by fallen snow -- be alert for

the possibility.

• Direct material discharge away from

glass enclosures, automobiles, etc.

• Do not run engine at high speed

while not removing snow.

• Be attentive when using the snow-

thrower, and stay alert for holes in

the terrain and other hidden haz-

ards.

• Make sure the rotor will spin freely

before attaching the snowthrower to

the powerhead.

• If the rotor will not rotate freely due

to frozen ice, thaw the unit thorough-

ly before attempting to operate

under power.

• Keep the rotor clear of debris.

• Do not throw snow near other

people. The snow thrower could

propel small objects at high speed

causing injury.

• After striking a foreign object, stop

the engine, disconnect spark plug

and inspect the snowthrower for

damage and repair if necessary be-

fore restarting unit.

• Never operate the snowthrower near

glass enclosures, automobiles and

trucks.

• Never attempt to use the snow-

thrower on a roof.

• Never operate the snowthrower near

window wells, dropoffs, etc.

• Never discharge snow onto public

roads or near moving traffic.

• Clear snow from slopes by going up

and down; never across. Use cau-

tion when changing directions. Nev-

er clear snow from steep slopes.

• Let snowthrower run for a few min-

utes after clearing snow so moving

parts do not freeze.

• Look behind and use care when

backing up. Exercise caution to

avoid slipping or falling, especially

when operating in reverse.

• Know how to stop quickly.

CARTON CONTENTS

Check carton contents against tile fol-

lowing list.

Model 358.791071

• Powerhead

• Trimmer attachment

• Shield

• Wing Nut (screwed onto shield)

• Container of line

• Container of oil

Examine parts for damage. Do not

use damaged parts.

NOTE: If you need assistance or find

parts missing or damaged, call

1-800-235-5878.

It is normal for the fuel filter to rattle in

the empty fuel tank.

Finding fuel or oil residue on muffler is

normal due to carburetor adjustments

and testing done by the manufacturer.

ASSEMBLY

,_&WARNING: Always stop unit

and disconnect spark plug before per-

forming any assembly procedures.

_WARNING: If received as-

sembled, repeat all steps to ensure

your unit is properly assembled and all

fasteners are secure.

INSTALLING TRIMMER ATTACH-

MENT

CAUTION: When installing trimmer

attachment, place the unit on a flat

surface for stability.

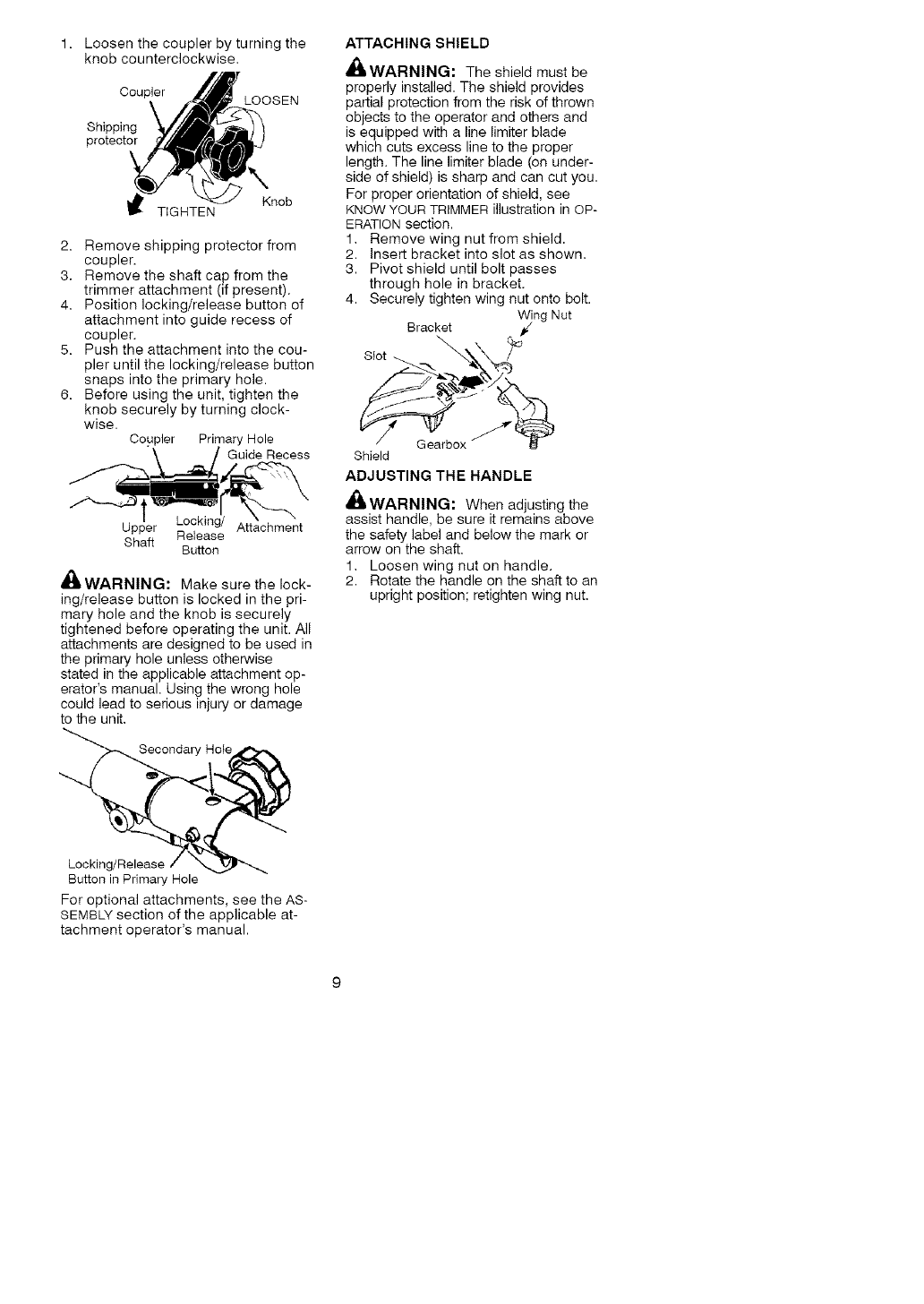

1. Loosen the coupler by turning the

knob counterclockwise.

Coupler

Shipph_g

protector

Knob

TIGHTEN

2. Remove shipping protector from

coupler.

3. Remove the shaft cap from the

trimmer attachment (if present).

4. Position locking/release button of

attachment into guide recess of

coupler.

5. Push the attachment into the cou-

pler until the locking/release button

snaps into the primary hole.

6. Before using the unit, tighten the

knob securely by turning clock-

wise.

Coupler Primary Hole

Guide Recess

Upper Locking/ Attachment

Release

Shaft Button

mlWARNING: Make sure the lock-

ing/release button is locked in the pri-

mary hole and the knob is securely

tightened before operating the unit. All

attachments are designed to be used in

the primary hole unless otherwise

stated in the applicable attachment op-

erator's manual. Using the wrong hole

could lead to serious injury or damage

to the unit.

Secondary Hote

ATTACHING SHIELD

,_&WARNING: The shield must be

properly installed. The shield provides

partial protection from the risk of thrown

objects to the operator and others and

is equipped with a line limiter blade

which cuts excess line to the proper

length. The line limiter blade (on under-

side of shield) is sharp and can cut you.

For proper orientation of shield, see

KNOW YOUR TRIMMER illustration in OP-

ERATION section.

1. Remove wing nut from shield.

2. Insert bracket into slot as shown.

3. Pivot shield until bolt passes

through hole in bracket.

4. Securely tighten wing nut onto bolt.

Wing Nut

Bracket _/

Slot

Gearbox

Shield

ADJUSTING THE HANDLE

_'WARNING: When adjusting tile

assist handle, be sure it remains above

the safety label and below the mark or

arrow on the shaft.

1. Loosen wing nut on handle.

2. Rotate the handle on the shaft to an

upright position; retighten wing nut.

Locking/Release

Button in Primary Hole

For optional attachments, see the AS-

SEMBLY section of the applicable at-

tachment operator's manual.

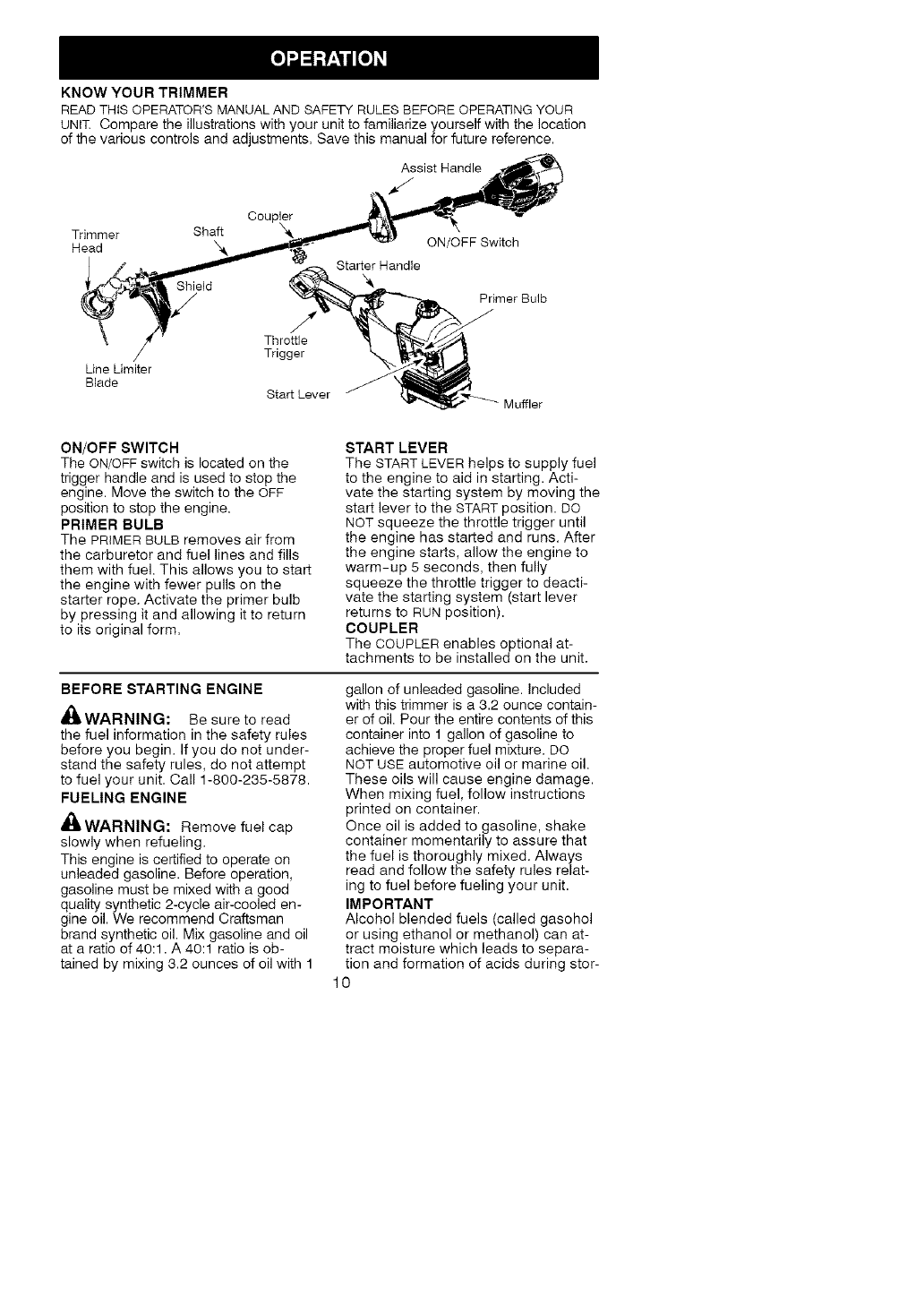

KNOWYOUR TRIMMER

READ THIS OPERATOR'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

UNIT. Compare the illustrations with your unit to familiarize yourself with the location

of the various controls and adjustments. Save this manual for future reference.

Assist H andIe .,_i_1_ "

Coup,er ___ --

Shaft _1_ I_'_ .... ) ..........

TrimmerRead ON OFFSwItoh

j_,,'- ,r_" Starter Handle

_ Primer Bulb

Throttle

/Trigger

Line Limiter

Blade Start Lever Muffler

ON/OFF SWITCH

The ON/OFF switch is located on the

trigger handle and is used to stop the

engine. Move the switch to the OFF

position to stop the engine.

PRIMER BULB

The PRIMER BULB removes air from

the carburetor and fuel lines and fills

them with fuel. This allows you to start

the engine with fewer pulls on the

starter rope. Activate the primer bulb

by pressing it and allowing it to return

to its original form.

START LEVER

The START LEVER helps to supply fuel

to the engine to aid in starting. Acti-

vate the starting system by moving the

start lever to the START position. DO

NOT squeeze the throttle trigger until

the engine has started and runs. After

the engine starts, allow the engine to

warm-up 5 seconds, then fully

squeeze the throttle trigger to deacti-

vate the starting system (start lever

returns to RUN position).

COUPLER

The COUPLER enables optional at-

tachments to be installed on the unit.

BEFORE STARTING ENGINE

_WARNING: Be sure to read

the fuel information in the safety rules

before you begin. If you do not under-

stand the safety rules, do not attempt

to fuel your unit. Call 1-800-235-5878.

FUELING ENGINE

,_WARNING: Remove fuel cap

slowly when refueling.

This engine is certified to operate on

unleaded gasoline. Before operation,

gasoline must be mixed with a good

quality synthetic 2-cycle air-cooled en-

gine oil. We recommend Craftsman

brand synthetic oil. Mix gasoline and oil

at a ratio of 40:1. A 40:1 ratio is ob-

tained by mixing 3.2 ounces of oil with 1

gallon of unleaded gasoline. Included

with this trimmer is a 3.2 ounce contain-

er of oil. Pour the entire contents of this

container into 1 gallon of gasoline to

achieve the proper fuel mixture. DO

NOT USE automotive oil or marine oil.

These oils will cause engine damage.

When mixing fuel, follow instructions

printed on container.

Once oil is added to gasoline, shake

container momentarily to assure that

the fuel is thoroughly mixed. Always

read and follow the safety rules relat-

ing to fuel before fueling your unit.

IMPORTANT

Alcohol blended fuels (called gasohol

or using ethanol or methanol) can at-

tract moisture which leads to separa-

tion and formation of acids during stor-

age.Acidicgascandamagethefuel

systemofanenginewhileinstorage.

Toavoidengineproblems,emptythe

fuelsystembeforestoragefor30days

orlonger.Drainthegastank,startthe

engineandletitrununtilthefuellines

andcarburetorareempty.Usefresh

fuelnextseason.

Neveruseengineorcarburetorclean-

erproductsinthefueltankorperma-

nentdamagemayoccur.

SeetheSTORAGEsectionforaddition-

alinformation.

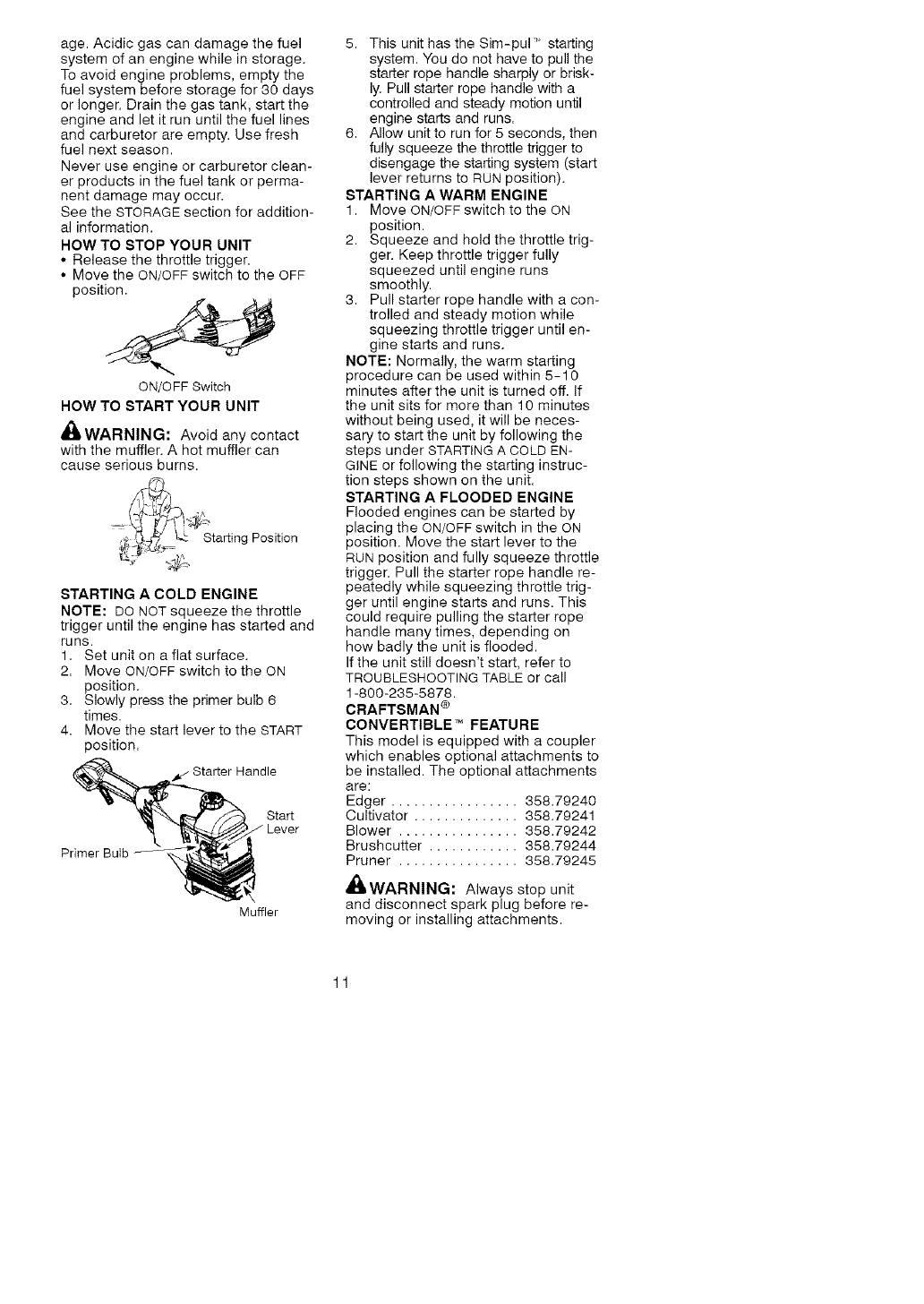

HOWTO STOP YOUR UNIT

•Release the throttle trigger.

• Move the ON/OFF switch to the OFF

position.

ON/OFF Switch

HOW TO START YOUR UNIT

_WARNING: Avoid any contact

with the muffler, A hot muffler can

cause serious burns.

_ '_"St arting Position

STARTING A COLD ENGINE

NOTE: DO NOT squeeze tile throttle

trigger until the engine has started and

runs.

1. Set unit on a flat surface.

2. Move ON/OFF switch to the ON

position.

3. Slowly press the primer bulb 6

times.

4. Move the start lever to the START

position.

_,/Starter Handle

Start

Primer Bulb

Muffler

5. This unit has the Sim-pul" starting

system. You do not have to pull the

starter rope handle sharply or brisk-

ly. Pull starter rope handle with a

controlled and steady motion until

engine starts and runs.

6. Allow unit to run for 5 seconds, then

fully squeeze the throttle trigger to

disengage the starting system (start

lever returns to RUN position).

STARTING A WARM ENGINE

1. Move ON/OFF switch to the ON

position.

2. Squeeze and hold the throttle trig-

ger. Keep throttle trigger fully

squeezed until engine runs

smoothly.

3. Pull starter rope handle with a con-

trolled and steady motion while

squeezing throttle trigger until en-

gine starts and runs.

NOTE: Normally, the warm starting

procedure can be used within 5-10

minutes after the unit is turned off. If

the unit sits for more than 10 minutes

without being used, it will be neces-

sary to start the unit by following the

steps under STARTING A COLD EN-

GINE or following the starting instruc-

tion steps shown on the unit.

STARTING A FLOODED ENGINE

Flooded engines can be started by

placing the ON/OFF switch in the ON

position. Move the start lever to the

RUN position and fully squeeze throttle

trigger. Pull the starter rope handle re-

peatedly while squeezing throttle trig-

ger until engine starts and runs. This

could require pulling the starter rope

handle many times, depending on

how badly the unit is flooded.

If the unit still doesn't start, refer to

TROUBLESHOOTING TABLE or call

1-800-235-5878.

CRAFTSMAN ®

CONVERTIBLE TM FEATURE

This model is equipped with a coupler

which enables optional attachments to

be installed. The optional attachments

are:

Edger ................. 358.79240

Cultivator .............. 358.79241

Blower ................ 358.79242

Brushcutter ............ 358.79244

Pruner ................ 358.79245

&WARNING: Always stop unit

and disconnect spark plug before re-

moving or installing attachments.

REMOVING TRIMMER ATTACH-

MENT (OR OTHER OPTIONAL AT-

TACHMENTS)

CAUTION: When removing or instal-

ling attachments, place the unit on a

flat surface for stability.

1. Loosen the coupler by turning the

knob counterclockwise.

Upper Shaft

Coupler

.OOSEN

Attachment

TIGHTEN Knob

2. Press and hold the locking/release

button.

Locking/Release

Button

erator's manual. Using the wrong hole

could lead to serious injury or damage

to the unit.

Secondary Hole

Locking/Release

Button in Primary Hole

OPERATING INSTRUCTIONS

To maximize operating efficiency, do

not run the engine for longer than 1

minute at a time at full throttle.

OPERATING POSITION

ALWAYS USE:

Hearing

Protection Eye Protection

C°uF Upper Shaft

Attachment

3. While securely holding the engine

and upper shaft, pull the attach-

ment straight out of the coupler.

INSTALLING OPTIONAL ATTACH-

MENTS

1. Remove the shaft cap from tile at-

tachment (if present).

2. Position locking/release button of

attachment into guide recess of

coupler.

3. Push the attachment into the cou-

pler until the locking/release button

snaps into the primary hole.

4. Before using the unit, tighten the

knob securely by turning clock-

wise.

Coupler Primary Hole

Guide Recess

Upper Locking/ Attachment

Shaft Release

Button

_WARNING: Make sure the lock-

ing/release button is locked in the pri-

mary hole and the knob is securely

tightened before operating the unit. All

attachments are designed to be used in

the primary hole unless otherwise

stated in the applicable attachment op-

Long

Pants

Heavy

Shoes

Cut from your left to your right.

dllWARNING: Always wear eye

protection and hearing protection. Never

lean over the trimmer head. Rocks or

debris can ricochet or be thrown into

eyes and face and cause blindness or

other serious injury.

When operating unit, stand as shown

and check for the following:

• Wear eye protection, hearing protec-

tion and heavy clothing.

• Hold trigger handle with right hand

and assist handle with left hand.

• Hold unit so that engine is below

waist level.

• Cut only from your left to your right to

ensure debris is thrown away from

you. Without bending over, keep line

near and parallel to the ground and

not crowded into material being cut.

Do not run the engine at a higher speed

than necessary. The cutting line will cut

efficiently when the engine is run at less

than full throttle. At lower speeds, there

is less engine noise and vibration.

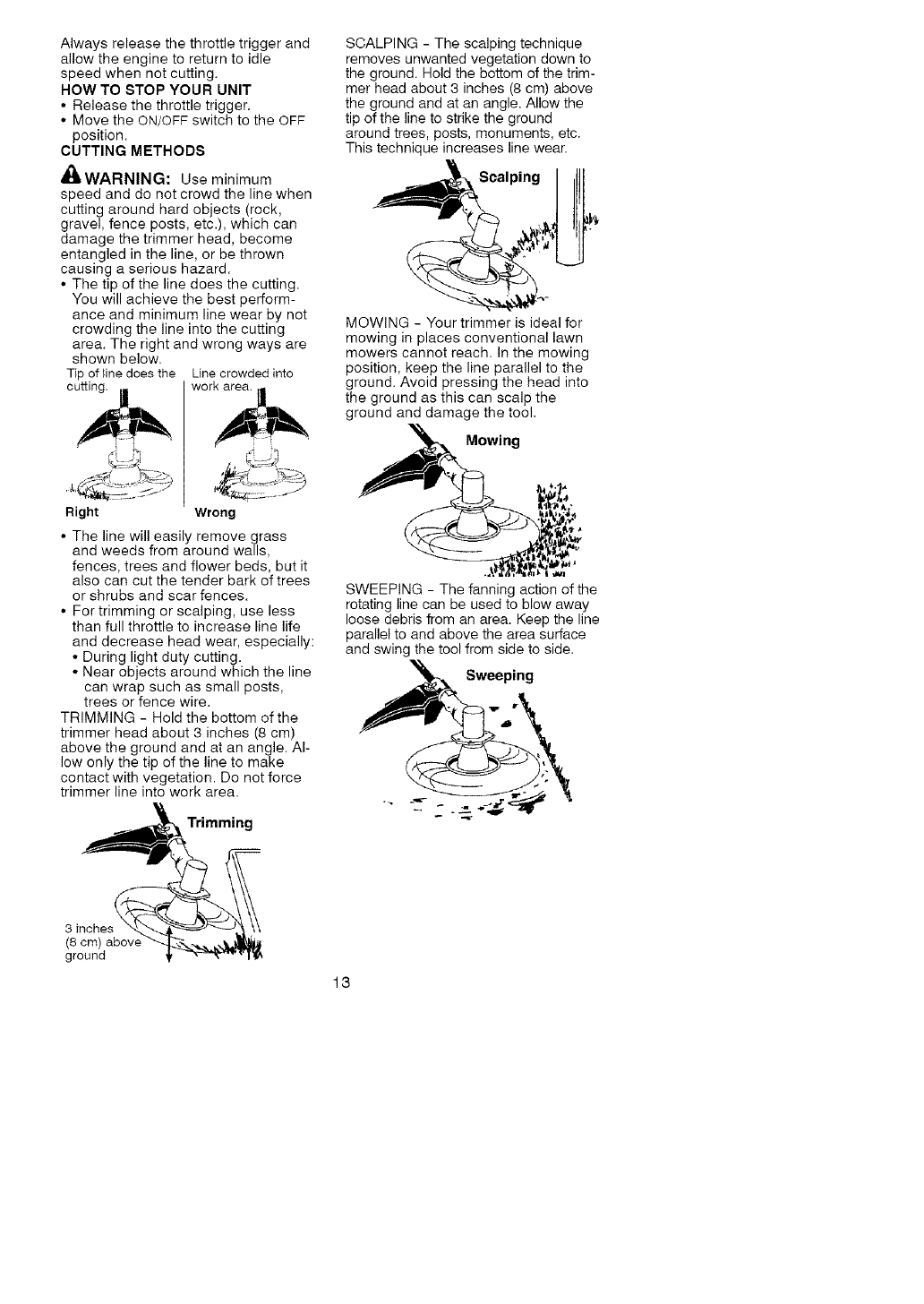

Alwaysreleasethethrottletriggerand

allowtheenginetoreturntoidle

speedwhennotcutting.

HOWTO STOP YOUR UNIT

•Release the throttle trigger.

• Move the ON/OFF switch to the OFF

position.

CUTTING METHODS

,i_WARNING: Use minimum

speed and do not crowd the line when

cutting around hard objects (rock,

gravel, fence posts, etc.), which can

damage the trimmer head, become

entangled in the line, or be thrown

causing a serious hazard.

• The tip of the line does the cutting.

You will achieve the best perform-

ance and minimum line wear by not

crowding the line into the cutting

area. The right and wrong ways are

shown below.

Tip of line does the Line crowded into

wor__

Right Wrong

• The line will easily remove grass

and weeds from around walls,

fences, trees and flower beds, but it

also can cut the tender bark of trees

or shrubs and scar fences.

• For trimming or scalping, use less

than full throttle to increase line life

and decrease head wear, especially:

• During light duty cutting.

• Near objects around which the line

can wrap such as small posts,

trees or fence wire.

TRIMMING - Hold the bottom of the

trimmer head about 3 inches (8 cm)

above the ground and at an angle. Al-

low only the tip of the line to make

contact with vegetation. Do not force

trimmer line into work area.

Trimming

SCALPING - The scalping technique

removes unwanted vegetation down to

the ground. Hold the bottom of the trim-

mer head about 3 inches (8 cm) above

the ground and at an angle. Allow the

tip of the line to strike the ground

around trees, posts, monuments, etc.

This technique increases line wear.

Scalping

MOWING - Your trimmer is ideal for

mowing in places conventional lawn

mowers cannot reach. In the mowing

position, keep the line parallel to the

ground. Avoid pressing the head into

the ground as this can scalp the

ground and damage the tool.

Mowing

SWEEPING - The fanning action of the

rotating line can be used to blow away

loose debris from an area. Keep the line

parallel to and above the area surface

and swing the tool from side to side.

j_ Sweeping

3 inches

(8 cm) abow

ground

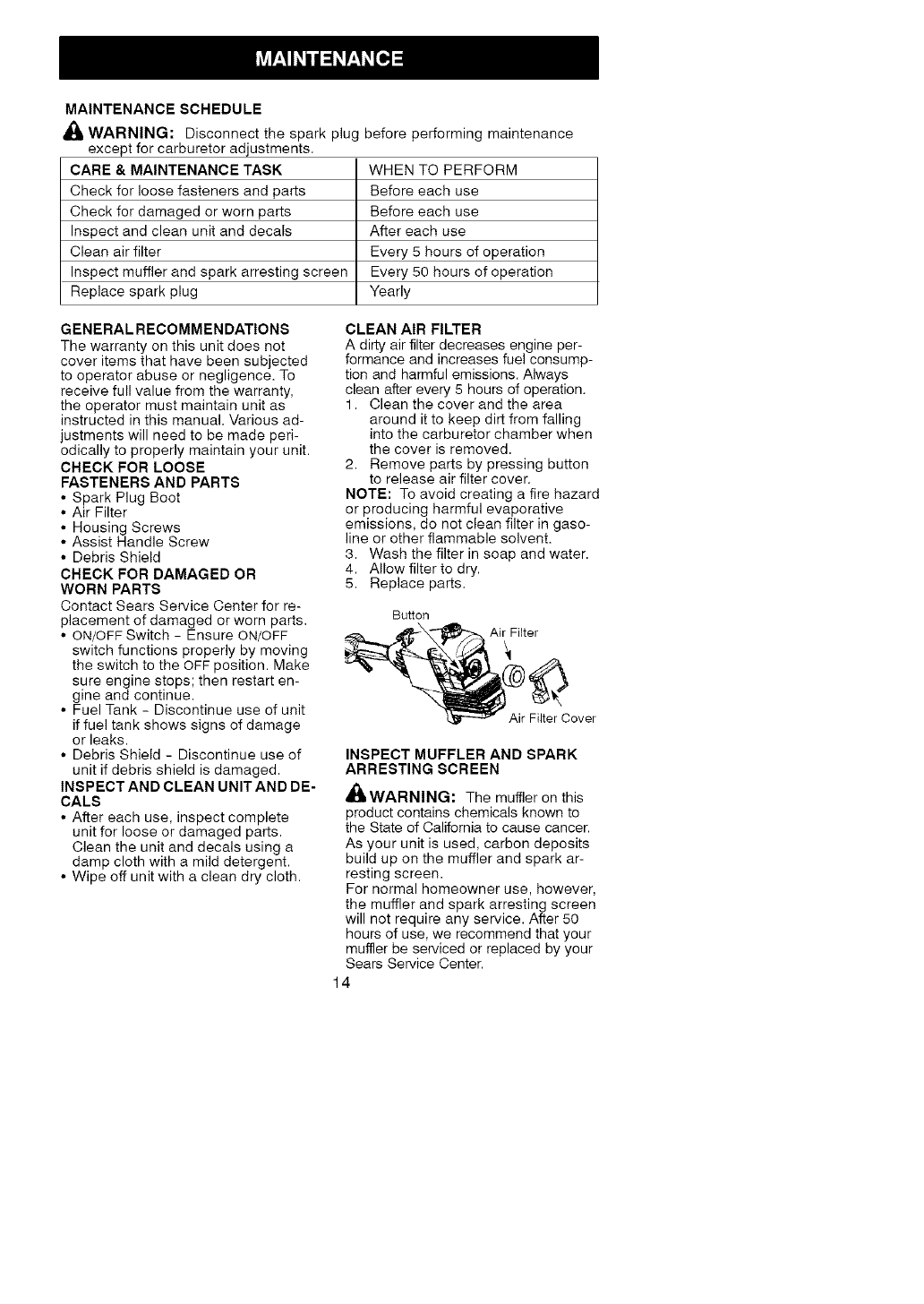

MAINTENANCE SCHEDULE

,_ WARNING: Disconnect the spark plug

except for carburetor adjustments.

CARE & MAINTENANCE TASK

Check for loose fasteners and parts

Check for damaged or worn parts

Inspect and clean unit and decals

Clean air filter

Inspect muffler and spark arresting screen

Replace spark plug

before performing maintenance

WHEN TO PERFORM

Before each use

After each use

Every 5 hours of operation

Every 50 hours of operation

Yearly

GENERAL RECOMMEN DATIONS

The warranty on this unit does not

cover items that have been subjected

to operator abuse or negligence. To

receive full value from the warranty,

the operator must maintain unit as

instructed in this manual. Various ad-

justments will need to be made peri-

odically to properly maintain your unit.

CHECK FOR LOOSE

FASTENERS AND PARTS

• Spark Plug Boot

• Air Filter

• Housing Screws

• Assist Handle Screw

• Debris Shield

CHECK FOR DAMAGED OR

WORN PARTS

Contact Sears Service Center for re-

placement of damaged or worn parts.

• ON/OFF Switch - Ensure ON/OFF

switch functions properly by moving

the switch to the OFF position. Make

sure engine stops; then restart en-

gine and continue.

• Fuel Tank - Discontinue use of unit

if fuel tank shows signs of damage

or leaks.

• Debris Shield - Discontinue use of

unit if debris shield is damaged.

INSPECT AND CLEAN UNIT AND DE-

CALS

• After each use, inspect complete

unit for loose or damaged parts.

Clean the unit and decals using a

damp cloth with a mild detergent.

• Wipe off unit with a clean dry cloth.

CLEAN AIR FILTER

A dirty air filter decreases engine per-

formance and increases fuel consump-

tion and harmful emissions. Always

clean after every 5 hours of operation.

1. Clean the cover and the area

around it to keep dirt from falling

into the carburetor chamber when

the cover is removed.

2. Remove parts by pressing button

to release air filter cover.

NOTE: To avoid creating a fire hazard

or producing harmful evaporative

emissions, do not clean filter in gaso-

line or other flammable solvent.

3. Wash the filter in soap and water.

4. Allow filter to dry.

5. Replace parts.

Button

Air Filter

Air Filter Cover

INSPECT MUFFLER AND SPARK

ARRESTING SCREEN

_WARNING: The muffler on this

product contains chemicals known to

the State of California to cause cancer.

As your unit is used, carbon deposits

build up on the muffler and spark ar-

resting screen.

For normal homeowner use, however,

the muffler and spark arresting screen

will not require any service. After 50

hours of use, we recommend that your

muffler be serviced or replaced by your

Sears Service Center.

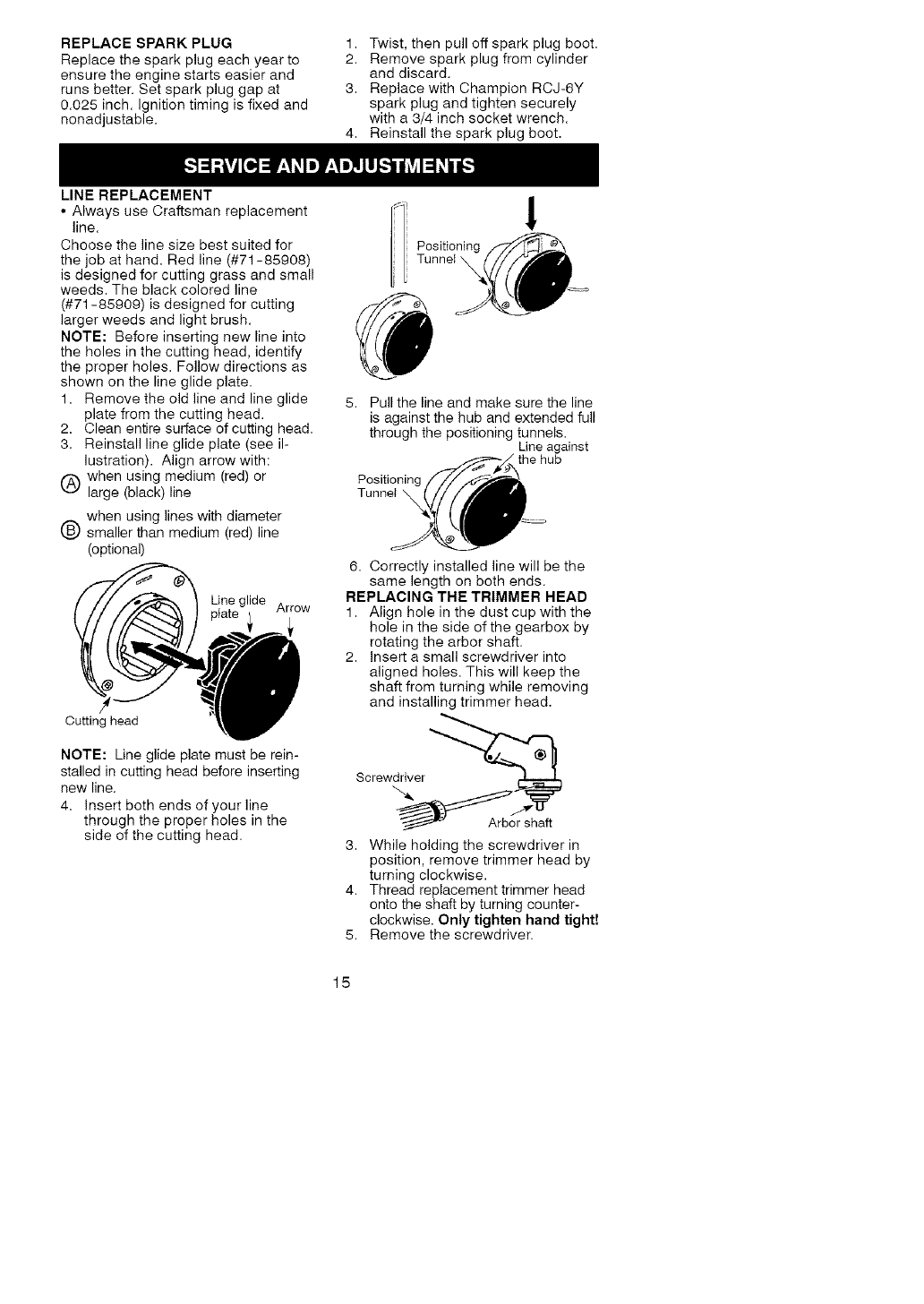

REPLACE SPARK PLUG

Replace the spark plug each year to

ensure the engine starts easier and

runs better. Set spark plug gap at

0.025 inch. Ignition timing is fixed and

nonadjustable.

1. Twist, then pull off spark plug boot.

2. Remove spark plug from cylinder

and discard.

3. Replace with Champion RCJ-dY

spark plug and tighten securely

with a 3/4 inch socket wrench.

4. Reinstall the spark plug boot.

LINE REPLACEMENT

• Always use Craftsman replacement

line.

Choose the line size best suited for

the job at hand. Red line (#71-85908)

is designed for cutting grass and small

weeds. The black colored line

(#71-85909) is designed for cutting

larger weeds and light brush.

NOTE: Before inserting new line into

the holes in the cutting head, identify

the proper holes. Follow directions as

shown on the line glide plate.

1. Remove the old line and line glide

plate from the cutting head.

2. Clean entire surface of cutting head.

3. Reinstall line glide plate (see il-

lustration). Align arrowwith:

t'_ when using medium (red) or

large (black) line

when using lines with diameter

(D smaller than medium (red) line

(optional)

Line glide Arrow

Cutting head

NOTE: Line glide plate must be rein-

stalled in cutting head before inserting

new line.

4. Insert both ends of your line

through the proper holes in the

side of the cutting head.

II '

Positioning

Tunnel

5. Pull the line and make sure the line

is against the hub and extended full

through the positioning tunnels.

Line against

Positioning

Tunnel \

6. Correctly installed line will be the

same length on both ends.

REPLACING THE TRIMMER HEAD

1. Align hole in the dust cup with the

hole in the side of the gearbox by

rotating the arbor shaft.

2. Insert a small screwdriver into

aligned holes. This will keep the

shaft from turning while removing

and installing trimmer head.

Screwier _

3. While holding the screwdriver in

position, remove trimmer head by

turning clockwise.

4. Thread replacement trimmer head

onto the shaft by turning counter-

clockwise. Only tighten hand tight!

5. Remove the screwdriver.

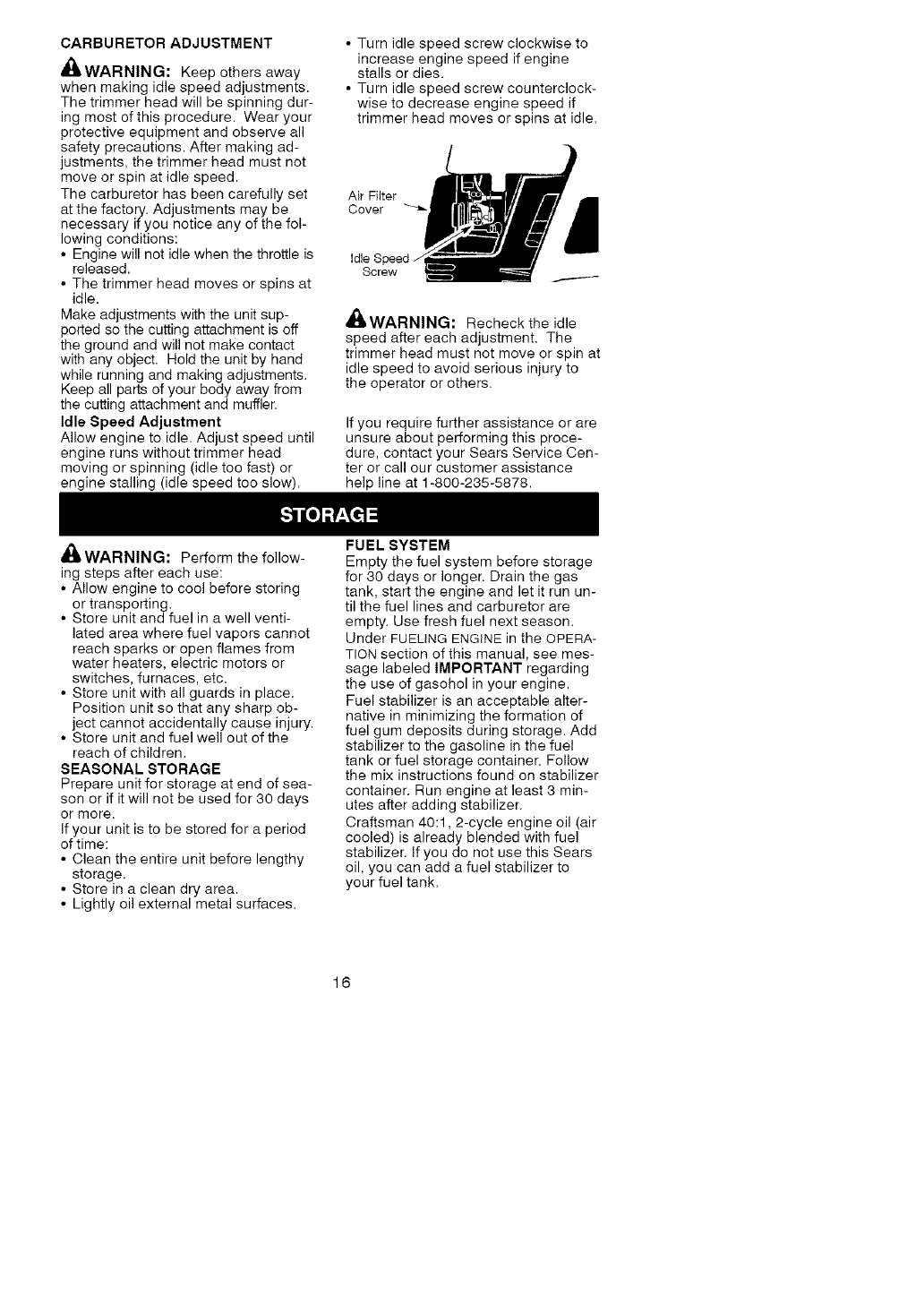

CARBURETOR ADJUSTMENT

_,WARNING: Keep others away

when making idle speed adjustments.

The trimmer head will be spinning dur-

ing most of this procedure. Wear your

protective equipment and observe all

safety precautions. After making ad-

justments, the trimmer head must not

move or spin at idle speed.

The carburetor has been carefully set

at the factory. Adjustments may be

necessary if you notice any of the fol-

lowing conditions:

• Engine will not idle when the throttle is

released.

• The trimmer head moves or spins at

idle.

Make adjustments with the unit sup-

ported so the cutting attachment is off

the ground and will not make contact

with any object. Hold the unit by hand

while running and making adjustments.

Keep all parts of your body away from

the cutting attachment and muffler.

Idle Speed Adjustment

Allow engine to idle. Adjust speed until

engine runs without trimmer head

moving or spinning (idle too fast) or

engine stalling (idle speed too slow).

• Turn idle speed screw clockwise to

increase engine speed if engine

stalls or dies.

• Turn idle speed screw counterclock-

wise to decrease engine speed if

trimmer head moves or spins at idle.

Air Filter __

Cover

Idle Speed

Screw

'_,WARNING: Recheck the idle

speed after each adjustment. The

trimmer head must not move or spin at

idle speed to avoid serious injury to

the operator or others.

If you require further assistance or are

unsure about performing this proce-

dure, contact your Sears Service Cen-

ter or call our customer assistance

help line at 1-800-235-5878.

A'IWARNING: Perform the follow-

ing steps after each use:

• Allow engine to cool before storing

or transporting.

• Store unit and fuel in a well venti-

lated area where fuel vapors cannot

reach sparks or open flames from

water heaters, electric motors or

switches, furnaces, etc.

• Store unit with all guards in place.

Position unit so that any sharp ob-

ject cannot accidentally cause injury.

• Store unit and fuel well out of the

reach of children.

SEASONAL STORAGE

Prepare unit for storage at end of sea-

son or if it will not be used for 30 days

or more.

If your unit is to be stored for a period

of time:

• Clean the entire unit before lengthy

storage.

• Store in a clean dry area.

• Lightly oil external metal surfaces.

FUEL SYSTEM

Empty the fuel system before storage

for 30 days or longer. Drain the gas

tank, start the engine and let it run un-

til the fuel lines and carburetor are

empty. Use fresh fuel next season.

Under FUELING ENGINE in the OPERA-

TION section of this manual, see mes-

sage labeled IMPORTANT regarding

the use of gasohol in your engine.

Fuel stabilizer is an acceptable alter-

native in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to the gasoline in the fuel

tank or fuel storage container. Follow

the mix instructions found on stabilizer

container. Run engine at least 3 min-

utes after adding stabilizer.

Craftsman 40:1,2-cycle engine oil (air

cooled) is already blended with fuel

stabilizer. If you do not use this Sears

oil, you can add a fuel stabilizer to

your fuel tank.

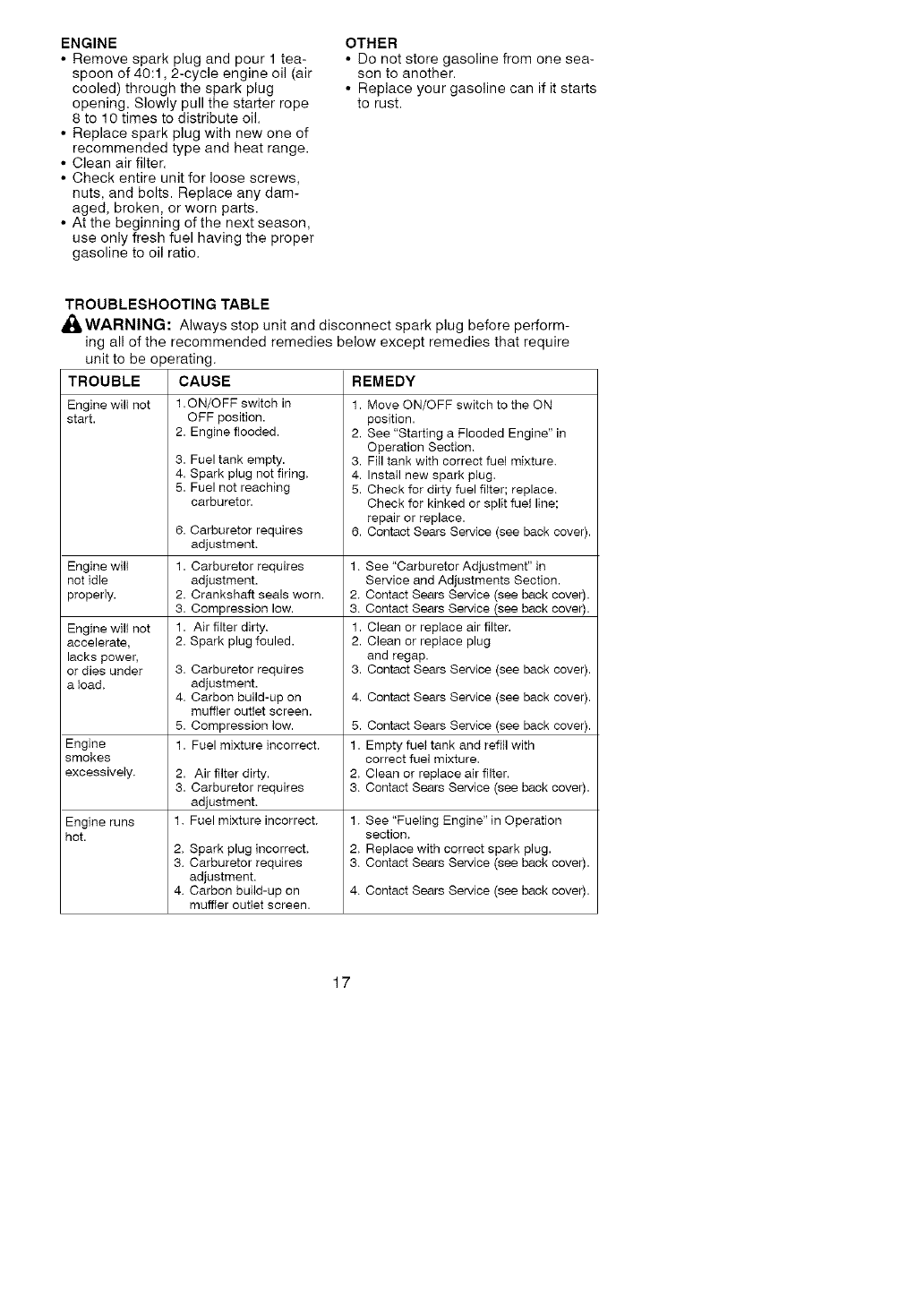

ENGINE

• Remove spark plug and pour 1 tea-

spoon of 40:1,2-cycle engine oil (air

cooled) through the spark plug

opening. Slowly pull the starter rope

8 to 10 times to distribute oil.

• Replace spark plug with new one of

recommended type and heat range.

• Clean air filter.

• Check entire unit for loose screws,

nuts, and bolts. Replace any dam-

aged, broken, or worn parts.

• At the beginning of the next season,

use only fresh fuel having the proper

gasoline to oil ratio.

OTHER

• Do not store gasoline from one sea-

son to another.

• Replace your gasoline can if it starts

to rust.

TROUBLESHOOTING TABLE

_WARNING: Always stop unit and disconnect spark plug before perform-

ing all of the recommended remedies below except remedies that require

TROUBLE

Engine will not

start.

unit to be operating.

CAUSE REMEDY

1. ON/OFF switch in

OFF position.

2. Engine flooded.

3. Fuel tank empty.

4. Spark plug not firing.

5. Fuel not reaching

carburetor.

1. Move ON/OFF switch to the ON

position.

2. See "Starting a Flooded Engine" in

Operation Section.

3. Fill tank with correct fuel mixture.

4. Instatl new spark plug.

5. Check for dirty fuel filter; replace.

Check for kinked or split fuel line;

repair or replace.

Contact Sears Service (see back cover).

6. Carburetor requires 6.

adjustment.

Engine wili 1. Carburetor requires 1. See "Carburetor Adjustment" in

not idle adjustment. Service and Adjustments Section.

properly. 2. Crankshaft seals worn. 2. Contact Sears Service (see back cover).

Engine wilt not

accelerate,

lacks power.

or dies under

a load.

Engine

smokes

excessively.

Engine runs

hot.

3. Carburetor requires

adjustment.

4. Carbon build-up on

muffler outlet screen.

5. Compression low.

1. Fuel mixture incorrect.

Compression low. 3. Contact Sears Service (see back cover).

Air filter dirty. 1. Clean or replace air filter.

Spark plug fouled. 2. Clean or replace plug

and regap.

3. Contact Sears Service (see back cover).

2. Air filter dirty.

3. Carburetor requires

adjustment.

1. Fuel mixture incorrect.

2. Spark plug incorrect.

3. Carburetor requires

adjustment.

4. Carbon build-up on

muffler outlet screen.

4. Contact Sears Service (see back cover).

5. Contact Sears Service (see back cover).

1. Empty fuel tank and refill with

correct fuel mixture.

2. Clean or replace air filter.

3. Contact Sears Service (see back cover).

See "Fueting Engine" in Operation

section.

Replace with correct spark plug.

Contact Sears Service (see back cover).

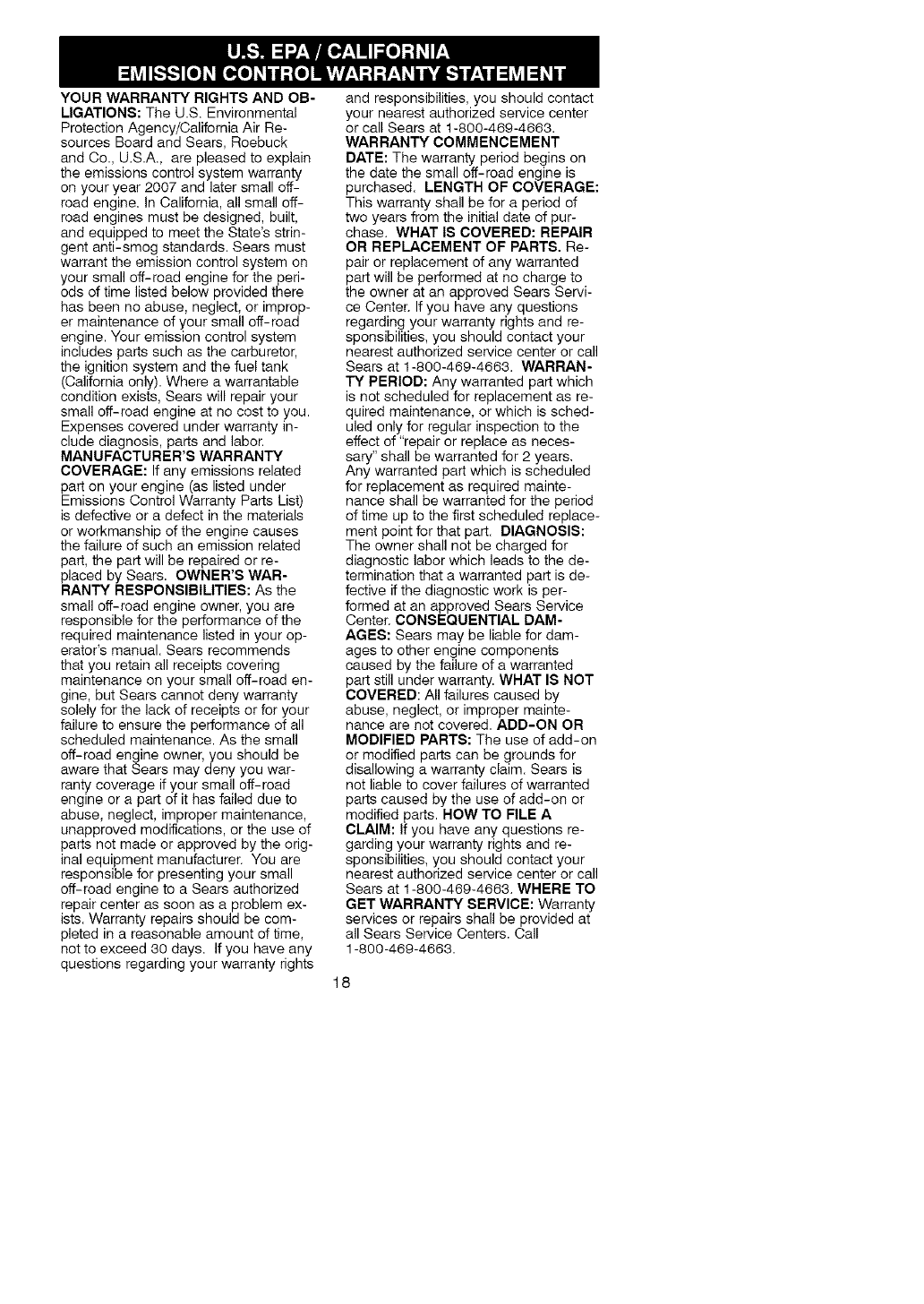

YOUR WARRANTY RIGHTS AND OB-

LIGATIONS: The U.S. Environmental

Protection Agency/California Air Re-

sources Board and Sears, Roebuck

and Co., U.S.A., are pleased to explain

the emissions control system warranty

on your year 2007 and later small off-

road engine. In California, all small off-

road engines must be designed, built,

and equipped to meet the State's strin-

gent anti-smog standards. Sears must

warrant the emission control system on

your small off-road engine for the peri-

ods of time listed below provided there

has been no abuse, neglect, or improp-

er maintenance of your small off-road

engine. Your emission control system

includes parts such as the carburetor,

the ignition system and the fuel tank

(California only). Where a warrantable

condition exists, Sears will repair your

small off-road engine at no cost to you.

Expenses covered under warranty in-

clude diagnosis, parts and labor.

MANUFACTURER'S WARRANTY

COVERAGE: If any emissions related

part on your engine (as listed under

Emissions Control Warranty Parts List)

is defective or a defect in the materials

or workmanship of the engine causes

the failure of such an emission related

part, the part will be repaired or re-

placed by Sears. OWNER'S WAR-

RANTY RESPONSIBILITIES: As the

small off-road engine owner, you are

responsible for the performance of the

required maintenance listed in your op-

erator's manual. Sears recommends

that you retain all receipts covering

maintenance on your small off-road en-

gine, but Sears cannot deny warranty

solely for the lack of receipts or for your

failure to ensure the performance of all

scheduled maintenance. As the small

off-road engine owner, you should be

aware that Sears may deny you war-

ranty coverage if your small off-road

engine or a part of it has failed due to

abuse, neglect, improper maintenance,

unapproved modifications, or the use of

parts not made or approved by the orig-

inal equipment manufacturer. You are

responsible for presenting your small

off-road engine to a Sears authorized

repair center as soon as a problem ex-

ists. Warranty repairs should be com-

pleted in a reasonable amount of time,

not to exceed 30 days. If you have any

questions regarding your warranty rights

and responsibilities, you should contact

your nearest authorized service center

or call Sears at 1-800-469-4663.

WARRANTY COMMENCEMENT

DATE: The warranty period begins on

the date the small off-road engine is

purchased. LENGTH OF COVERAGE:

This warranty shall be for a period of

two years from the initial date of pur-

chase. WHAT IS COVERED: REPAIR

OR REPLACEMENT OF PARTS. Re-

pair or replacement of any warranted

part will be performed at no charge to

the owner at an approved Sears Servi-

ce Center. If you have any questions

regarding your warranty rights and re-

sponsibilities, you should contact your

nearest authorized service center or call

Sears at 1-800-469-4663. WARRAN-

TY PERIOD: Any warranted part which

is not scheduled for replacement as re-

quired maintenance, or which is sched-

uled only for regular inspection to the

effect of "repair or replace as neces-

sary" shall be warranted for 2 years.

Any warranted part which is scheduled

for replacement as required mainte-

nance shall be warranted for the period

of time up to the first scheduled replace-

ment point for that part. DIAGNOSIS:

The owner shall not be charged for

diagnostic labor which leads to the de-

termination that a warranted part is de-

fective if the diagnostic work is per-

formed at an approved Sears Service

Center. CONSEQUENTIAL DAM-

AGES: Sears may be liable for dam-

ages to other engine components

caused by the failure of a warranted

part still under warranty. WHAT IS NOT

COVERED: All failures caused by

abuse, neglect, or improper mainte-

nance are not covered. ADD-ON OR

MODIFIED PARTS: The use of add-on

or modified parts can be grounds for

disallowing a warranty claim. Sears is

not liable to cover failures of warranted

parts caused by the use of add-on or

modified parts. HOW TO FILE A

CLAIM: If you have any questions re-

garding your warranty rights and re-

sponsibilities, you should contact your

nearest authorized service center or call

Sears at 1-800-469-4663. WHERE TO

GET WARRANTY SERVICE: Warranty

services or repairs shall be provided at

all Sears Service Centers. Call

1-800-469-4663.

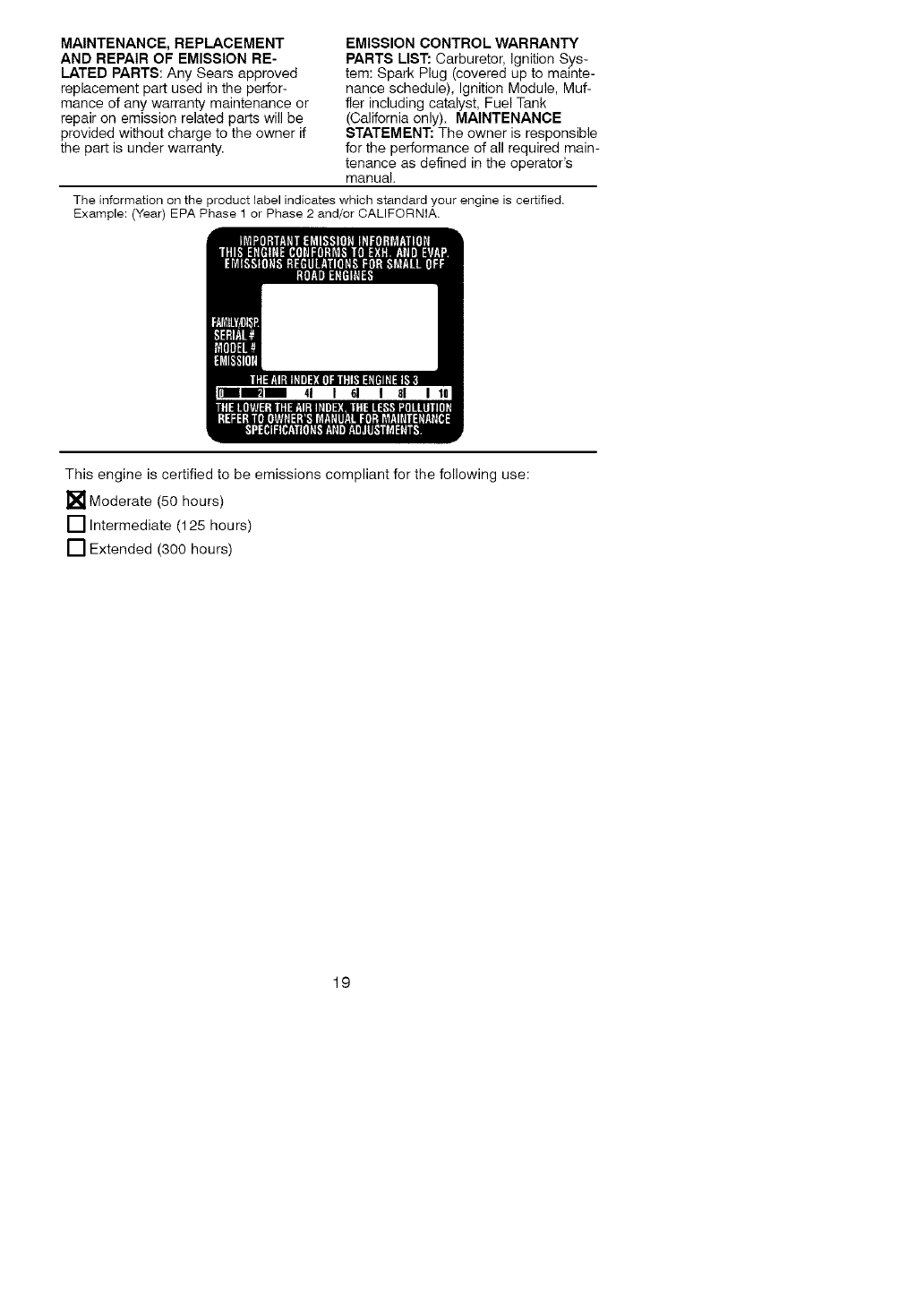

MAINTENANCE, REPLACEMENT

AND REPAIR OF EMISSION RE-

LATED PARTS: Any Sears approved

replacement part used in the perfor-

mance of any warranty maintenance or

repair on emission related parts will be

provided without charge to the owner if

the part is under warranty.

EMISSION CONTROL WARRANTY

PARTS LIST: Carburetor, Ignition Sys-

tem: Spark Plug (covered up to mainte-

nance schedule), Ignition Module, Muf-

fler including catalyst, Fuel Tank

(California only). MAINTENANCE

STATEMENT: The owner is responsible

for the performance of all required main-

tenance as defined in the operator's

manual.

The information on the product label indicates which standard your engine is certified.

Example: (Year) EPA Phase 1 or Phase 2 and/or CALIFORNIA.

41 I61 I 81 I

This engine is certified to be emissions compliant for the following use:

[] Moderate (50 hours)

[] Intermediate (125 hours)

[] Extended (300 hours)

REPAIR PARTS

SEARS TRIMMER MODEL 358.791071

_1_ WARNING

All repairs, adjustments and

maintenance not described in

the Operator's Manual must be

performed by qualified service

personnel

Ref

"1.

11.

12.

13.

14.

15.

16.

17.

18.

19.

Part No.

530015805

530015886

530057983

530016326

530057984

530058843

530069572

530015886

545017701

530015786

530058583

530016152

530071936

530016344

530096218

580071789

580016152

530057554

580096099

Description

Screw-alignment

Screw

Hsg -Throttle right

Screw-Cable Retention

Hsg-Left throttle

Assy-Wire

Kit-Switch

Screw

Lever-Trigger

Bolt

Assy-Handle (Incl 10,12)

Wingnut

Kit-Upper Shaft

(Incl flex, clamp & 14)

Screw

Shaft- Flex (lower)

Kit-Lower Shaft

Wingnut

Bracket- Shield

Gearbox

Ref.

20.

Part No.

530016014

530015775

530052285

530015814

530071765

530015820

71-85740

71-85908

71-85909

530096039

Description

Screw

Umiter- Line

Screw

Kit-Shield Assy. (incl 22,23)

Bolt

Head-Cutting

Tube-Twisted Line

Red Line

B_ack Line

Plate-Glide

Not Shown

545154227 Operator Manual

530056220 Decal-Shaft Warning

530057296 Decal-Upper Shaft

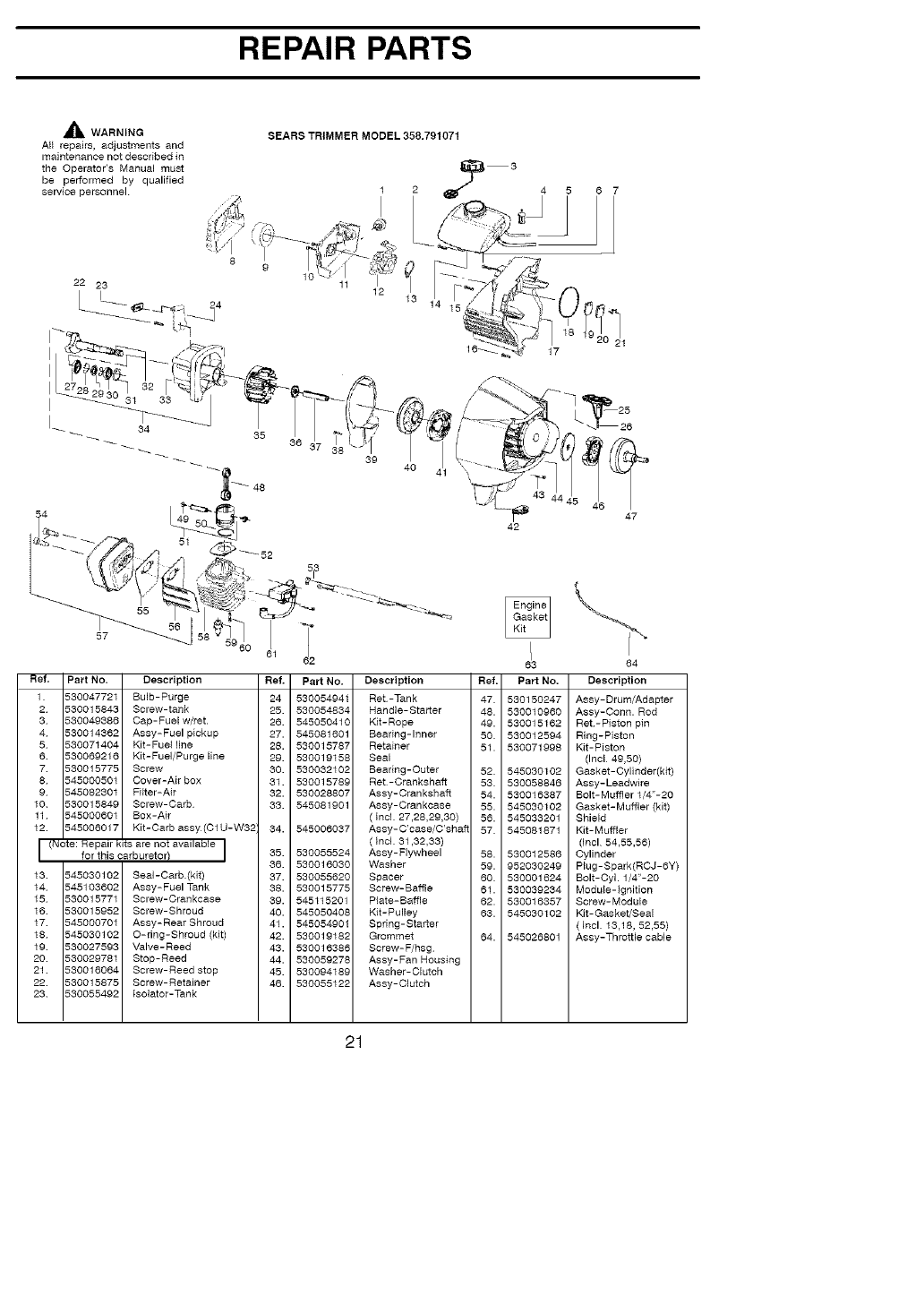

REPAIR PARTS

_lL WARNING

At_ repairs, adjustments and

maintenance not described in

the Operator's Manual must

be performed by qualified

service personnel

SEARS TRIMMER MODEL 358.791071

1 2 _ 4 5

22 23

8 I

9lO 11

39 40 %

\47

Ret. Part No. Description

1 530047721 Bulb-Purge

2 530015843 Screw-tank

3 530049386 Cap-Fuel w/ret.

4 530014362 Assy-Fuel pickup

5 530071404 Kit- Fue_ line

6 530069216 Kit-Fuel/Purge line

7 530015775 Screw

8 545000501 Cover-Air box

9 545082301 Fi_ter-Air

10 530015849 Screw-Carb

11 545000601 Box-Air

12 545006017 Kit-Carb assy (01U-W32

ate: Hepalr kits are not available

E_ for this carburetor)

Ref. Part No. Description

24 530054941 Ret-Tank

25. 530054834 Hand]e-Sta_er

26. 545050410 Kit-Rope

27. 545081601 Beabng-lnner

28. 530015787 Retainer

29. 530019158 Seal

50. 530032102 Bearing-Outer

31. 530015789 Ret-Crankshaff

32. 530028807 Assy-Crankshaff

35. 545081901 Assy-Orankcase

(Incl. 27,28,29,30)

63 64

Ref. Part No, Description

47. 530150247 Assy-Drum/Adapter

48. 530010960 Assy-Conn. Rod

49. 530015162 Ret-Piston pin

50. 530012594 Ring-Piston

51. 550071998 Kit-Piston

(Incl 49,50)

52. 545030102 Gasket-Cylinder(kit)

58. 550058846 Assy-Leadwhe

54. 530016387 Bolt-Muffler I/4"-20

55. 545030102 Gasket-Muffler (kit)

56. 545033201 Shield

34. 545006037 Assy-C'case/C'shaf 57. 545081871 Kit-Muffler

(Incl. 31,32,33)

35. 530055524 Assy-F]ywheel

36. 530016030 Washer

13 545080102

14 545103602

15 530015771

16 530015952

17 545000701

18 545050102

19 550027593

20 550029781

21 550016064

22 550015875

25 550055492

Sea]-Carb(kit)

Assy-FuelTank

Screw-Crankcase

Screw-Shroud

Assy-Rear Shroud

C-ring-Shroud (kit)

Valve-Reed

Stop-Reed

Screw-Reed stop

Screw-Retainer

isolator-Tank

37. 530055620 Spacer

38. 530015775 Screw-Baffle

39. 545115201 Plate-Baffle

40. 545050408 Kit-Pulley

41. 545054901 Spring-Sta_er

42. 530019182 Grommet

43. 530016386 Screw-F/hsg.

44. 530059278 Assy-Fan Housing

45. 530094189 Washer-Clutch

46. 530055122 Assy-Olutch

(]ncl 54,55,56)

58. 530012586 Cylinder

59. 952030249 P{ug-Spark(RCJ-6Y)

60. 530001624 Bolt-Cy]. 1/4"-20

61. 530039234 Module-ignition

62. 530016357 Screw-Module

63. 545850102 Kit-Gasket/Seal

(]ncl 13,18, 52,55)

64. 545026801 Assy-Throttle cable

Craftsman 358 791071 Users Manual

358791071 358791071 CRAFTSMAN TRIMMER - Manuals and Guides L0803165 View the owners manual for your CRAFTSMAN TRIMMER #358791071. Home:Lawn & Garden Parts:Craftsman Parts:358791071 Craftsman Grass trimmer (weed wacker) Manual

CRAFTSMAN Line Trimmers/Weedwackers, Gas Manual L0803165 CRAFTSMAN Line Trimmers/Weedwackers, Gas Owner's Manual, CRAFTSMAN Line Trimmers/Weedwackers, Gas installation guides

3587910711 f6c74e54-3299-bc94-fd05-b19fb3e1b88d Craftsman Trimmer 358.791071 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
