Operator's Manual
3.4 HP, 2-Cycle
53 cc/3.2 cu. in.
235 mph/705 cfm
BACKPACK AIR BLOWER
Model 360.796900
CAUTION:
Before using this product, read this
manual and follow all Safety Rules and
Operating Instructions.
•Safety
•Assembly
• Operation
•Maintenance
•Parts
•Espa_ol
Sears. Roebuck and Co., Hoffman Estates, IL 60179 U.S.A
V=s=four Craftsman website ;vww sears COmlCrattsman
Dear Valued Customer,
When you operate your new Craftsman air blowerdon't expect !o hear the high-pitchedengine noise commonly
associatedwith motorizedpower equipment. L
This is ablowerdesignedto meet the needs of both professionaland occasional usersand comply withfuture noise
and emissionstandards.Many years of reseamh and engineeringwent intocreating thisquieter, more efficientunit.
By redesigningthe engine,fan, and blowerhousingcomponents,noise emissionswere cut by 50%. Engine speed
was loweredby 2,500 RPM, which reduces noise,fuel consumption,and emissions, while increasingoperatingtime
between refuelingwiththe added benefit of alonger engine life.
Incorporatinga very powerfulengine and speciallydesigned highvolume fan the Craftsman blower is able to achieve
maximumair power at only 4,800 RPM. Competitive blowerstypicallyrun at 7,000 to 8,000 RPM. This air bloweris
quietand powerful,features you and your neighborswill quicklyappreciate.
•Warranty Pg. 2
•Safety Pg. 3
•Contentsof Carton Pg. 4
•Accessories Pg. 4
•Assembly Pg. 4
•Operation Pg. 5
•Maintenance Pg. 7
• Storage Pg. 8
•Troubleshooting Pg. 9
•California Emission Control Pg.10

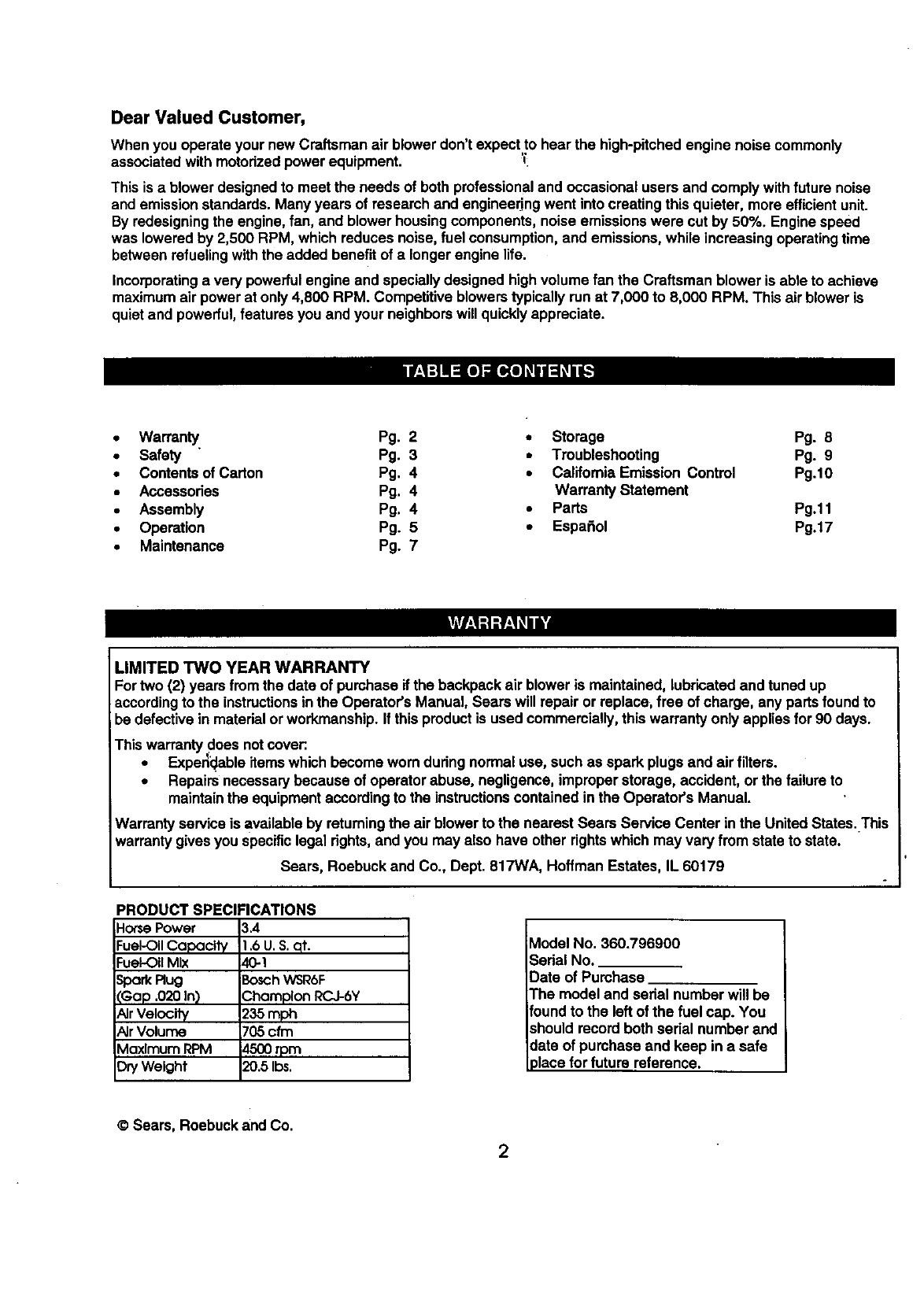

Warranty Statement
•Parts Pg.11
•Espal_ol Pg.17
LIMITED TWO YEAR WARRANTY
Fortwo (2) years from the date of pumhase if the backpack air blower is maintained, lubricatedand tuned up
accordingto the instructionsin the Operator's Manual, Sears will repair or replace, free of charge, any partsfound to
be defective in materialor workmanship.If this productis usedcommemially, thiswarranty only appliesfor 90 days.
This warranty does notcover:.
•Exper{_ableitems which becomeworn duringnormal use, suchas spark plugs and air filters.
•Repairsnecessarybecause of operator abuse, negligence, improperstorage, accident, or the failure to
maintainthe equipmentaccordingto the instructionscontained in the Operator's Manual.
Warrantyservice is available by retumingthe air blowerto the nearest Sears Service Center in the UnitedStates. This
warrantygives you specificlegal rights,and you may also have other rightswhich may vary from state to state.
Sears, Roebuck and Co., Dept. 817WA, Hoffman Estates, IL 60179
PRODUCT SPECIFICATIONS
Horse Power
Fuel-Oil Capacity
FueFOII Mix
Spork Rug
IGop .020 In)
AirVelo¢_
Air Volume
Maximum RPM
Dry Weight
3.4
1.6U.S. qt.
40-1
_sch WSR6F
3hamplon RCJ--6Y
Z35mph
705cfm
_500rpm
20.5Ibs.
Model No. 360.796900
Serial No.
Date of Pumhase
"rhemodel and serial numberwill be
found to the left of the fuel cap. You
should recordboth serial number and
date of pumhase and keep ina safe
place for future reference.
©Sears, Roebuckand Co.
2
CAUTION: Always disconnect spark plug wire and place',Where it cannot contact spark plug to prevent
accidental starting when setting up, transporting, adjusting or making repairs.
TRAINING
Read the operator's manual carefuUy.Become familiar
withthe controlsand know howto operate your air
blower"properly.
•Do not allow childrento use your air blower. Never
allow adultsto use air blowerwithoutproper
instructions.
•Keep the area of operationclear of all persons,
especiallysmallchildrenand pets..
•Use air blower only as described in this manual.
•Do notoperate air blower if it has been droppedor
damaged in any manner. Always have damage
repaired before usingyour air blower.
•Do not use accessoryattachmentsthat are not
recommended by the manufacturer.Use of such
attachmentsmay be hazardous.
PREPARATION
•Alwayswear safetyglasses or eye shieldswhen
startingand while usingyour air blower.
•Dress properly.Do notoperate air blowerwhen
barefootor weadng open sandals. Wear only solid
shoeswith goodtraction.
•Wear long-sleevedclothesthat are snug fitting.
Avoidwearing loose clothing.
•Wear either tightlycuffed or cufflesspants.
•Wear hearing protectioneven when workingfor a
short period of time. Remember - hearingdamage
is cumulative.
•Wear protective,non-slipglovesfor safer
operation_
•Check fuel.tank before startingengine. Do notfill
fueltank indoors,when the engine is runningor
when the engine is hot. Allowthe engineto cool
for several minutes before fillingthe fueltank.
Clean off any spilled gasoline before startingthe
engine.
•Always make adjustmentsbefore startingyour air
blower. Never attemptto do this while the engine
is running.
•Use only in daylightor goodartificial light.
OPERATION
•Keep your eyes and mind on your air blower and
the area being blown. Don't let other interests
distractyou.
•Always be sureof your footing.Use extra caution
in wet or slipperyareas. WALK - DON'T RUN.
•Do not put hands or feet near rotatingpads. Keep
clear of the nozzle openingat alltimes.
•Always stopthe enginewhenever you leave orare
notusingyour air blower.
•Before cleaning, inspecting,or repairingyour air
blower,stop the engine and make absolutelysure
all movingparts have stopped. Then disconnect
the sparkplug wire and keep it away fromthe
spark plugto prevent accidentalstarting.
•Do not adjustcarburetor,Overspeeding, engine
damage or personal injurymay result.
•Do not operate your air blower if it vibrates
abnormally.Excessivevibrationis an indication of
damage; stopthe engine, safely check for the
cause of vibrationand repairas needed.
•Do not run the engine indoors.Exhaustfumes are
dangerous.
•Never operate your air blower withoutproper
guards, tubes, or other safetydevices in place.

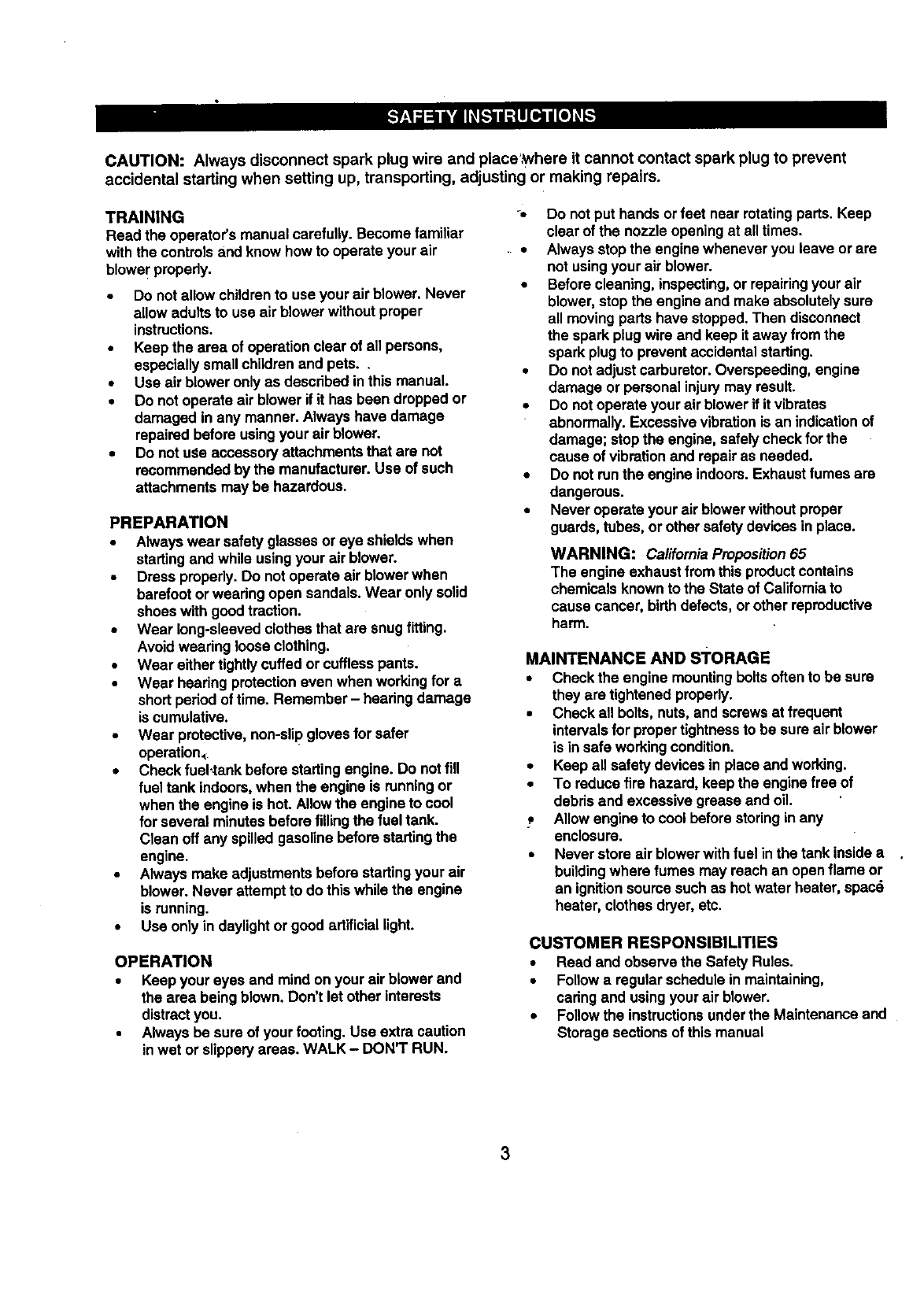

WARNING: CaliforniaProposition65
The engineexhaust fromthis productcontains
chemicalsknown to the State of Californiato
cause cancer, birthdefects, orother reproductive
harm.
MAINTENANCE AND STORAGE
•Check the engine mountingboltsoftento be sure
they are tightened properly.
•Check all bolts,nuts, and screwsat frequent
intervalsfor proper tightnessto be sureair blower
is insafe working condition.
•Keep all safety devicesin place and working.
•To reduce fire hazard, keep the engine free of
debrisand excessive grease and oil.
Allowengineto cool before storingin any
enclosure.
•Never storeair blowerwith fuel inthe tank insidea .
buildingwhere fumes may reach an open flame or
an ignitionsource suchas hotwater heater, spacd
heater, clothes dryer, etc.
CUSTOMER RESPONSIBILITIES
•Read and observethe Safety Rules.
•Followa regular schedulein maintaining,
caringand usingyour air blower.
•Followthe instructionsunderthe Maintenanceand
Storage sectionsof thismanual
3

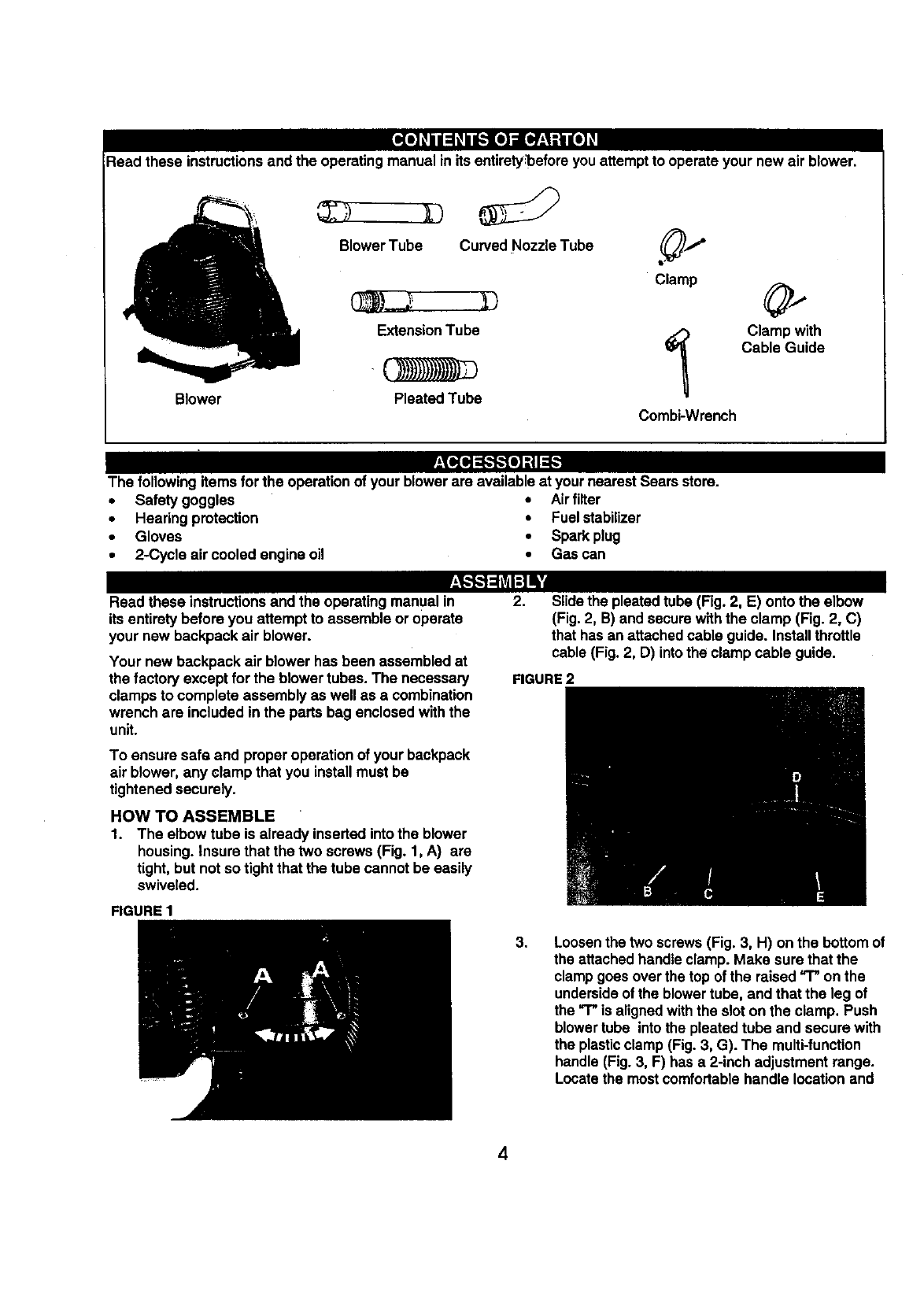

:lead these instructionsand the operatingmanual inits entirety_beforeyou attemptto operate your new air blower.
Blower
BlowerTube CurvedNozzle Tube
ExtensionTube
Pleated Tube
Clamp (_,
Clamp with
Cable Guide
Combi-Wrench
_TO][o.]:_,,,."[._o_tl_[.,._
The following items for the operation of your blowerare availableat your nearest Sears store.
•Safety goggles •Airfilter
•Hearing protection •Fuel stabilizer
•Gloves • Sparkplug
•2-Cycle air cooled engine oil •Gas can
V-!.'%'1_hVd:]lWd
Read these instructionsand the operating manual in
its entirety before you attempt to assemble or operate
your new backpack air blower.
Your new backpack air blower has been assembled at
the factory except for the blowertubes. The necessary
clampsto complete assembly as well as a combination
wrench are included inthe parts bag enclosedwiththe
unit.
To ensure safe and proper operationof your backpack
air blower, any clamp that you installmust be
tightened securely.
HOW TO ASSEMBLE
1. The elbow tube is already insertedintothe blower
housing. Insure that the two screws (Fig. 1, A) are
tight,but notso tight that the tube cannot be easily
swiveled.
FIGURE 1
2. Slidethe pleatedtube (Fig. 2, E) onto the elbow
(Fig.2, B) and secure withthe clamp (Fig. 2, C)
that has an attachedcable guide. Installthrottle
cable(Fig. 2, D) intothe clampcable guide.
FIGURE 2
3, Loosenthe two screws (Fig. 3, H) on the bottomof
the attachedhandleclamp. Make sure that the
clampgoes overthe topof the raised _on the
undersideof the blowertube, and that the leg of
the "T" is alignedwiththe slot on the clamp. Push
blowertube into the pleated tube and secure with
the plasticclamp (Fig. 3, G). The multi-function
handle(Fig. 3, F) has a 2-inch adjustment range.
Locatethe most comfortablehandle location and
4
then tighten the multi-functionhandle to blower
with the two screws (Fig. 3, H).
FIGURE 3
4. Once the handle is secured, the blower tubewith
-handle can be twisted and swiveled. Ensure that
the throttlecable does not become pinched or
trappedwhen swiveling handle.
.5. Installthe extensiontube (if desired) onto blower
tube by aligningthe tab on the extensionwiththe
correspondingarea on blower tube; then push
togetherand twist to secure.
6. Installthe curved nozzle tube in the same manner.
Twistto secure.

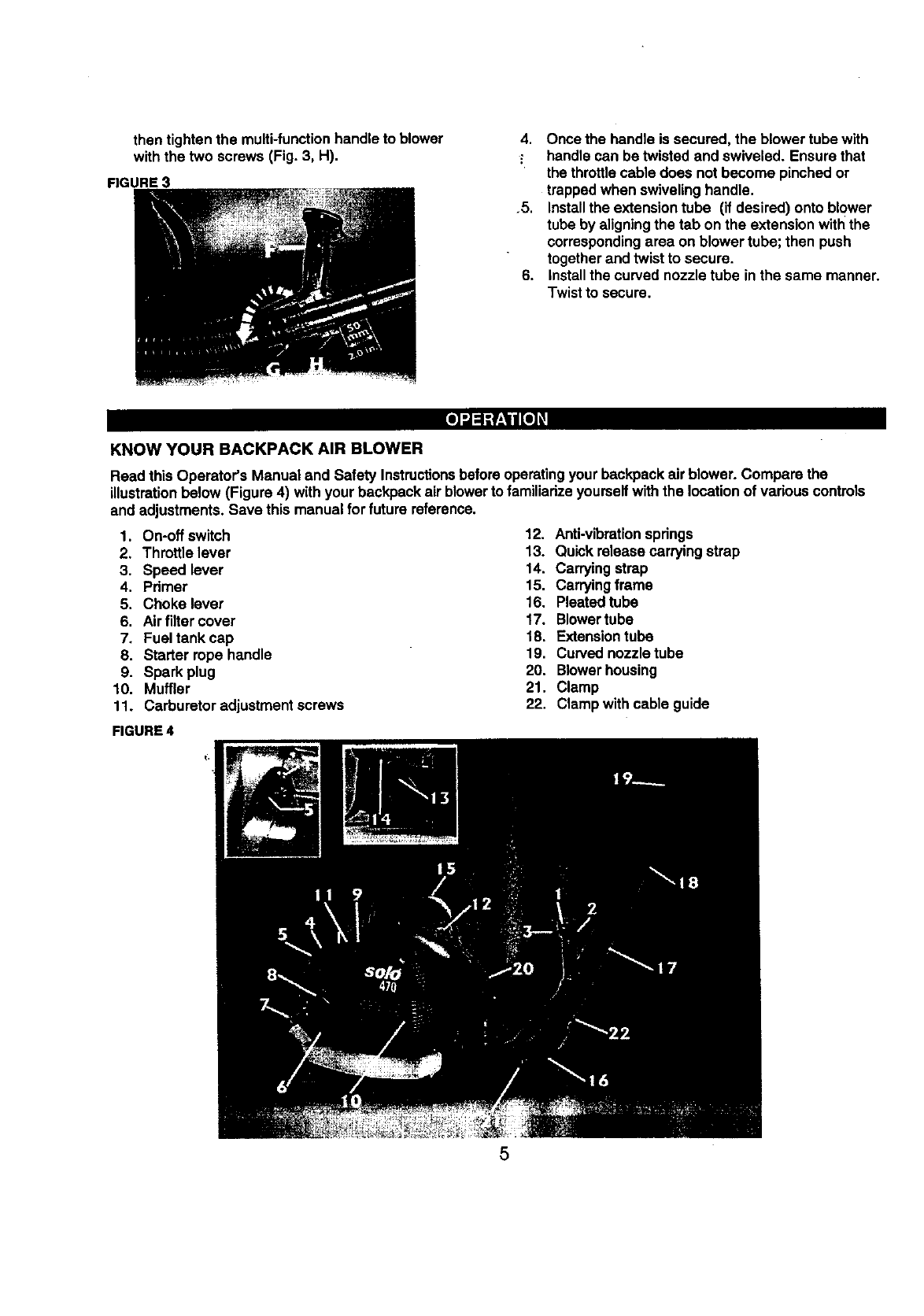

KNOW YOUR BACKPACK AIR BLOWER
Read this Operator's Manual and Safety Instructionsbefore operatingyour backpackair blower. Compare the
illustrationbelow (Figure 4) with your backpack airblowerto familiarize yourselfwith the locationof variouscontrols
and adjustments. Save this manual for future reference.
1. On-off switch
2. Throttle lever
3. Speed lever
4. Pdmer
5. Choke lever
6. Airfilter cover
7. Fuel tank cap
8. Starter rope handle
9. Spark plug
10. Muffler
11. Carburetor adjustment screws
5
12. Anti-vibrationsprings
13. Quickrelease carryingstrep
14. Carryingstrap
15. Carryingfreme
16. Pleated tube
17. Blowertube
18. Extensiontube
19. Curved nozzletube
20. Blowerhousing
21. Clamp
22. Clamp withcable guide
FIGURE 4
HOW TO USE YOUR BACKPACK AIR
BLOWER

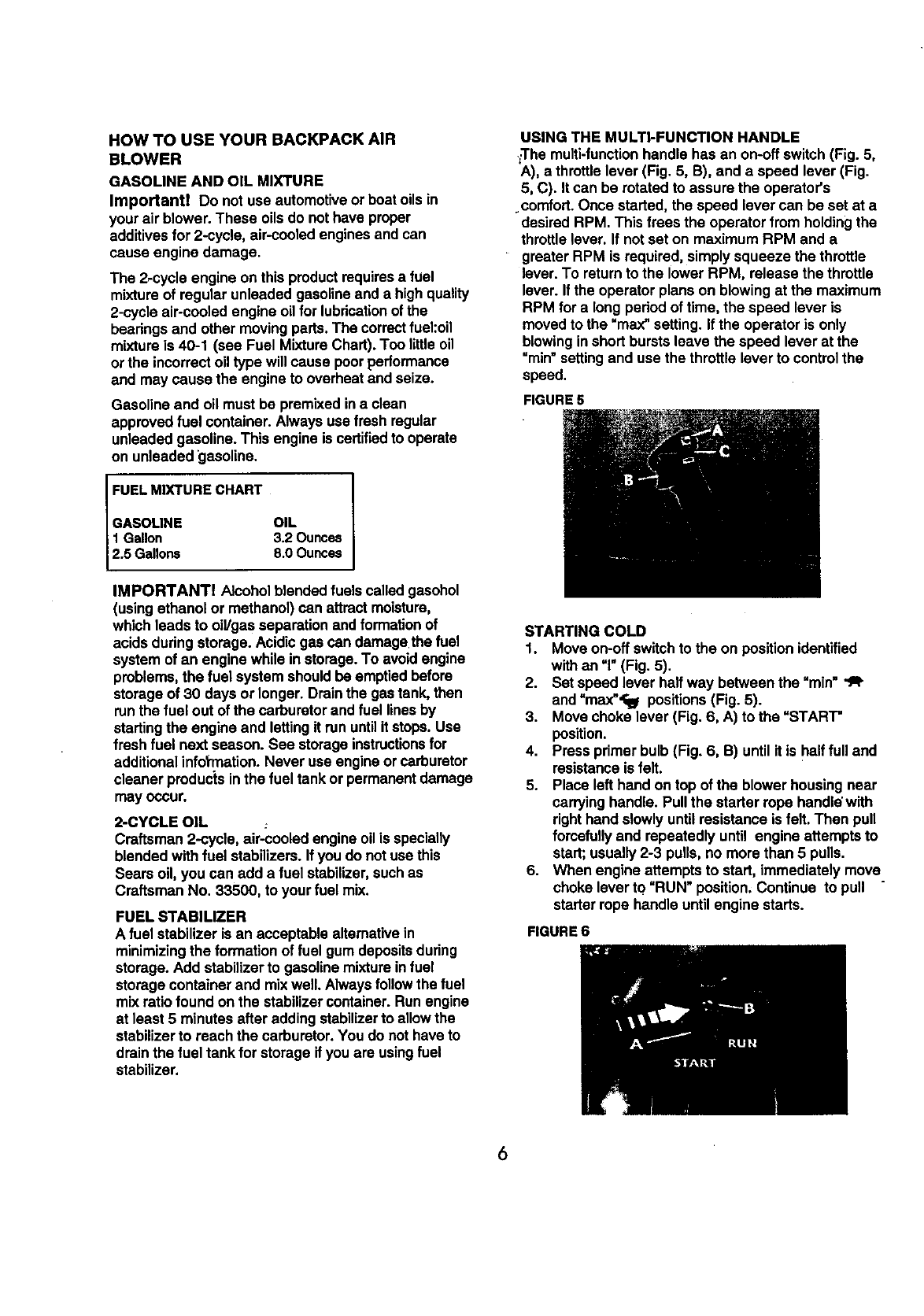

GASOUNE AND OIL MIXTURE
Important! Do not use automotiveor boatoils in
your air blower. These oilsdo nothave proper
additivesfor 2-cycle, air-cooled enginesand can
cause engine damage.
The 2.cycle engine onthis productrequiresa fuel
mixtureof regular unleaded gasolineand a highquality
2-cycle air-cooled engine oil for lubricationof the
bearings and other movingpads. The correctfuel:oil
mixture is 40-1 (see Fuel MixtureChad). Too littleoil
or the incorrectoil type will cause poorperformance
and may cause the engine to overheatand seize.
Gasoline and oil must be premixedina clean
approved fuel container.Alwaysuse fresh regular
unleaded gasoline. This engine is certifiedto operate
on unleaded 'gasoline.
I
FUELMIXTURECHART I
GASOLINE OIL
I Gallon 3+2Dunces
2.5 Gallons 8.0 Dunces
IMPORTANTI Alcoholblended fuelscalled gasohol
(usingethanolor methanol)can attract moisture,
which leads to oil/gas separation andformationof
acidsduringstorage. Acidicgas can damage the fuel
systemof an engine while in storage.To avoidengine
problems,the fuel systemshould be emptied before
storage of 30 days or longer.Drainthe gas tank, then
run the fuel out of the carburetor andfuel lines by
startingthe engine and lettingit run untilit stops.Usa
fresh fuel next season. See storageinstructionsfor
additionalinfot'mation.Never use engineor carburetor
cleaner produc_sin the fuel tank or permanentdamage
may occur.
2-CYCLE OIL
Craftsman 2-cycle, air-cooledengine oil is specially
blended withfuel stabilizers. If you do not usethis
Sears oil,you can add a fuel stabilizer,suchas
Craftsman No. 33500, to your fuel mix.
FUEL STABILIZER
Afuel stabilizeris an acceptable altamativein
minimizingthe formation of fuel gumdepositsduring
storage. Add stabilizerto gasoline mixtureinfuel
storage container and mix well. Alwaysfollow the fuel
mix ratiofound on the stabilizercontainer.Run engine
at least 5 minutes after adding stabilizerto allow the
stabilizerto reach the carburetor.You donot have to
drain the fuel tank for storage if youare usingfuel
stabilizer.
USING THE MULTI-FUNCTION HANDLE
_Themulti-functionhandle has an on-off switch (Fig. 5,
A), a throttlelever (Fig. 5, B), and a speed lever (Fig.
5, C). It can be rotated to assure the operator's
•comfort.Once started, the speed lever can be set at a
desired RPM. This frees the operator from holdingthe
throttlelever. If notset on maximumRPM and a
•greater RPM is required, simplysqueeze the throttle
lever. To returnto the lower RPM, release the throttle
lever. If the operator plans on blowingat the maximum
RPM for a long period of time, the speed lever is
movedto the =max" setting. If the operator is only
blowingin shortbursts leave the speed lever at the
"min" settingand use the throttlelever to controlthe
speed.
FIGURE 5
STARTING COLD
1. Moveon-off switchto the on positionidentified
withan "1"(Fig. 5).
2. Set speed lever halfway between the =rain" '_
and"max"'_ positions(Fig. 5).
3. Move choke lever (Fig. 6, A) to the =START"
position.
4. Press primer bulb(Fig. 6, B) untilit is halffull and
resistanceis felt.
5. Place left hand on top of the blower housingnear
carryinghandle. Pull the starter rope handle'with
righthand slowly untilresistance is felt. Then pull
forcefullyand repeatedly until engine attemptsto
start; usually2-3 pulls, no more than 5 pulls.
6. When engine attempts to start, immediately move
choke lever t0 "RUN" posifion.Continue to pull
starterrope handle untilengine starts.
FIGURE 6
6

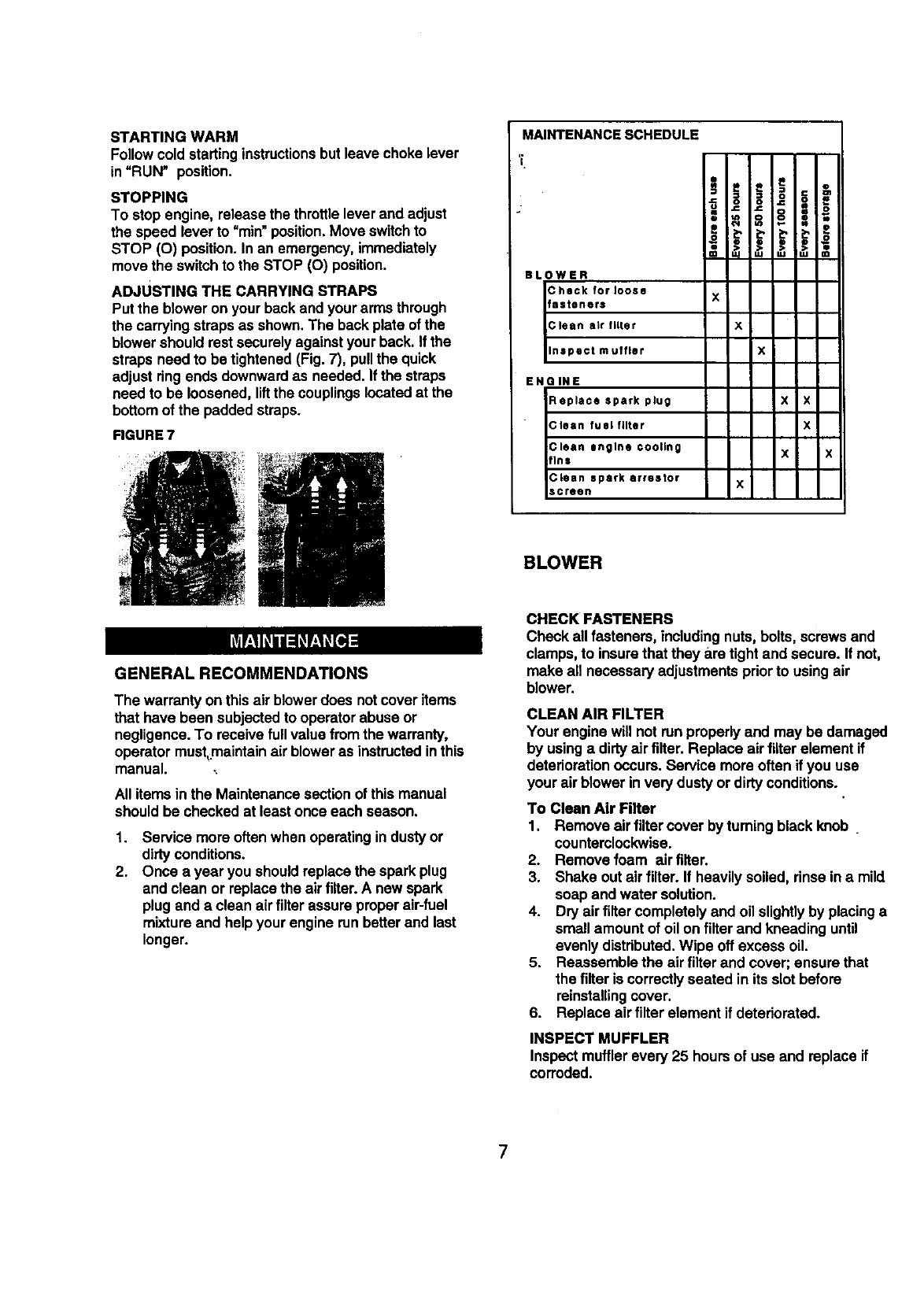

STARTING WARM
Follow cold startinginstructionsbutleave choke lever
in"RUN" position.
STOPPING
To stopengine, release the throttleleverand adjust
the speed leverto "min_position.Move switchto
STOP (O) position.In an emergency,immediately
move the switchto the STOP (O) position.
ADJUSTING THE CARRYING STRAPS
Put the blower on your back and yourarms through
the carrying strapsas shown.The back plate of the
blowershould rest securelyagainst your back. If the
straps need to be tightened (Fig. 7), pullthe quick
adjust dng ends downwardas needed. If the straps
need to be loosened,liftthe couplingslocated at the
bottomof the padded straps.
FIGURE 7
MAINTENANCESCHEDULE
-0
.OWER
Check for loose X
fasteners
Clean air filter X
Inspect muffler x
4GINE
Replace spark plug X X
Clean fuel filter X
Clean onglne cooling X X
fins
Clean spark arrestor X
screen
BLOWER
GENERAL RECOMMENDATIONS
The warranty on thisair blowerdoes notcover items
that have been subjectedto operator abuse or
negligence.To receive fullvalue fromthe warranty,
operator must,maintainair bloweras instructedin this
manual.
All items in the Maintenance sectionof this manual
shouldbe checkedat least once each season.
1,
2.
Service more often whenoperatingin dustyor
dirtyconditions.
Once a year you shouldreplace the sparkplug
and clean or replace the air filter. A new spark
plug and aclean air filter assure properair-fuel
mixtureand help your engine run batter and last
longer.
CHECK FASTENERS
Check all fasteners, includingnuts, bolts,screws and
clamps, to insurethat they are tight and secure. If not,
make all necessary adjustmentspdor to usingair
blower.
CLEAN AIR FILTER
Your engine will not run properlyand may be damaged
by usingadirty air filter. Replace air filter element if
deteriorationoccurs.Service more often if you use
your air blowerin very dustyor dirty conditions.
To Clean Air Filter
1. Remove airfilter cover bytuming black knob
counterclockwise.
2. Remove foam air filter.
3. Shake outair filter. If heavily soiled, rinse in amild
soapand water solution.
4. Dry air fiifercompletelyand oil slightlyby placinga
smallamount of oil on filter and kneading until
evenly distdbuted.Wipe off excess oil.
5. Reassemble the air filterand cover;ensure that
the filter is correctlyseated in its slot before
reinstallingcover.
6. Replace air filter element if detedorated.
INSPECT MUFFLER
Inspect mufflerevery 25 hoursof use and replace if
corroded.
_n[ol :P,_[_

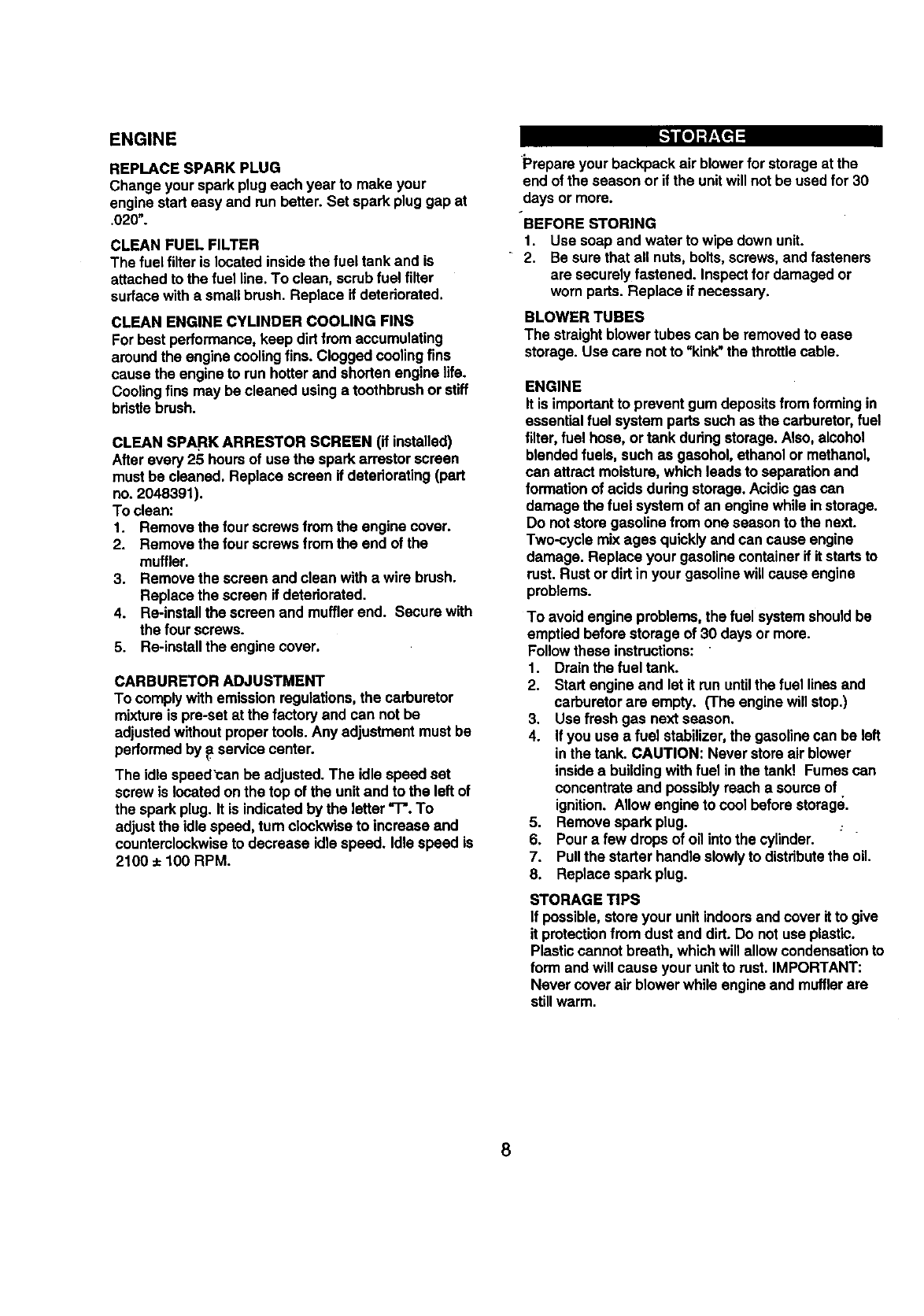

ENGINE
REPLACE SPARK PLUG
Change your spark plugeach year to make your
engine start easy and run better. Set spark pluggap at
.020".
CLEAN FUEL FILTER
The fuel filter is located insidethe fuel tank and is
attachedto the fuel line. To clean, scrub fuel filter
surfacewith a small brush, Replace if deteriorated.
CLEAN ENGINE CYLINDER COOLING FINS
For best performance,keep dirt from accumulating
around the enginecoolingfins. Clogged coolingfins
cause the engineto run hotter and shortenengine life.
Coolingfinsmay be cleaned usingatoothbrushor stiff
bristle brush.
CLEAN SPARK ARRESTOR SCREEN (if installed)
Afterevery 25 hoursof use the spark arrestor screen
must be cleaned. Replace screen if detadorating(part
no. 2048391).
To clean:
1. Remove the four screws fromthe engine cover.
2. Remove the four screws fromthe end of the
muffler,
3. Remove the screen and clean with a wire brush.
Replace the screen if deteriorated.
4. Re-installthe screen and muffler end. Secure with
the four screws.
5. Re-installthe engine cover.
CARBURETOR ADJUSTMENT
To complywithemissionregulations,the carburetor
mixtureis pre-set at the factory and can not be
adjustedwithoutpropertools. Any adjustmentmust be
performedby _service center.
The idle speed'can be adjusted.The idle speed set
screw is located on the top of the unit and to the left of
the spark plug. It is indicated by the letter=r". To
adjustthe idle speed, turn clockwiseto increase and
counterclockwiseto decrease idle speed. Idle speed is
2100 + 100 RPM.
Prepare your backpack air blowerfor storage at the
end of the season or if the unitwill notbe used for 30
days or more.
BEFORE STORING
1. Use soap and water to wipe down unit.
2. Be sure that all nuts, bolts,screws,and fasteners
are securelyfastened. Inspectfor damaged or
worn parts. Replace if necessary.
BLOWER TUBES
The straightblowertubes can be removed to ease
storage. Use care notto "kink" the throttlecable.
ENGINE
It is importantto prevent gum depositsfromformingin
essentialfuel system partssuch as the carburetor,fuel
filter, fuel hose, or tank duringstorage.Also, alcohol
blendedfuels, such as gasohol,ethanolor methanol,
can attractmoisture,which leads to separationand
formation of acids duringstorage.Acidicgas can
damage the fuel system of an engine while instorage.
Do notstore gasolinefrom one season to the next.
Two-cycle mix ages quicklyand can cause engine
damage. Replace your gasolinecontainerif it starts to
rust. Rustor dirt in your gasolinewill cause engine
problems.
To avoid engine problems,the fuel systemshouldbe
emptied before storage of 30 days or more.
Followthese instructions:
1. Drainthe fuel tank.
2. Start engine and let it run untilthe fuel linesand
carburetorare empty. (The engine willstop.)
3. Use fresh gas next season.
4. If you use a fuel stabilizer, thegasolinecan be left
inthe tank. CAUTION: Never storeair blower
insidea buildingwithfuel in the tank{ Fumescan
concentrateand possibly reach a source of
ignition. Allow engineto cool before storage.
5. Remove spark plug.
6, Pour a few drops of oil intothe cylinder.
7. Pull the starter handleslowlyto distributethe oil.
8. Replace spark plug,
STORAGE TIPS
If possible,storeyour unit indoorsand cover itto give
it protectionfrom dust and dirt. Do notuse plastic.
Plasticcannot breath, which will allowcondensationto
form and will cause your unit to rust. IMPORTANT:
Never coverair blower while engine and mufflerare
stillwarm.
8

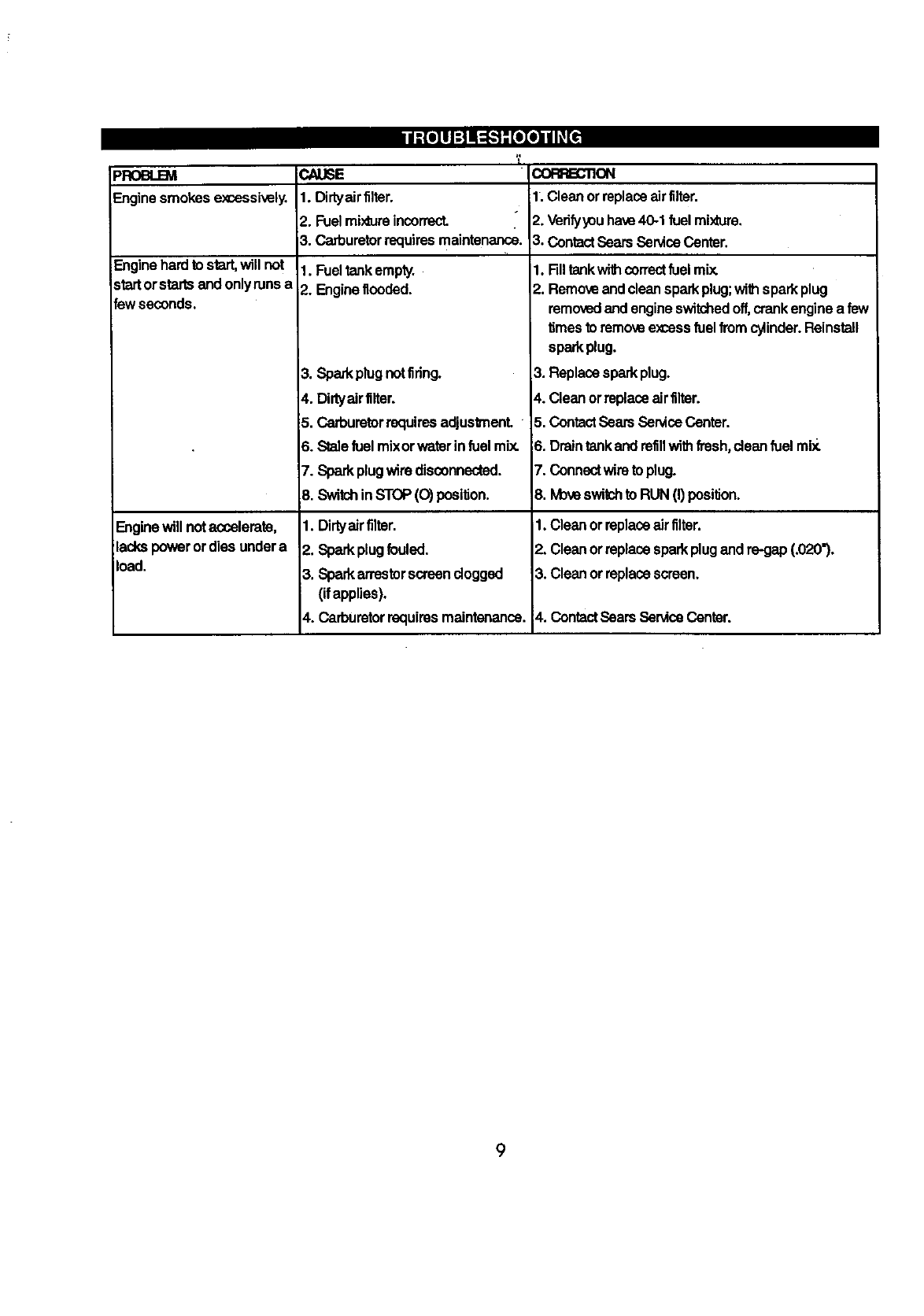

PROB..BJI
Enginesmokes e._cessively.
Enginehard tostart,will not
startorstartsandonlyrunsa
fewseconds.
Enginewill notaccelerate,
!lackspowerordies undera
load.
I
CAUSE
1. Dirtyairfilter.
2. Fuelmixtureincorrect.
3. Carburetorrequiresmaintenance.
1. Fueltankempty.
2. Engineflooded.
3. Sparkplugnotfiring.
4. Didyairfllten
5. Carburetorrequiresadjuslment.
5. Stalefuelmixorwaterinfuelmix.
7. Sparkplugwire disconnected.
El.SwitchinSTOP(O)posilion.
1. Dirtyairfilter.
2. Spark plugfouled.
3. Sparkarrestorscreendogged
(ifapplies).
4. Carburetorrequiresmaintenance.
_ON
1. Clean or replaceair filter.
2. Vedfyyouhave40-1 fuel mixture,
3. ContactSearsSe_ce Center.
1. RII tankwi_ correctfuelmi)_
2. Removeandcleansparkplug;with sparkplug
removedand engineswitchedoff,crankenginea few
timesto removee_cessfuel fromcylinder.Reinstall
sparkplug.
3. Replacesparkplug.
4. Cleanorreplaceair filter.
5. ContactSears ServiceCanter,
6. Draintankandrefillwith fresh,dean fuel mix.
7. Connectwire toplug.
8, Moveswitchto RUN(I) position.
1. Cleanorreplaceairfilter.
2. Cleanorreplacesparkplugand re-gap(.020").
3. Cleanor replacescreen.
4. Contact Sears Service Canter.
9

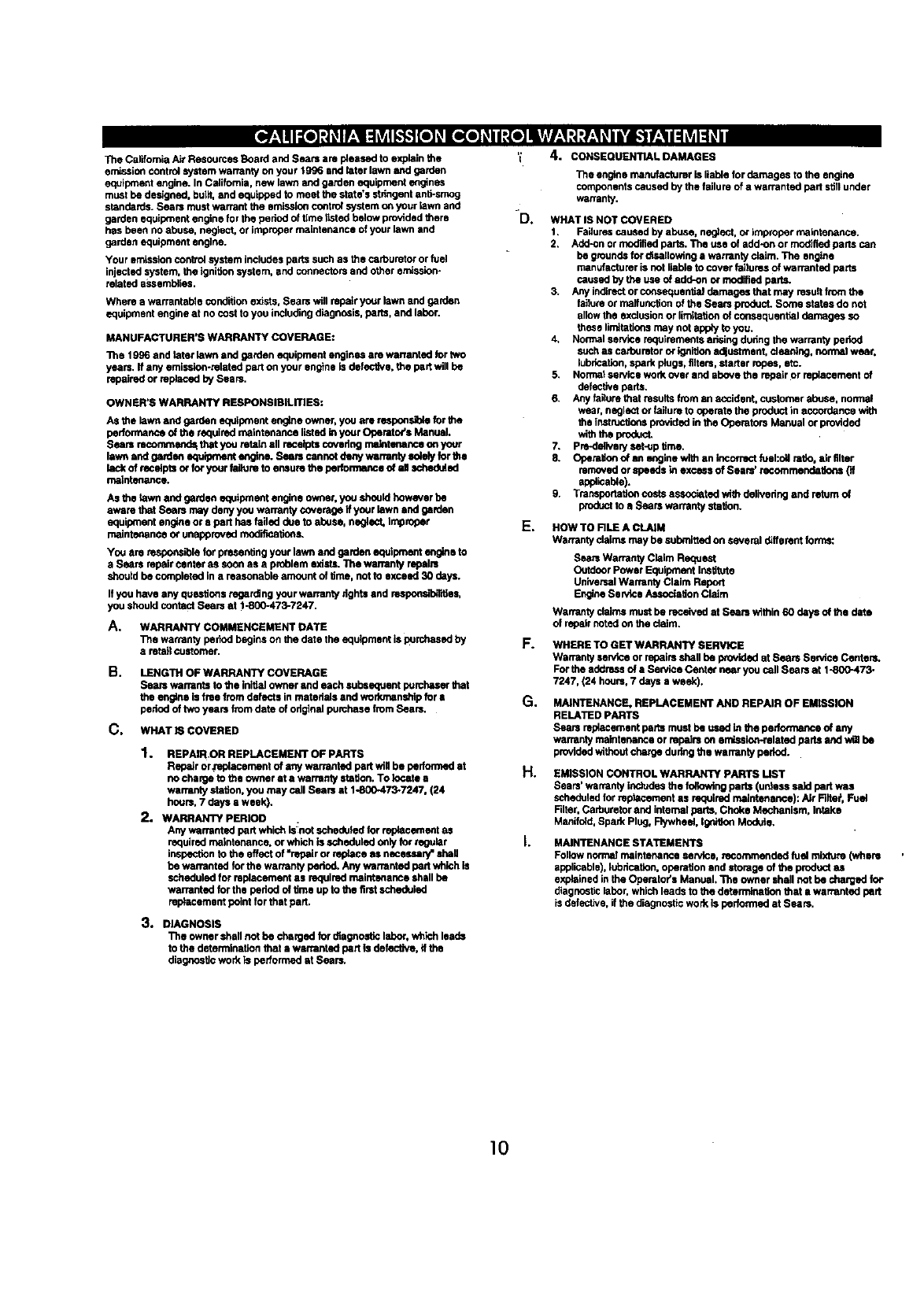

The Celifomia Air Resources Board and Sears are pleased to explain the
eadssisn control system warranty on your t996 and later lawn and garden
equipment engine. In California, now lawn and garden equipment engines
m_sl be des_jned, builf, and equipped to meet the state's stringent anli-smog
standards. Sears must warrant the emission contrdisystem on your lawn and
garden equipment engine for the period of time listed below provided there
has been no abuse, neglect, or Improper maintenance of yourlawn and
garden equipment engine.
Your emission control system includes parts such as the caYouratoror fuel
injected system, the ignition system, and connectors end other emlaelon-
mlatnd a_;sembllas.
Where a warrantable condition exists, Sears will repair your lawn and garden
equipment engine at no cost to you including diagnosis, parts, and labe_
MANUFACTURER'S WARRANTY COVERAGE:
"n_e1996 and later lawn and garden equipment engines are warranted fur two
years. If any emiselon-relatod pan on your engine is defective, the part will be
repaired or replaced by Sears.
OWNER'S WARRANTY RESPONSIBILITIES:
AS the lawn and garden equipment engthe owner, you are responelb_ for the
performance of the required maintenance listed in your Operator's Manuel.
Sears recommend_ that you retain all receipts covedeg maintenance on your
lawn and g_d__engine. Seem cannot deny warranty solely for the
leek of recelpta o_ tor your fultom to ensure the perfomlance of ell sshedulnd
maintenance.
AS the lawn and garden equipment eugine owner, you should howiNer be
aware that Sears may deny you warranty coverage If your lawn and garden
equipment engine or apart has failed due to abuse, neglect, ir_oropar
maintenance or unapproved moddicat_es.
You are responsible for pmsendng your lawn and garden equipment engine to
aSears mpelr center as soon asaproblem exists. 1he warranty repelm
should be completed in areasonable amount of _me, not to exceed 30 days.
If you have any questions regarding your warranty dghbl and respon_"o4T_es,
you should contact Sears at 1-800-473-7247.
A. WARRANTY COMMENCEMENT DATE
The warranty pe_od begins on the date the equipment is purchased by
areta}l customei_
B,
C.
LENGTH OF WARRANTY COVERAGE
Sears warrants to the initial owner and each subsequent purchaser that
the engine is free from defects in matehals and wedananship for a
period of two years from date of odgfoel purchase from Sears.
WHAT iS COVERED
1. REPAIR OR REPLACEMENT OF PARTS
Raper or replacement of any warranted part will be pedormed at
no cberge to the owner at a warranty station. To locate a
warranty station, you may call Sears it 1-800-473-7247, (24
hours, 7 days Iweek).
2. WARRANTY PERIOD
Any warranted bert which Is-not scheduled for rep_cement as
required rnalntenance, or which is scheduled only for regular
inspactfon to the effect of *repair or replace as necdssa_" shall
be warranted for the warranty pedod. Any warranted part which is
scheduled for replacement as required maintenance shall be
warranted for the pedod of time up to the first scheduled
reqlacement point for that part.
3. DIAGNOSIS
The owner shall _ be charged for diagnostic labor, w_ibh leads
to the determination that a warranted pan la defective, if the
diagnostic work Is performed it Sears.
'i
E.
F°
G.
H.
4. CONSEQUENTIALDAMAGES
The engine manufacturer is liable for damages to the engine
components caused by the failure of a warranted part still under
warranty.
WHAT IS NOT COVERED
1. Failures caused by abuse, ne_ect, o_Improper maintenance.
2. ACid-onor mod'dindparts. The use of add-on or mod_lfed parts can
be grounds for disallowing awarranty claim. The engine
manufacturer is not liable to cover failures of warranted parts
caused by the use of add-on or modified parts.
3. Any indirect or cc_.sequentild damages that may result from the
lailum or malfunction of the Sears product. S_ne states do not
allow the exclusion or limitation of consequential damages so
these limitations may not apply to you.
4. Normal sen'ice requirements adelng dudng the warranty period
such as carburetor or ignition adjustment, cleablug, nonnst wea¢.
lubrication, spark plugs, lfhars, starter ropes, etc.
5. Normal service work over and above the repair or replacement of
defective pads.
6. Any failure that results from an accident, customer abuse, noanof
wear, neglect or failure to operate the product in accordance with
the insm._-tlads provided in the Operators Manual or provided
with the prnduct,
7. Pre-delfvePj set-up time.
8. Operslfon of an engine with an lacomlot fuel:o_ ratfo, air filter
removed or speeds in excess of Sears' recommendaUons
ap_icaMa).
9. Transportationcosts assoclatnd with dalivedug and ratum of
productto a Sears warranty station.
HOW TO FILE A CLAIM
Warranty claims may be submitted on several c_ffemntforrr_:
Sears Warranty Claim Request
Outdoor Power Equipment Institute
Universal Warranty Claim Report
En_ne Service AssoctalfonClaim
Warranty claims must be received at Sears within 60 days of the date
of repair notedon the delm.
WHERE TO GET WARRANTY SERVICE
Warranty eawine or repairs shall be provided at Sears Sewi,.'_ Centers.
Forthe address of a Service Center near you call Sears at 1-800-473-
7247, {24 hours. 7 days a week).
MAINTENANCE, REPLACEMENT AND REPAIR OF EMISSION
RELATED PARTS
Sears replacement parts must ha used in the pedoanance of any
warranty maintenance or repairs on emlaelen-mlatnd parts and will be
providedwithoutcharge during the warranty pedod.
EMISSION CONTROL WARRANTY PARTS LIST
Seam' warranty incfudes the fo_owing parts (ubless said part was
scheduled for tenement as required maintenance): Air FlfteL,Fuel
Rltor. Carburetor and internal parts, Choke Mechanism, Intake
Manifold, Spark Plug, Flywheel. ign_on Mndute.
MAINTENANCE STATEMENTS
Follow normal maintenance set.Ace, recommended fuel mixl_m (whom
applicable), lubdcatlan, operation and storage of the product as
explained in the Oparatc_'s Manual. The owner shall not be charged for
diugnoslfc labor, which leads to the determination that a warranted dart
is defective, if the diagnosticwork is performed at Sears.
I0
_, 140
135
146
_15o
--155
--156
--157
///
/
/ f
/
74
F----95
125
II
21
20

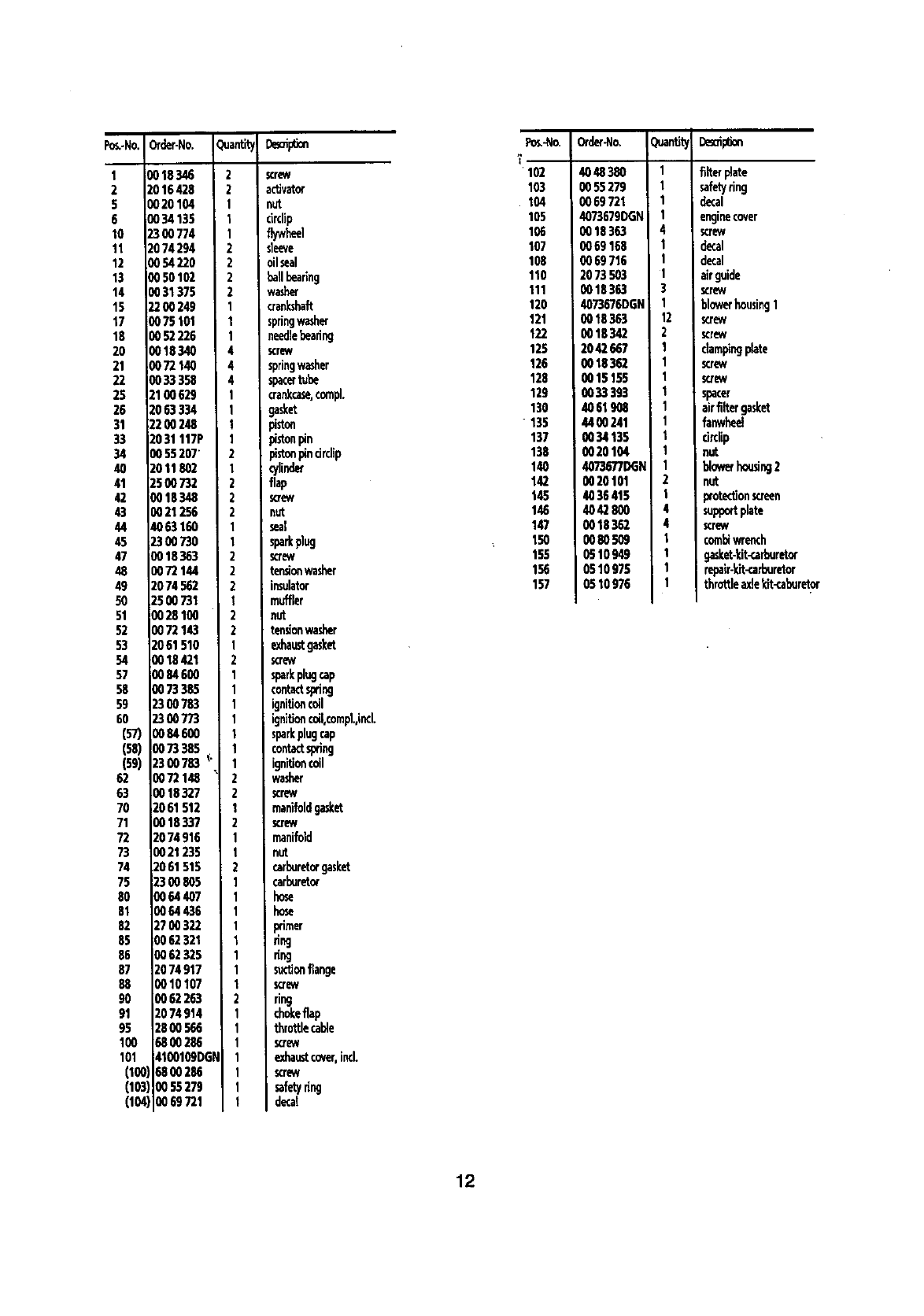

Pos.-No.Ord,er..No.
1 )018346
2)016428
5 )020104
6)034135
10 2300774
11 2074294
12 :)054220
13 _050102
14 _31375
15 2200249
17 0075101
18 0052226
20 0018340
21 0072140
22 8033358
25 2100629
26 2063334
31 2280248
33 2031117P
34 0055207"
40 2011802
41 2500732
42 0018348
43 8021256
44 4063160
45 2300730
47 0018363
48 0072144
49 2074562
50 25O0731
51 )028100
52 1072143
53 _061510
54 )018421
57 )084600
58 3073385
59 2380783
50 Z380773
(57) :)084600
(58) _073385
259) Z3O0783
6_072148
63 0018327
70 2061512
71 0018337
72 2074916
73 8021235
74 2061515
75 2380805
80 0064407
81 0064436
82 2700322
85 0062321
86 8062325
87 2074917
88 0010107
90 0062263
91 2074914
95 2800566
180 6880286
101
(1_ 68800286
(103)8055279
(104) 8069721
screw
activator
nut
cltcfip
fl_heel
sleeve
oilseal
ballbearing
washer
crankshaft
springwasher
needlebearing
screw
springwasher
spacertubu
crankcase,compi.
pistonpin
pistonpindrdip
cylinder
flap
screw
nut
saal
sparkping
screw
tendonwasher
insulator
muffler
nut
tendonwasher
exhaustgasket
screw
sparkplugcap
contactslxing
ignitioncoil
ignitioncoil,compl.,incl.
sparkplugcap
contactspring
ignitioncoil
washer
screw
manifoldgasket
screw
manifold
nut
carburetorgasket
hose
hose
nng
nng
suctionflange
screw
nng
chokeflap
throttlecable
s_c'w
exhaustcover,incl.
screw
safetydng
decal
12
Po_-N_
7
"102
103
104
105
106
107
108
110
111
120
121
122
125
126
128
129
130
"135
137
138
140
142
145
146
147
150
155
156
157
Order-No.
4048380
8055279
8069721
40736790GN
8018363
0069168
8069716
2073503
8018363
4073676DGN
8018363
0018342
2042667
8018362
0015155
0033393
4061908
4480241
8034135
8020104
4073677DGN
8020101
4036415
4042800
0018362
0080580
0510949
0510975
0510976
:_uantity
1
1
1
1
4
1
1
1
3
1
12
1
1
1
_p_on
filterplate
safetyring
decal
enginecover
screw
decal
decal
airguide
Screw
blowerhousing1
screw
screw
dampingplate
screw
screw
spacer
airfiltergasket
fanwheoi
drclip
nut
blowerhousing2
nut
_rotedinnscreen
supportplate
mew
comblwrench
_ket-kit-carburetor
repair-_-carburetor
throttleaxlekit<ahoretor
MODELNUMBER360.796900
I
2
1

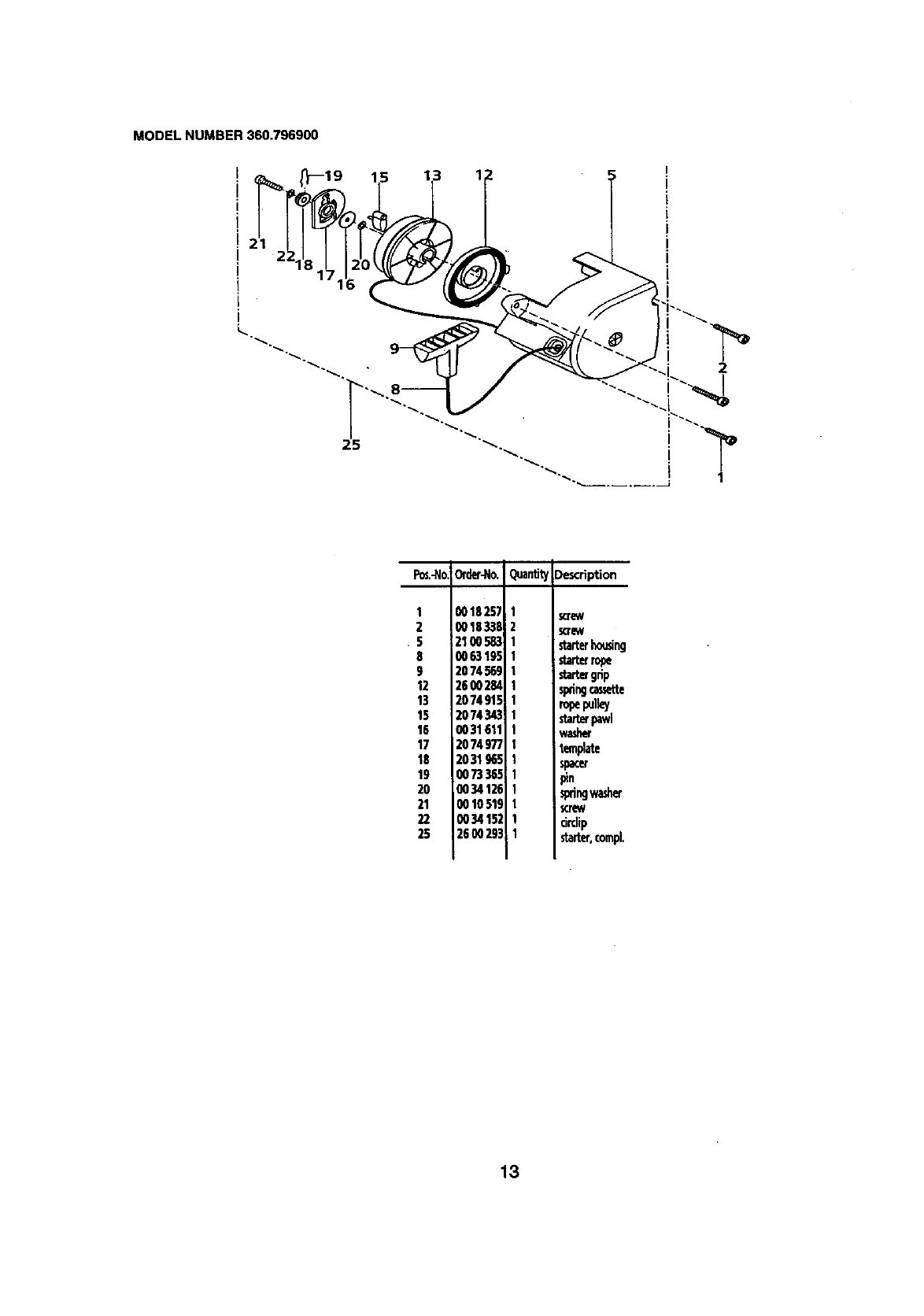

Pox'No,_er-No. Iquantit 3escdption
1 )01825711 s_ew
2 )01833812 so'ew
5!I00 58311 starterhousing
8 )06319511 start_rope
9 ZO745691I startergrip
12 Z6O028411 springcassette
13 Z07491511 ropepulley
15 ZO7434311 staderpawl
16 _0316111 washer
17 20749771 template
18 Z0319651 spacer
19 O0733651 pin
20 00341261 slxingwasher
21 DO105191 screw
22 D0341521 drdip
25 26O0293| starter,compl.
13

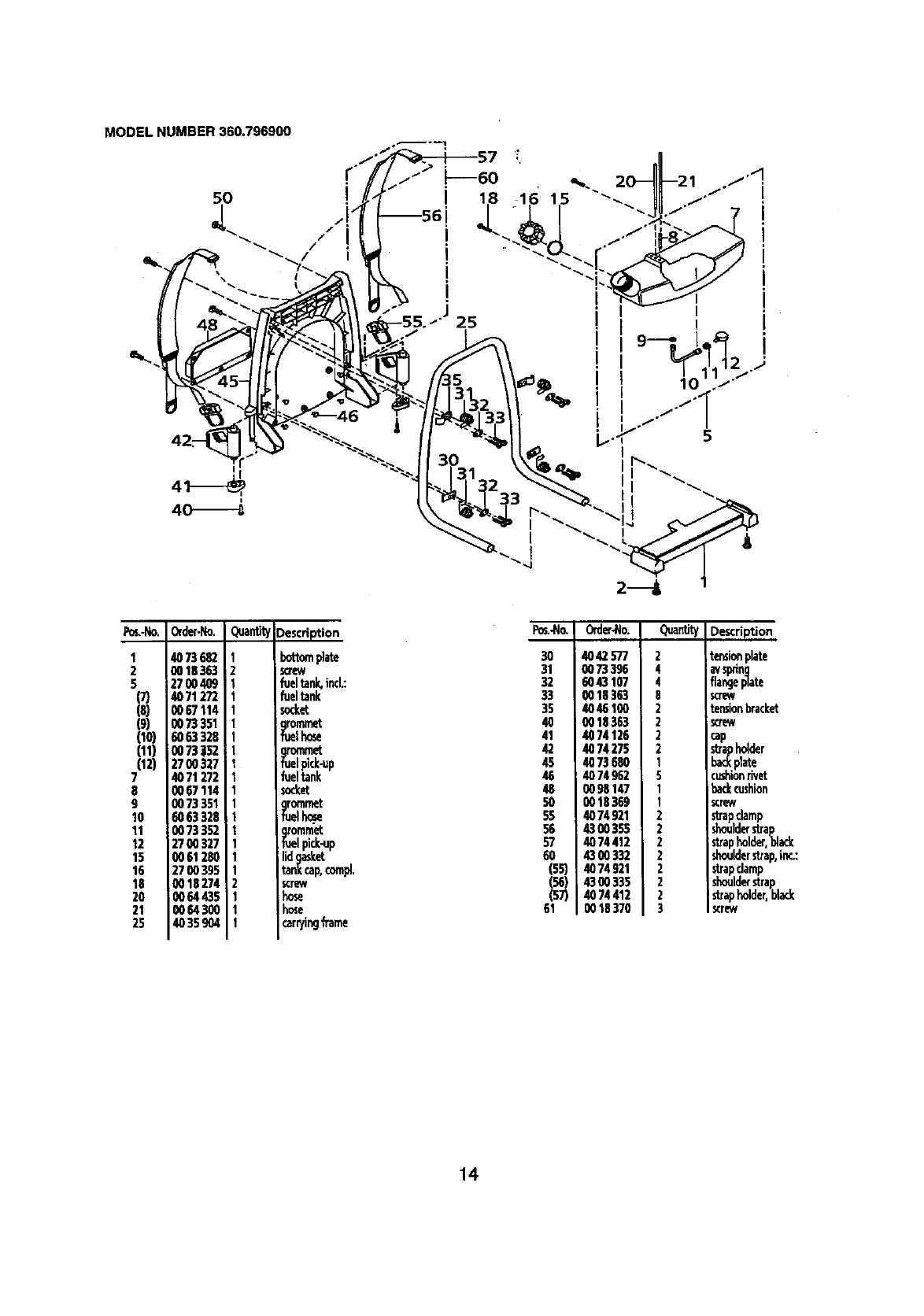

MODEL NUMBER 360.796900
25
Po_-No.
1
2
5
(7)
(8)
(9)
(lo)
(11)
(12)
7
8
9
10
11
12
15
16
18
20
21
25
_der,No, I Quantity
4073682I 1
_01836312
Z700409I I
1071272 I 1
D067114I 1
0073351 I 1
6063328 I 1
O073_52 I 1
2700327 I I
4071272 I 1
0067114 I 1
0073351 I 1
6063328 I 1
0073352 I '1
2700327 I 1
O061280I 1
27O0395I 1
0018274|2
0064435 I 1
0064300 I 1
4O35904I 1
Description
ho_omplate
5_ew
fueltank,incl.:
fueltank
socket
r_et
_el pidc-up
fueltank
so_et
el
_mmet
I pi_-up
lidgasket
tanEcap,compl.
screw
hose
hose
carr/ingframe
30 4042577
31 0073396
32 6043107
33 0018363
35 4046100
40 0018363
41 4074126
42 4074275
45 4073680
46 4074962
48 0098147
50 0018369
55 4074921
56 43O0355
57 4074412
60 43O0332
(55) 4074921
(56) 43O0335
(57) 4074412
61 0018370
_nt_
2
4
4
8
2
2
2
2
1
5
1
1
2
2
2
2
2
2
De_ription
tensi_plate
avspnng
flangeplate
screw
tensionbracket
screw
cap
strapholder
ba_plate
cushionrivet
backcushion
scmw
strapclamp
shoulderstrap
strapholder,black
shoulder_ap, inc.:
strapclamp
shoulderstrap
strapholder,black
screw
14
MODEL NUMBER 360.796900

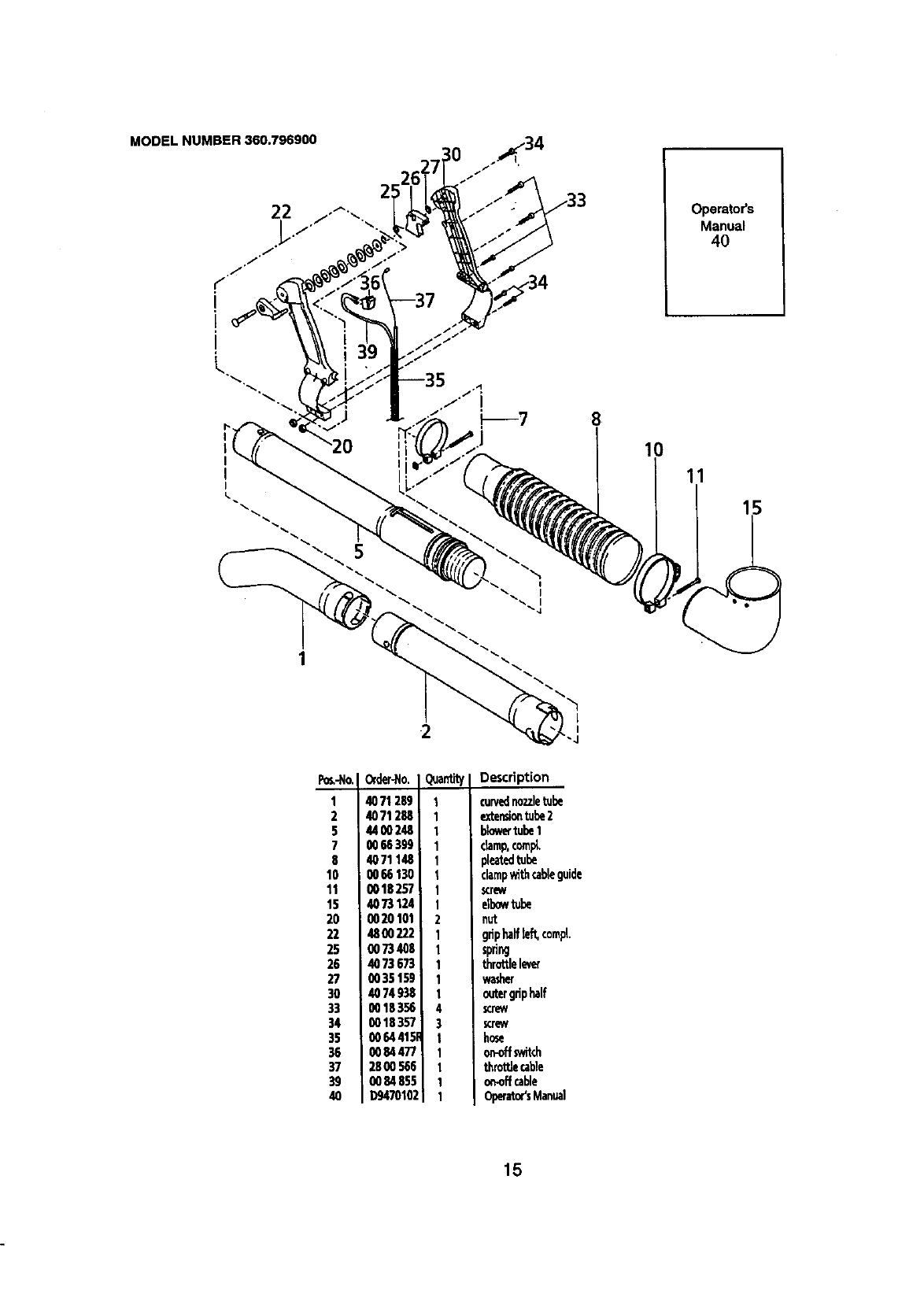

Operator's
Manual
40
1
10
11
2
I_.-No.
1
2
5
7
8
10
11
15
2O
22
25
26
27
30
33
34
35
36
37
39
4o
Order-No. _antity Description
4071289 1 curvednozzletube
4071288 1extensiontube2
4400248 I_tmvertube1
0066399 I damp,compL
4071148 deatedtube
0066130 clampwithcableguide
0018257 sere,.,'
4073124 elbowtube
0020101 nut
48O0222 griphalfleft,compL
O073408 spdng
4073673 throttlelever
O035159 washer
4074938 outergriphalf
0018356 screw
0018357 screw
00644151 hose
0084477 on..offswitch
28(30566 throttlecable
O084855 on-offcable
I_47OlO_ Operatur'sManual
15
