Owner's Manual

Model No. 486.244122

48" DOZER BLADE

CAUTION:

Before using this product, read

this manual and follow all Safety

Rules and

Operating Instructions.

•Safety

•Assembly

•Operation

•Maintenance

•Parts

PRINTED IN U.S.A. FORM NO. 49344 (REV. 7/04)

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

www.sears.com/craftsman

IMPORTANT - READ THIS FIRST!!!

For Missing Parts or Assembly Questions

Please Call 866-576-8388

Mon.-Fri. 7 am - 5 pm CST.

FAX 217-728-2032 or e-mail info@agri-fab.com

Missing parts will be sent UPS in 24 hours directly to your home.

LIMITED ONE YEAR WARRANTY ON 48" DOZER BLADE

For one year from the date of purchase, when this Dozer Blade is maintained and lubricated according to the

operating and maintenance instructions in the owner's manual, Sears will repair any defect in material or

workmanship free of charge. If this Dozer Blade is used for commercial or rental purposes, this warranty applies for

only 90 days from the date of purchase.

This warranty does not cover repairs necessary because of operator negligence or abuse, including the failure to

maintain the equipment according to instructions contained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPART-

MENT IN THE UNITED STATES.

This warranty applies only while this product is in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co. D/817 WA. Hoffman Estates, Chicago, IL 60179

Look for this symbol to point out important safety precautions. It mean--Attention!!

Become alert!! Your safety is involved.

Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the

equipment. Exercise caution at all times, when using power equipment.

1. Read the tractor and dozer blade owners manuals and know how to operate your tractor before using the tractor with

the dozer blade attachment.

2. Never operate the tractor and dozer blade without wearing proper clothing suited to weather conditions and

operation of controls.

3. Never allow children to operate the tractor and dozer blade. Do not allow adults to operate without proper instructions.

4. Always begin with transmission in first (low) gear and gradually increase speed as required.

SAFETY

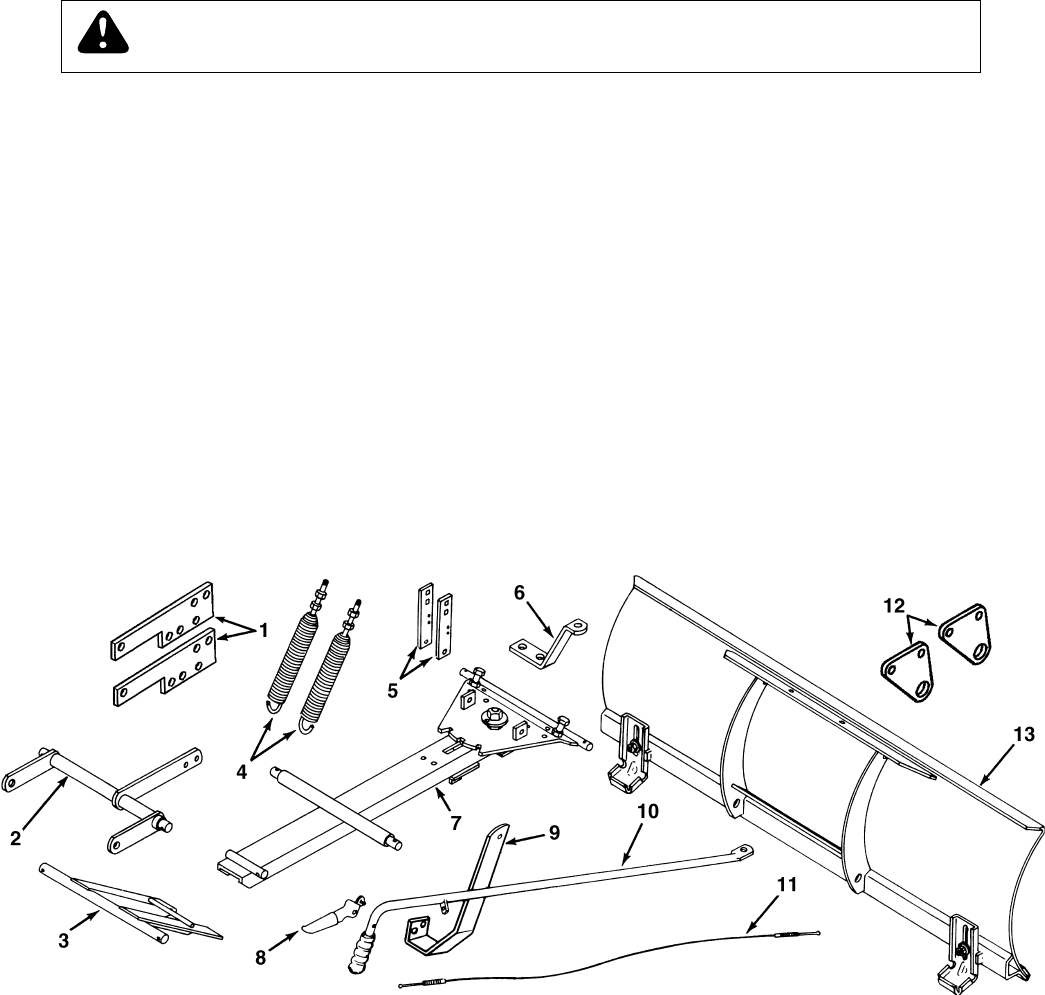

CARTON CONTENTS

1. Frame Brackets

2. Lift Assembly

3. Guide Bracket Assembly

4. Spring Assembly (2)

5. Angle Lock Bars (2)

6. Blade Pivot Bracket

7. Channel/Pivot Plate Assembly

8. Grip Assembly

9. Support Bracket

10. Handle Assembly w/Grip

11. Control Cable Assembly

12. Lift Pivot Plate (2)

13. Blade Assembly

Parts Package (See page 3)

D E F G H I J

WXZ AA

DDCC EE

BB FF

NOT SHOWN FULL SIZE

SHOWN FULL SIZE

JJ KK

REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION

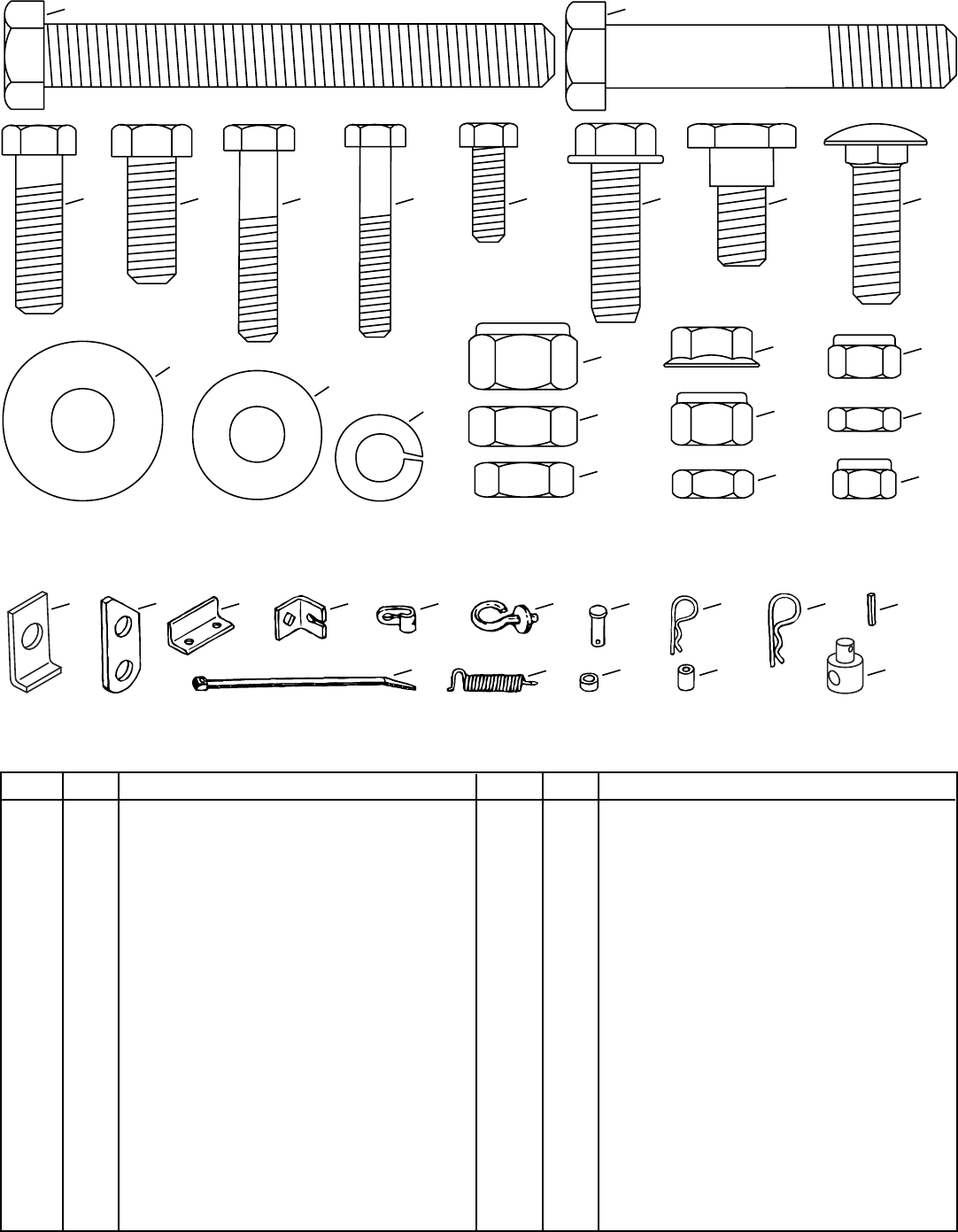

CONTENTS OF PARTS PACKAGE

A 1 Hex Bolt, 1/2" x 4"

B 2 Hex Bolt, 1/2" x 2-3/4"

C 9 Hex Bolt, 3/8" x 1-1/4"

D 1 Hex Bolt, 3/8" x 1"

E 1 Hex Bolt, 5/16" x 1-1/2"

F 1 Hex Bolt, 1/4" x 1-1/2"

G 1 Hex Bolt, 1/4" x 3/4"

H 2 Hex Bolt, 3/8" x 1" Thread Forming

I 1 Shoulder Bolt, (Special) 3/8" x 5/8"

J 2 Carriage Bolt, 3/8" x 1-1/4"

K 4 Flat Washer, 7/16" Std.

L 1 Flat Washer, 3/8" Std.

M 4 Lock Washer, 3/8"

N 2 Nylock Nut, 1/2"

O 2 Hex Jam Nut, 1/2"

P 4 Hex Jam Nut, 7/16"

Q 1 Whizlock Nut, 3/8"

R 10 NyLock Nut, 3/8"

S 2 Hex Jam Nut, 3/8"

T 1 Nyock Nut, 5/16"

U 4 Hex Jam Nut, 5/16"

V 3 Nyock Nut, 1/4"

W 2 Keeper Plate

X 1 Lift Arm Link

Y 1 Stop Angle

Z 1 Cable Mount Bracket

AA 2 Cable End Fitting

BB 1 Handle Guide

CC 4 Clevis Pin, 3/8" x 3/4"

DD 6 Hairpin Cotter, 3/32"

EE 10 Hairpin Cotter, 1/8"

FF 1 Spring Pin, 1/4" x 1"

GG 1 Nylon Tie

HH 1 Spring, Angle Lock

II 9 Spacer, Short

JJ 1 Spacer, Long

KK 2 Trunnion, Lift Rod

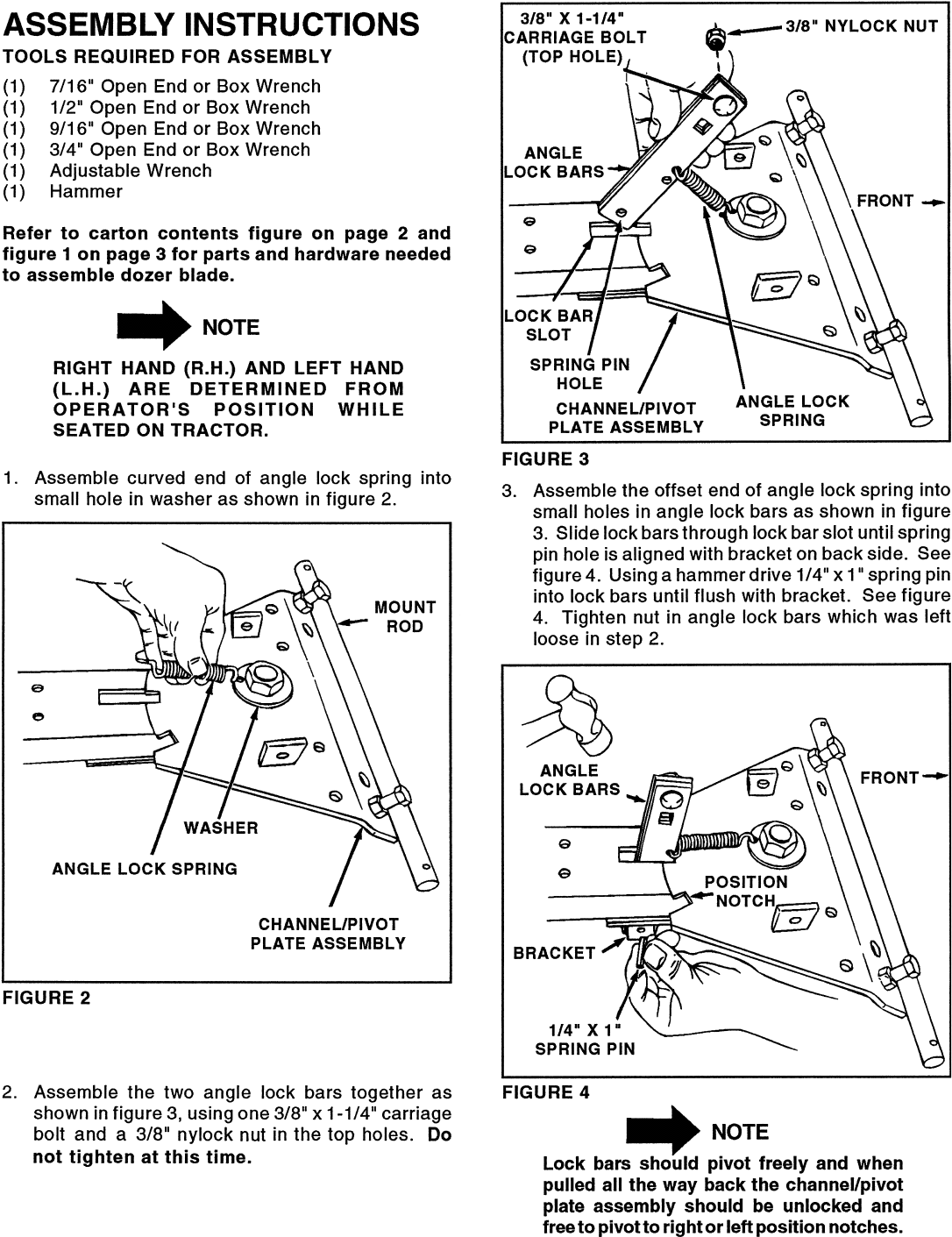

ASSEMBLY OF BLADE TO TRACTOR

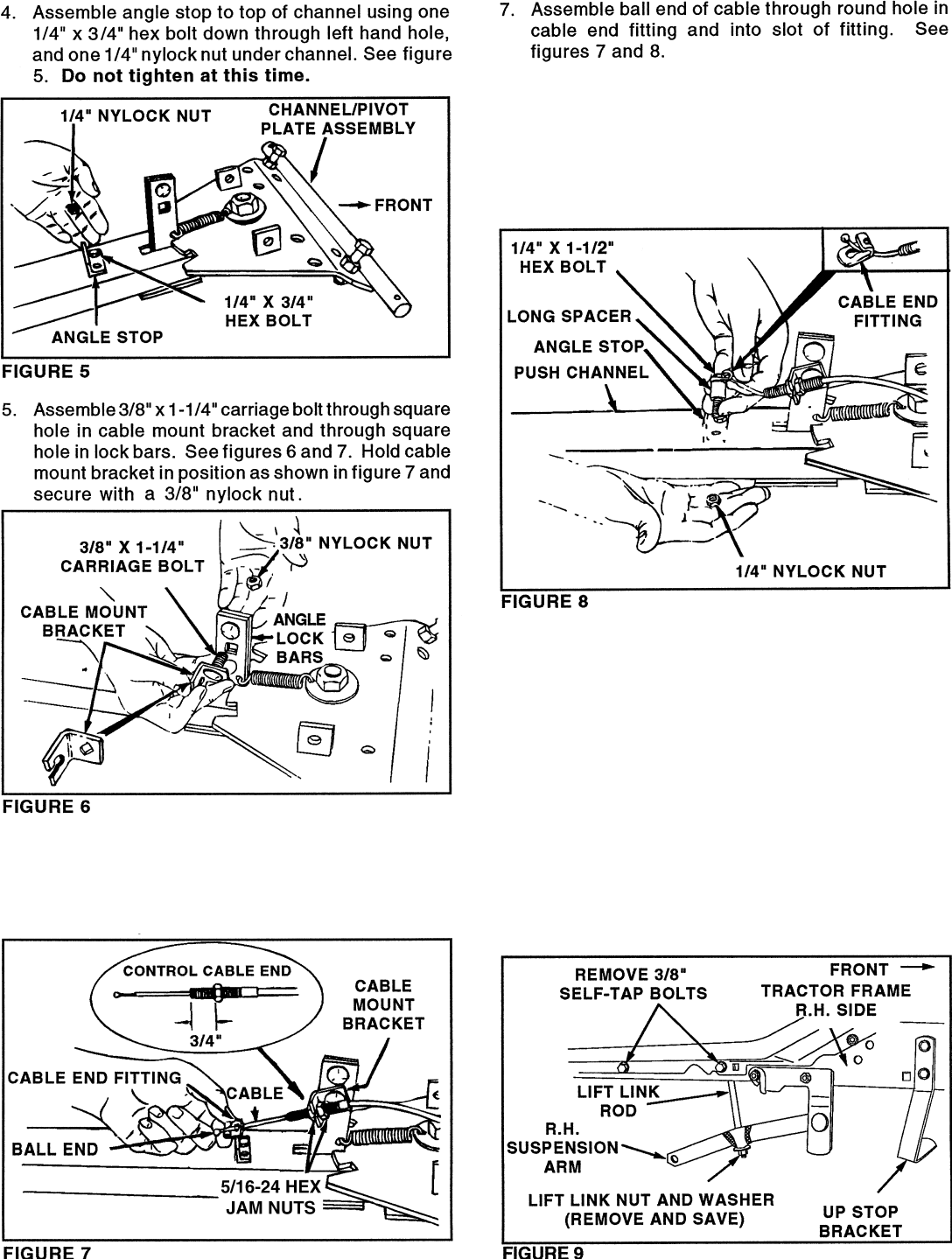

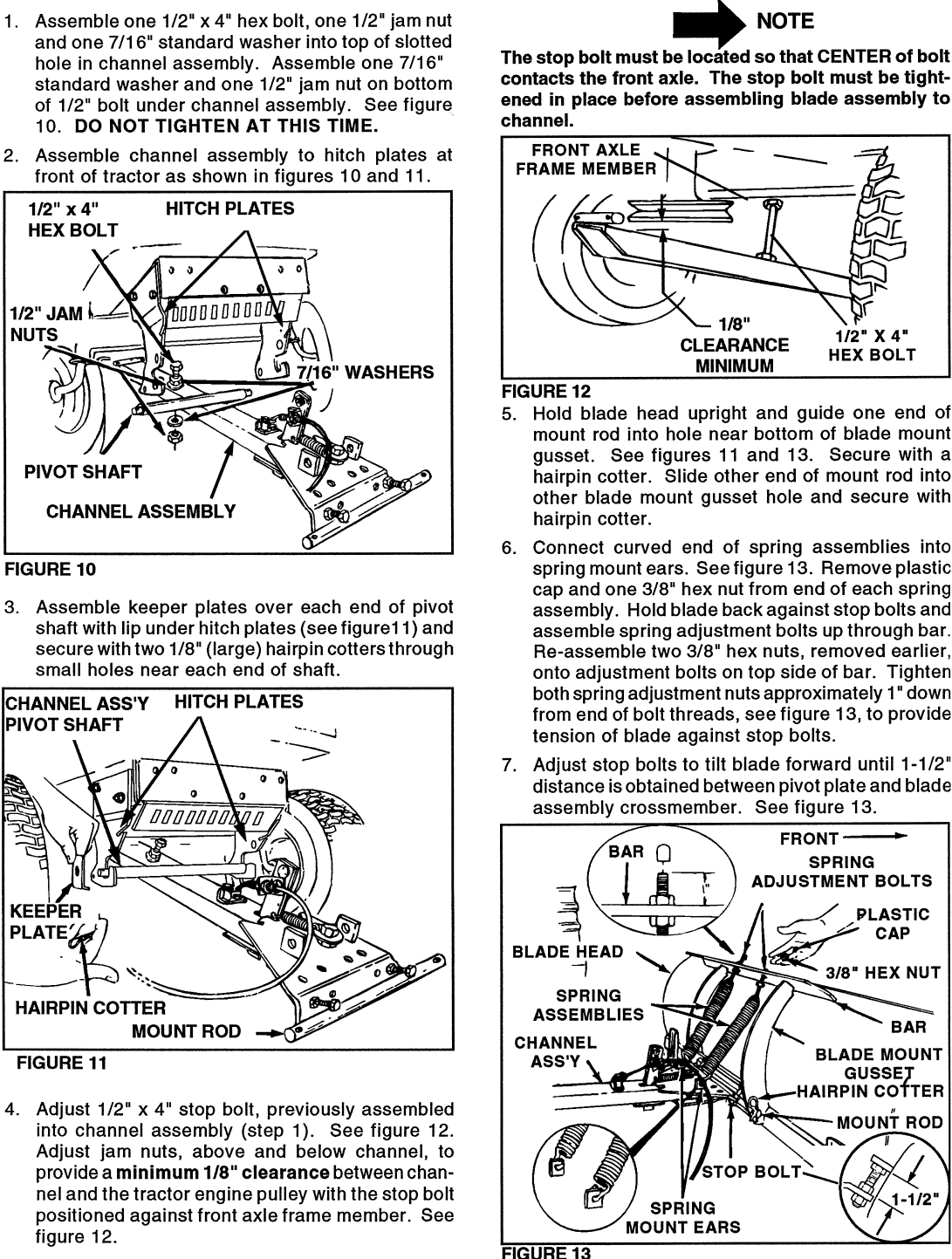

6. Assemble one 5/16-24 hex jam nut onto threaded

end of control cable approximately 3/4" from end.

Assemble threaded cable end through round hole

in cable mount bracket and secure with another

5/16-24 hex jam nut. See figure 7.

TO PREPARE TRACTOR:

A. Remove the mower or any other attachment you

may have mounted to your tractor. Mark all loose

parts and save for re-assembly. Refer to tractor

owners manual for instructions on removal of the

mower or attachment.

B. Remove and save both suspension arms, along

with the nuts and washers which fasten them to

the lift link rods. Also remove the 3/8" self-tapping

bolts from each side of the tractor frame as shown

in figure 9. On some tractors the lift link nuts

will be reused to fasten the dozer blade lift

assembly to the lift link rods.

8. Attach cable end fitting and long spacer to right

hand hole in angle stop and channel using 1/4" x

1-1/2" hex bolt and 1/4" Nylock nut. Tighten both

1/4" Nylock nuts that secure the angle stop to the

channel. See figure 8. NOTE: Keep cable and

fitting in alignment with cable mount bracket

when tightening nuts.

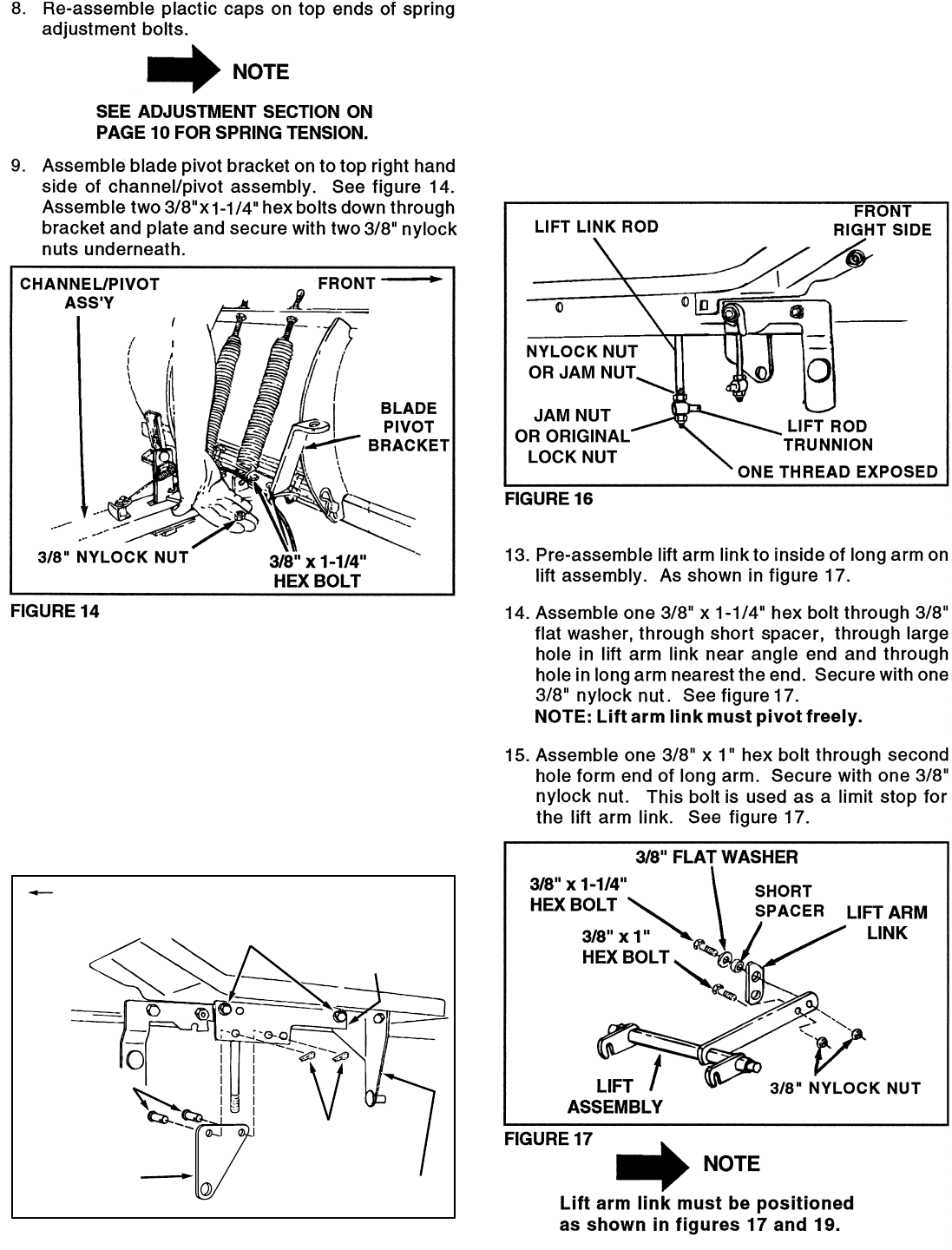

12. Assemble a lift rod trunnion (facing in) to each lift link

rod using either a, b or c:

a. two 7/16-20 hex jam nuts (48" mower decks)

b. a 3/8-16 Nylock nut and the original lock

nut you removed earlier (models before 1995).

c. a 3/8-24 hex jam nut and the original lock nut

you removed earlier (all other models)

The correct nuts will screw on easily. Tighten nuts so

that one thread of rod extends past bottom nut.

CLEVIS PINS

3/8" x 3/4"

3/8" x 1-1/4" BOLTS,

3/8" LOCK WASHERS

& SHORT SPACERS

LIFT PIVOT

PLATE

HAIRPIN COTTER

(SMALL)

FRAME BRACKET

FRONT

LEFT SIDE

SWAY BAR BRACKET

FIGURE 15

10. Assemble a frame bracket to the outside of the

tractor frame under the left foot rest. Use two 3/8"

x 1-1/4" hex bolts, two 3/8" lock washers and four

short spacers. Use two spacers on each bolt,

between the frame bracket and the tractor frame.

Use only one spacer on the rear bolt if it goes

through a sway bar bracket. See figure 15.

11. Assemble the lift pivot plate to the inside of the

frame bracket using two 3/8" x 3/4" clevis pins and

two small hairpin cotters. See figure 15.

22. Align two front holes in Support Bracket with holes

in front of foot rest on right side of tractor frame.

Remove any bolts present in holes, but leave all

brackets in place. Attach the Support Bracket using

two 3/8" x 1-1/4" hex bolts and 3/8" Nylock nuts. If

bolts won't fit, use 3/8" x 1" thread forming bolts

without the Nylock nuts. See figure 22.

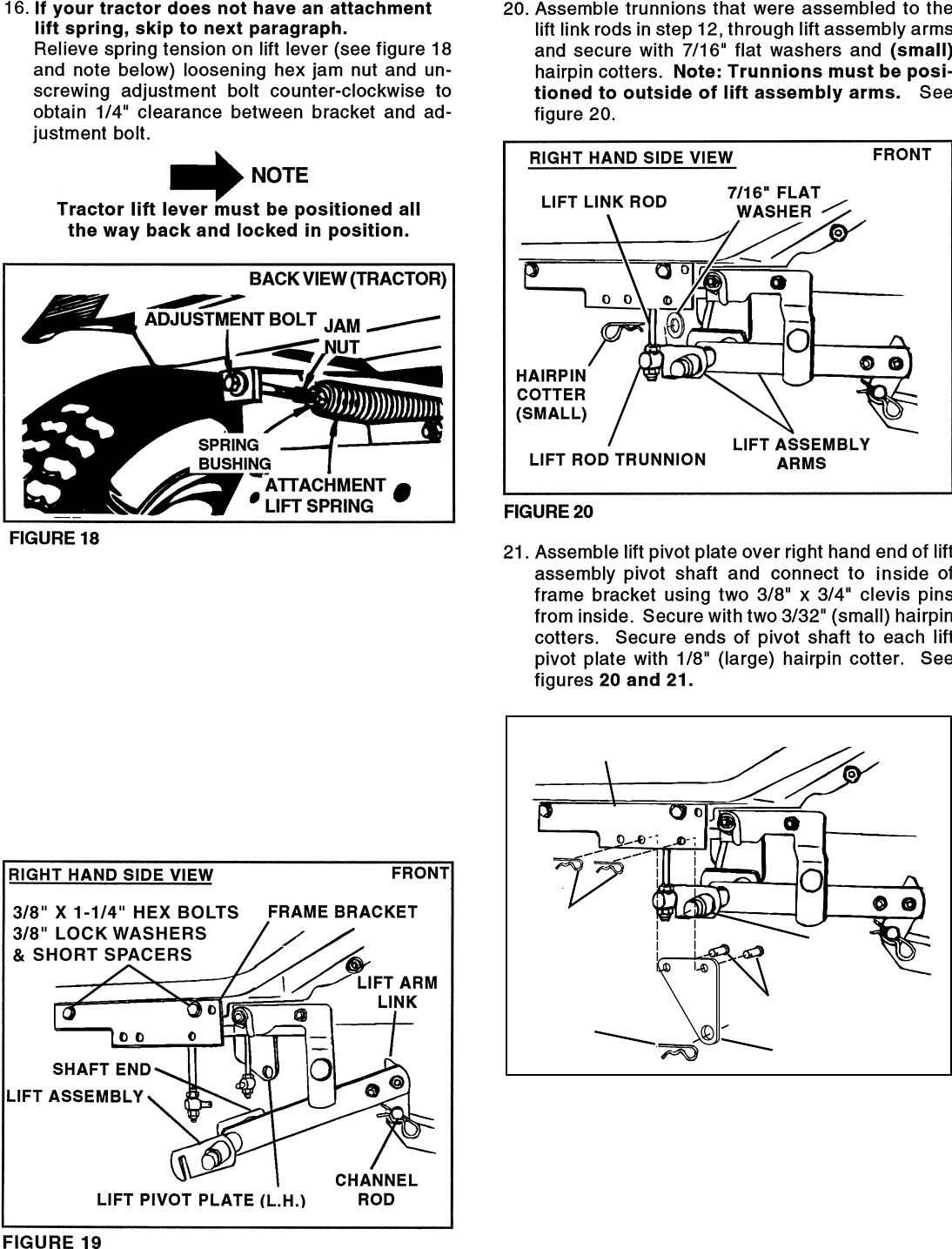

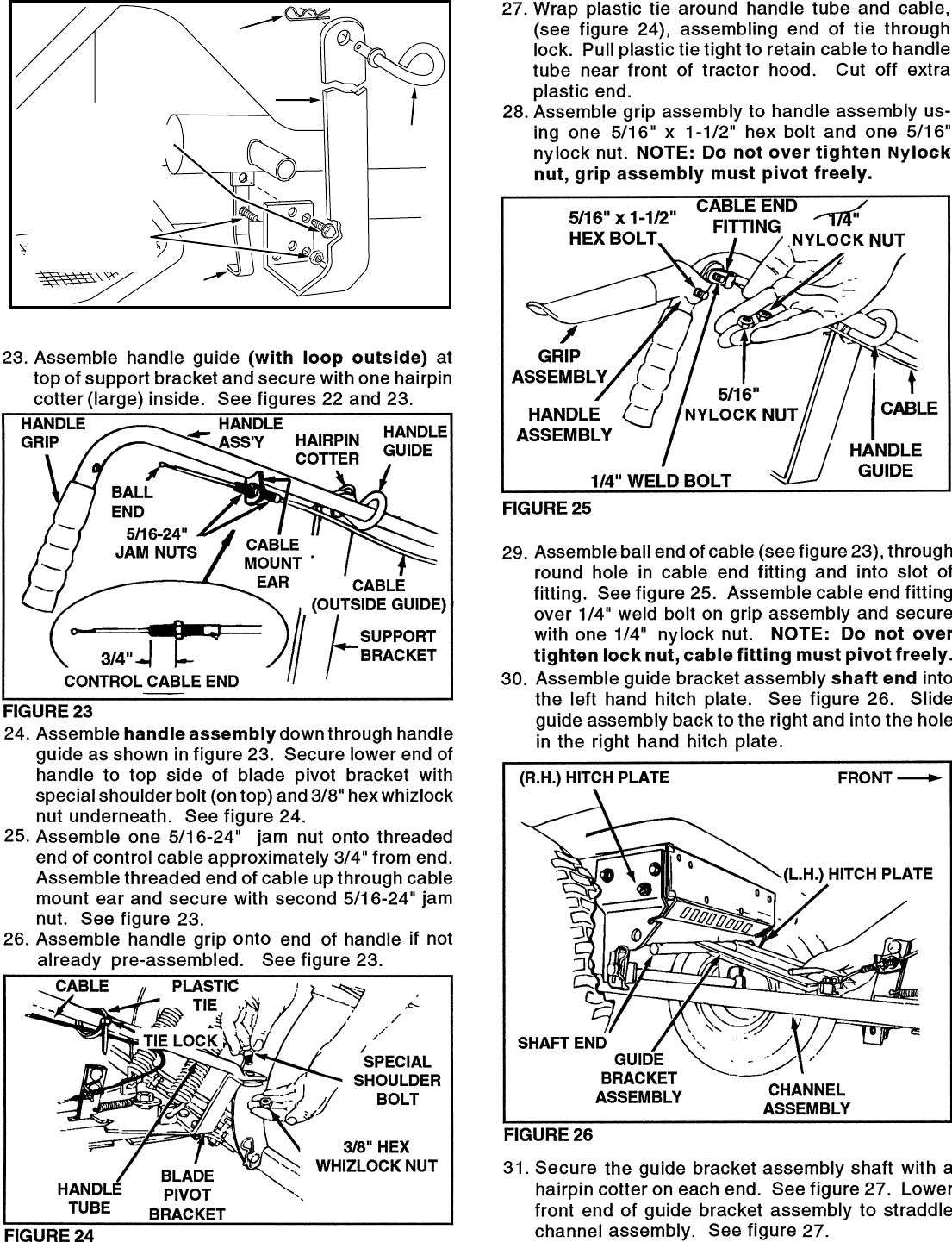

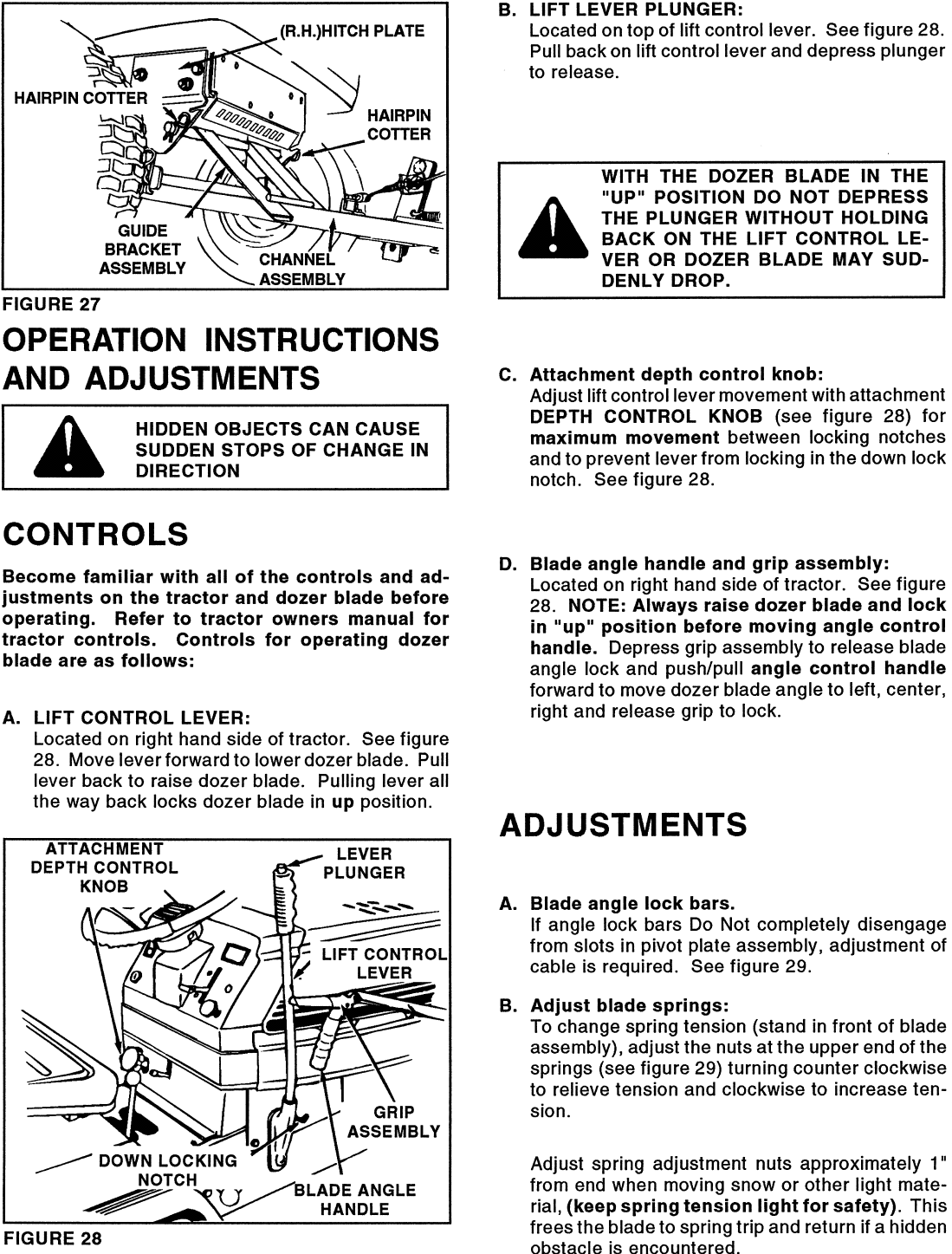

17. Move attachment lift lever all the way forward and lock

in position. See figure 28 on page 10.

18. Assemble lift arm link over channel rod and insert pivot

shaft end (from R.H. side of tractor) into hole in L.H. lift

pivot plate. Secure lift arm link to channel rod with 1/8"

(large) hairpin cotter. See figure 19.

19. Assemble a frame bracket under the right hand foot

rest of the tractor using two 3/8" x 1-1/4" hex bolts, two

3/8" lock washers and four short spacers. Use two

spacers on each bolt, between the frame bracket

and the tractor frame. See figure 19.

CLEVIS PINS

3/8" x 3/4"

HAIRPIN

COTTER

(SMALL)

HAIRPIN

COTTER

(LARGE) LIFT PIVOT PLATE

LIFT

ASSEMBLY

PIVOT SHAFT

FRAME

BRACKET RIGHT HAND SIDE VIEW

FRONT

FIGURE 21

FIGURE 22

3/8" x 1"

HEX BOLTS

SUPPORT

BRACKET

SUPPORT

BRACKET

UP STOP BRACKETUP STOP BRACKET

HAIRPIN

COTTER

HAIRPIN

COTTER

HANDLE

GUIDE

(2) 3/8" x 1"

THREAD FORMING

HEX BOLTS

(2) 3/8" x 1-1/4"

HEX BOLTS

AND 3/8"

NYLOCK NUTS

CLEVIS PINS

3/8" x 3/4"

HAIRPIN

COTTER

(SMALL)

HAIRPIN

COTTER

(LARGE) LIFT PIVOT PLATE

LIFT ASSEMBLY

LIFT ARM

LINK

LIFT ROD TRUNNION

AND HEX NUTS

HAIRPIN

COTTER

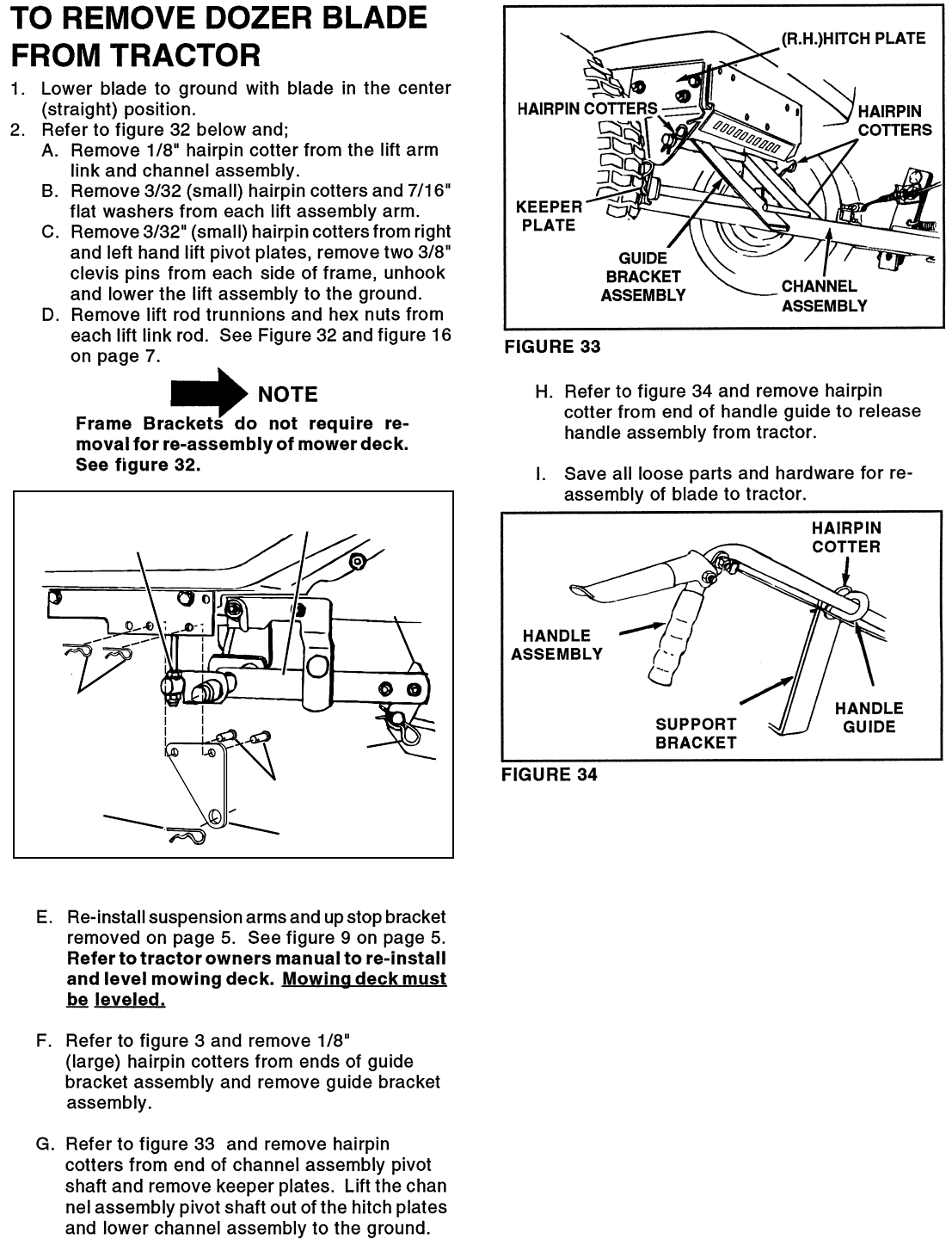

FIGURE 32

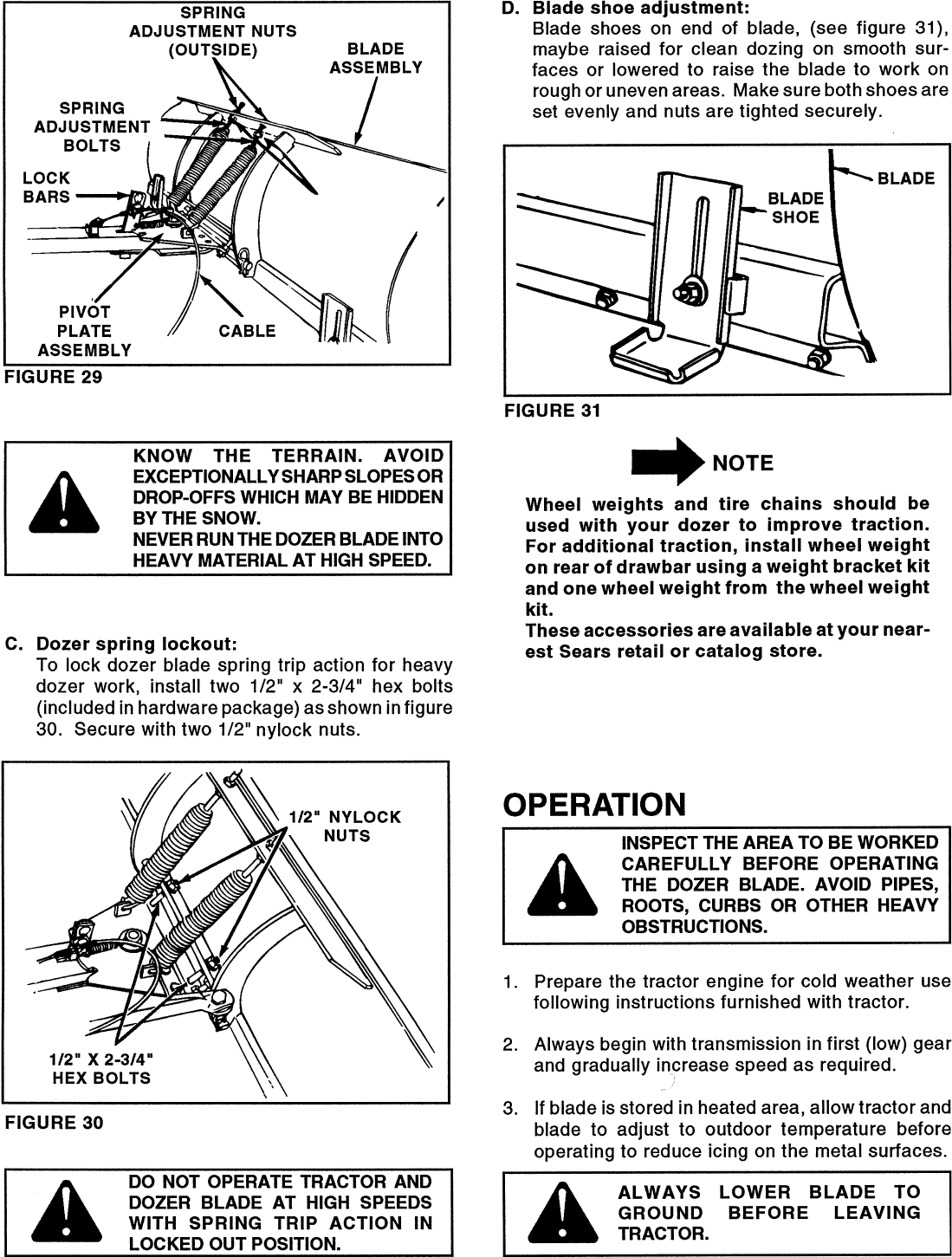

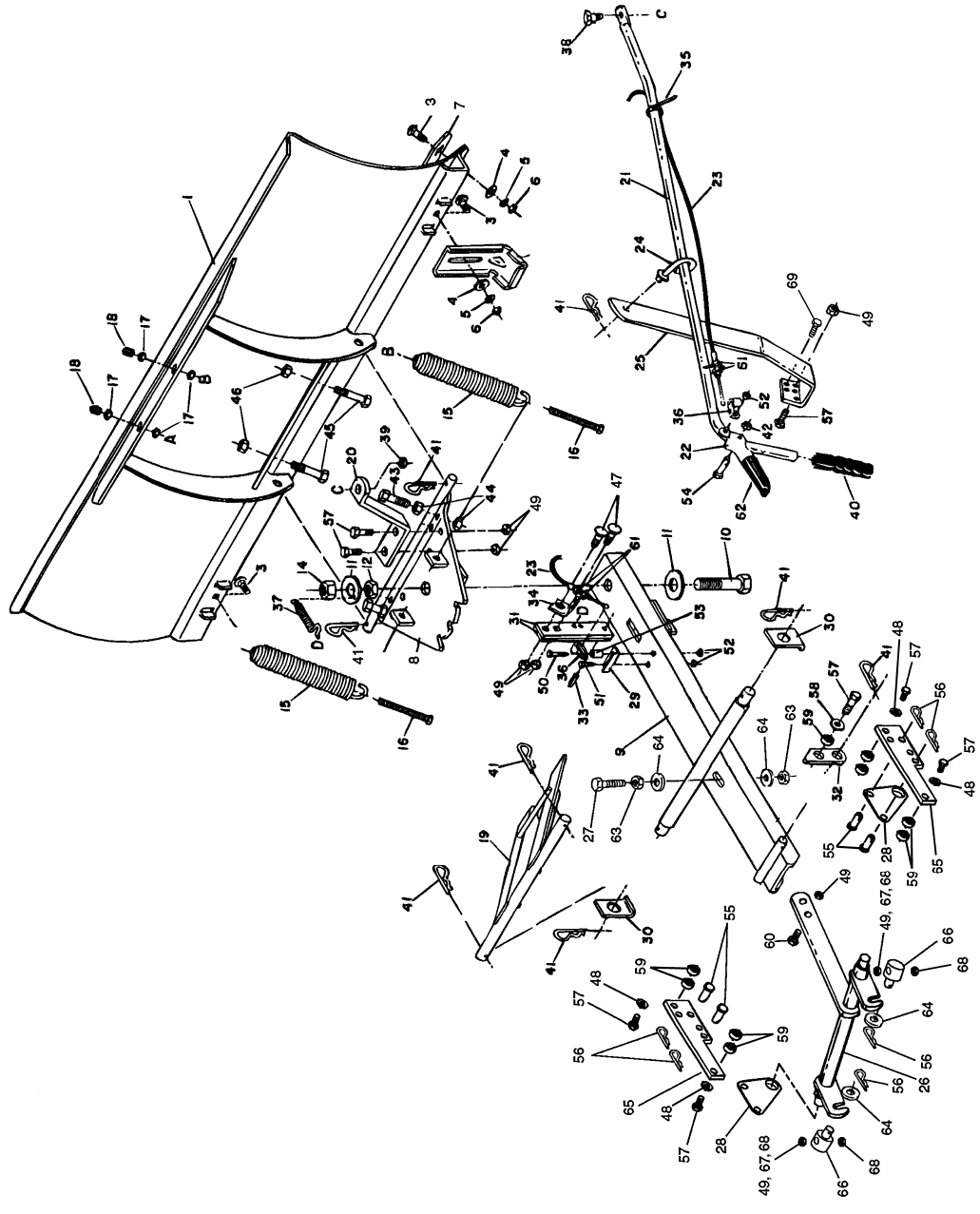

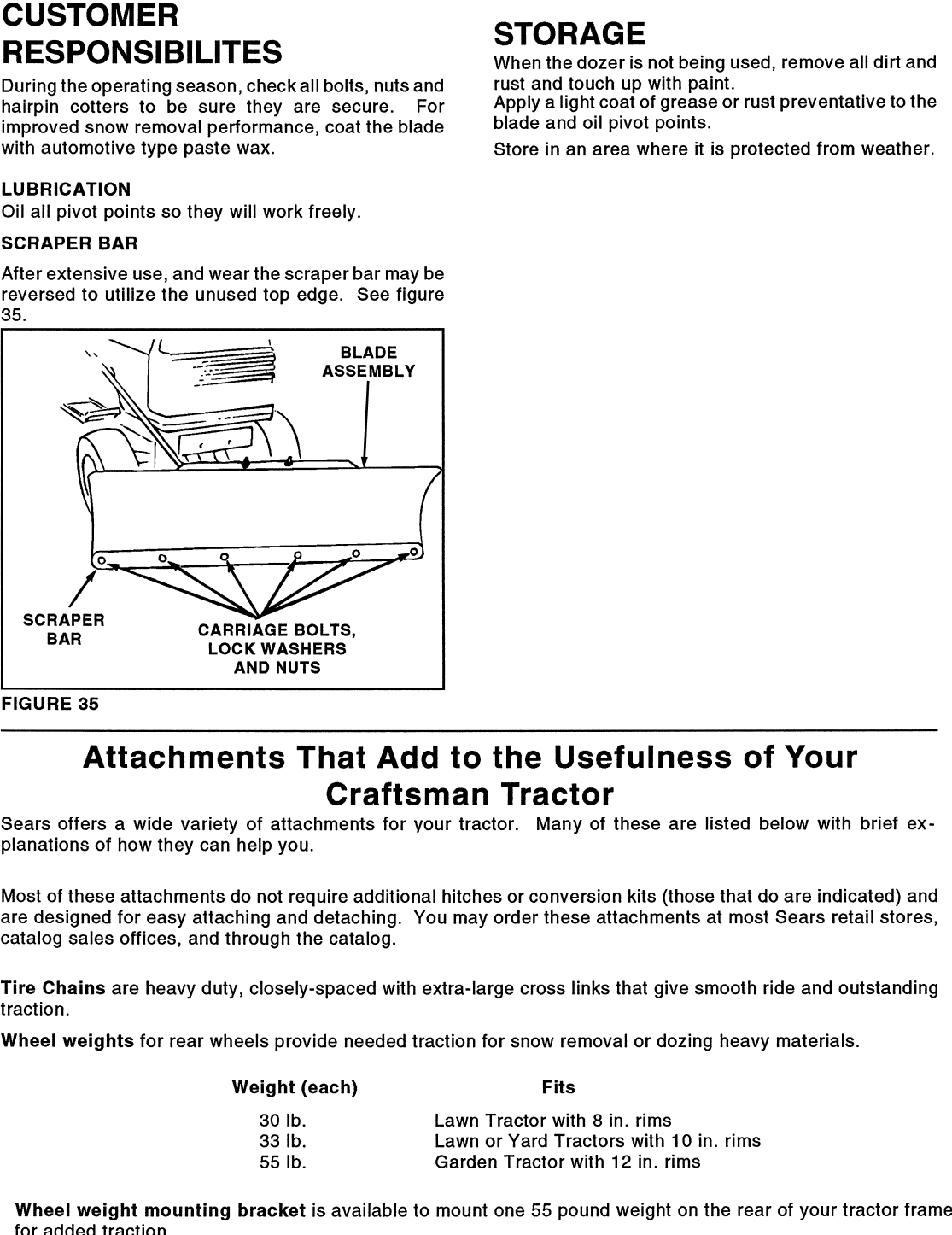

REPAIR PARTS FOR MODEL 486.244122 - 48" DOZER BLADE

37 43348 1 Angle Lock Spring

38 48106 1 Shoulder Bolt, Special 3/8-16 x 5/8"

39 44072 1 Hex Whizlock Nut 3/8-16

40 7071 1 Handle Grip 3/4"

41 43343 10 Hairpin Cotter 1/8"*

42 47810 1 Nylock Nut 5/16-18*

43 41596 2 Hex Bolt 1/2-13 x 2"*

44 712-0206 4 Hex Nut 1/2-13*

45 43510 2 Hex Bolt 1/2-13 x 2-3/4"*

46 712-0383 2 Nylock Nut, 1/2-13

47 710-0305 2 Carriage Bolt 3/8-16 x 1-1/4"*

48 43003 4 Lock Washer, Spring 3/8*

49 HA21362 10 Nylock Nut 3/8-16*

50 43648 1 Hex Bolt 1/4-20 x 1-1/2"*

51 43012 1 Hex Bolt 1/4-20 x 3/4"*

52 47189 3 Nylock Nut 1/4-20*

53 23658 1 Spacer, Long

54 43085 1 Hex Bolt 5/16-18 x 1-1/2"*

55 44044 4 Clevis Pin, 3/8" Dia. x 3/4" Lg.

56 43055 6 Hairpin Cotter 3/32"*

57 43087 9 Hex Bolt 3/8-16 x 1-1/4"*

58 43070 1 Washer 3/8 Std. Wrt.*

59 23625 9 Spacer, Short

60 43001 1 Hex Bolt 3/8-16 x 1"*

61 712-0256 4 Hex Jam Nut 5/16-24*

62 731-0869 1 Plastic Grip

63 43019 2 Hex Jam Nut 1/2-13*

64 43352 4 Washer 7/16 Std. Wrt.*

65 25301 2 Frame Bracket

66 46001 2 Lift Rod Trunnion

67 44684 2 Jam Nut, 3/8-24 Fine Thread

68 48183 4 Hex Jam Nut, 7/16-20 Fine Thread

69 HA23193 2 Hex Bolt, 3/8-16 x 1" Thread Forming

49344 1 Owners Manual

1 62554 1 48" Blade Ass'y.

2 R3132J 2 Shoe

3 44326 8 Carriage Bolt 5/16-18 x 1"*

4 43081 8 Washer 5/16 Std. Wrt.*

5 43086 8 Lock Washer, Spring 5/16*

6 43083 8 Hex Nut 5/16-18*

7 23639 1 Wear Plate 48"

8 62556 1 Pivot Plate Ass'y.

9 62944 1 Channel Ass'y.

10 710-0741 1 Hex Bolt 3/4-10 x 3-1/2"

11 1540-162 2 Washer 3/4"

12 40436 1 Hex Jam Nut 3/4-10*

14 40598 1 Hex Lock Nut 3/4-10

15 9466R 2 Blade Adjustment Spring

16 44071 2 Hex Bolt 3/8-16 x 3-1/2"

17 43015 4 Hex Nut 3/8-16*

18 44074 2 Plastic Cap, 3/8"

19 62868 1 Guide Bracket Ass'y.

20 23646 1 Blade Pivot Bracket

21 62560 1 Tube Handle Ass'y.

22 62561 1 Release Grip Ass'y.

23 746-0366 1 Control Cable Ass'y

24 62562 1 Handle Guide

25 23728 1 Support Bracket

26 62951 1 Lift Ass'y.

27 45100 1 Hex Bolt 1/2-13 x 4"*

28 23922 2 Lift Pivot Plate

29 23655 1 Stop Angle

30 23624 2 Keeper Plate

31 23151 2 Angle Lock Bar

32 23631 1 Lift Arm Link

33 43349 1 Spring Pin 1/4 x 1"*

34 05762 1 Cable Mount Bracket

35 726-0178 1 Nylon Tie (Cable)

36 746-0260 2 Cable Fitting, End

PART NO. QTY. DESCRIPTION REF.

NO.

REF.

NO.

*Purchase common hardware locally.

REPAIR PARTS FOR MODEL 486.244122 - 48" DOZER BLADE

PART NO. QTY. DESCRIPTION

Get it fixed, at your home or ours!

For repair of major brand appliances in your own home…

no matter who made it, no matter who sold it!

1-800-4-MY-HOME

Anytime, day or night

(1-800-469-4663)

www.sears.com

To bring in products such as vacuums, lawn equipment and electronics

for repair, call for the location of your nearest Sears Parts & Repair Center.

1-800-488-1222

Anytime, day or night

www.sears.com

For the replacement parts, accessories and owner’s manuals

that you need to do-it-yourself, call Sears PartsDirect

1-800-366-PART

6 a.m. – 11 p.m. CST,

(1-800-366-7278)

7 days a week

www.sears.com/partsdirect

To purchase or inquire about a Sears Service Agreement:

1-800-827-6655

7 a.m. – 5 p.m. CST, Mon. – Sat.

Para pedir servicio de reparación a domicilio,

y para ordenar piezas con entrega a domicilio:

1-888-SU-HOGAR

(1-888-784-6427)

Au Canada pour service en français:

1-877-LE-FOYER

(1-877-533-6937)

® Registered Trademark / ™ Trademark of Sears, Roebuck and Co.

® Marca Registrada / ™ Marca de Fábrica de Sears, Roebuck and Co.

HomeCentral

Craftsman 486 244122 Users Manual 48184

486.24412 24412e

Navigation menu

Versions of this User Manual:

Views

Navigation
