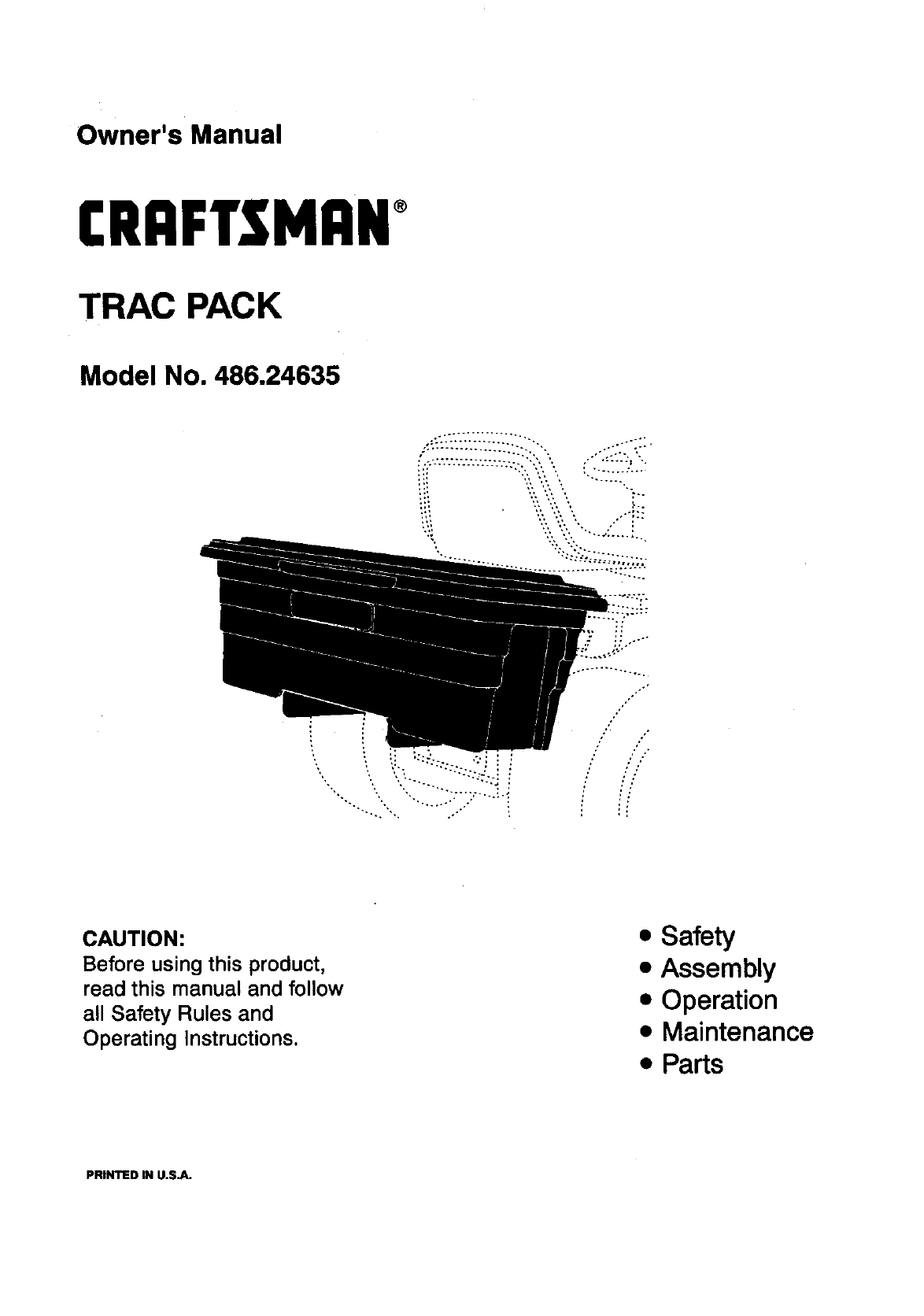

Owner's Manual

CRRFTSMnNo

TRAC PACK

Model No. 486.24635

CAUTION:

Before using this product,

read this manual and follow

all Safety Rules and

Operating Instructions.

• Safety

• Assembly

• Operation

• Maintenance

•Parts

PRINTED IN U.S.A.

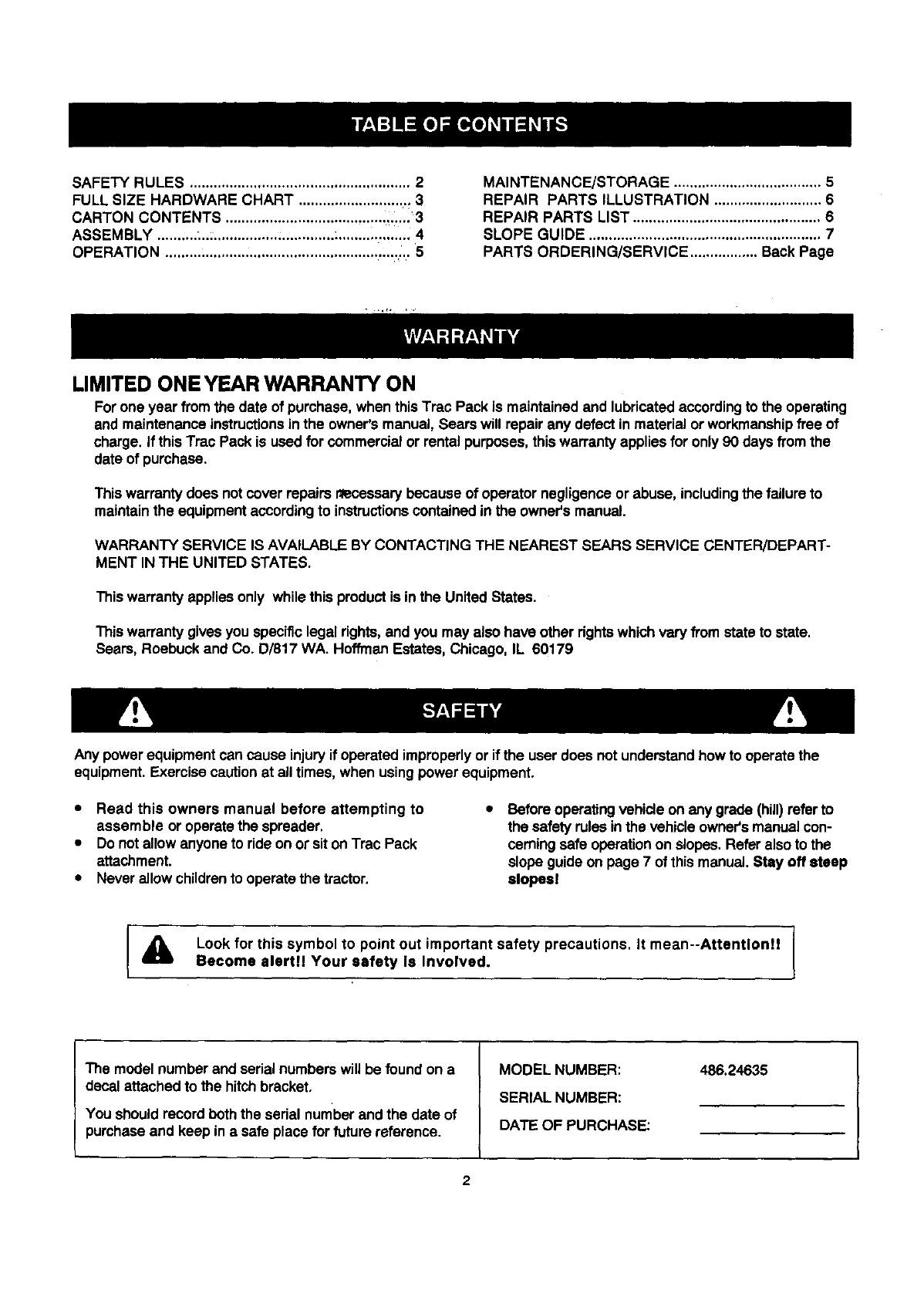

SAFETY RULES ....................................................... 2

FULL SIZE HARDWARE CHART ...........................! 3

CARTON CONTENTS ........................................ i,..3

ASSEMBLY ......;..._..:............. ;., ............. :.................. 4

OPERATION ......................................................... .... 5

MAINTENANCE/STORAGE ..................................... 5

REPAIR PARTS ILLUSTRATION ........................... 6

REPAIR PARTS LIST ............................................... 6

SLOPE GUIDE .......................................................... 7

PARTS ORDERING/SERVICE ................. Back Page

LIMITED ONE YEAR WARRANTY ON

For one year fromthe date of purchase, when this Trac Pack is maintained and lubricatedaccordingto the operating

and maintenance instructionsin the owner's manual, Sears will repair any defect in material or workmanshipfree of

charge. If this Trac Pack is used for commercialor rental purposes,thiswarranty applies for only 90 days from the

date of purchase.

This warranty does notcover repairs r_cessary because of operator negligence or abuse, includingthe failure to

m;dntainthe equipment accordingto instructionscontained in the owner's manual.

WARRANTY SERVICE IS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPART-

MENT IN THE UNITED STATES.

This warranty applies only while this product is in the United States.

This warranty gives you specificlegal rights,and you may also have other dghtswhich vary from state to state.

Seam, Roebuck and Co. D/817 WA. Hoffman Estates, Chicago, IL 60179

Any power equipment can cause injuryif operated improperlyor if the user does notunderstandhow to operate the

equipment.Exercise cautionat alltimes, when using power equipment.

•Read this owners manual before attempting to

assemble or operate the spreader.

•Do notallow anyone to ride on or sit on Trac Pack

attachment.

•Never allow childrento operate the tractor.

Before operatingvehicle on any grade (hill)refer to

the safety rules inthe vehicle owner'smanual con-

ceming safe operationon slopes. Refer also to the

slope guide on page 7 of this manual. Stay off steep

slopes!

,_ Look for this symbol to point out important safety precautions. It mean--Attantlonll

Become alertf! Your safety Is Involved.

486.24635The model number and serial numberswill be found on a

decal attached to the hitchbracket.

You should record beth the serial number and the date of

purchaseand keep in asafe place for future reference.

MODEL NUMBER:

SERIAL NUMBER:

DATE OF PURCHASE:

L

D

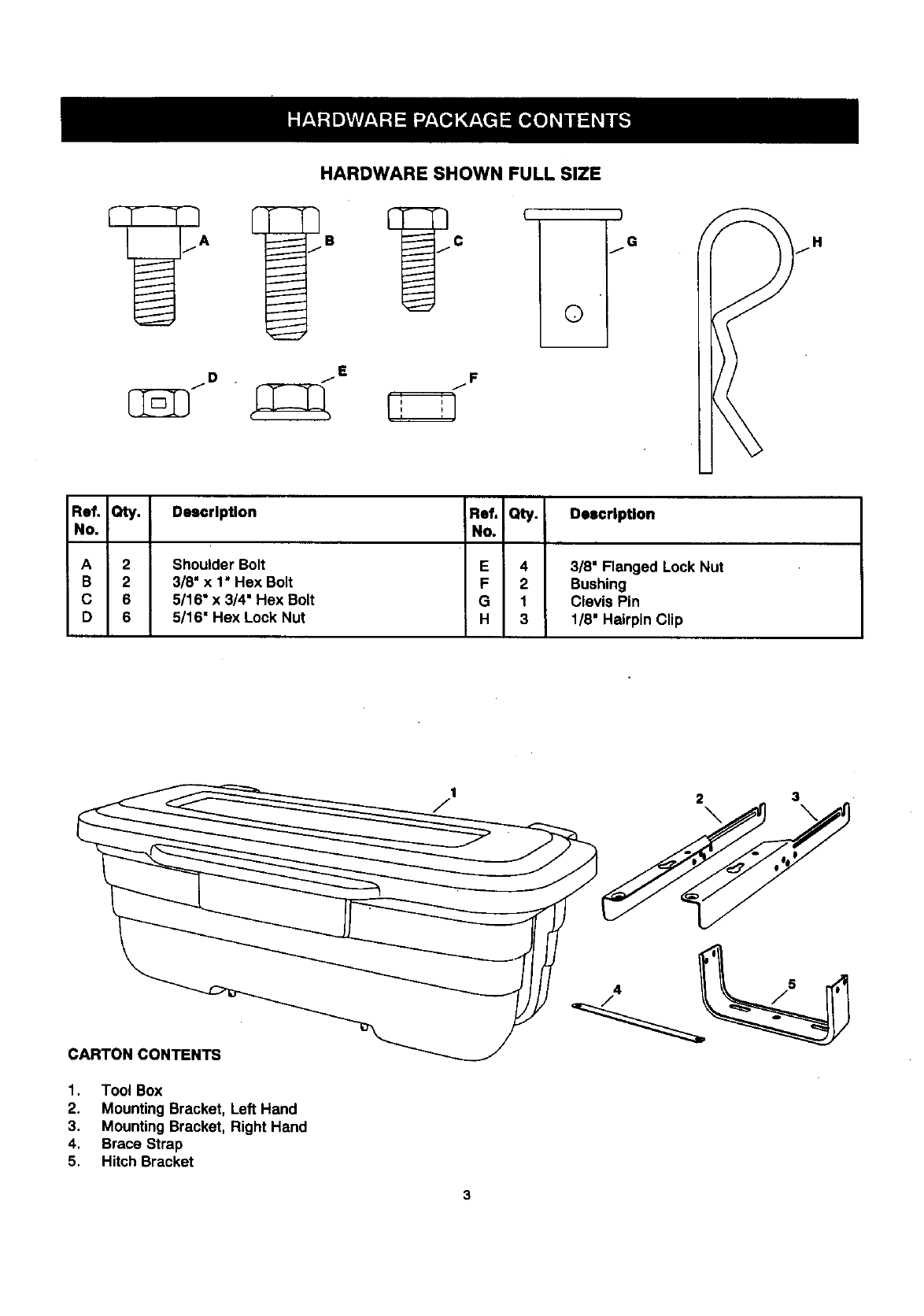

HARDWARE SHOWN FULL SIZE

©

E

JF

J

)

G

JH

Ref. Qty. Description

No.

A 2 Shoulder Bolt

B 2 3/8" x 1" Hex Bolt

C 6 5/16" x 3/4' Hex Bolt

D 6 5/16" Hex Lock Nut

Ref, Qty.

No. Description

E 4

F 2

G 1

H 3

3/8" Flanged Lock Nut

Bushing

Clevis Pin

1/8" Hairpin Clip

1

/23

CARTON CONTENTS

1. Tool Box

2. Mounting Bracket, Left Hand

3. Mounting Bracket, Right Hand

4. Brace Strap

5. Hitch Bracket

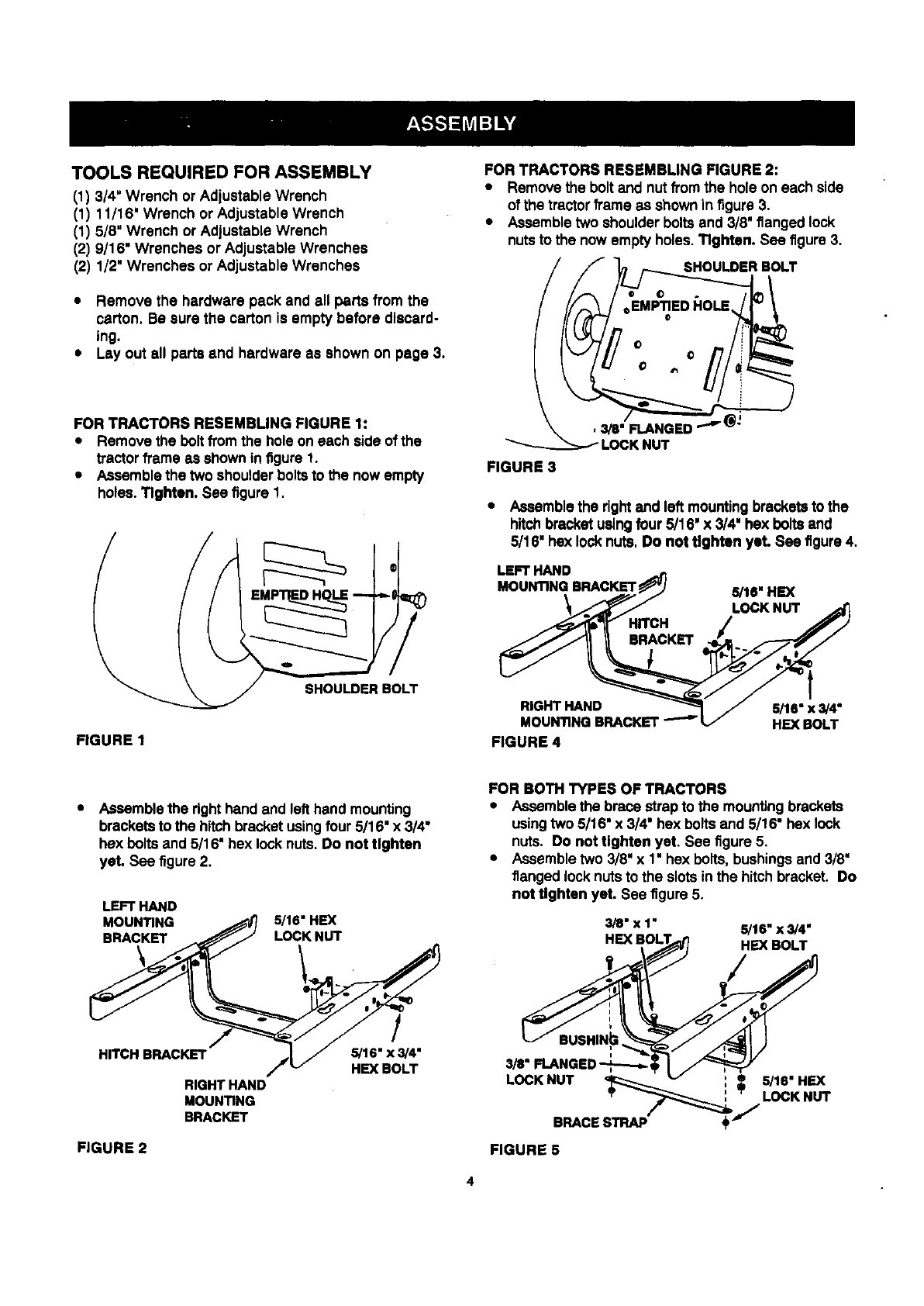

TOOLS REQUIRED FOR ASSEMBLY

(1) 3/4" Wrench or Adiustable Wrench

(1) 11/16' Wrench or Adjustable Wrench

(1) 5/8" Wrench or Adjustable Wrench

(2) 9/16" Wrenches or Adjustable Wrenches

(2) 1/2" Wrenches or Adjustable Wrenches

•Remove the hardware pack and all parts from the

carton. Be sure the carton is empty before discard-

ing,

•Lay out ell parts and hardware as shown on page 3.

FOR TRACTORS RESEMBUNG FIGURE 1:

•Remove the boltfrom the hole on each side of the

tractorframe as shown in figure 1.

•Assemble the two shoulderboltsto the now empty

holes.Tighten. See figure 1,

SHOULDER BOLT

FIGURE 1

FOR TRACTORS RESEMBLING FIGURE 2:

•Remove the bolt and nutfrom the hole on each side

of the tractorframe as shown in figure 3,

•Assemble two shoulder boltsand 3/8" flanged lock

nutsto the now empty holes.Tighten. See figure3.

SHOULDERBOLT

,3/6.FLANGED

_LOCKNUT

FIGURE 3

•Assemble the rightand left mountingbracketsto the

hitchbracket usingfour 5/18' x 3/4" hex bolts and

5/16" hex locknuts, Do not tighten yet. See figure4,

LEFT HAND

MOUNTINGBRACKET_J _14a.Mm,,

RIGHTHAND _ J 5/16"x 3/4"

MOUNTINGBRACKET_ 1.7 HE)( BOLT

FIGURE 4

Assemble the righthand and left hand mounting

bracketsto the hitch bracket usingfour 5/16" x 3/4"

hex bolts and 5/16" hex locknuts. Do not tighten

yet. See figure 2.

LEFT HAND

MOUNTING _ 5/16. HE)(

HITCH BRACKET dl . / 5/16. x 3/4"

7L/ HEX BOLT

RIGHTHAND

MOUNTING

BRACKET

FIGURE 2

FOR BOTH TYPES OF TRACTORS

•Assemblethe brace strapto the mountingbrackets

usingtwo 5/16' x 3/4" he:<bolts and 5/16" hex lock

nuts. Do not tighten yet. See figure 5.

•Assemble two 3/8" x 1• hax bolts, bushingsand 3/8"

flangedlock nutsto the slotsin the hitch bracket. Do

not tighten yet. See figure 5.

5/6. x 1" 5/16"x3/4"

HE)( BOLT_,_tl HEXBOLT

BRACESTRAP __*

FIGURE 5

4

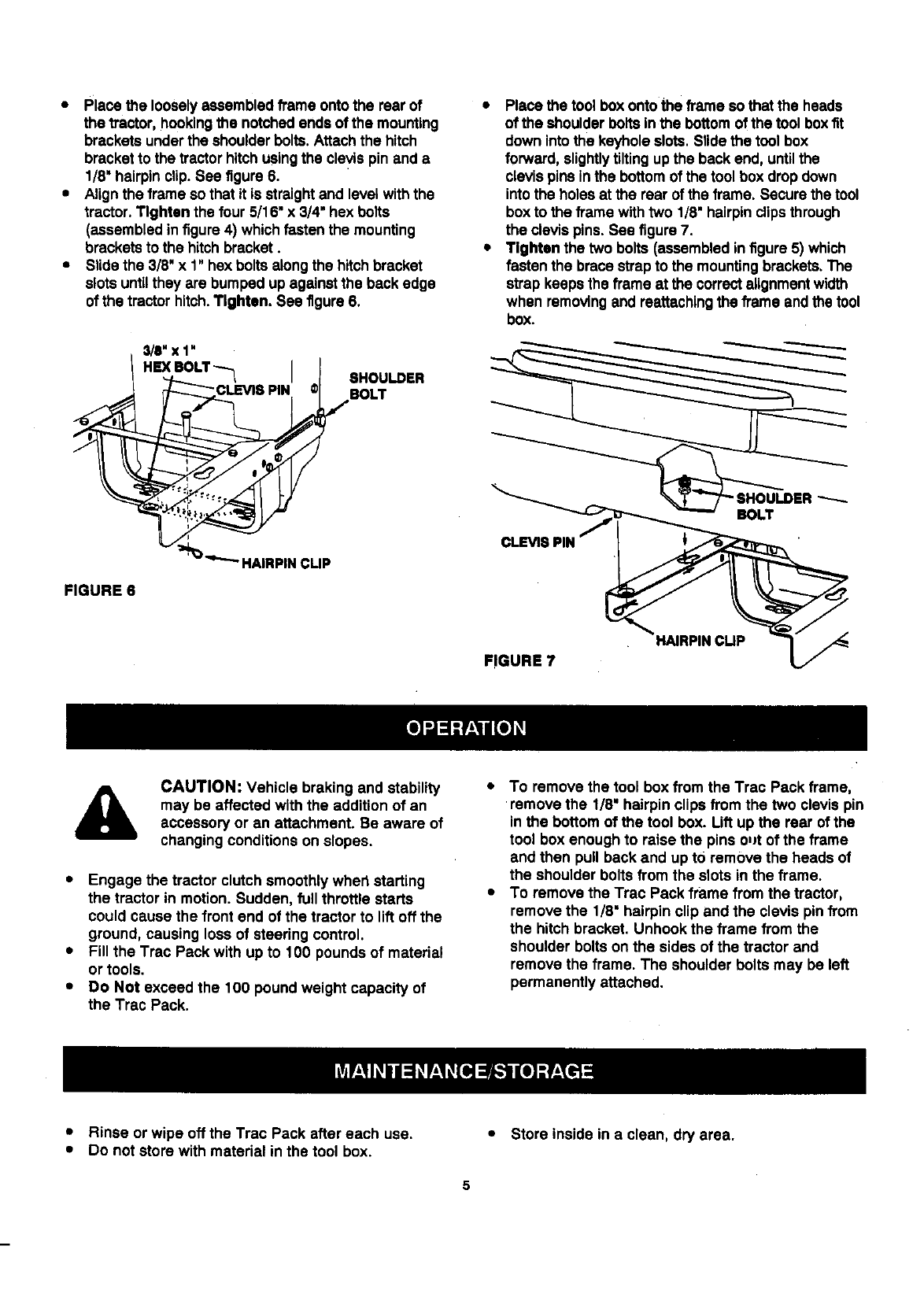

•Place the looselyassembled frame onto the rear of

the b'actor,hookingthe notched ends of the mounting

brackets under the shoulderbolts,Attachthe hitch

bracketto the tractor hitchusingthe clevis pin and a

1/8" hairpinclip. See figure6.

•Align the frame so that it is straightand level withthe

tractor. Tighten the four 5/16" x 3/4" hex bolts

(assembled in figure 4) which fasten the mounting

bracketsto the hitch bracket.

•Slide the 3/8" x 1" hex boltsalong the hitch bracket

slots untilthey are bumped upagainst the back edge

of the tractor hitch.Tighten. See figure 6.

•Place the tool box onto the frame so that the heads

of the shoulder boltsin the bottom of the tool boxfit

down intothe keyhole slots. Slide the tool box

forward, slightlytilting up the back end, untilthe

clevis pins inthe bottomof the tool box dropdown

into the holes at the rear of the frame. Secure the tool

box to the frame with two 1/8" hairpinclips through

the clevis pins. See figure7.

•Tighten the two bolts(assembled in figure 5) which

fasten the brace strap to the mountingbrackets. The

strap keeps the frame at the correct alignmentwidth

when removingand reattachingthe frame and the tool

box.

3/8" x 1"

HEXBOLT'-----. I I

IItSHOULDER

BOLT

F 6

[o]"J=1: ,JIII

&CAUTION: Vehicle braking and stability

may be affected with the addition of an

accessory or en attachment. Be aware of

changing conditions on slopes.

•Engage the tractor clutch smoothly whert starting

the tractor in motion. Sudden, full throttle starts

could cause the front end of the tractor to lift off the

ground, causing loss of steering control.

•Fill the Trac Pack with up to 100 pounds of material

or tools.

•Do Not exceed the 100 pound weight capacity of

the Trec Pack.

•To remove the tool box from the Trac Pack frame,

'remove the 1/8" hairpin clips from the two clevis pin

in the bottom of the tool box. Lift up the rear of the

tool box enough to raise the pins o,t of the frame

end then pull back and up tO remove the heads of

the shoulder bolts from the slots in the frame.

•To remove the Trac Pack frame from the tractor,

remove the 1/8" hairpin clip end the clevis pinfrom

the hitch bracket. Unhook the frame from the

shoulder bolts on the sides of the tractor and

remove the frame. The shoulder bolts may be left

permanently attached.

•Rinse or wipe off the Trac Pack after each use.

•Do not store with material in the tool box. •Store inside in a clean, dry area.

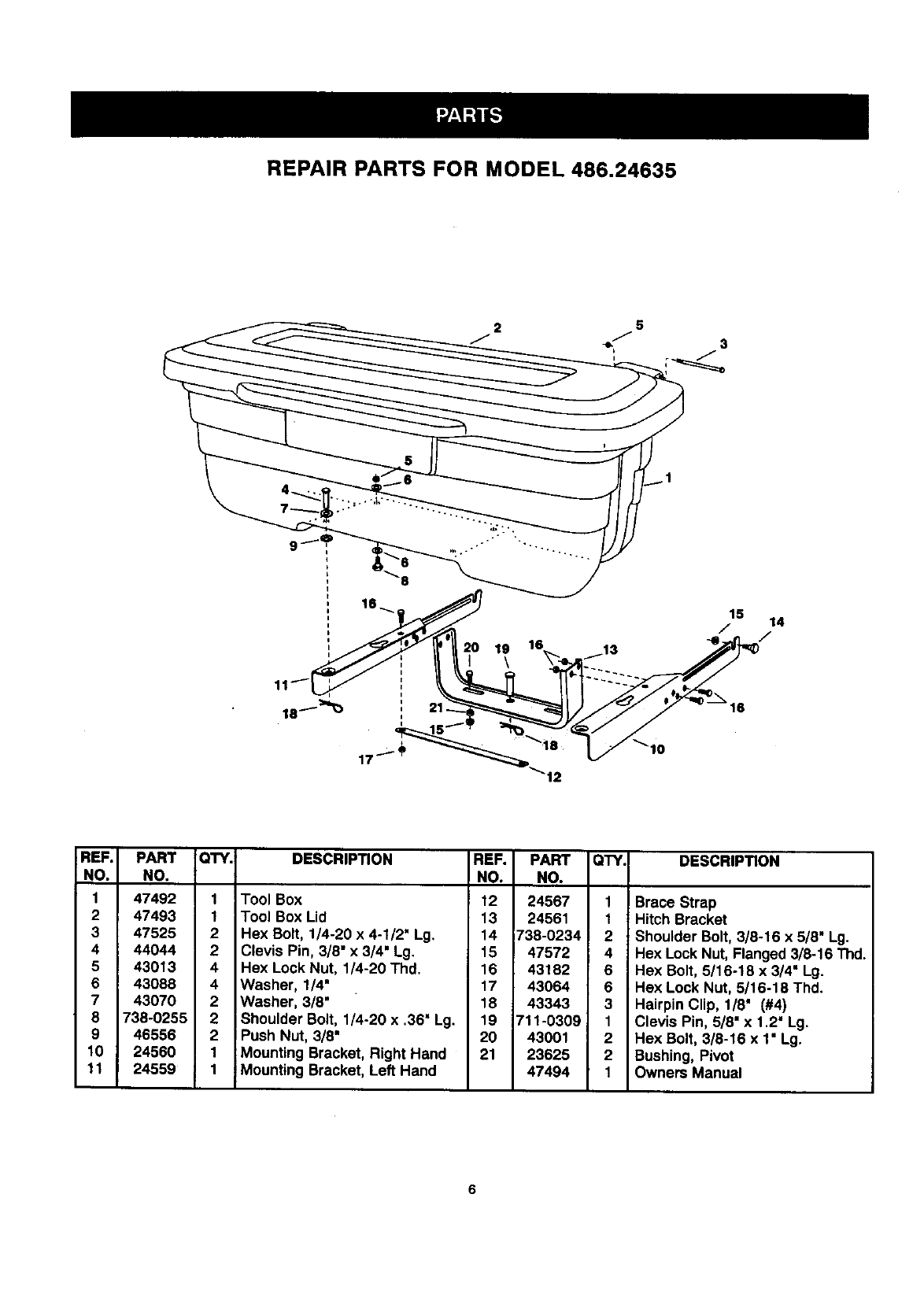

REPAIR PARTS FOR MODEL 486.24635

9

19 16

\

15

/14

/

16

REF.

NO.

1

2

3

4

5

6

7

8

9

10

11

PART QTY,

NO.

47492 1

47493 1

47525 2

44044 2

43013 4

43088 4

43070 2

738-0255 2

46556 2

24560 1

24559 1

DESCRIPTION REF. PART

NO. NO.

Tool BOX 12 24567

Tool Box Lid 13 24561

Hex Bolt, 1/4-20 x 4-1/2" Lg. 14 738-0234

Clevis Pin, 3/8" x 3/4" Lg. 15 47572

Hex Lock Nut, 1/4-20 Thd. 16 43182

Washer, 1/4= 17 43064

Washer, 3/8" 18 43343

Shoulder Bolt, 1/4-20 x .36" Lg. 19 711-0309

I Push Nut, 3/8" 20 43001

Mounting Bracket, Right Hand 21 23625

iMounting Bracket, Left Hand 47494

QTY. DESCRIPTION

1 Brace Strap

1 Hitch Bracket

2 Shoulder Bolt, 3/8-16 x 5/8" Lg.

4 Hex Lock Nut, Flanged 3/8-16 Thd.

6 Hex Bolt, 5/16-18 x 3/4" Lg.

6 Hex Lock Nut, 5/16-18 Thd.

3 Hairpin Clip, 1/8" (#4)

1Clevis Pin, 5/8" x 1.2' Lg.

2 Hex Bolt, 3/8-16 x 1" Lg.

2 Bushing, Pivot

1 Owners Manual

9rmc

• G$

"M I

10•

j CAOT,ON:O°n o tey°ur orw' T Pa °ns'° in1 1

excess of 10 degrees. Operate up and down slopes, neveracmes the

face of slopes.Avoidsuddenturns or maneuvers.

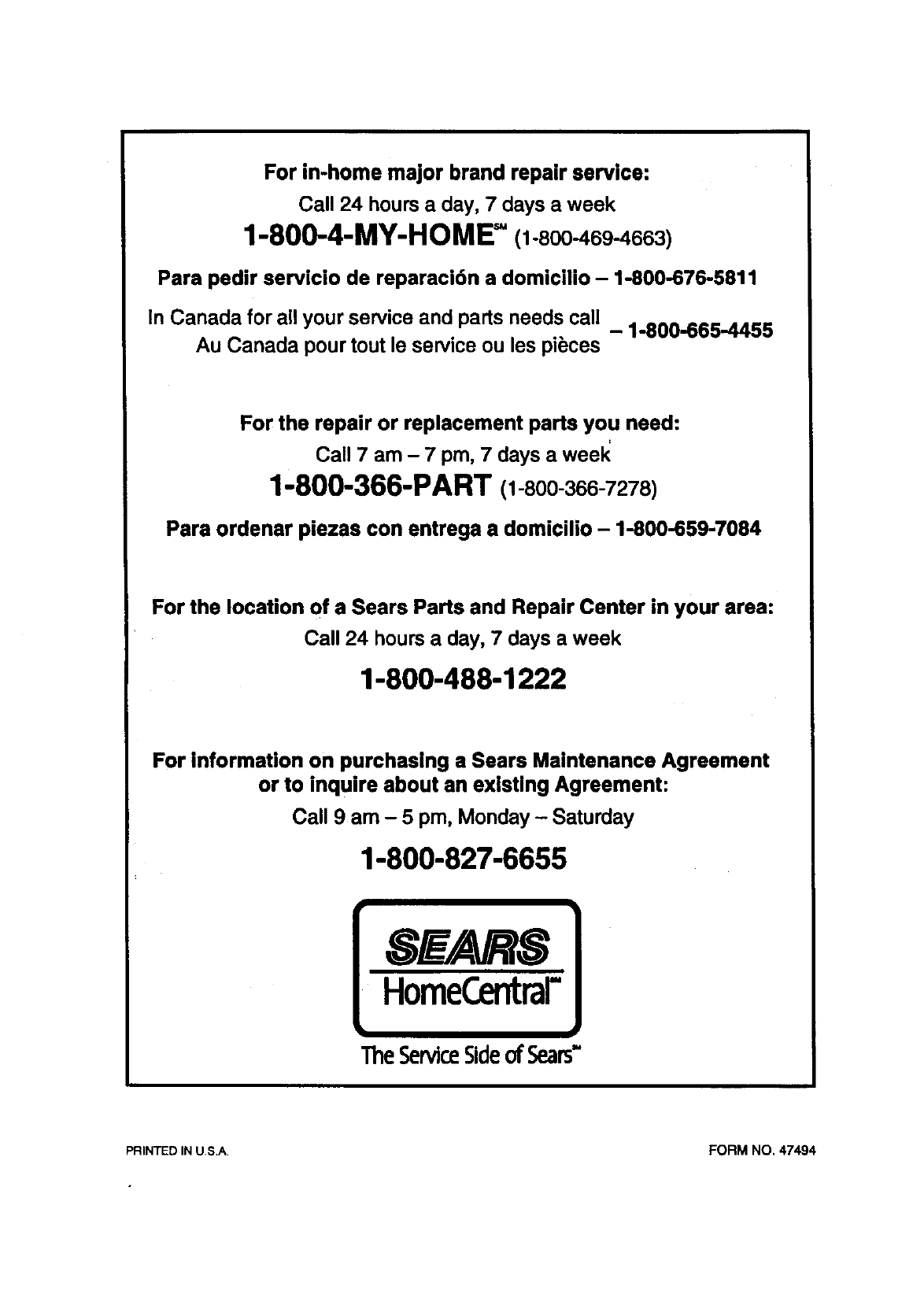

For in-home majorbrand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME (1-800-469-4663)

Para pedir servicio de reparaci6n a domicilio- 1-800-676-5811

In Canada for all your service and parts needs call - 1-600-665-4455

Au Canada pour tout le service ou les pibces

For the repair or replacement parts you need:

Call 7 am - 7 pm, 7 days a weel_

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio - 1-800-659-7084

For the location of a Sears Parts and Repair Center in your area:

Call 24 hoursa day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance Agreement

or to inquire about an existing Agreement:

Call 9 am - 5 pm, Monday -Saturday

1-800-827-6655

TheServiceSideofSears"

PRINTED IN US.A, FORM NO. 47494
