Owner's Manual

CRAFTSMAN

40"- 2 STAGE SNOW THROWER

TRACTOR ATTACHMENT

Model No. 486.24839

CAUTION:

Before using this product,

read this manual and follow

all Safety Rules and

Operating Instructions.

• Safety

• Assembly

• Operation

• Maintenance

• Parts

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

pRINTED IN U.S.A.

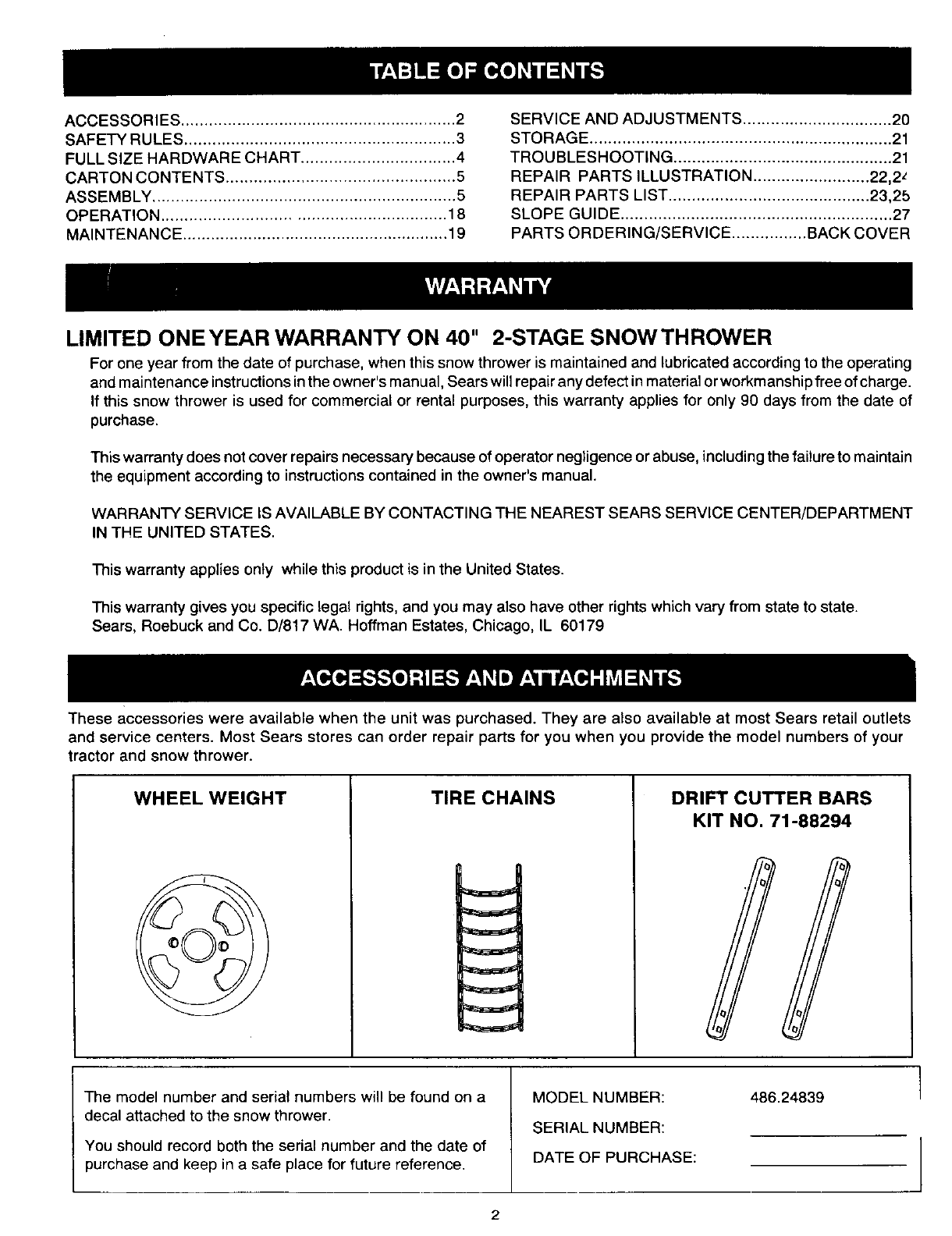

ACCESSORIES ........................................................... 2

SAFETY RULES .......................................................... 3

FULL SIZE HARDWARE CHART ................................. 4

CARTON CONTENTS ................................................. 5

ASSEMBLY ................................................................. 5

OPERATION ............................................................ 18

MAINTENANCE ......................................................... 19

SERVICE AND ADJUSTMENTS ................................ 20

STORAGE ................................................................. 21

TROUBLESHOOTING ............................................... 21

REPAIR PARTS ILLUSTRATION ......................... 22,2z

REPAIR PARTS LIST ........................................... 23,25

SLOPE GUIDE .......................................................... 27

PARTS ORDERING/SERVICE ................ BACK COVER

LIMITED ONEYEAR WARRANTY ON 40" 2-STAGE SNOWTHROWER

For one year from the date of purchase, when this snow thrower is maintained and lubricated according to the operating

and maintenance instructions in the owner's manual, Sears will repair any defect in material or workmanship free of charge.

If this snow thrower is used for commercial or rental purposes, this warranty applies for only 90 days from the date of

purchase.

This warranty does not cover repairs necessary because of operator negligence or abuse, including the failure to maintain

the equipment according to instructions contained in the owner's manual.

WARRANTY SERVICE iS AVAILABLE BY CONTACTING THE NEAREST SEARS SERVICE CENTER/DEPARTMENT

IN THE UNITED STATES.

This warranty applies onty while this product is in the United States.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co. D/817 WA. Hoffman Estates, Chicago, IL 60179

These accessories were available when the unit was purchased. They are also available at most Sears retail outlets

and service centers. Most Sears stores can order repair parts for you when you provide the model numbers of your

tractor and snow thrower.

WHEEL WEIGHT TIRE CHAINS DRIFT CUTTER BARS

KIT NO. 71-88294

The model number and serial numbers will be found on a

decal attached to the snow thrower.

You should record both the serial number and the date of

purchase and keep in a safe place for future reference.

MODEL NUMBER:

SERIAL NUMBER:

DATE OF PURCHASE:

486.24839

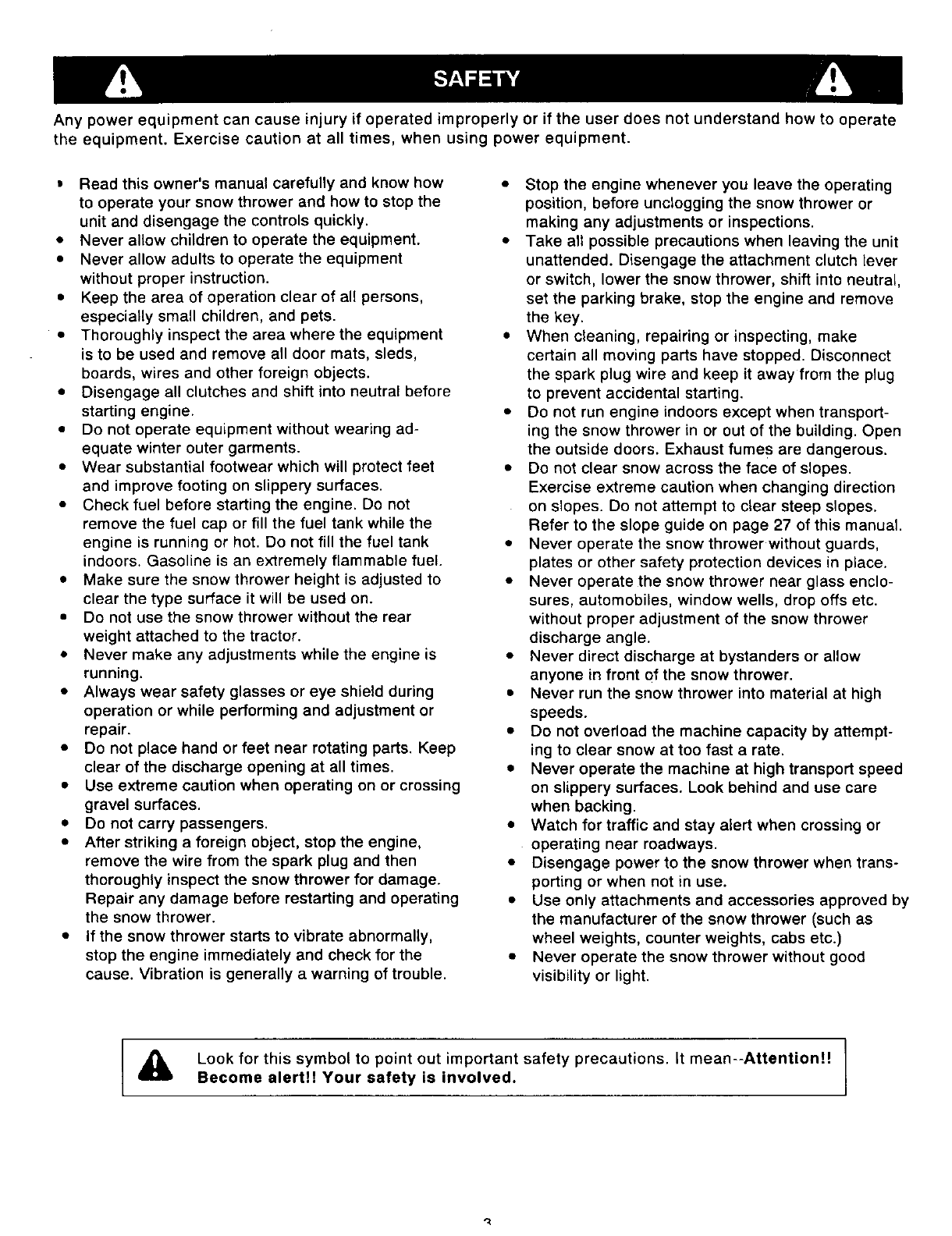

Any power equipment can cause injury if operated improperly or if the user does not understand hew to operate

the equipment. Exercise caution at all times, when using power equipment.

• Read this owner's manual carefully and know how

to operate your snow thrower and how to stop the

unit and disengage the controls quickly.

•Never allow children to operate the equipment.

• Never allow adults to operate the equipment

without proper instruction.

• Keep the area of operation clear of all persons,

especially small children, and pets.

• Thoroughly inspect the area where the equipment

is to be used and remove all door mats, sleds,

boards, wires and other foreign objects.

• Disengage all clutches and shift into neutral before

starting engine.

•Do not operate equipment without wearing ad-

equate winter outer garments.

• Wear substantial footwear which will protect feet

and improve footing on slippery surfaces.

•Check fuel before starting the engine. Do not

remove the fuel cap or fill the fuel tank while the

engine is running or hot. Do not fill the fuel tank

indoors. Gasoline is an extremely flammable fuel.

• Make sure the snow thrower height is adjusted to

clear the type surface it will be used on.

•Do not use the snow thrower without the rear

weight attached to the tractor.

• Never make any adjustments while the engine is

running.

• Always wear safety glasses or eye shield during

operation or while performing and adjustment or

repair.

• Do not place hand or feet near rotating parts. Keep

clear of the discharge opening at all times.

• Use extreme caution when operating on or crossing

gravel surfaces.

• Do not carry passengers.

• After striking a foreign object, stop the engine,

remove the wire from the spark plug and then

thoroughly inspect the snow thrower for damage.

Repair any damage before restarting and operating

the snow thrower.

•If the snow thrower starts to vibrate abnormally,

stop the engine immediately and check for the

cause. Vibration is generally a warning of trouble.

Stop the engine whenever you leave the operating

position, before unclogging the snow thrower or

making any adjustments or inspections.

Take all possible precautions when leaving the unit

unattended. Disengage the attachment clutch lever

or switch, lower the snow thrower, shift into neutral,

set the parking brake, stop the engine and remove

the key.

When cleaning, repairing or inspecting, make

certain all moving parts have stopped. Disconnect

the spark plug wire and keep it away from the plug

to prevent accidental starting.

Do not run engine indoors except when transport-

ing the snow thrower in or out of the building. Open

the outside doors. Exhaust fumes are dangerous.

Do not clear snow across the face of slopes.

Exercise extreme caution when changing direction

on slopes. Do not attempt to clear steep slopes.

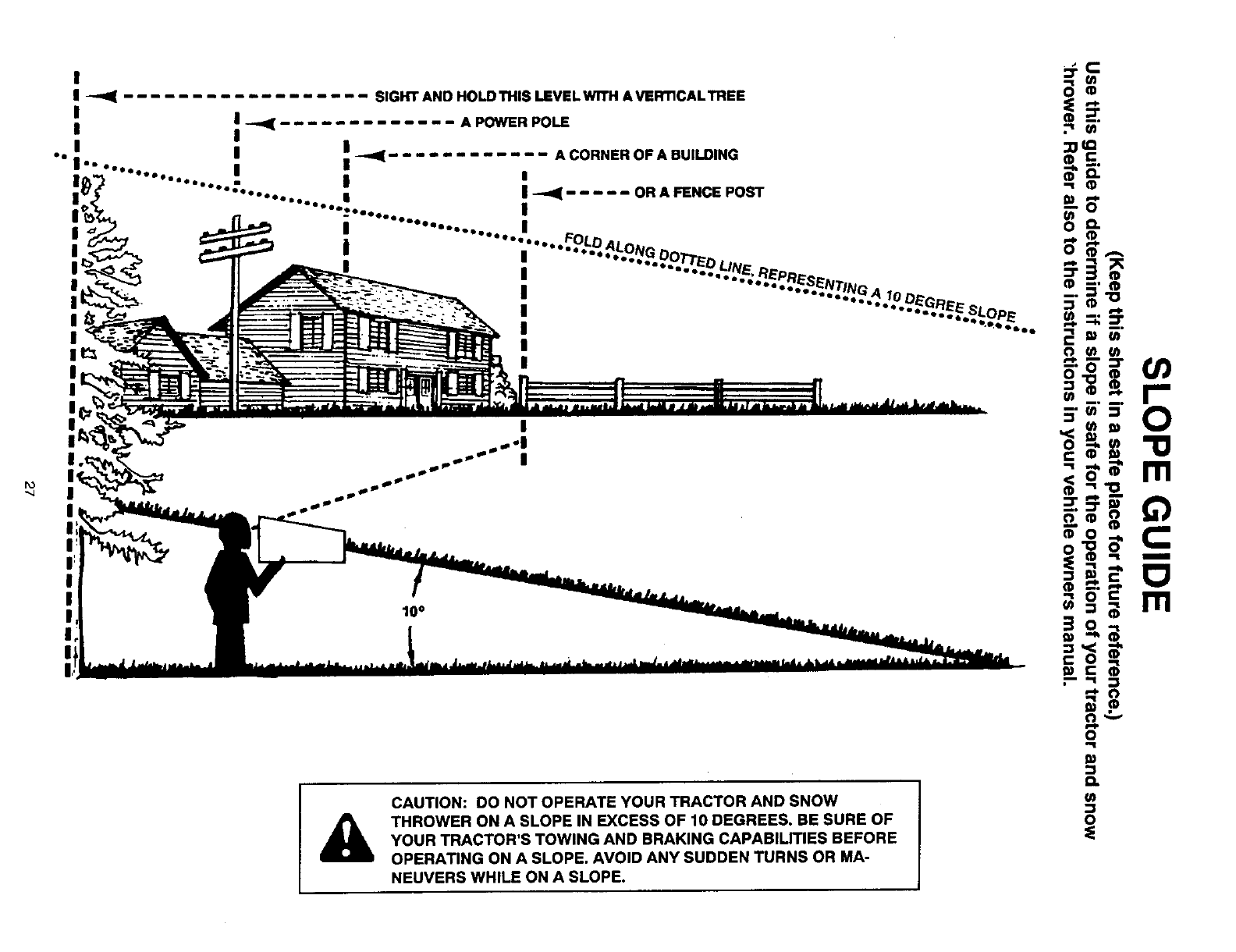

Refer to the slope guide on page 27 of this manual.

Never operate the snow thrower without guards,

plates or other safety protection devices in place.

Never operate the snow thrower near glass enclo-

sures, automobiles, window wells, drop offs etc.

without proper adjustment of the snow thrower

discharge angle.

Never direct discharge at bystanders or allow

anyone in front of the snow thrower.

Never run the snow thrower into material at high

speeds.

Do not overload the machine capacity by attempt-

ing to clear snow at too fast a rate.

Never operate the machine at high transport speed

on slippery surfaces. Look behind and use care

when backing.

Watch for traffic and stay alert when crossing or

operating near roadways.

Disengage power to the snow thrower when trans-

porting or when not in use.

Use only attachments and accessories approved by

the manufacturer of the snow thrower (such as

wheel weights, counter weights, cabs etc.)

Never operate the snow thrower without good

visibility or light.

Look for this symbol to point out important safety precautions. It mean--Attention!! I

Become alert!! Your safety is involved. h

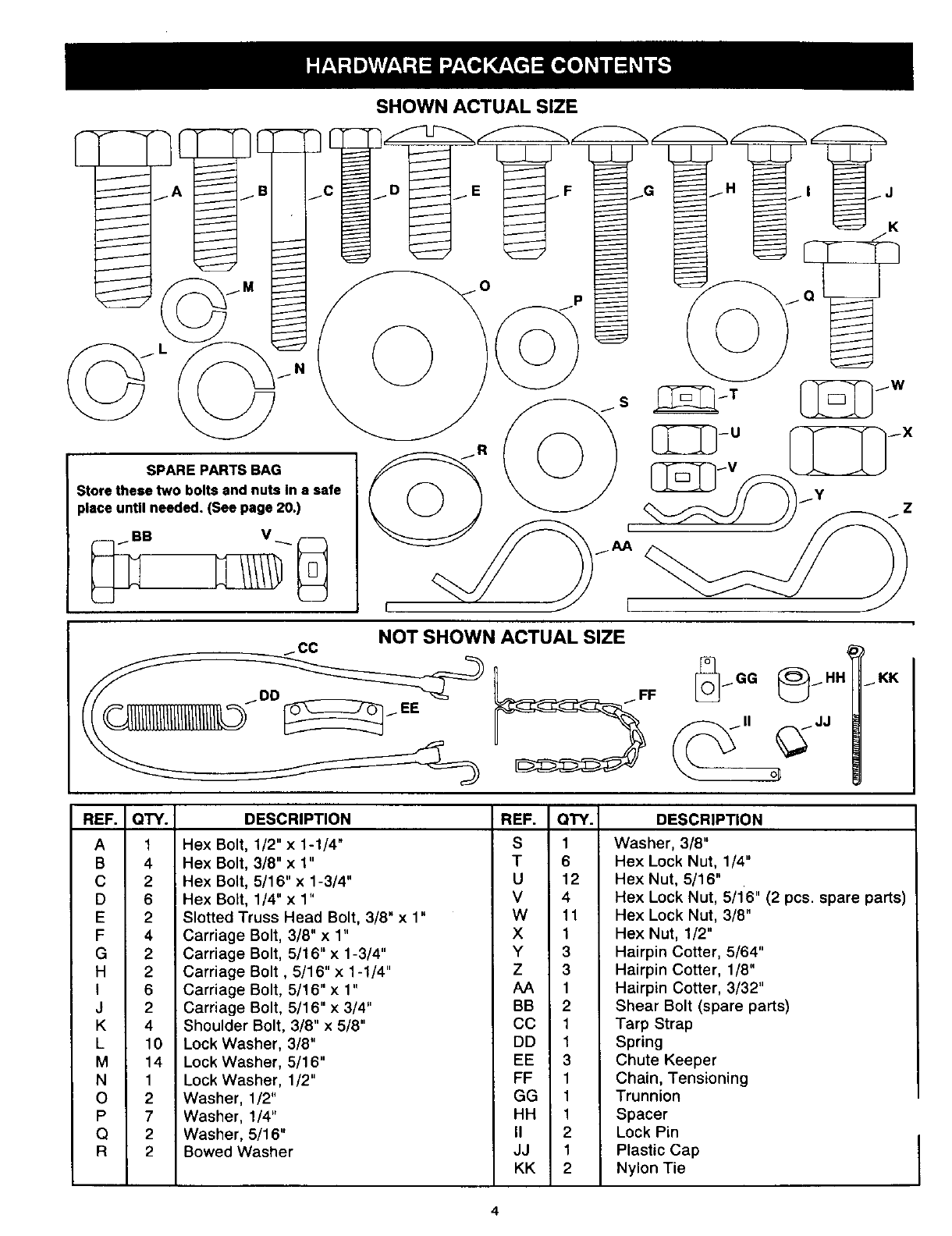

SPARE PARTS BAG

Storethese two bolts and nuts In a safe

place until needed. (See page 20.)

SHOWN ACTUAL SIZE

NOT SHOWN ACTUAL SIZE

/CC

/FF

.EE /oo _KK

REF.

QTY.

DESCRIPTION

Hex Bolt, 1/2" x 1-1/4"

Hex Bolt, 3/8" x 1"

, Hex Bolt, 5/16" x1-3/4"

Hex Bolt, 1/4" x 1"

Slotted Truss Head Bolt, 3/8" x 1"

Carriage Bolt, 3/8" x 1"

Carriage Bolt, 5/16" x 1-3/4"

Carriage Bolt, 5/16" x 1-1/4"

Carriage Bolt, 5/16" x 1"

Carriage Bolt, 5/16" x 3/4"

REF.

U12

V 4

W 11

X 1

Y 3

AA 1

BB 2

QTY. DESCRIPTION

Washer, 3/8"

Hex Lock Nut, 1/4"

Hex Nut, 5/16"

Hex Lock Nut, 5/16" (2 pcs. spare parts)

Hex Lock Nut, 3/8"

Hex Nut, 1/2"

Hairpin Cotter, 5/64"

Hairpin Cotter, 1/8"

Hairpin Cotter, 3/32"

Shear Bolt (spare parts)

Shoulder Bolt, 3/8" x 5/8"

Lock Washer, 3/8"

Lock Washer, 5/16"

Lock Washer, 1/2"

Washer, 1/2"

Washer, 1/4"

Washer, 5/16"

Bowed Washer

CC 1 Tarp Strap

DD 1 Spring

EE 3 Chute Keeper

FF 1 Chain, Tensioning

GG 1 Trunnion

HH 1 Spacer

II 2 Lock Pin

JJ 1 Plastic Cap

KK 2 Nylon Tie

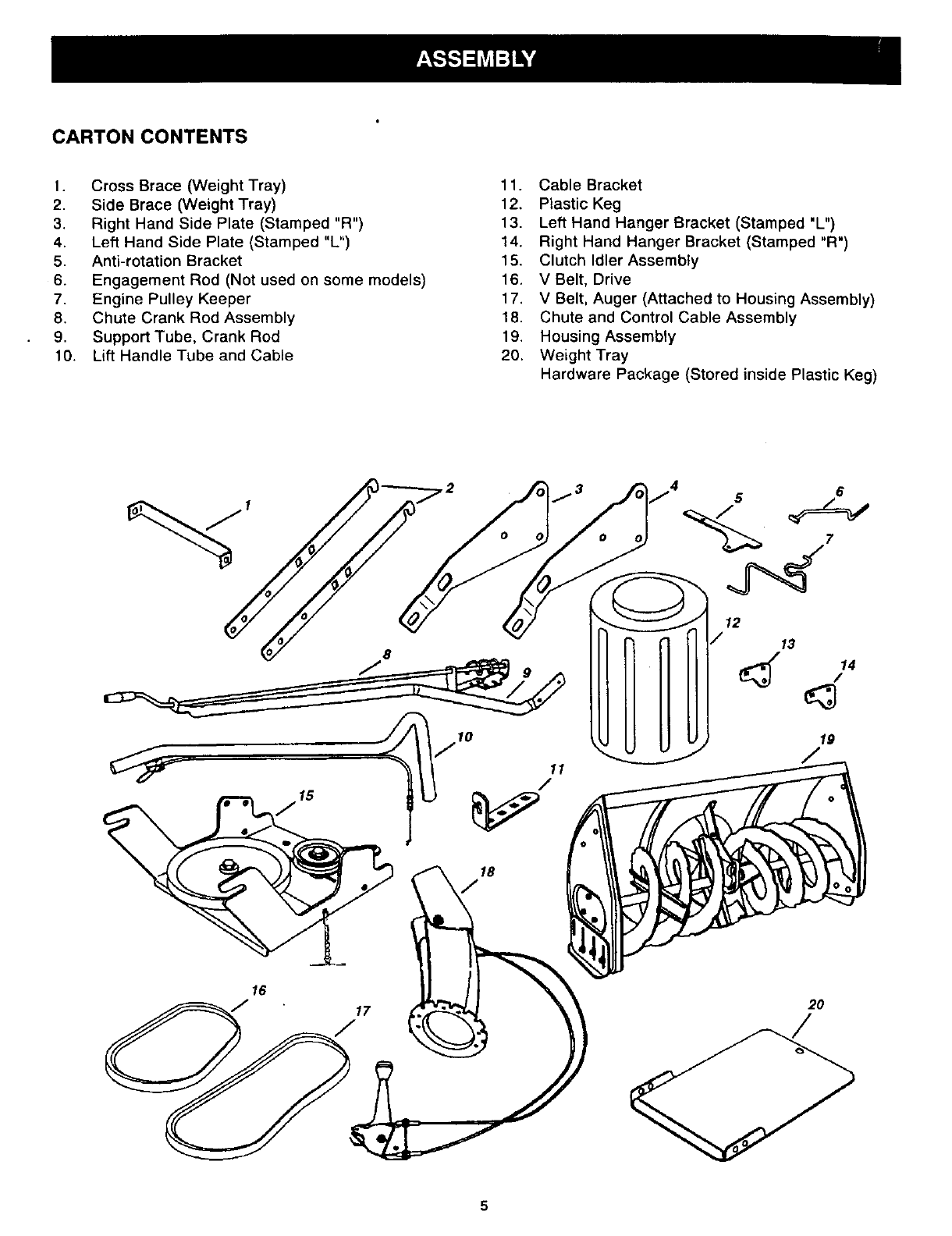

CARTON CONTENTS

1. Cross Brace (Weight Tray)

2. Side Brace (Weight Tray)

3. Right Hand Side Plate (Stamped "R")

4. Left Hand Side Plate (Stamped "L")

5. Anti-rotation Bracket

6. Engagement Rod (Not used on some models)

7. Engine Pulley Keeper

8. Chute Crank Rod Assembly

9. Support Tube, Crank Rod

10. Lift Handle Tube and Cable

11. Cable Bracket

12. Plastic Keg

13. Left Hand Hanger Bracket (Stamped "L")

14. Right Hand Hanger Bracket (Stamped "R ")

15. Clutch Idler Assembly

16. V Belt, Drive

17. V Belt, Auger (Attached to Housing Assembly)

18. Chute and Control Cable Assembly

19. Housing Assembly

20. Weight Tray

Hardware Package (Stored inside Plastic Keg)

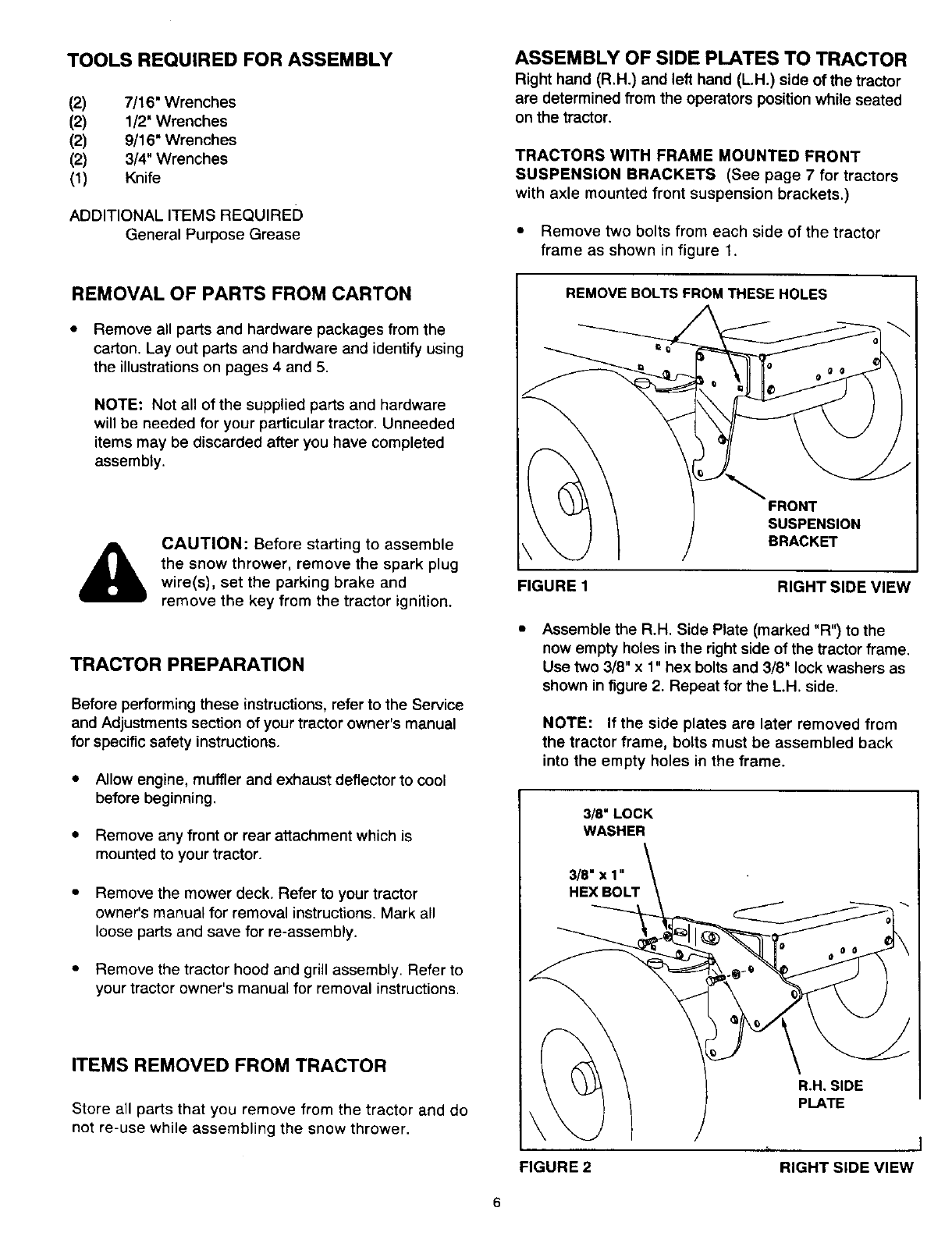

TOOLS REQUIRED FOR ASSEMBLY

(2) 7/16" Wrenches

(2) 1/2' Wrenches

(2) 9/16" Wrenches

(2) 3/4" Wrenches

(1) Knife

ADDITIONAL ITEMS REQUIRED

General Purpose Grease

ASSEMBLY OF SIDE PLATES TO TRACTOR

Right hand (R,H.) and left hand (L.H.) side of the tractor

are determined from the operators position while seated

on the tractor.

TRACTORS WITH FRAME MOUNTED FRONT

SUSPENSION BRACKETS (See page 7 for tractors

with axle mounted front suspension brackets.)

• Remove two bolts from each side of the tractor

frame as shown in figure 1.

REMOVAL OF PARTS FROM CARTON

• Remove all parts and hardware packages from the

carton. Lay out parts and hardware and identify using

the illustrations on pages 4 and 5.

NOTE: Not all of the supplied parts and hardware

will be needed for your particular tractor. Unneeded

items may be discarded after you have completed

assembly.

&CAUTION: Before starting to assemble

the snow thrower, remove the spark plug

wire(s), set the parking brake and

remove the key from the tractor ignition.

TRACTOR PREPARATION

Before performing these instructions, refer to the Service

and Adjustments section of your tractor owner's manual

for specific safety instructions.

• Allow engine, muffler and exhaust deflector to cool

before beginning.

• Remove any front or rear attachment which is

mounted to your tractor.

•Remove the mower deck. Refer to your tractor

owner's manual for removal instructions. Mark all

loose parts and save for re-assembly.

• Remove the tractor hood and grill assembly. Refer to

your tractor owner's manual for removal instructions.

ITEMS REMOVED FROM TRACTOR

Store all parts that you remove from the tractor and do

not re-use while assembling the snow thrower.

REMOVE BOLTS FROM THESE HOLES

FRONT

SUSPENSION

BRACKET

FIGURE 1 RIGHT SIDE VIEW

Assemble the R.H. Side Plate (marked "R") to the

now empty holes in the right side of the tractor frame.

Use two 3/8" x 1" hex bolts and 3/8" lock washers as

shown in figure 2. Repeat for the L.H. side.

NOTE: If the side plates are later removed from

the tractor frame, bolts must be assembled back

into the empty holes in the frame.

3_"LOCK

WASHER

3/8"x1"

HEXBOLT

FIGURE 2

R.H. SIDE

PLATE

,, I

RIGHT SIDE VIEW

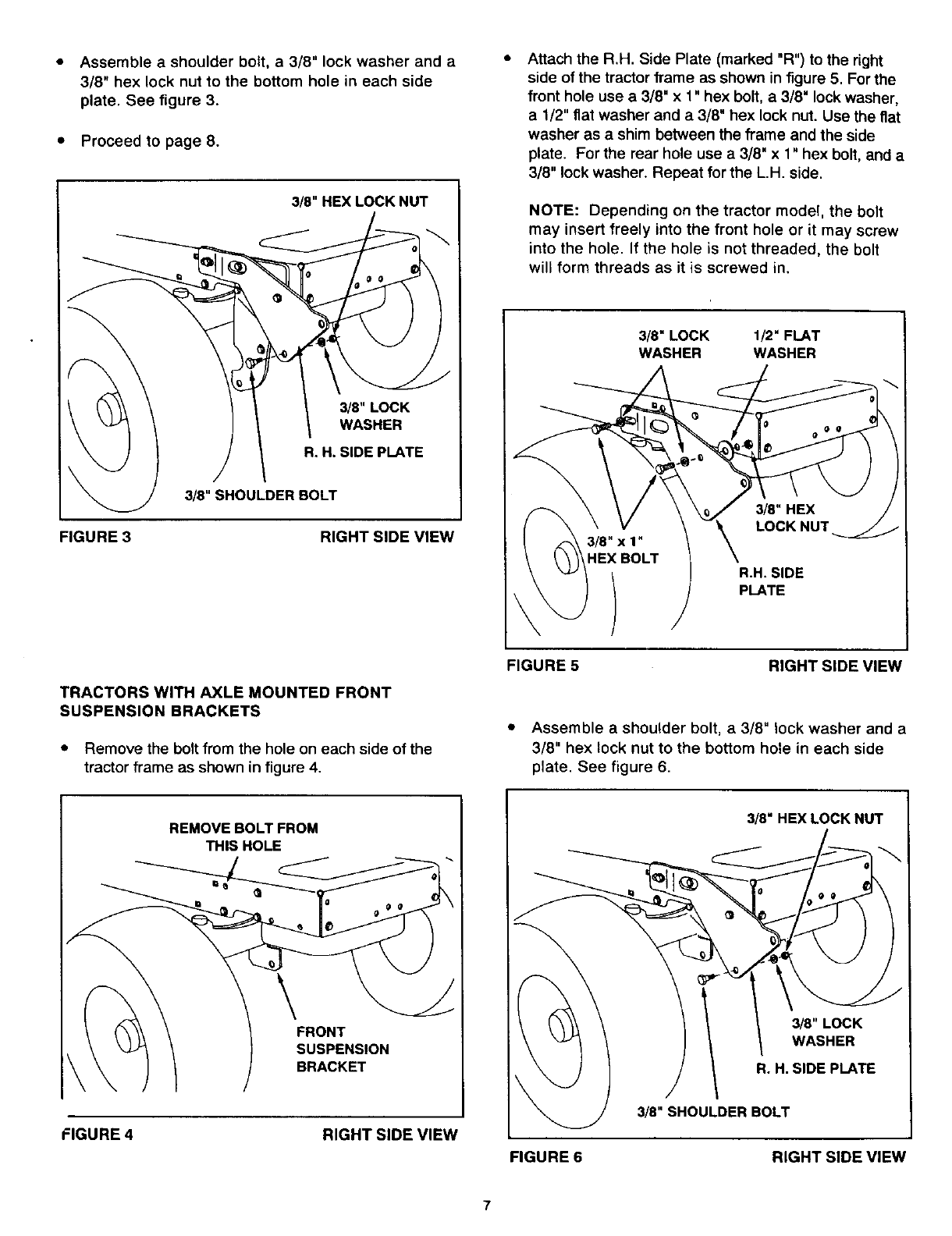

Assemble a shoulder bolt, a 3/8" lock washer and a

3/8" hex lock nut to the bottom hole in each side

plate. See figure 3.

Proceed to page 8.

3_" HEX LOCK NUT

_8"LOCK

WASHER

R. H. SIDE PLATE

FIGURE 3

3/8" SHOULDER BOLT

RIGHT SIDE VIEW

Attach the R.H. Side Plate (marked "R") to the right

side of the tractor frame as shown in figure 5. For the

front hole use a 3/8" x 1" hex bolt, a 3/8" lock washer,

a 1/2" flat washer and a 3/8" hex lock nut. Use the flat

washer as a shim between the frame and the side

plate. For the rear hole use a 3/8" x 1" hex bolt, and a

3/8" lock washer. Repeat for the L.H. side.

NOTE: Depending on the tractor model, the bolt

may insert freely into the front hole or it may screw

into the hole. If the hole is not threaded, the bolt

will form threads as it is screwed in.

3_"LOCK I_"FLAT

WASHER WASHER

3/8" x 1"

HEX BOLT

3/8"HEX

LOCK NUT

R.H. SIDE

PLATE

TRACTORS WITH AXLE MOUNTED FRONT

SUSPENSION BRACKETS

• Remove the bolt from the hole on each side of the

tractor frame as shown in figure 4.

FIGURE 5 RIGHT SIDE VIEW

• Assemble ashoulder bolt, a 3/8" lock washer and a

3/8" hex lock nut to the bottom hole in each side

plate. See figure 6.

FIGURE 4

REMOVE BOLT FROM

THIS HOLE

FRONT

SUSPENSION

BRACKET

RIGHT SIDE VIEW

FIGURE 6

3/8"HEXLOCKNUT

_8"LOCK

WASHER

R.H. SlDE PLATE

3/8" SHOULDER BOLT

RIGHT SIDE VIEW

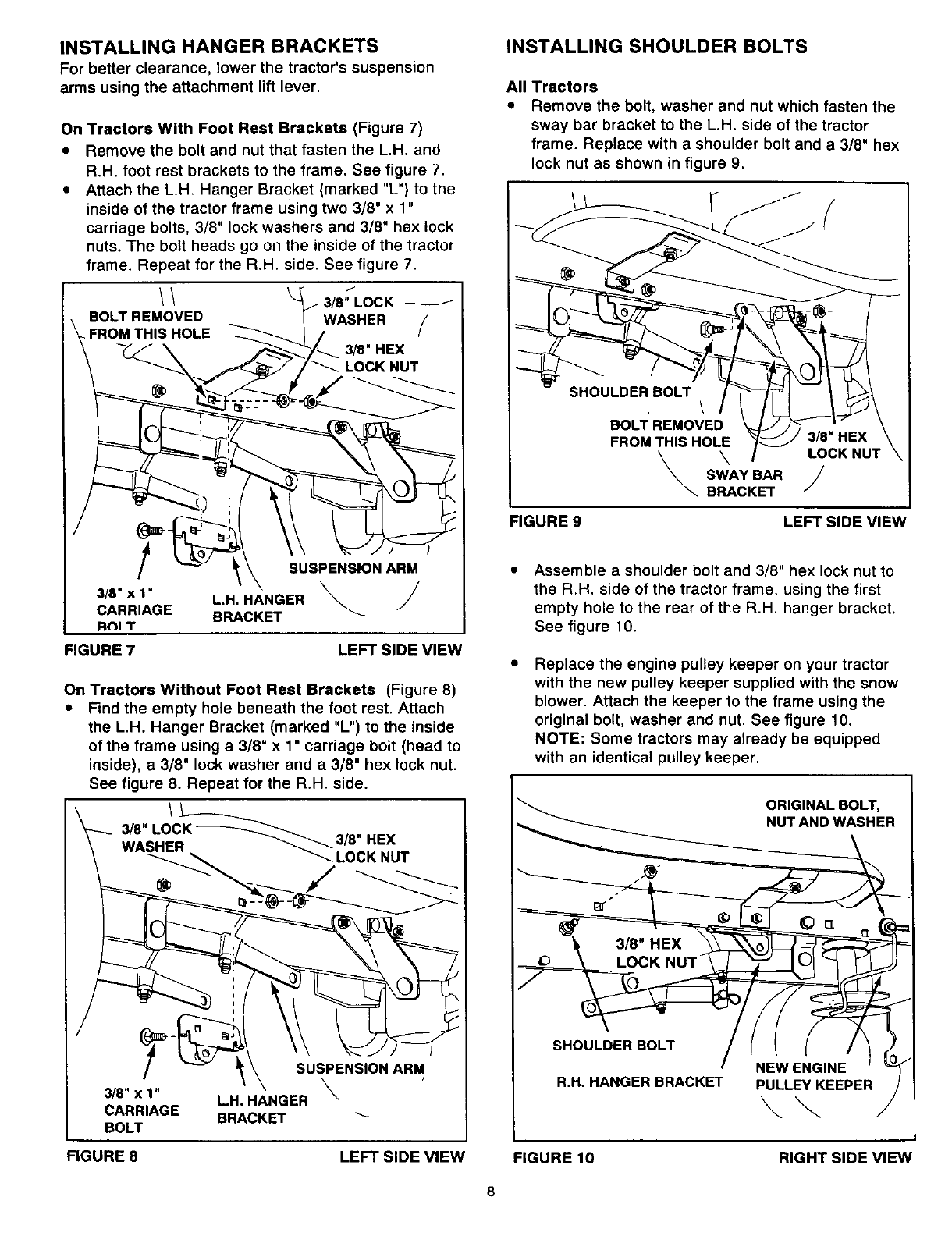

INSTALLING HANGER BRACKETS

For better clearance, lower the tractor's suspension

arms using the attachment lift lever.

On Tractors With Foot Rest Brackets (Figure 7)

•Remove the bolt and nut that fasten the L.H. and

R.H. foot rest brackets to the frame. See figure 7.

•Attach the L,H. Hanger Bracket (marked "L') to the

inside of the tractor frame using two 3/8" x 1"

carriage bolts, 3/8" lock washers and 3/8" hex lock

nuts. The bolt heads go on the inside of the tractor

frame. Repeat for the R.H, side. See figure 7.

3/8" LOCK

BOLT REMOVED WASHER /

. FROM THIS HOLE /

--_.,_ 3/8" HEX

3/8" x 1"

CARRIAGE

ROlL T

FIGURE 7

SUSPENSION ARM

L.H. HANGER _

BRACKET

LEFT SIDE VIEW

On Tractors Without Foot Rest Brackets (Figure 8)

•Find the empty hole beneath the foot rest, Attach

the LH. Hanger Bracket (marked "L") to the inside

of the frame using a3/8" x 1" carriage bolt (head to

inside), a 3/8" lock washer and a 3/8" hex lock nut.

See figure 8. Repeat for the R,H. side.

3/8" LOC_

WASHER _3/8 HEX

LOCK NUT

SUSPENSION ARM

3/8"x1" L.H. HANGER _

CARRIAGE BRACKET "_

BOLT

FIGURE 8 LEFT SIDE VIEW

INSTALLING SHOULDER BOLTS

All Tractors

•Remove the bolt, washer and nut which fasten the

sway bar bracket to the L.H. side of the tractor

frame. Replace with ashoulder bolt and a 3/8" hex

lock nut as shown in figure 9.

SHOULDER BOLT

I \

BOLTREMOVED

FROM THIS HOLE 3/8"HEX

_. \ L_CKNUT

SWAY BAR

BRACKET

FIGURE 9 LEFT SIDE VIEW

Assemble a shoulder bolt and 3/8" hex lock nut to

the R.H. side of the tractor frame, using the first

empty hole to the rear of the R.H. hanger bracket.

See figure 10.

Replace the engine pulley keeper on your tractor

with the new pulley keeper supplied with the snow

blower. Attach the keeper to the frame using the

original bolt, washer and nut. See figure 10.

NOTE: Some tractors may already be equipped

with an identical pulley keeper.

ORIGINAL BOLT,

NUT AND WASHER

FIGURE 10 RIGHT SIDE VIEW

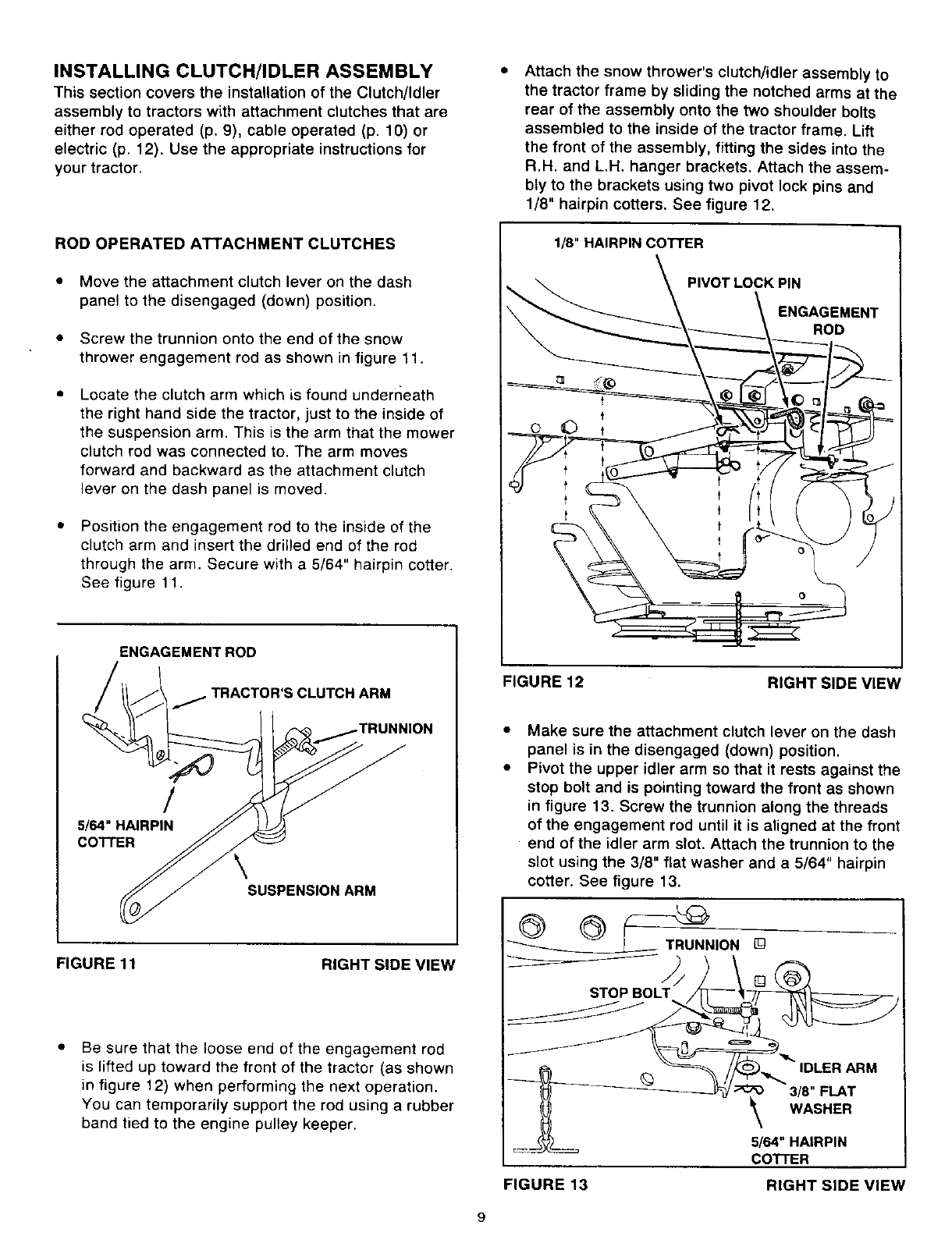

INSTALLING CLUTCH/IDLER ASSEMBLY

This section covers the installation of the Clutch/Idler

assembly to tractors with attachment clutches that are

either rod operated (p, 9), cable operated (p. 10) or

electric (p. 12). Use the appropriate instructions for

your tractor.

ROD OPERATED ATTACHMENT CLUTCHES

• Move the attachment clutch lever on the dash

panel to the disengaged (down) position.

Screw the trunnion onto the end of the snow

thrower engagement rod as shown in figure 11.

Locate the clutch arm which is found underneath

the right hand side the tractor, just to the inside of

the suspension arm. This is the arm that the mower

clutch rod was connected to. The arm moves

forward and backward as the attachment clutch

lever on the dash panel is moved.

Position the engagement rod to the inside of the

clutch arm and insert the drilled end of the rod

through the arm. Secure with a 5/64" hairpin cotter.

See figure 11.

ENGAGEMENTROD

TRACTOR'S CLUTCH ARM

5/64" HAIRPIN

COTTER \SUSPENSION ARM

FIGURE 11 RIGHT SIDE VIEW

Be sure that the loose end of the engagement rod

is lifted up toward the front of the tractor (as shown

in figure 12) when performing the next operation.

You can temporarily support the rod using a rubber

band tied to the engine pulley keeper.

Attach the snow thrower's clutch/idler assembly to

the tractor frame by sliding the notched arms at the

rear of the assembly onto the two shoulder bolts

assembled to the inside of the tractor frame. Lift

the front of the assembly, fitting the sides into the

R.H. and L.H. hanger brackets. Attach the assem-

bly to the brackets using two pivot lock pins and

1/8" hairpin cotters. See figure 12.

1/8" HAIRPIN COTTER

PIVOT LOCK PIN

ENGAGEMENT

ROD

FIGURE 12 RIGHT SIDE VIEW

Make sure the attachment clutch lever on the dash

panel is in the disengaged (down) position.

Pivot the upper idler arm so that it rests against the

stop bolt and is pointing toward the front as shown

in figure 13. Screw the trunnion along the threads

of the engagement rod until it is aligned at the front

end of the idler arm slot. Attach the trunnion to the

slot using the 3/8" flat washer and a 5/64" hairpin

cotter. See figure 13.

FIGURE 13

IDLER ARM

3/8" FLAT

_WASHER

5/64" HAIRPIN

COTTER

RIGHT SIDE VIEW

Assemblethe short "V" belt onto the engine pulley

and then onto the large pulley on top of the clutch/

idler assembly. The belt must be placed to the

inside of the engine pulley keeper, the idler pulley

and the keeper bolt located beside the large pulley.

See figure 14.

IMPORTANT: Do Not assemble the "V" belt

around the outside of the enaine pulley keeper or

the keeper bolt.

Hold this drawing above you while viewing the

Clutch/Idler Assembly from underneath the

tractor, Right and left in the drawing will be the

reverse of the viewer's right and left.

ENGINE Left Side

PULLEY of Tractor

KEEPER

ENGINE

PULLEY

BOLT

FIGURE 14 VIEWED FROM UNDERNEATH

• Proceed to page 13.

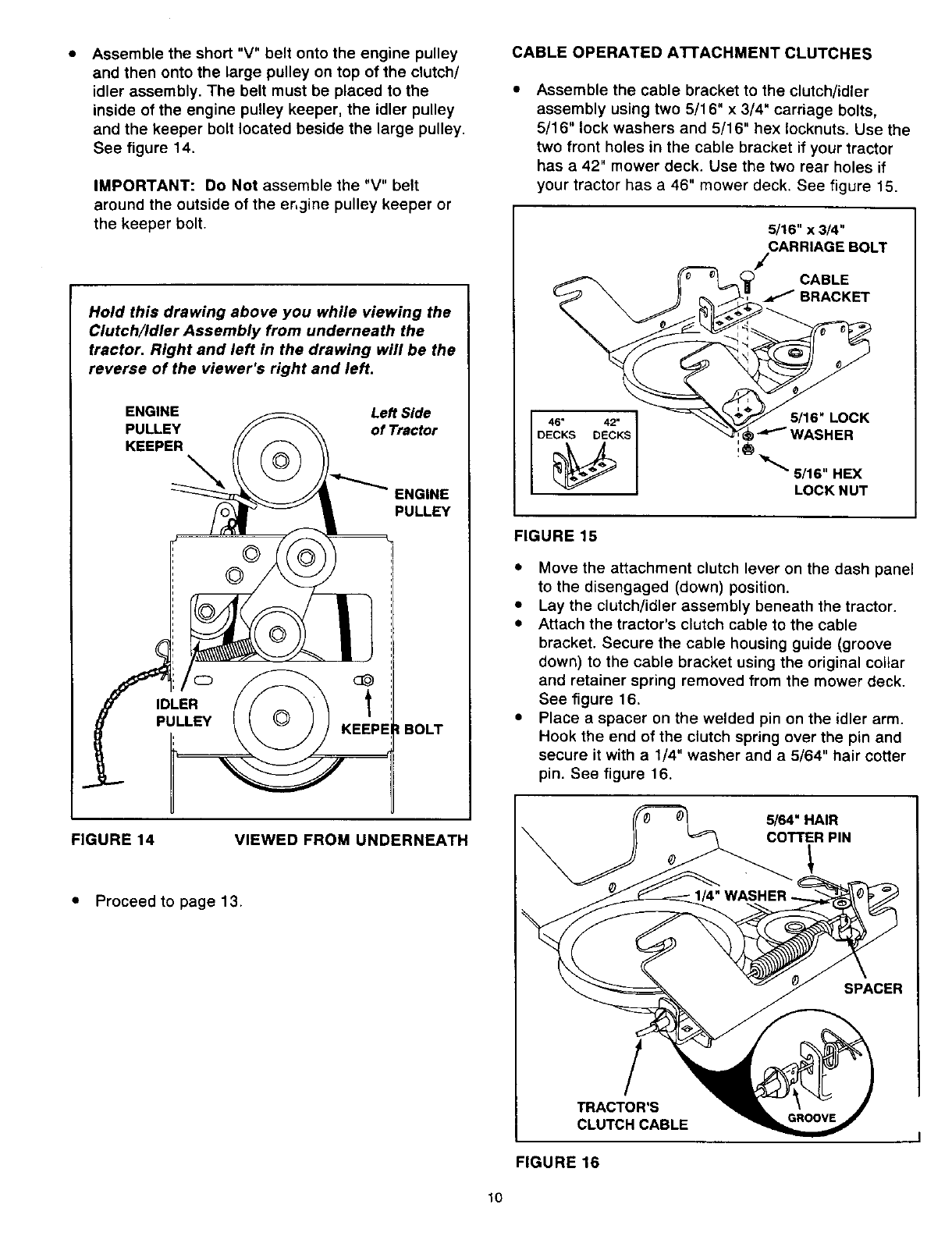

CABLE OPERATED A'n'ACHMENT CLUTCHES

Assemble the cable bracket to the clutch/idler

assembly using two 5/16" x 3/4" carriage bolts,

5/16" lock washers and 5/16" hex Iocknuts. Use the

two front holes in the cable bracket if your tractor

has a 42" mower deck. Use the two rear holes if

your tractor has a 46" mower deck. See figure 15.

5/16" x 3/4"

CARRIAGE BOLT

5/16" LOCK

WASHER

;/16" HEX

LOCK NUT

FIGURE 15

• Move the attachment clutch lever on the dash panel

to the disengaged (down) position.

• Lay the clutch/idler assembly beneath the tractor.

• Attach the tractor's clutch cable to the cable

bracket. Secure the cable housing guide (groove

down) to the cable bracket using the original collar

and retainer spring removed from the mower deck.

See figure 16.

• Place a spacer on the welded pin on the idler arm.

Hook the end of the ctutch spring over the pin and

secure it with a 1/4" washer and a 5/64" hair cotter

pin. See figure 16.

5/64" HAIR

COTTER PIN

TRACTOR'S

CLUTCH CABLE

FIGURE 16

SPACER

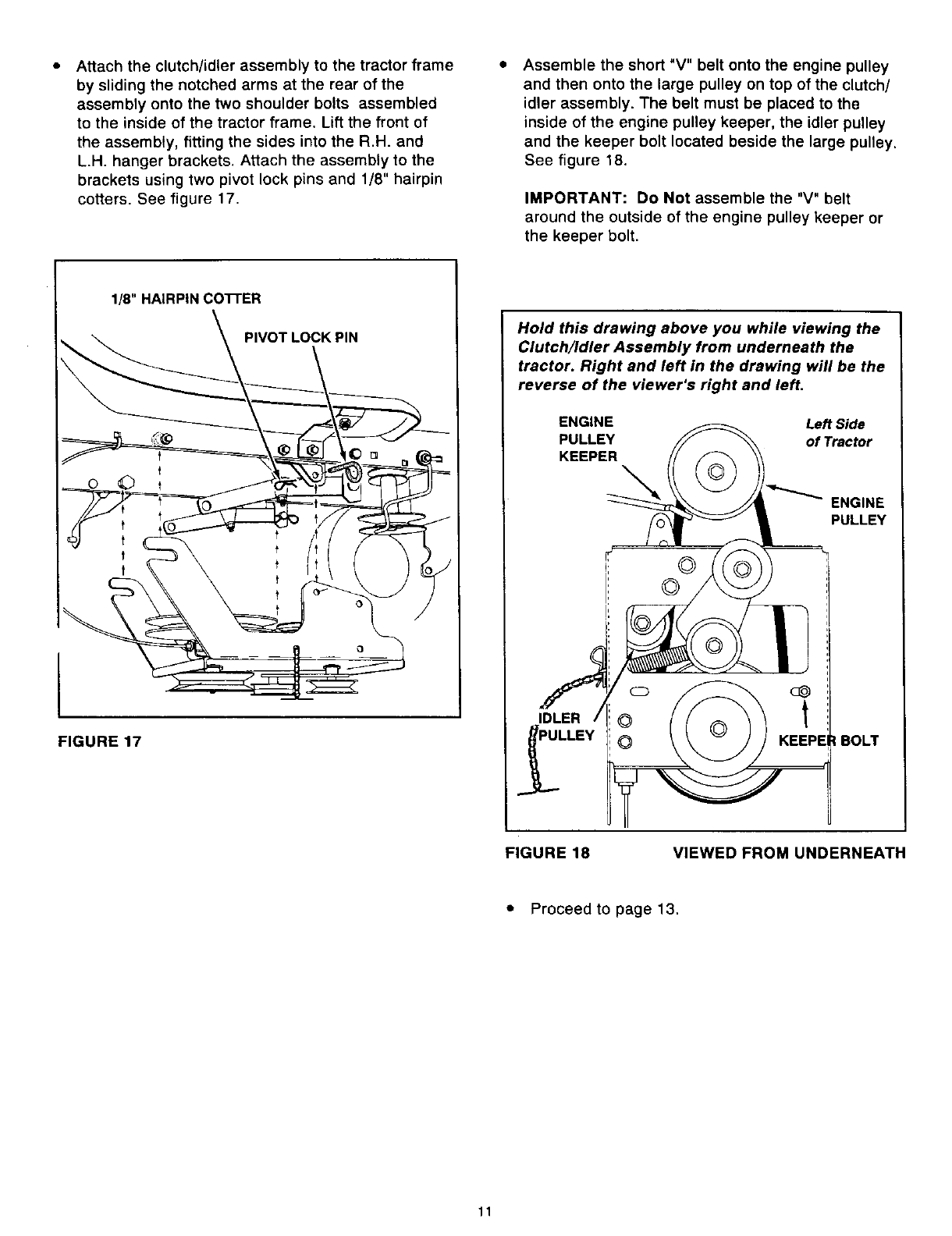

Attach the clutch/idler assembly to the tractor frame

by sliding the notched arms at the rear of the

assembly onto the two shoulder bolts assembled

to the inside of the tractor frame. Lift the front of

the assembly, fitting the sides into the R.H. and

L.H. hanger brackets. Attach the assembly to the

brackets using two pivot lock pins and 1/8" hairpin

cotters. See figure 17.

Assemble the short "V" belt onto the engine pulley

and then onto the large pulley on top of the clutch/

idler assembly. The belt must be placed to the

inside of the engine pulley keeper, the idler pulley

and the keeper bolt located beside the large pulley.

See figure 18.

IMPORTANT: Do Not assemble the "V" belt

around the outside of the engine pulley keeper or

the keeper bolt.

1/8" HAIRPIN COTI'ER

PIVOT LOCK PIN

FIGURE 17

Hold this drawing above you while viewing the

Clutch/Idler Assembly from underneath the

tractor. Right and left in the drawing will be the

reverse of the viewer's right and left,

ENGINE

PULLEY

KEEPER _

IDLER

Left Side

of Tractor

ENGINE

_j 4_PULLEY

BOLT

FIGURE 18 VIEWED FROM UNDERNEATH

• Proceed to page 13.

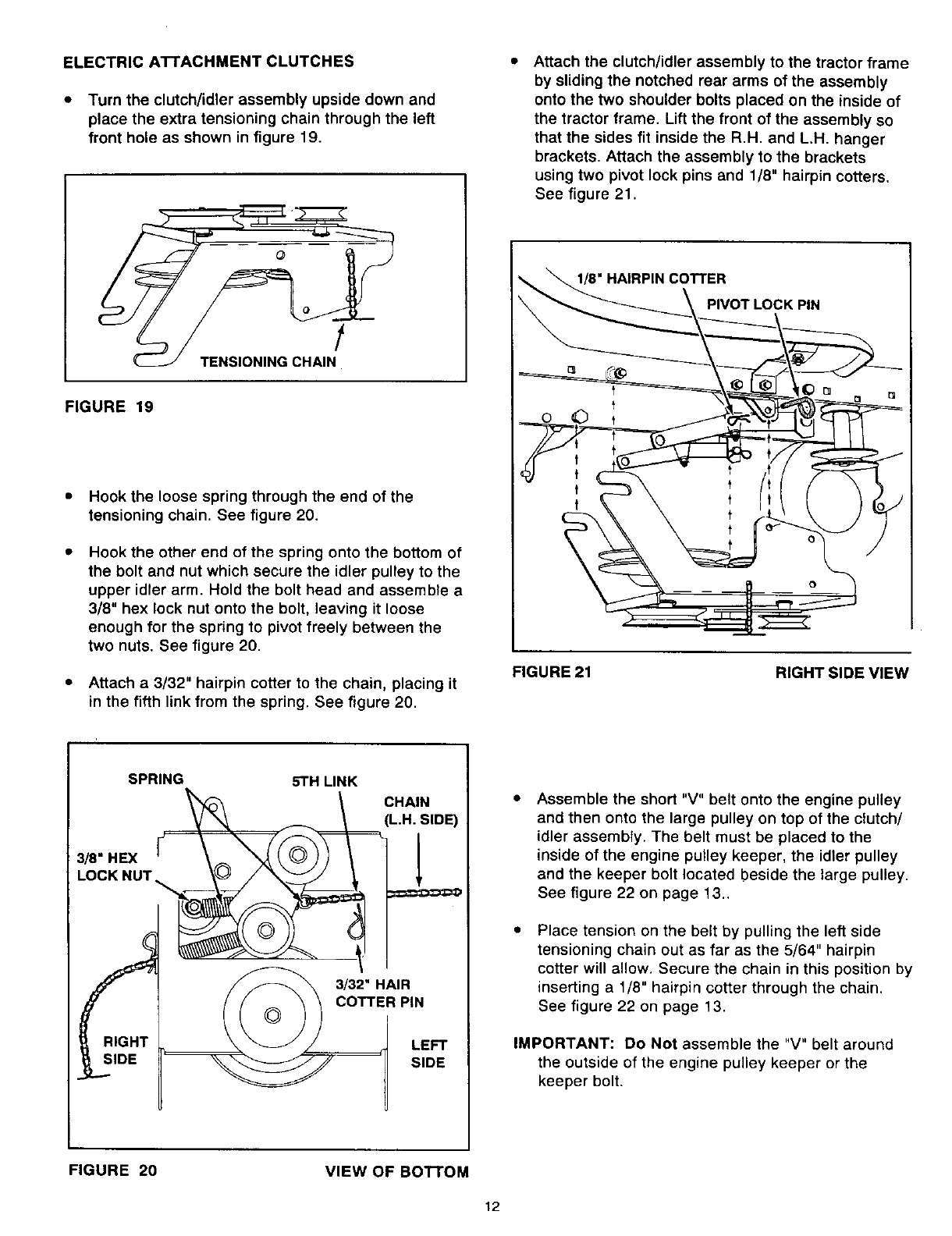

ELECTRIC A'n'ACHMENT CLUTCHES

•Turn the clutch/idler assembly upside down and

place the extra tensioning chain through the left

front hole as shown in figure 19.

TENSIONING CHAIN

FIGURE 19

Hook the loose spring through the end of the

tensioning chain. See figure 20.

Hook the other end of the spring onto the bottom of

the bolt and nut which secure the idler pulley to the

upper idler arm. Hold the bolt head and assemble a

3/8" hex lock nut onto the bolt, leaving it loose

enough for the spring to pivot freely between the

two nuts. See figure 20.

Attach a 3/32" hairpin cotter to the chain, placing it

in the fifth link from the spring. See figure 20.

•Attach the clutch/idler assembly to the tractor frame

by sliding the notched rear arms of the assembly

onto the two shoulder bolts placed on the inside of

the tractor frame. Lift the front of the assembly so

that the sides fit inside the R.H. and L.H. hanger

brackets. Attach the assembly to the brackets

using two pivot lock pins and 1/8" hairpin cotters.

See figure 21.

1/8" HAIRPIN COTTER

PIVOT LOCK PIN

FIGURE 21 RIGHT SIDE VIEW

RIGHT

SIDE

CHAIN

L..H.SIDE)

3/32" HAIR

COTTER PIN

LEFT

SIDE

Assemble the short "V" belt onto the engine pulley

and then onto the large pulley on top of the clutch/

idler assembly. The belt must be placed to the

inside of the engine pulley keeper, the idler pulley

and the keeper bolt located beside the large pulley.

See figure 22 on page 13..

Place tension on the belt by pulling the left side

tensioning chain out as far as the 5/64" hairpin

cotter will allow. Secure the chain in this position by

inserting a 1/8" hairpin cotter through the chain.

See figure 22 on page 13.

IMPORTANT: Do Not assemble the "V" belt around

the outside of the engine pulley keeper or the

keeper bolt.

FIGURE 20 VIEW OF BOTTOM

Hold this drawing above you while viewing the

Clutch/Idler Assembly from underneath the

tractor. Right and left in the drawing will be the

reverse of the viewer's right and left.

ENGINE Left Side

PULLEY of Tractor

KEEPER

1/8" HAIRPIN

COTTER

IDLER

KEEPER

BOLT

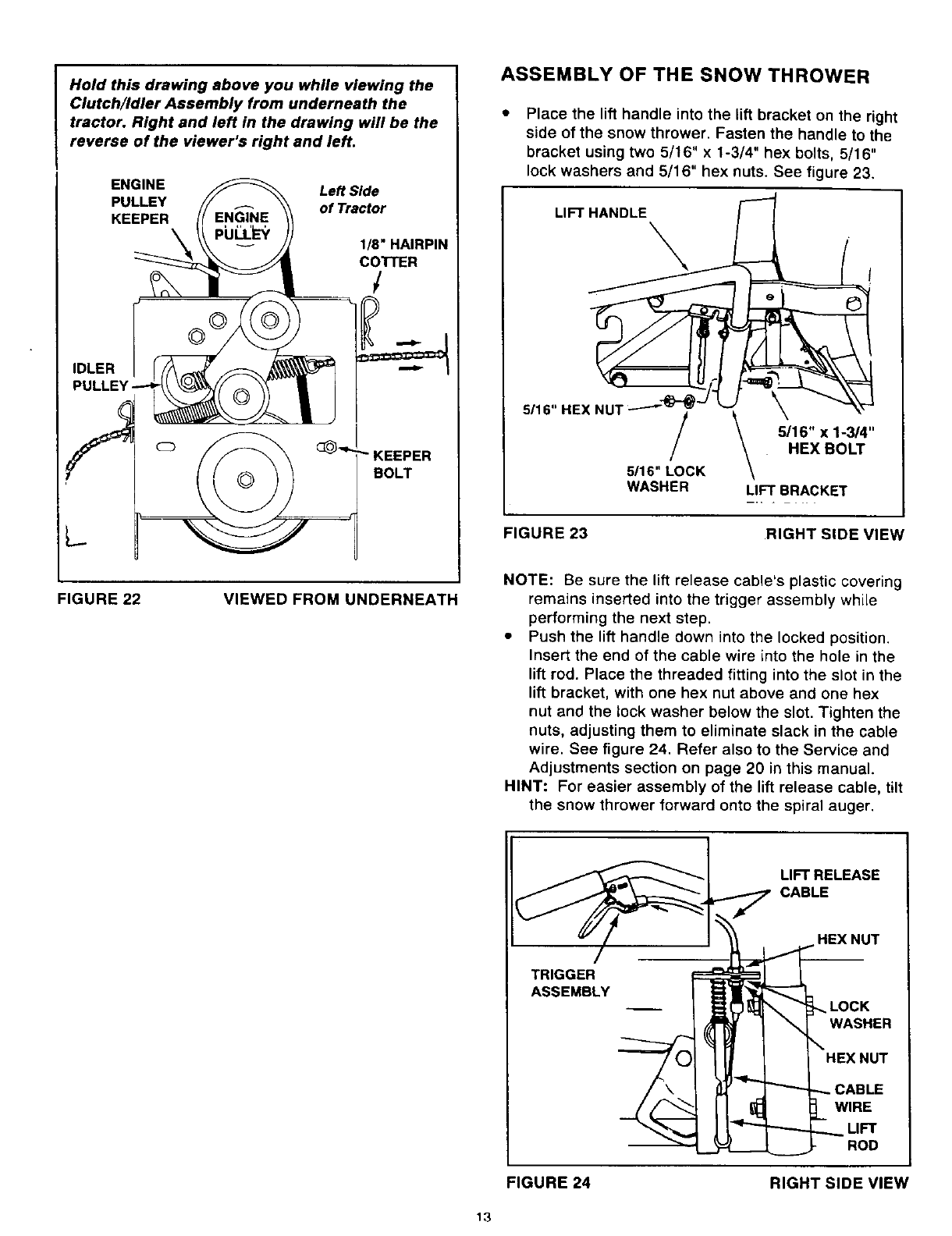

ASSEMBLY OF THE SNOW THROWER

Place the lift handle into the lift bracket on the right

side of the snow thrower. Fasten the handle to the

bracket using two 5/16" x 1-3/4" hex bolts, 5/16"

lock washers and 5/16" hex nuts. See figure 23.

LIFT HANDLE \

5/16" HEX NUT "---"_ _'"

5116"LOCK

WASHER

5116" x 1-3/4"

HEX BOLT

LIFT BRACKET

FIGURE 23 RIGHT SIDE VIEW

FIGURE 22 VIEWED FROM UNDERNEATH NOTE: Be sure the lift release cable's plastic covering

remains inserted into the trigger assembly while

performing the next step.

• Push the lift handle down into the locked position.

Insert the end of the cable wire into the hole in the

lift rod. Place the threaded fitting into the slot in the

lift bracket, with one hex nut above and one hex

nut and the lock washer below the slot. Tighten the

nuts, adjusting them to eliminate slack in the cable

wire. See figure 24. Refer also to the Service and

Adjustments section on page 20 in this manual.

HINT: For easier assembly of the lift release cable, tilt

the snow thrower forward onto the spiral auger.

LIFT RELEASE

p1,.._ CABLE

_\WASRER

_'_\ l_r"_ _ _ CABLE

___WIRE

"-------.___LIFT

L__ __ - ROD

FIGURE 24 RIGHT SIDE VIEW

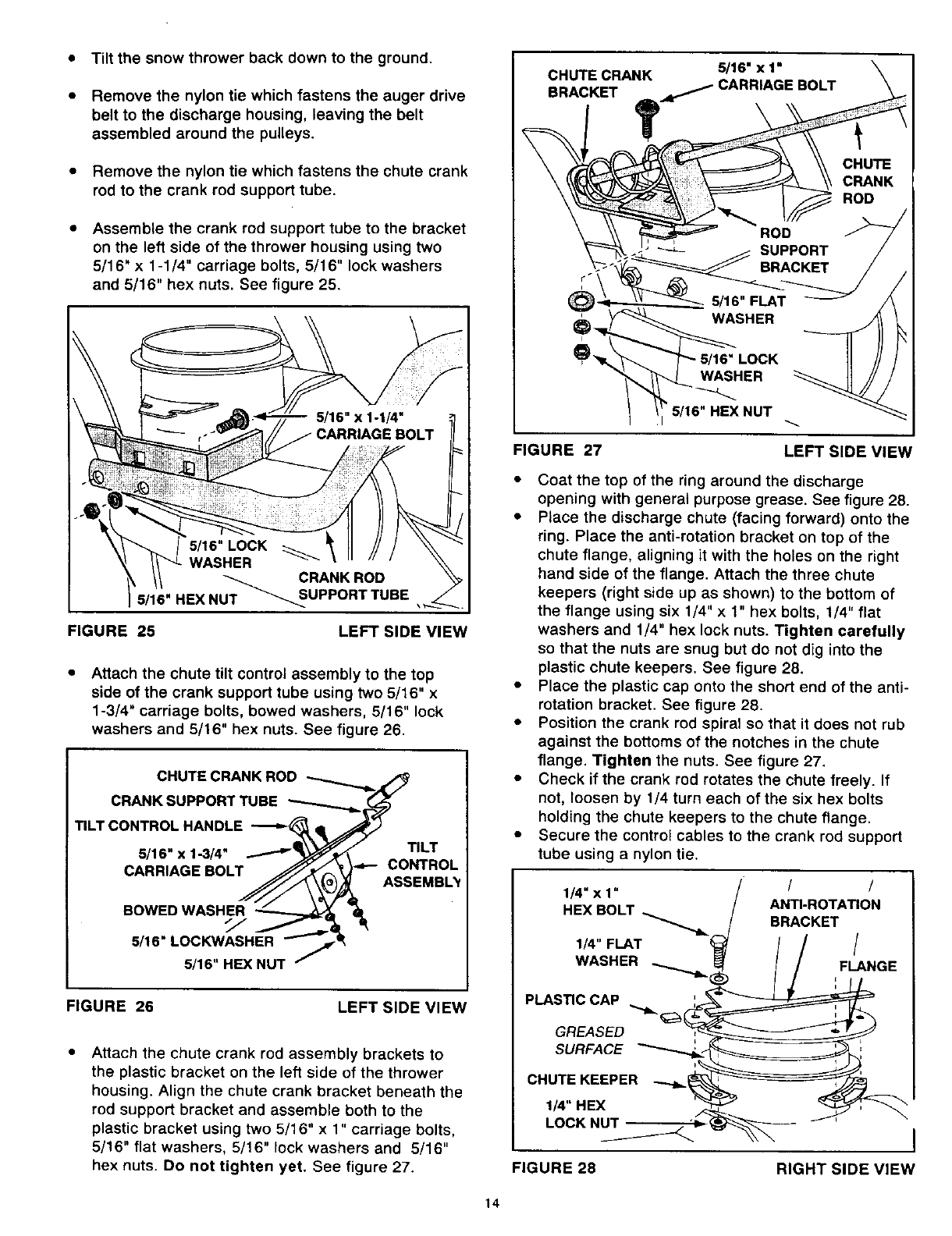

•Tilt the snow thrower back down to the ground.

• Remove the nylon tie which fastens the auger drive

belt to the discharge housing, leaving the belt

assembled around the pulleys.

• Remove the nylon tie which fastens the chute crank

rod to the crank rod support tube.

• Assemble the crank rod support tube to the bracket

on the left side of the thrower housing using two

5/16" x 1-1/4" carriage bolts, 5/16" lock washers

and 5/16" hex nuts. See figure 25.

16"LOCK

WASHER

CRANK ROD

5/16"HEX NUT _UPPORTTUBE

FIGURE 25 LEFT SIDE VIEW

Attach the chute tilt control assembly to the top

side of the crank support tube using two 5/16" x

1-3/4" carriage bolts, bowed washers, 5/16" lock

washers and 5/16" hex nuts. See figure 26.

CHUTE CRANK ROD _._ ,.,_

CRANK SUPPORT TUBE _

TILT CONTROL HANDLE ""_="_'!_ 7

5/16" x 1-3/4" _ll_"%'J__'//_ TILT

CARRIAGEBOLT CONTROL

ASSE.B'

BOWED WASHER _ ill

5/16" HEX NUT ""

FIGURE 26 LEFT SIDE VIEW

Attach the chute crank rod assembly brackets to

the plastic bracket on the left side of the thrower

housing. Align the chute crank bracket beneath the

rod support bracket and assemble both to the

plastic bracket using two 5/16" x 1" carriage bolts,

5/16" flat washers, 5/16" lock washers and 5/16"

hex nuts. Do not tighten yet. See figure 27.

CHUTE CRANK 5/16" x I •

BRACKET _CARRIAGE BOLT

' 5/16" HEX NUT

FIGURE 27 LEFT SIDE VIEW

• Coat the top of the ring around the discharge

opening with general purpose grease. See figure 28.

• Place the discharge chute (facing forward) onto the

ring. Place the anti-rotation bracket on top of the

chute flange, aligning it with the holes on the right

hand side of the flange. Attach the three chute

keepers (right side up as shown) to the bottom of

the flange using six 1/4" x 1" hex bolts, 1/4" flat

washers and 1/4" hex lock nuts. Tighten carefully

so that the nuts are snug but do not dig into the

plastic chute keepers. See figure 28.

• Place the plastic cap onto the short end of the anti-

rotation bracket. See figure 28.

• Position the crank rod spiral so that it does not rub

against the bottoms of the notches in the chute

flange. Tighten the nuts. See figure 27.

• Check if the crank rod rotates the chute freely. If

not, loosen by 1/4 turn each of the six hex bolts

holding the chute keepers to the chute flange.

• Secure the control cables to the crank rod support

tube using a nylon tie.

1/4" x 1" // /

HEX BOLT /ANTI-ROTATION

1/4"FLAT BRACKET

PLASTIC CAP .....__

GREASED I.- _.r ,

SURFACE

CHUT',KEE,ER

FIGURE 28 RIGHT SIDE VIEW

A'I-rACHING SNOW THROWER TO TRACTOR

NOTE: An additional person's help may be required to

mount the snow thrower to the front of the tractor.

• Place the tractor and snow thrower on a flat, level

surface so that the tractor can be rolled forward to

attach the snow blower.

• Remove the Attachment Pin from the snow thrower.

Extend the belt out behind the snow thrower,

making sure the belt is still looped over the top of

the large drive pulley and underneath the two idler

pulleys. The "V" side of the belt must be seated in

the grooves of all three pulleys.

• Roll the tractor up behind the snow thrower, center-

ing it between the snow thrower's mounting plates.

Raise the rear of the snow thrower by lifting up on

the lift handle until the notches in the mounting

plates align with the shoulder bolts in the tractor's

side plates. Guide the bolts into the notches.

To ease the assembly of the auger drive belt, delay

the installation of the attachment pin shown in

figure 29 until you have assembled the belt as

instructed for figures 30 and 31.

A'n'ACHMENT PIN

1/8" HAIRPIN

COTTER

-SHOULDER

BOLT

MOUNTING PLATE

SIDE

PLATE

FIGURE 29 RIGHT SIDE VIEW

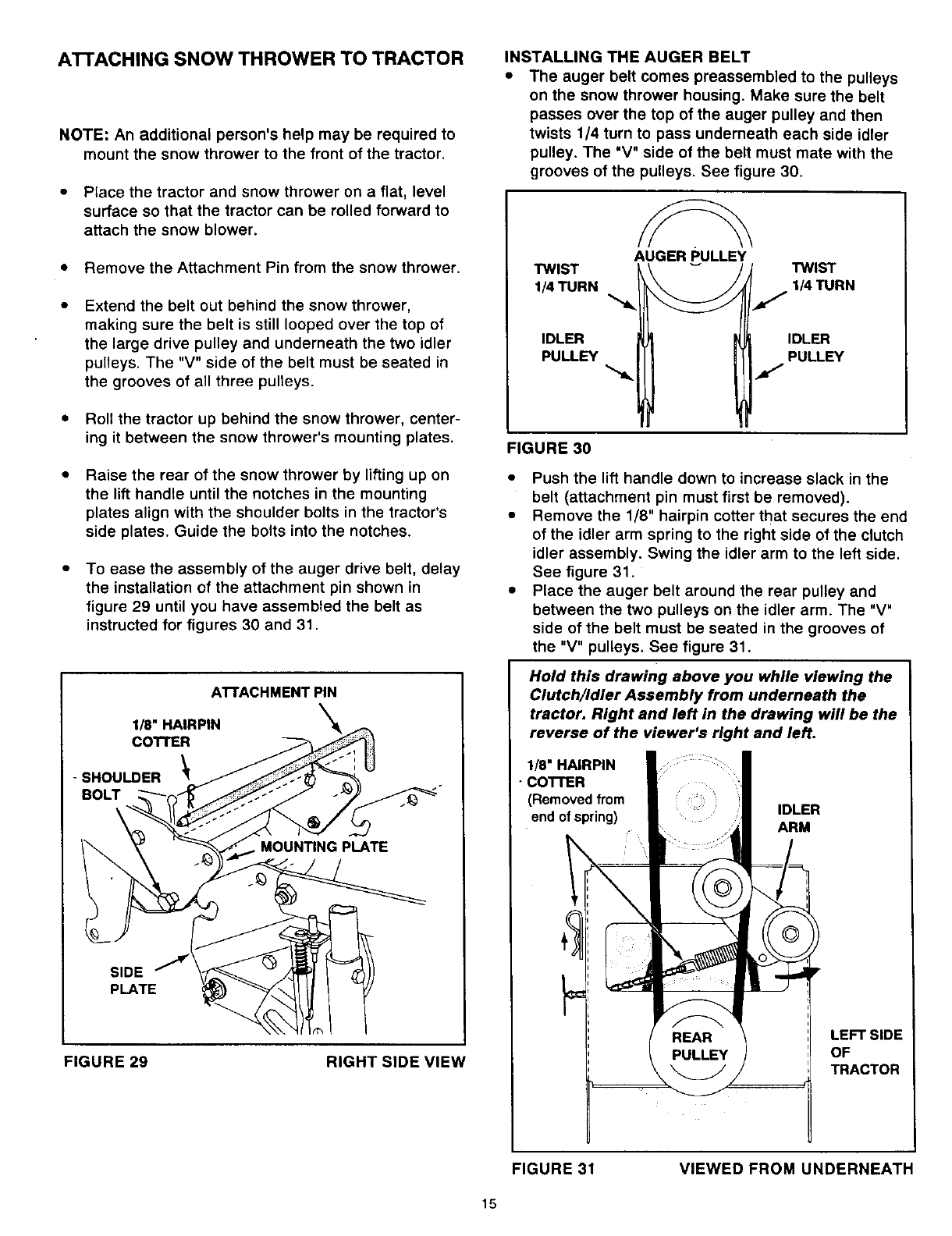

INSTALLING THE AUGER BELT

•The auger belt comes preassembled to the pulleys

on the snow thrower housing. Make sure the belt

passes over the top of the auger pulley and then

twists 1/4 turn to pass underneath each side idler

pulley. The "V" side of the belt must mate with the

grooves of the pulleys. See figure 30.

TWIST

1/4 TURN

IDLER

PULLEY

AUGER PULLEY TWIST

1/4 TURN

IDLER

PULLEY

FIGURE 30

Push the lift handle down to increase slack in the

belt (attachment pin must first be removed).

Remove the 1/8" hairpin cotter that secures the end

of the idler arm spring to the right side of the clutch

idler assembly. Swing the idler arm to the left side.

See figure 31.

Place the auger belt around the rear pulley and

between the two pulleys on the idler arm. The "V"

side of the belt must be seated in the grooves of

the "V" pulleys. See figure 31.

Hold this drawing above you while viewing the

Clutch/Idler Assembly from underneath the

tractor. Right and left in the drawing will be the

reverse of the viewer's right and left.

1/8" HAIRPIN

COFFER

(Removedfrom i

end ofspring)

110"_,v

REAR

IDLER

ARM

LEFT SIDE

TRACTOR

FIGURE 31 VIEWED FROM UNDERNEATH

INSTALLING THE ATTACHMENT PIN

Lift the front of the snow blower to align the holes

in the mounting plates and the side plates. From

the left side of the tractor install the attachment pin

through the holes, securing it with the 1/8" hairpin

cotter. Refer back to figure 29 on page 15.

SETrlNG THE AUGER BELT TENSION

Pull the tensioning chain until the end of the spring

is pulled through the hole in the side of the Clutch/

Idler assembly. Install the 1/8" hairpin cotter

through the end of the spring, securing it on the

outside of the Clutch/Idler assembly. See figure 32.

IMPORTANT: For correct belt tension, the 1/8"

hairpin cotter must attach to the end of the spring,

not to the chain.

Hold this drawing above you while viewing the

Clutch/idler Assembly from underneath the

tractor. Right and left in the drawing will be the

reverse of the viewer's right and left.

LEFT SIDE

TRACTOR

1/8"

HAIRPIN

FLAT

PULLEY

END OF

SPRING

FIGURE 32 VIEWED FROM UNDERNEATH

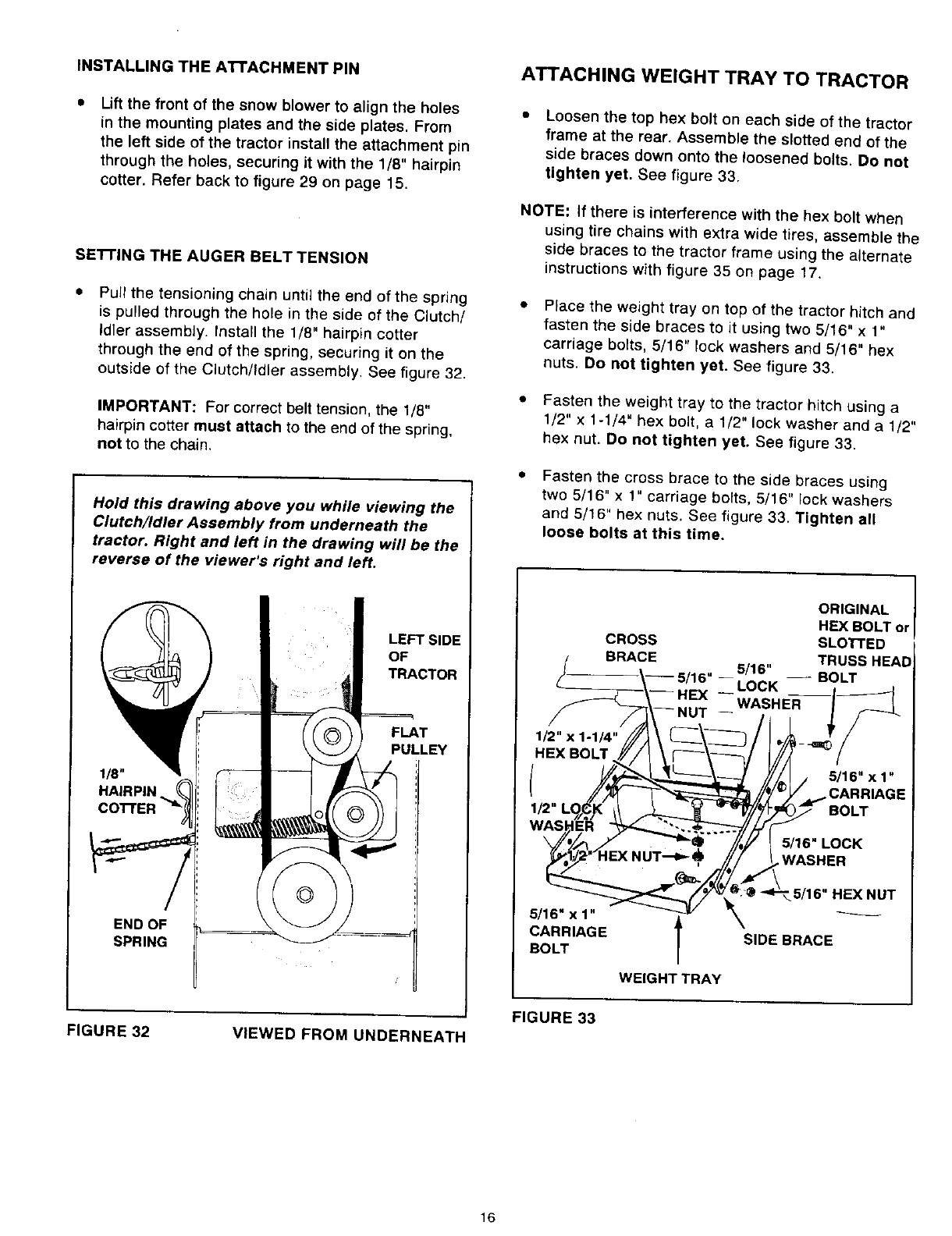

ATTACHING WEIGHT TRAY TO TRACTOR

Loosen the top hex bolt on each side of the tractor

frame at the rear. Assemble the slotted end of the

side braces down onto the loosened bolts. Do not

tighten yet. See figure 33.

NOTE: If there is interference with the hex bolt when

using tire chains with extra wide tires, assemble the

side braces to the tractor frame using the alternate

instructions with figure 35 on page 17.

Place the weight tray on top of the tractor hitch and

fasten the side braces to it using two 5/16" x 1"

carriage bolts, 5/16" lock washers and 5/16" hex

nuts. Do not tighten yet. See figure 33.

• Fasten the weight tray to the tractor hitch using a

1/2" x 1-1/4" hex bolt, a 1/2" lock washer and a1/2"

hex nut. Do not tighten yet. See figure 33.

Fasten the cross brace to the side braces using

two 5/16" x 1" carriage bolts, 5/16" lock washers

and 5/16" hex nuts. See figure 33. Tighten all

loose bolts at this time.

ORIGINAL

HEX BOLT or

CROSS SLOTTED

_BRACE 5 1 "TRUSS HEAD

,,,°.=__BOLT

/ CARRIAGE

1/2" Lg_,K"_/ __//_/_-_ BOLT

WAS_ER W:F--.._"_..÷_.._";=7".-/H (-

/H/ /,'/;.':LOCK

WAS.ER

gk"RlAG f S'DEBRAO

BOLT |

WEIGHT TRAY

FIGURE 33

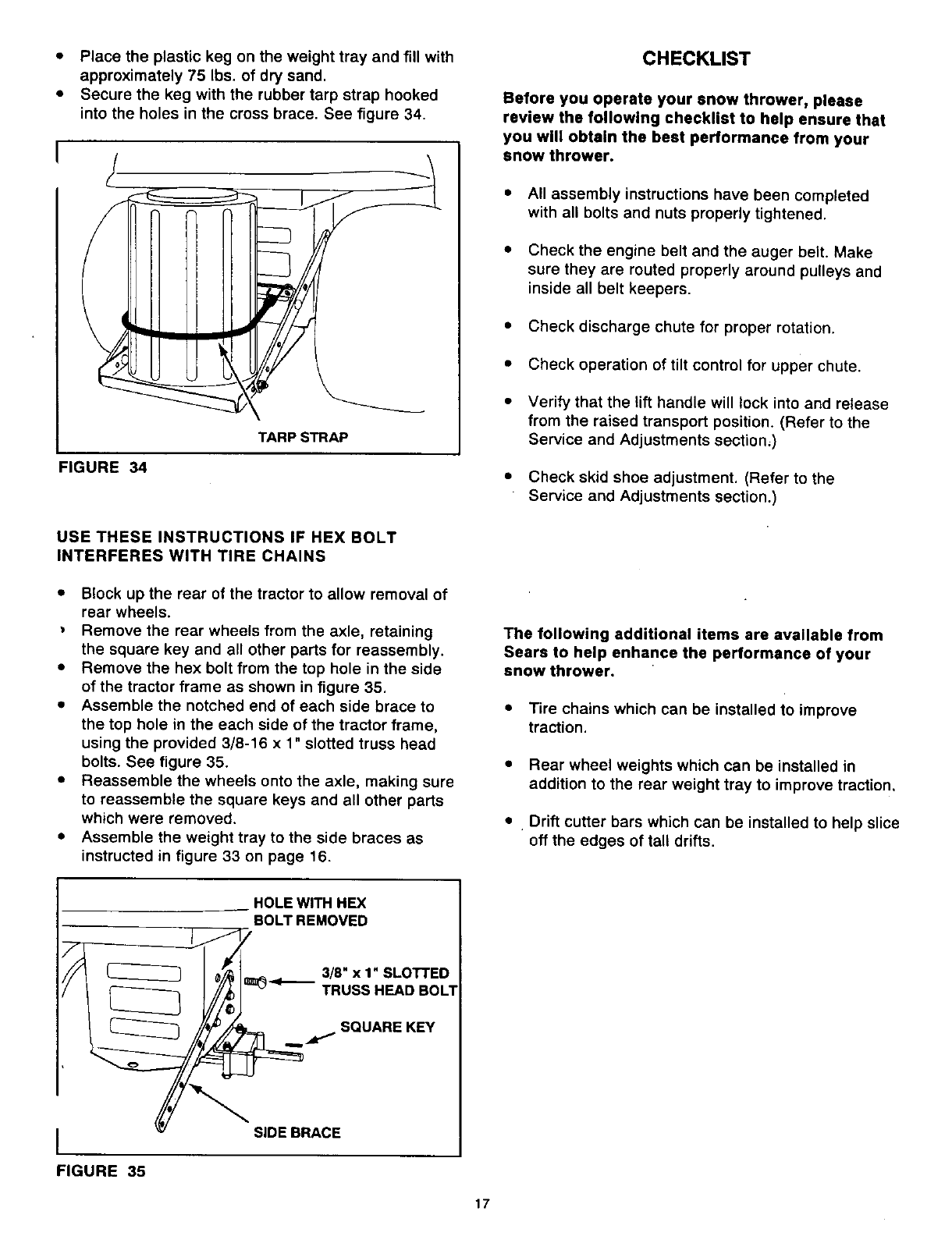

• Placethe plastic keg on the weight tray and fill with

approximately 75 Ibs. of dry sand.

• Secure the keg with the rubber tarp strap hooked

into the holes in the cross brace. See figure 34.

TARP STRAP

FIGURE 34

USE THESE INSTRUCTIONS IF HEX BOLT

INTERFERES WITH TIRE CHAINS

•Block up the rear of the tractor to allow removal of

rear wheels.

Remove the rear wheels from the axle, retaining

the square key and all other parts for reassembly.

• Remove the hex bolt from the top hole in the side

of the tractor frame as shown in figure 35.

• Assemble the notched end of each side brace to

the top hole in the each side of the tractor frame,

using the provided 3/8-16 x 1" slotted truss head

bolts. See figure 35.

• Reassemble the wheels onto the axle, making sure

to reassemble the square keys and all other parts

which were removed.

• Assemble the weight tray to the side braces as

instructed in figure 33 on page 16.

CHECKLIST

Before you operate your snow thrower, please

review the following checklist to help ensure that

you will obtain the best performance from your

snow thrower.

•All assembly instructions have been completed

with all bolts and nuts properly tightened.

• Check the engine belt and the auger belt. Make

sure they are routed properly around pulleys and

inside all belt keepers.

• Check discharge chute for proper rotation.

• Check operation of tilt control for upper chute.

•Verify that the lift handle will lock into and release

from the raised transport position. (Refer to the

Service and Adjustments section,)

• Check skid shoe adjustment. (Refer to the

Service and Adjustments section.)

The following additional items are available from

Sears to help enhance the performance of your

snow thrower.

•Tire chains which can be installed to improve

traction.

• Rear wheel weights which can be installed in

addition to the rear weight tray to improve traction.

•Drift cutter bars which can be installed to help slice

off the edges of tall drifts.

HOLE WITH HEX

BOLT REMOVED

_..,___ 3/8" x 1" SLOTTED

TRUSS HEAD BOLT

.._ SQUARE KEY

'_"_ SIDE BRACE

FIGURE 35

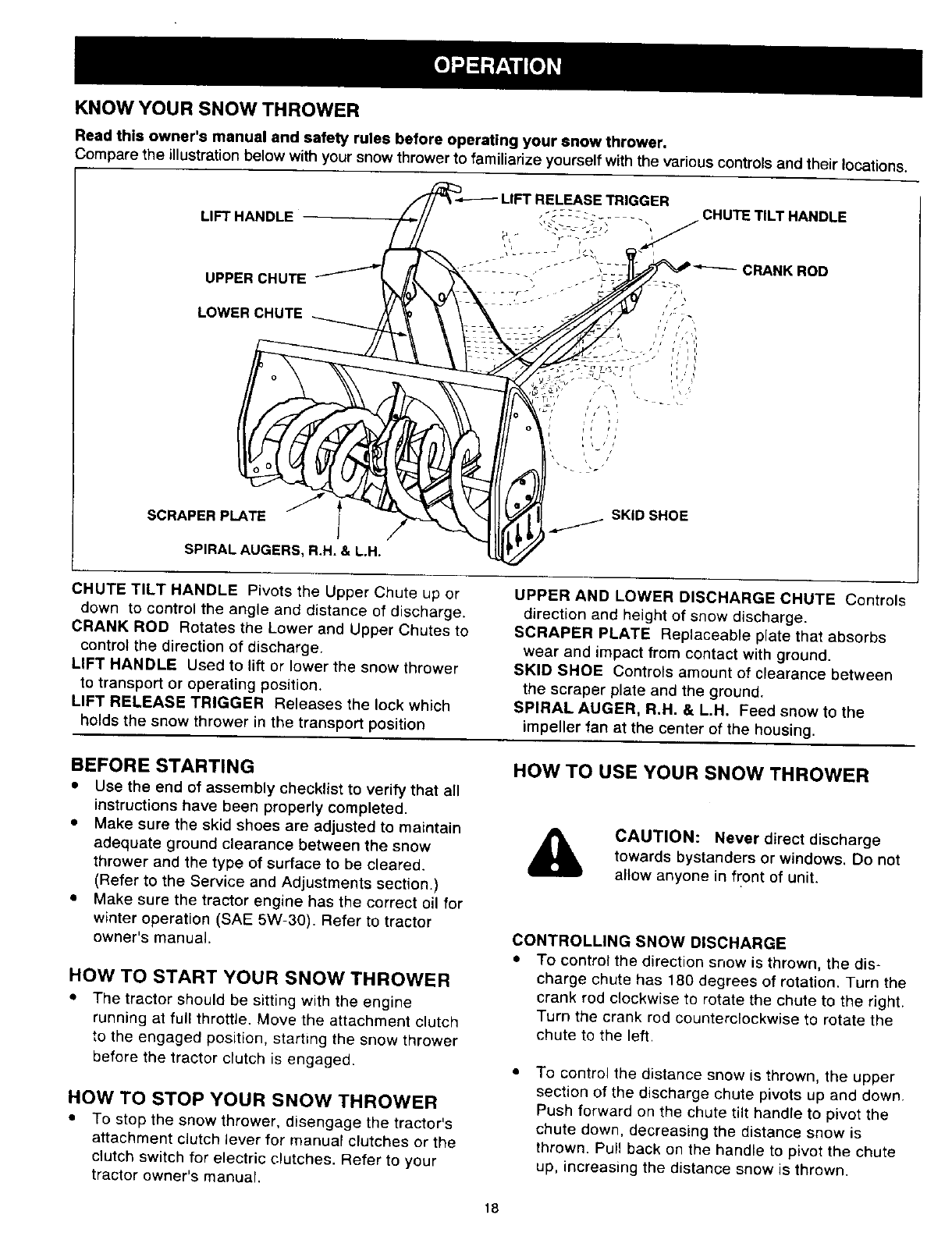

KNOW YOUR SNOW THROWER

Read this owner's manual and safety rules before operating your snow thrower,

Compare the illustration below with your snow thrower to familiarize yourself with the various controls and their locations.

CHUTE TILTHANDLE

CRANK ROD

CHUTE TILT HANDLE Pivots the Upper Chute up or

down to control the angle and distance of discharge.

CRANK ROD Rotates the Lower and Upper Chutes to

control the direction of discharge.

LIFT HANDLE Used to lift or lower the snow thrower

to transport or operating position.

LIFT RELEASE TRIGGER Releases the lock which

holds the snow thrower in the transport position

UPPER AND LOWER DISCHARGE CHUTE Controls

direction and height of snow discharge.

SCRAPER PLATE Replaceable plate that absorbs

wear and impact from contact with ground.

SKID SHOE Controls amount of clearance between

the scraper plate and the ground.

SPIRAL AUGER, R.H. & L.H. Feed snow to the

impeller fan at the center of the housing.

BEFORE STARTING

• Use the end of assembly checklist to verify that all

instructions have been properly completed.

• Make sure the skid shoes are adjusted to maintain

adequate ground clearance between the snow

thrower and the type of surface to be cleared.

(Refer to the Service and Adjustments section.)

• Make sure the tractor engine has the correct oil for

winter operation (SAE 5W-30). Refer to tractor

owner's manual.

HOW TO START YOUR SNOW THROWER

• The tractor should be sitting with the engine

running at full throttle. Move the attachment clutch

to the engaged position, starting the snow thrower

before the tractor clutch is engaged.

HOW TO STOP YOUR SNOW THROWER

• To stop the snow thrower, disengage the tractor's

attachment clutch lever for manual clutches or the

clutch switch for electric clutches. Refer to your

tractor owner's manual

HOW TO USE YOUR SNOW THROWER

&CAUTION: Never direct discharge

towards bystanders or windows. Do not

allow anyone in front of unit.

CONTROLLING SNOW DISCHARGE

•To control the direction snow is thrown, the dis-

charge chute has 180 degrees of rotation. Turn the

crank rod clockwise to rotate the chute to the right.

Turn the crank rod counterclockwise to rotate the

chute to the left.

To control the distance snow is thrown, the upper

section of the discharge chute pivots up and down.

Push forward on the chute tilt handle to pivot the

chute down, decreasing the distance snow is

thrown. Pull back on the handle to pivot the chute

up, increasing the distance snow is thrown.

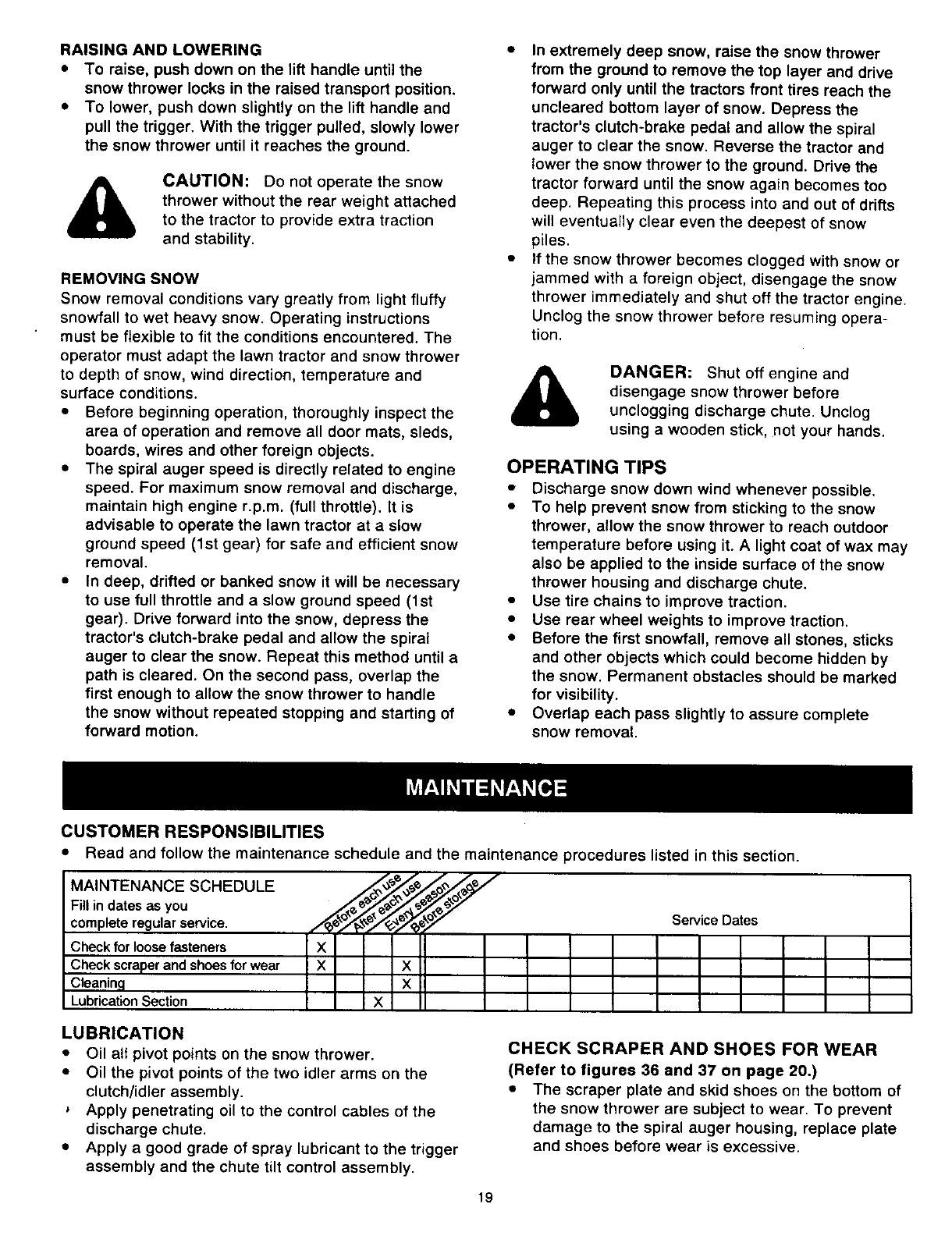

RAISING AND LOWERING

•To raise, push down on the lift handle until the

snow thrower locks in the raised transport position.

•To lower, push down slightly on the lift handle and

pull the trigger. With the trigger pulled, slowly lower

the snow thrower until it reaches the ground.

&CAUTION: Do not operate the snow

thrower without the rear weight attached

to the tractor to provide extra traction

and stability.

REMOVING SNOW

Snow removal conditions vary greatly from light fluffy

snowfall to wet heavy snow. Operating instructions

must be flexible to fit the conditions encountered. The

operator must adapt the lawn tractor and snow thrower

to depth of snow, wind direction, temperature and

surface conditions.

• Before beginning operation, thoroughly inspect the

area of operation and remove all door mats, sleds,

boards, wires and other foreign objects.

• The spiral auger speed is directly related to engine

speed. For maximum snow removal and discharge,

maintain high engine r.p.m. (full throttle). It is

advisable to operate the lawn tractor at a slow

ground speed (1st gear) for safe and efficient snow

removal.

•In deep, drifted or banked snow it will be necessary

to use full throttle and a slow ground speed (1st

gear). Drive forward into the snow, depress the

tractor's clutch-brake pedal and allow the spiral

auger to clear the snow. Repeat this method until a

path is cleared. On the second pass, overlap the

first enough to allow the snow thrower to handle

the snow without repeated stopping and starting of

forward motion.

CUSTOMER RESPONSIBILITIES

•In extremely deep snow, raise the snow thrower

from the ground to remove the top layer and drive

forward only until the tractors front tires reach the

uncleared bottom layer of snow. Depress the

tractor's clutch-brake pedal and allow the spiral

auger to clear the snow. Reverse the tractor and

lower the snow thrower to the ground. Drive the

tractor forward until the snow again becomes too

deep. Repeating this process into and out of drifts

will eventually clear even the deepest of snow

piles.

•If the snow thrower becomes clogged with snow or

jammed with a foreign object, disengage the snow

thrower immediately and shut off the tractor engine.

Unclog the snow thrower before resuming opera-

tion.

DANGER: Shut off engine and

disengage snow thrower before

unclogging discharge chute. Unclog

using a wooden stick, not your hands.

OPERATING TIPS

e Discharge snow down wind whenever possible.

• To help prevent snow from sticking to the snow

thrower, allow the snow thrower to reach outdoor

temperature before using it. A light coat of wax may

also be applied to the inside surface of the snow

thrower housing and discharge chute.

• Use tire chains to improve traction.

• Use rear wheel weights to improve traction.

• Before the first snowfall, remove all stones, sticks

and other objects which could become hidden by

the snow. Permanent obstacles should be marked

for visibility.

• Overlap each pass slightly to assure complete

snow removal.

• Read and follow the maintenance schedule and the maintenance procedures listed in this section.

MAINTENANCE SCHEDULE

Fill in dates as you

complete regular service.

Check for loose fasteners

Check scraper and shoes for wear

Cleanin 9

Lubrication Section

X X

Service Dates

LUBRICATION

• Oil all pivot points on the snow thrower.

•Oil the pivot points of the two idler arms on the

clutch/idler assembly.

,Apply penetrating oil to the control cables of the

discharge chute.

• Apply a good grade of spray lubricant to the trigger

assembly and the chute tilt control assembly.

CHECK SCRAPER AND SHOES FOR WEAR

(Refer to figures 36 and 37 on page 20.)

• The scraper plate and skid shoes on the bottom of

the snow thrower are subject to wear. To prevent

damage to the spiral auger housing, replace plate

and shoes before wear is excessive.

&CAUTION: Before servicing or adjusting

the snow thrower, shut off the engine,

remove the spark plug wire(s), set the

parking brake and remove the key from

the tractor ignition.

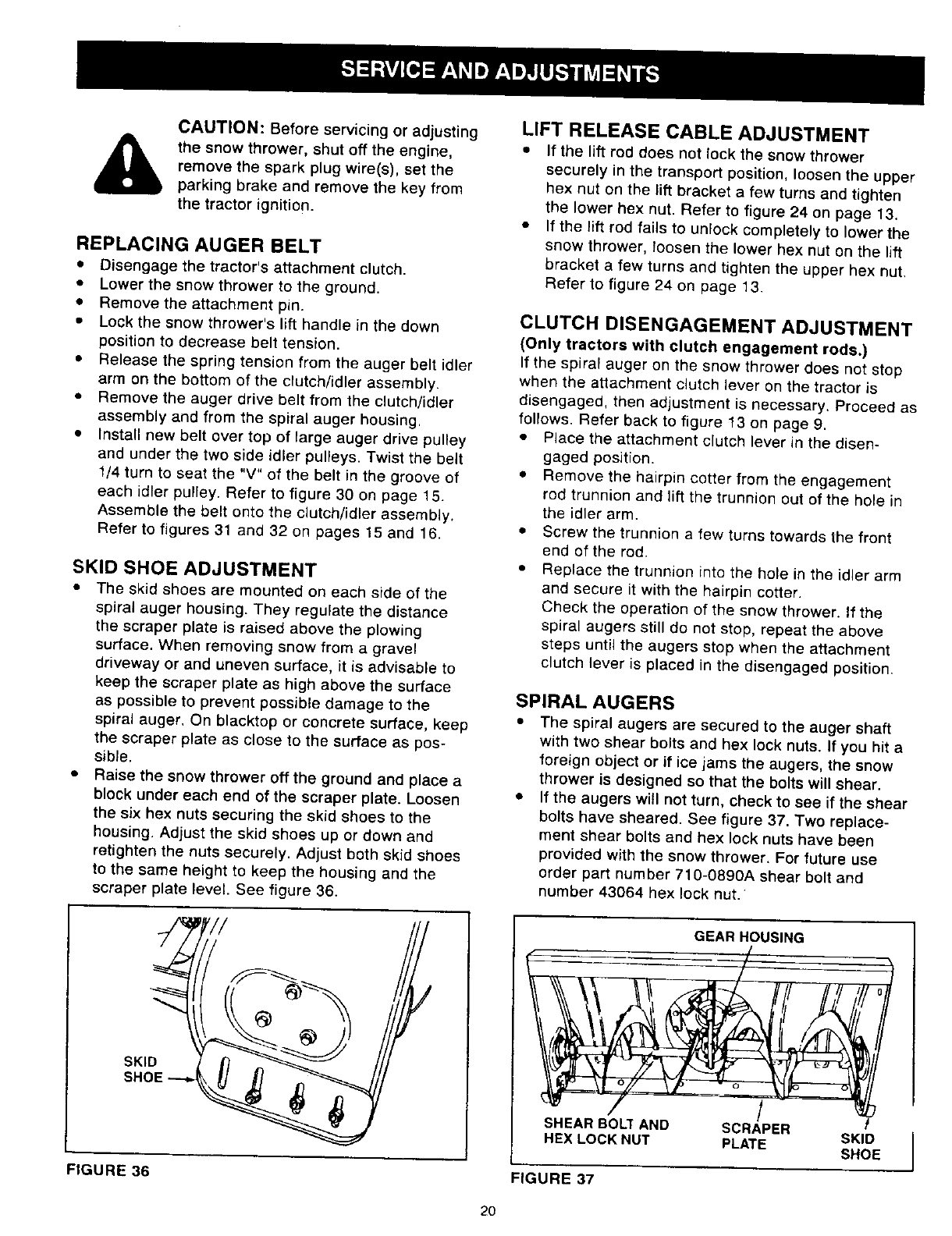

REPLACING AUGER BELT

•Disengage the tractor's attachment clutch.

• Lower the snow thrower to the ground.

• Remove the attachment pin.

• Lock the snow thrower's lift handle in the down

position to decrease belt tension.

• Release the spring tension from the auger belt idler

arm on the bottom of the clutch/idler assembly.

•Remove the auger drive belt from the clutch/idler

assembly and from the spiral auger housing.

• Install new belt over top of large auger drive pulley

and under the two side idler pulleys. Twist the belt

1/4 turn to seat the "V" of the belt in the groove of

each idler pulley. Refer to figure 30 on page 15.

Assemble the belt onto the clutch/idler assembly.

Refer to figures 31 and 32 on pages 15 and 16.

SKID SHOE ADJUSTMENT

• The skid shoes are mounted on each side of the

spiral auger housing. They regulate the distance

the scraper plate is raised above the plowing

surface. When removing snow from a gravel

driveway or and uneven surface, it is advisable to

keep the scraper plate as high above the surface

as possible to prevent possible damage to the

spiral auger, On blacktop or concrete surface, keep

the scraper plate as close to the surface as pos-

sible.

• Raise the snow thrower off the ground and place a

block under each end of the scraper plate. Loosen

the six hex nuts securing the skid shoes to the

housing. Adjust the skid shoes up or down and

retighten the nuts securely. Adjust both skid shoes

to the same height to keep the housing and the

scraper plate level. See figure 36.

SKID

SHOE

FIGURE 36

LIFT RELEASE CABLE ADJUSTMENT

•If the lift red does not lock the snow thrower

securely in the transport position, loosen the upper

hex nut on the lift bracket a few turns and tighten

the lower hex nut. Refer to figure 24 on page 13.

• if the lift rod fails to unlock completely to lower the

snow thrower, loosen the lower hex nut on the lift

bracket a few turns and tighten the upper hex nut.

Refer to figure 24 on page 13.

CLUTCH DISENGAGEMENT ADJUSTMENT

(Only tractors with clutch engagement rods.)

If the spiral auger on the snow thrower does not stop

when the attachment clutch lever on the tractor is

disengaged, then adjustment is necessary. Proceed as

follows. Refer back to figure 13 on page 9.

• Place the attachment clutch lever in the disen-

gaged position.

• Remove the hairpin cotter from the engagement

rod trunnion and lift the trunnion out of the hole in

the idler arm.

•Screw the trunnion a few turns towards the front

end of the rod.

• Replace the trunnion into the hole in the idler arm

and secure it with the hairpin cotter.

Check the operation of the snow thrower. If the

spiral augers still do not stop, repeat the above

steps unti_ the augers stop when the attachment

clutch lever is placed in the disengaged position.

SPIRAL AUGERS

•The spiral augers are secured to the auger shaft

with two shear bolts and hex lock nuts. If you hit a

foreign object or if ice jams the augers, the snow

thrower is designed so that the bolts will shear.

• ff the augers will not turn, check to see if the shear

bolts have sheared. See figure 37. Two replace-

ment shear bolts and hex lock nuts have been

provided with the snow thrower. For future use

order part number 710-0890A shear bolt and

number 43064 hex rock nut.

GEAR HOUSING

SHEAR BO_ AND SCRAPER

HEX LOCK NUT PLATE SKID

SHOE

FIGURE 37 I

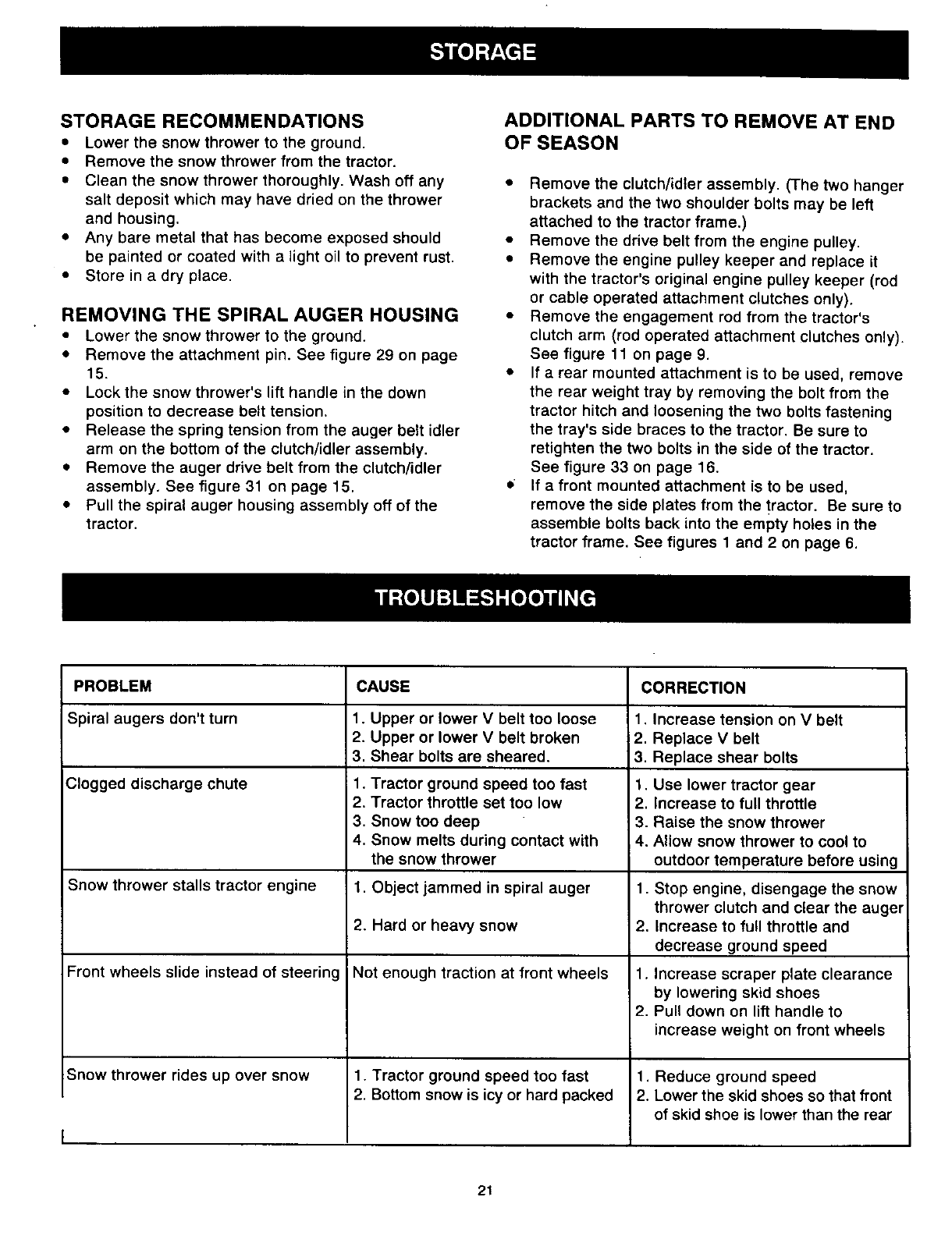

STORAGE RECOMMENDATIONS

•Lower the snow thrower to the ground.

• Remove the snow thrower from the tractor.

• Clean the snow thrower thoroughly. Wash off any

salt deposit which may have dried on the thrower

and housing.

• Any bare metal that has become exposed should

be painted or coated with a light oil to prevent rust.

• Store in a dry place.

REMOVING THE SPIRAL AUGER HOUSING

•Lower the snow thrower to the ground.

•Remove the attachment pin. See figure 29 on page

15.

•Lock the snow thrower's lift handle in the down

position to decrease belt tension.

• Release the spring tension from the auger belt idler

arm on the bottom of the clutch/idler assembly,

•Remove the auger drive belt from the clutch/idler

assembly. See figure 31 on page 15.

•Pull the spiral auger housing assembly off of the

tractor.

ADDITIONAL PARTS TO REMOVE AT END

OF SEASON

• Remove the clutch/idler assembly. (The two hanger

brackets and the two shoulder bolts may be left

attached to the tractor frame.)

•Remove the drive belt from the engine pulley.

• Remove the engine pulley keeper and replace it

with the tractor's original engine pulley keeper (rod

or cable operated attachment clutches only).

• Remove the engagement rod from the tractor's

clutch arm (rod operated attachment clutches only).

See figure 11 on page 9.

• If a rear mounted attachment is to be used, remove

the rear weight tray by removing the bolt from the

tractor hitch and loosening the two bolts fastening

the tray's side braces to the tractor. Be sure to

retighten the two bolts in the side of the tractor.

See figure 33 on page 16.

e If a front mounted attachment is to be used,

remove the side plates from the tractor. Be sure to

assemble bolts back into the empty holes in the

tractor frame. See figures 1 and 2 on page 6.

PROBLEM

Spiral augers don't turn

Clogged discharge chute

Snow thrower stalls tractor engine

Front wheels slide instead of steering

Snow thrower rides up over snow

CAUSE

1. Upper or lower Vbelt too loose

2. Upper or lower Vbelt broken

3. Shear bolts are sheared.

1, Tractor ground speed too fast

2. Tractor throttle set too low

3. Snow too deep

4. Snow melts during contact with

the snow thrower

1. Object jammed in spiral auger

2. Hard or heavy snow

Not enough traction at front wheels

1. Tractor ground speed too fast

2. Bottom snow is icy or hard packed

CORRECTION

1. Increase tension on V belt

2. Replace V belt

3. Replace shear bolts

1. Use lower tractor gear

2. Increase to full throttle

3. Raise the snow thrower

,4. Allow snow thrower to cool to

outdoor temperature before using

1. Stop engine, disengage the snow

thrower clutch and clear the auger

2. Increase to full throttle and

decrease ground speed

1. Increase scraper plate clearance

by lowering skid shoes

2. Pull down on lift handle to

increase weight on front wheels

1. Reduce ground speed

2. Lower the skid shoes so that fTont

of skid shoe is lower than the rear

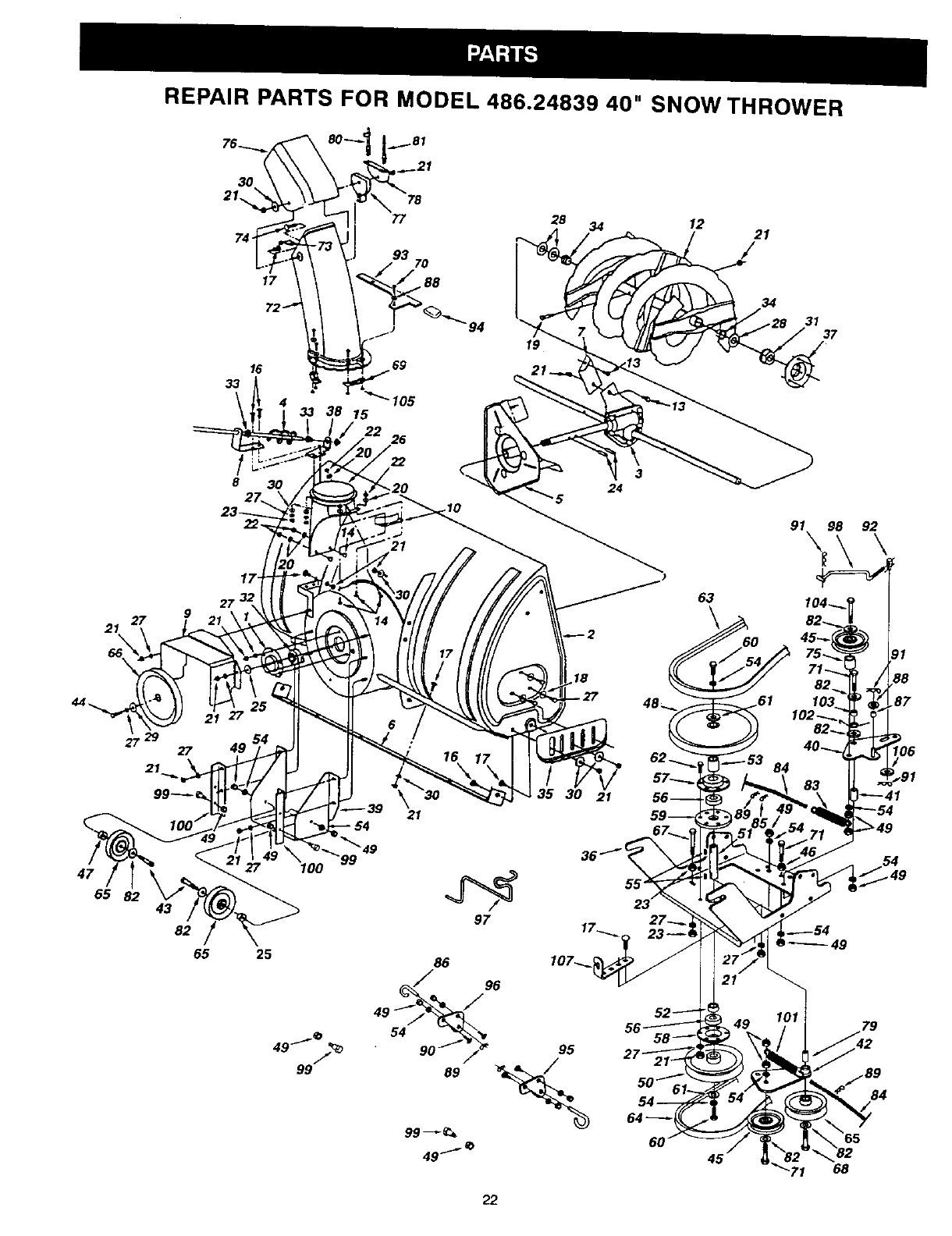

REPAIR PARTS FOR MODEL 486.24839 40" SNOW THROWER

8 30

23_-

77 28

34 12 21

98 92\

27 29

100

7 o

49 _

64_

.87

REF.

NO.

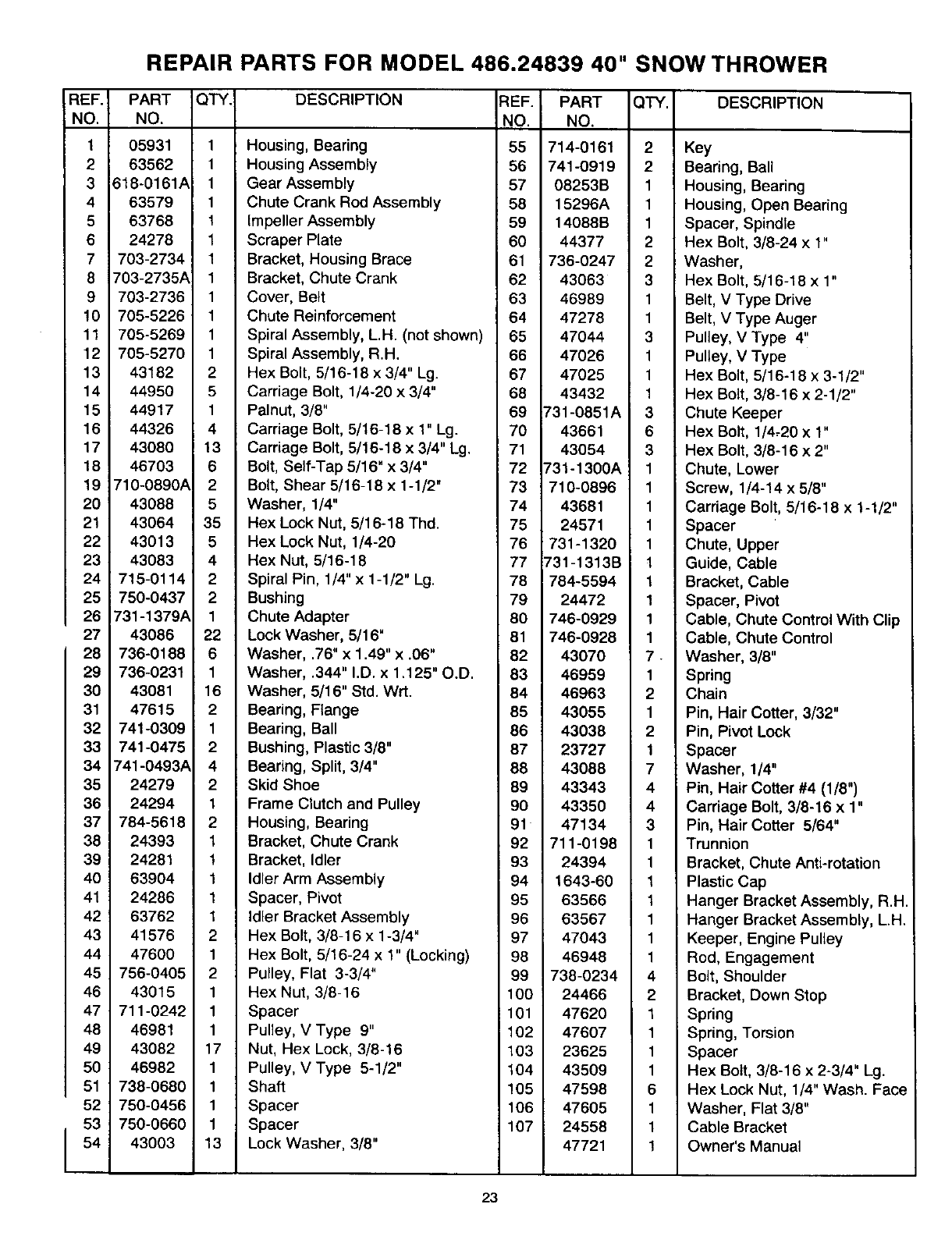

REPAIR PARTS FOR MODEL 486.24839 40" SNOW THROWER

PART

NO.

05931

63562

618-0161A

63579

63768

24278

703-2734

703-2735A

703-2736

705-5226

705-5269

705-5270

43182

44950

44917

44326

43080

46703

710-0890A

43088

43064

43013

43083

715-0114

750-0437

731-1379A

43086

736-0188

736-0231

43081

47615

741-0309

741-0475

741-0493A

24279

24294

784-5618

24393

24281

63904

24286

63762

41576

47600

756-0405

43015

711-0242

46981

43082

46982

738-0680

750-0456

750-0660

43003

QTY._ DESCRIPTION REF.

NO.

1 Housing, Bearing 55

1 Housing Assembly 56

1 Gear Assembly 57

1 Chute Crank Rod Assembly 58

1 Impeller Assembly 59

1 Scraper Plate 60

1 Bracket, Housing Brace 61

1 Bracket, Chute Crank 62

1 Cover, Belt 63

1 Chute Reinforcement 64

1 Spiral Assembly, L.H. (not shown) 65

1 Spiral Assembly, R.H. 66

2 Hex Bolt, 5/16-18 x 3/4" Lg. 67

5 Carriage Bolt, 1/4-20 x 3/4" 68

1 Palnut, 3/8" 69

4 Carriage Bolt, 5/16-18 x 1" Lg. 70

13 Carriage Bolt, 5/16-18 x 3/4" Lg. 71

6 Bolt, Self-Tap 5/16" x 3/4" 72

2Bolt, Shear 5/16-18 x 1-1/2" 73

5 Washer, 1/4" 74

35 Hex Lock Nut, 5/16-18 Thd. 75

5 Hex Lock Nut, 1/4-20 76

4 Hex Nut, 5/16-18 77

2 Spiral Pin, 1/4" x 1-1/2" Lg. 78

2 Bushing 79

1 Chute Adapter 80

22 Lock Washer, 5/16" 81

6 Washer, .76" x 1.49" x .06" 82

1 Washer, .344" I.D. x 1.125" O.D. 83

16 Washer, 5/16" Std. WrL 84

2 Bearing, Flange 85

1 Bearing, Ball 86

2 Bushing, Plastic 3/8" 87

4 Bearing, Split, 3/4" 88

2 Skid Shoe 89

1 Frame Clutch and Pulley 90

2 Housing, Bearing 91

1 Bracket, Chute Crank 92

1 Bracket, Idler 93

1 Idler Arm Assembly 94

1 Spacer, Pivot 95

1 Idler Bracket Assembly 96

2 Hex Bolt, 3/8-16 x 1-3/4" 97

1 Hex Bolt, 5/16-24 x 1" (Locking) 98

2 Pulley, Flat 3-3/4" 99

1 Hex Nut, 3/8-16 100

1 Spacer 101

1 Pulley, V Type 9" 102

17 Nut, Hex Lock, 3/8-16 103

1 Pulley, V Type 5-1/2" 104

1 Shaft 105

1 Spacer 106

1 Spacer 107

13 Lock Washer, 3/8"

PART QTY. DESCRIPTION

NO.

714-0161 2 Key

741-0919 2 Bearing, Ball

08253B 1 Housing, Bearing

15296A 1 Housing, Open Bearing

14088B 1 Spacer, Spindle

44377 2 Hex Bolt, 3/8-24 x 1"

736-0247 2 Washer,

43063 3 Hex Bolt, 5/16-18 x 1"

46989 1 Belt, V Type Drive

47278 1 Belt, V Type Auger

47044 3 Pulley, V Type 4"

47026 1 Pulley, V Type

47025 1 Hex Bolt, 5/16-18 x 3-1/2"

43432 1 Hex Bolt, 3/8-16 x 2-1/2"

731-0851A 3 Chute Keeper

43661 6 Hex Bolt, 1/4,20 x 1"

43054 3 Hex Bolt, 3/8-16 x 2"

731-1300A 1 Chute, Lower

710-0896 1 Screw, 1/4-14 x 5/8"

43681 1 Carriage Bolt, 5/16-18 x 1-1/2"

24571 1 Spacer

731-1320 1 Chute, Upper

731-1313B t Guide, Cable

784-5594 1 Bracket, Cable

24472 1 Spacer, Pivot

746-0929 1 Cable, Chute Control With Clip

746-0928 1 Cable, Chute Control

43070 7. Washer, 3/8"

46959 1 Spring

46963 2 Chain

43055 1 Pin, Hair Cotter, 3/32"

43038 2 Pin, Pivot Lock

23727 1 Spacer

43088 7 Washer, 1/4"

43343 4 Pin, Hair Cotter #4 (1/8")

43350 4 Carriage Bolt, 3/8-16 x 1"

47134 3 Pin, Hair Cotter 5/64"

711-0198 1 Trunnion

24394 1 Bracket, Chute Anti-rotation

1643-60 1 Plastic Cap

63566 1 Hanger Bracket Assembly, R.H.

63567 1 Hanger Bracket Assembly, L.H.

47043 1 Keeper, Engine Pulley

46948 1 Rod, Engagement

738-0234 4 Bolt, Shoulder

24466 2 Bracket, Down Stop

47620 1 Spring

47607 1 Spring, Torsion

23625 1 Spacer

43509 1 Hex Bolt, 3/8-16 x 2-3/4" Lg.

47598 6 Hex Lock Nut, 1/4" Wash. Face

47605 1 Washer, Flat 3/8"

24558 1 Cable Bracket

47721 1 Owner's Manual

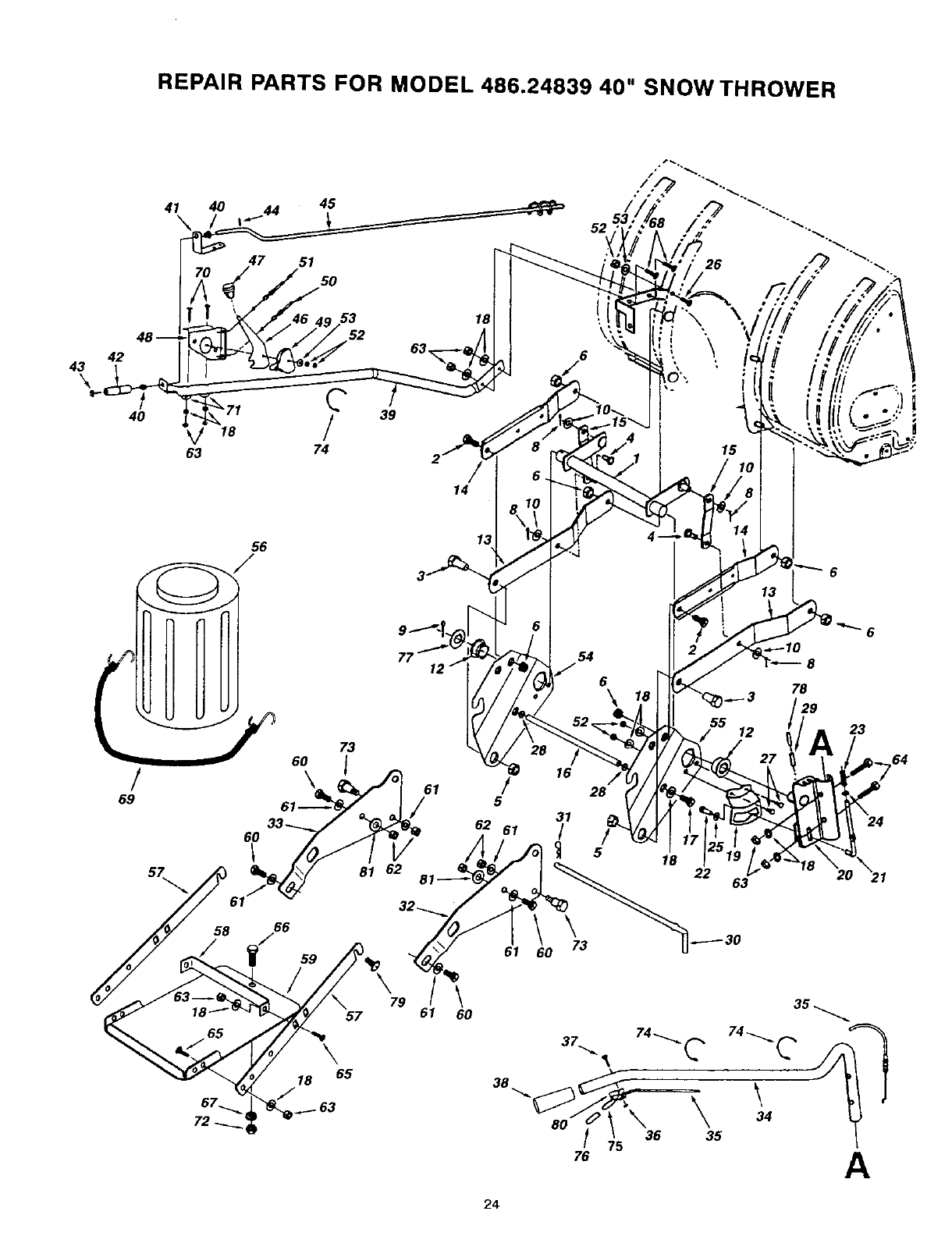

REPAIR PARTS FOR MODEL 486.24839 40" SNOW THROWER

47 51

53 18

26 1_

t \

81 62

57 61 60

18 65

/_ 28

531

62 61 /

1 5

\\ 73

61 60

55 12

18 22

ao \ \

36 35

REF.

135

_36

i37

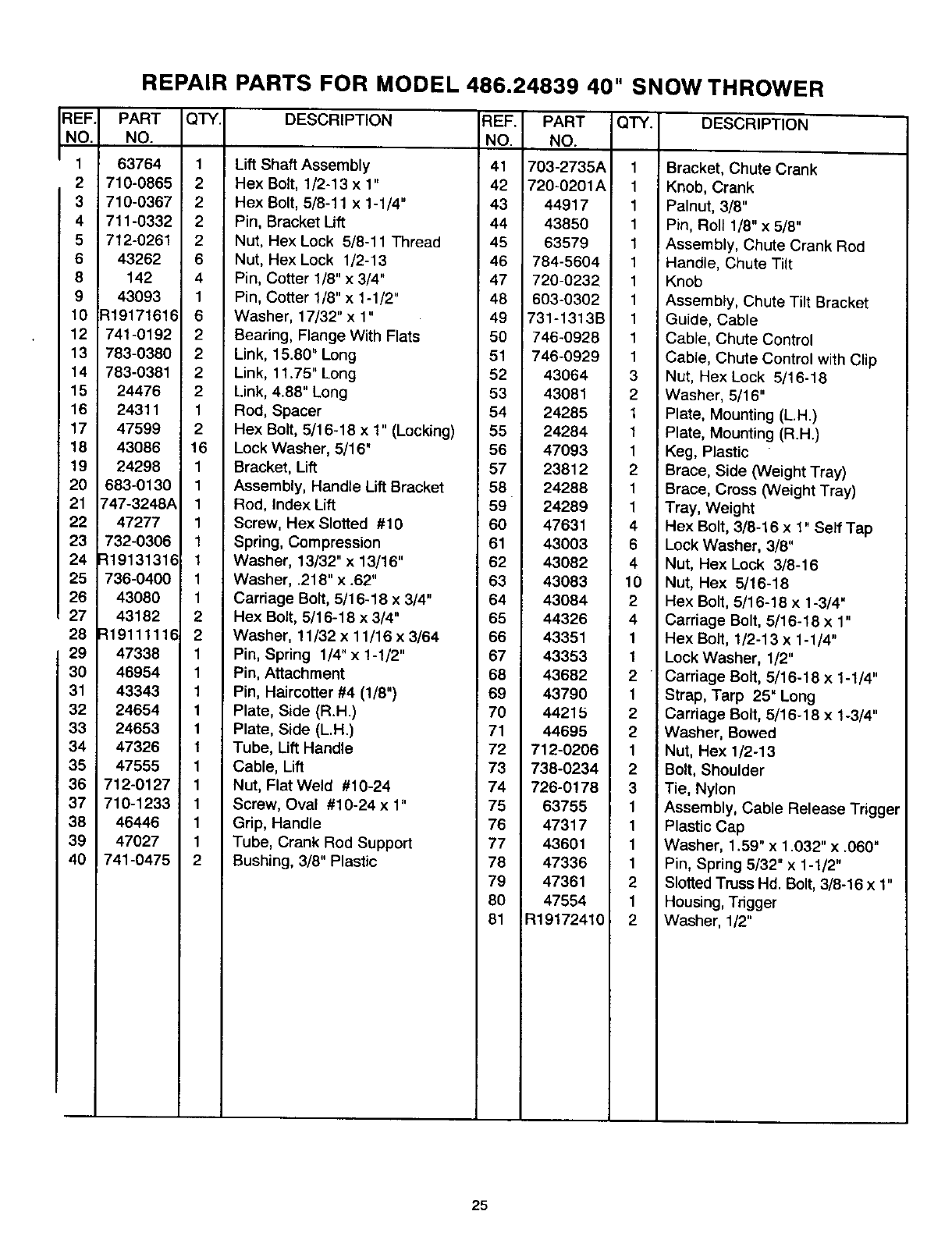

REPAIR PARTS FOR MODEL 486.24839 40" SNOW THROWER

PART

NO.

QTY. DESCRtPTION REF

NO.

63764 1

710-0865 2

710-0367 2

711-0332 2

712-0261 2

43262 6

142 4

43093 1

IR19171616 6

741-0192 2

783-0380 2

783-0381 2

24476 2

24311 1

47599 2

43086 16

24298 1

683-0130 1

747-3248A 1

47277 1

732-0306 1

_19131316 1

736-0400 1

43080 1

43182 2

_1911111_ 2

47338 1

46954 1

43343 1

24654 1

24653 1

47326 1

47555 1

712-0127 1

710-1233 1

46446 1

47027 1

741-0475 2

Lift Shaft Assembly 41

Hex Bolt, 1/2-13 x 1" 42

Hex Bolt, 5/8-11 x 1-1/4" 43

Pin, Bracket Lift 44

Nut, Hex Lock 5/8-11 Thread 45

Nut, Hex Lock 1/2-13 46

Pin, Cotter 1/8" x 3/4" 47

Pin, Cotter 1/8" x 1-1/2" 48

Washer, 17/32" x 1" 49

Bearing, Flange With Flats 50

Link, 15.80" Long 51

Link, 11.75" Long 52

Link, 4.88" Long 53

Rod, Spacer 54

Hex Bolt, 5/16-18 x 1" (Locking) 55

Lock Washer, 5/16" 56

Bracket, Lift 57

Assembly, Handle Uft Bracket 58

Rod, Index Lift 59

Screw, Hex Slotted #10 60

Spring, Compression 61

Washer, 13/32" x 13/16" 62

Washer, .218" x ,62" 63

Carriage Bolt, 5/16-18 x 3/4" 64

Hex Bolt, 5/16-18 x 3/4" 65

Washer, 11/32 x 11/16 x 3/64 66

Pin, Spring 1/4" x !-1/2" 67

Pin, Attachment 68

Pin, Haircotter #4 (1/8") 69

Plate, Side (R.H.) 70

Plate, Side (L.H.) 71

Tube, Uft Handle 72

Cable, Lift 73

Nut, Flat Weld #10-24 74

Screw, Oval #10-24 x 1" 75

Grip, Handle 76

Tube, Crank Rod Support 77

Bushing, 3/8" Plastic 78

PART QTY. i

NO.

703-2735A 1

720-0201A 1

44917 1

43850 1

63579 1

784-5604 1

720-0232 1

603-0302 1

731-1313B 1

746-0928 1

746-0929 1

43064 3

43081 2

24285 1

24284 1

47093 1

23812 2

24288 1

24289 1

47631 4

43003 6

43082 4

43083 10

43084 2

44326 4

43351 1

43353 1

43682 2

43790 1

44215 2

44695 2

712-0206 1

738-0234 2

726-0! 78 3

63755 1

47317 1

43601 1

47336 1

47361 2

47554 1

R19172410 2

DESCRIPTION

Bracket, Chute Crank

Knob, Crank

Palnut, 3/8"

Pin, Roll 1/8" x 5/8"

Assembly, Chute Crank Rod

Handle, Chute Tilt

Knob

Assembly, Chute Tilt Bracket

Guide, Cable

Cable, Chute Control

Cable, Chute Control with Clip

Nut, Hex Lock 5/16-18

Washer, 5/16"

Plate, Mounting (LH.)

Plate, Mounting (R.H.)

Keg, Plastic

Brace, Side (Weight Tray)

Brace, Cross (Weight Tray)

Tray, Weight

Hex Bolt, 3/8-16 x 1" Serf Tap

Lock Washer, 3/8"

Nut, Hex Lock 3/8-16

Nut, Hex 5/16-18

Hex Bolt, 5/16-18 x 1-3/4"

Carriage Bolt, 5/16-18 x 1"

Hex Bolt, 1/2-13 x1-1/4"

Lock Washer, 1/2"

Carriage Bolt, 5/16-18 x 1-1/4"

Strap, Tarp 25" Long

Carriage Bolt, 5/16-18 x 1-3/4"

Washer, Bowed

Nut, Hex 1/2-13

Bolt, Shoulder

Tie, Nylon

Assembly, Cable Release Trigger

Plastic Cap

Washer, 1.59" x 1.032" x .060"

Pin, Spring 5/32" x 1-1/2"

Slotted Truss Hd. Bolt, 3/8-16 x 1"

Housing, Trigger

Washer, 1/2"

NOTES

'26

10°

&CAUTION: DO NOT OPERATE YOUR TRACTOR AND SNOW

THROWER ON A SLOPE IN EXCESS OF 10 DEGREES. BE SURE OF

YOUR TRACTOR'S TOWING AND BRAKING CAPABILITIES BEFORE

OPERATING ON A SLOPE. AVOID ANY SUDDEN TURNS OR MA-

NEUVERS WHILE ON A SLOPE.

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800-4-MY-HOME" 0-800-469-4663)

Para pedir servicio de reparaci6n a domicilio - 1-800-676-5811

In Canada for all your service and parts needs call - 1-600-665-4455

Au Canada pour tout le service ou les pi_ces

For the repair or replacement parts you need:

Call 7 am - 7 pm, 7 days a week

1-800-366-PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio - 1-800-659-7084

For the location of a Sears Parts and Repair Center in your area:

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears Maintenance Agreement

or to inquire about an existing Agreement:

Call 9 am - 5 pm, Monday -Saturday

1-800-827-6655

TheServiceSideof Sears"

PRINTED IN U.S,A. FORM NO. 47721 (REV. 11/99)

Craftsman 486 24839 Users Manual

48624839 48624839 CRAFTSMAN SNOW THROWER ATTACHMENT - Manuals and Guides L0030099 View the owners manual for your CRAFTSMAN SNOW THROWER ATTACHMENT #48624839. Home:Lawn & Garden Parts:Craftsman Parts:Craftsman SNOW THROWER ATTACHMENT Manual

CRAFTSMAN Snow Thrower Attachment Manual L0030099 CRAFTSMAN Snow Thrower Attachment Owner's Manual, CRAFTSMAN Snow Thrower Attachment installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
