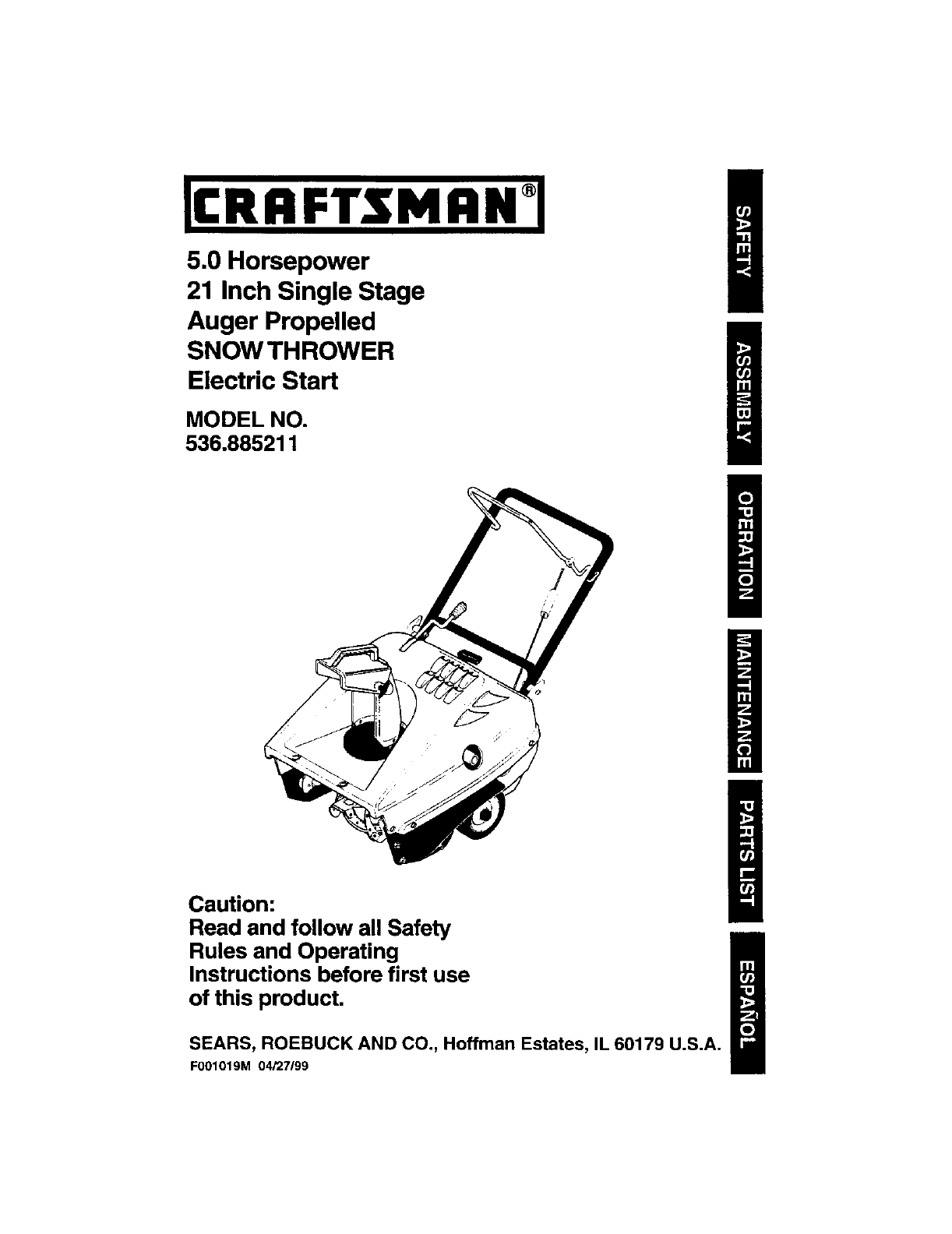

5.0 Horsepower

21 Inch Single Stage

Auger Propelled

SNOW THROWER

Electric Start

MODEL NO.

536.885211

I

B

!

!

Caution:

Read and follow all Safety

Rules and Operating

Instructions before first use

of this product,

SEARS, ROEBUCK AND CO., Hoffman Estates, IL 60179 U.S.A.

F001019M 04/27/99

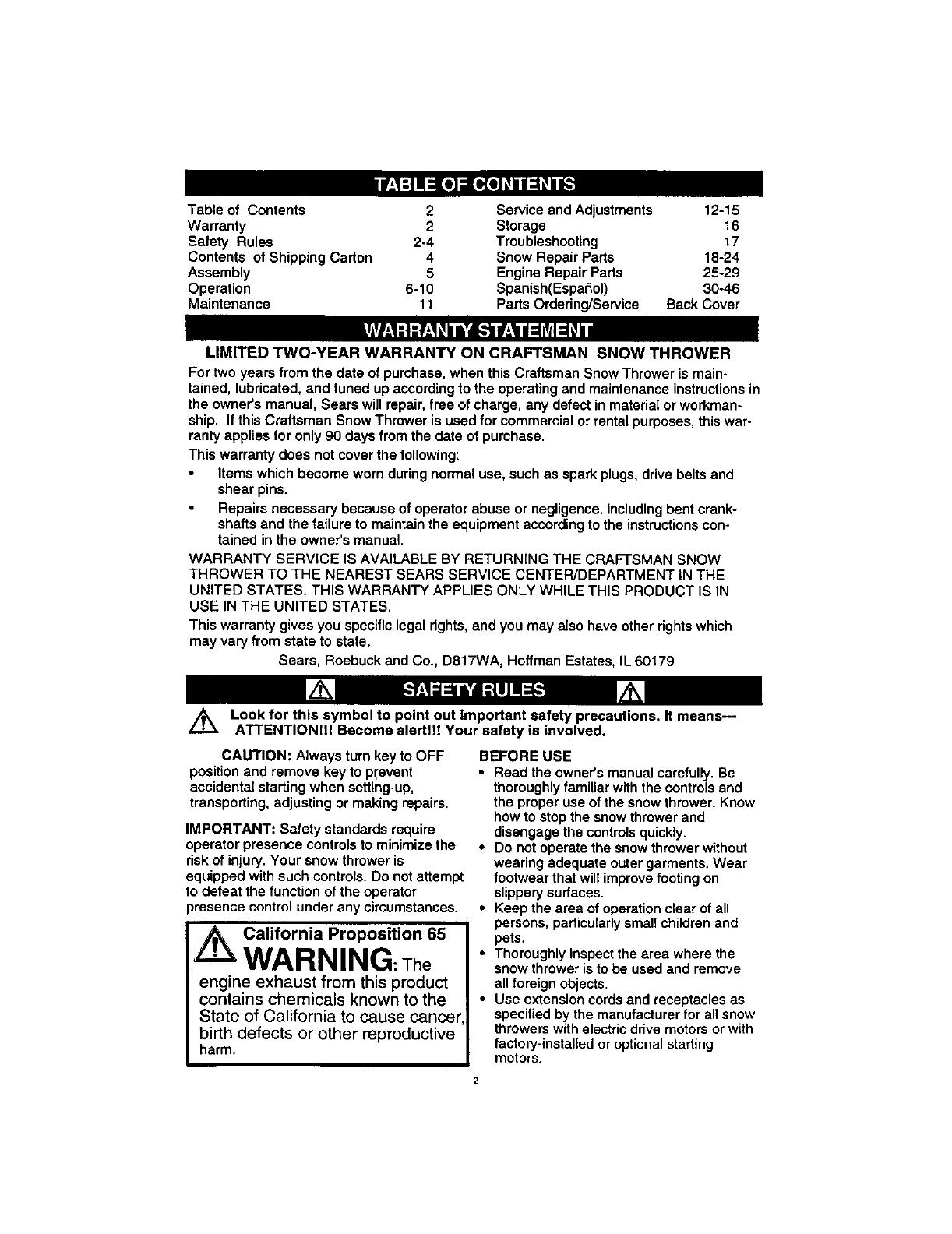

Table of Contents 2 Service and Adjustments 12-15

Warranty 2 Storage 16

Safety Rules 2-4 Troubleshooting 17

Contents of Shipping Carton 4 Snow Repair Parts 18-24

Assembly 5 Engine Repair Parts 25-29

Operation 6-10 Spanish(EspaSol) 30-46

Maintenance 11 Parts Ordering/Service Back Cover

kvAv/_,1--| Ir.,_ _| ik"J _ir.,_li_ivllq_| I

LIMITED TWO-YEAR WARRANTY ON CRAFTSMAN SNOW THROWER

For two years from the date ofpurchase, when this Craftsman Snow Thrower is main-

tained, lubricated, and tuned up according to the operating and maintenance instructionsin

the owner's manual, Sears will repair, free of charge, any defect in material or workman-

ship. If this Craftsman Snow Thrower is used for commercial or rental purposes, this war-

ranty applies for only 90 days from the date of purchase.

This warranty does not cover the following:

Items which become worn during normal use, such as spark plugs, drive belts and

shear pins.

Repairs necessary because of operator abuse or negligence, including bent crank-

shafts and the failure to maintain the equipment according to the instructions con-

tained in the owner's manual,

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE CRAFTSMAN SNOW

THROWER TO THE NEAREST SEARS SERVICE CENTER/DEPARTMENT IN THE

UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE THIS PRODUCT IS IN

USE IN THE UNITED STATES.

This warranty gives you specific legal rights, and you may also have other dghts which

may vary from state to state.

Sears, Roebuck and Co., D817WA, Hoffman Estates, IL 60179

Look for this symbol to point out Important safety precautions. It means--

ATTENTION!!! Become alertllt Your safety is involved.

CAUTION: Always turn key to OFF

position and remove key to prevent

accidental starting when setting-up,

transporting, adjusting or making repairs.

IMPORTANT: Safety standards require

operator presence controls to minimize the

risk of injury. Your snow thrower is

equipped with such controls. Do not attempt

to defeat the function of the operator

)resence control under any circumstances.

_California Proposition 65

WARNING: The

engine exhaust from this product

contains chemicals known to the

State of California to cause cancer

birth defects or other reproductive

harm.

BEFORE USE

•Read the owner's manual carefully. Be

thoroughly familiar with the controls and

the proper use of the snow thrower. Know

how to stop the snow thrower and

disengage the controls quickly.

•Do not operate the snow thrower without

wearing adequate outer garments. Wear

footwear that wilt improve footing on

slippery surfaces.

•Keep the area of operation clear of all

persons, particularly small children and

pets.

• Thoroughly inspect the area where the

snow thrower is to be used and remove

all foreign objects.

•Use extension cords and receptacles as

specified by the manufacturer for all snow

throwers with electric drive motors or with

factory-installed or optional starting

motors.

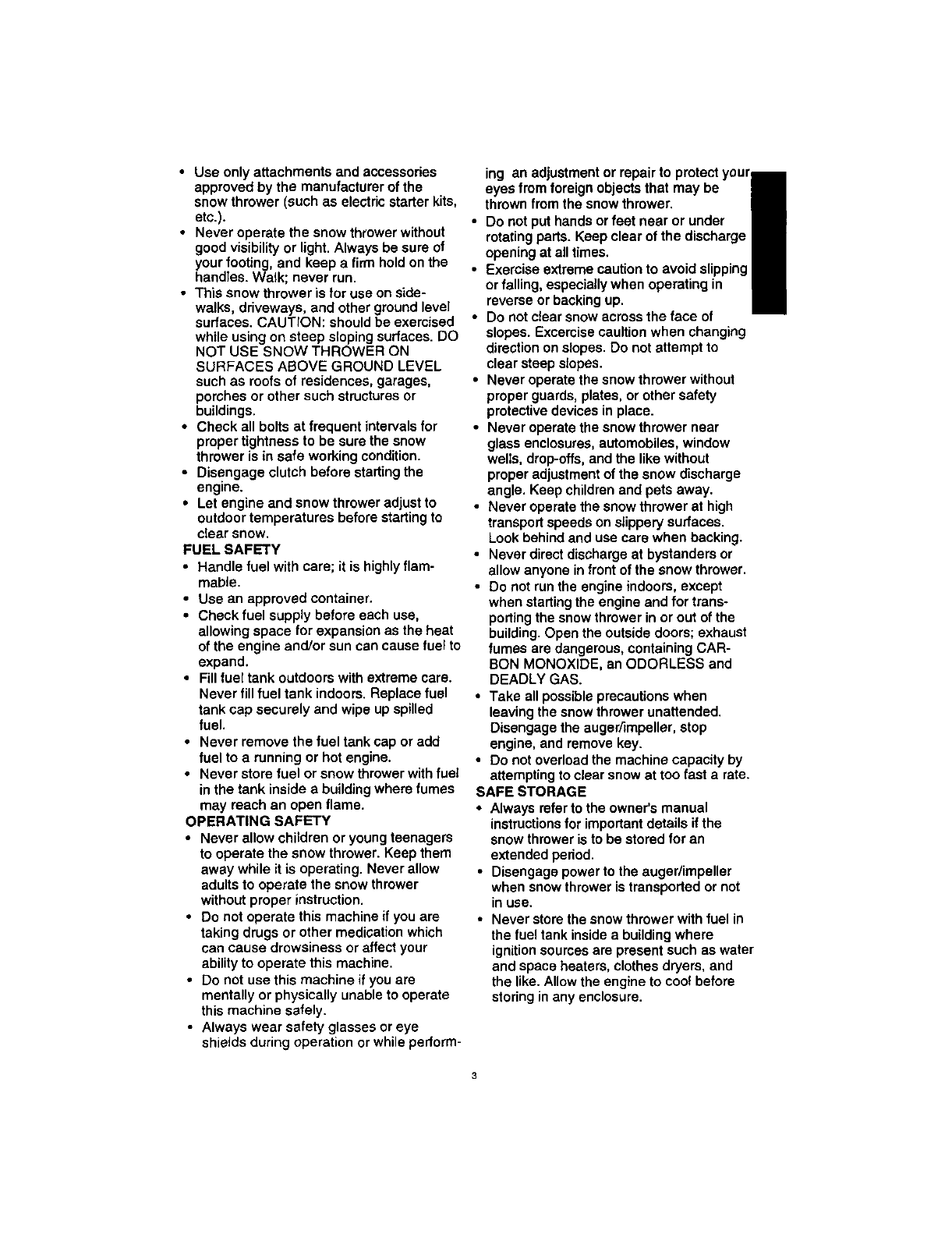

• Useonlyattachmentsandaccessories

approvedby the manufacturer of the

snow thrower (such as electric starter kits,

etc.).

•Never operate the snow thrower without

good visibility or light. Always be sure of

your footing, and keep a firm hold on the

handles. Walk; never run.

•This snow thrower is for use on side-

walks, driveways, and other ground level

surfaces. CAUTION: should be exemised

while using on steep sloping surfaces. DO

NOT USE SNOW THROWER ON

SURFACES ABOVE GROUND LEVEL

such as roofs of residences, garages,

porches or other such structures or

buildings.

• Check all bolts at frequent intervals for

proper tightness to be sure the snow

thrower is in safe working condition.

• Disengage clutch before starting the

engine.

• Let engine and snow thrower adjust to

outdoor temperatures before starting to

clear snow.

FUEL SAFETY

•Handle fuel with care; it is highly flam-

mable.

•Use an approved container.

•Check fuel supply before each use,

allowing space for expansion as the heat

of the engine and/or sun can cause fuel to

expand.

•Fill fuel tank outdoors with extreme care.

Never fill fuel tank indoors. Replace fuel

tank cap securely and wipe up spilled

fuel.

•Never remove the fuel tank cap or add

fuel to a running or hot engine.

•Never store fuel or snow thrower with fuel

in the tank inside a building where fumes

may reach an open flame.

OPERATING SAFETY

•Never allow children or young teenagers

to operate the snow thrower. Keep them

away while it is operating. Never allow

adults to operate the snow thrower

without proper instruction.

•Do not operate this machine if you are

taking drugs or other medication which

can cause drowsiness or affect your

ability to operate this machine.

• Do not use this machine if you are

mentally or physically unable to operate

this machine safely.

•Always wear safety glasses or eye

shields during operation or while perform-

ing an adjustment or repair to protect your_

eyes from foreign objects that may be I

thrown from the snow thrower.

• Do not put hands or feet near or under

rotating parts. Keep clear of the discharge

opening at all times.

•Exercise extreme caution to avoid slipping

or falling, especially when operating in

reverse or backing up.

•Do not clear snow across the face of

slopes. Excercise caultion when changing

direction on slopes. Do not attempt to

clear steep slopes.

•Never operate the snow thrower without

proper guards, plates, or other safety

protective devices in place.

•Never operate the snow thrower near

glass enclosures, automobiles, window

wells, drop-offs, and the like without

proper adjustment of the snow discharge

angle. Keep children and pets away.

•Never operate the snow thrower at high

transport speeds on slippery surfaces.

Look behind and use care when backing.

• Never direct discharge at bystanders or

allow anyone in front of the snow thrower

• Do not run the engine indoors, except

when starting the engine and for trans-

porting the snow thrower in or out of the

building. Open the outside doors; exhaust

fumes are dangerous, containing CAR-

BON MONOXIDE, an ODORLESS and

DEADLY GAS.

•Take all possible precautions when

leaving the snow thrower unattended.

Disengage the auger/impeller, stop

engine, and remove key.

• Do not overload the machine capacity by

attempting to clear snow at too fast a rate.

SAFE STORAGE

•Always refer to the owner's manual

instructionsfor important details if the

snow thrower is to be stored for an

extended period.

•Disengage power to the auger/impeller

when snow thrower is transported or not

in use.

•Never store the snow thrower with fuel in

the fuel tank inside a building where

ignitionsources are present such as water

and space heaters, clothes dryers, and

the like. Allow the engine to cool before

storing in any enclosure.

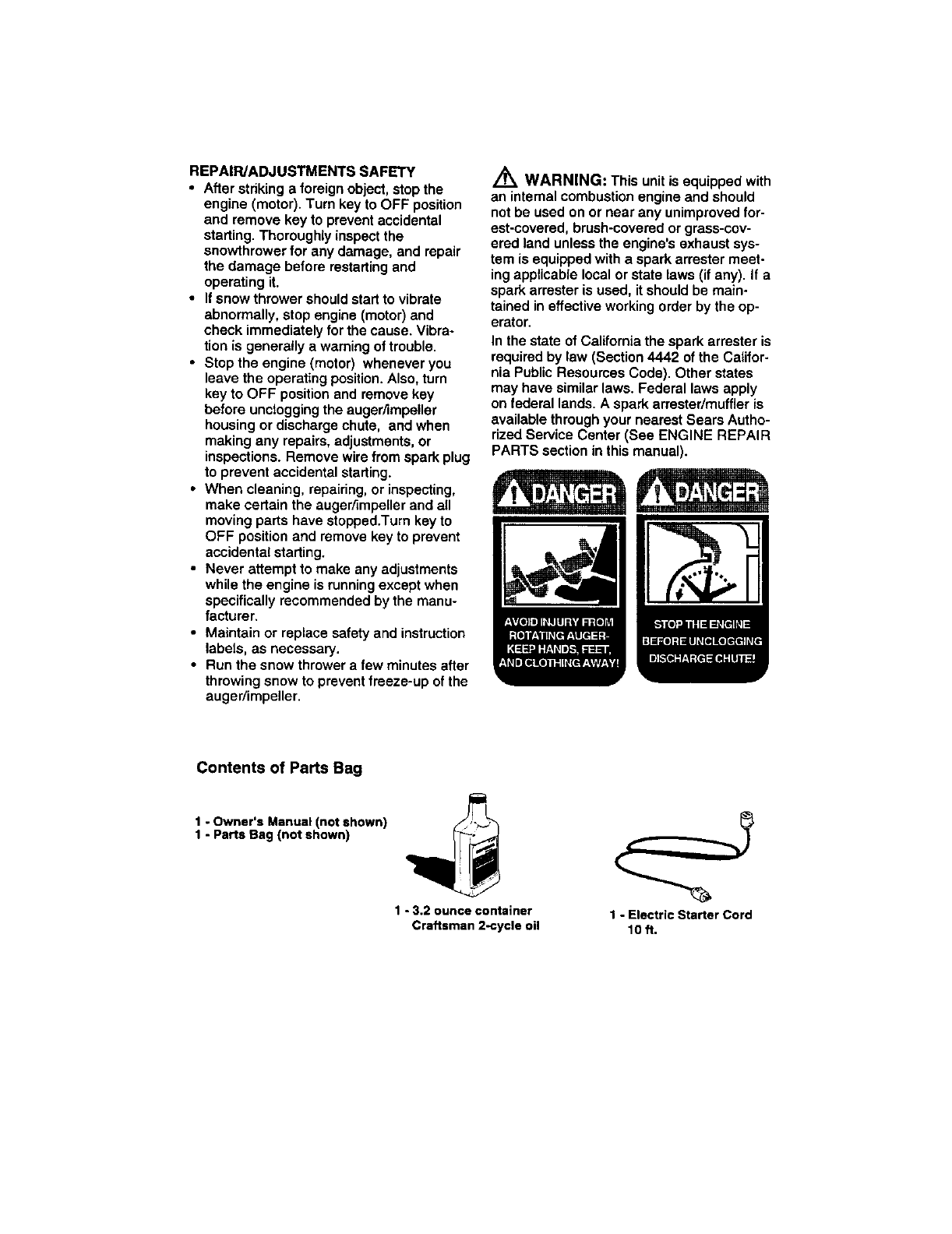

REPAIPJADJUSTMENTSSAFETY

•After striking aforeign object, stop the

engine (motor). Turn key to OFF position

and remove key to prevent accidental

starting. Thoroughly inspect the

snowthrower for any damage, and repair

the damage before restarting and

operating it.

•If snow thrower should start to vibrate

abnormally, stop engine (motor) and

check immediately for the cause. Vibra-

tion is generally a warning of trouble.

•Stop the engine (motor) whenever you

leave the operating position. Also, turn

key to OFF position and remove key

before unclogging the auger/impeller

housing or discharge chute, and when

making any repairs, adjustments, or

inspections. Remove wire from spark plug

to prevent accidental starting.

• When cleaning, repairing, or inspecting,

make certain the auger/_mpeller and all

moving parts have stopped.Turn key to

OFF position and remove key to prevent

accidental starting.

• Never attempt to make any adjustments

while the engine is running except when

specifically recommended by the manu-

facturer.

•Maintain or replace safety and instruction

labels, as necessary.

•Run the snow thrower a few minutes after

throwing snow to prevent freeze-up of the

auger/impeller.

Z_ WARNING: This unit is equipped with

an internal combustion engine and should

not be used on or near any unimproved for-

est-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust sys-

tem is equipped with a spark arrester meet-

ing applicable local or state laws (if any). if a

spark arrester is used, it should be main-

tained in effective working order by the op-

erator.

In the state of California the spark arrester is

required by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester/muffier is

available through your nearest Sears Autho-

rized Service Center (See ENGINE REPAIR

PARTS section in this manual).

Contents of Parts Bag

1 - Owner's Manual (not shown)

1 - Parts Bag (not shown)

1-3.2 ounce container

Craftsman 2-cycle oil 1-Electric Starter Cord

lOft.

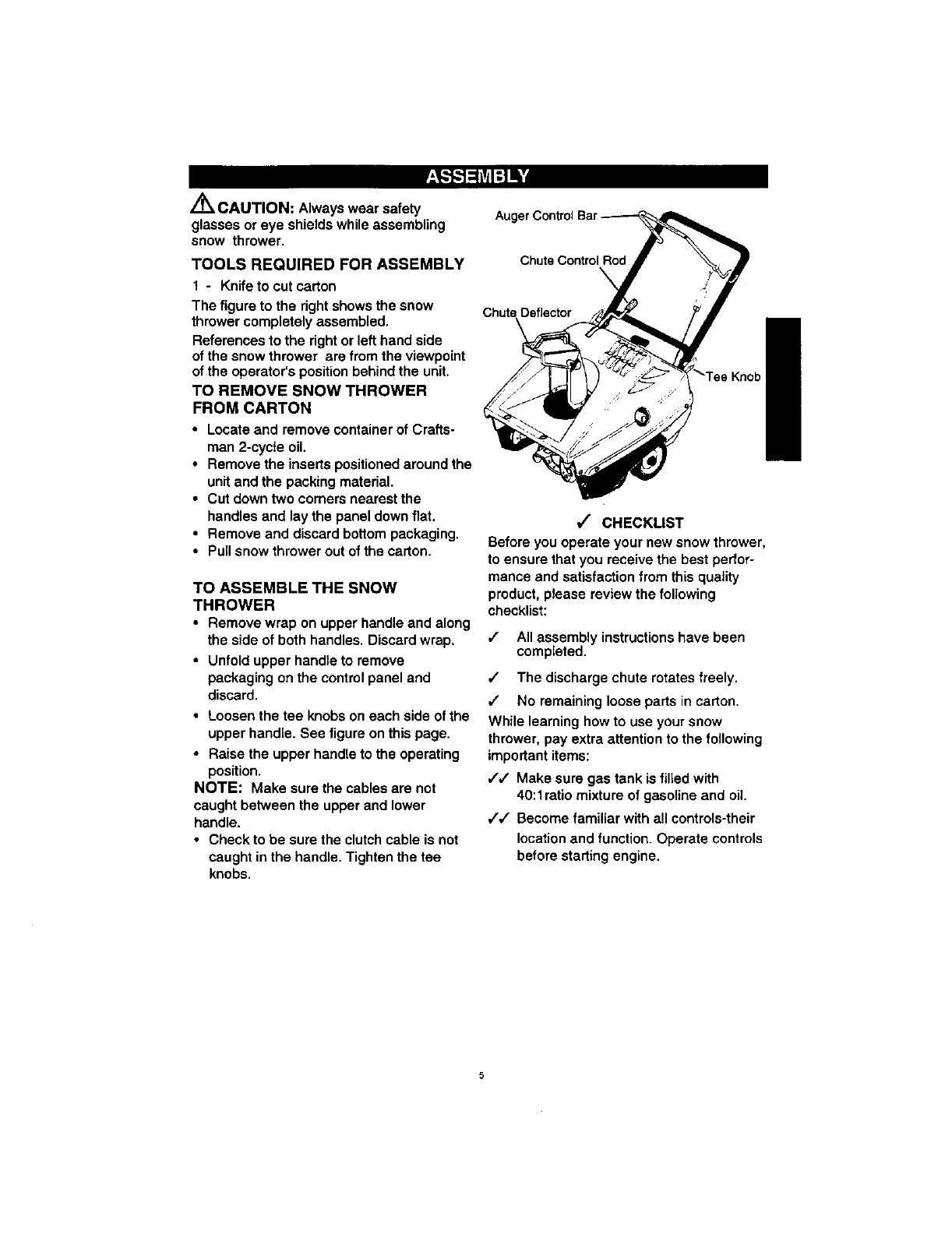

CAUTION: Always wear safety

glasses or eye shields while assembling

snow thrower.

TOOLS REQUIRED FOR ASSEMBLY

1-Knife to cut carton

The figure to the right shows the snow

thrower completely assembled.

References to the right or left hand side

of the snow thrower are from the viewpoint

of the operator's position behind the unit.

TO REMOVE SNOW THROWER

FROM CARTON

• Locate and remove container of Crafts-

man 2-cycte oil.

•Remove the inserts positioned around the

unit and the packing material.

•Cut down two comers nearest the

handles and lay the panel down flat.

• Remove and discard bottom packaging.

•Pug snow thrower out of the carton.

TO ASSEMBLE THE SNOW

THROWER

•Remove wrap on upper handle and along

the side of both handles. Discard wrap.

•Unfold upper handle to remove

packaging on the control panel and

discard.

•Loosen the tee knobs on each side of the

upper handle. See figure on this page.

•Raise the upper handle to the operating

position.

NOTE: Make sure the cables are not

caught between the upper and lower

handle.

•Check to be sure the clutch cable is not

caught in the handle. Tighten the tee

knobs.

Chute Control Rod

\

CHECKLIST

Before you operate your new snow thrower,

to ensure that you receive the best perfor-

mance and satisfaction from this quality

product, please review the following

checklist:

J" All assembly instructions have been

completed.

,/ The discharge chute rotates freely.

,I No remaining loose parts in carton.

While learning how to use your snow

thrower, pay extra attention to the following

important items:

,/,/ Make sure gas tank is filled with

40:1 ratio mixture of gasoline and oil.

./,/ Become familiar with all controls-their

location and function. Operate controls

before starting engine.

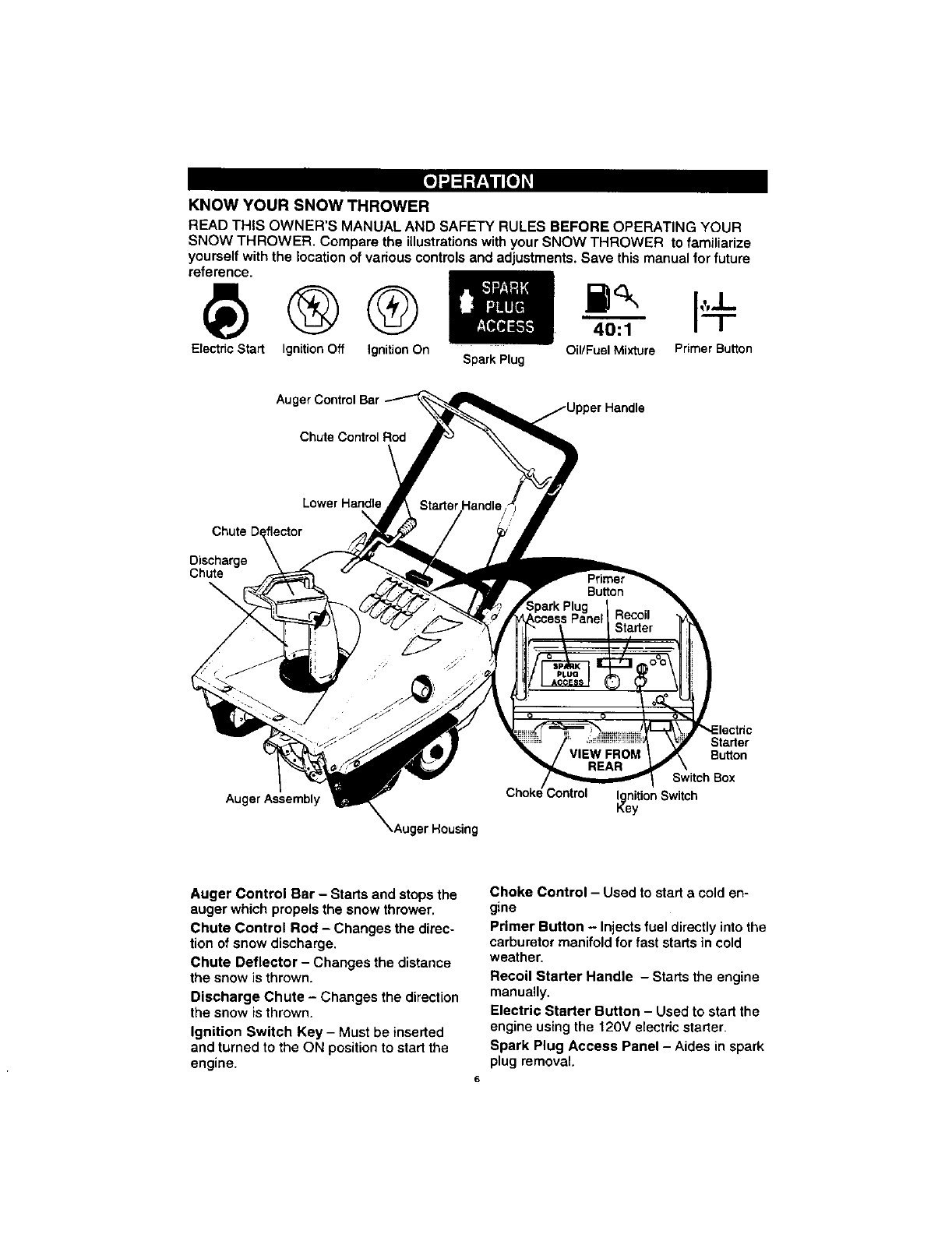

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

SNOW THROWER, Compare the illustrations with your SNOW THROWER to familiarize

yourself with the location of various controls and adjustments. Save this manual for future

reference.

ElectricStart Ignition Off ignitionOn ..... Oil/Fuel Mixture Primer Button

Spark Plug

Aug

Chute ControlRod

Lower Handle

\

Chute

Auger Assembly

Starter

Button

REAR Switch BOX

_enition Switch

Y

Auger Control Bar - Starts and stops the

auger which propels the snow thrower.

Chute Control Rod - Changes the direc-

tion of snow discharge,

Chute Deflector - Changes the distance

the snow is thrown.

Discharge Chute - Changes the direction

the snow is thrown.

Ignition Switch Key - Must be inserted

and turned to the ON position to start the

engine.

Choke Control - Used to start a cold en-

gine

Primer Button - Injects fuel directly into the

carburetor manifold for fast starts in cold

weather.

Recoil Starter Handle - Starts the engine

manually.

Electric Starter Button - Used to start the

engine using the 120V electric starter.

Spark Plug Access Panel - Aides in spark

plug removal.

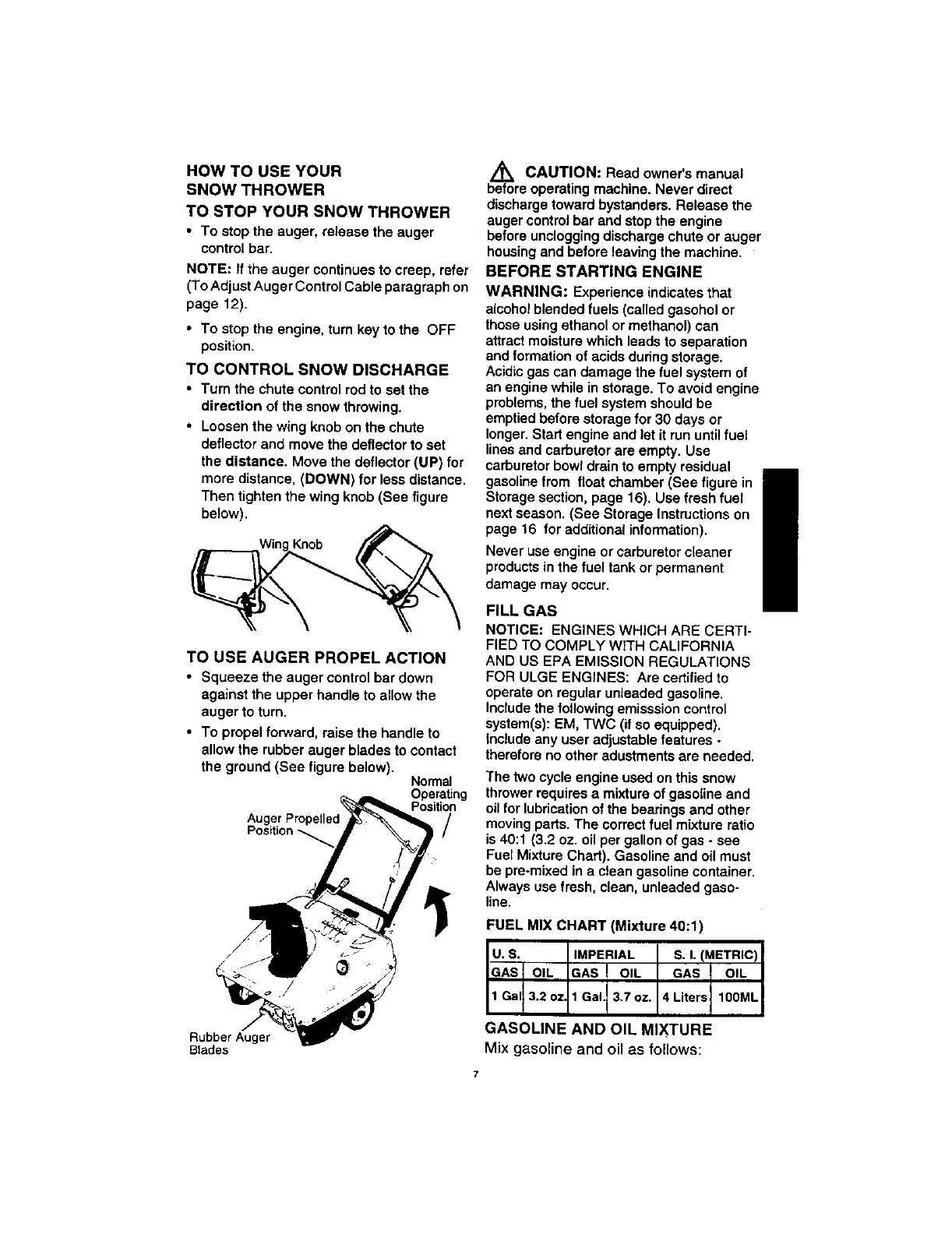

HOWTOUSEYOUR

SNOWTHROWER

TOSTOPYOURSNOWTHROWER

•To stop the auger, release the auger

control bar.

NOTE: If the auger continues to creep, refer

(To Adjust Auger Control Cable paragraph on

page 12).

•To stop the engine, turn key to the OFF

position.

TO CONTROL SNOW DISCHARGE

•Turn the chute control rod to set the

direction of the snow throwing.

•Loosen the wing knob on the chute

deflector and move the deflector to set

the distance. Move the deflector (UP) for

more distance, (DOWN) for less distance.

Then tighten the wing knob (See figure

below).

Knob

TO USE AUGER PROPEL ACTION

•Squeeze the auger control bar down

against the upper handle to allow the

auger to turn.

•To propel forward, raise the handle to

allow the rubber auger blades to contact

the ground (See figure below). Normal

Operating

Position

/

Rubber Auger

Blades

/_ CAUTION: Read owner's manual

before operating machine. Never direct

discharge toward bystanders. Release the

auger control bar and stop the engine

before unclogging discharge chute or auger

housing and before leaving the machine.

BEFORE STARTING ENGINE

WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

those using ethanol or methanol) can

attract moisture which leads to separation

and formation of acids dunng storage.

Acidic gas can damage the fuel system of

an engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage for 30 days or

longer. Start engine and let it run until fuel

lines and carburetor are empty. Use

carburetor bowl drain to empty residual

gasoline from float chamber (See figure in

Storage section, page 16). Use fresh fuel

next season. (See Storage Instructions on

page 16 for additional information).

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

FILL GAS

NOTICE: ENGINES WHICH ARE CERTI-

FIED TO COMPLY WITH CALIFORNIA

AND US EPA EMISSION REGULATIONS

FOR ULGE ENGINES: Are certified to

operate on regular unleaded gasoline.

Include the following emisssion control

system(s): EM, TWC (if so equipped).

Include any user adjustable features -

therefore no other adustments are needed.

I

The two cycle engine used on this snow

thrower requires a mixture of gasoline and

oil for lubricationof the bearings and other

moving parts. The correct fuel mixture ratio

is 40:1 (3.2 oz. oil per gallon of gas - see

Fuel Mixture Chart). Gasoline and oil must

be preomixed in a clean gasoline container.

Always use fresh, clean, unleaded gaso-

line,

FUEL MIX CHART (Mixture 40:1)

U.S. IMPERIAL S.I. (METRIC)

OASO'L/OAS0"I OASZO'LI

1Ga 3.2oz]1Ga. 3.7oz. 4Lters 100MLI

GASOLINE AND OIL MIXTURE

Mix gasoline and oil as follows:

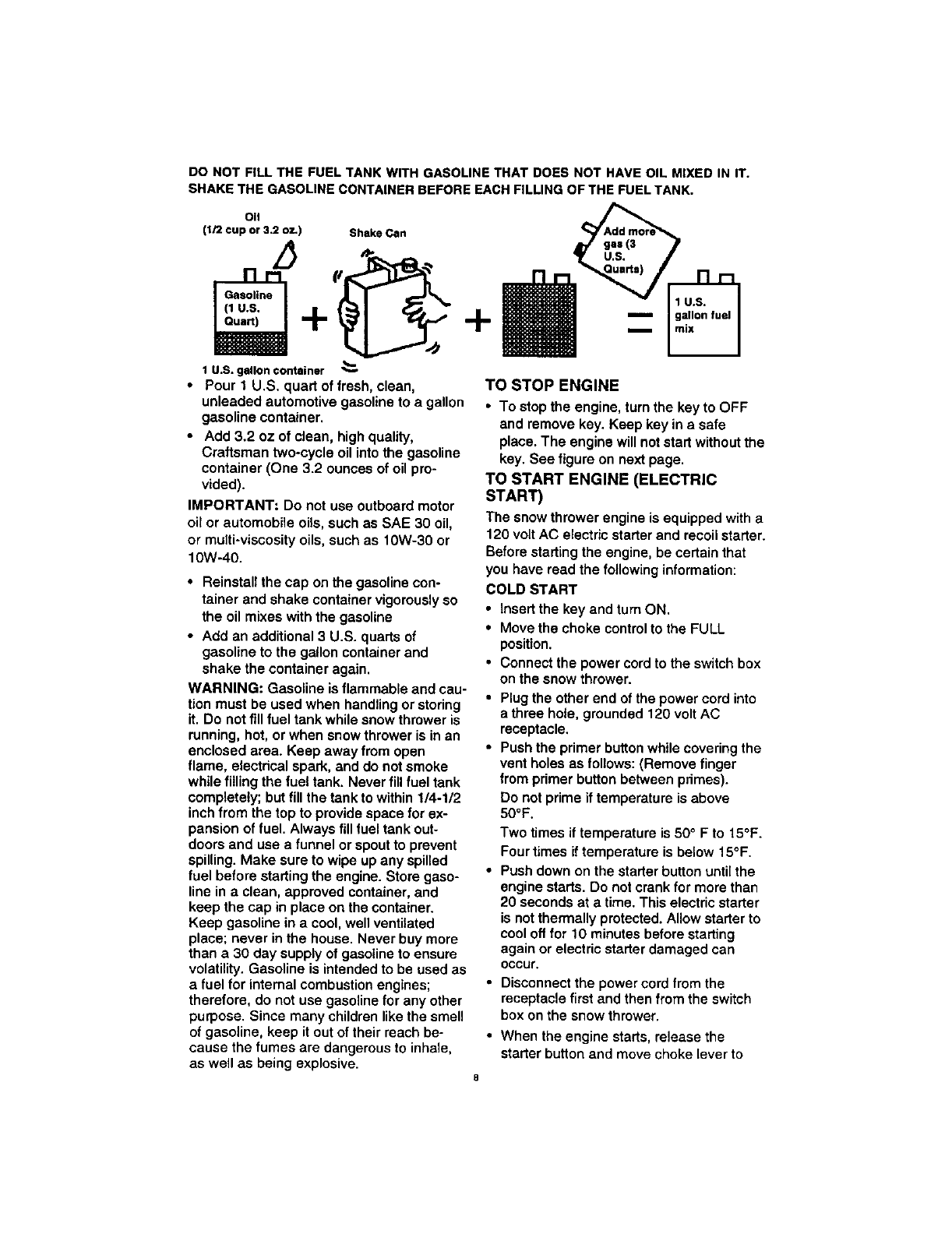

DO NOT FILL THE FUEL TANK WITH GASOLINE THAT DOES NOT HAVE OIL MIXED IN IT.

SHAKE THE GASOLINE CONTAINER BEFORE EACH FILLING OF THE FUEL TANK.

011

(1/2 cup or 3.2 o7.) Shake Can

1 U.S. gallon container _-

• Pour 1 U.S. quart of fresh, clean,

unleaded automotive gasoline to a gallon

gasoline container.

•Add 3.2 oz of clean, high quality,

Craftsman two-cycle oil into the gasoline

container (One 3.2 ounces of oil pro-

vided).

IMPORTANT: Do not use outboard motor

oil or automobile oils, such as SAE 30 oil,

or multi-viscosity oils, such as 10W-30 or

10W-40.

• Reinstall the cap on the gasoline con-

tainer and shake container vigorously so

the oil mixes with the gasoline

•Add an additional 3 U.S. quarts of

gasoline to the gallon container and

shake the container again.

WARNING: Gasoline is flammable and cau-

tion must be used when handling or storing

it. Do not fill fuel tank while snow thrower is

running, hot, or when snow thrower is in an

enclosed area. Keep away from open

flame, electrical spark, and do not smoke

while filling the fuel tank. Never fill fuel tank

completely; but fill the tank to within 1/4-1/2

inch from the top to provide space for ex-

pansion of fuel. Always fill fuel tank out-

doors and use a funnel or spout to prevent

spilling. Make sure to wipe up any spilled

fuel before starting the engine. Store gaso-

line in a clean, approved container, and

keep the cap in place on the container.

Keep gasoline in a cool, well ventilated

place; never in the house. Never buy more

than a 30 day supply of gasoline to ensure

volatility. Gasoline is intended to be used as

a fuel for internal combustion engines;

therefore, do not use gasoline for any other

purpose. Since many children like the smell

of gasoline, keep it out of their reach be-

cause the fumes are dangerous to inhale,

as well as being explosive.

4- 1 U.S.

gallon fuel

mix

TO STOP ENGINE

•To stop the engine, turn the key to OFF

and remove key, Keep key in a safe

place. The engine will not start without the

key, See figure on next page.

TO START ENGINE (ELECTRIC

START)

The snow thrower engine is equipped with a

120 volt AC electric starter and recoil starter.

Before starting the engine, be certain that

you have read the following information:

COLD START

•Insert the key and turn ON.

•Move the choke control to the FULL

position.

• Connect the power cord to the switch box

on the snow thrower.

•Plug the other end of the power cord into

a three hole, grounded 120 volt AC

receptacle.

•Push the primer button while covering the

vent holes as follows: (Remove finger

from primer button between primes).

Do not prime if temperature is above

50°F.

Two times if temperature is 50" F to 15°F.

Four times iftemperature is below 15°F.

•Push down on the starter button until the

engine starts. Do not crank for more than

20 seconds at a time. This electric starter

is not thermally protected. Allow starter to

cool off for 10 minutes before starting

again or electric starter damaged can

Occur.

•Disconnect the power cord from the

receptacle first and then from the switch

box on the snow thrower.

•When the engine starts, release the

starter button and move choke lever to

"1/2choke"position.When engine runs

smoothly, move choke lever to "No

Choke" Position.

NOTE: Allow the engine to warm up for

several minutes before blowing snow in

temperatures below 0°F.

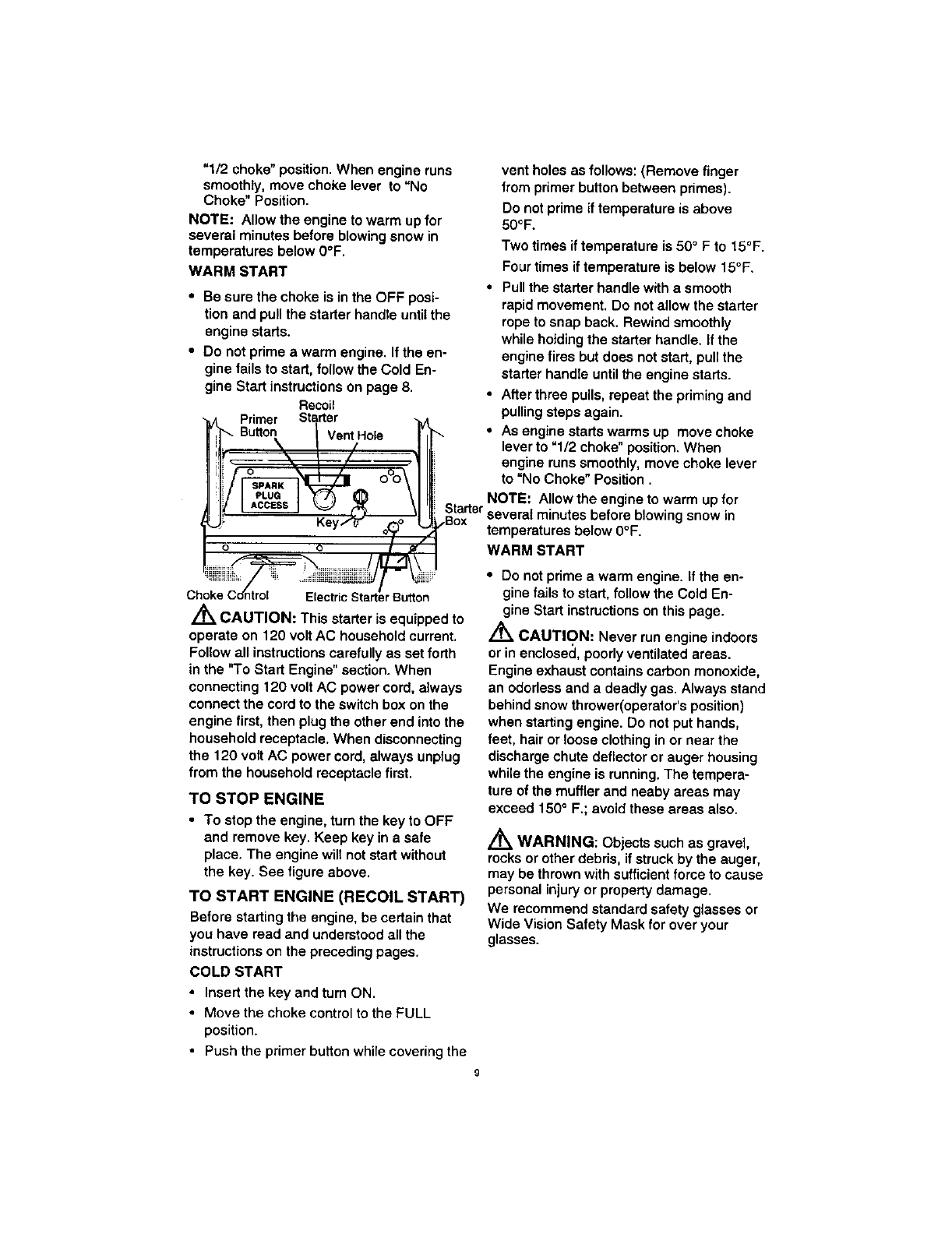

WARM START

•Be sure the choke is in the OFF posi-

tion and putt the starter handle unlil the

engine starts.

•Do not prime a warm engine. If the en-

gine fails to start, follow the Cold En-

gine Start instructions on page 8,

Recoil

vent holes as follows: (Remove finger

from primer button between primes).

Do not prime if temperature is above

50°F.

Two times if temperature is 50 ° F to 15°F.

Four times iftemperature is below 15°F.

•Pull the starter handle with asmooth

rapid movement. Do not allow the starter

rope to snap back. Rewind smoothly

while holding the starter handle. If the

engine fires but does not start, pull the

starter handle until the engine starts.

• Affer three pulls, repeat the priming and

pulling steps again.

Primer St rter

,_ Button _- ... "_ • As engine starts warms up move choke

vent Hope

\ r leVerto1/2choke"poeition,W.en

r_---- \ I ,! "_'_ Ii engine runs smoothly, move choke lever

°%11; toNoChokePosition.

i/} ,_s I _ _ \ III; NOTE: Allow the engine to warm up for

_(;_L__._] I_:Starter several minutes before blowing snow in

Key,/_r" o(po ._Box temperatures below 0°F.

o o /_' I WARM START

.

iJii_i_ iiiii_i /"!i_ ' ,:!ii_i!!iii_i!iiiii==iiiiiii=,!i_/ / t _=_ i i Do not prime awarm engine. If the en-

Choke C_ntrol Elec_rt/er Button glne fails to start, foBow the Cold En

gine Start instructions on this page.

/_ CAUTION: This starter is equipped to

operate on 120 volt AC household current.

Follow all instructions carefully as set forth

in the "To Slart Engine" section. When

connecting 120 volt AC power cord, always

connect the cord to the switch box on the

engine first, then plug the other end into the

household receptacle. When disconnecting

the 120 volt AC power cord, always unplug

from the household receptacle first.

TO STOP ENGINE

•To stop the engine, turn the key to OFF

and remove key. Keep key in a safe

place. The engine will not start without

the key. See figure above.

TO START ENGINE (RECOIL START)

Before starting the engine, be certain that

you have read arid understood all the

instructions on the preceding pages.

COLD START

Z_ CAUTI .ON: Never run engine indoors

or in enclosed, poorly ventilated areas.

Engine exhaust contains carbon monoxide,

an odorless and a deadly gas. Always stand

behind snow thrower(operator's position)

when starting engine. Do not put hands,

feet, hair or loose clothing in or near the

discharge chute deflector or auger housing

while the engine is running. The tempera-

ture of the muffler and neaby areas may

exceed 150 _ F.; avoid these areas also.

Z_ WARNING: Objects such as gravel,

rocks or other debris, ifstruck by the auger,

may be thrown with sufficient force to cause

personal injury or property damage.

We recommend standard safety glasses or

Wide Vision Safety Mask for over your

glasses.

•Insert the key and turn ON.

• Move the choke control to the FULL

position.

• Push the primer button while covering the

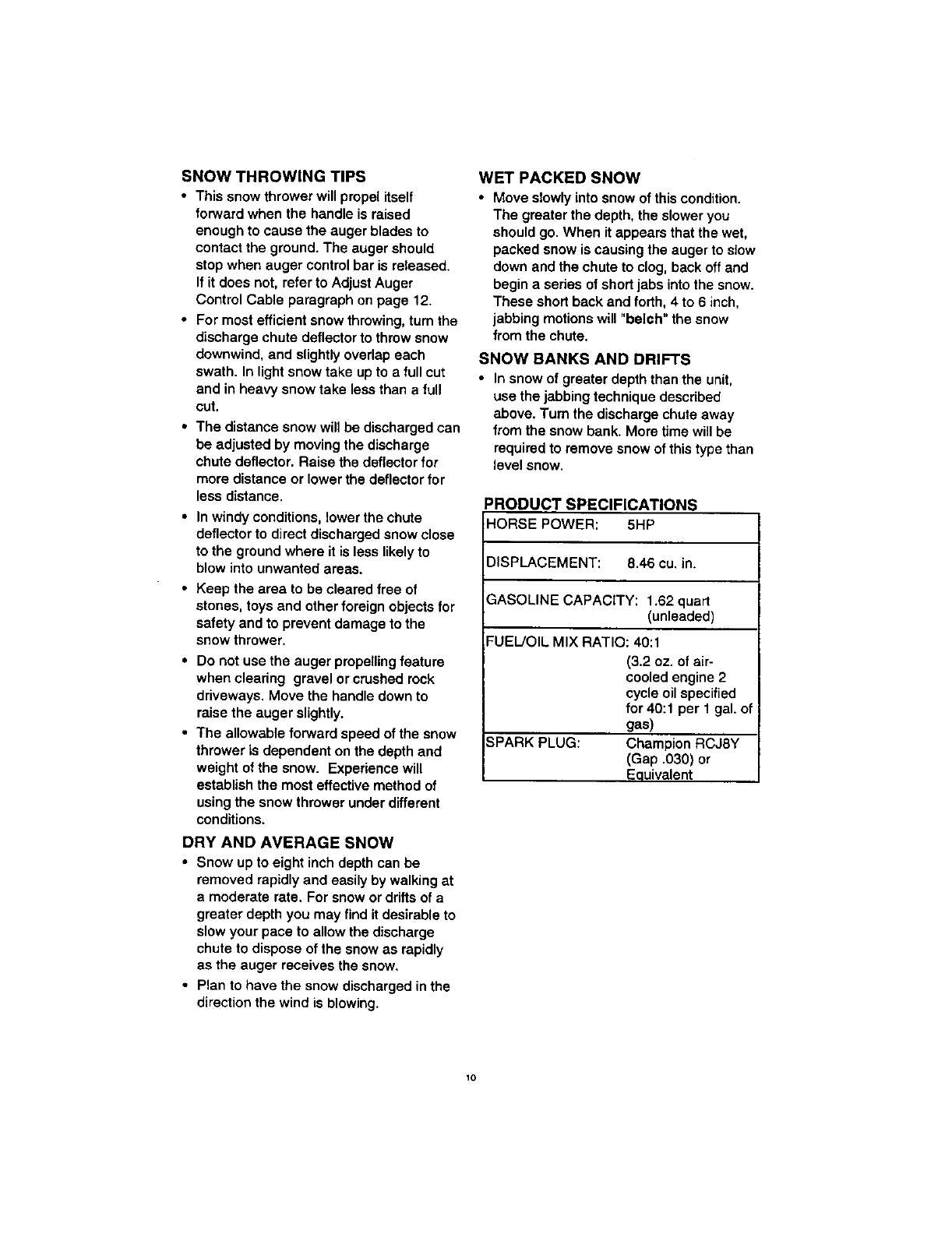

SNOW THROWING TIPS

• This snow thrower will propel itself

forward when the handle is raised

enough to cause the auger blades to

contact the ground. The auger should

stop when auger control bar is released.

If it does not, refer to Adjust Auger

Control Cable paragraph on page 12.

• For most efficient snow throwing, turn the

discharge chute deflector to throw snow

downwind, and slightly overlap each

swath. In light snow take up to afull cut

and in heavy snow take less than afull

cut.

•The distance snow will be discharged can

be adjusted by moving the discharge

chute deflector. Raise the deflector for

more distance or lower the deflector for

less distance.

•In windy conditions, lower the chute

deflector to direct discharged snow close

to the ground where it is less likely to

blow into unwanted areas.

• Keep the area to be cleared free of

stones, toys and other foreign objects for

safety and to prevent damage to the

snow thrower.

• Do not use the auger propelling feature

when clearing gravel or crushed rock

driveways. Move the handle down to

raise the auger slightly.

• The allowable forward speed of the snow

thrower is dependent on the depth and

weight of the snow. Experience will

establish the most effective method of

using the snow thrower under different

conditions.

DRY AND AVERAGE SNOW

• Snow up to eight inch depth can be

removed rapidly and easily by walking at

a moderate rate. For snow or drifts of a

greater depth you may find itdesirable to

slow your pace to allow the discharge

chute to dispose of the snow as rapidly

as the auger receives the snow.

•Plan to have the snow discharged in the

direction the wind is blowing.

WET PACKED SNOW

•Move slowly into snow of this condition.

The greater the depth, the slower you

should go. When itappears that the wet,

packed snow is causing the auger to slow

down and the chute to clog, back off and

begin a series of short jabs into the snow.

These short back and forth, 4 to 6 inch,

jabbing motions will "belch" the snow

from the chute.

SNOW BANKS AND DRIFTS

•In snow of greater depth than the unit,

use the jabbing technique described

above. Turn the discharge chute away

from the snow bank. More time will be

required to remove snow of this type than

level snow.

PRODUCT SPECIFICATIONS

HORSE POWER: 5HP

DISPLACEMENT: 8.46 cu. in.

GASOLINE CAPACITY: 1.62 quart

(unleaded)

FUEL/OIL MIX RATIO: 40:1

(3.2 oz. of air-

cooled engine 2

cycle oil specified

for 40:1 per 1 gal. of

gas)

SPARK PLUG: Champion RCJ8Y

(Gap .030) or

Equivalent

10

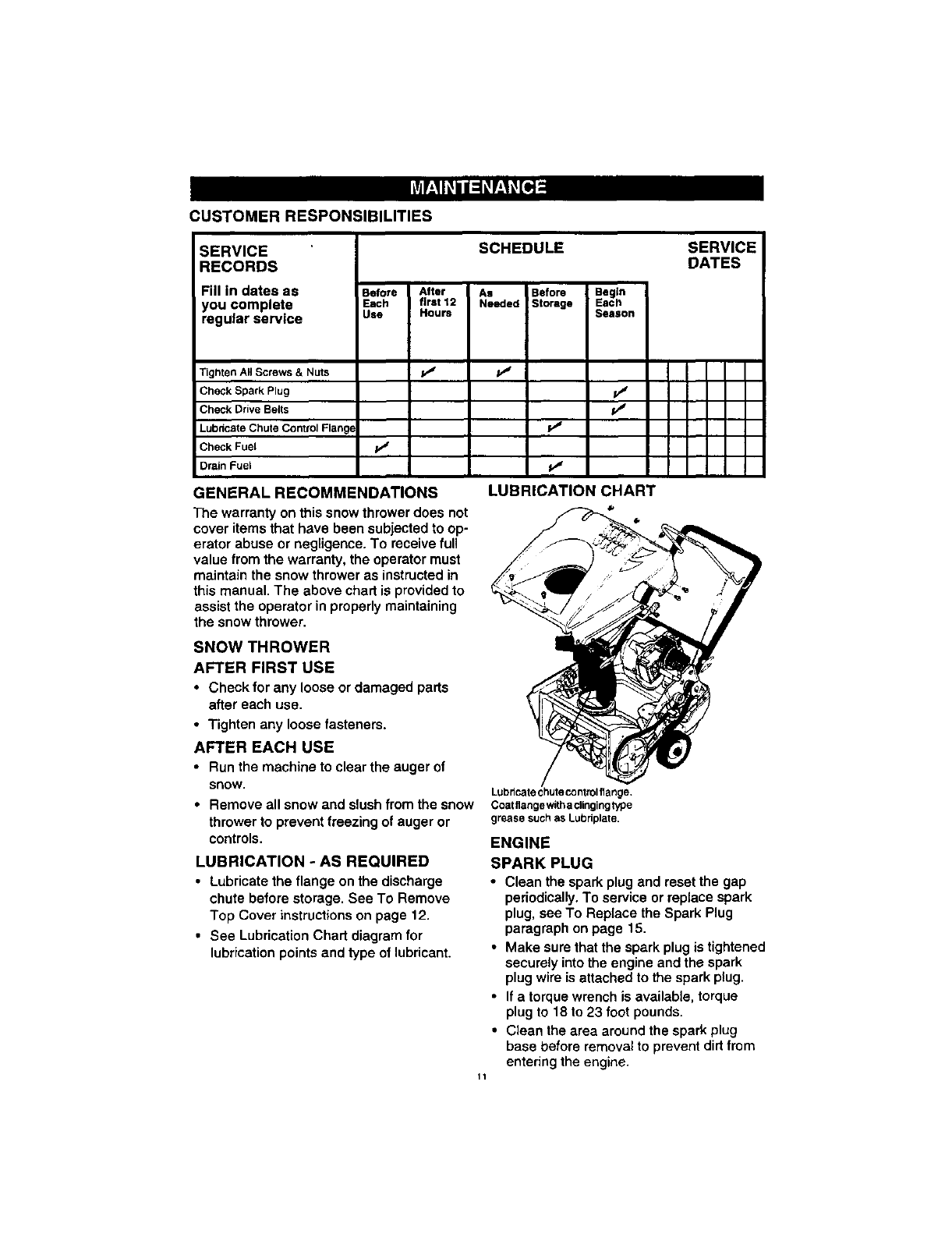

CUSTOMER RESPONSIBILITIES

SERVICE

RECORDS

Fill in dates as

you complete

regular service

SCHEDULE SERVICE

DATES

Before After As Before Begin

Each first 12 Needed Storage r Each

Use Hours Season

Tighten All Screws & Nuts

Check Spark Plug

Check Drive Belts

Lubricate Chute Control Flange

Check Fuel p,/

Drain Fuel

GENERAL RECOMMENDATIONS

The warranty on this snow thrower does not

cover items that have been subjected to op-

erator abuse or negligence. To receive full

value from the warranty, the operator must

maintain the snow thrower as instructed in

this manual. The above chart is provided to

assist the operator in properly maintaining

the snow thrower.

SNOW THROWER

AFTER FIRST USE

•Check for any loose or damaged parts

after each use.

•Tighten any loose fasteners.

AFTER EACH USE

•Run the machine to clear the auger of

SCOW.

•Remove all snow and slush from the snow

thrower to prevent freezing of auger or

controls.

LUBRICATION - AS REQUIRED

•Lubricate the flange on the discharge

chute before storage. See To Remove

Top Cover instructions on page 12.

•See Lubrication Chart diagram for

lubrication points and type of lubricant.

v,'

v"

LUBRICATION CHART

4,

Lubricate chute controlflange.

Coat flange with a clinging type

grease such as Lubdplate.

11

ENGINE

SPARK PLUG

• Clean the spark plug and reset the gap

periodically. To service or replace spark

plug, see To Replace the Spark Plug

paragraph on page 15.

•Make sure that the spark plug is tightened

securely into the engine and the spark

plug wire is attached to the spark plug.

•Ifa torque wrench is available, torque

plug to 18 to 23 foot pounds.

•Clean the area around the spark plug

base before removal to prevent dirt from

entering the engine.

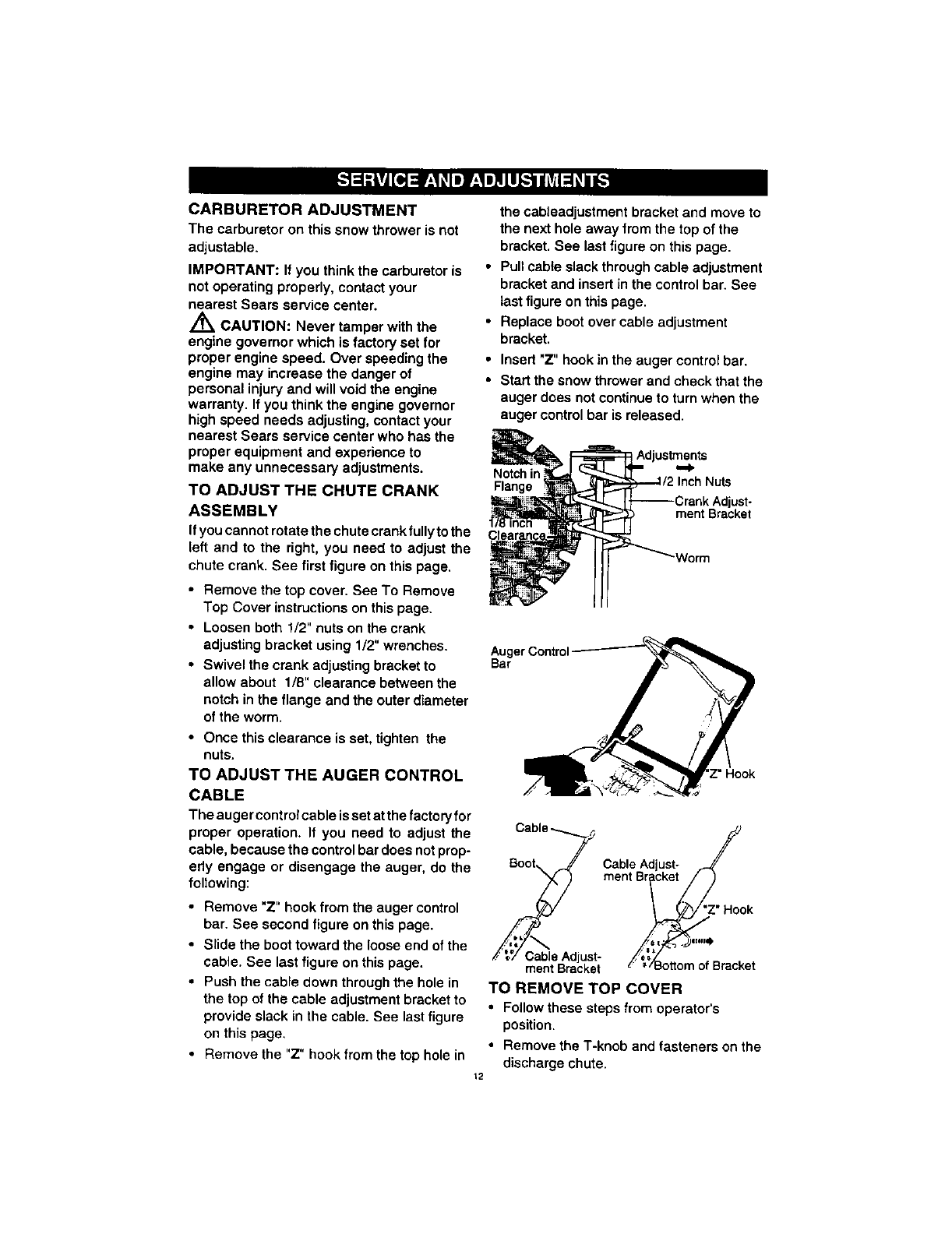

CARBURETORADJUSTMENT

Thecarburetoronthissnowthrowerisnot

adjustable.

IMPORTANT:Ifyouthinkthecarburetoris

notoperatingproperly,contactyour

nearestSearsservicecenter.

Z_ CAUTION: Never tamper with the

engine governor which is factory set for

proper engine speed. Over speeding the

engine may increase the danger of

personal injury and will void the engine

warranty. If you think the engine governor

high speed needs adjusting, contact your

nearest Sears service center who has the

proper equipment and experience to

make any unnecessary adjustments.

TO ADJUST THE CHUTE CRANK

ASSEMBLY

Ifyou cannot rotate the chute crank fully to the

left and to the right, you need to adjust the

chute crank. See first figure on this page.

•Remove the top cover. See To Remove

Top Cover instructions on this page.

• Loosen both 1/2" nuts on the crank

adjusting bracket using 1/2" wrenches.

•Swivel the crank adjusting bracket to

allow about 1/8" clearance between the

notch in the flange and the outer diameter

of the worm.

•Once this clearance is set, tighten the

nuts.

TO ADJUST THE AUGER CONTROL

CABLE

The auger control cable is set at the factory for

proper operation. If you need to adjust the

cable, because the control bar does not prop-

edy engage or disengage the auger, do the

following:

•Remove "Z" hook from the auger control

bar. See second figure on this page.

• Slide the boot toward the loose end of the

cable. See last figure on this page.

•Push the cable down through the hole in

the top of the cable adjustment bracket to

provide slack in the cable. See last figure

on this page.

•Remove the "Z" hook from the top hole in

the cableadjustment bracket and move to

the next hole away from the top of the

bracket. See last figure on this page.

•Pull cable slack through cable adjustment

bracket and insert in the control bar. See

last figure on this page.

•Replace boot over cable adjustment

bracket.

•Insert "Z" hook in the auger control bar.

•Start the snow thrower and check that the

auger does not continue to turn when the

auger control bar is released.

Adjustments

Notchin ,.,e.

Flange

ment Bracket

Worm

AugerControl

Bar

Hook

Cable,-_ Cable Adjust- ,_tj

ment Brlcket_ _....

/_Z" Hook

_=_'/Cm_acbnl_Ad_UkSti _:::Bracket

TO REMOVE TOP COVER

• Follow these steps from operator's

position.

• Remove the T-knob and fasteners on the

discharge chute.

t2

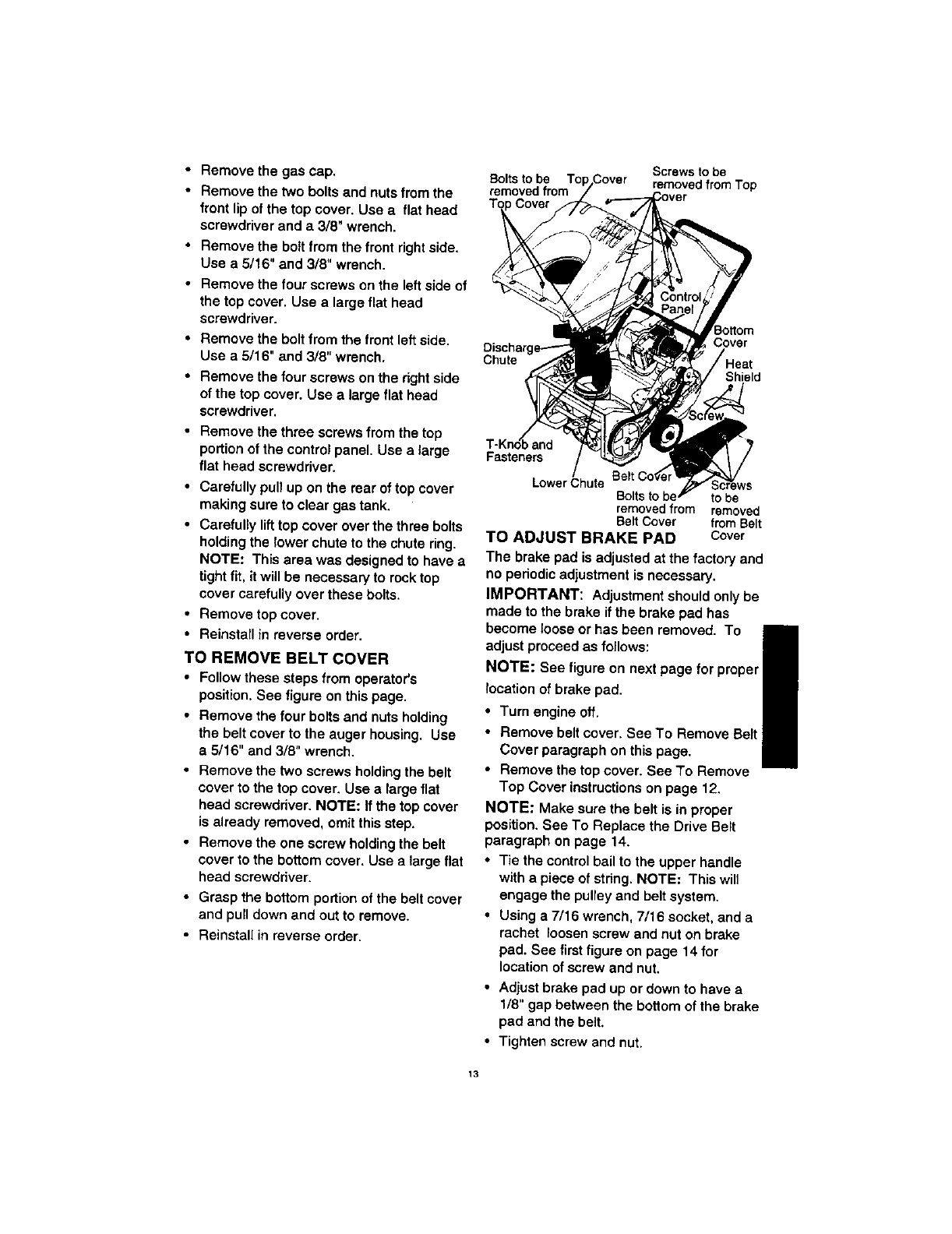

• Remove the gas cap.

• Remove the two bolts and nuts from the

front lip of the top cover. Use a flat head

screwdriver and a 3/8" wrench.

• Remove the bolt from the front right side.

Use a 5/16" and 3/8" wrench.

•Remove the four screws on the left side of

the top cover. Use alarge flat head

screwdriver.

•Remove the bolt from the front left side.

Use a 5/16" and 3/8" wrench,

•Remove the four screws on the right side

of the top cover. Use a large flat head

screwdriver.

•Remove the three screws from the top

portion of the control panel. Use a large

fiat head screwdriver.

•Carefully pull up on the rear of top cover

making sure to clear gas tank,

• Carefully lift top cover over the three bolts

holding the lower chute to the chute ring.

NOTE: This area was designed to have a

tight fit, it will be necessary to rock top

cover carefully over these bolts.

•Remove top cover.

•Reinstall in reverse order.

TO REMOVE BELT COVER

•Follow these steps from operator's

position. See figureon this page.

•Remove the four bolts and nuts holding

the belt cover to the auger housing. Use

a 5/16" and 3/8" wrench.

• Remove the two screws holding the belt

cover to the top cover. Use a large flat

head screwdriver. NOTE: If the top cover

is already removed, omit this step.

• Remove the one screw holding the belt

cover to the bottom cover. Use a large flat

head screwdriver.

• Grasp the bottom portion of the belt cover

and pun down and out to remove.

• Reinstall in reverse order.

Bolts to be T(

removed from

Screws to be

removed from Top

Chute

Cover

Shield

Fasteners

Lower Chute to be

removed from removed

Belt Cover from Belt

TO ADJUST BRAKE PAD Cover

The brake pad is adjusted at the factory and

no periodic adjustment is necessary.

IMPORTANT: Adjustment should only be

made to the brake ifthe brake pad has

become loose or has been removed. To

adjust proceed as follows: I

NOTE: See figure on next page for proper

location of brake pad.

•Turn engine off.

•Remove belt cover, See To Remove Belt

Cover paragraph on this page.

•Remove the top cover. See To Remove

Top Cover instructions on page 12.

NOTE: Make sure the belt is in proper

position. See To Replace the Drive Belt

paragraph on page 14.

•Tie the control bail to the upper handle

with a piece of stdng. NOTE: This will

engage the pulley and belt system.

• Using a 7/16 wrench, 7/16 socket, and a

rachet loosen screw and nut on brake

pad. See first figure on page 14 for

location of screw and nut,

Adjust brake pad up or down to have a

1/8" gap between the bottom of the brake

pad and the belt.

Tighten screw and nut.

13

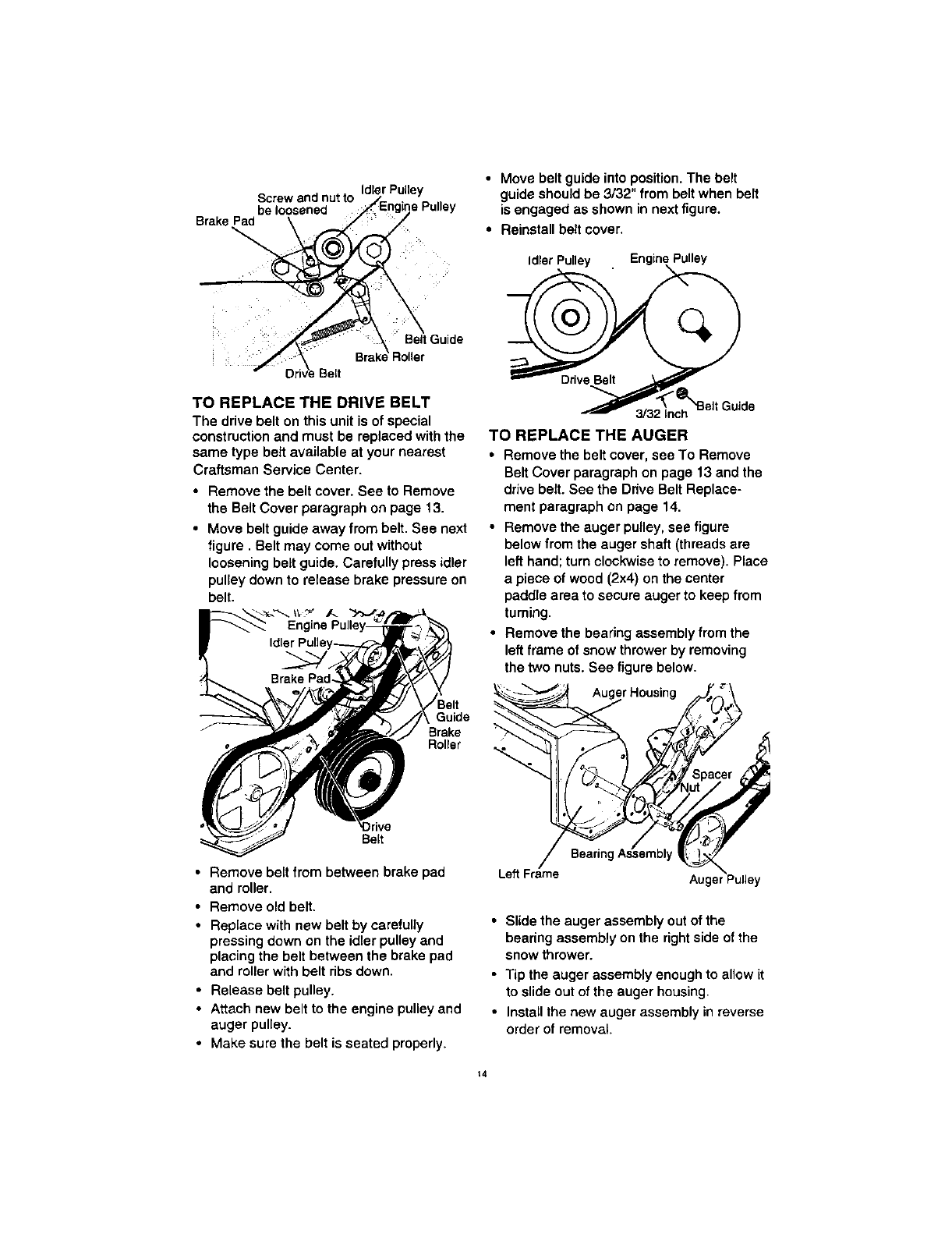

Screw and nut to Idler Pulley

be loosened Pulley

Brake Pad

•Move belt guide into position. The belt

guide should be 3/32" from belt when belt

is engaged as shown in next figure.

•Reinstall belt cover.

TO REPLACE THE DRIVE BELT

The drive belt on this unit is of special

construction and must be replaced with the

same type belt available at your nearest

Craftsman Service Center.

• Remove the belt cover. See to Remove

the Belt Cover paragraph on page 13.

•Move belt guide away from belt. See next

figure. Belt may come out without

loosening belt guide. Carefully press idler

pulley down to release brake pressure on

belt.

Belt

Guide

Brake

Roller

•Remove belt from between brake pad

and roller.

•Remove old belt.

•Replace with new belt by carefully

pressing down on the idler pulley end

placing the belt between the brake pad

and rollerwith belt ribs down.

• Release belt pulley.

• Attach new belt to the engine pulley and

auger pulley.

• Make sure the belt is seated properly.

TO REPLACE THE AUGER

•Remove the belt cover, see To Remove

Belt Cover paragraph on page 13 and the

drive belt. See the Drive Belt Replace-

ment paragraph on page 14.

•Remove the auger pulley, see figure

below from the auger shaft (threads are

left hand; turn clockwise to remove). Place

apiece of wood (2x4) on the center

paddle area to secure auger to keep from

tuming.

•Remove the bearing assembly from the

left frame of snow thrower by removing

the two nuts. See figure below.

_,_ _r Housing

•o

/

LeftFrame

Spacer ,_

Auger Pulley

•Slide the auger assembly out of the

bearing assembly on the right side of the

snow thrower.

• Tip the auger assembly enough to allow it

to slide out of the auger housing•

•Install the new auger assembly in reverse

order of removal.

14

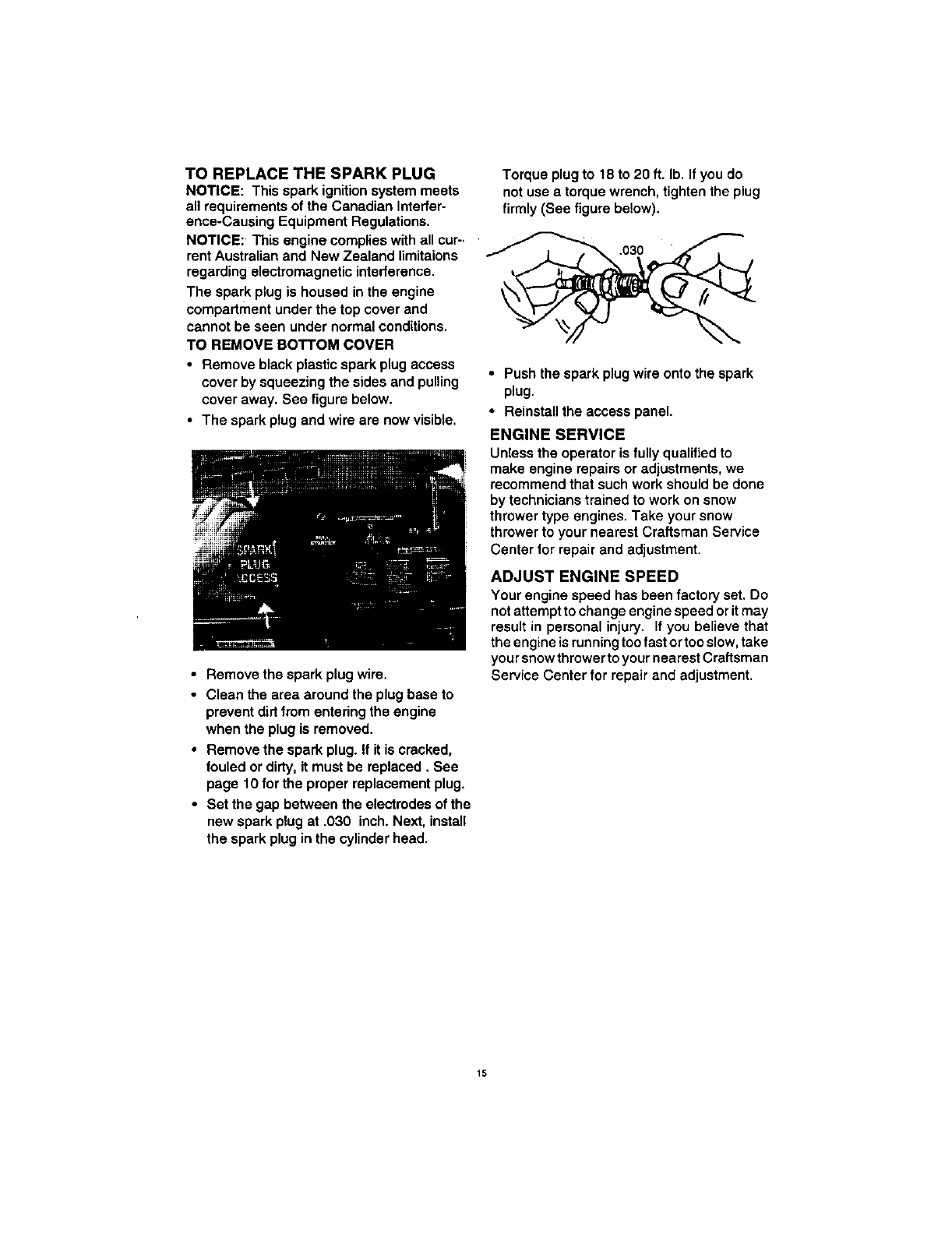

TO REPLACE THE SPARK PLUG

NOTICE: This spark ignition system meets

all requirements of the Canadian Interfer-

ence-Causing Equipment Regulations.

NOTICE: This engine complies with all cur-. '

rent Australian and New Zealand limitaions

regarding electromagnetic interference.

The spark plug is housed in the engine

compartment under the top cover and

cannot be seen under normal conditions.

TO REMOVE BOTTOM COVER

• Remove black plastic spark plug access

cover by squeezing the sides and pulling

cover away. See figure below.

• The spark plug and wire are now visible.

•Remove the spark plug wire.

• Clean the area around the plug base to

prevent dirt from entering the engine

when the plug is removed.

•Remove the spark plug. If it is cracked,

fouled or dirty, it must be replaced. See

page 10 for the proper replacement plug.

•Set the gap between the electrodes of the

new spark plug at .030 inch. Next, install

the spark plug in the cylinder head.

Torque plug to 18 to 20 ft. lb. If you do

not use a torque wrench, tighten the plug

firmly (See figure below).

,030

•Push the spark plug wire onto the spark

plug.

•Reinstall the access panel.

ENGINE SERVICE

Unless the operator is fully qualified to

make engine repairs or adjustments, we

recommend that such work should be done

by technicians trained to work on snow

thrower type engines. Take your snow

thrower to your nearest Craftsman Service

Center for repair and adjustment.

ADJUST ENGINE SPEED

Your engine speed has been factory set. Do

not attempt to change engine speed orit may

result in personal injury, if you be[ieve that

the engine is running too fast ortoo slow, take

your snow throwerto your nearest Craftsman

Service Center for repair and adjustment.

15

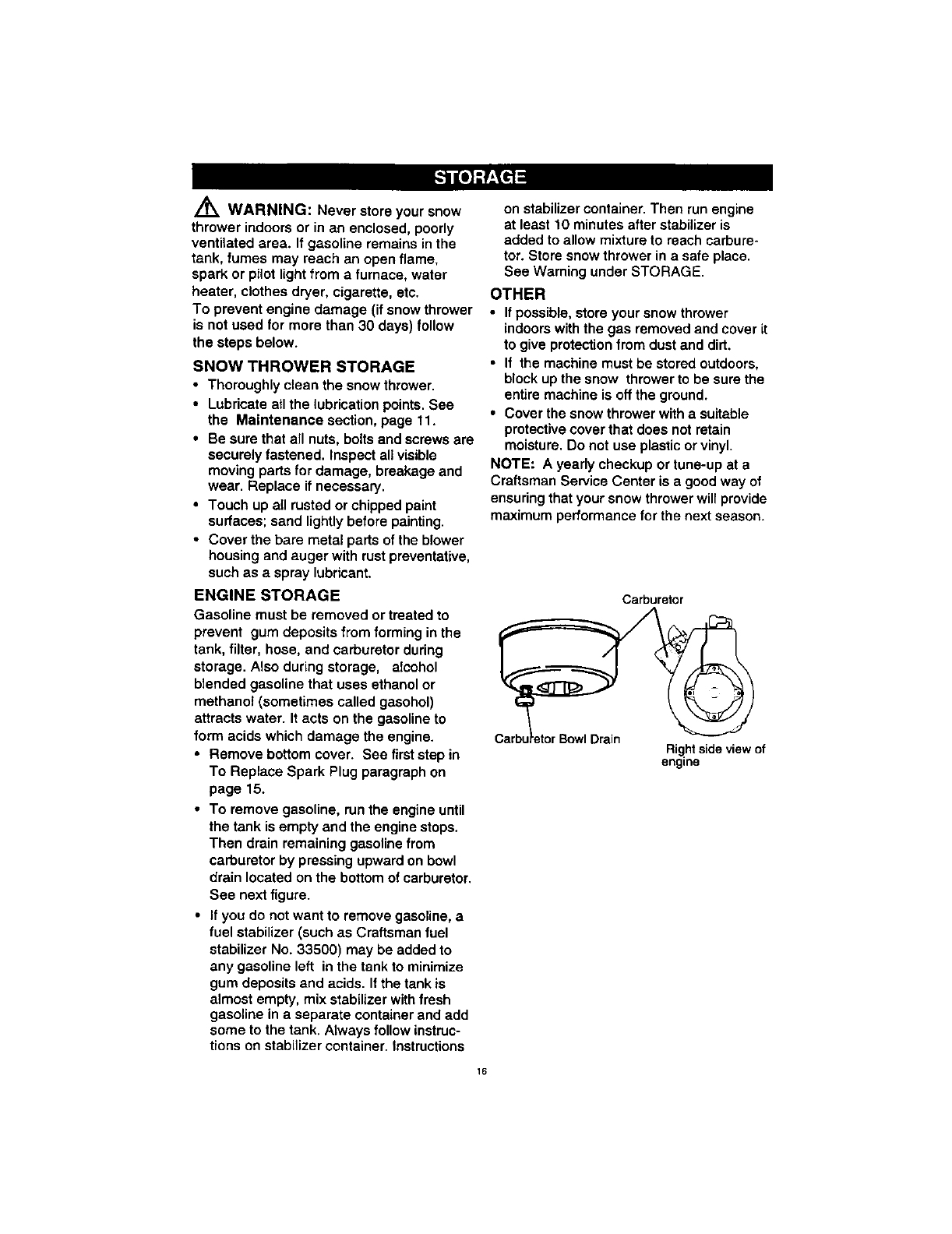

WARNING: Never store your snow

thrower indoors or in an enclosed, poorly

ventilated area. If gasoline remains in the

tank, fumes may reach an open flame,

spark or pilot light from afurnace, water

heater, clothes dryer, cigarette, etc.

To prevent engine damage (if snow thrower

is not used for more than 30 days) follow

the steps below.

SNOW THROWER STORAGE

• Thoroughly clean the snow thrower.

• Lubricate all the lubrication points. See

the Maintenance section, page 11.

•Be sure that all nuts, bolts and screws are

securely fastened. Inspect all visible

moving parts for damage, breakage and

wear. Replace if necessary.

•Touch up aU rusted or chipped paint

surfaces; sand lightly before painting.

• Cover the bare metal parts of the blower

housing and auger with rust preventative,

such asaspray lubricant.

ENGINE STORAGE

Gasoline must be removed or treated to

prevent gum deposits from forming in the

tank, filter, hose, and carburetor during

storage. Also during storage, aJoohol

blended gasoline that uses ethanol or

methanol (sometimes called gasohol)

attracts water. It acts on the gasoline to

form acids which damage the engine.

• Remove bottom cover. See first step in

To Replace Spark Plug paragraph on

page 15.

•To remove gasoline, run the engine until

the tank is empty and the engine stops.

Then drain remaining gasoline from

carburetor by pressing upward on bowl

drain located on the bottom of carburetor.

See next figure.

• If you do not want to remove gasoline, a

fuel stabilizer (such as Craftsman fuel

stabilizer No. 33500) may be added to

any gasoline left in the tank to minimize

gum deposits and acids. If the tank is

almost empty, mix stabilizer with fresh

gasoline in a separate container and add

some to the tank. A_ways follow instruc-

tions on stabilizer container. Instructions

on stabilizer container. Then run engine

at least 10 minutes after stabilizer is

added to allow mixture to reach carbure-

tor. Store snow thrower in a safe place.

See Warning under STORAGE.

OTHER

•If possib|e, store your snow thrower

indoors with the gas removed and cover it

to give protection from dust and dirt,

•tf the machine must be slored outdoors,

block up the snow thrower to be sure the

entire machine is off the ground.

•Cover the snow thrower with a suitable

protective cover that does not retain

moisture. Do not use plastic or vinyl.

NOTE: Ayearly checkup or tune-up at a

Craftsman Service Center is agood way of

ensuring that your snow thrower wit1provide

maximum performance for the next season.

Carburetor

Right side view of

engtne

16

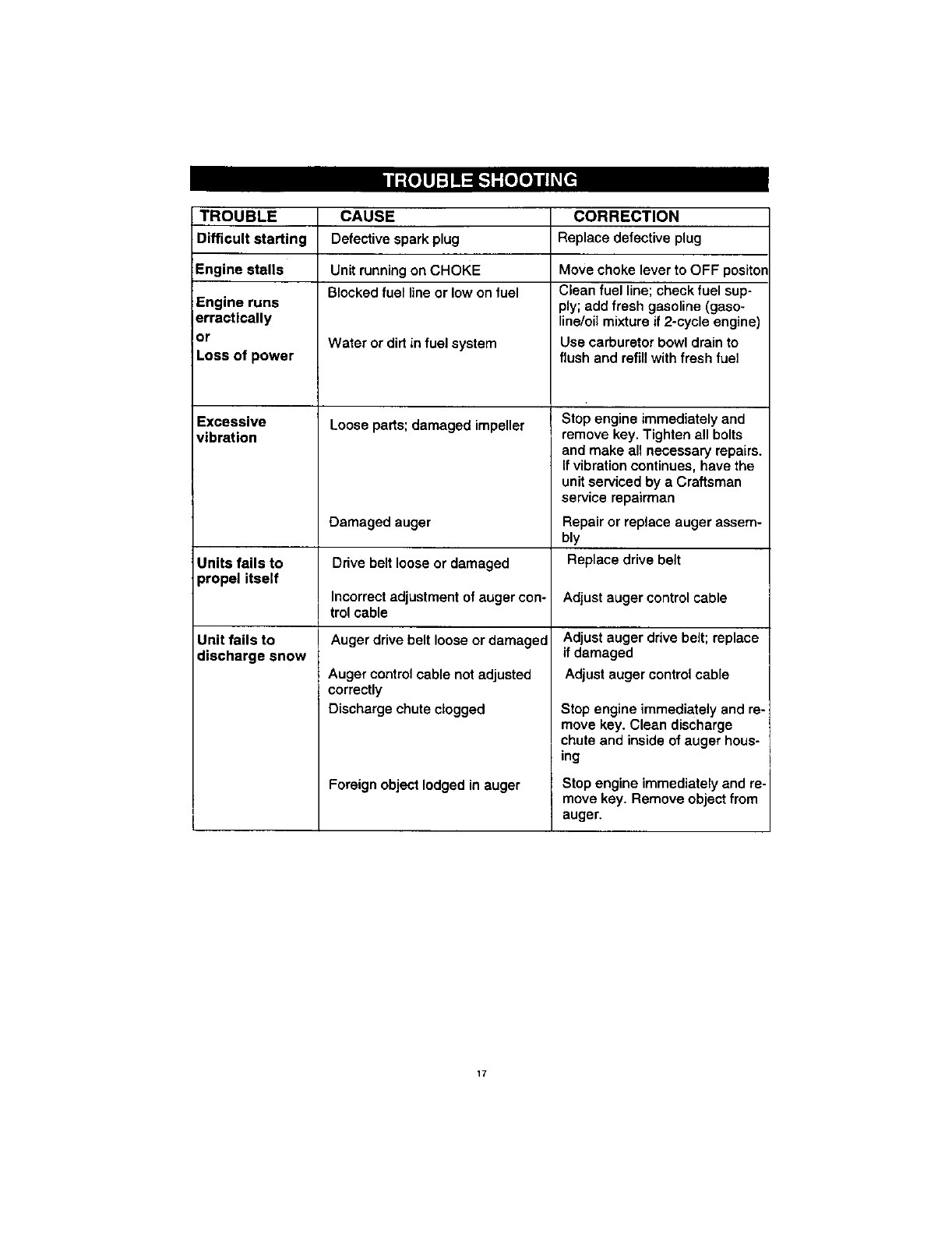

TROUBLE CAUSE CORRECTION

Difficult starting Defective spark plug Replace defective plug

Engine stalls Unit running on CHOKE Move choke lever to OFF positor

Blocked fuel line or low on fuel Clean fuel line; check fuel sup-

Engine runs ply; add fresh gasoline (gaso-

erractically line/oil mixture if2-cycle engine)

or Water or dirt in fuel system Use carburetor bowl drain to

Loss of power flush and refill with fresh fuel

Loose pads; damaged impeller

Excessive

vibration Stop engine immediately and

remove key. Tighten all bolts

and make all necessary repairs.

If vibration continues, have the

unit serviced by a Craftsman

service repairman

Drive belt loose or damaged

Incorrect adjustment of auger con-

trol cable

Auger drive belt loose or damaged

Auger control cable not adjusted

correctly

Discharge chute clogged

Damaged auger Repair or replace auger assem-

bly

Units fails to Replace drive belt

propel itself

Adjust auger control cable

Unit fails to Adjust auger drive belt; replace

discharge snow if damaged

Adjust auger control cable

Foreign object lodged in auger

Stop engine immediately and re-

move key. Clean discharge

chute and inside of auger hous-

ing

Stop engine immediately and re-

move key. Remove object from

auger.

17
