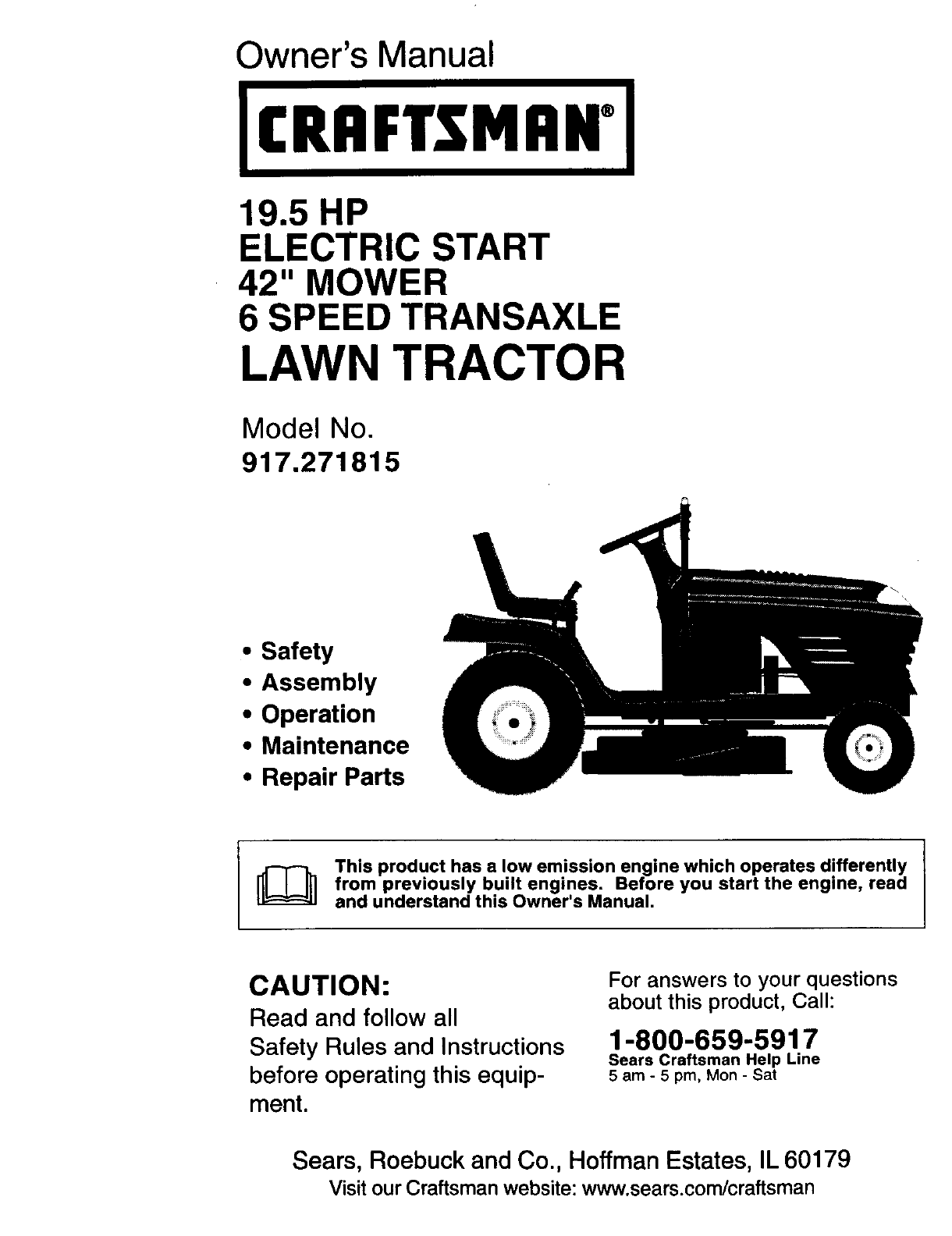

Owner's Manual

CRAFTSMIIH°I

9.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.271815

•Safety

•Assembly

•Operation

•Maintenance

•Repair Parts

This product has a low emission engine which operates differently

from previously built engines. Before you start the engine, read

and understand this Owner's Manual,

CAUTION:

Read and follow all

Safety Rules and Instructions

before operating this equip-

ment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon- Sat

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Visit our Craftsman website: www.sears.com/craftsman

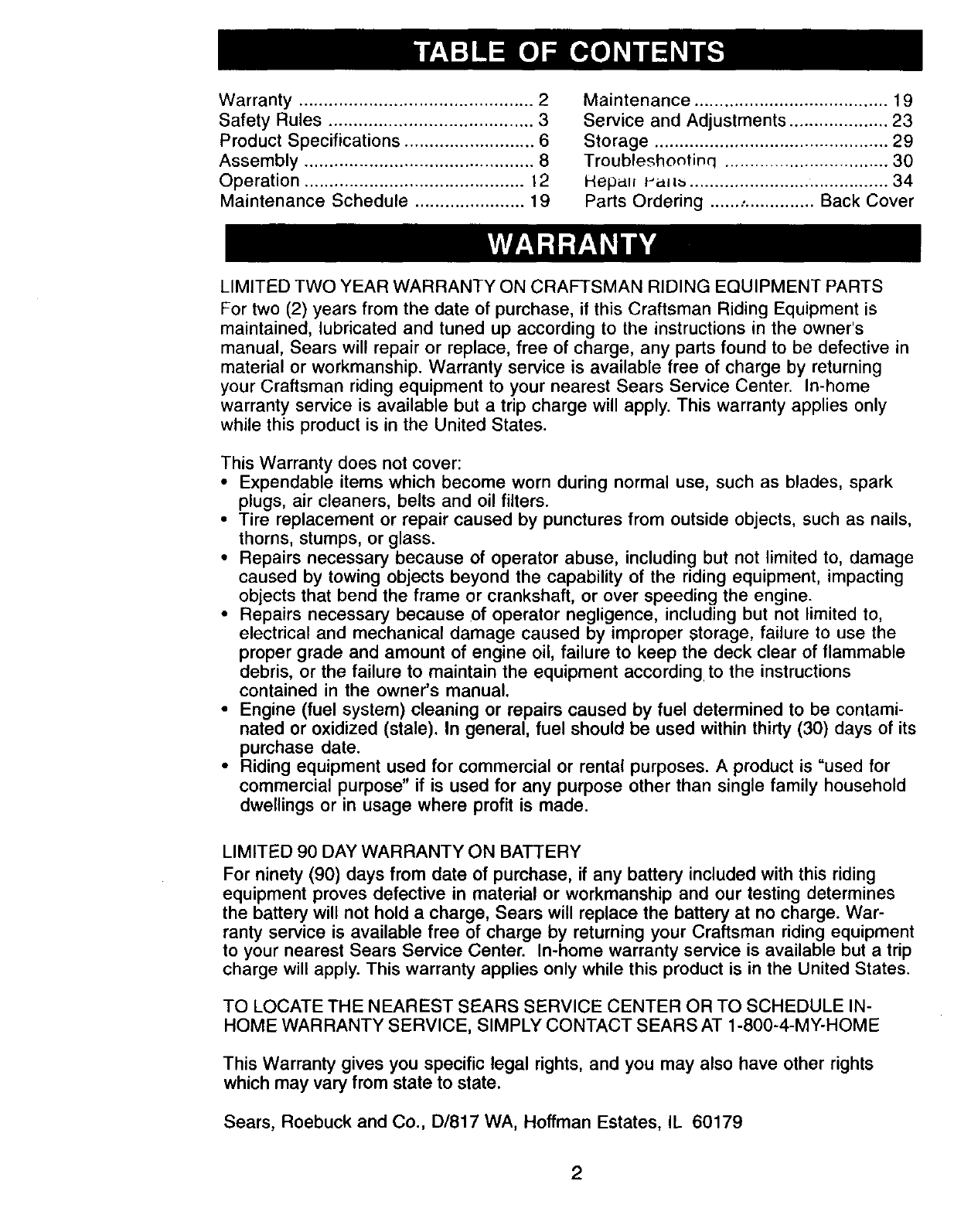

Warranty ............................................... 2

Safety Rules ......................................... 3

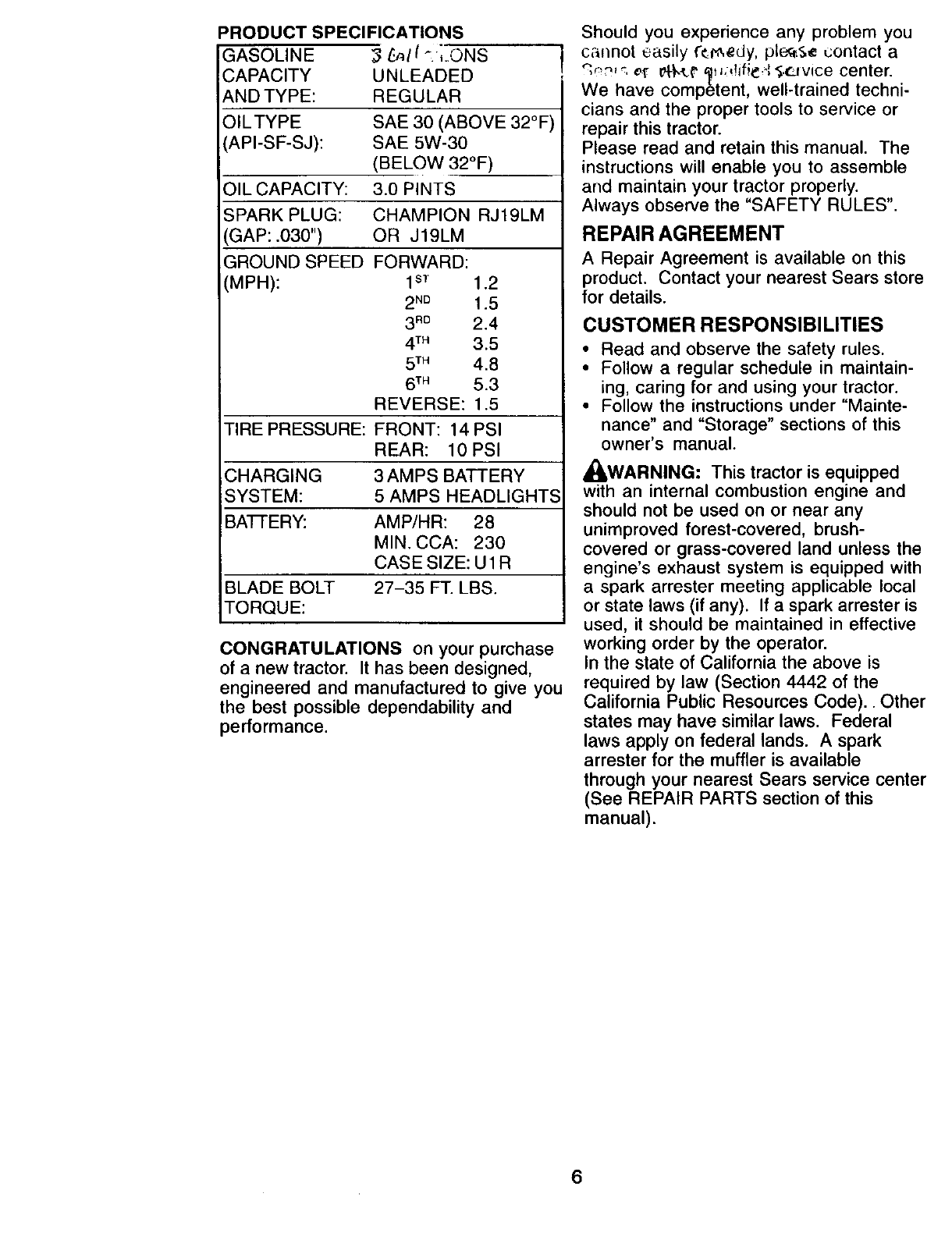

Product Specifications .......................... 6

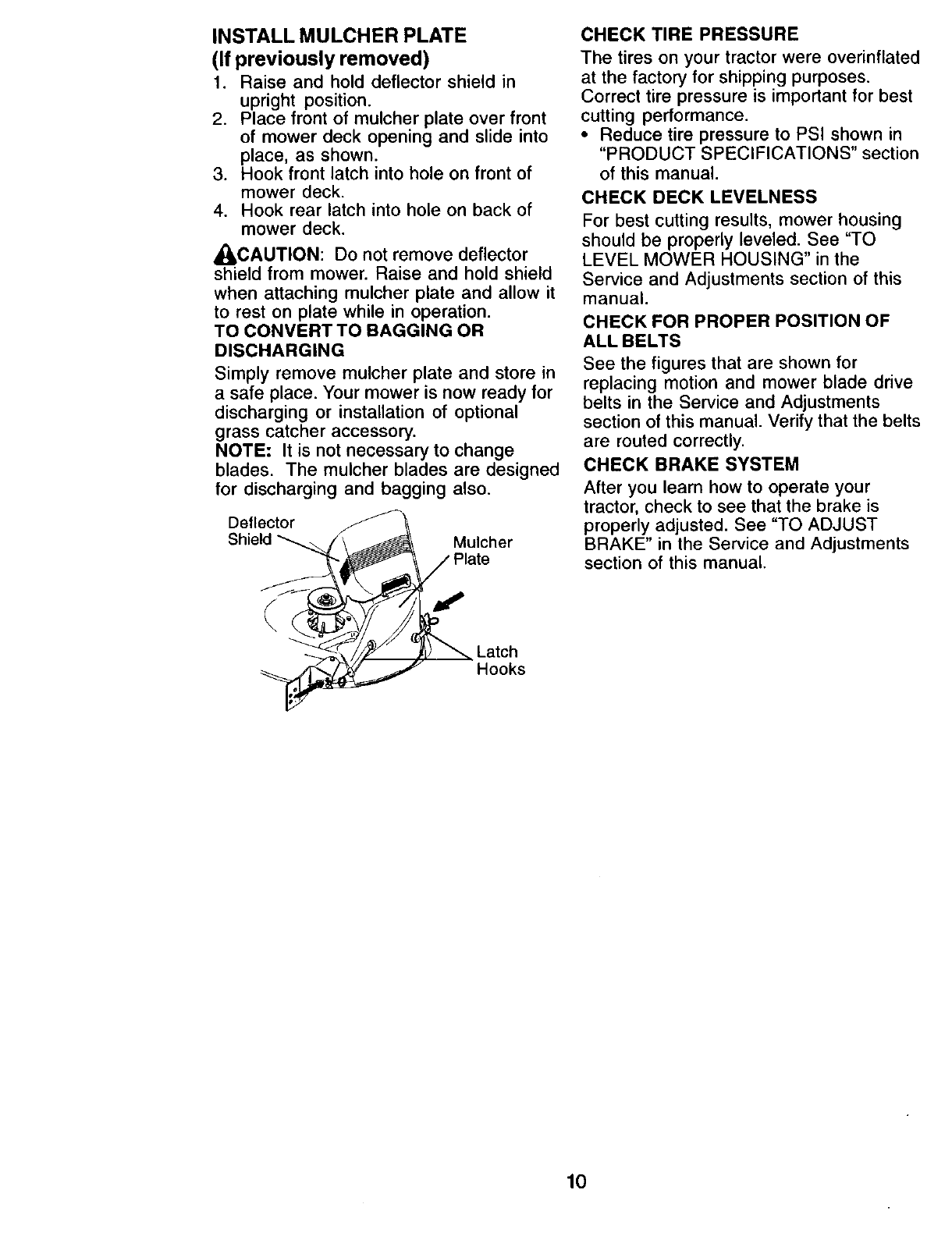

Assembly .............................................. 8

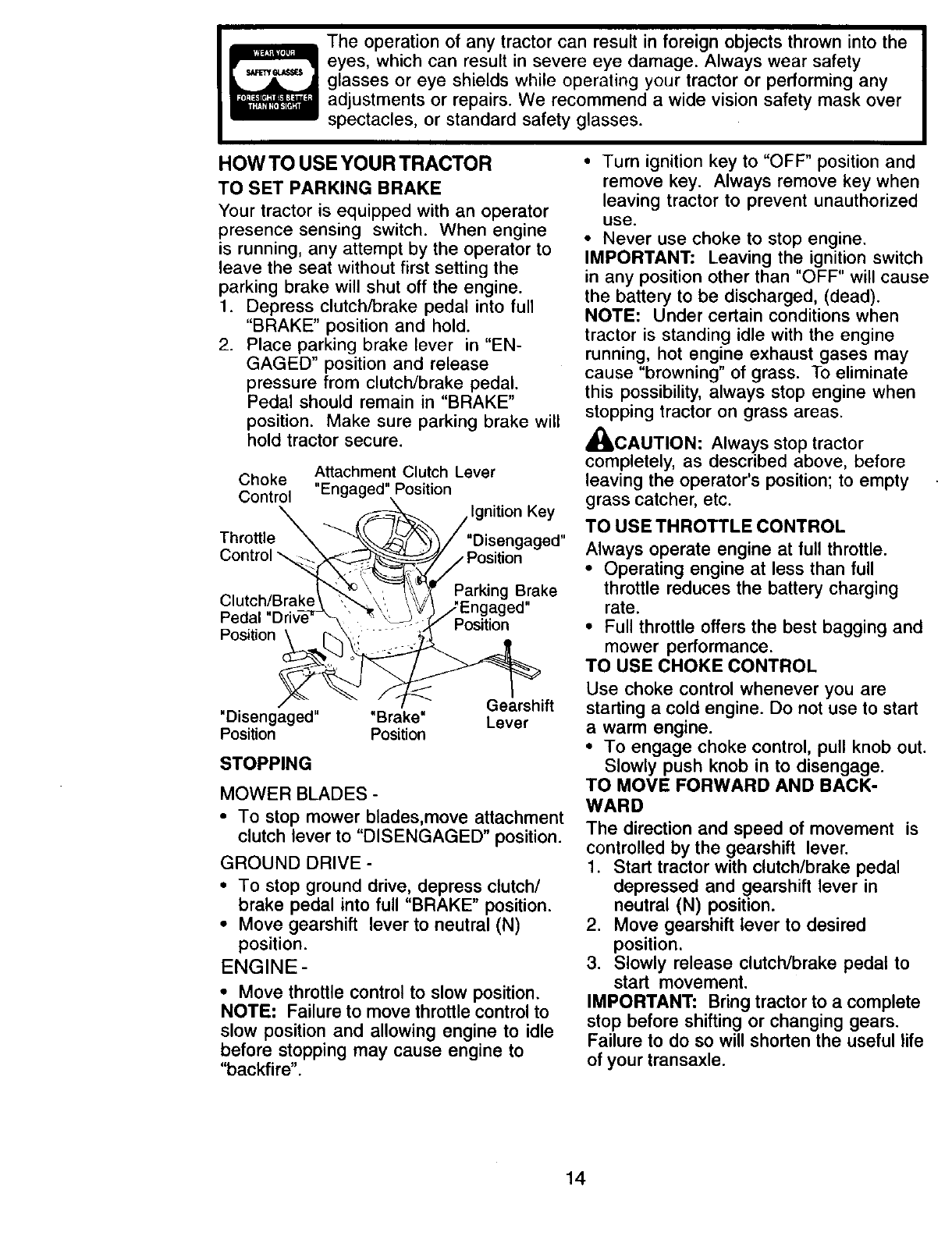

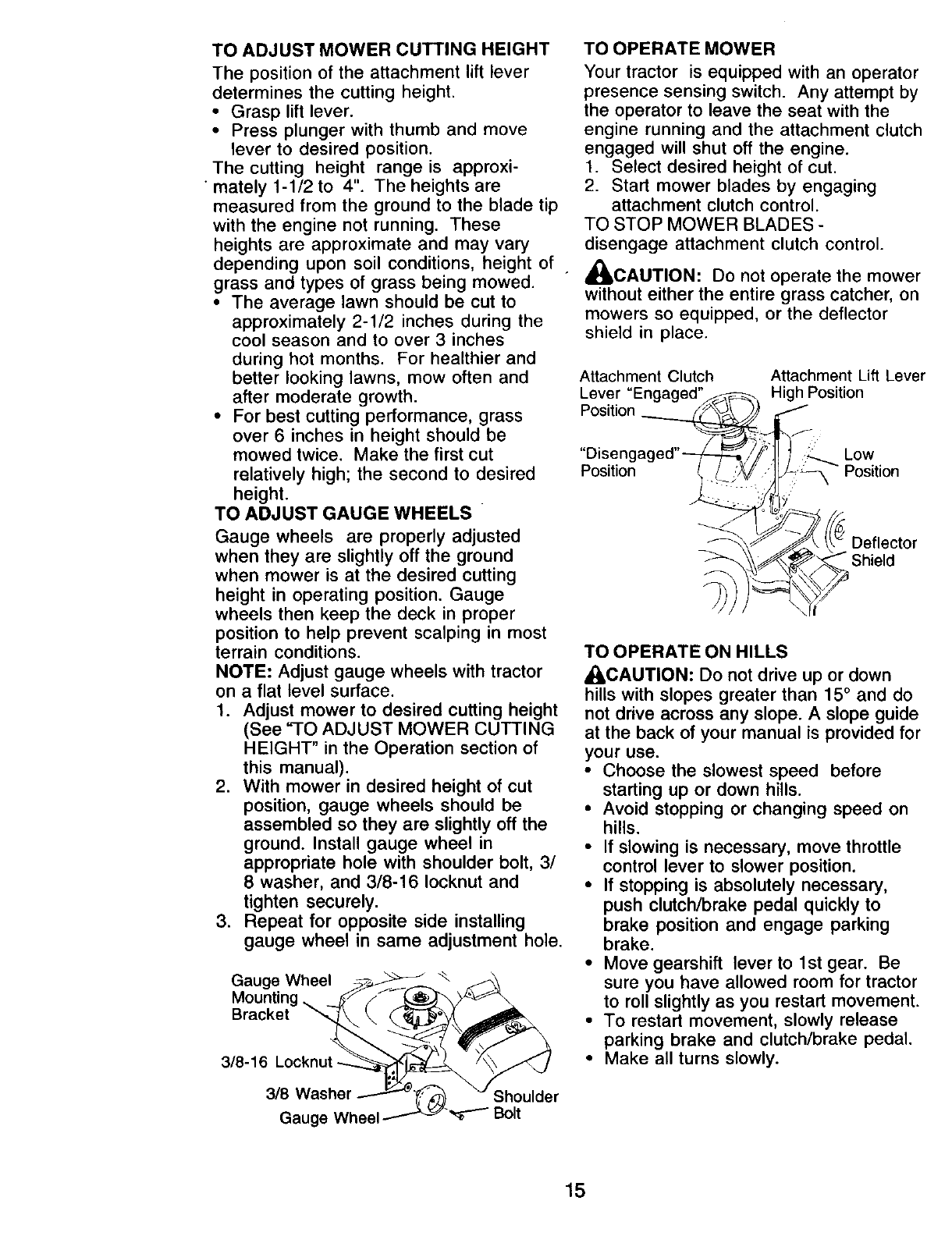

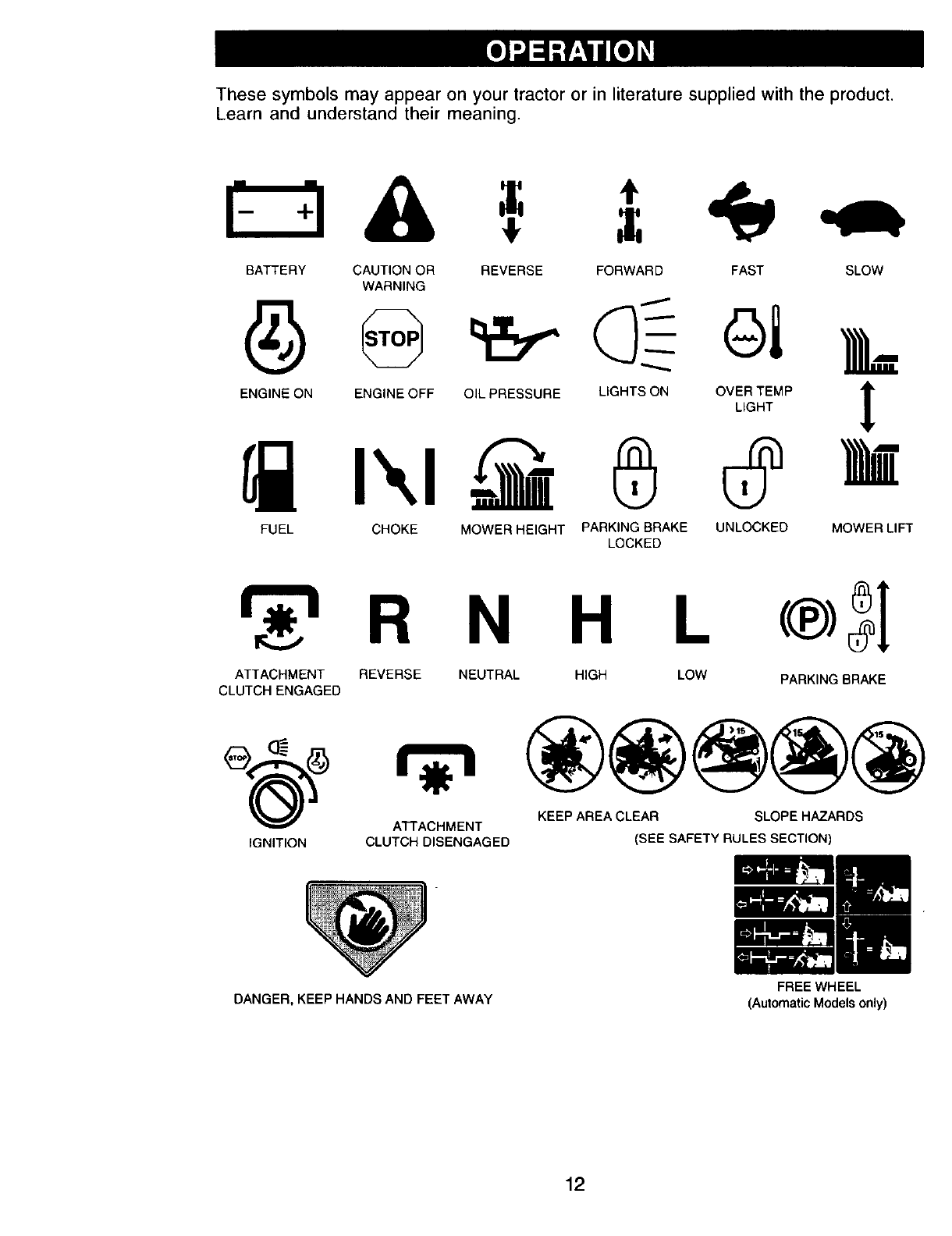

Operation ............................................ 12

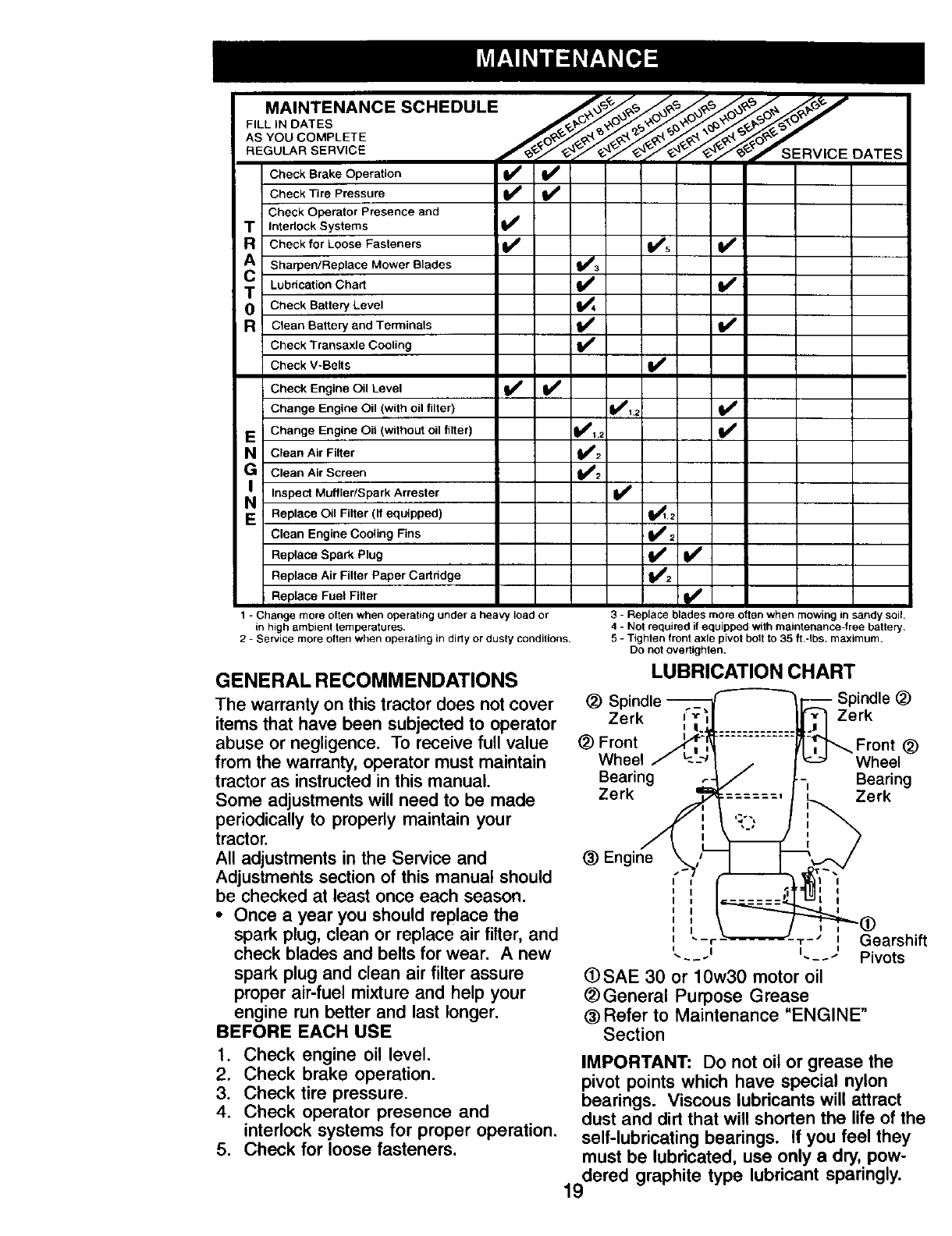

Maintenance Schedule ...................... 19

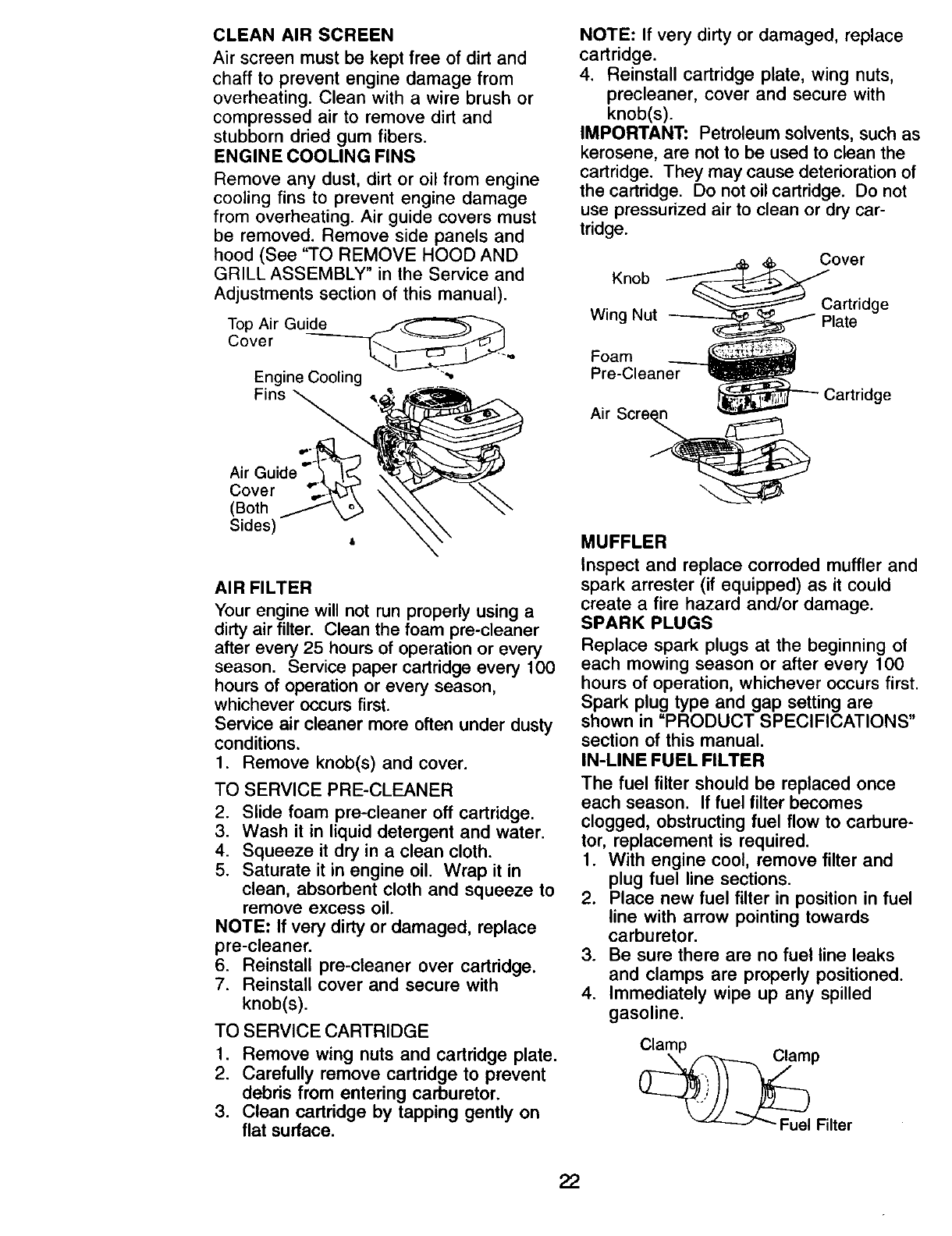

Maintenance ....................................... 19

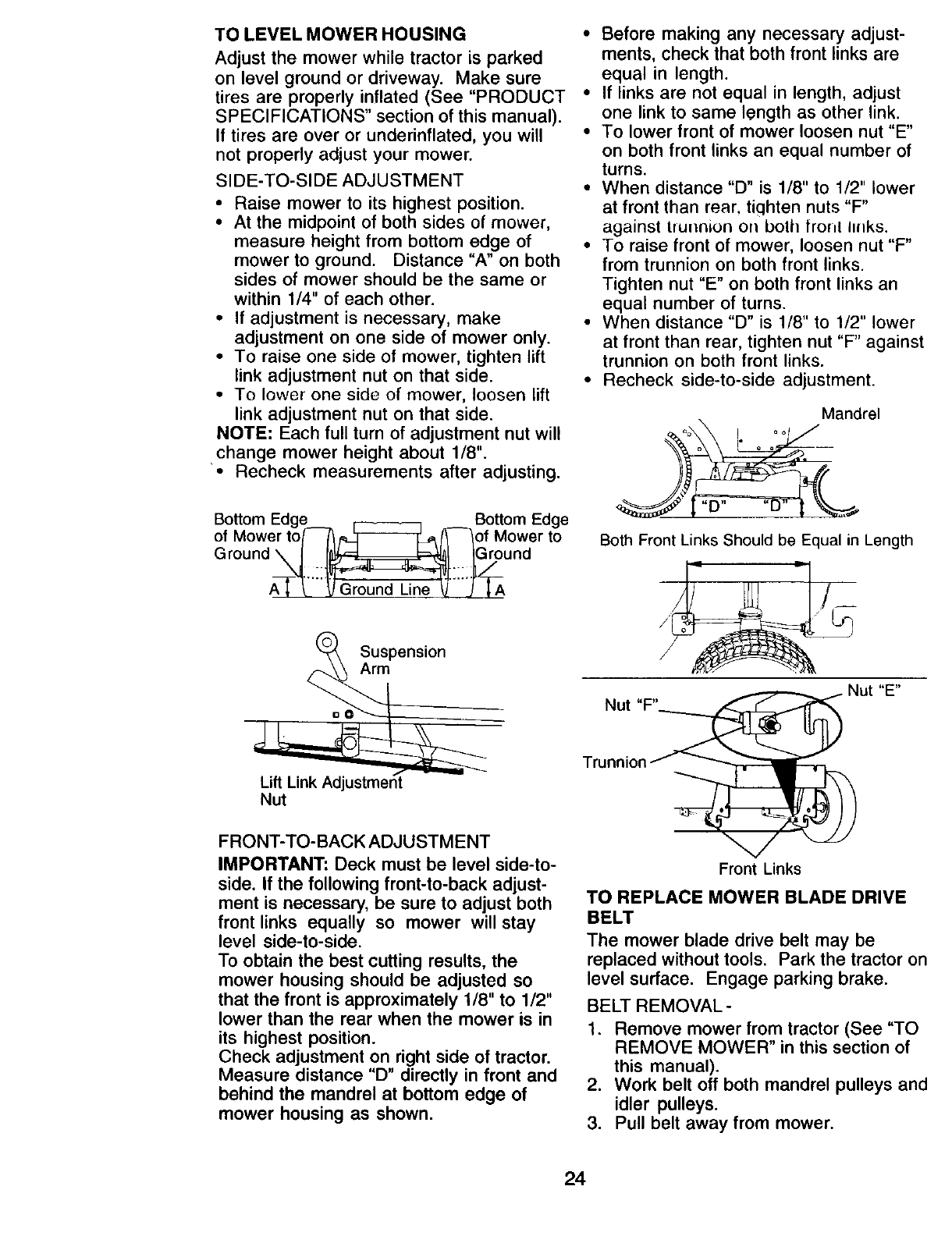

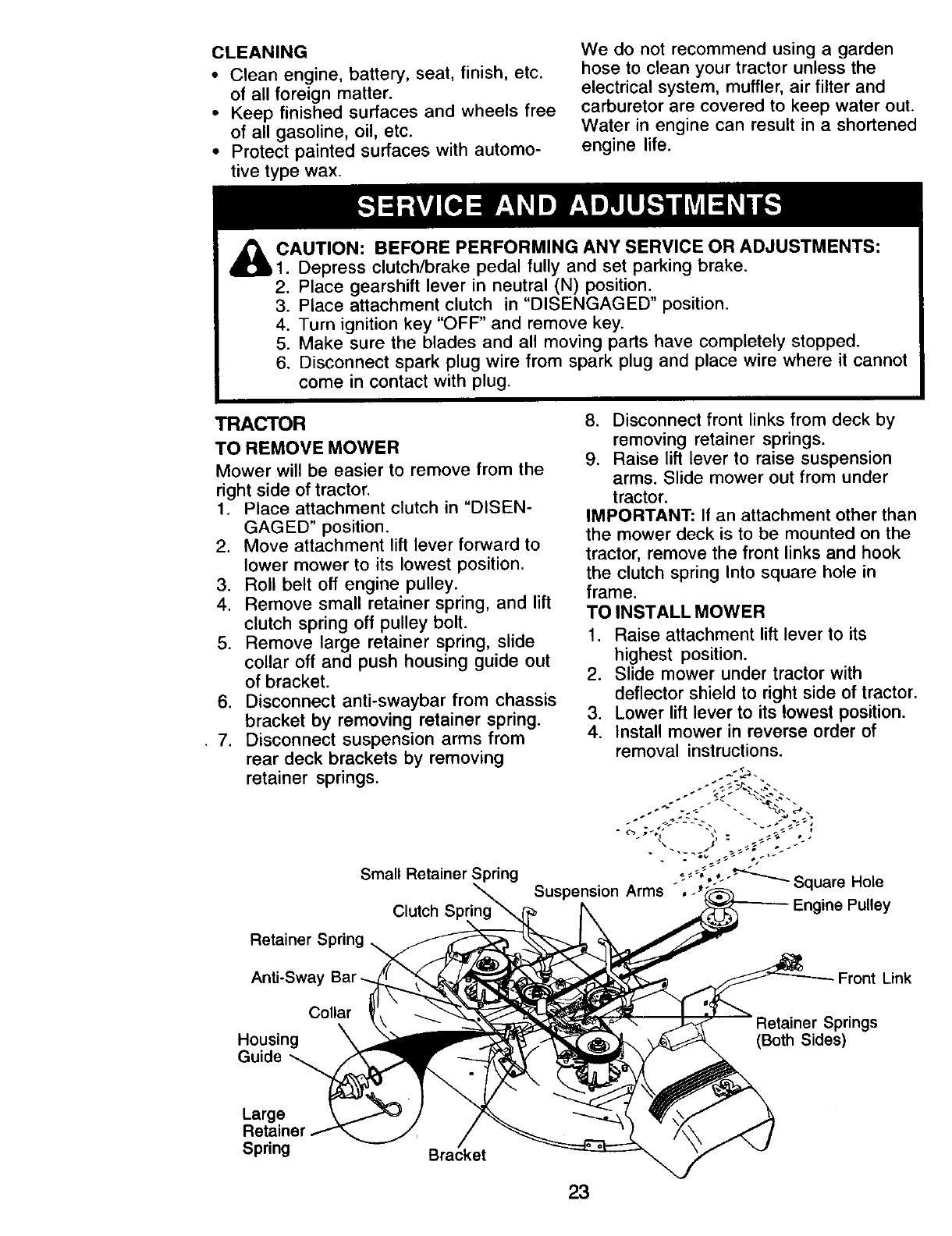

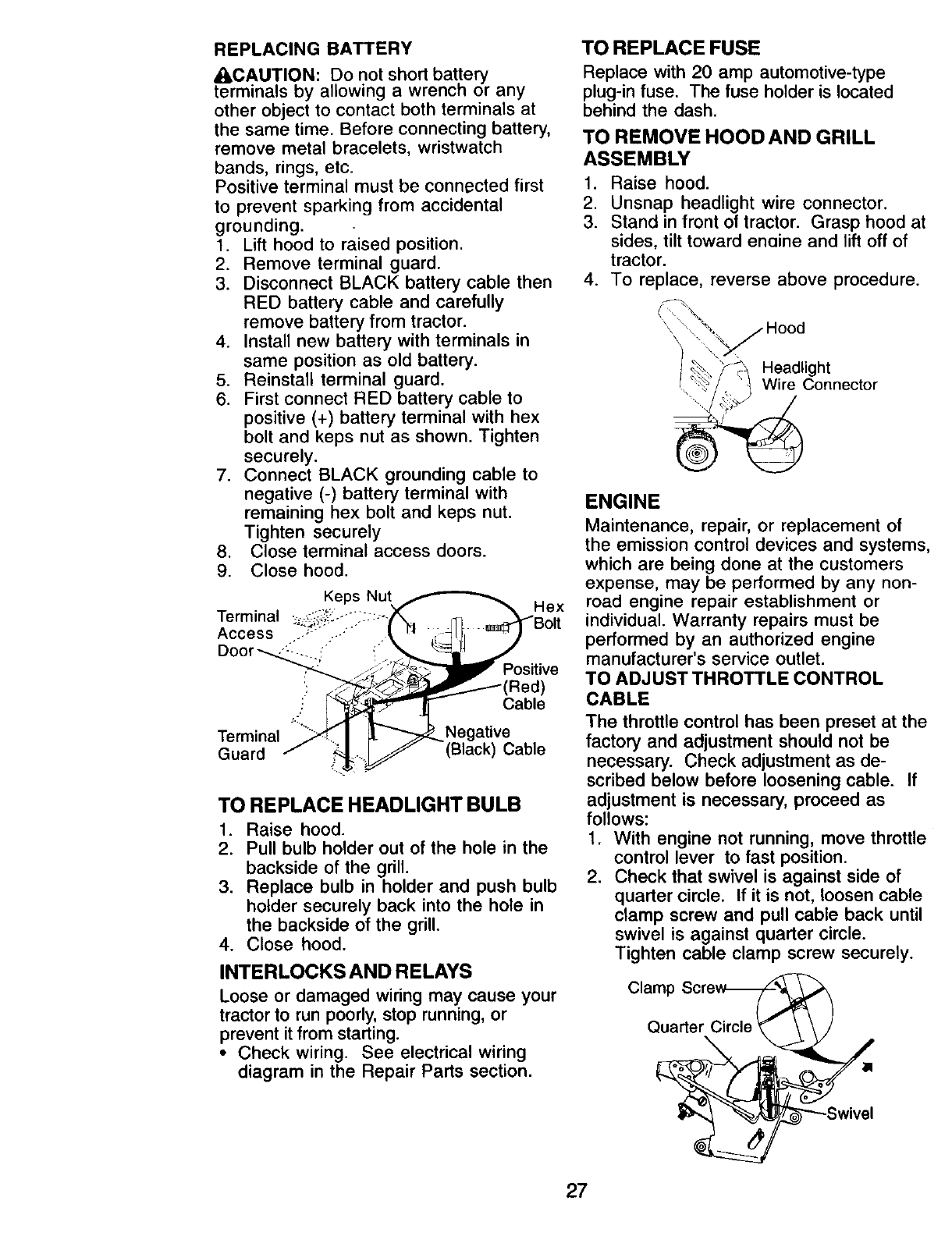

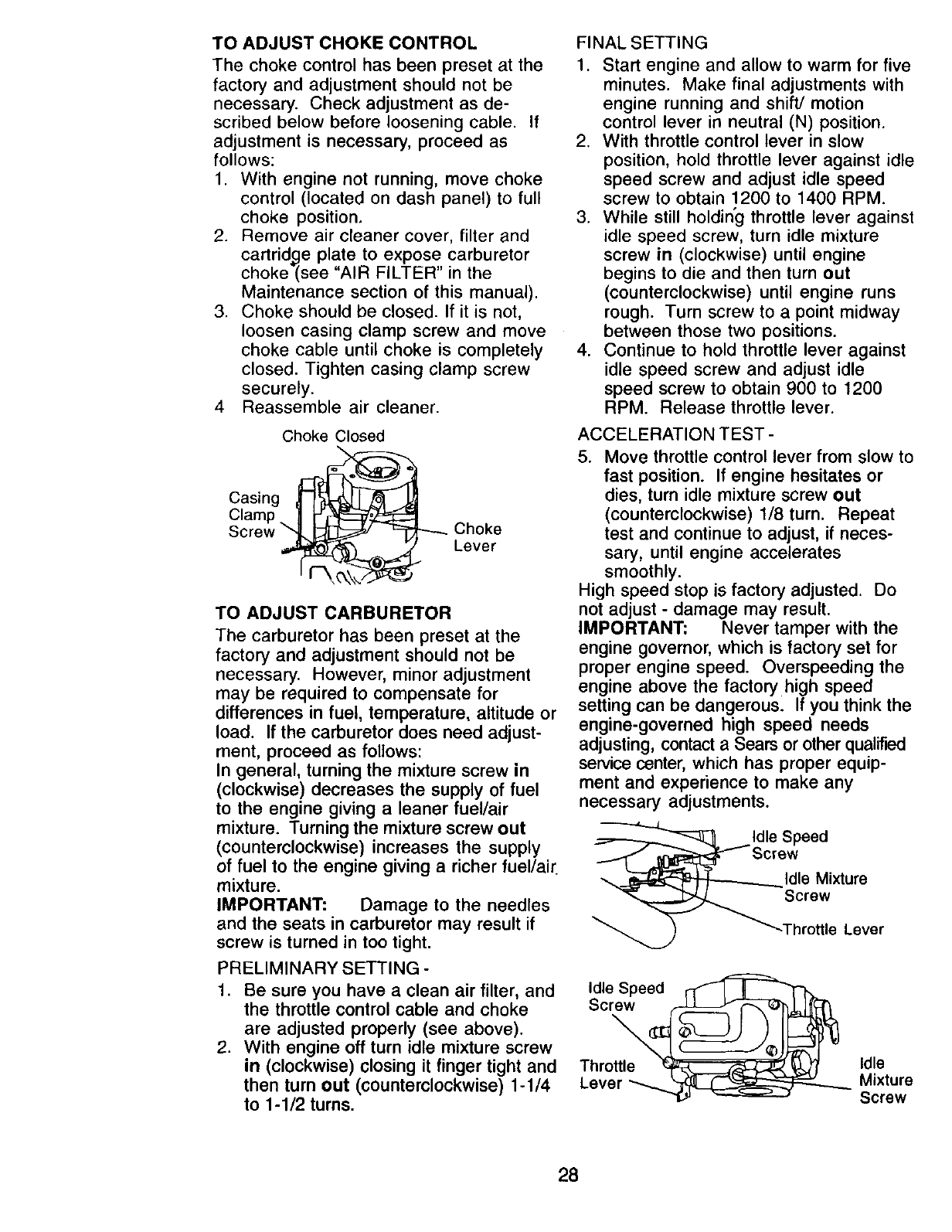

Service and Adjustments .................... 23

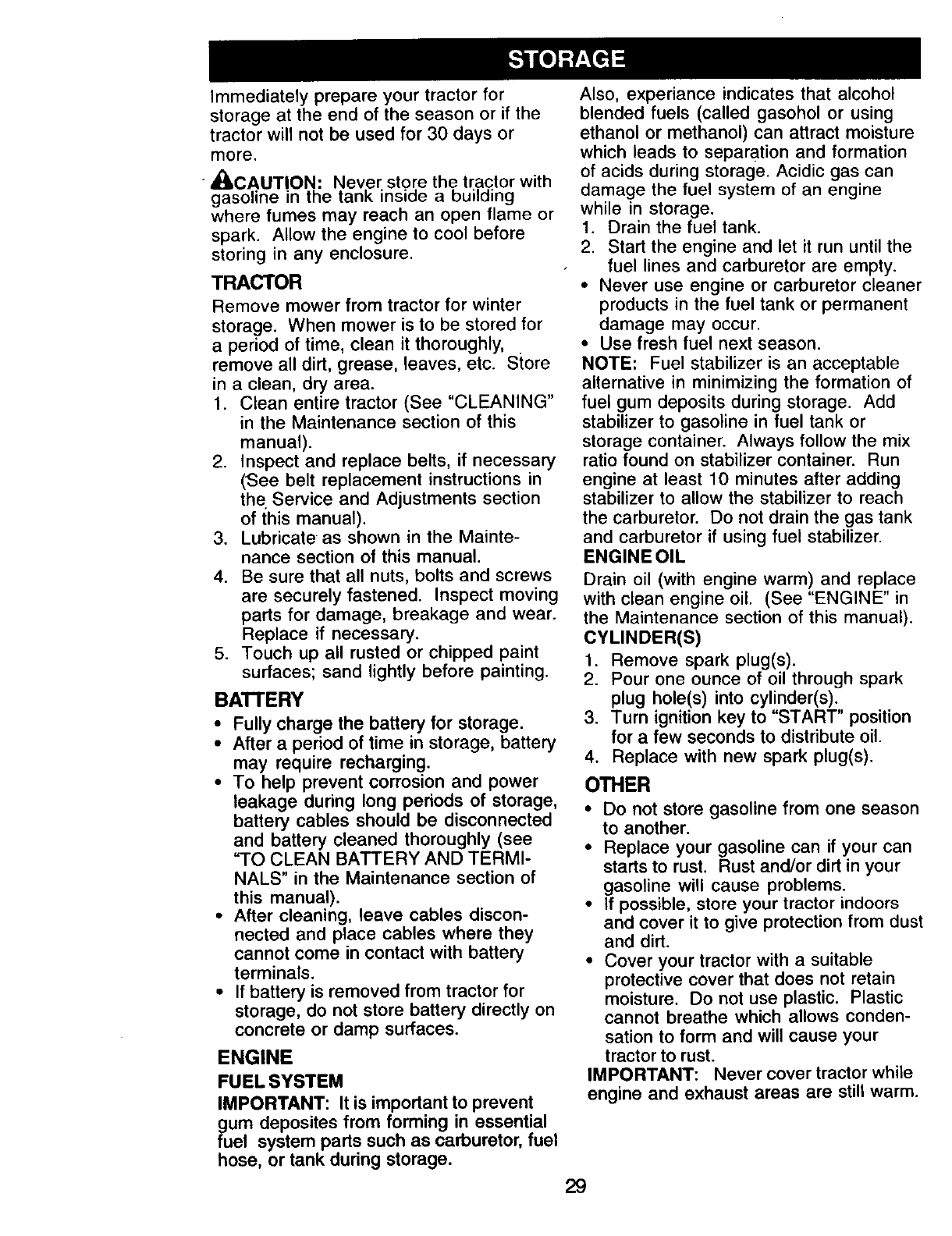

Storage ............................................... 29

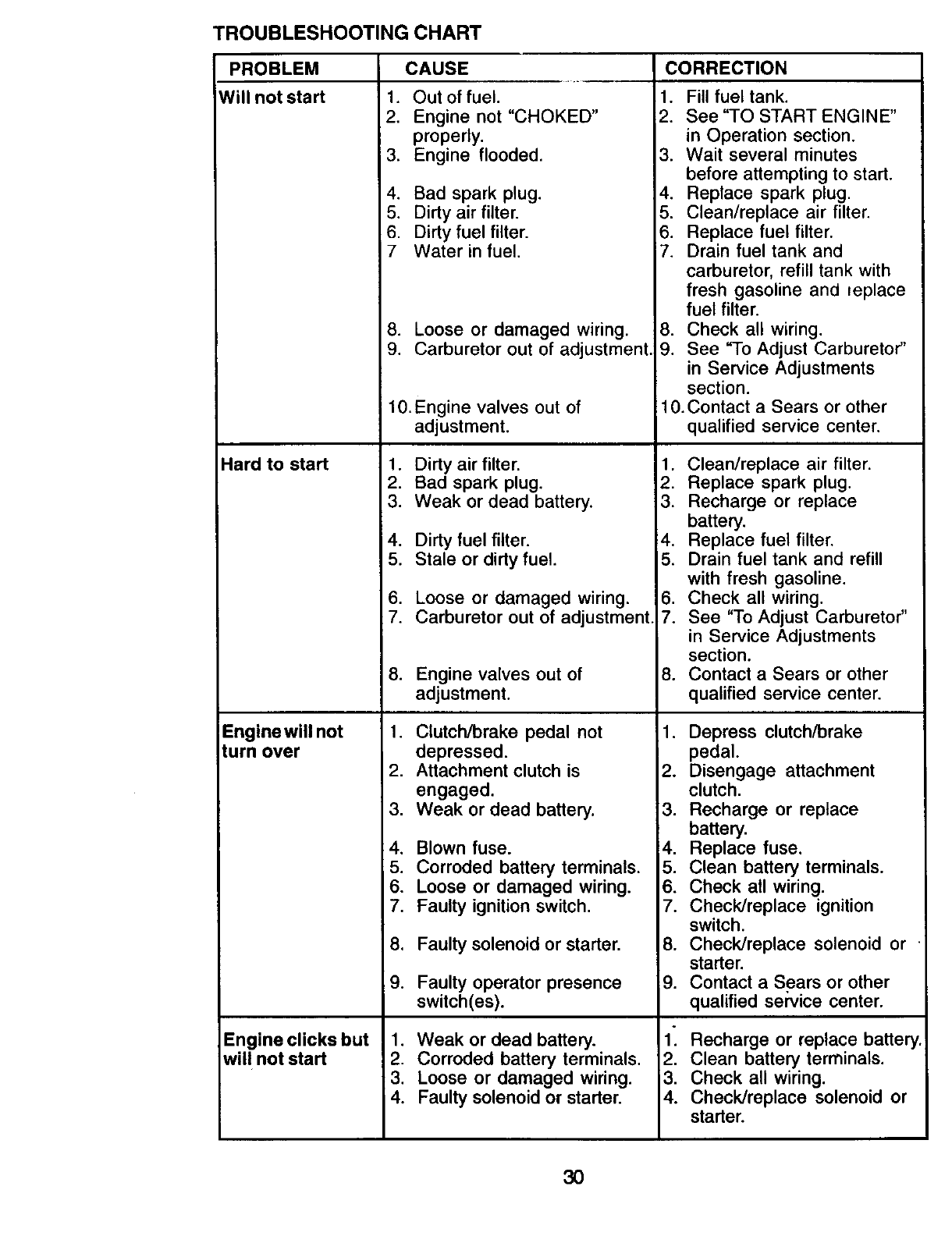

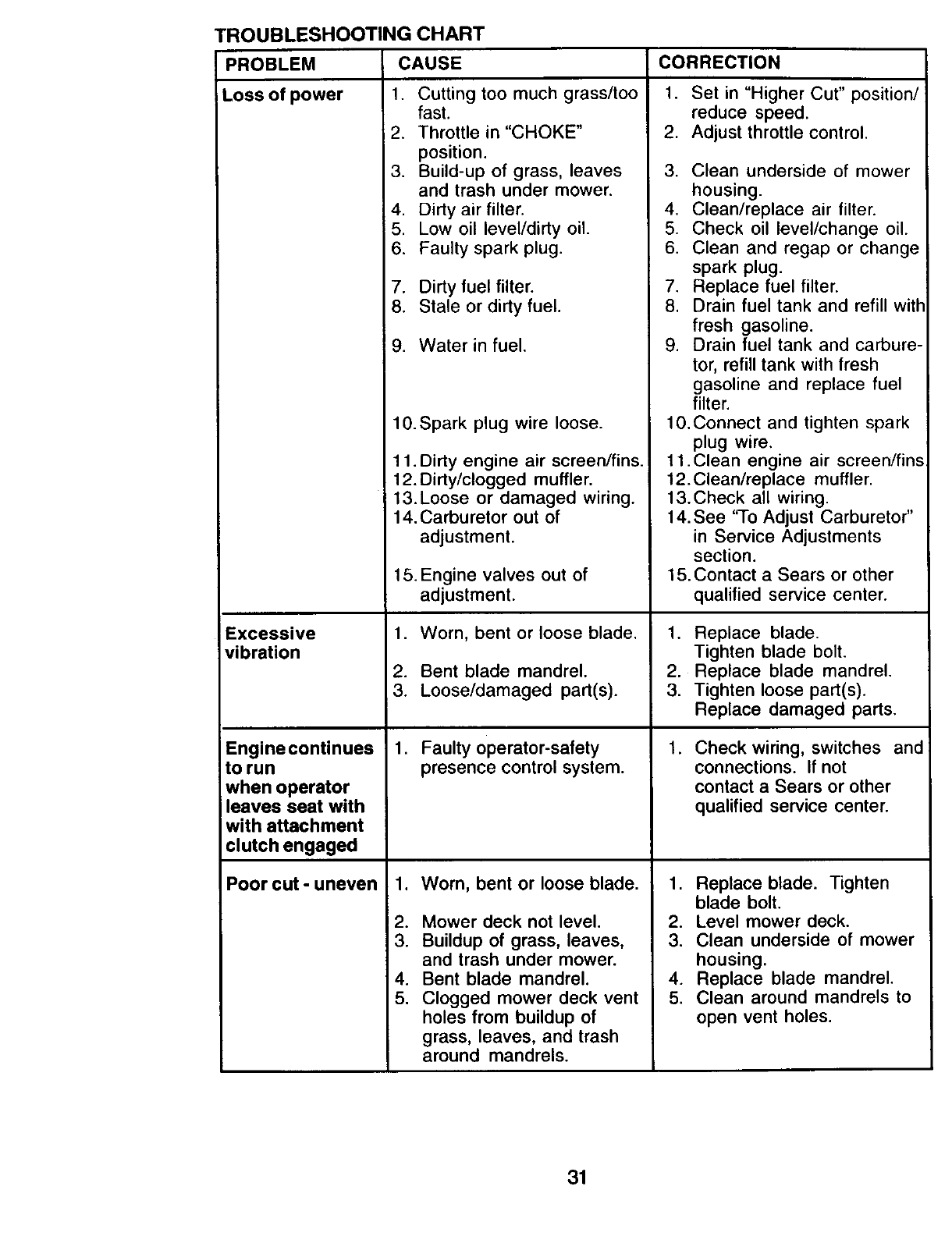

Troubleshontinq ................................. 30

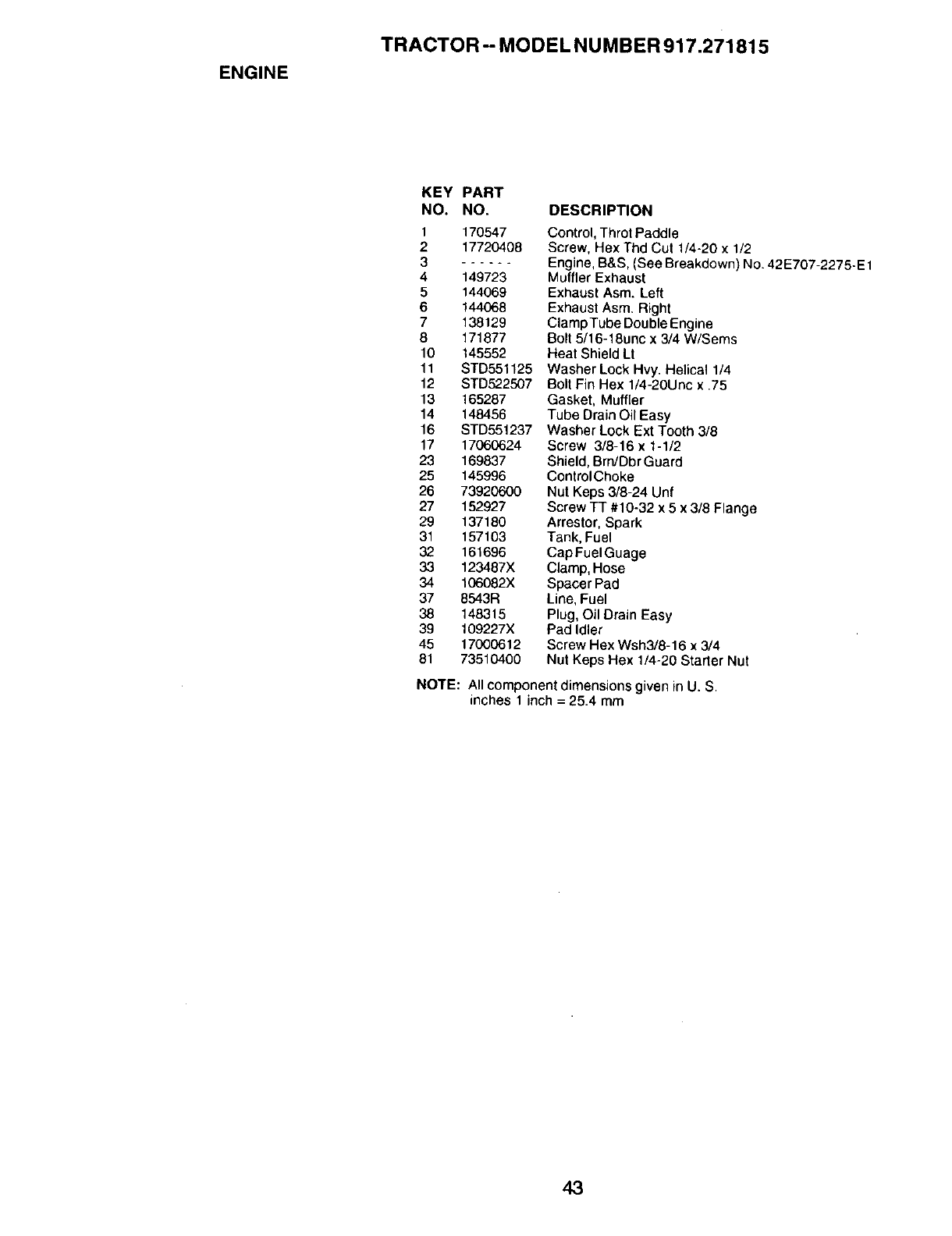

Hepetl _'alL_ ........................................ 34

Parts Ordering ...... ................ Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service is available free of charge by returning

your Craftsman riding equipment to your nearest Sears Service Center. In-home

warranty service is available but a trip charge will apply. This warranty applies only

while this product is in the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according, to the instructions

contained in the owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within thirty (30) days of its

purchase date.

• Riding equipment used for commercial or rental purposes. A product is "used for

commercial purpose" if is used for any purpose other than single family household

dwellings or in usage where profit is made.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines

the battery will not hold a charge, Sears will replace the battery at no charge. War-

ranty service is available free of charge by returning your Craftsman riding equipment

to your nearest Sears Service Center. In-home warranty service is available but a trip

charge will apply. This warranty applies only while this product is in the United States.

TO LOCATE THE NEAREST SEARS SERVICE CENTER OR TO SCHEDULE IN-

HOME WARRANTY SERVICE, SIMPLY CONTACT SEARS AT 1-800-4-MY-HOME

This Warranty gives you specific legal rights, and you may also have other rights

which may vary from state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

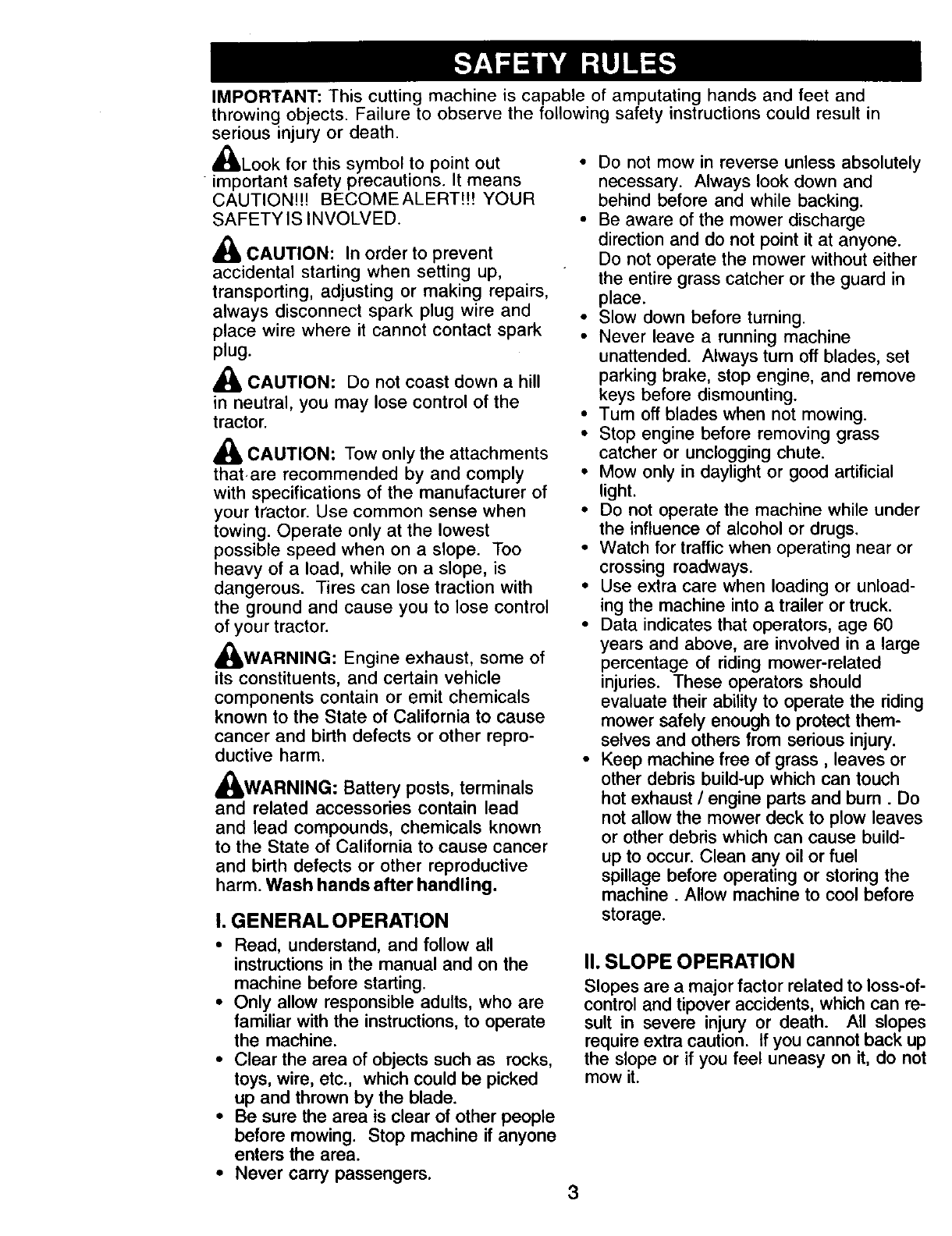

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

_Look for this symbol to point out

"important safety precautions. It means

CAUTIONH! BECOMEALERT!!! YOUR

SAFETYIS INVOLVED.

_lb CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

_lb CAUTION" Tow only the attachments

that.are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

,_WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

•Do not mow in reverse unless absolutely

necessary. Always look down and

behind before and while backing.

•Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before turning.

•Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Tum off blades when not mowing.

•Stop engine before removing grass

catcher or unclogging chute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for traffic when operating near or

crossing roadways.

•Use extra care when loading or unload-

ing the machine into a trailer or truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protect them-

selves and others from serious injury.

•Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and bum. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

•Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

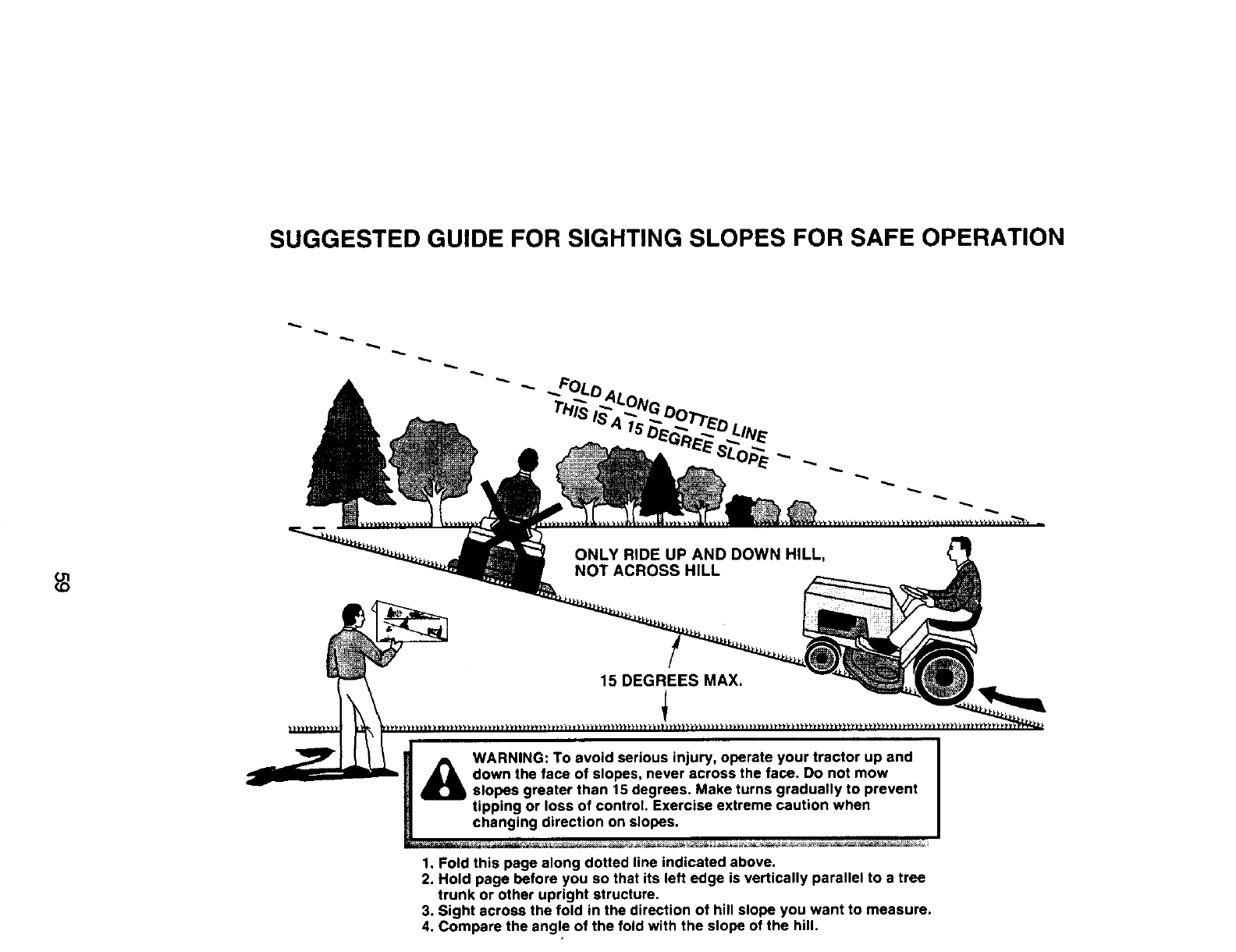

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

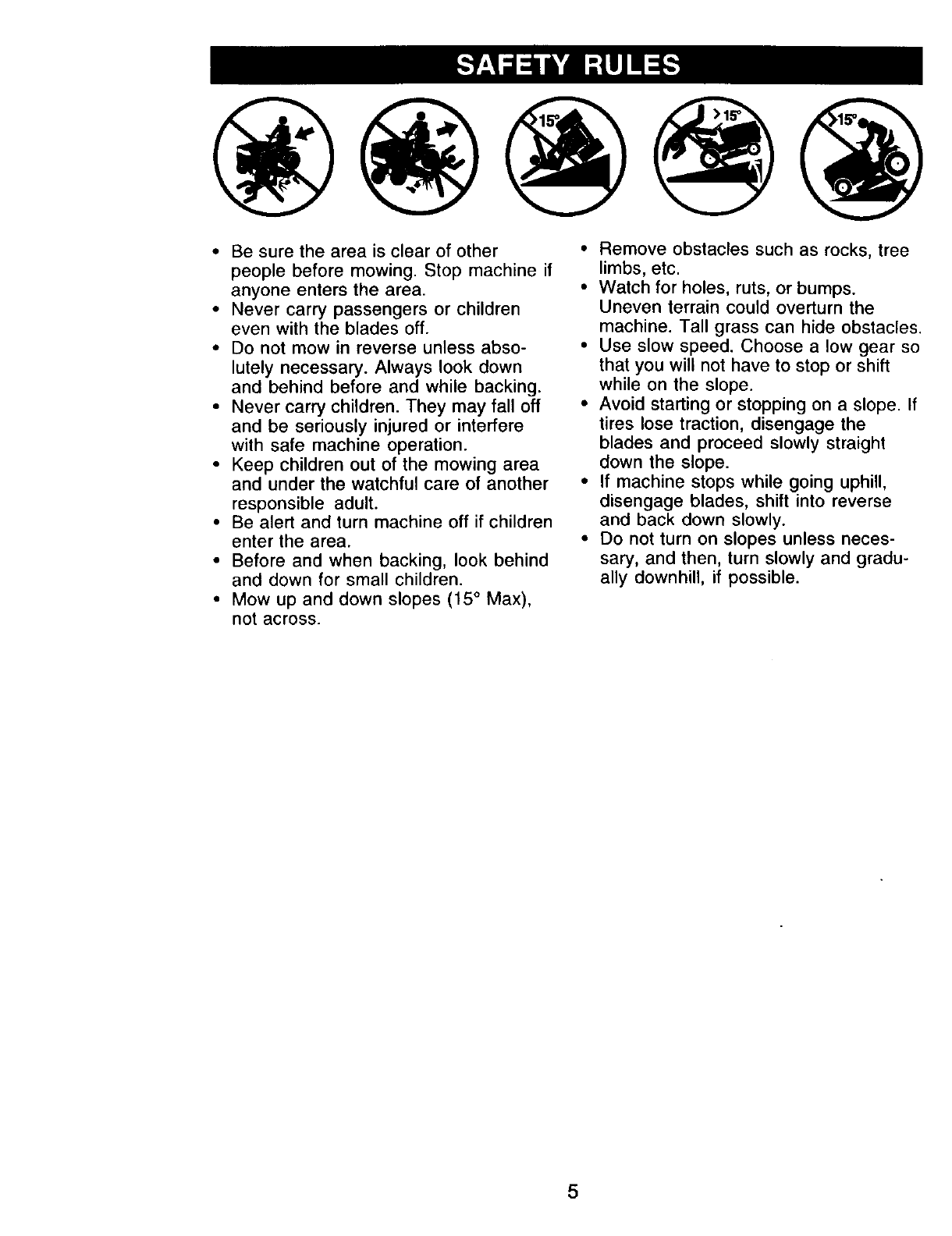

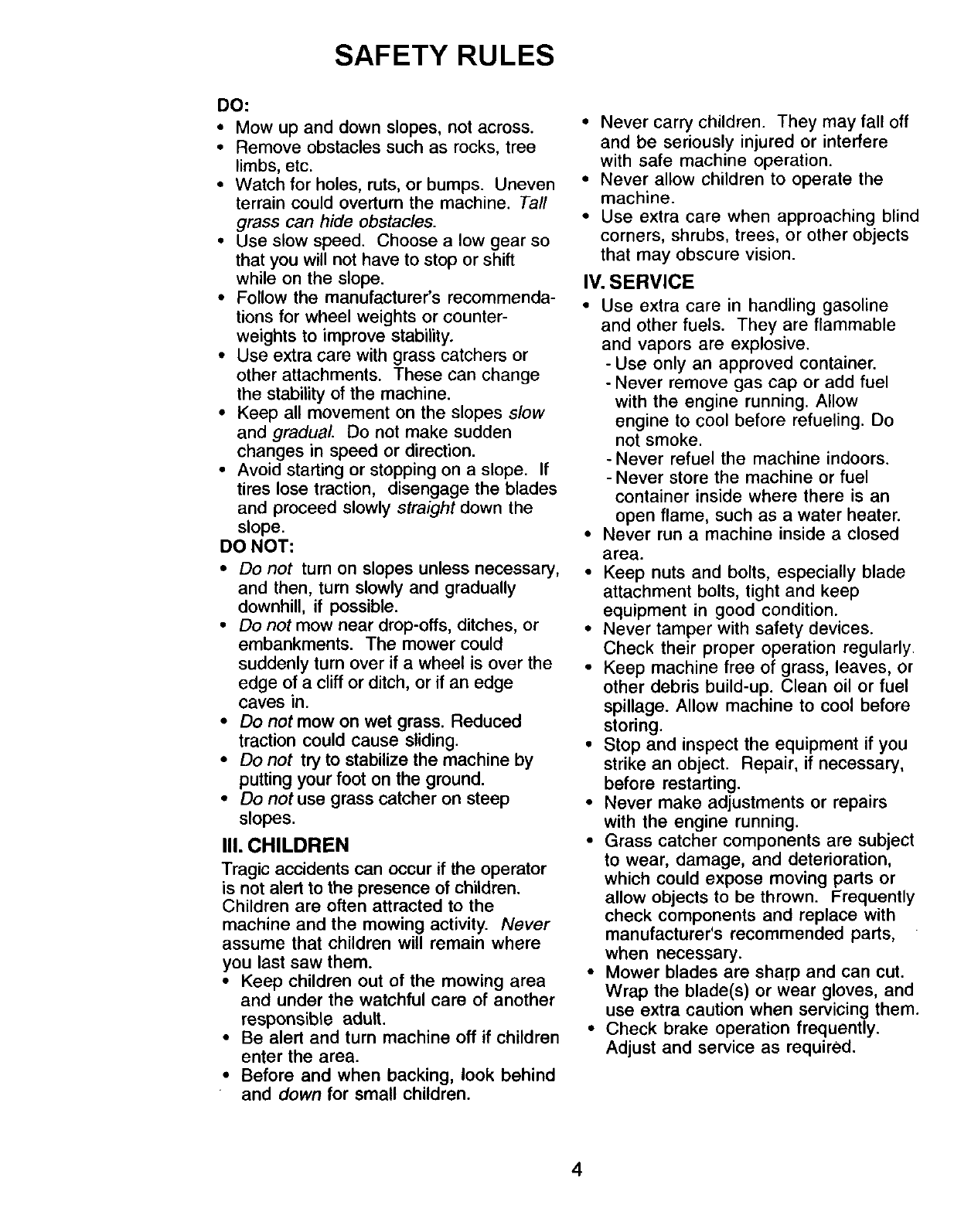

SAFETY RULES

DO:

•Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommenda-

tions for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

•Do not turn on slopes unless necessary, •

and then, turn slowly and gradually

downhill, if possible.

•Do not mow near drop-offs, ditches, or •

embankments. The mower could

suddenly turn over if a wheel is over the .

edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding, o

•Do not try to stabilize the machine by

putting your foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsib{e adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

area.

Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

Never tamper with safety devices.

Check their proper operation regularly.

Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

Never make adjustments or repairs

with the engine running.

Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

Check brake operation frequently.

Adjust and service as required.

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

GASOLINE ;_ _iI _ ,_ONS

CAPACITY UNLEADED

ANDTYPE: REGULAR

OILTYPE SAE 30 (ABOVE 32°F

(API-SF-SJ): SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: 3.0 PINTS

SPARK PLUG: CHAMPION RJ19LM

(GAP: .030") OR J19LM

GROUND SPEED FORWARD:

(MPH): 1sT 1.2

2N° 1.5

3R° 2.4

4TM 3.5

5TM 4.8

6TM 5.3

REVERSE: 1.5

TIRE PRESSURE: FRONT: 14 PSI

REAR: 10PSI

CHARGING 3AMPS BATTERY

SYSTEM: 5 AMPS HEADLIGHTS

BA'I-I-ERY: AMP/HR: 28

MIN. CCA: 230

CASE SIZE: U1R

BLADE BOLT 27-35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give you

the best possible dependability and

performance.

Should you experience any problem you

cannot easily ¢_edy, please L:ontact a

_r_, _.e_ et-_,'t_'_ J,difi_H <;._.fvicecenter.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears store

for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arrester meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).. Other

states may have similar laws. Federal

laws apply on federal lands. A spark

arrester for the muffler is available

through your nearest Sears service center

(See REPAIR PARTS section of this

manual).

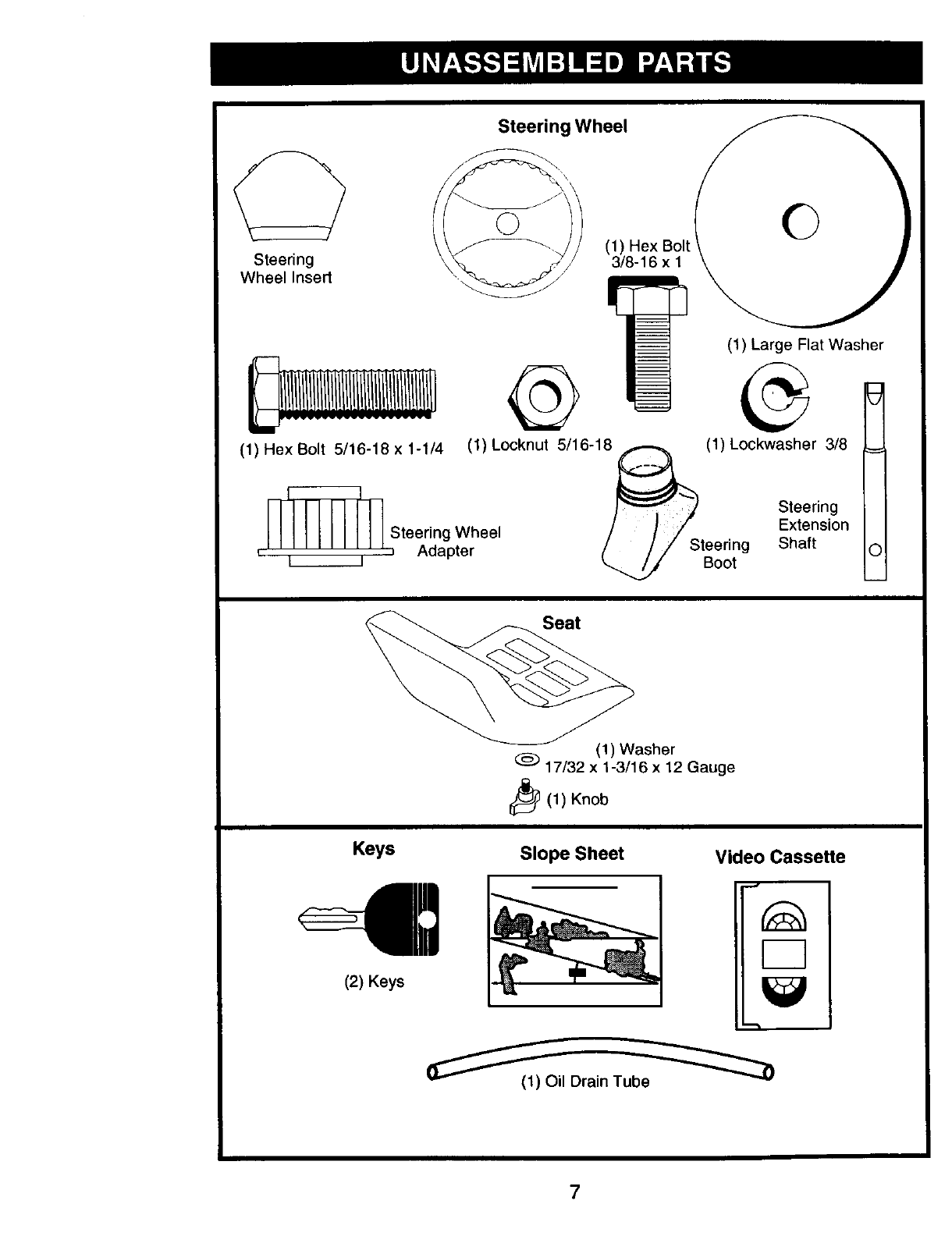

Steering

Wheel Insert

(1) Hex Bolt 5/16-18 x 1-1/4

Steering Wheel

(1) Locknut 5/16-18

(1) Hex Bolt

3/8-16 x

(1) Large Flat Washer

(1) Lockwasher 3/8

_ Steering Wheel

,Adapter

LBoot

Steering

Extension

Shaft ©

Seat

Keys

(2) Keys

(1) Washer

@ 17/32 x 1-3/16 x 12 Gauge

_(1) Knob

Slope Sheet Video Cassette

(1) Oil Drain Tube

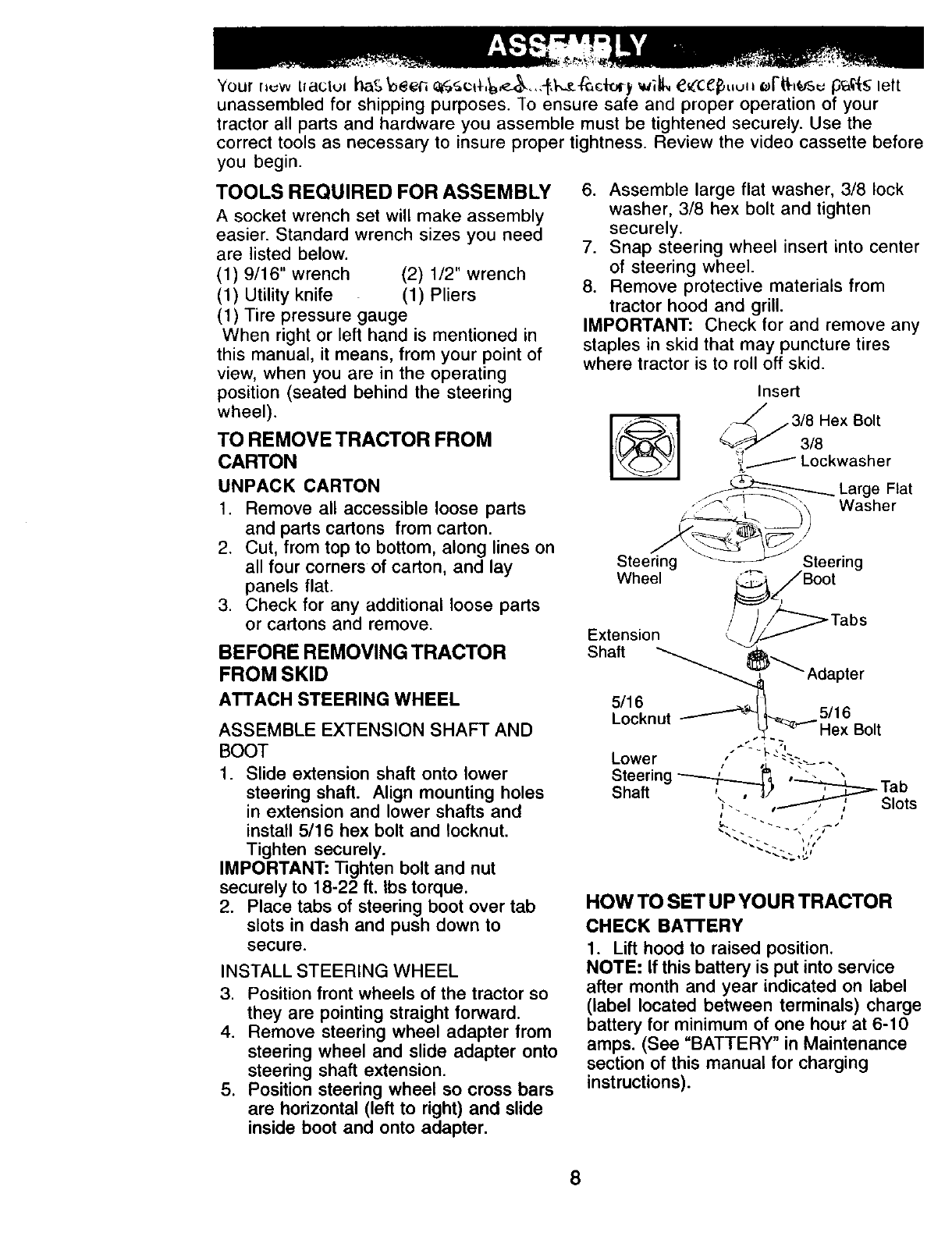

unassembled for shipping purposes. [o ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (2) 1/2" wrench

(1) Utility knife (1) Pliers

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts cartons from carton.

2. Cut, from top to bottom, along lines on

all four corners of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

1. Slide extension shaft onto lower

steering shaft. Align mounting holes

in extension and lower shafts and

install 5/16 hex bolt and Iocknut.

Tighten securely.

IMPORTANT: Tighten bolt and nut

securely to 18-22 ft. Ibs torque.

2. Place tabs of steering boot over tab

slots in dash and push down to

secure.

INSTALL STEERING WHEEL

3. Position front wheels of the tractor so

they are pointing straight forward.

4. Remove steering wheel adapter from

steering wheel and slide adapter onto

steering shaft extension.

5. Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

6. Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

7. Snap steering wheel insert into center

of steering wheel.

8. Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging

instructions).

.... ,a e,

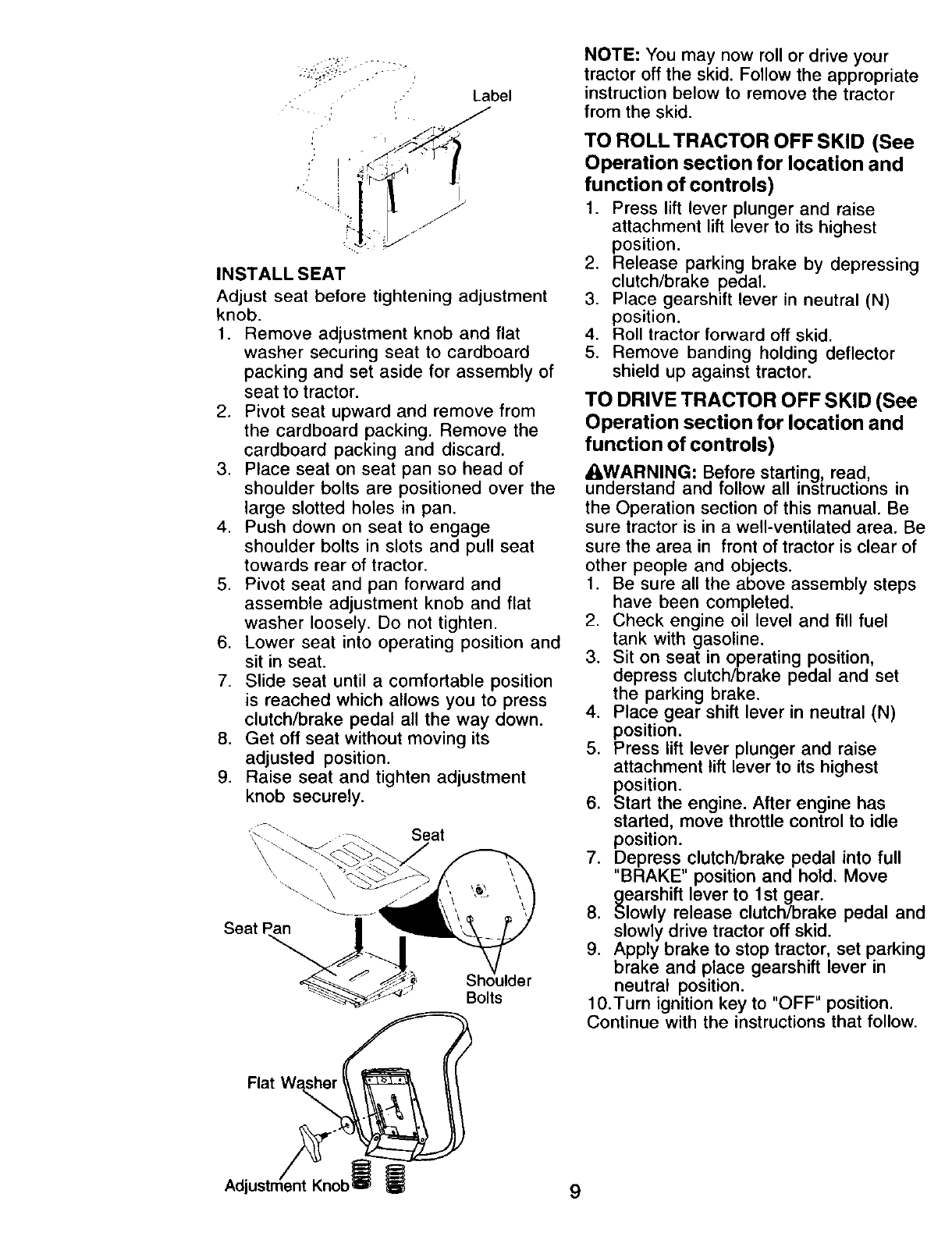

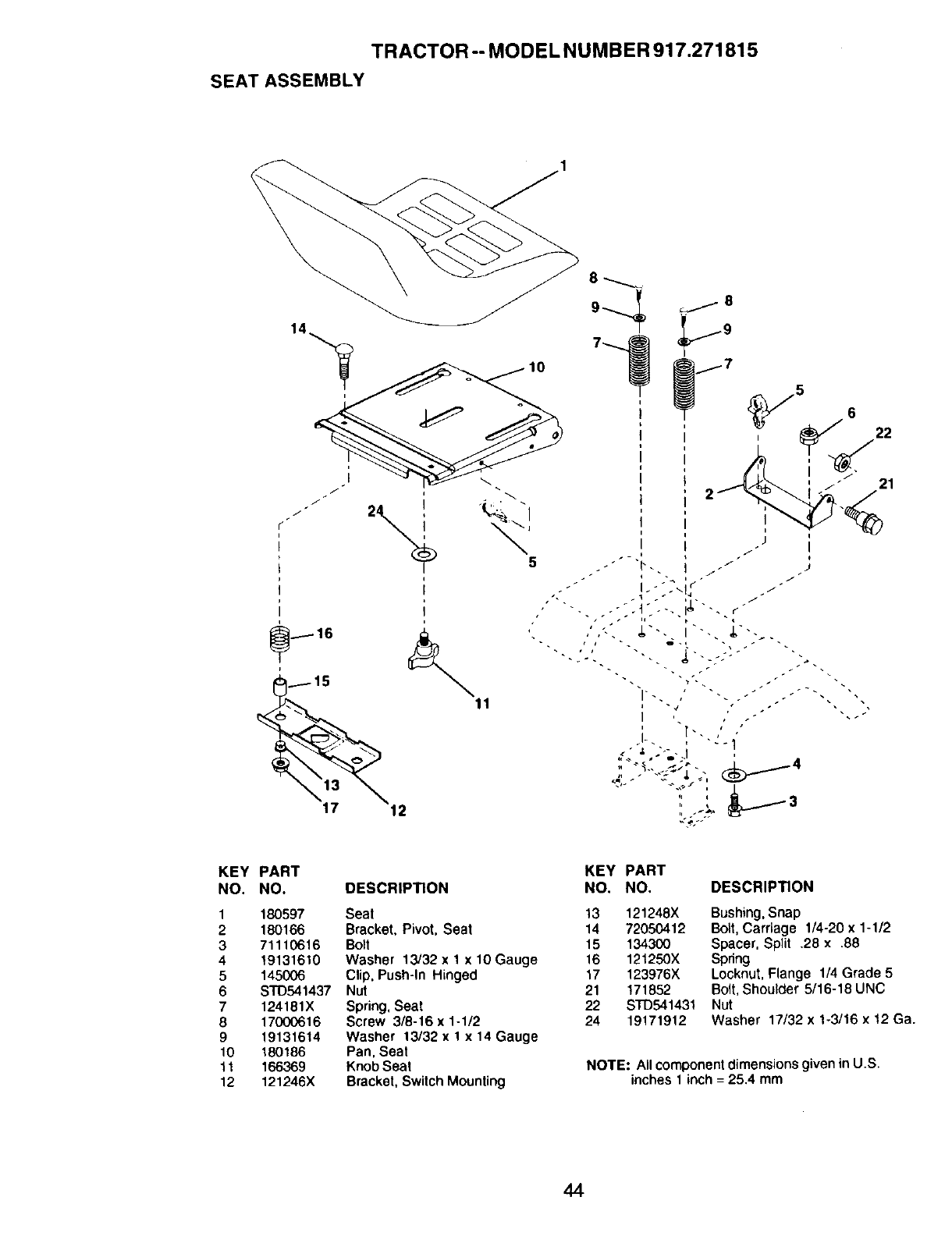

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Place seat on seat pan so head of

shoulder bolts are positioned over the

large slotted holes in pan.

4. Push down on seat to engage

shoulder bolts in slots and pull seat

towards rear of tractor.

5. Pivot seat and pan forward and

assemble adjustment knob and flat

washer loosely. Do not tighten.

6. Lower seat into operating position and

sit in seat.

7. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

8. Get off seat without moving its

adjusted position.

9. Raise seat and tighten adjustment

knob securely.

\ \

Seat I

Seat

Bolts

NOTE: You may now roll or ddve your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

5. Remove banding holding deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

uAndWeArsRtaN/dNGanB_lrewS _ _tiing_rre_d'n s in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

8. _ar_hirft/eeVer t°ll?thg/l_arl<e pedal a nd

slowly drive tractor off skid.

9. Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

10.Turn ignition key to "OFF" position.

Continue with the instructions that follow.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

_CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulcher blades are designed

for discharging and bagging also.

Deflector

Mulcher

Plate

CHECK TIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes.

Correct tire pressure is important for best

cutting performance.

•Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Verify that the belts

are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual,

Latch

Hooks

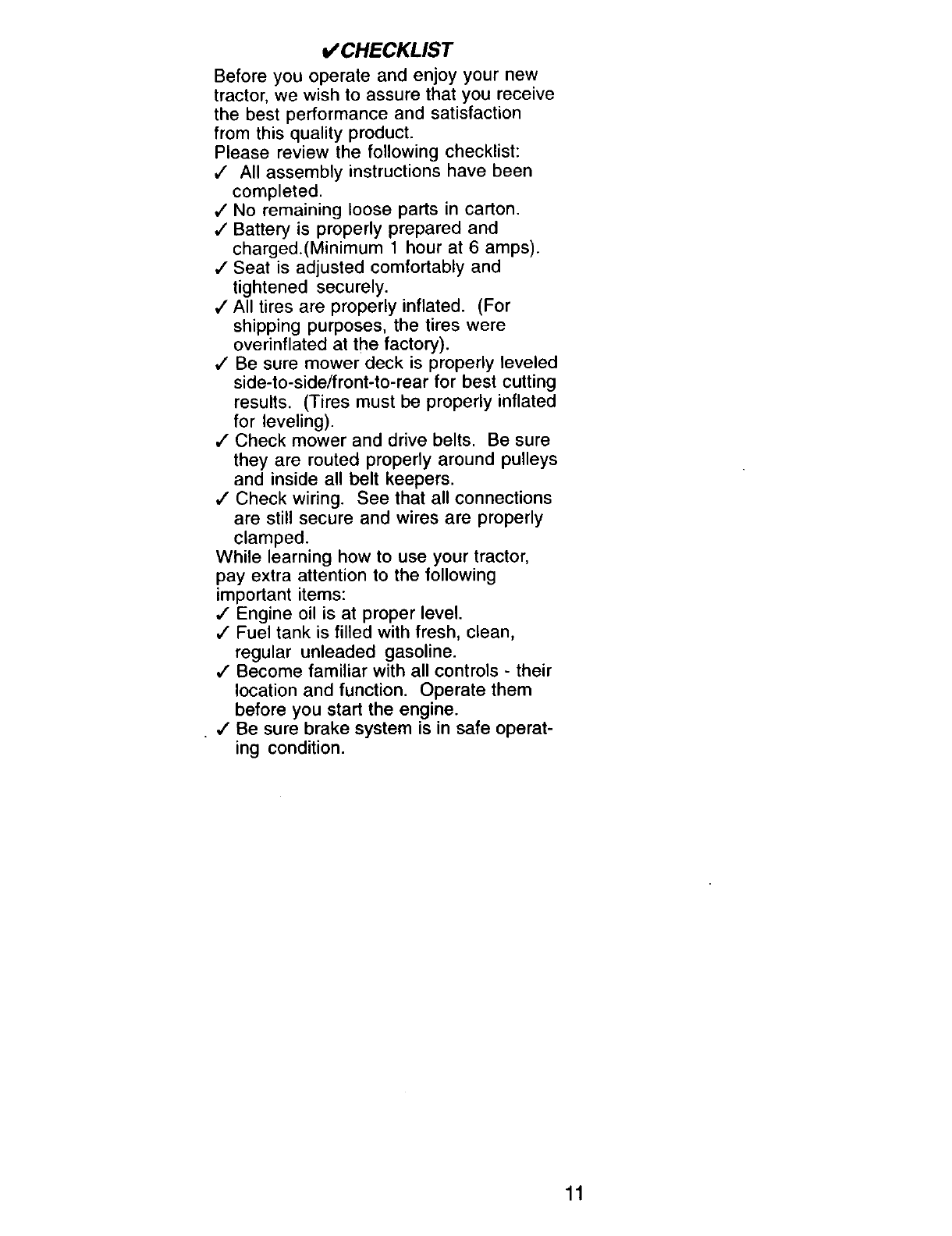

o/CHECKLIST

Before you operate and enjoy your new

tractor, we wish to assure that you receive

the best performance and satisfaction

from this quality product.

Please review the following checklist:

,/ All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged.(Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and

tightened securely.

,/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor,

pay extra attention to the following

important items:

,/ Engine oil is at proper level.

,/ Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,,/Become familiar with all controls - their

location and function. Operate them

before you start the engine.

•/Be sure brake system is in safe operat-

ing condition.

These symbols may appear on your tractor or in literature supplied with the product,

Learn and understand their meaning.

I- _1

BATTERY CAUTION OR

WARNING

ENGINE ON ENGINE OFF

REVERSE FORWARD FAST SLOW

OIL PRESSURE LIGHTS ON OVER TEMP

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED

LOCKED

MOWER LIFT

N H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKING BRAKE

CLUTCH ENGAGED

KEEP AREA CLEAR SLOPE HAZARDS

ATTACHMENT

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

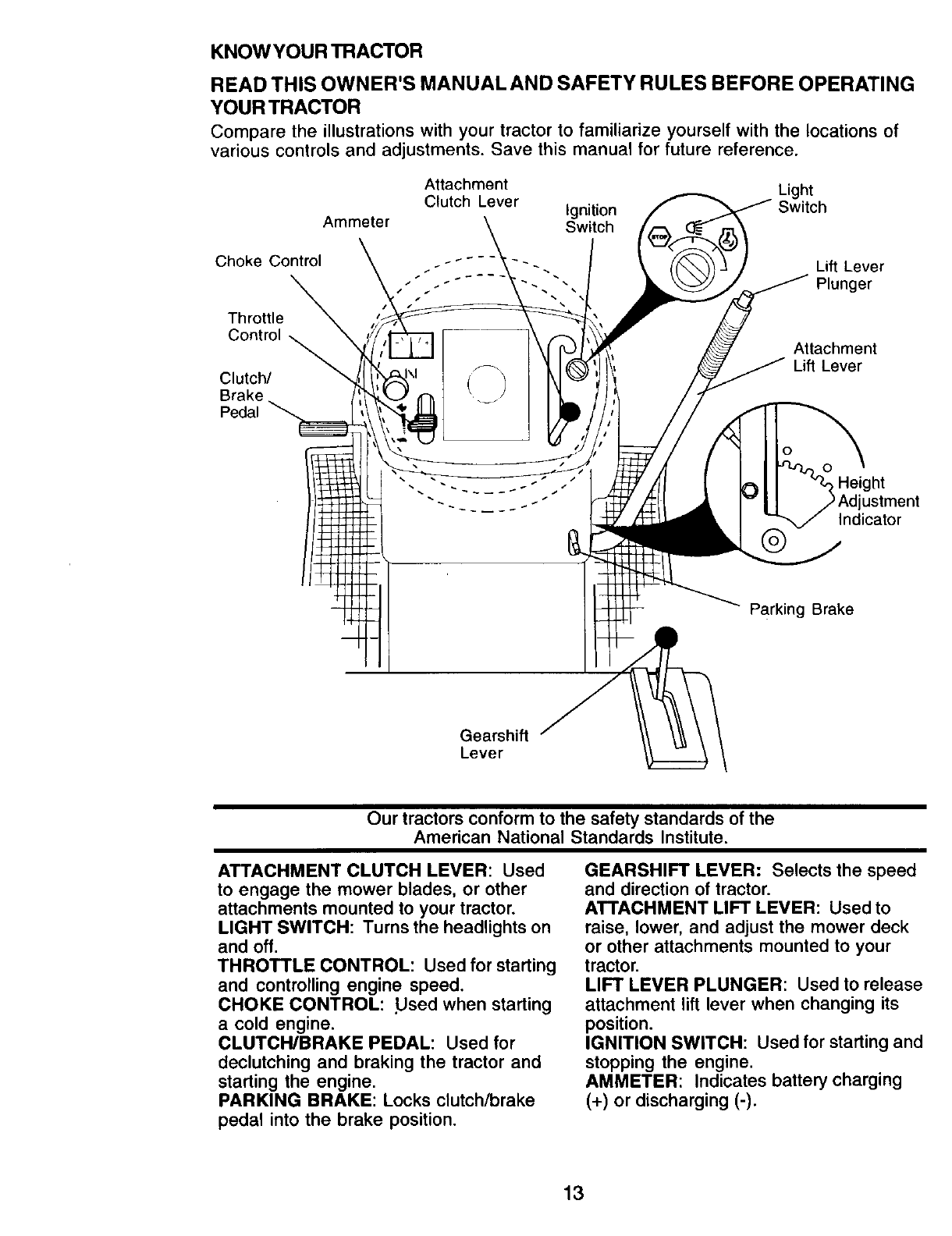

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrationswith your tractor to familiarize yourselfwith the locations of

various controls and adjustments. Save this manual for future reference.

Attachment Light

Clutch Lever Ignition Switch

Ammeter Switch

Choke Control Lift Lever

Plunger

Throttle

Control

Clutch/

Brake

Pedal

Attachment

Lift Lever

,Height

ustment

Indicator

Parking Brake

Gearshift

Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used

to engage the mower blades, or other

attachments mounted to your tractor.

LIGHT SWITCH: Turns the headlights on

and off.

THROTTLE CONTROL: Used for starting

and controlling engine speed.

CHOKE CONTROL: .Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL: Used for

declutching and braking the tractor and

starting the engine.

PARKING BRAKE: Locks clutch/brake

pedal into the brake position.

GEARSHIFT LEVER: Selects the speed

and direction of tractor.

ATTACHMENT LIFT LEVER: Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER: Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH: Used for starting and

stopping the engine.

AMMETER: Indicates battery charging

(+) or discharging (-).

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask over

spectacles, or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal into full

"BRAKE" position and hold.

2. Place parking brake lever in "EN-

GAGED" position and release

pressure from clutch/brake pedal.

Pedal should remain in "BRAKE"

position. Make sure parking brake will

hold tractor secure.

Choke Attachment Clutch Lever

Control "Engaged" Position

", _. -f_ Ignition Key

Throttle _ _ ""_(_ _/"Disengaged"

Control _ ,_--_ 7/Position

. . "_._ _-'[_ i/ Parking Brake

Clutch/Brake \ _'. \ _.//_ ._ ..... .,.

. . ","_\, v/) _nyclyuu

Pedal Drive_ \ "_F J//l_osition

Position_, ._,_. _

•, ÷ "%

"_" Gearshift

"Disengaged" "Brake" Lever

Position Position

STOPPING

MOWER BLADES -

•To stop mower blades,move attachment

clutch lever to "DISENGAGED" position.

GROUND DRIVE-

• To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

• Move gearshift lever to neutral (N)

position.

ENGINE-

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

• Turn ignition key to "OFF" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "OFF" will cause

the battery to be discharged, (dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

,_CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACK-

WARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal

depressed and gearshift lever in

neutral (N) position.

2. Move gearshift lever to desired

position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever

determines the cutting height.

•Grasp lift lever.

• Press plunger with thumb and move

lever to desired position.

The cutting height range is approxi-

•mately 1-1/2 to 4". The heights are

measured from the ground to the blade tip

with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height of .

grass and types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth•

•For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Adjust gauge wheels with tractor

on a flat level surface.

1. Adjust mower to desired cutting height

(See "3-0 ADJUST MOWER CUTTING

HEIGHT" in the Operation section of

this manual).

2. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground. Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 Iocknut and

tighten securely.

3. Repeat for opposite side installing

gauge wheel in same adjustment hole.

Gauge Wheel

Bracket

3/8-16 Locknut

3/8 Washer

Gauge Wheel

Shoulder

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch• Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control•

_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch

Lever

Position

Attachment Lift Lever

High Position

"Disenc Low

Position Position

Deflector

TO OPERATE ON HILLS

_CAUTION: Do not drive up or down

hills with slopes greater than 15° and do

not drive across any slope. A slope guide

at the back of your manual is provided for

your use.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle

control lever to slower position.

• If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

• Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to roll slightly as you restart movement.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Make all turns slowly.

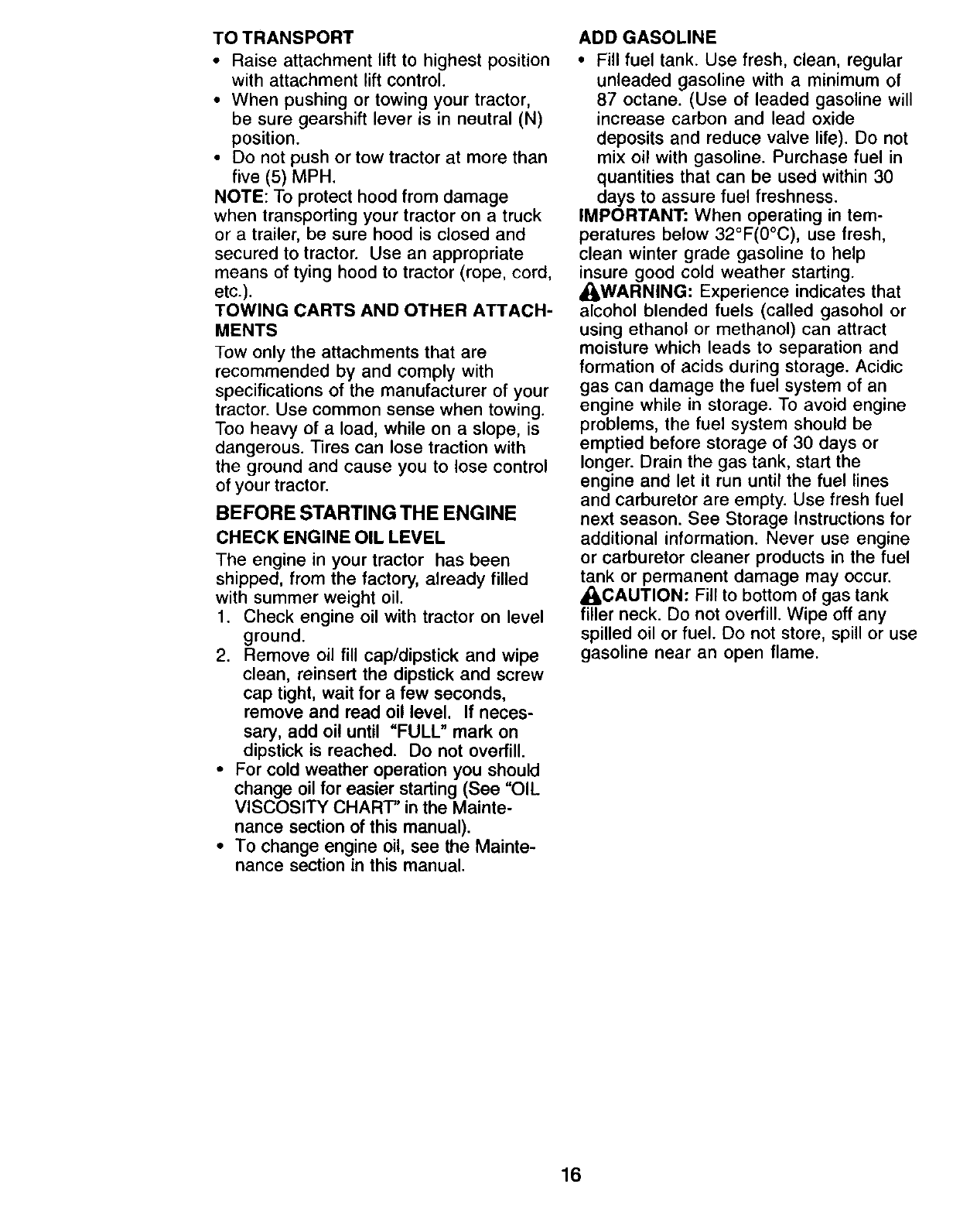

TO TRANSPORT

•Raise attachment lift to highest position

with attachment lift control.

•When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

•Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds,

remove and read oil level. If neces-

sary, add oil until "FULL" mark on

dipstick is reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

•Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide

deposits and reduce valve life). Do not

mix oil with gasoline. Purchase fuel in

quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh,

clean winter grade gasoline to help

insure good cold weather starting.

,_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

_CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or use

gasoline near an open flame.

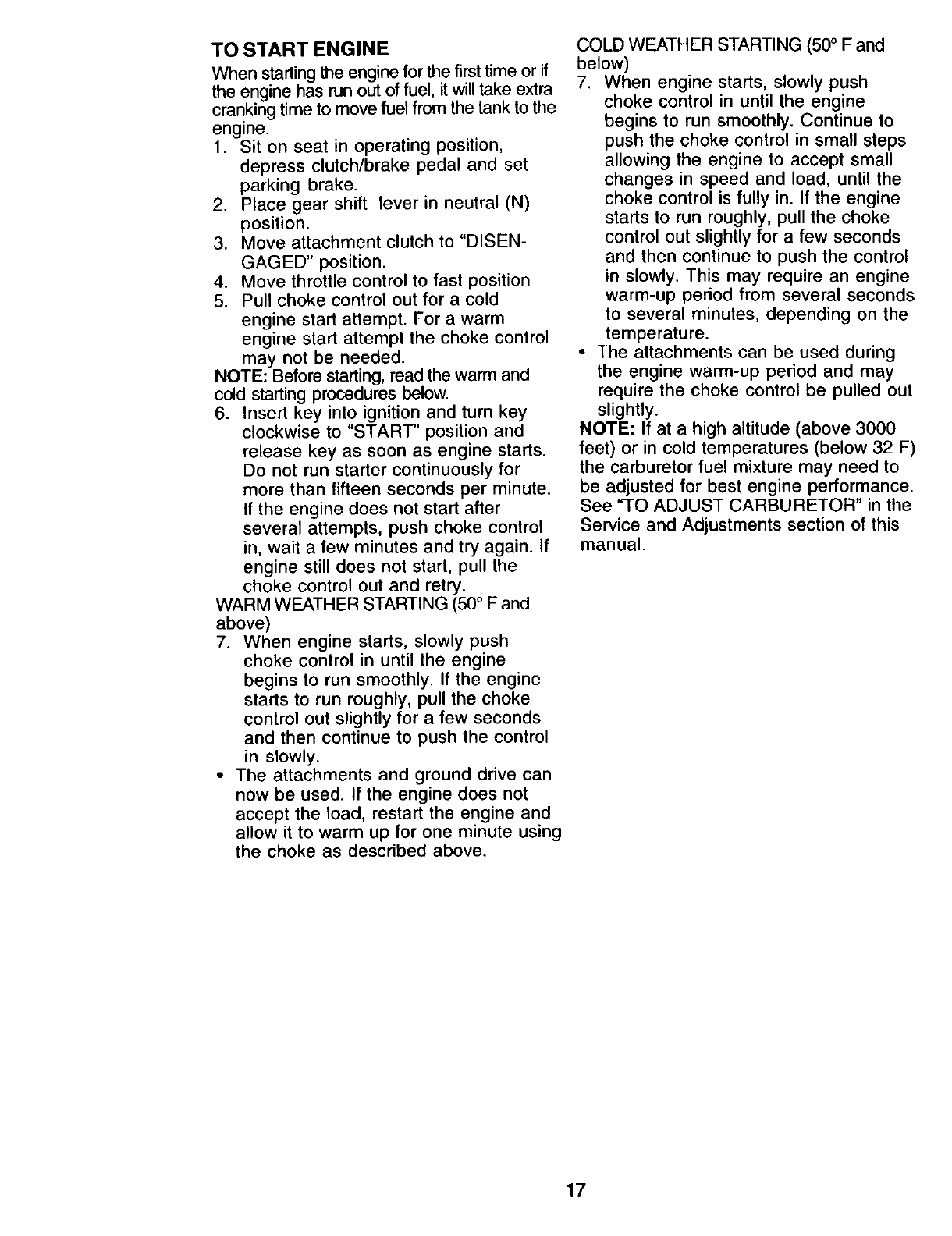

TO START ENGINE

When starting the engine for the first time or if

the engine has run out of fuel, itwill take extra

crankingtime to move fuel from the tank to the

engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to "DISEN-

GAGED" position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

NOTE: Before starting,read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to "START" position and

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

WARM WEATHER STARTING (50° F and

above)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for afew seconds

and then continue to push the control

in slowly.

•The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 °F and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

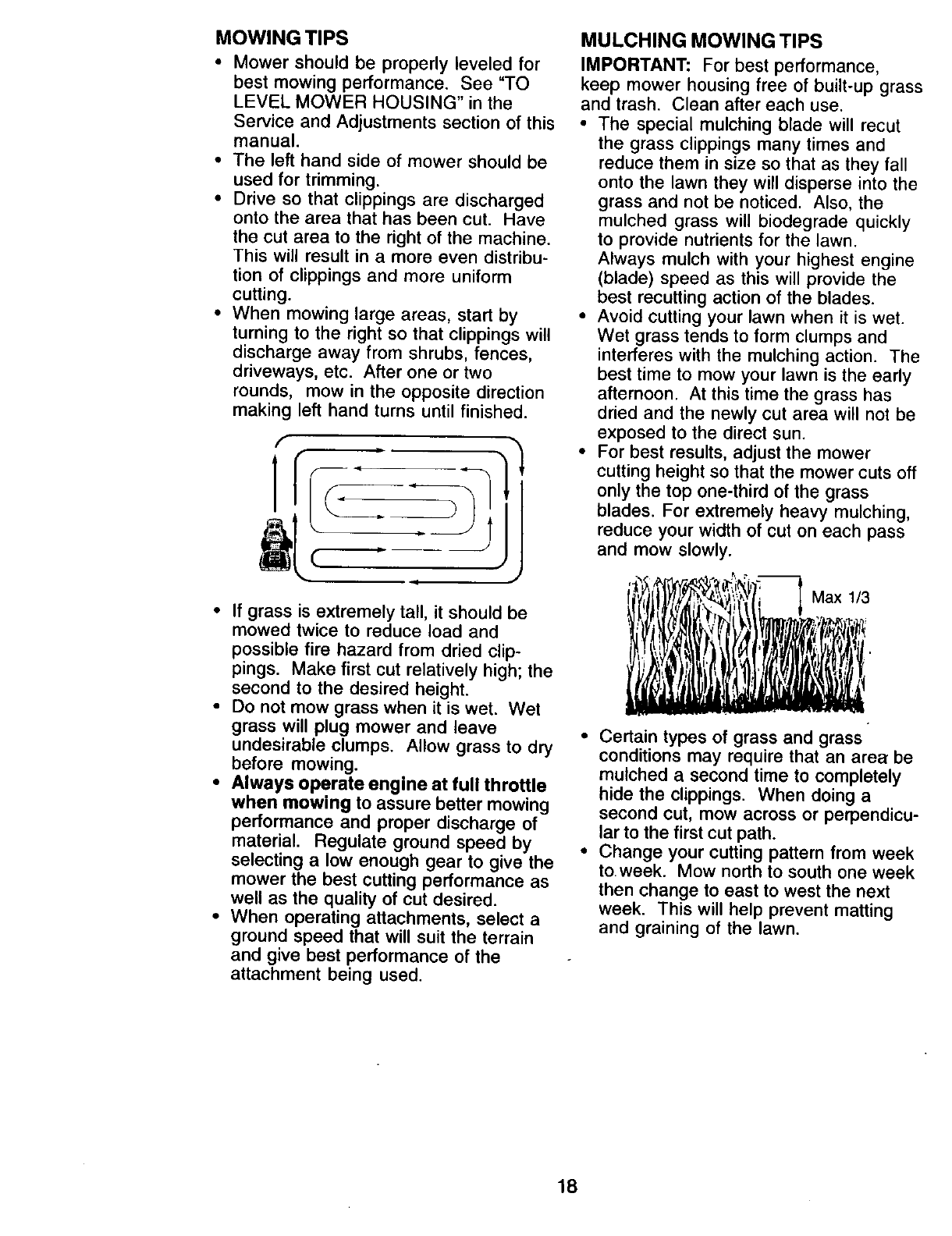

MOWING TIPS

•Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the machine.

This will result in amore even distribu-

tion of clippings and more uniform

cutting.

•When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

ii J

•If grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make first cut relatively high; the

second to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower the best cutting performance as

well as the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up grass

and trash. Clean after each use.

• The special mulching blade will recur

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

• Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action. The

best time to mow your lawn is the early

afternoon. At this time the grass has

dried and the newly cut area will not be

exposed to the direct sun.

• For best results, adjust the mower

cutting height so that the mower cuts off

only the top one-third of the grass

blades. For extremely heavy mulching,

reduce your width of cut on each pass

and mow slowly.

Max 1/3

• Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

• Change your cutting pattern from week

toweek. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

MAINTENANCE SCHEDULE ___ ._-_y

F,LL,.OATES

AS YOU COMPLETE ._'__._f ......

REGULAR SERVICE _'__: J_.4_-_" S E RV iC E DATES

II _///

::kk

Check Operator Presence end

TInterlock Systems V'

gCheck for Loose Fasteners _ 9##'s V'

ASharpen/Replace Mower Blades i3

TLubrication Chart

0 Check Battery Level

gClean Battery and Terminals I1_

Check Transaxle Cooling

Check V-Belts

Check Engine Oil Level VpV'

Change Engine Oil (with oil filter) V'1.2 I1_

EChange Engine Oil (without oil filter) b_l,; V'

NCleanAirFilter _:

GClean Air Screen

N[ Inspect Muffler/Spark Arrester V'

EReplace Oil Filter (If equipped) I_.2

Clean Engine Cooling Fins V'2

Replace Spark Plug _ V'

Replace Air Filter Paper Cadddge ! V'2

Replace Fuel Filter

1 - Change more olten when operating under a heavy load or

in high ambient temperatures.

2-Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover

items that have been subjected to operator

abuse or negligence. To receive full value

from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual should

be checked at least once each season.

•Once a year you should replace the

spark plug, clean or replace air filter, and

check blades and belts for wear. A new

spark plug and clean air filter assure

proper air-fuel mixture and help your

engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

3- Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

DO not overtighten.

LUBRICATION CHART

(_ Spindle

Zerk Zerk

_) Front _)

Wheel Wheel

Bearing q Bearing

Zerk Zerk

(_ Engine f

I_--r

i I

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

_SAE 30 or 10w30 motor oil

@General Purpose Grease

Refer to Maintenance "ENGINE"

Section

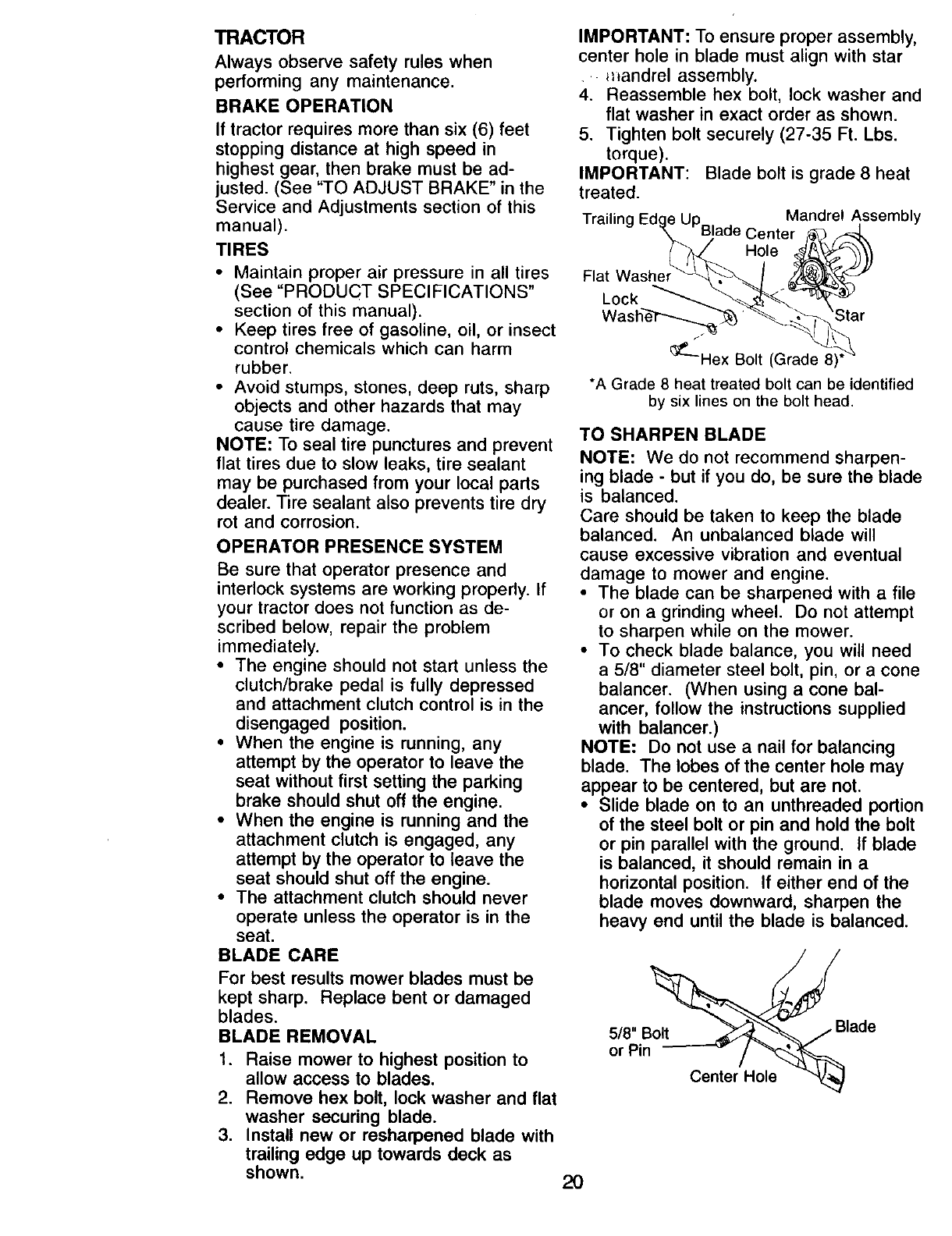

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure that operator presence and

interlock systems are working properly. If

your tractor does not function as de-

scribed below, repair the problem

immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachment clutch control is in the

disengaged position.

• When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove hex bolt, lock washer and flat

washer secudng blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

_,andrel assembly.

4. Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

5. Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Trailing Ed_ .=Up Mandrel Assembly

•Blade Center

Hole

Flat

\Star

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the blade

is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt

or Pin

Center Hole

Blade

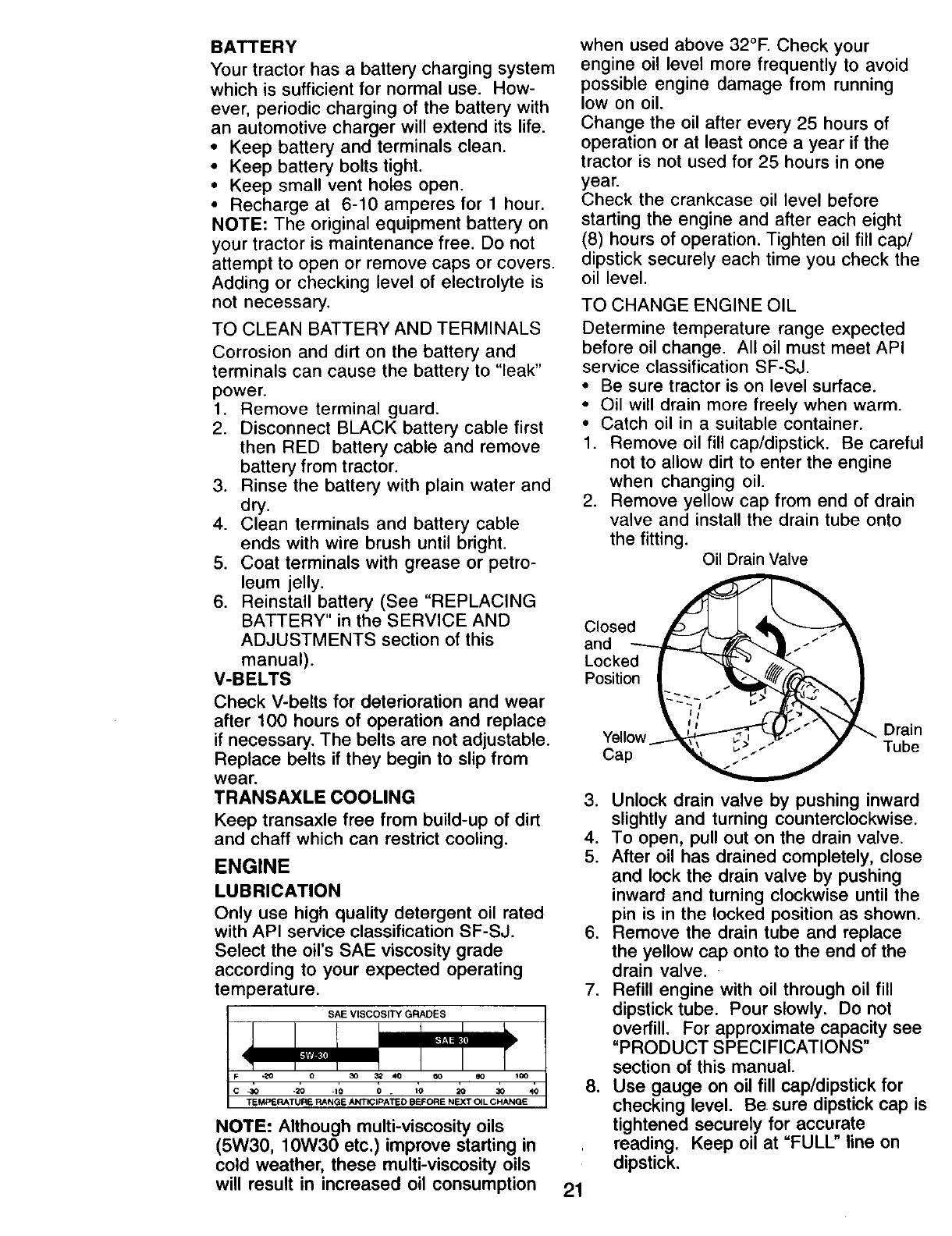

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes open.

•Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ.

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

_0 .2o .10 0 . 20 30 40

TEMPERATURE RANGE ANTICIPATEO B_FORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, these multi-viscosity oils

will result in increased oil consumption

when used above 32°E Check your

engine oil level more frequently to avoid

possible engine damage from running

low on oil.

Change the oil after every 25 hours of

operation or at least once a year if the

tractor is not used for 25 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting. Oil Drain Valve

Closed ,__'_

and _L._"_ ._ i __"

Yellow _ __ Drain

Cap - _;__ /uDe

3. Unlock drain valve by pushing inward

slightly and turning counterclockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the yellow cap onto to the end of the

drain valve.

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. Be sure dipstick cap is

tightened securely for accurate

reading. Keep oil at "FULL" line on

dipstick.

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

ENGINE COOLING FINS

Remove any dust, dirt or oil from engine

cooling fins to prevent engine damage

from overheating. Air guide covers must

be removed. Remove side panels and

hood (See "TO REMOVE HOOD AND

GRILL ASSEMBLY" in the Service and

Adjustments section of this manual).

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every 100

hours of operation or every season,

whichever occurs first.

Service air cleaner more often under dusty

conditions.

1. Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

2. Slide foam pre-cleaner off cartridge.

3. Wash it in liquid detergent and water.

4. Squeeze it dry in a clean cloth.

5. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

6. Reinstall pre-cleaner over cartridge.

7. Reinstall cover and secure with

knob(s).

TO SERVICE CARTRIDGE

1. Remove wing nuts and cartridge plate.

2. Carefully remove cartridge to prevent

debds from entering carburetor.

3. Clean cartridge by tapping gently on

flat surface.

NOTE: If very dirty or damaged, replace

cartridge.

4. Reinstall cartridge plate, wing nuts,

precleaner, cover and secure with

knob(s).

IMPORTANT: Petroleum solvents, such as

kerosene, are not to be used to clean the

cartridge. They may cause deterioration of

the cartridge. Do not oil cartridge. Do not

use pressurized air to clean or dry car-

tridge.

Cover

Knob

Cartridge

Wing Nut Plate

Foam

Pre-Cleaner

Air Scre_

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are properly positioned.

4. Immediately wipe up any spilled

gasoline.

Clamp

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

,_ CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key "OFF" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor.

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Move attachment lift lever forward to

lower mower to its lowest position.

3. Roll belt off engine pulley.

4. Remove small retainer spring, and lift

clutch spring off pulley bolt.

5. Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

6. Disconnect anti-swaybar from chassis

bracket by removing retainer spring.

• 7. Disconnect suspension arms from

rear deck brackets by removing

retainer springs.

Small Retainer Spring

Clutch

Retainer Spring \

8. Disconnect front links from deck by

removing retainer springs.

9. Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on the

tractor, remove the front links and hook

the clutch spring Into square hole in

frame.

TO INSTALL MOWER

1. Raise attachment lift lever to its

highest position.

2. Slide mower under tractor with

deflector shield to right side of tractor.

3. Lower lift lever to its lowest position.

4. Install mower in reverse order of

removal instructions.

Anti-Swa_ Front Link

Collar

Housing

Guide

Springs

(Both Sides)

Large

Retainer

Spring Bracket

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PRODUCT

SPECIFICATIONS" section of this manual).

If tires are over or underinflated, you will

not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance "A" on both

sides of mower should be the same or

within 1/4" of each other.

• If adjustment is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut will

change mower height about 1/8".

• Recheck measurements after adjusting.

Bottom Edge _ Bottom Edge

of Mower to_(_ _ (_-_of Mower to

Ground \ I f_.,_L JGround

(_ Suspension

Nut

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tiqhten nuts "F"

against tru=mJonon both front Itnks.

• To raise front of mower, loosen nut "F"

from trunnion on both front links.

Tighten nut "E" on both front links an

equal number of turns.

• When distance "D" is 1/8" to 1/2" lower

at front than rear, tighten nut "F" against

trunnion on both front links.

• Recheck side-to-side adjustment.

Mandrel

Both Front Links Should be Equal in Length

•Nut "E"

Nut "F"

Trunnio

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front and

behind the mandrel at bottom edge of

mower housing as shown.

Front Links

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor on

level surface. Engage parking brake.

BELT REMOVAL -

1. Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

this manual).

2. Work belt off both mandrel pulleys and

idler pulleys.

3. Pull belt away from mower.

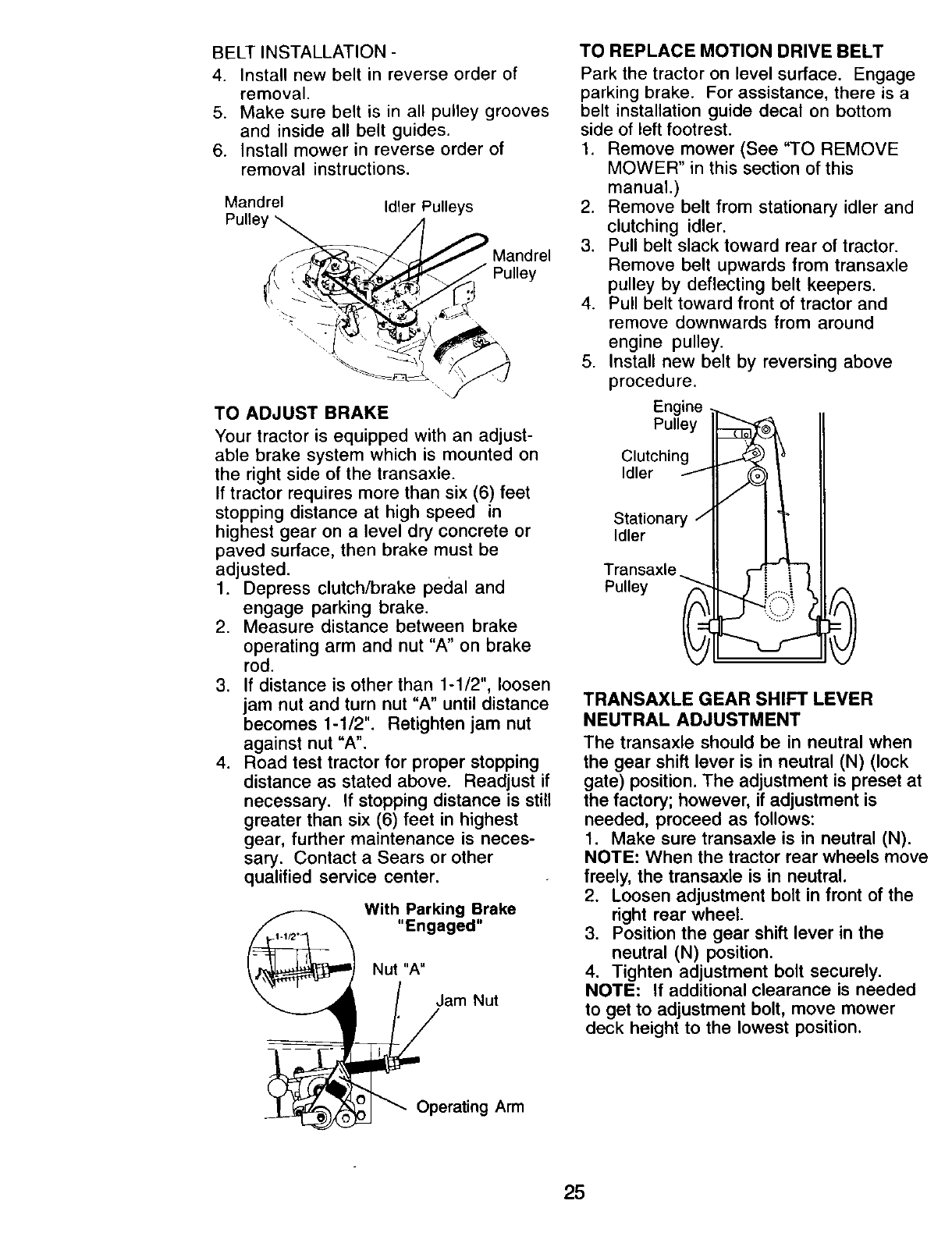

BELT INSTALLATION -

4. Install new belt in reverse order of

removal.

5. Make sure belt is in all pulley grooves

and inside all belt guides.

6. Install mower in reverse order of

removal instructions.

Mandrel Idler Pulleys

Pulley _ Mandrel

_"_ _ _---J Pulley

--_,,t i_77 \

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear on a level dry concrete or

paved surface, then brake must be

adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut "A" on brake

rod.

3. If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

With Parking Brake

"Engaged"

Nut "A"

._Jam Nut

_Operating Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

1. Remove mower (See "TO REMOVE

MOWER" in this section of this

manual.)

2. Remove belt from stationary idler and

clutching idler.

3. Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers.

4. Pull belt toward front of tractor and

remove downwards from around

engine pulley.

5. Install new belt by reversing above

procedure.

Engine

Pulley

Clutching

Idler

Stationary 7

Idler

T_lnyaxle i:

TRANSAXLE GEAR SHIFT LEVER

NEUTRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position. The adjustment is preset at

the factory; however, if adjustment is

needed, proceed as follows:

1. Make sure transaxle is in neutral (N).

NOTE: When the tractor rear wheels move

freely, the transaxle is in neutral.

2. Loosen adjustment bolt in front of the

right rear wheel.

3. Position the gear shift lever in the

neutral (N) position.

4. Tighten adjustment bolt securely.

NOTE: If additional clearance is needed

to get to adjustment bolt, move mower

deck height to the lowest position.

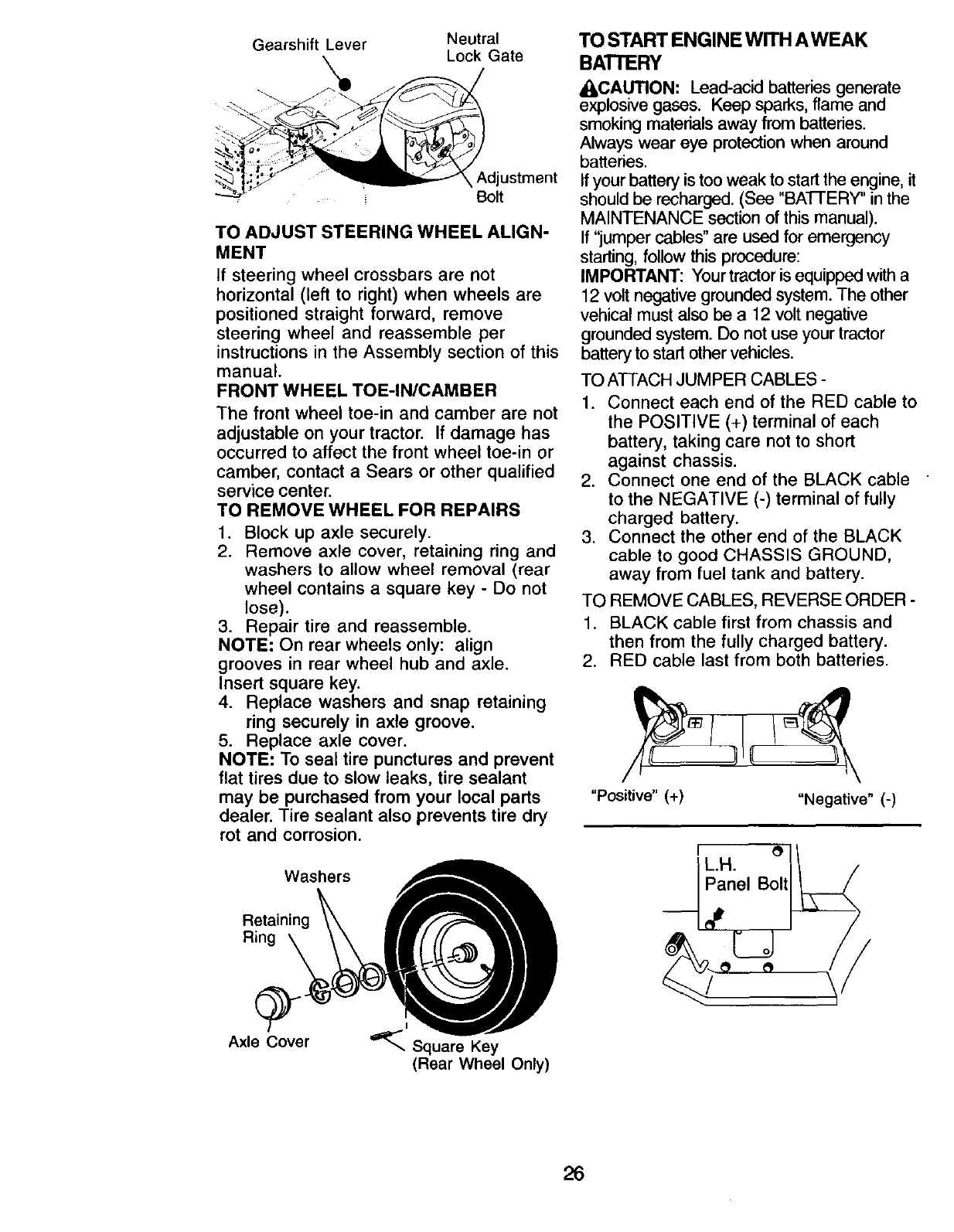

Gearshift Lever Neutral

Lock Gate

Adjustment

Bolt

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of this

manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal (rear

wheel contains a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align

grooves in rear wheel hub and axle.

Insert square key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Washers

Retaining

Ring

Axle Cover

Square Key

(Rear Wheel Only)

TOSTART ENGINEWITHAWEAK

BATTERY

_II,CAUTION: Lead-acid batteries generate

explosive gases. Keep sparks, flame and

smoking materials away from batteries.

Always wear eye protectionwhen around

batteries.

If yourbattery istoo weak to start the engine, it

should be recharged. (See "BATIERY" in the

MAINTENANCE section of this manual).

If "jumper cables" are used for emergency

starting,follow this procedure:

IMPORTANT: Yourtractorisequipped witha

12 volt negativegrounded system. The other

vehical must also be a 12 voltnegative

grounded system. Do not use yourtractor

battery to startothervehicles.

TO ATTACH JUMPER CABLES -

1. Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short

against chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery.

3. Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

"Positive" (+) "Negative" (-)

_LH _ll

._ _nel Bolt]_

L_J //

REPLACING BATTERY

_CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

8. Close terminal access doors.

9. Close hood.

Keps

Terminal

Access _.,_i.

Hex

Positive

:" Cable

Terminal Negative

Guard Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

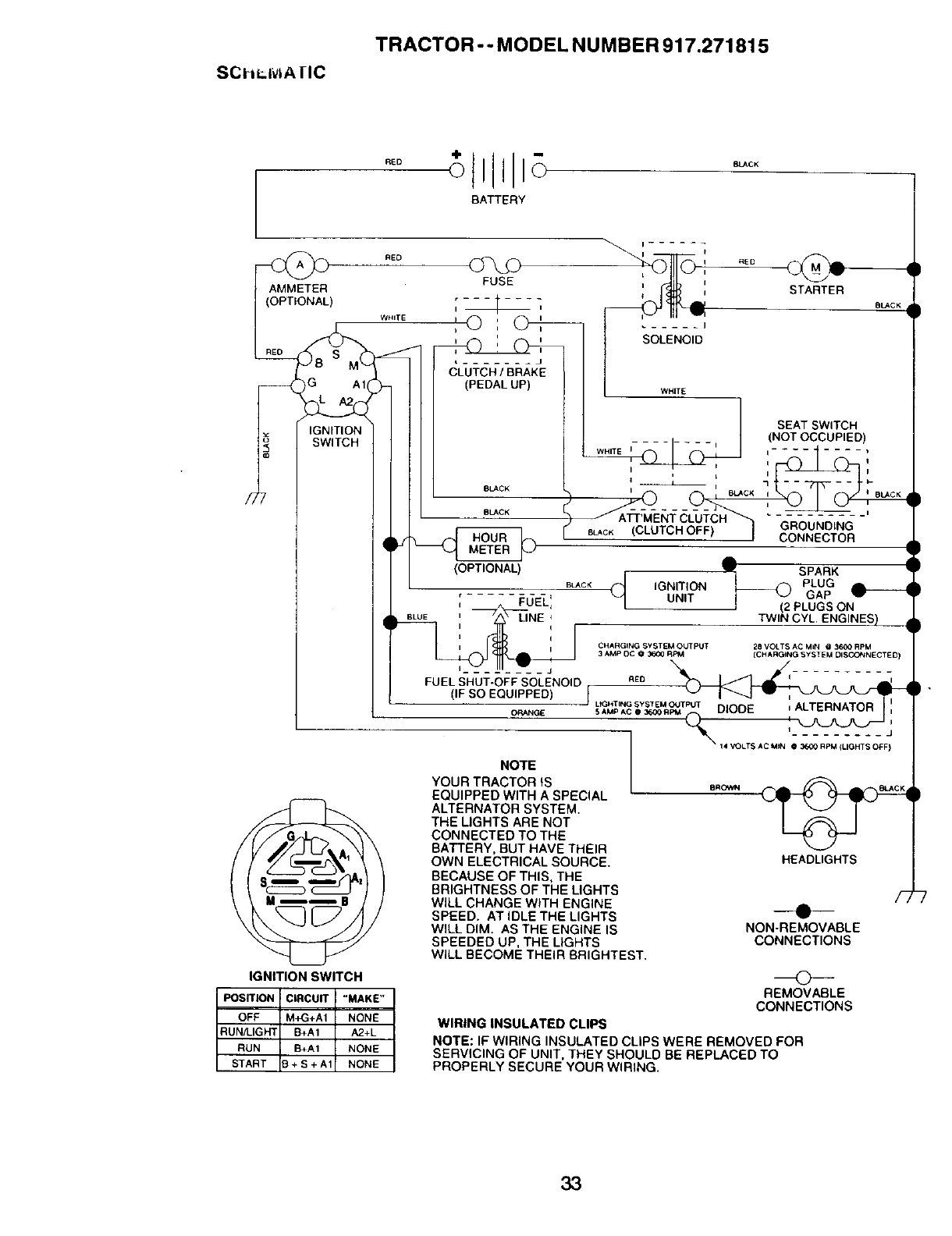

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your

tractor to run poorly, stop running, or

prevent it from starting.

•Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL

ASSEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward enaine and lift off of

tractor.

4. To replace, reverse above procedure.

Headlight

Wire Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers

expense, may be performed by any non-

road engine repair establishment or

individual. Warranty repairs must be

performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against side of

quarter circle. If it is not, loosen cable

clamp screw and pull cable back until

swivel is against quarter circle.

Tighten cable clamp screw securely.

Clamp Scre_

Quarter _€_rcle_,_ ._ _

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (see "AIR FILTER" in the

Maintenance section of this manual).

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4 Reassemble air cleaner.

Choke Closed

Casing

Clamp

Screw \ Choke

Lever

TO ADJUST CARBURETOR

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude or

load. If the carburetor does need adjust-

ment, proceed as follows:

In general, turning the mixture screw in

(clockwise) decreases the supply of fuel

to the engine giving aleaner fuel/air

mixture. Turning the mixture screw out

(counterclockwise) increases the supply

of fuel to the engine giving a richer fuel/air

mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

1. Be sure you have a clean air filter, and

the throttle control cable and choke

are adjusted properly (see above).

2. With engine off turn idle mixture screw

in (clockwise) closing it finger tight and

then turn out (counterclockwise) 1-1/4

to 1-1/2 turns.

FINAL SETTING

1. Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

2. With throttle control lever in slow

position, hold throttle lever against idle

speed screw and adjust idle speed

screw to obtain 1200 to 1400 RPM.

3. While still holding throttle lever against

idle speed screw, turn idle mixture

screw in (clockwise) until engine

begins to die and then turn out

(counterclockwise) until engine runs

rough. Turn screw to a point midway

between those two positions.

4. Continue to hold throttle lever against

idle speed screw and adjust idle

speed screw to obtain 900 to 1200

RPM. Release throttle lever.

ACCELERATION TEST -

5. Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle mixture screw out

(counterclockwise) 1/8 turn. Repeat

test and continue to adjust, if neces-

sary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT; Never tamper with the

engine governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact a Sears or other qualified

service center, which has proper equip-

ment and experience to make any

necessary adjustments.

ldle Speed

few

Idle Mixture

Screw

Throttle Lever

Idle Speed

Throttle _ _ Idle

Lever _ Mixture

Screw

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

/kCAUTION: Never store the tractor with

gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

•Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

"TO CLEAN BATTERY AND TERMI-

NALS" in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposites from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, experiance indicates that alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to "START" position

for a few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

CAUSE CORRECTION

Out of fuel.

Engine not "CHOKED"

properly.

Engine flooded. 3.

Bad spark plug. 4.

Dirty air filter. 5.

Dirty fuel filter. 6.

Water in fuel• 7,

Loose or damaged wiring. 8.

Carburetor out of adjustment. 9.

10, Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

:7. Carburetor out of adjustment

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

• Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter,

Replace fuel filter.

Drain fuel tank and

carburetor, refill tank with

fresh gasoline and leplace

fuel filter.

Check all wiring.

See "To Adjust Carburetor"

in Service Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace

battery.

4. Replace fuel filter.

5. Drain fuel tank and refill

with fresh gasoline.

6. Check all wiring.

7, See "To Adjust Carburetor"

in Service Adjustments

section.

8. Contact a Sears or other

qualified service center•

1. Depress clutch/brake

pedal.

2. Disengage attachment

clutch.

3. Recharge or replace

battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1_ Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART

CAUSE

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE"

position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

PROBLEM

Lossofpower

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut -uneven

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13.Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

CORRECTION

1. Set in "Higher Cut" position/

reduce speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill with

fresh gasoline.

9. Drain fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/fins

12.Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Replace blade mandrel.

3. Tighten loose part(s).

Replace damaged pads.

.Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Replace blade mandrel.

5. Clean around mandrels to

open vent holes.

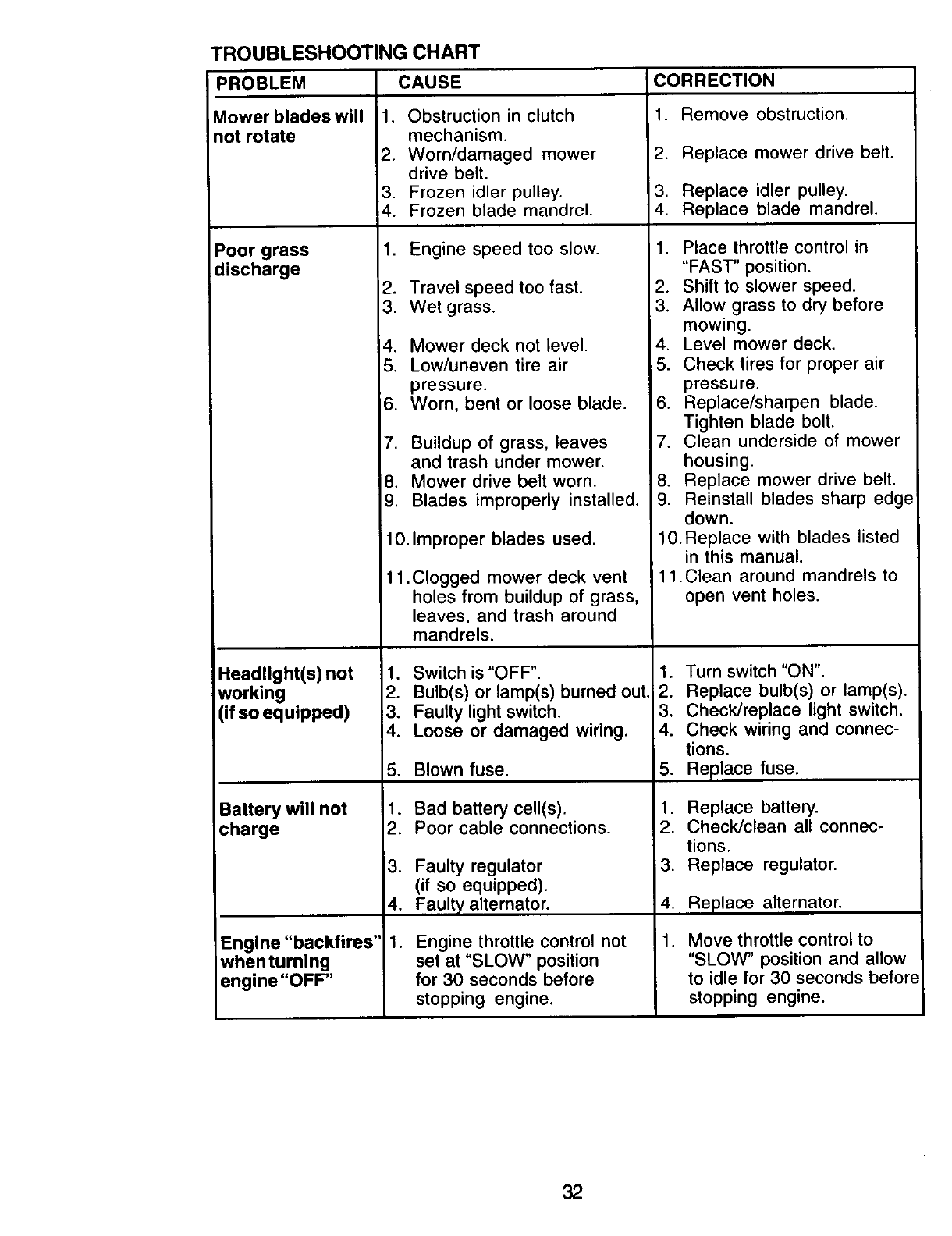

TROUBLESHOOTING CHART

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

CAUSE

1. Obstruction in clutch

mechanism.

12. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.Improper blades used.

11.Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

Headlight(s) not 1.

working 2.

(if so equipped) 3,

Battery will not 1.

charge 2.

Engine "backfires" 1.

whenturning

engine "OFF"

Switch is "OFF".

Bulb(s) or lamp(s) burned out

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

CORRECTION

1. Remove obstruction.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Replace blade mandrel.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10.Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

Faulty regulator

(if so equipped).

Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

tions.

3. Replace regulator.

4. Replace alternator.

.Move throttle control to

"SLOW" position and allow

to idle for 30 seconds befor_

stopping engine.

SC|ILIVIA I-IC

TRACTOR -- MODEL NU MBER 917.271815

RED ;tlll

BATTERY

BtJ_CK

AED

AMMETER

(OPTIONAL)

WHITE

)G All

IGNITION

SWITCH

FUSE

:©:C_,'--

_LUTCR/RRAZE

(PEDAL UP)

BLACK

(OPTIONAL)

BLACK

-- 1_:L_E-L_

SOLENOID

RED _p_

STARTER

BI_CK

WHITE

SEAT SWITCH

........ I (NOT OCCUPIED)

B_CK (CLUTCH OFF) G OUO NG

SPARK

(_ IGNITION _ PLUG L

GAP Iw

UNIT I _2 PLUGS ON

TWIN CYL ENGINES)

28 VOLTS AC MIN @ 36_ RPM

(CHARGING SYSTEM DISCONNECTED)

CHARGING SYSTEM OUTPUT

3 AMP OC @ _ RPM

FUEL SHUT-OFF SOLENOID nE_ _ i

(IF SO EQUIPPED) JLtGHTINGSYSTEMOMTPUT I

ORANGE 5 AMP AC O3600 R

--14 VOLTSACM'N ; 3_ RPfd(L_O;TS OFF)

NOTE

YOUR TRACTOR iS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WiLL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

HEADLIGHTS

NON-REMOVABLE

CONNECTIONS

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+A1 NONE

RUN/LIGHT B+A1 A2+L

RUN B+A1 NONE

START 3+S+ A 1 NONE

REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT. THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

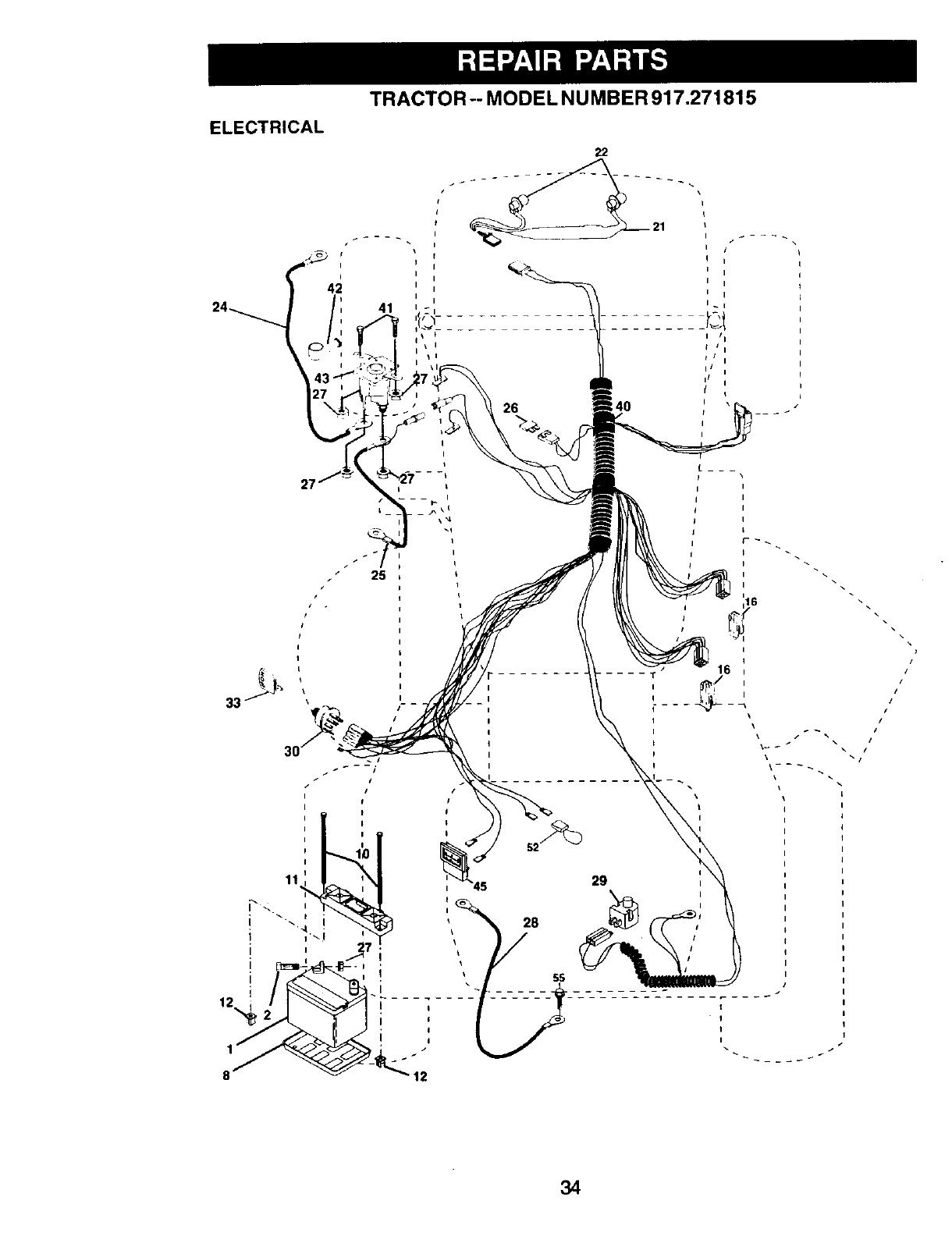

ELECTRICAL

TRACTOR -- MODEL N UMB ER 917.271815

[

_ I

i I

16 t

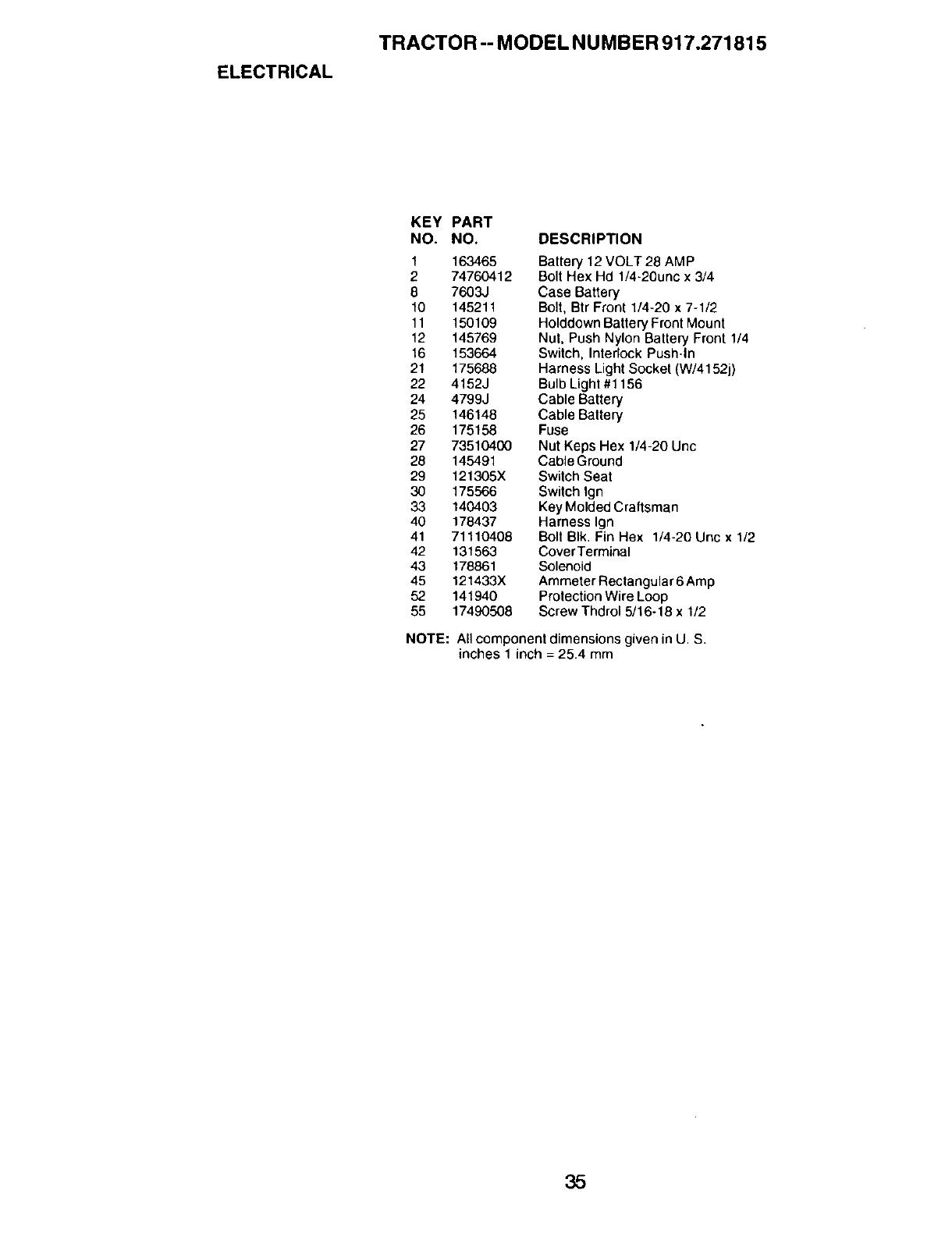

ELECTRICAL

TRACTOR -- MODEL NU MB ER 917.271815

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery 12 VOLT 28 AMP

2 74760412 Bolt Hex Hd 1/4-20unc x 3/4

8 7603J Case Battery

10 145211 Bolt, Btr Front 1/4-20 x 7-1/2

11 150109 Holddown Battery Front Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 153664 Switch, Interlock Push-In

21 175688 Harness Light Socket (W/4152j)

22 4152J Bulb Light #1156

24 4799J Cable Battery

25 146148 Cable Battery

26 175158 Fuse

27 73510400 Nut Keps Hex 1/4-20 Unc

28 145491 Cable Ground

29 121305X Switch Seat

30 175566 Switch Ign

33 140403 Key Molded Craftsman

40 178437 Harness Ign

41 71110408 Bolt BIk. Fir', Hex 1/4-20 Uric x 1/2

42 131563 CoverTerminal

43 178861 Solenoid

45 121433X Amrneter Rectangular 6 Amp

52 141940 Protection Wire Loop

55 17490508 Screw Thdrol 5/16-18 x 1/2

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

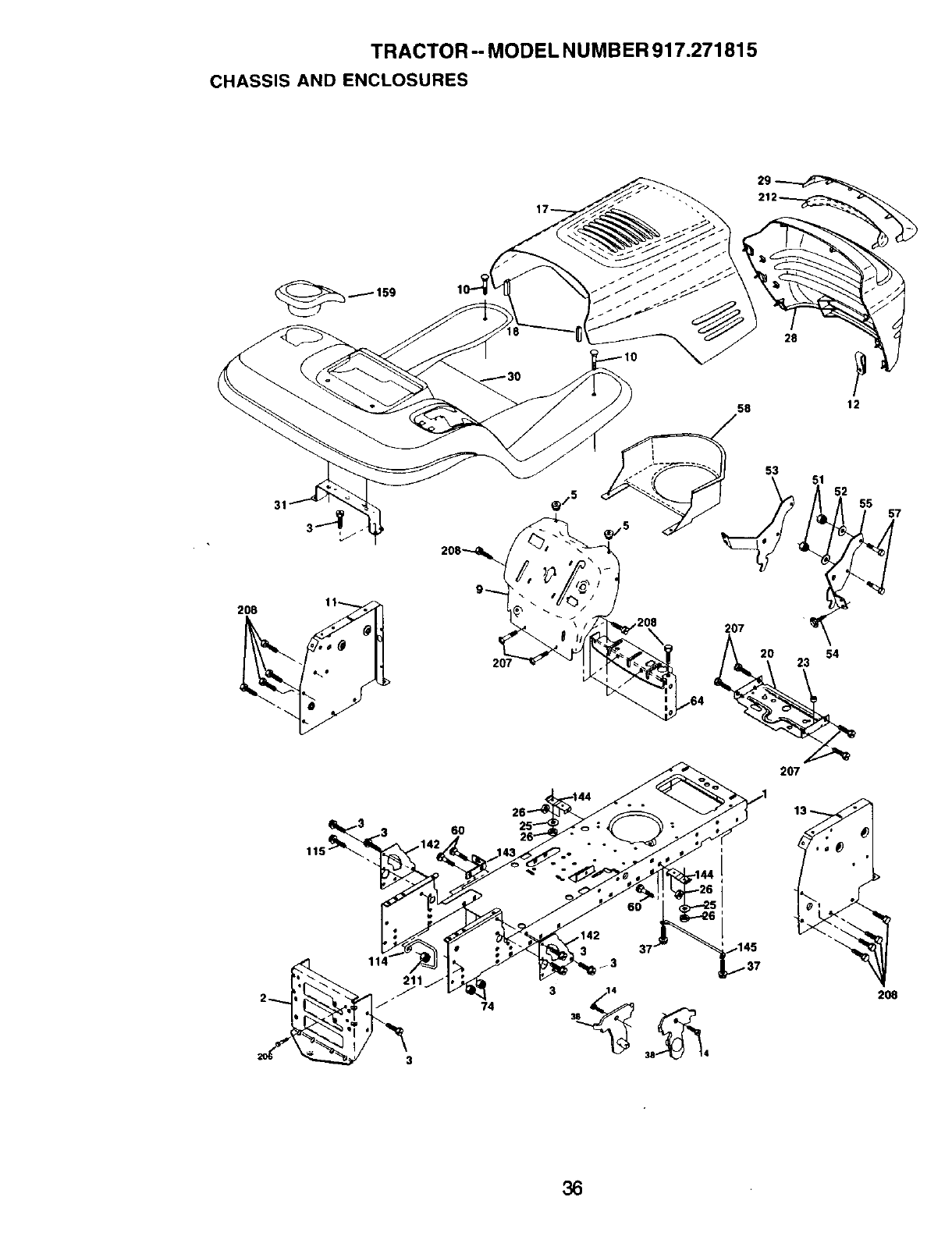

TRACTOR - MODEL NUMBER 917.271815

CHASSIS AND ENCLOSURES

207

3 37

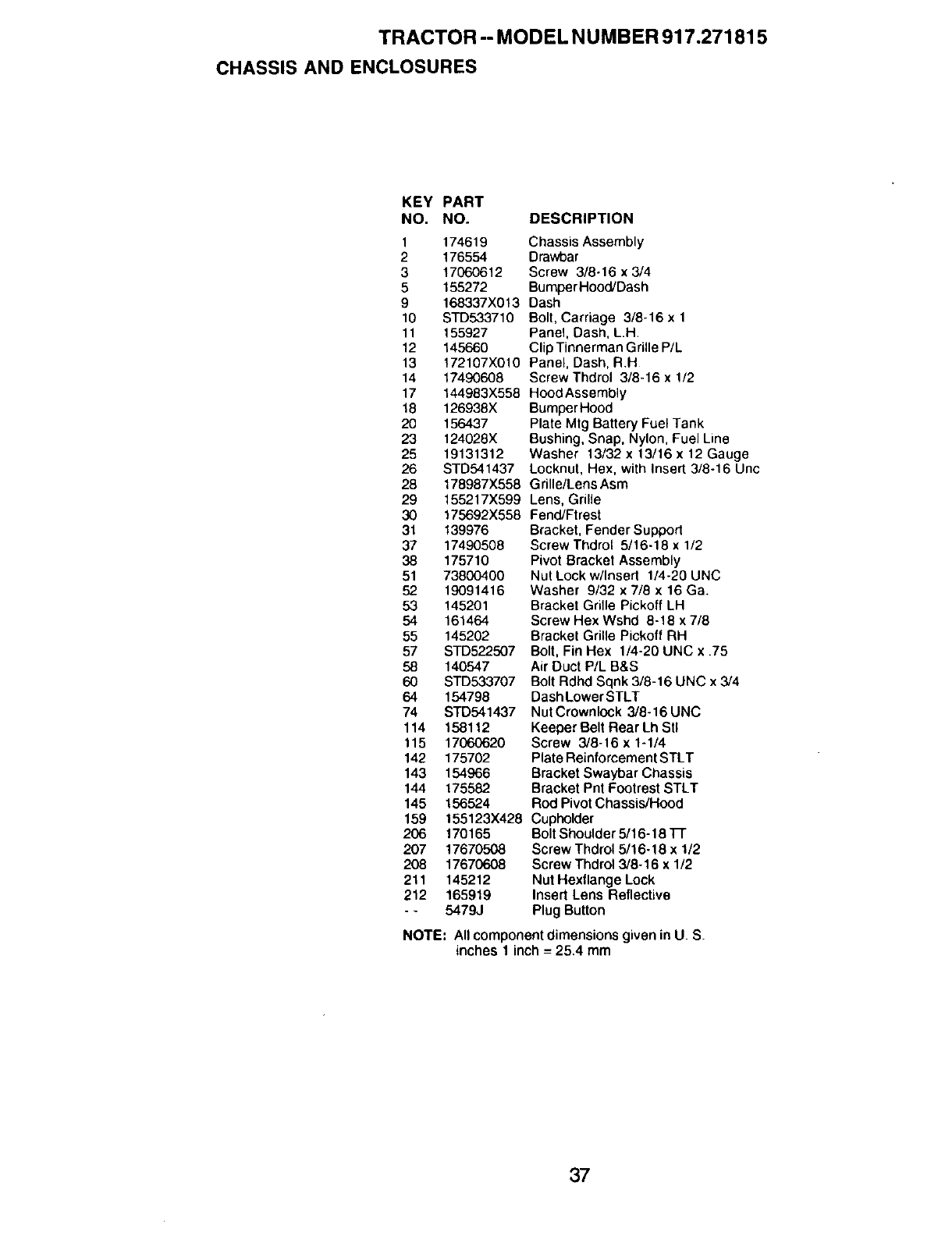

TRACTOR -- MODEL NUMB ER 917.271815

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1174619

2 176554

3 17060612

5 155272

9168337X013

10 STD533710

11 155927

12 145660

13 172107X010

14 17490608

17 144983X558

18 126938X

2O 156437

23 124028X

25 19131312

26 STD541437

28 178987X558

29 155217X599

30 175692X558

31 139976

37 17490508

38 175710

51 73800400

52 19091416

53 145201

54 161464

55 145202

57 STD522507

58 140547

60 STD533707

64 154798

74 STD541437

114 158112

115 17060620

142 175702

143 154966

144 175582

145 156524

159 155123X428

206 170165

207 17670508

208 17670608

211 145212

212 165919

--5479J

Chassis Assembly

Drawbar

Screw 3/8-16 x 3/4

Bumper Hood/Dash

Dash

Roll, Carriage 3/8-16 x 1

Panel, Dash, L.H

Clip Tinnerman Grille P/L

Panel, Dash, RH

Screw Thdrol 3/8-16 x 1/2

Hood Assembly

BumperHood

Plate Mlg Battery Fuel Tank

Bushing, Snap, Nylon, Fuel Line

Washer 13/32 x 13/16 x 12 Gauge

Locknut, Hex, with Insert 3/6-16 Unc

Grille/Lens Asm

Lens, Grille

Fend/Ftrest

Bracket, Fender Support

Screw Thdrol 5/16-18 x 1/2

Pivot Bracket Assembly

Nut Lock w/Insed 1/4-20 UNC

Washer 9/32 x 7/6 x 16 Ga.

Rrackel Grille Pickoff LH

Screw Hex Wshd 8-18 x 7/8

Rracket Grille Pickoff RH

Bolt, Fin Hex 1/4-20 UNC x .75

Air Duct P/L B&S

Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

Dash Lower STLT

Nut Crownlook 3/8-16 UNC

Keeper Belt Rear Lh Stl

Screw 3/8-16 x 1-1/4

Plate Reinforcement STLT

Bracket Swaybar Chassis

Bracket Pnt Footrest STLT

Rod Pivot Chassis/Hood

Cupholder

Bolt Shoulder 5/16-181-1"

Screw Thdrol 5/16-18 x 1/2

Screw Thdrol 3/8-16 x 1/2

Nut Hexflange Lock

Insert Lens Reflective

Plug Button

NOTE: All component dimensions given in U. S.

inches 1inch =25.4 mm

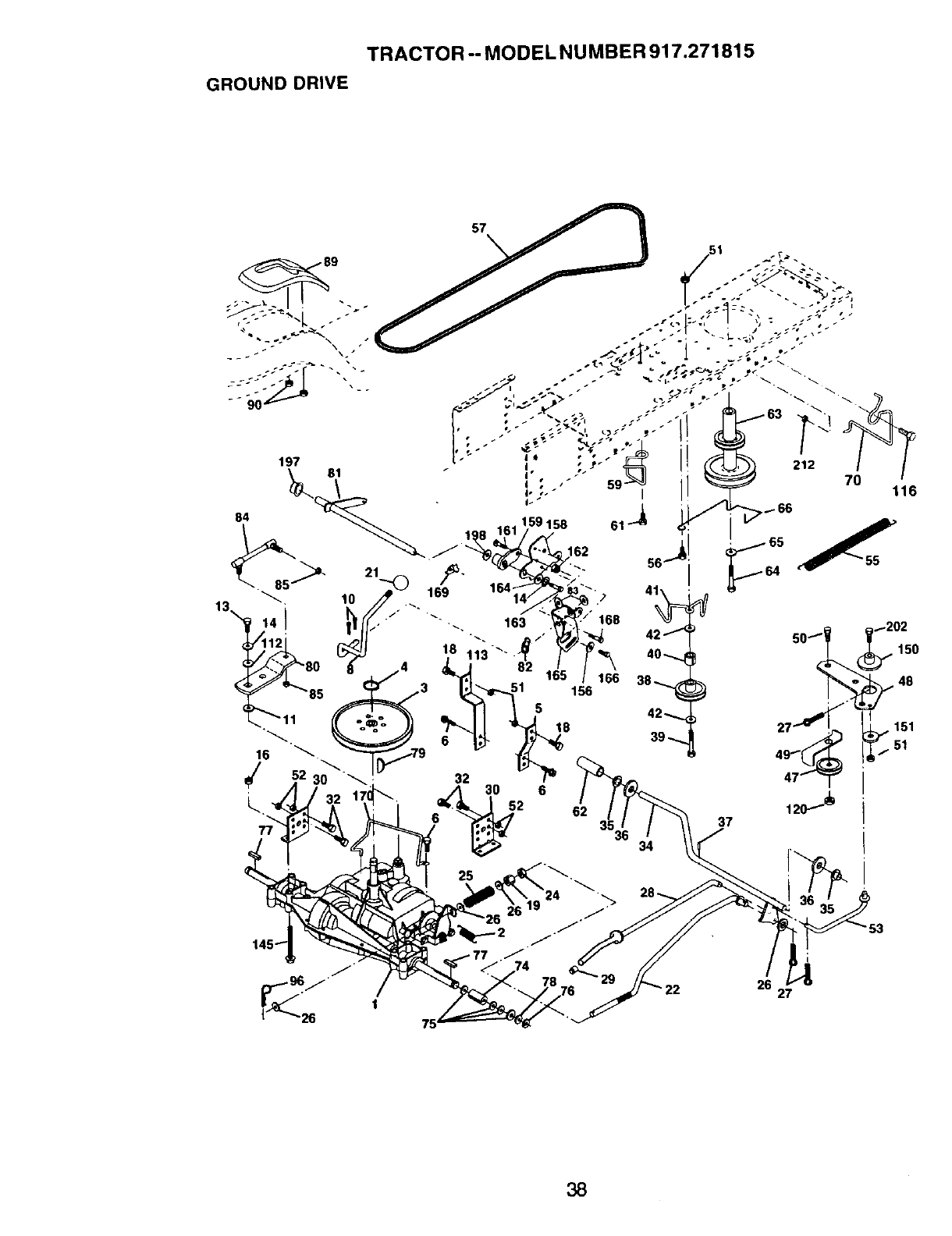

TRACTOR -- MODEL NU MBER 917.271815

GROUND DRIVE

26 27

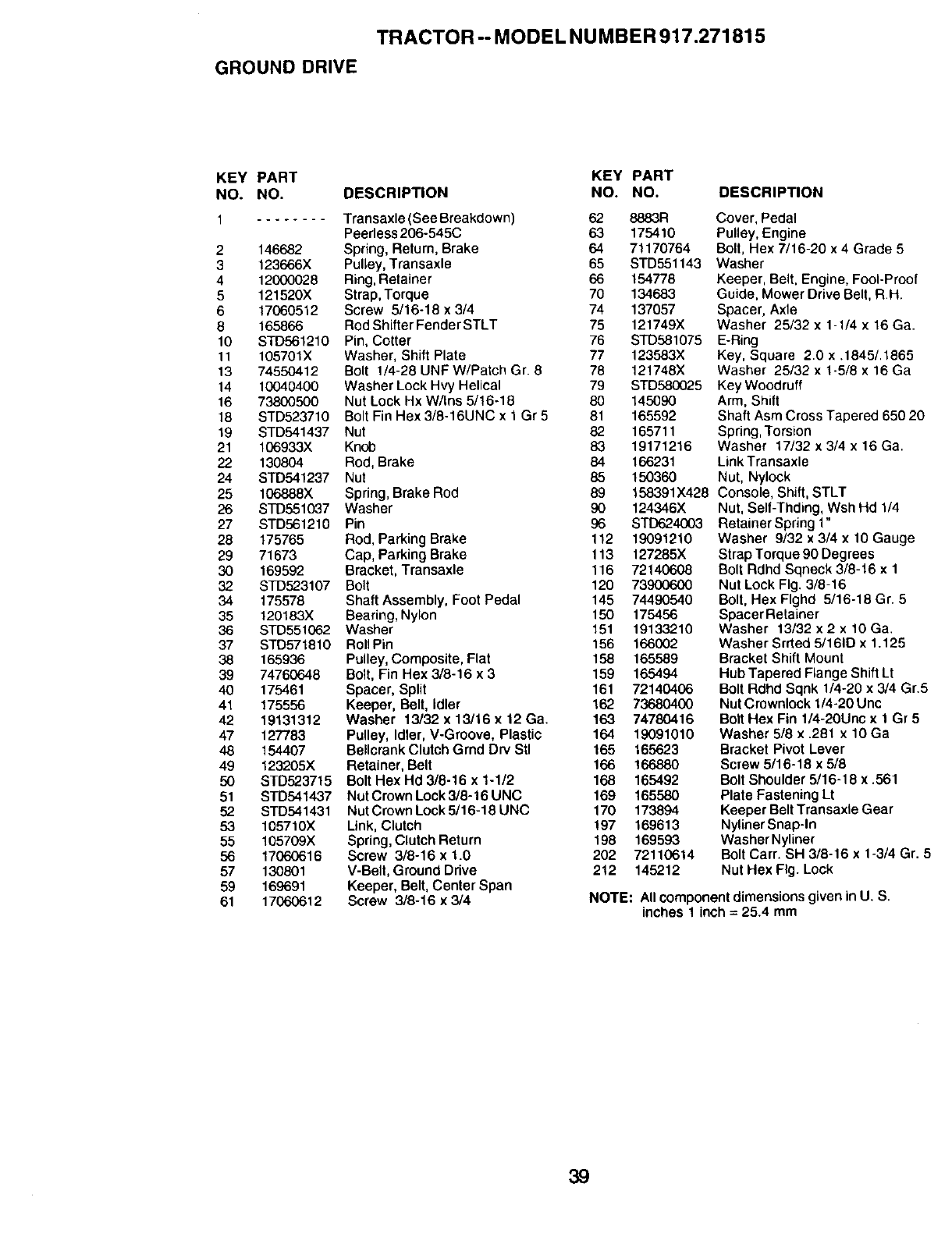

TRACTOR -- MODEL NUMBER 917.271815

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1Transaxle (See Breakdown) 62 8883R

Peerless 206-545C 63 175410

2 146682 Spring, Return, Brake 64 71170764

3 123666X Pulley, Transaxle 65 STD551143

412000028 Ring, Retainer 66 154778

5 121520X Strap, Torque 70 134683

6 17060512 Screw 5/16-18 x 3/4 74 137057

8 165866 Rod Shifter Fender STLT 75 121749X

10 STD561210 Pin, Cotter 76 STD581075

11 105701X Washer, Shift Plate 77 123583X

13 74550412 Bolt 1/4-28 UNF W/Patch Gr. 8 78 121748X

14 10040400 Washer Lock Hvy Helical 79 STD580025

16 73800500 Nut Lock Hx W/Ins 5/16-18 80 145090

18 STD523710 Bolt Fin Hex 3/8-16UNC x 1 Gr 5 81 165592

19 STD541437 Nut 82. 165711

21 106933X Knob 83 19171216

22 130804 Rod, Brake 84 166231

24 STD541237 Nut 85 150360

25 106888X Spring, Brake Rod 89

26 STD551037 Washer 90

27 STD561210 Pin 96

28 175765 Rod, Parking Brake 112 19091210

29 71673 Cap, Parking Brake 113 127285X

30 169592 Bracket, Transaxle 116 72140608

32 STD523107 Bolt 120 73900600

34 175578 Shaft Assembly, Foot Pedal 145 74490540

35 120183X Bearing, Nylon 150 175456

36 STD551062 Washer 151 19133210

37 STD5718t 0 Roll Pin 156 166002

38 165936 Pulley, Composite, Flat 158 165589

39 74760648 Bolt, Fin Hex 3/8-16 x 3 159 165494

40 175461 Spacer, Split 161 72140406

41 175556 Keeper, Belt, Idler 162 73680400

42 19131312 Washer 13/32 x 13/16 x 12 Ga. 163 74780416

47 127783 Pulley, Idler, V-Groove, Plastic 164 19091010

48 154407 Bellcrank Clutch Grad Drv Stl 165 165623

49 123205X Retainer, Belt 166 166880

50 STD523715 Bolt Hex Hd 3/8-16 x 1-1/2 168 165492

51 STD541437 NutCrownLock3/8-16UNC 169 165580

52 s'rD541431 Nut Crown Lock 5/16-18 UNC 170 173894

53 105710X Link, Clutch !97 169613

55 105709X Spring, Clutch Return 198 169593

56 17060616 Screw 3/8-16 x 1.0 202 72110614

57 130801 V-Belt, Ground Drive 2t2 145212

59 169691 Keeper, Belt, Center Span

61 17060612 Screw 3/8-16 x 3/4

DESCRIPTION

Cover, Pedal

Pulley, Engine

Bolt, Hex 7/16-20 x4 Grade 5

Washer

Keeper, Belt, Engine, Fool-Proof

Guide, Mower Drive Belt, R H.

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Ga.

E-Ring

Key, Square 20 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Ga

Key Woodruff

Arm, Shift

Shaft Asm Cross Tapered 650 20

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga.

Link Transaxle

Nut, Nylock

158391X428 Console, Shift, STLT

124346X Nut, Self-Thding, Wsh Hd 1/4

STD624003 Retainer Spring 1"

Washer 9/32 x 3/4 x 10 Gauge

Strap Torque 90 Degrees

Bolt Rdhd Sqneck 3/8-16 x 1

Nut Lock Fig. 3/8-16

Bolt, Hex Flghd 5/16-18 Gr. 5

Spacer Retainer

Washer 13/32 x 2x 10 Ga.

Washer Srrted 5/161D x 1.125

Bracket Shift Mount

Hub Tapered Flange Shift Lt

Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr.5

Nut Crownlock 1/4-20 Unc

Bolt Hex Fin 1/4-20Unc x 1Gr 5

Washer 5/8 x .281 x 10 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bolt Shoulder 5/16-18 x .561

Plate Fastening Lt

Keeper Belt Transaxte Gear

Nyliner Snap-In

Washer Nyliner

Bolt Carr. SH 3/8-16 x 1-3/4 Gr. 5

Nut Hex Fig. Lock

NOTE: All component dimensions given in U. S.

inches 1inch =25.4 mm

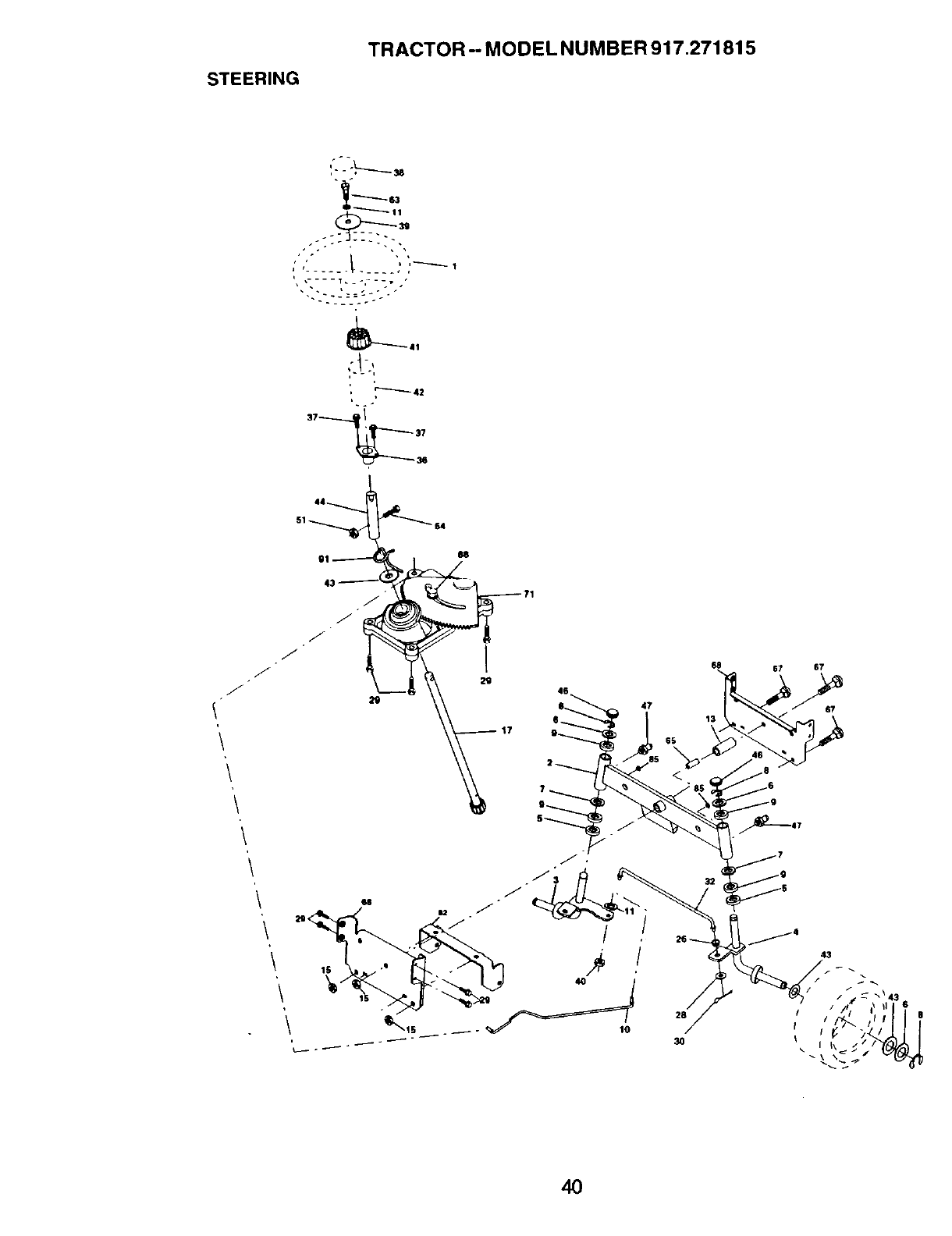

STEERING

TRACTOR-- MODEL NUMBER 917.271815

",'--. 2.- ='- :'. -"

_----- 41

i _- ,

51 54 H

°'

43---_ .71

/' 32

u,,2 /_4

_,, _. . A.,_" 43

,o ,/, ,, ii o

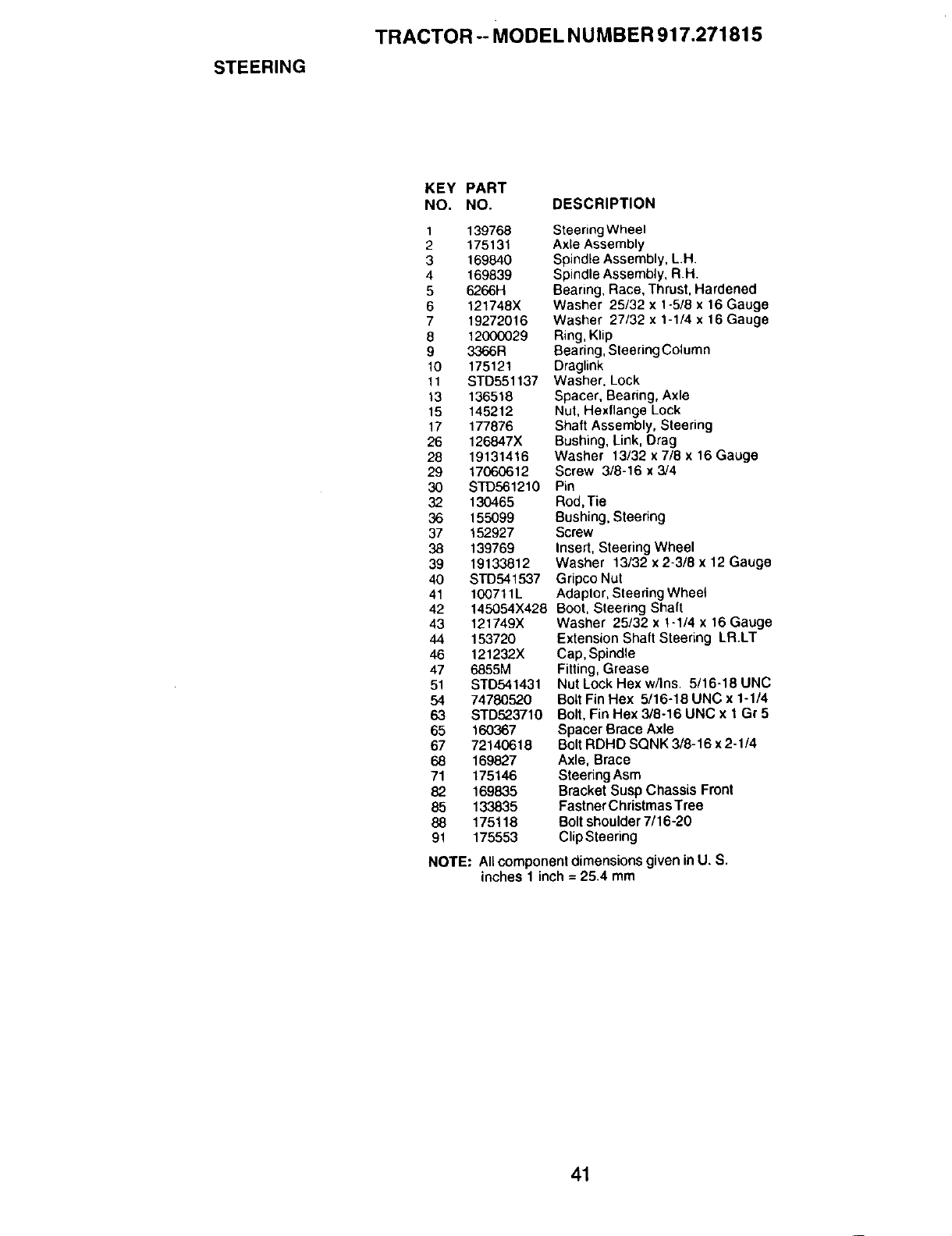

STEERING

TRACTOR -- MODEL N UMBER 917.271815

KEY PART

NO. NO. DESCRIPTION

1 139768

2175131

3 169840

4 169839

5 6266H

6 121748X

7 19272016

8 12000029

9 3366R

10 175121

11 STD551137

13 136518

15 145212

17 177876

26 126847X

28 19131416

29 17060612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133812

40 STD541537

41 100711L

42 145054 X428

43 121749X

44 153720

46 121232X

47 6855M

51 STD541431

54 74780520

63 STD523710

65 160367

67 72140618

68 169827

71 175146

82 169835

85 133835

88 175118

91 175553

NOTE:

Steering Wheel

Axle Assembly

Spindle Assembly, LH

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steering Column

Draglink

Washer, Lock

Spacer, Bearing, Axle

Nut, Hexflange Lock

Shaft Assembly, Steering

Bushing, Link, Drag

Washer 13/32 x 7/8 x 16 Gauge

Screw 3/8-16 x 3/4

Rod, Tie

Bushing, Steering

Screw

Insert, Steering Wheel

Washer 13/32 x 2-3/8 x 12 Gauge

Gripco Nut

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Shaft Steering LRLT

Cap, Spindle

Fitting, Grease

Nut Lock Hex w/Ins. 5/16-18 UNC

Bolt Fin Hex 5/16-18 UNC x1-1/4

Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5

Spacer Brace Axle

Bolt RDHD SQNK 3/8-16 x 2-1/4

Axle, Brace

Steering Asm

Bracket Susp Chassis Front

Fastner Christmas Tree

Bolt shoulder 7/16-20

Clip Steering

Allcomponent dimensions given in U. S.

inches 1 inch = 25.4 mm

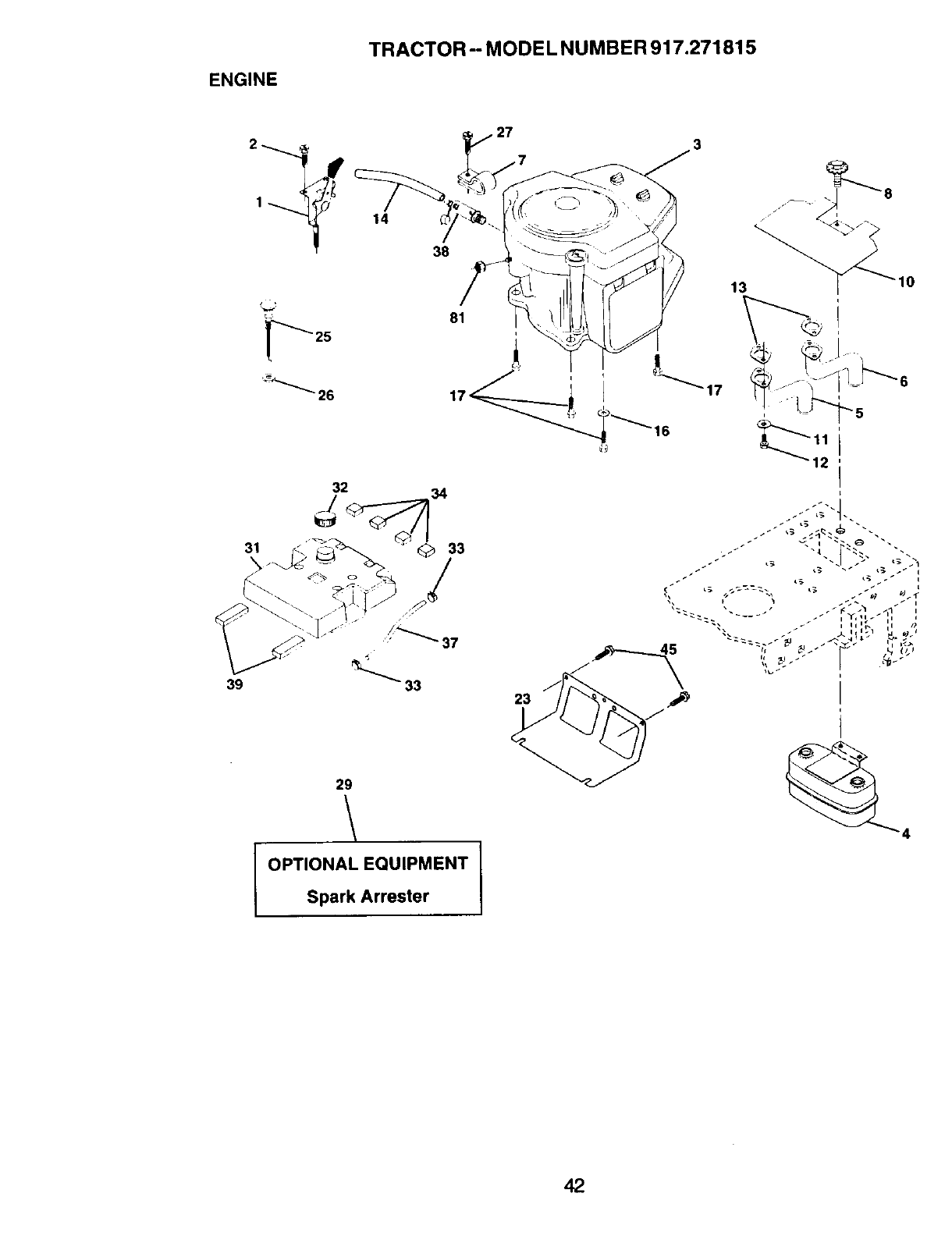

ENGINE

TRACTOR-- MODEL NUMBER 917.271815

'_'_"'_ 26

,, 27

39 _33

OPTIONAL EQUIPMENT

Spark Arrester

ENGINE

TRACTOR - MODEL NU MBER 917.271815

KEY PART

NO. NO. DESCRIPTION

1 170547

217720408

4 149723

5144069

6 144068

7 138129

8 171877

10 145552

11 STD551125

12 STD522507

13 165287

14 148456

16 STD551237

17 17060624

23 169837

25 145996

26 73920600

27 152927

29 137180

31 157103

32 161696

33 123487X

34 106082X

37 8543R

38 148315

39 109227X

45 17000612

81 73510400

Control, Throt Paddle

Screw, Hex Thd Cut 1/4-20 x 1/2

Engine, B&S, (See Breakdown) No. 42E707-2275-E1

Muffler Exhaust

Exhaust Asm. Left

Exhaust Asm. Right

ClampTube Double Engine

Bolt 5/16-18unc x 3/4 W/Sems

Heat Shield Lt

Washer Lock Hvy. Helical 1/4

Bolt Fin Hex 1/4-20Unc x .75

Gasket, Muffler

Tube Drain Oil Easy

Washer Lock Ext Tooth 3/8

Screw 3/8-16 x 1-1/2

Shield, Brn/Dbr Guard

ControlChoke

Nut Keps 3/8-24 Unf

Screw TT #10-32 x 5 x 3/8 Flange

Arrestor, Spark

Tank, Fuel

CapFuelGuage

Clamp, Hose

Spacer Pad

Line, Fuel

Plug, Oil Drain Easy

Pad Idler

Sc'_ew Hex Wsh3/8-16 x3/4

Nut Keps Hex 1/4-20 Stader Nut

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.271815

SEAT ASSEMBLY

KEY

NO.

PART

NO.

180597

180166

71110616

19131610

145006

STD541437

124181X

17000616

19131614

180186

166369

121246X

DESCRIPTION

Seat

Bracket, Pivot, Seat

Bolt

Washer 13/32 x 1 x 10 Gauge

Clip, Push-In Hinged

Nut

Spring, Seat

Screw 3/8-16 x1-1/2

Washer 13/32 x1 x 14 Gauge

Pan, Seat

Knob Seat

Bracket, Switch Mounting

KEY PART

NO. NO, DESCRIPTION

13 121248X Bushing, Snap

14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

15 134300 Spacer, Split .28 x .88

16 121250X Spring

17 123976X Locknut, Flange 1/4 Grade 5

21 171852 Bolt, Shoulder 5/16-18 UNC

22 STD541431 Nut

24 19171912 Washer 17/32 x 1-3/16 x 12 Ga.

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

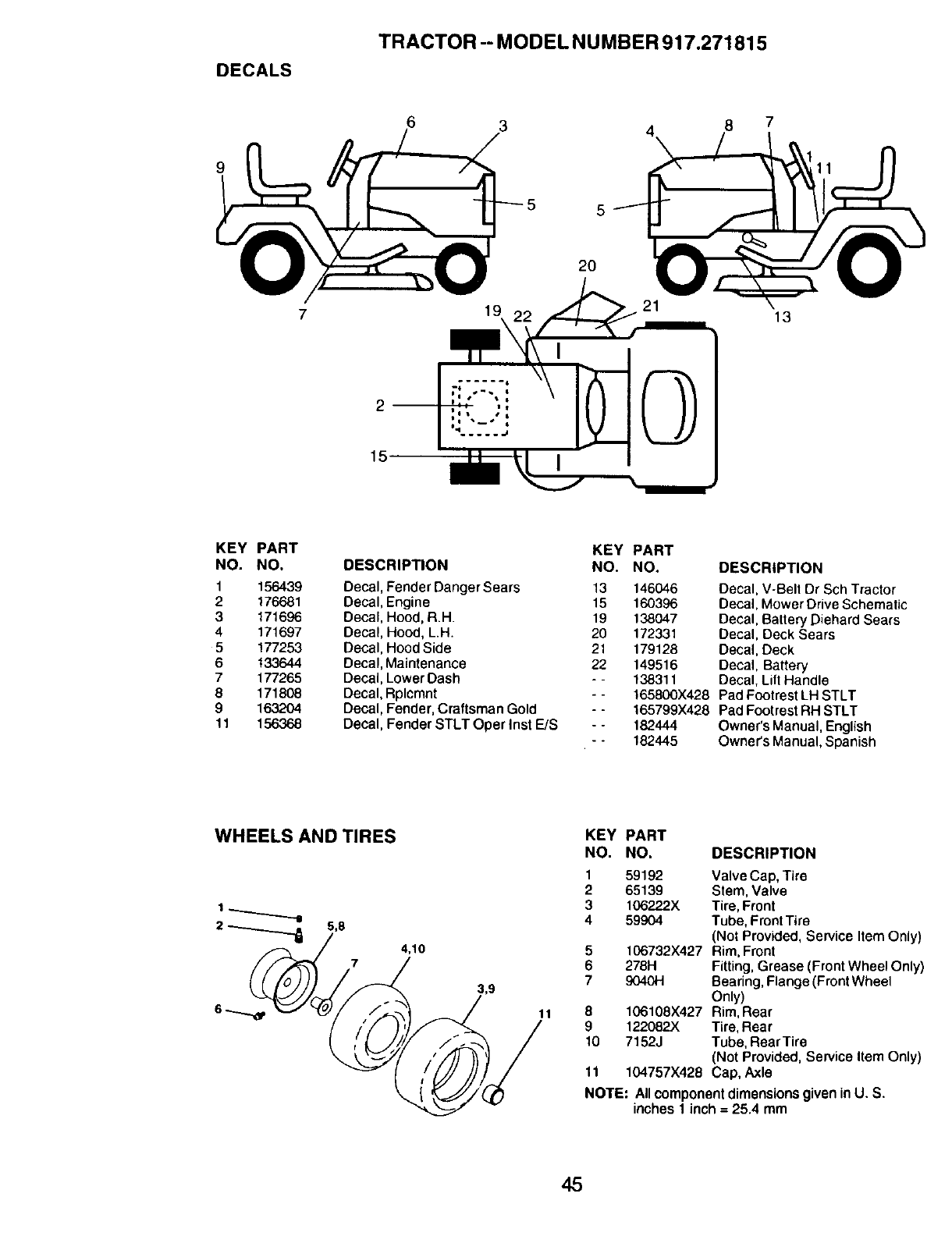

DECALS

TRACTOR -- MODEL NU MBER 917.271815

68 7

KEY PART

NO. NO.

1 156439

2176681

3171696

4 171697

5177253

6 133644

7 177265

8 171808

9 163204

11 156368

DESCRIPTION

Decal, Fender Danger Sears

Decal, Engine

Decal, Hood, R.H.

Decal, Hood, L.H.

Decal, Hood Side

Decal, Maintenance

Decal, Lower Dash

Decal, Rplcmnt

Decal, Fender, Craftsman Gold

Decal, Fender STLT Oper Inst F-JS

KEY PART

NO. NO.

13 146046

15 160396

19 138047

20 172331

21 179128

22 149516

- - 138311

- - 165800X428

- - 165799X428

- - 182444

- - 182445

DESCRIPTION

Decal, V-Belt Dr Sch Tractor

Decal, Mower Drive Schematic

Decal, Battery Diehard Sears

Decal, Deck Sears

Decal, Deck

Decal, Battery

Decal, Lift Handle

Pad Footrest LH STLT

Pad Footrest RH STLT

Owner's Manual, English

Owner's Manual, Spanish

WHEELS AND TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3 106222X Tire, Front

4 59904 Tube, Front Tire

(Not Provided, Service Item Only)

5 106732X427 Rim, Front

6 278H Fitting, Grease (Front Wheel Only)

7 9040t-I Bearing, Flange (Front Wheel

Only)

8 106108X427 Rim, Rear

9 122082X Tire, Rear

10 7152J Tube, Rear Tire

(Not Provided, Service Item Only)

11 104757X428 Cap, Axle

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

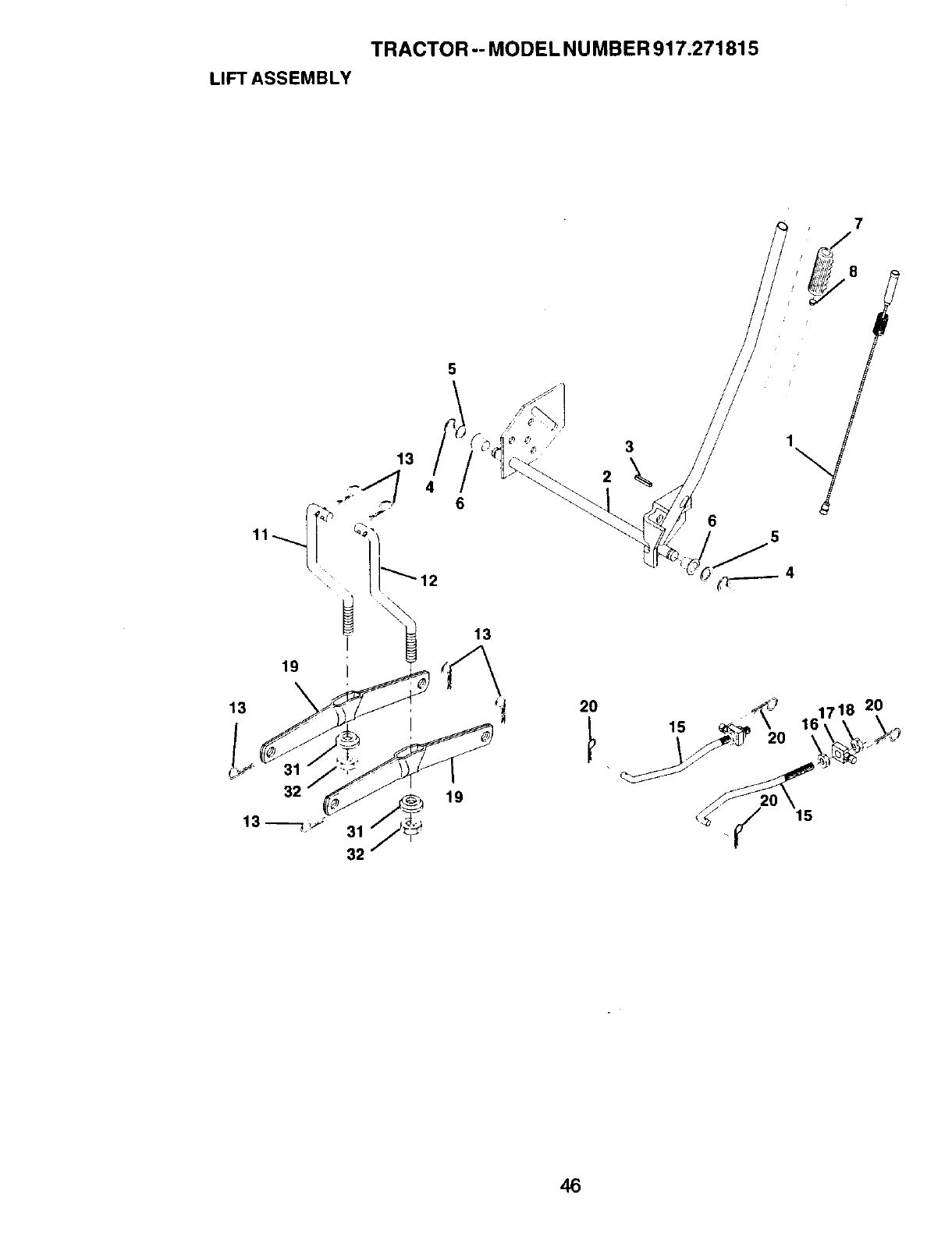

TRACTOR -- MODEL NUMBER 917.271815

LIFT ASSEMBLY

20 _,_ 161718 20

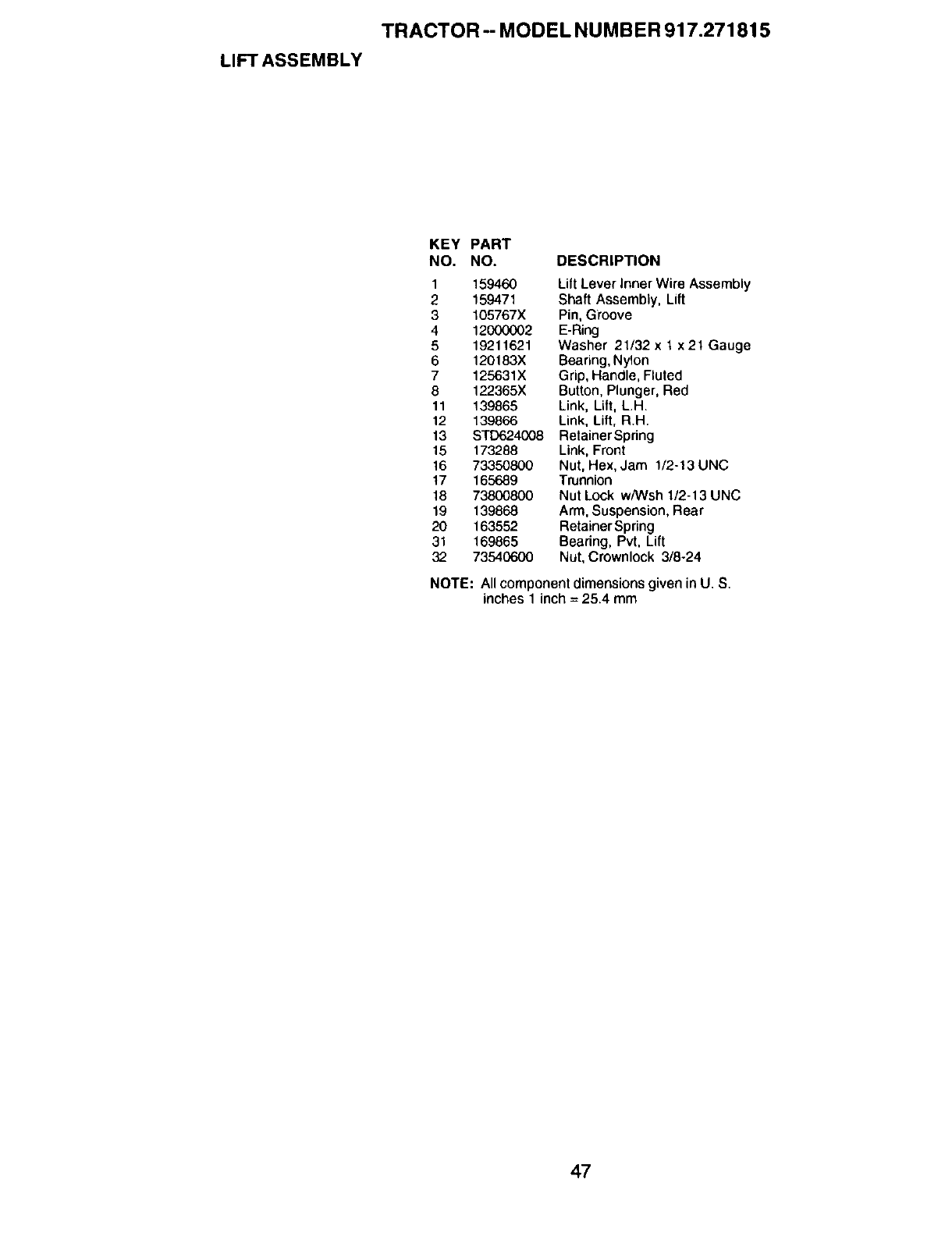

TRACTOR -- MODEL NUMBER 917.271815

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159460 Lift Lever Inner Wire Assembly

2159471 Shaft Assembly, Lift

3 105767X Pin, Gf'oove

4 12000002 E-Ring

5 19211621 Washer 21/32 x I x 21 Gauge

6 120183X Bearing, Nylon

7 125631X Grip, Handle, Fluted

8 122365X Button, Plunger, Red

11 139865 Link, Lift, LH.

12 139866 Link, Lift, RH.

13 STD624008 Retainer Spring

15 173288 Link, Front

16 73350800 Nut, Hex, Jam 1/2-13 UNC

17 165689 Trunnion

18 73800800 Nut Lock w/Wsh 1/2-13 UNC

19 139868 Arm, Suspension, Rear

20 163552 Retainer Spring

31 169865 Bearing, Pvt, Lift

32 73540600 Nut, Crownlock 3/8-24

NOTE: All component dimensions given in U. S.

inches 1 inch = 25.4 mm

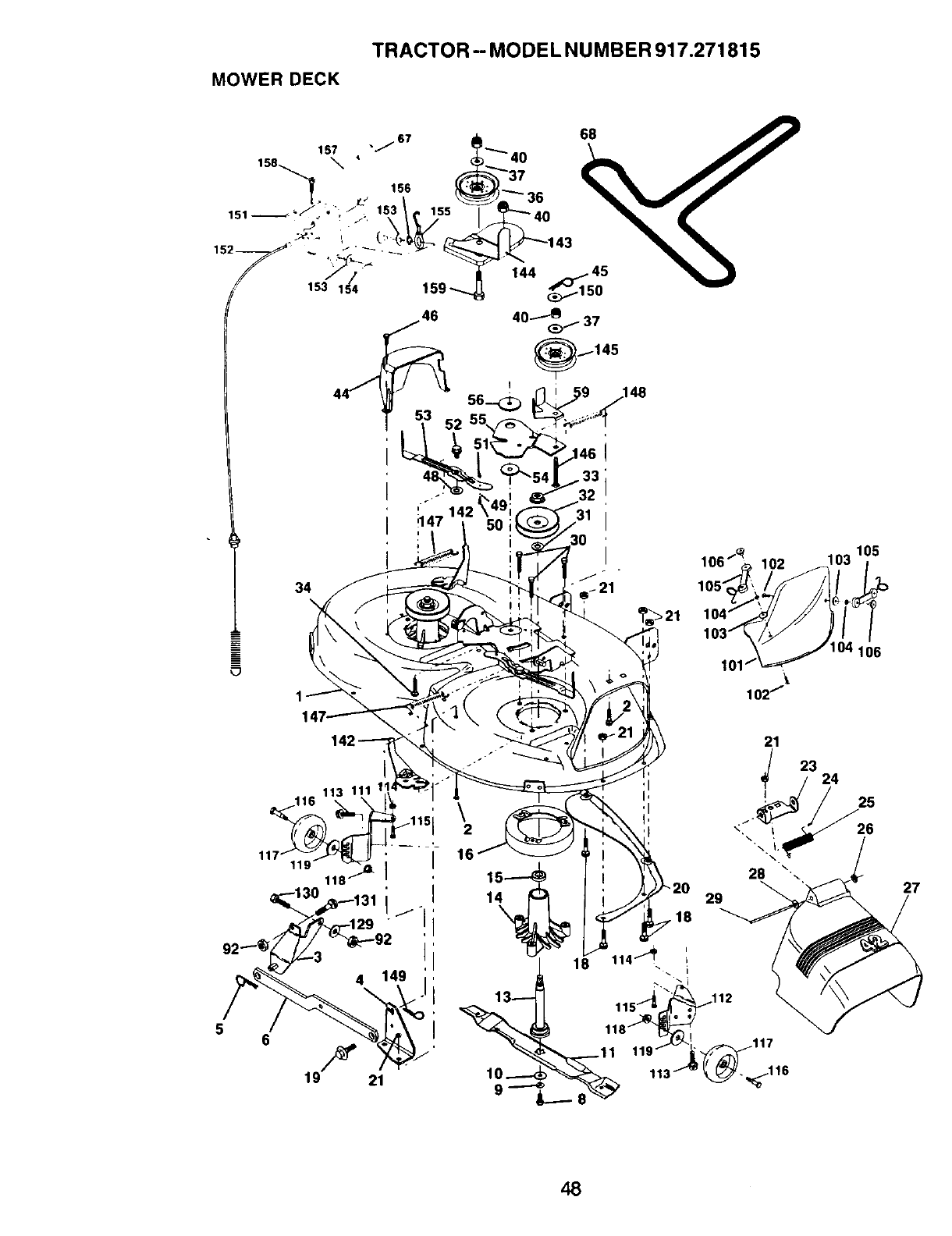

MOWER DECK

TRACTOR -- MODEL NUMBER 917.271815

44_52 55,

118

19F 21

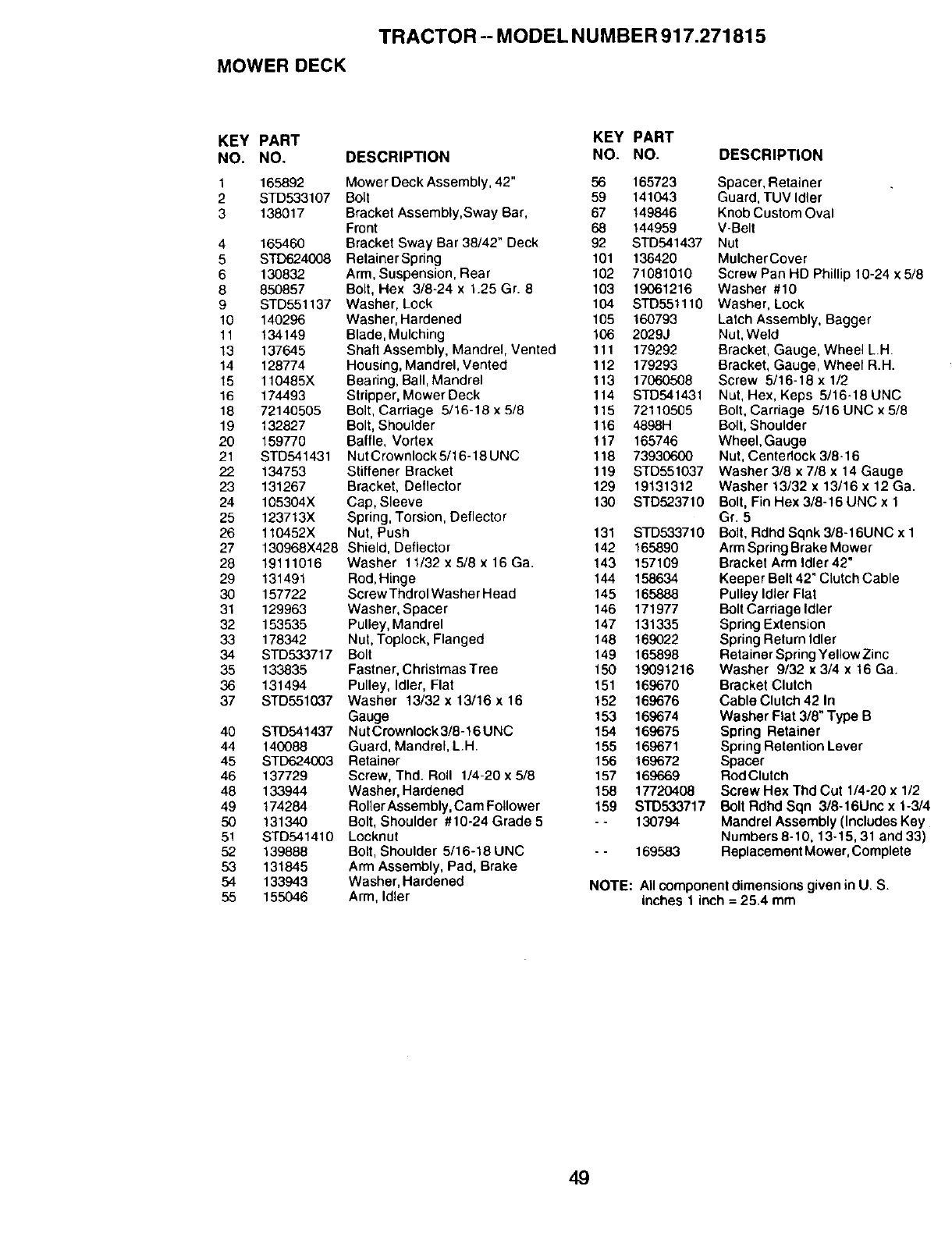

MOWER DECK

TRACTOR -- MODEL NUMBER 917.271815

KEY PART

NO. NO.

1165892

2 STD533107

3 138017

4 165460

5 STD624008

6130832

8 850857

9 STD551137

10 140296

11 134149

13 137645

14 128774

15 110485X

16 174493

18 7214O505

19 132827

20 159770

21 STD541431

22 134753

23 131267

24 105304X

25 123713X

26 110452X

27 130968X428

28 19111016

29 131491

30 157722

31 129963

32 153535

33 178342

34 STD53-3717

35 133835

36 131494

37 STD551037

40 STD541437

44 140088

45 STD624003

46 137729

48 133944

49 174284

50 131340

51 STD541410

52 139888

53 131845

54 133943

55 155046

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Mower Deck Assembly, 42" 56

Bolt 59

Bracket Assembly,Sway Bar, 67

Front 68

Bracket Sway Bar 38/42" Deck 92

Retainer Spring 101

Arm, Suspension, Rear 102

Bolt, Hex 3/8-24 x 1.25 Gr. 8 103

Washer, Lock 104

Washer, Hardened 105 160793

Blade, Mulching 106 2029J

Shaft Assembly, Mandrel, Vented 111 179292

Housing, Mandrel, Vented 112 179293

Bearing, Ball, Mandrel 113 17060508

Stripper, Mower Deck 114 STD541431

Bolt, Carriage 5/16-18 x 5/8 115 72110505

Bolt, Shoulder 116 4898H

Baffle, Vortex t17 165746

Nut Crownlock 5/16-18 UNC 118 73930600

Stiffener Bracket 119 STD551037

Bracket, Deflector 129 19131312

Cap, Sleeve 130 STD523710

Spring, Torsion, Deflector

Nut, Push 131 STD533710

Shield, Deflector 142 165890

Washer 11/32 x 5/8 x 16 Ga. 143 157109

Rod, Hinge 144 158634

Screw Thdrol Washer Head 145 165888

Washer, Spacer 146 171977

Pulley, Mandrel 147 131335

Nut, Toplock, Flanged 148 169022

Bolt 149 165898

Fastner, Christrnas Tree 150 19091216

Pulley, Idler, Flat 151 168670

Washer 13/32 x 13/16 x 16 152 169676

Gauge 153 169674

Nut Crownloek 3/8-16 UNC 154 169675

Guard, Mandrel, LH. 155 169671

Retainer 156 169672

Screw, Thd. Roll 1/4-20 x 5/8 157 169669

Washer, Hardened 158 17720408

Roller Assembly, Cam Follower 159 STD533717

Bolt, Shoulder #10-24 Grade 5 - - 130794

Loeknut

Bolt, Shoulder 5/16-18 UNC - - 169583

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

165723 Spacer, Retainer

141043 Guard, TUV Idler

149846 Knob Custom Oval

144959 V-Belt

STD541437 Nut

136420 MulcherCover

71081010 Screw Pan HD Phillip 10-24 x 5/8

19061216 Washer #10

STD551110 Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket, Gauge, Wheel L.H.

Bracket, Gauge, Wheel R.H.

Screw 5/16-18 x 1/2

Nut, Hex, Keps 5/16-18 UNC

Bolt, Carriage 5/16 UNC x 5/8

Bolt, Shoulder

Wheel, Gauge

Nut, Centedock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Washer 13/32 x 13/16 x 12 Ga.

Bolt, Fin Hex 3/8-16 UNC x 1

Gr. 5

Bolt, Rdhd Sqnk 3/8-16UNC x 1

Arm Spring Brake Mower

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Flat

Bolt Carriage Idler

Spring Extension

Spring Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

Bracket Clutch

Cable Clulch 42 In

Washer Flat 3/8" Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod Clutch

Screw Hex Thd Cut 1/4-20 x 1/2

Bolt Rdhd Sqn 3/8-16Unc x 1-3/4

Mandrel Assembly (Includes Key

Numbers 8-10, 13-15, 31 and 33)

Replacement Mower, Complete

NOTE: All component dimensions given in U. S.

inches 1inch = 25.4 mm

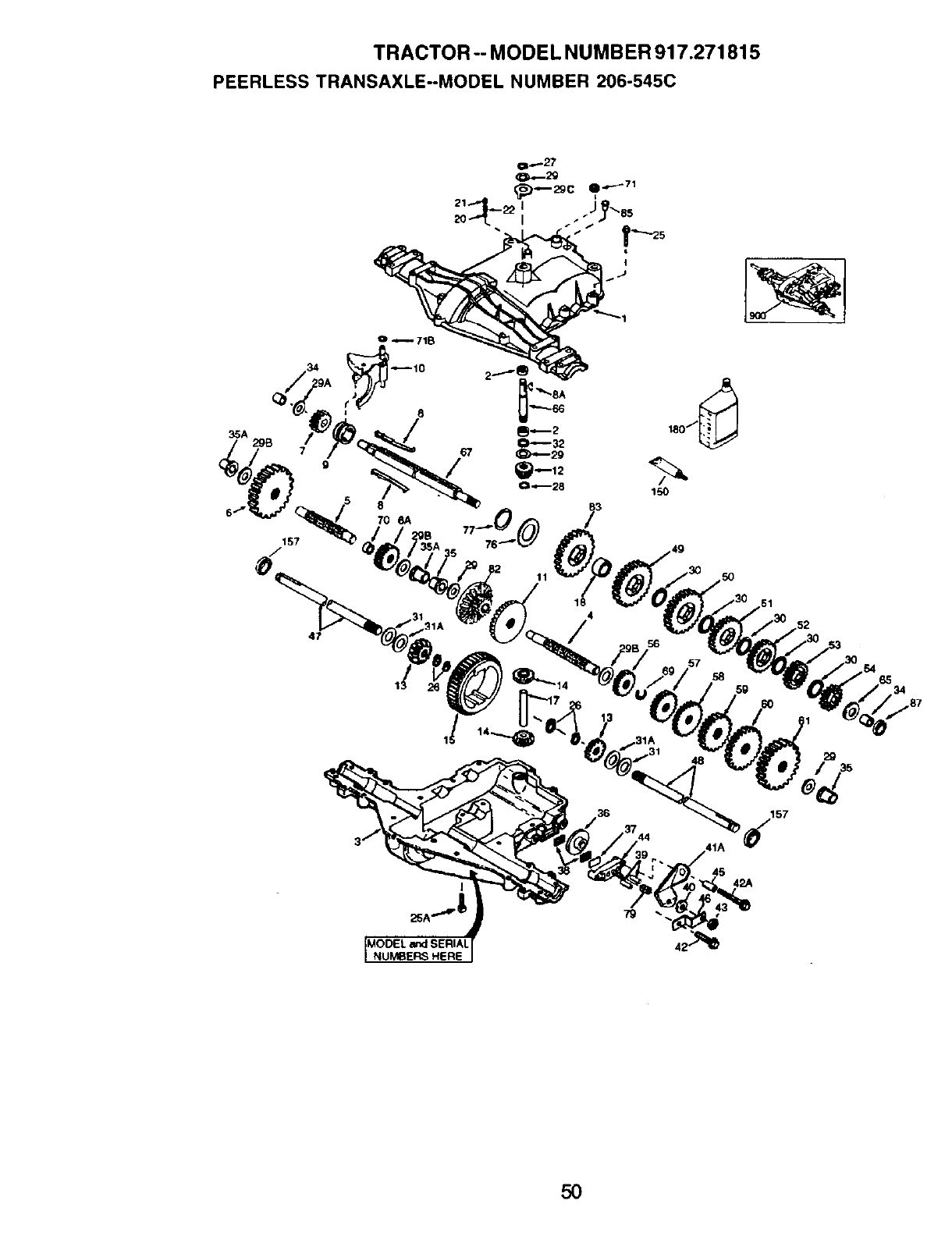

TRACTOR -- MODEL NUMB ER 917.271815

PEERLESS TRANSAXLE-MODEL NUMBER 206-545C

35A

6/ 8

7O 8A

157

O_-71B

NUMBERS HERE

157

42A

29 35

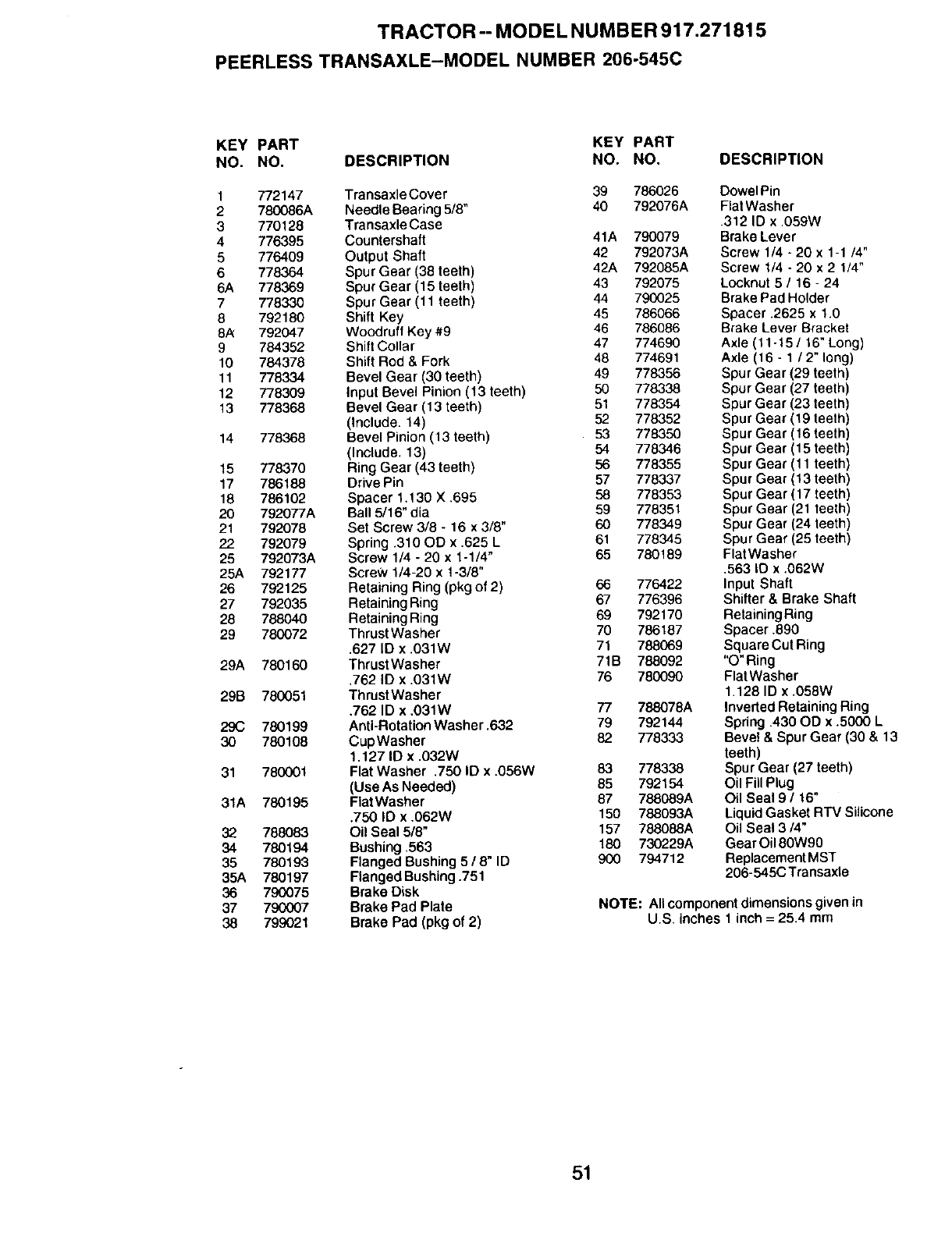

TRACTOR -- MODEL NUMB ER 917.271815

PEERLESS TRANSAXLE-MODEL NUMBER 206-545C

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 772147 Transaxle Cover 39 786026

2780086A Needle Bearing 5/8" 40 792076A

3 770128 Transaxle Case

4 776395 Countershaft 41A 790079

5 776409 Output Shaft 42 792073A

6 778364 Spur Gear (38 teeth) 42A 792085A

6A 778369 Spur Gear (15 teeth) 43 792075

7 778330 Spur Gear (11 teeth) 44 790025

8 792180 Shift Key 45 786066

8A 792047 Woodruff Key #9 46 786086

9 784352 Shift Collar 47 774690

10 784378 Shift Rod & Fork 48 774691

11 778334 Bevel Gear (30 teeth) 49 778356

12 778309 Input Bevel Pinion (13 teeth) 50 778338

13 778368 Bevel Gear (13 teeth) 51 778354

(Include. 14) 52 778352

14 778368 Bevel Pinion (13 teeth) 53 778350

(Include, 13) 54 778346

15 778370 Ring Gear (43 teeth) 56 778355

17 786188 Drive Pin 57 778337

18 786102 Spacer 1.130 X .695 58 778353

20 792077A Ball 5/16" dia 59 778351

21 792078 Set Screw 3/8 - 16 x 3/8" 60 778349

22 792079 Spring .310 OD x .625 L 61 778345

25 792073A Screw 1/4 - 20 x 1-1/4" 65 780189

25A 792177 Screw 1/4-20 x 1-3/8"

26 792125 Retaining Ring (pkg of 2) 66 776422

27 792035 Retaining Ring 67 776396

28 788040 Retaining Ring 69 792170

29 780072 Thrust Washer 70 786187

.627 ID x .031W 71 788069

29A 780160 ThrustWasher 71B 788092

,762 ID x.031W 76 780090

29B 780051 Thrust Washer

,762 ID x ,031W 77 788078A

29C 780199 Anti-Rotation Washer .632 79 792144

30 780108 CupWasher 82 778333

1.127 ID x .032W

31 780001 Flat Washer ,750 ID x .056W 83 778338

(Use As Needed) 85 792154

31A 780195 Flat Washer 87 788089A

.750 ID x ,062W 150 788093A

32 788083 Oil Seal 5/8" 157 788088A

34 780194 Bushing .563 180 730229A

35 780193 Flanged Bushing 5/8" ID 900 794712

35A 780197 Flanged Bushing .751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 799021 Brake Pad (pkg of 2)

DESCRIPTION

Dowel Pin

FlatWasher

.312 ID x .059W

Brake Lever

Screw 1/4 - 20 x1-1 /4"

Screw 1/4 -20 x 2 1/4"

Locknut 5 /16 - 24

Brake Pad Holder

Spacer .2625 x 1.0

Brake Lever Bracket

Axle (11-15/16" Long)

Axle (16 - 1 /2" long)

Spur Gear (29 teeth)

Spur Gear (27 teeth)

Spur Gear (23 teeth)

Spur Gear (19 teeth)

Spur Gear (16 teeth)

Spur Gear (15 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (17 teeth)

Spur Gear (21 teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

Flat Washer

.563 ID x.062W

Input Shaft

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cut Ring

"O" Ring

FlatWasher

1.128 ID x .058W

Inverted Retaining Ring

Spring .430 OD x .5000 L

Bevel & Spur Gear (30 & 13

teeth)

Spur Gear (27 teeth)

Oil Fill Plug

Oil Seal 9 /16"

Liquid Gasket RTV Silicone

Oil Seal 3/4"

Gear Oil 80W90

Replacement MST

206-545C Transaxie

NOTE: All component dimensions given in

U.S. inches 1 inch = 25.4 mm

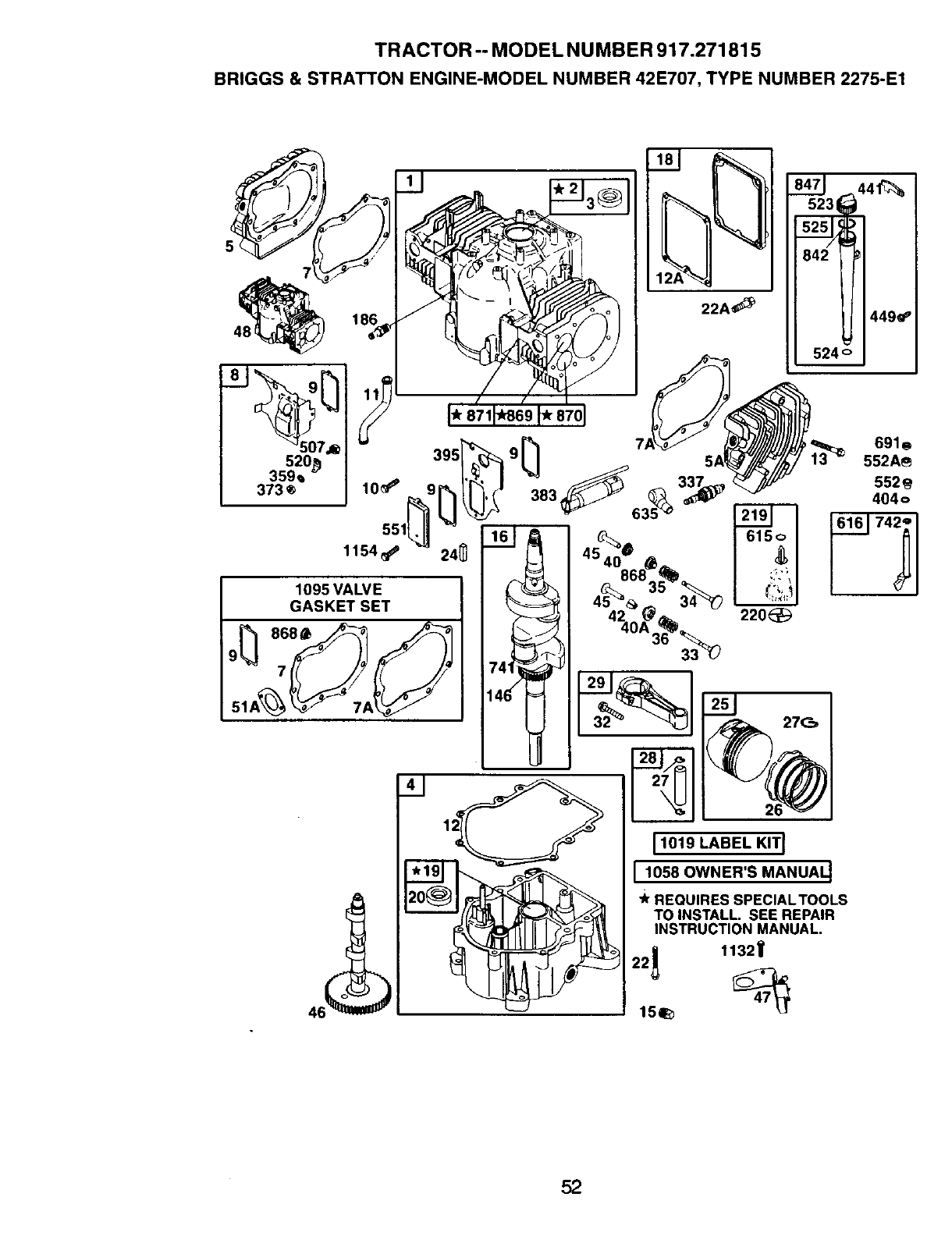

TRACTOR -- MODEL NU MBER 917.271815

BRIGGS & STRATTON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

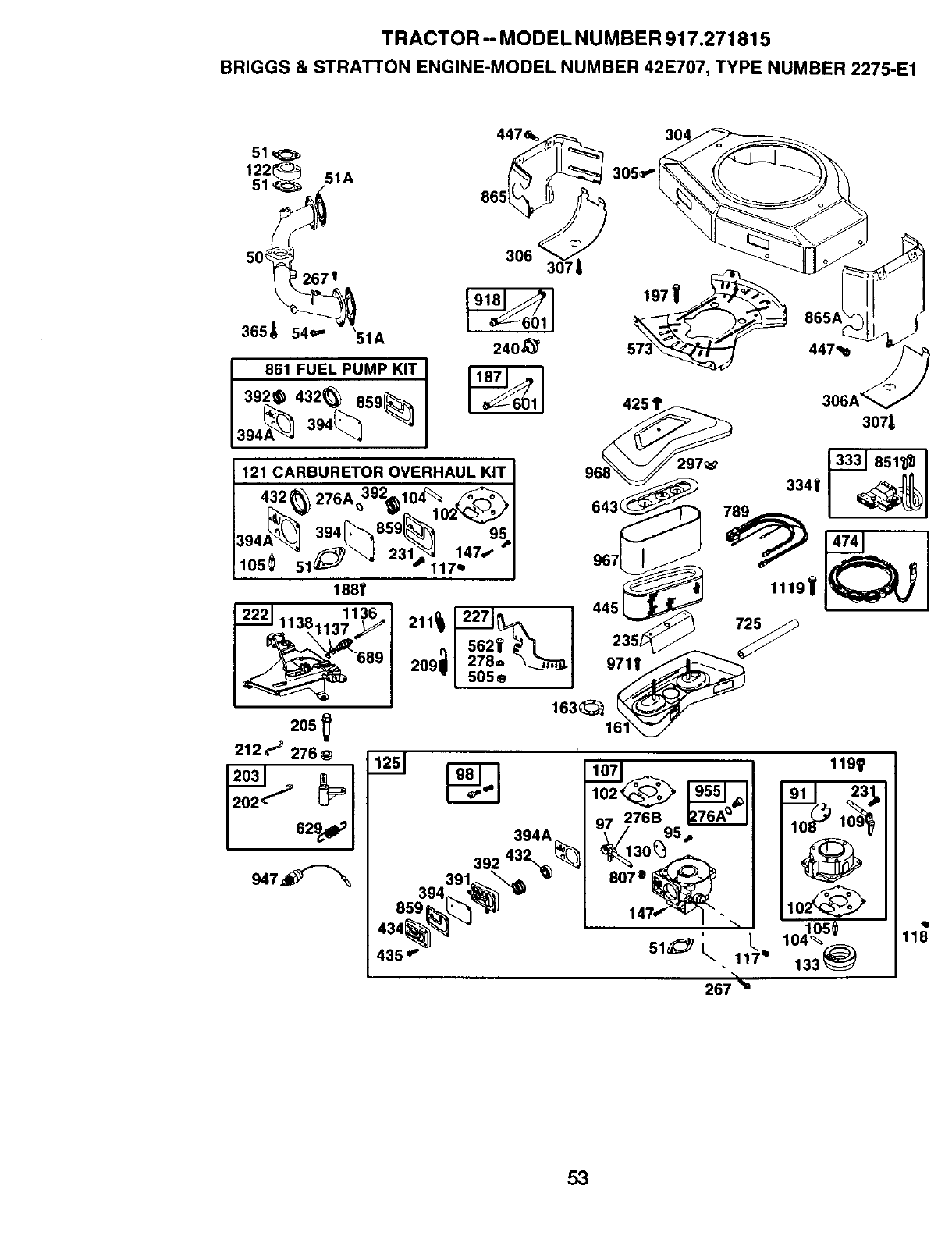

TRACTOR -- MODEL NUMBER 917.271815

BRIGGS & STRATTON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

643(

297_

3341 3331_

267 _

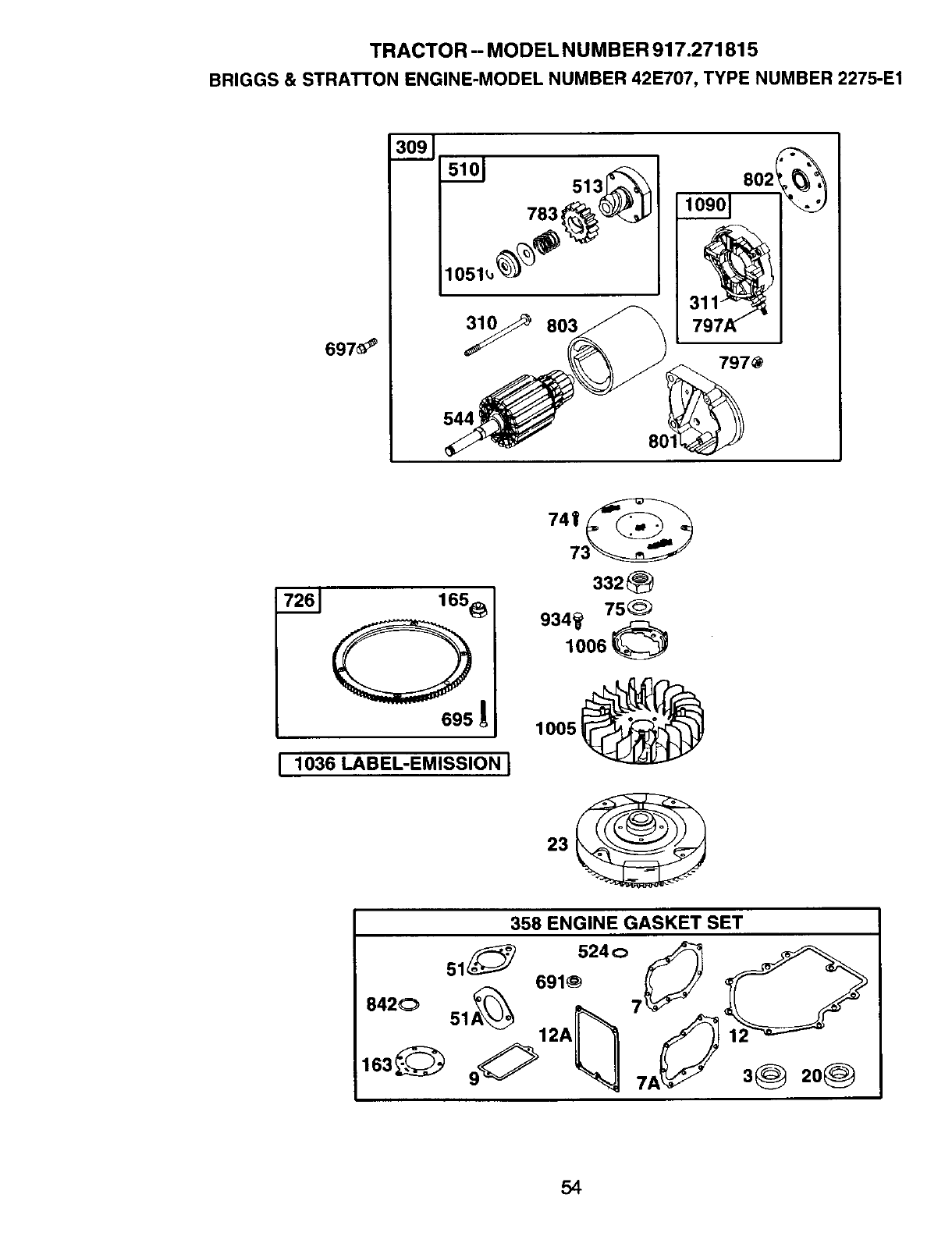

TRACTOR -- MODEL NUMBER 917.271815

BRIGGS & STRATTON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

697_

3091

7831

1051_

y803

544

513 10901 802_,

797A"

797_

801

7261 165_

C?695

I 1036 LABEL-EMISSION I

73_

332_

934_ 75_

1006 _

1005_

358 ENGINE GASKET SET

51_ 691:240

842_:_ 51A_ 12A_ 7_

3@ 20®

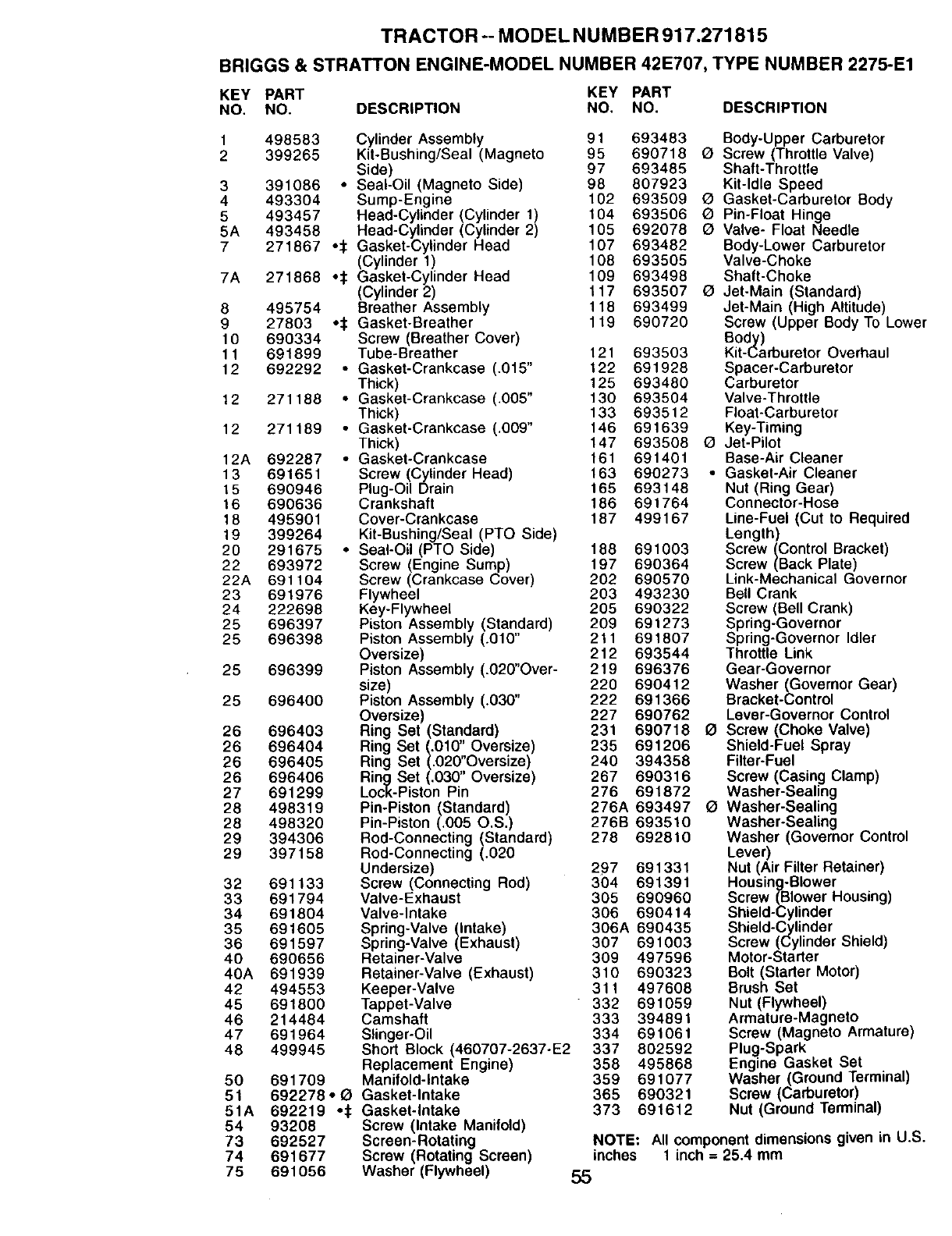

TRACTOR -- MODEL NUMBER 917.271815

BRIGGS & STRATTON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

2498583

399265

3 391086

4 493304

5 493457

5A 493458

7 271867

7A 271868

8495754

9 27803

10 690334

11 691899

12 692292

t2 271188

12 271189

12A 692287

13 691651

15 690946

16 690636

18 495901

19 399264

20 291675

22 693972

22A 691104

23 691976

24 222698

25 696397

25 696398

25 696399

25 696400

26 696403

26 696404

26 696405

26 696406

27 691299

28 498319

28 498320

29 394306

29 397158

32 691133

33 691794

34 691804

35 691605

36 691597

40 690656

40A 691939

42 494553

45 691800

46 214484

47 691964

48 499945

50 691709

51 692278°

51A 692219 •_

54 93208

73 692527

74 691677

75 691056

Cylinder Assembly 91 693483

Kit-Bushing/Seal (Magneto 95 690718

Side) 97 693485

Seal-Oil (Magneto Side) 98 807923

Sump-Engine 102 693509

Head-Cylinder (Cylinder 1) 104 693506

Head-Cylinder (Cylinder 2) 105 692078

Gasket-Cylinder Head 107 693482

(Cylinder 1) 108 693505

Gasket-Cylinder Head 109 693498

(Cylinder 2) 117 693507

Breather Assembly 118 693499

Gasket-Breather 119 690720

Screw (Breather Cover)

Tube-Breather 121 693503

Gasket-Crankcase (.015" 122 691928

Thick) 125 693480

Gasket-Crankcase (.005" 130 693504

Thick) 133 693512

Gasket-Crankcase (.009" 146 691639

Thick) 147 693508

Gasket-Crankcase 161 691401

Screw (Cylinder Head) 163 690273

Plug-Oil Drain 165 693148

Crankshaft 186 691764

Cover-Crankcase 187 499167

Kit-Bushing/Seal (PTO Side)

Seal-Oil (PTO Side) 188 691003

Screw (Engine Sump) 197 690364

Screw (Crankcase Cover) 202 690570

Flywheel 203 493230

Key-Flywheel 205 690322

Piston Assembly (Standard) 209 691273

Piston Assembly (.010" 211 691807

Oversize) 212 693544

Piston Assembly (.020"Over- 219 696376

size) 220 690412

Piston Assembly (.030" 222 691366

Oversize) 227 690762

Ring Set (Standard) 231 690718

Ring Set (.010" Oversize) 235 691206

Ring Set (.020"Oversize) 240 394358

Ring Set (.030" Oversize) 267 690316

Lock-Piston Pin 276 691872

Pin-Piston (Standard) 276A 693497

Pin-Piston (.005 O.S.) 276B 693510

Rod-Connecting (Standard) 278 692810

Rod-Connecting (.020

Undersize) 297 691331

Screw (Connecting Rod) 304 691391

Valve-Exhaust 305 690960

Valve-Intake 306 690414

Spring-Valve (Intake) 306A 690435

Spring-Valve (Exhaust) 307 691003

Retainer-Valve 309 497596

Retainer-Valve (Exhaust) 310 690323

Keeper-Valve 311 497608

Tappet-Valve 332 691059

Camshaft 333 394891

Slinger-Oil 334 691061

Short Block (460707-2637-E2 337 802592

Replacement Engine) 358 495868

Manifold-Intake 359 691077

Gasket-Intake 365 690321

Gasket-Intake 373 691612

Screw (Intake Manifold)

Screen-Rotating

Screw (Rotating Screen)

Washer (Flywheel) 55

Body-Upper Carburetor

Q Screw (Throttle Valve)

Shaft-Throttle

Kit-Idle Speed

Gasket-Carburetor Body

O Pin-Float Hinge

O Valve- Float Needle

Body-Lower Carburetor

Valve-Choke

Shalt-Choke

CI Jet-Main (Standard)

Jet-Main (High Altitude)

Screw (Upper Body To Lower

Body)

Kit-Carburetor Overhaul

Spacer-Carburetor

Carburetor

Valve-Throttle

Float-Carburetor

Key-Timing

Jet-Pilot

Base-Air Cleaner

•Gasket-Air Cleaner

Nut (Ring Gear)

Connector-Hose

Line-Fuel (Cut to Required

Length)

Screw (Control Bracket)

Screw (Back Plate)

Link-Mechanical Governor

Bell Crank

Screw (Bell Crank)

Spring-Governor

Spring-Governor Idler

Throttle Link

Gear-Governor

Washer (_Governor Gear)

Bracket-Control

Lever-Governor Control

Screw (Choke Valve)

Shield-Fuel Spray

Filter-Fuel

Screw (Casing Clamp)

Washer-Sealing

O Washer-Sealing

Washer-Sealing

Washer (Governor Control

Lever)

Nut (Air Filter Retainer)

Housing-Blower

Screw (Blower Housing)

Shield-Cylinder

Screw (Cylinder Shield)

Motor-Starter

Bolt (Starter Motor)

Brush Set

Nut (Flywheel)

Armature-Magneto

Screw (Magneto Armature)

Plug-Spark

Engine Gasket Set

Washer (Ground Terminal)

Screw (Carburetor)

Nut (Ground Terminal)

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

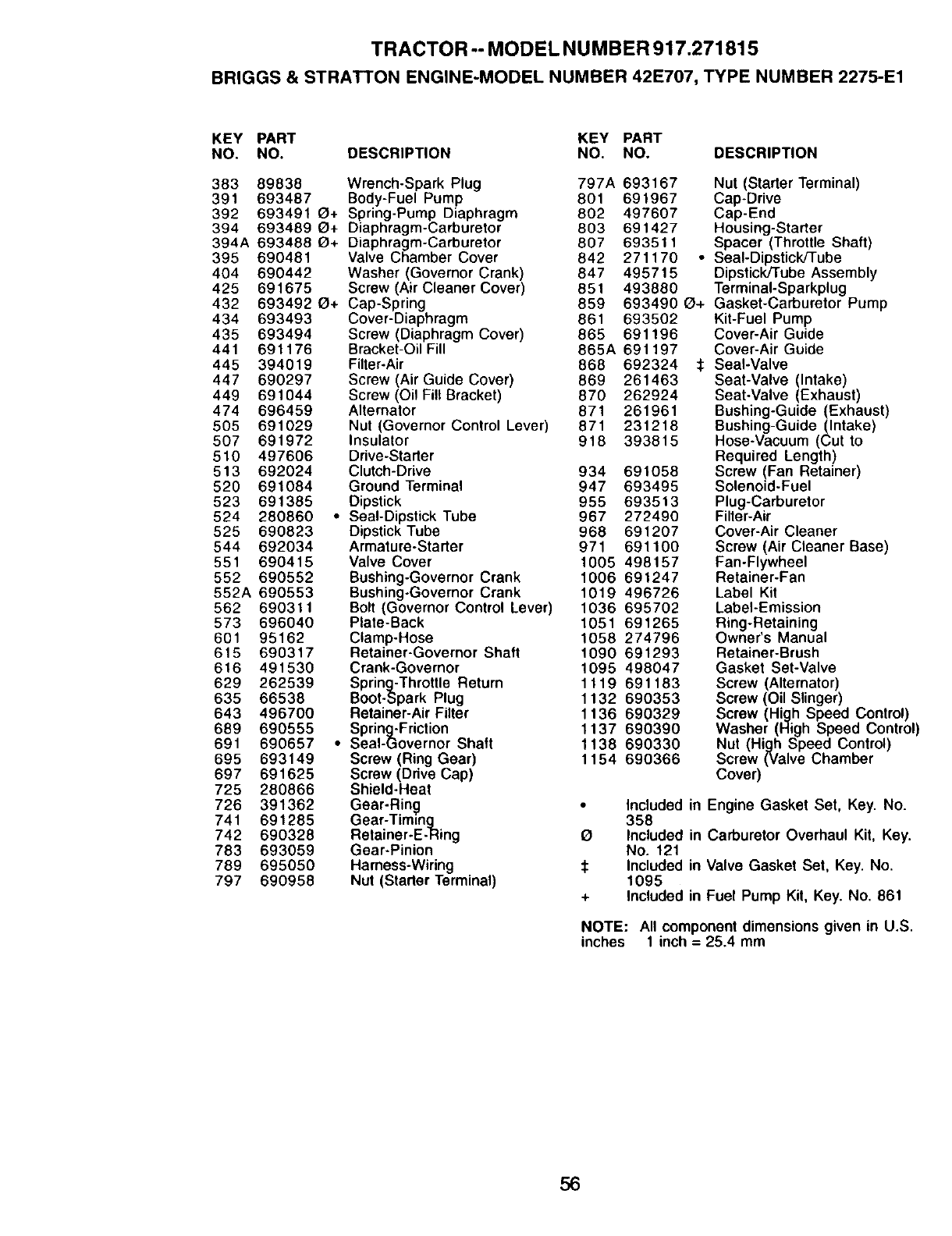

TRACTOR -- MODEL NUMBER 917.271815

BRIGGS & STRATTON ENGINE-MODEL NUMBER 42E707, TYPE NUMBER 2275-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

383 89838 Wrench-Spark Plug 797A 693167 Nut (Starter Terminal)

391 693487 Body-Fuel Pump 801 691967 Cap-Drive

392 693491 (a+ Spring-Pump Diaphragm 802 497607 Cap-End

394 693489 Q+ Diaphragm-Carburetor 803 691427 Housing-Starter

394A 693488 Q+ Diaphragm-Carburetor 807 693511 Spacer (Throttle Shaft)

395 690481 Valve Chamber Cover 842 271170 ° Seal-Dipstick/Tube

404 690442 Washer (Governor Crank) 847 495715 Dipstick/Tube Assembly

425 691675 Screw (Air Cleaner Cover) 851 493880 Terminal-Sparkplug

432 693492 1_+ Cap-Spring 859 693490 O+ Gasket-Carburetor Pump

434 693493 Cover-Diaphragm 861 693502 Kit-Fuel Pump

435 693494 Screw (Diaphragm Cover) 865 691196 Cover-Air Guide

441 691176 Bracket-Oil Fill 865A 691197 Cover-Air Guide

445 394019 Filter-Air 868 692324 :I: Seal-Valve

447 690297 Screw (Air Guide Cover) 869 261463 Seat-Valve (Intake)

449 691044 Screw (Oil Fill Bracket) 870 262924 Seat-Valve (Exhaust)

474 696459 Alternator 871 261961 Bushing-Guide (Exhaust)

505 691029 Nut (Governor Control Lever) 871 231218 Bushing-Guide (Intake)

507 691972 Insulator 918 393815 Hose-Vacuum (Cut to

510 497606 Drive-Starter Required Length)

513 692024 Clutch-Drive 934 691058 Screw (Fan Retainer)

520 691084 Ground Terminal 947 693495 Solenoid-Fuel

523 691385 Dipstick 955 693513 Plug-Carburetor

524 280860 ° Seal-Dipstick Tube 967 272490 Filter-Air

525 690823 Dipstick Tube 968 691207 Cover-Air Cleaner

544 692034 Armature-Starter 971 691100 Screw (Air Cleaner Base)

551 690415 Valve Cover 1005 498157 Fan-Flywheel

552 690552 Bushing-Governor Crank 1006 691247 Retainer-Fan

552A 690553 Bushing-Governor Crank 1019 496726 Label Kit

562 690311 Bolt (Governor Control Lever) 1036 695702 Label-Emission

573 696040 Plate-Back 1051 691265 Ring-Retaining

601 95162 Clamp-Hose 1058 274796 Owner's Manual

615 690317 Retainer-Governor Shaft 1090 691293 Retainer-Brush

616 491530 Crank-Governor 1095 498047 Gasket Set-Valve

629 262539 Spring-Throttle Return 1119 691183 Screw (Alternator)

635 66538 Boot-Spark Plug 1132 690353 Screw (Oil Slinger)

643 496700 Retainer-Air Filter 1136 690329 Screw (High Speed Control)

689 690555 Spring-Friction 1137 690390 Washer (High Speed Control)

691 690657 ° Seal-Governor Shaft 1138 690330 Nut (High Speed Control)

695 693149 Screw (Ring Gear) 1154 690366 Screw (Valve Chamber

697 691625 Screw (Drive Cap) Cover)

725 280866 Shield-Heat

726 391362 Gear-Ring •Included in Engine Gasket Set, Key. No.

741 691285 Gear-Tirrfing 358

742 690328 Retainer-E-Ring O Included in Carburetor Overhaul Kit, Key.

783 693059 Gear-Pinion No. 121

789 695050 Harness-Wiring -1: Included in Valve Gasket Set, Key. No.

797 690958 Nut (Starter Terminal) 1095

+ Included in Fuel Pump Kit, Key. No. 861

NOTE: All component dimensions given in U.S.

inches 1inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Get it fixed, at your home or ours!

For repairof major brand appliances in your own home...

no matter who made it, no matter who soldit!

1-800-4-MY-HOM_ _, dayorn_jht

(1-80o469-4663) (u s_ andCanada

t_t.sear_conl 1_Q_/.,.qears.ca

For repairof carry-inproducts like vacuums, lawn equipment,and

electronics,callfor the nearest Sears Parts and Repair Center.

1-800-488-1222 A_me, day ornight (U S_. only)

www,l_ar_co(11

For the replacement parts, accessoriesand owner'smanuals

that you need to do-it-yourself,callSears PartsDirectS"!

1-800-366-PART 6am.-11 p.m., 7 days aweek

(1-8(X)-366-7278) (U.S.A, only)

tw_w.searLcom/padsdirect

To purchase or inquireabout a Sears Service Agreement

or Sears Maintenance Agreement:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

7 a.m. - 5 pro., CST, Mon.- Sat. 9 am.- 8 p.m. EST, M- F,4 p.m.Sat.

Para pedr serviciode mparaci_ a

domici_o,y paraordonarpiezas:

1-888-SU-HOGAR sM

(1-888-784-6427)

Au Canada pourse_ce en frar_:ais:

1.8004_E..FOYERMc

(1-800-.533-6937)

WVWV.Sears.ca

I"M SM

®Regaslered Trademark ITrademark /Serwce Mark of Sears, Roebuck and Co

®Marca Reg=strada /TMMarca de F&bnca /SMMarca de Serv=c=ode Sears, Roebuck and Co

MCMarque de commerce /MOMarque d_pos6e de Sears, Roebuck and Co

182444 1.8.02 RD Printedin U.S.A.

Craftsman 917 271815 Users Manual

917271815 917271815 CRAFTSMAN LAWN TRACTOR - Manuals and Guides L0202082 View the owners manual for your CRAFTSMAN LAWN TRACTOR #917271815. Home:Lawn & Garden Parts:Craftsman Parts:Craftsman LAWN TRACTOR Manual

CRAFTSMAN Lawn, Tractor Manual L0202082 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
