Owner's Manual

ICRRFTSMRWI

LAWN TRACTOR

22.0 HP, 42" Mower

Electric Start

Automatic Transmission

Model No.

917.272281

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Seam, Roebuck and Co., Hoffman Estates, II 60179 U.S.A

VisitourCraftsmanwebsite:www.sears.corn/craftsman

Warranty ............................................... 2

Safety Rules ......................................... 3

Product Specifications .......................... 6

AssemblyPre-Operation ....................... 8

Operation ............................................ 11

Maintenance ....................................... 18

Maintenance Schedule ...................... 18

Service and Adjustments.................... 22

Storage ............................................... 29

Troubleshooting ................................. 30

Repair Parts ........................................ 34

Sears Service ...................... Back Cover

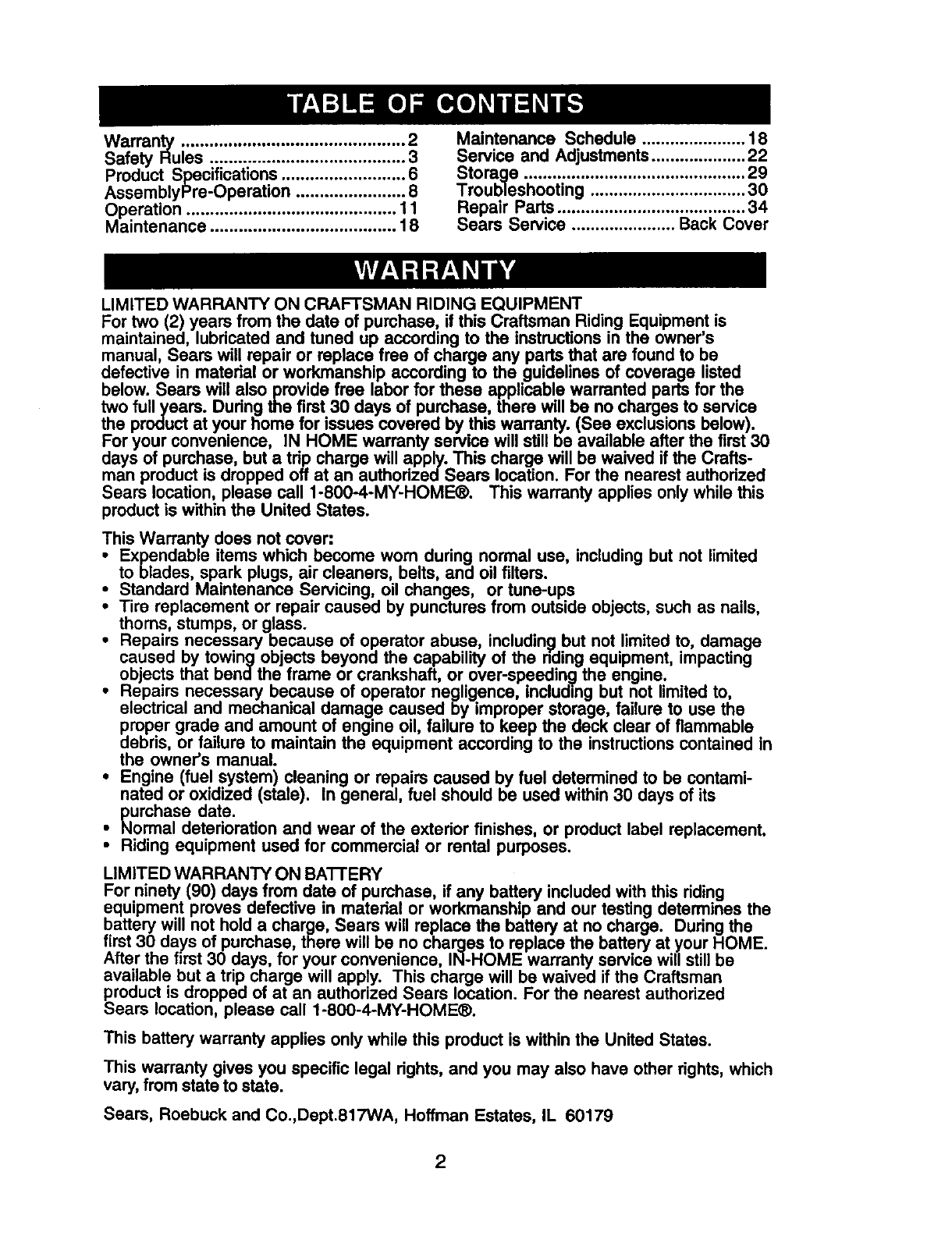

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace free of charge any parts that are found to be

defective in material or workmanship according to the guidelines of coverage listed

below. Sears will elsoprovide free labor for these applicable warranted parts for the

two full years. During the first 30 days of purchase, there will be no charges to service

the product at your home for issues covered by this warranty. (See exclusions below).

For your convenience, IN HOME warranty service will still be available after the first30

days of purchase, but a trip charge will apply. This charge will be waived if the Crafts-

man product is dropped off at an authodzedSears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME_. This warranty applies only while this

product is within the United States.

This Warranty does not cover:

•Expendable items which become worn during normal use, including but not limited

to blades, spark plugs, air cleaners, belts, and oil filters.

•Standard Maintenance Servicing, oil changes, or tune-ups

•Tire replacement or repair caused by punctures from outside objects, such as nails,

thoms, stumps, or glass.

iRepairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the nding equipment, impacting

objects that bend the frame or crankshaft, or over-speedin_ the engine.

Repairs necessary because of operator negligence, includmg but not limited to,

electrical and mechanical damage caused by improper storage, failure to use the

proper grade and amount of engine oil, failure to keep the deck clear of flammable

debris, or failure to maintain the equipment according to the instructionscontained in

the owner's manual.

•Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its

purchase date.

•Normal deterioration and wear of the exterior finishes, or product label replacement.

•Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BA'I-rERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. During the

first 30 days of purchase, there will be no charges to replace the battery at your HOME.

After the first 30 days, for your convenience, IN-HOME warranty service will still be

available but a trip charge will apply. This charge will be waived if the Craftsman

product is dropped of at an authorized Sears location. For the nearest authorized

Sears location, please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

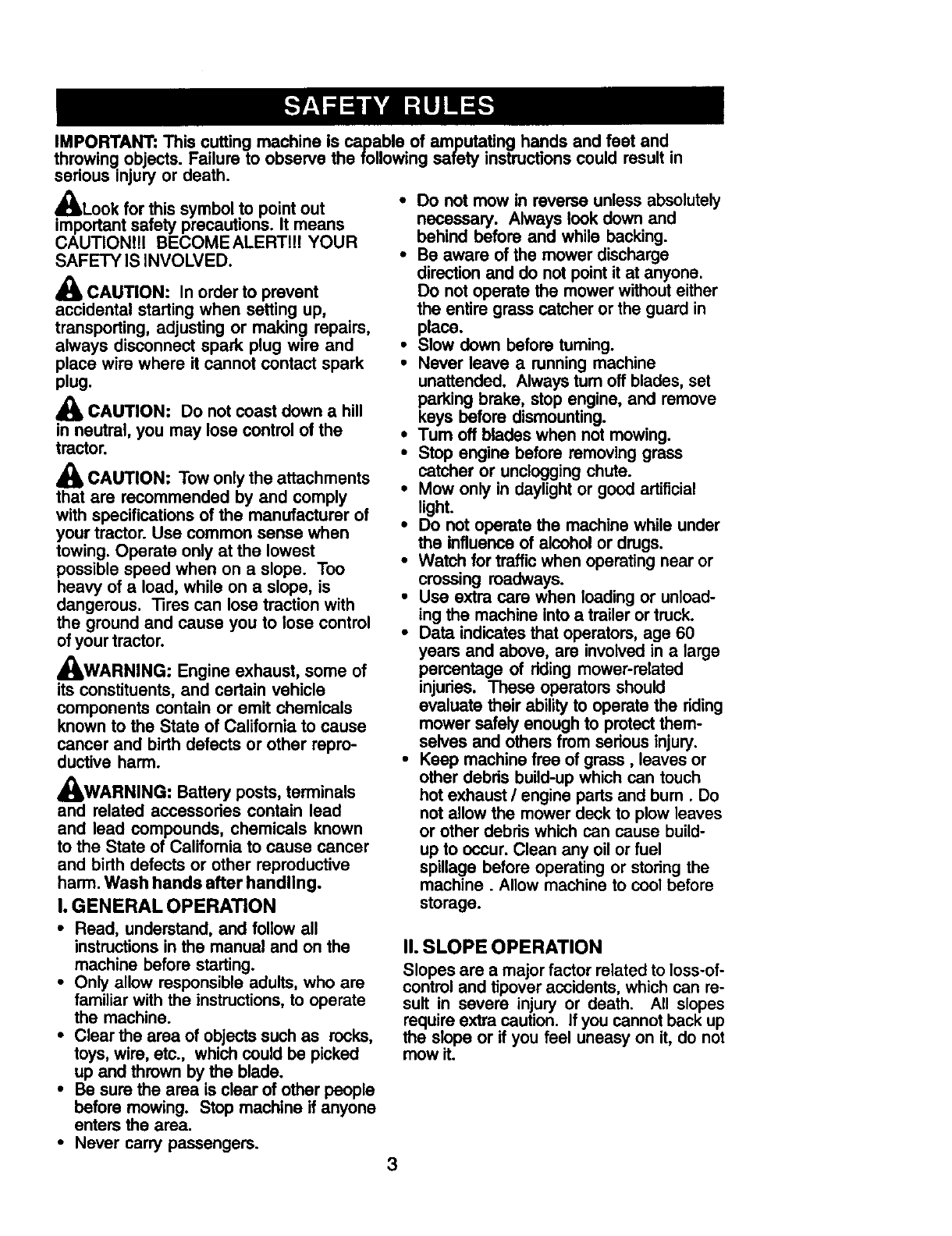

IMPORTANT: This cutting machine is capable of amputating hands and feet and

throwing objects. Failure to observe the following safety instructions could result in

serious injury or death.

Look for this symbol to point out •Do not mow in reverse unless absolutely

important safety precautions. It means necessary. Always look down and

CAUTION!!I BECOMEALERTI!! YOUR behind before and while backing.

SAFETY IS INVOLVED.

_, CAUTION: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_ CAUTION: Do not coast down a hill

in neutral, you may lose control of the

tractor.

CAUTION: Tow only the attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor. Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. Too

heavy of aload, while on a slope, is

dangerous. "13rescan lose traction with

the ground and cause you to lose control

of your tractor.

_,WARNING: Engine exhaust, some of

its constituents, and certain vehicle

components contain or emit chemicals

known to the State of Califomia to cause

cancer and birth defects or other repro-

ductive harm.

WARNING: Battery posts, terminals

and related accessories contain lead

and lead compounds, chemicals known

to the State of Califomia to cause cancer

and birth defects or other reproductive

harm. Wash hands after handling.

I. GENERAL OPERATION

•Read, understand, and follow all

instructions in the manual and on the

machine before starting.

•Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

•Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

•Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

•Never carry passengers.

•Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without either

the entire grass catcher or the guard in

place.

•Slow down before tuming.

•Never leave a running machine

unattended. Always tum off blades, set

parking brake, stop engine, and remove

keys before dismounting.

•Tum off blades when not mowing.

•Stop engine before removing grass

catcher or uncloggingchute.

•Mow only in daylight or good artificial

light.

•Do not operate the machine while under

the influence of alcohol or drugs.

•Watch for trafficwhen operating near or

crossing roadways.

• Use extra care when loading or unload-

ing the machine intoa trailer or truck.

•Data indicates that operators, age 60

years and above, are involvedin a large

percentage of riding mower-related

injuries. These operators should

evaluate their ability to operate the riding

mower safely enough to protectthem-

selves and othersfrom serious injury.

•Keep machine free of grass, leaves or

other debris build-upwhich can touch

hot exhaust /engine parts and bum. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storingthe

machine. Allow machine to cool before

storage.

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-

control and tipover accidents, which can re-

sult in severe injury or death. All slopes

require extra caution. If you cannot back up

the slope or if you feel uneasy on it, do not

mow it.

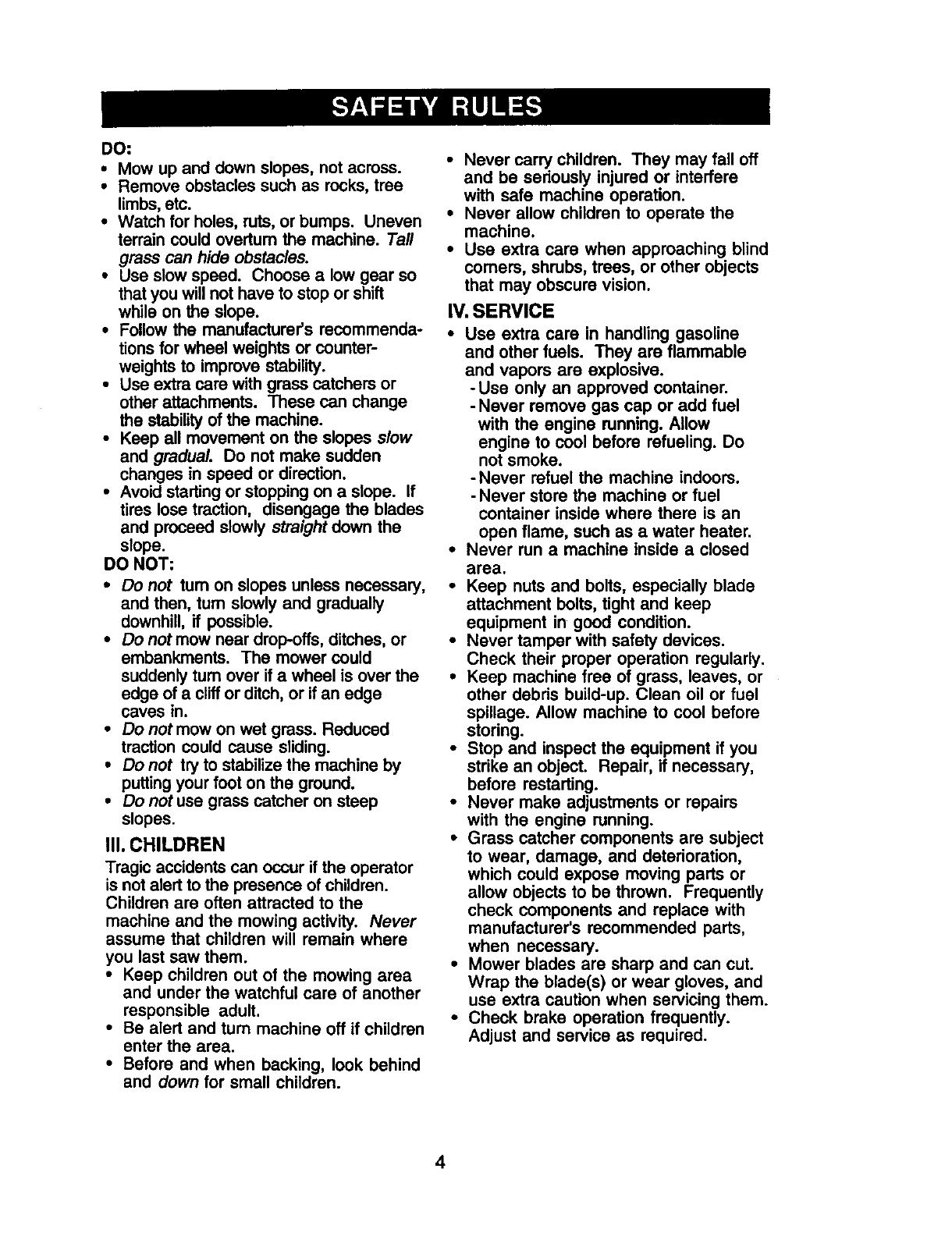

DO:

• Mow up and down slopes, not across.

•Remove obstacles such as rocks, tree

limbs,etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overtum the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose alow gear so

that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommenda-

tionsfor wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stabilityof the machine.

•Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoidstarting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straightdown the

slope.

DO NOT-

•Do not tum on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

•Do notmow near drop-offs,ditches, or

embankments. The mower could

suddenly turn over if a wheel is over the

edge of a cliffor ditch, or ifan edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do not try to stabilize the machine by

puttingyour foot on the ground.

•Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and tum machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching blind

comers, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

•Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

-Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

-Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

•Never run a machine inside a closed

area.

•Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

•Never tamper with safety devices.

Check their proper operation regularly.

•Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

•Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

•Never make adjustments or repairs

with the engine running.

•Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

•Check brake operation frequently.

Adjust and service as required.

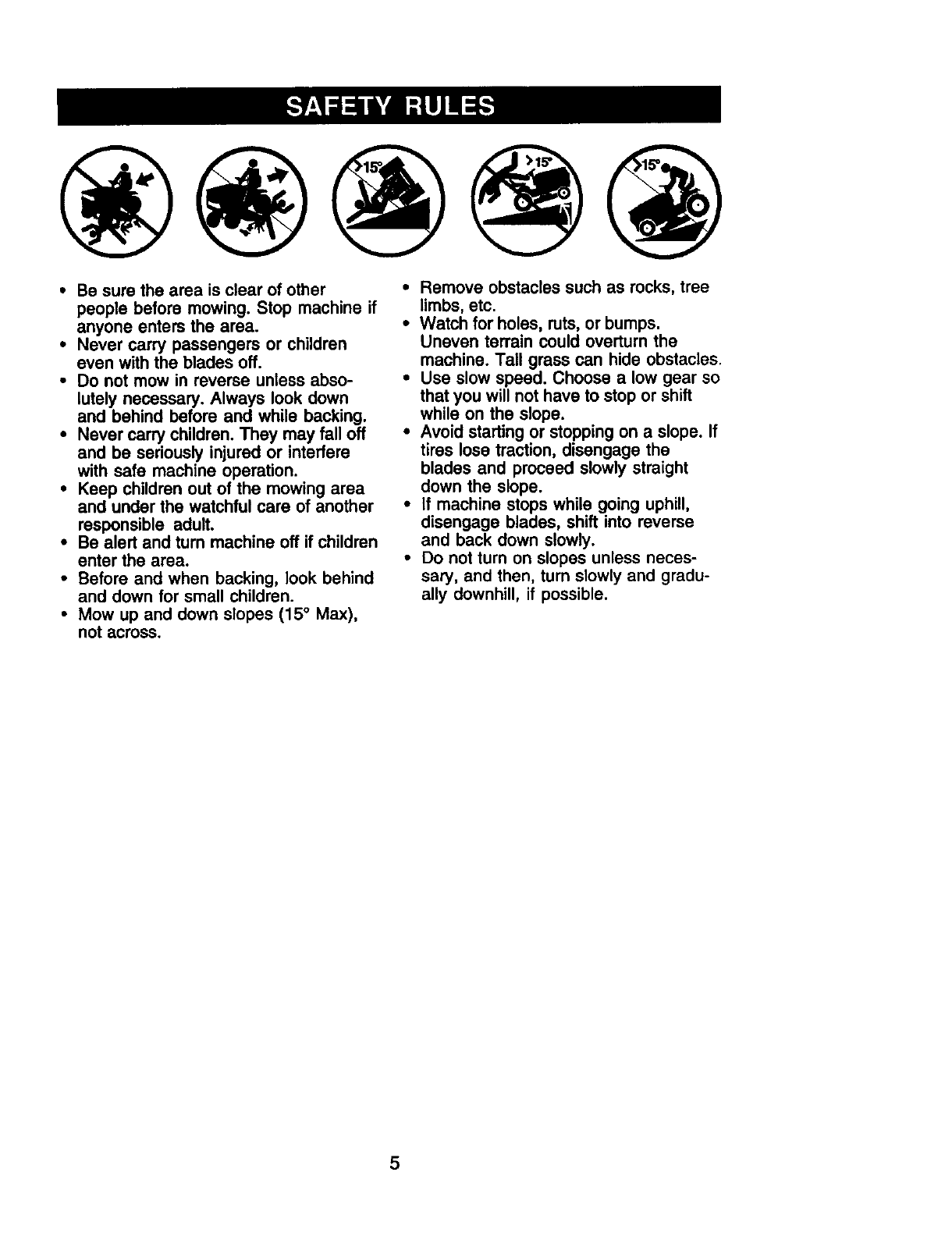

•Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

•Never carry passengers or children

even with the blades off.

•Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Keep children out of the mowing area

and under the watchful care of another

responsible adult.

•Be alert and turn machine off if children

enter the area.

•Before and when backing, look behind

and down for small children.

•Mow up and down slopes (15 ° Max),

not across.

•Remove obstacles such as recks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide obstacles.

•Use slow speed. Choose a low gear so

that you will not have to stop or shift

while on the slope.

•Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

•If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

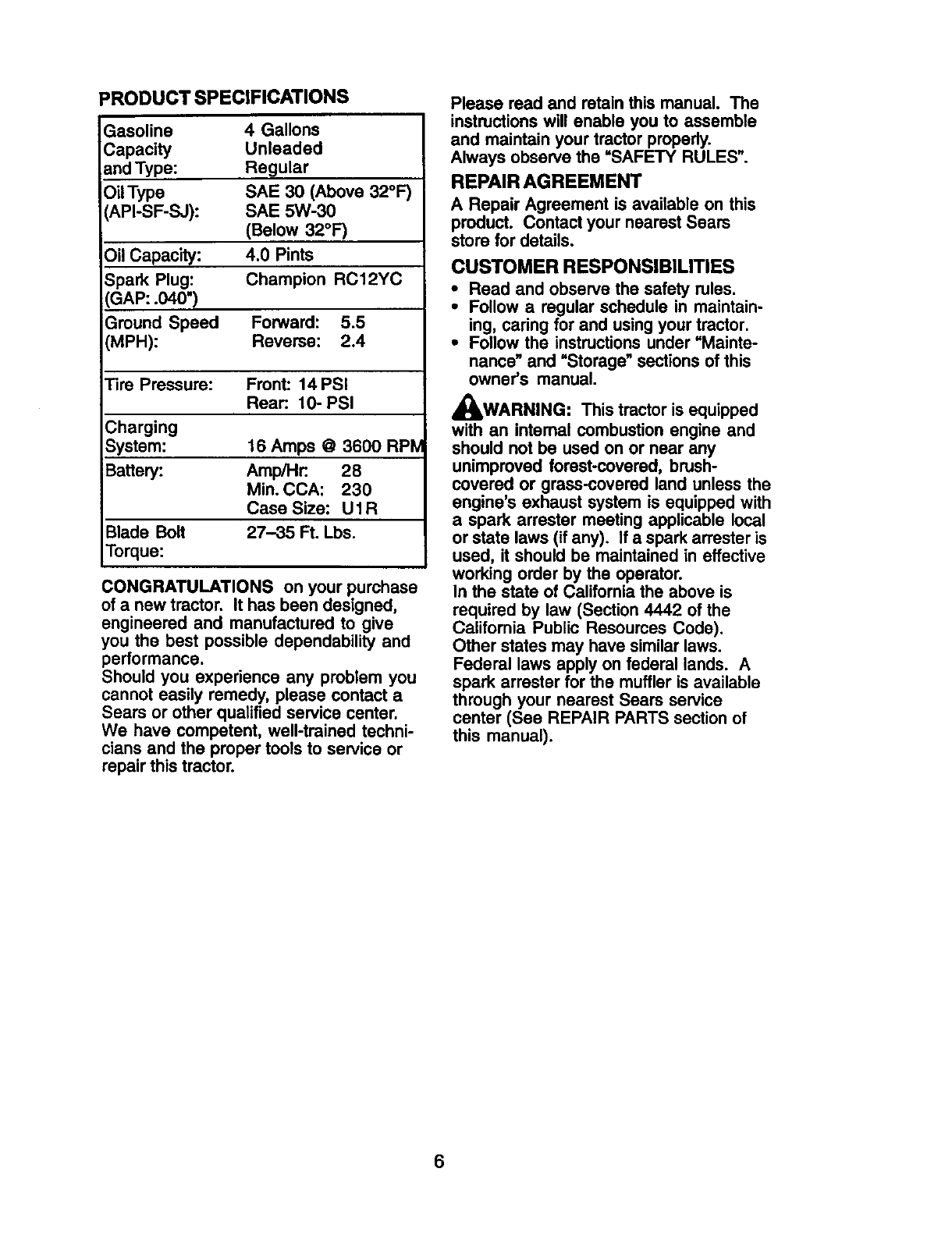

3RODUCT SPECIFICATIONS

Gasoline

Capacity

and Type:

Oil Type

(API-SF-SJ):

4 Gallons

Unleaded

Regular

SAE 30 (Above 32°F)

SAE 5W-30

(Below 32°F)

Oil Capacity: 4.0 Pints

Spark Plug: Champion RC12YC

(GAP: .040")

Ground Speed Forward: 5.5

(MPH): Reverse: 2.4

Tire Pressure: Front: 14PSI

Rear:. 10- PSI

Charging

System: 16 Amps @3600 RPM

Battery: Amp/Hr. 28

Min. CCA: 230

Case Size: U 1R

Blade Bolt 27-35 Ft. Lbs.

Torque:

CONGRATULATIONS on your purchase

of anew tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the =SAFETY RULES".

REPAIR AGREEMENT

A Repair Agreement is available on this

product. Contact your nearest Sears

store for details.

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

•Follow aregular schedule in maintain-

ing, cadng for and using your tractor.

•Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

,_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless the

engine's exhaust system is equipped with

a spark arraster meeting applicable local

or state laws (if any). If a spark arrester is

used, it should be maintained in effective

working order by the operator.

In the state of California the above is

required by law (Section 4442 of the

Califomia Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears service

center (See REPAIR PARTS section of

this manual).

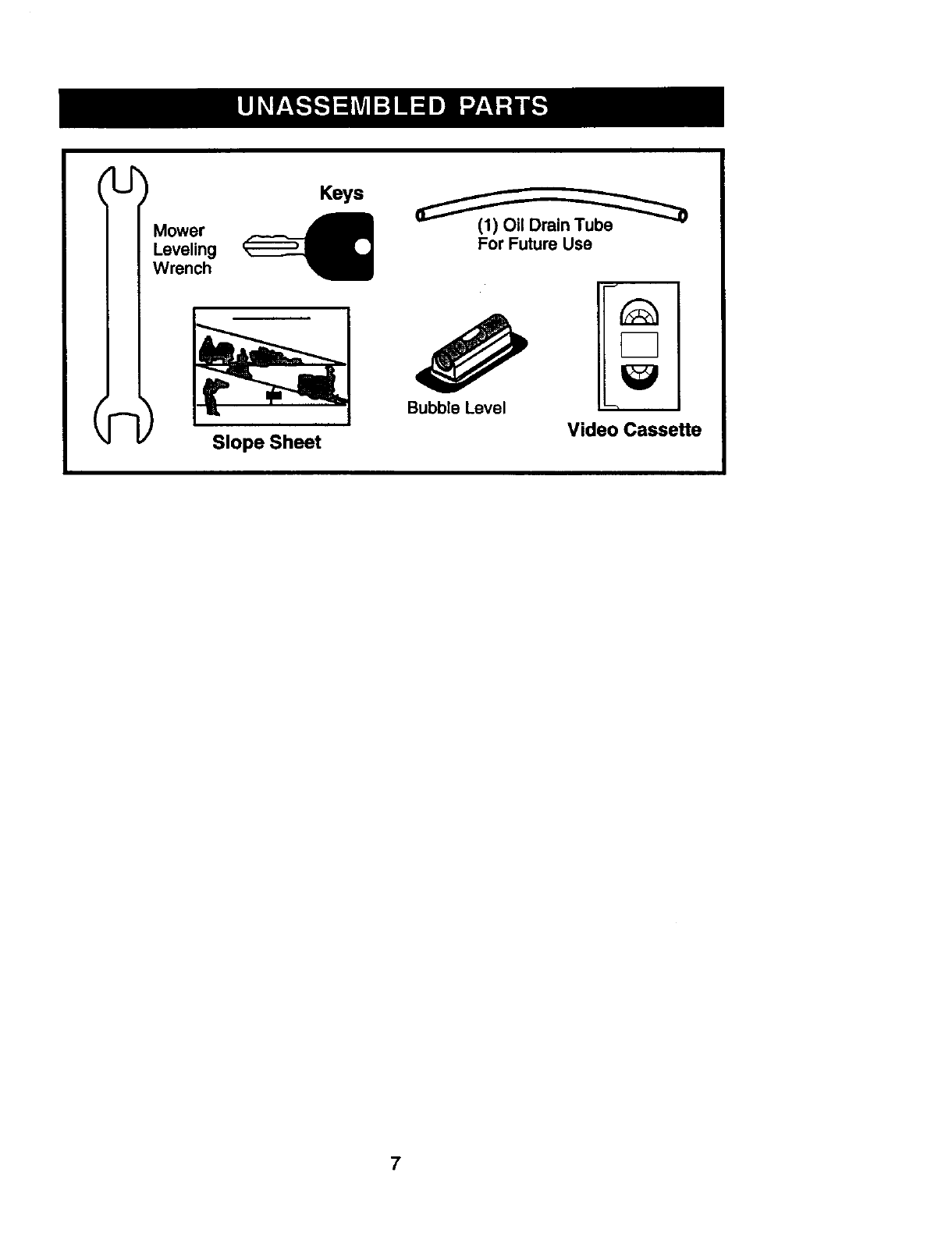

Mower,__ _Ora, n','_

Leveling For Future Use

Wrench

Slope Sheet

Bubble Level

Video Cassette

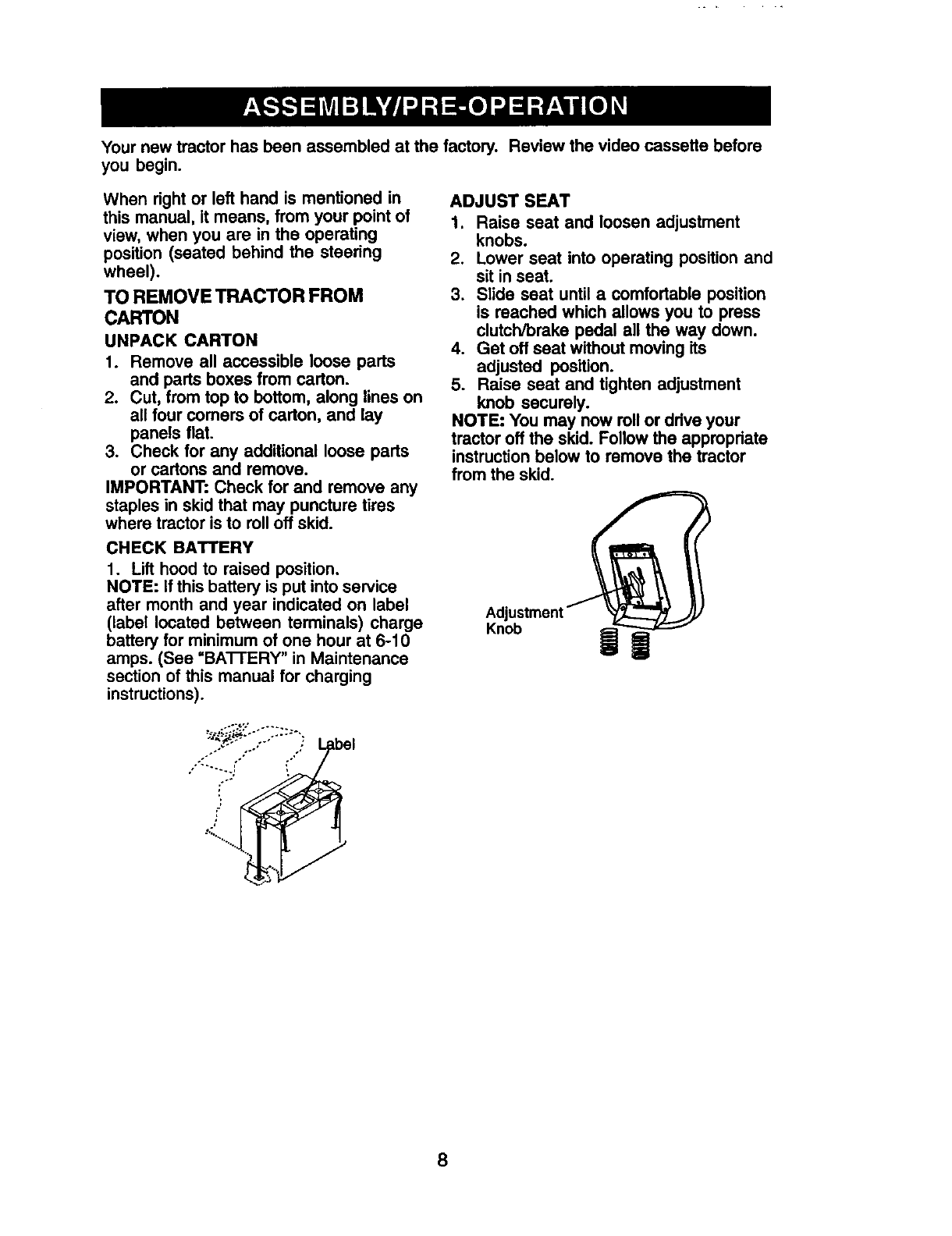

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts

and parts boxes from carton.

2. Cut, from top to bottom, along lines on

all four comers of carton, and lay

panels flat.

3. Check for any additional loose parts

or cartons and remove.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

CHECK BATTERY

1. Lift hood to raised position,

NOTE: if this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See =BA'I-I'ERY" in Maintenance

section of this manual for charging

instructions).

ADJUST SEAT

1. Raise seat and loosen adjustment

knobs.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its

adjusted position.

5. Raise seat and tighten adjustment

knob securely.

NOTE: You may now roll or ddve your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

Adjustment

Knob | |

"_J*" .., "La

.... bel

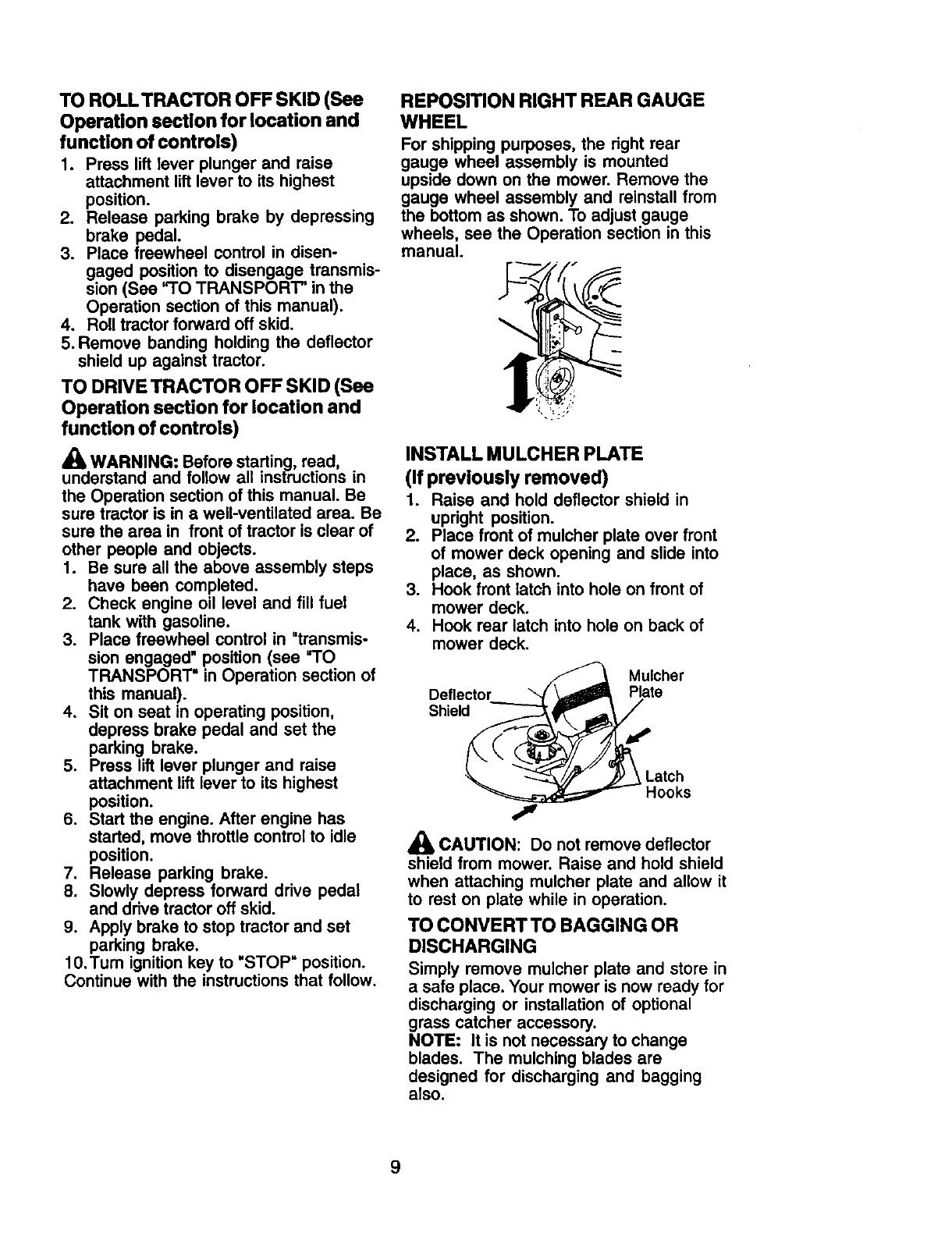

TO ROLLTRACTOR OFF SKID (See

Operetion section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest

position.

2. Release parking brake by depressing

brake pedal.

3. Place freewheel control in disen-

gaged position to disengage transmis-

sion (See =TOTRANSPORT" in the

Operation section of this manual).

4. Roll tractorforward off skid.

5. Remove banding holding the deflector

shield up against tractor.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in awell-ventilated area. Be

sure the area in front of tractor is clear of

other people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel

tank with gasoline.

3. Place freewheel control in "transmis-

sion engaged =position (see =TO

TRANSPORT" in Operation section of

this manual).

4. Sit on seat in operating position,

depress brake pedal and set the

parking brake.

5. Press lift lever plunger and raise

attachment lift lever to its highest

position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Release parking brake.

8. Slowly depress forward drive pedal

and drive tractor off skid.

9. Apply brake to stop tractor and set

parking brake.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

REPOSmON RIGHT REAR GAUGE

WHEEL

For shipping purposes, the right rear

gauge wheel assembly is mounted

upside down on the mower. Remove the

gauge wheel assembly and reinstall from

the bottom as shown. To adjust gauge

wheels, see the Operation section in this

manual.

INSTALL MULCHER PLATE

(If previously removed)

1. Raise and hold deflector shield in

upright position.

2. Place front of mulcher plate over front

of mower deck opening and slide into

place, as shown.

3. Hook front latch into hole on front of

mower deck.

4. Hook rear latch into hole on back of

mower deck.

Mulcher

Deflector te

o o0 a

Latch

-_ Hooks

CAUTION: Do not remove deflector

shield from mower. Raise and hold shield

when attaching mulcher plate and allow it

to rest on plate while in operation.

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in

a safe place. Your mower is now ready for

discharging or installation of optional

grass catcher accessory.

NOTE: It is not necessary to change

blades. The mulchingblades are

designed for discharging and bagging

also.

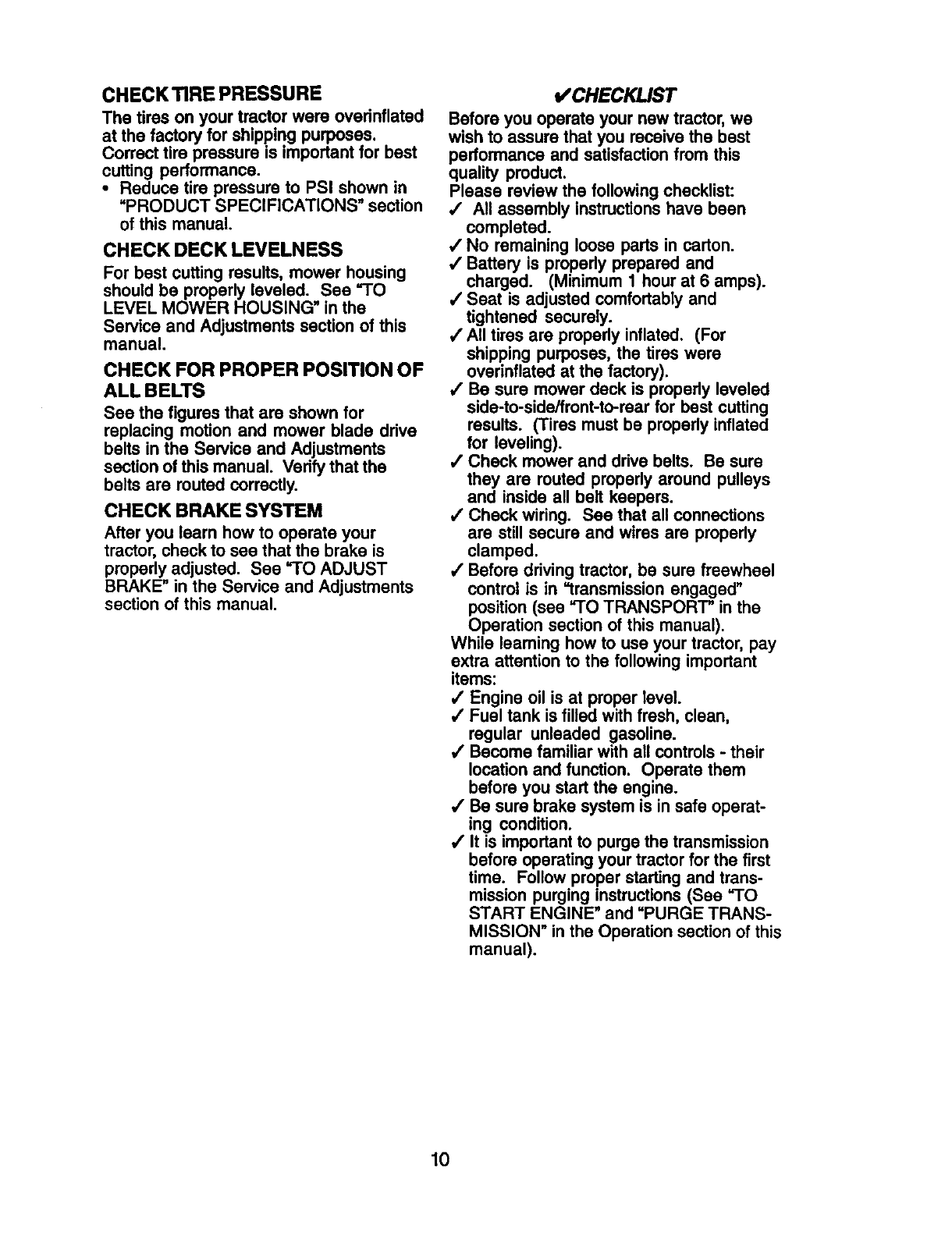

CHECK TIRE PRESSURE

Thetireson yourtractorwereoverinflated

at the factoryfor shippingpurposes.

Correcttire pressureis importantfor best

cuttingperformance.

• Reducetire pressureto PSIshownin

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cuffing results, mower housing

should be properly leveled. Sea "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

CHECK FOR PROPER POSITION OF

ALL BELTS

See the figures that are shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of this manual. Vedfy that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

_CHECKUST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

quality product.

Please review the following checklist:

/All assembly instructionshave been

completed.

,/No remaining loose parts in carton.

/Battery is propedy prepared and

charged. (Minimum 1 hour at 6 amps).

/Seat is adjusted comfortably and

tightened securely.

/All tires are properly inflated. (For

shipping purposes, the tires were

overinflated at the factory).

/Be sure mower deck is propedy leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be propedy inflated

for leveling).

,/Check mower and ddve belts. Be sure

they are routed propedy around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

/Before driving tractor, be sure freewheel

control is in =transmission engaged"

position (see "TO TRANSPORT" in the

Operation section of this manual).

While learning how to use your tractor, pay

extra attention to the following important

items:

/Engine oil is at proper level.

/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

4' Become familiar with all controls - their

location and function. Operate them

before you start the engine.

/Be sure brake system is in safe operat-

ing condition.

/It is important to purge the transmission

before operating your tractor for the first

time. Follow proper starting and trans-

mission purging instructions (See "TO

START ENGINE" and "PURGE TRANS-

MISSION" in the Operation section of this

manual).

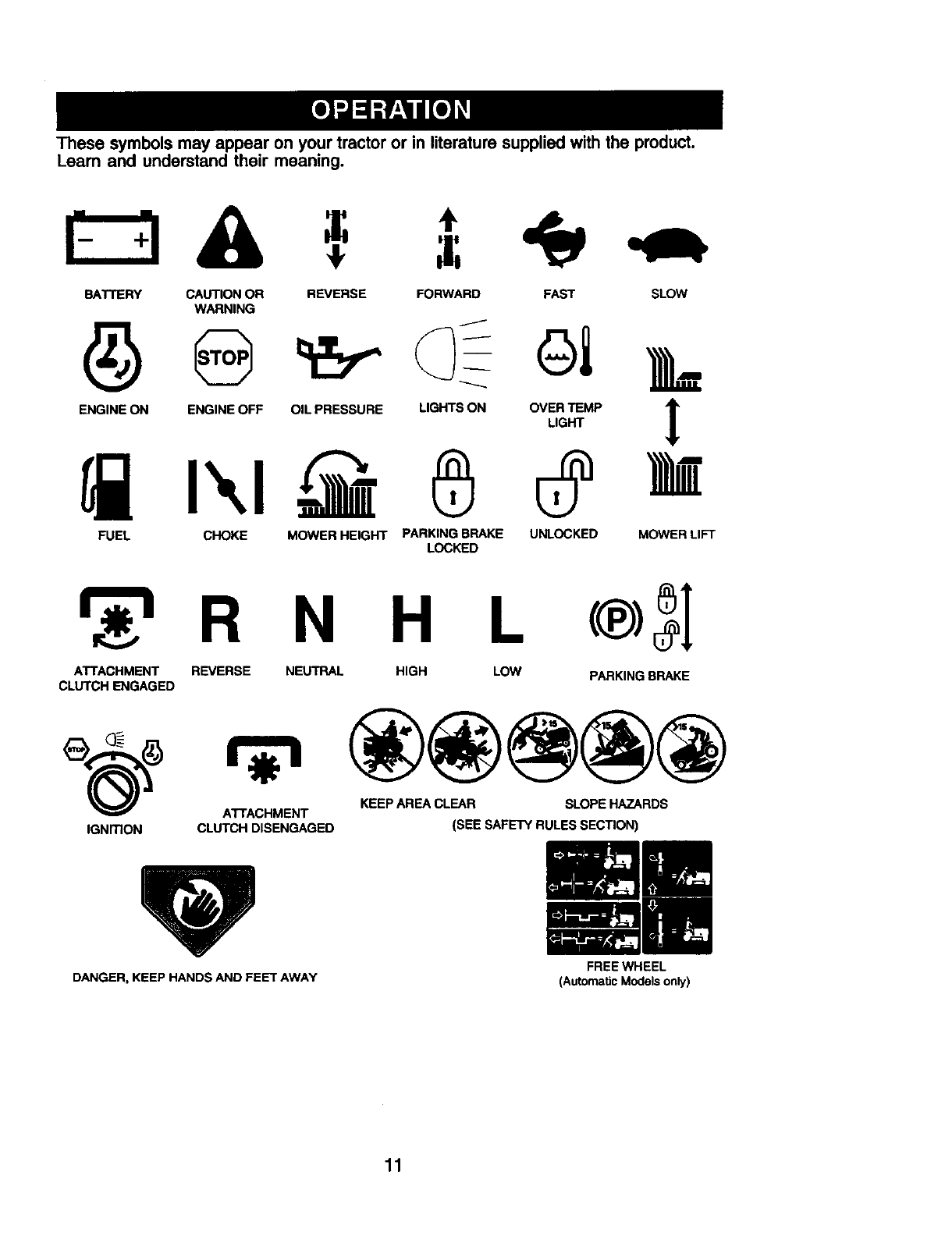

These symbols may appear on your tractor or in literature supplied with the product.

Leam and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVERTE?P 1

[i l\l 0 m

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

H L

ATTACHMENT REVERSE NEUTRAL HIGH LOW PARKINGBRAKE

CLUTCH ENGAGED

o6 o @@@@@

ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNmON CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatic Models only)

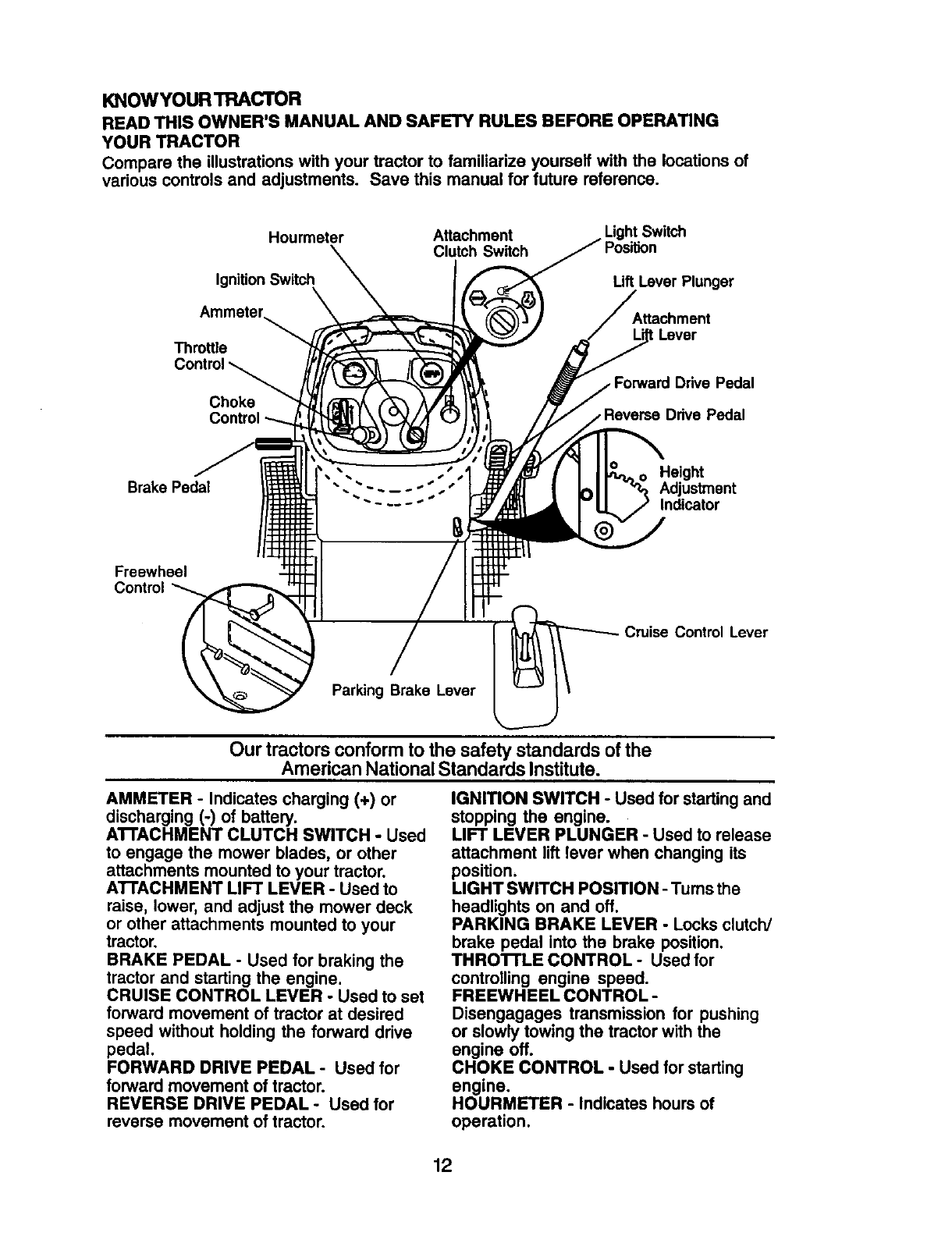

KNOWYOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Hourmeter

Ignition Switch

Ammetel

Throttle

Choke

Attachment

Clutch Switch Light Switch

Lift Lever Plunger

Attachment

: Lever

Drive Pedal

Brake Pedal •.. "Height

Adjustment

Indicator

Freewheel

Control

Cruise Control Lever

Parking Brake Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

ATrACHMENT CLUTCH SWITCH -Used

to engage the mower blades, or other

attachments mounted to your tractor,

ATrACHMENT LIFT LEVER -Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

BRAKE PEDAL -Used for braking the

tractor and starting the engine.

CRUISE CONTROL LEVER -Used to set

forward movement of tractor at desired

speed without holding the forward drive

pedal.

FORWARD DRIVE PEDAL -Used for

forward movement of tractor.

REVERSE DRIVE PEDAL oUsed for

reverse movement of tractor.

IGNITION SWITCH -Used for starting and

stopping the engine.

LIFT LEVER PLUNGER -Used to release

attachment lift lever when changing its

position,

LIGHT SWITCH POSITION -Tums the

headlights on and off.

PARKING BRAKE LEVER -Locks clutch/

brake pedal into the brake position.

THROI"rLE CONTROL -Used for

controlling engine speed.

FREEWHEEL CONTROL -

Disengagages transmission for pushing

or slowly towing the tractor with the

engine off.

CHOKE CONTROL -Used for starting

engine.

HOURMETER -Indicates hours of

operation.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend standard safety glasses or a

wide vision safety mask worn over spectacles.

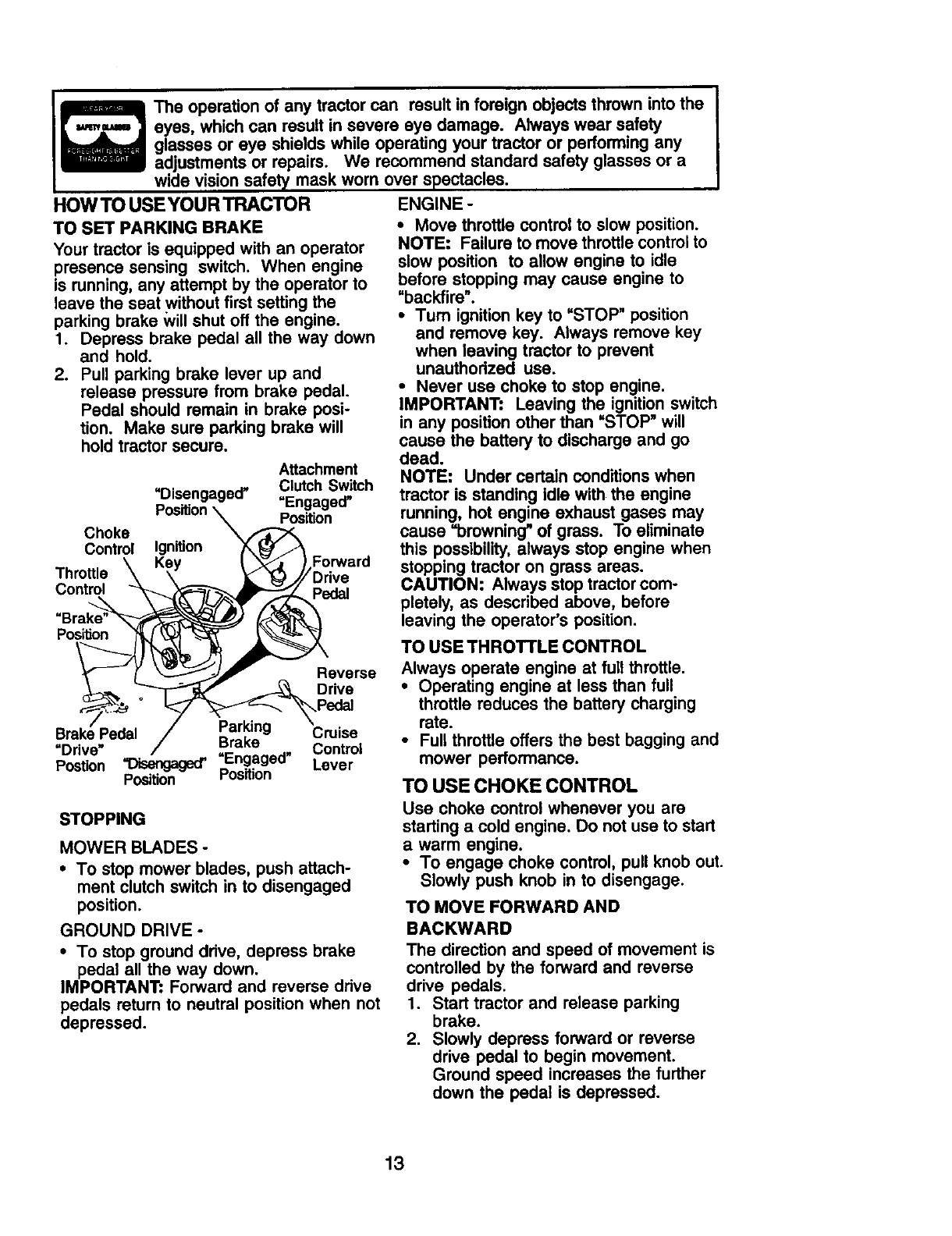

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

1. Depress brake pedal all the way down

and hold.

2. Pull parking brake lever up and

release pressure from brake pedal.

Pedal should remain in brake posi-

tion. Make sure parking brake will

hold tractor secure.

Attachment

"Disengaged" Cinch Switch

PosWon "Engaged"

Pos_on

Choke

Control Ign_on

Throttle

Control Pedal

Position

Reverse

Drive

Pedal

Brake Pedal Parking Cruise

"Drive" Brake Control

Postion =Disengaged' "Engaged" Lever

Position Position

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttlecontrol to

slow position to allow engine to idle

before stopping may cause engine to

"backfire".

•Turn ignition key to "STOP" position

and remove key. Always remove key

when leaving tractor to prevent

unauthodzed use.

•Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause =browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

CAUTION: Always stop tractor com-

pletely, as described above, before

leaving the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle,

•Operating engine at less than full

throttle reduces the battery charging

rate.

•Full throttle offers the best bagging and

mower performance.

TO USE CHOKE CONTROL

STOPPING

MOWER BLADES -

•To stop mower blades, push attach-

ment clutch switch in to disengaged

position.

GROUND DRIVE -

•To stop ground drive, depress brake

pedal all the way down.

IMPORTANT: Forward and reverse drive

pedals return to neutral position when not

depressed.

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

•To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement is

controlled by the forward and reverse

drive pedals.

1. Start tractor and release parking

brake.

2. Slowly depress forward or reverse

drive pedal to begin movement.

Ground speed increases the further

down the pedal is depressed.

TO USE CRUISE CONTROL

The cruise control feature can be used

for forward travel only.

1. With forward ddve pedal depressed to

desired speed, move cruise control

lever forward to =SET" position and

hold while lifting your foot off the

pedal, then release the cruise control

lever.

To disengage the cruise control, pull the

lever backward to =OFF" position, or fully

depress the brake pedal.

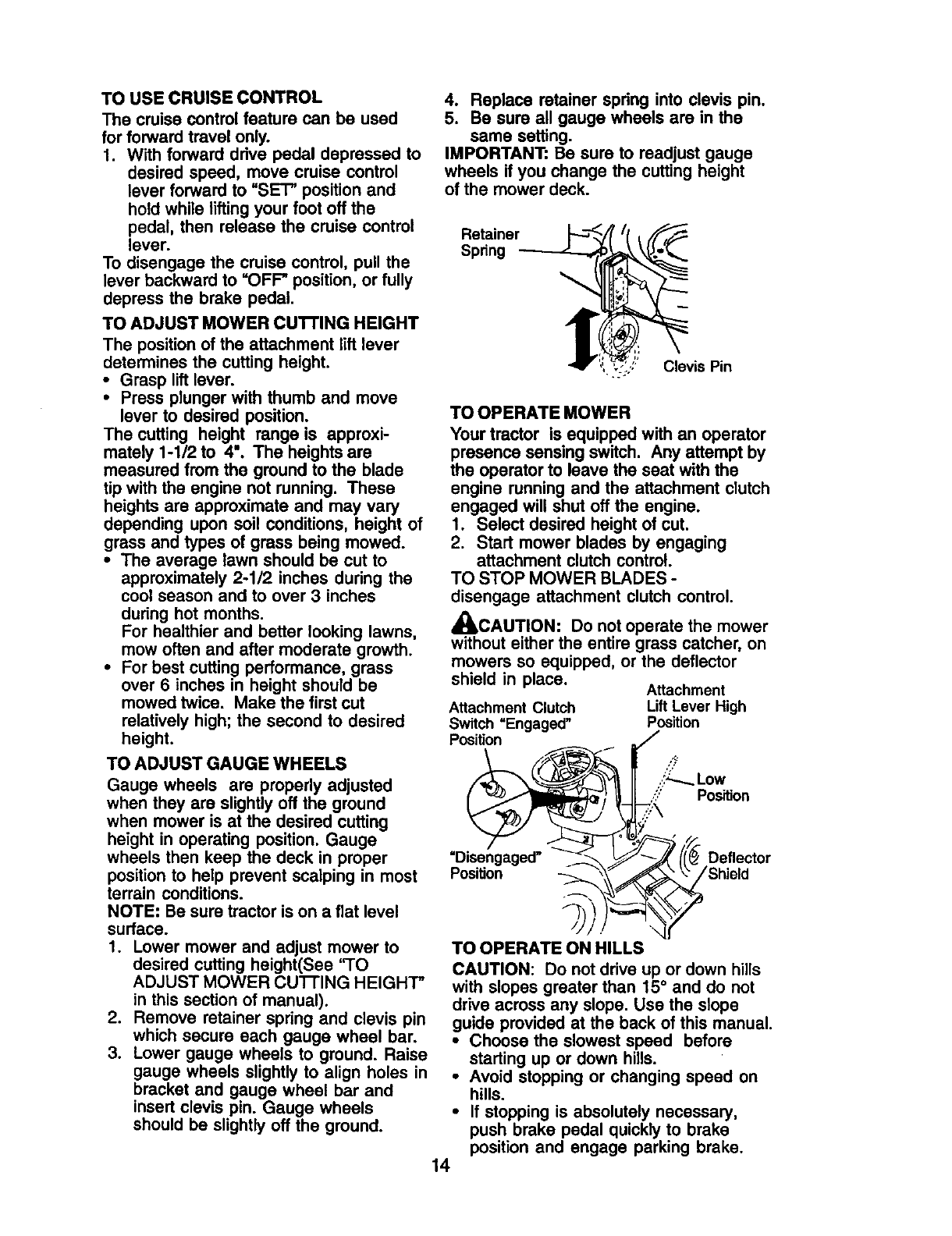

TO ADJUST MOWER CU'I'rlNG HEIGHT

The position of the attachment lift lever

determines the cuffing height.

•Grasp lift lever.

•Press plunger with thumb and move

lever to desired position.

The cuffing height range is approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height of

grass and types of grass being mowed.

•The average lawn should be cut to

approximately 2-1/2 inches dudng the

cool season and to over 3 inches

during hot months.

For healthier and better looking lawns,

mow often and after moderate growth.

•For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to

desired cutting height(See 'qO

ADJUST MOWER CU'I-FING HEIGHT"

in this section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes in

bracket and gauge wheel bar and

insert clevis pin. Gauge wheels

should be slightly off the ground.

4. Replace retainer spdng into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cuffing height

of the mower deck.

Retainer

Spring

Clevis Pin

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.

1. Select desired height of cut.

2. Start mower blades by engaging

attachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch

Switch =Engaged"

Position

;%on

,siUon ___

Attachment

Lift Lever High

Pos'dion

,:!Z,,.....Low

HPosition

((_Deflector

Shield

TO OPERATE ON HILLS

CAUTION: Do not drive up or down hills

with slopes greater than 15 ° and do not

drive across any slope. Use the slope

guide provided at the back of this manual.

•Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

•If stopping is absolutely necessary,

push brake pedal quickly to brake

position and engage parking brake.

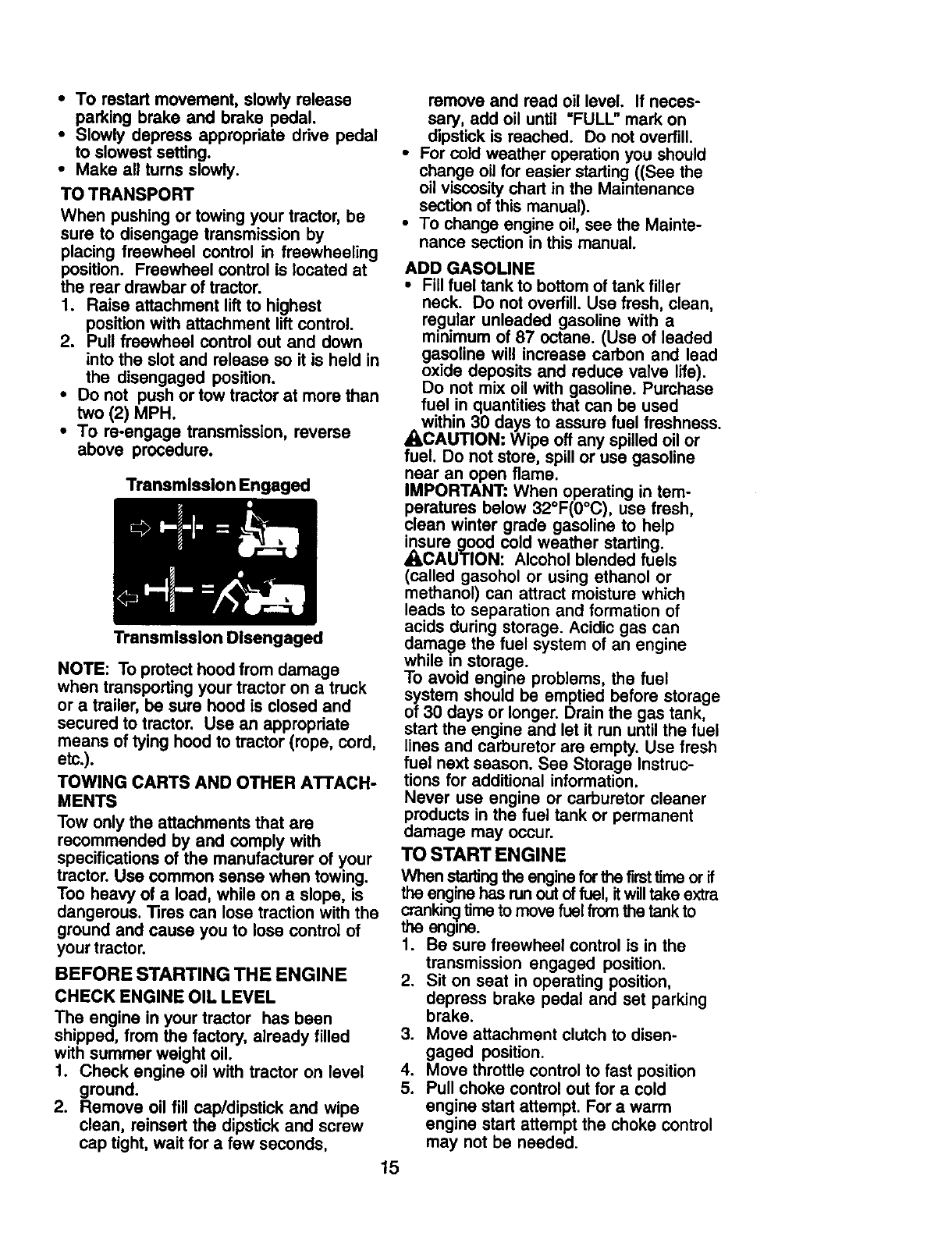

•To restart movement, slowly release

parking brake and brake pedal.

•Slowly depress appropriate drive pedal

to slowest setting.

•Make all turns slowly.

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheeling

position. Freewheel control is located at

the rear drawbar of tractor.

1. Raise attachment liftto highest

position with attachment lift control.

2. Pull freewheel control out and down

into the slot and release so it is held in

the disengaged position.

•Do not push or tow tractor at more than

two (2) MPH.

•To re-engage transmission, reverse

above procedure.

Transmission Engaged

Transmlsslon Dlsengaged

NOTE: To protect hood from damage

when transportingyour tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATrACH-

MENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with the

ground and cause you to lose control of

your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for afew seconds,

remove and read oil level. If neces-

sary, add oil until =FULL" mark on

dipstick is reached. Do not over/ill.

For cold weather operationyou should

change oilfor easier starting]((See the

oil viscositychart in the Mamtenance

section of this manual).

To change engine oil,see the Mainte-

nance section in this manual.

ADD GASOLINE

•Fillfuel tank to bottom of tank filler

neck. Do not overfill. Use fresh, clean,

re.gularunleaded gasoline with a

mmJmumof 87 octane. (Use of leaded

gasoline will increase carbon and lead

oxide deposits and reduce valve life).

Do not mix oil with gasoline. Purchase

fuel in quantities that can be used

. within 30 days to assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in tem-

peratures below 32°F(0°C), use fresh

clean winter grade gasoline to help

insure good cold weather starting.

_kCAUTION: Alcohol blended fuels

(called gasohol or using ethanol or

methanol) can attract moisture which

leads to separation and formation of

acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

To avoid engine problems, the fuel

system should be emptied before storage

of 30 days or longer. Drain the gas tank,

start the engine and let it run untilthe fuel

lines and carburetor are empty. Use fresh

fuel next season. See Storage Instruc-

tions for additional information,

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

TO START ENGINE

When startingthe engineforthe firsttimeor if

theengine has runoutof fuel, itwilltake extra

crankingtimeto movefuel from the tank to

the eng=ne.

1. Be sure freewheel control is in the

transmission engaged position.

2. Sit on seat in operating position,

depress brake pedal and set parking

brake.

3. Move attachment clutch to disen-

gaged position.

4. Move throttle control to fast position

5. Pull choke control out for a cold

engine start attempt. For a warm

engine start attempt the choke control

may not be needed.

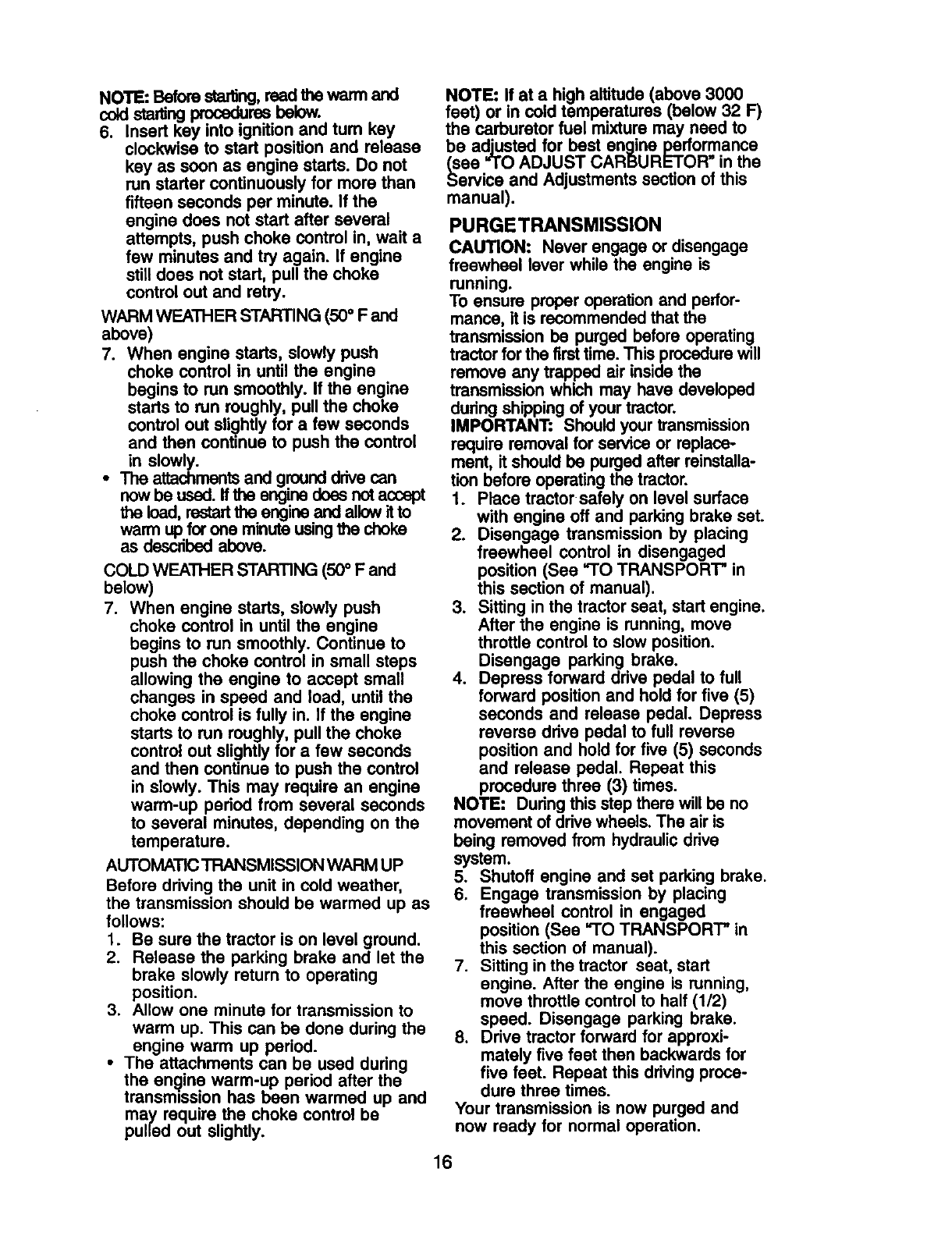

NOTE:Beforestarting,readthewarmand

coldstartingproceduresbelow.

6. Insertkeyinto ignitionand tum key

clockwise to start position and release

key as soon as engine starts. Do not

run starter continuously for more than

fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait a

few minutes and try again. If engine

still does not start, pull the choke

control out and retry.

WARM WEATHER STARTING (50°F and

above)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

•The attachments and grounddrivecan

now be used. If the enginedoesnot accept

the load, rastartthe engineand allowitto

warm up for one minuteusingthe choke

as described above.

COLD WEATHER STARTING (50° F and

below)

7. When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for afew seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

AUTOMATICTRANSMISSION WARM UP

Before driving the unit in cold weather,

the transmission should be warmed up as

follows:

1. Be sure the tractor is on level ground.

2. Release the parking brake and let the

brake slowly return to operating

position.

3. Allow one minute for transmission to

warm up. This can be done during the

engine warm up period.

•The attachments can be used during

the engine warm-up period after the

transmission has been warmed up and

may require the choke control be

pulled out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance

(see =TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual).

PURGETRANSMISSION

CAUTION: Never engage or disengage

freewheel lever while the engine is

running.

To ensure proper operationand psrfor-

manse, it is recommended that the

transmission be purged before operating

tractorfor the firsttime. This procedurewill

remove any trapped air inside the

transmission which may have developed

during shipping ofyour tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstalla-

tion before operatingthe tractor.

1. Place tractor safely on level surface

with engine off and parking brake set.

2. Disengage transmission by placing

freewheel control in disengaged

position (See =TO TRANSPORT" in

this section of manual).

3. Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position.

Disengage parking brake.

4. Depress forward drive pedal to full

forward position and hold for five (5)

seconds and release pedal. Depress

reverse drive pedal to full reverse

position and hold for five (5) seconds

and release pedal. Repeat this

procedure three (3) times.

NOTE: During this step there will be no

movement of drivewheels. The air is

being removed from hydraulicdrive

system.

5. Shutoff engine and set parking brake.

6. Engage transmission by placing

freewheel control in engaged

position (See "TO TRANSPORT" in

this section of manual).

7. Sitting in the tractor seat, start

engine. After the engine is running,

move throttlecontrol to half (1/2)

speed. Disengage parking brake.

8. Drive tractor forward for approxi-

mately five feet then backwards for

five feet. Repeat this driving proce-

dure three times.

Your transmission is now purged and

now ready for normal operation.

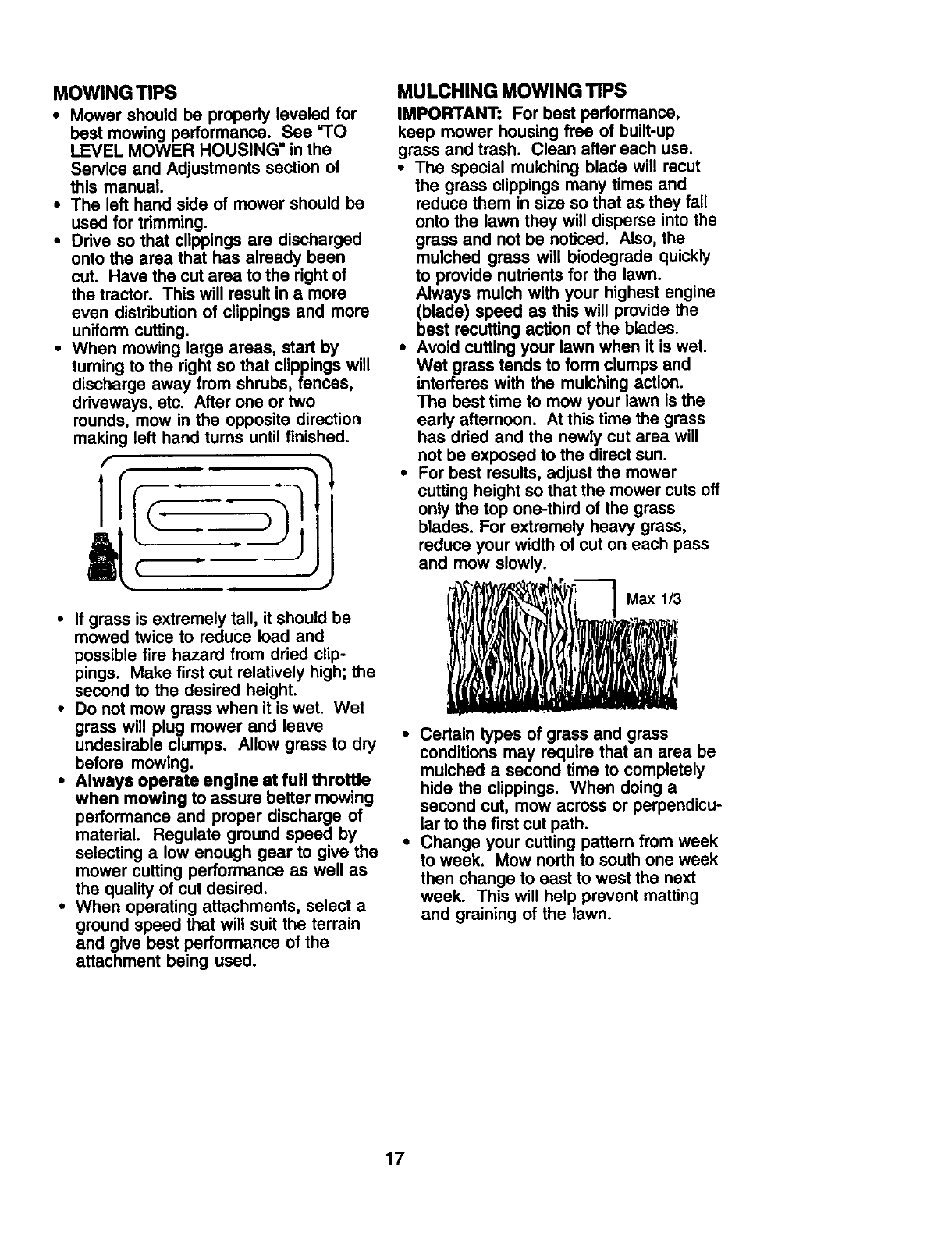

MOWING TIPS

•Mower should be propedy leveled for

best mowing performance. See rl'O

LEVEL MOWER HOUSING" in the

Service and Adjustments section of

this manual.

•The left hand side of mower should be

used for trimming.

•Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

•When mowing large areas, start by

tuming to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash. Clean after each use.

• The special mulching blade will recut

the grass clippings many times and

reduce them in size so that as they fall

onto the lawn they will disperse into the

grass and not be noticed. Also, the

mulched grass will biodegrade quickly

to provide nutrients for the lawn.

Always mulch with your highest engine

(blade) speed as this will provide the

best recutting action of the blades.

•Avoid cutting your lawn when it is wet.

Wet grass tends to form clumps and

interferes with the mulching action.

The best time to mow your lawn is the

early aftemoon. At this time the grass

has dried and the newly cut area will

not be exposed to the direct sun.

I(,__ •For best results, adjust the mower

I_____ _-_"_ I cutting height so that the mower cuts off

only the top one-third of the grass

I blades. For extremely heavy grass,

tI_ ___---_ _andreduceyour width of cut on eachpaSSmowslowly, o

_Max 1/3

•If grass is extremely tall, it should be t,

mowed twice to reduce load and

possible fire hazard from dried clip-

pings. Make firstcut relatively high; the

second to the desired height.

•Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

•Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

•When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

•Certain types of grass and grass

conditions may require that an area be

mulched a second time to completely

hide the clippings. When doing a

second cut, mow across or perpendicu-

lar to the first cut path.

•Change your cutting pattern from week

to week. Mow north to south one week

then change to east to west the next

week. This will help prevent matting

and graining of the lawn.

M.,.'rO.A.C,=SC.,=OU.,=

AS YOU COMPLETE

REGULAR SERVICE DE DATES

Check Operator Presence and

TInterlock Systems V'

R crux+<_" LooseFasteners IfP I_s I_'

_SharpeNReplace Mower Blades t_ 3

TLubrication Chart V'

0 Che<_BetmryLewi 1_4

R ClaanBe_w andTermed= V _IV/

Che¢_ Transaxla Cooling I_

CheckV-Belts

c,_ EnCneO,_,= V" =/

Changer=m_r_eOa(w_o+lat+r) If,_ I,_

E ;crmngeEngineo,(wimomo.m.-) If,_ i/

GN CtesnAi++Fdtor

Ckwn Air _

InspectMufflar/SparkArremr I/

E_m R_(. =_ _._

Replace Spark Plug I_

Replace Air Filter Paper Cartridge II_=

Replace Fuel Filter !1_

1+Change m¢_ often when opem_g under a heevy toad or

In tdgh aml;+:enttemperatures,

2+Set'vice _oltett when operating in dtrly or du,stycond_ons.

3-Replace blades morn often when mowing _mmdy Soil

4 - NO( mqu_ If equlppod v_,th malntenanapf_ee betty+

5-Tlgh_ front _L_b p_ bo_ to _ n.-IbcL _1L6%

DO not over_hten+

GENERAL RECOMMENDATIONS

The warranty on thistractordoes not

cover items that have been subjected to

operator abuse or negligence. To receive

fullvalue from the warranty, operator must

maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodicallyto properly maintain your

tractor.

All adjustments in the Service and

Adjustmentssection of this manual should

be checked at least once each season.

•Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear. A

new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper opera-

tion.

5. Check for loose fasteners.

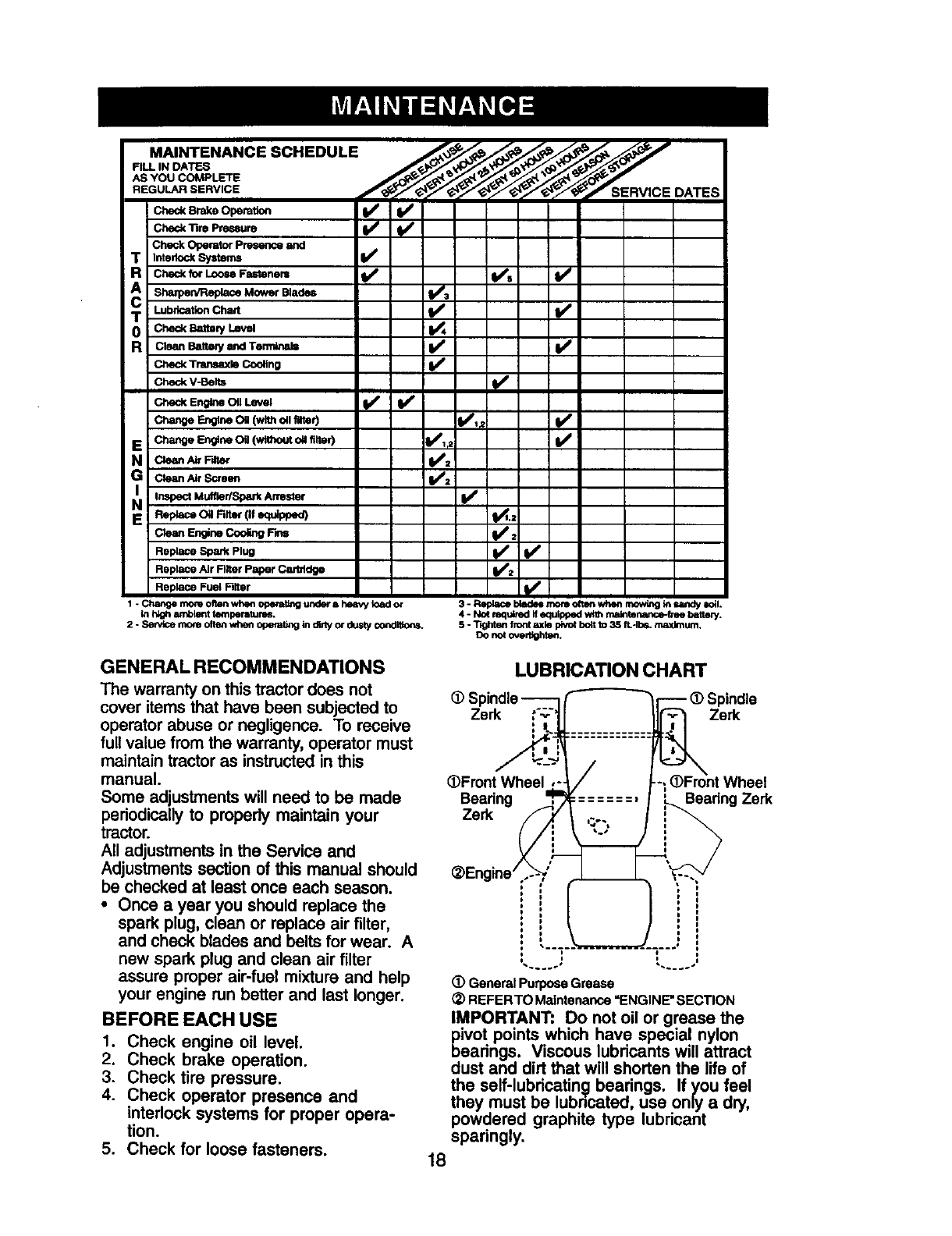

LUBRICATION CHART

Zerk Zerk

_)Front Wheel Wheel

Beadng Beadng Zerk

Zerk

(_ General PurposeGrease

<_ REFERTO Maintenance "ENGINE"SECTION

IMPORTANT:. Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant

sparingly.

TRACTOR

Always observe safety rules when

performing any maintenance.

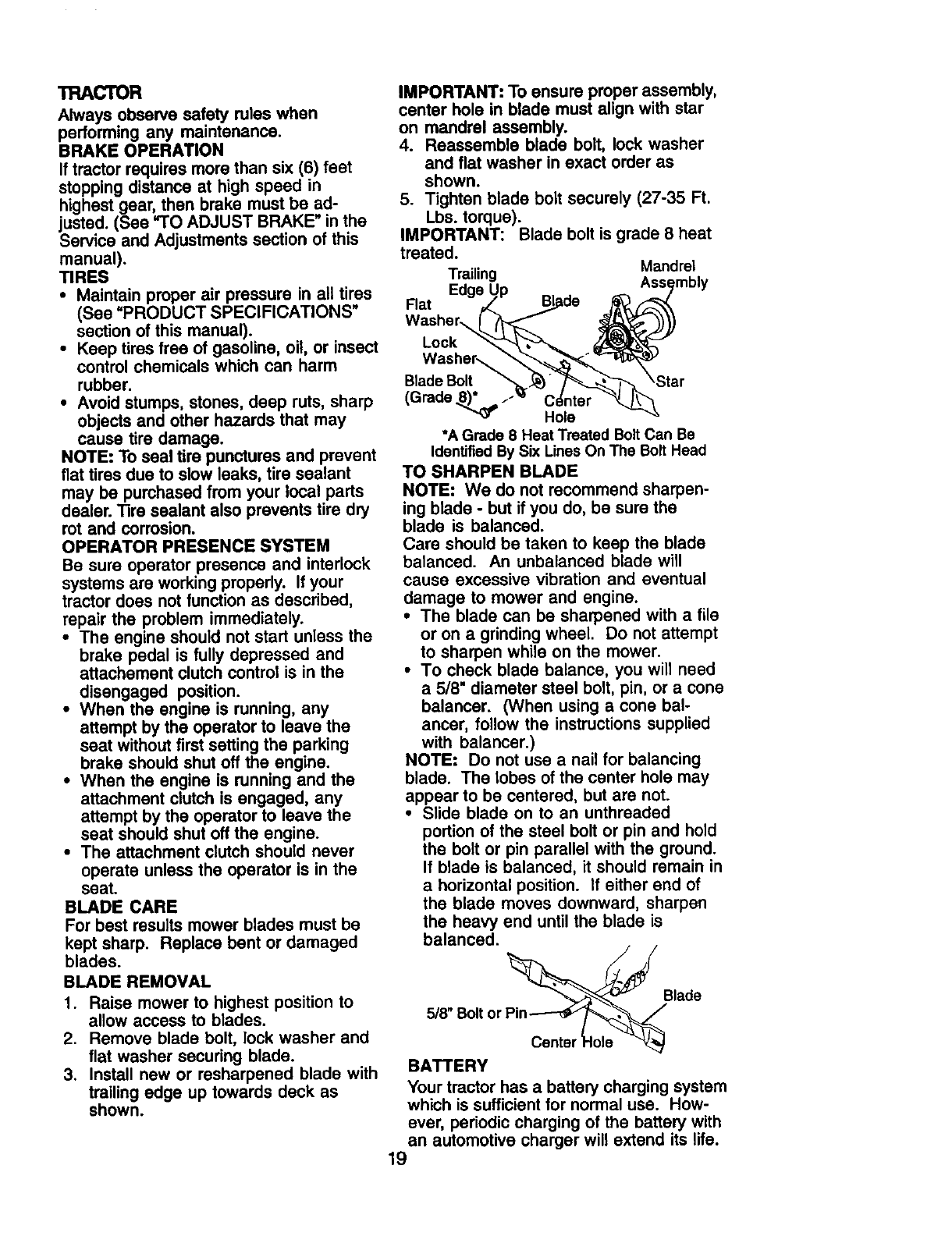

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be ad-

justed. (See "TO ADJUST BRAKE" in the

Service and Adjustments section of this

manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

•Keep tires free of gasoline, oil, or insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

•The engine should not start unless the

brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

•When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

•When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

•The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

2. Remove blade bolt, lock washer and

flat washer securing blade.

3. Install new or resharpened blade with

trailing edge up towards deck as

shown.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star

on mandrel assembly.

4. Reassemble blade bolt, lock washer

and flat washer in exact order as

shown.

5. Tighten blade bolt securely (27-35 Ft.

Lbs. torque).

IMPORTANT: Blade bolt is grade 8 heat

treated.

Trailing Mandrel

F,at

washar L

Lock

(Grade 8"--)_)*._/'_ C_nter "-_

Hole

*A Grade 8 Heat Treated Bolt Can Be

Identified By Six Lines On The Bolt Head

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

•The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

•To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a cone

balancer. (When using acone bal-

ancer, follow the instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

•Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain in

a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

___' _ Blade

5/8" Bolt or Pin_

Center Hole

BATTERY

Your tractor has a battery charging system

which is sufficientfor normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

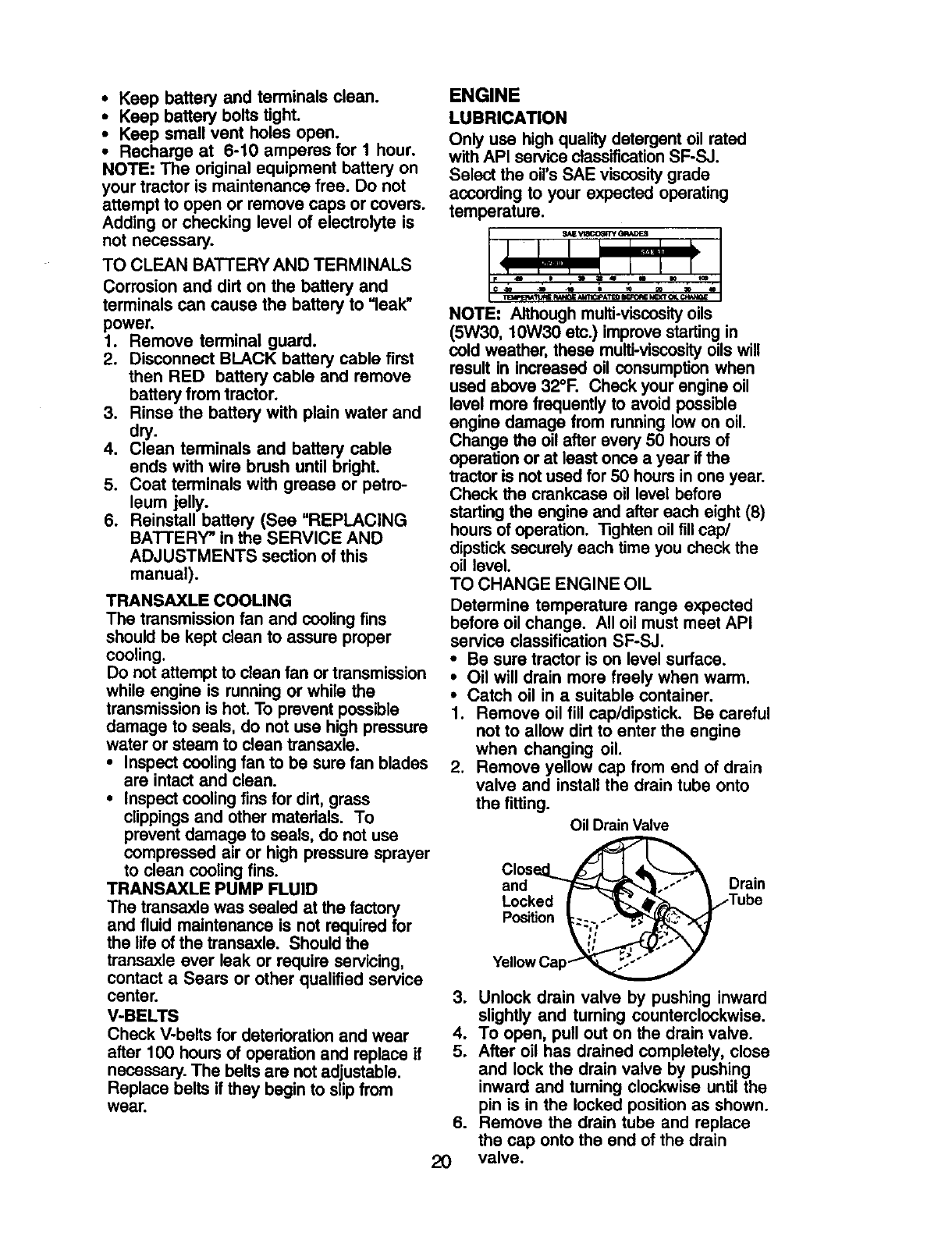

•Keep battery and terminals clean.

•Keep battery bolts tight.

•Keep small vent holes open.

•Recharge at 6-10 amperes for I hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable

ends with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

TRANSAXLE COOLING

The transmissionfan and coolingfins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmission

while engine is running or while the

transmissionis hot. To prevent possible

damage to seals, do not use high pressure

water or steam to clean transaxle.

•Inspect coolingfan to be sure fan blades

are intact and clean.

•Inspect coolingfinsfor dirt,grass

clippingsand other materials. To

prevent damage to seals, do not use

compressed air or high pressure sprayer

to clean coolingfins.

TRANSAXLE PUMP FLUID

The transexle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact a Sears or other qualified service

center.

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace if

necessary.The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergentoil rated

with API service classificationSF-SJ.

Select the oil'sSAE viscositygrade

according to your expected operating

temperature.

8AE_ GRAD_

F"4m .B , "I_ 41 .II ,m,:co

lqD4_ft JRK R_N_K i_111_PATI_O K_ f_ MEX'r OILCK_E

NOTE: Although multi-viscosityoils

(5W30, 10W30 etc.) improvestartingin

cold weather, these multi-viscosityoils will

result in increased oil consumptionwhen

used above 32°R Check your engine oil

level more frequently to avoid possible

engine damage from running low on oil.

Change the oilafter every 50 hoursof

operationor at least once a year if the

tractoris notused for 50 hoursin one year.

Check the crankcase oil level before

startingthe engine and after each eight (8)

hours of operation. "13ghtenoilfillcap/

dipsticksecurely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

•Be sure tractor is on level surface.

•Oil will drain more freely when warm.

•Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto

the fitting.

Oil Drain Valve

Close_

and _.-'" _ Drain

Locked ["_e_ _jTube

Yellow Ca_

3. Unlock drain valve by pushing inward

slightly and turning countemlockwise.

4. To open, pull out on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

inward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace

the cap onto the end of the drain

20 valve.

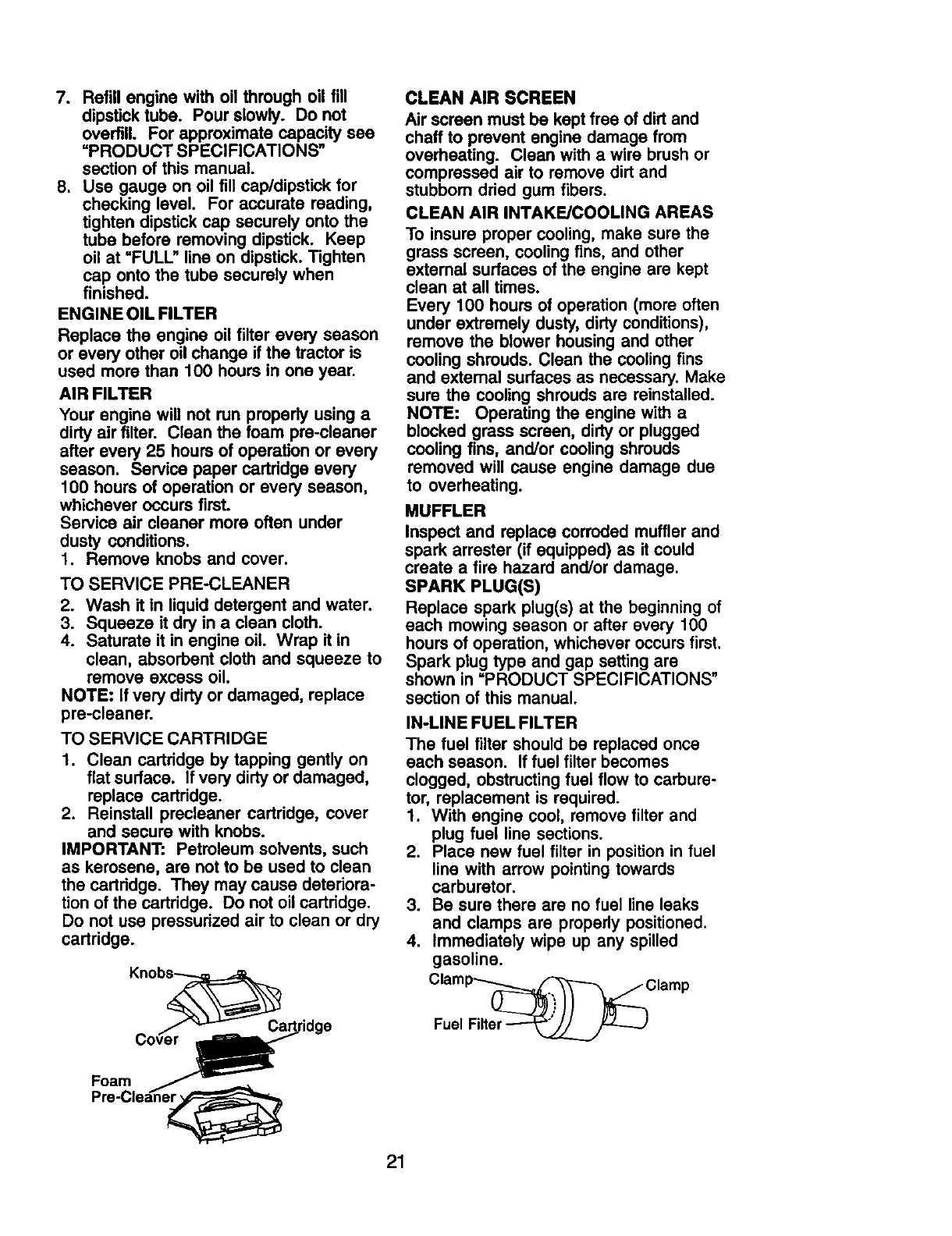

7. Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

=PRODUCT SPECIFICATIONS"

section of this manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep

oil at =FULL" line on dipstick. Tighten

cap onto the tube securely when

finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove knobs and cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartddge by tapping gently on

flat surface. If very dirty or damaged,

replace cartddge.

2. Reinstall precleaner cartridge, cover

and secure with knobs.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartddge. They may cause deteriora-

tion of the cartridge. Do not oil cartridge.

Do not use pressudzed air to clean or dry

cartridge.

Knob_

idle

Fr°ea_lean_

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary. Make

sure the cooling shrouds are reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could

create a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are

shown in =PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carbure-

tor, replacement is required.

1. With engine cool, remove filter and

plug fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

3. Be sure there are no fuel line leaks

and clamps are propedy positioned.

4. Immediately wipe up any spilled

gasoline.

ClamP_clamp

Fuel Filter

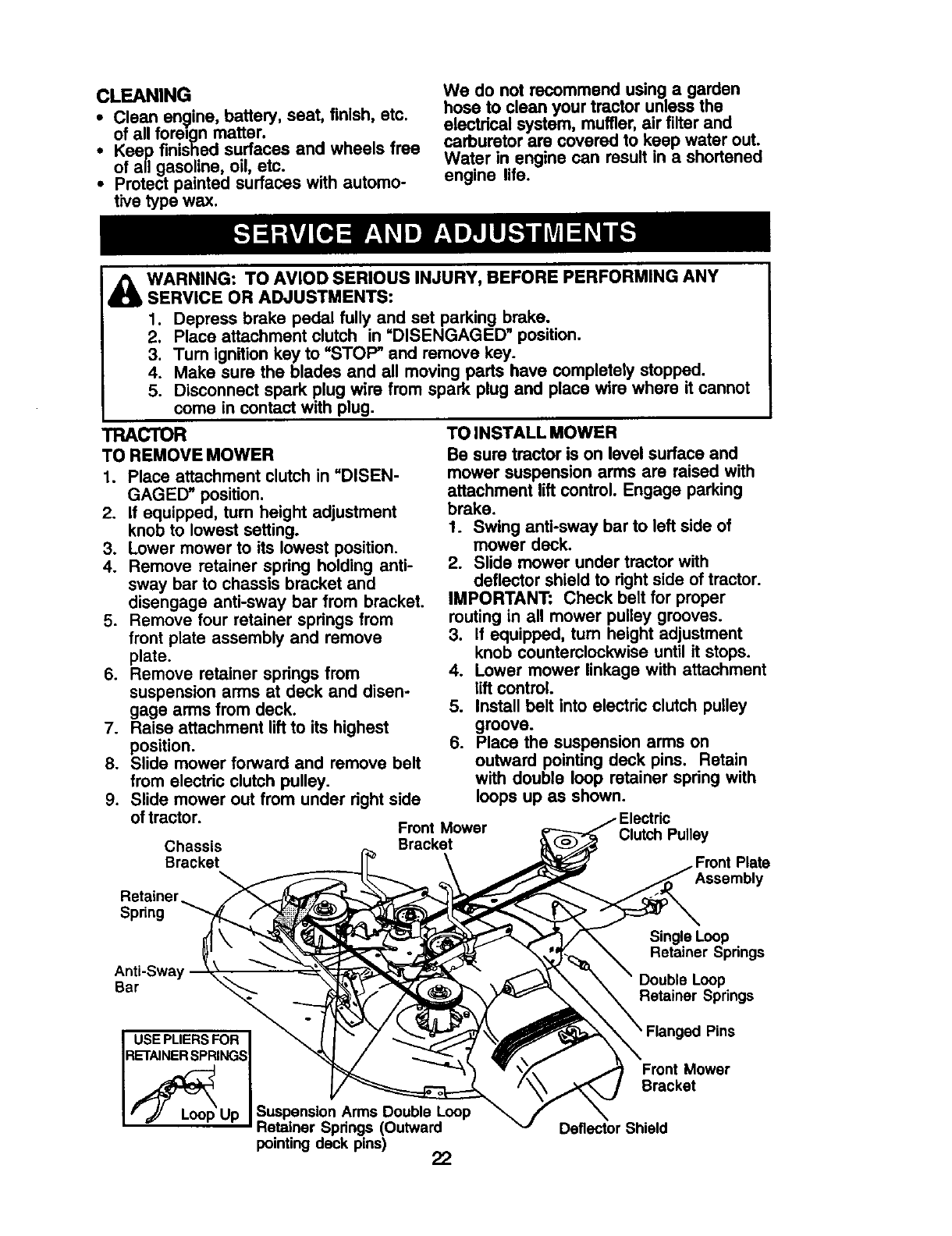

CLEANING

Clean en_line, battery, seat, finish, etc.

of all matter.

foreign

Keep finished surfaces and wheels free

of all gasoline, oil, etc.

•Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electdcal system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a shortened

engine life.

I& WARNING: TO AVIOD SERIOUS INJURY, BEFORE PERFORMING ANY

SERVICE OR ADJUSTMENTS:

1. Depress brake pedal fully and set parking brake.

2. Place attachment clutch in =DISENGAGED" position.

3. Tum ignition key to "STOP" and remove key.

4. Make sure the blades and all moving parts have completely stopped.

5. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in =DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Remove retainer spdng holding anti-

sway bar to chassis bracket and

disengage anti-sway bar from bracket.

5. Remove four retainer spdngs from

front plate assembly and remove

plate.

6. Remove retainer spdngs from

suspension arms at deck and disen-

gage arms from deck.

7. Raise attachment lift to its highest

position.

8. Slide mower forward and remove belt

from electric clutch pulley.

9. Slide mower out from under dght side

of tractor.

Chassis

Bracket

Retainer

Spring

TO INSTALL MOWER

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with

deflector shield to dght side of tractor.

IMPORTANT: Check belt for proper

muting in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Install belt into electdc clutch pulley

groove.

6. Place the suspension arms on

outward pointing deck pins. Retain

with double loop retainer spdng with

loops up as shown.

Front Mower

Bracket Clutch Pulley

Front Plate

Anti-Sway

Bar

Single Loop

Retainer Springs

Double Loop

Retainer Springs

USE PLIERS FOR ]

RETAINERSPRINGS I

upISuspension Arms Double Loop

Retainer Springs (Outward

pointing deck pins) 22

Pins

Front Mower

Bracket

Deflector Shield

7. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

8. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate and mower brackets.

NOTE: To assist in locating hole in

flanged pin, the hole in pin is inline with

notch on head of pin. If necessary, move

mower side-to-side to give space

between plate and mower brackets.

IMPORTANT: Check belt for proper

routingin all mower pulley grooves.

9. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

10. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

11. Raise deck to highest position.

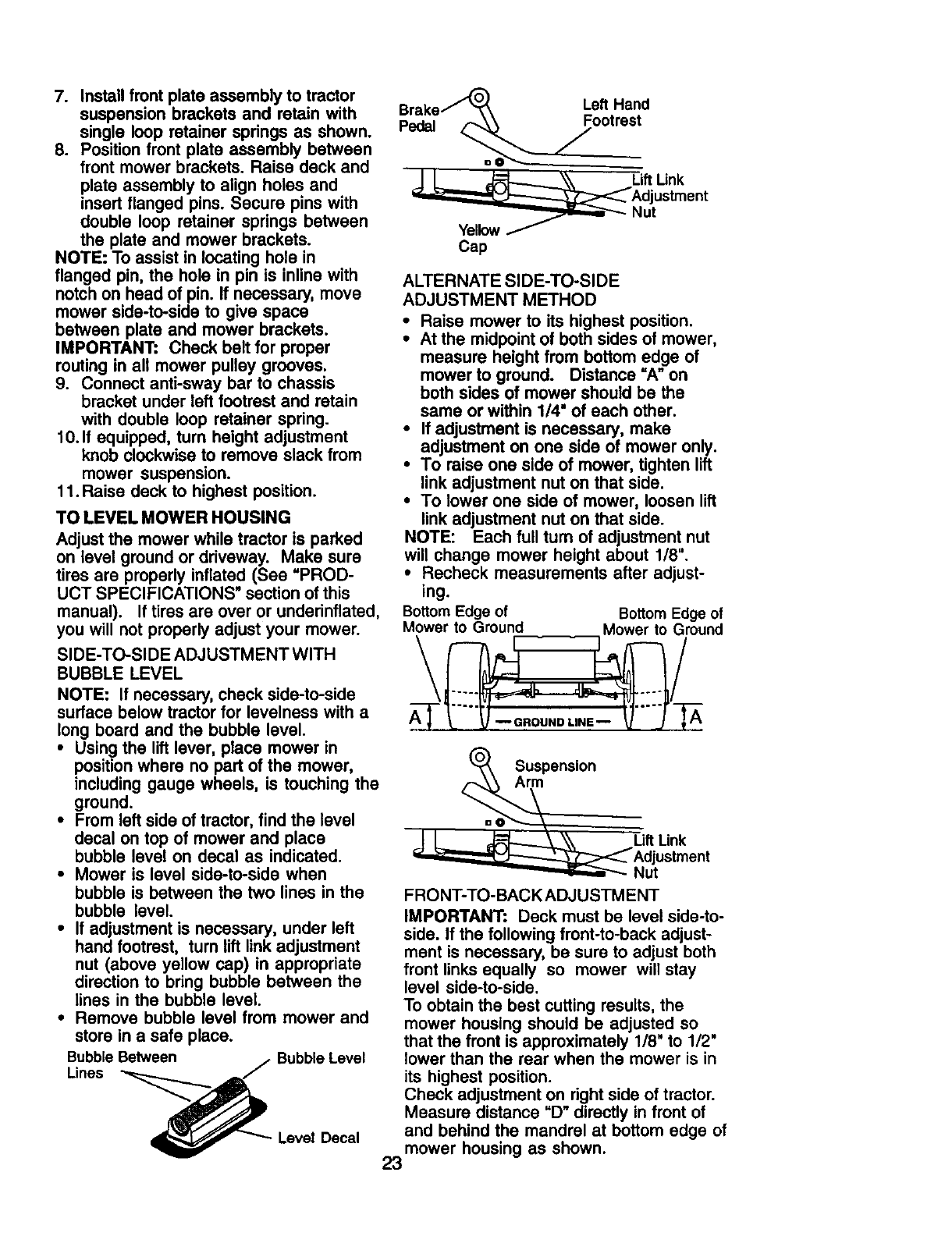

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See =PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or underinflated,

you will not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

•Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

• From left side of tractor, find the level

decal on top of mower and place

bubble level on decal as indicated.

•Mower is level side-to-side when

bubble is between the two lines in the

bubble level.

•If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

•Remove bubble level from mower and

store in a safe place.

Bubble Between .Bubble Level

__ _ Level Decal

Lines

Brake.,,_ Left Hand

Pedal _ jootrest

LiftUnk

Adjustment

Nut

Cap

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

•Raise mower to its highest position.

•At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground. Distance =A" on

both sides of mower should be the

same or within 1/4" of each other.

•If adjustment is necessary, make

adjustment on one side of mower only.

•To raise one side of mower, tighten lift

link adjustment nut on that side.

•To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 1/8".

•Recheck measurements after adjust-

ing.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

=o_ Suspensi°n

_Adjuslmenl

__ Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

that the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

•Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

•If links are not equal in length, adjust

one link to same length as other link.

•To lower front of mower loosen nut =1£'

on both front links an equal number of

turns.

•When distance =D" is 1/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnion on both front links.

•To raise front of mower, loosen nut =F"

from trunnion on both front links.

Tighten nut =E" on both front links an

equal number of tums. The two front

links must remain equal in length.

•When distance =D" is 1/8" to 1/2" lower

at front than roar, tighten nut =F" against

trunnion on both front links.

•Recheck side-to-side adjustment.

Measure distance =D" directly in front of

and behind the mandrel at bottom edge of

mower housing as shown.

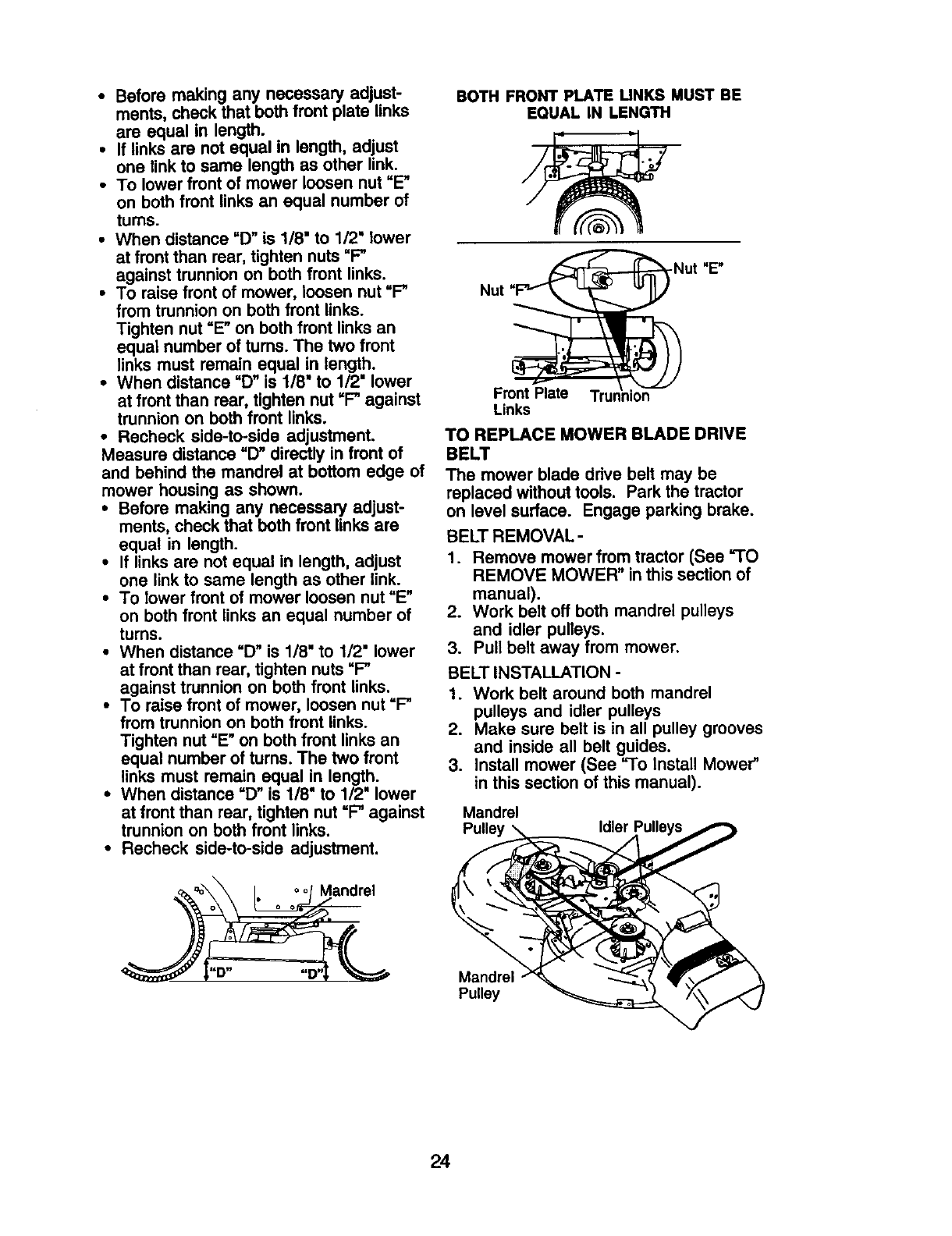

•Before making any necessary adjust-

ments, check that both front links are

equal in length.

•If links are not equal in length, adjust

one link to same length as other link.

•To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

•When distance =D" is 1/8" to 1/2" lower

at front than rear, tighten nuts =F"

against trunnion on both front links.

•To raise front of mower, loosen nut =F"

from trunnion on both front links.

Tighten nut =E" on both front links an

equal number of turns. The two front

links must remain equal in length.

•When distance =D" is 1/8" to 1/2" lower

at front than rear, tighten nut =F" against

trunnion on both front links.

•Recheck side-to-side adjustment.

Mandrel

BOTH FRONT PLATE UNKS MUST BE

EQUAL IN LENGTH

Nut

Front Plate Trur

Links

Nut "E"

don

TO REPLACE MOWER BLADE DRIVE

BELT

The mower blade drive belt may be

replaced without tools. Park the tractor

on level surface. Engage parking brake.

BELT REMOVAL-

1. Remove mower from tractor (See =TO

REMOVE MOWER" in this section of

manual).

2. Work belt off both mandrel pulleys

and idler pulleys.

3. Pull belt away from mower.

BELT INSTALLATION -

1. Work belt around both mandrel

pulleys and idler pulleys

2. Make sure belt is in all pulley grooves

and inside all belt guides.

3. Install mower (See =To Install Mower"

in this section of this manual).

Mandrel Idler

Mandrel

Pulley

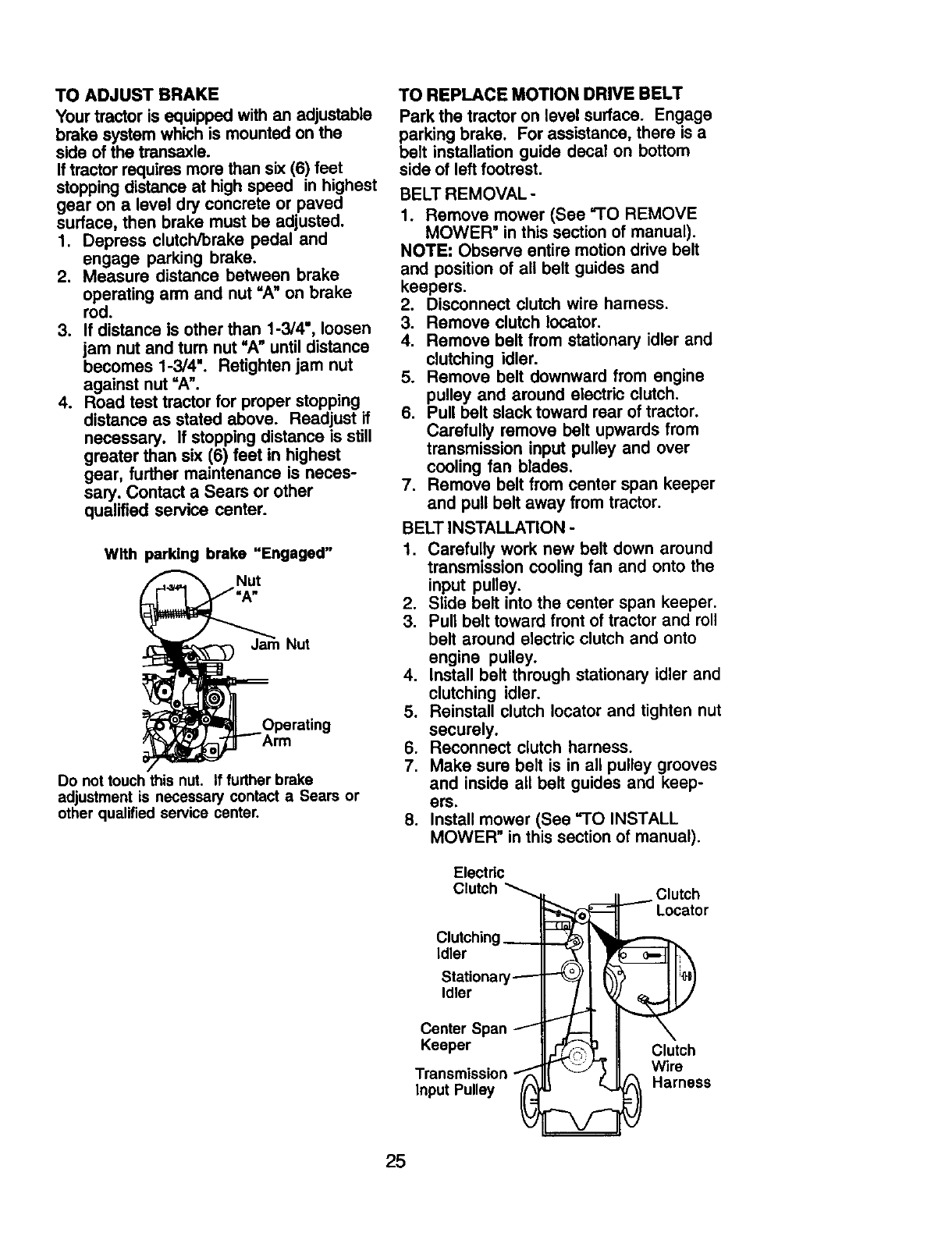

TO ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

side ofthe transaxle.

If tractor requiresmore than six (6) feet

stoppingdistance at high speed in highest

gear on a level dry concrete or paved

surface, then brake must be adjusted.

1. Depress clutch/brake pedal and

engage parking brake.

2. Measure distance between brake

operating arm and nut =A" on brake

rod.

3. If distance is other than 1-3/4", loosen

jam nut and turn nut =A" until distance

becomes 1-3/4". Retighten jam nut

against nut =A".

4. Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact a Sears or other

qualified service center.

With parking brake "Engaged"

Nut

J_m Nut

Operating

Do not touch this nut. If further brake

adjustment is necessary contact aSears or

other qualified service center.

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For assistance, there is a

belt installation guide decal on bottom

side of left footrest.

BELT REMOVAL -

1. Remove mower (See =TO REMOVE

MOWER" in this section of manual).

NOTE: Observe entire motion drive belt

and position of all belt guides and

keepers.

2. Disconnect clutch wire harness.

3. Remove clutch locater.

4. Remove belt from stationary idler and

clutching idler.

5. Remove belt downward from engine

pulley and around electric clutch.

6. Pull belt slack toward rear of tractor.

Carefully remove belt upwards from

transmission input pulley and over

cooling fan blades.

7. Remove belt from center span keeper

and pull belt away from tractor.

BELT INSTALLATION -

1. Carefully work new belt down around

transmission coolingfan and onto the

input pulley.

2. Slide belt into the center span keeper.

3. Pull belt toward front oftractor and roll

belt around electric clutch and onto

engine pulley.

4. Install belt through stationary idler and

clutching idler.

5. Reinstall clutch locater and tighten nut

securely.

6. Reconnect clutch harness.

7. Make sure belt is in all pulley grooves

and inside all belt guides and keep-

ers.

8. Install mower (See =TO INSTALL

MOWER" in this section of manual).

Electric

Clutch

Clutching_

Idler

Stationary_

Idler

Center Span 1_"

Keeper

Transmission

Input Pulley

oClutch r

Harness

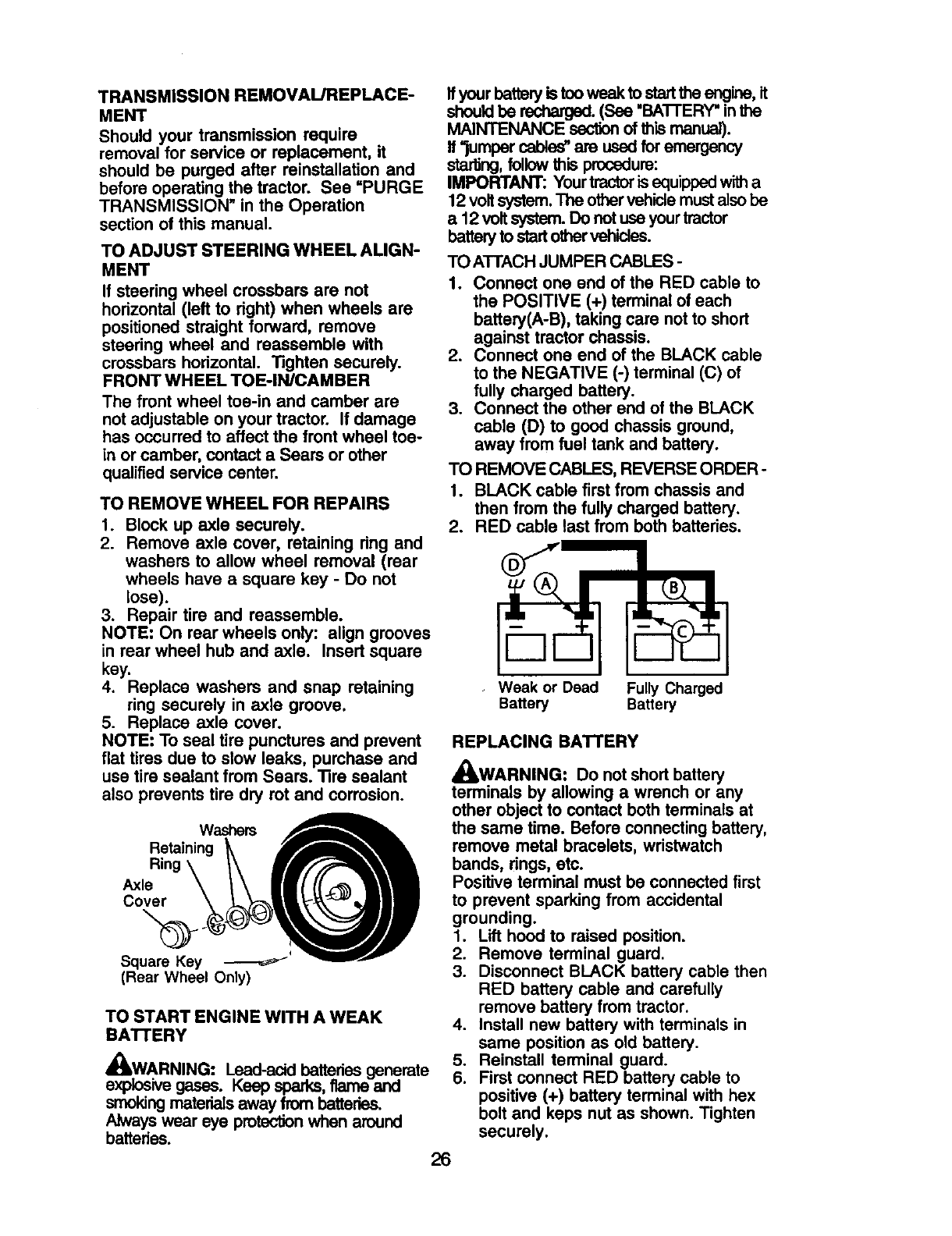

TRANSMISSION REMOVAUREPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See =PURGE

TRANSMISSION" in the Operation

section of this manual.

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to dght) when wheels are

positioned straight forward, remove

steering wheel and reassemble with

crossbars hodzontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are

not adjustable on your tractor. If damage

has occurred to affect the front wheel toe-

in or camber, contact a Sears or other

qualified service center.

TO REMOVE WHEEL FOR REPAIRS

1. Block up axle securely.

2. Remove axle cover, retaining dng and

washers to allow wheel removal (rear

wheels have a square key - Do not

lose).

3. Repair tire and reassemble.

NOTE: On rear wheels only: align grooves

in rear wheel hub and axle. Insert square

key.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

NOTE: To seal tire punctures and prevent

fiat tires due to slow leaks, purchase and

use tire sealant from Sears. Tire sealant

also prevents tire dry rot and corrosion.

Washers

Retaining

Ring

Axle

Cover

Square Key _'

(Rear Wheel Only)

TO START ENGINE WITH A WEAK

BATI'ERY

e_kWosA.RNING:Lead-acidbatterissgenerate

h/egasas. Keepsparks,flame and

smokingmaterialsaway from batteries.

Alwayswear eye protectionwhen around

battedes.

ffyour battery is teo weak to start the engine, it

.shouldbe recharged. (See "BATrERY" inthe

MAINTENANCE section of this manual).

ff "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped with a

12 volt system. The other vehicle must also be

a 12 volt system. Do not use your tractor

battery to start other vehiclea.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable to

the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

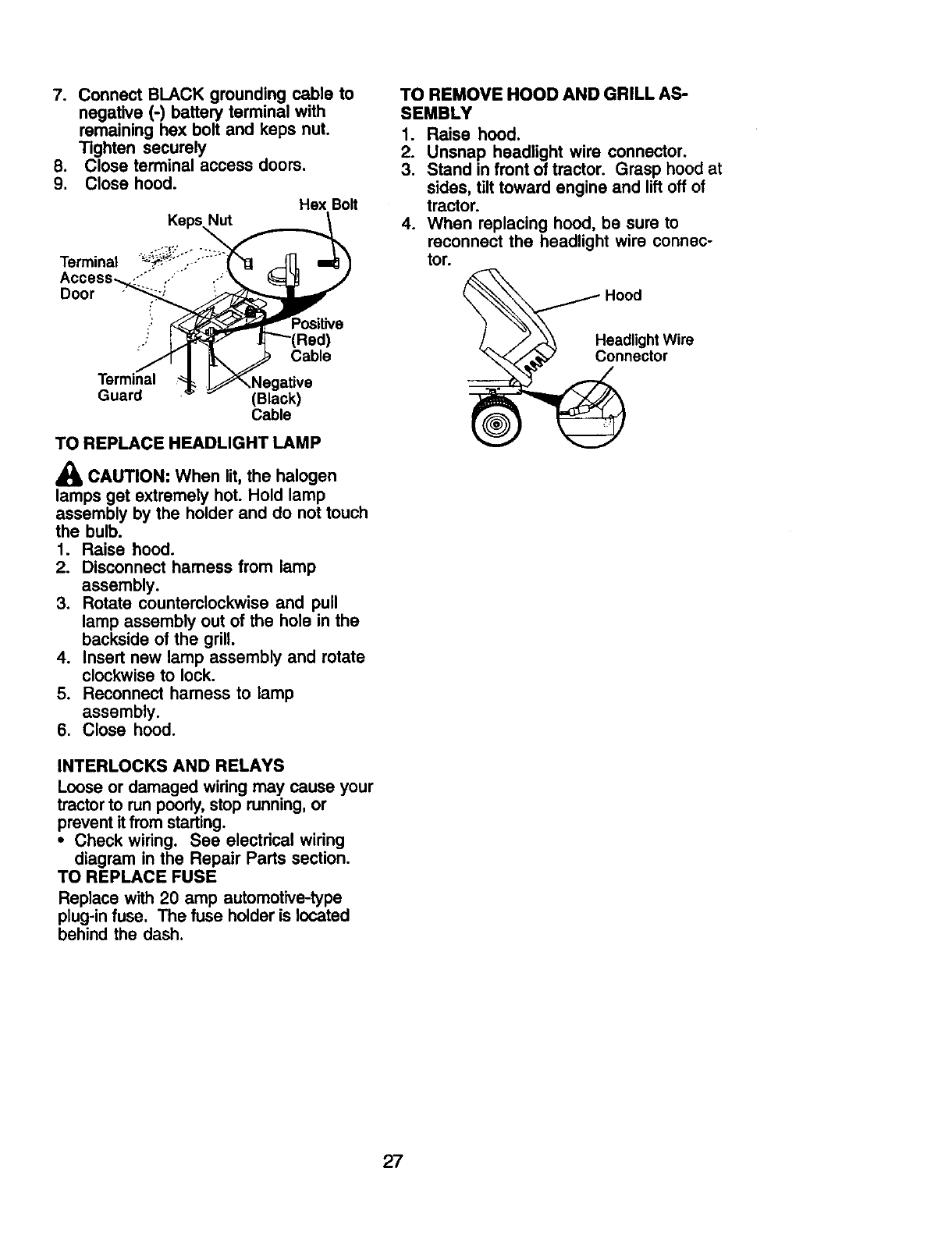

7. ConnectBLACKgroundingcableto

negative(-) batteryterminalwith

remaininghex boltand keps nut.

Tightensecurely

8. Closeterminalaccessdoors.

9, Closehood. HexBolt

KepsNut

Terminal

Door

Cable

,Negative

Guard (Black)

Cable

TO REPLACE HEADLIGHT LAMP

CAUTION: When lit, the halogen

lamps get extremely hot. Hold lamp

assembly by the holder and do not touch

the bulb.

1. Raise hood.

2. Disconnect harness from lamp

assembly.

3. Rotate counterclockwise and pull

lamp assembly out of the hole in the

backside of the grill.

4. Insert new lamp assembly and rotate

clockwise to lock.

5. Reconnect harness to lamp

assembly.

6. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged widng may cause your

tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 20 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to

reconnect the headlight wire connec-

tor.

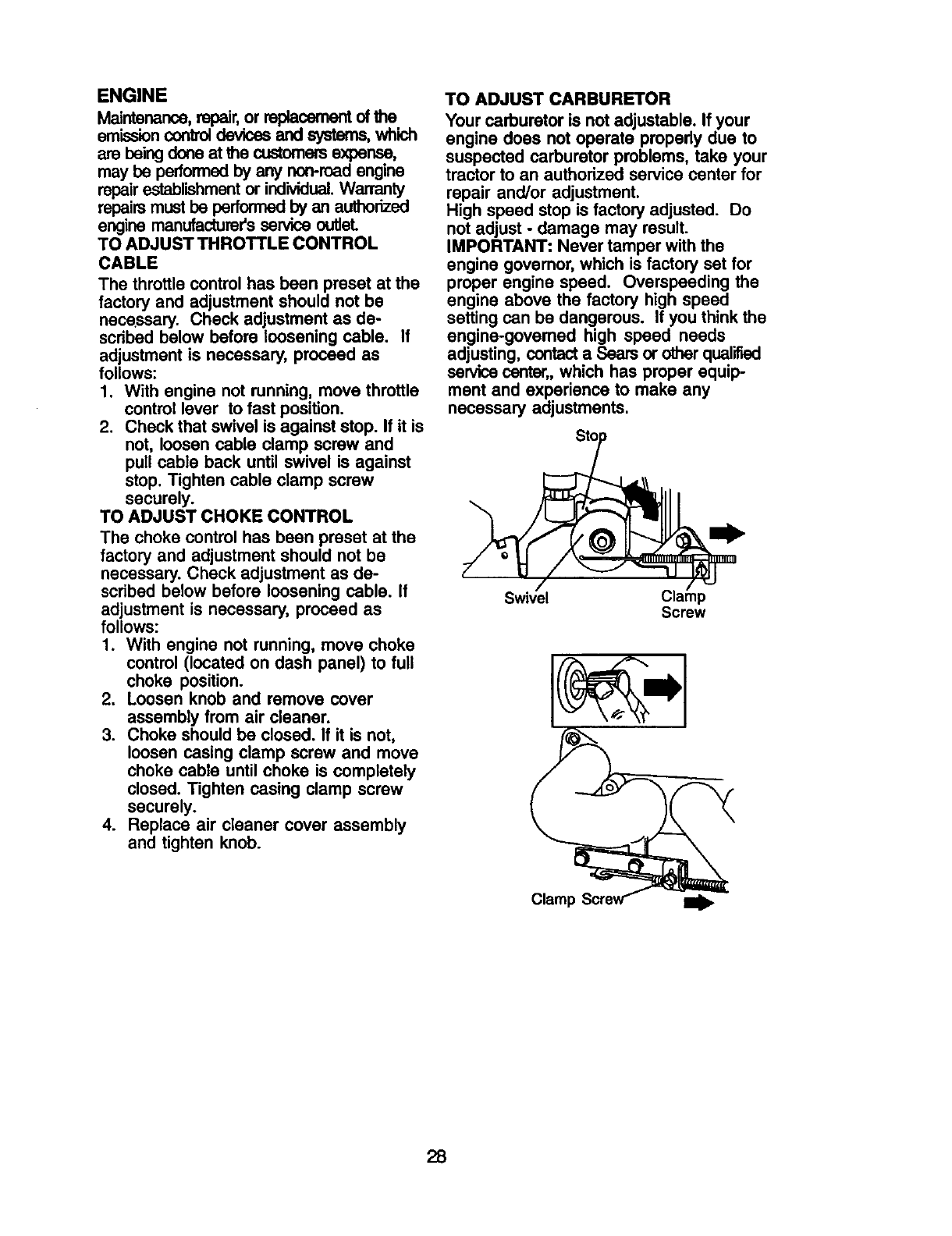

ENGINE

Maintenance, repair, or replacement of the

emission control devices and systems, which

are being done at the customers expense,

may be performed by any non-road engine

repair establishment or individual. Warranty

repairs must be performed by an authorized

engine manufacturer's service outJeL

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it is

not, loosen cable clamp screw and

pull cable back until swivel is against

stop. Tighten cable clamp screw

securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover

assembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to an authorized service canter for

repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust -damage may result.

IMPORTANT: Never tamper with the

engine govemor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

setting can be dangerous. If you think the

engine-govemed high speed needs

adjusting, contacta Sears or otherqualified

se_ce center,,which has proper equip-

ment and experience to make any

necessary adjustments.

Clamp

Screw

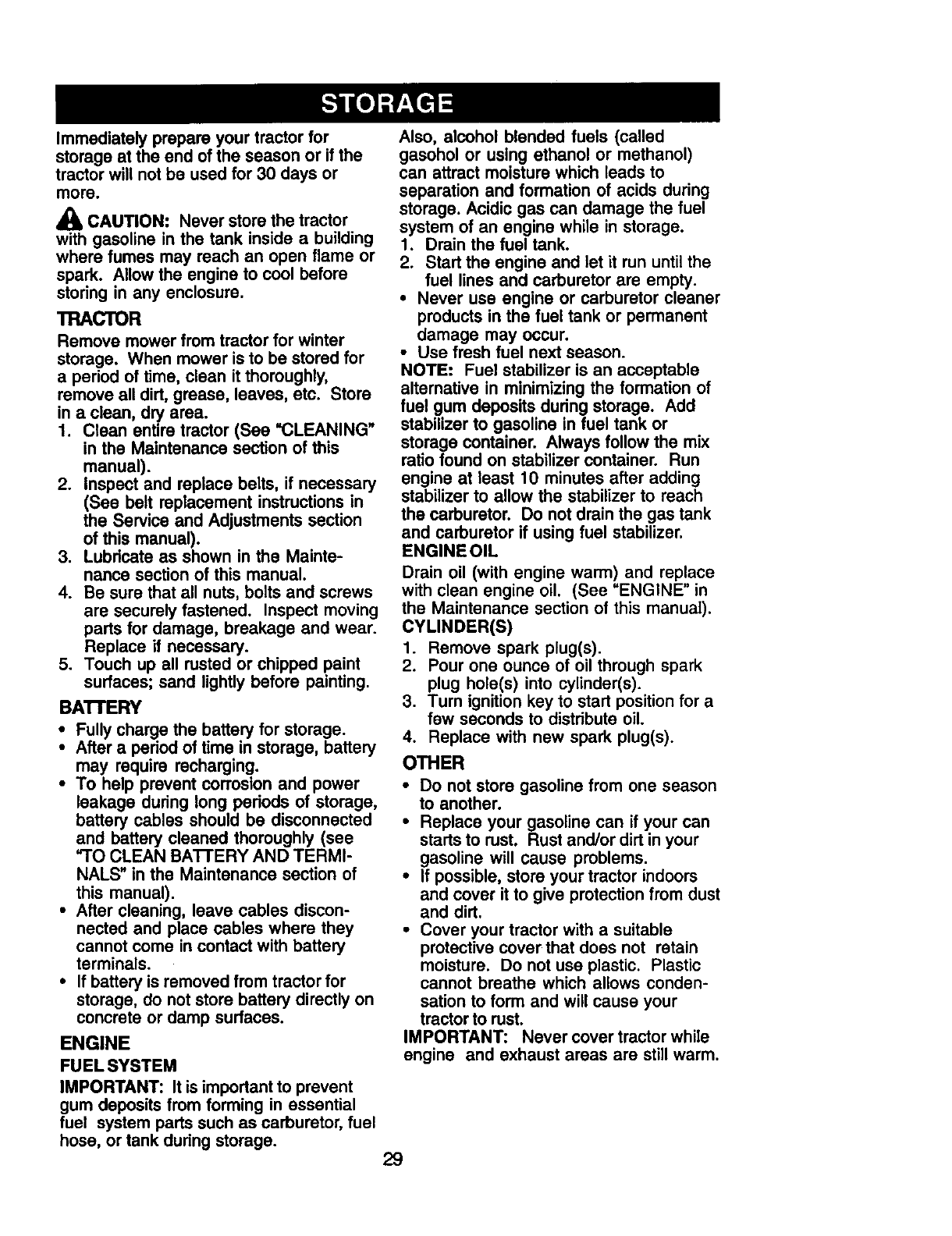

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

,_ CAUTION: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame or

spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt,grease, leaves, etc. Store

in a clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section

of this manual).

3. Lubricate as shown in the Mainte-

nance section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATI'ERY

•Fully charge the battery for storage.

•After a period of time in storage, battery

may require recharging.

•To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see

_1"OCLEAN BA'I-I'ERY AND TERMI-

NALS_in the Maintenance section of

this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

•If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage.

Also, alcohol blended fuels (called

gasohol or using ethanol or methanol)

can attract moisture which leads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage.

1. Drain the fuel tank.

2. Start the engine and let it run until the

fuel lines and carburetor are empty.

•Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

•Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See =ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

•Do not store gasoline from one season

to another.

•Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

•If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

•Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

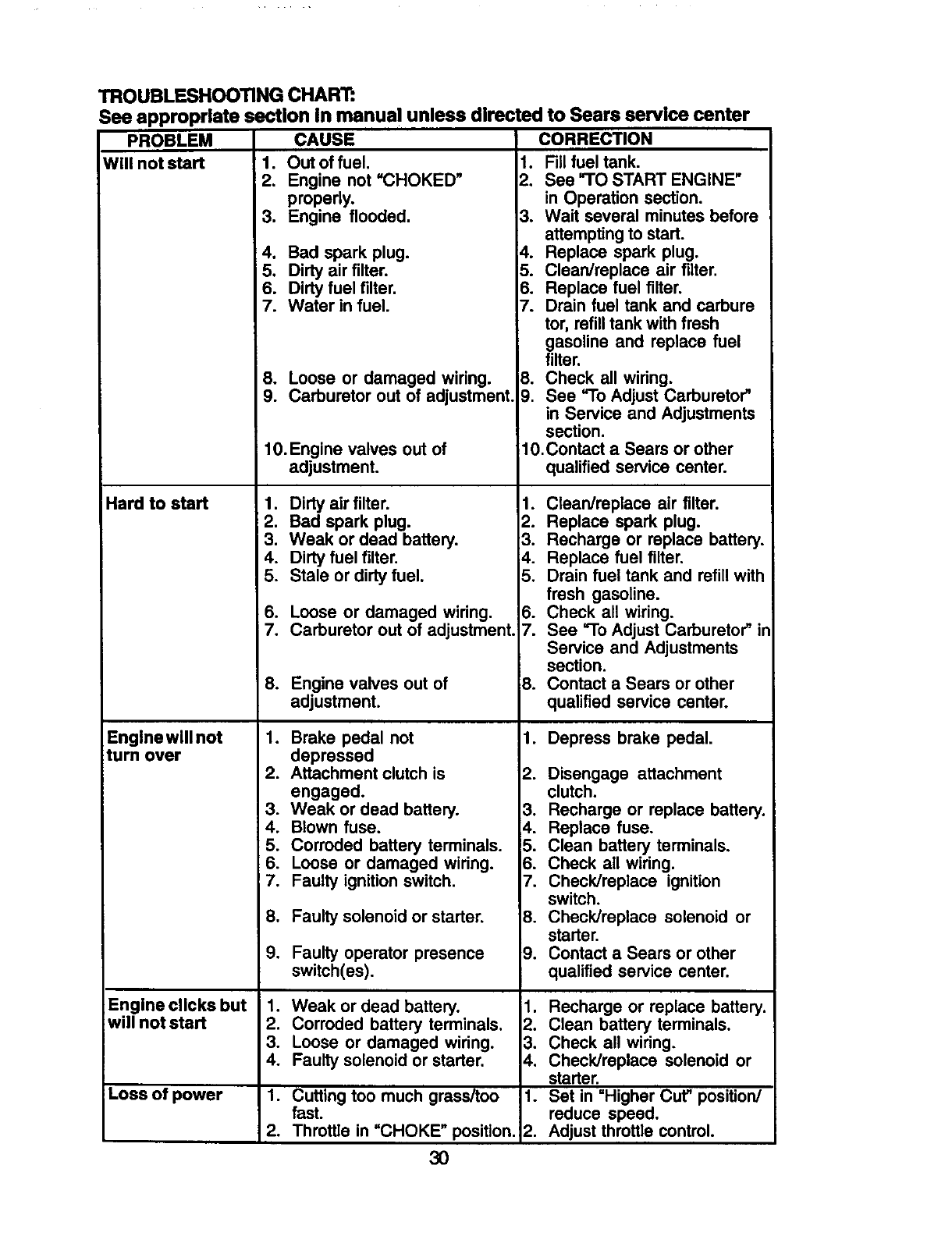

TROUBLESHOOTINGCHART:.

See appropriate section In manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

Engine clicks but

will not start

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirtyfuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Brake pedal not

depressed

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

CORRECTION

1. Fillfuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes before

attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Drain fuel tank and carbure

tor, refill tank with fresh

gasoline and replace fuel

filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

lO.Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with

fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in

Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress brake pedal.

2. Disengage attachment

clutch.

3. Recharge or replace battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

Loss of power 1. Cutting too much grass/too 1.

fast.

2. Throttle in =CHOKE" position. 2.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

Set in "Higher Cut" position/

reduce speed.

Adjust throttle control.

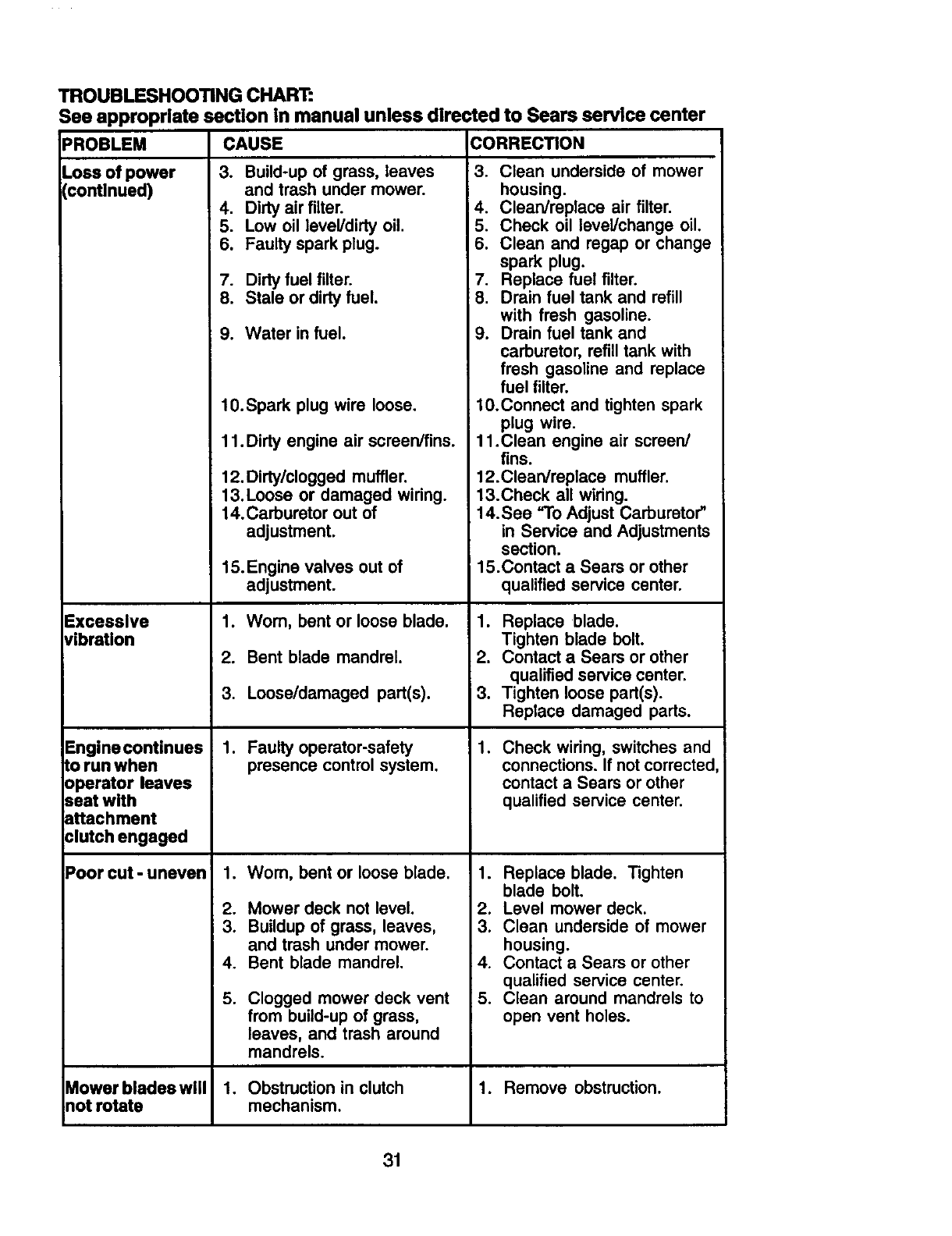

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

CAUSE

PROBLEM

Loss of power

contlnued)

Excessive

vibration

Engine continues

Io run when

)perator leaves

seat with

_ttachment

:lutch engaged

_oorcut-uneven

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirtyfuel.

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

1. Worn, bent or loose blade.

2. Mower deck not level.

3. Buildup of grass, leaves,

and trash under mower.

4. Bent blade mandrel.

,Clogged mower deck vent

from build-up of grass,

leaves, and trash around

mandrels.

CORRECTION

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Drain fuel tank and refill

with fresh gasoline.

9. Drain fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

10.Connect and tighten spark

plug wire.

11 .Clean engine air screen/

fins.

12.Clean/replace muffler.

13.Check all widng.

14.See "To Adjust Carburetor"

in Service and Adjustments

section.

15.Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

,Check wiring, switches and

connections. If not corrected

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

•owerbladeswlil 1. Obstruction in clutch 1. Remove obstruction.

not rotate mechanism.

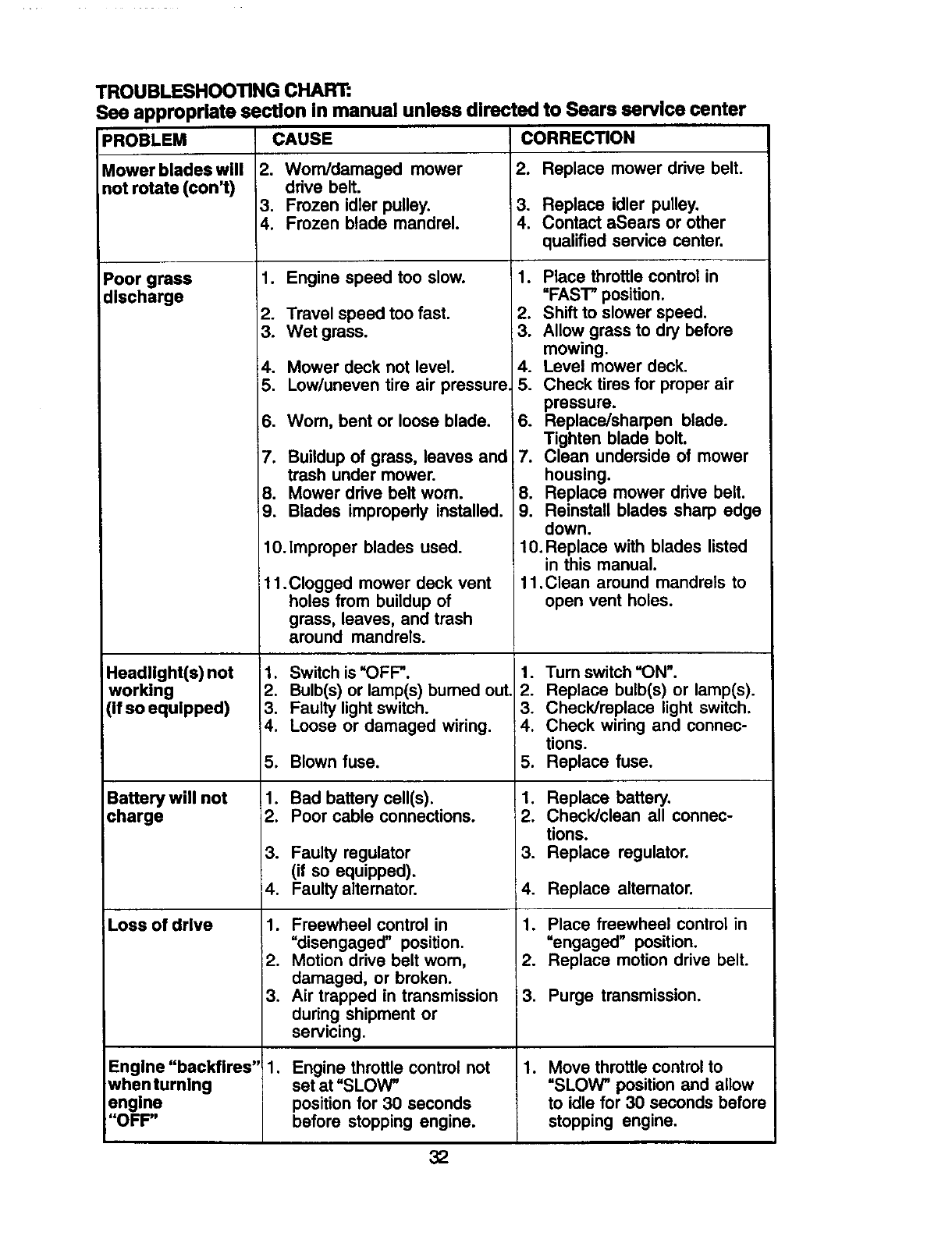

TROUBLESHOOTINGCHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Mower blades will 2. Worn/damaged mower 2. Replace mower drive belt.

not rotate (con't) drive belt.

3. Frozen idler pulley. 3. Replace idler pulley.

4. Frozen blade mandrel. 4. Contact aSears or other

qualified service center.

Poor grass 1. Engine speed too slow.

discharge 2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure

6. Wom, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.1mproper blades used.

11.Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

Headlight(a) not 1.

working 2.

(if so equipped) 3.

Battery will not 1.

charge 2.

Loss of drive 1.

Engine "backfires" 1.

whenturnlng

engine

"OFF"

Switch is =OFP.

Bulb(s) or lamp(s) bumed out.

Faulty light switch.

Loose or damaged wiring.

Blown fuse.

Bad battery cell(s).

Poor cable connections.

Faulty regulator

(if so equipped).

Faulty alternator.

Freewheel control in

=disengaged" position.

Motion drive belt wom,

damaged, or broken.

Air trapped in transmission

during shipment or

servicing.

Engine throttle control not

set at "SLOW _

position for 30 seconds

before stopping engine.

1. Place throttle control in

=FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

i6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch =ON'.

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

1. Place freewheel control in

=engaged" position.

2. Replace motion drive belt.

3. Purge transmission.

.Move throttle control to

=SLOW" position and allow

to idle for 30 seconds before

stopping engine.

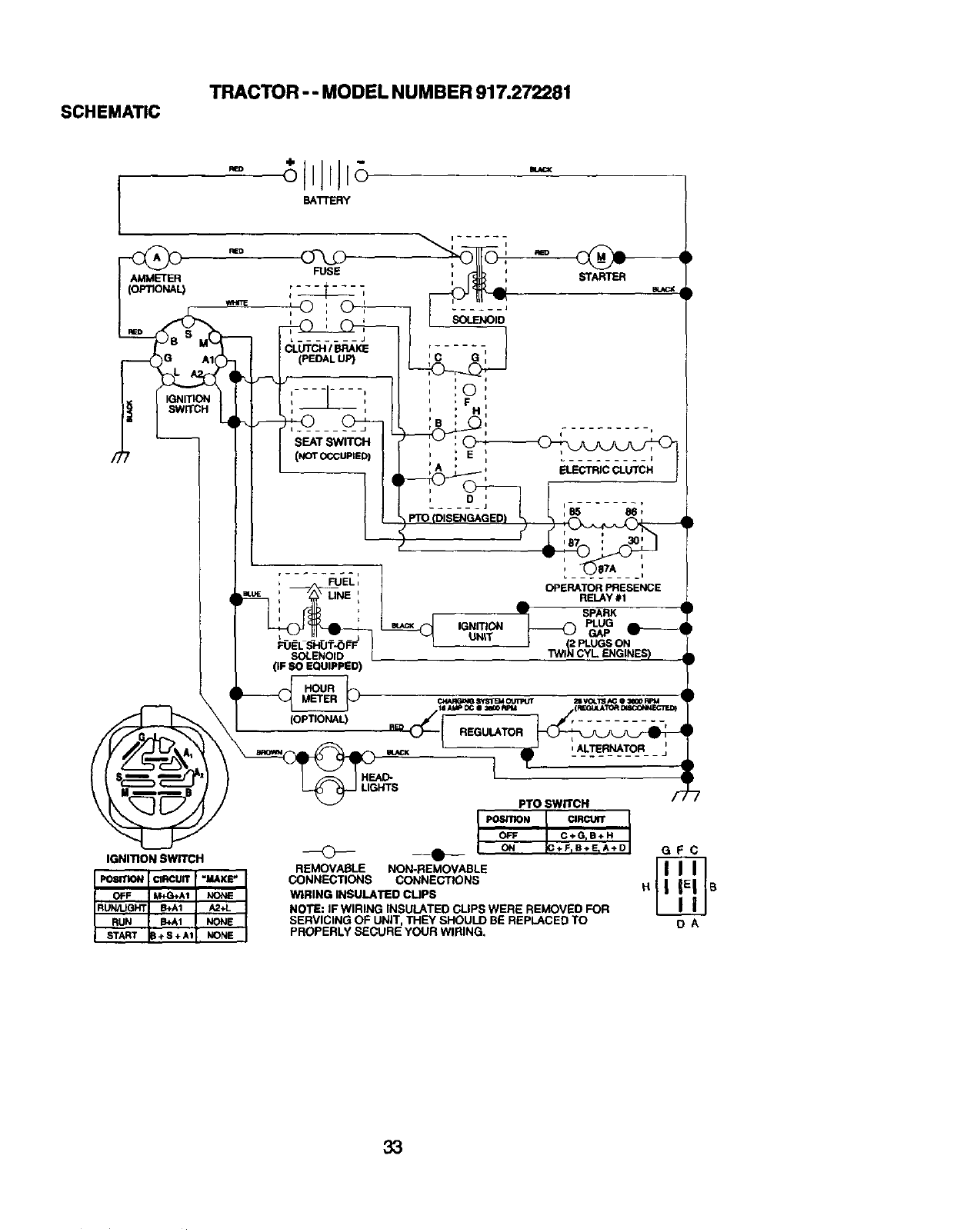

TRACTOR -- MODEL NUMBER 917.272281

SCHEMATIC

IGNmON SWITCH

SEAT SWITCH

(NOT OCCUPIED)

, i ! _ ......... =

bFUEL' _OPERATORPRESENCE

KUE i LINE J A RELAY#t

i__ _ SPARK

'=IGNITION PLUG

...... UNiT GAP

I_ PLUGSON

FUELSHUT-OFF _CYL ENGINES) ,

(IF SO EQUIPPED)

LIGHTS

L-_--J LIC PTO SWITCH F

C+GeB+H

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED GLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

GFC

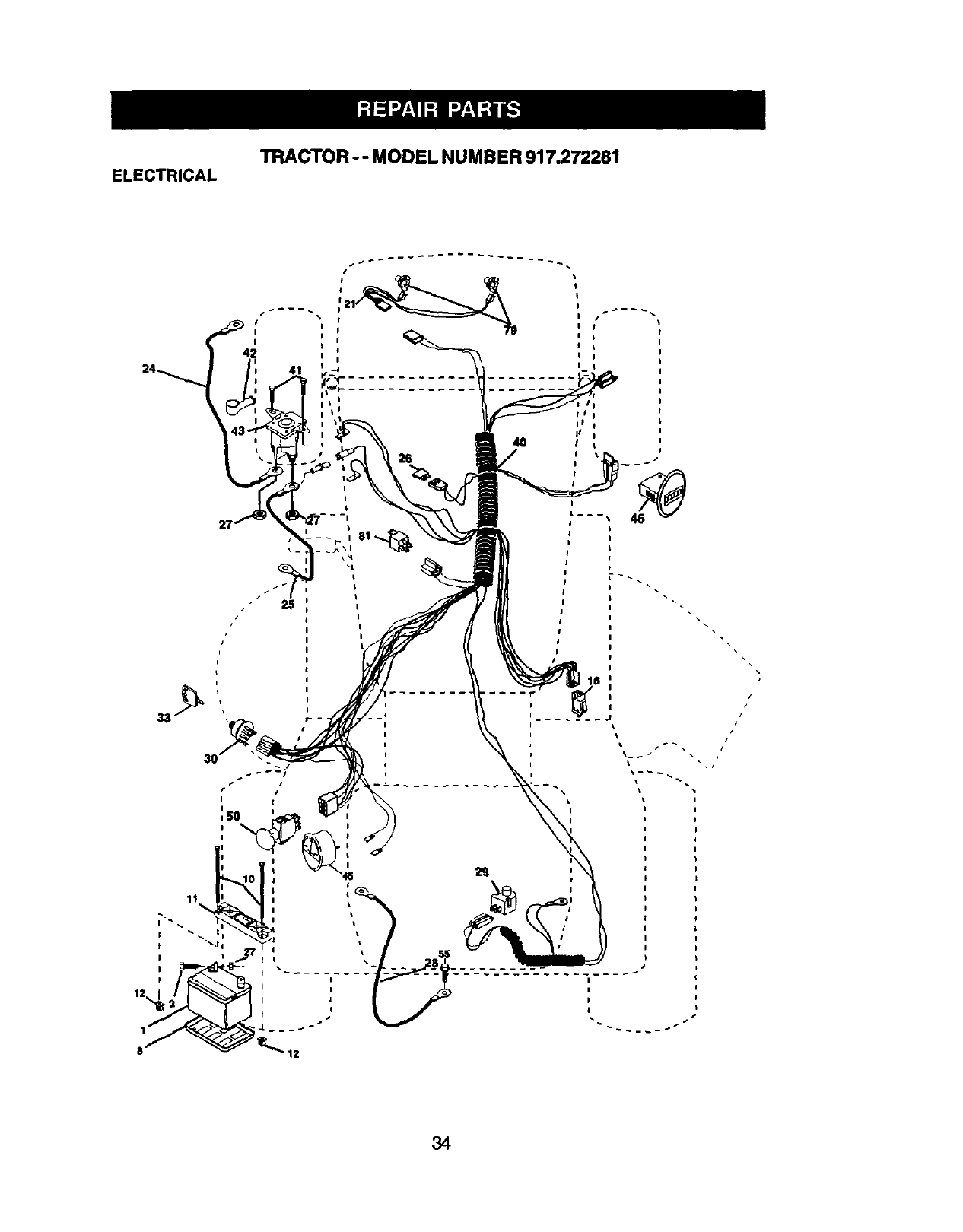

ELECTRICAL TRACTOR -- MODEL NUMBER 917.272281

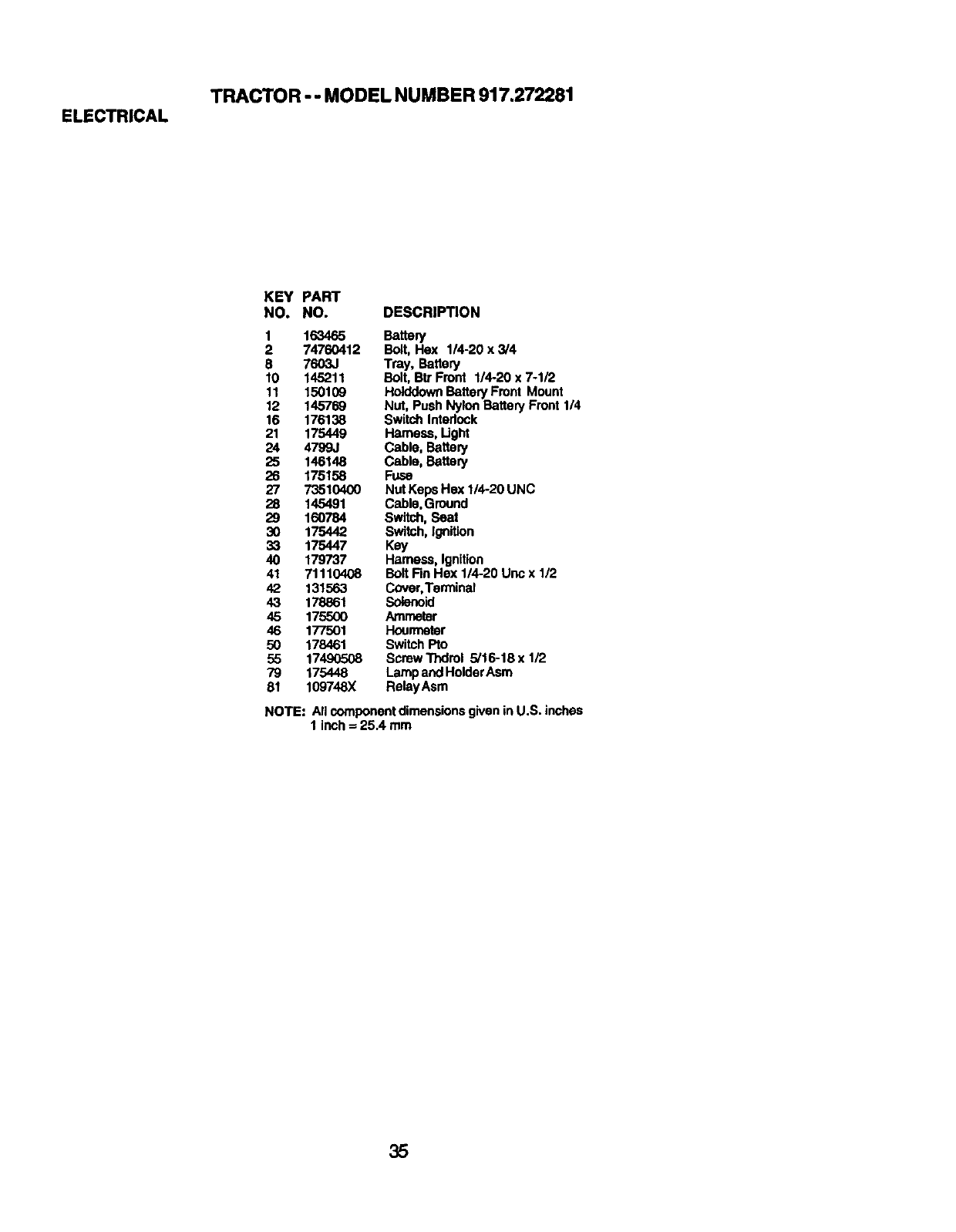

TRACTOR -- MODEL NUMBER 917.272281

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 163465 Battery

2 74760412 Bolt, Hex 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt, Btr Front 1/4-20 x 7-1/2

11 150109 Holddown Battery Front Mount

12 145769 Nut, Push Nylon Battery Front 1/4

16 176138 Switch Intedock

21 175449 Harness, Light

24 4799J Cable, Battery

25 146148 Cable, Battery

26 175158 Fuse

27 73510400 Nut Keps He)( 1/4-20 UNC

28 145491 Cable, Ground

29 160784 Switch, Seat

30 175442 Switch, Ignition

33 175447 Key

40 179737 Harness, Ignition

41 71110408 Bolt Fin He)( 1/4-20 Unc x 1/2

42 131563 Cover,Terminal

43 178861 Solenoid

45 175500 Ammeter

46 177501 Hourmeter

50 178461 SwitchPto

55 17490508 Scrow Thdrol 5116-18x 1/2

79 175448 Lamp and HolderAsm

81 109748X ReleyAsm

NOTE: All componentdimensionsgiven in U.S. inches

1 inch = 25.4 mm

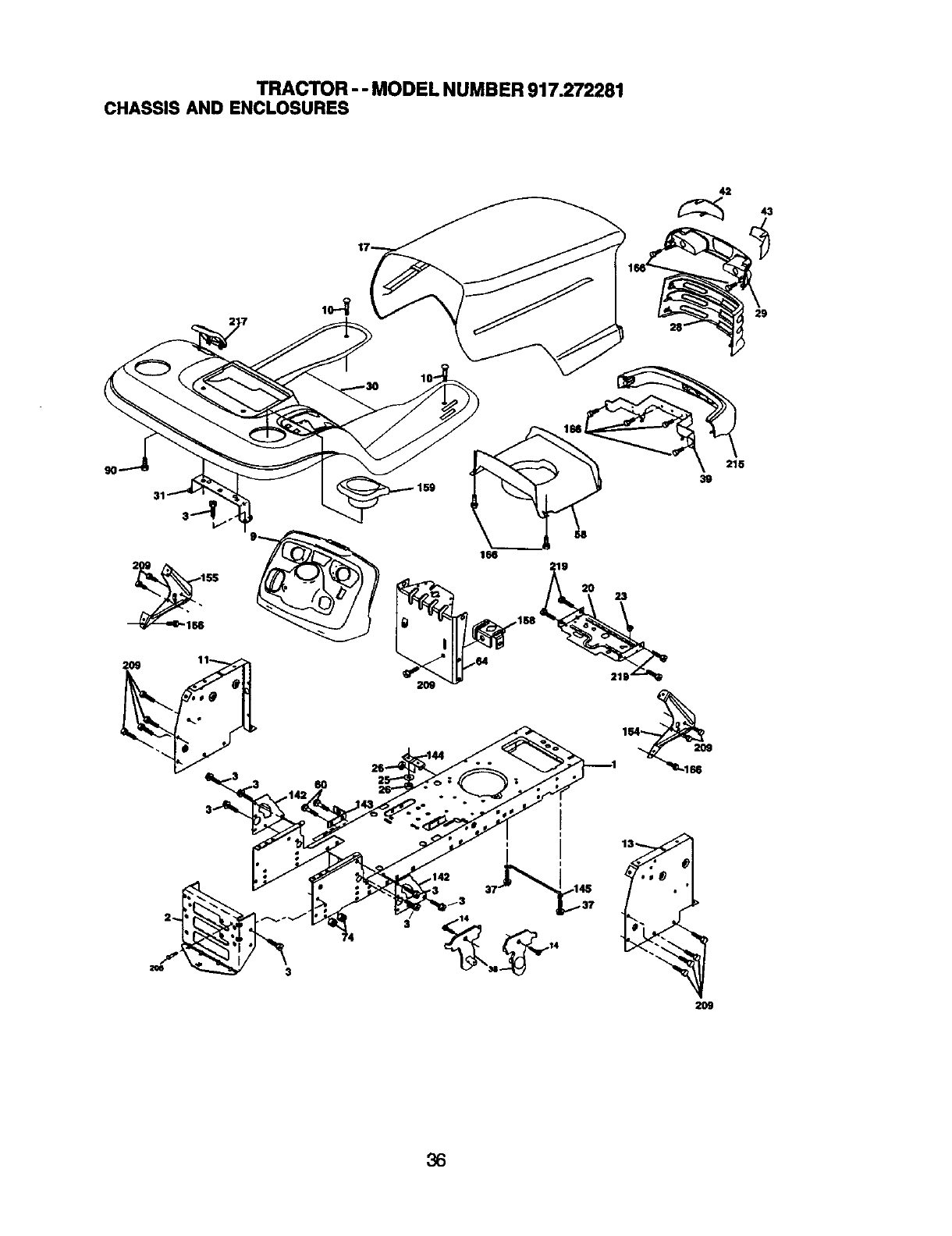

TRACTOR - - MODEL NUMBER 917.272281

CHASSISAND ENCLOSURES

215

2O9

166

2O 23

2OO

2O9

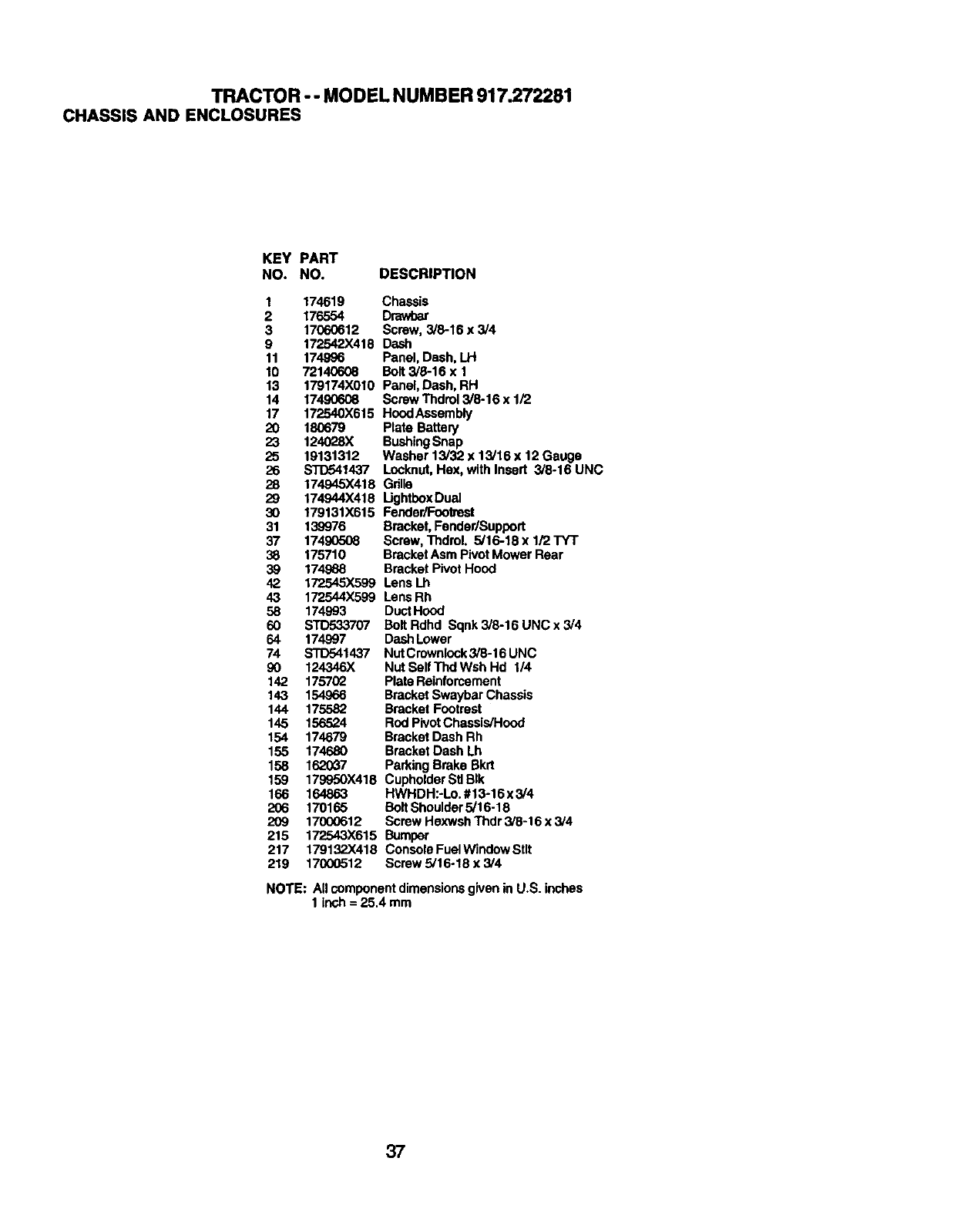

TRACTOR-- MODEL NUMBER 917.272281

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRIPTION

1 174619 Chassis

2 176554

3 17060612 Screw, 3/8-16 x 3/4

9 172542)(418 Dash

11 174996 Panel, Dash, I_H

10 72140608 Bolt 3/8-16 x 1

13 179174X010 Panel, Dash, RH

14 17490608 Screw Thdrol 3/8-16 x 1/2

17 172540X615 HoodAssembly

20 180679 Plate Battely

23 124028X BushingSnap

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD541437 Locknut,Hex, with Insert 3/8-16 UNC

28 174945X418 Grille

29 174944X418 LightboxDual

30 179131X615 Fender/Footrest

31 139976 Bracket,Fender/Support

37 17490508 Screw, Thdrol. 5/16-18 x 1/2 TYT

38 175710 BracketAsm Pivot Mower Rear

39 174988 Bracket Pivot Hood

42 172545X599 Lens I.h

43 172544X599 Lens Rh

58 174993 DuctHood

60 STD533707 BoltRdhd Sqnk3/8-16UNCx3/4

64 174997 Dash Lower

74 STD541437 NutCrownlock3/8-16 UNC

90 124346X Nut Self Thd Wsh Hd 1/4

142 17570_ Plate Reinforcement

143 154966 Bracket Swaybar Chassis

144 175582 Bracket Footrest

145 156524 Rod PivotChassis/Hood

154 174679 Bracket Dash Rh

155 174680 Bracket Dash Lh

158 1620_7 Parking Brake Bkrt

159 179950X418 CupholderStlBIk

166 164863 HWHDH:-Lo.#13-16 x3/4

206 170165 BoltShoulder 5/16-18

209 17000612 Screw HexwshThdr 3/8-t 6 x 3/4

215 172543X615 Bumper

217 179132X418 ConsoleFuelWindowStlt

219 17000512 ScrewS/16-18x3/4

NOTE: Allcomponentdimensionsgiven in U.S. inches

1 inch= 25.4 mm

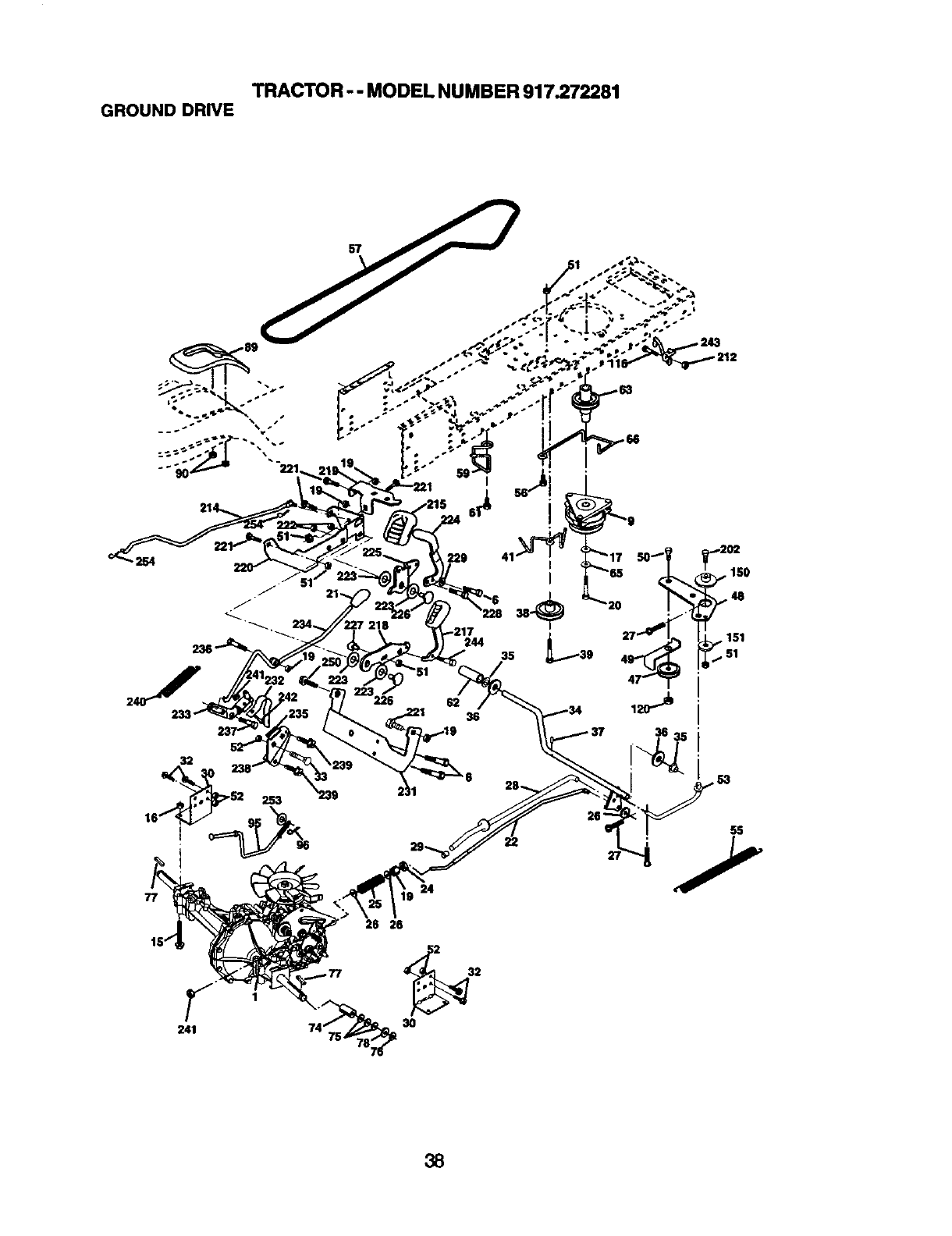

TRACTOR -- MODEL NUMBER 917.272281

GROUNDDRIVE

_52 253

241

244

226 62

26 26

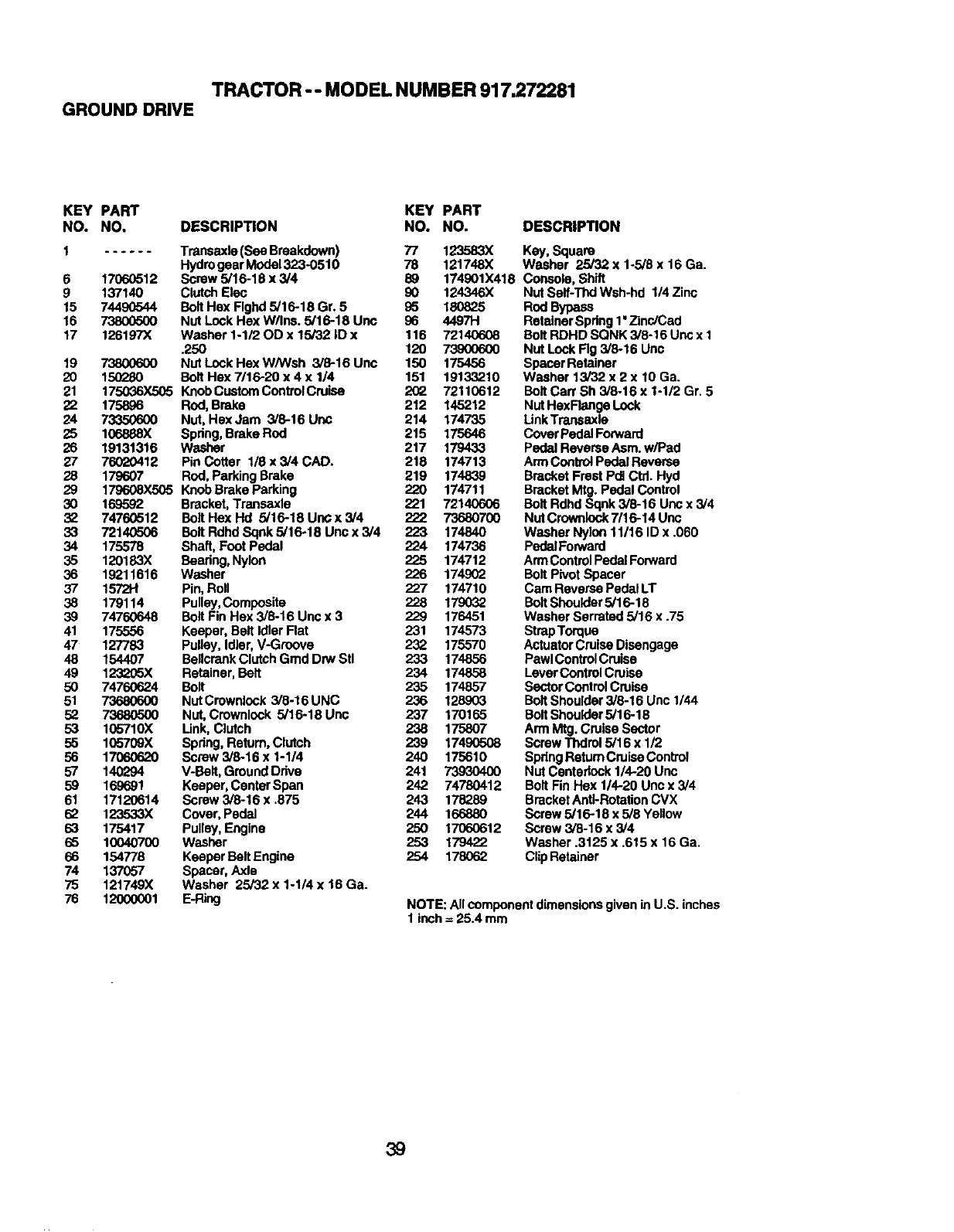

TRACTOR -- MODEL NUMBER 917.272281

GROUNDDRIVE

KEY PARr KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1...... Transaxle (See Breakdown) 77

Hydrogear Model323-O510 78

6 17060512 Screw 5/16-16 x 3/4 89

9137140 ClutchElec 90 124346X

15 74490544 BoltHe)( Flghd 5/16-18 Gr. 5 95 180825

16 _Nut Lock Hex W/Ins. 5/16-18 Unc 96 4497H

17 126197X Washer 1-1/20D x 15/32 ID x 116 72140608

.250 120 73900600

19 73800600 NutLockHexW/Wsh 3/6-16Unc 150 175456

20 150P_80 Bolt Hex 7/16-20 x 4 x 1/4 151 19133210

21 175036X505 KnobCustaroControlCruise 202 72110612

22 175896 Rod,Brake 212 145212

24 73350600 Nut, He:<Jam 3/6-16 Uoc 214 174735

25 106888X Spring,Brake Rod 215 175646

26 19131316 Washer 217 179433

27 760_0412 Pin Cotter 1/8 x 3/4 CAD. 218 174713

28 179607 Rod, Parking Brake 219 174839

29 179608X505 KnobBrake Parking _174711

30 16..o592 Bracket, Transaxle 221 72140606

:_ 74760512 BoltHexHd 5/16-18Uncx3/4 222 73680700

33 72140506 Bolt Rdhd Sqnk 5/16-18 Unc x 3/4 223 174840

34 175578 Shaft, Foot Pedal 224 174736

35 120183X Boedng, Nylon 225 174712

36 19211616 Washer 226 174902

37 1572H Pin, Roll 227 174710

38 179114 Pulley,Composite 228 179032

39 74760648 Bolt Fin He)( 3/8-16 Unc x 3 229 176451

41 175556 Keeper, Belt Idler Flat 231 174573

47 127783 Pulley, Idler, V-Groove 232 175570

48 154407 BellcrankClutchGmd Drw Stl 233 174856

49 123205X Retainer, Belt 234 174858

50 74760624 Bolt 235 174857

51 73680600 NutCrownlock 3/8-16UNC 236 128903

52 73680500 NUt,Crownlock 5/16-18 Unc 237 170165

53 10b-'/10X Link, Clutch 238 175807

55 105709X Spring, Retum, Clutch 239 17490508

56 17060620 Screw 3/8-16 x 1-1/4 240 175610

57 140_294 V-Belt, GroundDrive 241 73930400

59 169691 Keeper, Center Span 242 74780412

61 17120614 Screw 3/8-16 x .875 243 178289

62 123533 Cover,Pedal 244 166880

63 175417 Pulley, Engine 250 17060612

65 10040700 Washer 253 179422

66 154778 Keepor BaitEngine 254 178062

74 137057 Spacer, Axle

75 121749X Washer 25/32 x 1-1/4 x 16 Ga.

76 12000001 E-Ring

123583X Key, Square

121748X Washer 25/32 x 1-5/8 x 16 Ga.

174901X418 Console, Shift

NUtSeff-Thd Wsh-hd 1/4 Zinc

Rod Bypass

RetainerSpring 1' Zinc/Cad

Belt RDHD SQNK 3/8-16 Unc x 1

NUt Lock Rg 3/8-16 Unc

Spacer Retainer

Washer 13/32 x 2 x 10 Ga.

Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5

NUtHexFlange Lock

LinkTraneaxle

Cover Pedal Forward

Pedal Reverse Asm. w/Pad

Arm ControlPedal Reverse

Bracket Frast Pdl Ctrl. Hyd

Bracket Mtg. Pedal Control

Bolt Rdhd Sqnk 3/8-16 Uric x 3/4

NUtCrownlock7116-14 Unc

Washer Nylon 11/16 ID x .060

PedalForward

ArmControlPedal Forward

Bolt Pivot Spacer

Cam ReverSePedal LT

Bolt Shoulder5/16-18

Washer Serrated 5/16 x .75

StrapTorque

ActuatorCruiseDisengage

PawlControlCruise

LeverControlCruise

SectorControlCruise

Bolt Shoulder 3/6-16 Unc 1/44

Bolt Shoulder5/16-18

Arm Mtg. Cruise Sector

Screw Thdrol5/16 x 1/2

SpdngReturn CruiseControl

Nut Cantarlock 1/4-20 Unc

Bolt Fin Hex 1/4-20 Unc x 3/4

BracketAnti-Rotation CVX

Screw 5/16-18 x 5/8 Yellow

Screw 3/8-16 x 3/4

Washer .3125 x .615 x 16 Ga.

ClipRetainer

NOTE: All componentdimensionsgiven in U.S. inches

1 inch = 25.4 mm

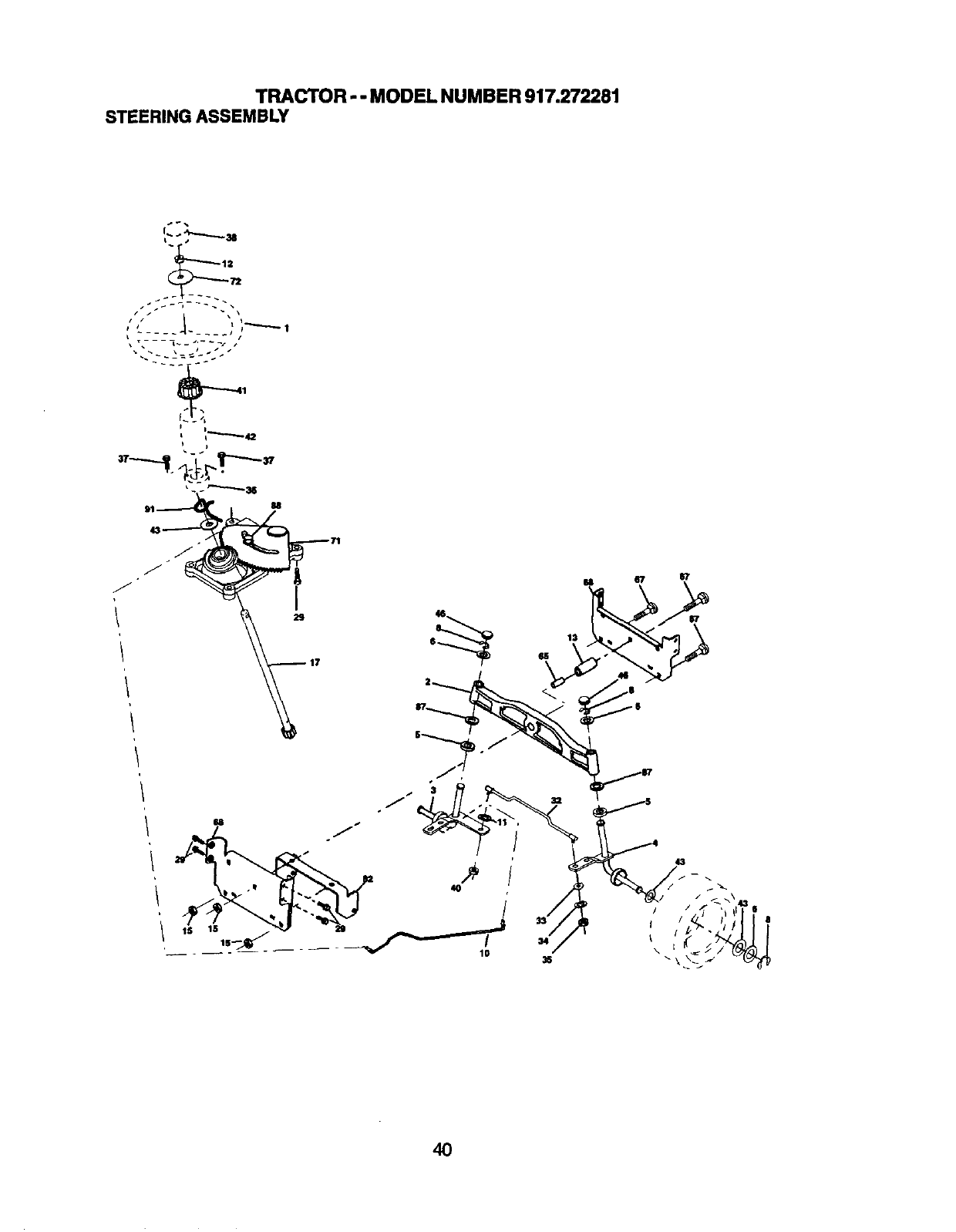

TRACTOR -- MODEL NUMBER 917.272281

STEERINGASSEMBLY

lO 36

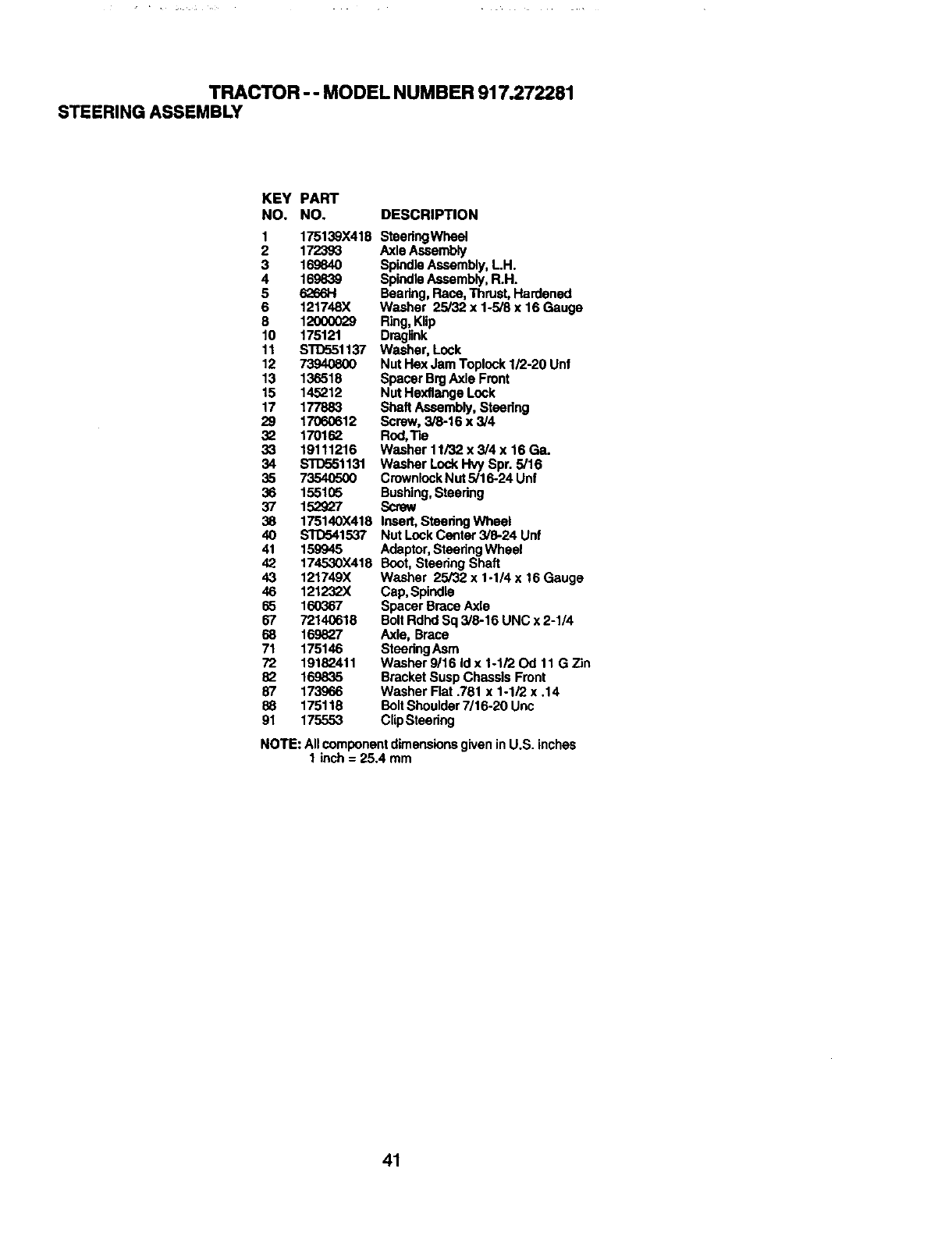

TRACTOR - - MODEL NUMBER 917.272281

STEERINGASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 175139X418 StasdngWheel

2 172393 Axle Assembly

3 169840 SpindleAssembly, LH.

4 169839 SpindleAssembly, R.H.

5 6266H Bearing,Race, Thrust, Hardened

6 121748X Washer 25/32 x 1o5/8x 16 Gauge

8 12000029 Ring,Klip

10 175121 Draglink

11 STD551137 Washer, Lock

12 7394.9800 Nut I.-lexJam Toplock 1/2-20 Unf

13 136518 Spacer Brg Axle Front

15 145212 Nut Hexflange Lock

17 177883 Shaft Assembly, Steedng

29 17060612 Screw, 3/8-16 x 3/4

32 170162 Red,Tie

33 19111216 Washer 11/32 x 3/4 x 16 Ga.

34 STITo51131 Washer Lock Hvy Spr. 5/16

35 73540500 CrownlockNut5/16-24 Unf

36 155105 Bushing,Stasdng

37 152g_7 Screw

38 175140X418 Insert,Stasnng Wheel

40 ST0541537 Nut Lock Center 3/8-24 Unf

41 159945 Adaptor,Steedng Wheel

42 174530X418 Boot, Steering Shaft

43 121749X Washer 25/32 x t-1/4 x 16 Gauge

46 121232X Cap, Spindle

65 160_67 Spacer Brace Axle

67 72140618 Bolt Rdhd Bq 3/8-16 UNC x 2-1/4

68 169827 Axle, Brace

71 175146 SteeringAsm

72 19182411 Washer 9116Id x Iol/20d 11G Zin

82 169835 Bracket Susp Chassis Front

87 173966 Washer Fiat .781 x 1-1/2 x .14

88 175118 BoltShoulder 7/16-20 Unc

91 1755,53 ClipSteedng

NOTE: Allcomponentdimensionsgivenin U.S. inches

1 inch = 25.4 mm

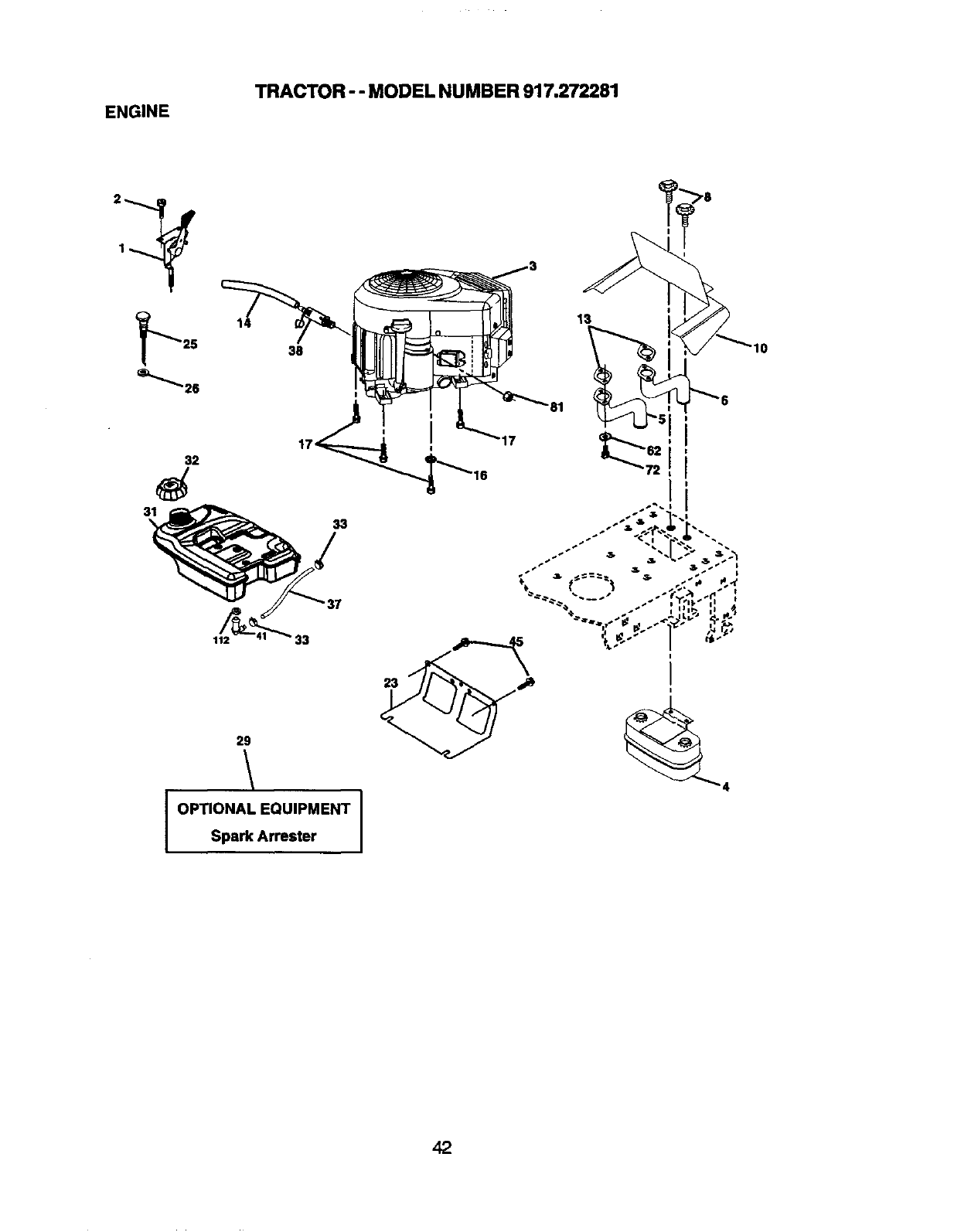

TRACTOR -- MODEL NUMBER 917.272281

ENGINE

IOPTIONAL EQUIPMENT I

Spark Arrester

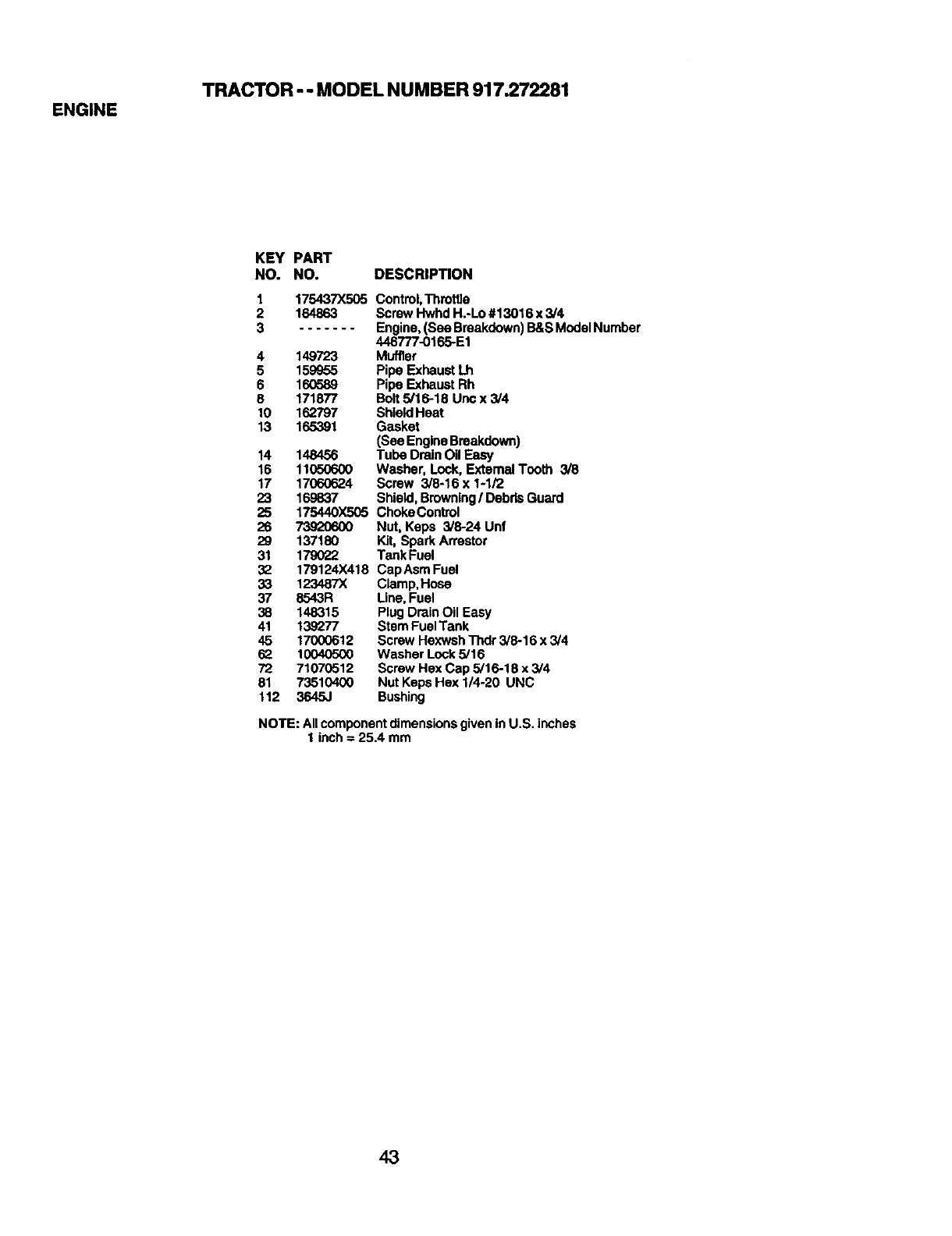

TRACTOR -- MODEL NUMBER 917.272281

ENGINE

KEY PART

NO. NO. DESCRIPTION

1 175437X505 ContmI,Throffia

2 164863 Screw Hwhd H.-Lo #13016 x 3/4

3....... Engine,(See Breakdown) B&S ModelNumber

446777-0165-E1

4 149723 Muffler

5 159955 Pipe Exhaust Lh

6 160589 Pipe Exhaust Rh

8 171877 Bolt 5/16-18 Unc x 3/4

10 162797 ShieldHeet

13 165391 Gasket

(See Engine Breakdown)

14 148456 Tube Drain Oil Easy

16 11050600 Washer, Lock, External Tooth 3/8

17 17060624 Screw 3/8-16 x 1-1/2

23 169837 Shield, Browning/DebrisGuard

25 175440X505 Choke Control

26 "/3920600 Nut, Keps 3/8-24 Unf

29 137180 Kit, Spark Arrestor

31 179022 Tank Fuel

32 179124X418 CapAsm Fuel

33 123487X Clamp, Hose

37 8543R Line, Fuel

38 148315 Plug Drain Oil Easy

41 139277 Stem Fuel Tank

45 17000612 Screw HexwshThdr 3/6-16 x 3/4

62 10040500 Washer Lock 5/16

72 71070512 Screw Hex Cap 5/16-18 x 3/4

81 73510400 Nut Keps Hex 1/4-20 UNC

112 3645,.I Bushing

NOTE: Allcomponentdimensionsgiven in U.S. inches

1 inch = 25.4 mm

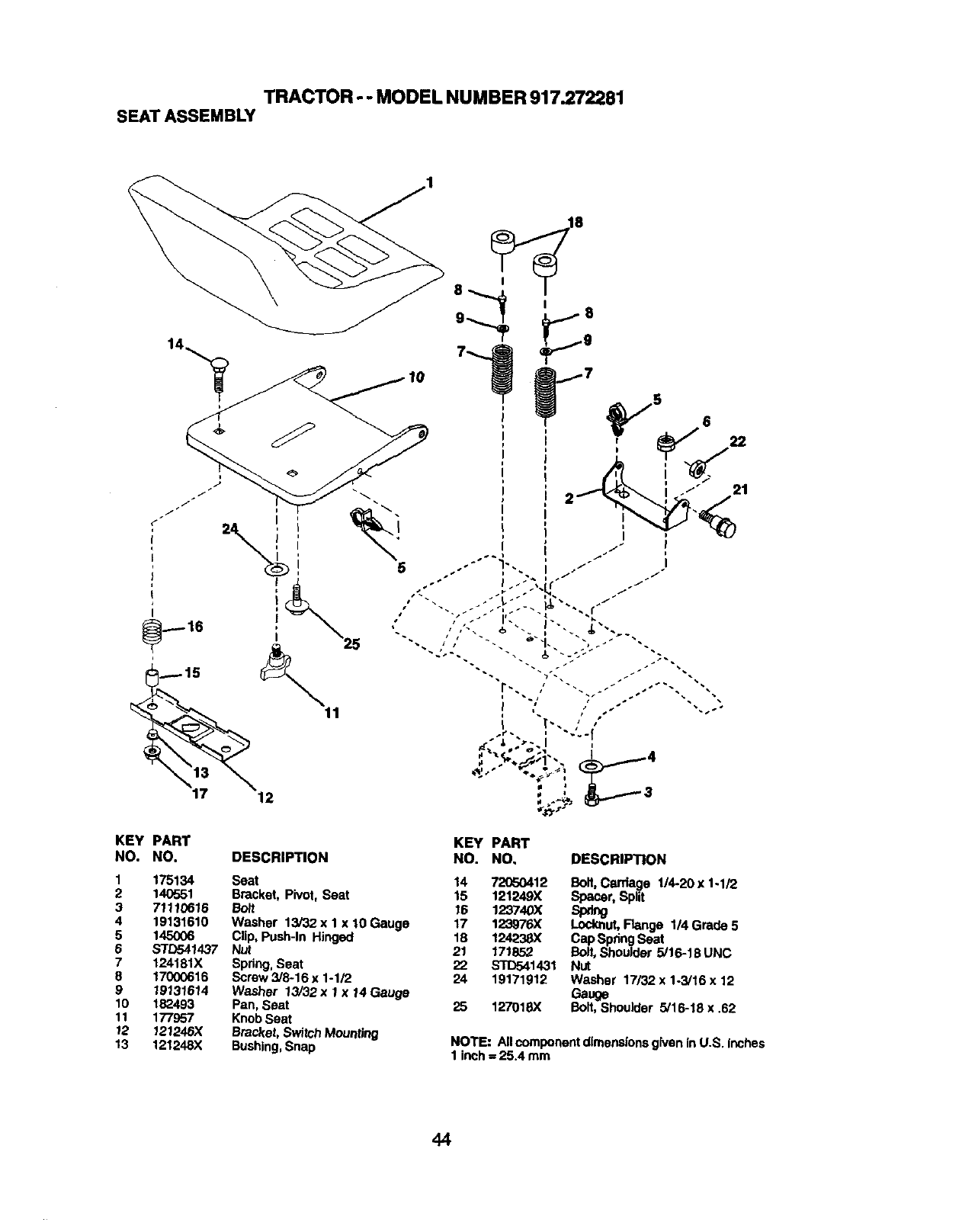

TRACTOR- - MODEL NUMBER 917.272281

SEATASSEMBLY

KEY PART

NO. NO.

1175134

2 14O551

3 71110616

4 19131610

5 145OO6

5STD541437

7 124181X

8 17000616

9 19131614

10 182493

11 177957

12 121246X

13 121248X

KEY PART

DESCRIPTION NO. NO, DESCRIPTION

Seat 14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

Bracket, Pivot, Seat 15 121249X Spacer, Split

Bolt 16 123740X Spring

Washer 13/32 x1 x 10 Gauge 17 12397'6X Locknut, Flange 1/4 Grade 5

Clip, Push-In Hinged 18 124238X Cap Spdng Seat

Nut 21 171852 Boll,Shou)der 5/16-19 UNC

Spdng, Seat 22 STD541431 Nut

Screw 3/8-16 x 1-1/2 24 19171912 Washer 17/32 x 1-3/16 x 12

Washer 13/32 x1x 14 Gauge Gauge

Pan, Seat 25 127018X Bolt, Shoulder 5/16-18 x ,62

Knob Seat

Bracket, Switch Mounting NOTE: Allcomponentdimensionsgiven In U.S. inches

Bushing,Snap 1 inch= 25.4 mm

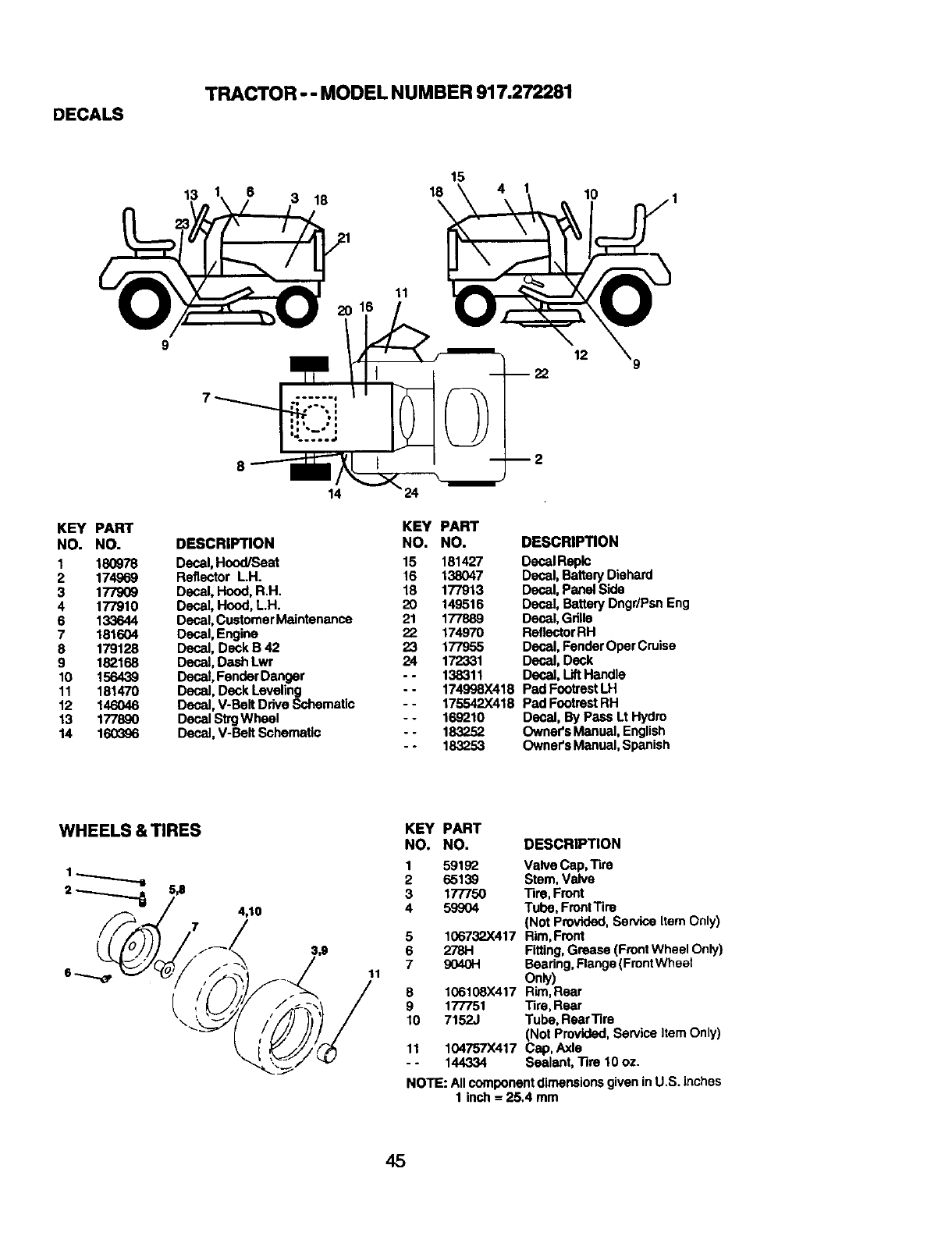

DECALS

TRACTOR -- MODEL NUMBER 917.272281

13 63 18

KEY PART

NO. NO.

1 180978

2 174969

3 17"/909

4 177910

6 133644

7 181604

8 179128

9 182168

10 156439

11 181470

12 146046

13 177890

14 160396

KEY PART

DESCRIPTION NO. NO.

Decal, Hood/Seat 15 181427

Reflector LH. 16 138047

Decal, Hood, R.H. 18 177913

Decal, Hood, L.H. 20 149516

Decal, CustomerMaintenance 21 177889

Decal, Engine _2 174970

Decal, Deck B 42 23 177955

Decal, Dash Lwr 24 17"2331

Decal, Fender Danger - - 138311

Decal, Deck Leveling - - 174998X418

Decal, V-Belt Drive Schematic - - 175542X418

Decal StrgWheel -- 169210

Decal, V-Beti Schematic - - 183252

-- 1837-53

12 9

--22

DESCRIPTION

Decal Replc

Decal, Battery Diehard

Decal, Panel Side

Decal, Battery Dngr/Psn Eng

Decal, Gdlle

ReflectorRH

Decal, Fender Oper Cruise

Decal, Deck

Decal, LiftHandle

Pad FootrestLH

Pad FootrestRH

Decal, By Pass Lt Hydro

OwneCsManual, English

Owner'sManual, Spanish

WHEELS & TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

1 59192 Valve Cap, Tire

2 65139 Stem, Valve

3 177750 Tire, Front

4 59904 Tube, FrontTire

(Not Provided, Service Item Only)

5 106732X417 Rim,Front

6 278H Fitting,Grease (FrontWheel Only)

7 9040H Bearing,Range (FrontWheel

Only)

8 106108X4t7 Rim,Rear

9 177751 Tire, Rear

10 7152J Tube, RearTire

(Not Provided, Service Item Only)

11 104757X417 Cap, Axle

- - 144334 Sealant, Tire 10 oz.

NOTE: All componentdimensionsgiveninU.S. inches

1 inch = 25.4 mm

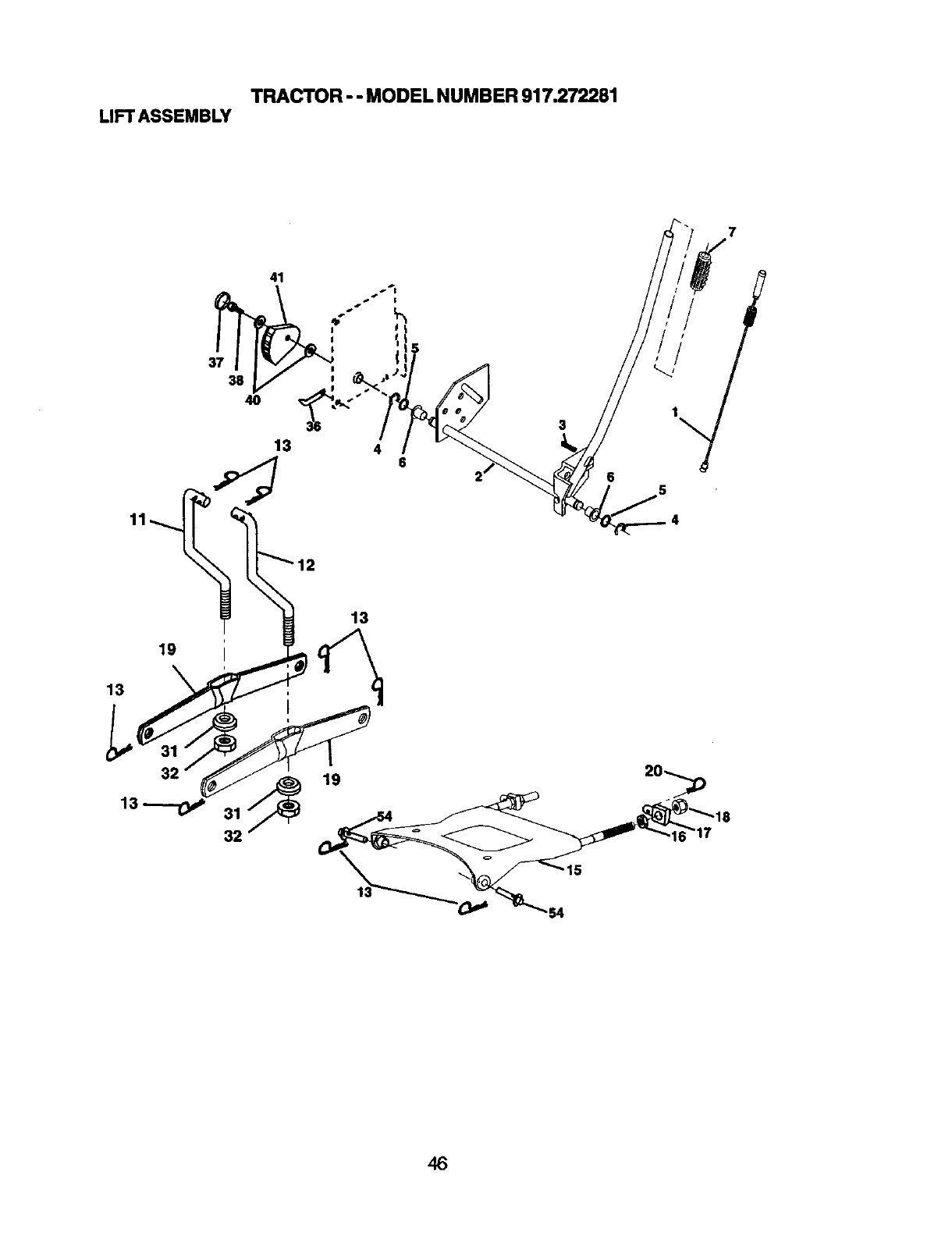

TRACTOR - - MODEL NUMBER 917.272281

LIFT ASSEMBLY

13 46

32 19

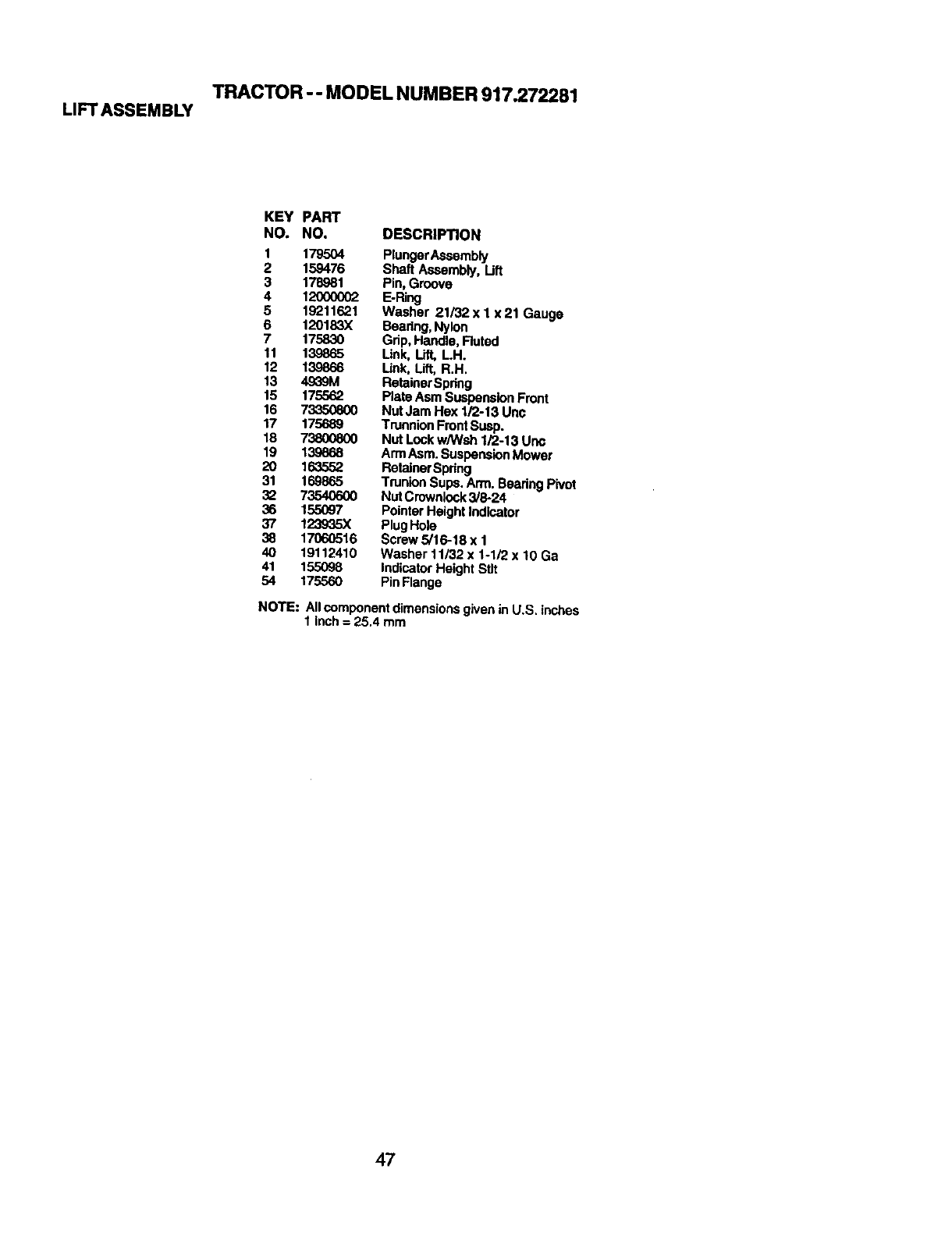

TRACTOR-- MODEL NUMBER 917.272281

LIFT ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 179.504 PlungerAssembly

2 159476 Shaft Assembly, Lift

3 178981 Pin, Groove

4 12000002 E-Ring

5 19211621 Washer 21/32x 1 x21 Gauge

6 120183X Bearing,Nylon

7 175830 Grip, Handle, Ruted

11 139865 Unk, Lift, LH.

12 139866 Unk, Lift, R.H.

13 4939M ReteinerSpring

15 175562 Plate Asm Suspension Front

16 73350800 Nut Jam Hex 1/2-13 Unc

17 175689 Trunnion FrontSusp.

18 73800800 Nut Lock w/Wsh 1/2-13 Unc

19 139868 ArmAsm. SuspensionMower

20 163552 RetainerSpdng

31 169865 TrunionSups. Arm. Beadng Pivot

32 73540600 Nut Crowniock3/8-24

36 155097 Pointer Height Indicator

37 123935X PlugHole

38 17060516 Screw 5/16-18 x 1

40 19112410 Washer 11/32 x %1/2 x 10 Ga

41 155098 IndicatorHeight Stlt

54 175560 PinFtange

NOTE: Allcomponent dimensionsgivenin U.S. inches

1 inch = 25.4 mm

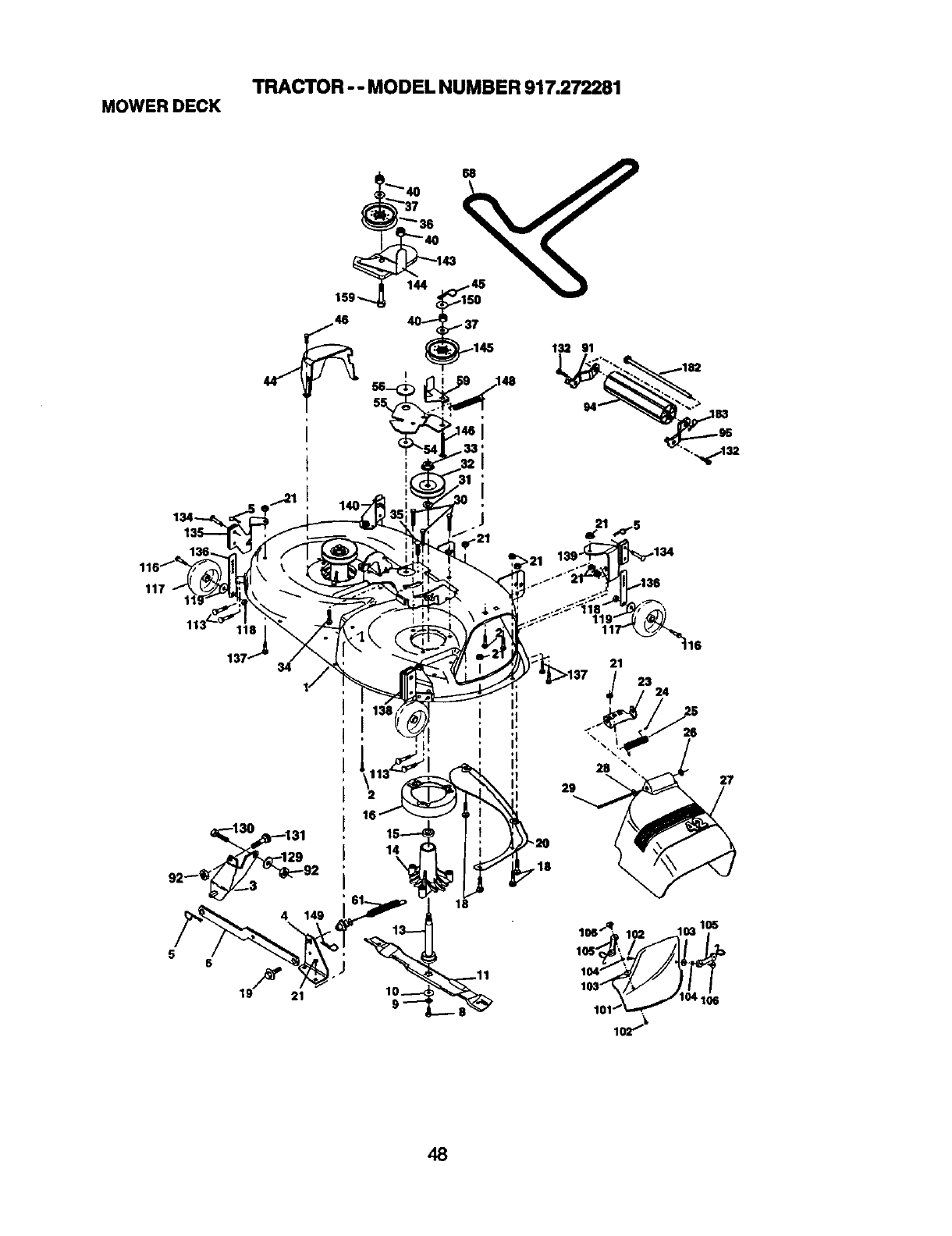

TRACTOR -- MODEL NUMBER 917.272281

MOWERDECK

140-

117 11

137 21

h 29 27

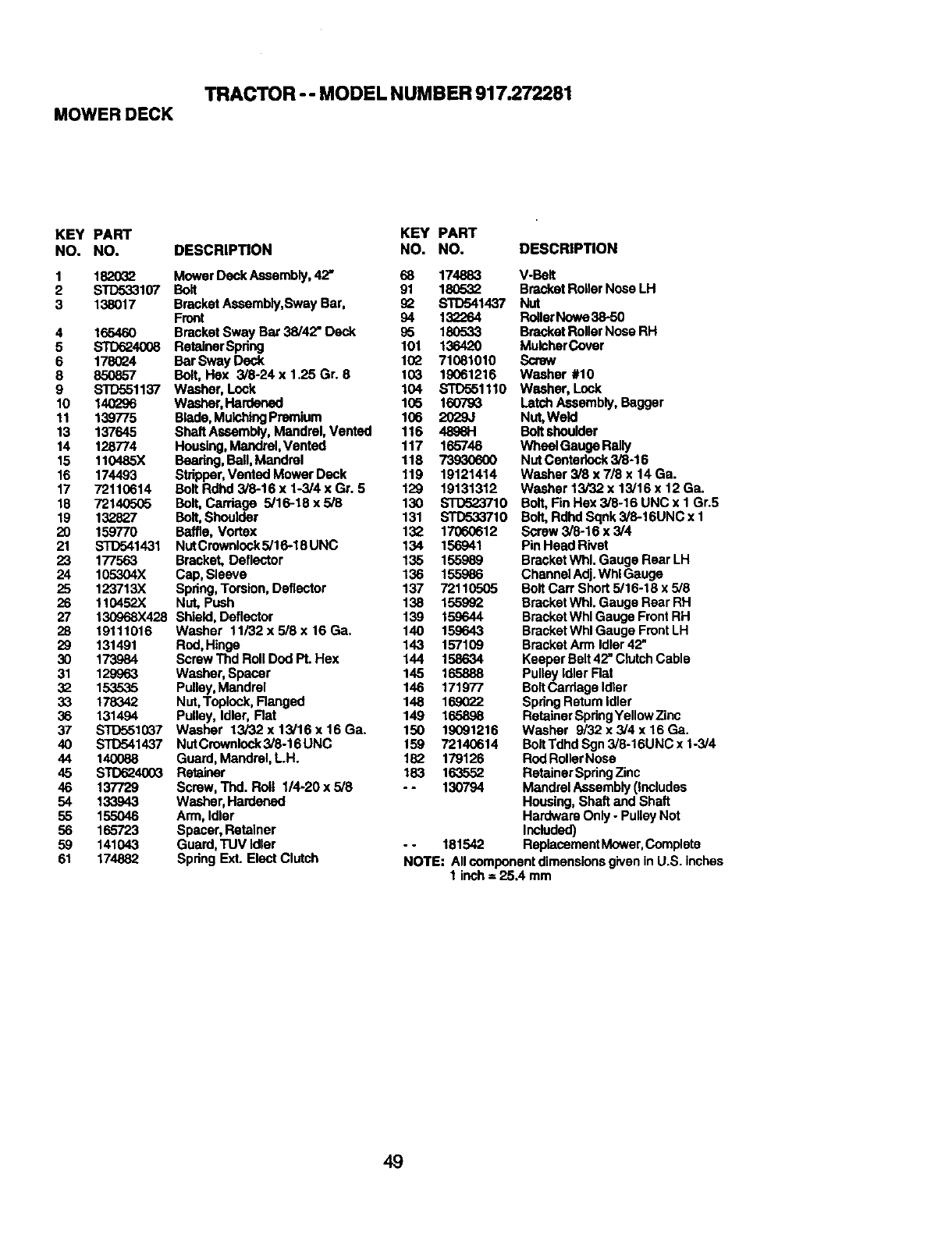

TRACTOR -- MODEL NUMBER 917.272281

MOWERDECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 182032 Mower Deck Assembly, 42" 68 174883

2 STD533107 Boll 91 180532

3 138017 Bracket Aosembly,Sway Bar, 92 STD541437

Front 94 132264

4 165460 Bracket Sway Bar 38/42" Deck 95 180533

5 STD624008 RetalnerSpdng 101 136420

6 1780_4 Bar Sway Dack 102 71081010

8 850857 Boil, Hex 3/8-24 x 1.25 Gr. 8 103 19061216

9 STD551137 Washer, Lock 104 STD551110

10 140296 Washer, Hardened 105 160793

11 139775 Blade,MulchingPremium 106 2029J

13 137645 Shaft Assembly, Mandrel, Vented 116 48961-1

14 128774 Housing,Mandrel,Vented 117 165746

15 110485X Bearing,Boll, Mandrel 118 73930600

16 174493 S_ppar, Vented Mower Dack 119 19121414

17 72110614 Bolt Rdhd 3/8-16 x 1-3/4 x Gr. 5 129 19131312

18 72140505 Bolt, Carriage 5/16-18 x 5/8 130 S'1"D523710

19 132827 Bolt,Shoulder 131 STD533710

20 159770 Baffle, Vortex 132 17060612

21 STD541431 NutCrownlocks/16-18UNC 134 156941

23 177563 Bracket, Deflector 135 155989

24 105304X Cap, Sleeve 136 155986

25 123713X Spdng, Torsion, Deflactor 137 72110505

26 110452X Nut, Push 138 155992

27 130968X428 Shield, Deflector 139 159644

28 19111016 Washer 11/32x5/8x16Ga. 140 159643

29 131491 Rod,Hinge 143 157109

30 173984 Screw Thd Roll Dod Pt. Hex t44 158634

31 129963 Washer, Spacer 145 165888

32 153535 Pulley,Mandrel 146 171977

33 178342 Nut,Toplock, Flanged 148 169022

36 131494 Pulley, Idler, Flat 149 165898

37 STD551037 Washer 13i32x13/16x16Ga. 150 19091216

40 STD541437 NutCrownlock3/8-16UNC 159 72140614

44 140088 Guard, Mandrel, L.H. 182 179129

45 STD624003 Retainer 183 163552

46 137729 Screw, Thd. Roll 1/4-20 x 5/8 - - 130794

54 133943 Washer,Han:laned

55 155046 Arm, Idler

56 165723 Spacer, Retainer

59 141043 Guard,TUV ldlar -- 181542

61 174882 Spring ExL Elect Clutch

V-BoIl

BracketRoller Nose LH

Nut

RollarNowe36-50

BracketRoller Nose RH

MulcherCover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bolt shoulder

Wheel Gauge Rally

NutCenterlock 3/8-16

Washer 3/8 x 7/8 x 14 Ga.

Washer 13/32 x 13/16 x 12 Ga.

Bolt,Fin Hex 3/8-16 UNC x I Gr.5

Bolt, Rdhd Sqnk 3/6-16UNC x 1

Screw 3/8-16 x 3/4

Pin Head Rivet

BracketWhL Gauge Rear LH

Channel Adj.Whl Gauge

Bolt Carr Short5/16-18 x 5/8

BracketWhl. Gauge Rear RH

BracketWhl Gauge Front RH

Bracket Whl Gauge FrontLH

Bracket Arm Idler 42"

Keeper Belt 42" Clutch Cable

Pulley Idler Rat

Boil Cardage Idler

Spdng ReturnIdler

RetainerSpdngYellow Zinc

Washer 9/32 x 3/4 x 16 Ga.

BoltTdhd Sgn 3/8-16UNC x 1-3/4

Red RollerNose

RetainerSpringZinc

Mandrel Assembly (Includes

Housing,Shaft and Shaft

Hardware Only. PulleyNot

Included)

ReplacementMower,Complete

NOTE: Allcomponentdimensionsgiven in U.S. inches

1inch= 25.4 mm

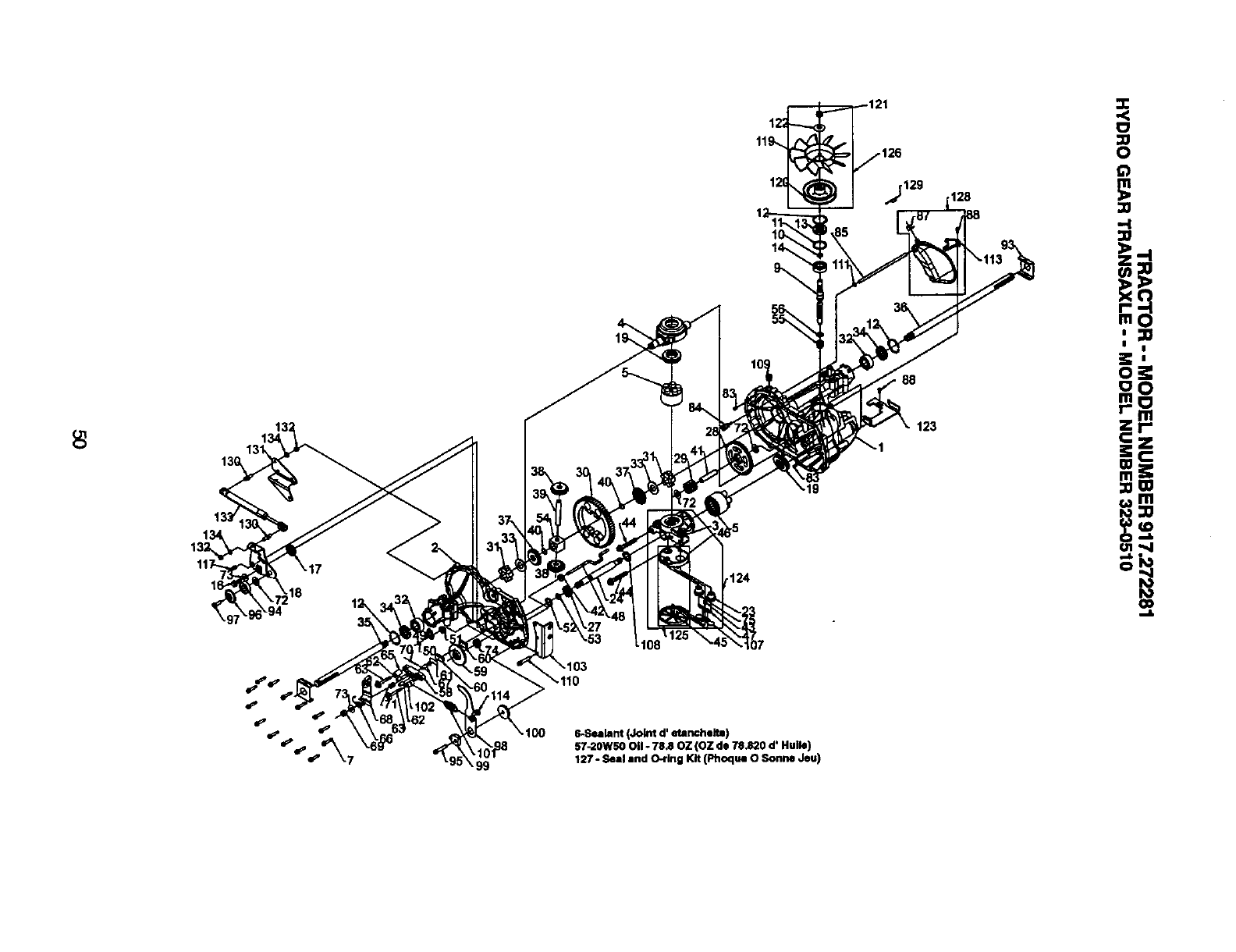

18 124

6.Sealant (Jolt d' etancheb)

57-20W50 Oil - 78.80Z (OZ de 78.820 d' Huile)

127 - Seal and O-ring Kit (Phoque 0 Sonne Jeu)

128 i

,=0

oi:

r M

€z

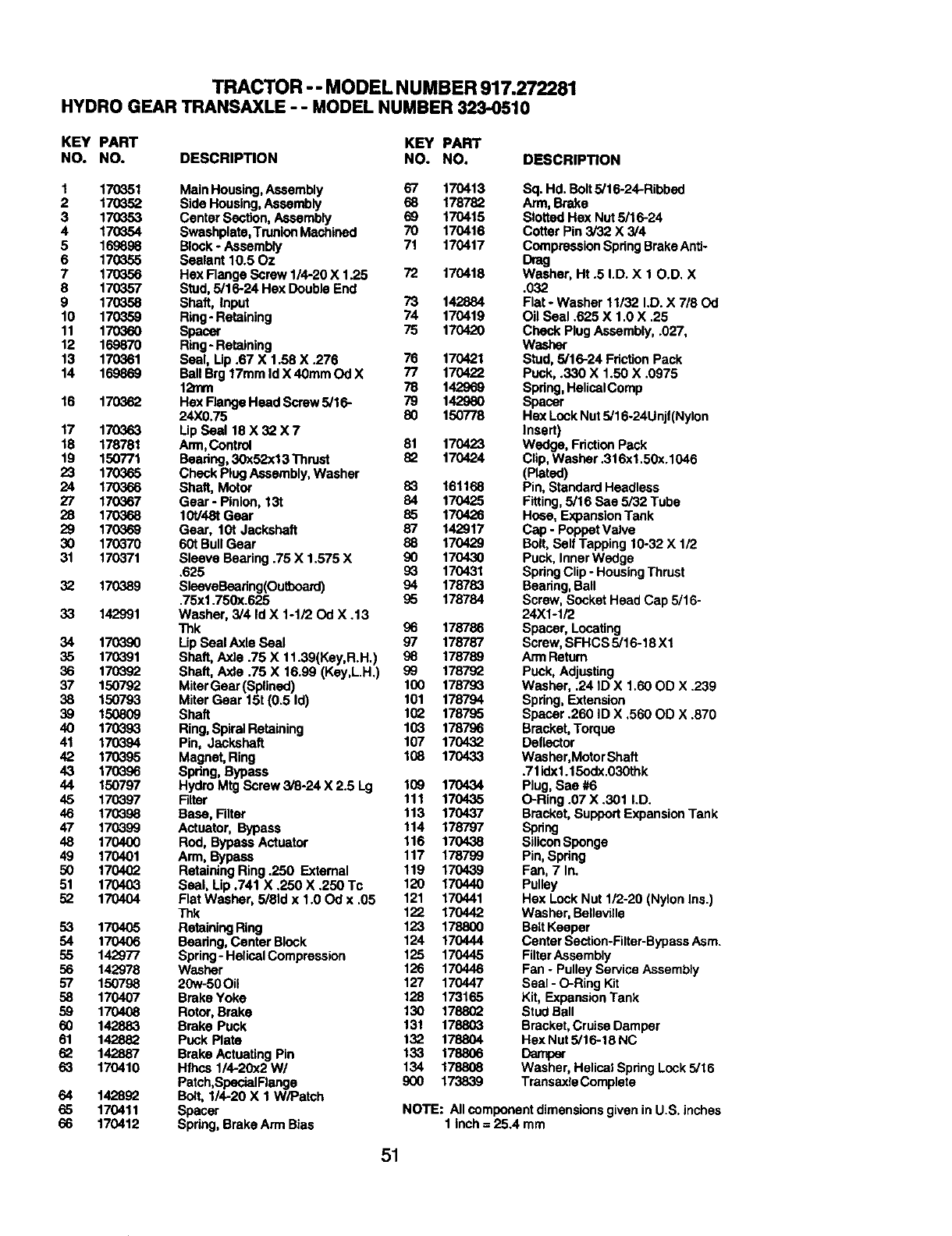

TRACTOR -- MODEL NUMBER 917.272281

HYDRO GEAR TRANSAXLE - - MODEL NUMBER 3230510

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 1_1 Main Housing,Assembly 67 170413

2 170_52 Side Housing,Assembly 68 178782

3 1_ Center Section, Assembly 69 170415

4 170354 Swashplata,TmnionMachined 70 170416

5 169698 Block- Assembly 71 170417

6 170355 Sealant 10.50z

7 170356 Hex Flange Screw 114-20X 1.25 72 170418

8 170357 Stud,5/16-24 Hex DoubleEnd

9 170358 Shaft, Input 73 142884

10 170359 Ring-Retaining 74 170419

11 170360 Spacer 75 170420

12 169870 Ring- Retaining

13 170361 Seal, Lip.67 X 1.58 X .276 76 170421

14 169869 Ball Brg 17mm IdX 40ram Od X 77 170422

l_nrn 78 142969

16 170362 Hex Range Head Screw 5/16- 79 142980

24X0,75 80 150778

17 170363 LipSeal 18 X 32 X7

18 178781 Ann,Control 81 170423

19 150771 Beadng, 30x52x13 Thrust 82 170424

23 170365 Chock PlugAssembly,Washer

24 170366 Shaft, Motor 83 161168

27 170367 Gear- Pinion, 13t 84 170425

28 170368 10t/48t Gear 85 170426

29 170369 Gear, 10t Jackshaft 87 142917

30 170370 60t Bull Gear 88 170429

31 170371 Sleeve Bearing.75 X 1,575 X 90 170430

.625 93 170431

32 170389 SleaveBearing(Outboard) 94 178783

.75xl .750x.625 85 178784

33 142991 Washer, 3/4 Id X 1-1/20d X .13

Tick 96 178786

34 170390 Lip Seal Axle Seal 97 178787

35 170391 Shaft, Axle .75 X11.39(Key, R.H.) 98 178789

36 170332 Shaft, Axle .75 X 16.99 (Key,L.H.) 99 178792

37 150792 Miter Gear (Spllned) 100 178793

38 150793 Miter Gear 15t (0.5 Id) 101 178794

39 150809 Shaft 132 178795

40 170393 Ring,Spiral Retaining 103 178796

41 170394 Pin, Jaskshaft 107 170432

42 170395 Magnet, Ring 108 170433

43 170_96 Spring, Bypass

44 150797 Hydre Mtg Screw 3/8-24 X 2.5 Lg 109 170434

45 170397 Filter 111 170435

46 170398 Base, Filter 113 170437

47 170399 Actuator, Bypass 114 178797

48 170400 Rod, Bypass Actuator 116 170438

49 170401 Arm, Bypass 117 178799

50 170402 Retaining Ring .250 Extemal 119 170439

51 170403 Seal, Lip .741 X .250 X .250 Tc 120 170440

52 170404 Flat Washer, 5/81dx 1,00d x .05 121 170441

Thk 122 170442

53 170405 RetainingRing 123 178800

54 170406 Bearing,Center Block 124 170444

55 142977 Spring-Helical Compression 125 170445

56 142978 Washer 126 170446

57 150798 20w-50Oil 127 170447

58 170407 Brake Yoke 128 173165

59 170408 Rotor, Brake 130 17880_

60 142883 Brake Puck 131 17880_

61 142882 Puck Plate 132 178804

62 142887 Brake ActuatingPin 133 178806

63 170410 Hfhcs 1/4-20x2 W/ 134 178808

Patch,SpocialRange 900 173839

64 142892 Bolt, 1/4-20 X 1 W/Patch

65 170411 Spacer

66 170412 Spring, Brake Arm Bias

Sq. Hd. Bolt5/16-24-Ribbed

Arm, Brake

SlottedHex Nut 5/16-24

Cotter Pin 3/32 X 3/4

CompressionSpringBrakeAnti-

Drag

Washer, Ht .5 I.D. X 10.D, X

.032

Flat - Washer 11132 I.D. X 7/80d

Oil Seal .625 X 1.0 X ,25

Check Plug Assembly, .027,

Washer

Stud, 5/16-24 FrictionPack

Puck, .330 X 1.50 X .0975

Spring,HelicalComp

Spacer

Hex LockNut 5/16-24Unjf(Nylon

Insert)

Wedge, FrictionPack

Clip, Washer .316xl.50x.1046

(Plated)

Pin, Standard Headless

Fitting,5/16 Sae 5/32 Tube

Hose, ExpansionTank

Cap - PoppetValve

Bolt, Self Tapping 10-32 X 112

Puck, Inner Wedge

Spring Clip- HousingThrust

Bearing,Ball

Screw, Socket Head Cap 5/16-

24X1-1/2

Spacer, Locating

Screw, BFHCS 5/16-18 X1

ArmRetum

Puck, Adjusting

Washer, .24 ID X 1.60 OD X .239

Spring, Extension

Spacer .260 ID X ,560 OD X .870

Bracket, Torque

Deflector

Washer,MotorShaft

.71idx1.15odx.030thk

Plug, Sac #6

O-Ring .07 X .301 I.D,

Bracket, Support Expansion Tank

spnng

SiliconSponge

Pin, Spring

Fan, 7 In,

Pulley

Hex Lock Nut 1/2-20 (Nylon Ins.)

Washer, BelleviJle

Belt Keeper

Center Soction-Filter-BypassAsm.

FilterAssembly

Fan - Pulley Service Assembly

Seal - O-Ring Kit

Kit, ExpansionTank

StodBall

Bracket,Cruise Damper

Hex Nut5/16-18 NC

Damper

Washer, Helical SpringLock 5/16

TransaxlaComplete

NOTE: Allcomponentdimensionsgiven in U.S. inches

1 inch =25.4 mm

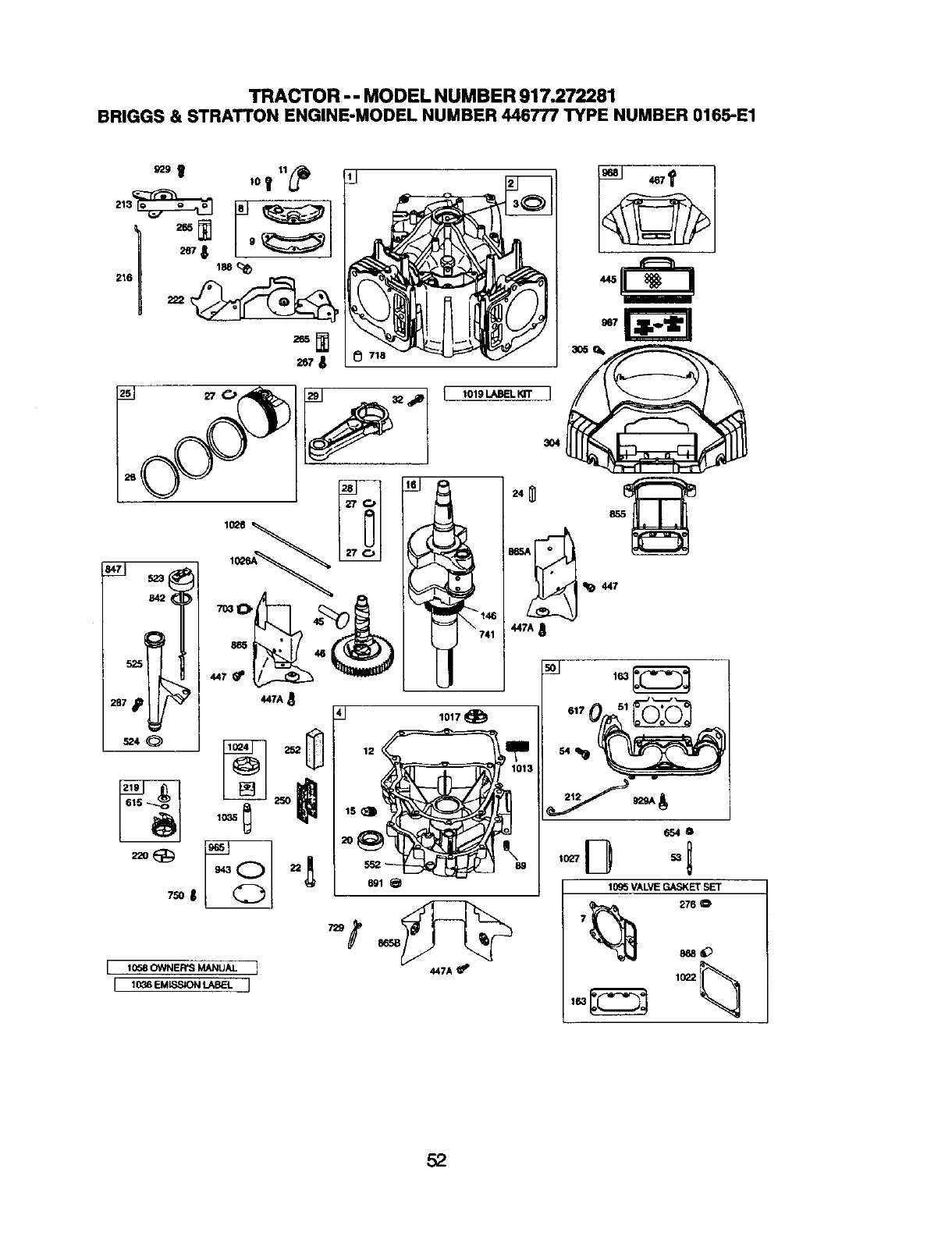

TRACTOR -- MODEL NUMBER 917.272281

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446777 TYPE NUMBER 0165-E1

89g1

213_

216 1

,oi' "_

878 '

87 tL 718

I1019 L.ABEL Kn" ]

3O4

1017_

305_

447

_340

1095 VALVEGASKET SET

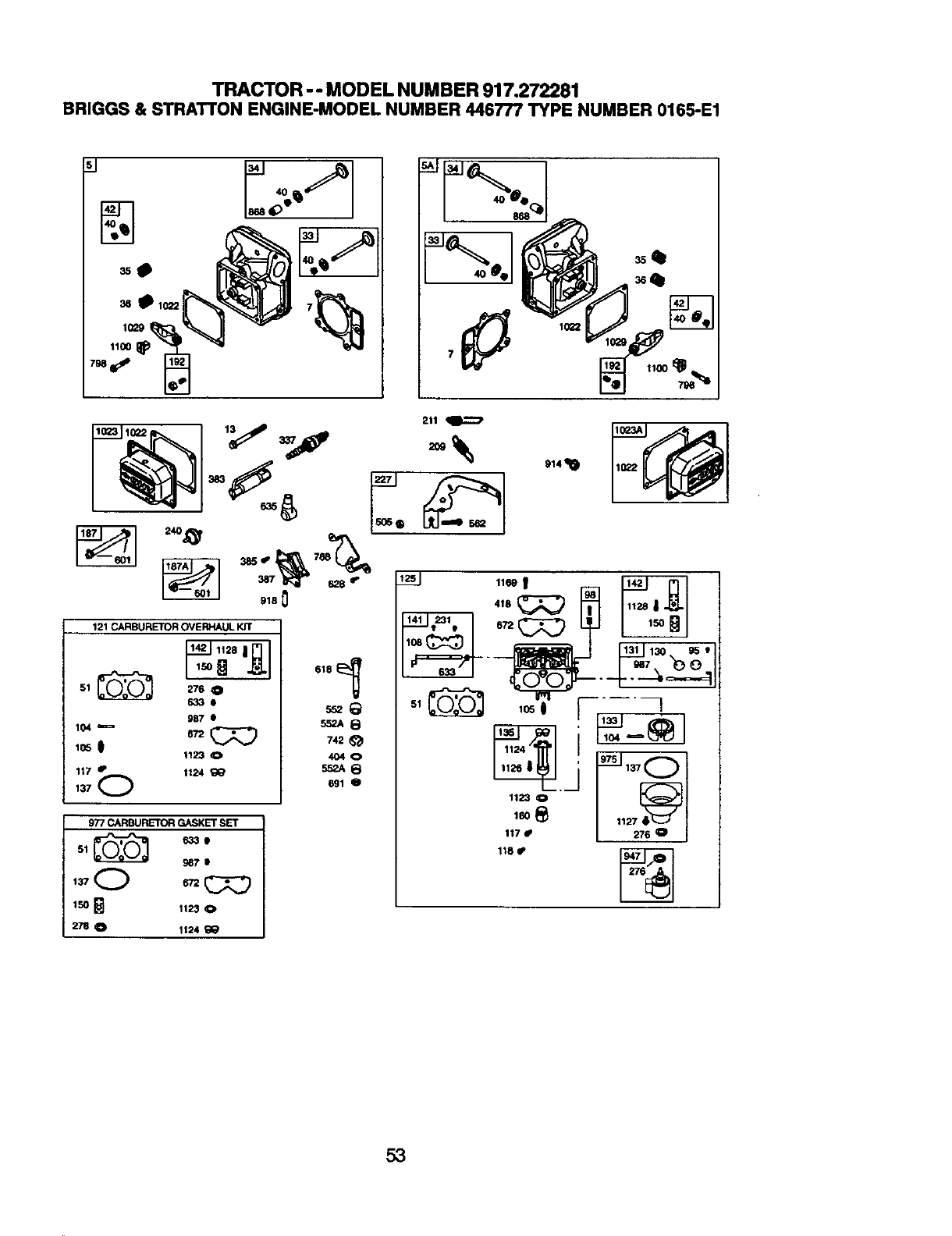

TRACTOR -- MODEL NUMBER 917.272281

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446777 TYPE NUMBER 0165-E1

121 CARBURETOR OVERHAUL KIT

51 L(,._,_(_,,J 276 _)

633e

987 •

104

117 •

__ 1124 gG'

Q137

s,s2A@

742

4O4O

691 0

977 CARBURETOR GASKET SET

51 _ _e

987 D

150

276 0 1124 _

2tt _1_

108 ,t_ I ,_ t11311130 S6

. ._-___

It7 B276 0

118 f

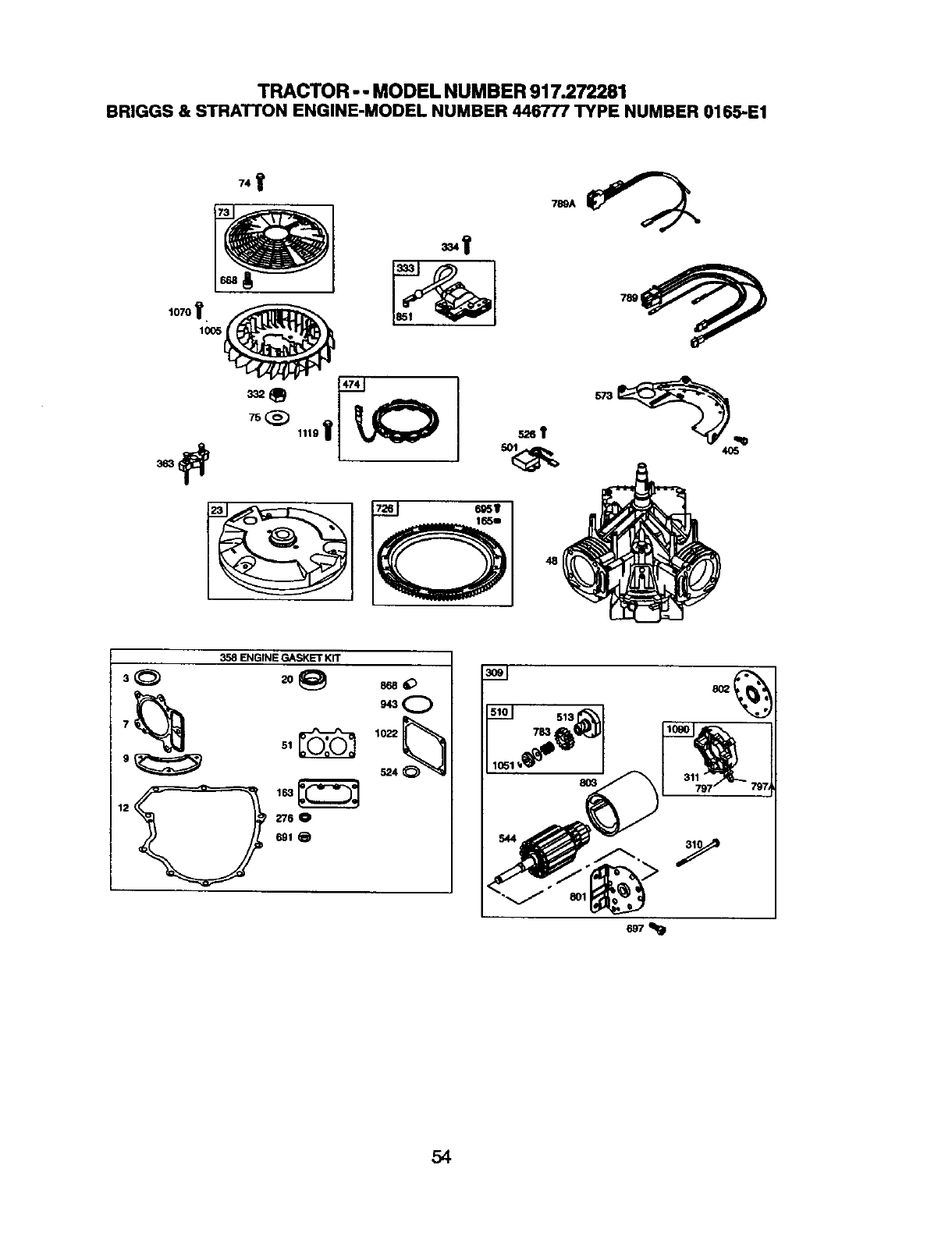

TRACTOR -- MODEL NUMBER 917.272281

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446777 TYPE NUMBER 0165-E1

7,|

=,T

4O5

358 ENGINE GASKET KiT

163

275 O

691

797

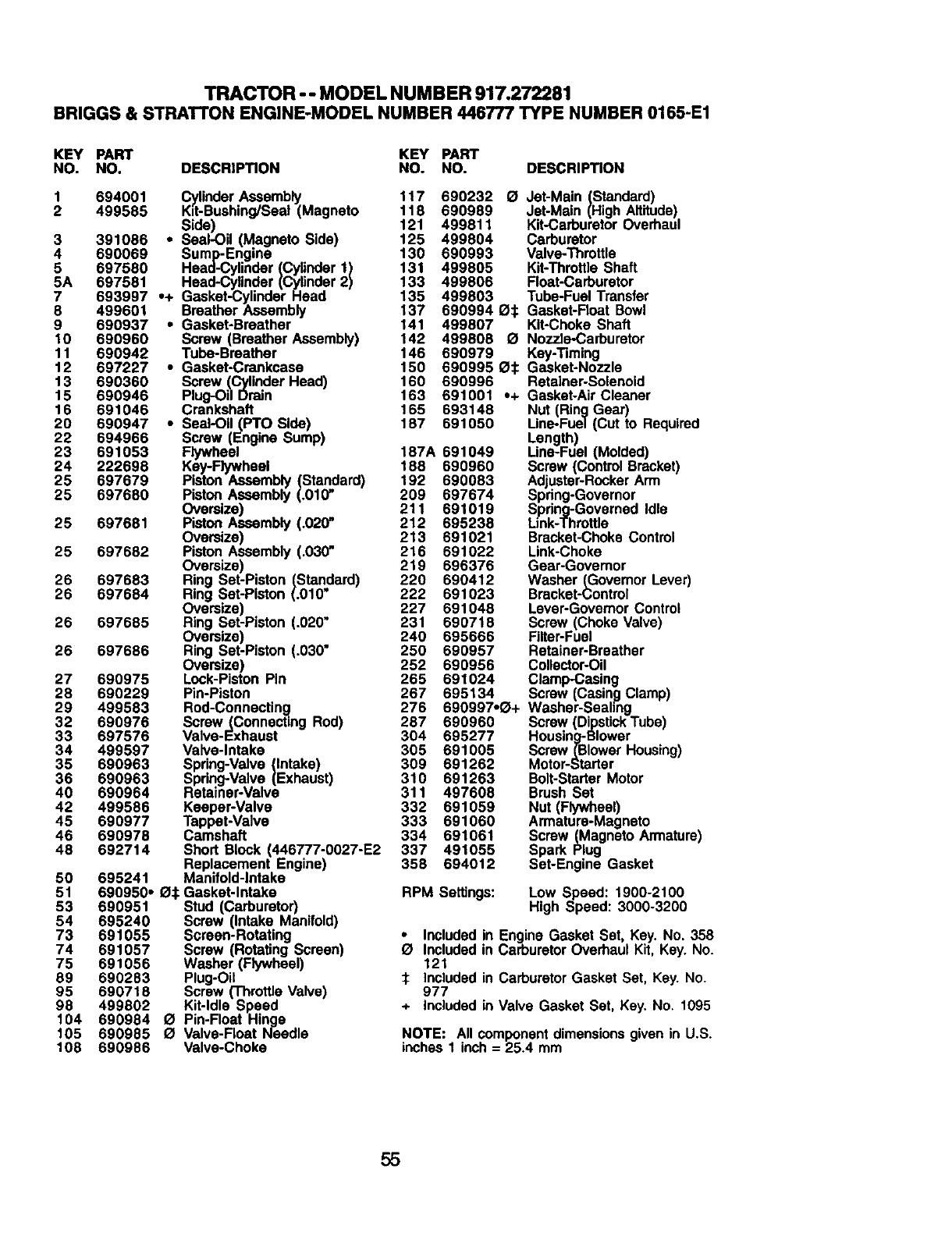

TRACTOR -- MODEL NUMBER 917.272281

BRIGGS& STRATTONENGINE-MODELNUMBER446777TYPENUMBER0165-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

I 694001 .CylinderAssembly 117 690232 _Jet-Main (Standard)

2 499585 Kit-Bushing/Seal (Magneto 118 690989 Jet-Main (High Altitude)

Side) 121 499811 Kit-CarburatorOverhaul

3 391086 -Seal-Oil (Magneto Side) 126 499804 Carburetor

4 690069 + Sump-Engine 130 690993 Valve-Throttle

5 697580 Head-Cylinder(Cylinder1) 131 499805 Kit-ThrottleShaft

5A 697581 Head-Cyflnder(Cylinder2) 133 499806 Float-Carburetor

7 693997 •Gasket-Cylinder Head 135 499803 Tube-FualTransfer

8 499601 Breather Assembly 137 690994 0:[: Gasket-Roat Bowl

9 690937 •Gasket-Breather 141 499807 Kit-Choke Shaft

10 690960 Screw (Breather Assembly) 142 499808 I_ Nozzle-Carburator

11 690942 Tube-Breather 148 690979 Key-Timing

12 697227 • Gasket-Crankcase 150 690995 _:1: Gasket-Nozzle

13 690360 Borew (CylinderHead) 160 690996 Retainer-Solenoid

15 690946 Plug-OilDrain 163 691001 .+ Gasket-AirCleaner

16 691046 Crankshaft 165 693148 Nut (Ring Gear)

20 690947 - Seal-Oil(PTO Side) 187 691050 Line-Fuel(Cut to Required

22 694966 Screw (Engine Sump) Length)

23 691053 Flywheel 187A 691049 Line-Fuel (Molded)

24 222698 Key-Flywheel 188 690960 Screw (ControlBracket)

25 697679 Piston Assembly(Standard) 192 690083 Adjuster-RockerArm

25 697680 PistonAssembly (.010" 209 697674 Spring-Governor

Oversize) 211 691019 Spring-Governed Idle

25 697681 PistonAssembly (.020" 212 695238 Link-Throttle

Oversize) 213 691021 Bracket-ChokeControl

25 697682 Piston Assembly(.030" 216 691022 Link-Choke

Oversize) 219 696376 Gear-Governor

26 697683 Ring Set-Piston (Standard) 220 690412 Washer (Govemor Lever)

26 697684 Ring Set-Piston (.010" 222 691023 Bracket-Control

Oversize) 227 691048 Lever-GovernorControl

26 697685 Ring Set-Piston (.020" 231 690718 Screw (Choke Valve)

Oversize) 240 695666 Filter-Fuel

26 697686 Ring Set-Piston(.030" 250 690957 Retainer-Breather

Oversize) 252 690956 Collector-Oil

27 690975 Lock-Piston Pin 265 691024 Clamp-Casing

28 690229 Pin-Piston 267 695134 Screw (CasingClamp)

29 499583 Rod-Connecting 276 690997.1_+ Washer-Sealing

32 690976 Screw(Connecting Rod) 287 690960 Screw (DipstickTube)

33 697576 Valve-Exhaust 304 695277 Housing-Blower

34 499597 Valve-Intake 305 691005 Scraw_Blower Housing)

Motor-Starter

35 690963 Spring-Valve(Intake) 309 691262

36 690963 Spring-Valve(Exhaust) 310 691263 Bolt-Starter Motor

40 690964 Retainer-Valve 311 497608 BrushSat

42 499586 Keeper-Valve 332 691059 Nut (Flywheel)

45 690977 Tappet-Valve 333 691060 Armature-Magneto

46 690978 Camshaft 334 691061 Screw (Magneto Armature)

48 692714 Short Block (446777-0027-E2 337 491055 Spark Plug

Replacement Engine) 358 694012 Set-Engine Gasket

50 695241 Manifold-Intake

51 690950. £1:1:Gasket-Intake RPM Settings: Low Speed: 1900-2100

53 690951 Stud (Carburetor) High Speed: 3000-3200

54 695240 Screw (Intake Manifold)

73 691055 Scraen-Rotating - Includedin EngineGasket Set, Key. No. 358

74 691O57 Screw (Rotating Screen) OIncludedin CarburetorOverhaulKit, Key.No.

75 691056 Washer (Flywheel) 121

89 690283 Plug-Oil :1: Includedin CarburetorGasket Set, Key. No.

95 690718 Screw (Throttle Valve) 977

98 499802 Kit-Idle Speed + Includedin Valve Gasket Set, Key. No, 1095

104 690984 _Pin-Float Hinge

105 690985 OValve-Float Needle NOTE: All componentdimensionsgiven in U.S.

108 690986 Valve-Choke inches 1 inch = 25.4 mm

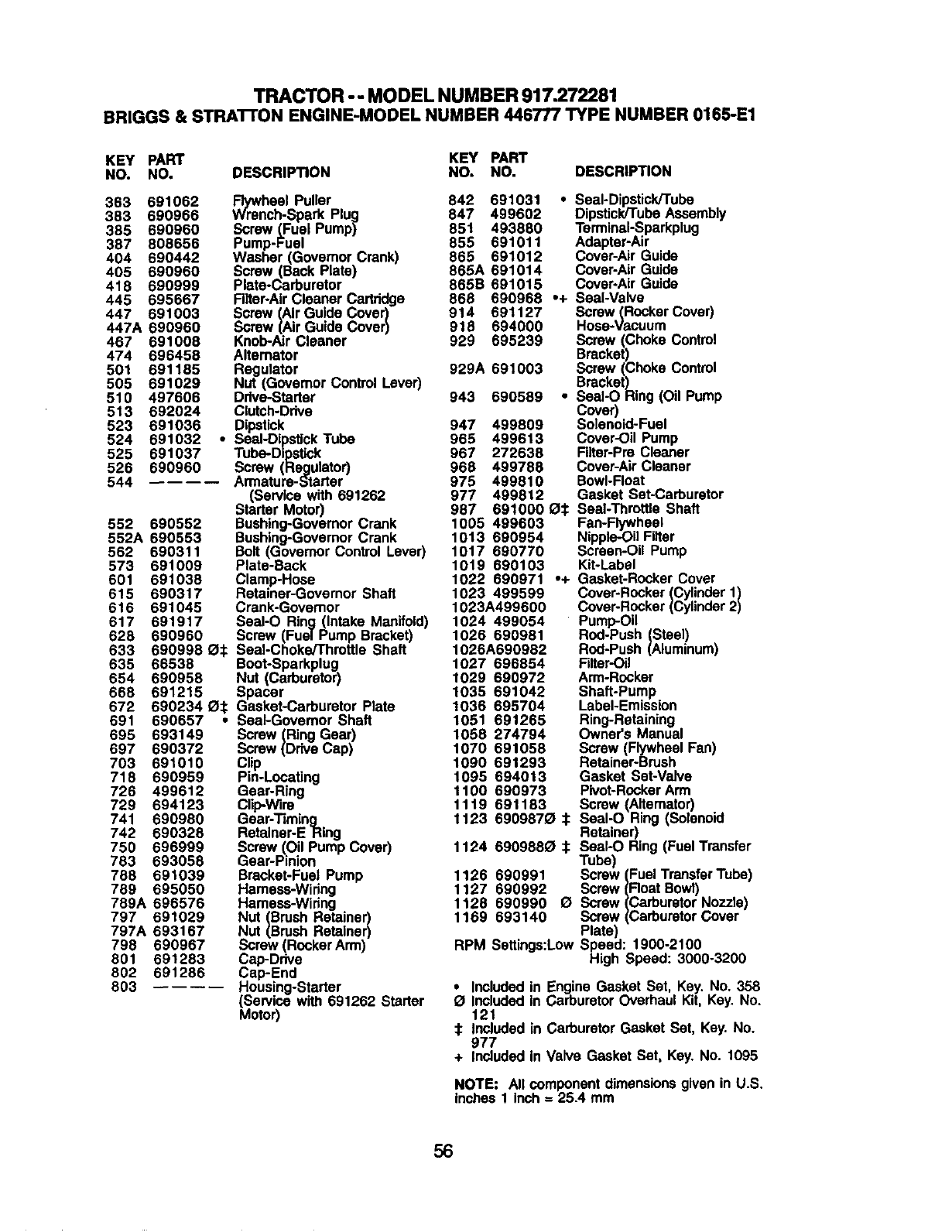

TRACTOR - - MODEL NUMBER 917.272281

BRIGGS & STRA'I-rON ENGINE-MODEL NUMBER 448777 TYPE NUMBER 0165-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

363 691062 Flywheel Puller 842 691031

383 690966 Wrench-Spark Plug 847 499602

385 690960 Screw(Fuel Pump) 651 493880

387 808656 Pump-Fuel 855 691011

404 690442 Washer (GovernorCrank) 865 691012

405 590960 Screw (Back Plate) 865A 691014

418 690999 Plate-Carburetor 865B 691015

445 695667 Rlter-AlrCleaner Cartridge 868 690968

447 691003 Screw (Air Guide Cover) 914 691127

447A 690960 Screw (Air Guide Cover) 918 694000

467 691008 Knob-Air Cleaner 929 695239

474 696458 Alternator

501 691185 Regulator 929A 691003

505 691029 Nut (GovernorControl Lever)

510 497606 Ddve-Starter 943 690589 •

513 692024 Clutch-Drive

523 691036 Dipstick 947 499809

524 691032 •Seal-DipstickTube 965 499613

525 691037 Tube-Dipstick 967 272638

526 690960 Screw (Regulator) 968 499788

544 Armature-Starter 975 499810

(Service with 691262 977 499812

Starter Motor) 987 691000 O:1:

552 690552 Bushing-Governor Crank 1005 499603

552A 690553 Bushing-GovernorCrank 1013 690954

562 690311 Bolt (Governor Control Lever) 1017 690770

573 691009 Plate-Back 1019 690103

601 691038 Clamp-Hose 1022 690971 •+

615 690317 Retainer-Governor Shaft 1023 499599

616 691045 Crank-Govemor 1023A499600

617 691917 SeaI-O Ring_lntake Manifold) 1024 499054

628 690960 Screw (Fuel Pump Bracket) 1026 690981

633 690998 _1:1:Seal-Choke/Throttle Shaft 1026A690982

635 66538 Boot-Sparkplug 1027 696854

654 690958 Nut (Carburetor) 1029 690972

668 691215 Spacer 1035 691042

672 690234 0:[: Gasket-Carburetor Plate 1036 695704

691 690657 • Seal-Governor Shaft 1051 691265

695 693149 Screw (Ring Gear) 1058 274794

697 690372 Screw (Drive Cap) 1070 691058

703 691010 Clip 1090 691293

718 690959 Pin-Locating 1095 694013

726 499612 Gear-Ring 1100 690973

729 694123 Clip-W'lre 1119 691183

741 690980 Gear-Timing 1123 6909870 -1:

742 590328 Retalner-ERing

750 696999 Screw _OilPump Cover) 1124 6909880:1:

783 693058 Gear-Pinion

788 691039 Bracket-Fuel Pump 1126 690991

789 695050 Hamass-Wiring 1127 690992

789A 696576 Hamass-Widng 1128 690990 Q

797 691029 Nut (BrushRetainer) 1169 693140

797A 693167 Nut (BrushRetainer)

798 690967 Screw _RockerArm)

801 691283 Cap-Dnve

802 691286 Cap-End

803 Housing-Starter

(Service with 691262 Starter

Motor)

RPM Settings:Low

• Seal-Dipstick/Tube

Dipstick/TubeAssembly

Terminal-Sparkplug

Adapter-Air

Cover-AirGuide

Cover*AirGuide

•+ Seal-Valve

Screw(Rocker Cover)

Hose-Vasuum

Screw (Choke Control

Bracket)

Screw (Choke Control

Bracket)

Seal-ORing (Oil Pump

Cover)

Solenoid-Fuel

Cover-Oil Pump

F'ilter-PreCleaner

Cover-AirCleaner

Bowl-Float

Gasket Set-Carburetor

Seal-Throttle Shaft

Fan-Flywheel

Nipple-OilFilter

Screen-Oil Pump

Klt-Labal

Gasket-Rocker Cover

Cover-Rocker(Cylinder1)

Cover-Rocker(Cylinder2)

Pump-Oil

Rod-Push (Steel)

Rod-Push (Aluminum)

Filter-Oil

Arm-Rocker

Shaft-Pump.

LabeI-Em_sston

Ring-Retaining

Owner's Manual

Screw (FlywheelFan)

Retainer-Brush

Gasket Set-Valve

Pivot-RockerArm

Screw (Alternator)

Seal-O Ring (Solenoid

Retainer)

Seal-O Ring (Fuel Transfer

Tube)

Screw FuelTransferTube)

Screw Roat BoWl)

Screw CarburetorNozzle)

Screw CarburetorCover

Plate)

Speed: 1900-2100

High Speed: 3000-3200

•Included in Engine Gasket Set, Key. No. 358

GIncluded in Carburetor Overhaul Kit, Key. No.

121

-1:Included in Carburetor Gasket Set, Key. No.

977

+ Included in Valve Gasket Set, Key. No. 1095

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

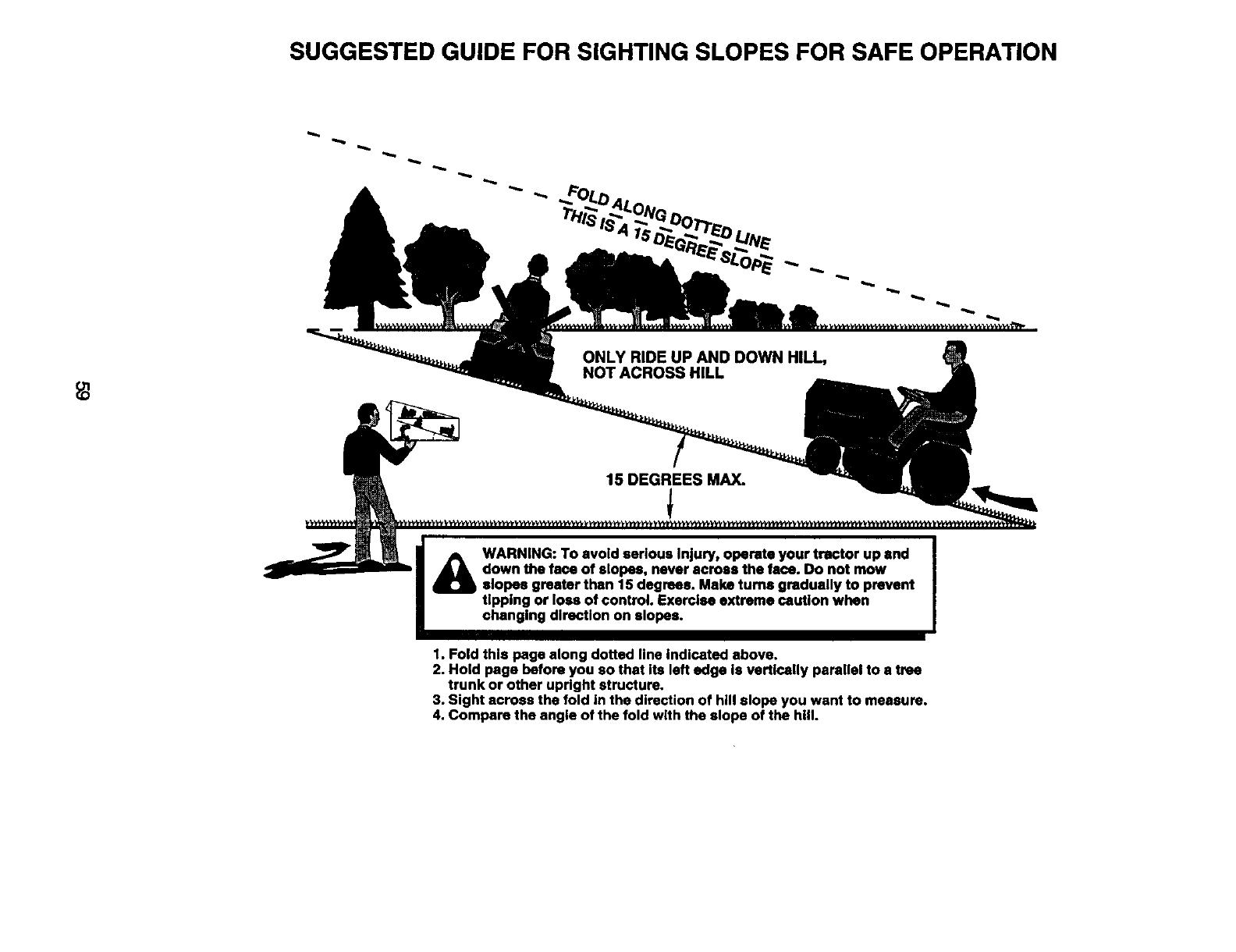

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge Is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the elope of the hill.

Forrepairofmajorbrand appliances

inyour own home...

nomatterwho made it,no matterwhosoldit!

1-800-4-MY-HOME _AnyOne,dayornigl_

(1-8(X_ (U.S.A.andCanada)

Forrepairofcarry-inproductslikevacuums,lawnequipment,and

electronics,callforthe nearestSears Parts and RepairCenter.

1-800-488-1222 Any_ dayorright(U.SAonly)

wt_llm

Forthe replacementparts,accessoriesandowner'smanuals

thatyouneed todo-it-yourself,callSears PartsDirectS=!

1-800-366-PART 6 a.m.-11 p.m.,7 daysaweek

(1-800-366-7278) (U.S.A.only)

To purchaseorinquireabouta Sears ServiceAgreement

orSears MaintenanceAgreement

1-800-827-6655 (u.sJ_) 1-800-361-6665 (Canada)

7am.-5 p.m.,CST, MoR- Sat. 9 a.m.- 8 p.m.EST,M-F,4 p.m.Sat.

Parapetitse_c_de_parac_na

domiclo,y paraonJenarp@zas:

1-888-SU-HOGARsu

(l_SS-7e4-6427)

Au_la ix_se_ce en P_

1-_.I_-FO_:I Mc

(1_

WWW.SeEII_

®Registered Trademark/'ra Trademark /su Selvice Mark of Sears, Roebuckand Co.

®Mama Registrada /TMMama de Fdbdca /su Marca de Serviciode Sears, Roebuck and Co.

MCMarque de commerce /ao Marque d_poe@ede Sears, Roebuck and Co.

183252 3.11.02 RD Printedin U.S.A.

Craftsman 917 272281 Users Manual

917272281 917272281 CRAFTSMAN LAWN TRACTOR - Manuals and Guides L0203211 View the owners manual for your CRAFTSMAN LAWN TRACTOR #917272281. Home:Lawn & Garden Parts:Craftsman Parts:Craftsman LAWN TRACTOR Manual

CRAFTSMAN Lawn, Tractor Manual L0203211 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

917.272281 L0203211

Navigation menu

Versions of this User Manual:

Views

Navigation
