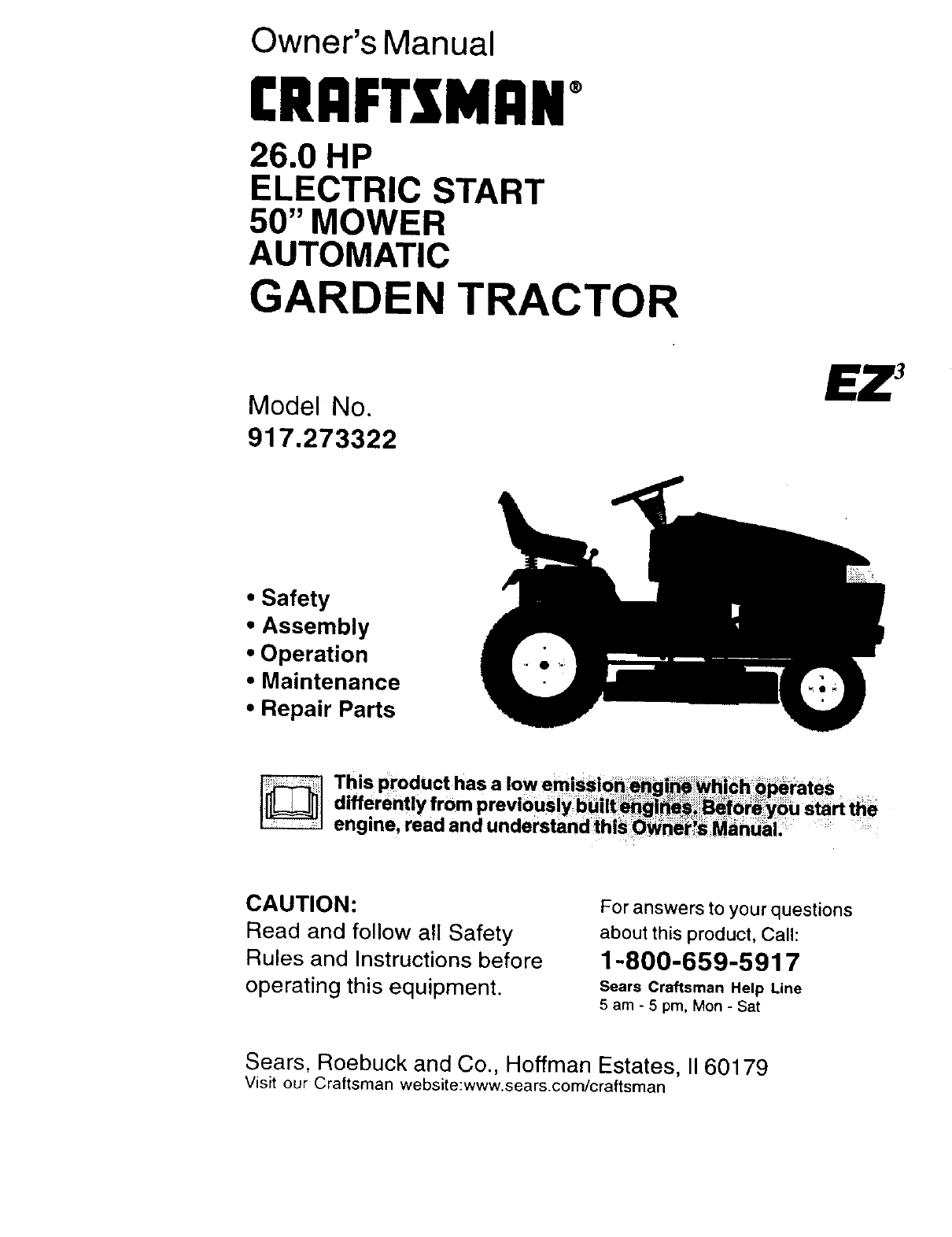

Owner's Manual

£RAFTZMIIN+

260 HP

ELECTRIC START

50" MOWER

AUTOMATIC

GARDEN TRACTOR

Model No.

917.273322

• Safety

•Assembly

• Operation

•Maintenance

•Repair Parts

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am 5 pro, Mon Sat

Sears, Roebuck and Co., Hoffman Estates, II 60179

Visit our Craftsman website:www.sears.com/craftsman

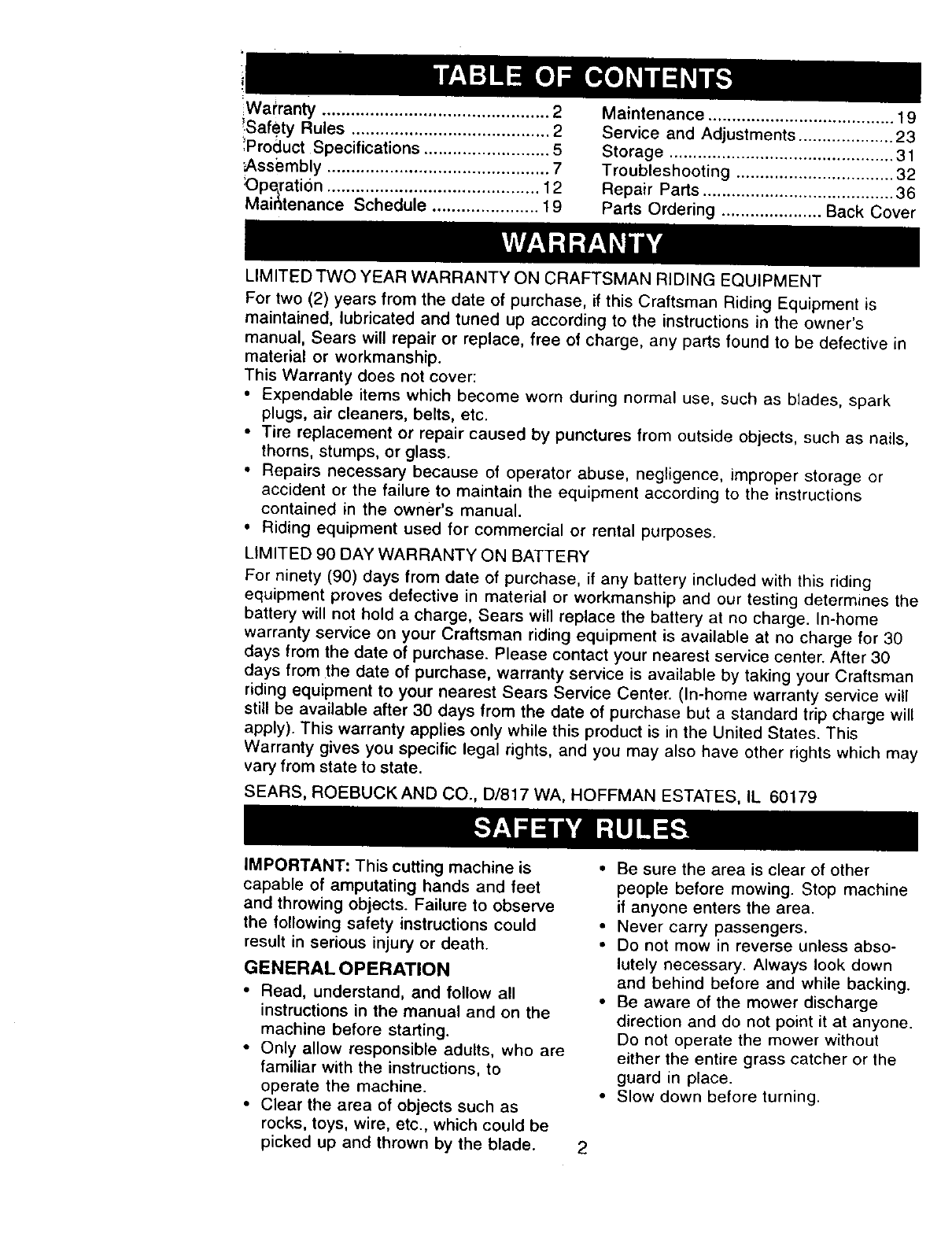

Wal'ranty ............................................... 2

iSafety Rules .................. 2

!Pro_luct Spec f cat ons ...... 5

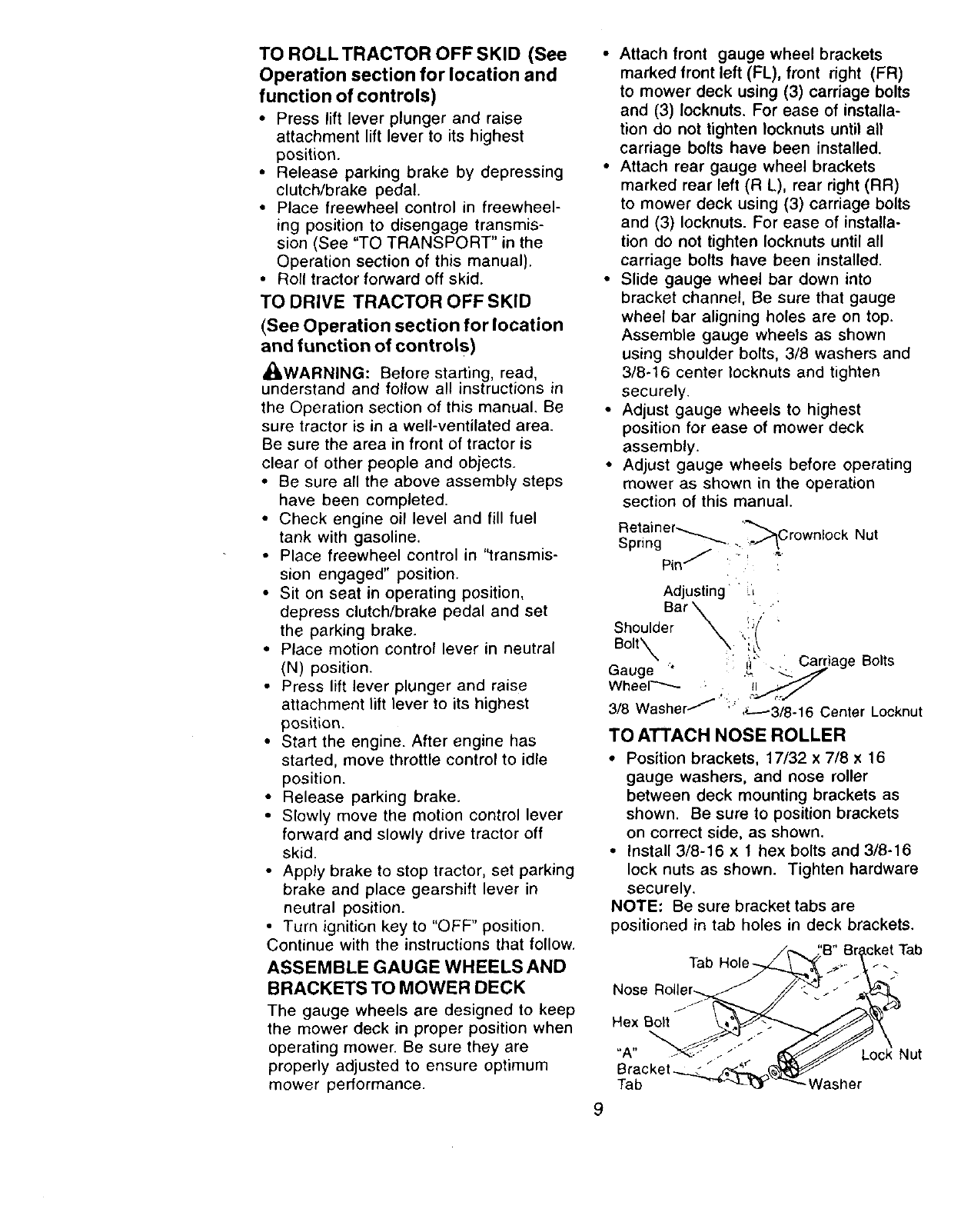

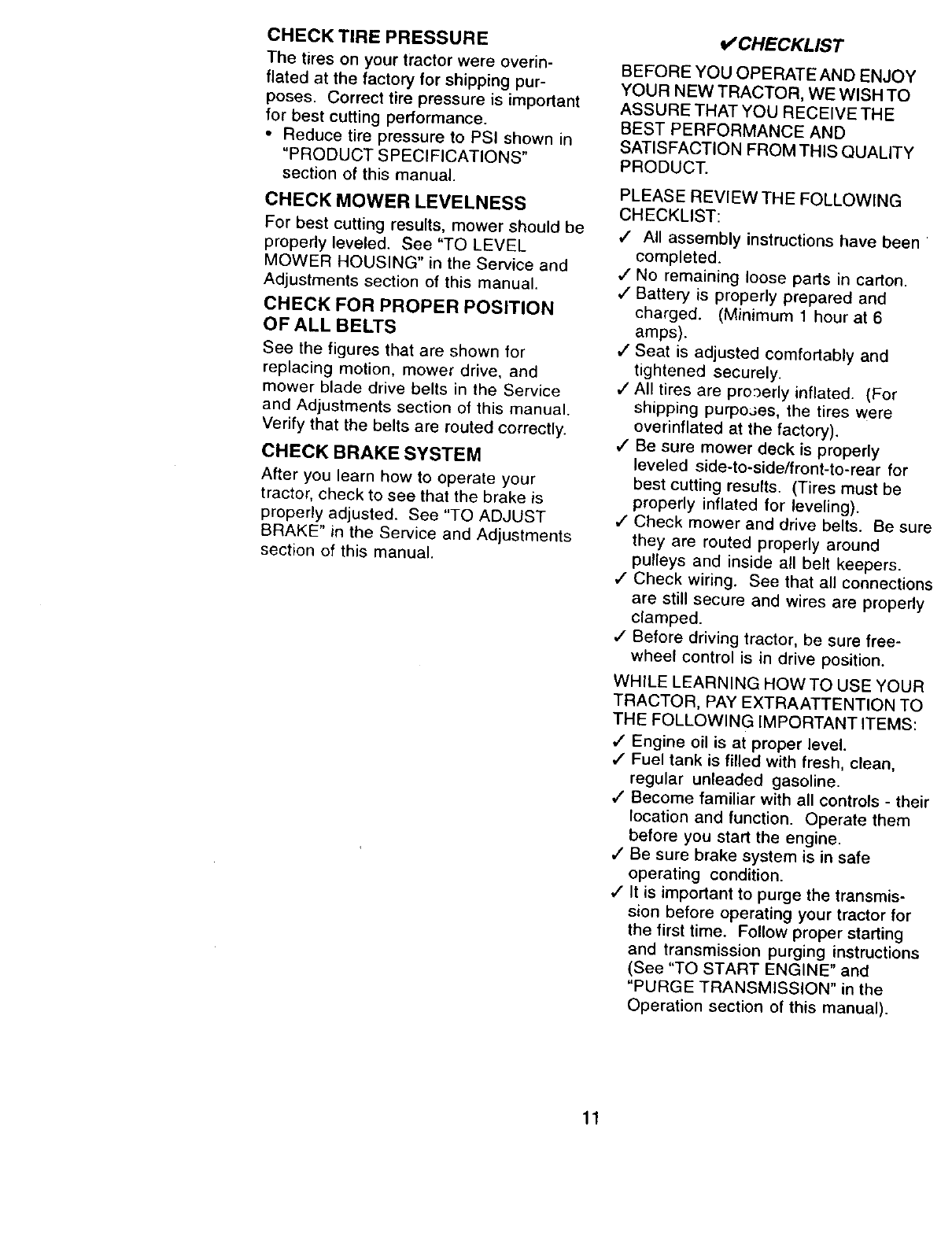

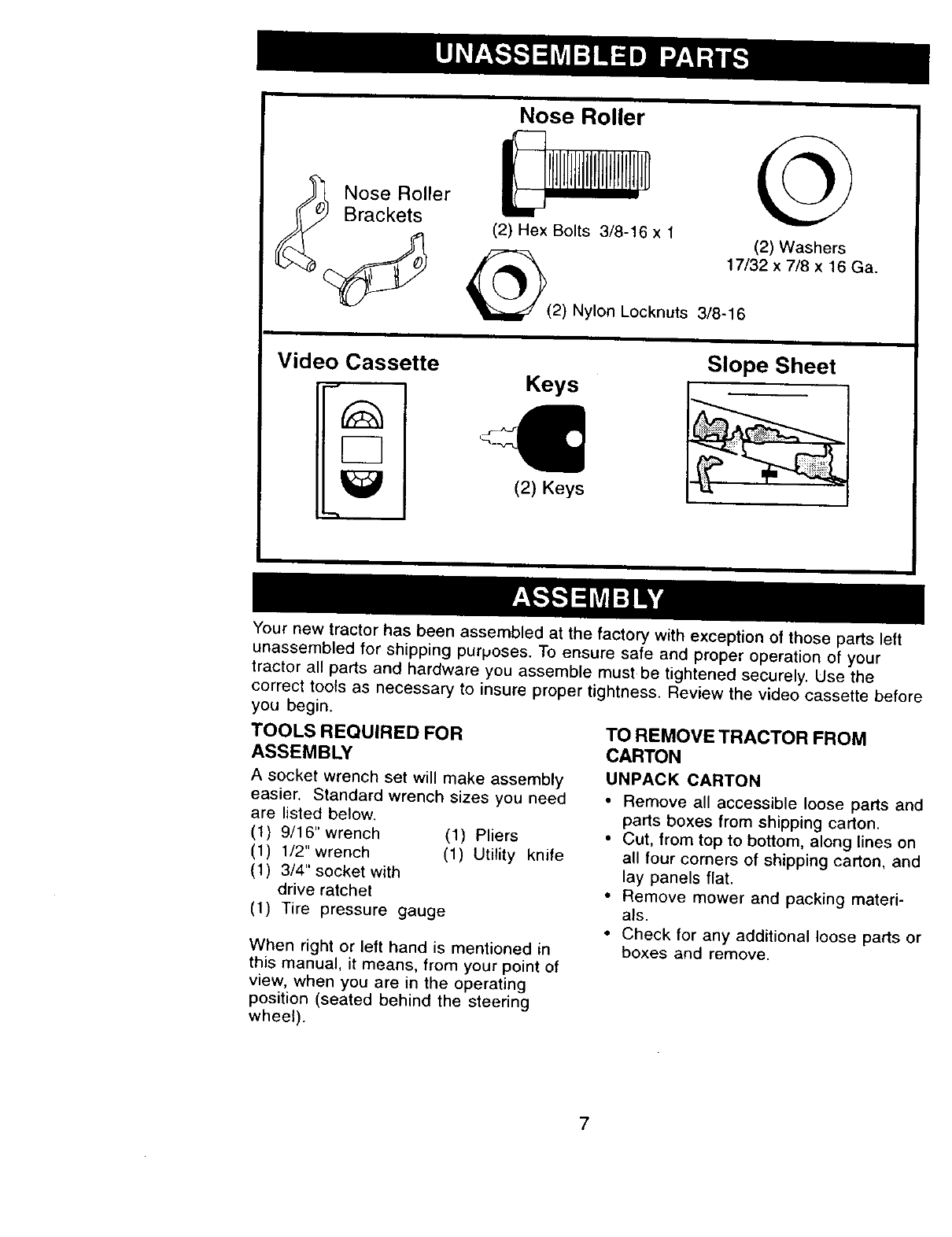

;Assembly .............................................. 7

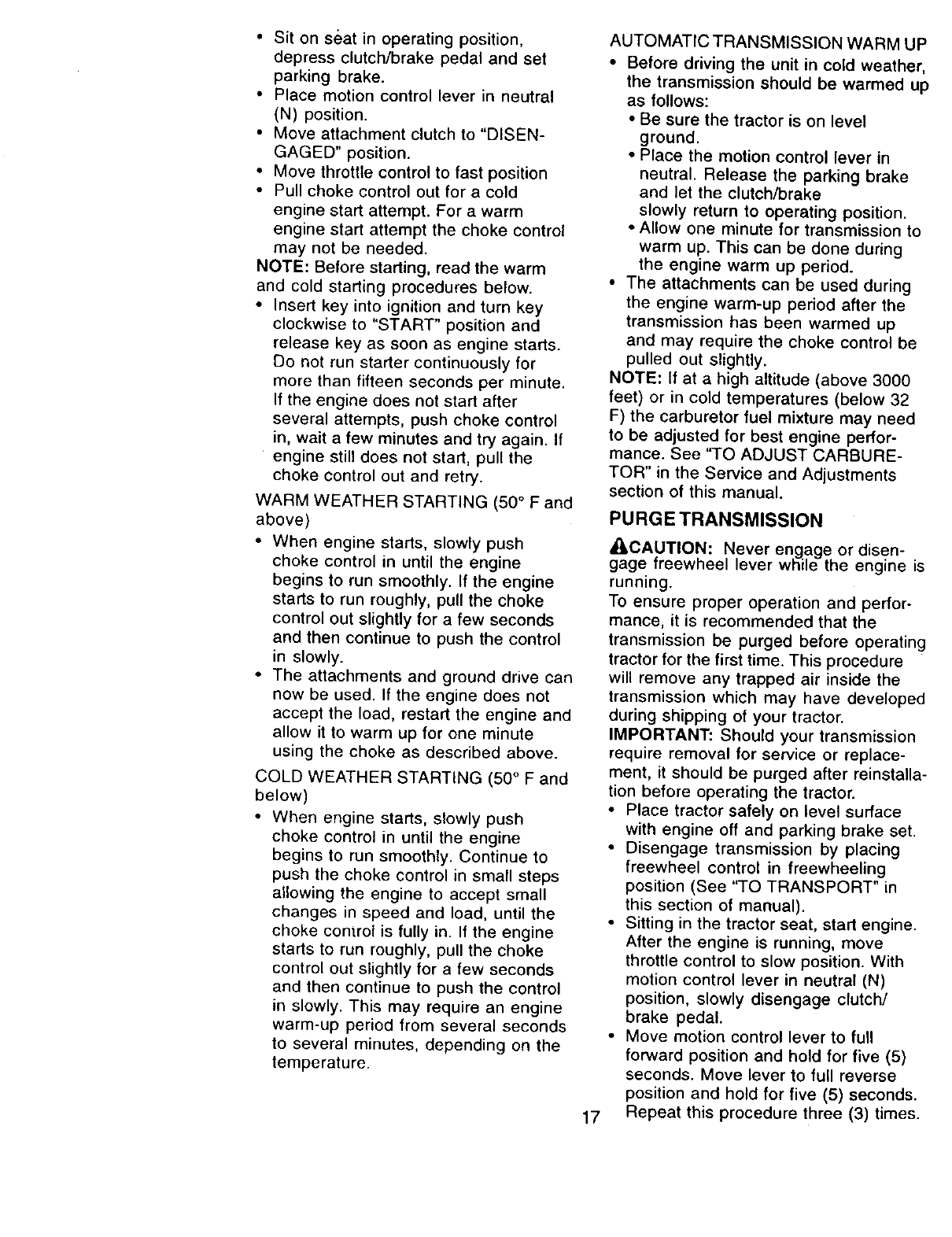

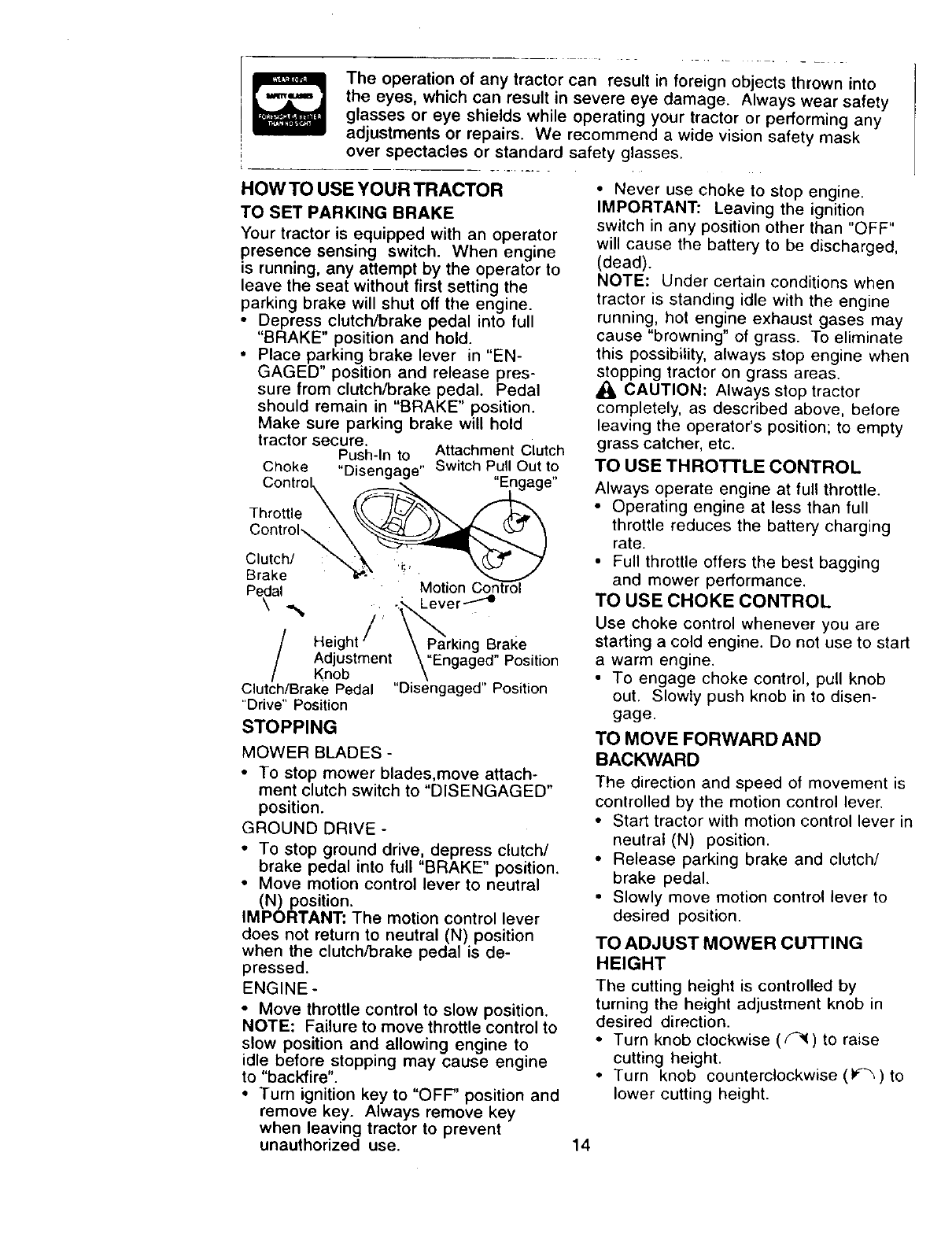

_3pe,ratibn ............................................ 12

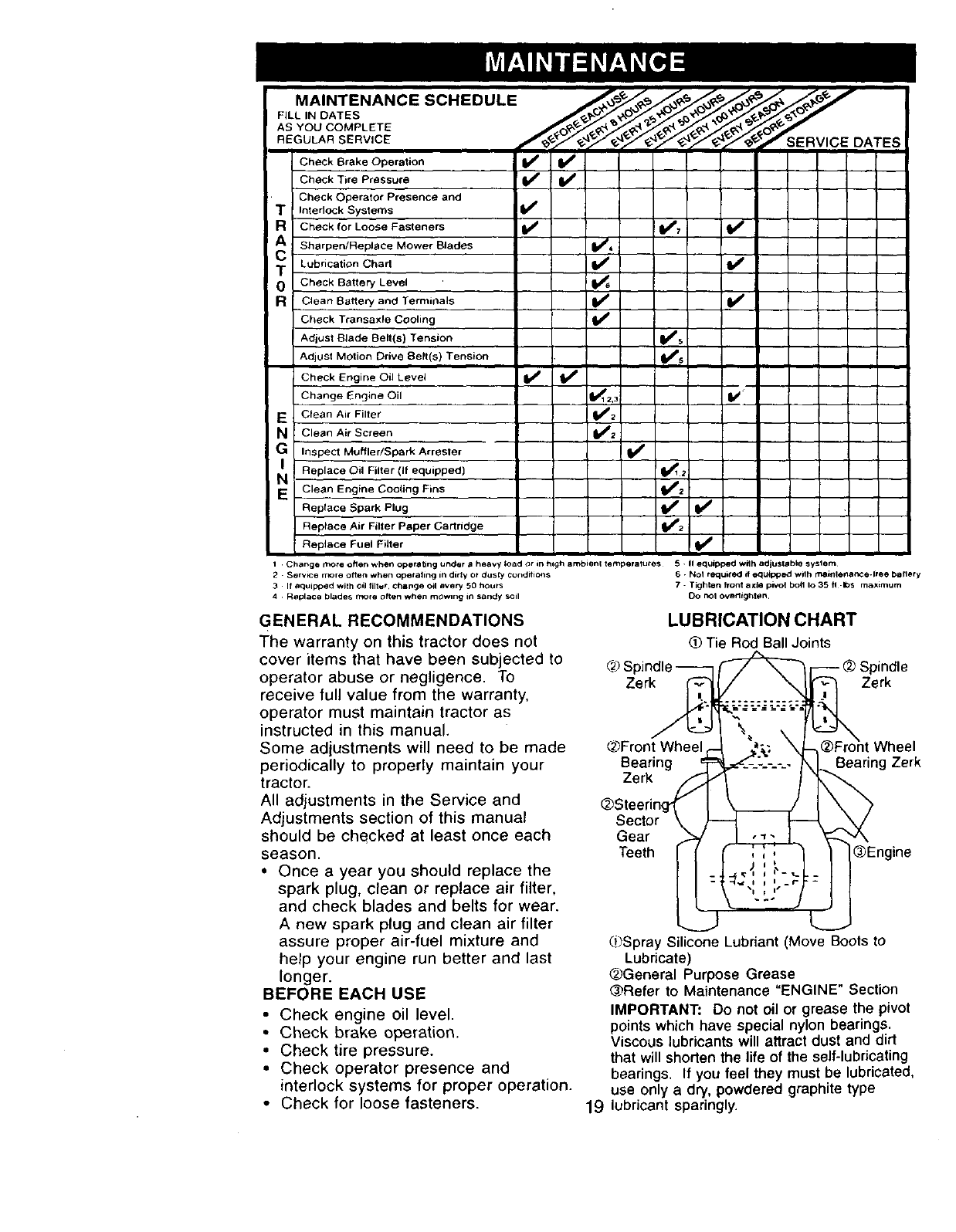

Maihtenance Schedule ...................... 19

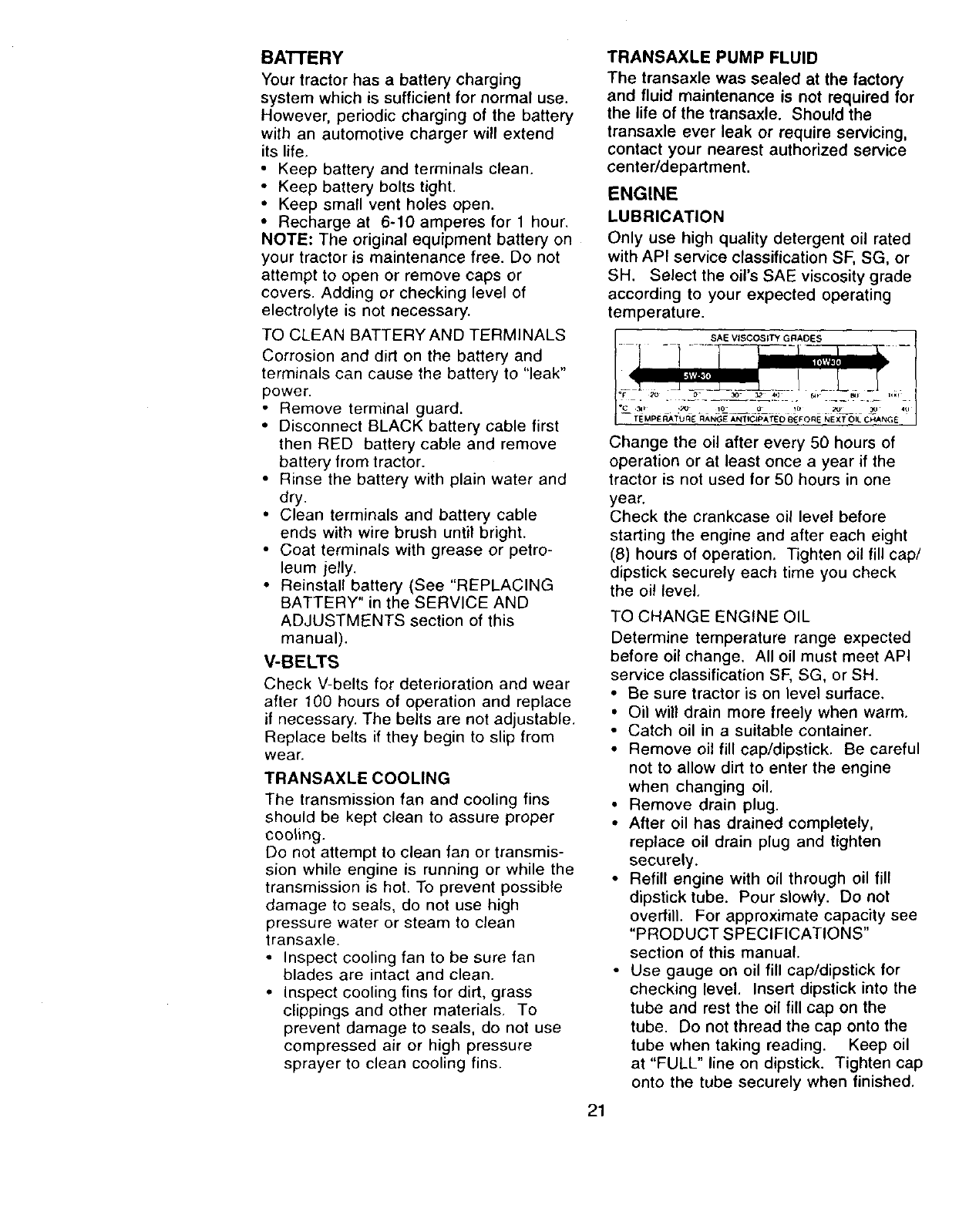

Maintenance ....................................... 19

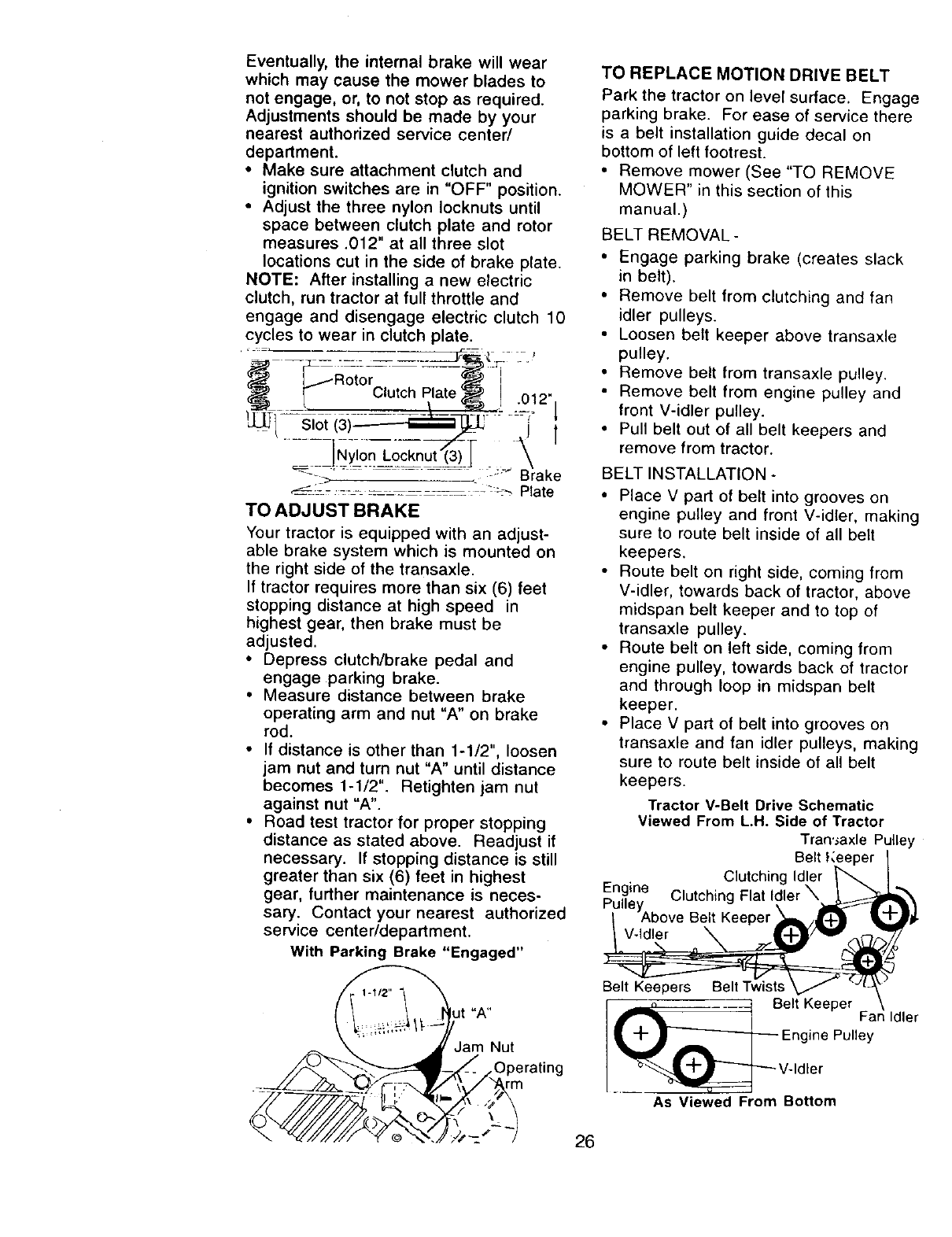

Service and Adjustments .................... 23

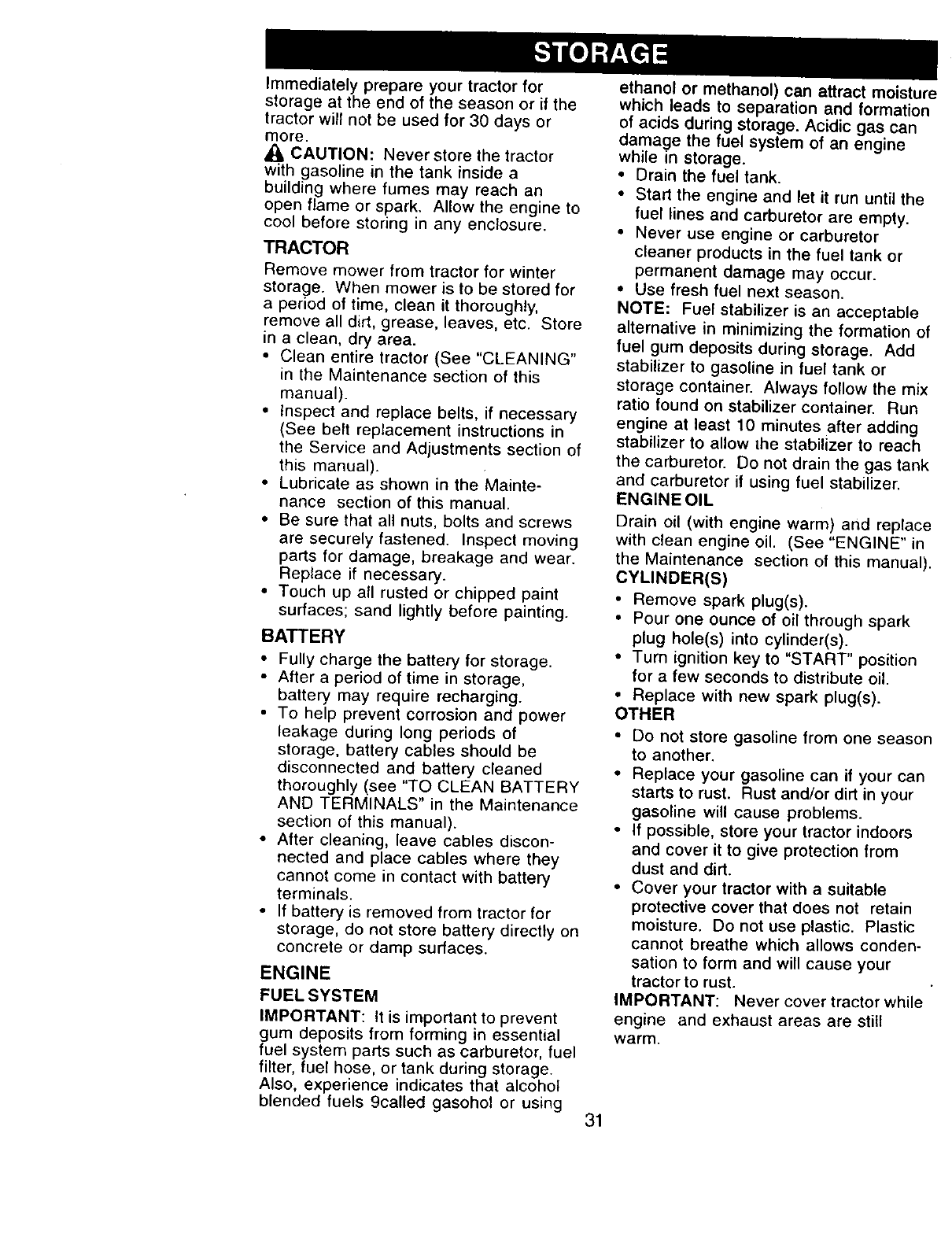

Storage ............................................... 31

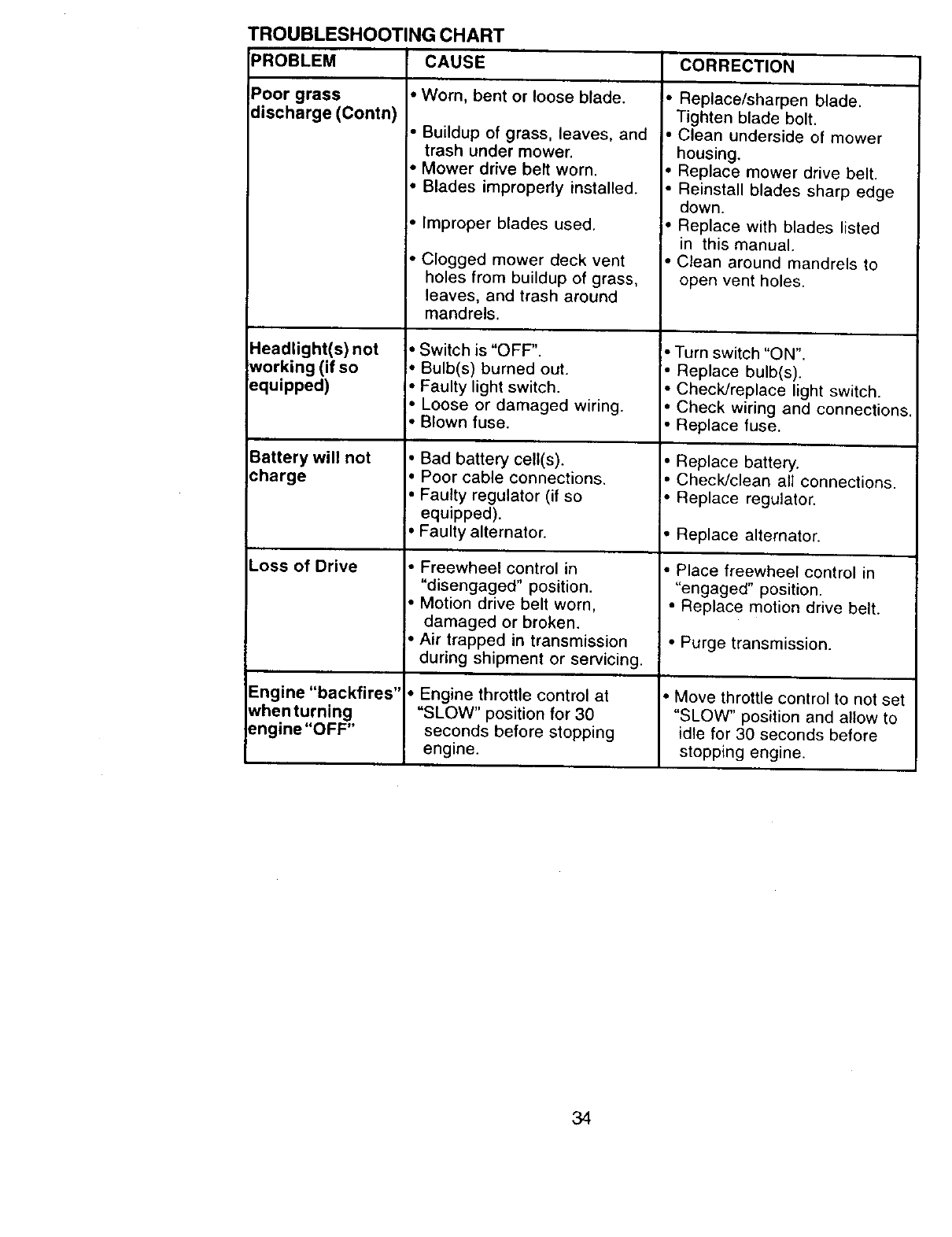

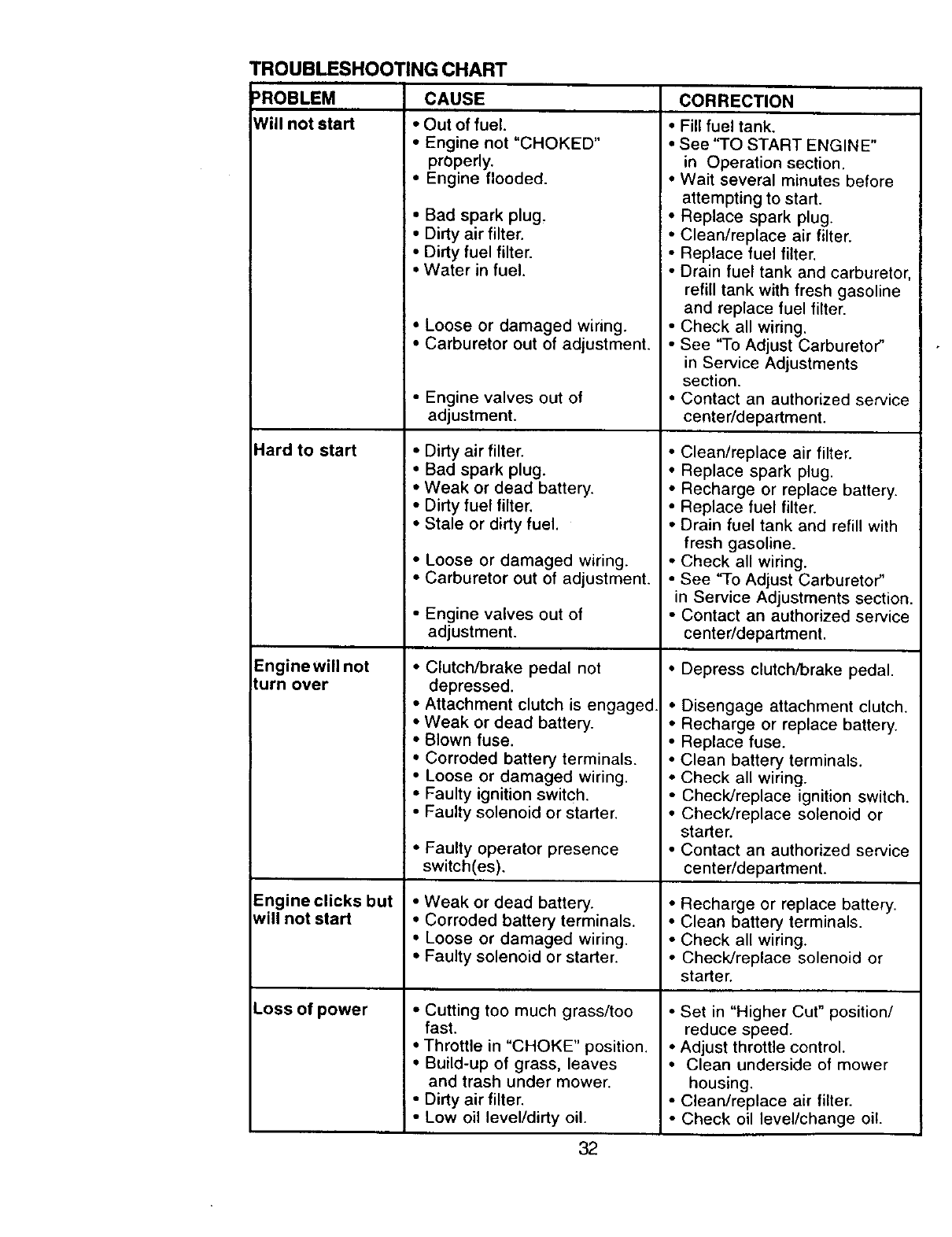

Troubleshooting ................................. 32

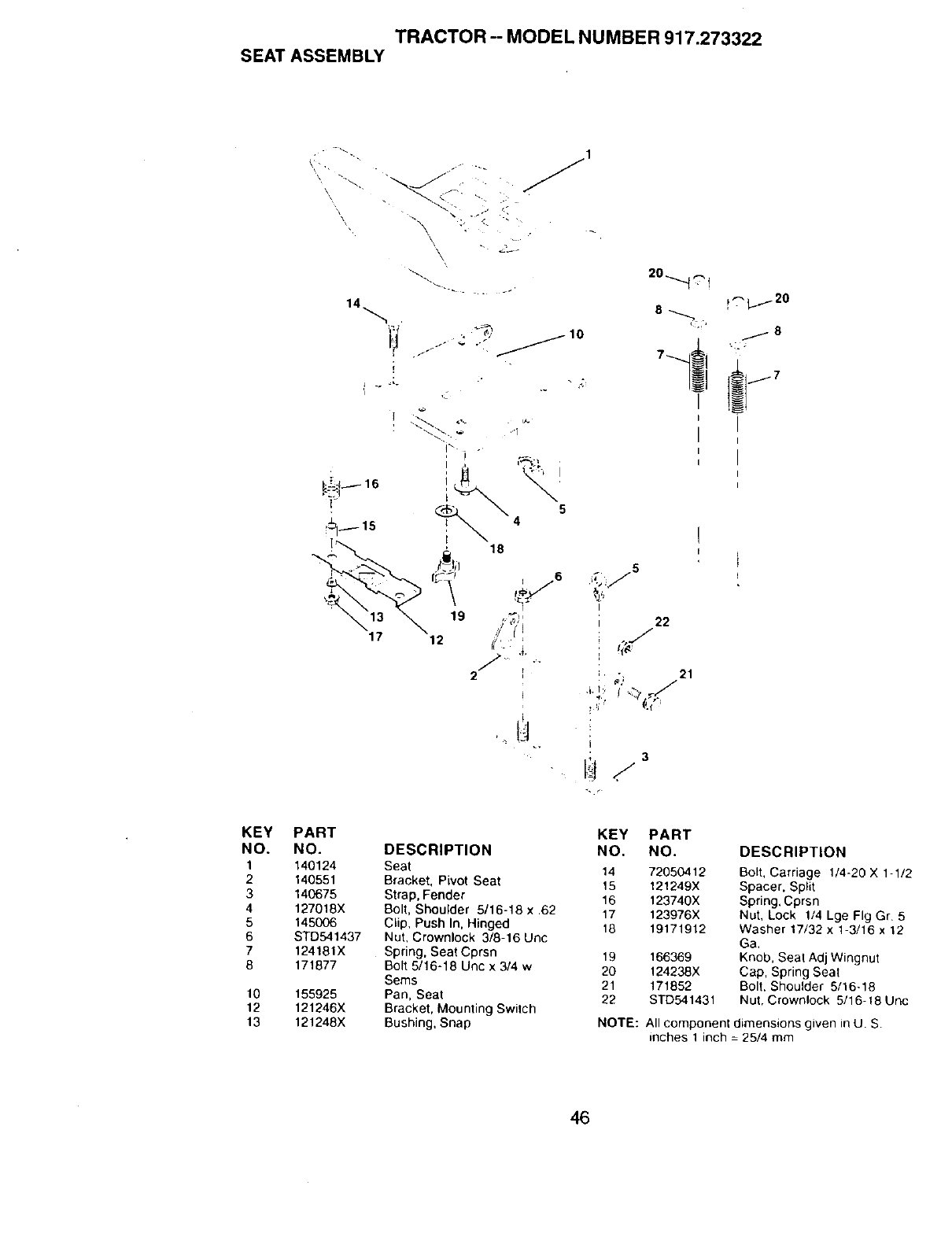

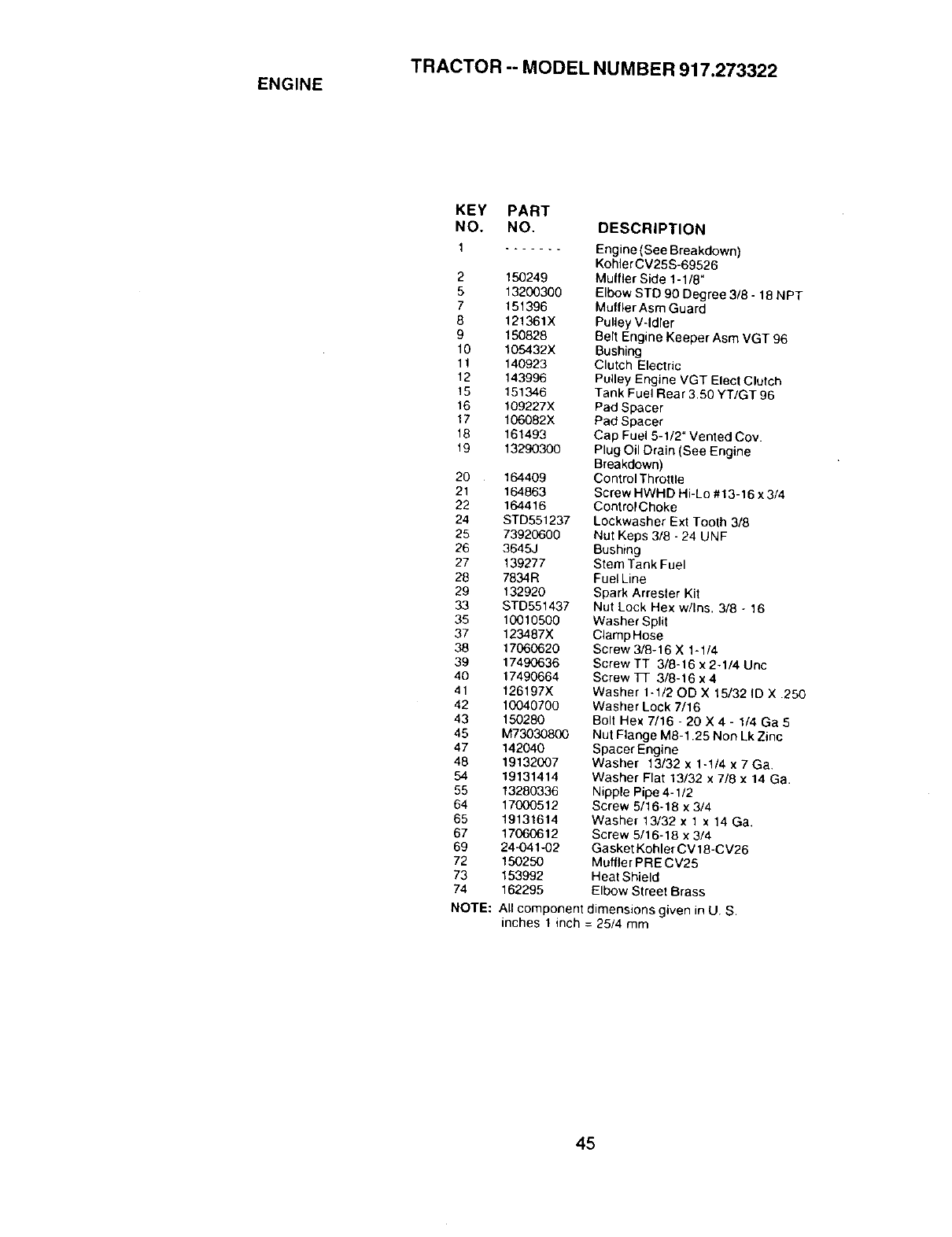

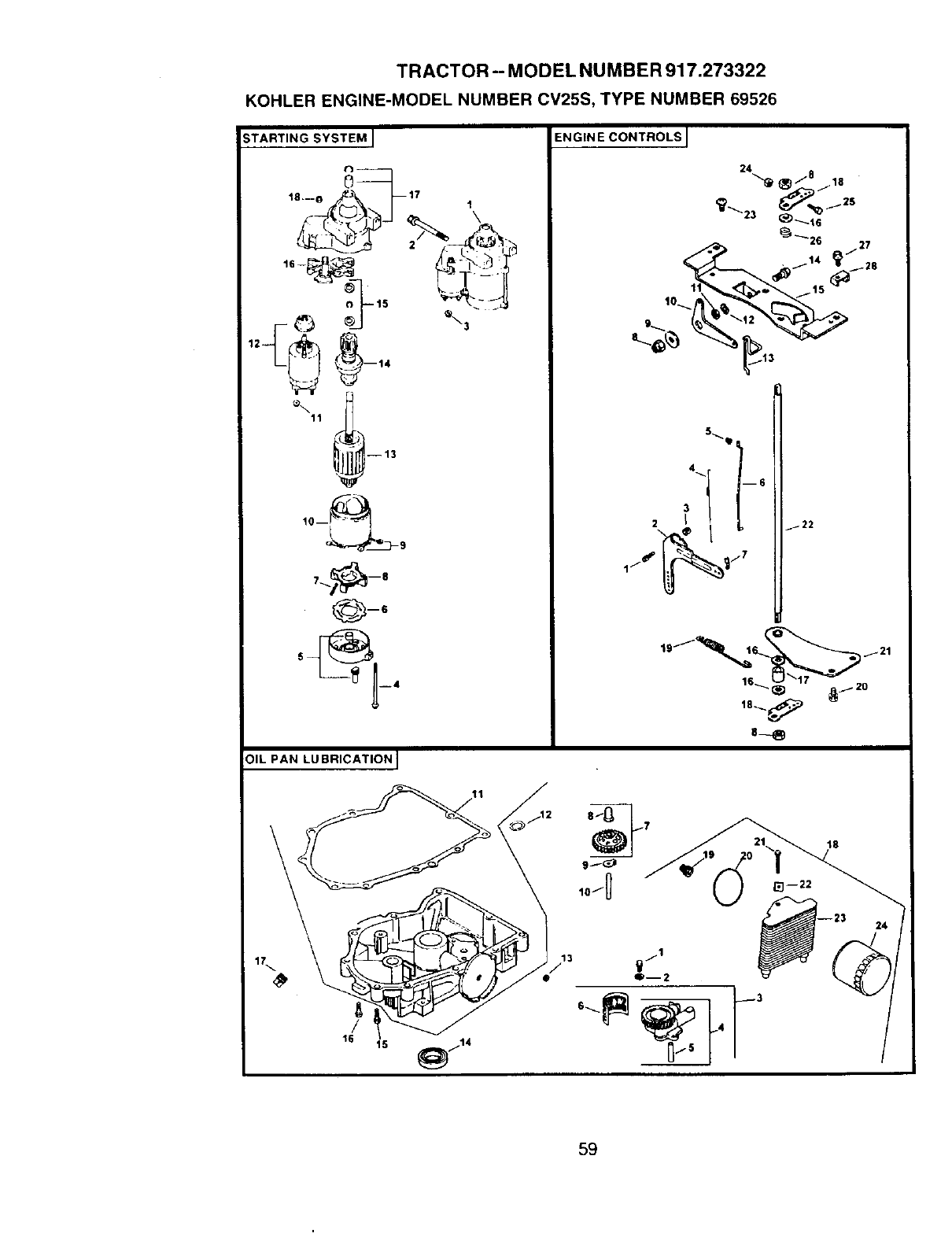

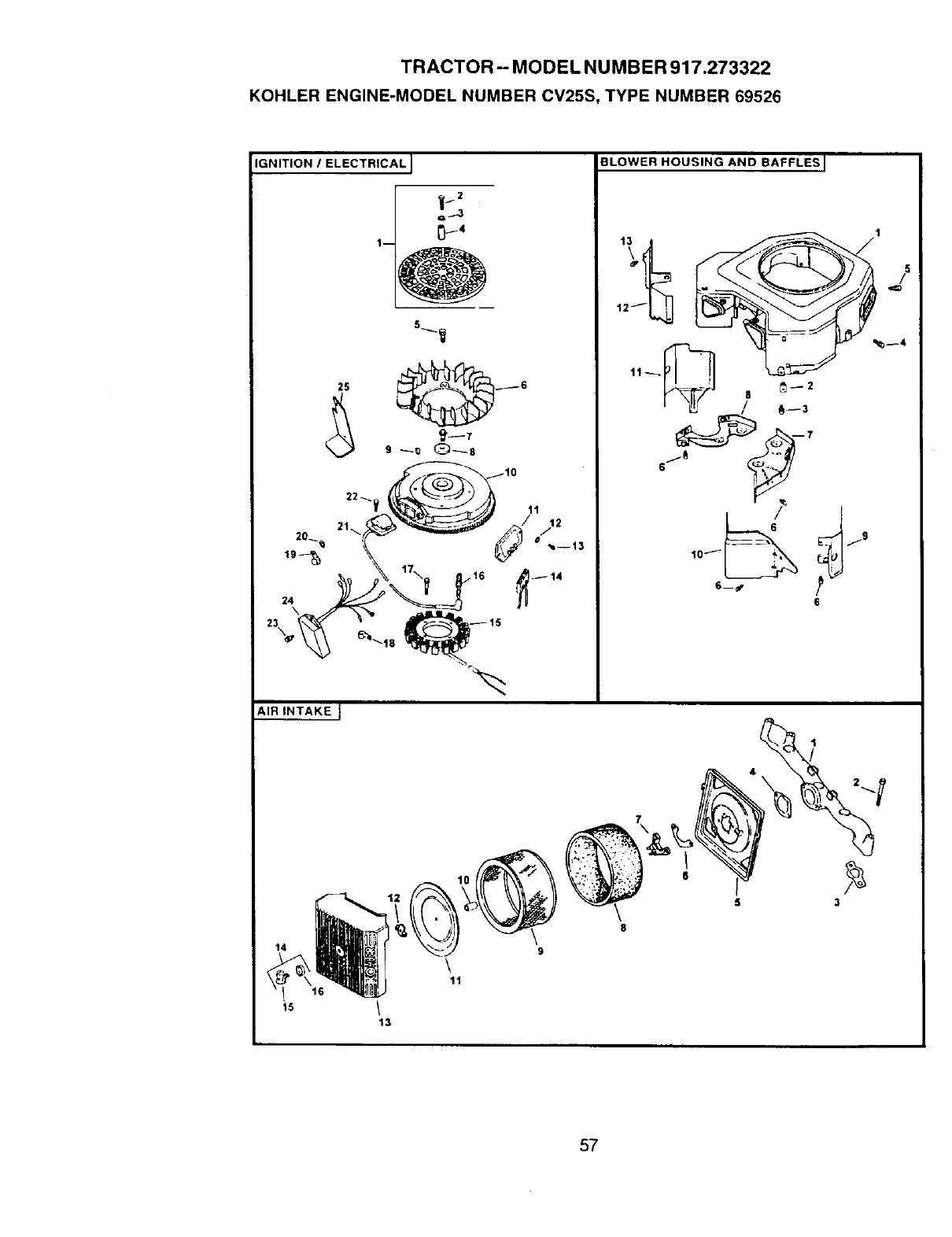

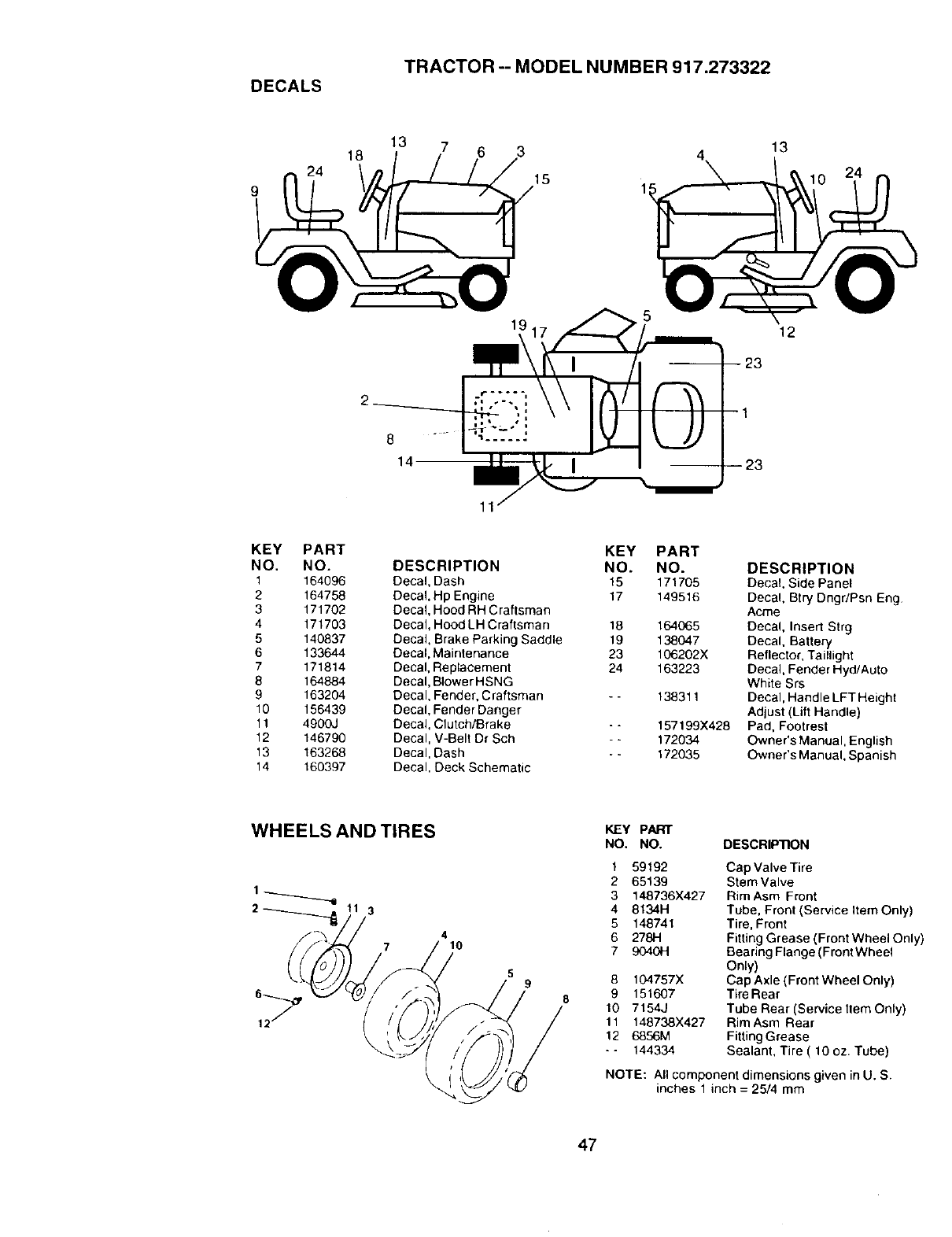

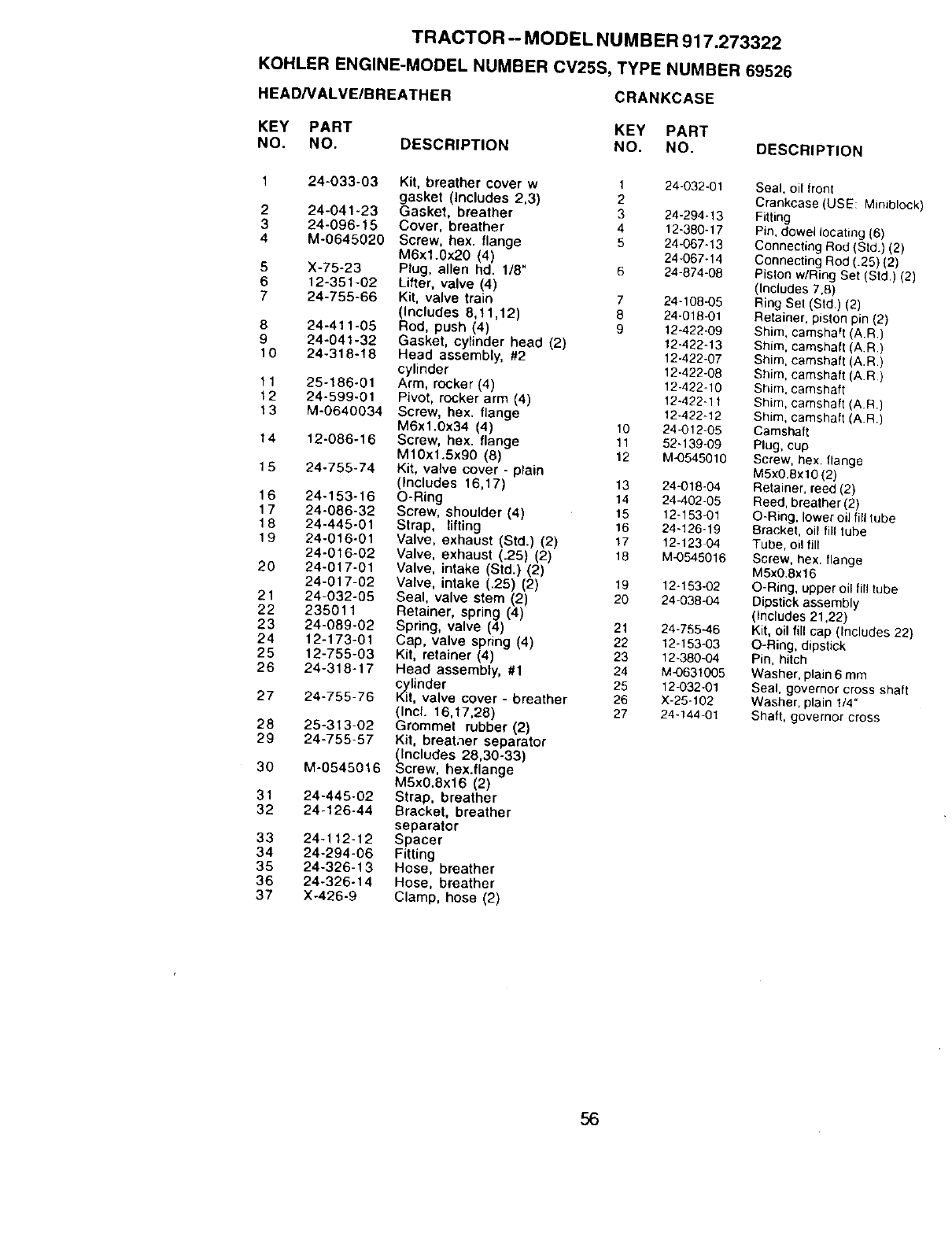

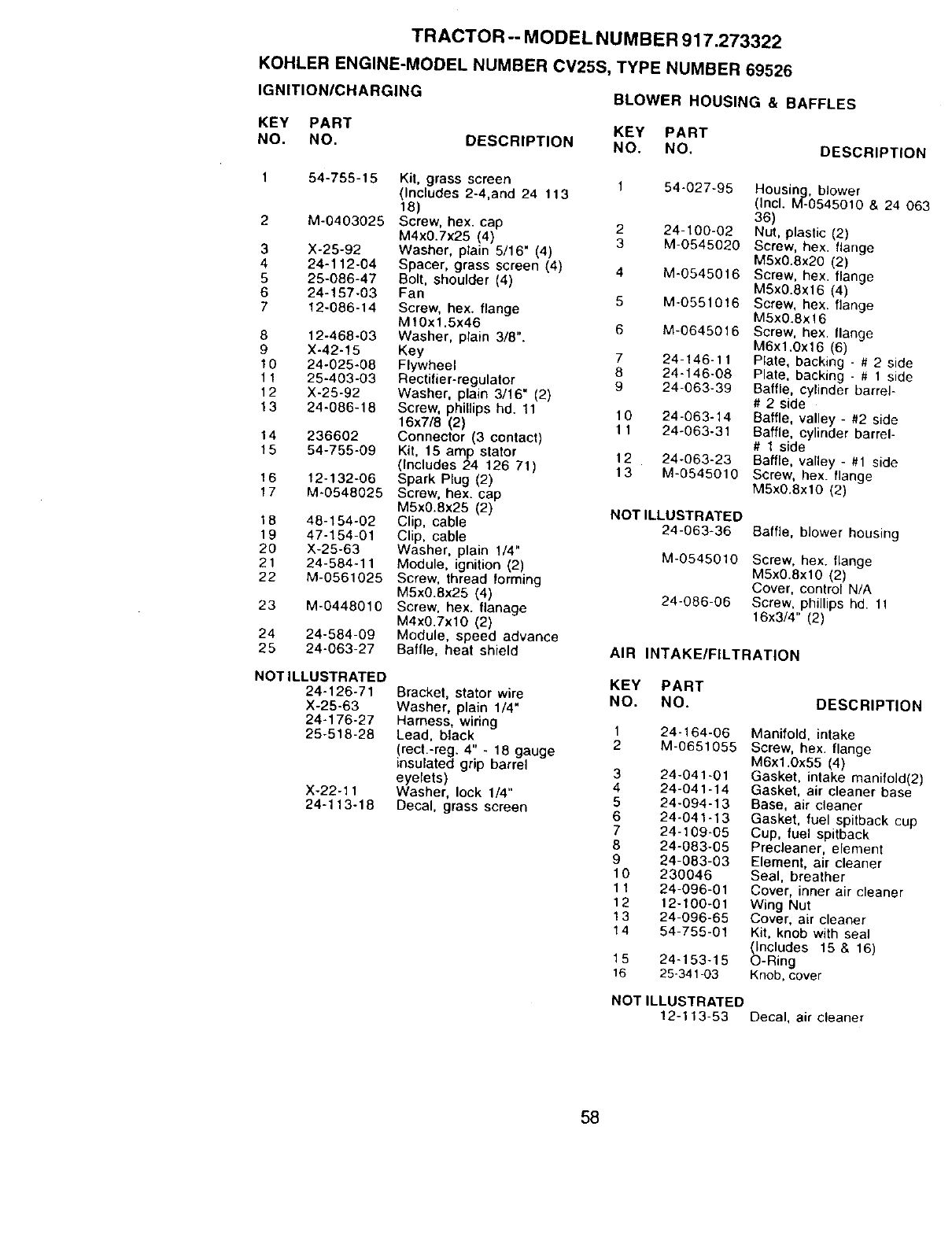

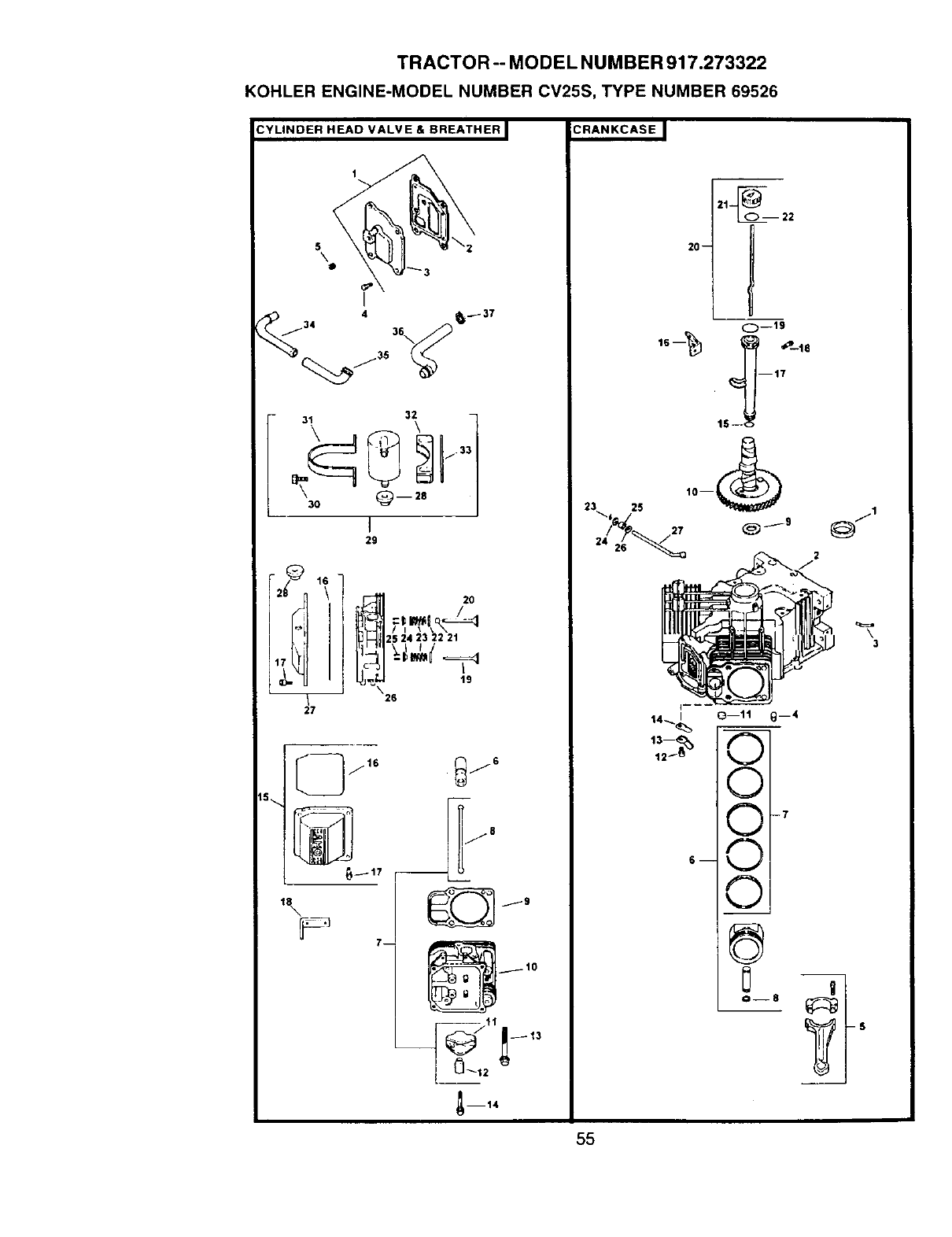

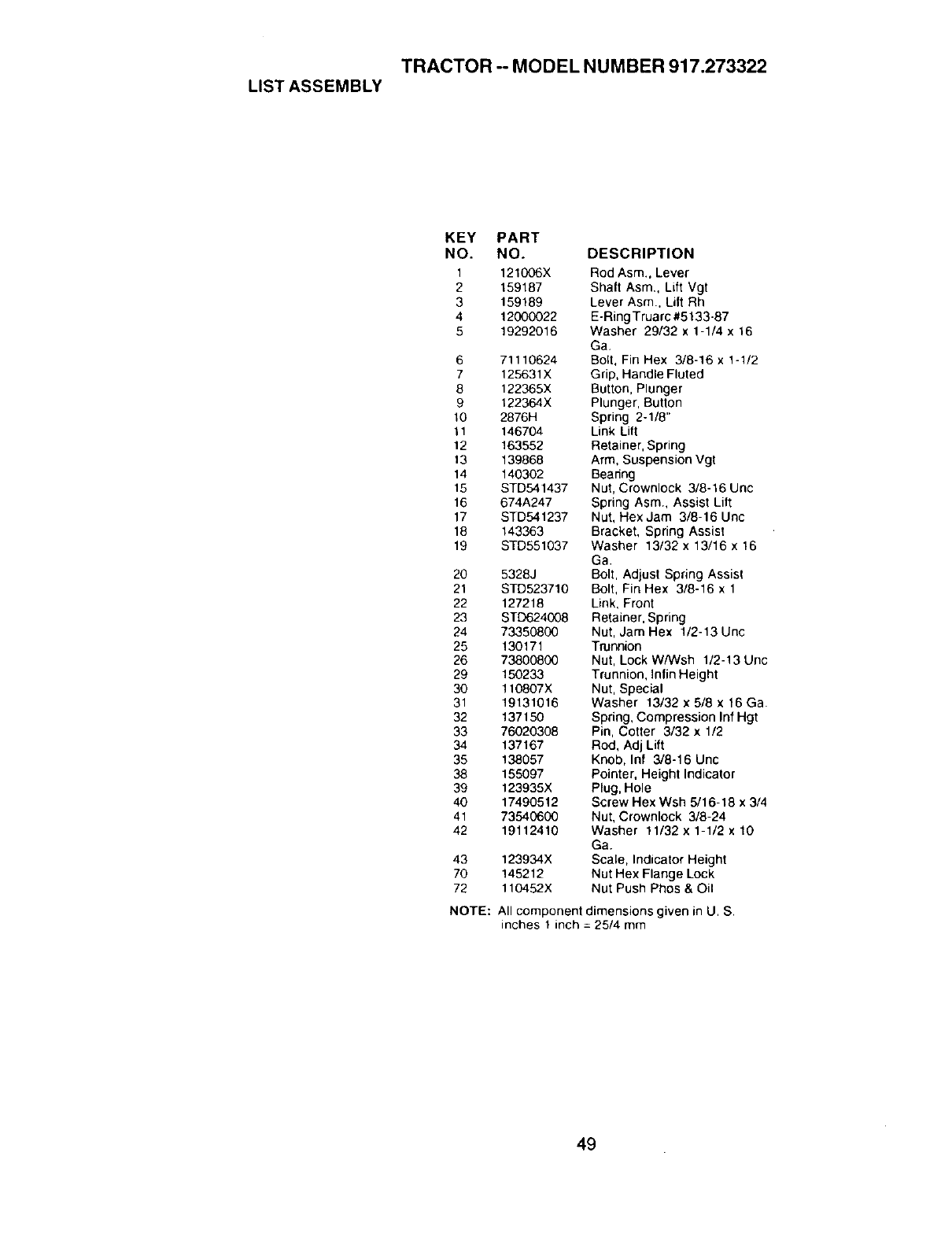

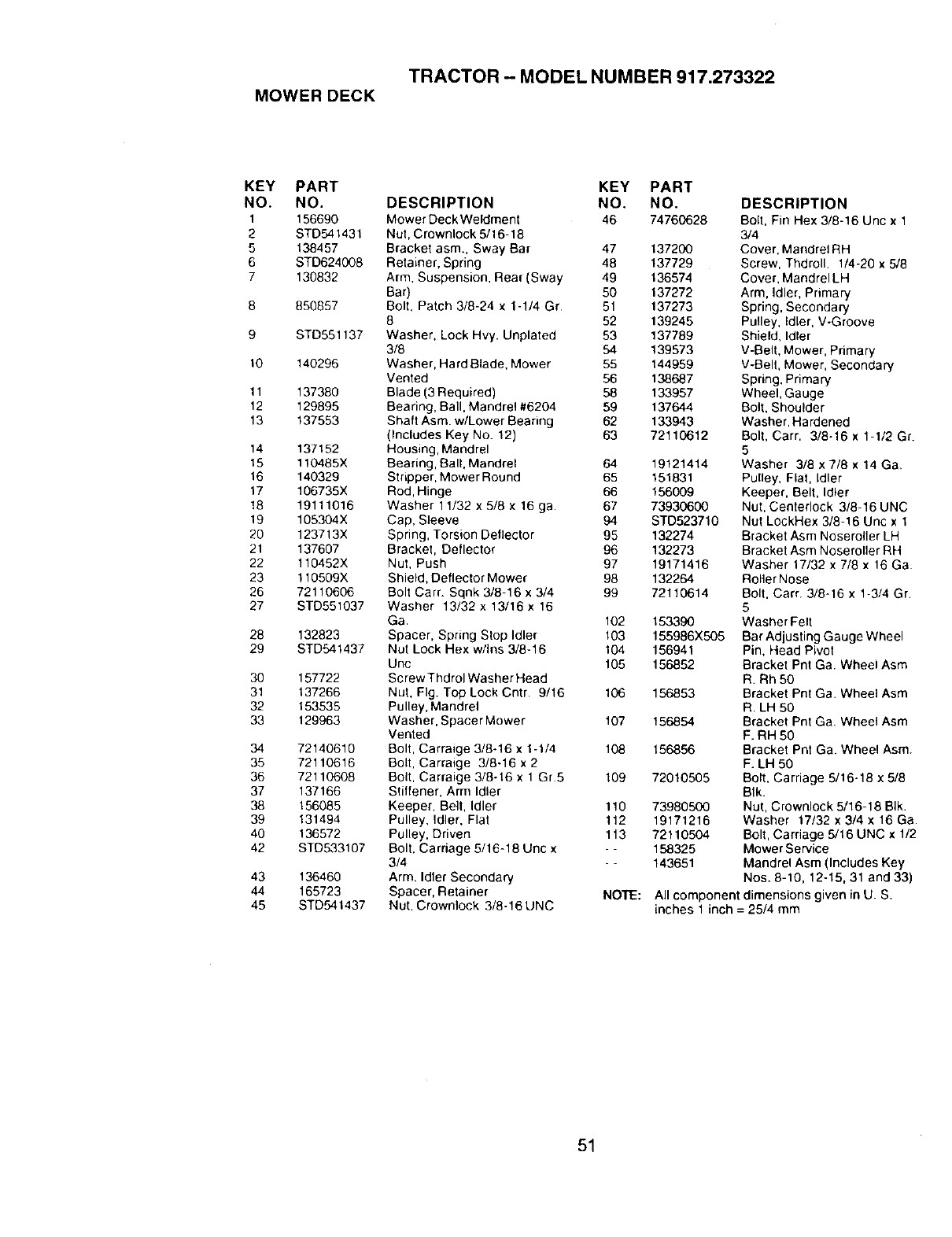

Repair Parts ........................................ 36

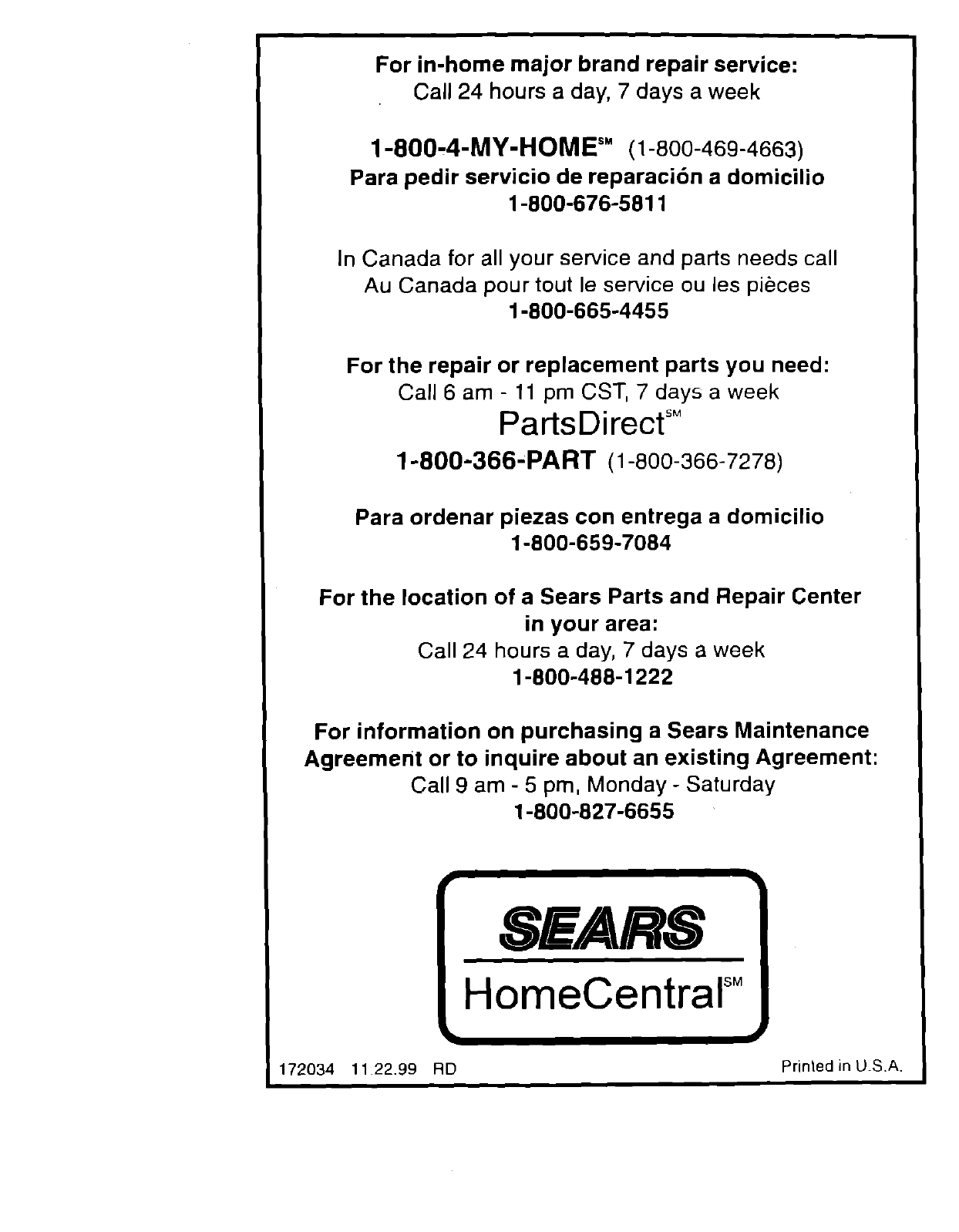

Parts Ordering ..................... Back Cover

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship.

This Warranty does not cover:

•Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts, etc.

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, negligence, improper storage or

accident or the failure to maintain the equipment according to the instructions

contained in the owner's manual.

• Riding equipment used for commercial or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding

equipment proves defective in material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. In-home

warranty service on your Craftsman riding equipment is available at no charge for 30

days from the date of purchase. Please contact your nearest service center. After 30

days from the date of purchase, warranty service is available by taking your Craftsman

riding equipment to your nearest Sears Service Center. (In-home warranty service will

still be available after 30 days from the date of purchase but a standard trip charge will

apply). This warranty applies only while this product is in the United States. This

Warranty gives you specific legal rights, and you may also have other rights which may

vary from state to state.

SEARS, ROEBUCKAND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

IMPORTANT: This cutting machine is

capable of amputating hands and feet

and throwing objects. Failure to observe

the following safety instructions could

result in serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all

instructions in the manual and on the

machine before starting.

• Only allow responsible adults, who are

familiar with the instructions, to

operate the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blade. 2

• Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Be aware of the mower discharge

direction and do not point it at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard in place.

Slow down before turning.

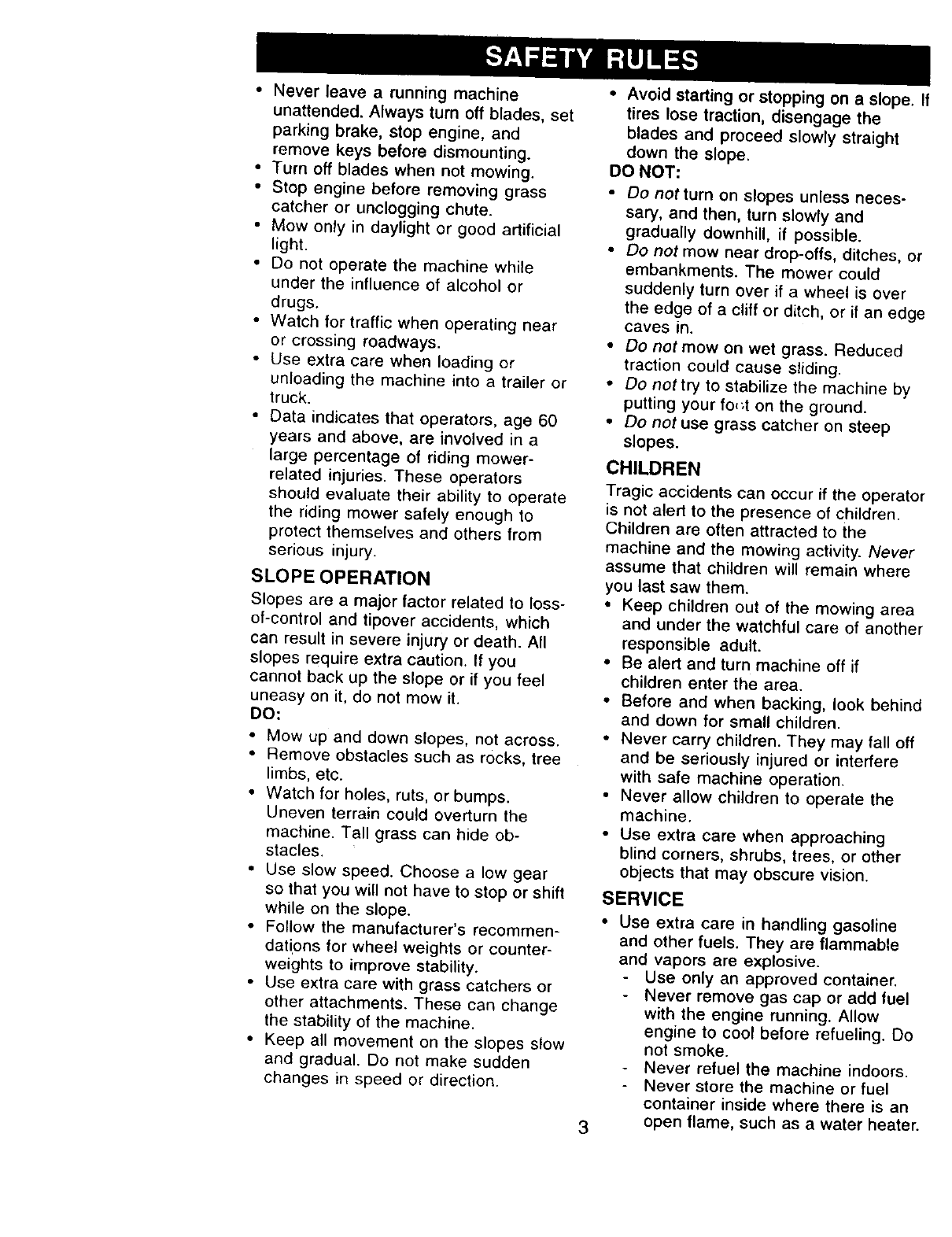

•Never leave a running machine

unattended. Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while

under the influence of alcohol or

drugs.

• Watch for traffic when operating near

or crossing roadways.

•Use extra care when loading or

unloading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related injuries. These operators

should evaluate their ability to operate

the riding mower safely enough to

protect themselves and others from

serious injury.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which

can result in severe injury or death. All

slopes require extra caution. If you

cannot back up the slope or if you feel

uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps.

Uneven terrain could overturn the

machine. Tall grass can hide ob-

stacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

•Follow the manufacturer's recommen-

dati.ons for wheel weights or counter-

weights to improve stability.

•Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

•Avoid starting or stopping on a slope. I

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

DO NOT:

•Do not turn on slopes unless neces-

sary, and then, turn slowly and

gradually downhill, if possible.

•Do not mow near drop-offs, ditches, or

embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

•Do not mow on wet grass. Reduced

traction could cause sliding.

•Do nottry to stabilize the machine by

putting your fo,;t on the ground.

•Do not use grass catcher on steep

slopes.

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the

machine and the mowing activity. Never

assume that children will remain where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if

children enter the area.

• Before and when backing, look behind

and down for small children.

•Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

•Never allow children to operate the

machine.

•Use extra care when approaching

blind corners, shrubs, trees, or other

objects that may obscure vision.

SERVICE

• Use extra care in handling gasoline

and other fuels. They are flammable

and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

Never refuel the machine indoors.

Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

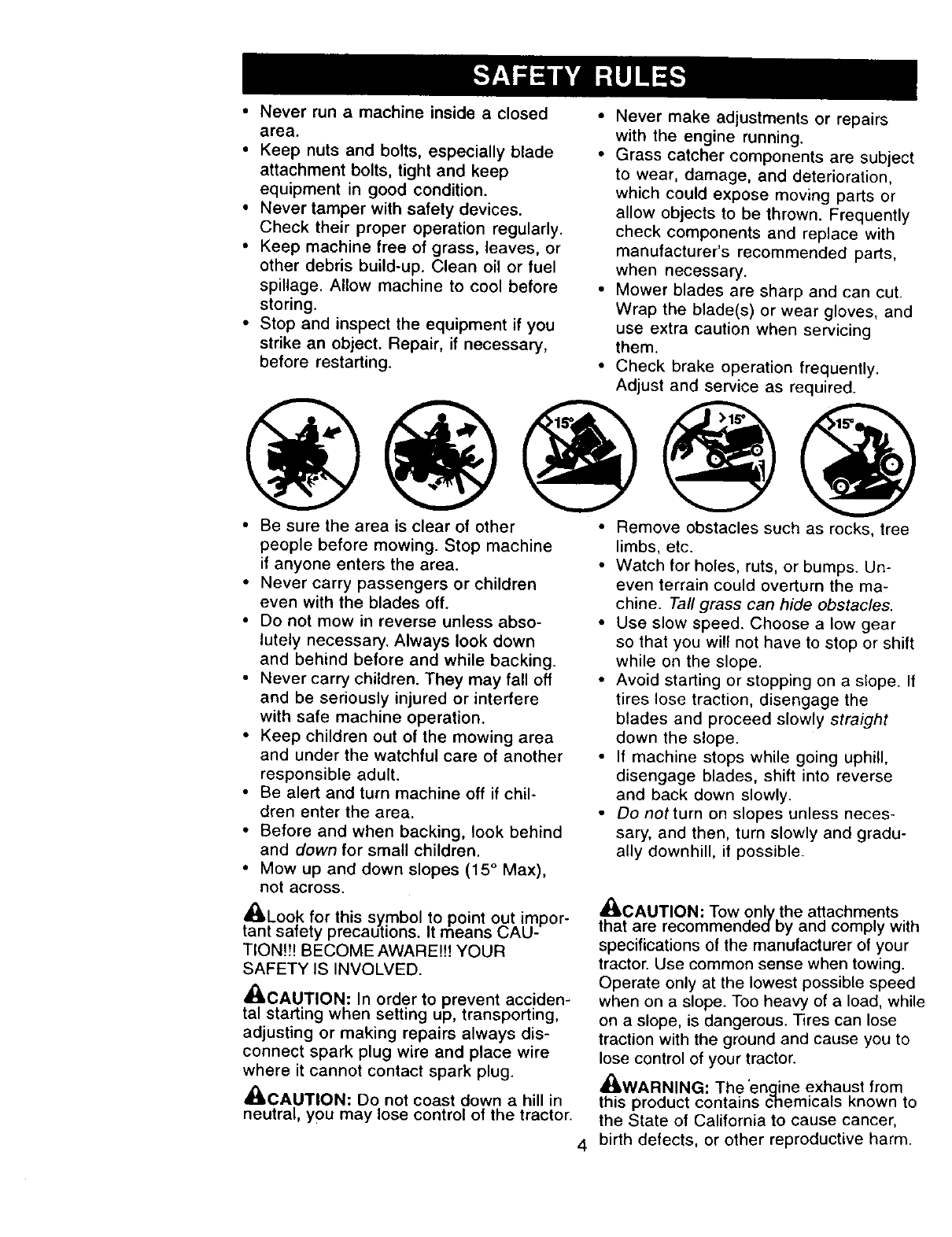

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs

with the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

•Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing

them.

• Check brake operation frequently.

Adjust and service as required.

• Be sure the area is clear of other

people before mowing. Stop machine

if anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if chil-

dren enter the area.

• Before and when backing, look behind

and down for small children.

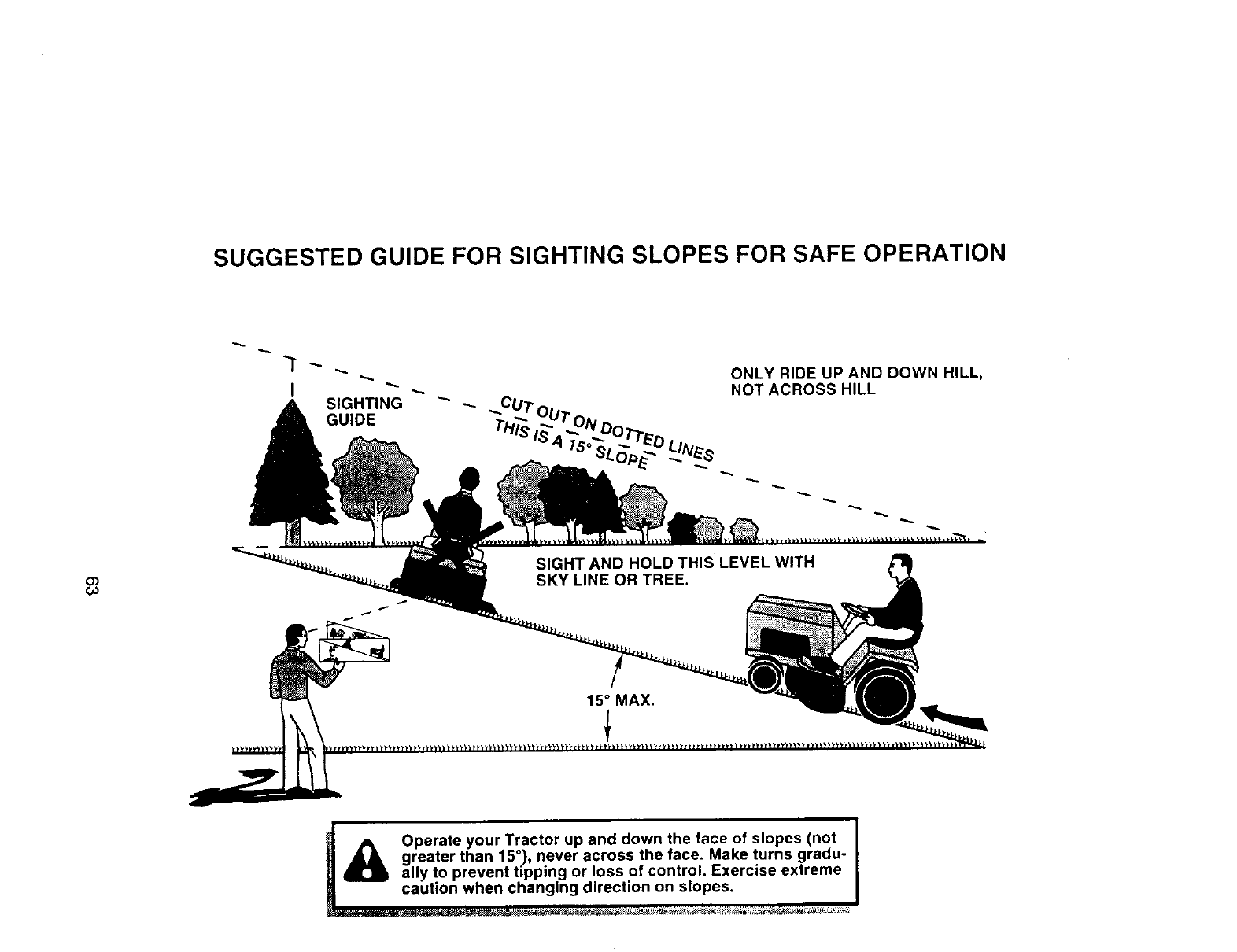

• Mow up and down slopes (15 ° Max),

not across.

_ILook for this symbol ,to point out impor-

tant safety precautions. It means CAU-

TION!!! BECOME AWARE!!! YOUR

SAFETY IS INVOLVED.

_CAUTION: In order to prevent acciden-

tal starting when setting up, transporting,

adjusting or making repairs always dis-

connect spark plug wire and place wire

where it cannot contact spark plug.

_IbCAUTION: Do not coast down a hill in

neutral, yo u may lose control of the tractor.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the ma-

chine. Tall grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the

blades and proceed slowly straight

down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse

and back down slowly.

•Do notturn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

A_.CAUTION: Tow only the attachments

that are recommendedby and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load, while

on a slope, is dangerous. Tires can lose

traction with the ground and cause you to

lose control of your tractor.

_WARNING: The'enqine exhaust from

this product contains chemicals known to

the State of California to cause cancer,

birth defects, or other reproductive harm.

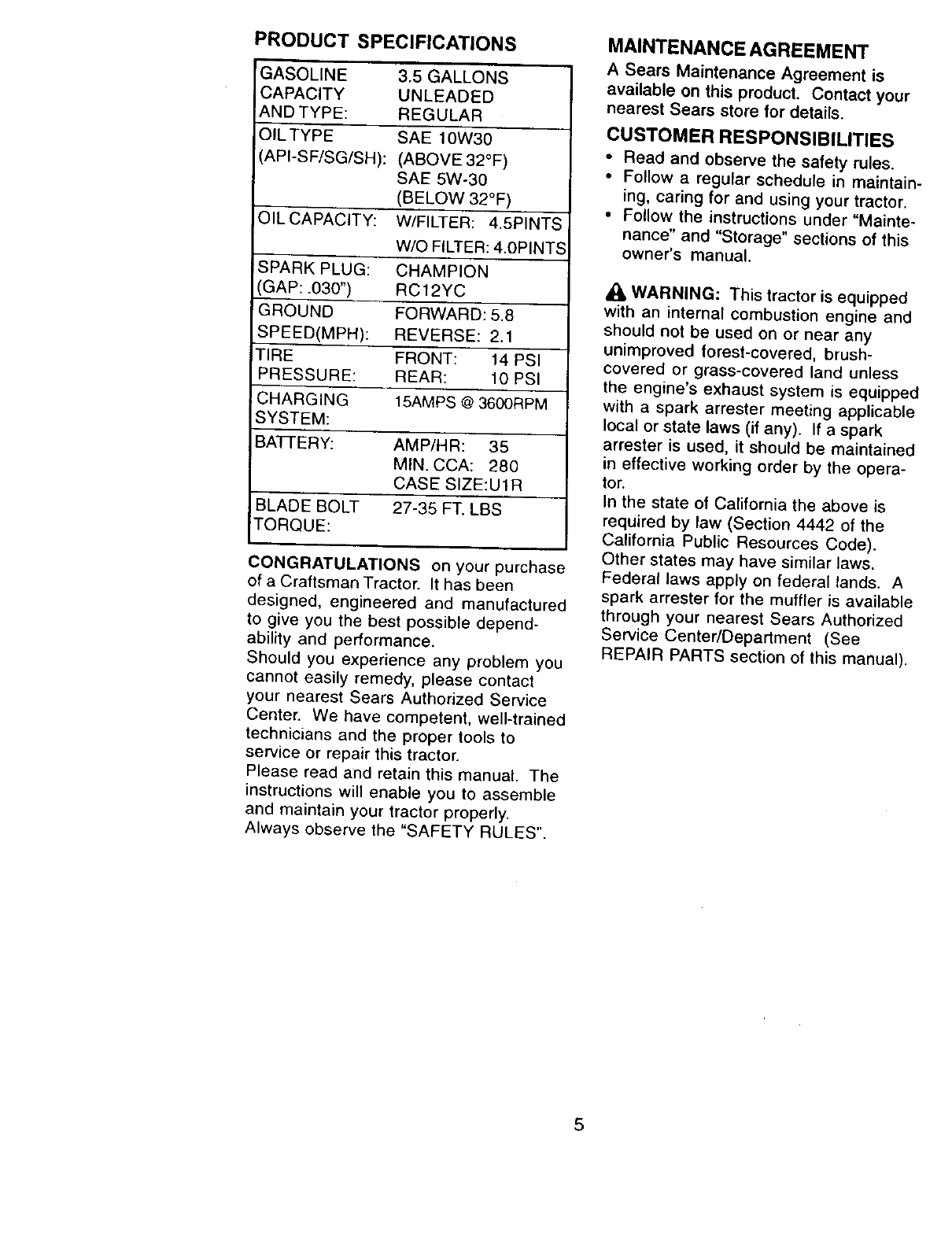

PRODUCT SPECIFICATIONS

GASOLINE

CAPACITY

AND TYPE:

OILTYPE

'API-SF/SG/SH):

3.5 GALLONS

UNLEADED

REGULAR

SAE 10W30

(ABOVE 32°F)

SAE 5W-30

(BELOW 32°F)

OIL CAPACITY: W/FILTER: 4.5PINTS

W/O FILTER: 4.0PINTS

SPARK PLUG: CHAMPION

GAP: .030") RC12YC

GROUND FORWARD: 5.8

SPEED(MPH): REVERSE: 2.1

TIRE FRONT: 14 PSI

PRESSURE: REAR: 10 PSI

CHARGING 15AMPS @ 3600RPM

SYSTEM:

BA'FI'ERY: AMP/HR: 35

MIN. CCA: 280

CASE SIZE:U1R

BLADE BOLT 27-35 FT. LBS

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible depend-

ability and performance.

Should you experience any problem you

cannot easily remedy, please contact

your nearest Sears Authorized Service

Center. We have competent, well-trained

technicians and the proper tools to

service or repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES".

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is

available on this product. Contact your

nearest Sears store for details.

CUSTOMER RESPONSIBILITIES

•Read and observe the safety rules.

• Follow a regular schedule in maintain-

ing, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

_, WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any

unimproved forest-covered, brush-

covered or grass-covered land unless

the engine's exhaust system is equipped

with a spark arrester meeting applicable

local or state laws (if any). If a spark

arrester is used, it should be maintained

in effective working order by the opera-

tor.

In the state of California the above is

required by law (Section 4442 of the

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest Sears Authorized

Service Center/Department (See

REPAIR PARTS section of this manual).

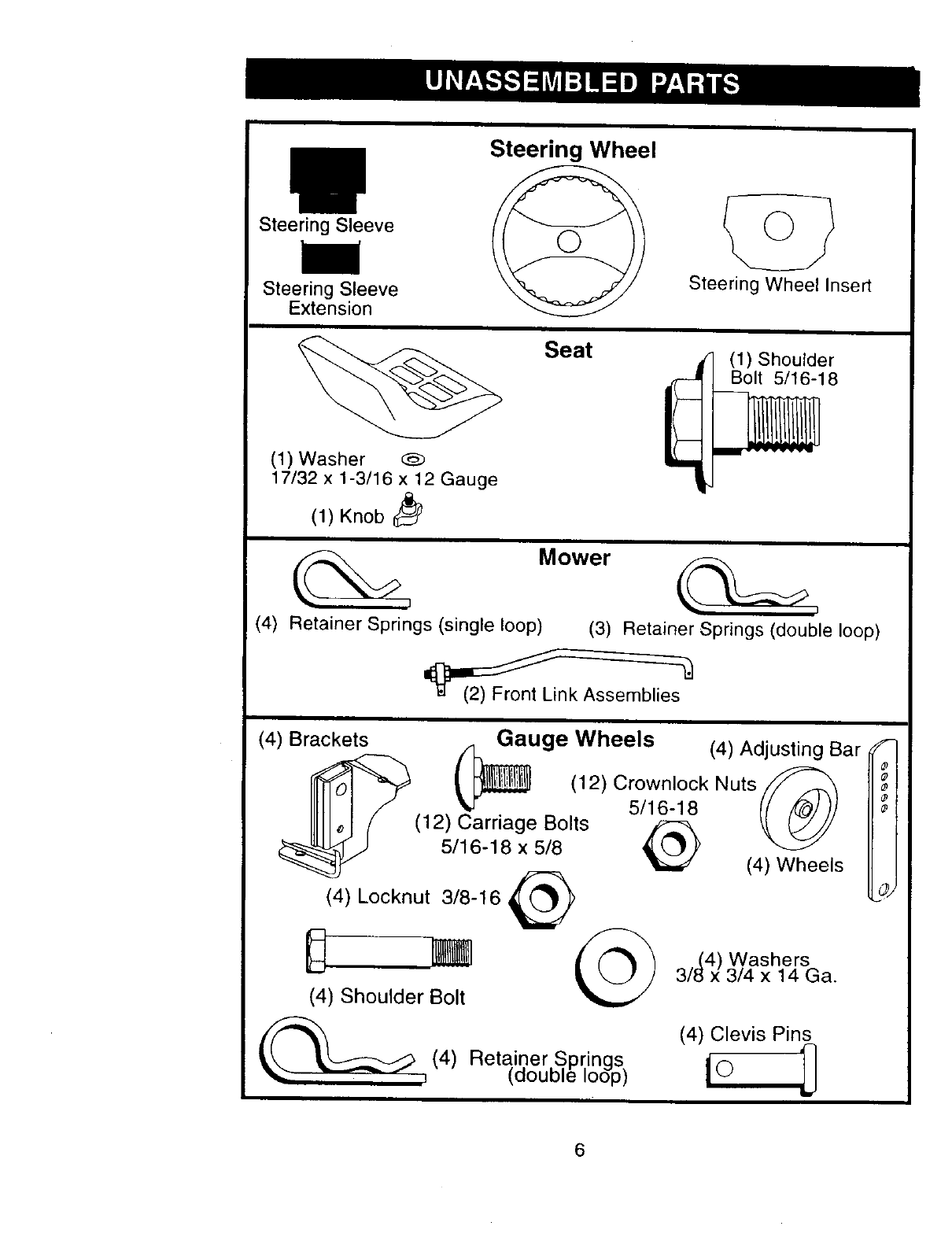

Steering Wheel

Steering Sleeve

Extension

Steering Wheel Insert

(1) Washer

17/32 x 1-3/16 x 12 Gauge

(1) Knob _

Seat (1) Shoulder

Bolt 5/16-18

_, Mower

(4) Retainer Springs (single loop) (3) Retainer Springs (double loop)

(4) Brackets Gauge Wheels (4) Adjusting Bar

_ (12) Crownlock Nuts @

5/16-18

(12) Carriage Bolts

5/16-18 x 5/8 (4) Wheels

(4) Locknut 3/8-16 _(_

g _ @ (4) Washers

3/8 x 3/4 x 14 Ga.

(4) Shoulder Bolt

(4) Clevis Pin_

(4) Retainer S.pr,ings IO

taouo e oop) I

Nose Roller

i l)))llllllllll

(2) Hex Bolts 3/8-16 x1

(2) Nylon Locknuts 3/8-16

(2) Washers

17/32 x 7/8 x16 Ga.

Video Cassette Keys

(2) Keys

Slope Sheet

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor all parts and hardware you assemble must be tightened securely. Use the

correct tools as necessary to insure proper tightness. Review the video cassette before

you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

• Remove aU accessible loose parts and

parts boxes from shipping carton.

• Cut, from top to bottom, along lines on

all four corners of shipping carton, and

lay panels flat.

• Remove mower and packing materi-

als.

• Check for any additional loose parts or

boxes and remove.

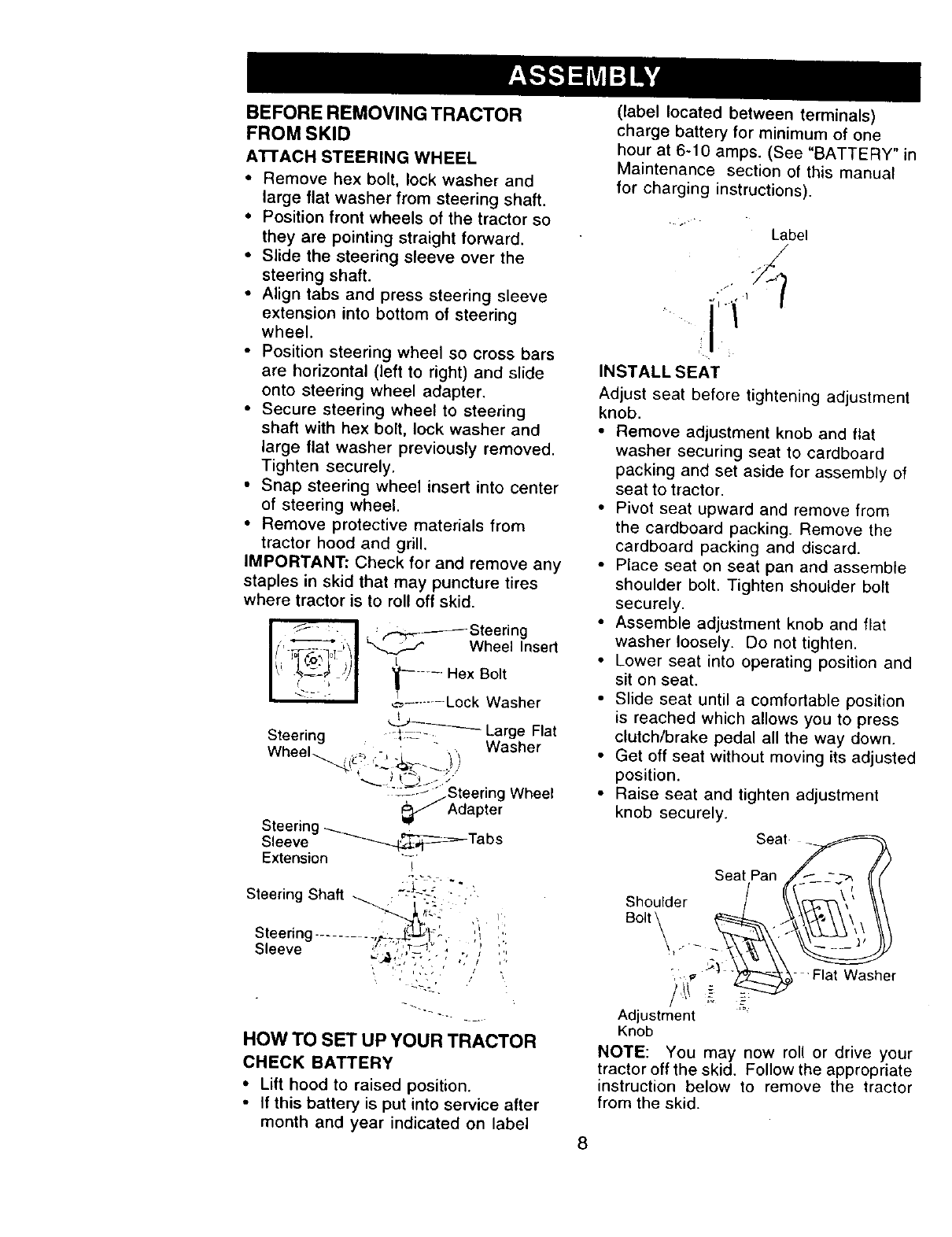

BEFORE REMOVING TRACTOR

FROM SKID

AI-I'ACH STEERING WHEEL

• Remove hex bolt, lock washer and

large flat washer from steering shaft.

• Position front wheels of the tractor so

they are pointing straight forward.

• Slide the steering sleeve over the

steering shaft.

• Align tabs and press steering sleeve

extension into bottom of steering

wheel.

• Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

• Secure steering wheel to steering

shaft with hex bolt, lock washer and

large flat washer previously removed.

Tighten securely,

• Snap steering wheel insert into center

of steering wheel.

• Remove protective materials from

tractor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

• Lift hood to raised position.

• If this battery is put into service after

month and year indicated on label

(label located between terminals)

charge battery for minimum of one

hour at 6-10 amps. (See "BATTERY" in

Maintenance section of this manual

for charging instructions).

Label

INSTALLSEAT

Adjust seat before tightening adjustment

knob.

• Remove adjustment knob and liar

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

• Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

• Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely.

• Assemble adjustment knob and flat

washer loosely. Do not tighten.

• Lower seat into operating position and

sit on seat.

• Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

• Get off seat without moving its adjusted

position.

• Raise seat and tighten adjustment

knob securely.

Seat

Seat Pan

Shoulder

Bolt \

•_'_' Flat Washer

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

• Press lift lever plunger and raise

attachment lift lever to its highest

position.

• Release parking brake by depressing

clutch/brake pedal.

• Place freewheel control in freewheel-

ing position to disengage transmis-

sion (See "TO TRANSPORT" in the

Operation section of this manual).

•Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID

(See Operation section for location

and function of controls)

_WARNING: Before starting, read,

understand and follow all instructions in

the Operation section of this manual. Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor is

clear of other people and objects.

• Be sure all the above assembly steps

have been completed.

• Check engine oil level and fill fuel

tank with gasoline.

• Place freewheel control in "transmis-

sion engaged" position.

• Sit on seat in operating position,

depress clutch/brake pedal and set

the parking brake.

• Place motion control lever in neutral

(N) position.

• Press lift lever plunger and raise

attachment lift lever to its highest

position.

• Start the engine. After engine has

started, move throttle control to idle

position.

• Release parking brake.

• Slowly move the motion control lever

forward and slowly drive tractor off

skid.

• Apply brake to stop tractor, set parking

brake and place gearshift lever in

neutral position.

• Turn ignition key to "OFF" position.

Continue with the instructions that follow.

ASSEMBLE GAUGE WHEELS AND

BRACKETS TO MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper position when

operating mower. Be sure they are

properly adjusted to ensure optimum

mower performance.

• Attach front gauge wheel brackets

marked front left (FL), front right (FR)

to mower deck using (3) carriage bolts

and (3) Iocknuts. For ease of installa-

tion do not tighten Iocknuts until all

carriage bolts have been installed.

• Attach rear gauge wheel brackets

marked rear left (R L), rear right (RR)

to mower deck using (3) carriage bolts

and (3) Iocknuts. For ease of installa-

tion do not tighten Iocknuts until all

carriage bolts have been installed.

• Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top.

Assemble gauge wheels as shown

using shoulder bolts, 3/8 washers and

3/8o16 center Iocknuts and tighten

securely.

• Adjust gauge wheels to highest

position for ease of mower deck

assembly.

• Adjust gauge wheels before operating

mower as shown in the operation

section of this manual.

TO ATTACH NOSE ROLLER

• Position brackets, 17/32 x 7/8 x 16

gauge washers, and nose roller

between deck mounting brackets as

shown. Be sure to position brackets

on correct side, as shown.

• Install 3/8-16 x 1 hex bolts and 3/8-16

lock nuts as shown. Tighten hardware

securely.

NOTE: Be sure bracket tabs are

positioned in tab holes in deck brackets.

Tab

Nose Rolh

Hex Bolt

"A" Lock Nut

Brack_

Tab -Washer

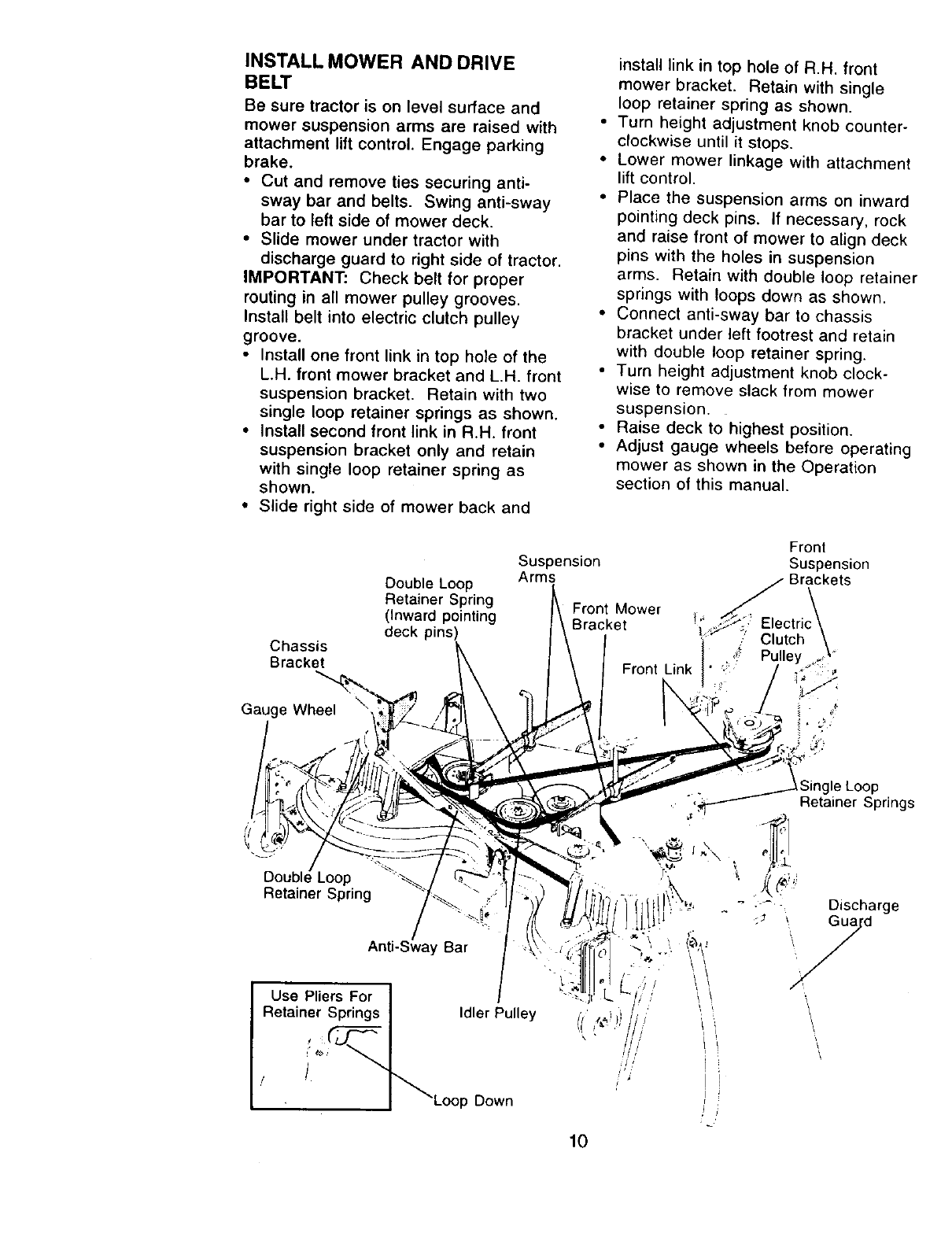

INSTALL MOWER AND DRIVE

BELT

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

•Cut and remove ties securing anti-

sway bar and belts. Swing anti-sway

bar to left side of mower deck.

•Slide mower under tractor with

discharge guard to right side of tractor.

IMPORTANT: Check belt for proper

routing in all mower pulley grooves.

Install belt into electric clutch pulley

groove.

• Install one front link in top hole of the

L.H. front mower bracket and L.H. front

suspension bracket. Retain with two

single loop retainer springs as shown.

• Install second front link in R.H. front

suspension bracket only and retain

with single loop retainer spring as

shown.

• Slide right side of mower back and

Chassis

Bracket

Double Loop

Retainer Spring

(inward pointing

deck pins)

Gauge Wheel

Loop

Retainer Spring

Anti-Sway Bar

Use Pliers For

Retainer Springs Idler Pulley

Down

Suspension

Arms

install link in top hole of R.H. front

mower bracket. Retain with single

loop retainer spring as shown.

•Turn height adjustment knob counter-

clockwise until it stops.

• Lower mower linkage with attachment

lift control.

• Place the suspension arms on inward

pointing deck pins. If necessary, rock

and raise front of mower to align deck

pins with the holes in suspension

arms, Retain with double loop retainer

springs with loops down as shown.

• Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

• Turn height adjustment knob clock-

wise to remove slack from mower

suspension.

• Raise deck to highest position.

•Adjust gauge wheels before operating

mower as shown in the Operation

section of this manual.

Front Mower

Bracket

Front Link

Loop

Retainer Springs

,. <o!i

.-_ Discharge

"_ _d

CHECK TIRE PRESSURE

The tires on your tractor were overin-

flared at the factory for shipping pur-

poses. Correct tire pressure is important

for best cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS"

section of this manual.

CHECK MOWER LEVELNESS

For best cutting results, mower should be

properly leveled. See "TO LEVEL

MOWER HOUSING" in the Service and

Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for

replacing motion, mower drive, and

mower blade drive belts in the Service

and Adjustments section of this manual.

Verify that the belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see that the brake is

properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments

section of this manual.

CHECKLIST

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRACTOR, WE WISH TO

ASSURE THAT YOU RECEIVE THE

BEST PERFORMANCE AND

SATISFACTION FROM THIS QUALITY

PRODUCT.

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

,/ All assembly instructions have been

completed.

JNo remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6

amps).

,/Seat is adjusted comfortably and

tightened securely,

,/All tires are pro:_erly inflated. (For

shipping purpoJes, the tires were

overinflated at the factory).

J Be sure mower deck is properly

leveled side-to-side/front-to-rear for

best cutting results. (Tires must be

properly inflated for leveling).

4" Check mower and drive belts. Be sur_

they are routed properly around

pulleys and inside all belt keepers.

,/Check wiring. See that all connection,'

are still secure and wires are properly

clamped.

,/Before driving tractor, be sure free-

wheel control is in drive position.

WHILE LEARNING HOWTO USE YOUR

TRACTOR, PAY EXTRAATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

,I Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

,/ Become familiar with all controls - their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe

operating condition.

,/It is important to purge the transmis-

sion before operating your tractor for

the first time. Follow proper starting

and transmission purging instructions

(See "TO START ENGINE" and

"PURGE TRANSMISSION" in the

Operation section of this manual).

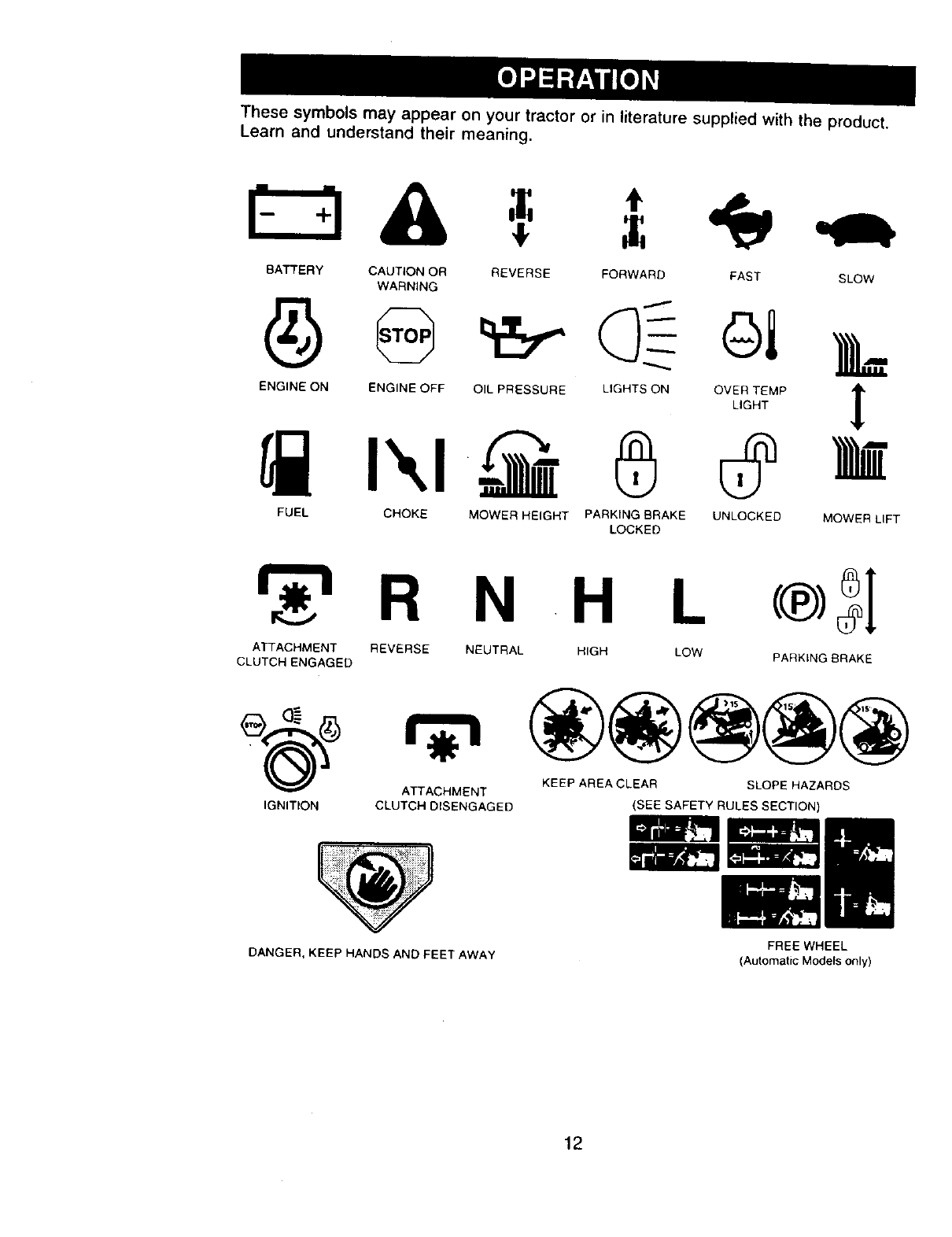

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

BATTERY CAUTION OR REVERSE FORWARD FAST SLOW

WARNING

ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP !

LIGHT

FUEL CHOKE MOWER HEIGHT PARKING BRAKE UNLOCKED MOWER LIFT

LOCKED

R N H L (® 51

ATTACHMENT REVERSE NEUTRAL HIGH LOW

CLUTCH ENGAGED PARKING BRAKE

e_(_) ATTACHMENT KEEP AREA CLEAR SLOPE HAZARDS

IGNITION CLUTCH DISENGAGED (SEE SAFETY RULES SECTION)

DANGER, KEEP HANDS AND FEET AWAY FREE WHEEL

(Automatic Models only)

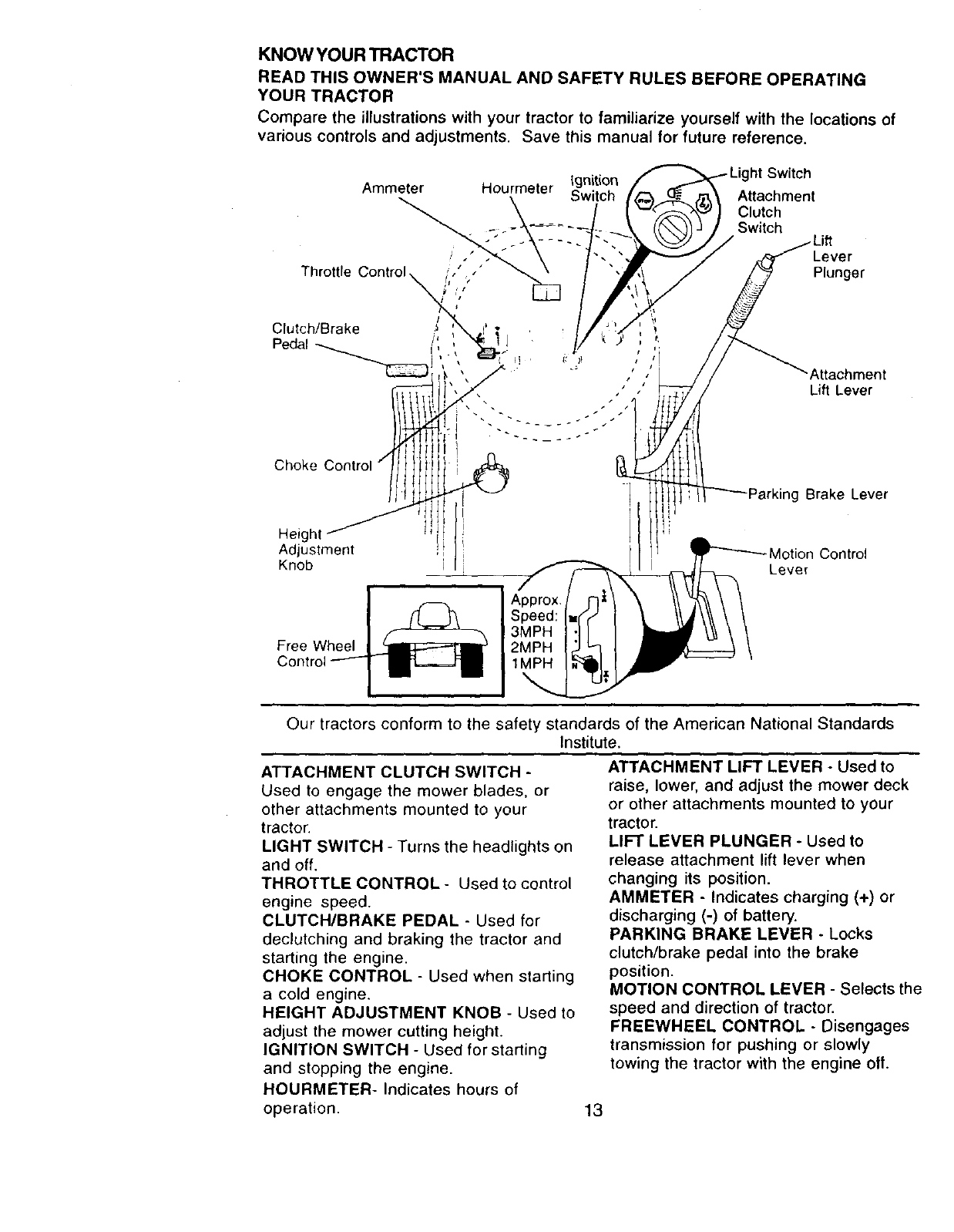

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

{gnition

Ammeter Hourmeter ^ . -

•_,, .bwltcn

Throttle Control /,, ,

Clutch/Brake ,_ ,' ,

I I , .

Pedal __1

x . _ / ,

Choke Control !

AdjustmentKnob !i

.-Light Switch

Attachment

x'sN_ ]Clutch

_// Switch

__ !_tuVe;er

/" Attachment

Lift Lever

Motion Control

Lever

Free Wheel

Control

Our tractors conform to the safety standards of the American National Standards

Institute.

ATTACHMENT CLUTCH SWITCH -

Used to engage the mower blades, or

other attachments mounted to your

tractor.

LIGHT SWITCH - Turns the headlights on

and off.

THROTTLE CONTROL- Used to control

engine speed.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

IGNITION SWITCH - Used for starting

and stopping the engine.

HOURMETER- Indicates hours of

operation.

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor.

LIFT LEVER PLUNGER -Used to

release attachment lift lever when

changing its position.

AMMETER - Indicates charging (+) or

discharging (-) of battery.

PARKING BRAKE LEVER - Locks

clutch/brake pedal into the brake

position.

MOTION CONTROL LEVER - Selects the

speed and direction of tractor.

FREEWHEEL CONTROL - Disengages

transmission for pushing or slowly

towing the tractor with the engine off.

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask

over spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine.

•Depress clutch/brake pedal into full

"BRAKE" position and hold.

•Place parking brake lever in "EN-

GAGED" position and release pres-

sure |rein clutch/brake pedal. Peda_

should remain in "BRAKE" position.

Make sure parking brake will hold

tractor secure.

Push-In to Attachment Clutch

Choke "Disengage" Switch Pull Out to

"Engage"

Throttle

Clutch/

Brake

Pedal

Clutch/Brake Pedal

"Drive" Position

Motion

Height/' _ Parking Brake

AdJoUl_tment\"Engaged" Position

"Disengaged" Position

STOPPING

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch switch to "DISENGAGED"

position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal into full "BRAKE" position.

• Move motion control lever to neutral

(N) position.

IMPORTANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position and allowing engine to

idle before stopping may cause engine

to "backfire".

• Turn ignition key to "OFF" position and

remove key. Always remove key

when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition

switch in any position other than "OFF"

will cause the battery to be discharged,

(dead).

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_1= CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best bagging

and mower performance.

TO USE CHOKE CONTROL

Use choke control whenever you are

starting a cold engine. Do not use to start

a warm engine.

• To engage choke control, pull knob

out. Slowly push knob in to disen-

gage,

TO MOVE FORWARD AND

BACIk3NARD

The direction and speed ot movement is

controlled by the motion control lever.

• Start tractor with motion control lever in

neutral (N) position.

• Release parking brake and clutch/

brake pedal.

• Slowly move motion control lever to

desired position.

TO ADJUST MOWER CUTTING

HEIGHT

The cutting height is controlled by

turning the height adjustment knob in

desired direction.

• Turn knob clockwise (f-_) to raise

cutting height.

• Turn knob counterclockwise (1_'_) to

lower cutting height.

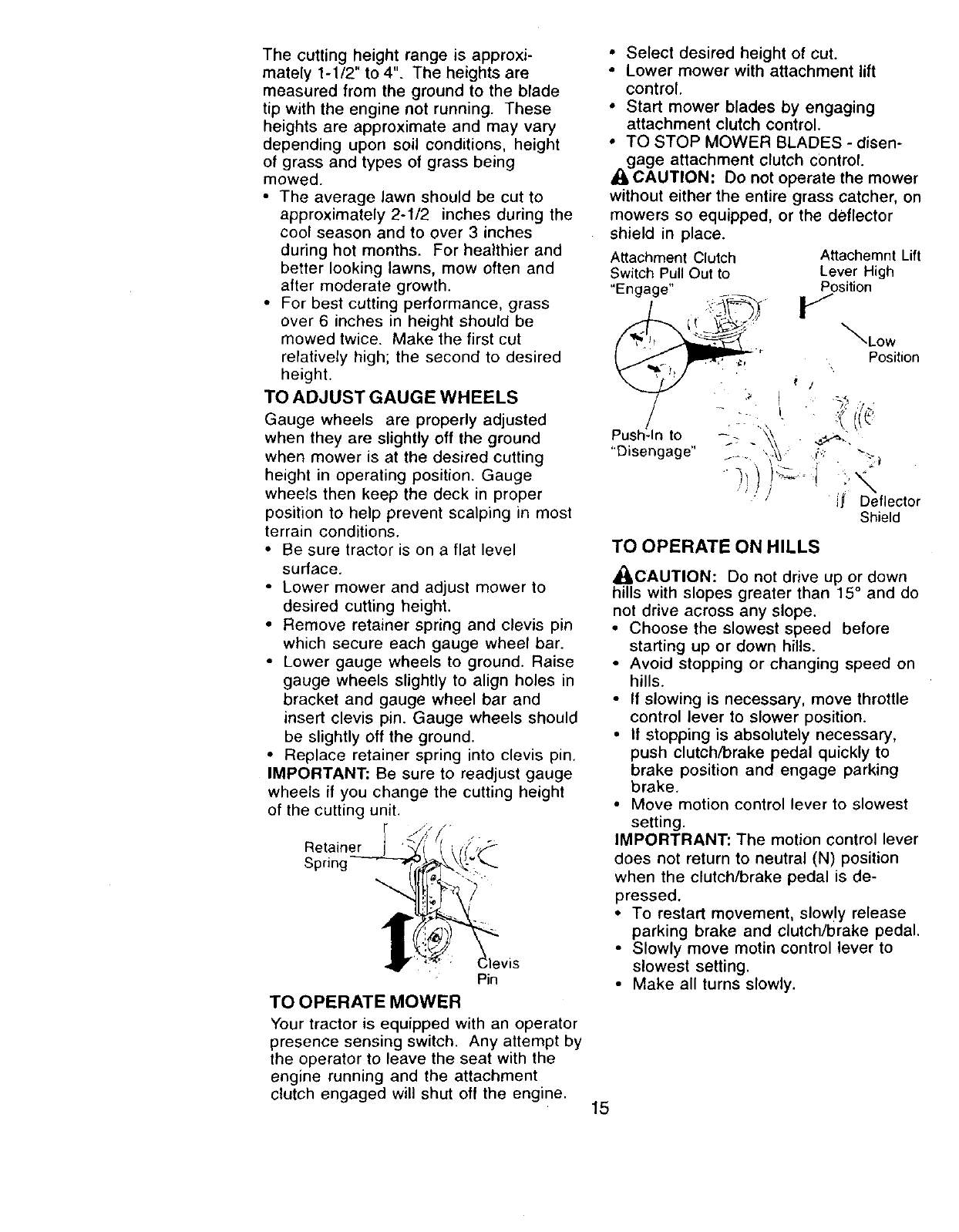

The cutting height range is approxi-

mately 1-1/2" to 4", The heights are

measured from the ground to the blade

tip with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height

of grass and types of grass being

mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches

during hot months. For healthier and

better looking lawns, mow often and

after moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

when mower is at the desired cutting

height in operating position. Gauge

wheels then keep the deck in proper

position to help prevent scalping in most

terrain conditions.

• Be sure tractor is on a flat level

surface,

• Lower mower and adjust mower to

desired cutting height.

• Remove retainer spring and clevis pin

which secure each gauge wheel bar.

• Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes in

bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground•

• Replace retainer spring into clevis pin.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the cutting unit•

Retainer

Spring

evis

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment

clutch engaged will shut off the engine•

• Select desired height of cut.

• Lower mower with attachment lift

control.

• Start mower blades by engaging

attachment clutch control.

• TO STOP MOWER BLADES - disen-

gage attachment clutch control.

• 1,CAUTION: Do not operate the mower

without either the entire grass catcher, on

mowers so equipped, or the deflector

shield in place.

Attachment Clutch

Switch Pull Out to

"Engage"

Attachemnt Lift

Lever High

Position

, Position

Push/!In to _ '_ I . _._ .,.

"Disengage" ;--_- '_ " "_',t

i_ Deflector

Shield

TO OPERATE ON HILLS

,J_CAUTION: Do not drive up or down

hills with slopes greater than 15 °and do

not drive across any slope.

• Choose the slowest speed before

starting up or down hills.

• Avoid stopping or changing speed on

hills.

•If slowing is necessary, move throttle

control lever to slower position.

•If stopping is absolutely necessary,

push clutch/brake pedal quickly to

brake position and engage parking

brake.

•Move motion control lever to slowest

setting.

IMPORTRANT: The motion control lever

does not return to neutral (N) position

when the clutch/brake pedal is de-

pressed.

• To restart movement, slowly release

parking brake and clutch/brake pedal.

• Slowly move motin control lever to

slowest setting.

•Make all turns slowly.

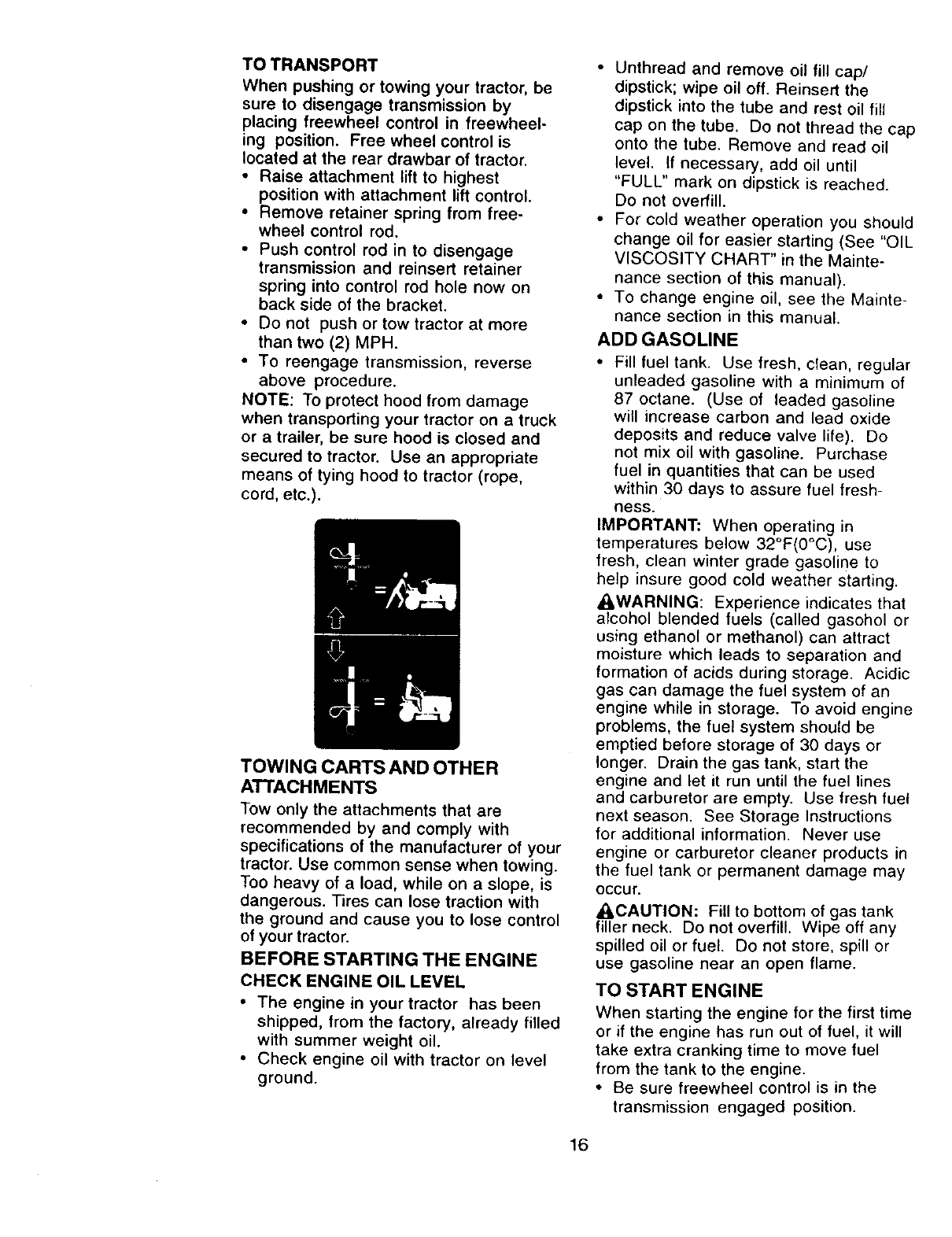

TO TRANSPORT

When pushing or towing your tractor, be

sure to disengage transmission by

placing freewheel control in freewheel-

=ng position. Free wheel control is

located at the rear drawbar of tractor.

•Raise attachment lift to highest

position with attachment lift control.

•Remove retainer spring from free-

wheel control rod.

•Push control rod in to disengage

transmission and reinsert retainer

spring into control rod hole now on

back side of the bracket.

•Do not push or tow tractor at more

than two (2) MPH.

•To reengage transmission, reverse

above procedure.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope,

cord, etc.).

TOWING CARTS AND OTHER

ATTACHMENTS

Tow only the attachments that are

recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

•The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

• Check engine oil with tractor on level

ground.

• Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into the tube and rest oil fill

cap on the tube. Do not thread the cap

onto the tube. Remove and read oil

level. If necessary, add oil until

"FULL" mark on dipstick is reached.

Do not overfill.

• For cold weather operation you should

change oil for easier starting (See "OIL

VISCOSITY CHART" in the Mainte-

nance section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline

will increase carbon and lead oxide

deposits and reduce valve life). Do

not mix oil with gasoline. Purchase

fuel in quantities that can be used

within 30 days to assure fuel fresh-

ness.

IMPORTANT: When operating in

temperatures below 32°F(0°C), use

fresh, clean winter grade gasoline to

help insure good cold weather starting.

_WARNING: Experience indicates that

alcohol blended fuels (called gasohol or

using ethanol or methanol) can attract

moisture which leads to separation and

formation of acids during storage. Acidic

gas can damage the fuel system of an

engine while in storage. To avoid engine

problems, the fuel system should be

emptied before storage of 30 days or

longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions

for additional information. Never use

engine or carburetor cleaner products in

the fuel tank or permanent damage may

OCCUf.

_CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel

from the tank to the engine.

• Be sure freewheel control is in the

transmission engaged position.

• Sit on seat in operatingposition,

depressclutch/brakepedaland set

parkingbrake.

• Placemotioncontrolleverin neutral

(N) position.

• Moveattachmentclutchto "DISEN-

GAGED"position.

• Movethrottlecontrolto fastposition

• Pullchokecontroloutfor a cold

enginestartattempt.Fora warm

enginestartattemptthe chokecontrol

maynot be needed.

NOTE:Beforestarting,readthewarm

and cold startingproceduresbelow.

• Insertkeyinto ignitionandturn key

clockwiseto "START"positionand

release key as soon as engine starts.

Do not run starter continuously for

more than fifteen seconds per minute.

If the engine does not start after

several attempts, push choke control

in, wait a few minutes and try again. If

engine still does not start, pull the

choke control out and retry.

WARM WEATHER STARTING (50 ° F and

above)

• When engine starts, slowly push

choke control in until the engine

begins to run smoothly. If the engine

starts to run roughly, pull the choke

control out slightly for a few seconds

and then continue to push the control

in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

• When engine starts, slowly push

choke control in until the engine

begins to run smoothly. Continue to

push the choke control in small steps

allowing the engine to accept small

changes in speed and load, until the

choke control is fully in. If the engine

starts to run roughly, pull the choke

control out slightly for a law seconds

and then continue to push the control

in slowly. This may require an engine

warm-up period from several seconds

to several minutes, depending on the

temperature.

AUTOMATIC TRANSMISSION WARM UP

• Before driving the unit in cold weather,

the transmission should be warmed up

as follows:

• Be sure the tractor is on level

ground.

• Place the motion control lever in

neutral. Release the parking brake

and let the clutch/brake

slowly return to operating position,

• Allow one minute for transmission to

warm up. This can be done during

the engine warm up period.

• The attachments can be used during

the engine warm-up period after the

transmission has been warmed up

and may require the choke control be

pulled out slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32

F) the carburetor fuel mixture may need

to be adjusted for best engine perfor-

mance. See "TO ADJUST CARBURE-

TOR" in the Service and Adjustments

section ot this manual.

PURGE TRANSMISSION

_CAUTION: Never engage or disen-

gage freewheel lever while the engine is

running.

To ensure proper operation and perfor-

mance, it is recommended that the

transmission be purged before operating

tractor for the first time. This procedure

will remove any trapped air inside the

transmission which may have developed

during shipping of your tractor.

IMPORTANT: Should your transmission

require removal for service or replace-

ment, it should be purged after reinstalla-

tion before operating the tractor.

•Place tractor safely on level surface

with engine off and parking brake set.

• Disengage transmission by placing

freewheel control in freewheeling

position (See "TO TRANSPORT" in

this section of manual).

• Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to slow position. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

• Move motion control lever to full

forward position and hold for five (5)

seconds. Move lever to full reverse

position and hold for five (5) seconds.

Repeat this procedure three (3) times.

NOTE: Duringthis procedure there will

be no movement of drive wheels. The air

is being removed from hydraulic drive

system.

• Move motion control lever to neutral

(N) position. Shut- off engine and set

parking brake.

• Engage transmission by placing

freewheel control in driving position

(See "TO TRANSPORT" in this section

of manual).

• Sitting in the tractor seat, start engine.

After the engine is running, move

throttle control to hall (1/2) speed. With

motion control lever in neutral (N)

position, slowly disengage clutch/

brake pedal.

• Slowly move motion control lever

towvard, after the tractor moves

approximately five (5) feet, slowly

move motion control lever to reverse

position. After the tractor moves

approximately five (5) feet return the

motion control lever to the neutral (N)

position. Repeat this procedure with

the motion control lever three (3)

times•

• Your tractor is now purged and now

ready for normal operation.

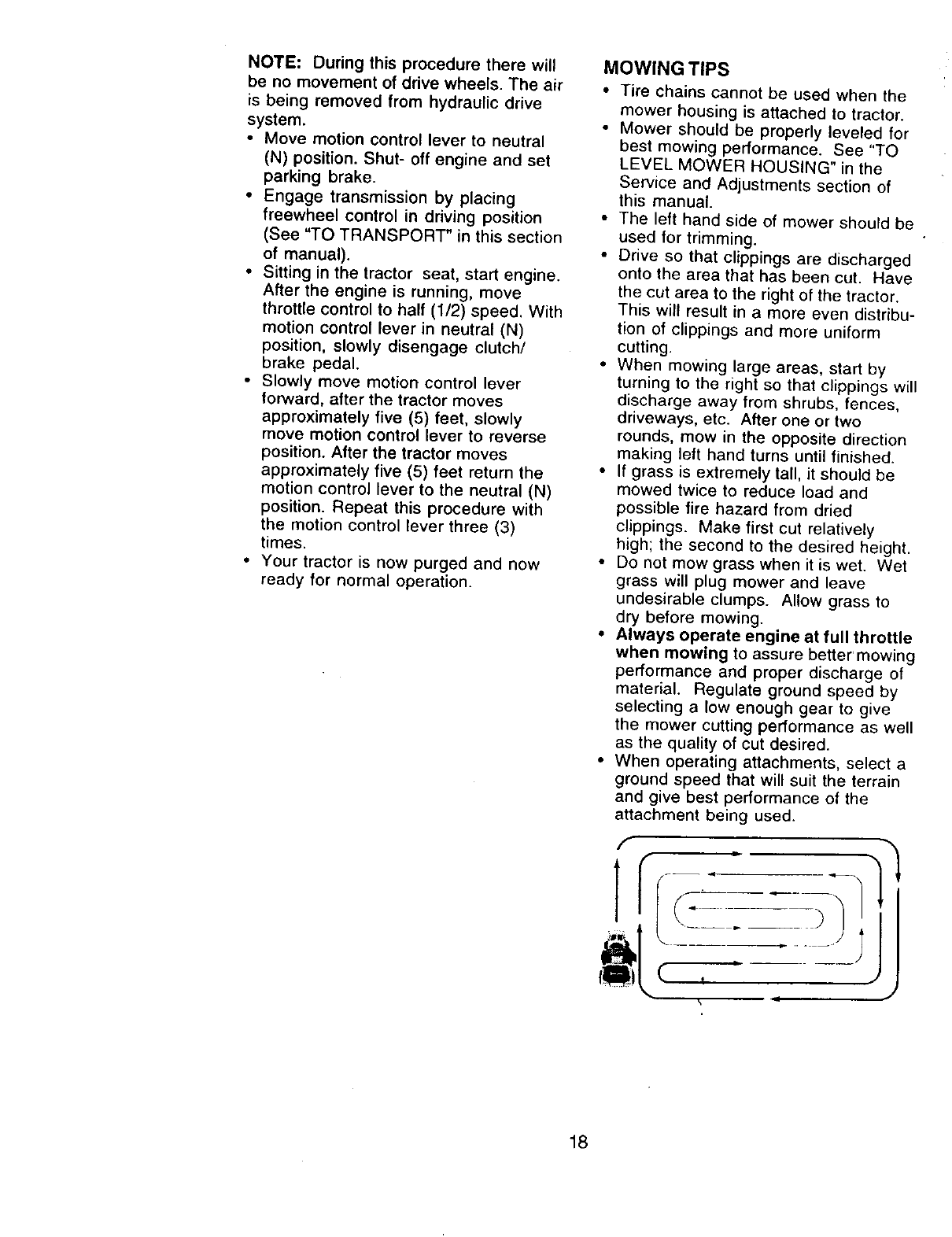

MOWING TIPS

Tire chains cannot be used when the

mower housing is attached to tractor.

Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of

this manual.

The left hand side of mower should be

used for trimming.

Drive so that clippings are discharged

onto the area that has been cut. Have

the cut area to the right of the tractor•

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two

rounds, mow in the opposite direction

making left hand turns until finished.

if grass is extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried

clippings. Make first cut relatively

high; the second to the desired height.

Do not mow grass when it is wet. Wet

grass will plug mower and leave

undesirable clumps. Allow grass to

dry before mowing.

Always operate engine at full throttle

when mowing to assure better' mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give

the mower cutting performance as well

as the quality of cut desired.

When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the

attachment being used.

-_. ,,

PILL,. DATES

R EGU LAR SERVICE /_./_O_sE RVICE DATE S

Check Operator Presence and

TInterlock Systems V_

IR Check for Loose Fasteners V' i1_,

iA Sharpen/Replace Mower Blades V',

I 0TC Lubrication Chart _

Check Battery Level

aClean Battery and Terminals If

Check Transaxle Cooling II/

Adjust Blade Belt(s) Tension I_,

v'°Adjust Motion Drive Belt(s) Tension

!Check Engine Oil Level ll_

Change Engine Oil I_12,3 I_"

Clean Air Filter ! II/'_

Clean Air Screen

Inspect Muffler/Spark Arresler

Replace Oil Filter (if equipped)

Clean Engine Cooling Fins

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter

Ii1_2

I/_11/

1. Change r_re often when operating under a heavy load or in hl(}h arr, bienl tetrtperalUteS S . II equipped with adjLl$lable system

2-Service rnore Often when operating in dirly or dus{y condilions 6 . NO1 req uiced if equipped with rr_inlenat',Ce.lree baflery

3 If equipped with oil tilter, change oil avery 50 hours 7. Tighten front axle pivot bolt I0 35 {I .Ibs maxtn_urn

4 . Replace blades rl_ore often when mowing in s_ndy soil DO noI overtighten

GENERAL RECOMMENDATIONS LUBRICATION CHART

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To

receive full value from the warranty,

operator must maintain tractor as

instructed in this manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

All adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

•Once a year you should replace the

spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and

help your engine run better and last

longer.

BEFORE EACH USE

• Check engine oil level.

• Check brake operation.

• Check tire pressure.

• Check operator presence and

interlock systems for proper operation.

• Check for loose fasteners.

Tie Rod Ball Joints

,indle

Zerk Zerk

L2")FrontWheel

Bearing

Zerk Bearing Zerk

Sector

Gear

Teeth _)Engine

q>Spray Silicone Lubriant (Move Boots to

Lubricate)

_General Purpose Grease

@Refer to Maintenance "ENGINE" Section

IMPORTANT: Do not oil or grease the pivot

points which have special nylon bearings.

Viscous lubricants will attract dust and dirt

that will shorten the life of the self-lubricating

bearings. If you feel they must be lubricated,

use only a dry, powdered graphite type

lubricant sparingly.

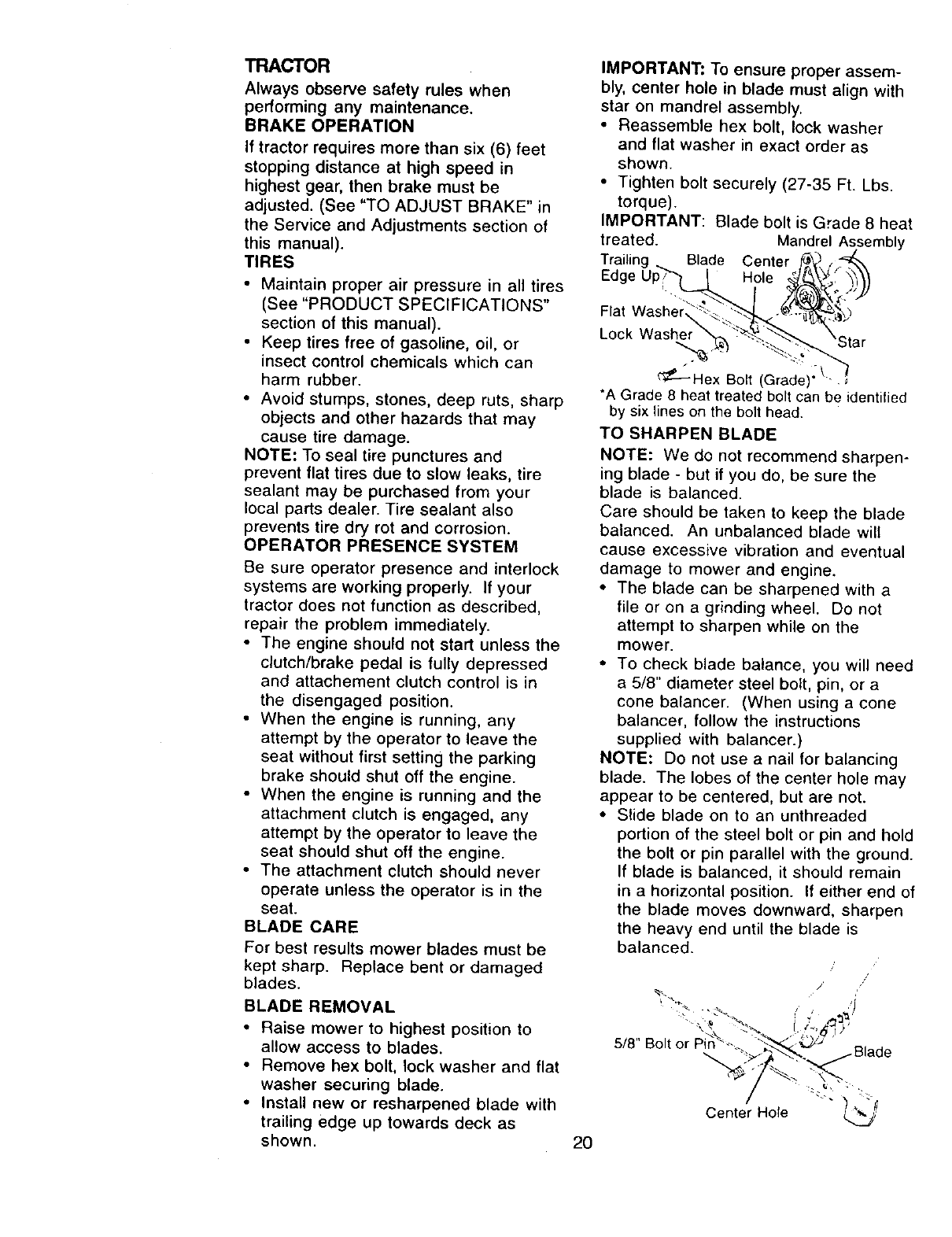

TRACTOR

Always observe safety rules when

performing any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be

adjusted. (See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual).

TIRES

•Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or

insect control chemicals which can

harm rubber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your

tractor does not function as described,

repair the problem immediately.

• The engine should not start unless the

clutch/brake pedal is fully depressed

and attachement clutch control is in

the disengaged position.

•When the engine is running, any

attempt by the operator to leave the

seat without first setting the parking

brake should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine.

• The attachment clutch should never

operate unless the operator is in the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

•Raise mower to highest position to

allow access to blades.

• Remove hex bolt, lock washer and flat

washer securing blade.

• Install new or resharpened blade with

trailing edge up towards deck as

shown. 2O

IMPORTANT: To ensure proper assem-

bly, center hole in blade must align with

star on mandrel assembly.

• Reassemble hex bolt, lock washer

and flat washer in exact order as

shown.

• Tighten bolt securely (27-35 Ft. Lbs.

torque).

IMPORTANT: Blade bolt is Grade 8 heat

treated. Mandrel Assembly

Trailing Blade Center

Edge Hole

Flat

Lock Washer

_--Hex Bolt (Grade) '_\ ,

*A Grade 8 heat treated bolt can be identified

by six lines on the bolt head.

TO SHARPEN BLADE

NOTE: We do not recommend sharpen-

ing blade - but if you do, be sure the

blade is balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will

cause excessive vibration and eventual

damage to mower and engine.

•The blade can be sharpened with a

file or on a grinding wheel. Do not

attempt to sharpen while on the

mower.

• To check blade balance, you will need

a 5/8" diameter steel bolt, pin, or a

cone balancer. (When using a cone

balancer, follow the instructions

supplied with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded

portion of the steel bolt or pin and hold

the bolt or pin parallel with the ground.

If blade is balanced, it should remain

in a horizontal position. If either end of

the blade moves downward, sharpen

the heavy end until the blade is

balanced.

5/8" Bolt or

Center Hole

BATTERY

Your tractor has a battery charging

system which is sufficient for normal use.

However, periodic charging of the battery

with an automotive charger will extend

its life,

•Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

•Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or

covers. Adding or checking level of

electrolyte is not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power.

•Remove terminal guard.

• Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

• Rinse the battery with plain water and

dry.

• Clean terminals and battery cable

ends with wire brush until bright.

• Coat terminals with grease or petro-

leum jelly.

• Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual).

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

TRANSAXLE COOLING

The transmission fan and cooling fins

should be kept clean to assure proper

cooling.

Do not attempt to clean fan or transmis-

sion while engine is running or while the

transmission is hot. To prevent possible

damage to seals, do not use high

pressure water or steam to clean

transaxle.

• Inspect cooling fan to be sure fan

blades are intact and clean.

• Inspect cooling fins for dirt, grass

clippings and other materials, To

prevent damage to seals, do not use

compressed air or high pressure

sprayer to clean cooling fins.

TRANSAXLE PUMP FLUID

The transaxle was sealed at the factory

and fluid maintenance is not required for

the life of the transaxle. Should the

transaxle ever leak or require servicing,

contact your nearest authorized service

center/department,

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF, SG, or

SH. Select the oil's SAE viscosity grade

according to your expected operating

temperature.

SAE VISCOSITY GRADES

Change the oil after every 50 hours of

operation or at least once a year if the

tractor is not used for 50 hours in one

year.

Check the crankcase oil level before

starting the engine and after each eight

(8) hours of operation. Tighten oil fill cap/

dipstick securely each time you check

the oil level,

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG, or SH.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

• Remove drain plug.

• After oil has drained completely.

replace oil drain plug and tighten

securely.

• Refill engine with oil through oil fill

dipstick tube. Pour slowly. Do not

overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS"

section of this manual.

• Use gauge on oil fill cap/dipstick for

checking level. Insert dipstick into the

tube and rest the oil fill cap on the

tube. Do not thread the cap onto the

tube when taking reading. Keep oil

at "FULL" line on dipstick. Tighten cap

onto the tube securely when finished.

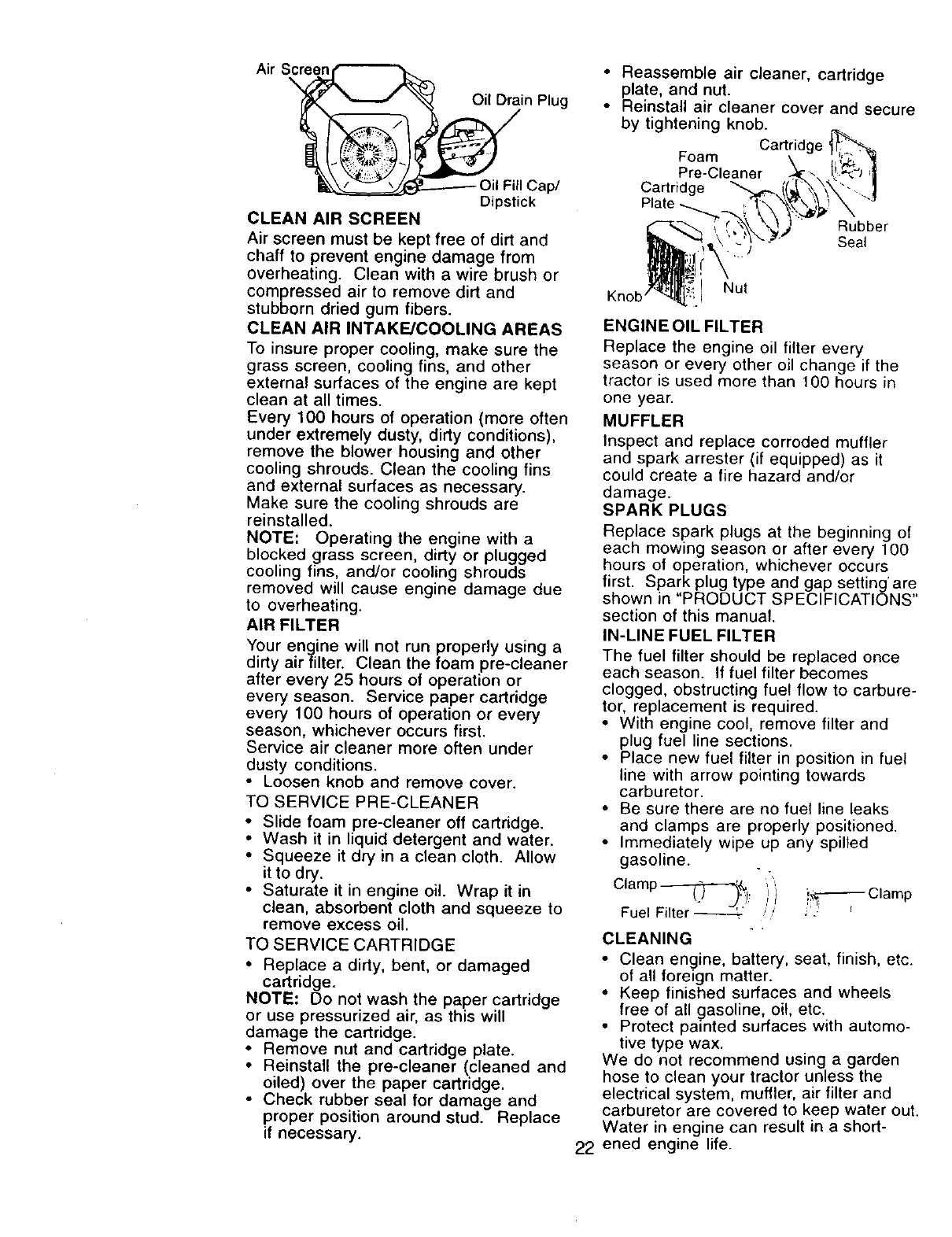

Air S_i n Plug

Oil Fill Cap/

Dipstick

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary.

Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the engine with a

blocked grass screen, dirty or plugged

cooling fins, and/or cooling shrouds

removed will cause engine damage due

to overheating.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or

every season. Service paper cartridge

every 100 hours of operation or every

season, whichever occurs first.

Service air cleaner more often under

dusty conditions.

•Loosen knob and remove cover.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth. Allow

it to dry.

•Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

TO SERVICE CARTRIDGE

• Replace a dirty, bent, or damaged

cartridge.

NOTE: Do not wash the paper cartridge

or use pressurized air, as this will

damage the cartridge.

• Remove nut and cartridge plate.

• Reinstall the pre-cleaner (cleaned and

oiled) over the paper cartridge.

• Check rubber seal for damage and

proper position around stud. Replace

if necessary. 22

• Reassemble air cleaner, cartridge

plate, and nut.

• Reinstall air cleaner cover and secure

by tightening knob.

Cartridge '

Foam

Pre-Cleaner

Cartridge

Rubber

Seal

Nut

Knob

ENGINE OIL FILTER

Replace the engine oil filter every

season or every other oil change if the

tractor is used more than 100 hours in

one year.

MUFFLER

Inspect and replace corroded muffler

and spark arrester (if equipped) as it

could create a fire hazard and/or

damage.

SPARK PLUGS

Replace spark plugs at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs

first. Spark plug type and gap setting'are

shown in "PRODUCT SPECIFICATIONS"

section of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fue! flow to carbure-

tor, replacement is required.

• With engine cool, remove filter and

plug fuel line sections.

• Place new fuel filter in position in fuel

line with arrow pointing towards

carburetor.

• Be sure there are no fuel line leaks

and clamps are properly positioned.

• Immediately wipe up any spilled

gasoline. I

Clamp - '._ ,"_

ii i Ciamp

Fuel Filter _ ' /;-"

CLEANING

• Clean engine, battery, seat, finish, etc.

of all foreign matter.

• Keep finished surfaces and wheels

free of all gasoline, oil, etc.

• Protect painted surfaces with automo-

tive type wax.

We do not recommend using a garden

hose to clean your tractor unless the

electrical system, muffler, air filter and

carburetor are covered to keep water out.

Water in engine can result in a short-

ened engine life.

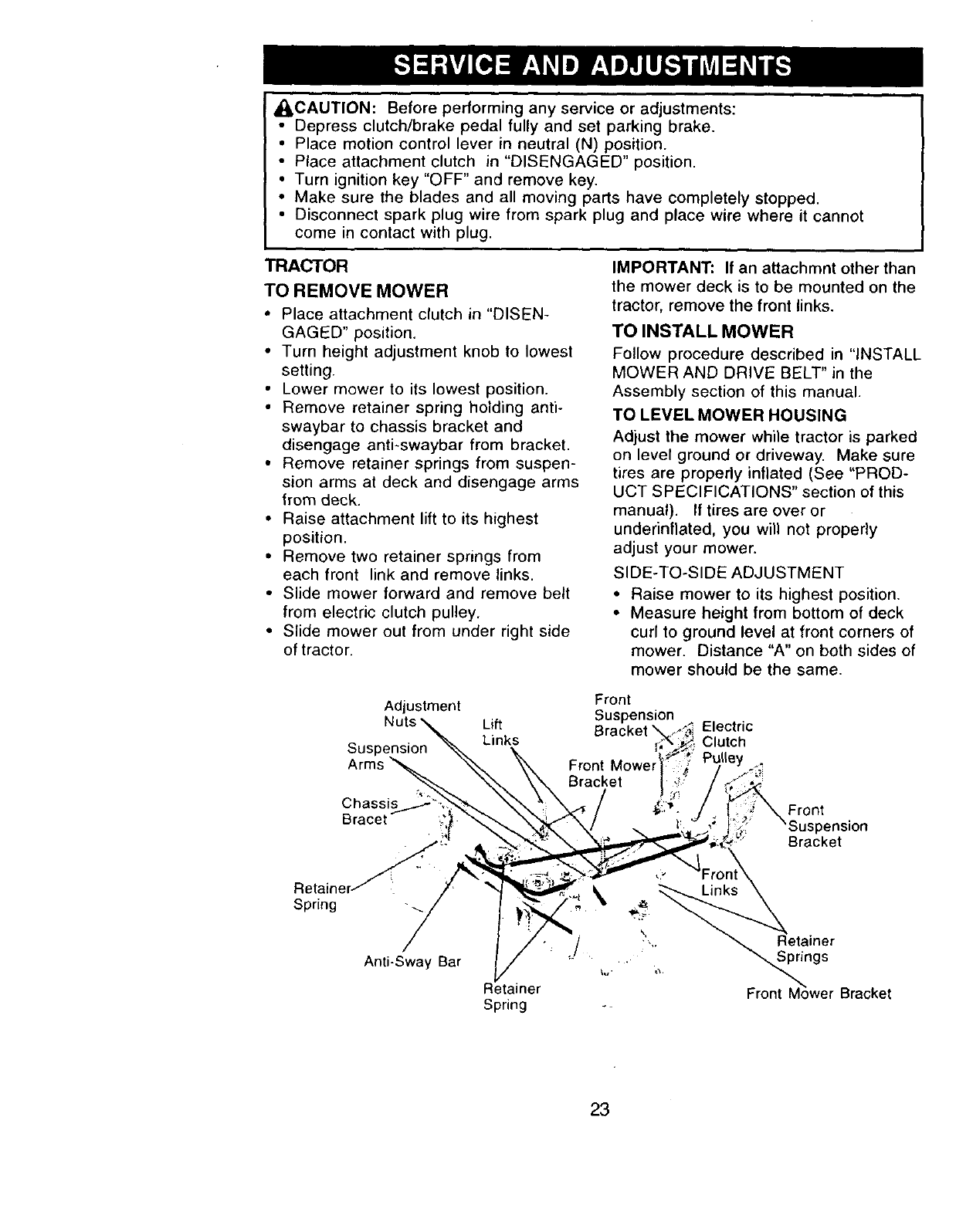

,_CAUTION: Before performing any service or adjustments:

• Depress clutch/brake pedal fully and set parking brake.

• Place motion control lever in neutral (N) position.

• Place attachment clutch in "DISENGAGED" position.

• Turn ignition key "OFF" and remove key.

• Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

•Place attachment clutch in "DISEN-

GAGED" position.

,' Turn height adjustment knob to lowest

setting.

• Lower mower to its lowest position.

• Remove retainer spring holding anti-

swaybar to chassis bracket and

disengage anti-swaybar from bracket.

• Remove retainer springs from suspen-

sion arms at deck and disengage arms

from deck.

• Raise attachment lift to its highest

position.

• Remove two retainer springs from

each front link and remove links.

• Slide mower forward and remove belt

from electric clutch pulley.

• Slide mower out from under right side

of tractor.

IMPORTANT: If an attachmnt other than

the mower deck is to be mounted on the

tractor, remove the front links.

TO INSTALL MOWER

Follow procedure described in "INSTALL

MOWER AND DRIVE BELT" in the

Assembly section of this manual.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are propedy inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• Measure height from bottom of deck

curl to ground level at front corners of

mower. Distance "A" on both sides of

mower should be the same.

Adjustment

Lift

Links

Suspension

Front

Suspension Electric

Clutch

Chassis

Bracet Front

pension

Bracket

Spring

Anti-Sway Bar

Retainer

Spring

jRetainer

Springs

Front M_ower Bracket

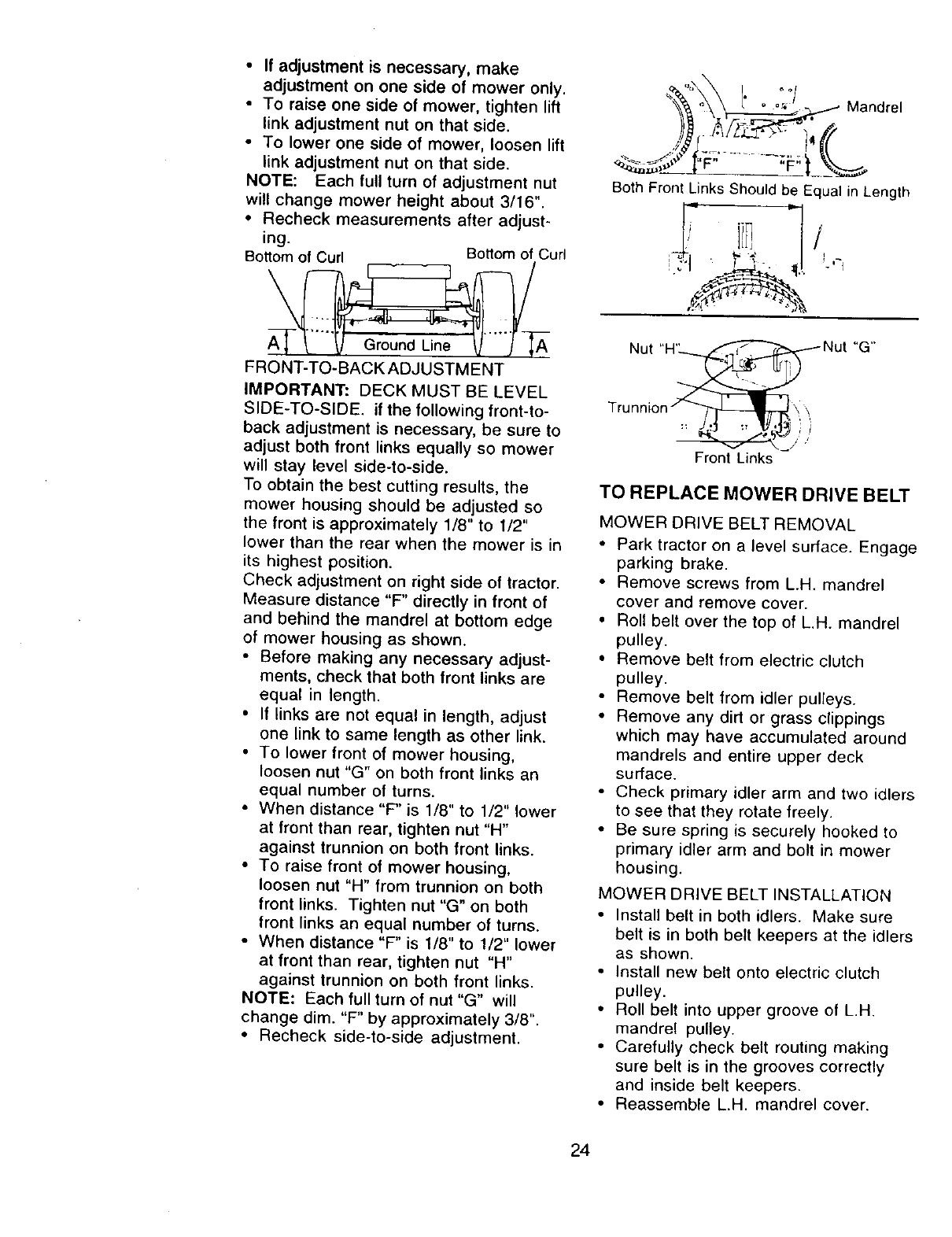

• If adjustment is necessary, make

adjustment on one side of mower only.

•To raise one side of mower, tighten lift

link adjustment nut on that side.

•To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

*Recheck measurements after adjust-

ing.

Bottom of Curl Bottom of Curl

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: DECK MUST BE LEVEL

SIDE-TO-SIDE. if the following front-to-

back adjustment is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain the best cutting results, the

mower housing should be adjusted so

the front is approximately 1/8" to 1/2"

lower than the rear when the mower is in

its highest position.

Check adjustment on right side of tractor.

Measure distance "F" directly in front of

and behind the mandrel at bottom edge

of mower housing as shown.

• Before making any necessary adjust-

ments, check that both front links are

equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

•To lower front of mower housing,

loosen nut "G" on both front links an

equal number of turns.

•When distance "F" is 1/8" to 1/2" lower

at front than rear, tighten nut "H"

against trunnion on both front links.

•To raise front of mower housing,

loosen nut "H" from trunnion on both

front links. Tighten nut "G" on both

front links an equal number of turns.

•When distance "F" is 1/8" to 1/2" lower

at front than rear, tighten nut "H"

against trunnion on both front links.

NOTE: Each full turn of nut "G" will

change dim. "F" by approximately 3/8".

•Recheck side-to-side adjustment.

oor. Mandrel

_'-4_,_' j_"P" "F" I_ _

Both Front Links Should be Equal in Length

Nut "G"

Front Links

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

•Park tractor on a level sudace. Engage

parking brake.

• Remove screws from L.H. mandrel

cover and remove cover.

•Roll belt over the top of L.H. mandrel

pulley.

• Remove belt from electric clutch

pulley.

• Remove belt from idler pulleys.

• Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck

surface.

• Check primary idler arm and two idlers

to see that they rotate freely.

• Be sure spring is securely hooked to

primary idler arm and bolt in mower

housing.

MOWER DRIVE BELT INSTALLATION

• Install belt in both idlers. Make sure

belt is in both belt keepers at the idlers

as shown.

• Install new belt onto electric clutch

pulley.

• Roll belt into upper groove of L.H.

mandrel pulley.

• Carefully check belt routing making

sure belt is in the grooves correctly

and inside belt keepers.

• Reassemble L.H. mandrel cover.

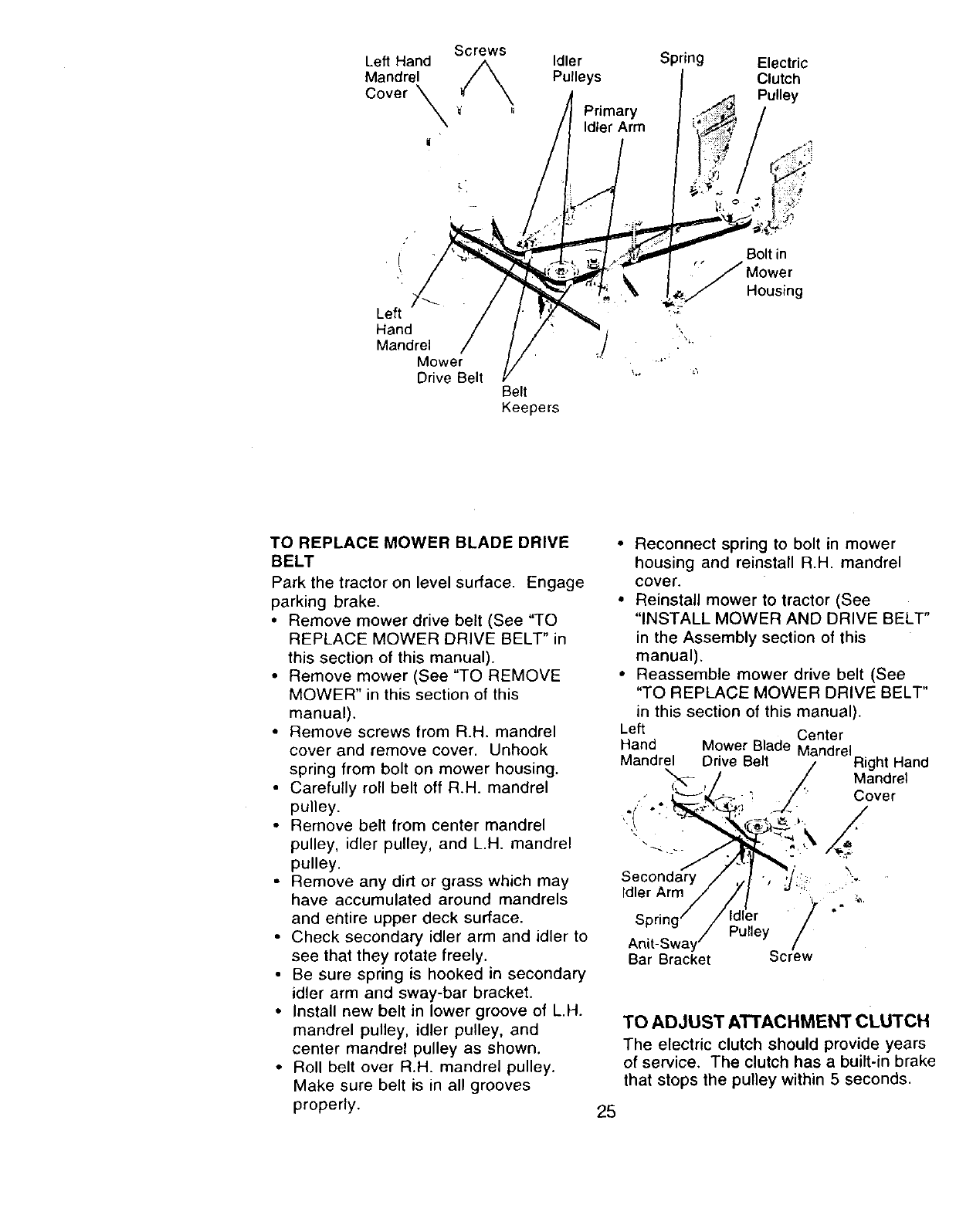

Left Hand

Mandrel

Cover

Screws Idler

Pulleys

Primary

Idler Arm

Spring Electric

Clutch

Pulley

Left

Hand

Mandrel

Mower

Drive Belt Belt

Keepers

Bolt in

'" J Mower

_7 /Housing

TO REPLACE MOWER BLADE DRIVE

BELT

Park the tractor on level surface. Engage

parking brake.

•Remove mower drive belt (See "TO

REPLACE MOWER DRIVE BELT" in

this section of this manual).

•Remove mower (See "TO REMOVE

MOWER" in this section of this

manual).

• Remove screws from R.H. mandrel

cover and remove cover. Unhook

spring from bolt on mower housing.

• Carefully roll belt off R.H. mandrel

pulley.

•Remove belt from center mandrel

pulley, idler pulley, and L.H. mandrel

pulley.

•Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

• Check secondary idler arm and idler to

see that they rotate freely.

• Be sure spring is hooked in secondary

idler arm and sway-bar bracket.

•Install new belt in lower groove of L.H.

mandrel pulley, idler pulley, and

center mandrel pulley as shown.

•Roll belt over R.H. mandrel pulley.

Make sure belt is in all grooves

properly.

• Reconnect spring to bolt in mower

housing and reinstall R.H. mandrel

cover.

• Reinstall mower to tractor (See

"INSTALL MOWER AND DRIVE BELT"

in the Assembly section of this

manual).

•Reassemble mower drive belt (See

"TO REPLACE MOWER DRIVE BELT"

in this section of this manual).

Sprin,

Bar Bracket

Left Center

Hand Mower Blade Mandrel

Mandrel Drive Belt /Right Hand

/Mandrel

,- _ Cover

Secondary _'. 5,

Idler Arm _;: ;. '

Pulley re/w

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually,the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by your

nearest authorized service center/

department.

•Make sure attachment clutch and

ignition switches are in "OFF" position.

• Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012" at aU three slot

locations cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate•

Nylon Locknut" _'_

" -:_ Brake

TO ADJUST BRAKE

Your tractor is equipped with an adjust-

able brake system which is mounted on

the right side of the transaxle.

If tractor requires more than six (6) feet

stopping distance at high speed in

highest gear, then brake must be

adjusted.

•Depress clutch/brake pedal and

engage parking brake.

• Measure distance between brake

operating arm and nut "A" on brake

rod.

• If distance is other than 1-1/2", loosen

jam nut and turn nut "A" until distance

becomes 1-1/2". Retighten jam nut

against nut "A".

• Road test tractor for proper stopping

distance as stated above. Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact your nearest authorized

service center/department.

With Parking Brake "Engaged"

_.A _.

Jam Nut

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there

is a belt installation guide decal on

bottom of left footrest.

• Remove mower (See "TO REMOVE

MOWER" in this section of this

manual•)

BELT REMOVAL -

• Engage parking brake (creates slack

in belt).

• Remove belt from clutching and fan

idler pulleys.

• Loosen belt keeper above transaxle

pulley.

• Remove belt from transaxle pulley•

•Remove belt from engine pulley and

front V-idler pulley.

• Pull belt out of all belt keepers and

remove from tractor.

BELT INSTALLATION -

• Place V part of belt into grooves on

engiae pulley and front V-idler, making

sure to route belt inside of all belt

keepers.

• Route belt on right side, coming from

V-idler, towards back of tractor, above

midspan belt keeper and to top of

transaxle pulley.

• Route belt on left side, coming from

engine pulley, towards back of tractor

and through loop in midspan belt

keeper•

•Place V part of belt into grooves on

transaxle and fan idler pulleys, making

sure to route belt inside of all belt

keepers•

Tractor V-Belt Drive Schematic

Viewed From L.H. Side of Tractor

Tran'saxle Pulley

Belt Keeper

• Clutching Idler _'_

En.gme C utching Flat Idler :_ 1_

lu"eYAboveBe,tKeeper

Belt Keepers Belt Twists _,_ -_7__

_---_ BeltKeeper F,

_- Engine Pulley

_'_V-Idier

As Viewed From Bottom

Idler

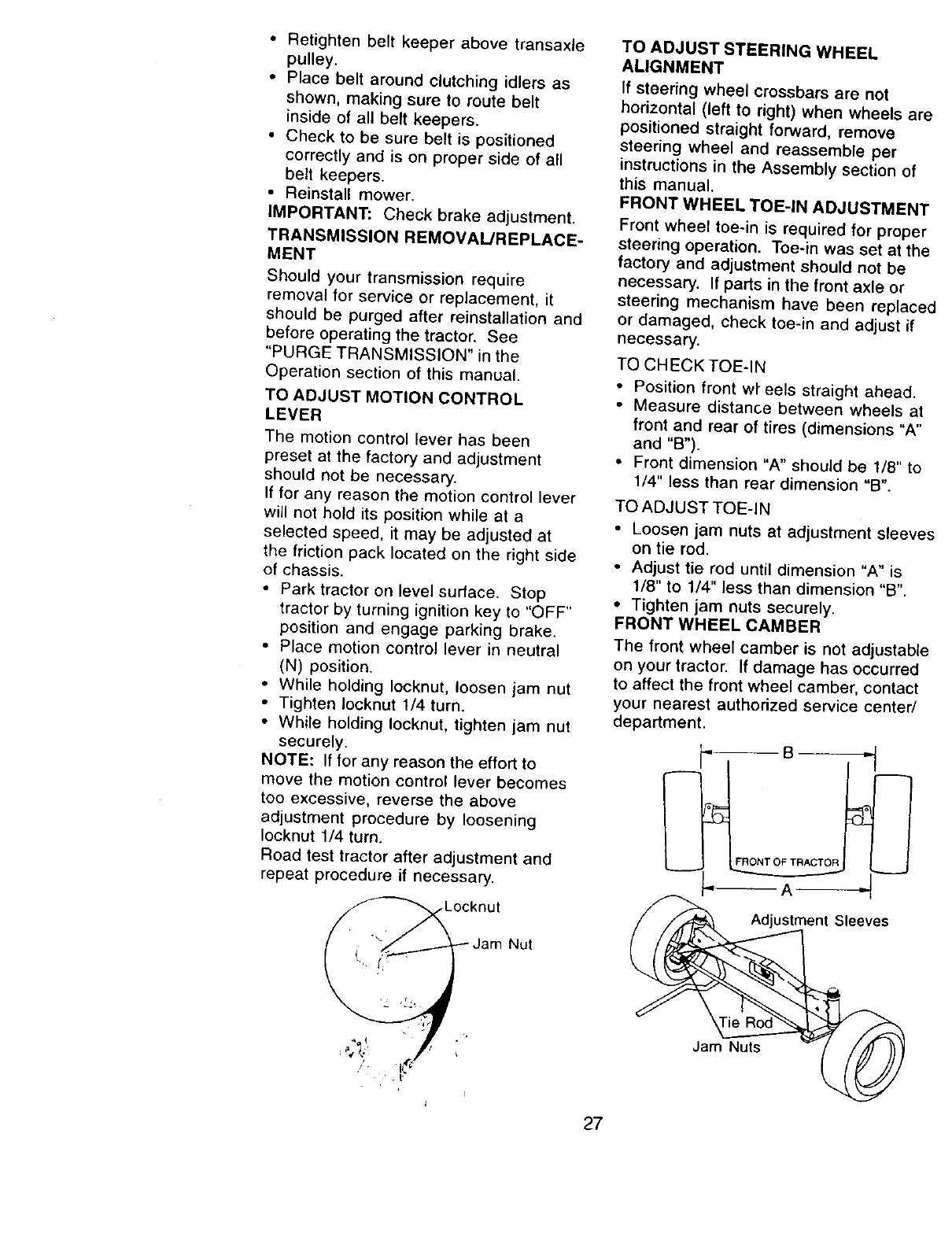

• Retighten belt keeper above transaxle

pulley.

• Place belt around clutching idlers as

shown, making sure to route belt

inside of all belt keepers.

• Check to be sure belt is positioned

correctly and is on proper side of all

belt keepers.

• Reinstall mower.

IMPORTANT: Check brake adjustment.

TRANSMISSION REMOVAL/REPLACE-

MENT

Should your transmission require

removal for service or replacement, it

should be purged after reinstallation and

before operating the tractor. See

"PURGE TRANSMISSION" in the

Operation section of this manual.

TO ADJUST MOTION CONTROL

LEVER

The motion control lever has been

preset at the factory and adjustment

should not be necessary.

If for any reason the motion control lever

will not hold its position while at a

selected speed, it may be adjusted at

the friction pack located on the right side

of chassis.

• Park tractor on level surface. Stop

tractor by turning ignition key to "OFF"

position and engage parking brake.

•Place motion control lever in neutral

(N) position.

• While holding Iocknut, loosen jam nut

• Tighten Iocknut 1/4 turn.

• While holding Iocknut, tighten jam nut

securely.

NOTE: If for any reason the effort to

move the motion control lever becomes

too excessive, reverse the above

adjustment procedure by loosening

Iocknut 1/4 turn.

Road test tractor after adjustment and

repeat procedure if necessary.

.Locknul

Nut

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove

steering wheel and reassemble per

instructions in the Assembly section of

this manual.

FRONT WHEEL TOE-IN ADJUSTMENT

Front wheel toe-in is required for proper

steering operation. Toe-in was set at the

factory and adjustment should not be

necessary. If parts in the front axle or

steering mechanism have been replacec

or damaged, check toe-in and adjust if

necessary.

TO CHECK TOE-IN

• Position front wl eels straight ahead.

• Measure distance between wheels at

front and rear of tires (dimensions "A"

and "B").

• Front dimension "A" should be 1/8" to

1/4" less than rear dimension "B".

TO ADJUST TOE-IN

• Loosen jam nuts at adjustment sleeve.'

on tie rod.

• Adjust tie rod until dimension "A" is

1/8" to 1/4" less than dimension "B".

• Tighten jam nuts securely.

FRONT WHEEL CAMBER

The front wheel camber is not adjustable

on your tractor. If damage has occurred

to affect the front wheel camber, contact

your nearest authorized service center/

department.

Adjustment Sleeves

Jam Nuts

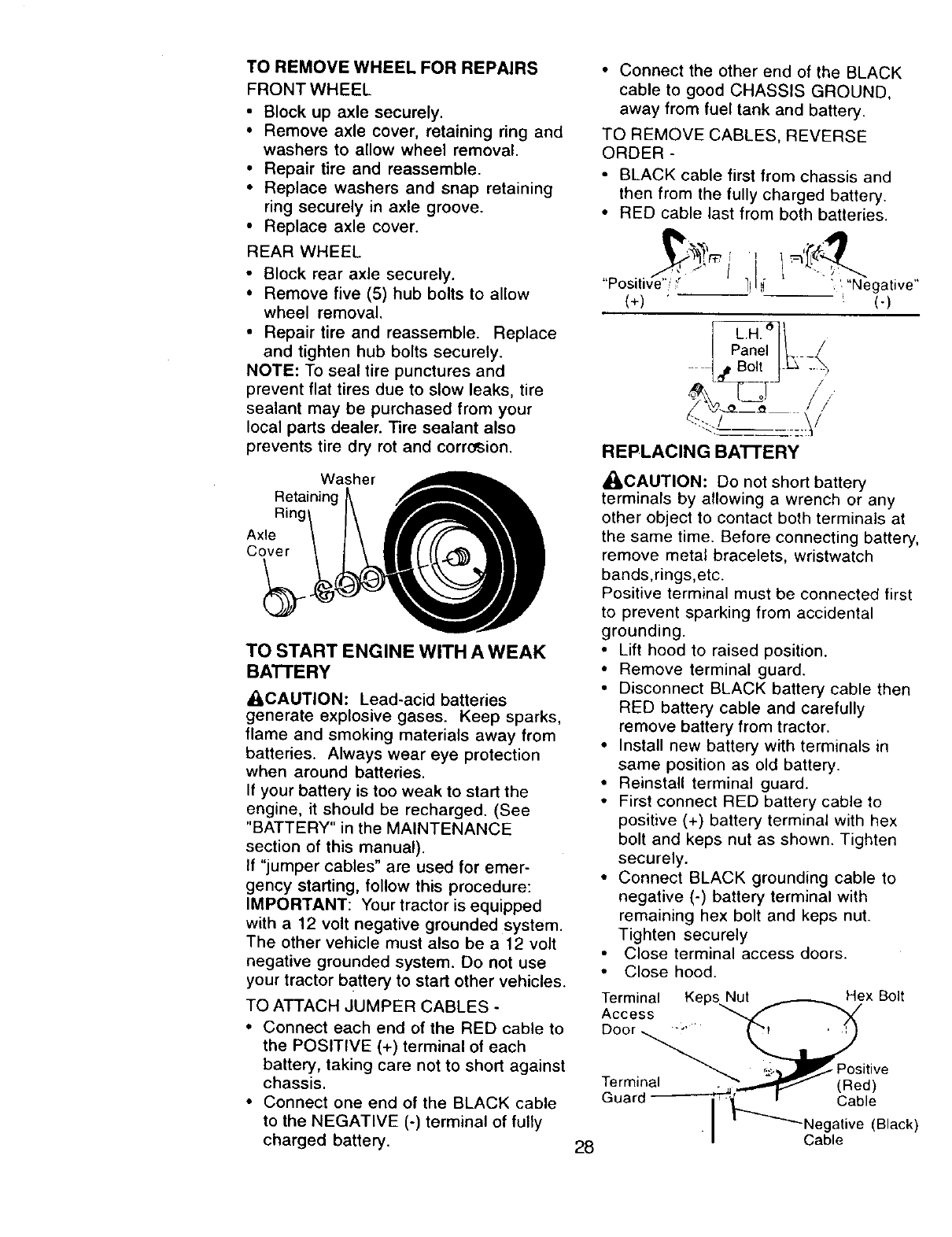

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL

• Block up axle securely.

•Remove axle cover, retaining ring and

washers to allow wheel removal.

• Repair tire and reassemble.

• Replace washers and snap retaining

ring securely in axle groove.

• Replace axle cover.

REAR WHEEL

• Block rear axle securely.

• Remove five (5) hub bolts to allow

wheel removal.

•Repair tire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corro'3ion.

Washer

Retaining

Ring,

Axle

Cover

TO START ENGINE WITH A WEAK

BATTERY

_,CAUTION: Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See

"BATTERY" in the MAINTENANCE

section of this manual).

If "jumper cables" are used for emer-

gency starting, follow this procedure:

IMPORTANT: Your tractor is equipped

with a 12 volt negative grounded system.

The other vehicle must also be a 12 volt

negative grounded system. Do not use

your tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

• Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short against

chassis.

• Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery. 28

• Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

• BLACK cable first from chassis and

then from the fully charged battery.

• RED cable last from both batteries.

Positive". =': Ii I Id" "'. "Negative"

(+) (4

REPLACING BATTERY

_CAUTION: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparking from accidental

grounding.

• Lift hood to raised position.

• Remove terminal guard.

• Disconnect BLACK battery cable then

RED battery cable and carefully

remove battery from tractor.

•Install new battery with terminals in

same position as old battery.

• Reinstall terminal guard.

• First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

• Connect BLACK grounding cable to

negative (-) battery terminal with

remaining hex bolt and keps nut.

Tighten securely

•Close terminal access doors.

• Close hood.

Terminal Keps Nut Hex Bolt

Access _

Door .... 'n_, , _ I

Terminal :_'_..,..._---_ (Red)

Guard .-_-_r ca;le

I"IB,ack/

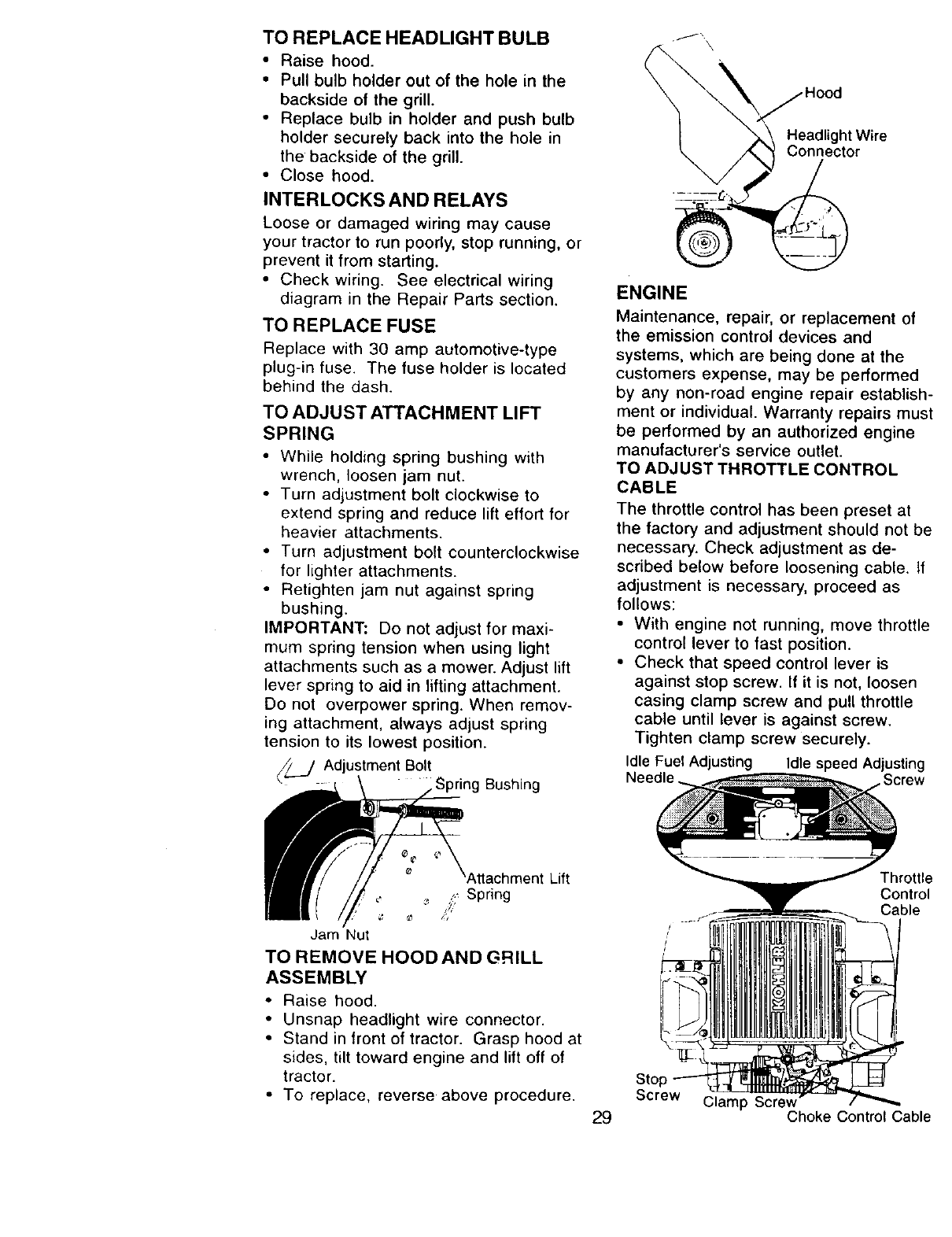

TO REPLACEHEADLIGHTBULB

•Raise hood.

• Pull bulb holder out of the hole in the

backside of the grill.

• Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

• Close hood.

INTERLOCKSANDRELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACEFUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO ADJUST ATTACHMENT LIFT

SPRING

• While holding spring bushing with

wrench, loosen jam nut.

• Turn adjustment bolt clockwise to

extend spring and reduce lift effort for

heavier attachments.

• Turn adjustment bolt counterclockwise

for lighter attachments.

• Retighten jam nut against spring

bushing.

IMPORTANT: Do not adjust for maxi-

mum spring tension when using _ight

attachments such as a mower. Adjust lift

lever spring to aid in lifting attachment.

Do not overpower spring. When remov-

ing attachment, always adjust spring

tension to its lowest position.

(/__J Adjustment Bolt pring Bushing

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and

systems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish

ment or individual. Warranty repairs mus

be performed by an authorized engine

manufacturer's service outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at

the factory and adjustment should not b_

necessary. Check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

• With engine not running, move throttl_

control lever to fast position.

• Check that speed control lever is

against stop screw. If it is not, loosen

casing clamp screw and pull throttle

cable until lever is against screw.

Tighten clamp screw securely.

Idle Fuel Adjusting Idle speed Adjusting

Needle

_ntLift

_, :, _, Spring

Jam Nut

TO REMOVE HOODAND GRILL

ASSEMBLY

•Raise hood.

• Unsnap headlight wire connector.

• Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

• To replace, reverse above procedure. 29

Stop

Screw

Throtth

Centre

Cable

Clamp Screw

Choke Control Cabh

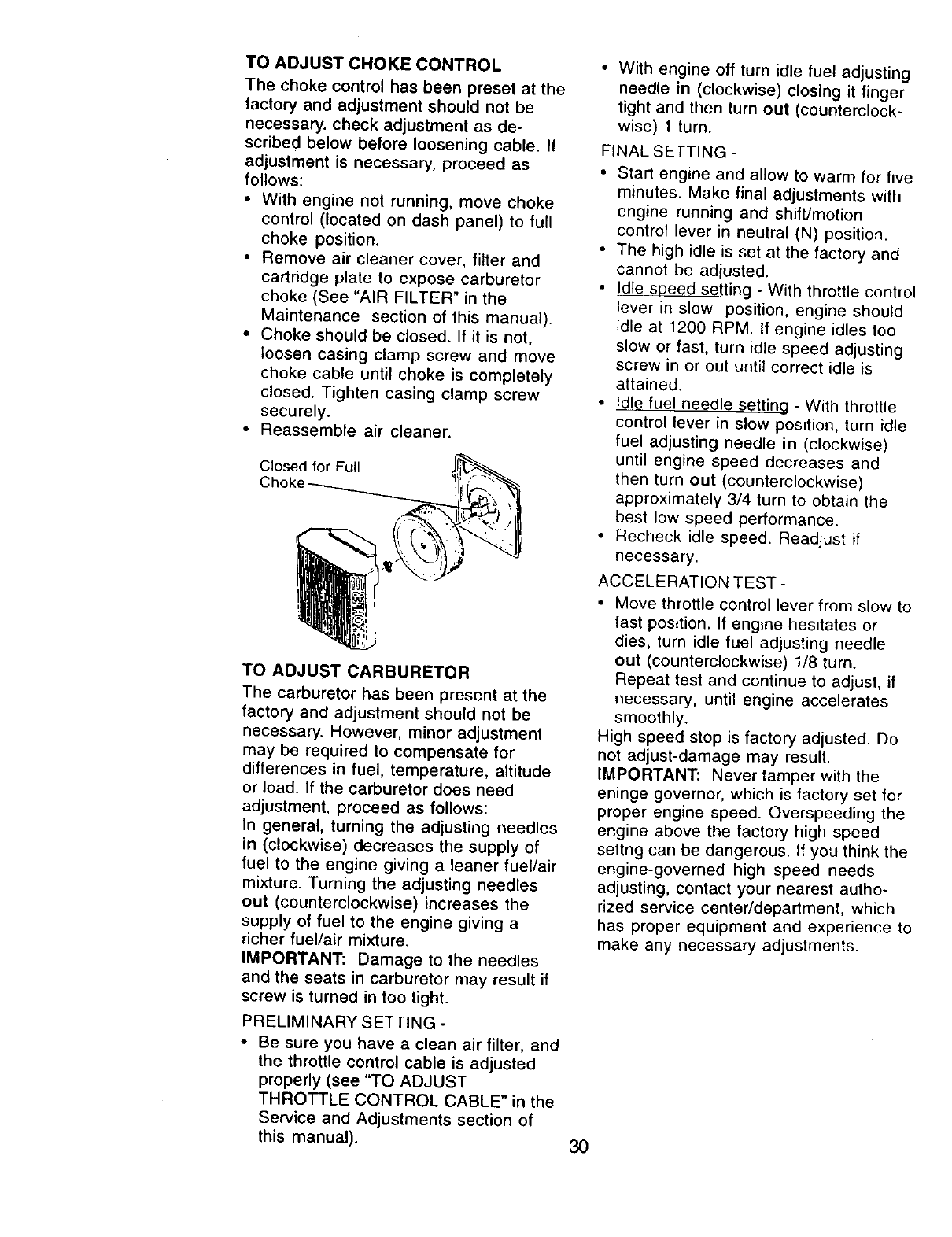

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be

necessary, check adjustment as de-

scribed below before loosening cable. If

adjustment is necessary, proceed as

follows:

•With engine not running, move choke

control (located on dash panel) to full

choke position.

• Remove air cleaner cover, filter and

cartridge plate to expose carburetor

choke (See "AIR FILTER" in the

Maintenance section of this manual).

• Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

• Reassemble air cleaner.

Closed for Full

Ch(

TO ADJUST CARBURETOR

The carburetor has been present at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or load. If the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needles

in (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture. Turning the adjusting needles

out (counterclockwise) increases the

supply of fuel to the engine giving a

richer fuel/air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

screw is turned in too tight.

PRELIMINARY SETTING -

• Be sure you have a clean air filter, and

the throttle control cable is adjusted

properly (see "TO ADJUST

THROTTLE CONTROL CABLE" in the

Service and Adjustments section of

this manual).

• With engine off turn idle fuel adjusting

needle in (clockwise) closing it finger

tight and then turn out (counterclock-

wise) 1 turn.

FINAL SETTING -

• Start engine and allow to warm for five

minutes. Make final adjustments with

engine running and shift/motion

control lever in neutral (N) position.

• The high idle is set at the factory and

cannot be adjusted.

• Idle speed setting - With throttle control

lever in slow position, engine should

idle at 1200 RPM. If engine idles too

slow or fast, turn idle speed adjusting

screw in or out until correct idle is

attained.

• Idle fuel needle _etting - With throttle

control lever in slow position, turn idle

fuel adjusting needle in (clockwise)

until engine speed decreases and

then turn out (counterclockwise)

approximately 3/4 turn to obtain the

best low speed performance.

• Recheck idle speed. Readjust if

necessary.

ACCELERATION TEST -

• Move throttle control lever from slow to

fast position. If engine hesitates or

dies, turn idle fuel adjusting needle

out (counterclockwise) 1/8 turn.

Repeat test and continue to adjust, if

necessary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do

not adjust-damage may result.

IMPORTANT: Never tamper with the

eninge governor, which is factory set for

proper engine speed. Overspeeding the

engine above the factory high speed

settng can be dangerous. If you think the

engine-governed high speed needs

adjusting, contact your nearest autho-

rized service center/department, which

has proper equipment and experience to

make any necessary adjustments.

Immediately prepare your tractor for

storage at the end of the season or if the

tractor will not be used for 30 days or

more.

CAUTION: Never store the tractor

with gasoline in the tank inside a

building where fumes may reach an

open flame or spark. Allow the engine to

cool before storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc. Store

in a clean, dry area.

• Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

• Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

• Lubricate as shown in the Mainte-

nance section of this manual.

• Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

• Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage,

battery may require recharging.

• To help prevent corrosion and power

leakage during long periods of

storage, battery cables should be

disconnected and battery cleaned

thoroughly (see "TO CLEAN BATTERY

AND TERMINALS" in the Maintenance

section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with batten/

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol

blended fuels 9called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine

while in storage.

• Drain the fuel tank.

• Start the engine and let it run until the

fuel lines and carburetor are empty.

• Never use engine or carburetor

cleaner products in the fuel tank or

permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or

storage container. Always follow the mix

ratio found on stabilizer container. Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

•Remove spark plug(s).

• Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

• Turn ignition key to "START" position

tor a few seconds to distribute oil.

• Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from

dust and dirt.

• Cover your tractor with a suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breathe which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still

warm.

TROUBLESHOOTING CHART

_ROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

Loss of power

CAUSE

•Out of fuel.

• Engine not "CHOKED"

properly.

• Engine flooded.

•Bad spark plug,

• Dirty air filter.

• Dirty fuel filter.

• Water in fuel.

• Loose or damaged wiring.

• Carburetor out of adjustment.

• Engine valves out of

adjustment.

• Dirty air filter.

• Bad spark plug.

• Weak or dead battery.

• Dirty fuel filter.

• Stale or dirty fuel.

• Loose or damaged wiring.

• Carburetor out of adjustment.

• Engine valves out of

adjustment.

• Clutch/brake pedal not

depressed.

• Attachment clutch is engaged.

• Weak or dead battery.

• Blown fuse.

• Corroded battery terminals.

• Loose or damaged wiring.

• Faulty ignition switch.

• Faulty solenoid or starter.

•Faulty operator presence

switch(es).

• Weak or dead battery.

• Corroded battery terminals.

• Loose or damaged wiring.

• Faulty solenoid or starter.

• Cutting too much grass/too

fast.

• Throttle in "CHOKE" position.

• Build-up of grass, leaves

and trash under mower.

• Dirty air filter,

• Low oil level/dirty oil.

CORRECTION

• Fill fuel tank.

•See "TO START ENGINE"

in Operation section.

• Wait several minutes before

attempting to start.

• Replace spark plug.

• Clean/replace air filter.

• Replace fuel filter.

• Drain fuel tank and carburetor,

refill tank with fresh gasoline

and replace fuel filter.

•Check all wiring.

• See "To Adjust Carburetor"

in Service Adjustments

section.

•Contact an authorized service

center/department.

• Clean/replace air filter.

• Replace spark plug.

• Recharge or replace battery.

• Replace fuel filter.

• Drain fuel tank and refill with

fresh gasoline.

• Check all wiring.

• See "To Adjust Carburetor"

in Service Adjustments section.

• Contact an authorized service

center/department.

• Depress clutch/brake pedal.

•Disengage attachment clutch,

• Recharge or replace battery.

• Replace fuse.

• Clean battery terminals.

• Check all wiring.

• Check/replace ignition switch.

• Check/replace solenoid or

starter.

• Contact an authorized service

center/department.

• Recharge or replace battery.

• Clean battery terminals.

• Check all wiring.

• Check/replace solenoid or

starter,

• Set in "Higher Cut" position/

reduce speed.

•Adjust throttle control.

• Clean underside of mower

housing,

• Clean/replace air filter.

• Check oil level/change oil.

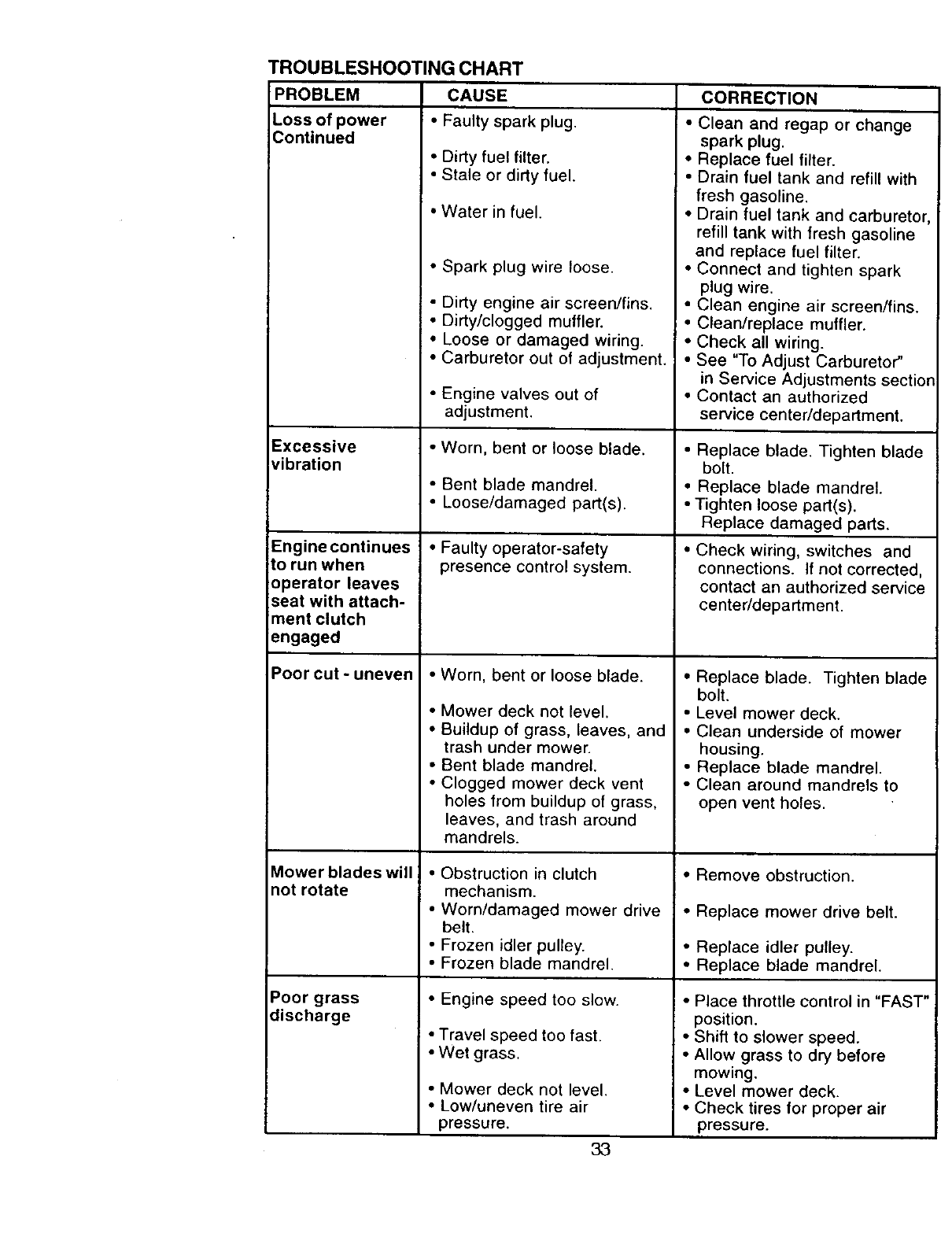

PROBLEM

Loss of power

Continued

TROUBLESHOOTING CHART

CAUSE

•Faulty spark plug.

• Dirty fuel filter.

• Stale or dirty fuel.

•Water in fuel.

Excessive

vibration

Engine continues

to run when

operator leaves

seat with attach-

ment clutch

engaged

Poor cut - uneven

Mower blades will

not rotate

Poor grass

• Spark plug wire loose.

•Dirty engine air screen/fins.

• Dirty/clogged muffler.

• Loose or damaged wiring.

• Carburetor out of adjustment.

• Engine valves out of

adjustment.

• Worn, bent or loose blade.

• Bent blade mandrel.

• Loose/damaged part(s).

• Faulty operator-safety

presence control system.

• Worn, bent or loose blade.

• Mower deck not level.

• Buildup of grass, leaves, and

trash under mower.

• Bent blade mandrel.

•Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

• Obstruction in clutch

mechanism.

• Worn/damaged mower drive

belt.

• Frozen idler pulley.

• Frozen blade mandrel.

• Engine speed too slow.

CORRECTION

• Clean and regap or change

spark plug.

•Replace fuel filter.

• Drain fuel tank and refill with

fresh gasoline.

• Drain fuel tank and carburetor,

refill tank with fresh gasoline

and replace fuel filter.

• Connect and tighten spark

plug wire.

• Clean engine air screen/fins.

• Clean/replace muffler.

• Check all wiring.

• See "To Adjust Carburetor"

in Service Adjustments section

• Contact an authorized

service center/department.

• Replace blade. Tighten blade

bolt.

• Replace blade mandrel.

• Tighten loose part(s).

Replace damaged parts.

• Check wiring, switches and

connections. If not corrected,

contact an authorized service

center/department.

• Replace blade. Tighten blade

bolt.

• Level mower deck.

• Clean underside of mower

housing.

• Replace blade mandrel.

• Clean around mandrels to

open vent holes.

• Remove obstruction.

• Replace mower drive belt.

• Replace idler pulley.

• Replace blade mandrel.

• Place throttle control in "FAST"

discharge

• Travel speed too fast.

• Wet grass.

• Mower deck not level.

• Low/uneven tire air

pressure.

position.

• Shift to slower speed.

• Allow grass to dry before

mowing.

• Level mower deck.

• Check tires for proper air

pressure.

TROUBLESHOOTINGCHART

PROBLEM CAUSE

Poor grass

discharge (Contn)

Headlight(s) not

working (if so

equipped)

Battery willnot

:harge

Loss of Drive

Engine "backfires"

when turning

engine "OFF"

•Worn, bent or loose blade.

• Buildup of grass, leaves, and

trash under mower.

• Mower drive belt worn.

• Blades improperly installed.

• Improper blades used.

• Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

• Switch is "OFF'.

• Bulb(s) burned out.

• Faulty light switch.

• Loose or damaged wiring.

• Blown fuse.

• Bad battery cell(s).

• Poor cable connections.

I• Faulty regulator (if so

equipped).

• Faulty alternator.

Freewheel control in

"disengaged" position.

Motion drive belt worn,

damaged or broken.

• Air trapped in transmission

during shipment or servicing.

• Engine throttle control at

"SLOW" position for 30

seconds before stopping

engine.

CORRECTION

• Replace/sharpen blade.

Tighten blade bolt.

• Clean underside of mower

housing.

• Replace mower drive belt.

• Reinstall blades sharp edge

down.

• Replace with blades listed

in this manual.

• Clean around mandrels to

open vent holes.

• Turn switch "ON".

• Replace bulb(s).

• Check/replace light switch.

Check wiring and connections.

Replace fuse.

• Replace battery.

• Check/clean all connections.

• Replace regulator.

• Replace alternator.

•Place freewheel control in

"engaged" position.

• Replace motion drive belt.

• Purge transmission.

• Move throttle control to not set

"SLOW" position and allow to

idle tot 30 seconds before

stopping engine.

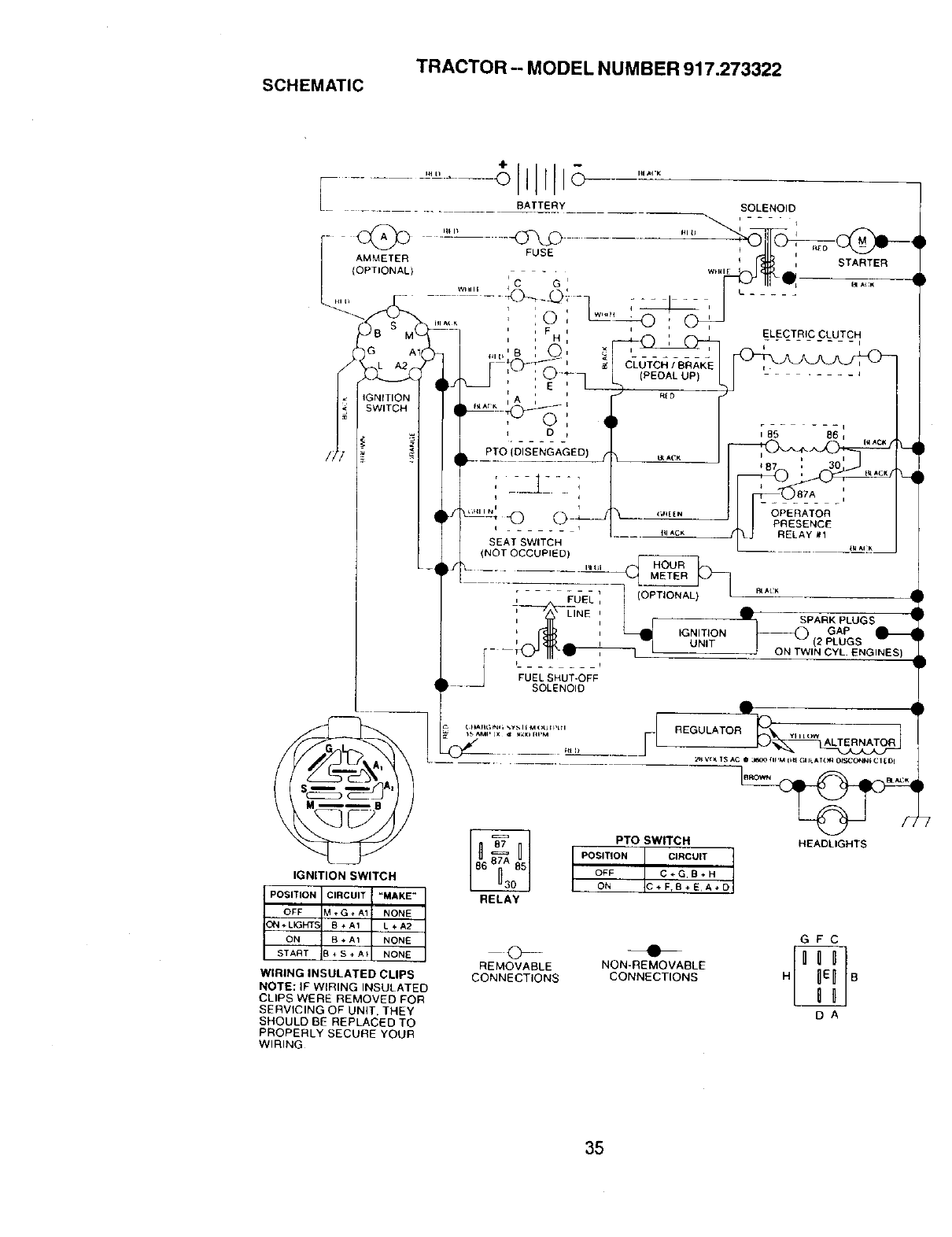

TRACTOR -- MODEL NUMBER 917.273322

SCHEMATIC

FUEL SHUT-OFF

SOLENOID

HEADLIGHTS

PTO SWITCH

POSITION CIRCUIT

OFF C÷G,B÷H

ON C÷F,B+E A*D

BELAY

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M*G ÷ A1 NONE

:)N + LIGP?r_ B÷A1 L+A2

ON B •A1 NONE

ST ART B+S+A_ NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVE[:) FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING

GFC

--O--- e

REMOVABLE NON-REMOVABLE

CONNECTIONS CONNECTIONS H B

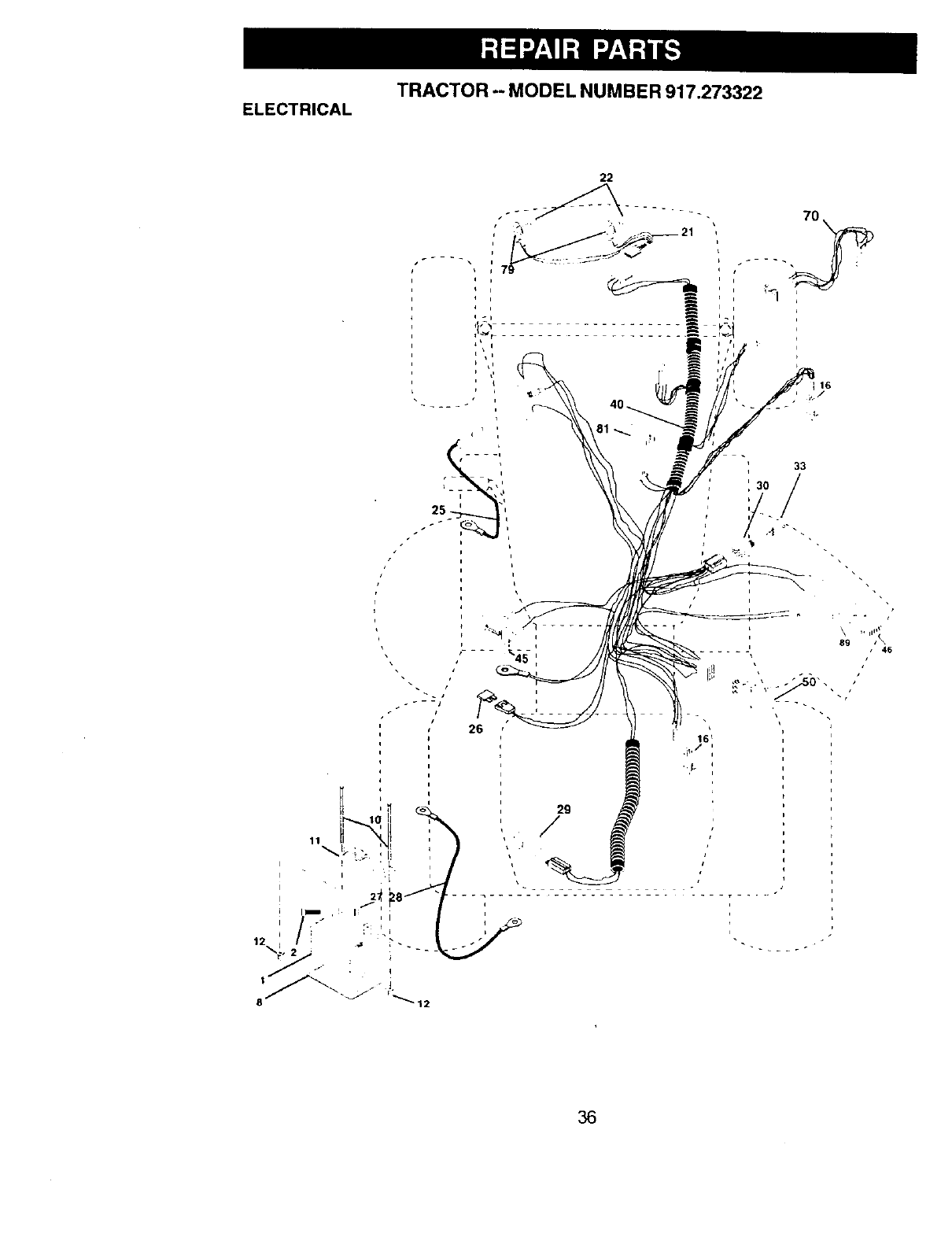

TRACTOR -- MODEL NUMBER 917.273322

ELECTRICAL

16'

,i_./

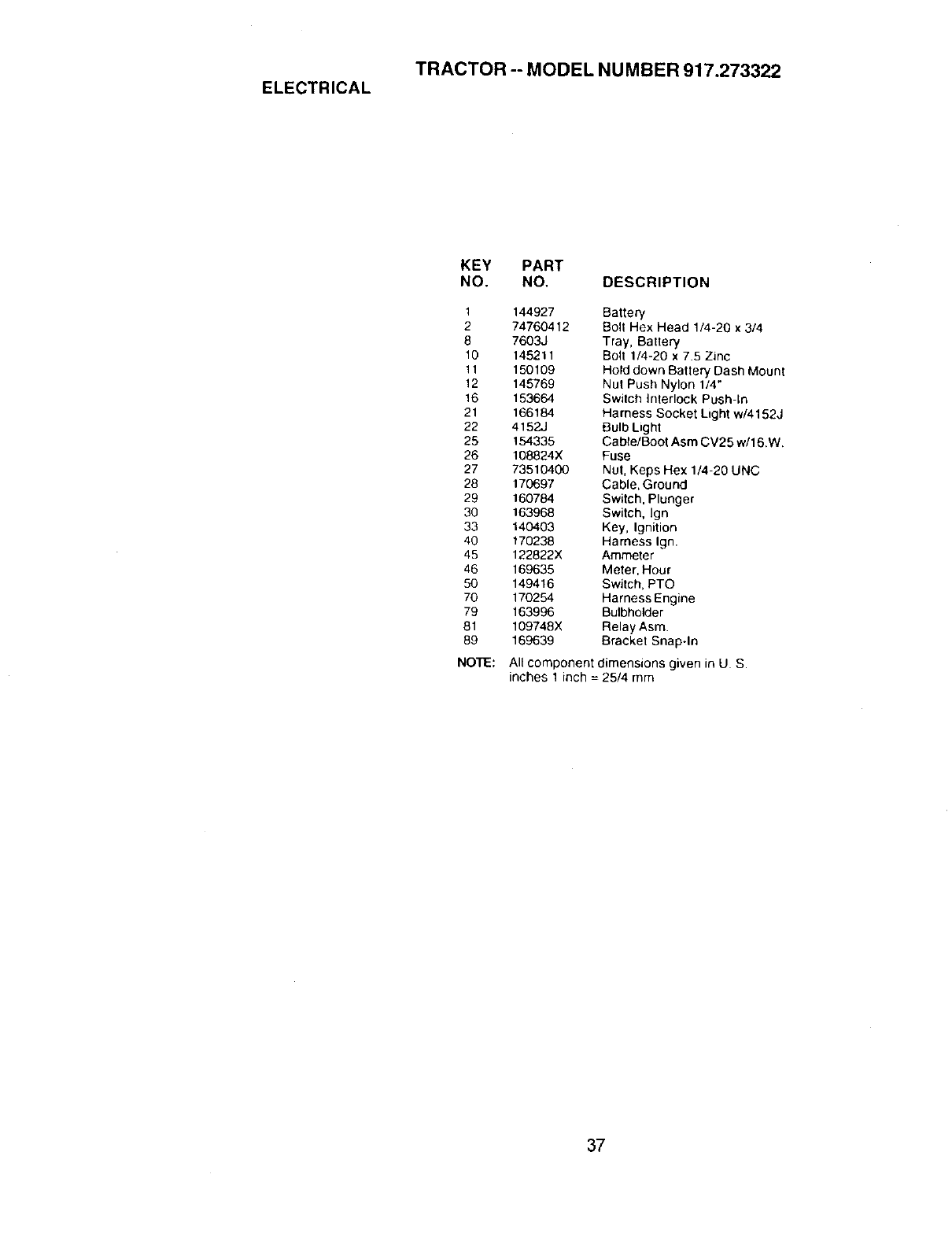

TRACTOR -- MODEL NUMBER 917.273322

ELECTRICAL

KEY PART

NO. NO, DESCRIPTION

1 144927 Batted/

274760412 Bolt Hex Head 1/4-20 x3/4

8 7603J Tray, Battery

10 145211 Bolt 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 153664 Switch Interlock Push-in

21 166184 Harness Socket Light w/4152J

22 4152J Bulb Light

25 154335 Cabte/Boot Asm CV25 w/16.W.

26 108824X Fuse

27 73510400 Nut, Keps Hex 1/4-20 UNC

28 170697 Cable, Ground

29 160784 Switch, Plunger

30 163968 Switch, Ign

33 140403 Key, Ignition

40 170238 Harness Ign.

45 122822X Ammeter

46 169635 Meter, Hour

50 149416 Switch, PTO

70 170254 Harness Engine

79 163996 Bulbholder

81 109748X Relay Asm.

89 169639 Bracket Snap°In

NOTE: All component dimensions given in U S.

inches 1 inch = 25/4 mm

TRACTOR -- MODEL NUMBER 917.273322

CHASSIS AND ENCLOSURES

134

_141

5_. _140

'_138 /

_47 ! -i

,. "_, _135

_17

133 31

l " 68/-I /

35f_! -"

1790_ h..

7_ .

17 I

'K_ 7--_ " - --6

-- _ _130

14_477 1/49

147

122 /

150 _,

122

I "_-30

147

122 /

\147

122

• i -i

43_. , 52

17 !16 IF

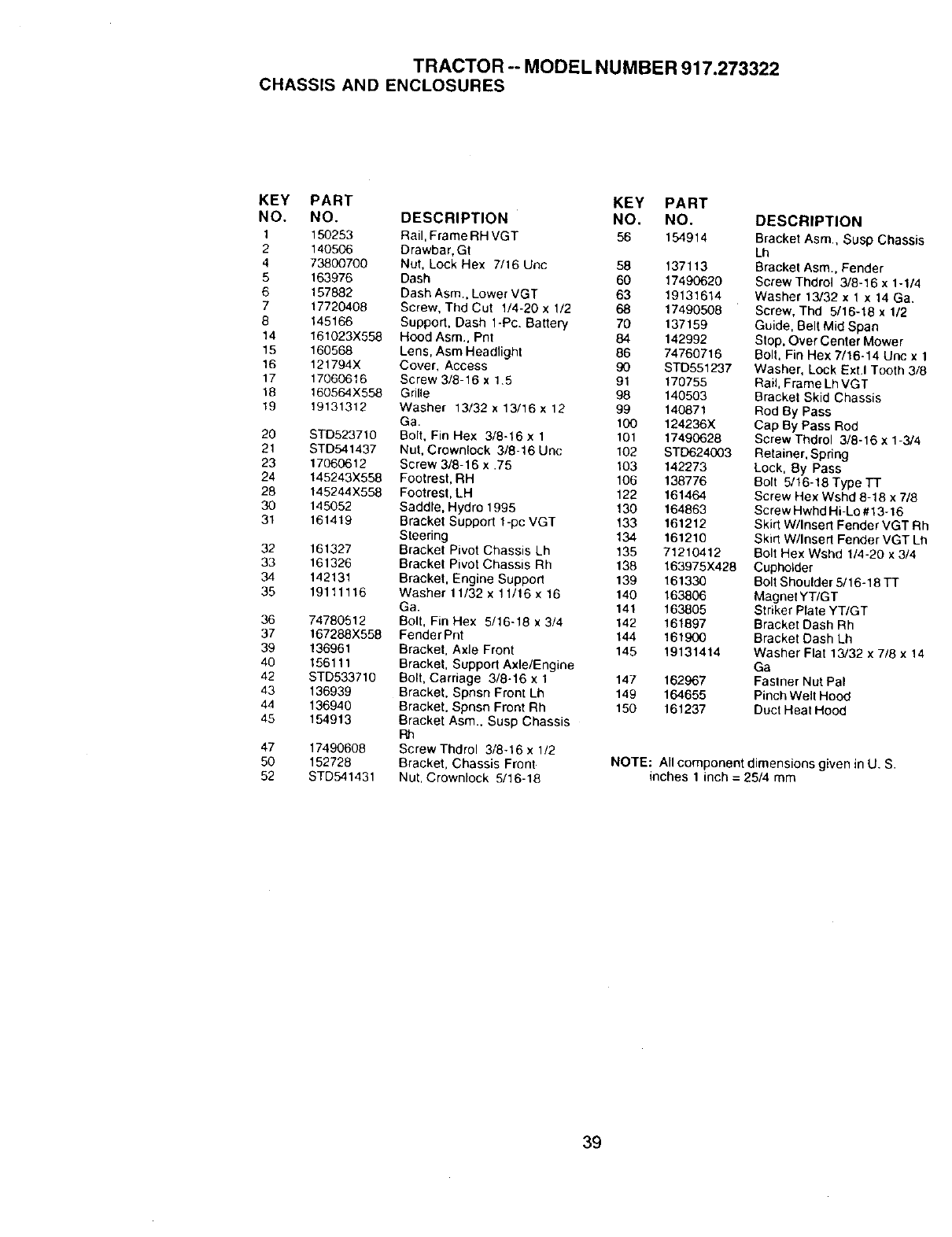

TRACTOR -- MODEL NUMBER 917.273322

CHASSISAND ENCLOSURES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 150253 Rail, Frame RH VGT 56 154914

2 140506 Drawbar, Gt

4 73800700 Nut, Lock Hex 7/16 Unc 58 137113

5 163976 Dash 60 17490620

6 157882 Dash Asm., Lower VGT 63 19131614

717720408 Screw, Thd Cut 1/4-20 x 1/2 68 17490508

8 145186 Support, Dash loPc. Battery 70 137159

14 161023X558 Hood Asm.. Pnt 84 142992

15 160568 Lens, Asm Headlight 86 74760716

16 121794X Cover, Access 90 STD551237

17 17060616 Screw 3/8-16 x 1.5 91 170755

18 160564X558 Gnlle 98 140503

19 19131312 Washer 13/32x 13/16x 12 9g 140871

Ga. 100 124236X

20 STD523710 Bolt. Fin Hex 3/8-16 x 1 101 17490628

21 STD541437 Nut, Crownlock 3/8-16 Unc 102 STD624003

23 17060612 Screw 3/8-16 x .75 103 142273

24 145243X558 Footrest, RH 106 138776

28 145244X558 Footrest, LH 122 161464

30 145052 Saddle, Hydro 1995 130 164863

31 161419 Bracket Support 1-pc VGT 183 161212

Steering 134 161210

32 161327 Bracket Pivot Chassis Lh 135 71210412

33 161326 Bracket Pivot Chassis Rh 138 163975X428

34 142131 Bracket, Engine Support 139 161330

35 19111118 Washer 11/32 x 11/16 x 16 140 163806

Ga. 141 163805

36 74780512 Bolt, Fin Hex 5/16-18 x 3/4 142 161897

37 167288X558 Fender Pnt 144 161900

39 136961 Bracket, Axle Front 145 19131414

40 156111 Bracket, Support Axle/Engine

42 STD533710 Bolt. Carriage 3/8-16 x 1 147 162967

43 136939 Bracket, Spnsn Front Lh 149 164655

44 136940 Bracket. Spnsn Front Rh 150 161237

45 154913 Bracket Asm.. Susp Chassis

47 17490608 Screw Thdrol 3/8-16 x 1/2

50 152728 Bracket, Chassis Front

52 STD541431 Nut, Crownlock 5/16-18

DESCRIPTION

Bracket Asm,, Susp Chassis

Bracket Asm., Fender

Screw Thdrol 3/8-16 x 1-1/4

Washer 13/32 x 1 x 14 Ga.

Screw, Thd 5/16-18 x 1/2

Guide, Belt Mid Span

Stop. Over Center Mower

Bolt, Fin Hex 7/16-14 Unc x 1

Washer, Lock Ext.I Tooth 3/8

Rail, Frame Lh VGT

Bracket Skid Chassis

Rod By Pass

Cap By Pass Rod

Screw Thdrol 3/8-16 x 1-3/4

Retainer, Spring

Lock, By Pass

Bolt 5/16-18 Type TT

Screw Hex Wshd 8-18 x 7/8

Screw Hwhd Hi-Lo #13-16

Skirt W/Insert Fender VGT Rh

Skirt W/Insert Fender VGT Lh

Bolt Hex Wshd 1/4-20 x 3/4

Cupholder

Bolt Shoulder 5/18-18 TT

Magnet YT/GT

Striker Plate YT/GT

Bracket Dash Rh

Bracket Bash Lh

Washer Flat 13/32 x 7/8 x 14

Faslner Nut Pal

Pinch Welt Hood

Duct Heat Hood

NOTE: All component dimensions given in U. S.

inches 1 inch = 25/4 mm

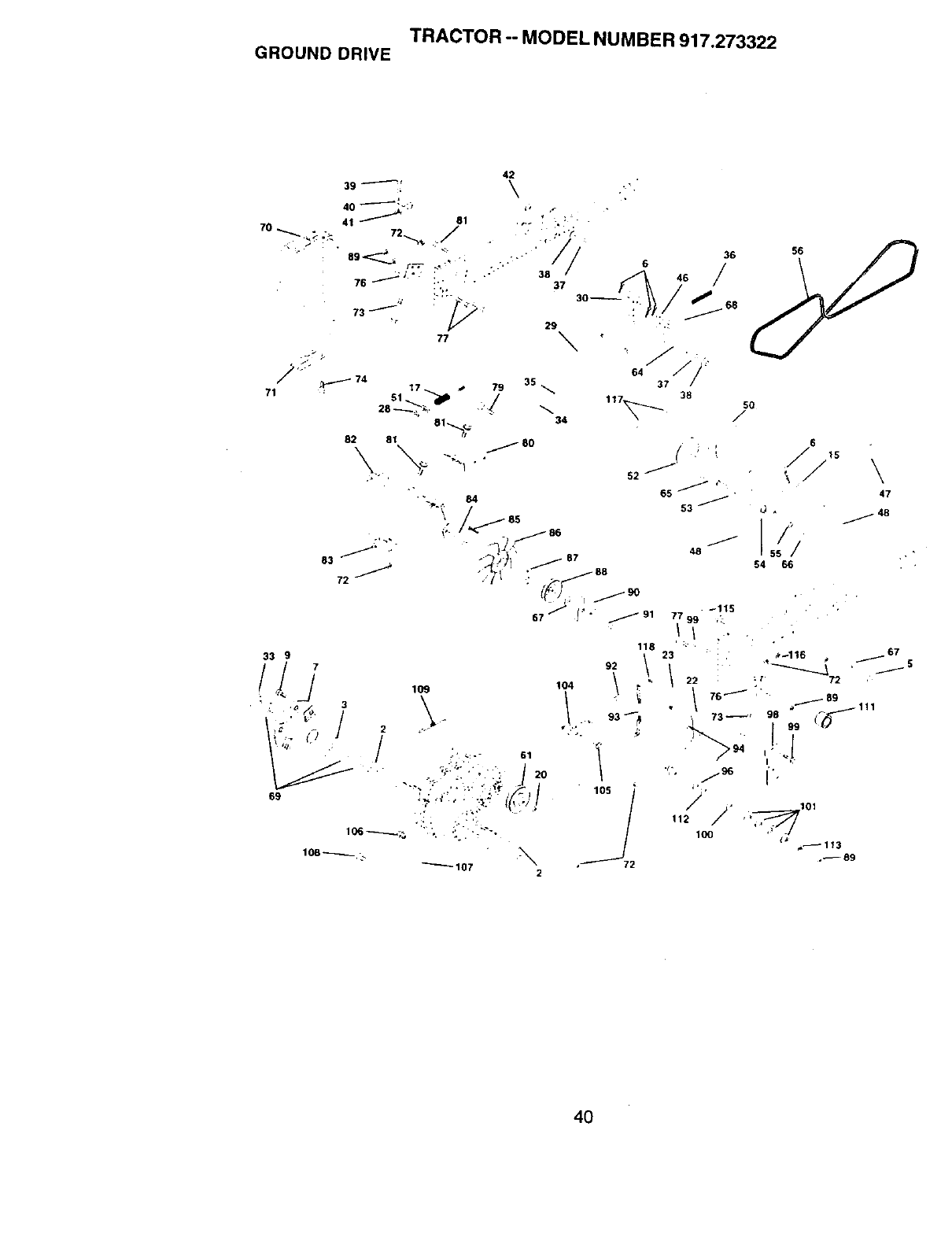

TRACTOR -- MODEL NUMBER 917.273322

GROUND DRIVE

73 F;"

82 81

83 ,,

72 J

33 9

104

108_ ,.'_

_- 107 2

54 66

15 \

-," '

_115 "

7799 ,:

' ;: ":_116

23 /67

., 73_' 9S ; i_ -111

¢1_11

,_ 89

118

, 72

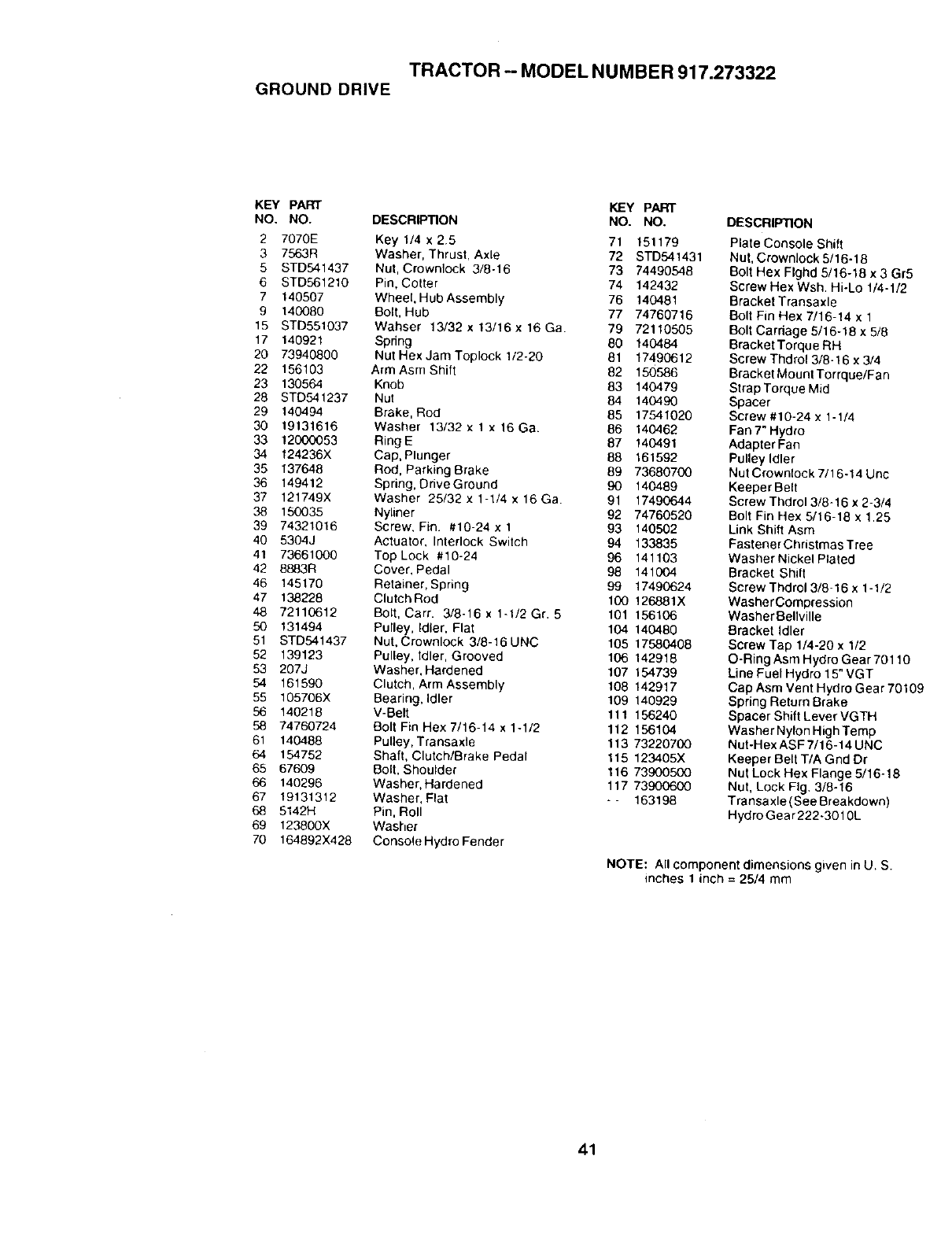

TRACTOR -- MODEL NUMBER 917.273322

GROUNDDRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

2 7070E Key 1/4 x25 71 151179

3 7563R Washer, Thrust, Axle 72 STD541431

5 STD541437 Nut, Crownlock 3/8-16 73 74490548

6 STD561210 Pin, Cotter 74 142432

7 140507 WheeI, HubAssembly 76 140481

9 140080 Bolt, Hub 77 74760716

15 STD551037 Wahser 13/32 x 13/16 x 16 Ga. 79 72110505

17 140921 Spring 80 140484

20 73940800 Nut Hex Jam Toplock 1/2-20 81 17490612

22 156103 Arm Asm Shift 82 150586

23 130564 Knob 83 140479

28 STD541237 Nut 84 140490

29 140494 Brake, Rod 85 17541020

30 19131616 Washer 13/32 x 1 x 16 Ga 86 140462

33 12000053 RingE 87 140491

34 124236X Cap, Plunger 88 161592

35 137648 Rod, Parking Brake 89 73680700

36 149412 Spring, DriveGround 90 140489

37 121749X Washer 25/32 x 1-1/4 x 16 Ga. 91 17490644

38 150035 Nyliner 92 74760520

39 74321016 Screw. Fin #10-24 x 1 93 140502

40 5304J Actuator. Interlock Switch 94 133835

41 73661000 TopLock #10-24 96 141103

42 8883R Cover, Pedal 98 141004

46 145170 Retainer, Spring 99 17490624

47 138228 ClutchRod 100 126881X

48 72110612 Bolt, Cam 3/8-16 x 1-1/2 Gr. 5 101 156106

50 131494 Pulley, Idler, Flat 104 140480

51 STD541437 Nut, Crownlock 3/8-16UNC 105 17580408

52 139123 Pulley, Idler, Grooved 106 142918

53 207J Washer, Hardened 107 154739

54 161590 Clutch, Arm Assembly 108 142917

55 105706X Bearing, Idler 109 140929

56 140218 V-Belt 111 156240

58 74760724 Bolt Fin Hex 7/16-14 x 1-1/2 112 156104

61 140488 Pulley, Transaxle 113 73220700

64 154752 Shaft, Clutch/Brake Pedal 115 123405X

65 67609 Bolt. Shoulder 116 73900800

66 140296 Washer, Hardened 117 73900600

67 19131312 Washer, Flat -- 163198

68 8142H Pin, Roll

69 123800X Washer

70 164892X428 ConsoleHydro Fender

DESCRIPTION

Plate Console Shift

Nut, Crownlock 5/16-18

Bolt Hex Flghd 5/16-18 x 3 Gr5

Screw Hex Wsh, Hi-Lo 1/4-1/2

Bracket Transaxle

Bolt Fin Hex 7/16-14 x 1

Bolt Carriage 5/16-18 x 5/8

Bracket Torque RH

Screw Thdrol 3/8-16 x 3/4

Bracket Mount Torrque/Fan

Strap Torque Mid

Spacer

Screw #10-24 x1-1/4

Fan 7" Hydro

Adapter Fan

Pulley Idler

Nut Crownlock 7/16-14 Unc

Keeper Belt

Screw Thdrol 3/8-16 x 2-3/4

Bolt Fin Hex 5/16-18 x 1.25

Link Shift Asm

Fastener Christmas Tree

Washer Nickel Plated

Bracket Shill

Screw Thdrol 3/8-16 x 1-1/2

WasherCompression

Washer Beltville

Bracket Idler

Screw Tap 1/4-20 x 1/2

O-Ring Asm Hydro Gear 70110

Line Fuel Hydro 15" VGT

Cap Asm Vent Hydro Gear 70109

Spring Return Brake

Spacer Shift Lever VGTH

Washer Nylon High Temp

Nut-Hex ASF 7/16-14 UNC

Keeper Belt T/A Grid Dr

Nut Lock Hex Flange 5/16-18

Nut, Lock Fig. 3/8-16

Transaxle (See Breakdown)

HydroGear222-3010L

NOTE: All component dimensions given in U. S.

inches 1 inch = 25/4 mm

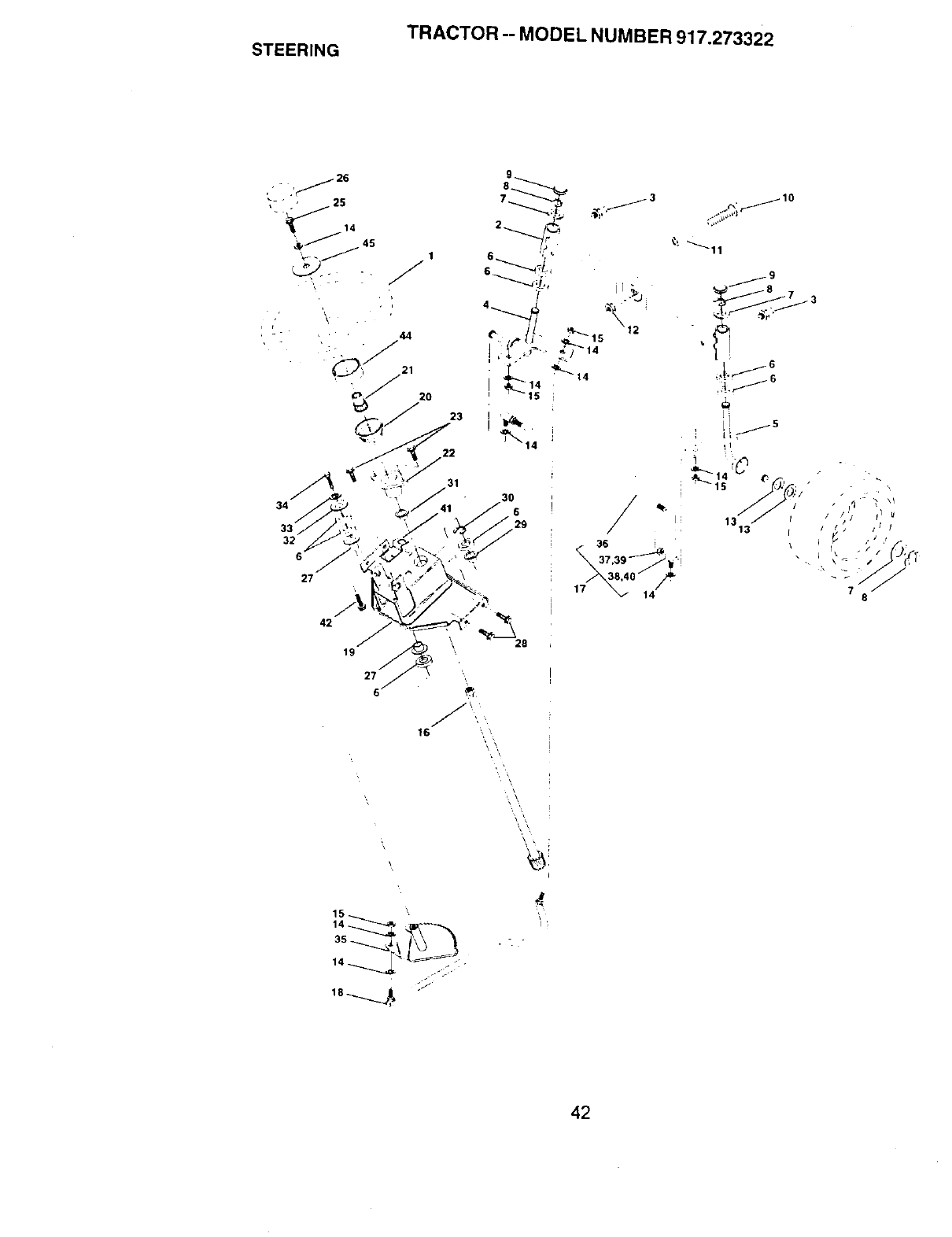

TRACTOR -- MODEL NUMBER 917.273322

STEERING

17 _14 /

\ L ,

13" s

13 i

// /

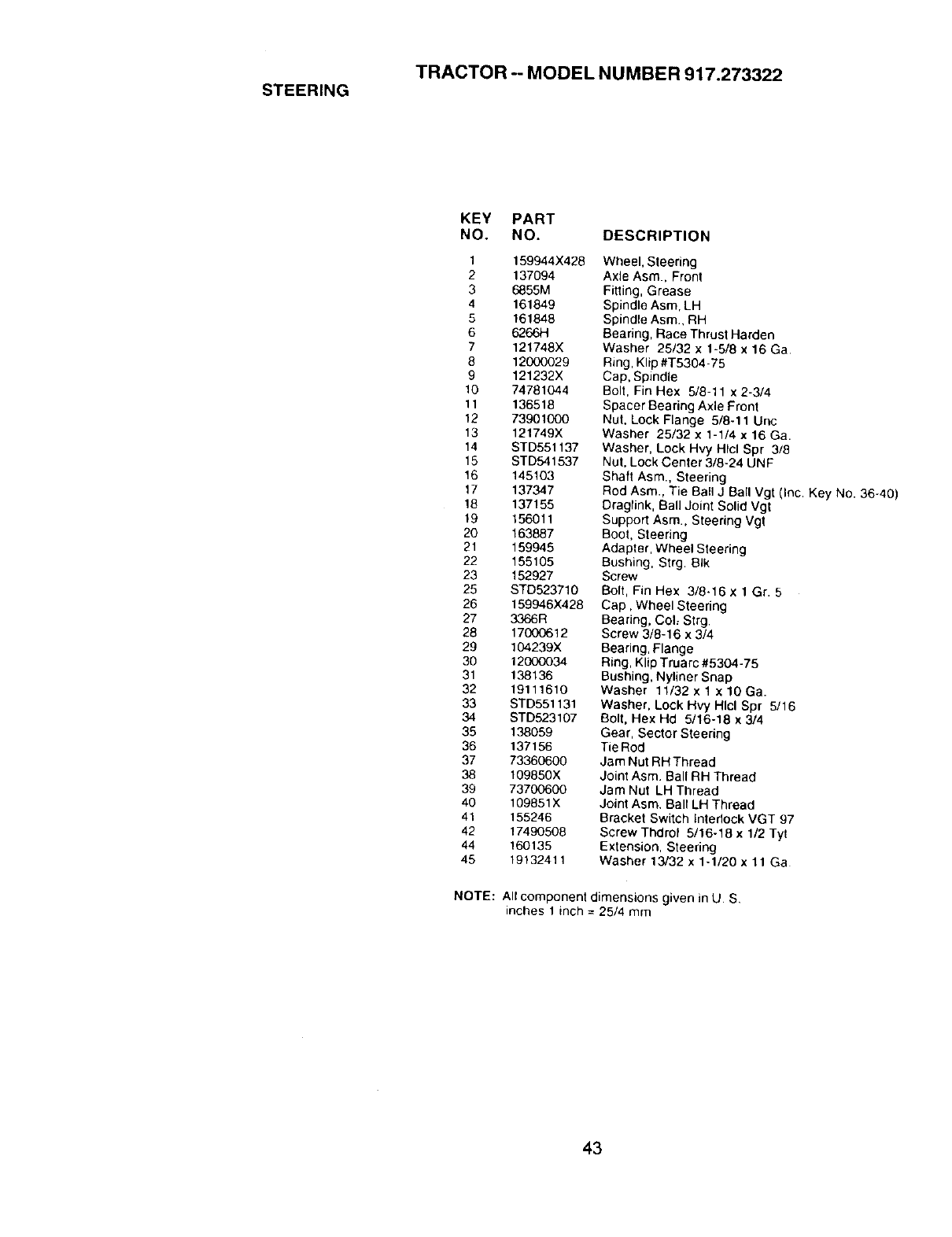

TRACTOR -- MODEL NUMBER 917.273322

STEERING

KEY PART

NO. NO. DESCRIPTION

1 159944X428

2137094

3 6855M

4161849

5 161848

6 6266H

7 121748X

8 12000029

9 121232X

10 74781044

11 136518

12 7390100O

13 121749X

14 STD551137

15 STD541537

16 145103

17 137347

18 137155

19 156011

2O 1638B7

21 159945

22 155105

23 152927

25 STD523710

26 159946X428

27 3366R

28 17000612

29 104239X

3O 12OOO034

31 138136

32 19111810

33 STD551131

34 STD523107

35 138059

36 137156

37 73360600

38 109850X

39 73700600

4O 109851X

41 155246

42 17490508

44 160135

45 19132411

NOTE:

Wheel, Steering

Axle Asm, Front

Fitting, Grease

Spindle Asm. LH

Spindle Aem., RH

Beadng, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga

Ring, Klip #T5304-75

Cap, Spindle

Bolt, Fin Hex 5/8-11 x 2-3/4

Spacer Bearing Axle Front

Nut, Lock Flange 5/8-11 Unc

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy HIcl Spr 3/8

Nut, Lock Center 3/8-24 UNF

Shaft Asm., Steering

Rod Asm., Tie Ball J Ball Vgt (Inc. Key No. 36-40)

Dragfink, Ball Joint Solid Vgt

Support Asm., Steering Vgt

BOO1, S_.eering

Adapter, Wheel Steering

Bushing, Strg. BIk

Screw

Bolt, Fin Hex 3/8-16 x 1 Gr. 5

Cap, Wheel Steering

Bearing, Col, Strg.

Screw 3/8-16 x 3/4

Bearing, Flange

Ring, Klip Truarc #5304-75

Bushing, Nyliner Snap

Washe_- 11/32 x1x10 Ga.

Washer, Lock Hvy Hlcl Spr 5/16

Bolt, Hex Hd 5/16-18 x 3/4

Gear, Sector Steering

Tie Rod

Jam Nut RHThread

Joint Asm. Ball RH Thread

Jam Nut LH Thread

Joint Asm. Bait LH Thread

Bracket Switch Interlock VGT 97

Screw Thdrol 5/16-18 x 1/2 Tyt

Extension. Steering

Washer 13/32 x 1-1/20 x 11 Ga

All component dimensions given in U. S,

inches 1 inch =25/4 mm

TRACTOR -- MODEL NUMBER 917.273322

ENGINE

22 _'

18 15 17

//_j/

•÷._ _

39 j_

47_

"!_ 39

"_ 45

'_42

''_ 9

i._ 4o

35-_. ,

_69

f/72 2

y_/_ 67

_- F74

_F 52

[ SPARK ARRESTER KIT l

TRACTOR -- MODEL NUMBER 917.273322

ENGINE

KEY PART

NO. NO. DESCRIPTION

1....... Engine {See Breakdown)

KohlerCV25S-69526

2 150249 Muffler Side 1-1/8"

5 13200300 Elbow STD 90 Degree 3/8 - 18 NPT

7 151396 Muffler Asm Guard

8 121361X Pulley V-Idler

9 150828 Belt Engine Keeper Asm VGT 96

10 105432X Bushing

11 140923 Clutch Electric

12 143996 Pulley Engine VGT Elect Clutch

15 151346 Tank Fuet Rear 3.50 YT/GT 96

16 109227X Pad Spacer

17 106082X Pad Spacer

18 161493 Cap Fuel 5-1/2" Vented Coy.

19 13290300 Plug Oil Drain (See Engine

Breakdown)

20 164409 Control Throttle

21 164863 Screw HWHD Hi-Lo #13-16 x3/4

22 164416 ControlChoke

24 STD551237 Lockwasher Ext Tooth 3/8

25 73920600 Nut Keps 3/8 - 24 UNF

26 3645J Bushing

27 139277 Stem Tank Fuel

28 7834R Fuel Line

29 132920 Spark Arrester Kit

33 STD551437 Nut Lock Hex w/Ins. 3/8 -16

35 10010500 Washer Split

37 123487X C_ampHose

38 17060620 Screw 3/8-16 X 1-1/4

39 17490636 Screw TT 3/8-16 x 2-1/4 Unc

40 17490664 Screw 37- 3/8-16 x4

41 126197X Washer 1-1/20D X 15/32 fD X .250

42 10040700 Washer Lock 7/16

43 150280 Bolt Hex 7/16 - 20 X 4 - 1/4 Ga 5

45 M73030800 Nut Flange M8-1.25 Non Lk Zinc

47 142040 Spacer Engine

48 19132007 Washer 13/32 x 1-1/4 x 7 Ga.

54 19131414 Washer Flat 13132 x 7/8 x14 Ga.

55 13280336 Nipple Pipe 4-1/2

64 17000512 Screw 5/16-18 x 3/4

65 19131614 Washer 13/32 x 1 x 14 Ga.

67 17060612 Screw 5/16-18 x 3/4

69 24-041-02 Gasket Kohler CV 18-CV26

72 150250 Muffler PRECV25

73 153992 Heat Shield

74 162295 Elbow Street Brass

NOTE: All component dimensions given in U. S.

inches 1 inch = 25/4 mm

TRACTOR -- MODEL NUMBER 917.273322

SEAT ASSEMBLY

-\ 1

\ •

_-_ _ 10

I _ , .

i" 5

!_1_ 15 4

[ ' 18

,/ (

17 12 " ,i,

_If 20

8-_

7'J i '

"; 21

KEY

NO.

PART

NO. DESCRIPTION

140124 Seat

140551 Bracket, Pivot Seat

140675 Strap, Fender

127018X Bolt, Shoulder 5/16-18 x .62

145006 Clip, Push In, Hinged

STD841437 Nut, Crownlock 3/8-16 Uric

124181X Spring, Seat Cprsn

171877 Bolt 5/16-18 Unc x 3/4 w

Sems

155925 Pan, Seat

121246X Bracket, Mounting Switch

121248X Bushing, Snap

KEY

NO.

NOTE:

PART

NO. DESCRIPTION

72050412

121249X

123740X

123976X

19171912

166369

124238X

171852

STD541431

Bolt, Carriage 1/4-20 X 1-1/2

Spacer. Split

Spring, Cprsn

Nut, Lock 1/4 Lge Fig Gr. 5

Washer 17/32 x 1-3/16 x 12

Ga.

Knob, Seat Adj Wingnut

Cap, Spring Seat

Bolt. Shoulder 5/16-18

Nut, Crownlock 5/16-18 Unc

All component dimensions given in U. S

inches 1 inch = 25/4 mm

DECALS

TRACTOR -- MODEL NUMBER 917.273322

18 13 7 6 3

KEY PART

NO. NO.

1 164096

2 164758

3 171702

4 171703

5 140837

6 133644

7 171814

8 164884

9 1632O4

10 156439

11 4900J

12 146790

13 163268

14 160397

KEY PART

DESCRIPTION NO. NO.

Decal, Dash 15 171705

Decal, Hp Engine 17 149516

Decal, Hood RH Craftsman

Decal, Hood LH Craftsman 18 164065

Decal, Brake Parking Saddte 19 138047

Decal, Maintenance 23 106202X

Decal, Replacement 24 163223

Decal, Blower HSNG

Decal, Fender, Craftsman - - 138311

Decal, Fender Danger

Decal, Clutch/Brake - -157199X428

Decal, V-Belt Dr Sch - - 172034

Decal, Dash - - 172035

Decal, Deck Schematic

DESCRIPTION

Decal, Side Panel

Decal, Btry Dngr/Psn Eng

Acme

Decal, Insert Strg

Decal Baller,/

Rellector, Taillight

Decal, Fender Hyd/Auto

White Srs

Decal, Handle LFT Height

Adjust (Lift Handle)

Pad, Footrest

Owner's Manual, English

Owner's Manual, Spanish

WHEELS AND TIRES

7410

KEY pART

NO. NO. DESCRIPTION

59192 Cap Valve Tire

65139 Stem Valve

148736X427 Rim Asm Front

8134H Tube, Front (Service Item Only)

148741 Tire, Front

278;-I Fitting Grease (Front Wheel Only',

9040H Bearing Flange (Front Wheel

Only)

lO4757X Cap Axle (Front Wheel Only)

151607 Tire Rear

7154J Tube Rear (Service Item Onty)

148738X427 Rim Asm Rear

6856M Fitting Grease

144334 Sealant, Tire ( 10 oz. Tube)

NOTE: All component dimensions given in U. S.

inches 1 inch = 25/4 mm

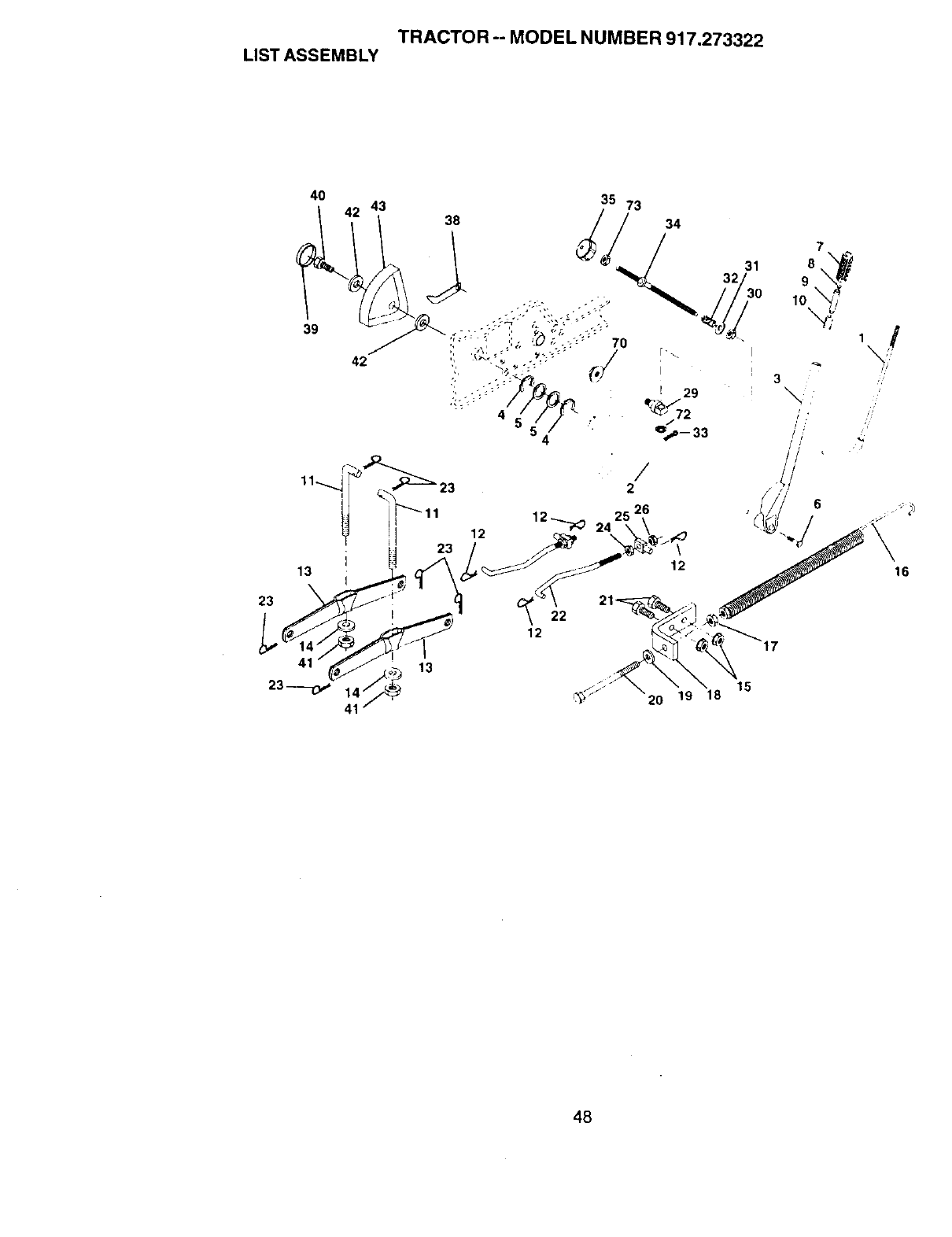

TRACTOR -- MODEL NUMBER 917.273322

LIST ASSEMBLY

40 43 38

35 73

_29

--33

\i ¸¸'

12_._ 2s2P

12 _24_'_ ,_3 _

13 '!!- a ;_J\ _ " 12 _16

23 ---_ 14 J/_,_ jj_ 15

,_'_ 20 19 18

41 7'

TRACTOR -- MODEL NUMBER 917.273322

LIST ASSEMBLY

KEY

NO.

NOTE:

PART

NO. DESCRIPTION

121006X Rod Asm., Lever

159187 Shaft Asm., Lift Vgt

159189 Lever Asm., Lilt Rh

12000022 E-Ring Truarc #5133o87

19292016 Washer 29/32 x 1-1/4 x 16

Ga.

71110624 Bolt, Fin Hex 3/8-16 x 1-1/2

125631X Grip, Handle Fluted

122365X Button, Plunger

122364X Plunger, Button

2876H Spring 2-1/8"

146704 Link Lift

163552 Retainer, Spring

139868 Arm, Suspension Vgt

140302 Bearing

STD541437 Nut, Crownlock 3/8-16 Unc

674A247 Spring Asm., Assist Lift

STD541237 Nut, Hex Jam 3/8-16 Unc

143363 Bracket, Spring Assist

STD851037 Washer 13/32 x 13/16 x 16

Ga.

5328J Bolt, Adjust Spring Assist

STD523710 Bolt, Fin Hex 3/8-16 x 1

127218 Link, Front

STD624008 Retainer, Spring

73350800 Nut, Jam Hex 1/2-13 Unc

130171 Trunnion

73800800 Nut, Lock W/Wsh 1/2-13 Unc

150233 Trunnion, Infin Height

110807X Nut, Special

19131016 Washer 13/32 x 8/8 x 16 Ga.

137150 Spring, Compression Inf Hgt

76020308 Pin, Cotter 3/32 x 1/2

137167 Rod, Adj Lift

138057 Knob, Inf 3/8-16 Unc

155097 Pointer, Height Indicator

123935X Plug, Hole

17490512 Screw Hex Wsh 5/16-18 x 3/4

73540600 Nut, Crownlock 3/8-24

19112410 Washer 11/32 x 1-1/2 x 10

Ga.

123934X Scale, Indicator Height

145212 Nut Hex Flange Lock

110452X Nut Push Phos & Oil

All component dimensions given in U. S,

inches 1 inch = 25/4 mm

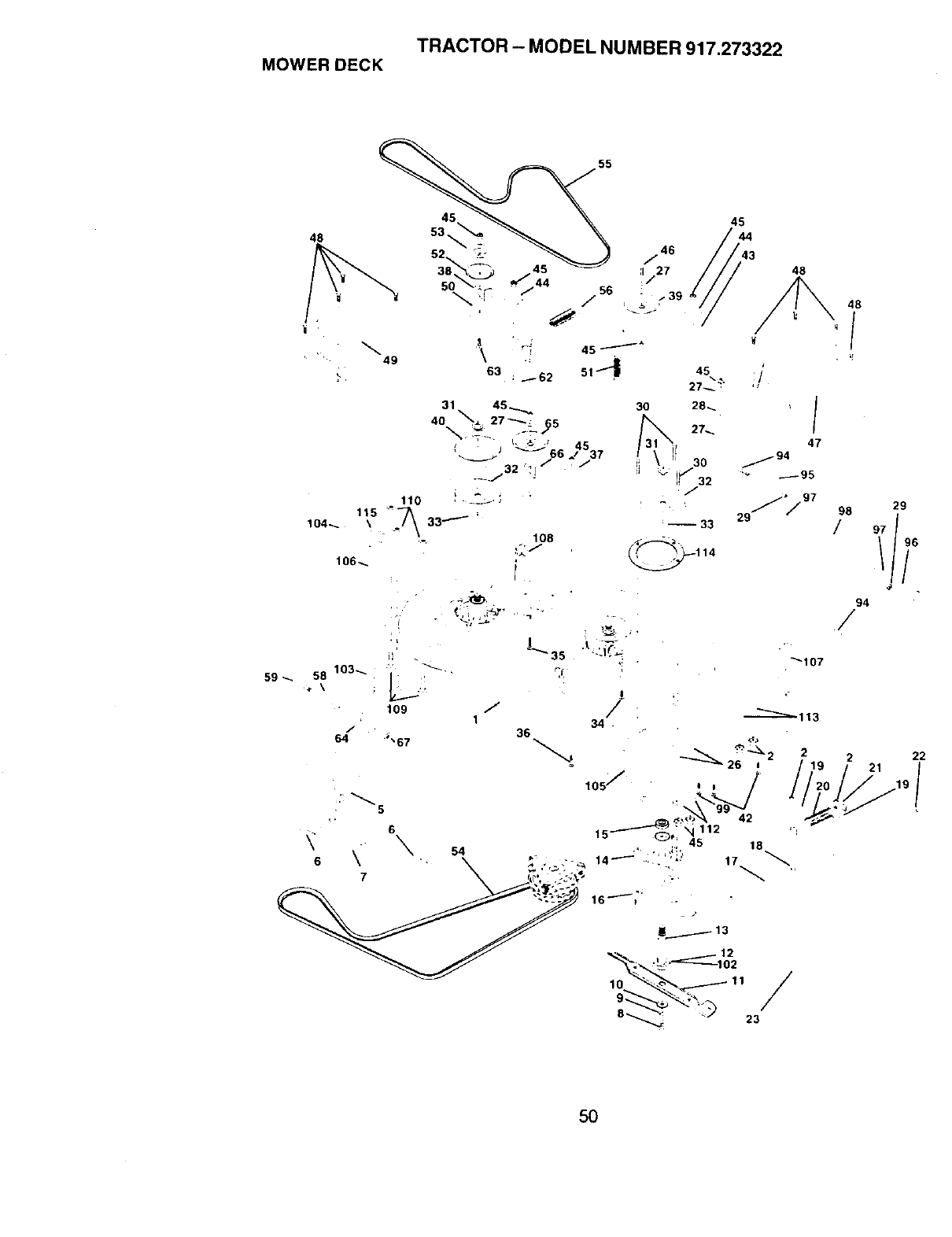

TRACTOR - MODEL NUMBER 917.273322

MOWER DECK

_49 _\

58 103_

'-- 33

114

34.

105 /

221

TRACTOR - MODEL NUMBER 917.273322

MOWERDECK

KEY PART

NO. NO.

1 156690

2 STD541431

5 138457

6 STD624008

7 130832

8 850857

9 STD551137

10 140296

11 137380

12 129895

13 137553

14 137152

15 110485X

16 140329

17 106735X

18 19111016

19 105304X

20 123713X

21 137607

22 110452X

23 110509X

26 72110606

27 STD551037

28 132823

29 STD541437

30 157722

31 137266

32 153535

33 129963

34 72140610

35 72110616

36 72110608

37 137166

38 156085

39 131494

40 136572

42 STD533107

43 136460

44 165723

45 STD541437

KEY PART

DESCRIPTION NO. NO.

Mower Deck Weldment 46 74760628

Nut, Crownlock 5/16-18

Bracket asm., Sway Bar 47 137200

Retainer, Spring 48 137729

Arm. Suspension, Rear (Sway 49 136574

Bar) 50 137272

Bolt, Patch 3/8-24 x 1-1/4 Gr 51 137273

8 52 139245

Washer. Lock Hvy. Unplated 53 137789

3/8 54 139573

Washer, Hard Blade. Mower 55 144959

Vented 56 138687

Blade (3 Required) 58 133957

Bearing. Ball. Mandrel #6204 59 137644

Shaft Asm. w/Lower Bearing 62 133943

(Includes Key No. 12) 63 72110612

Housing, Mandrel

Bearing,Bali, Mandrel 64 19121414

Stripper. Mower Round 65 151831

Rod, Hinge 66 156009

Washer 11/32 x 5/8 x 16 ga. 67 73930600

Cap, Sleeve 94 STD523710

Spring, Torsion Deflector 95 132274

Bracket, Deflector 96 132273

Nut, Push 97 19171416

Shield, Deflector Mower 98 132264

Bolt Cam Sqnk 3/8-16 x 3/4 99 72110614

Washer 13/32 x 13/16 x 16

Ga. 102 153390

Spacer, Spring Stop Idler 103 155986X505

Nut Lock Hex w/Ins 3/8-16 104 156941

Unc 105 156852

Screw Thdrol Washer Head

Nut, Fig. Top Lock Cntr. 9/16 106 156853

Pulley, Mandrel

Washer, Spacer Mower 107 156854

Vented

Bolt, Carraige 3/8-16 x 1-1/4 108 156856

Bolt, Carraige 3/8-16 x 2

Bolt, Carraige 3/8-16 x 1 Gr5 109 72010505

Stiffener, Arm Idler

Keeper, Belt, Idler 110 73980800

Pulley, Idler, Flat 112 19171216

Pulley, Driven 113 72110504

Bolt, Carriage 5/16-18 Uric x - - 158325

3/4 - - 143651

Arm, Idler Secondary

Spacer, Retainer NOTE:

Nut, Crownloek 3/8-16UNC

DESCRIPTION

Bolt. Fin Hex 3/8-16 Unc x 1

3/4

Cover, Mandrel RH

Screw, Thdroll 1/4-20 x 5/8

Cover, Mandrel LH

Arm, Idler, Pnmary

Spring, Secondary

Pulley, Idler, V-Groove

Shield, Idler

V-Belt, Mower, Primary

V-Belt, Mower, Secondary

Spring, Primary

Wheel, Gauge

Bolt, Shoulder

Washer, Hardened

Bolt, Carr. 3/8-16 x 1-1/2 Gr.

Washer 3/8 x 7/8 x 14 Ga.

Pulley. Flat, Idler

Keeper, Belt, Idler

Nut. Centerlock 3/8-16 UNC

Nut LockHex 3/8-16 Unc x 1

Bracket Asm Noseroller LH

Bracket Asm Noseroller RH

Washer 17/32 x 7/8 x 16 Ga

Roller Nose

Bolt, Cam 3/8-16 x 1-3/4 Gr.

Washer Felt

Bar Adjusting Gauge Wheel

Pin, Head Pivot

Bracket Pnt Ga. Wheel Asm

R. Rh 50

Bracket Pnt Ga. Wheel Asm

R. LH 50

Bracket Pnt Ga Wheel Asm

F. RH 50

Bracket Pnt Ga. Wheel Asm

F. LH 50

Bolt. Carriage 5/16-18 x 5/8

BIk.

Nut, Crownloek 5/16-18 BIk.

Washer 17/32 x 3/4 x 16 Ga.

Bolt, Carriage 5/16 UNC x 1/2

Mower Service

Mandrel Asm (Includes Key

Nos. 8-10, 12-15, 31 and 33)

All component dimensions given in U. S.

inches 1 inch = 25/4 mm

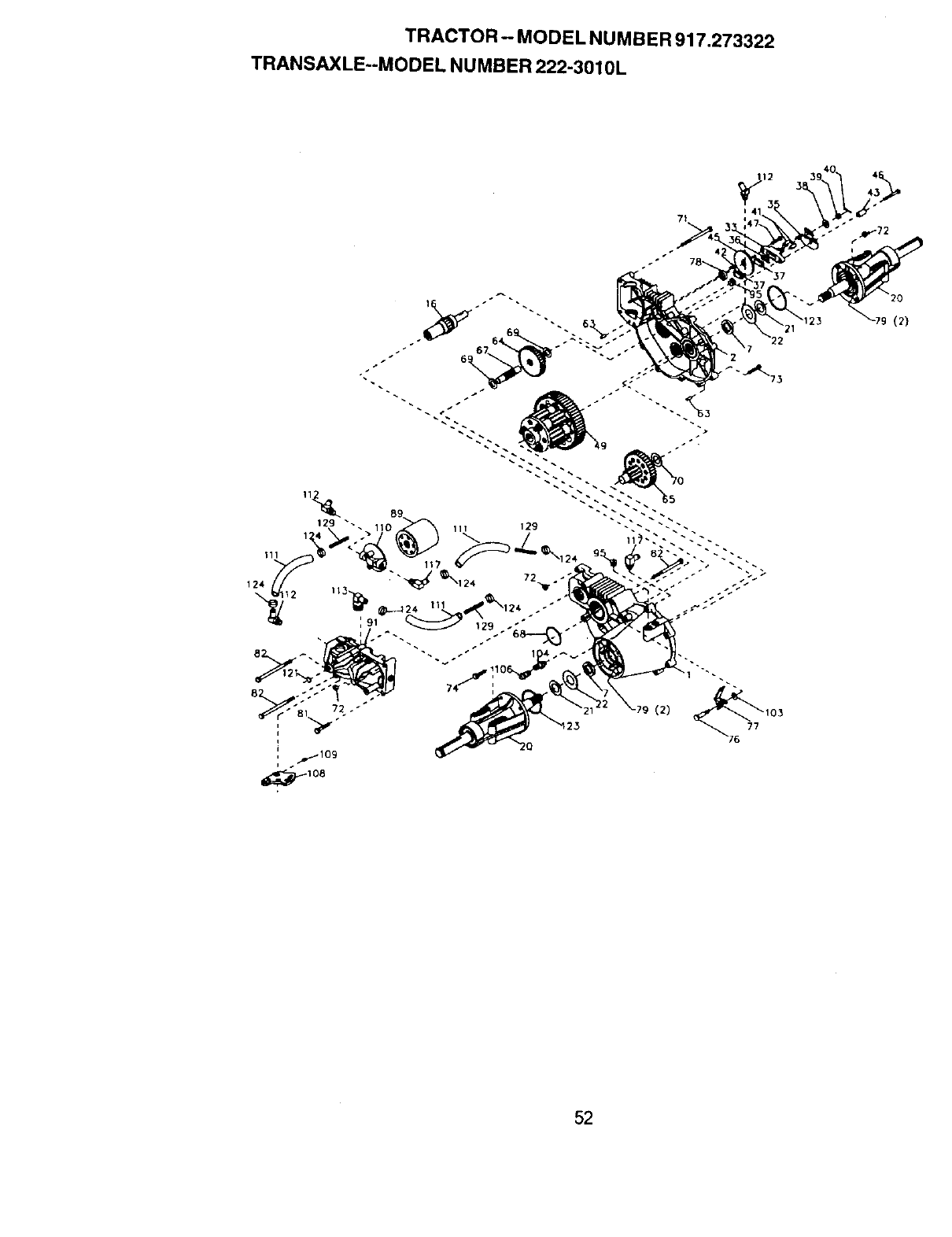

TRACTOR - MODEL NUMBER 917.273322

TRANSAXLE--MODEL NUMBER 222-3010L

_I08

I2)

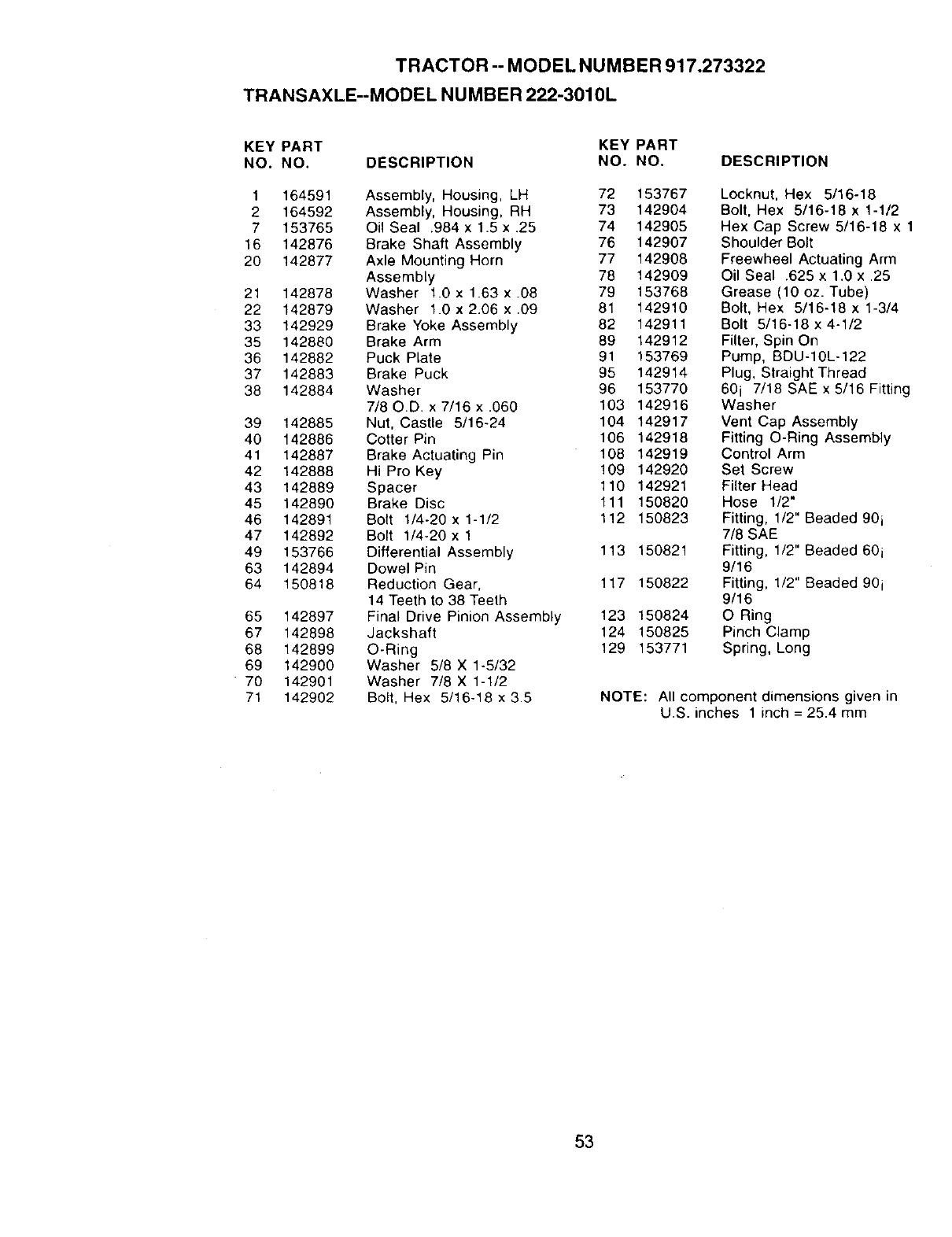

TRACTOR -- MODEL NUMBER917.273322

TRANSAXLE--MODEL NUMBER 222-3010L

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 164591 Assembly, Housing, LH 72 153767

2 164592 Assembly, Housing, RH 73 142904

7 153765 Oil Seal .984 x 1.5 x .25 74 142905

16 142876 Brake Shaft Assembly 76 142907

20 142877 Axle Mounting Horn 77 142908

Assembly 78 142909

21 142878 Washer 1.0 x 1.63 x .08 79 153768

22 142879 Washer 1.0 x 2.06 x .09 81 142910

33 142929 Brake Yoke Assembly 82 142911

35 142880 Brake Arm 89 142912

36 142882 Puck Plate 91 153769

37 142883 Brake Puck 95 142914

38 142884 Washer 96 153770

7/80.D. x 7/16 x .060 103 142916

39 142885 Nut, Castle 5/16-24 104 142917

40 142886 Cotter Pin 106 142918

41 142887 Brake Actuating Pin 108 142919

42 142888 Hi Pro Key 109 142920

43 142889 Spacer 110 142921

45 142890 Brake Disc 111 150820

46 142891 Bolt 1/4-20 x 1-1/2 112 150823

47 142892 Bolt 1/4-20 x 1

49 153766 Differential Assembly 113 150821

63 142894 Dowel Pin

64 150818 Reduction Gear, 117 150822

14 Teeth to 38 Teeth

65 142897 Final Drive Pinion Assembly 123 150824

67 142898 Jackshaft 124 150825

68 142899 O-Ring 129 153771

69 142900 Washer 5/8 X 1-5/32

70 142901 Washer 7/8 X 1-1/2

71 142902 Bolt, Hex 5/16-18x3.5

DESCRIPTION

Locknut, Hex 5/16-18

Bolt, Hex 5/16-18x 1-1/2

Hex Cap Screw 5/16-18 x 1

Shoulder Bolt

Freewheel Actuating Arm

Oil Seal .625 x 1.0 x .25

Grease (10 oz. Tube)

Bolt, Hex 5/16-18 x 1-3/4

Bolt 5/16-18 x 4-1/2

Filter, Spin On

Pump, BDU-10L-122

Plug, Straight Thread

60i 7/18 SAE x 5/16 Fitting

Washer

Vent Cap Assembly

Fitting O-Ring Assembly

Control Arm

Set Screw

Filter Head

Hose 1/2"

Fitting, 1/2" Beaded 90i

7/8 SAE

Fitting, 1/2" Beaded 60i

9/16

Fitting, 1/2" Beaded 90i

9/16

0 Ring

Pinch Clamp

Spring, Long

NOTE: All component dimensions given in

U.S. inches 1 inch = 25.4 mm

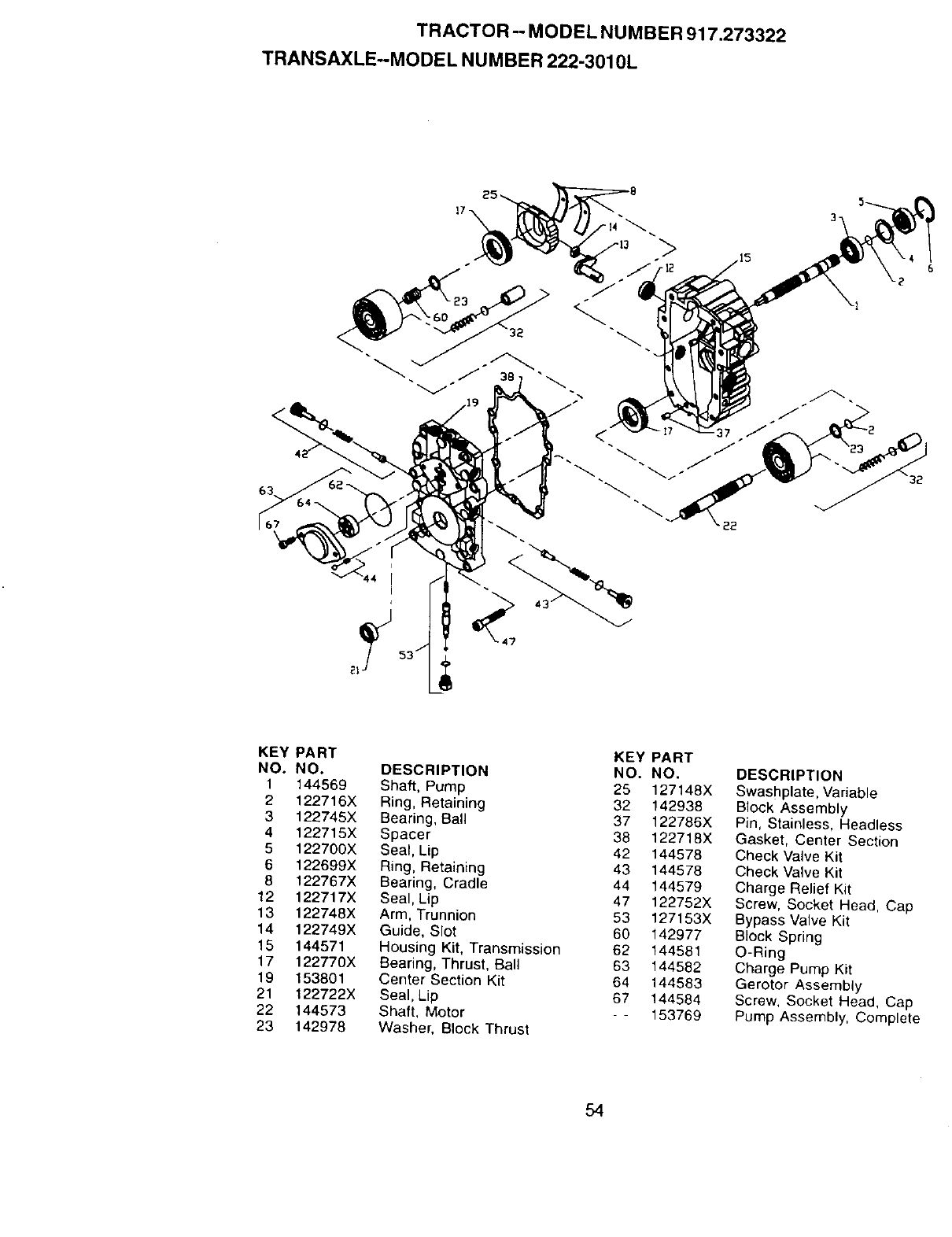

TRACTOR -- MODEL NUMBER 917.273322

TRANSAXLE--MODEL NUMBER 222-3010L

KEY PART

NO. NO.

1144569

2 122716X

3 122745×

4 122715X

5122700X

6 122699X

8 122767X

12 122717X

13 122748X

14 122749X

15 144571

17 122770×

19 153801

21 122722X

22 144573

23 142978

DESCRIPTION

Shaft, Pump

Ring, Retaining

Bearing, Bail

Spacer

Seal, Lip

Ring, Retaining

Bearing, Cradle

Seal, Lip

Arm, Trunnion

Guide, Slot

Housing Kit, Transmission

Bearing, Thrust, Ball

Center Section Kit

Seal, Lip

Shaft, Motor

Washer, Block Thrust

KEY PART

NO. NO.

25 127148X

32 142938

37 122786X

38 122718X

42 144578

43 144578

44 144579

47 122752X

53 127153X

60 142977

62 144581

63 144582

64 144583

67 144584

-- 153769

DESCRIPTION

Swashplate, Variable

Block Assembly

Pin, Stainless, Headless

Gasket, Center Section

Check Valve Kit

Charge Relief Kit

Screw, Socket Head, Cap

Bypass Valve Kit

Block Spring

O-Ring

Charge Pump Kit

Gerotor Assembly

Screw, Socket Head, Cap

Pump Assembly, Complete

TRACTOR -- MODEL NUMBER 917.273322

KOHLER ENGINE-MODEL NUMBER CV25S, TYPE NUMBER 69526

CYLINDER HEAD VALVE & BREATHER I

15,_

3\ \

30 (_ -- 28

n1_ 20

L_j_ 19

_26

_17

7--

_js

flO

CRANKCASE I

21_ 22

20- I

C)--19

"-_ ,____1,"-"

,3-.% -_

"-_JI

0--8

TRACTOR -- MODEL NUMBER 917.273322

KOHLER ENGINE-MODEL NUMBER CV25S, TYPE NUMBER 69526

HEAD/VALVEIBREATHER CRANKCASE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NOt DESCRIPTION

1 24-033-03 Kit, breather cover w 1 24-032-01 Seal, oil Iront

gasket (Includes 2,3) 2 Crankcase (USE: Miniblock)

2 24-041-23 Gasket, breather 3 24-294-13 Fitting

3 24-096-15 Cover, breather 4 12-380-17 Pin, dowel locating (6)

4M-0645020 Screw, hex. flange 5 24-067.13 Connecting Rod(Sial.)(2)

M6x1.0x20 (4) 24-067-14 Connecting Rod (.25) (2)

5 X-75-23 Plug, allen hd. 118" 6 24-874-08 Piston w/Ring Set (Std) (2)

612-351-02 Lifter, valve (4) (Includes 7,8)

7 24-755-66 Kit, valve train 7 24-108-05 Ring Set (Std.) (2)

(Includes 8, t 1,12) 8 24-018-01 Retainer, piston pin (2)

9 12-422-o9 Shim, camshaft (A.R./

8 24-411-05 Rod, push (4)

9 24-041-32 Gasket, cylinder head (2) 12-422-13 Shim, camshaft (A.R.)

10 24-318-18 Head assembly, #2 12-422-07 Shim, camshaft(A.R )

12-422-08 Shim, camshaft (A R)

cylinder 12-422-10 Shim, camshaft

11 25-186-01 Arm, rocker (4)

1 2 24-599-01 Pivot, rocker arm (4) 12-422-11 Shim, camshaft (AR.)

13 M-0640034 Screw, hex, flange 12-422-12 Shim, camshalt (AR.)

M6xl.0x34 (4) 10 24-012-05 Camshaft

14 12-086-16 Screw, hex. flange 11 52-139-09 Plug, cup

M10x1.5x90 (8) 12 M_0545010 Screw, hex. flange

15 24-755-74 Kit, valve cover - plain M5x0.Sx10(2)

(Includes 16,17) 13 24-018-04 Retainer, reed (2)

14 24-402-05 Reed, breather (2)

16 24-153-16 O-Ring

1 7 24-086-32 Screw, shoulder (4) 15 12-153-01 O-Ring, lower oil fill tube

18 24-445-01 Strap, lifting 16 24-126-19 Bracket, oil fill tube

19 24-016-01 Valve, exhaust (Std.) (2) 17 12-12304 Tube, oilfitl

24-016-02 Valve, exhaust (.25) (2) 18 M-0545016 Screw, hex. flange

MSxO.8x16

20 24-017-01 Valve, intake (Std.) (2)

24-017-02 Valve, intake (.25) (2) 19 12-153432 O-Ring, upper oi_fill tube

2 1 24-032-05 Seal, valve stem (2) 20 24-038-04 Dipstick assembly

22 235011 Retainer, spring (4) (Includes 21,22)

23 24-089-02 Spring, valve (4) 21 24-755-46 Kit, oil fill cap (Includes 22)

24 12-173-01 Cap, valve spdng (4) 22 12-153433 O-Ring, dipstick

25 12-755-03 Kit, retainer (4) 23 12-380-o4 Pin, hitch

26 24-318-17 Head assembly, #1 24 M-0631005 Washer, plain6mm

25 12-032-01 Seal, governor cross shaft

cylinder

27 24-755-76 Kit, valve cover - breather 26 X-25o102 Washe_, plain 1/4"

(Incl. 16,17,28) 27 24-144-01 Shaft, governor cross

28 25-313-02 Grommet rubber (2)

29 24-755-57 Kit, breat,'_er separator

(Includes 28,30-33)

30 M-0545016 Screw, hex.flange

M5x0.8x16 (2)

31 24-445-02 Strap, breather

32 24-126-44 Bracket, breather

separator

33 24-112-12 Spacer

34 24-294-06 Fitting

35 24-326-13 Hose, breather

36 24.326-14 Hose, breather

37 X-426-9 Clamp, hose (2)

TRACTOR -- MODEL NUMBER 917.273322

KOHLER ENGINE-MODEL NUMBER CV25S, TYPE NUMBER 69526

IGNITION /ELECTRICALJ

a_3

0f4

25 __6

AIR INTAKE t

\11

! 1(;

Is /

BLOWER HOUSING AND BAFFLES I

TRACTOR -- MODEL NUMBER 917.273322

KOHLER ENGINE-MODEL NUMBER CV25S, TYPE NUMBER 69526

IGNITIONICHARGING BLOWER HOUSING & BAFFLES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO, DESCRIPTION

154-755-15 Kit, grass screen

(includes 2-4,and 24 113

18)

2 M-0403025 Screw, hex. cap

M4x0.7x25 (4)

3 X-25-92 Washer, plain 5/16" (4)

4 24-112-04 Spacer, grass screen (4)

5 25-086-47 Bolt, shoulder (4)

6 24-157-03 Fan

7 12-086-14 Screw, hex. flange

MlOx1.5x46

8 12-468-03 Washer, plain 3/8".

9 X-42-15 Key

10 24-025-08 F_ywheel

11 25-403-03 Rectifier-regulator

12 X-25-92 Washer, plain 3/16" (2)

13 24-086-18 Screw, phillips hd. 11

16x7/8 (2)

14 236602 Connector (3 contact)

15 54-755-09 Kit, 15 amp stator

(Includes 24 126 71)

16 12-132-06 Spark Plug {2)

17 M-0548025 Screw, hex. cap

M5x0.8x25 (2)

1B 48-154 -02 Clip, cable

19 47-154-01 Clip, cable

20 X-25-63 Washer, plain 1/4"

21 24-584-11 Module, ignition (2)

22 M-0561025 Screw, thread forming

M5x0.ax25 (4)

23 M-0448010 Screw, hex. flanage

M4x0,Txl0 (2)

24 24.584-09 Module, speed advance

25 24-063-27 Baffle, heat shield

NOT ILLUSTRATED

24-126-71

X-25-63

24-176-27

25-518-28

X-22-11

24-113-18

Bracket, stator wire

Washer, plain 1/4"

Harness, wiring

Lead, black

recI -reg. 4" - 18 gauge

insulated grip barre

eyelets)

Washer, lock 1/4"

Decal, grass screen

1 54-027-95

2 24-100-02

3 M-0545020

4 M-0545016

5 M-0551016

6 M-0645016

7 24-146-11

8 24-146-06

924-063-39

10 24-063-14

11 24-063-31

t 2 24-063-23

13 M-0545010

NOT ILLUSTRATED

24-063-36

M-0545010

24-086-06

Housing, blower

(Incl. M*05450t0 & 24 063

36)

Nut, plastic (2)

Screw, hex. flange

M5x0.8x20 (2)

Screw, hex flange

M5x0.8x16 (4)

Screw, hex. flange

M5x0.8xt 6

Screw, hex flange

M6xl.0x16 (6)

Plate, backing - # 2 side

Plate, backing - # t side

Baffle, cylinder barrel-

# 2 side

Baffle, valley -#2 side

Baffle, cylinder barrel-

#1side

Baffle, valley - #1 side

Screw, hex. flange

M5xO.6xt 0 {2)

Balfle, blower housing

Screw, hex. flange

M5x0.axl0 (2)

Cover, control N/A

Screw, phillips hd 11

16x3/4" (2)

AIR INTAKE/FILTRATION

KEY PART

NO. NO. DESCRIPTION

1 24-164-06 Manifold, intake

2 M-0651055 Screw, hex. flange

M6x1.0x55 (4)

3 24_041-01 Gasket, intake manifold(2)

4 24-041-14 Gasket, air cleaner base

5 24-094-13 Base, air cleaner

6 24-041-13 Gasket, fuel spitback cup

7 24-109-05 Cup, fuel spitback

8 24-083-05 Precleaner, element

9 24-083-03 Element, air cleaner

10 230046 Seal, breather

1I24-096-01 Cover, inner air cleaner

12 12-100-01 Wing Nut

13 24-096-65 Cover, air cleaner

14 54-755-01 Kit, knob with seal

(Includes 15 & 16)

15 24-153-15 O-Ring

16 25-341-03 Knob, cover

NOT ILLUSTRATED

12-113-53 Decal, air cleaner

TRACTOR-- MODEL NUMBER 917.273322

KOHLER ENGINE-MODEL NUMBER CV25S, TYPE NUMBER 69526

STARTING SYSTEM I

t8--@ ,_17 1

_\11 i_ -13

10--_9

5__4

IL PAN LUBRICATION I

EN GIN E CONTROLS J

24 "_®.-'° is

3_46

_26 /27

19F_t_ j21

18_

16 15

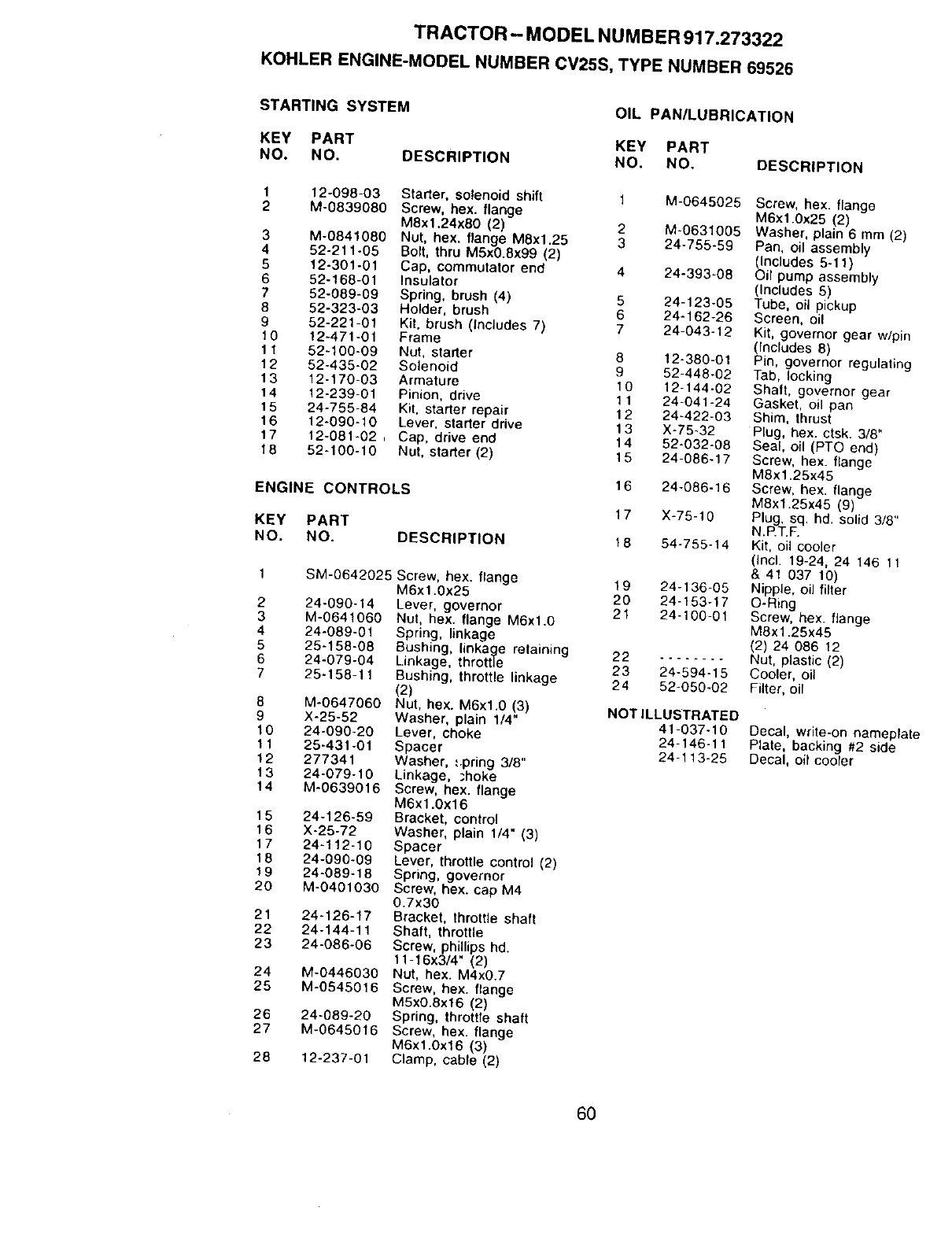

TRACTOR - MODEL NUMBER 917.273322

KOHLERENGINE-MODELNUMBERCV25S,TYPENUMBER69526

STARTING SYSTEM OIL PAN/LUBRICATION

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 12-098-03 Starter, soleno{d shift

2 M-0839080 Screw, hex. flange

M8xl.24x80 (2)

3 M-0841080 Nut, hex. flange MSx1.25

4 52-211-05 Bolt, thru M5x0.8x99 (2)

5 12-301-01 Cap, commutator end

6 52-168-01 Insulator

752-089+09 Spring, brush (4)

6 52-323-03 Holder, brush

952-221-01 Kit, brush (Includes 7)

10 12-471-01 Frame

11 52-100-09 Nut, starter

12 52-435-02 Solenoid

1 3 12-170-03 Armature

14 12-239-01 Pinion, drive

15 24-755-84 Kit, starter repair

16 12-090-10 Lever, starter drive

17 12-081-02 , Cap, drive end

18 52-100-10 Nut, starter (2)

ENGINE CONTROLS

KEY PART

NO. NO. DESCRIPTION

SM-0642025 Screw, hex. flange

M6x1.0x25

24-090-14

M-0641060

24-089-01

25-158-08

24.079-04

25+158-11

M-0647060

X-25-52

24.090-20

25-431-01

277341

24.079-10

M-0639016

24.126-59

X-25-72

24-112-10

24-090-09

24-089-18

M-0401030

24-126-17

24-144-11

24-086-06

M-0446030

M+0545016

24-089-20

M-0645016

12-237-01

Lever, governor

Nut, hex. flange M6xl.0

Spring, linkage

Bushing, linkage retaining

Linkage, throttle

Bushing, throttle linkage

(2)

Nut, hex. M6xl.0 (3)

Washer, plain 1/4"

Lever, choke

Spacer

Washer, :.pring 3/8"

Linkage, ;hoke

Screw, hex. flange

M6x1.0x16

Bracket, control

Washer, plain 1/4" (3)

Spacer

Lever, throttle control (2)

Spring, governor

Screw, hex. cap M4

0.7x30

Bracket, throttle shaft

Shaft, throttle

Screw, phillips hd.

11-16x3/4" (2)

Nut, hex. M4x0.7

Screw, hex. flange

M5x0.8x16 (2}

Spring, throttle shaft

Screw, hex. flange

M6xl.0x16 (3)

Clamp, cable (2)

1 M-0645025 Screw, hex. flange

M6x1.0x25 (2)

2 M-0631005 Washer, plain 6 mm (2)

3 24-755-59 Pan, oil assembly

(Includes 5-11)

4 24-393-08 Oil pump assembly

(Includes 5)

5 24-123-05 Tube, oil pickup

6 24-162-26 Screen, oil

7 24-043-12 Kit, governor gear w/pin

(Includes 8)

8 12-380-01 Pin, governor regulating

9 52-448-02 Tab, locking

10 12-144-02 Shalt, governor gear

1 1 24-041-24 Gasket, oil pan

12 24-422-03 Shim, thrust

13 X-75-32 Ptug, hex, ctsk. 3/8"

14 52-032-06 Seal, oil (PTO end)

15 24-086-17 Screw, hex. ttange

M8x1.25x45

16 24-086-16 Screw, hex. flange

MSx1.25x45 (9)

1 7 X-75-10 Plug, sq. hd. solid 3/8"

N.P.T.F.

18 54-755-14 Kit, oil cooler

(Incl. 19-24, 24 146 11

& 41 037 10)

19 24-136-05 Nipple, oil filter

20 24-153-17 O-Ring

21 24-100-01 Screw, hex flange

M8x1.25x45

{2) 24 086 12

22 ........ Nut, plastic (2)

23 24-894-15 Cooler, oil

24 52-050-02 Fitter, oil

NOT ILLUSTRATED

41-037-10

24-146-11

24-113-25

Decal, write-on nameplate

Plate, backing #2 side

Deca_, oil cooler

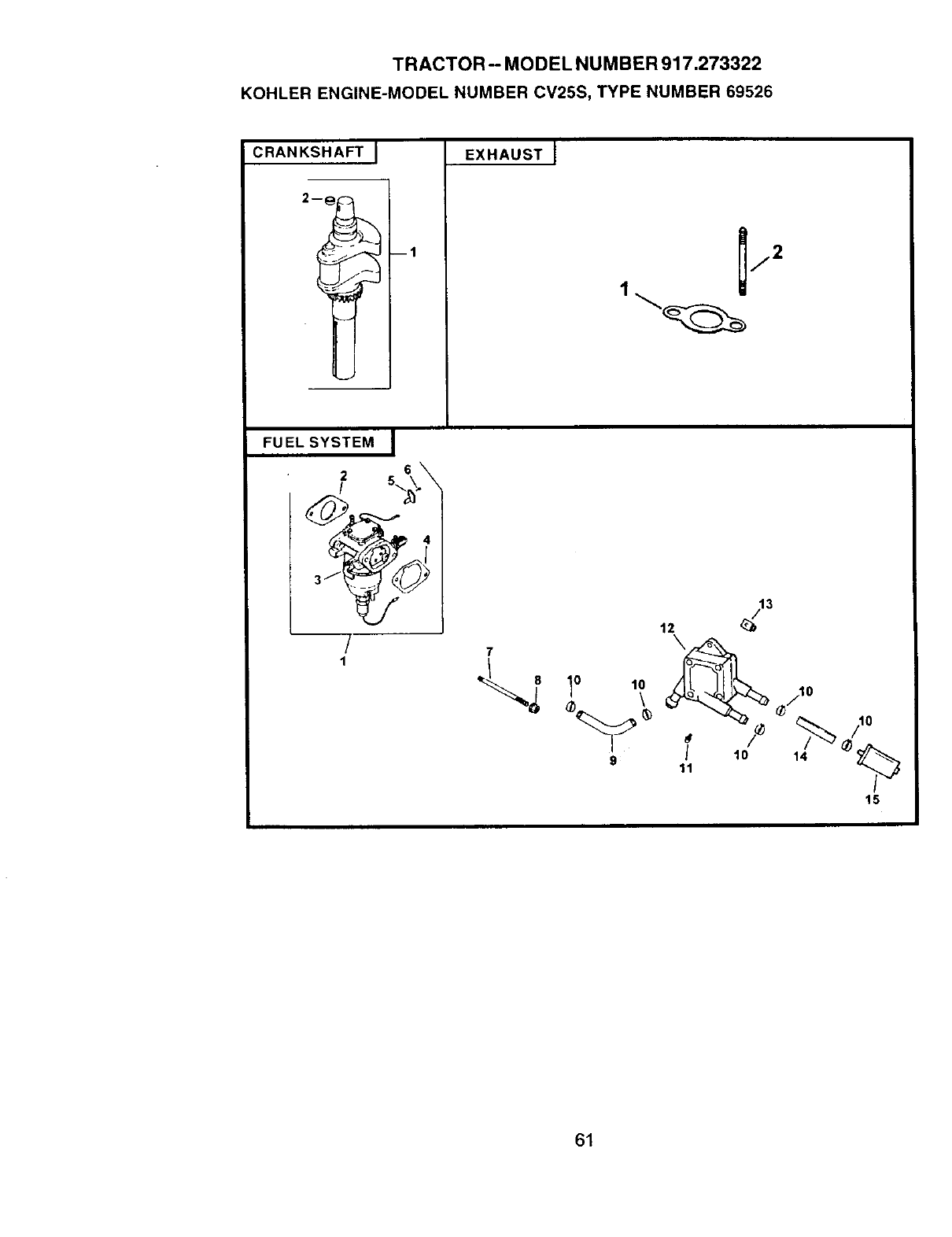

TRACTOR -- MODEL NUMBER 917.273322

KOHLER ENGINE-MODEL NUMBER CV25S, TYPE NUMBER 69526

CRANKSHAFT J

--1

EXHAUST I

lo lO

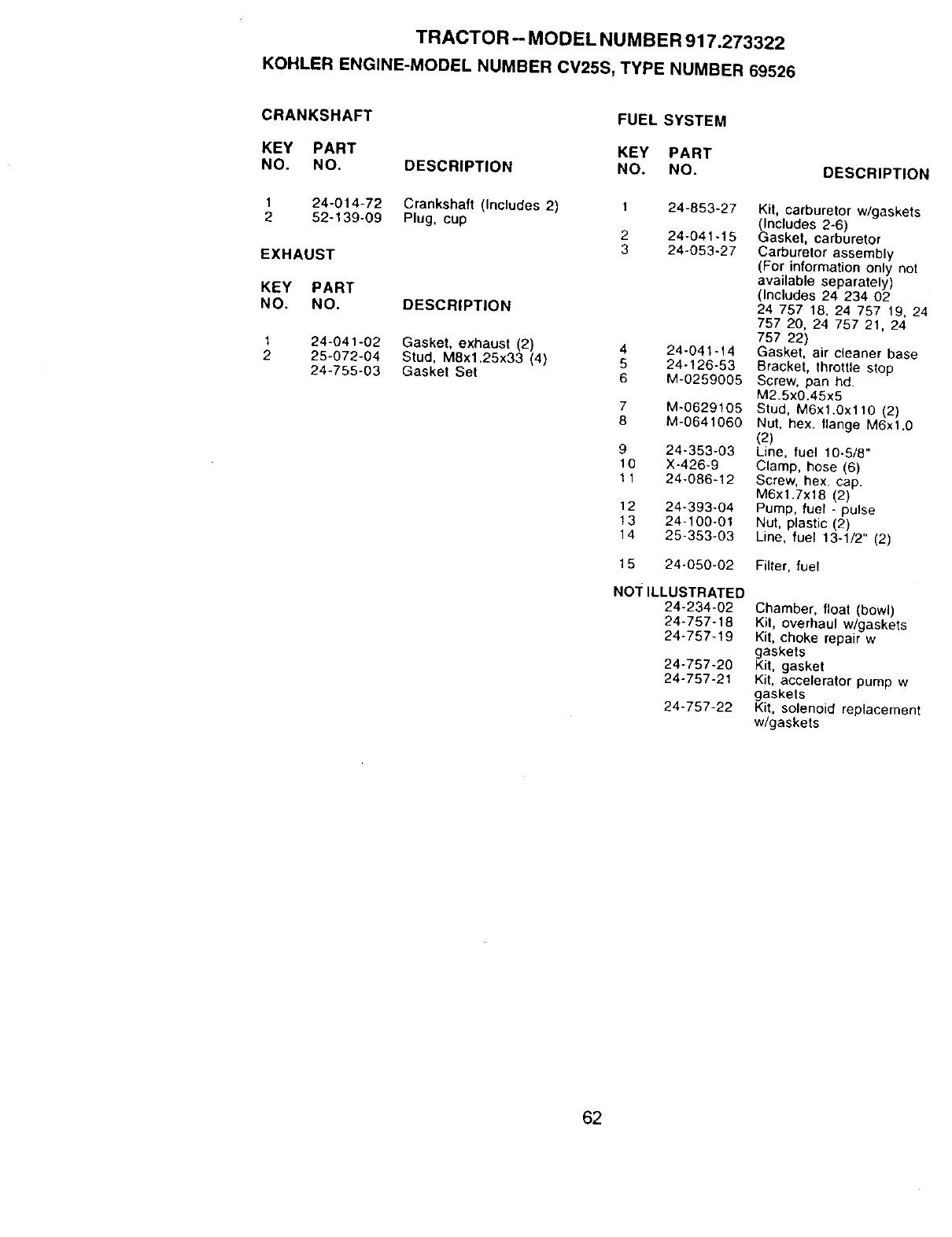

TRACTOR -- MODEL NUMBER 917.273322

KOHLER ENGINE-MODEL NUMBER CV25S, TYPE NUMBER 69526

CRANKSHAFT FUEL SYSTEM

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 24-014-72 Crankshaft (Includes 2) 1 24-853-27

2 52-139-09 Plug, cup 2 24-041.15

EXHAUST 3 24-053o27

KEY PART

NO, NO. DESCRIPTION

124-041-02 Gasket, exhaust (2) 4 24-041-14

2 25-072-04 Stud, M8xl.25x33 (4) 5 24-126-53

24-755-03 Gasket Set 6 M-0259005

7 Mo0629105

8 M-0641060

9 24-353-03

10 X-426-9

11 24-086-12

12 24-393-04

13 24-100-01

14 25-353-03

DESCRIPTIOI_

Kit, carburetor w/gaskets

(Includes 2-6)

Gasket, carburetor

Carburetor assembly

(For information only not

available separately)

(Includes 24 234 02

24 757 18, 24 757 19, 24

757 20, 24 757 21, 24

757 22)

Gasket, air cleaner base

Bracket, throttle stop

Screw, pan hd.

M2.5x0.45x5

Stud, M6xl.0x110 (2)

Nut, hex. flange M6xl.0

(2)

Une, fuel 10-5/8"

Clamp, hose (6)

Screw, hex. cap.

M6xl.7x18 (2)

Pump, fuel - pulse

Nut, plastic (2)

Line, fuel 13-1/2" (2)

15 24-050-02 Filter, fuel

NOT ILLUSTRATED

24-234-02

24-757-18

24-757-19

24-757-20

24-757-21

24-757-22

Chamber, float (bowl)

Kit, overhaul w/gaskets

Kit, choke repair w

gaskets

Kit, gasket

Kit, accelerator pump w

gaskets

Kit, solenoid replacement

w/gaskets

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

15 ° MAX.

tAOperate your Tractor up and down the face of slopes (not I

•,A greater than 15 ), never across the face. Make turns gradu- I

ally to prevent tipping or loss of control. Exercise extreme

caution when changing direction on slopes.

For in-home major brand repair service:

Call 24 hours a day, 7 days a week

1-800,4-MY-HOME'" (1-800-469-4663)

Para pedir servicio de reparacibn adomicilio

1-800-676-5811

In Canada for all your service and parts needs call

Au Canada pour tout le service ou les pieces

1-800-665-4455

For the repair or replacement parts you need:

Call 6 am - 11 pm CST, 7 days a week

PartsDirect 'M

1-800-366.PART (1-800-366-7278)

Para ordenar piezas con entrega a domicilio

1-800-659-7084

For the location of a Sears Parts and Repair Center

in your area:

Call 24 hours aday, 7days aweek

1-800-488-1222

For information on purchasing a Sears Maintenance

Agreement or to inquire about an existing Agreement:

Call 9 am - 5 pro, Monday - Saturday

1-800-827-6655

172034 1122.99 RD Printed in U.S.A.

Craftsman 917 273322 Users Manual

CRAFTSMAN Lawn, Tractor Manual L0010016 CRAFTSMAN Lawn, Tractor Owner's Manual, CRAFTSMAN Lawn, Tractor installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
