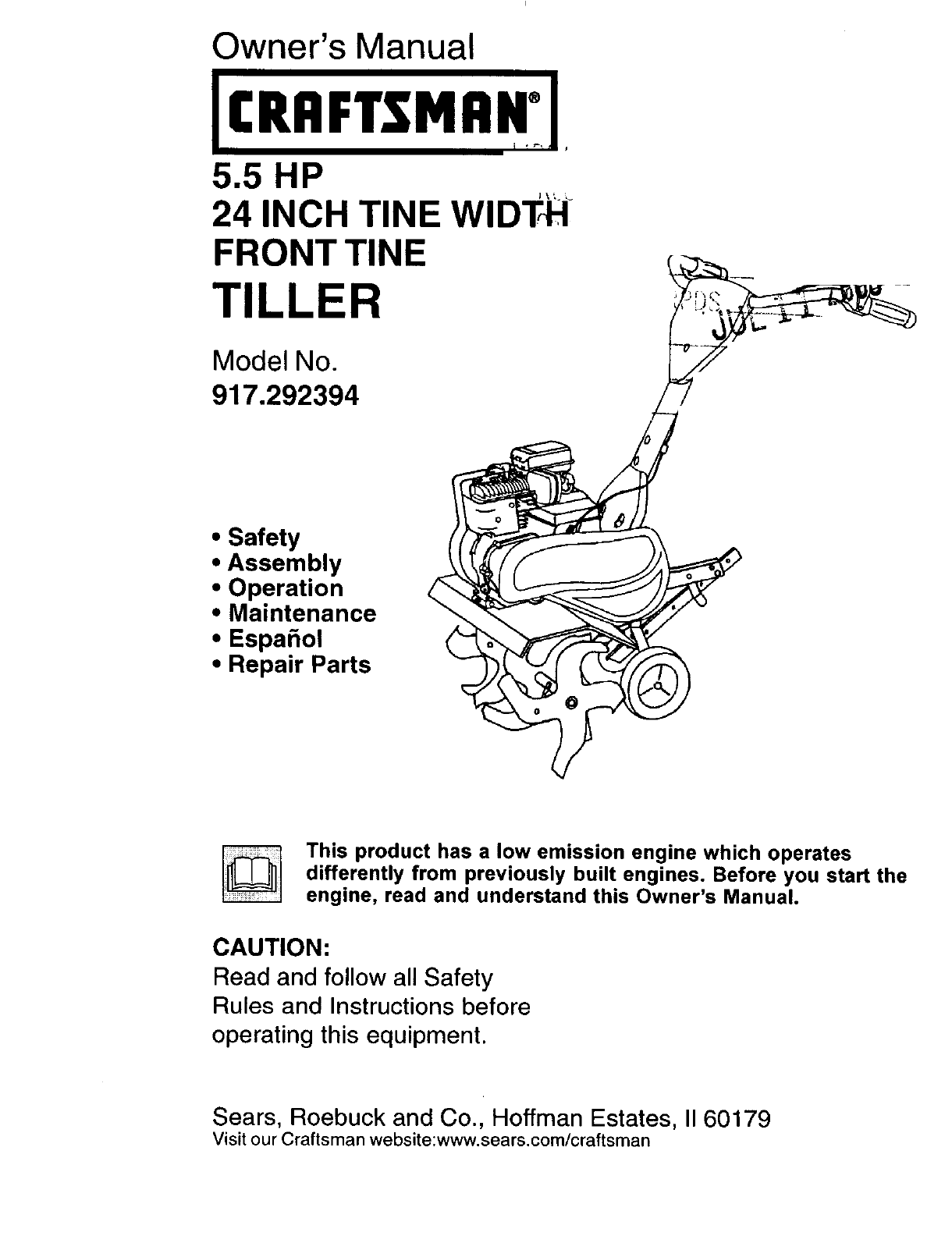

Owner's Manual
ICP nFTSMnN:,I,
5.5 HP
24 INCH TINE WIDT_I
FRONT TINE
TILLER
Model No.
917.292394
•Safety
•Assembly
•Operation
•Maintenance
•EspaSol
•Repair Parts
@
This product has a low emission engine which operates
differently from previously built engines. Before you start the
engine, read and understand this Owner's Manual.
CAUTION:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
Sears, Roebuck and Co., Hoffman Estates, II 60179
Visit our Craftsman website:www.sears.com/craftsman

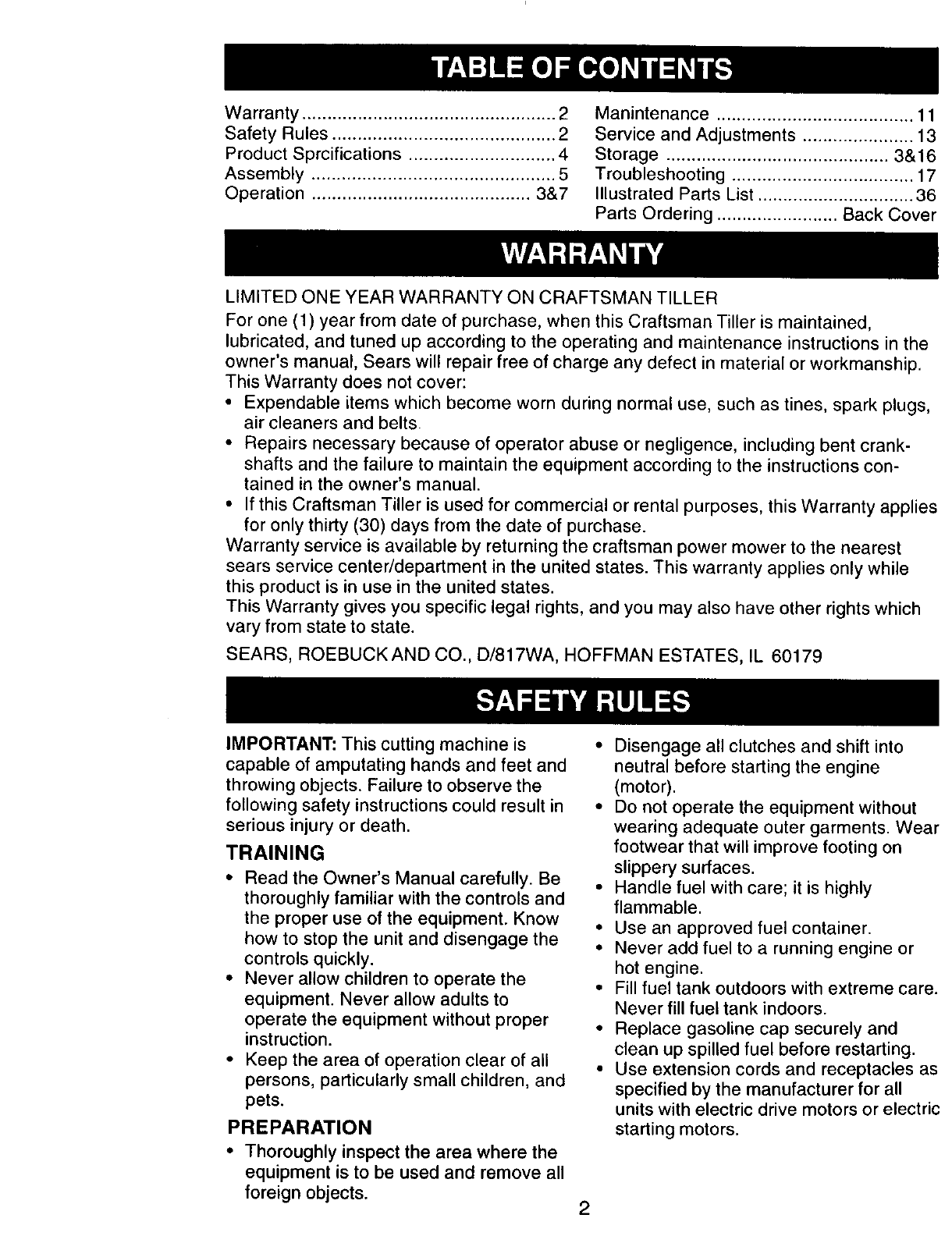

Warranty .................................................. 2
Safety Rules ............................................ 2
Product Sprcifications ............................. 4
Assembly ................................................ 5

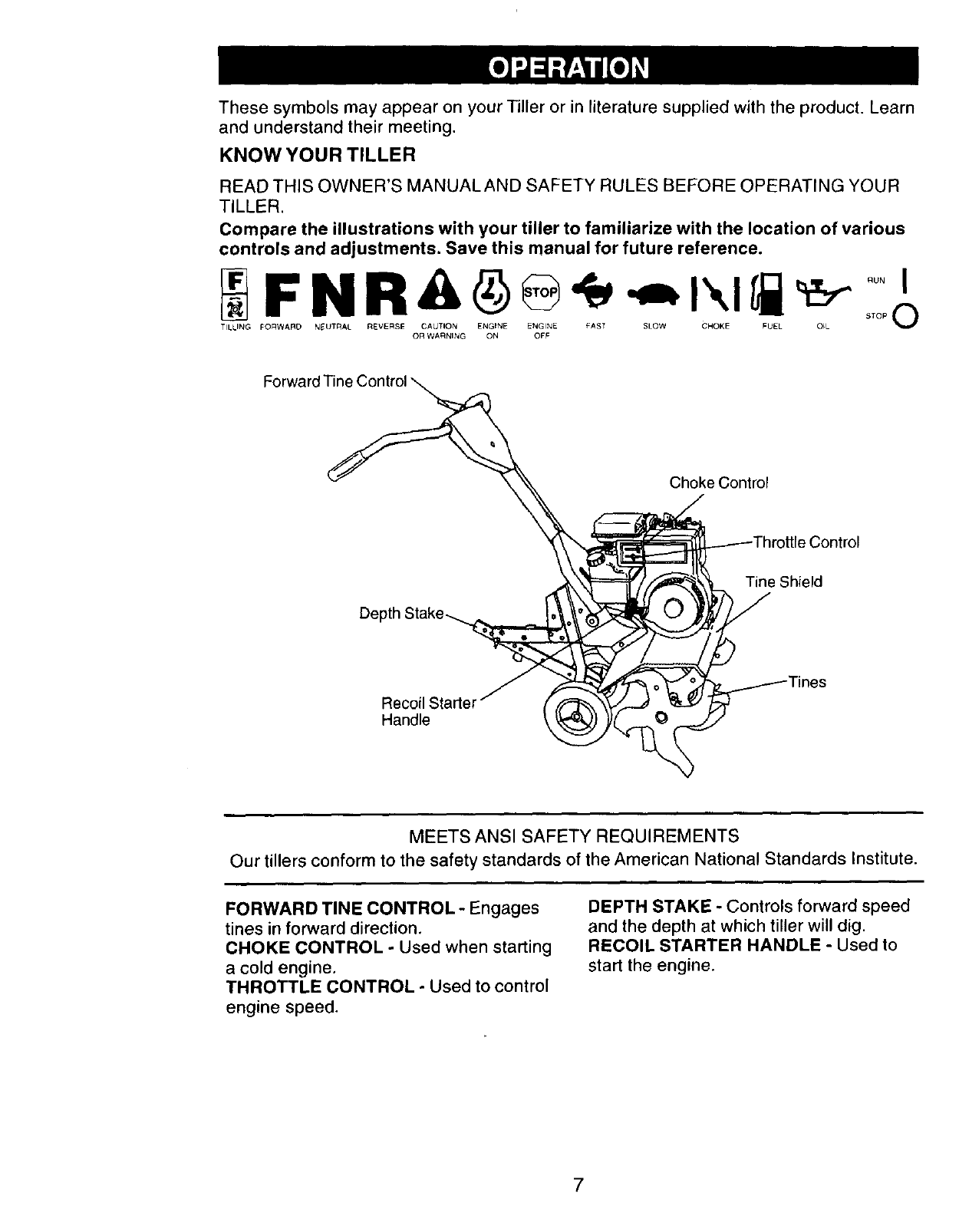

Operation ........................................... 3&7

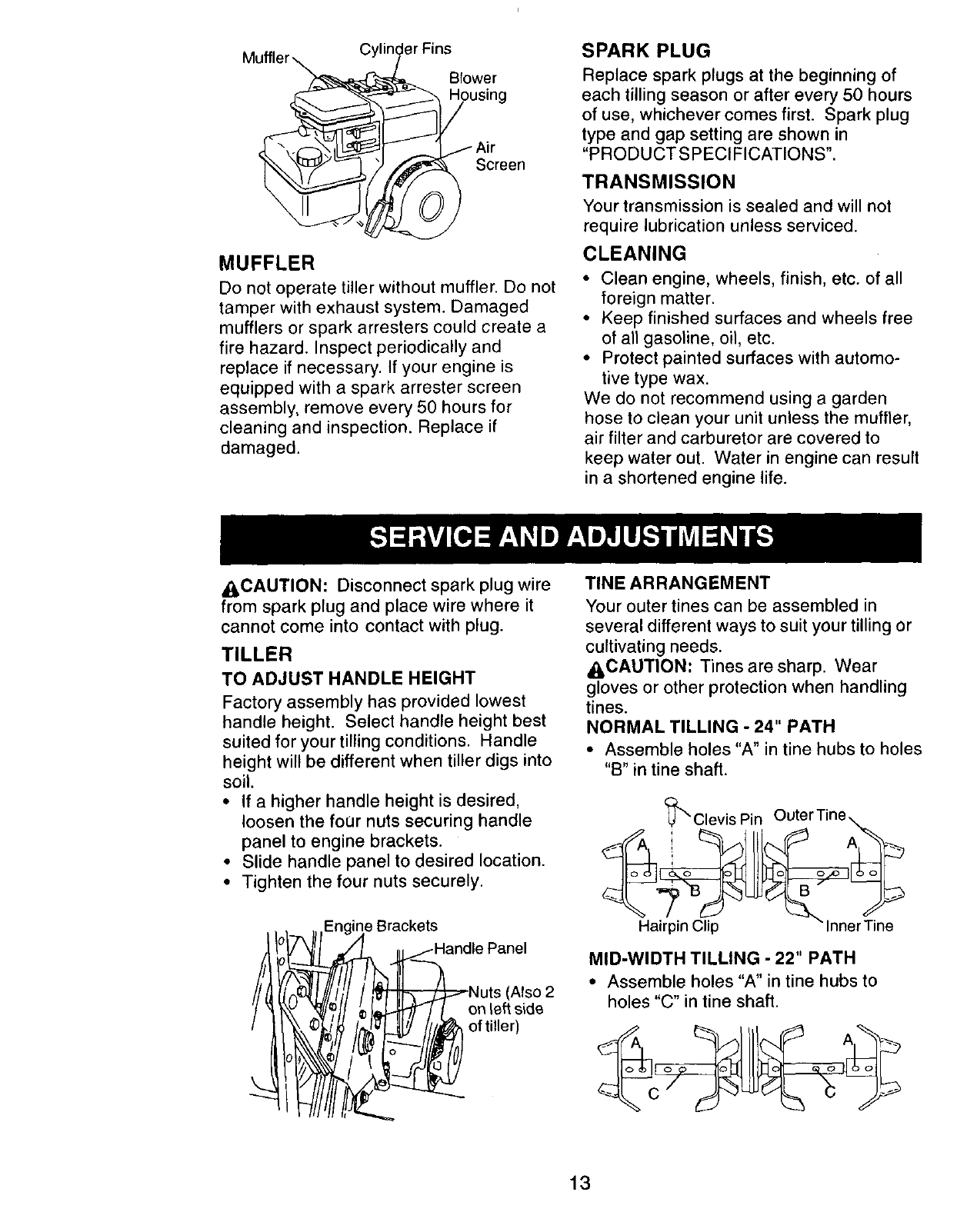

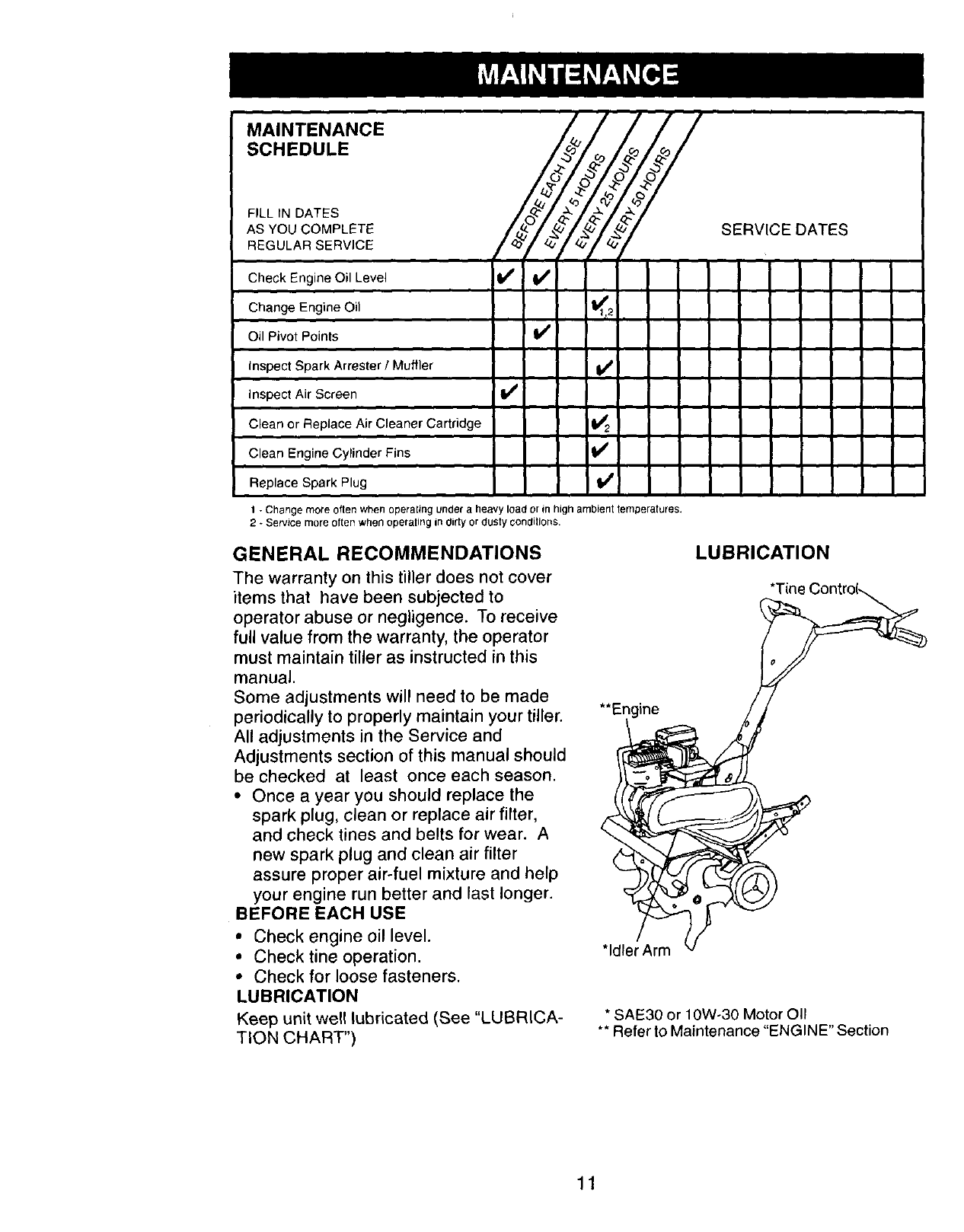

Manintenance ....................................... 11

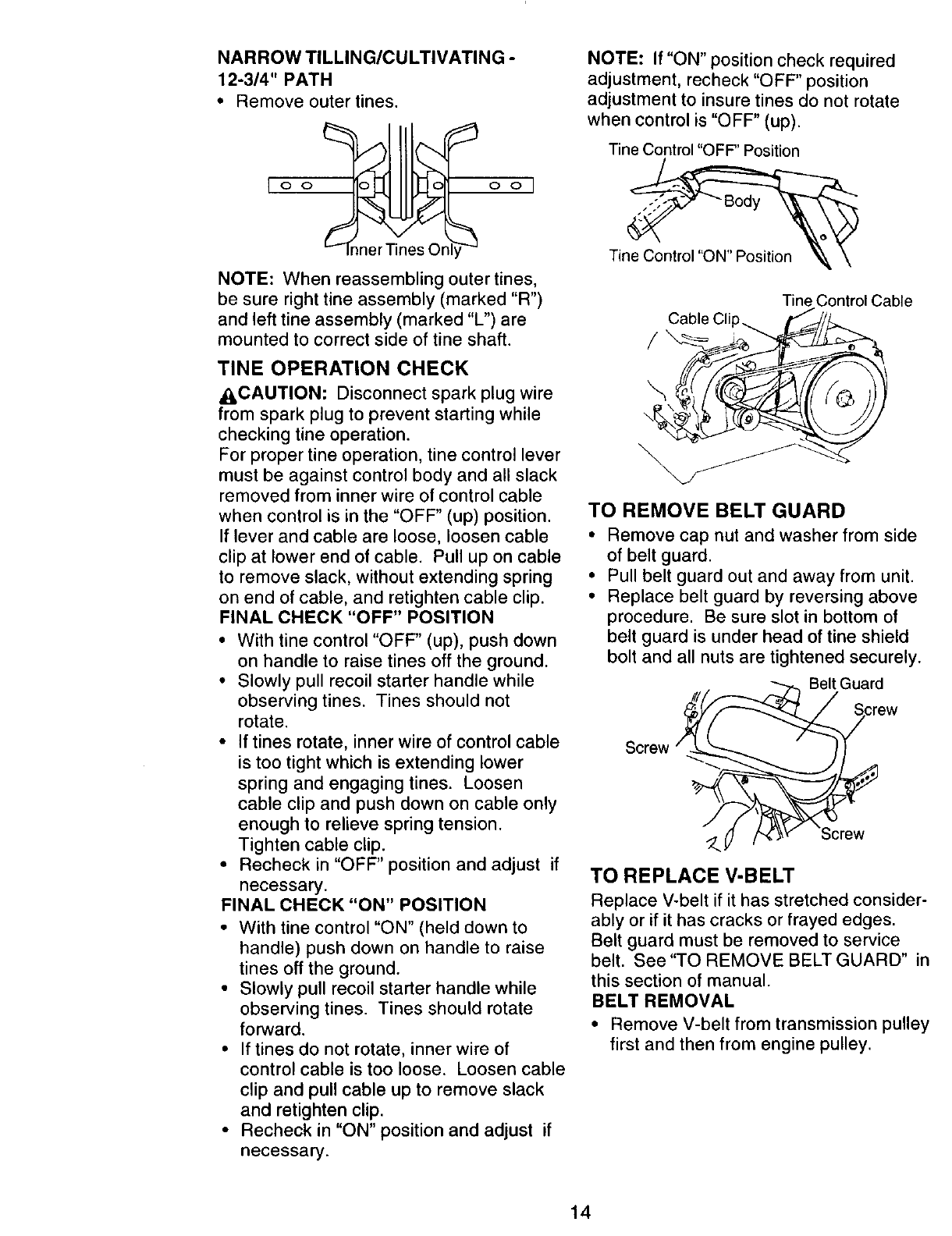

Service and Adjustments ...................... 13

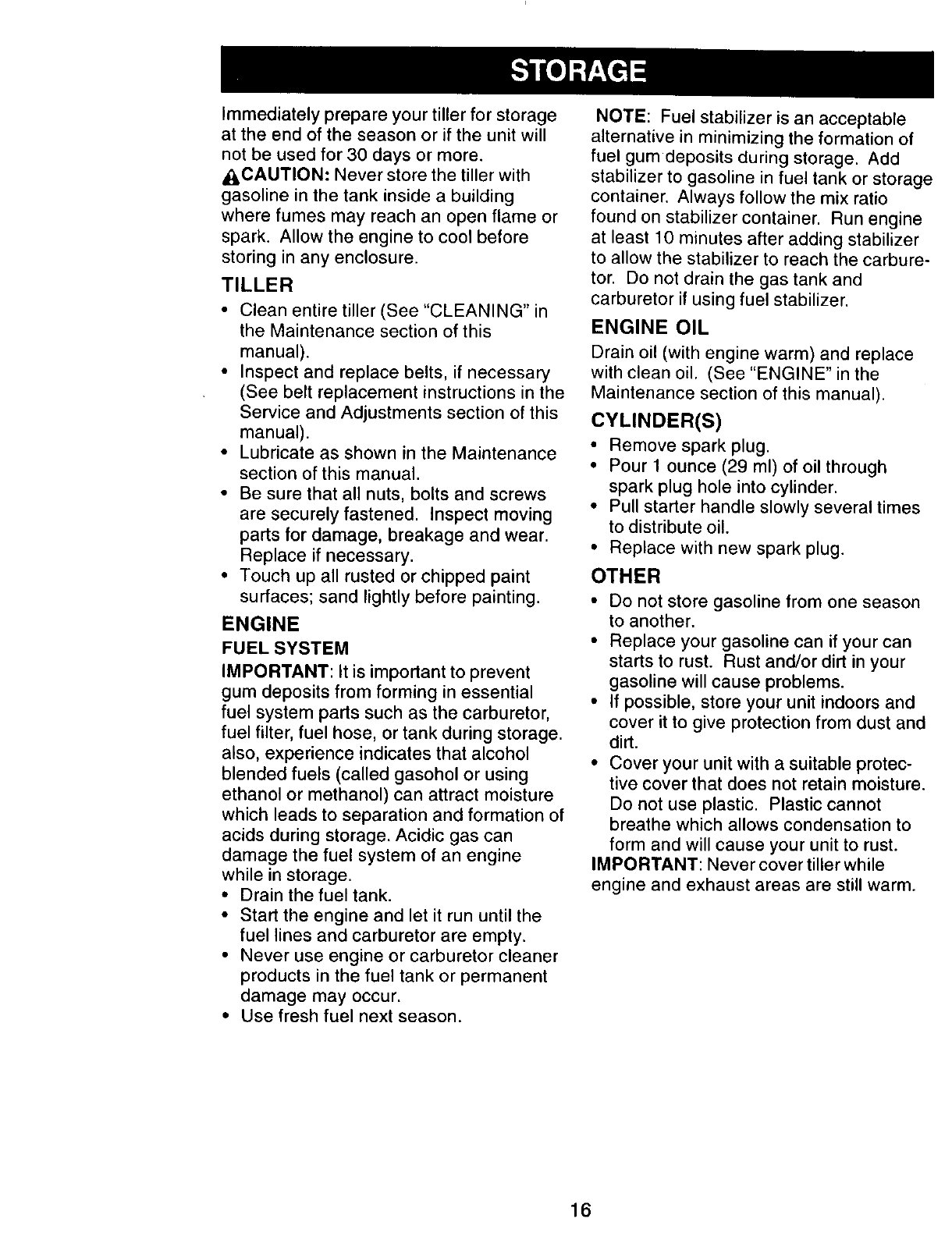

Storage ............................................ 3&16

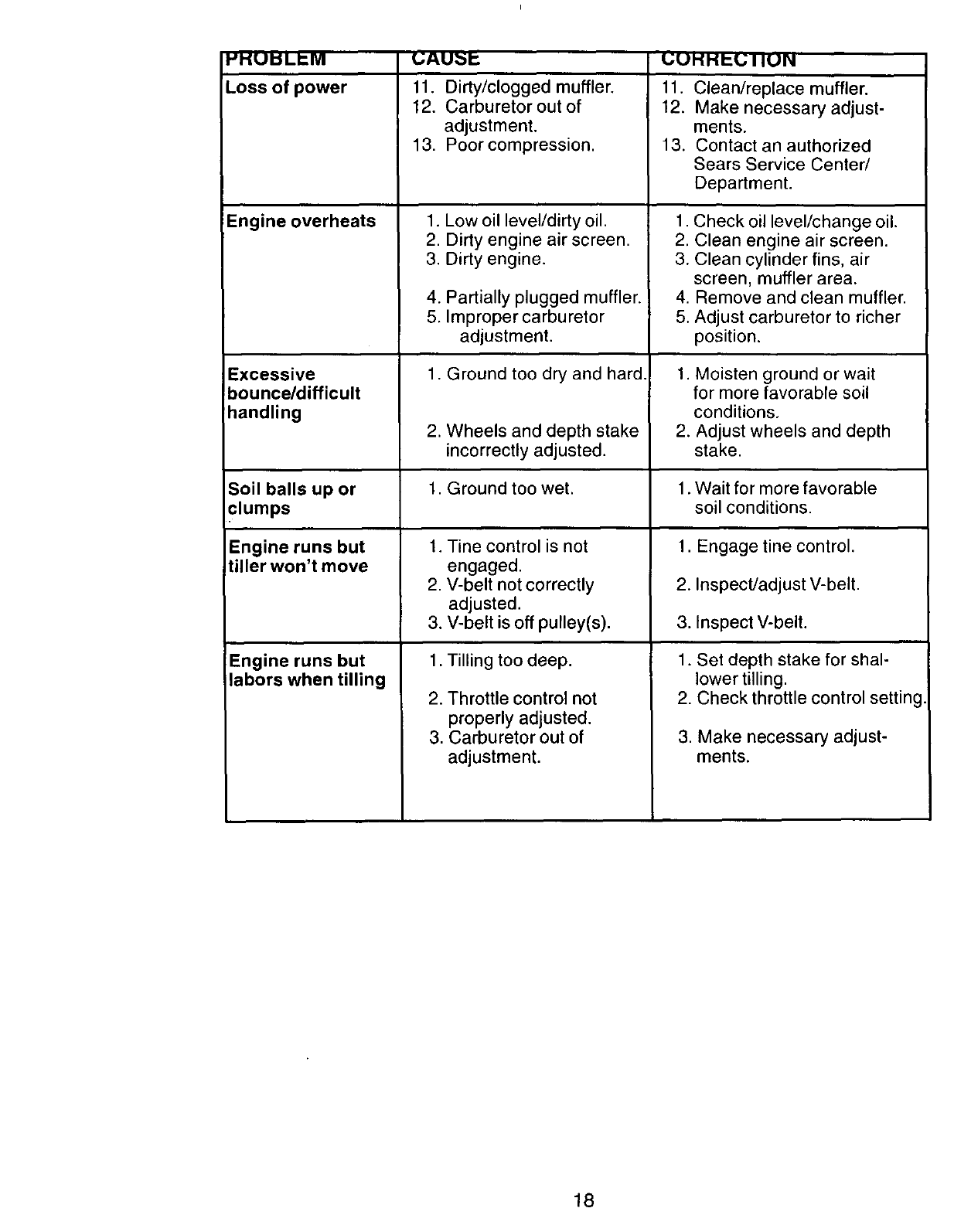

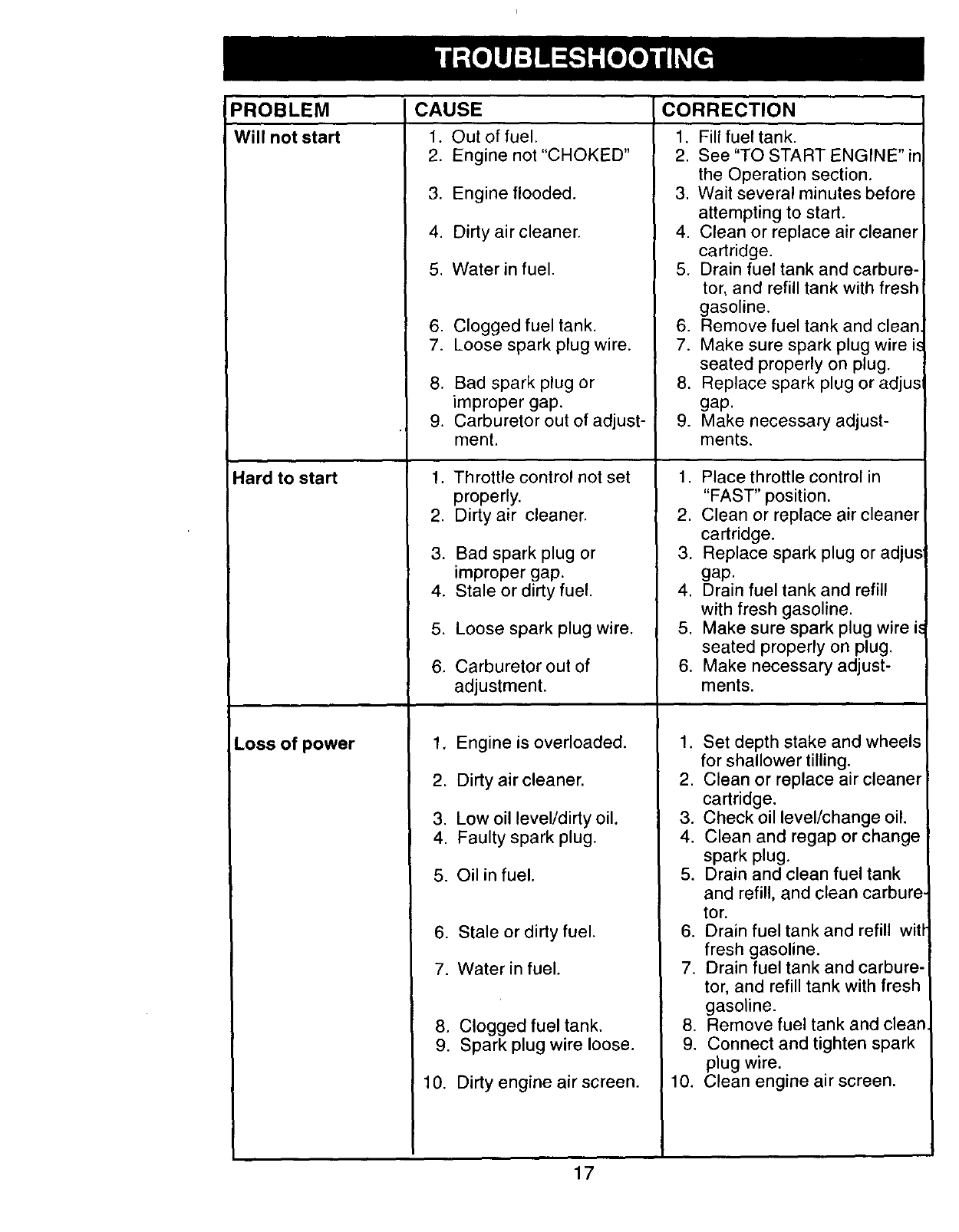

Troubleshooting .................................... 17

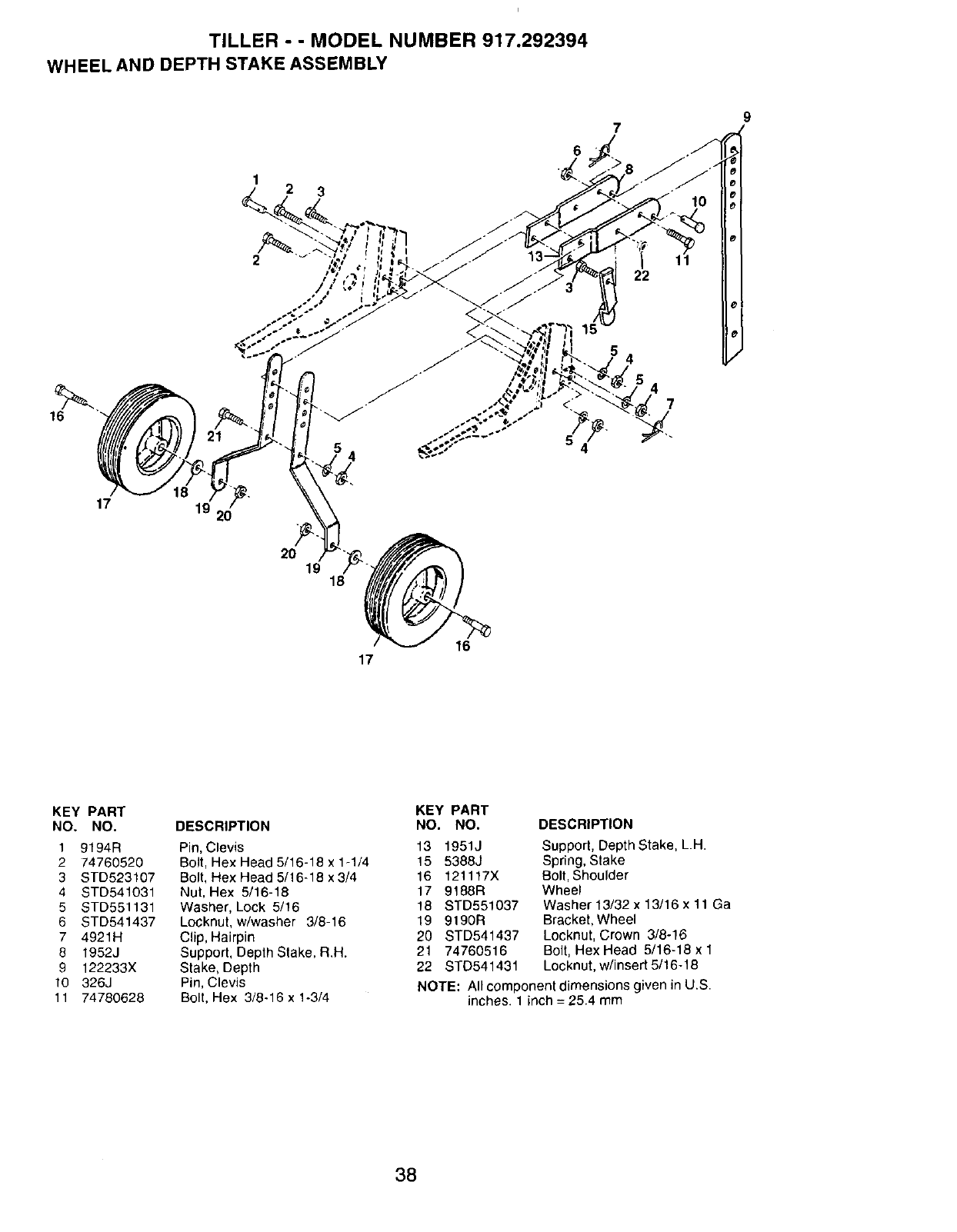

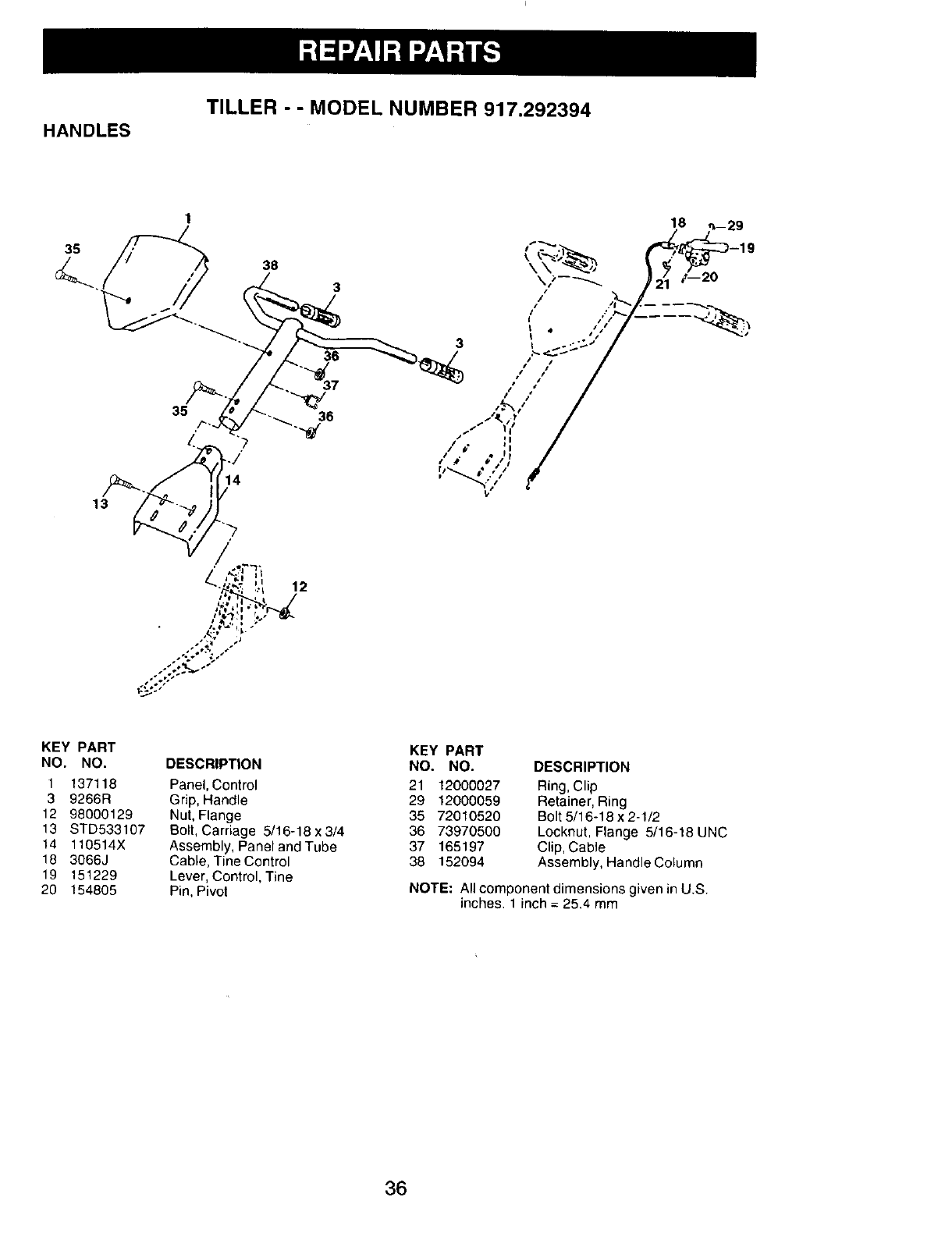

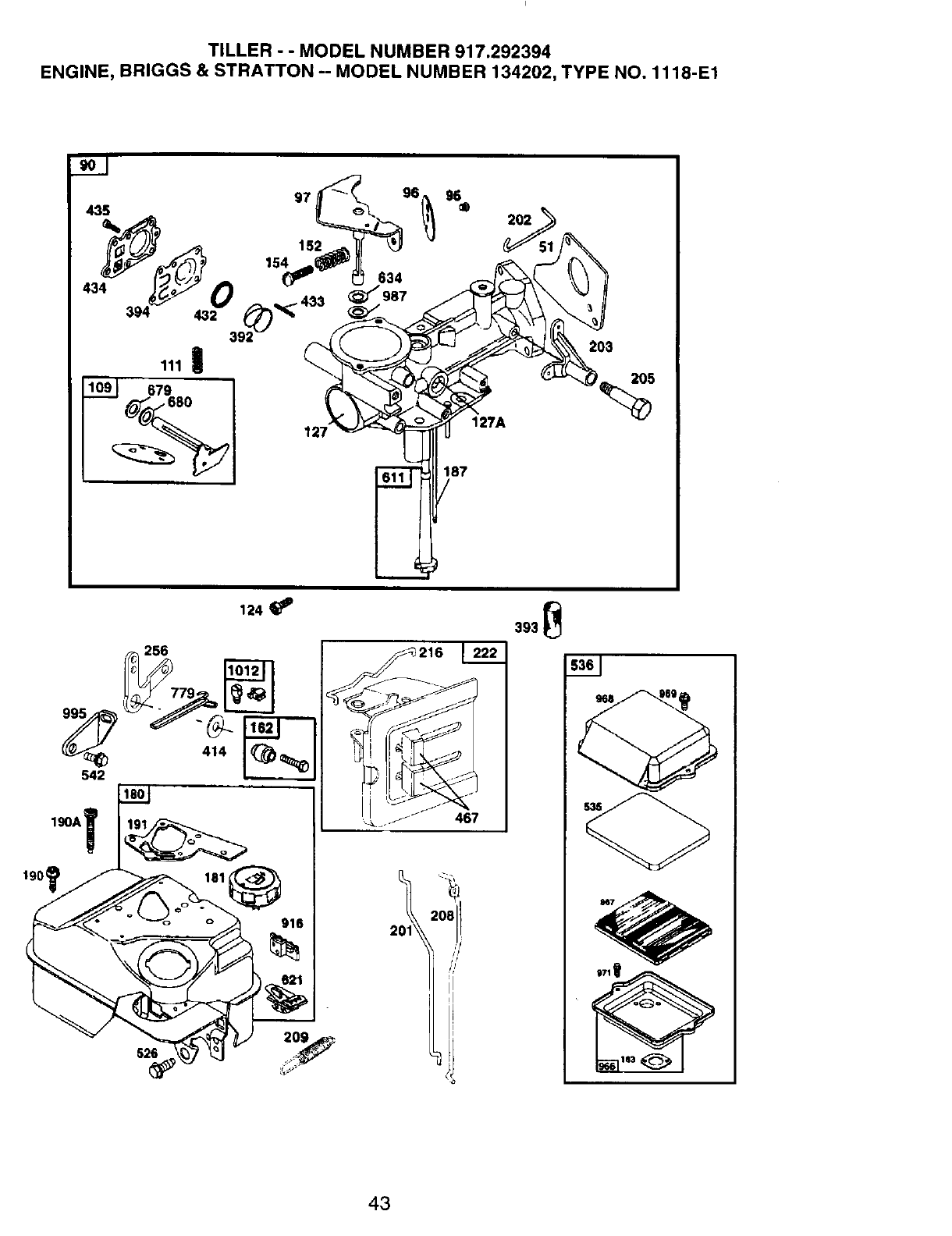

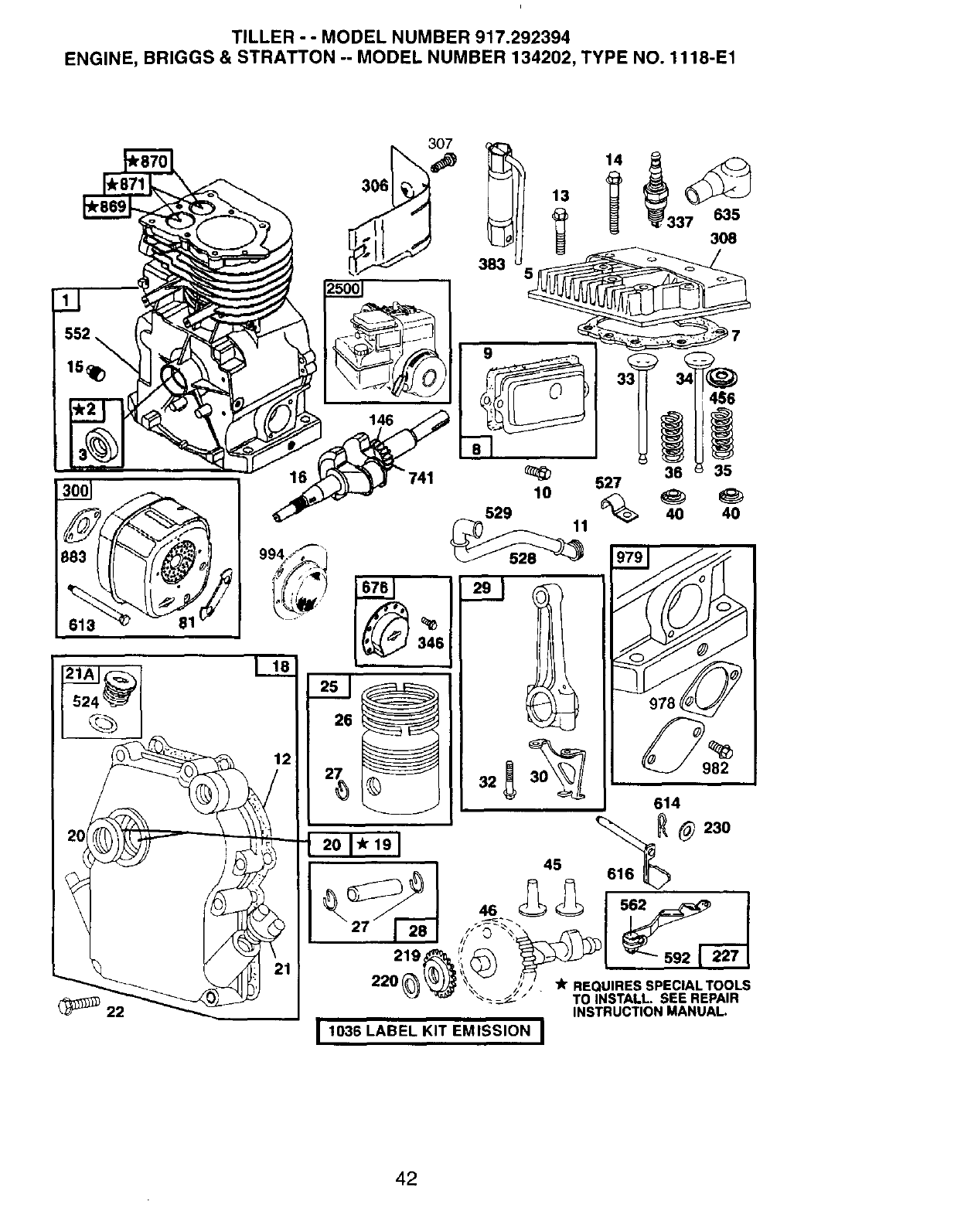

lUustrated Parts List ............................... 36

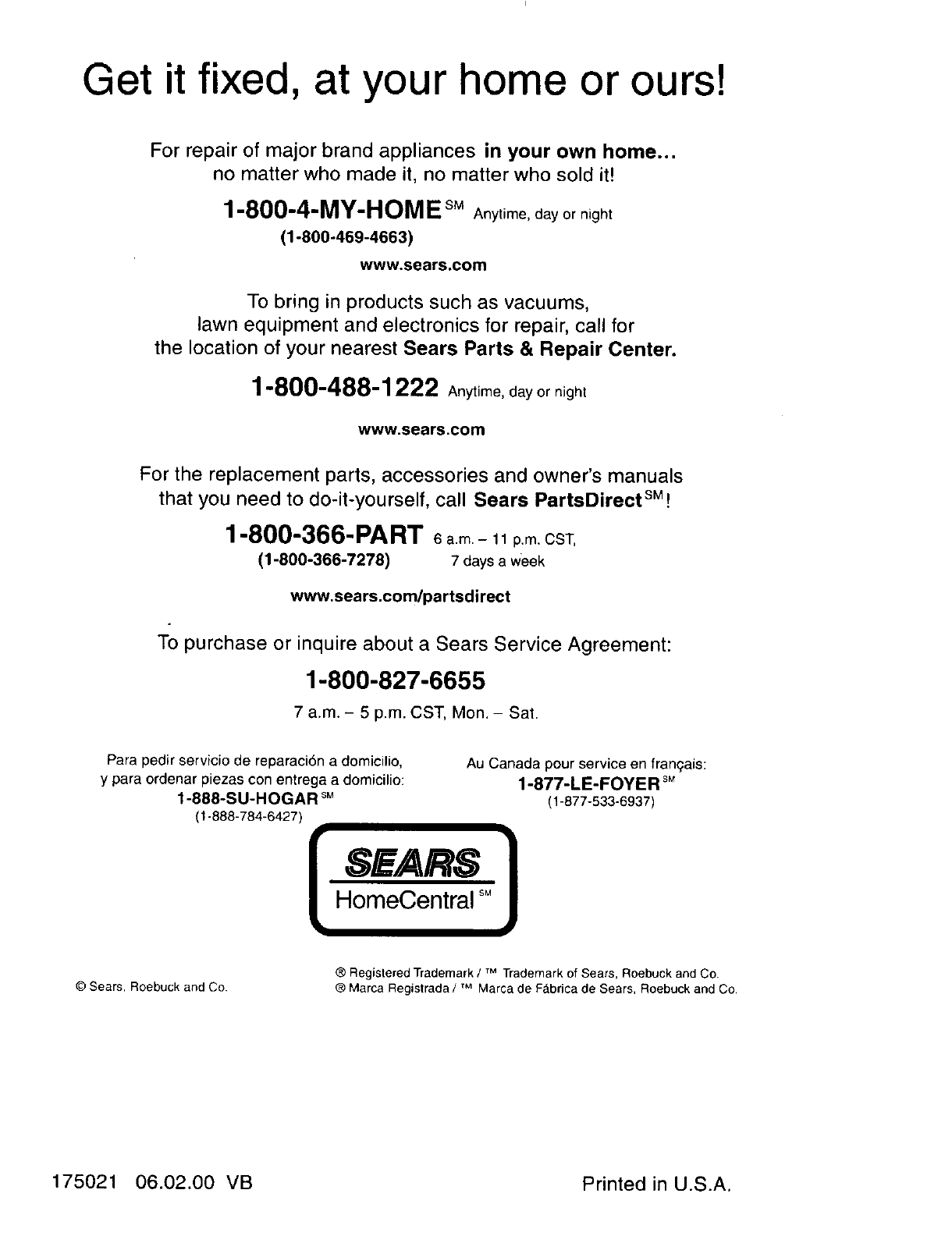

Parts Ordering ........................ Back Cover
LIMITED ONE YEAR WARRANTY ON CRAFTSMAN TILLER
For one (1) year from date of purchase, when this Craftsman Tiller is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in the
owner's manual, Sears will repair free of charge any defect in material or workmanship.
This Warranty does not cover:
•Expendable items which become worn during normal use, such as tines, spark plugs,
air cleaners and belts.
•Repairs necessary because of operator abuse or negligence, including bent crank-
shafts and the failure to maintain the equipment according to the instructions con-
tained in the owner's manual.
• If this Craftsman Tiller is used for commercial or rental purposes, this Warranty applies
for only thirty (30) days from the date of purchase.
Warranty service is available by returning the craftsman power mower to the nearest
sears service center/department in the united states. This warranty applies only while
this product is in use in the united states.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCKAND CO., D/817WA, HOFFMAN ESTATES, IL 60179
IMPORTANT: This cutting machine is
capable of amputating hands and feet and
throwing objects. Failure to observe the
following safety instructions could result in
serious injury or death.
TRAINING
• Read the Owner's Manual carefully. Be
thoroughly familiar with the controls and
the proper use of the equipment. Know
how to stop the unit and disengage the
controls quickly.
• Never allow children to operate the
equipment. Never allow adults to
operate the equipment without proper
instruction.
• Keep the area of operation clear of all
persons, particularly small children, and
pets.
PREPARATION
• Thoroughly inspect the area where the
equipment is to be used and remove all
foreign objects.
• Disengage all clutches and shift into
neutral before starting the engine
(motor).
• Do not operate the equipment without
wearing adequate outer garments. Wear
footwear that will improve footing on
slippery surfaces.
• Handle fuel with care; it is highly
flammable.
• Use an approved fuel container.
• Never add fuel to a running engine or
hot engine.
• Fill fuel tank outdoors with extreme care.
Never fill fuel tank indoors.
• Replace gasoline cap securely and
clean up spilled fuel before restarting.
• Use extension cords and receptacles as
specified by the manufacturer for all
units with electric drive motors or electric
starting motors.
2

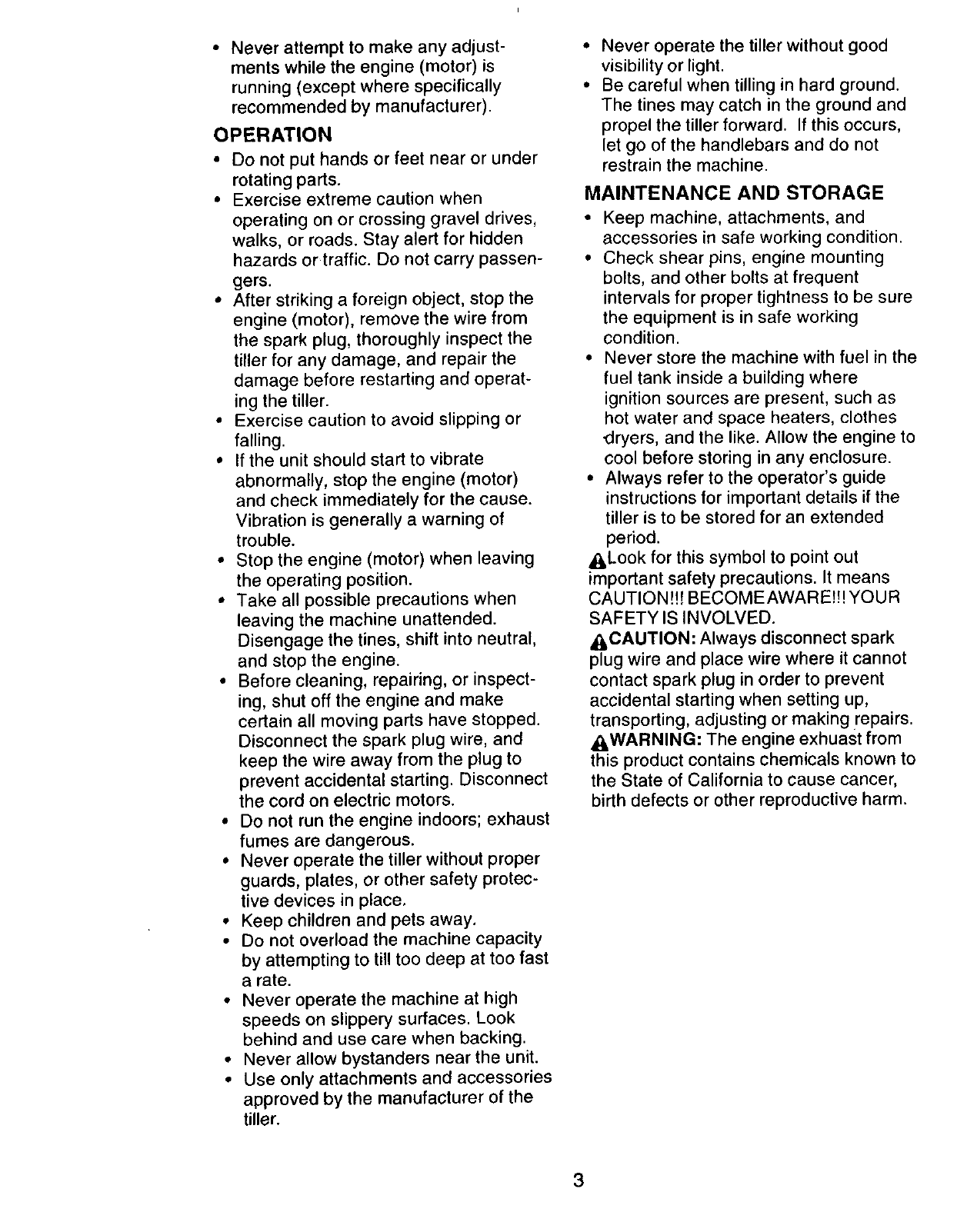

°Never attempt to make any adjust-
ments while the engine (motor) is
running (except where specifically
recommended by manufacturer).
OPERATION
•Do not put hands or feet near or under
rotating parts.
• Exercise extreme caution when
operating on or crossing gravel drives,
walks, or roads. Stay alert for hidden
hazards or traffic. Do not carry passen-
gers.
•After striking a foreign object, stop the
engine (motor), remove the wire from
the spark plug, thoroughly inspect the
tiller for any damage, and repair the
damage before restarting and operat-
ing the tiller.
• Exercise caution to avoid slipping or
falling.
•If the unit should start to vibrate
abnormally, stop the engine (motor)
and check immediately for the cause.
Vibration is generally a warning of
trouble.
•Stop the engine (motor) when leaving
the operating position.
• Take all possible precautions when
leaving the machine unattended.
Disengage the tines, shift into neutral,
and stop the engine.
• Before cleaning, repairing, or inspect-
ing, shut off the engine and make
certain all moving parts have stopped.
Disconnect the spark plug wire, and
keep the wire away from the plug to
prevent accidental starting. Disconnect
the cord on electric motors.
• Do not run the engine indoors; exhaust
fumes are dangerous.
° Never operate the tiller without proper
guards, plates, or other safety protec-
tive devices in place.
• Keep children and pets away.
• Do not overload the machine capacity
by attempting to till too deep at too fast
a rate.
• Never operate the machine at high
speeds on slippery surfaces. Look
behind and use care when backing.
• Never allow bystanders near the unit.
• Use only attachments and accessories
approved by the manufacturer of the
tiller.
Never operate the tiller without good
visibility or light.
Be careful when tilling in hard ground.
The tines may catch in the ground and
propel the tiller forward. If this occurs,
let go of the handlebars and do not
restrain the machine.
MAINTENANCE ANDSTORAGE
• Keep machine, attachments, and
accessories in safe working condition.
• Check shear pins, engine mounting
bolts, and other bolts at frequent
intervals for proper tightness to be sure
the equipment is in safe working
condition.
• Never store the machine with fuel in the
fuel tank inside a building where
ignition sources are present, such as
hot water and space heaters, clothes
dryers, and the like. Allow the engine to
cool before storing in any enclosure.
• Always refer to the operator's guide
instructions for important details if the
tiller is to be stored for an extended
period.
_,Look for this symbol to point out
important safety precautions. It means
CAUTION!!! BECOMEAWARE!!! YOUR
SAFETY IS INVOLVED.
_,CAUTION: Always disconnect spark
plug wire and place wire where it cannot
contact spark plug in order to prevent
accidental starting when setting up,
transporting, adjusting or making repairs.
_I_WARNING: The engine exhuast from
this product contains chemicals known to
the State of California to cause cancer,
birth defects or other reproductive harm.
3

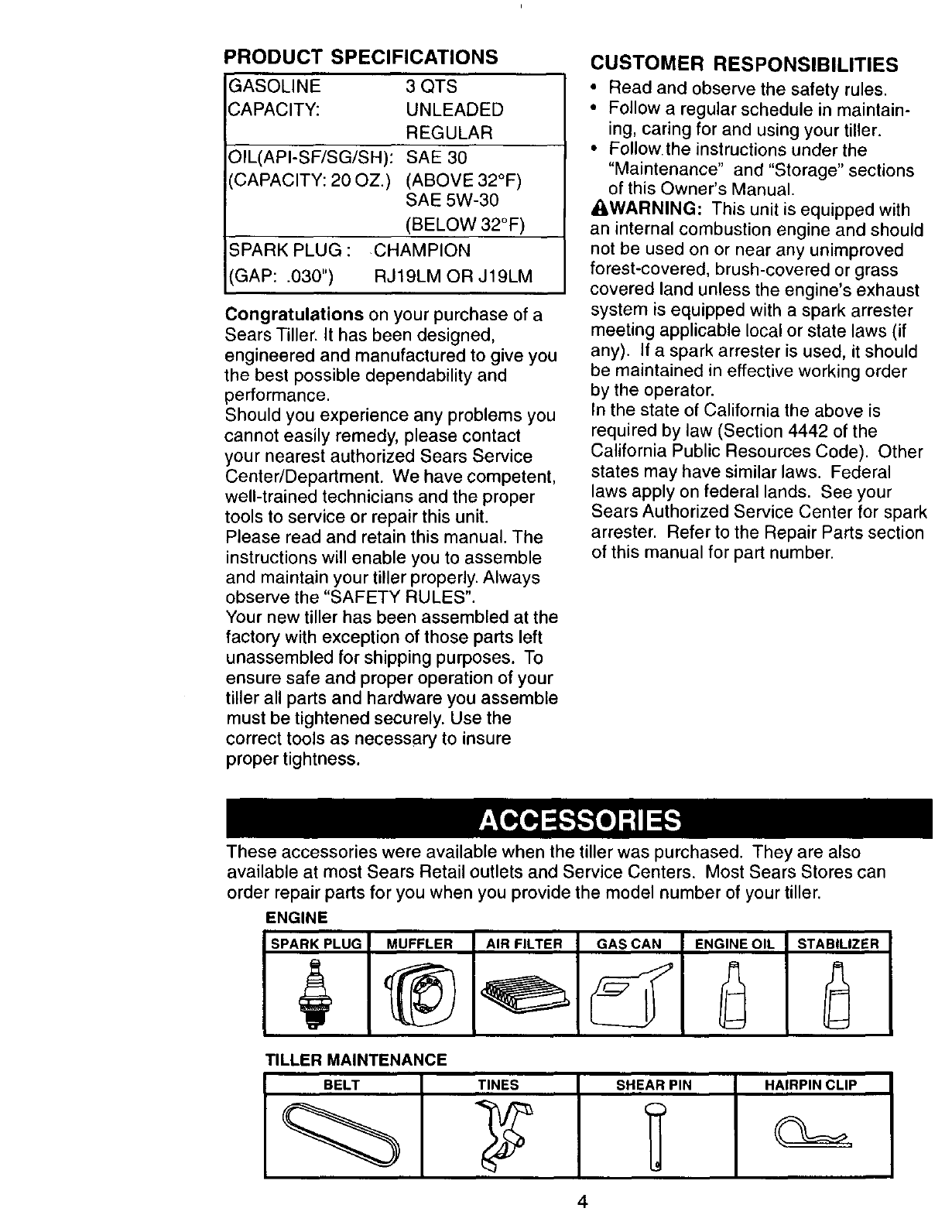

PRODUCT SPECIFICATIONS
GASOLINE 3 QTS
CAPACITY: UNLEADED
REGULAR
OIL(API-SF/SG/SH): SAE 30
CAPACITY: 20 OZ.) (ABOVE 32°F)
SAE 5W-30
(BELOW 32°F)
SPARK PLUG: CHAMPION
GAP: .030") RJ19LM OR J19LM
Congratulations on your purchase of a
Sears Tiller. It has been designed,
engineered and manufactured to give you
the best possible dependability and
performance.
Should you experience any problems you
cannot easily remedy, please contact
your nearest authorized Sears Service
Center/Department. We have competent,
well-trained technicians and the proper
tools to service or repair this unit.
Please read and retain this manual. The
instructions will enable you to assemble
and maintain your tiller properly. Always
observe the "SAFETY RULES".
Your new tiller has been assembled at the
factory with exception of those parts left
unassembled for shipping purposes. To
ensure safe and proper operation of your
tiller all parts and hardware you assemble
must be tightened securely. Use the
correct tools as necessary to insure
proper tightness.
CUSTOMER RESPONSIBILITIES
• Read and observe the safety rules.
• Follow a regular schedule in maintain-
ing, caring for and using your tiller.
• Followthe instructions under the
"Maintenance" and "Storage" sections
of this Owner's Manual.
_i, WARNING: This unit is equipped with
an internal combustion engine and should
not be used on or near any unimproved
forest-covered, brush-covered or grass
covered land unless the engine's exhaust
system is equipped with a spark arrester
meeting applicable local or state laws (if
any). If a spark arrester is used, it should
be maintained in effective working order
by the operator.
In the state of California the above is
required by law (Section 4442 of the
California Public Resources Code). Other
states may have similar laws. Federal
laws apply on federal lands. See your
Sears Authorized Service Center for spark
arrester. Refer to the Repair Parts section
of this manual for part number.
These accessories were available when the tiller was purchased. They are also
available at most Sears Retail outlets and Service Centers. Most Sears Stores can
order repair parts for you when you provide the model number of your tiller.
ENGINE
SPARK PLUG MUFFLER AIR FILTER GAS CAN ENGINE OIL STABILIZER
TILLER MAINTENANCE
BELT TINES SHEAR PIN HAIRPIN CLIP
,
4

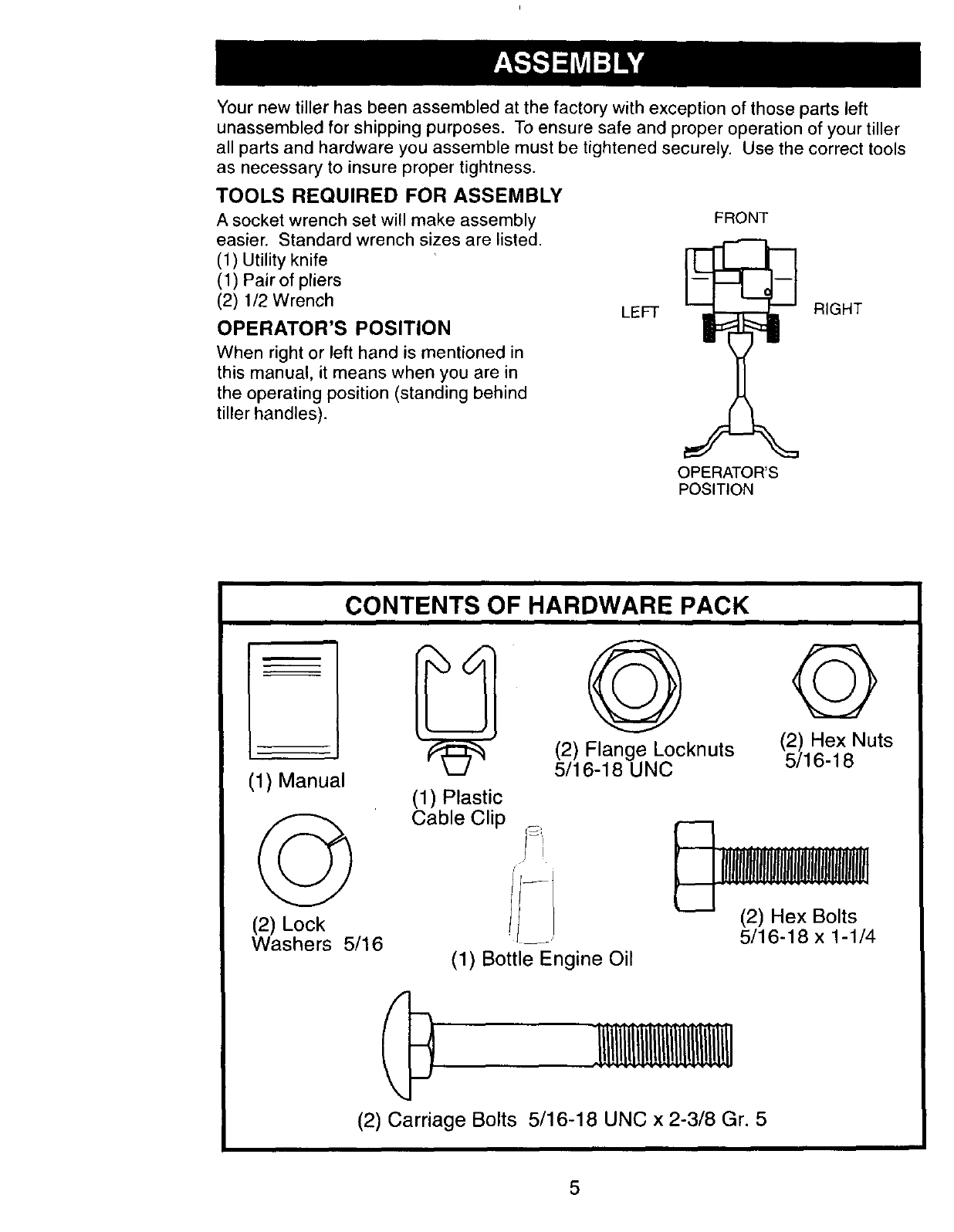

Your new tiller has been assembled at the factory with exception of those parts left
unassembled for shipping purposes. To ensure safe and proper operation of your tiller
all parts and hardware you assemble must be tightened securely. Use the correct tools
as necessary to insure proper tightness.
TOOLS REQUIRED FOR ASSEMBLY
A socket wrench set will make assembly
easier. Standard wrench sizes are listed.
(1) Utility knife
(1) Pair of pliers
(2) 1/2 Wrench
OPERATOR'S POSITION
When right or left hand is mentioned in
this manual, it means when you are in
the operating position (standing behind
tiller handles).
FRONT
LEFT RIGHT
OPERATOR'S
POSITION
CONTENTS OF HARDWARE PACK
(1) Manual
@
(2) Lock
Washers 5/16
@
(2) Flange Locknuts
5/16-18 UNC
@
(2) Hex Nuts
5/16-18
(1) Plastic
Cable Clip
5/16-18 x 1-1/4
(1) Bottle Engine Oil
(2) Carriage Bolts 5/16-18 UNC x 2-3/8 Gr. 5
5

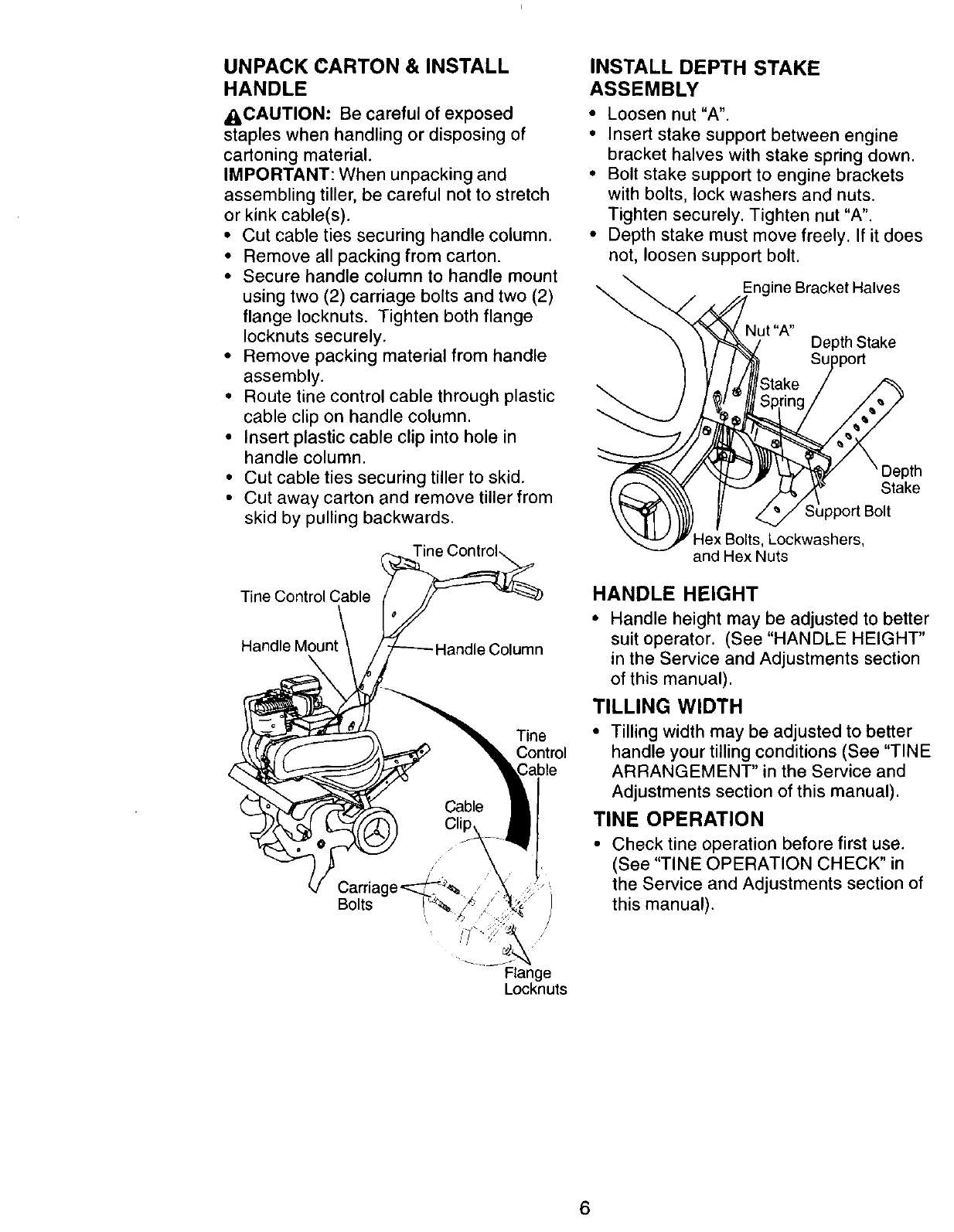

UNPACK CARTON & INSTALL
HANDLE
ACAUTION: Be careful of exposed
staples when handling or disposing of
cartoning material.
IMPORTANT: When unpacking and
assembling tiller, be careful not to stretch
or kink cable(s).
• Cut cable ties securing handle column.
•Remove all packing from carton.
•Secure handle column to handle mount
using two (2) carriage bolts and two (2)
flange Iocknuts. Tighten both flange
Iocknuts securely.
•Remove packing material from handle
assembly.
•Route tine control cable through plastic
cable clip on handle column.
•Insert plastic cable clip into hole in
handle column.
• Cut cable ties securing tiller to skid.
• Cut away carton and remove tiller from
skid by pulling backwards.
Tine Control_
Tine Control Cable
Handle Moun umn
Tine
Control
/'
Carriage _"%
Bolts I-_% _;_ S
/
Flange
Locknuts
INSTALL DEPTH STAKE
ASSEMBLY
•Loosen nut "A".
• Insert stake support between engine
bracket halves with stake spring down.
• Bolt stake support to engine brackets
with bolts, lock washers and nuts.
Tighten securely. Tighten nut "A".
• Depth stake must move freely. If it does
not, loosen support bolt.
\Engine Bracket Halves
Depth Stake
Su
Depth
Stake
Hex Bolts, Lockwashers,
and Hex Nuts
HANDLE HEIGHT
• Handle height may be adjusted to better
suit operator. (See "HANDLE HEIGHT"
in the Service and Adjustments section
of this manual).
TILLING WIDTH
• Tilling width may be adjusted to better
handle your tilling conditions (See "TINE
ARRANGEMENT" in the Service and
Adjustments section of this manual).
TINE OPERATION
• Check tine operation before first use.
(See "TINE OPERATION CHECK" in
the Service and Adjustments section of
this manual).
6
These symbols may appear on your Tiller or in literature supplied with the product. Learn
and understand their meeting.
KNOW YOUR TILLER
READ THIS OWNER'S MANUALAND SAFETY RULES BEFORE OPERATING YOUR
TILLER.
Compare the illustrations with your tiller to familiarize with the location of various
controls and adjustments. Save this manual for future reference.
F N
TILLING FORWARD N_UT_AL REVERSE CAUTION ENGINE ENGINE EAST SLOW CHOKE FUEL O_L STOp O
OR WARNING ON OFF
Choke Control
ottle Control
Depth Stake_
Tine Shield
Recoil Startel
Handle O
MEETS ANSI SAFETY REQUIREMENTS
Our tillers conform to the safety standards of the American National Standards Institute.
FORWARD TINE CONTROL - Engages
tines in forward direction.
CHOKE CONTROL -Used when starting
a cold engine.
THROTTLE CONTROL - Used to control
engine speed.
DEPTH STAKE -Controls forward speed
and the depth at which tiller will dig.
RECOIL STARTER HANDLE - Used to
start the engine.
7

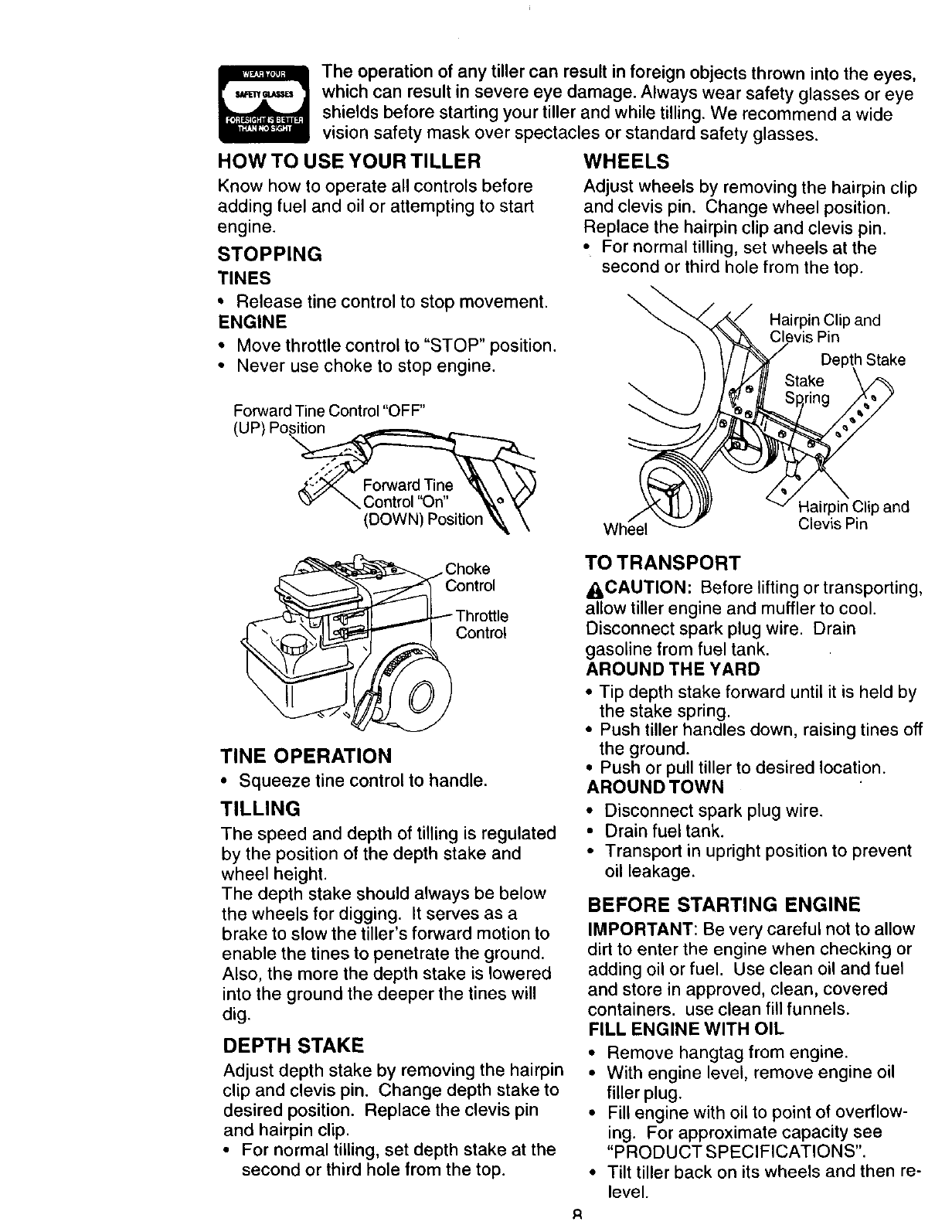

The operation of any tiller can result in foreign objects thrown into the eyes,
which can result in severe eye damage. Always wear safety glasses or eye
shields before starting your tiller and while tilling. We recommend a wide
vision safety mask over spectacles or standard safety glasses.
HOW TO USE YOUR TILLER WHEELS
Know how to operate all controls before
adding fuel and oil or attempting to start
engine.
STOPPING
TINES
Adjust wheels by removing the hairpin clip
and clevis pin. Change wheel position.
Replace the hairpin clip and clevis pin.
*For normal tilling, set wheels at the
second or third hole from the top.
•Release tine control to stop movement.
ENGINE
*Move throttle control to "STOP" position.
•Never use choke to stop engine.
\
Hairpin Clip and
;Pin
Depth Stake
Forward Tine Control "OFF"
(DOWN) Positiol
Control
Control
TINE OPERATION
• Squeeze tine control to handle.
TILLING
The speed and depth of tilling is regulated
by the position of the depth stake and
wheel height.
The depth stake should always be below
the wheels for digging. It serves as a
brake to slow the tiller's forward motion to
enable the tines to penetrate the ground.
Also, the more the depth stake is lowered
into the ground the deeper the tines will
dig.
DEPTH STAKE
Adjust depth stake by removing the hairpin
clip and clevis pin. Change depth stake to
desired position. Replace the clevis pin
and hairpin clip.
• For normal tilling, set depth stake at the
second or third hole from the top.
Wheel
Hairpin Clip and
Clevis Pin
TOTRANSPORT
A, CAUTION: Before lifting or transporting,
allow tiller engine and muffler to cool.
Disconnect spark plug wire. Drain
gasoline from fuel tank.
AROUND THE YARD
• Tip depth stake forward until it is held by
the stake spring.
• Push tiller handles down, raising tines off
the ground.
• Push or pull tiller to desired location.
AROUND TOWN
• Disconnect spark plug wire.
•Drain fuel tank.
•Transport in upright position to prevent
oil leakage.

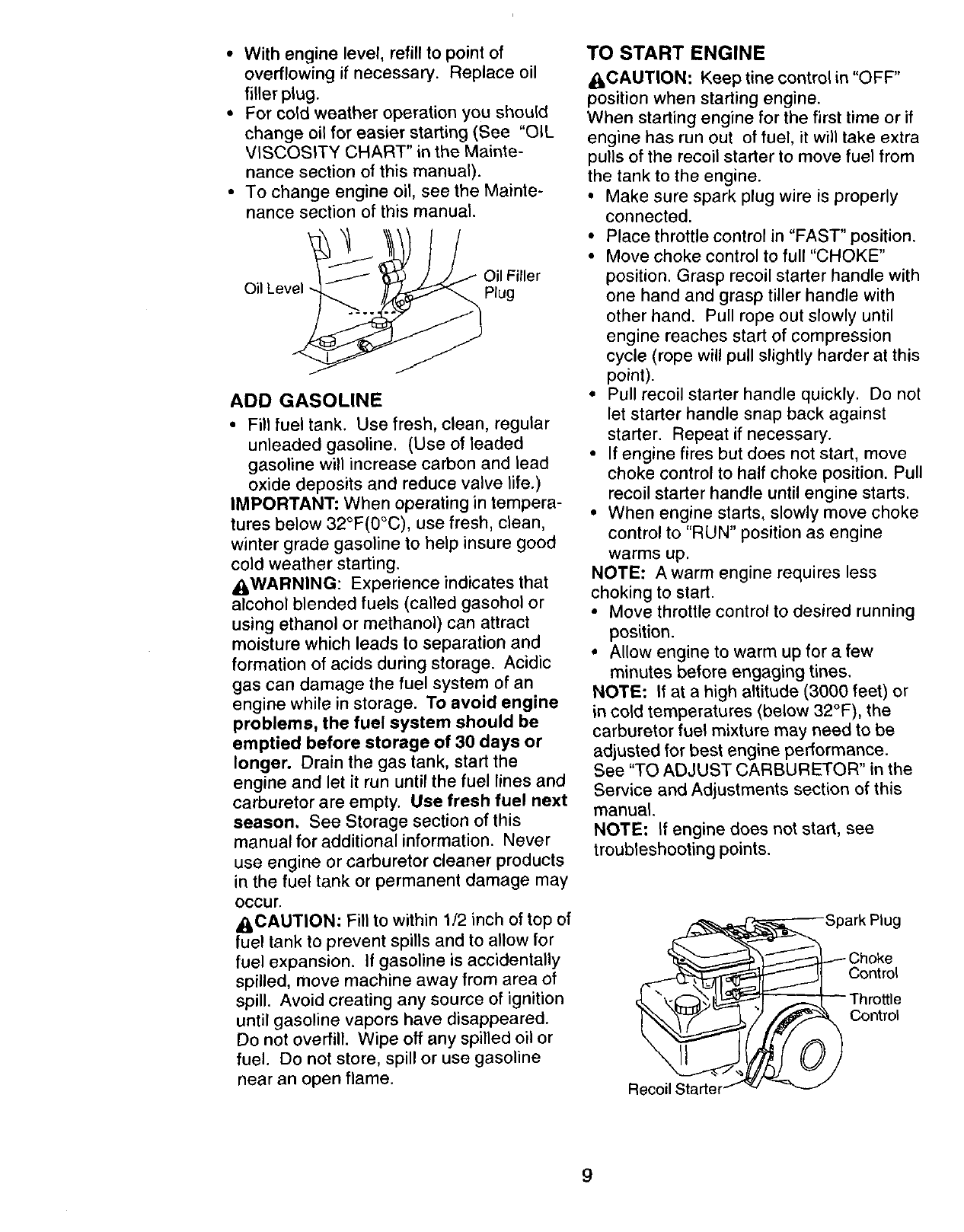

BEFORE STARTING ENGINE
IMPORTANT: Be very careful not to allow
dirt to enter the engine when checking or
adding oil or fuel. Use clean oil and fuel
and store in approved, clean, covered
containers, use clean fill funnels.
FILL ENGINE WITH OIL
• Remove hangtag from engine.
• With engine level, remove engine oil
filler plug.
• Fill engine with oil to point of overflow-
ing. For approximate capacity see
"PRODUCT SPECIFICATIONS".
• Tilt tiller back on its wheels and then re-
level.
• With engine level, refill to point of
overflowing if necessary. Replace oil
filler plug.
• For cold weather operation you should
change oil for easier starting (See "OIL
VISCOSITY CHART" in the Mainte-
nance section of this manual).
• To change engine oil, see the Mainte-
nance section of this manual.
Oil Filler
Oil Level Plug
ADD GASOLINE
• Fill fuel tank. Use fresh, clean, regular
unleaded gasoline. (Use of leaded
gasoline will increase carbon and lead
oxide deposits and reduce valve life.)
IMPORTANT: When operating in tempera-
tures below 32°F(0°C), use fresh, clean,
winter grade gasoline to help insure good
cold weather starting.
_WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the gas tank, start the
engine and let it run until the fuel lines and
carburetor are empty. Use fresh fuel next
season. See Storage section of this
manual for additional information. Never
use engine or carburetor cleaner products
in the fuel tank or permanent damage may
Occur.
ACAUTION: Fill to within 1/2 inch of top of
fuel tank to prevent spills and to allow for
fuel expansion. If gasoline is accidentally
spilled, move machine away from area of
spill. Avoid creating any source of ignition
until gasoline vapors have disappeared.
Do not overfill. Wipe off any spilled oil or
fuel. Do not store, spill or use gasoline
near an open flame.
TO START ENGINE
_CAUTION: Keep tine control in "OFF"
position when starting engine.
When starting engine for the first time or if
engine has run out of fuel, it will take extra
pulls of the recoil starter to move fuel from
the tank to the engine.
• Make sure spark plug wire is properly
connected.
• Place throttle control in "FAST" position.
• Move choke control to full "CHOKE"
position. Grasp recoil starter handle with
one hand and grasp tiller handle with
other hand. Pull rope out slowly until
engine reaches start of compression
cycle (rope will pull slightly harder at this
point).
• Pull recoil starter handle quickly. Do not
let starter handle snap back against
starter. Repeat if necessary.
• If engine fires but does not start, move
choke control to half choke position. Pull
recoil starter handle until engine starts.
• When engine starts, slowly move choke
control to "RUN" position as engine
warms up,
NOTE: A warm engine requires less
choking to start.
• Move throttle control to desired running
position.
• Allow engine to warm up for a few
minutes before engaging tines.
NOTE: If at a high altitude (3000 feet) or
in cold temperatures (below 32°F), the
carburetor fuel mixture may need to be
adjusted for best engine performance.
See "TO ADJUST CARBURETOR" in the
Service and Adjustments section of this
manual.
NOTE: If engine does not start, see
troubleshooting points.
Control
Control
Recoil Stal
9

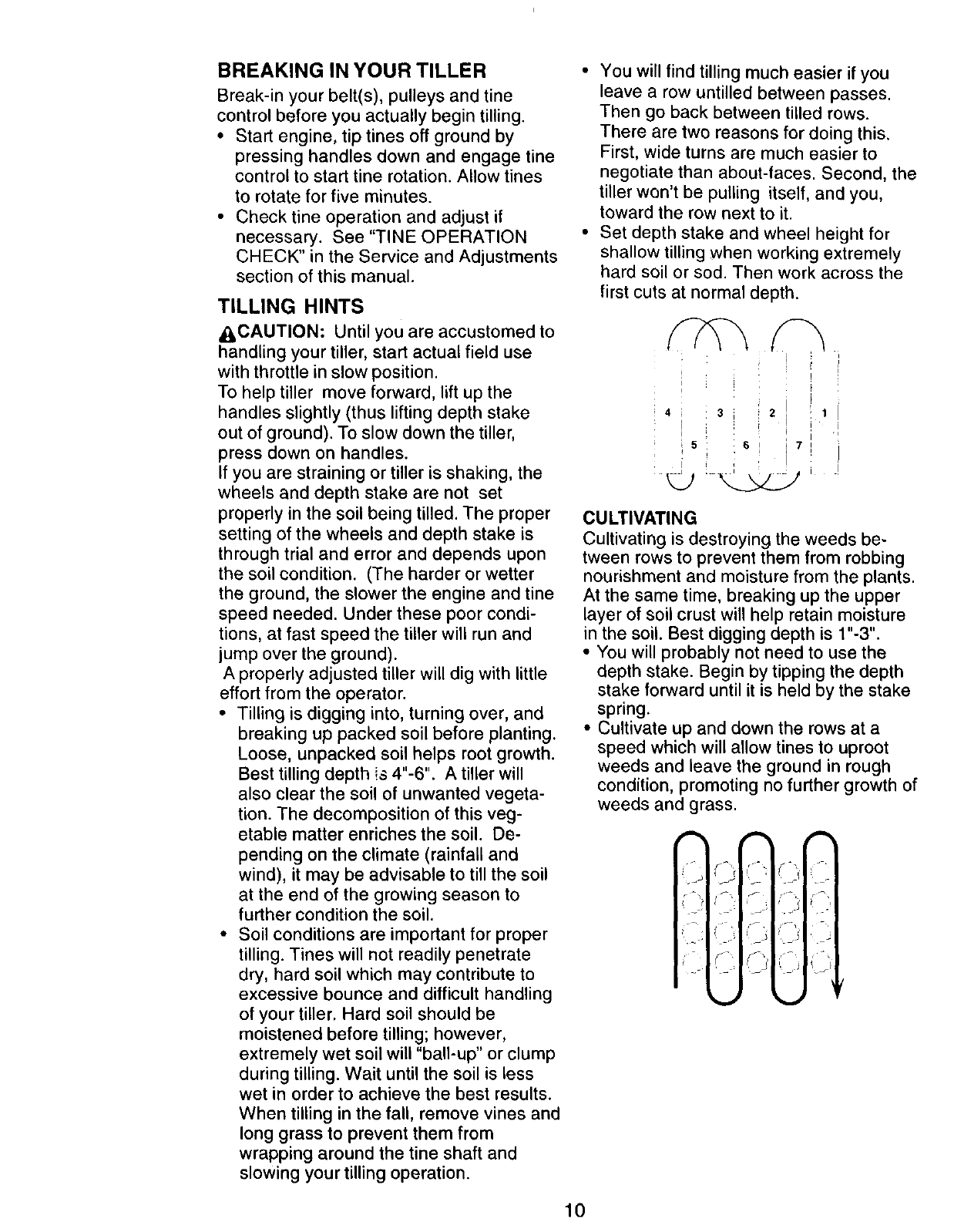

BREAKING IN YOUR TILLER
Break-in your belt(s), pulleys and tine
control before you actually begin tilling.
•Start engine, tip tines off ground by
pressing handles down and engage tine
control to start tine rotation. Allow tines
to rotate for five minutes.
• Check tine operation and adjust if
necessary. See "TINE OPERATION
CHECK" in the Service and Adjustments
section of this manual.
TILLING HINTS
_,CAUTION: Until you are accustomed to
handling your tiller, start actual field use
with throttle in slow position.
To help tiller move forward, lift up the
handles slightly (thus lifting depth stake
out of ground). To slow down the tiller,
press down on handles.
If you are straining or tiller is shaking, the
wheels and depth stake are not set
properly in the soil being tilled. The proper
setting of the wheels and depth stake is
through trial and error and depends upon
the soil condition. (The harder or wetter
the ground, the slower the engine and tine
speed needed. Under these poor condi-
tions, at fast speed the tiller will run and
jump over the ground).
A properly adjusted tiller will dig with little
effort from the operator.
• Tilling is digging into, turning over, and
breaking up packed soil before planting.
Loose, unpacked soil helps root growth.
Best tilling depth is 4"-6". A tiller will
also clear the soil of unwanted vegeta-
tion. The decomposition of this veg-
etable matter enriches the soil. De-
pending on the climate (rainfall and
wind), it may be advisable to till the soil
at the end of the growing season to
further condition the soil.
•Soil conditions are important for proper
tilling. Tines will not readily penetrate
dry, hard soil which may contribute to
excessive bounce and difficult handling
of your tiller. Hard soil should be
moistened before tilling; however,
extremely wet soil will "ball-up" or clump
during tilling. Wait until the soil is less
wet in order to achieve the best results.
When tilling in the fall, remove vines and
long grass to prevent them from
wrapping around the tine shaft and
slowing your tilling operation.
•You will find tilling much easier if you
leave a row untilled between passes.
Then go back between tilled rows.
There are two reasons for doing this.
First, wide turns are much easier to
negotiate than about-faces. Second, the
tiller won't be pulling itself, and you,
toward the row next to it.
• Set depth stake and wheel height for
shallow tilling when working extremely
hard soil or sod. Then work across the
first cuts at normal depth.
3 2 !11
4i
I ; I ! i
15! 6 7 t
1
2
CULTIVATING
Cultivating is destroying the weeds be-
tween rows to prevent them from robbing
nourishment and moisture from the plants.
At the same time, breaking up the upper
layer of soil crust will help retain moisture
in the soil. Best digging depth is 1"-3".
• You will probably not need to use the
depth stake. Begin by tipping the depth
stake forward until it is held by the stake
spring.
• Cultivate up and down the rows at a
speed which will allow tines to uproot
weeds and leave the ground in rough
condition, promoting no further growth of
weeds and grass.
¸
r- , |
i i
10
MAINTENANCE ,/_Z ./S _
SCHEDULE Io
AS YOU COMPLETE /,e-O_,_'/,_¢'/,_/ SERVICE DATES
REGULAR SERVICE /q2e'7/z._/z._/_'_/
Check Engine Oil Level if i I_
Change Engine Oil 1_1,2
Oil Pivot Points
Inspect Spark Arrester/Muffler I_
Inspect Air Screen If
Clean or Replace Air Cleaner Cartridge 11_2
Clean Engine Cylinder Fins I1_
Replace Spark Plug
1 - Change more often when operating under a heavy load or in high ambient temperatures.
2 - Service more often when operating in dirty or dusty conditions.
GENERAL RECOMMENDATIONS
The warranty on this tiller does not cover
items that have been subjected to
operator abuse or negligence. To receive
full value from the warranty, the operator
must maintain tiller as instructed in this
manual.
Some adjustments will need to be made
periodically to properly maintain your tiller.
All adjustments in the Service and
Adjustments section of this manual should
be checked at least once each season.
• Once a year you should replace the
spark plug, clean or replace air filter,
and check tines and belts for wear. A
new spark plug and clean air filter
assure proper air-fuel mixture and help
your engine run better and last longer.
BEFORE EACH USE
•Check engine oil level.
• Check tine operation.
• Check for loose fasteners.
LUBRICATION
Keep unit well lubricated (See "LUBRICA-
TION CHART")
LUBRICATION
**Enqine
*Idler Arm
* SAE30 or 10Wo30 Motor OII
** Refer to Maintenance "ENGINE" Section
11

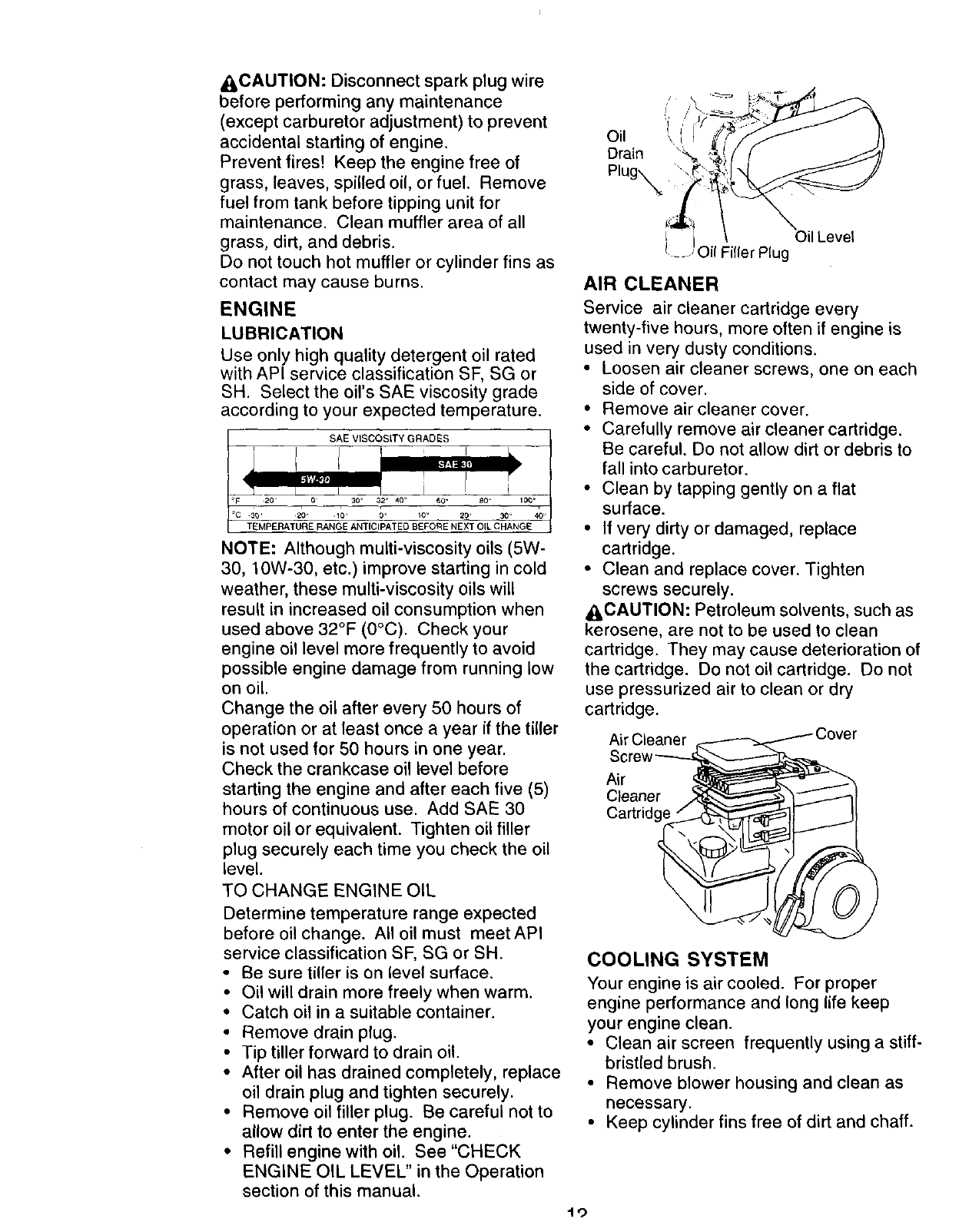

_,CAUTION: Disconnect spark plug wire
before performing any maintenance
(except carburetor adjustment) to prevent
accidental starting of engine,
Prevent fires! Keep the engine free of
grass, leaves, spilled oil, or fuel. Remove
fuel from tank before tipping unit for
maintenance. Clean muffler area of all
grass, dirt, and debris.
Do not touch hot muffler or cylinder fins as
contact may cause burns.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF, SG or
SH. Select the oil's SAE viscosity grade
according to your expected temperature.
SAE VISCOSLTY GRADES I
3_ 20 30
TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
NOTE: Although multi-viscosity oils (5W-
30, 10W-30, etc.) improve starting in cold
weather, these multi-viscosity oils will
result in increased oil consumption when
used above 32°F (O°C). Check your
engine oil level more frequently to avoid
possible engine damage from running low
on oil.
Change the oil after every 50 hours of
operation or at least once a year if the tiller
is not used for 50 hours in one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Add SAE 30
motor oil or equivalent. Tighten oil filler
plug securely each time you check the oil
level.
TO CHANGE ENGINE OIL
Determine temperature range expected
before oil change. All oil must meet API
service classification SF, SG or SH.
•Be sure tiller is on level surface.
•Oil will drain more freely when warm.
•Catch oil in a suitable container.
•Remove drain plug.
• Tip tiller forward to drain oil.
• After oil has drained completely, replace
oil drain plug and tighten securely.
• Remove oil filler plug. Be careful not to
allow dirt to enter the engine.
• Refill engine with oil. See "CHECK
ENGINE OIL LEVEL" in the Operation
section of this manual.
Oil Level
Fifler Plug
AIR CLEANER
Service air cleaner cartridge every
twenty-five hours, more often if engine is
used in very dusty conditions.
• Loosen air cleaner screws, one on each
side of cover.
• Remove air cleaner cover.
• Carefully remove air cleaner cartridge.
Be careful. Do not allow dirt or debris to
fall into carburetor.
• Clean by tapping gently on a flat
surface.
• If very dirty or damaged, replace
cartridge.
• Clean and replace cover. Tighten
screws securely.
£1,CAUTION: Petroleum solvents, such as
kerosene, are not to be used to clean
cartridge. They may cause deterioration of
the cartridge. Do not oil cartridge. Do not
use pressurized air to clean or dry
cartridge.
Air Cleaner
Screw_
Air
Cleaner
Cartrid_
Cover
COOLING SYSTEM
Your engine is air cooled. For proper
engine performance and long life keep
your engine clean.
• Clean air screen frequently using a stiff-
bristled brush.
• Remove blower housing and clean as
necessary.
• Keep cylinder fins free of dirt and chaff.
lO
Blower
Screen
MUFFLER
Do not operate tiller without muffler. Do not
tamper with exhaust system. Damaged
mufflers or spark arresters could create a
fire hazard. Inspect periodically and
replace if necessary. If your engine is
equipped with a spark arrester screen
assembly, remove every 50 hours for
cleaning and inspection. Replace if
damaged.
SPARK PLUG
Replace spark plugs at the beginning of
each tilling season or after every 50 hours
of use, whichever comes first. Spark plug
type and gap setting are shown in
"PRODUCT SPECIFICATIONS".
TRANSMISSION
Your transmission is sealed and will not
require lubrication unless serviced.
CLEANING
•Clean engine, wheels, finish, etc. of all
foreign matter.
• Keep finished surfaces and wheels free
of all gasoline, oil, etc.
• Protect painted surfaces with automo-
tive type wax.
We do not recommend using a garden
hose to clean your unit unless the muffler,
air filter and carburetor are covered to
keep water out. Water in engine can result
in a shortened engine life.
_CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come into contact with plug.
TILLER
TO ADJUST HANDLE HEIGHT
Factory assembly has provided lowest
handle height. Select handle height best
suited for your tilling conditions. Handle
height will be different when tiller digs into
soil.
•If a higher handle height is desired,
loosen the four nuts securing handle
panel to engine brackets.
•Slide handle panel to desired location.
•Tighten the four nuts securely.
tgir Brackets
f _,,}..._Handle Panel
_Ji/ i_1 rl_ J /Nuts(Also2
;_--4_/ on left side
!_ ,_ oftiller)

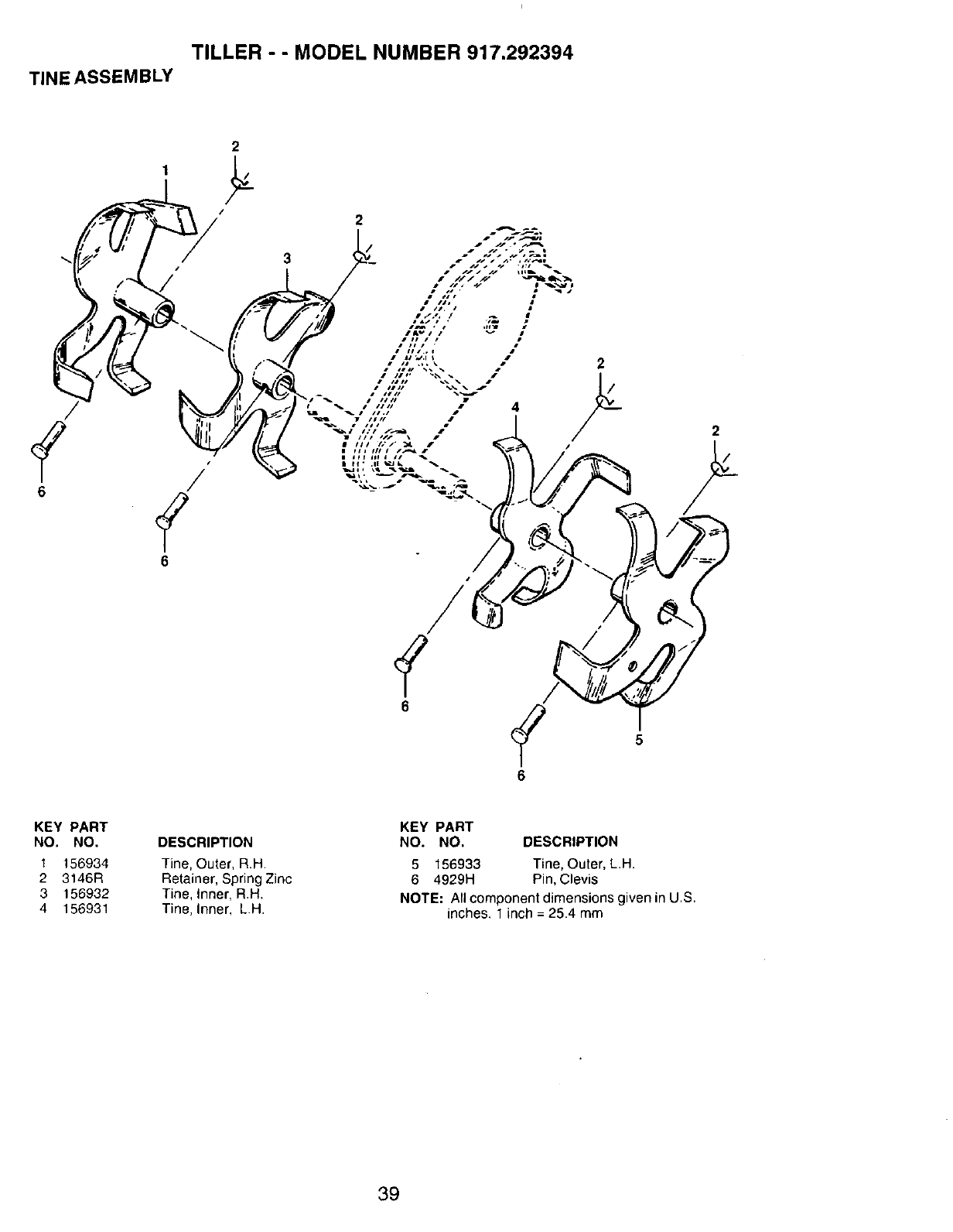

TINEARRANGEMENT
Your outer tines can be assembled in
several different ways to suit your tilling or
cultivating needs.
ACAUTION: Tines are sharp. Wear
gloves or other protection when handling
tines.
NORMAL TILLING - 24" PATH
• Assemble holes "A" in tine hubs to holes
"B" in tine shaft.
_L"Clevis Pin OuterTinex
MID-WIDTH TILLING -22" PATH
• Assemble holes "A" in tine hubs to
holes "C" in tine shaft.
13
NARROW TILLING/CULTIVATING -
12-3/4" PATH
• Remove outer tines.
_ _nerTinesOr
ool
NOTE: When reassembling outer tines,
be sure right tine assembly (marked "R")
and left tine assembly (marked "L") are
mounted to correct side of tine shaft.
TINE OPERATION CHECK
_,CAUTION: Disconnect spark plug wire
from spark plug to prevent starting while
checking tine operation.
For proper tine operation, tine control lever
must be against control body and all slack
removed from inner wire of control cable
when control is in the "OFF" (up) position.
If lever and cable are loose, loosen cable
clip at lower end of cable. Pull up on cable
to remove slack, without extending spring
on end of cable, and retighten cable clip.
FINAL CHECK "OFF" POSITION
• With tine control "OFF" (up), push down
on handle to raise tines off the ground.
• Slowly pull recoil starter handle while
observing tines. Tines should not
rotate.
• If tines rotate, inner wire of control cable
is too tight which is extending lower
spring and engaging tines. Loosen
cable clip and push down on cable only
enough to relieve spring tension.
Tighten cable clip.
• Recheck in "OFF" position and adjust if
necessary.
FINAL CHECK "ON" POSITION
• With tine control "ON" (held down to
handle) push down on handle to raise
tines off the ground.
• Slowly pull recoil starter handle while
observing tines. Tines should rotate
forward.
• If tines do not rotate, inner wire of
control cable is too loose. Loosen cable
clip and pull cable up to remove slack
and retighten clip.
• Recheck in "ON" position and adjust if
necessary.
NOTE: If "ON" position check required
adjustment, recheck "OFF" position
adjustment to insure tines do not rotate
when control is "OFF" (up).
Tine Control "OFF' Position
Tine Control Cable
Cable Clip._ _//_._

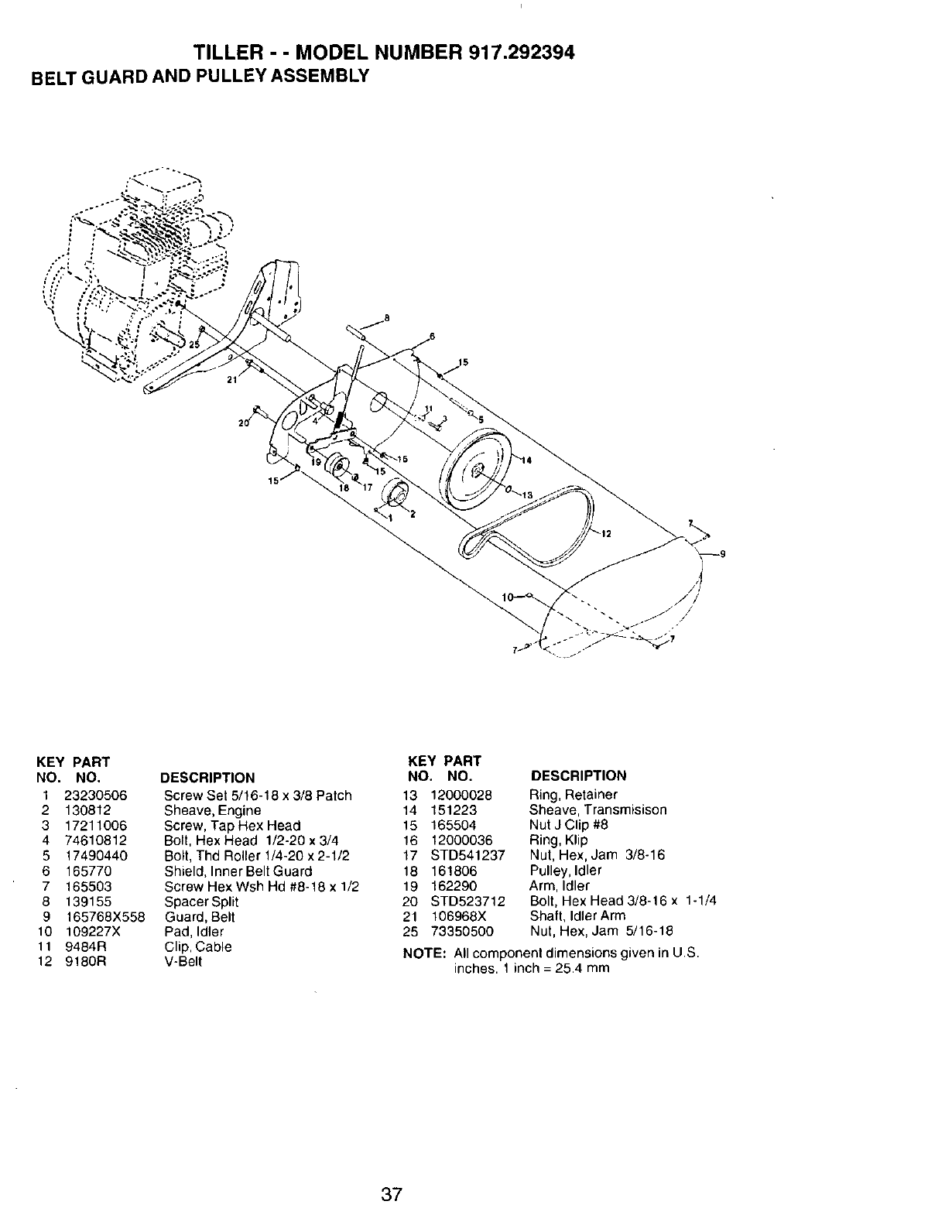

TO REMOVE BELT GUARD
• Remove cap nut and washer from side
of belt guard.
• Pull belt guard out and away from unit.
• Replace belt guard by reversing above
procedure. Be sure slot in bottom of
belt guard is under head of tine shield
bolt and all nuts are tightened securely.
Screw
TO REPLACE V-BELT
Replace V-belt if it has stretched consider-
ably or if it has cracks or frayed edges.
Belt guard must be removed to service
belt. See "TO REMOVE BELT GUARD" in
this section of manual.
BELT REMOVAL
• Remove V-belt from transmission pulley
first and then from engine pulley.
14

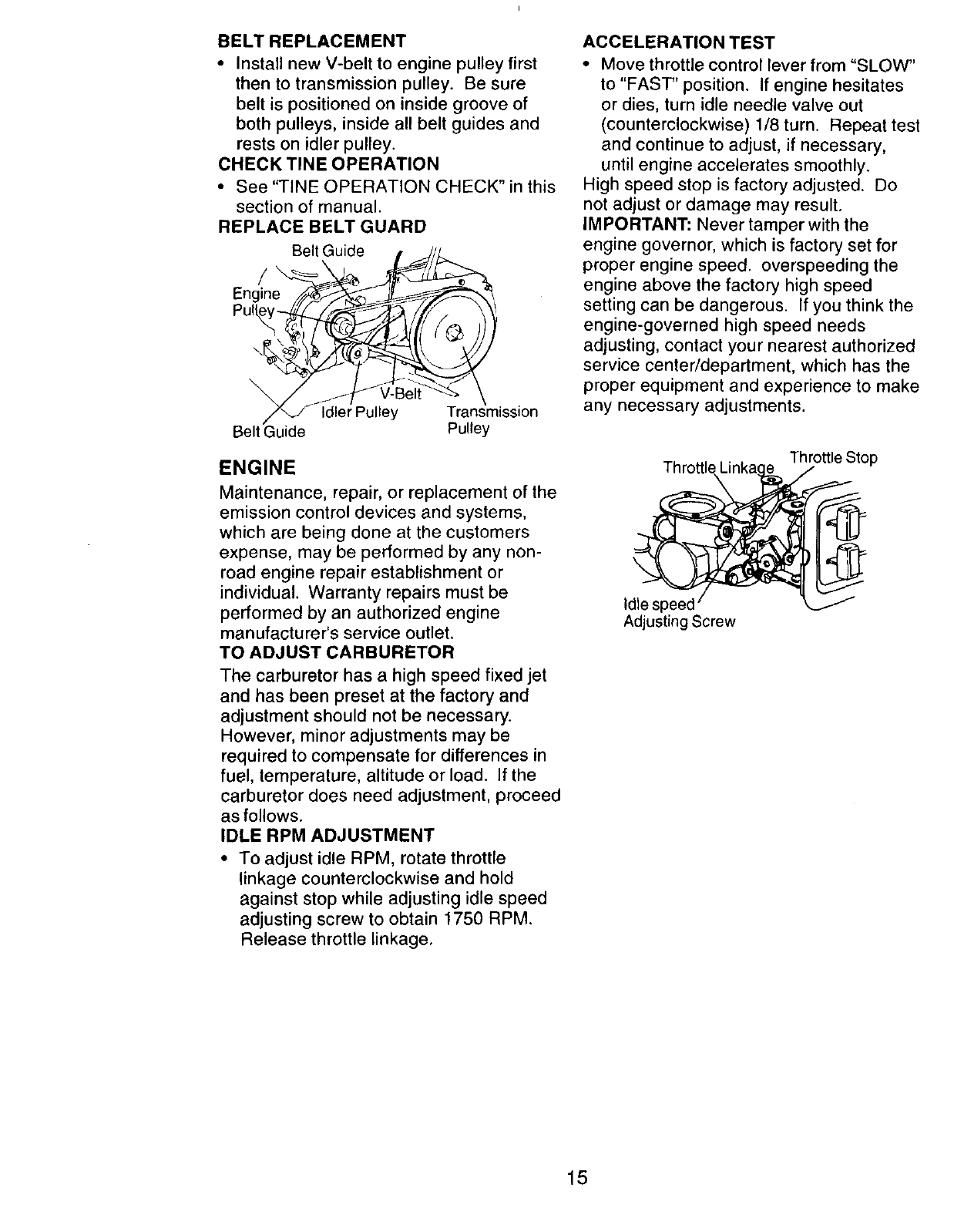

BELT REPLACEMENT
•Install new V-belt to engine pulley first
then to transmission pulley. Be sure
belt is positioned on inside groove of
both pulleys, inside all belt guides and
rests on idler pulley.
CHECK TINE OPERATION
• See "TINE OPERATION CHECK" in this
section of manual.
REPLACE BELT GUARD
Belt Guide
/
Engine
\
Idler Pulley Transmission
Belt Guide Pulley
ENGINE
Maintenance, repair, or replacement of the
emission control devices and systems,
which are being done at the customers
expense, may be performed by any non-
road engine repair establishment or
individual. Warranty repairs must be
performed by an authorized engine
manufacturer's service outlet.
TO ADJUST CARBURETOR
The carburetor has a high speed fixed jet
and has been preset at the factory and
adjustment should not be necessary.
However, minor adjustments may be
required to compensate for differences in
fuel, temperature, altitude or load. If the
carburetor does need adjustment, proceed
as follows.
IDLE RPM ADJUSTMENT
• To adjust idle RPM, rotate throttle
linkage counterclockwise and hold
against stop while adjusting idle speed
adjusting screw to obtain 1750 RPM.
Release throttle linkage.
ACCELERATION TEST
• Move throttle control lever from "SLOW"
to "FAST" position. If engine hesitates
or dies, turn idle needle valve out
(counterclockwise) 1/8turn. Repeat test
and continue to adjust, if necessary,
until engine accelerates smoothly.
High speed stop is factory adjusted. Do
not adjust or damage may result.
IMPORTANT: Never tamper with the
engine governor, which is factory set for
proper engine speed, overspeeding the
engine above the factory high speed
setting can be dangerous. If you think the
engine-governed high speed needs
adjusting, contact your nearest authorized
service center/department, which has the
proper equipment and experience to make
any necessary adjustments.
Throtth Throttle Stop
\
Idle speed
Adjusting Screw
15
Immediately prepare your tiller for storage
at the end of the season or if the unit will
not be used for 30 days or more.
_I, CAUTION: Never store the tiller with
gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
TILLER
• Clean entire tiller (See "CLEANING" in
the Maintenance section of this
manual).
• Inspect and replace belts, if necessary
(See belt replacement instructions in the
Service and Adjustments section of this
manual).
• Lubricate as shown in the Maintenance
section of this manual.
• Be sure that all nuts, bolts and screws
are securely fastened. Inspect moving
parts for damage, breakage and wear.
Replace if necessary.
• Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
ENGINE
FUELSYSTEM
IMPORTANT: It is important to prevent
gum deposits from forming in essential
fuel system parts such as the carburetor,
fuel filter, fuel hose, or tank during storage.
also, experience indicates that alcohol
blended fuels (called gasohol or using
ethanol or methanol) can attract moisture
which leads to separation and formation of
acids during storage. Acidic gas can
damage the fuel system of an engine
while in storage.
• Drain the fuel tank.
• Start the engine and let it run until the
fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in fuel tank or storagq
container. Always follow the mix ratio
found on stabilizer container. Run engine
at least 10 minutes after adding stabilizer
to allow the stabilizer to reach the carbure
tor. Do not drain the gas tank and
carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean oil. (See "ENGINE" in the
Maintenance section of this manual).
CYLINDER(S)
•Remove spark plug.
•Pour 1ounce (29 rnl) of oil through
spark plug hole into cylinder.
•Pull starter handle slowly several times
to distribute oil.
•Replace with new spark plug.
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and
dirt+
•Cover your unit with a suitable protec-
tive cover that does not retain moisture.
Do not use plastic. Plastic cannot
breathe which allows condensation to
form and will cause your unit to rust.
IMPORTANT: Never cover tiller white
engine and exhaust areas are still warm.
16
PROBLEM
Will not start
Hard to start
Loss of power
CAUSE
1. Out of fuel.
2. Engine not "CHOKED"
3. Engine flooded.
4. Dirty air cleaner.
5. Water in fuel.
6. Clogged fuel tank.
7. Loose spark plug wire.
8. Bad spark plug or
improper gap.
9. Carburetor out of adjust-
ment,
1. Throttle control not set
properly.
2. Dirty air cleaner.
3. Bad spark plug or
improper gap.
4. Stale or dirty fuel.
5. Loose spark plug wire.
6, Carburetor out of
adjustment.
1, Engine is overloaded.
2. Dirty air cleaner.
3. Low oil level/dirty oil.
4. Faulty spark plug.
5. Oil in fuel.
6. Stale or dirty fuel.
7. Water in fuel.
8. Clogged fuel tank.
9. Spark plug wire loose.
10. Dirty engine air screen.
CORRECTION
1. Fill fuel tank.
2. See "TO START ENGINE" ir
the Operation section.
3. Wait several minutes before
attempting to start.
4. Clean or replace air cleaner
cartridge.
5. Drain fuel tank and carbure-
tor, and refill tank with fresh
gasoline.
6. Remove fuel tank and clean
7. Make sure spark plug wire i,,
seated properly on plug.
8. Replace spark plug or adjusl
gap.
9. Make necessary adjust-
ments.
1. Place throttle control in
"FAST" position.
2. Clean or replace air cleaner
cartridge.
3. Replace spark plug or adjus
gap.
4. Drain fuel tank and refill
with fresh gasoline.
5. Make sure spark plug wire i_
seated properly on plug,
6. Make necessary adjust-
ments.
1. Set depth stake and wheels
for shallower tilling.
2. Clean or replace air cleaner
cartridge.
3. Check oil level/change oil.
4. Clean and regap or change
spark plug.
5. Drain and clean fuel tank
and refill, and clean carbure
tor.
6. Drain fuel tank and refill witl
fresh gasoline.
7. Drain fuel tank and carbure-
tor, and refill tank with fresh
gasoline.
8. Remove fuel tank and clear
9. Connect and tighten spark
plug wire.
10. Clean engine air screen.
17
HHUId L="IVI
Loss of power
IEngine overheats
Excessive
bounce/difficult
handling
Soil balls up or
clumps
Engine runs but
tiller won't move
Engine runs but
labors when tilling
UAU_ UUHH_IIU_
11. Dirty/clogged muffler.
12. Carburetor out of
adjustment.
13. Poor compression.
1. Low oil level/dirty oil.
2. Dirty engine air screen.
3. Dirty engine.
4. Partially plugged muffler.
5. Improper carburetor
adjustment.
1. Ground too dry and hard.
2. Wheels and depth stake
incorrectly adjusted.
1. Ground too wet.
1. Tine control is not
engaged.
2. V-belt not correctly
adjusted.
3. V-belt is off pulley(s).
1. Tilling too deep.
2. Throttle control not
properly adjusted.
3. Carburetor out of
adjustment.
11. Clean/replace muffler.
12. Make necessary adjust-
ments.
13. Contact an authorized
Sears Service Center/
Department.
1. Check oil level/change oil.
2. Clean engine air screen.
3. Clean cylinder fins, air
screen, muffler area.
4. Remove and clean muffler.
5. Adjust carburetor to richer
position.
1. Moisten ground or wait
for more favorable soil
conditions.
2. Adjust wheels and depth
stake.
1. Wait for more favorable
soil conditions.
1. Engage tine control.
2. Inspect/adjust V-belt.
3. Inspect V-belt.
1. Set depth stake for shal-
lower tilling.
2. Check throttle control setting.
3. Make necessary adjust-
ments.
18
HANDLES
TILLER - - MODEL NUMBER 917.292394
35
13
35
14
38
36
18
KEY PART
NO. NO.
1 137118
3 9266R
12 98000129
13 STD533107
14 110514X
18 3066J
19 151229
20 154805
DESCRIPTION
Panel, Control
Grip, Handle
Nut, Flange
Bolt, Carriage 5/16-18 x 3/4
Assembly, Panel and Tube
Cable, Tine Control
Lever, Control, Tine
Pin, Pivot
KEY PART
NO. NO.
21 12000027
29 12000059
35 72010520
36 73970500
37 165197
38 152094
DESCRIPTION
Ring, Clip
Retainer, Ring
Bolt 5/16-18 x 2-1/2
Looknut, Flange 5/16-18 UNC
Clip, Cable
Assembly, Handle Column
NOTE: All component dimensions given in U.S.
inches. 1 inch =25.4 mm
36
TILLER - - MODEL NUMBER 917.292394
BELT GUARD AND PULLEY ASSEMBLY
KEY PART
NO. NO.
1 23230506
2 130812
3 17211006
4 74610812
5 17490440
6165770
7165503
8 139155
9165768X558
10 109227X
11 9484R
12 9160R
DESCRIPTION
Screw Set 5/16-18 x 3/8 Patch
Sheave, Engine
Screw, Tap Hex Head
Bolt, Hex Head 1/2-20 x 3/4
Bolt, Thd Roller 1/4-20 x2-1/2
Shield, Inner Belt Guard
Screw Hex Wsh Hd #8-18 x1/2
Spacer Split
Guard, Belt
Pad, Idler
Clip, Cable
V-Belt
KEY PART
NO. NO. DESCRIPTION
13 12000028 Ring, Retainer
14 151223 Sheave, Transmisison
15 165504 Nut J Clip #8
16 12000036 Ring, Klip
17 STD541237 Nut, Hex, Jam 3/8-16
18 161806 Pulley, Idler
19 162290 Arm, Idler
20 STD523712 Bolt, HexHead3/8-16x 1-1/4
21 106968X Shaft, Idler Arm
25 73350500 Nut, Hex, Jam 5/16-18
NOTE: All component dimensions given in U,S.
inches. 1 inch = 25.4 mm
37
TILLER - - MODEL NUMBER 917.292394
WHEEL AND DEPTH STAKE ASSEMBLY
16
17
1
18
11
22
9
16
17
KEY PART
NO. NO.
1 9194R
2 74760520
3 STD523107
4 STD541031
5 STD551131
6 STD541437
7 4921H
8 1952J
9 122233X
10 326J
11 74780628
DESCRIPTION
Pin, Clevis
Bolt, Hex Head 5/16-18 x 1-1/4
Bolt, Hex Head 5/16-18 x 3/4
Nut, Hex 5/16-18
Washer, Lock 5/16
Locknut, w/washer 3/8-16
Clip, Hairpin
Support, Depth Stake, R.H.
Stake, Depth
Pin, Clevis
Bolt, Hex 3/8-16 x 1-3/4
KEY PART
NO. NO. DESCRIPTION
13 1951J
15 5388J
16 121117X
17 9188R
18 STD551037
19 9190R
20 STD541437
21 74760516
22 STD541431
Support, Depth Stake, L.H.
Spring, Stake
Boll, Shoulder
Wheel
Washer 13/32 x 13/16 x 11 Ga
Bracket, Wheel
Locknut, Crown 3/8-16
Bolt, Hex Head 5/16-18 x 1
Locknut, w/insert 5/16-18
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
38
TILLER - - MODEL NUMBER 917.292394
TINE ASSEMBLY
2
6
6
5
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 156934 Tine, Outer, R.H. 5 156933 Tine, Outer, L.H.
2 3146R Retainer, Spring Zinc 6 4929H Pin, Clevis
3 156932 Tine, Inner, R.H. NOTE: All component dimensions given
4 156931 Tine, Inner, L.H. inches. 1 inch = 25.4 mm
in U.S.
39

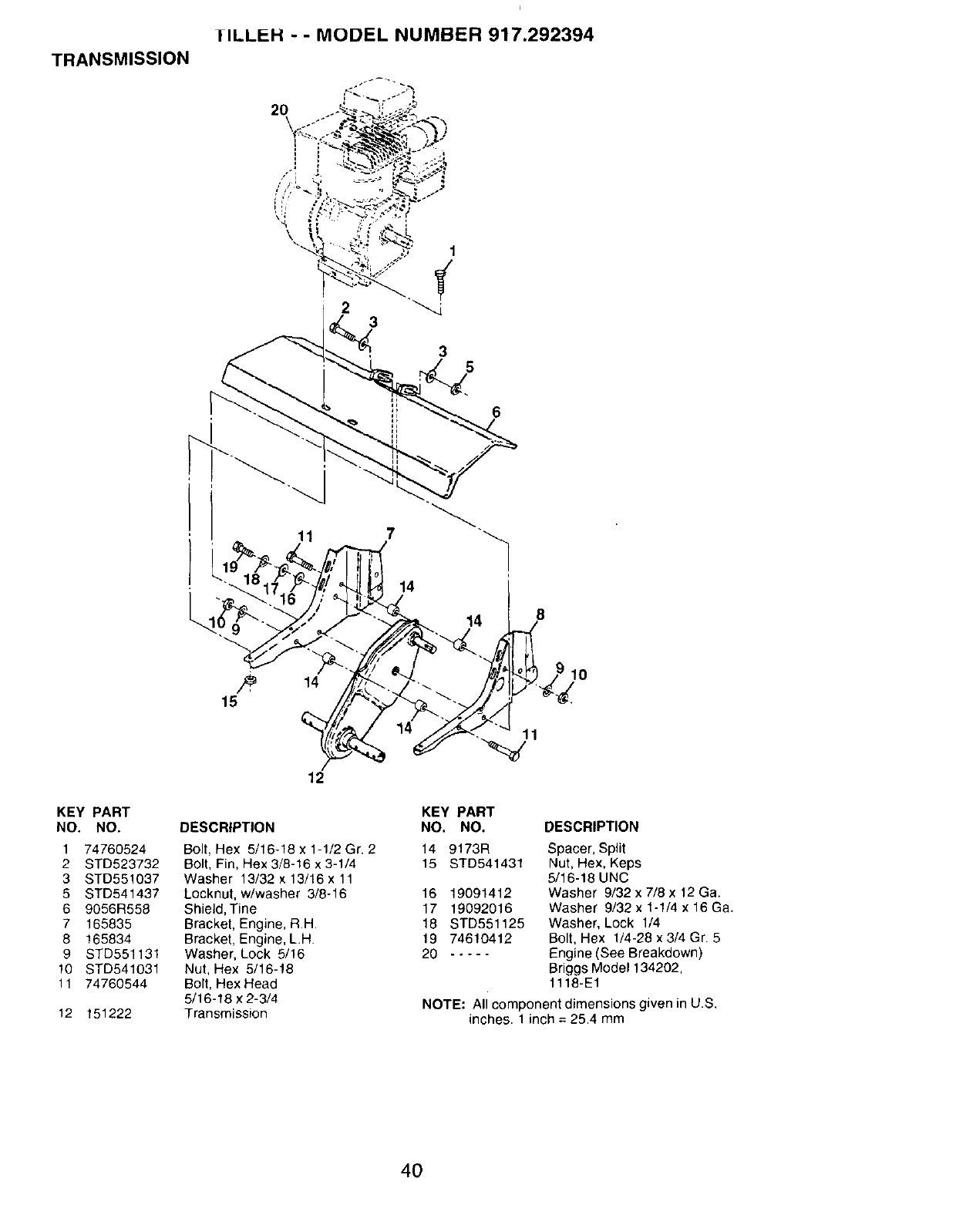

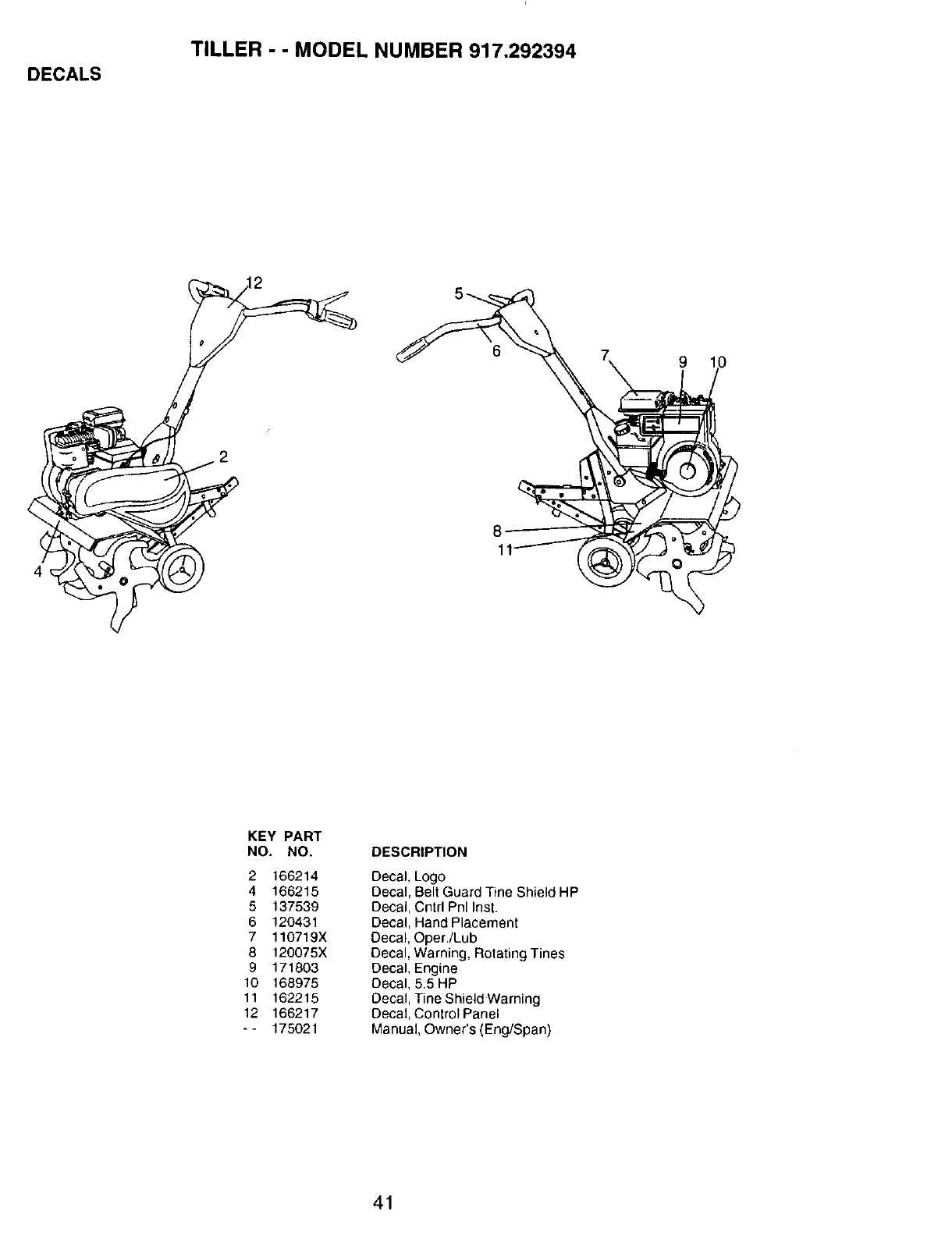

DECALS
TILLER - - MODEL NUMBER 917.292394
!/
/z2
J81
!o
KEY PART
NO. NO.
2 166214
4166215
5 137539
6 120431
7110719X
8 120075X
9 171803
10 168975
11 162215
12 166217
-- 175021
DESCRIPTION
Decal, Logo
Decal, Belt Guard Tine Shield HP
Decal, Cntrl Pnl Inst.
Decal, Hand Placement
Decal, Open/Lub
Decal, Warning, Rotating Tines
Decal, Engine
Decal, 5.5 HP
Decal, Tine Shield Warning
Decal, Control Panel
Manual, Owner's (Eng/Span)
41
TILLER - - MODEL NUMBER 917.292394
ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 134202, TYPE NO. 1118-E1
307
,13
3 308
5
552.
10
36 35
527
40 40
INSTRUCTION MANUAL.
I 1036 LABEL KIT EMISSION I
42
TILLER --MODEL NUMBER 917.292394
ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 134202, TYPE NO. 1118-E1
901
435
995
434
394 432
111
542
256
526
97
152
154
124q_'
96
634
987 j
_127A
187
3,3[
43

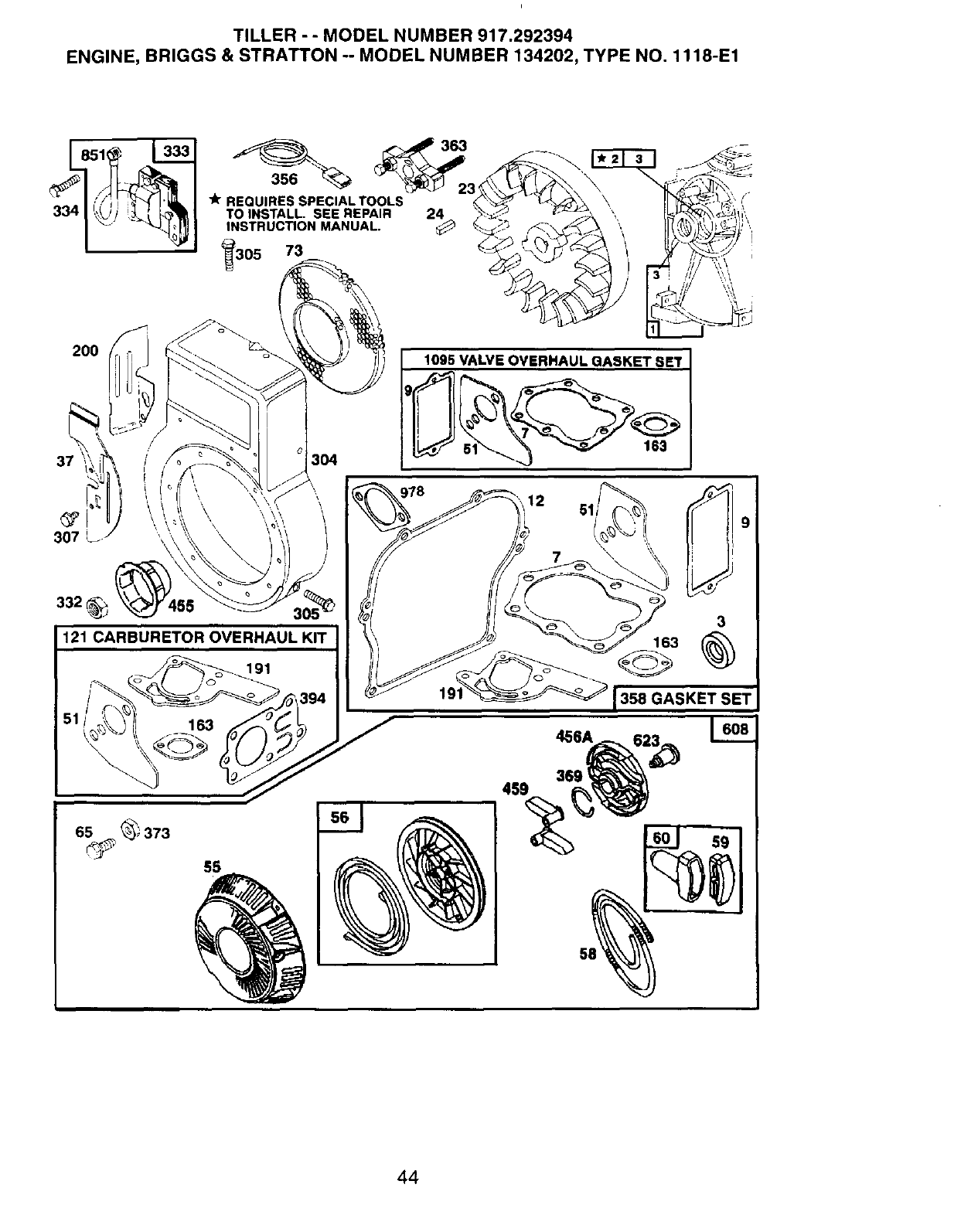

TILLER - - MODEL NUMBER 917.292394
ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 134202, TYPE NO. 1118-E1
8s1
200
37
307 '
332
_3S6 _ _ 363
_r REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR 24
INSTRUCTION MANUAL.
05 73
304
9
3
65 _373
i
5)
44

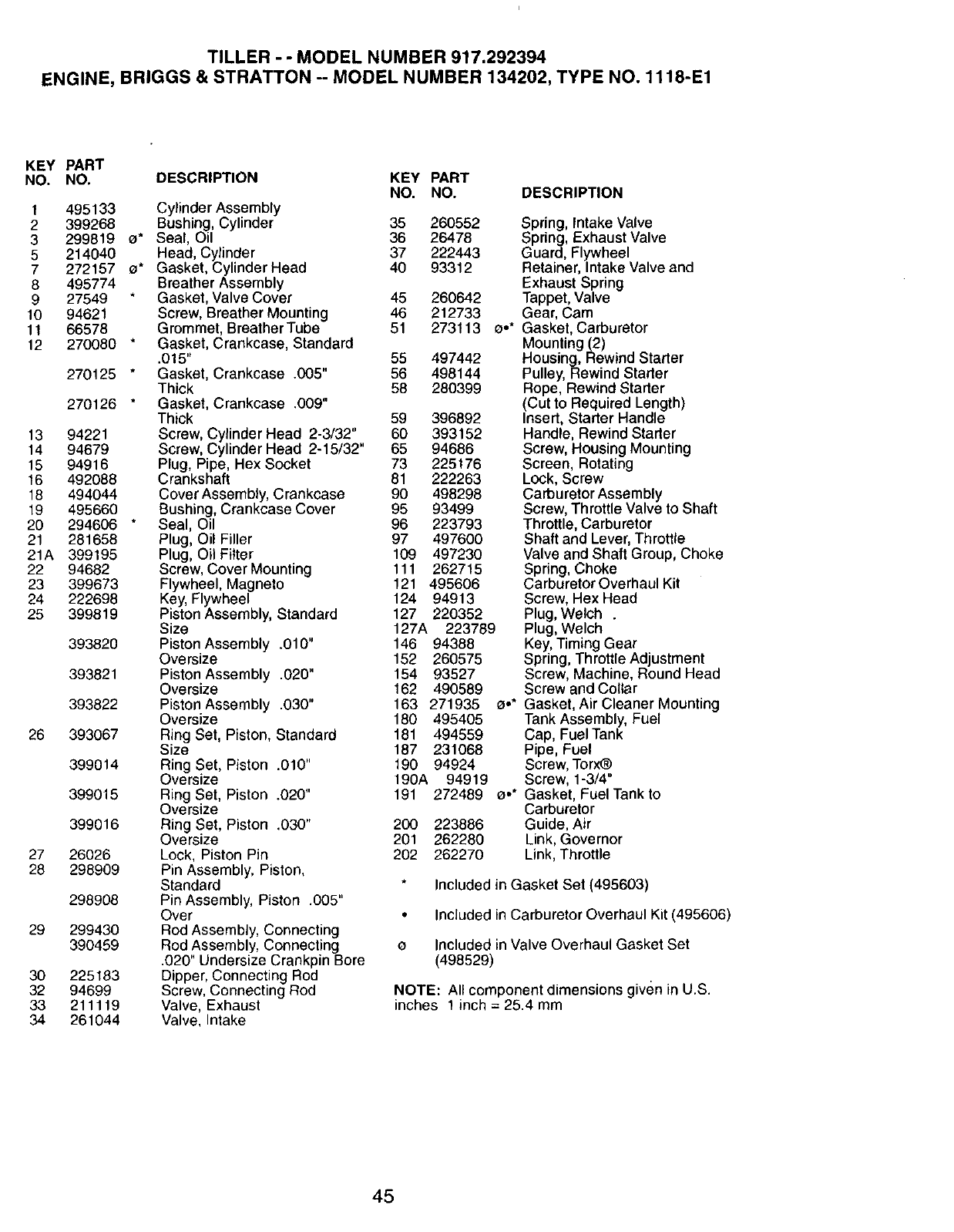

TILLER --MODEL NUMBER 917.292394
ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 134202, TYPE NO. 1118-E1
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
t495133 Cylinder Assembly
2 399268 Bushing, Cylinder 35 260552 Spring, Intake Valve
3 299819 o* Seal, Oil 36 26478 Spring, Exhaust Valve
5 214040 Head, Cylinder 37 222443 Guard, Flywheel
7 272157 e* Gasket, Cylinder Head 40 93312 Retainer, Intake Valve and
8 495774 Breather Assembly Exhaust Spring
9 27549 Gasket, Valve Cover 45 260642 Tappet, Valve
10 94621 Screw, Breather Mounting 46 212733 Gear, Cam
1t 66578 Grommet, BreatherTube 51 273113 e.* Gasket, Carburetor
12 270080 * Gasket, Crankcase, Standard Mounting (2)
.015" 55 497442 Housing, Rewind Starter
270125 Gasket, Crankcase .005" 56 498144 Pulley, Rewind Starter
Thick 58 280399 Rope, Rewind Starter
270126 * Gasket, Crankcase .009" (Cut to Required Length)
Thick 59 396892 Insert, Starter Handle
13 94221 Screw, Cylinder Head 2-3/32" 60 393152 Handle. Rewind Starter
14 94679 Screw. Cylinder Head 2-15/32" 65 94686 Screw, Housing Mounting
15 94916 Plug, Pipe, Hex Socket 73 225176 Screen, Rotating
16 492088 Crankshaft 81 222263 Lock, Screw
18 494044 Cover Assembly, Crankcase 90 498298 Carburetor Assembly
19 495660 Bushing, Crankcase Cover 95 93499 Screw, Throttle Valve to Shaft
20 294606 * Seal, Oil 96 223793 Throttle, Carburetor
21 281658 Plug, Oil Filler 97 497600 Shaft and Lever, Throttle
21A 399195 Plug, Oil Filter 109 497230 Valve and Shaft Group, Choke
22 94682 Screw, Cover Mounting 111 2627t5 Spring, Choke
23 399673 Flywheel, Magneto 121 495606 CarburetorOverhaulKit
24 222698 Key, Flywheel 124 94913 Screw, Hex Head
25 399819 Piston Assembly, Standard 127 220352 Plug, Welch .
Size 127A 223789 Plug, Welch
393820 Piston Assembly .010" 146 94388 Key, Timing Gear
Oversize 152 260575 Spring, Throttle Adjustment
393821 Piston Assembly .020" 154 93527 Screw, Machine, Round Head
Oversize 162 490589 Screw andCollar
393822 Piston Assembly .030" 163 271935 e.* Gasket, Air Cleaner Mounting
Oversize 180 495405 Tank Assembly, Fuel
26 393067 Ring Set, Piston, Standard 181 494559 Cap, Fuel Tank
Size 187 231068 Pipe, Fuel
399014 Ring Set, Piston .010" 190 94924 Screw, Torx_
Oversize 190A 94919 Screw, 1-3/4"
399015 Ring Set, Piston .020" 191 272489 o.* Gasket, FueITank to
Ove rsize Carburetor
399016 Ring Set, Piston .030" 200 223886 Guide, Air
Oversize 201 262280 Link, Governor
27 26026 Lock, Piston Pin 202 262270 Link, Throttle
28 298909 Pin Assembly, Piston,
Standard Included in Gasket Set (495603)
298908 Pin Assembly, Piston .005"
Over •Included in Carburetor Overhaul Kit (495606)
29 299430 Rod Assembly, Connecting
390459 Rod Assembly, Connecting e Included in Valve Overhaul Gasket Set
.020" Undersize Crankpin Bore (498529)
30 225183 Dipper, Connecting Rod
32 94699 Screw, Connecting Rod NOTE: All component dimensions given in U.S.
33 211119 Valve, Exhaust inches 1 inch = 25.4 mm
34 261044 Valve, Intake
45

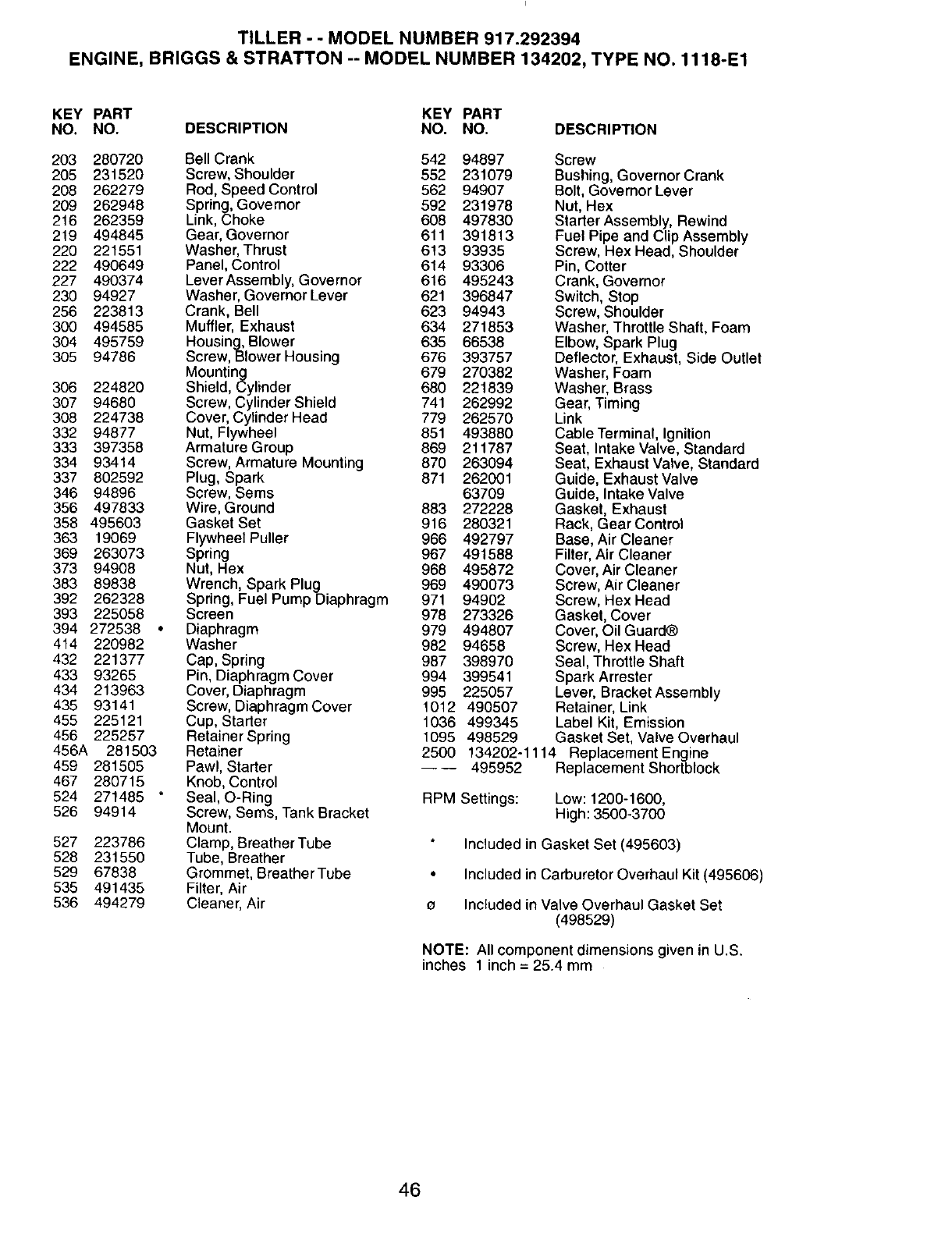

TILLER --MODEL NUMBER 917.292394
ENGINE, BRIGGS & STRATTON -- MODEL NUMBER 134202, TYPE NO. 1118-E1
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
203 280720 Bell Crank 542 94897
205 231520 Screw, Shoulder 552 231079
208 262279 Rod, Speed Control 562 94907
209 262948 Spring, Governor 592 231978
216 262359 Link, Choke 608 497830
219 494845 Gear, Governor 611 391813
220 221551 Washer, Thrust 613 93935
222 490649 Panel, Control 614 93306
227 490374 LeverAssembly, Governor 616 495243
230 94927 Washer, Governor Lever 621 396847
256 223813 Crank, Bell 623 94943
300 494585 Muffler, Exhaust 634 271853
304 495759 Housing, Blower 635 66538
305 94786 Screw,Blower Housing 676 393757
Mounting 679 270382
306 224820 Shield, Cylinder 680 221839
307 94680 Screw, Cylinder Shield 741 262992
308 224738 Cover, Cylinder Head 779 262570
332 94877 Nut, Flywheel 851 493880
333 397358 ArmatureGroup 869 211787
334 93414 Screw, Armature Mounting 870 263094
337 802592 Plug, Spark 871 262001
346 94896 Screw, Sems 63709
356 497833 Wire, Ground 883 272228
358 495603 Gasket Set 916 280321
363 19069 FlywheelPuller 966 492797
369 263073 Spring 967 491588
373 94908 Nut, Hex 968 495872
383 89838 Wrench, Spark Plug 969 490073
392 262328 Spring, Fuel Pump Diaphragm 971 94902
393 225058 Screen 978 273326
394 272538 •Diaphragm 979 494807
414 220982 Washer 982 94658
432 221377 Cap, Spring 987 398970
433 93265 Pin, Diaphragm Cover 994 399541
434 213963 Cover, Diaphragm 995 225057
435 93141 Screw, Diaphragm Cover 1012 490507
455 225121 Cup, Starter 1036 499345
456 225257 Retainer Spring 1095 498529
456A 281503 Retainer 2500
459 281505 Paw_,Starter
467 280715 Knob, Control
524 271485 Seal, O-Ring RPM
526 94914 Screw, Sems, Tank Bracket
Mount.
527 223786 Clamp, Breather Tube
528 231550 Tube, Breather
529 67838 Grommet, BreatherTube
535 491435 Filter, Air
536 494279 Cleaner, Air e
Screw
Bushing, Governor Crank
Bolt, Governor Lever
Nut, Hex
Starter Assembly, Rewind
Fuel Pipe and Clip Assembly
Screw, Hex Head, Shoulder
Pin, Cotter
Crank, Governor
Switch, Slop
Screw, Shoulder
Washer, Throttle Shaft, Foam
Elbow, Spark Plug
Deflector, Exhaust, Side Outlet
Washer, Foam
Washer, Brass
Gear, Timing
Link
Cable Terminal, Ignition
Seat, Intake Valve, Standard
Seat, Exhaust Valve, Standard
Guide, Exhaust Valve
Guide, Intake Valve
Gasket, Exhaust
Rack, Gear Control
Base, Air Cleaner
Filter, Air Cleaner
Cover, Air Cleaner
Screw, Air Cleaner
Screw, Hex Head
Gasket, Cover
Cover, Oil Guard_
Screw, Hex Head
Seal, Throttle Shaft
Spark Arrester
Lever, Bracket Assembly
Retainer, Link
Label Kit, Emission
Gasket Set, Valve Overhaul
134202-1114 Replacement Engine
-- -- 495952 Replacement Shortblock
Settings: Low: 1200-1600,
High: 3500-3700
Included in Gasket Set (495603)
• Included in Carburetor Overhaul Kit (495606)
Included in Valve Overhaul Gasket Set
(498529)
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
46
47
Get it fixed, at your home or ours!
For repair of major brand appliances in your own home...
no matter who made it, no matter who sold it!
1-800-4-MY-HOME sM Anytime, day or night
(1-800-469-4663)
www.sears.com
To bring in products such as vacuums,
lawn equipment and electronics for repair, call for
the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 Anytime, day or night
www.sears.com
For the replacement parts, accessories and owner's manuals
that you need to do-it-yourself, call Sears PartsDirectSM!
1-800-366-PART 6 a.m.- 11 p.m. CST,
(1-800-366-7278) 7 days a week
www.sears.com/par tsdirect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 am. - 5 p.m. CST, Mon. - Sat.
Para pedir servicio de reparacidn a domicilio,
y para ordenar piezas con entrega a domicilio:
1-888-SU-HOGAR SM
(1-888-784-6427)
HomeCentral sM
Au Canada pourservice en fran_;ais:
1-877-LE-FOYER sM
(1-877-533-6937)
© Sears, Roebuck and Co. ® Registered Trademark /TMTrademark of Sears, Roebuck and Co.
® Marca Registrada/ TMMarca de Fabrica de Sears, Roebuck and Co,
175021 06.02.00 VB Printed in U.S.A.

Navigation menu
