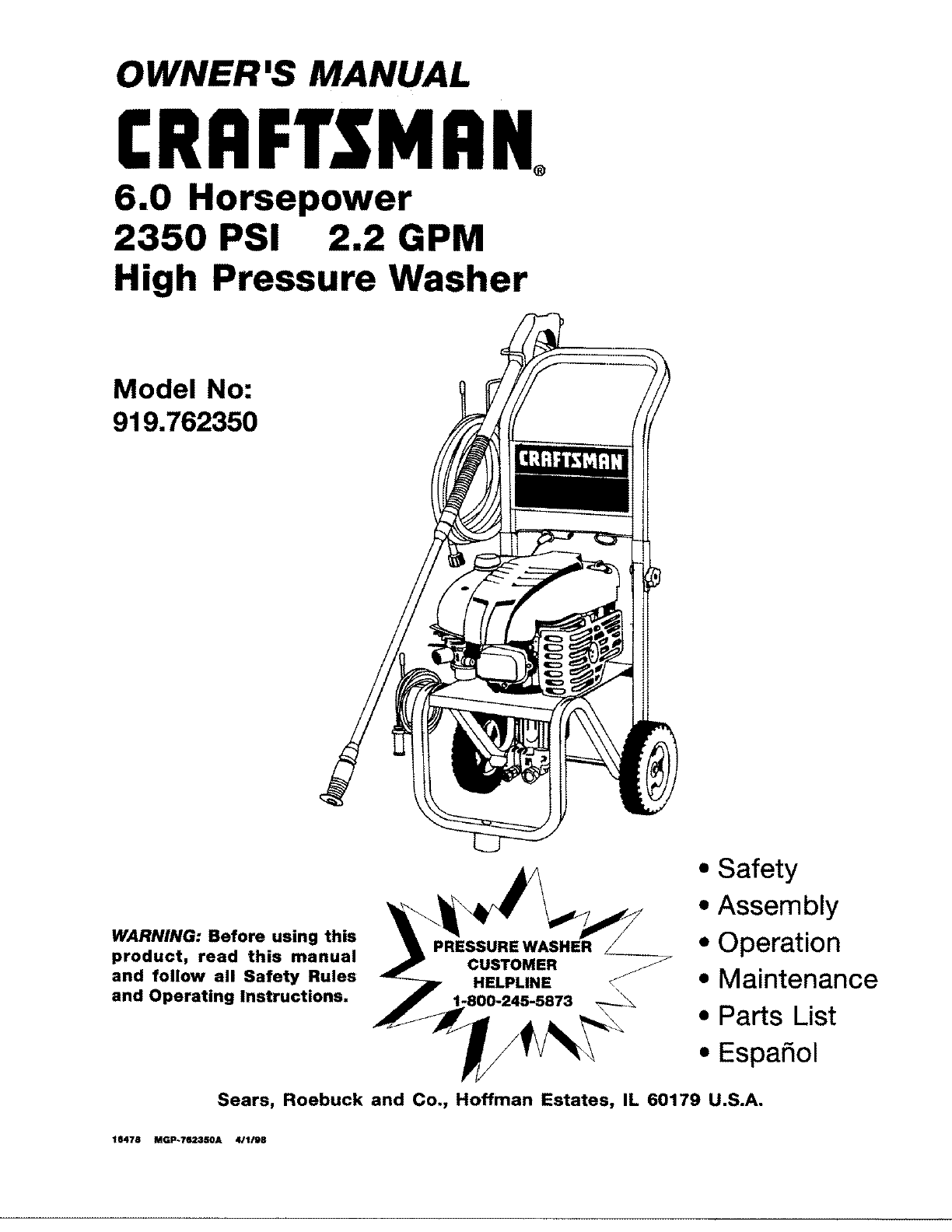

OWNER'S MANUAL

I:RItFTSMnN

6.0 Horsepower

2350 PSI 2.2 GPM

High Pressure Washer

Model No:

919.762350

WARNING: Before using this

product, read this manual

and follow all Safety Rules

and Operating Instructions.

CUSTOMER

HELPLINE

•Safety

•Assembly

•Operation

•Maintenance

• Parts List

• EspaSol

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

18478 MGP-?62350A 41t/98

TABLE OF CONTENTS

Warranty ............................................ 2

Safety Guidelines .............................. 3-5

Assembly .......................................... 5-7

Operation .......................................... 7-10

Maintenance ...................................... 11_13

Service and Adjustments ................ 13-14

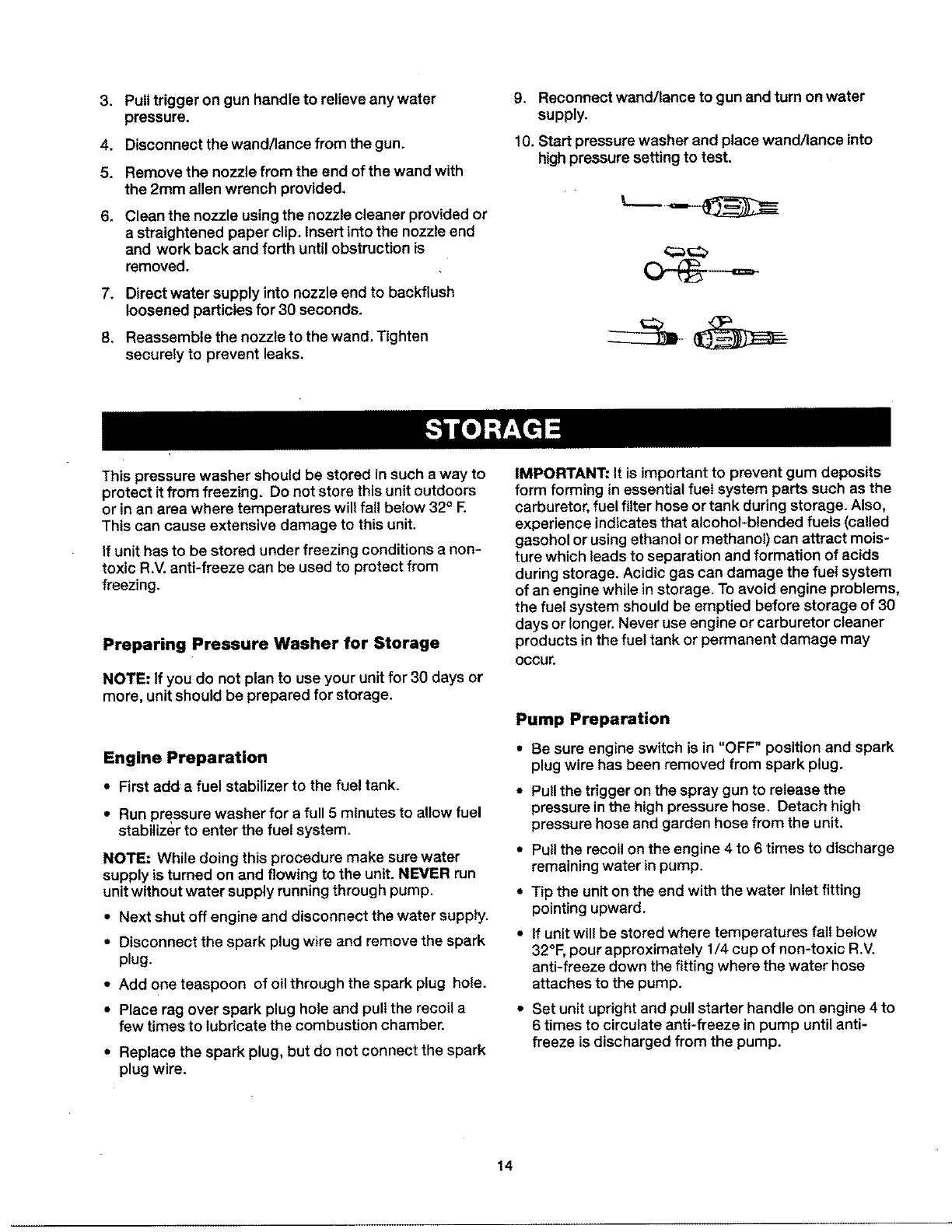

Storage ................................................. 14

Troubleshooting .................................... 15

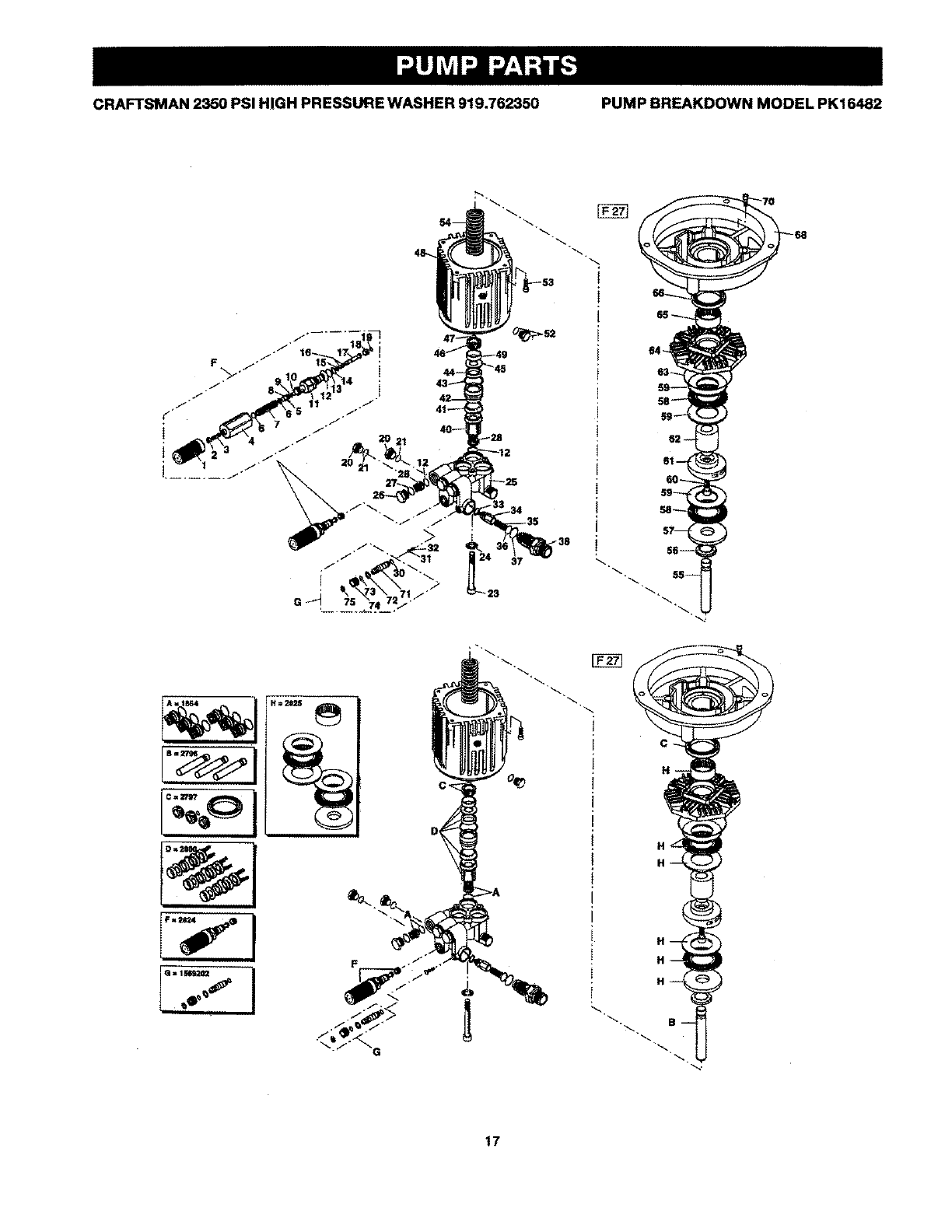

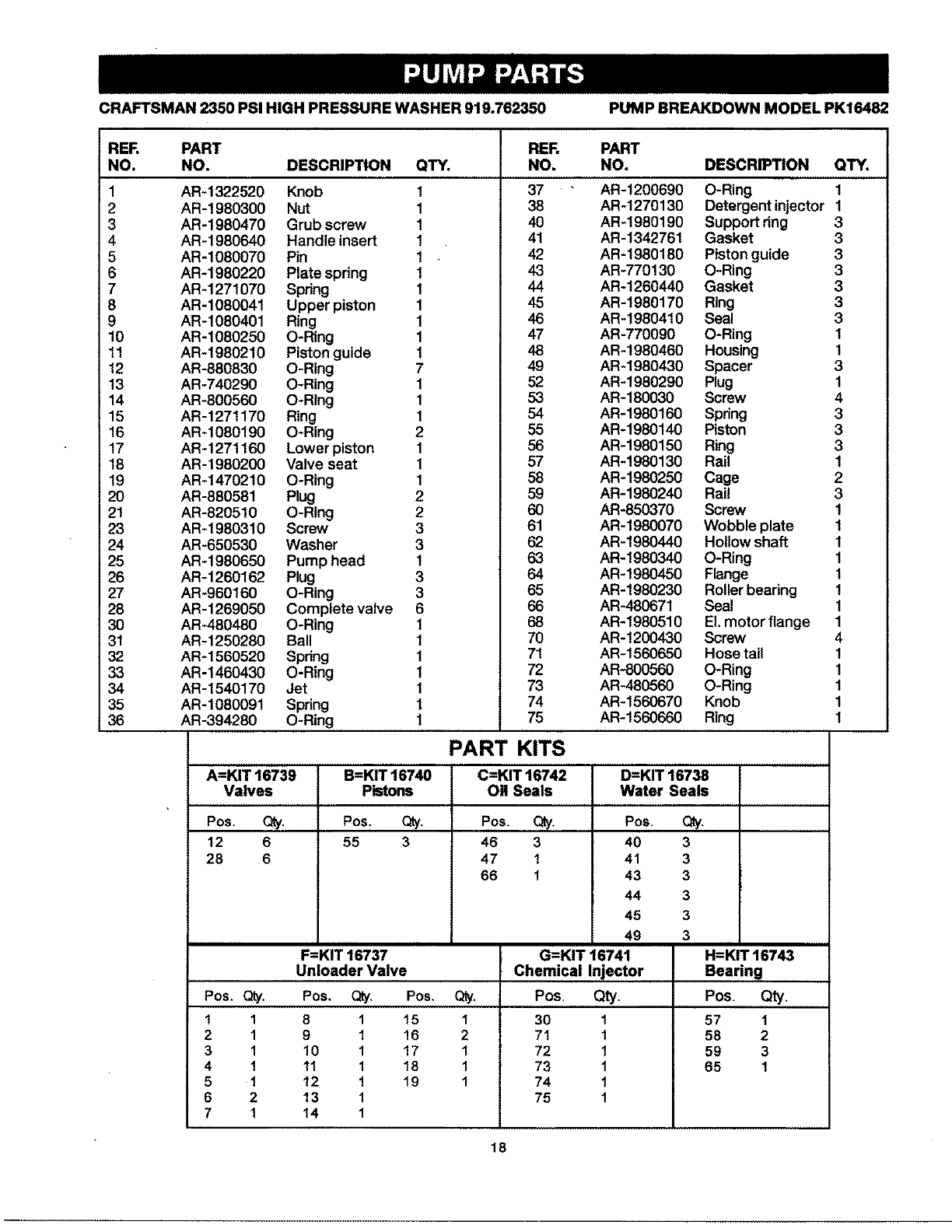

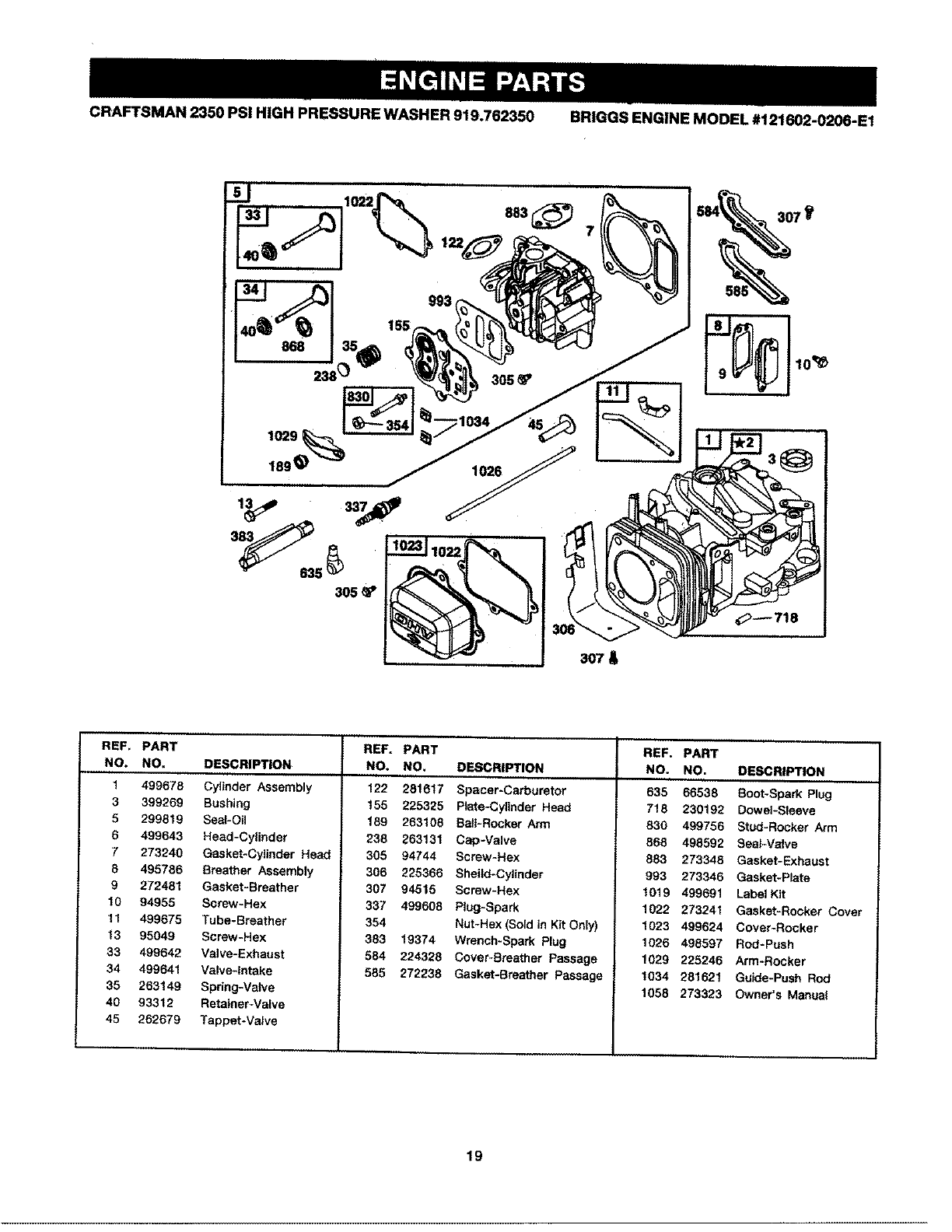

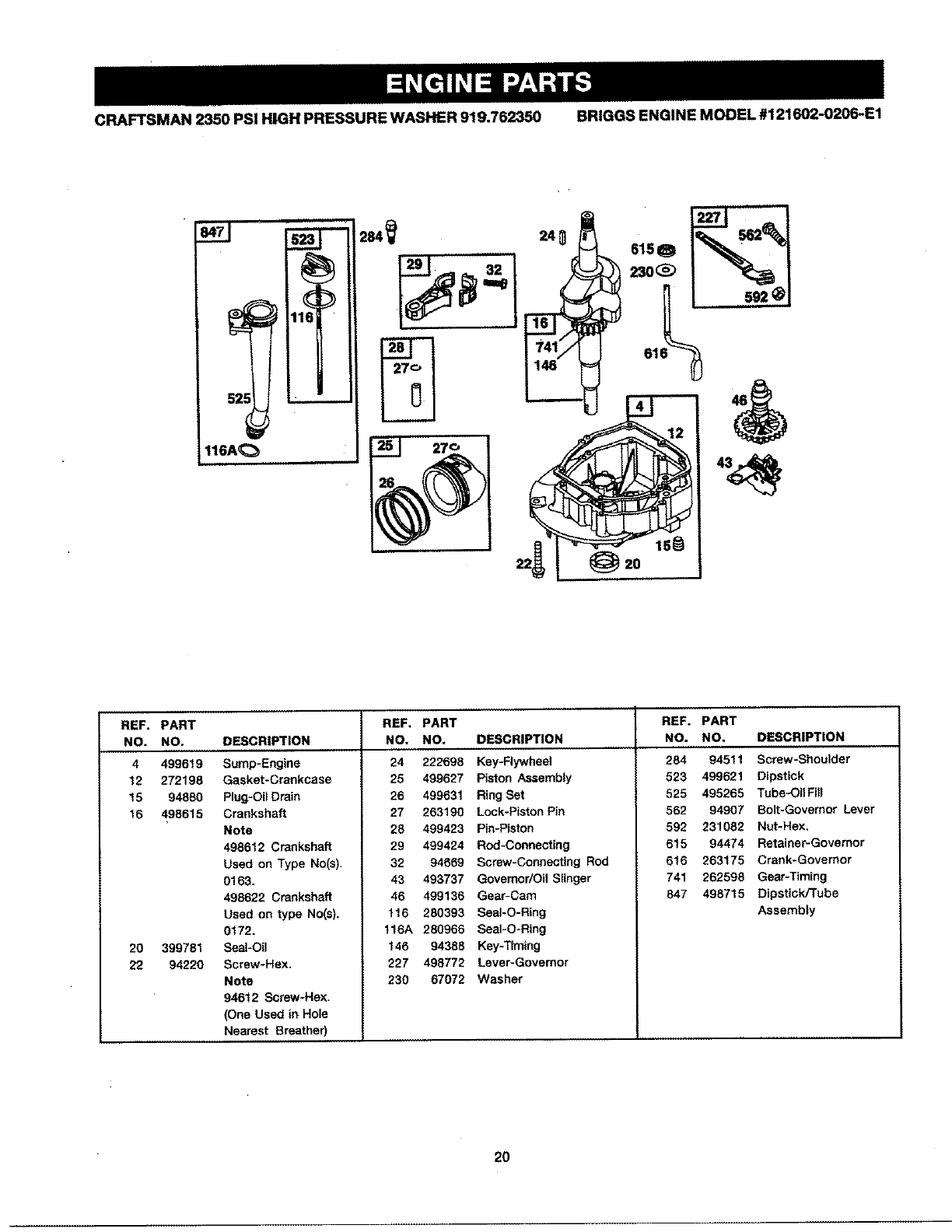

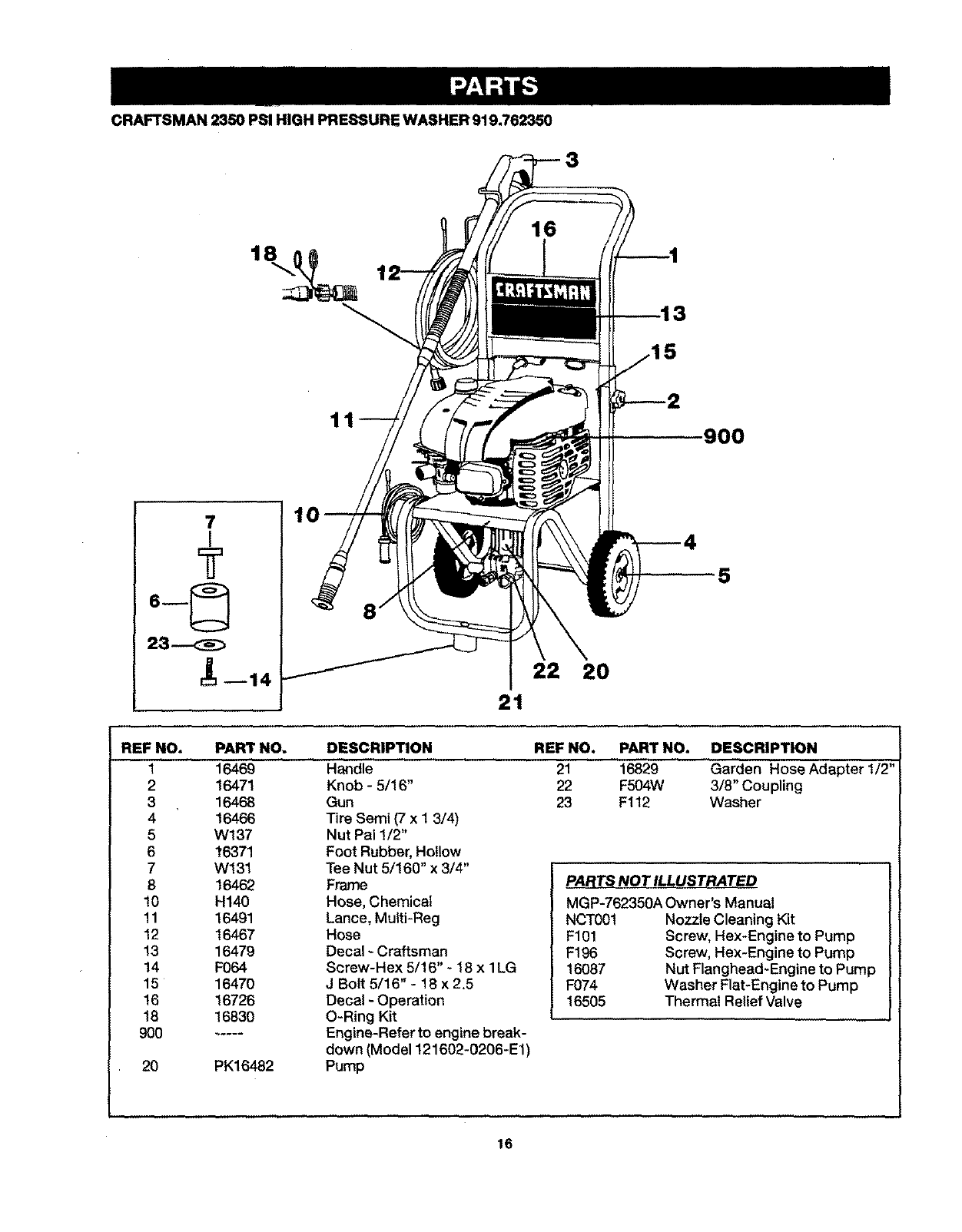

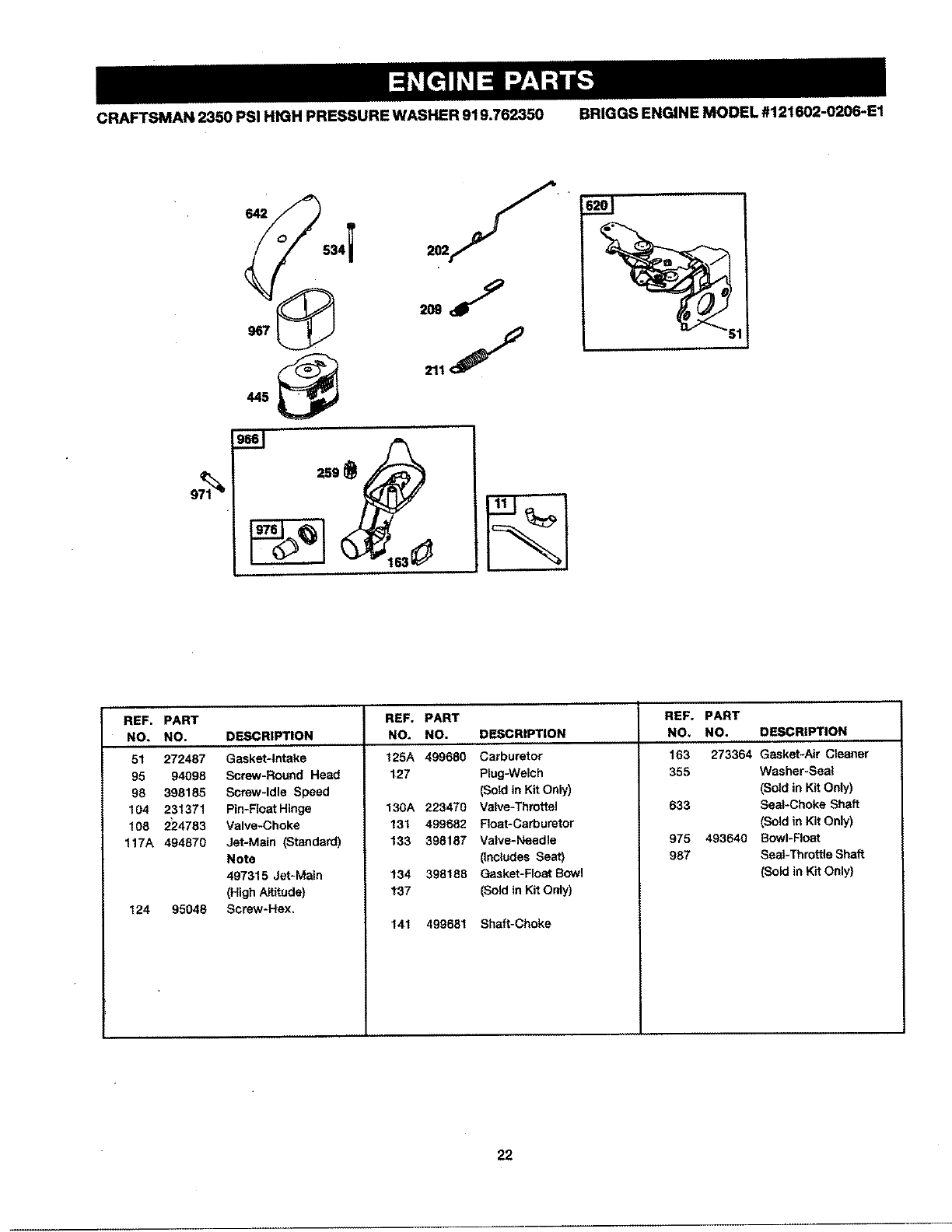

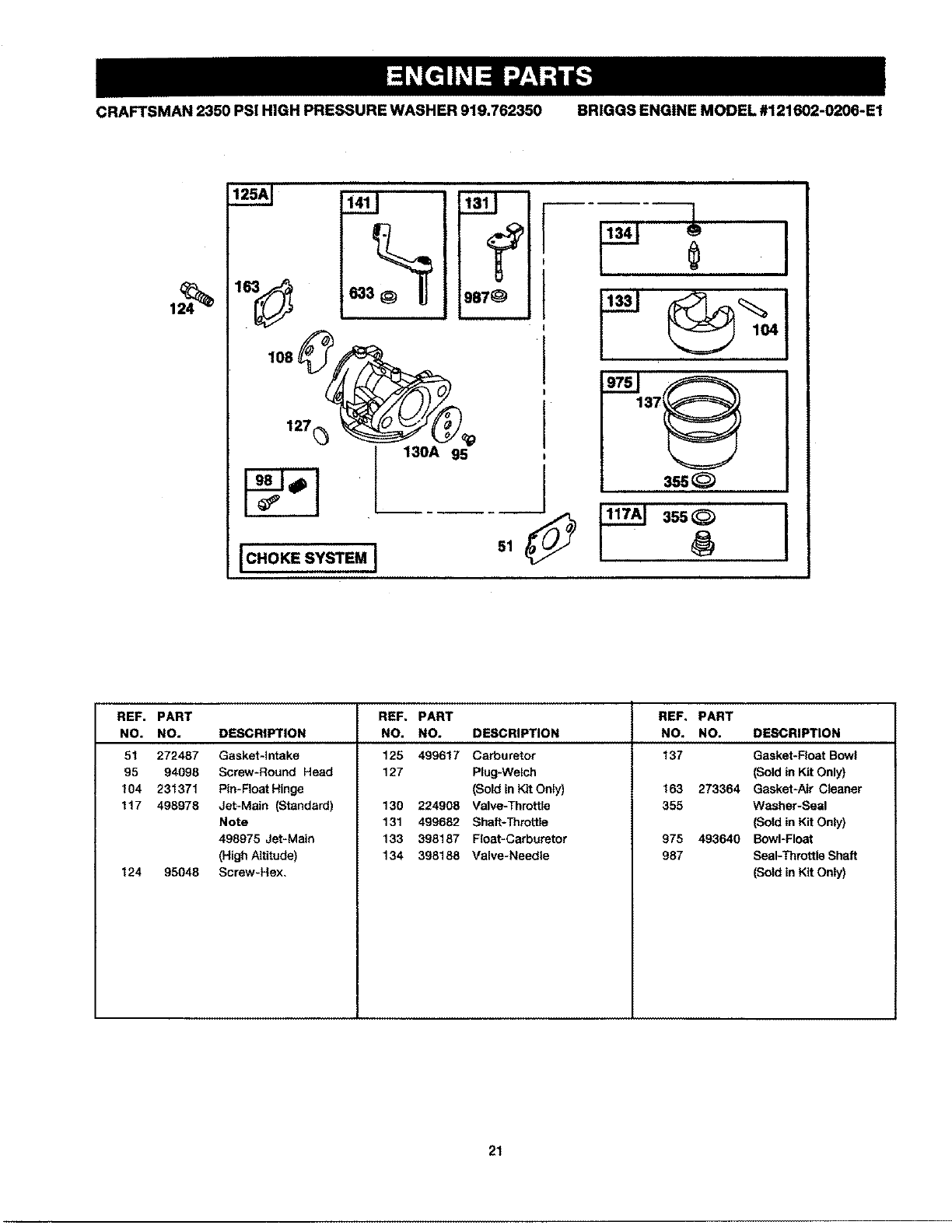

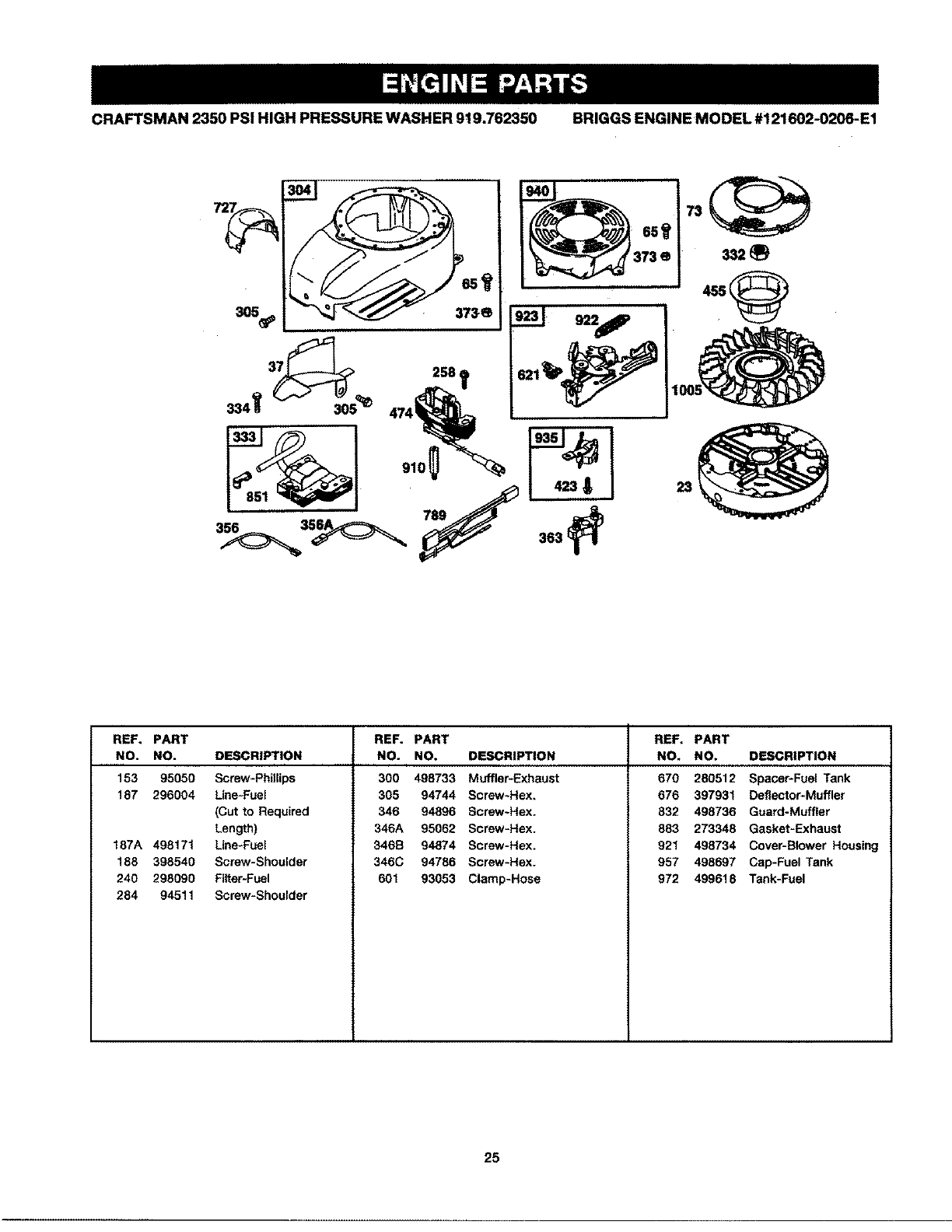

Parts ................................................ 16-27

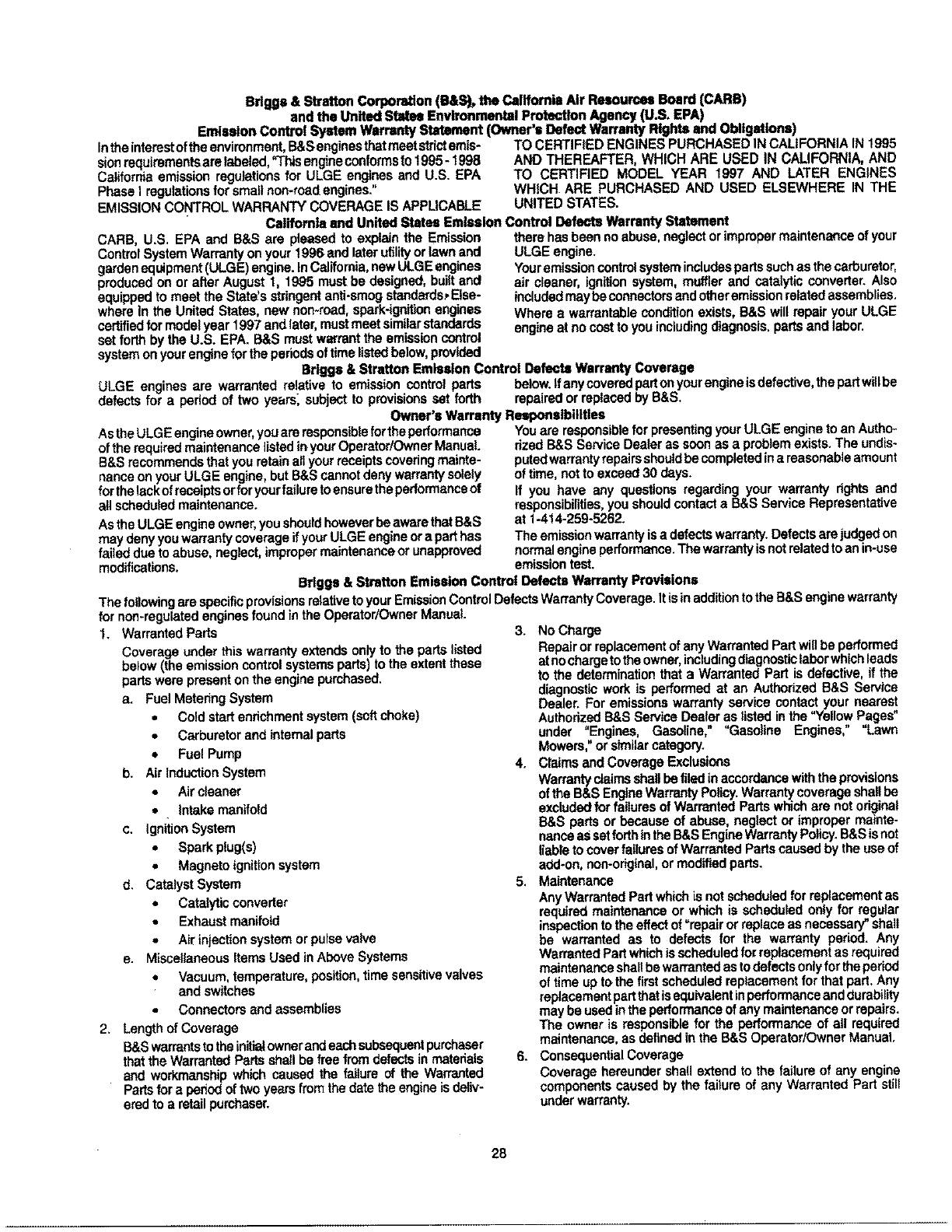

EPA Codes ...................................... 28-29

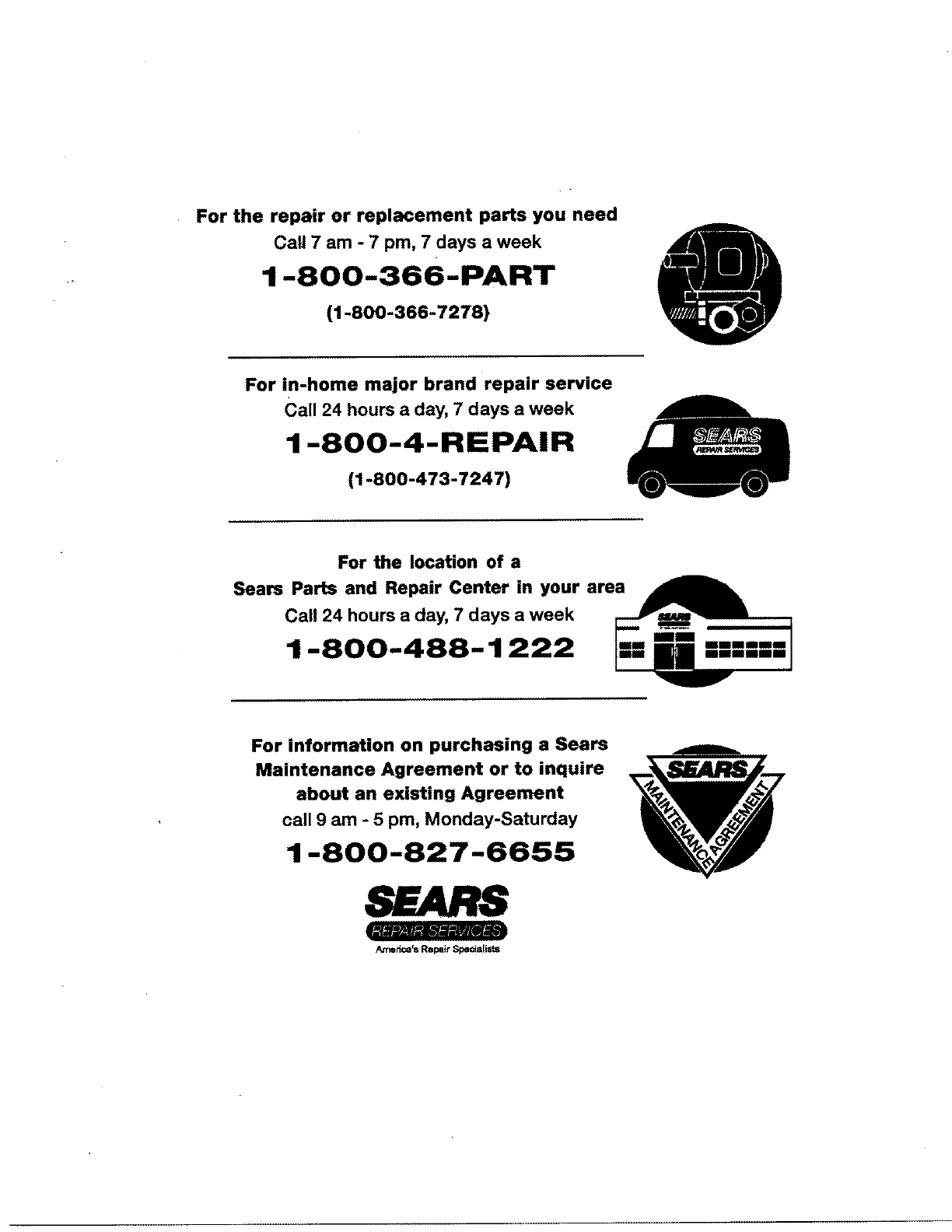

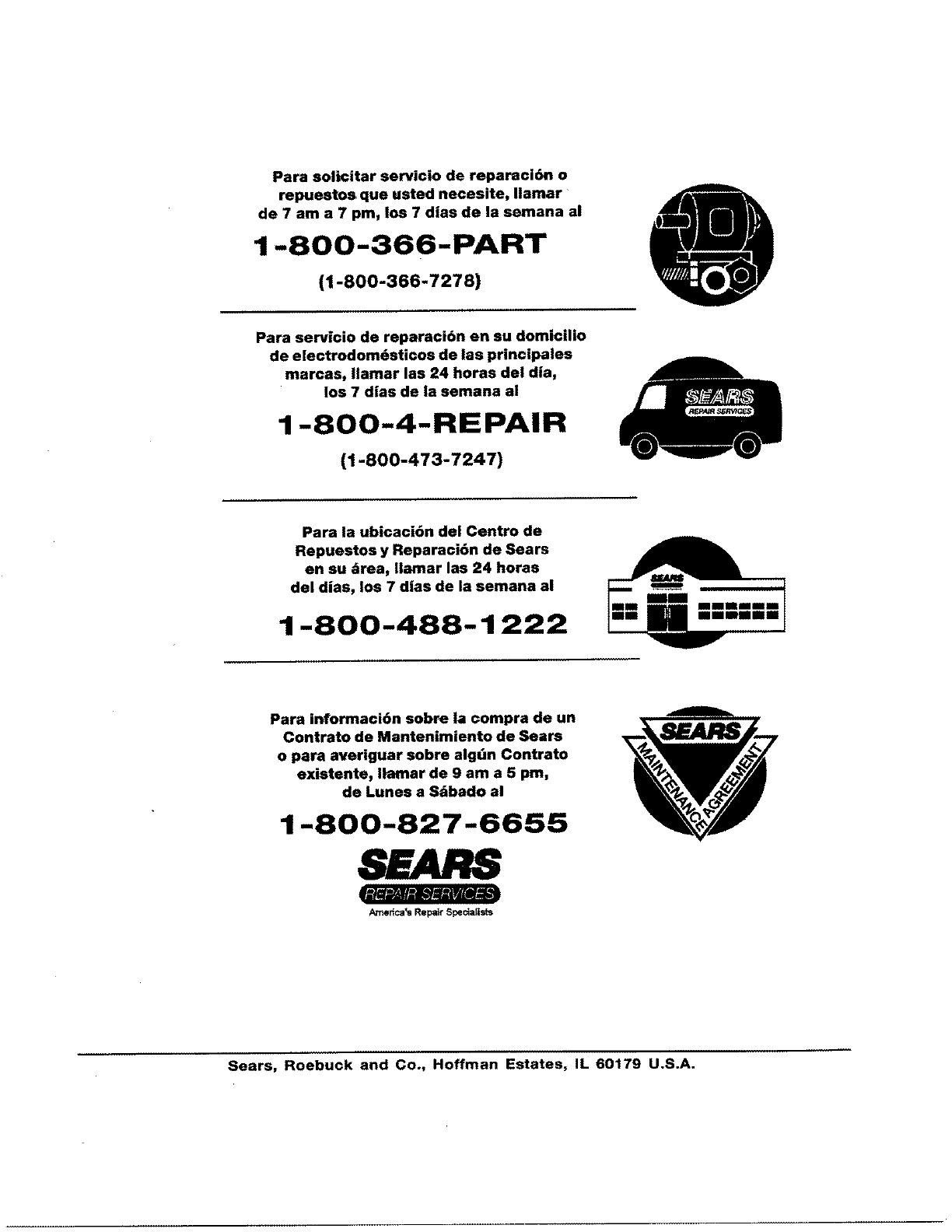

How to Order Parts ............... Back Cover

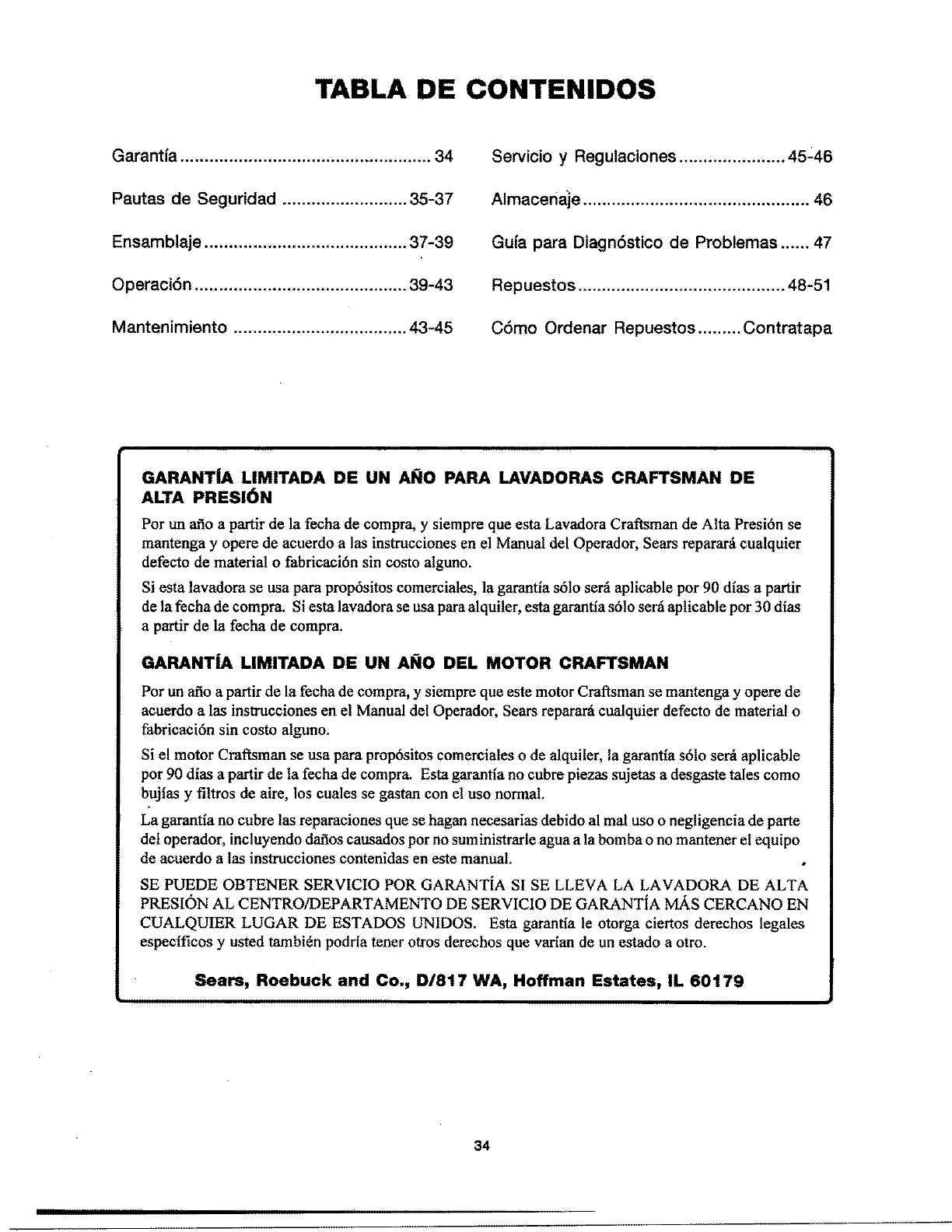

Espa5ol ........................................... 34-51

LIMITED ONE YEAR WARRANTY ON CRAFTSMAN HIGH PRESSURE WASHER

For one year from the date of purchase, when this Craftsman High Pressure Washer is maintained

and operated according to the instructions in the owner's manual, Sears will repair, free of charge,

any defect in material and workmanship.

If your Craftsman Pressure Washer is used for commerical or rental purposes, this warranty

applies only for 90 days from the date of purchase.

LIMITED ONE YEAR WARRANTY ON CRAFTSMAN ENGINE

Maintenance, replacement or repair of the emission control devices and systems may be per-

formed by any nonroad engine repair establishment or individual. However, to obtain no charge

repairs under the terms and provisions of Craftsman warranty statement, any service or emission

control part repair or replacement must be performed by an factory authorized dealer.

For one year from the date of purchase, when this Craftsman engine is maintained and operated

according to the instructions in the owner's manual, Sears will repair, free of charge, any defect in

material and workmanship.

If your Craftsman engine is used for commerical or rental purposes, this warranty applies only for

90 days from the date of purchase. This warranty does not cover: Expendable items such as

spark plugs and air filters, which become worn during normal use.

Repairs necessary because of operator abuse or negligence, including damage resulting from no

water being supplied to pump or failure to maintain the equipment according to the instructions

contained in the owner's manual, are not covered under warranty.

WARRANTY SERVICE IS AVAILABLE BY RETURNING THE HIGH PRESSURE WASHER TO THE

NEAREST SEARS SERVICE CENTER/DEPARTMENT THROUGHOUT THE UNITED STATES.

This, warranty gives you specific legal rights and you may also have other rights, which vary from

state to state.

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

iiiiii

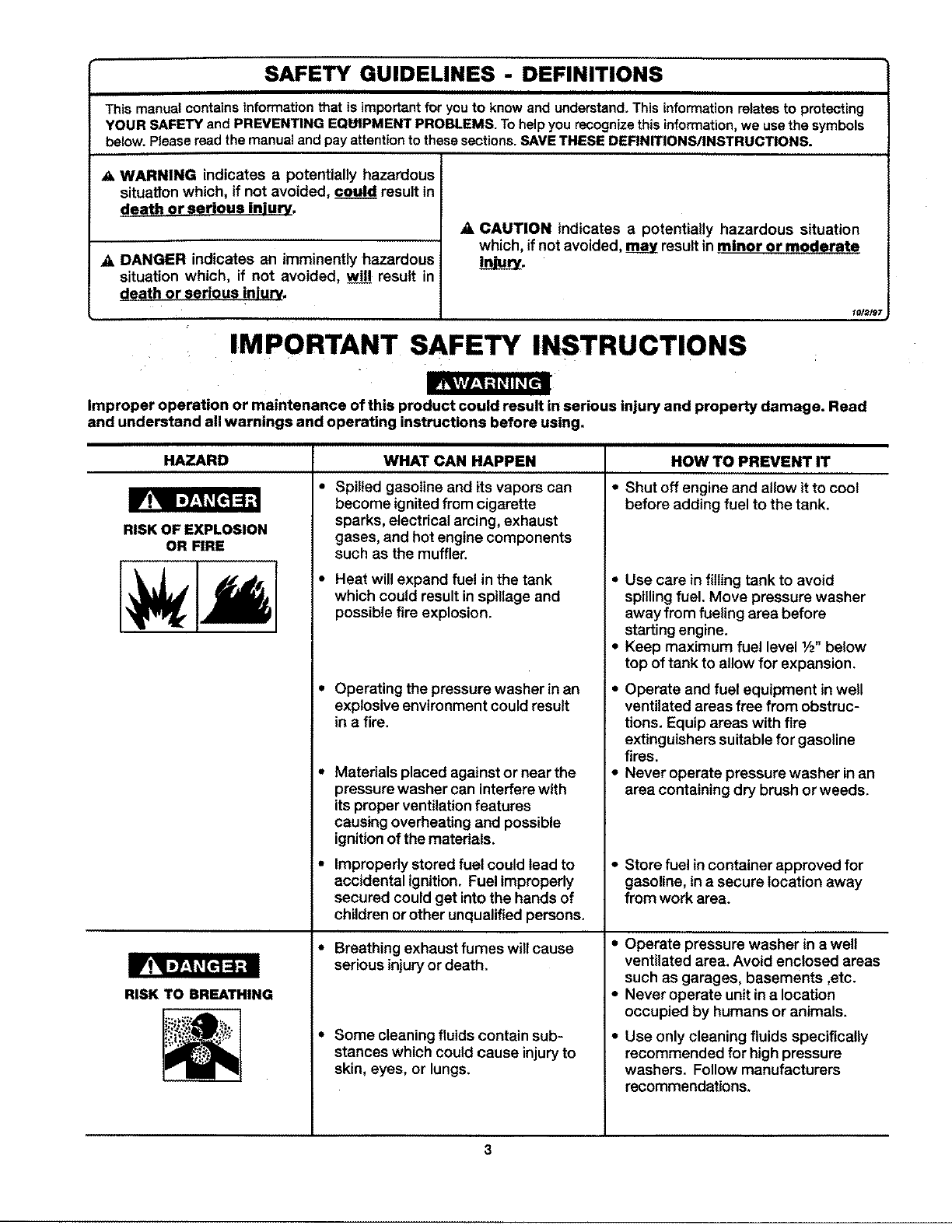

SAFETY GUIDELINES - DEFINITIONS

This manual containsinformationthat is importantfor youto know and understand. This informationrelatesto protesting

YOUR SAFETYand PREVENTING EQUIPMENT PROBLEMS. Tohelpyou recognizethisinformation,we usethe symbols

below. Pleasereadthe manualandpay attentionto thesesections.SAVETHESE DEFINITIONS/INSTRUCTIONS.

•& WARNING indicates a potentially hazardous

situation which, if not avoided, _couldresult in

death or set ous in" ,

A DANGER indicates an imminently hazardous

situation which, if not avoided, will result in

death or serious injury.

CAUTION indicates a potentially hazardous situation

which, if not avoided, _result inminor or moderate

i__qju .

f_2_Z

IMPORTANT SAFETY INSTRUCTIONS

!'_YI:! I]_ I1_[e]

Improper operation or maintenance of this product could result in serious injury and property damage. Read

and understand all warnings and operating instrucUons before using.

HAZARD

RISK OF EXPLOSION

OR FIRE

RISK TO BREATHING

WHAT CAN HAPPEN

•Spilled gasoline and its vapors can

become ignited from cigarette

sparks, electrical arcing, exhaust

gases, and hot engine components

such as the muffler.

•Heat will expand fuel inthe tank

which could result in spillage and

possible fire explosion.

Operating the pressure washer in an

explosive environment could result

in a fire.

Materials placed against or near the

pressure washer can interferewith

its proper ventilation features

causing overheating and possible

ignition of the materials.

Improperly stored fuel could lead to

accidental ignition. Fuel improperly

secured could get into the hands of

children orother unqualified persons.

Breathing exhaust fumes will cause

serious injury or death.

Some cleaning fluids contain sub-

stances which could cause injury to

skin, eyes, or lungs.

HOW TO PREVENT IT

• Shut off engine and allow it to cool

before adding fuel to the tank.

•Use care in filling tank to avoid

spilling fuel. Move pressure washer

away from fueling area before

startingengine.

•Keep maximum fuel level 1/2"below

top of tank to allow for expansion.

,, Operate and fuel equipment in well

ventilated areas free from obstruc-

tions. Equip areas with fire

extinguishers suitable for gasoline

fires.

•Never operate pressure washer in an

area containing dry brush or weeds.

Store fuel in container approved for

gasoline, in a secure location away

from work area.

•Operate pressure washer in awell

ventilated area. Avoid enclosed areas

such as garages, basements ,etc.

•Never operate unit ina location

occupied by humans or animals.

Use only cleaning fluids specifically

recommended for high pressure

washers. Follow manufacturers

recommendations.

IMPORTANT SAFETY INSTRUCTIONS (cont'd)

HAZARD

RISK OF UNSAFE

OPERATION

RISK OF INJURY FROM

SPRAY

RISK OF

ELECTRICAL

SHOCK

RISK OF FLUID INJECTION

RISK OF CHEMICAL BURN

WHAT CAN HAPPEN

• Unsafe operation of your pressure

washer could lead to serious injury

or death to you or others.

•The spray gun/wand is a powerful

cleaning tool that could look like a

toy to a child.

• Reactive force of spray will cause

gun/wand to move, and could cause

the operator to slip or fall, or

misdirect the spray. Improper control

of gun/wand can result in injuriesto

self and others.

High velocity fluid spray can cause

objects to break, propelling particles

at high speed.

Ught orunsecured objects can become

hazardous projectiles.

• Spray directed at electrical outlets or

switches, or objects connected to an

electrical circuit, could resultin a fatal

electrical shock.

• Your washer operates at fluid

pressures and velocities high enough

to penetrate human and animal flesh,

which could result in amputation or

other serious injury. Leaks caused by

loose fittings or worn or damaged

hoses can result in injection injuries.

DO NOT TREAT FLUID iNJECTION AS

ASIMPLE CUT! See aphysician

immediately!

• Relieve system pressure before

attempting maintenance or disassem-

bly of equipment.

Use of acids, toxic or corrosive

chemicals, poisons, insecticides, or

any kind of flammable solvent with this

product could result in serious injury

or death.

HOW TO PREVENT IT

•Become famiUar with the operation

and controls of the pressure washer.

• Keep children away from the

pressure washer at all times.

•Never defeat the safety features of this

product.

• Do not operate machine with missing,

broken, or unauthorized parts.

• Never leave wand unattended while

unit is running.

•Keep work area free of obstacles.

•Stand on astable surface and grip gun/

wand firmly. Expect the gun to kick

when triggered.

• Always wear ANSI approved Z87 safety

glasses. Wear protective clothing to

protect against accidental spraying.

•Never point wand at, or spray people or

animals.

• Always secure trigger lock when wand

is not in service to prevent accidental

operation.

•Neverpermanentlysecuretriggerinpull

back (open)position.

• Unplug any electrically operated

product before attempting to clean it.

Direct spray away from electric outlets

and switches.

• Never place hands in front of nozzle.

•Direct spray away from self and others.

• Make sure hose and fittings are

tightened and in good condition. Never

hold onto the hose or fittings during

operation.

• Do not allow hose to contact muffler.

• Never attach or remove wand or hose

fittings while system is pressurized.

i •

Use only hose and high pressure

accessories rated for 2000 PSI service.

To relieve system pressure, shut off

engine, turn off water supply, and pull

gun trigger until water stops flowing.

Do not use acids, gasoline, kerosene, or

any other flammable matarials in this

product. Use only household

detergents, cleaners and degreasers

recommended for use in pressure

washers.

•Wear protective clothing to protect

eyes and skin from contact with

sprayed materials.

IMPORTANT SAFETY INSTRUCTIONS (cont'd)

HAZARD WHAT CAN HAPPEN HOW TO PREVENT IT

RISK OF HOT SURFACES

*Contact with hot surfaces, such as

engines exhaust components, could

result in serious burn.

•During operation, touch only the control

surfaces of the pressure washer. Keep

children away from the pressure washer

at all times. They may not be able to

recognize the hazards of this product.

Symbols Owner's Manual I_e_I Choke

IMPORTANT:

The powerful spray from your pressure washer is capable of causing damage to fragile surfaces such as: wood, glass,

automobile paint, auto stripping and trim, and delicate objects such as flowers and shrubs. Before spraying, check the

item to be cleaned to assure yourself that it is robust enough to resist damage from the force of the spray. Avoid the

use of the concentrated spray stream except for very strong surfaces like concrete and steel.

Operating unit with water supply shut off without flow of water will result in equipment damage. You should never run

this pressure washer for more than 2 minutes without pulling the trigger to allow cool water to enter the pump and the

heated (recirculated) water to exit. Running the pressure washer with water supply shut off will void your warranty.

Carton Contents

• Main Unit pressure washer with wheels

• Handle

• High Pressure Hose

• Chemical Pickup Hose and Filter

•Gun

• Wand

Main Unit pressure washer Handle

with wheels

Chemical Pickup Hose and Filter

High Pressure Hose

Gun and Wand

• Bag Containing

•Video Cassette

• Owners' Manual

•Nozzle Cleaning Kit and Replacement O-Rings

•Engine Oil

•Rubber Isolator and Mounting Hardware

•Handle Mounting Hardware

Video Cassette Owners'Manual Nozzle Cleaning Kit

Handle Mounting

Hardware

Engine Oil

Replacement O-Rings

<3E_

Rubber Isolator and

Mounting Hardware

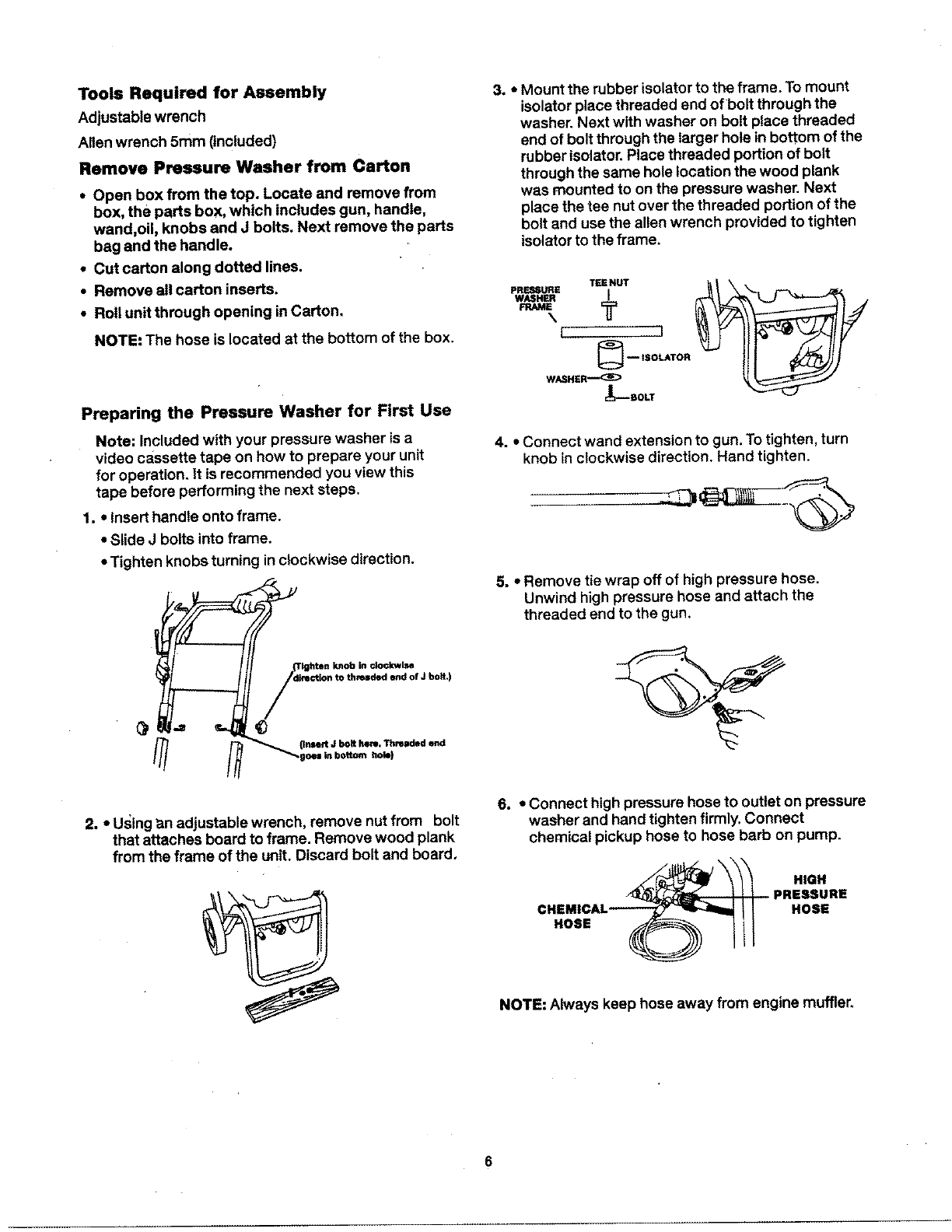

Tools Required for Assembly

Adjustablewrench

Allenwrench 5ram (included)

Remove Pressure Washer from Carton

• Open box from the top. Locate and remove from

box, the parts box, which includes gun, handle,

wand,oil, knobs and J bolts. Next remove the parts

bag and the handle.

• Cut carton along dotted lines.

•Remove all carton inserts.

•Roll unit through opening in Carton,

NOTE: The hose is located at the bottom of the box,

Preparing the Pressure Washer for First Use

Note: Included with your pressure washer is a

video cassette tape on how to prepare your unit

for operation. It is recommended you view this

tape before performing the next steps,

1. •Insert handle onto frame.

•Slide J bolts into frame.

•Tighten knobs turning in clockwise direction.

!ir lghten knob in clockwise

ctinn to threaded end of J bob+)

(inzert J bolt Itere, Th,,,_zdedend

_9oes in bOt_m hole)

2. =Using an adjustable wrench, remove nut from bolt

that attaches board to frame. Remove wood plank

from the frame of the unit. Discard bolt and board.

3. • Mount the rubber isolator to the frame. To mount

isolator place threaded end of bolt through the

washer. Next with washer on boIt place threaded

end of bolt through the larger hole in bottom of the

rubber isolator. Place threaded portion of bolt

through the same hole location the wood plank

was mounted to on the pressure washer. Next

place the tee nut over the threaded portion of the

bolt and use the allen wrench provided to tighten

isolator to the frame.

PRESSURE TEE NUT

WASHe. I

L J

-- ISOLATOR

4. • Connect wand extension to gun. To tighten, turn

knob in clockwise direction. Hand tighten.

5. =Remove tie wrap off of high pressure hose.

Unwind high pressure hose and attach the

threaded end to the gun.

6. • Connect high pressure hose to outlet on pressure

washer and hand tighten firmly. Connect

chemical pickup hose to hose barb on pump.

CHEMICAL-'--'---_k-_ II HOSE

NOTE: Always keep hose away from engine muffler.

7. •Place assembled gun and wand on pressure

washer holder. - Lift the pull cord handle up and slide the cord to

the left sliding the cord into the wire loop.

- Next slide handle behind the wire bracket to the

left of the wire loop.

- Engine recoil will pull the cord into its final

position.

8. •Place pull cord into the wire bracket holder.

- Pull the cord under the wire bracket to the right

of the wire loop.

Checklist

Before going any further please review the following:

•Be sure you have completed assembly instructions.

•Double check allfittings to be sure they are tight.

IMPORTANT: Before any attempt to start your pres-

sure washer be sure to check engine oil (See Operation

under Engine Oil, page 8.)

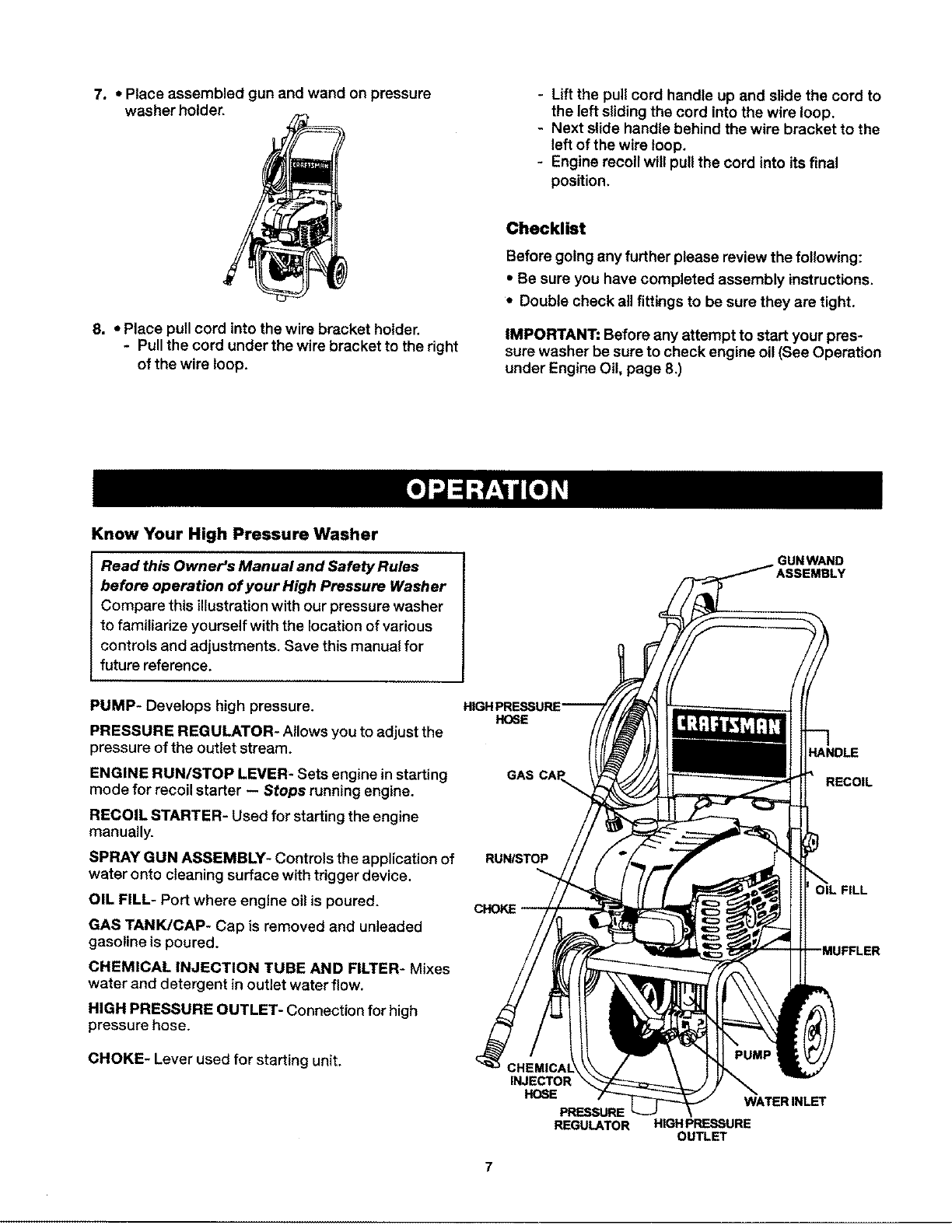

Know Your High Pressure Washer

Read this Owner's Manual and Safety Rules

before operation of your High Pressure Washer

Compare this illustration with our pressure washer

to familiarize yourself with the location of various

controls and adjustments. Save this manual for

future reference.

GUNWAND

PUMP- Develops high pressure. HOSE

PRESSURE REGULATOR- Allows you to adjust the

pressure of the outlet stream.

ENGINE RUN/STOP LEVER- Sets engine in starting GAS

mode for recoil starter -- Stops running engine.

RECOIL STARTER- Used for starting the engine

manually.

SPRAY GUN ASSEMBLY- Controls the application of

water onto cleaning surface with trigger device.

OIL FILL- Port where engine ell is poured. CHOKE

GAS TANK/CAP- Cap is removed and unleaded

gasoline is poured.

CHEMICAL INJECTION TUBE AND FILTER- Mixes

water and detergent in outlet water flow.

HIGH PRESSURE OUTLET- Connection for high

pressure hose.

CHOKE- Lever used for starting unit.

HOSE

REGULATOR

RECOIL

WATER INLET

HIGH PRESSURE

OUTLET

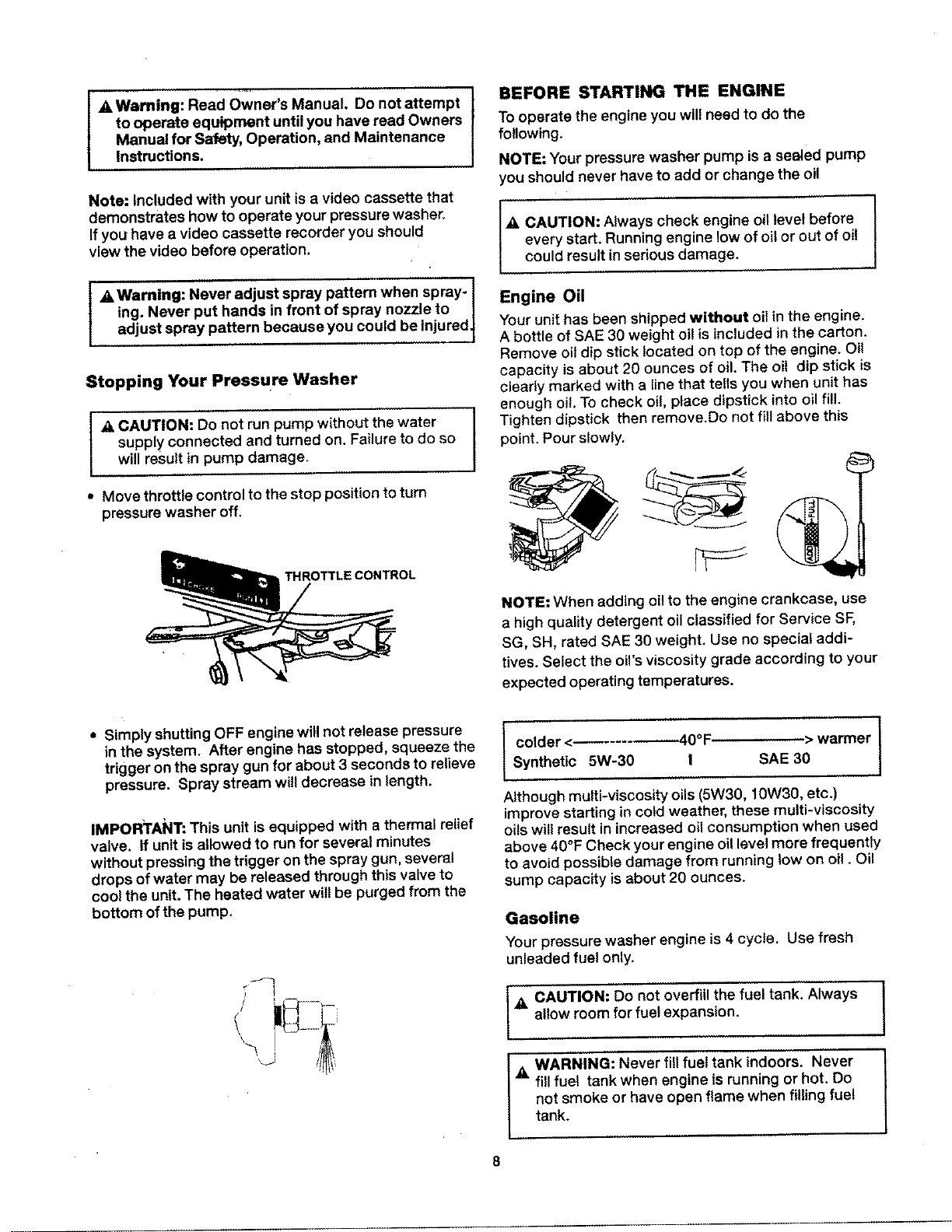

_, arning: Read Owner's Manual. Do not attempt

to operate equipment until you have read Owners

Manual for Safety, Operation, and Maintenance

Instructions.

Note: Included with your unit is a video cassette that

demonstrates how to operate your pressure washer.

If you have a video cassette recorder you should

view the video before operation.

,,,,

_, Warning: Never adjust spray pattern when spray- I

ing. Never put hands in front of spray nozzle to |

adjust spray pattern because you could be injuredt

Stopping Your Pressure Washer

_, CAUTION: Do not run pump without the water J

supply connected and turned on, Failure to do so I

will result in pump damage.

• Move threttle control to the stop position to turn

pressure washer off.

THROTTLE CONTROL

BEFORE STARTING THE ENGINE

To operate the engine you will need to do the

following.

NOTE: Your pressure washer pump is a sealed pump

you should never have to add or change the oil

wa e en0neoeve eoreI

every start. Running engine low of oil or out of oil

could result in serious damage.

Engine Oil

Your unit has been shipped without oil in the engine.

A bottle of SAE 30 weight oil is included in the carton.

Remove oil dip stick located on top of the engine. Oil

capacity is about 20 ounces of oil. The oil dip stick is

clearly marked with a line that tells you when unit has

enough oil. To check oil, place dipstick into oil fill.

Tighten dipstick then remove.Do not fill above this

point. Pour slowly.

NOTE: When adding oil to the engine crankcase, use

ahigh quality detergent oil classified for Service SF,,

SG, SH, rated SAE 30 weight. Use no special addi-

tives. Select the oil's viscosity grade according to your

expected operating temperatures.

•Simply shutting OFF engine will not release pressure

in the system. After engine has stopped, squeeze the

trigger on the spray gun for about 3 seconds to relieve

pressure. Spray stream will decrease in length.

IMPORTANT: This unit is equipped with a thermal relief

valve. If unit is allowed to run for several minutes

without pressing the trigger on the spray gun, several

drops of water may be released through this valve to

cool the unit. The heated water will be purged from the

bottom of the pump.

colder <...... -------4O°F > warmer

Synthetic 5W-30 ISAE 30

Although multi-viscosity oils (5W30, 10W30, etc.)

improve starting in cold weather, these multi-viscosity

oils will result in increased oil consumption when used

above 40°F Check your engine oil level more frequently

to avoid possible damage from running low on oil, Oil

sump capacity is about 20 ounces.

Gasoline

Your pressure washer engine is 4 cycle. Use fresh

unleaded fuel only.

_, AUTION: Do not overfill the fuel tank. Always

allow room for fuel expansion.

_. WARNING; Never fill fueI tank indoors. Never

fill fuel tank when engine is running or hot, Do

not smoke or have open flame when tilting fuel

tank.

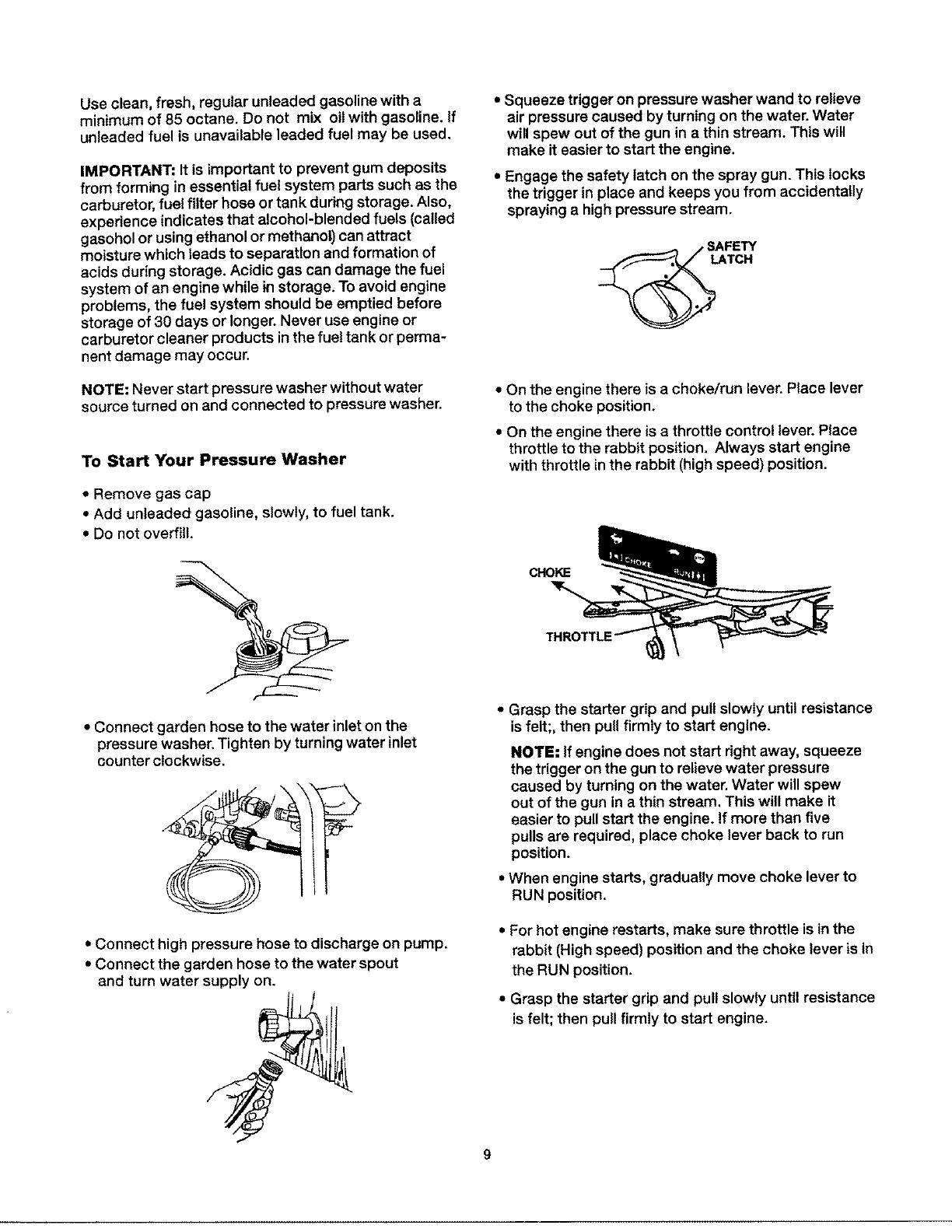

Use clean, fresh, regular unleaded gasoline with a

minimum of 85 octane. Do not mix oil with gasoline. If

unleaded fuel is unavailable leaded fuel may be used.

IMPORTANT: It is important to prevent gum deposits

from forming in essential fuel system parts such as the

carburetor, fuel filter hose or tank during storage. Also,

experience indicates that alcohol-blended fuels (called

gasohol or using ethanol or methanol) can attract

moisture which leads to separation and formation of

acids during storage. Acidic gas can damage the fuel

system of an engine while in storage. Toavoid engine

problems, the fuel system should be emptied before

storage of 30 days or longer. Never use engine or

carburetor cleaner products in the fuel tank or perma-

nent damage may occur.

NOTE: Never start pressure washer without water

source turned on and connected to pressure washer.

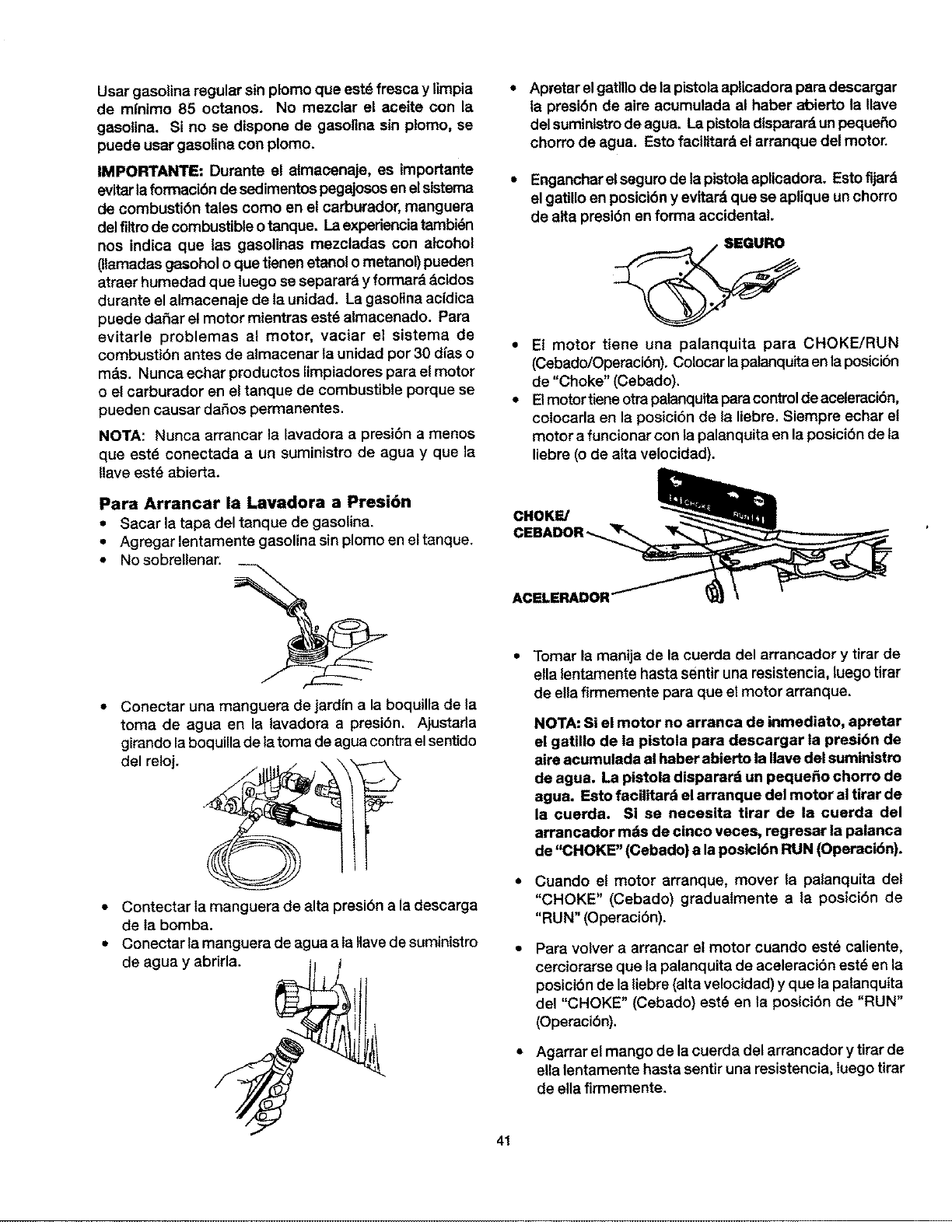

To Start Your Pressure Washer

•Remove gas cap

• Add unleaded gasoline, slowIy, to fuel tank.

•Do not overfill.

• Squeeze trigger on pressure washer wand to relieve

air pressure caused by turning on the water. Water

will spew out of the gun in athin stream. This will

make it easier to start the engine.

• Engage the safety latch on the spray gun. This locks

the trigger in place and keeps you from accidentally

spraying a high pressure stream.

_LA AFETY

TCH

• On the engine there is a choke/run lever. Place lever

to the choke position.

• On the engine there is a throttle control lever. Place

throttle to the rabbit position. Always start engine

with throttle in the rabbit (high speed) position.

CHOKE

• Connect garden hose to the water inlet on the

pressure washer. Tighten by turningwater inlet

counter clockwise.

• Connect high pressure hose to discharge on pump.

• Connect the garden hose to the water spout

and turn water supply on.

• Grasp the starter grip and pull slowly until resistance

is felt;, then pull firmly to start engine.

NOTE: If engine does not start right away, squeeze

the trigger on the gun to relieve water pressure

caused by turning on the water. Water will spew

out of the gun in a thin stream. This will make it

easier to pull start the engine. If more than five

pulls are required, place choke lever back to run

position.

•When engine starts, gradually move choke lever to

RUN position.

•For hot engine restarts, make sure throttle is in the

rabbit (High speed) position and the choke lever is in

the RUN position.

• Grasp the starter grip and pull slowly until resistance

is felt; then pull firmly to start engine.

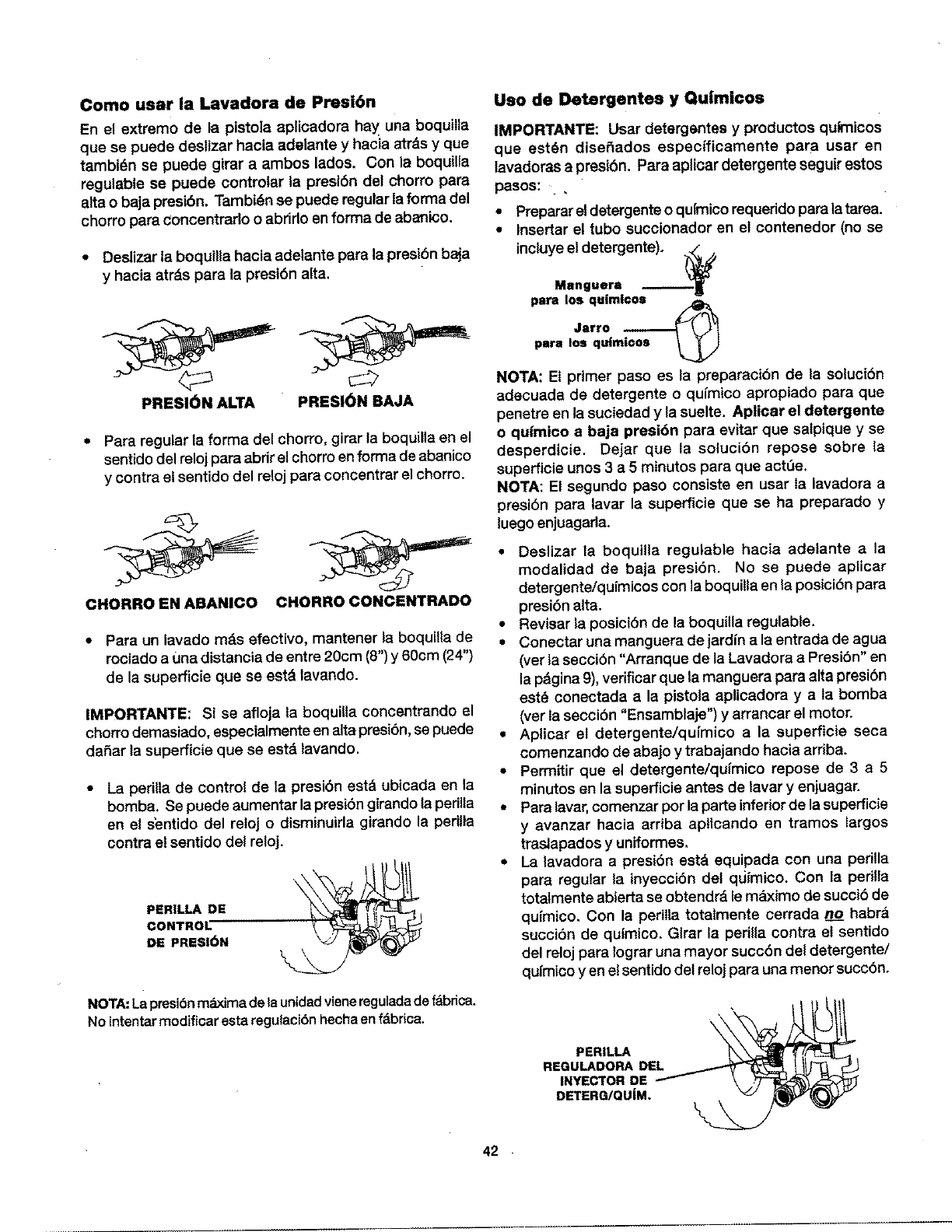

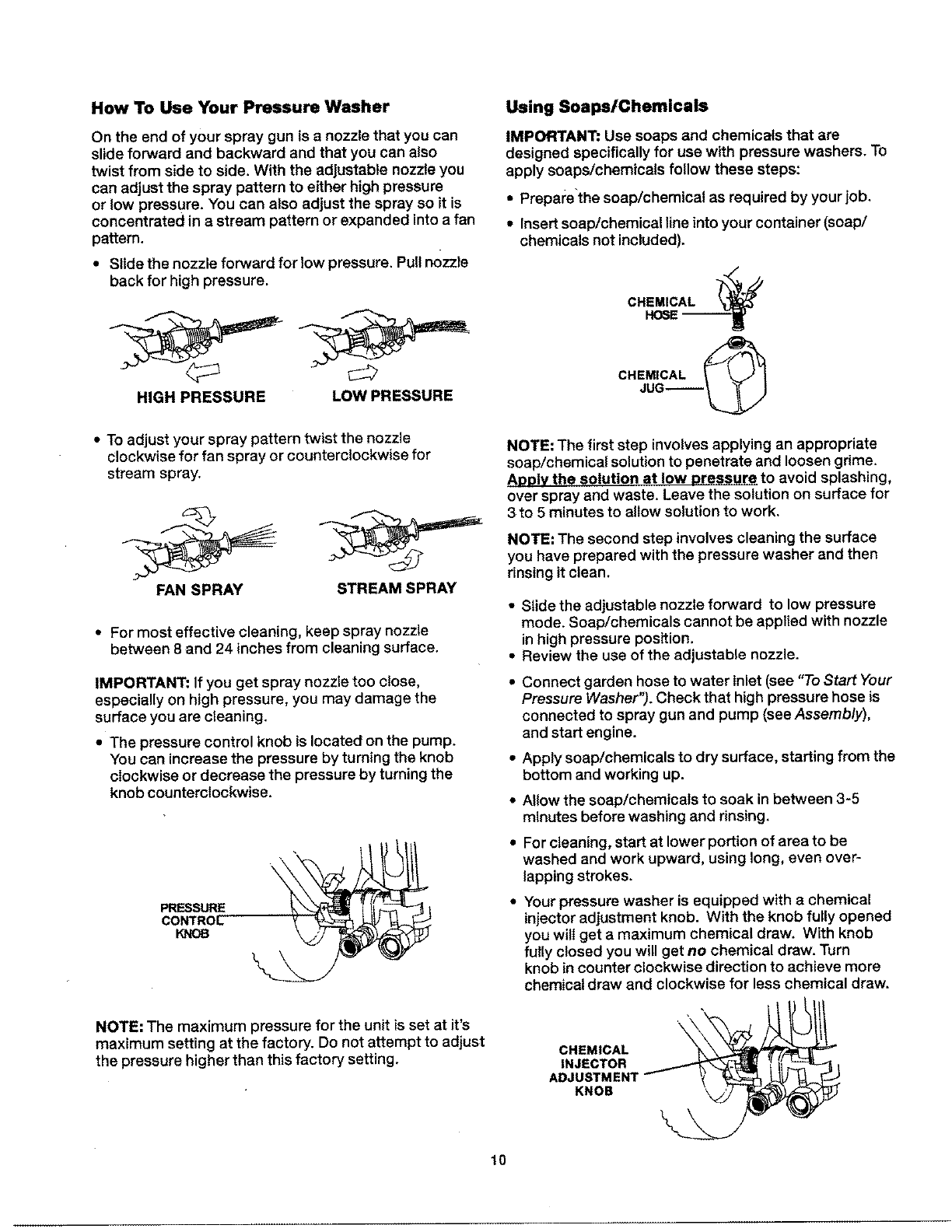

How To Use Your Pressure Washer

On the end of your spray gun is a nozzle that you can

slide forward and backward and that you can also

twist from side to side. With the adjustable nozzle you

can adjust the spray pattern to either high pressure

or low pressure. You can also adjust the spray so it is

concentrated in a stream pattern or expanded into a fan

pattem.

• Slide the nozzle forward for low pressure. Pull nozzle

back for high pressure.

HIGH PRESSURE LOW PRESSURE

•To adjust your spray pattern twist the nozzle

clockwise for fan spray or counterclockwise for

stream spray.

FAN SPRAY STREAM SPRAY

•For most effective cleaning, keep spray nozzle

between 8 and 24 inches from cleaning surface.

IMPORTANT" If you get spray nozzle too close,

especially on high pressure, you may damage the

surface you are cleaning.

• The pressure control knob is located on the pump.

You can increase the pressure by turning the knob

clockwise or decrease the pressure by turning the

knob counterclockwise.

PRESSURE

CONTROL

KNOB

Using Soaps/Chemicals

IMPORTANT: Use soaps and chemicals that are

designed specifically for use with pressure washers. To

apply soaps/chemicals follow these steps:

•Prepal;e'the soap/chemical as required by your job.

• Insert soap/chemical line into your container (soap/

chemicals not included).

C. AL

CHEMICAL

JUG_ _._

NOTE: The first step involves applying an appropriate

soap/chemical solution to penetrate and loosen grime.

ADDIVthe solution at low pressure to avoid splashing,

over spray and waste. Leave the solution on surface for

3to 5 minutes to allow solution to work.

NOTE: The second step involves cleaning the surface

you have prepared with the pressure washer and then

rinsing it clean.

• Slide the adjustable nozzle forward to low pressure

mode. Soap/chemicals cannot be applied with nozzle

in high pressure position.

• Review the use of the adjustable nozzle.

• Connect garden hose to water inlet (see "ToStart Your

Pressure Washer"). Check that high pressure hose is

connected to spray gun and pump (see Assembly),

and start engine.

• Apply soap/chemicals to dry surface, starting from the

bottom and working up.

• Allow the soap/chemicals to soak in between 3-5

minutes before washing and dnsing.

• For cleaning, start at lower portion of area to be

washed and work upward, using long, even over-

lapping strokes.

• Your pressure washer is equipped with a chemical

injector adjustment knob. With the knob fully opened

you will get a maximum chemical draw. With knob

fully closed you will get no chemical draw. Turn

knob in counter clockwise direction to achieve more

chemical draw and clockwise for less chemical draw,

NOTE: The maximum pressure for the unit is set at it's

maximum setting at the factory. Do not attempt to adjust

the pressure higher than this factory setting. CHEMICAL

INJECTOR

ADJUSTMENT

KNOB

• Afterusingthe pressure washer, you should flush clear water° To do so, simply place chemical injector

the pump, chemical injector and chemical line with hose in water and siphon for 1 to 2 minutes.

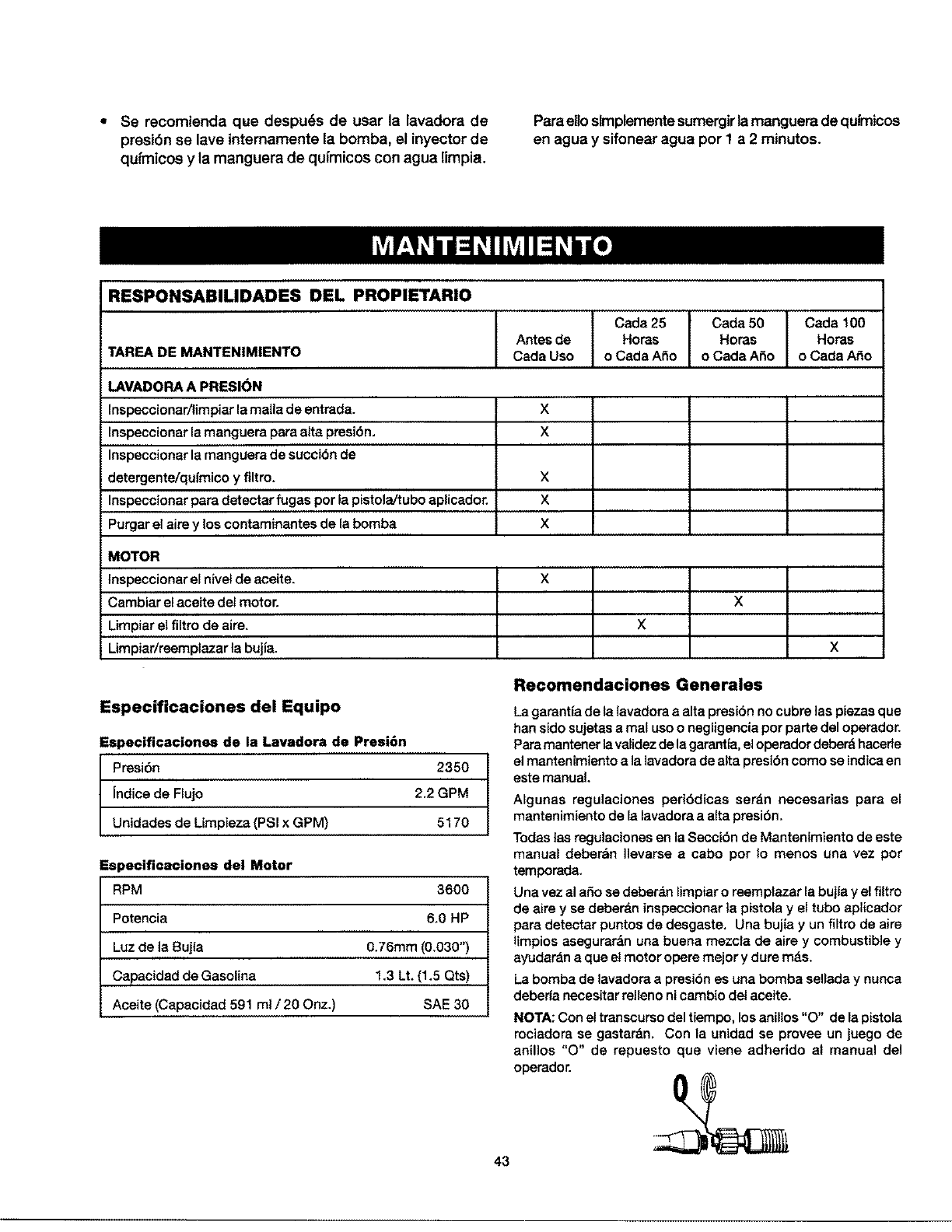

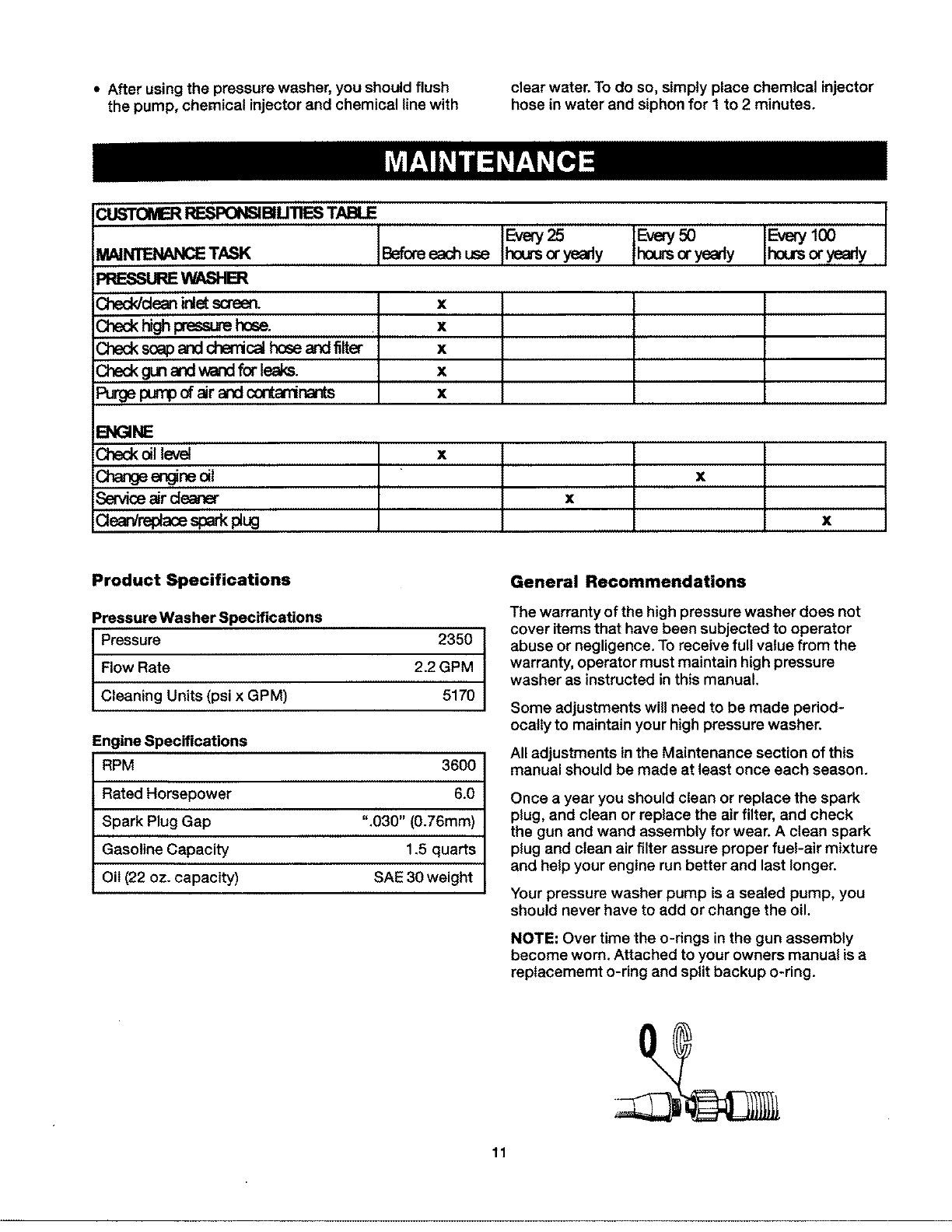

CUSTC)MER _BlUTIES TABLE

MAi_ TASK

PRESSUREWASHER

Checlddean inletscreer_

Check p ssurehose.

Checksoapandchernic_hoseandfilter

Check gun and wand for le_s.

PurgepLrnpofar andcor_arrinants

Every25

Beforeeachuse hoLrscr yeady

Every50

lhoursoryearly

ENGINE

Chag_ engineoil x

Se_ice airdeener x

aearVreplacesparkplug x

Every100

hoursoryeady

Product Specifications

Pressure Washer Specifications

Pressure

Flow Rate

Cleaning Units (psi xGPM)

2350

2.2 GPM

5170

Engine Specifications

RPM 3600

Rated Horsepower 6.0

Spark Plug Gap ".030" (0.76mm)

Gasoline Capacity 1.5 quarts

Oil (22 oz. capacity) SAE 30 weight

General Recommendations

IThe warranty of the high pressure washer does not

cover items that have been subjected to operator

abuse or negligence. To receive full value from the

warranty, operator must maintain high pressure

washer as instructed in this manual.

Some adjustments will need to be made period-

ocally to maintain your high pressure washer.

All adjustments in the Maintenance section of this

manual should be made at least once each season.

Once a year you should clean or replace the spark

plug, and clean or replace the air filter, and check

the gun and wand assembly for wear. A clean spark

plug and clean air filter assure proper fuel-air mixture

and help your engine run better and last longer.

Your pressure washer pump is asealed pump, you

should never have to add or change the oil.

NOTE: Over time the o-rings in the gun assembly

become worn. Attached to your owners manual is a

replacememt o-ring and split backup o-ring.

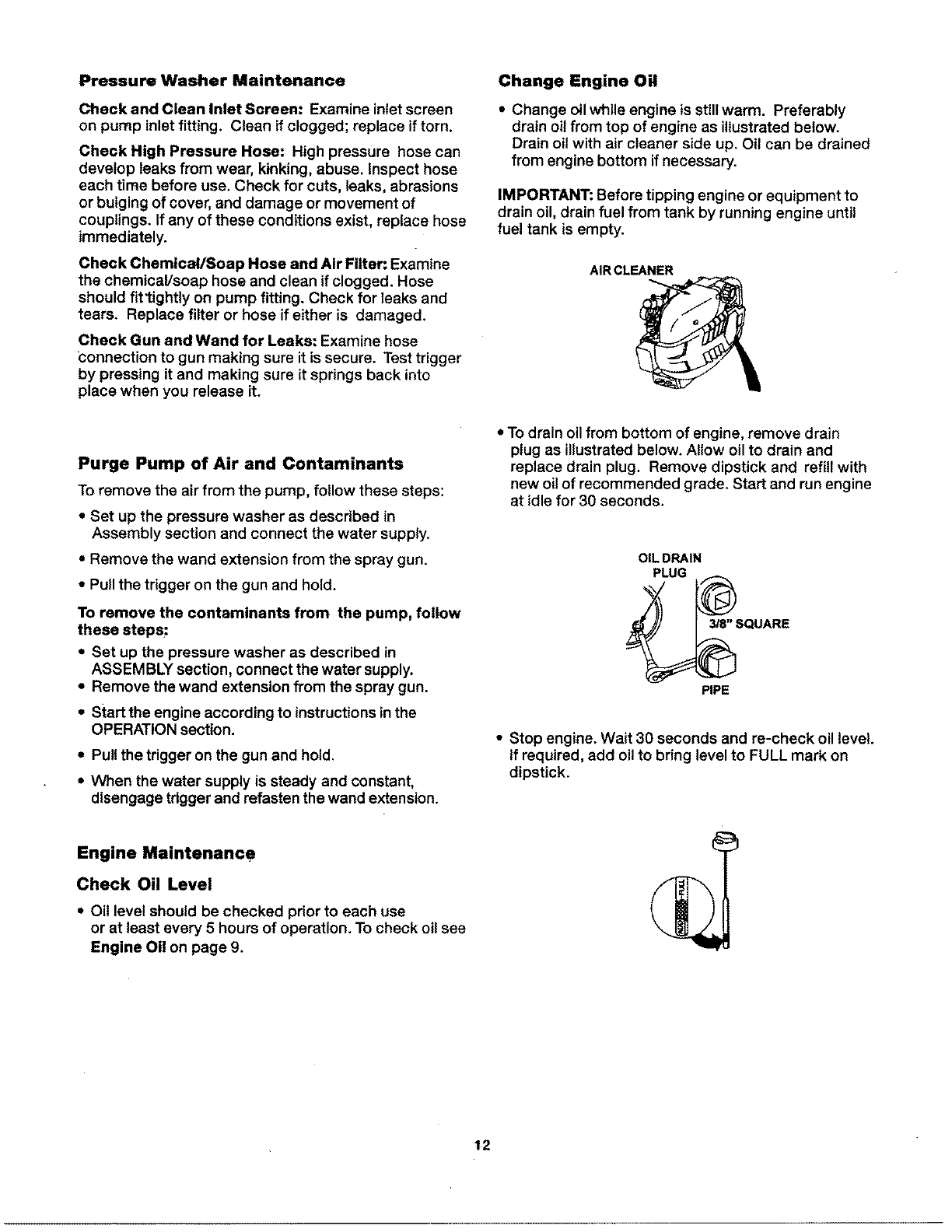

Pressure Washer Maintenance

Check and Clean Inlet Soreen: Examine inlet screen

on pump inlet fitting. Clean if clogged; replace if torn.

Check High Pressure Hose: High pressure hose can

develop leaks from wear, kinking, abuse. Inspect hose

each time before use. Check for cuts, leaks, abrasions

or bulging of cover, and damage or movement of

couplings. If any of these conditions exist, replace hose

immediately.

Check Chemical/Soap Hose and Air Filter: Examine

the chemical/soap hose and clean if clogged. Hose

should fit'tightly on pump fitting. Check for leaks and

tears. Replace filter or hose if either is damaged.

Check Gun and Wand for Leaks: Examine hose

connection to gun making sure it is secure. Test trigger

by pressing it and making sure it springs back into

place when you release it.

Change Engine Oil

•Change oll w_lle engine is still warm. Preferably

drain oil from top of engine as illustrated below.

Drain oil with air cleaner side up. Oil can be drained

from engine bottom if necessary.

IMPORTANT: Before tipping engine or equipment to

drain oil, drain fuel from tank by running engine until

fuel tank is empty.

AIR CLEANER

Purge Pump of Air and Contaminants

To remove the air from the pump, follow these steps:

• Set up the pressure washer as described in

Assembly section and connect the water supply.

•Remove the wand extension from the spray gun.

• Pull the trigger on the gun and hold.

To remove the contaminants from the pump, follow

these steps:

•Set up the pressure washer as described in

ASSEMBLY section, connect the water supply.

• Remove the wand extension from the spray gun.

•Start the engine according to instructions in the

OPERATION section.

•Pull the trigger on the gun and hold.

• When the water supply is steady and constant,

disengage trigger and refasten the wand extension.

• To drain oil from bottom of engine, remove drain

plug as illustrated below. Allow oil to drain and

replace drain plug. Remove dipstick and refill with

new oil of recommended grade. Start and run engine

at idle for 30 seconds.

OIL DRAIN

PLUG

_8"SQUARE

PIPE

• Stop engine. Wait 30 seconds and re-check oil level.

If required, add oil to bring level to FULL mark on

dipstick.

Engine Maintenance

Check Oil Level

• Oil level should be checked prior to each use

or at least every 5 hours of operation. To check oil see

Engine Oil on page 9.

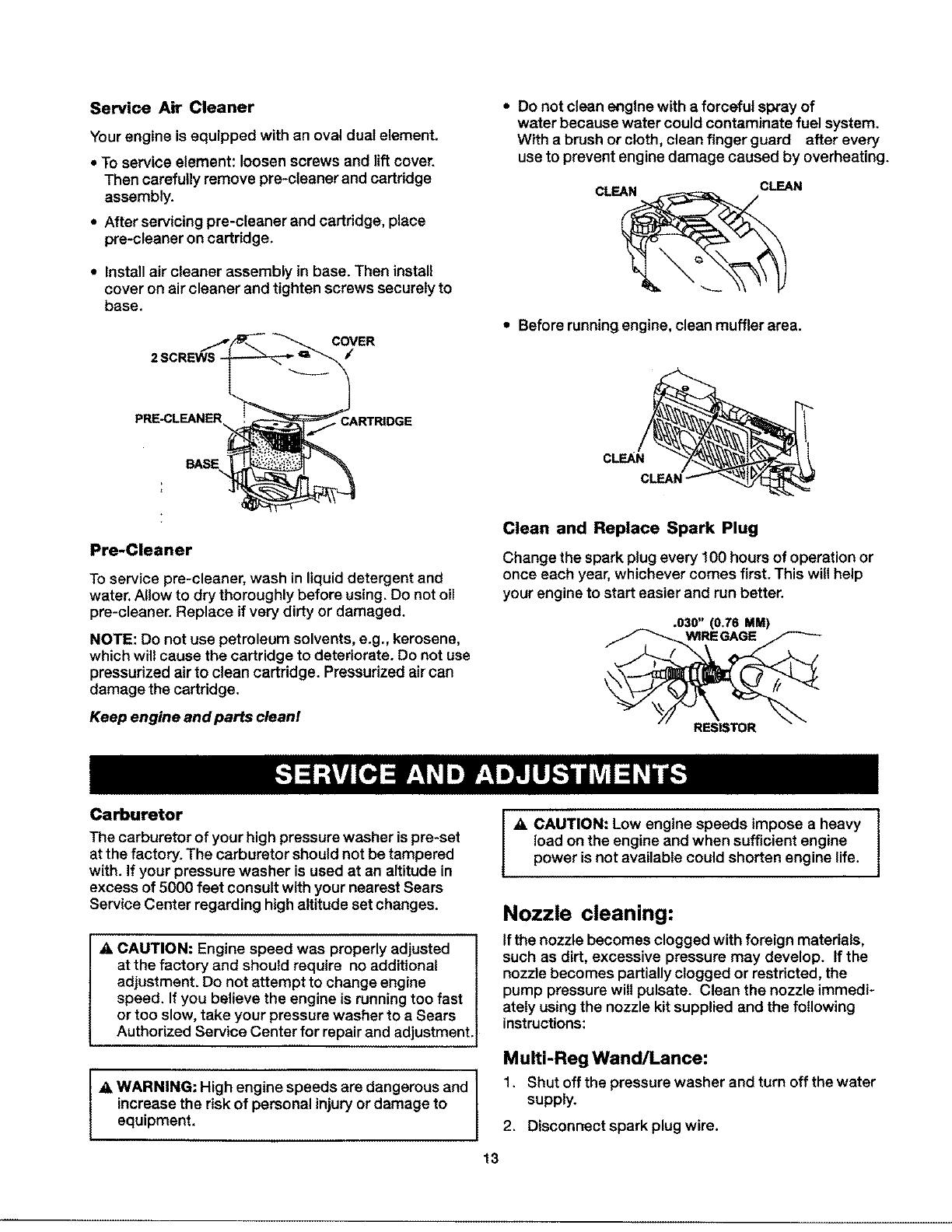

Service Air Cleaner

Your engine is equipped with an oval dual element.

• To service element: loosen screws and lift cover.

Then carefully remove pre-cleaner and cartridge

assembly.

•After servicing pre-cleaner and cartridge, place

pre-cleaner on cartridge.

•Install air cleaner assembly in base. Then install

cover on air cleaner and tighten screws securely to

base.

sc-s Z

PRE-CLEANER _CARTRIDGE

Pre-Cleaner

To service pre-cleaner, wash in liquid detergent and

water. Allow to dry thoroughly before using. Do not oil

pre-cleaner. Replace if very dirty or damaged.

NOTE: Do not use petroleum solvents, e.g., kerosene,

which will cause the cartridge to deteriorate. Do not use

pressurized air to clean cartridge. Pressurized air can

damage the cartridge.

Keep engine and parts cleanl

•Do not clean engine with a forceful spray of

water because water could contaminate fuel system.

With a brush or cloth, clean finger guard after every

use to prevent engine damage caused by overheating.

CLEAN

CLEAN_

•Before running engine, clean muffler area.

CLEAN

Clean and Replace Spark Plug

Change the spark plug every 100 hours of operation or

once each year, whichever comes first. This will help

your engine to start easier and run better.

.030" (0,76 MM)

WIRE GAGE

RESISTOR

Carburetor

The carburetor of your high pressure washer is pre-set

at the factory. The carburetor should not be tampered

with. If your pressure washer is used at an altitude in

excess of 5000 feet consult with your nearest Sears

Service Center regarding high altitude set changes.

_, CAUTION: Engine speed was properly adjusted

at the factory and should require no additional

adjustment. Do not attempt to change engine

speed. If you believe the engine is running too fast

or too slow, take your pressure washer to aSears

Authorized Service Center for repair and adjustment.

IA WARNING: High engine speeds are dangerous and

increase the risk of personal injury or damage to

equipment,

• , CAUTION: Low engine speeds impose a heavy I

load on the engine and when sufficient engine I

power is not available could shorten engine life.

Nozzle cleaning:

If the nozzle becomes clogged with foreign materials,

such as dirt, excessive pressure may develop. If the

nozzle becomes partially clogged or restricted, the

pump pressure will pulsate. Clean the nozzle immedi-

ately using the nozzle kit supplied and the following

instructions:

Multi-Reg Wand/Lance:

1. Shut off the pressure washer and turn off the water

supply.

2. Disconnect spark plug wire.

3. Pull trigger on gun handle to relieve any water

pressure.

4. Disconnect the wand/lance from the gun.

5. Remove the nozzle from the end of the wand with

the 2mm allen wrench provided.

6. Clean the nozzle using the nozzle cleaner provided or

a straightened paper clip. Insert into the nozzle end

and work back and forth until obstruction is

removed.

7. Direct water supply into nozzle end to backflush

loosened particles for 30 seconds.

8. Reassemble the nozzle to the wand. Tighten

securely to prevent leaks.

9. Reconnect wand/lance to gun and turn on water

supply.

10. Start pressure washer and place wand/lance into

highpressure setting to test.

(_---,==-

This pressure washer should be stored insuch a way to

protect it from freezing. Do not store this unit outdoors

or in an area where temperatures will fail below 32° F.

This can cause extensive damage to this unit.

If unit has to be stored under freezing conditions a non-

toxic R.V. anti-freeze can be used to protect from

freezing.

Preparing Pressure Washer for Storage

NOTE: If you do not plan to use your unit for 30 days or

more, unit should be prepared for storage.

Engine Preparation

•First add a fuel stabilizer to the fuel tank.

•Run pressure washer for afull 5minutes to a!low fuel

stabilizer to enter the fuel system.

NOTE: While doing this procedure make sure water

supply is turned on and flowing to the unit. NEVER run

unit without water supply running through pump.

•Next shut off engine and disconnect the water supply.

•Disconnect the spark plug wire and remove the spark

plug.

• Add one teaspoon of oil through the spark plug hole.

•Place rag over spark plug hole and pull the recoil a

few times to lubricate the combustion chamber.

•Replace the spark plug, but do not connect the spark

plug wire.

IMPORTANT: It is important to prevent gum deposits

form forming in essential fuel system parts such as the

carburetor, fuel filter hose or tank during storage. Also,

experience indicates that alcohol-blended fuels (called

gasohol or using ethanol or methanol) can attract mois-

ture which leads to separation and formation of acids

during storage. Acidic gas can damage the fuel system

of an engine while in storage. To avoid engine problems,

the fuel system should be emptied before storage of 30

days or longer. Never use engine or carburetor cleaner

products in the fuel tank or permanent damage may

Occur,

Pump Preparation

•Be sure engine switch is in "OFF" position and spark

plug wire has been removed from spark plug.

• Pull the trigger on the spray gun to release the

pressure inthe high pressure hose. Detach high

pressure hose and garden hose from the unit.

•Pull the recoil on the engine 4to 6 times to discharge

remaining water inpump.

•Tip the unit on the end with the water inlet fitting

pointing upward.

• If unit will be stored where temperatures fall below

32°F, pour approximately 1/4 cup of non-toxic R.V.

anti-freeze down the fitting where the water hose

attaches to the pump.

• Set unit upright and pull starter handle on engine 4to

6 times to circulate anti-freeze in pump until anti-

freeze is discharged from the pump.

SYMPTOM

Engine won't

start

Won't Draw

Chemical

Pump running

normally but

pressure does

not achieve

rated values

Fluctuating

Pressure

Pressure drops

after period of

normal use

Pump noisy

Presence of

water in oil (oil

milky).

Water dripping

from pump

CAUSE

1. Engine throttle is in "OFF" Position.

2. Choke lever has not been placed to

choke.

3. Pressure buildup after initialuse.

2. Pump suckingair.

3. Valves dirty or worn.

4. Worn bearings.

SOLUTION

1. Slide throttle to "Rabbit" position,

2. Slide choke lever to choke position.

3. Depress trigger gun.

Place nozzlsto low pressure_

Check chemical screen;clean if obstructed.

Make sure chemical screen is submerged in

chemical/water.

Check and clean.

Nozzle not in chemical draw position. 1.

Chemical screen is obstructed. 2.

Chemical screen not working. 3.

Chemical injector orifice obstructed 4.

or stuck.

Chemical injector closed.

Water supply restricted. 1.

Nozzle is in low PSI pos_lan, 2.

Nozzle incorrector worn. 3.

Pump suckingair. 4.

Nozzle blocked. 5.

Pump sucking air. 1.

Garden hose inlet strainerclogged. 2.

Worn Seals or Packing, 3.

Inadequate water supply. 4.

Fouled or dirty inlet or discharge 5.

valves.

Leaky discharge hose. 6.

Nozzle clogged, partially obstructed. 1.

Nozzle wom. 2.

Pump Valves worn, dirty or stuck. 3.

Worn pump piston packing. 4.

Water too hot. 1.

High humidity. 1.

Piston packing and oil seal worn. 2.

Thermal relief functioning normal. 1.

Fittings Loose.

O-rings of piston guide or retainer 2.

worn. 3.

Piston packing worn. 4.

Oil sealworn 1.

Loose drain plugor worn drain plug 2.

o-dng.

5. Open chemical injectorby turning adjustment

knob.

Check water supply and filter screen for.

blockage. Check hoses for blockage, kinks,

leaks, etc.

Pull nozzleat end of wand back to the high pressure

position.

Check and replace.

Check that hoses and fittings ere air-tight.

Clean nozzle.

Check that hosesand fittings are airtight. Purge air

from garden hose.

Clean. Check filter frequently.

Check end replace.

Check hose for kinks.

Check flow availableto pump. Check for

excessive heat, 145o F or above,

Clean inlet and discharge valve assemblies,

Replace if damaged.

Use nozzle cleaningkit to clear obstruction.(See

Nozzle Maintenance under Service Adjustment.)

Clean or replace.

Check and replace.

Reduce temperaturebelow 63° C or 145° F.

Check that hoses and fittingsare air tight.

Check, clean or replace.

Check and replace if necessary.

Change Oil.

Check and replace oil seals.

Protecting pump, if not using pressure washer for

along period of time, shutoffengine.

Tighten.

Check and replace.

Oil Dripping 1. Check and replace

2. Tightendrainplug orreplaceO-ring. Do notovertorque.

CRAFTSMAN 2350 PSi HIGH PRESSURE WASHER 919362350

11 900

22 20

REF NO.

9O0

PART NO.

16469

16471

16468

16466

W137

"t6371

W131

16462

H140

16491

16467

16479

F064

16470

16726

16830

PK16482

DESCRIPTION

Handle

Knob - 5/16"

Gun

Tire Semi (7 x I 3/4)

Nut Pal 1/2"

Foot Rubber, Hollow

Tee Nut 5/160" x 3/4"

Frame

Hose, Chemical

Lance, Multi-Reg

Hose

Decal - Craftsman

Screw-Hex 5/16" - 18 x 1LG

J Bolt 5/16" - 18 x 2.5

Decal -Operation

O-Ring Kit

Engine-Refer to engtne break-

down (Model 121602-0206-E1)

Pump

REF NO. PART NO. DESCRIPTION

21 16829 Garden Hose Adapter 1/2"

22 F504W 3/8" Coupling

23 Fl12 Washer

PART_, NOT ILLUSTRATED

MGP-762350A Owner's Manual

NCT001 Nozzle Cleaning Kit

F101 Screw, Hex-Engine to Pump

F196 Screw, Hex-Engine to Pump

16087 Nut Flanghead-Engine to Pump

F074 Washer Flat-Engine to Pump

16505 Thermal Relief Valve

CRAFTSMAN2350PSlHIGHPRESSUREWASHER919.762350 PUMPBREAKDOWNMODELPK16482

....... J

"_. B m

CRAFTSMAN 2350 PSI HIGH PRESSURE WASHER 919.762350 PUMP BREAKDOWN MODEL PK16482

REF. PART PER PART

NO. NO. DESCRIPTION QTY. NO. NO, DESCRIPTION QTY,

1 AR-1322520 Knob 1

2 AR-1980300 Nut 1

3 AR-1980470 Grub screw 1

4 AR-1980640 Handle insert 1

5 AR-1080070 Pin 1

6 AR-1980220 Plate spring 1

7 AR-1271070 Spring 1

8 AR-1080041 Upper piston 1

9 AR-1080401 Ring 1

10 AR-1080250 O-Ring 1

11 AR-1980210 Piston guide 1

12 AR-880830 O-Ring 7

13 AR-740290 O-Ring 1

14 AR-800560 O-Ring 1

15 AR-1271170 Ring 1

16 AR-1080190 O-Ring 2

17 AR-1271160 Lower piston 1

18 AR-1980200 Valve seat 1

19 AR-1470210 O-Ring 1

20 AR-880581 Plug 2

21 AR-820510 O-Ring 2

23 AR-1980310 Screw 3

24 AR-650530 Washer 3

25 AR-1980650 Pump head 1

26 AR-1260162 Plug 3

27 AR-960160 O-Ring 3

28 AR-1269050 Complete valve 6

30 AR-480480 O-Ring 1

31 AR-1250280 Ball 1

32 AR-1560520 Spring 1

33 AR-1460430 O-Ring 1

34 AR-1540170 Jet 1

35 AR-1080091 Spring 1

36 AR-394280 O-Ring 1

37 _ AR-1200690 O-Ring 1

38 AR-1270130 Detergent injector 1

40 AR-1980190 Support ring 3

41 AR-1342761 Gasket 3

42 AR-1980180 Piston guide 3

43 AR-770130 O-Ring 3

44 AR-1260440 Gasket 3

45 AR-1980170 Ring 3

46 AR-1980410 Seal 3

47 AR-770090 O-Ring 1

48 AR-1980460 Housing 1

49 AR-1980430 Spacer 3

52 AR-1980290 Plug 1

53 AR-180030 Screw 4

54 AR-1980160 Spring 3

55 AR-1980140 Piston 3

56 AR-1980150 Ring 3

57 AR-1980130 Rail 1

58 AR-1980250 Cage 2

59 AR-1980240 Rail 3

60 AR-850370 Screw 1

61 AR-1980070 Wobble plate 1

62 AR-1980440 Hollow shaft 1

63 AR-1980340 O-Ring 1

64 AR-1980450 Flange 1

65 AR-1980230 Roller bearing 1

66 AR-480671 Seal 1

68 AR-1980510 El. motor flange 1

70 AR-1200430 Screw 4

71 AR-1560650 Hose tail 1

72 AR-800560 O-Ring 1

73 AR-480560 O-Ring 1

74 AR-1560670 Knob 1

75 AR-1560660 Ring 1

PART KITS

A=KIT 16739 B=Krr 16740 D=KIT 16738

Valves Pistons Water Seals

Pos. Qty.

55 3

Pos. Qty.

12 6

28 6

F=KIT t 6737

Unloader Valve

Pos. Qty. Pos, Qty, Pos,

1 1 8 1 15

2 1 9 1 16

3 1 10 1 17

4 1 11 1 18

5 1 12 1 19

6 2 13 1

7 1 14 1

C=KIT 16742

Oil Seals

Pos. Qty.

46 3

47 1

66 1

G=KIT 18741

Chemical Injector

Q_y. Pos. Qty.

1 30 1

2 71 1

1 72 1

1 73 1

1 74 1

75 1

POS. (_y.

40 3

41 3

43 3

H=Krr16743

Bearing

Pos. Qty,

57 1

58 2

59 3

65 1

CRAFTSMAN 2350 PSi HiGH PRESSURE WASHER 919.762350 BRIGGS ENGINE MODEL #121602-0206-EI

307

1029

189

REF. PART

NO. NO. DESCRIPTION

1 499678 Cylinder Assembly

3 399269 Bushing

5299819 Seal-Oil

6 499643 Head-Cylinder

7 273240 Gasket-Cylinder Head

8495786 Breather Assembly

9272481 Gaskat-Breether

10 94955 Screw-Hex

1t 499675 Tube-Breather

13 95049 Screw-Hex

33 499642 Valve-Exhaust

34 499641 Valve-intake

35 263149 Spring-Valve

40 93312 Retainer-Valve

45 262679 Tappat-Valve

REF.

NO.

122

155

189

238

305

308

307

337

354

383

584

555

PART

NO, DESCRIPTION

281617 Spacer-Carburetor

225325 Plate-Cylinder Head

263108 Ball-Rocker Arm

253131 Cap-Valve

94744 Screw-Hex

225366 Sheitd-Cylinder

REF. PART

NO. NO.

635 66538

7!8 230192

830 499756

868 498592

883 273348

993 273346

94515 Screw-Hex lc,19

499608 Plug-Spark 1022

Nut-Has (Sold in Kit Only) 1023

19374 Wrench-Spark Plug 1026

224328 Cover-Breather Passage 1029

272238 Gasket-Breather Passage 1034

1058

499691

273241

499624

498597

225246

281621

273323

DESCRIPTION

Root-Spark Plug

Dowel-Sleeve

Stud-Rocker Arm

Seal-Valve

Gasket-Exhaust

Gasket-Plate

Label Kit

Gasket-Rocker Cover

Cover-Rocker

Rod-Push

Arm-Rocker

Guide-Push Rcd

Owner's Manual

CRAFTSMAN2350PSIHIGHPRESSUREWASHER919.762350 BRIGGSENGINEMODEL#121602-0206-E1

11si

525

116A_

284 _24

REF. PART

NO. NO.

4 499619

12 272198

15 94880

16 498615

20 399781

22 94220

DESCRIPTION

Sump-Engine

Gasket-Crankcase

Plug-Oil Drain

Crankshaft

Note

498612 Crankshaft

Used on Type No(s),

0163.

498622 Crankshaft

Used on type No(s).

0172.

Seal-Oil

Screw-Hex,

Note

94612 Scraw-Hox.

(One Used in Hole

Nearest Breather)

REF. PART

NO. NO.

24 222698 Key-Flywheel

25 499627 Piston Assembly

26 499631 Ring Set

REF.

DESCRIPTION NO.

284

523

525

27 263190 Lock-Piston Pin

28 499423 Pin-Piston

29 499424 Rod-Connecting

32 94669 Screw-Connecting Rod

43 493737 Governor/Oil Slinger

46 499136 Gear-Cam

116 280393 Seal-O-Ring

t16A 280966 Seal-O-Ring

148 94388 Key-Timing

227 498772 Lever-Govemor

230 67072 Washer

PART

NO, DESCRIPTION

94511 Straw-Shoulder

499621 Dipstick

495265 Tube-OlIFlll

562 94907 Bolt-Governor Lever

592 231082 Nut-Hex,

615 94474 Retainer-Governor

616 263175 Crank-Governor

741 262598 Gear-Timing

847 498715 Dipstick/Tube

Assembly

CRAFTSMAN2350PSIHIGHPRESSUREWASHER919.762350 BRIGGSENGINEMODEL#121602-0206-E1

108

127_

987_

130A 95

REF. PART

NO. NO.

51 272487

95 94098

104 231371

117 498978

124 95048

DESCRIPTION

Gasket-intake

Screw-Round Head

Pin-Float Hinge

Jet-Main (Standard)

Note

498975 Jet-Main

(High Altitude)

Screw-Hex.

REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

137125 499617 Carburetor

127 Plug-Welch

(Sold in Kit Only)

130 224908 Valve-Throttle

131 499682 Shaft-Throttle

133 398187 Float-Carburetor

134 398188 Valve-Needle

163 273364

355

975 493640

987

Gasket-Float Bowl

(Sold in Kit Only)

Gasket-Air Cleaner

Washer-Seal

(Sold in Kit Only)

Bowl-Float

Seal-Throttle Shaft

(Sold in Kit Only)

CRAFTSMAN 2350 PSI HIGH PRESSURE WASHER 919362350 BRIGGS ENGINE MODEL #121602-0206-E1

534 l

REF. PART

NO. NO.

51 272487

95 94098

98 398185

104 231371

108 224783

117A 494870

124 95048

DESCRIPTION

Gasket-Intake

Screw-Round Head

Screw-Idle Speed

Pin-Roat Hinge

Valve-Choke

Jet-Main (Standard)

Note

497315 Jet-Main

(High Altitude)

Screw-Hex.

REF. PART

NO. NO.

125A 499680

127

130A 223470

131 499682

133 398187

134 398188

437

141 499681

DESCRIPTION

Carburetor

Plug-Welch

(Sold in Kit Only)

Valve-Throttel

Float-Carburetor

Valve-Needle

(Includes Seat)

Gasket-Float Bowl

(Sold in Kit Ordy)

Shaft-Choke

REF. PART

NO. NO. DESCRIPTION

163 273364 Gasket-Air Cleaner

355 Washer-Seal

(Sold in Kit Only)

633 Seal-Choke Shaft

(Sold in Kit Only)

975 493640 Bowl-Float

987 Seat-Throttle Shaft

(Sold in Kit Only)

CRAFTSMAN2350PSlHIGHPRESSUREWASHER919,762350 ERIGGSENGINEMODEL#121602-0206-E1

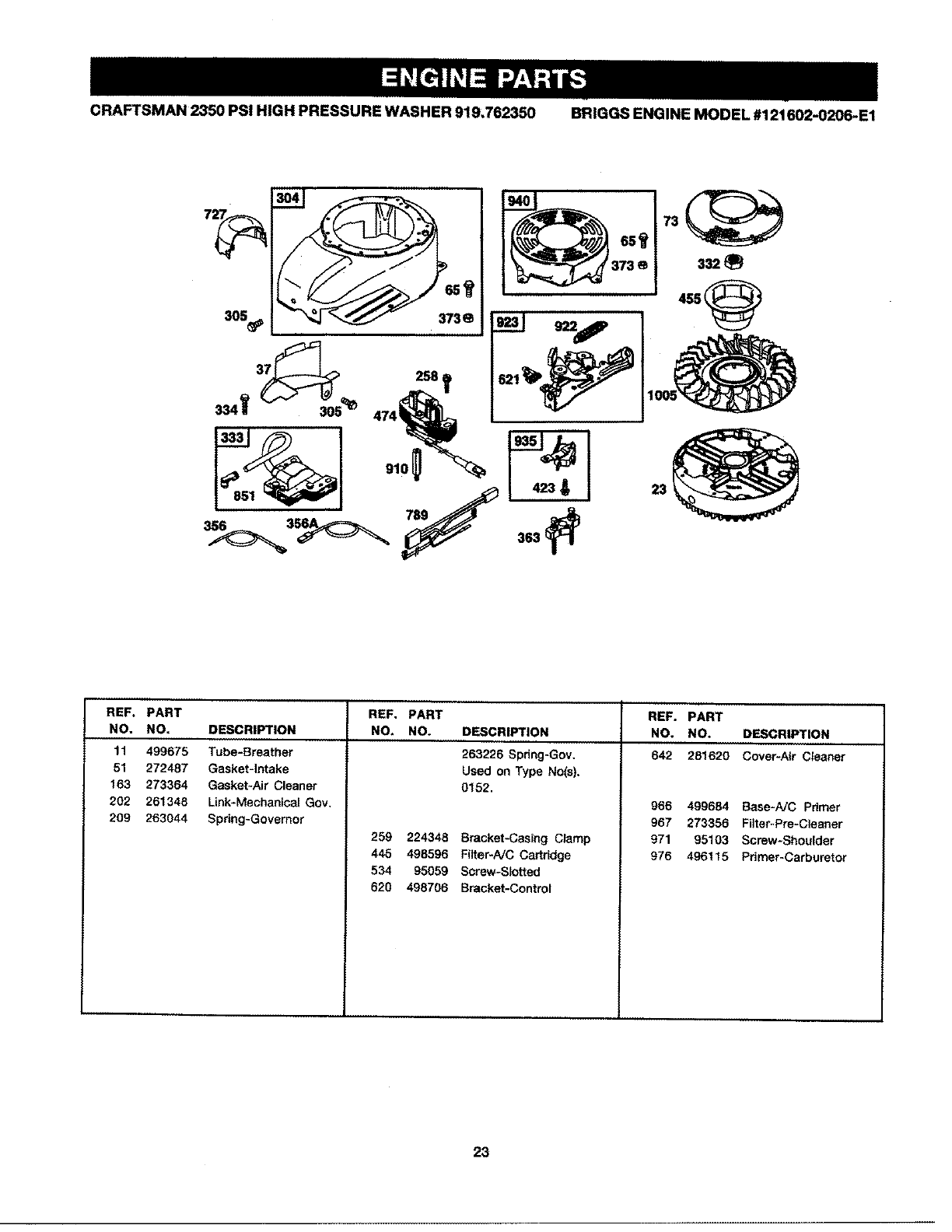

REF, PART

NO. NO.

11 499675

51 272467

163 273364

202 261348

208 263044

DESCRIPTION

Tube-Breather

Gasket-Intake

Gasket-Air Cleaner

Link-Mechanical Gov,

Spring-Governor

REF. PART

NO, NO. DESCRIPTION

263226 Spdng-Gov.

Used on Type No(s),

0152.

259 224348 Bracket-Casing Clamp

445 498596 Filter-NC Cartridge

534 95059 Screw-Slotted

620 498706 Bracket-Control

R==F. PART

NO. NO. DESCRIPTION

642 281620 Cover-Air Cleaner

966 499684 Base-A/C primer

967 273356 Filter-Pre-Cleaner

971 95103 Screw-Shoulder

976 496115 Primer-Carburetor

CRAFTSMAN2350PSIHIGHPRESSUREWASHER919.762350 BRIGGSENGINEMODEL#121602-0206-E1

__ ,,, ,,,,,,., , ,,,,,3os

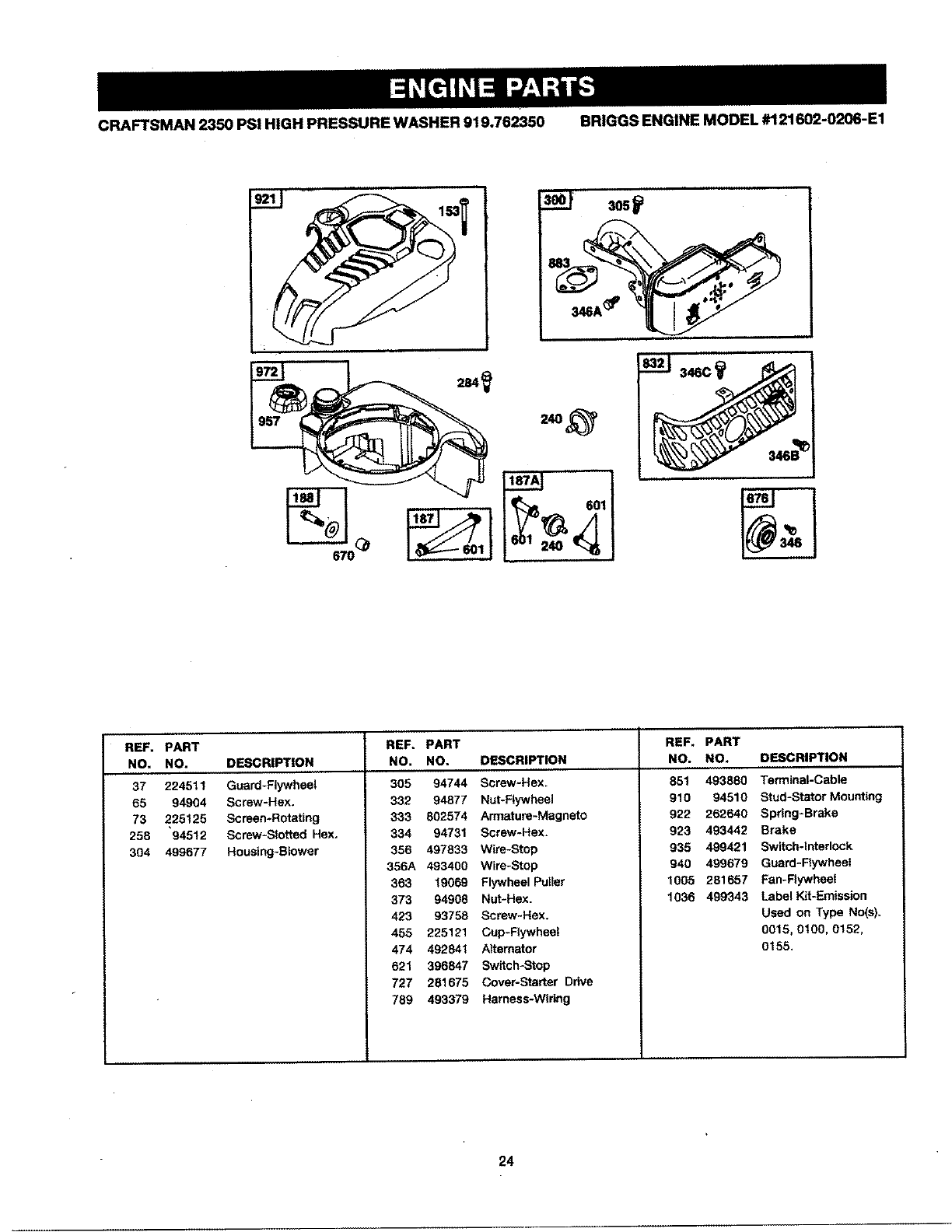

REF. pART

NO. NO.

37 224511

65 94904

73 225125

258 '94512

304 499677

DESCRIPTION

Guard-Flywheel

Screw-Hex.

Screen-Rotating

Screw-Slotted Hex,

Housing-Blower

REF. PART

NO. NO. DESCRIPTION

305 94744 Screw-Hex,

332 94877 Nut-Flywheel

333 802574 Armature-Magneto

334 94731 Screw-Hex.

356 497833 Wire-Stop

356A 493400 Wire-Stop

363 19069 Flywheel Puller

373 94908 Nut-Hex.

423 93758 Screw-Hex.

455 225121 Cup-Flywheel

474 492841 Alternator

621 396847 Switch-Stop

727 281675 Cover-Starter Drive

789 493379 Harness-Wiring

REF. PART

NO. NO,

851 493880

910 94510

922 262640

923 493442

935 499421

940 499679

1005 281657

1036 499343

DESCRIPTION

Terminal-Cable

Stud-Stator Mounting

Spring=Brake

Brake

Switch-ioterlock

Guard_Ftywheet

Fan-Flywheel

Label Kit-Emission

Used on Type No(s).

0015, 0100, 0152,

0155.

CRAFTSMAN2350PSIHIGHPRESSUREWASHER919.762350 BRIGGSENGINEMODEL#121602-0206-E1

REF. PART

NO. NO.

153 95050

187 296004

187A 498171

186 398540

240 298090

284 94511

DESCRIPTION

Screw-Phillips 300

Line-Fuel 305

(Cut to Required 346

Length) 346A

Line-Fuel 346B

Screw-Shoulder 346C

Filter-Fuel

Screw-Shoulder

REF. PART

NO. NO. DESCRIPTION

498733 Muffler-Exhaust

94744 Screw-Hex,

94896 Screw-Hex.

95062 Screw-Hex.

94874 Screw-Hex.

94786 Screw-Hex.

REF. PART

NO, NO, DESCRIPTION

670 280512 Spacer-Fuel Tank

676 397931 Deflector-Muffler

832 498736 Guerd-Muffler

883 273348 Gasket-Exhaust

921 498734 Cover-Blower Housing

987 498697 Cap-Fuel Tank

972 499618 Tank-Fuel

601 93053 Clamp-Hose

CRAFTSMAN2350PSIHIGHPRESSUREWASHER919,762350 BRIGGSENGINEMODEL#121602-0206-E1

55 373 _5

689 0

REF. PART

NO. NO.

55 497440

56 498144

58 280399

DESCRIPTION

Housing-Rewind

Starter

Pulley-Starter

Rope-Starter

(Cut to Required

Length)

REF, PART

NO, NO. DESCRIPTION

80 281434 Grip-Starter Rope

65 94904 Screw-Hex.

373 94908 Nut-Hex.

456 281503 Retainer-Spdng

459 281505 Plate-PauIFriction

REF. PART

NO, NO. DESCRIPTION

461 94943 Screw-Shoulder

608 497680 Starter-Rewind

689 263073 Spring-Friction

CRAFTSMAN2350PSIHIGHPRESSUREWASHER919.762350 BRIGGSENGINEMODEL#121602-0206-E1

:_S0GASKET SET

883 _-_ 163

116_ 116A_ 3_20_ 978}_"_ _

51_ 9_ 5_O

1033 VALVE OVERHAUL KIT

9'F/CARBURETOR GASI'_ SET I

855 51 I

121 CARBURETOR KIT

1346 987 0

9560 _3_

REF.

NO.

104

116

116A

121

122

PART

NO.

299819

273240

272481

272198

399781

272487

231371

290393

280966

499685

281617

DESCRIPTION

Seal-oil

Gasket-CyUnder Head

Gasket-Breather

Gasket-Crankcase

Seal-Oil

Gasket-intake

Pin-Float Hinge

Seal-O-Ring

Carburetor Kit

Spacer-Carburetor

REF. PART

NO. NO. DESCRIPTION

127 Plug-Welch

(Sold in Kit Only)

134 398188 Valve-Needle

(Includes Seat)

137 Gasket-Float Bowl

(Sold in Kit Only)

163 273364 Gasket-Air Cleaner

355 Washer-Seal

(Sold in Kit Only)

358 499686 Gasket Set

585 272238 Gasket-Breather

Passage

REF. PART

NO, NO.

633

868 498592

883 273348

977 499687

978 273346

987

1022 273241

1033 499688

DESCRIPTION

Seal-Choke Shaft

(Sold in Kit Only)

Seal-Valve

Gasket-Exhaust

Gasket-Set

Carburetor

Gasket

Seal-Throttle Shaft

(Sold in Kit Only)

Gasket-Rocker Cover

Kit-Valve Overhaul

BdggS &Stratton Corporation (B&S), the California Air Resources Board (CARB)

and the United States Environmental Pr,otactfon Agency (U.S. EPA)

Emission Control System Warranty Statement (Owner sDefect Warranty Rights and Obligations)

Inthe interestoftheenvironment,B&Senginasthat meet strictemis- TO CERTIFIED ENGINES PURCHASED IN CALIFORNIA IN 1995

sionrequlremantsarelabeled,"Thisengineconformsto 1995-1998 AND THEREAFTER, WHICH ARE USED IN CALIFORNIA, AND

California emission regulationsfor ULGE engines and U.S. EPA TO CERTIFIED MODEL YEAR 1997 AND LATER ENGINES

Phase I regulationsfor small non-road engines." WHICH. ARE PURCHASED AND USED ELSEWHERE IN THE

EMISSION CONTROL WARRANTY COVERAGE IS APPUCABLE UNITED STATES.

California and United State==Emlulon Control Defects Warranty Statement

CARB, U.S. EPA and B&S are pleased to explain the Emission

ControlSystem Warranty on your 1996and laterutilityor lawn and

garden equipment(ULGE) engine. InCalitomia,new ULGE engines

produced on or after August t, 1995 must be designed, builtand

equipped to meet the State's stringentanti-smog standards,Else-

where in the United States, new non-road, spark-ige_ engines

certifiedfor modelyear 1997 and later,mustmeet similarstandards

set forth by the U.S. EPA. B&S must warrantthe emissioncontrol

systemonyour engine for theperiodsof time listedbelow,provided

there has been no sbuse, neglector impropermaintenance of your

ULGE engine.

Youremissioncontrolsystem includesparts suchas thecarburetor,

air cleaner, ignitionsystem, muffler and catalytic conveder. Also

includedmay beconnastorsand otheremissionrelatedassemblies.

Where awarrantablecondition exists, B&S will repair your ULGE

engineat no cost toyou includingdiagnosis, partsand labor.

Brfggs & Stratton Emission Control Defects Warranty Coverage

ULGE engines are warranted relative to emission control pads below,lfanycoveredpadonyourangineisdetective, thepadwi, be

detects for a period of two years_ subject to provisionsset forth repaired or replacedby B&S.

Owner's Warranty Responsibilities

As theULGE engineowner,you are responsiblefor the performance Youare responsiblefor presentingyour ULGE engine to an Autho-

of the requiredmaintenance ]istsd in yourOperator/OwnerManual.

B&S recommendsthat you retain all yourreceiptscovering mainte-

nance onyour ULGE engine, but B&S cannot deny warrantysolely

for thelack ofreceiptsorfor yourfailure toensuretheperformanceof

all scheduledmaintenance.

Asthe ULGE engine owner,youshouldhoweverbe aware that B&S

may deny you warranty coverageifyour ULGE engine ora parthas

failed due to abuse, neglect, impropermaintenance or unapprovod

modifications.

dzed B&S Service Dealer as soon as a problem exists.The undis-

putedwarrantyrepairs should be completed ina reasonebla amount

of time, not to exceed 30 days.

If you have any quastlons regarding your warranty rights and

responsibilities, you shouldcontacta B&S Service Representative

at 1-4! 4-259-5262.

The emissionwarranty isa defectswarranty.Defects are judged on

normal engine performance. The warrantyis not related to an in-use

emission test.

Brlggs & Stratton Emission Control Defects Warranty Provisions

The following are specificprovisionsrelativetoyour EmissionControlDefects Warranty Coverage. Itis inadditiontothe B&S enginewarranty

for non-ragulatedengines found in the Operator/Owner Manual.

1. Warranted Parts

Coverage under this warranty extends only to the parts listed

below (the emission control systemsparts) to the extent these

parts were present on the engine purchassd.

a. Fuel Metering System

• Cold start enrichment system (serf choke)

•Carburetor and internalpads

,, Fuel Pump

b. Air Induction System

• Air cleaner

• . Intake manifold

c. Ignition System

•Spark piog(s)

•Magneto ignition system

d. Catalyst System

•Catalytic converter

•Exhaustmanifold

•Air injection system orpulse valve

e. Miscellaneous Items Used in Above Systems

•Vacuum, temperature, position,time sensitivevalves

and switches

• Connectors and assemblies

2. Length of Coverage

B&Swarrantstothe initia_ownerand each subsequentpurchaser

that the Warranted Parts shall be free from defectsin materials

and workmanship which caused the failure of the Warranted

Partsfor a penod of two yearsfrom the date theengineis deliv-

eredto a retailpumhaser.

3. No Charge

Repair or replacementof any Warranted Part willbe performed

at no chargeto the owner, including diagnostic labor whichleads

to the determination that aWarranted Part is defective, if the

diagnostic work is performed at an Authorized B&S Service

Dealer. For emissions warranty service contact your nearest

Authorized B&S Service Dealer as listed in the "Yellow Pages"

under "Engines, Gasoline," "Gasoline Engines," "Lawn

Mowers," or similarcategory.

4. Claims and Coverage Exclusions

Warranty claimsshallbe tiled in accordance withthe provisions

of the B&S Engine Warranty Policy. Warranty coverage shall be

excluded for failures of Warranted Parts which are not original

B&S parts or because of abuse, neglect or improper mainte-

nance as set forth inthe B&S Engine Warranty Policy. B&S isnet

liable to cover failures of Warranted Parts caused by the use of

add-an, non-or'_ginsi,or modified parts.

5. Maintenance

AnyWarranted Part which is not scheduledfor replacementas

required maintenance or which is scheduled only for regular

inspectionto the effectof =repair or replace as necessary" shall

be warranted as to defects for the warranty period. Any

Warranted Partwhich is scheduledfor replacement as required

maintenanceshallbe warrantedas to defectsonlyfor the period

of time up to the first scheduled replacementfor that part. Any

replacementpartthatis equivalentinperformance and durability

may be used intheperformanceof any maintenance orrepairs.

The owner is responsiblefor the performance of all required

maintenance, as defined inthe B&S Oparator/Owner Manual.

6. ConsequentialCoverage

Coverage hereunder shall extend to the failure of any engine

componentscaused by the failure of any Warranted Part still

under warranty.

Briggs&Strattonwelcomeswarrantyrepairandapologizes

toyou for being inconvenienced. Any Authorized Service

Dealer may performwarrantyrepairs. Mostwarrantyrepairs

are handled routinely,but sometimes requests for warranty

servicemaynotbe appropriate.For example, warrantywould

notapplyif enginedamage occurredbecause of misuse, lack

of routinemaintenance, shipping,handling,warehousingor

improperinstallation.Similarly,warranty is void if the serial

numberof the engine has been removed or the engine has

been altered or modified.

If acustomerdifferswiththe decisionof the Service,Dealer,an

investigationwillbe made to determinewhetherthe warranty

applies.Askthe ServiceDealertosubmitall supportingfactsto

hisDistributororthe Factoryforreview.If the Distributororthe

Factorydecidesthat the claimisjustified,the customerwillbe

fully reimbursedfor those itemsthat are defective.To avoid

misunderstandingwhich mightoccur betweenthe customer

and the Dealer,listedbelow are come of the causesof engine

failure that the warrantydoes notcover.

Improper maintenance:

The life of an engine depends upon the conditionsunder

whichit operates,andthe care itreceives.Some applications,

suchastillers,pumpsand rotarymowers, arevery oftenused

industyordirtyconditions,whichcan cause what appears to

be prematurewear. Such wear, when caused by dirt, dust,

spark plugcleaning grit, or other abrasive material that has

entered the enginebecause of impropermaintenance, is not

covered by warranty.

This warranty covers engine related defective material

and/or workmanship _and not replacement or refund

of the equipment to which the engine may be mounted.

Nor does the warranty extend to repairs required

because of:

1. PROBLEMS CAUSED BY PARTS THAT ARE NOT

ORIGINAL BRIGGS & STRATTON PARTS.

2. Equipmentcontrolsor installations that prevent starting,

cause unsatisfactory engine performance, or shorten

enginelife. (Contact equipmentmanufacturer.)

3. Leakingcarburetors,cloggedfuel pipes, sticking valves,

or other damage, caused by usingcontaminatedor stale

fuel. (Use clean, fresh, lead-free gssolineand Briggs&

Strattongasoline stabilizer,Part No. 5041.)

4. Parts which are scored or broken because an engine was

operated with insufficient or contaminated lubricating oil,

or an incorrect grade of lubricating oiJ(check oil level daily

or after every 8 hours of operation. Refill when necessary

and change at recommended intervals.) Read "Owner's

Manual,"

5. Repair or adjustment of associated parts or assemblies

such as clutches, transmissions, remote controls, etc.,

which are not manufactured by Briggs & Stratton.

6. Damage or wear to parts caused by dirt, which entered

the engine because of improper air cleaner maintenance,

re-assembly, or use of a non-odginsl air cleaner element

or cartridge. (At recommended intervals, clean and re-oil

the Oil-Foam® element or the foam pre-cleaner, and

replace the cartridge.) Read "Owner's Manual."

7. Parts damaged by overspeeding, or overheating caused

by grass, debris, or dirt. which plugs or clogs the cooling

fins, or flywheel area, or damage caused by operating the

engine in a confined area without sufficient ventilation.

(Clean fins on the cylinder, cylinder head and flywheel at

recommended intervals.) Read "Owner's Manuel."

8. Engine or equipment parts broken by excessive vibration

caused by aloose engine mounting, loose cutter blades,

unbalanced blades or loose or unbalanced impellers,

improper attachment of equipment to engine crankshaft,

overspeeding or other abuse in operation.

9. A bent or broken crankshaft, caused by striking asolid

object with the cutter blade of arotary lawn mower, or

excessive v-belt tightness.

10, Routine tune-up or adjustment of the engine.

11. Engine or engine component failure, i.e, combustion

chamber, valves, valve seats, valve guides, or burned

starter motor windings, caused by the use of alternate

fuels such as, liquified petroleum, natural gas, altered

gasolines, etc.

For the repair or replacement parts you need

Ca, 7 am - 7 pm, 7 days a week

1-800-366-PART

(1-800-366-7278)

For in-home major brand repair service

Call 24 hours a day, 7 days a week

1 -800-4-REPAIR

(1-800-473-7247)

For the location of a

Sears Parts and Repair Center in your area

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

call 9 am - 5 pm, Monday-Saturday

1 -800-827-8655

%17

Ame_c_'s Repair Spedalists

MANUAL DEL OPERADOR

CRAFI"SMAN

Lavadora de Alta Presi6n

6.0 Cabal!os de Fuerza

2350 PSI 2.2 GPM

Modelo No.

919.762350

ADVERTENCIA: Leer este

manual y observar todas las

Precauciones de Seguridad e

Instrucciones de Operaoi6n

antes de usar este equipo.

•Seguridad

•Ensamblaje

•Operaci6n

• Mantenimiento

•Lista de Partes

,EspaSol

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

16478 MGP-7023S0A 41t5/98

TABLA DE CONTENIDOS

Garantia .................................................... 34

Pautas de Seguridad .......................... 35-37

Ensamblaje .......................................... 37-39

Operaci6n ............................................ 39-43

Mantenimiento .................................... 43-45

Servicio y Regulaciones ...................... 45-46

Almacenaje ............................................... 46

Gu{a para Diagn6stico de Problemas ...... 47

Repuestos ........................................... 48-51

C6mo Ordenar Repuestos ......... Contratapa

GARANT|A LIMITADA DE UN Ai_O PARA LAVADORAS CRAFTSMAN DE

ALTA PRESION

Por un afio a partir de la fecha de compra, y siempre que esta Lavadora Craftsman de Alta Presi6n se

mantenga y opere de acuerdo alas instrucciones en el Manual del Operador, Sears reparar_i cualquier

defecto de material o fabricaci6n sin costo alguno.

Siesta lavadora se usa para prop6sitos comerciales, la garantia s61o ser_taplicable por 90 dias a partir

de la fecha de compra. Siesta lavadora se usa para alquiler, esta garantla s61o ser_iaplicable por 30 dias

a partir de la fecha de compra.

GARANT|A LIMITADA DE UN AI_IO DEL MOTOR CRAFTSMAN

Por un at_o a partir de la fecha de compra, y siempre que este motor Craftsman se mantenga y opere de

acuerdo alas instrucciones en el Manual del Operador, Sears reparar_ cualquier defecto de material o

fabricaci6n sin costo alguno.

Si el motor Craftsman se usa para prop6sitos comerciales o de alquiler, la garantia s61o sera aplicable

por 90 dias a partir de la fecha de compra. Esta garantia no cubre piezas sujetas a desgaste tales como

bujias y filtros de aire, los euales se gastan con el uso normal.

La garantia no cubre las reparaciones que se hagan necesarias debido al mal uso o negligencia de parte

del operador, incluyendo dafios causados por no suministrarle agua a la bomba o no mantenar el equipo

de acuerdo alas instrucciones contenidas en este manual.

SE PL_DE OBTENER SERVICIO POR GARANTIA SI SE LLEVA LA LAVADORA DE ALTA

PRESION AL CENTROiDEPARTAMENTO DE SERVICIO DE GARANTiA MAS CERCANO EN

CUALQUIER LUGAR DE ESTADOS UNIDOS. Esta garantia le otorga ciertos derechos legales

especificos y usted tambi_n podrla tenet otros derechos que varian de an estado a otto.

Sears, Roebuck and Co,, D/817 WA, Hoffman Estates, IL 60179

IIIIIIIIIIIIIIII

PAUTAS DE $EGURIDAD - DEFINICIONES

Este manuel contiene inforrnaci6n que es importante que usted sepa y entienda. Esta informaci6n se relaciona con la

pmtecot6n de SU SEGURIDAD y la PREVENCI6N DE PROBLEMAS AL EQUIPO. Para ayudarle a identificar esta informecibn

usamos los siguientes elmbolos. Par favor leer este manual y prestar atenci6n especial a estes secciones. CONSERVAR

ESTAS DEFINICIONES/INSTRUCCIONE$.

AADVERTENCIA indica una situaci6n

potencialmente riesgosa, la cual, si nose evita

puede causar lesiones series o muerte,

_, PELIGRO indica una situacibn riesgosa

inminente que si no se evita ¢ausar_ lesiones

series o muerte.

_, CUIDADO indica una situaci6n potencialmente

peligrosa que si no se evita ouede causer

lesiones menores.

lOlall17

INSTRUCCIONES IMPORTANTES DE SEGURIDAD

LA OPERACI_N O EL MANTENINRENTO INAPROPIADOS DE ESTA UNIDAD PUEDEN CAUSAR LESIONES SERIAS Y DAI_OS

A LA PROP|EDAD. LEER Y ENTENDER TODAS LAS ADVERTENCIAS DE SEGURIDAD E INSTRUCCIONES DE OPERACI(_N

ANTES DE USAR ESTA UN|DAD.

RIESGO

RIEGO DE INCENDIO O

EXPLOSION

RIESGO A LA RESPIRACI6N

QUEPUEDESUCEDER

La gasoliney los vapores de gasolinapueden

encenderse con las chispas de los

cigarrillos,amos el_ctrloos, gases de escape

ylos componentes calientes de los motores

tales coma el mofle.

El calor expandir_ el combustible en el

tanque lo cual puede causer un derrame y

posiblemente fuego oexplosibn.

Operar la unidad en un ambiente con

riesgos de exploel6n, puede causer un

incendio.

Los meteriales colocados contra la lavedora

de presi6n o cema de _sta pueden interfedr

con su ventilaci6n apropiada causando

sobreealentamiento y posible inflamaci6n

de los materieles.

El combustible indebidemente guardado

puede ceusar una ignici6n accidental. El

combustible indebidamente asegurado

puede caer en las manos de nifios u otras

personas indebidas.

•Inhaler los gases del escape causard

leeiones series o muerte.

• Algunos t_quidos limpiadores contienen

sustanciasque pueden causerdafio ata piel,

los ojos o los pulmones.

COMO PREVENIRLO

• Apagar el motor y permitir que se enfr{e

antes de agregar combustible el tanque.

Tener culdado al Ilenar el tanque pare evitar

derramar el combustible. Retirar la lavadora

de presi6n del _rea de relleno de

combustible antes de arrencar el motor.

•Mantener el nivel m,_xlmo del combustible

a1,5 cm par debajo de la tape del tanque

de combustible pare dejar sltio para la

expensibn.

• Operar y agregar combustiblo el equipo en

_rees bien ventiladas y libres de

obstrucciones.Equipar el_rea de operacibn

con exttnguidor(es) edecuado(s) pare

incendios de gasolina.

•Nunca operar Ia lavadora de presi6n en un

_rea que contenga hierbas o tames secas.

• Almacenar la gasotina en envase designedo

pare contener gasoline yen un lugar seguro

lejos del _lreade trabajo.

•Operar la lavadora de presi6n en un ,_rea

bien ventileda. Evitar &reas cerradas tales

coma garajes, s6tanos, etc.

•Nunca operar la unidad en lugares

ocupados par personas ni animeles.

•Solo user Itquidos limpiadores

especialmente recomendedos pare

lavadoras de alta presi6n. Seguir las

recomendeclones del fabdcante.

INSTRUCCIONES IMPORTANTES DE SEGURIDAD (Cont.)

RIESGO

RIESGO POR OPERACION

INSEGURA

'.RI:IIt4'IttlII

RIESGO DE LESlONES

POR EL CHORRO

RIESGO DE

CHOQUE

ELliCTRICO

RIESGO DE INYEC¢ION DE

L|QUIDO

RIESGO DE QUEMADURAS

QU|MICAS

QUE PUEDE SUCEDER

La operaci6n o mantenimientoinadecuados

de la lavadora de presibn puede causar

tesiones seriasomuerte al operador o a otras

personas.

Lapistola/tubo aplicadores unaherramienta

potente de Iimpieza y aun niSo podria

parecerle un juguete.

La fuerza reactive del chorro hard que el

splicador "patee" y pueda causar clue el

operador se resbale y caiga o dirija real el

chorro. La p_rdida de control del apticador

puede causar lesiones al mtsmooperador o

aotros.

• El chorro de los liquidos aalta velocidad

puede causar la mtura de algunos objetos

proyectando sus psrtfculas a altas

velocldades.

• Los objetos livianoso que no eat_n sujetos

se pueden convertir en proyectiles

peligrosos.

•Dirigir el chorro hacia tomacorrientes o

interruptores el6ctricos, ohacia objetos

conectados al suministro eldctrico puede

causar choque eI6ctrico.

La m_iquina opera con fiuidos a atta presi6n

yavelocidadesIo suficientementealtas pars

penetrar el cuerpo de personas y animales,

Io cual puede resultar en lesiones sedas y

amputacibn. Las p6rdidaa causadas por

conexionesflojas o gastadas pueden causer

inyeccibn y lesiones, iNO TRATAR LA

INYECCI(_N DE LIQUIDOS COMO UN

SIMPLE CORTE! Obtener atencibn mi_dica

de Inmediato.

• Aliviar la presion del siatema antes de

tntentar darle mantenimiento o

desensamblarlo.

El uso de &cidos, quimicos t6xicos o

corroslvos, venenos, insecticidas, o

cualquler tipo de solvente lnflamable en esta

unidad pueden causar lesiones personales

serias o muerte.

COMO PREVENIRLO

Famllladzarsecon la oparacibn y los controles

de la lavadora de presi6n.

Mantener a los nil'los alejados dela lavadorade

presi6n en toclo mornento.

Nunca burlar los disposltlvos de seguridad de

este equipo.

No operar la mdquinacon piezasfaltantes, rotas

o no autodzadas.

Nunce dejar desatendido el tubo aplicador

cuando la lavadora eat_ten operacibn.

Mantener el drea de trabajo Iibre de obstiiculos.

Pararse en una superficle estable y agarrar con

flrmeza la pistola/tubo aplicador. Prepararse

pars el retroceso de la pistols aplicadora cads

vez que se presione el gatillo.

• Siempre usar anteojos de seguridad que

cumplan con la norms Z87 de ANSI. Siempre

usar ropa especial pars protegerse del chorro.

•Nunca apuntar el tubo apticador ni dirigir el

choffo a personas ni artlmales,

•Para evitar que se accione accidentalmente

siempre enganchar el seguro del gatillo

cuando la pistola aplicadora no est6 en uso.

• Nunca fijar el gatillo permanentemente en la

posici6n de abierto.

•Desconectar cualquier aparato el_ctricoantes

de intentar limpiarlo. No dirigir el chorro a

tomacorrientes ni ainterruptores el6ctricos.

•Nunca cotocar las manos delante de la

boquilla.

• No dirigir el chorro hacia uno mismo ni hacia

otras personas.

•Asegurarse que la manguera y las conexiones

esten bienajustadas yen buenas condiciones.

Nunca agarrar la manguera ni las conexiones

durante la operactbn.

•No parmitIr que la manguera entre en contacto

con el mofle,

•Nunca poner ni quitar et tubo apficador ni los

acoples de la manguera mientras que el

sistema est_ presurtzado.

•Usar 0nicemente mangueras y accesorios de

alta presibn para servicio a2000 PSI.

•Para aliviar la presibn del sistema, apagar et

motor, cortar el suministro de agua y tirar del

gati}lo hasta que el agua deje de flulr.

•No user dcidos, gasoline, kerosene ni otros

materiales inflamables en esta unidad. $61o

usar detergentes dom6stlcos, limptadores y

desengrasantes recomendados para user en

esta lavadora de presi6n.

•Usar rope protectors pars evltar que los ojos

y la piel entrenen contacto con los materiales

rociados.

INSTRUCCIONES IMPORTANTES DE SEGURIDAD (Cont.)

RIESGO

RIESGO POR SUPERFICIES

CALIENTES

QUE PUEDE SUCEDER

• El contacto con superficies caUentes,tales

como los componentes del escape, puede

causar quemadums serias.

COMO PREVENIRLO

•Durante la operaci6n, s61o tocar las

superficies de control Mantener a los nifios

alejados de la lavadora en todo momento.

EIIos pueden no reconocer los fiesgos de

esta m_quina.

S|mbolOSlnternacionales[L_._ ]jl..__________.jitLeerel Manualde,-`- _....... iL_/Prende r (_ Detener_C_duetlble

. .. Operad6n

IMPORTANTE:

El poderoso chorro producido por la lavadora de presi6n es capaz de dafiar superficies fr_giles tales como; madera,

viddo, pintura y molduras automotrices,y objetos delicados tales como floresy arbustos. Antes de rociar,inspeccionar

etobjeto alimpiarse para asegurarseque esIosuficienternenterobustocomo para resistirla fuerza del chorrosinsostener

dafios. Evitaruser chorros muy concentrados excepto para limpiarsuperficiesfuertestales como concretoy acem.

Operar la unidad con el suministmde agua cerradoy sinflujode ague le causar&dafios al equipo. Nunca se debe operar

esta lavadora de presi6n pot m&s de 2 minutos sintirar del gatiUopara permitirel ingreso de ague _a ala bombay que

haga salirel agua caliente. Operar la lavadora de presi6ncon el flujode agua cortado anular&la garantfa.

Contenidos de la Caja

•Unidad pdncipaI de la lavadora a presi6n con ruedas

• Asa

- Manguera para alta presi6n

• Manguera absorbente de soluciones

qufmicas y filtro

• Pistola

•Tubo aplicador

Unidad pdncipat de la lavadora Asa

apresi6n con ruedas

Manguera absorbente

de soluciones qufmicas y filtro

Manguera para

alta presi6n

Pistola y Tube aplicador

Bolsa contenlendo

• Casete de video

• ManualdelOperador

• Juego de timpiador de boquUlas y anillos "O" de

repuesto

• Botella de aceite para motor

• Tope amortiguador de caucho para pata y

elemento de fijaci6n

• Elementos de sujeci6n para el asa

Casete de video Manual del Operador Juego de limpiador de

boquillas

L _ Botetla de aceite <3_>

pare motor

Elementos de sujeci6n

para el asa 0

An,los "O" de repuesto

Tope arnortiguador de

caucho para pate y

elemento de fijaci6n

Herramlentas Requeridas part= el Ensamblaje

Llave regulable para tuercas

Ltave hexagonal Allen de 5mm 0ncluida)

Sacar la Lavadora de Presi6n de la Caja

• Abrir la caja pot la parte de arn_a, bentro de la caja

ubicar ysacar Ia pistola y el tube aplicador, la cinta de

video y la botena de aceite.

• Cortar la caja a Io largo de la Iinea punteada.

• Sacar el empaque de la caja.

• Hacer rodar la unidad por la apertura de la caja.

NOTA: La manguera se encuentra en el rondo de la caja,

Preparaci6n de la Lavadora de Presi6n pare

el Primer Uso

Nota: En la caja de la lavadora se incluye una cinta de

video que muestra como preparar la unidad pare su

operaci6n. Se recomienda vet esta cinta de video antes

de continuer con los siguientes pesos.

1. •tnsertar el asa en el bastidor.

• Ajustar las perillas gir&ndolas en el sentido de{ reloj.

• AJustar la perilla gir_ndola en el sentido del reloj.

(Ajustar la perilla en el sentido del

reloj pare enroscar en el pemo J)

_ (Inserter perno J _q_i. E_ex_remo

roscaclo entra en el oriflcio superior)

2. • Quitar la plancha de madera del bastidor de la unidad.

Deseohar ta tuerca, el perno y tatabla. Quitar la tuema

del perno quejunta la plancha de madera al bastidor,

usando una tuerca ajustable.

3÷ O Instalar eltope amortiguadorde caucho en el bastidor

colocando el extremo roscado del pemo dentro de la

arandela. Luego, {:on la arandela en el perno, pasar

el extremo roscado del pemo por el tope amortiguador.

Colocar Ia parte roscada del tope amortiguador en el

mismo oriflcio donde estuvo montada la tabla de

madera en la lavadora a presi6n. A continuaei6n

colocar Iatuerca en forma de T sobre le parte roscada

del perno y, usando la Ilave Allen provista, sujetar el

tope amortiguador al bastidor.

III- Ill

4. , Conectar el tubo aplicador ala pistola. Para ajustar,

girar la perilla en el sentido deI retoj. Ajustar a mano.

5. • Cortar et amarre de la manguera para alta presiOn.

Desenrollar lamangueray conectar elextremo roscado

ala pistola.

6. •Conectarlamangueraparaattapresi6nalasalidade

Ia presi6n en la lavadora y ajustarla firmemente a

mano. Conectar la manguera de succibn de quimicos

al niple en el conector de la manguera de Ia bomba.

MANGUERA

PARA

DE OU|MICOS

MANGUERA

PARA ALTA

PRESION

NOTA: Siempre mantener la manguera alejada del tubo

de escape del motor.

7. • Colocarlapistolaensambladaconeltuboaplicador

en el soporte de la lavadora a presi6n.

8. , Cotocalacuerdadearranqueenelsoportetipo

argolla.

Pasar la cuerda por debajo del soporte a la

derecha de la argolla.

Elevar el mango de la cuerda de arranque y

deslizar la cuerda hacia la izquierda para que

entre en la argolla.

Luego deslizar el mango por atrds det soporte

hacia el lado izquierdo de la argolla.

El retroceso del motor halard el mango y Io

pondr_ en su posici6n final,

Lista de Comprobaci6n

Antes de continuar, por favor comprobar Io siguiente:

• Haber seguido las instrucolones de ensamblaje

complefamante.

•Haber revisadodos veces quetodos losacoples est_n

firmemente ajustados.

IMPORTANTE: Antes de cualquierlntento de arrancar la

lavadora apresi0n, cemiorarse de inspeccionar el aceite

del motor (referirse a la secci6n Aceite del Motor en el

capftulo Operaci6n. Ver la pdglna 9).

Familiarizarse con la Lavadora de Presi6n

Leer el Manual del Operador y las Pautas de

Seguridad antes de operar la Lavadora de Alta

Presidn. Comparar esta ilustracibn con nuestra

lavadora de presi6n para famUtarizarse con los

diversos controles y dispositivos de regulacibn.

Conservar este manual para referencia futura.

BOMBA: Desarrolla alta presibn.

REGULADOR DE PRESI(_N: Permite regular la presi6n

del chorro de salida.

MANGUERA DE

ALTA PRES_(_N

TAPA DE

GASOUNA

INTERRUPTOR PARA ARRANCAR Y APAGAR:

Coloca la unidad en la modalidad para arrancar con la INTERRUPTOR

cuerda de arranque y paraApagar el motor cuando estd PARA

funcionando. Y

CUERDA DEL ARRANCADOR: Se usa para arrancar

el motor manualmente.

PISTOLA APUCADORA: Tiene un gatillo que permite

controlar el agua que se aplica a la superficie que se

desea lavar.

TAPA DE ACEITE Y VARILLA MEDIDORA: Toma por

donde se le reIIena aceite al motor.

TAPA DEL TANQUE DE GASOUNA: La tapa se saca

para rellenar con gasolina sin plomo.

TUBO INYECTOR DE QU|MICOS Y FILTRO: Mezcla

el agua y el detergente en el punto de altmentacibn del

agua.

SALIDA DE ALTA PRESI6N: Conexi6n para la

manguera de alta presi6n.

CHOKE: Palanquita de cebado para arrancar la unidad.

TUBO

INYECTOR DE

QUiMICOS Y

FILTRO

REGULADOR DE

PRESION

A Y TUBO

APUCADOR

PARA

ARRANCAR

TAPA

iDE ACEITEY

VARILLA

MEDIDORA

MOFLE

CONEXI(_N PARA

SAUDA DE LA ENTRADA DE

ALTA PRESI(_N AGUA

A, Advertenola: Leer el Manual del operador. No

intentar operar este equipo hasta haber leido las

instrucciones de Seguridad, Operacibn y

Mantenimiento. Antes de Arrancar el Motor

Hacer 1osiguiente para hacer que el motor funcione:

NOTk Labombade lalavadoraa presi6nes unabombaseltada

y nuncadeberfanecesitarrellenoni cambioetaceite.

Nota: En la caja de la lavadora se incluye una cinta de [

video que muestra como operar la lavadora de presi6n. Si 1

se dispone de una grabadora de video se recomienda ver

esta cinta antes de operar la unidad.

_, dvertencta: Nunca regular la forrna del abanico [

del chorro mientras se estd rociando. Nunca colocar !

Ias manos delante de la boquilla del chorro para

modificar la forrna de! chorro porque puede

lesionarse.

Apagado de la Lavadora de Presi6n

_, CUIDADO: Nooperarlabombaarnenosquelamanguera I

de abastecimiento de aguaest6 conectadaa unaIlavede I

aguaqueest_abierta, deIocontradode daSardlabornba.

•Para apagar la lavadora de presibn, mover la palanca

de aceleraci6n a la posici6n de OFF/APAGAR.

ACELERADOR

•La presi6n de agua del sistema no se ativiard con s61o

apagar el motor. Despu_s que el motor se haya

detenido, presionar el gatillo de la pistola por unos 3

segundos para descargar la presi6n. La Iongitud del

chorro disminuird.

IMPORTANTE: Esta unidad est_ equipada con una vdlvula

t_rmica de alivio. Si se deja funcionar la unidad por varios

minutos sin presionar el gatillo de la pistola puede ser que

vadas gotas de agua salgan por esta valvula para enfriar

la unidad. El agua fluird del fondo de la bomba.

•_, CUfDADO: Siempre verificar el nivel de aceite del

motor antes de cada arranque. Haoer que el motor

funcione sin aceite o con el nivel bajo puede

casusar dar3ossedos el motor.

Aceite del Motor

La unidad ha sido despachada sin aceite en el motor,

pero se inctuye una botella de aceite SAE 30 en la caja

de embalaje. Sacar la tapa de aceite con vadlla medidora

ubicada sobre el motor. La capacidad de aceite es

aproximadamente 591 ml (20 Onz.). La varilla medidora

estd claramente marcada con lineas indicadoras que

permiten saber cuando hay suficiente aceite. No

sobrepasar la linea de Ilenado. Rellenar el aceite

lentamente. Para revisar el aceite, introducir Ia vadlla

medidora dentro de la toma de aceite. Ajustar la medidora

y volverla a sacar. No sobrepasar la Iinea de Ilenado.

Rellenar el acelte lentamente.

NOTA: AI rellenaraceite al c_rter del motor, usar aceite de

alta calidad y grado SAE 30 conteniendo detergente

clasjficado para servicio SF, SG o SH. No usar aditivos

especiales. Seleccionar el gradode viscosidadde acuerdo

alas temperatura de operaci6n que se esperen tener.

Mds fifo <i-----4°C/40°F---_> mas caliente

Sint_tico 5W-30 I SAE 30

A pesar que los aceites de vlscosidad m{31tiple(5W30,

10W30, etc.) mejoran e! arranque en climas frios, estos

pueden aumentar el consumo de acette cuando se usen

por encima de 4°C/40°F. Revisar el nivel del aceite con

mds frecuencia para evitar posibles daSos al motor por

operar con poco aceite. La capacidad de aceite del cdrter

es de 591ml (20 Onz.).

Gasolina

El motor de la lavadora de presi6n es de 4 tiempos. Usar

enicamente gasolina sin plomo.

A CUIDADO: No rellenar ettanque de gasolina demasiado.

Sernpre dejar espac o para aexpans 6n de combust be.

A. ADVERTENCIA: Nunca rellenar el tanque en interiores.

Nunca rellenar el tanque de combustible cuando el motor [

estd funcionando ni cuando estd caliente, No fumar ni

tener arnascercacuandosere enecornbustbe.

Usar gasolina regular sin plomo que est_ fresca y limpia

de m|nimo 85 octanos. No mezclar el aceite con la

gasolina. Si no se dispone de gasolina sin ptomo, se

puede usar gasoline con plomo.

IMPORTANTE: Durante el almacenaje, es importante

evitar la formacibn de sedimentos pegajososen el sistema

de combusti6n tales come en el carburador, manguera

del filtrode combustible o tanque, La experienciatambi_n

nos indlca que las gasolinas mezcladas con alcohol

(llamadas gasohol o que tienen etanol o metanol) pueden

atraer humedad que luego se separard y formard dcidos

durante el almacenaje de Ia unidad. La gasofina acfdica

puede daSar et motor mientras est_ almacenado. Para

evitarle problemas al motor, vaciar el sistema de

combustibn antes de almacenar la unidad pot 30 dfas o

m&s. Nunca echar productos limpiadores pare el motor

o el carburador en el tanque de combustible porque se

pueden causar daSos perrnanentes.

NOTA: Nunca arrancar la lavadora a presi6n a menos

que est_ conectade a un suministro de agua y que la

Ilave est_ abierta.

Para Arrancar la Lavadora a Presi6n

•Sacar la tape del tanque de gasolina.

•Agregarlentamentagasolinasinplomoeneltanque.

•No sobrellenar.

• Conectar una manguera de jardfn ala boquilla de la

toma de agua en la lavadora apresi6n. Ajustarla

girando la boquilla de latoma de agua contra el sentido

del reloj.

Contectar la manguera de alta presi6n ala descarga

de Ia bomba.

Conectar la manguera de ague a Ia Ilave de suministro

de agua y abrirla. _!

t t

•Apretar el gatillcde la pistolaapl|cadora para descargar

la presi6n de aire acumulada al haber abierto la Ilave

del suministrode ague. La pistoladisparar_ un pequei_o

chorm de agua. Esto facilitar_ el arranque del motor.

•Enganchar el segum de la pistolaaplicadora. Esto fijar_

el gatillc en posicibn y evitar& que se aplique unchorro

de alta presi6n en forma accidental.

SEGURO

•El motor tiene una palanquita para CHOKE/RUN

(Cebado/Operacibn). Colocar lapalanquita en la posicibn

de "Choke" (Cebado).

• Elmotor tiene otra palanquita pare control de aceleraci6n,

colocarla en la posici6n de la liebre. Siempre echar et

motor a funcionar con la palanquita en la posici6n de ta

liebre (o de alta velocidad).

CHOKE/

CEBADOR_..

Tomar la manija de le cuerda del arrancador y tirar de

ella lentamente hasta sentir una resistencia, luego tirar

de ella firmemente para que el motor arranque.

NOTA: Si el motor no arranca de inmediato, apretar

el gatillo de la pistola para descargar la presi6n de

aire acumulada al haber abierto la Ilave del suministro

de agua. La pistola disparard un peque_o chorro de

agua. Esto facilitard el arranque del motor al tirar de

la cuerda. Si se necesita tirar de la cuerda del

arrancador m-'tsde cinco veces, regresar la palanca

de "CHOKE" (Cebado) a la posici6n RUN (Operaci6n).

Cuando el motor arranque, mover la paianquita del

"CHOKE" (Cebado) gradualmente ala posici6n de

"RUN" (Operaci6n).

Pare volver a arrancar el motor cuando est_ caliente,

cerciorarse que la palanquita de aceleraci6n eat_ en la

posici6n de la Uebre (alta velocidad) y que la palanquita

del "CHOKE" (Cebado) est_ en la posici6n de "RUN"

(OperaciSn).

Agarrar el mango de la cuerda del arrancador ytirar de

ella lentamente hasta sentir una resistencia, luego tirar

de ella firmemente.

Como user la Lavadora de Presi6n

En el extremo de Papistola aplioadora hay una boquilla

que ee puede deeltzar hacia adelante yhacia atr_s y que

tambi_n se puede girar a ambos lados. Con la boquilla

regulable se puede controlar la preslbn del chorro pare

alta o baja presibn. Tambidn se puede regular Ia forma del

chorro pare concentrado o abrirlo en forma de abanico.

• Deslizar la boqutl/a hacia adelanta pare la presi6n ba_a

y hacia atrds para la presi6n alta.

PRESl6N ALTA PRESl6N BAJA

Pare regular la forma del chorro, girar la boquilla en el

sentido del reloj para abrir el chorro en forma de abanico

y contra el sentido del reloj para concentrar el chorro.

CHORRO EN ABANICO CHORRO CONCENTRADO

•Para un lavado m_s efectivo, mantener la boqulfla de

roctado a una distancia de entre 20cm (8") y 60cm (24")

de la superficie que se est_ levando.

IMPORTANTE: Si se afloja la boquiUa concentrando el

chorro demasiado, especialmente en alta presibn,se puede

da5ar la superficie que se est& lavando,

La perilla de control de la presi6n est_ ubicada en la

bomba, Se puede aumentar la presi6n girando la perilla

en el s'entJdo del reloj o disminuirla girando la perilta

contra el sentido del reloj.

PERILLA DE

CONTROL

DE PRESI6N

NOTA:Lapresl6n mdxima de launidadviene reguladadef_brica.

No lntentar modiffcar estareg'utaci6nhecha en f_brica.

Uso de Detergentes y Quimicos

IMPORTANTE: Usar detergentea yproduetos qulmicos

que est_n diseSados especfficamente para usar en

lavadoras a presi6n. Pare aplicar detergente seguir estos

pasos: .,

•Prepararel detergente o qufmicorequeddo para la tarea.

•Insertar el tubo succionador en el contenedor (no se

incluye el detergente). _, ._

Manguera

pare los quimlcos

Jarro __

pare los qutmicos

NOTA: El primer paso es la preparaci6n de la soluci6n

adecuada de detergente o qufmtco apropiado para que

penetre en la suciedad y la suelte. Apltcar el detergente

oquimico a baja presi6n para evitar que salpique y se

desperdicie, iDejar que Ia soluci6n repose sobre la

superficie unos 3 a 5 minutos pare que act_e.

NOTA: El segundo paso consiste en usar Ia lavadora a

presi6n para lavar la superficie que se ha preparado y

luego enjuagada.

• Deslizar la boquilla regulable hacia adelante ala

modalidad de baja presi6n. No se puede aplicar

detergente/quimicos con la boquilla en la posici6n para

presi6n alta.

•Revisar la posicl6n de la boquUla regulable.

• Conectar una manguera de jardfn a la entrada de agua

(ver la secci6n "Arranque de la Lavadora a Presibn" en

la p_gina 9), verificar que la manguera pare alta presi6n

est,* conectada ala pistola aplicadora yaIa bomba

(ver Ia secci6n "Ensamblaje") y arrancar el motor.

• Aplicar el detergente/qufmico a la superficie seca

comenzando de abajo y trabajando hacia arriba.

• Permitir que el detergente/qufmico repose de 3 a 5

minutos en la superficie antes de lavar y enjuagar.

• Para lavar, comenzar por la parte inferior de la superficie

yavanzar hacia arriba apttoando en tramos largos

tra_apados y unfformes.

• La lavadora a presi6n estd equipada con una perilla

pare regular la inyecci6n del qufmico. Con la perilla

totalmente abierta se obtendrd le mdximo de succi6 de

qulmico. Con la perilla totalmente cerrada no habr_

succi6n de qufmico. Glrar la perilla contra el sentido

del reloj pare lograr una mayor succ6n del detergente/

qufmico yen el sentido del reloj para una menor succ6n.

PERILLA

REGULADORA DEL

INYECTOR DE

DETERG/QU|M. \

•Se recomienda que despu_s de usar la lavadora de

presi6n se lave internamente la bomba, el inyector de

qufmicos y la manguera de qufmicos con agua limpia,

Paraelloslmplementesumergirla manguera de qufmicos

en agua y sifonear agua por 1 a 2 minutos.

RESPONSABILIDADES DEL PROPIETARIO

TAREA DE MANTENIMIENTO

LAVADORA A PRESION

Inspeccionar/limpiar la malla de entrada.

Inspeccionar la manguera para elta presi6n,

Inspeccionar la manguera de succi6n de

detergente/qufmico y filtro.

Inspeccionar para detectar fugas por la pistola/tubo aplicador.

Purgar el aire ylos contaminantes de la bomba

Cada 25 Cada 50

Antes de Horas Horas

Cada Uso o Cada Afio o Cada Afio

Cada 100

Horas

o Cada Afio

MOTOR

Inspeccionar el nivel de acelte.

Cambiar el acelte del motor.

Limpiar el filtro de aire,

Limpiar/reemplazar ta bujia.

Especificaciones del Equipo

Especificaciones de la Lavadora de Pres|6n

Presi6n 2350 I

indice de Flujo 2,2 GPM

Unidades de Llmpieza (PSI x GPM) 5170

Eepecificaciones del Motor

RPM 3600

Potencia 6,0 HP

Luz de ]a Bujia 0,76mm (0,030")

Capacidad de Gasolina 1.3 Lt, (1.5 Qts)

Acelte (Capacidad 591 ml /20 Onz.) SAE 30

Recomendaciones Generales

La garantfa de la lavadora a elta presi6n no cubre las piezas que

han sido sujetas a mel uso o negligencia por parte del operador.

Para mantener lavalidez de la garantia, el operador deber_ hacede

el mantenimiento a la lavadorade alta preel6n como se indica en

este manual,

Algunas regulaciones peri6dicas ser&n necesarias para el

mantenimiento de la lavadora a elta presi6n.

Todas las r_,-:_gulacionesen la Secci6n de Mantenlmiento de este

manual deber'&n Ilevarse acabo por Io menos una vez por

temporada,

Una vez el afio se deber&n limpiar o reemplazar la bujla y el filtro

de aire y se deber_n inspeccionar la pistola yel tubo aplicador

para detectar puntos de desgaste, Una bujia y un filtro de aire

!impios asegurar_n una buena mezcla de aire y combustible y

ayudar_n a que el motor opere mejor y dure m_.s,

La bomba de lavadora a presibn es una bomba sellada y nunca

deberia neceeltar relleno ni cambio del aceite.

NOTA: Con el transcurso del tiempo, los anillos "O" de la pistola

rociadora se gastar_n, Con la unidad se provee un juego de

anillos "O" de repuesto que viene adherido al manual del

operador.

Mantenimlento de la Lavadora de Presi6n

Inspeccionar y Camblar la Malla de Entrada: Examinar

la malla en el acople de entrada de la bomba. Umpiar si

estuviese atorada, reemplazar si estuviese rota.

Inspeccionar la Manguera de Alta PresiOn: La manguera

de alta prestonpuede deSarTollarfugas debido al desgaste,

estrangulamiento omaltrato. Inspeccionar la manguera

antes de cada uso para detectar cortes, fugas, abrasiones,

protuberancias en el form, dafios o juego de los acoples.

Si existiese alguna de estas condiciones, reemplazar la

manguera de inmediato.

Inspeocionar la Manguera de Suministro de Quimico/

Detergents y el Filtro: Exarninarla manguera de quirnico/

detergents y limpiarlasi estuviese obstruida. La manguera

debe quedar bien _justada en et acopte de la bomba,

Inspeccionar para detectar fugas o roturas. Reemplazar el

fHtro o la manguera si alguno de ellos estuviese dafiado.

Inspeccionar la Pistola/Tubo Aplicador: Examinar las

conexiones de Ia manguera a la pistola para cerciorarse

que est_n blen asegurados. Probar el gatillo presiondndoto

para asegurarse que regress a su posiciOn cuando se

suelte.

Purgar el Aire y los Contaminantes

de la Bomba

Seguir estos pasos para eliminar ef aire de la bomba:

• Preparar la lavadora de presibn como se describe en

ta SectiOn de Ensambla}e yconectar e_suministro de

agua.

•Retirar la extensi6n del tubo aplicador de la pistola

aplicadora.

•Tirar del gatillo en la pistola y rnantenerlo presionado.

Seguir estos pasos para eliminar los contaminantes de la

bomba:

• Preparar la lavadora de presiOncomo se describe en la

seccibn de ENSAMBLAJE, conectar el suministro de

agua. '

•Retirar la extension del tubo aplicador de la pistola

aplicadora.

•Arrancar el motor de acuerdo alas instrucciones en la

seccibn de OPERACION.

•Tirar del gatillo en la pistola y mantenedo preslonado.

• Soltar el gatillo y volver a instalar la extension del tubo

aplicador cuando el suministro de agua estd constante

yparejo.

Mantenimiento del Motor

Revisar el Nivel del Aceite

• El nivel del aceite deberd inspeccionarse antes de cada

uso de la lavadora o por Io menos cada 5 horas de

operaCi0n. Referirse a ta seccibn "Aceite del Motor" en

fa pdgina 9.

Cambio de Aceite del Motor

Cambiar el aceite cuando el motor todav{a estd caltente.

De preferencia, drenar el aceite por la parte superior

del motor como se muestra mds adelante. Drenar el

aceite con el filtro de aire hacia arriba. El acelte puede

drenarse por el lado inferior si fuese necesario.

IMPORTANTE: Antes de inclinarel motor o el equipo para

drenarel aceite, drenar el combustible del tanque operando

el motor hasta que el tanque de combustible quede vacio.

FILTRO DE AIRE

•Para drenar el aceite por Ia parte inferiordel motor, retirar

eltapOnde drenaje como se ilustraa continuacibn. Dejar

que el aceite se drene y volver a co{ocar el tapOn del

drenaje. Retirar la tapa con varilla medidora y rellenar

con aceite nuevo del grado recomendado. Arrancar el

motor y operarlo pot 30 segundos.

TAP_N DE LLENADO

DADO DE 3/8"

TUBO

• Apagar el motor. Esperar 30 segundos yvolver a

inspeccionar el nivel de aceite. Si se requiere, agregar

aceite hasta que el nivel alcance la marca FULL (LLENO)

en la vadlla.

Mantenimiento del Filtro de AWe

El motor est& equipado con un elemento doble ovalado.

•Para Iimpiar el elemento, aflojar los pernos y levantar la

cubierta. Luego retirar el prefiltro y el cartucho

cuidadosamente.

• Despu_s de limpiar el prefiltro, colocarlo en el cartucho.

• Instalar el conjunto del filtro de aire en su base. Luego

instalar la cubierta sobre el filtro de aire y empernarlo

firmemente ala base.

PREFILTRO _CARTUCHO

; BASE_ ,

Filtro de Aire de Doble Elemento

Para limpiar el preflltro, lavarlo con detergente Ifquido y

con agua. Dejar que se seque bien antes de usar. No

aceitar el prefiltro. Reemplazarlo si estuviese muy sucio o

dafiado.

NOTA: No user sotventes derivados de petr61eo, tales

como kerosene, porque deteriorarbn el cartucho del _tro.

No usar aire presurizado para limpiar el filtro. El aire

presudzado puede dafter el cartucho del filtro.

/Mantener limpias las piezas y el motorl

No nmpiar el motor con un chorro de ague fuerte porque

el agua podria contaminar el sistema de combustible.

Despu_s de cadauso, con una brocha o cepillo limpiar

el protector con aberturas de ventilaci6n para evitar que

el motor se dafie por sobrecalentamlento.

LIMPIAR

LIMP_

• Antes de operar et motor, limpiar el _rea del mofle para

eliminar et pasto y los residuos que puedan ser

combustibles.

LIMPIAR

Limpiar y Reemplazar la Buj|a

Reemplazar la buj{a cada 100 horas de operaci6n o una

vez cada afio, Io que sea primero. Esto ayudar_ a que el

motor arranque con facilidad y opere mejor.

.030" (0.76 MM)

CAMBRADOR

RESISTENCIA

Carburador

El carburador de la lavadora de alta presi6n est& regulado

de f_bfica. El carburador no deber_ alterarse. Si la lavadora

de presi6n se usa a una altitud superior a 1,500 metros

(5,000'), consultar con el Centro de Servicio de Sears mbs

cercano para obtener las regulaciones necesarias para la

altitud.

_, CUIDADO: La velocidad del motor se fij6 en la f_brica a

un punto apropiado y no debe requerir regulaciones

adicionales. No intentar alterar la velocidad del motor. En

caso que se sospeche que el motor est_ operando muy

lento o muy r_pido, Uevar ta lavadora de presi6n a un

Centro de Serviclo Autorizado de Sears pare que lo

reparen o regulen.

A ADVERTENCIA: Las velocidades elevadas de operacibn

son peligrosas y aumentan el riesgode daSos personales

o al equipo.

,il CUIDADO: Lasbajas velocidades del motor imponen una

carga pesada el motor, y ouando el motor no provee la

potencia necesaria, la vide _til del motor podda ecortarse.

Limpieza de la Boquilla

Si la boquilla se obstruyese con materiales extrafios, tales

como suciedad, la unidad podrfa desarrollar un exceso de

presi6n. Si la boquina se obstruyese parcialmente o se

restringiese, la presi6n de la bomba pulsarb. En estos

casos limpiar inmediatamente la boquilla usando el juego

limpiador suministrado con la unidad y siguiendo los pasos

indicados a continuacibn:

Tubo Aplicador Regulable

1. Apagar la lavadora a presi6n y cerrar el suministro de

agua.

2. Desconectar el cable de la bujia.

3. Apretar el gatillo de la pistola aplicadora para aliviar

toda la presi6n de agua acumulada.

4. Desconectar el tubo aplicador de la pistola.

5. Sacar la boquilla del extremo del tubo aplicador con la

llave Allen de 2ram provista con la unidad.

6. Umptar la boquilla usando el limpiador de boquUlas que

se provee o con un clip para papeles enderezado.

Introducir en un extremo de la boquilla y moverlo hacia

adelante hacia atr&s hasta eliminar la obstruccl6n.

7. Eliminar los residuos pasando agua al reverso por el •

tubo durante unos 30 segundos.

8. Volvera instalarla boquilla en el tubo aplicador. Ajustar

firmemente para evitar fugas.

9. Volver a instalar el tubo aplicador en la pistola y abrir

el suministro de agua.

10. Arrancar la lavadora a presibn y probar haci_ndola

funcionar en presi6n alta.

Esta lavadora de presi6n debe almacenarse de tel forma

que este protegida de la congelaci6n. No almacenar la

unidad en el exterior ni en un _rea donde la temperatura

caiga por debajo de O°C (32°F). Esto puede causar dafios

extensos a la unidad.

Si Ia unidad tlene que almacenarse en lugares de

temperaturas congelantes, se deber_ usar unanticongelante

no tbxico R.V. para protegerla de ta congelaci6n.

Preparaci6n de la unidad para

su Almacenamiento

NOTA: Si no se tiene planeado usar la Iavadora de presi6n

por 30 dfas o mas, debe preparase la unidad para su

almacenamiento.

Preparaci6n del Motor

•Primero agregarle estabilizador de combustible al "

tanque de gasolina.

•Hacer funcionar la lavadora por 5 minutes completos

para permitir que el estabilizador de combustible entre •

atodo el sistema de combusti6n.

NOTA: Mientras se Ileve a cabo este procedimiento,

cerciorarse que la bomba tenga su suministro de agua y•

que el agua salga de la unidad. NUNCA permitir que la

unidad funcione sin que corra agua por la bomba. =

• A continuaci6n, apagar el motor y desconectar el

sum!nistro de agua. •

• Desconectar el cable de la bujfa y sacar la bujfa.

• Echar una cucharadita de aceite en el orificio de la buj{a.

• Taponar el odflcio con un patio y tirar de la manija de la

cuerda del arrancador varias veces para lubricar la •

cSmara de combusti6n.

• Volver a colocar la bujfa, pero no conectar el cable de la

buj{a.

IMPORTANTE: Duranteel almacenaje, es importante evitar

la formaclbn de sedimentos pegajosos en el sistema de

combusti6n tales como en el carburador, manguera del

filtro de combustible o tanque. La experiencia tambi_n

nos indica que las gasolinas mezcladas con alcohol

(llamadas gasohol o que tienen etanol ometanol) pueden

atraer humedad que Iuego se separar_ y forrnar_ _cidos

durante el almacenaje de la unidad. La gasolina acidica

puede dafiar el motor mientras est_ almacenado. Para

evitadeproblemas al motor,vaciar el sistema de combustibn

antes de almacenar la unidad por 30 dfas o m_s. Nunca

echar productos limpiadores para el motor o el carburador

en el tanque de combustible porque se pueden causar

dafios permanentes.

Preparaci6n de ia Bomba

Cerciorarse de poner el interruptor en la posici6n de

"OFF" (apagado) y que el cable de la bujia est_

desconectado.

Apretar el gatillo de la pistola para aliviar la presibn de

la manguera de presi6n. Desconectar la manguera de

alta presibn yla manguera de jardfn de la unidad.

Tirar de la manija del arrancador 4 a 6 veces para

descargar el agua remanente en la bomba.

Inclinar la unidad con el orificio de entrada de agua

apuntando hacia arriba.

Si se va a guardar la unidad en un lugar donde la

temperatura caiga bajo 0°C (32°F), echar aprox-

imadamente 1/4 de taza de anticongelante no t6xico

R.V. por el orificio donde se conecta la manguera de

agua a la bomba.

Poner la m_quina aI derecho y tirar de la manija del

arrancador de 4 a 6 veces para hacer circular el

anticongelante dentro de la bomba hasta que expulse

un poco.

S|NTOMA

El motorno

_'q'_ca

No absorbe

quimk?,o

La bomba

funciona

normelmente

pero la preel6n

no alcanza los

niveles

espeelficados.

Presi6n

Ructuante

Lapreel6n cae

despu6s de un

)enodo normal

de uso

Bomba ruidosa

Presenciade

Ague en et Aceite

_Re iechoso)

Agua Goteando

de la Bomba

Goteo de AeeRe

CAUSA

1. Lapalanquitade aceleracibndel motor est_ en la

posici6n"OFF" (APAGADO).

2. La vdlvula de "Choke" (cebado) no esta en Ia

poelcibn de "Choke".

3. Acumulaci6n de presi6ndespu_s del uso iniciel.

1. La boquilla de la pistola no est_len la poelcibn de

absorber.

2. Lamella de succibnde qufmicosest_obstruida.

3. La succi6n de quimicos no est_ trabajando.

4. Elorificio del inyector de quimicos est&obstruido.

5. Inyectorde detergente/quimicos cerrado.

1. Suministro de agua restringido.

2. Boquillaen la poelci6n de baja presi6n.

3. Boquilla incorrecta o gastada.

4. La bomba absorbe aire.

5. Boquilla obstruida.

1. La bombs absorbe aire.

2. La mafia de la entrada de la manguera del jardln

est&obstruida.

3. Sellos o empaques gastados.

4. Suministro de agua inadecuado.

5. Valvulas de entrada o descarga sucias o gastadas.

6. Fugas en la manguera de descarga.

1. Boquilla atorada, o parcialmente obstruida.

2. Boquillagastada.

3. V_lvulas de la bomba estSn gastadas, sucias o

pegadas.

4. Empsque del pistbn de ta bomba est8 gastado.

!. Ague muy catiente.

2. Bomba absorbe aire.

3. V&lvulas suciaso gastadas.

4. Rodamientos gastados.

1. ARehumedad.

2. Empaque del pist6nysellosde aceResgastados.

1. V,_lvulat6rmicadealiviofuncionando normelmente

2. Acoples ttojos.

3. Anillos "O" de lagufadel pi_ oretenes gastados.

4. Empaque del pist6n gastado.

1. Sello de ace'Regastado.

2. Tap6n de drenaje flojo o anitlo "O" del tsp6n

gastado.

SOLUCI6N

1. Deslizarla pslanquitsde aceleraci6nala posici6nde la

"l-iebre".

2. Deelizarla palanquitaala posick_nde"Choke".

3. Preelonarel gatillode la pL_tola.

1. ColocarIs boquiUa en la posici6npare baja presi6n.

2. Inspeccionar la malla de quimicos, limpiar si estuviese

obstruida.

3. Cerciorarseque elextremodel tubo de succi6nde quir'nicos

est_ sumergido.

4. Inspeccionar ytimpiar.

5. Abrir el inyectorde quimicos girandola pedllade mgulacibn.

1. Verificarel suministrodeagua yla malladel fil_opera detecter

cualquier bloqueo. Inspeccionar lasmanguefas paradetecter

sihay bloqueos, estrangulaciones, fugas, etc.

2. Hatar el extremo de la boquilla hacia atr_s ala posici6n de

presi6n elta.

3. Revisar y reemplazar.

4. Cerciorarse que las mangueras y acoples no tengan fugas

de aire.

5. Limpiar la boqulUa.

1. Verificar que lasmangueras y scoples no tengan fugas de

aire. Purger el aire de la manguera de jardin.

2. Limpiar. Inspeccionar el fiRrocon frecuencia.

3. Inspeccionar y reemplazar.

4. Inspecelonar lamanguera pars verque noestesetrangulada

o acodsda

5. Verificarqueel flujodesuministro ala bomba seaeladecuado.

Asegurarse que latemperature no exceda (63°C/145°F).

6. Limpiar tasvSIvulas de entrada y descarga. Reemplazar si

fuese necesario.

1. Usar el juego para limpieza de boquillas pare eliminar la

obstrucci6n. (Referirse ala secci6n Mantenimiento de

Boquillas en el capftulo Servicio y Regulaciones)

2. Limpiar o reemplazar.

3. Reviser y reemplazar.

4. Reviser y reemplazar.

1. Reducir latemperature por debajo de 63°C 6145°E

2. Verificar que las mangueras y acoples no tengan fugas de

elre.

3. Reviser, limpiar o reemplazar.

4. Reviser y reemplazar si fuese necesario.

1. Cambiar el aceRe.

2. Revisary reemplazar lossellosde aceRe.

1. Est_ protegiendola bomba si la lavadora est8 funcionando

por un tiempo largo perosin usarse, Apagar el motor.

2. Ajustar.

3. Revisery reemplazar.

4. Reviser y reemplazar.

1. Revisery reemplazar.

2. Ajustar el tap6n de drenaje oreemplazar el aniflo "O".

No sobreajustar.

CRAFTSMAN 2350 PSI MAQUINA LAVADORA DE ALTA PRESION 919.762350

814

VEA LA PAGINA 16

VERSION EN INGLES

CRAFTSMAN 2350 PSI MAQUINA LAVADORA DE ALTA PRESION 919.762350 BOMBA PARTES # PK16482

0_52

CRAFTSMAN 2350 PSI MAQUINA LAVADORA DE ALTA PRESION 91 g,762350 BOMBA PARTES # PK16482

PARA LISTE DE PARTES

VEA LA PAGINA 18

VERSION EN INGLES

CRAFTSMAN 2350 PSi MAQUINA LAVADORA DE ALTA PRESION 919.762350 MOTOR PARTES # 121602-0206-E1

PARA LISTE DE

VEA LA PAGINA 19-27

VERSION EN INGLES

Para solicitar servicio de reparaci6n o

repuestos que usted necesite, Ilamar

de 7 am a 7 pm, los 7 dias de ia semana al

1 -800-366-PART

(1-800-366-7278)

Para serv|oio de reparaci6n en su domic|lio

de electrodom6stioos de las princlpales

marcas, Hamar las 24 horas de! dia,

los 7 dlas de la semana al

1-800-4-REPAIR

(1-800-473-7247)

Para la ubicaei6n del Centro de

Repuestos y Reparaei6n de Sears

en su _rea, Ilamar las 24 horas

del dias, los 7 Was de la semana al

1-800-488-1222

Para informaci6n sobre |a compra de un

Contrato de Mantenimiento de Sears

o para averiguar sobre alg,',n Contrato

existente, ilamar de 9 am a 5 pm,

de Lunes a S_;bado al

1-800-827-6655

SEARS

SF.ARS

Arnenca_s Repair Spe_a[tsts

Sears, Roebuok and Co., Hoffman Estates, IL 60179 U.S.A.

Craftsman 919 76235 Users Manual

919762350 919762350 CRAFTSMAN PRESSURE WASHER - Manuals and Guides L0807020 View the owners manual for your CRAFTSMAN PRESSURE WASHER #919762350.

CRAFTSMAN Power Washer Manual L0807020 CRAFTSMAN Power Washer Owner's Manual, CRAFTSMAN Power Washer installation guides

91976235 a747cd3f-327b-4c35-84a3-71846b9ba37c Craftsman Pressure Washer 919.76235 User Guide |

Navigation menu

Versions of this User Manual:

Views

Navigation
