102757

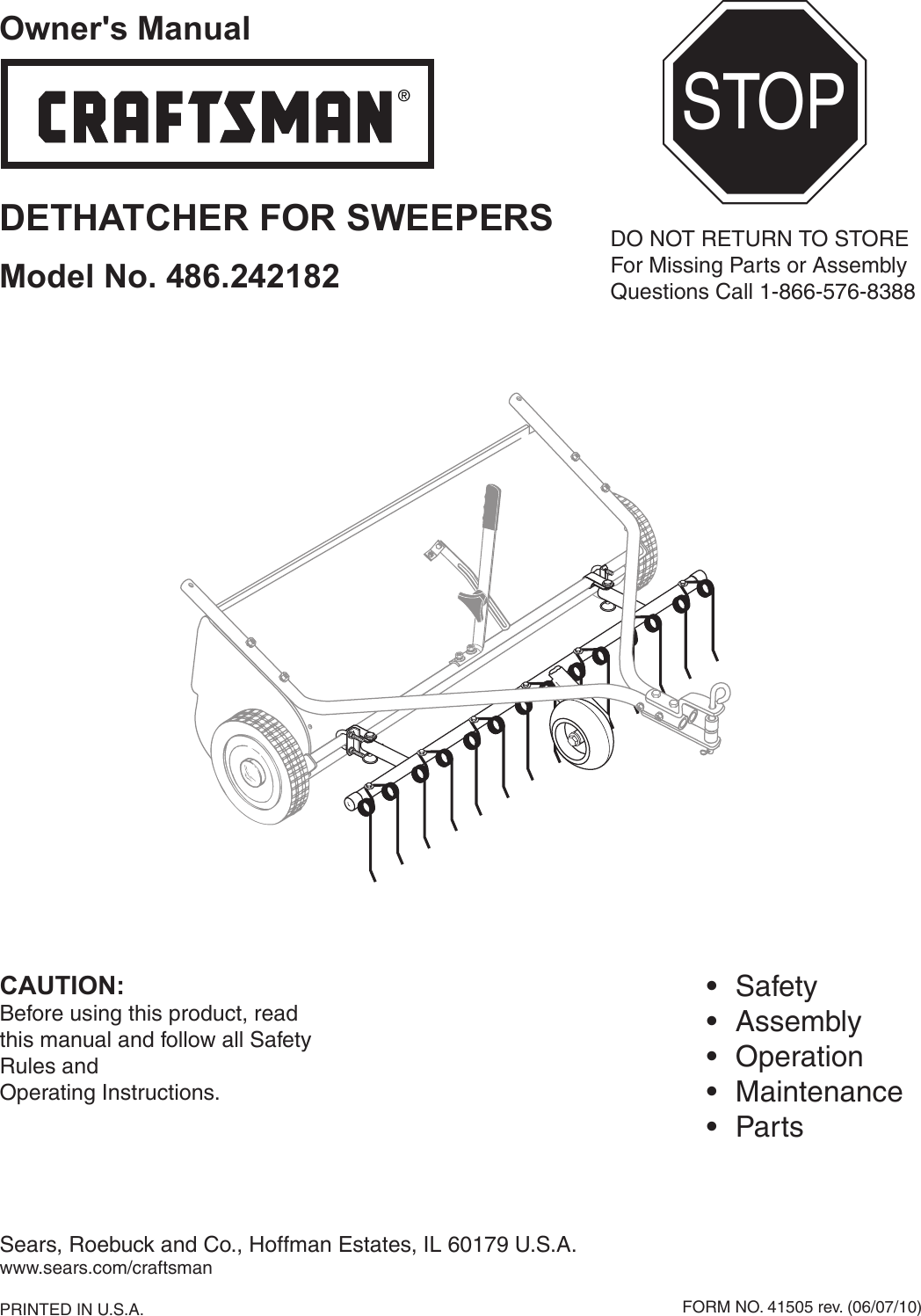

Owner's Manual

Model No. 486.242182

DETHATCHER FOR SWEEPERS

®

CAUTION:

Before using this product, read

this manual and follow all Safety

Rules and

Operating Instructions.

• Safety

• Assembly

• Operation

• Maintenance

• Parts

PRINTEDINU.S.A. FORMNO.41505rev.(06/07/10)

Sears,RoebuckandCo.,HoffmanEstates,IL60179U.S.A.

www.sears.com/craftsman

STOP

DO NOT RETURN TO STORE

For Missing Parts or Assembly

Questions Call 1-866-576-8388

2Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

SAFETY

Anypowerequipmentcancauseinjuryifoperatedimproperlyoriftheuserdoesnotunderstandhowtooperatetheequipment.

Exercisecautionatalltimes,whenusingpowerequipment.

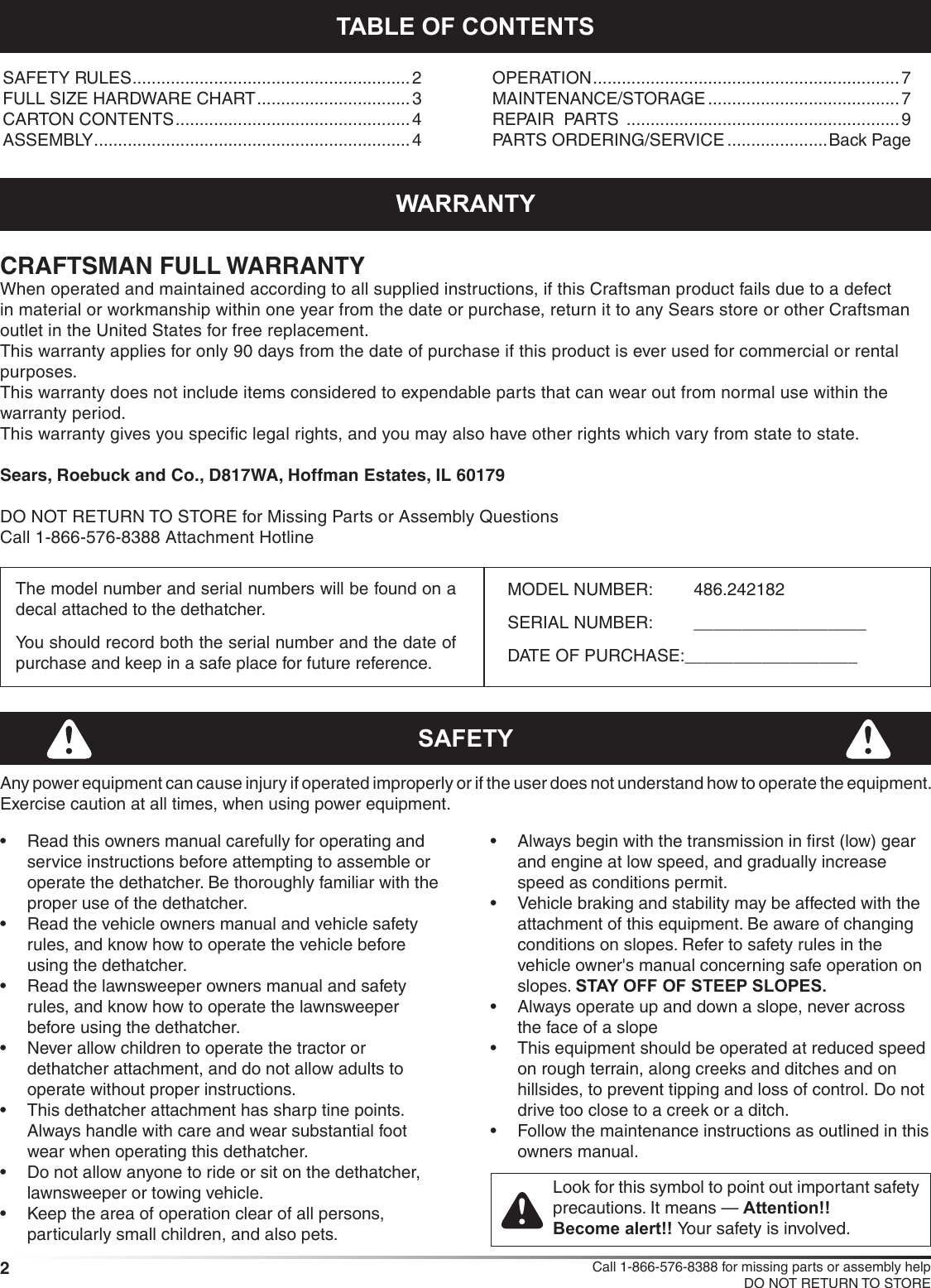

TABLE OF CONTENTS

SAFETYRULES .......................................................... 2

FULLSIZEHARDWARECHART ................................ 3

CARTONCONTENTS .................................................4

ASSEMBLY .................................................................. 4

OPERATION ................................................................7

MAINTENANCE/STORAGE ........................................7

REPAIRPARTS .........................................................9

PARTSORDERING/SERVICE .....................BackPage

MODELNUMBER: 486.242182

SERIALNUMBER: __________________

DATEOFPURCHASE:__________________

Themodelnumberandserialnumberswillbefoundona

decal attached to the dethatcher.

Youshouldrecordboththeserialnumberandthedateof

purchaseandkeepinasafeplaceforfuturereference.

WARRANTY

• Readthisownersmanualcarefullyforoperatingand

serviceinstructionsbeforeattemptingtoassembleor

operate the dethatcher. Be thoroughly familiar with the

proper use of the dethatcher.

• Readthevehicleownersmanualandvehiclesafety

rules,andknowhowtooperatethevehiclebefore

using the dethatcher.

• Readthelawnsweeperownersmanualandsafety

rules,andknowhowtooperatethelawnsweeper

beforeusingthedethatcher.

• Neverallowchildrentooperatethetractoror

dethatcher attachment, and do not allow adults to

operate without proper instructions.

• Thisdethatcherattachmenthassharptinepoints.

Alwayshandlewithcareandwearsubstantialfoot

wear when operating this dethatcher.

• Donotallowanyonetorideorsitonthedethatcher,

lawnsweeperortowingvehicle.

• Keeptheareaofoperationclearofallpersons,

particularly small children, and also pets.

• Alwaysbeginwiththetransmissioninrst(low)gear

and engine at low speed, and gradually increase

speed as conditions permit.

• Vehiclebrakingandstabilitymaybeaffectedwiththe

attachmentofthisequipment.Beawareofchanging

conditions on slopes. Refer to safety rules in the

vehicleowner'smanualconcerningsafeoperationon

slopes. STAY OFF OF STEEP SLOPES.

• Alwaysoperateupanddownaslope,neveracross

the face of a slope

• Thisequipmentshouldbeoperatedatreducedspeed

onroughterrain,alongcreeksandditchesandon

hillsides,topreventtippingandlossofcontrol. Donot

drivetooclosetoacreekoraditch.

• Followthemaintenanceinstructionsasoutlinedinthis

owners manual.

Lookforthissymboltopointoutimportantsafety

precautions. It means — Attention!!

Become alert!! Yoursafetyisinvolved.

CRAFTSMAN FULL WARRANTY

Whenoperatedandmaintainedaccordingtoallsuppliedinstructions,ifthisCraftsmanproductfailsduetoadefect

inmaterialorworkmanshipwithinoneyearfromthedateorpurchase,returnittoanySearsstoreorotherCraftsman

outletintheUnitedStatesforfreereplacement.

Thiswarrantyappliesforonly90daysfromthedateofpurchaseifthisproductiseverusedforcommercialorrental

purposes.

Thiswarrantydoesnotincludeitemsconsideredtoexpendablepartsthatcanwearoutfromnormalusewithinthe

warranty period.

Thiswarrantygivesyouspeciclegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.

Sears, Roebuck and Co., D817WA, Hoffman Estates, IL 60179

DONOTRETURNTOSTOREforMissingPartsorAssemblyQuestions

Call1-866-576-8388AttachmentHotline

3

Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

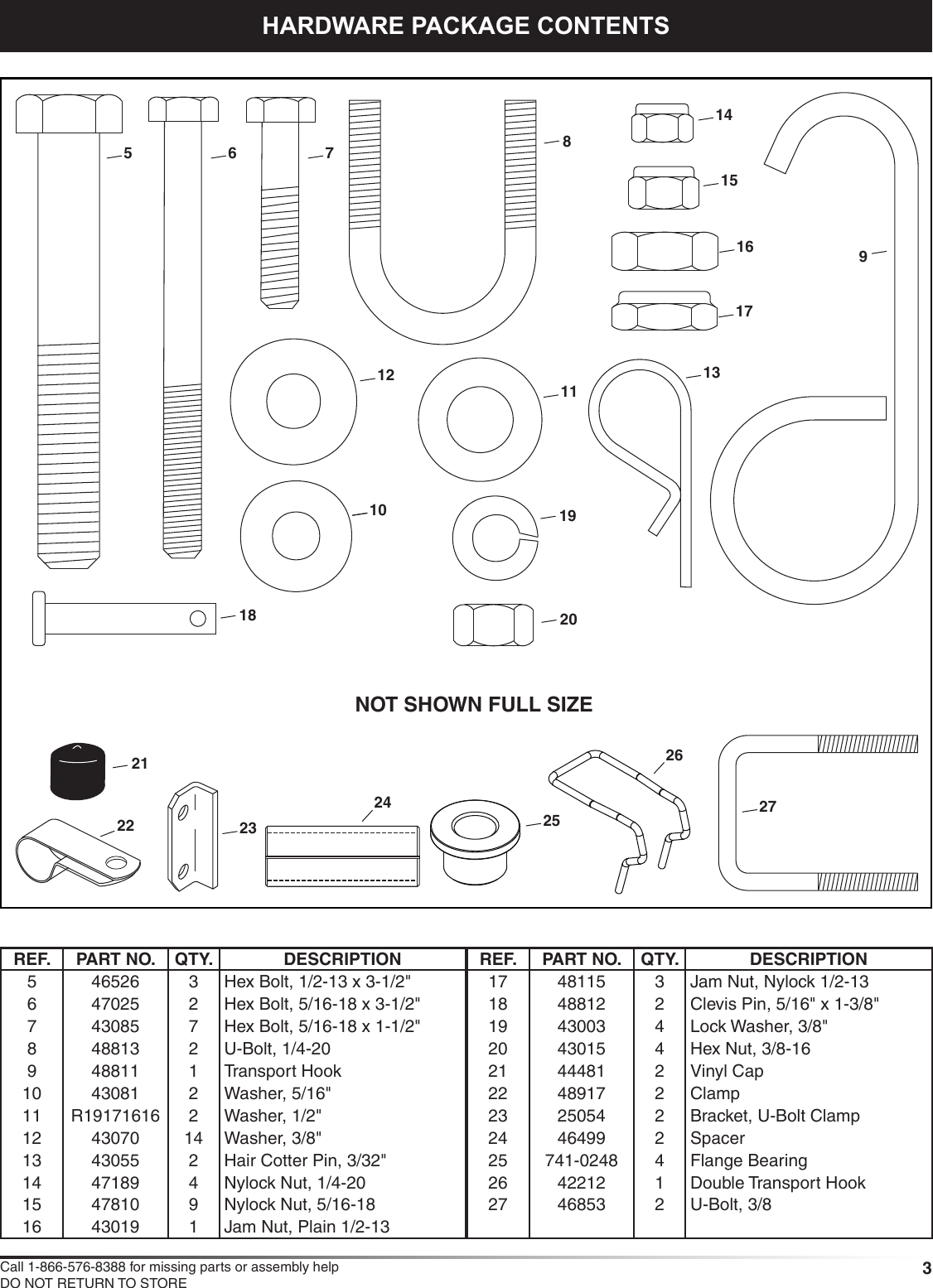

HARDWARE PACKAGE CONTENTS

5

21

NOT SHOWN FULL SIZE

6 7

18

19

20

9

10

11

8

13

14

15

16

23

24

26

25 27

22

17

12

REF. PART NO. QTY. DESCRIPTION

5 46526 3 HexBolt,1/2-13x3-1/2"

6 47025 2HexBolt,5/16-18x3-1/2"

7 43085 7 HexBolt,5/16-18x1-1/2"

8 48813 2U-Bolt,1/4-20

9 48811 1 TransportHook

10 43081 2Washer,5/16"

11 R19171616 2Washer,1/2"

12 43070 14 Washer,3/8"

13 43055 2HairCotterPin,3/32"

14 47189 4 NylockNut,1/4-20

15 47810 9 NylockNut,5/16-18

16 43019 1 JamNut,Plain1/2-13

REF. PART NO. QTY. DESCRIPTION

17 48115 3 JamNut,Nylock1/2-13

18 48812 2ClevisPin,5/16"x1-3/8"

19 43003 4 LockWasher,3/8"

20 43015 4 HexNut,3/8-16

21 44481 2VinylCap

22 48917 2Clamp

23 25054 2Bracket,U-BoltClamp

24 46499 2 Spacer

25 741-0248 4 Flange Bearing

26 42212 1 DoubleTransportHook

27 46853 2U-Bolt,3/8

4Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

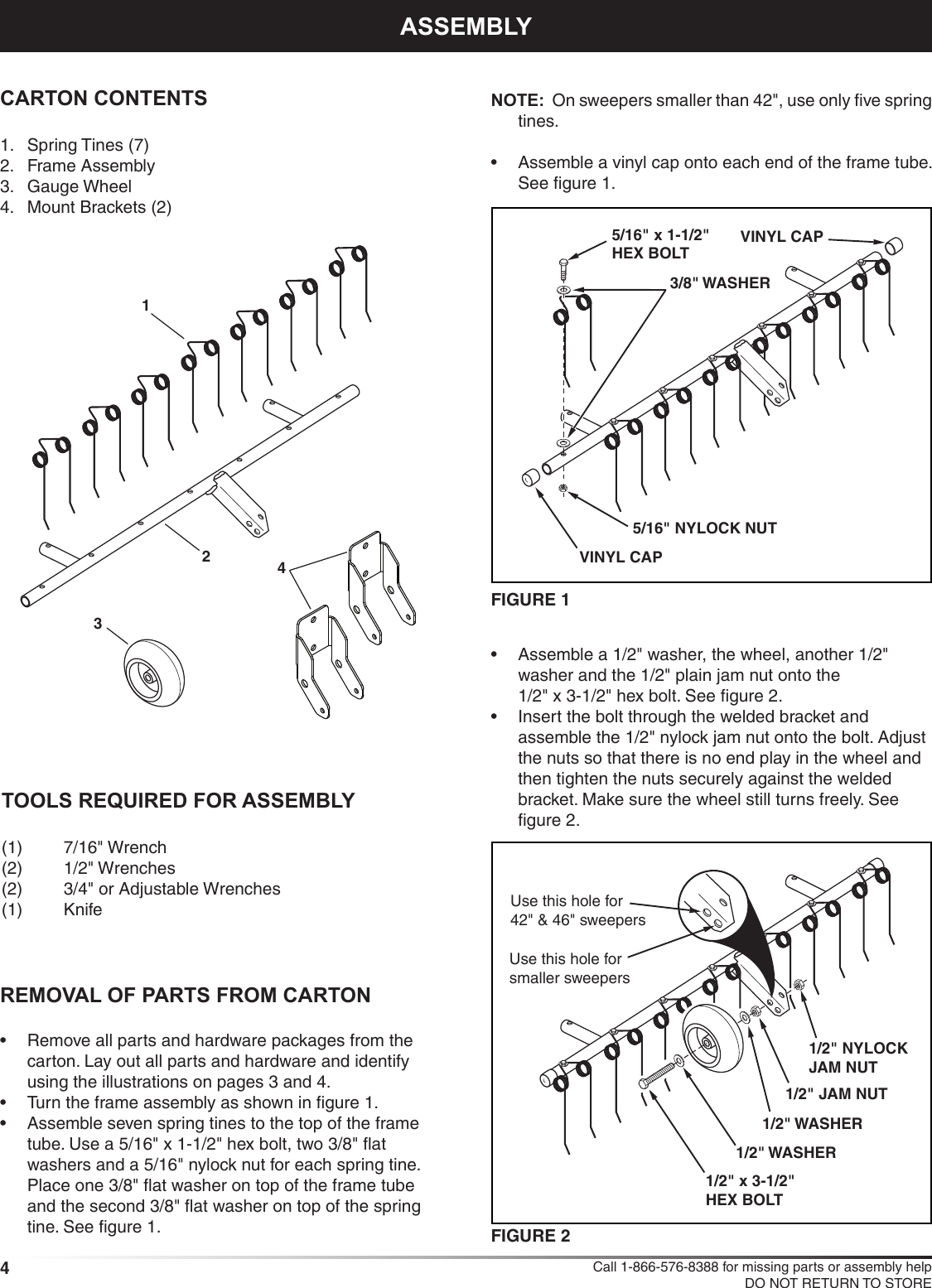

ASSEMBLY

FIGURE 1

NOTE:Onsweeperssmallerthan42",useonlyvespring

tines.

• Assembleavinylcapontoeachendoftheframetube.

Seegure1.

FIGURE 2

• Assemblea1/2"washer,thewheel,another1/2"

washerandthe1/2"plainjamnutontothe

 1/2"x3-1/2"hexbolt.Seegure2.

• Inserttheboltthroughtheweldedbracketand

assemblethe1/2"nylockjamnutontothebolt.Adjust

the nuts so that there is no end play in the wheel and

then tighten the nuts securely against the welded

bracket.Makesurethewheelstillturnsfreely.See

gure2.

1/2" WASHER

1/2" x 3-1/2"

HEX BOLT

1/2" WASHER

1/2" NYLOCK

JAM NUT

Use this hole for

42" & 46" sweepers

Use this hole for

smaller sweepers

1/2" JAM NUT

TOOLS REQUIRED FOR ASSEMBLY

(1) 7/16"Wrench

(2) 1/2"Wrenches

(2) 3/4"orAdjustableWrenches

(1) Knife

• Removeallpartsandhardwarepackagesfromthe

carton.Layoutallpartsandhardwareandidentify

usingtheillustrationsonpages3and4.

• Turntheframeassemblyasshowningure1.

• Assemblesevenspringtinestothetopoftheframe

tube.Usea5/16"x1-1/2"hexbolt,two3/8"at

washersanda5/16"nylocknutforeachspringtine.

Placeone3/8"atwasherontopoftheframetube

andthesecond3/8"atwasherontopofthespring

tine.Seegure1.

REMOVAL OF PARTS FROM CARTON

CARTON CONTENTS

1. SpringTines(7)

2. FrameAssembly

3. GaugeWheel

4. MountBrackets(2)

5/16" NYLOCK NUT

3/8" WASHER

5/16" x 1-1/2"

HEX BOLT

VINYL CAP

VINYL CAP

1

2

3

4

5

Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

FIGURE 5

• Connectthesweepertothetractor.Setthesweeper

heightadjustmenthandletoaboutthemiddleofit's

adjustmentrange.

• Placethedethatcherinfrontofthesweeperhousing,

underneaththehitchtubes.

• Connectthedethatchertotheconduitclampsusing

two5/16"x1-3/8"clevispins,5/16"washersand

 3/32"haircotterpins.Seegure4.

CONDUIT

CLAMP

TRANSPORT

HOOK

HEIGHT ADJ.

TUBE

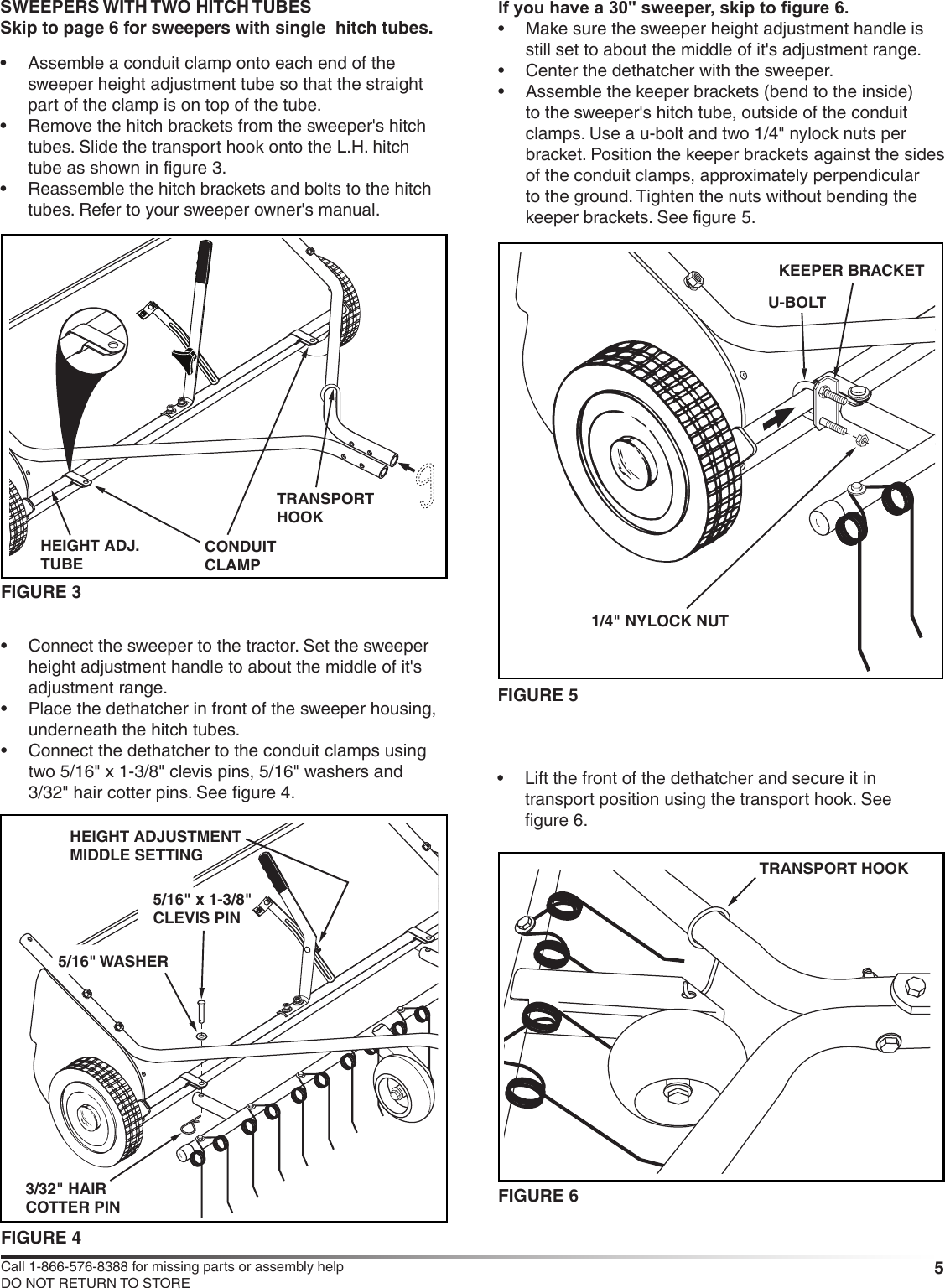

FIGURE 3

• Assembleaconduitclampontoeachendofthe

sweeperheightadjustmenttubesothatthestraight

partoftheclampisontopofthetube.

• Removethehitchbracketsfromthesweeper'shitch

tubes.SlidethetransporthookontotheL.H.hitch

tubeasshowningure3.

• Reassemblethehitchbracketsandboltstothehitch

tubes.Refertoyoursweeperowner'smanual.

3/32" HAIR

COTTER PIN

5/16" WASHER

5/16" x 1-3/8"

CLEVIS PIN

HEIGHT ADJUSTMENT

MIDDLE SETTING

If you have a 30" sweeper, skip to gure 6.

• Makesurethesweeperheightadjustmenthandleis

stillsettoaboutthemiddleofit'sadjustmentrange.

• Centerthedethatcherwiththesweeper.

• Assemblethekeeperbrackets(bendtotheinside)

tothesweeper'shitchtube,outsideoftheconduit

clamps.Useau-boltandtwo1/4"nylocknutsper

bracket.Positionthekeeperbracketsagainstthesides

oftheconduitclamps,approximatelyperpendicular

totheground.Tightenthenutswithoutbendingthe

keeperbrackets.Seegure5.

KEEPER BRACKET

U-BOLT

1/4" NYLOCK NUT

FIGURE 4

FIGURE 6

• Liftthefrontofthedethatcherandsecureitin

transportpositionusingthetransporthook.See

gure6.

TRANSPORT HOOK

SWEEPERS WITH TWO HITCH TUBES

Skip to page 6 for sweepers with single hitch tubes.

6Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

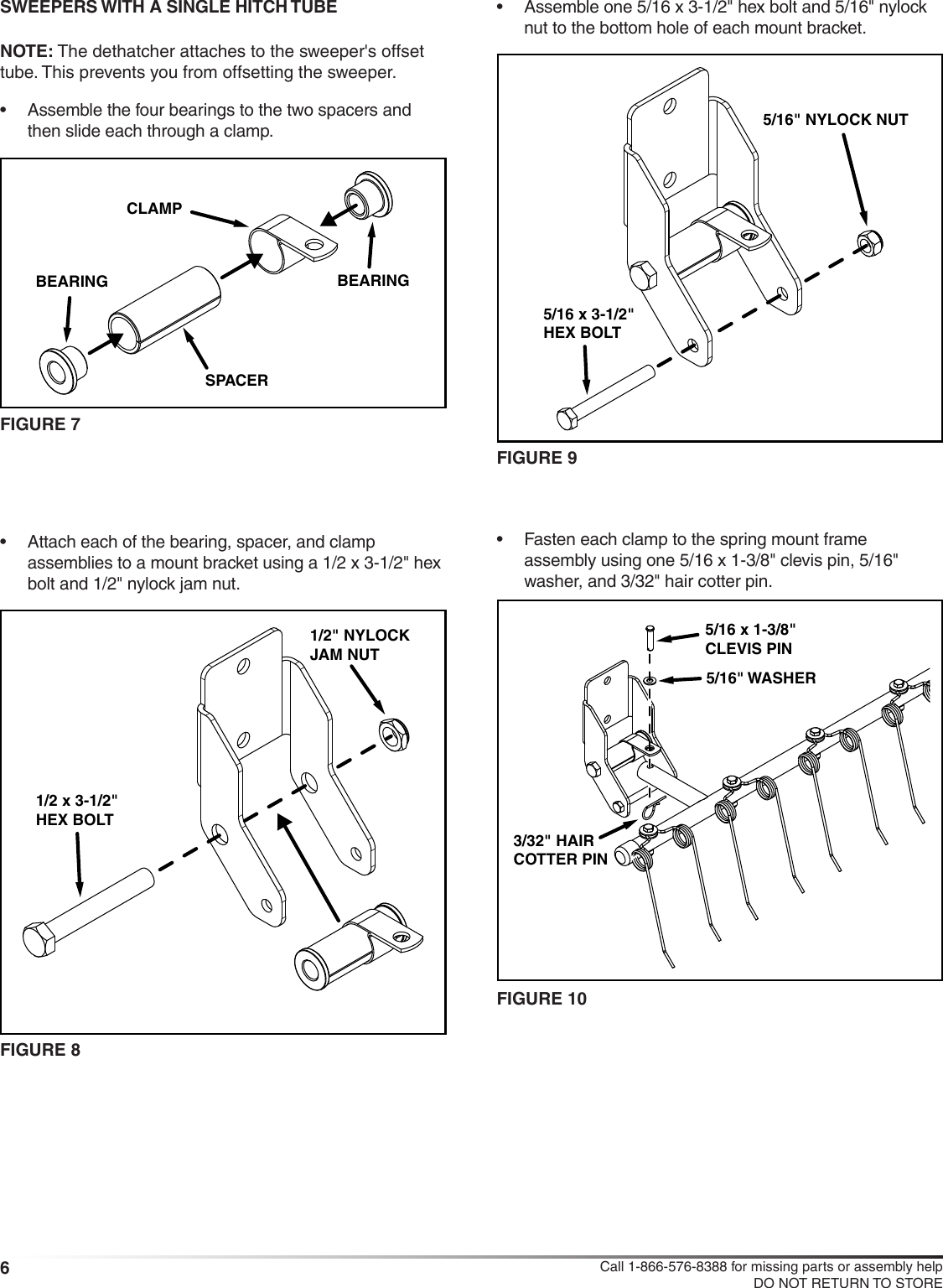

FIGURE 7

SWEEPERS WITH A SINGLE HITCH TUBE

BEARING BEARING

SPACER

CLAMP

NOTE:Thedethatcherattachestothesweeper'soffset

tube.Thispreventsyoufromoffsettingthesweeper.

FIGURE 8

FIGURE 9

• Assemblethefourbearingstothetwospacersand

then slide each through a clamp.

• Assembleone5/16x3-1/2"hexboltand5/16"nylock

nuttothebottomholeofeachmountbracket.

• Attacheachofthebearing,spacer,andclamp

assembliestoamountbracketusinga1/2x3-1/2"hex

boltand1/2"nylockjamnut.

FIGURE 10

• Fasteneachclamptothespringmountframe

assemblyusingone5/16x1-3/8"clevispin,5/16"

washer,and3/32"haircotterpin.

5/16" NYLOCK NUT

5/16 x 3-1/2"

HEX BOLT

1/2" NYLOCK

JAM NUT

1/2 x 3-1/2"

HEX BOLT

3/32" HAIR

COTTER PIN

5/16" WASHER

5/16 x 1-3/8"

CLEVIS PIN

7

Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

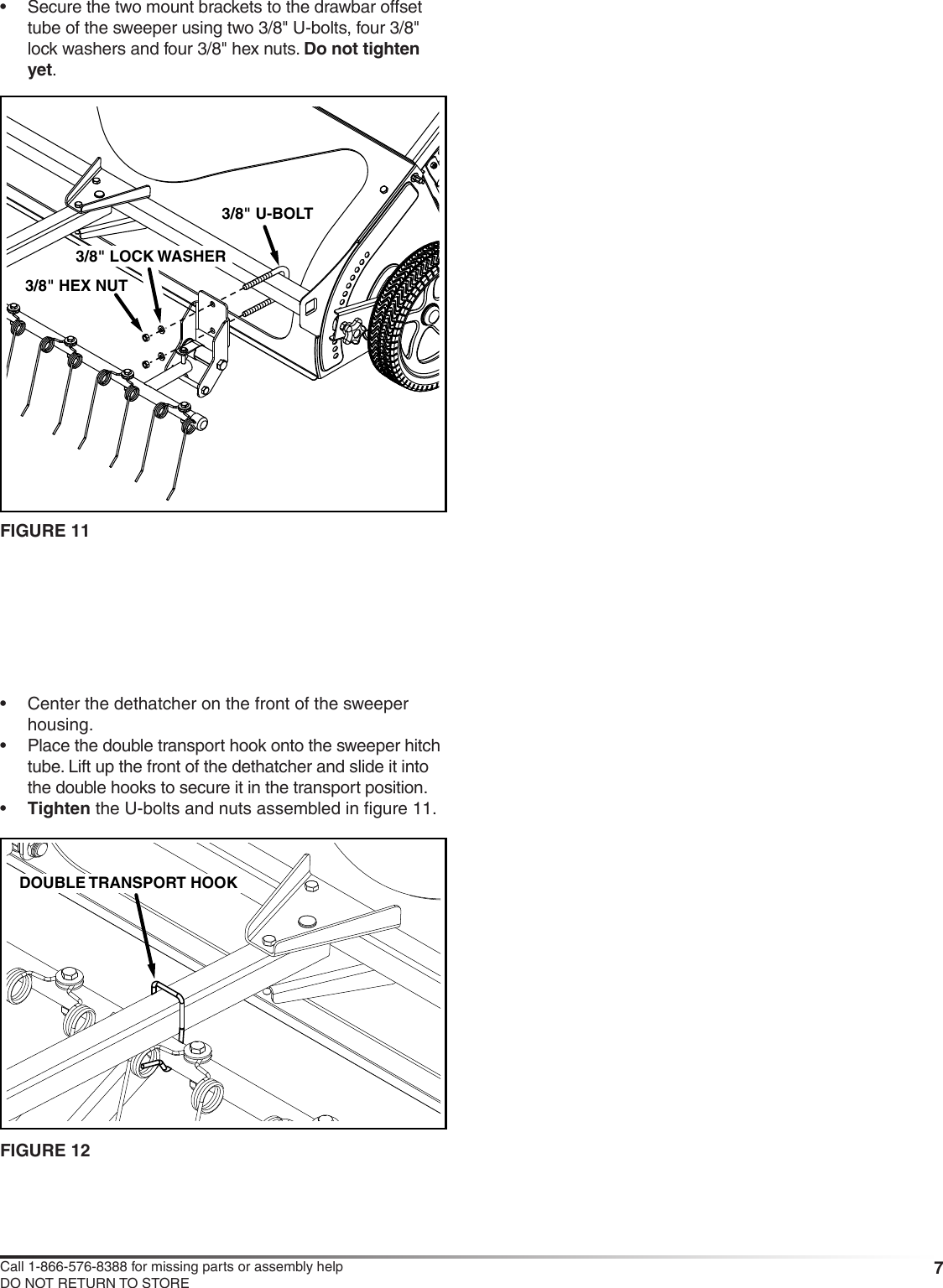

FIGURE 11

FIGURE 12

• Securethetwomountbracketstothedrawbaroffset

tubeofthesweeperusingtwo3/8"U-bolts,four3/8"

lockwashersandfour3/8"hexnuts.Do not tighten

yet.

• Centerthedethatcheronthefrontofthesweeper

housing.

• Placethedoubletransporthookontothesweeperhitch

tube.Liftupthefrontofthedethatcherandslideitinto

thedoublehookstosecureitinthetransportposition.

• TightentheU-boltsandnutsassembledingure11.

3/8" HEX NUT

3/8" U-BOLT

3/8" LOCK WASHER

DOUBLE TRANSPORT HOOK

8Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

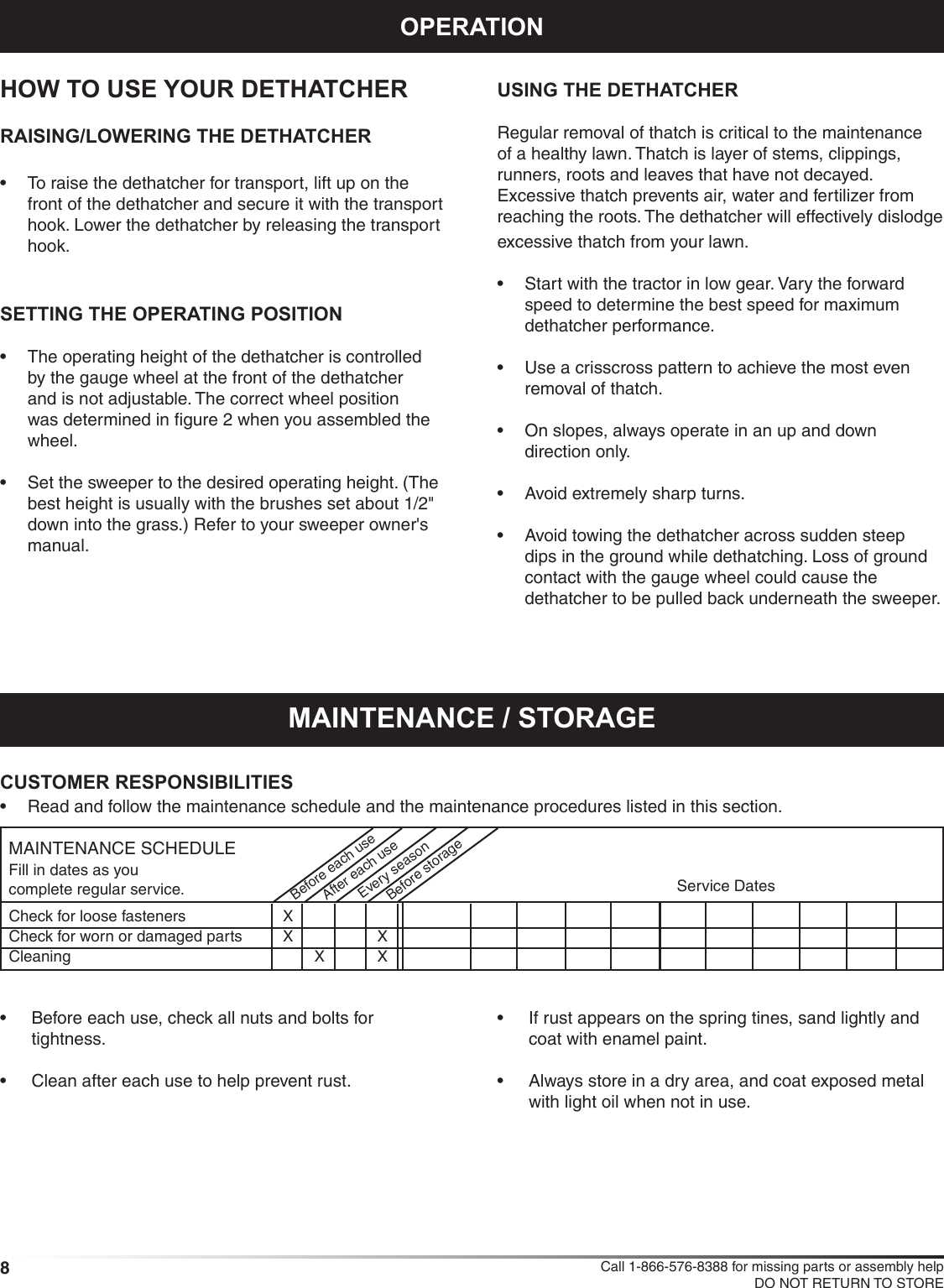

OPERATION

HOW TO USE YOUR DETHATCHER

RAISING/LOWERING THE DETHATCHER

• Toraisethedethatcherfortransport,liftuponthe

front of the dethatcher and secure it with the transport

hook.Lowerthedethatcherbyreleasingthetransport

hook.

SETTING THE OPERATING POSITION

• Theoperatingheightofthedethatcheriscontrolled

bythegaugewheelatthefrontofthedethatcher

andisnotadjustable.Thecorrectwheelposition

wasdeterminedingure2whenyouassembledthe

wheel.

• Setthesweepertothedesiredoperatingheight.(The

bestheightisusuallywiththebrushessetabout1/2"

downintothegrass.)Refertoyoursweeperowner's

manual.

USING THE DETHATCHER

Regularremovalofthatchiscriticaltothemaintenance

ofahealthylawn.Thatchislayerofstems,clippings,

runners,rootsandleavesthathavenotdecayed.

Excessivethatchpreventsair,waterandfertilizerfrom

reachingtheroots.Thedethatcherwilleffectivelydislodge

excessivethatchfromyourlawn.

• Startwiththetractorinlowgear.Varytheforward

speedtodeterminethebestspeedformaximum

dethatcher performance.

• Useacrisscrosspatterntoachievethemosteven

removalofthatch.

• Onslopes,alwaysoperateinanupanddown

direction only.

• Avoidextremelysharpturns.

• Avoidtowingthedethatcheracrosssuddensteep

dipsinthegroundwhiledethatching.Lossofground

contact with the gauge wheel could cause the

dethatchertobepulledbackunderneaththesweeper.

MAINTENANCE / STORAGE

ServiceDates

Checkforloosefasteners  X

 Checkforwornordamagedparts  X   X

 Cleaning   X  X

 MAINTENANCESCHEDULE

Fill in dates as you

 completeregularservice.

Before each use

Aftereachuse

Everyseason

Before storage

• Ifrustappearsonthespringtines,sandlightlyand

coat with enamel paint.

• Alwaysstoreinadryarea,andcoatexposedmetal

with light oil when not in use.

• Beforeeachuse,checkallnutsandboltsfor

tightness.

• Cleanaftereachusetohelppreventrust.

CUSTOMER RESPONSIBILITIES

• Readandfollowthemaintenancescheduleandthemaintenanceprocedureslistedinthissection.

9

Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

PARTS

REPAIR PARTS FOR MODEL 486.242182 DETHATCHER

8

6

19

5

20

17

27

24

15

4

18

10

13

25

25 22

23 14

21

21

5

11

11

16

17

115

26

12

12

18

10

13

22

7

2

39

REF. PART NO. QTY. DESCRIPTION

1 64650 1 SpringMountFrameAssem.

2 46761 7 SpringTine

3 48098 1 GaugeWheel

4 27117 2MountBracket

5 46526 3 HexBolt,1/2-13x3-1/2"

6 47025 2HexBolt,5/16-18x3-1/2"

7 43085 7 HexBolt,5/16-18x1-1/2"

8 48813 2U-Bolt,1/4-20

9 48811 1 TransportHook

10 43081 2Washer,5/16"

11 R19171616 2Washer,1/2"

12 43070 14 Washer,3/8"

13 43055 2HairCotterPin,3/32"

14 47189 4 NylockNut,1/4-20

REF. PART NO. QTY. DESCRIPTION

15 47810 9 NylockNut,5/16-18

16 43019 1 JamNut,Plain1/2-13

17 48115 3 JamNut,Nylock1/2-13

18 48812 2ClevisPin,5/16"x1-3/8"

19 43003 4 LockWasher,3/8"

20 43015 4 HexNut,3/8-16

21 44481 2VinylCap

22 48917 2Clamp

23 25054 2Bracket,U-BoltClamp

24 46499 2 Spacer

25 741-0248 4 Flange Bearing

26 42212 1 DoubleTransportHook

27 46853 2U-Bolt,3/8

41505 1 Owner'sManual

10 Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

11

Call1-866-576-8388formissingpartsorassemblyhelp

DONOTRETURNTOSTORE

® Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC

® Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC

MC Marque de commerce / MD Marque déposée de Sears Brands, LLC © Sears Brands, LLC

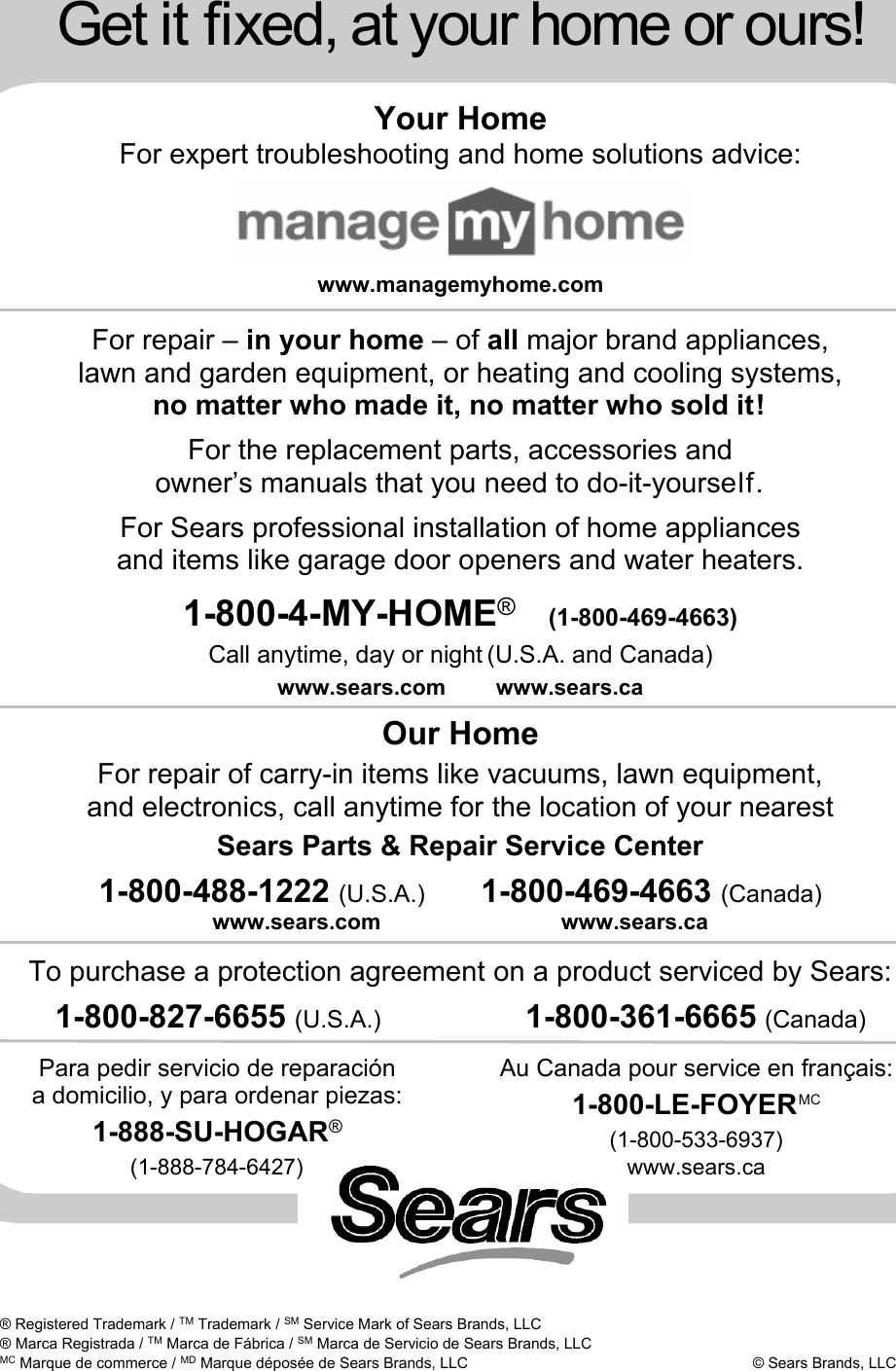

Get it fixed, at your home or ours!

Your Home

For expert troubleshooting and home solutions advice:

www.managemyhome.com

For repair – in your home – of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME®(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)

www.sears.com www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR®

(1-888-784-6427)

Au Canada pour service en français:

1-800-LE-FOYERMC

(1-800-533-6937)

www.sears.ca

---

---

---

---

---

---

---

---

---

---

---

---
