HARDWARE

TOOLS REQUIRED

COMPONENTS

BOX 1

COMPONENTS

BOX 2

Made in China - r05 Page 1 of 5

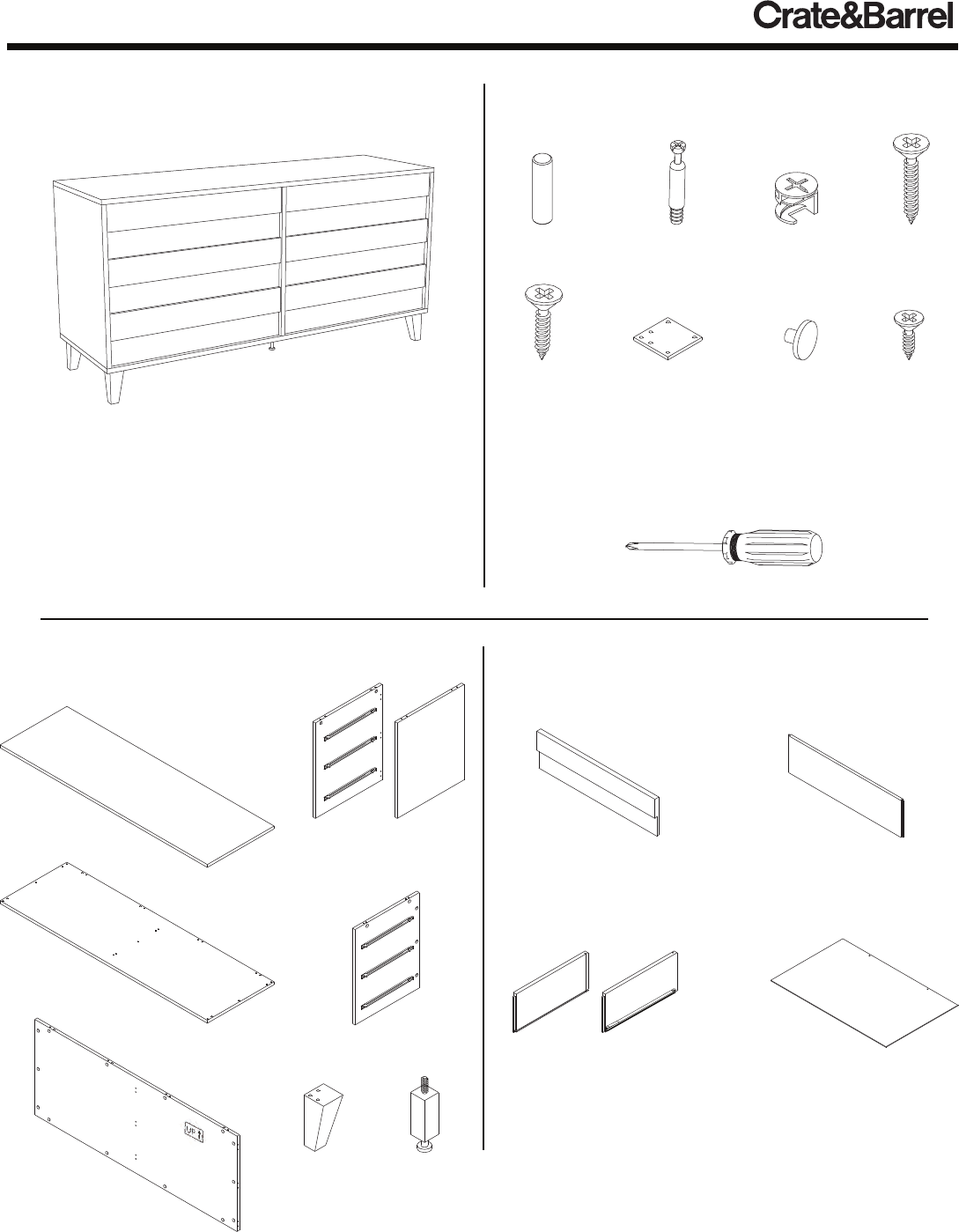

Thank you for purchasing the Cole Six Drawer Dresser.

This page lists all the contents included in the boxes.

Please take time to identify the hardware as well as the

individual components of this product. As you unpack

and prepare for assembly, place the contents on a

carpeted or padded area to protect them from damage.

Note: 2 people are required to safely assemble this product.

COLE SIX DRAWER DRESSER

Missing hardware? Please call 800.606.6387 for replacements.

2 - side panels

(1 left, 1 right)

1 - top

panel

1 - bottom

panel

1 - back

panel

12 - drawer sides

(6 left, 6 right)

6 - drawer backs

6 - drawer fronts

6 - drawer bottoms

4 - legs

29 - wood

dowels

23 - cam

screws

23 - cams

24 - medium

screws

4 - leg

plates

23 - cam

covers

12 - small

screws

9 - large

screws

1 - partition

1 - center

support

phillips head screwdriver

Customer Service 800.967.6696 | www.crateandbarrel.com

allen wrench (included)

COLE SIX DRAWER DRESSER

Made in China - r05 Page 2 of 5

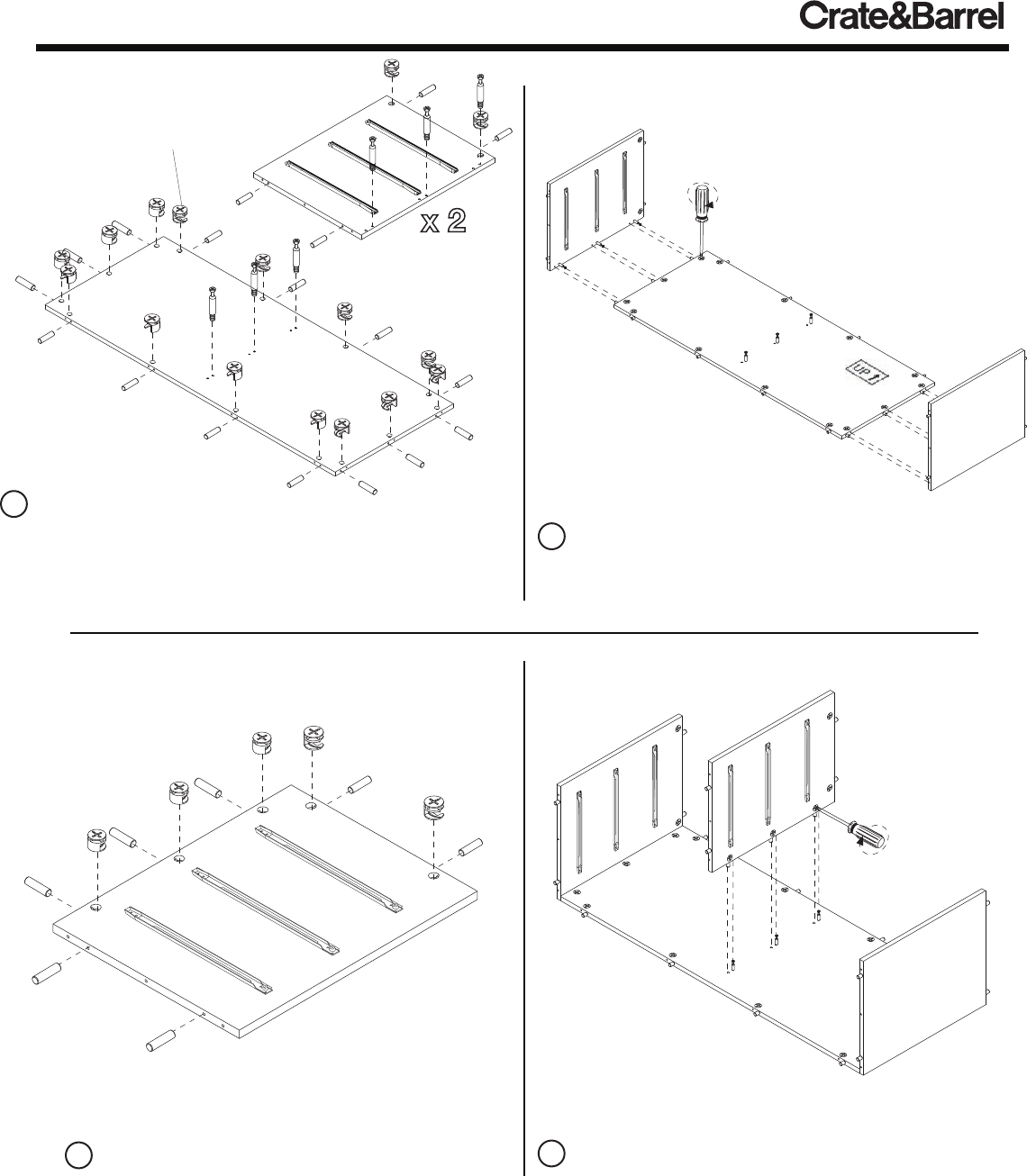

1 A) Insert 4 wood dowels, 3 cam screws, and 2 cams into left

and right side panels as shown. Secure cam screws with a

phillips head screwdriver. Make sure arrows on each cam

points toward nearest edge with holes.

B) Insert 14 cams, 3 cam screws and 14 wood dowels into

back panel as shown.

2 Fit dowels of back panel into corresponding holes

of left and right side panels as shown. With a

screwdriver, turn cams clockwise until it securely

engages each cam screw.

side

panel

back

panel

B

A

NOTE: Make sure

arrows on each cam

points toward nearest

edge with holes

back

panel

left side

panel

right side

panel

partition

partition

Customer Service 800.967.6696 | www.crateandbarrel.com

3 Insert 5 cams and 7 wood dowels into partition

as shown.

4 Fit dowels of partition into corresponding holes

of assembled unit as shown. Secure 3 cams.

COLE SIX DRAWER DRESSER

Made in China - r05 Page 3 of 5

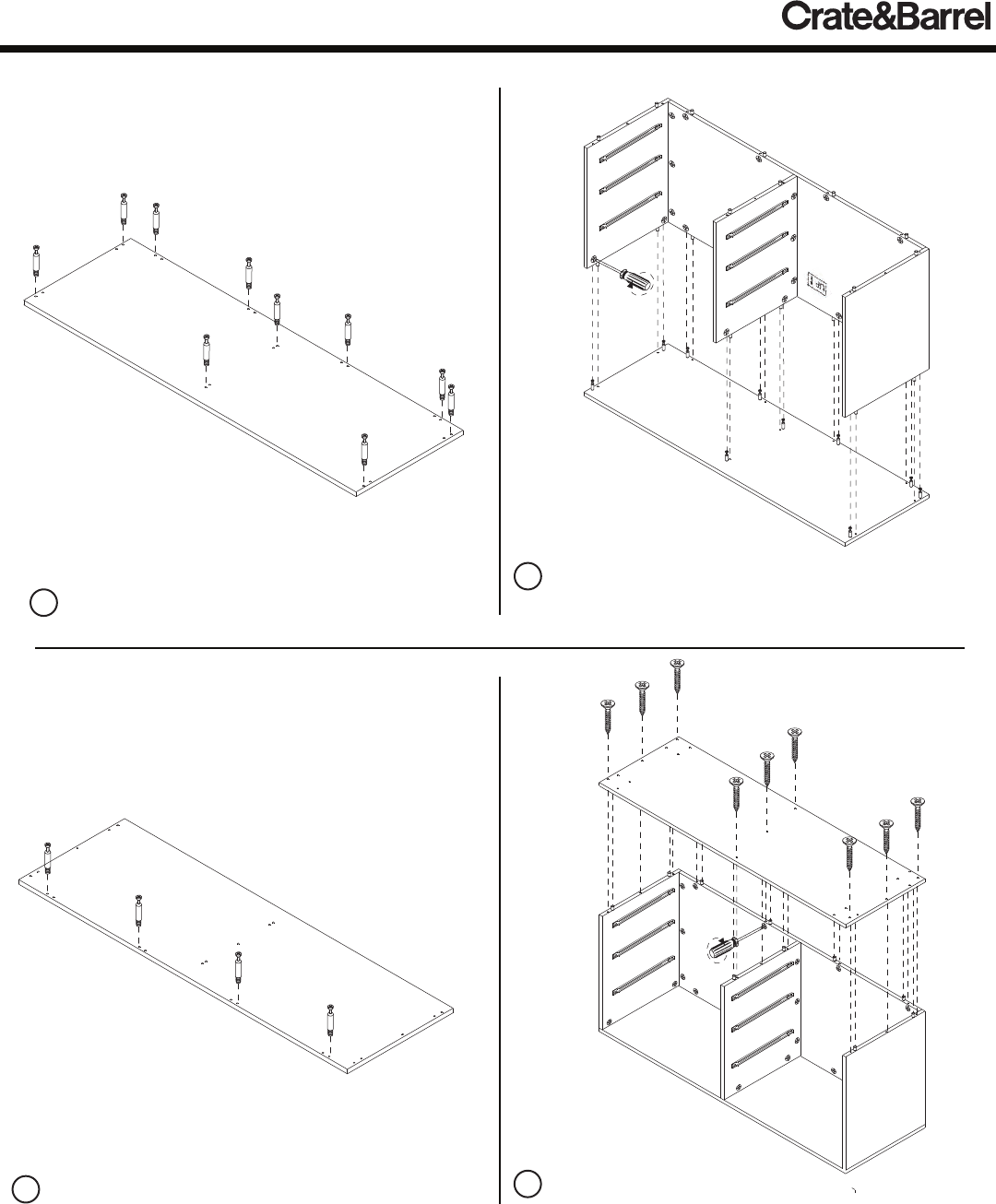

6 With the assistance of another adult, position assembly

as shown. Fit dowels of assembled unit into corresponding

holes of top panel as shown. Secure 10 cams.

8 A) Fit dowels of assembled unit into corresponding holes

of bottom panel as shown. Secure 4 cams.

B) Secure bottom panel with 9 large screws as shown, using

a phillips head screwdriver.

A

B

Customer Service 800.967.6696 | www.crateandbarrel.com

top

panel

5 Insert 10 cam screws into top panel as shown.

top

panel

7 Insert 4 cam screws into bottom panel as shown.

bottom

panel

bottom

panel

COLE SIX DRAWER DRESSER

Made in China - r05 Page 4 of 5

leg

plate

leg

Customer Service 800.967.6696 | www.crateandbarrel.com

leg

assembly

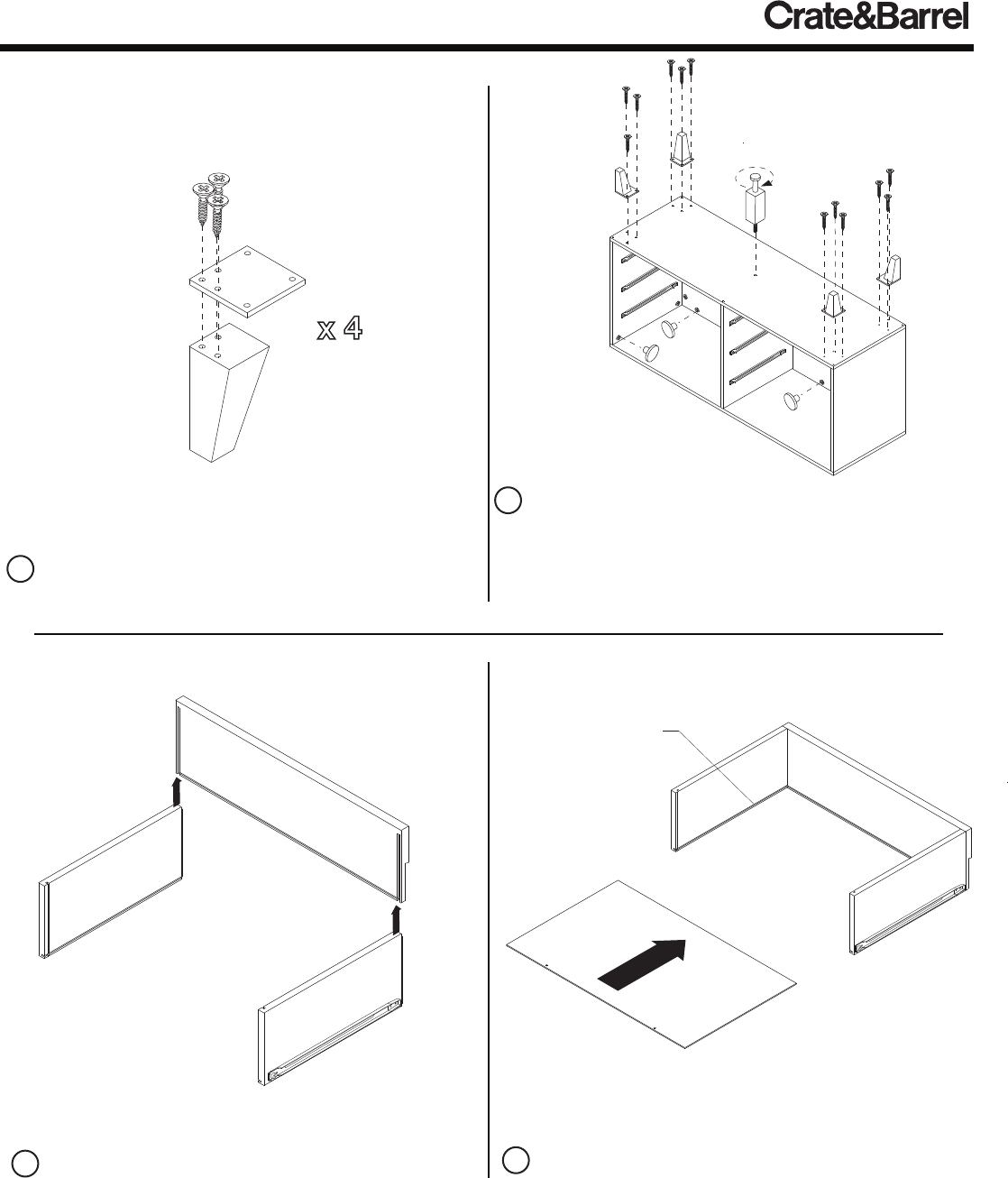

9 Attach leg plate to leg with 3 medium screws per

leg as shown. Secure screws with a screwdriver.

right drawer

side

left drawer

side

drawer

front

11 Slide left and right drawer sides into

corresponding grooves of drawer front as shown.

12 Slide drawer bottom into corresponding grooves

of drawer assembly as shown.

drawer

bottom

10 A) Attach 4 leg assemblies onto bottom of assembled unit

with 3 medium screws per leg assembly as shown. Secure, but

do not overtighten screws with a screwdriver.

B) Attach center support onto bottom of assembled unit. Turn

center support clockwise to secure as shown.

C) Conceal all exposed cams with cam covers.

center

support

A

B

cam

covers

C

Make sure groove on the

drawer front is aligned with

groove on the

side panels

COLE SIX DRAWER DRESSER

Made in China - r05 Page 5 of 5

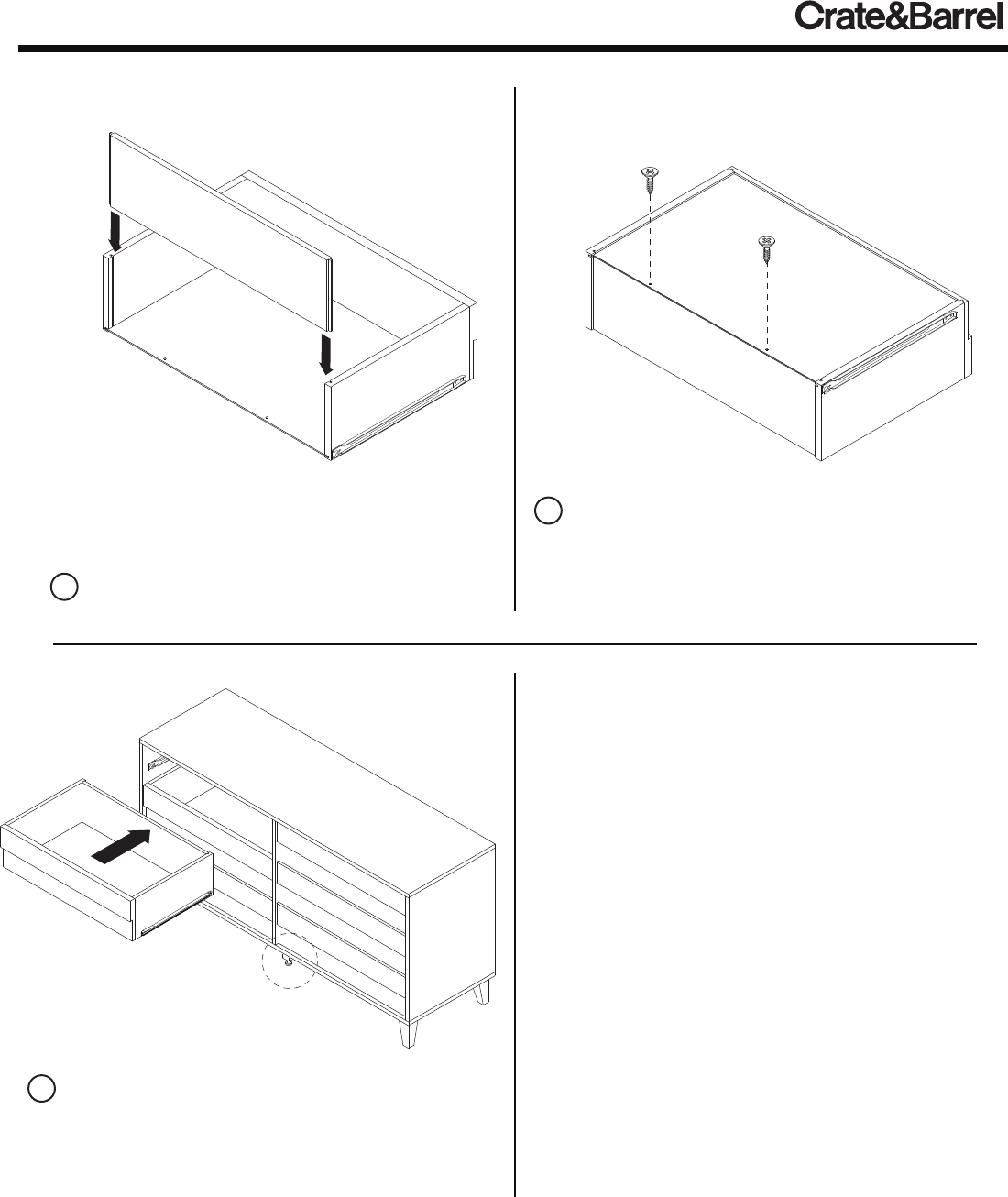

13 Slide drawer back into corresponding grooves of

drawer assembly as shown.

back mirror

assembly

drawer

back

drawer

assembly

drawer

assembly

Customer Service 800.967.6696 | www.crateandbarrel.com

14 Place drawer assembly upside down onto a clean,

padded surface as shown. Secure drawer bottom of

drawer assembly with 2 small screws as shown, using a

screwdriver.

Repeat steps 11-14 for remaining 5 drawer assemblies.

15 A) With the assistance of another adult, position unit

upright as shown. Fit drawer glide wheels over wheels on

the cabinet glides and push in while lifting slightly.

B) Adjust floor glide on center support leg until it hits the

floor.

Assembly is now complete.

CLEANING AND CARE

Clean surfaces with a dry or damp soft cloth. Do not use

abrasive cleaners. Do not use furniture wax or polish as the

wood is finished with a protective clear lacquer.
