HARDWARE

TOOLS REQUIRED

COMPONENTS

Made in China - r02 Page 1 of 2

Thank you for purchasing the Summit Extension

Dining Table. This page lists all the contents included

in the box. Please take time to identify the hardware as

well as the individual components of this product. As

you unpack and prepare for assembly, place the

contents on a carpeted or padded area to protect them

from damage.

Note: 2 people are required to safely assemble this product.

SUMMIT EXTENSION DINING TABLE

Missing hardware?

Please call 800.606.6387 for replacements.

8 - hex nuts

8 - flat washers

8 - spring washers

1 - tabletop

(leaf pre-assembled)

4 - legs

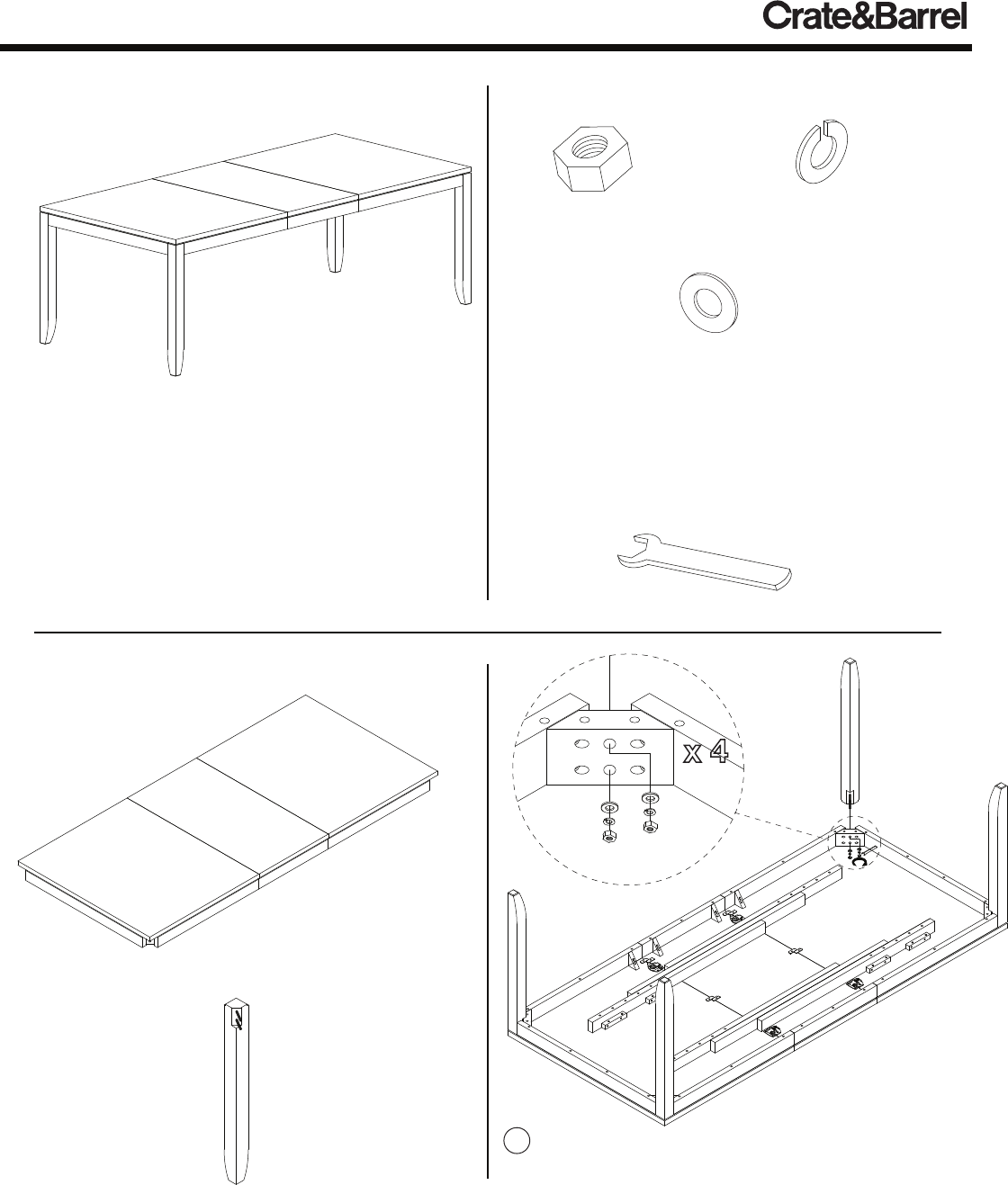

1 With the assistance of another adult, carefully place

tabletop upside down onto a clean, padded surface.

Loosely attach each leg with 2 hex nuts, 2 spring

washers, and 2 flat washers as shown.

ON

OFF

hex bolt

spring washer

flat washer

hex wrench (included)

Customer Service 800.967.6696 | www.crateandbarrel.com

OFF

ON

OFF

ON

Made in China - r02 Page 2 of 2

SUMMIT EXTENSION DINING TABLE

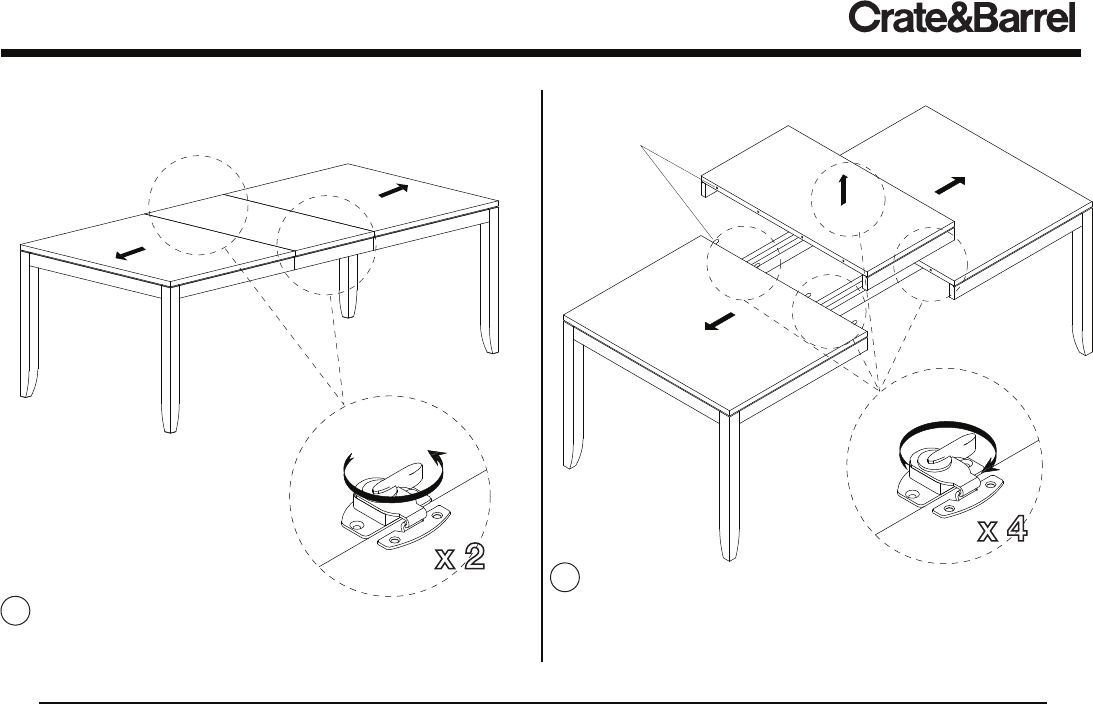

3 With the assistance of another adult, pull apart tabletop evenly

on each side and remove leaf. Make sure to detach pins in the

tabletop from the leaf. Push ends of tabletop back together and

lock mechanisms underneath tabletop.

Assembly is now complete.

2 With the assistance of another adult, carefully position

assembled unit upright. Unlock mechanism underneath

tabletop.

OFF

ON

ON

OFF

Turn mechanism

counterclockwise

to unlock

REMOVING LEAF ASSEMBLY

Turn mechanism

clockwise to lock

Customer Service 800.967.6696 | www.crateandbarrel.com

CLEANING AND CARE

Clean surfaces with a dry or damp soft cloth. Do not use

abrasive cleaners. Do not use furniture wax or polish as the

wood is finished with a protective clear lacquer.

Make sure pins in the

tabletop align with the locator

holes in the leaf.
