Crave Interactive BT-DOCK Bluetooth charging dock User Manual
Crave Interactive Ltd Bluetooth charging dock
User manual
User Manual
Bluetooth charging dock
Model Name：BT-dock
Crave
Manufacture's Name: Honsung International Industry Ltd.
1 .Product name of blue-tooth charging dock -Crave BT Speaker

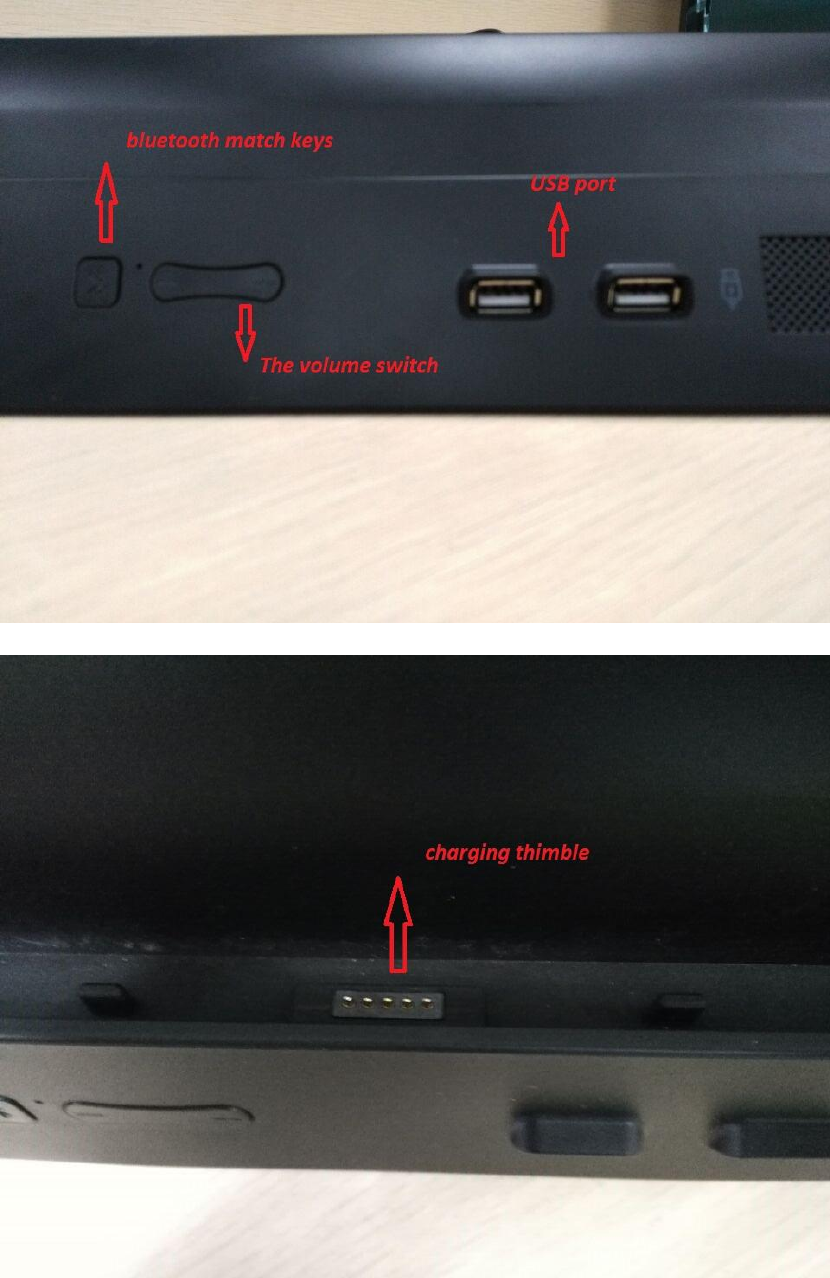

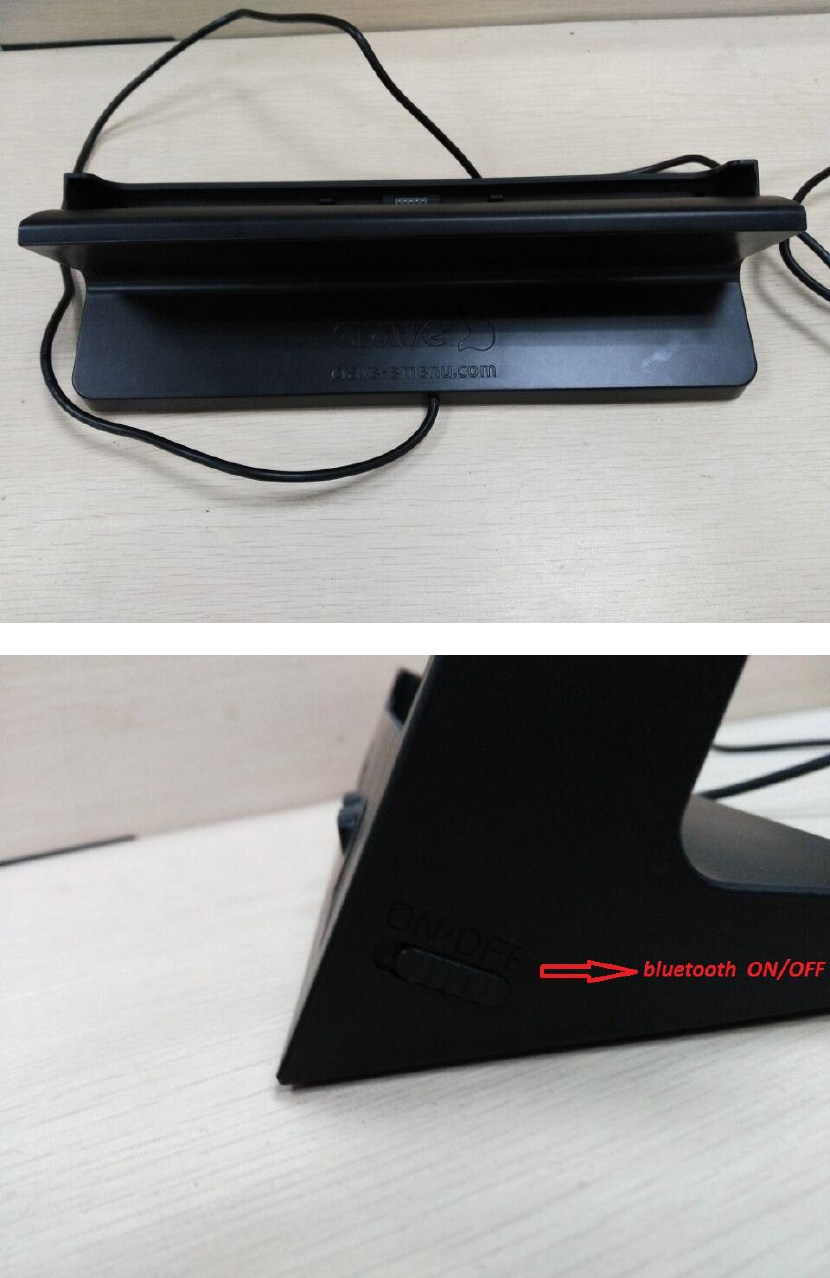

2. Blue light flickers when switch on the blue-tooth matching key, if succeed in matching, it
will emit prompt tone of successful connection and blue light off .
3. After blue-tooth connected, if re-trigger the blue-tooth matching key, the blue-tooth
signal will be disconnected and re-matched .
4. Power-on the dock , put the tablet in the dock charging jack , the tablet will be charging .
Bluetooth:
Frequency: 2402 – 2480 MHz
Bluetooth Modulation: GFSK(1Mbps), π/4-DQPSK(2Mbps),8-DPSK(3Mbps)
Span: 1MHz
Channel List: 79
Antenna Type：PCB Antenna
Antenna Gain: 1dBi
Rating: DC 5V, 6000mA
Adapter Rating:
Input: AC 100-240V, 1500mA, 50/60 Hz
Output: DC 5V, 6000mA

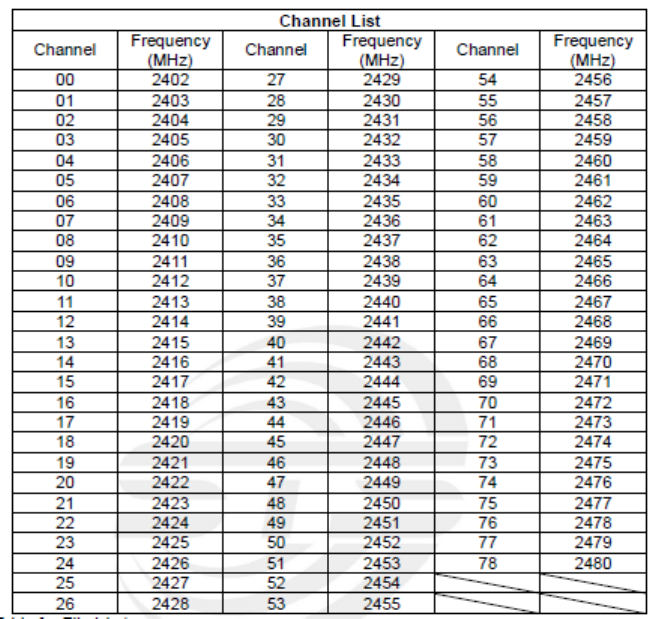

Channel List
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator &
your body.
