Creative Game Accessories SBT609 EQ Speaker User Manual PACKAGE CONTENTS

Creative Game Accessories Co., LTD EQ Speaker PACKAGE CONTENTS

Users Manual

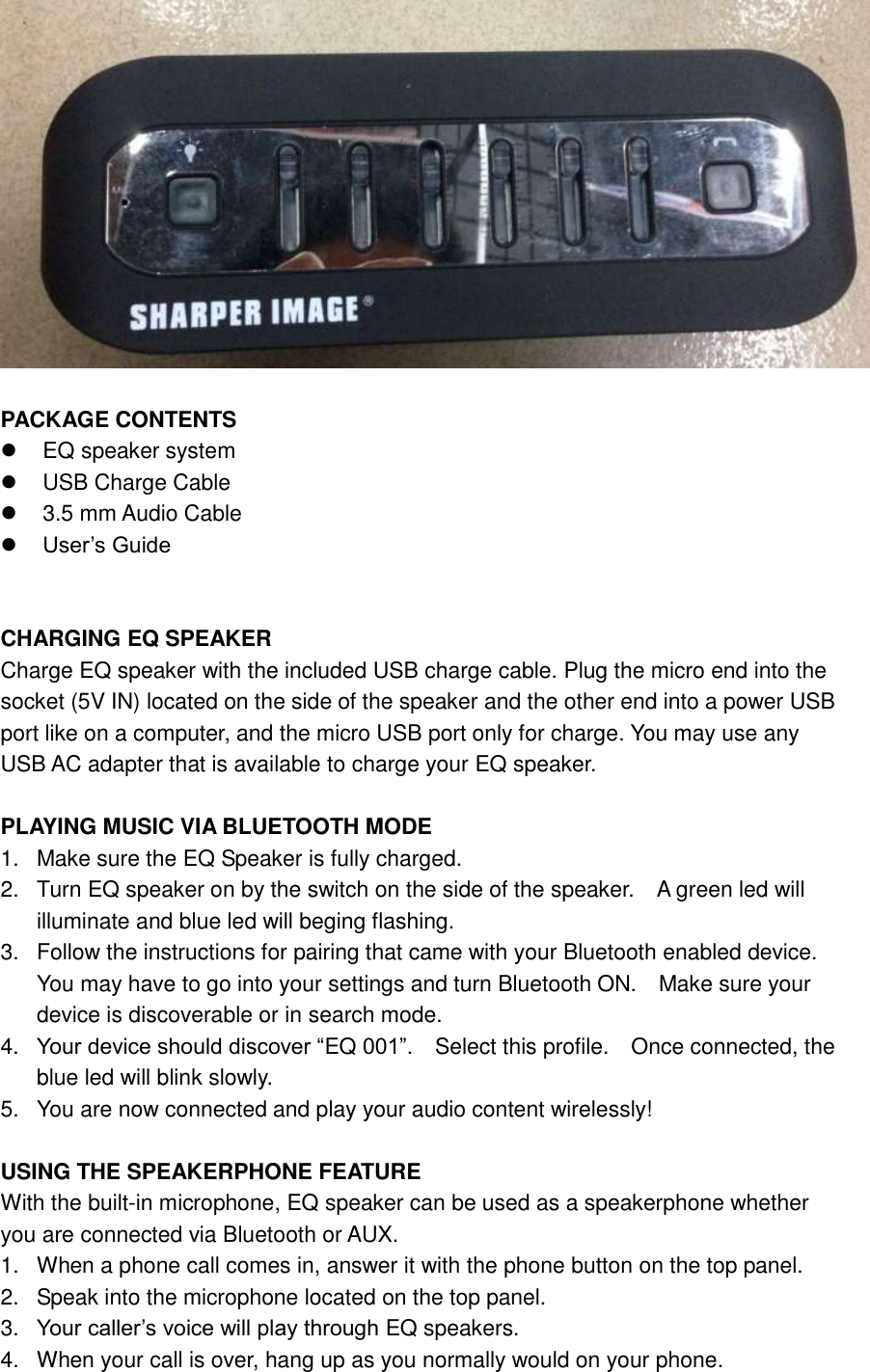

PACKAGE CONTENTS  EQ speaker system  USB Charge Cable  3.5 mm Audio Cable  User’s Guide CHARGING EQ SPEAKER Charge EQ speaker with the included USB charge cable. Plug the micro end into the socket (5V IN) located on the side of the speaker and the other end into a power USB port like on a computer, and the micro USB port only for charge. You may use any USB AC adapter that is available to charge your EQ speaker. PLAYING MUSIC VIA BLUETOOTH MODE 1. Make sure the EQ Speaker is fully charged. 2. Turn EQ speaker on by the switch on the side of the speaker. A green led will illuminate and blue led will beging flashing. 3. Follow the instructions for pairing that came with your Bluetooth enabled device. You may have to go into your settings and turn Bluetooth ON. Make sure your device is discoverable or in search mode. 4. Your device should discover “EQ 001”. Select this profile. Once connected, the blue led will blink slowly. 5. You are now connected and play your audio content wirelessly! USING THE SPEAKERPHONE FEATURE With the built-in microphone, EQ speaker can be used as a speakerphone whether you are connected via Bluetooth or AUX. 1. When a phone call comes in, answer it with the phone button on the top panel. 2. Speak into the microphone located on the top panel. 3. Your caller’s voice will play through EQ speakers. 4. When your call is over, hang up as you normally would on your phone.

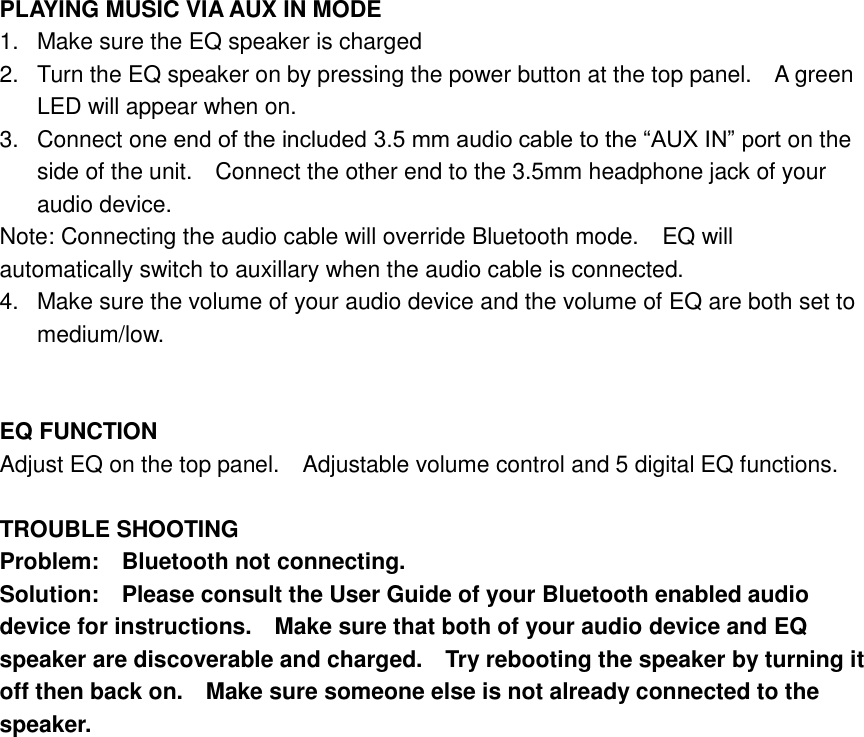

PLAYING MUSIC VIA AUX IN MODE 1. Make sure the EQ speaker is charged 2. Turn the EQ speaker on by pressing the power button at the top panel. A green LED will appear when on. 3. Connect one end of the included 3.5 mm audio cable to the “AUX IN” port on the side of the unit. Connect the other end to the 3.5mm headphone jack of your audio device. Note: Connecting the audio cable will override Bluetooth mode. EQ will automatically switch to auxillary when the audio cable is connected. 4. Make sure the volume of your audio device and the volume of EQ are both set to medium/low. EQ FUNCTION Adjust EQ on the top panel. Adjustable volume control and 5 digital EQ functions. TROUBLE SHOOTING Problem: Bluetooth not connecting. Solution: Please consult the User Guide of your Bluetooth enabled audio device for instructions. Make sure that both of your audio device and EQ speaker are discoverable and charged. Try rebooting the speaker by turning it off then back on. Make sure someone else is not already connected to the speaker.

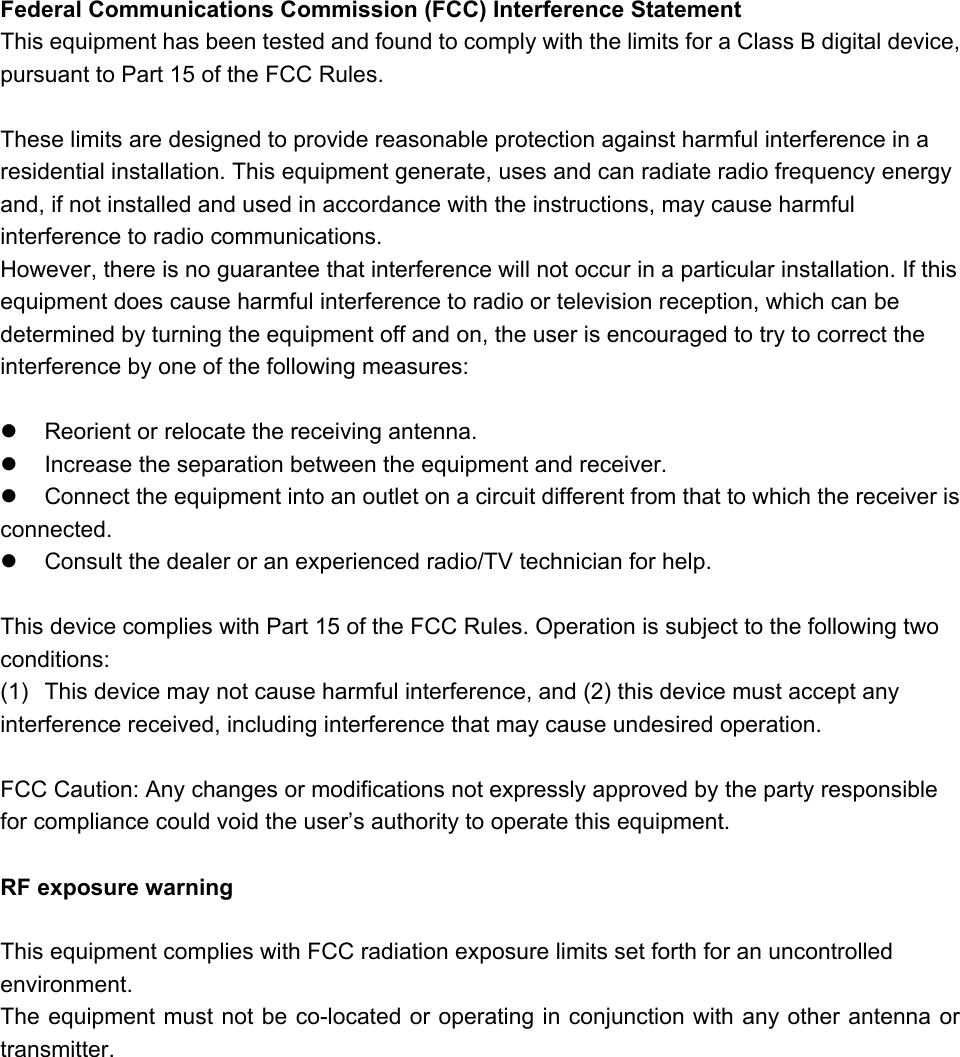

Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
