Introduction
Congratulations on your purchase of Sound Blaster®R5/E5! This portable audio recording hub and DAC
(Digital-to-Analog Converter) features powerful noise reduction microphones that record clean, high
quality audio directly to smart devices or PCs and Macs. The built-in powerful SoundCore3DTM sound
and voice processor with SBX®Pro Studio™ technology was designed to perfectly deliver our legendary
microphone reverb engine and produce an amazing cinematic audio playback experience. The Sound
Blaster R5/E5 provides support for high performance headphones for a studio- grade listening
experience and it also comes with dual headphone jacks for easy music sharing. It also boasts NFC for
one-touch Bluetooth®pairing.
Package Checklist
Your Sound Blaster R5/E5 package comes with the following:
lThe Sound Blaster R5/E5
lMicro-USB 2.0 cable
l3.5 mm (1/8") stereo analog cable
l3.5 mm (1/8") clip microphone
lTwo elastic bands
lDesk stand
lQuick Start leaflet
Minimum System Requirements
For Windows®OS
lIntel®Core™2 Duo or AMD equivalent processor, 2.8 GHz or faster recommended
lIntel, AMD or 100% compatible motherboard
lMicrosoft®Windows 8.1 32-bit or 64-bit, Windows 8 32-bit or 64-bit, Windows 7 32-bit or 64-bit,
Windows Vista®32-bit or 64-bit (Service Pack 1 or higher)
l1 GB RAM
l>600 MB of free hard disk space
lAvailable USB 2.0 port (High Speed requires driver)
For Mac®OS
lIntel®Core™2 Duo or AMD®equivalent processor, 2.8 GHz or faster recommended
lMac OSX®10.6.8 or higher
l1 GB RAM
l>600 MB of free hard disk space
lAvailable USB 2.0 port
For mobile device
liPhone®/ iPad®running iOS 5.1.1 or higher
lAndroid™ phone / tablet running Android 2.3 or higher for Bluetooth
lAndroid phone / tablet running Android 4.1 or higher for USB Host Audio Streaming*
* These devices' firmware must implement AOA2 protocol so as to support USB Host Audio
Streaming
Sound Blaster R5/E5 – Introduction 1
Registering Your Product
Registering your product ensures you receive the most appropriate service and product support
available. You can register your product during installation or at www.creative.com/register.
Please note that your warranty rights are not dependent on registration.
More Help
For the latest news and products for the Sound Blaster, please visit www.soundblaster.com. The site
also includes information on making purchases, technical help and the latest software updates.
Using Creative Software AutoUpdate
Locating, downloading and installing updates for your Creative products is now simpler and faster with
the web-based Creative Software AutoUpdate system.
When you connect to Creative Software AutoUpdate via the Internet, the website will analyze your
computer system to determine your operating system, language and which Creative products are
connected to your system.
When this analysis is completed, you will then be given a list of only the most relevant software updates
for your connected products. The files can then be retrieved and installed.
To learn more about the Creative Software AutoUpdate, please visit www.soundblaster.com/support.
Note:
First-time users of Creative Software AutoUpdate may be prompted to authorize the download of a
browser component required for system analysis. Check to ensure that this content is signed by
Creative Labs, Inc., then click the Yes button.
Please ensure that all your Creative products are connected and installed on the same computer
running Creative Software AutoUpdate.
Sound Blaster R5/E5 – Introduction 2
About Your Hardware
The Sound Blaster R5/E5 has input and output jacks to enable connection to various devices while
controls on the side give you basic control over your audio device.
Sound Blaster R5/E5
Control /
Indicator
Description

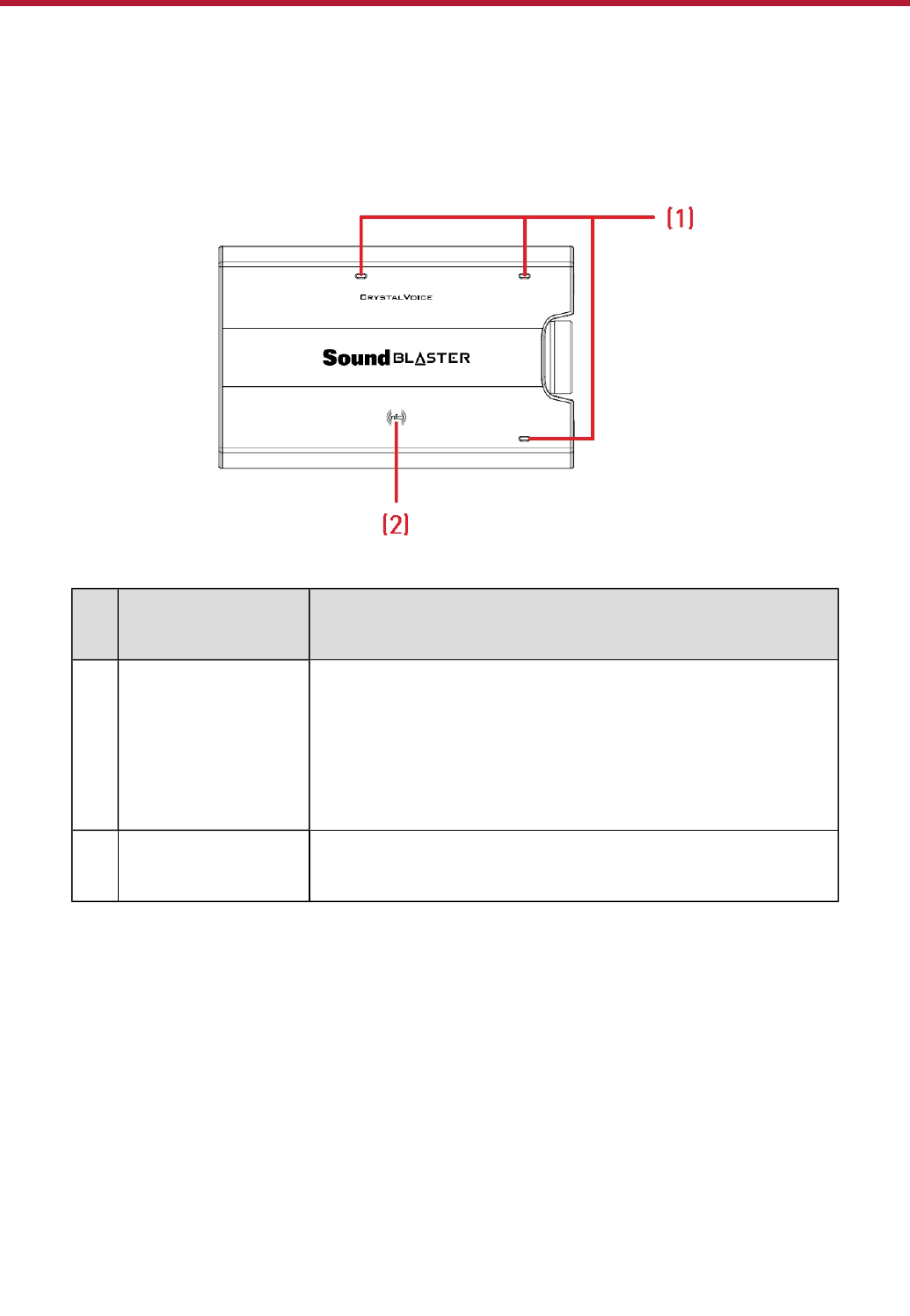

1Microphones Built-in stereo microphones with horizontal or vertical
orientation sensor.
Note:
Only one pair of microphones will be enabled at a
time, depending on the orientation of the device.
2NFC receptor Tap your NFC-enabled device on the Sound Blaster R5/E5
to instantly pair and connect.
Sound Blaster R5/E5 – About Your Hardware 3

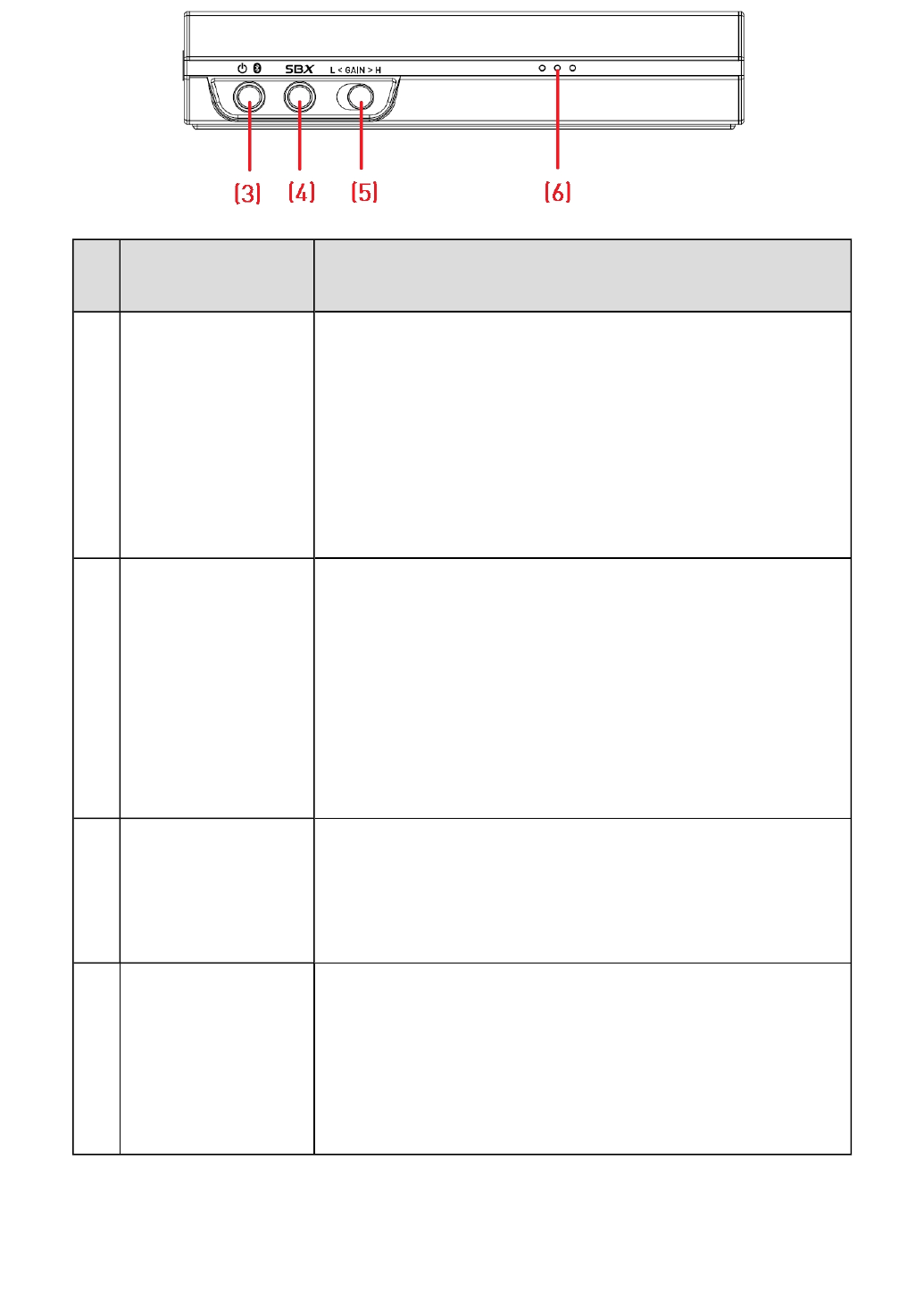

Controls & Indicators
Control /
Indicator
Description
3 Power / Bluetooth
button and
indicator
Power / Bluetoothbutton
lPower On – Press and hold 1 sec
lBluetooth pairing – Press and hold 2 sec
lPower Off – Press and hold 4 sec
Indicator
lWhite: Power ON
lBlue (blinking): Bluetooth discovery/pairing mode
lBlue: Bluetooth connected
lOff: Power OFF
4 SBX / Call button
and indicator
SBX button
lToggles SBX Pro Studio audio enhancements ON/OFF.
During an incoming call
lPress once to answer an incoming call.
lPress again to end a call.
Indicator
lWhite: SBXPro Studio ON
lWhite (blinking): Call in progress
lOff: SBXPro Studio OFF
5 Gain switch
(Low / High)
Switches the headphones gain level.
lLow: For headphones with low impedance or high
sensitivity (33 ~ 300 ohms).
lHigh: For headphones with high impedance or low
sensitivity (300 ~ 600 ohms).
6Power / Battery
indicator The three white LEDs show the power status (ON or OFF)
of the Sound Blaster R5/E5 and its battery level.
lLighted: Power ON. The lighted LEDs show the
current battery level.
lFlashing: Battery is charging. The flashing LED shows
the charge level.
lOff: Power OFF.
Sound Blaster R5/E5 – About Your Hardware 4

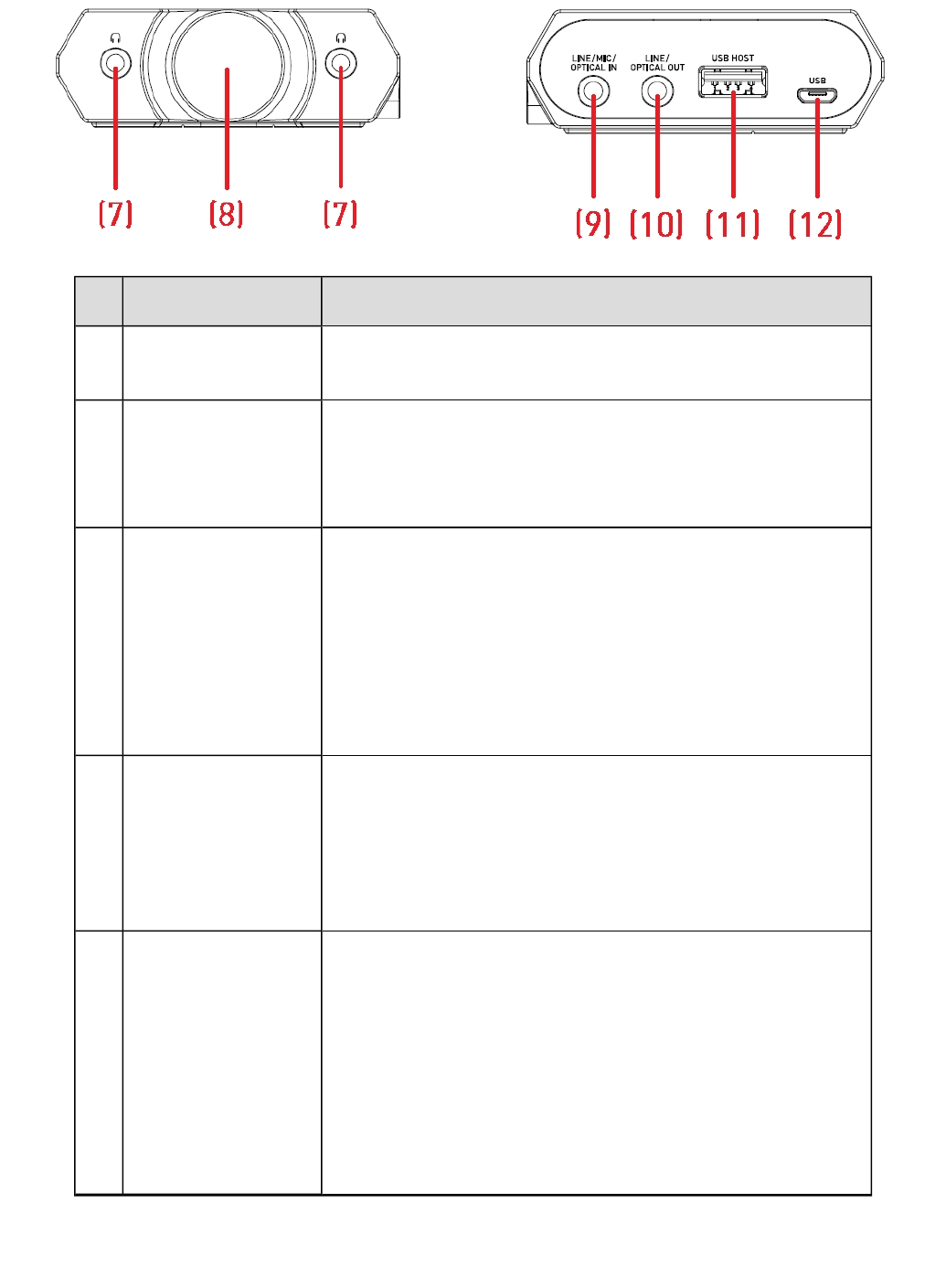

Input / Output Jacks
Top Bottom
Jack / Control Description
7Headphone jacks Connects to stereo headphones with a 3.50 mm (1/8-
inch) plug.
8 Volume control
knob
Adjusts the audio output volume.
Turn clockwise: Increase volume
Turn anti-clockwise: Decrease volume
Press once: Mute or unmute the volume
9Line / Mic / Optical In
jack Connects to line-level sources (smartphones, tablets,
MP3 players) with a 3.50 mm (1/8-inch plug.
OR
Connects to microphones with a 3.50 mm (1/8- inch)
plug.
OR
Connects to optical digital sources (video game consoles,
DVD players, AV receivers) with a Mini-TOSLINK plug.
10 Line / Optical Out
jack Connects to powered analog speakers with a 3.50 mm
(1/8-inch) plug.
OR
Connects to optical digital devices (video game consoles,
DVD players, AV receivers) with a 3.50 mm (1/8-inch)
Mini-TOSLINK plug.
11 USB Host port Connects to an iPhone/iPad for audio playback or
recording.
OR
Connects to an Android phone/tablet for audio playback.
OR
Connects to a USB microphone (Sound Blaster R1).
OR
For charging external device, e.g. phone, MP3 player,
etc.
Sound Blaster R5/E5 – About Your Hardware 5
Jack / Control Description
12 USB port Connects to USB ports of PC/Mac for audio playback or
recording.
OR
Connects to an Android phone/tablet via an OTG cable for
audio recording.
OR
Alternatively, you may connect it to the power socket via
a USB power adapter to charge it.
Sound Blaster R5/E5 – About Your Hardware 6
Setting Up Your Audio Device
Step 1: Charging your Sound Blaster R5/E5
Connect your Sound Blaster R5/E5 directly to a USB port on your computer.
You can also connect to a wall outlet using USB power adapter* (not included).
* DC 5V, 1 A
Charge your Sound Blaster R5/E5 for approximately 3 to 4 hours.
It is recommended that you charge it for at least 8 hours before it is used for the first time.
Note:
Lithium-ion battery life may suffer when it is constantly fully depleted or overexerted at low voltage.
It is a good practice to keep the battery well charged.
Sound Blaster R5/E5 can be charged even when it is powered off. If a power source is present, it will
go into charging mode 3 seconds after it is powered off.
Sound Blaster R5/E5 – Setting Up Your Audio Device 7
Step 2: Turning On Sound Blaster R5/E5

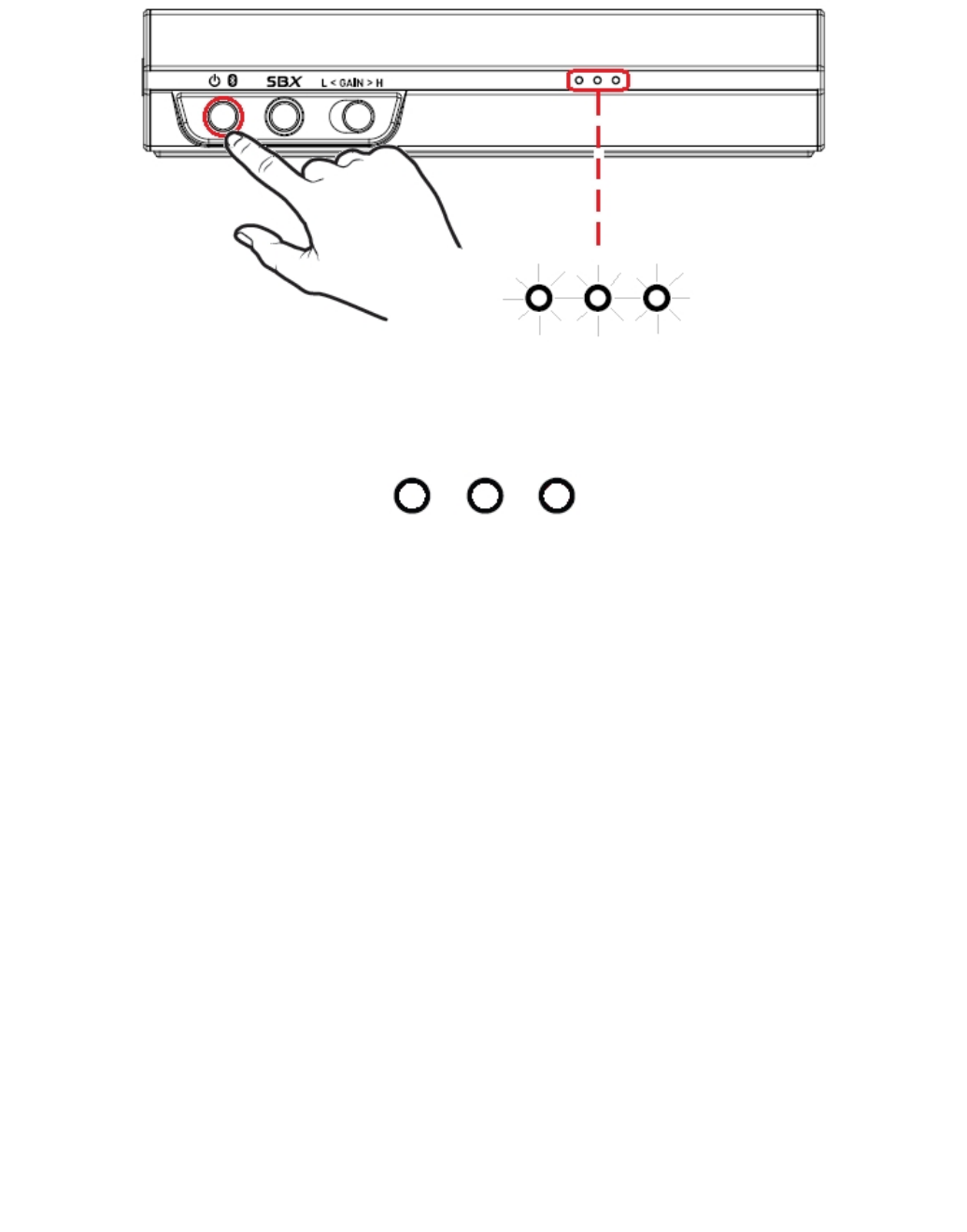

Press the Power / Bluetooth button to turn on Sound Blaster R5/E5.
lPower On – Press and hold 1 sec
lBluetooth pairing – Press and hold 2 sec
lPower Off – Press and hold 4 sec
Battery level indication
In On mode, the three white LEDs light up according to the battery level of your Sound Blaster R5/E5.
Low Full
When charging during Off mode, the LEDs will light up according to the battery level, and the flashing
LED shows the charge level. All LEDs will turn off when fully charged.
Sound Blaster R5/E5 – Setting Up Your Audio Device 8
Step 3: Connecting to an Audio Source

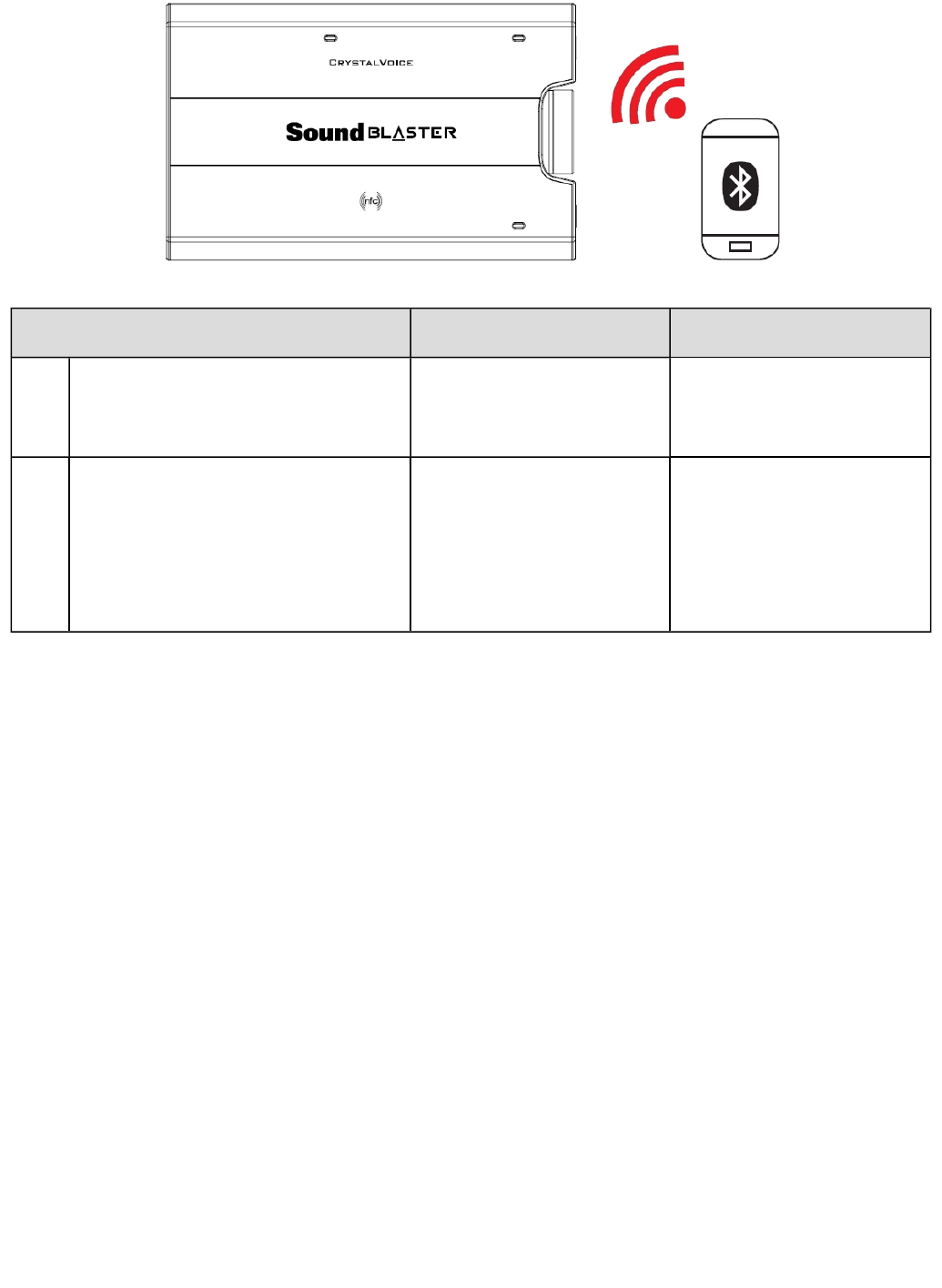

One-touch pairing with NFC
You may pair your NFC-enabled devices with the Sound Blaster R5/E5 with a single tap using NFC
technology. Simply follow these steps to connect them.
Action LED Status Device Status
1 Turn ON the NFC feature on your
device. And touch your device on
the NFC logo on Sound Blaster
R5/E5.
If prompted "Are you sure you
want to pair the Bluetooth
device?", tap "Yes".
Bluetooth indicator lights
up in blue.
Device paired
automatically.
Ready to stream music.
Note:
Be sure that your phone is NFC-enabled and find out where the NFC sensor is located on your phone.
For more information, refer to the User Guide of your phone.
To disconnect, tap your device with the Sound Blaster R5/E5 again.
Sound Blaster R5/E5 – Setting Up Your Audio Device 9

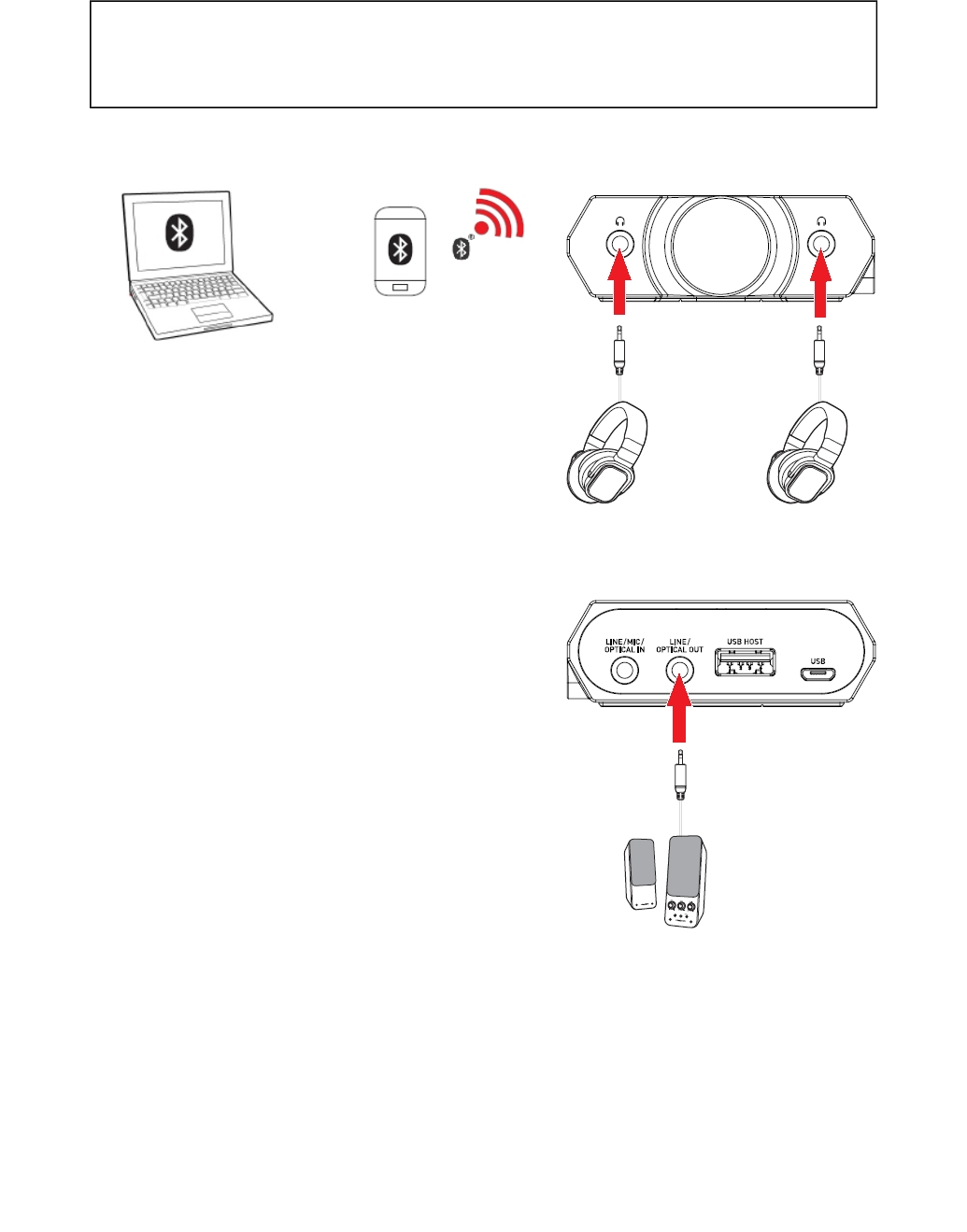

Manual Bluetooth pairing
To enjoy your favorite music from your Bluetooth devices, simply follow these steps to connect them.
Action LED Status Device Status
1 Press and hold Power /
Bluetooth button for 2seconds.
Bluetooth indicator blinks
in blue.
Pairing mode.
Ready to be paired with
new device.
2 Turn ON the Bluetooth feature on
your device.
Search and select "Sound Blaster
R5/E5".
If password is required, enter
0000 and connect to it.
Bluetooth indicator lights
up in blue.
Ready to stream music.
Note:
If no pairing is done within 60 seconds, Bluetooth pairing mode will be deactivated.
Bluetooth pairing between these devices may vary depending upon the model type. Consult your
device’s manual on how to pair.
You can only connect one Bluetooth device at a time.
Sound Blaster R5/E5 – Setting Up Your Audio Device 10

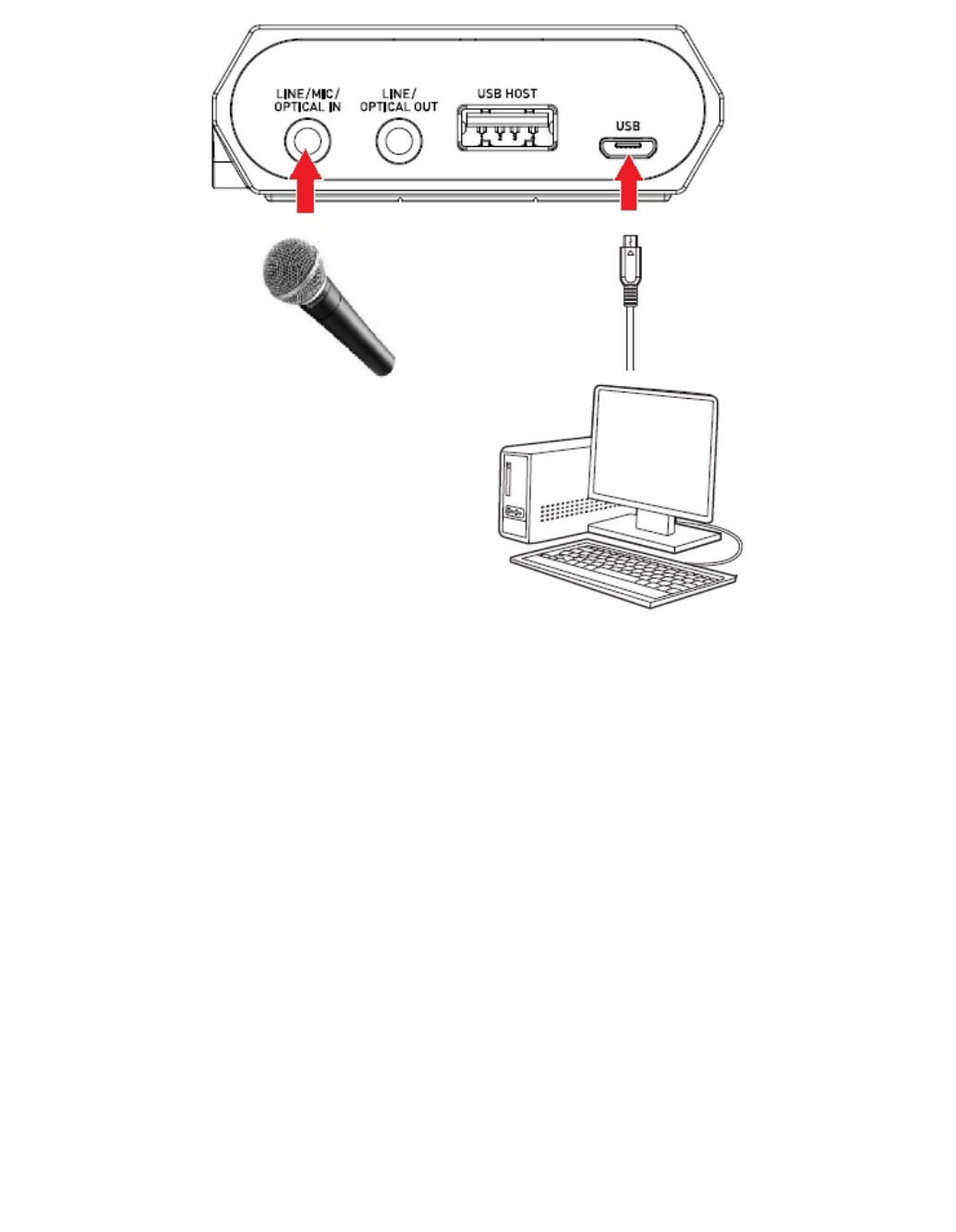

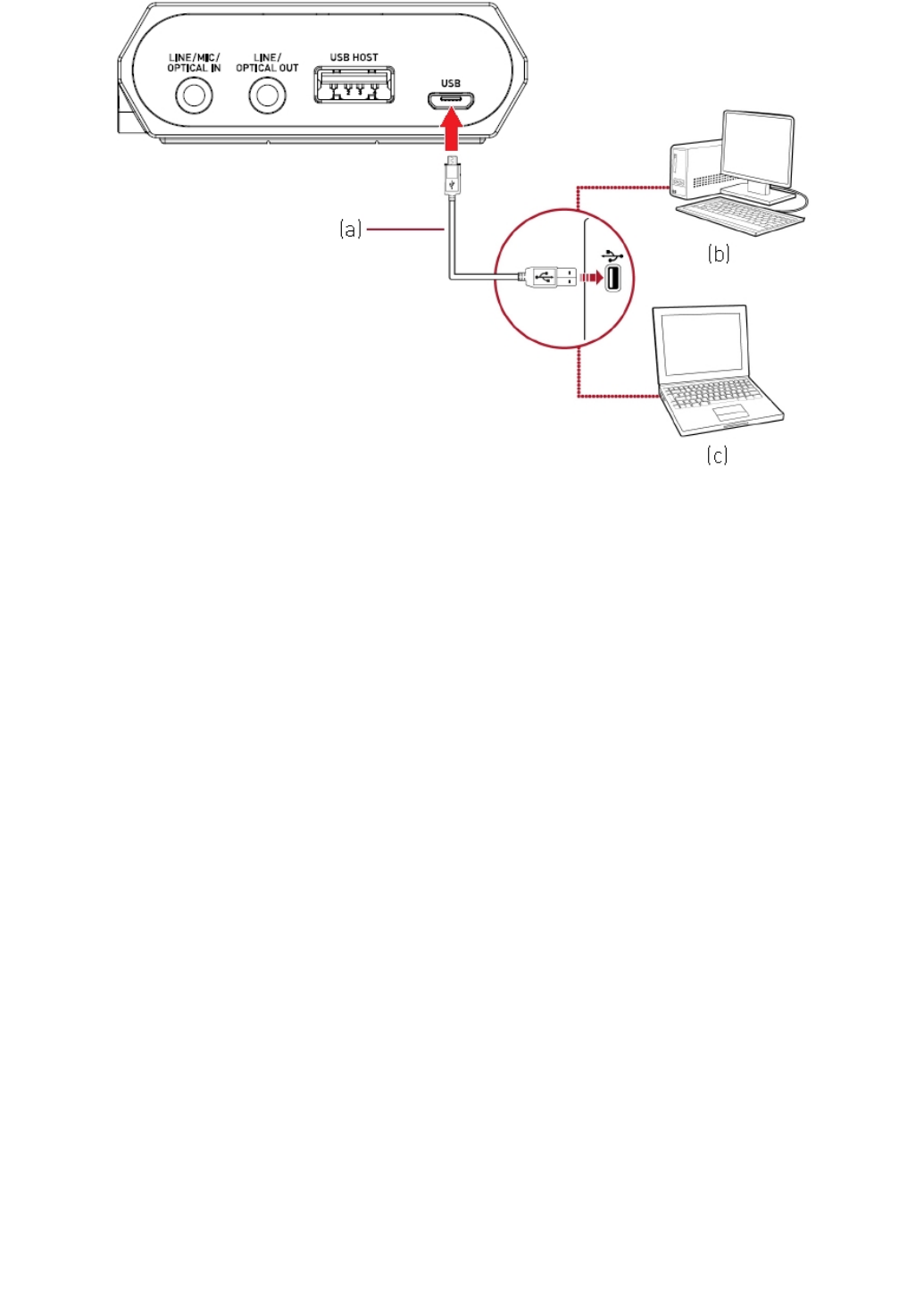

Connecting to a computer via USB
(a) Micro-USB cable
(b) Desktop
(c) Laptop
Note:
Connecting the Sound Blaster R5/E5 to a USB hub is not recommended.
Setting the Sound Blaster R5/E5 as the default audio device
For Windows
1. Go to Control Panel and click Sound.
2. Click the Playback tab, select Sound Blaster R5/E5, then click the Set Default button.
3. Click the Recording tab, select the required Sound Blaster R5/E5 recording device, then click the
SetDefault button.
For Mac
1. Go to System Preferences and click Sound.
2. Click the Output tab, then select Sound Blaster R5/E5.
3. Click the Input tab, then select the required Sound Blaster R5/E5 recording device.
Sound Blaster R5/E5 – Setting Up Your Audio Device 11

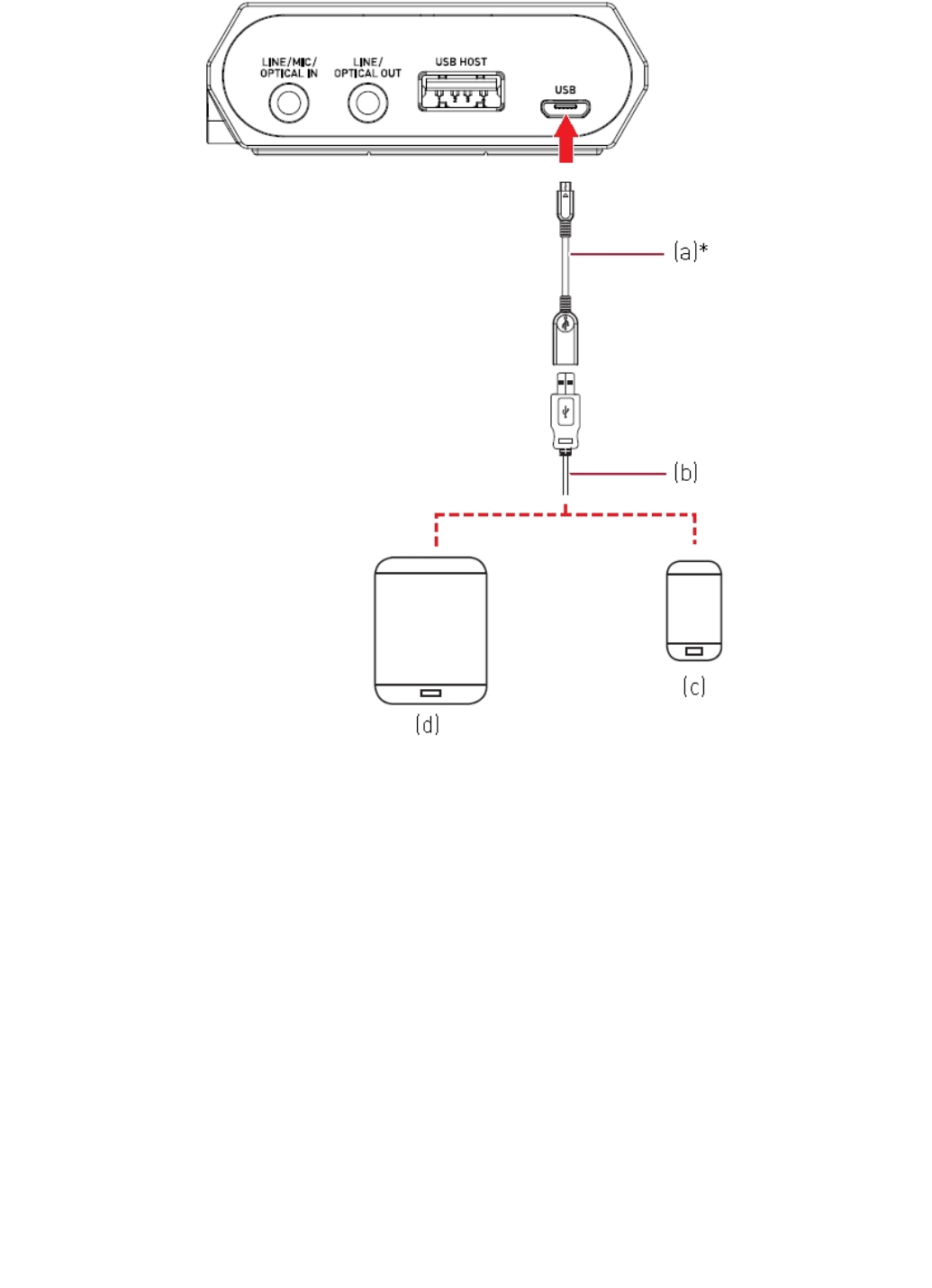

Connecting to an Android device via USB
To connect an Android device via USB, use an On-The-Go cable*.
(a) On-The-Go cable*
(b) USB cable
(c) Android phone
(d) Android tablet
Note:
* The On-The-Go cable is available separately.
On-The-Go cable lets you connect your device to the Sound Blaster R5/E5 using the USB cable that
came with your device.
Sound Blaster R5/E5 – Setting Up Your Audio Device 12

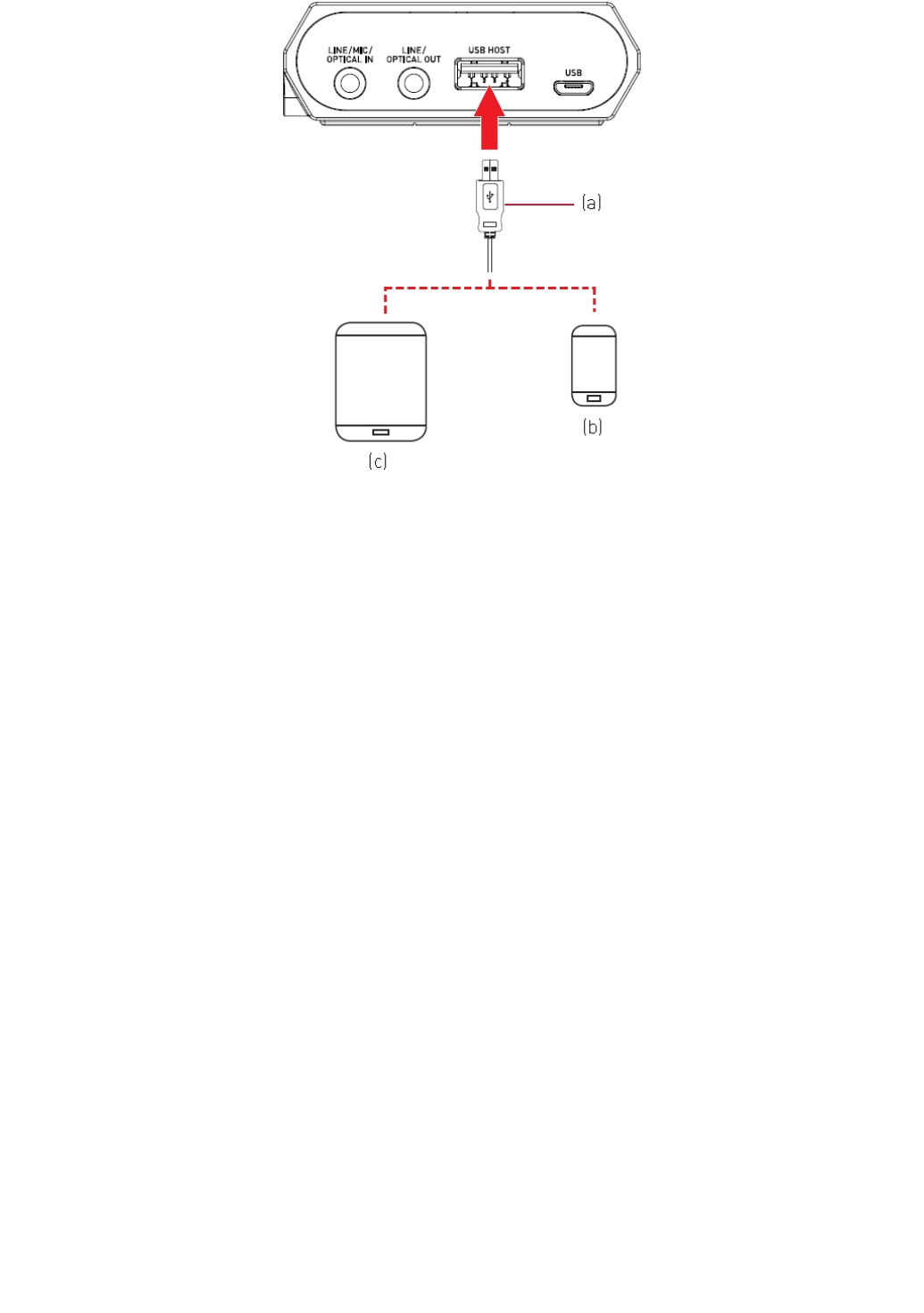

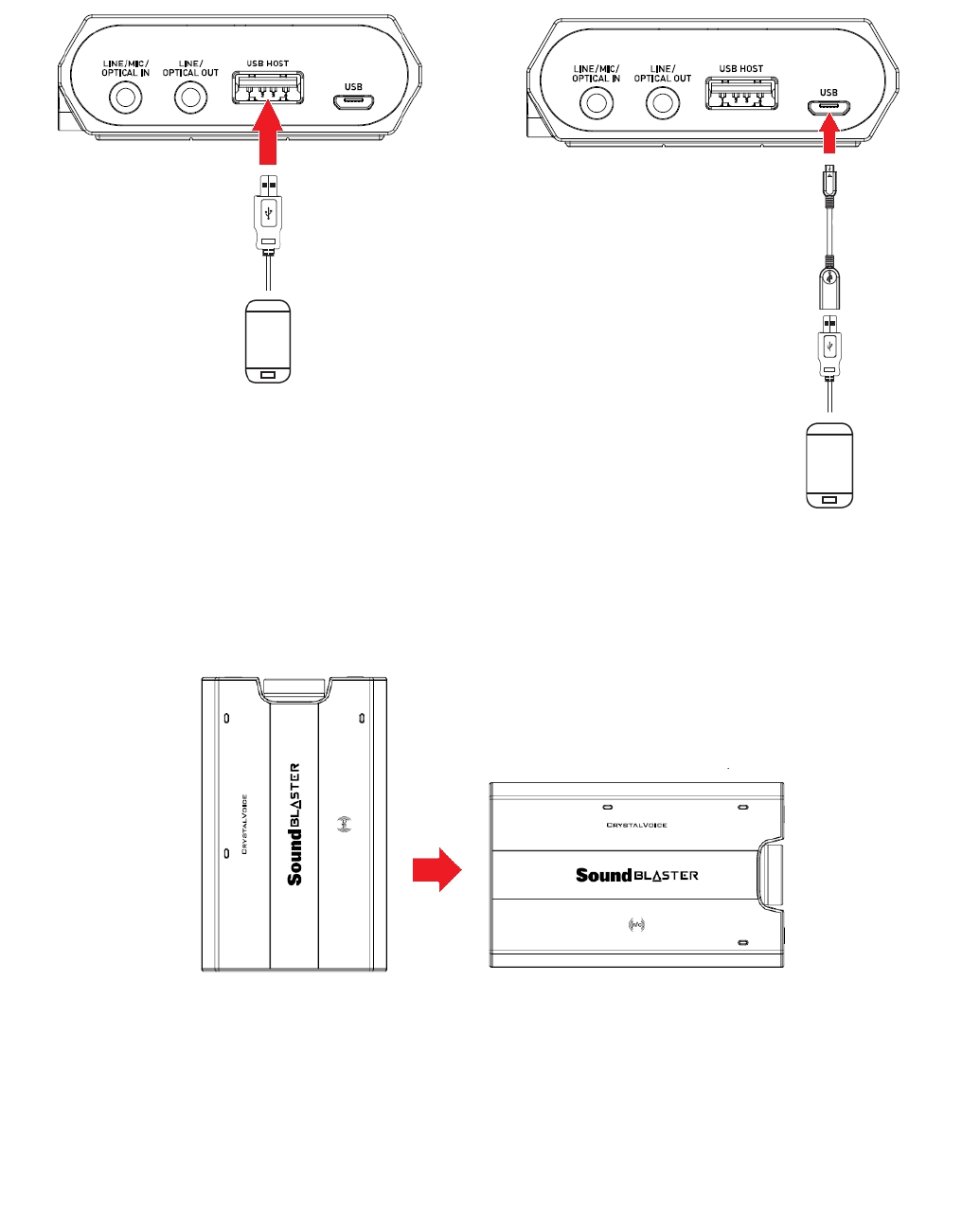

Connecting to a mobile device via USB Host
(a) USB cable
(b) Smartphone
(c) Tablet
Sound Blaster R5/E5 – Setting Up Your Audio Device 13

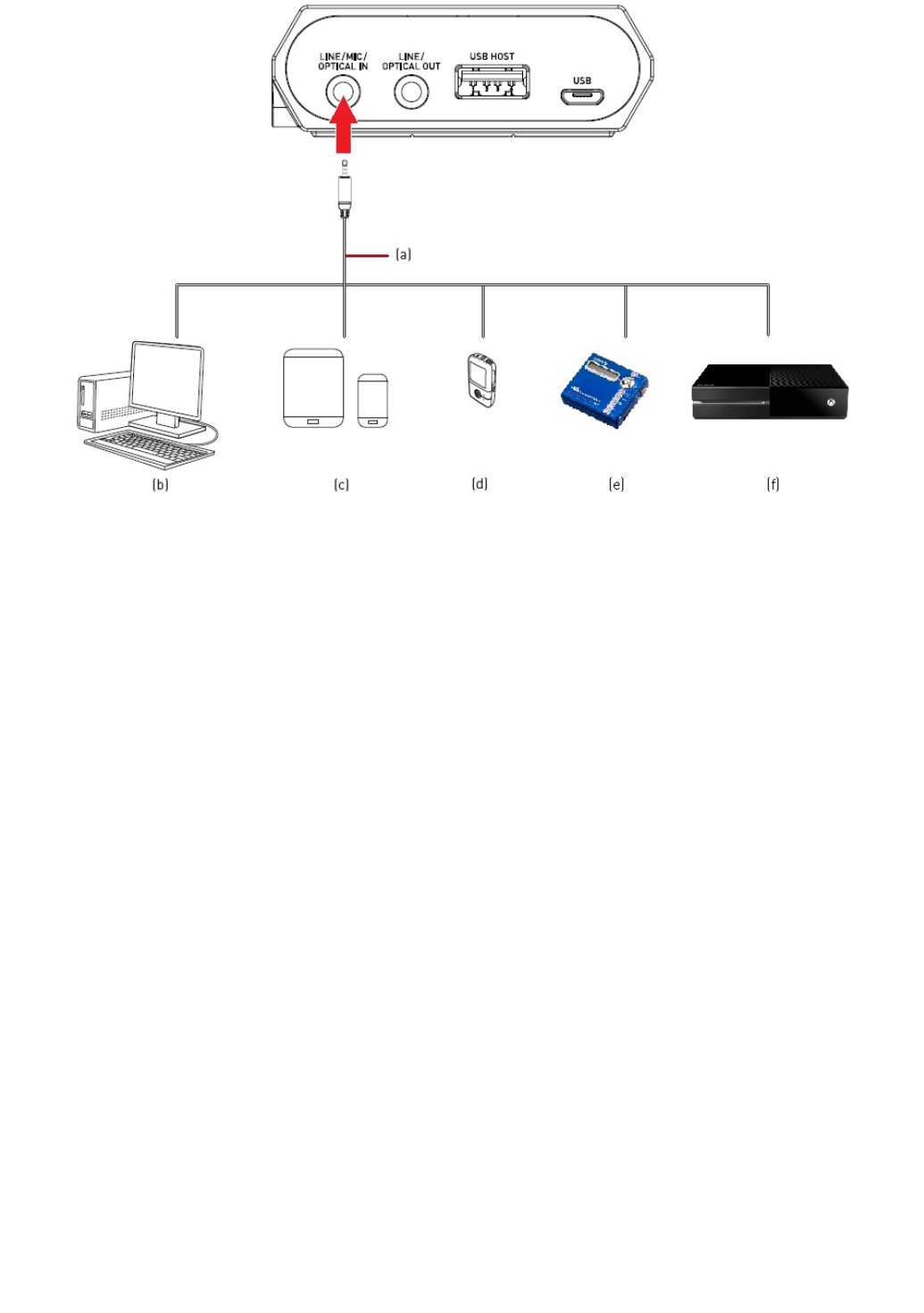

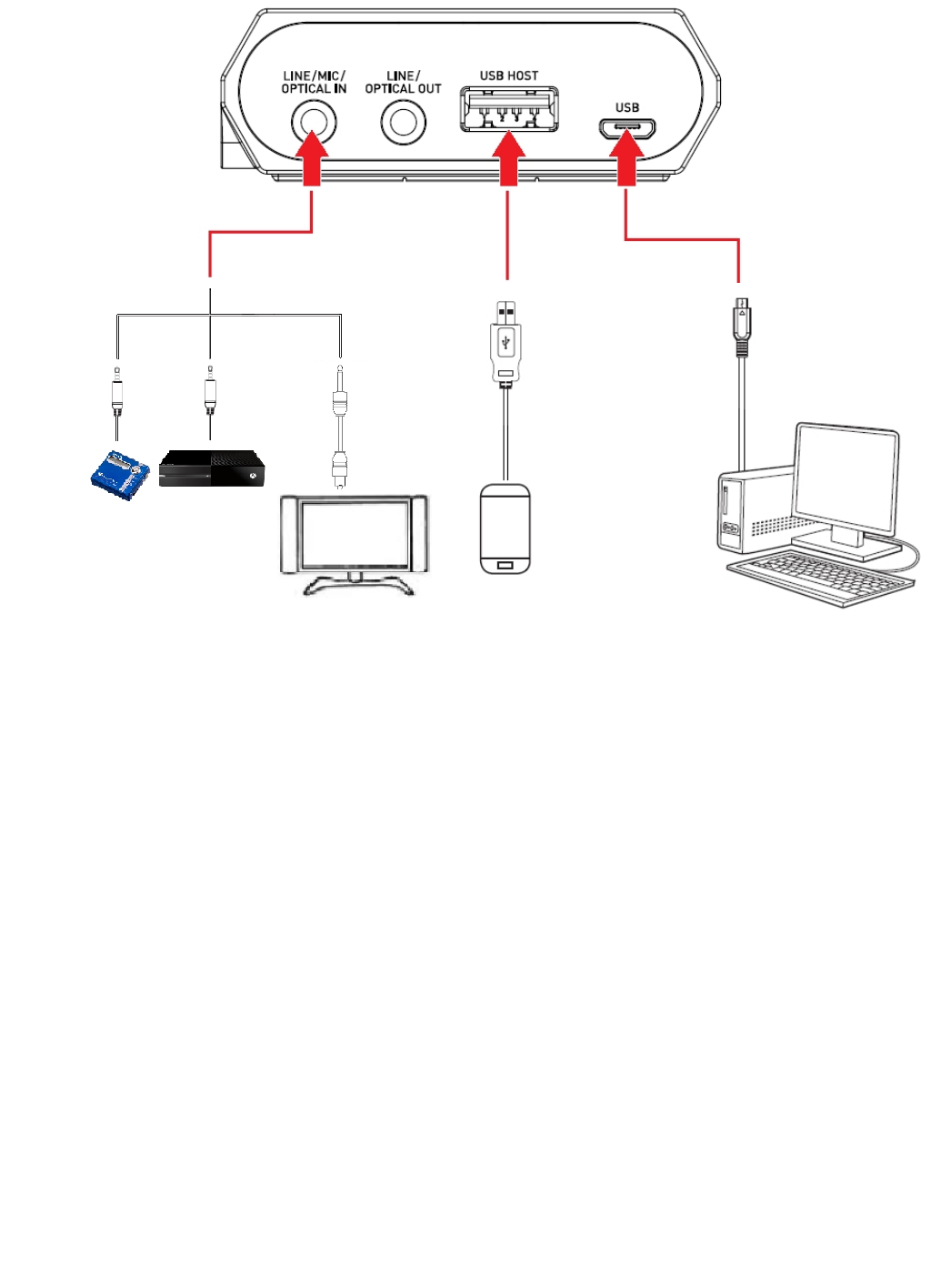

Connecting to line-in sources (e.g. MP3 player, CD player)
(a) 3.5 mm (1/8") stereo analog cable
(b) PC/Mac
(c) Tablet/Smartphone
(d) Portable media player
(e) External recording devices
(DAT players, CD players, etc.)
(f) Game console
Sound Blaster R5/E5 – Setting Up Your Audio Device 14

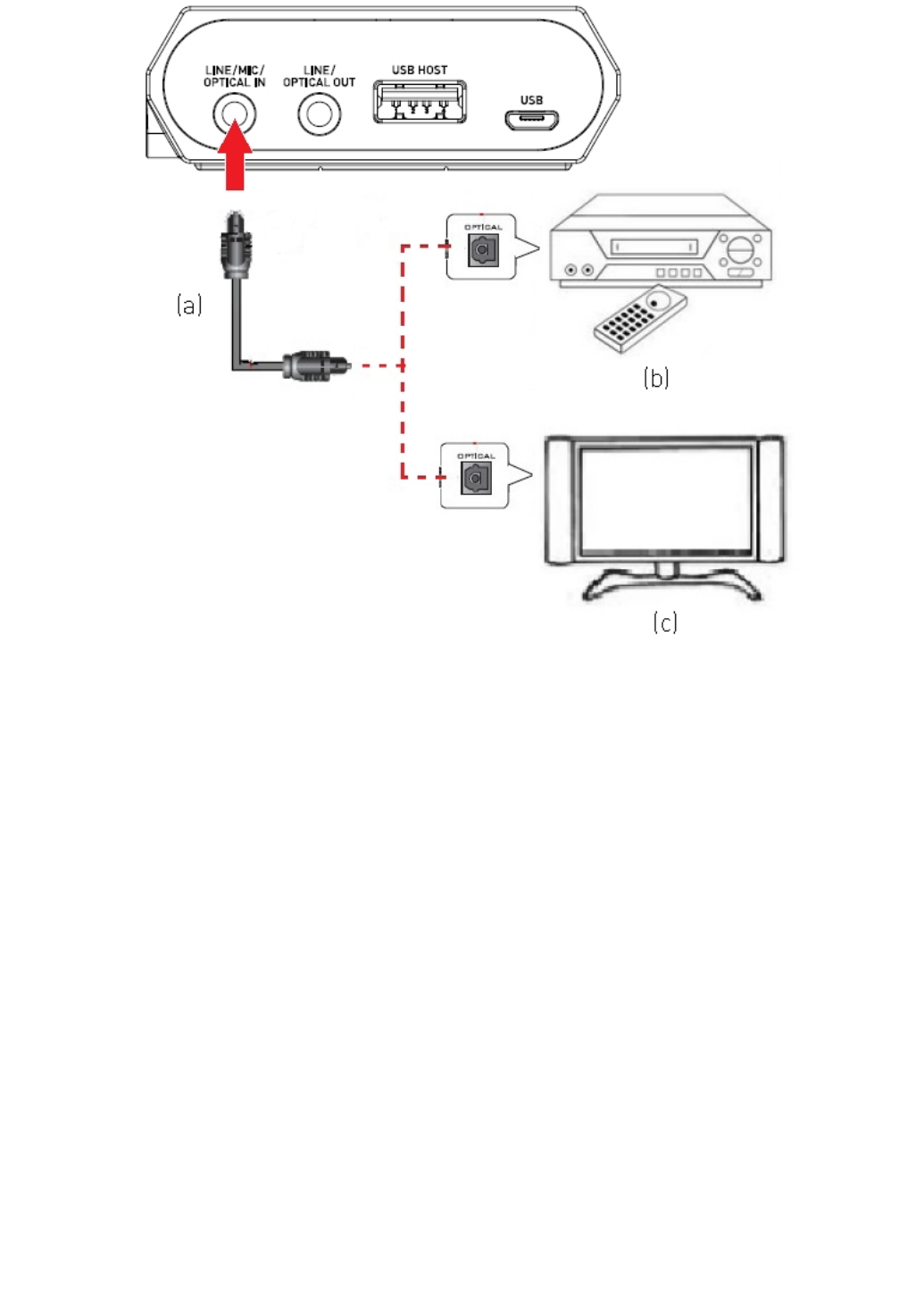

Connecting to Optical-In Sources (e.g. DVD player, TV set)
(a) Mini-TOSLINK cable
(not included)
(b) DVD player
(c) TV set
Sound Blaster R5/E5 – Setting Up Your Audio Device 15

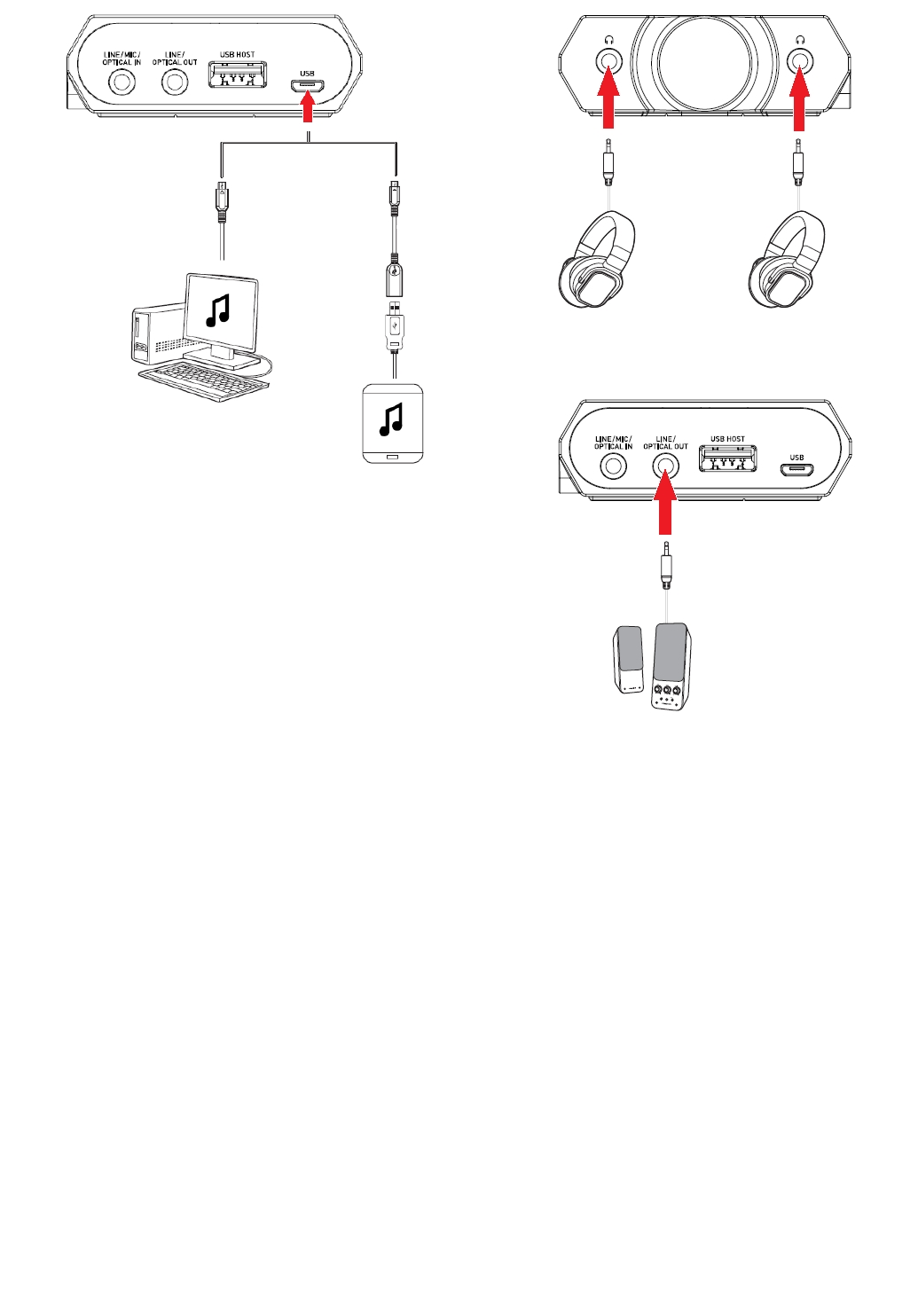

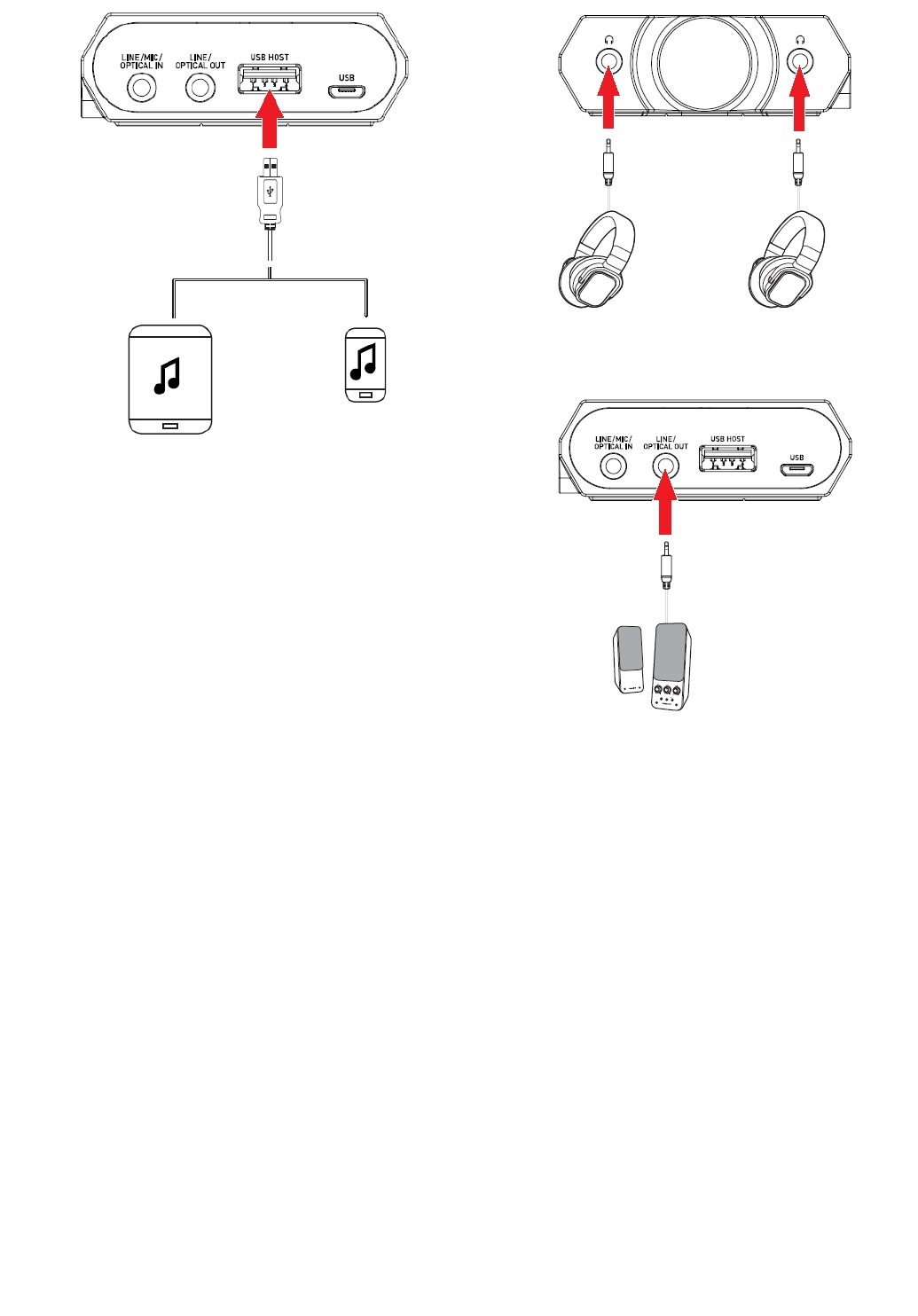

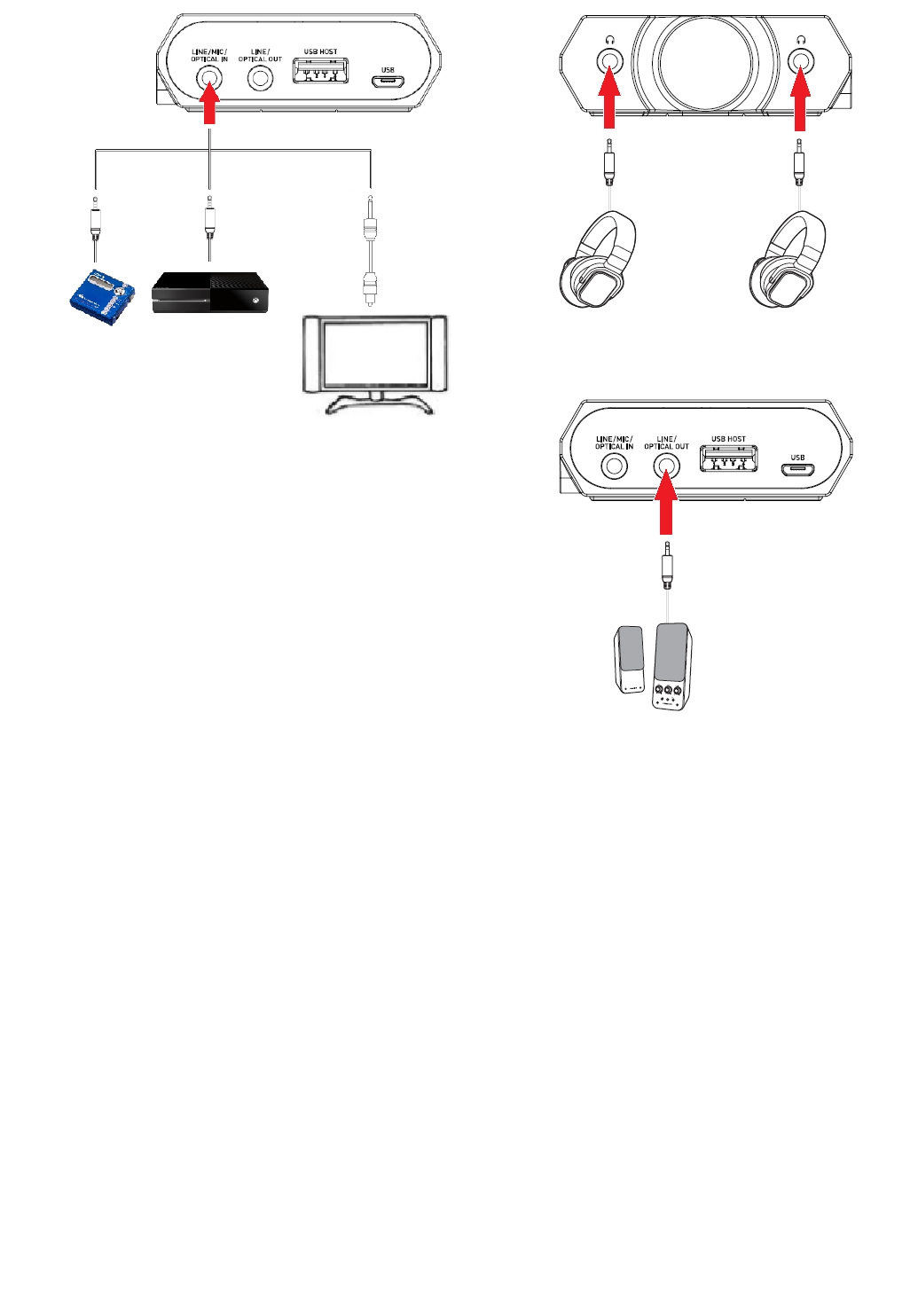

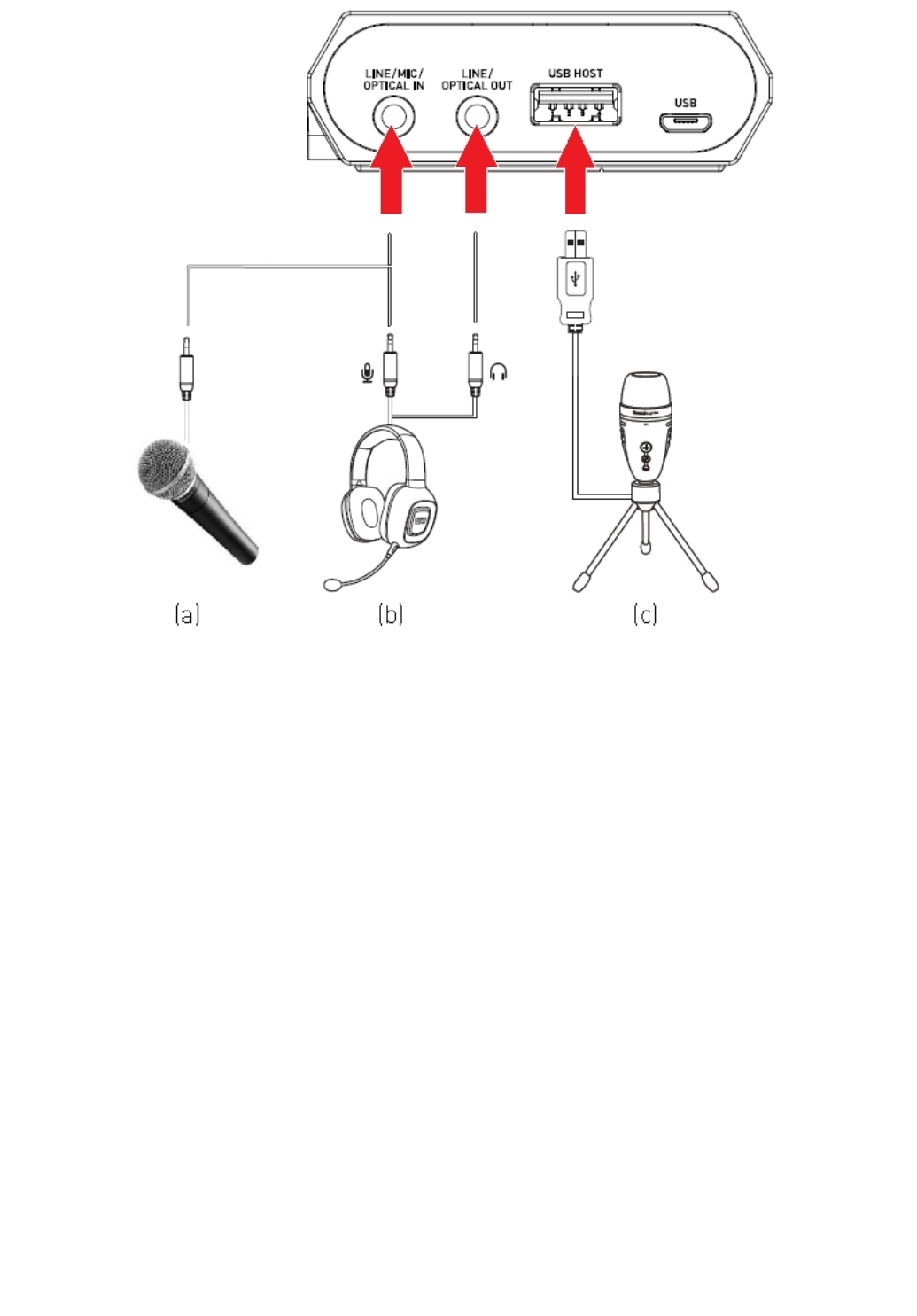

Step 4: Connecting to Headphones / Speakers / Microphone

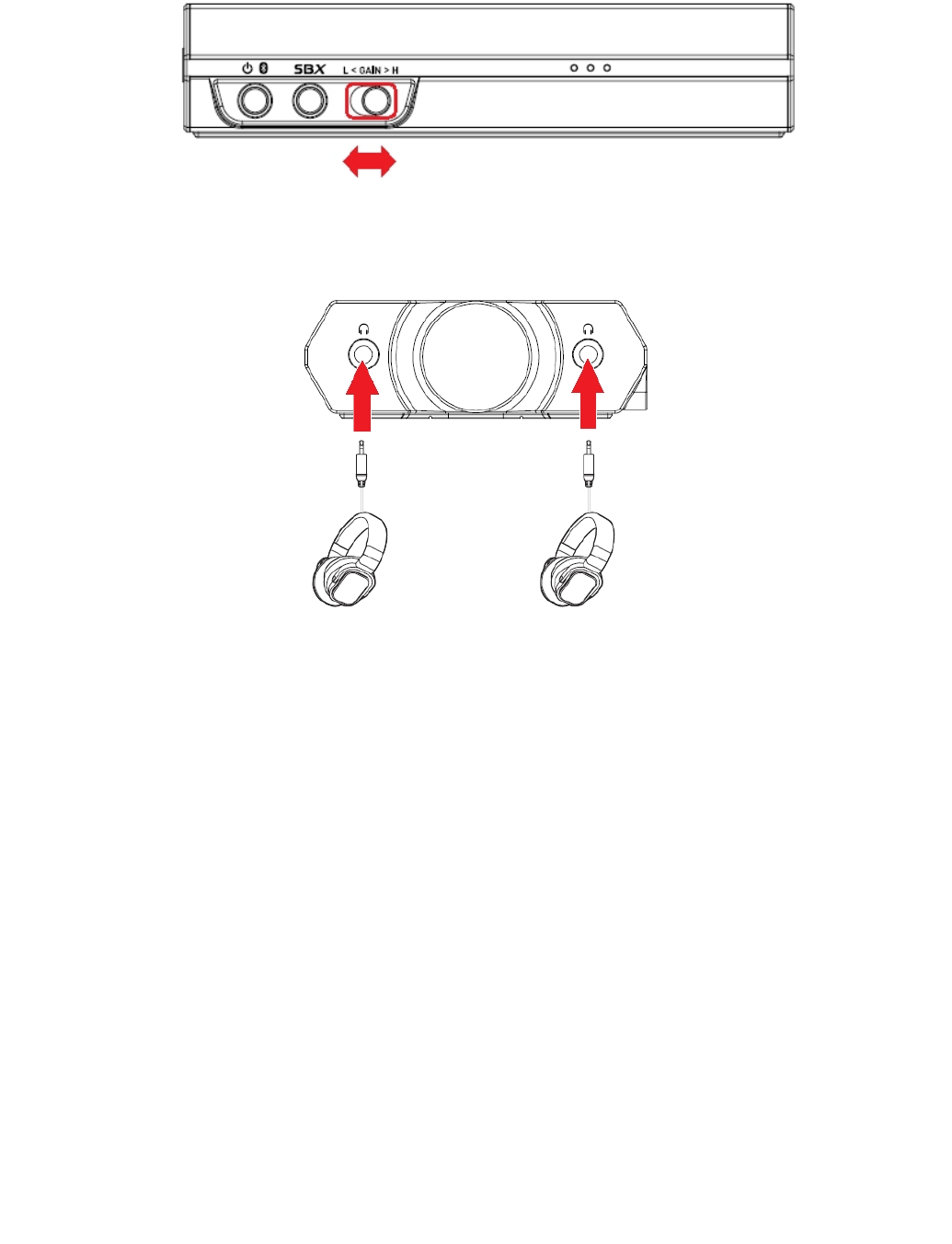

Connecting to headphones
CAUTION:
Set the appropriate gain level (L or H) before connecting your headphones to the Headphone jack to
prevent damaging your headphones.
Sound Blaster R5/E5 – Setting Up Your Audio Device 16

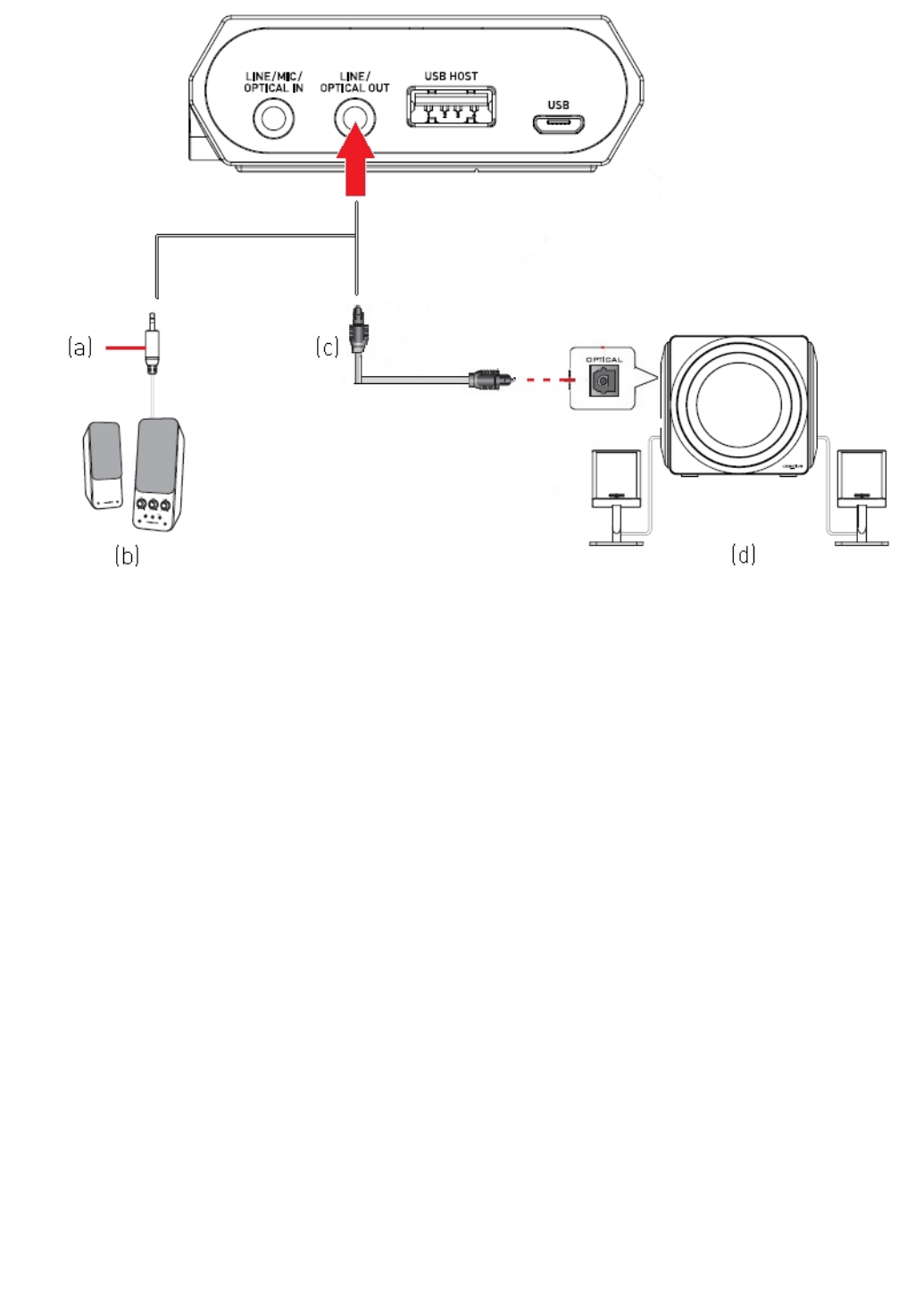

Connecting to speakers
(a) 3.5 mm 2-channel audio cable
(available separately)
(b) Analog speakers
(c) Mini-TOSLINK cable
(not included)
(d) Digital speakers
Note:
The Line/Optical Out jack is disabled if a device is connected to the Headphone jacks.
Sound Blaster R5/E5 – Setting Up Your Audio Device 17
Connecting to microphones
(a) Microphone
(b) Headset
(c) Sound Blaster R1
(available separately)
To use an external microphone
For Windows
1. Go to Control Panel and click Sound.
2. Click the Recording tab, select Sound Blaster R5/E5 (External Mic) or Sound Blaster R1,
then click the SetDefault button.
For Mac
1. Go to System Preferences and click Sound.
2. Click the Input tab, then select Sound Blaster R5/E5 (External Mic) or Sound Blaster R1.
Note:
You can only use one microphone at a time.
The Sound Blaster R1 is available separately.
Sound Blaster R5/E5 – Setting Up Your Audio Device 18
Installing and Uninstalling Software
To take full advantage of your Sound Blaster R5/E5 audio device, you need to install device drivers and
applications. At times, you may also need to uninstall some or all of the device drivers and applications
to correct problems, change configurations, or upgrade outdated drivers or applications. To learn how to
do so in all supported Windows and Mac operating systems, consult the following sections:
lInstalling Drivers and Applications
lUninstalling Drivers and Applications
lInstalling the Mobile App
Installing Drivers and Applications
Ensure that your audio device is connected before proceeding. For instructions on
connecting your audio device, consult your Quick Start leaflet.
After you have connected your audio device, turn on your computer. Windows automatically detects
your audio device and searches for device drivers.
For Windows OS
1. Using a standard web browser, visit www.creative.com/support.
2. Locate Sound Blaster R5/E5 and the software package for your Windows operating system.
3. Download this package into your local hard disk.
4. Locate and launch the software package.
5. Follow the on-screen instructions to complete the installation.
6. When prompted, restart your computer.
7. Launch the application by locating and clicking Sound Blaster R5/E5 Control Panel.
For Mac OS
1. Using a standard web browser, visit www.creative.com/support.
2. Locate Sound Blaster R5/E5 and the software package for your Mac OS.
3. Download this package into your local hard disk.
4. Double-click the downloaded file to uncompress it.
5. Double-click the uncompressed DMG file.
6. Double-click the Install icon and follow the subsequent on-screen instructions to complete the
installation.
7. Launch the Sound Blaster R5/E5 Control Panel from the Applications >Creative >Sound
Blaster E-Series folder.
Note:
Depending on your operating system, model and software version, the user interface or color theme
may differ.
Sound Blaster R5/E5 – Installing and Uninstalling Software 19
Uninstalling Drivers and Applications
In the event that an uninstallation is required (such as for upgrades), please follow the following
procedure.
Before you begin, close all running audio applications. Applications that are still running
during uninstallation will not be removed.
For Windows OS
1. From the Control Panel, click Uninstall a program.
2. Select Sound Blaster R5/E5.
3. Click the Uninstall button or option.
If the User Account Control dialog box appears, click the Continue button.
4. Click the Yes button.
5. When prompted, restart your computer.
For Mac OS
1. Click Applications >Creative >Creative Uninstaller.
2. Select Sound Blaster R5/E5.
3. Click the Uninstall button.
4. Follow the on-screen instructions.
Sound Blaster R5/E5 – Installing and Uninstalling Software 20
Installing the Mobile App

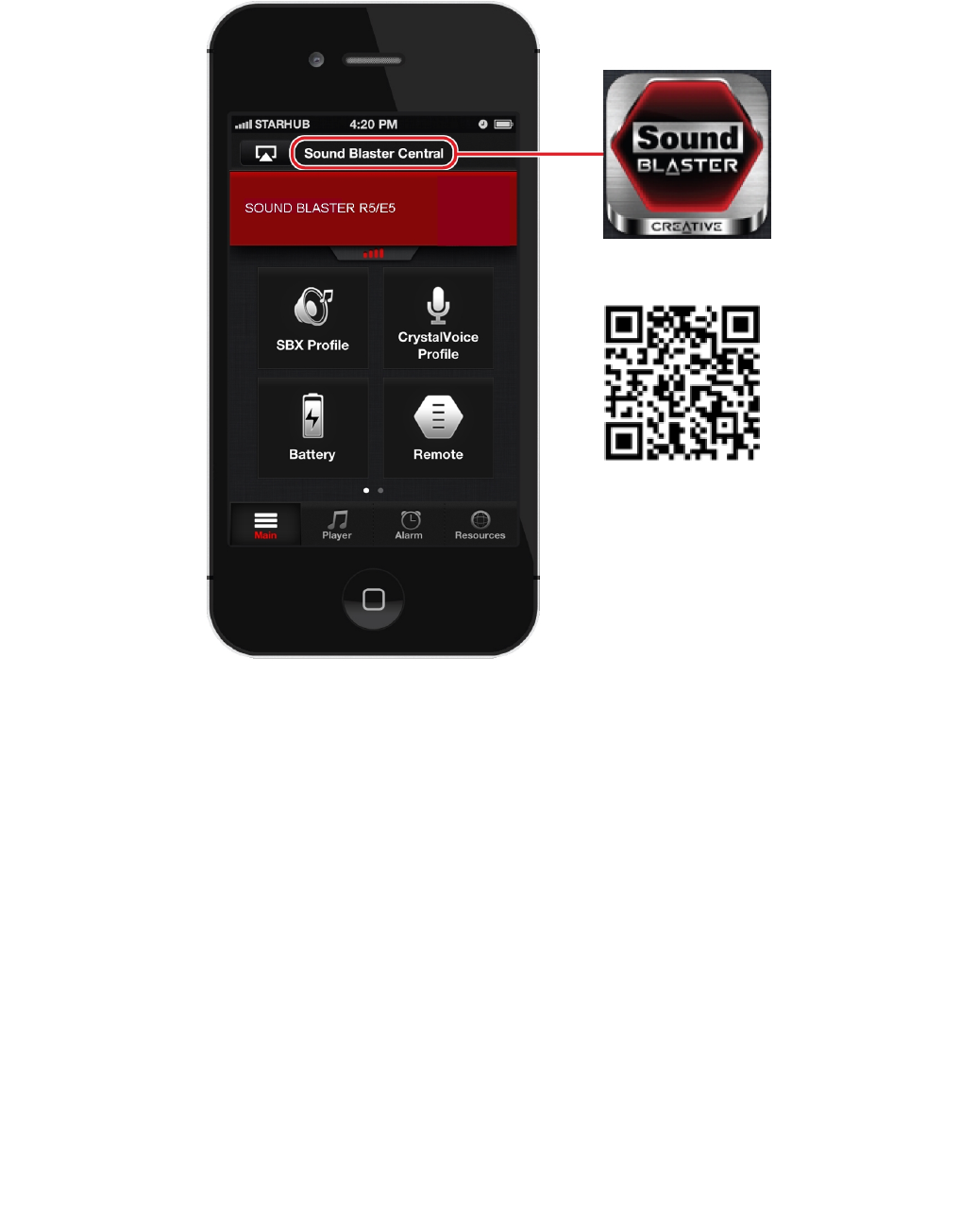

Sound Blaster Central (for iOS and Android)
Sound Blaster R5/E5 comes with the Sound Blaster Central mobile application, that supports both iOS
and Android OS, for you to customize your audio – you now have total control right from the palm of
your hand. Download Sound Blaster Central from the Apple App Store or Google Play Store.
Sound Blaster R5/E5 – Installing and Uninstalling Software 21
Using Your Audio Device
Step 1: Adjusting the volume
WARNING:
lSet the volume control at minimum level before connecting headphones or
speakers.
lDo not listen to audio at high volumes for prolonged periods of time to avoid
impairing your hearing.
Adjust the volume to a comfortable level using the volume control.
You can also adjust or mute the volume using:
lYour connected device
lSound Blaster R5/E5 Control Panel
lSound Blaster Central mobile application
Note:
If you mute the volume on your connected device or in the software applications, you will not hear
any sound output even if the volume control is set to the maximum.
Sound Blaster R5/E5 – Using Your Audio Device 22
Step 2: Using your Sound Blaster R5/E5
Your Sound Blaster R5/E5 works seamlessly with many external devices to perform different tasks:
lPlaying audio
lAnswering and ending calls
lRecording audio
Note:
The Line/Optical Out jack is disabled if a device is connected to the Headphone
jacks.
Playing audio from a Bluetooth device
OR
OR
Note:
Customize and enhance your audio playback via Bluetooth with the Sound Blaster Central mobile
application or Sound Blaster R5/E5 Control Panel software. See Installing and Uninstalling
Software.
Sound Blaster R5/E5 – Using Your Audio Device 23
Playing audio from a computer/mobile device via USB
OR
Note:
Enhance audio playback with SBX Pro Studio enhancements such as immersion control, dynamic
range restoration, low-frequency boost, dialog boost, and automatic volume levelling. See Using
the Creative Software Suite –SBX Pro Studio Settings.
Sound Blaster R5/E5 – Using Your Audio Device 24
Playing audio from a mobile device via USB host
OR
Sound Blaster R5/E5 – Using Your Audio Device 25
Playing audio from a line-in/optical-in device
OR
Sound Blaster R5/E5 – Using Your Audio Device 26

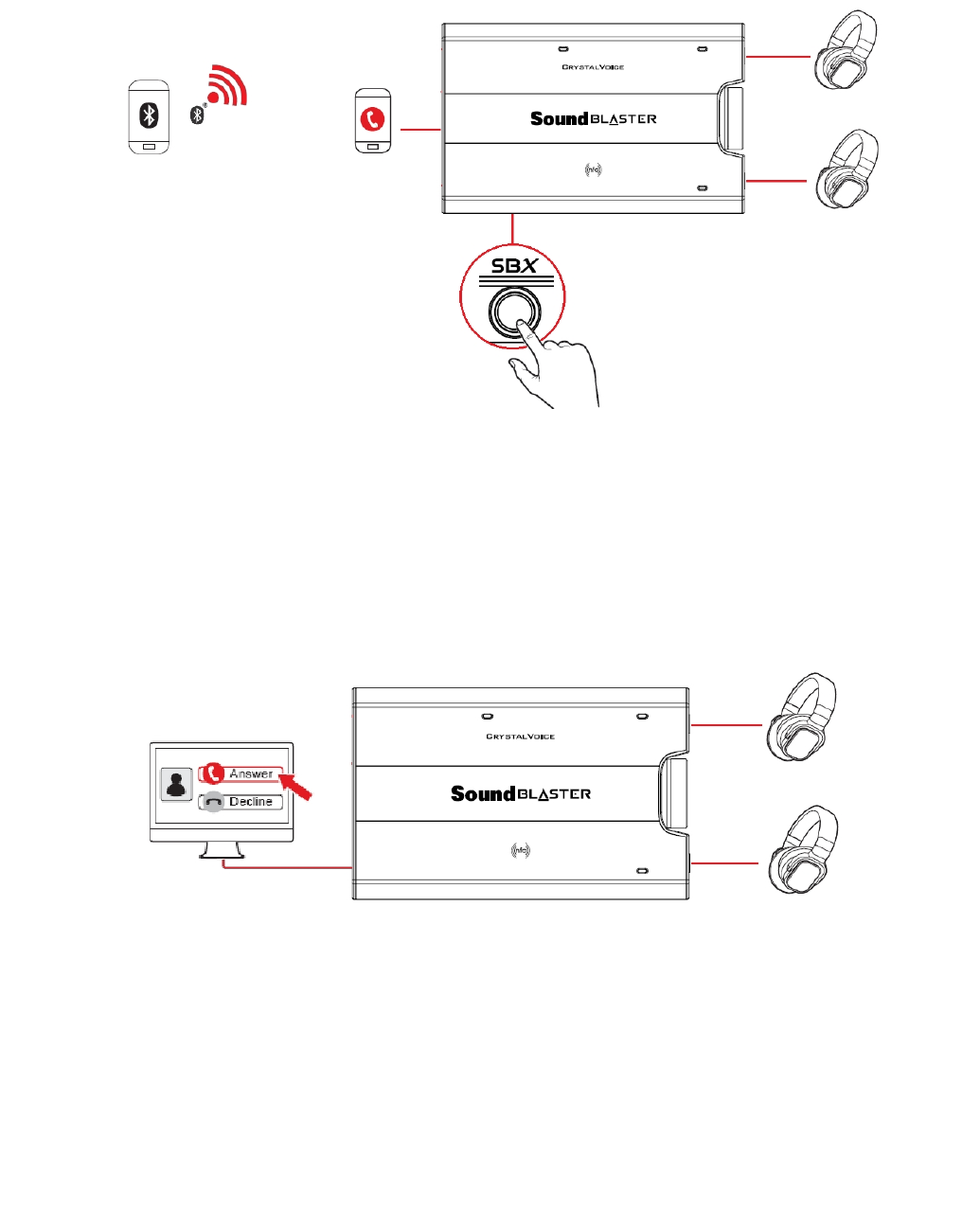

Answering and ending calls
Mobile communication
When there's an incoming call, the call takes precedence over audio playback – playback stops and the
ringtone will be heard.
Press the SBX button once to answer the call. Press again to end the call.
The music will resume after the call has ended.
OR
Desktop communication
Use the Sound Blaster R5/E5 to enjoy outstanding acoustic performance in popular VoIP applications
like Ventrilo®and TeamSpeak®. Hear and be heard clearly by teammates during multiplayer games to
get the tactical edge. You may choose to morph your voice with special effects with the VoiceFX too!
See Using the Creative Software Suite.
If the device is connected to a computer, click on the answer call button prompted on the computer
screen to enter voice communication.
Note:
If two headphones are connected, you will be able to listen to the call on both headphones.
CrystalVoice enhancements help to further this experience by enhancing the clarity of
communications. See Using the Creative Software Suite–CrystalVoice Settings.
Sound Blaster R5/E5 – Using Your Audio Device 27
Recording audio to a mobile device
You can record audio to your mobile device using the built-in microphones of the Sound Blaster R5/E5,
or an external microphone connected to the Sound Blaster R5/E5.
Use a voice recording application on your mobile device to record audio.
For Android, a third party app such as "USB Audio Recorder PRO" must be installed on your device to
use this feature.
iPhone/iPad Android phone/tablet
OR
Microphone array orientation
The built-in stereo microphones with horizontal or vertical orientation sensor creates a beamforming
microphone array that works together with CrystalVoice technology to ensure crystal clear recording.
Note:
The built-in microphones will be disabled automatically when an external microphone is connected.
Sound Blaster R5/E5 – Using Your Audio Device 28
Recording audio to a computer
Easily record audio on your computer with the built-in microphones of the Sound Blaster R5/E5, or an
external microphone connected to the Sound Blaster R5/E5.
Use a voice recording application on your computer to record audio.
Note:
The built-in microphones will be disabled automatically when an external microphone is connected.
Sound Blaster R5/E5 – Using Your Audio Device 29
Recording line-level audio to a mobile device or computer
You can record audio from a line-in source (game console, DVD player, TV set) and store them in your
mobile or computer via the Sound Blaster R5/E5.
OR
Note:
Signal levels can be adjusted using the Sound Blaster R5/E5 Control Panel or the Sound Blaster
Central application. See Using the Creative Software Suite.
Sound Blaster R5/E5 – Using Your Audio Device 30
Recording "What U Hear"
(For Windows OS)
The Sound Blaster R5/E5 is equipped with What U Hear feature that allows you to record what is being
played as it is.
You can also record voice conversations held over instant messaging tools such as Google Talk, Skype
etc.
1. Go to Control Panel and click Sound.
2. Click the Recording tab, select Sound Blaster R5/E5 (What U Hear), then click the
SetDefault button.
3. Play music on your connected device or activate your voice conversation.
4. Launch a third-party sound recording tool of your choice and start recording.
Sound Blaster R5/E5 – Using Your Audio Device 31
Using the Creative Software Suite
A software suite for the Sound Blaster R5/E5 is developed to provide additional enhancements to the
audio and voice inputs and outputs of the product.
Applications
For Windows
lSound Blaster R5/E5 Control Panel
lCreative ALchemy
lCreative Software Autoupdate
lHost OpenAL + EAX 5 HD
lProduct Registration
For Mac
lSound Blaster R5/E5 Control Panel
lProduct Registration
For iOS and Android
lSound Blaster Central
Bonus Pack Software (for Windows only)
Various other bonus Creative applications are also compatible for your audio device.
Visit www.creative.com/support and navigate to the relevant product page to view and download these
applications:
lCreative WaveStudio
lCreative Smart Recorder
Supported Third-party Software
lGarage Band (for Mac only)
Sound Blaster R5/E5 – Using the Creative Software Suite 32
Sound Blaster R5/E5 Control Panel
The rest of this chapter explains how to use the Sound Blaster R5/E5 Control Panel to view and adjust
the various features of your Sound Blaster R5/E5. The examples and screenshots below uses Windows
as an example. The UI for other operating systems may differ slightly.

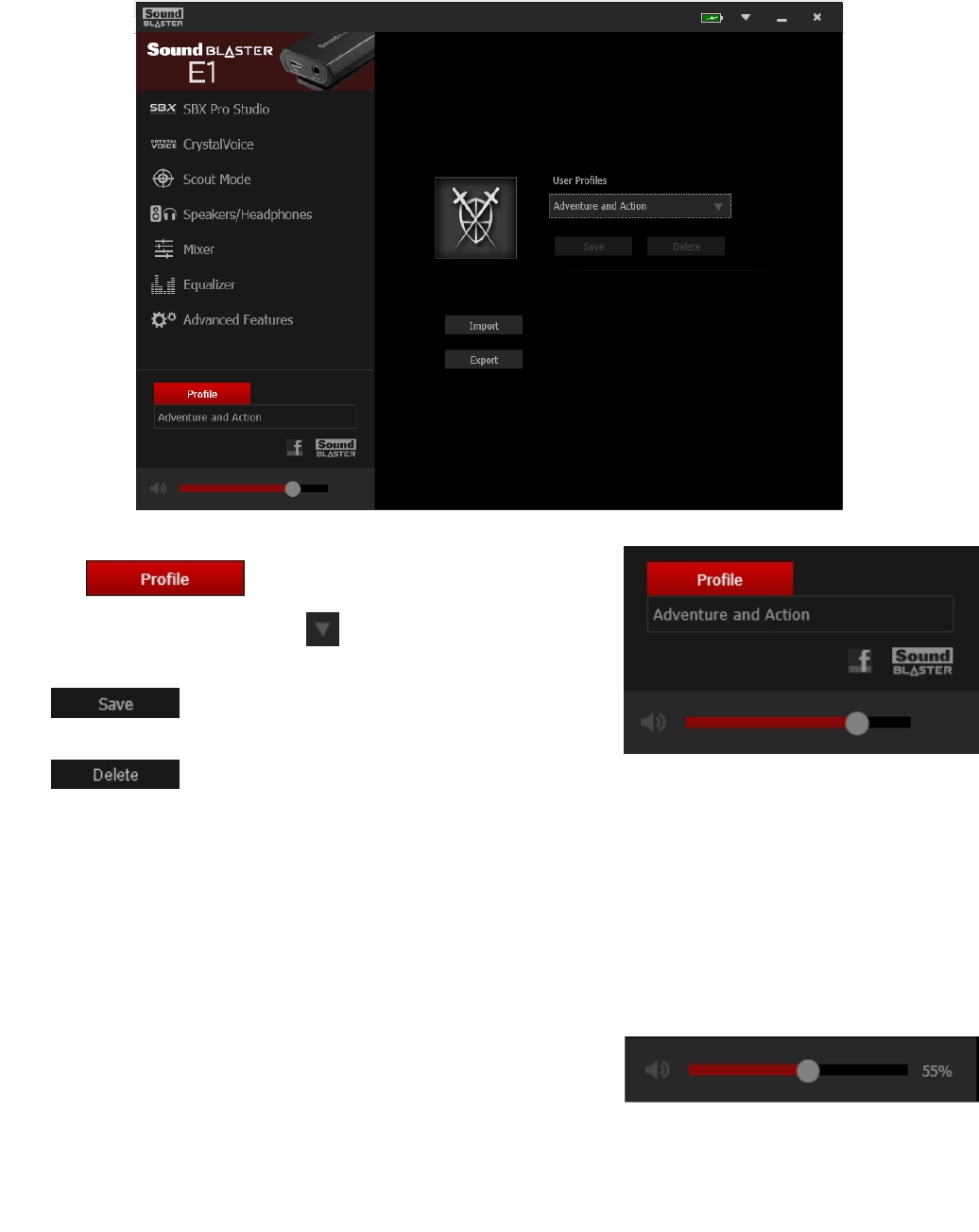

Managing Your Profiles
Click the button to display the Profiles pane.
Activate a profile by clicking the and selecting it from the
list.
Click to save all settings to the current profile or
create a new profile.
Click to delete the active profile.
Sharing Profiles
You can export your custom settings and share them with others, or import other gamers' custom
settings.
Customizing Your Avatar
You can customize the avatar for each profile by clicking the portrait and selecting another one from the
list.

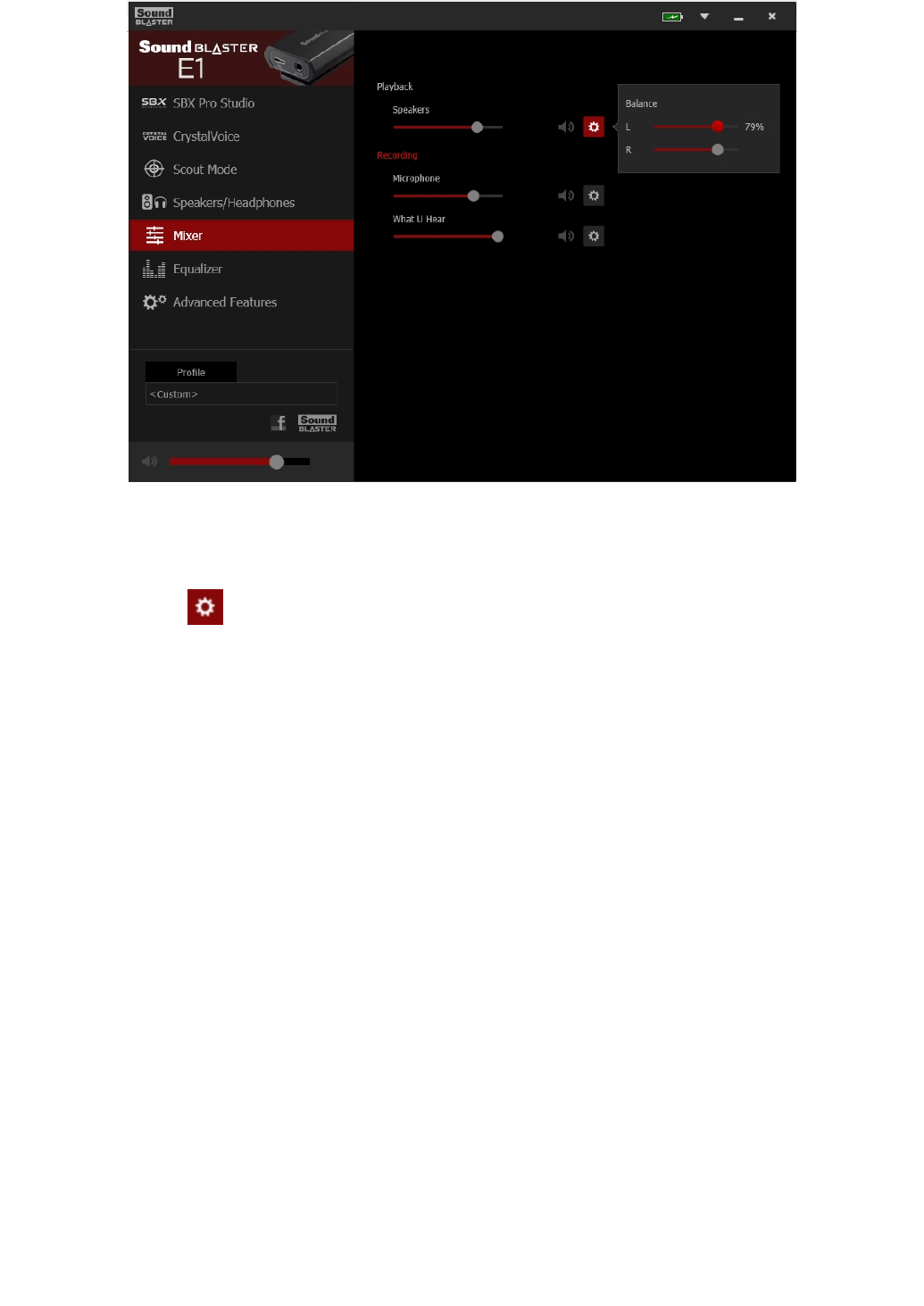

Adjusting Your Master Volume Settings
Drag the master volume slider to adjust the volume level. You
can mute / unmute the volume by clicking the speaker icon.
Sound Blaster R5/E5 – Using the Creative Software Suite 33
FPO

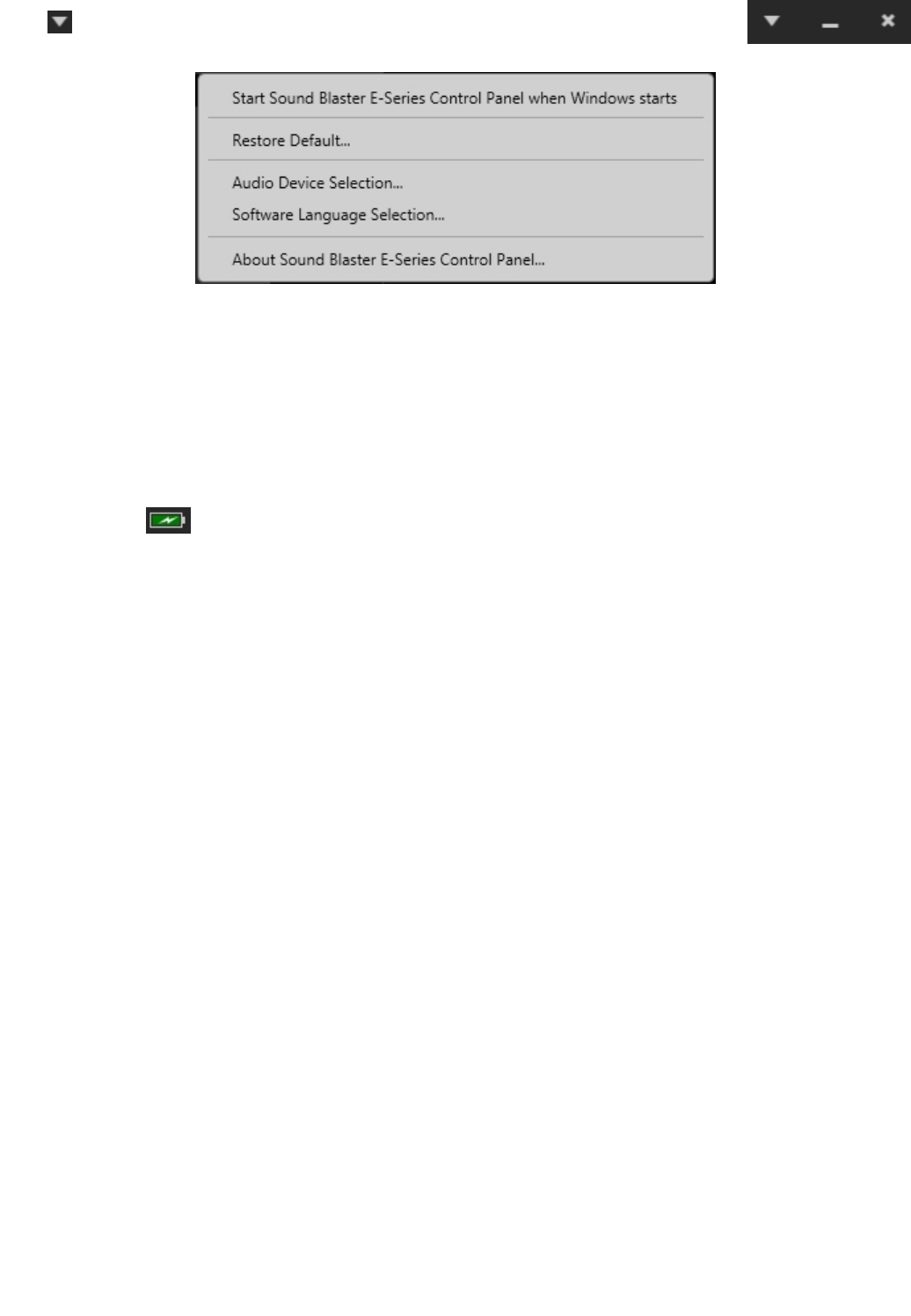

Configuring Your General Settings
Click from the top right corner of the interface and select the option from the
list：
lSelect whether the Sound Blaster R5/E5 Control Panel is activated when Windows starts. (For
Windows only)
lRestore default settings.
lSelect the audio playback device. (For Windows only)
lSelect the supported software languages available for your system.
lGeneral information regarding your Sound Blaster R5/E5 Control Panel software.
Battery
The battery icon indicates the battery status of the Sound Blaster R5/E5.
Sound Blaster R5/E5 – Using the Creative Software Suite 34
FPO
SBX Pro Studio Settings
1. SBX Pro Studio enhancements
Select to turn on or turn off each enhancement.
You can hover your mouse cursor over each enhancement to display a brief explanation.
2. Enhancement Level sliders
Adjust the amount of enhancement to apply.
3. Audio test controls
Play/Pause or Stop the demo video.
Enhancing Your Listening Experience
You can adjust the amount to apply for each enhancement by dragging its slider left to decrease or right
to increase. To test the effects of the audio enhancements, click and listen to the demo video.
lSBXPro Studio Surround provides immersion control of sounds not just around you, but also
above and below for a full 3D audio experience. Hear the natural sense of audio depth, spaciousness
and stunning 3D surround effects from your audio content. Enjoy an unbelievably true-to-life audio
experience, whether it's over stereo speakers or headphones.
lSBXPro Studio Crystalizer restores the dynamic range that is lost when iTunes and MP3 music
gets compressed. This makes the music sound as good as the artist originally intended, and adds an
enhanced level of realism for movies and games.
lSBX Pro Studio Bass fills in the low frequency tones and gives the extra impact for a better
entertainment experience. It dramatically improves the sound experience without a subwoofer.
lSBXPro Studio Smart Volume addresses the problem of abrupt volume level changes during
playback and between songs by automatically and continously measuring volume, and intelligently
applying gain and attenuation to compensate for those changes.
lSBXPro Studio Dialog Plus enhances the voices in movies for clearer dialog, allowing the
listener to hear the dialog over the rest of the soundtrack and over ambient noise in the listening
environment.
Sound Blaster R5/E5 – Using the Creative Software Suite 35
FPO
CrystalVoice Settings
1. Volume sliders
Adjust the recording and monitoring volumes, or to mute/unmute them.
2. Microphone EQ
Select an equalizer preset suitable for your microphone.
3. Crystal Voice enhancements
Select to turn on or off each of the available enhancements.
4. Enhancement Level sliders
Adjust the amount of enhancement to apply.
5. Audio test button
Click and speak into your microphone to hear how your voice sounds with
CrystalVoice applied.
Having Fun with CrystalVoice
You can adjust the amount to apply for each enhancement by dragging its slider left to decrease or right
to increase. To test the effects of the audio enhancements, click and speak into your
microphone.
lCrystalVoice FX enables the speaker's voice to be altered with a variety of effects, which can be
used to enhance the tone of the speaker's voice, create interesting accents or to sound like a
completely different person.
lCrystalVoice Smart Volume automatically adjusts the loudness of the speaker's voice to
maintain a consistent volume level. This makes it convenient for the speaker to converse normally,
regardless of whether the speaker is close to or far away from the microphone.
lCrystalVoice Noise Reduction enables the speaker to be heard clearly over background noise by
constantly monitoring the environment and eliminate the unwanted noise that interferes with the
conversation.
Sound Blaster R5/E5 – Using the Creative Software Suite 36
FPO
lCrystalVoice Acoustic Echo Cancellation eliminates echoes and enables the speaker to listen to
the other party clearly. Echoes are a common problem present in voice communication systems that
disrupts conversations by making it difficult to hear the other party.
lCrystalVoice Focus creates a zone and suppresses noise outside it to enable the speaker within to
be heard with amazing clarity. Multiple microphones are used to focus, enhance the speaker's voice,
and eliminate sounds outside the zone.
Sound Blaster R5/E5 – Using the Creative Software Suite 37

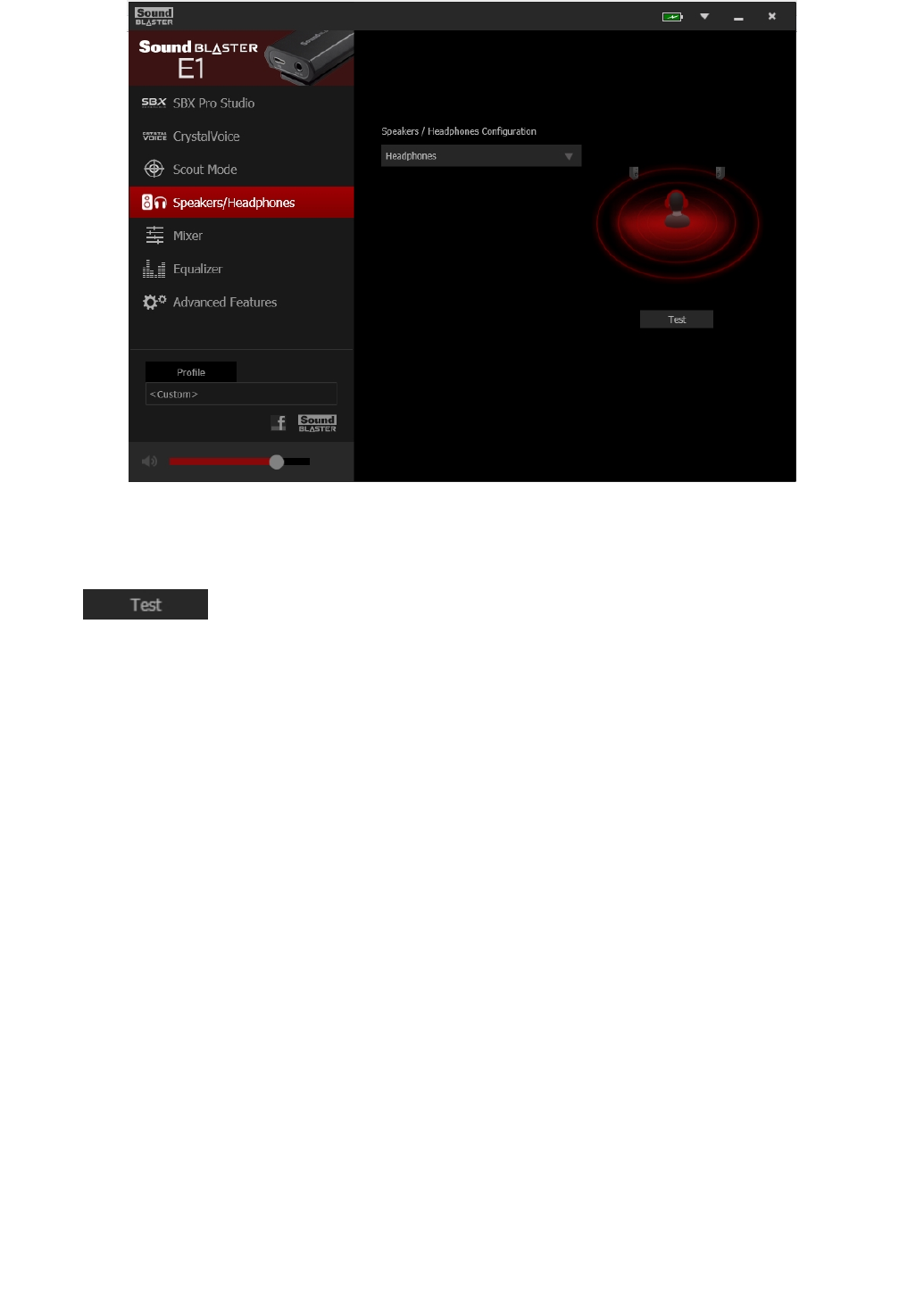

Speakers/Headphones Settings
1. Speakers / Headphones Configuration
Shows your current physical speakers or headphones configuration.
2. Testing your audio playback
Click to hear a sample audio clip being played back through your setup.
Sound Blaster R5/E5 – Using the Creative Software Suite 38
FPO
Mixer Settings
1. Volume sliders
Under Playback, adjust your playback and monitoring volumes, or to mute/unmute them.
Under Recording, adjust your recording volumes or to mute/unmute them.
2. You can click the icon to adjust more settings for your input/output.
Sound Blaster R5/E5 – Using the Creative Software Suite 39
FPO

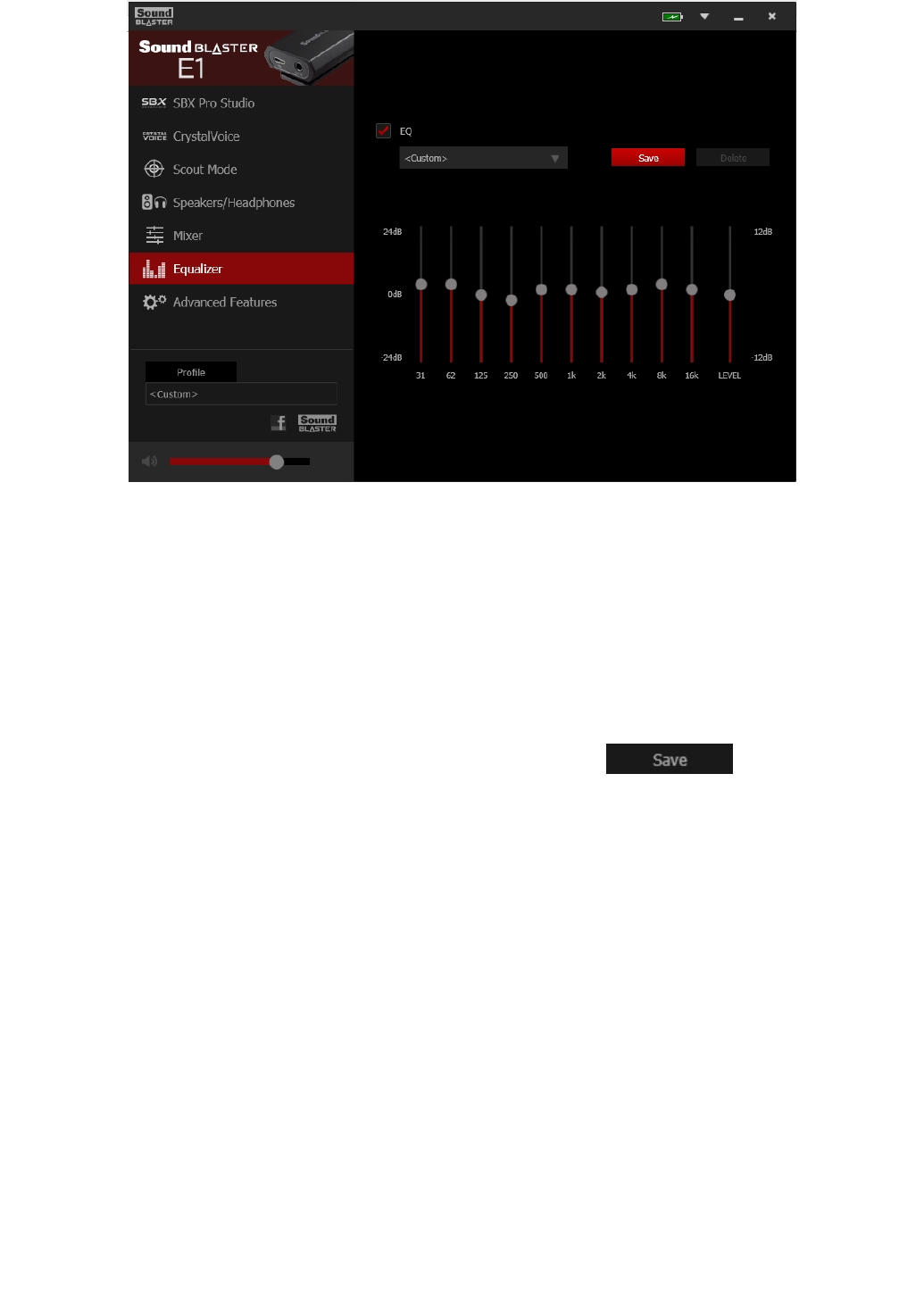

Equalizer Settings
1. EQ presets
Select an equalizer preset to apply to your audio.
2. EQ sliders
Adjust the equalizer settings.
Customizing Your EQSettings
Select the EQ checkbox to enable this feature, then click the EQ drop-down arrow and select a preset
from the list.
Selecting a preset will move the EQ sliders to the appropriate values. You can then adjust the equalizer
setting by dragging the sliders up or down to the desired level. Click to save the new
configuration as a new preset.
Note:
The list of default EQ presets cannot be deleted or overwritten.
Sound Blaster R5/E5 – Using the Creative Software Suite 40
FPO
General Specifications
Inputs
lOne 3.5 mm (1/8") line-in/mic-in/optical-in jack
lBuilt-in stereo microphones
Outputs
lTwo 3.5 mm (1/8") headphones jack
lOne 3.5 mm (1/8") line-out/optical-out jack
Connectivity
lOne USB Type A host port
lOne Micro-USB Type B port
Controls and Indicators
lPower / Bluetooth button and indicator
lSBX / Call button and indicator
lGain switch for headphones gain setting
lPower/battery indicatior
lVolume control knob
Physical Specifications
lDimensions (L x W x H) : 35 x 19 x 66 mm
lWeight: Approx. 0.025 kg
Technical Specifications
lBluetooth Version: Bluetooth v4.1
lSupported Bluetooth Profiles:
oA2DP (Wireless Stereo Bluetooth)
oAVRCP (Bluetooth Remote Control)
oHFP (Hands-Free Profile)
lBluetooth Operating Frequency: 2402 - 2480 MHz
lBluetooth Operating Range: Up to 10 meters / 33 feet
(Measured in open space. Walls and structures may affect range of device.)
lSupported Audio Codec: AAC, SBC, aptX®
lOperating Temperature range: 0°C to 40°C (32°F to 104°F)
lLithium Ion Battery: 3.7 V 3200 mAh (11.84 Wh)
lUSB Input: 5V 500mA
lUSB Output:5V 500mA
Sound Blaster R5/E5 – General Specifications 41
lHeadphone amplifier:
oNormal: 33 ~ 300 ohms (1.5 ~ 3.3 V)
oHigh: 300 ~ 600 ohms (3.3 ~ 6 V)
Sound Blaster R5/E5 – General Specifications 42
Troubleshooting and Support
This section provides solutions to problems you may encounter during installation or normal use. This
includes:
lProblems with Sound
lProblems with Simultaneous Playback/Recording
lTips to Improve Your Recording Quality
lRestore Default Settings
Problems with Sound
No sound from the headphones.
Check the following:
lThe headphones are connected to the Headphone jack.
lEnsure the Sound Blaster R5/E5 is turned on.
lEnsure the volume control of the Sound Blaster R5/E5 is not at minimum level.
lEnsure the volume on your connected device or the media player is not muted.
No audio output when playing digital files such as WAV, MIDI files or AVI clips.
Check the following:
lThe volume control is set at mid-range. Adjust the volume mixer settings in Sound Blaster R5/E5
Control Panel, if necessary.
lThe powered speakers or external amplifier are connected to the Line Out jack.
No audio can be recorded from the built-in microphone.
Do the following:
i. Navigate to Windows Control Panel >Sound >Recording tab.
ii. Select Sound Blaster R5/E5 (Internal Mic) as the default recording device.
iii. In the Mixer selection of Sound Blaster R5/E5 Control Panel, unmute the Internal Mic in the
Recording section.
No audio can be recorded from the source connected to Line In/Mic In jack.
Do the following:
i. Navigate to Windows Control Panel >Sound >Recording tab.
ii. Select Sound Blaster R5/E5 (Aux In or External Mic) as the default recording device.
iii. In the Mixer selection of Sound Blaster R5/E5 Control Panel, unmute the Aux In or External Mic
in the Recording section.
Sound Blaster R5/E5 – Troubleshooting and Support 43
Problems with Simultaneous Playback/Recording
An error message appears when recording and playing back simultaneously.
This may occur due to data transfer limitations if your computer is using a USB 1.1 connection. It may
not be possible to play back, or simultaneously record and play back, content at the highest bit rate
and/or frequency supported. Select lower bit depth and sampling rates for reduced CPU consumption
and lower USB bandwidth requirements. Select lower settings if you encounter performance problems
or if you run out of USB bandwidth. Lower sampling and bit depth rates, however, usually result in lower
audio quality.
This should not be a problem if you are using a USB 2.0 connection.
Tips to Improve Your Recording Quality
The Sound Blaster R5/E5 Control Panel allows you to configure various audio settings to enhance your
recording experience. You may toggle between the pre-configured microphone settings or adjust the
audio configurations, such as microphone input volume, microphone equalizer, microphone boost, etc.
Restore Factory Default Settings
To reset your device to the factory default settings, press the Power button together with the Volume
Control knob for 5 seconds and then release. All settings and configurations made previously on your
device will be erased.
Additional Support
If you encounter any other issues or have any other enquiries about your Sound Blaster R5/E5 or any
other Creative products, please visit our comprehensive knowledge base at support.creative.com or
www.soundblaster.com for additional information.
Sound Blaster R5/E5 – Troubleshooting and Support 44
Safety Information
Refer to the following information to use your product safely, and to reduce the chance of electric shock,
short-circuiting, damage, fire, hearing impairment or other hazards. Improper handling may void the
warranty for your product. For more information, read the warranty available with your product.
lDo not dismantle or attempt to repair your product.
Refer all servicing to authorized repair agents.
lDo not expose your product to temperatures outside the range of 0°C to 40°C (32°F to 104°F).
lDo not pierce, crush or set fire to your product.
lKeep your product away from strong magnetic objects.
lDo not subject your product to excessive force or impact.
lDo not expose your product to water or moisture.
If your product is moisture-resistant, take care not to immerse your product in water or expose it to
rain.
Earphones
lDo not listen to audio on your earbuds or headphones at high volume for prolonged periods of time
as hearing loss may result. For users in the United States, go to www.hei.org for more information.
lDo not listen to your audio device at high volume when driving, cycling or crossing the road,
especially in heavy traffic or any other traffic condition where such use will hinder safe travel on the
roads. We recommend that consumers be extremely cautious when using this device on the road.
Avoid Hearing Damage
Permanent hearing loss may occur if the headphone is used at high volume. Set the volume to a safe
level. You can adapt over time to a higher volume of sound that may sound normal but can be damaging
to your hearing. If you experience ringing in your ears or muffled speech, stop listening and have your
hearing checked. The louder the volume, the less time is required before your hearing could be
affected. Hearing experts suggest that to protect your hearing:
lLimit the amount of time you use the headphone at high volume.
lAvoid turning up the volume to block out noisy surroundings.
lTurn the volume down if you can't hear people speaking near you.
Embedded Battery
lDo not attempt to remove the embedded battery.
The product must be disposed of according to the local environmental regulations. To replace the
battery, return your product to your regional support office. For product service information, go to
www.creative.com.
lDo not expose to excessive heat such as sunlight, fire or the like.
lCAUTION: Risk of explosion if battery is replaced by incorrect types.
Sound Blaster R5/E5 – Safety Information 45
Wireless Product
lThe short wave radio frequency signals of a wireless device may impair the operation of other
electronic and medical devices.
lSwitch off the device where it is prohibited. Do not use the device in medical facilities, aircraft,
refueling points, close to automatic doors, automatic fire alarms or other automatically controlled
devices.
lKeep this device at least 20 cm from pacemakers and other medical devices. Radio waves may
impair the operation of pacemakers and other medical devices.
Sound Blaster R5/E5 – Safety Information 46
IMPORTANT — A LIRE AVEC ATTENTION
Ecouter de manière prolongée, à un très haut volume sonore de la musique (au dessus de 80 decibels),
aumoyen d'un casque ou d'écouteurs, peut entraîner une détérioration irreversible et définitive de vos
facultés auditives. L’usage répété et habituel d’un casque ou d’écouteurs à un niveau de volume
sonoretrop élevé peut donner l'impression à l'utilisateur que le volume sonore émis par l’appareil n'est
pas suffisant. L’utilisateur sera tenté d’augmenter, petit à petit, son réglage habituel, risquant ainsi
d'atteindre un niveau dangereux pour ses oreilles. Afin de protéger votre santé, et vos oreilles, veillez à
maintenir le volume de la sortie casque de votre appareil à un niveau adapté et à interrompre son
utilisation régulièrement et particulièrement si des symptômes, comme des troubles de l'ouïe, se
manifestent.
N'utilisez pas le casque ou les écouteurs pendant la conduite d'une voiture, d'une bicyclette ou de tout
autre véhicule motorisé, afin d'éviter tout accident de le circulation. En outre, il est interdit dans
certains pays d'utiliser un casque ou des écouteurs en conduisant. Il peut être également dangereux
d'écouter à volume élevé tout en marchant, spécialement aux passages piétons. Soyez toujours
extrêment prudent et cessez d'utiliser cet appareil dans les situations présentant des risques d'accident.
Evitez d'utiliser le casque ou les écouteurs à volume élevé. Les médecins spécialistes de l'audition
déconseillent une écoute continue à volume trop élevé. Si vous percevez un sifflement dans les oreilles,
réduisez le volume ou cessez l'écoute.
Maintenez un volume d'écoute modéré. Vous pourrez ainsi entendre les sons extérieurs et être attentif
aux gens qui vous entourent.
Votre produit Creative accompagné des écouteurs fournis, est conforme à la règlementation française
concernant les baladeurs musicaux (Arrêté du 24 Juillet 1998). Les caractéristiques techniques de ces
écouteurs se trouvent dans le manuel en ligne et/ou sur le site internet de Creative. Si vous choisissez
d'utiliser un autre casque ou d'autres écouteurs, veuillez vous assurer au préalable que leurs
caractéristiques techniques soient les mêmes.
срок эксплуатационной долговечности
В соответствии с законодательством Российской Федерации компания Creative устанавливает для
данного товара срок службы 2 года. Указанный срок – это период времени, в течение которого
компания Creative гарантирует возможность использования продукции в соответствии с ее
назначением. Кроме того, во время этого срока компания Creative гарантирует:
(i) безопасность товара, (ii) возможность выполнения его ремонта и получения технической
поддержки, (iii) поставку запасных частей. Однако установление срока службы не означает
автоматического бесплатного предоставления технической поддержки и обслуживания. Эти виды
услуг предоставляются бесплатно только в течение гарантийного периода в соответствии с
гарантийными обязательствами.
Sound Blaster R5/E5 – Safety Information 47
Regulatory Information
Notice for the USA
Federal Communication Commission (FCC) Interference Statement
FCCPart 15: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCCRules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if no installed and used in accordance with instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
lConsult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCCRules. Operation is subjected to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules,
this device must be installed with computer equipment certified to comply with Class B limits.
All cables used to connect to the computer and peripherals must be shielded and grounded. Operation
with non-certified computers or non-shielded cables may result in interference to radio or television
reception.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the device.
Federal Communication Commission (FCC) Radiation Exposure Statement
Power is so low that no RF exposure calculation is needed.
Sound Blaster R5/E5 – Regulatory Information 48
Notice for Canada
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Cet appareil numérique de classe B est conforme aux normes canadiennes NMB-003 et CNR-210.
This device complies with Industry Canada licence-exempt RSS standard.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesirable operation.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence.
Son fonctionnement est soumis aux deux conditions suivantes :
1. Le matériel ne peut étre source D’interférences et
2. Doit accepter toutes les interférences reques, Y compris celles pouvant provoquer un
fonctionnement indésirable.
CANADIANCLASSBSTATEMENT: This digital device does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the interference-causing equipment statement
entitled "Digital Apparatus", ICES-003 of the Department of Communications.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils
numeriques de Class B prescrites dans la norme sur le materiel brouilleur: “Appareils Numeriques,”
NMB-003 edictee par le ministre des Communications.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the device.
Toute modification non approuvé explicitement par le fournisseur de licence de l’appareil peut entraîner
l’annulation du droit de l’utilisateur à utiliser l’appareil.
Sound Blaster R5/E5 – Regulatory Information 49
DECLARATION OF CONFORMITY
According to the FCC96 208 and ET95-19
Manufacturer/Importer’s Name: Creative Labs, Inc.
Manufacturer/Importer’s Address: 1901 McCarthy Boulevard
Milpitas, CA. 95035
Tel: (408) 428-6600
declares under its sole responsibility that the product
Trade Name: Creative
Model Number:SB1590
has been tested according to the FCC / CISPR22 requirement for Class
B devices and found compliant with the following standards:
EMI/EMC: ANSI C63.4, FCC Part 15 Subpart B& C
Complies with Canadian ICES-003 Class B and RSS-210 standards
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
Interference that may cause undesirable operation.
Ce matériel est conforme à la section 15 des régles FCC.
Son Fonctionnement est soumis aux deux conditions suivantes :
(1) Le matériel ne peut étre source D’interférences et
(2) Doit accepter toutes les interférences reques, Y compris celles
pouvant provoquer un fonctionnement indésirable.
Supplementary Information:
Compliance Manager
Creative Labs, Inc.
<DATE>
Sound Blaster R5/E5 – Regulatory Information 50
European Compliance
This product conforms to the following:
EMC Directive 2004/108/EC.
RoHS Directive 2011/65/EU.
Mains operated products for the European market comply with Low Voltage Directive
2006/95/EC and Commission Regulation(s) Implementing Directive 2009/125/EC.
Communication/RF wireless products for the European market comply with R&TTE
Directive 1999/5/EC.
CAUTION: To comply with the Europe CErequirement, this device must be installed with CE certified
computer equipment which meet with Class B limits.
All cables used to connect this device must be shielded, grounded and no longer than 3m in length.
Operation with non-certified computers or incorrect cables may result in interference to other devices
or undesired effects to the product.
MODIFICATION: Any changes or modifications not expressly approved by Creative Technology
Limited or one of its affliated companies could void the user's warranty and guarantee rights.
Conformité européenne
Ce produit est conforme aux normes suivantes :
Directive 2004/108/CE sur les émissions électromagnétiques.
Directive RoHS 2011/65/UE.
Les produits secteur pour le marché européen sont conformes à la Directive sur la faible tension
2006/95/CE et à la réglementation de la Commission exécutant la Directive 2009/125/CE.
Les produits de communication/sans fil RF destinés au marché européen sont conformes à la directive
R&TTE 1999/5/CE.
ATTENTION : pour respecter les critères CE d'Europe, cet appareil doit être installé avec du matériel
informatique certifié CE respectant les limites de la classe B.
Tous les câbles utilisés pour connecter cet appareil doivent être blindés, reliés à la terre et ne pas faire
plus de 3 m de long. L'utilisation d'ordinateurs non certifiés ou de câbles inappropriés peut entraîner des
interférences avec d'autres appareils ou des effets indésirables sur le produit.
MODIFICATION : toute modification non approuvée explicitement par Creative Technology Limited ou
l'une de ses sociétés affiliées peut entraîner l'annulation de la garantie et des droits de garantie de
l'utilisateur.
Sound Blaster R5/E5 – Regulatory Information 51
Conformità alle normative europee
Questo prodotto è conforme alla seguente normativa:
Direttiva EMC 2004/108/CE.
Direttiva RoHS 2011/65/UE.
I prodotti che funzionano con corrente di rete per il mercato europeo sono conformi alla direttiva bassa
tensione 2006/95/CE e alla direttiva di implementazione nelle normative europee 2009/125/CE.
I prodotti di comunicazione/wireless RF per il mercato europeo sono conformi alla Direttiva R&TTE
1999/5/CE.
ATTENZIONE: ai fini della conformità con i requisiti del marchio CE europeo, il dispositivo deve essere
installato in un computer certificato CE conforme ai limiti di Classe B.
Tutti i cavi usati per collegare il dispositivo devono essere schermati, dotati di idonea messa a terra e
avere una lunghezza massima di 3 metri. L'uso del dispositivo con computer non certificati o cavi non
idonei può provocare interferenze ad altri dispositivi nonché danneggiare il prodotto stesso.
MODIFICHE: eventuali modifiche o alterazioni non espressamente approvate da Creative Technology
Limited o dalle sue società controllate possono rendere nulli la garanzia e il diritto dell'utente a
utilizzare il prodotto.
Einhaltung der europäischen Bestimmungen
Dieses Produkt erfüllt die folgenden Bestimmungen:
EMC-Richtlinie 2004/108/EG.
RoHS-richtlinie 2011/65/EU.
Netzbetriebene Produkte für den europäischen Markt erfüllen die Niederspannungsverordnung
2006/95/EG und der Commission Regulation(s) Implementing-Verordnung 2009/125/EG.
Drahtlose Kommunikationsgeräte/Funksender und -empfänger für den europäischen Markt erfüllen die
R&TTE-Richtlinie 1999/5/EG.
ACHTUNG: Um die Anforderungen der europäischen CE-Norm zu erfüllen, muss dieses Produkt an
einem CE-geprüften Computer der Klasse B angeschlossen werden.
Alle Verbindungskabel zu diesem Gerät müssen abgeschirmt und geerdet sein und dürfen nicht länger
als 3 m sein. Der Betrieb mit nicht zertifizierten Computern oder nicht ordnungsgemäßen Kabeln kann
zu Störungen anderer Geräte oder unerwünschten Auswirkungen auf das Produkt führen.
MODIFIZIERUNG: Jegliche Änderung oder Modifizierung des Produkts, die nicht ausdrücklich von
Creative Technology Limited oder einer der zugehörigen Firmen genehmigt worden ist, kann für den
Benutzer zum Erlöschen der Garantie und der Gewährleistungsrechte führen.
Sound Blaster R5/E5 – Regulatory Information 52
Homologación para Europa
Este producto cumple:
la Directiva de compatibilidad electromagnética 2004/108/CE.
Directiva RoHS 2011/65/UE.
Los productos funcionando con corriente electrica cumplen con la Directiva 2006/95/CE de baja tensión
y con la implementación de los requisitos de la Comisión para la directiva 2009/125/CE.
Los productos inalámbricos de comunicación o frecuencias de radio para el mercado europeo cumplen la
Directiva 1999/5/CE de equipos de radio y terminales de telecomunicaciones.
ATENCIÓN: para cumplir con los requisitos de Homologación para Europa, este dispositivo debe
instalarse con un equipo informático con certificación CE que cumpla los límites de la Clase B. Todos los
cables utilizados para conectar este dispositivo deben estar protegidos, conectados a tierra y no tener
más de 3 m de longitud. El funcionamiento del dispositivo con equipos no certificados o cables
incorrectos podría provocar interferencias a otros dispositivos o efectos no deseados al producto.
MODIFICACIÓN: los cambios o modificaciones no aprobados expresamente por Creative Technology
Limited o una de sus empresas afiliadas podrían invalidar la garantía del usuario y los derechos de la
garantía.
Europese naleving
Dit product voldoet aan de volgende voorschriften:
EMC-richtlijn 2004/108/EG.
RoHS-richtlijn 2011/65/EU.
Electrische producten voor de Europese markt voldoen aan de Laagspanningsrichtlijn 2006/95/EG en EC
and Verordening(en) voor uitvoering van Richtlijn 2009/125/EG.
Communicatie- of draadloze RF-producten voor de Europese markt voldoen aan de richtlijn R&TTE
1999/5/EG.
LET OP: Om te voldoen aan de Europese CE-norm, moet dit apparaat zijn geïnstalleerd in
computerapparatuur die CE-gecertificeerd is voor de Klasse B-limieten.
Alle kabels die worden gebruikt om dit apparaat aan te sluiten, moeten zijn afgeschermd en geaard, en
mogen niet langer dan 3 meter zijn. Gebruik met niet-gecertificeerde computers of incorrecte kabels
kan leiden tot interferentie van andere apparaten of ongewenste effecten op het product.
AANPASSING: Alle wijzigingen of modificaties die niet uitdrukkelijk zijn goedgekeurd door Creative
Technology Limited of een van de gelieerde maatschappijen, kunnen ertoe leiden dat de rechten van de
gebruiker met betrekking tot garantie en vrijwaring vervallen.
Sound Blaster R5/E5 – Regulatory Information 53
Conformidade Europeia
Este produto está em conformidade com a seguinte regulamentação:
Directiva EMC 2004/108/EC.
Directiva RoHS 2011/65/UE.
Os produtos com ligação à rede destinados ao mercado europeu estão em conformidade com a directiva
de baixa voltagem 2006/95/CE. Directiva de Implementação do(s) Regulamento(s) da Comissão
2009/125/CE.
Os produtos de comunicação/radiofrequência sem fios destinados ao mercado europeu estão em
conformidade com a directiva R&TTE 1999/5/CE.
ATENÇÃO: De modo a cumprir com os requisitos da marca CE Europeia, este dispsotivo deve ser
instalado com equipamento informático com certificação CE que cumpra com os limites de Classe B
limits.
Todos os cabos usados para ligar este dispositivo devem ser blindados, ligados à terra e não devem
exceder os 3m de comprimento. O funcioanemnto com computadores não certificados ou cabos
incorrectos pode resultar em interferências em outros dispositivos ou provocar efeitos indesejados no
produto.
MODIFICAÇÃO: Quaisquer alterações ou modificações que não sejam expressamente aprovadas pela
Creative Technology Limited ou por uma das suas afiliadas, pode anular a garantia do utilizador e os
direitos inerentes à mesma.
Europeisk efterlevnad
Denna produkt uppfyller följande:
EMC-direktivet 2004/108/EC.
RoHS Direktivet 2011/65/EU.
Produkter för den europeiska marknaden som drivs via elnätet uppfyller Lågspänningsdirektivet
2006/95/EC och Kommissionens regleringsimplementeringsdirektiv 2009/125/EG.
Trådlösa kommunikations/RF-produkter för den europeiska marknaden uppfyller R&TTE-direktivet
1999/5/EC.
VARNING: För att uppfylla CE-kraven i Europa måste denna produkt installeras med CE-certifierad
datorutrustning som uppfyller gränsvärdena för klass B.
Alla kablar som används för anslutning av denna produkt måste vara avskärmade, jordade och får inte
vara längre än 3 m. Användning med icke certifierade datorer eller felaktiga kablar kan leda till
interferens på annan utrustning eller oönskade effekter på produkten.
MODIFIERING: Alla förändringar och modifieringar som inte är uttryckligen tillåtna av Creative
Technology limited eller något av dess filialföretag kan göra användarens garanti och garantirättigheter
ogiltiga.
Sound Blaster R5/E5 – Regulatory Information 54
Europeisk samsvar
Dette produktet er i samsvar med følgende:
EMC-direktivet 2004/108/EC.
RoHS-Direktivet 2011/65/EU.
Elektriske produkter til det europeiske markedet er i samsvar med Lavspenningsdirektivet 2006/95/EC
og Økodesigndirektivet 2009/125/EC.
Kommunikasjon/RF trådløse produkter til det europeiske markedet er i samsvar med R&TTE-direktivet
1999/5/EC.
ADVARSEL: For å overholde det europeiske CE-kravet må denne enheten installeres med CE-sertifisert
datautstyr som tilfredsstiller klasse B-grensene.
Alle kabler som kobles til enheten må være skjermet, jordet og ikke lenger enn 3 m i lengde. Bruk av
ikke-sertifiserte datamaskiner eller feil kabler kan føre til forstyrrelse av andre enheter eller uønsket
effekt på produktet.
MODIFIKASJON: Eventuelle endringer eller modifikasjoner som ikke uttrykkelig er godkjent av
Creative Technology Limited eller et av dets tilknyttede selskaper, kan ugyldiggjøre garantien eller
garantirettighetene.
Overholdelse af Europæiske regler og standarder
Dette produkt overholder følgende:
EMC-direktivet 2004/108/EC.
RoHS-Direktivet 2011/65/EU.
Produkter til det Europæiske marked, skal ovberholde Lavspændingsdirektivet 2006/95/EC og
Kommissionens forordninger for implementering af direktivet 2009/125/EF.
Kommunikations- / RF-trådløse produkter til det Europæiske overholder R&TTE-direktivet 1999/5/EC.
ADVARSEL: For at overholde Europe CE-kravet, skal denne enheden installeres med CE-certificeret
computerudstyr, der opfylder klasse B-grænserne.
Alle kabler der anvendes til at tilslutte enheden skal være skærmede, jordforbundne og ikke længere
end 3 m lange. Drift med ikke-certificerede computere og ukorrekte kabler kan medføre interferens for
andre enheder eller uønskede effekter på produktet.
MODIFIKATION: Enhver ændring eller modifikation, der ikke er udtrykkeligt godkendt af Creative
Technology Limited eller et associerede selskab, vil gøre brugerens garanti og garanterede rettigheder
ugyldig.
Sound Blaster R5/E5 – Regulatory Information 55
Eurooppalainen yhdenmukaisuus
Tämä tuote täyttää seuraavat tuotemääritykset:
TEMC-direktiivin 2004/108/EC.
RoHS-direktiivin 2011/65/EU.
Euroopan markkinoiden verkkovirtaa käyttävät tuotteet ovat matalajännitedirektiivin 2006/95/EY
mukaisia. Euroopan parlamentin ja neuvoston ohjaava direktiivi 2009/125/EY.
Euroopan markkinoiden tietoliikenne- ja langattomat radiotaajuustuotteet noudattavat R&TTE-
direktiiviä 1999/5/EY.
VAROITUS: Jotta tämä laite noudattaisi Euroopan CE-vaatimuksia , tämä laite on asennettava CE-
sertifioituun tietokoneeseen, joka noudattaa luokan B rajoituksia.
Kaikki tämän laitteen liittämiseen käytetyt kaapelit tulee suojata ja maadoittaa eivätkä ne saa olla 3 m
pidempiä. Luokan rajoituksia noudattamattoman tietokoneen tai vääränlaisten kaapeleiden käyttäminen
voi aiheuttaa häiriöitä muihin laitteisiin tai haitata itse laitteen toimintaa.
MUOKKAUKSET: Muutokset tai muokkaukset, joita Creative Technology Limited tai sen tytäryhtiöt
eivät nimenomaisesti ole hyväksyneet, voivat mitätöidä tuotteelle annetun takuun.
Evropská shoda
Tento výrobek splňuje následující směrnice:
Směrnice EMC 2004/108/EC.
Směrnice RoHS 2011/65/EU.
Výrobky napájené z elektrické zásuvky pro evropský trh splňují směrnici o nízkém napětí 2006/95/EC a
směrnici komise 2009/125/EC o zavádění předpisů.
Komunikační / vysokofrekvenční bezdrátové výrobky pro evropský trh splňují směrnici R&TTE
1999/5/EC.
UPOZORNĚNÍ: Aby toto zařízení splňovalo evropský požadavek CE, musí být nainstalováno s
počítačovým vybavením s certifikátem CE, které splňuje limity pro zařízení třídy B.
Veškeré kabely používané pro připojení tohoto zařízení musí být stíněné, uzemněné a nesmí být delší
než 3 metry. Při používání s necertifikovanými počítači nebo nesprávnými kabely může dojít k rušení
jiných zařízení nebo k nežádoucím vlivům na produkt.
ÚPRAVY: Jakékoli změny nebo úpravy, které nebyly vysloveně schváleny společností Creative
Technology Limited nebo některou z jejích dceřiných společností, mohou způsobit propadnutí záruky
uživatele a záručních práv.
Sound Blaster R5/E5 – Regulatory Information 56
Zgodność z przepisami europejskimi
Urządzenie jest zgodne z
dyrektywą EMC 2004/108/EC.
Dyrektywa RoHS 2011/65/UE.
Urządzenia zasilane z sieci elektrycznej przeznaczone na rynek europejski muszą być zgodne z
dyrektywą dotyczącą urządzeń niskonapięciowych 2006/95/EC oraz z dyrektywą wdrażającą komisji
regulacyjnej 2009/125/WE.
Urządzenia komunikacyjne / bezprzewodowe wykorzystujące transmisję radiową przeznaczone na
rynek europejski spełniają warunki dyrektywy RTTE 1999/5/EC.
UWAGA: Aby uzyskać zgodność z wymogami europejskiej normy CE urządzenie musi być
zainstalowane wraz ze sprzętem komputerowym mającym certyfikat CE z ograniczeniami klasy B.
Wszystkie przewody używane do podłączania niniejszego urządzenia muszą być ekranowane, uziemione
i nie dłuższe niż 3 metry. Użytkowanie z komputerami nie posiadającymi certyfikatów lub
wykorzystanie niewłaściwych przewodów może powodować zakłócenia pracy innych urządzeń lub
opisywanego urządzenia.
MODYFIKACJE: Dokonanie jakichkolwiek zmian lub modyfikacji, na które firma Creative Technology
Limited lub spółki z nią stowarzyszone nie udzielają wyraźnej zgody, może doprowadzić do
unieważnienia praw gwarancji i rękojmi użytkownika.
Соответствие европейским нормам
Данное изделие соответствует следующим стандартам:
EMC Директива 2004/108/EC.
Продукция с питанием от сети, поставляемая на европейский рынок, соответствует Директиве по
низковольтному оборудованию 2006/95/EC и Имплементирующей директиве постановления (-й)
комиссии 2009/125/EC.
Коммуникационное/радио- беспроводное оборудование, поставляемое на европейский рынок,
соответствует Директиве по оконечному радио- и телекоммуникационному оборудованию
1999/5/EC.
ВНИМАНИЕ! Для обеспечения соответствия европейским требованиям CE, это устройство должно
устанавливаться с компьютерным оборудованием, сертифицированным по стандарту CE и
удовлетворяющим нормам класса B.
Все кабели, используемые для подключения данного устройства, должны быть экранированы,
заземлены и иметь длину не более 3 м. Работа с несертифицированными компьютерами или
неподходящими кабелями может привести к возникновению помех другим устройствам или
негативному влиянию на работу самого изделия.
ИЗМЕНЕНИЯ КОНСТРУКЦИИ Любые изменения конструкции, на которые не было получено
прямое разрешение компании Creative Technology Limited или ее дочерней компании, может
привести к аннуляции гарантии и связанных с нею прав.
Sound Blaster R5/E5 – Regulatory Information 57
Európai megfelelőség
Ez a termék megfelel a következőknek:
2004/108/EGK sz., az elektromágneses összeférhetőségre. 2011/65/EU, RoHS.
Az Európa területére szánt hálózati termékek megfelelnek az alacsony feszültségre vonatkozó
2006/95/EC irányelvnek.
Az irányelvet 2009/125/EK végrehajtó bizottsági rendeletek.
Az Európa területére szánt, távközlési, illetve rádiófrekvenciás vezeték nélküli termékek megfelelnek a
rádióés távközlő végberendezésekre vonatkozó 1999/5/EK irányelvnek.
FIGYELEM!: Az európai CE követelmények teljesítéséhez ezt a készüléket a B kategóriájú értékeknek
megfelelő, CE minősítésű számítógéppel együtt kell telepíteni.
A készülék csatlakoztatására használt valamennyi kábelnek árnyékoltnak és földeltnek kell lennie,
továbbá hosszúsága nem haladhatja meg a 3 métert. A nem hitelesített számítógépekkel vagy helytelen
kábelekkel való használat más készülékek zavarását vagy a termék nem kívánatos befolyásolását
okozhatja.
MÓDOSÍTÁS: Minden módosítás vagy változtatás, amit kifejezetten nem hagyott jóvá a Creative
Technology Limited vagy valamelyik leányvállalata, érvénytelenítheti a készülék garanciáját és
felhasználó garanciális jogait.
Ευρωπαϊκή συμμόρφωση
Το παρόν προϊόν συμμορφώνεται με τα παρακάτω:
Οδηγία ΗΜΣ 2004/108/EΚ.
Οδηγία RoHS 2011/65/EE.
Τα προϊόντα που λειτουργούν με ρεύμα για την ευρωπαϊκή αγορά συμμορφώνονται με την Οδηγία περί
χαμηλής τάσης 2006/95/EΚ και τους κανονισμούς της επιτροπής που υλοποιούν την οδηγία 2009/125/EK.
Τα ασύρματα προϊόντα επικοινωνιών / RF για την ευρωπαϊκή αγορά συμμορφώνονται με την οδηγία
R&TTE 1999/5/EK.
ΠΡΟΣΟΧΗ: Για τη συμμόρφωση με τις απαιτήσεις του ευρωπαϊκού CE, αυτή η συσκευή θα πρέπει να
εγκατασταθεί σε εξοπλισμό υπολογιστή με πιστοποίηση CE ο οποίος πληροί τα όρια της κατηγορίας Β.
Όλα τα καλώδια που χρησιμοποιούνται για τη σύνδεση της συσκευής θα πρέπει να είναι θωρακισμένα,
γειωμένα και να μην υπερβαίνουν σε μήκος τα 3μ. Η λειτουργία με μη πιστοποιημένους υπολογιστές ή
λάθος καλώδια μπορεί να οδηγήσει σε παρεμβολές με άλλες συσκευές ή ανεπιθύμητες επιδράσεις στο
προϊόν.
ΤΡΟΠΟΠΟΙΗΣΗ: Οι όποιες αλλαγές ή τροποποιήσεις που δεν έχουν εγκριθεί ρητά από την Creative
Technology Limited ή κάποια από τις θυγατρικές της ενδέχεται να ακυρώσουν την εγγύηση του χρήστη
και τα δικαιώματα που απορρέουν από αυτήν.
Sound Blaster R5/E5 – Regulatory Information 58
Europos Sąjungos atitiktis
Šis gaminys atitinka šiuos reikalavimus:
„Elektromagnetinės atitikties“ („EMC“) direktyva 2004/108/EC.
RoHS direktyva 2011/65/ES.
Produktai, kurie veikia maitinami iš elektros tinklo, skirti Europos rinkai, atitinka Žemos įtampos
direktyvą 2006/95/EB.
Komisijos reglamentas(-ai) dėl Direktyvos 2009/125/EB įgyvendinimo.
Europos Sąjungos rinkai skirti ryšių / radijo dažnių bevieliai gaminiai atitinka 1999/5/EB direktyvą „Dėl
radijo ryšio įrenginių ir telekomunikacijų galinių įrenginių bei abipusio jų atitikties pripažinimo“.
ATSARGIAI: Tam, kad šis prietaisas atitiktų Europos Sąjungos „CE“ reikalavimus, jis turi būti įdiegtas į
„CE“ sertifikuotą kompiuterinę įrangą, atitinkančią „B“ klasės ribas. Visi su šiuo prietaisu naudojami
laidai turi būti ekranuoti, įžeminti ir neviršyti 3 m ilgio. Nesertifikuotų kompiuterių ar netinkamų laidų
naudojimas gali tapti trikdžių kitiems prietaisams arba nepageidaujamų šio gaminio veikimo pasekmių
priežastimi.
MODIFIKAVIMAS: Bet kokie pakeitimai ar modifikavimai neturint aiškiai patvirtinto „Creative
Technology Limited“ ar vienos iš su ja susijusių bendrovių leidimo gali panaikinti vartotojo garantiją ir
garantijos teises.
Dodržiavanie predpisov Európskej únie
Tento výrobok splna nasledujúce normy:
Smernica EMC 2004/108/ES.
Smernica RoHS 2011/65/EÚ.
Výrobky napájané zo siete urcené na európsky trh sú v súlade so smernicou o harmonizácii právnych
predpisov clenských štátov týkajúcich sa elektrického zariadenia urceného na používanie v rámci
urcitých limitov napätia 2006/95/ES a s nariadeniami Komisie, ktorými sa vykonáva smernica
2009/125/ES.
Bezdrôtové komunikacné/RF výrobky urcené na európsky trh sú v súlade so smernicou R&TTE
1999/5/ES.
VAROVANIE: Toto zariadenie musí byt’ nainštalované s pocítacovým zariadením s certifikáciou CE,
ktoré splna limity triedy B, aby bolo v súlade s európskymi požiadavkami CE.
Všetky káble použité na pripojenie tohto zariadenia musia byt’ tienené, uzemnené a nie dlhšie ako 3 m.
Prevádzka pomocou necertifikovaných pocítacov alebo nesprávnych káblov môže mat’ za následok
rušenie iných zariadení alebo nežiaduce úcinky na výrobok.
ÚPRAVY: Akékolvek zmeny alebo úpravy, ktoré neboli výslovne odsúhlasené spolocnost’ou Creative
Technology Limited alebo jednou z jej sesterských spolocností, môžu zrušit’ platnost’ záruky a
zárucných práv používatela.
Sound Blaster R5/E5 – Regulatory Information 59
Avrupa Uyumu
Bu ürün aşağıdakilere uygundur:
2004/108/EC EMC (Elektromanyetik Uyumluluk) Yönetmeliği.
2011/65/EC RoHS (Tehlikeli Maddelerin Kısıtlanması) Yönetmeliği
Avrupa piyasasına yönelik, elektrik şebekesi tarafından çalıştırılan ürünler 2006/95/EC Alçak Gerilim
Yönetmeliği (LVD) ve 2009/125/EC Enerji ile İlgili Ürünlerin Çevreye Duyarlı Tasarımına İlişkin
Yönetmeliğe uygundur.
Avrupa piyasasına yönelik İletişim / RF kablosuz ürünleri R ve TTE Yönetmeliği 1999/5/EC ile
uyumludur.
DİKKAT: Avrupa CE gereksinimleriyle uyumlu olması için bu cihazın, B Sınıfı sınırlarına uygun olan CE
sertifikalı bilgisayar donanımları ile birlikte kurulması gerekir.
Bu cihazı bağlamak için kullanılan tüm kabloların koruyuculu ve topraklanmış olması ve 3 metreden
uzun olmaması gerekir. Sertifikalı olmayan bilgisayarlarla veya yanlış kablolarla birlikte kullanılması,
diğer cihazların düzgün çalışmamasına veya üründe istenmeyen etkiler görülmesine neden olabilir.
DEĞİŞİKLİKLER: Creative Technology Limited veya bağlı şirketlerinden biri tarafından açıkça
onaylanmamış tüm değişiklikler kullanıcının garanti ve teminat haklarını geçersiz kılabilir.
Sound Blaster R5/E5 – Regulatory Information 60
Ukraine RoHS Statement
Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких
небезпечних речовин в електричному та електронному обладнанні, затвердженого постановою
Кабінету Міністрів України від 3 грудня 2008 № 1057
Notice for Japan
充電式電池のリサイクル
充電式リチウム電池はリサイクル可能な資源です。
lCreative製品に埋め込まれている充電式リチウム電池をリサイクルするために、本体から電池を取り外さないで
ください。リサイクルに関する情報および指示については、 Creative Media K Kカスタマーサポート
http://jp.creative.com/support/contact/ (日本語) をご覧ください。
l交換可能な (取り外し可能な) 充電式リチウム電池のリサイクルについては、以下をご覧ください。
o充電式リチウム電池が完全に放電した場合、取り外すことを推奨します。
o電池の金属部分にはセロハンテープなどの絶縁物質で覆うなど、注意が必要です。
o充電式電池のリサイクルおよび回収、および対応店舗に関する情報は、JBRCのホームページをご覧くださ
い。(http://www.jbrc.com/)
Notice for Korea
B급 기 기
(가정용 방송통신기자재 )
Class B Equipment
(For Home Use Broadcasting & Communication Equipment)
이 기기는 가정용 (B급)전자파적합기기로서 주로 가정에서 사용하는 것을 목적으로 하며,모든 지역에서
사용할 수 있습니다.
This equipment is home use (Class B) electromagnetic wave suitability equipment and to be used mainly
at home an it can be used in all areas.
Sound Blaster R5/E5 – Regulatory Information 61
Notice for China
Vietnam RoHS Statement
This product is in compliance with Circular 30/2011/TTBCT of the Ministry of Trade of the Socialist
Republic of Vietnam (“Circular”), it does not contain the following substances in concentration greater
than the Maximum Limit value as specified in the Circular.
Substance Maximum Limit (ppm) 1, 2
llead 1000
lmercury 1000
lcadmium 100
lhexavalent chromium 1000
lpolybrominated biphenyls (PBB) 1000
lpolybrominated diphenyl ethers (PBDE) 1000
1Maximum Limit does not apply to applications exempted from the Circular.
2Maximum Limit refers to concentration by weight in homogeneous materials.
Notice for Singapore
Complies with
IDA Standard
DB00148
Sound Blaster R5/E5 – Regulatory Information 62
License and Copyright
Information in this document is subject to change without notice and does not represent a commitment
on the part of Creative Technology Ltd. No part of this manual may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including photocopying and recording, for any purpose
without the written permission of Creative Technology Ltd.
© 2014 Creative Technology Ltd. All rights reserved. Creative, the Creative logo, Sound Blaster, the
Sound Blaster logo, SBX Pro Studio, the SBX logo and CrystalVoice are trademarks or registered
trademarks of Creative Technology Ltd. in the United States and/or other countries. The Bluetooth®
word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Creative
Technology Ltd is under license. Intel and Intel Core are trademarks of Intel Corporation in the U.S.
and/or other countries. AMD is a registered trademark of Advanced Micro Devices, Inc. Microsoft,
Windows and Windows Vista are registered trademarks of Microsoft Corporation. iPhone, iPad, Mac, Mac
OS, OS X and GarageBand are registered trademarks of Apple Inc. Android is a trademark of Google
Inc. aptX is a trademark of CSR plc. Other trademarks and trade names are those of their respective
owners. All specifications are subject to change without prior notice. Use of this product is subject to a
limited hardware warranty. Actual contents may differ slightly from those pictured. The software
included in this packaging may not be used separately from the hardware. Before using the software,
you must agree to be bound by the terms and conditions of the end user license agreement.
Version 1.0
May 2014
Sound Blaster R5/E5 – License and Copyright 63
