Introduction
This user guide details the features of your Creative ZEN®Style. Creative ZEN Style is a music and
video* player, voice recorder, and FM radio**, all rolled into one. It can also stream music output to
Bluetooth®compatible devices.**
For setup and installation instructions, refer to the printed Quick Start leaflet that comes with your
player.
*For transcoded videos only.
**The FMradio and Bluetooth options are available on M300 only.
- 1 -
![](/img.php?id=1481432&img=bg2.png)
ZENStyle M100/M300 User Guide

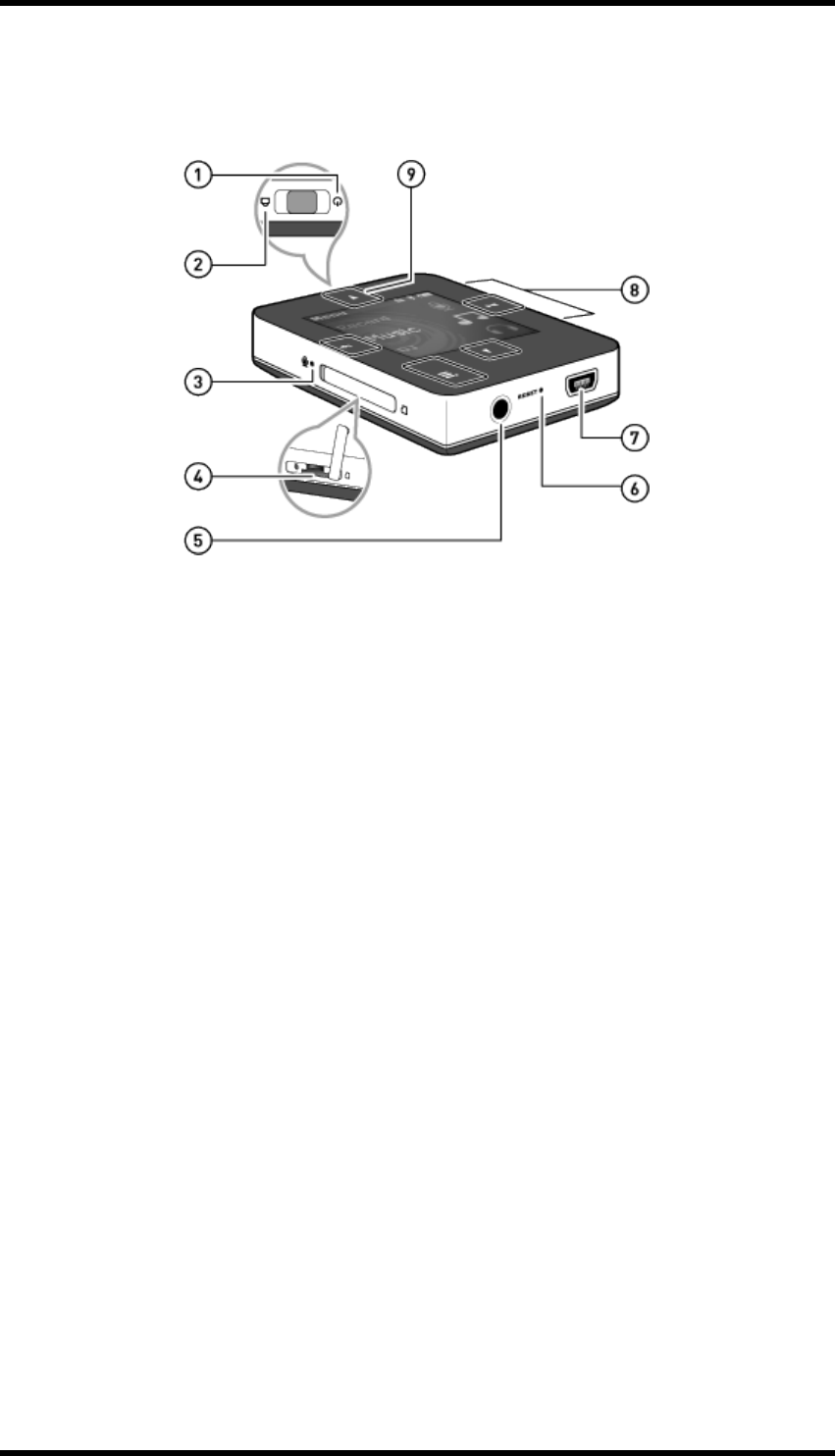

Your Player at a Glance
This section introduces your player and its parts. Click the numbered labels for more information.
- 2 -
![](/img.php?id=1481432&img=bg3.png)
ZENStyle M100/M300 User Guide
Power/Lock Switch
Slide to and hold for a few seconds to turn your player on or off.
- 3 -
![](/img.php?id=1481432&img=bg4.png)
ZENStyle M100/M300 User Guide
Power/Lock Switch
Slide to to lock your player.
To unlock your player, slide away from .
- 4 -
![](/img.php?id=1481432&img=bg5.png)
ZENStyle M100/M300 User Guide
Microphone
Place this built-in microphone as close as possible to the source that you are recording.
- 5 -
![](/img.php?id=1481432&img=bg6.png)
ZENStyle M100/M300 User Guide
microSD Card Slot
Lift the slot cover and insert a microSD card to expand your player's memory.
- 6 -
![](/img.php?id=1481432&img=bg7.png)
ZENStyle M100/M300 User Guide
Earphone Jack
Connect your earphones to this jack.
- 7 -
![](/img.php?id=1481432&img=bg8.png)
ZENStyle M100/M300 User Guide
Reset Button
To reset your player if it stops responding, press the Reset button using a straightened paperclip or a
ballpoint pen.
- 8 -
![](/img.php?id=1481432&img=bg9.png)
ZENStyle M100/M300 User Guide
USB Port
Use the USB cable to connect your player to a computer.
- 9 -
![](/img.php?id=1481432&img=bga.png)
ZENStyle M100/M300 User Guide
Volume +/-
Press + or - to increase or decrease the volume.
- 10 -
![](/img.php?id=1481432&img=bgb.png)
ZENStyle M100/M300 User Guide
Direction/Function Buttons
Press to move up or down on a menu.
Press to return to the previous screen.
Press to play or pause a track, or to select a menu option.
Press to view the menu options available.
- 11 -
![](/img.php?id=1481432&img=bgc.png)
ZENStyle M100/M300 User Guide
Turning Your Player On and Off
To turn on your player
nSlide the Power/Lock switch to and hold for a few seconds.
The display screen lights up.
To turn off your player
nSlide the Power/Lock switch to and hold until the Shutting down... message appears.
- 12 -
![](/img.php?id=1481432&img=bgd.png)
ZENStyle M100/M300 User Guide

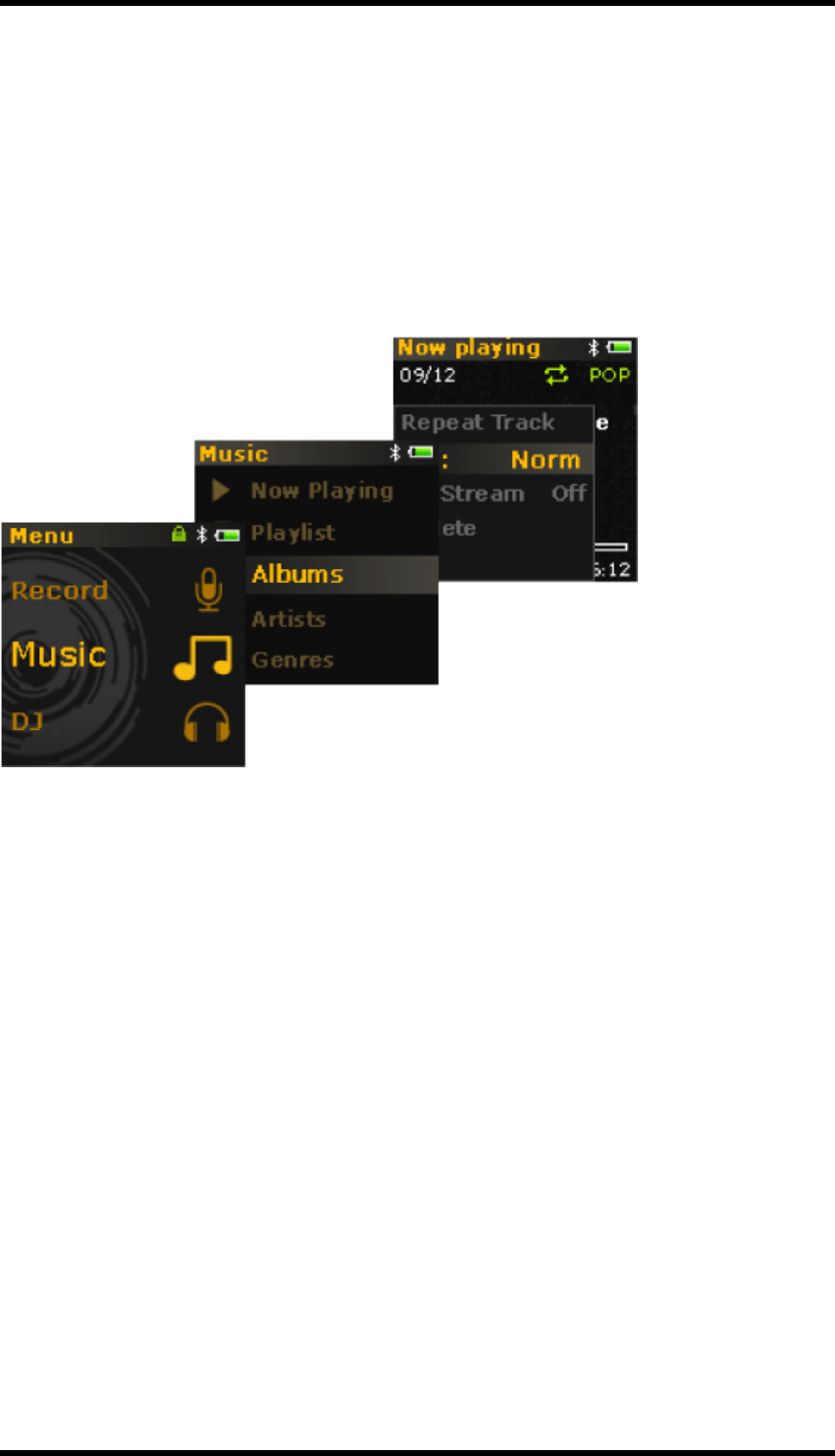

Selecting Menus and Options
Your player has menus and options from which you can select. This section explains the difference
between menus and options, and how to access them.
Menus are categories of content or player information. Examples of menus are Music and System.
Options are actions you can perform on a menu item. Examples of options are EQ and Delete.
When you turn on your player, you see the main menu. The main menu on your player leads to sec-
ondary menus called submenus. Submenus themselves can lead to other menus.
For more information, click the screen diagrams below.
- 13 -
![](/img.php?id=1481432&img=bge.png)
ZENStyle M100/M300 User Guide
Submenu
At a menu, press or to highlight an item, and then press to select.
To return to the previous screen, press .
- 14 -
![](/img.php?id=1481432&img=bgf.png)
ZENStyle M100/M300 User Guide
Main Menu
To go back to the main menu, press until the main menu is displayed.
- 15 -
![](/img.php?id=1481432&img=bg10.png)
ZENStyle M100/M300 User Guide
Options
At any menu, press to view the available options.
To exit, press .
- 16 -
![](/img.php?id=1481432&img=bg11.png)
ZENStyle M100/M300 User Guide
Selecting an item
1. Press or to highlight a menu or option item.
2. Press to select.
- 17 -
![](/img.php?id=1481432&img=bg12.png)
ZENStyle M100/M300 User Guide

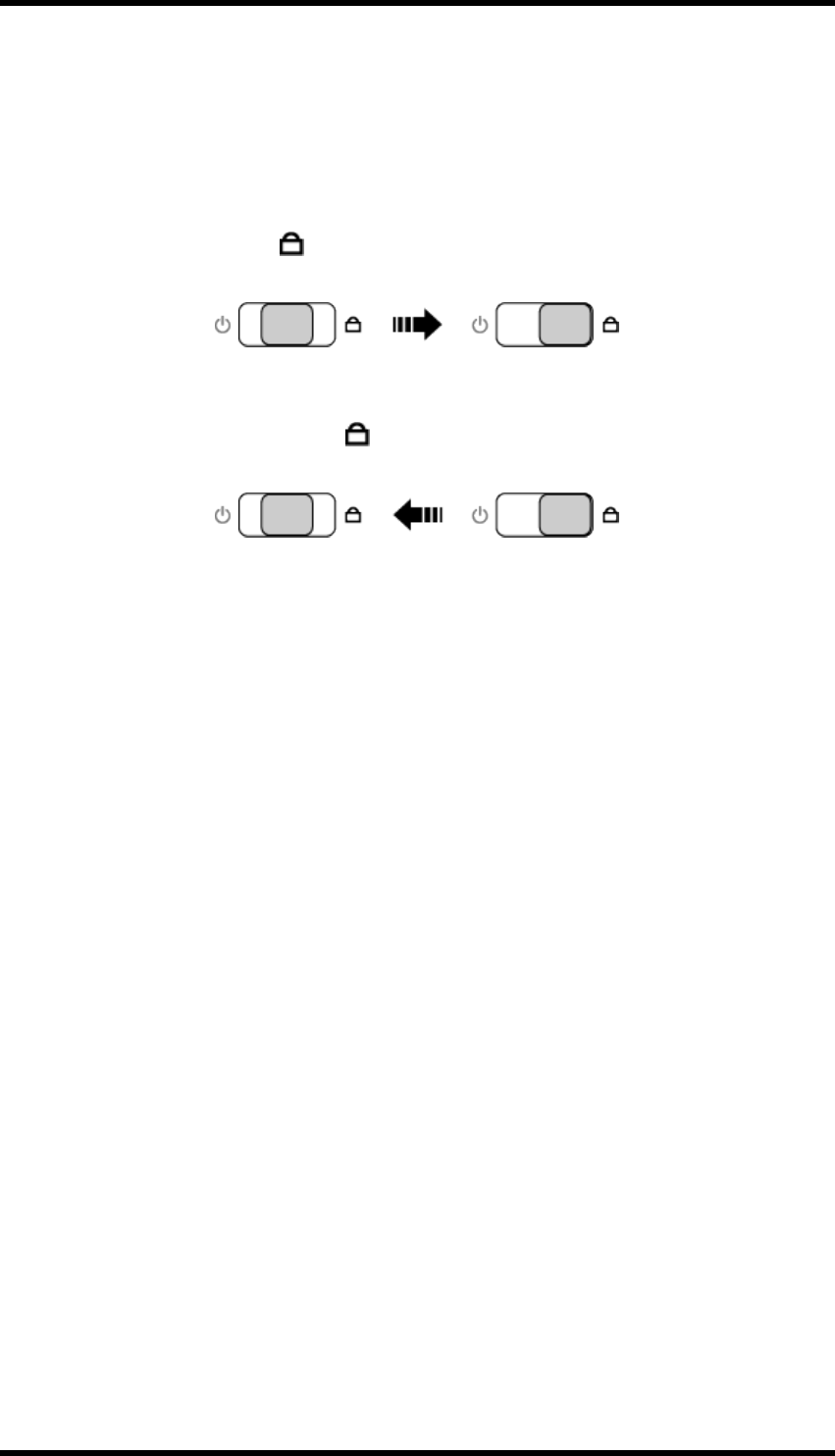

Locking Your Player
Locking your player disables the functions of all buttons on your player. Locking your player is useful
when you do not want to accidentally activate functions on your player, such as when your player is
in your pocket or bag.
To lock your player
nSlide the Power/Lock switch to .
To unlock your player
nSlide the Power/Lock switch away from back to its original position.
- 18 -
![](/img.php?id=1481432&img=bg13.png)
ZENStyle M100/M300 User Guide
Ripping Music
When you rip music, you convert music tracks (often from CDs) into a format suitable for playback
on your computer. You can rip music using applications such as Windows Media®Player. For more
information, refer to the help that comes with the application.
- 19 -
![](/img.php?id=1481432&img=bg14.png)
ZENStyle M100/M300 User Guide
Transferring Files to Your Player
You can use Windows Explorer or Windows Media®Player to transfer files from your computer to
your player. For more information, refer to the help that comes with the application.
If you are using Windows Media Player, make sure that your contents are in personal fold-
ers specified under WindowsMedia Player, namely, My Music,My Pictures, and My Vid-
eos.
- 20 -
![](/img.php?id=1481432&img=bg15.png)
ZENStyle M100/M300 User Guide
Playing and Managing Music Tracks
You can search for music tracks by album, artist or genre.
If you have combined tracks from various albums, and saved them as playlists, you can also search
your tracks by playlist.
To play a music track
1. On the main menu, select Music.
2. Select a category, such as Albums or Playlists.
If you want to search by track title, select All Tracks.
3. Select the track you want, and press .
For effective searches, add the relevant media information to your tracks using an application such as
Windows®Media Player.
- 21 -
![](/img.php?id=1481432&img=bg16.png)
ZENStyle M100/M300 User Guide

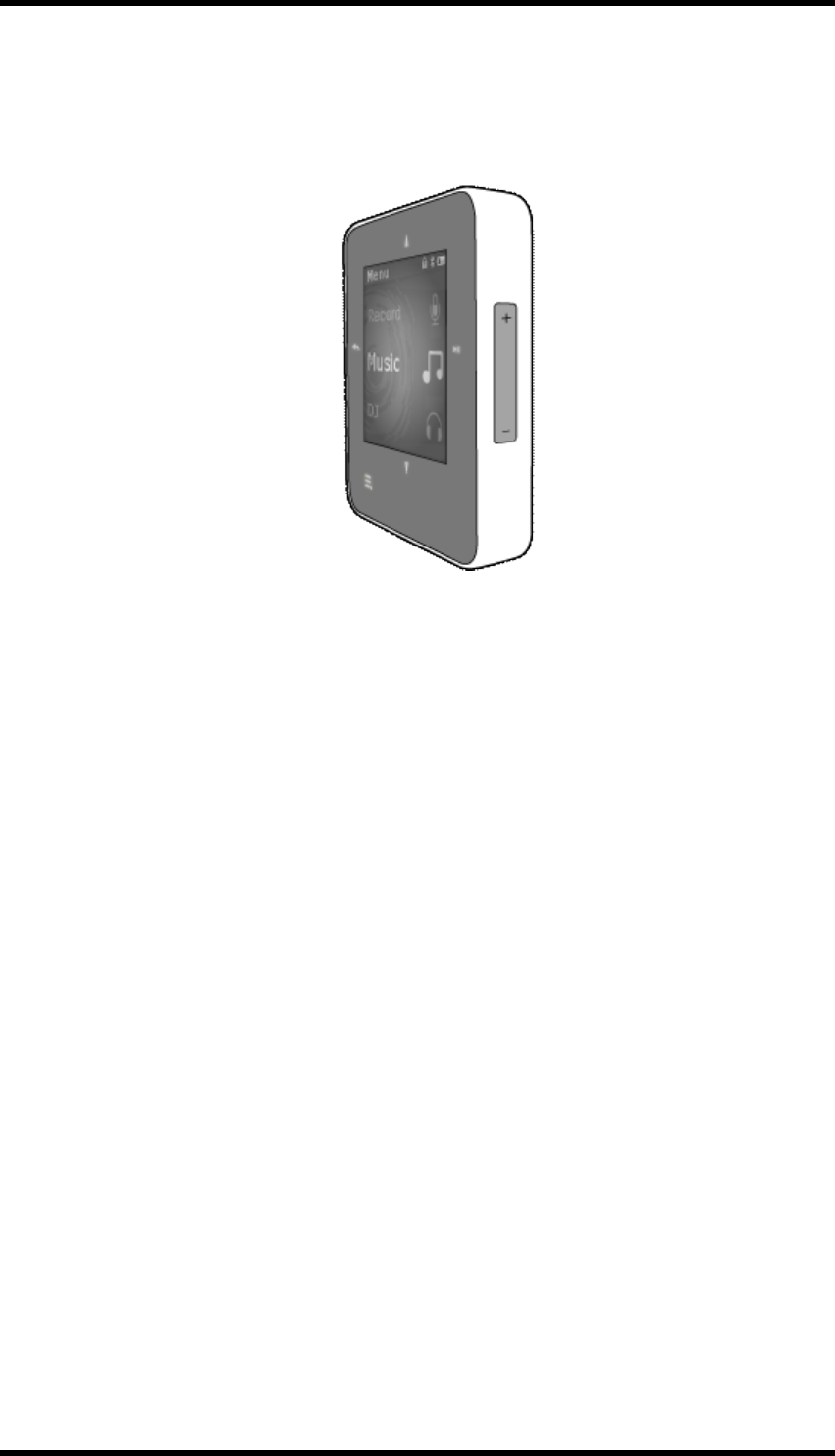

Adjusting Volume
While a song or video is playing, press the + or - button at the right hand side of the player to
increase or decrease the volume.
- 22 -
![](/img.php?id=1481432&img=bg17.png)
ZENStyle M100/M300 User Guide
Shuffling and Repeating Tracks
You can shuffle or repeat your list of selected tracks by selecting a different play mode.
1. On the main menu, select Music Now Playing .
2. Press followed by .
3. Select one of the following options:
lNormal
Plays your selected tracks in sequential order.
lRepeat Track
Repeats the current track.
lRepeat All
Repeats all selected tracks.
lShuffle
Plays all selected tracks in random order, once only.
lShuffle Repeat
Plays and repeats all selected tracks, in random order.
lTrack Once
Stops playing after the current track ends.
You can also access these options by pressing while playing a track.
- 23 -
![](/img.php?id=1481432&img=bg18.png)
ZENStyle M100/M300 User Guide
Deleting a Track
To permanently delete the track that is currently being played:
1. In the Now Playing view, press and select Delete.
2. Press .
3. Press or to highlight Yes.
4. Press to confirm the deletion.
- 24 -
![](/img.php?id=1481432&img=bg19.png)
ZENStyle M100/M300 User Guide
Being Your Own DJ
Instead of selecting tracks yourself, let your player's DJ pick out tracks for you.
1. On the main menu, select DJ.
2. Select one of the following:
lAlbum of the Day
Plays any album.
lRandom Play All
Plays all tracks, including your recorded tracks, in random order.
lMost Popular
Plays frequently played tracks.
- 25 -
![](/img.php?id=1481432&img=bg1a.png)
ZENStyle M100/M300 User Guide
Using the Bluetooth®Wireless Feature
You can stream music from your player to Bluetooth compatible speakers or headphones.
lTurning on Bluetooth
lPairing with a Bluetooth Device
lStreaming Music to a Bluetooth Device
lClearing the Bluetooth Device List
lBluetooth streaming is available for music output only. Bluetooth streaming is not sup-
ported for FM radio, voice recordings, videos, and Audible.
lThe FMradio and Bluetooth options are available on M300 only.
- 26 -
![](/img.php?id=1481432&img=bg1b.png)
ZENStyle M100/M300 User Guide
Turning on Bluetooth®
1. On the main menu, select System Bluetooth Bluetooth OFF.
2. Press to switch to Bluetooth ON.
lBluetooth streaming is available for music output only. Bluetooth streaming is not sup-
ported for FM radio, voice recordings, videos, and Audible.
lThe Bluetooth option is available on M300 only.
- 27 -
![](/img.php?id=1481432&img=bg1c.png)
ZENStyle M100/M300 User Guide
Pairing with a Bluetooth®Device
1. On the Bluetooth menu, select Scan for devices.
A list of available Bluetooth devices appears.
2. Press to select the desired Bluetooth device.
lBluetooth streaming is available for music output only. Bluetooth streaming is not sup-
ported for FM radio, voice recordings, videos, and Audible.
lThe Bluetooth option is available on M300 only.
- 28 -
![](/img.php?id=1481432&img=bg1d.png)
ZENStyle M100/M300 User Guide
Streaming Music to a Bluetooth®Device
1. On the Bluetooth menu, select Stream OFF.
2. Press to switch to Stream ON.
Alternatively, press in the Now Playing view and select the desired option.
lBluetooth streaming is available for music output only. Bluetooth streaming is not sup-
ported for FM radio, voice recordings, videos, and Audible.
lThe Bluetooth option is available on M300 only.
- 29 -
![](/img.php?id=1481432&img=bg1e.png)
ZENStyle M100/M300 User Guide
Clearing the Bluetooth®Device List
1. On the Bluetooth menu, select Clear ALL.
2. Press to clear the device list.
lBluetooth streaming is available for music output only. Bluetooth streaming is not sup-
ported for FM radio, voice recordings, videos, and Audible.
lThe Bluetooth option is available on M300 only.
- 30 -
![](/img.php?id=1481432&img=bg1f.png)
ZENStyle M100/M300 User Guide
Playing Audible Files
1. On the main menu, select Audible.
The list of Audible files appears.
2. Select the file you want, and press .
3. To delete a file, press in the file list view and select Delete.
Bluetooth streaming is not supported for playback of Audible files.
- 31 -
![](/img.php?id=1481432&img=bg20.png)
ZENStyle M100/M300 User Guide
Listening to the Radio*
Your player saves FM radio stations as presets.
The FM frequency range on your player is set to "International" by default. Most regions in the world
receive FM broadcasts in this range.
l*The FM radio option is available on M300 only.
lBluetooth streaming is not available when listening to the FMradio.
- 32 -
![](/img.php?id=1481432&img=bg21.png)
ZENStyle M100/M300 User Guide
Performing an Autoscan and Autosave
1. Connect your earphones to the earphone jack.
Your earphones act as an antenna and must be connected to your player for radio reception.
2. On the main menu, select FM Radio.
3. Press and select Autoscan.
4. When prompted to start autoscan, select Yes.
You will be prompted to start autoscan if this is the first time you select FMRadio on the
main menu.
- 33 -
![](/img.php?id=1481432&img=bg22.png)
ZENStyle M100/M300 User Guide
Performing a Manual Scan
1. Connect your earphones to the earphone jack.
Your earphones act as an antenna and must be connected to your player to receive radio signals.
2. On the main menu, select FM Radio.
3. Press , and then press to switch from Preset Tuning to Manual Tuning.
On your display, the word 'preset' disappears.
4. Press and hold or to scan for the next available radio station.
Press or to fine-tune the frequency.
5. Press and select Save as Preset.
6. Select an empty preset denoted by "--.-- MHz".
If you have selected an existing preset, you will be prompted to confirm that you want to replace the
current preset.
- 34 -
![](/img.php?id=1481432&img=bg23.png)
ZENStyle M100/M300 User Guide
Deleting Radio Presets
1. On the main menu, select FM Radio.
2. Select a preset.
3. Press and select Delete Preset.
- 35 -
![](/img.php?id=1481432&img=bg24.png)
ZENStyle M100/M300 User Guide
Viewing Your Presets
1. On the main menu, select FM Radio.
2. Press .
The list of presets appears.
- 36 -
![](/img.php?id=1481432&img=bg25.png)
ZENStyle M100/M300 User Guide
Recording with the Built-in Microphone
1. On the main menu, select Microphone.
2. Place your player as close as possible to the source you are recording.
3. Press to start the recording.
4. To pause a recording session, press and select Pause.
To resume, press .
5. To end the recording session, press .
The player automatically saves the recording. The track is named "MIC", followed by the date and time
of the recording (YYYY-MM-DD HH:MM:SS). For example, if you record a track on May 18, 2011 at
3:15 am, the track is named MIC 2011-05-18 03:15:00.
You can split a long recording session into different files. While recording, press and
select Split. Your player automatically saves the current recording and immediately starts a
new one.
- 37 -
![](/img.php?id=1481432&img=bg26.png)
ZENStyle M100/M300 User Guide
Playing Recordings
1. On the main menu, select Recorded.
2. Select the track you want.
The track plays automatically.
Bluetooth streaming is not supported for playback of recordings.
- 38 -
![](/img.php?id=1481432&img=bg27.png)
ZENStyle M100/M300 User Guide
Viewing and Managing Photos
View photos individually, or as a slideshow, on your player.
To access the photos
1. On the main menu, select Photos .
A list of photos that are on your player appears.
2. Select a photo.
The photo appears in full screen.
3. Press and select one of the following:
lDelete to delete the photo.
lSlide Interval to change the slideshow interval duration.
To stop the slideshow, press .
lYour player displays photos in the JPEG (JPG) format only.
lExpect a short interval before the photos you select are displayed. Your player is pre-
paring to load and display the photos.
- 39 -
![](/img.php?id=1481432&img=bg28.png)
ZENStyle M100/M300 User Guide
Playing and Managing Videos
To play videos on your player, you need to convert them to the SMV format.
To download a copy of the video transcoding software for your player, go to http://www-
.creative.com/getstarted/m100 or http://www.creative.com/getstarted/m300.
Bluetooth streaming is not available during video playback.
- 40 -
![](/img.php?id=1481432&img=bg29.png)
ZENStyle M100/M300 User Guide
Playing a Video
1. On the main menu, select Videos.
2. Select a video and press .
3. To pause the video, press .
Press again to resume.
4. To exit the video playback, press .
5. To rewind or fast-forward, press and hold or .
Release the buttons to resume playback.
6. While playing the video, you can adjust the volume.
Bluetooth streaming is not available during video playback.
- 41 -
![](/img.php?id=1481432&img=bg2a.png)
ZENStyle M100/M300 User Guide
Deleting a Video
1. On the main menu, select Videos.
2. Select a video.
3. Press and select Delete.
4. Press to select Yes.
- 42 -
![](/img.php?id=1481432&img=bg2b.png)
ZENStyle M100/M300 User Guide
Setting the Menu Language
1. On the main menu, select System Language.
2. Select the language that you want.
- 43 -
![](/img.php?id=1481432&img=bg2c.png)
ZENStyle M100/M300 User Guide
Using Equalizer (EQ)
EQ is the player's collection of equalizer settings, which you can use to enhance the quality of your
audio tracks. You can select an equalizer preset or customize your own settings to suit the genre or
style of your music.
To select an equalizer preset
1. On the main menu, select Music Now Playing.
2. Press and select EQ.
3. Press repeatedly to cycle through the list of EQ menu options.
4. Press to exit the Options menu.
The selected EQ menu option appears in the Now Playing view.
- 44 -
![](/img.php?id=1481432&img=bg2d.png)
ZENStyle M100/M300 User Guide
Setting the Display Brightness
1. On the main menu, select System Brightness.
2. Select the setting that you want.
- 45 -
![](/img.php?id=1481432&img=bg2e.png)
ZENStyle M100/M300 User Guide
Setting the Backlight Duration
1. On the main menu, select System Backlight Time.
2. Select the length of time that you want your player's backlight to be on before it dims.
- 46 -
![](/img.php?id=1481432&img=bg2f.png)
ZENStyle M100/M300 User Guide
Setting the Idle Shutdown Time
You can specify how long your player can remain inactive before it automatically shuts down. This fea-
ture helps you save battery power.
1. On the main menu, select System Idle Shutdown.
2. Select the setting that you want.
- 47 -
![](/img.php?id=1481432&img=bg31.png)
ZENStyle M100/M300 User Guide
Setting the Date and Time
1. On the main menu, select Time.
The current date and time are displayed.
2. Press and select Set Time or Set Date.
3. Press or to change the value of the field.
4. Press to set the value.
The cursor will move to the next field.
5. To exit, press .
- 49 -
![](/img.php?id=1481432&img=bg32.png)
ZENStyle M100/M300 User Guide
Resetting Your Player
You can reset your player to its original settings.
On the main menu, select System Reset Settings.
- 50 -
![](/img.php?id=1481432&img=bg33.png)
ZENStyle M100/M300 User Guide
Safety and Regulatory Information for M100
The following sections contain notices for various countries.
CAUTION: This product is intended for use with FCC/CE certified computer equipment. Please check
the equipment operating/installation manual and/or with the equipment manufacturer to ver-
ify/confirm if your equipment is suitable prior to the installation or use of the product.
Notice for the USA
Federal Communication Commission (FCC) Interference Statement
FCC Part 15: This equipment has been tested and found to comply with the limits for a Class B dig-
ital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
lConsult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two con-
ditions:
lThis device may not cause harmful interference, and
lThis device must accept any interference received, including interference that may cause undesired
operation.
CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC
Rules, this device must be installed with computer equipment certified to comply with Class B limits.
All cables used to connect to the computer and peripherals must be shielded and grounded. Oper-
ation with non-certified computers or non-shielded cables may results in interference to radio or tel-
evision reception.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the device.
DECLARATIONOFCONFORMITY
Manufacturer/Importer's Name:
Creative Labs, Inc.
Manufacturer/Importer's Address:
1901 McCarthy Boulevard
Milpitas, CA. 95035
United States
Tel: (408) 428-6600
declares under its sole responsibility that the product
Trade Name:
Creative Labs
Model Number:
DVP-FL0018
has been tested according to the FCC/CISPR22 requirement for Class B devices and found compliant
with the following standards:
EMI/EMC: ANSI C63.4, FCC Part 15 Subpart B
Complies with Canadian ICES-003 Class B
- 51 -
![](/img.php?id=1481432&img=bg34.png)
ZENStyle M100/M300 User Guide
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesirable
operation.
Ce matériel est conforme à la section 15 des régles FCC.
Son Fonctionnement est soumis aux deux conditions suivantes:
1. Le matériel ne peut étre source D'interférences et
2. Doit accepter toutes les interférences reques, Y compris celles pouvant provoquer un fonctionnement
indésirable.
Compliance Manager
Creative Labs, Inc.
May 31, 2011
California Proposition 65 Statement
WARNING: Handling this product may expose you to chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
Explanatory Note: California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition
65) requires special product labeling for products containing certain chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm. Creative has chosen to provide
a warning based on its knowledge about the presence of one or more listed chemicals without
attempting to evaluate the level of exposure. With Creative's products, the exposure may be below
the Proposition 65 level of concern, or could even be zero. However, out of an abundance of caution,
Creative has elected to place the Proposition 65 warning on its products.
Déclaration de la Proposition 65 de la Californie
AVERTISSEMENT: La manipulation de ce produit peut vous exposer à des produits chimiques qui
sont reconnus par l'État de la Californie comme pouvant provoquer le cancer, des anomalies con-
génitales ou d'autres effets nuisibles à la reproduction.
Veuillez vous laver les mains après l'avoir manipuler.
Note explicative: La Proposition 65 (California Safe Drinking Water and Toxic Enforcement Act of
1986) de la Californie sur les matières dangereuses et l'eau potable exige un étiquetage spécial pour
les produits contenant certains produits chimiques qui sont reconnus par l'État de la Californie
comme pouvant provoquer le cancer, des anomalies congénitales ou d'autres effets nuisibles à la
reproduction. Creative a choisi d'inclure une mise en garde s'appuyant sur sa connaissance de la
présence d'un ou de plusieurs de ces produits chimiques sans essayer d'en évaluer le niveau d'e-
xposition. Pour les produits de Creative, le niveau d'exposition peut être inférieur au niveau critique
établi par la Proposition 65 ou même être nul. Néanmoins, par souci extrême de prudence, Creative
a choisi de placer l'avertissement de la Proposition 65 sur ses produits.
Notice for Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CANADIAN CLASS B STATEMENT: This digital device does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the interference-causing equipment standard
entitled "Digital Apparatus," ICES-003 of the Department of Communications.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils
numeriques de Classe B prescrites dans la norme sur le materiel brouilleur: "Appareils Numeriques,"
NMB-003 edictee par le ministre des Communications.
- 52 -
![](/img.php?id=1481432&img=bg35.png)
ZENStyle M100/M300 User Guide
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the device.
Toute modification non approuvée explicitement par le fournisseur de licence de l'appareil peut
entraîner l'annulation du droit de l'utilisateur à utiliser l'appareil.
European Compliance
This product conforms to the following:
EMC Directive 2004/108/EC.
Mains operated products for the European market comply with Low Voltage Directive 2006/95/EC
and Commission Regulation(s) Implementing Directive (2005/32/EC).
Communication / RF wireless products for the European market comply with R&TTE Directive
1999/5/EC.
CAUTION: To comply with the Europe CE requirement, this device must be installed with CE certified
computer equipment which meet with Class B limits.
All cables used to connect this device must be shielded, grounded and no longer than 3m in length.
Operation with non-certified computers or incorrect cables may result in interference to other
devices or undesired effects to the product.
MODIFICATION: Any changes or modifications not expressly approved by Creative Technology Lim-
ited or one of its affiliated companies could void the user's warranty and guarantee rights.
WEEE Statement
The use of the WEEE Symbol indicates that this product may not be treated as
household waste. By ensuring this product is disposed of correctly, you will help
protect the environment. For more detailed information about the recycling of
this product, please contact your local authority, your household waste disposal
service provider or the shop where you purchased the product.
Batteries Directive 2006/66/EC
FOR REMOVABLE BATTERY (Li-ion/polymer, button/coin cells, cylindrical
cells)
This product contains one or more of the above removable batteries. The crossed-out
wheeled bin symbol indicates that the battery in this product should not be treated as
unsorted municipal waste upon reaching its end of life. Instead it should be taken to sep-
arate collection and recycling schemes. Batteries containing heavy metal content will
have a two-letter symbol for the chemical under the crossed-out wheeled bin symbol.
'Cd' stands for cadmium, 'Pb' for lead, and 'Hg' for mercury. You can help the envi-
ronment and avoid public health hazards by recycling the battery at an authorized recy-
cling facility or the place of purchase. To find the nearest authorized recycle centre
contact your local authority. Instructions for removing the battery can be found in the
product user manual. The instructions should be followed carefully before attempting to
remove the battery.
FOR INTEGRATED BATTERY
This product contains a Lithium ion/polymer battery that should only be removed by an
authorized recycling centre. By recycling this product at your local authorized recycling
centre or the place of purchase, the battery will be removed and recycled separately.
Notice for Japan
Recycling Rechargeable Battery
Lithium rechargeable battery is a resource that can be recycled.
- 53 -
![](/img.php?id=1481432&img=bg36.png)
ZENStyle M100/M300 User Guide
lFor recycling of embedded lithium rechargeable batteries inside Creative products, please do not
attempt to remove the battery from the device. For recycling information and instruction, please go to
Creative Media K K customer support at http://jp.creative.com/support/contact/ (in Japanese)
lFor recycling of replaceable (removable) lithium rechargeable batteries:
oIt is recommended to remove the rechargeable batteries when they are fully discharged.
oPrecaution needs to be taken on metal parts of the battery by covering them with isolation mate-
rials such as scotch tape.
oRefer to the homepage of JBRC for information on recycling and recovery of rechargeable batteries
and supporting shops. (http://www.jbrc.com/)
Notice for Australia and New Zealand
This product complies with the requirements of the ACMA Radiocommunications (Electromagnetic
Compatibility) Standard 2008.
Notice for Korea
B급 기기
(가정용 방송통신기자재)
이 기기는 가정용(B급)전자파적합기기로서 주로 가정에서 사용하는 것을 목적으로 하
며,모든 지역에서 사용할 수 있습니다.
Safety Information
Refer to the following information to use your product safely, and to reduce the chance of electric
shock, short-circuiting, damage, fire, hearing impairment or other hazards. Improper handling may
void the warranty for your product. For more information, read the warranty available with
your product.
lDo not dismantle or attempt to repair your product.
Refer all servicing to authorized repair agents.
lDo not expose your product to temperatures outside the range of 0°C to 45°C (32°F to 113°F).
lDo not pierce, crush or set fire to your product.
lKeep your product away from strong magnetic objects.
lDo not subject your product to excessive force or impact.
lDo not expose your product to water or moisture.
If your product is moisture-resistant, take care not to immerse your product in water or expose it to
rain.
lThe socket outlet shall be installed near the equipment and shall be easily accessible.
Earphones
lWhen a conductive apparatus such as earphones, is used in close proximity with a CRT television or
CRT monitor, the latter may emit an electrostatic discharge. This electrostatic discharge can be felt as
a static shock. While this static shock is usually harmless, it is good practice to avoid close contact
with CRT devices when using earphones.
lDo not listen to audio on your earbuds or headphones at high volume for prolonged periods of time as
hearing loss may result. For users in the United States, go to www.hei.org for more information.
lDo not listen to your audio device at high volume when driving, cycling or crossing the road, espe-
cially in heavy traffic, or in any other traffic condition where such use will hinder safe travel on the
roads. We recommend that consumers be extremely cautious when using this device on the road.
- 54 -
![](/img.php?id=1481432&img=bg37.png)
ZENStyle M100/M300 User Guide
Embedded Battery
lDo not attempt to remove the embedded battery.
The product must be disposed of according to local environmental regulations. To replace the battery,
return your product to your regional support office. For product service information, go to www.cr-
eative.com.
lDo not expose to excessive heat such as sunlight, fire or the like.
CAUTION: Risk of explosion if battery is replaced by incorrect types.
Avoiding Hearing Damage
Permanent hearing loss may occur if the player is used at high volume. Set the volume to a safe
level. You can adapt over time to a higher volume of sound that may sound normal but can be dam-
aging to your hearing. If you experience ringing in your ears or muffled speech, stop listening and
have your hearing checked. The louder the volume, the less time is required before your hearing
could be affected. Hearing experts suggest that to protect your hearing:
lLimit the amount of time you use the player at high volume.
lAvoid turning up the volume to block out noisy surroundings.
lTurn the volume down if you can’t hear people speaking near you.
- 55 -
![](/img.php?id=1481432&img=bg38.png)
ZENStyle M100/M300 User Guide
Safety and Regulatory Information for M300
The following sections contain notices for various countries.
CAUTION: This product is intended for use with FCC/CE certified computer equipment. Please check
the equipment operating/installation manual and/or with the equipment manufacturer to ver-
ify/confirm if your equipment is suitable prior to the installation or use of the product.
Notice for the USA
Federal Communication Commission (FCC) Interference Statement
FCC Part 15: This equipment has been tested and found to comply with the limits for a Class B dig-
ital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
lReorient or relocate the receiving antenna.
lIncrease the separation between the equipment and receiver.
lConnect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
lConsult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two con-
ditions:
lThis device may not cause harmful interference, and
lThis device must accept any interference received, including interference that may cause undesired
operation.
CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC
Rules, this device must be installed with computer equipment certified to comply with Class B limits.
All cables used to connect to the computer and peripherals must be shielded and grounded. Oper-
ation with non-certified computers or non-shielded cables may results in interference to radio or tel-
evision reception.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the device.
Federal Communication Commission (FCC) Radiation Exposure Statement
Power is so low that no RF exposure calculation is needed.
DECLARATIONOFCONFORMITY
Manufacturer/Importer's Name:
Creative Labs, Inc.
Manufacturer/Importer's Address:
1901 McCarthy Boulevard
Milpitas, CA. 95035
United States
Tel: (408) 428-6600
declares under its sole responsibility that the product
Trade Name:
Creative Labs
Model Number:
DVP-FL0017
- 56 -
![](/img.php?id=1481432&img=bg39.png)
ZENStyle M100/M300 User Guide
has been tested according to the FCC/CISPR22 requirement for Class B devices and found compliant
with the following standards:
EMI/EMC: ANSI C63.4, FCC Part 15 Subpart B &C
Complies with Canadian ICES-003 Class B and RSS-210 Standards
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesirable
operation.
Ce matériel est conforme à la section 15 des régles FCC.
Son Fonctionnement est soumis aux deux conditions suivantes:
1. Le matériel ne peut étre source D'interférences et
2. Doit accepter toutes les interférences reques, Y compris celles pouvant provoquer un fonctionnement
indésirable.
Compliance Manager
Creative Labs, Inc.
May 31, 2011
California Proposition 65 Statement
WARNING: Handling this product may expose you to chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm.
Wash hands after handling.
Explanatory Note: California Safe Drinking Water and Toxic Enforcement Act of 1986 (Proposition
65) requires special product labeling for products containing certain chemicals known to the State of
California to cause cancer, birth defects or other reproductive harm. Creative has chosen to provide
a warning based on its knowledge about the presence of one or more listed chemicals without
attempting to evaluate the level of exposure. With Creative's products, the exposure may be below
the Proposition 65 level of concern, or could even be zero. However, out of an abundance of caution,
Creative has elected to place the Proposition 65 warning on its products.
Déclaration de la Proposition 65 de la Californie
AVERTISSEMENT: La manipulation de ce produit peut vous exposer à des produits chimiques qui
sont reconnus par l'État de la Californie comme pouvant provoquer le cancer, des anomalies con-
génitales ou d'autres effets nuisibles à la reproduction.
Veuillez vous laver les mains après l'avoir manipuler.
Note explicative: La Proposition 65 (California Safe Drinking Water and Toxic Enforcement Act of
1986) de la Californie sur les matières dangereuses et l'eau potable exige un étiquetage spécial pour
les produits contenant certains produits chimiques qui sont reconnus par l'État de la Californie
comme pouvant provoquer le cancer, des anomalies congénitales ou d'autres effets nuisibles à la
reproduction. Creative a choisi d'inclure une mise en garde s'appuyant sur sa connaissance de la
présence d'un ou de plusieurs de ces produits chimiques sans essayer d'en évaluer le niveau d'e-
xposition. Pour les produits de Creative, le niveau d'exposition peut être inférieur au niveau critique
établi par la Proposition 65 ou même être nul. Néanmoins, par souci extrême de prudence, Creative
a choisi de placer l'avertissement de la Proposition 65 sur ses produits.
Notice for Canada
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Cet appareil numérique de classe B est conforme aux normes canadiennes NMB-003 et CNR-210.
This device complies with Industry Canada licence-exempt RSS standard.
Operation is subject to the following two conditions:
- 57 -
![](/img.php?id=1481432&img=bg3a.png)
ZENStyle M100/M300 User Guide
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause unde-
sirable operation.
Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence.
Son Fonctionnement est soumis aux deux conditions suivantes :
(1) Le matériel ne peut étre source D’interférences et
(2) Doit accepter toutes les interférences reques, Y compris celles pouvant provoquer un fonc-
tionnement indésirable.
CANADIAN CLASS B STATEMENT: This digital device does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the interference-causing equipment standard
entitled "Digital Apparatus," ICES-003 of the Department of Communications.
Cet appareil numerique respecte les limites de bruits radioelectriques applicables aux appareils
numeriques de Classe B prescrites dans la norme sur le materiel brouilleur: "Appareils Numeriques,"
NMB-003 edictee par le ministre des Communications.
MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the device.
Toute modification non approuvée explicitement par le fournisseur de licence de l'appareil peut
entraîner l'annulation du droit de l'utilisateur à utiliser l'appareil.
European Compliance
This product conforms to the following:
EMC Directive 2004/108/EC.
Mains operated products for the European market comply with Low Voltage Directive 2006/95/EC
and Commission Regulation(s) Implementing Directive (2005/32/EC).
Communication / RF wireless products for the European market comply with R&TTE Directive
1999/5/EC.
CAUTION: To comply with the Europe CE requirement, this device must be installed with CE certified
computer equipment which meet with Class B limits.
All cables used to connect this device must be shielded, grounded and no longer than 3m in length.
Operation with non-certified computers or incorrect cables may result in interference to other
devices or undesired effects to the product.
MODIFICATION: Any changes or modifications not expressly approved by Creative Technology Lim-
ited or one of its affiliated companies could void the user's warranty and guarantee rights.
WEEE Statement
The use of the WEEE Symbol indicates that this product may not be treated as household
waste. By ensuring this product is disposed of correctly, you will help protect the envi-
ronment. For more detailed information about the recycling of this product, please con-
tact your local authority, your household waste disposal service provider or the shop
where you purchased the product.
- 58 -
![](/img.php?id=1481432&img=bg3b.png)
ZENStyle M100/M300 User Guide
Batteries Directive 2006/66/EC
FOR REMOVABLE BATTERY (Li-ion/polymer, button/coin cells, cylindrical
cells)
This product contains one or more of the above removable batteries. The crossed-out
wheeled bin symbol indicates that the battery in this product should not be treated as
unsorted municipal waste upon reaching its end of life. Instead it should be taken to sep-
arate collection and recycling schemes. Batteries containing heavy metal content will
have a two-letter symbol for the chemical under the crossed-out wheeled bin symbol.
'Cd' stands for cadmium, 'Pb' for lead, and 'Hg' for mercury. You can help the envi-
ronment and avoid public health hazards by recycling the battery at an authorized recy-
cling facility or the place of purchase. To find the nearest authorized recycle centre
contact your local authority. Instructions for removing the battery can be found in the
product user manual. The instructions should be followed carefully before attempting to
remove the battery.
FOR INTEGRATED BATTERY
This product contains a Lithium ion/polymer battery that should only be removed by an
authorized recycling centre. By recycling this product at your local authorized recycling
centre or the place of purchase, the battery will be removed and recycled separately.
DECLARATION OF CONFORMITY
According to R&TTE Directive (1999/5/EC)
Company Name:
Creative Technology Ltd
Company Address:
31, International Business Park
Creative Resource
Singapore 609921
Declare under our sole responsibility that the product(s):
Product Name:
Creative ZEN Style M300
Model Number:
DVP-FL0017
Intended Use:
Indoor and Outdoor Usage
To which this declaration relates are in conformity with the following standard(s):
Radio:
EN 300 328 V1.7.1: 2006
EMI/EMC:
EN 55013:2001 +A1:2003 +A2:2006
EN 55020:2007
EN 55022: 2006 + A1: 2007
EN 55024: 1998 + A1: 2001 + A2: 2003
EN 61000-3-2:2006 + A1:2009 + A2:2009
EN 61000-3-3:2008
EN 301 489-1 V1.8.1: 2008
EN 301 489-17 V2.1.1: 2009
Safety:
EN 60950-1: 2006 + A11: 2009
Supplementary Information:
Annex I of EC No 278/2009 and Annex II of EC No. 1275/ 2008 are not applicable for this product.
Technical documentation for this product(s) is retained at the following address:
Company Name:
Creative Technology Ltd
- 59 -
![](/img.php?id=1481432&img=bg3c.png)
ZENStyle M100/M300 User Guide
Company Address:
31, International Business Park
Creative Resource
Singapore 609921
UK: Hereby, Creative Technology Ltd. declares that this wireless device is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC.
FR: Par la présente Creative Technology Ltd. déclare que l’appareil totalement sans fil est conforme
aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/EC.
IT: Con la presente Creative Technology Ltd. dichiara che questo dispositivo wireless è conforme ai
requisiti essenziali e alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/EC.
DE: Hiermit erklärt Creative Technology Ltd, dass dieses drahtlose Gerät die grundlegenden Anford-
erungen und weitere relevante Vorschriften der Richtlinie 1999/5/EG erfüllt.
ES: Por medio de la presente, Creative Technology Ltd. declara que el dispositivo inalámbrico cum-
ple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Direc-
tiva 1999/5/CE.
NL: Bij deze verklaart Creative Technology Ltd. dat dit draadloze apparaat voldoet aan de essentiële
eisen en aan overige relevante bepalingen van Richtlijn 1999/5/EC.
PT: Por meio deste documento, a Creative Technology Ltd. declara que este dispositivo sem fio está
em conformidade com os requisitos essenciais e com outras cláusulas relevantes da Diretiva
1999/5/EC.
SV: Härmed intygar Creative Technology Ltd. att denna trådlösa enhet står i överensstämmelse med
de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
DA: Creative Technology Ltd. erklærer hermed, at denne trådløse enhed overholder de væsentlige
krav og andre relevante bestemmelser i Direktiv 1999/5/EØ.
FI: Creative Technology Ltd. vakuuttaa täten, että tämä langaton laite on direktiivin 1999/5/ EY oleel-
listen vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
NO: Creative Technology Ltd. erklærer herved at denne trådløse enheten er i overensstemmelse
med vesentlige krav og andre relevante bestemmelser i EU-direktivet 1999/5/EC.
RU: Настоящим компания Creative Technology Ltd. заявляет, что данное беспроводное изделие
соответствует необходимым требованиями и прочим применимым положениям Директивы
1999/5/EC.
PL: Firma Creative Technology Ltd. niniejszym oświadcza, że urządzenie bezprzewodowe jest
zgodne z podstawowymi wymaganiami i innymi właściwymi postanowieniami dyrektywy 1999/5/WE.
CZ: Creative Technology Ltd. tímto potvrzuje, že bezdrátové zařízení splňuje podstatné požadavky a
jiné závazné předpisy Direktivy 1999/5/EC.
HU: A Creative Technology Ltd. kijelenti, hogy ez a vezeték nélküli készülék megfelel az 1999/5/EK
számú direktíva alapvető követelményeinek és egyéb releváns elvárásainak.
EL: Με το παρόν, η Creative Technology Ltd, δηλώνει ότι αυτή η ασύρματη συσκευή συμμορφώνεται
με τις βασικές προδιαγραφές και τις λοιπές σχετικές προϋποθέσεις της οδηγίας 1999/5/EC.
LT: „Creative Technology Ltd.“ skelbia, kad šis belaidis prietaisas atitinka esminius direktyvos
1999/5/EB reikalavimus ir kitas susijusias jos nuostatas.
SK: Spoločnosť Creative Technology Ltd. týmto deklaruje, že toto bezdrôtové zariadenie je v súlade
so základnými požiadavkami a ostatnými relevantnými ustanoveniami Nariadenia 1999/5/EC.
- 60 -
![](/img.php?id=1481432&img=bg3d.png)
ZENStyle M100/M300 User Guide
Notice for Japan
Recycling Rechargeable Battery
Lithium rechargeable battery is a resource that can be recycled.
lFor recycling of embedded lithium rechargeable batteries inside Creative products, please do not
attempt to remove the battery from the device. For recycling information and instruction, please go to
Creative Media K K customer support at http://jp.creative.com/support/contact/ (in Japanese)
lFor recycling of replaceable (removable) lithium rechargeable batteries:
oIt is recommended to remove the rechargeable batteries when they are fully discharged.
oPrecaution needs to be taken on metal parts of the battery by covering them with isolation mate-
rials such as scotch tape.
oRefer to the homepage of JBRC for information on recycling and recovery of rechargeable batteries
and supporting shops. (http://www.jbrc.com/)
Notice for Australia and New Zealand
This product complies with the requirements of the ACMA Radiocommunications (Electromagnetic
Compatibility) Standard 2008.
Notice for Singapore
Notice for Taiwan
敬告使用者:
1. 本產品使用時,不致造成違反低功率電波輻射性電機管理辦法之控制、調整及
開關之使用方法。
2. 本產品不得任意調整更改各項零件或對於發射之功率影響之作為,若有操作問
題請與本公司人員聯繫;並由本公司負起監督及維修之責任。
3. 根據交通部低功率電波輻射性電機管理辦法規定:
第十二條
經型式認證合格之低功率射頻電機,非經許可,公司、商號或使用者均不得擅
自變更頻率、加大功率或變更原設計之特性及功能。
第十四條
低功率射頻電機之使用不得影響飛航安全及干擾合法通信;經發現有干擾現象
時,應立即停用,並改善至無干擾時方得繼續使用。
前項合法通信,指依電信法規定作業之無線電通信。
- 61 -
![](/img.php?id=1481432&img=bg3e.png)
ZENStyle M100/M300 User Guide
低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之
干擾。
Notice for Korea
B급 기 기
(가정용 방송통신기자재)
이 기기는 가정용(B급)전자파적합기기로서 주로 가정에서 사용하는 것을 목적으로 하
며,모든 지역에서 사용할 수 있습니다.
Safety Information
Refer to the following information to use your product safely, and to reduce the chance of electric
shock, short-circuiting, damage, fire, hearing impairment or other hazards. Improper handling may
void the warranty for your product. For more information, read the warranty available with
your product.
lDo not dismantle or attempt to repair your product.
Refer all servicing to authorized repair agents.
lDo not expose your product to temperatures outside the range of 0°C to 45°C (32°F to 113°F).
lDo not pierce, crush or set fire to your product.
lKeep your product away from strong magnetic objects.
lDo not subject your product to excessive force or impact.
lDo not expose your product to water or moisture.
If your product is moisture-resistant, take care not to immerse your product in water or expose it to
rain.
lThe socket outlet shall be installed near the equipment and shall be easily accessible.
Earphones
lWhen a conductive apparatus such as earphones, is used in close proximity with a CRT television or
CRT monitor, the latter may emit an electrostatic discharge. This electrostatic discharge can be felt as
a static shock. While this static shock is usually harmless, it is good practice to avoid close contact
with CRT devices when using earphones.
lDo not listen to audio on your earbuds or headphones at high volume for prolonged periods of time as
hearing loss may result. For users in the United States, go to www.hei.org for more information.
lDo not listen to your audio device at high volume when driving, cycling or crossing the road, espe-
cially in heavy traffic, or in any other traffic condition where such use will hinder safe travel on the
roads. We recommend that consumers be extremely cautious when using this device on the road.
Embedded Battery
lDo not attempt to remove the embedded battery.
The product must be disposed of according to local environmental regulations. To replace the battery,
return your product to your regional support office. For product service information, go to www.cr-
eative.com.
lDo not expose to excessive heat such as sunlight, fire or the like.
CAUTION: Risk of explosion if battery is replaced by incorrect types.
Bluetooth Device
lThe short wave radio frequency signals of a Bluetooth device may impair the operation of other elec-
tronic and medical devices.
lSwitch off the device where it is prohibited. Do not use the device in medical facilities, aircraft, refu-
eling points, close to automatic doors, automatic fire alarms or other automatically controlled devices.
lKeep this device at least 20 cm from pacemakers and other medical devices. Radio waves may impair
the operation of pacemakers and other medical devices.
Avoiding Hearing Damage
Permanent hearing loss may occur if the player is used at high volume. Set the volume to a safe
level. You can adapt over time to a higher volume of sound that may sound normal but can be
- 62 -
![](/img.php?id=1481432&img=bg3f.png)
ZENStyle M100/M300 User Guide
damaging to your hearing. If you experience ringing in your ears or muffled speech, stop listening
and have your hearing checked. The louder the volume, the less time is required before your hearing
could be affected. Hearing experts suggest that to protect your hearing:
lLimit the amount of time you use the player at high volume.
lAvoid turning up the volume to block out noisy surroundings.
lTurn the volume down if you can’t hear people speaking near you.
- 63 -
![](/img.php?id=1481432&img=bg40.png)
ZENStyle M100/M300 User Guide
License and Copyright
Information in this document is subject to change without notice and does not represent a com-
mitment on the part of Creative Technology Ltd. No part of this manual may be reproduced or trans-
mitted in any form or by any means, electronic or mechanical, including photocopying and recording,
for any purpose without the written permission of Creative Technology Ltd.
ZEN and the Creative logo are trademarks or registered trademarks of Creative Technology Ltd. in
the United States and/or other countries. Microsoft and Windows are trademarks or registered trade-
marks of Microsoft Corporation in the United States and/or other countries. Intel and Pentium are reg-
istered trademarks of Intel Corporation in the United States and/or other countries.
Gracenote is CDDB, Inc. d/b/a ""Gracenote."" CD and music-related data from Gracenote CDDB®
Music Recognition ServiceSM © 2000, 2001, 2002 Gracenote. Gracenote CDDB Client Software ©
2000, 2001, 2002 Gracenote. U.S. Patents Number #5,987,525; #6,061,680; #6,154,773, and other
patents issued or pending.
CDDB is a registered trademark of Gracenote. The Gracenote logo and logotype, the Gracenote
CDDB logo and logotype, and the "Powered by Gracenote CDDB" logo are trademarks of Gracenote.
Music Recognition Service and MRS are service marks of Gracenote.
All other products are trademarks or registered trademarks of their respective owners.
Copyright © 2011 by Creative Technology Ltd. All rights reserved.
Version 1.00.00
April 2011
- 64 -
