Introduction
ZiiO is a portable entertainment center, an Internet access, a game station, an e-book
reader, and much more. This versatile touchscreen device runs the Android™ operating
system, enabling you to easily install more applications from thousands of cool choices
on the Web.
Getting Started
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (2 of 21)10/20/2010 12:35:53 PM
Contents

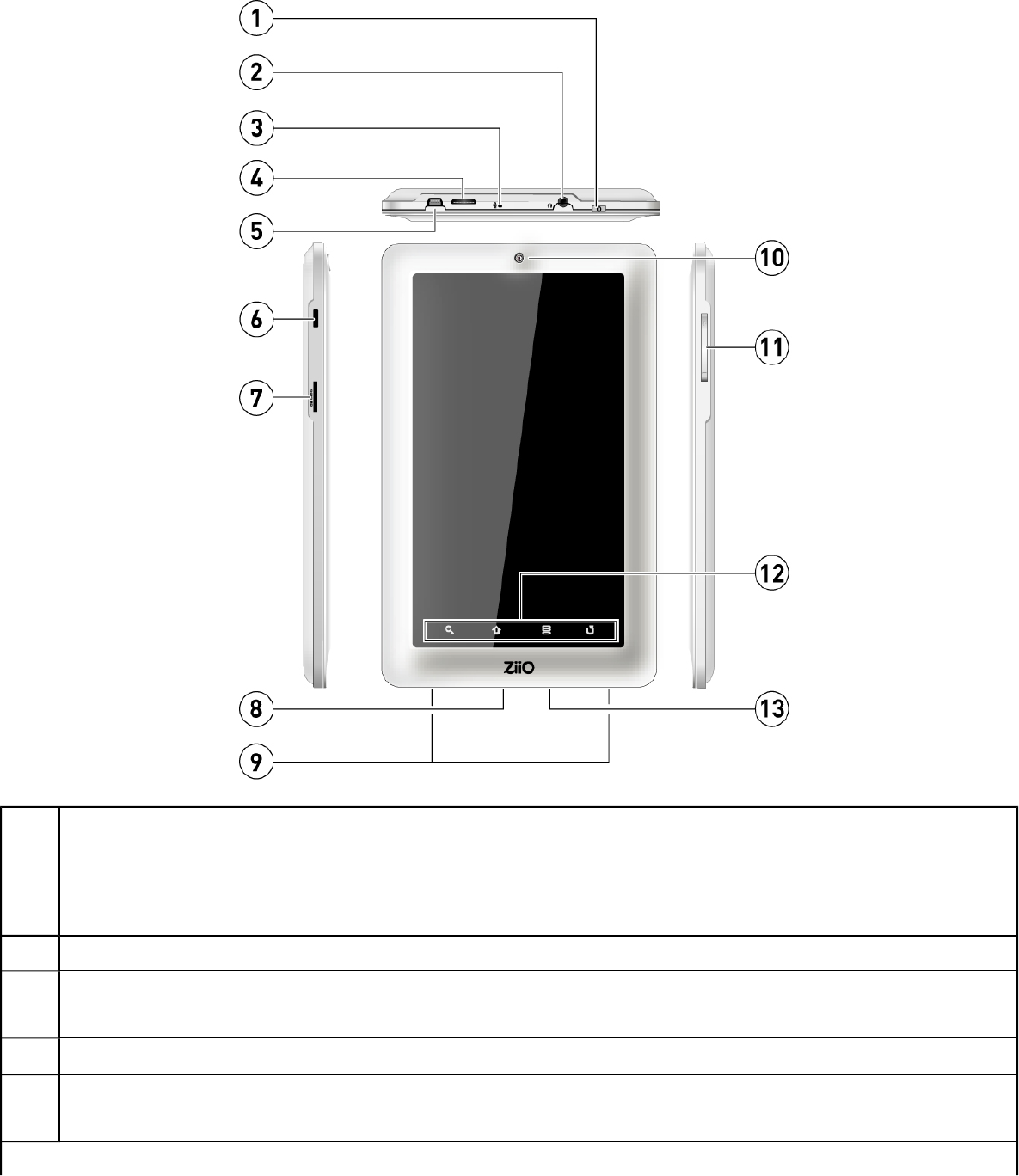

Your Device at a Glance
1
Power On/Off
Sleep / Wake Up
Press and hold to turn on/off.
Press wake up /sleep.
2Earphone Jack
3Microphone
When recording audio, keep this close to the source.
4HDMI Port
5Micro-USB Port
Connects your device to a computer.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (3 of 21)10/20/2010 12:35:53 PM
Contents
6Mini-USB Port
7MicroSD Card Slot
See Inserting and Removing a microSD card.
8LED
Turns on when charging.
Turns off when fully charged.
9Stereo Speakers
10 Camera
11 Volume
Press + or – to adjust the volume.
12 Function Buttons
See Function Buttons.
13 Power Adapter Jack
Connects to a power outlet for charging.
Back to top
Charging
Before you turn on your device for the first time, charge it from a wall socket with the use
of the included power adapter. Initial charging may take up to 6 hours. The LED is
turned on while your device is charging. When the battery is full, the LED turns off.
Assembling the Power Adapter

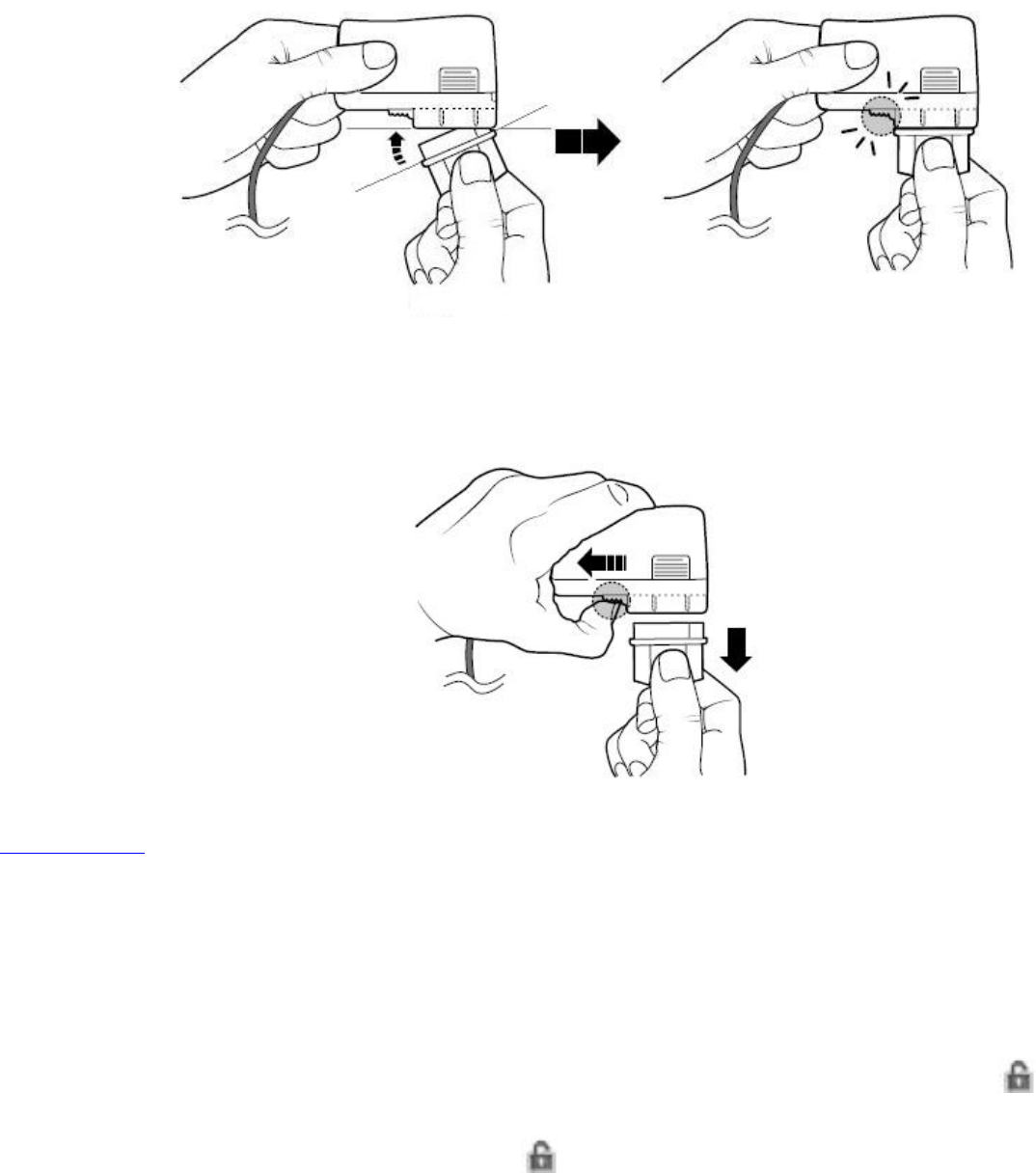

If there are several plug heads available, select one that matches your wall socket.
Mount the plug head onto the power adapter base until it locks in place. Note that the
plug head must be inserted approximately at the same angle as shown in the figure
below. After locking, make sure that it is firmly secured.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (4 of 21)10/20/2010 12:35:53 PM
Contents
If you need to remove the plug head from the power adapter base, pull the latch to
release the plug head, and gently remove it from the base.
Back to top
Turning On/Off, Unlocking
To turn on, press and hold the Power button until the screen lights up. Notice that the
screen is locked every time your player turns on (as denoted by the Lock icon ).
To unlock, touch and drag the Lock icon upwards.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (5 of 21)10/20/2010 12:35:53 PM
Contents
To turn off your device, press , and touch Shutdown> Power off > OK. Alternatively,
you can press and hold the Power button, and tapPower off > OK.
Back to top
Setting to Sleep and Waking Up
To let ZiiO sleep, press the Power button. The screen goes black as your device goes
into Sleep mode.
Note:
To conserve battery power, your device automatically goes into Sleep mode after a
certain preset period of inactivity. To set the time duration before your device
automatically sleeps, seeSetting the Screen Brightness, Timeout, and Orientation.
To wake your device up, press the Power button. Note that the screen is locked every
time your player wakes up. To unlock the screen, touch and drag the Lock icon
upwards.
Back to top
Inserting and Removing a microSD Card
Inserting a Memory Card
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (6 of 21)10/20/2010 12:35:53 PM
Contents
Ejecting a Memory Card
Note:
If your device is on, before you eject the microSD card, press , touch Settings > SD
card & local storage > Unmount external SD card.
Back to top
Connecting to a Computer
1. Connect to your computer with the use of the included USB cable.
2. On the device, touch Mount on the popup box that appears.
Your device will appear as a removable disk drive on your computer. If a microSD card
is inserted on the device, this will appear as another disk drive.
Back to top
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (7 of 21)10/20/2010 12:35:53 PM
Contents
Navigating your Device
Screen Gestures
Gesture What it does
Touch
● Select an item
● Launch an application
● Enter characters using the onscreen keyboard.
Touch and hold
● "Lift" an item from the Home Screen so that you can drag it somewhere
else.
● Shows the Context Menu (if on an empty space on the Home Screen)
Drag
● Slowly pan through a photo that is larger than the screen.
● Slowly scroll through a list.
● Pull down the Status bar to see the Notification panel. See Notification
Panel.
Swipe
● Pan through a photo or webpage.
● Move from one Home Screen panel to the next.
● Scroll through a list.
Double-tap ● Zoom into or out of a photo or Webpage.
Back to top
About the Home Screen

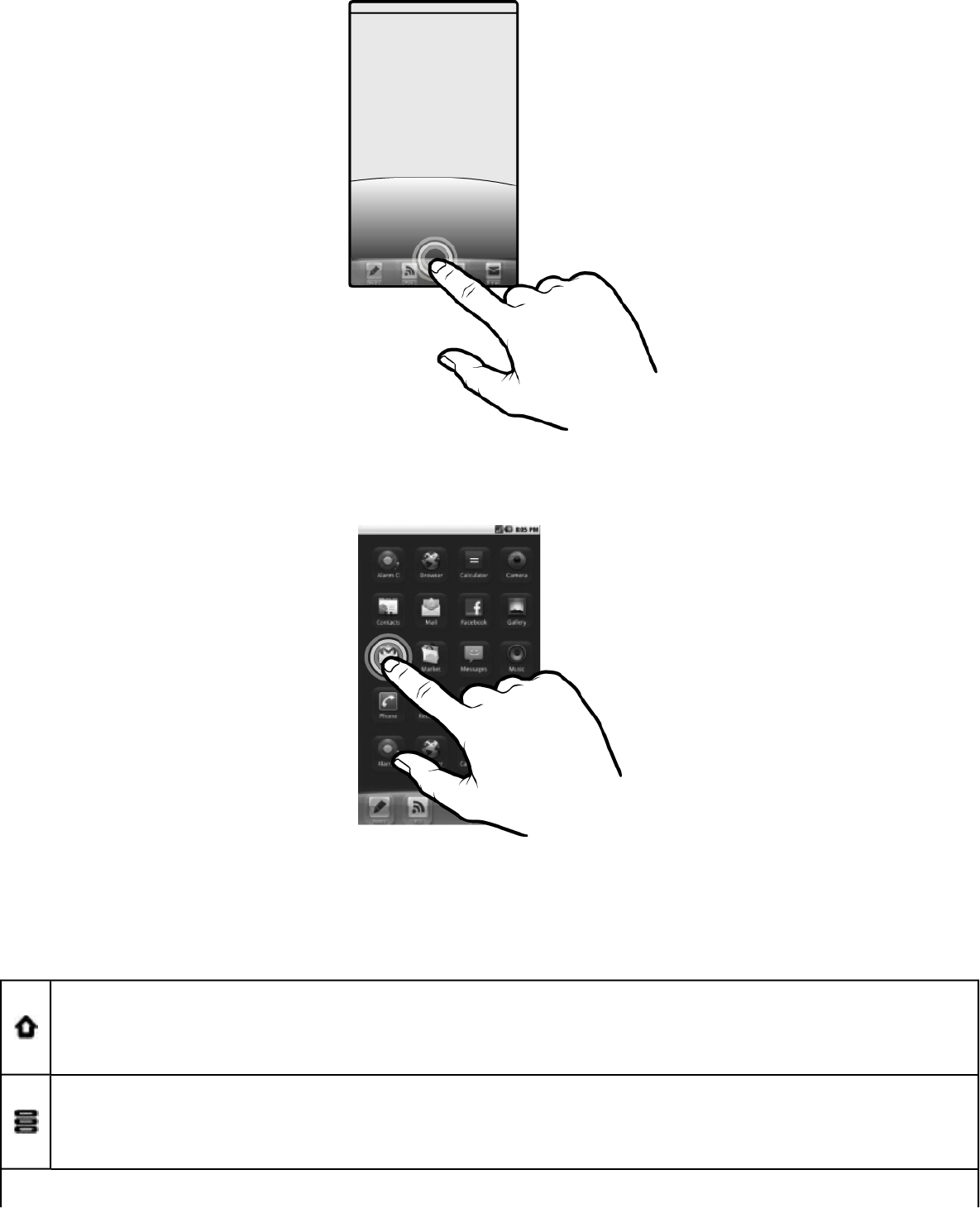

The Home Screen extends further than what you currently see on the display. It consists
of 2 layers with 3 panels each.
To move across the panels, swipe your finger towards the left or right.
To bring up the second layer, swipe upwards.
To return to the first layer, swipe downwards.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (8 of 21)10/20/2010 12:35:53 PM
Contents
The panels of the Home Screen are “customizable,” where you can add your choice of
application icons, widgets, and other items.
See also Customizing the Home Screen.
Back to top
About the Launcher Screen
The Launcher screen contains all the applications installed on your ZiiO. To show or
hide the Launcher, tap or .
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (9 of 21)10/20/2010 12:35:53 PM
Contents
To start an application from the Launcher, tap the application's icon.
Function Buttons
Home
Press to return to the Home Screen at any time.
Press and hold to display recently opened applications.
Menu
Press to display the available menu for the current screen.
Press and hold to show the on-screen keyboard.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (10 of 21)10/20/2010 12:35:53 PM
Contents
Back
Press to return to the previous screen.
Search
Press to search for items on your device or the Web.
Back to top
Icons on the Status Bar

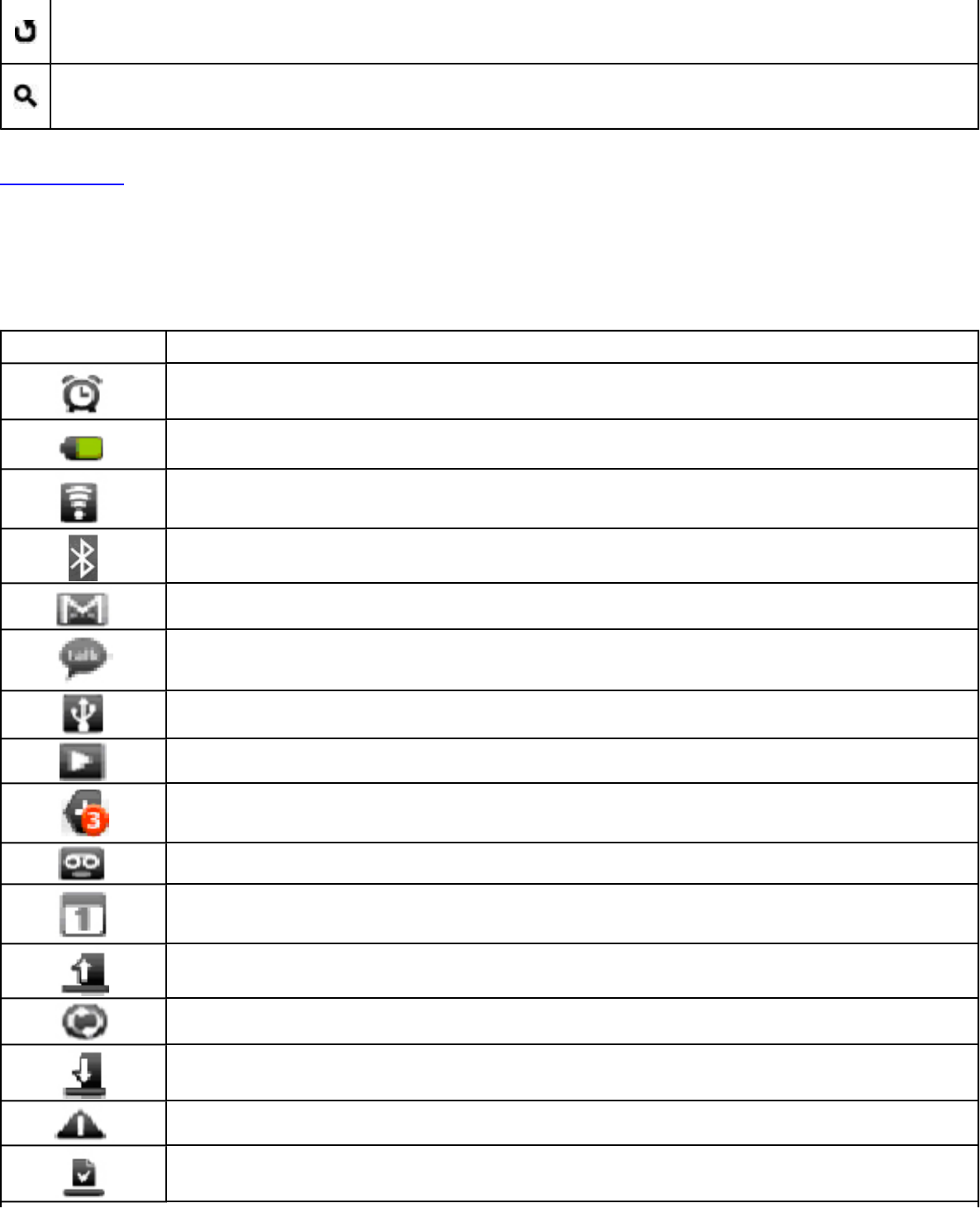

Icon Meaning
Alarm On
Battery Status
Wi-Fi On
Bluetooth On
New e-mail message
New instant message
Connected via USB Cable
Music is Playing
More notifications not displayed
New Voicemail
Upcoming Event
Uploading Data
Syncing Data
Downloading Data
New Notifications
Download Finished
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (11 of 21)10/20/2010 12:35:53 PM
Contents

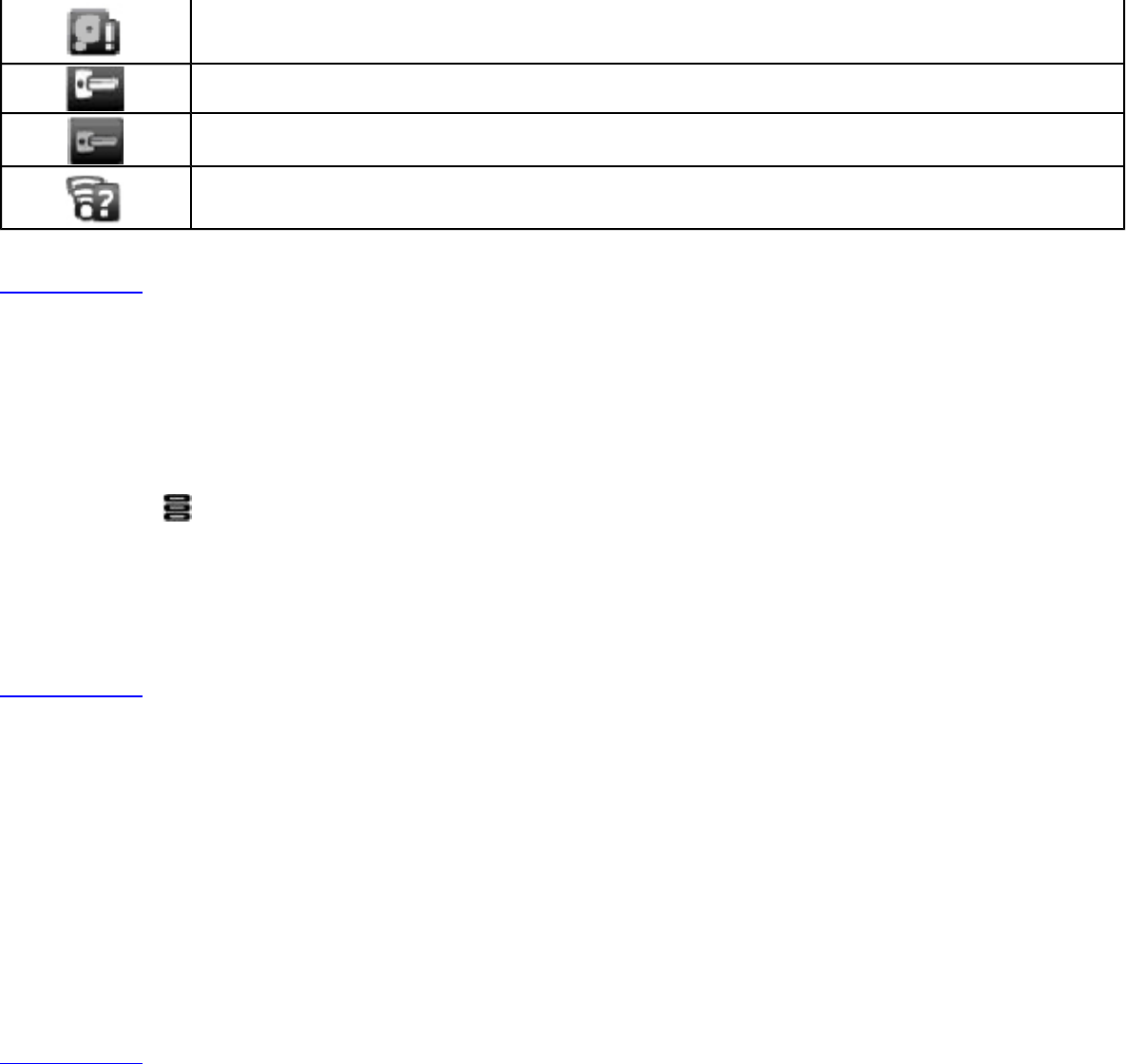

microSD Card is Full
Connected to VPN
Disconnected from VPN
An Open Wi-Fi Network is Available
Back to top
Notification Panel
The Notification panel contains a list of your current notifications. To view the notification
panel, press and tap Notifications.
Alternatively, you can tap and hold the Status bar, and then drag it down to show the
Notification panel
Back to top
Entering Text
When you need to enter text such as a password or a URL (on the Browser), simply
touch the textbox. This brings up the onscreen keyboard.
If you want to select another keyboard language, tap and hold the text box.
Back to top
Context Menus
The context menu contains tools and options that apply to certain items on the screen.
For example, touch and hold an empty area on the Home Screen, and a context menu
pops up.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (12 of 21)10/20/2010 12:35:53 PM
Contents
Note that not all items have context menus.
Back to top
Customizing the Home Screen
Changing the Wallpaper
1. Press to make sure you are on the Home Screen.
2. Press .
3. Tap Wallpaper and select the wallpaper location.
4. Tap a wallpaper of your choice.
When selecting from your own set of image files, you can still set the coverage of the
wallpaper. Notice that the selected image has initial borders that show the coverage
area. Touch and drag the border lines to increase the area. To drag the box to a
specified location without increasing the coverage, touch and hold the at the center of
the box.
Back to top
Adding an Item to the Home Screen
You can fill the Home Screen panels with your choice of icons, widgets, and other items.
1. Press to make sure you are on the Home Screen.
2. Scroll to the panel where you want an item added.
3. Press .
4. Touch Add.
5. From the popup box, select the item type, followed by the item to be added on the
screen.
Back to top
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (13 of 21)10/20/2010 12:35:53 PM
Contents
Moving an Item on the Home Screen
Touch and hold an item until it appears to vibrate. Drag and drop it into an empty part of
the screen.
Back to top
Removing an Item from the Home Screen
Touch and hold an item until it appears to vibrate, and drag it into the trash bin icon that
appears at the bottom of the screen.
Note:
This procedure refers to removing items from the customizable area only. To uninstall an
application, see Installing More Applications .
Back to top
Pure Android Audio

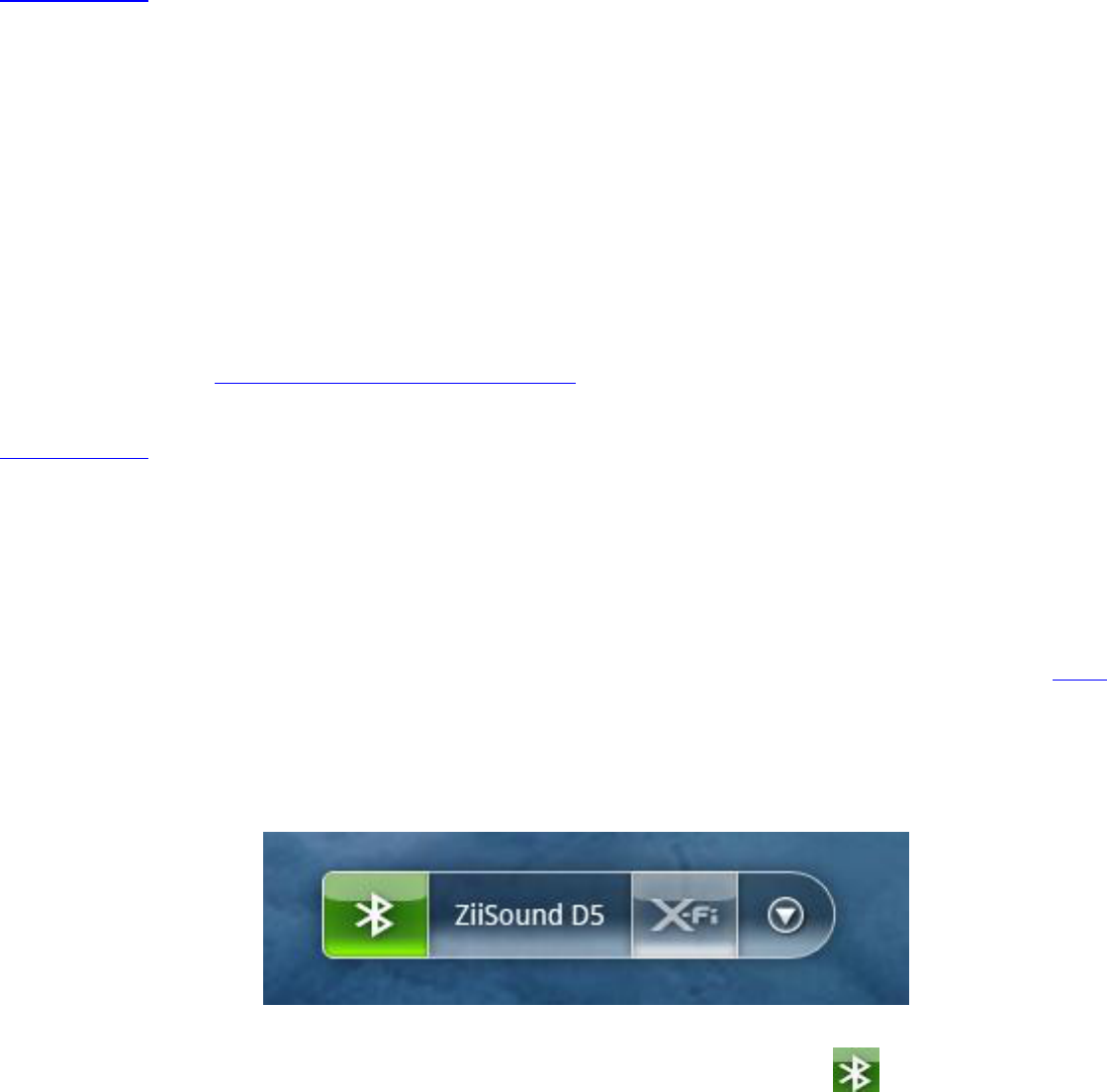

The Pure Android Audio widget gives you to easy access to the Bluetooth® and X-Fi
settings. You can instantly connect to your Bluetooth-ready devices such as speakers
and sound systems, and at the same time, you can immediately turn on/off the X-Fi
enhancements.
● To connect to an available Bluetooth device within range, tap , and select a device.
Note that the Bluetooth feature on both your ZiiO and the other device should be turned
on.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (14 of 21)10/20/2010 12:35:53 PM
Contents
● To turn on or off the X-Fi enhancement, tap .
● To show the Pure Android Audio settings panel, tap .
Note:
Alternatively, you can access the Bluetooth settings from the Settings menu. Refer
toTurning On/Off Bluetooth.
About X-Fi
X-Fi (Xtreme Fidelity) is a new audio standard from Creative that enhances your music
and movies. ZiiO's X-Fi enhancement consists of 2 components:
● X-Fi Crystalizer. Intelligently restores details that were lost during compression of audio
files. It makes audio richer and clearer, delivering sound that is closer to the original
quality.
● X-Fi Expand. Gives audio a realistic and natural feel, akin to a live performance on
stage.
Note:
When using your ZiiO together with other X-Fi enhanced accessories (such as X-Fi
headphones or external speakers), make sure that X-Fi is enabled on either the player
or the accessory only.
Back to top
E-Books
Using ZiiAcademy
ZiiAcademy is an e-book solution that comes with ZiiO. It enables you to read,
download, and manage your e-books all at the same time.
On the Home Screen, tap ZiiAcademy to start the application. Notice that the book
covers are initially displayed on the screen.
● To browse through the covers, swipe your finger across the screen.
● To open a book, tap the cover.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (15 of 21)10/20/2010 12:35:53 PM
Contents
● To flip through the pages, swipe your finger across the page.
You can also tap the left or right edge of the page to flip to the previous or next page.
● To view more options, tap twice on the center of a page
Back to top
Importing E-Books From Your Computer
1. Connect ZiiO to your computer.
Refer to the Connecting to a Computer instructions.
2. From your computer, copy e-book files to your device – into the location /ziiacademy/
import.
3. Press , followed by .
4. Tap Notifications > Turn off USB storage > Turn off.
5. On your computer, click the Safely Remove Hardware icon on the Notifications area,
and then proceed to safely disconnect the ZiiO disk drive.
6. Disconnect ZiiO from the USB port.
7. On ZiiO, start ZiiAcademy.
8. Tap Menu > Import Books.
The newly copied books are then added to ZiiAcademy's library.
9.
Deleting an E-Book
1. Go to ZiiAcademy’s main window.
2. Make sure the book you want to delete is the current cover on display.
3. Touch Delete, and select Delete Book to confirm.
Back to top
Browsing the Internet
Connecting to a Wi-Fi Network
1. Press , followed by .
2. Tap Settings > Wireless & networks > Wi-Fi settings.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (16 of 21)10/20/2010 12:35:53 PM
Contents
3. Tap Wi-Fi to turn it on.
Your device automatically scans for Wi-Fi networks within range.
The icon on the Status bar indicates that the Wi-Fi feature is on.
4. Tap the Wi-Fi network that you want to join.
If you are prompted for the password, tap the text input box to bring up the keyboard,
and type the password, and tap Connect.
If you need further assistance, contact your network administrator.
Back to top
Using the Browser
1. Tap the Browser icon on the Home Screen.
2. Tap the URL bar to bring up the onscreen keyboard.
3. Enter the URL of the webpage you want, and tap Go.
Tip:
To zoom in or out of a webpage, double-tap the screen.
Back to top
Videos, Music, and Photos
Transferring Files from Your Computer
1. Connect your device to your computer.
Refer to the Connecting to a Computer instructions
2. Select media files from your computer, and copy the files to the ZiiO's internal memory
or microSD card.
You can organize your media files in any folder that you prefer.
3. When you are done, click the Safely Remove Hardware icon on your computer to
disconnect ZiiO properly.
Back to top
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (17 of 21)10/20/2010 12:35:53 PM
Contents
Viewing Videos, Photos, and Listening to Music
To watch videos, view photos, or listen to music, launch the ZiiVideo, ZiiPhoto, and
ZiiMusic applications respectively. Alternatively, you can use ZiiExplorer to navigate to
the folder containing the media file, and then open it from there. See Exploring ZiiO's
Contents.
Back to top
Deleting Media Files from ZiiO
You can delete media files with the use of the ZiiExplorer application. See Exploring
ZiiO's Contents.
Exploring ZiiO's Contents
Tap ZiiExplorer icon to start the application. You can explore the contents of your device
in a similar manner as you would do on a computer. Among other tasks, you can copy,
move, or delete files.
Back to top
Installing More Applications
Aside from applications that were preinstalled on your device, you can download and
install more applications and games that are specifically developed for Android devices.
Installers are usually in APK (.apk) format.
To install
1. Download or copy the APK (.apk) file into your ZiiO’s microSD memory card or internal
memory.
2. With the use of ZiiExplorer, navigate to the folder where you copied the file.
3. Tap the APK file to automatically start installation.
An icon for the newly installed application is added on the Launcher screen.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (18 of 21)10/20/2010 12:35:53 PM
Contents
To uninstall
1. Press , followed by .
2. Touch Settings > Applications > Manage applications.
3. Touch the application you want to remove.
4. Touch Uninstall, and touch OK to confirm.
Back to top
Settings
Accessing the Settings Screen
You can enable/disable features and personalize your ZiiO from the Settings screen,
which contains several menu items that are mostly typical of Android.
1. Press to make sure you are on the Home Screen.
2. Press .
3. Tap Settings.
Back to top
Changing the Screen and Keyboard Language
1. Press , followed by .
2. Tap Settings > Language & keyboard.
3. Select your locale and keyboard.
Note:
The language settings apply only to certain applications.
Back to top
Setting the Screen Brightness, Timeout, and
Orientation.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (19 of 21)10/20/2010 12:35:53 PM
Contents
1. Press , followed by .
2. Tap Settings > Sound & display.
3. Under the Display settings section, select the options and settings that you prefer.
Back to top
Customizing the Sounds
1. Press , followed by .
2. Tap Settings > Sound & display.
3. Under the Sound settings section, select the options and settings that you prefer.
Back to top
Setting the Date and Time
1. Press , followed by .
2. Tap Settings > Date & time.
3. Set the date and time, including other settings that you prefer.
Back to top
Turning On/Off Bluetooth
1. Press , followed by .
2. Tap Settings > Wireless & networks > Bluetooth settings.
3. Tap Bluetooth to turn on/off the Bluetooth feature.
You will see on Status bar when this feature is on.
Back to top
More About Your Device
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (20 of 21)10/20/2010 12:35:53 PM
Contents
1. Press , followed by .
2. Tap Settings > About.
Back to top
License and Copyright
Creative, the Creative logo, ZiiO, ZiiSound, and X-Fi are trademarks or registered
trademarks of Creative Technology Ltd in the United States and/or other countries. The
Bluetooth word mark and logo are owned by Bluetooth SIG, Inc, and any use of such
marks by Creative Technology Ltd is under license. Android and the Android Robot is a
trademark of Google Inc. apt-X is a trademark of APT Licensing Ltd. All other
trademarks are the property of their respective owners and are hereby recognized as
such. All specifications are subject to change without notice. Actual product may differ
slightly from images shown.
file:///D|/Madcap%20Flare/Ruby%20HTML%20Help/Outp...eda/MyWebHelp/Content/Resources/HTMs/Contents.htm (21 of 21)10/20/2010 12:35:53 PM

Navigation menu
