Crestron Green Light™
DIN-PWS50
DIN Rail 50 Watt Cresnet® Power Supply
Operations & Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
All brand names, product names and trademarks are the property of their respective owners.
©2008 Crestron Electronics, Inc.
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
Contents
Crestron Green Light™ DIN Rail 50 Watt Cresnet® Power Supply: DIN-PWS50 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................1
Applications.................................................................................................................2
Specifications ..............................................................................................................3
Physical Description....................................................................................................4
Industry Compliance ...................................................................................................7
Setup ..........................................................................................................................................8
Network Wiring........................................................................................................... 8
Installation................................................................................................................... 8
Hardware Hookup .....................................................................................................10
Problem Solving ......................................................................................................................13
Troubleshooting......................................................................................................... 13
Check Network Wiring..............................................................................................14
Further Inquiries ........................................................................................................15
Future Updates ..........................................................................................................15
Return and Warranty Policies .................................................................................................. 16
Merchandise Returns / Repair Service ......................................................................16
CRESTRON Limited Warranty.................................................................................16
Operations & Installation Guide – DOC. 6667A Contents • i
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
Crestron Green Light™
DIN Rail 50 Watt Cresnet®
Power Supply: DIN-PWS50
Introduction
The DIN-PWS50 is a 50 Watt Cresnet® Power Supply module designed
to snap onto a standard DIN rail for installation in a wall mount
enclosure. DIN rail mounting enables modular installation alongside
Crestron® DIN Rail lighting and automation control modules and other
third party DIN rail mountable devices. All wiring connections are made
using screw terminals positioned along the top and bottom, clearly
accessible from the front for easy installation and servicing. Three
Cresnet power ports are provided.
Features and Functions
• 50 Watt Cresnet® power supply module
• Powers the DIN Rail series of Crestron products and other
Cresnet devices
• Includes three Cresnet power ports
• Cresnet data passes through unaffected
• Dual line power input terminals for easy daisy chaining
• 6M wide DIN rail mounting
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 1
DIN Rail 50 Watt Cresnet® Power Supply Crestron DIN-PWS50
Applications
The following diagram shows a DIN-PWS50 in a typical application.
DIN-PWS50 in a Typical Application
2 • DIN Rail Power Supply: DIN-PWS50 Operations & Installation Guide – DOC. 6667A
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
Specifications
Specifications for the DIN-PWS50 are listed in the following table.
DIN-PWS50 Specifications
SPECIFICATION DETAILS
Output Power
Per Output Port 50 Watts (2.08 Amps @ 24 Volts
DC, Regulated), limited power
source
Module Total 50 Watts (2.08 Amps @ 24 Volts
DC, Regulated)
Ripple/Noise <1%
Power Requirements 60 Watts @ 100-240V, 50/60 Hz
Environmental
Temperature 0º to 40º C (32º to 104º F)
Humidity 10% to 90% RH (non-condensing)
Heat Dissipation 26 BTU/Hr
Enclosure Light gray polycarbonate housing
with polycarbonate label overlay,
UL94 V-0 rated, 35 mm DIN EN
60715 rail mount, DIN 43880 form
factor for enclosures with 45 mm
front panel cutout, occupies 6 DIN
module spaces (108 mm)
Dimensions
Height 94.2 mm (3.71 in)
Width 106 mm (4.18 in)
Depth 58 mm (2.29 in)
Weight 170 g (6 oz)
Available Accessories
DIN-BLOCK DIN Rail Cresnet Distribution Block
DIN-HUB DIN Rail Cresnet Distribution Hub
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 3
DIN Rail 50 Watt Cresnet® Power Supply Crestron DIN-PWS50
Physical Description
This section provides information on the connections, controls and
indicators available on your DIN-PWS50.

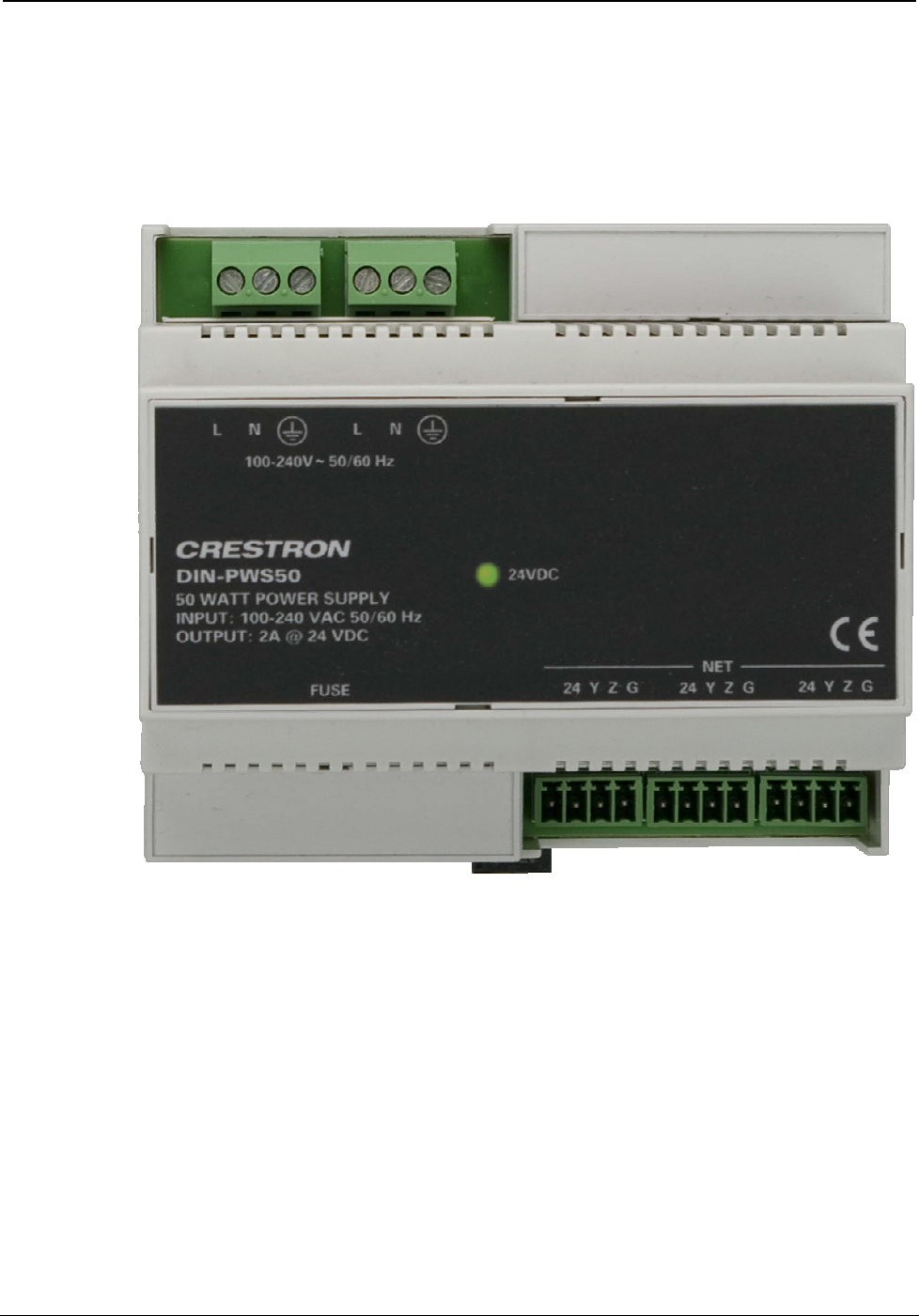

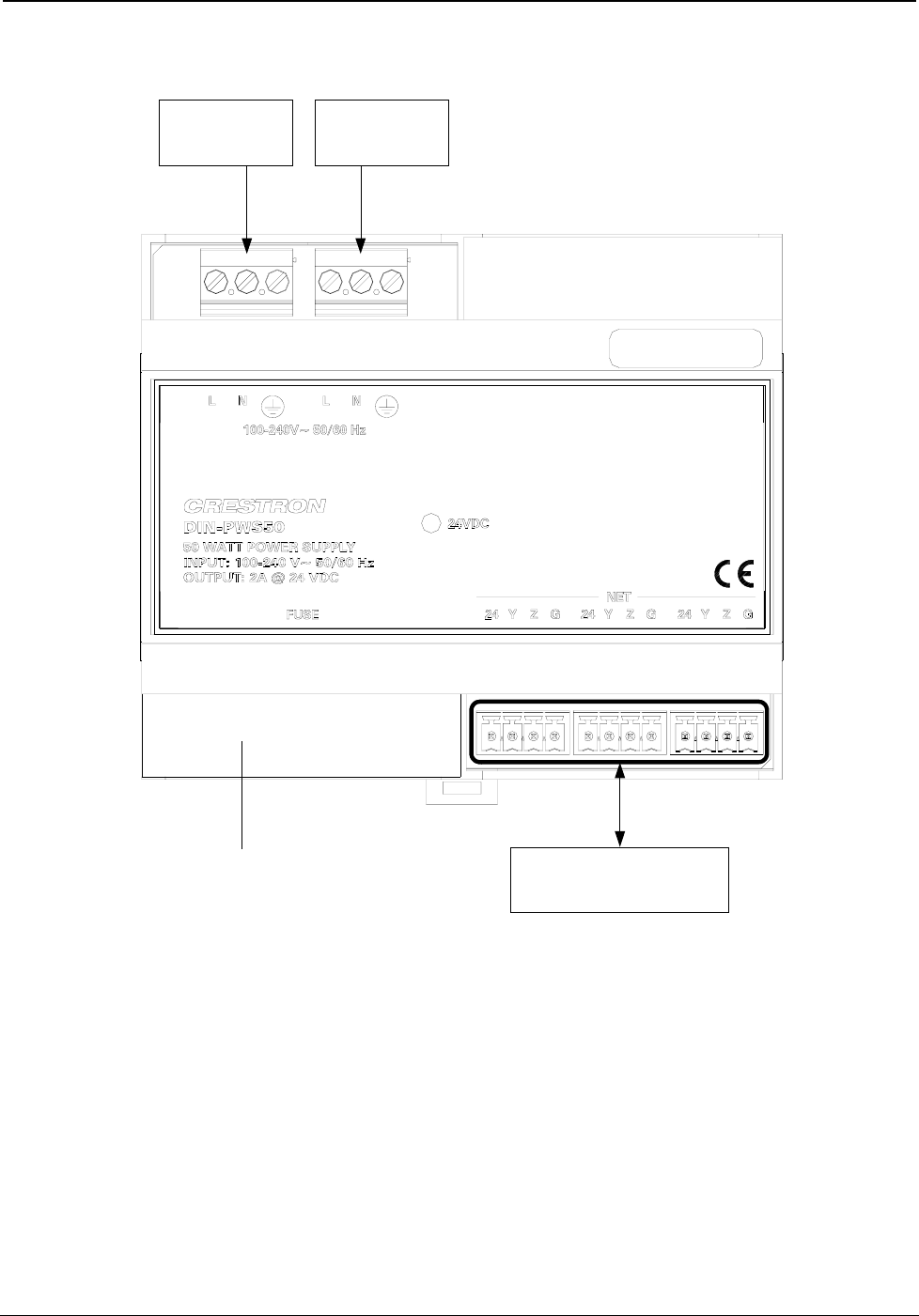

DIN-PWS50 Physical View
4 • DIN Rail Power Supply: DIN-PWS50 Operations & Installation Guide – DOC. 6667A
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply

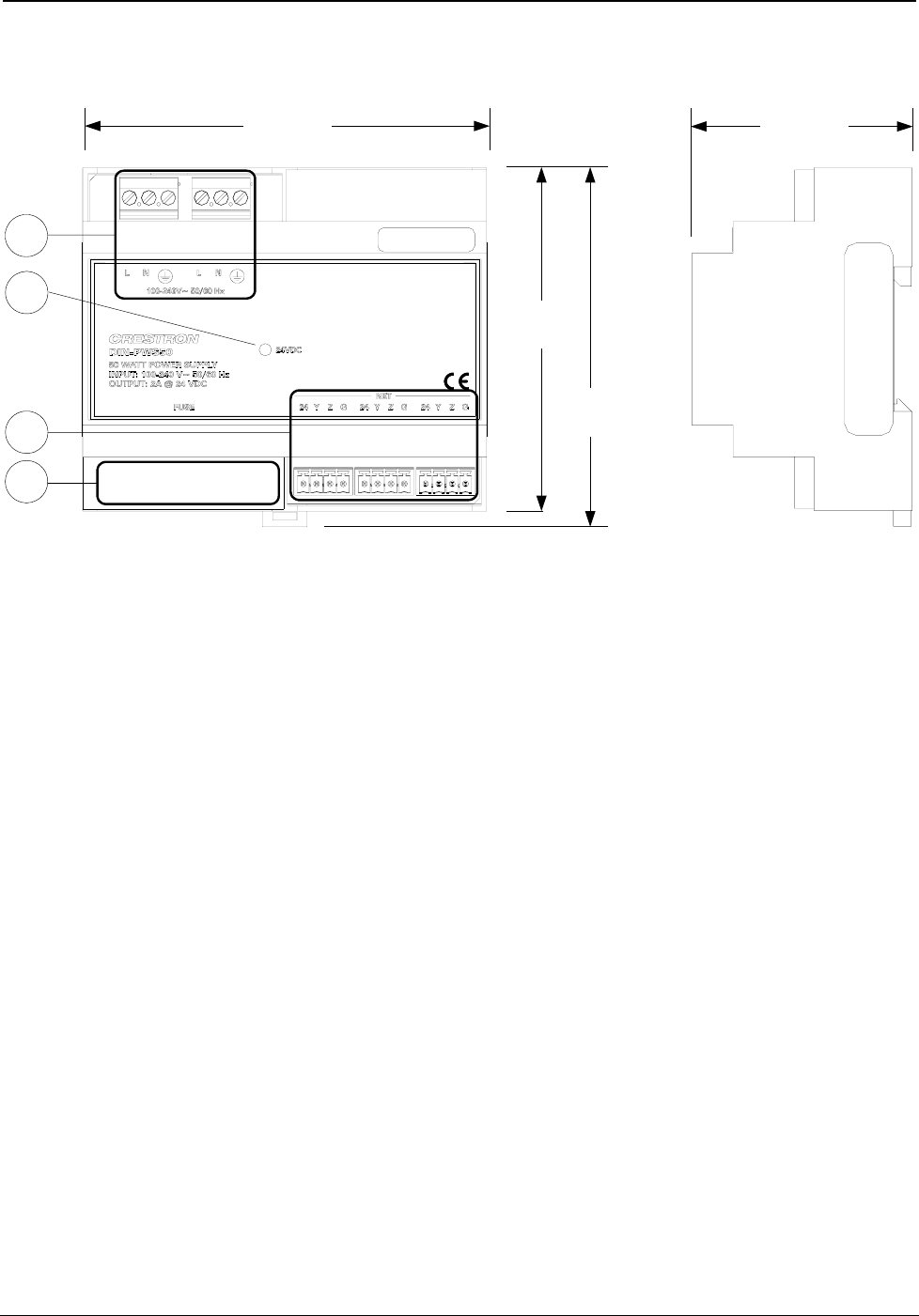

DIN-PWS50 Overall Dimensions
58 mm
(2.29 in)
106 mm
(4.18 in)
94.2 mm
(3.71 in)
90 mm
(3.55 in)
2
3
1
4
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 5
DIN Rail 50 Watt Cresnet® Power Supply Crestron DIN-PWS50

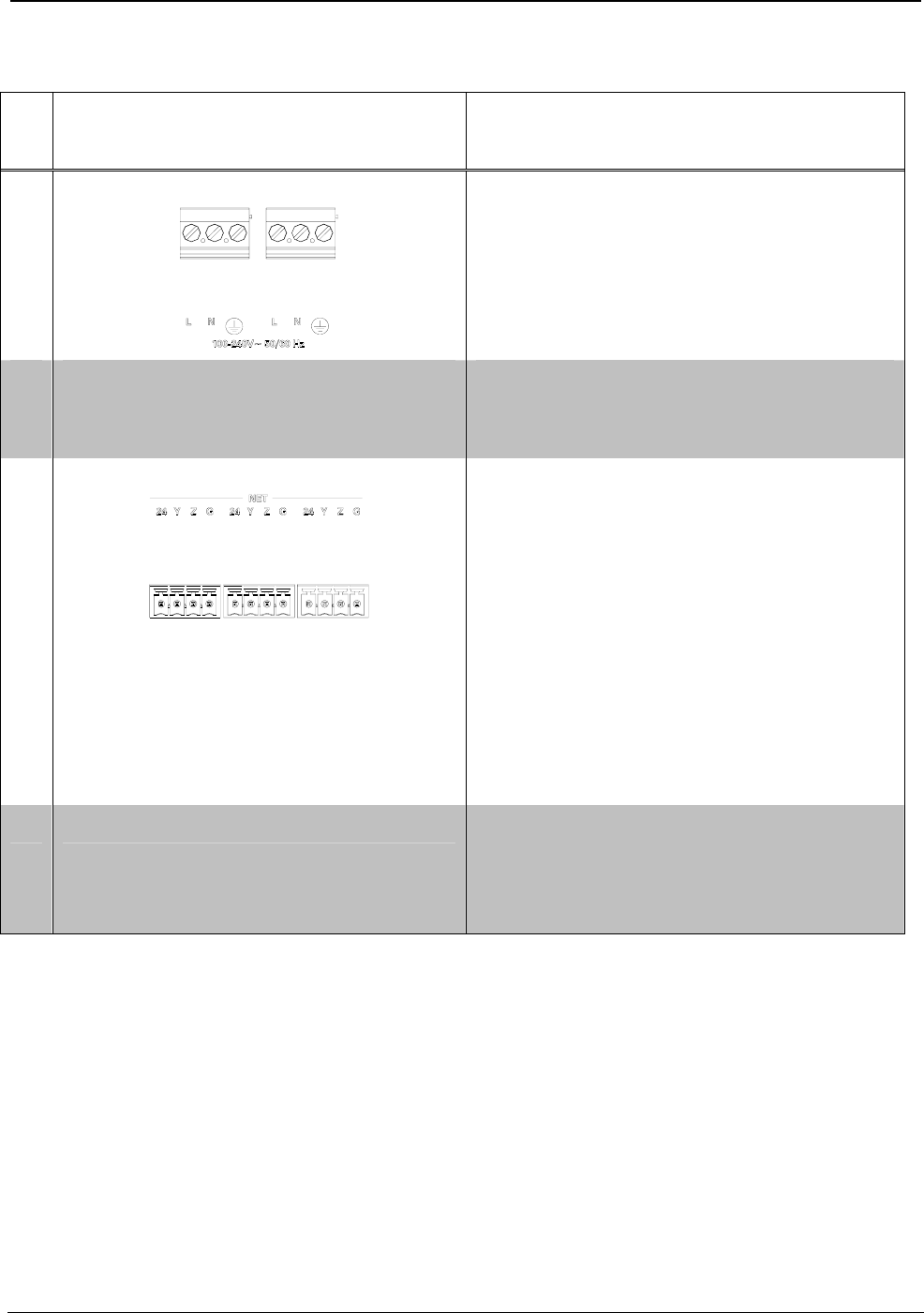

Connectors, Controls & Indicators
# CONNECTORS*, CONTROLS
& INDICATORS
DESCRIPTION
1 100-240V~50/60Hz
(2) Sets of (3) captive screw
terminals, each set paralleled
Line power input, neutral and
ground with pass through
Maximum wire size: 2.5 mm2
(12 AWG)
2 24VDC (1) Green LED indicates 24 Volts
DC output at all NET ports;
extinguished when fuse is blown
3 NET
(3) 4-pin 3.5 mm detachable
terminal blocks, paralleled Cresnet
power output ports with data pass
through
Connects to Cresnet control
network.
Pin 1 (24) Power
(24 Volts DC)
Pin 2 (Y) Data
Pin 3 (Z) Data
Pin 4 (G) Ground
4 FUSE Main fuse (located under cover),
T3.15AH (5 x 20 mm, 250V,
3.15 A, time lag, ceramic
cartridge)
* Interface connectors for NET ports are provided with the unit.
6 • DIN Rail Power Supply: DIN-PWS50 Operations & Installation Guide – DOC. 6667A
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
Industry Compliance
This unit has been manufactured to comply with UL’s Standards for
Safety in Canada and the United States. Formal approval is pending.
As of the date of manufacture, the DIN-PWS50 has been tested and
found to comply with specifications for CE marking and standards per
EMC and Radiocommunications Compliance Labelling.
NOTE: This device complies with part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 7
DIN Rail 50 Watt Cresnet® Power Supply Crestron DIN-PWS50
Setup
Network Wiring
When wiring the Cresnet® network, consider the following:
• Use Crestron Certified Wire.
NOTE: Cresnet HP cannot be used.
• Use Crestron power supplies for Crestron equipment.
• Provide sufficient power to the system.
CAUTION: Insufficient power can lead to unpredictable results
or damage to the equipment. Please use the Crestron Power
Calculator to help calculate how much power is needed for the
system (www.crestron.com/calculators).
• Use of a Cresnet hub/repeater (DIN-HUB) is advised whenever the
number of Cresnet devices on a network exceeds 20 or when the
combined total length of Cresnet cable exceeds 914 meters (3000
feet).
For more details, refer to “Check Network Wiring” which starts on page
14.
Installation
The DIN-PWS50 must be installed by a licensed electrician, in
accordance with all national and local codes.
CAUTION: This equipment is for indoor use only. Mount in a well
ventilated area. The ambient temperature must be 0º to 40º C
(32º to 104º F). The relative humidity must be 10% – 90%
(non-condensing).
NOTE: When installing in an enclosure, high-voltage devices should be
grouped separately from low-voltage devices.
8 • DIN Rail Power Supply: DIN-PWS50 Operations & Installation Guide – DOC. 6667A
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
The DIN-PWS50 is designed for installation on a DIN rail. Refer to the
following diagram when installing.

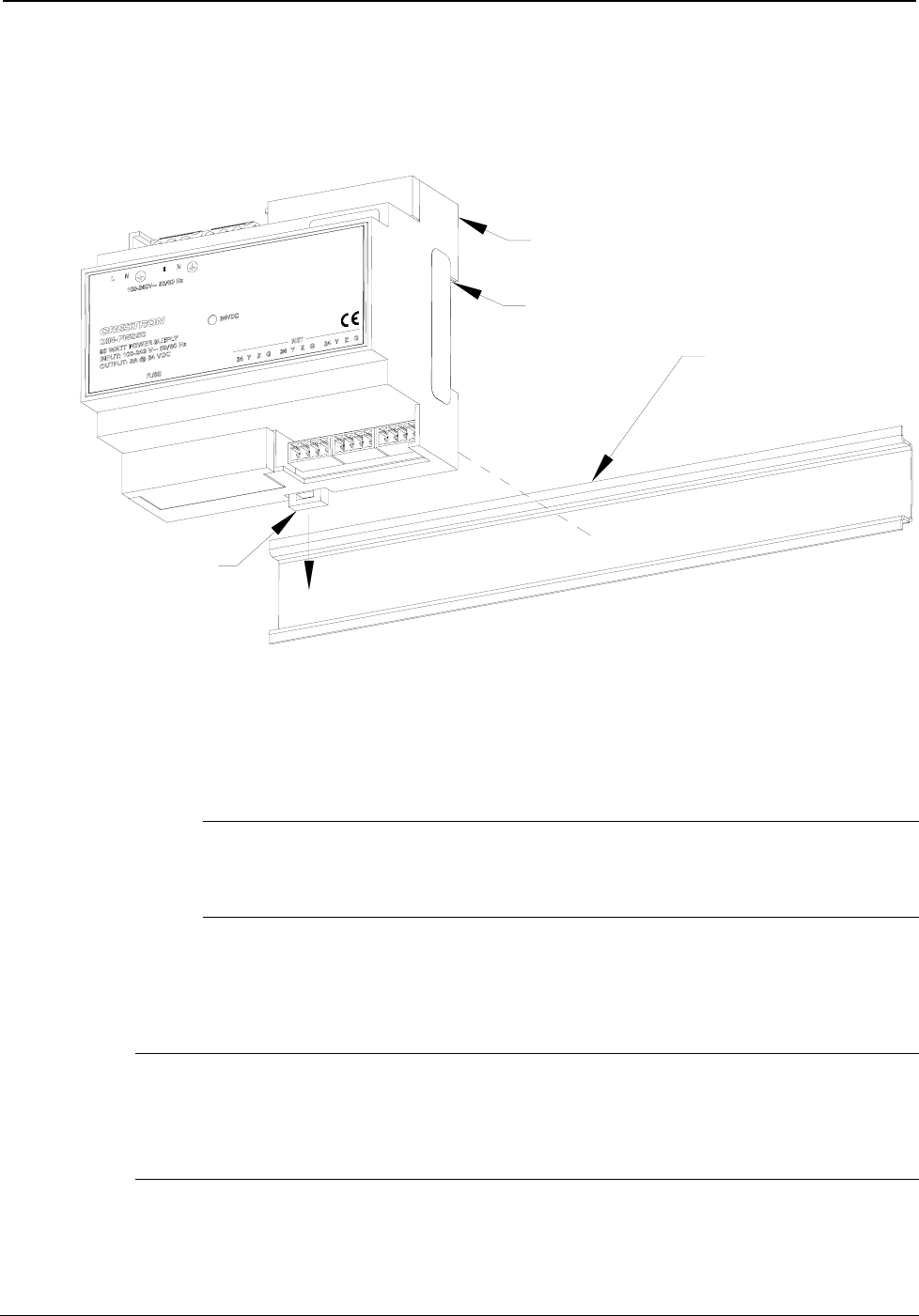

Installing the DIN-PWS50
DIN-PWS50
DIN RAIL RELEASE
DIN RAIL
(NOT SUPPLIED)
TOP
1. Place the top of the DIN-PWS50’s rail mount over the top of the
DIN rail.
2. Tilt the bottom of the DIN-PWS50 toward the DIN rail until it
snaps into place.
NOTE: When mounting DIN rail products, it may be necessary to
use a flat-head screwdriver to pull the DIN rail release tab while
snapping the device onto the DIN rail.
To remove the DIN-PWS50 from the DIN rail, use a small, flat object
(i.e. a flat-head screwdriver) to pull the DIN rail release and tilt the
bottom of the DIN-PWS50 away from the DIN rail.
NOTE: Certain third party DIN cabinets provide space for an
informational label between each DIN rail row. Crestron’s Engraver
software (version 4.0 or later) can generate appropriate labels for all
Crestron DIN rail products.
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 9
DIN Rail 50 Watt Cresnet® Power Supply Crestron DIN-PWS50
Hardware Hookup
Connect the
Device Make the necessary connections as called out in the illustration that
follows this paragraph. Refer to “Network Wiring” on page 8 before
attaching the 4-position terminal block connector. Apply power after all
connections have been made.
WARNING: Prior to connecting the device, turn off power at the circuit
breaker. Failure to do so may result in serious injury or damage to the
device. Restore power after all connections have been made.
NOTE: Install in accordance with all local and national electric codes.
NOTE: High-voltage connections accept 2.5 mm2 (12 AWG) wire. Wire
should be stripped to 8 mm (1/3 inch). Tighten terminal blocks to 0.5 Nm
(5 in-lbs).
NOTE: Use copper wire only. For high-voltage connections, use wire
rated for at least 75º C (167º F).
NOTE: Ensure the unit is properly grounded.
When making network connections to the DIN-PWS50, use a Crestron
power supply.
10 • DIN Rail Power Supply: DIN-PWS50 Operations & Installation Guide – DOC. 6667A
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
Hardware Connections for the DIN-PWS50
NET:
TO CONTROL SYSTEM AND
OTHER CRESNET DEVICES
100-240~50/60Hz:
FROM AC
POWER LINE
FUSE IS LOCATED
UNDER THIS COVER
POWER TO
OTHER DEVICES
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 11
DIN Rail 50 Watt Cresnet® Power Supply Crestron DIN-PWS50
Fuse
Replacement If the DIN-PWS50 does not power up when it is plugged into an AC
outlet, the fuse may need to be replaced. The fuse holder is located on the
front panel, under the cover in the lower left corner. To replace the fuse:
1. Disconnect power to the DIN-PWS50.
2. Remove the cover from the lower left corner on the front of the
DIN-PWS50.
3. Remove the defective fuse from the fuse holder and replace with a
new one.
CAUTION: Use only time lag type fuses, 3.15 Amps / 250 Volts.
Failure to do so may cause damage to the DIN-PWS50.
4. Replace the fuse cover.
5. Connect power to the DIN-PWS50.
12 • DIN Rail Power Supply: DIN-PWS50 Operations & Installation Guide – DOC. 6667A
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
Problem Solving
Troubleshooting
The following table provides corrective action for possible trouble
situations. If further assistance is required, please contact a Crestron
customer service representative.
DIN-PWS50 Troubleshooting
TROUBLE POSSIBLE
CAUSE(S)
CORRECTIVE
ACTION
24VDC LED
does not
illuminate.
DIN-PWS50 is not
receiving power.
Verify the DIN-PWS50
is connected to an AC
power line.
Fuse is blown. Replace fuse with
T3.15AH (5 x 20 mm,
250 V, 3.15 A, time
lag, ceramic
cartridge). Refer to
“Fuse Replacement”
on page 12.
Output is
short-circuited.
Disconnect all output
connectors. LED will
light if problem was a
short circuit on output.
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 13
DIN Rail 50 Watt Cresnet® Power Supply Crestron DIN-PWS50
Check Network Wiring
Use the Right
Wire In order to ensure optimum performance over the full range of your
installation topology, Crestron Certified Wire and only Crestron Certified
Wire may be used. Failure to do so may incur additional charges if
support is required to identify performance deficiencies because of using
improper wire.
Calculate
Power CAUTION: Use only Crestron power supplies for Crestron equipment.
Failure to do so could cause equipment damage or void the Crestron
warranty.
CAUTION: Provide sufficient power to the system. Insufficient power
can lead to unpredictable results or damage to the equipment. Please use
the Crestron Power Calculator to help calculate how much power is
needed for the system (www.crestron.com/calculators).
When calculating the length of wire for a particular Cresnet run, the wire
gauge and the Cresnet power usage of each network unit to be connected
must be taken into consideration. Use Crestron Certified Wire only. If
Cresnet units are to be daisy-chained on the run, the Cresnet power usage
of each network unit to be daisy-chained must be added together to
determine the Cresnet power usage of the entire chain. If the unit is
home-run from a Crestron system power supply network port, the
Cresnet power usage of that unit is the Cresnet power usage of the entire
run. The wire gauge and the Cresnet power usage of the run should be
used in the following equation to calculate the cable length value on the
equation’s left side.
Cable Length Equation
L = Length of run (or chain) in feet
R = 6 Ohms (Crestron Certified Wire: 0.75 MM (18 AWG))
P = Cresnet power usage of entire run (or chain)
2
L < 40,000
R x P
Where:
Make sure the cable length value is less than the value calculated on the
right side of the equation. For example, a Cresnet run using 0.75 mm2
(18 AWG) Crestron Certified Wire and drawing 20 watts should not have
a length of run more than 101 meters (333 feet). Cresnet HP cannot be
used.
14 • DIN Rail Power Supply: DIN-PWS50 Operations & Installation Guide – DOC. 6667A
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
NOTE: All Crestron certified Cresnet wiring must consist of two
twisted pairs. One twisted pair is the +24V conductor and the GND
conductor and the other twisted pair is the Y conductor and the Z
conductor.
Strip and Tin
Wire When daisy-chaining Cresnet units, strip the ends of the wires carefully
to avoid nicking the conductors. Twist together the ends of the wires that
share a pin on the network connector and tin the twisted connection.
Apply solder only to the ends of the twisted wires. Avoid tinning too far
up the wires or the end becomes brittle. Insert the tinned connection into
the Cresnet connector and tighten the retaining screw. Repeat the
procedure for the other three conductors.
Add Hubs Use of a Cresnet hub/repeater (DIN-HUB) is advised whenever the
number of Cresnet devices on a network exceeds 20 or when the
combined total length of Cresnet cable exceeds 914 meters (3000 feet).
Further Inquiries
If you cannot locate specific information or have questions after
reviewing this guide, please take advantage of Crestron's award winning
customer service team by calling Crestron at 1-888-CRESTRON
[1-888-273-7876].
You can also log onto the online help section of the Crestron website
(www.crestron.com/onlinehelp) to ask questions about Crestron products.
First-time users will need to establish a user account to fully benefit from
all available features.
Future Updates
As Crestron improves functions, adds new features and extends the
capabilities of the DIN-PWS50, additional information may be made
available as manual updates. These updates are solely electronic and
serve as intermediary supplements prior to the release of a complete
technical documentation revision.
Check the Crestron website periodically for manual update availability
and its relevance. Updates are identified as an “Addendum” in the
Download column.
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 15
DIN Rail 50 Watt Cresnet® Power Supply Crestron DIN-PWS50
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange or service without prior authorization
from CRESTRON. To obtain warranty service for CRESTRON products, contact an
authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory
and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying
the nature of the problem, name and phone number of contact person, RMA number and
return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with
RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect
or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its
sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any
products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials
and workmanship under normal use for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical
parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and
overlay components are covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON
dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if
any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended or if it has been subjected to misuse, accidental
damage, modification or improper installation procedures. Furthermore, this warranty does not cover any
product that has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a
third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or
labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the
unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or
implied, nor authorizes any other party to offer any warranty, including any implied warranties of
merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are
limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark
of Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation.
16 • DIN Rail Power Supply: DIN-PWS50 Operations & Installation Guide – DOC. 6667A
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 17
This page is intentionally left blank.
DIN Rail 50 Watt Cresnet® Power Supply Crestron DIN-PWS50
This page is intentionally left blank.
18 • DIN Rail Power Supply: DIN-PWS50 Operations & Installation Guide – DOC. 6667A
Crestron DIN-PWS50 DIN Rail 50 Watt Cresnet® Power Supply
This page is intentionally left blank.
Operations & Installation Guide – DOC. 6667A DIN Rail Power Supply: DIN-PWS50 • 19
Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6667A
15 Volvo Drive Rockleigh, NJ 07647 (2020749)
Tel: 888.CRESTRON 05.08
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
