Crestron Electronics Inc 2.4GHz Transceiver Operations Guide DOC 6260
Users Manual
Crestron CEN-RFGW-EX
infiNET EX™ Gateway
Operations & Installation Guide
This document was prepared and written by the Technical Documentation department at:
Crestron Electronics, Inc.
15 Volvo Drive
Rockleigh, NJ 07647
1-888-CRESTRON
Industry Compliance
Federal Communications Commission (FCC) Compliance Statement
FCC ID: EROCEN-RFGW-EX
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference and (2) this device must accept any interference received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Statement
IC: 5683C-CENRFGWEX
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
To satisfy RF exposure requirements, this device and its antenna must operate with a separation distance of at least
20 centimeters from all persona and must not be co-located or operating in conjunction with any other antenna or
transmitter.
Shielded LAN cable must be used.
All brand names, product names and trademarks are the property of their respective owners.
©2009 Crestron Electronics, Inc.
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Contents
infiNET EX™ Gateway: CEN-RFGW-EX 1
Introduction ...............................................................................................................................1
Features and Functions................................................................................................2
Specifications ..............................................................................................................3
Physical Description....................................................................................................5
Setup ..........................................................................................................................................9
Network Wiring........................................................................................................... 9
Identity Code ...............................................................................................................9
Installation.................................................................................................................10
Hardware Hookup .....................................................................................................11
Programming Software............................................................................................................12
Earliest Version Software Requirements for the PC ................................................. 12
Programming with Crestron SystemBuilder.............................................................. 12
Programming with SIMPL Windows ........................................................................12
Example Program...................................................................................................... 14
Uploading and Upgrading........................................................................................................ 15
Establishing Communication.....................................................................................15
Programs and Firmware ............................................................................................16
Program Checks ........................................................................................................ 16
Operation .................................................................................................................................18
Problem Solving ......................................................................................................................20
Troubleshooting......................................................................................................... 20
Reference Documents................................................................................................ 22
Further Inquiries ........................................................................................................ 23
Future Updates ..........................................................................................................23

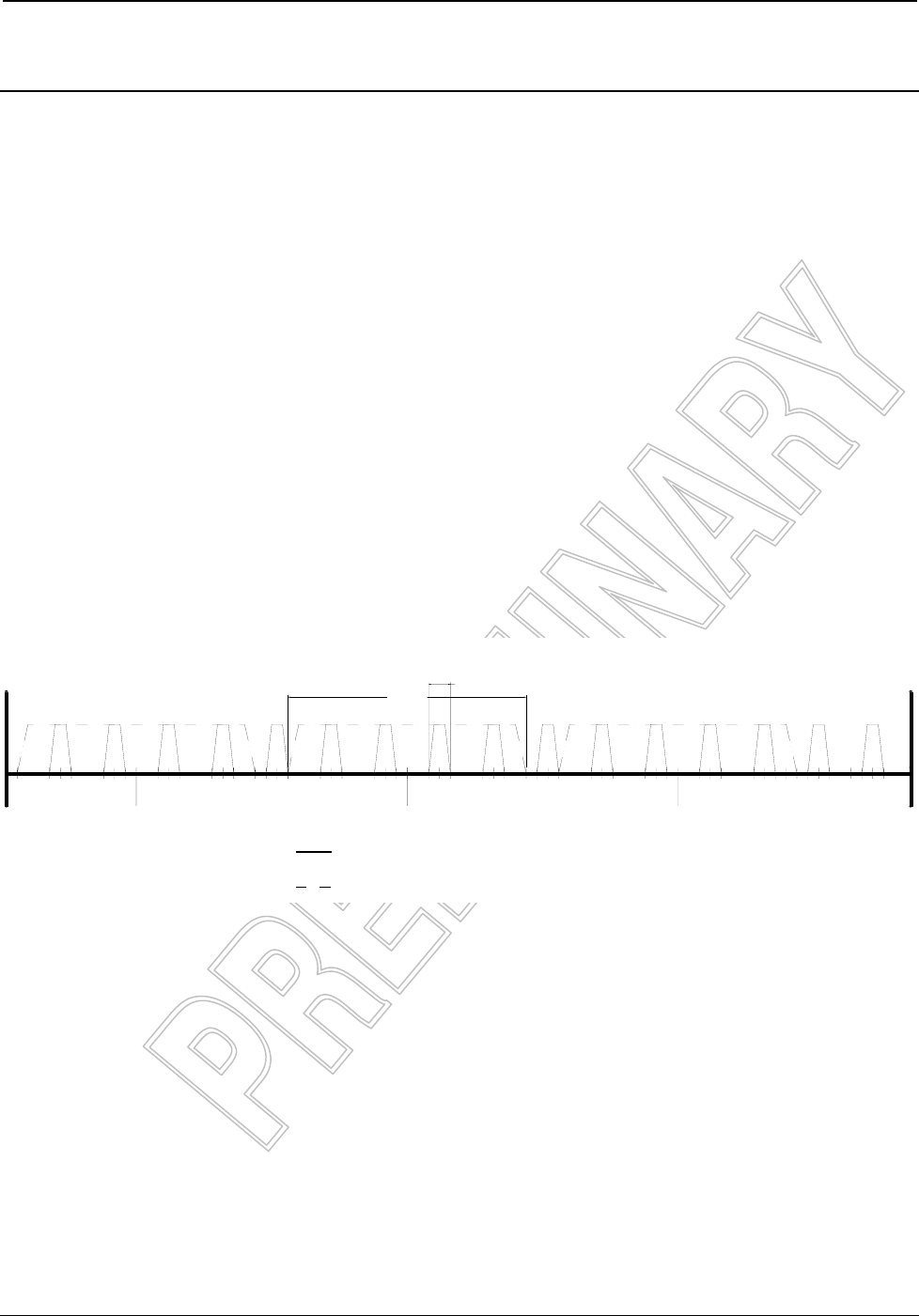

Appendix A: The RF Spectrum ..............................................................................................24

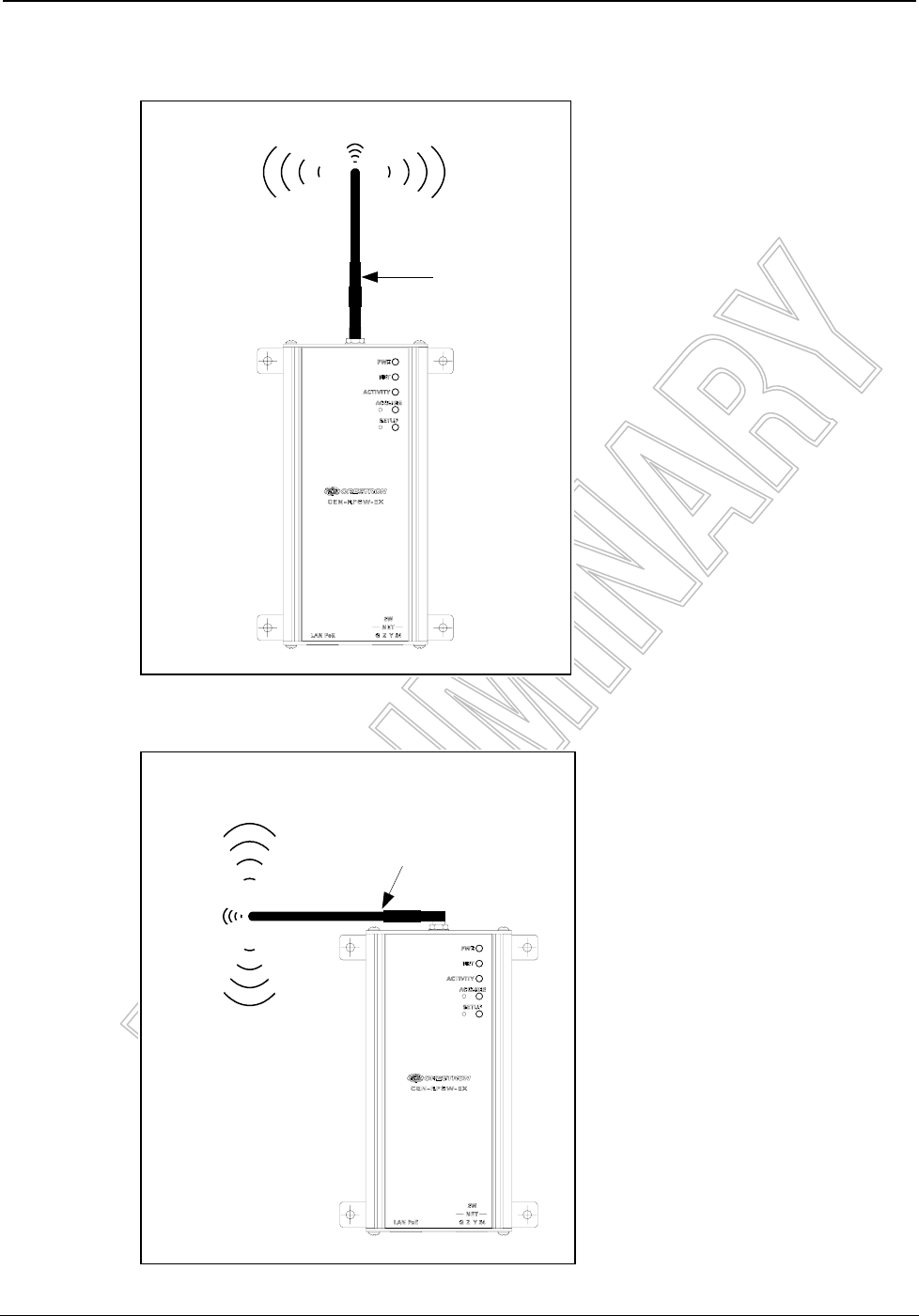

Appendix B: Optimum RF Reception Guidelines ..................................................................25
Minimize Interference ...............................................................................................25
Gateway Placement ................................................................................................... 25

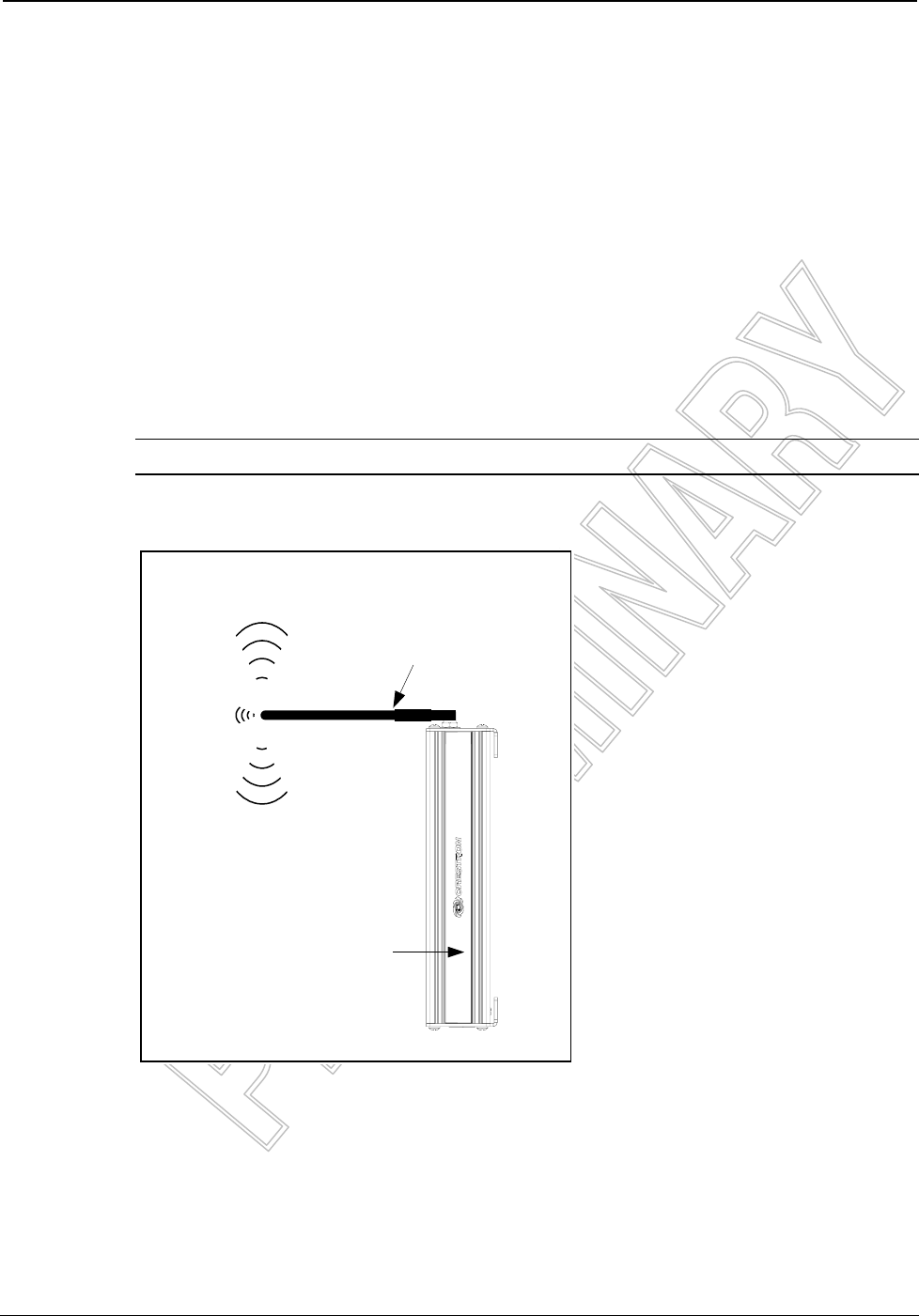

Antenna Orientation ..................................................................................................26
Return and Warranty Policies ..................................................................................................28
Merchandise Returns / Repair Service ......................................................................28
CRESTRON Limited Warranty.................................................................................28
Operations & Installation Guide – DOC. 6706B Contents • i
Crestron CEN-RFGW-EX infiNET EX™ Gateway
infiNET EX™ Gateway:
CEN-RFGW-EX
Introduction
The CEN-RFGW-EX gateway is an RF wireless transceiver designed for
use with the MLX-2 infiNET EX™ LCD Handheld Remote and other
Crestron® infiNET EX devices as part of a Crestron control system.
“Wi-Fi friendly” RF technology permits selection from 16 ISM* channels
within the 2.4 GHz spectrum to minimize the possibility of interference
with other RF equipment including 802.11 devices. The CEN-RFGW-EX
affords a range of approximately 100 feet (30 meters) indoors.
Up to 16 MLX-2 remotes or other infiNET EX devices, may be
associated with a single CEN-RFGW-EX. Setup is simple, utilizing
dynamic discovery to locate and acquire each remote automatically. Each
wireless connection is monitored continuously, diligently keeping track
when remotes go to sleep or wander out of range and restoring
communications seamlessly when any remote reappears on the network.
More than just a wireless bridge, the CEN-RFGW-EX actually functions
as a proxy for each MLX-2, processing every button press and display
change right onboard. So when a remote goes to sleep or out of range, the
gateway continues communicating with the control system, keeping sync
with every command and updating the remote’s display the instant it
awakens or reconnects.
* Industrial, Scientific and Medical; refers to frequency range used for unlicensed
communications applications, such as Wi-Fi.
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 1
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
PoE (Power-over-Ethernet) powers the \CEN-RFGW-EX right through
the network wiring, eliminating the need for a separate wall-wart power
supply. The CEN-RFGW-EX is available with a PoE Injector, PWE-
4803RU, which simply connects inline with the Ethernet cable connected
to the gateway, allowing for installation at any convenient location. Or,
using Crestron’s 5-port PoE switch (CEN-SW-POE-5, sold separately),
up to four gateways and other PoE devices can be powered from a single
location, simplifying design and wiring.
Features and Functions
• infiNET EX 2-way RF wireless transceiver/gateway
• Manages up to 16 MLX-2 handheld remotes or other Crestron
infiNET EX devices
• Up to 100 feet (30 meters) range indoors
• Dynamic discovery for fast, easy setup
• “Wi-Fi friendly” channel selection
• Built-in RF network diagnostics
• Ethernet control system interface
• PoE “Power-over-Ethernet” compatible
2 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Specifications
Specifications for the CEN-RFGW-EX are listed in the following table.
CEN-RFGW-EX Specifications
SPECIFICATION DETAILS
Wireless
RF Transceiver infiNET EX 2-way RF, 2.4 GHz
ISM Channels 11-26 (2400 to
2483.5 MHz), IEEE 802.15.4
compliant;
Maximum 16 remotes per
gateway;
Default RF channel is 15
Range (typical) 100 feet (30 meters) indoors,
subject to site-specific conditions
Ethernet 10BASE-T/100BASE-TX,
auto-switching, auto-negotiating,
auto-discovery, full/half duplex,
TCP/IP, UDP/IP, CIP, DHCP,
IEEE 802.3U and 802.3af
compliant;
Unit ships with DHCP enabled.
Power Requirements
PoE <45 mA @ 48 Volts DC
Default Net ID 2F
Minimum 2-Series Control
System Update File1, 2
Version 3.155.1240 or later
Environmental
Temperature 41º to 104º F (5º to 40º C)
Humidity 10% to 90% RH (non-
condensing)
Heat Dissipation 7 BTU/Hr
(Continued on following page)
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 3
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
CEN-RFGW-EX Specifications (Continued)
SPECIFICATION DETAILS
Enclosure Aluminum with polycarbonate
label overlay, freestanding or
surface mount with (4) integral
mounting flanges.
Dimensions
(without antenna)
Height 6.41 in (16.27 cm)
Width 3.91 in (9.94 cm)
Depth 1.43 in (3.62 cm)
Weight 13.1 oz (372.7 g)
Available Accessories
PWE-4803RU PoE Injector
CEN-SW-POE-5 5-Port PoE Switch
1. The latest software versions can be obtained from the Crestron website. Refer to
the NOTE following these footnotes.
2. Crestron 2-Series control systems include the AV2 and PRO2. Consult the latest
Crestron Product Catalog for a complete list of 2-Series control systems.
NOTE: Crestron software and any files on the website are for authorized
Crestron dealers and Crestron Authorized Independent Programmers
(CAIP) only. New users may be required to register to obtain access to
certain areas of the site (including the FTP site).
4 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 5
Physical Description
This section provides information on the connections, controls and
indicators available on your CEN-RFGW-EX.

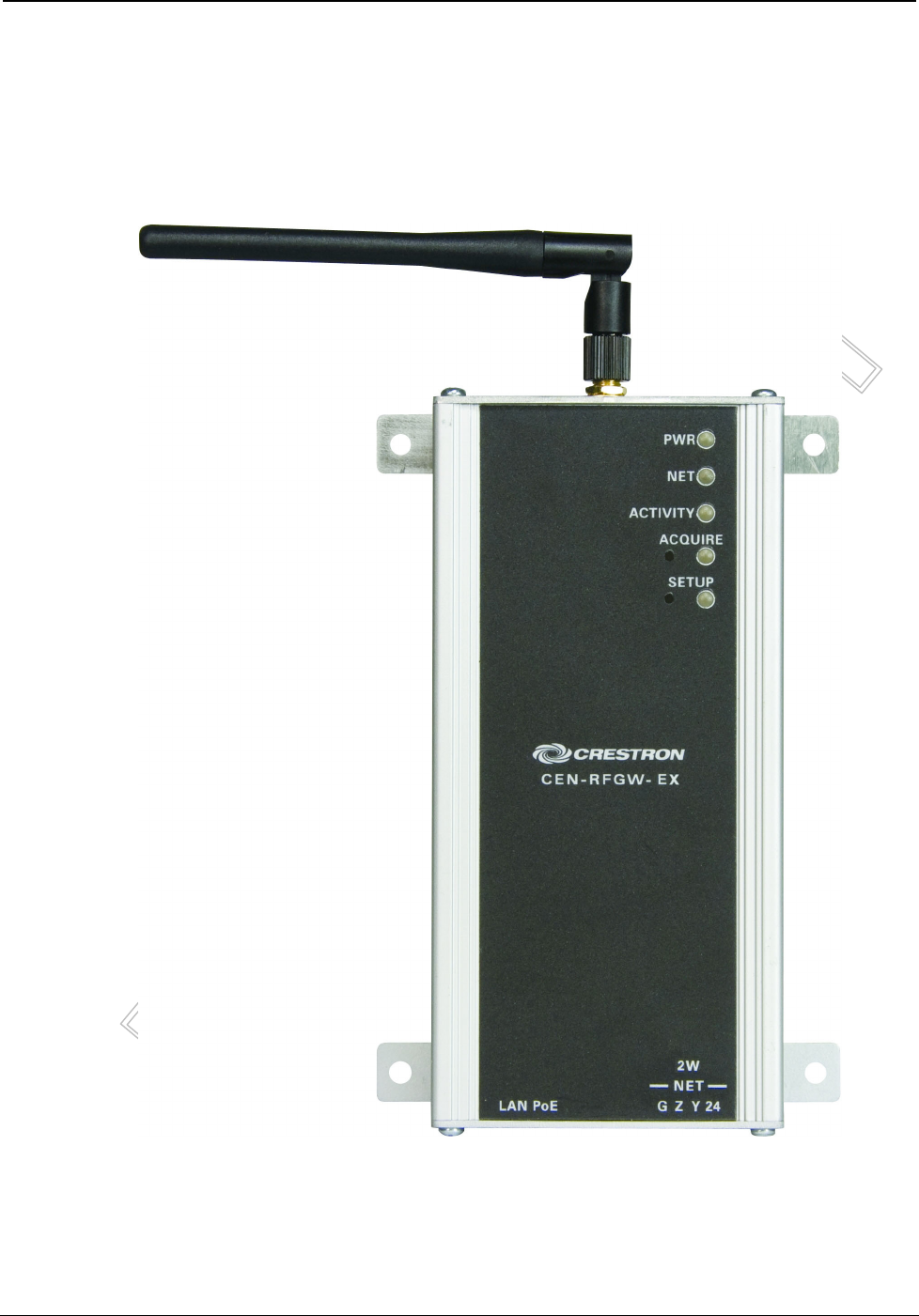

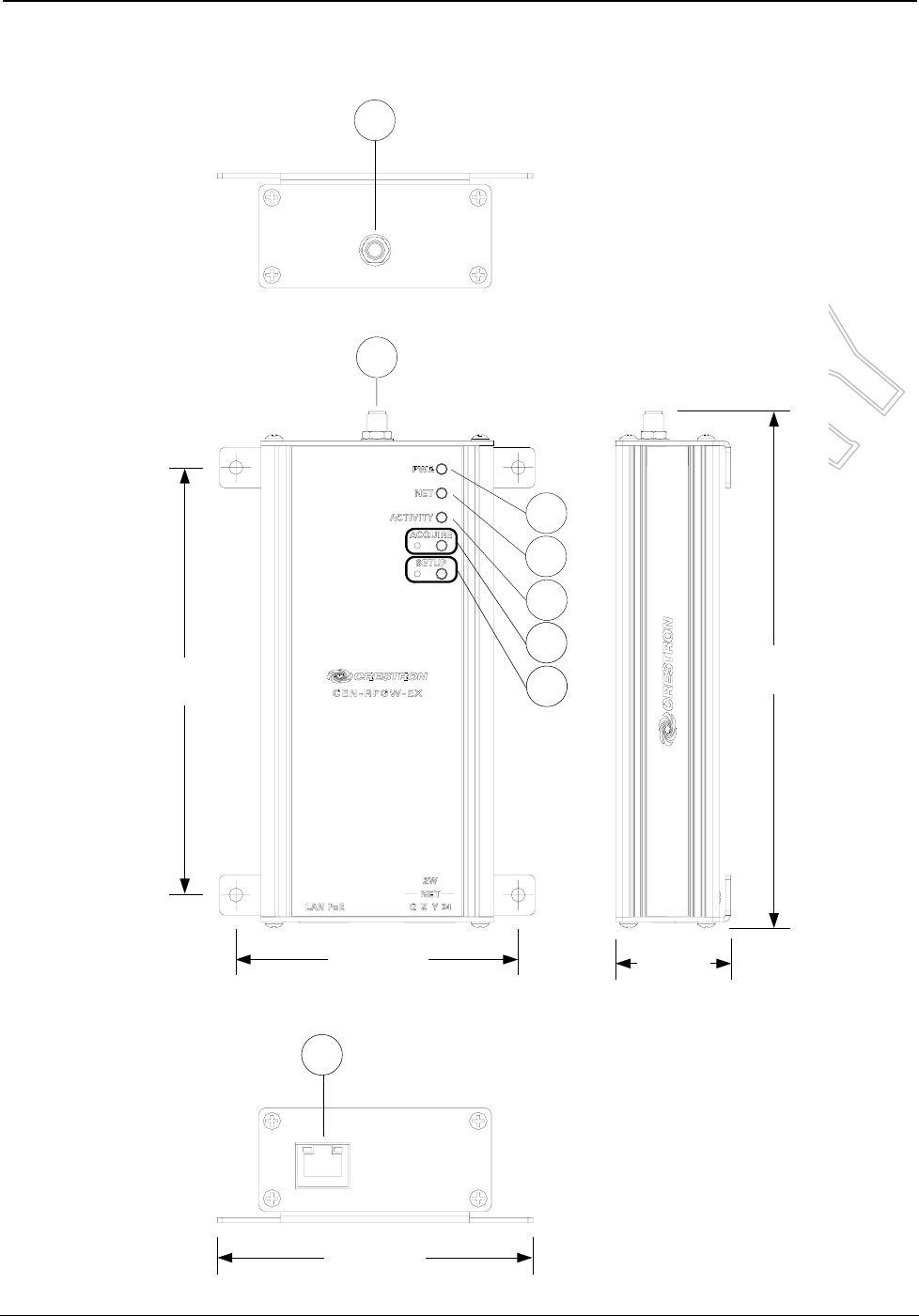

CEN-RFGW-EX Physical View
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
1
6.41 in
(16.27 cm)
1.43 in
(3.62 cm)
6
5
4
2
1
5.30 in
(13.47 cm)
3.50 in
(8.89 cm)
3
7
3.91 in
(9.94 cm)
6 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
CEN-RFGW-EX Overall Dimensions (Top, Front, Side and Bottom Views)
# CONNECTORS,
CONTROLS &
INDICATORS
DESCRIPTION
1 ANTENNA (1) Connection for supplied
antenna
2 PWR LED (1) Green LED, indicates
operating power supplied from
PoE
3 NET LED (1) Yellow LED, indicates
communication with the
Cresnet system
4 ACTIVITY LED (1) Red LED, indicates
wireless communications
5 ACQUIRE
(Button and LED)
(1) Recessed pushbutton with
red LED, used to set up
connections with wireless
devices
6 SETUP
(Button and LED)
(1) Recessed pushbutton with
red LED, used to set up
connection with the control
system via Cresnet or Ethernet
7 LAN PoE1, 2
GREEN
LED
YELLOW
LED
PIN 8 PIN 1
(1) 8-wire RJ-45 with two LED
indicators;
10BASE-T/100BASE-TX
Ethernet port, 802.3af Power
over Ethernet compliant;
Green LED indicates link
status;
Yellow LED indicates Ethernet
activity
PIN SIGNAL PIN SIGNAL
1 TX + 5 N/C
2 TX - 6 RC -
3 RC+ 7 N/C
4 N/C 8 N/C
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 7
Connectors, Controls & Indicators
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
1. To determine which is pin 1 on the cable, hold the cable so that the end of the
eight pin modular jack is facing away from you, with the clip down and copper
side up. Pin 1 is on the far left.
2. The pin out table indicates signal connections. DC power applied by Ethernet
power sourcing equipment (PSE) can connect to either signal pins or N/C pins.
8 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Setup
Network Wiring
Ethernet The CEN-RFGW-EX can also use high-speed Ethernet for
communications between the device and a control system, computer,
digital media server and other IP-based devices.
For information on connecting Ethernet devices in a Crestron system,
refer to the latest version of the Crestron e-Control Reference Guide
(Doc. 6052), which is available for download from the Crestron website
(www.crestron.com/manuals).
Identity Code
IP ID The IP ID is set within the CEN-RFGW-EX’s table using Crestron
Toolbox. For information on setting an IP table, refer to the Crestron
Toolbox help file. The IP IDs of multiple CEN-RFGW-EX devices in the
same system must be unique.
When setting the IP ID, consider the following:
• The IP ID of each unit must match an IP ID specified in the
SIMPL™ Windows® program.
• Each device using IP to communicate with a control system must
have a unique IP ID.
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 9
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
Installation
Ventilation To prevent overheating, do not operate this product in an area that
exceeds the environmental temperature range listed in the table of
specifications. Consider using forced air ventilation and/or incrementing
the spacing between units to reduce overheating. Consideration must be
given if installed in a closed or multi-unit rack assembly since the
operating ambient temperature of the environment may be greater than
the room ambient temperature. Contact with thermal insulating materials
should be avoided on all sides of the unit.
Placement
Tips When installing a CEN-RFGW-EX near another CEN-RFGW-EX, for
optimum performance, keep the following in mind:
• Do not place multiple gateways on the same channel. Refer to
“Appendix A: The RF Spectrum” on page 24 for details.
• Gateways on adjacent channels should be at least 12 feet
(3.7 meters) apart.
• Gateways on non-adjacent channels should be at least three feet
(0.9 meters) apart.
When installing a CEN-RFGW-EX near a Wi-Fi access point, for
optimum performance, keep the following in mind:
• Gateways on RF channels adjacent to operating Wi-Fi channels
should be placed at least 12 feet (3.7 meters) from the nearest
Wi-Fi access point.
• Gateways on RF channels that are non-adjacent to Wi-Fi channels
should be located at least six feet (1.8 meters) from the nearest Wi-
Fi access point.
For more information on RF channels and their interaction with the
Wi-Fi spectrum, refer to “Appendix A: The RF Spectrum” on page 24.
For additional information on optimal gateway placement, refer to
“Appendix B: Optimum RF Reception Guidelines” which starts on page
25.
10 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 11
Hardware Hookup
Make the necessary connections as called out in the illustrations that
follow this paragraph.

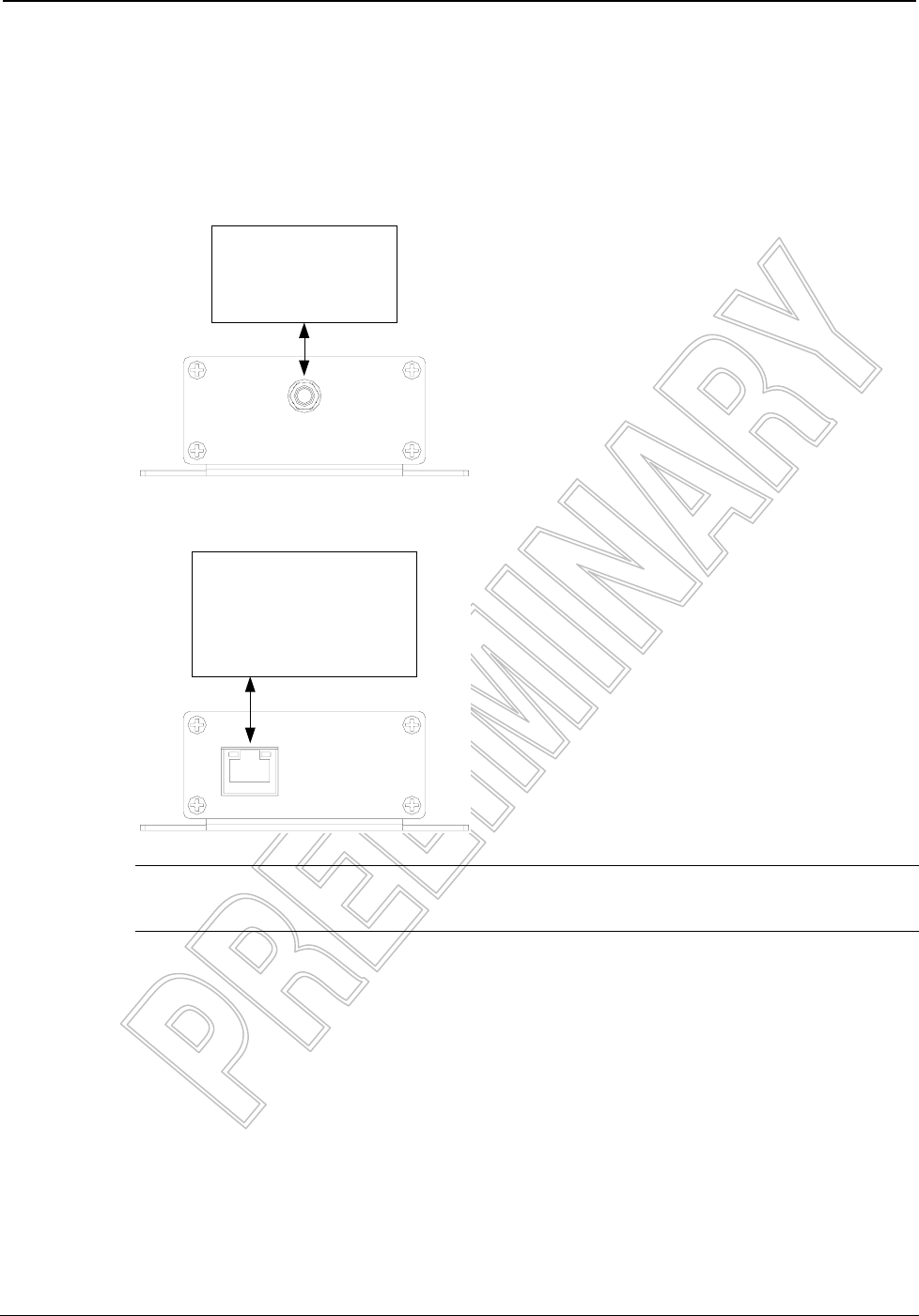

Hardware Connections for the CEN-RFGW-EX (Top View)
ANTENNA:
FOR INCLUDED
ANTENNA
Hardware Connections for the CEN-RFGW-EX (Bottom View)
LAN PoE:
10BASE-T /
100BASE-TX
ETHERNET TO LAN
NOTE: Antenna must be attached directly to the antenna connector. It
should not be extended with a cable.
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
Programming Software
Have a question or comment about Crestron software?
Answers to frequently asked questions (FAQs) can be viewed in the
Online Help section of the Crestron website. To post a question or view
questions you have submitted to Crestron’s True Blue Support, log in at
http://support.crestron.com. First-time users will need to establish a user
account.
Earliest Version Software Requirements for the
PC
NOTE: Crestron recommends that you use the latest software to take
advantage of the most recently released features. The latest software is
available from the Crestron website.
Crestron has developed an assortment of Windows-based software tools
to develop an infiNET system. For the minimum recommended software
versions, visit the Version Tracker page of the Crestron website
(www.crestron.com/versiontracker).
Programming with Crestron SystemBuilder
Crestron SystemBuilder is the easiest method of programming but does
not offer as much flexibility as SIMPL Windows. For additional details,
download SystemBuilder from the Crestron website and examine the
extensive help file.
Programming with SIMPL Windows
NOTE: While SIMPL Windows can be used to program the
CEN-RFGW-EX, it is recommended to use SystemBuilder for
configuring a system.
SIMPL Windows is Crestron’s premier software for programming
Crestron control systems. It is organized into two separate but equally
important “Managers”.
12 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 13
Configuration
Manager Configuration Manager is the view where programmers “build” a
Crestron control system by selecting hardware from the Device Library.
• To incorporate the CEN-RFGW-EX into the system, drag the
CEN-RFGW-EX from the Wireless Receivers | Wireless Receivers
(RF) folder of the Device Library and drop it in the System Views.

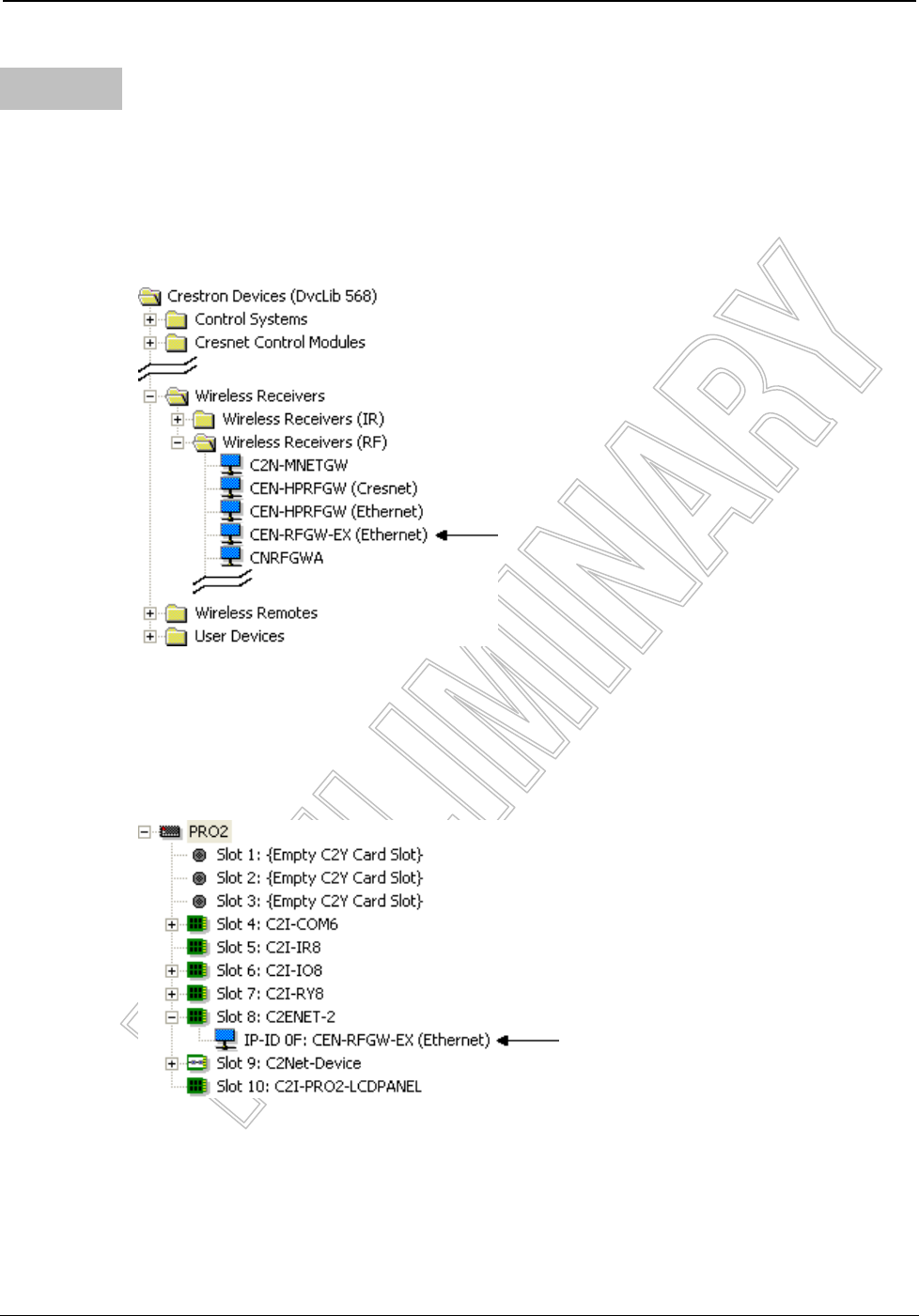

Locating the CEN-RFGW-EX in the Device Library
• The system tree of the control system displays the device in the
appropriate slot with a default IP ID, as shown in the following
illustration.
C2Net Device, Slots 8
• Additional CEN-RFGW-EX devices are assigned different IP ID
numbers as they are added.

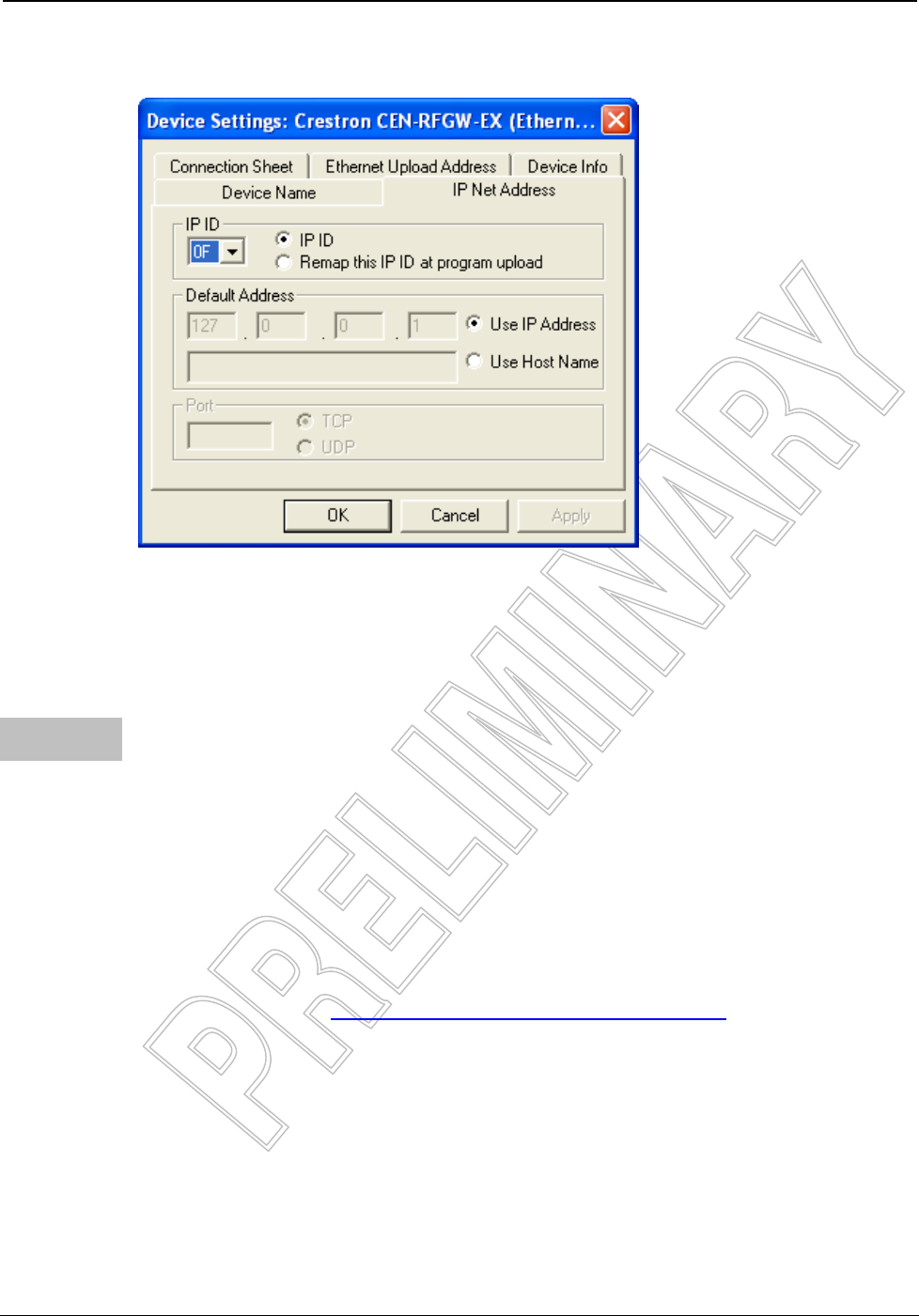

• If necessary, double click a device to open the “Device Settings”
window and change the IP ID, as shown in the following figure.
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
14 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
“CEN-RFGW-EX Device Settings (Ethernet)” Window
• The ID code specified in the SIMPL Windows program must
match the Net ID or IP ID of each unit. Refer to “Identity Code”
on page 9.
Program
Manager Program Manager is the view where programmers “program” a Crestron
control system by assigning signals to symbols.
The symbol can be viewed by double clicking on the icon or dragging it
into Detail View. Each signal in the symbol is described in the SIMPL
Windows help file (F1).
Example Program
An example program for the CEN-RFGW-EX is available from the
Crestron website (www.crestron.com/exampleprograms).
TCP/IP Ethernet Communication
ETHERNET
PC RUNNING
CRESTRON TOOLBOX CEN-RFGW-EX
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 15
Uploading and Upgrading
Crestron recommends using the latest programming software and that
each device contains the latest firmware to take advantage of the most
recently released features. However, before attempting to upload or
upgrade it is necessary to establish communication. Once communication
has been established, files (for example, programs or firmware) can be
transferred to the control system (and/or device). Finally, program checks
can be performed (such as changing the device ID or creating an IP table)
to ensure proper functioning.
Establishing Communication
Use Crestron Toolbox for communicating with the CEN-RFGW-EX;
refer to the Crestron Toolbox help file for details.
• Enter the IP address, IP mask, and default router of the
CEN-RFGW-EX via the Crestron Toolbox (Functions | Ethernet
Addressing); otherwise, leave DHCP enabled. (The unit ships with
DHCP enabled.)
• Confirm Ethernet connections between CEN-RFGW-EX and PC.
If connecting through a hub or router, use CAT5 straight through
cables with 8-pin RJ-45 connectors. Alternatively, use a CAT5
crossover cable to connect the two LAN ports directly without
using a hub or router.
• Use the Address Book in Crestron Toolbox to create an entry for
the CEN-RFGW-EX with the CEN-RFGW-EX’s TCP/IP
communication parameters.
• Display the “System Info” window (click the icon) and select
the CEN-RFGW-EX entry.
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
Programs and Firmware
Program or firmware files may be distributed from programmers to
installers or from Crestron to dealers. Firmware upgrades are available
from the Crestron website as new features are developed after product
releases. One has the option to upload programs via the programming
software or to upload and upgrade via the Crestron Toolbox. For details
on uploading and upgrading, refer to the SIMPL Windows help file or the
Crestron Toolbox help file.
SIMPL
Windows If a SIMPL Windows program is provided, it can be uploaded to the
control system using SIMPL Windows or Crestron Toolbox.
VisionTools
Pro-e Upload the VT Pro-e file for the MLX-2 (or other infiNET EX device)
using VT Pro-e or Crestron Toolbox.
Firmware Check the Crestron website to find the latest firmware. (New users may
be required to register to obtain access to certain areas of the site,
including the FTP site.)
Upgrade CEN-RFGW-EX firmware via Crestron Toolbox.
• Establish communication with the CEN-RFGW-EX and display
the “System Info” window.
• Select Functions | Firmware… to upgrade the CEN-RFGW-EX
firmware.
Program Checks
Ethernet
Connections Display the “System Info window (click the icon) and select the
Functions menu to display actions that can be performed on the CEN-
RFGW-EX.
Be sure to use Crestron Toolbox to create the CEN-RFGW-EX IP table.
• Select Functions | IP Table Setup.
• Add, modify or delete entries in the IP table. The CEN-RFGW-EX
can have only one IP table entry.
• A defined IP table can be saved to a file or sent to the device.
Edit the control system’s IP table to include an entry for the
CEN-RFGW-EX. The entry should list the CEN-RFGW-EX’s IP ID
(specified on the CEN-RFGW-EX’s IP table) and the internal gateway IP
address 127.0.0.1.
16 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
NOTE: Only one IP table entry is allowed. The unit can talk to only one
processor over IP.
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 17
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
Operation
Operating
Channel The operating channel of the CEN-RFGW-EX must be set prior to
operation using Crestron Toolbox. The CEN-RFGW-EX can operate on
one of 16 channels. The CEN-RFGW-EX can operate on a fixed channel
that is set by the installer. The default RF channel is 15.
For optimum performance when installing a CEN-RFGW-EX in a Wi-Fi
environment, do not set the CEN-RFGW-EX to a channel within a Wi-Fi
channel band. Crestron recommends channel 15 or channel 20.
• Gateway channels 11-14 are within Wi-Fi channel 1 band.
• Gateway channel 15 is adjacent to Wi-Fi channels 1 and 6.
• Gateway channels 16-19 are within Wi-Fi channel 6 band.
• Gateway channel 20 is adjacent to Wi-Fi channels 6 and 11.
• Gateway channels 21-24 are within Wi-Fi channel 11 band.
• Gateway channel 25 is adjacent to Wi-Fi channel 11.
• Gateway channel 26 is neither within or adjacent to any Wi-Fi
band.
For detailed information on RF channels, refer to “Appendix A: The RF
Spectrum” on page 24.
After establishing communication with the CEN-RFGW-EX (refer to
“Establishing Communication” which starts on page 15), use Crestron
Toolbox to set the operating channel.
RF Channel Each gateway can communicate with up to 16 infiNET EX devices on the
same channel. Each device must have an RF channel assignment that
matches the RF channel assignment of the gateway.
There are 16 possible channels ranging from 11 to 26.
Setting RF channel is done from a PC via Crestron Toolbox. To access
this in Toolbox, select Functions | infiNET EX Gateway…. Refer to the
Toolbox Help file and search for “infiNET EX Gateway” for more
details.
18 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Acquiring the
MLX-2
(or other
infNET EX
device)
MLX-2s and other infiNET EX devices can communicate with a
CEN-RFGW-EX only if they have been acquired by that
CEN-RFGW-EX. The Acquire mode can be activated from Crestron
Toolbox (recommended) or with the ACQUIRE button on the
CEN-RFGW-EX.
NOTE: To access this in Toolbox, select Functions | infiNET EX
Gateway…. Refer to the Toolbox Help file and search for “infiNET EX
Gateway” for more details.
NOTE: Use Toolbox to set the RF channel before starting the acquire
process. The default RF channel is 15. If you change the RF channel on a
device, it will need to be acquired again.
NOTE: The Acquire mode can be activated approximately 15 seconds
after applying power to the CEN-RFGW-EX.
NOTE: In an environment with multiple gateways, only one gateway
should be in the Acquire mode at a time.
NOTE: The CEN-RFGW-EX must be placed in Acquire mode before an
infiNET EX device is placed in the Acquire mode.
To acquire an MLX-2 or other infiNET EX device via the ACQUIRE
button on the CEN-RFGW-EX:
1. Press ACQUIRE on the CEN-RFGW-EX to enter the Acquire
mode. The accompanying LED will illuminate, indicating the unit
is ready to link to infiNET EX devices.
NOTE: The Acquire mode will automatically deactivate after one
hour. This default timeout period can be changed from Toolbox.
2. Bring the MLX-2 or other infiNET EX device within range of the
gateway and place it in the Acquire mode as described in its
manual. The device will be automatically acquired by the gateway
within two minutes after it enters Acquire mode.
3. Repeat step 2 for each infiNET EX device to be acquired.
4. Press AQCUIRE on the CEN-RFGW-EX to exit the Acquire
mode. The LED will turn off.
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 19
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
Problem Solving
Troubleshooting
The following table provides corrective action for possible trouble
situations. If further assistance is required, please contact a Crestron
customer service representative.
CEN-RFGW-EX Troubleshooting
TROUBLE POSSIBLE
CAUSE(S)
CORRECTIVE
ACTION
PWR LED does
not illuminate.
CEN-RFGW-EX is
not receiving
sufficient Ethernet
power.
Verify that appropriate
Ethernet power
sourcing equipment
(PSE) Power over
Ethernet indicator is
ON.
NET LED does
not illuminate.
CEN-RFGW-EX
Net ID is not set to
match the Net ID
of the SIMPL
program.
In Crestron Toolbox,
check Functions |
CresnetID to verify
Net ID. Verify Net ID in
SIMPL Windows
program.
CEN-RFGW-EX is
not communicating
with network.
Check network cabling
for solid connections
and correct pinouts.
NET LED is on
but unit does
not
communicate
with infiNET EX
device.
infiNET EX device
is set to wrong RF
channel.
Refer to the “Setup”
section of the guide
for the device to verify
that its RF channel is
set to match the
CEN-RFGW-EX
channel ID.
(Continued on following page)
20 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
CEN-RFGW-EX Troubleshooting (Continued)
TROUBLE POSSIBLE
CAUSE(S)
CORRECTIVE
ACTION
infiNET EX device
RF ID does not
match the RF ID of
the SIMPL
program.
Use Crestron Toolbox
to poll the network.
Check the RF ID for
the device, then refer
to the “Setup” section
of the guide for the
device to set its RF ID
to match the RF ID in
the SIMPL program.
NET LED is on
but unit does not
communicate
with infiNET EX
device.
(Continued)
infiNET EX device
is not functioning
correctly.
Refer to the “Problem
Solving” section of the
guide for the device.
CEN-RFGW-EX is
in vicinity of metal.
Verify that large
amount of metal is not
in vicinity of
transmission.
infiNET EX device
is not functioning
correctly.
Refer to the “Problem
Solving” section of the
guide for the device.
Intermittent
response from
CEN-RFGW-EX
during
communication
with device.
infiNET EX device
is out of range.
Position the device
within operating range
or relocate
CEN-RFGW-EX. Refer
to “Specifications”
which starts on page 3
for details.
(Continued on following page)
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 21
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
CEN-RFGW-EX Troubleshooting (Continued)
TROUBLE POSSIBLE
CAUSE(S)
CORRECTIVE
ACTION
Network wiring is
incorrect.
Check network cabling
for solid connections
and correct pinouts.
CEN-RFGW-EX
is not shown on
Network Device
Tree when
polling through
Toolbox. Other
devices are
reported.
CEN-RFGW-EX is
damaged.
Contact a Crestron
customer service
representative.
Multiple infiNET
EX devices only
operate one at a
time.
Multiple infiNET EX
devices are set to
the same RF ID.
Use Crestron Toolbox
to poll the network.
Check the RF ID for
the device, then refer
to the “Setup” section
of the guide for the
device to set its RF ID
to match the RF ID in
the SIMPL program.
Reference Documents
The latest version of all documents mentioned within the guide can be
obtained from the Crestron website (www.crestron.com/manuals). This
link will provide a list of product manuals arranged in alphabetical order
by model number.
List of Related Reference Documents
DOCUMENT TITLE
Crestron e-Control Reference Guide
22 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Further Inquiries
If you cannot locate specific information or have questions after
reviewing this guide, please take advantage of Crestron's award winning
customer service team by calling Crestron at 1-888-CRESTRON
[1-888-273-7876].
You can also log onto the online help section of the Crestron website
(www.crestron.com/onlinehelp) to ask questions about Crestron products.
First-time users will need to establish a user account to fully benefit from
all available features.
Future Updates
As Crestron improves functions, adds new features and extends the
capabilities of the CEN-RFGW-EX, additional information may be made
available as manual updates. These updates are solely electronic and
serve as intermediary supplements prior to the release of a complete
technical documentation revision.
Check the Crestron website periodically for manual update availability
and its relevance. Updates are identified as an “Addendum” in the
Download column.
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 23
Channel 11
(802.11b/g)
Channel 6
(802.11b/g)
Channel 1
(802.11b/g)
Channel
11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
22 MHz
2 MHz
2483.5 MHz
2480
2462 MHz
2465 2470 247524602445 2450 24552440
2437 MHz
2435243024252420241524102405
2412 MHz2400 MHz
Wi-Fi (802.11b/g)
RF (802.15.4)
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
24 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Appendix A: The RF Spectrum
Crestron’s RF network provides 16 RF channels in the 2.4GHz ISM*
band, specifically IEEE 802.15.4 channels 11 through 26. The 16
channels define the frequencies at which the RF device will
communicate.
RF devices on different channels will not communicate or interfere with
each other. However, since some of the channels are in the 2.4GHz ISM
band (as shown in the following diagram), interference can occur with
other devices using this band, such as 802.11b/g Wi-Fi devices, Crestron
infiNET™ devices or Zigbee devices, although the differing protocols
will not allow a link to be established or data to be transferred. Wireless
2.4GHz telephones and microwave ovens may also cause interference
with the network.
* Industrial, Scientific and Medical; refers to frequency range used for unlicensed
communications applications, such as Wi-Fi.
IEEE 802.15.4 channel selection (2400 MHz PHY)
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Appendix B: Optimum RF Reception Guidelines
Many factors can affect the reliability of RF communication between an
RF gateway and an RF device. While an effort has been made to
determine operating specifications, some specifications are not constant.
RF Communication can be limited by several factors including but not
limited to EMI (electromagnetic interference), intervening objects,
antenna orientation and receiver placement. To obtain maximum
reliability and performance, some basic rules for installing RF
transceivers are listed below.
Minimize Interference
RF reception range can be hindered by spurious EMI noise that may
interfere with or mask the desired frequency, thereby reducing useable
range. EMI is generated by any electrical device at various RF noise
levels depending on the device. Sources of EMI include computers, video
equipment, digital processors, lighting dimmers, lighting ballasts, motors
or any large AC source. Every effort should be made to separate any RF
transceiver from these sources of RF noise including Audio Visual
equipment in racks. If a gateway must be installed in an equipment rack,
make sure you have ample separation between the equipment and the
gateway.
Gateway Placement
Optimum reception for any RF transceiver is obtained by installing the
gateway transceiver in an open area or shelf with a clear line of sight (no
obstructions between gateway and receiver). Crestron recommends that
the gateway is at least five to six feet high for best results. Avoid placing
transceivers or transmitters at a low height or on the ground. Placing RF
equipment near metal objects, walls, corners or metal enclosures will
compromise RF propagation and reception. Try to avoid installing
gateways in equipment racks, service rooms, electrical closets or in
rooms other than that which the panel is located.
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 25
Side of gateway
Building
Antenna
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
26 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Antenna Orientation
The antenna orientation on Crestron gateways has considerable effect on
range and reliability. The best orientation is unique to each installation.
There are three possible antenna orientations:
Point the antenna horizontally (parallel to the ground)
Point the antenna vertically.
Point the antenna at a right angle to the gateway.
Never point the antenna downward as this will decrease range and
reliability. Refer to illustration below and those on the following page for
examples of the different antenna orientations.
NOTE: RF propagation is best from the sides of the antenna.
Horizontal Orientation
Building
Front of
gateway
Antenna
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 27
Vertical Orientation
Right Angle Orientation
Front of
gateway
Building
Antenna
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange or service without prior authorization
from CRESTRON. To obtain warranty service for CRESTRON products, contact an
authorized CRESTRON dealer. Only authorized CRESTRON dealers may contact the factory
and request an RMA (Return Merchandise Authorization) number. Enclose a note specifying
the nature of the problem, name and phone number of contact person, RMA number and
return address.
2. Products may be returned for credit, exchange or service with a CRESTRON Return
Merchandise Authorization (RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with
RMA number clearly marked on the outside of all cartons. Shipments arriving freight collect
or without an RMA number shall be subject to refusal. CRESTRON reserves the right in its
sole and absolute discretion to charge a 15% restocking fee plus shipping costs on any
products returned with an RMA.
3. Return freight charges following repair of items under warranty shall be paid by CRESTRON,
shipping by standard ground carrier. In the event repairs are found to be non-warranty, return
freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from manufacturing defects in materials
and workmanship under normal use for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other moving or rotating mechanical
parts, pan/tilt heads and power supplies are covered for a period of one (1) year; touchscreen display and
overlay components are covered for 90 days; batteries and incandescent lamps are not covered.
This warranty extends to products purchased directly from CRESTRON or an authorized CRESTRON
dealer. Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if
any.
CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any
application other than that for which it was intended or if it has been subjected to misuse, accidental
damage, modification or improper installation procedures. Furthermore, this warranty does not cover any
product that has had the serial number altered, defaced or removed.
This warranty shall be the sole and exclusive remedy to the original purchaser. In no event shall
CRESTRON be liable for incidental or consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is not liable for any claim made by a
third party or made by the purchaser for a third party.
CRESTRON shall, at its option, repair or replace any product found defective, without charge for parts or
labor. Repaired or replaced equipment and parts supplied under this warranty shall be covered only by the
unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no other warranties, expressed or
implied, nor authorizes any other party to offer any warranty, including any implied warranties of
merchantability or fitness for a particular purpose. Any implied warranties that may be imposed by law are
limited to the terms of this limited warranty. This warranty statement supersedes all previous warranties.
Trademark Information
All brand names, product names and trademarks are the sole property of their respective owners. Windows is a registered trademark
of Microsoft Corporation. Windows95/98/Me/XP/Vista and WindowsNT/2000 are trademarks of Microsoft Corporation.
28 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 29
This page is intentionally left blank.
InfiNET EX™ Gateway Crestron CEN-RFGW-EX
This page is intentionally left blank.
30 • infiNET EX™ Gateway: CEN-RFGW-EX Operations & Installation Guide – DOC. 6706B
Crestron CEN-RFGW-EX infiNET EX™ Gateway
This page is intentionally left blank.
Operations & Installation Guide – DOC. 6706B infiNET EX™ Gateway: CEN-RFGW-EX • 31
Crestron Electronics, Inc. Operations & Installation Guide – DOC. 6706B
15 Volvo Drive Rockleigh, NJ 07647 (2021630)
Tel: 888.CRESTRON 01.09
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
