Crestron Electronics CWD1011 Wall Type Dimmer User Manual Description
Crestron Electronics Inc Wall Type Dimmer Description
Manual
CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)
Introduction Specifications
Following are specifications for the -DIM1RF,
-DIMS1RF, and -SLVD1RF.
Features and Functions
The CLW-DIM1RF (-DIM1RF) is a stand-alone wall box
dimmer that can also act as a wireless Cresnet® device
that reports to a Crestron® control processor via a wireless
gateway such as the Crestron C2N-MNETGW. The CLW
-DIM1RF has two preset lighting levels that can be
adjusted (refer to note below). The CLW-DIM1RF
features an internal antenna for communication with
Crestron wireless switches using the 2.4 GHz ISM
frequency range.
CLW-DIM1RF, CLW-DIMS1RF, & CLS-SLVD1RF
Specifications
SPECIFICATION DETAILS
Power Requirements Line Power, 120 VAC, 60 Hz
Operating Frequency 2.4 GHz ISM
Default RF ID -DIM1RF: 00
-DIMS1RF: 00
Switch Type Dimmer
Load Type Incandescent, Tungsten-Halogen,
Magnetic Low Voltage
2-Series Control System
Update File1,2
Version 3.117 or later
Load Ratings3
Incandescent/Tungsten
Halogen
-DIM1RF: 1000W
-DIMS1RF: 1000W
-SLVD1RF: N/A
Magnetic Low Voltage4 -DIM1RF: 1000VA/750W
-DIMS1RF: 1000VA/750W
-SLVD1RF: N/A
Operating Temperature
and Humidity
32°F to 104°F (0°C to 40°C)
10 to 90% Relative Humidity
(Non-Condensing)
Dimensions and Weight -DIM1RF and -DIMS1RF:
Height: 4.13 in (10.48 cm)
Width: 2.38 in (6.03 cm)
Depth: 1.88 in (4.77 cm)
Weight: 4.9 oz (0.67 kg)
-SLVD1RF:
Height: 4.13 in (10.48 cm)
Width: 1.75 in (4.45 cm)
Depth: 1.88 in (4.77 cm)
Weight: 3.6 oz (0.50 kg)
NOTE: The two preset levels are noted as Preset 1-High
and Preset 1- Low. “Preset 1-High” is usually used for
turning lights on to full brightness while preset “Preset 1-
Low” is usually used for turning the lights off. Although
“Preset 1-High” and “Preset 1-Low” are usually used for
“On” and “Off” respectively, the light level for each
preset can be customized by the user. Refer to “Operating
Button and Switch” on page 4 for more information on
customizing light levels.
The CLW-DIM1RF features a three-position mode
selection switch. Refer to “Operating Button and Switch”
on page 5 for more information. In the absence of Cresnet
communications, the dimmer can still be used to control
lighting.
The CLW-DIMS1RF (-DIMS1RF) is similar to the -
DIM1RF with the added capability of working with a
slave unit (CLW-SLVD1RF) in a multi-switch / single
circuit application.
The CLW-SLVD1RF (-SLVD1RF) is a slave unit that
when used in conjunction with the -DIMS1RF acts as an
additional dimmer control point in a multi-dimmer /
single circuit application. It does not connect to a Cresnet
system and cannot be used without a -DIMS1RF. The
-SLVD1RF does not have a mode selection switch and is
not programmable. It emulates the operation of the
-DIMS1RF to which it is connected.
1. The latest software versions can be obtained from the Crestron
website. Refer to the NOTE following these footnotes.
2. Crestron 2-Series control systems include the AV2 and PRO2.
Consult the latest Crestron Product Catalog for a complete list of
2-Series control systems.
3. Refer to Derating Charts for Multigang Installations on page 3.
The -DIM1RF, -DIMS1RF, and -SLVD1RF are available
in white, almond, and black. White units are designated
by part numbers ending in “W”. Almond units are
designated by part numbers ending in “A”. Black units are
designated by part numbers ending in “B”. Each dimmer
can be covered with a decorative faceplate (not supplied).
4. VA ratings are for input power to the transformer. If you do not
know the input power requirement of the transformer, use the
bulb’s wattage rating to determine proper rating.
NOTE: Crestron software and any files on the website
are for Authorized Crestron dealers and Crestron
Authorized Independent Programmers (CAIP) only. New
users may be required to register to obtain access to
certain areas of the site (including the FTP site).
Crestron Electronics, Inc. Installation Guide – DOC. 6292
15 Volvo Drive Rockleigh, NJ 07647 02.05
Tel: 888.CRESTRON
Fax: 201.767.7576 Specifications subject to
www.crestron.com change without notice.
CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)

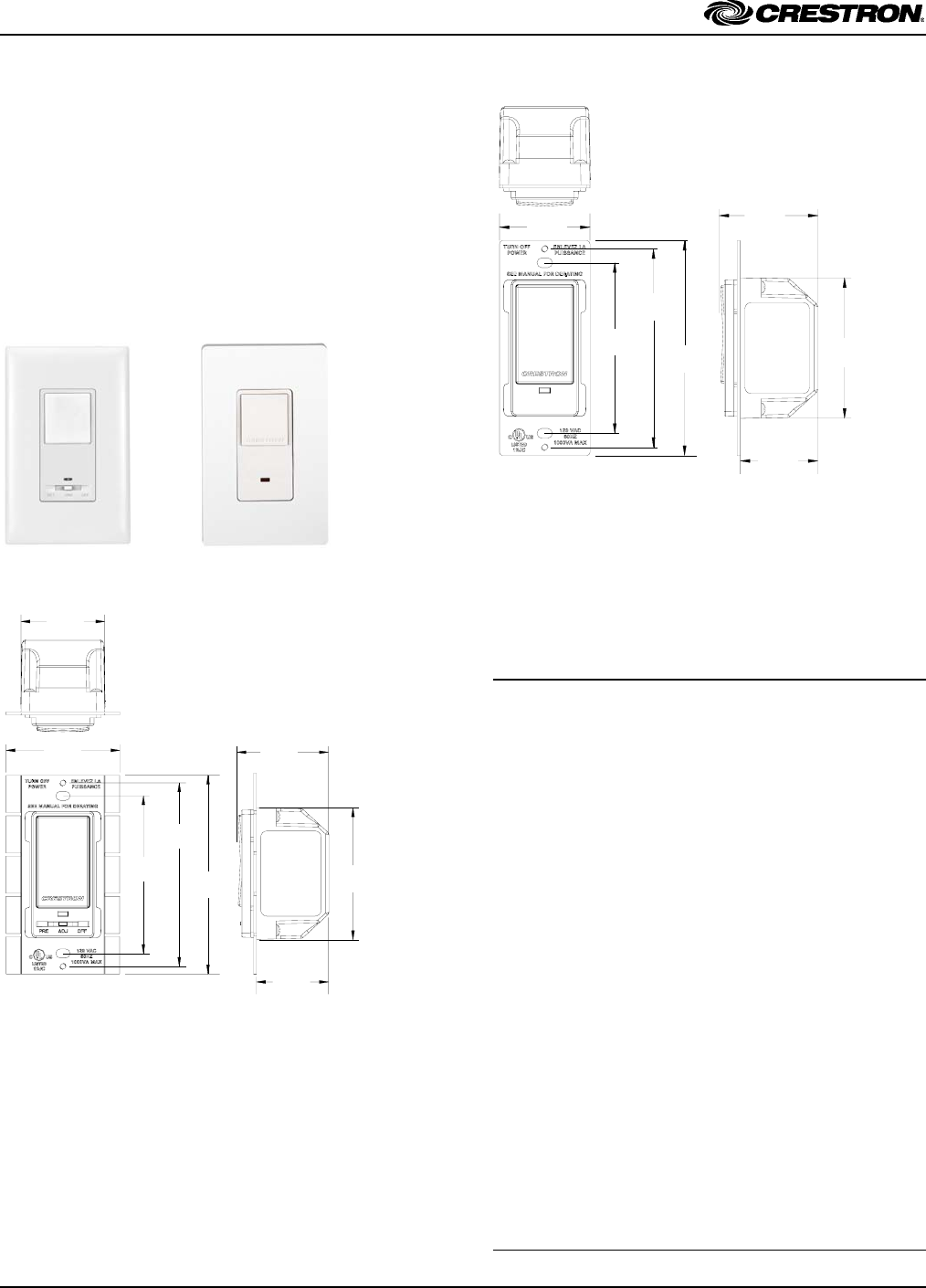

Physical Description Physical view of CLW-SLVD1RF (clockwise from top; Top,
Side, and Front)
The -DIM1RF and -DIMS1RF contain one large
pushbutton, a light emitting diode (LED) with software
adjustable brightness*, and a three-position slider-switch,
shown after this paragraph. The -SLVD1RF is similar to
the -DIM1RF and -DIMS1RF but does not have the
slider-switch. Line voltage connections are made at the
rear of the dimmer. 1.75 in
(4.45 cm)
3.81 in
(9.68 cm)
4.13 in
(10.48 cm)
3.28 in
(8.32 cm)
1.88 in
(4.77 cm)
2.70 in
(6.86 cm)
1.50 in
(3.81 cm)
* LED brightness can only be adjusted through Crestron programming
software.
CLW-DIM1RF/-DIMS1RF (L) and CLW-SLVD1RF (R)
shown in white
The -DIM1RF, -DIMS1RF, and -SLVD1RF mount in a
standard wallbox and are covered using a decorative
faceplate (not included).
Physical view of CLW-DIM1RF/-DIMS1RF
(clockwise from top; Top, Side, and Front) Industry Compliance
This unit has been manufactured to comply with UL’s
Standards for Safety in Canada and the United States.
Formal approval is pending.
1.75 in
(4.45 cm)
2.38 in
(6.03 cm)
3.28 in
(8.32 cm)
3.81 in
(9.68 cm)
4.13 in
(10.48 cm)
1.88 in
(4.77 cm)
2.70 in
(6.86 cm)
1.50 in
(3.81 cm)
Compliance Statement (Part 15.19 )
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Warning (Part 15.21 )
Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
RF Exposure (OET Bulletin 65 )
To comply with FCC's RF exposure limits for general
population / uncontrolled exposure, the antenna(s) used
for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and
must not be co-located or operating in conjunction with
any other antenna or transmitter.
Industry Canada Statement
The term "IC" before the certification/registration number
only signifies that the Industry Canada technical
specifications were met.
IC: 5683A-CWD1011
2 • Stand Alone Wall Box Dimmer : CLW-DIM1RF, DIMS1RF, & SLVD1RF Installation Guide – DOC. 6292
CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)
Important Notes Use transformers that incorporate
thermal protection or fuse transformer
primary windings to prevent
transformer failure due to overcurrent.
Read before installation.
• Codes: Install in accordance with all local and
national electrical codes. Multigang Installations
• CAUTION: TO REDUCE THE RISK OF
OVERHEATING AND POSSIBLE DAMAGE
TO OTHER EQUIPMENT, DO NOT INSTALL
TO CONTROL A RECEPTACLE OR A
MOTOR OPERATED APPLIANCE (i.e. BATH
FAN).
In multigang installations, several controls are grouped
horizontally in one wallbox. For a smooth appearance,
one-piece multigang faceplates (not supplied) can be
installed.
1. When combining controls in a wallbox, remove
inner side sections prior to wiring (refer to the
following figure).
• Wiring: Use copper wire only. For supply
connections, use wires rated for at least 75°C.

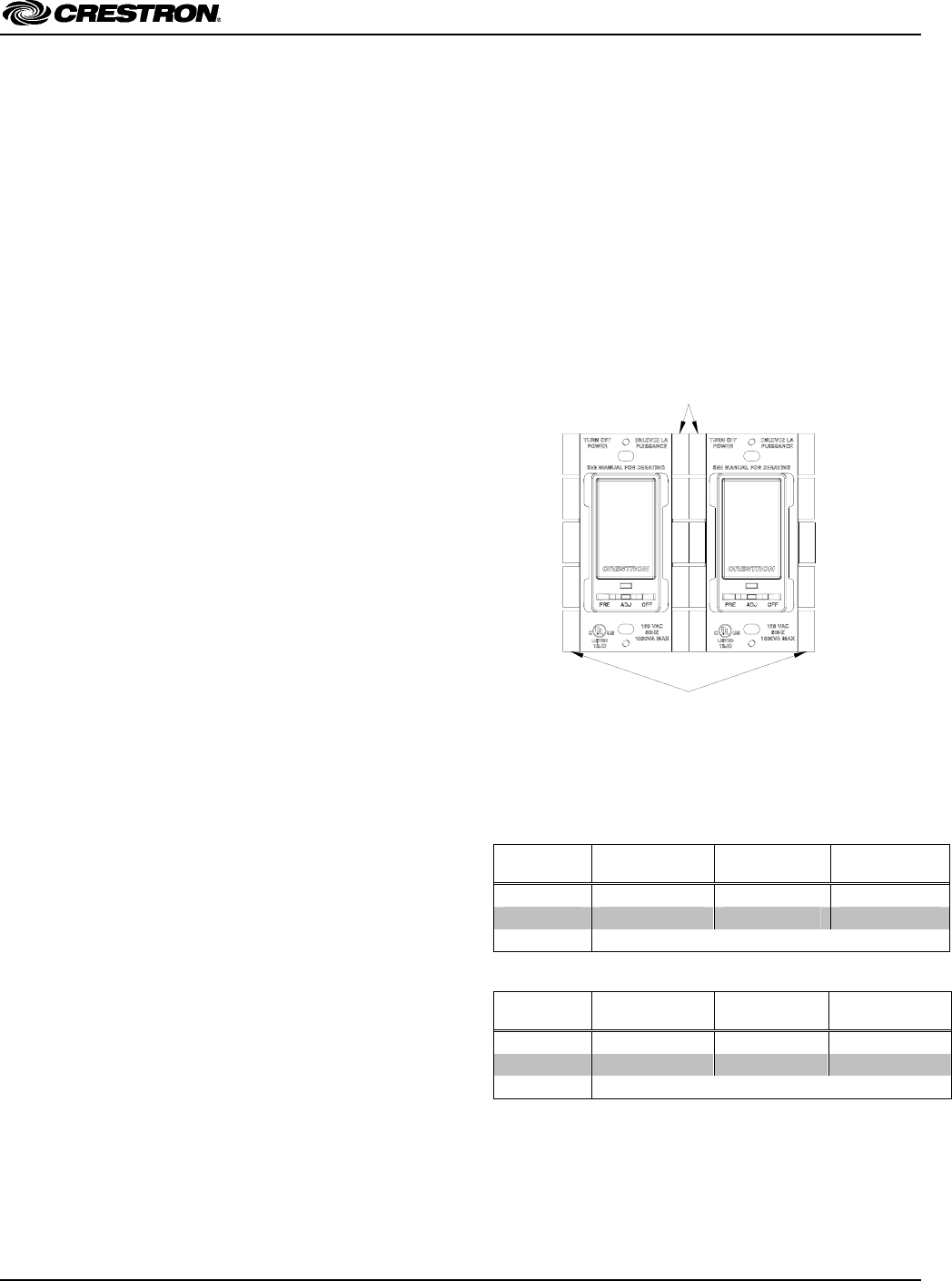

Inner Sections of Multiganged Switches
• Lamp Type: The -DIM1RF, -DIMS1RF, and -
SLVD1RF are designed for use with
permanently installed incandescent, magnetic
low voltage, or tungsten-halogen only.
REMOVE INNER SECTIONS
DO NOT REMOVE OUTER SECTIONS
• Temperature: The -DIM1RF, -DIMS1RF, and -
SLVD1RF are designed to be used where
temperatures are between 32° to 104°F (0° to
40°C).
• Wallboxes: Devices mount in standard
wallboxes. For easy installation, Crestron
recommends using 3 ½” deep wallboxes. Several
devices can be installed in one wall box
(multigang). This requires the removal of side
sections (refer to diagram on page 3) and the
derating of the dimming device. For a smooth
appearance, one-piece multigang faceplates (not
supplied) can be installed. The load capacity must also be derated. The
following charts provide derating information for
various applications.
• Other Switch Devices: Mechanical 3- or 4-way
switches will not work with the -DIM1RF, -
DIMS1RF, or -SLVD1RF. Derating Information for Incandescent and Tungsten Halogen
Applications
• Spacing: If mounting one device above another,
leave at least 4 ½” vertical space between them.
Part
Number
No Side
Removed
One Side
Removed
Two Sides
Removed
-DIM1RF 1000W 600W 400W
-DIMS1RF 1000W 600W 400W
-SLVD1RF No Derating Necessary
• Low Voltage Applications: Use with core and
coil (magnetic) low voltage transformers only.
Do not use any solid-state electronic low voltage
transformers.
Operation of a low voltage circuit with all lamps
inoperative or removed may result in current
flow in excess of normal levels. To avoid
transformer overheating and premature
transformer failure, Crestron recommends the
following:
Derating Information for Magnetic Low Voltage Applications*
Part
Number
No Side
Removed
One Side
Removed
Two Sides
Removed
-DIM1RF 1000VA/750W 600VA/450W 400VA/300W
-DIMS1RF 1000VA/750W 600VA/450W 400VA/300W
-SLVD1RF No Derating Necessary
* VA ratings are for input power to the transformer. If you do not
know the input power requirement of the transformer, use the bulb’s
wattage rating to determine proper rating.
Do not operate low voltage circuits
without operative lamps in place.
2. To remove a side section, bend the side section
back and forth with a pair of pliers until the
section breaks off from the mounting plate. Use a
file or sandpaper to remove any excess metal.
Replace burned-out lamps as quickly as
possible.
Installation Guide – DOC. 6292 Stand Alone Wall Box Dimmer: CLW-DIM1RF, DIMS1RF, & SLVD1RF • 3
CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)

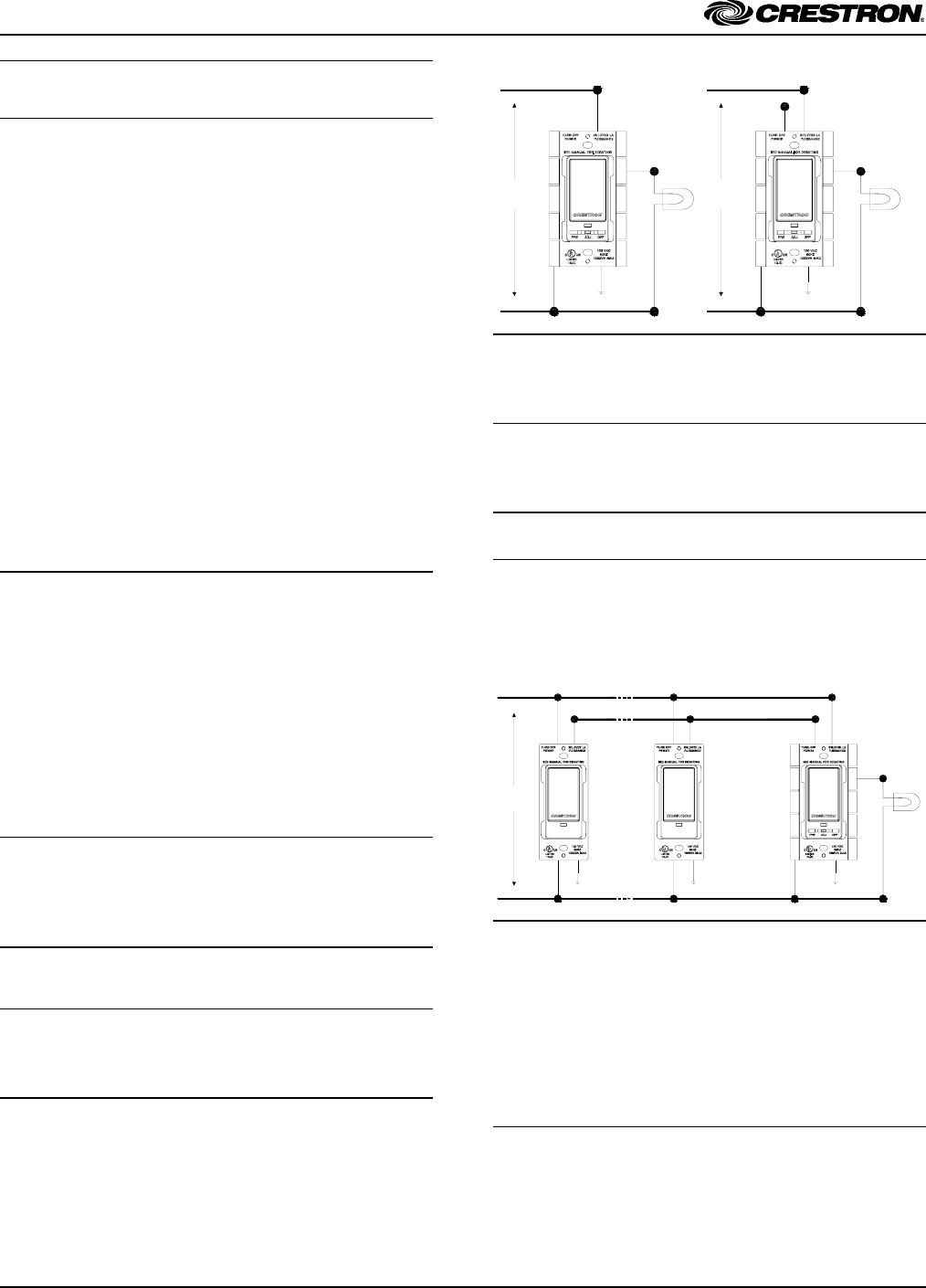

Wiring Diagram for CLW-DIM1RF (L) / CLW-DIMS1RF (R)
Installation Hot
Neutral
Load
RED
BLACK
WHITE
BLUE
Ground
GREEN
LINE
120VAC
60Hz
60Hz
120VAC
LINE
GREEN
Ground
WHITE
BLACK
RED
Load
Neutral
Hot
NOTE: The -DIMS1RF must be installed in the same
wallbox that contains the connections to the load.
NOTE: The -DIM1RF, -DIMS1RF, and -SLVD1RF
require a neutral wire for operation. If no neutral is
present, contact a licensed electrician for installation or
contact Crestron Customer Service for alternative wiring
options.
WARNING: Turn off power at the circuit breaker.
Installing with power on can result in serious personal
injury and damage to the device. NOTE: The RED (Load) and BLACK (Hot) wires are
#14 AWG. The BLUE (Slave) and WHITE (Neutral)
wires are #18 AWG. The GREEN (Ground) wire is #16
AWG.
NOTE: New installations should be checked for short
circuits prior to installing the -DIM1RF, -DIMS1RF, or
-SLVD1RF. With power off, close the circuit and restore
power. If the lights do not work or a breaker trips, check
and correct the wiring or fixture (if necessary). Install the
-DIM1RF, -DIMS1RF, or -SLVD1RF only when the
short is no longer present. The warranty is void if the
-DIM1RF, -DIMS1RF, or -SLVD1RF is installed and
operated with a shorted load.
CLW-DIMS1RF with CLW-SLVD1RF
Wiring
NOTE: The -DIMS1RF must be installed in the same
wallbox that contains the connections to the load.
The following wiring diagram illustrates installation of
the -DIMS1RF with multiple -SLVD1RFs.
1. Turn power off at the circuit breaker.
2. If installing multiple dimmers (-DIM1RF or
-DIMS1RF), note the serial number on each
device and make sure they are being installed in
the proper location.
Wiring Diagram of CLW-DIMS1RF with multiple CLW-
SLVD1RFs
Hot
Neutral
Load
RED
CLW-DIMS1RF
BLACK
WHITE
CLW-SLVD1RF
BLUEBLACK BLUE
Ground Ground
GREEN GREEN
LINE
120VAC
60Hz
WHITE
Ground
GREEN
BLACK BLUE
CLW-SLVD1RF
WHITE
3. Wire the device for the appropriate application.
Choose either “CLW-DIM1RF / CLW-
DIMS1RF Wiring” or “CLW-DIMS1RF with
CLW-SLVD1RF Wiring”, shown on this page
and the following page.
NOTE: Alternative wiring methods can be obtained from
the Dealer/Tech Resources | Design Center section of the
Crestron website (http://www.crestron.com/dealer-
tech_resources/design_center/hot_design_tips_and_
diagrams/tech_sales_tips/). NOTE: Do not connect the BLUE (Slave) wire to the
Black (Hot) or RED (Load) wires.
CLW-DIM1RF / CLW-DIMS1RF Wiring NOTE: The RED (Load) and BLACK (Hot) wires are
#14 AWG. The BLUE (Slave) and WHITE (Neutral)
wires are #18 AWG. The GREEN (Ground) wire is #16
AWG.
NOTE: The -DIM1RF and -DIMS1RF require a neutral
wire for operation. If no neutral is present, contact a
licensed electrician for installation or contact Crestron
customer service for alternative wiring options. NOTE: If a -DIMS1RF is installed without a
-SLVD1RF, the BLUE lead (Slave) should be capped.
The following wiring diagram illustrates installation of
the -DIM1RF or -DIMS1RF. 4. Push all Class 1 power wires back into the
wallbox and fasten the device to the wallbox
with the provided screws.
5. Attach decorative faceplate.
6. Restore power.
4 • Stand Alone Wall Box Dimmer : CLW-DIM1RF, DIMS1RF, & SLVD1RF Installation Guide – DOC. 6292
CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)
Operating Button and Switch
The -DIM1RF, -DIMS1RF, and -SLVD1RF have one
large pushbutton. The single button may be pushed at the
top or bottom to perform certain functions. The -DIM1RF
and -DIMS1RF also have a three-position mode selection
switch. The function of the pushbutton is determined by
the position of the mode selection switch. Refer to the
following diagram.
NOTE: The -SLVD1RF does not have a mode selection
switch. It will act in the same mode as the -DIMS1RF.
Buttons of CLW-DIM1RF, -DIMS1RF, and -SLVD1RF
Button
Mode Selection Switch
(-DIM1RF & -DIMS1RF Only)
OFF
When the mode selection switch is in the “OFF” position,
the pushbutton will not have any function and the load is
disconnected from the power source. This must be used
when changing light bulbs to ensure that the load is fully
disconnected from power.
ADJ
When the mode selection switch is in the “ADJ” position,
tapping the top of the button set the light to the Preset
1-Hi level. Tapping the bottom of the button will set the
light to the Preset 1-Lo level.
Pressing the button on the bottom will ramp the light level
down until it reaches 0%, or until the button is released.
Pressing the button on the top will ramp the light level up
until it reaches 100%, or until the button is released.
PRE
NOTE: Before storing a preset, the lighting must be
adjusted to the desired level while in the ADJ mode.
When the switch is in the PRE position, it is in the preset
mode and can be used to recall and/or store preset lighting
levels. The pushbutton is used to recall and/or store the
“Preset 1-High” and “Preset 1-Low” presets. Pressing and
releasing the pushbutton will fade to the preset lighting
level over a preset amount of time*. Tapping the
pushbutton while the light is fading will cause the light
level to “jump” directly to the preset without fading.
Pressing and holding the a button until the LED flashes
will store the current lighting level.
* The preset fade time can only be adjusted through Crestron
programming software.
To store preset values for “Preset 1-High” and “Preset 1-
Low”; while in the PRE mode, recall the lighting level to
be changed. Switch to the ADJ mode and adjust the
lighting to the desired level. Move the mode selection
switch to PRE. Press and hold the pushbutton until the
LED flashes to store the new preset value.
NOTE: If a new preset value for “Preset 1-High” is
lower than the stored value for “Preset 1-Low”, the
previously stored value for “Preset 1-Low” becomes
“Preset 1-High”. Similarly, if a new preset value for
“Preset 1-low” is higher than the value stored for “Preset
1-High”, the previously stored value for “Preset 1-High”
becomes “Preset 1-Low”.
NOTE: The default preset light values for each preset
are:
• Preset 1-High: 100%
• Preset 1-Low: 0%
NOTE: The device may be warm to the touch during
operation. This is normal.
Restoring Default Settings
To restore the dimmer’s default settings for lighting
levels, preset fade time (two seconds), and ramp time
(five seconds), move the mode selection switch to the
PRE position. While holding the pushbutton, move the
mode selection switch to the ADJ position and back to the
PRE position. Release the pushbutton. The LED will flash
to confirm that the default values have been restored.
Installation Guide – DOC. 6292 Stand Alone Wall Box Dimmer: CLW-DIM1RF, DIMS1RF, & SLVD1RF • 5
CLW-DIM1RF, DIMS1RF, & SLVD1RF(W/A/B)
6 • Stand Alone Wall Box Dimmer : CLW-DIM1RF, DIMS1RF, & SLVD1RF Installation Guide – DOC. 6292
Return and Warranty Policies
Merchandise Returns / Repair Service
1. No merchandise may be returned for credit, exchange, or
service without prior authorization from CRESTRON. To
obtain warranty service for CRESTRON products, contact
the factory and request an RMA (Return Merchandise
Authorization) number. Enclose a note specifying the nature
of the problem, name and phone number of contact person,
RMA number, and return address.
2. Products may be returned for credit, exchange, or service
with a CRESTRON Return Merchandise Authorization
(RMA) number. Authorized returns must be shipped freight
prepaid to CRESTRON, 6 Volvo Drive, Rockleigh, N.J, or
its authorized subsidiaries, with RMA number clearly marked
on the outside of all cartons. Shipments arriving freight
collect or without an RMA number shall be subject to refusal.
CRESTRON reserves the right in its sole and absolute
discretion to charge a 15% restocking fee, plus shipping
costs, on any products returned with an RMA.
3. Return freight charges following repair of items under
warranty shall be paid by CRESTRON, shipping by standard
ground carrier. In the event repairs are found to be non-
warranty, return freight costs shall be paid by the purchaser.
CRESTRON Limited Warranty
CRESTRON ELECTRONICS, Inc. warrants its products to be free from
manufacturing defects in materials and workmanship under normal use
for a period of three (3) years from the date of purchase from
CRESTRON, with the following exceptions: disk drives and any other
moving or rotating mechanical parts, pan/tilt heads and power supplies
are covered for a period of one (1) year; touchscreen display and overlay
components are covered for 90 days; batteries and incandescent lamps
are not covered.
This warranty extends to products purchased directly from CRESTRON
or an authorized CRESTRON dealer. Purchasers should inquire of the
dealer regarding the nature and extent of the dealer's warranty, if any.
CRESTRON shall not be liable to honor the terms of this warranty if the
product has been used in any application other than that for which it was
intended, or if it has been subjected to misuse, accidental damage,
modification, or improper installation procedures. Furthermore, this
warranty does not cover any product that has had the serial number
altered, defaced, or removed.
This warranty shall be the sole and exclusive remedy to the original
purchaser. In no event shall CRESTRON be liable for incidental or
consequential damages of any kind (property or economic damages
inclusive) arising from the sale or use of this equipment. CRESTRON is
not liable for any claim made by a third party or made by the purchaser
for a third party.
CRESTRON shall, at its option, repair or replace any product found
defective, without charge for parts or labor. Repaired or replaced
equipment and parts supplied under this warranty shall be covered only
by the unexpired portion of the warranty.
Except as expressly set forth in this warranty, CRESTRON makes no
other warranties, expressed or implied, nor authorizes any other party to
offer any warranty, including any implied warranties of merchantability
or fitness for a particular purpose. Any implied warranties that may be
imposed by law are limited to the terms of this limited warranty. This
warranty statement supercedes all previous warranties.
Trademark Information
All brand names, product names, and trademarks are the sole property of their respective
owners. Windows is a registered trademark of Microsoft Corporation. Windows95/98/Me/XP
and WindowsNT/2000 are trademarks of Microsoft Corporation.
