Two-Way RF Transceiver Module:
CWD6609
Introduction Functions and Features
The CWD6609 (hereafter referred to as “module”) is a two-way radio frequency
(RF) module that utilizes the 2.4 GHz frequency band to communicate with other
devices.
The module operates according to the IEEE 802.15.4 specification and can be
configured to minimize the possibility of interference with other devices.
The module receives RF signals from one or more Crestron devices and can transmit
these signals over the air or over a cable run for further processing (depending on the
application).
Functional Summary
• Two-way RF transceiver
− 2.4 GHz frequency band, IEEE 802.15.4 specification
− Range from 3 feet to 50 ft.
− Operates on one of sixteen available channels to establish optimal
si
g
nal
q
ualit
y
The transceiver uses a 1.67 milliwatt signal that can travel up to approximately 50
feet indoors. The range is dependent on the construction of the building,
obstructions, and RF interference from other devices. The location of the module and
the orientation of its antenna are also important factors in determining RF
performance.
Operations Guide - DOC. 6838A Two-Way RF Transceiver Module: CWD6609 • 1
Two-Way RF Transceiver Module Crestron CWD6609
Specifications
The table below is a summary of specifications for the CWD6609.
Specifications of the CWD6609
SPECIFICATION DETAILS
Power Requirements 0.58 Watts (5.0VDC @ 0.115A)
Operating Frequency 2400 MHz to 2483.5 MHz (802.15.4 compliant)
Operating Ranges¹
Minimum Distance
Maximum Distance Indoors
(without repeater device)
3 ft
50 ft
Available Channels 16 (numbered 11 through 26 per 802.15.4)
RF Output Power 1.67 mW
Dimensions Width: 1.64 in (4.15 cm)
Height: 2.35 in (5.98 cm)
Depth: 0.66 in (1.68 cm)
1. The location and the orientation of the module are important factors in the RF performance. The
range is dependent on its placement and the building in which it is used. The construction of the
building, obstructions, and RF interference from other devices are factors determining the effective
range of the unit. To prevent unit-to-unit RF interference, multiple modules operating at the same
frequencies should not be installed within 3-5 feet of each other.
Physical Description
The module, shown below, consists of various components attached to a printed
circuit board. A circuit-board mounted antenna is located at the top of the board
while a 10-pin connector for the application-specific installation is located at the
bottom of the board.

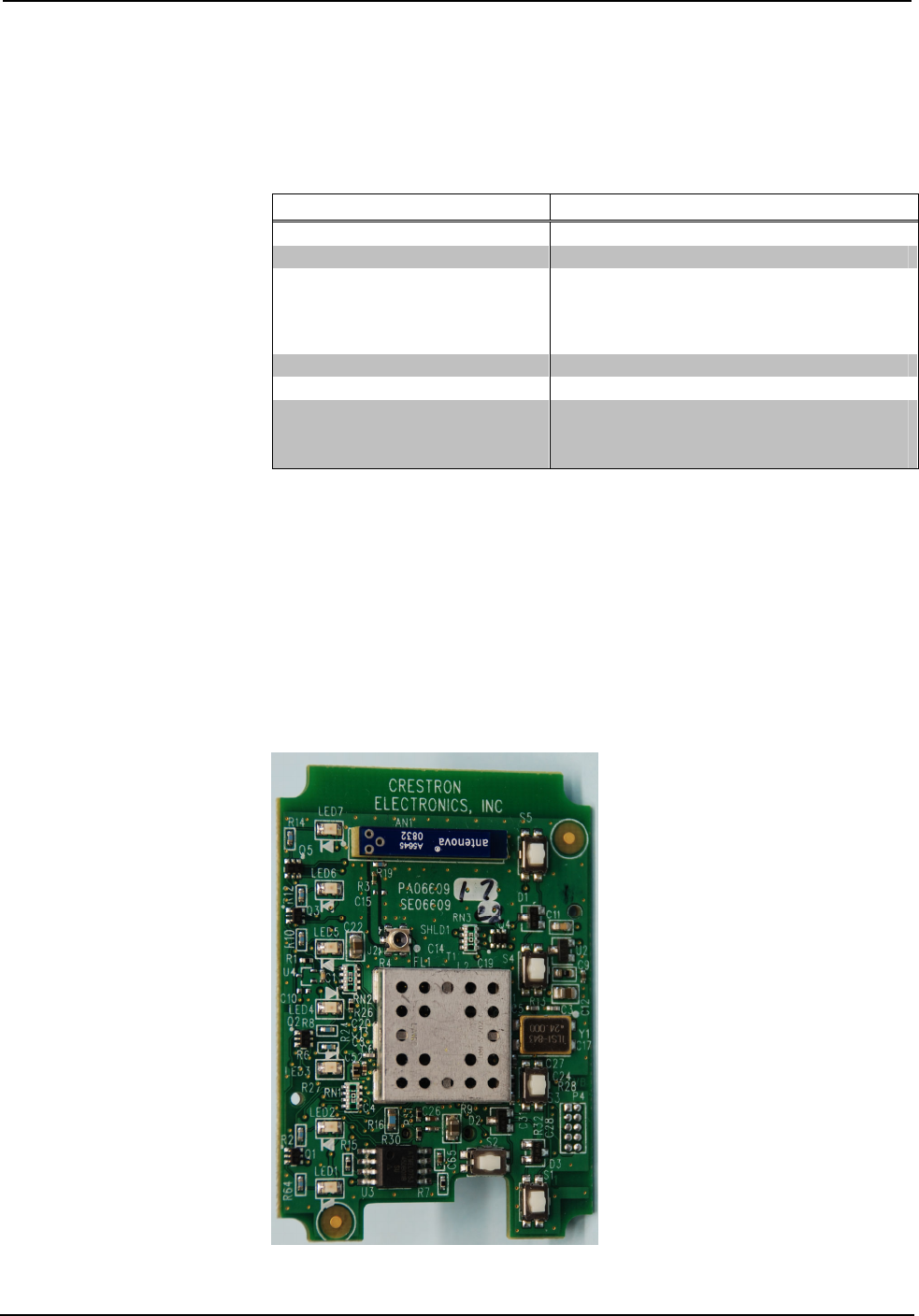

Physical View of CWD6609
2 • Two-Way RF Transceiver Module: CWD6609 Operations Guide - DOC. 6838A
Crestron CWD6609 Two-Way RF Transceiver Module

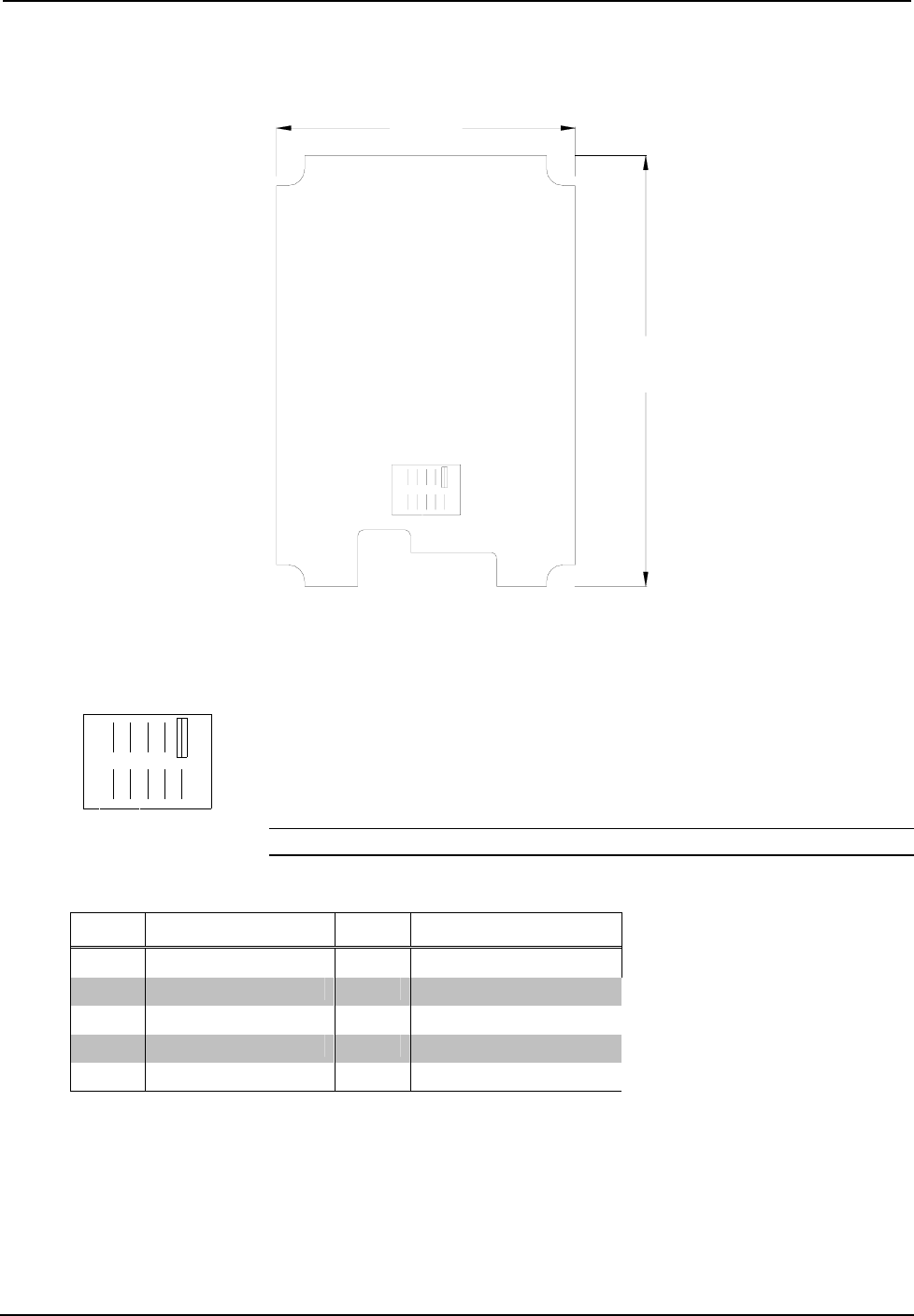

CWD6609 Detail Views
10
92
1
2.35 in
(5.98 cm)
1.64 in
(4.15 cm)
Ports
The module contains a 10-pin connector. Refer to the diagram and description that
follow.
Power/I-O
1
2
9
10 The 10-pin connector provides power to the module as well as communications
between the module and wired devices. Refer to the following table for pin
assignments of the module interface connector.
NOTE: Pin 1 provides power to the circuit card.
Power/I-O Pinout Signals
Pin # Signal Pin # Signal
1 +5V 6 REMOTE_B/CONFIG
2 TRIAC/RELAY 7 GND
3 ZERO_X 8 3.3v
4 REMOTE_A/RELAY 9 GND
5 GND 10 GND
Operations Guide - DOC. 6838A Two-Way RF Transceiver Module: CWD6609 • 3
Two-Way RF Transceiver Module Crestron CWD6609
Industry Compliance
Labeling Requirements
If the FCC ID on the CWD6609 is not visible when the module is installed inside
another device, then the outside of the device into which the module is installed must
also display a label referring to the enclosed module. This exterior label can use
wording such as the following: “Contains Transmitter Module FCC ID:
EROCWD6609” or “Contains FCC ID: EROCWD6609.” Any similar wording that
expresses the same meaning may be used.
Compliance Statement (Part 15.19 )
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
Warning (Part 15.21 )
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
RF Exposure (OET Bulletin 65 )
To comply with FCC RF exposure requirements for mobile transmitting devices, this
transmitter should only be used or installed at locations where there is at least 20cm
separation distance between the antenna and all persons.
Industry Canada Statement
The term "IC" before the certification/registration number only signifies that the
Industry Canada technical specifications were met.
IC: 5683C-CWD6609
Section 7.1.5 of RSS-GEN
Operation is subject to the following two conditions:
1) this device may not cause interference, and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body. This transmitter must
not be co-located or operating in conjunction with any other antenna or transmitter.
This device is intended only for OEM integrators under the following
conditions:
1. The antenna must be installed such that 20 cm is maintained between the
antenna and users, and
2. The transmitter module may not be co-located with any other transmitter or
antenna.
As long as the two conditions above are met, further transmitter test will not be
required. However, the OEM integrator is still responsible for testing their end-
product for any additional compliance requirements required with this module
installed (for example, digital device emissions, PC peripheral requirements, etc.).
4 • Two-Way RF Transceiver Module: CWD6609 Operations Guide - DOC. 6838A
Crestron CWD6609 Two-Way RF Transceiver Module
IMPORTANT NOTE: In the event that these conditions cannot be met (for
example certain laptop configurations or co-location with another transmitter), then
the FCC authorization is no longer considered valid and the FCC ID cannot be used
on the final product. In these circumstances, the OEM integrator will be responsible
for reevaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
Operations Guide - DOC. 6838A Two-Way RF Transceiver Module: CWD6609 • 5
Two-Way RF Transceiver Module Crestron CWD6609
Setup
Hardware Hookup
Refer to the hookup diagram below, which shows the connections made to the
module. Complete the connections in any order.
NOTE: To prevent unit-to-unit RF interference, multiple modules operating at the
same frequencies should not be installed within three to five feet of each other.
Hookup Connections for CWD6609
10
92
1
ANTENNA:
TRANSMITS AND RECEIVES
RF SIGNALS
(LOCATED ON OTHER SIDE)
HOST PCB
+5V
CONTROL
For more information on these connectors, refer to “Ports” on page 3.
6 • Two-Way RF Transceiver Module: CWD6609 Operations Guide - DOC. 6838A
Crestron CWD6609 Two-Way RF Transceiver Module
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains
FCC ID: EROCWD6609 .
Documentation
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the users manual of the end
product which integrate this module.
The users manual for OEM integrators must include the following information in a
prominent location
“IMPORTANT NOTE: To comply with FCC RF exposure
compliance requirements, the antenna used for this transmitter
must be installed to provide a separation distance of at least 20
cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
